Running High Performance and Fault Tolerant Elasticsearch Clusters on Docker

Elasticsearch & Docker Rafał Kuć – Sematext Group, Inc. @kucrafal @sematext sematext.com Running High Performance Fault Tolerant Elasticsearch Clusters On Docker

About me… Sematext consultant & engineer Solr.pl co-founder Father and husband :)

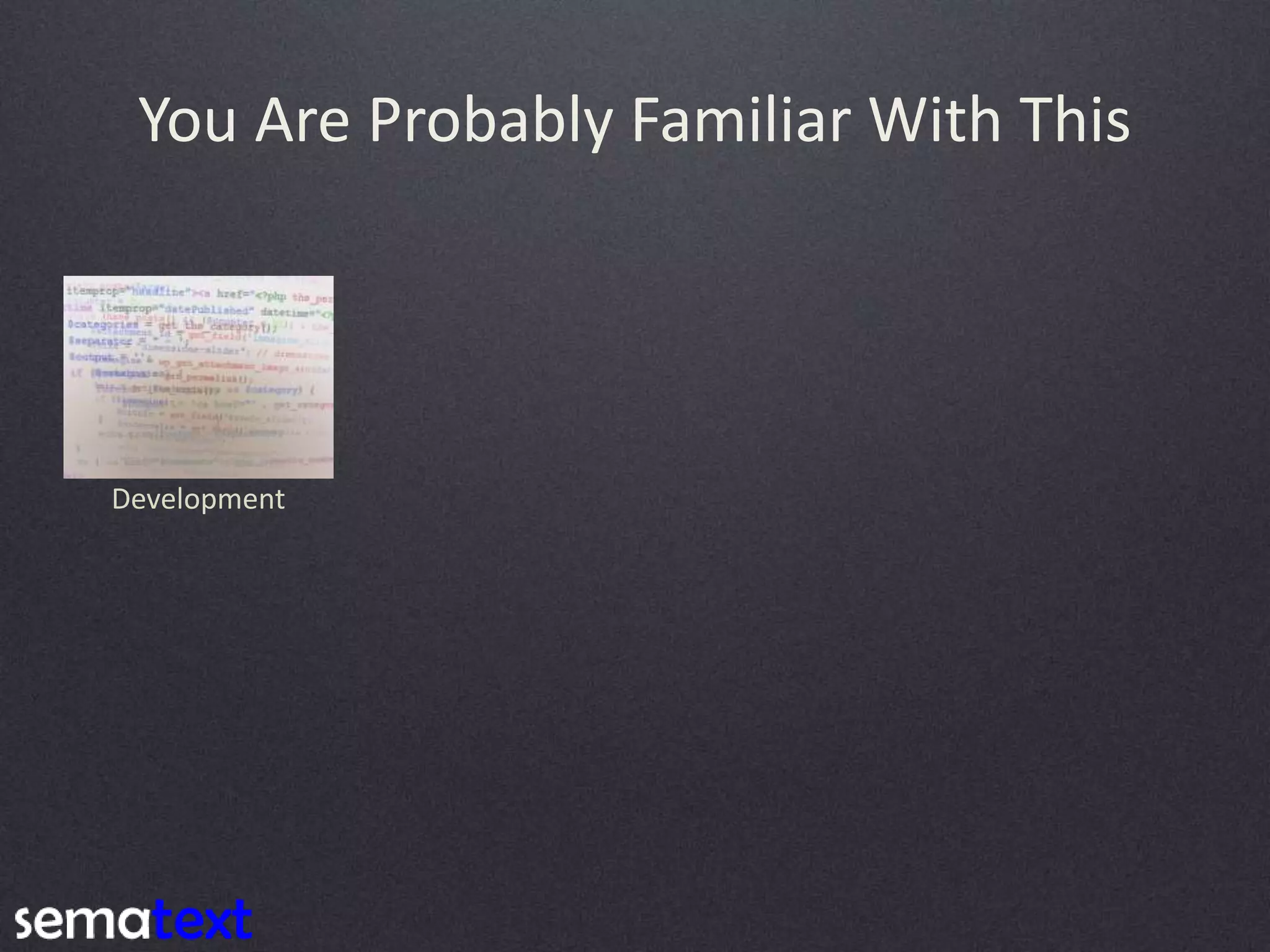

You Are Probably Familiar With This Development

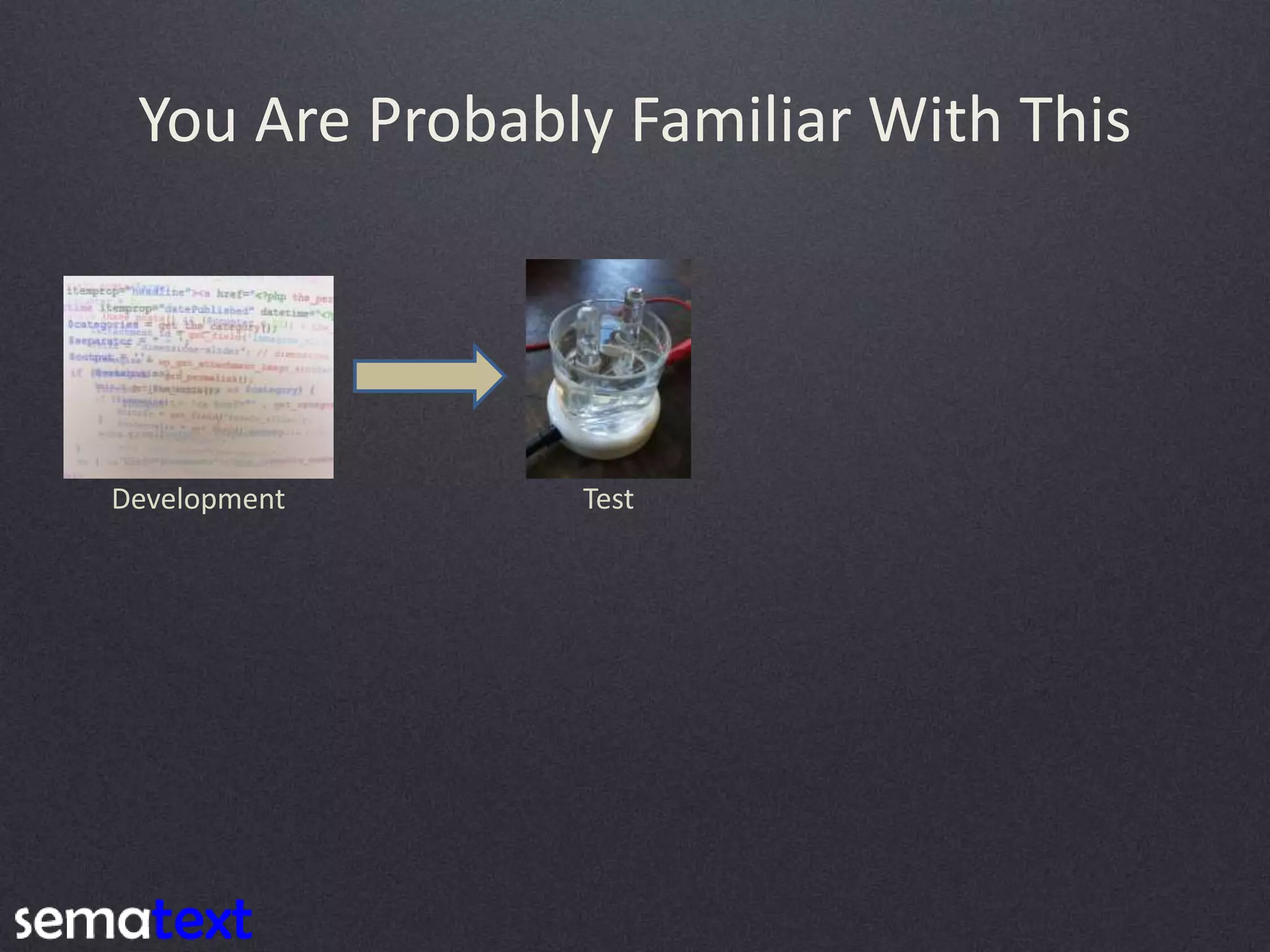

You Are Probably Familiar With This Development Test

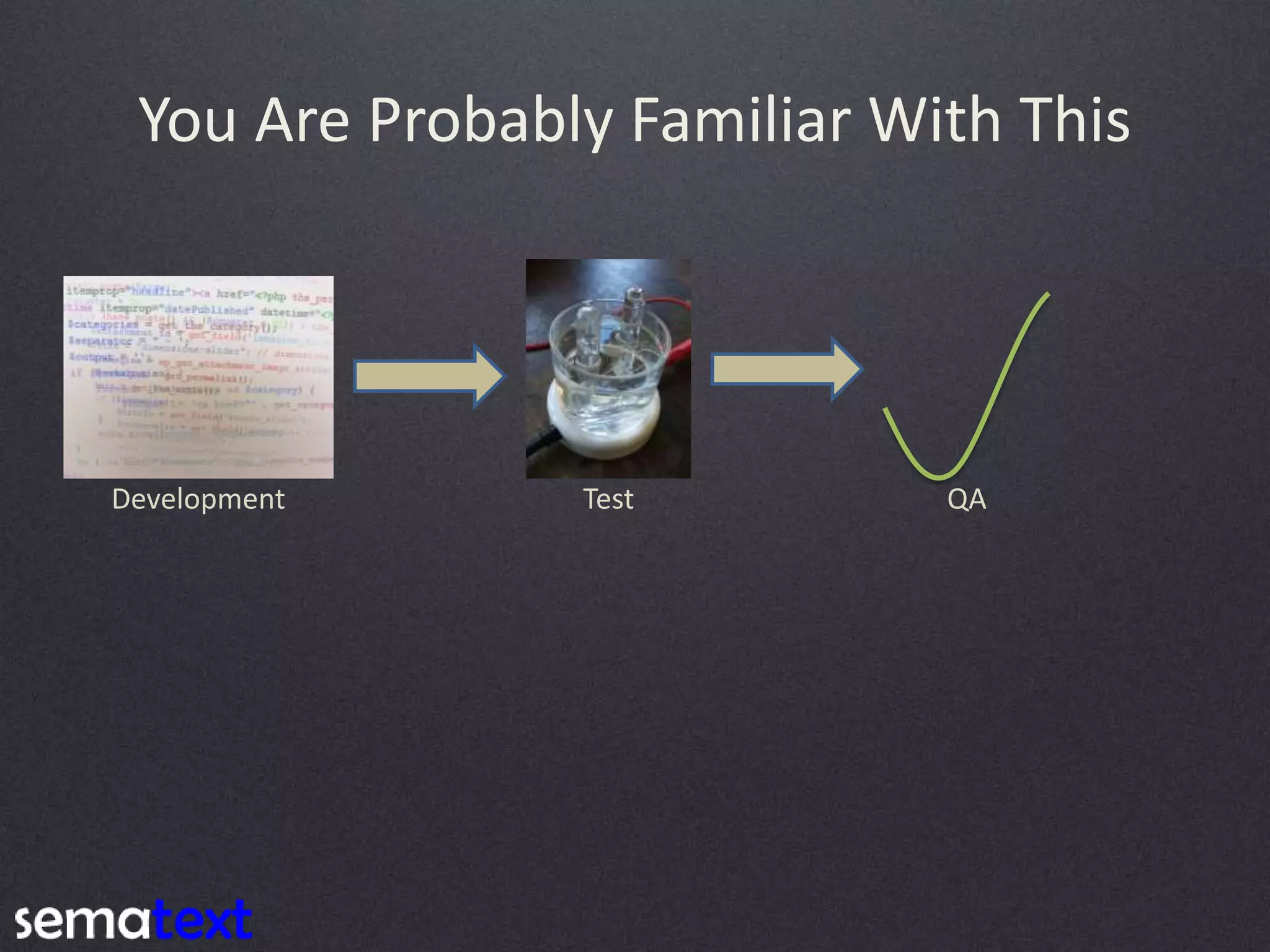

You Are Probably Familiar With This Development Test QA

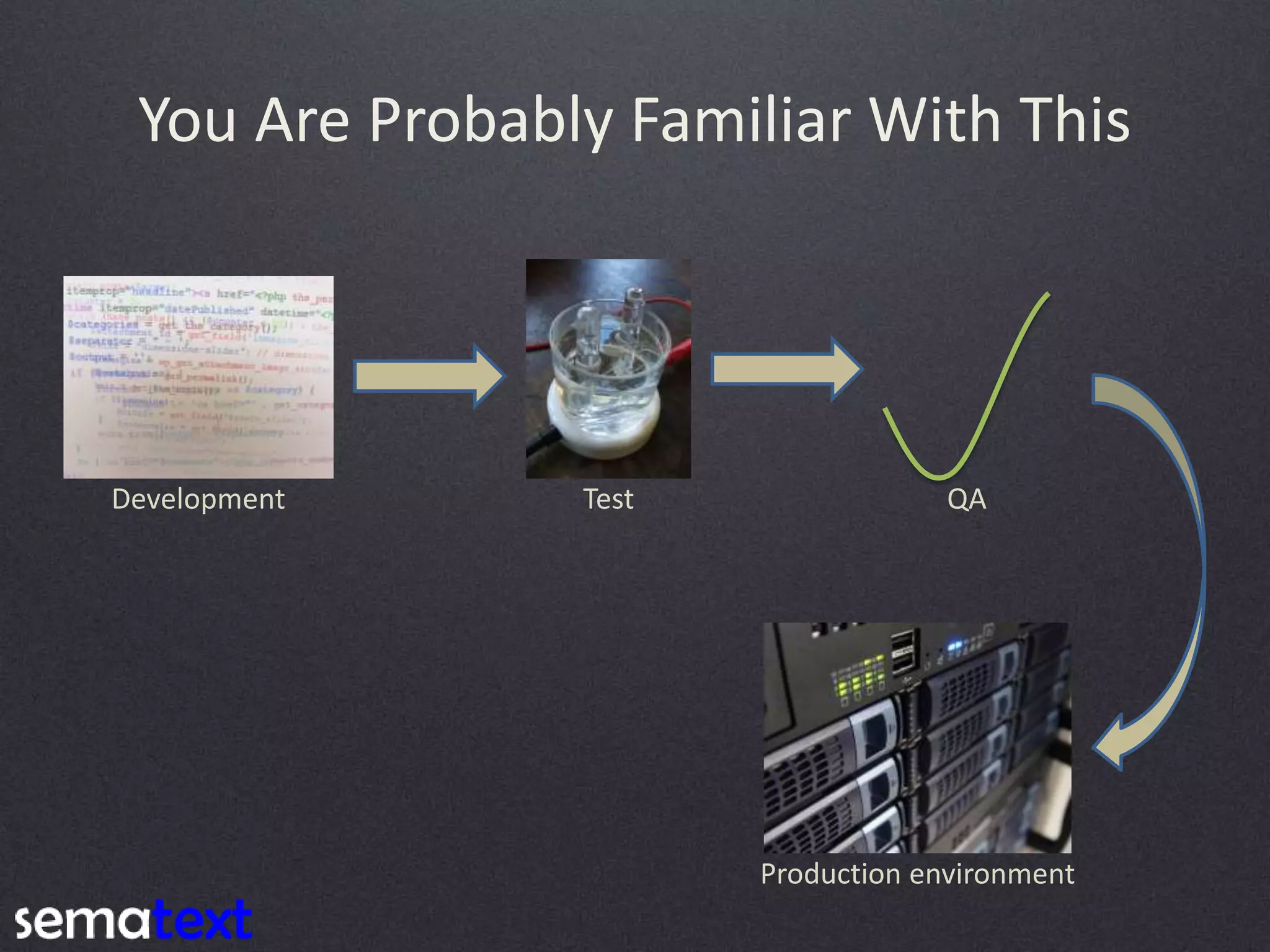

You Are Probably Familiar With This Development Test QA Production environment

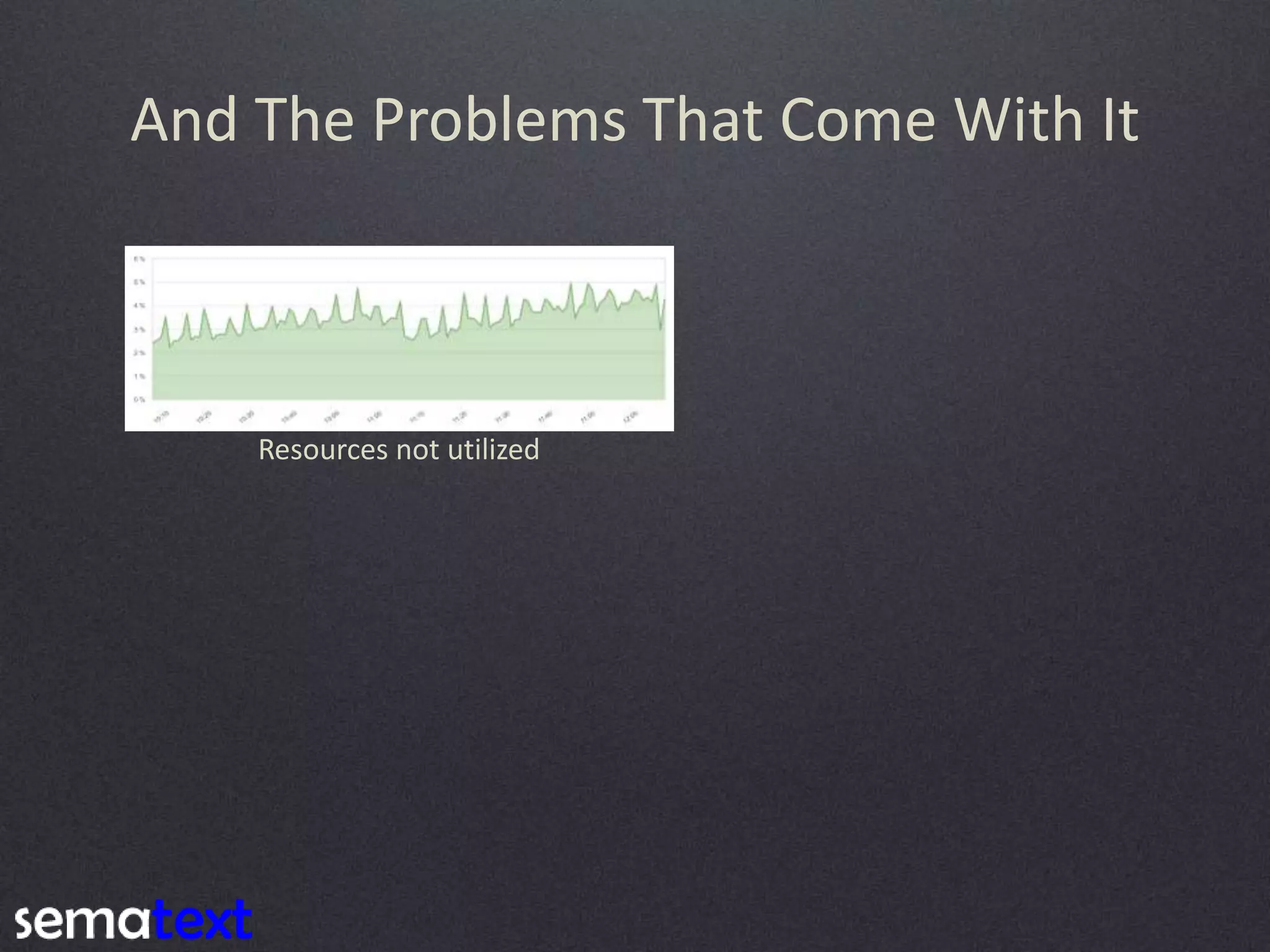

And The Problems That Come With It Resources not utilized

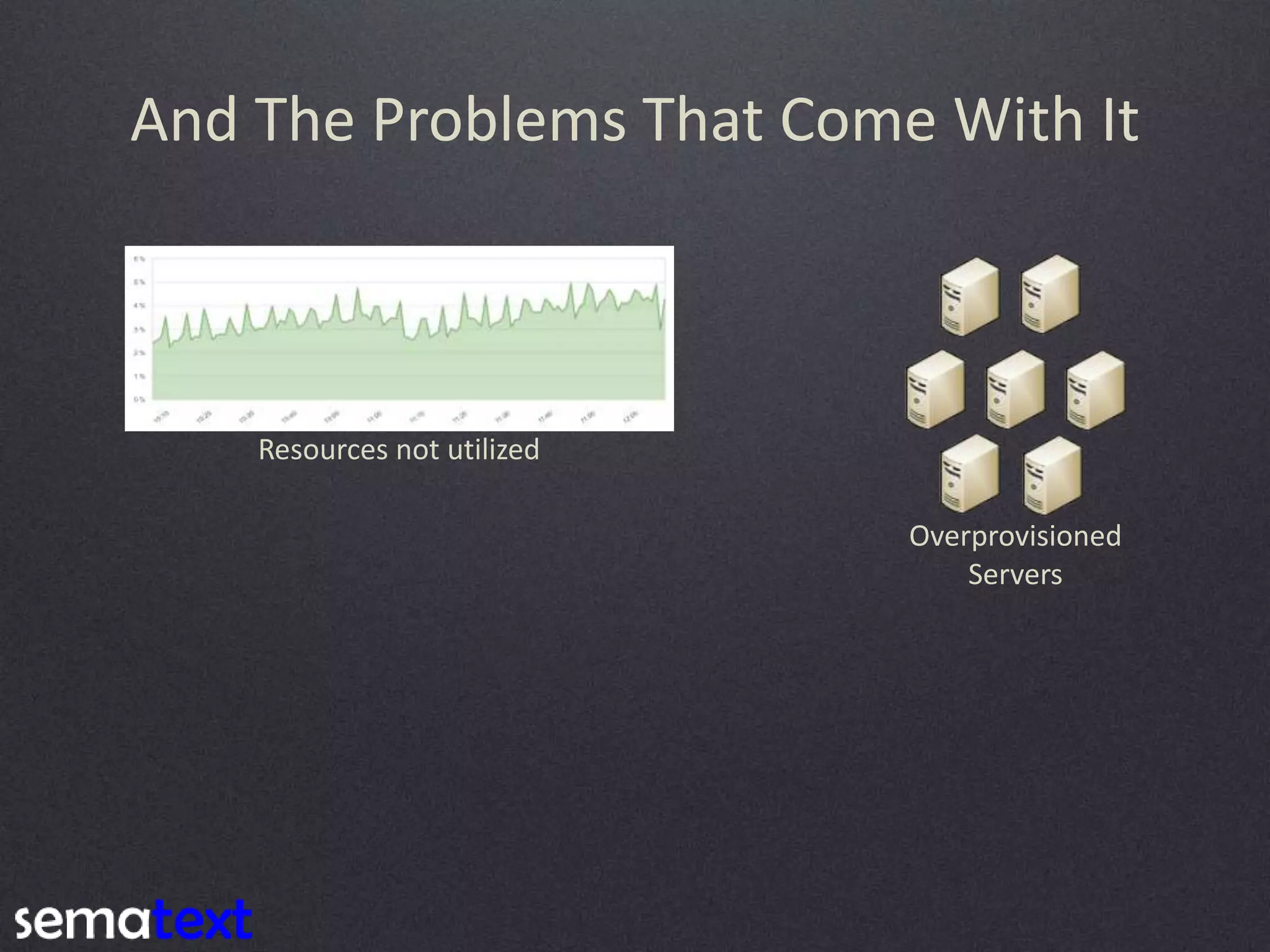

And The Problems That Come With It Resources not utilized Overprovisioned Servers

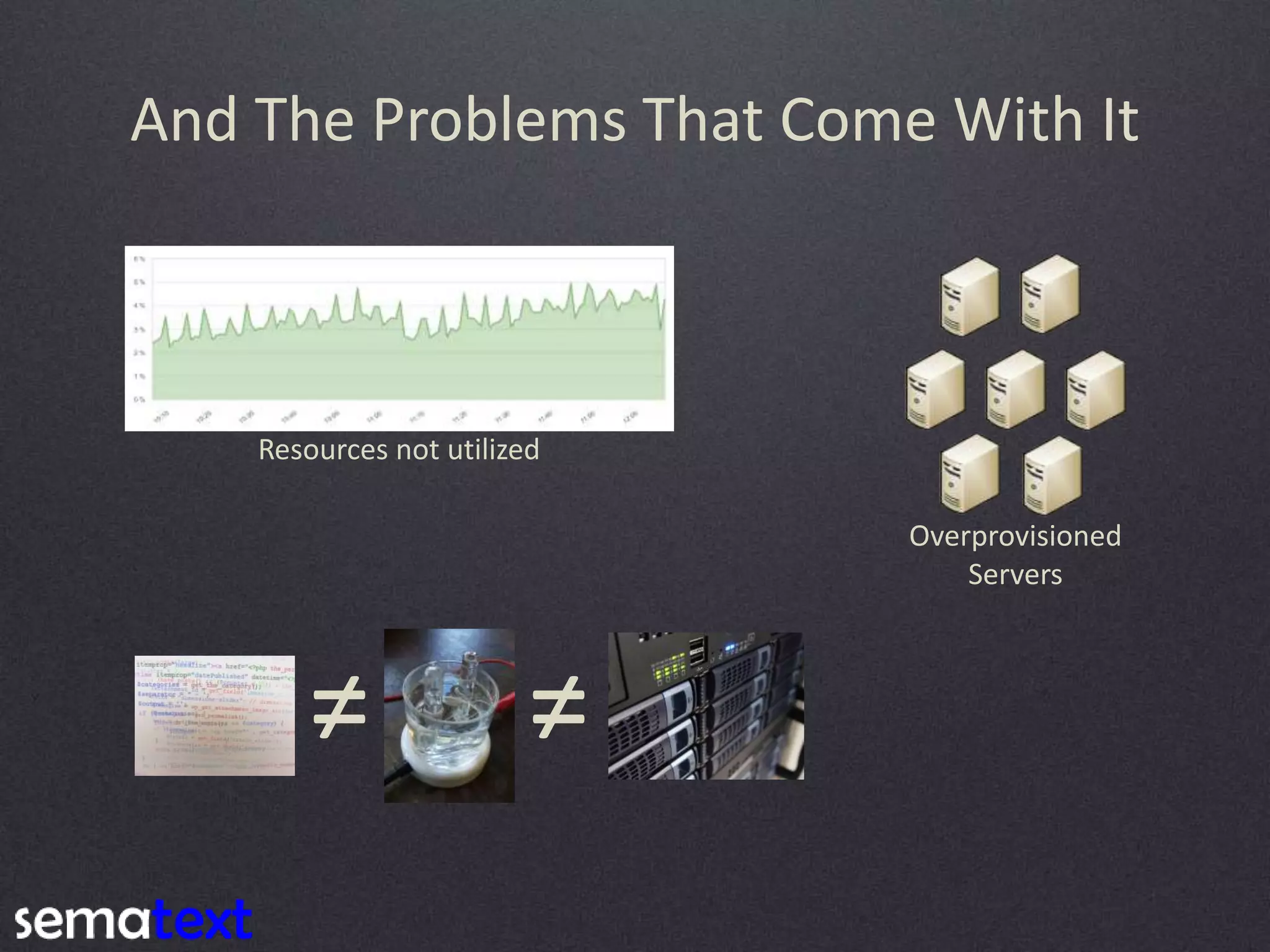

And The Problems That Come With It Resources not utilized Overprovisioned Servers ≠ ≠

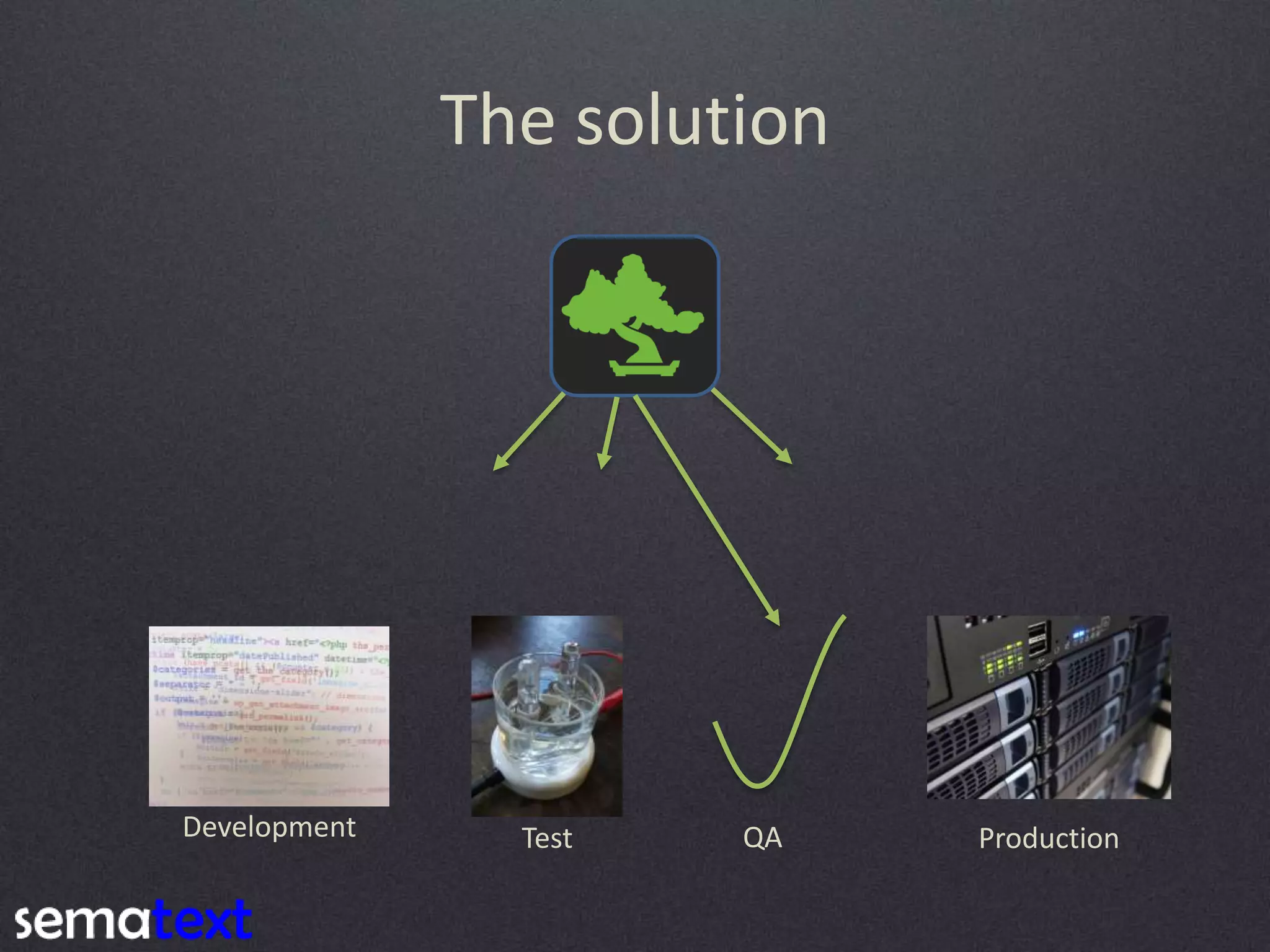

The solution Development Test QA Production

What is Docker? Lightweight Based on Open Standards Secure

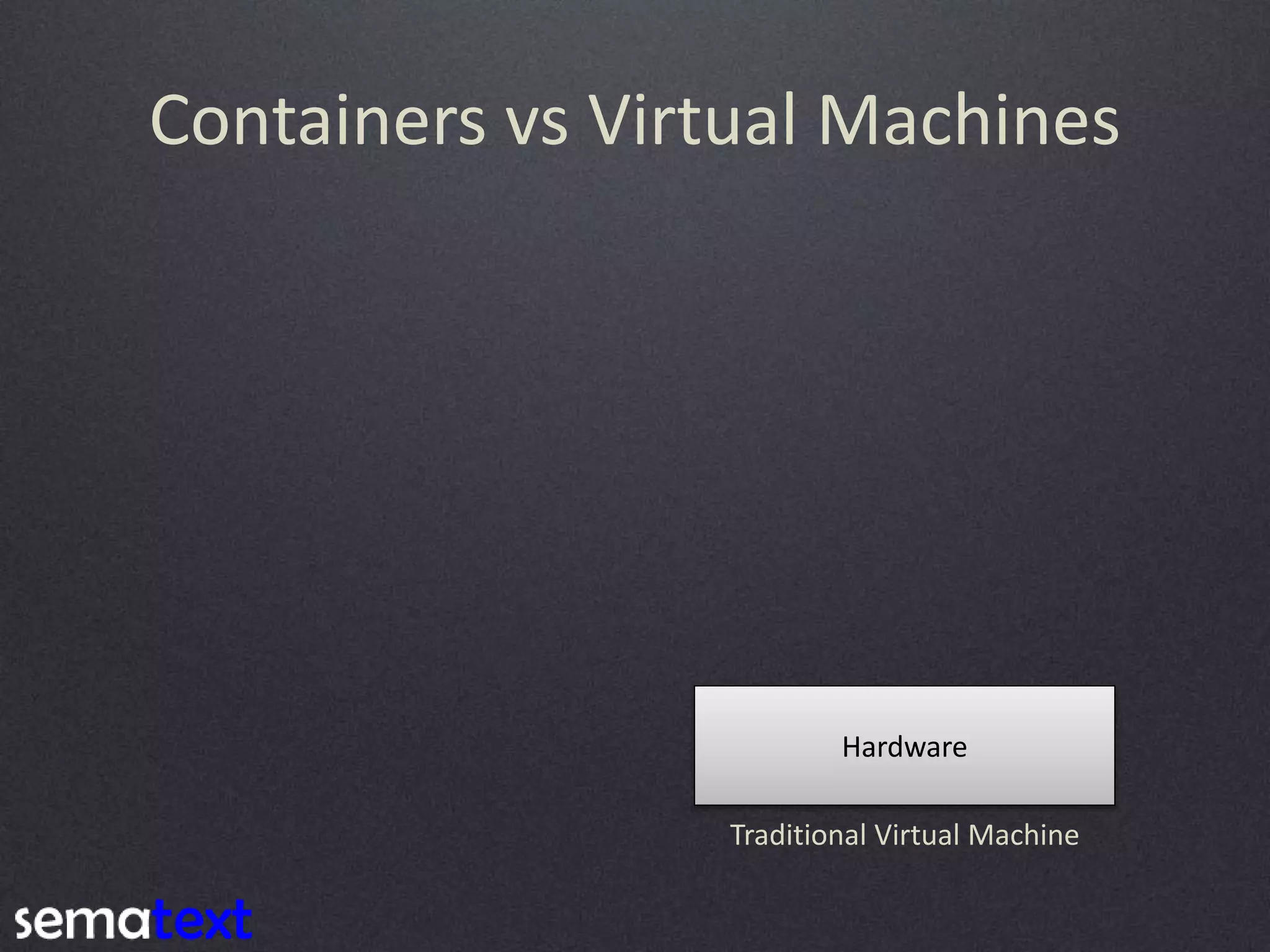

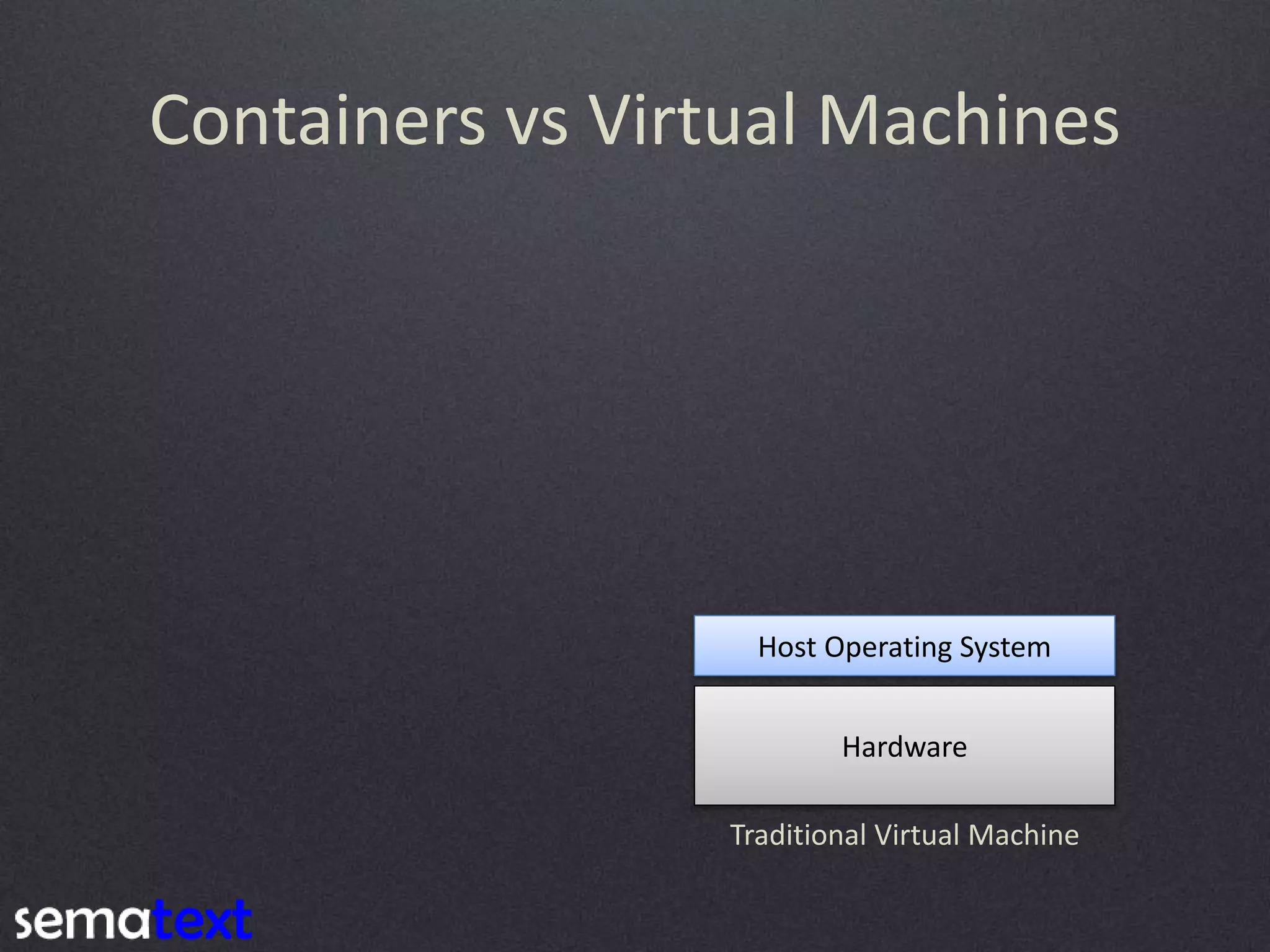

Containers vs Virtual Machines Hardware Traditional Virtual Machine

Containers vs Virtual Machines Hardware Host Operating System Traditional Virtual Machine

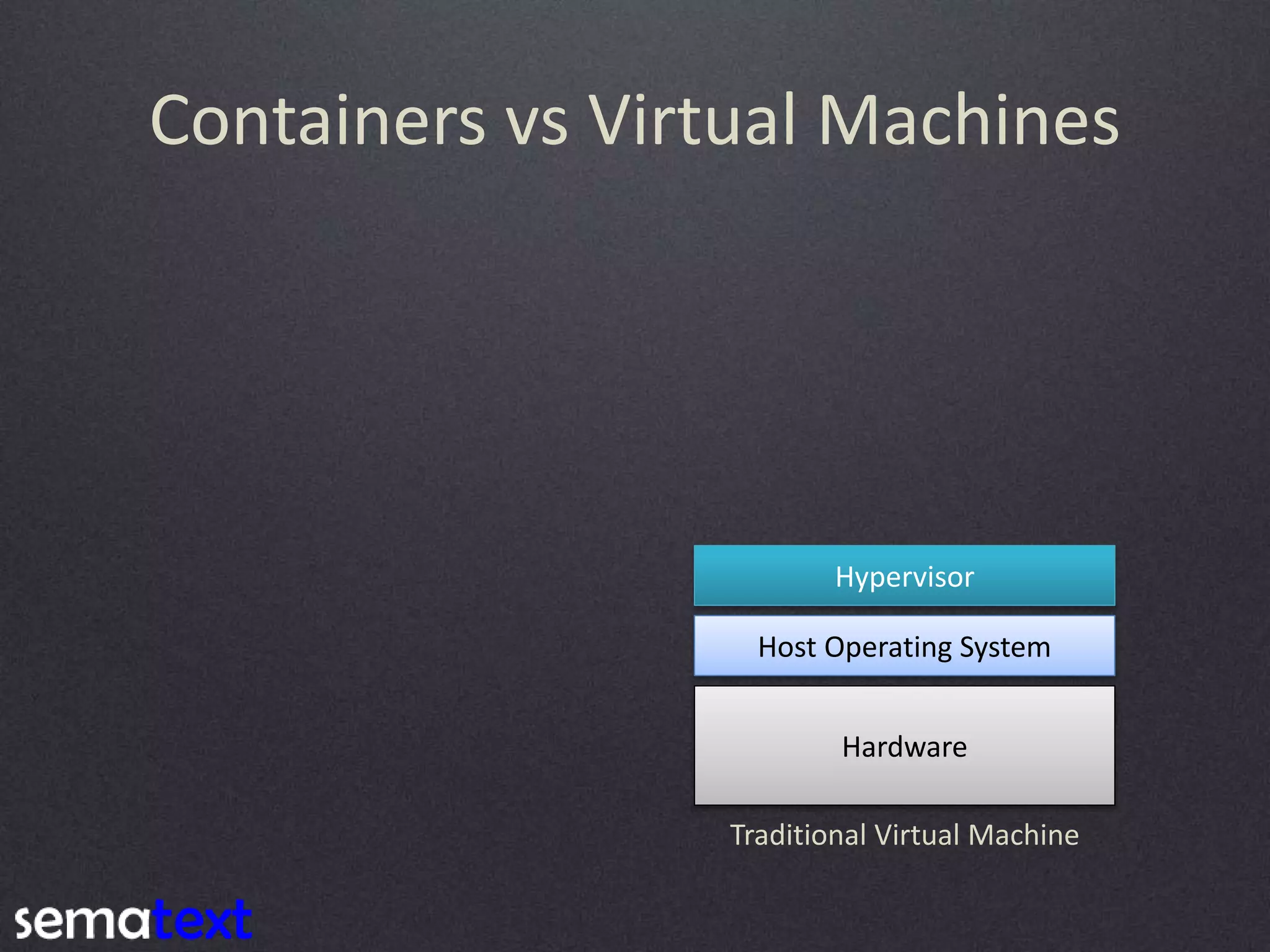

Containers vs Virtual Machines Hardware Host Operating System Hypervisor Traditional Virtual Machine

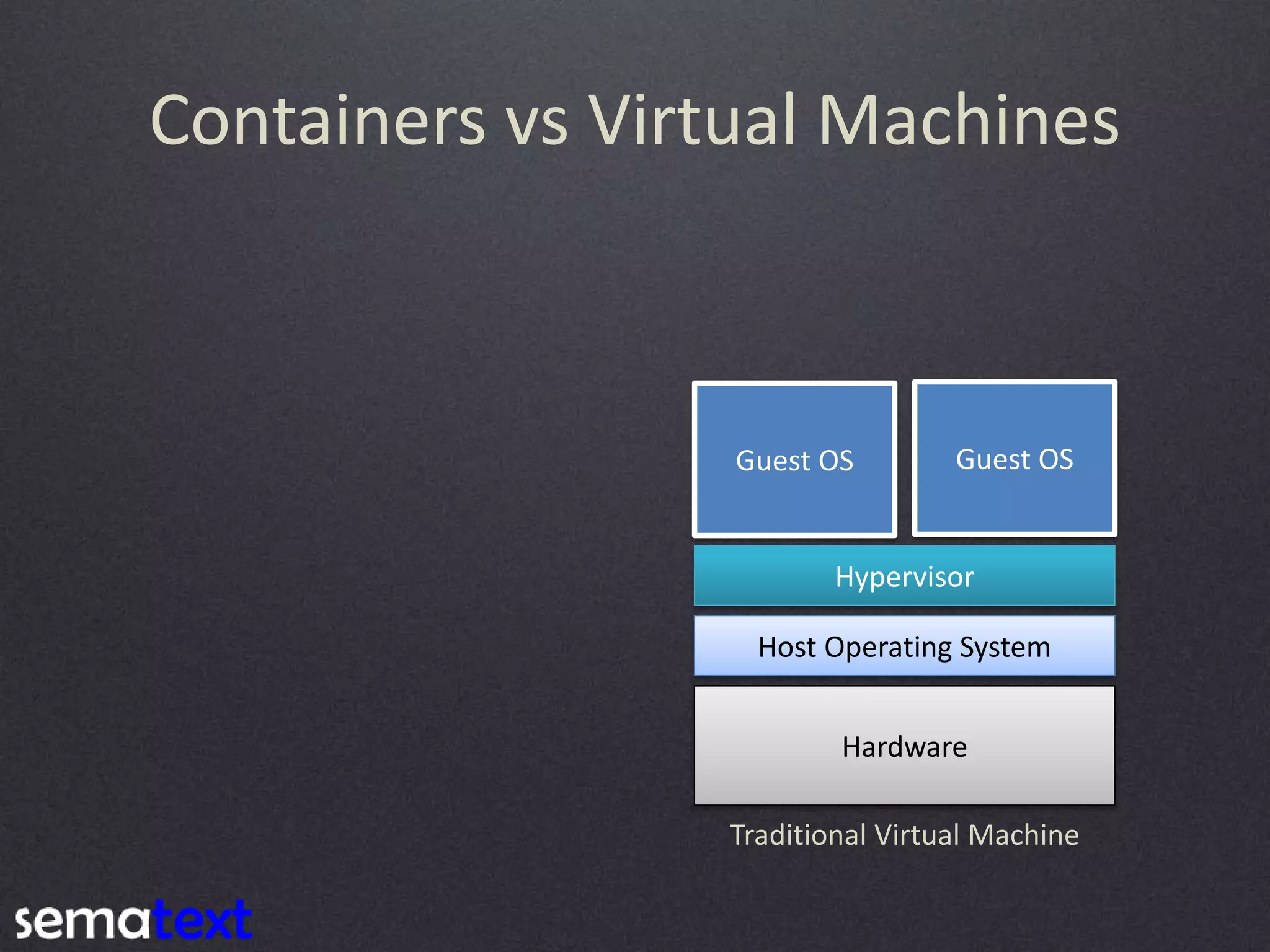

Containers vs Virtual Machines Hardware Host Operating System Hypervisor Guest OS Guest OS Traditional Virtual Machine

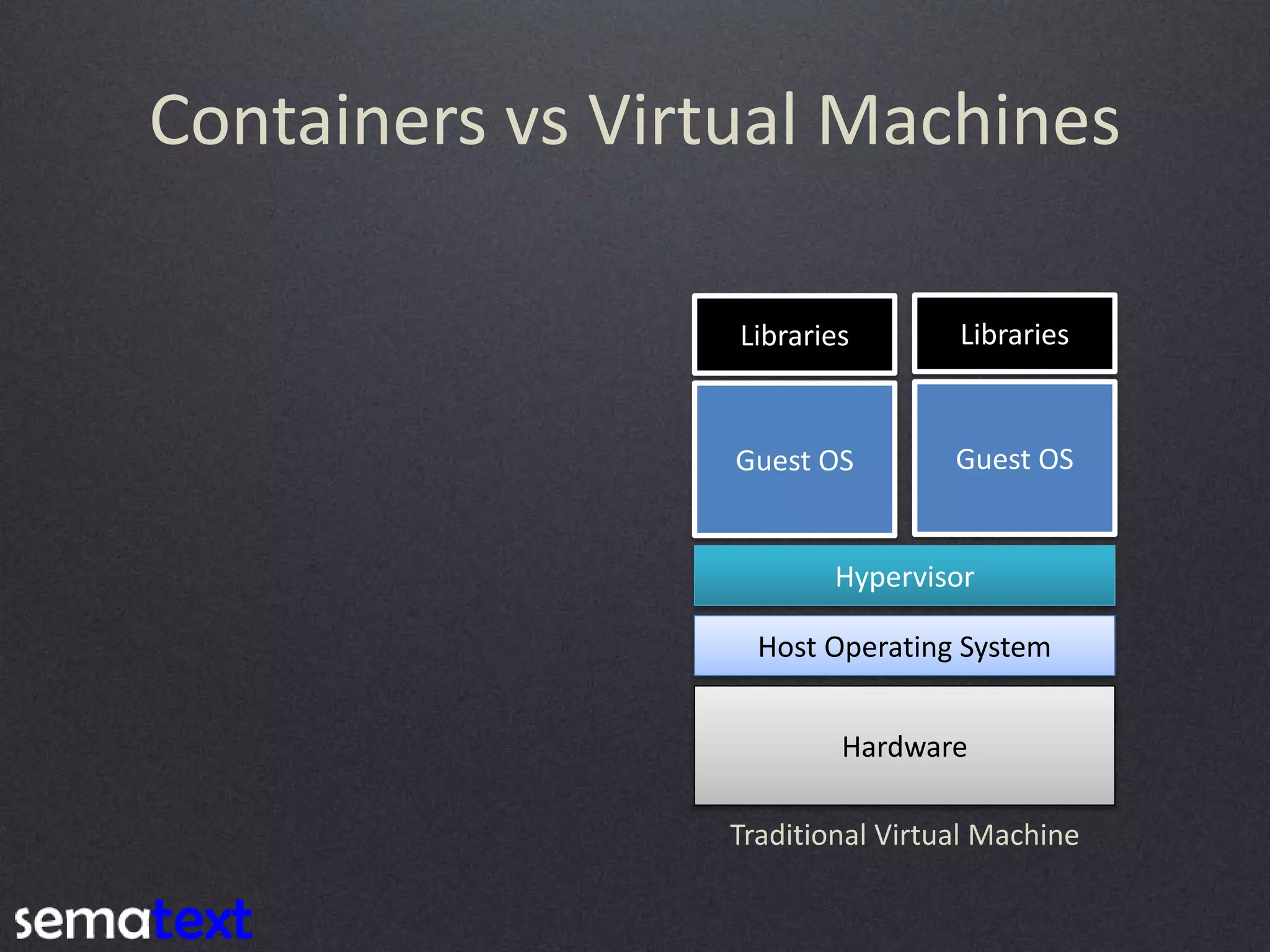

Containers vs Virtual Machines Hardware Host Operating System Hypervisor Guest OS Guest OS Libraries Libraries Traditional Virtual Machine

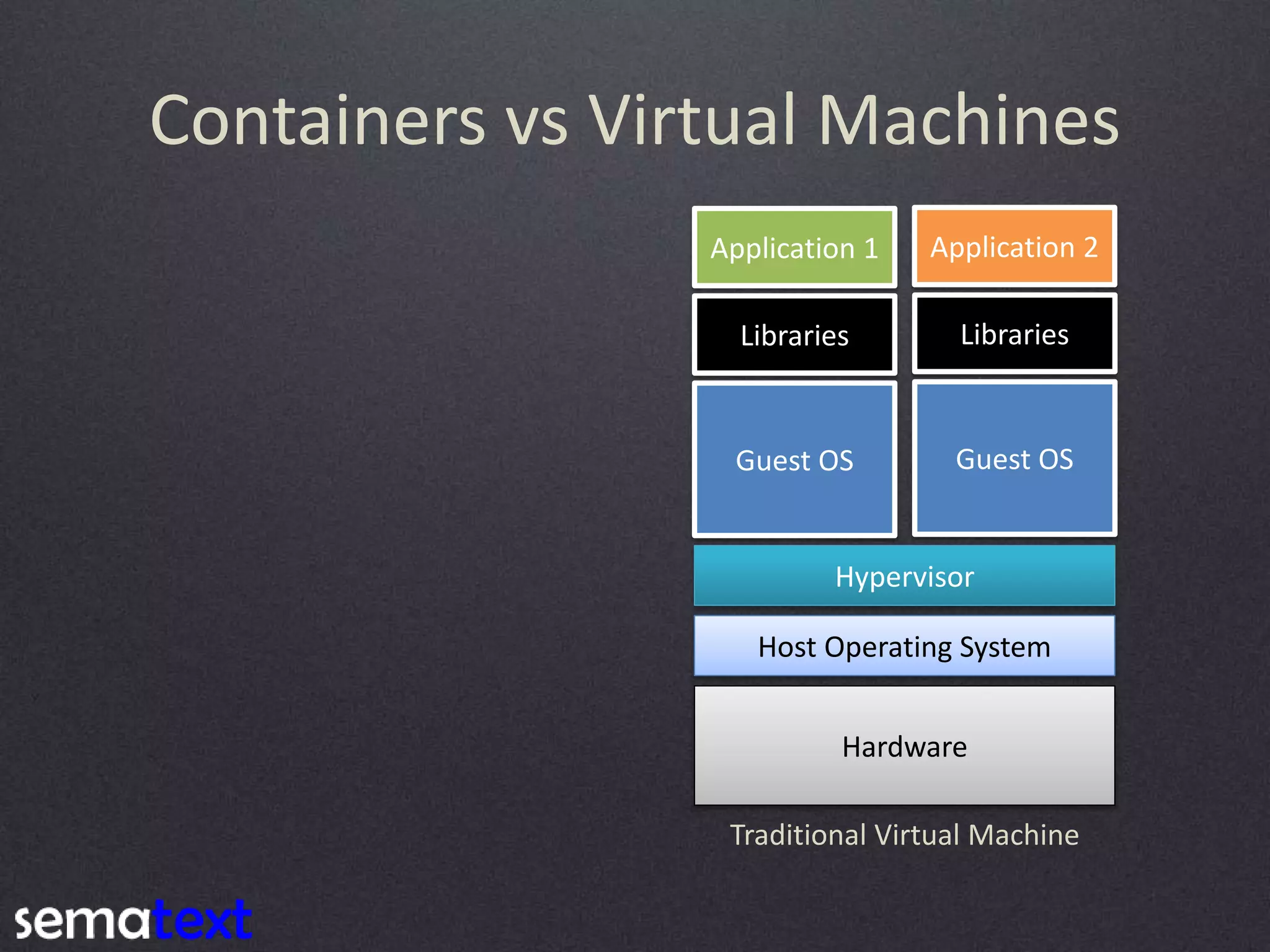

Containers vs Virtual Machines Hardware Host Operating System Hypervisor Guest OS Guest OS Libraries Libraries Application 1 Application 2 Traditional Virtual Machine

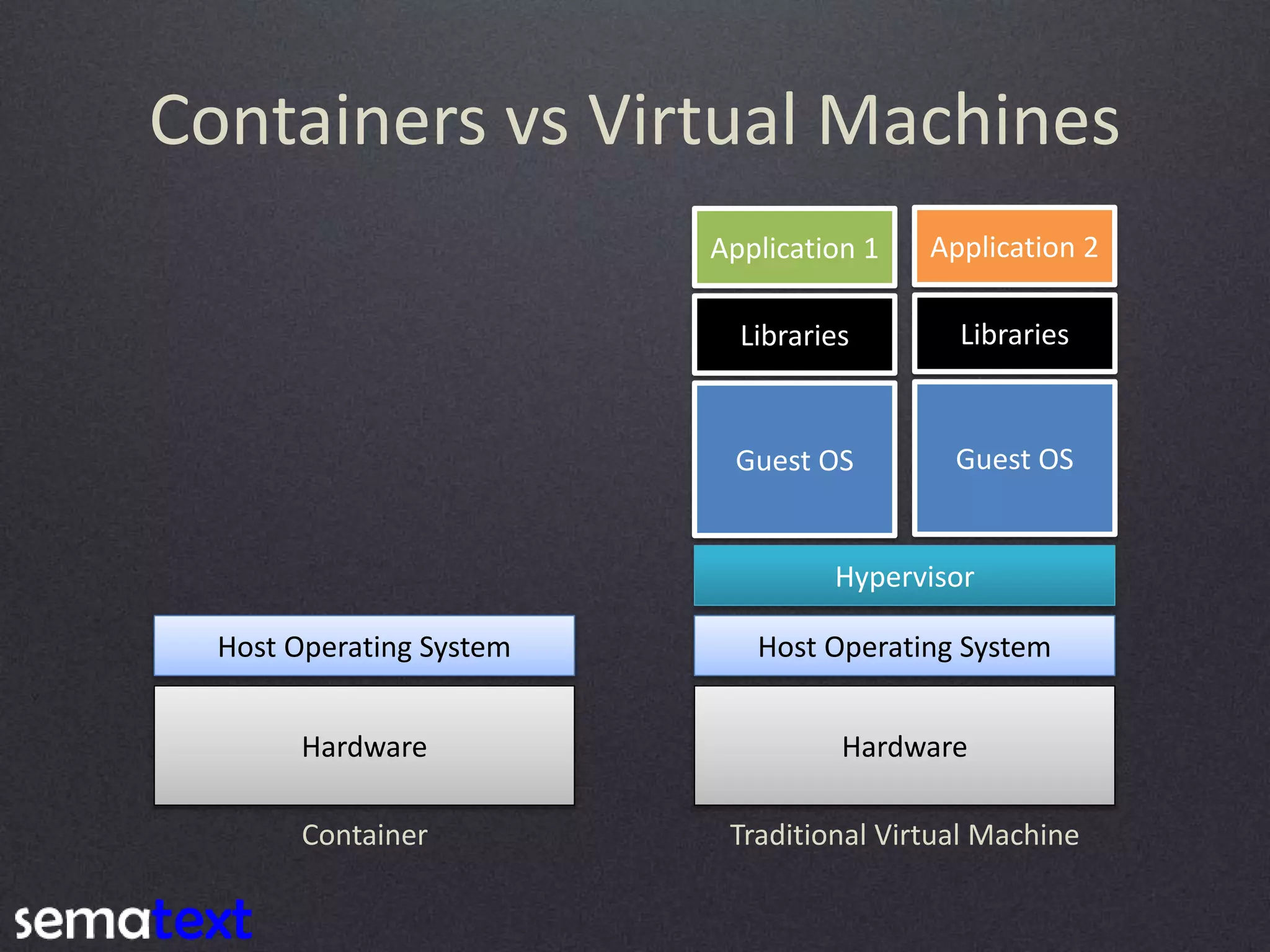

Containers vs Virtual Machines Hardware Host Operating System Hypervisor Guest OS Guest OS Libraries Libraries Application 1 Application 2 Hardware Host Operating System Traditional Virtual MachineContainer

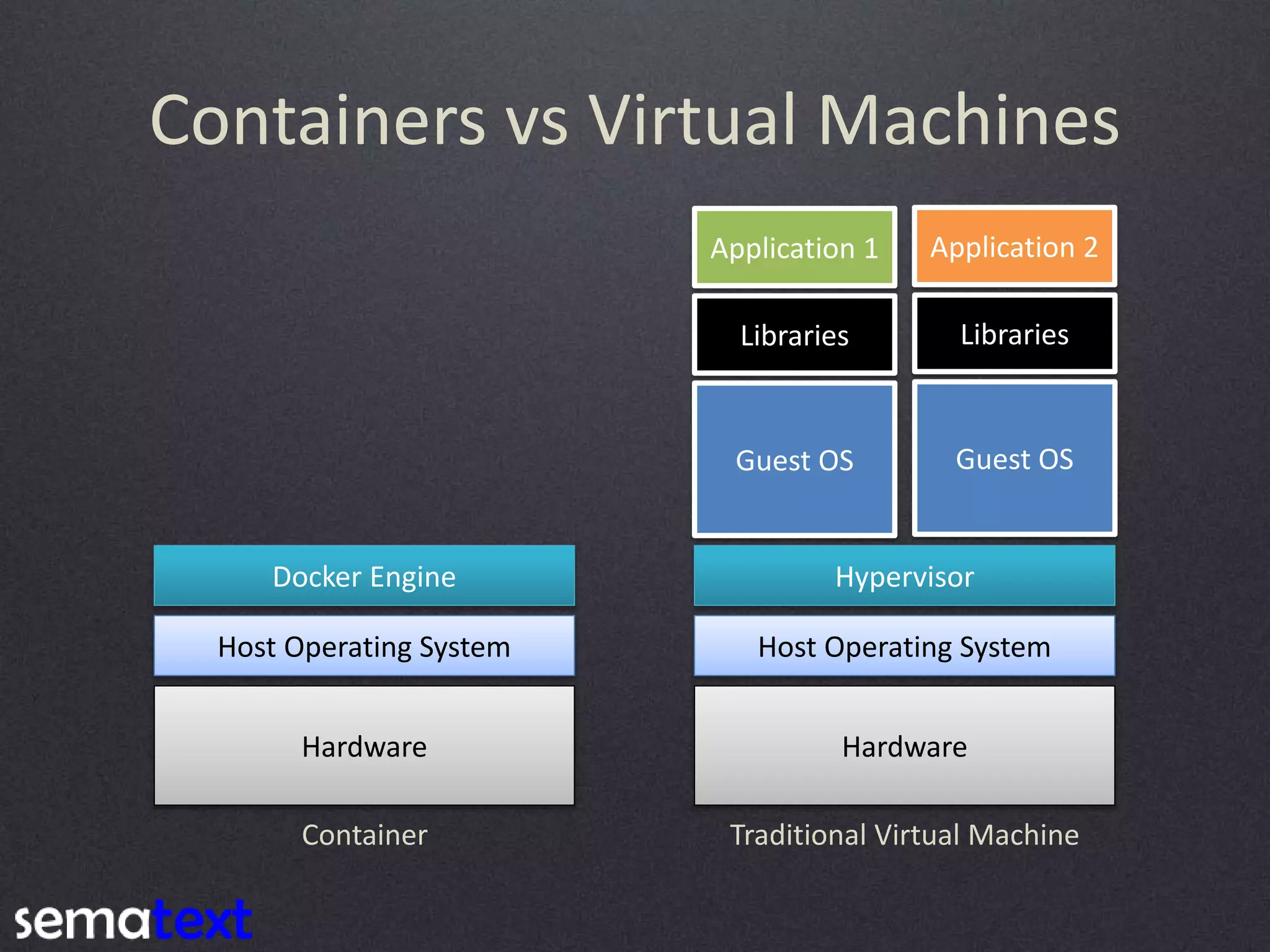

Containers vs Virtual Machines Hardware Host Operating System Hypervisor Guest OS Guest OS Libraries Libraries Application 1 Application 2 Hardware Host Operating System Docker Engine Traditional Virtual MachineContainer

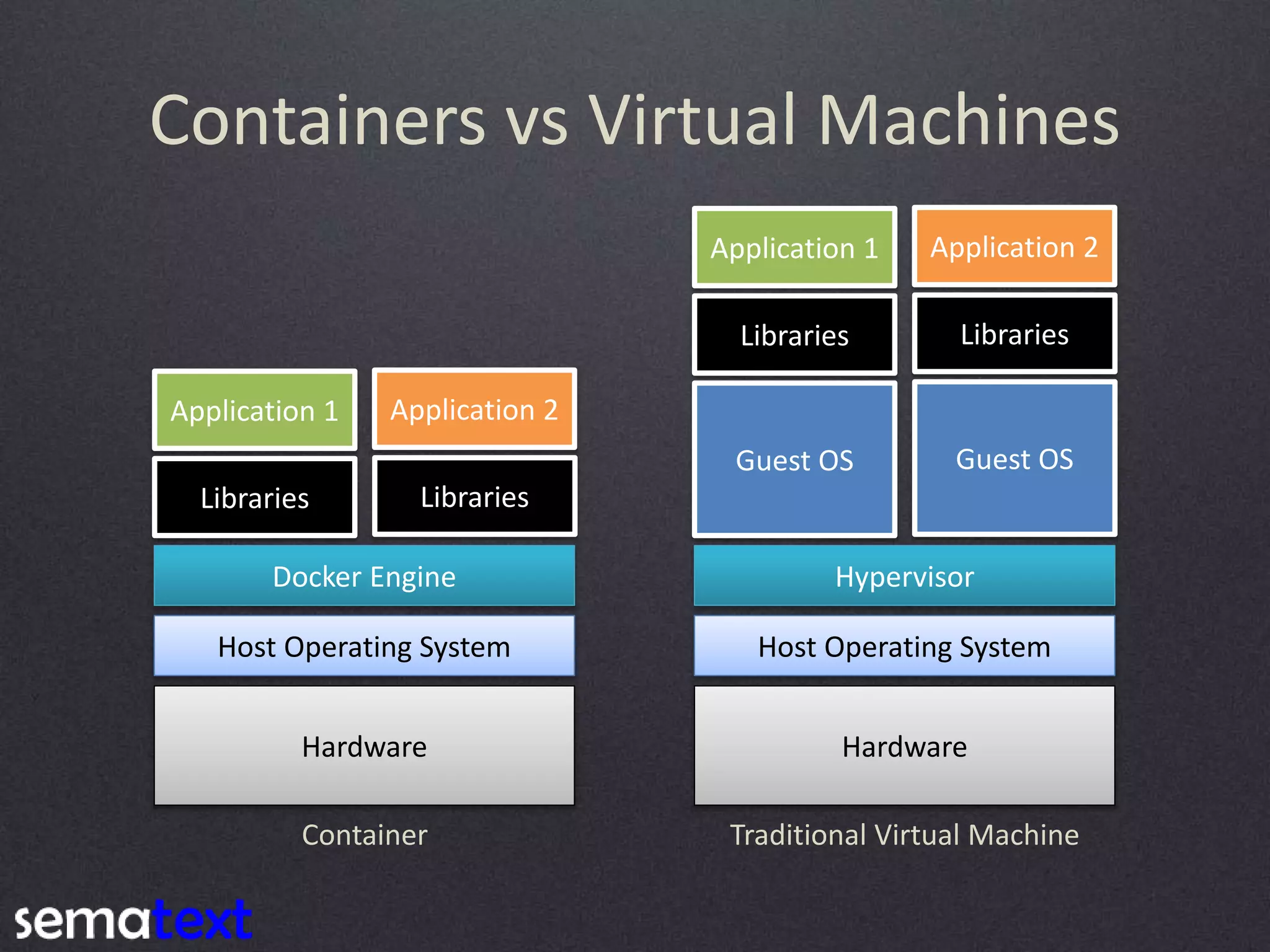

Containers vs Virtual Machines Hardware Host Operating System Hypervisor Guest OS Guest OS Libraries Libraries Application 1 Application 2 Hardware Host Operating System Docker Engine Libraries Libraries Application 1 Application 2 Traditional Virtual MachineContainer

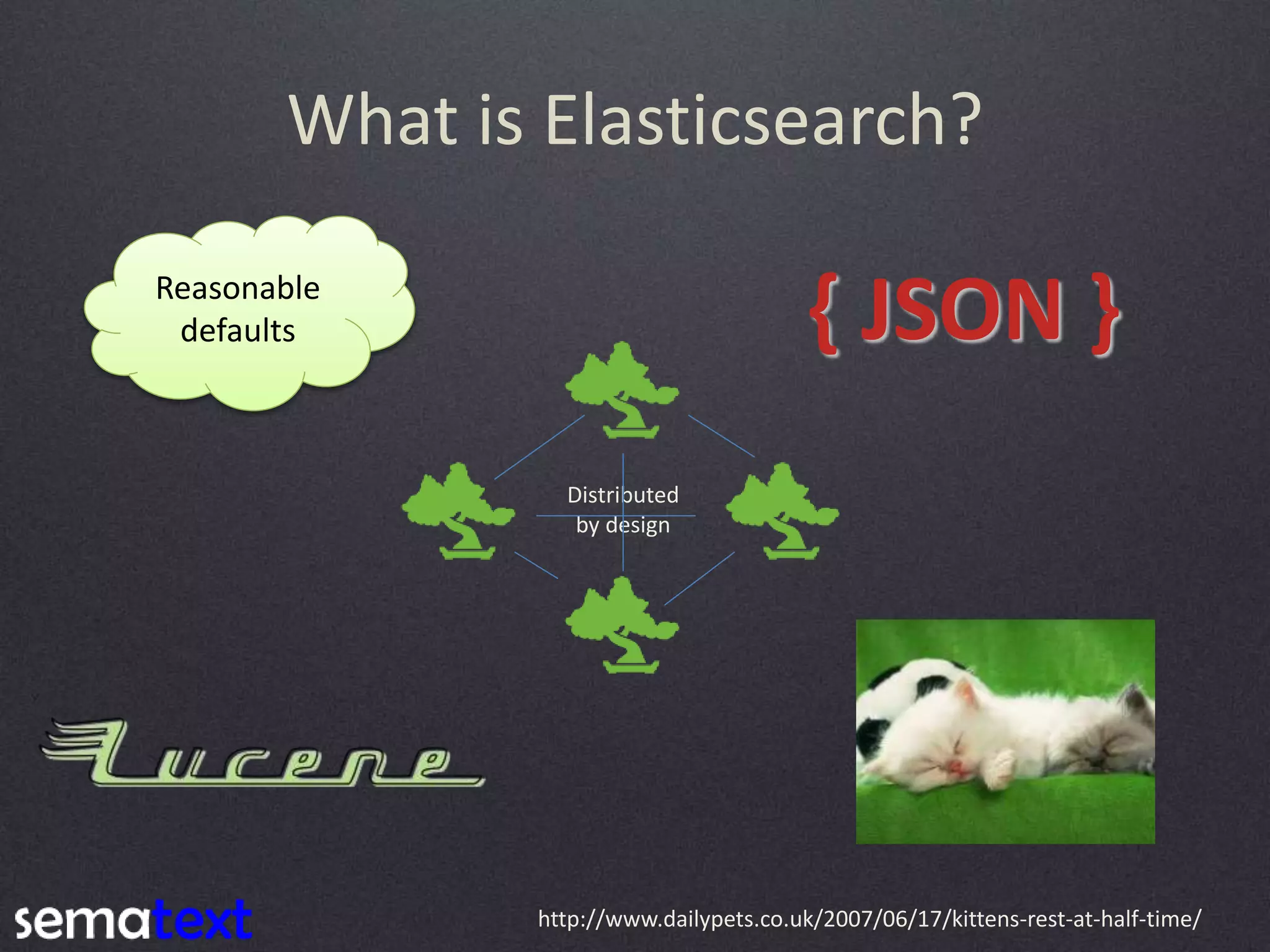

What is Elasticsearch? Reasonable defaults { JSON } Distributed by design http://www.dailypets.co.uk/2007/06/17/kittens-rest-at-half-time/

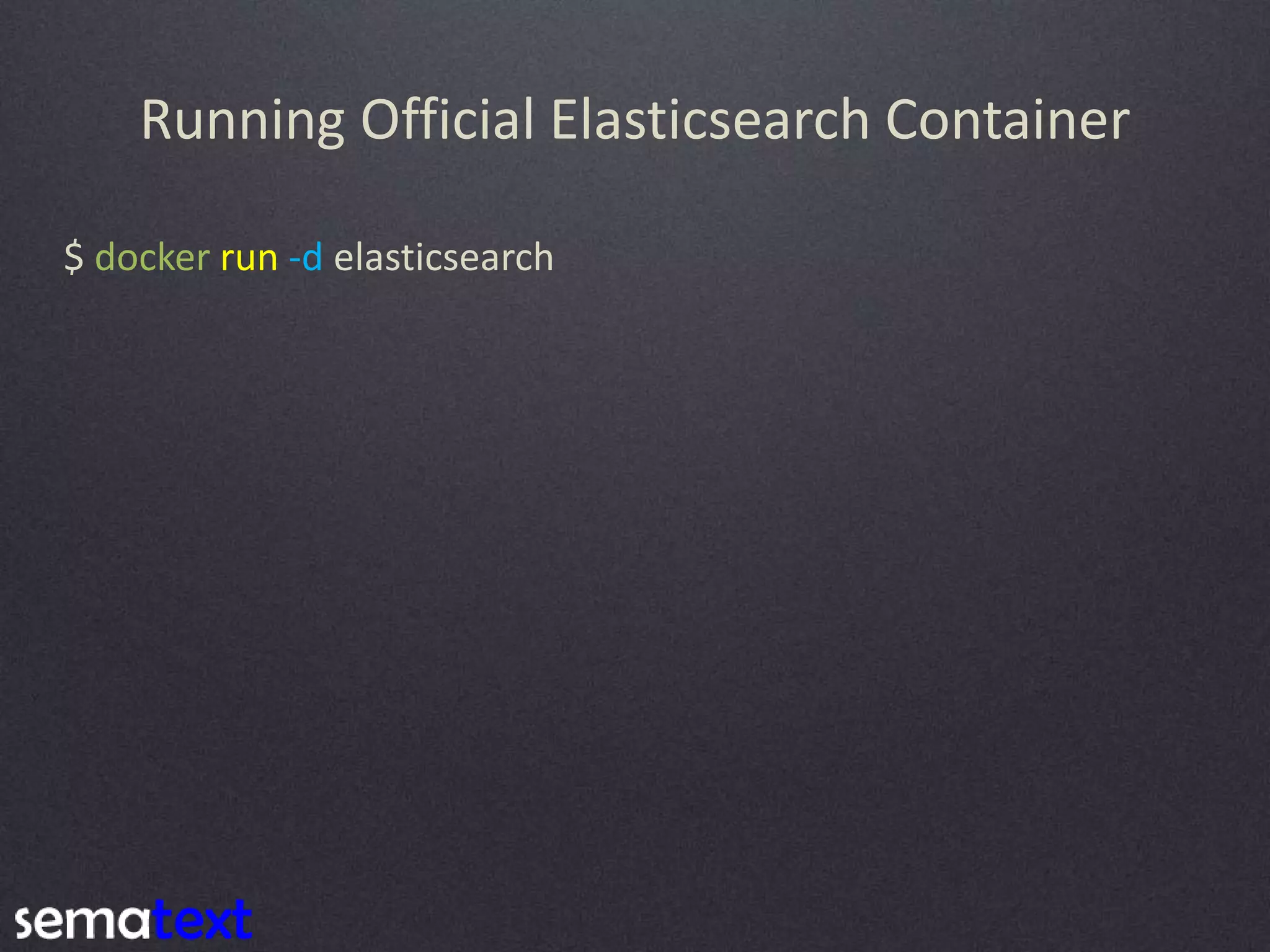

Running Official Elasticsearch Container $ docker run -d elasticsearch

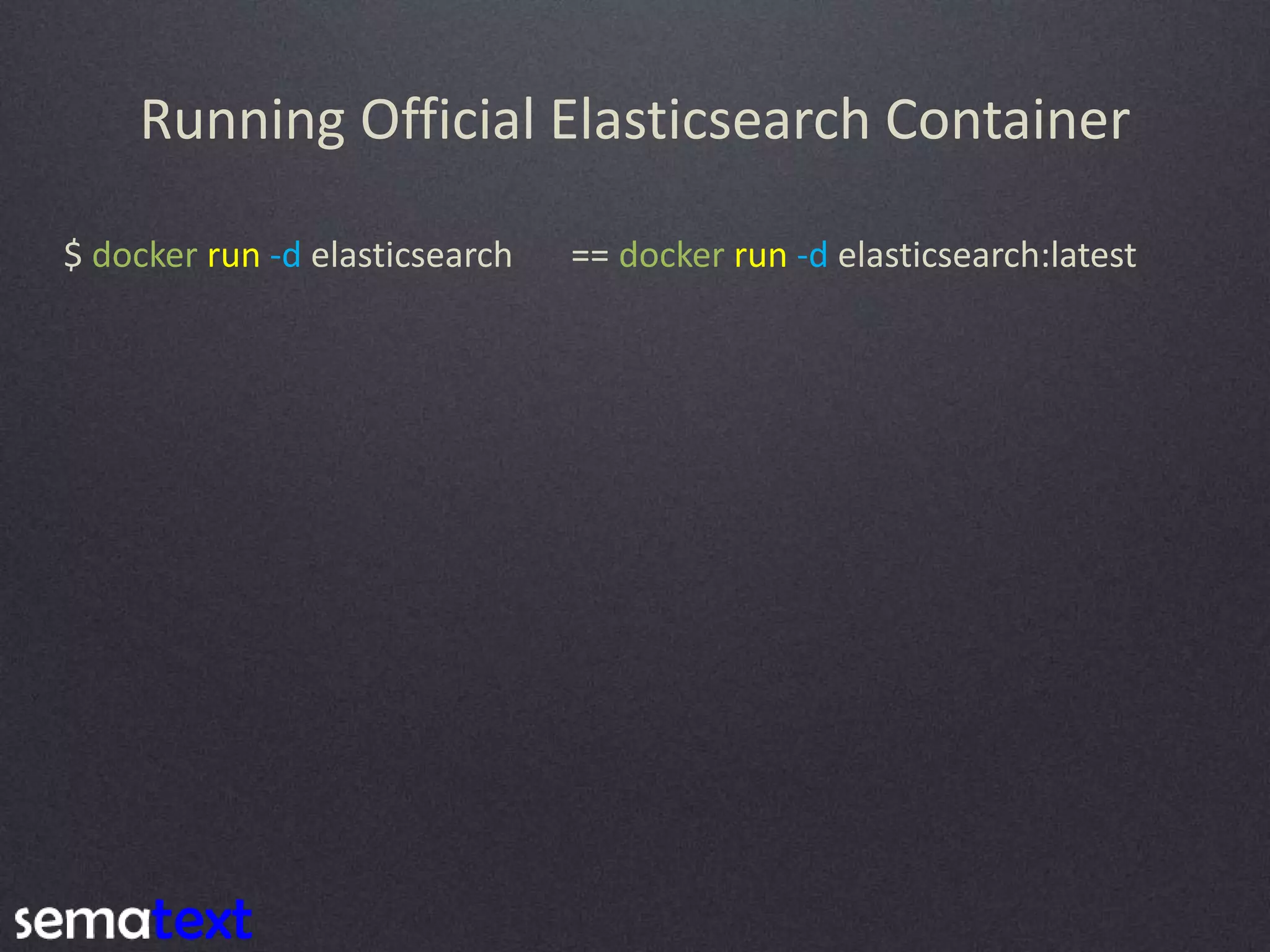

Running Official Elasticsearch Container $ docker run -d elasticsearch == docker run -d elasticsearch:latest

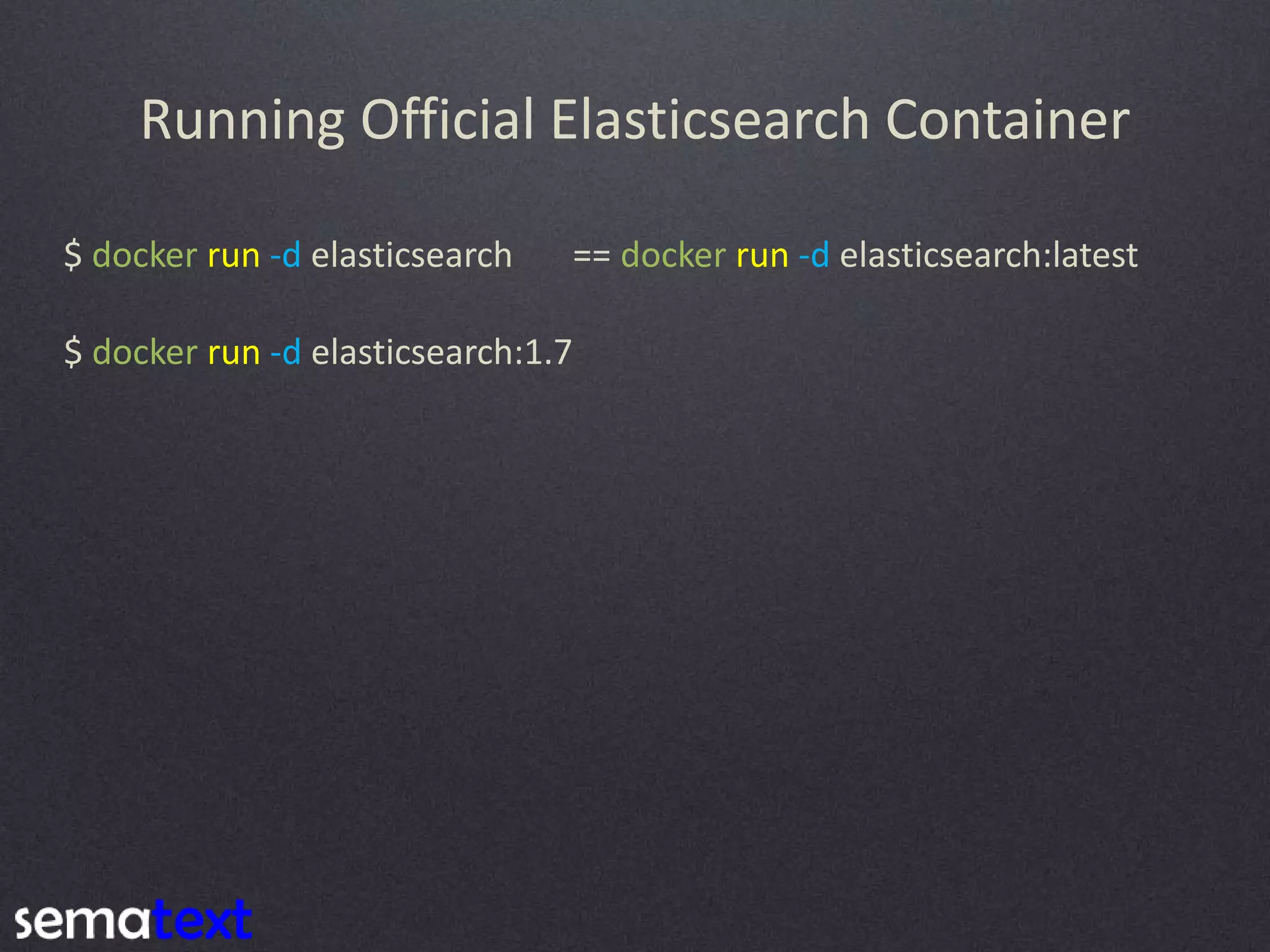

Running Official Elasticsearch Container $ docker run -d elasticsearch:1.7 $ docker run -d elasticsearch == docker run -d elasticsearch:latest

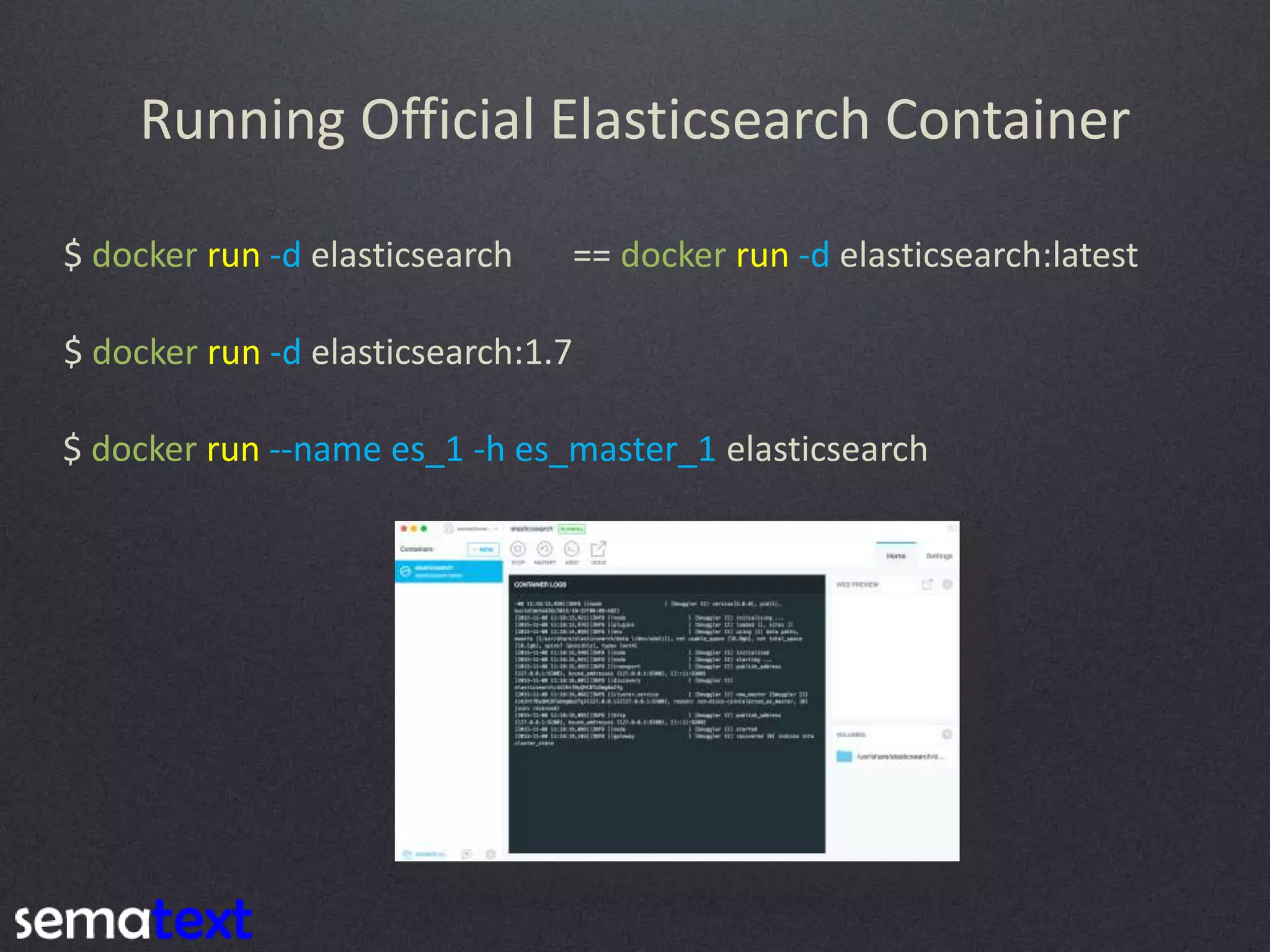

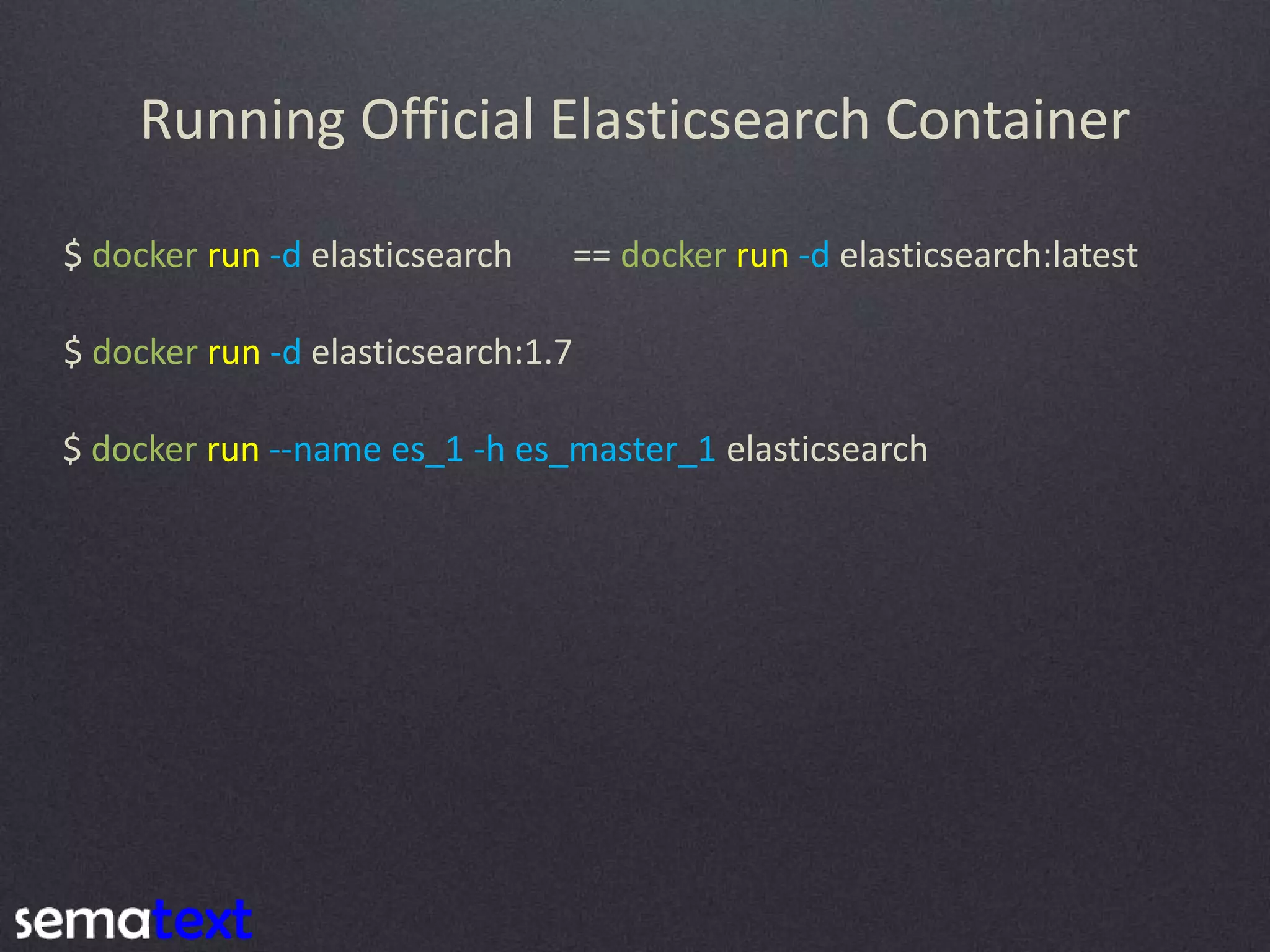

Running Official Elasticsearch Container $ docker run -d elasticsearch == docker run -d elasticsearch:latest $ docker run --name es_1 -h es_master_1 elasticsearch $ docker run -d elasticsearch:1.7

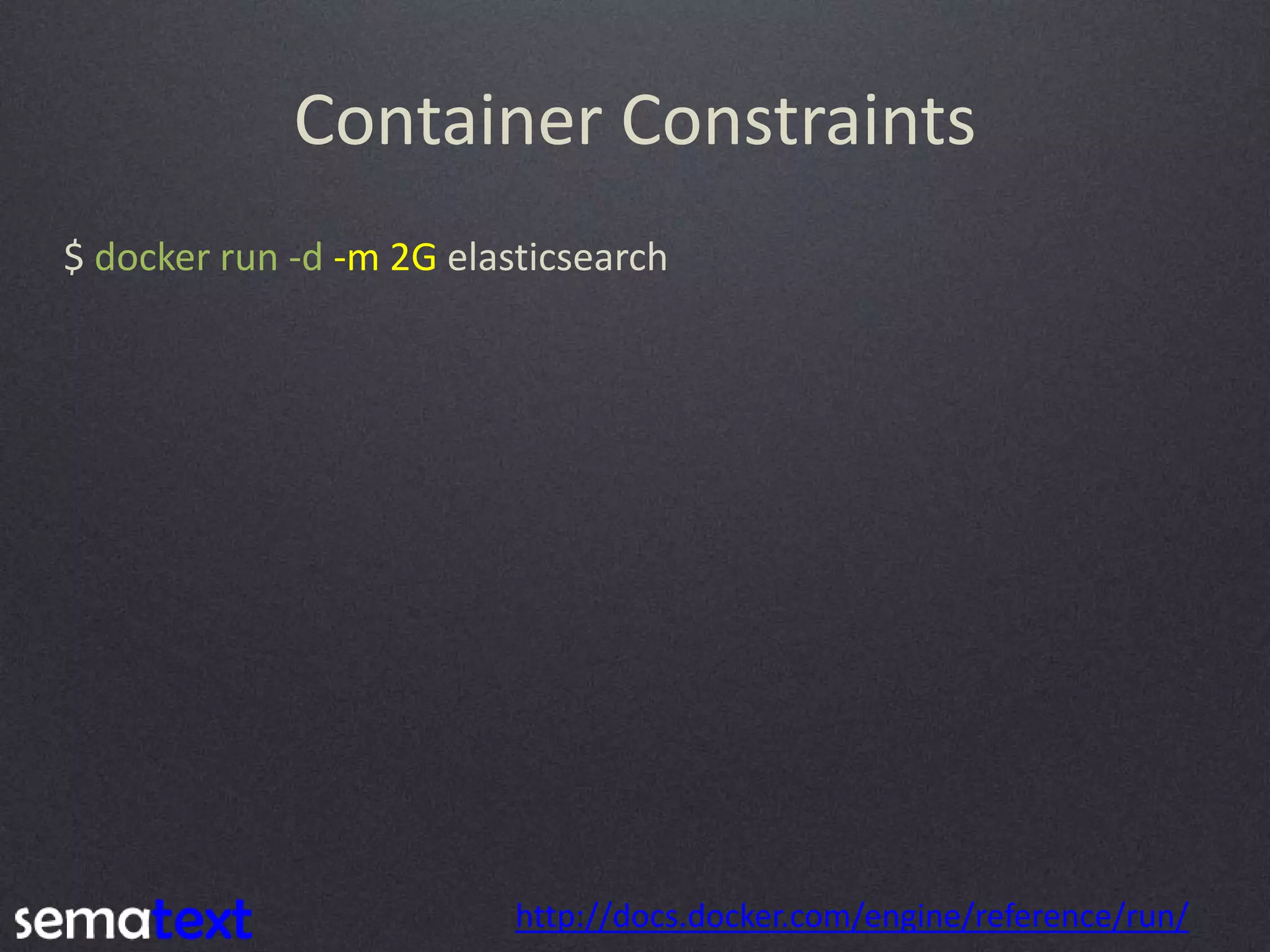

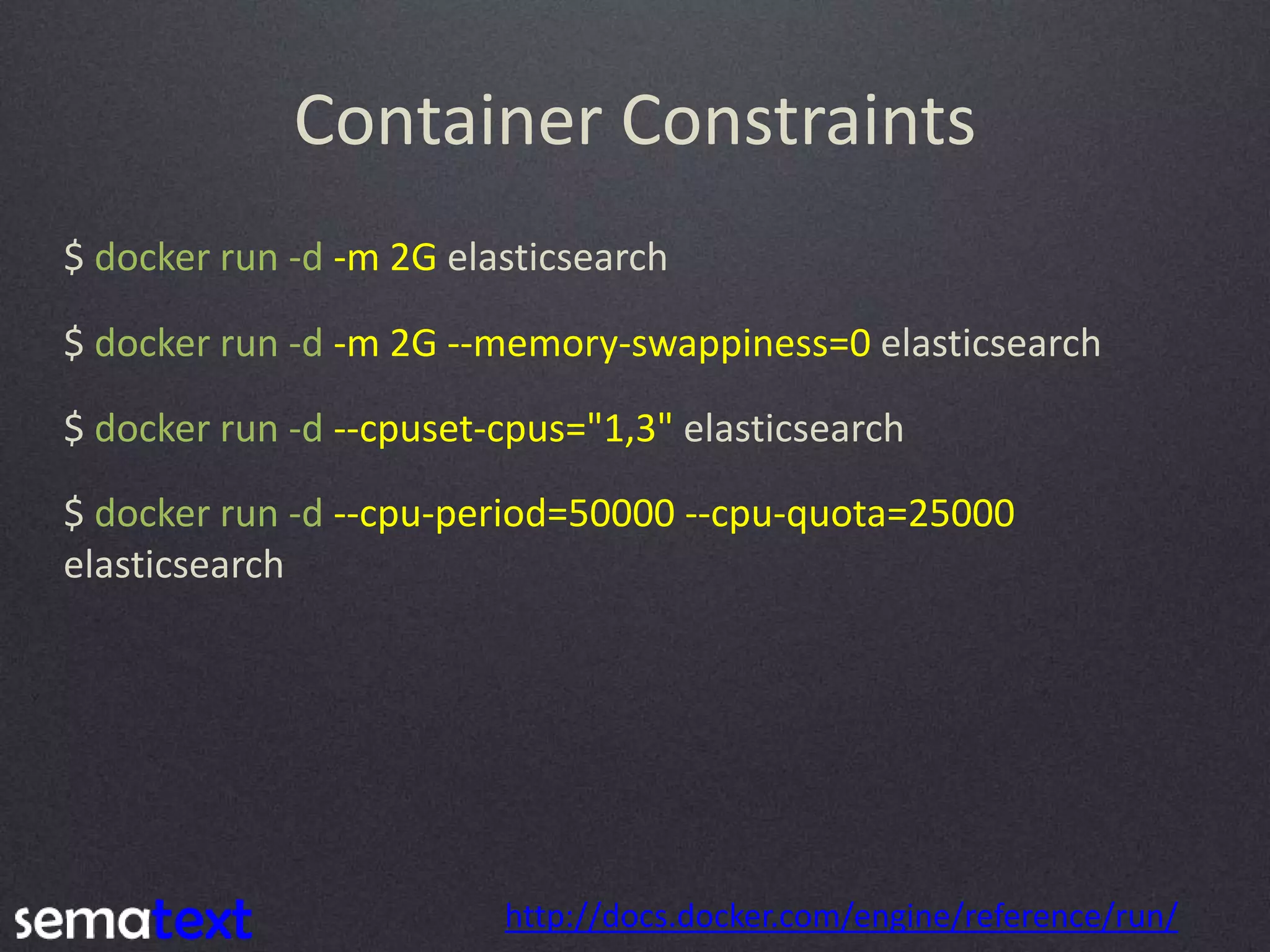

Container Constraints $ docker run -d -m 2G elasticsearch http://docs.docker.com/engine/reference/run/

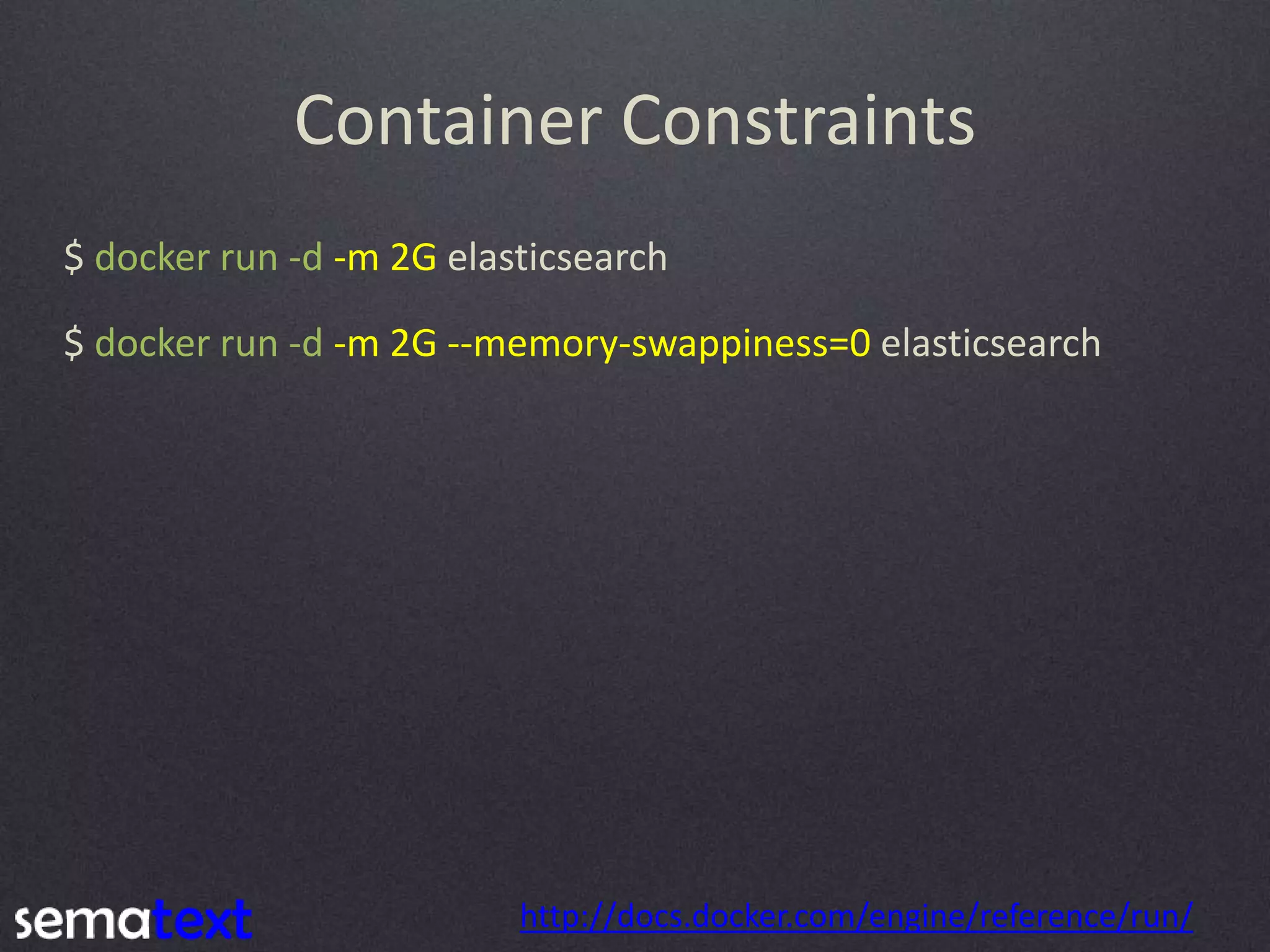

Container Constraints $ docker run -d -m 2G elasticsearch $ docker run -d -m 2G --memory-swappiness=0 elasticsearch http://docs.docker.com/engine/reference/run/

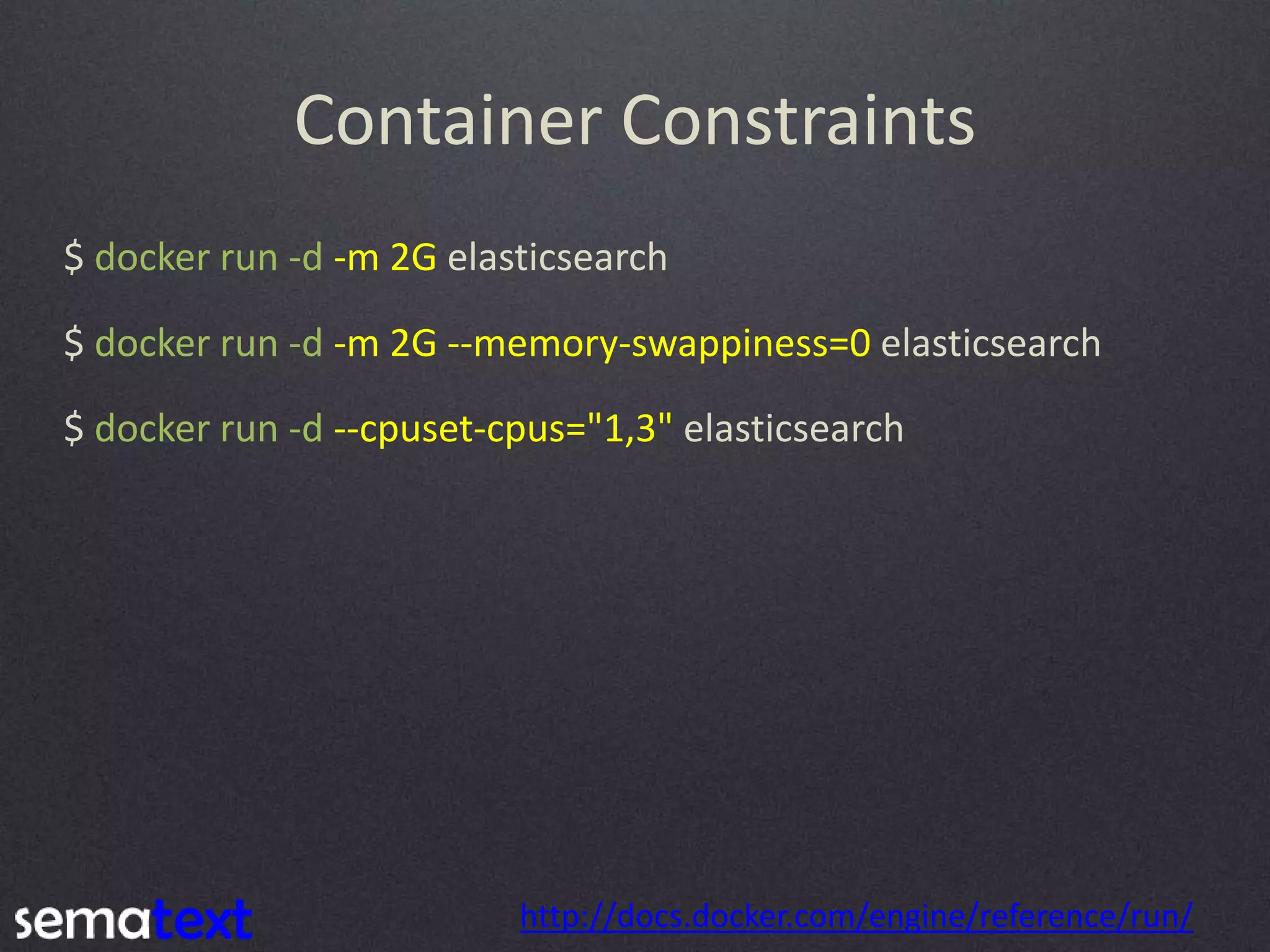

Container Constraints $ docker run -d -m 2G elasticsearch $ docker run -d -m 2G --memory-swappiness=0 elasticsearch $ docker run -d --cpuset-cpus="1,3" elasticsearch http://docs.docker.com/engine/reference/run/

Container Constraints $ docker run -d -m 2G elasticsearch $ docker run -d -m 2G --memory-swappiness=0 elasticsearch $ docker run -d --cpuset-cpus="1,3" elasticsearch http://docs.docker.com/engine/reference/run/ $ docker run -d --cpu-period=50000 --cpu-quota=25000 elasticsearch

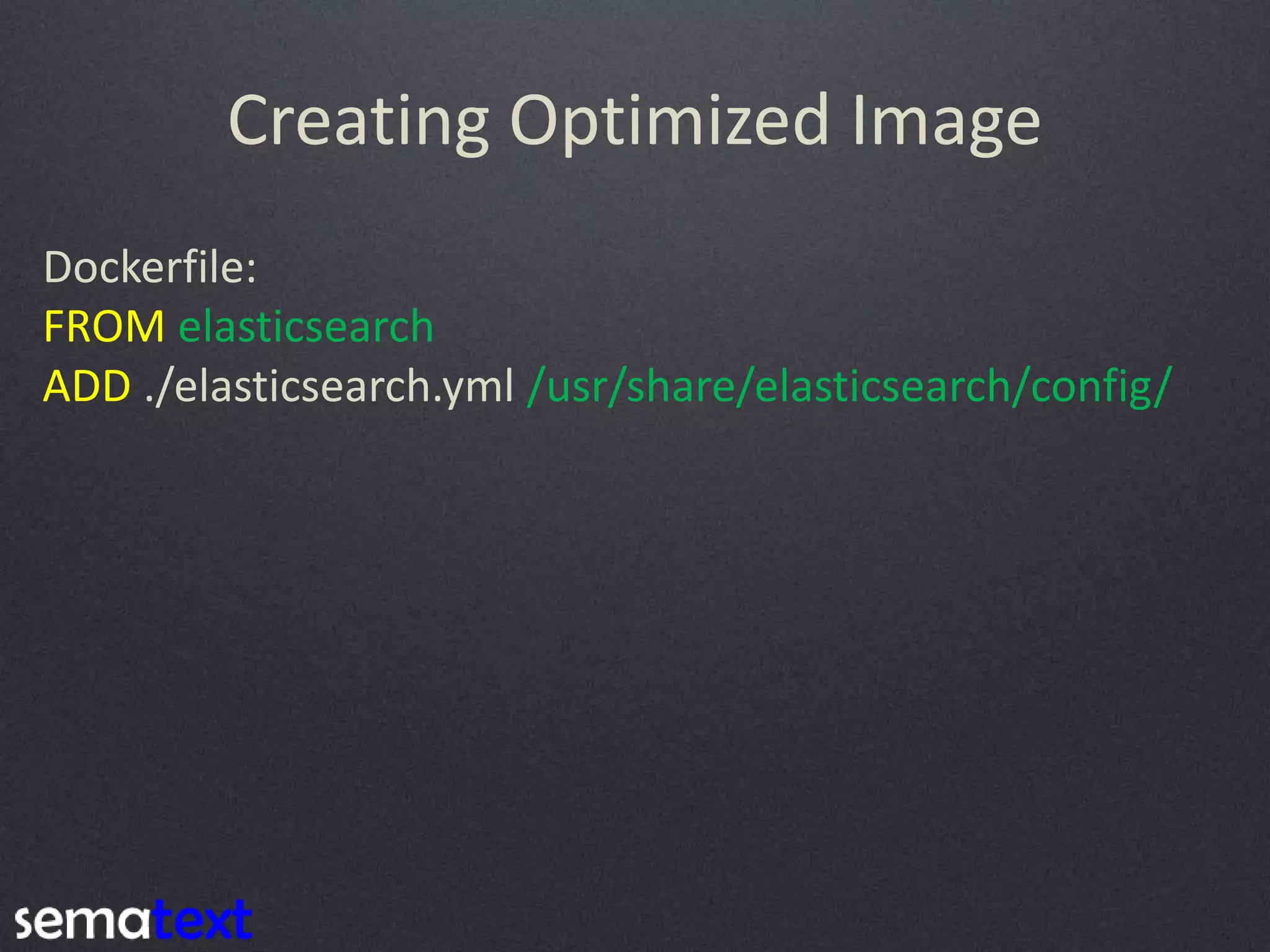

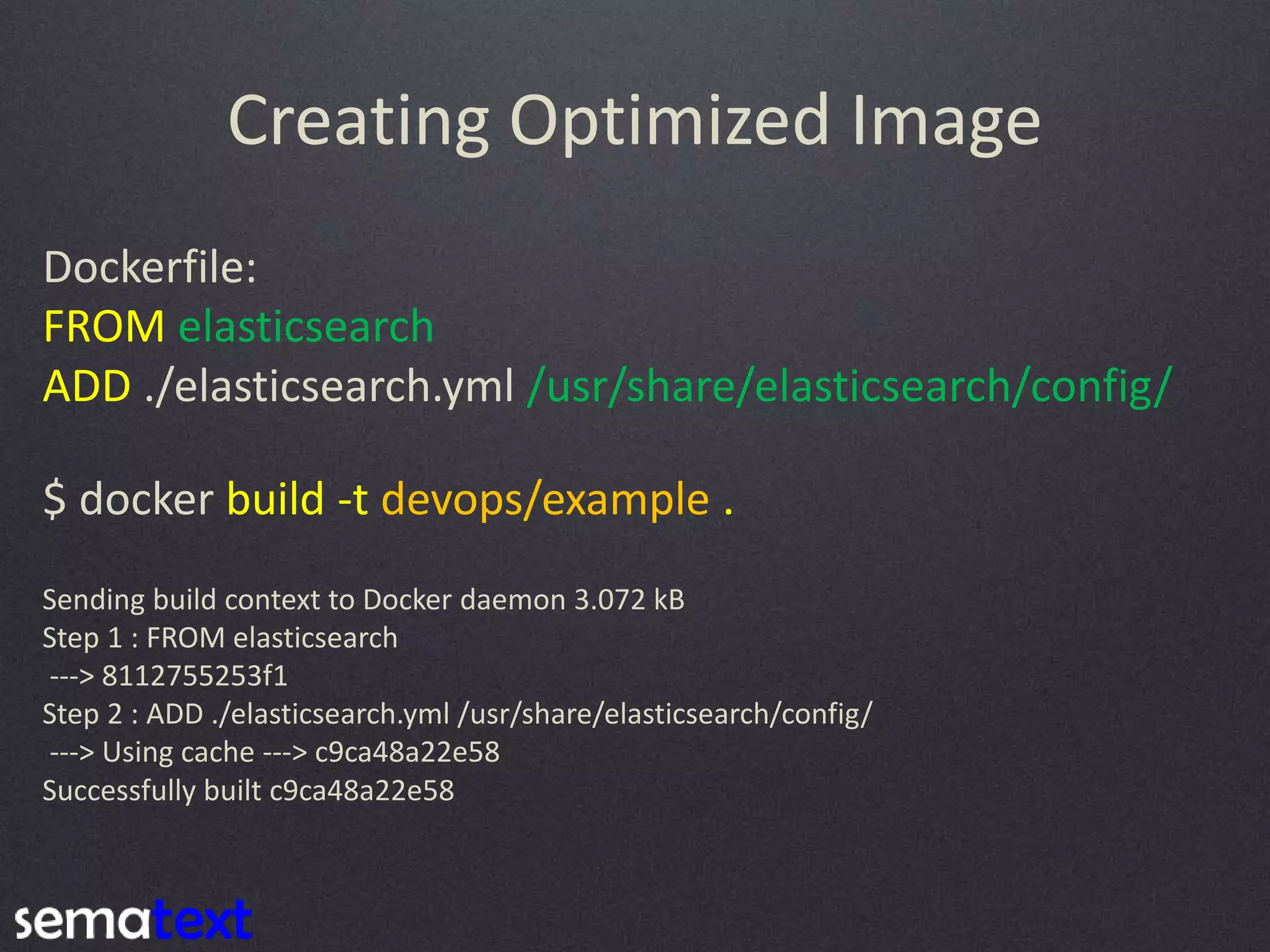

Creating Optimized Image Dockerfile: FROM elasticsearch ADD ./elasticsearch.yml /usr/share/elasticsearch/config/

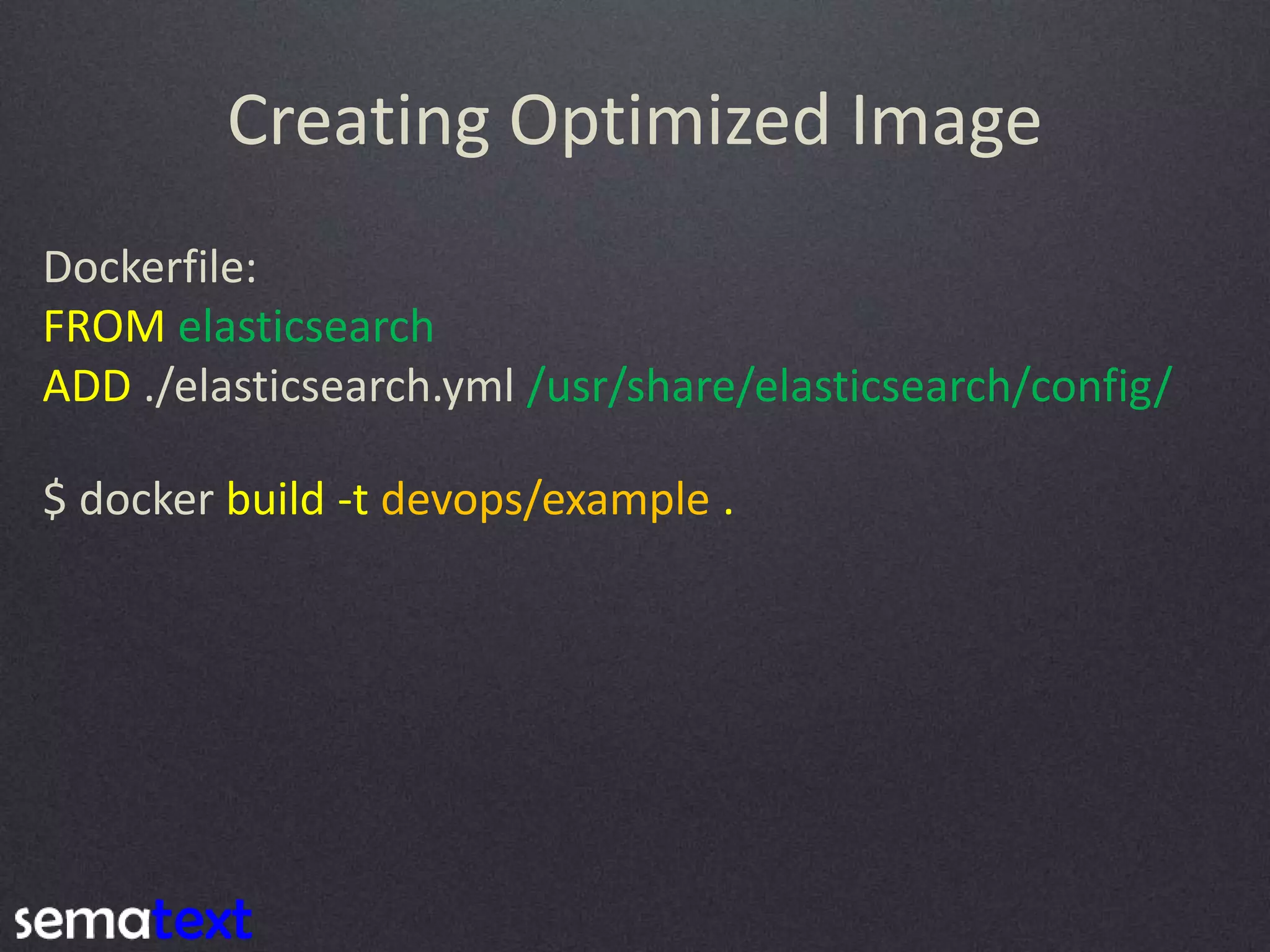

Creating Optimized Image Dockerfile: FROM elasticsearch ADD ./elasticsearch.yml /usr/share/elasticsearch/config/ $ docker build -t devops/example .

Creating Optimized Image Dockerfile: FROM elasticsearch ADD ./elasticsearch.yml /usr/share/elasticsearch/config/ $ docker build -t devops/example . Sending build context to Docker daemon 3.072 kB Step 1 : FROM elasticsearch ---> 8112755253f1 Step 2 : ADD ./elasticsearch.yml /usr/share/elasticsearch/config/ ---> Using cache ---> c9ca48a22e58 Successfully built c9ca48a22e58

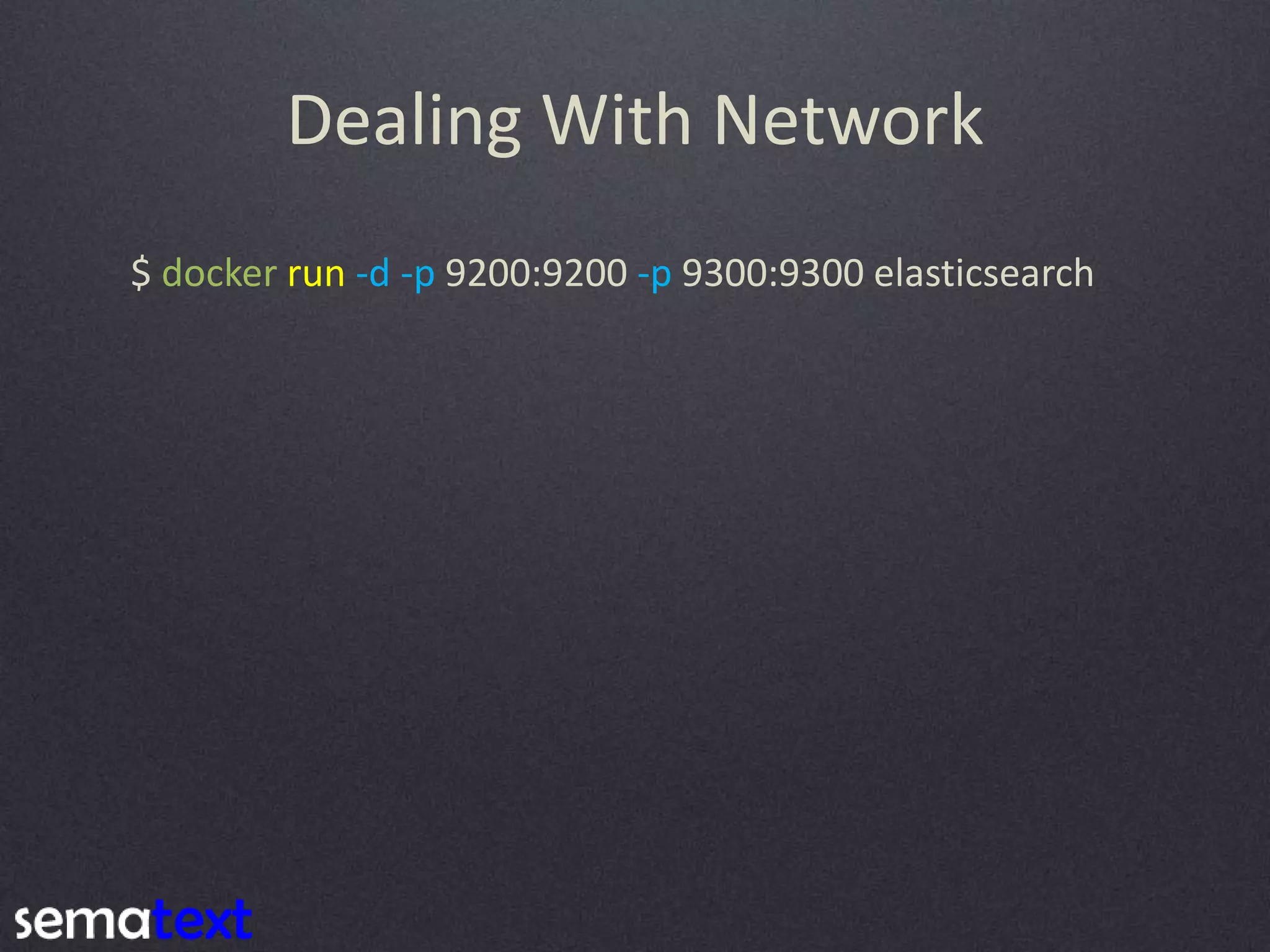

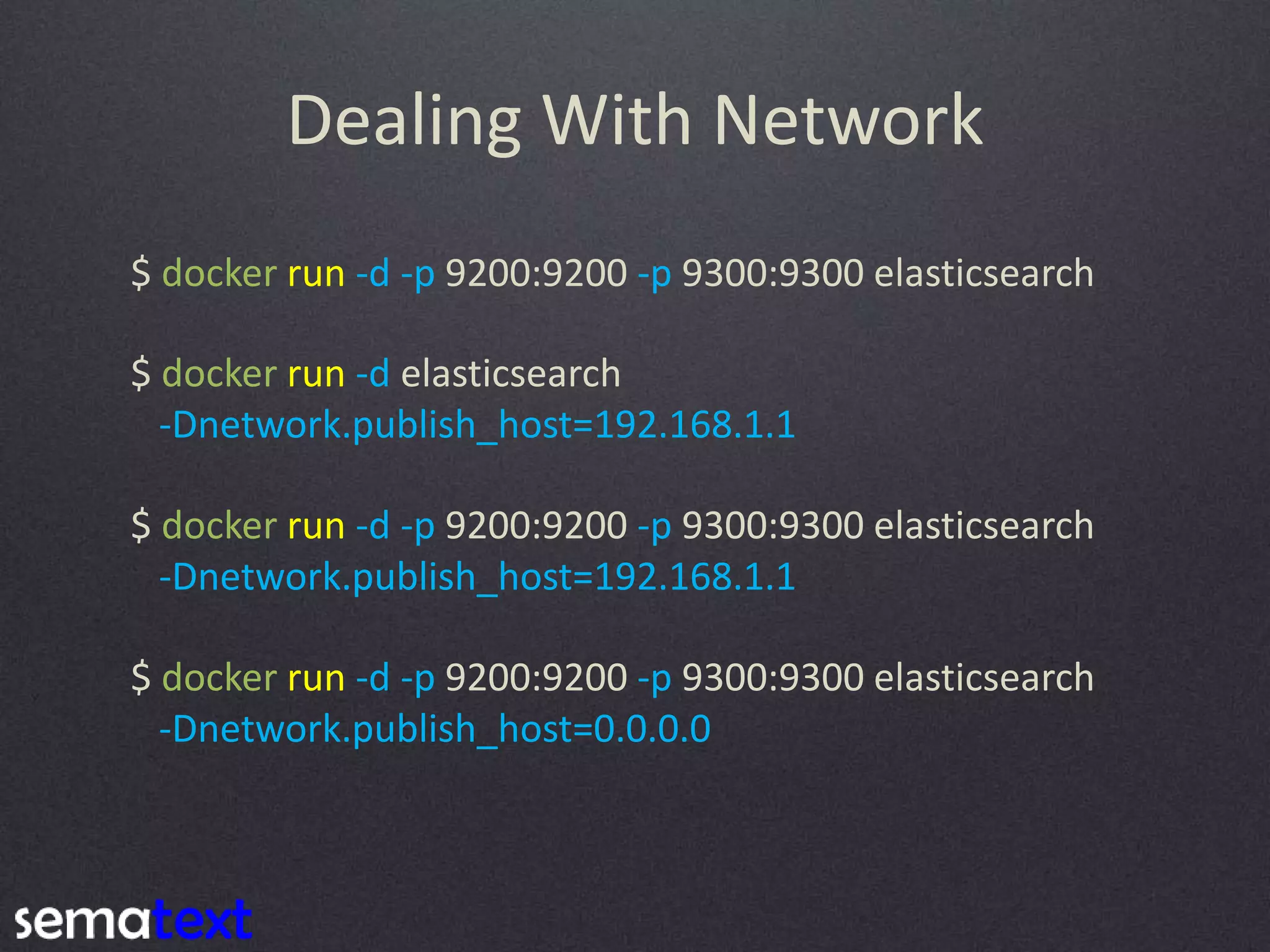

Dealing With Network $ docker run -d -p 9200:9200 -p 9300:9300 elasticsearch

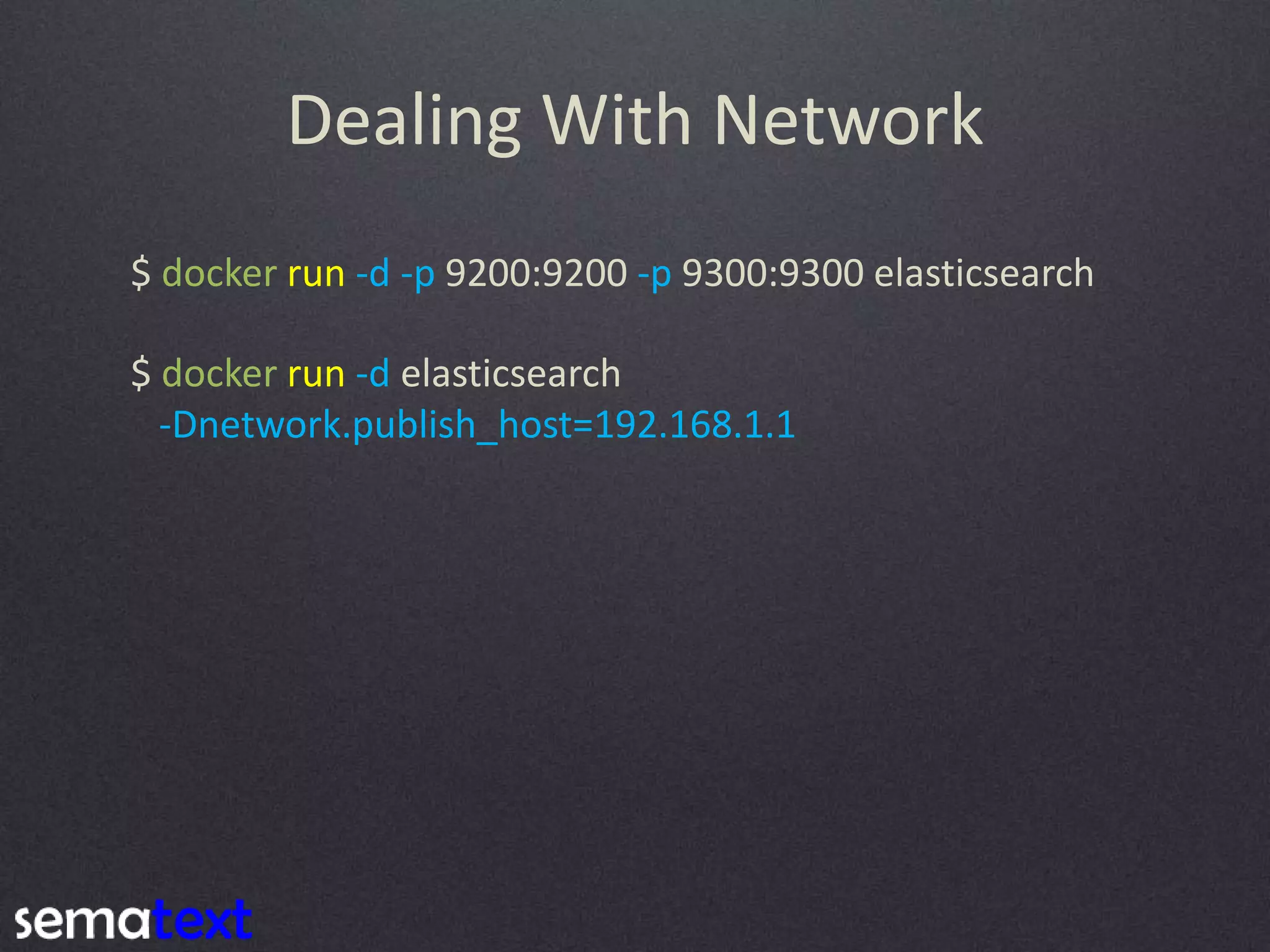

Dealing With Network $ docker run -d -p 9200:9200 -p 9300:9300 elasticsearch $ docker run -d elasticsearch -Dnetwork.publish_host=192.168.1.1

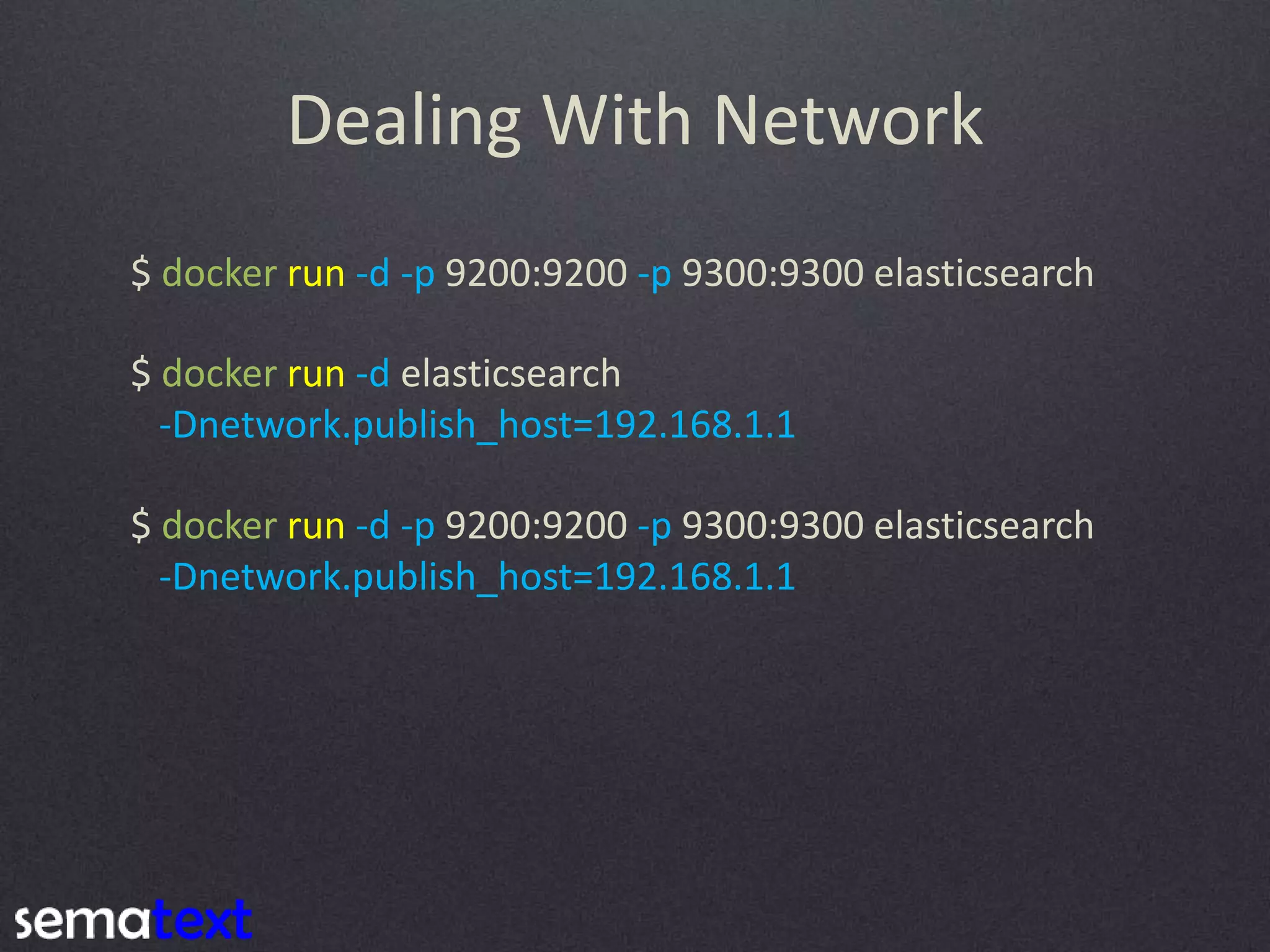

Dealing With Network $ docker run -d -p 9200:9200 -p 9300:9300 elasticsearch $ docker run -d elasticsearch -Dnetwork.publish_host=192.168.1.1 $ docker run -d -p 9200:9200 -p 9300:9300 elasticsearch -Dnetwork.publish_host=192.168.1.1

Dealing With Network $ docker run -d -p 9200:9200 -p 9300:9300 elasticsearch $ docker run -d elasticsearch -Dnetwork.publish_host=192.168.1.1 $ docker run -d -p 9200:9200 -p 9300:9300 elasticsearch -Dnetwork.publish_host=192.168.1.1 $ docker run -d -p 9200:9200 -p 9300:9300 elasticsearch -Dnetwork.publish_host=0.0.0.0

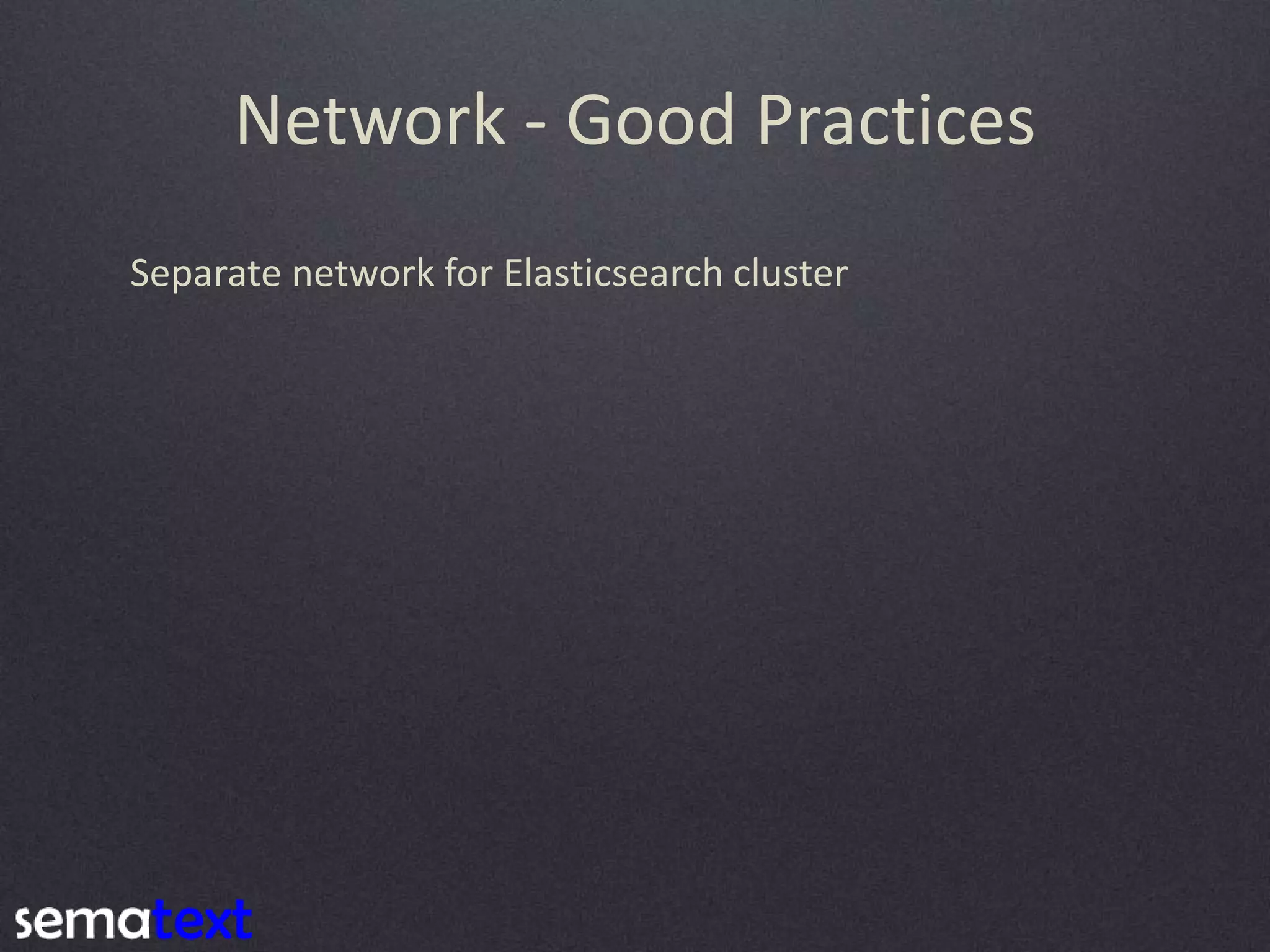

Network - Good Practices Separate network for Elasticsearch cluster

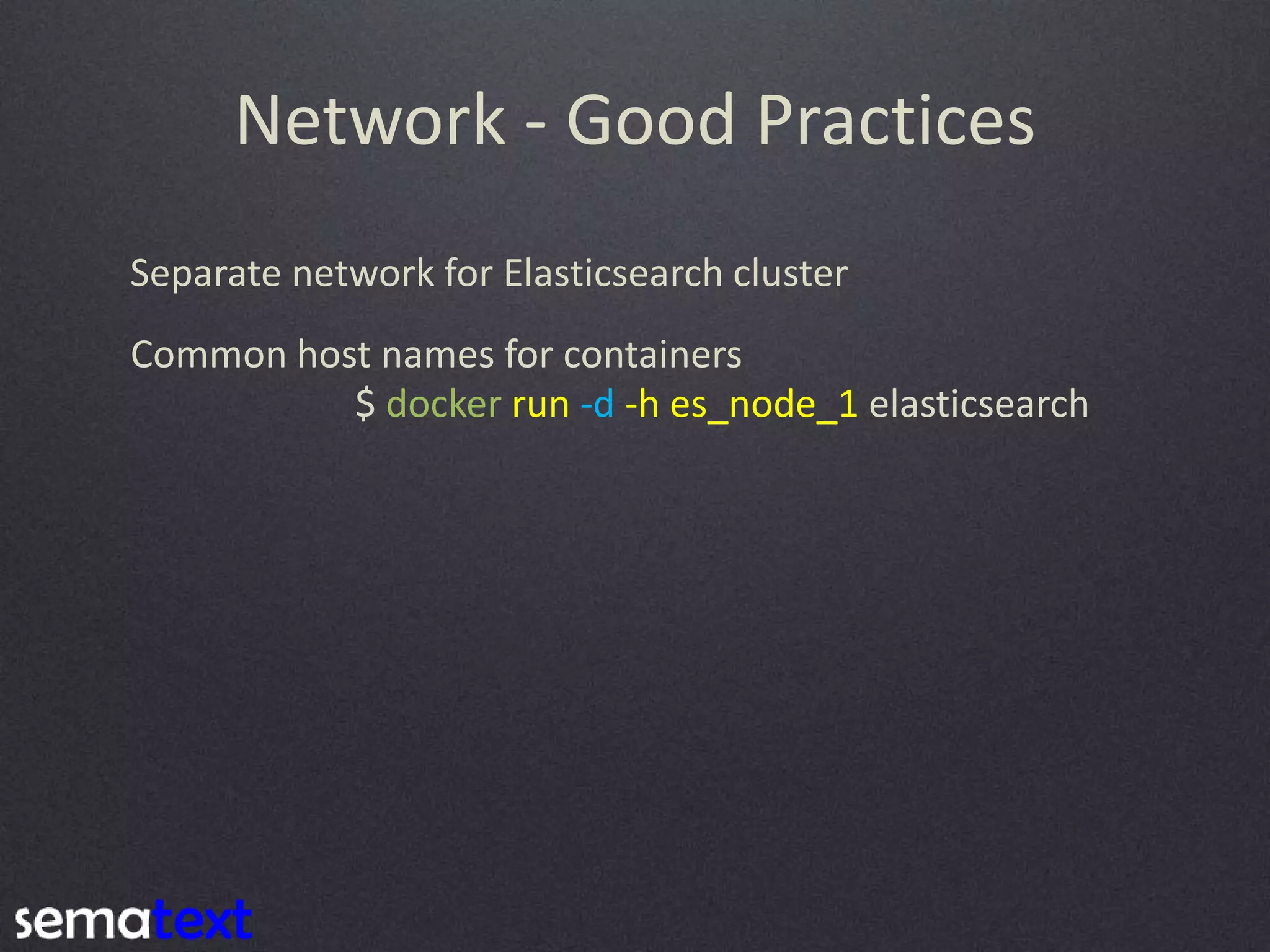

Network - Good Practices Separate network for Elasticsearch cluster Common host names for containers $ docker run -d -h es_node_1 elasticsearch

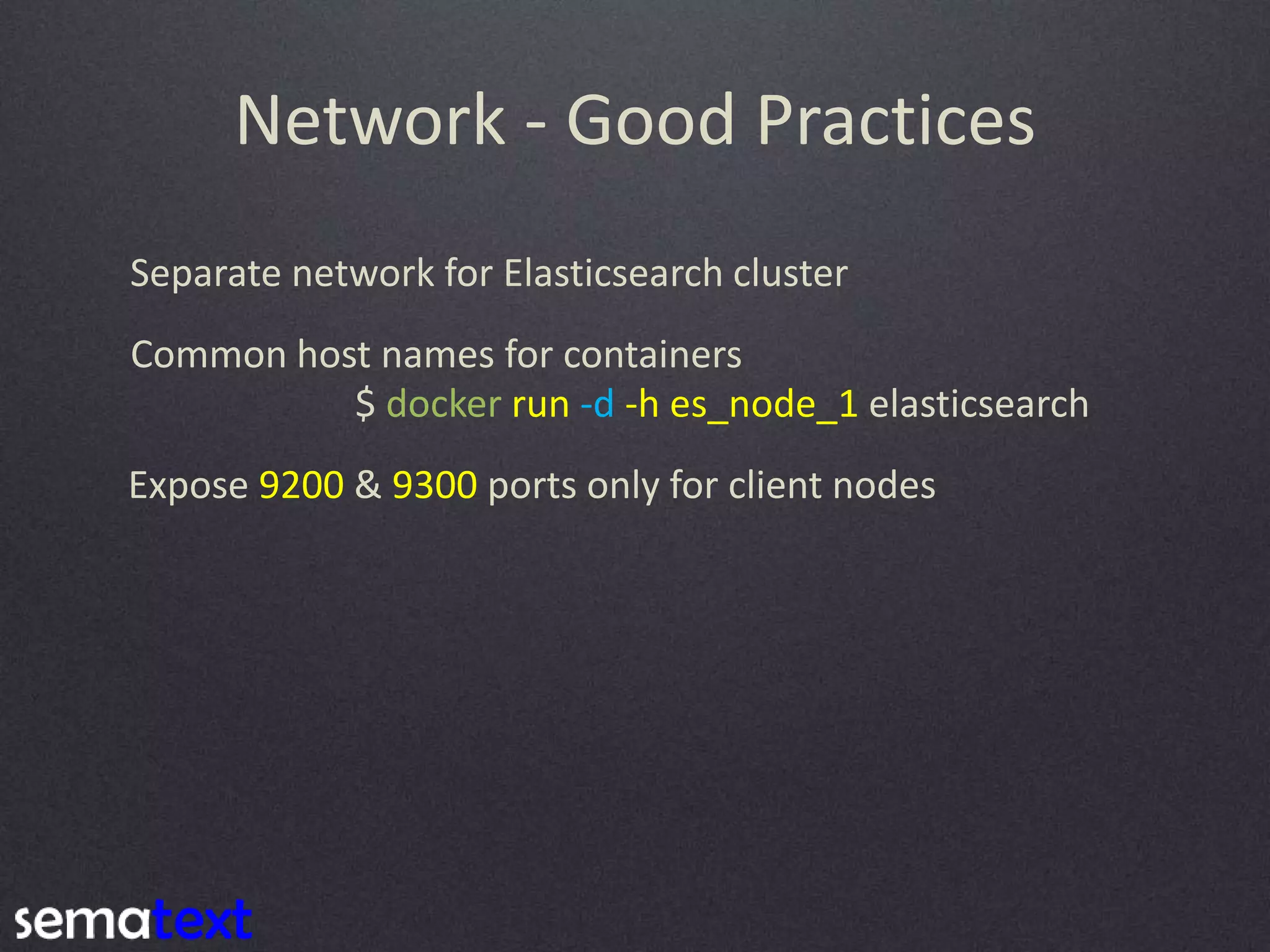

Network - Good Practices Separate network for Elasticsearch cluster Common host names for containers $ docker run -d -h es_node_1 elasticsearch Expose 9200 & 9300 ports only for client nodes

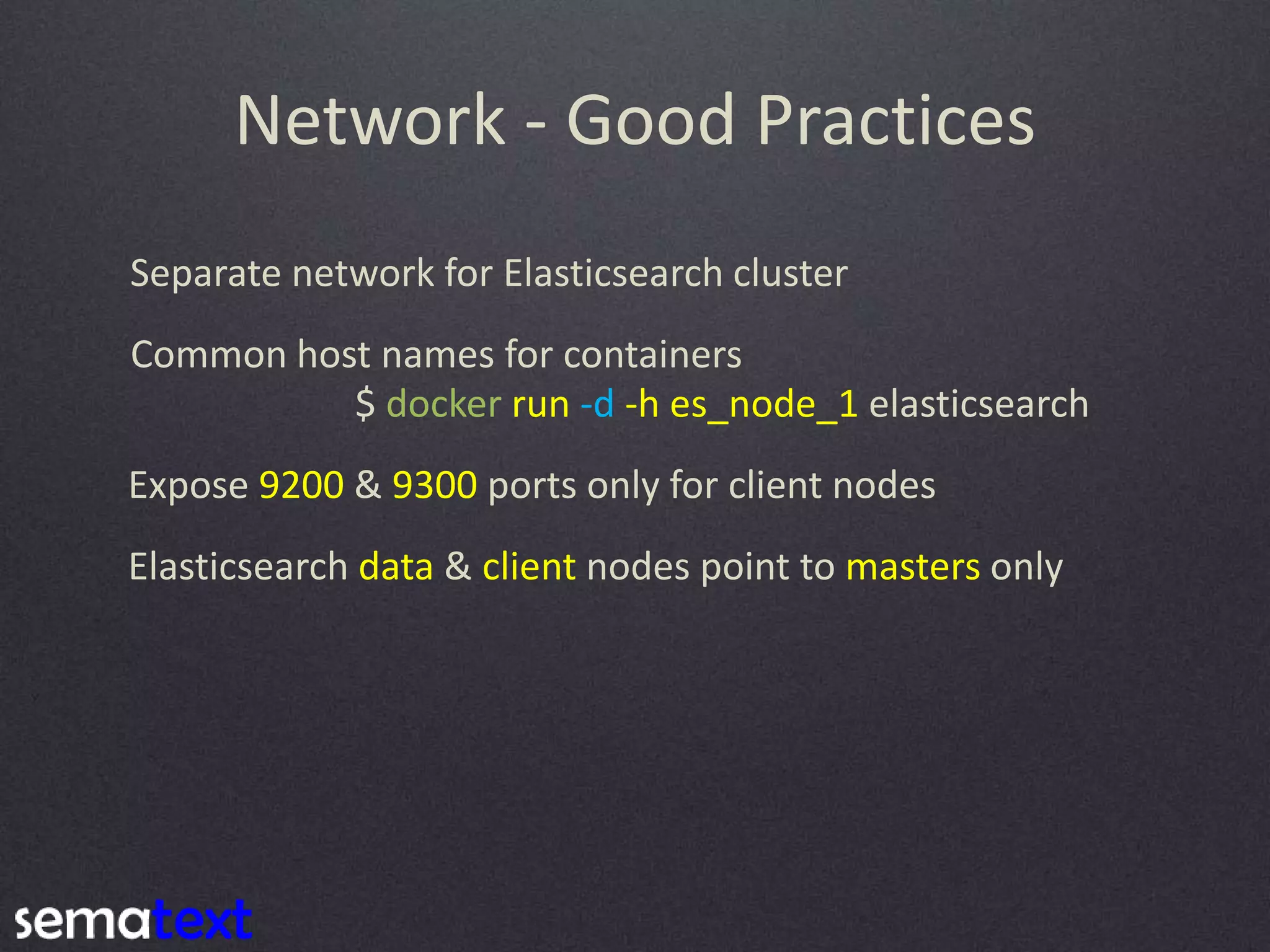

Network - Good Practices Separate network for Elasticsearch cluster Common host names for containers $ docker run -d -h es_node_1 elasticsearch Expose 9200 & 9300 ports only for client nodes Elasticsearch data & client nodes point to masters only

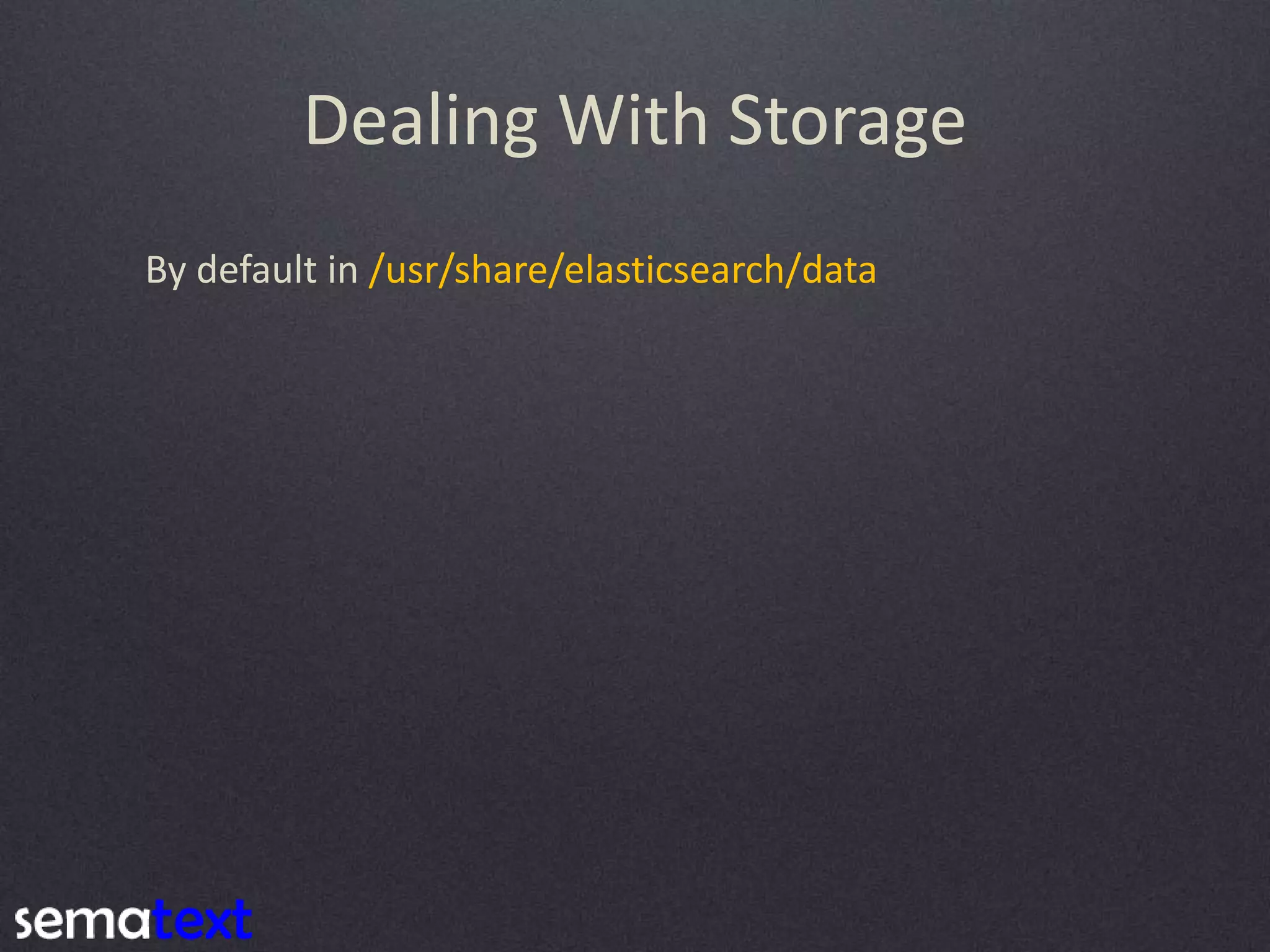

Dealing With Storage By default in /usr/share/elasticsearch/data

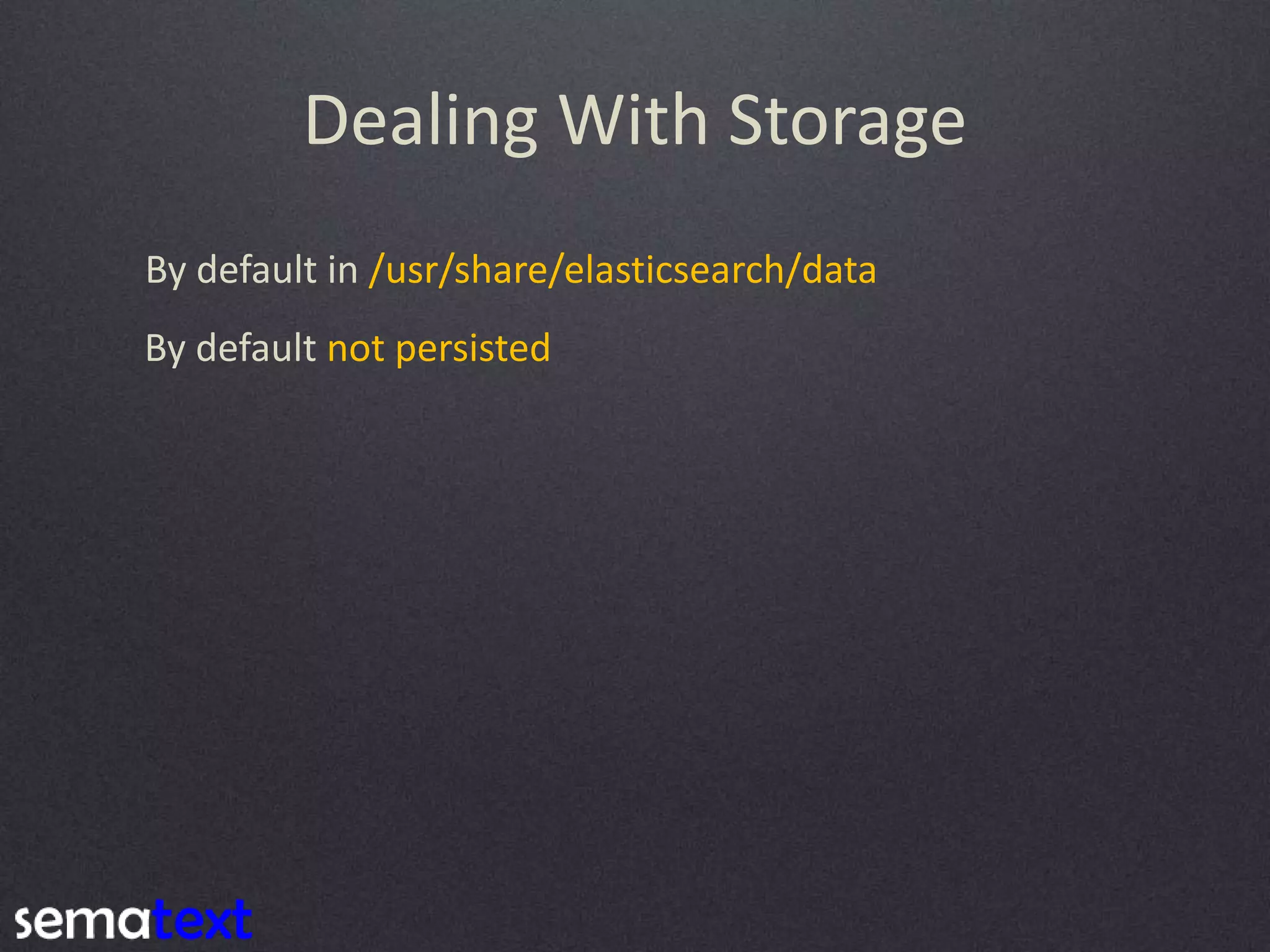

Dealing With Storage By default in /usr/share/elasticsearch/data By default not persisted

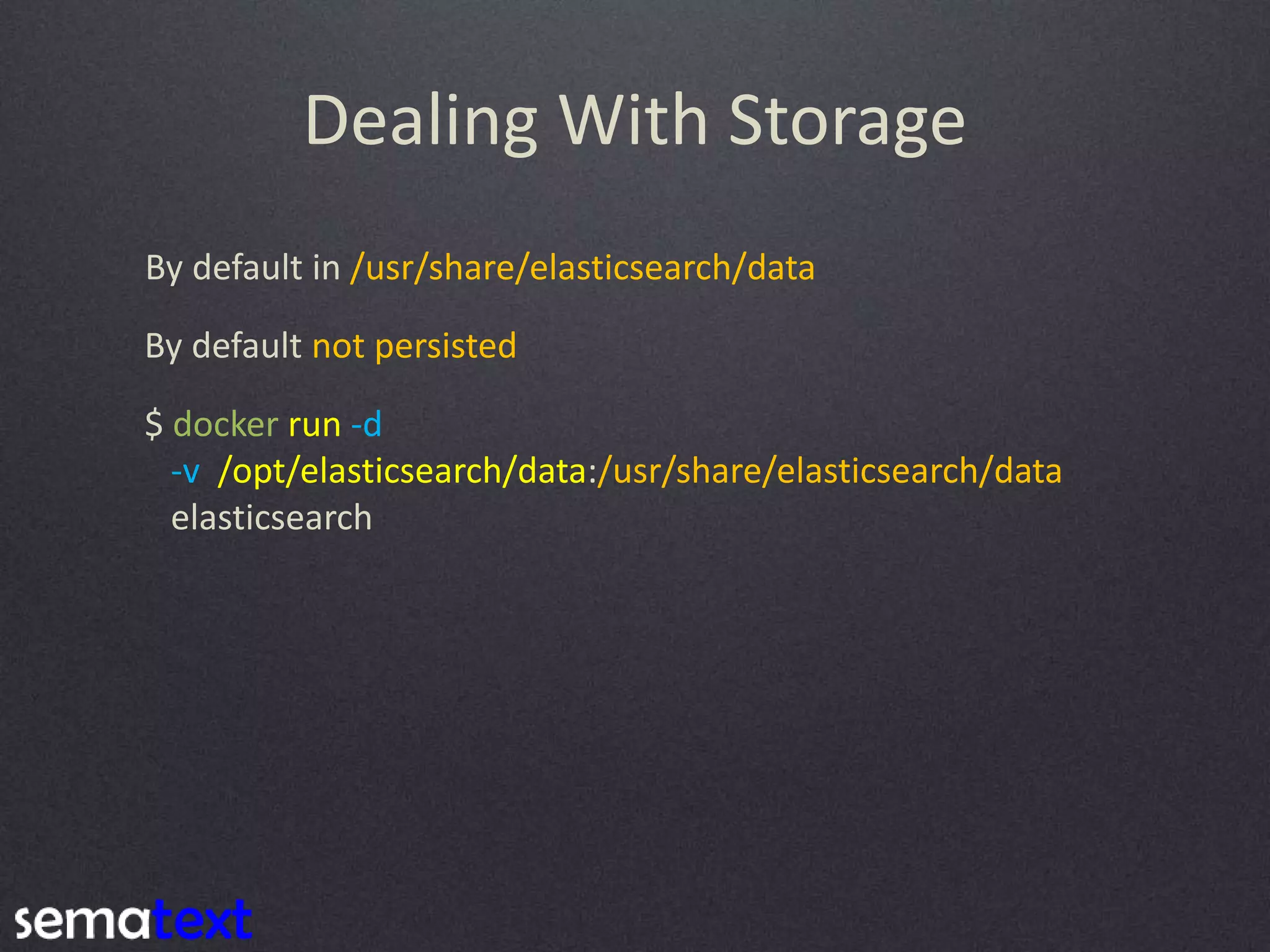

Dealing With Storage By default in /usr/share/elasticsearch/data By default not persisted $ docker run -d -v /opt/elasticsearch/data:/usr/share/elasticsearch/data elasticsearch

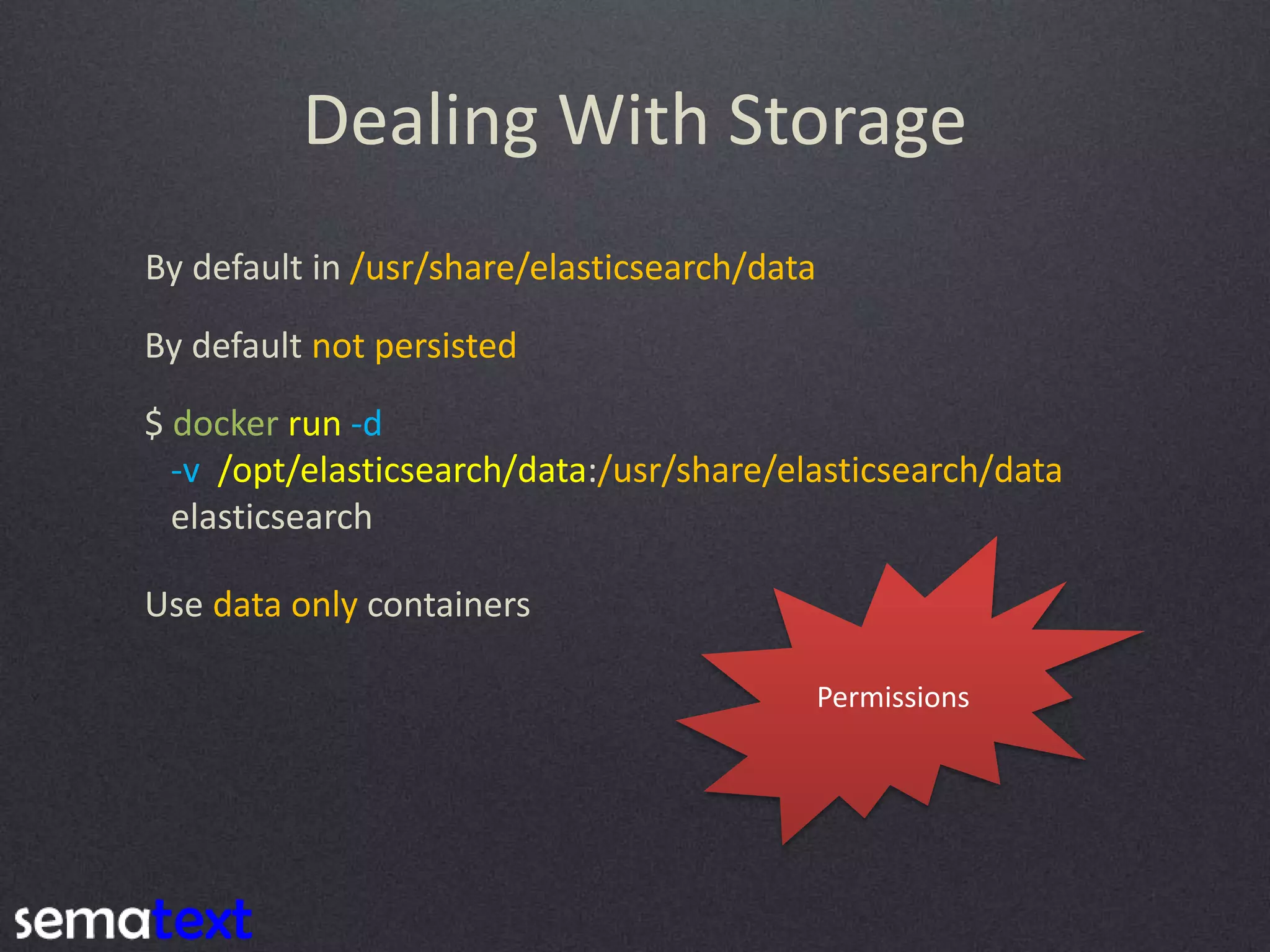

Dealing With Storage $ docker run -d -v /opt/elasticsearch/data:/usr/share/elasticsearch/data elasticsearch By default in /usr/share/elasticsearch/data By default not persisted Use data only containers Permissions

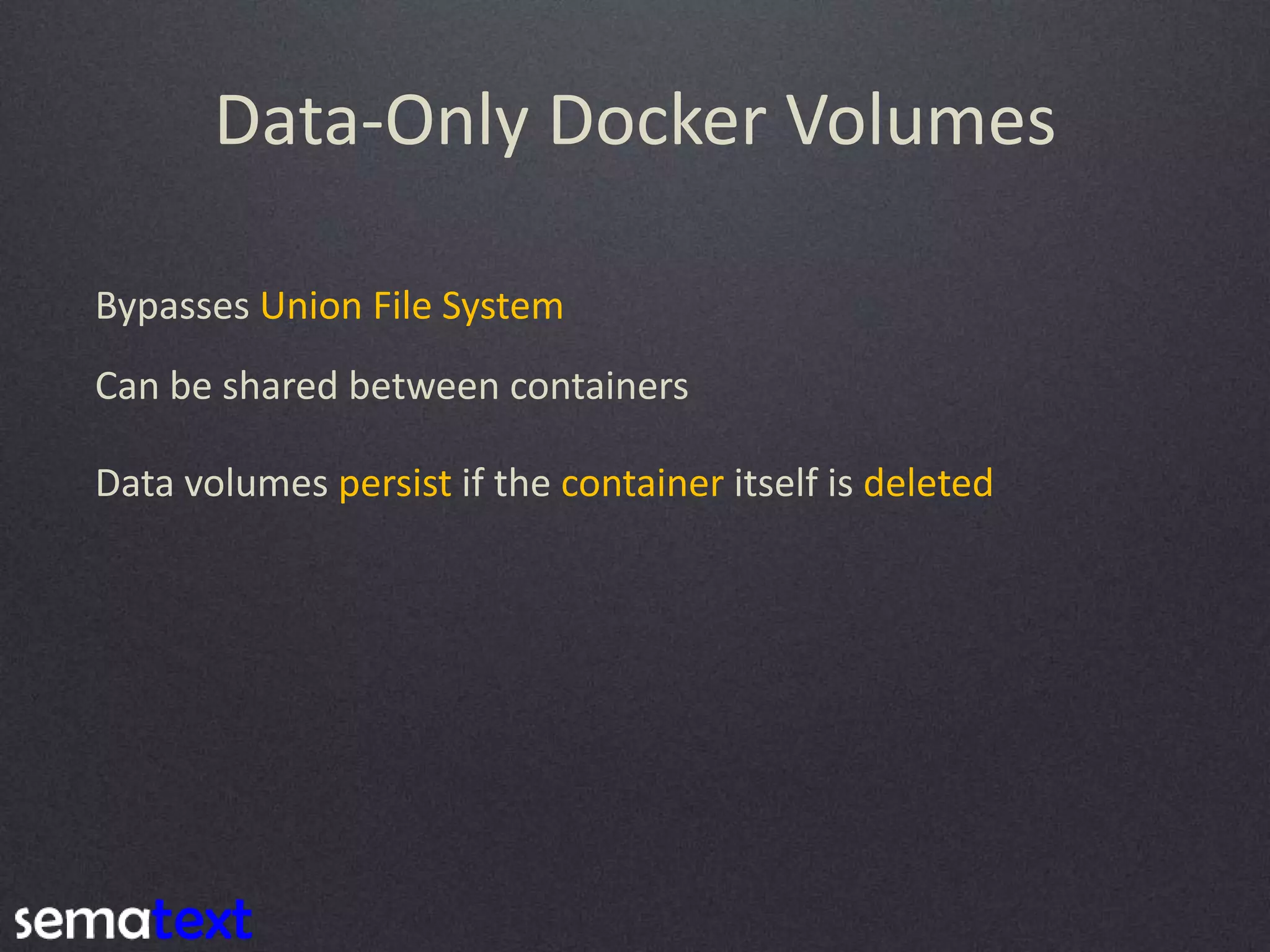

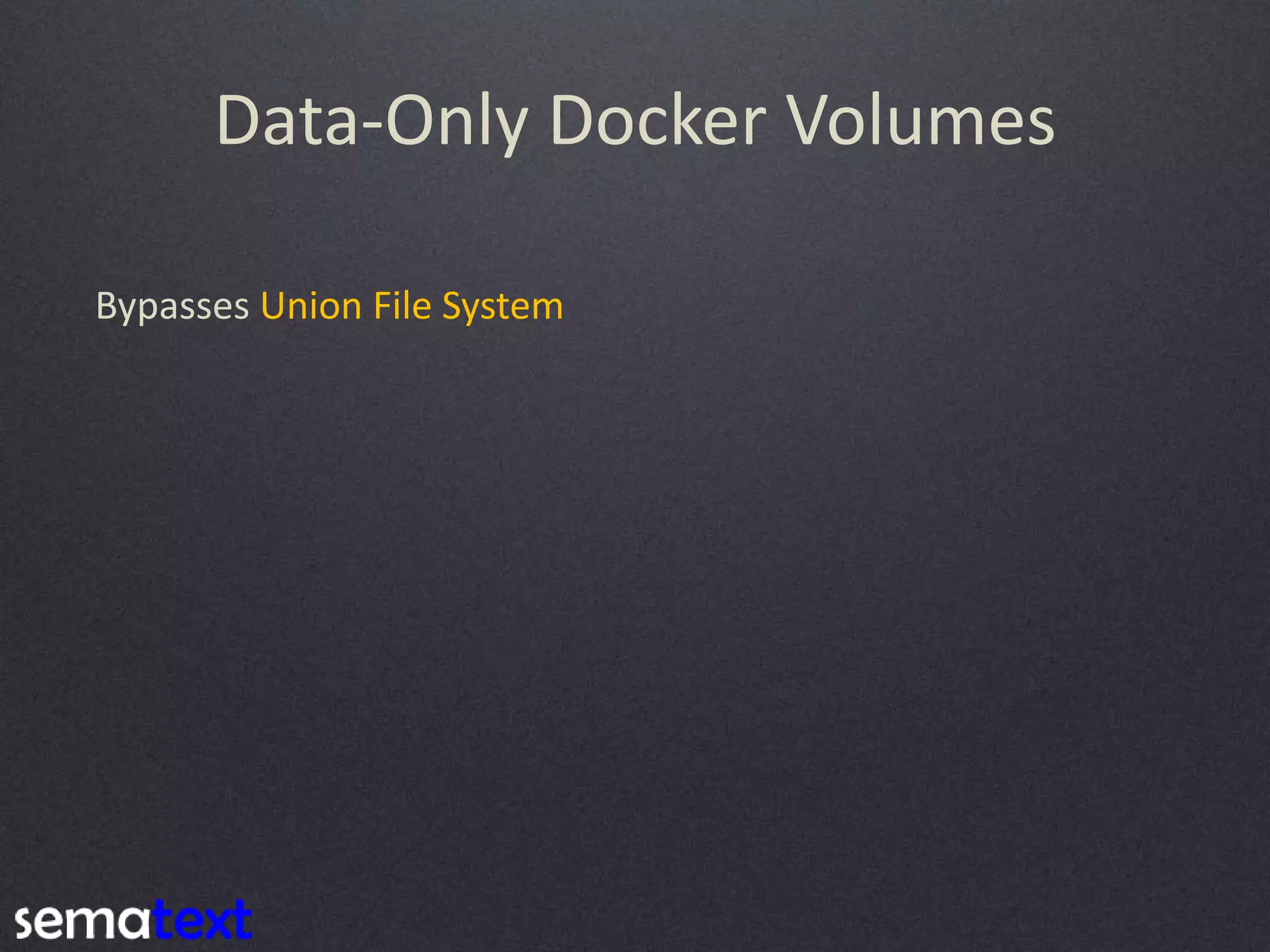

Data-Only Docker Volumes Bypasses Union File System

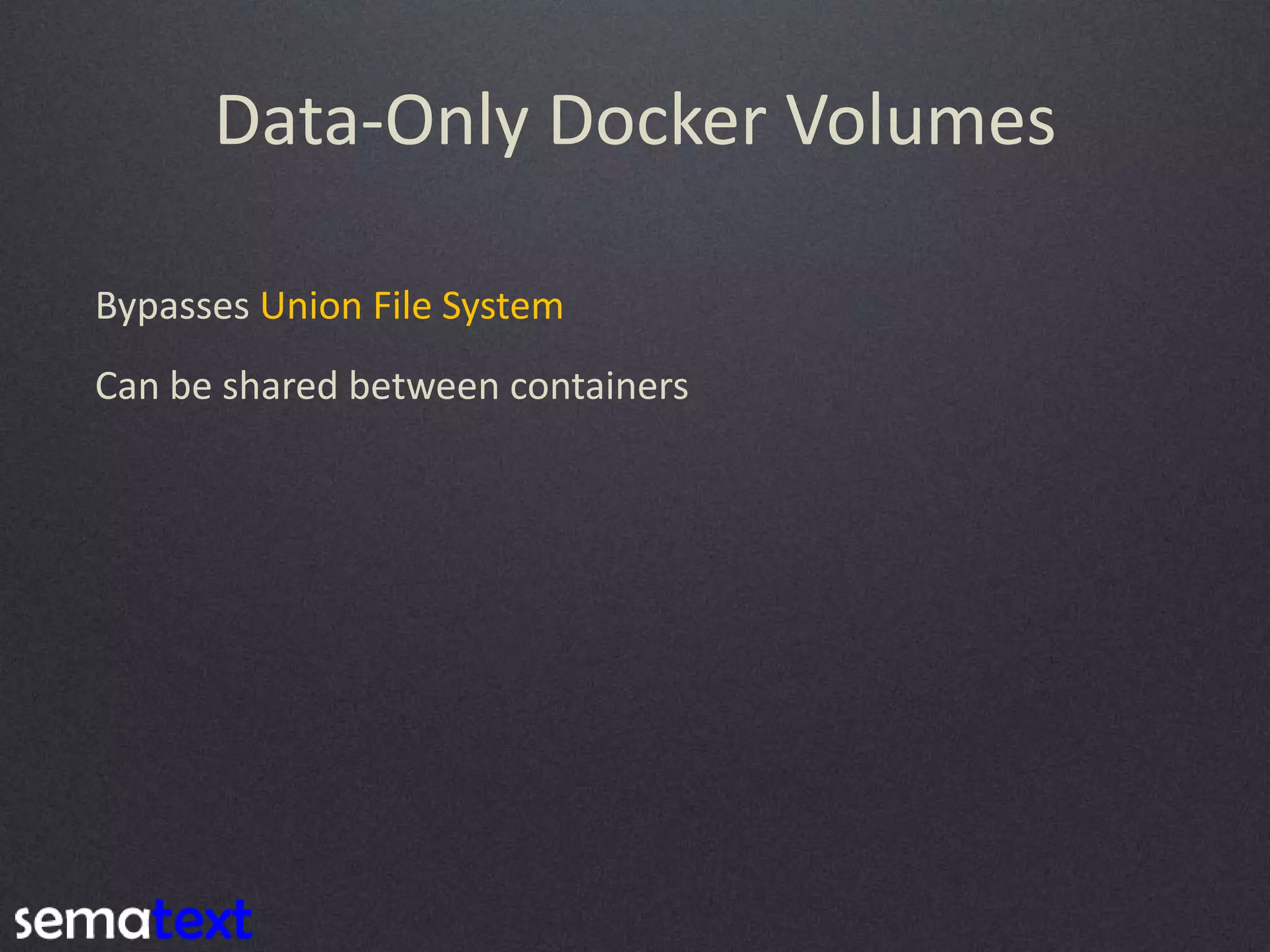

Data-Only Docker Volumes Bypasses Union File System Can be shared between containers

Data-Only Docker Volumes Bypasses Union File System Can be shared between containers Data volumes persist if the container itself is deleted

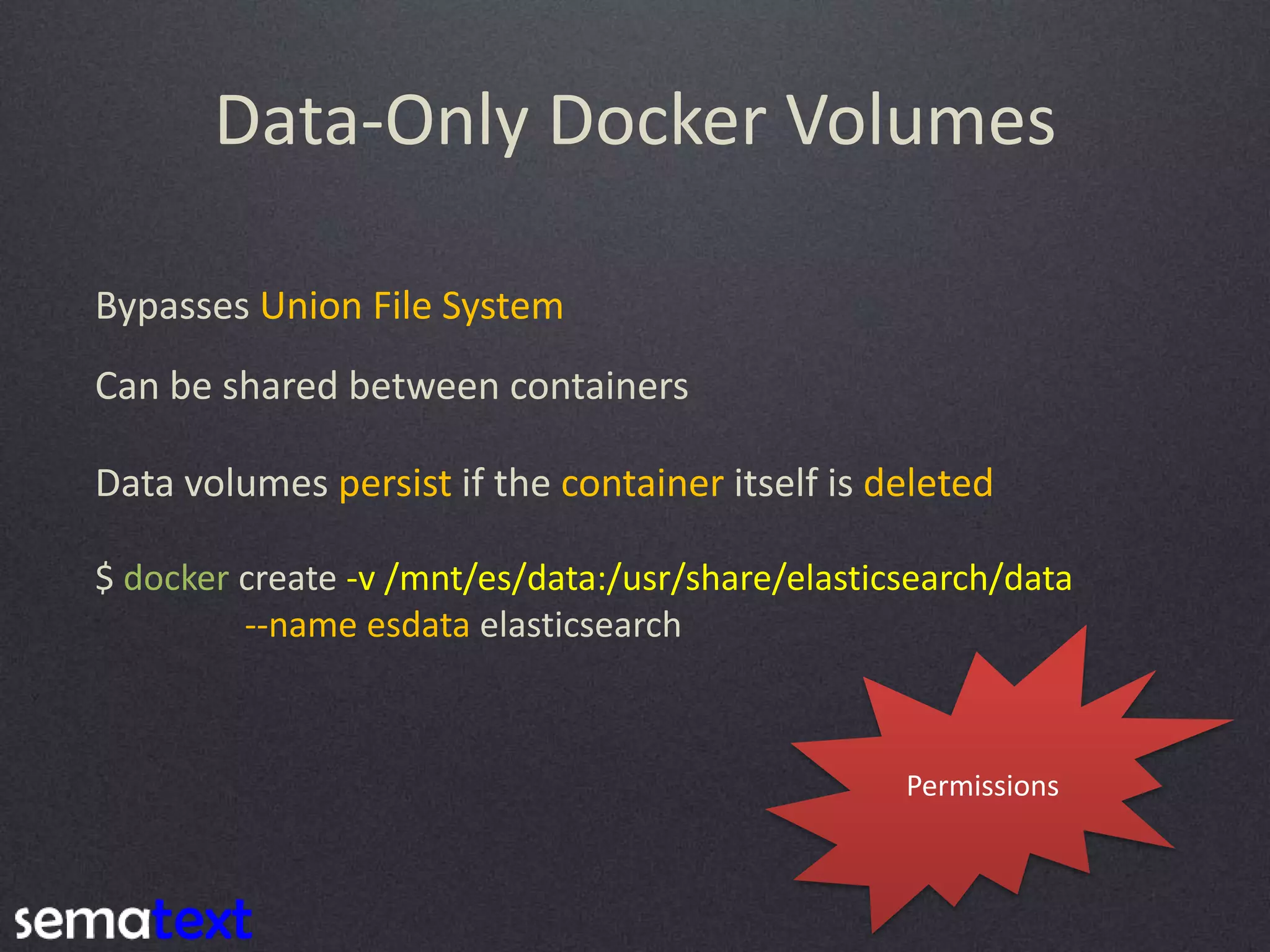

Data-Only Docker Volumes Bypasses Union File System Can be shared between containers Data volumes persist if the container itself is deleted $ docker create -v /mnt/es/data:/usr/share/elasticsearch/data --name esdata elasticsearch Permissions

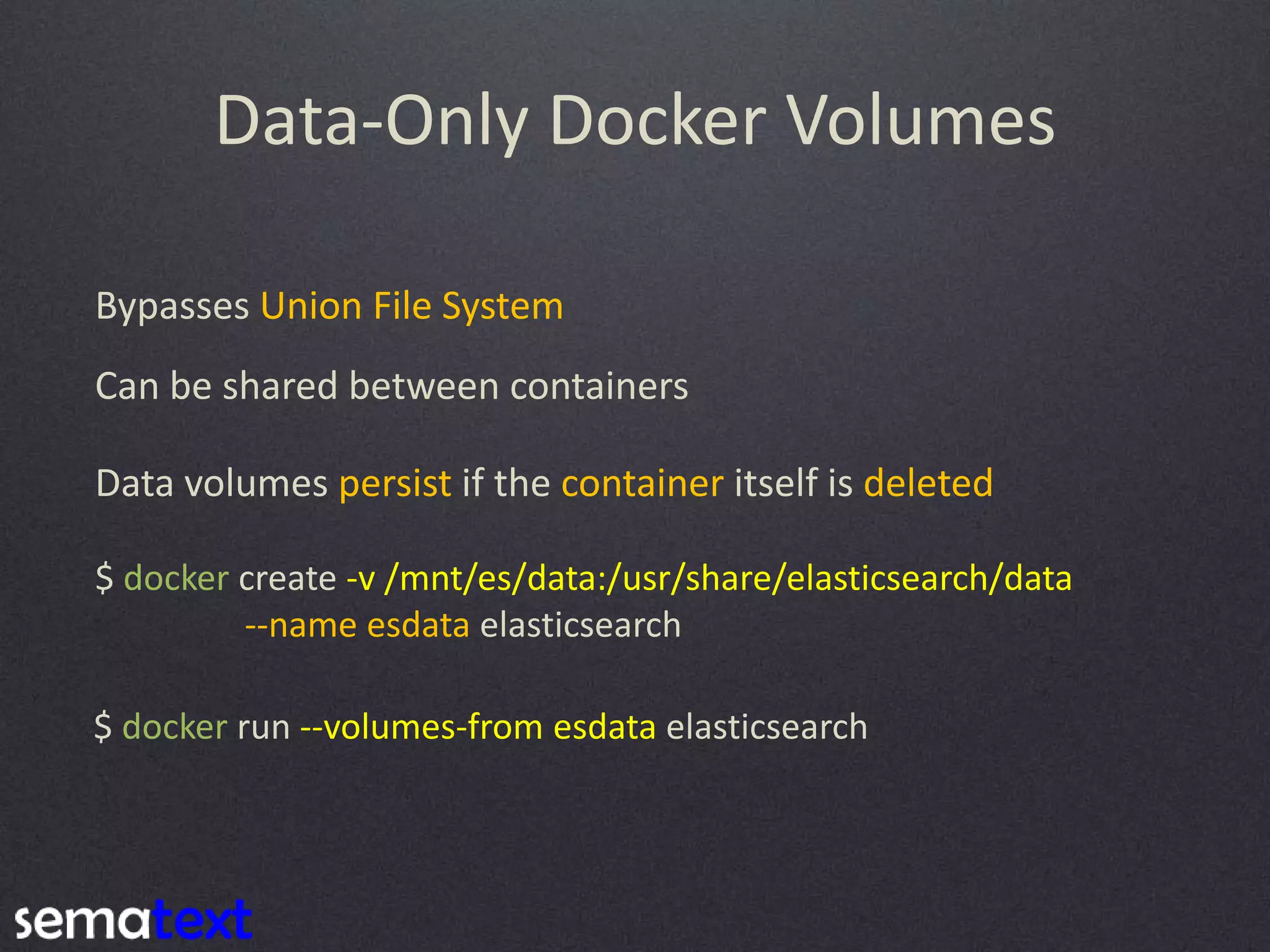

Data-Only Docker Volumes Bypasses Union File System Can be shared between containers Data volumes persist if the container itself is deleted $ docker create -v /mnt/es/data:/usr/share/elasticsearch/data --name esdata elasticsearch $ docker run --volumes-from esdata elasticsearch

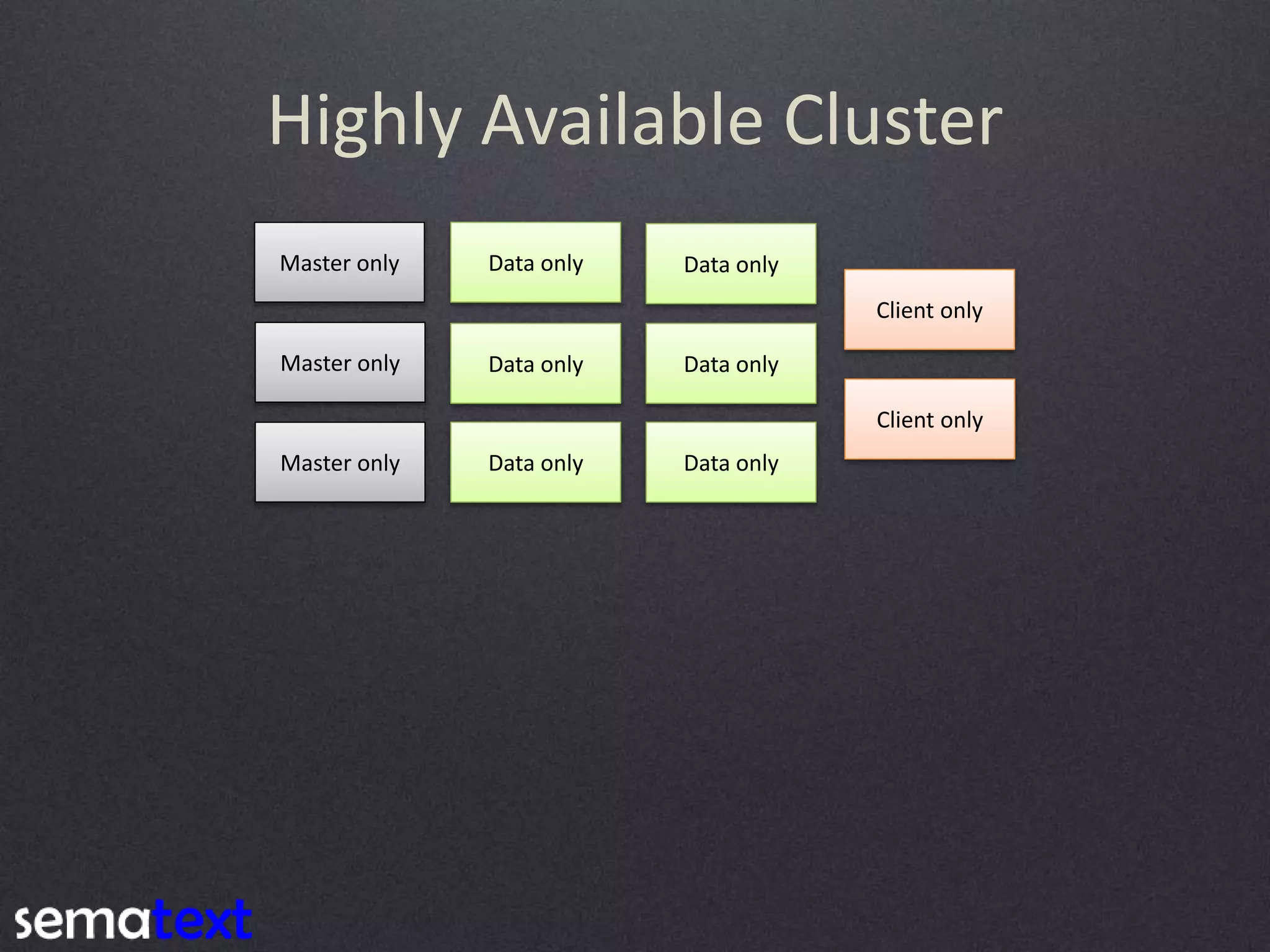

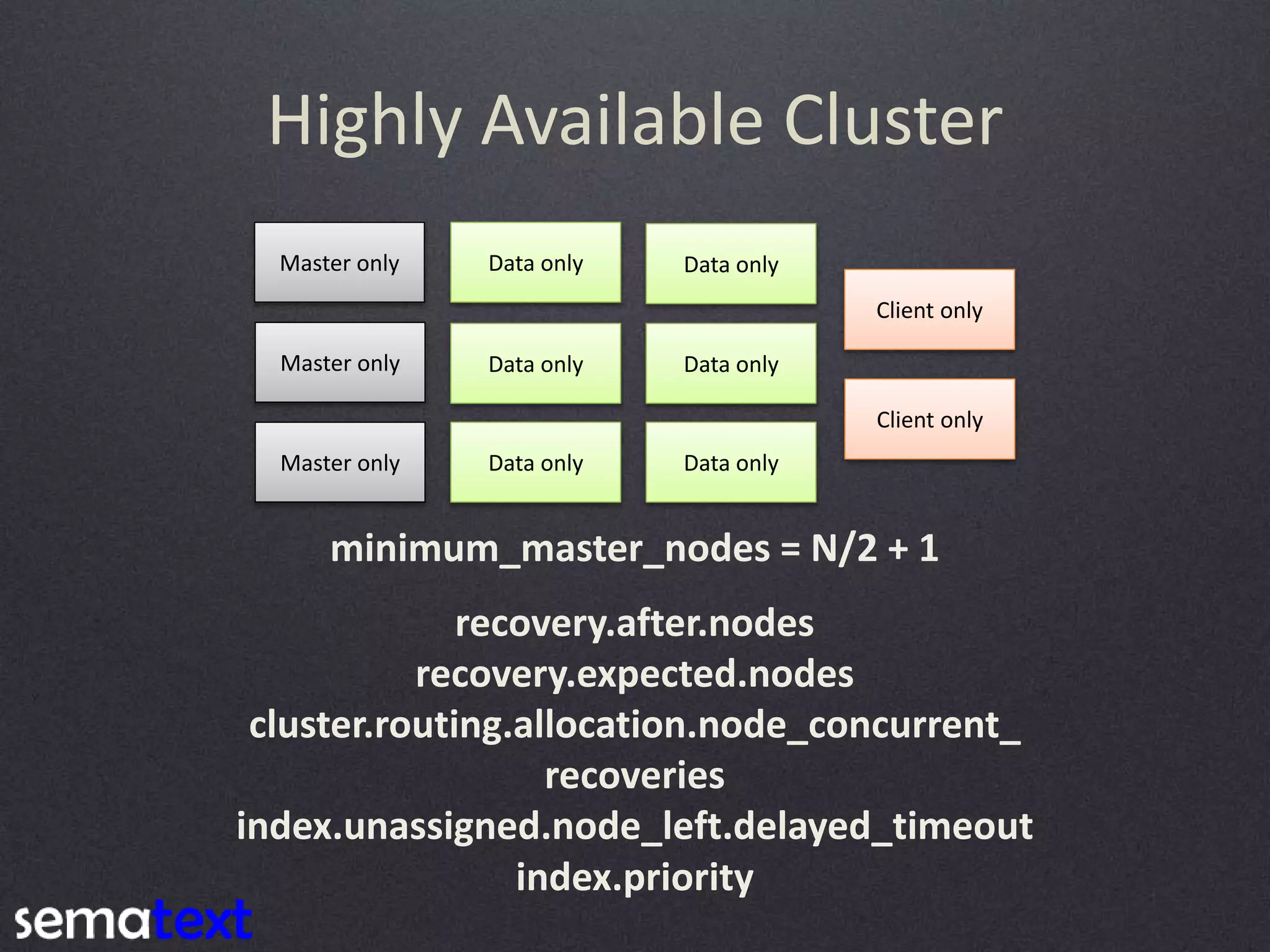

Highly Available Cluster Master only Master only Master only Data only Data only Data only Data only Data only Data only Client only Client only

Highly Available Cluster Master only Master only Master only Data only Data only Data only Data only Data only Data only Client only Client only minimum_master_nodes = N/2 + 1

Highly Available Cluster Master only Master only Master only Data only Data only Data only Data only Data only Data only Client only Client only minimum_master_nodes = N/2 + 1 recovery.after.nodes recovery.expected.nodes cluster.routing.allocation.node_concurrent_ recoveries index.unassigned.node_left.delayed_timeout index.priority

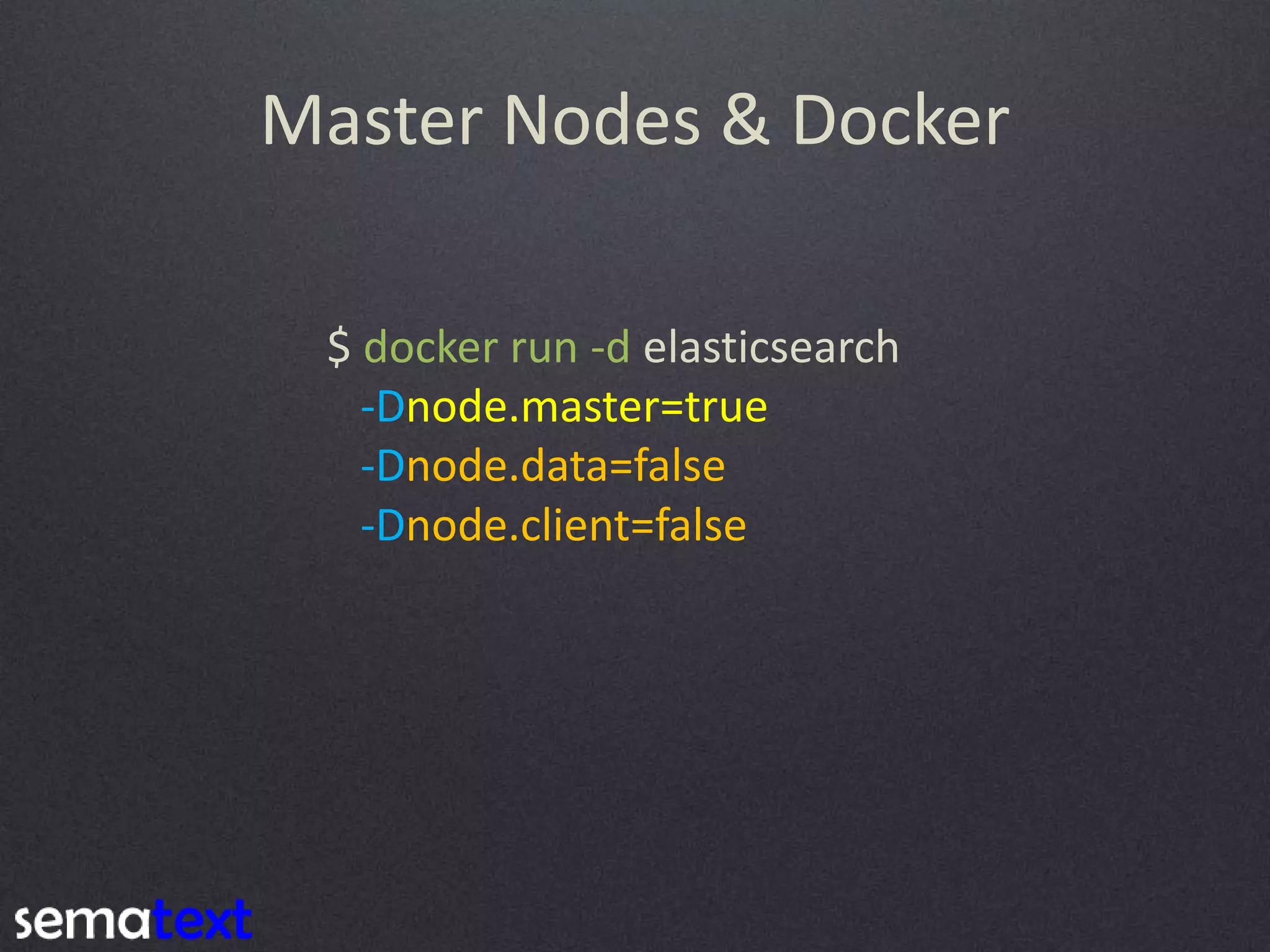

Master Nodes & Docker $ docker run -d elasticsearch -Dnode.master=true -Dnode.data=false -Dnode.client=false

Client Nodes & Docker $ docker run -d elasticsearch -Dnode.master=false -Dnode.data=false -Dnode.client=true

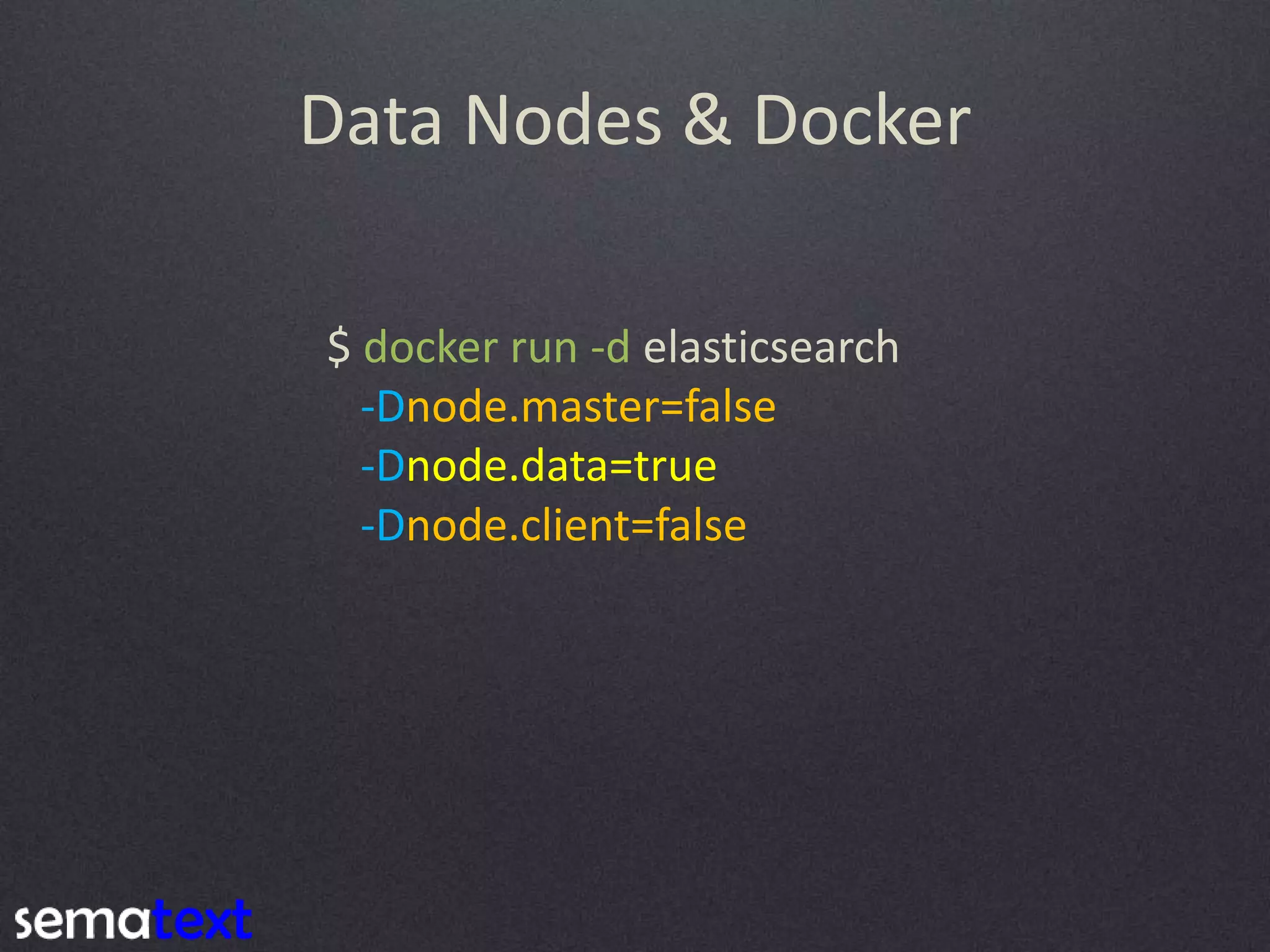

Data Nodes & Docker $ docker run -d elasticsearch -Dnode.master=false -Dnode.data=true -Dnode.client=false

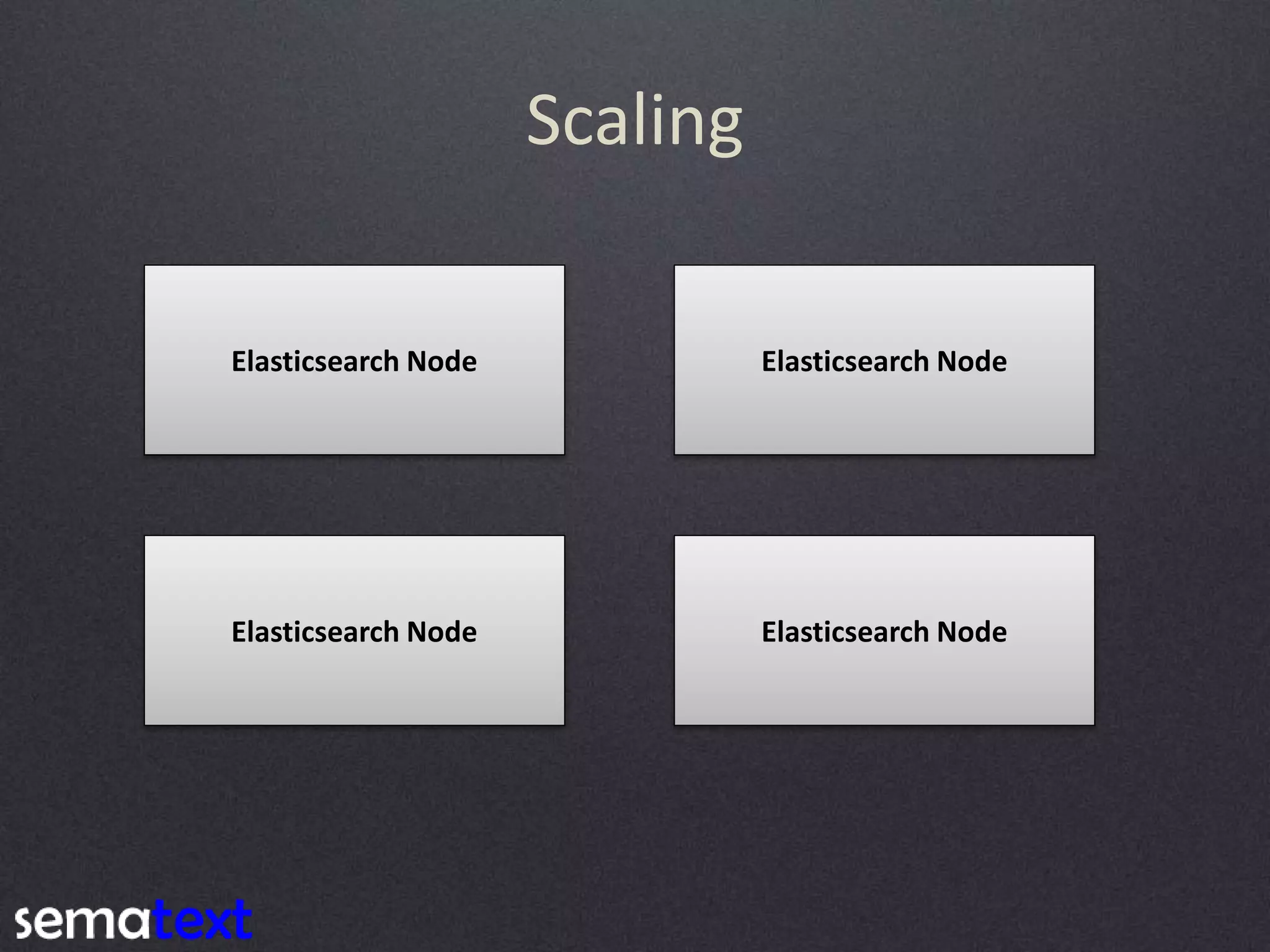

Scaling Elasticsearch Node Elasticsearch Node Elasticsearch Node Elasticsearch Node

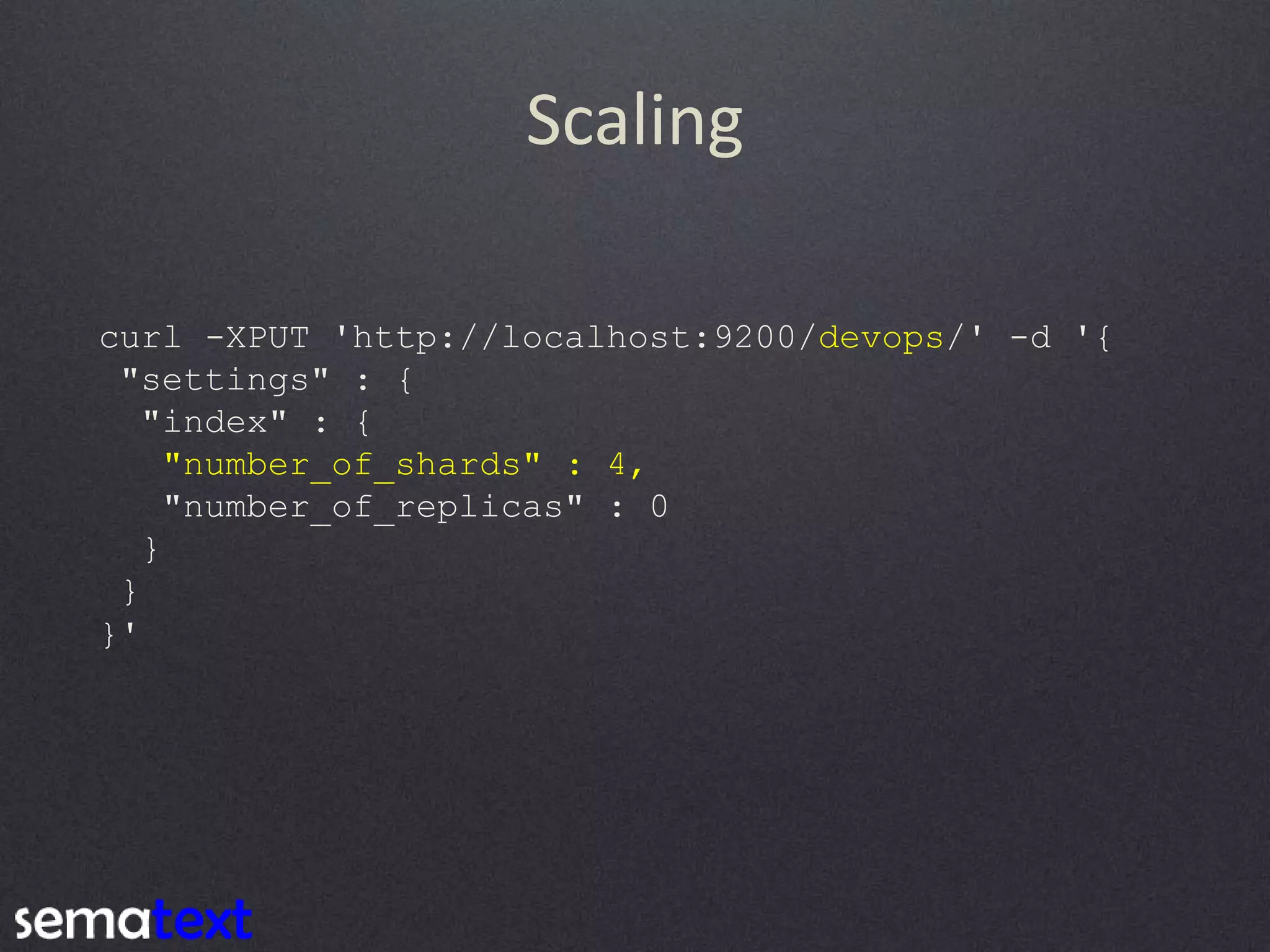

Scaling curl -XPUT 'http://localhost:9200/devops/' -d '{ "settings" : { "index" : { "number_of_shards" : 4, "number_of_replicas" : 0 } } }'

Scaling curl -XPUT 'http://localhost:9200/devops/_settings' -d '{ "index.number_of_replicas" : 1 }'

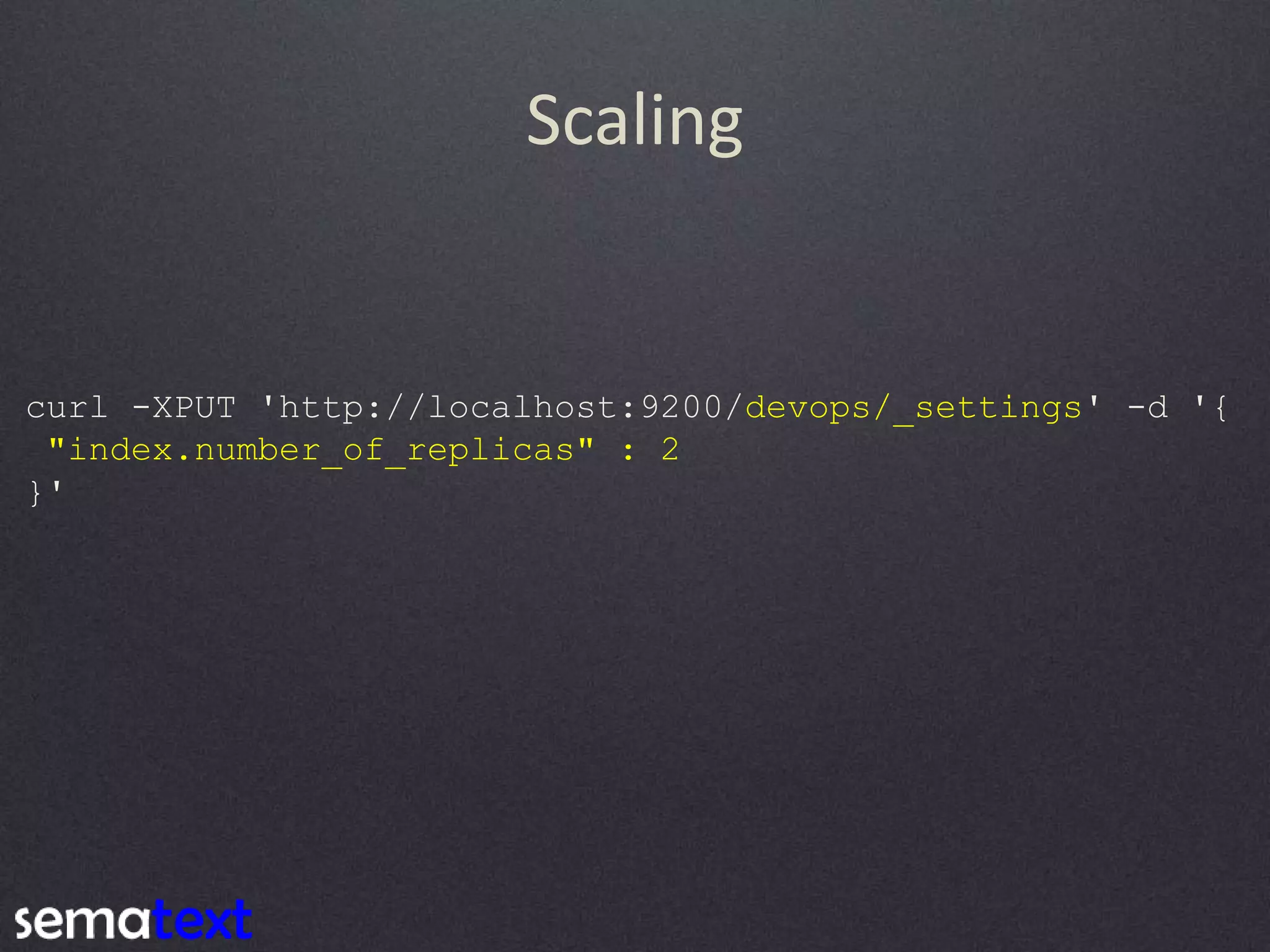

Scaling curl -XPUT 'http://localhost:9200/devops/_settings' -d '{ "index.number_of_replicas" : 2 }'

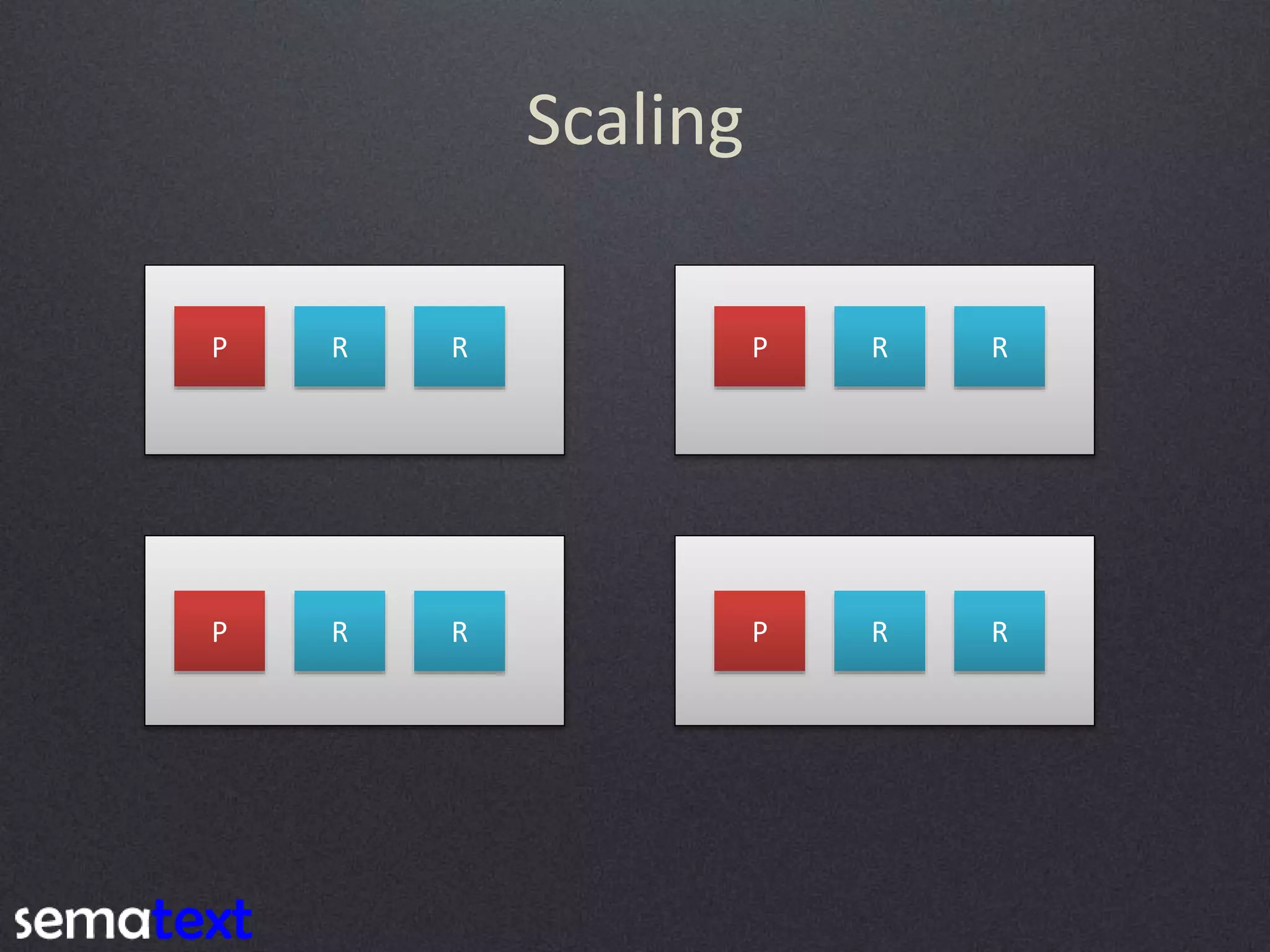

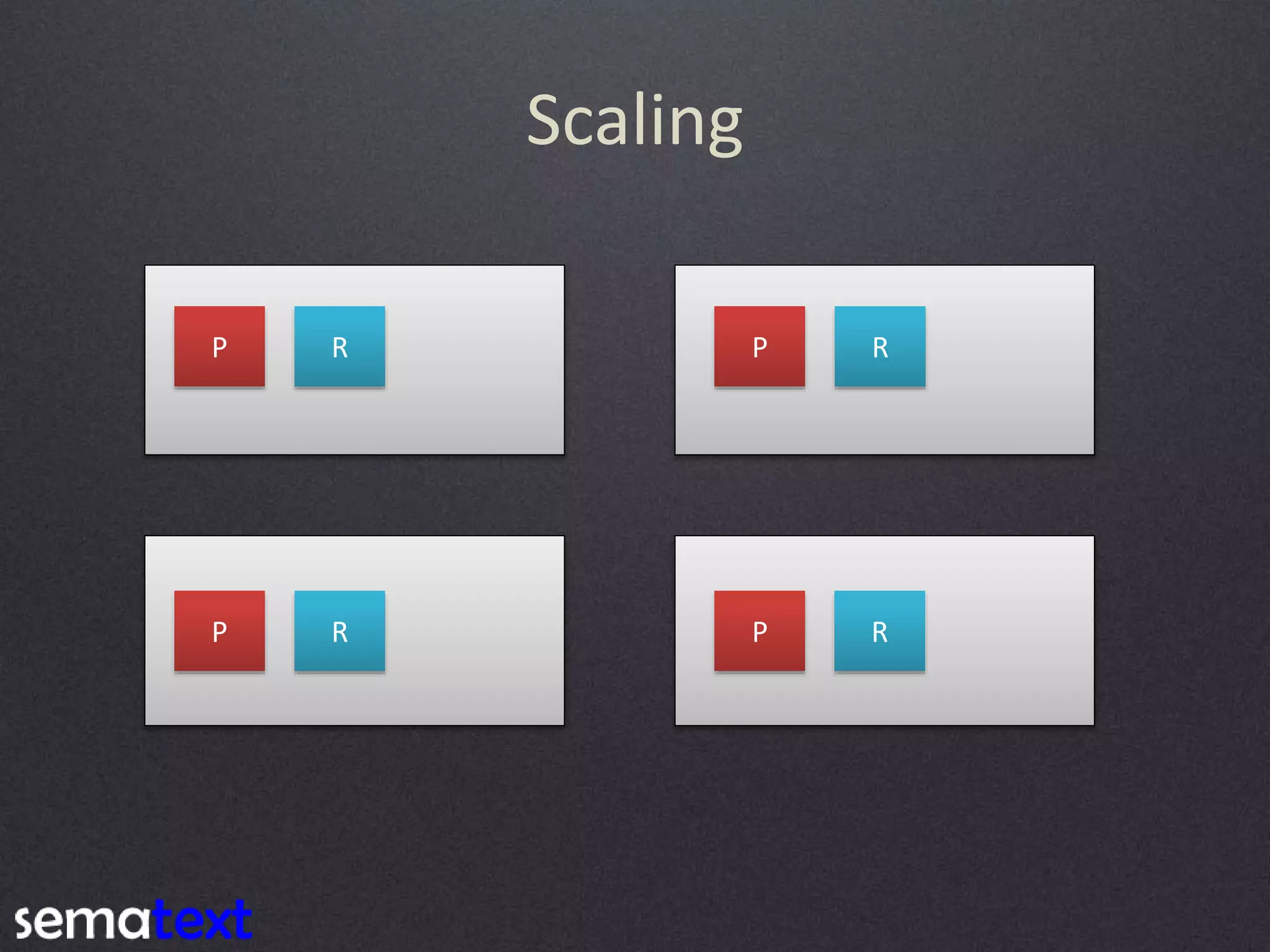

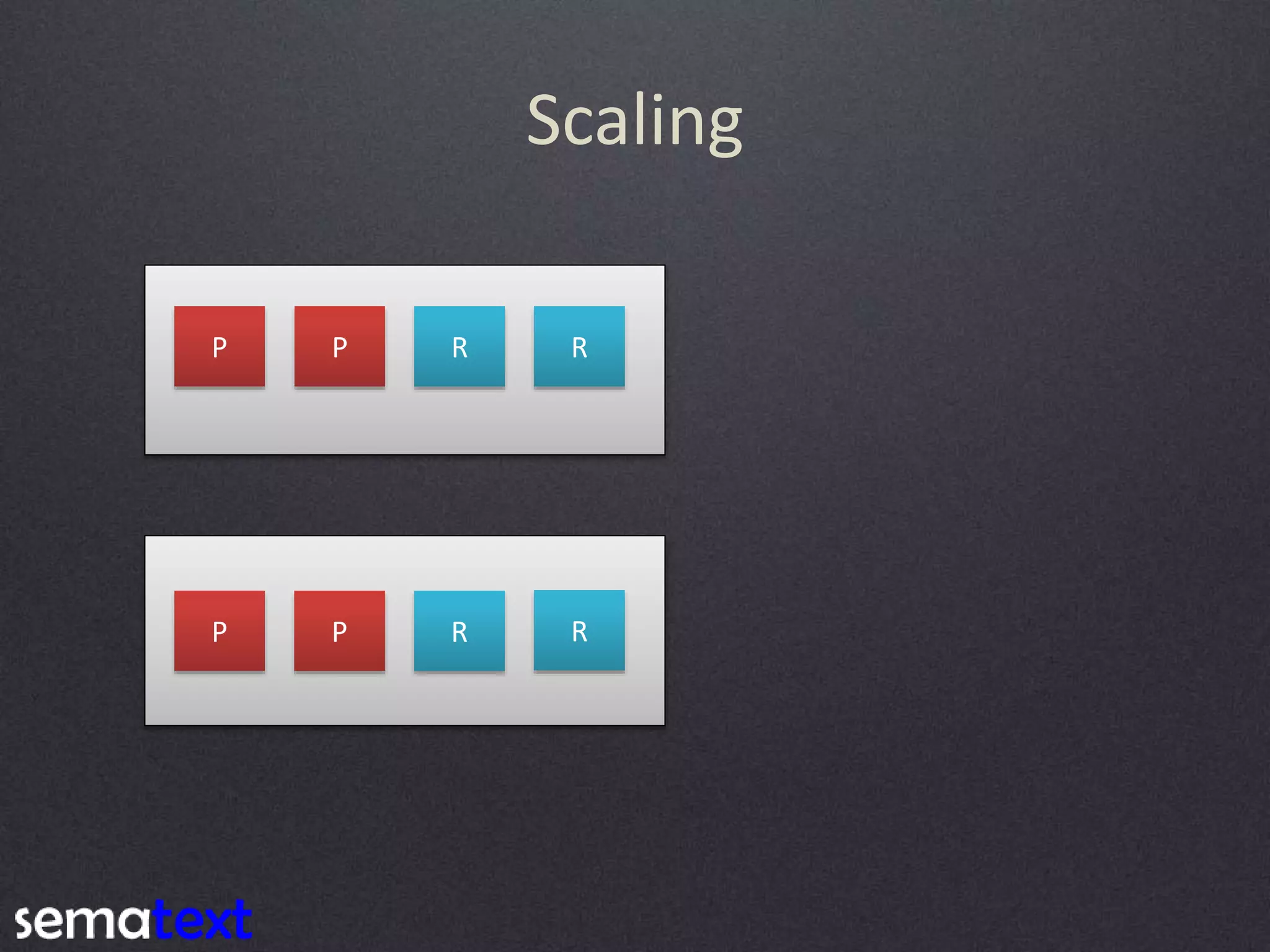

Scaling P P P P R R R R R R R R

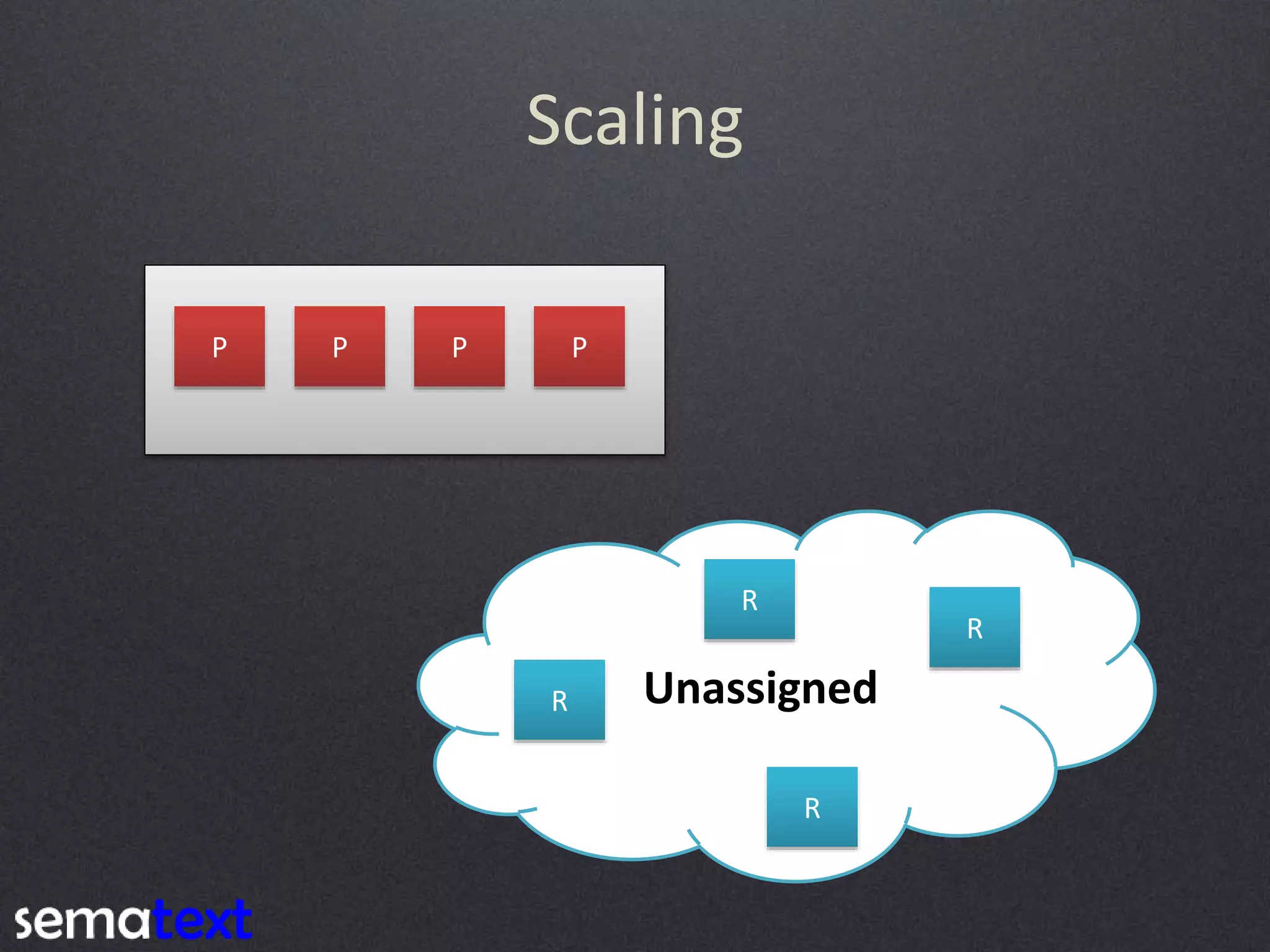

Scaling P P PP UnassignedR R R R

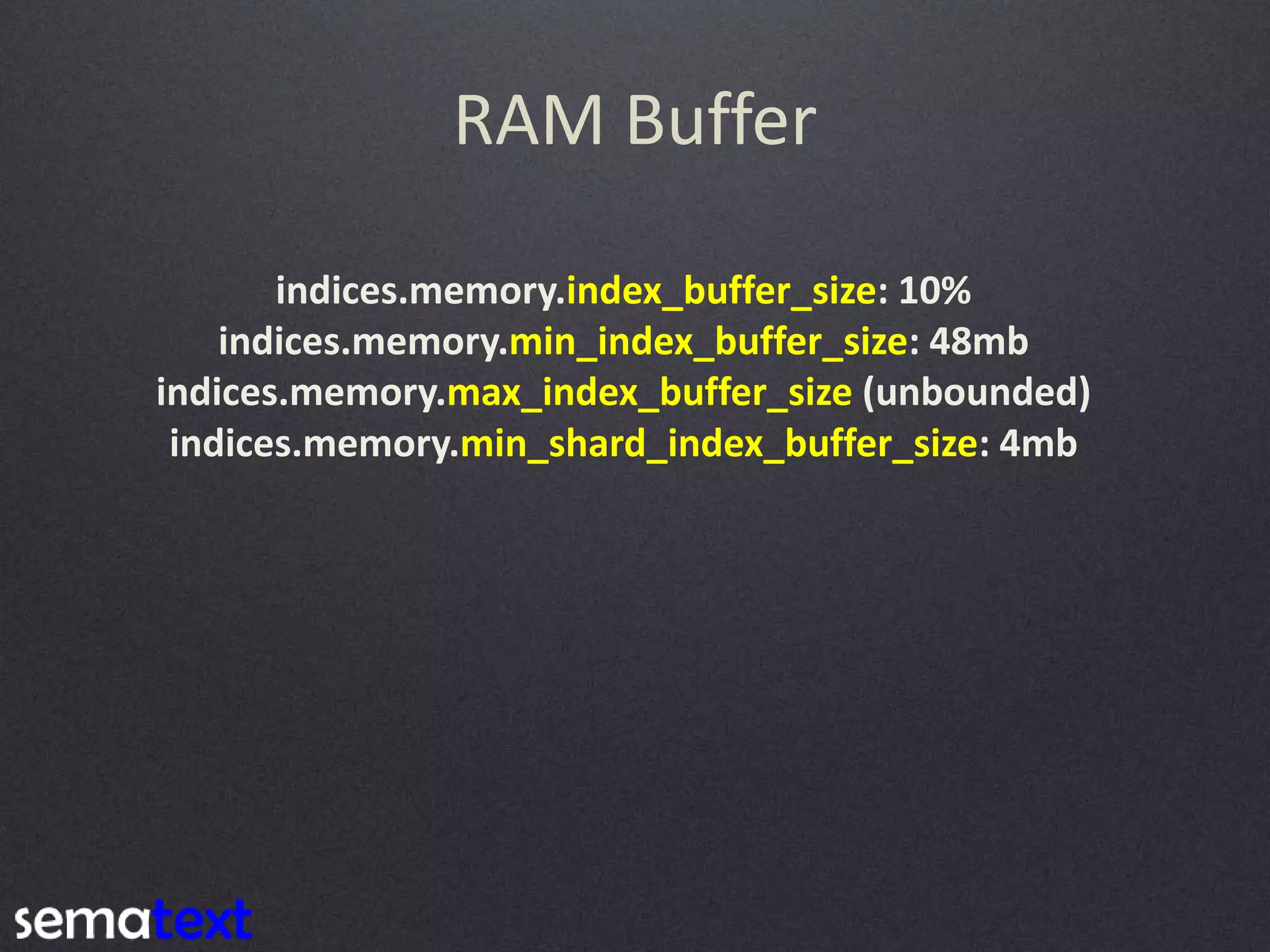

RAM Buffer indices.memory.index_buffer_size: 10% indices.memory.min_index_buffer_size: 48mb indices.memory.max_index_buffer_size (unbounded) indices.memory.min_shard_index_buffer_size: 4mb

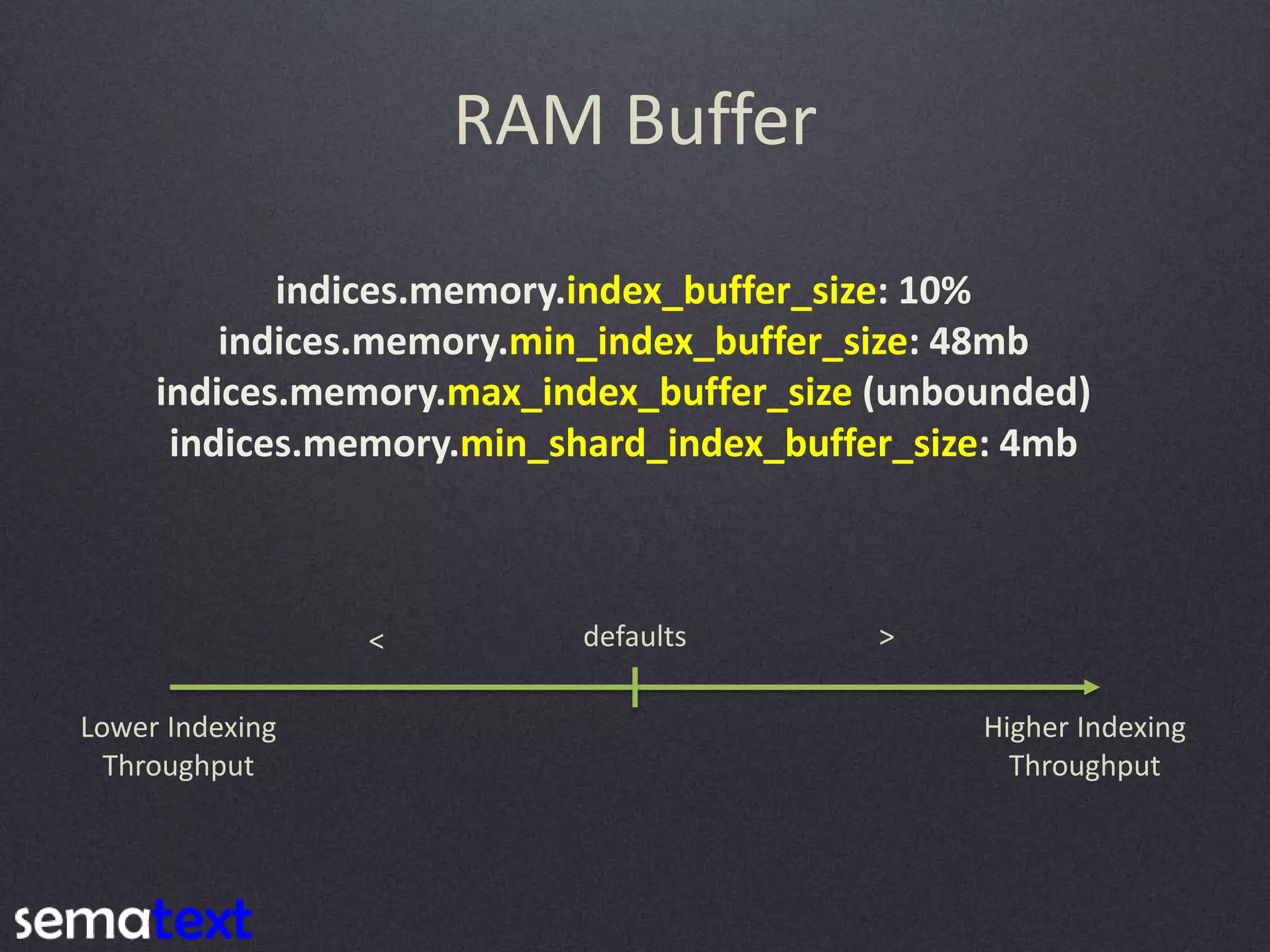

RAM Buffer indices.memory.index_buffer_size: 10% indices.memory.min_index_buffer_size: 48mb indices.memory.max_index_buffer_size (unbounded) indices.memory.min_shard_index_buffer_size: 4mb Higher Indexing Throughput Lower Indexing Throughput defaults ><

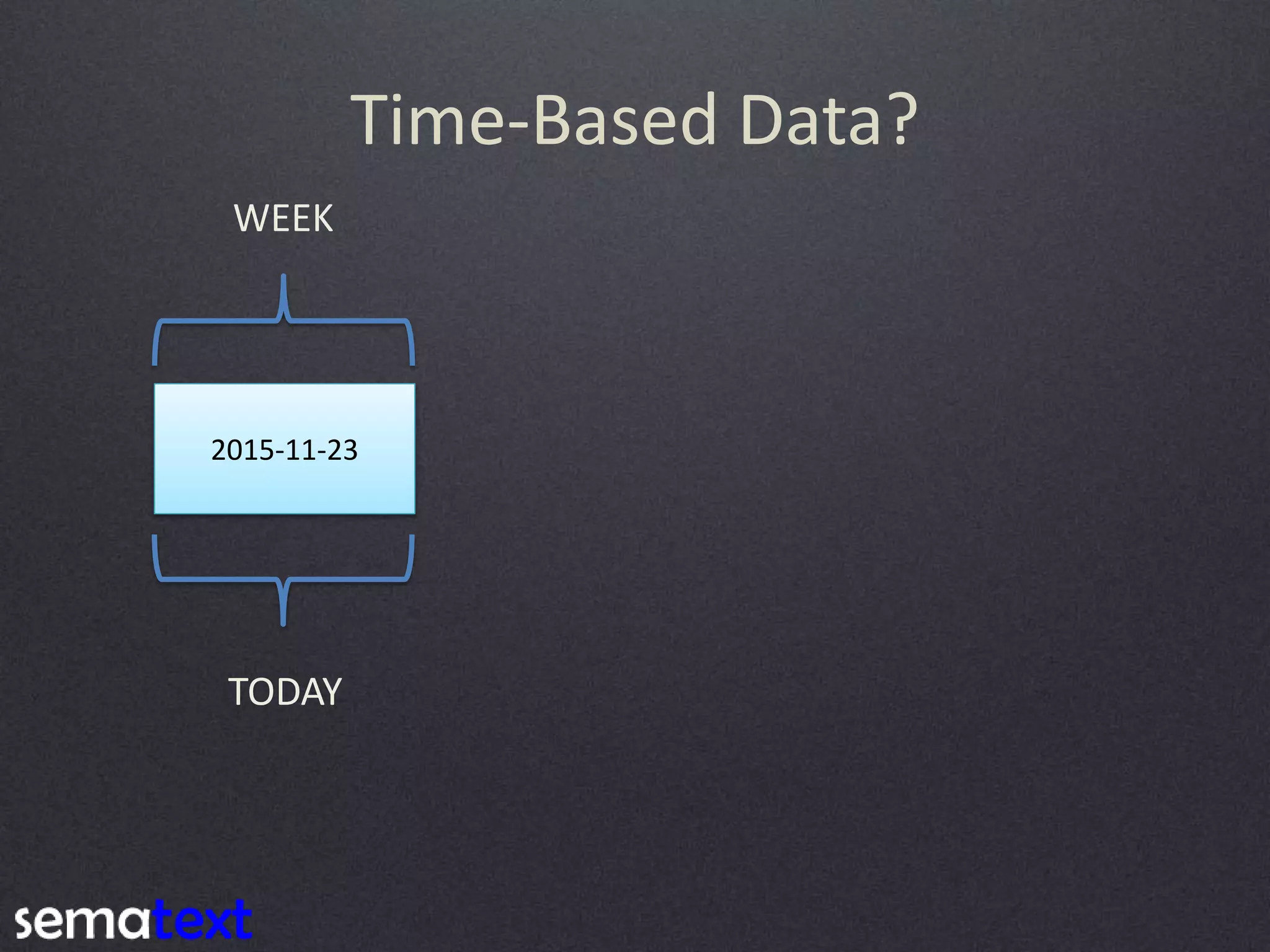

Time-Based Data? 2015-11-23 TODAY WEEK

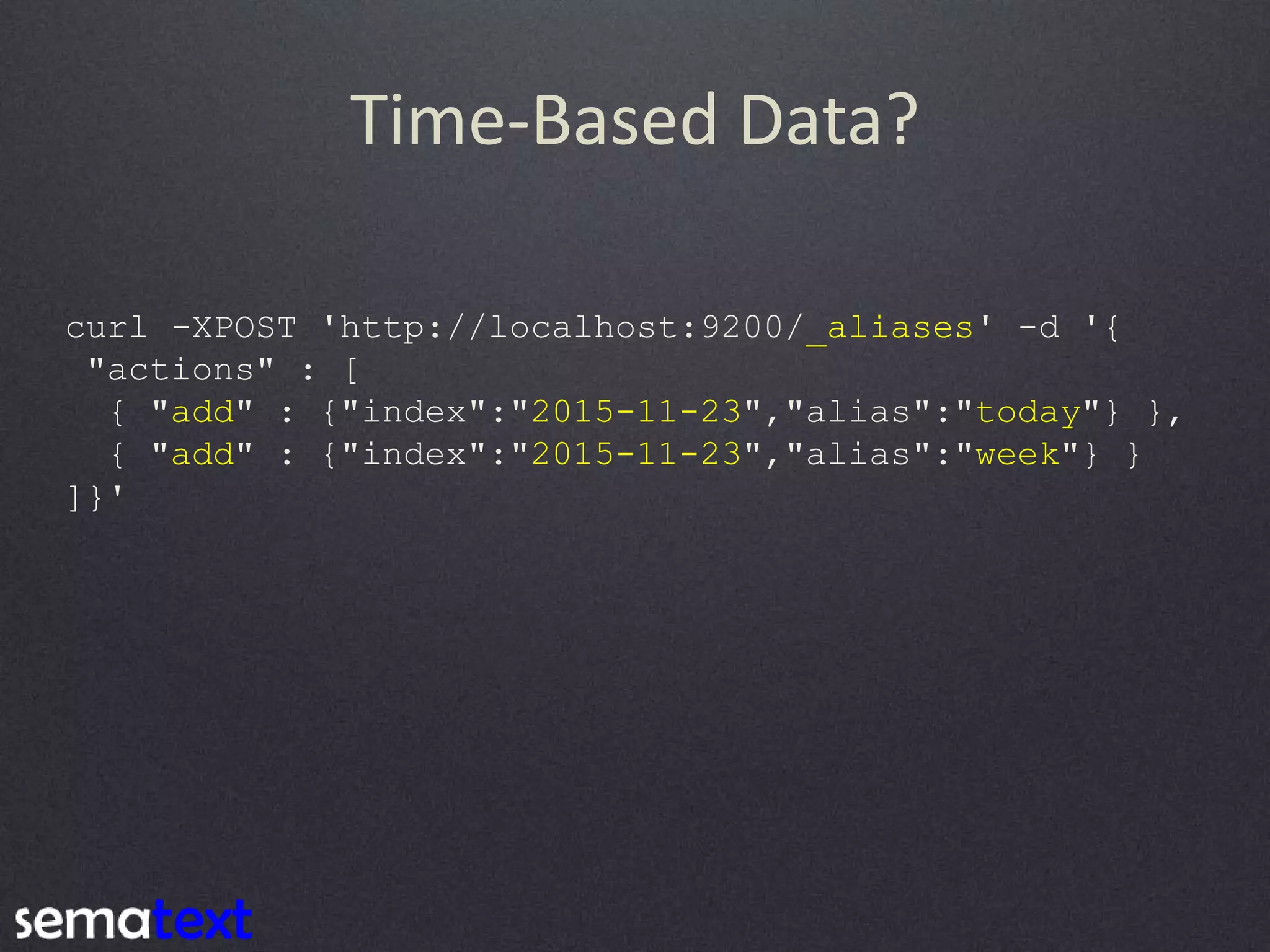

Time-Based Data? curl -XPOST 'http://localhost:9200/_aliases' -d '{ "actions" : [ { "add" : {"index":"2015-11-23","alias":"today"} }, { "add" : {"index":"2015-11-23","alias":"week"} } ]}'

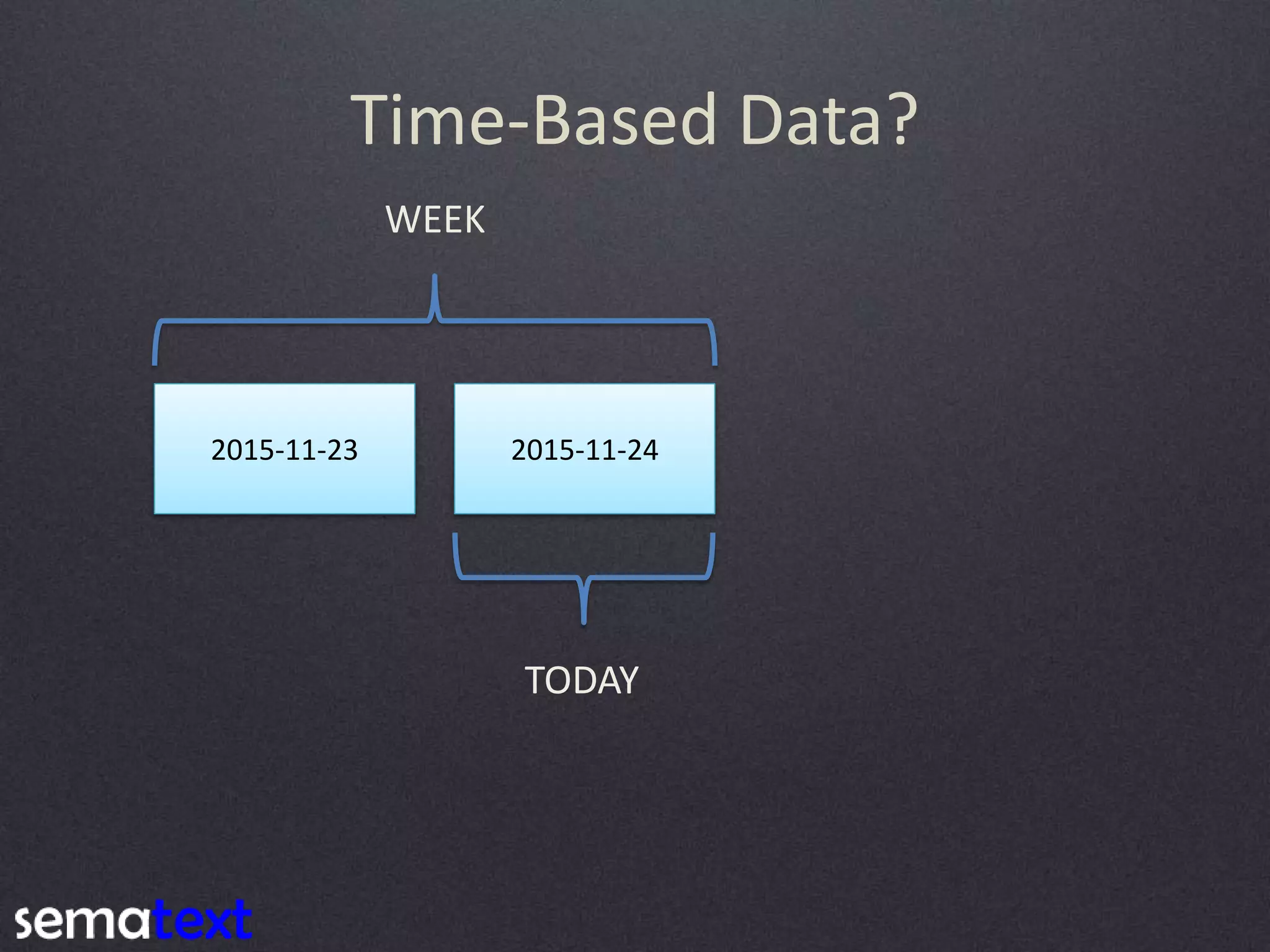

Time-Based Data? 2015-11-23 2015-11-24 TODAY WEEK

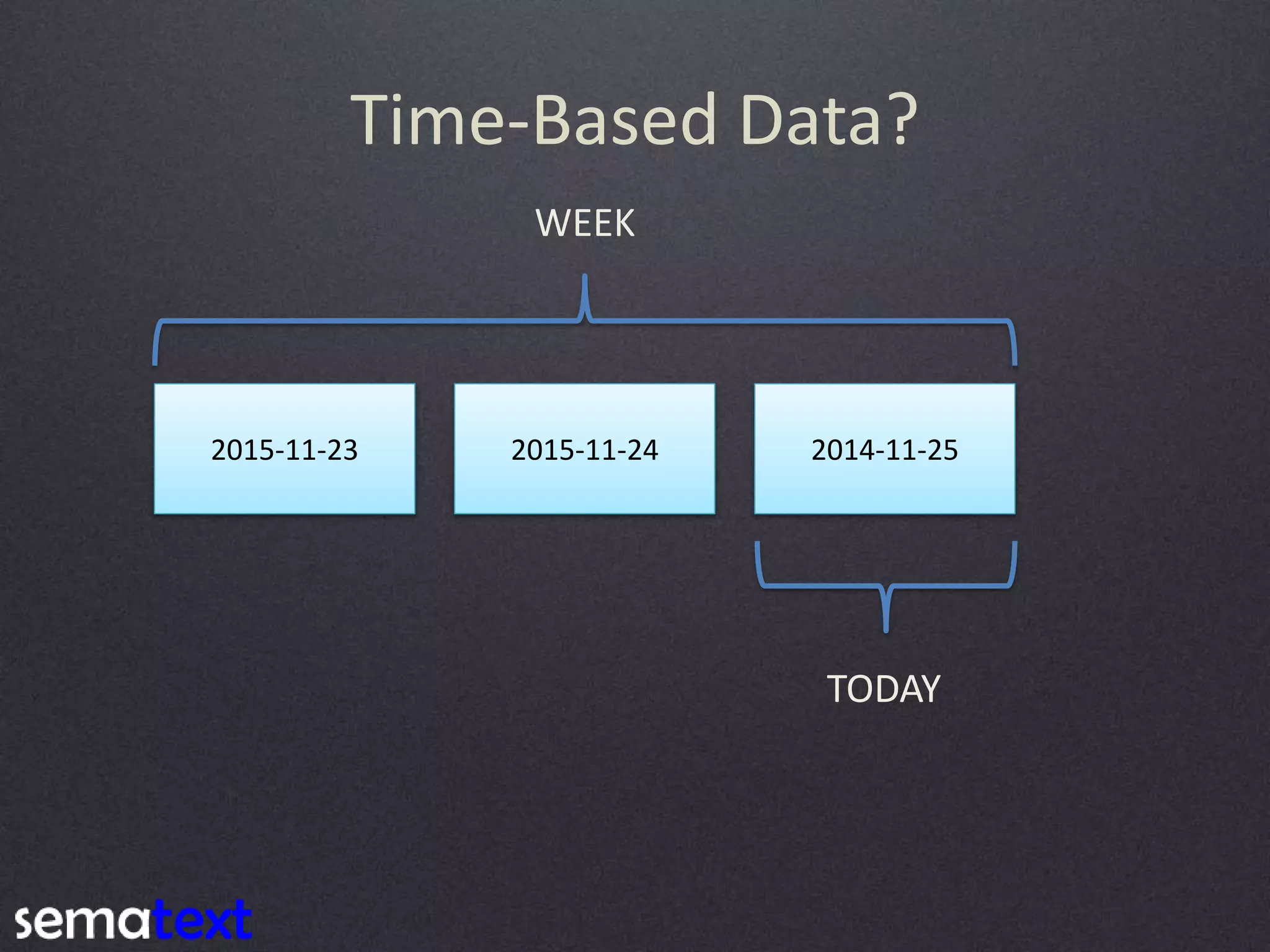

Time-Based Data? 2015-11-23 2015-11-24 2014-11-25 TODAY WEEK

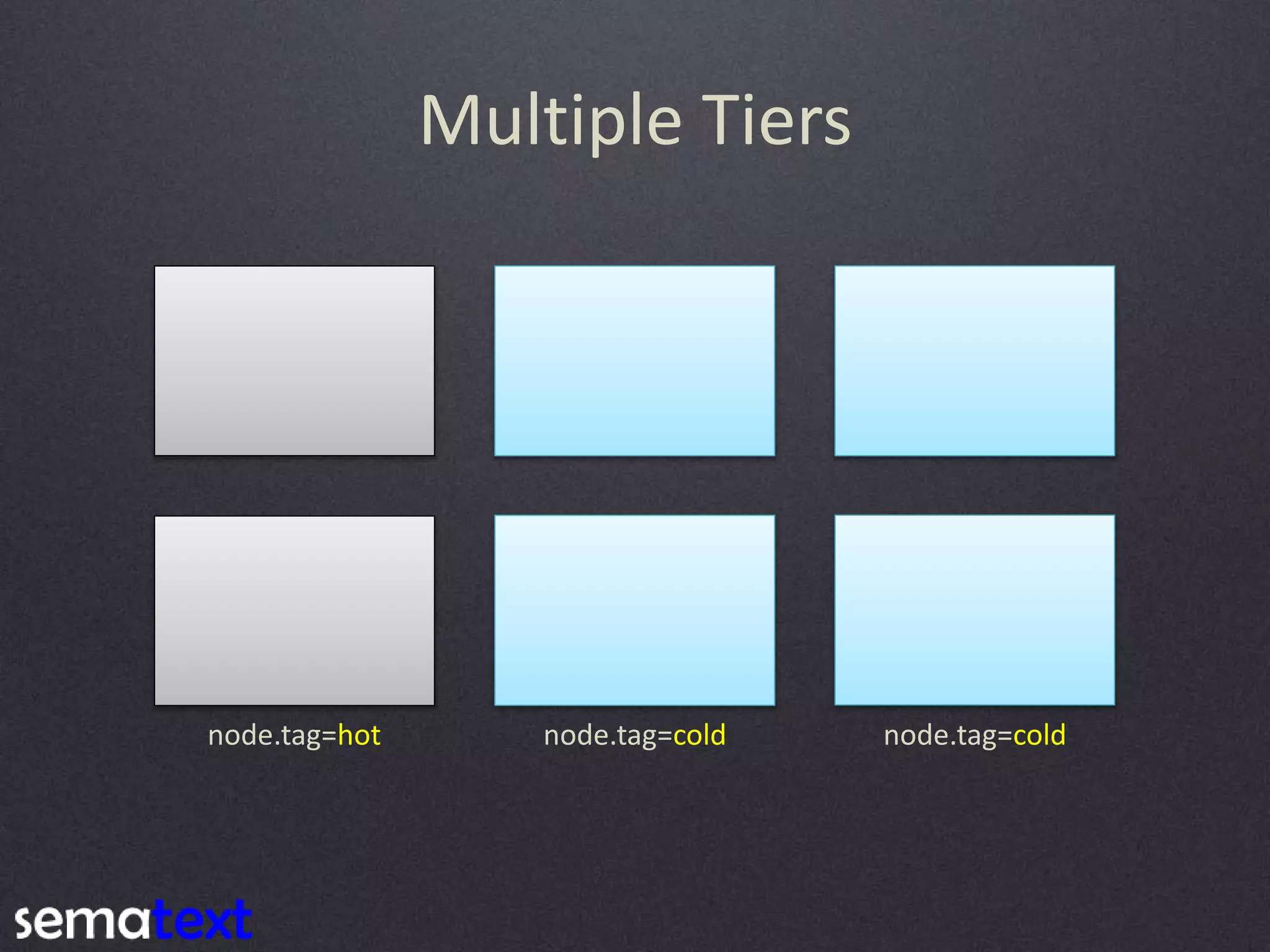

Multiple Tiers node.tag=hot node.tag=cold node.tag=cold

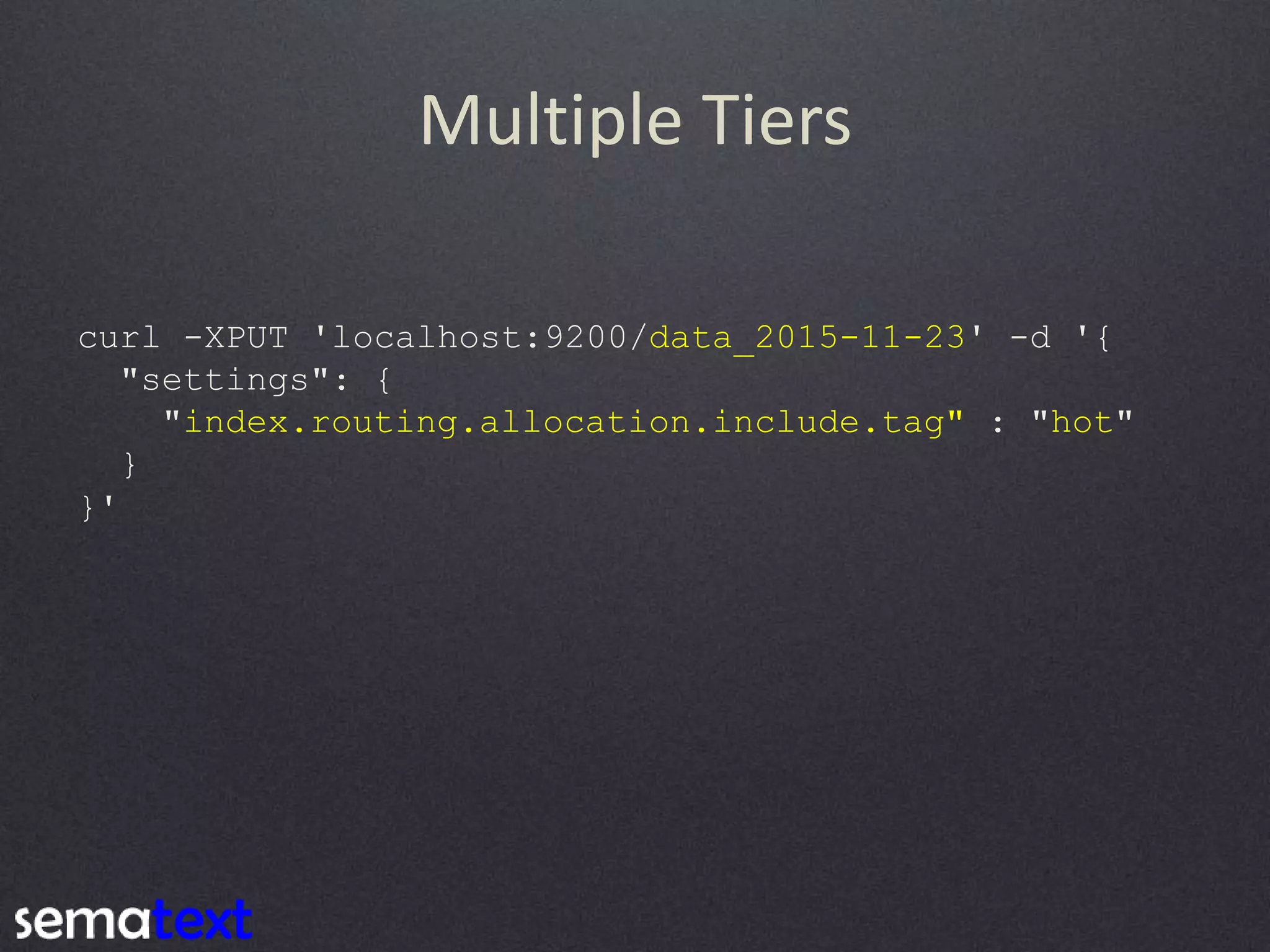

Multiple Tiers curl -XPUT 'localhost:9200/data_2015-11-23' -d '{ "settings": { "index.routing.allocation.include.tag" : "hot" } }'

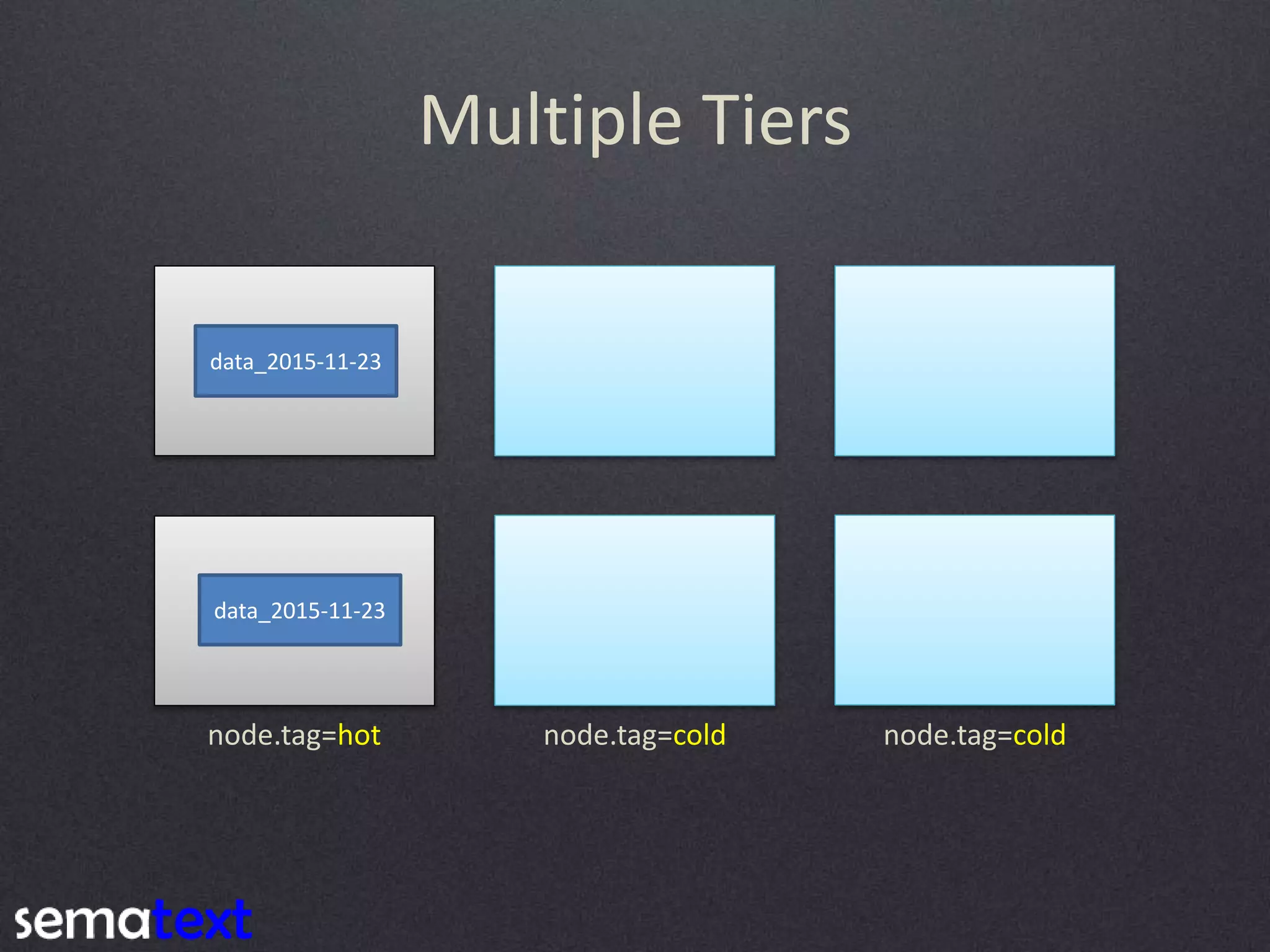

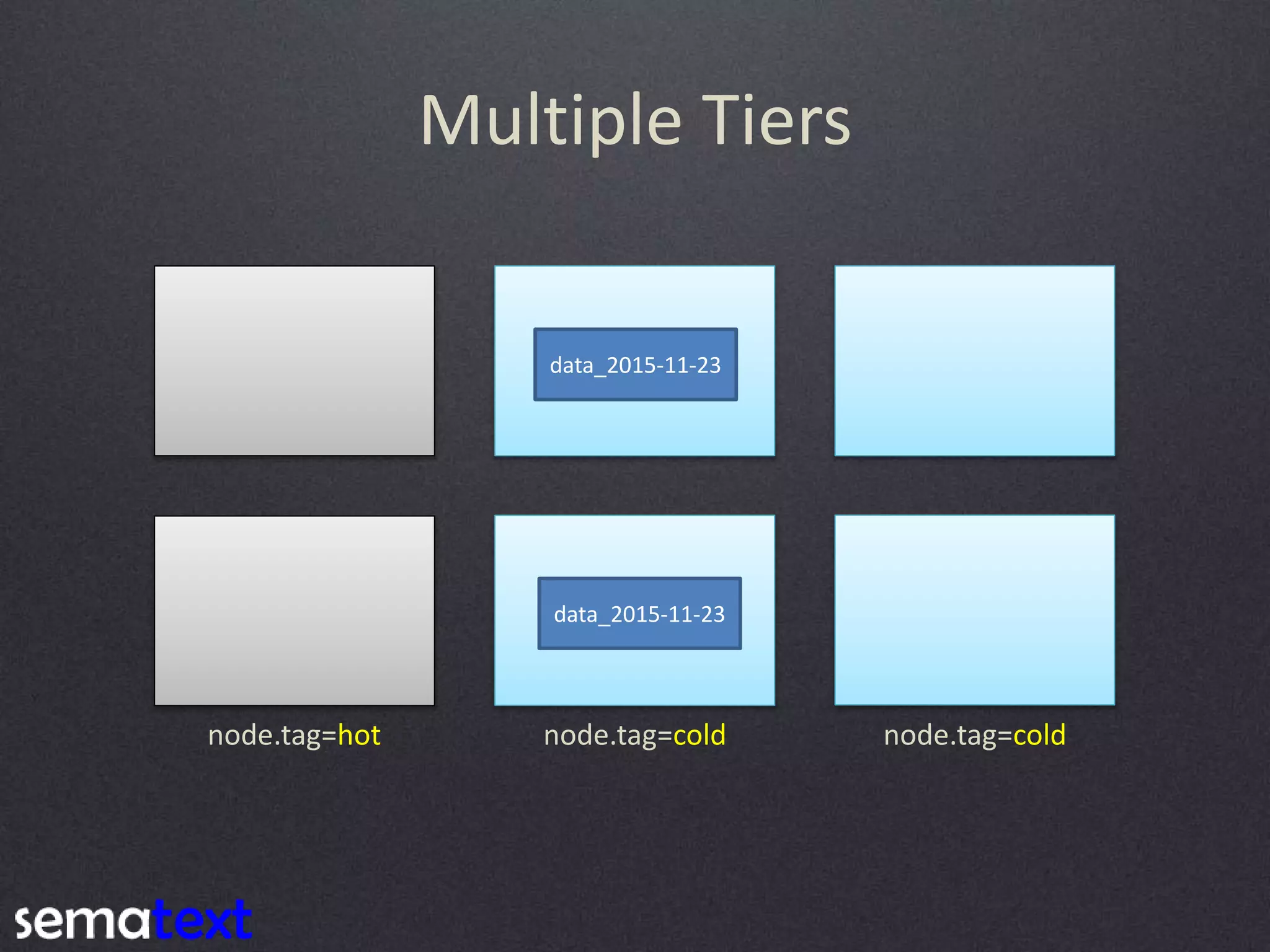

Multiple Tiers node.tag=hot node.tag=cold node.tag=cold data_2015-11-23 data_2015-11-23

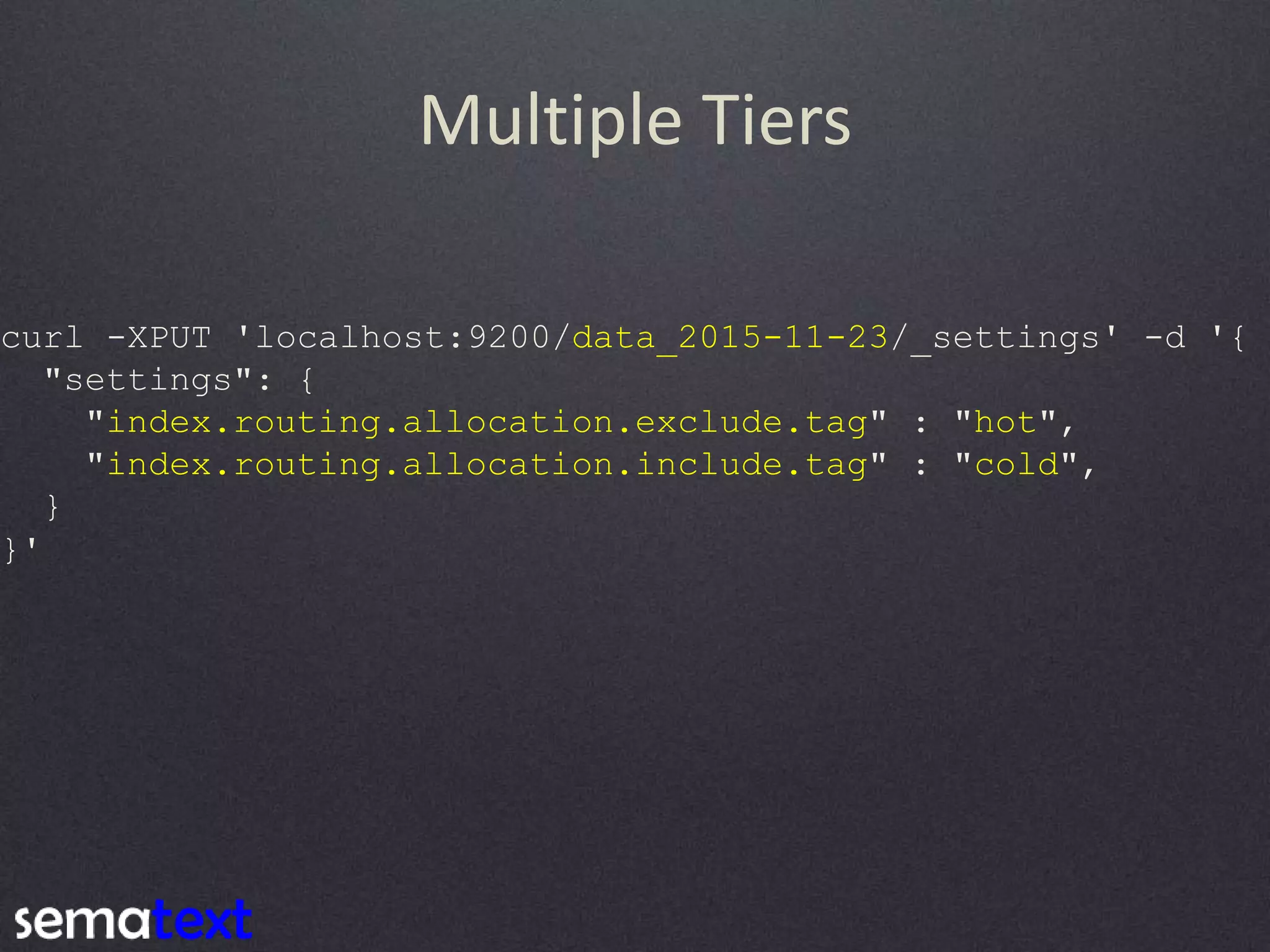

Multiple Tiers curl -XPUT 'localhost:9200/data_2015-11-23/_settings' -d '{ "settings": { "index.routing.allocation.exclude.tag" : "hot", "index.routing.allocation.include.tag" : "cold", } }'

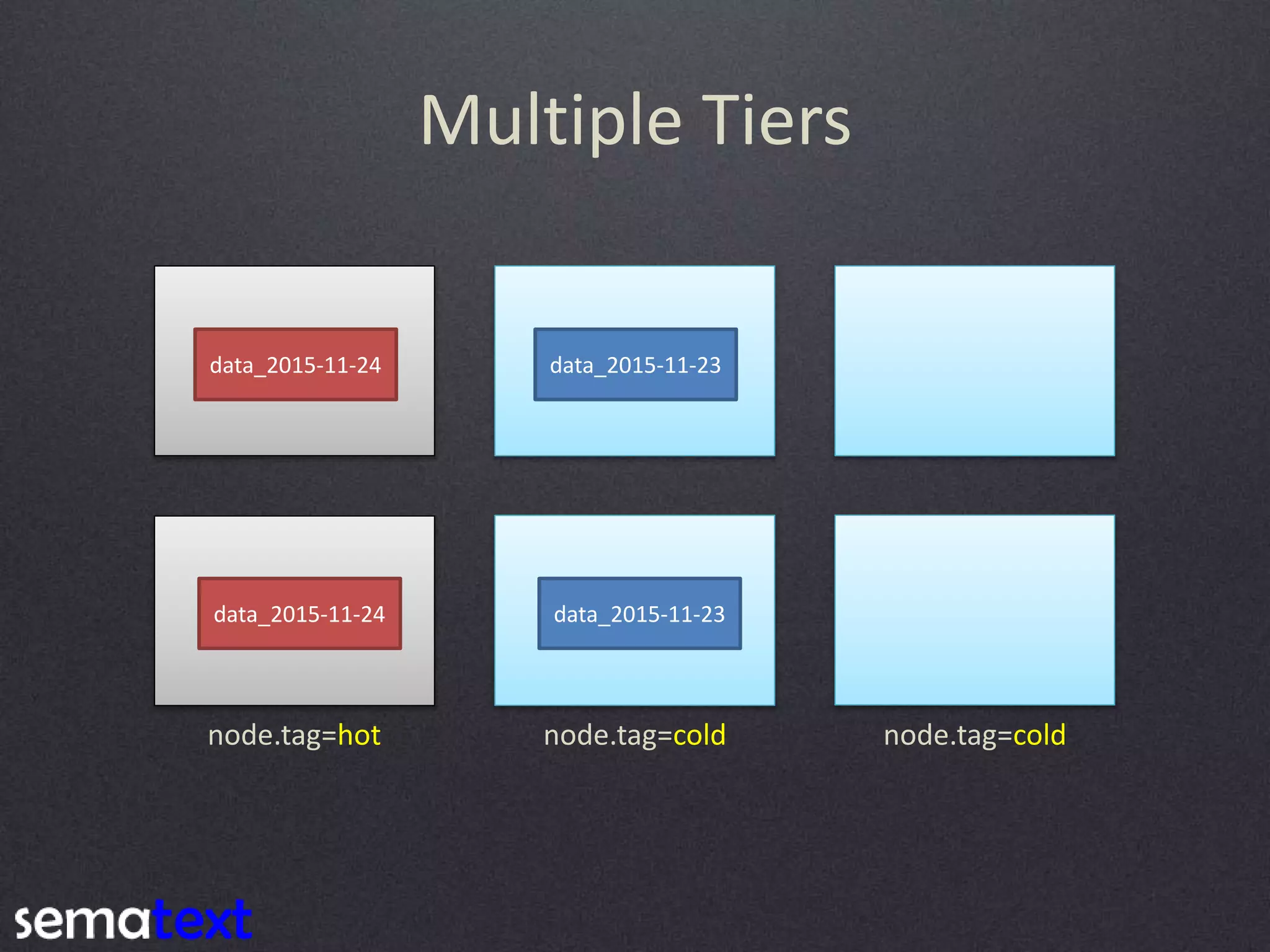

Multiple Tiers node.tag=hot node.tag=cold node.tag=cold data_2015-11-23 data_2015-11-23 data_2015-11-24 data_2015-11-24

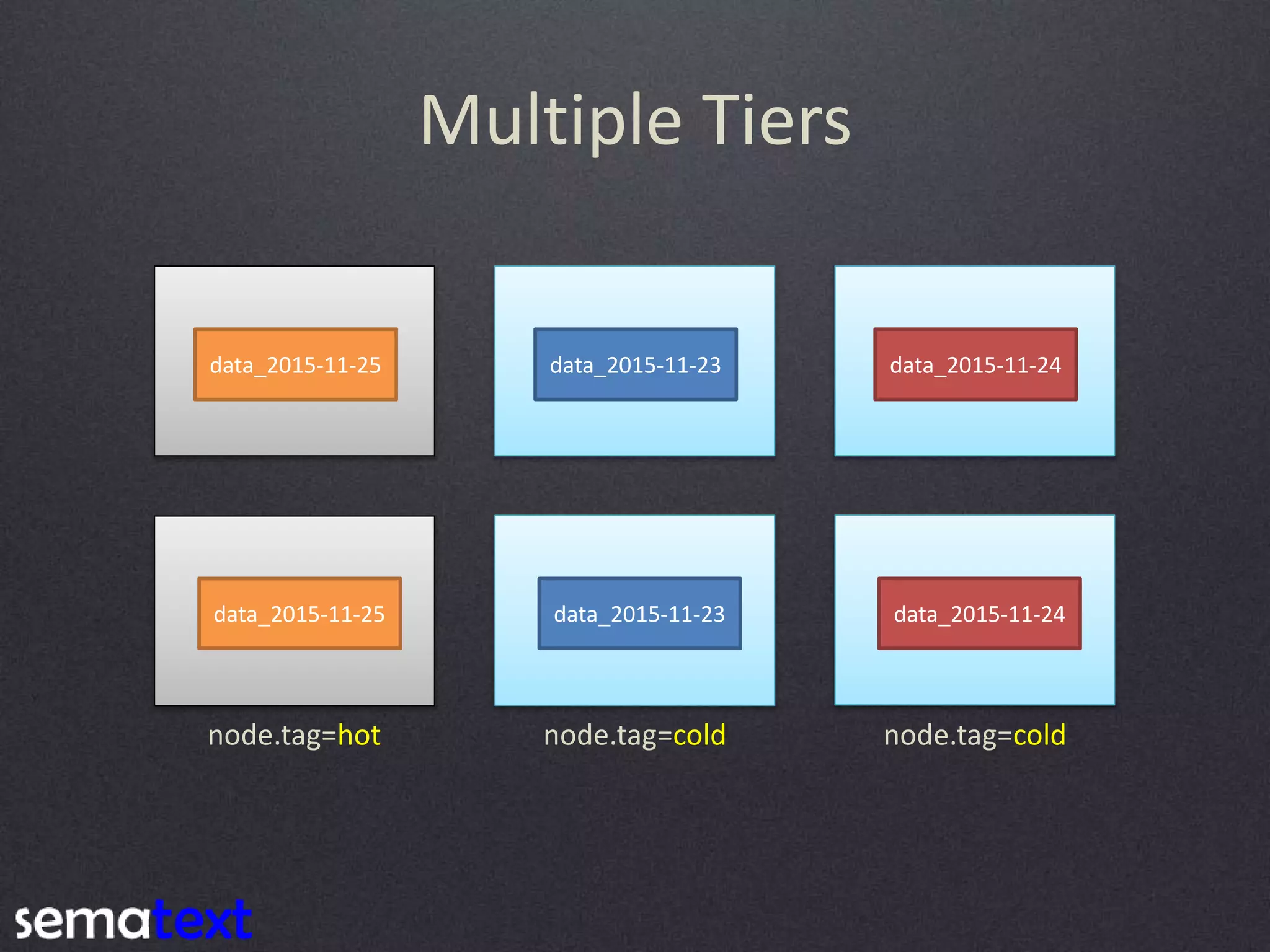

Multiple Tiers node.tag=hot node.tag=cold node.tag=cold data_2015-11-23 data_2015-11-23 data_2015-11-25 data_2015-11-25 data_2015-11-24 data_2015-11-24

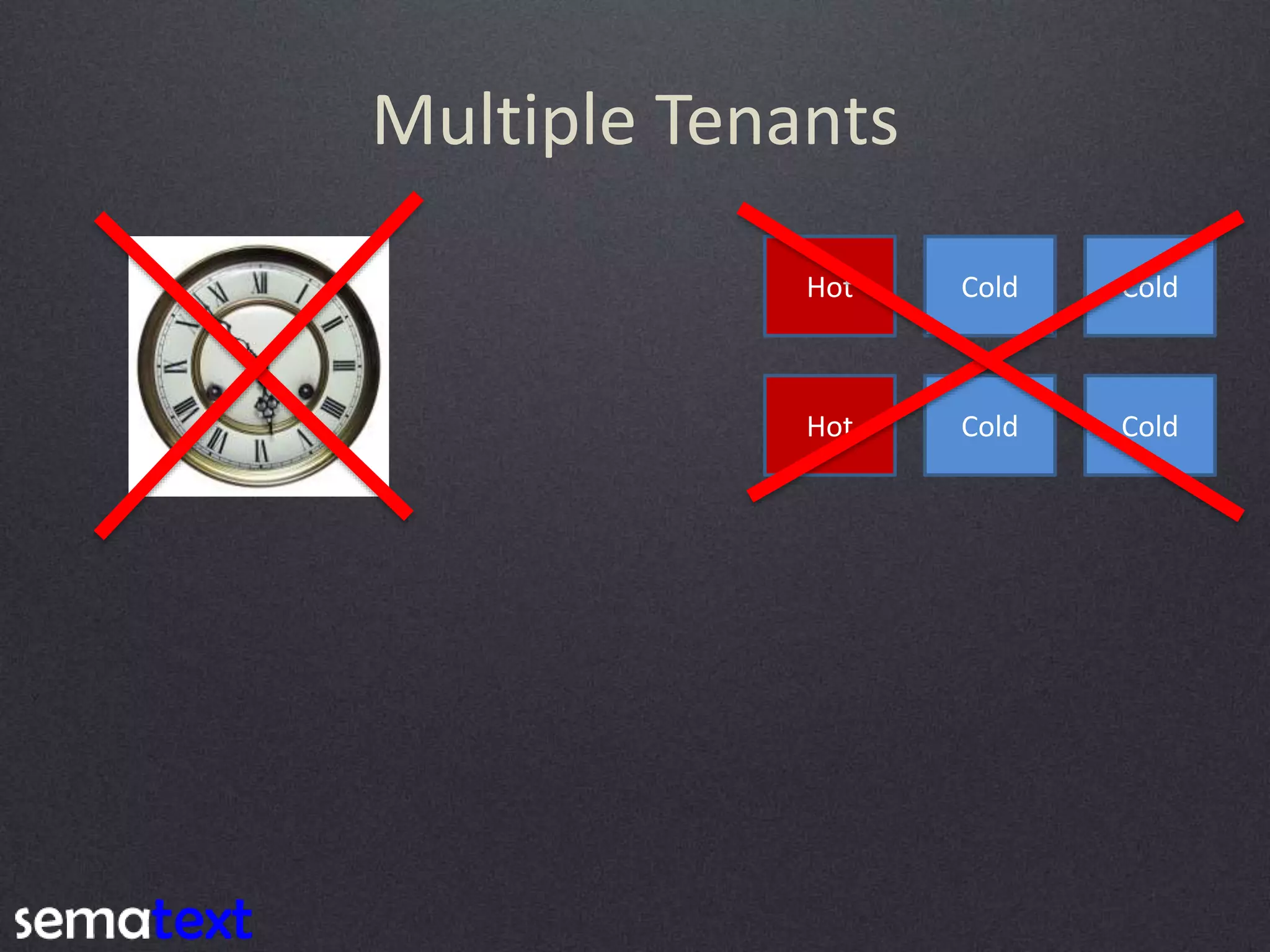

Multiple Tenants Hot Hot Cold Cold Cold Cold

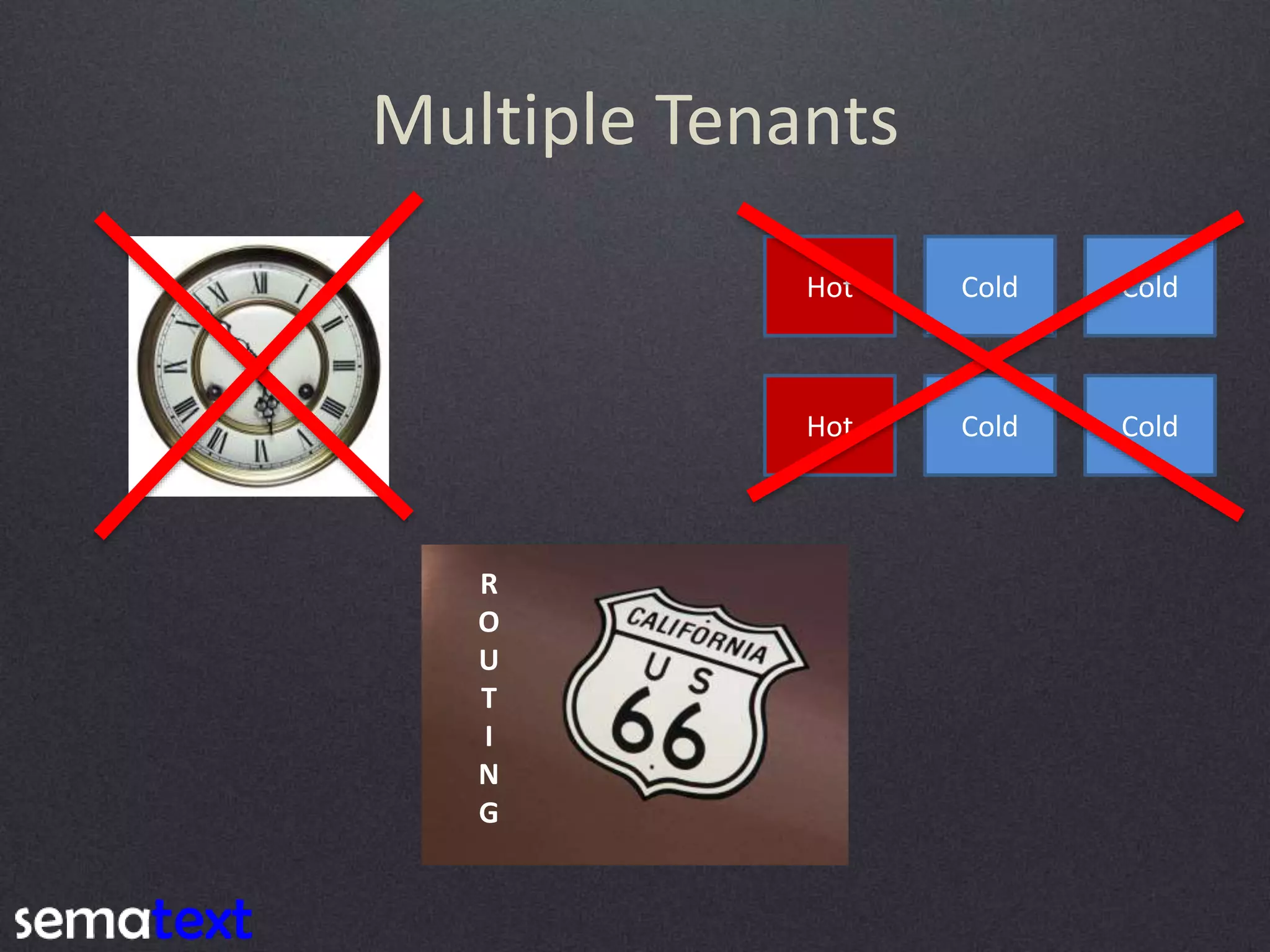

Multiple Tenants Hot Hot Cold Cold Cold Cold R O U T I N G

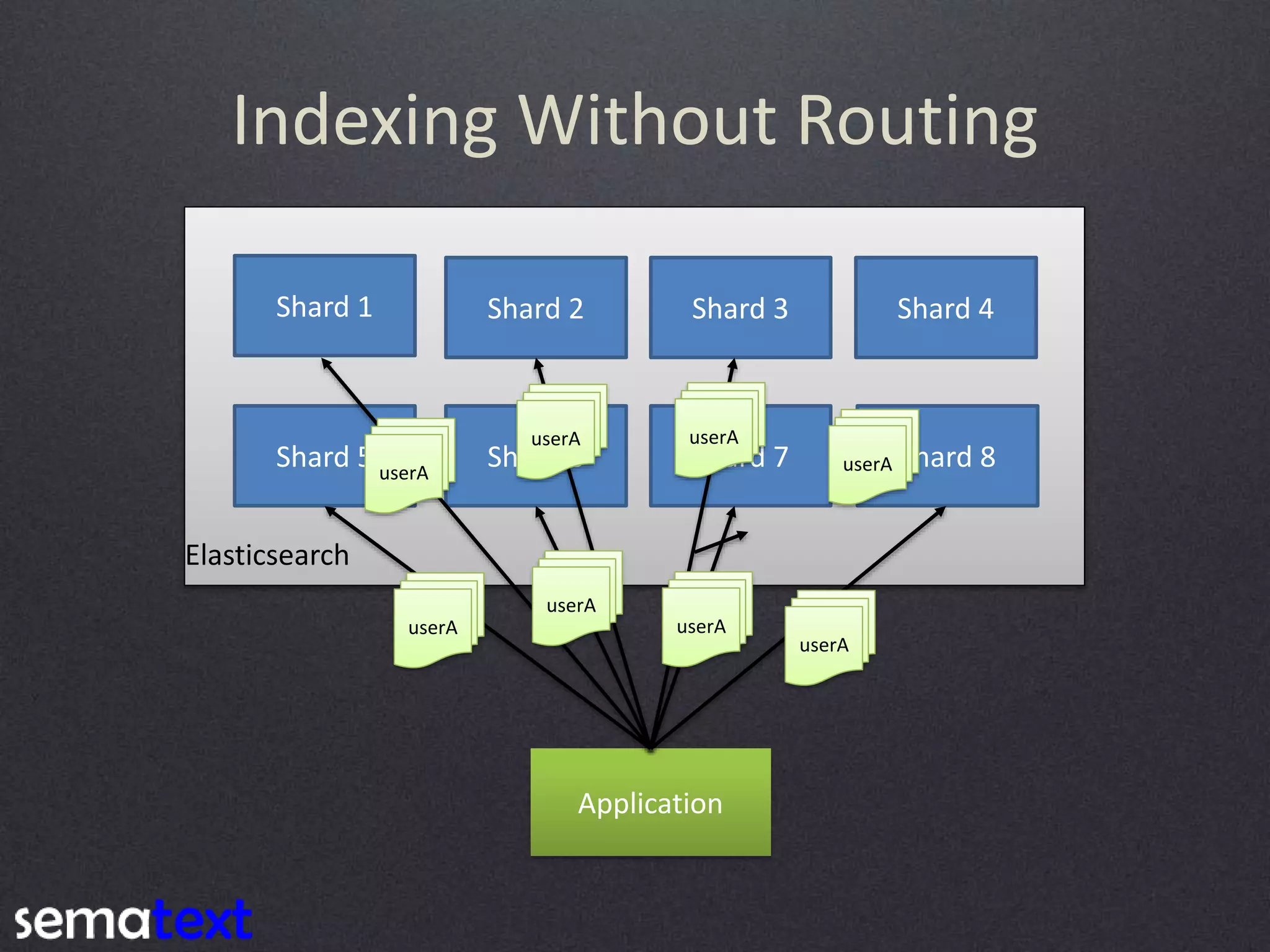

Indexing Without Routing Shard 1 Shard 2 Shard 3 Shard 4 Shard 5 Shard 6 Shard 7 Shard 8 Elasticsearch Application userA userA userA userA userAuserA userA userA

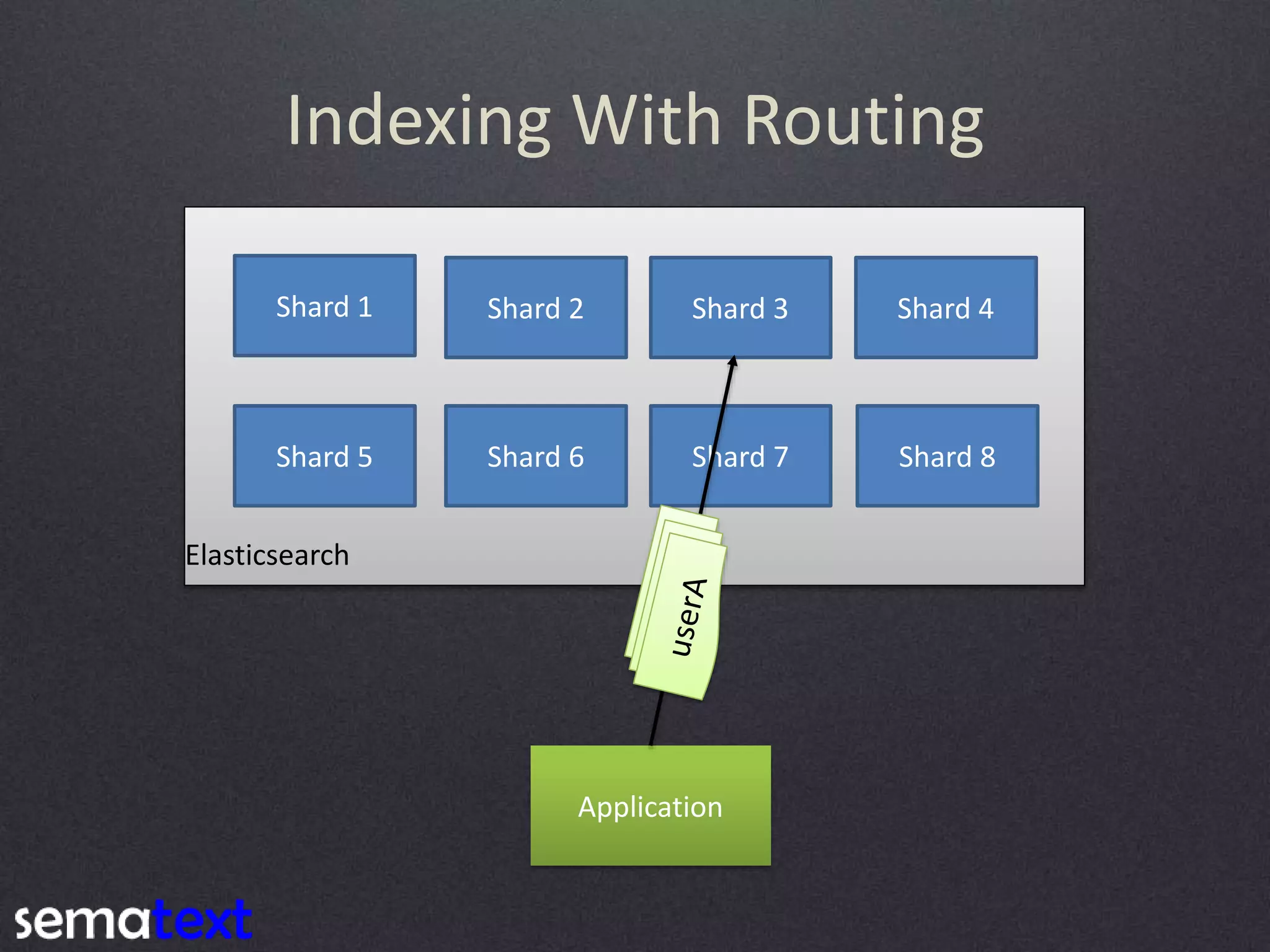

Indexing With Routing Shard 1 Shard 2 Shard 3 Shard 4 Shard 5 Shard 6 Shard 7 Shard 8 Elasticsearch Application

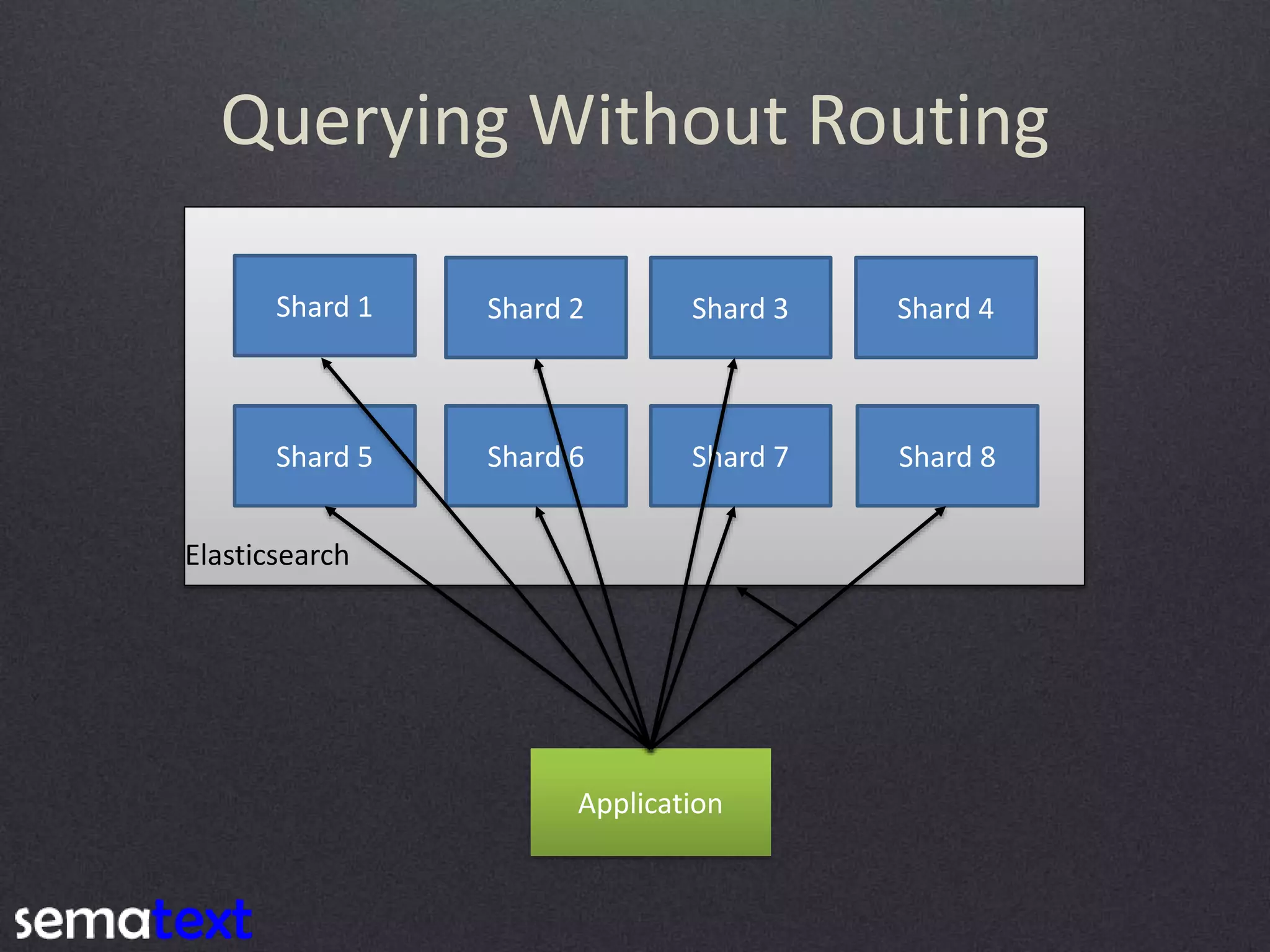

Querying Without Routing Shard 1 Shard 2 Shard 3 Shard 4 Shard 5 Shard 6 Shard 7 Shard 8 Elasticsearch Application

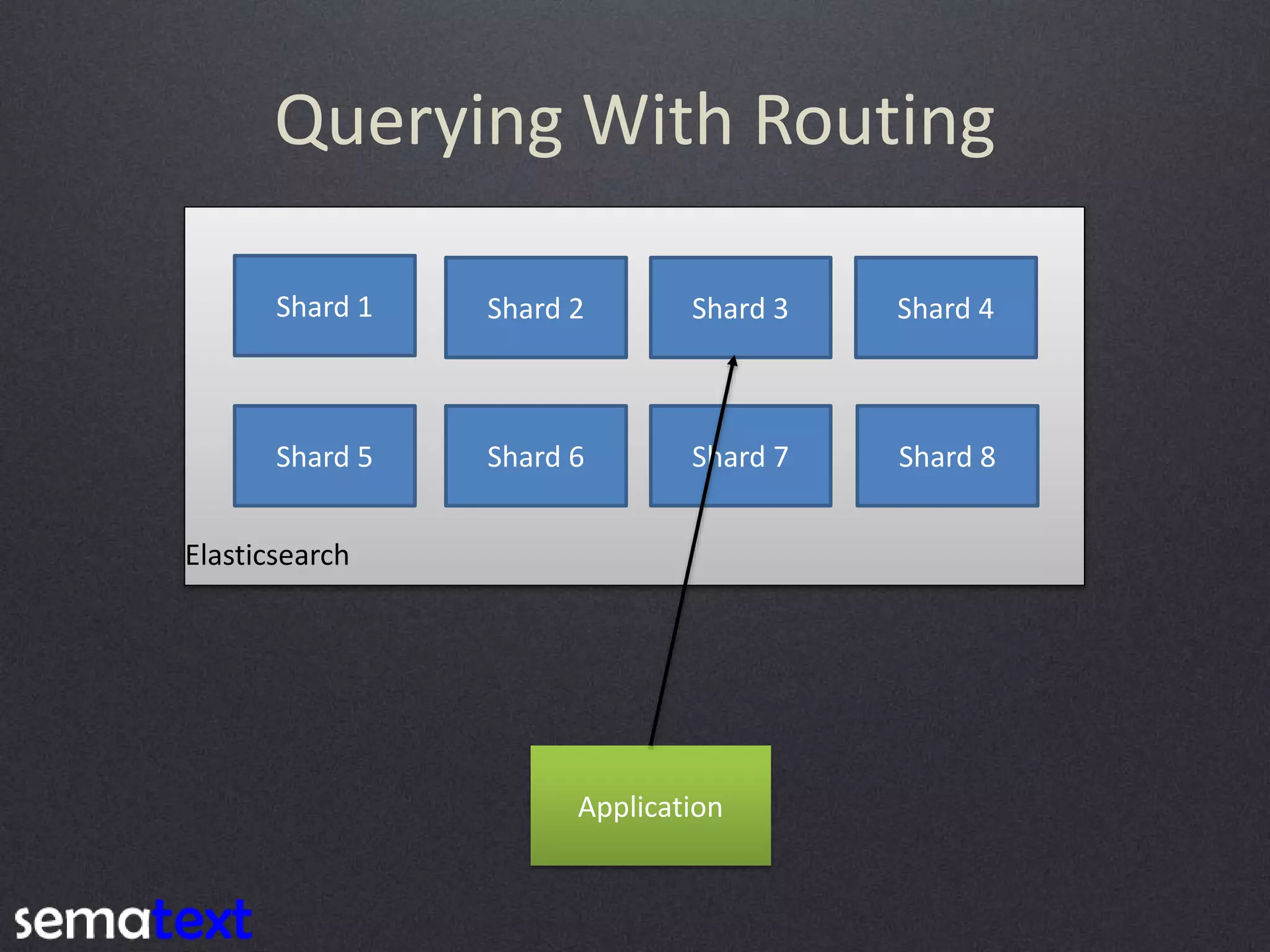

Querying With Routing Shard 1 Shard 2 Shard 3 Shard 4 Shard 5 Shard 6 Shard 7 Shard 8 Elasticsearch Application

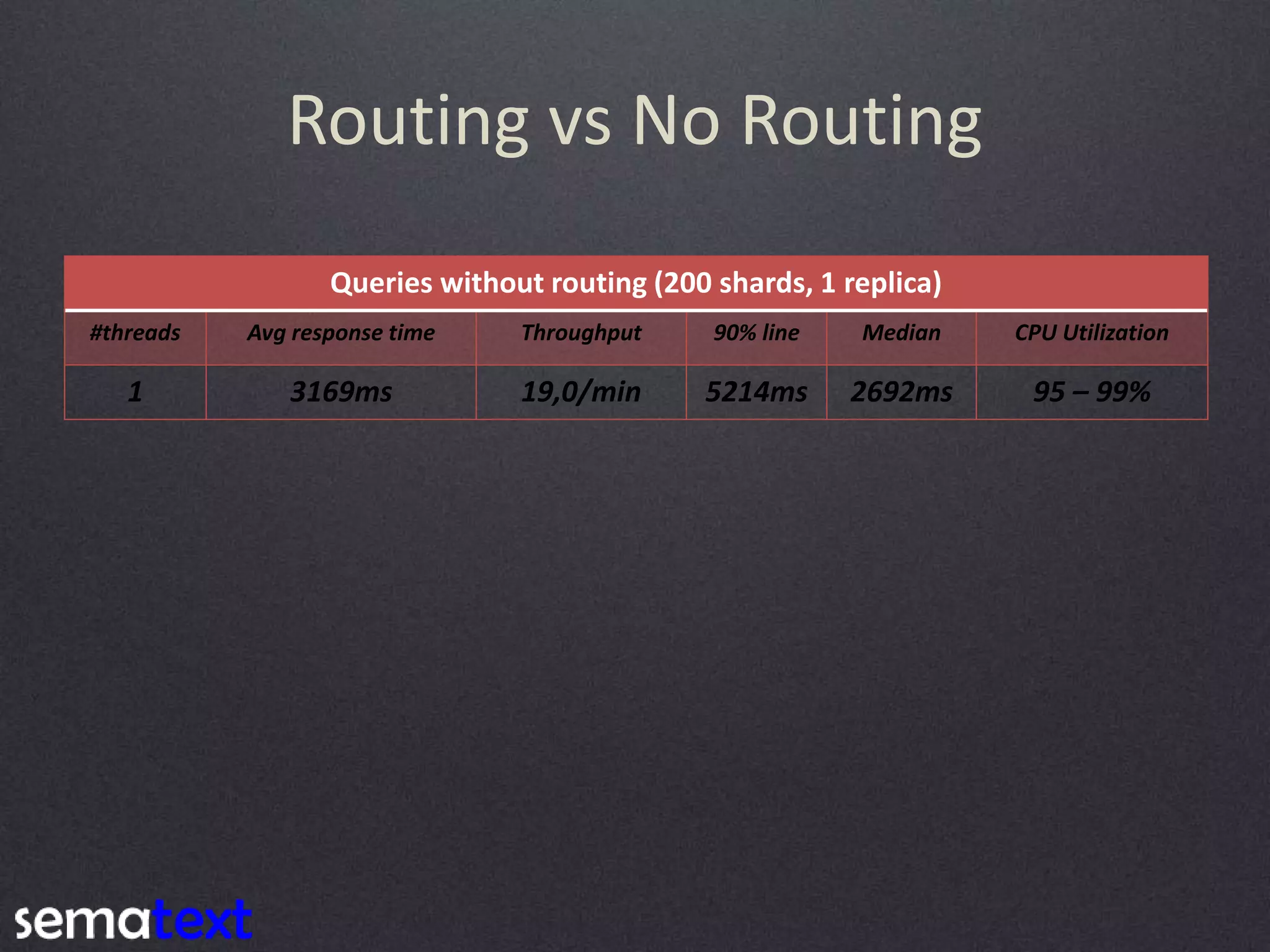

Routing vs No Routing Queries without routing (200 shards, 1 replica) #threads Avg response time Throughput 90% line Median CPU Utilization 1 3169ms 19,0/min 5214ms 2692ms 95 – 99%

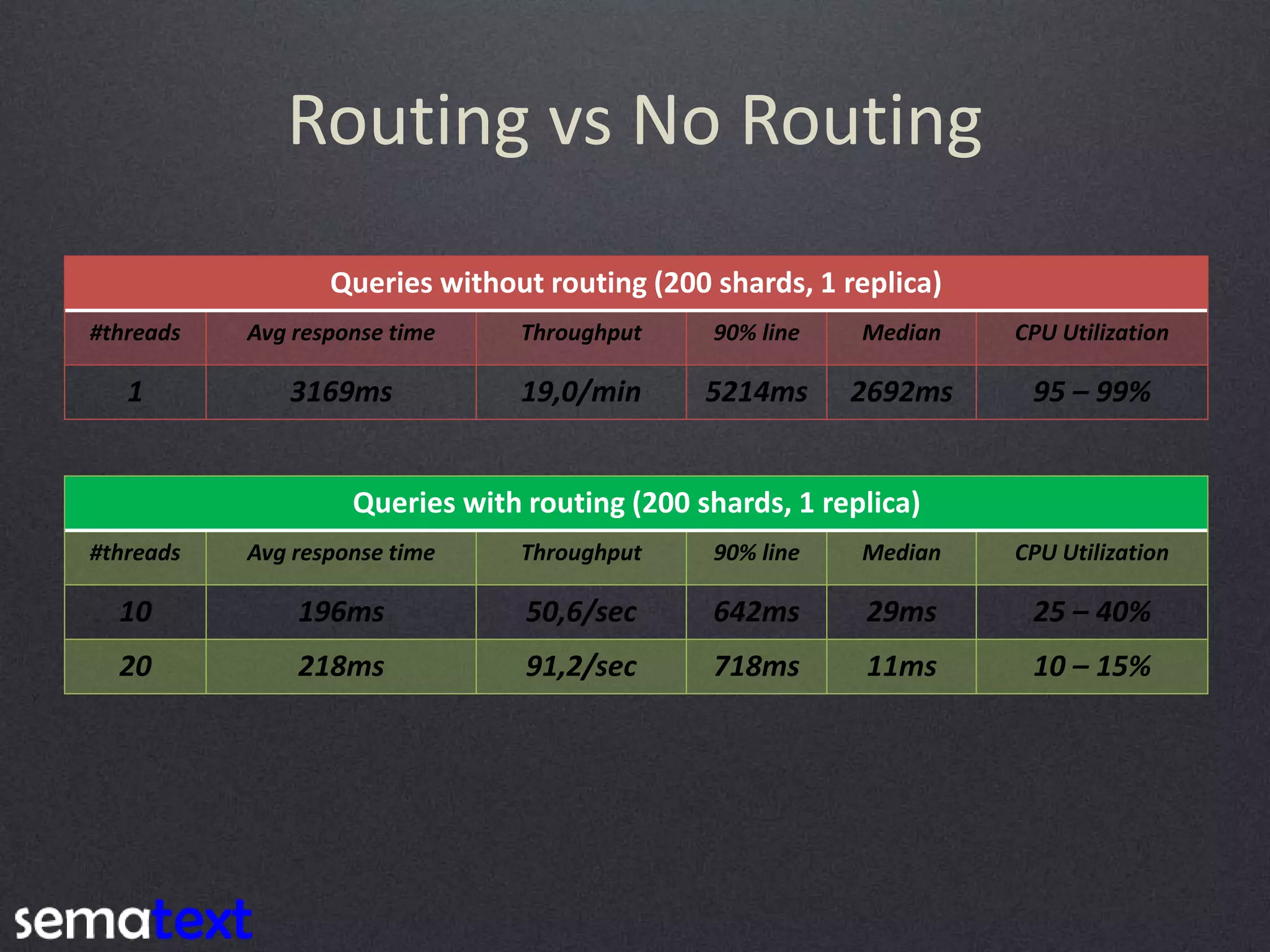

Routing vs No Routing Queries without routing (200 shards, 1 replica) #threads Avg response time Throughput 90% line Median CPU Utilization 1 3169ms 19,0/min 5214ms 2692ms 95 – 99% Queries with routing (200 shards, 1 replica) #threads Avg response time Throughput 90% line Median CPU Utilization 10 196ms 50,6/sec 642ms 29ms 25 – 40% 20 218ms 91,2/sec 718ms 11ms 10 – 15%

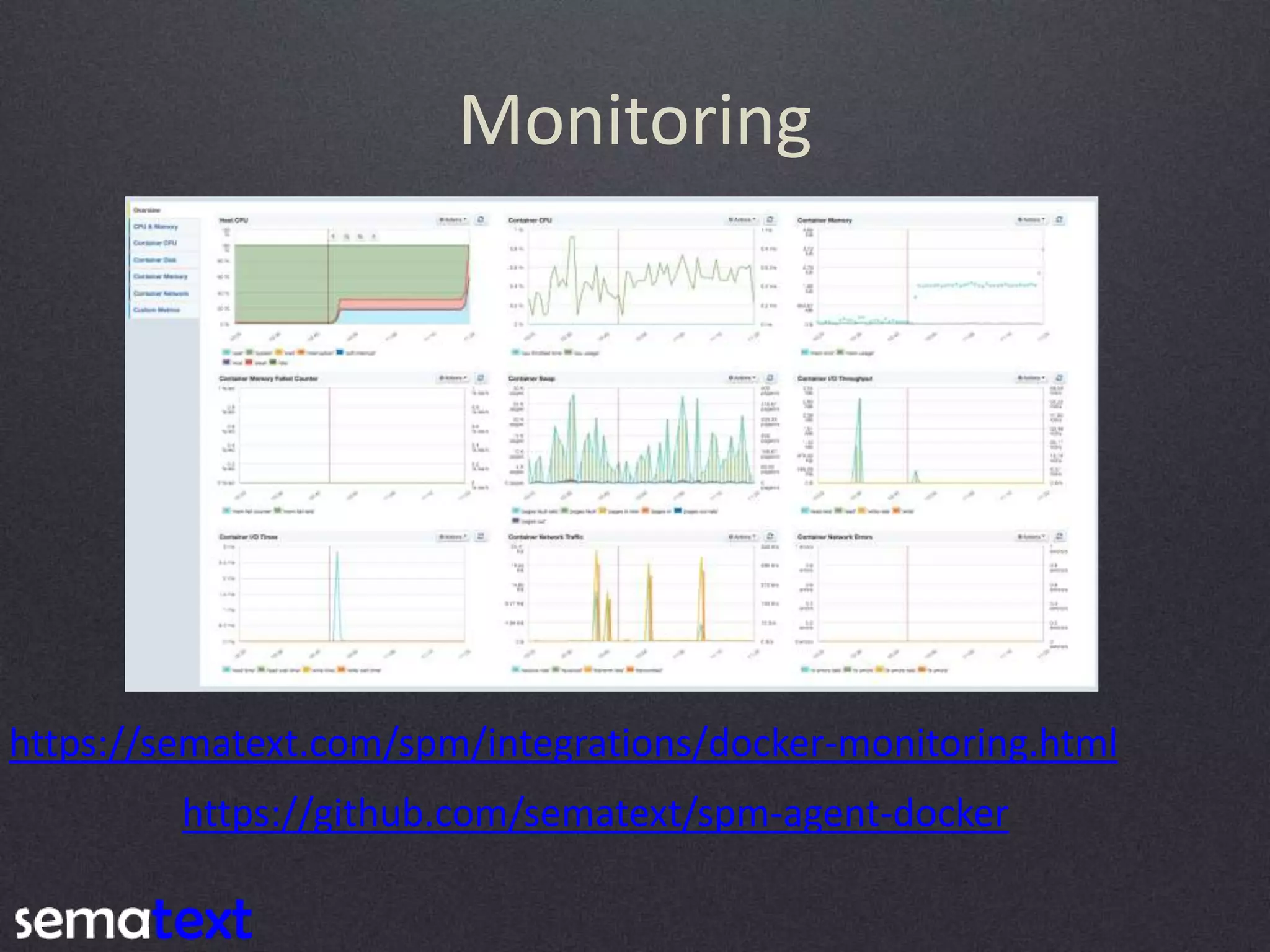

Monitoring https://sematext.com/spm/integrations/docker-monitoring.html https://github.com/sematext/spm-agent-docker

Short summary http://www.soothetube.com/2013/12/29/thats-all-folks/

We Are Hiring! Dig Search? Dig Analytics? Dig Big Data? Dig Performance? Dig Logging? Dig working with, and in, open–source? We’re hiring worldwide! http://sematext.com/about/jobs.html

Rafał Kuć @kucrafal rafal.kuc@sematext.com Sematext @sematext http://sematext.com http://blog.sematext.com Thank You !
