Relational Database  Design Bootcamp Mark Niebergall Longhorn PHP 2019  https://joind.in/talk/9d7a6 https://github.com/mbniebergall/database-bootcamp

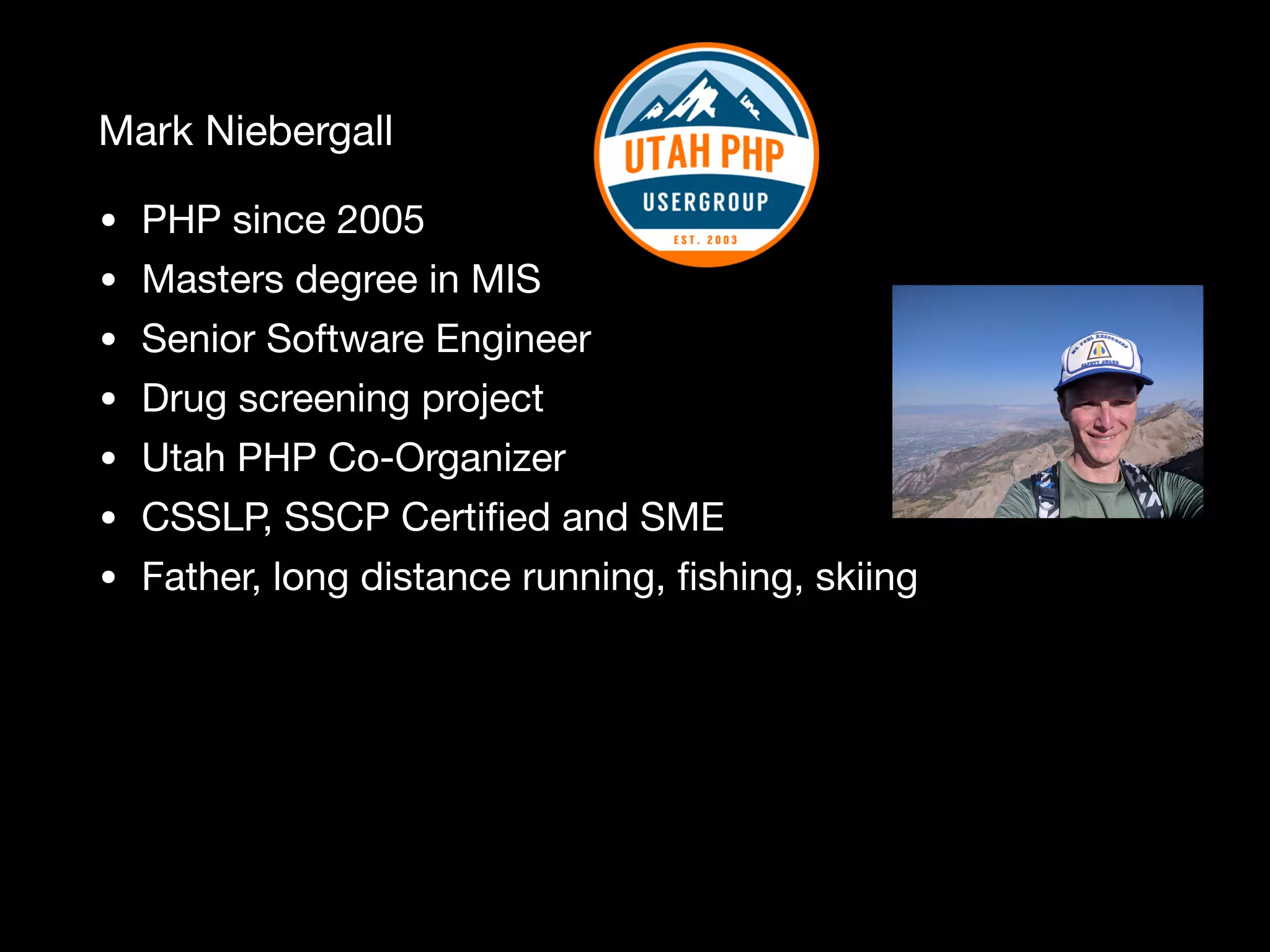

Mark Niebergall • PHP since 2005 • Masters degree in MIS • Senior Software Engineer • Drug screening project • Utah PHP Co-Organizer • CSSLP, SSCP Certiﬁed and SME • Father, long distance running, ﬁshing, skiing

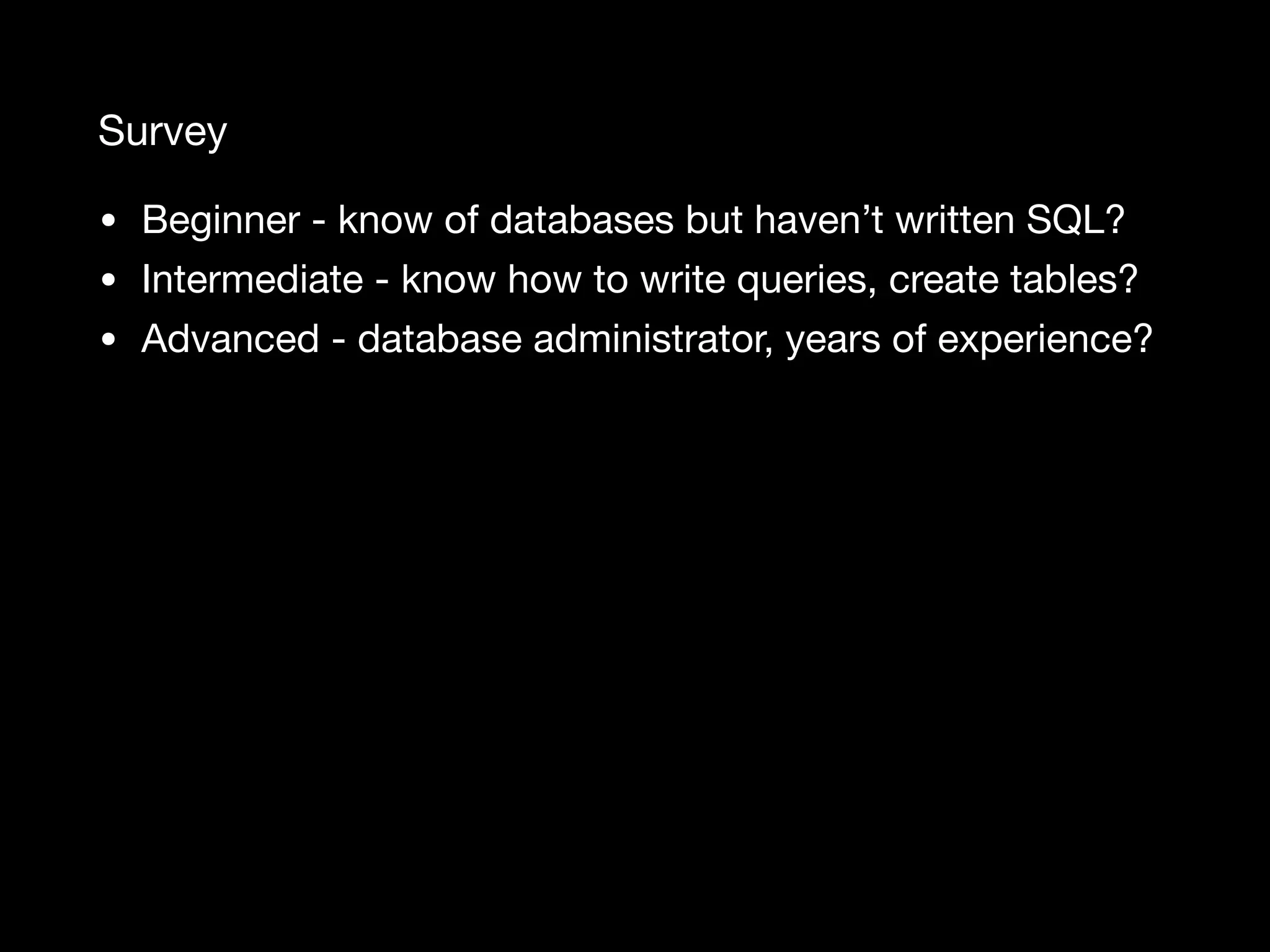

Survey • Beginner - know of databases but haven’t written SQL? • Intermediate - know how to write queries, create tables? • Advanced - database administrator, years of experience?

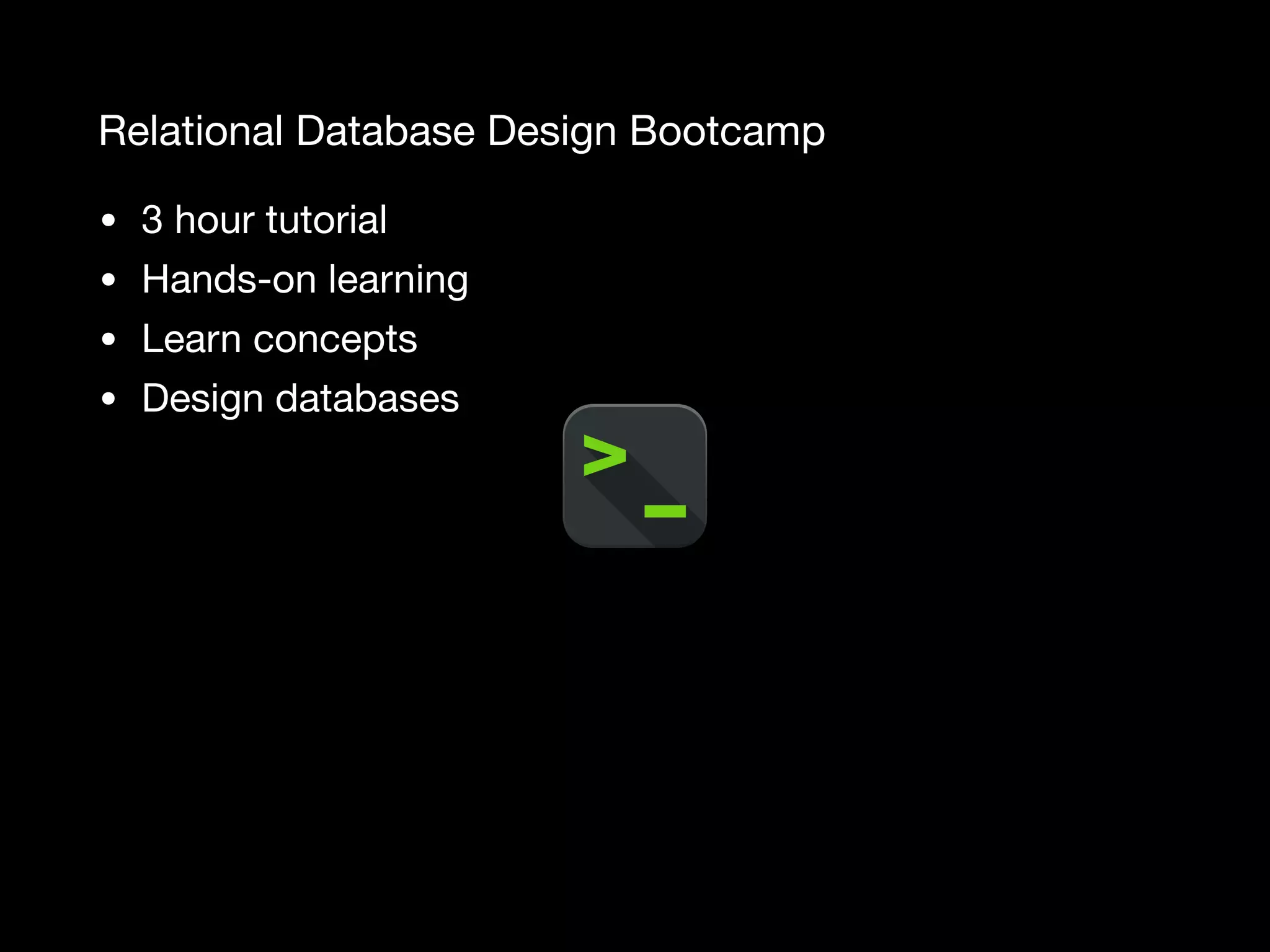

Relational Database Design Bootcamp • 3 hour tutorial • Hands-on learning • Learn concepts • Design databases

Relational Database Design Bootcamp • 1:00-1:30 Key concepts • 1:30-2:00 Class Project Design • 2:00-2:10 Break • 2:10-2:30 Class Project Design (continued) • 2:30-3:00 Group Projects • 3:00-3:10 Break • 3:10-3:30 Group Projects • 3:30-3:50 Group Project Presentations • 3:50-4:00 Review and Discussion

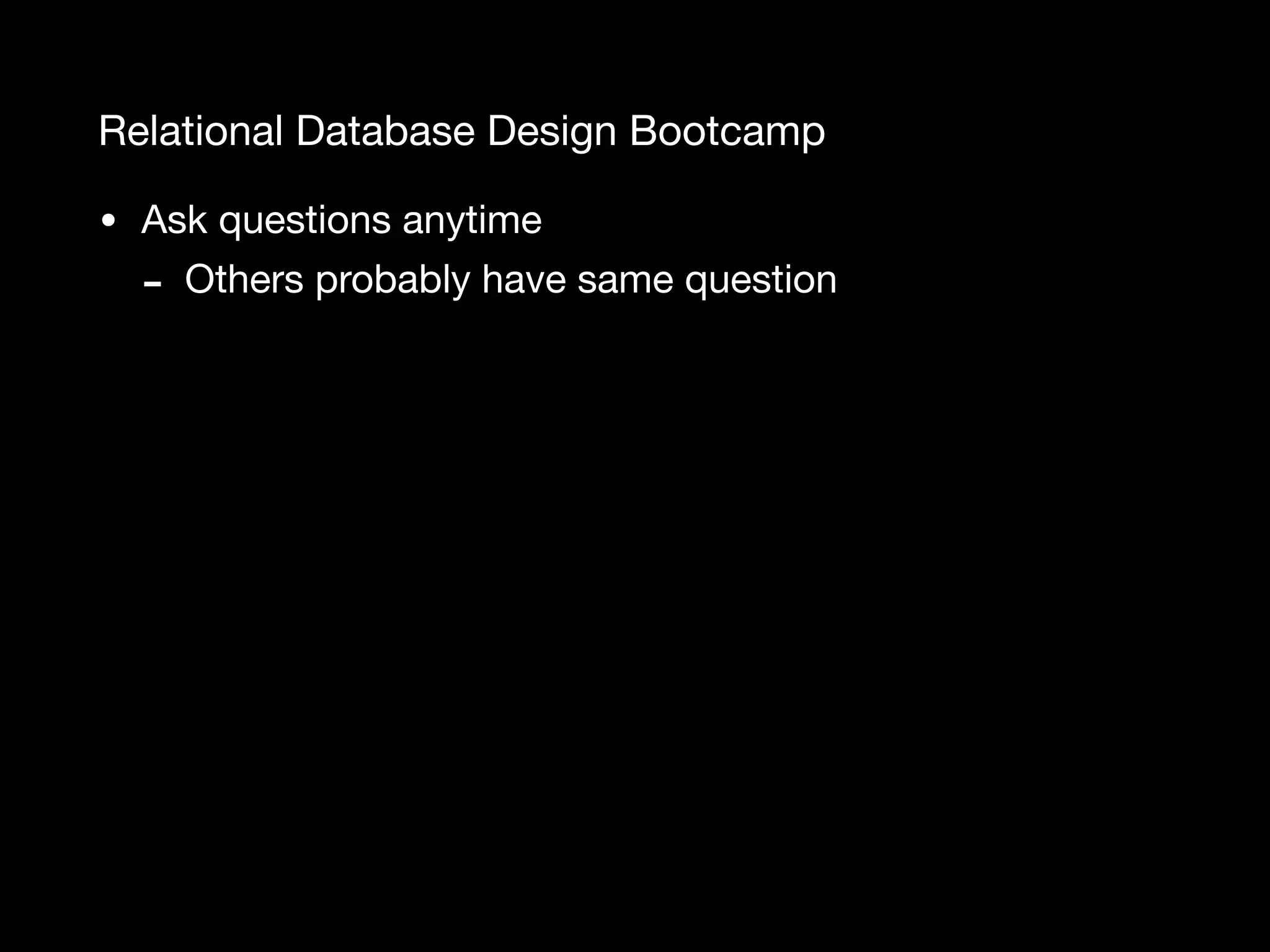

Relational Database Design Bootcamp • Ask questions anytime - Others probably have same question

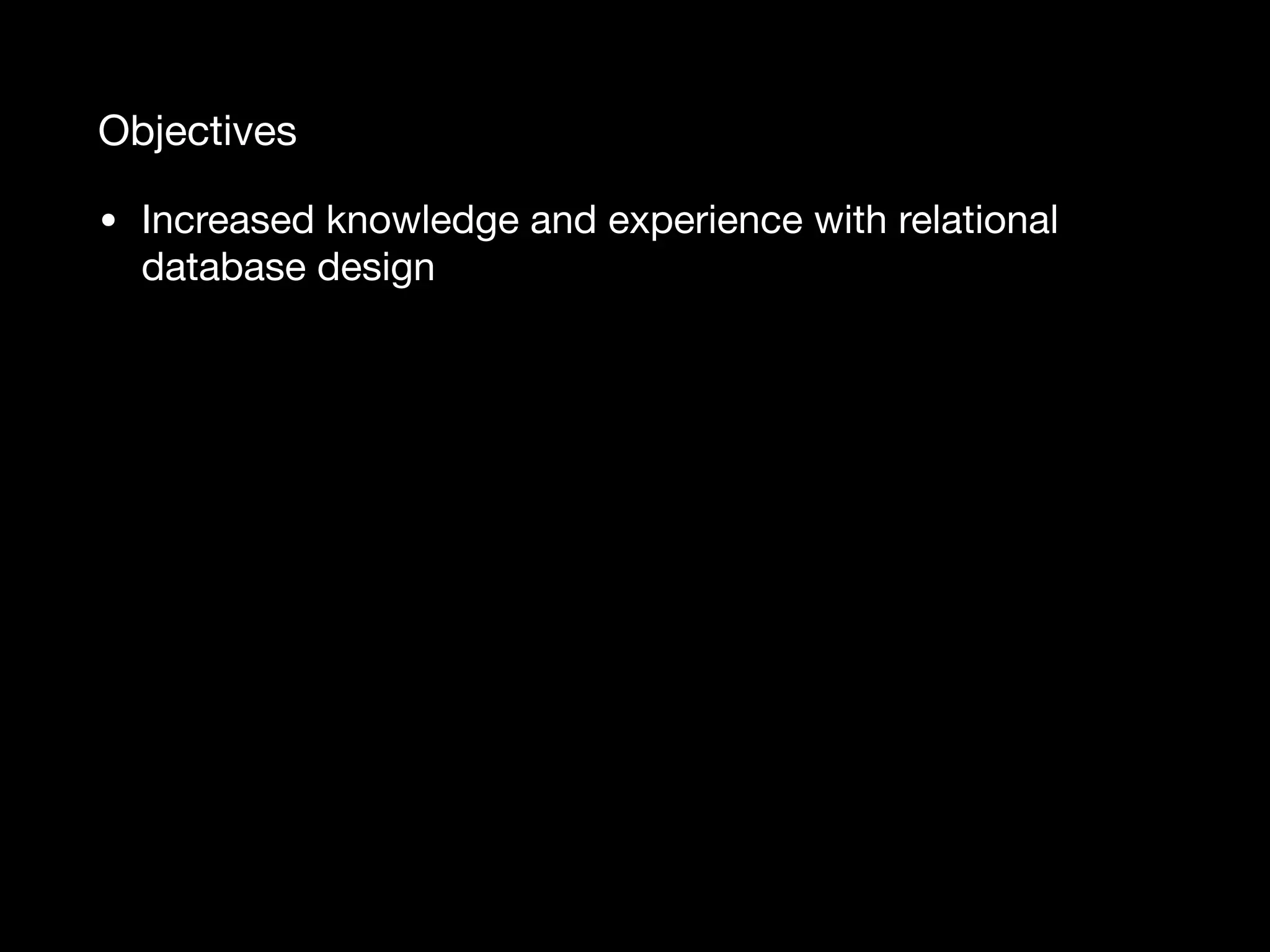

Objectives • Increased knowledge and experience with relational database design

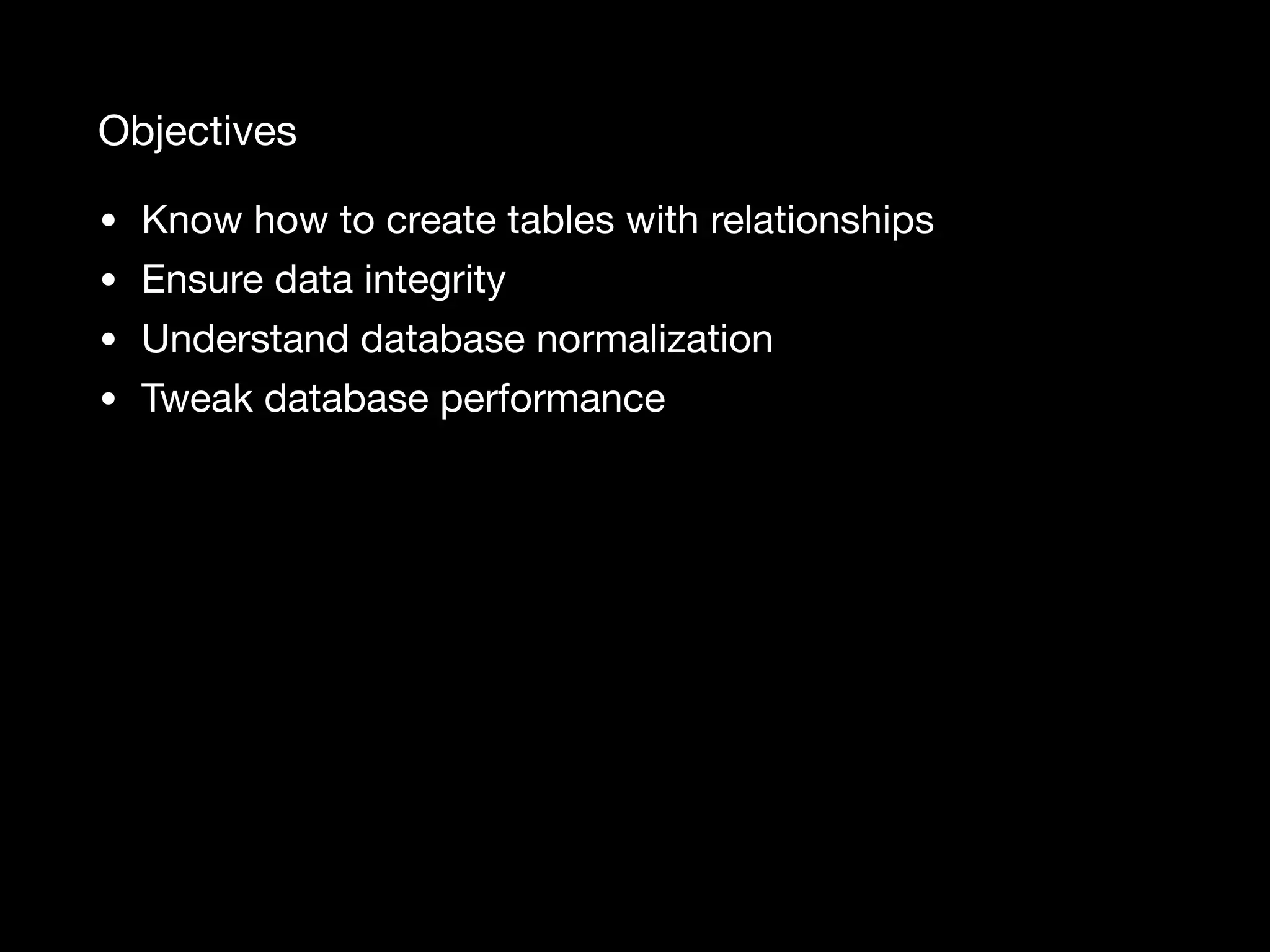

Objectives • Know how to create tables with relationships • Ensure data integrity • Understand database normalization • Tweak database performance

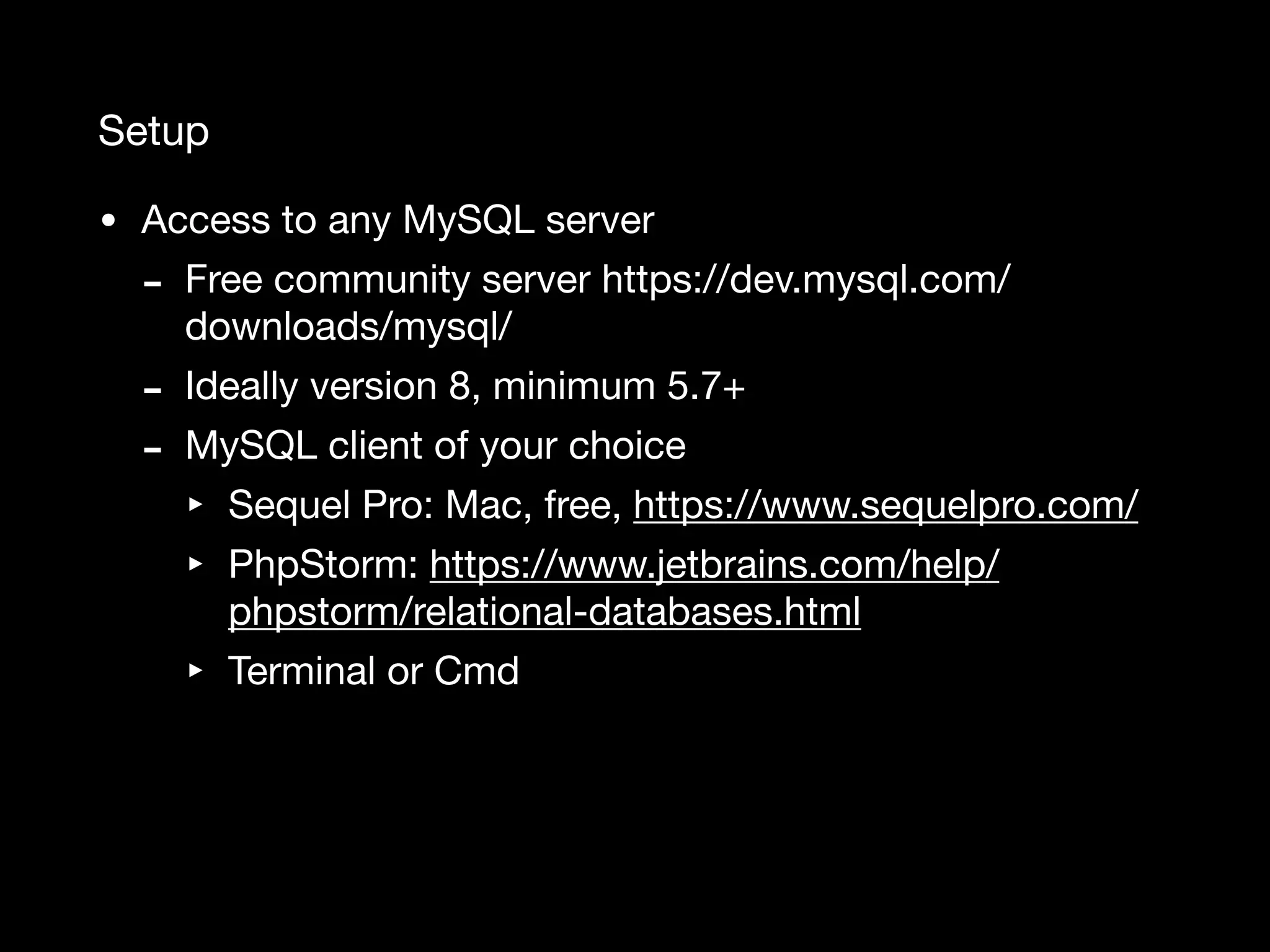

Setup • Access to any MySQL server - Free community server https://dev.mysql.com/ downloads/mysql/ - Ideally version 8, minimum 5.7+ - MySQL client of your choice ‣ Sequel Pro: Mac, free, https://www.sequelpro.com/ ‣ PhpStorm: https://www.jetbrains.com/help/ phpstorm/relational-databases.html ‣ Terminal or Cmd

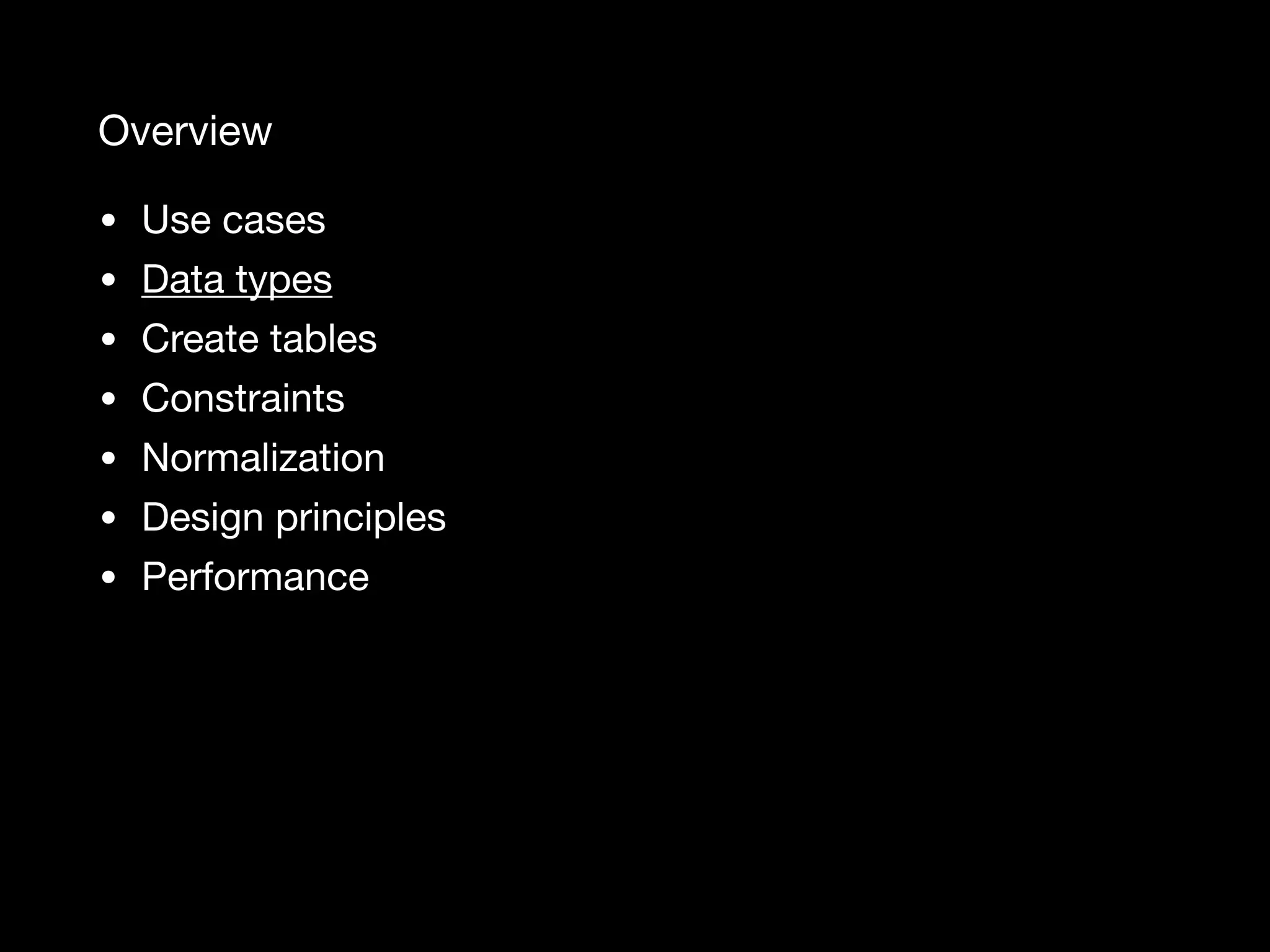

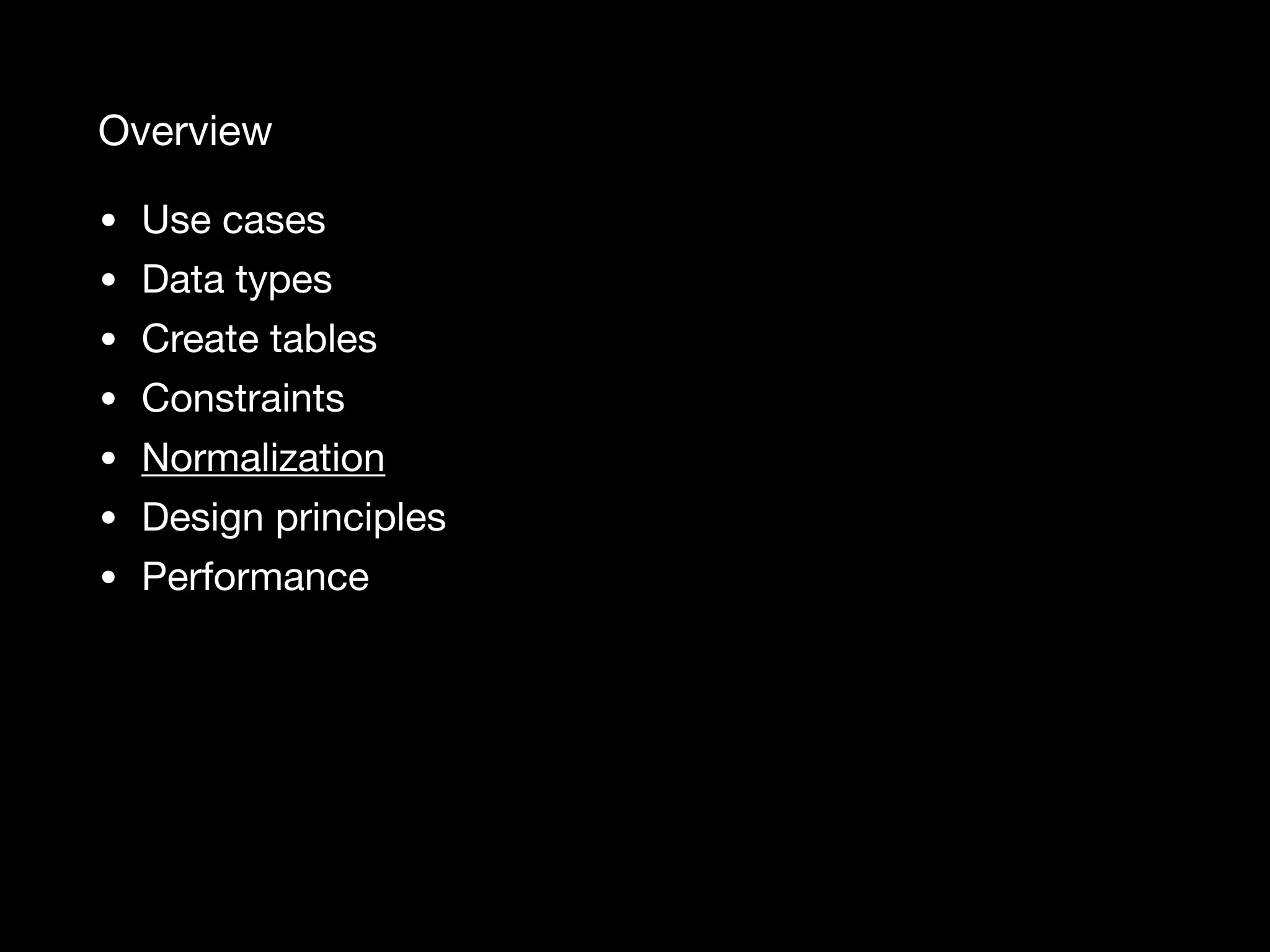

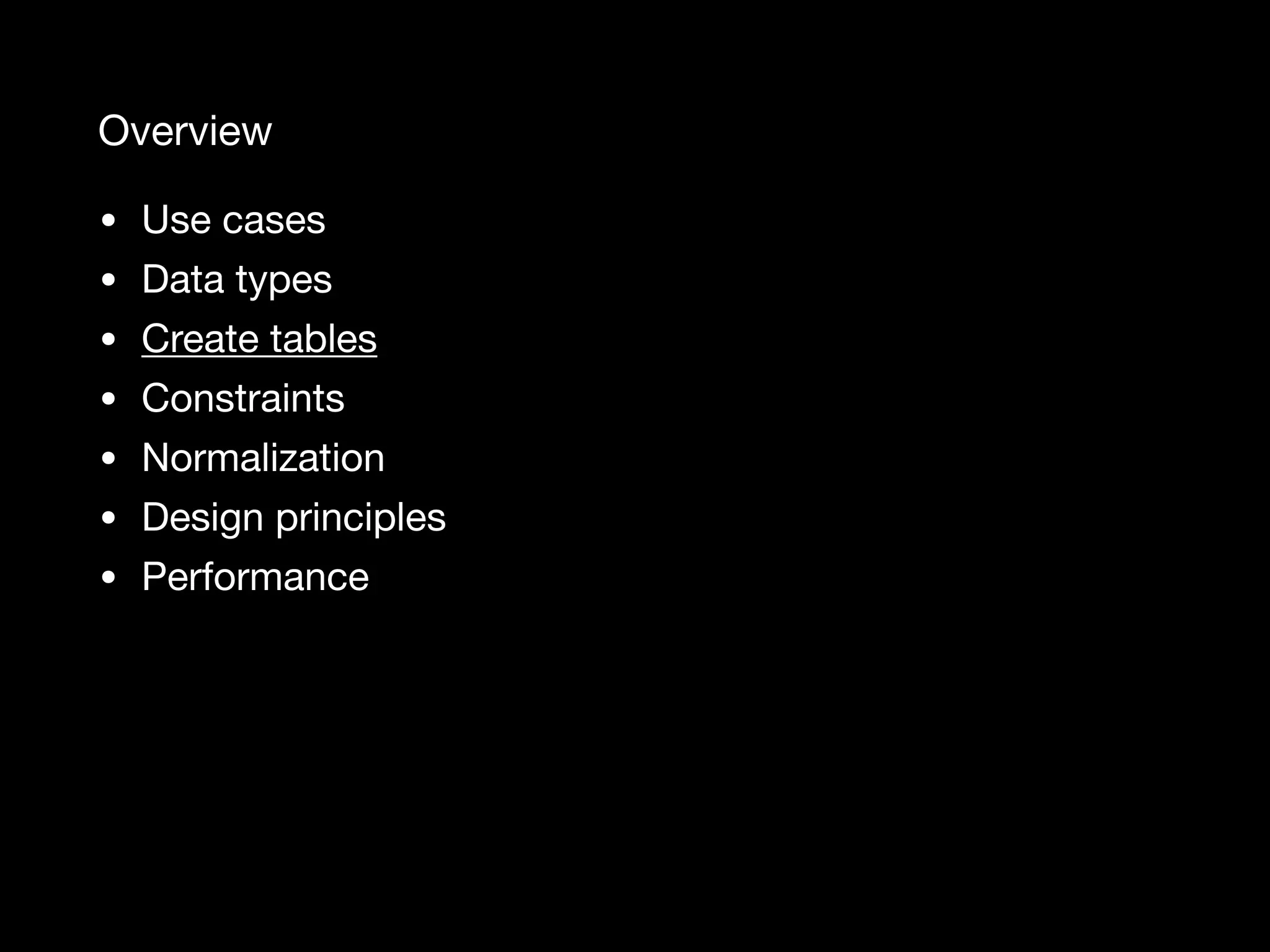

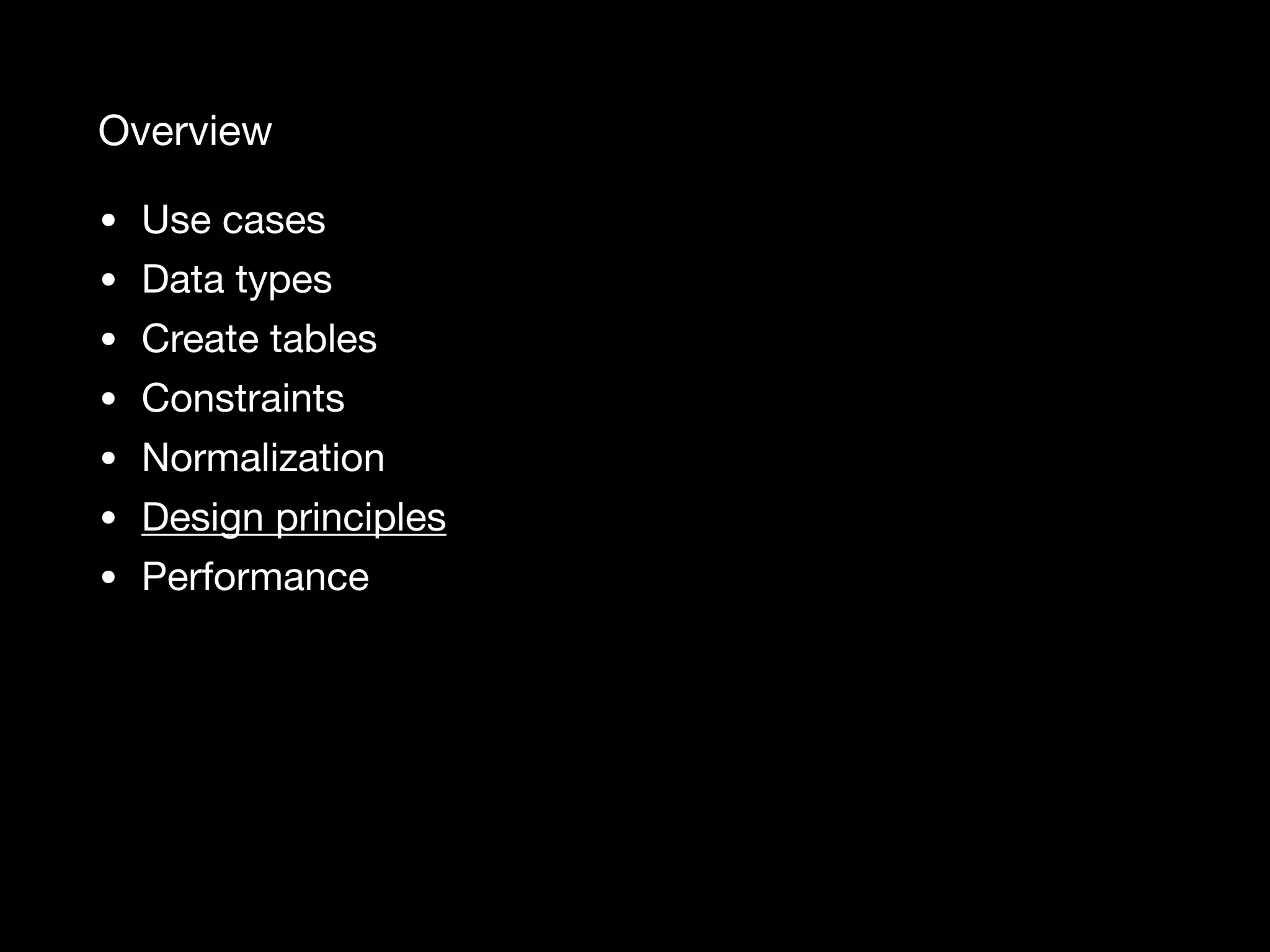

Overview • Use cases • Data types • Create tables • Constraints • Normalization • Design principles • Performance

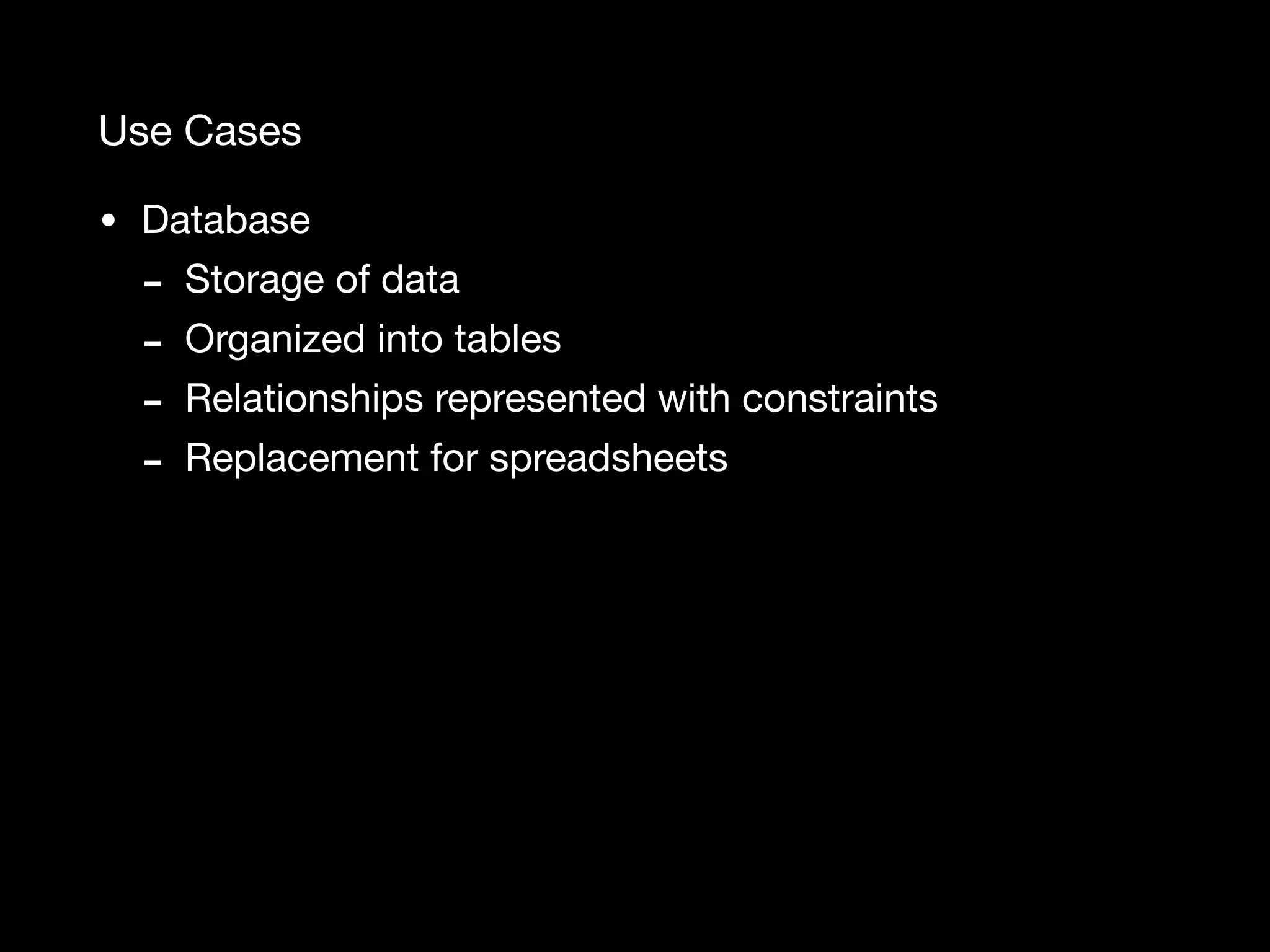

Use Cases • Database - Storage of data - Organized into tables - Relationships represented with constraints - Replacement for spreadsheets

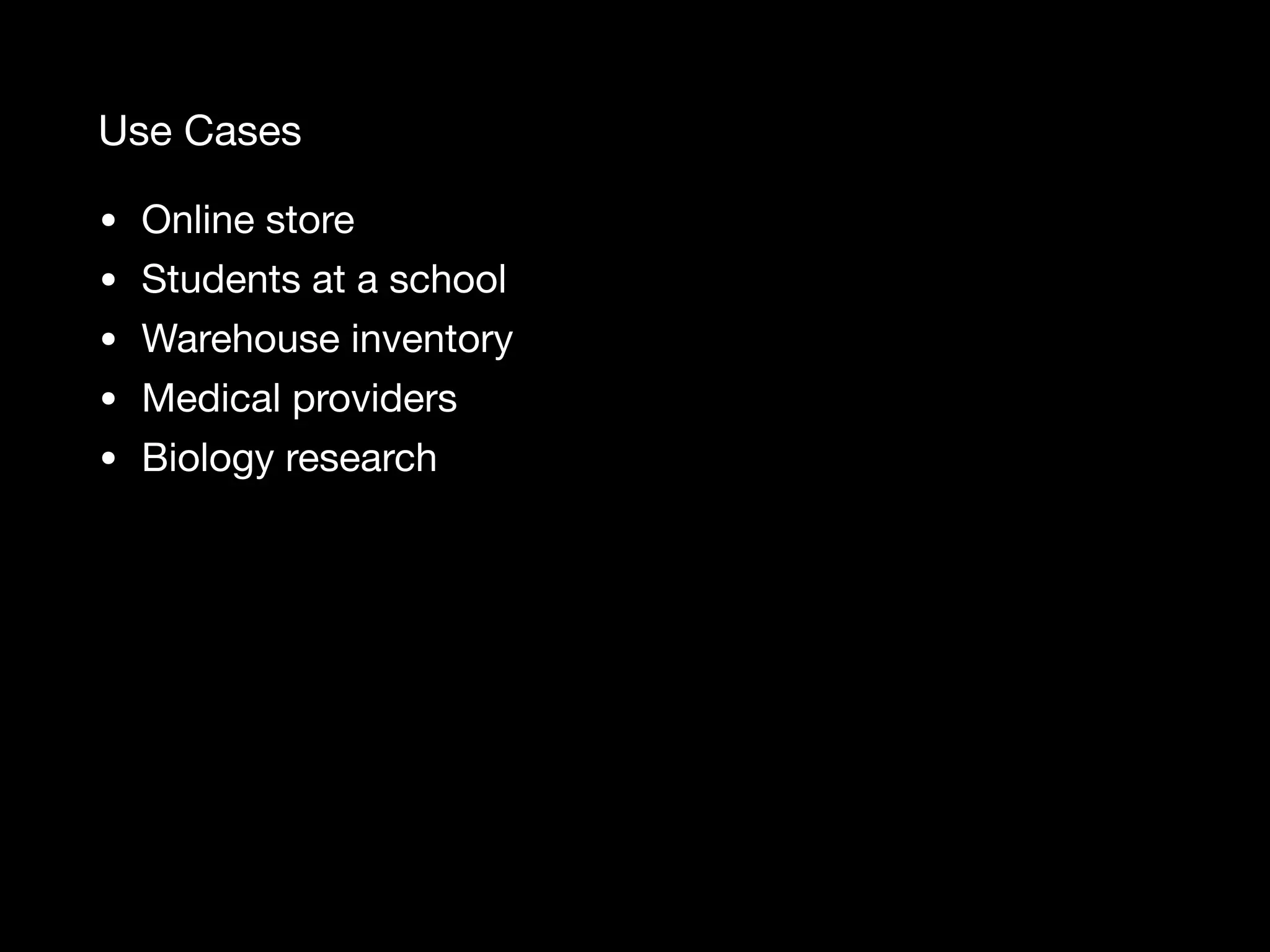

Use Cases • Online store • Students at a school • Warehouse inventory • Medical providers • Biology research

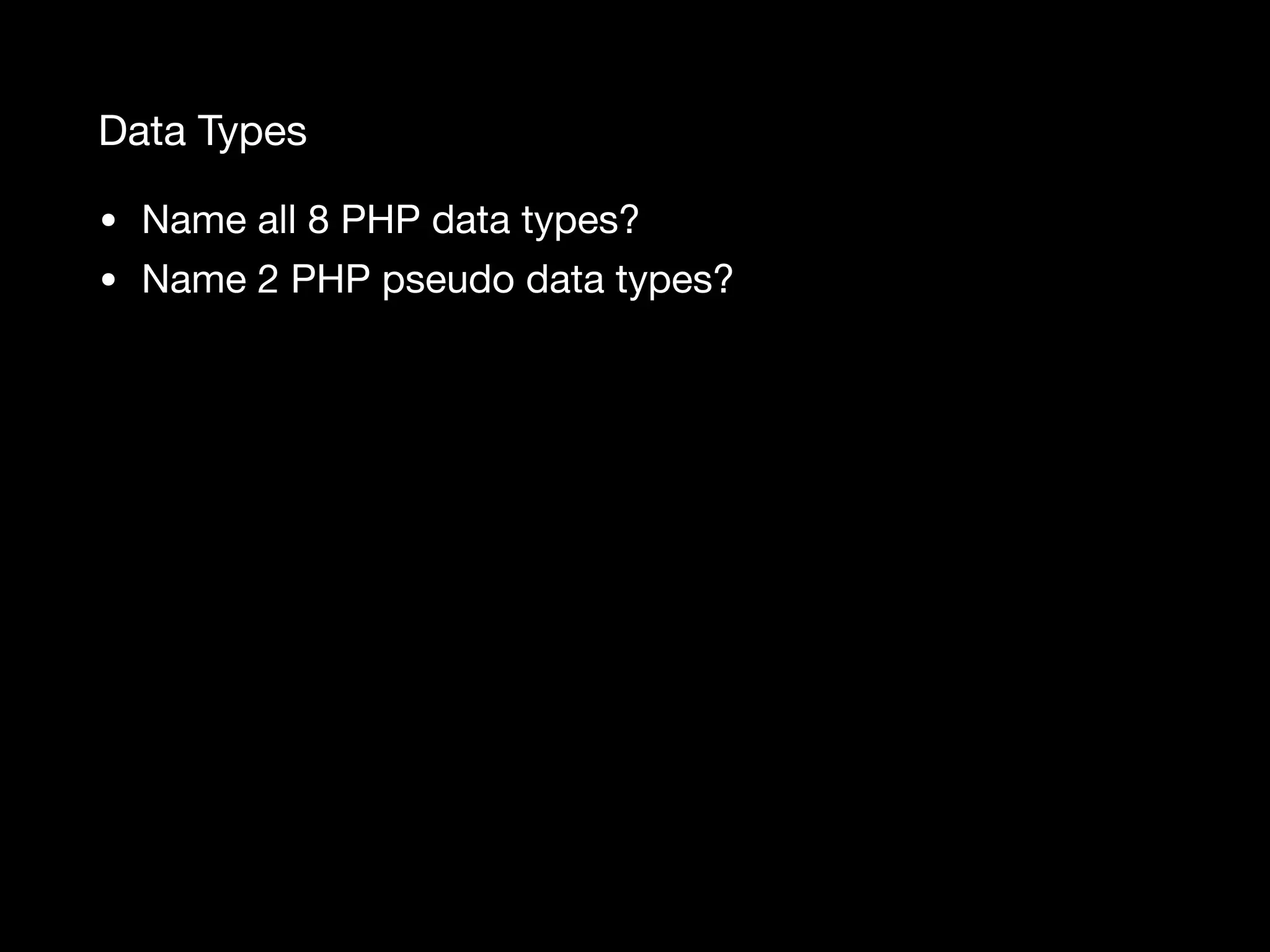

Data Types • Name all 8 PHP data types? • Name 2 PHP pseudo data types?

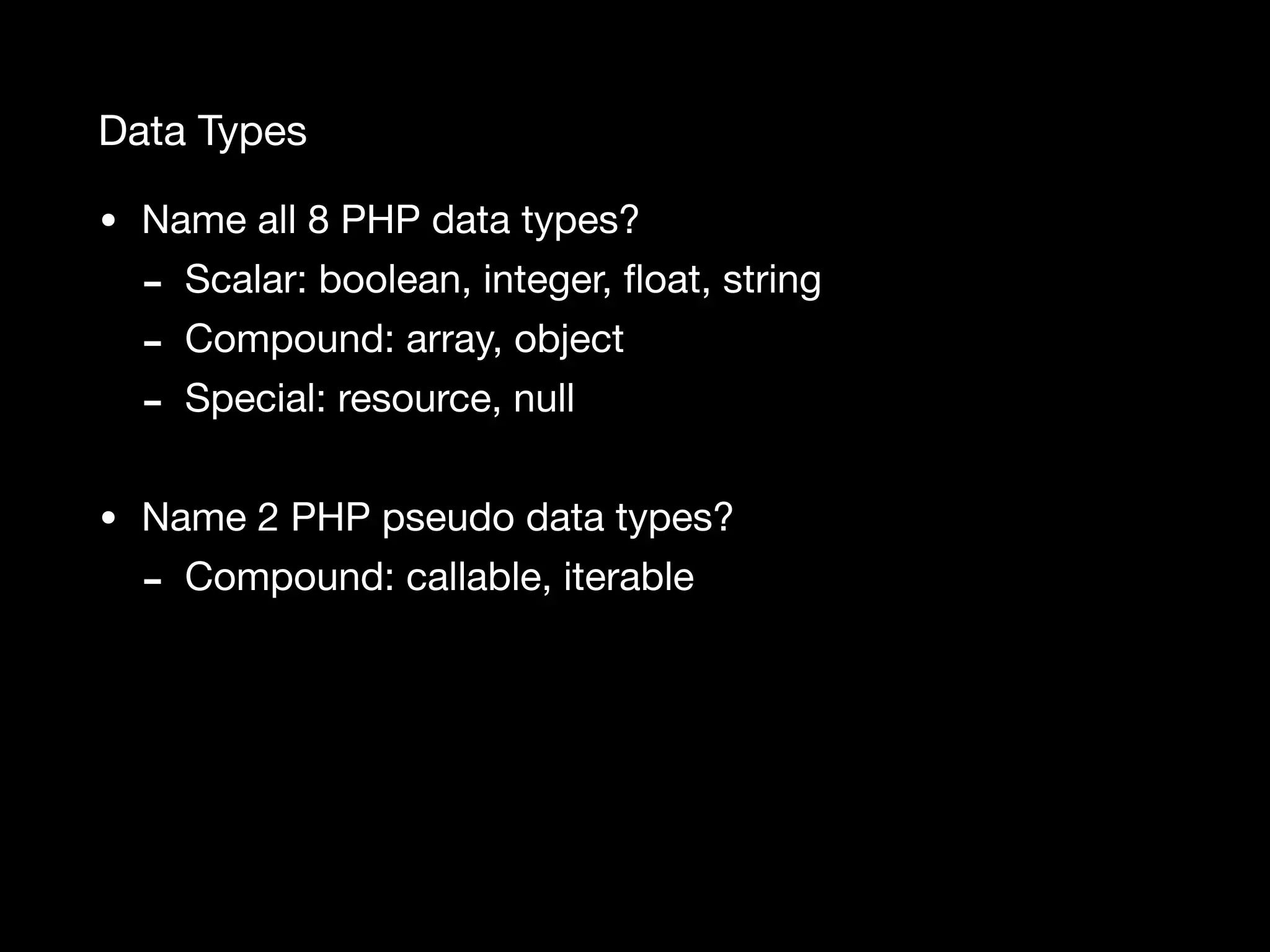

Data Types • Name all 8 PHP data types? - Scalar: boolean, integer, ﬂoat, string - Compound: array, object - Special: resource, null • Name 2 PHP pseudo data types? - Compound: callable, iterable

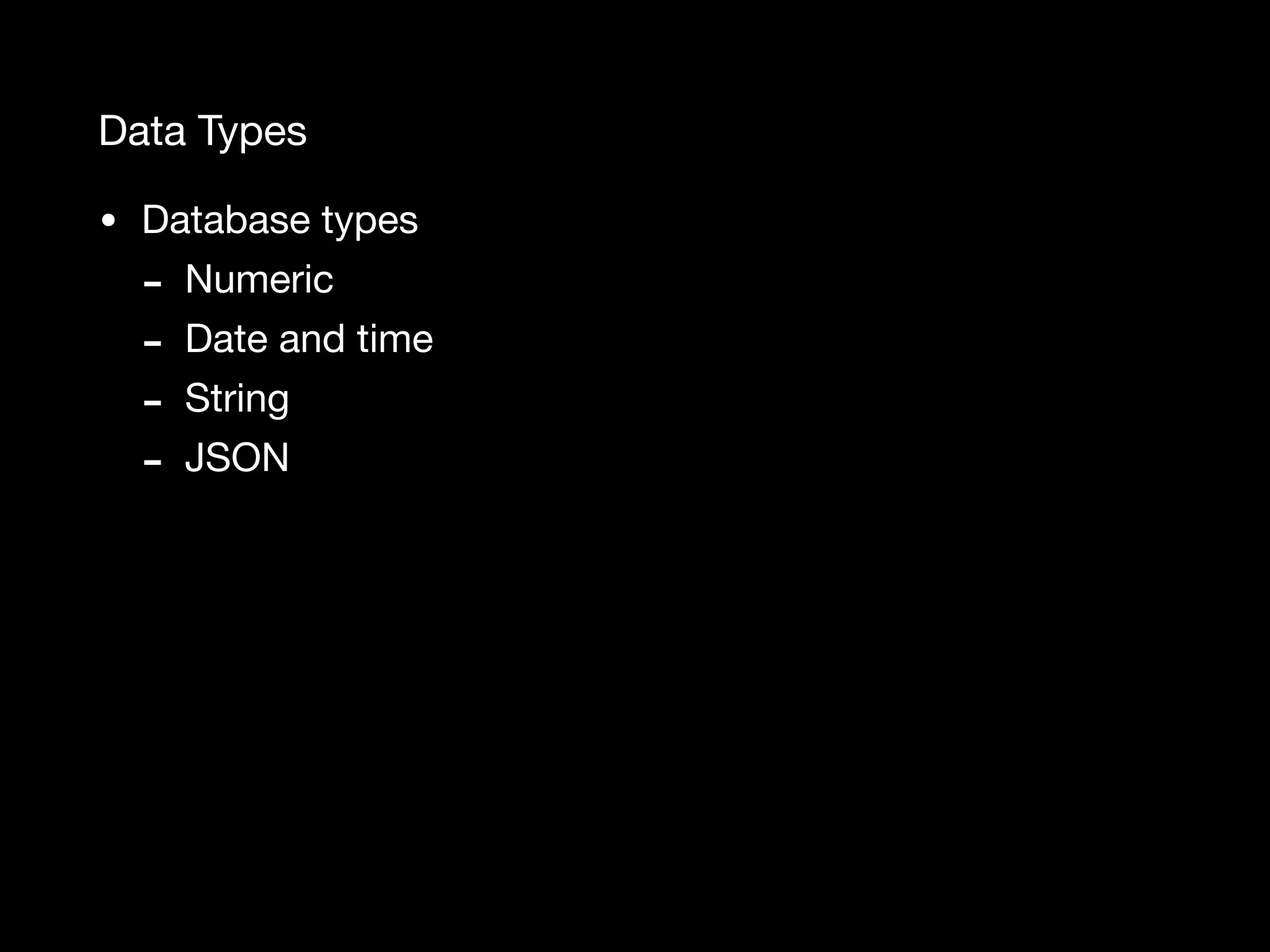

Data Types • Database types - Numeric - Date and time - String - JSON

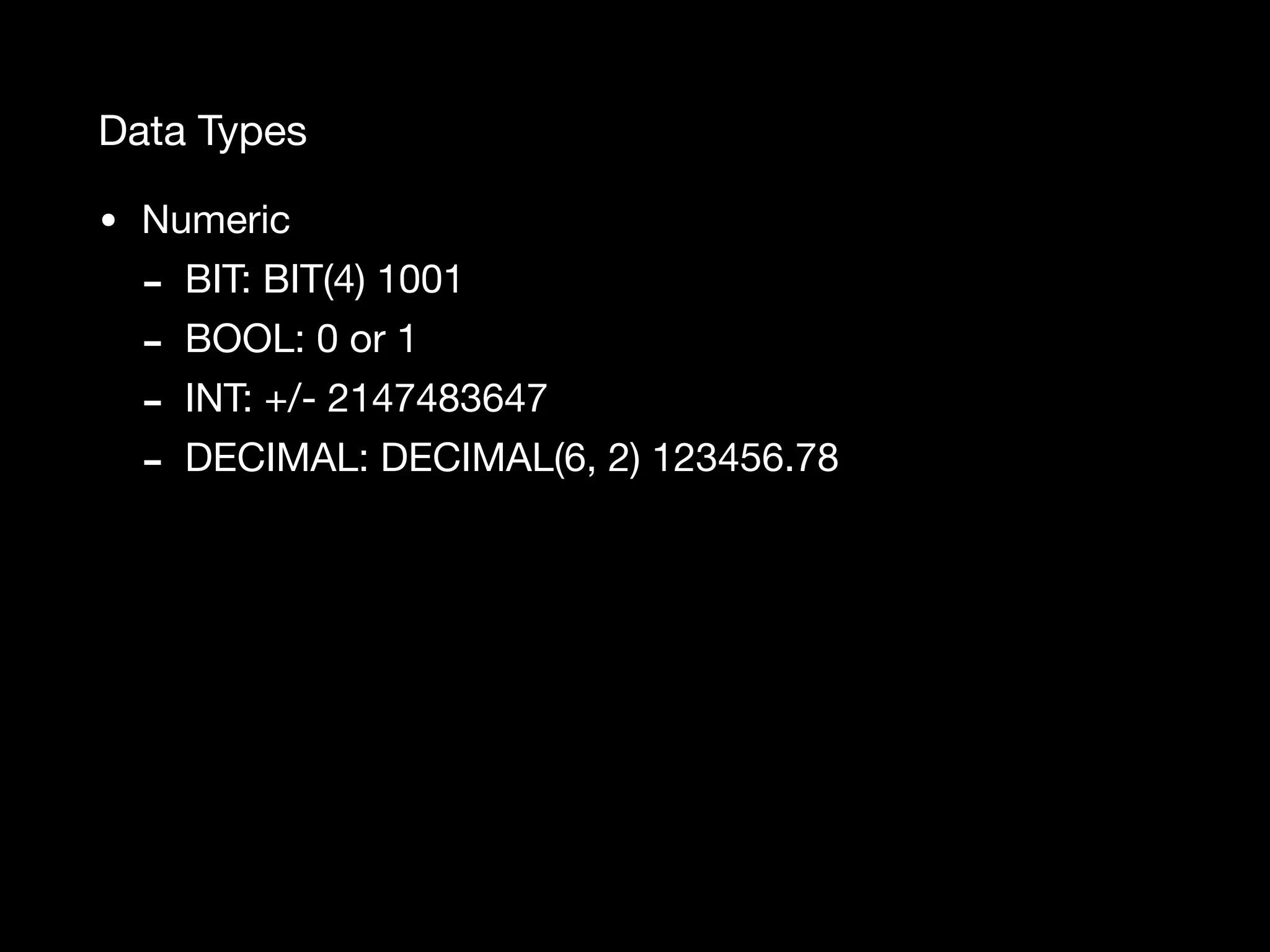

Data Types • Numeric - BIT: BIT(4) 1001 - BOOL: 0 or 1 - INT: +/- 2147483647 - DECIMAL: DECIMAL(6, 2) 123456.78

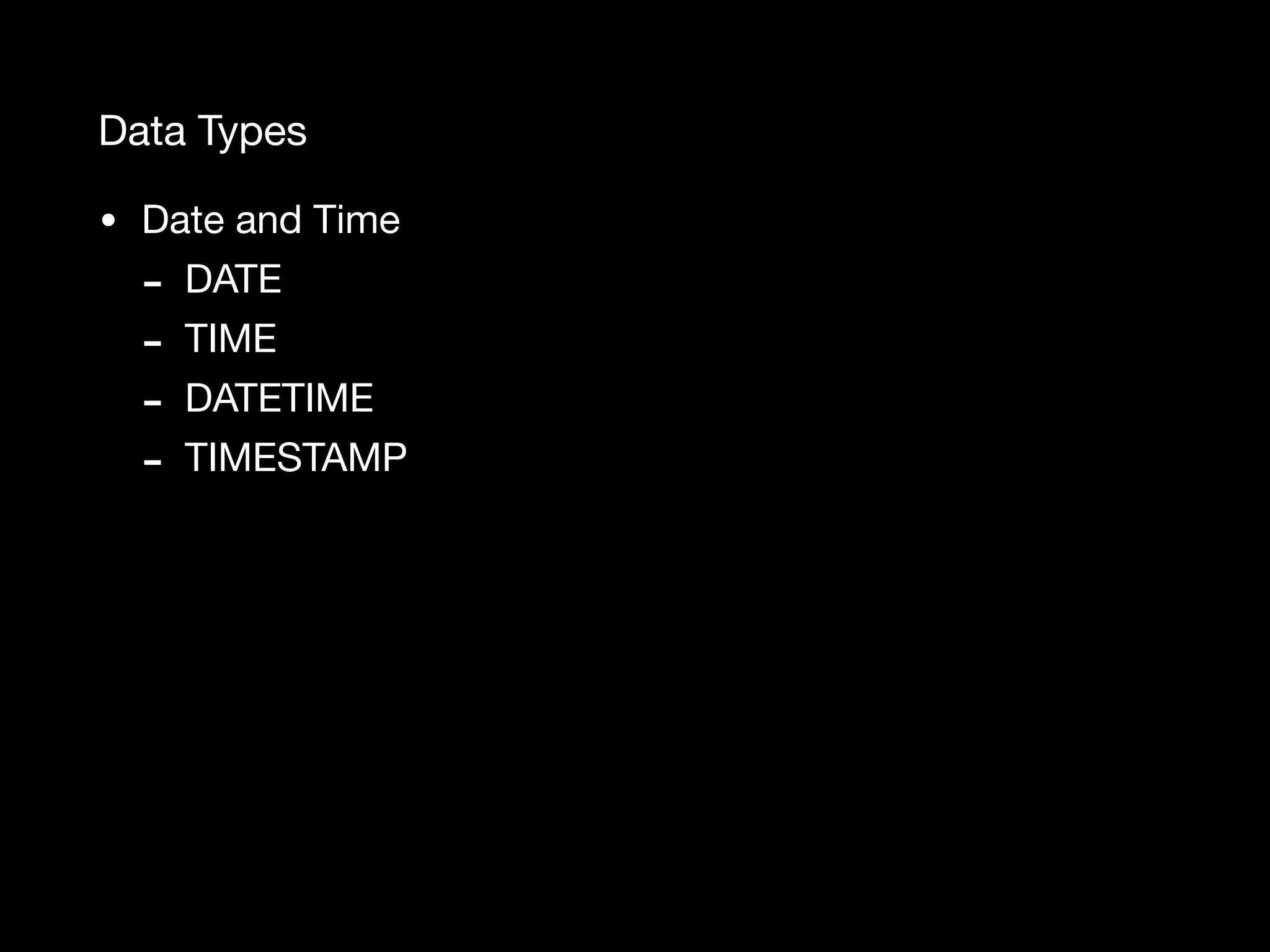

Data Types • Date and Time - DATE - TIME - DATETIME - TIMESTAMP

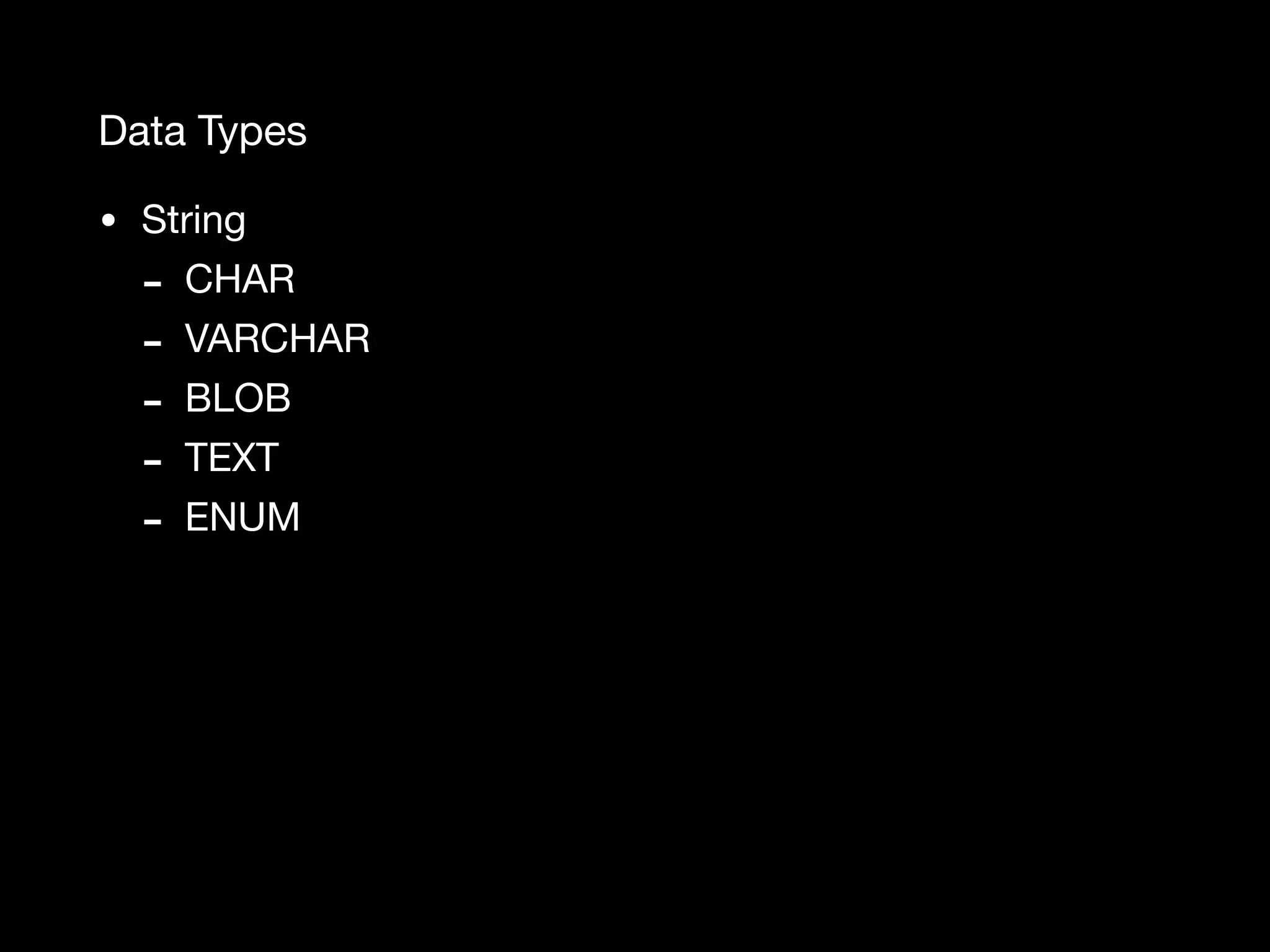

Data Types • String - CHAR - VARCHAR - BLOB - TEXT - ENUM

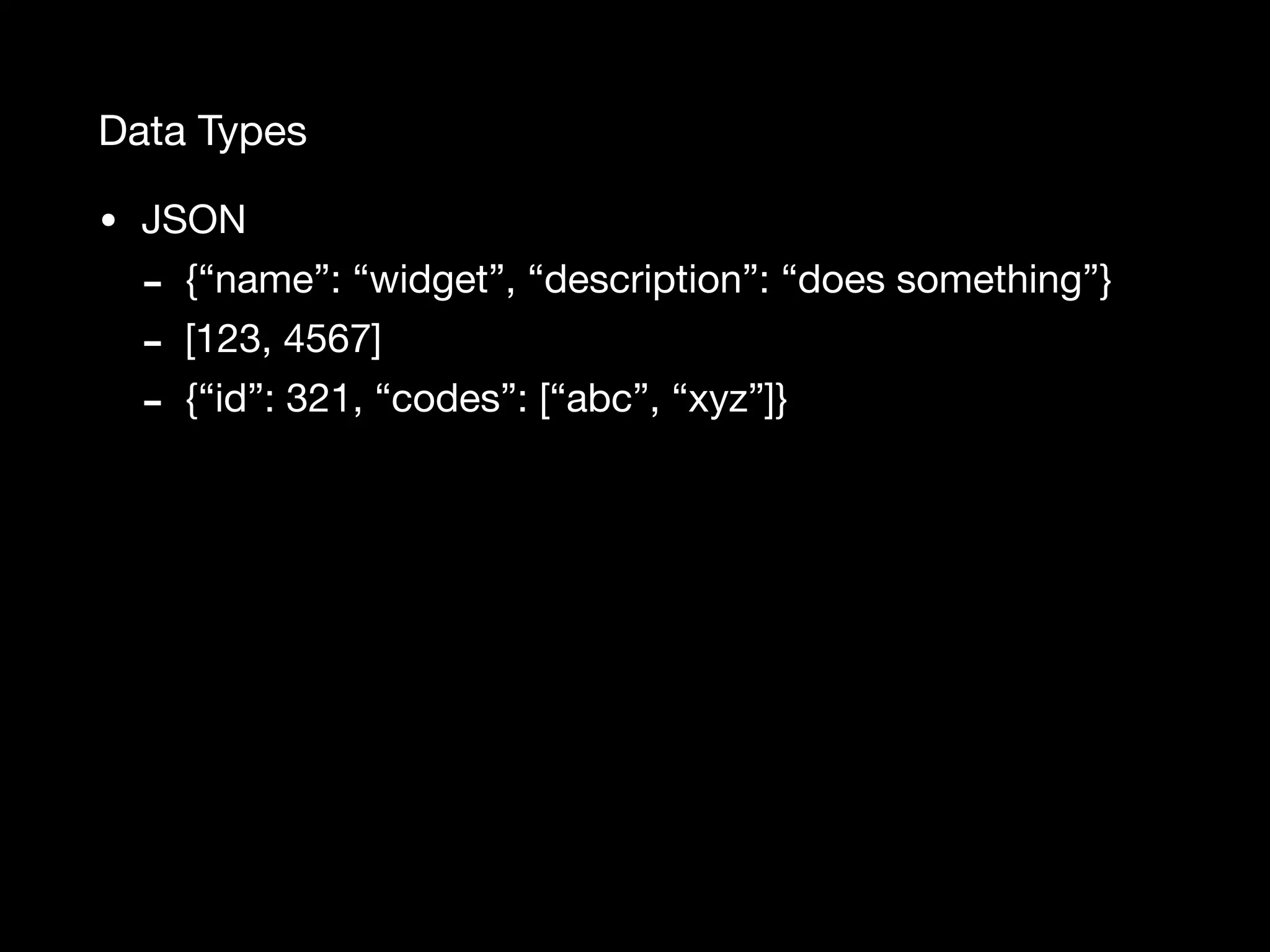

Data Types • JSON - {“name”: “widget”, “description”: “does something”} - [123, 4567] - {“id”: 321, “codes”: [“abc”, “xyz”]}

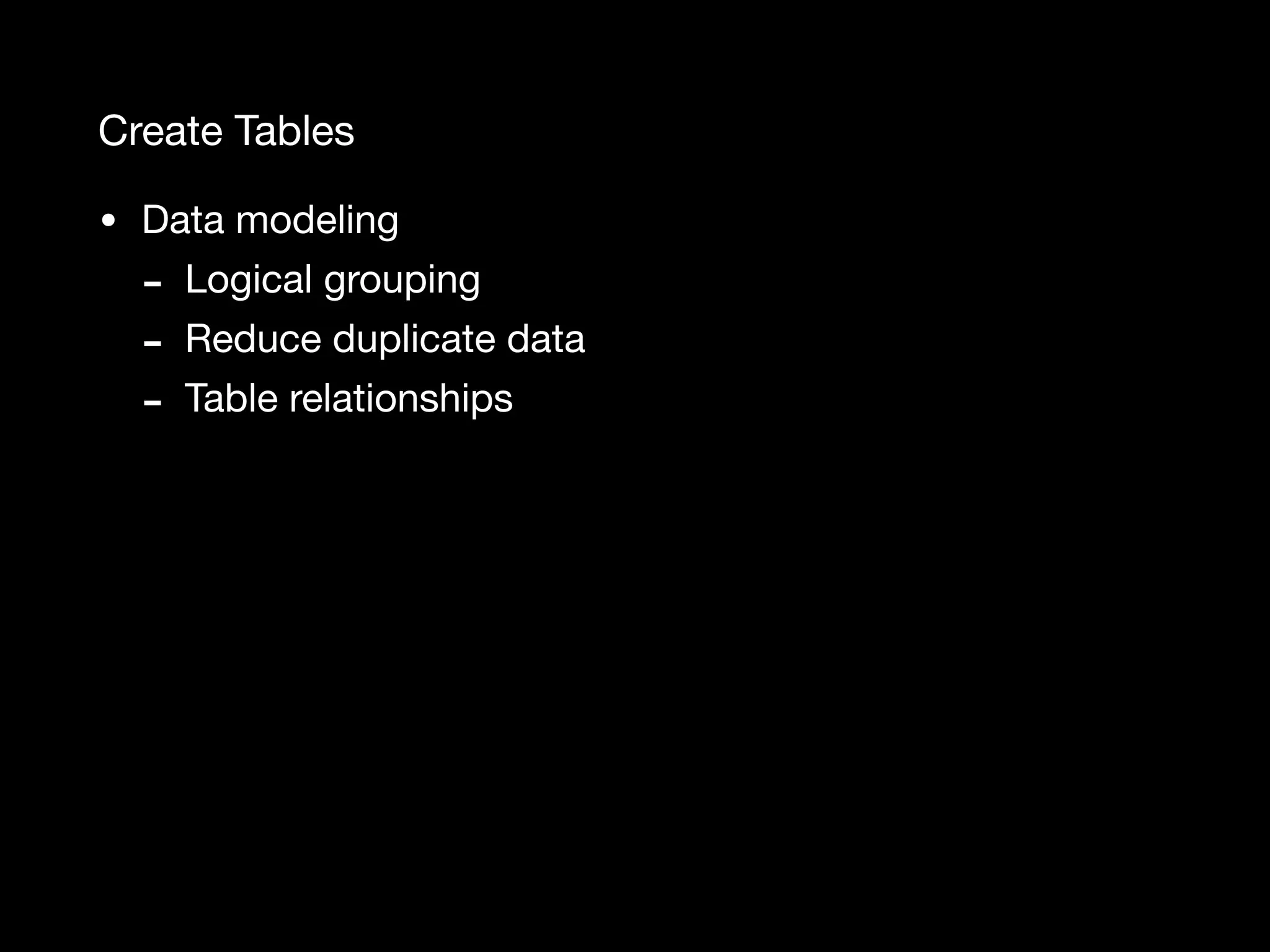

Create Tables • Data modeling - Logical grouping - Reduce duplicate data - Table relationships

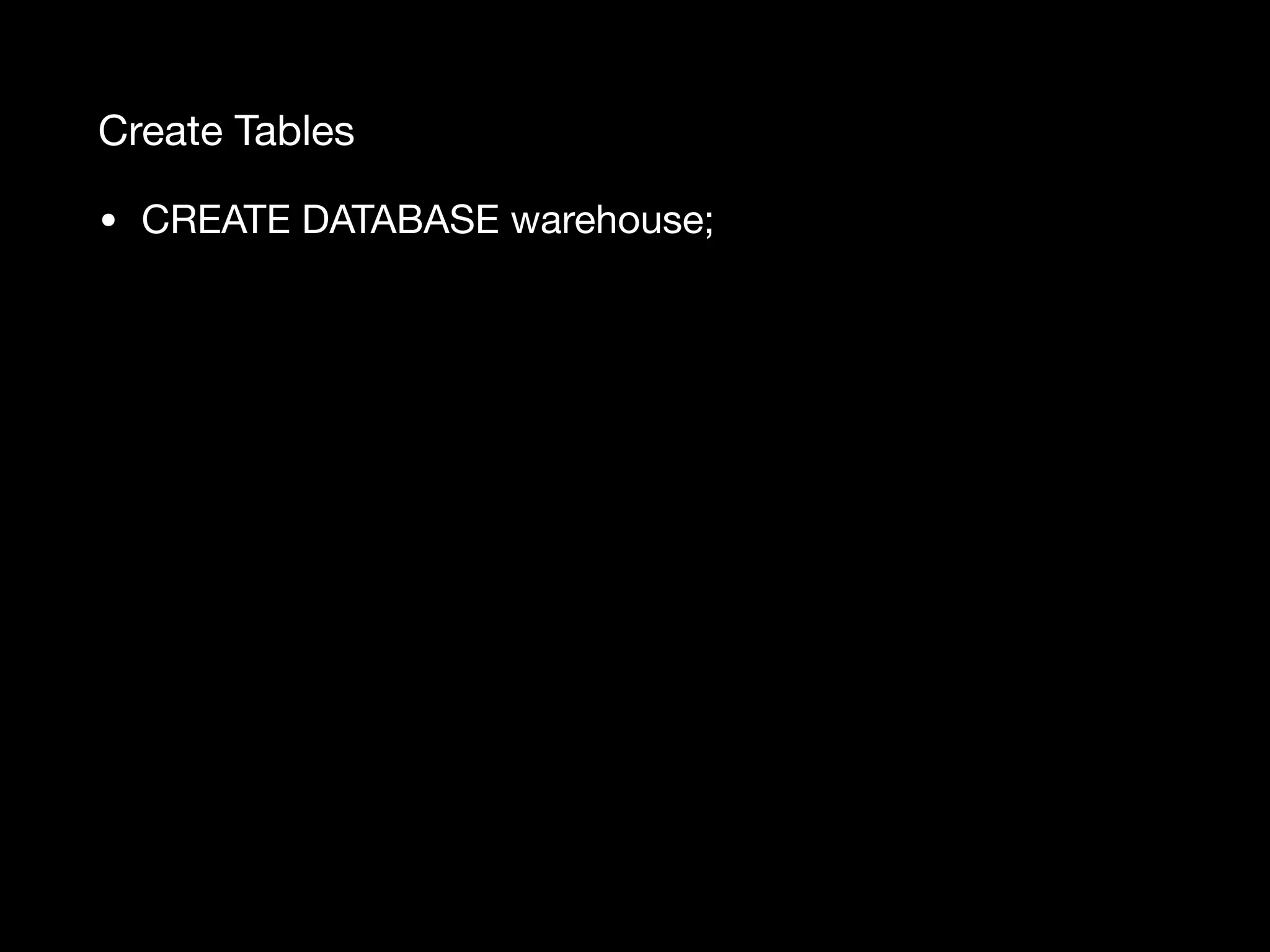

Create Tables • CREATE DATABASE warehouse;

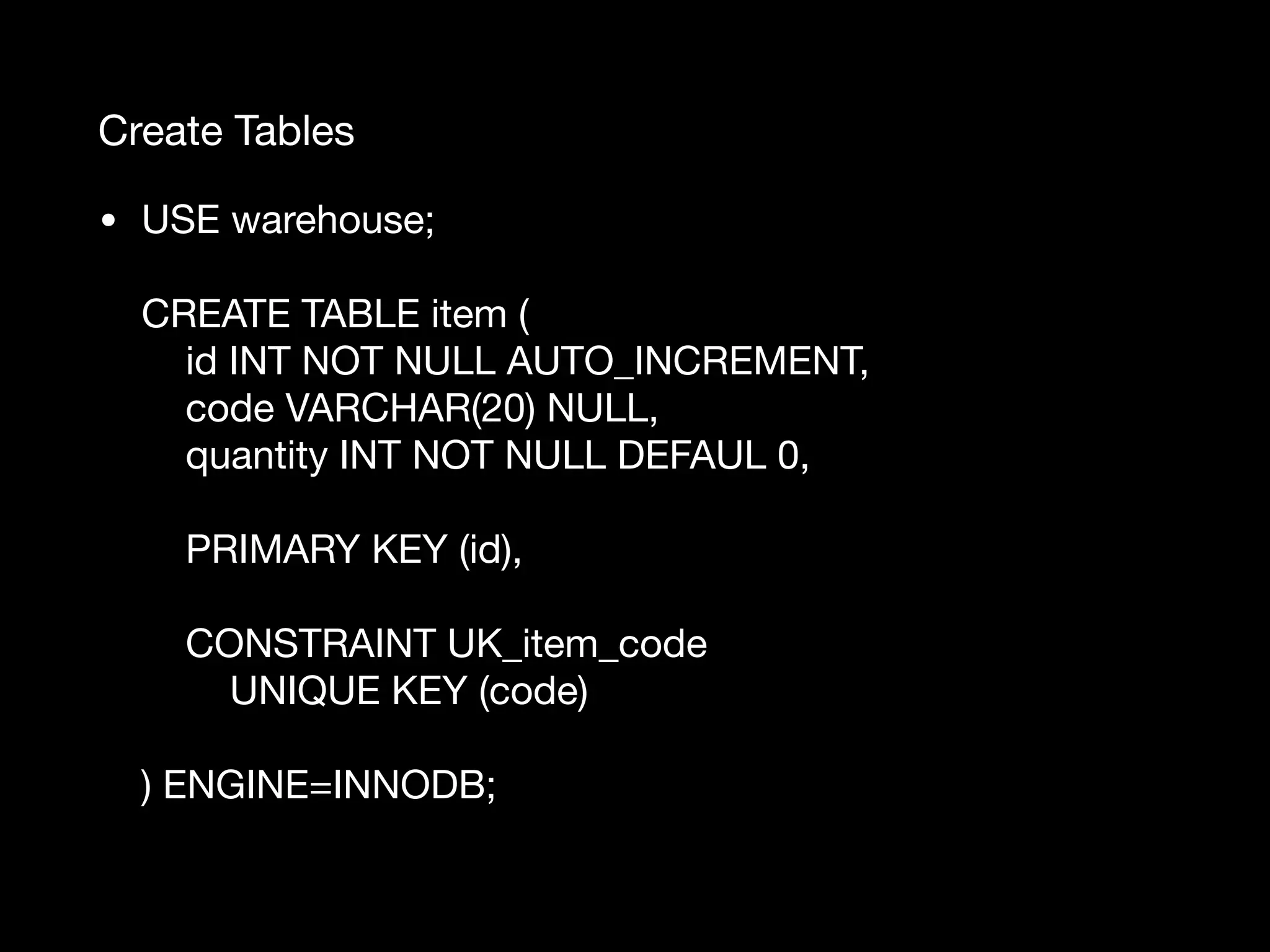

Create Tables • USE warehouse;    CREATE TABLE item (  id INT NOT NULL AUTO_INCREMENT,  code VARCHAR(20) NULL,  quantity INT NOT NULL DEFAUL 0,    PRIMARY KEY (id),    CONSTRAINT UK_item_code  UNIQUE KEY (code)    ) ENGINE=INNODB;

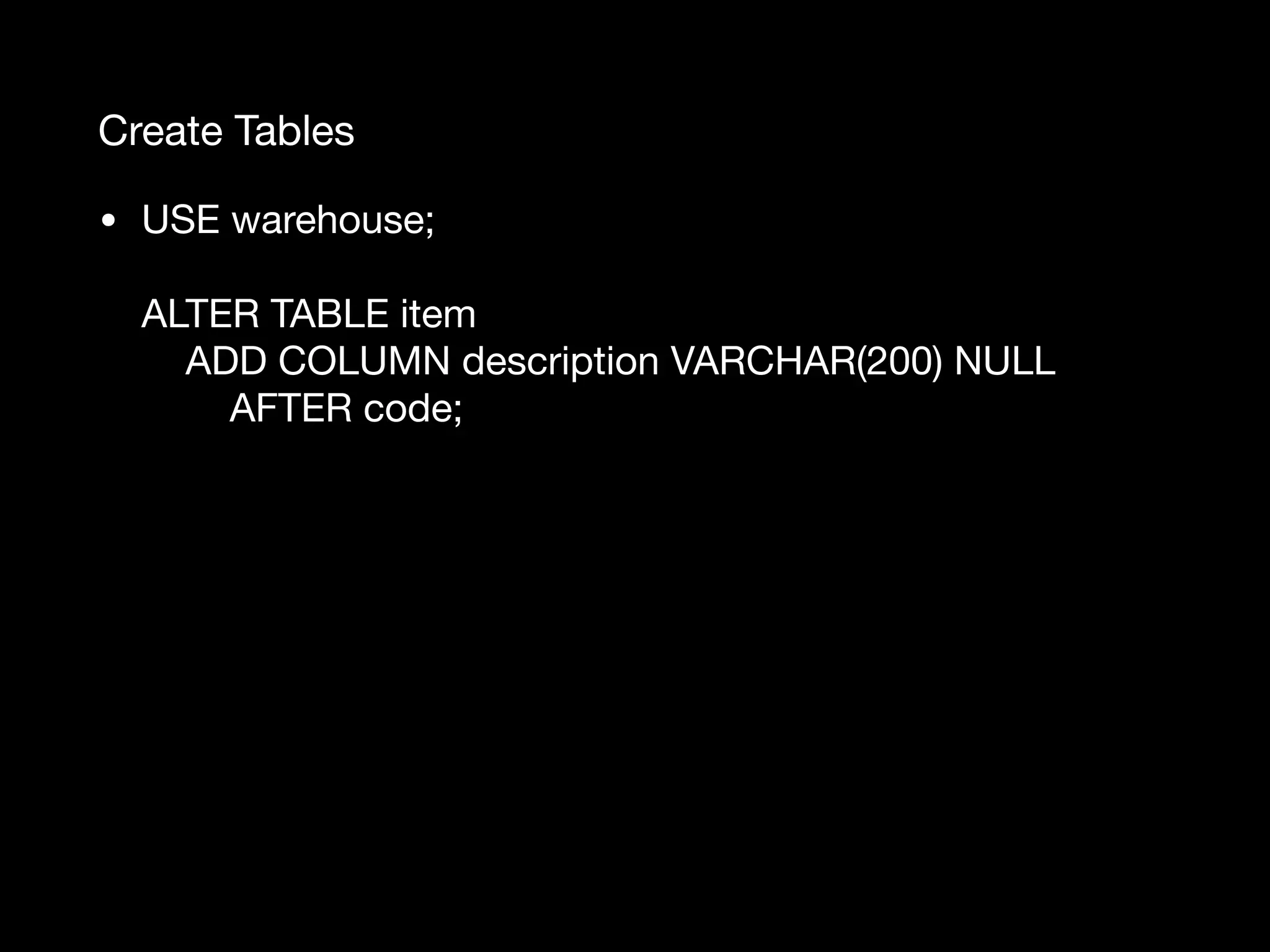

Create Tables • USE warehouse;    ALTER TABLE item  ADD COLUMN description VARCHAR(200) NULL  AFTER code;

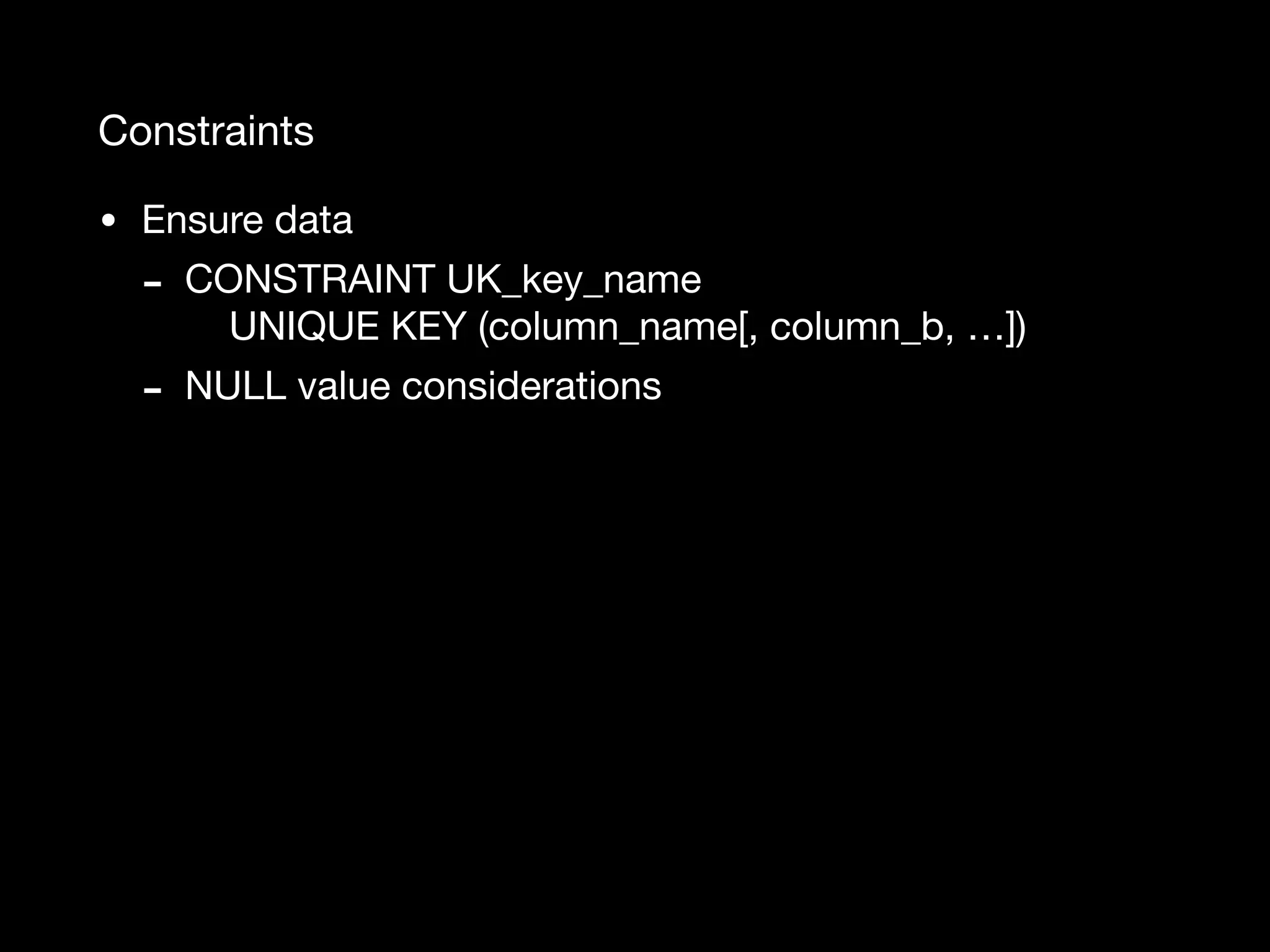

Constraints • Ensure data - CONSTRAINT UK_key_name  UNIQUE KEY (column_name[, column_b, …]) - NULL value considerations

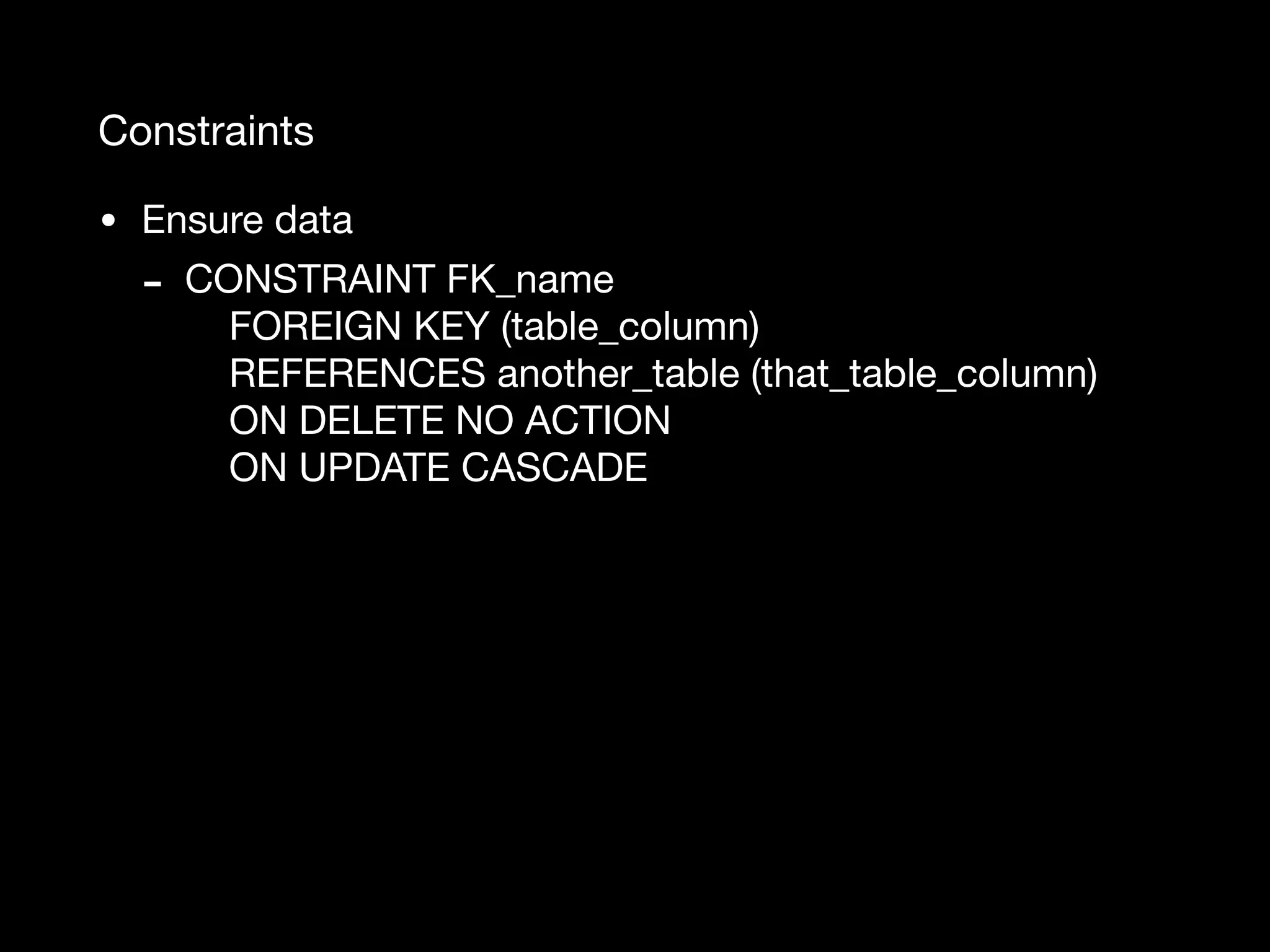

Constraints • Ensure data - CONSTRAINT FK_name  FOREIGN KEY (table_column)  REFERENCES another_table (that_table_column)  ON DELETE NO ACTION  ON UPDATE CASCADE

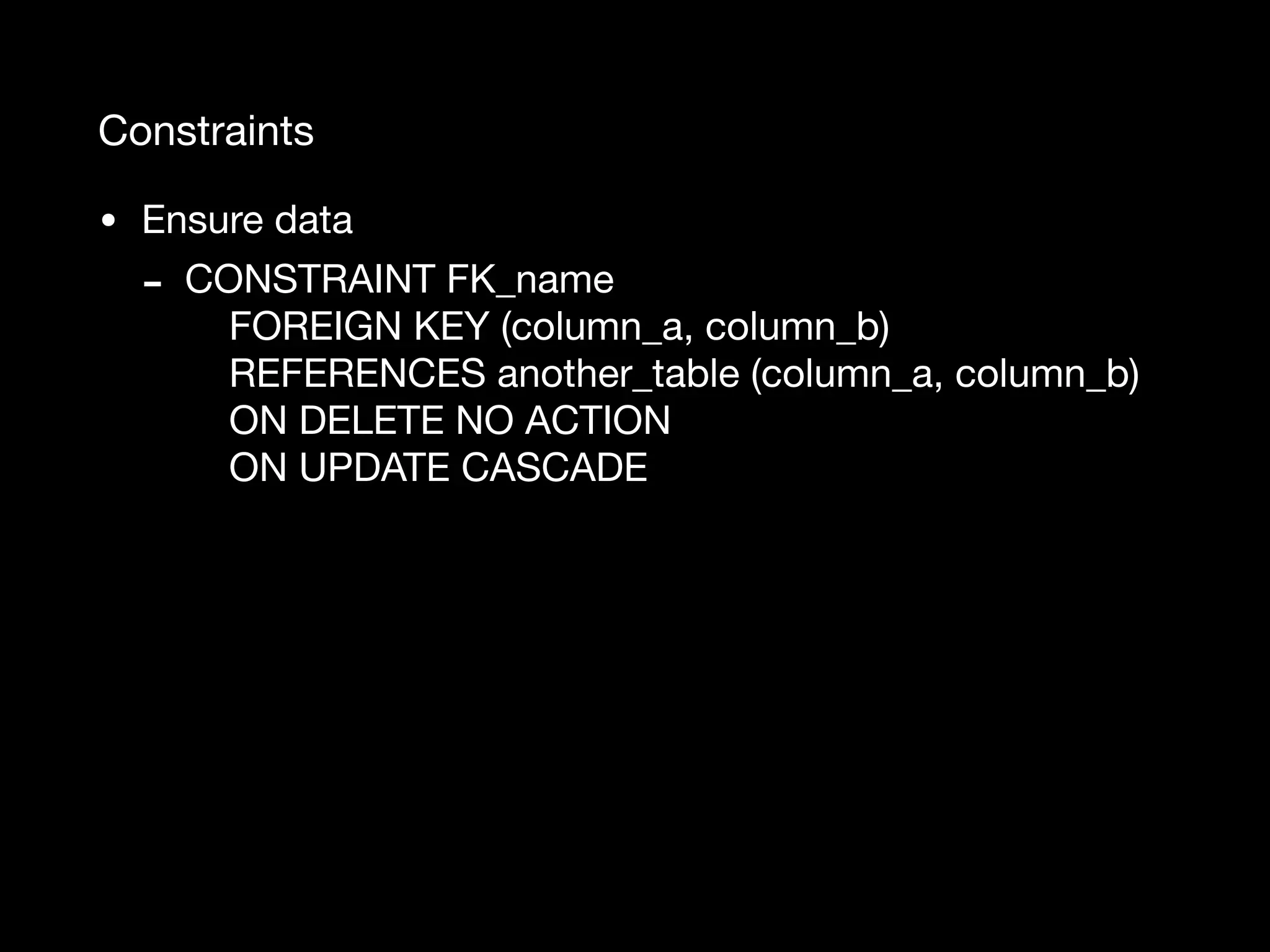

Constraints • Ensure data - CONSTRAINT FK_name  FOREIGN KEY (column_a, column_b)  REFERENCES another_table (column_a, column_b)  ON DELETE NO ACTION  ON UPDATE CASCADE

Normalization • Reduce data redundancy • Increase data integrity

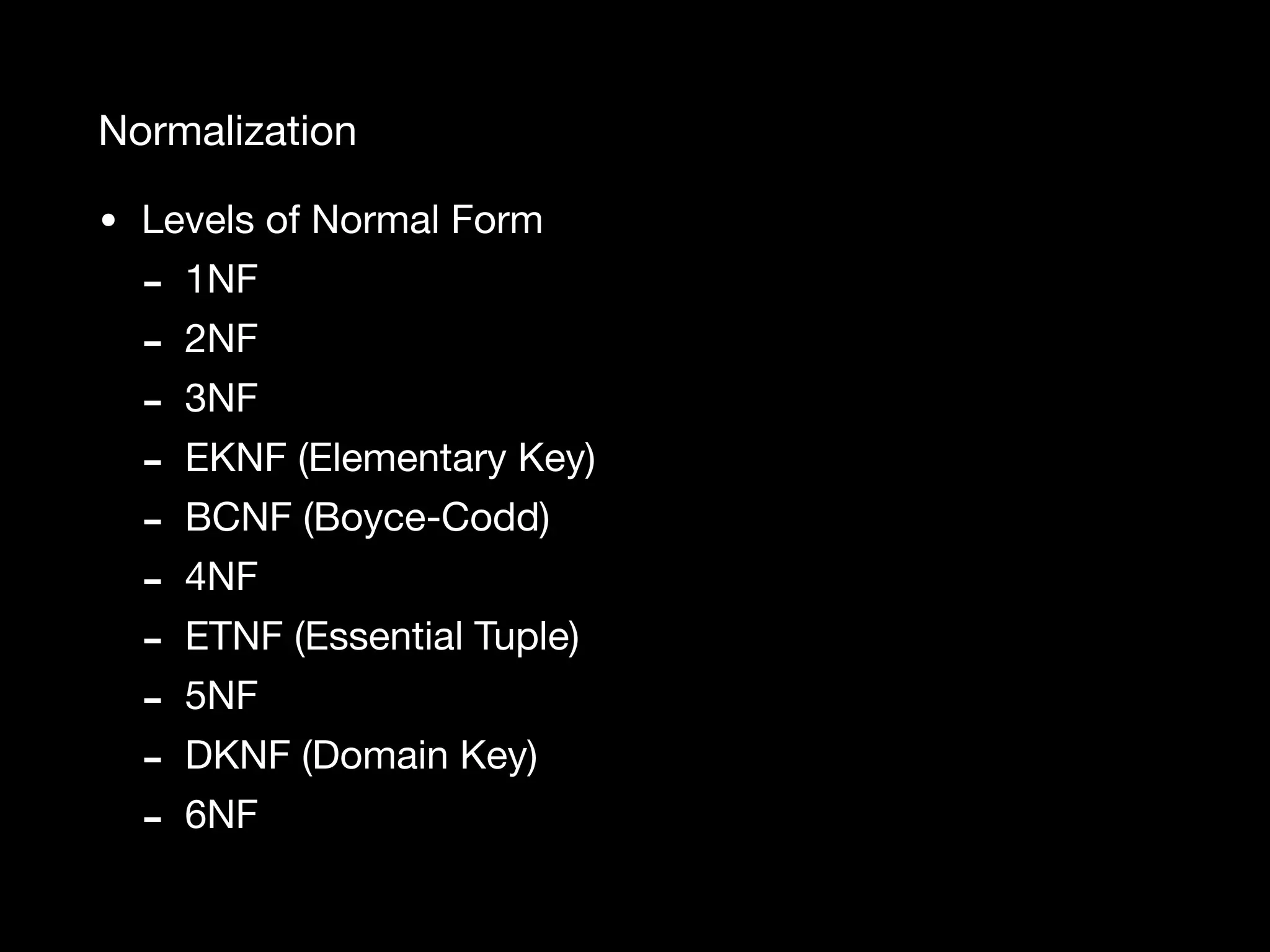

Normalization • Levels of Normal Form - 1NF - 2NF - 3NF - EKNF (Elementary Key) - BCNF (Boyce-Codd) - 4NF - ETNF (Essential Tuple) - 5NF - DKNF (Domain Key) - 6NF

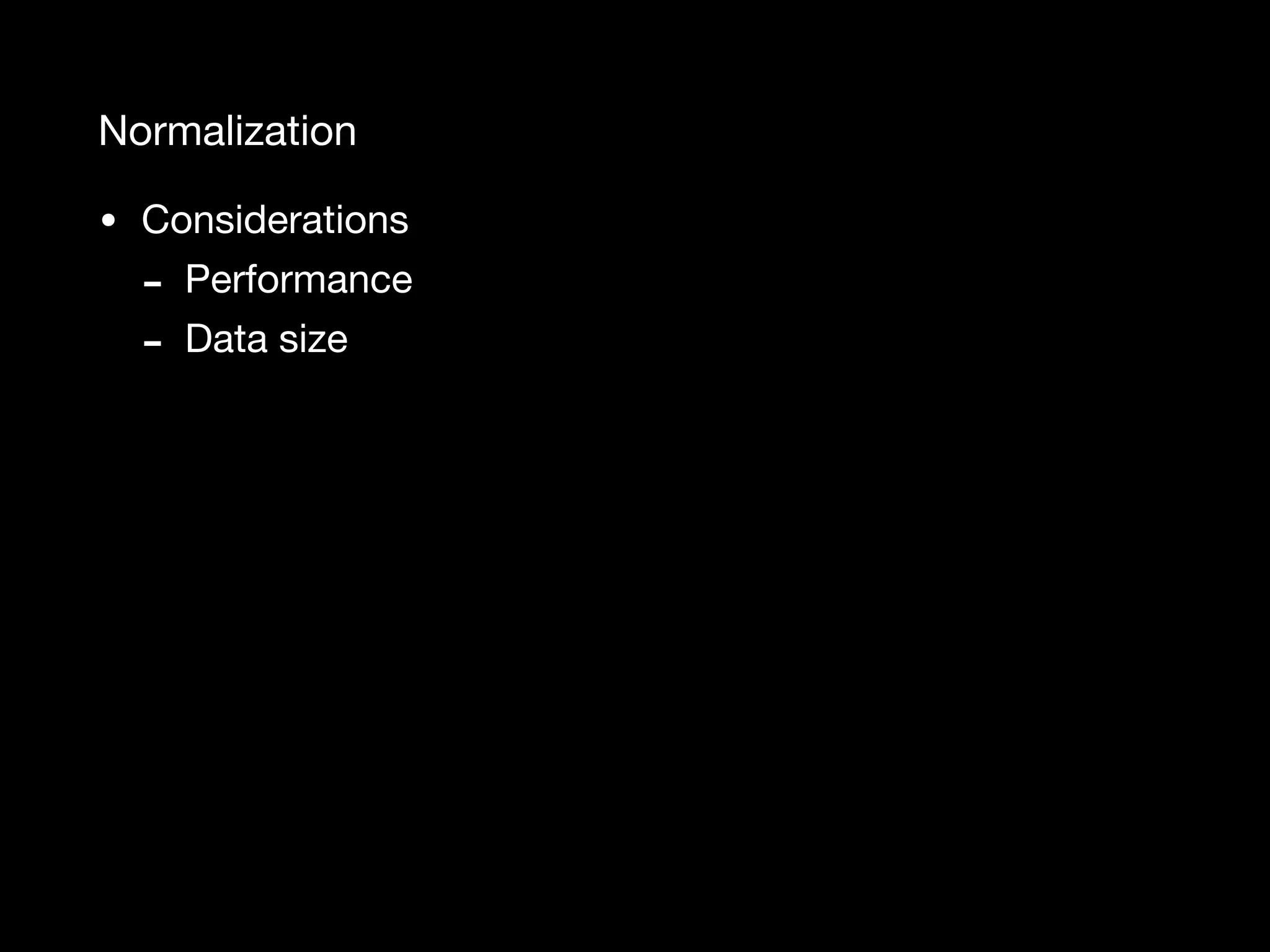

Normalization • Considerations - Performance - Data size

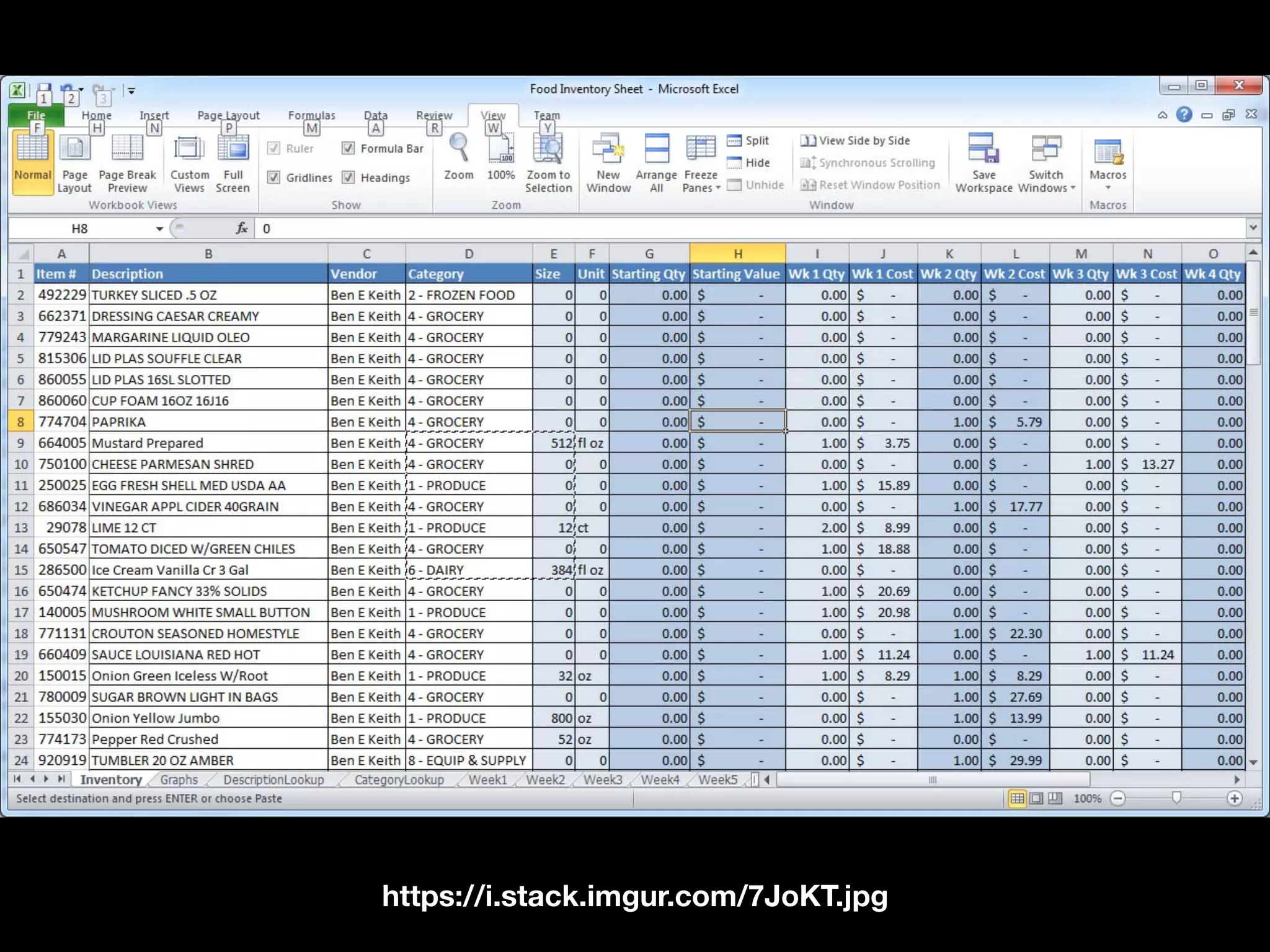

https://i.stack.imgur.com/7JoKT.jpg

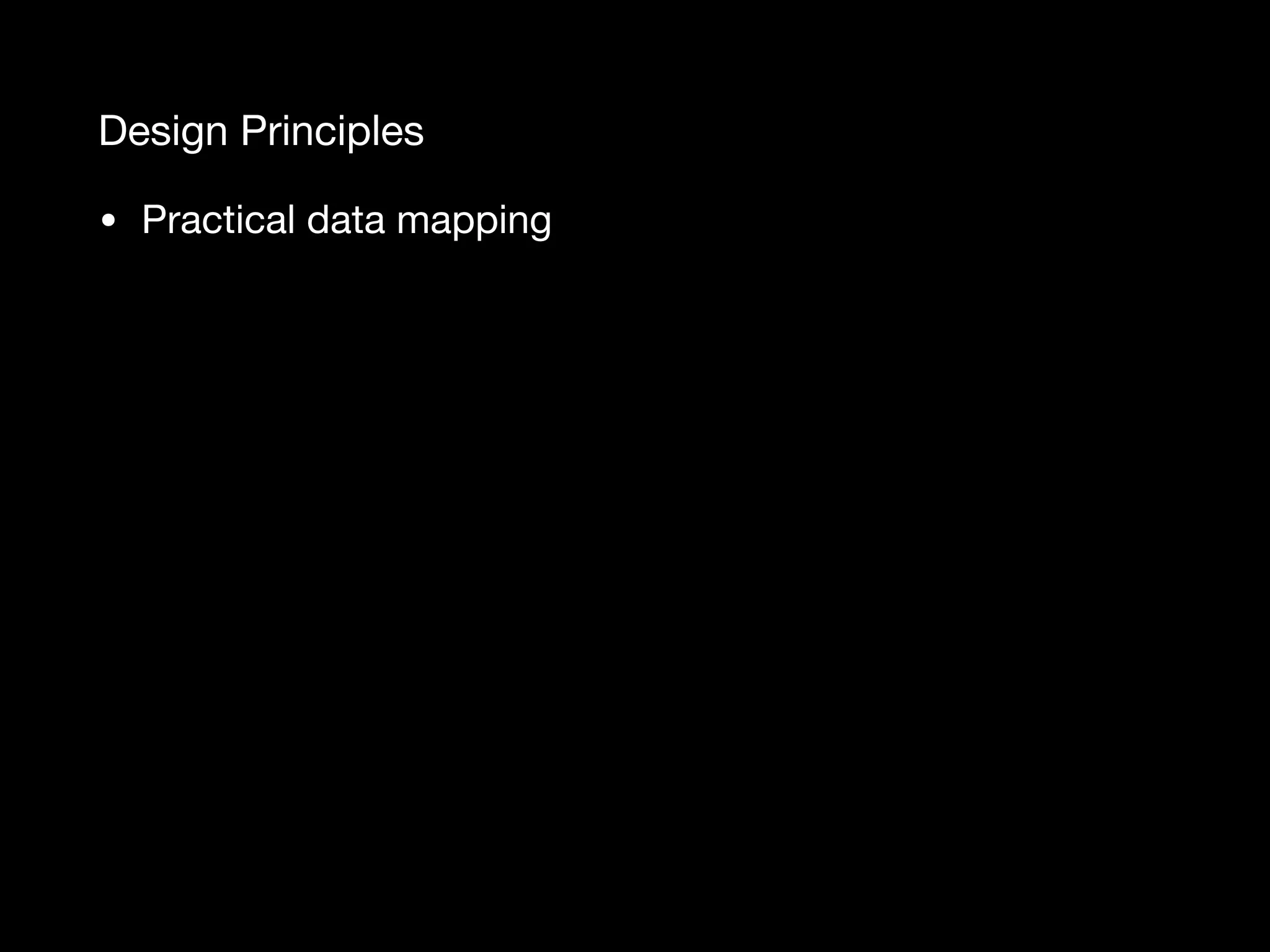

Design Principles • Practical data mapping

Design Principles • Naming that makes sense

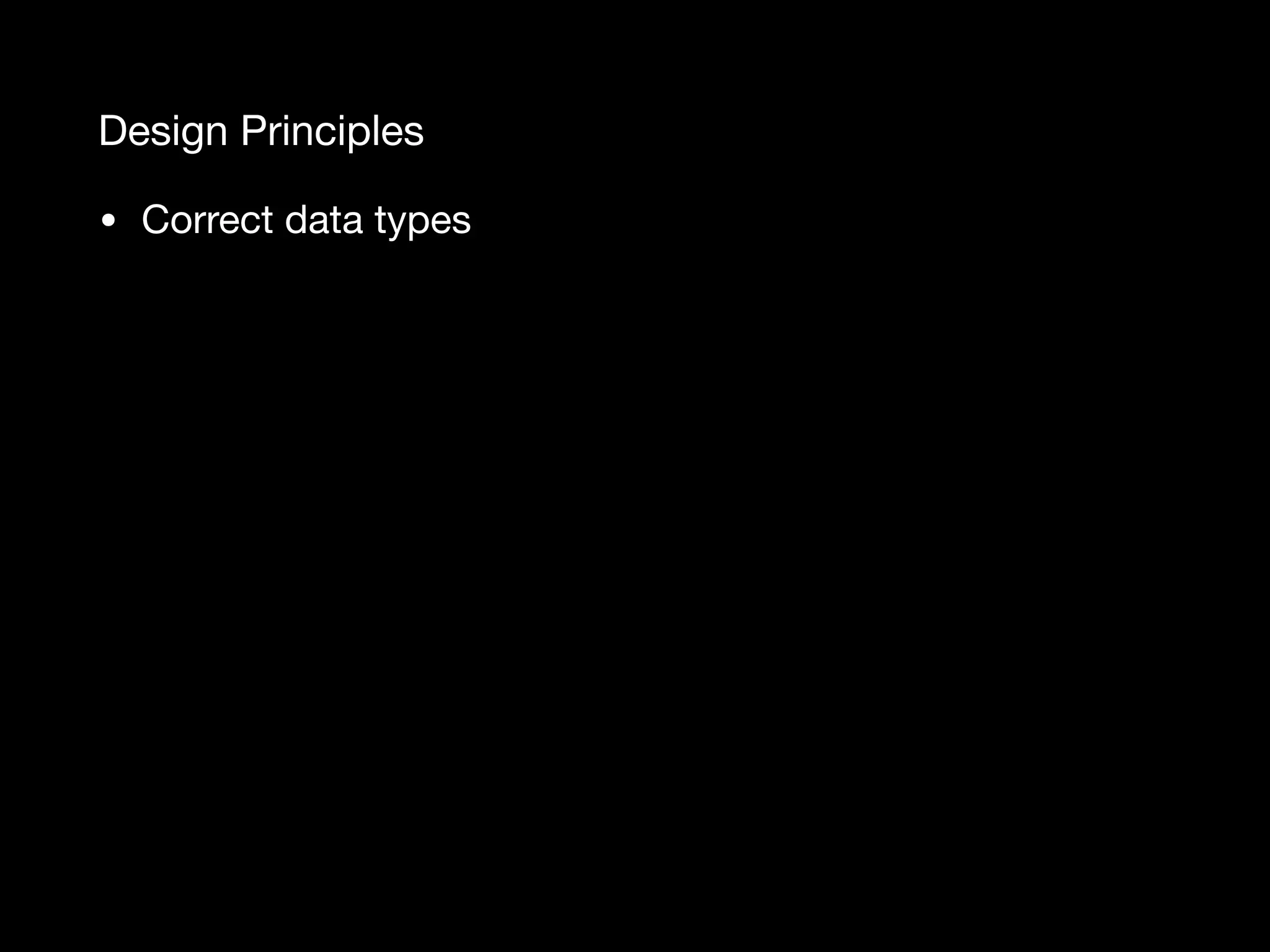

Design Principles • Correct data types

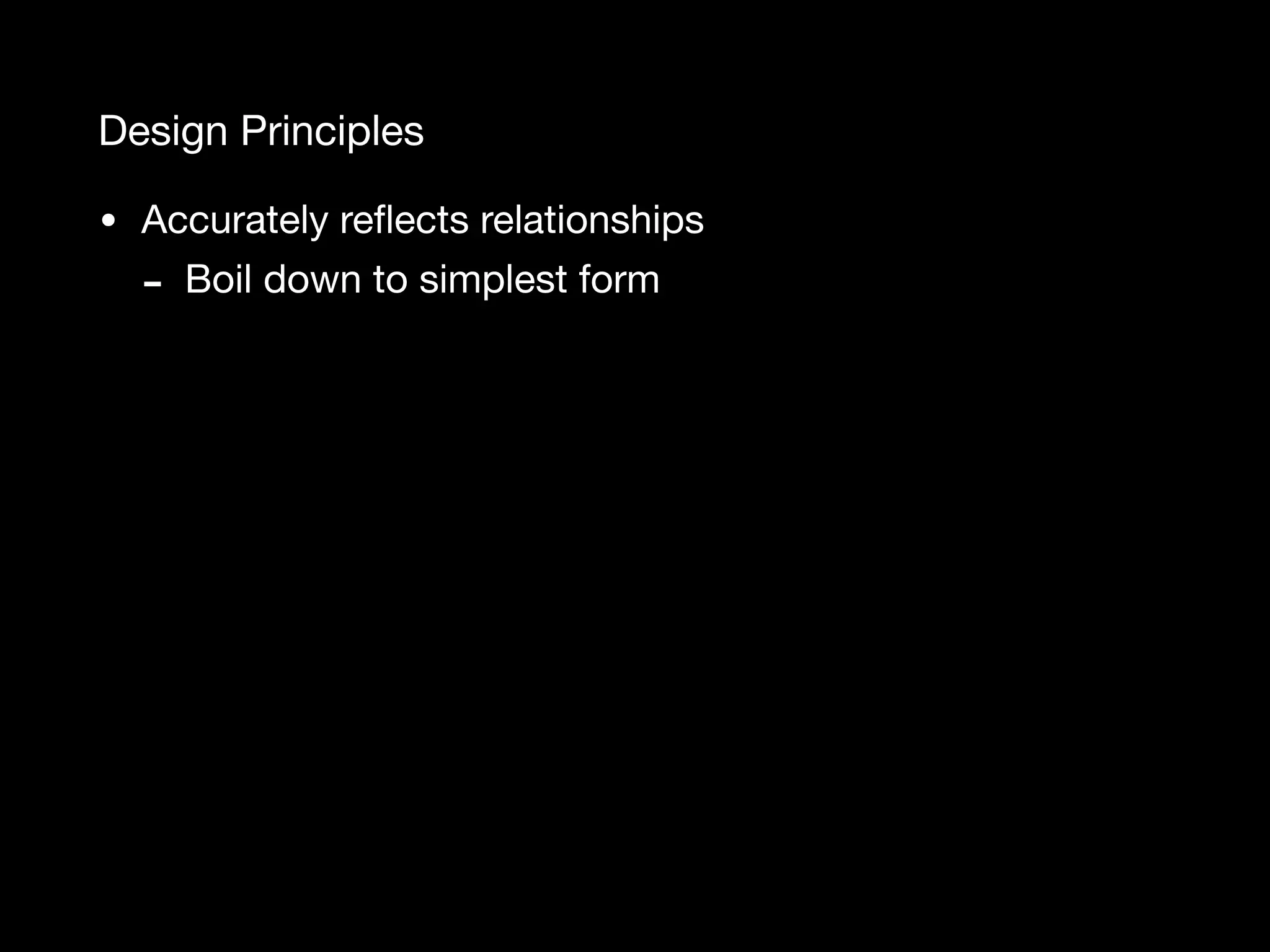

Design Principles • Accurately reﬂects relationships - Boil down to simplest form

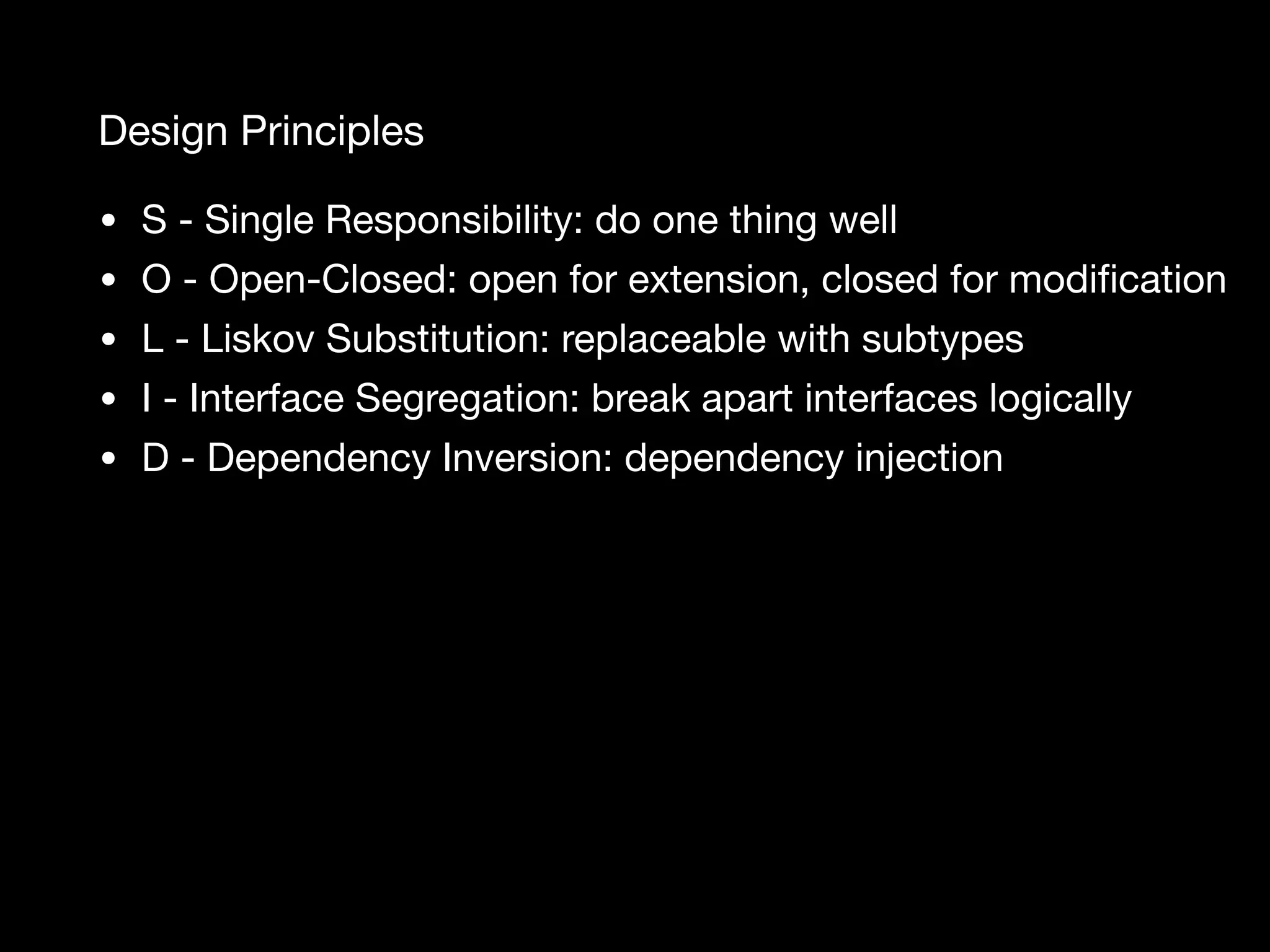

Design Principles • S - Single Responsibility: do one thing well • O - Open-Closed: open for extension, closed for modiﬁcation • L - Liskov Substitution: replaceable with subtypes • I - Interface Segregation: break apart interfaces logically • D - Dependency Inversion: dependency injection

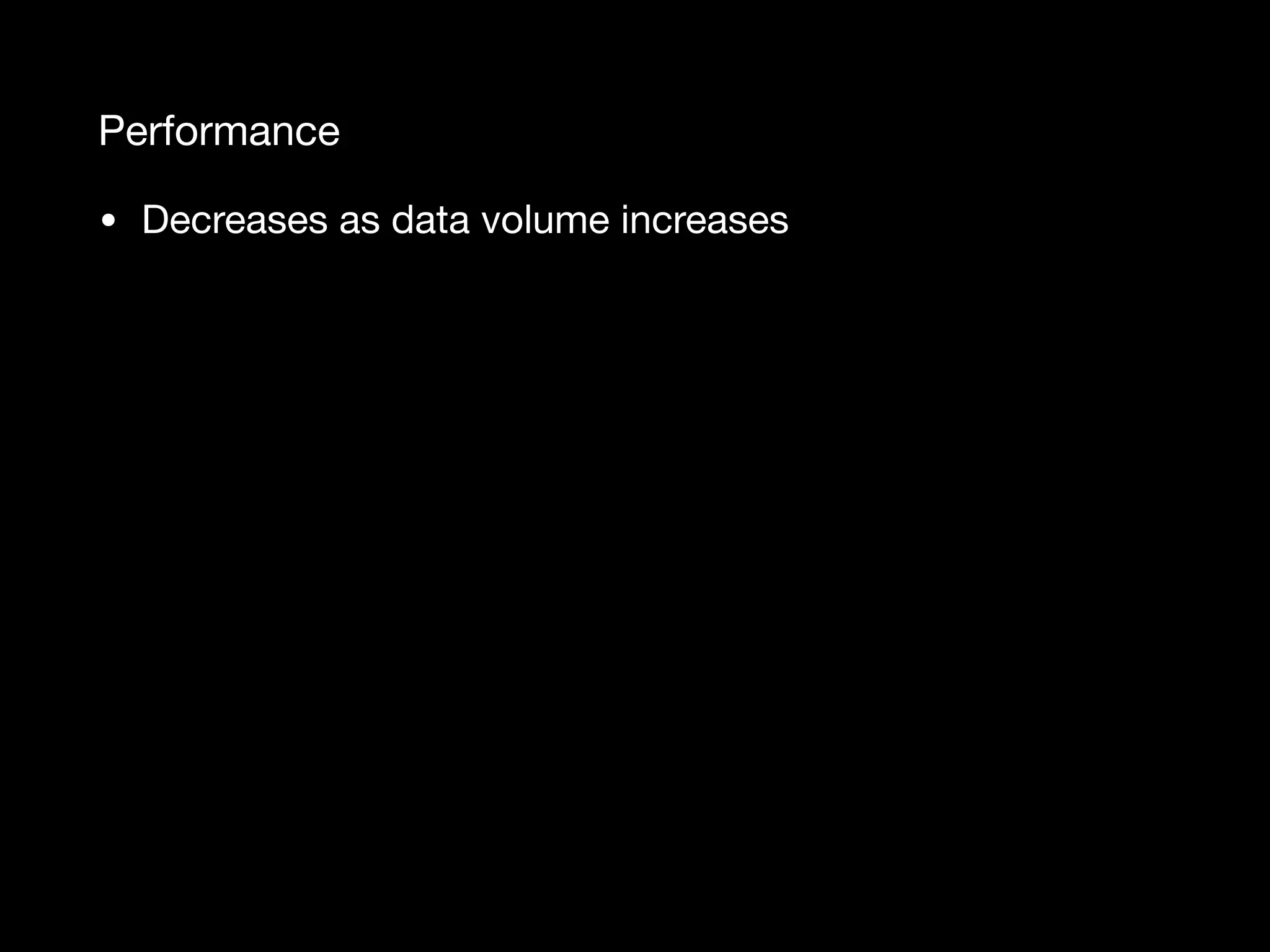

Performance • Decreases as data volume increases

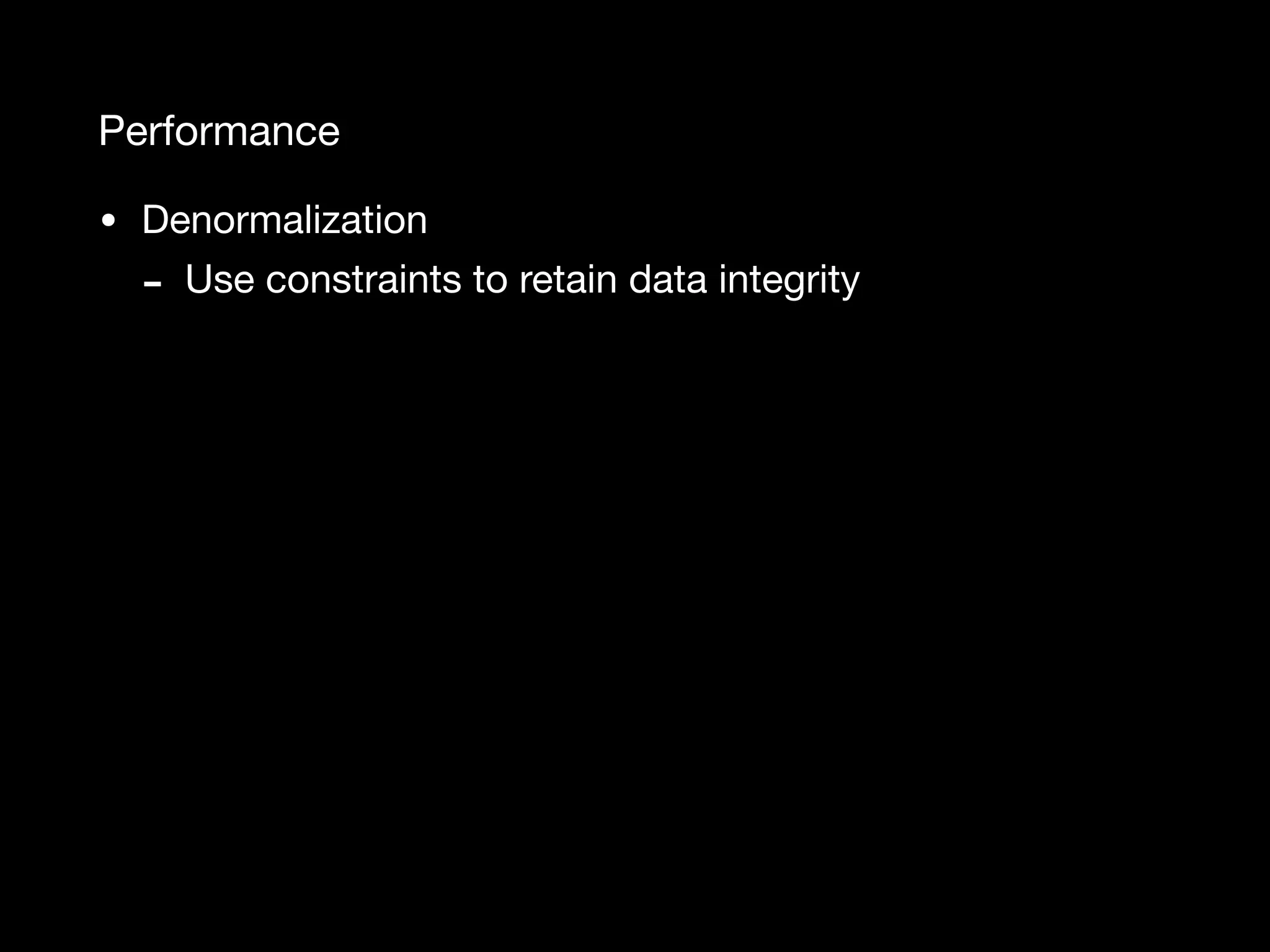

Performance • Denormalization - Use constraints to retain data integrity

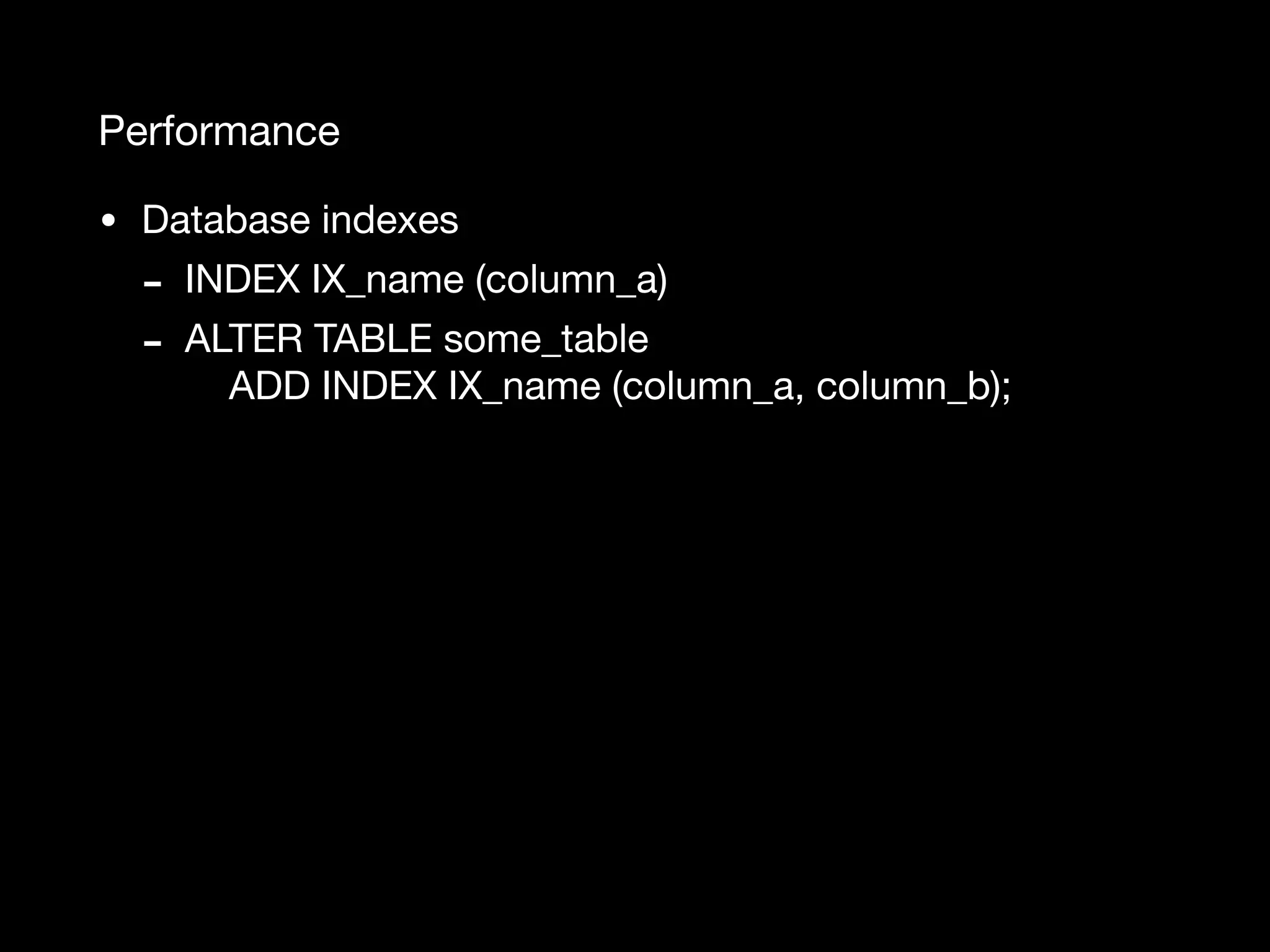

Performance • Database indexes - INDEX IX_name (column_a) - ALTER TABLE some_table  ADD INDEX IX_name (column_a, column_b);

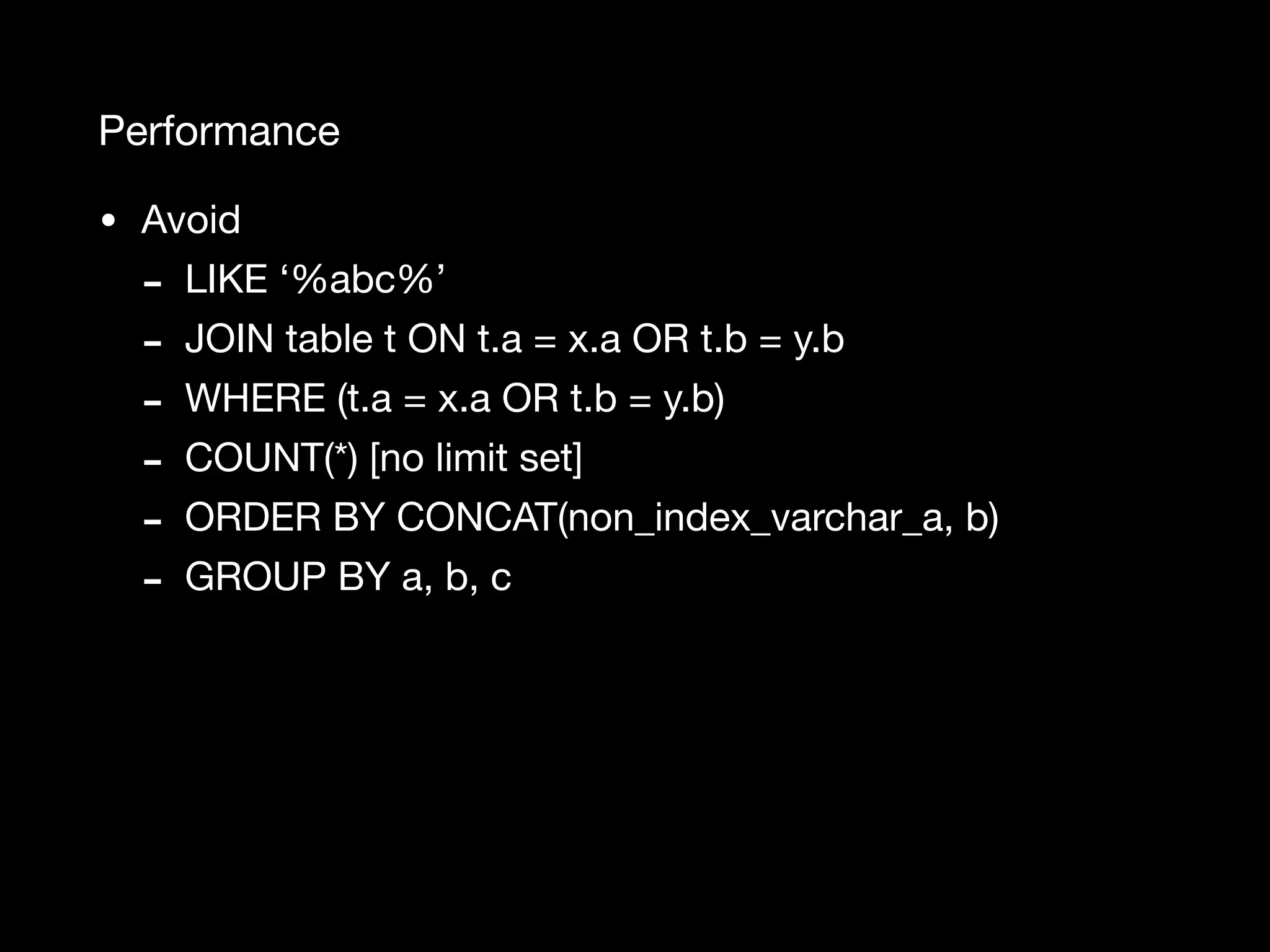

Performance • Avoid - LIKE ‘%abc%’ - JOIN table t ON t.a = x.a OR t.b = y.b - WHERE (t.a = x.a OR t.b = y.b) - COUNT(*) [no limit set] - ORDER BY CONCAT(non_index_varchar_a, b) - GROUP BY a, b, c

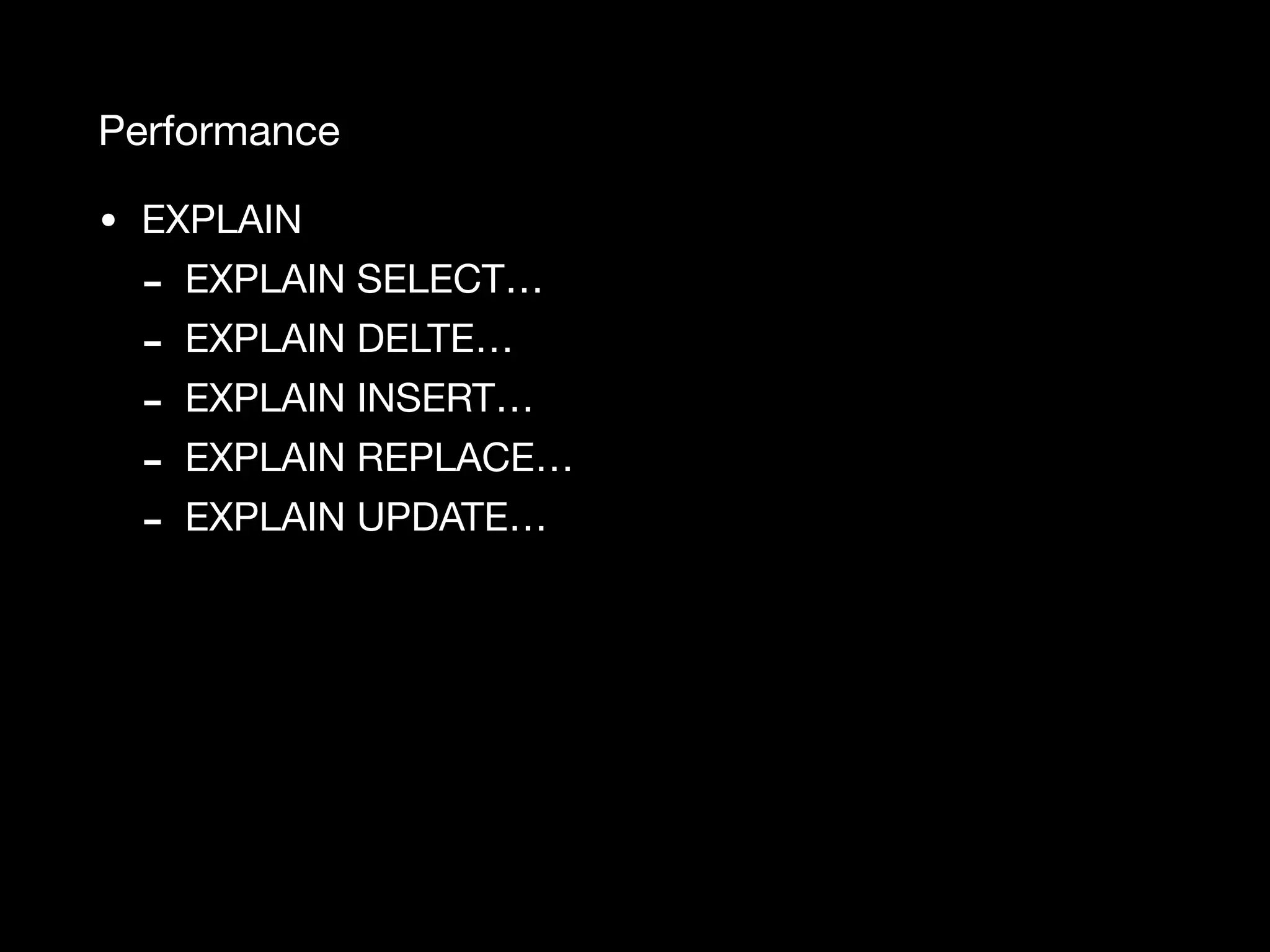

Performance • EXPLAIN - EXPLAIN SELECT… - EXPLAIN DELTE… - EXPLAIN INSERT… - EXPLAIN REPLACE… - EXPLAIN UPDATE…

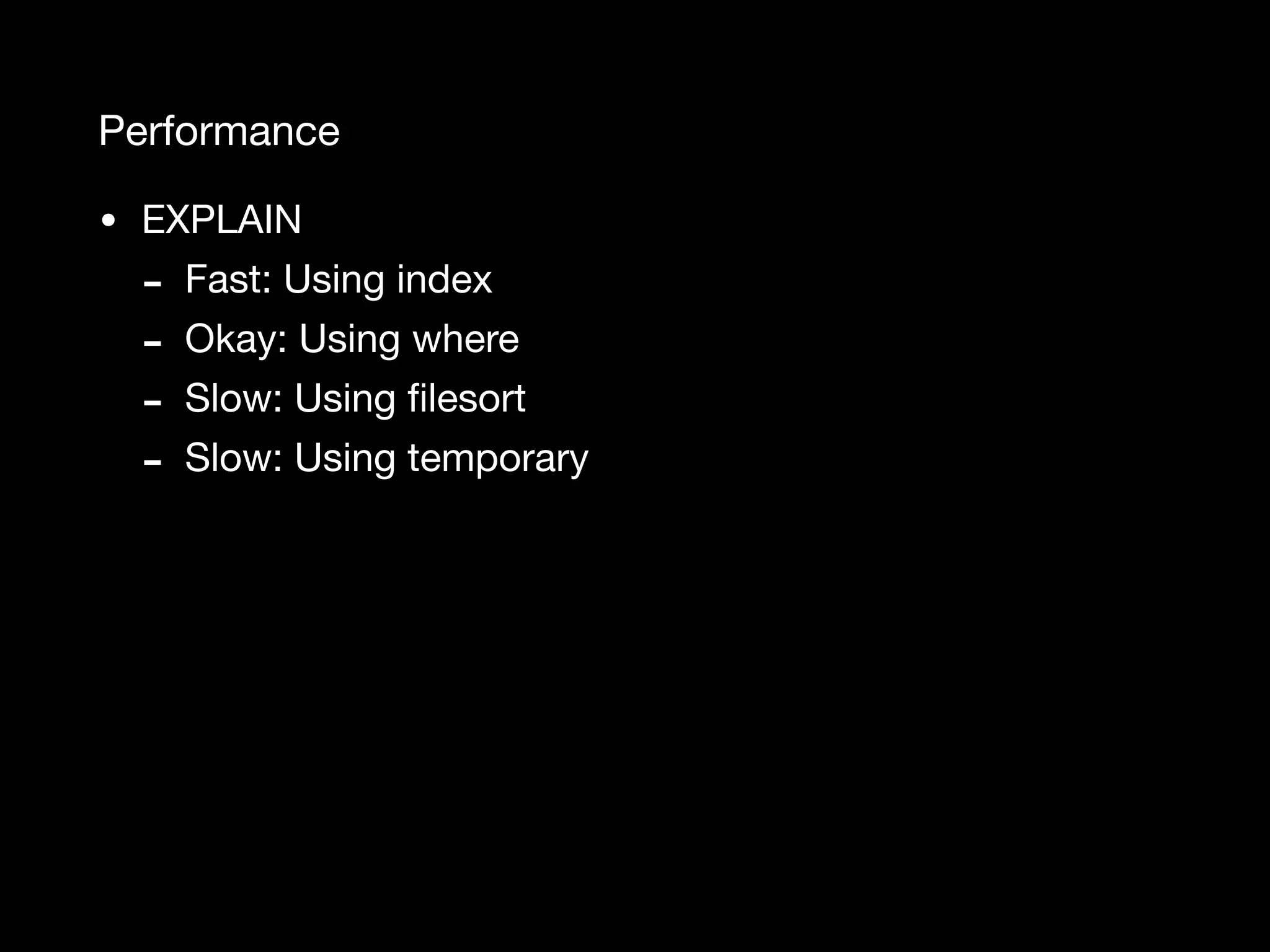

Performance • EXPLAIN - Fast: Using index - Okay: Using where - Slow: Using ﬁlesort - Slow: Using temporary

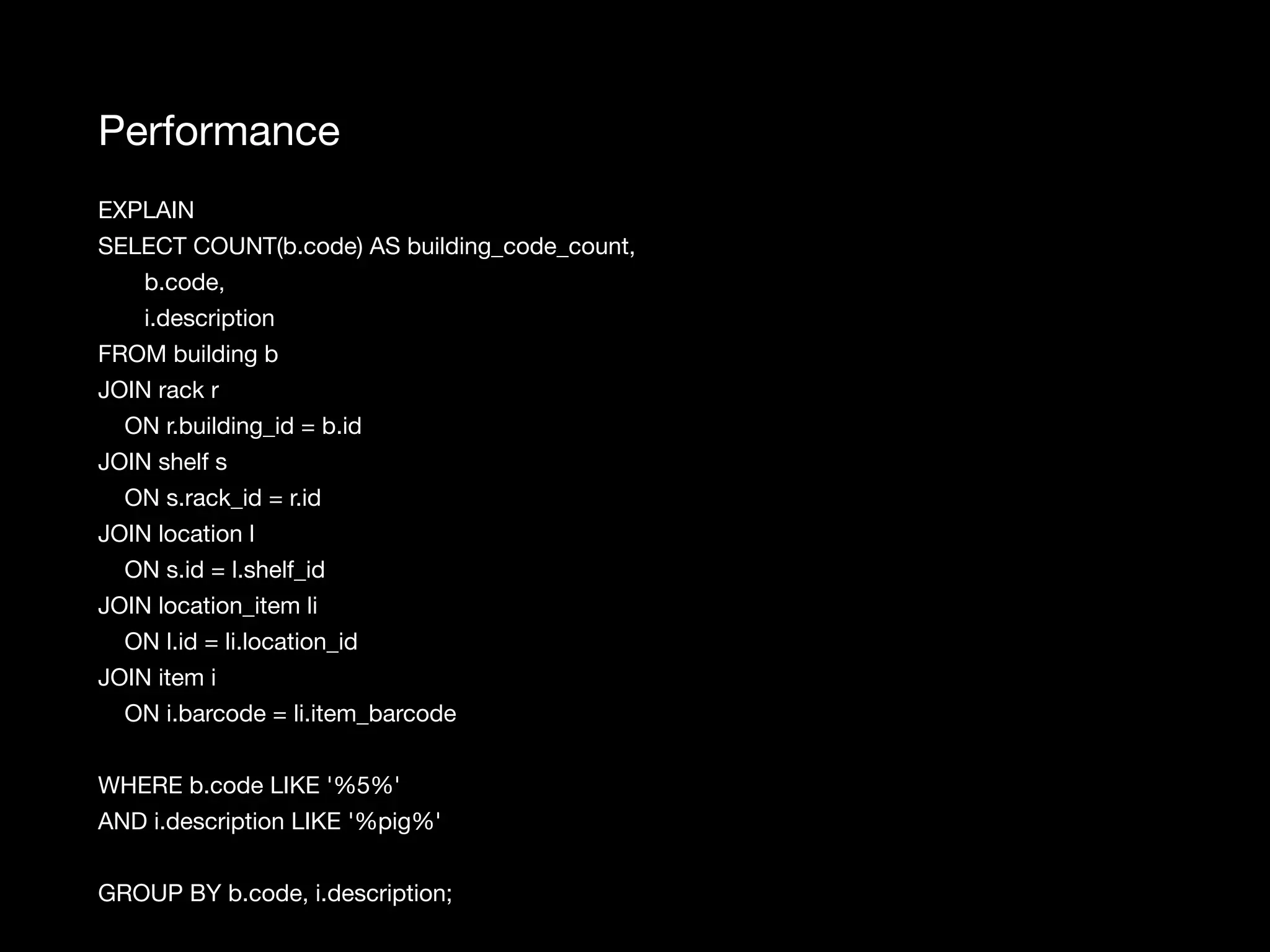

Performance EXPLAIN SELECT COUNT(b.code) AS building_code_count, b.code, i.description FROM building b JOIN rack r ON r.building_id = b.id JOIN shelf s ON s.rack_id = r.id JOIN location l ON s.id = l.shelf_id JOIN location_item li ON l.id = li.location_id JOIN item i ON i.barcode = li.item_barcode WHERE b.code LIKE '%5%' AND i.description LIKE '%pig%' GROUP BY b.code, i.description;

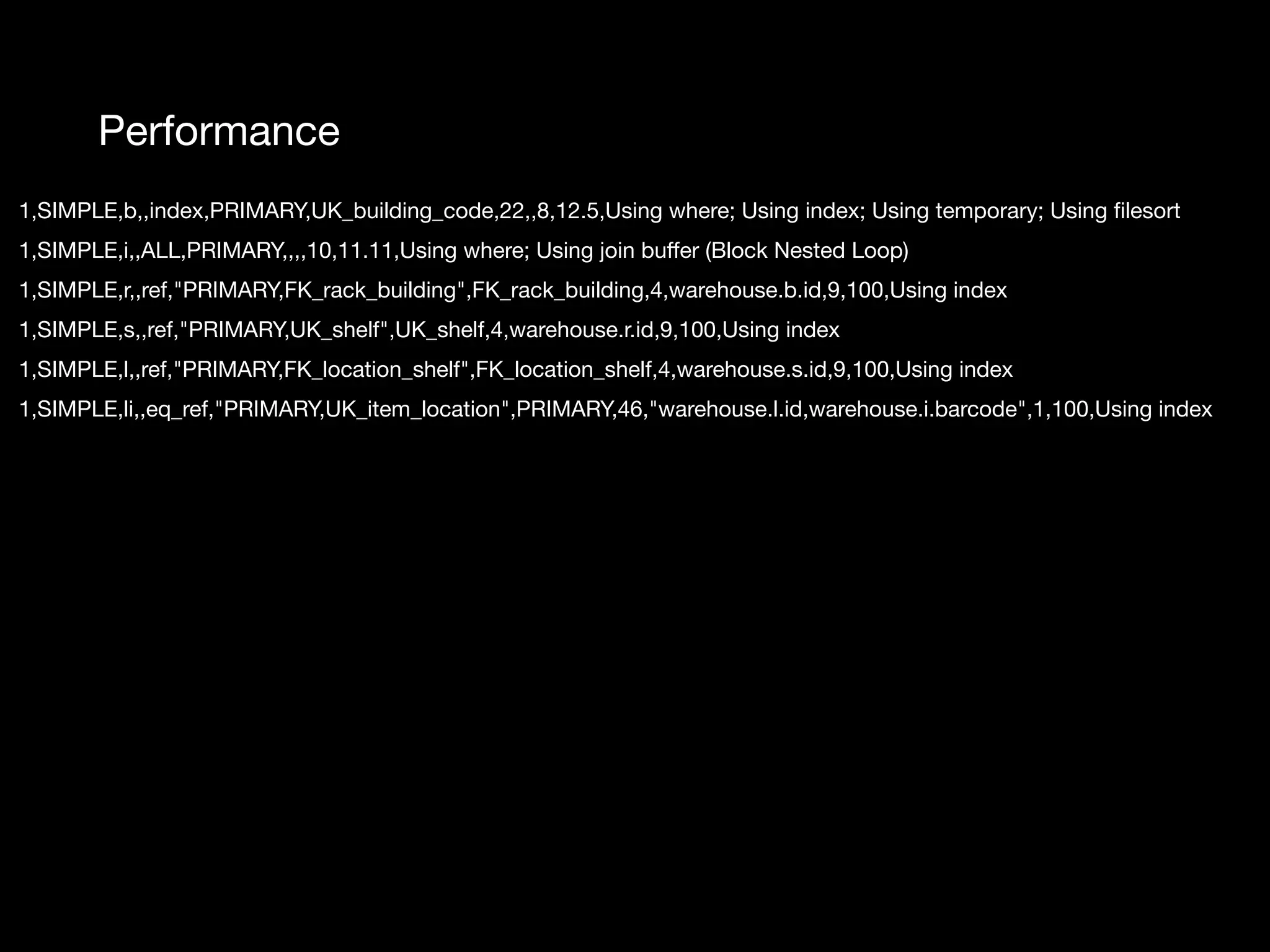

Performance 1,SIMPLE,b,,index,PRIMARY,UK_building_code,22,,8,12.5,Using where; Using index; Using temporary; Using ﬁlesort 1,SIMPLE,i,,ALL,PRIMARY,,,,10,11.11,Using where; Using join buﬀer (Block Nested Loop) 1,SIMPLE,r,,ref,"PRIMARY,FK_rack_building",FK_rack_building,4,warehouse.b.id,9,100,Using index 1,SIMPLE,s,,ref,"PRIMARY,UK_shelf",UK_shelf,4,warehouse.r.id,9,100,Using index 1,SIMPLE,l,,ref,"PRIMARY,FK_location_shelf",FK_location_shelf,4,warehouse.s.id,9,100,Using index 1,SIMPLE,li,,eq_ref,"PRIMARY,UK_item_location",PRIMARY,46,"warehouse.l.id,warehouse.i.barcode",1,100,Using index

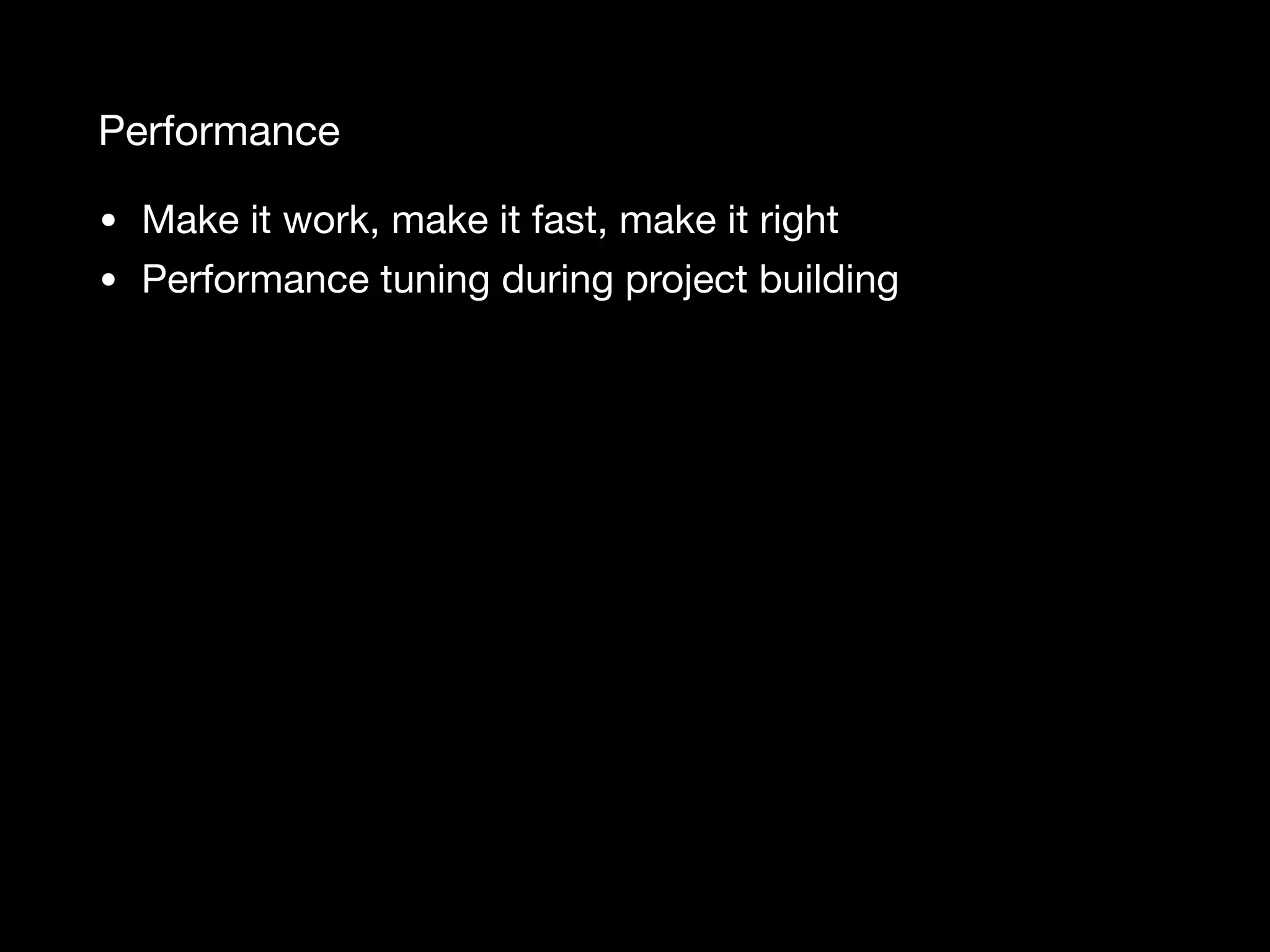

Performance • Make it work, make it fast, make it right • Performance tuning during project building

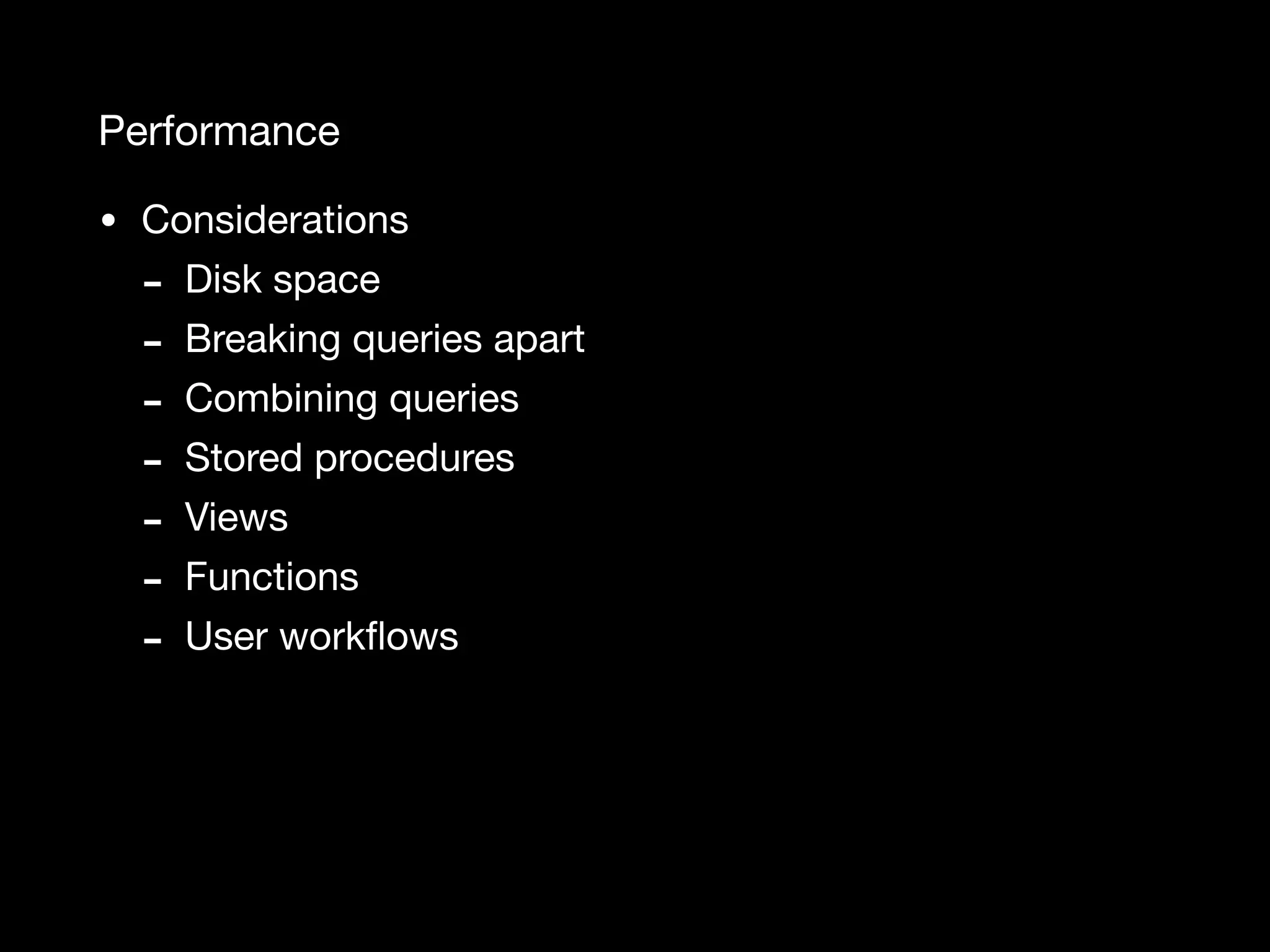

Performance • Considerations - Disk space - Breaking queries apart - Combining queries - Stored procedures - Views - Functions - User workﬂows

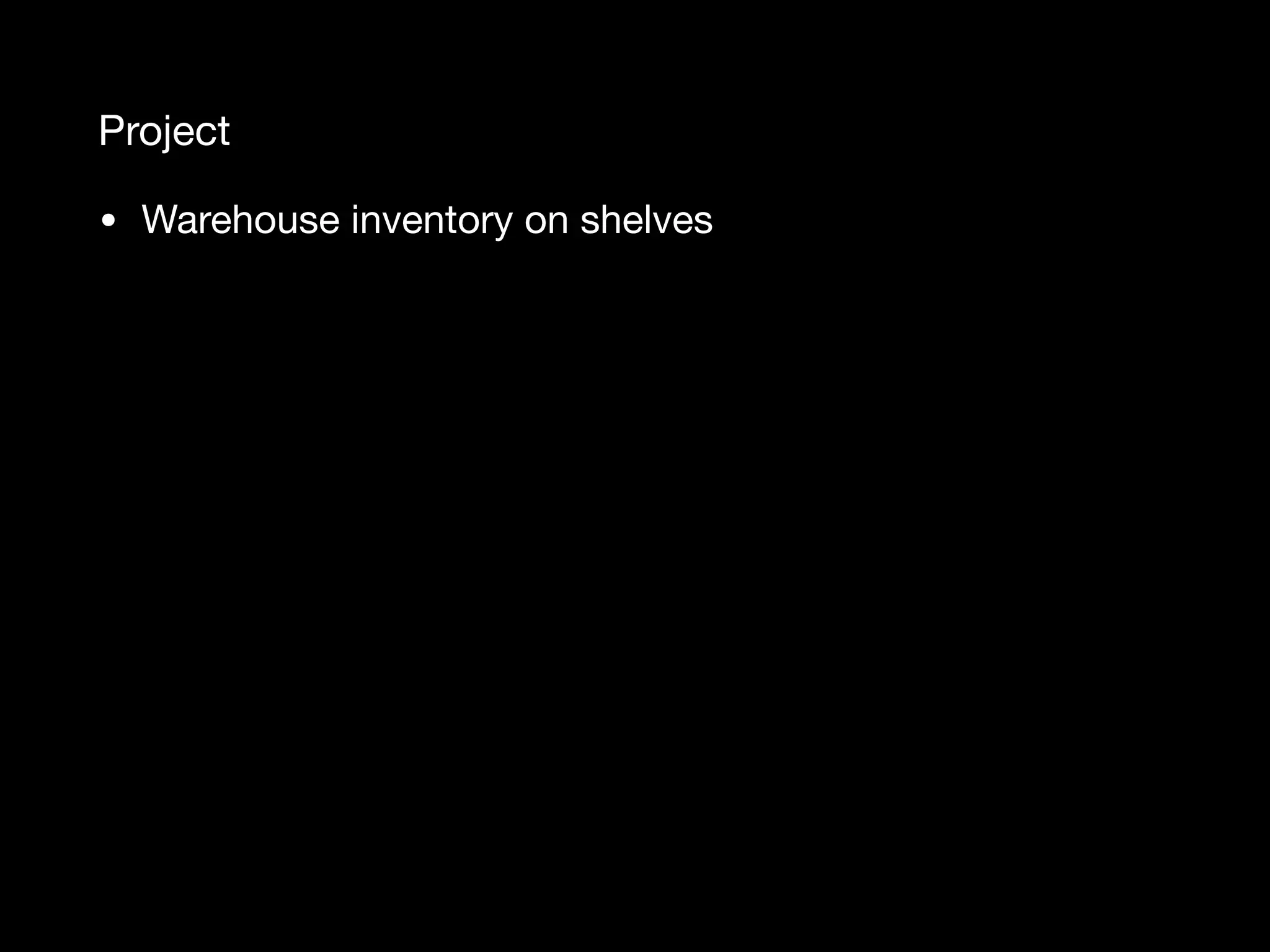

Project • Warehouse inventory on shelves

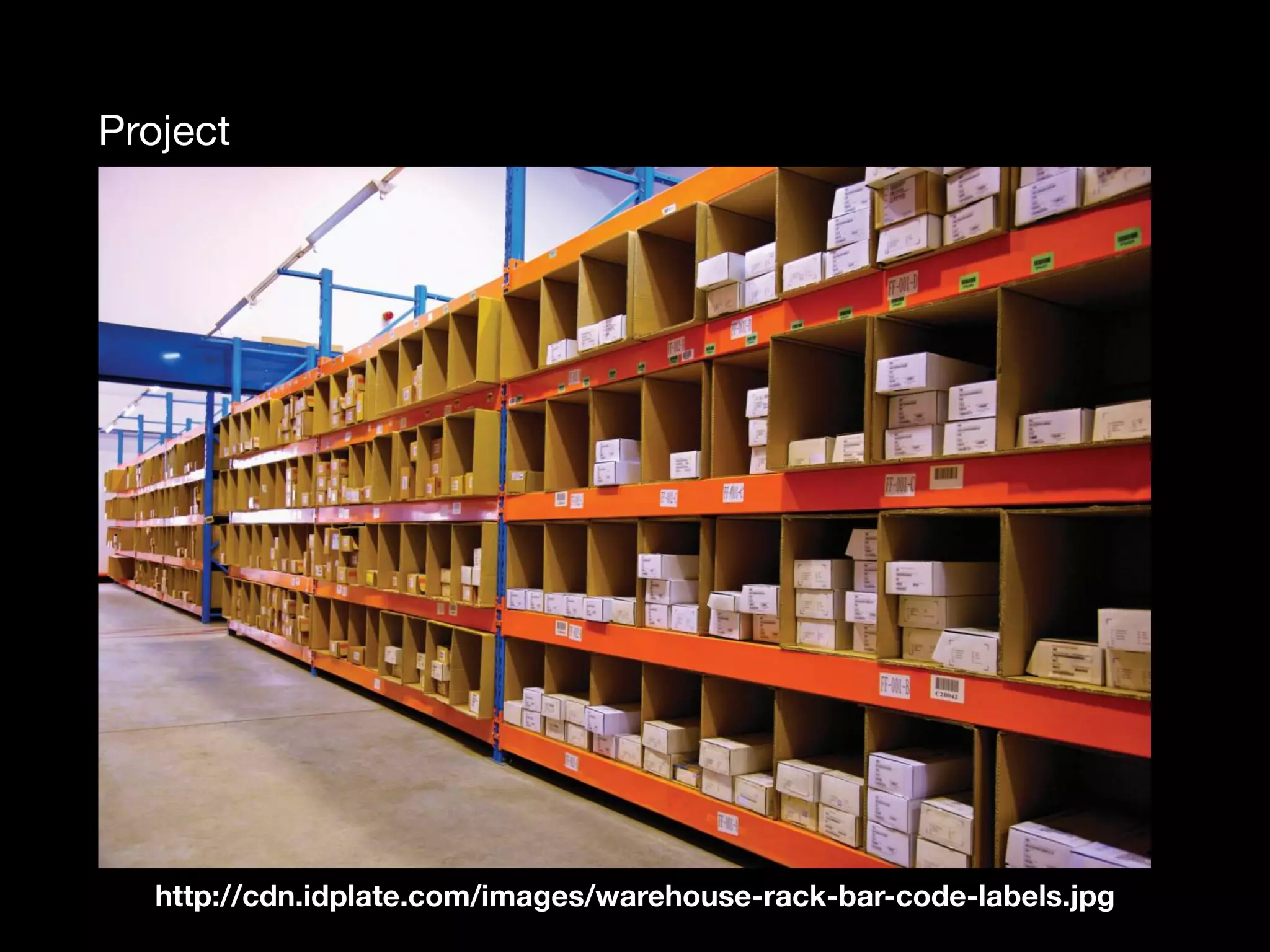

Project http://cdn.idplate.com/images/warehouse-rack-bar-code-labels.jpg

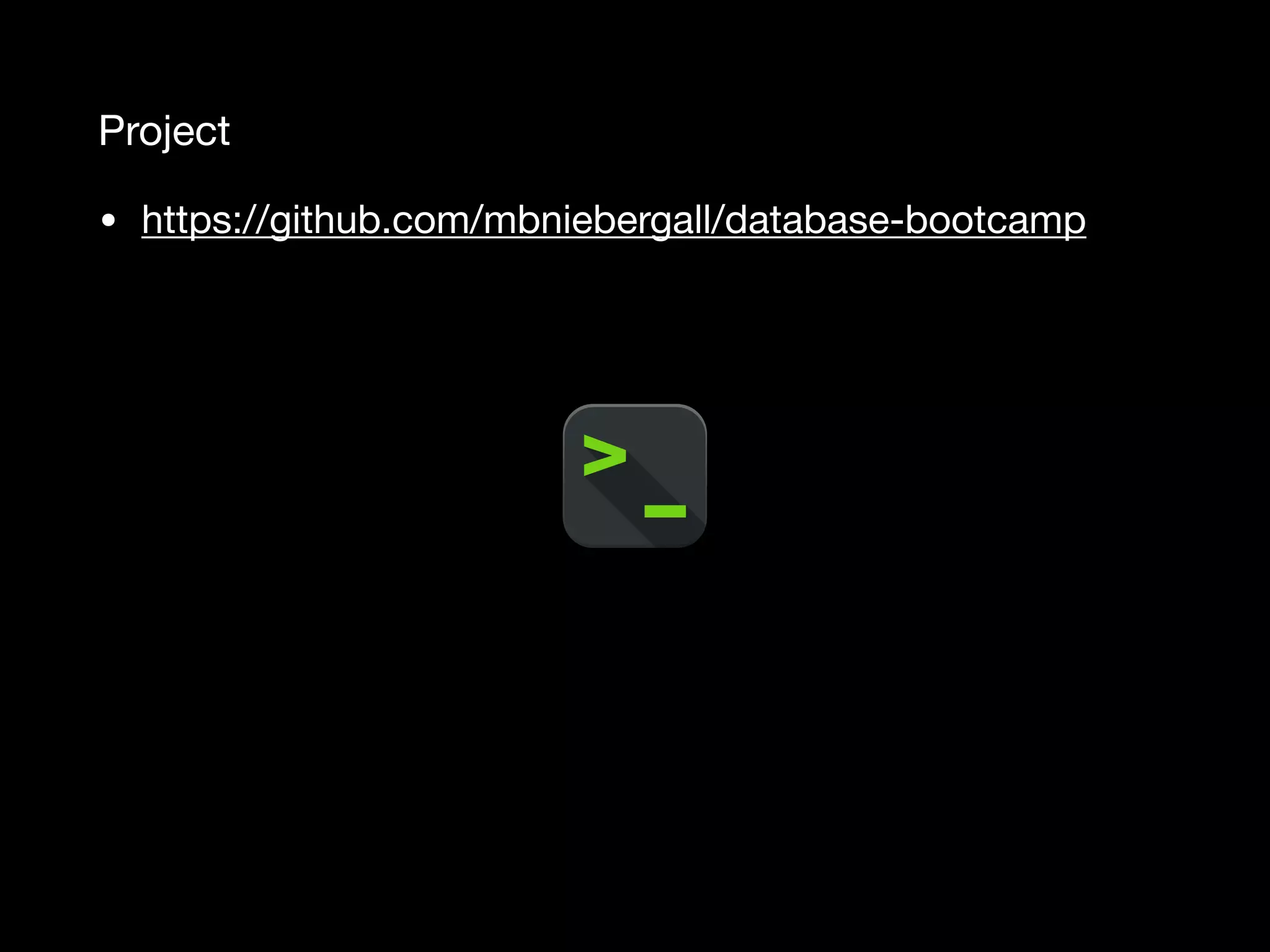

Project • https://github.com/mbniebergall/database-bootcamp

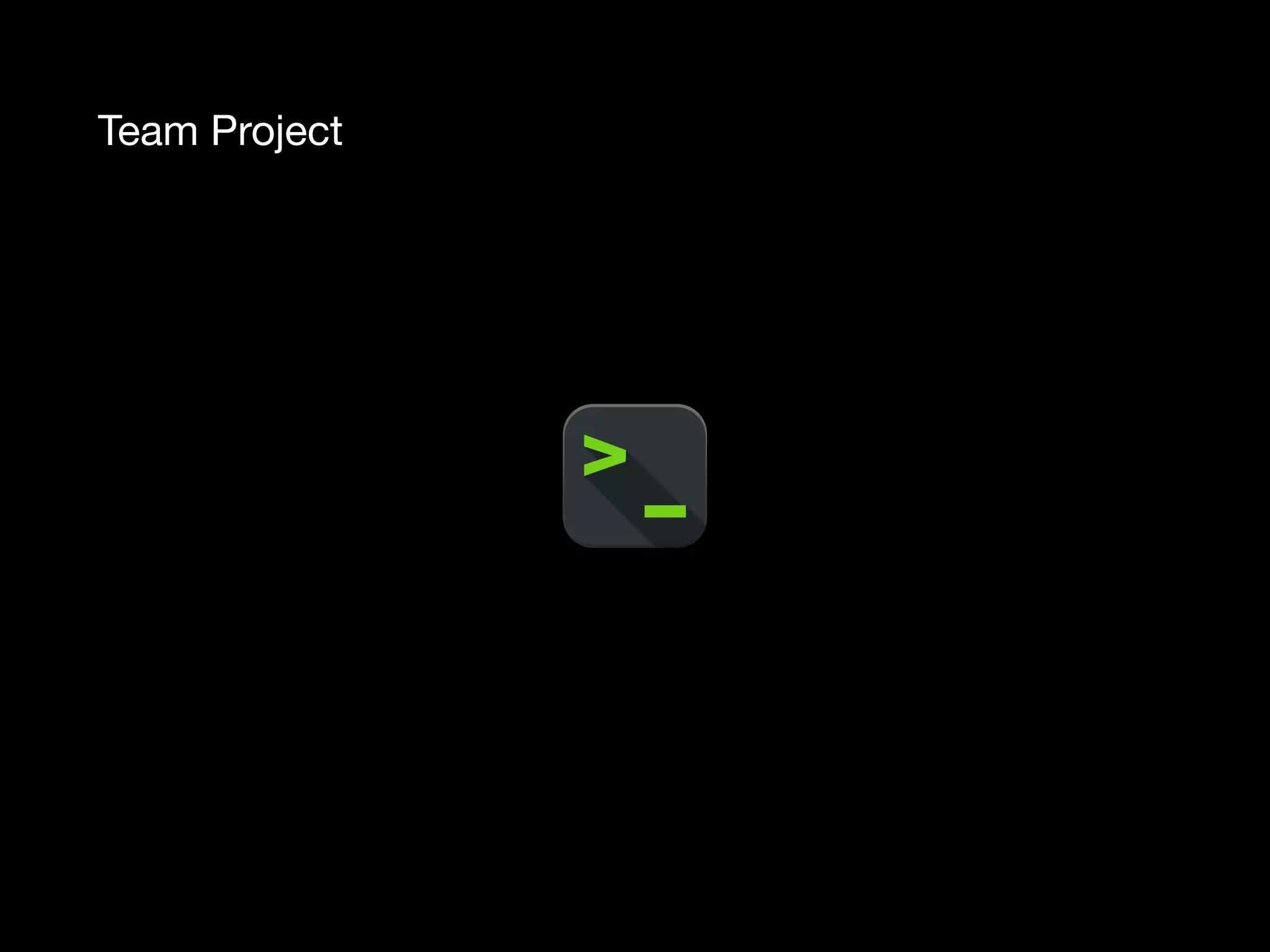

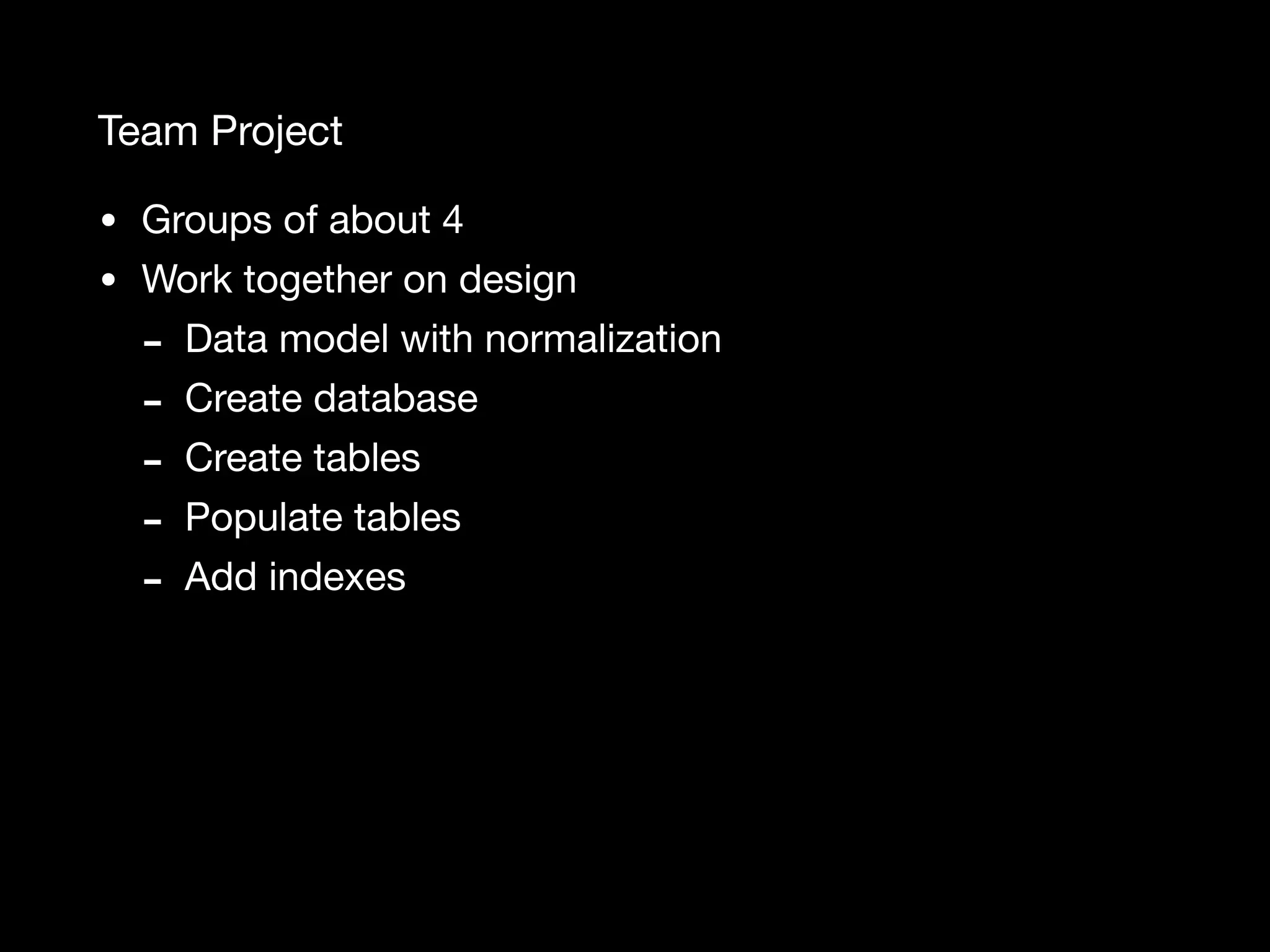

Team Project • Groups of about 4 • Work together on design - Data model with normalization - Create database - Create tables - Populate tables - Add indexes

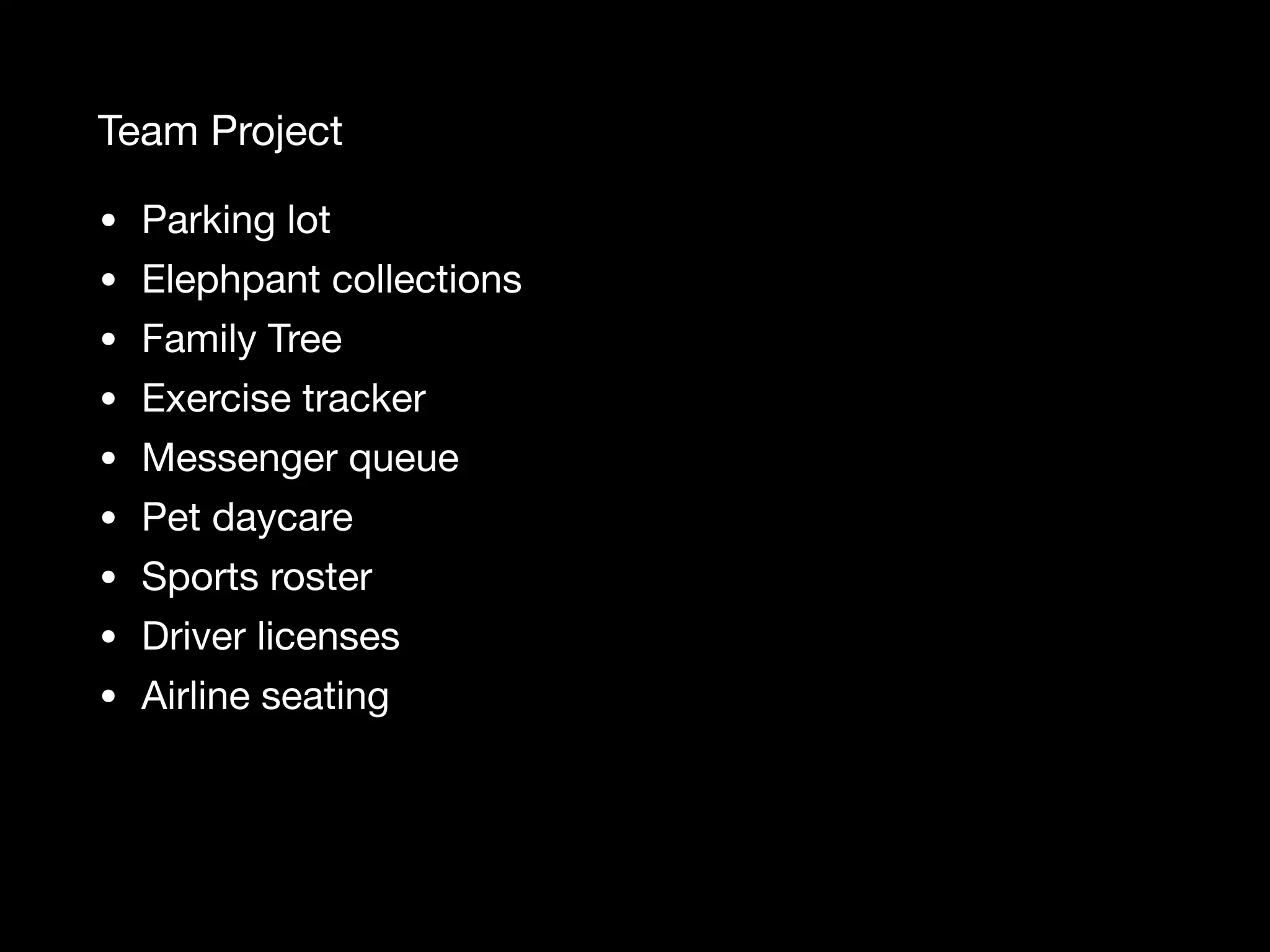

Team Project • Parking lot • Elephpant collections • Family Tree • Exercise tracker • Messenger queue • Pet daycare • Sports roster • Driver licenses • Airline seating

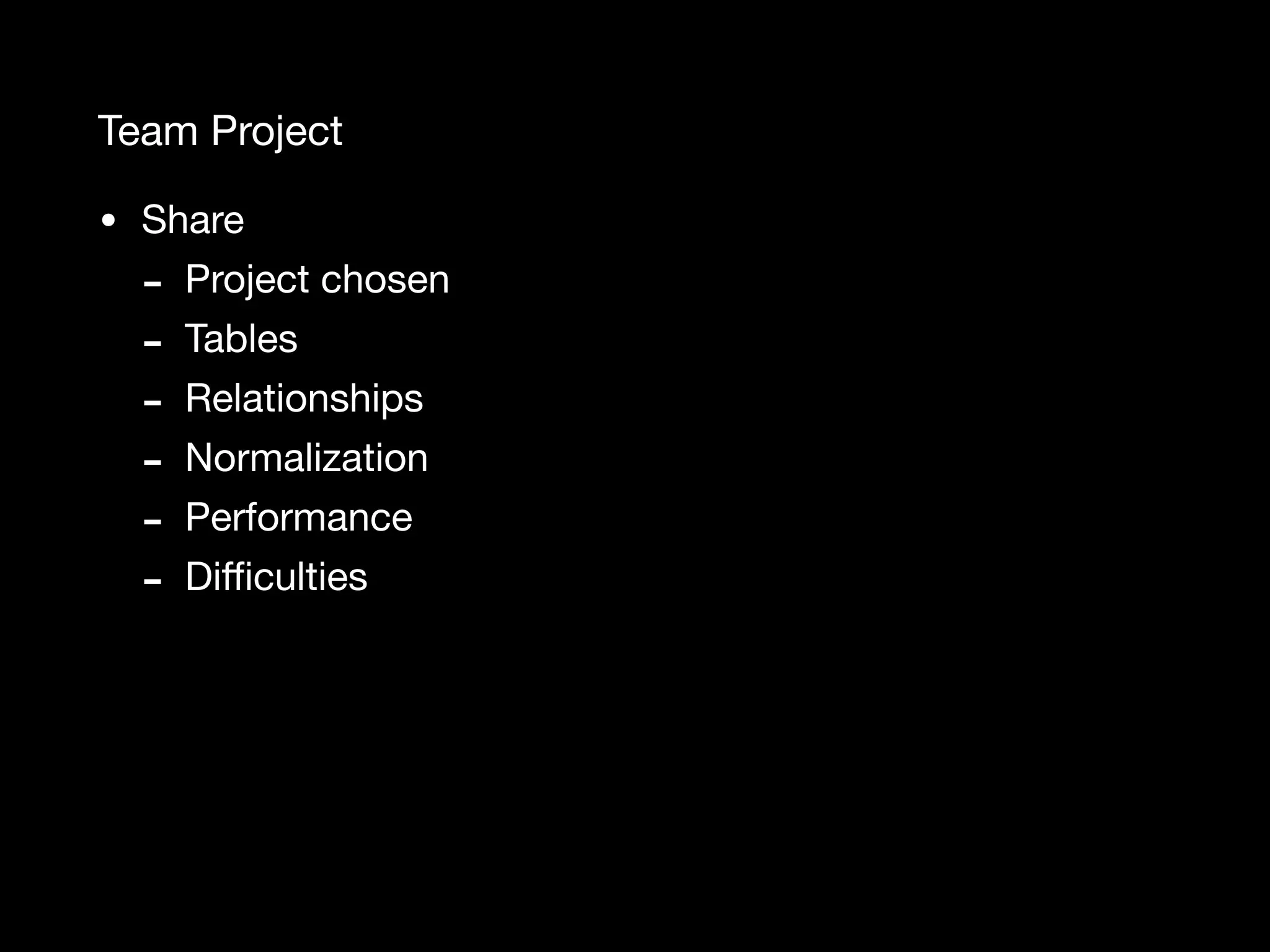

Team Project • Share - Project chosen - Tables - Relationships - Normalization - Performance - Diﬃculties

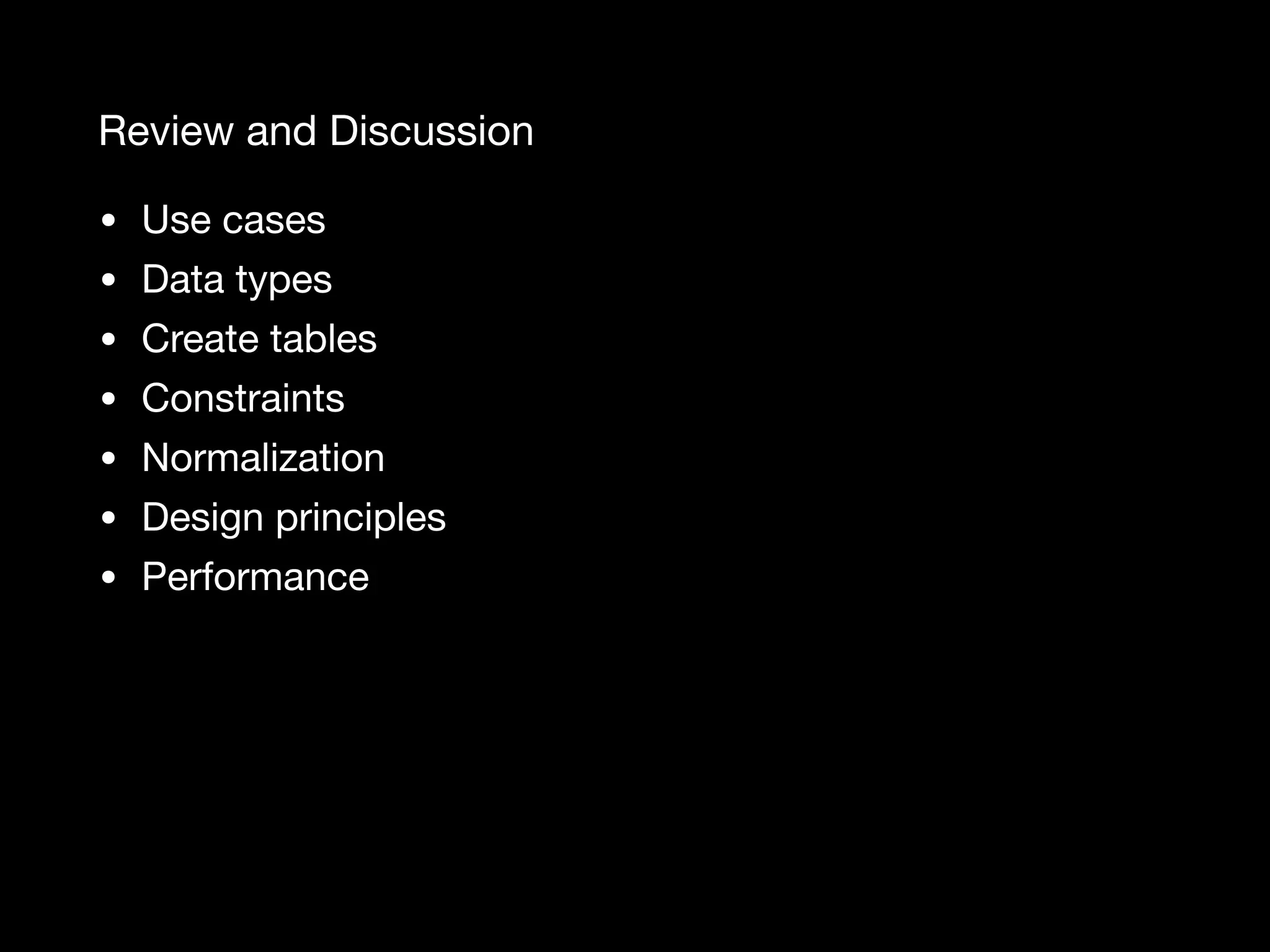

Review and Discussion • Use cases • Data types • Create tables • Constraints • Normalization • Design principles • Performance

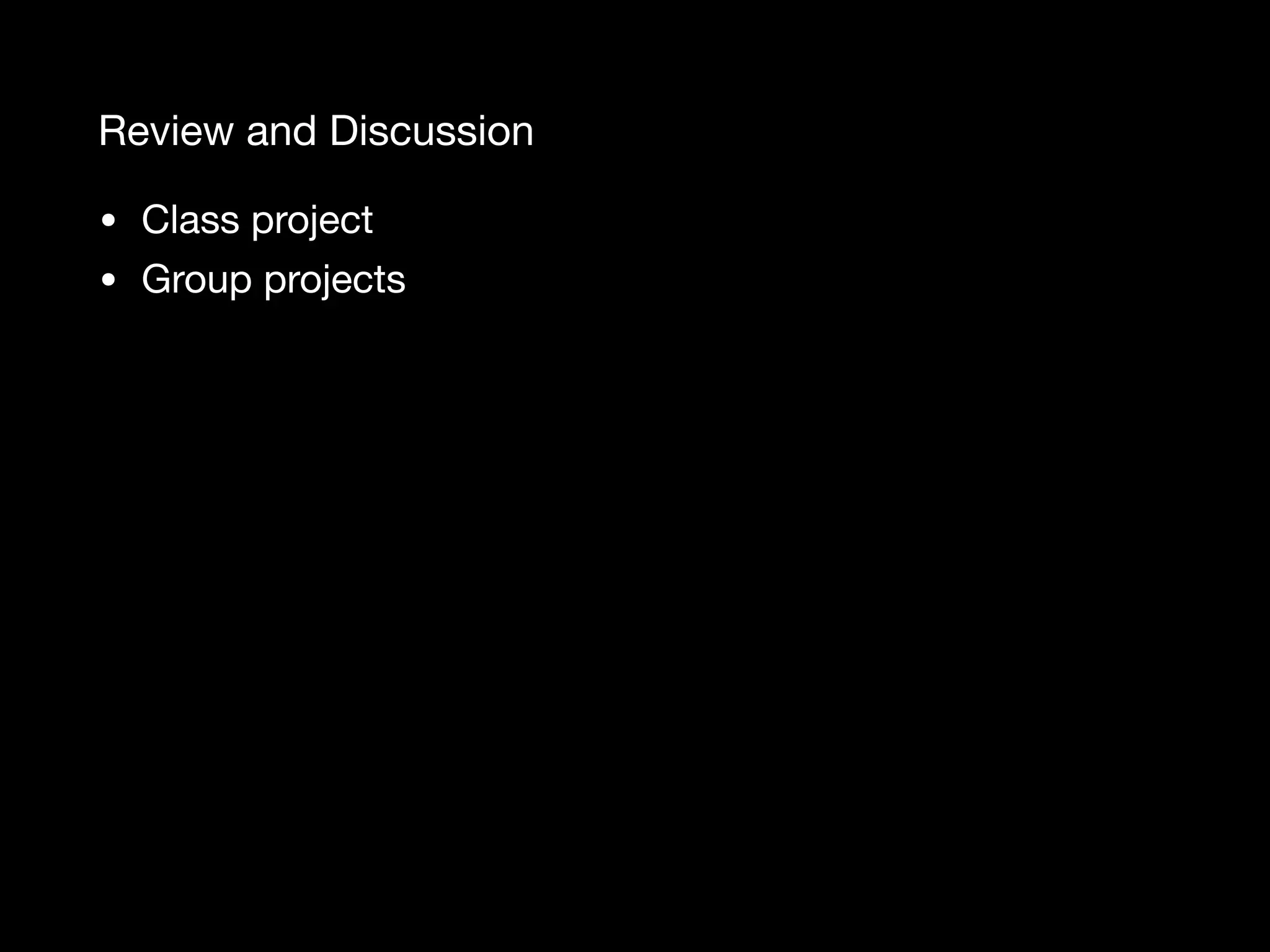

Review and Discussion • Class project • Group projects

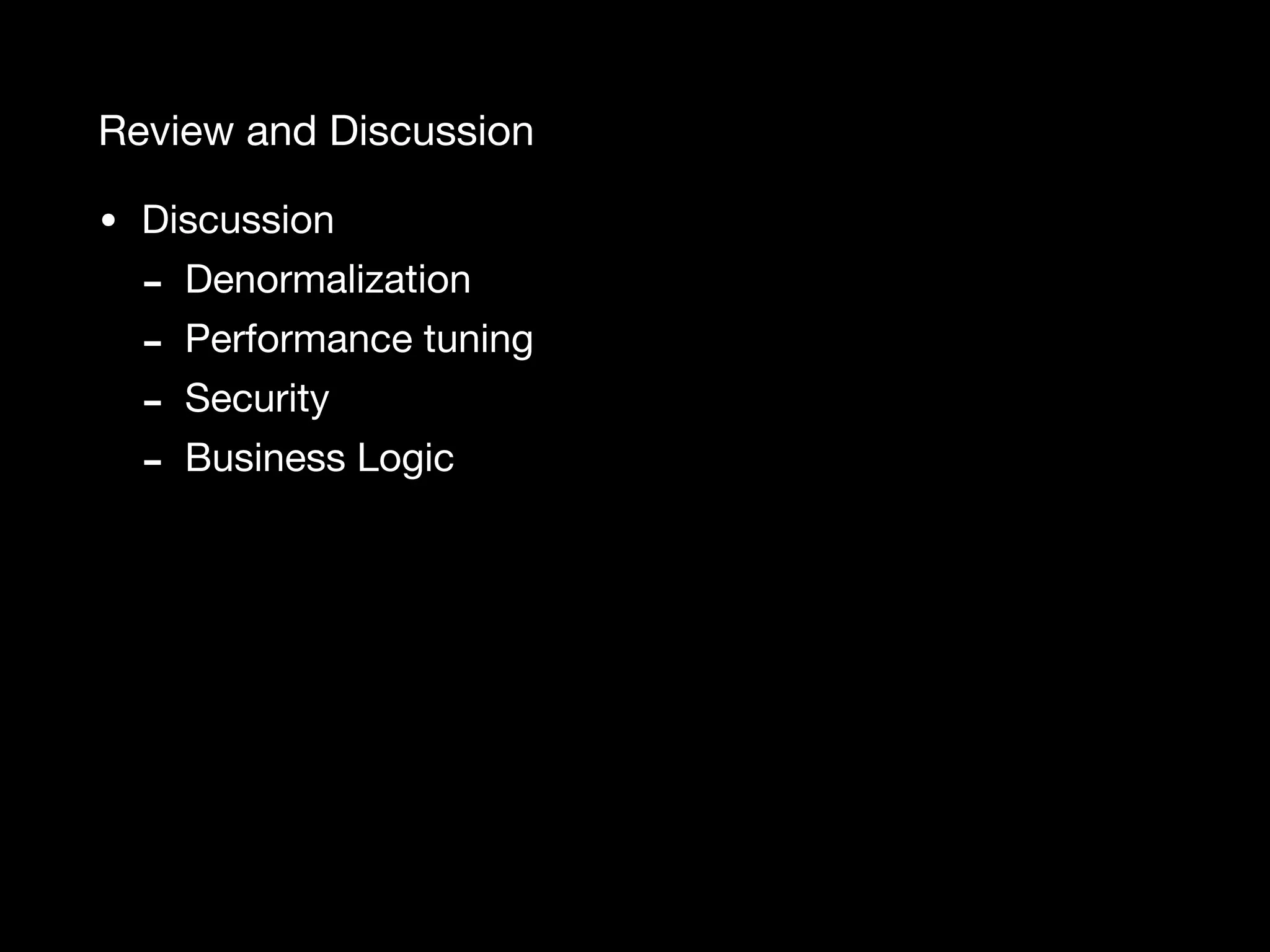

Review and Discussion • Discussion - Denormalization - Performance tuning - Security - Business Logic

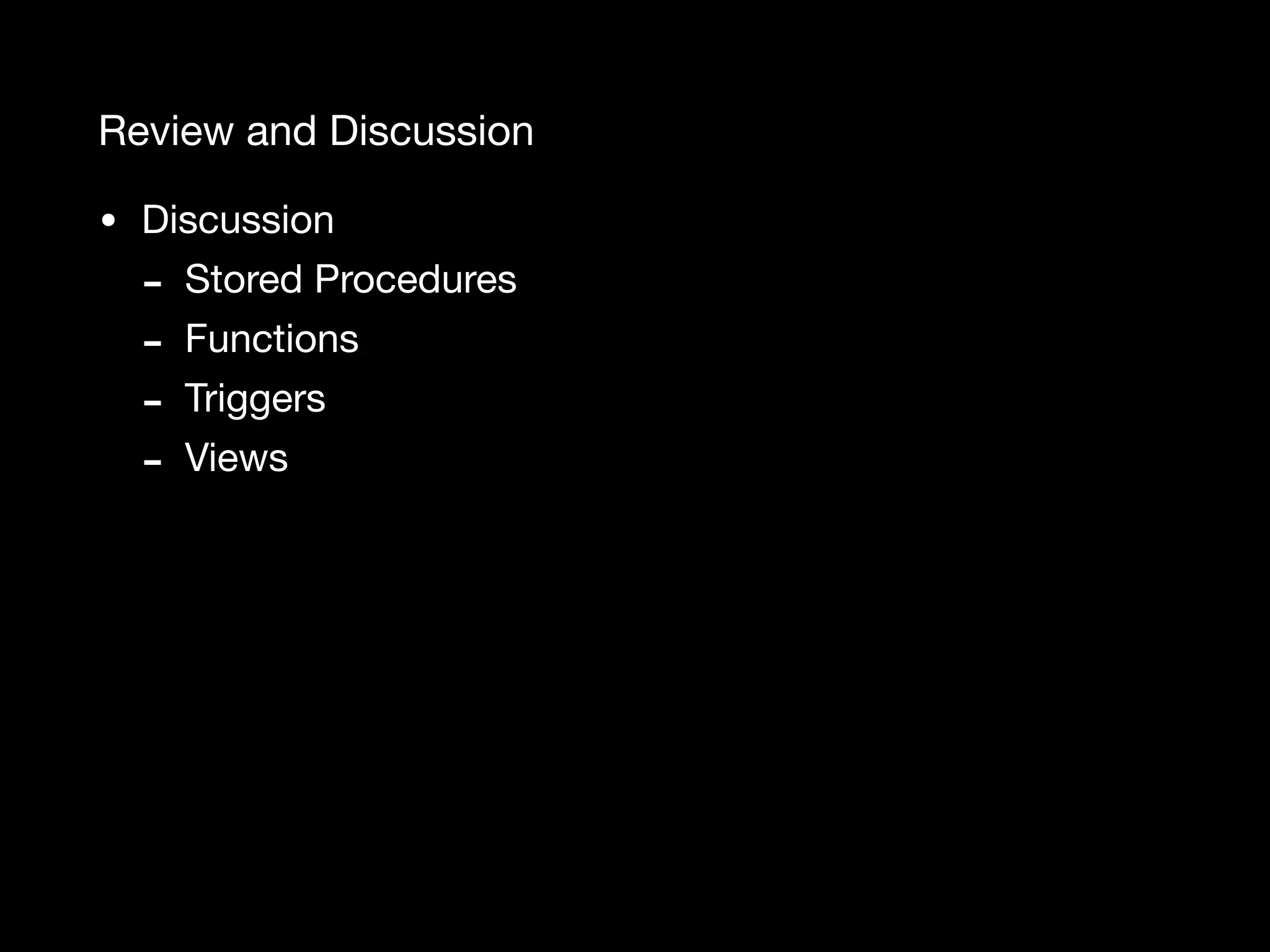

Review and Discussion • Discussion - Stored Procedures - Functions - Triggers - Views

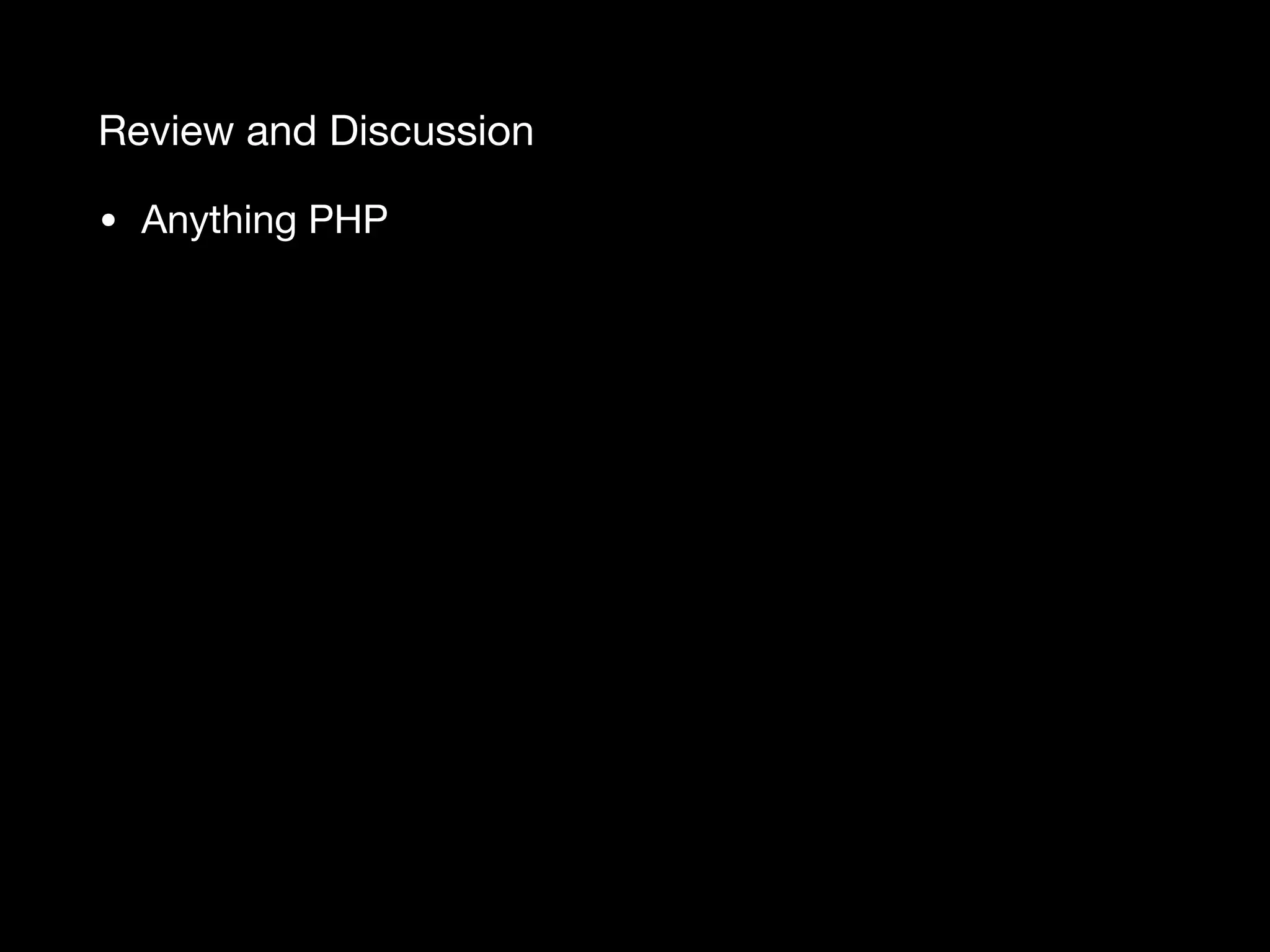

Review and Discussion • Anything PHP

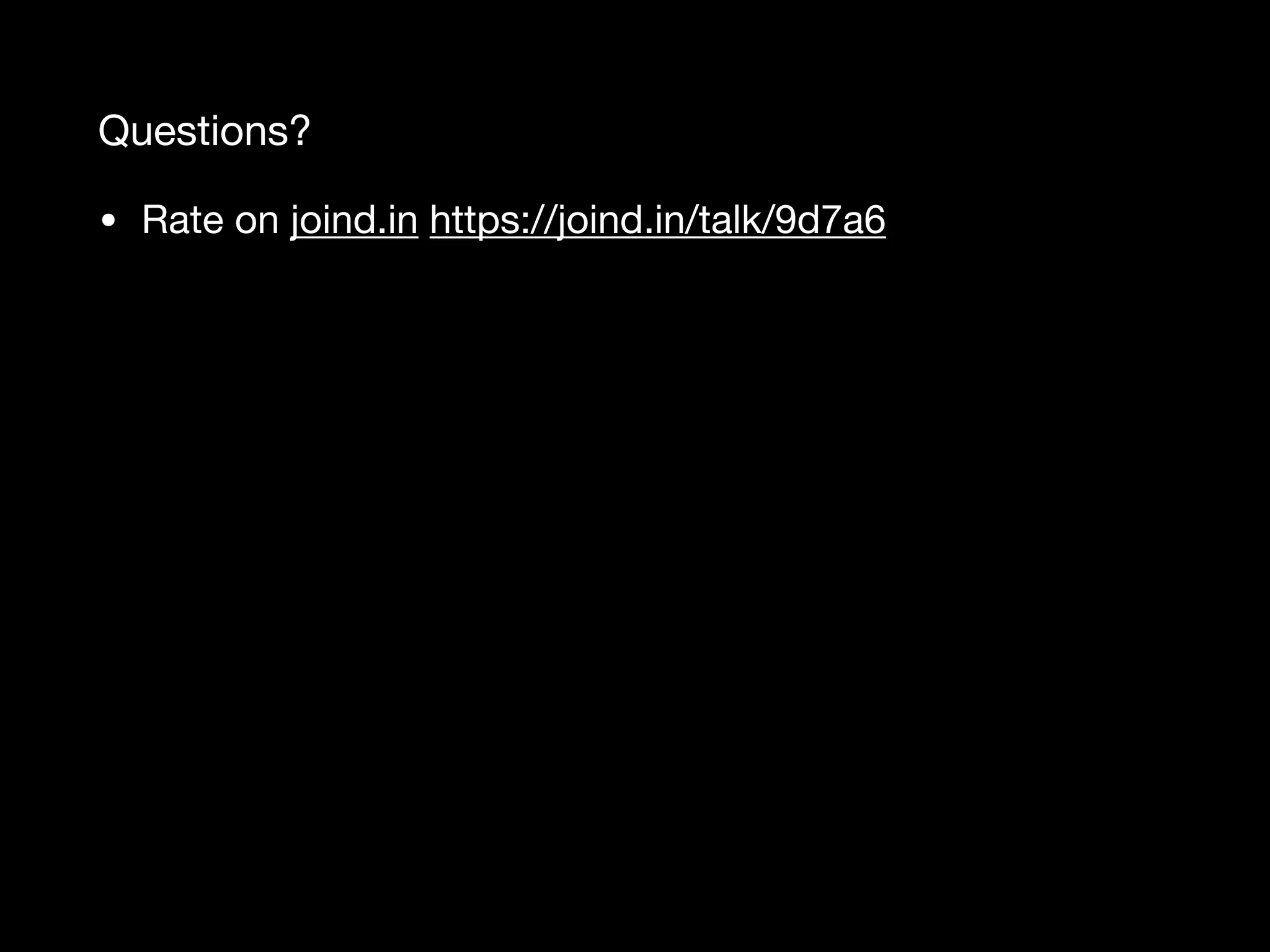

Questions? • Rate on joind.in https://joind.in/talk/9d7a6
