Reactive Fault Tolerant Programming with Hystrix and RxJava

REACTIVE FAULT TOLERANT PROGRAMMING with Hystrix and RxJava Matt Stine (@mstine)

Matt StineSenior Product Manager - Pivotal Software, Inc. Author of: http://bit.ly/cloud-native-book

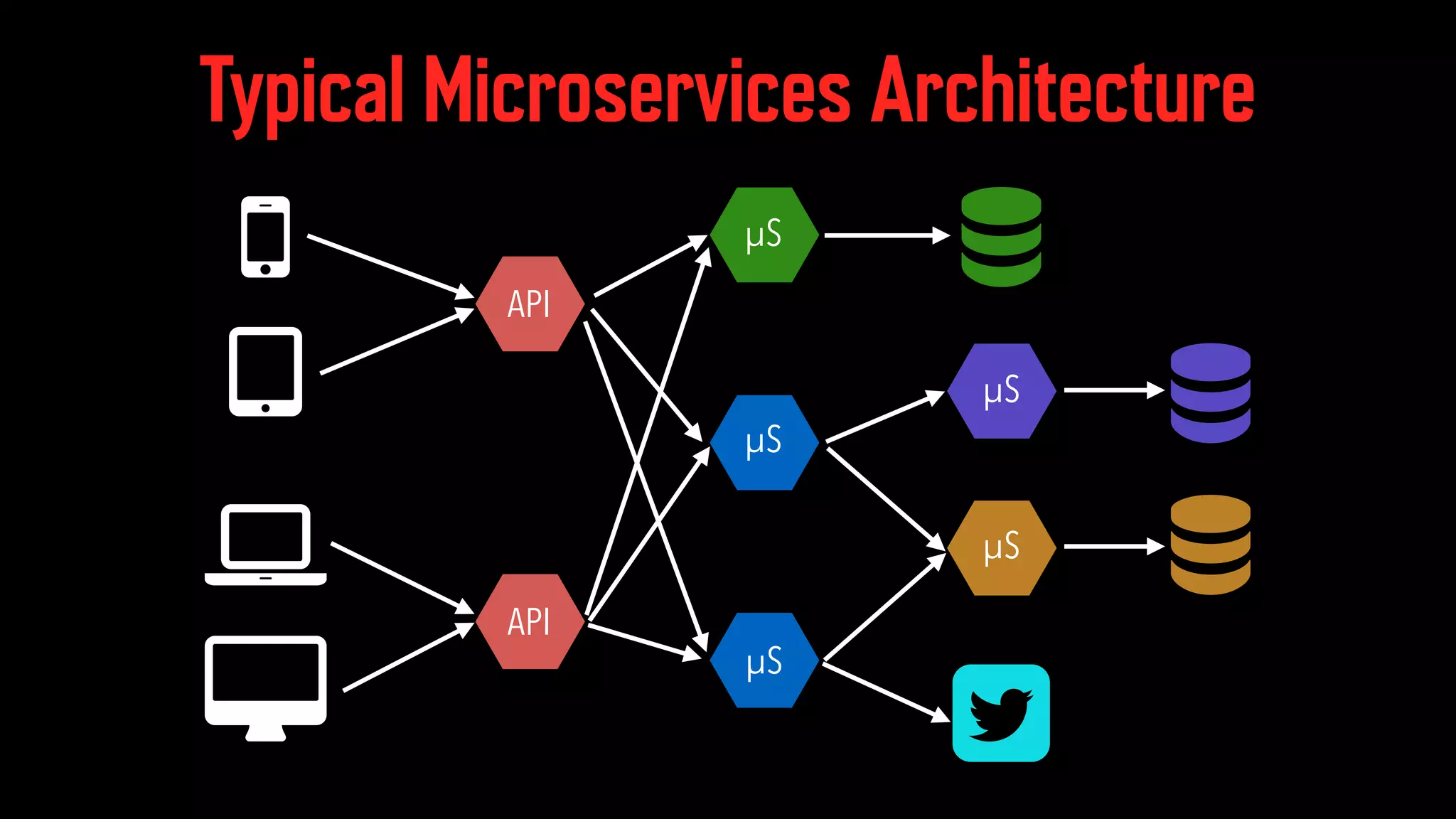

Typical Microservices Architecture ÂAPI ÂAPI ! ! ! ÂµS ÂµS ÂµS ÂµS ÂµS

Trace a Request ÂAPI ÂAPI ! ! ! ÂµS ÂµS ÂµS ÂµS ÂµS

Consider this subgraph… ÂAPI ÂµS ÂµS

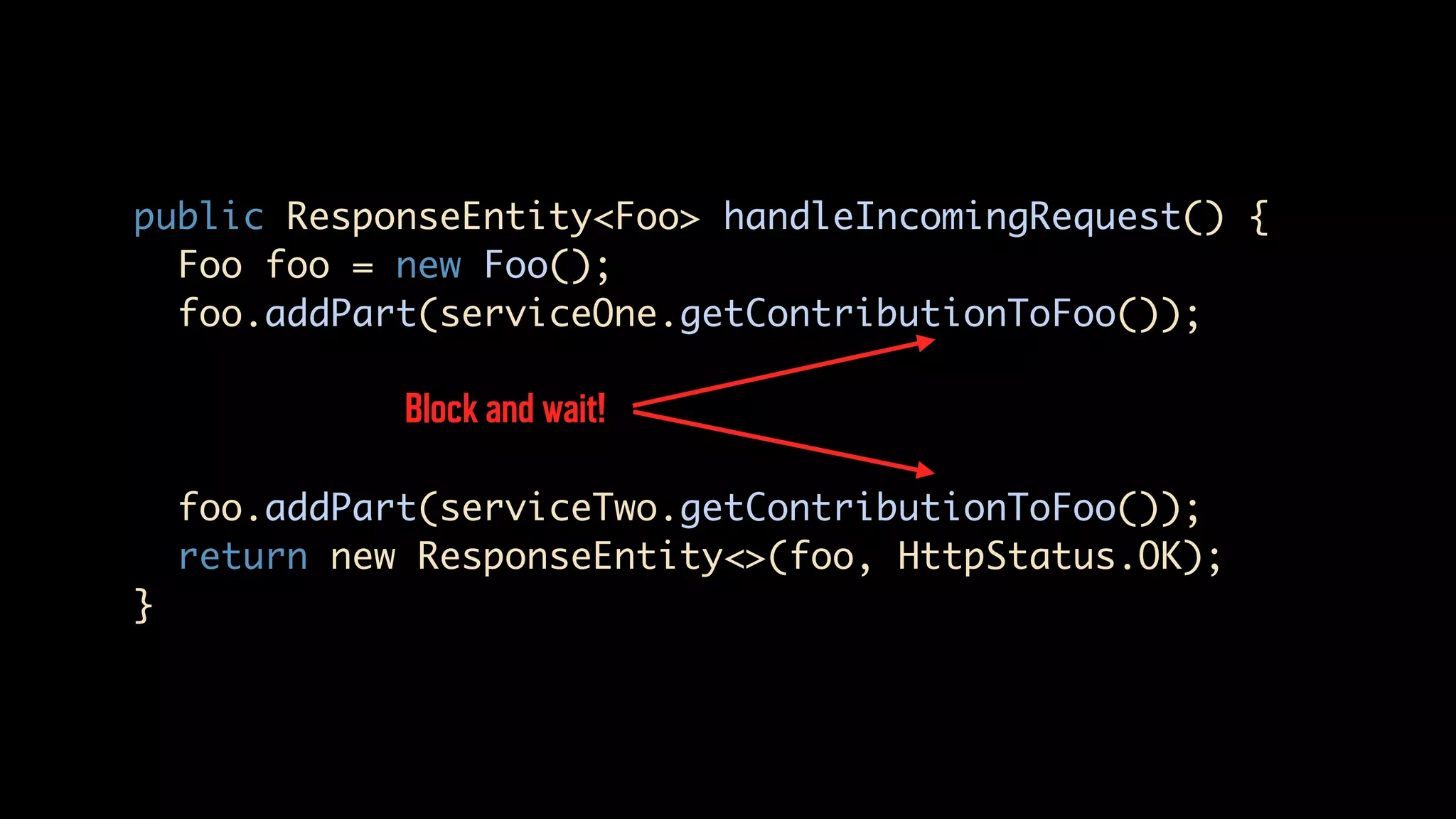

public ResponseEntity<Foo> handleIncomingRequest() { Foo foo = new Foo(); foo.addPart(serviceOne.getContributionToFoo()); foo.addPart(serviceTwo.getContributionToFoo()); return new ResponseEntity<>(foo, HttpStatus.OK); } Block and wait!

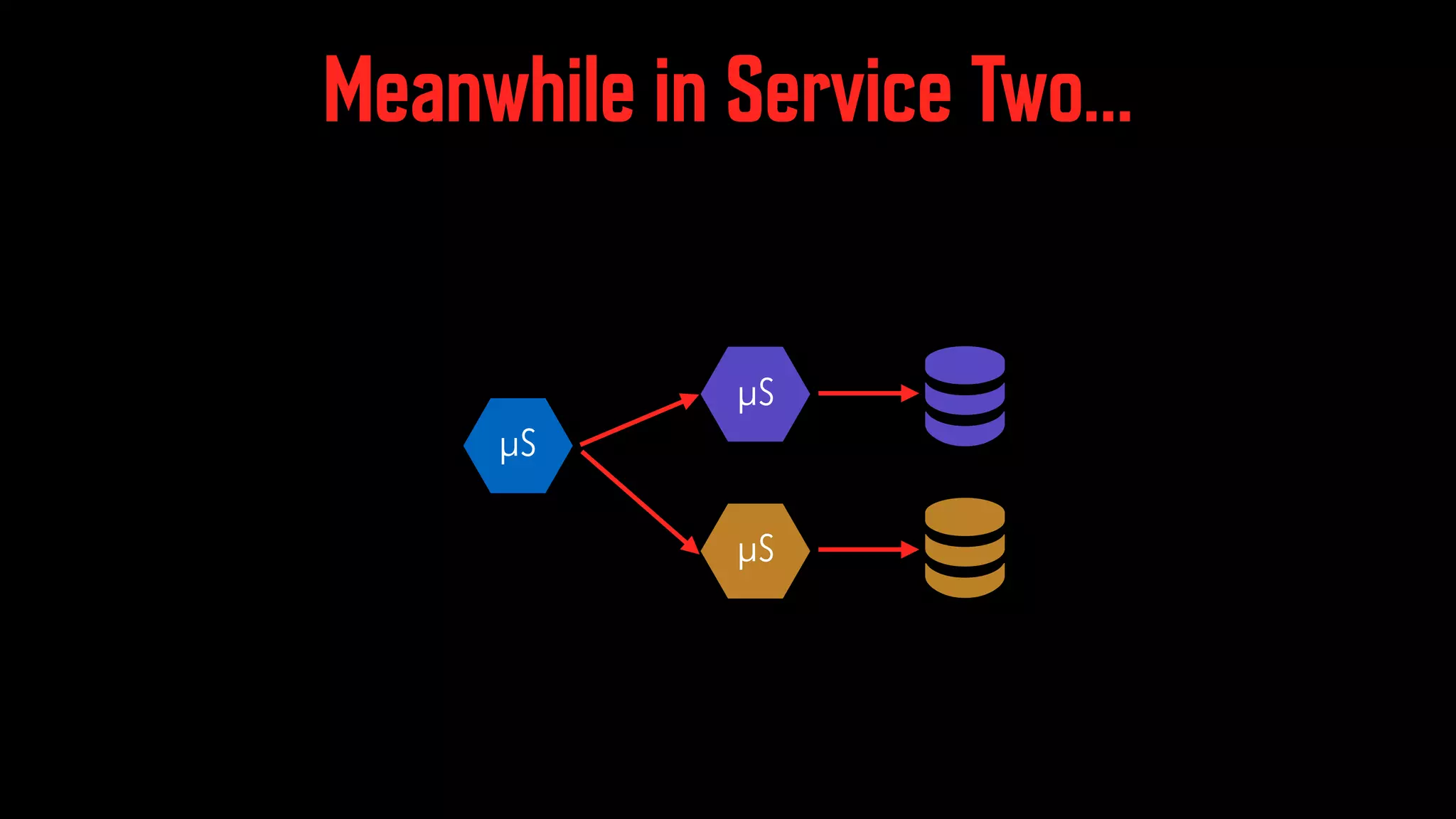

Meanwhile in Service Two… ! ! ÂµS ÂµS ÂµS

public ResponseEntity<FooPart> handleIncomingRequest() { FooPart fooPart = new FooPart(); fooPart.addSubPart(serviceThree.getContributionToFooPart()); fooPart.addSubPart(serviceFour.getContributionToFooPart()); return new ResponseEntity<>(fooPart, HttpStatus.OK); } Block and wait!

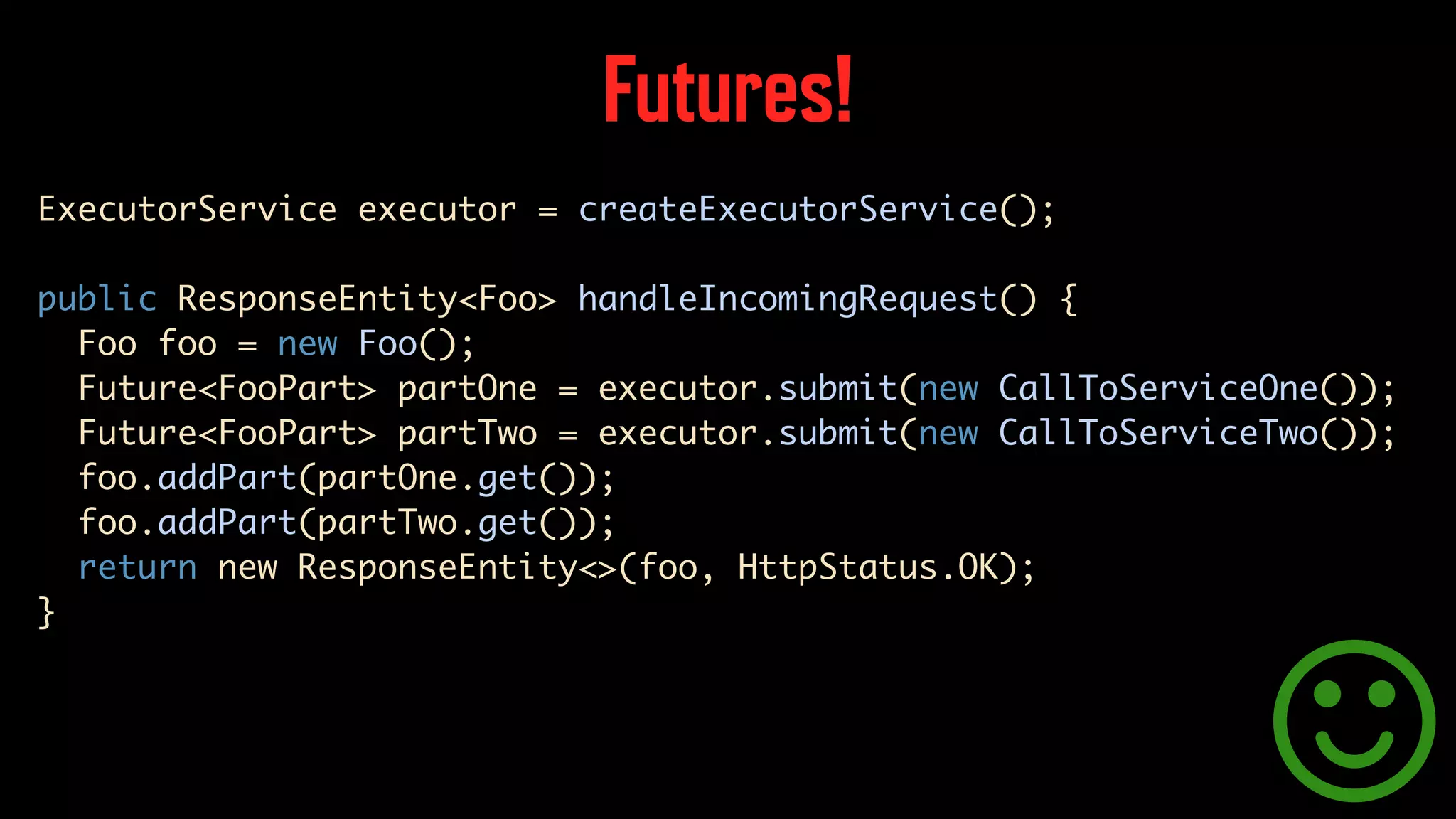

Futures! ExecutorService executor = createExecutorService(); public ResponseEntity<Foo> handleIncomingRequest() { Foo foo = new Foo(); Future<FooPart> partOne = executor.submit(new CallToServiceOne()); Future<FooPart> partTwo = executor.submit(new CallToServiceTwo()); foo.addPart(partOne.get()); foo.addPart(partTwo.get()); return new ResponseEntity<>(foo, HttpStatus.OK); }

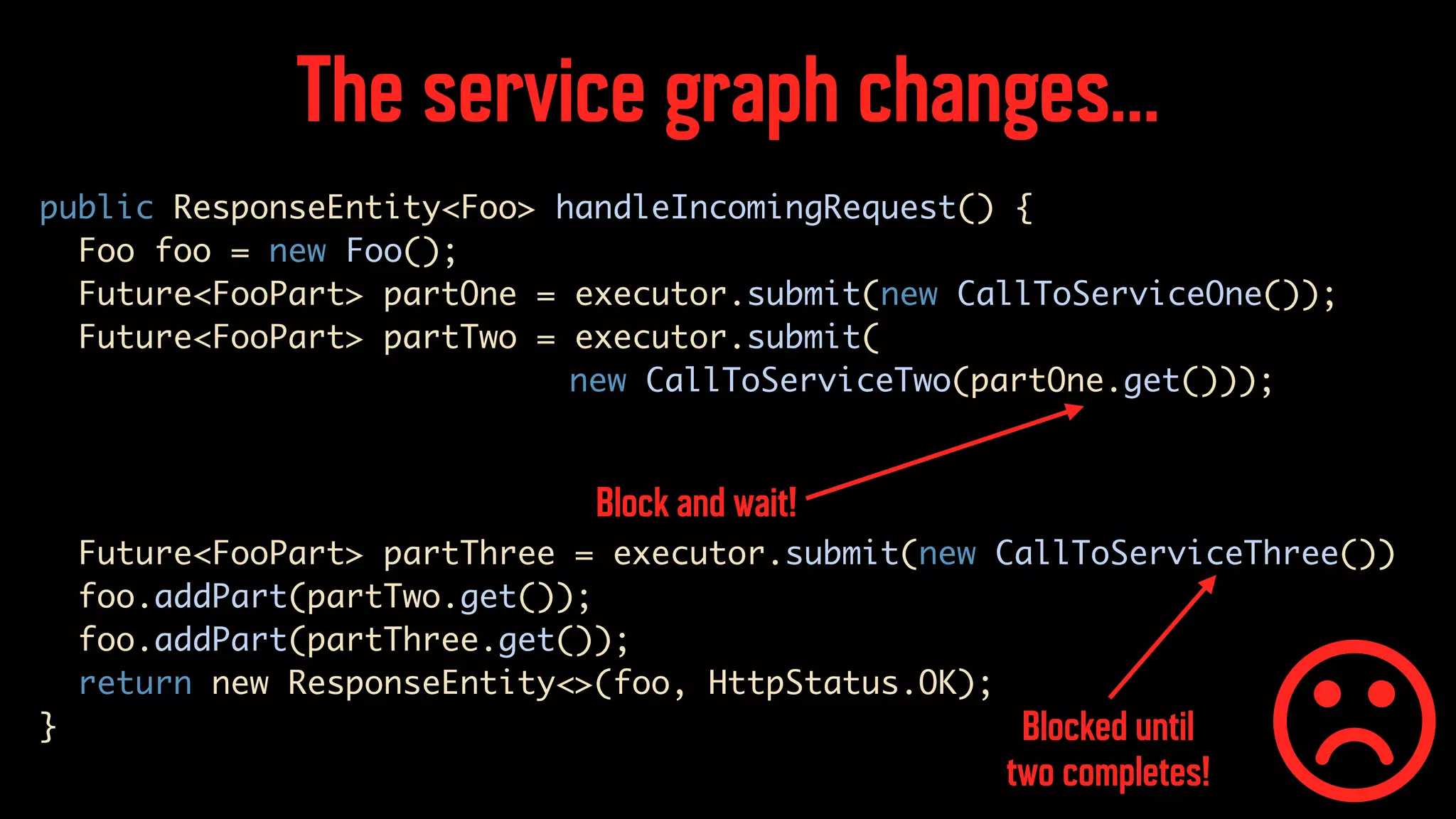

The service graph changes… public ResponseEntity<Foo> handleIncomingRequest() { Foo foo = new Foo(); Future<FooPart> partOne = executor.submit(new CallToServiceOne()); Future<FooPart> partTwo = executor.submit( new CallToServiceTwo(partOne.get())); Future<FooPart> partThree = executor.submit(new CallToServiceThree()) foo.addPart(partTwo.get()); foo.addPart(partThree.get()); return new ResponseEntity<>(foo, HttpStatus.OK); } Block and wait! Blocked until two completes!

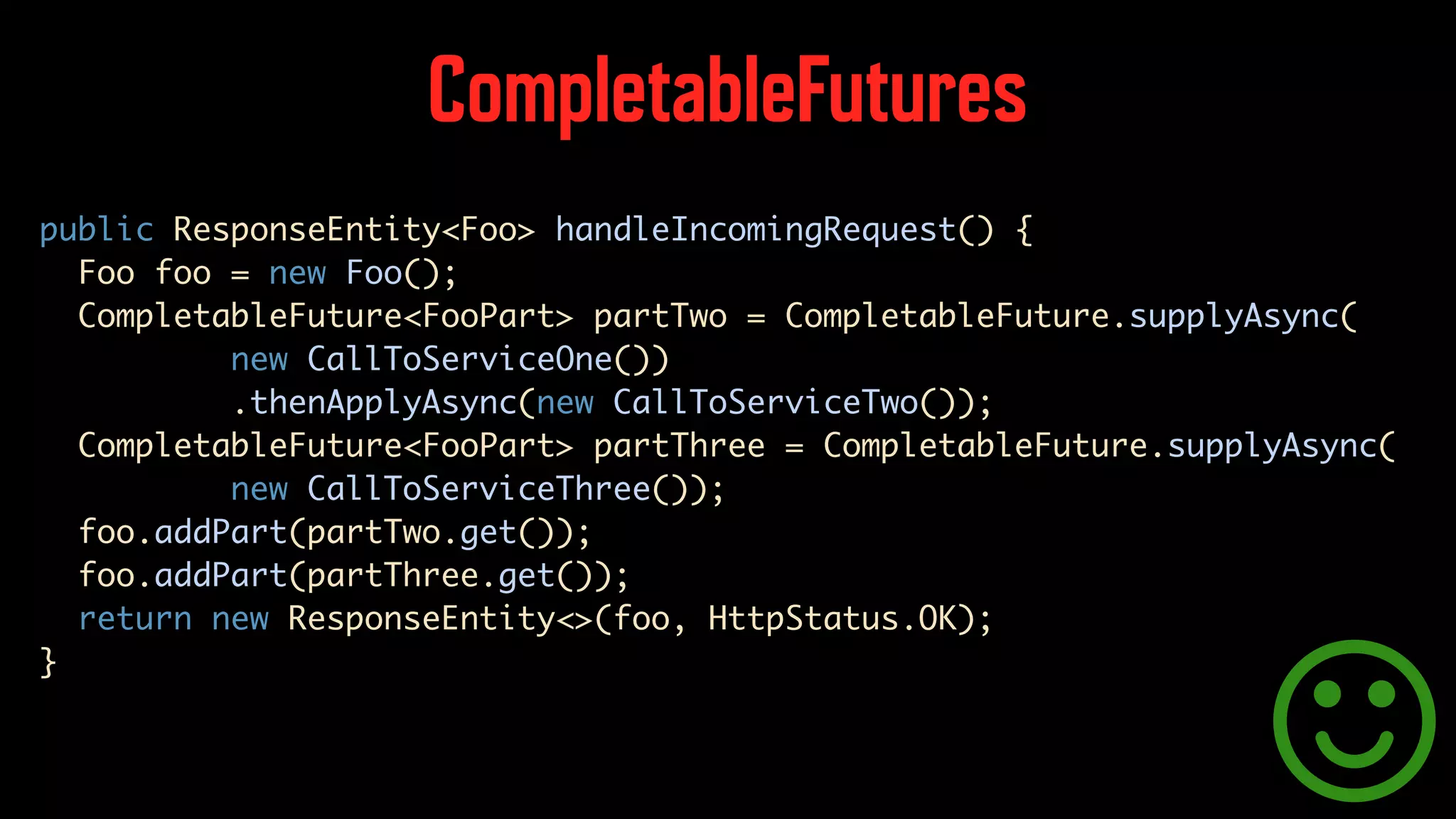

CompletableFutures public ResponseEntity<Foo> handleIncomingRequest() { Foo foo = new Foo(); CompletableFuture<FooPart> partTwo = CompletableFuture.supplyAsync( new CallToServiceOne()) .thenApplyAsync(new CallToServiceTwo()); CompletableFuture<FooPart> partThree = CompletableFuture.supplyAsync( new CallToServiceThree()); foo.addPart(partTwo.get()); foo.addPart(partThree.get()); return new ResponseEntity<>(foo, HttpStatus.OK); }

As composition becomes more complex, CompletableFuture API is lacking…

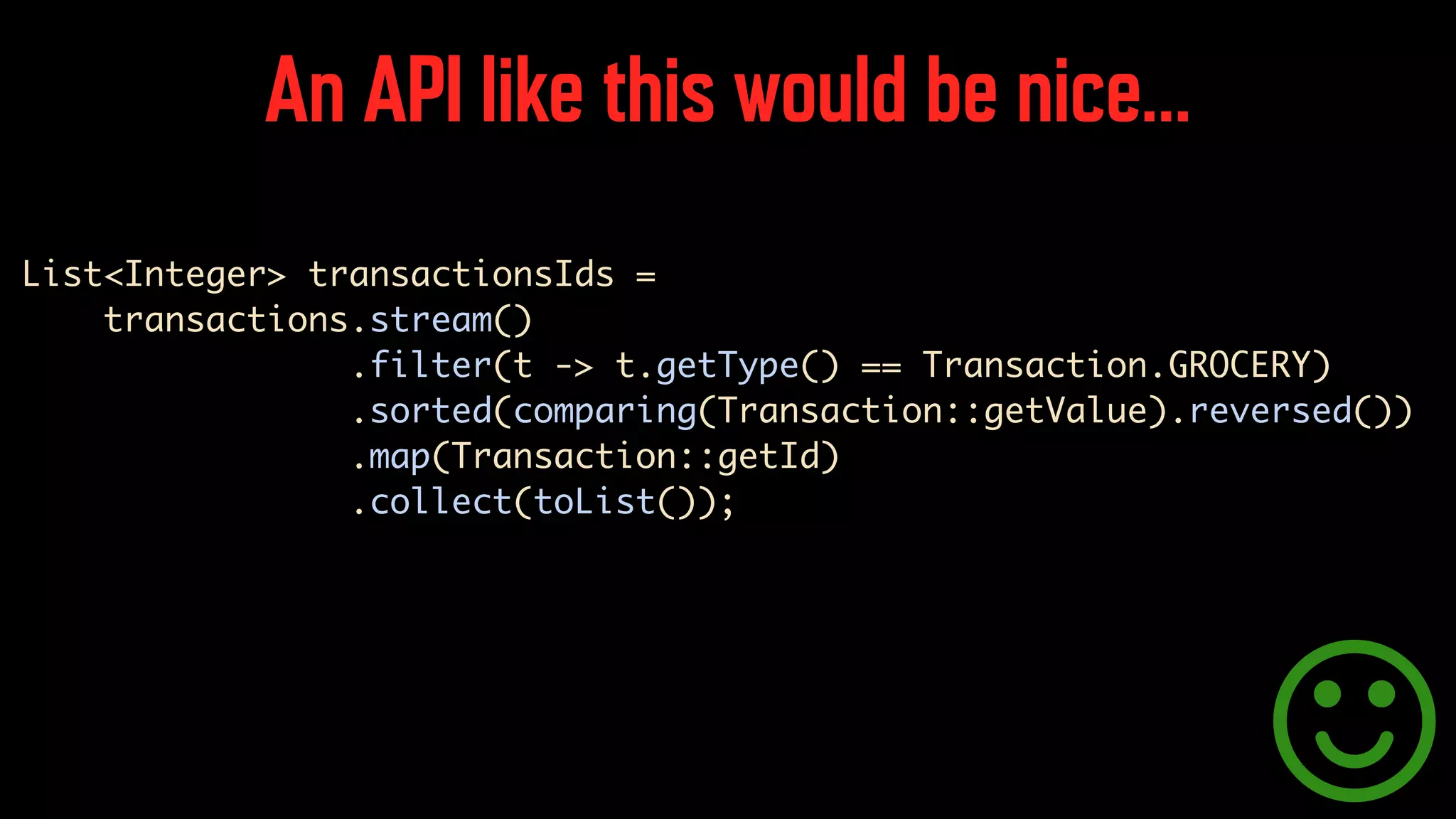

An API like this would be nice… List<Integer> transactionsIds = transactions.stream() .filter(t -> t.getType() == Transaction.GROCERY) .sorted(comparing(Transaction::getValue).reversed()) .map(Transaction::getId) .collect(toList());

RxJava http://reactivex.io https://github.com/ReactiveX/RxJava

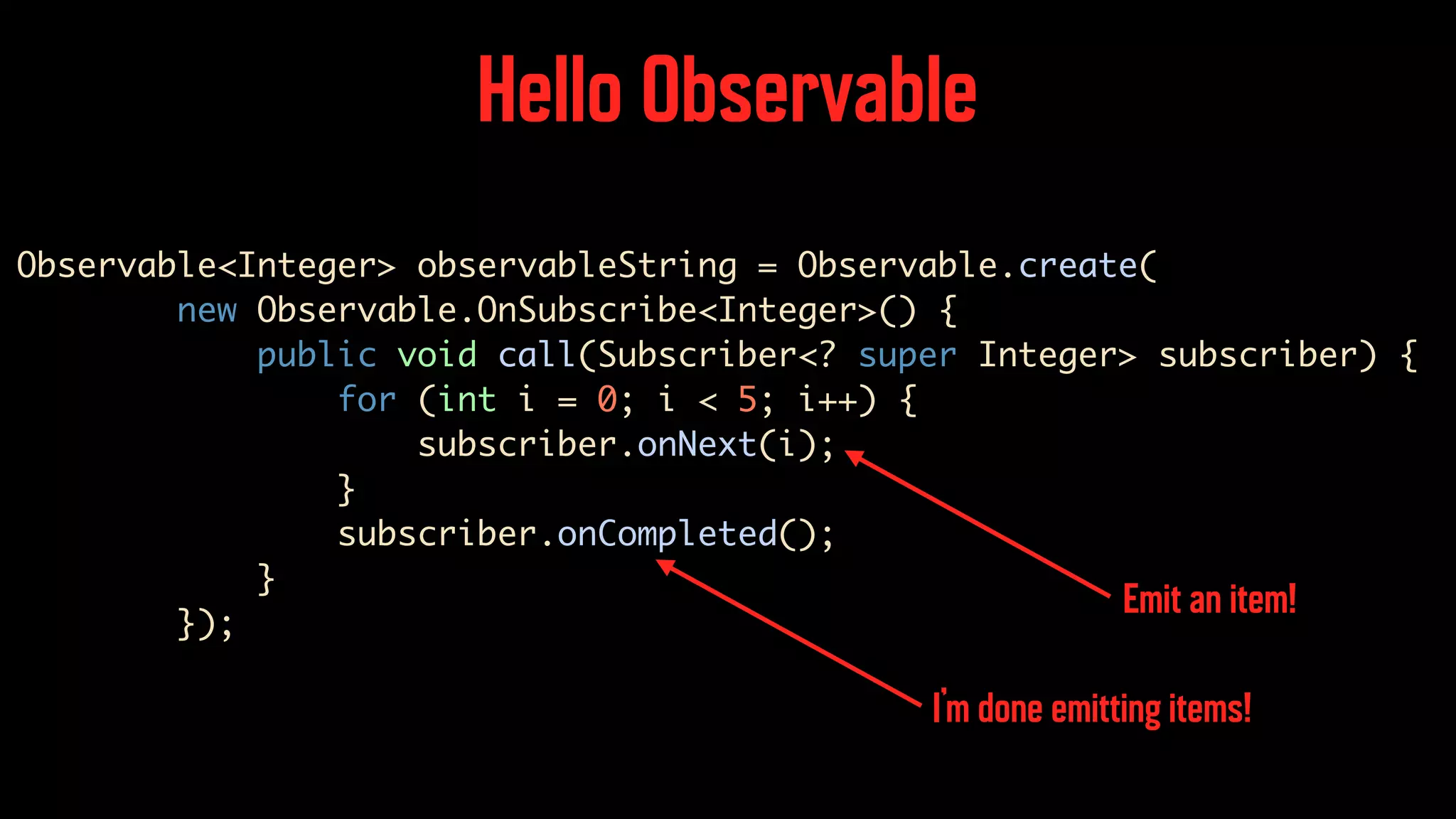

Hello Observable Observable<Integer> observableString = Observable.create( new Observable.OnSubscribe<Integer>() { public void call(Subscriber<? super Integer> subscriber) { for (int i = 0; i < 5; i++) { subscriber.onNext(i); } subscriber.onCompleted(); } }); Emit an item! I’m done emitting items!

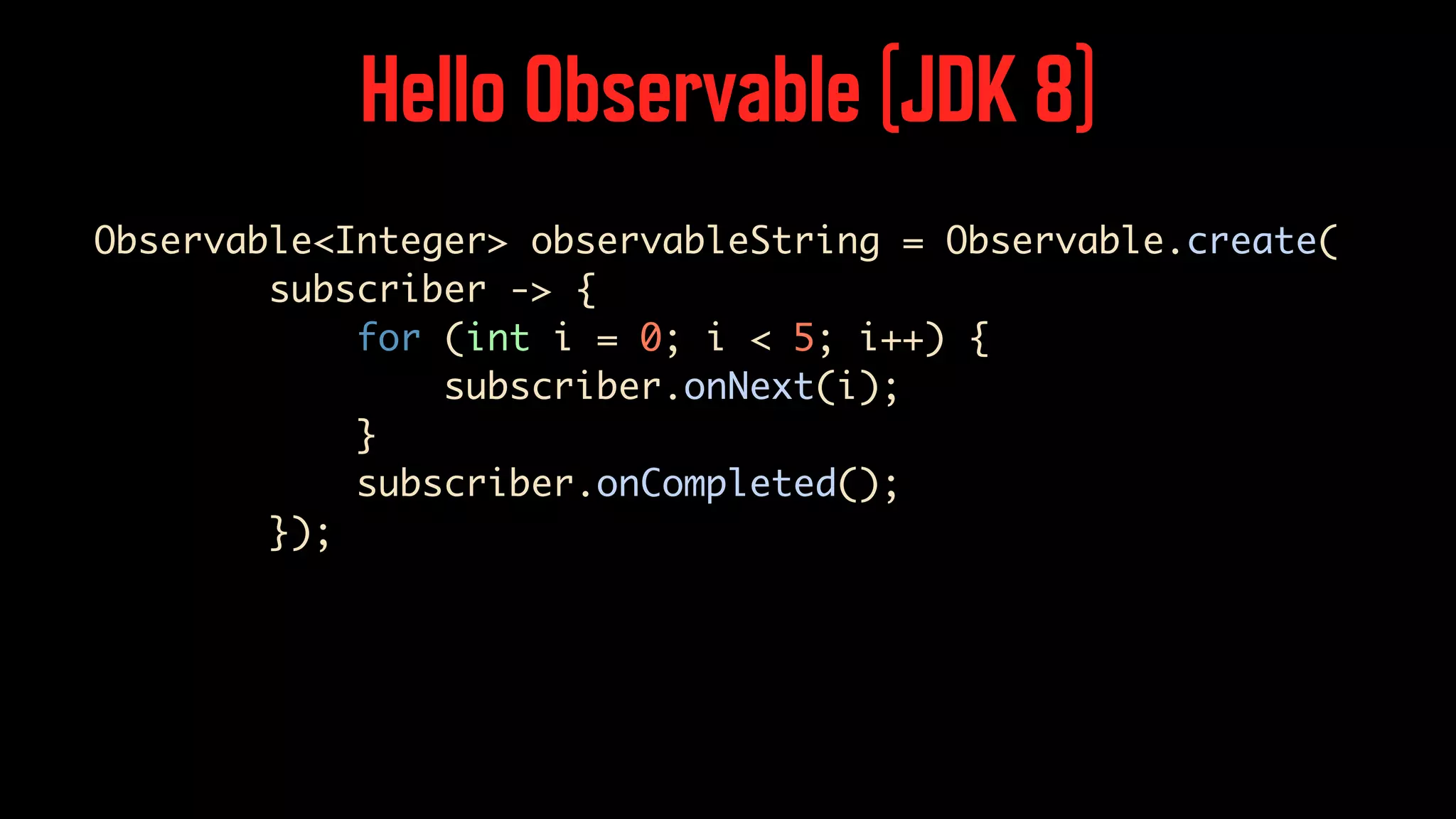

Observable<Integer> observableString = Observable.create( subscriber -> { for (int i = 0; i < 5; i++) { subscriber.onNext(i); } subscriber.onCompleted(); }); Hello Observable (JDK 8)

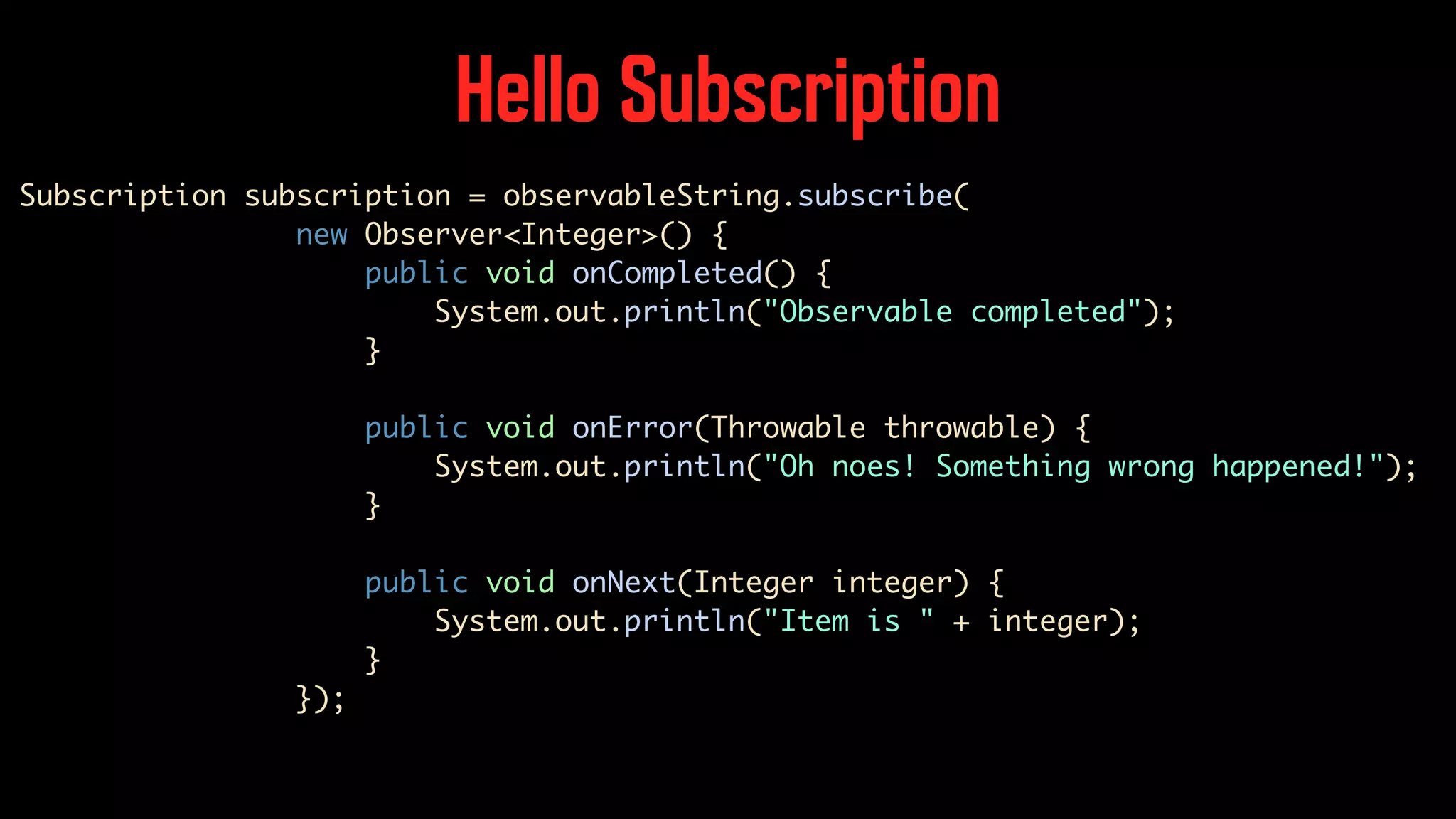

Hello Subscription Subscription subscription = observableString.subscribe( new Observer<Integer>() { public void onCompleted() { System.out.println("Observable completed"); } public void onError(Throwable throwable) { System.out.println("Oh noes! Something wrong happened!"); } public void onNext(Integer integer) { System.out.println("Item is " + integer); } });

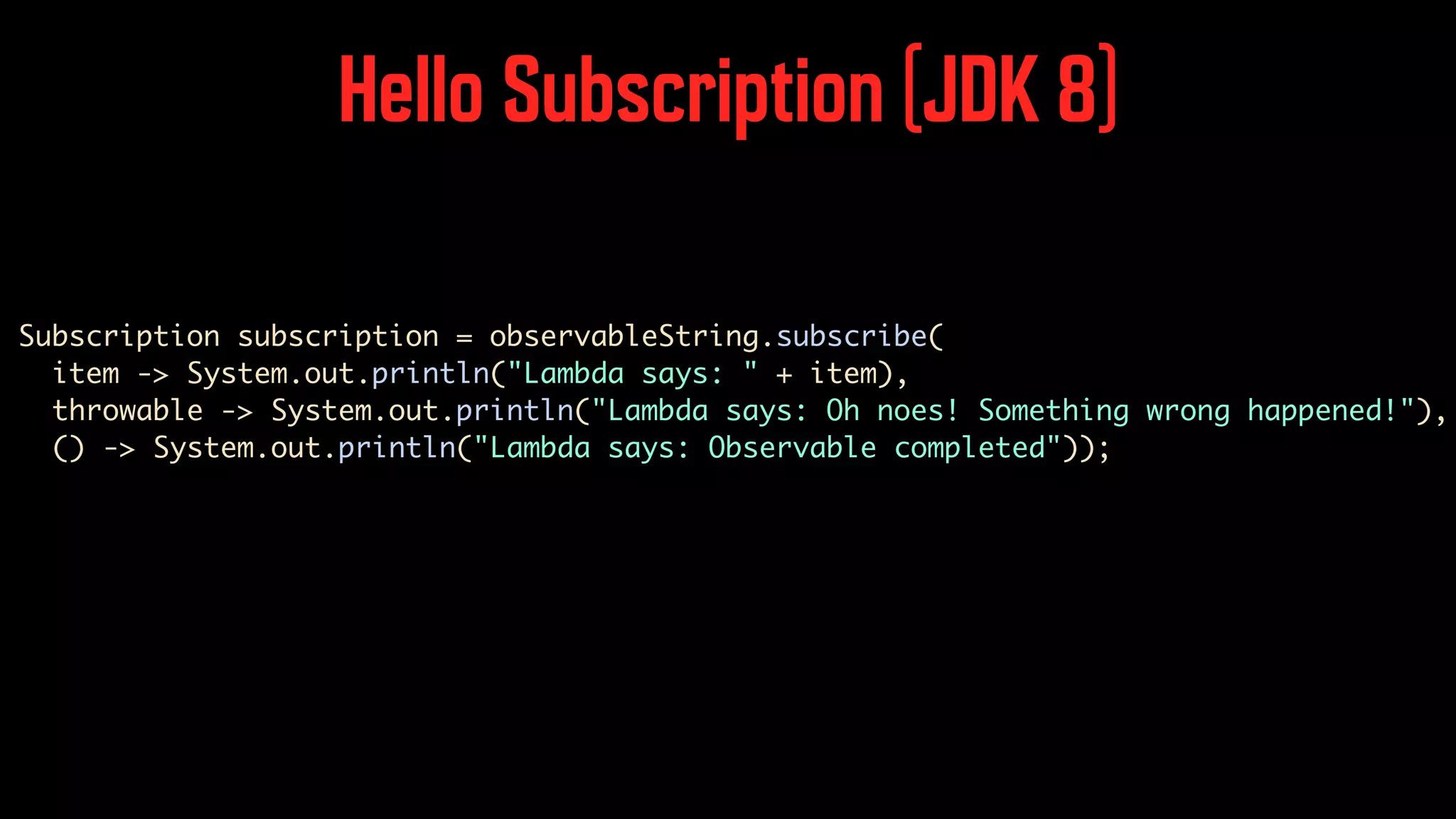

Hello Subscription (JDK 8) Subscription subscription = observableString.subscribe( item -> System.out.println("Lambda says: " + item), throwable -> System.out.println("Lambda says: Oh noes! Something wrong happened!"), () -> System.out.println("Lambda says: Observable completed"));

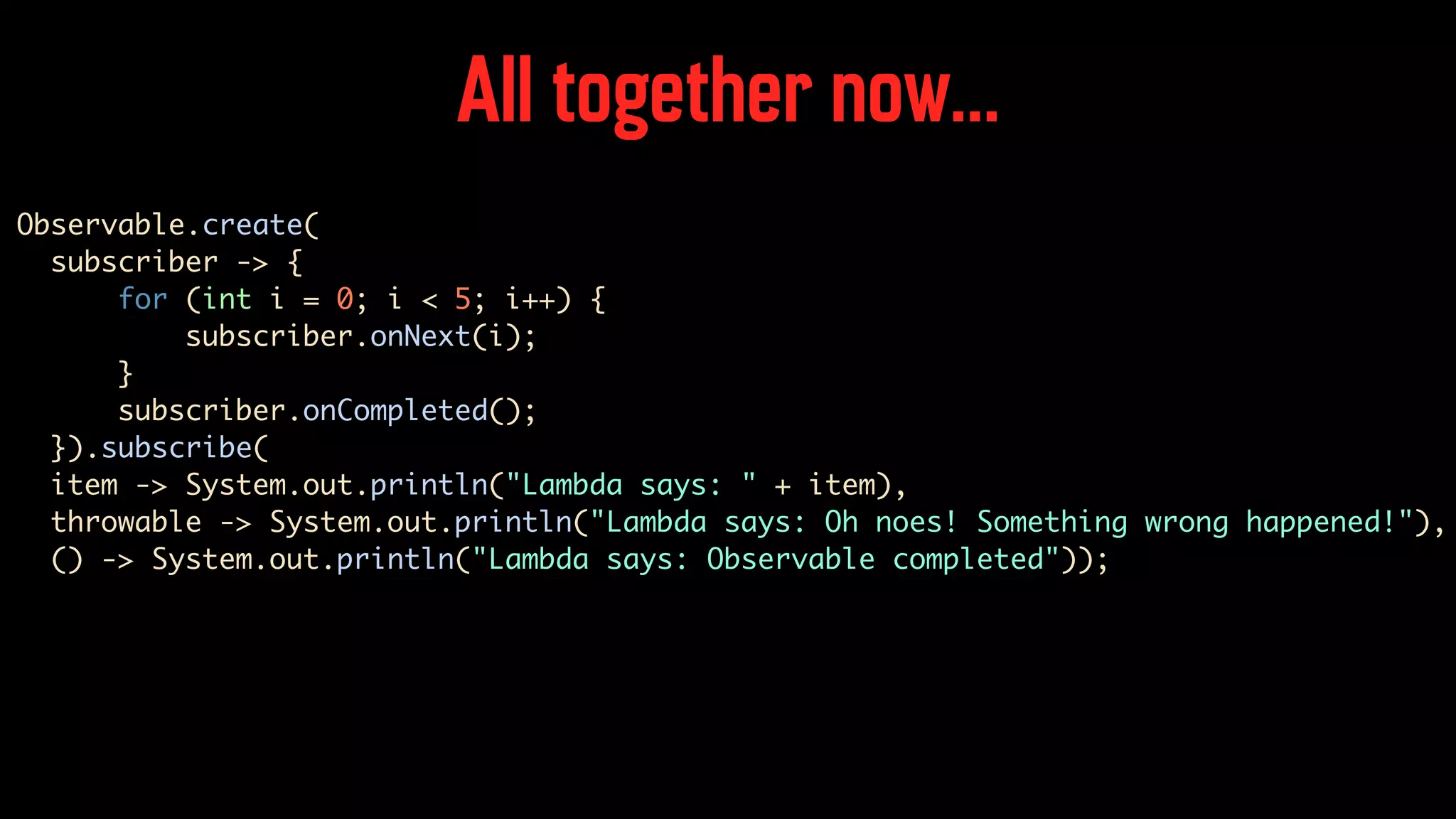

All together now… Observable.create( subscriber -> { for (int i = 0; i < 5; i++) { subscriber.onNext(i); } subscriber.onCompleted(); }).subscribe( item -> System.out.println("Lambda says: " + item), throwable -> System.out.println("Lambda says: Oh noes! Something wrong happened!"), () -> System.out.println("Lambda says: Observable completed"));

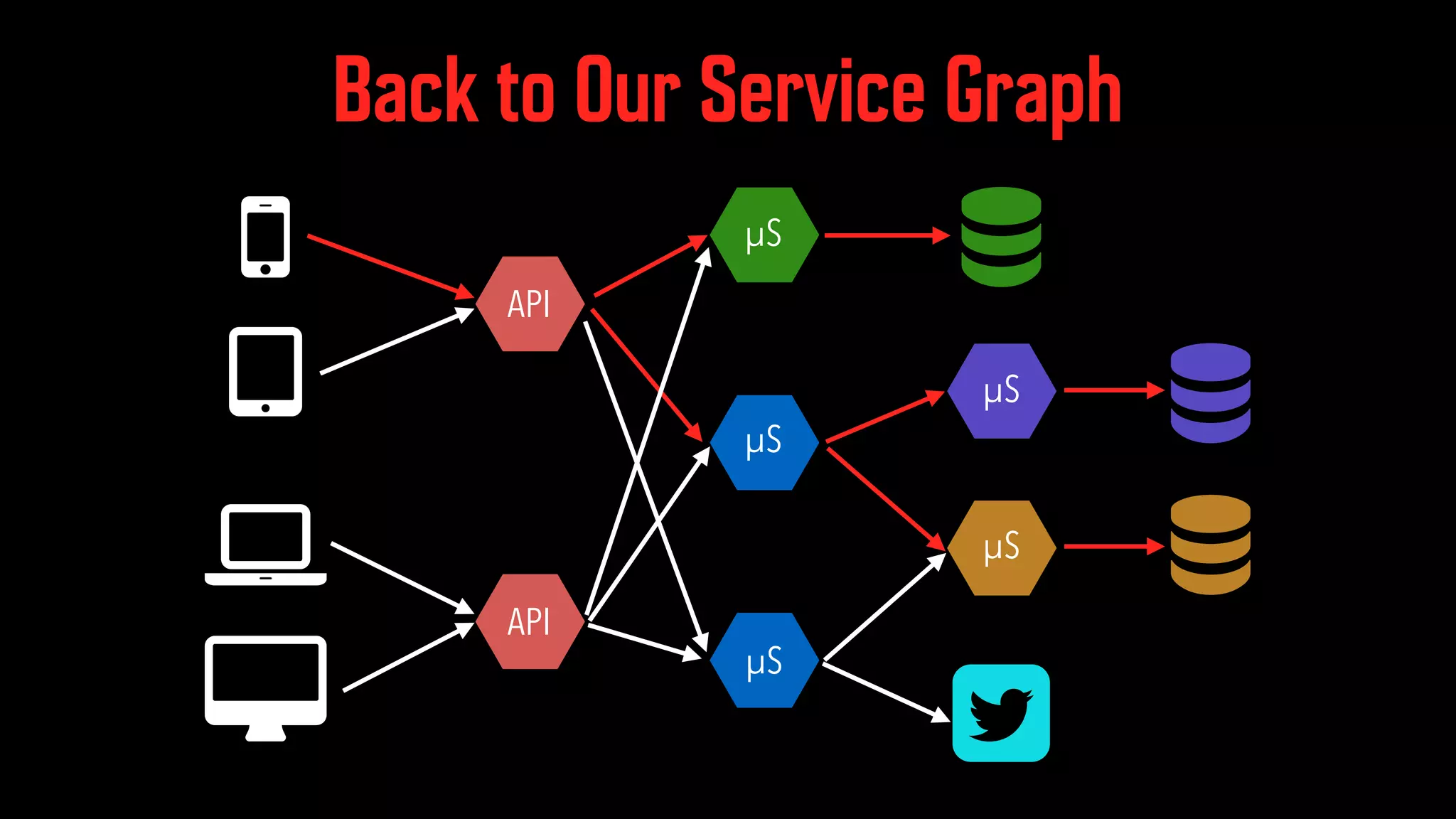

Back to Our Service Graph ÂAPI ÂAPI ! ! ! ÂµS ÂµS ÂµS ÂµS ÂµS

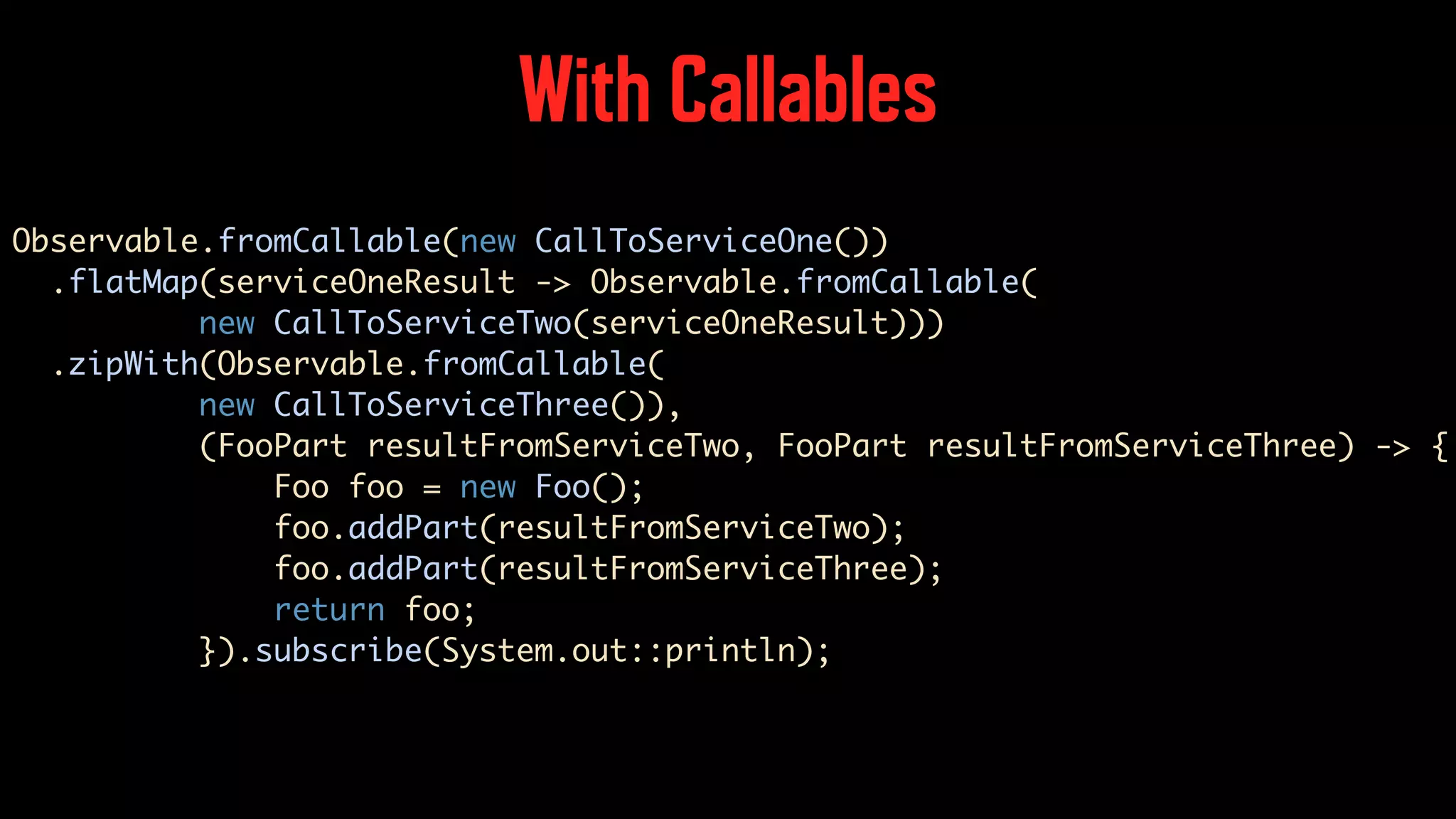

With Callables Observable.fromCallable(new CallToServiceOne()) .flatMap(serviceOneResult -> Observable.fromCallable( new CallToServiceTwo(serviceOneResult))) .zipWith(Observable.fromCallable( new CallToServiceThree()), (FooPart resultFromServiceTwo, FooPart resultFromServiceThree) -> { Foo foo = new Foo(); foo.addPart(resultFromServiceTwo); foo.addPart(resultFromServiceThree); return foo; }).subscribe(System.out::println);

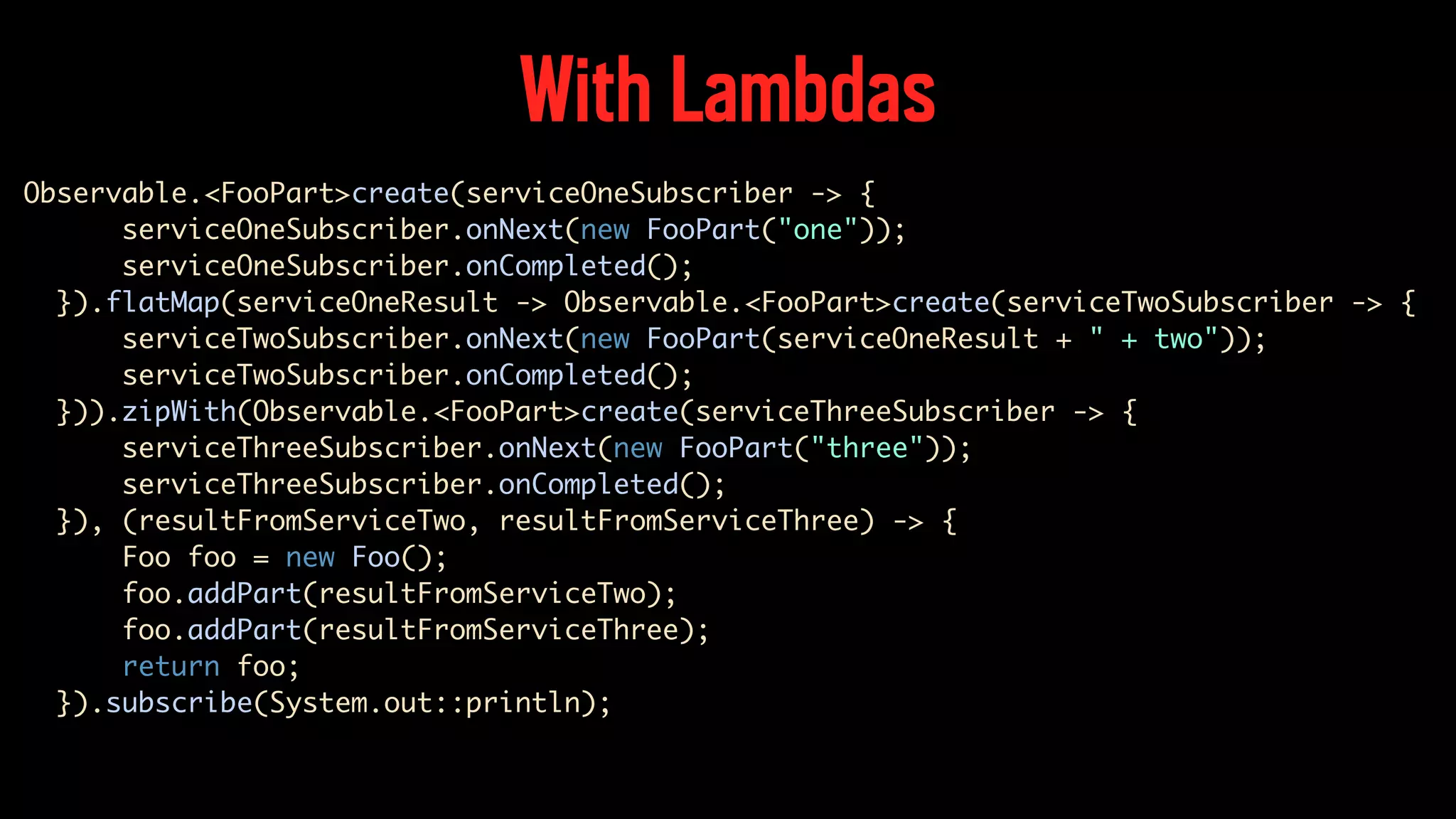

With Lambdas Observable.<FooPart>create(serviceOneSubscriber -> { serviceOneSubscriber.onNext(new FooPart("one")); serviceOneSubscriber.onCompleted(); }).flatMap(serviceOneResult -> Observable.<FooPart>create(serviceTwoSubscriber -> { serviceTwoSubscriber.onNext(new FooPart(serviceOneResult + " + two")); serviceTwoSubscriber.onCompleted(); })).zipWith(Observable.<FooPart>create(serviceThreeSubscriber -> { serviceThreeSubscriber.onNext(new FooPart("three")); serviceThreeSubscriber.onCompleted(); }), (resultFromServiceTwo, resultFromServiceThree) -> { Foo foo = new Foo(); foo.addPart(resultFromServiceTwo); foo.addPart(resultFromServiceThree); return foo; }).subscribe(System.out::println);

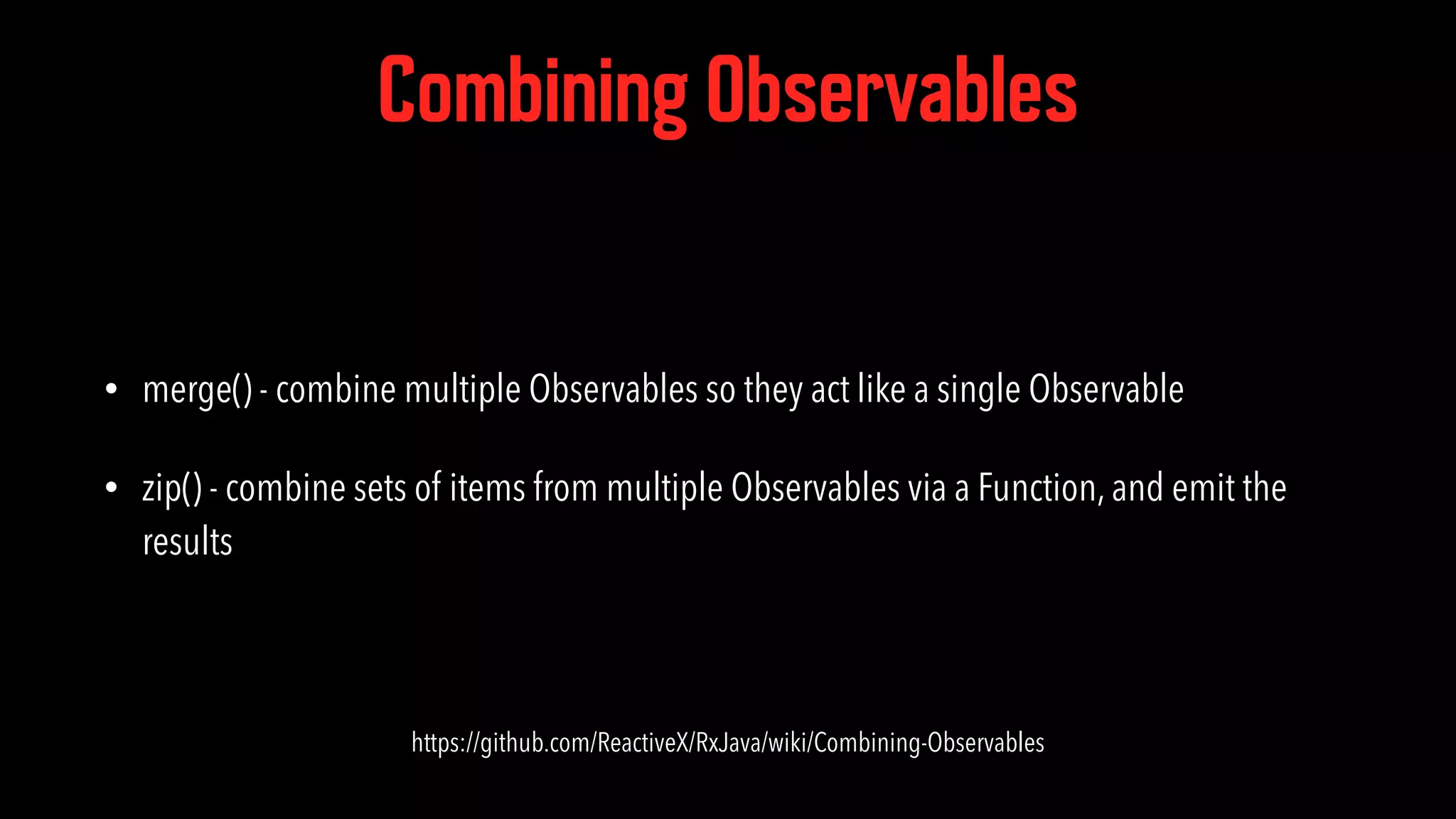

Combining Observables • merge() - combine multiple Observables so they act like a single Observable • zip() - combine sets of items from multiple Observables via a Function, and emit the results https://github.com/ReactiveX/RxJava/wiki/Combining-Observables

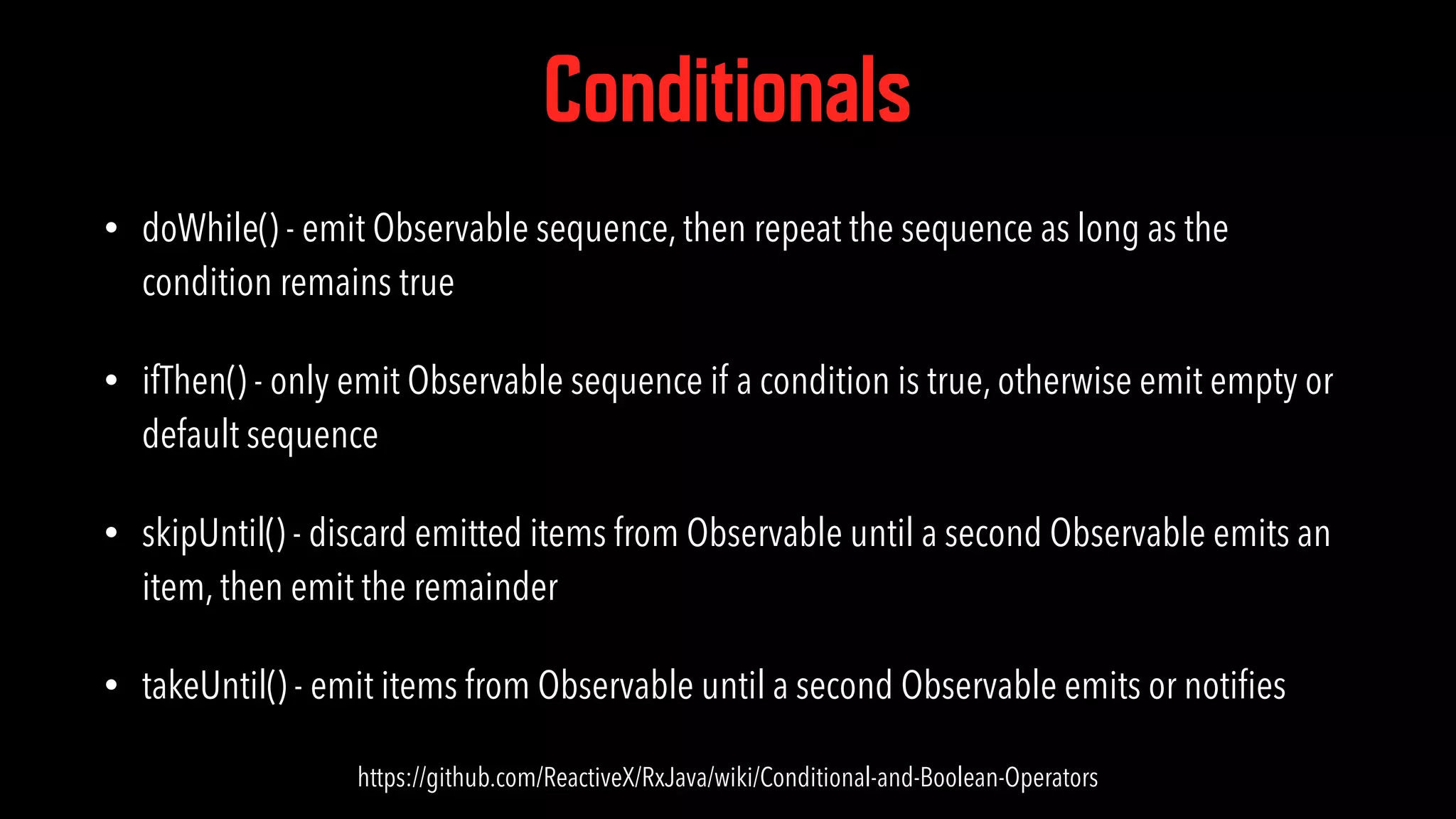

Conditionals • doWhile() - emit Observable sequence, then repeat the sequence as long as the condition remains true • ifThen() - only emit Observable sequence if a condition is true, otherwise emit empty or default sequence • skipUntil() - discard emitted items from Observable until a second Observable emits an item, then emit the remainder • takeUntil() - emit items from Observable until a second Observable emits or notiﬁes https://github.com/ReactiveX/RxJava/wiki/Conditional-and-Boolean-Operators

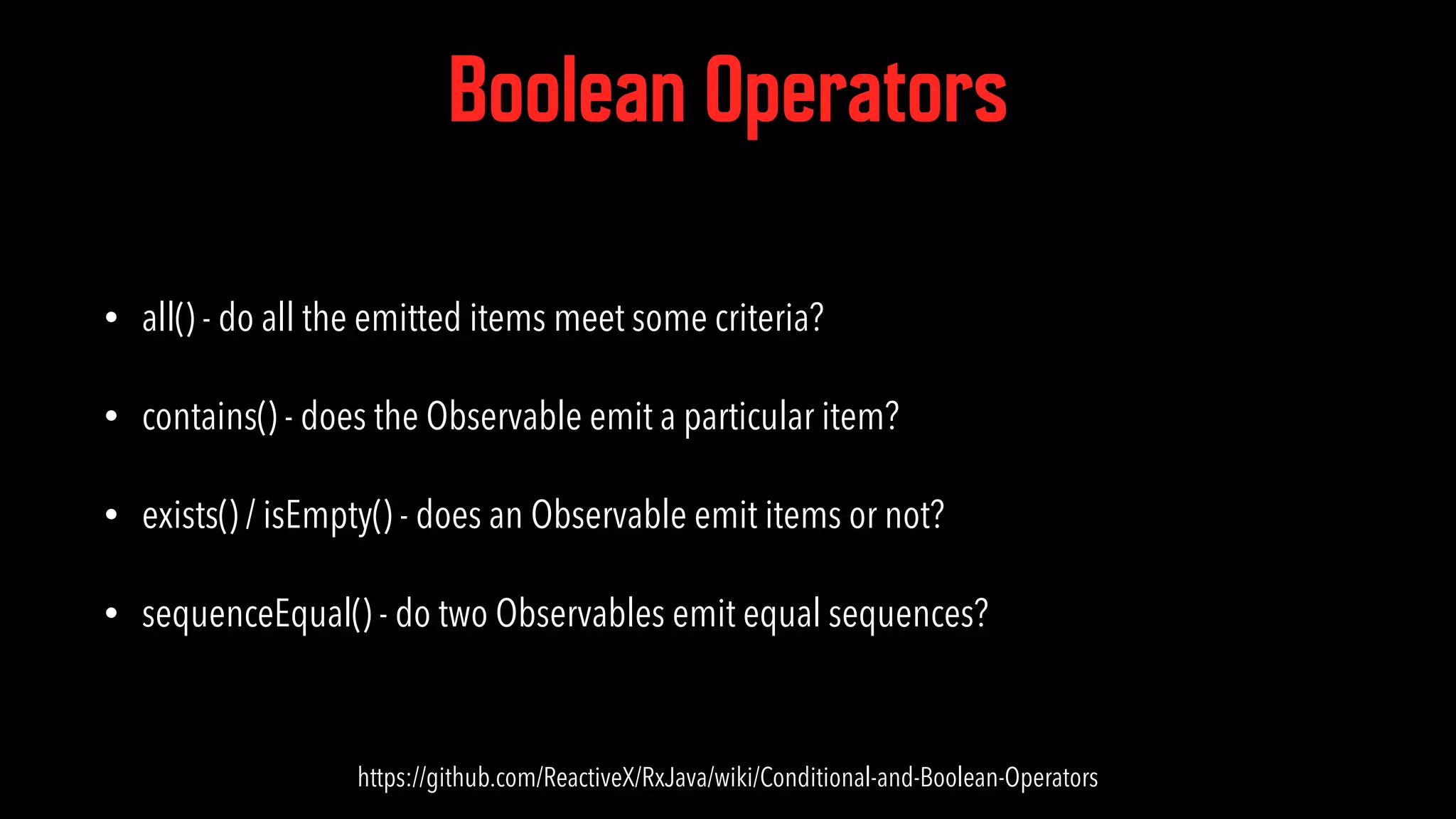

Boolean Operators • all() - do all the emitted items meet some criteria? • contains() - does the Observable emit a particular item? • exists() / isEmpty() - does an Observable emit items or not? • sequenceEqual() - do two Observables emit equal sequences? https://github.com/ReactiveX/RxJava/wiki/Conditional-and-Boolean-Operators

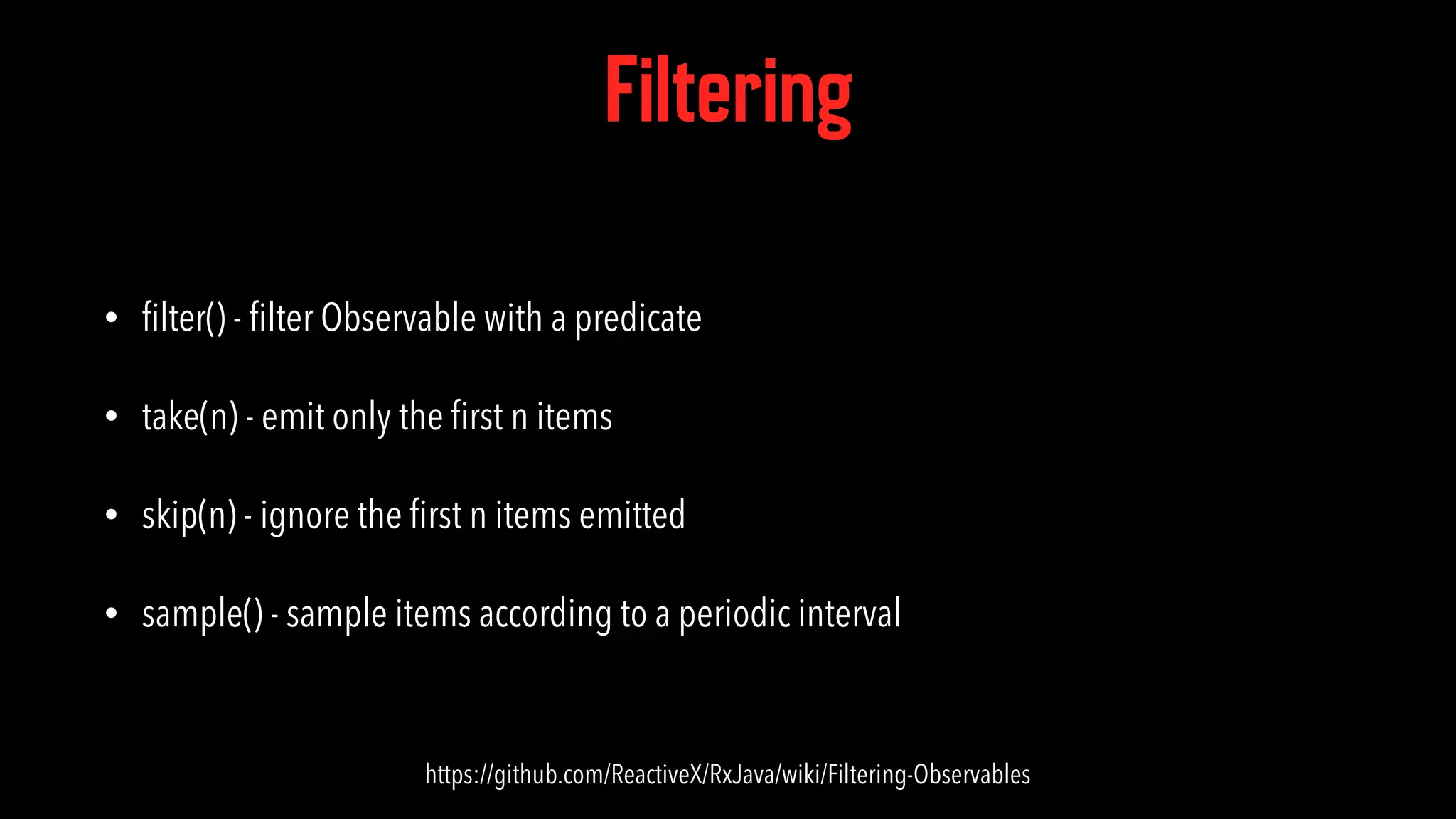

Filtering • filter() - filter Observable with a predicate • take(n) - emit only the first n items • skip(n) - ignore the first n items emitted • sample() - sample items according to a periodic interval https://github.com/ReactiveX/RxJava/wiki/Filtering-Observables

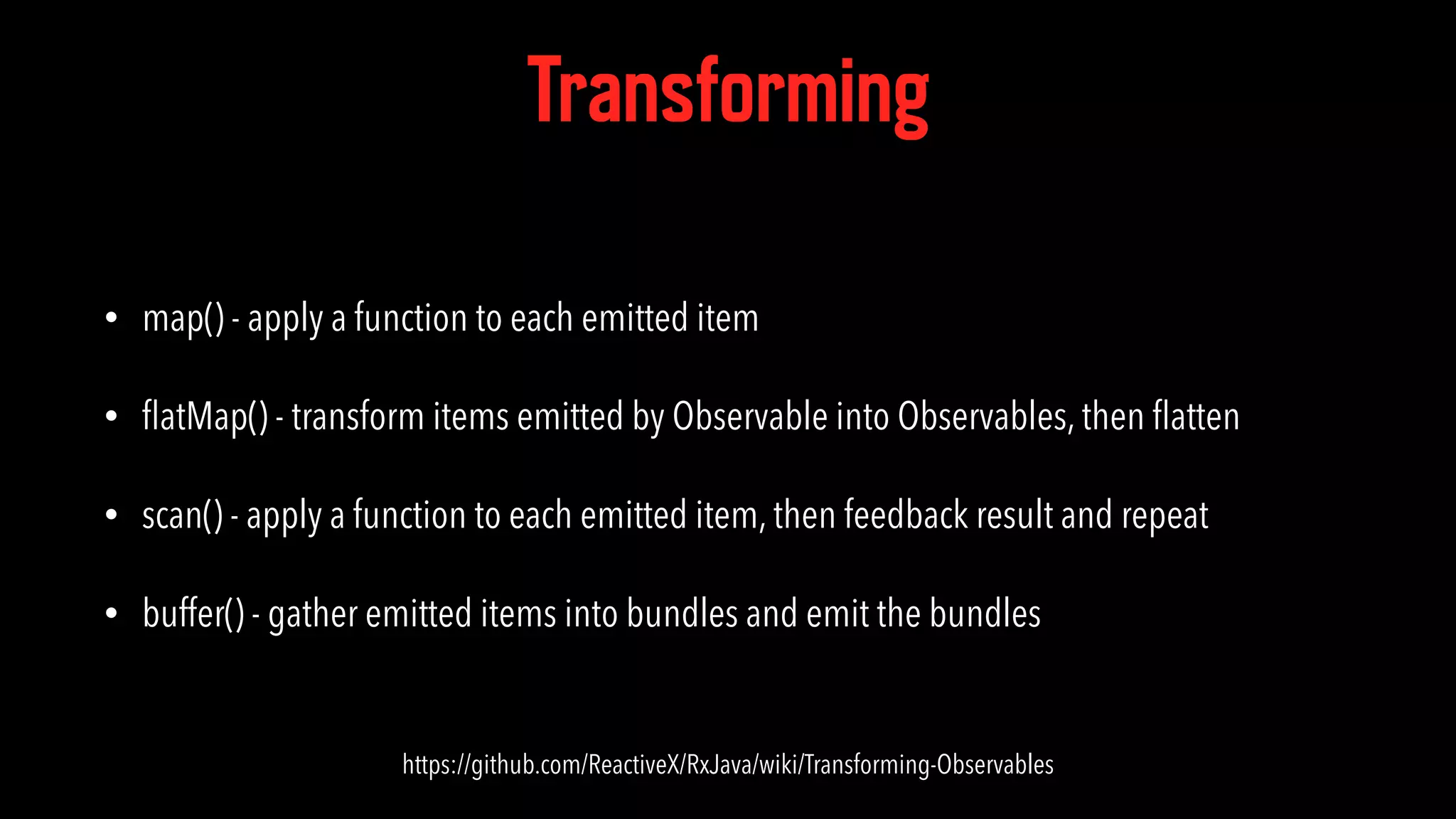

Transforming • map() - apply a function to each emitted item • ﬂatMap() - transform items emitted by Observable into Observables, then ﬂatten • scan() - apply a function to each emitted item, then feedback result and repeat • buffer() - gather emitted items into bundles and emit the bundles https://github.com/ReactiveX/RxJava/wiki/Transforming-Observables

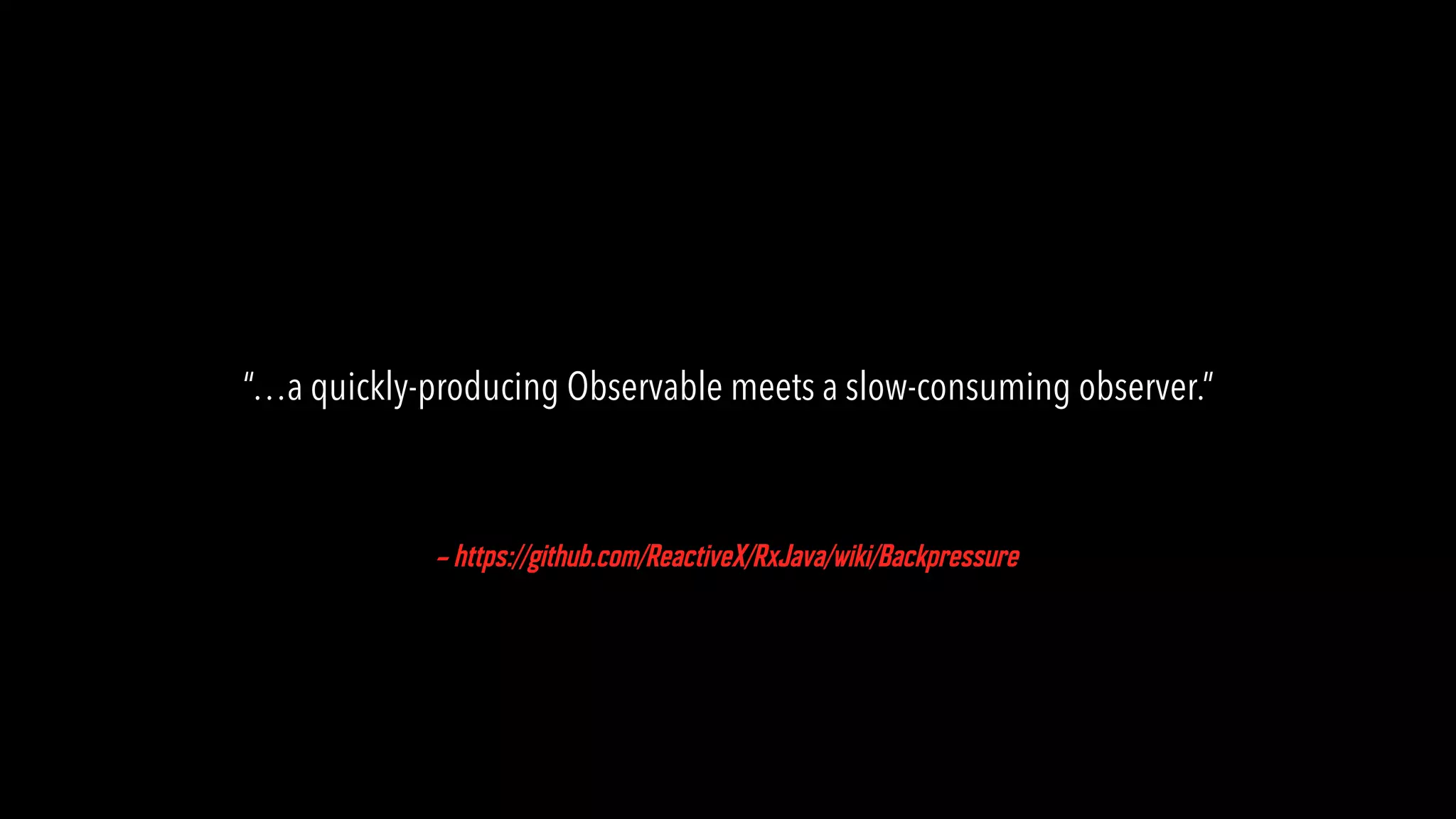

– https://github.com/ReactiveX/RxJava/wiki/Backpressure “…a quickly-producing Observable meets a slow-consuming observer.”

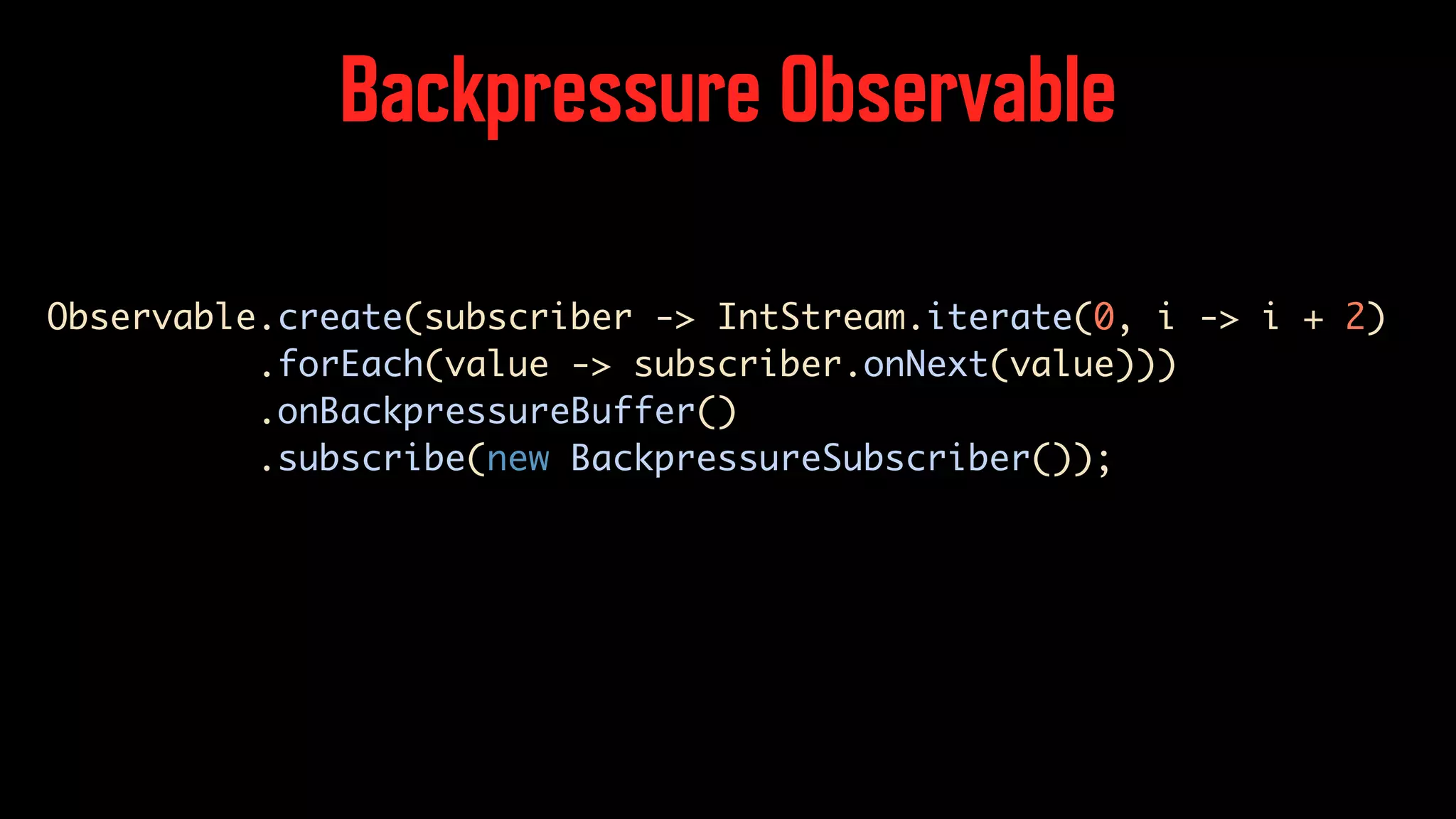

Backpressure Observable Observable.create(subscriber -> IntStream.iterate(0, i -> i + 2) .forEach(value -> subscriber.onNext(value))) .onBackpressureBuffer() .subscribe(new BackpressureSubscriber());

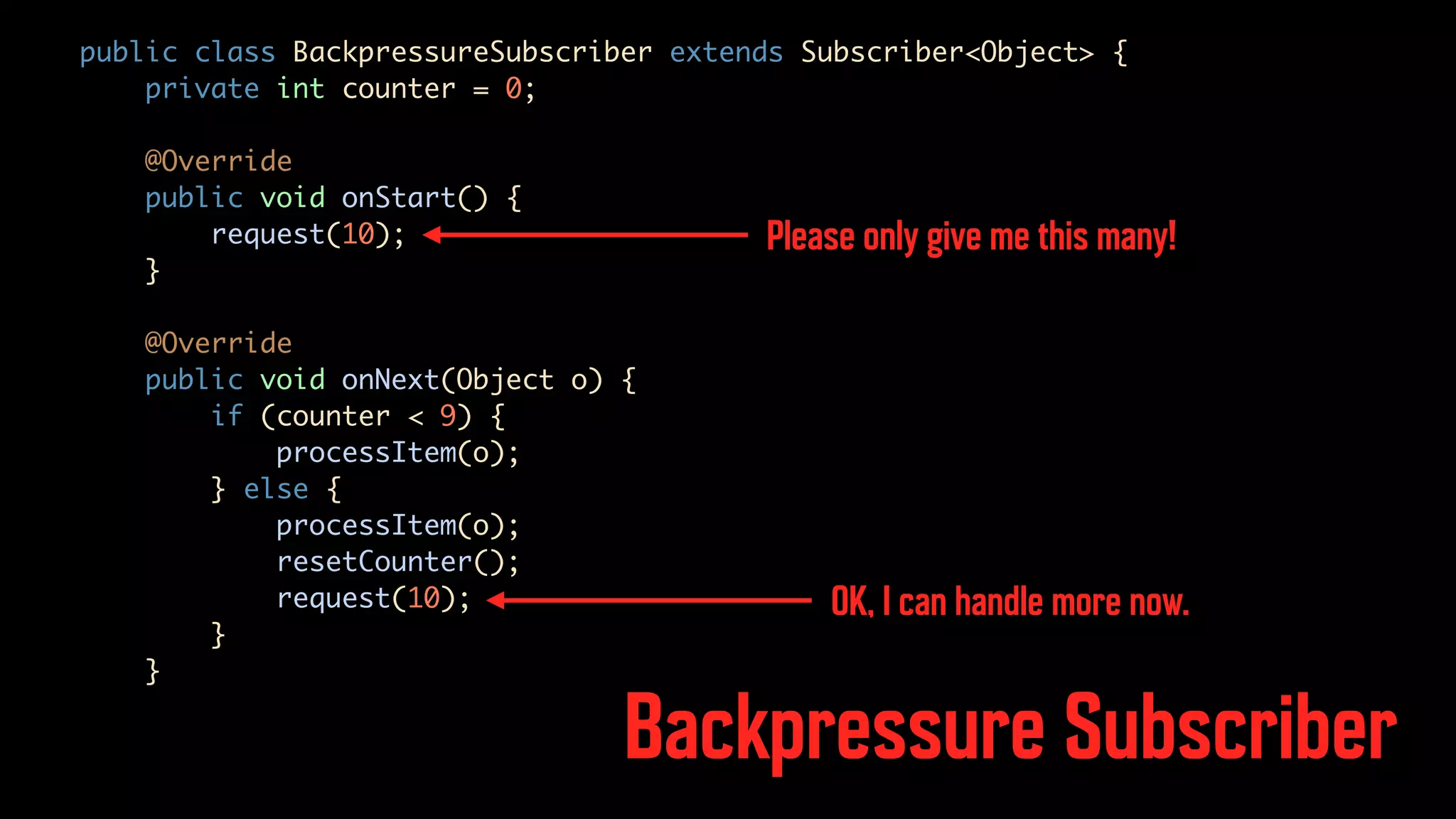

Backpressure Subscriber public class BackpressureSubscriber extends Subscriber<Object> { private int counter = 0; @Override public void onStart() { request(10); } @Override public void onNext(Object o) { if (counter < 9) { processItem(o); } else { processItem(o); resetCounter(); request(10); } } Please only give me this many! OK, I can handle more now.

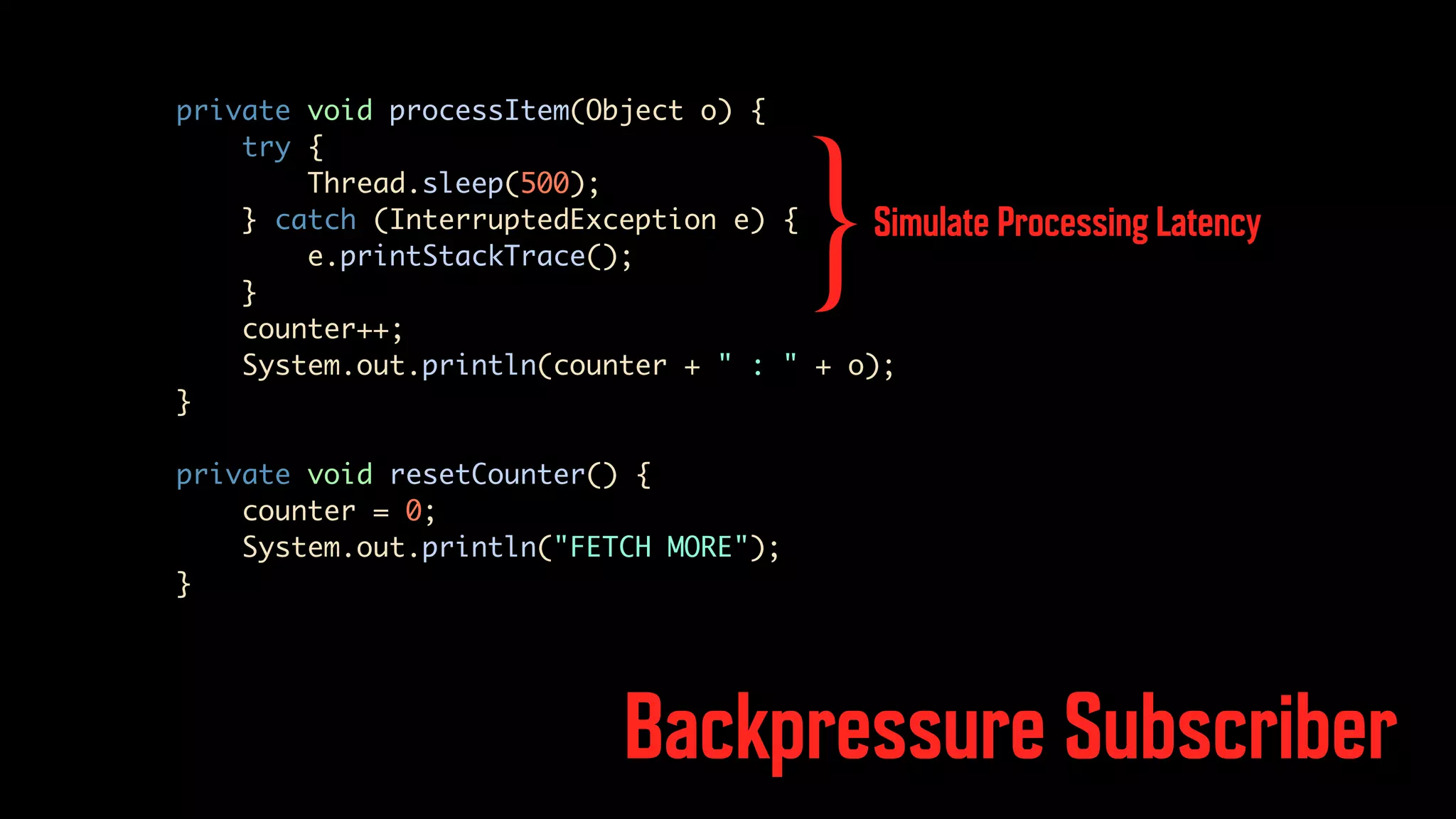

Backpressure Subscriber private void processItem(Object o) { try { Thread.sleep(500); } catch (InterruptedException e) { e.printStackTrace(); } counter++; System.out.println(counter + " : " + o); } private void resetCounter() { counter = 0; System.out.println("FETCH MORE"); } Simulate Processing Latency }

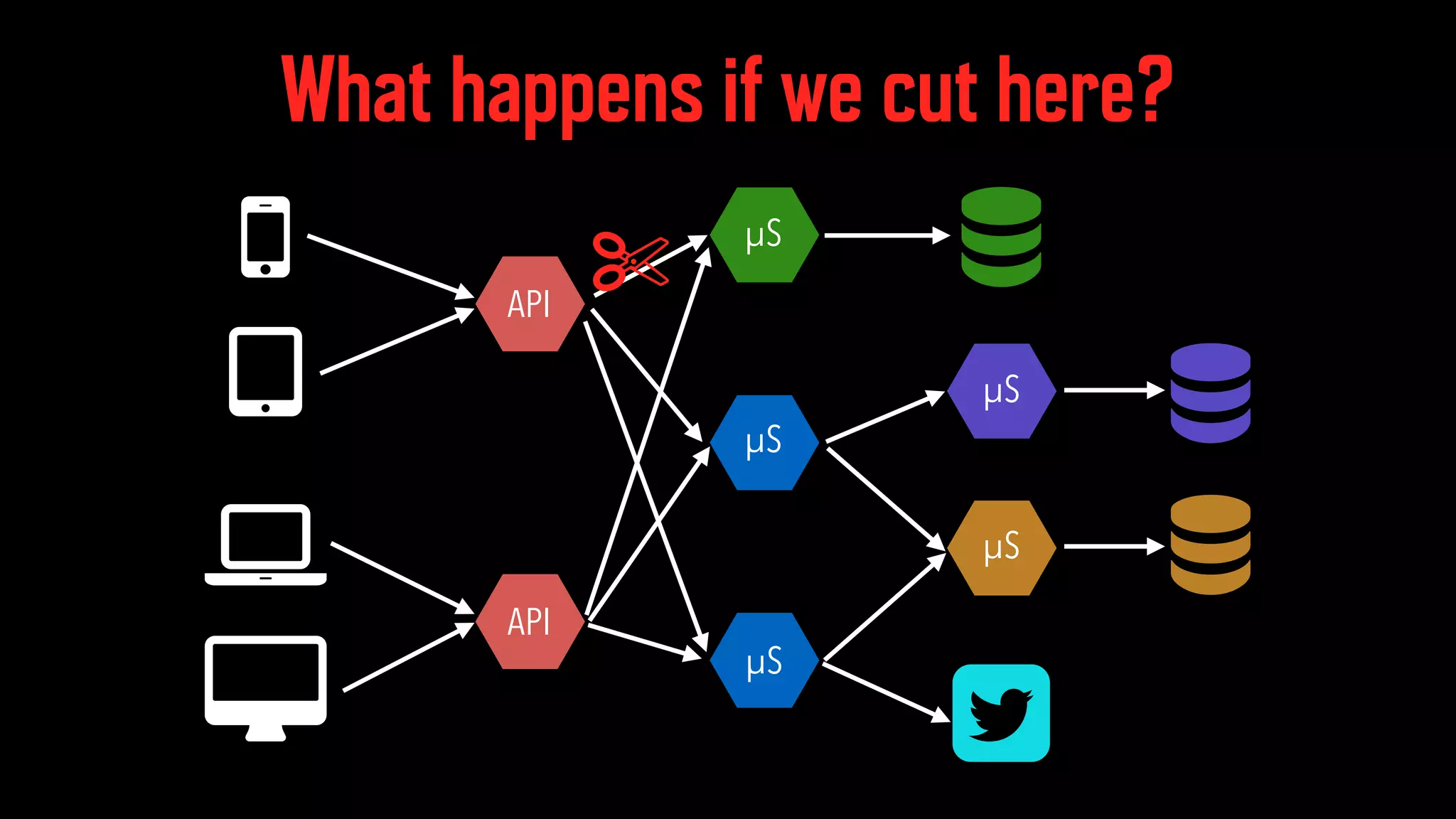

What happens if we cut here? ÂAPI ÂAPI ! ! ! ÂµS ÂµS ÂµS ÂµS ÂµS

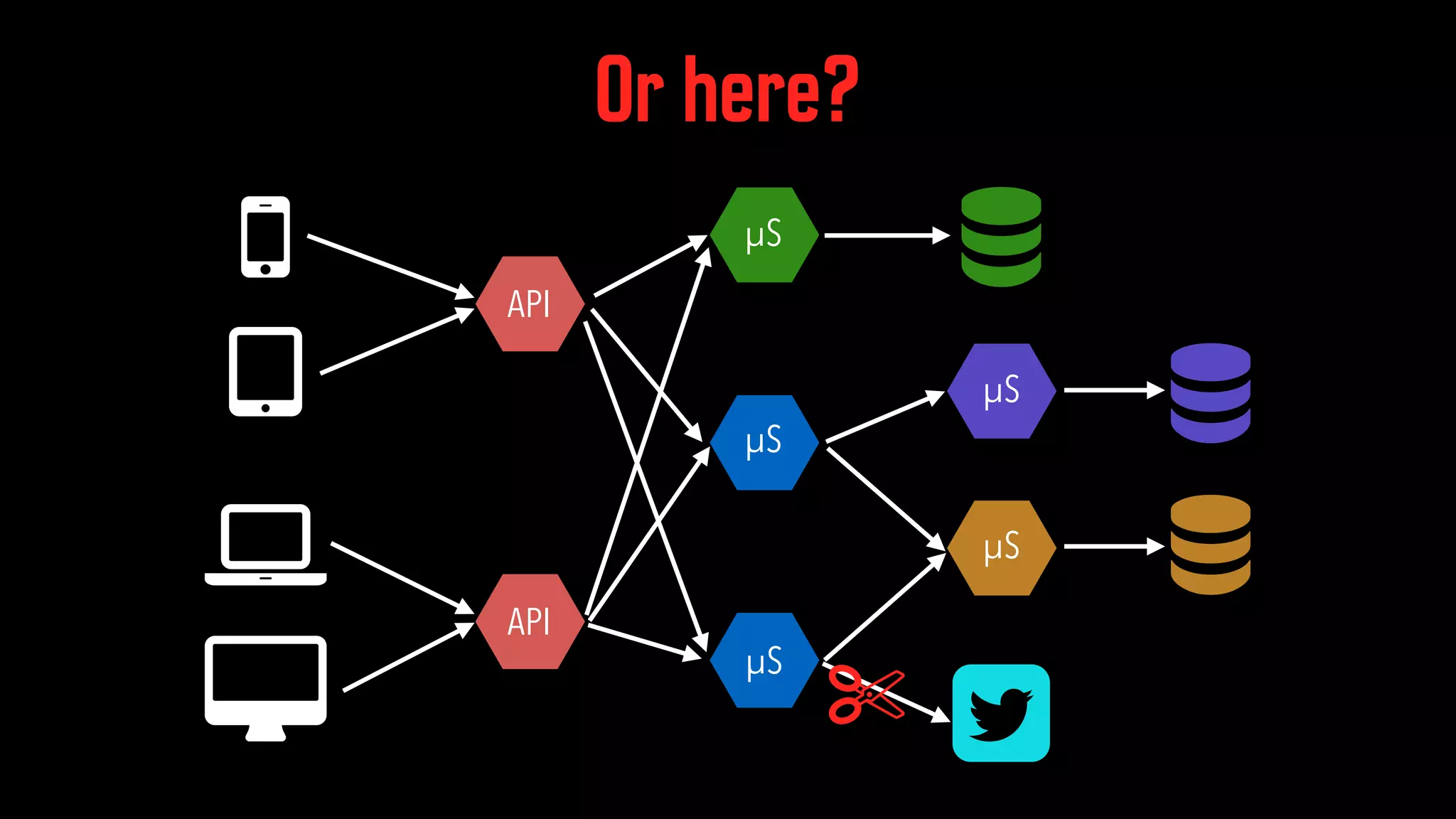

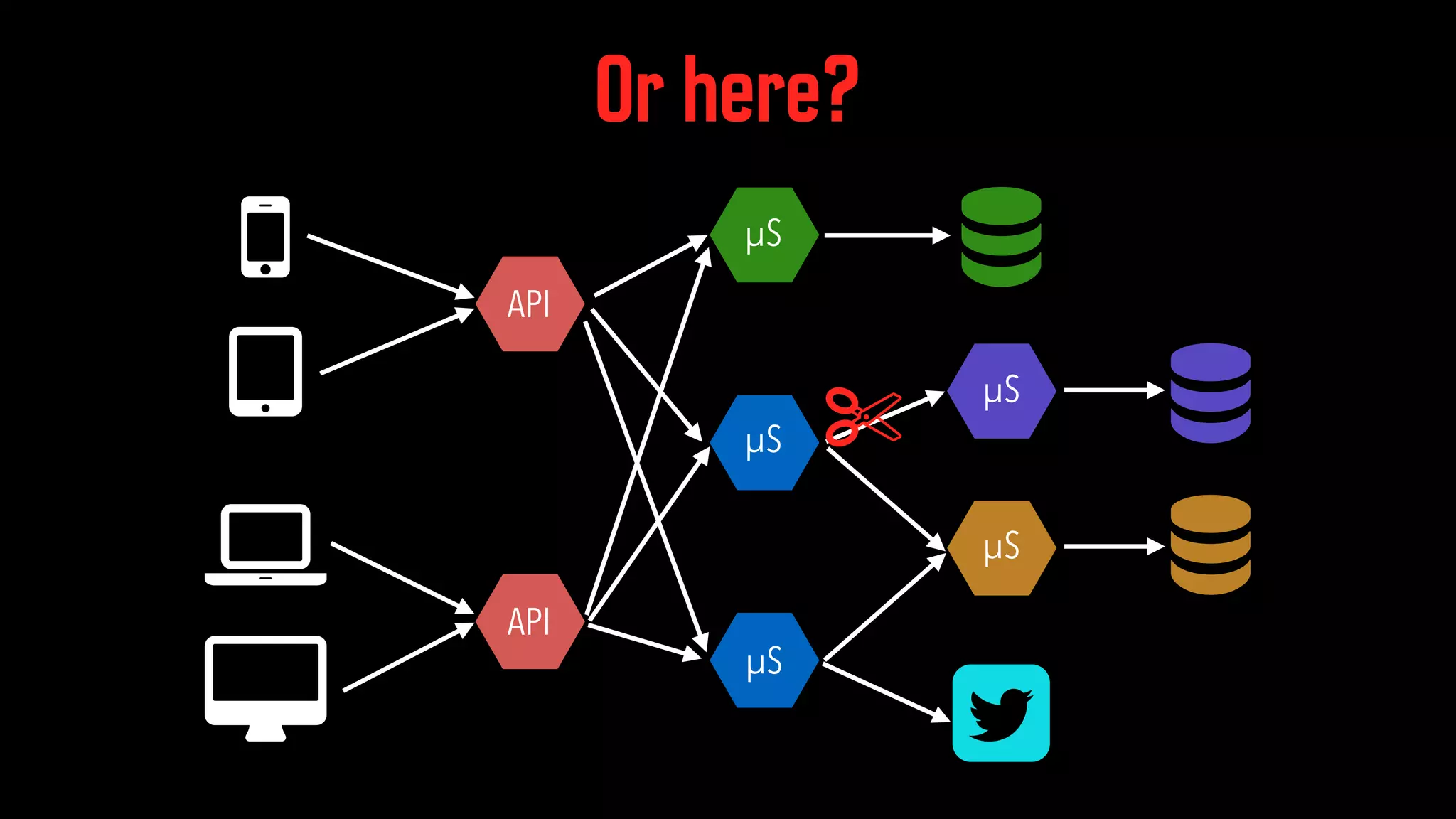

Or here? ÂAPI ÂAPI ! ! ! ÂµS ÂµS ÂµS ÂµS ÂµS

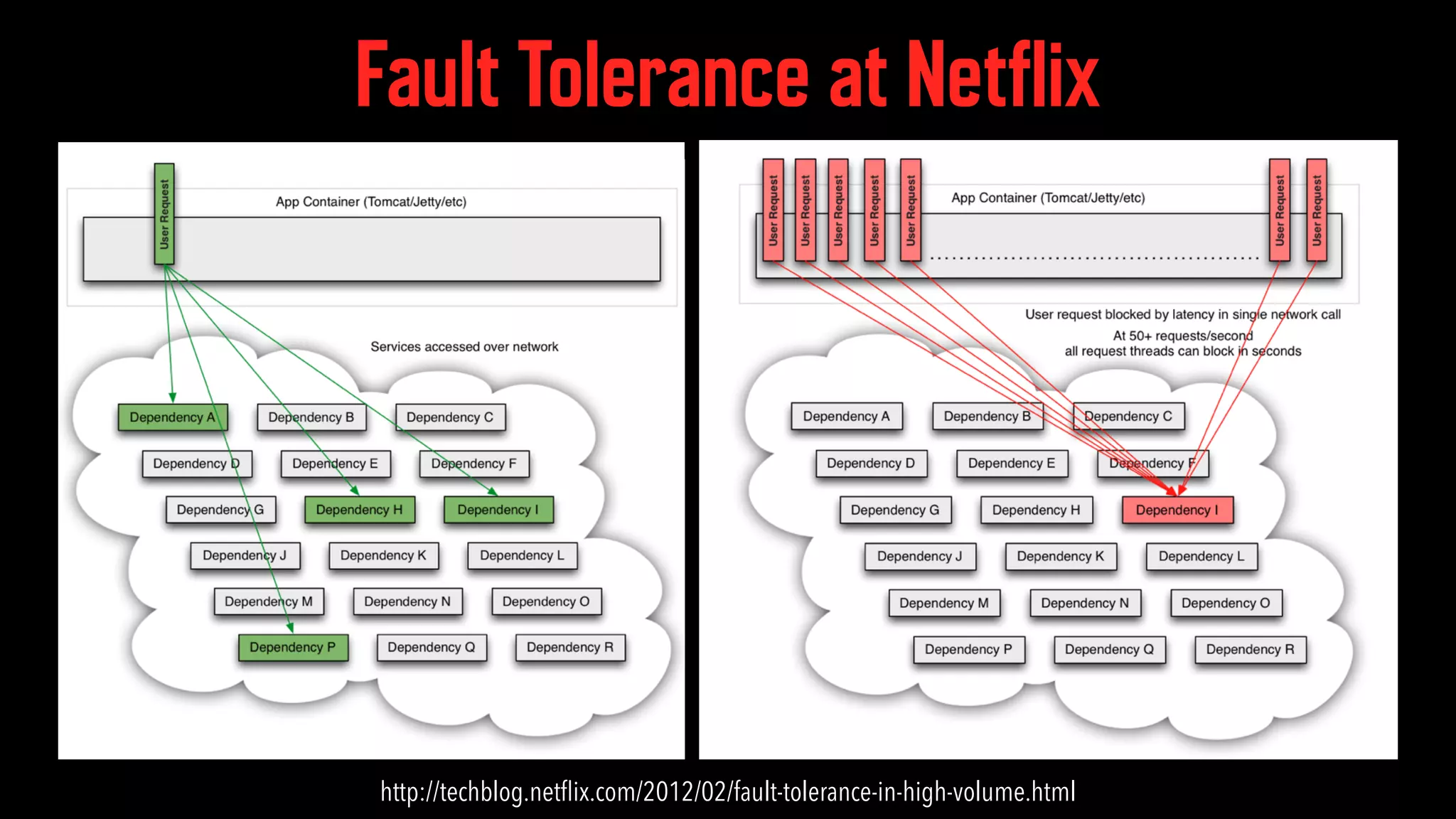

Fault Tolerance at Netflix http://techblog.netﬂix.com/2012/02/fault-tolerance-in-high-volume.html

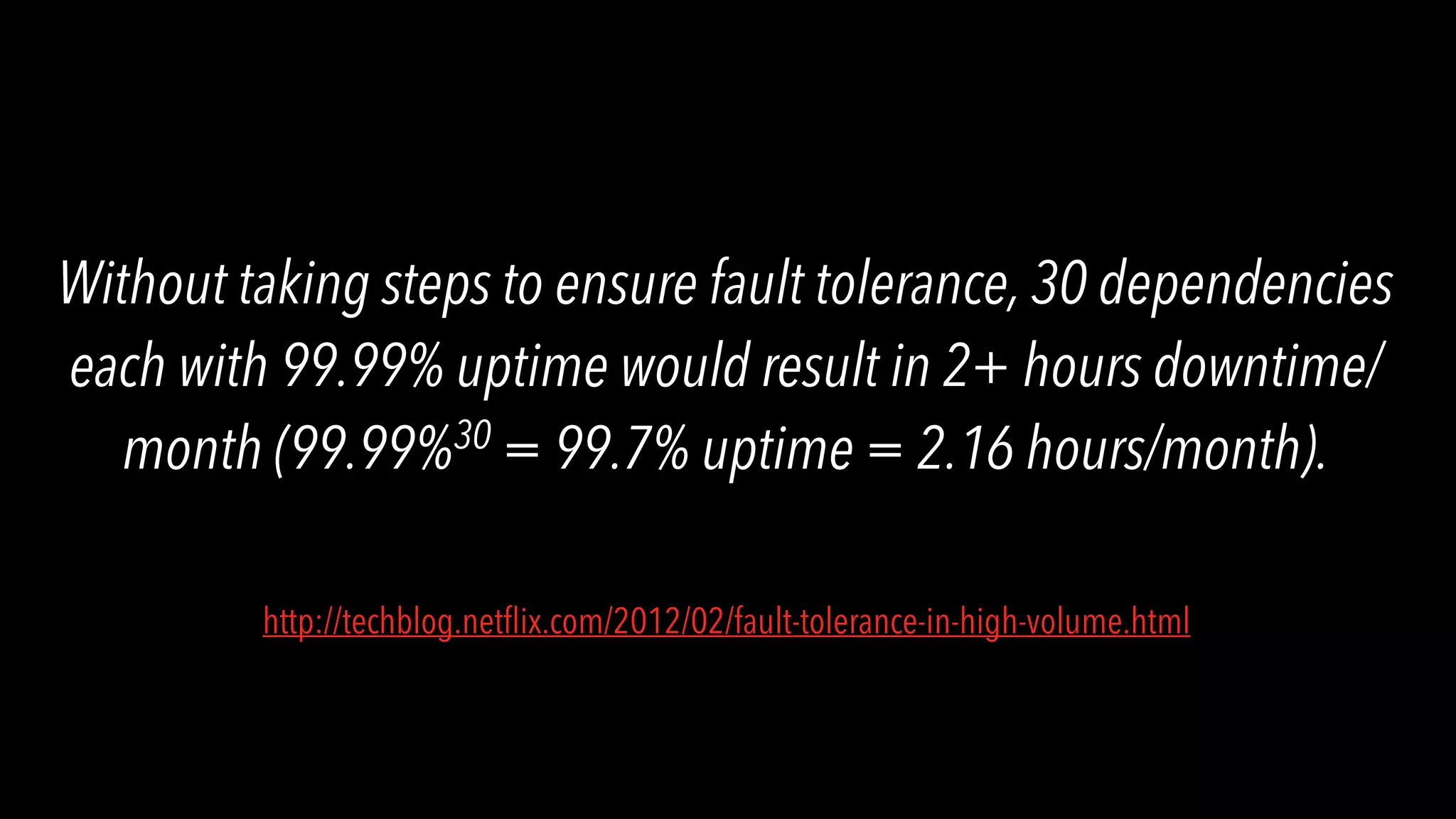

Without taking steps to ensure fault tolerance, 30 dependencies each with 99.99% uptime would result in 2+ hours downtime/ month (99.99%30 = 99.7% uptime = 2.16 hours/month). http://techblog.netﬂix.com/2012/02/fault-tolerance-in-high-volume.html

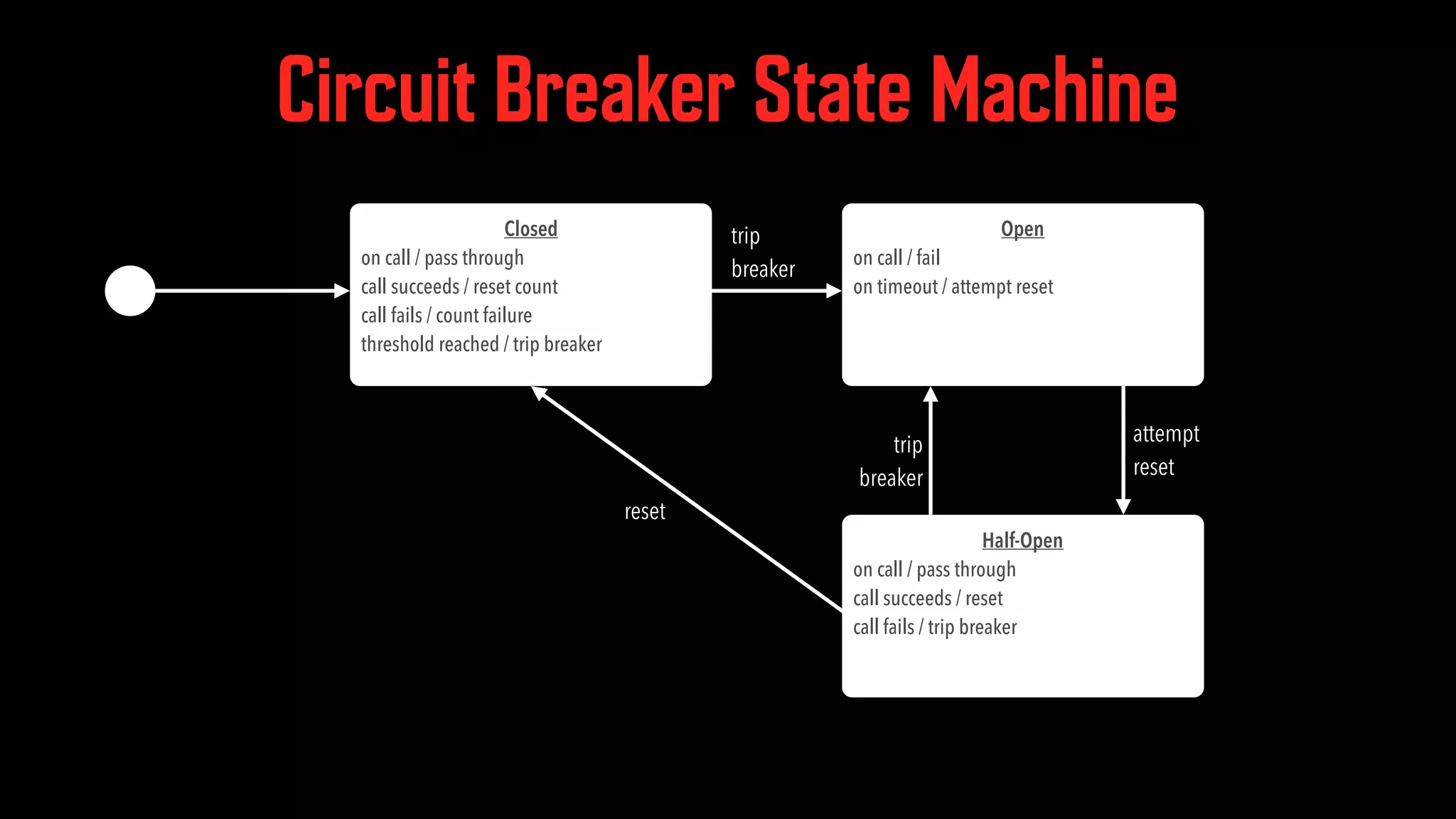

Circuit Breaker State Machine Closed on call / pass through call succeeds / reset count call fails / count failure threshold reached / trip breaker Open on call / fail on timeout / attempt reset Half-Open on call / pass through call succeeds / reset call fails / trip breaker trip breaker trip breaker attempt reset reset

https://github.com/Netﬂix/Hystrix

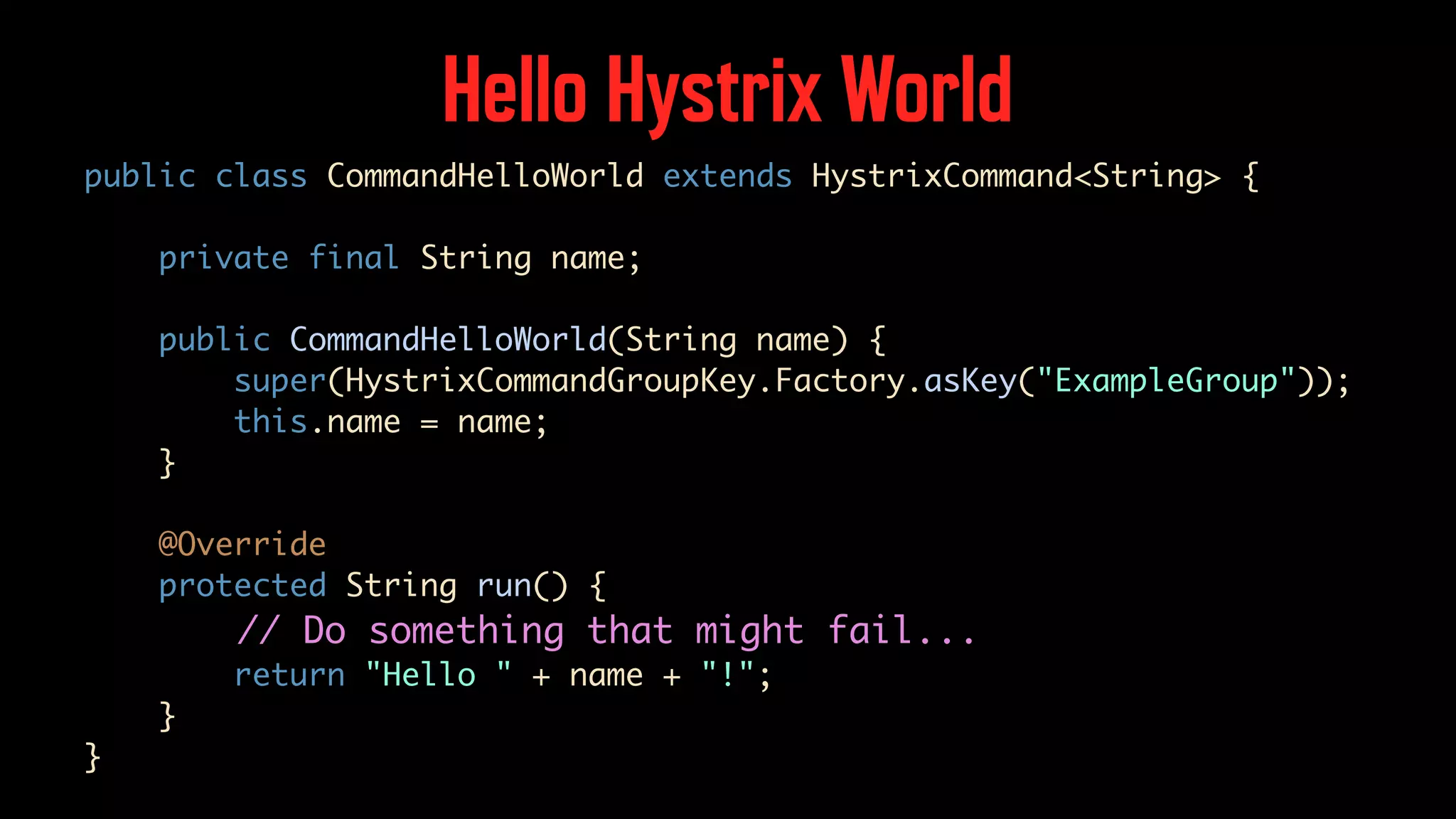

Hello Hystrix World public class CommandHelloWorld extends HystrixCommand<String> { private final String name; public CommandHelloWorld(String name) { super(HystrixCommandGroupKey.Factory.asKey("ExampleGroup")); this.name = name; } @Override protected String run() { // Do something that might fail... return "Hello " + name + "!"; } }

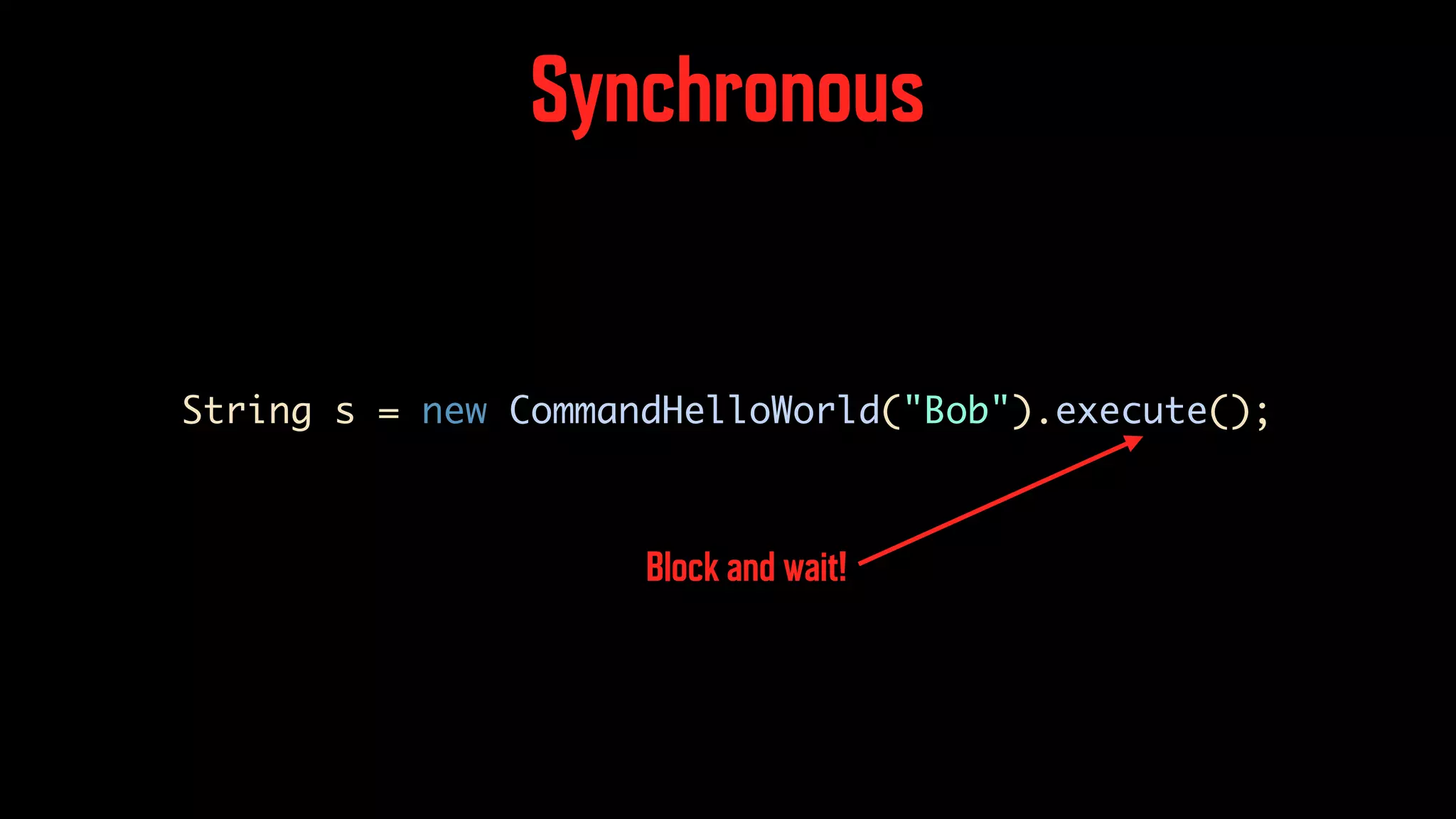

Synchronous String s = new CommandHelloWorld("Bob").execute(); Block and wait!

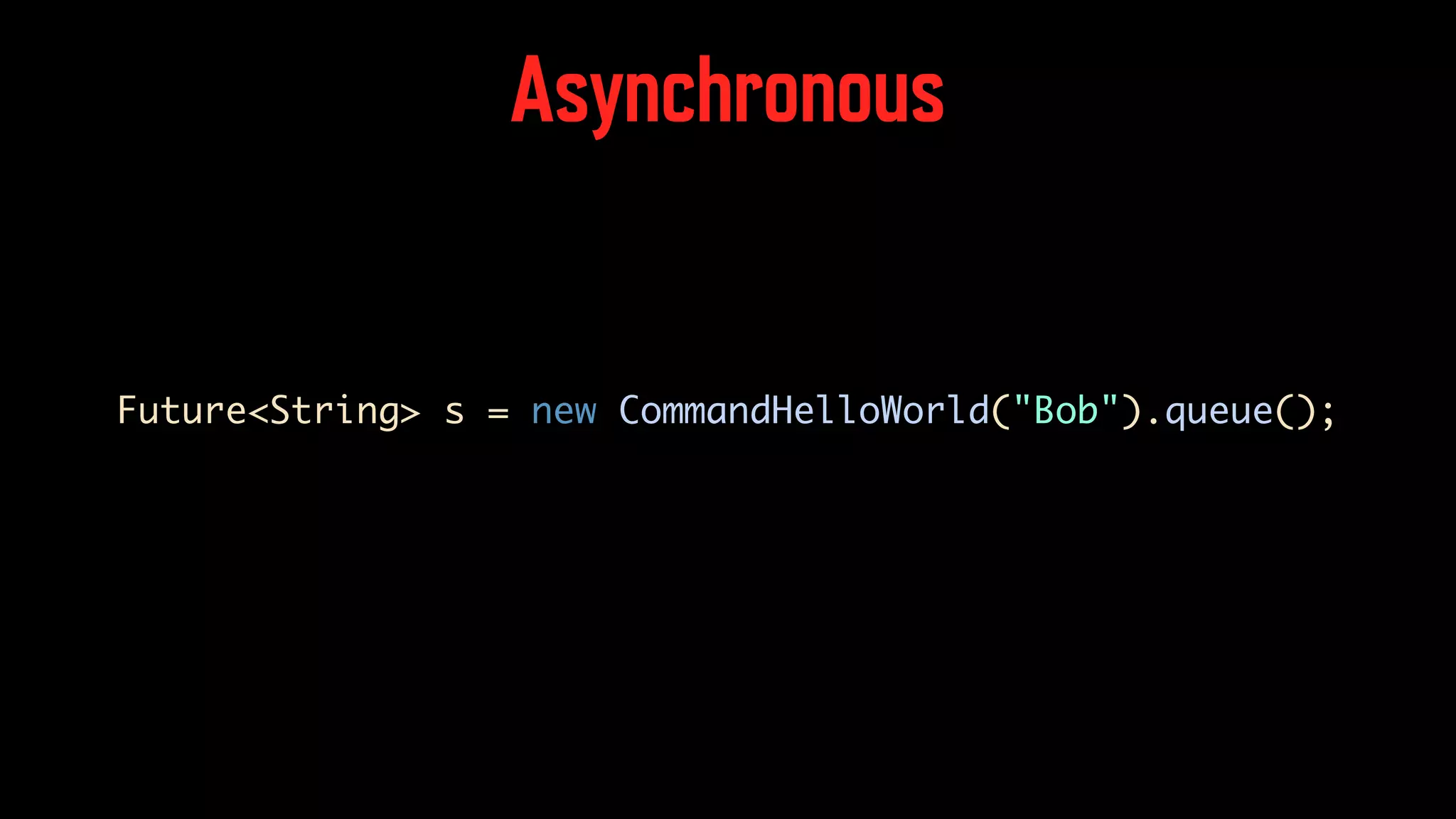

Asynchronous Future<String> s = new CommandHelloWorld("Bob").queue();

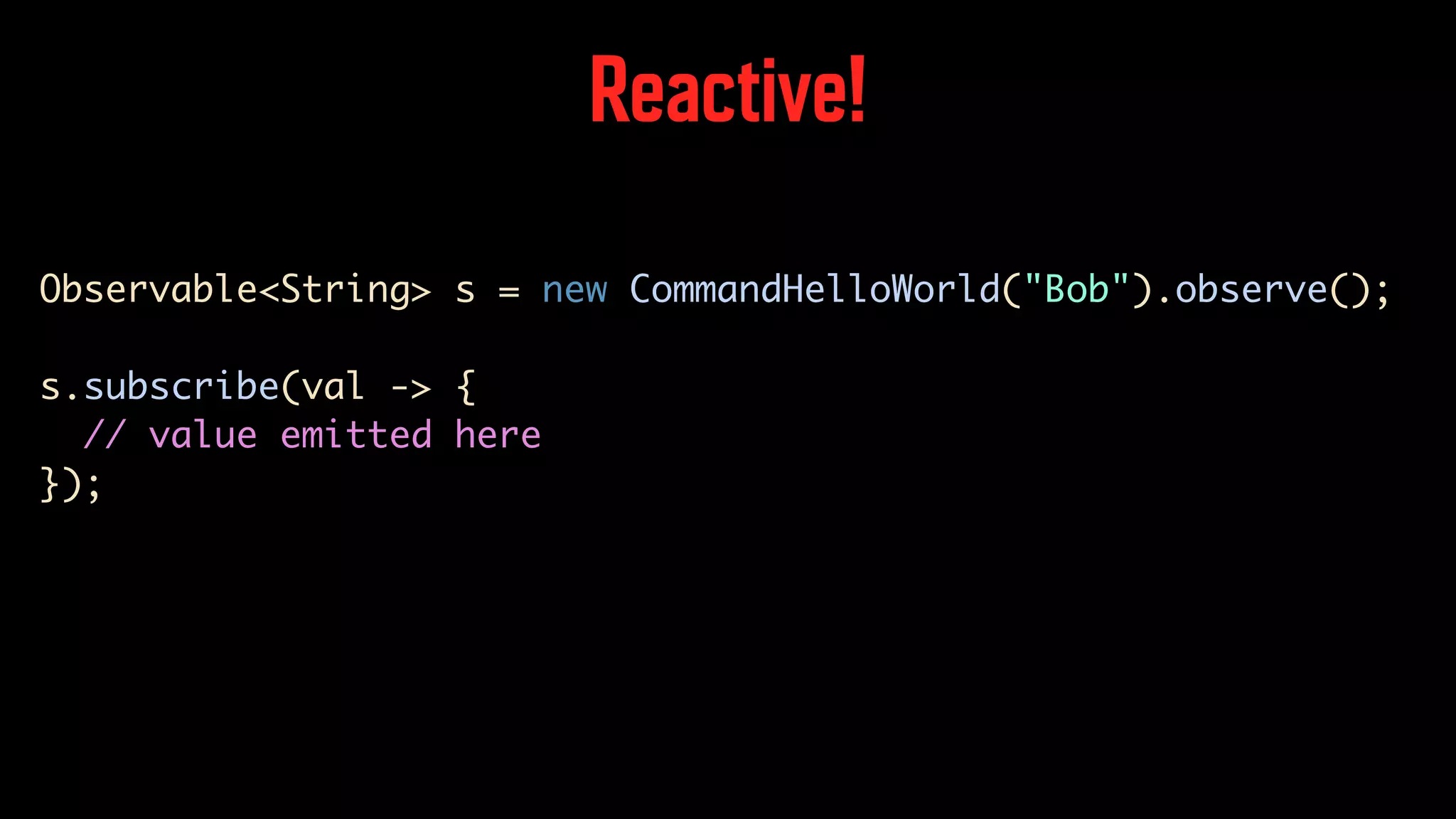

Reactive! Observable<String> s = new CommandHelloWorld("Bob").observe(); s.subscribe(val -> { // value emitted here });

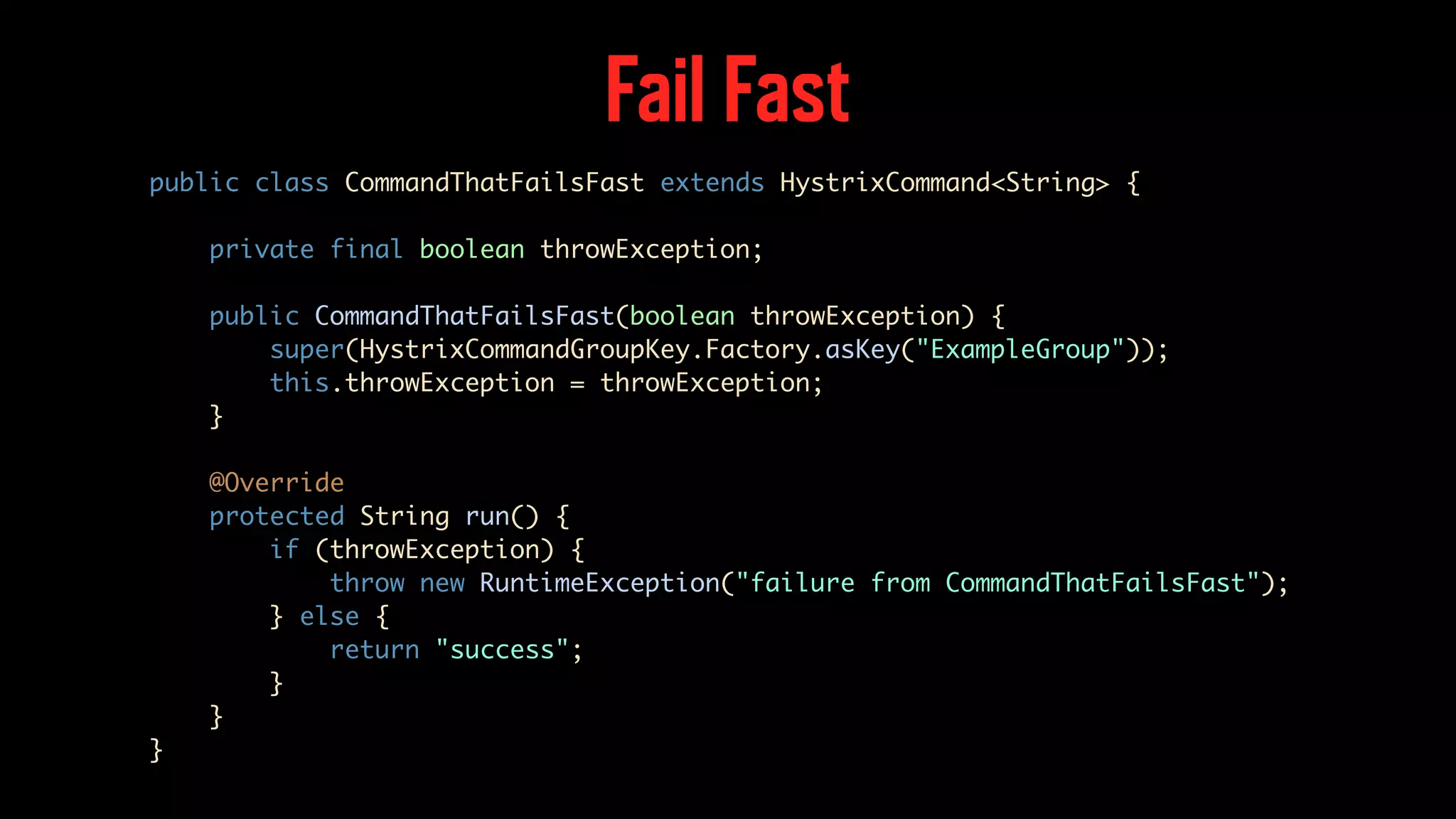

Fail Fast public class CommandThatFailsFast extends HystrixCommand<String> { private final boolean throwException; public CommandThatFailsFast(boolean throwException) { super(HystrixCommandGroupKey.Factory.asKey("ExampleGroup")); this.throwException = throwException; } @Override protected String run() { if (throwException) { throw new RuntimeException("failure from CommandThatFailsFast"); } else { return "success"; } } }

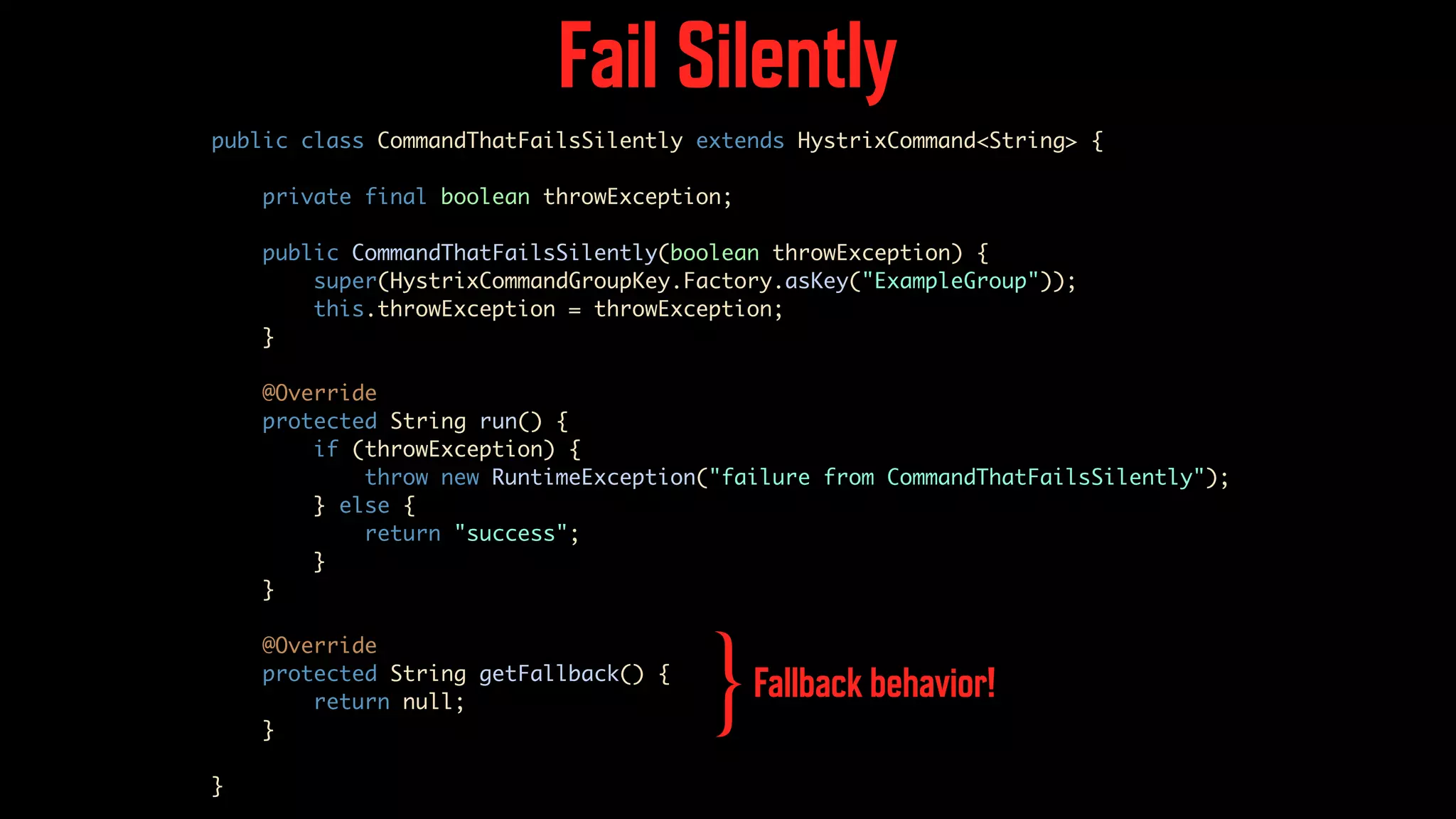

Fail Silently public class CommandThatFailsSilently extends HystrixCommand<String> { private final boolean throwException; public CommandThatFailsSilently(boolean throwException) { super(HystrixCommandGroupKey.Factory.asKey("ExampleGroup")); this.throwException = throwException; } @Override protected String run() { if (throwException) { throw new RuntimeException("failure from CommandThatFailsSilently"); } else { return "success"; } } @Override protected String getFallback() { return null; } } Fallback behavior! }

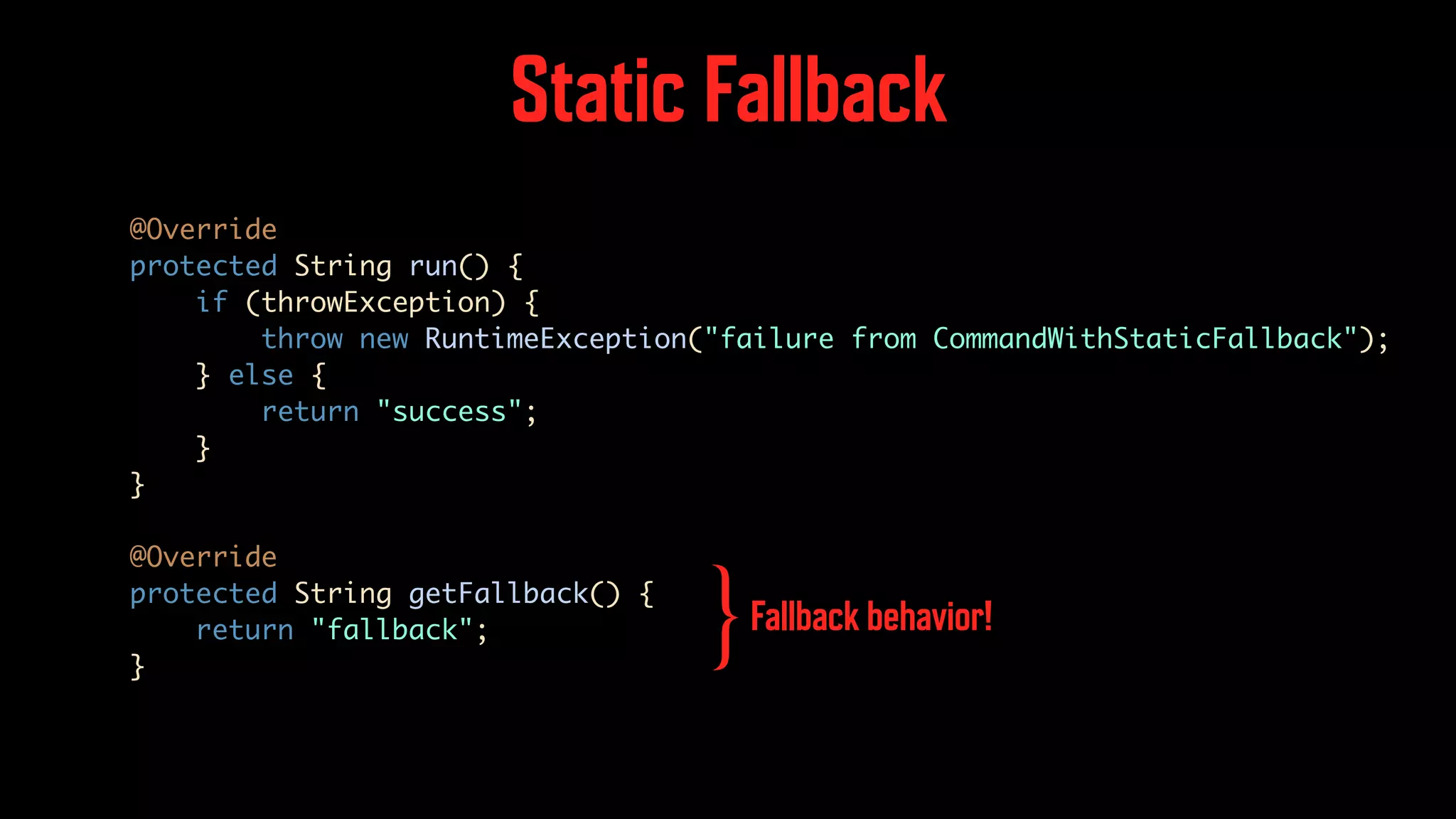

Static Fallback @Override protected String run() { if (throwException) { throw new RuntimeException("failure from CommandWithStaticFallback"); } else { return "success"; } } @Override protected String getFallback() { return "fallback"; } Fallback behavior! }

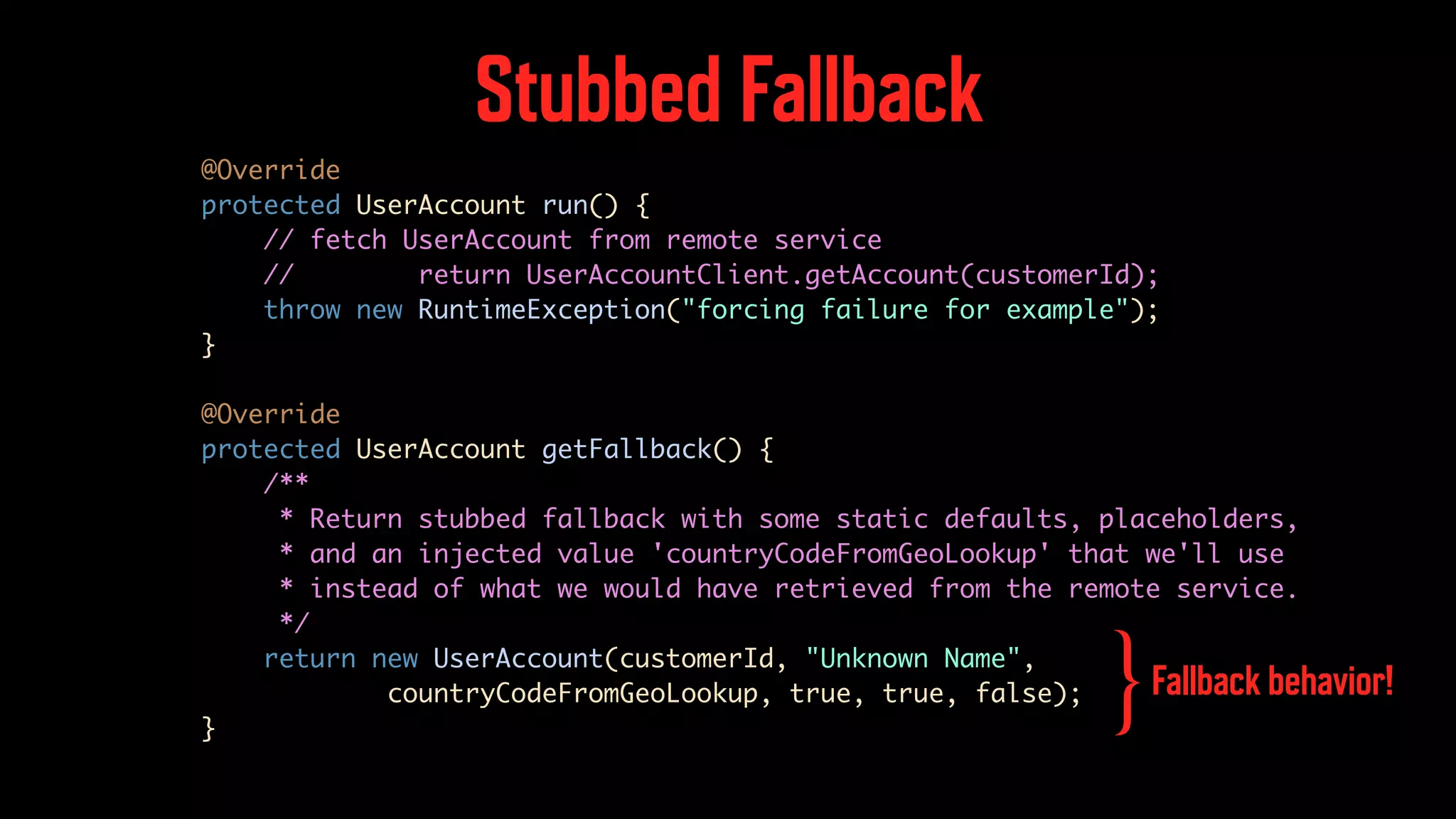

Stubbed Fallback @Override protected UserAccount run() { // fetch UserAccount from remote service // return UserAccountClient.getAccount(customerId); throw new RuntimeException("forcing failure for example"); } @Override protected UserAccount getFallback() { /** * Return stubbed fallback with some static defaults, placeholders, * and an injected value 'countryCodeFromGeoLookup' that we'll use * instead of what we would have retrieved from the remote service. */ return new UserAccount(customerId, "Unknown Name", countryCodeFromGeoLookup, true, true, false); } Fallback behavior! }

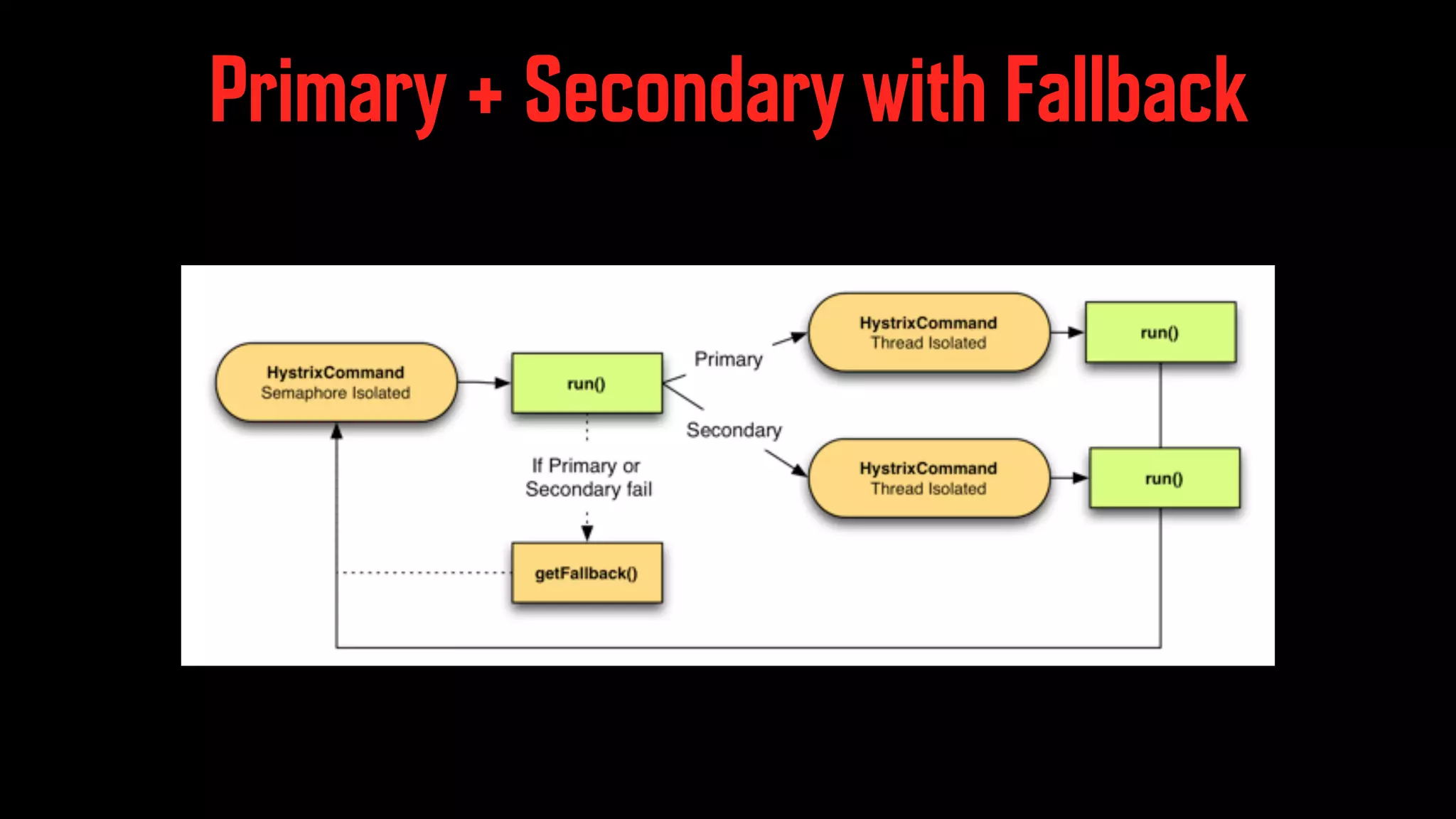

Primary + Secondary with Fallback

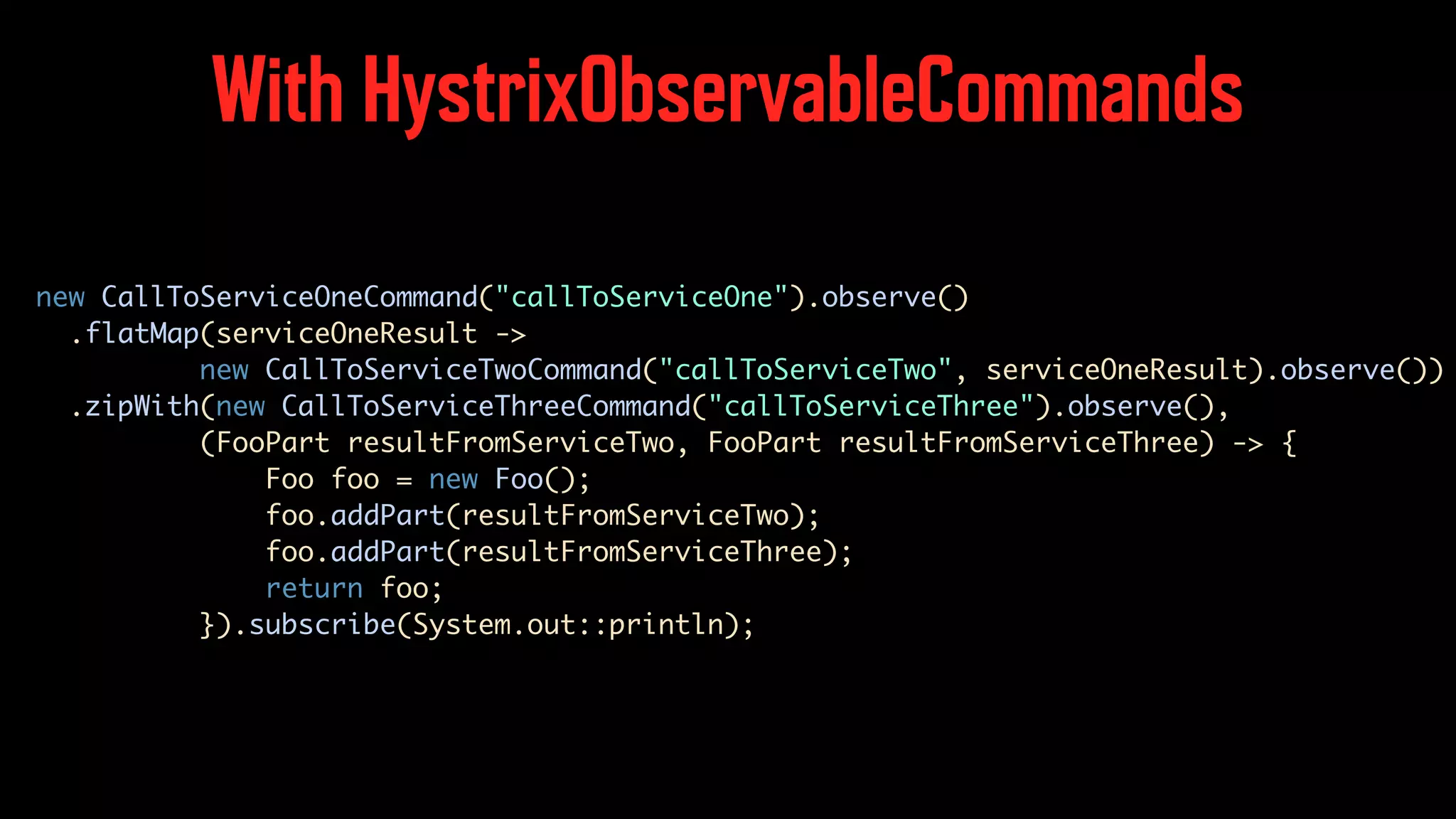

With HystrixObservableCommands new CallToServiceOneCommand("callToServiceOne").observe() .flatMap(serviceOneResult -> new CallToServiceTwoCommand("callToServiceTwo", serviceOneResult).observe()) .zipWith(new CallToServiceThreeCommand("callToServiceThree").observe(), (FooPart resultFromServiceTwo, FooPart resultFromServiceThree) -> { Foo foo = new Foo(); foo.addPart(resultFromServiceTwo); foo.addPart(resultFromServiceThree); return foo; }).subscribe(System.out::println);

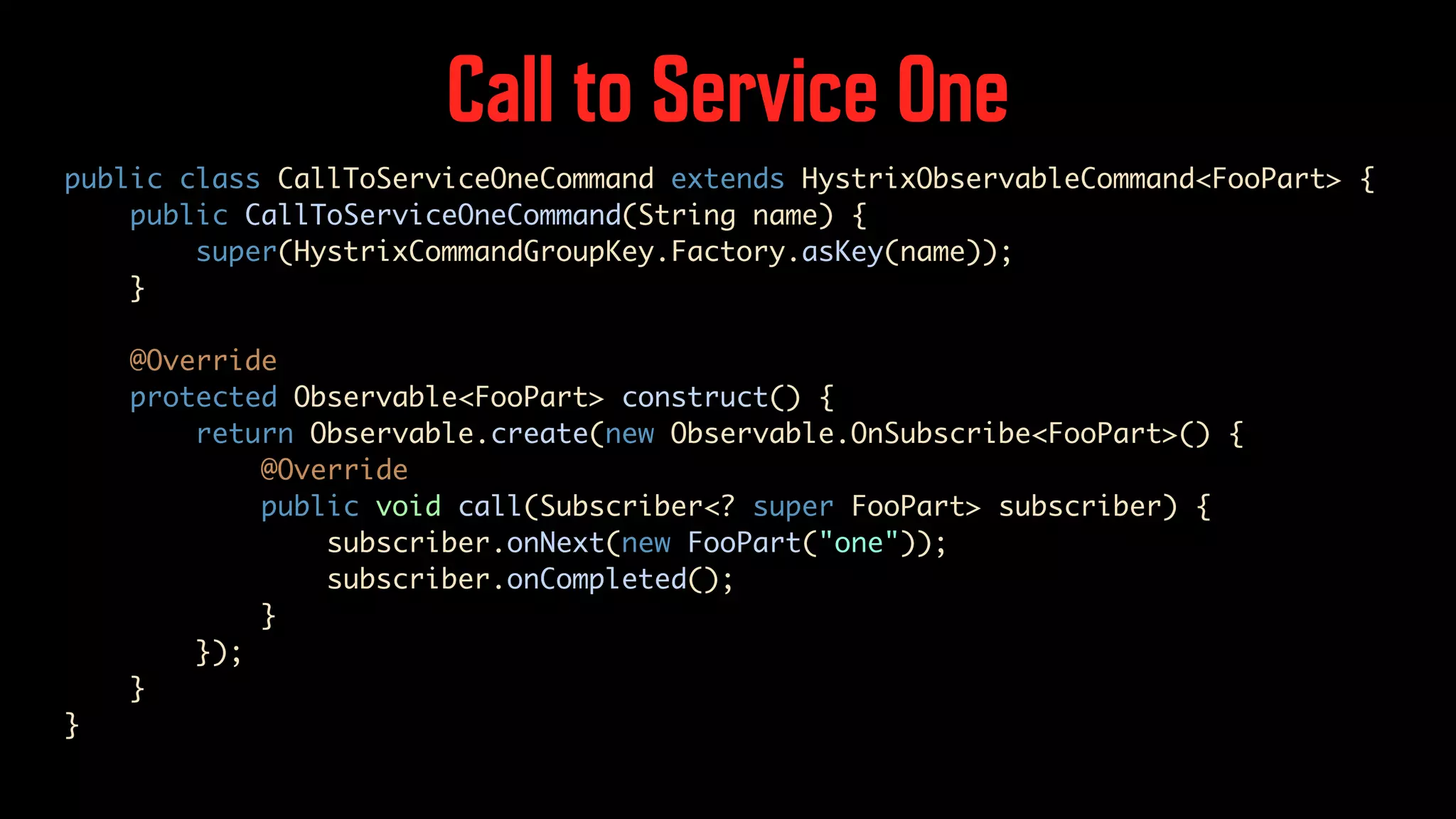

Call to Service One public class CallToServiceOneCommand extends HystrixObservableCommand<FooPart> { public CallToServiceOneCommand(String name) { super(HystrixCommandGroupKey.Factory.asKey(name)); } @Override protected Observable<FooPart> construct() { return Observable.create(new Observable.OnSubscribe<FooPart>() { @Override public void call(Subscriber<? super FooPart> subscriber) { subscriber.onNext(new FooPart("one")); subscriber.onCompleted(); } }); } }

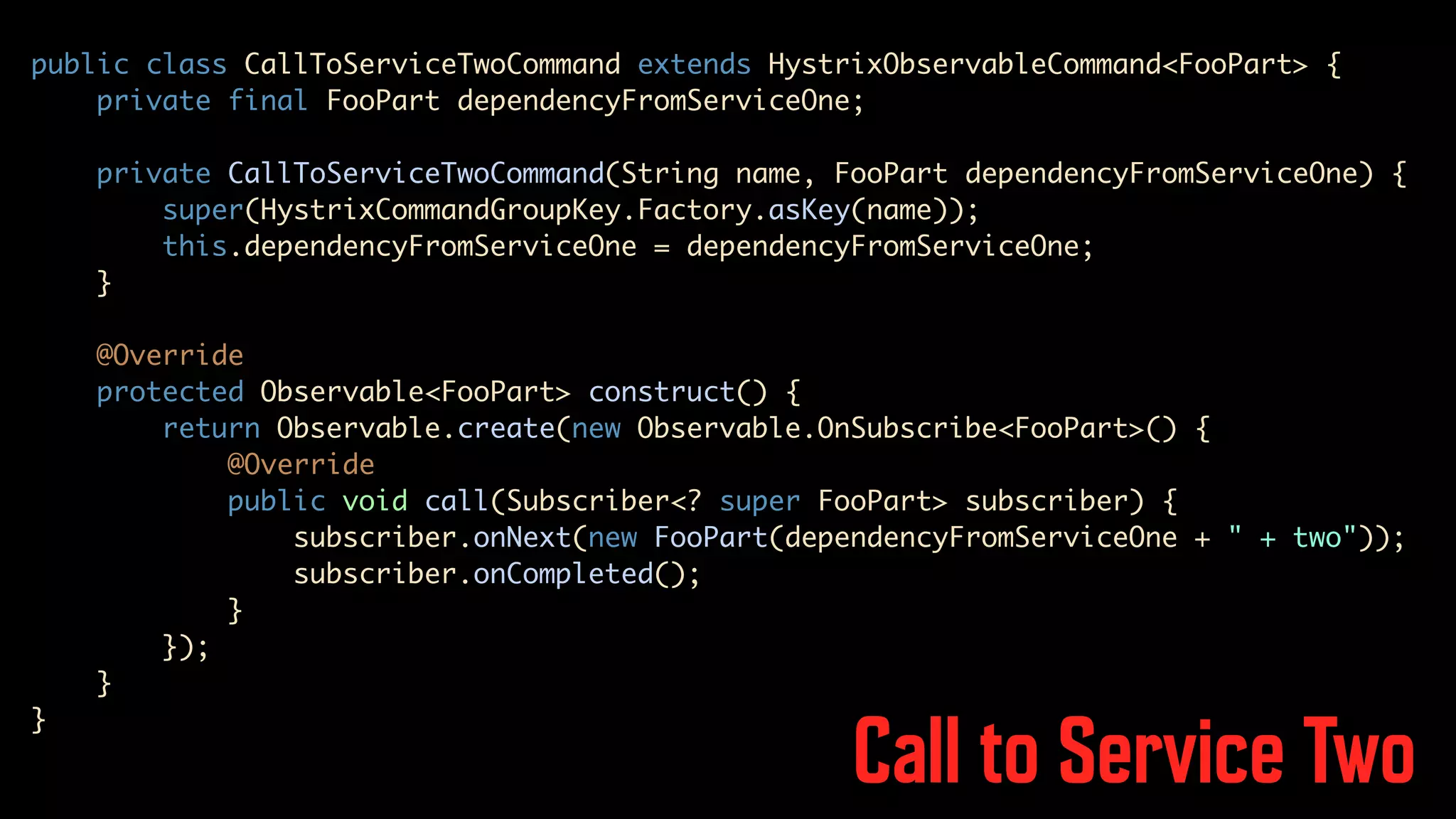

public class CallToServiceTwoCommand extends HystrixObservableCommand<FooPart> { private final FooPart dependencyFromServiceOne; private CallToServiceTwoCommand(String name, FooPart dependencyFromServiceOne) { super(HystrixCommandGroupKey.Factory.asKey(name)); this.dependencyFromServiceOne = dependencyFromServiceOne; } @Override protected Observable<FooPart> construct() { return Observable.create(new Observable.OnSubscribe<FooPart>() { @Override public void call(Subscriber<? super FooPart> subscriber) { subscriber.onNext(new FooPart(dependencyFromServiceOne + " + two")); subscriber.onCompleted(); } }); } } Call to Service Two

Spring Cloud http://cloud.spring.io

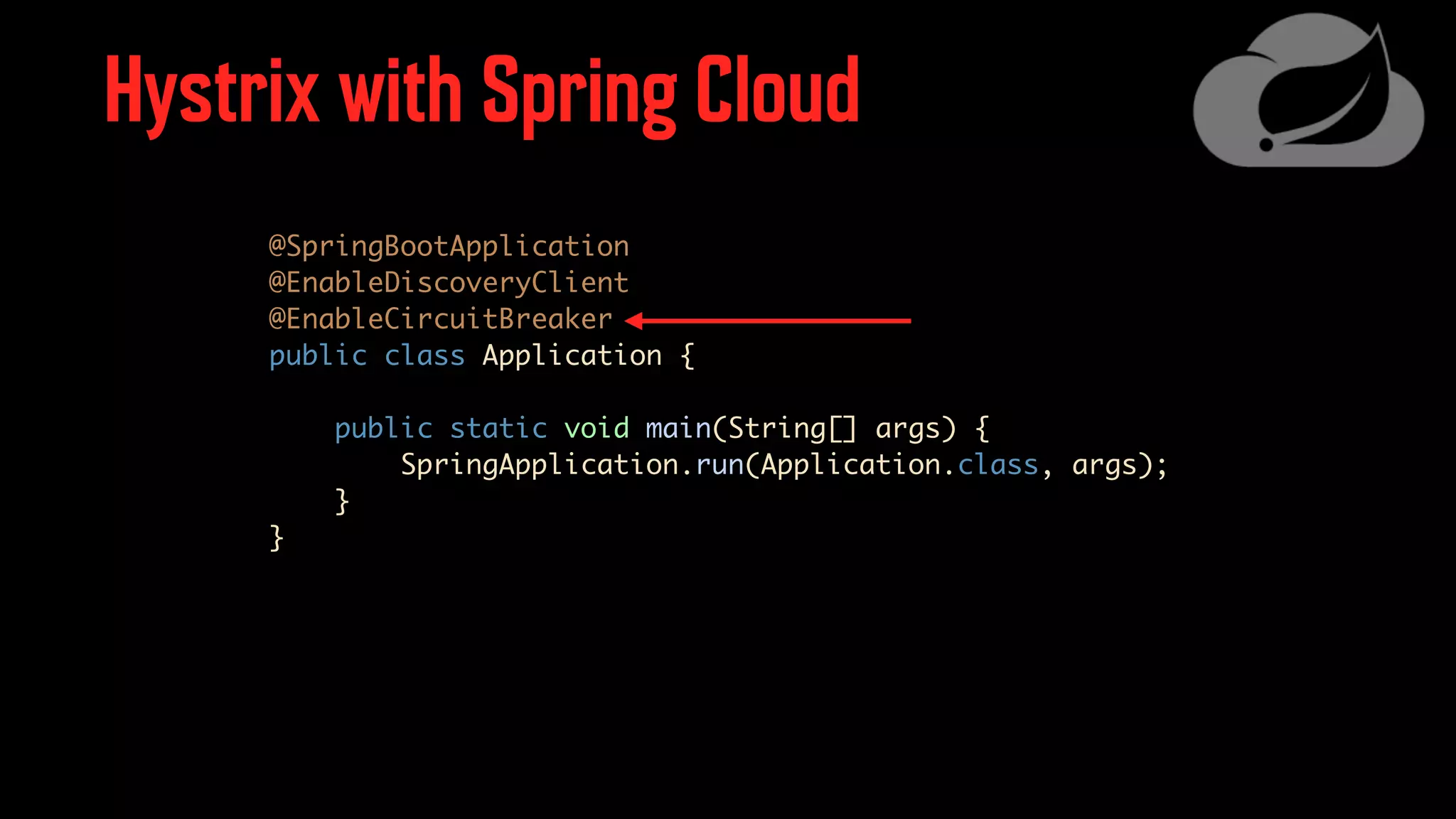

Hystrix with Spring Cloud @SpringBootApplication @EnableDiscoveryClient @EnableCircuitBreaker public class Application { public static void main(String[] args) { SpringApplication.run(Application.class, args); } }

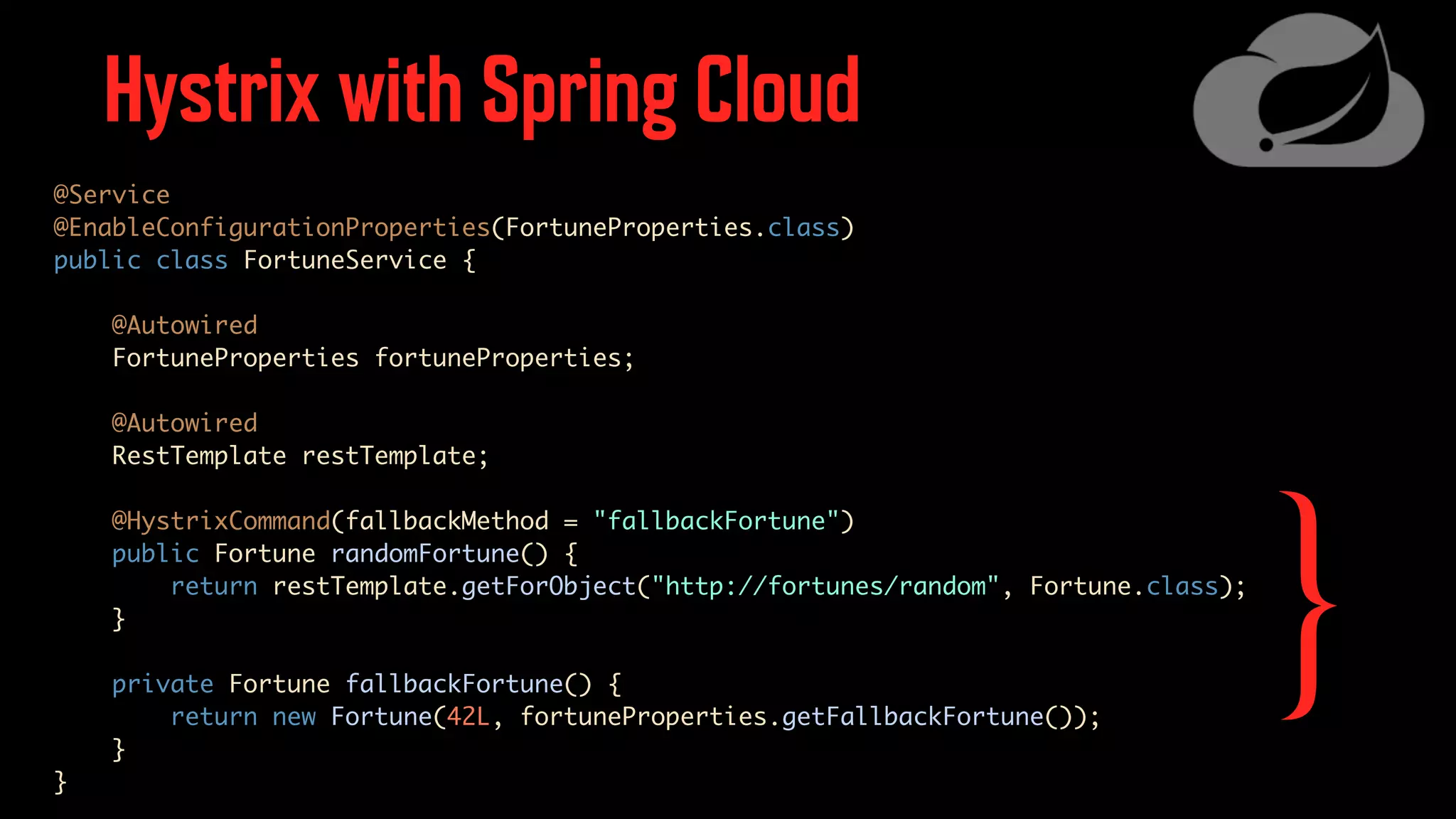

Hystrix with Spring Cloud @Service @EnableConfigurationProperties(FortuneProperties.class) public class FortuneService { @Autowired FortuneProperties fortuneProperties; @Autowired RestTemplate restTemplate; @HystrixCommand(fallbackMethod = "fallbackFortune") public Fortune randomFortune() { return restTemplate.getForObject("http://fortunes/random", Fortune.class); } private Fortune fallbackFortune() { return new Fortune(42L, fortuneProperties.getFallbackFortune()); } } }

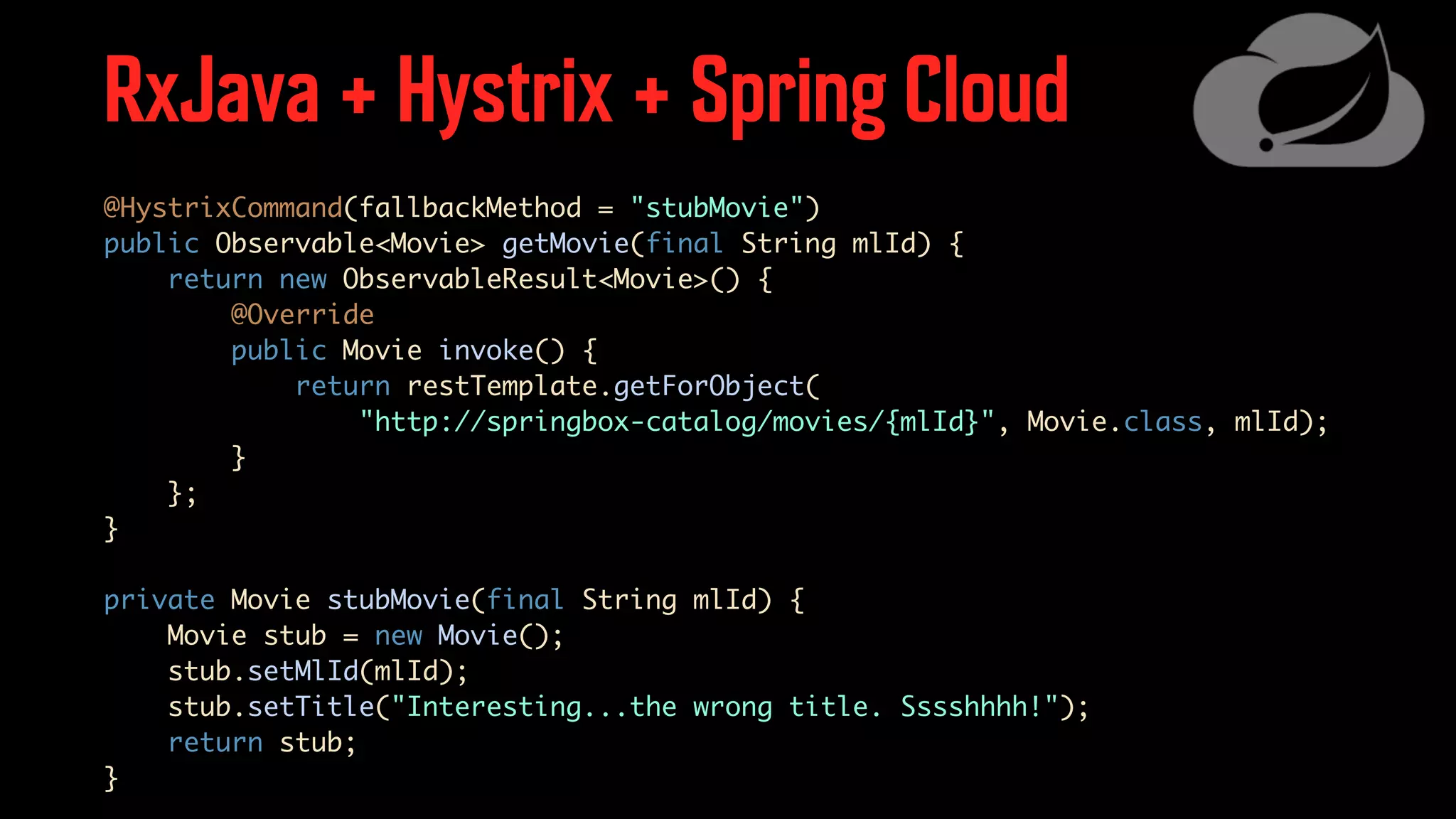

RxJava + Hystrix + Spring Cloud @HystrixCommand(fallbackMethod = "stubMovie") public Observable<Movie> getMovie(final String mlId) { return new ObservableResult<Movie>() { @Override public Movie invoke() { return restTemplate.getForObject( "http://springbox-catalog/movies/{mlId}", Movie.class, mlId); } }; } private Movie stubMovie(final String mlId) { Movie stub = new Movie(); stub.setMlId(mlId); stub.setTitle("Interesting...the wrong title. Sssshhhh!"); return stub; }

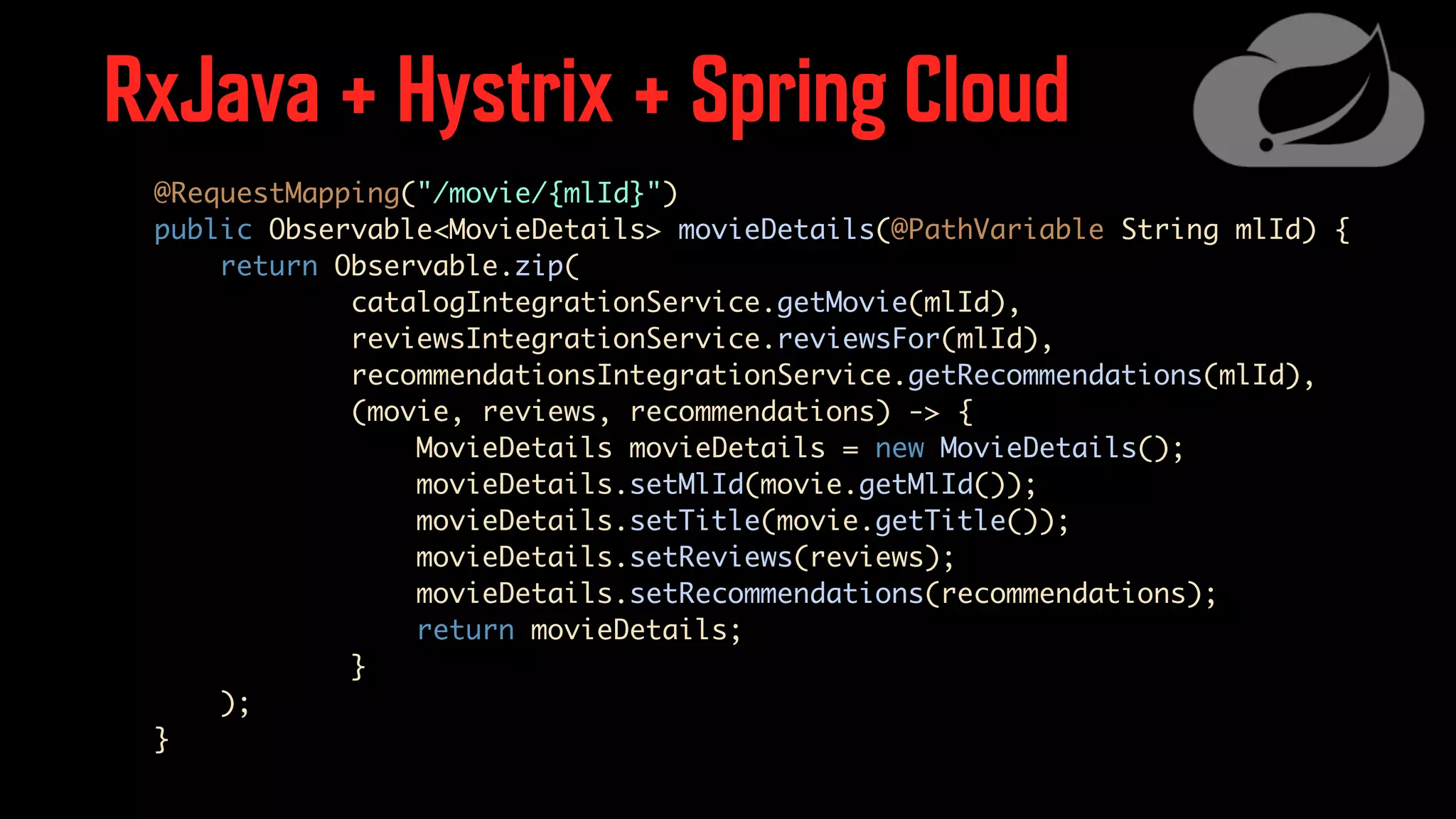

RxJava + Hystrix + Spring Cloud @RequestMapping("/movie/{mlId}") public Observable<MovieDetails> movieDetails(@PathVariable String mlId) { return Observable.zip( catalogIntegrationService.getMovie(mlId), reviewsIntegrationService.reviewsFor(mlId), recommendationsIntegrationService.getRecommendations(mlId), (movie, reviews, recommendations) -> { MovieDetails movieDetails = new MovieDetails(); movieDetails.setMlId(movie.getMlId()); movieDetails.setTitle(movie.getTitle()); movieDetails.setReviews(reviews); movieDetails.setRecommendations(recommendations); return movieDetails; } ); }

Reactive Streams http://www.reactive-streams.org/

Project Reactor https://projectreactor.io/

JDK 9 Flow API http://download.java.net/jdk9/docs/api/java/util/concurrent/Flow.html

REACTIVE FAULT TOLERANT PROGRAMMING with Hystrix and RxJava Get your FREE eBook! http://bit.ly/cloud-native-book Matt StineSenior Product Manager - Pivotal Software, Inc.  @mstine  matt.stine@gmail.com  http://mattstine.com
