Agile Development with OSGi
This document discusses using Tracer Bullet Development (TBD) and OSGi to develop software in an agile manner. TBD involves proposing system objects, interfaces, connecting interfaces, adding functions, and refining iteratively. A case study is presented of a speaker rental reservation system developed using TBD and OSGi. The system objects are defined along with interfaces for business services, data access, outbound messaging and inbound messaging. Functions are then added by coding implementations available on GitHub. The system is well-positioned for future refinement using TBD principles.
Agile Development with OSGi
- 1. Agile Development withOSGi Matt Stine

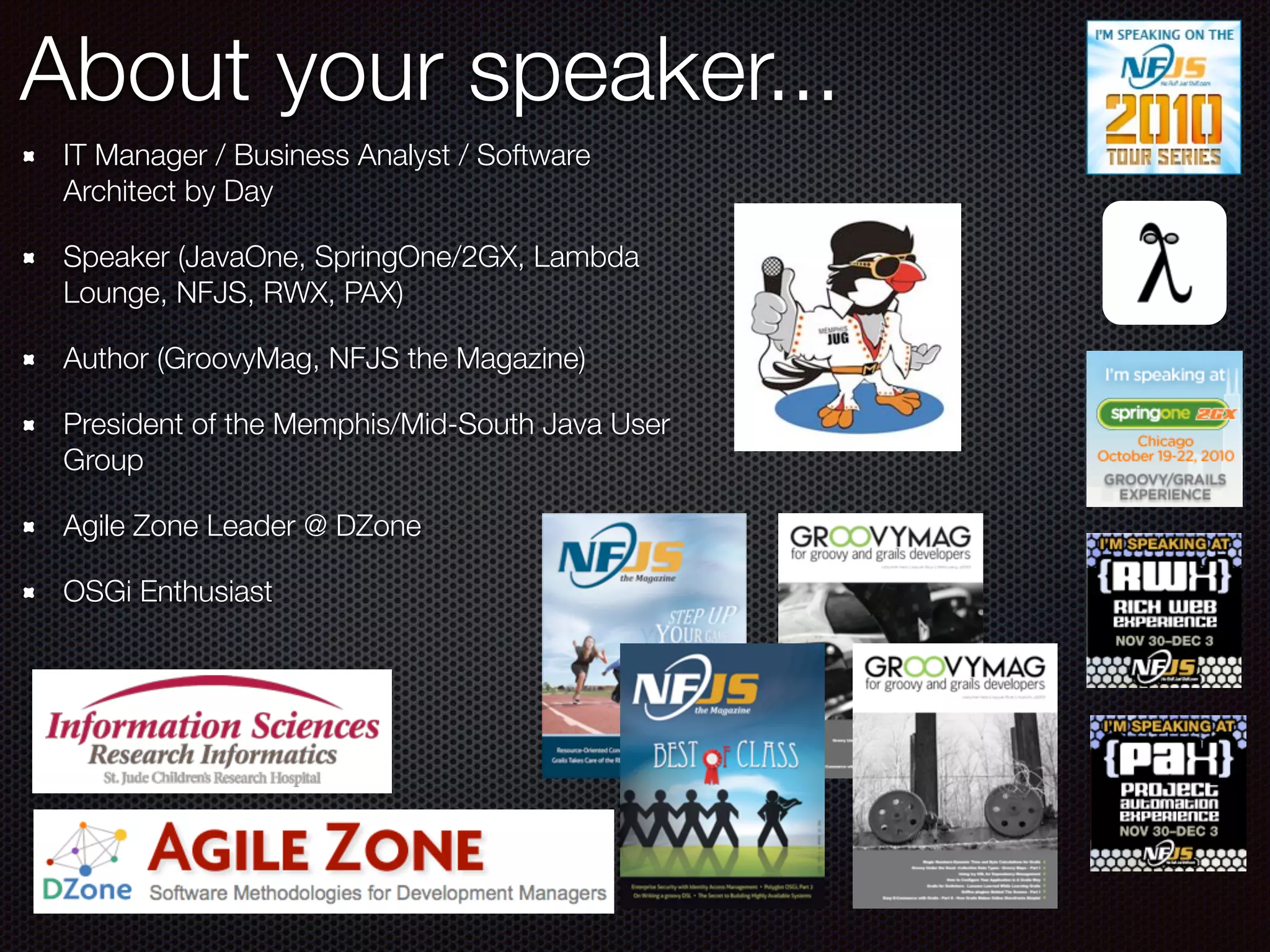

- 2. About your speaker... ITManager / Business Analyst / Software Architect by Day Speaker (JavaOne, SpringOne/2GX, Lambda Lounge, NFJS, RWX, PAX) Author (GroovyMag, NFJS the Magazine) President of the Memphis/Mid-South Java User Group Agile Zone Leader @ DZone OSGi Enthusiast
- 3. A Tale ofTwo Cities: Tracer Bullet Development OSGi
- 4. Where it allbegan...
- 5.
- 6. A rose byany other name... Walking Skeleton (Alistair Cockburn) http://alistair.cockburn.us/Walking+skeleton Spanning Application/Matrix (Mary & Tom Poppendieck) Lean Software Development: An Agile Toolkit Nested Synchronization (Mary & Tom Poppendieck) Implementing Lean Software Development Hudson River Company Start (Johanna Rothman) Manage It! Thread (Matt Simons) “Big and Agile?” Cutter IT Journal 15(1): January 2002. Spike (Luke Hohmann) Beyond Software Architecture: Creating and Sustaining Winning Solutions

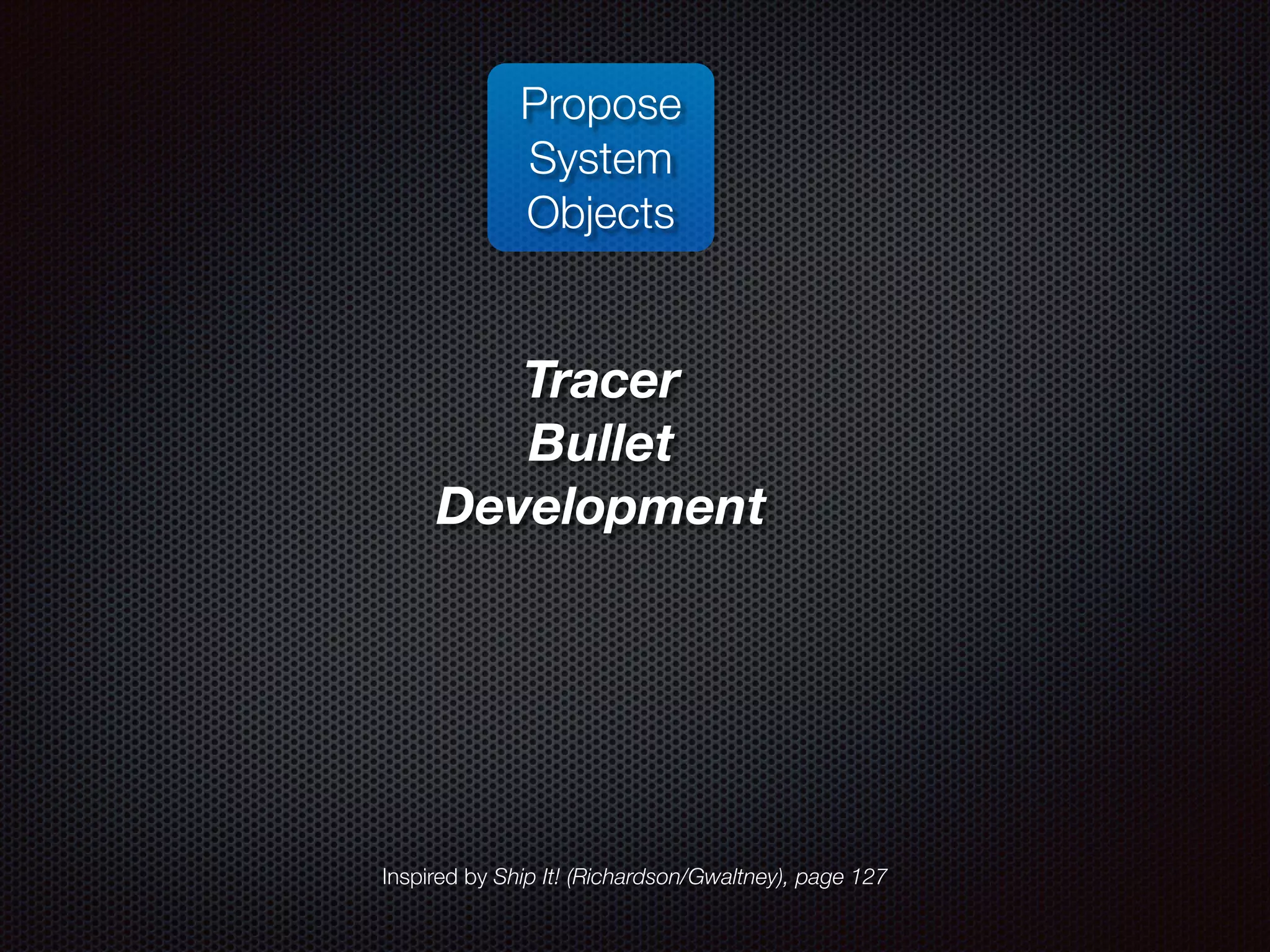

- 7. Propose System Objects Tracer Bullet Development Inspired by ShipIt! (Richardson/Gwaltney), page 127

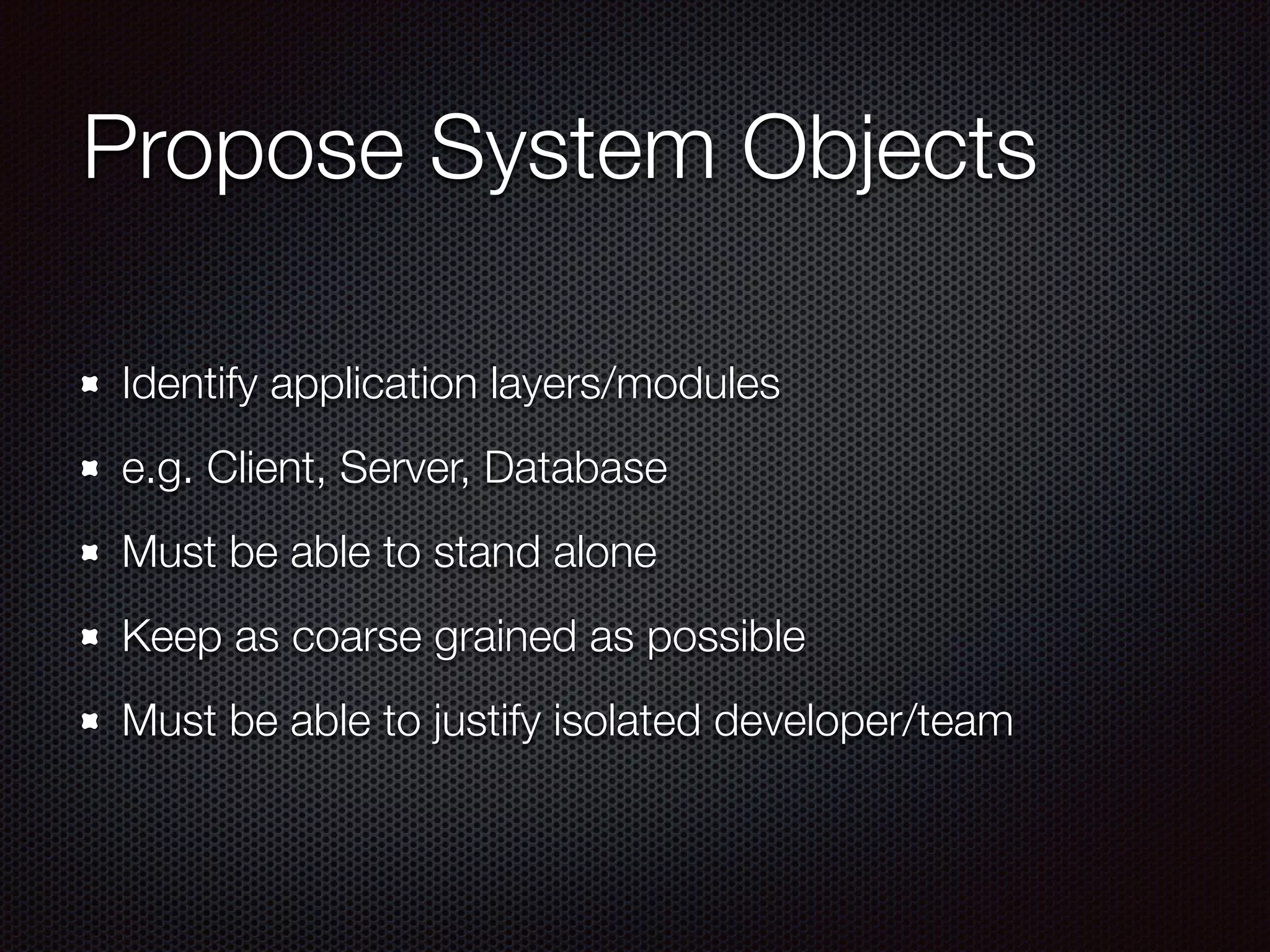

- 8. Propose System Objects Identifyapplication layers/modules e.g. Client, Server, Database Must be able to stand alone Keep as coarse grained as possible Must be able to justify isolated developer/team

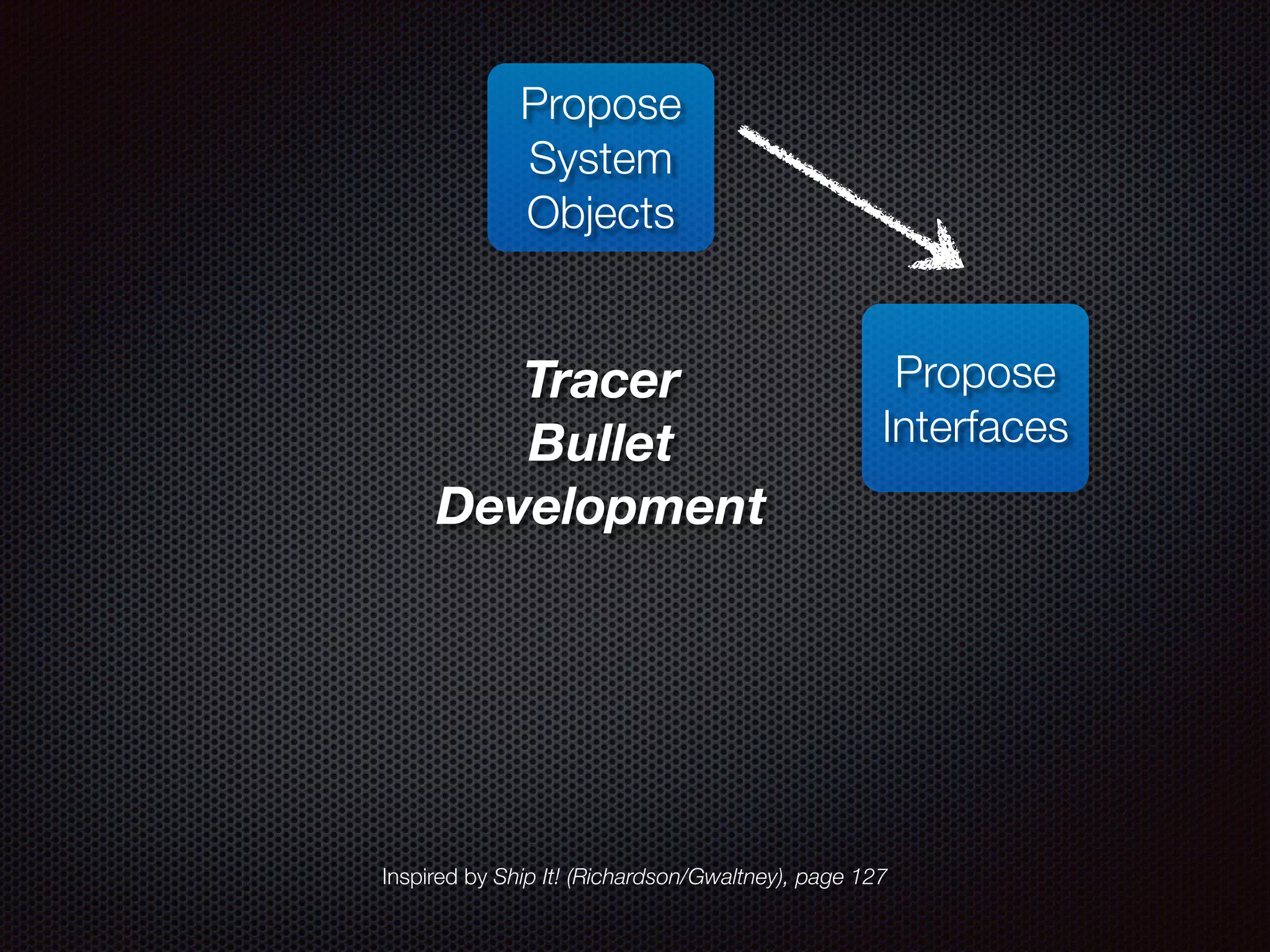

- 9. Propose System Objects Propose Interfaces Tracer Bullet Development Inspired by ShipIt! (Richardson/Gwaltney), page 127

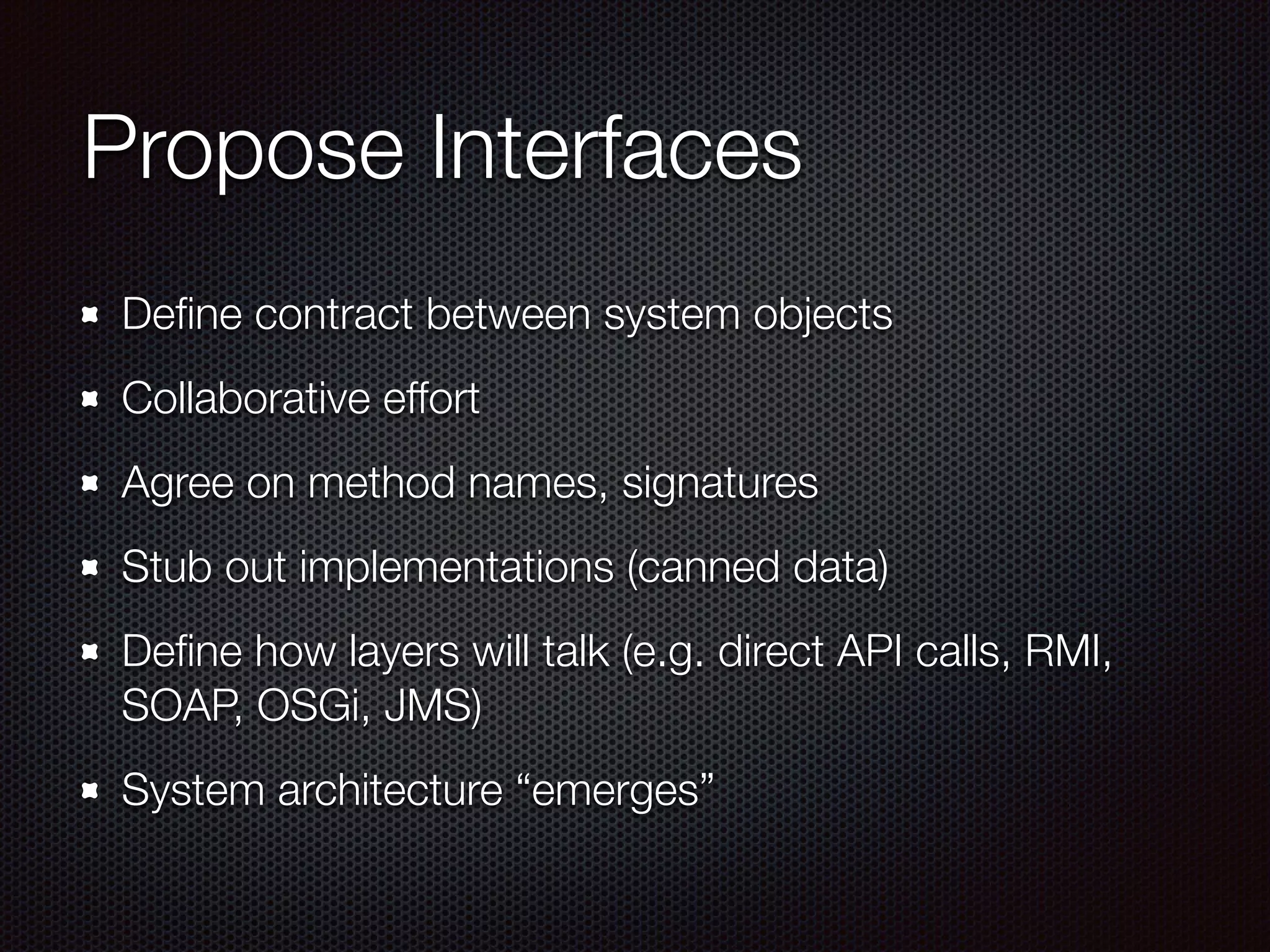

- 10. Propose Interfaces Define contractbetween system objects Collaborative effort Agree on method names, signatures Stub out implementations (canned data) Define how layers will talk (e.g. direct API calls, RMI, SOAP, OSGi, JMS) System architecture “emerges”

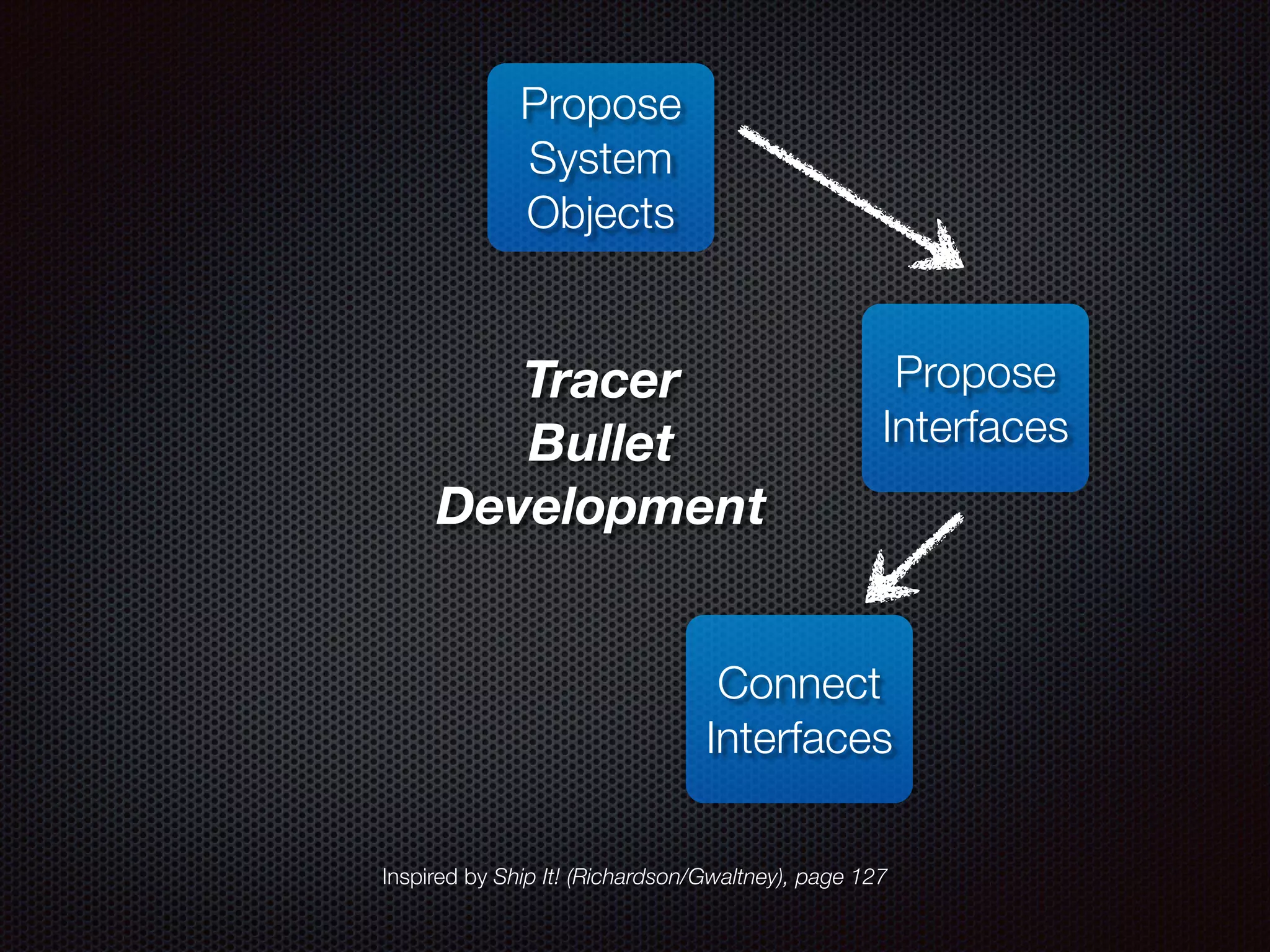

- 11. Propose System Objects Propose Interfaces Connect Interfaces Tracer Bullet Development Inspired by ShipIt! (Richardson/Gwaltney), page 127

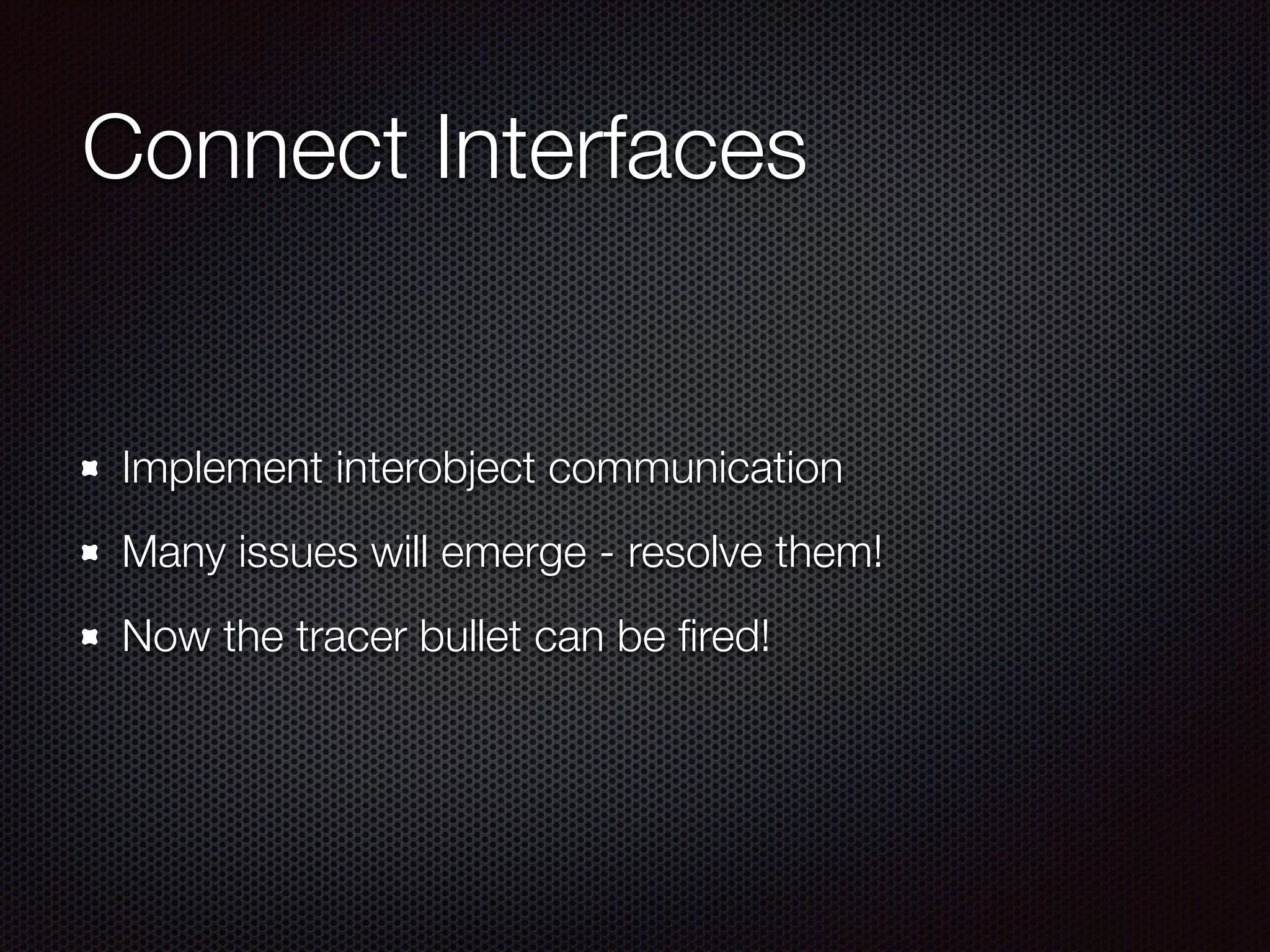

- 12. Connect Interfaces Implement interobjectcommunication Many issues will emerge - resolve them! Now the tracer bullet can be fired!

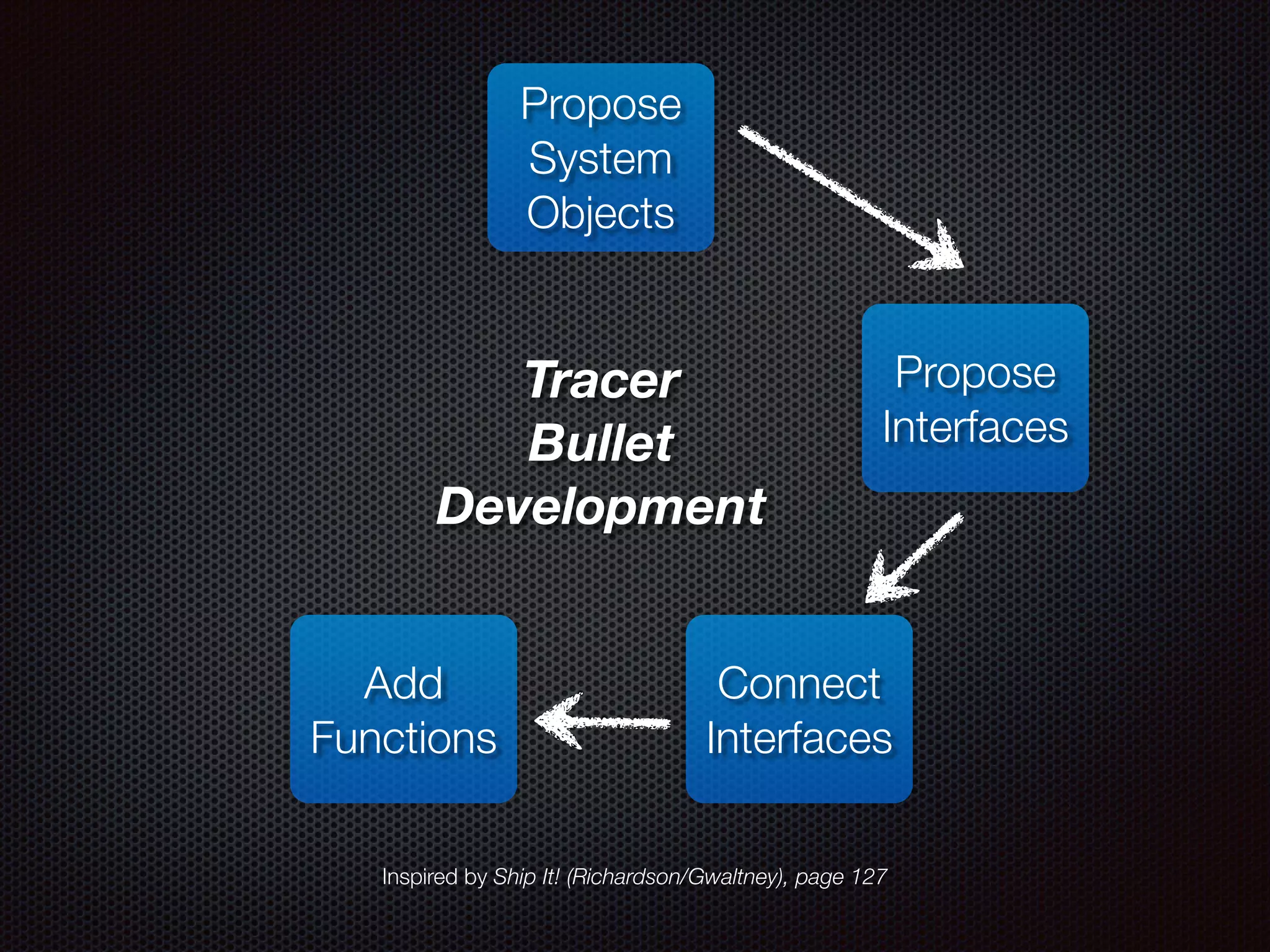

- 13. Propose System Objects Propose Interfaces Connect Interfaces Add Functions Tracer Bullet Development Inspired by ShipIt! (Richardson/Gwaltney), page 127

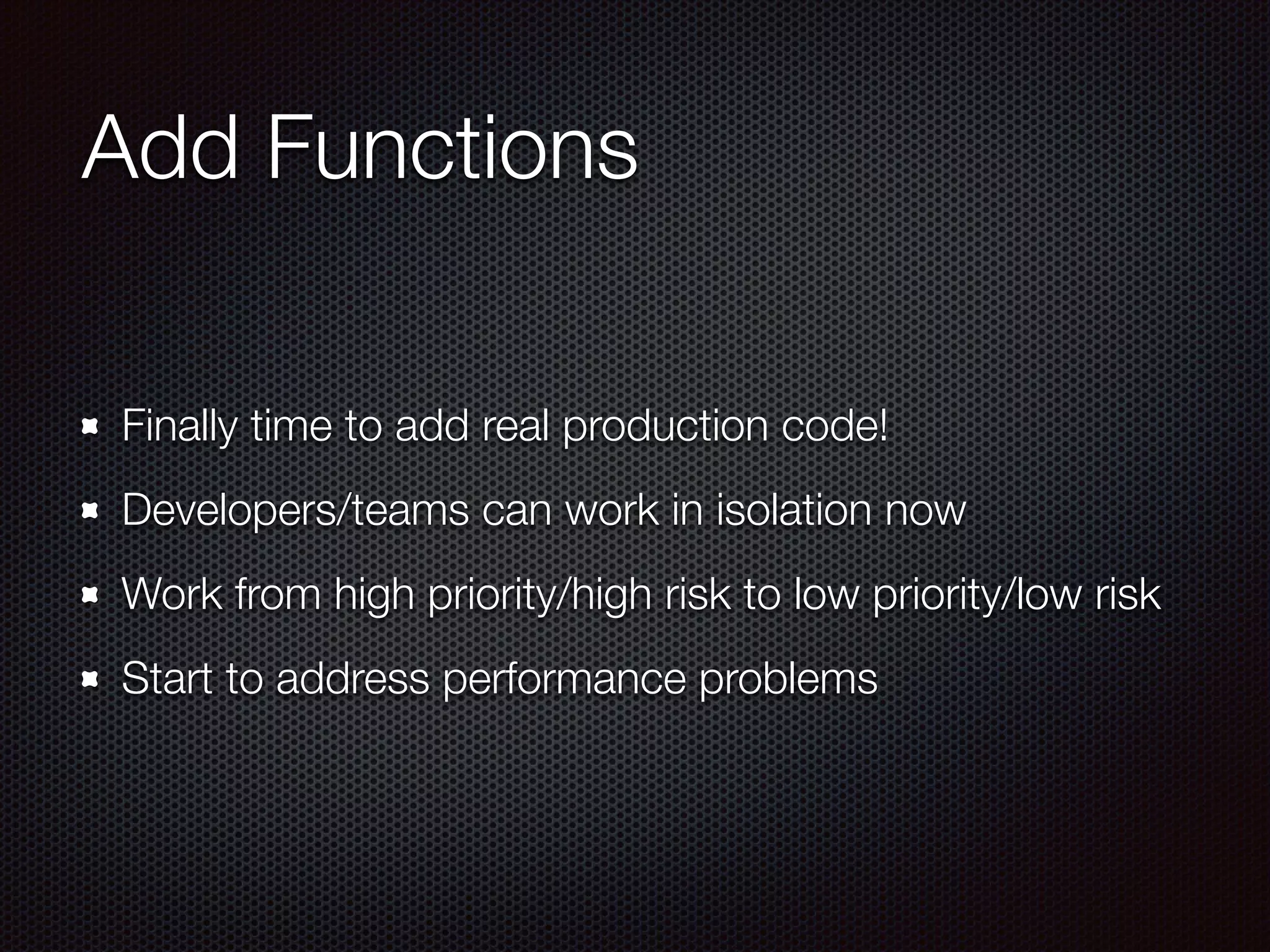

- 14. Add Functions Finally timeto add real production code! Developers/teams can work in isolation now Work from high priority/high risk to low priority/low risk Start to address performance problems

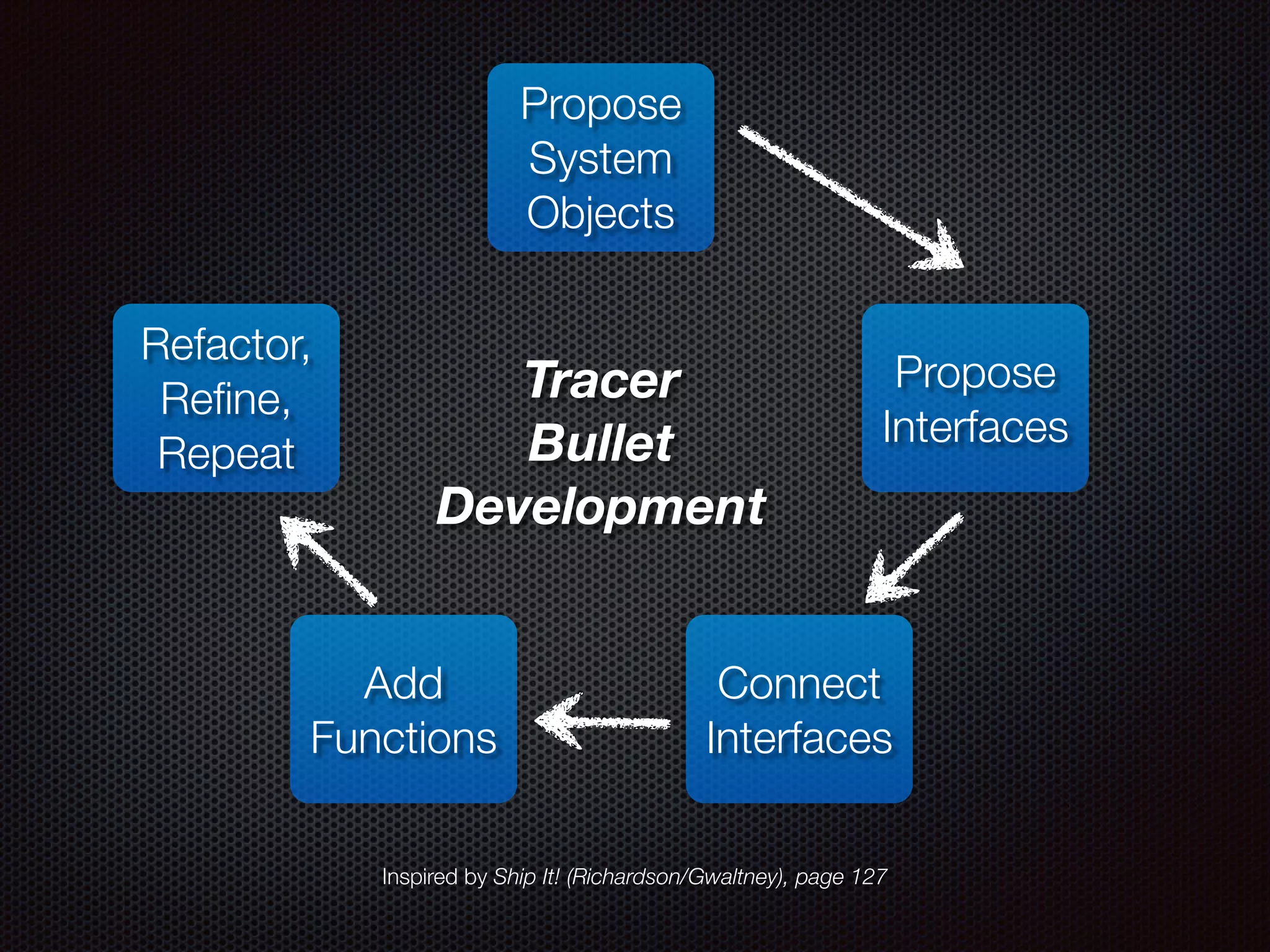

- 15.

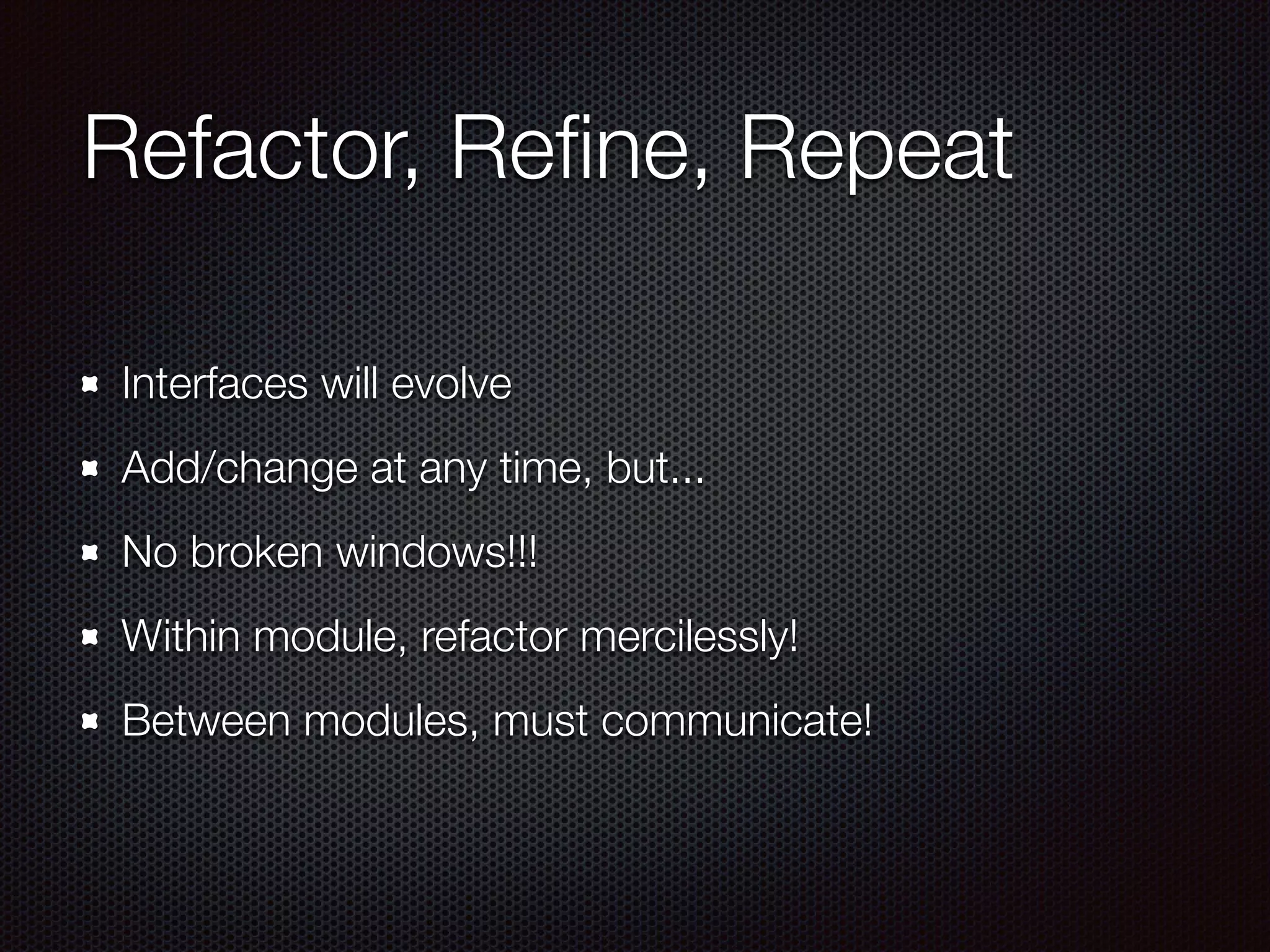

- 16. Refactor, Refine, Repeat Interfaceswill evolve Add/change at any time, but... No broken windows!!! Within module, refactor mercilessly! Between modules, must communicate!

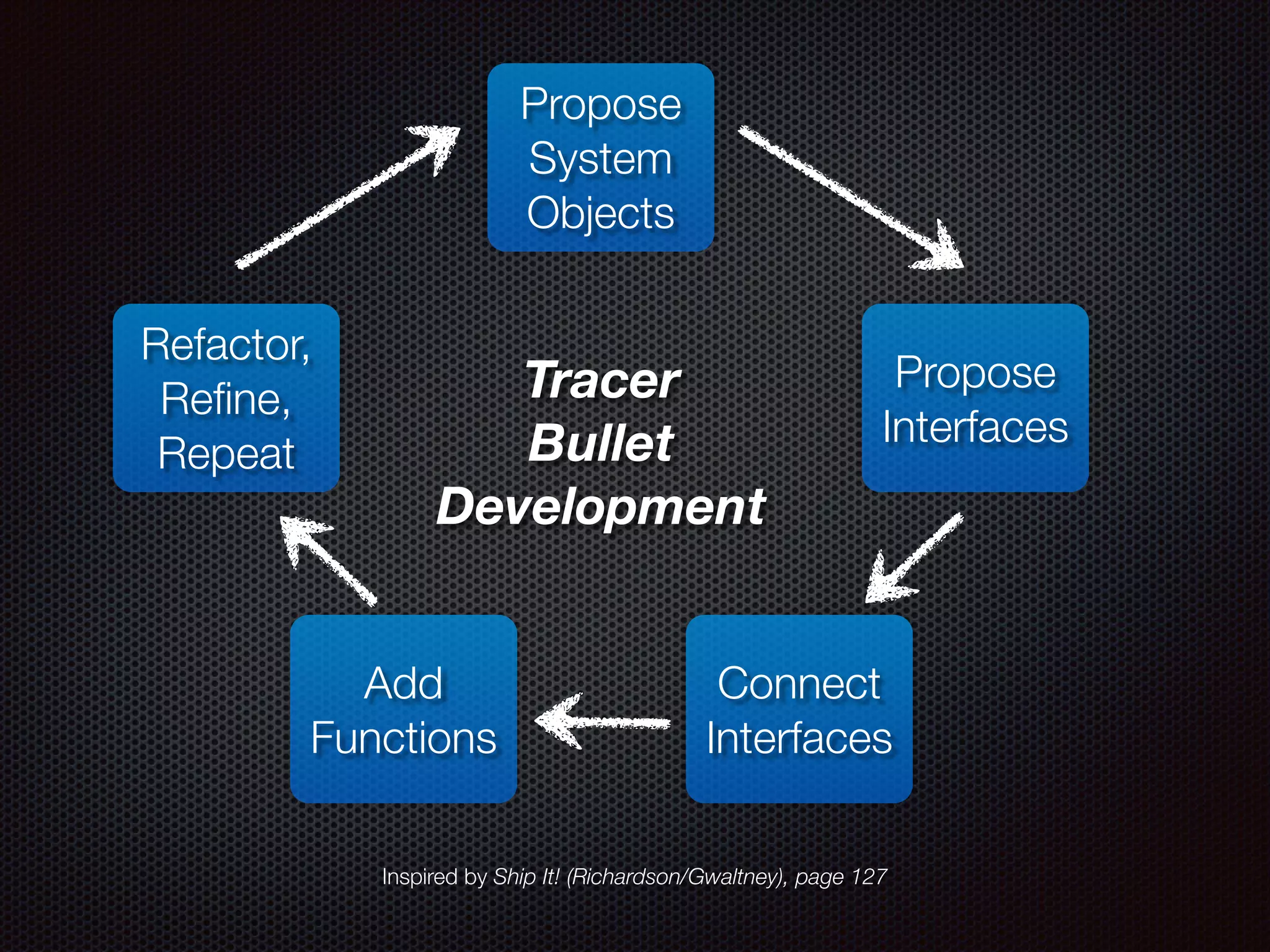

- 17.

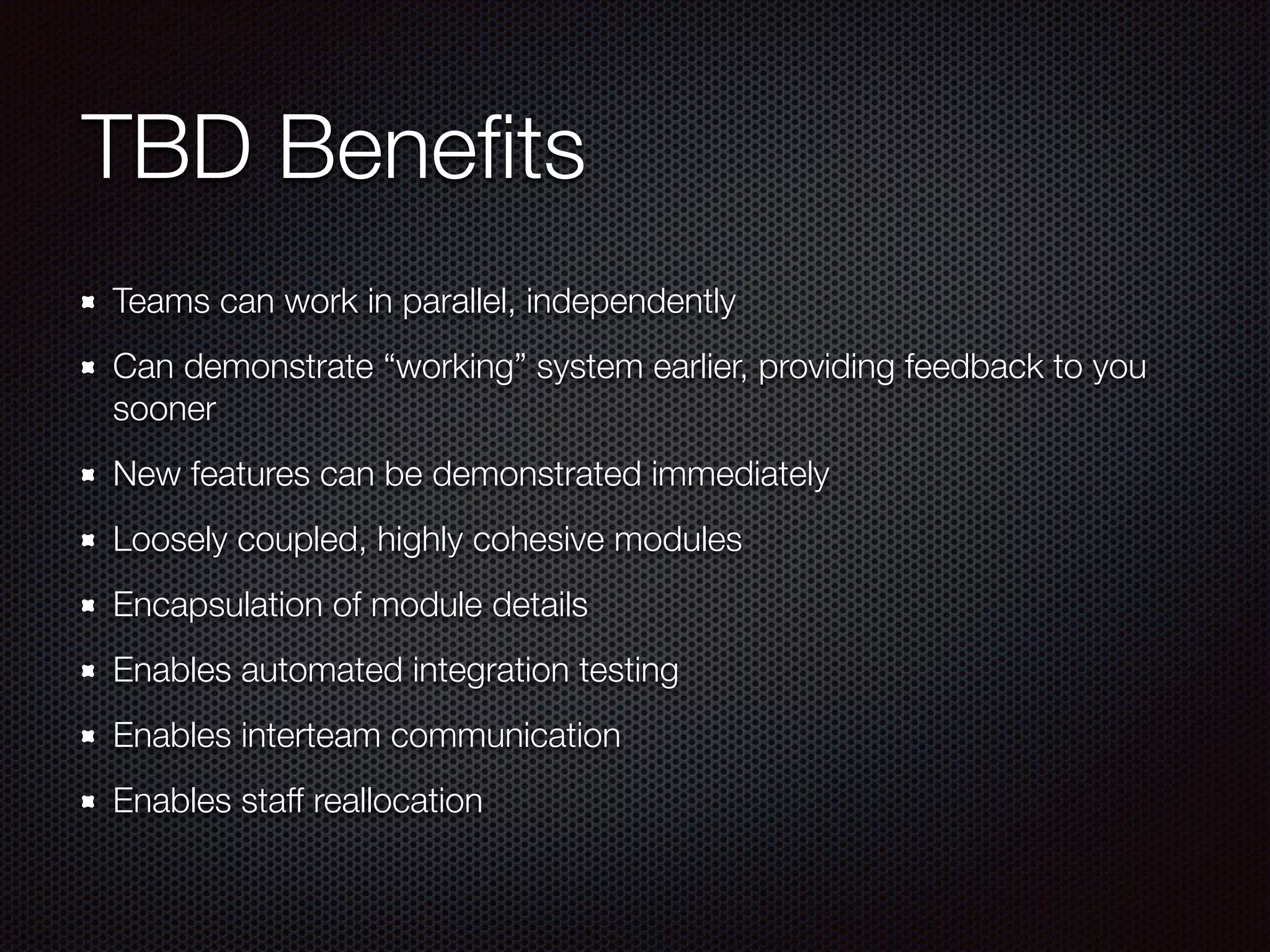

- 18. TBD Benefits Teams canwork in parallel, independently Can demonstrate “working” system earlier, providing feedback to you sooner New features can be demonstrated immediately Loosely coupled, highly cohesive modules Encapsulation of module details Enables automated integration testing Enables interteam communication Enables staff reallocation
- 19. OSGi The Dynamic Modulesystem for Java

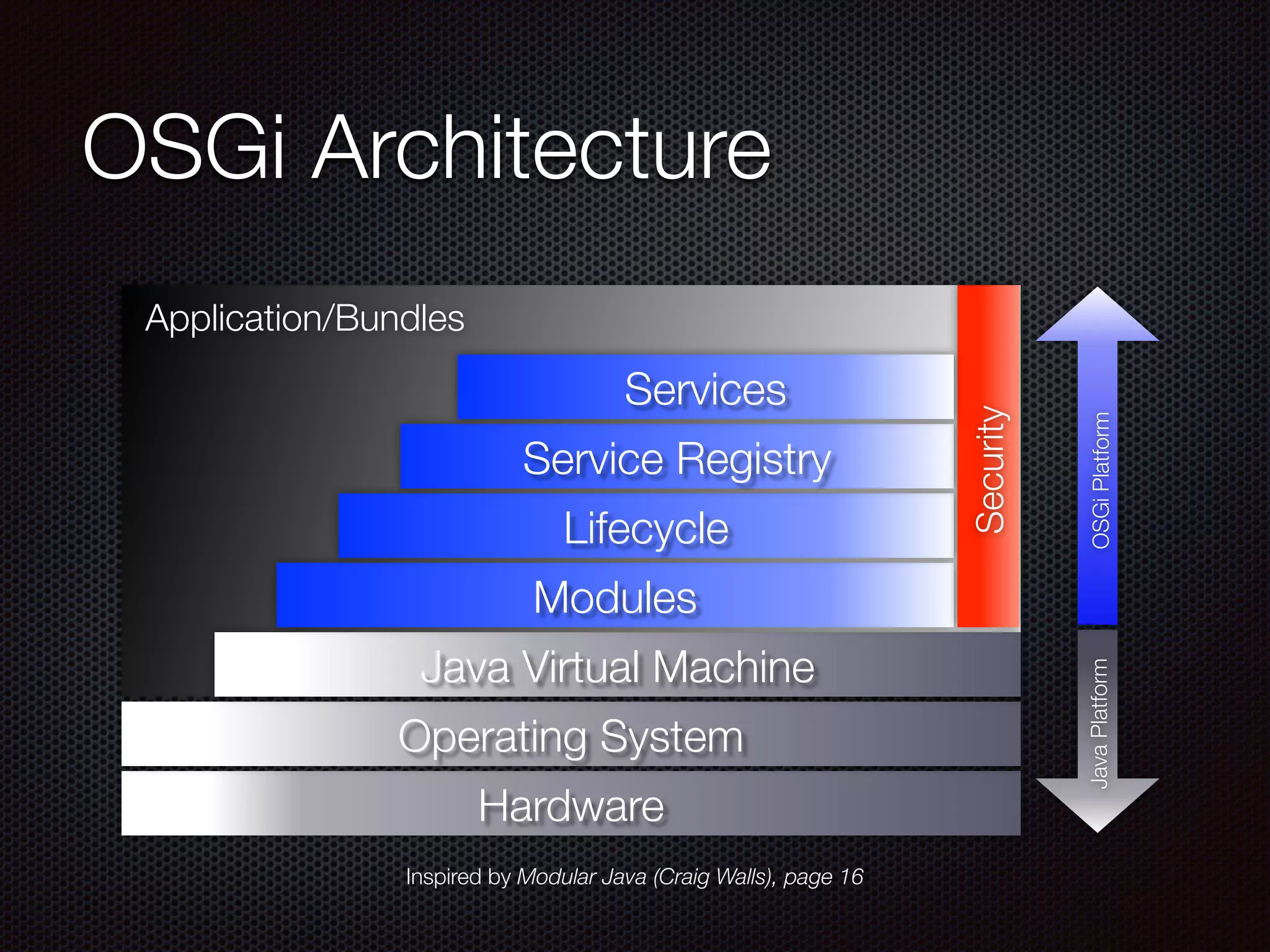

- 20. OSGi Architecture Hardware Operating System JavaVirtual Machine Modules Lifecycle Service Registry Services Security Application/Bundles OSGiPlatformJavaPlatform Inspired by Modular Java (Craig Walls), page 16

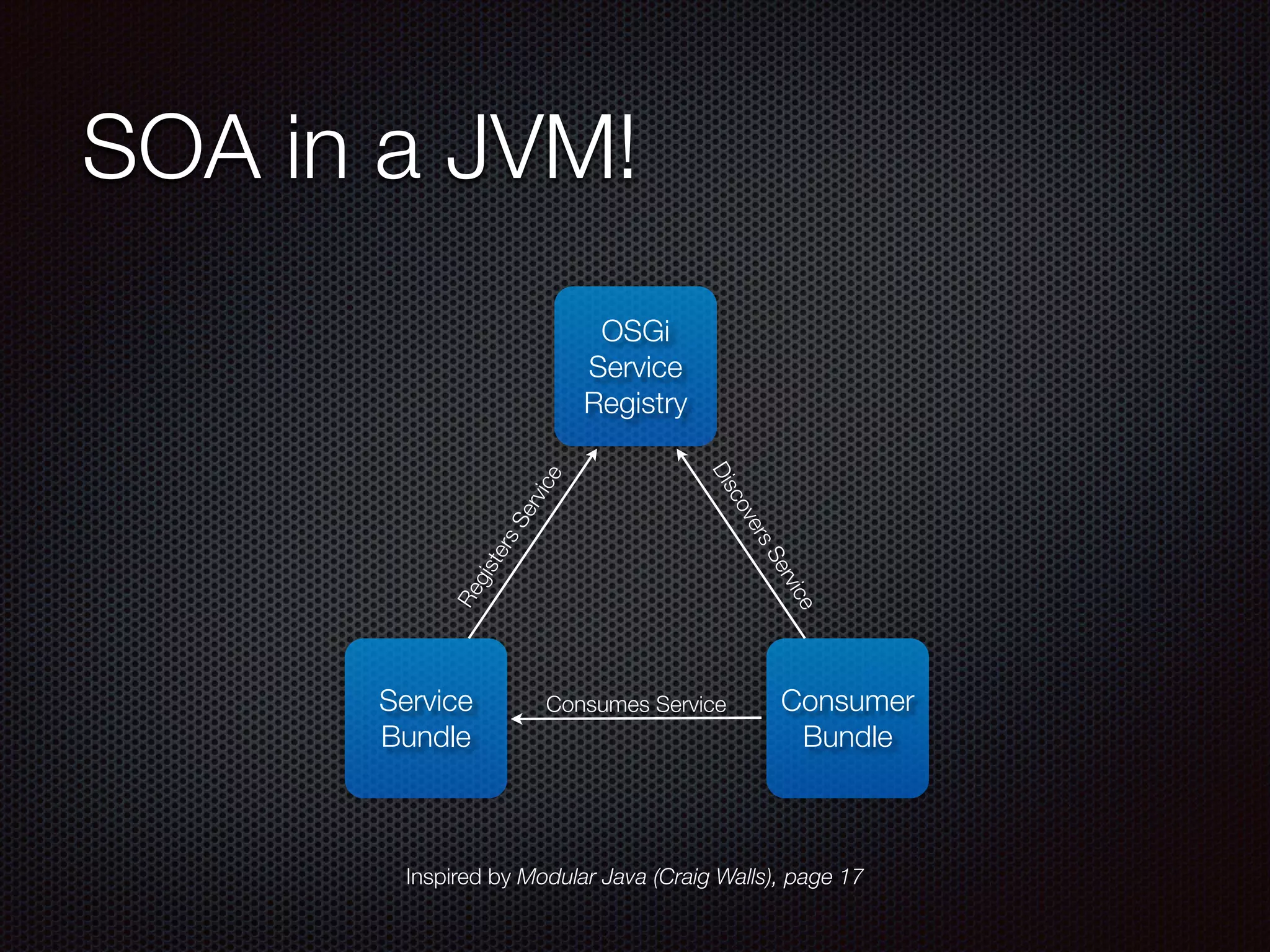

- 21. SOA in aJVM! Service Bundle Consumer Bundle RegistersService DiscoversService Consumes Service Inspired by Modular Java (Craig Walls), page 17 OSGi Service Registry
- 22.

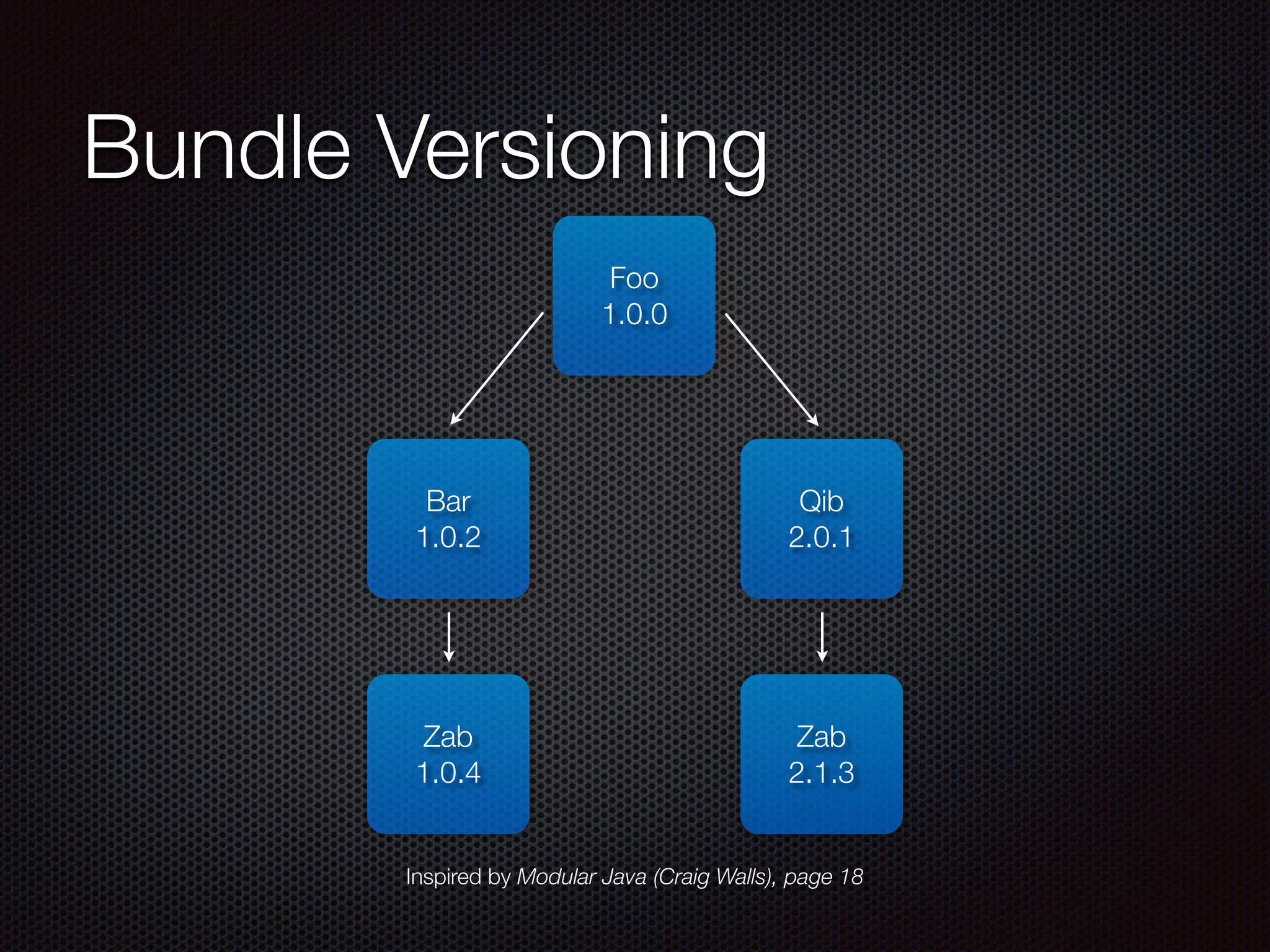

- 23. Bundle Versioning Bar 1.0.2 Zab 2.1.3 Inspired byModular Java (Craig Walls), page 18 Foo 1.0.0 Zab 1.0.4 Qib 2.0.1

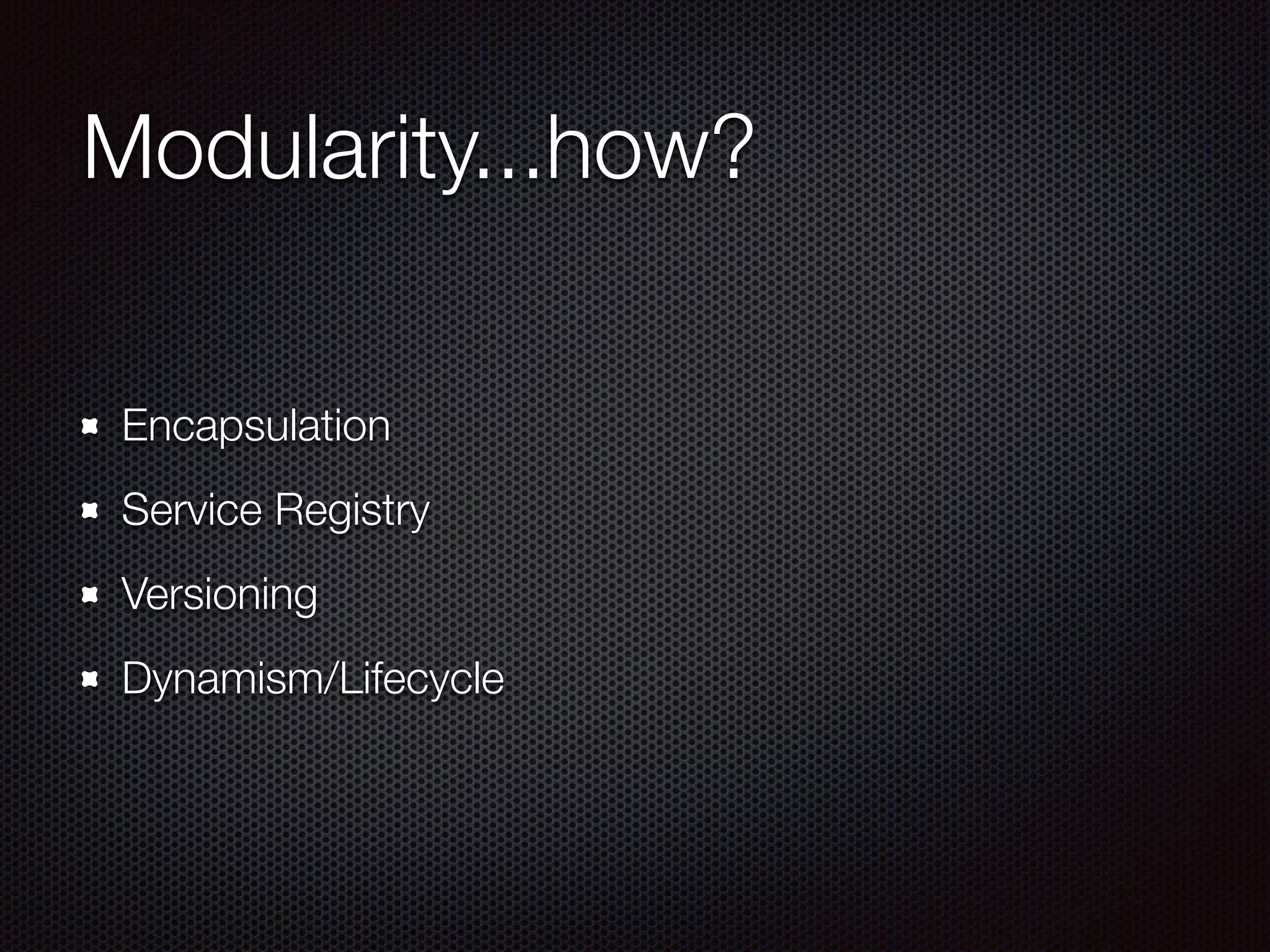

- 24.

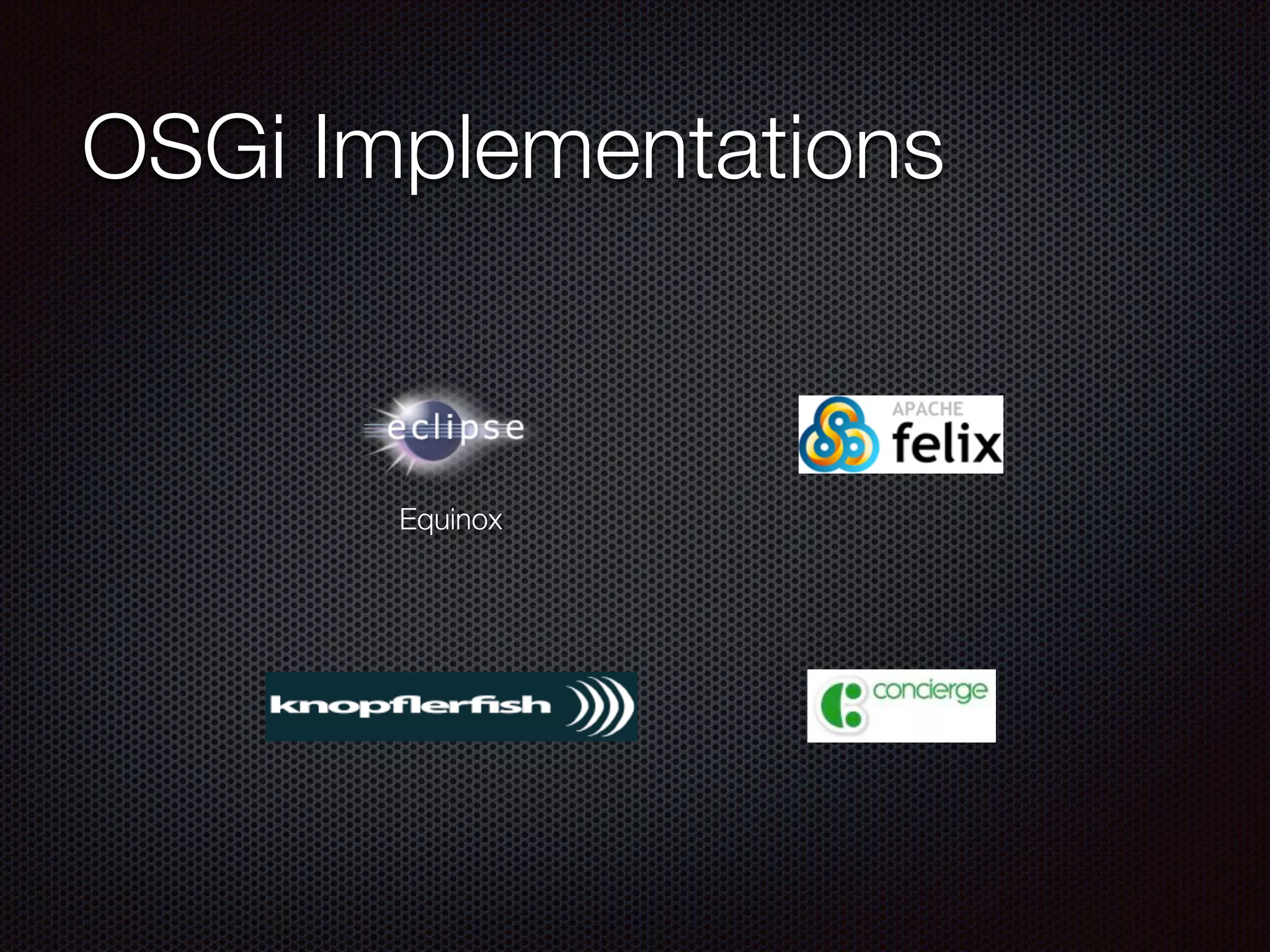

- 25.
- 26. PAX Tools forOSGi

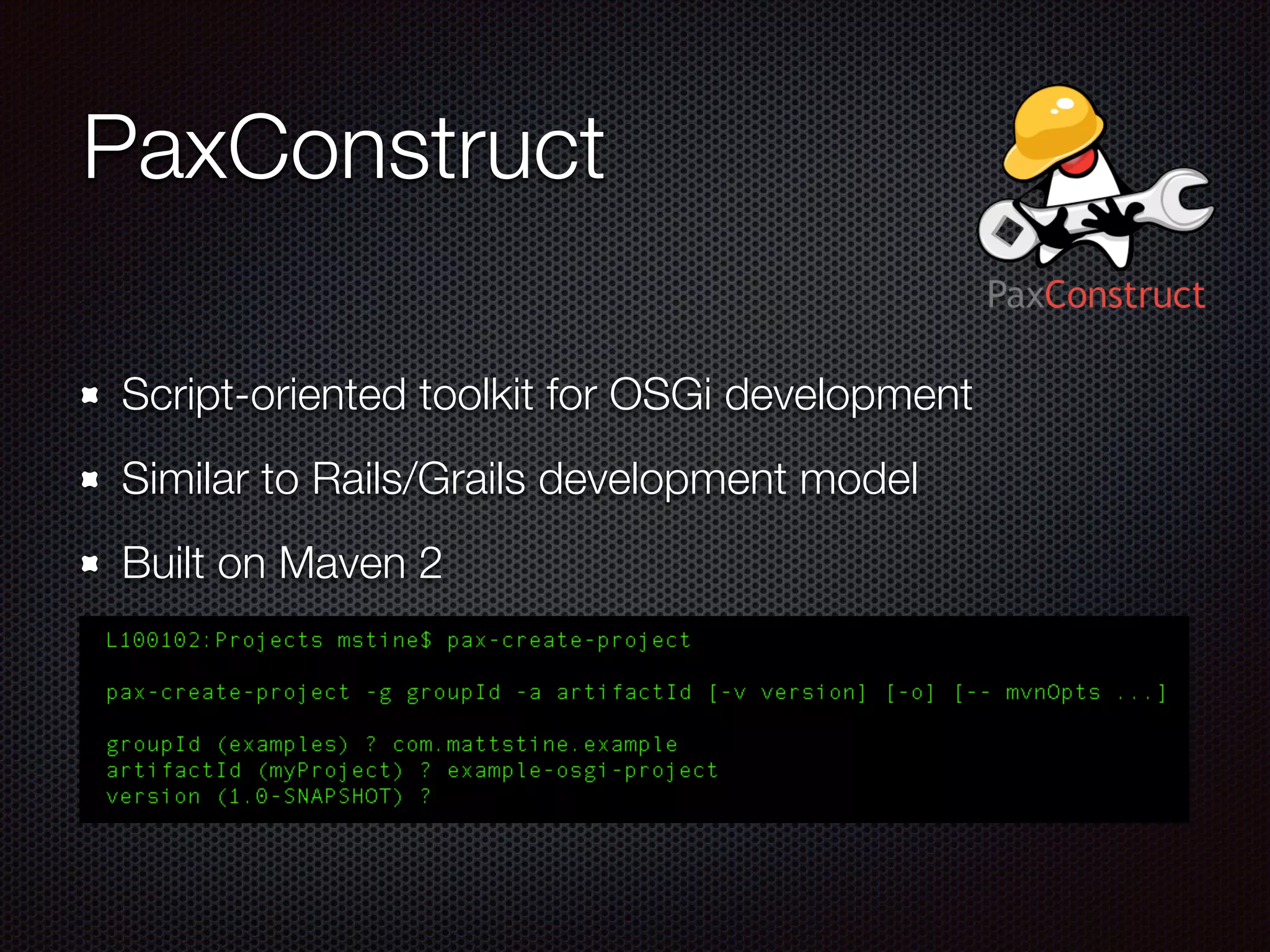

- 27. PaxConstruct Script-oriented toolkit forOSGi development Similar to Rails/Grails development model Built on Maven 2

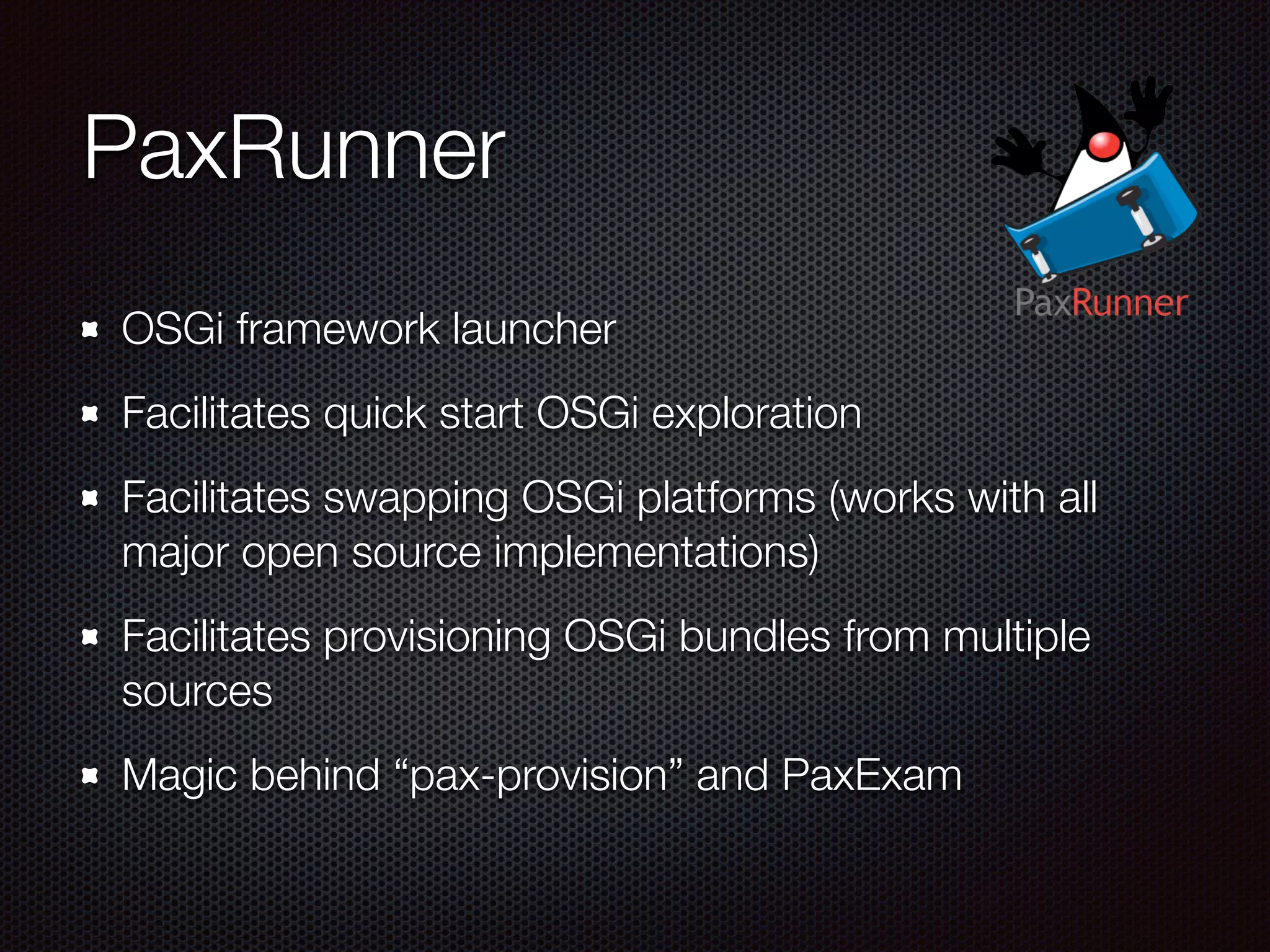

- 28. PaxRunner OSGi framework launcher Facilitatesquick start OSGi exploration Facilitates swapping OSGi platforms (works with all major open source implementations) Facilitates provisioning OSGi bundles from multiple sources Magic behind “pax-provision” and PaxExam

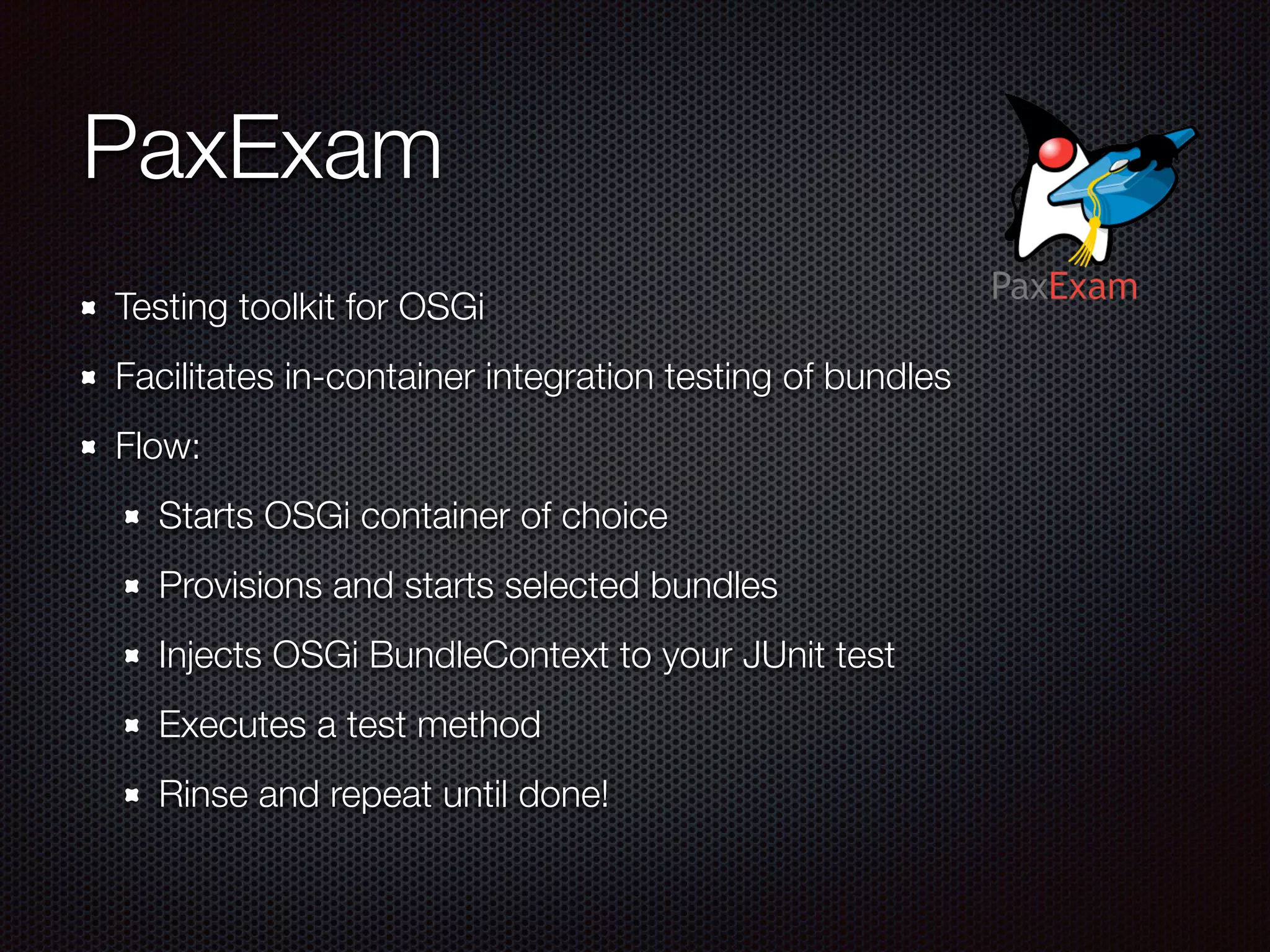

- 29. PaxExam Testing toolkit forOSGi Facilitates in-container integration testing of bundles Flow: Starts OSGi container of choice Provisions and starts selected bundles Injects OSGi BundleContext to your JUnit test Executes a test method Rinse and repeat until done!
- 30.
- 31.
- 32.

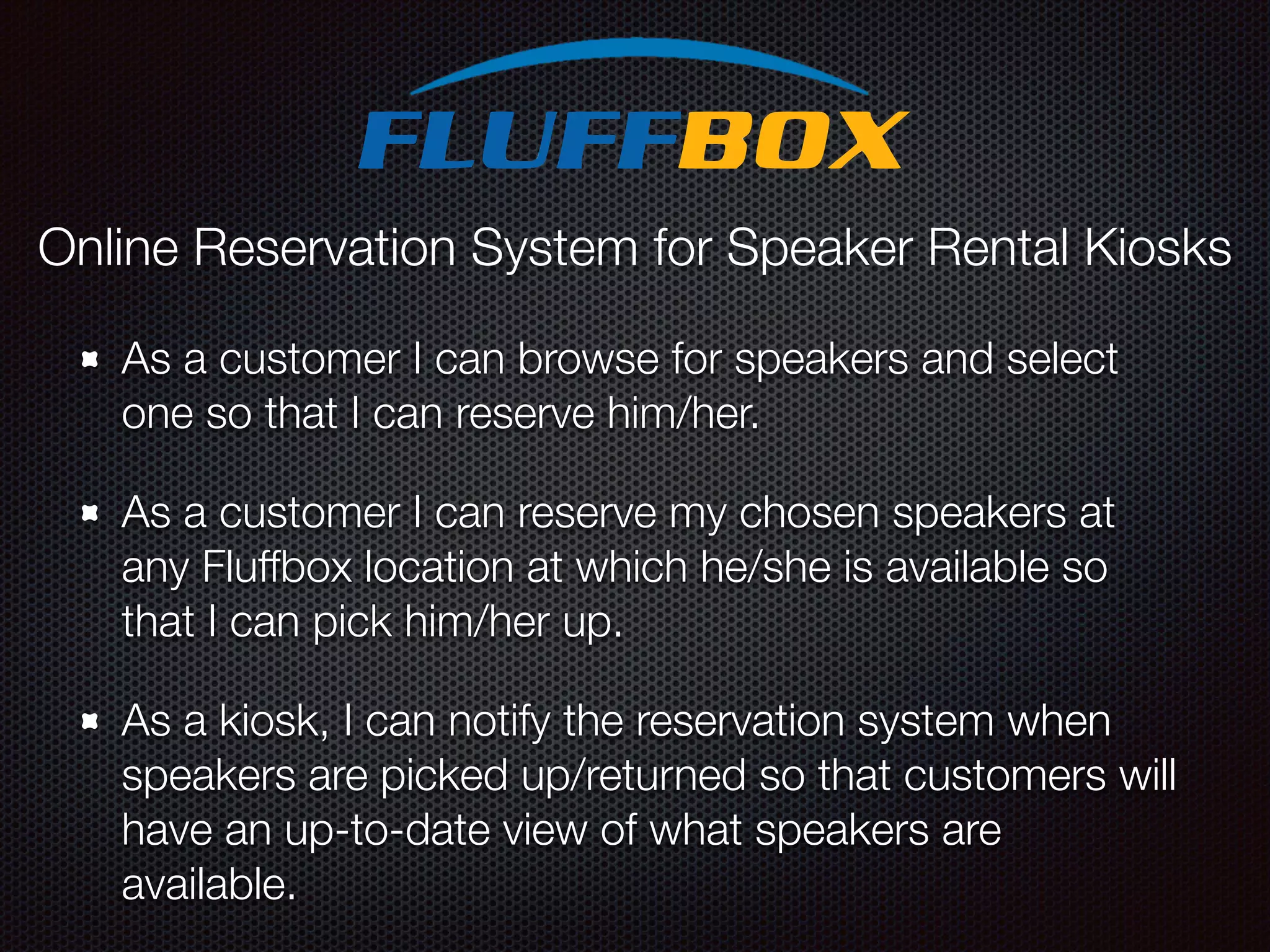

- 33. As a customerI can browse for speakers and select one so that I can reserve him/her. As a customer I can reserve my chosen speakers at any Fluffbox location at which he/she is available so that I can pick him/her up. As a kiosk, I can notify the reservation system when speakers are picked up/returned so that customers will have an up-to-date view of what speakers are available. Online Reservation System for Speaker Rental Kiosks

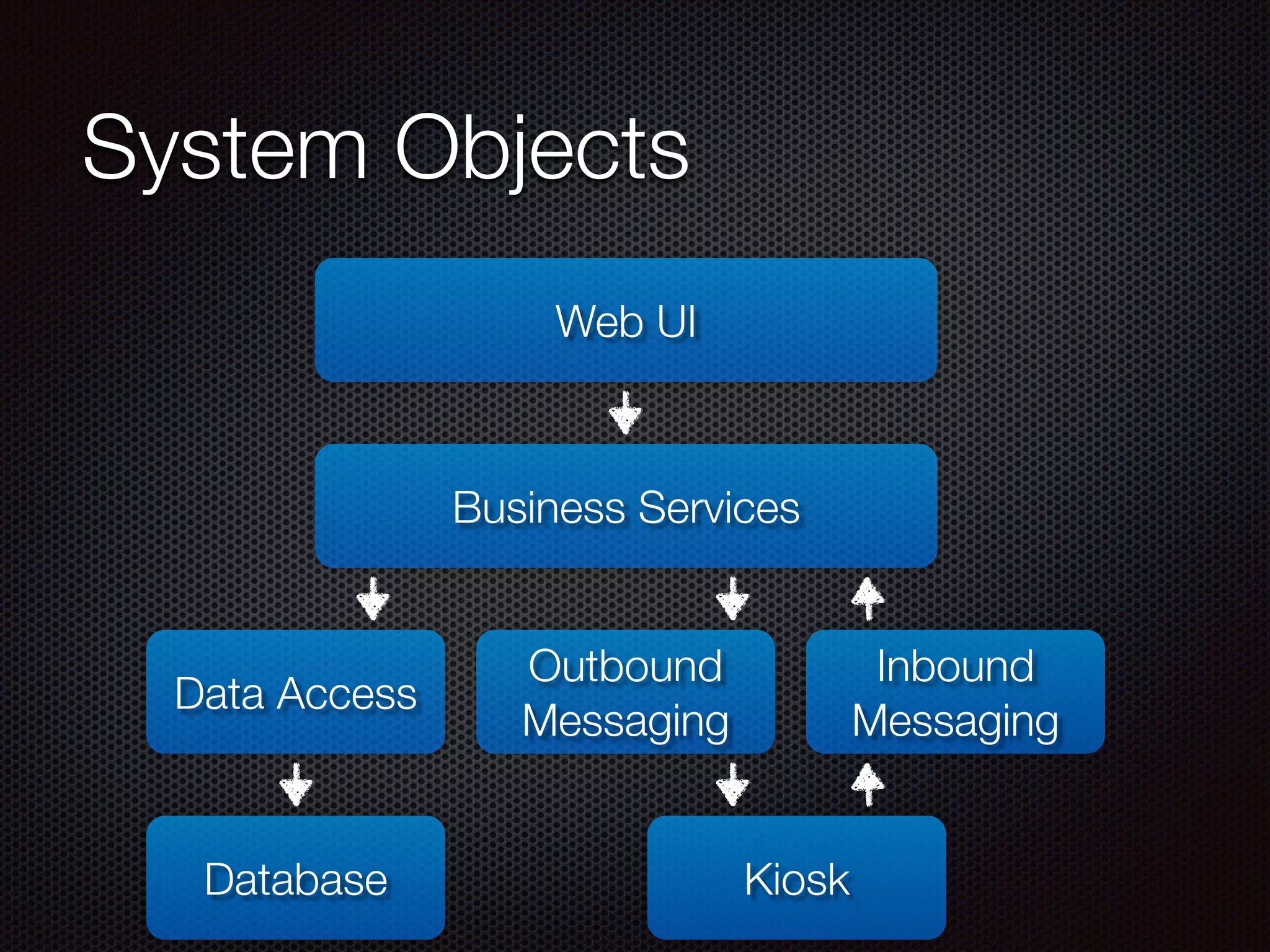

- 34. System Objects Web UI BusinessServices Data Access Outbound Messaging Database Kiosk Inbound Messaging

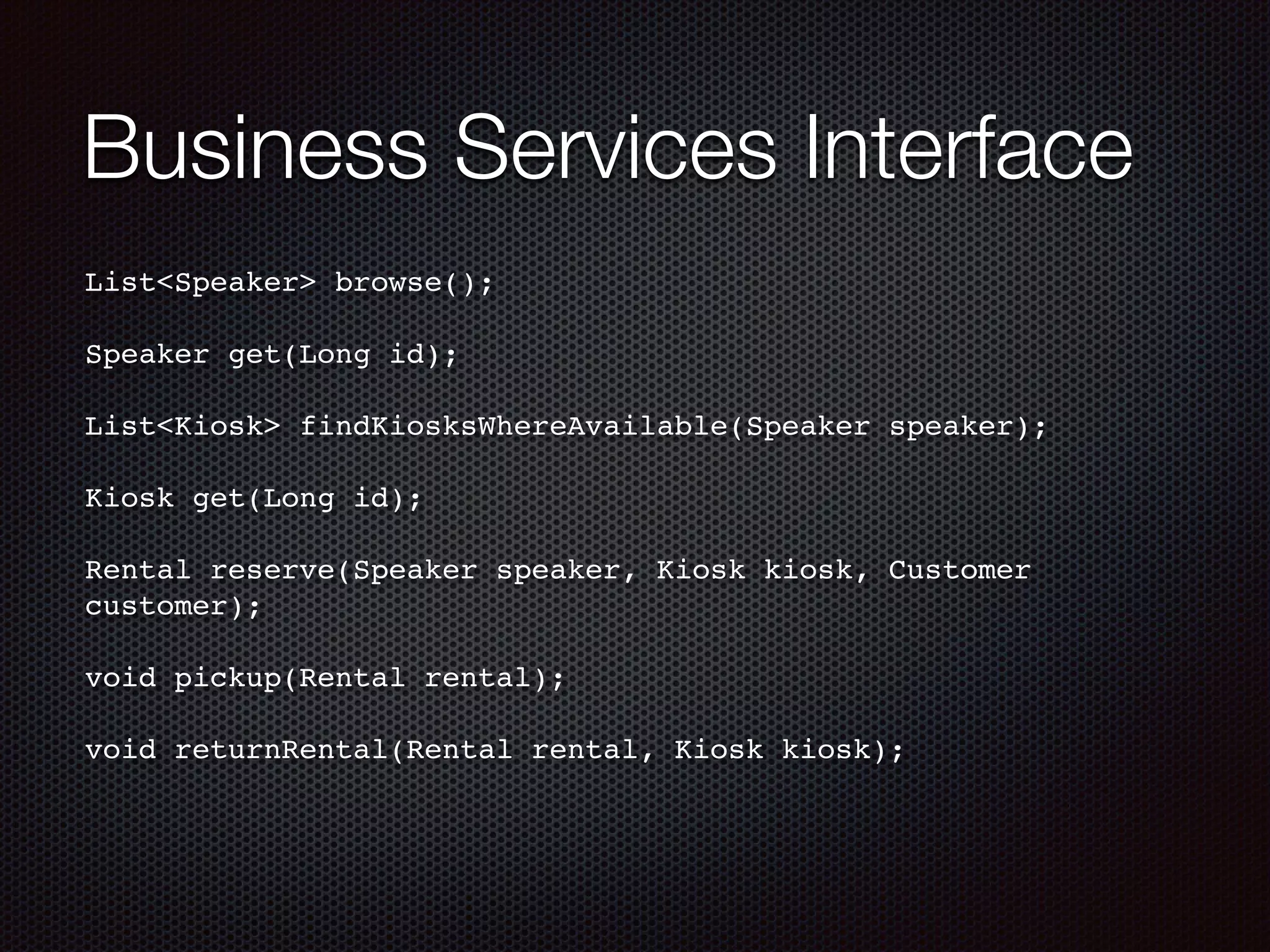

- 35. Business Services Interface List<Speaker>browse();! ! Speaker get(Long id);! ! List<Kiosk> findKiosksWhereAvailable(Speaker speaker);! ! Kiosk get(Long id);! ! Rental reserve(Speaker speaker, Kiosk kiosk, Customer customer);! ! void pickup(Rental rental);! ! void returnRental(Rental rental, Kiosk kiosk);!

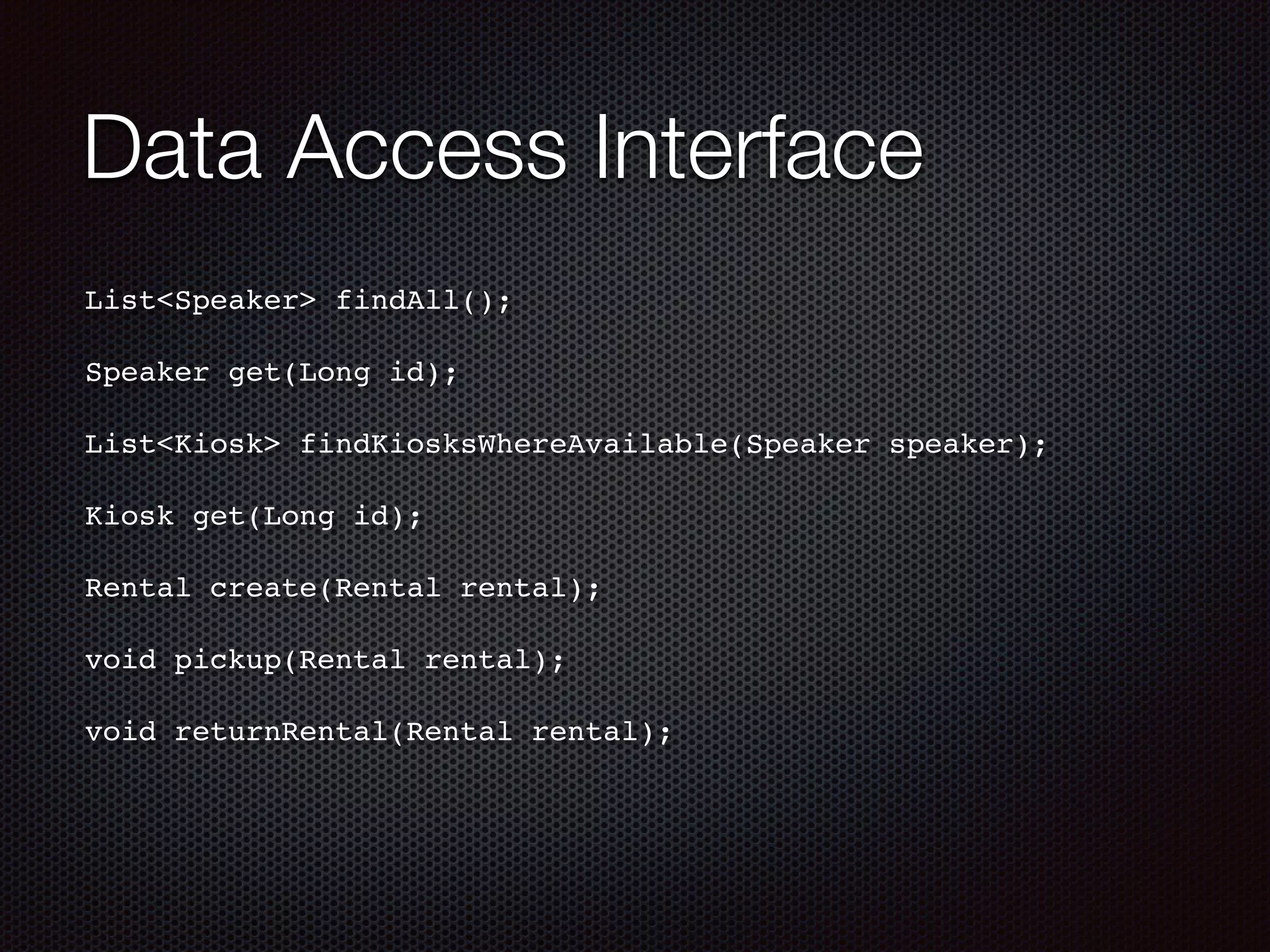

- 36. Data Access Interface List<Speaker>findAll();! ! Speaker get(Long id);! ! List<Kiosk> findKiosksWhereAvailable(Speaker speaker);! ! Kiosk get(Long id);! ! Rental create(Rental rental);! ! void pickup(Rental rental);! ! void returnRental(Rental rental);!

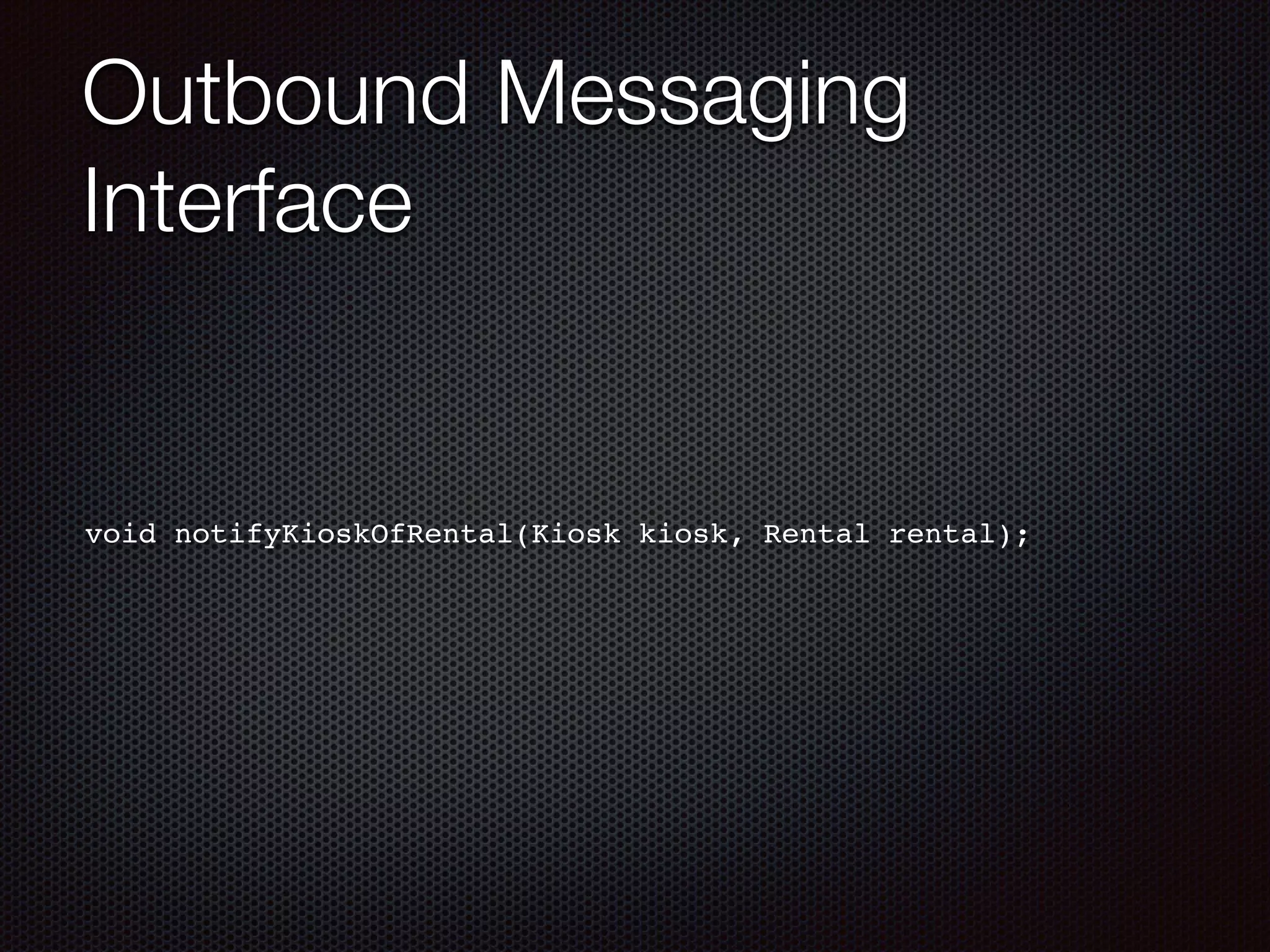

- 37. Outbound Messaging Interface void notifyKioskOfRental(Kioskkiosk, Rental rental);

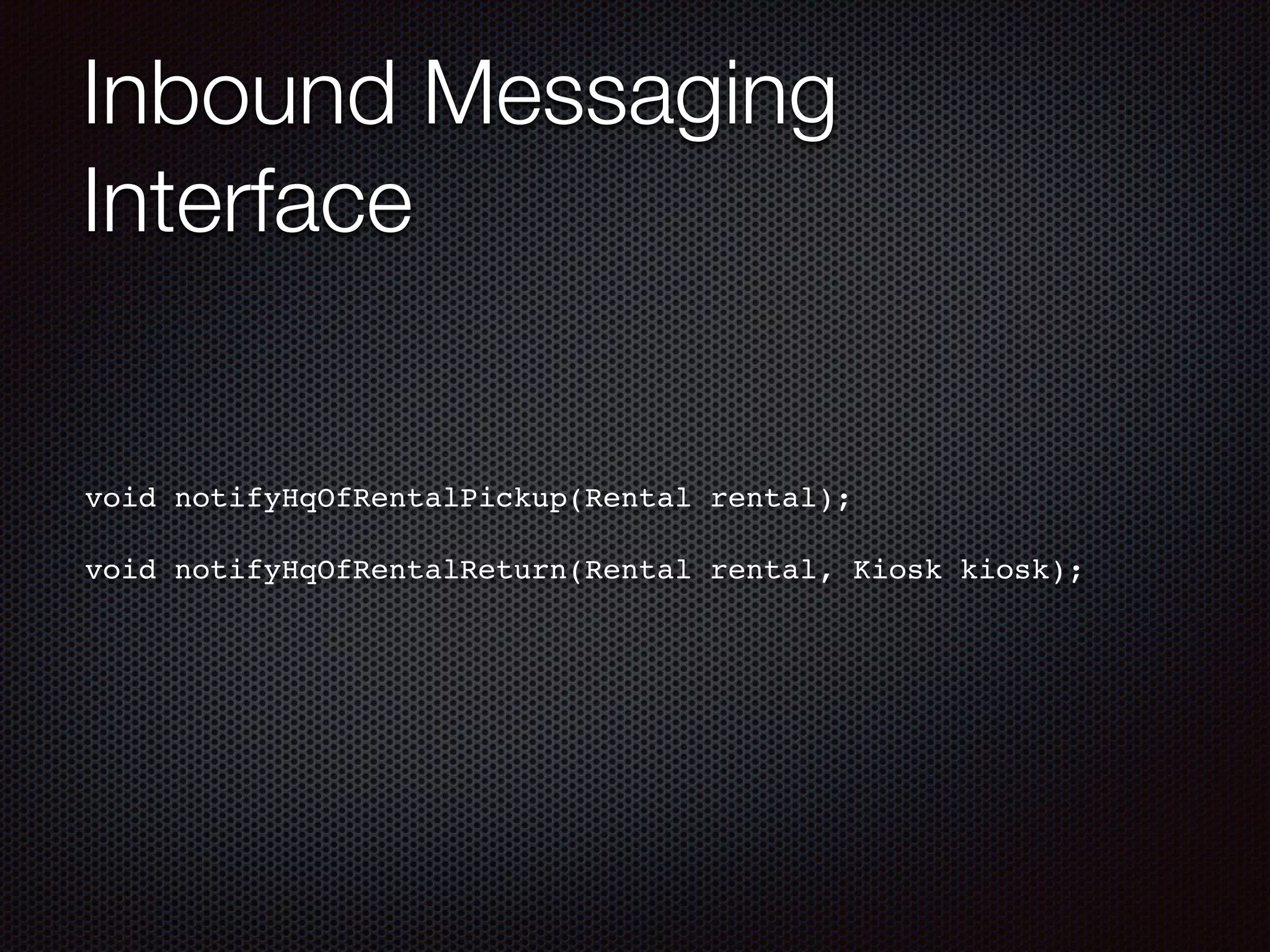

- 38. Inbound Messaging Interface void notifyHqOfRentalPickup(Rentalrental);! ! void notifyHqOfRentalReturn(Rental rental, Kiosk kiosk);

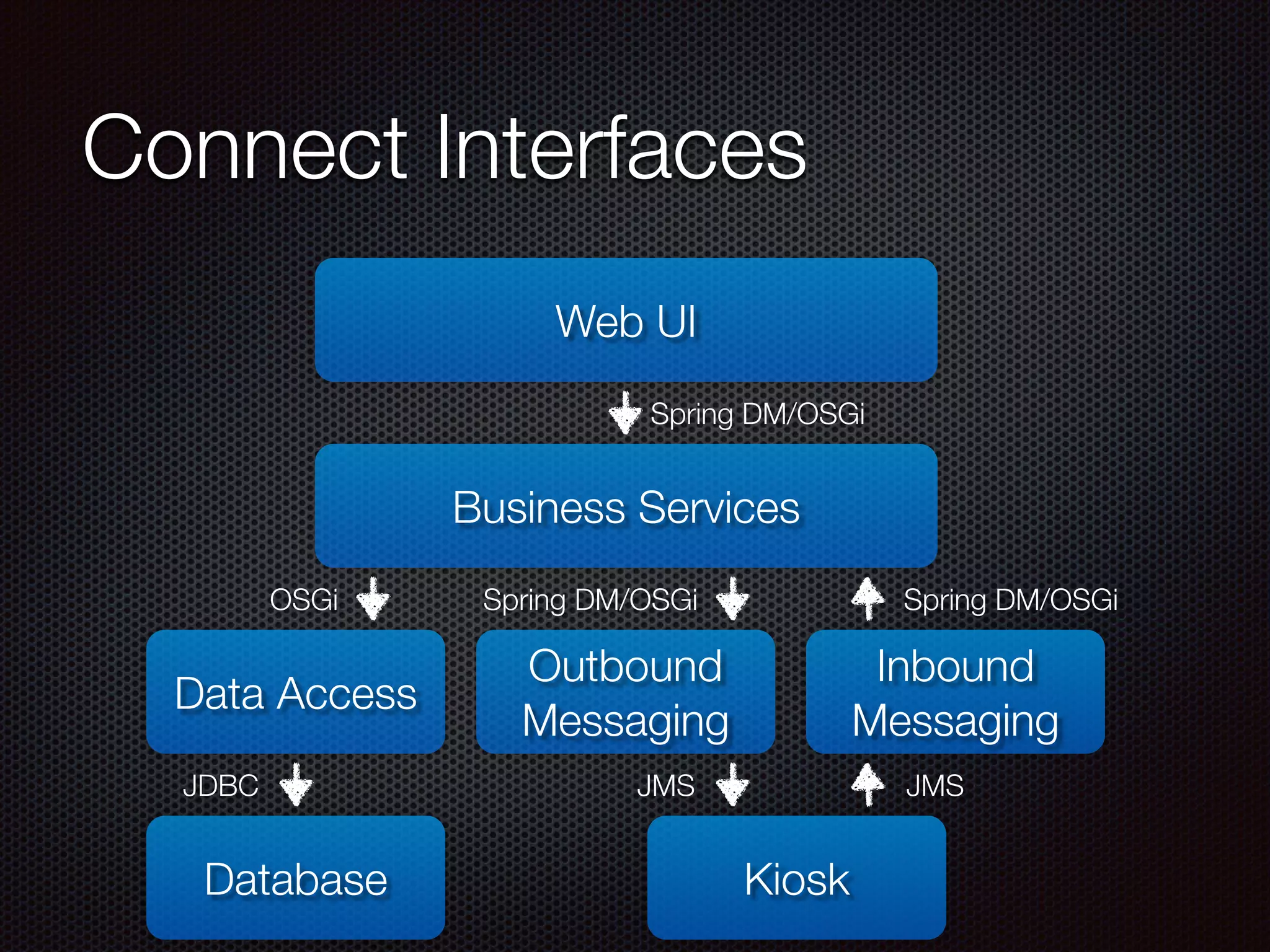

- 39. Connect Interfaces Web UI BusinessServices Data Access Outbound Messaging Database Kiosk Spring DM/OSGi OSGi JDBC Spring DM/OSGi JMS JMS Spring DM/OSGi Inbound Messaging

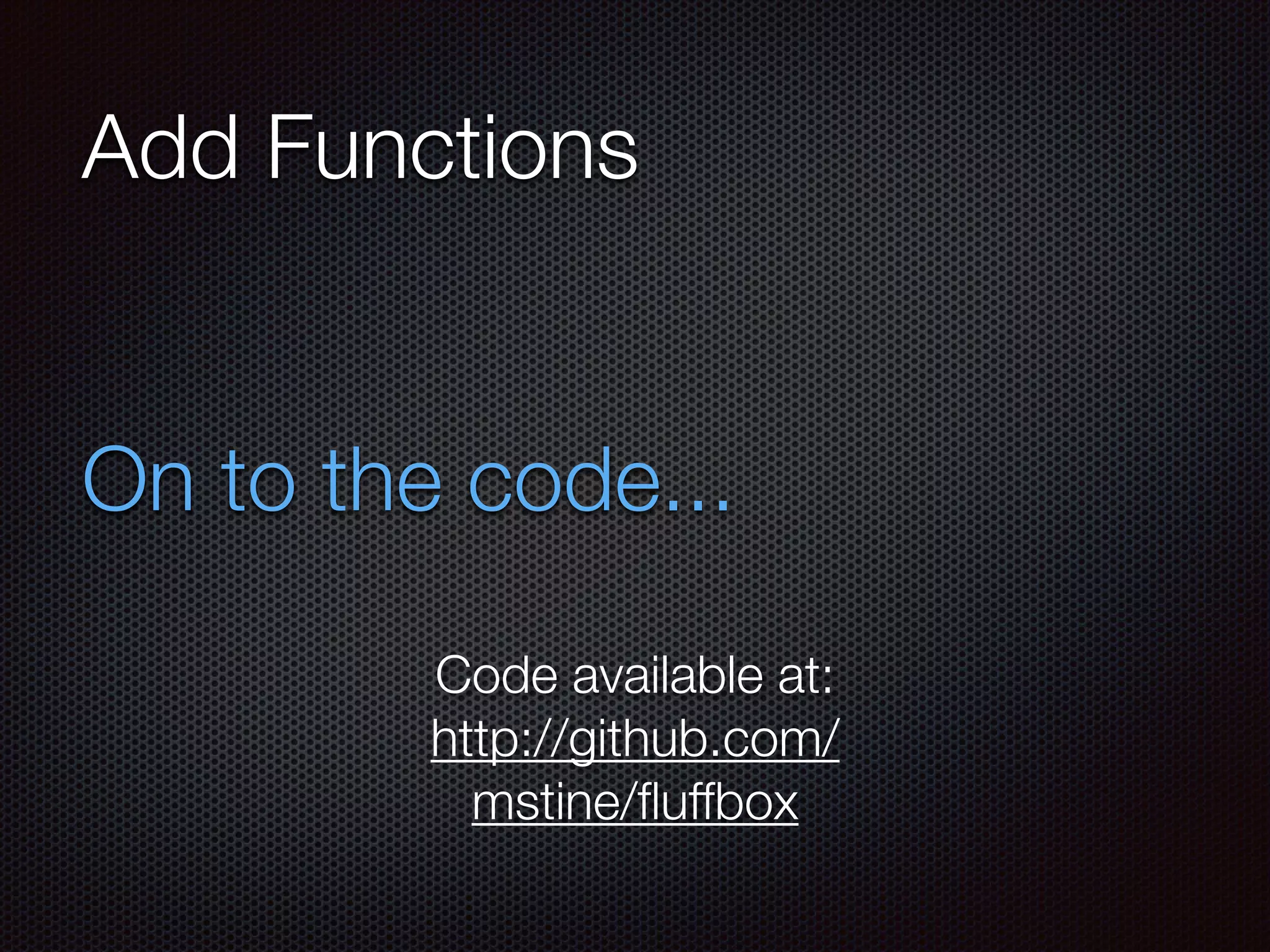

- 40. Add Functions On tothe code... Code available at: http://github.com/ mstine/fluffbox

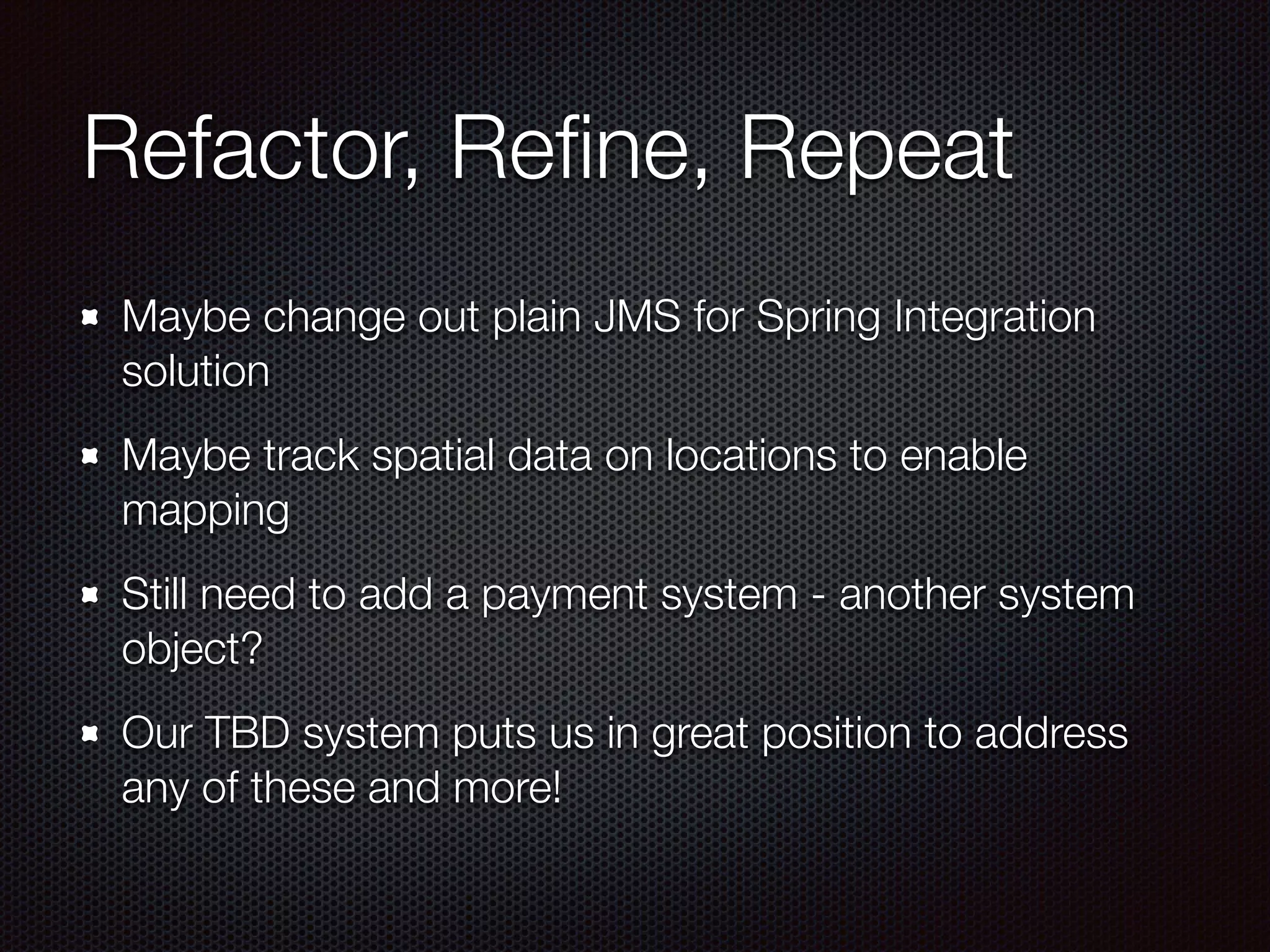

- 41. Refactor, Refine, Repeat Maybechange out plain JMS for Spring Integration solution Maybe track spatial data on locations to enable mapping Still need to add a payment system - another system object? Our TBD system puts us in great position to address any of these and more!
- 42. Please fill outyour evaluations! Matt Stine matt.stine@gmail.com Twitter: mstine http://www.mattstine.com
