Rate Limiting with NGINX and NGINX Plus
- 1.
- 2. Rate limiting withNGINX and NGINX PLUS July 2017 2

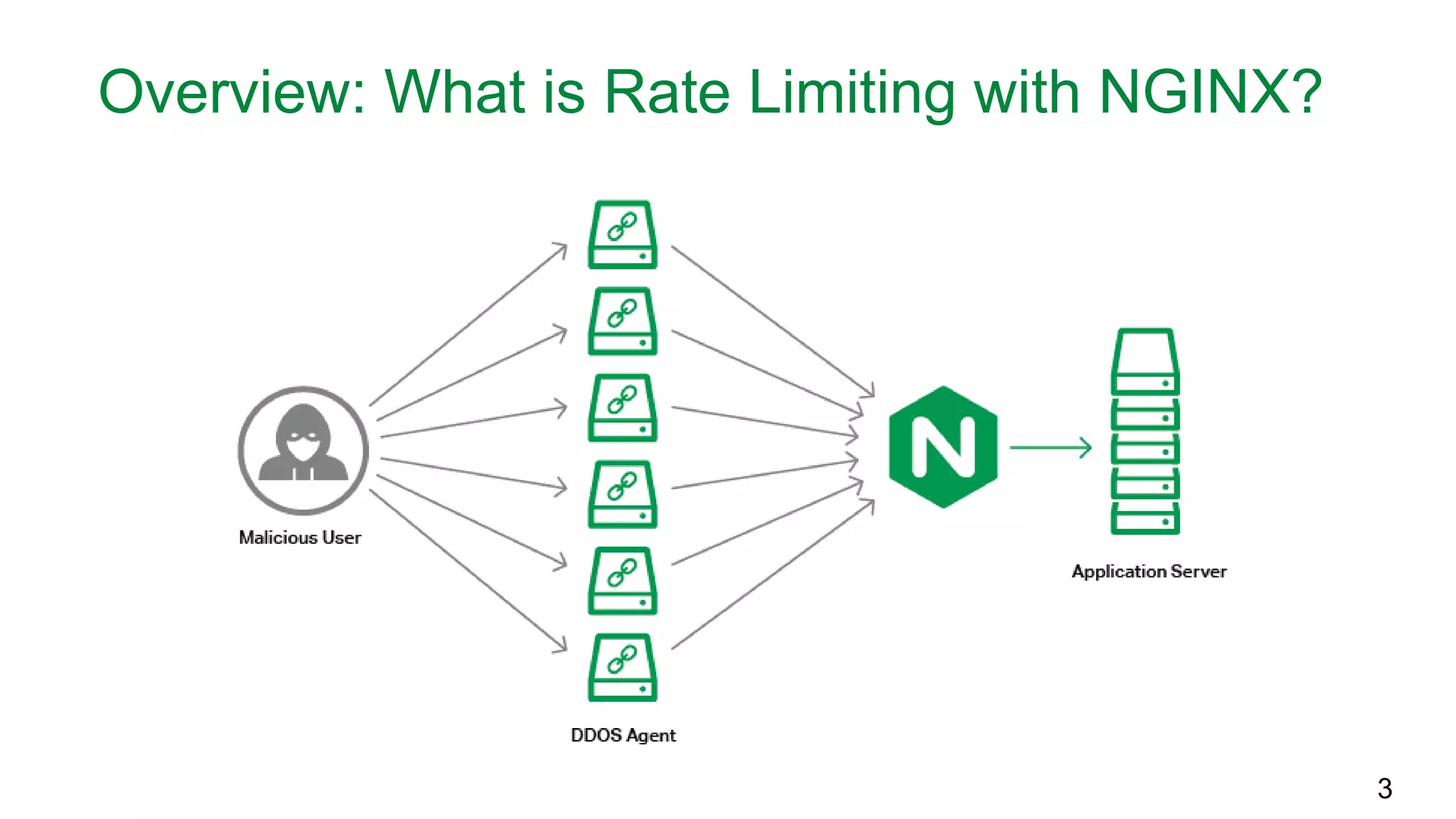

- 3. Overview: What isRate Limiting with NGINX? 3

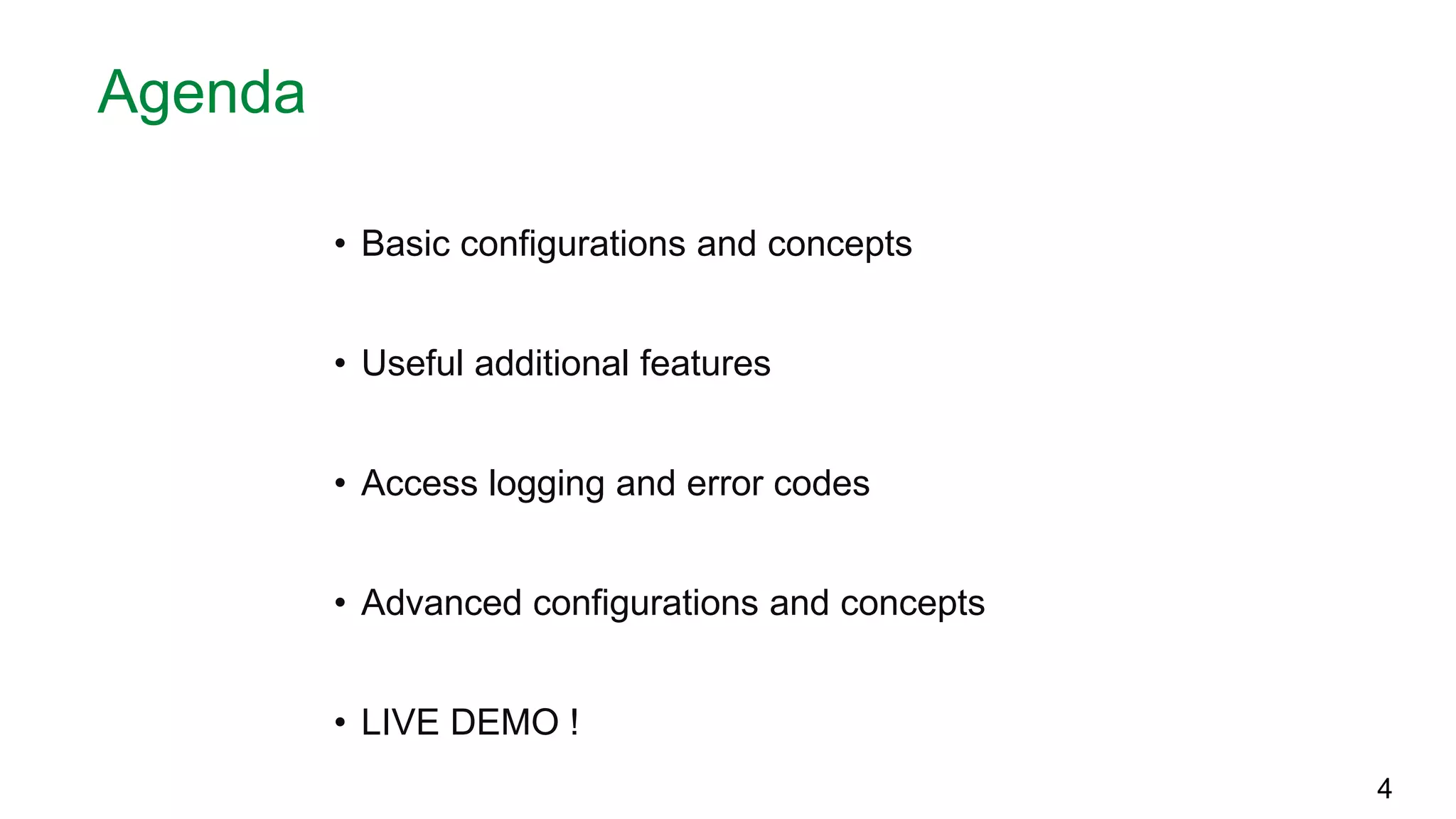

- 4. Agenda • Basic configurationsand concepts • Useful additional features • Access logging and error codes • Advanced configurations and concepts • LIVE DEMO ! 4
- 5. 01 Basic configurations andconcepts 5

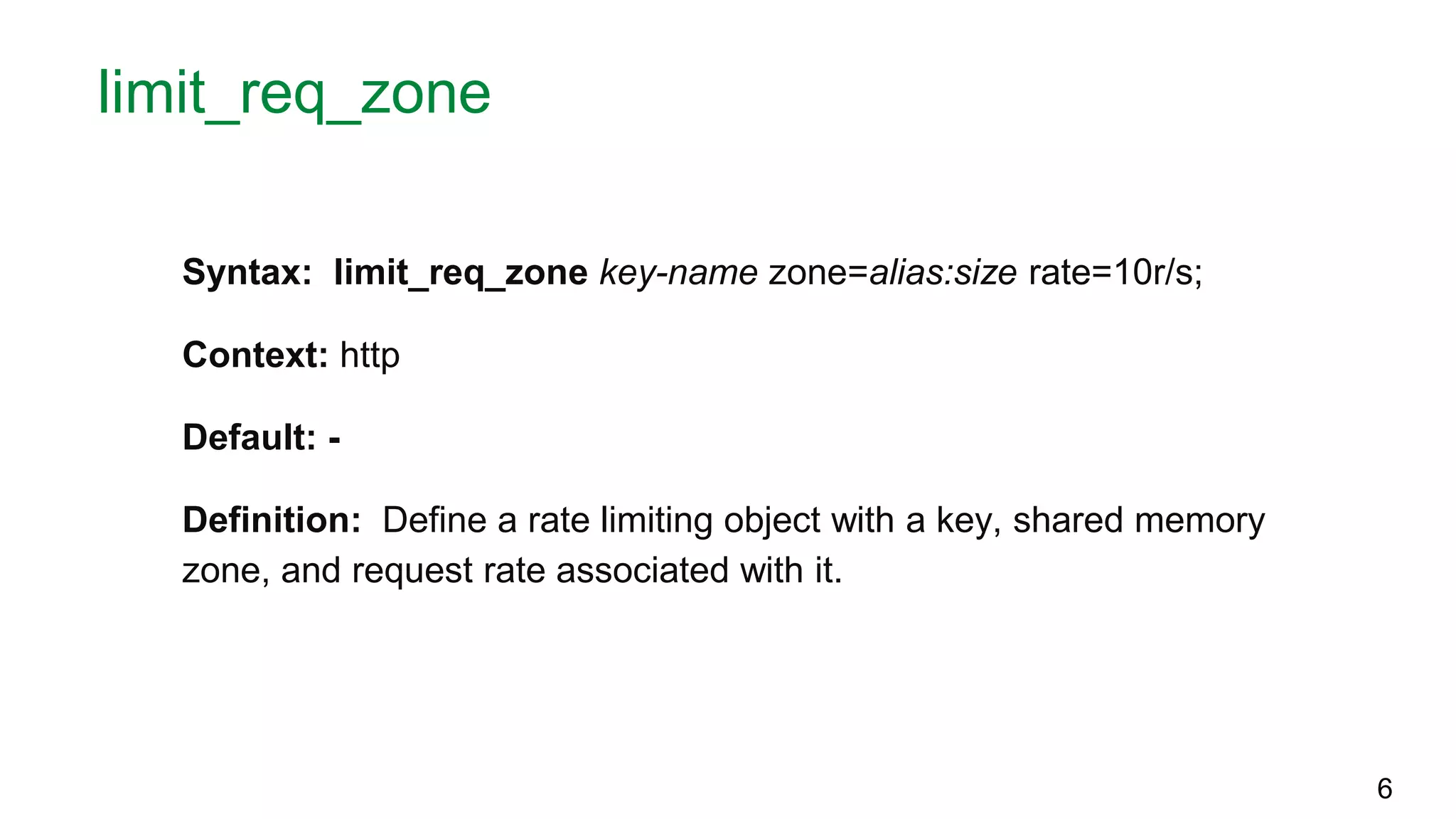

- 6. limit_req_zone Syntax: limit_req_zone key-namezone=alias:size rate=10r/s; Context: http Default: - Definition: Define a rate limiting object with a key, shared memory zone, and request rate associated with it. 6

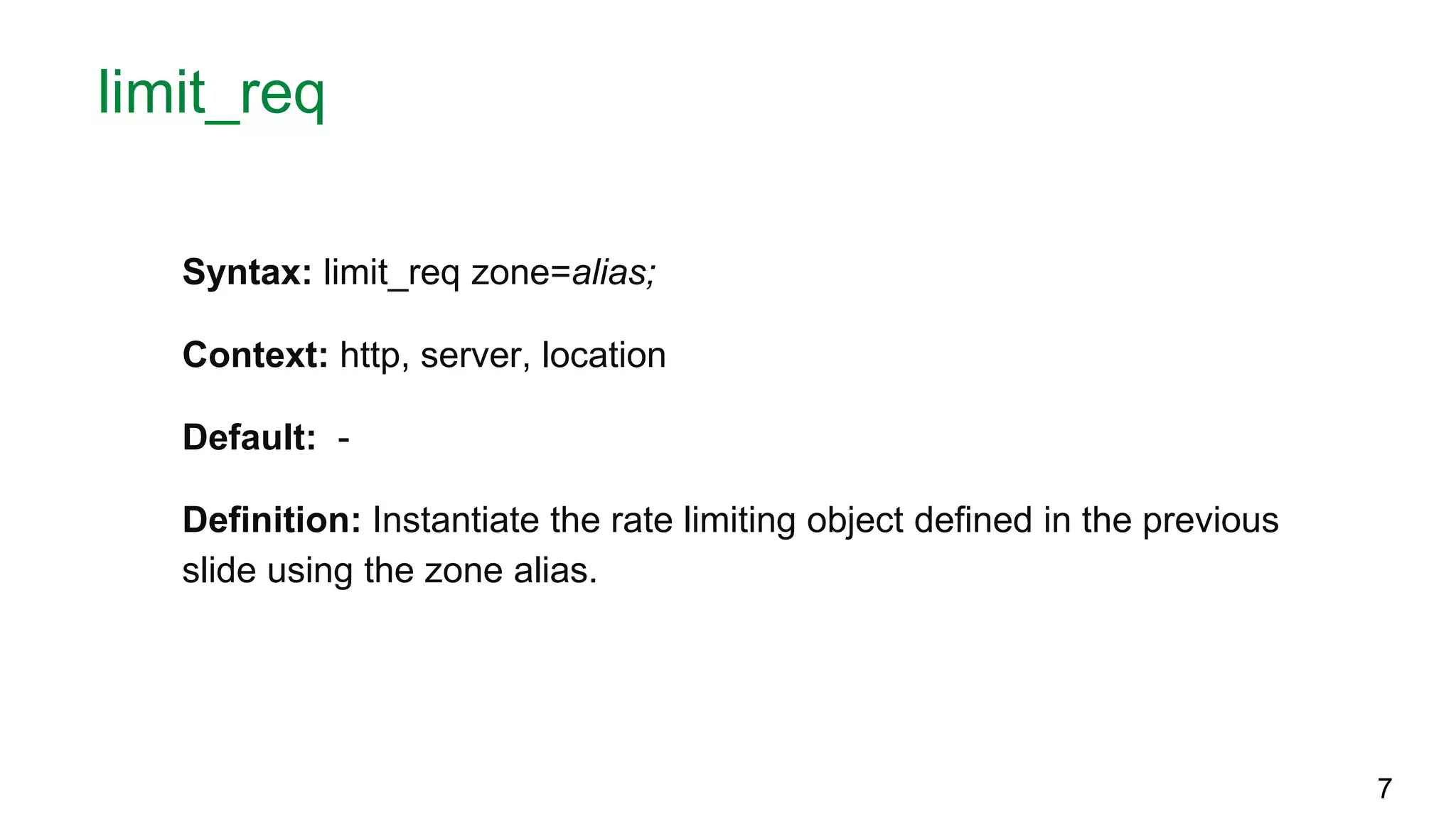

- 7. limit_req Syntax: limit_req zone=alias; Context:http, server, location Default: - Definition: Instantiate the rate limiting object defined in the previous slide using the zone alias. 7

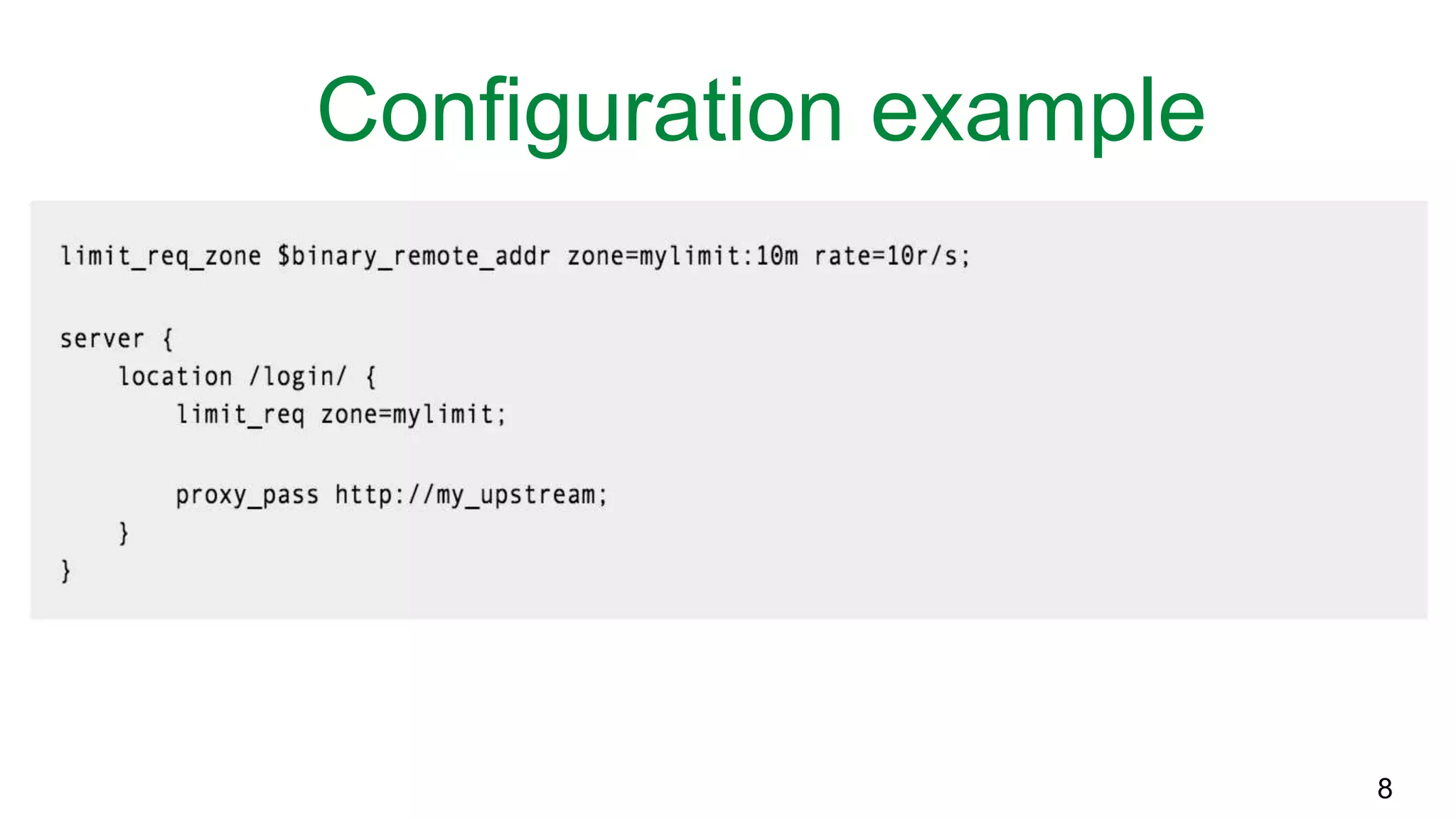

- 8.

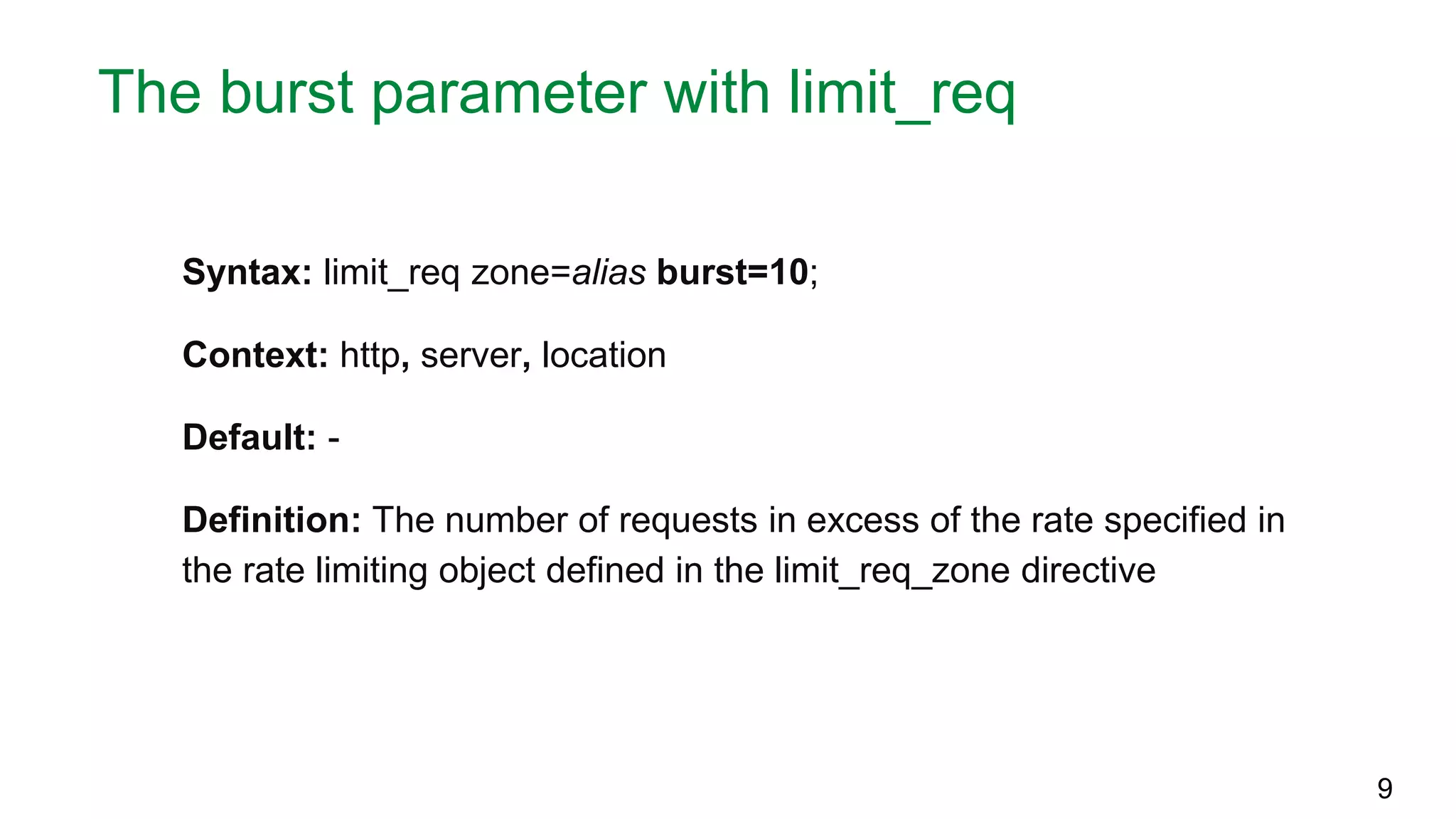

- 9. The burst parameterwith limit_req Syntax: limit_req zone=alias burst=10; Context: http, server, location Default: - Definition: The number of requests in excess of the rate specified in the rate limiting object defined in the limit_req_zone directive 9
- 10.

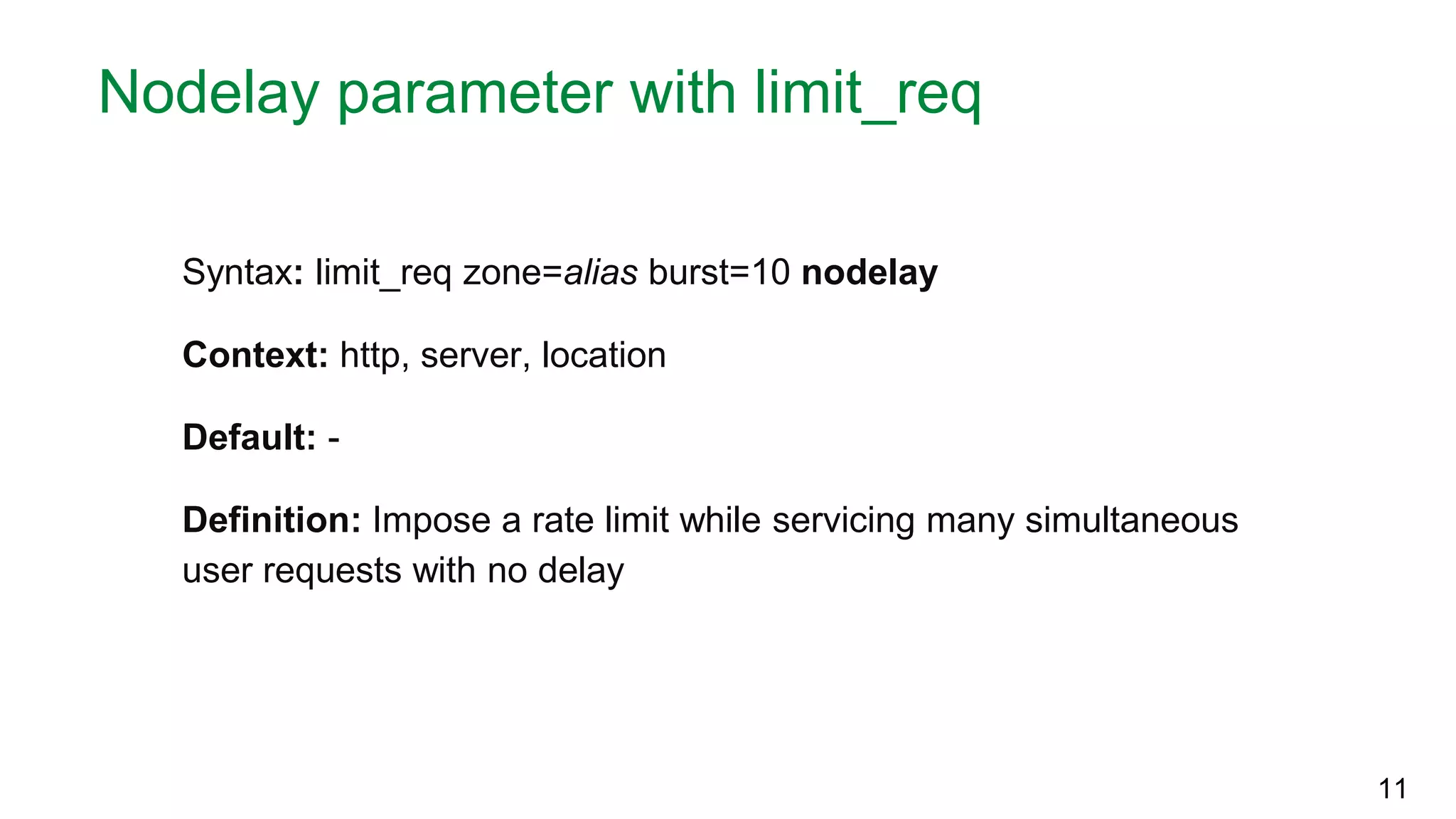

- 11. Nodelay parameter withlimit_req Syntax: limit_req zone=alias burst=10 nodelay Context: http, server, location Default: - Definition: Impose a rate limit while servicing many simultaneous user requests with no delay 11
- 12.
- 13.
- 14. 01 Access logging anderror statuses 14

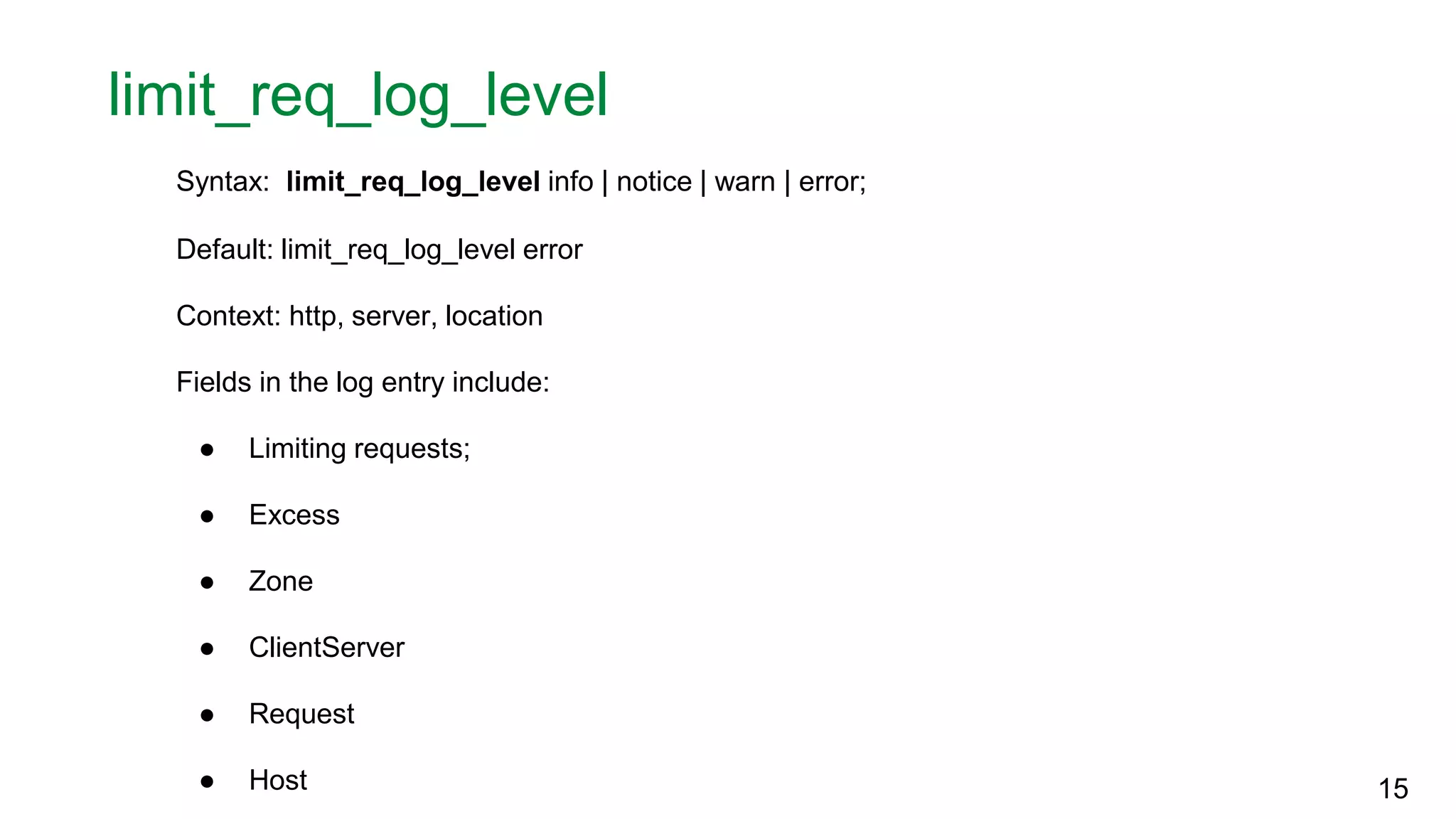

- 15. limit_req_log_level Syntax: limit_req_log_level info| notice | warn | error; Default: limit_req_log_level error Context: http, server, location Fields in the log entry include: ● Limiting requests; ● Excess ● Zone ● ClientServer ● Request ● Host 15

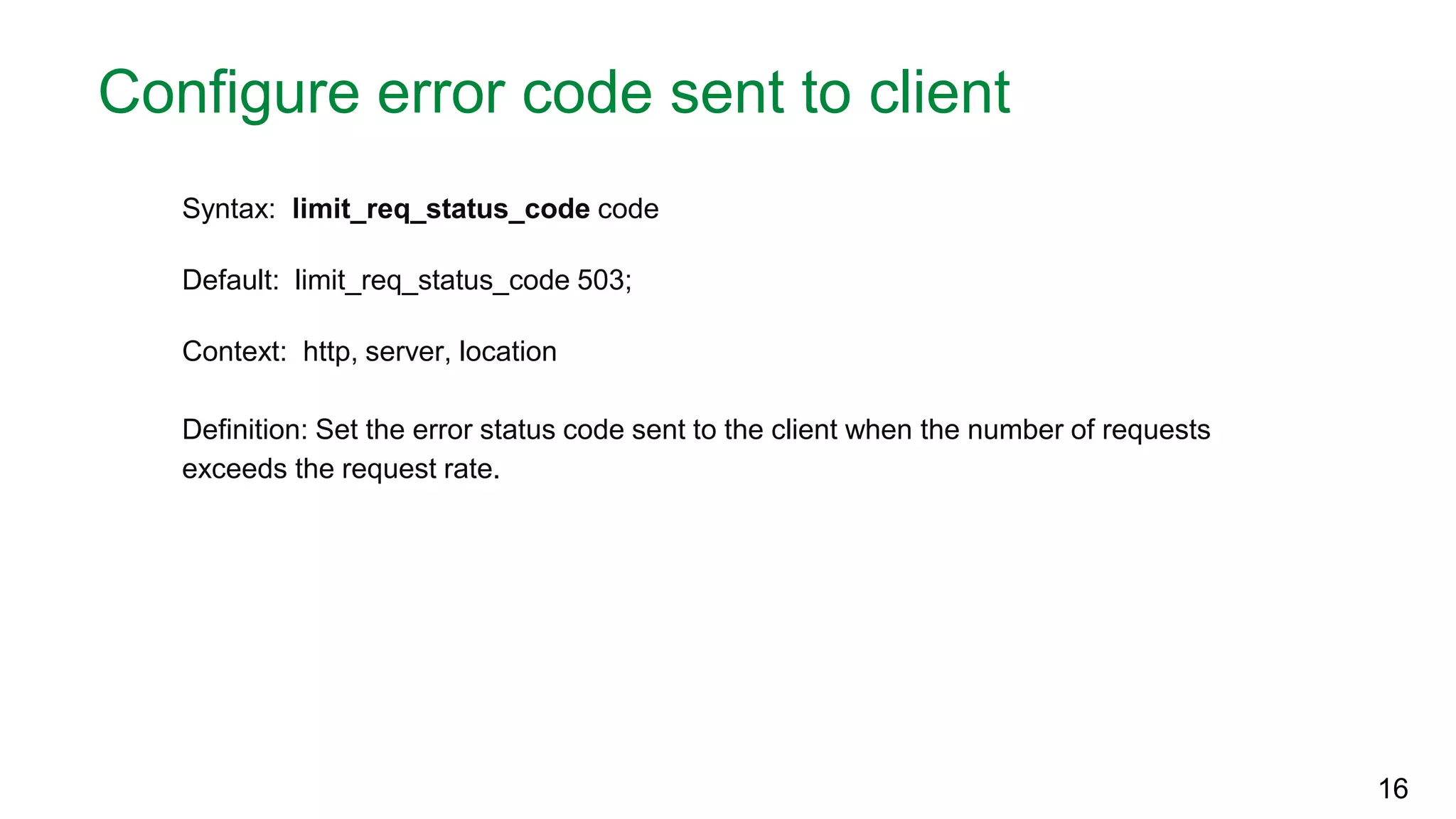

- 16. Configure error codesent to client Syntax: limit_req_status_code code Default: limit_req_status_code 503; Context: http, server, location Definition: Set the error status code sent to the client when the number of requests exceeds the request rate. 16
- 17. 01 Advanced configurations andconcepts 17

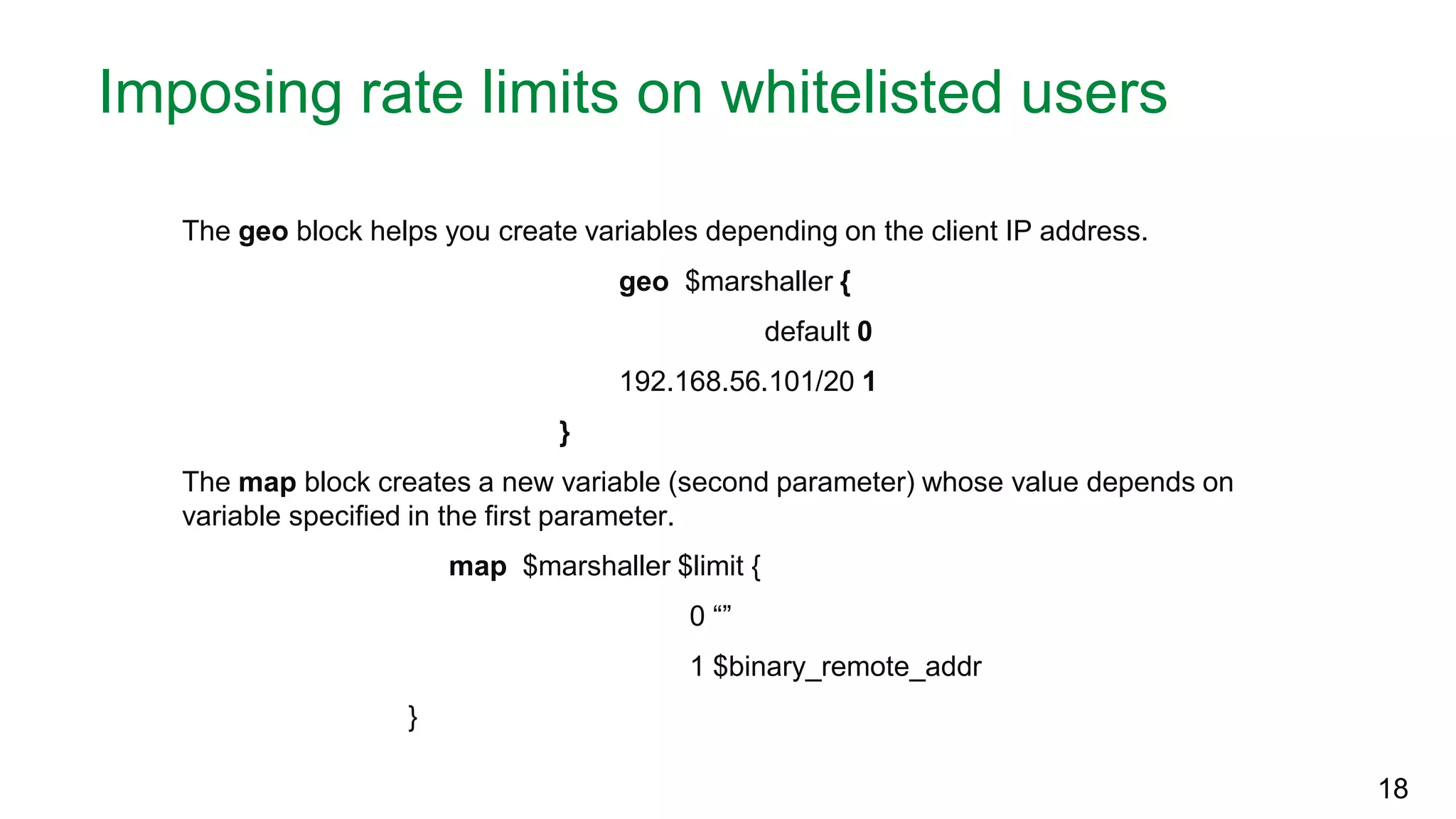

- 18. Imposing rate limitson whitelisted users The geo block helps you create variables depending on the client IP address. geo $marshaller { default 0 192.168.56.101/20 1 } The map block creates a new variable (second parameter) whose value depends on variable specified in the first parameter. map $marshaller $limit { 0 “” 1 $binary_remote_addr } 18
- 19.
- 20.
- 21.
- 22. 01 Start a 30day free trial of NGINX Plus today 22 https://www.nginx.com/free-trial-request/
Editor's Notes
- #6 Section divider / black
- #12 Diagram / bullets

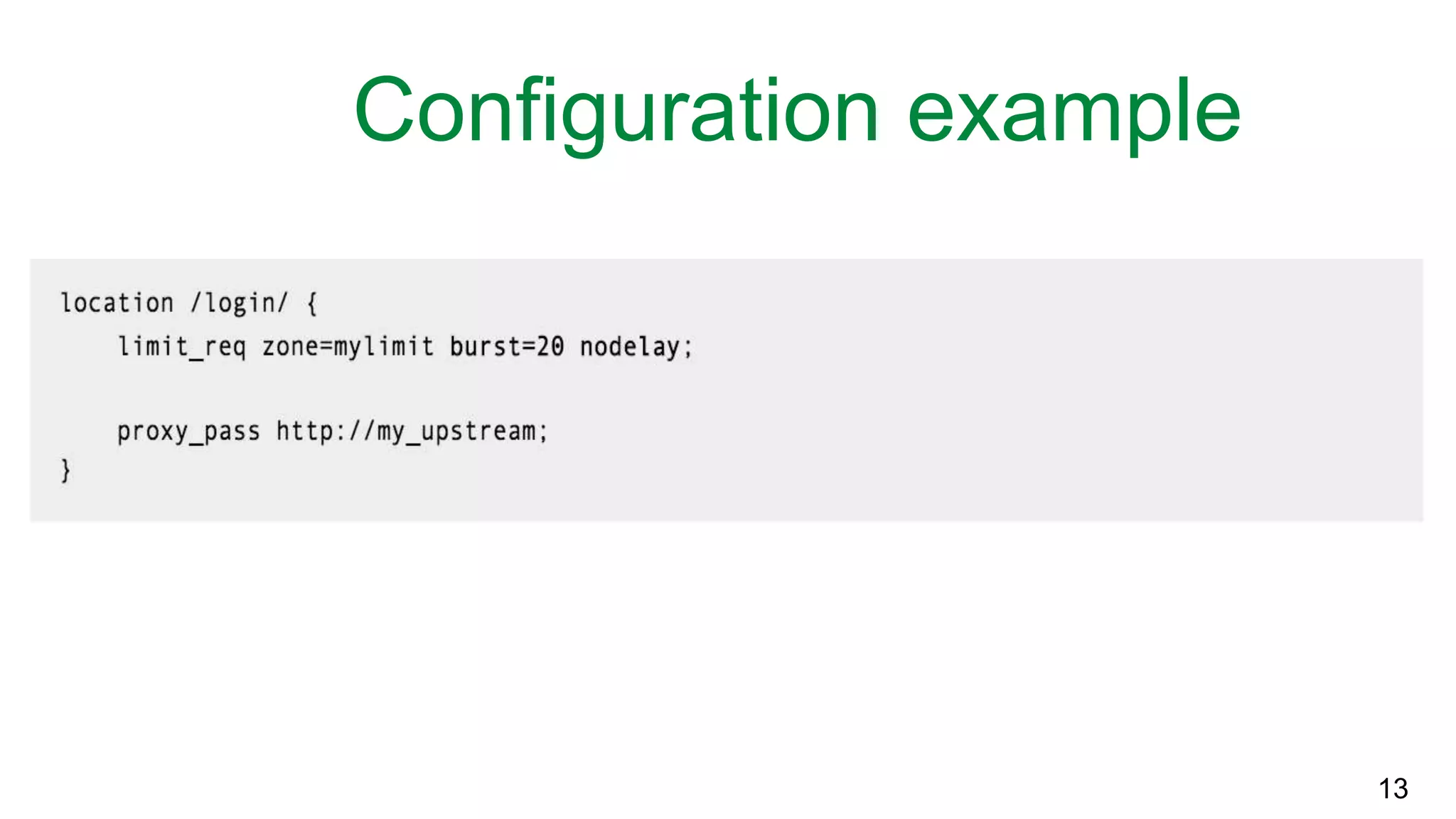

- #14 Pretty straight forward, you append the burst and no delay feature to the limit_req_zone directive.
- #15 Section divider / black
- #17 You can change the error status code sent to the client when the number of requests exceed the request rate. The code value must be set between 400 and 599.
- #18 Section divider / black
- #20 Explain
- #21 Commands for demo: docker build -t sportebois/nginx-rate-limit-sandbox-auto . docker run --rm -it -p 80 sportebois/nginx-rate-limit-sandbox-auto Terminal command to show network settings of docker container: docker inspect --format='{{json .NetworkSettings.Networks}}' container-name Look at the default gateway ip address (That is the ip address you want to use when you are whitelisting)
- #22 What is the point of using geo + map directive, why don’t we just use the geo block ? In a simple use case presented in this blog, you can use the geo block to impose rate limits on http requests. The benefit of using the geo + map block is if you want to create an additional variable that gets mapped to the first parameter in the geo block. For example, say you have the following geo block: geo $country { 192.168.23.10/24 CA 10.10.2.9/18 UK 172.45.67.66/20 US } Say you don’t want to use $country as the request zone key. You want to use $limit_key which can be mapped to $country, while using $country for another use like conditional logic.
- #23 If you enjoyed what you have just learned in this webinar, start a 30 day trial of NGINX Plus to start using many great exclusive features. NGINX Plus is a complete application delivery controller that offers advanced HTTP, TCP, and UDP load balancing beyond rate limiting such as session persistence, on-the-fly reconfiguration of load-balancing server groups, advanced cache control, and application health checking just to name a few. NGINX Plus also provides detailed live activity monitoring dashboard to increase application visibility and monitoring. Make sure to click the link on the slide and download it for free today, it takes two seconds. So do that right now and I will see you soon.
