Introduction to NGINX web server

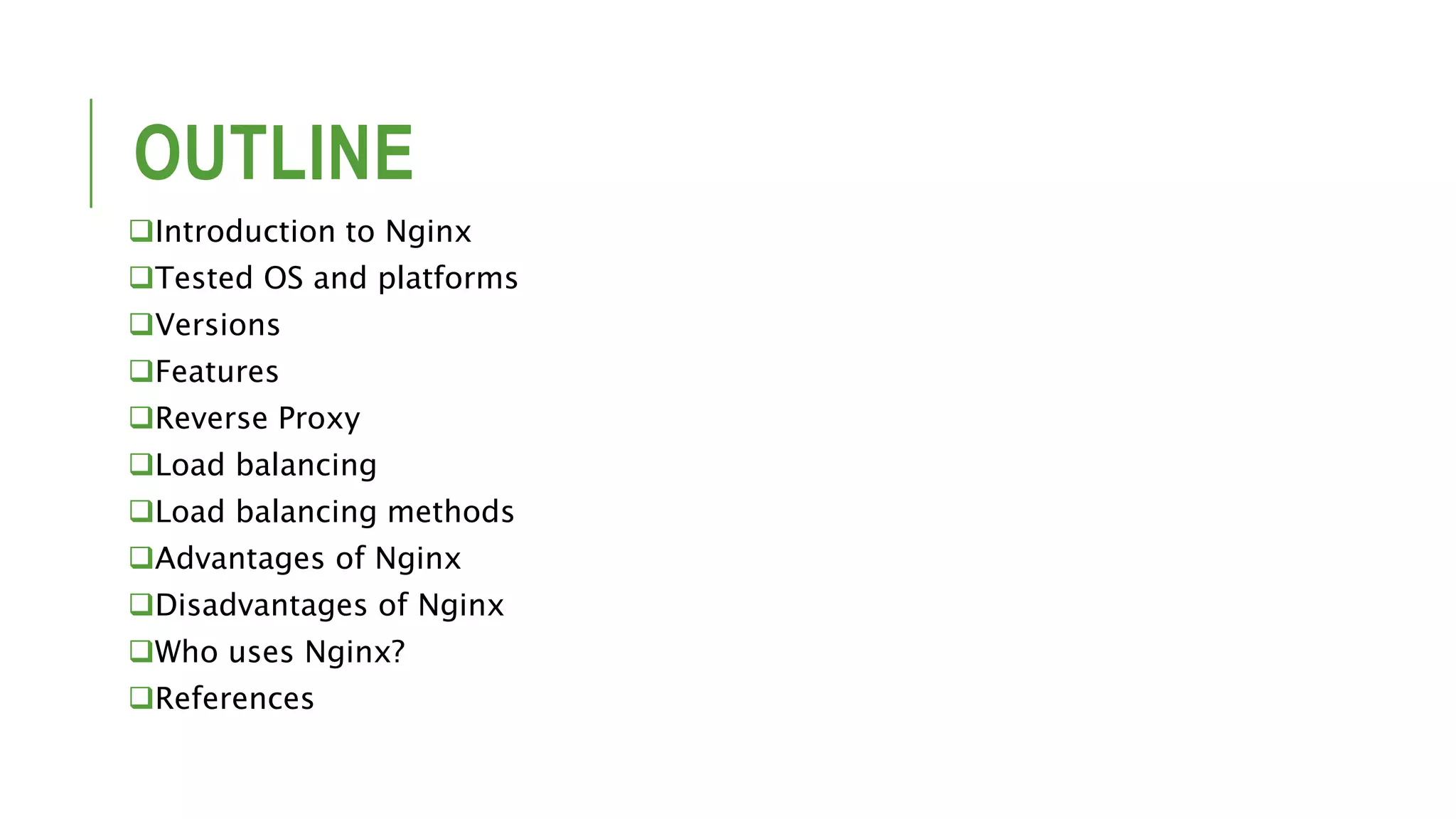

OUTLINE Introduction to Nginx Tested OS and platforms Versions Features Reverse Proxy Load balancing Load balancing methods Advantages of Nginx Disadvantages of Nginx Who uses Nginx? References

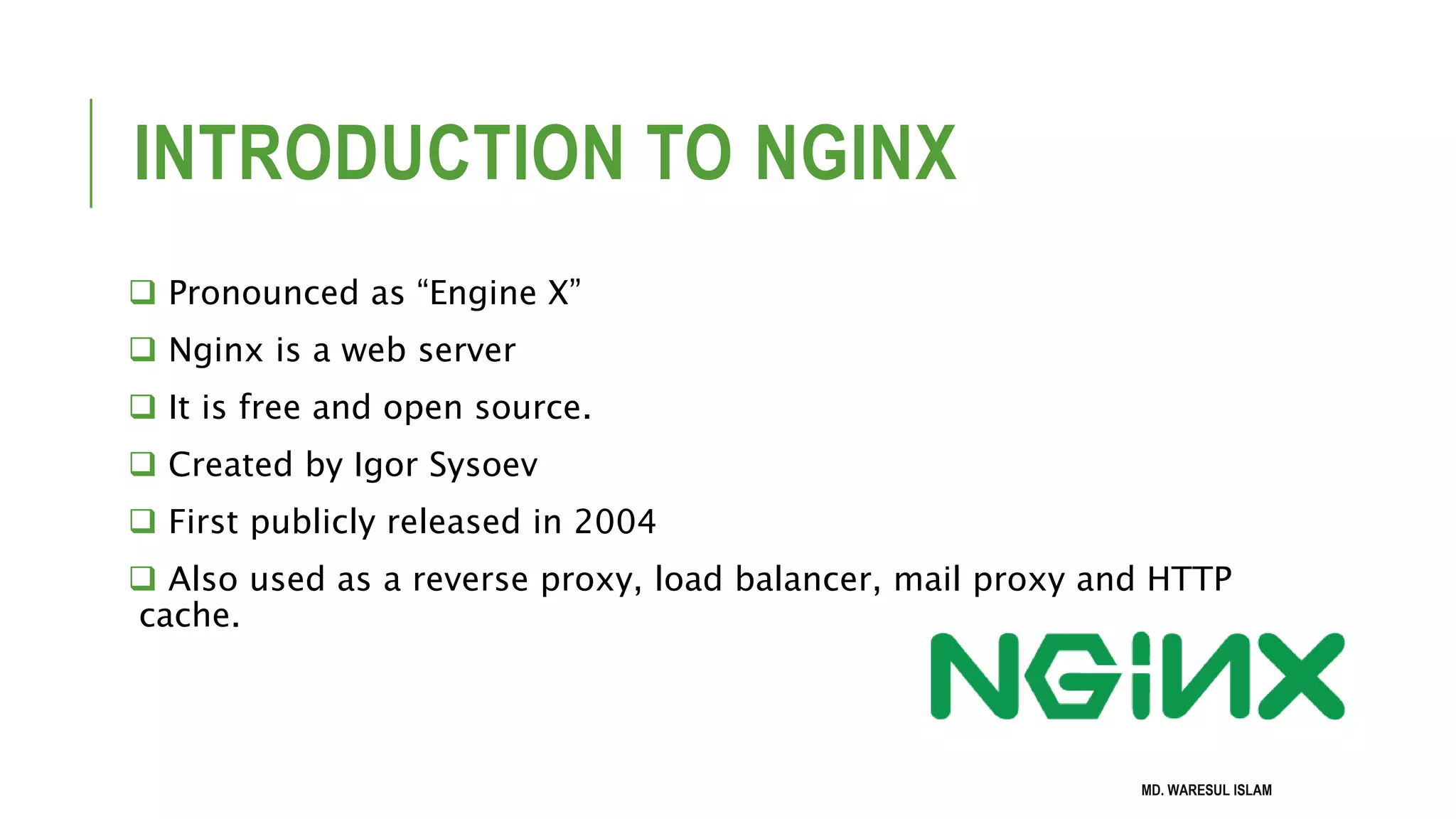

INTRODUCTION TO NGINX  Pronounced as “Engine X”  Nginx is a web server  It is free and open source.  Created by Igor Sysoev  First publicly released in 2004  Also used as a reverse proxy, load balancer, mail proxy and HTTP cache. MD. WARESUL ISLAM

TESTED OS AND PLATFORMS MD. WARESUL ISLAM

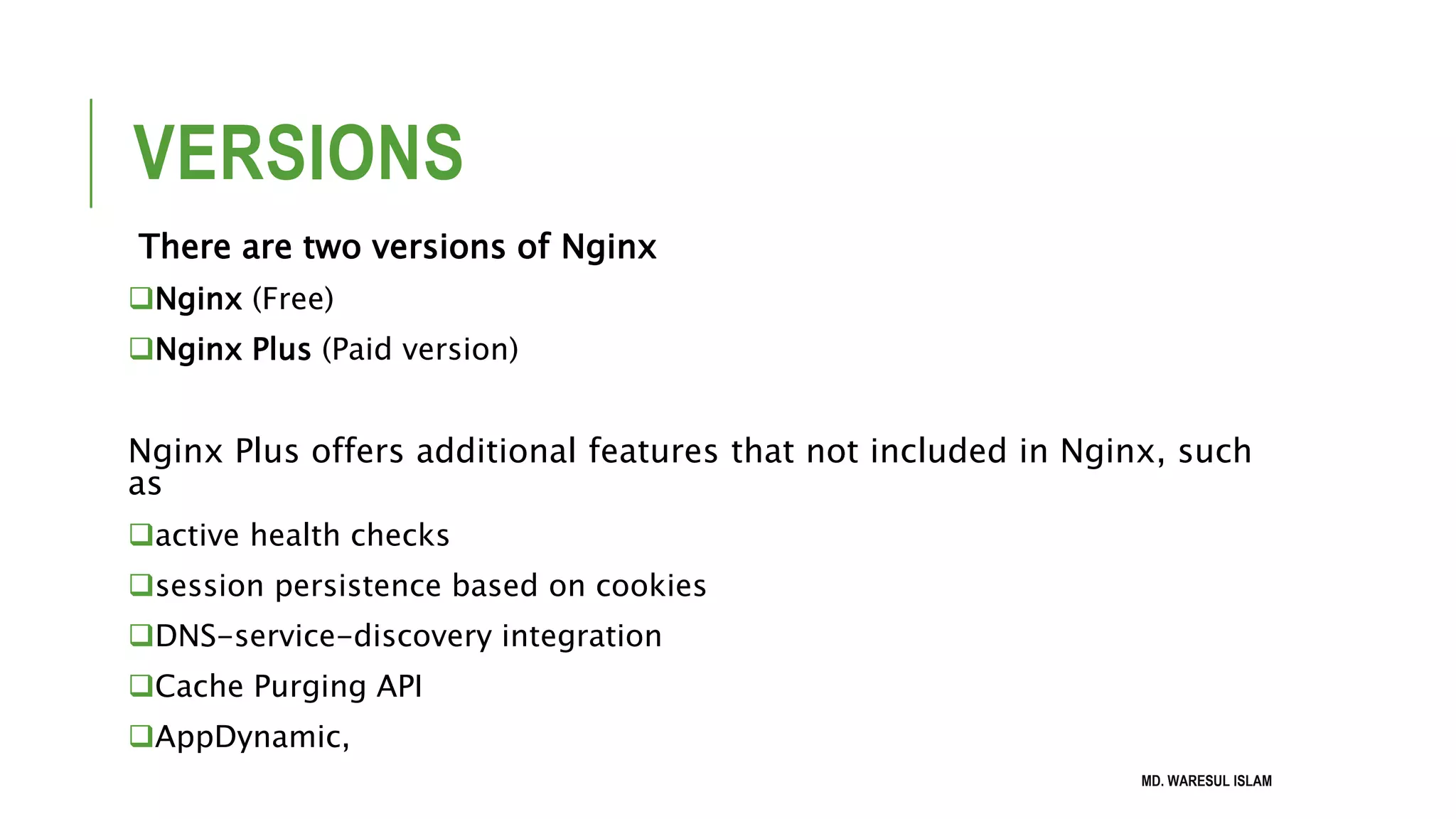

VERSIONS There are two versions of Nginx Nginx (Free) Nginx Plus (Paid version) Nginx Plus offers additional features that not included in Nginx, such as active health checks session persistence based on cookies DNS-service-discovery integration Cache Purging API AppDynamic, MD. WARESUL ISLAM

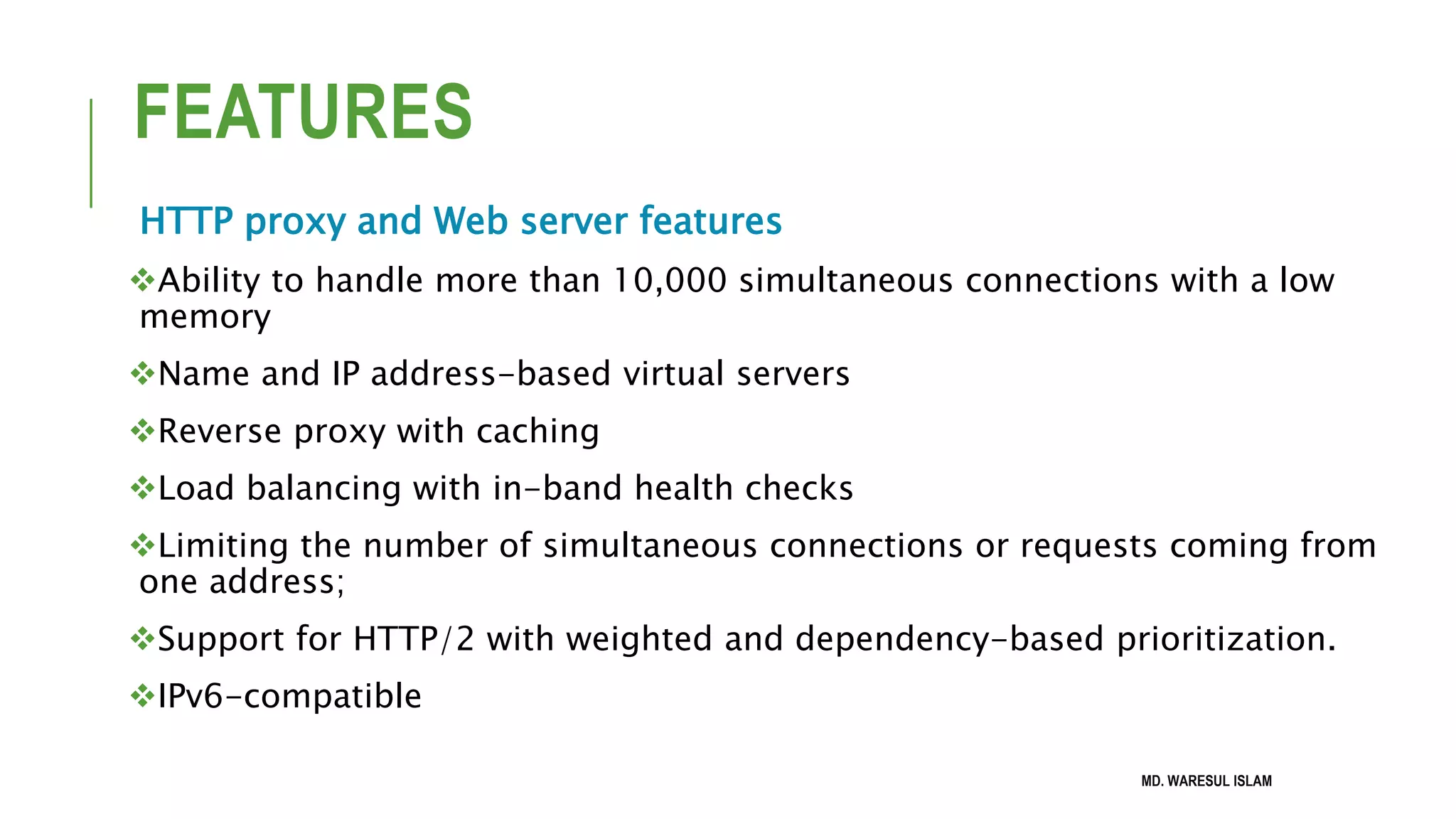

FEATURES HTTP proxy and Web server features Ability to handle more than 10,000 simultaneous connections with a low memory Name and IP address-based virtual servers Reverse proxy with caching Load balancing with in-band health checks Limiting the number of simultaneous connections or requests coming from one address; Support for HTTP/2 with weighted and dependency-based prioritization. IPv6-compatible MD. WARESUL ISLAM

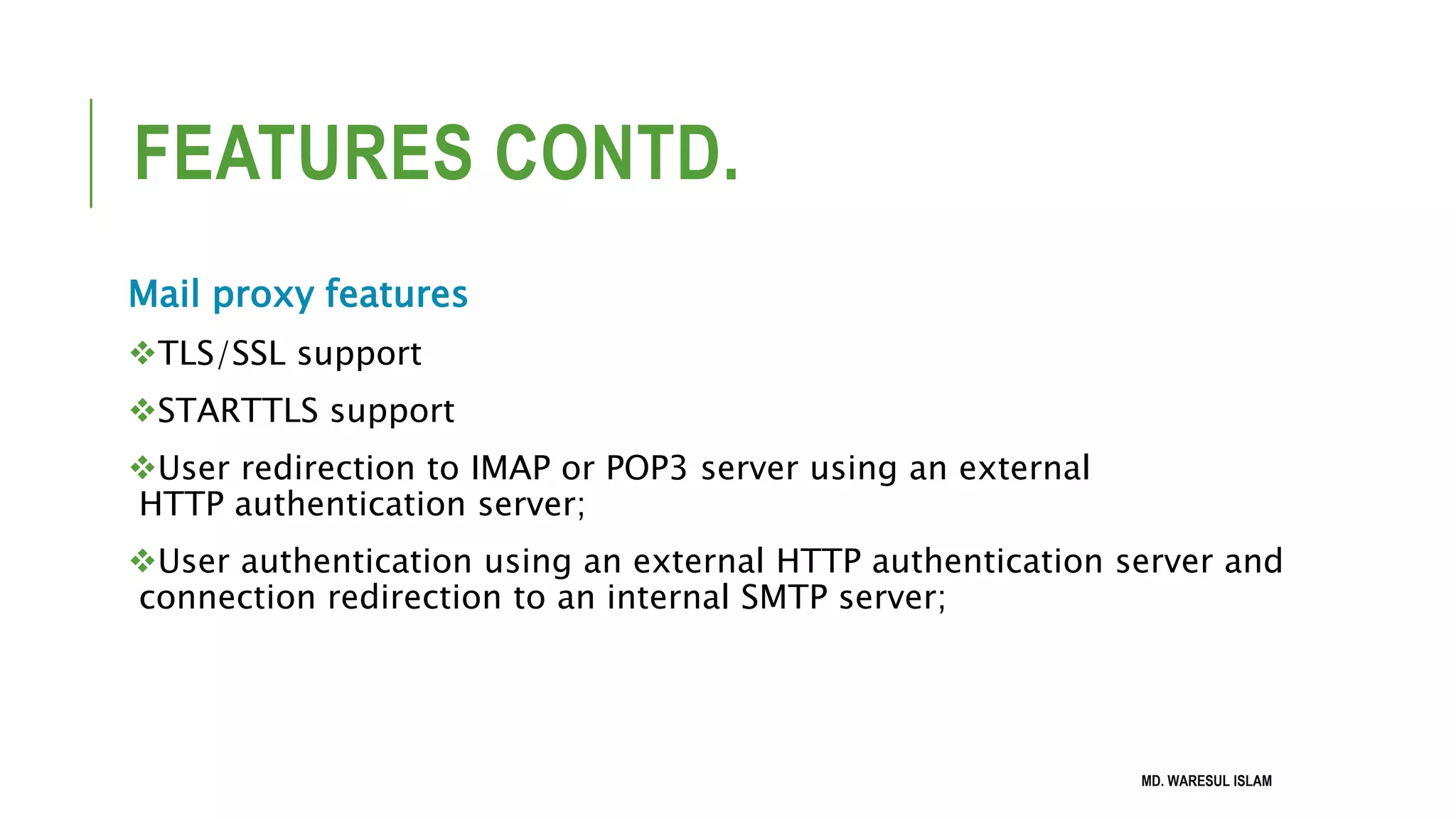

FEATURES CONTD. Mail proxy features TLS/SSL support STARTTLS support User redirection to IMAP or POP3 server using an external HTTP authentication server; User authentication using an external HTTP authentication server and connection redirection to an internal SMTP server; MD. WARESUL ISLAM

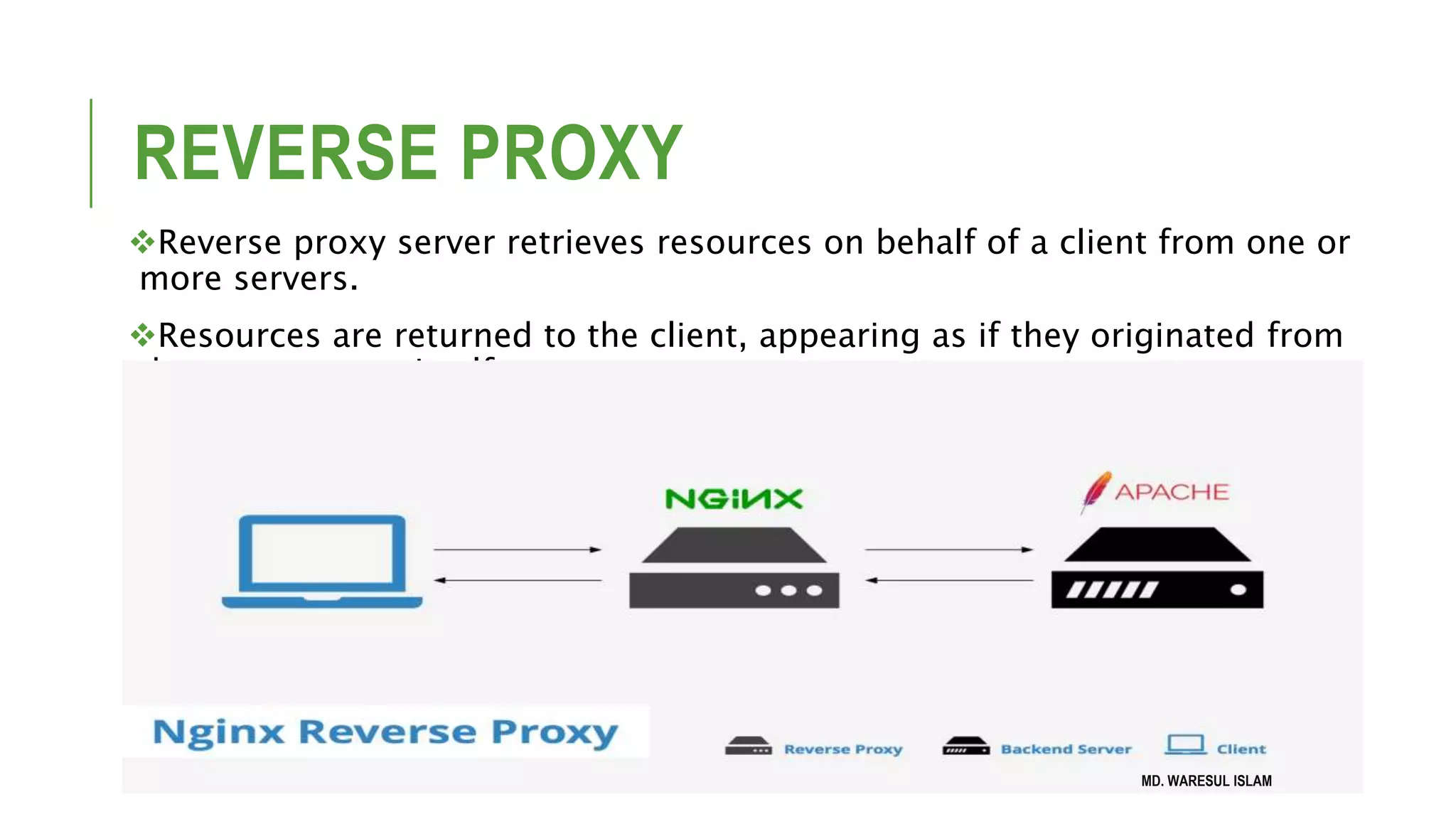

REVERSE PROXY Reverse proxy server retrieves resources on behalf of a client from one or more servers. Resources are returned to the client, appearing as if they originated from the proxy server itself. MD. WARESUL ISLAM

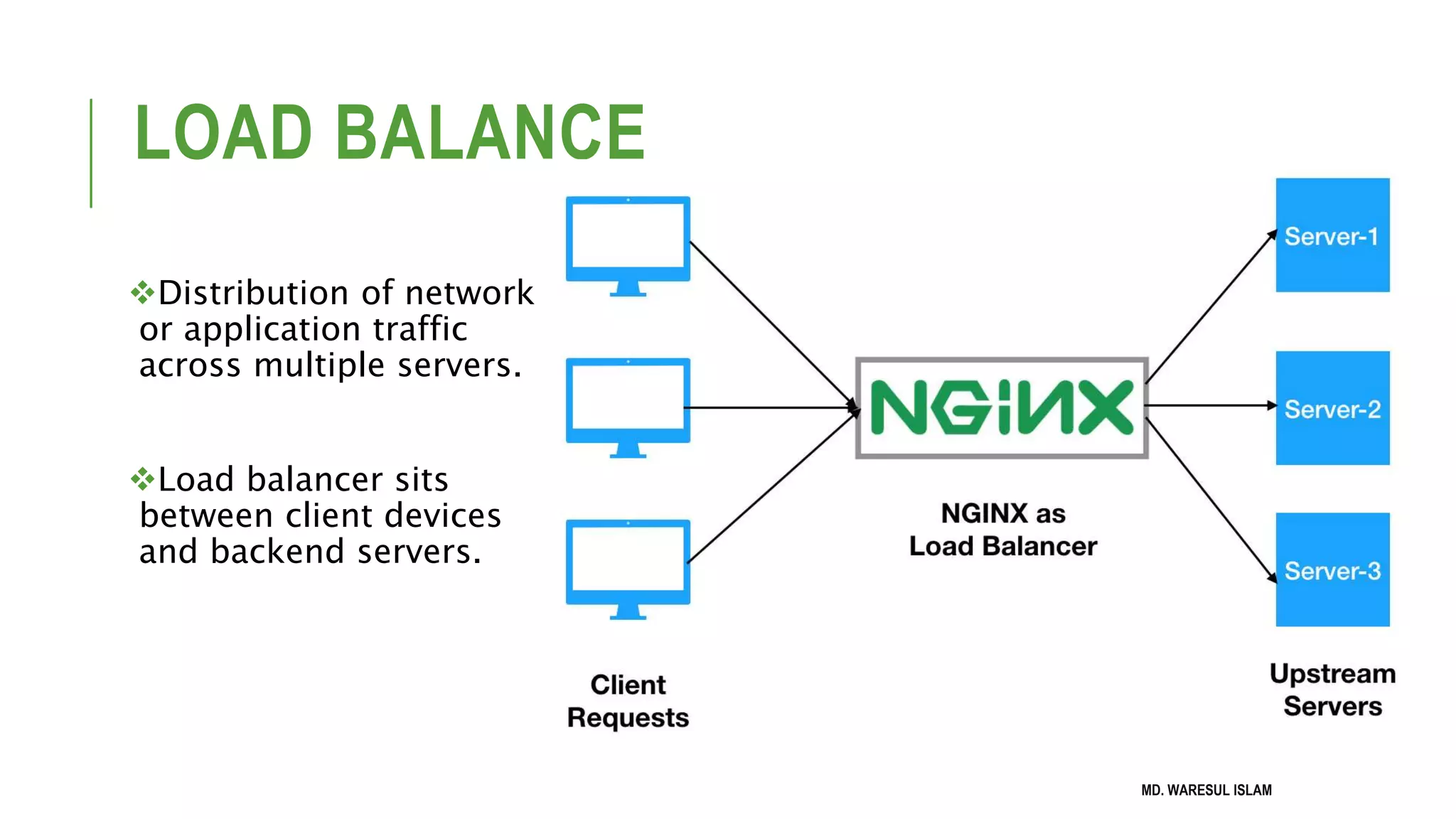

LOAD BALANCE Distribution of network or application traffic across multiple servers. Load balancer sits between client devices and backend servers. MD. WARESUL ISLAM

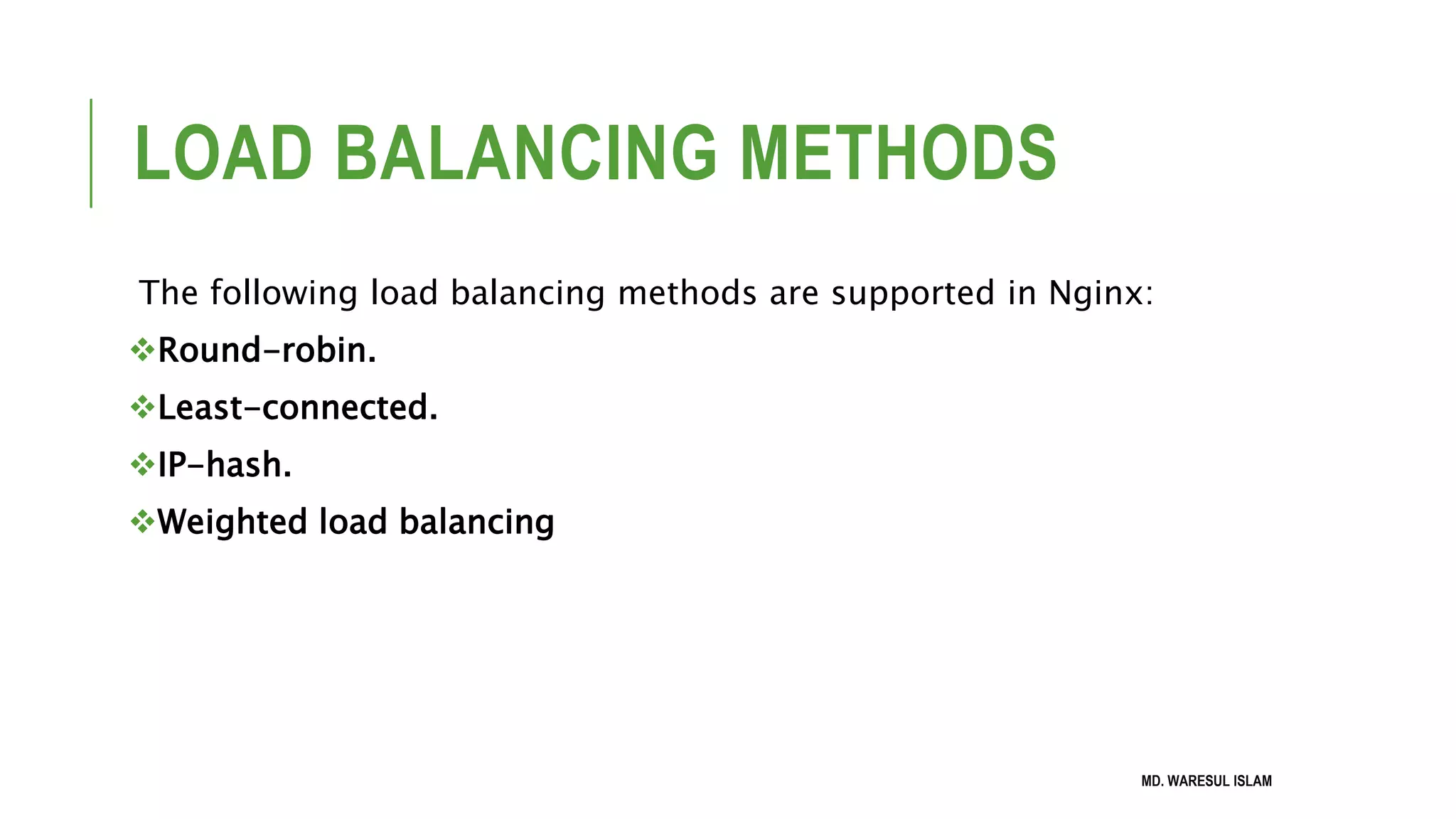

LOAD BALANCING METHODS The following load balancing methods are supported in Nginx: Round-robin. Least-connected. IP-hash. Weighted load balancing MD. WARESUL ISLAM

DEFAULT LOAD BALANCING CONFIGURATION To configure load balancing for HTTPS instead of HTTP, just use “https” as the protocol Round-robin: Requests to the application servers are distributed in a round-robin fashion. MD. WARESUL ISLAM

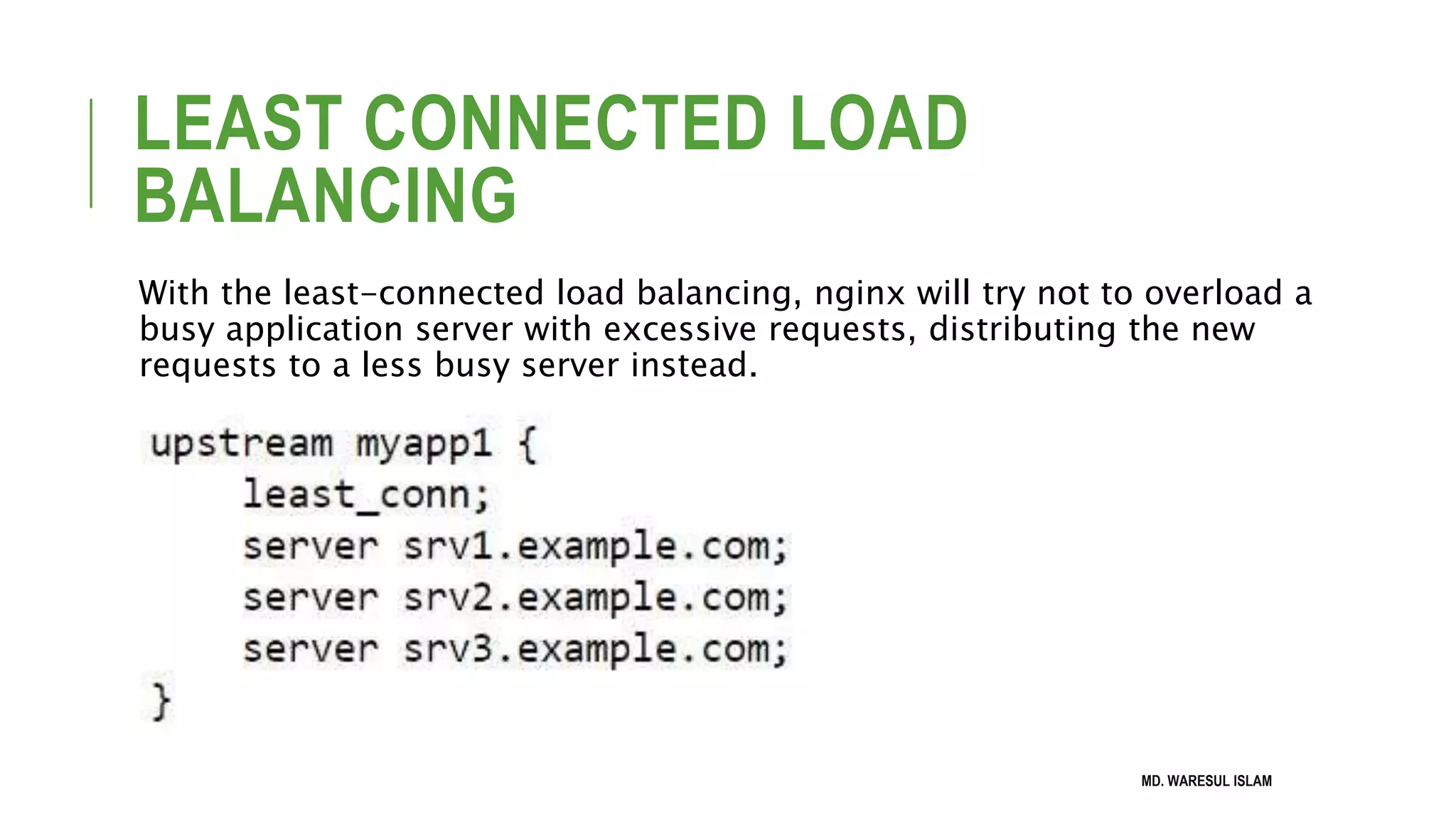

LEAST CONNECTED LOAD BALANCING With the least-connected load balancing, nginx will try not to overload a busy application server with excessive requests, distributing the new requests to a less busy server instead. MD. WARESUL ISLAM

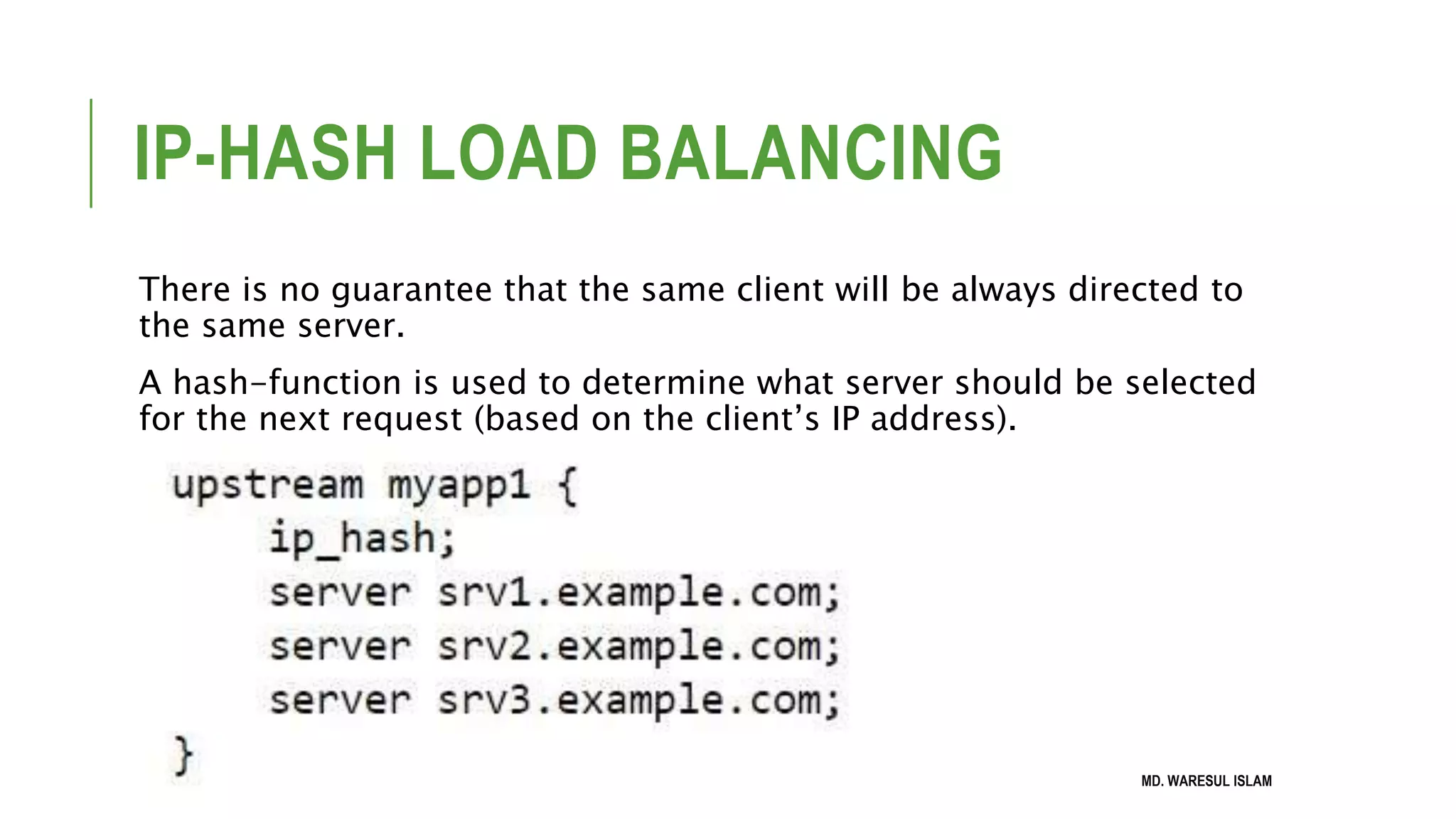

IP-HASH LOAD BALANCING There is no guarantee that the same client will be always directed to the same server. A hash-function is used to determine what server should be selected for the next request (based on the client’s IP address). MD. WARESUL ISLAM

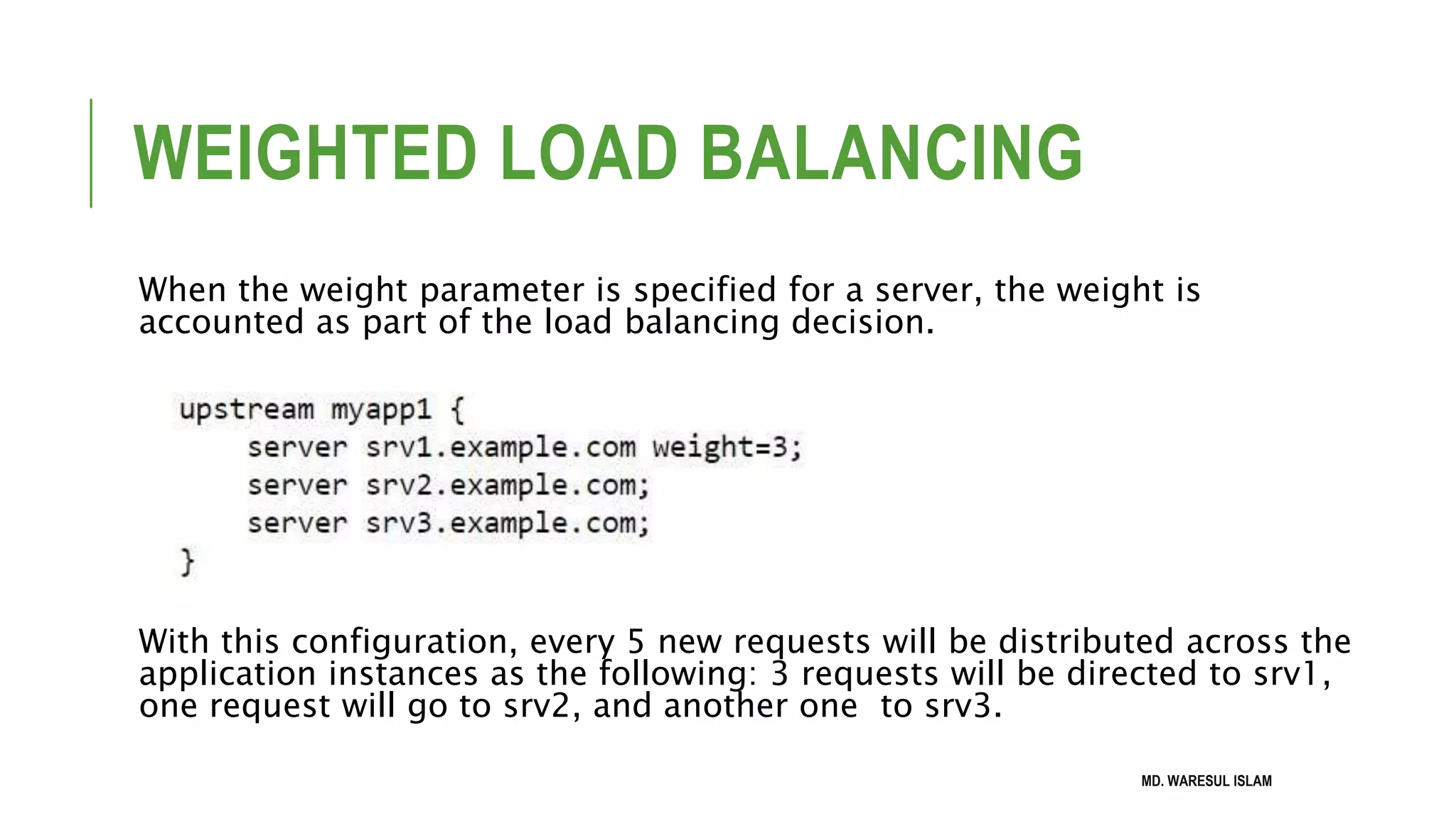

WEIGHTED LOAD BALANCING When the weight parameter is specified for a server, the weight is accounted as part of the load balancing decision. With this configuration, every 5 new requests will be distributed across the application instances as the following: 3 requests will be directed to srv1, one request will go to srv2, and another one to srv3. MD. WARESUL ISLAM

ADVANTAGES OF NGINX Lightweight with small memory footprint Handles connections asynchronously MD. WARESUL ISLAM

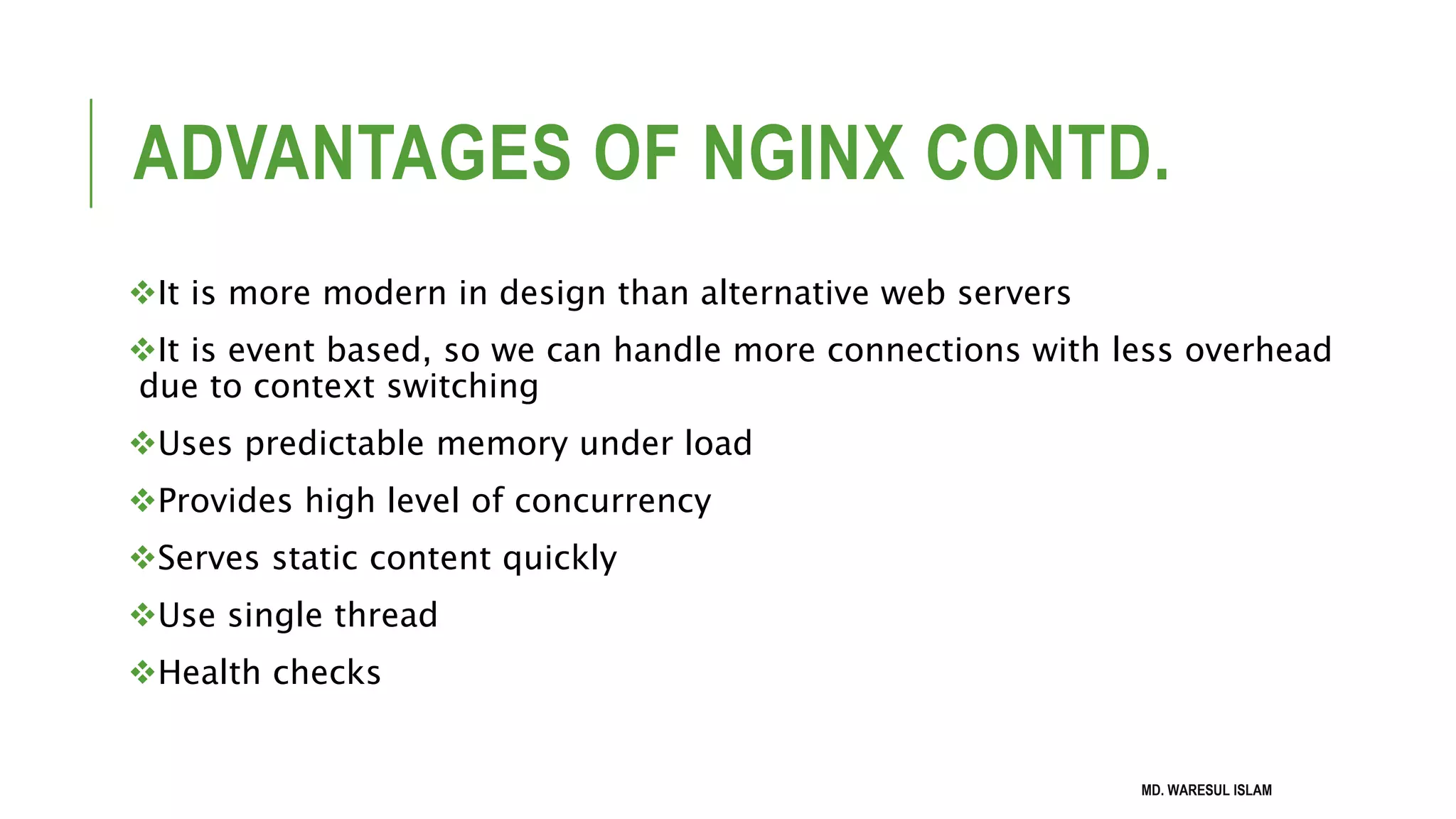

ADVANTAGES OF NGINX CONTD. It is more modern in design than alternative web servers It is event based, so we can handle more connections with less overhead due to context switching Uses predictable memory under load Provides high level of concurrency Serves static content quickly Use single thread Health checks MD. WARESUL ISLAM

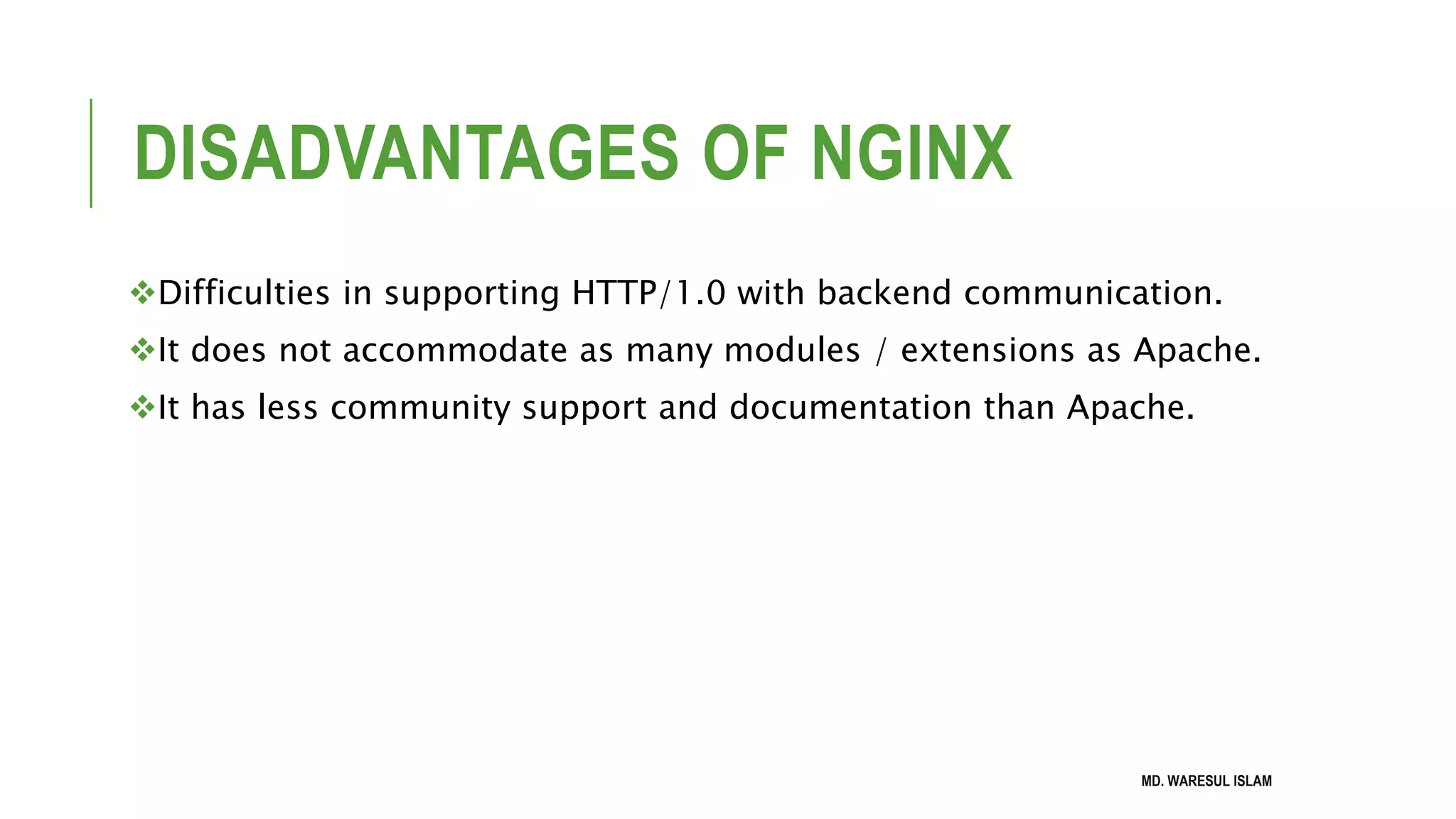

DISADVANTAGES OF NGINX Difficulties in supporting HTTP/1.0 with backend communication. It does not accommodate as many modules / extensions as Apache. It has less community support and documentation than Apache. MD. WARESUL ISLAM

WHO USES NGINX? MD. WARESUL ISLAM

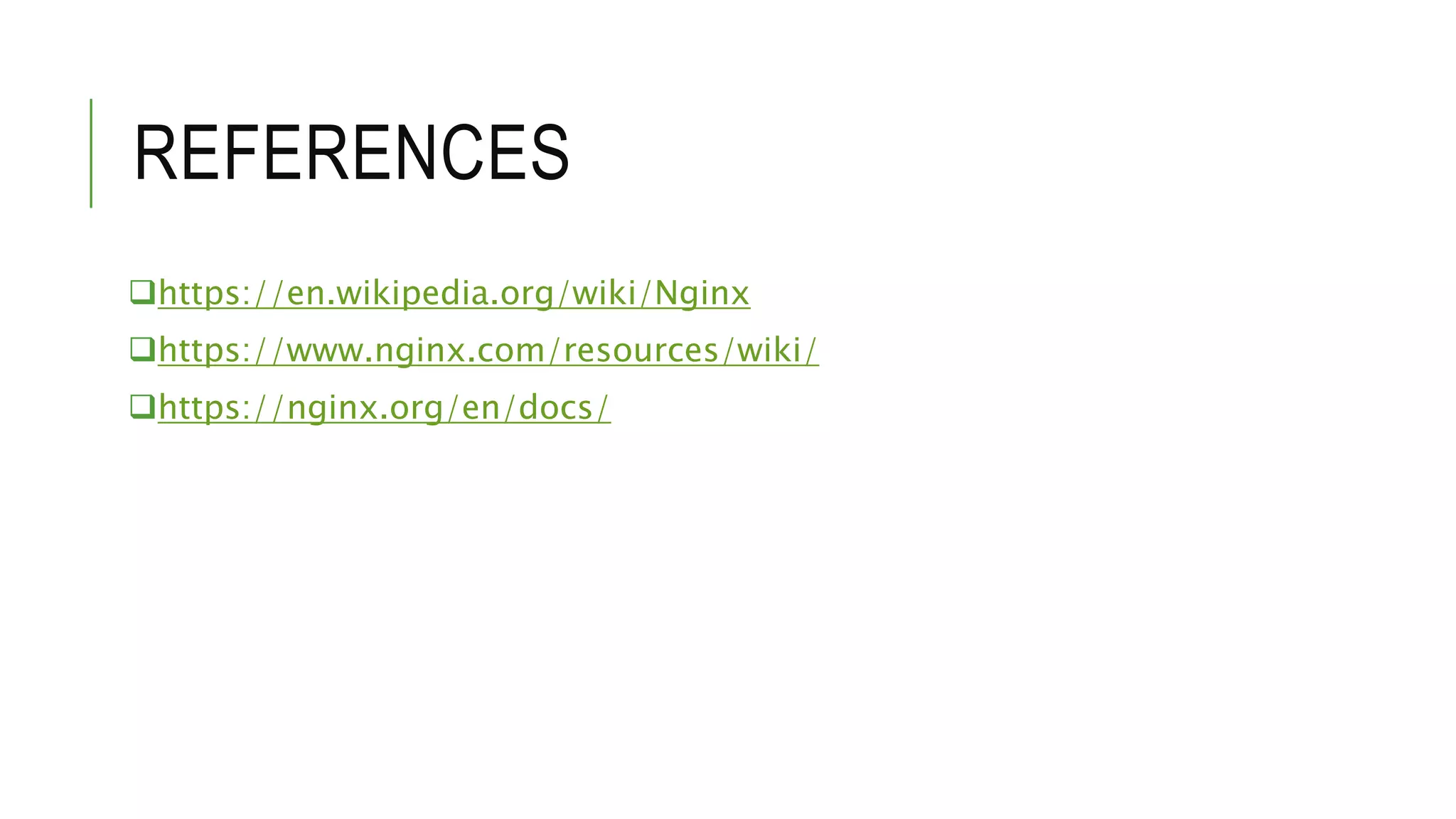

REFERENCES https://en.wikipedia.org/wiki/Nginx https://www.nginx.com/resources/wiki/ https://nginx.org/en/docs/
