R and C++ Romain François ! romain@r-enthusiasts.com @romainfrancois

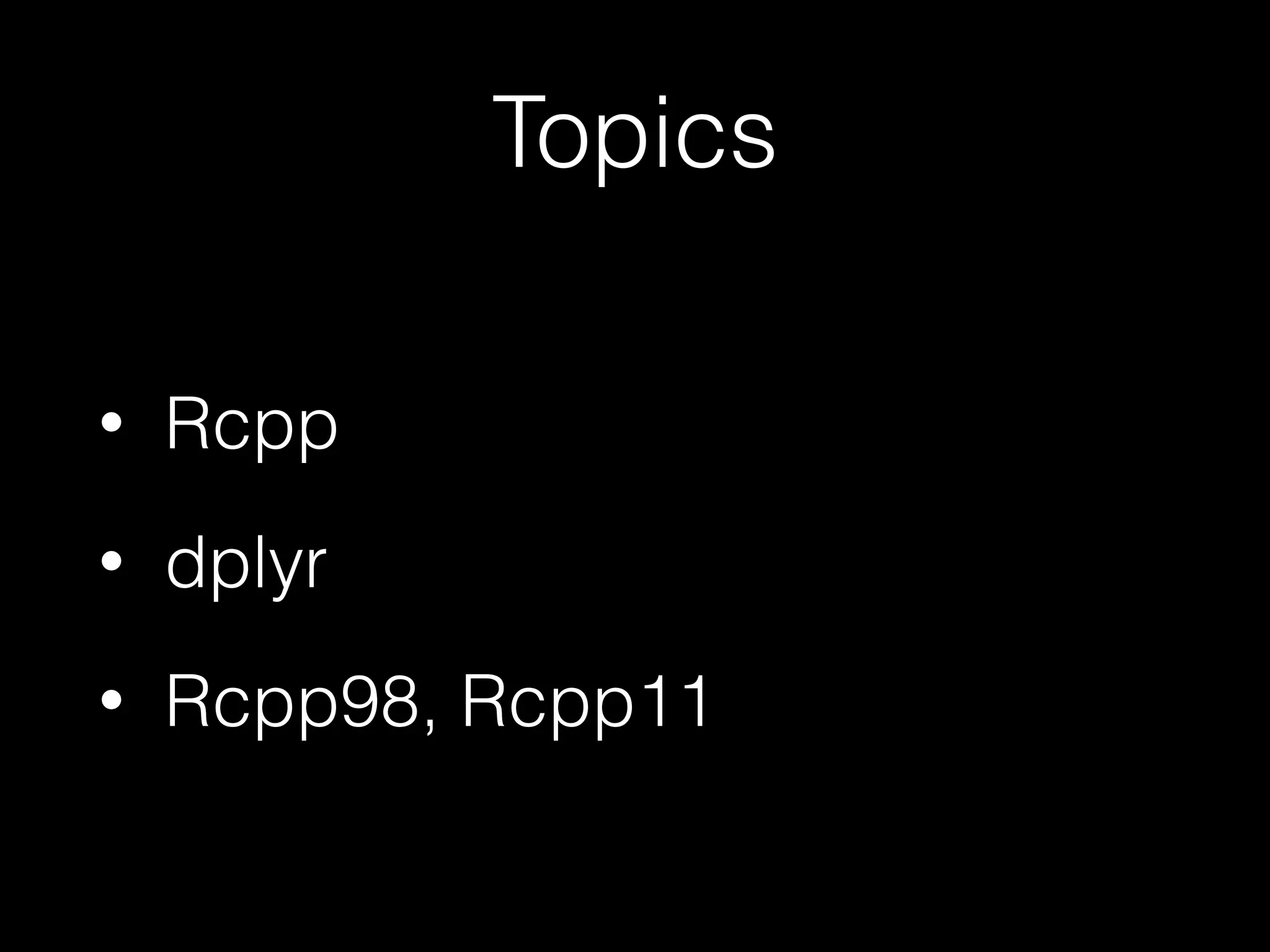

Topics • Rcpp • dplyr • Rcpp98, Rcpp11

0.10.6 currently ! 0.10.7 out soon, and perhaps it will be called 0.11.0

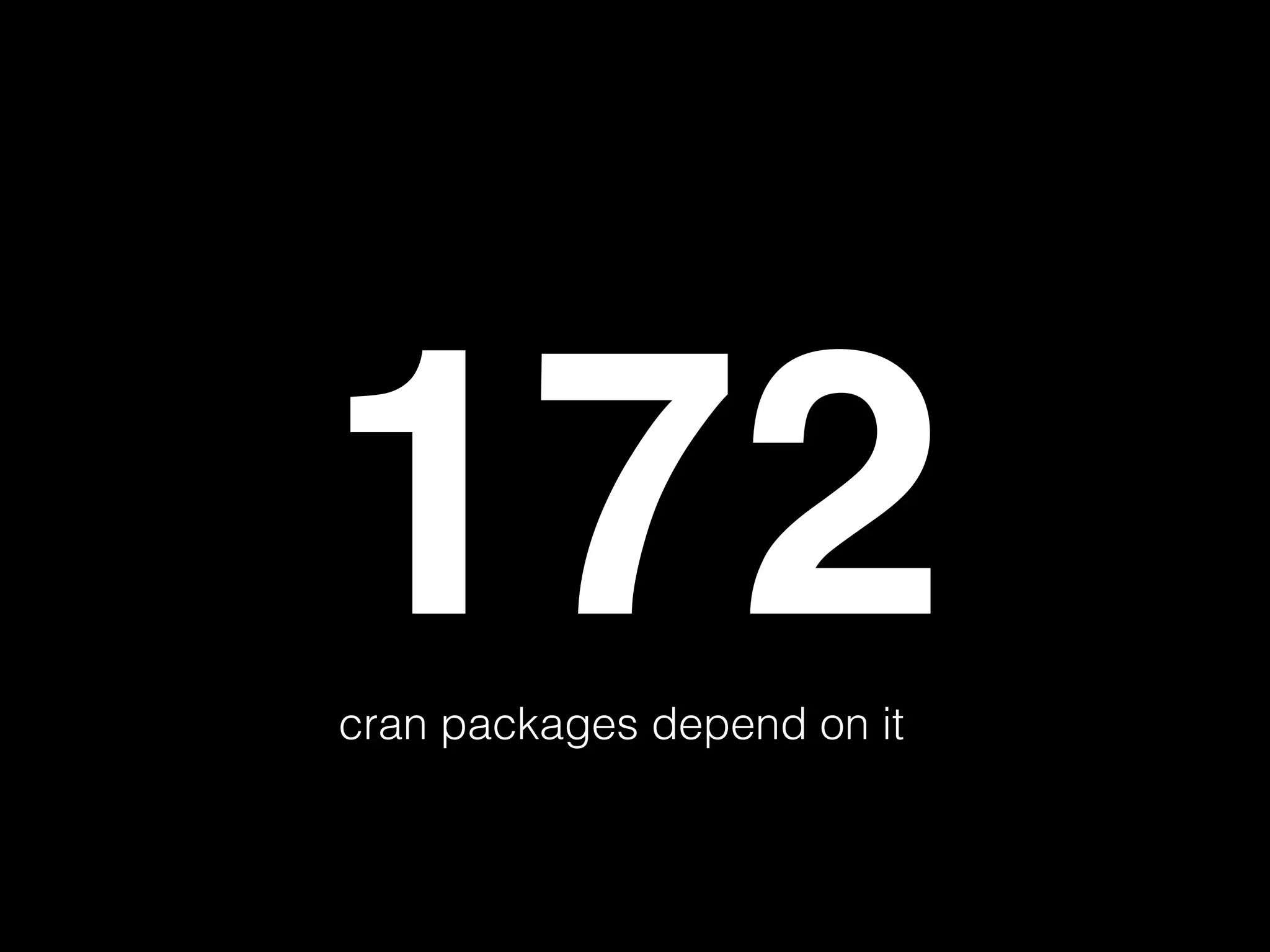

172 cran packages depend on it

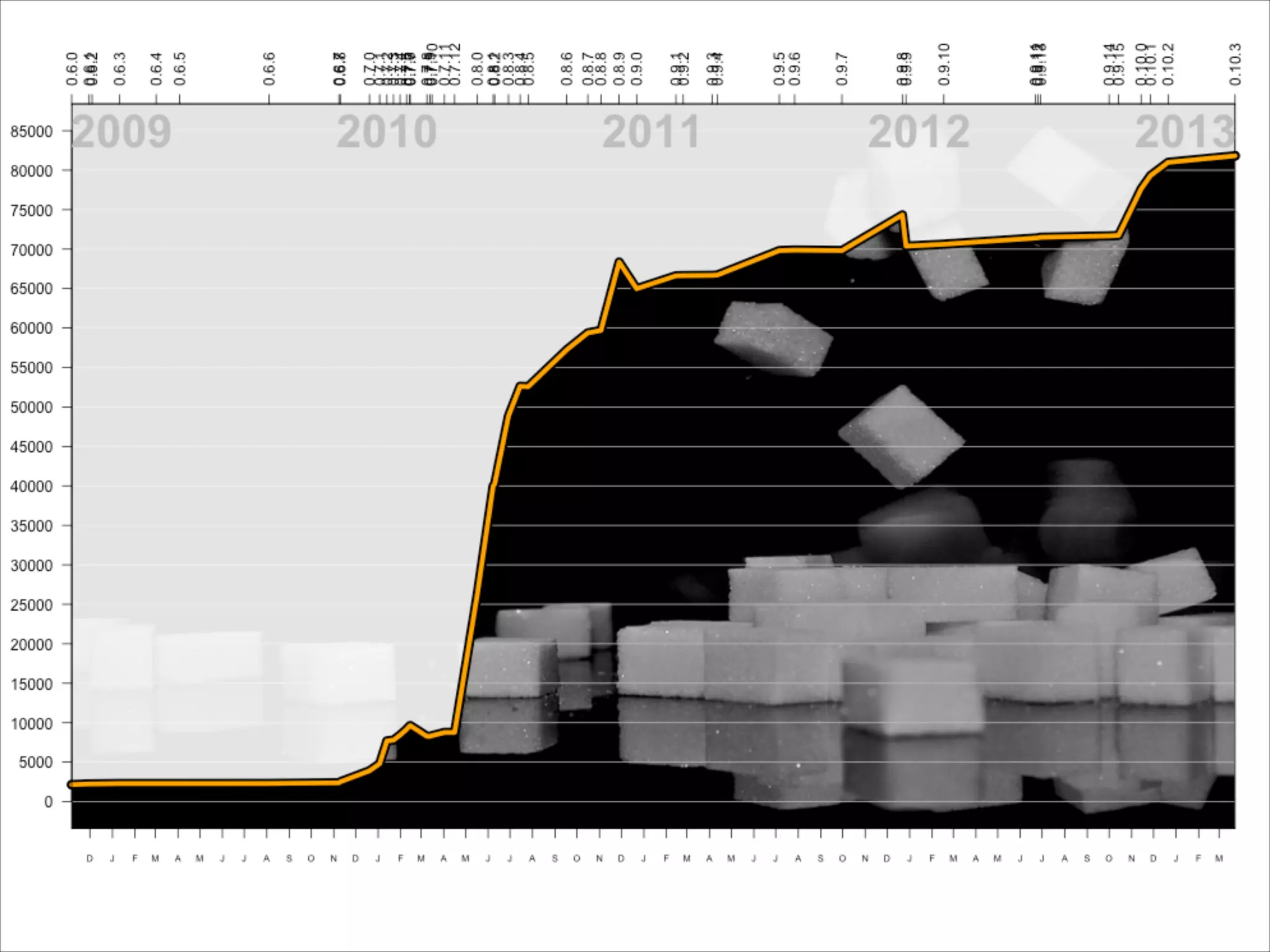

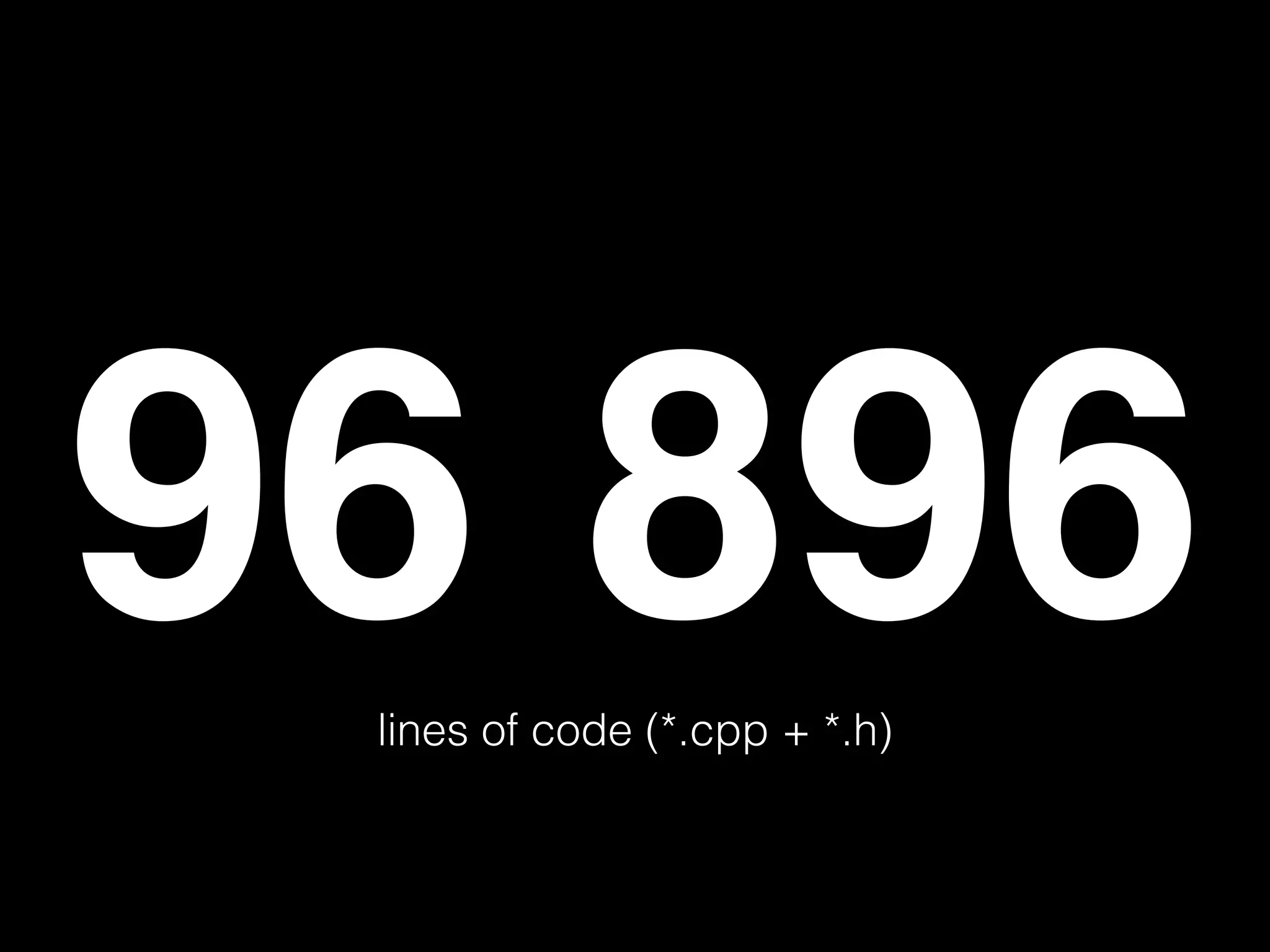

96 896 lines of code (*.cpp + *.h)

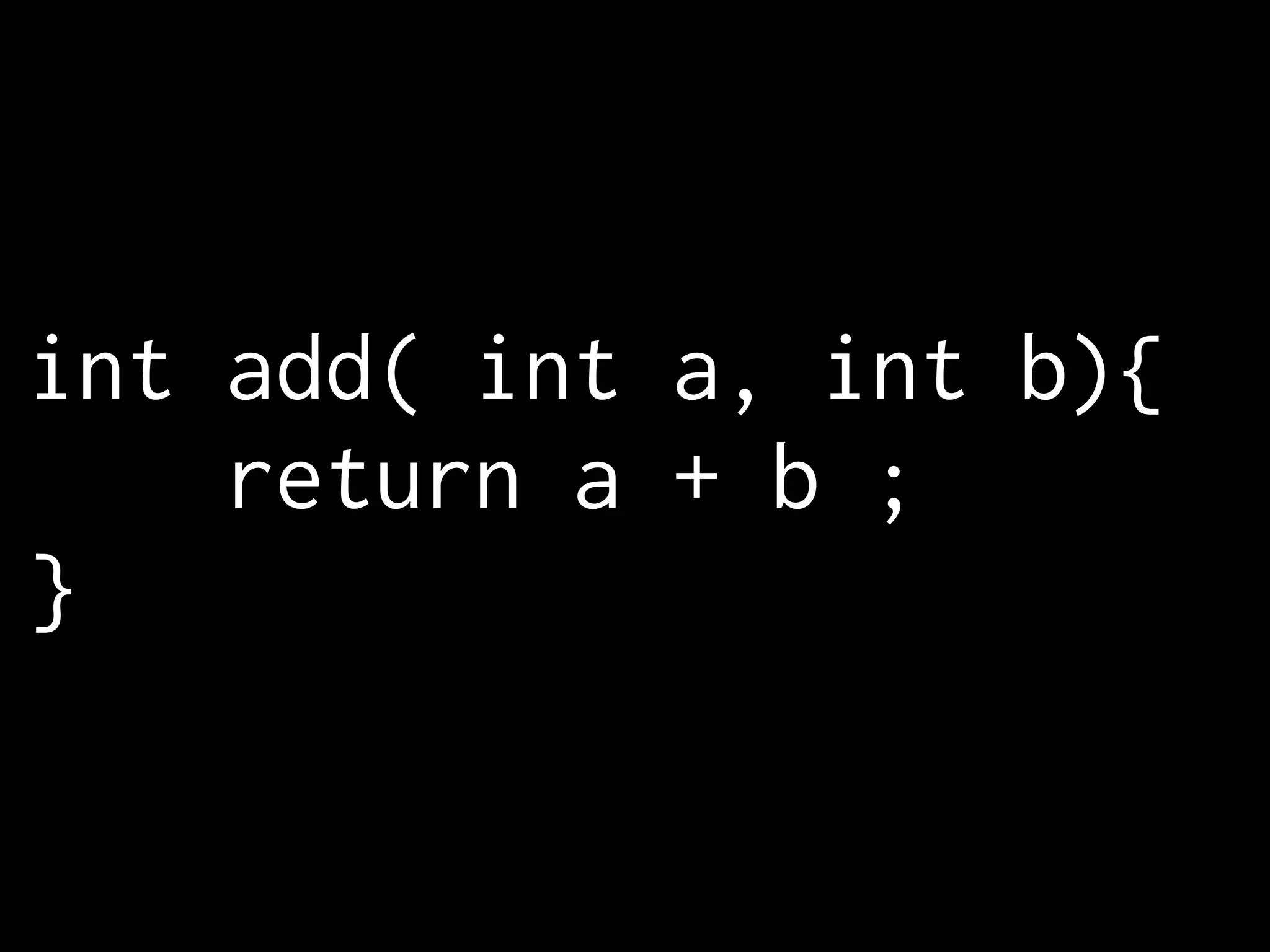

int add( int a, int b){ return a + b ; }

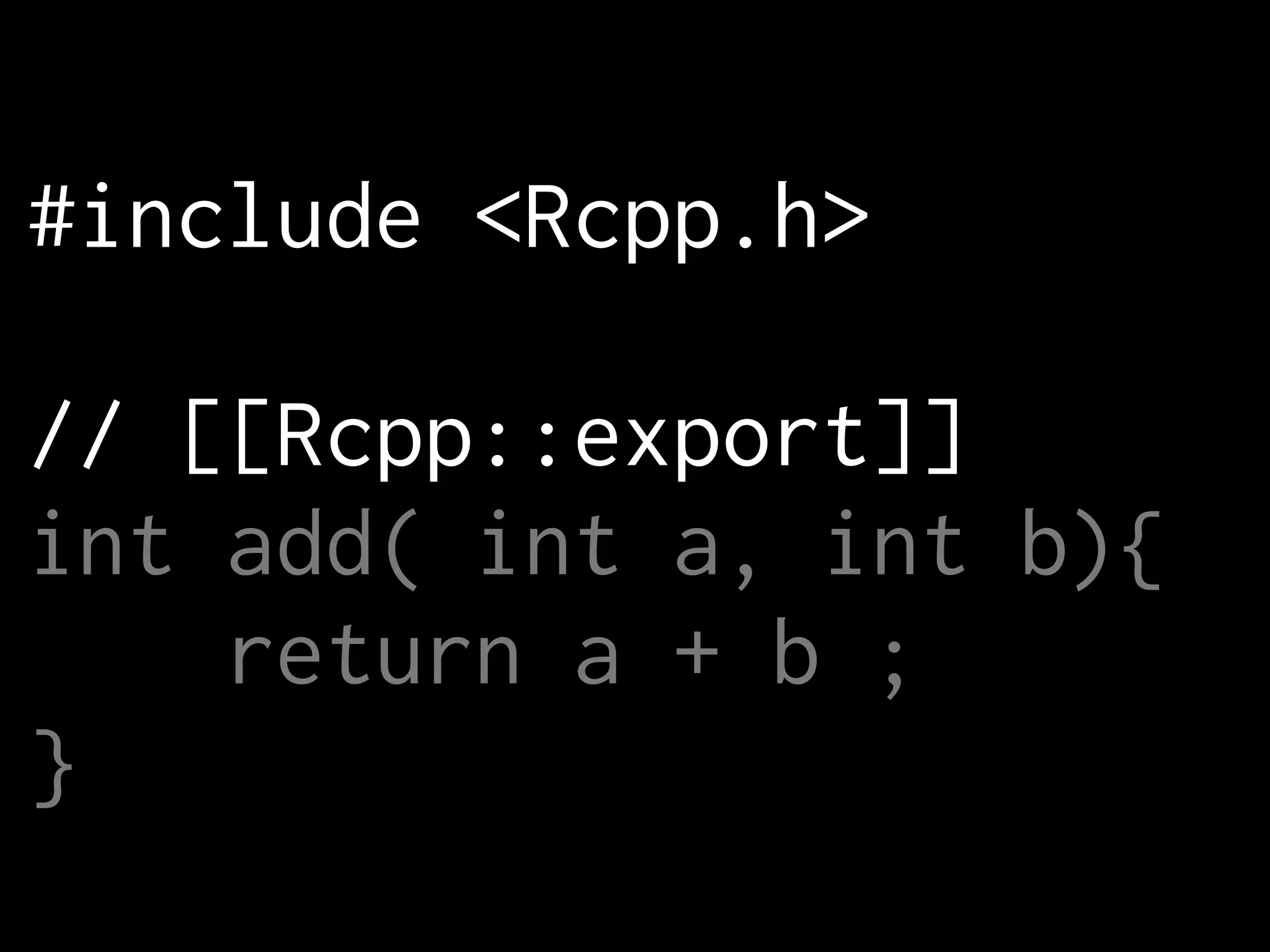

#include <Rcpp.h> ! // [[Rcpp::export]] int add( int a, int b){ return a + b ; }

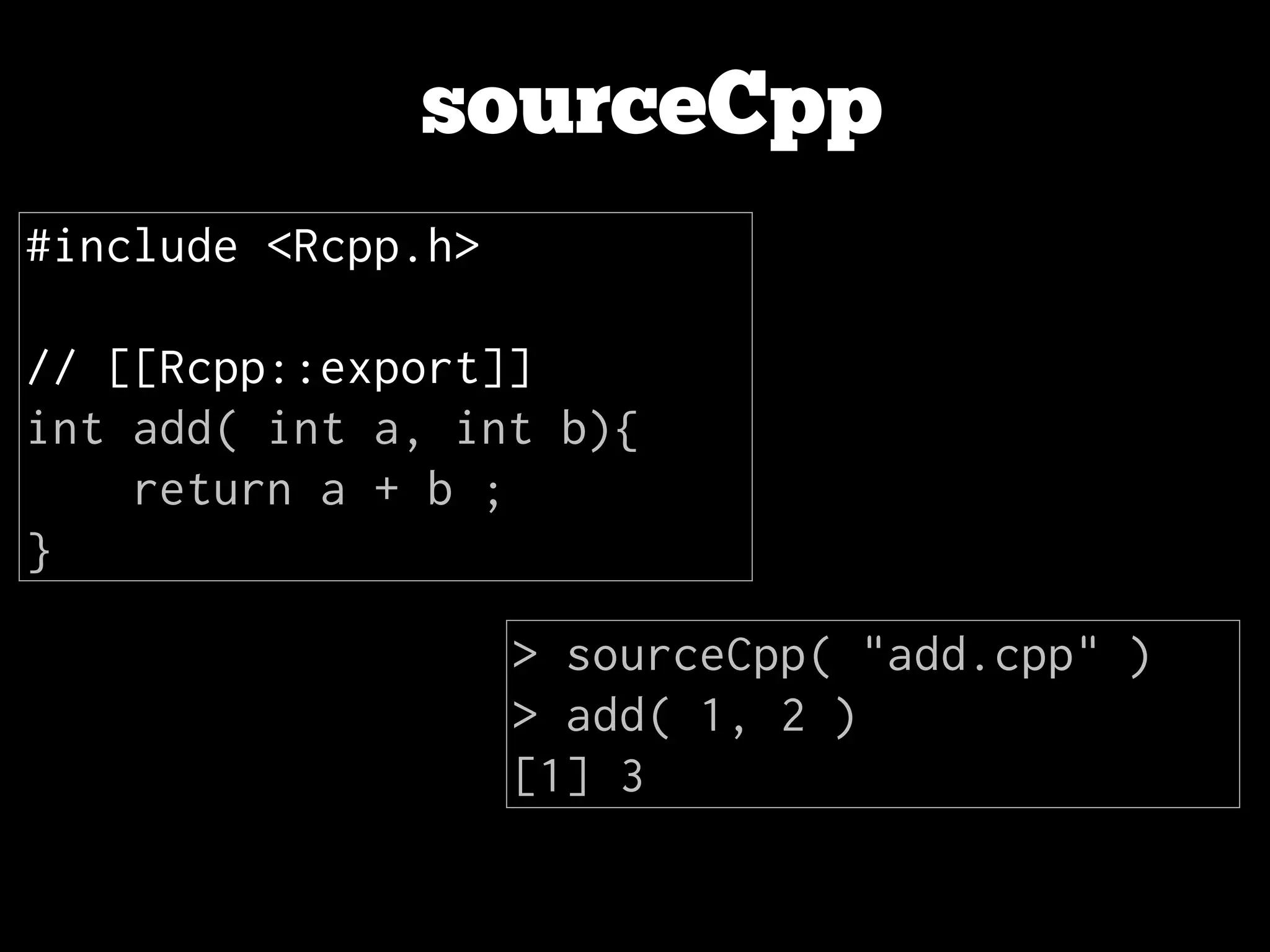

sourceCpp #include <Rcpp.h> ! // [[Rcpp::export]] int add( int a, int b){ return a + b ; } > sourceCpp( "add.cpp" ) > add( 1, 2 ) [1] 3

R data structures • vectors: NumericVector, IntegerVector, … • lists : List • functions: Function • environments: Environment

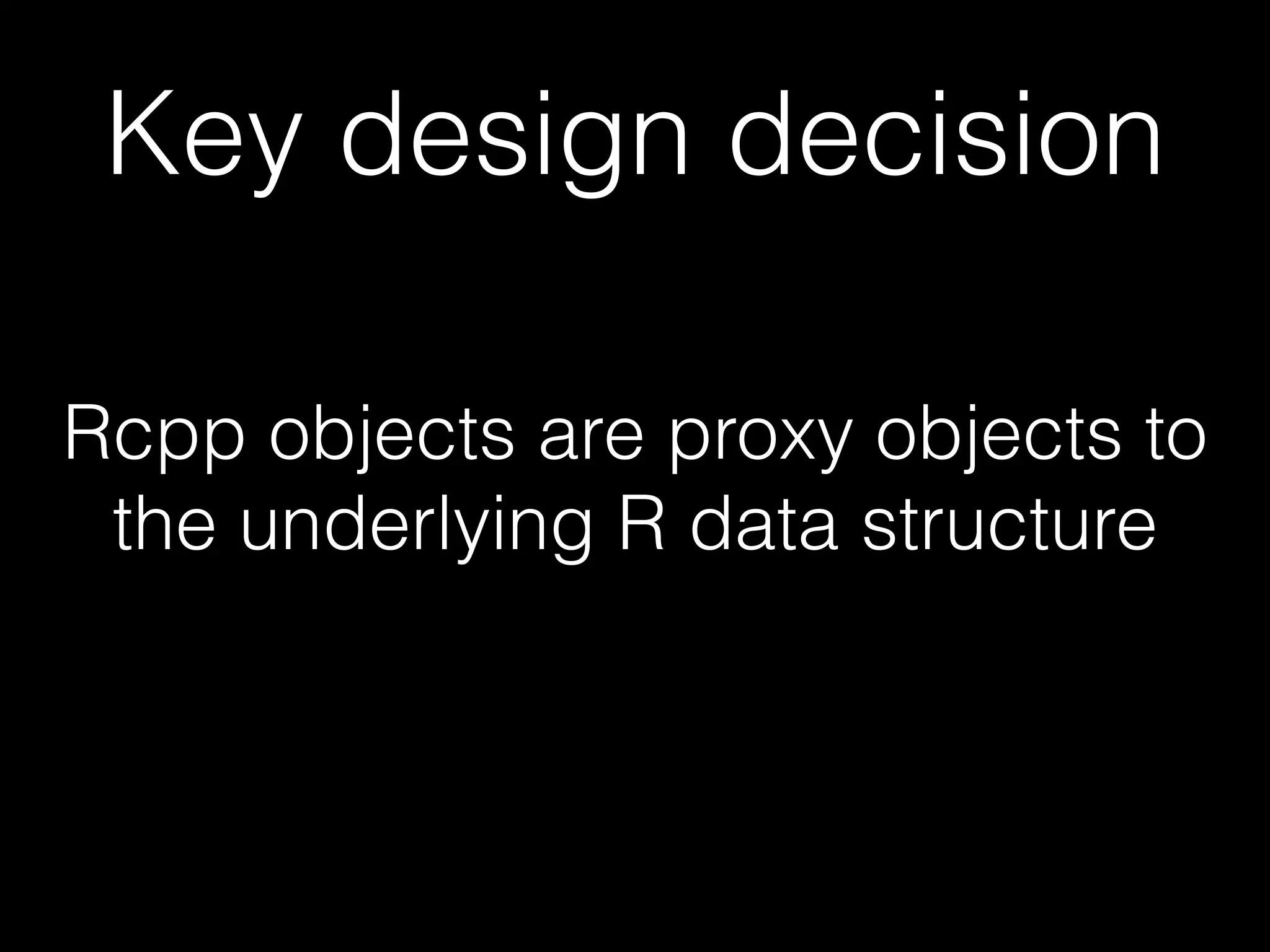

Key design decision Rcpp objects are proxy objects to the underlying R data structure

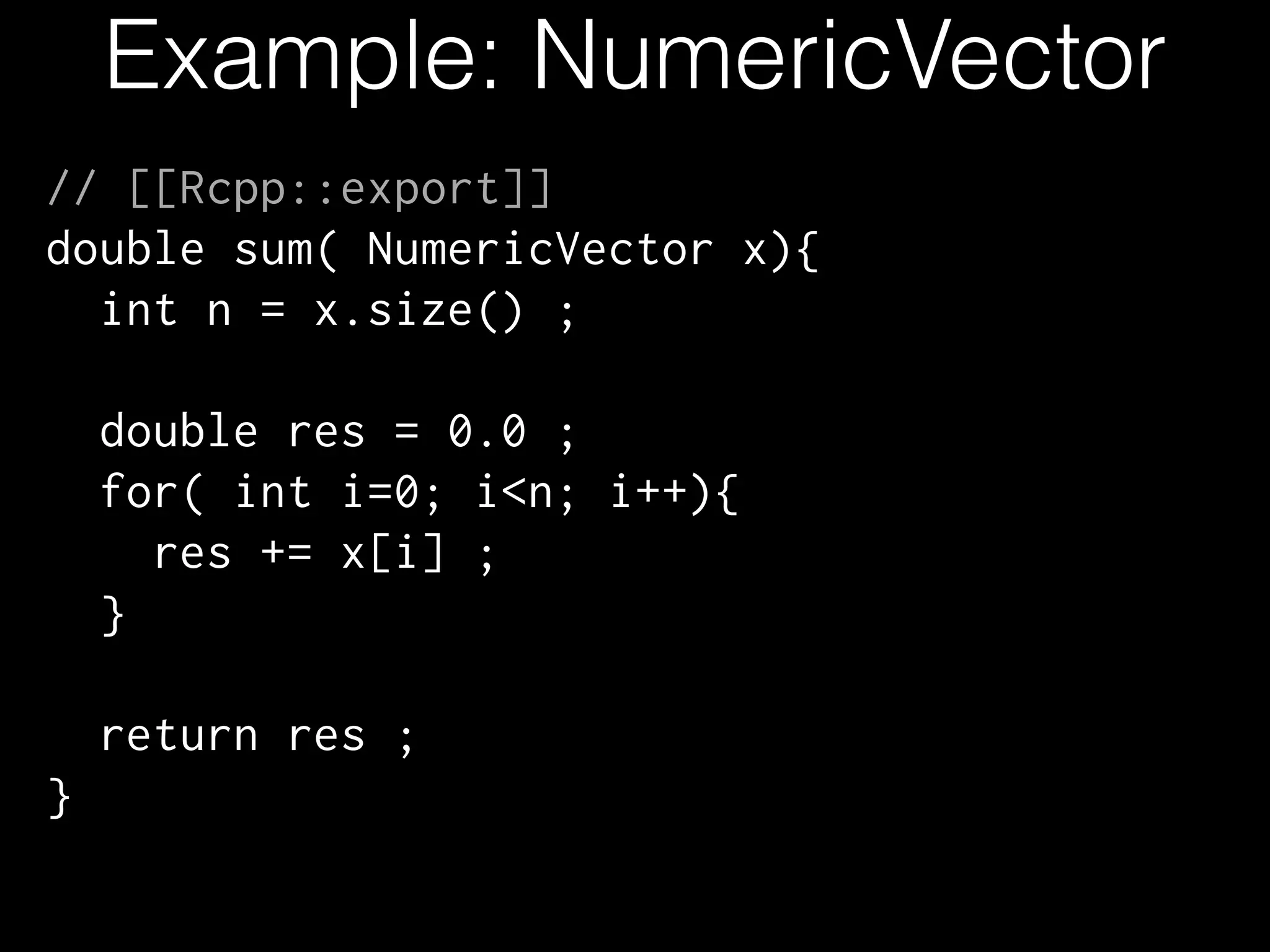

Example: NumericVector // [[Rcpp::export]] double sum( NumericVector x){ int n = x.size() ; ! double res = 0.0 ; for( int i=0; i<n; i++){ res += x[i] ; } ! return res ; }

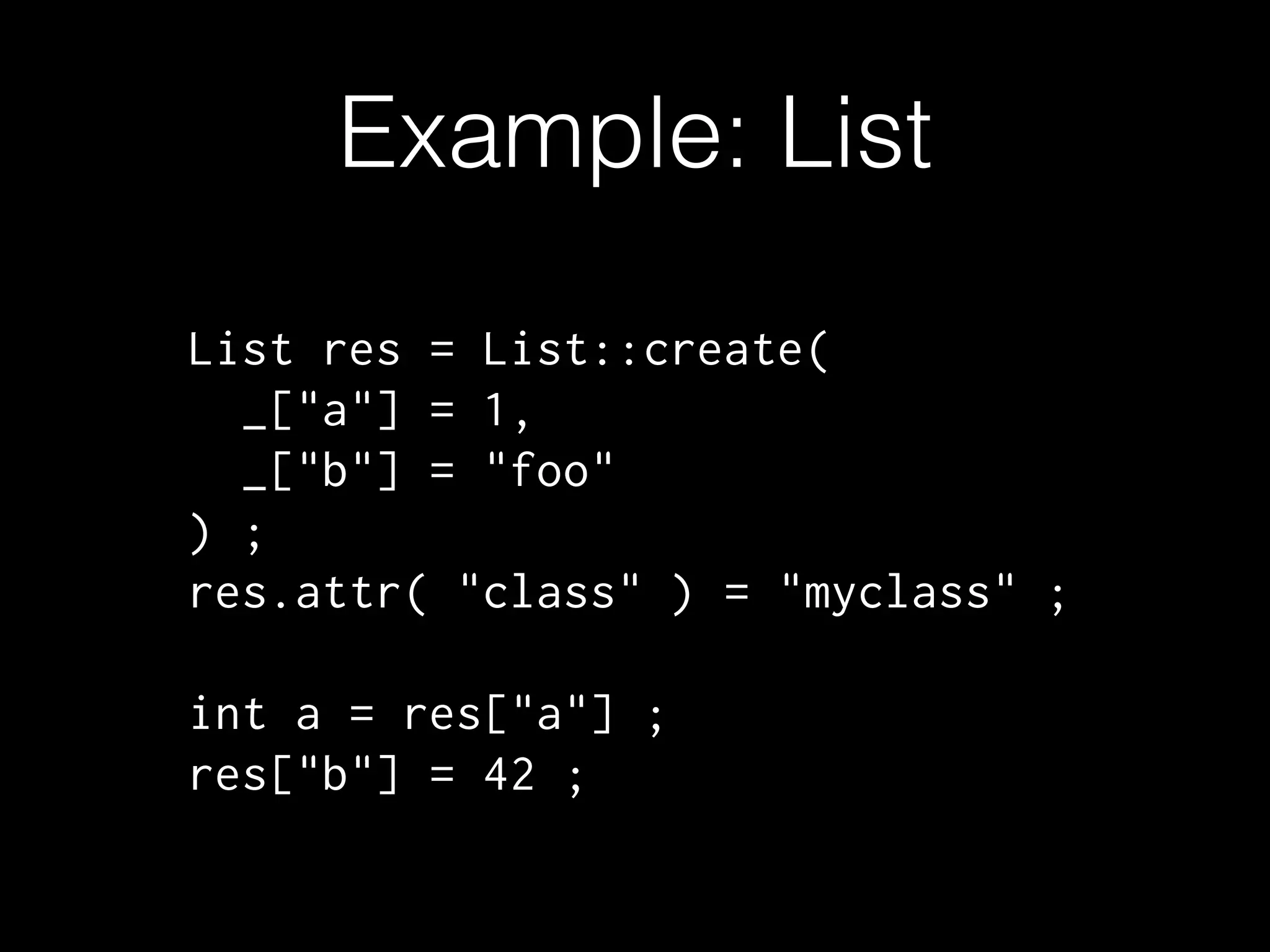

Example: List List res = List::create( _["a"] = 1, _["b"] = "foo" ) ; res.attr( "class" ) = "myclass" ; ! int a = res["a"] ; res["b"] = 42 ;

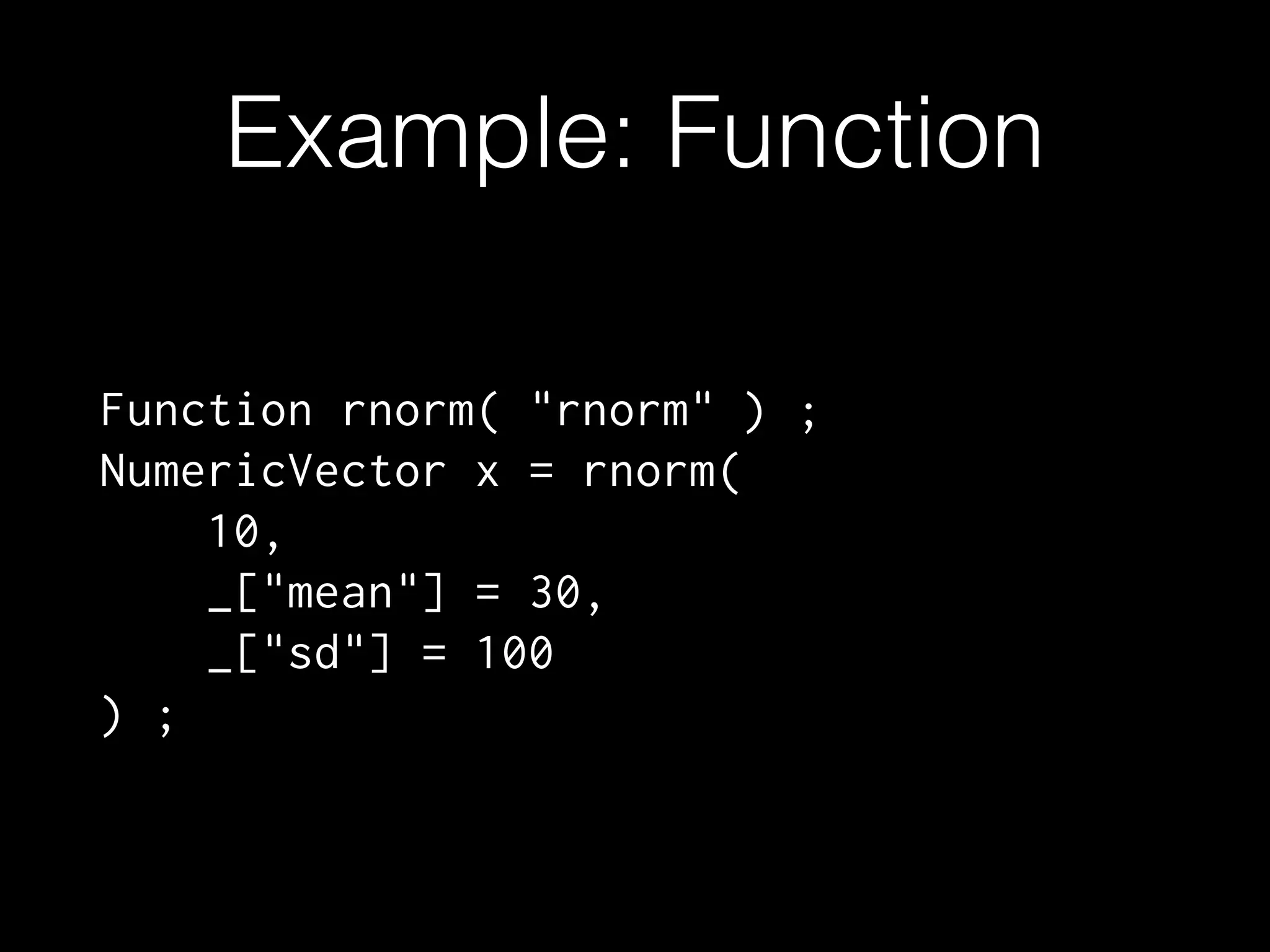

Example: Function Function rnorm( "rnorm" ) ; NumericVector x = rnorm( 10, _["mean"] = 30, _["sd"] = 100 ) ;

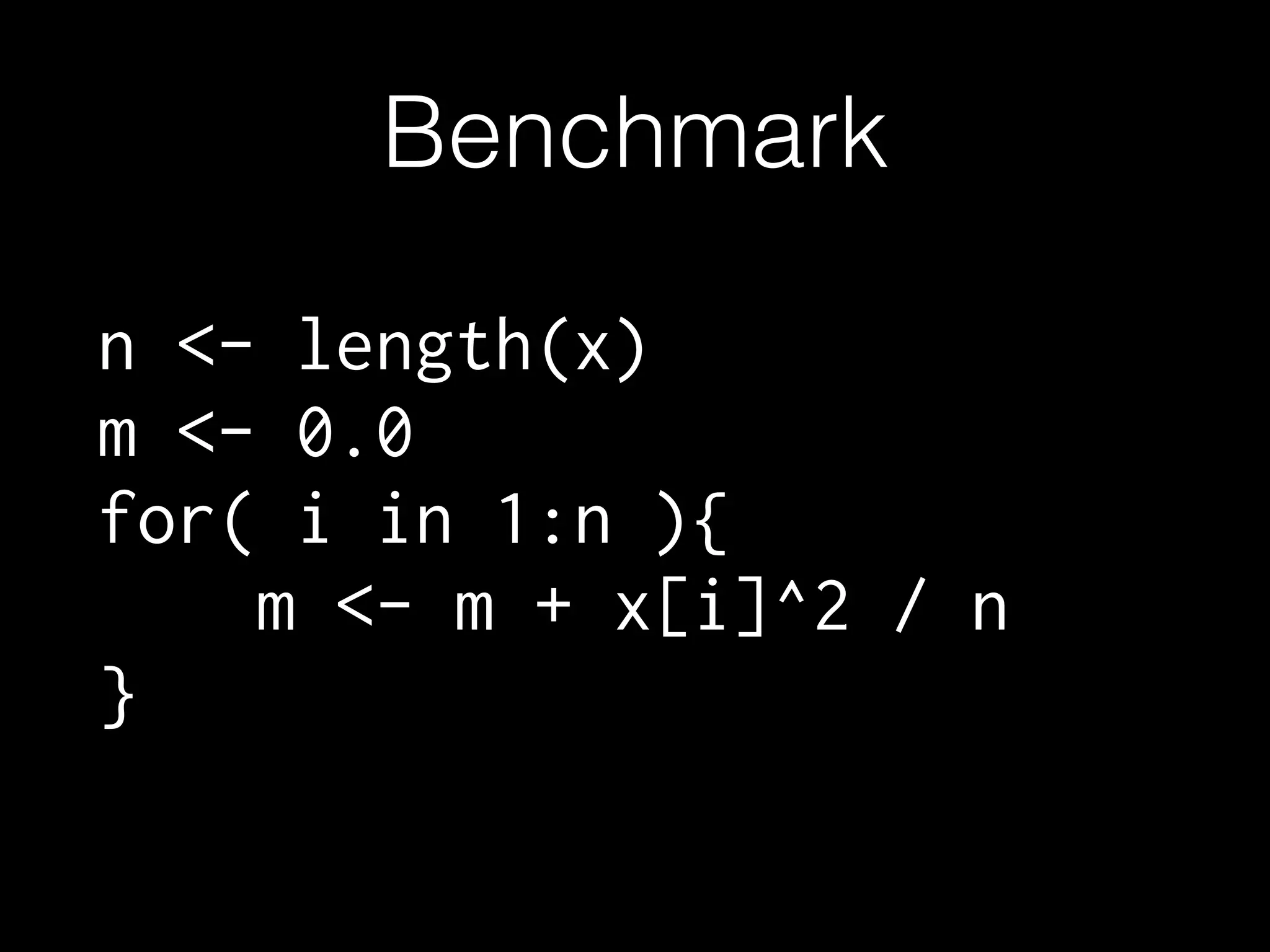

Benchmark n <- length(x) m <- 0.0 for( i in 1:n ){ m <- m + x[i]^2 / n }

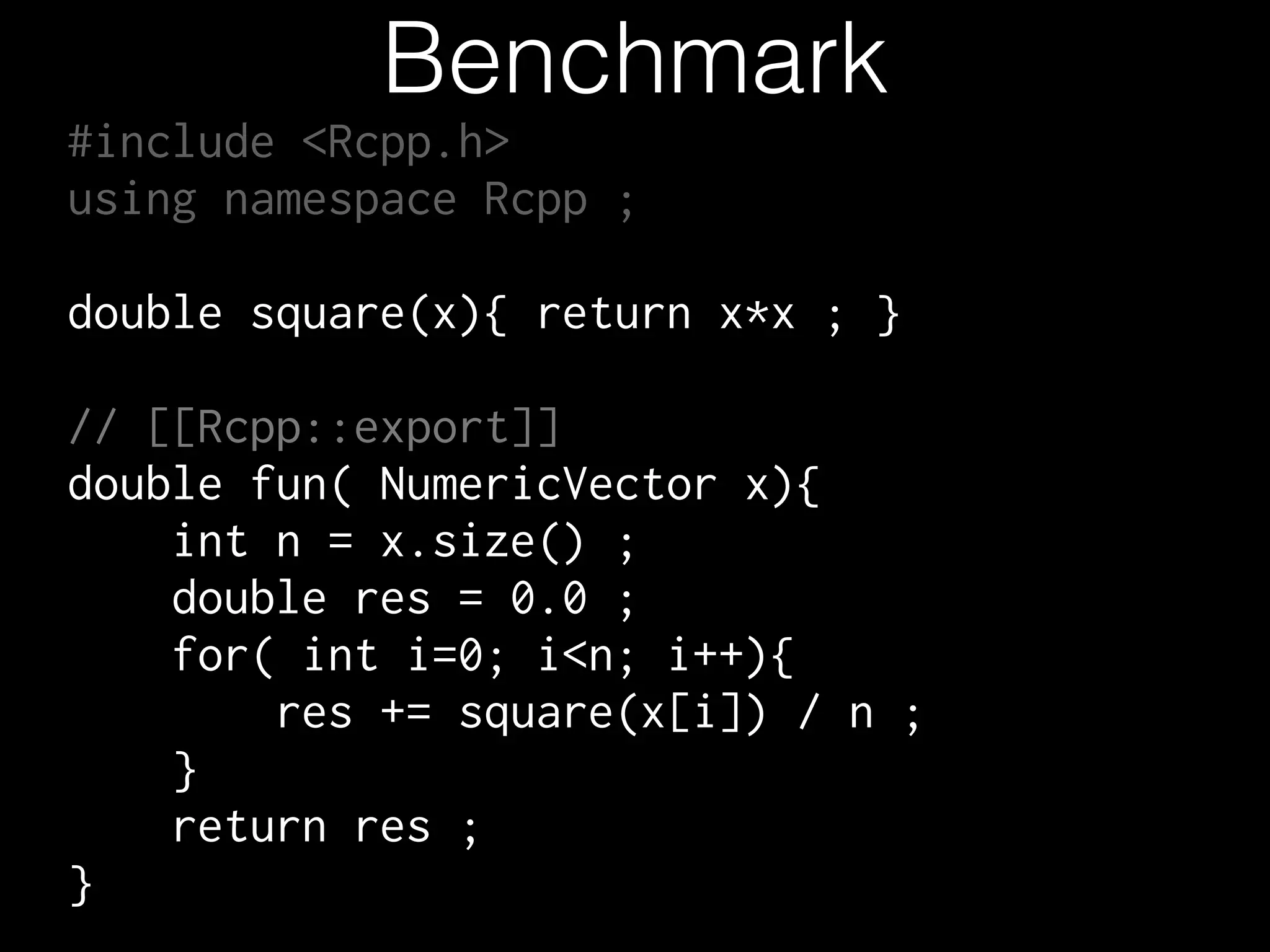

Benchmark #include <Rcpp.h> using namespace Rcpp ; ! double square(x){ return x*x ; } ! // [[Rcpp::export]] double fun( NumericVector x){ int n = x.size() ; double res = 0.0 ; for( int i=0; i<n; i++){ res += square(x[i]) / n ; } return res ; }

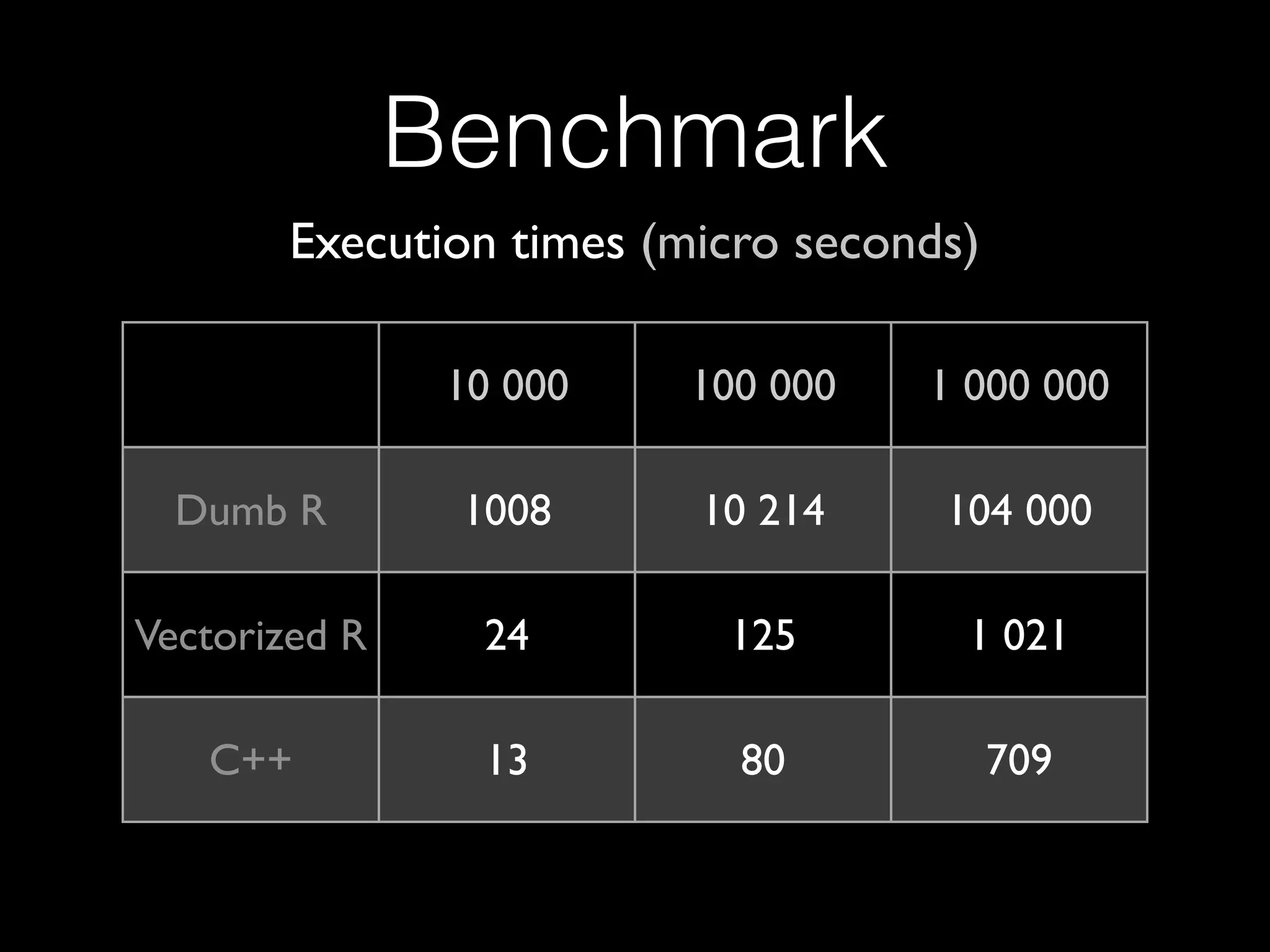

Benchmark Execution times (micro seconds) 10 000 100 000 1 000 000 Dumb R 1008 10 214 104 000 Vectorized R 24 125 1 021 C++ 13 80 709

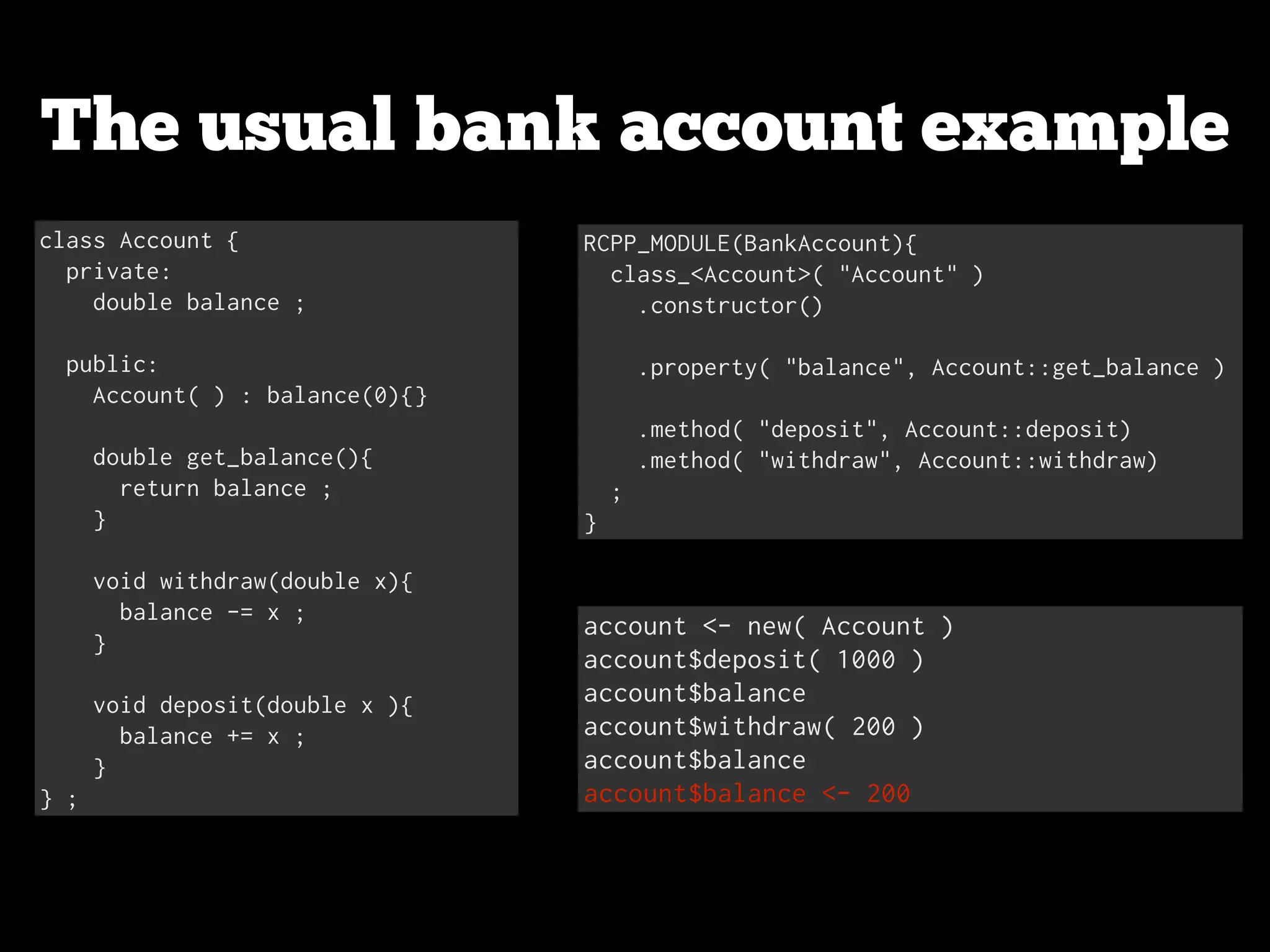

The usual bank account example class Account { private: double balance ; ! public: Account( ) : balance(0){} ! double get_balance(){ return balance ; } ! void withdraw(double x){ balance -= x ; } ! void deposit(double x ){ balance += x ; } } ; RCPP_MODULE(BankAccount){ class_<Account>( "Account" ) .constructor() ! .property( "balance", Account::get_balance ) ! .method( "deposit", Account::deposit) .method( "withdraw", Account::withdraw) ; } account <- new( Account ) account$deposit( 1000 ) account$balance account$withdraw( 200 ) account$balance account$balance <- 200

Packages Rcpp.package.skeleton compileAttributes ! ! devtools::load_all

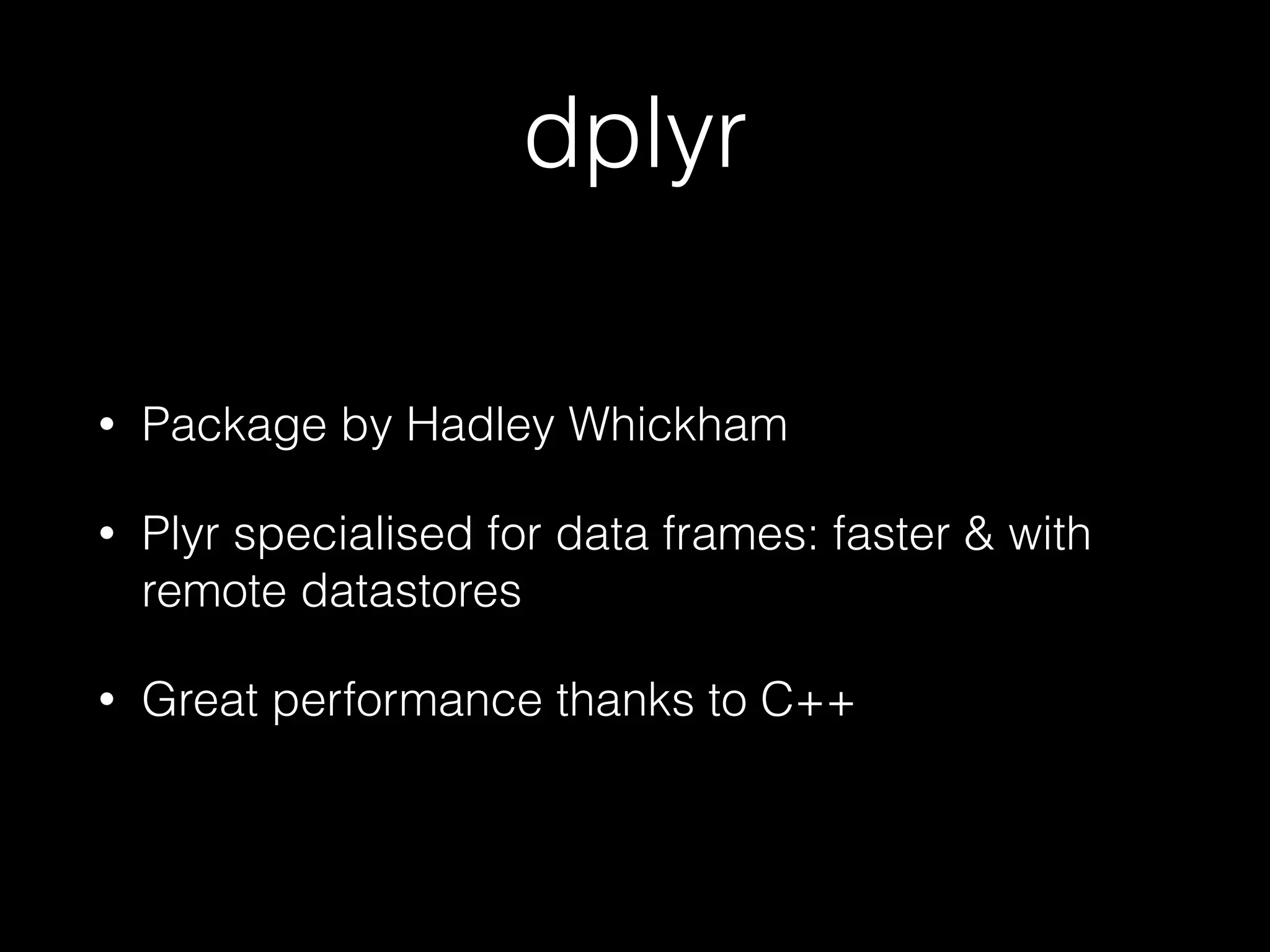

dplyr • Package by Hadley Whickham • Plyr specialised for data frames: faster & with remote datastores • Great performance thanks to C++

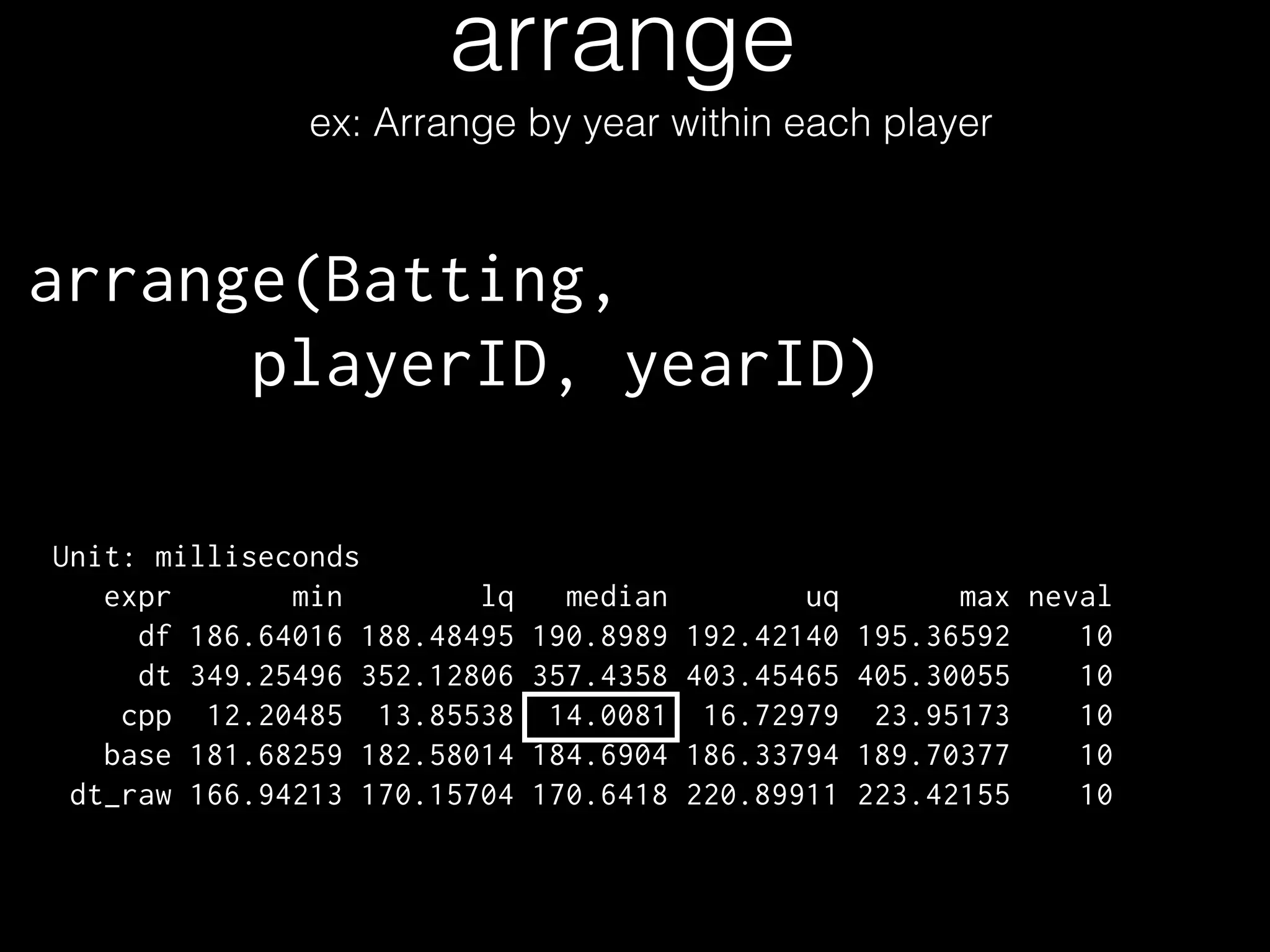

arrange ex: Arrange by year within each player arrange(Batting, playerID, yearID) Unit: milliseconds expr min lq df 186.64016 188.48495 dt 349.25496 352.12806 cpp 12.20485 13.85538 base 181.68259 182.58014 dt_raw 166.94213 170.15704 median 190.8989 357.4358 14.0081 184.6904 170.6418 uq 192.42140 403.45465 16.72979 186.33794 220.89911 max neval 195.36592 10 405.30055 10 23.95173 10 189.70377 10 223.42155 10

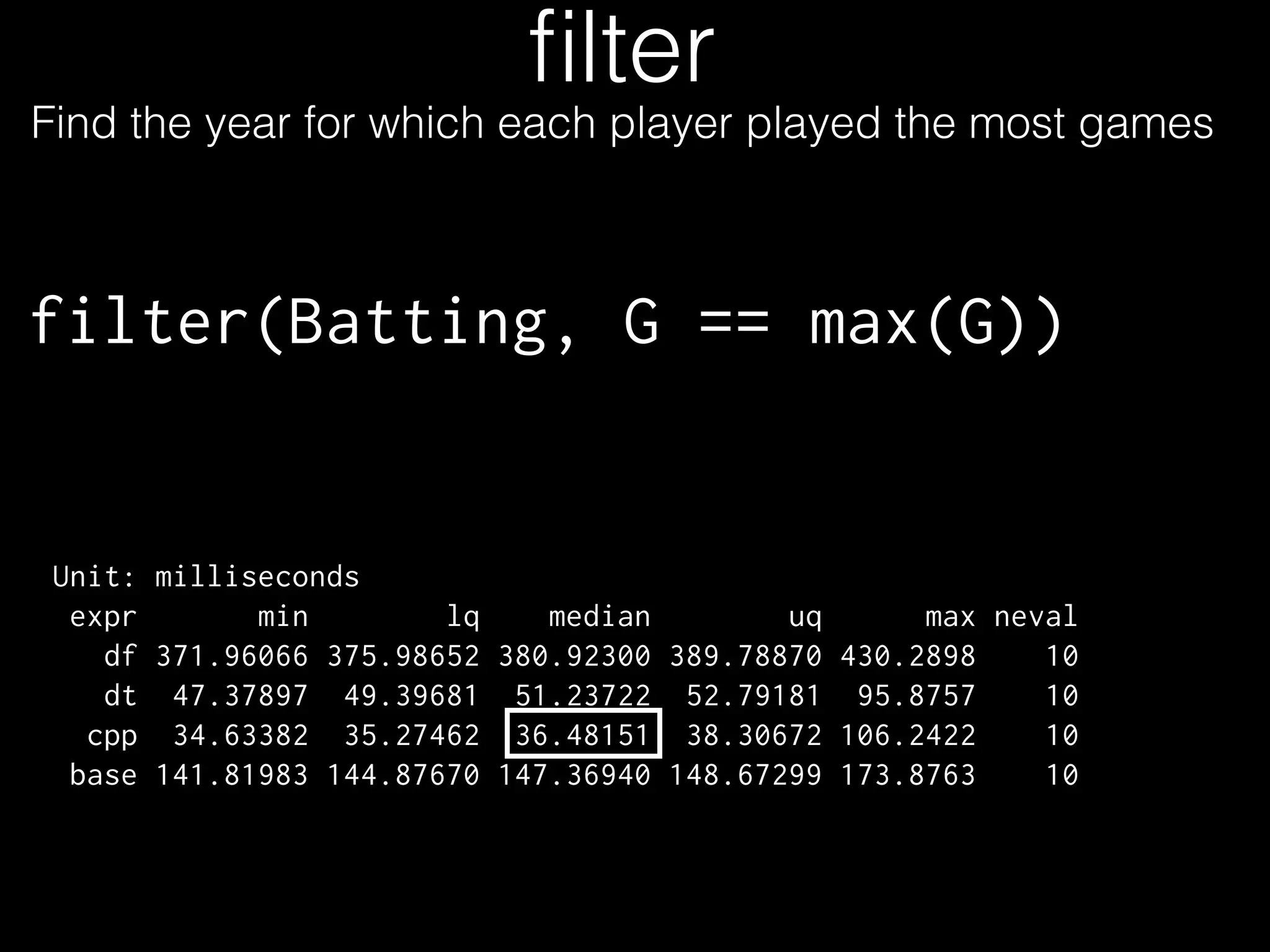

ﬁlter Find the year for which each player played the most games filter(Batting, G == max(G)) Unit: milliseconds expr min lq median uq max neval df 371.96066 375.98652 380.92300 389.78870 430.2898 10 dt 47.37897 49.39681 51.23722 52.79181 95.8757 10 cpp 34.63382 35.27462 36.48151 38.30672 106.2422 10 base 141.81983 144.87670 147.36940 148.67299 173.8763 10

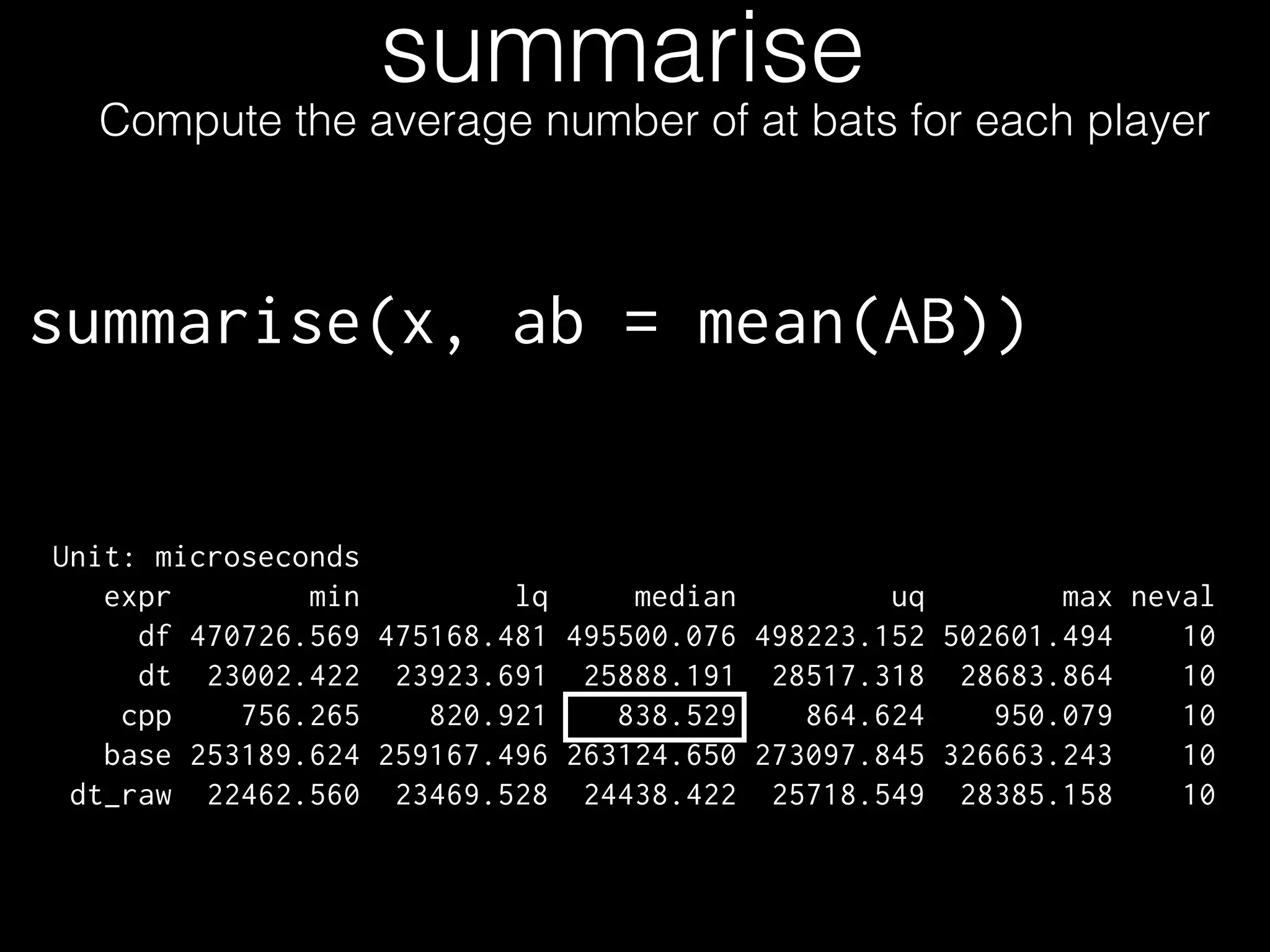

summarise Compute the average number of at bats for each player summarise(x, ab = mean(AB)) Unit: microseconds expr min lq median uq max neval df 470726.569 475168.481 495500.076 498223.152 502601.494 10 dt 23002.422 23923.691 25888.191 28517.318 28683.864 10 cpp 756.265 820.921 838.529 864.624 950.079 10 base 253189.624 259167.496 263124.650 273097.845 326663.243 10 dt_raw 22462.560 23469.528 24438.422 25718.549 28385.158 10

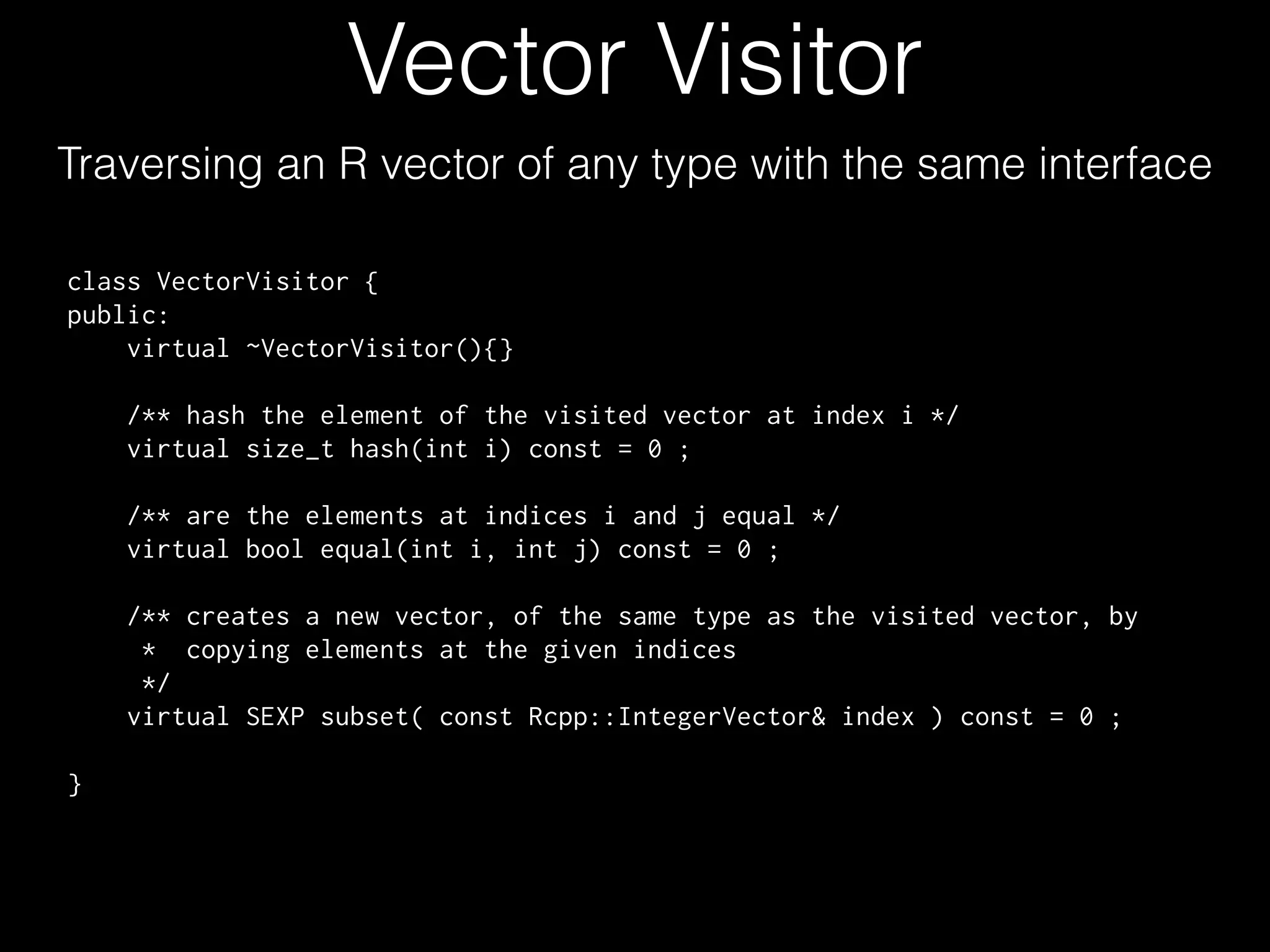

Vector Visitor Traversing an R vector of any type with the same interface class VectorVisitor { public: virtual ~VectorVisitor(){} /** hash the element of the visited vector at index i */ virtual size_t hash(int i) const = 0 ; /** are the elements at indices i and j equal */ virtual bool equal(int i, int j) const = 0 ; ! /** creates a new vector, of the same type as the visited vector, by * copying elements at the given indices */ virtual SEXP subset( const Rcpp::IntegerVector& index ) const = 0 ; ! }

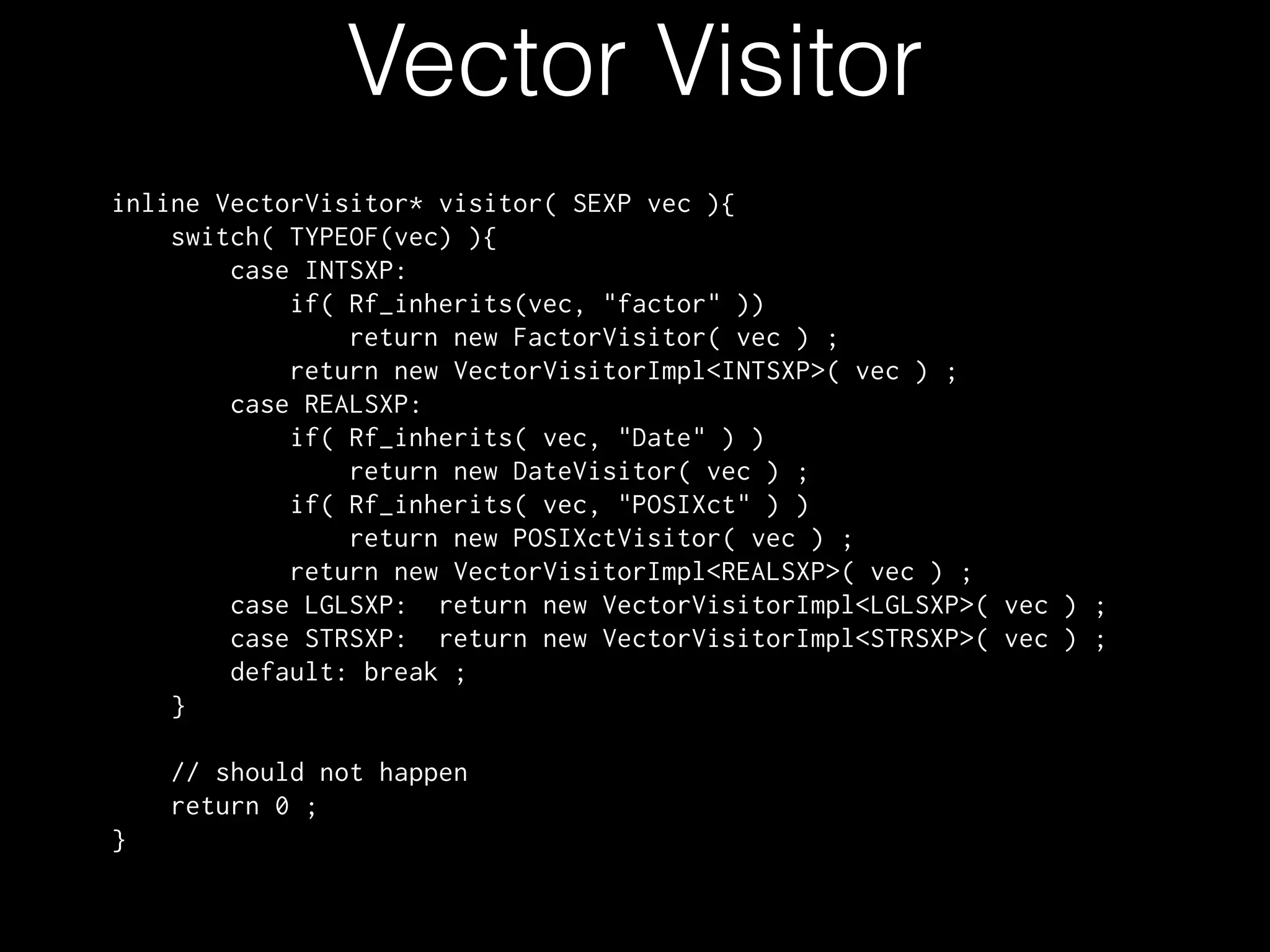

Vector Visitor inline VectorVisitor* visitor( SEXP vec ){ switch( TYPEOF(vec) ){ case INTSXP: if( Rf_inherits(vec, "factor" )) return new FactorVisitor( vec ) ; return new VectorVisitorImpl<INTSXP>( vec ) ; case REALSXP: if( Rf_inherits( vec, "Date" ) ) return new DateVisitor( vec ) ; if( Rf_inherits( vec, "POSIXct" ) ) return new POSIXctVisitor( vec ) ; return new VectorVisitorImpl<REALSXP>( vec ) ; case LGLSXP: return new VectorVisitorImpl<LGLSXP>( vec ) ; case STRSXP: return new VectorVisitorImpl<STRSXP>( vec ) ; default: break ; } // should not happen return 0 ; }

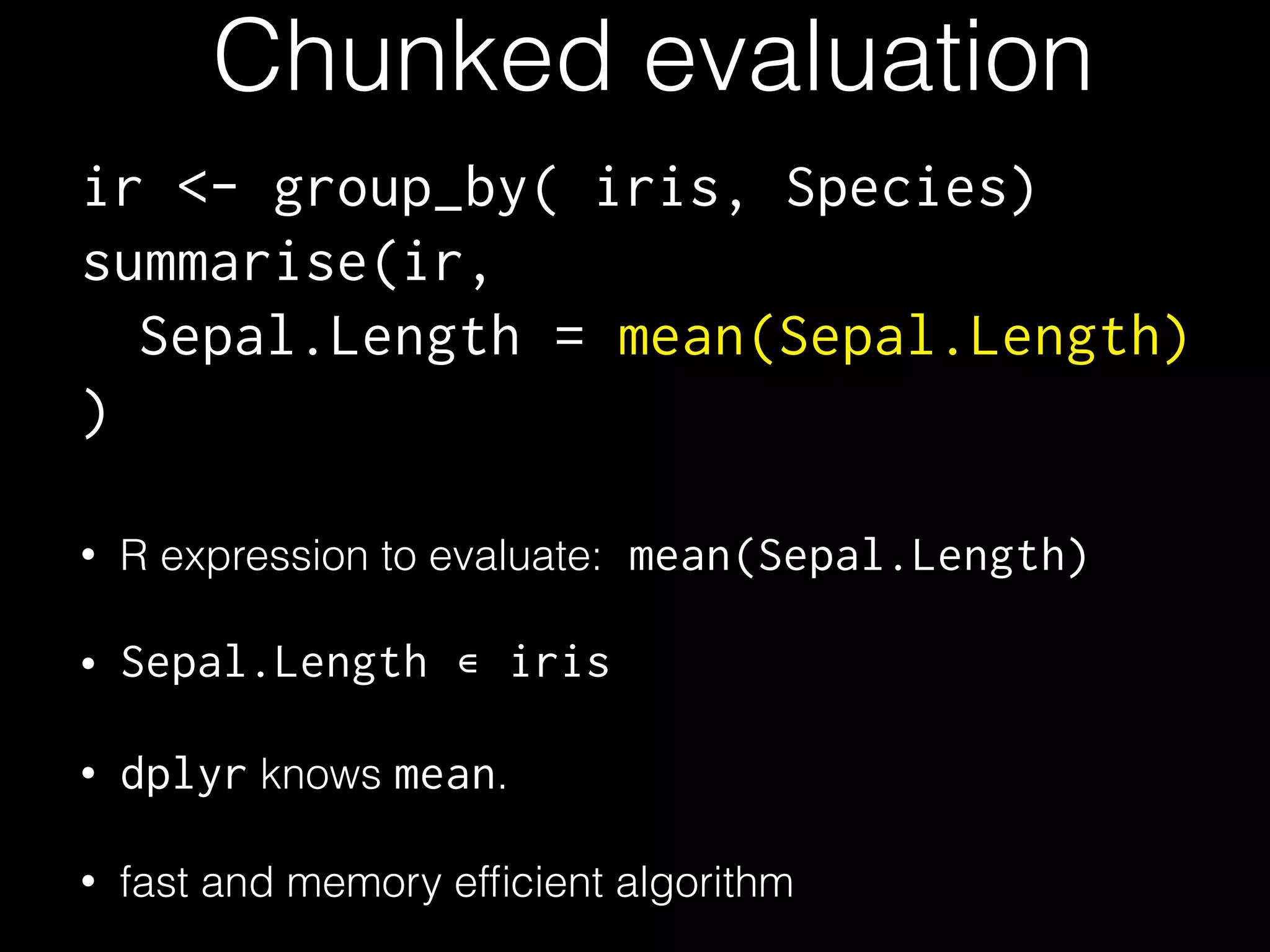

Chunked evaluation ir <- group_by( iris, Species) summarise(ir, Sepal.Length = mean(Sepal.Length) ) • R expression to evaluate: mean(Sepal.Length) • Sepal.Length • dplyr knows mean. • fast and memory efﬁcient algorithm ∊ iris

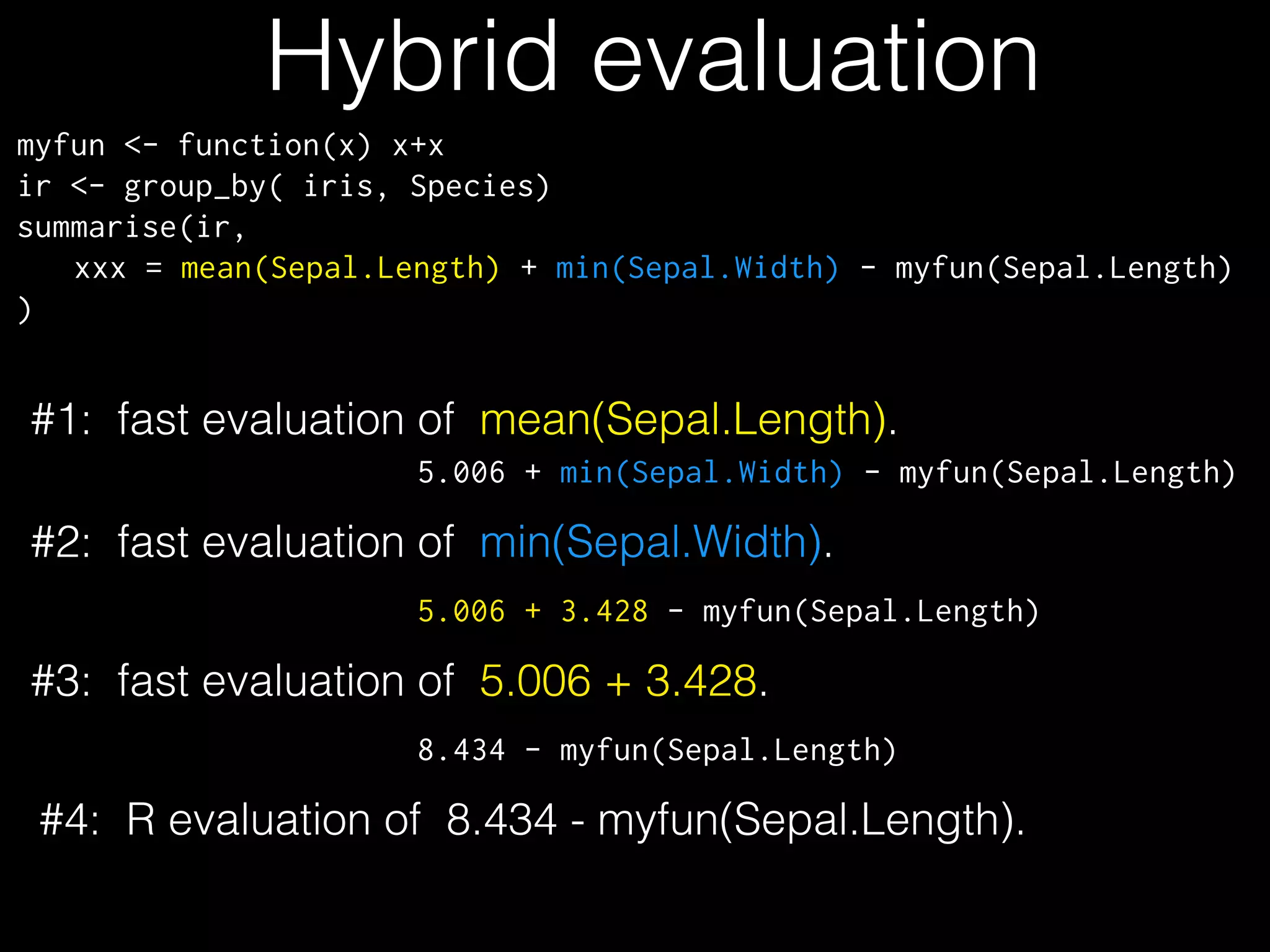

Hybrid evaluation myfun <- function(x) x+x ir <- group_by( iris, Species) summarise(ir, xxx = mean(Sepal.Length) + min(Sepal.Width) - myfun(Sepal.Length) ) #1: fast evaluation of mean(Sepal.Length). 5.006 + min(Sepal.Width) - myfun(Sepal.Length) #2: fast evaluation of min(Sepal.Width). 5.006 + 3.428 - myfun(Sepal.Length) #3: fast evaluation of 5.006 + 3.428. 8.434 - myfun(Sepal.Length) #4: R evaluation of 8.434 - myfun(Sepal.Length).

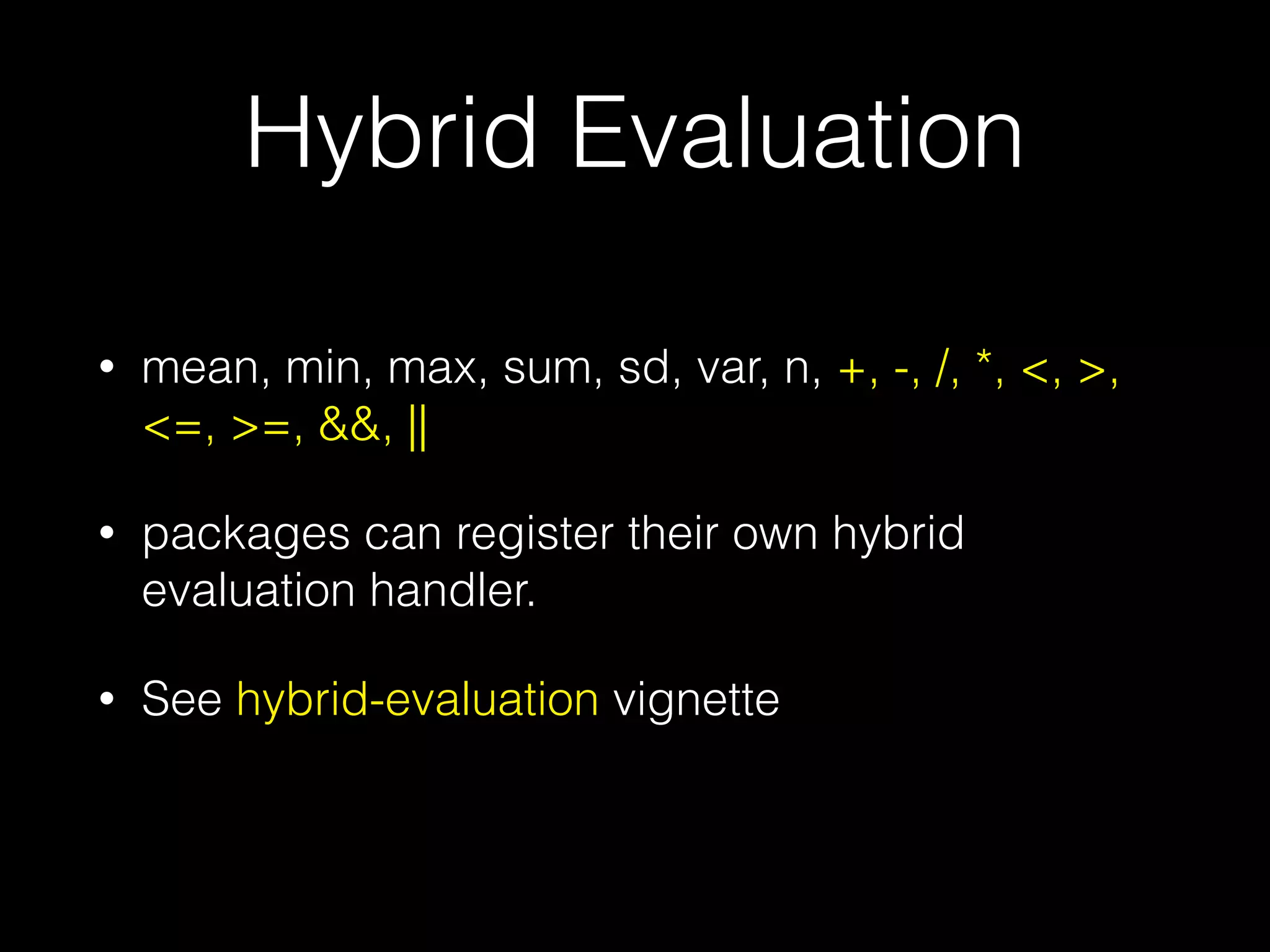

Hybrid Evaluation ! • mean, min, max, sum, sd, var, n, +, -, /, *, <, >, <=, >=, &&, || • packages can register their own hybrid evaluation handler. • See hybrid-evaluation vignette

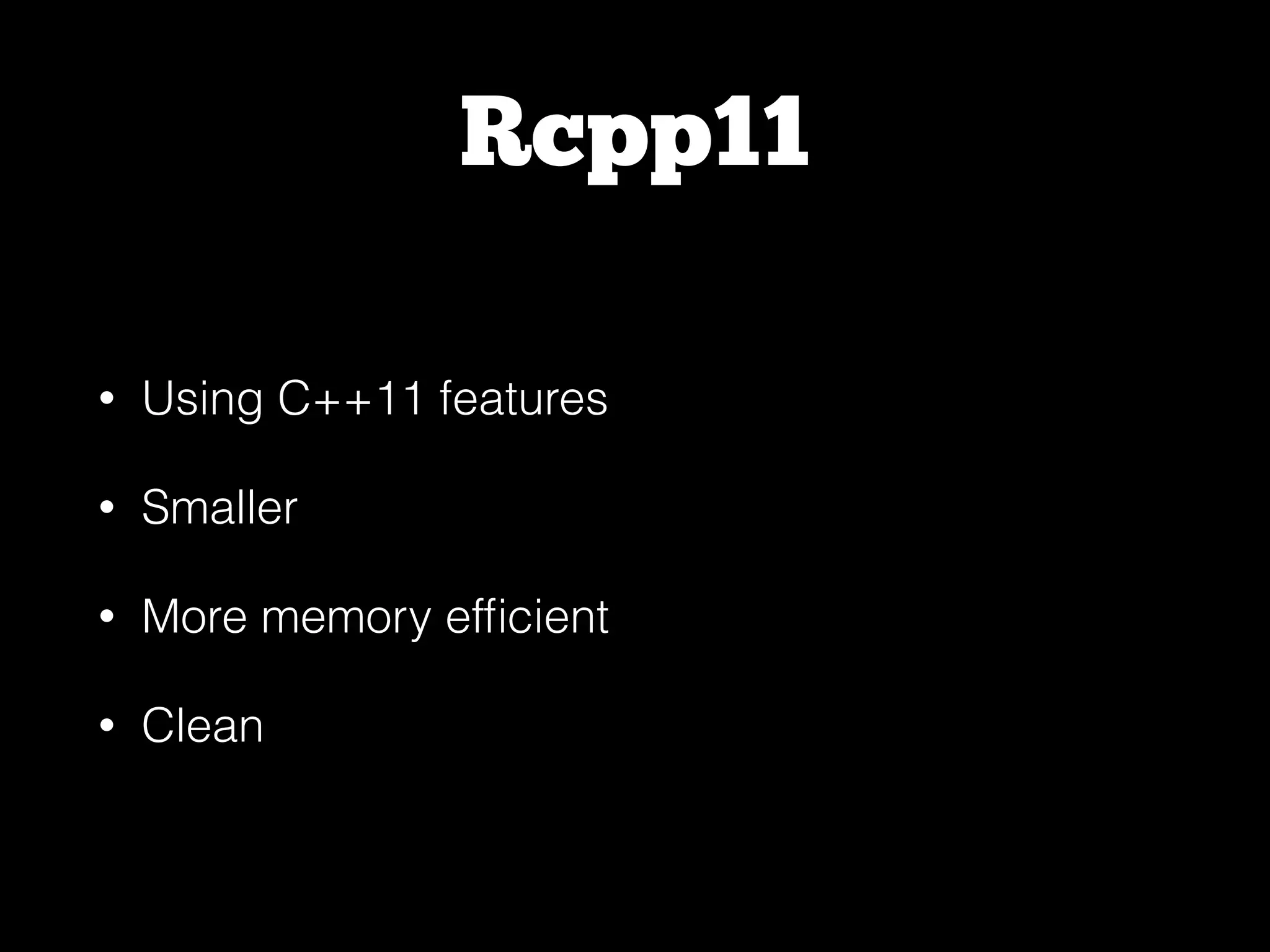

Rcpp11 • Using C++11 features • Smaller • More memory efﬁcient • Clean

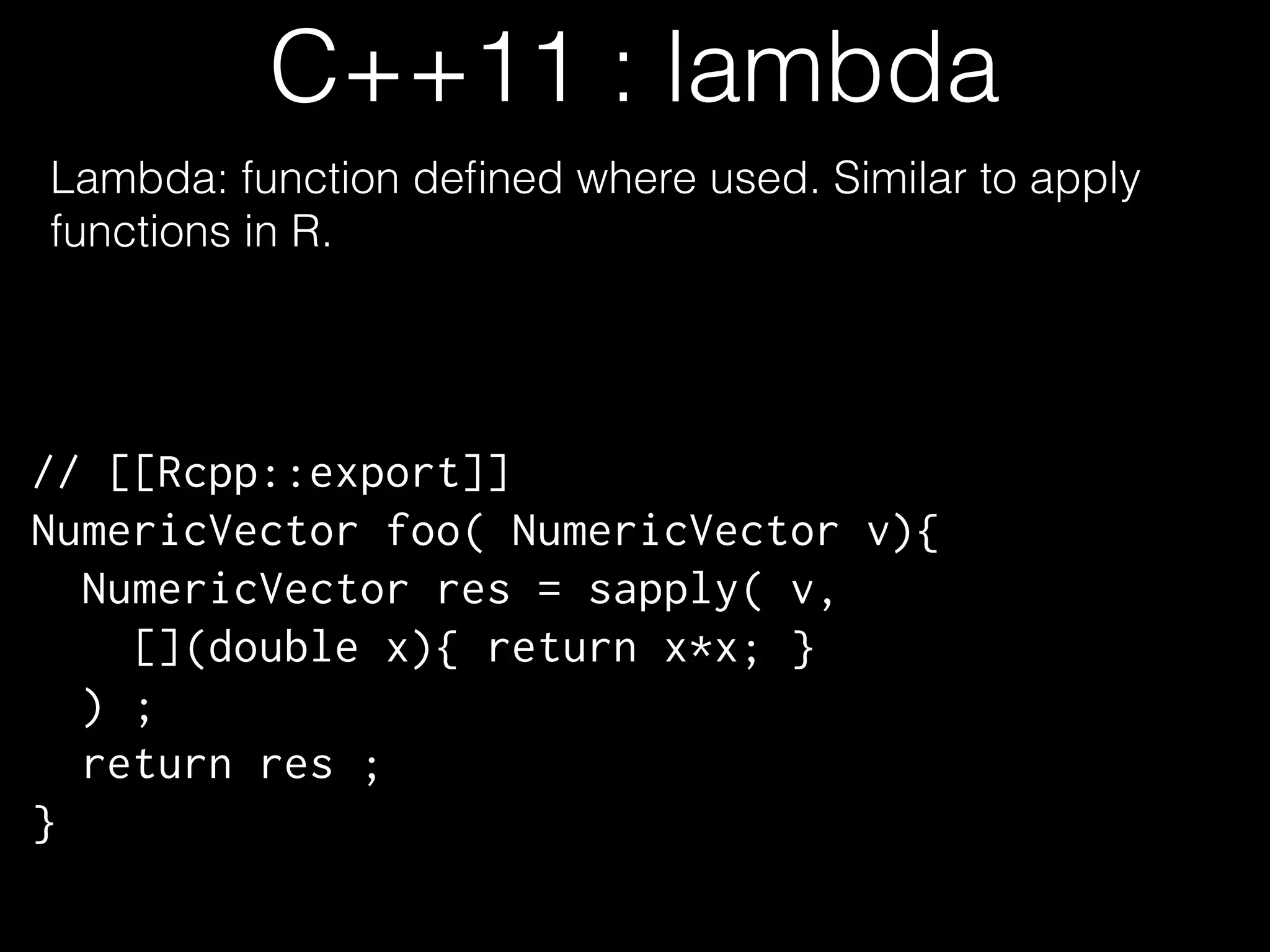

C++11 : lambda Lambda: function deﬁned where used. Similar to apply functions in R. // [[Rcpp::export]] NumericVector foo( NumericVector v){ NumericVector res = sapply( v, [](double x){ return x*x; } ) ; return res ; }

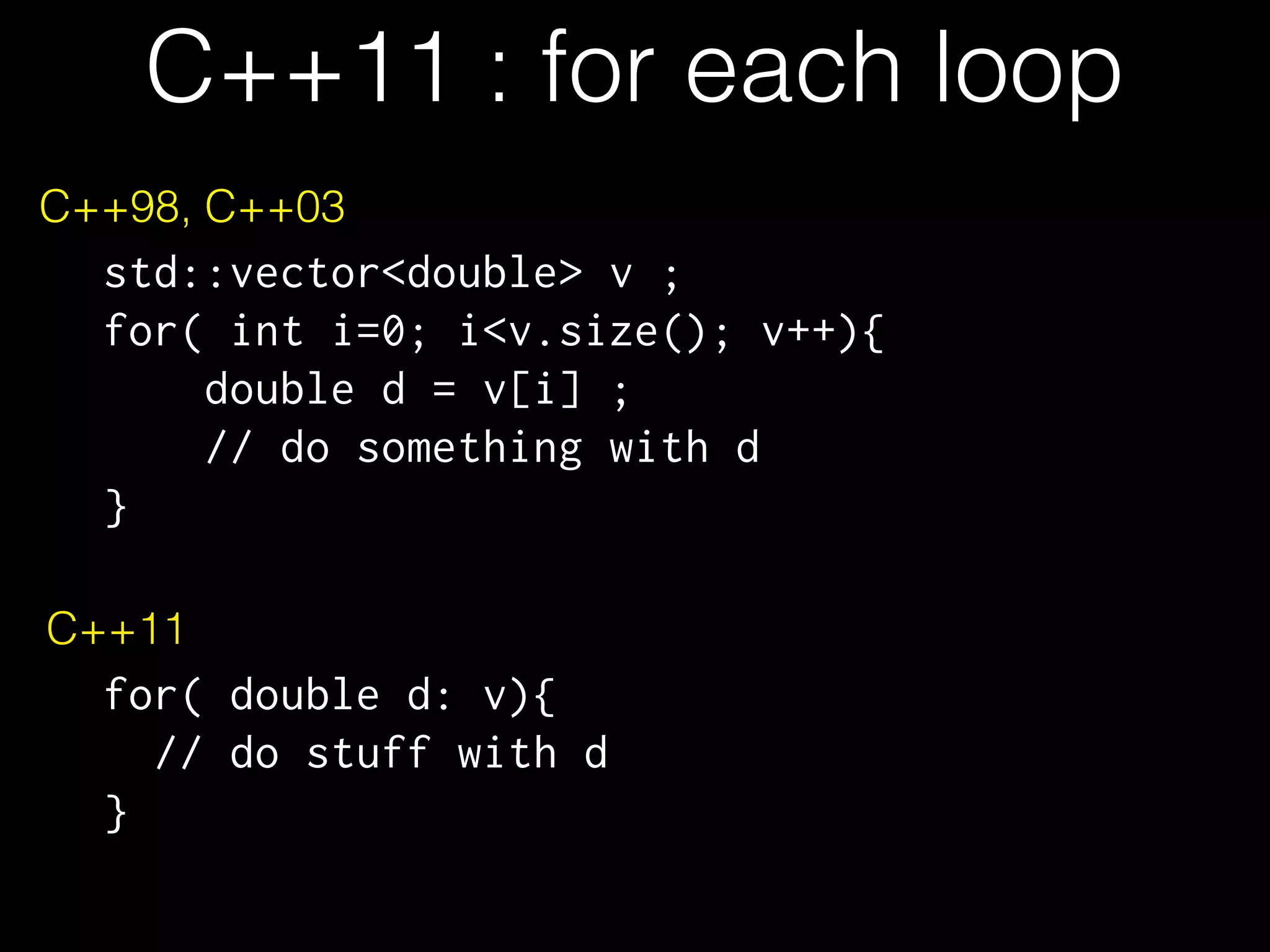

C++11 : for each loop C++98, C++03 std::vector<double> v ; for( int i=0; i<v.size(); v++){ double d = v[i] ; // do something with d } C++11 for( double d: v){ // do stuff with d }

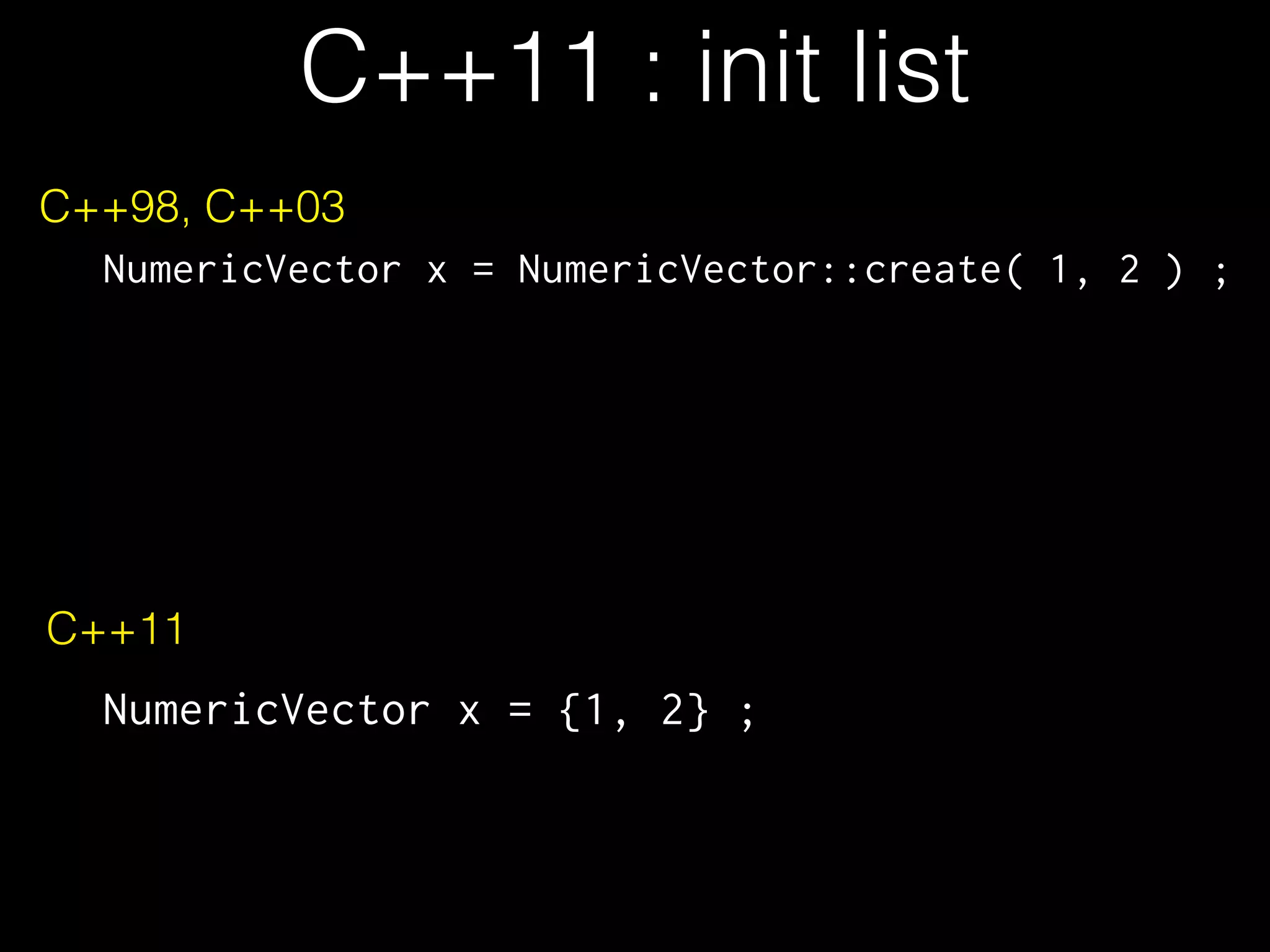

C++11 : init list C++98, C++03 NumericVector x = NumericVector::create( 1, 2 ) ; C++11 NumericVector x = {1, 2} ;

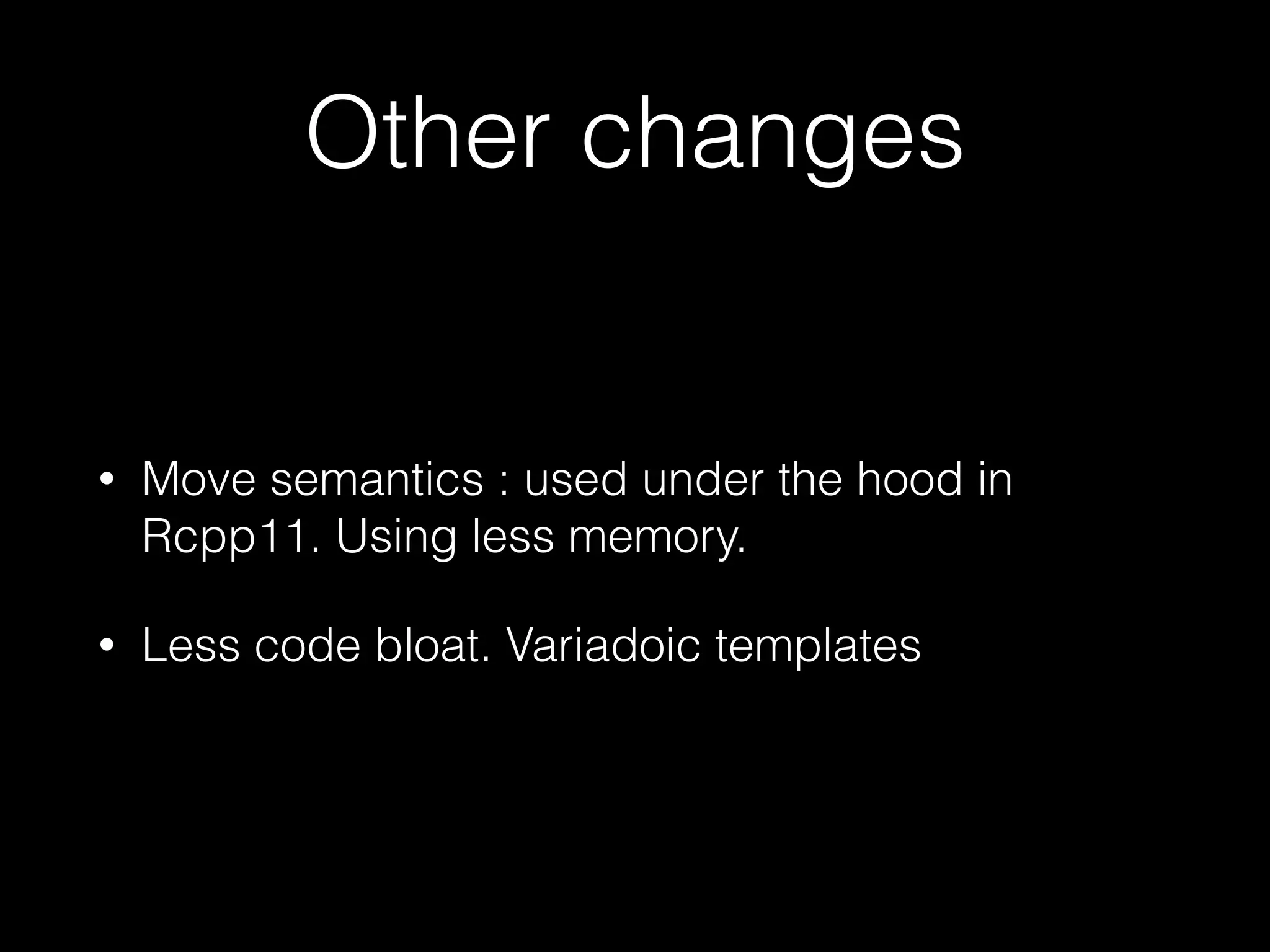

Other changes • Move semantics : used under the hood in Rcpp11. Using less memory. • Less code bloat. Variadoic templates

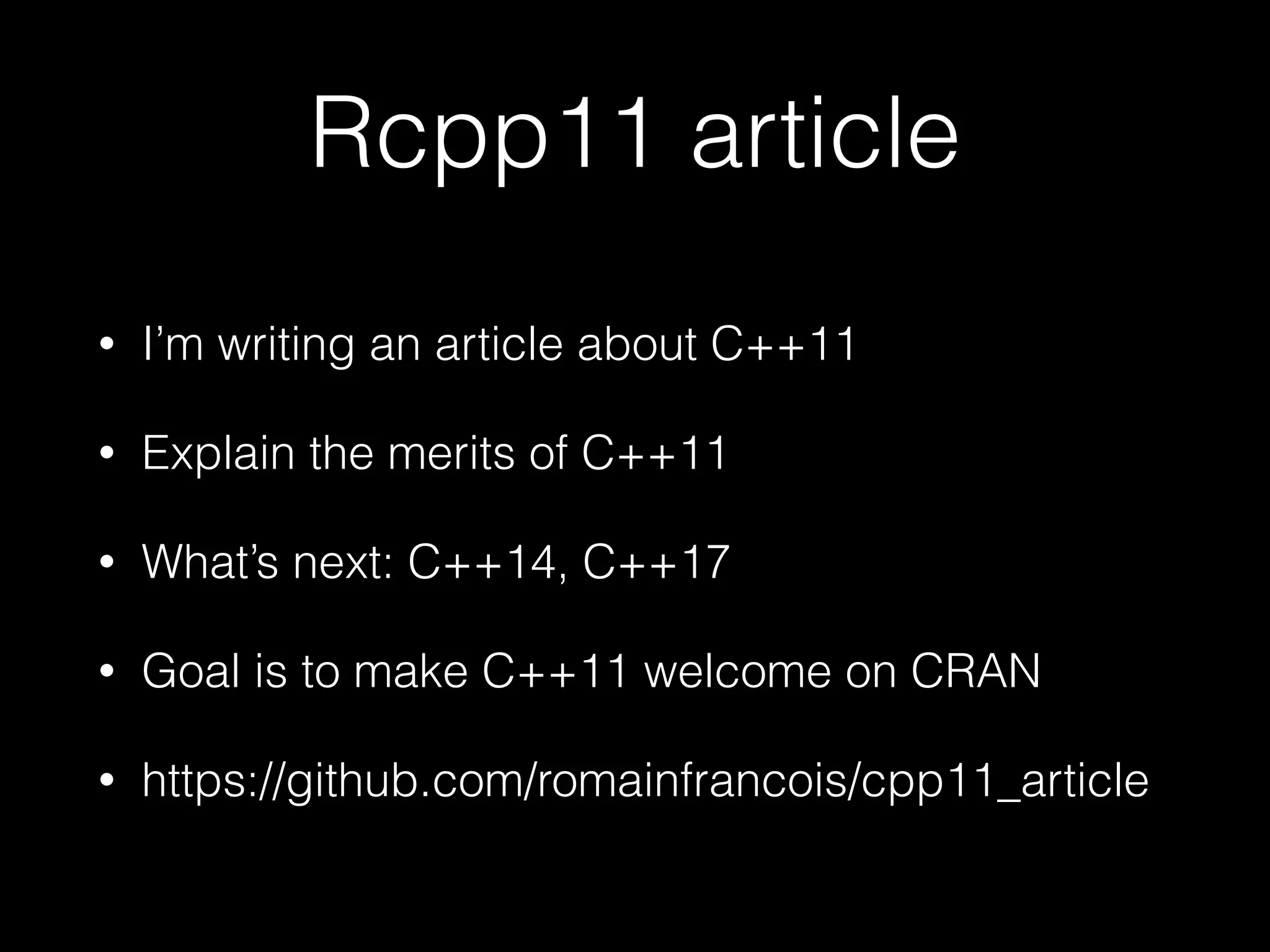

Rcpp11 article • I’m writing an article about C++11 • Explain the merits of C++11 • What’s next: C++14, C++17 • Goal is to make C++11 welcome on CRAN • https://github.com/romainfrancois/cpp11_article

Questions Romain François ! romain@r-enthusiasts.com @romainfrancois
