Porting an MPI application to hybrid MPI+OpenMP with Reveal tool on Shaheen II
The document outlines a tutorial on using the Reveal tool for optimizing MPI applications on the Shaheen II supercomputer, specifically focusing on a seismic acoustic wave solver application. It details the setup and execution process, including the compilation of code with performance tools and the integration of OpenMP for parallelism. Results demonstrate significant performance improvements with optimizations, emphasizing the utility of the Reveal tool for analyzing and enhancing code performance.
Porting an MPI application to hybrid MPI+OpenMP with Reveal tool on Shaheen II
- 1.
- 2. Outline KAUST King AbdullahUniversity of Science and Technology 2 ❖ Introduction ❖ Test case ❖ Reveal

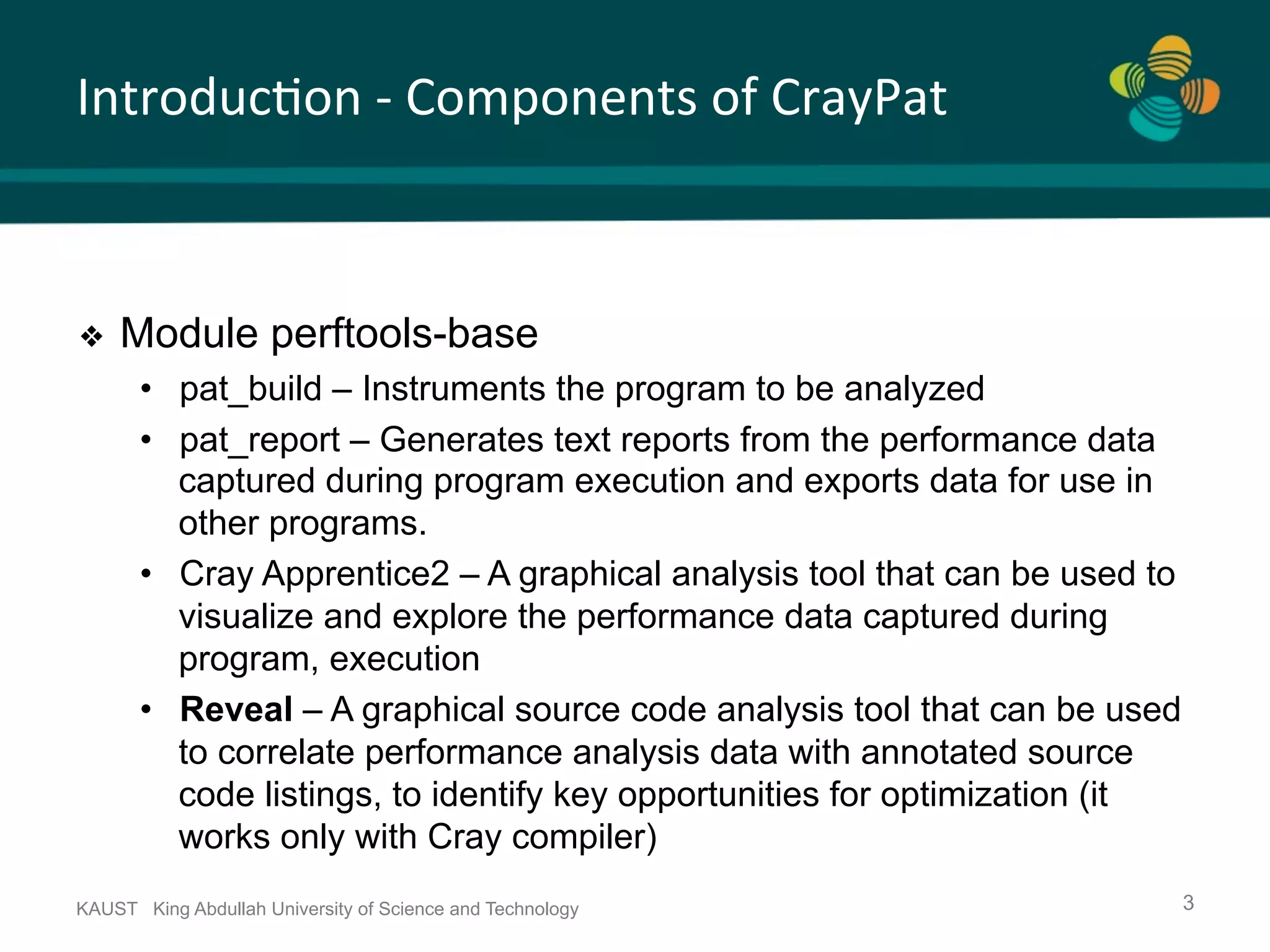

- 3. Introduc.on - Components of CrayPat KAUST King AbdullahUniversity of Science and Technology 3 ❖ Module perftools-base • pat_build – Instruments the program to be analyzed • pat_report – Generates text reports from the performance data captured during program execution and exports data for use in other programs. • Cray Apprentice2 – A graphical analysis tool that can be used to visualize and explore the performance data captured during program, execution • Reveal – A graphical source code analysis tool that can be used to correlate performance analysis data with annotated source code listings, to identify key opportunities for optimization (it works only with Cray compiler)

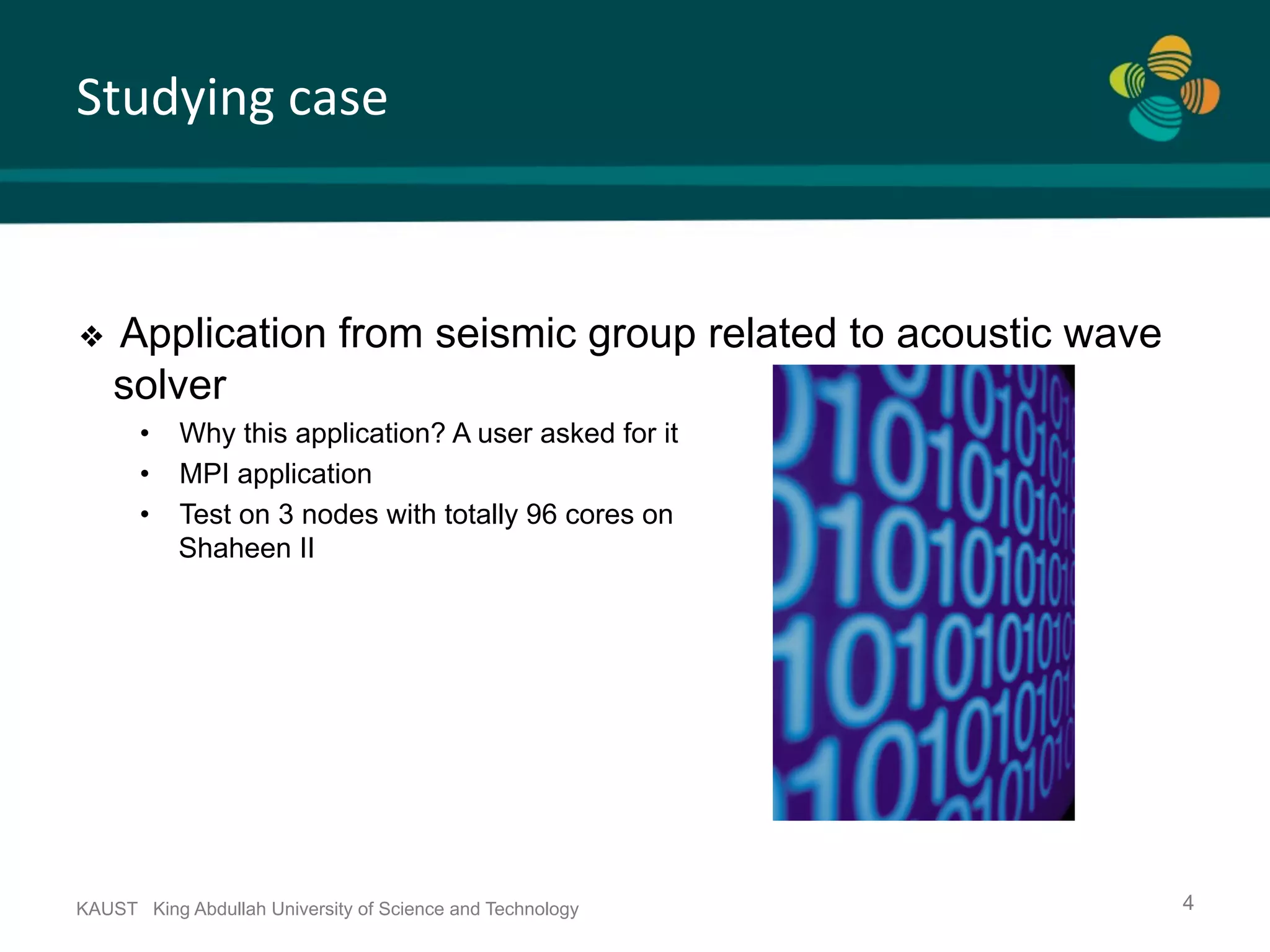

- 4. Studying case KAUST King AbdullahUniversity of Science and Technology 4 ❖ Application from seismic group related to acoustic wave solver • Why this application? A user asked for it • MPI application • Test on 3 nodes with totally 96 cores on Shaheen II

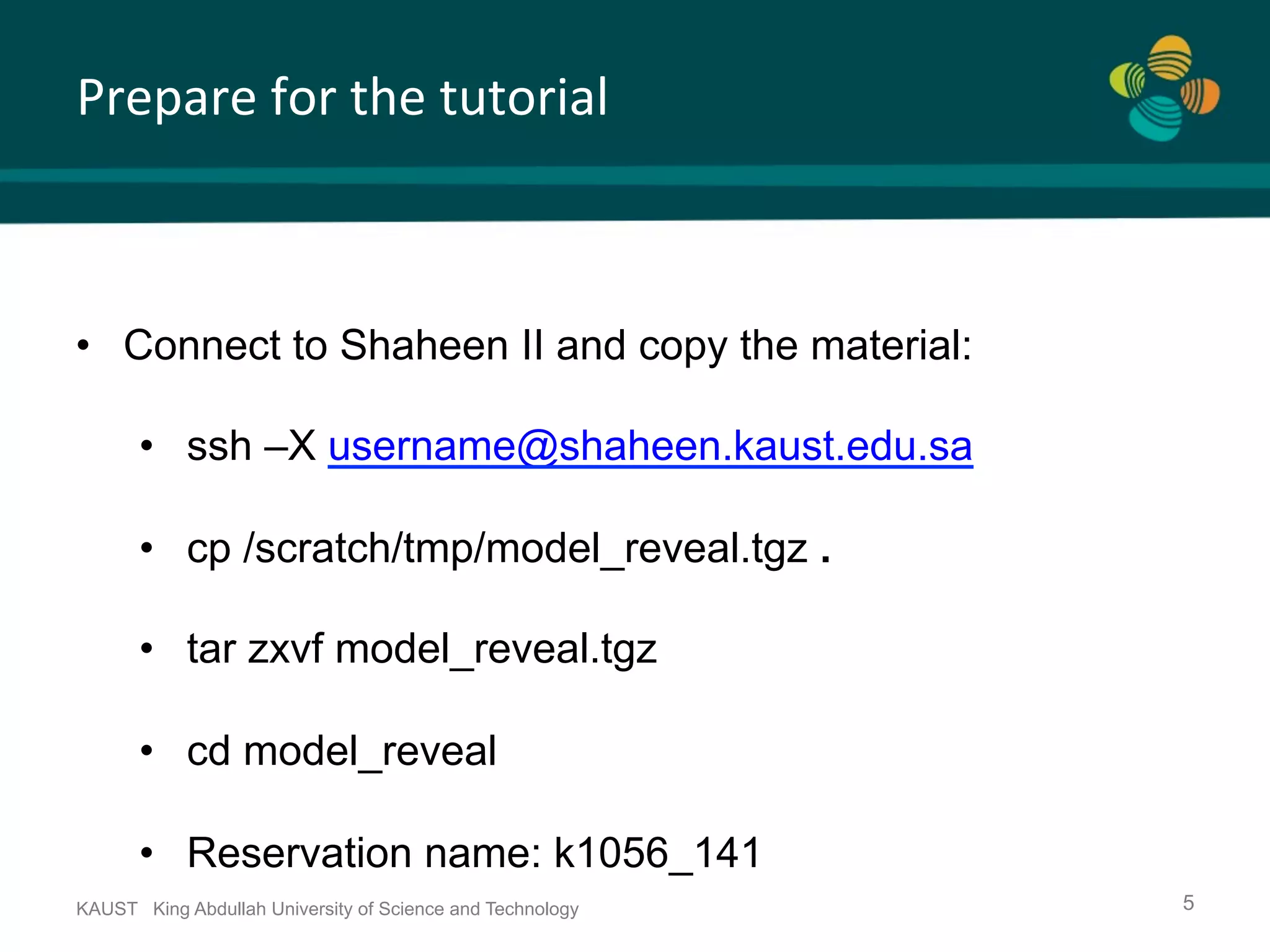

- 5. Prepare for the tutorial KAUST King AbdullahUniversity of Science and Technology 5 • Connect to Shaheen II and copy the material: • ssh –X username@shaheen.kaust.edu.sa • cp /scratch/tmp/model_reveal.tgz . • tar zxvf model_reveal.tgz • cd model_reveal • Reservation name: k1056_141
- 6. Reveal A tool toport your application to OpenMP programming model KAUST King Abdullah University of Science and Technology 6

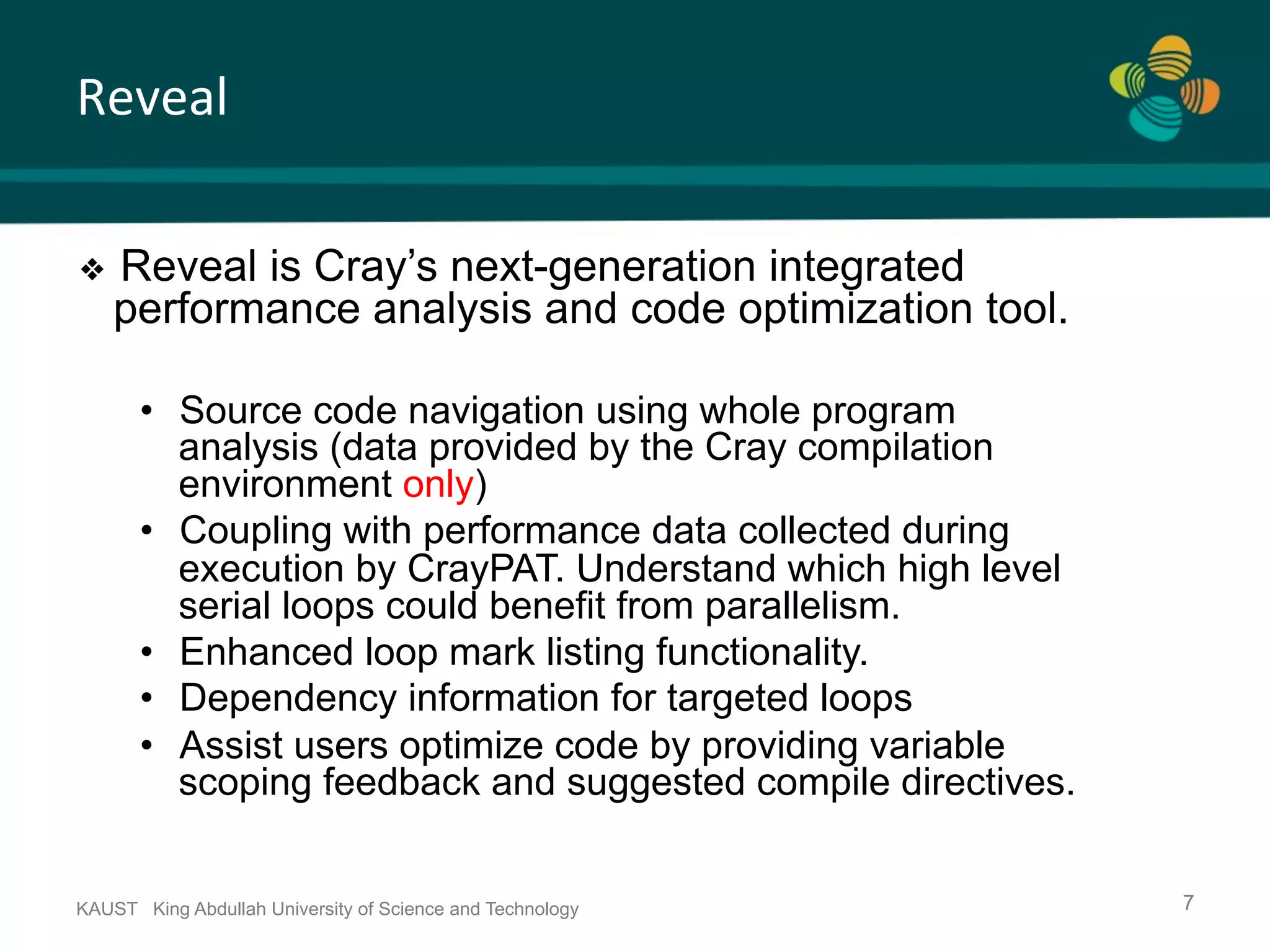

- 7. Reveal KAUST King AbdullahUniversity of Science and Technology 7 ❖ Reveal is Cray’s next-generation integrated performance analysis and code optimization tool. • Source code navigation using whole program analysis (data provided by the Cray compilation environment only) • Coupling with performance data collected during execution by CrayPAT. Understand which high level serial loops could benefit from parallelism. • Enhanced loop mark listing functionality. • Dependency information for targeted loops • Assist users optimize code by providing variable scoping feedback and suggested compile directives.

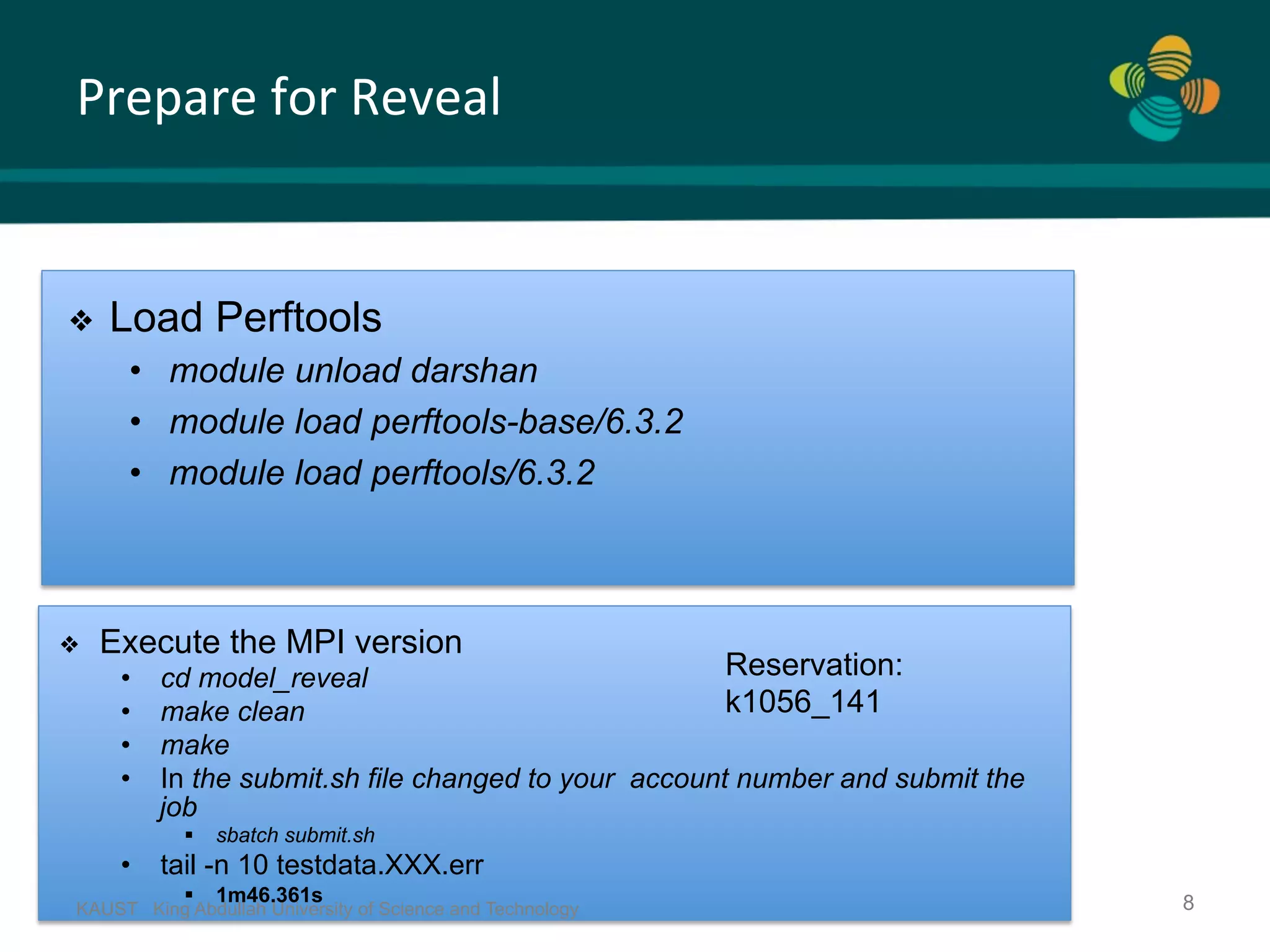

- 8. Prepare for Reveal KAUST King AbdullahUniversity of Science and Technology 8 ❖ Load Perftools • module unload darshan • module load perftools-base/6.3.2 • module load perftools/6.3.2 ❖ Execute the MPI version • cd model_reveal • make clean • make • In the submit.sh file changed to your account number and submit the job § sbatch submit.sh • tail -n 10 testdata.XXX.err § 1m46.361s Reservation: k1056_141

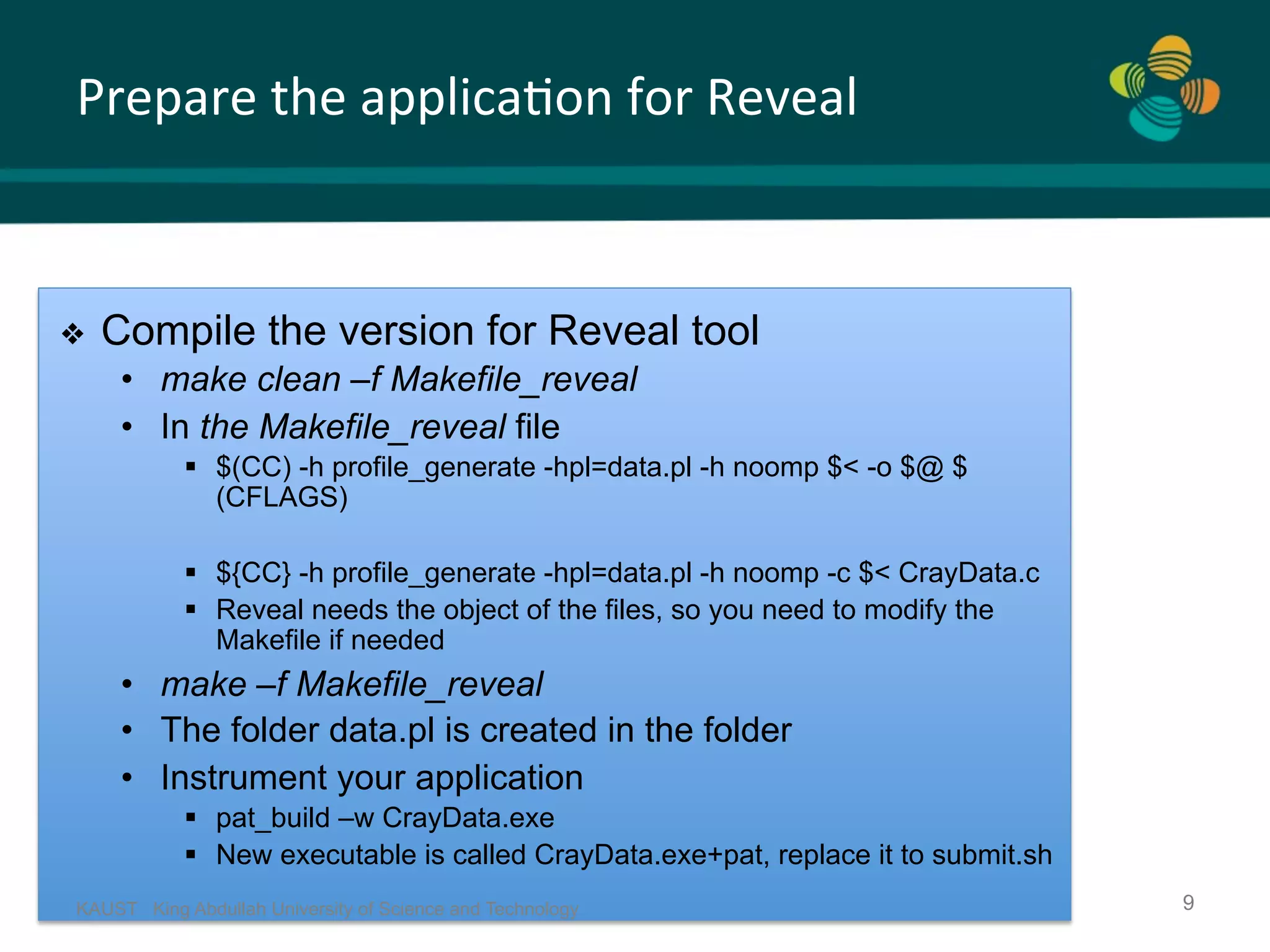

- 9. Prepare the applica.on for Reveal KAUST King AbdullahUniversity of Science and Technology 9 ❖ Compile the version for Reveal tool • make clean –f Makefile_reveal • In the Makefile_reveal file § $(CC) -h profile_generate -hpl=data.pl -h noomp $< -o $@ $ (CFLAGS) § ${CC} -h profile_generate -hpl=data.pl -h noomp -c $< CrayData.c § Reveal needs the object of the files, so you need to modify the Makefile if needed • make –f Makefile_reveal • The folder data.pl is created in the folder • Instrument your application § pat_build –w CrayData.exe § New executable is called CrayData.exe+pat, replace it to submit.sh

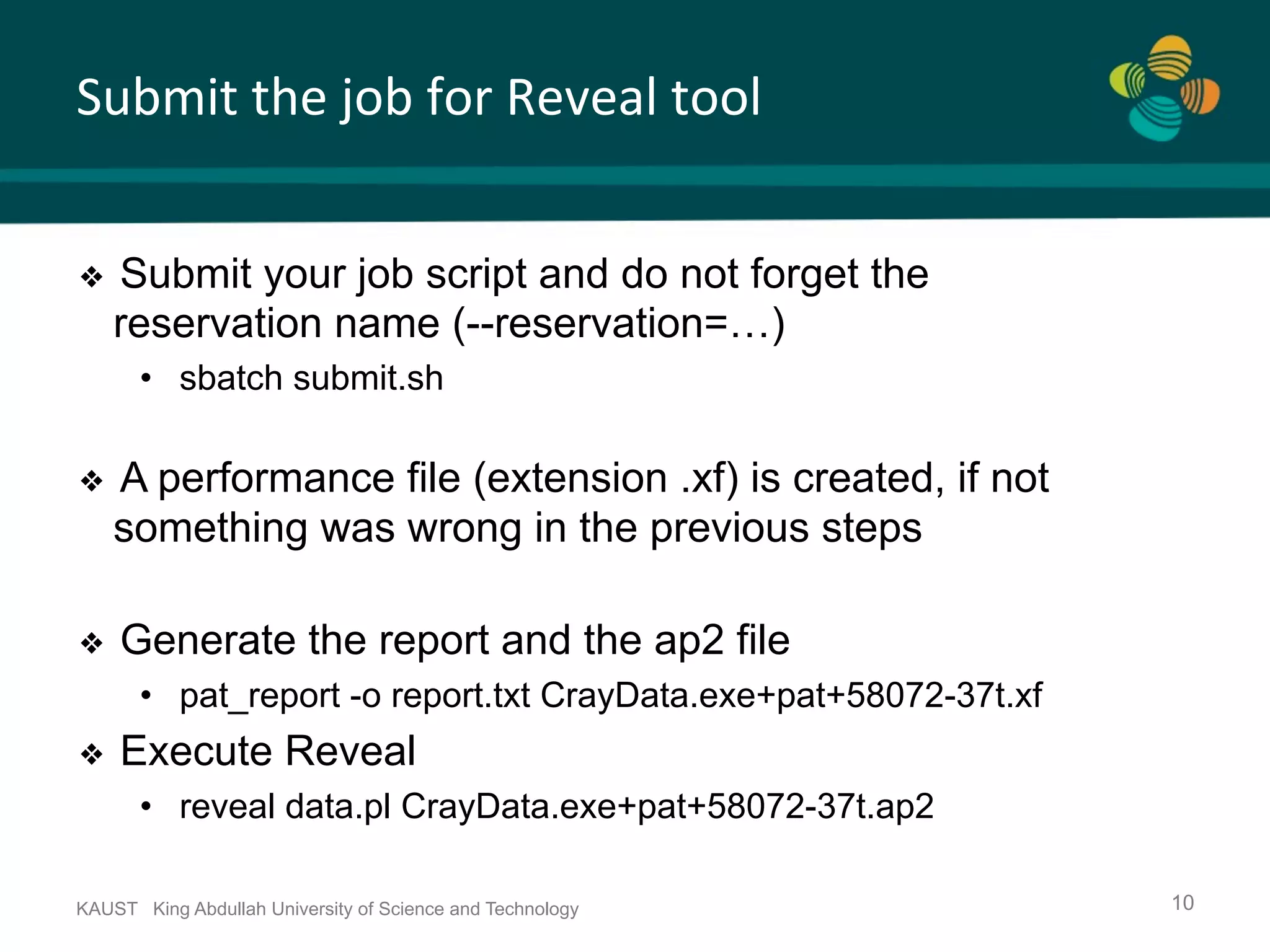

- 10. Submit the job for Reveal tool KAUST King AbdullahUniversity of Science and Technology 10 ❖ Submit your job script and do not forget the reservation name (--reservation=…) • sbatch submit.sh ❖ A performance file (extension .xf) is created, if not something was wrong in the previous steps ❖ Generate the report and the ap2 file • pat_report -o report.txt CrayData.exe+pat+58072-37t.xf ❖ Execute Reveal • reveal data.pl CrayData.exe+pat+58072-37t.ap2

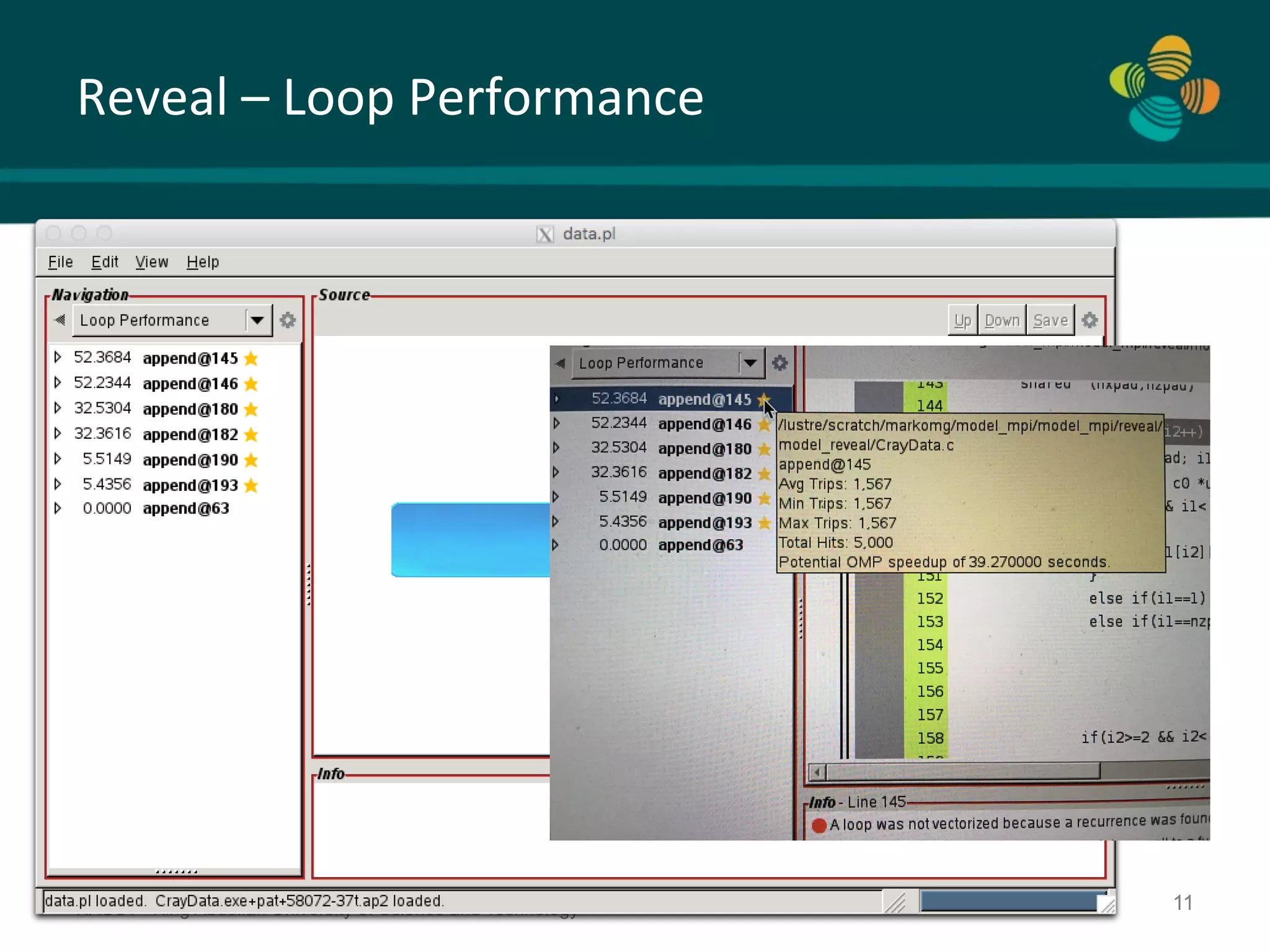

- 11. Reveal – Loop Performance KAUST King AbdullahUniversity of Science and Technology 11

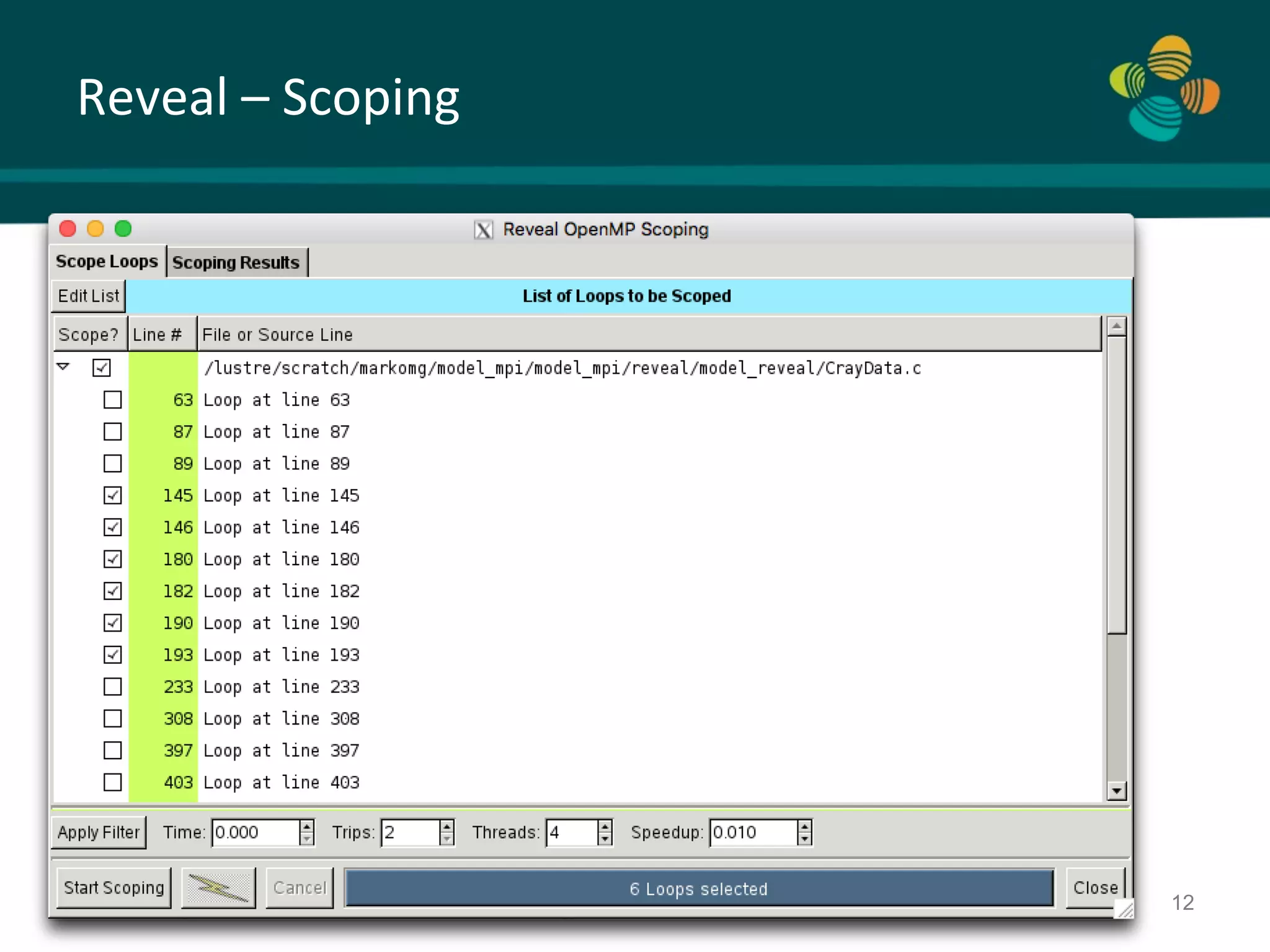

- 12. Reveal – Scoping KAUST King AbdullahUniversity of Science and Technology 12

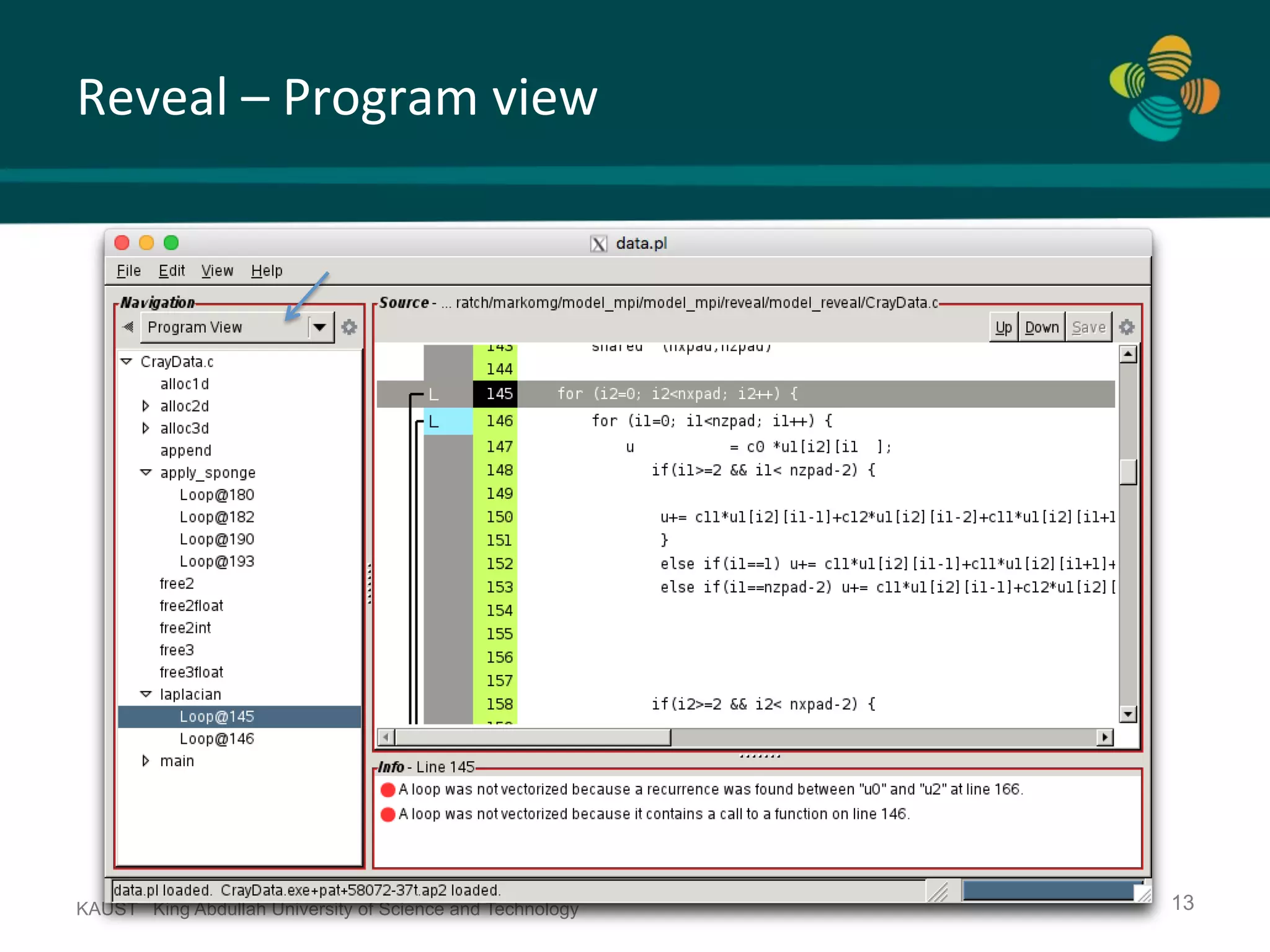

- 13. Reveal – Program view KAUST King AbdullahUniversity of Science and Technology 13

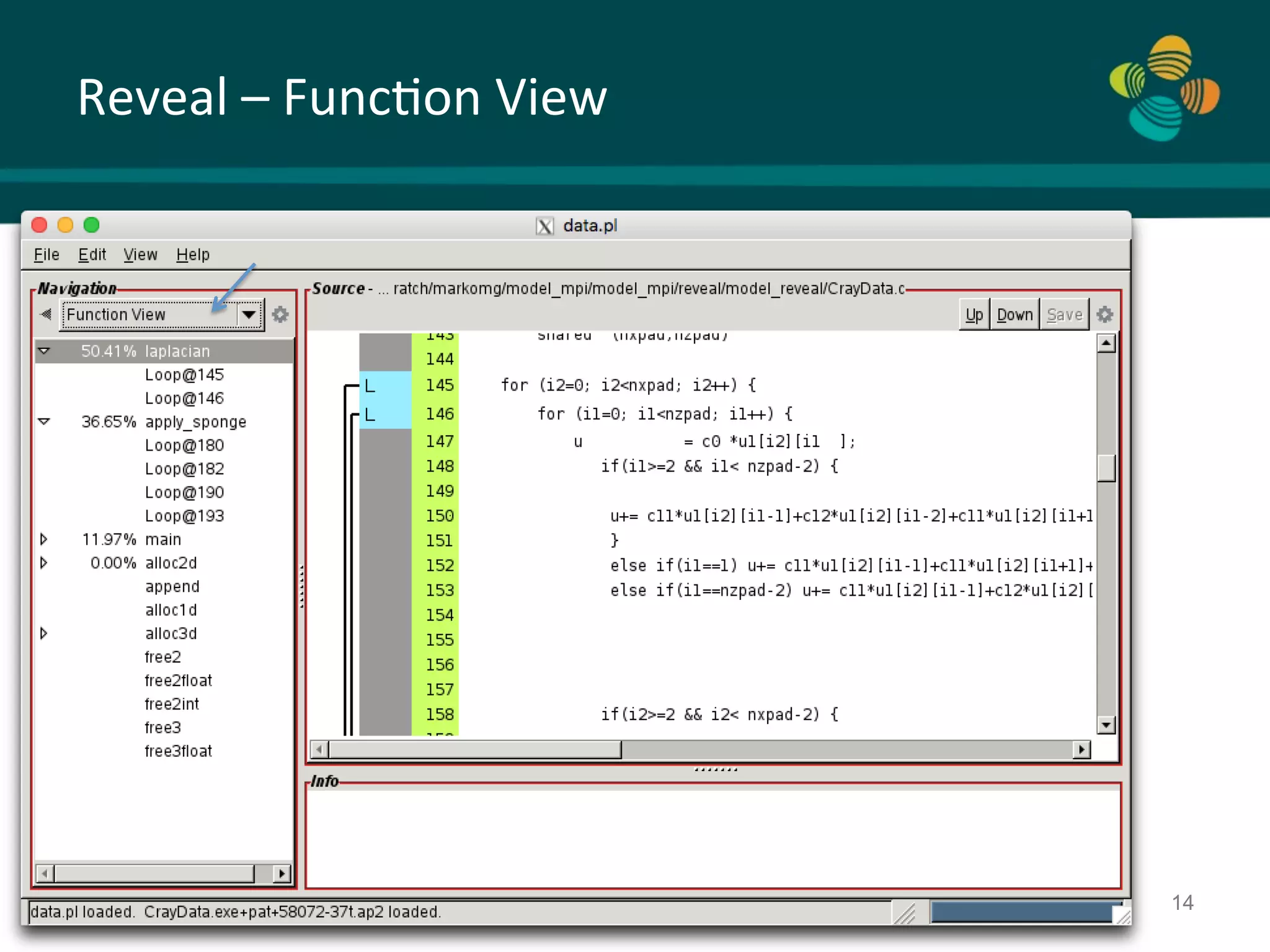

- 14. Reveal – Func.on View KAUST King AbdullahUniversity of Science and Technology 14

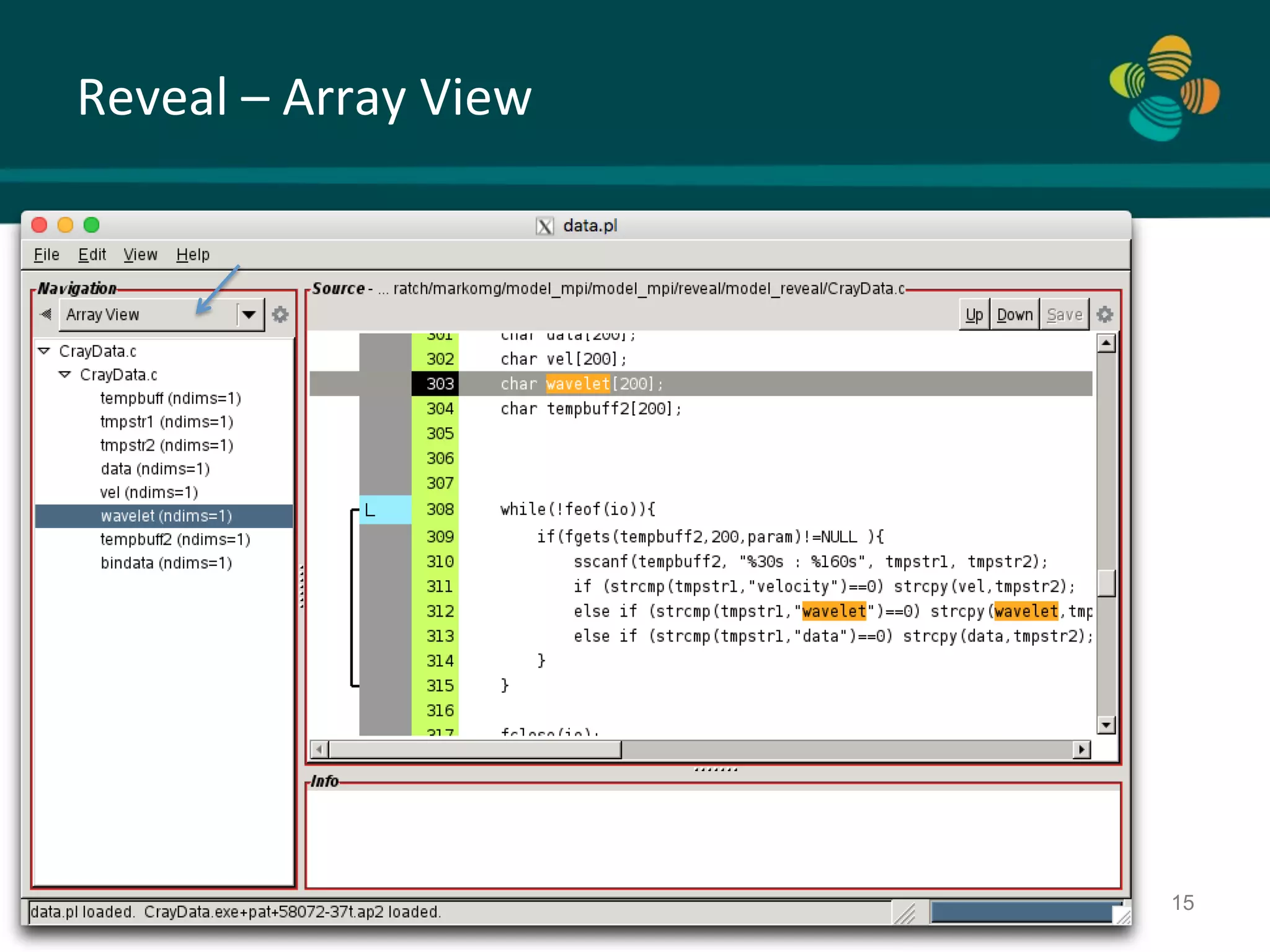

- 15. Reveal – Array View KAUST King AbdullahUniversity of Science and Technology 15

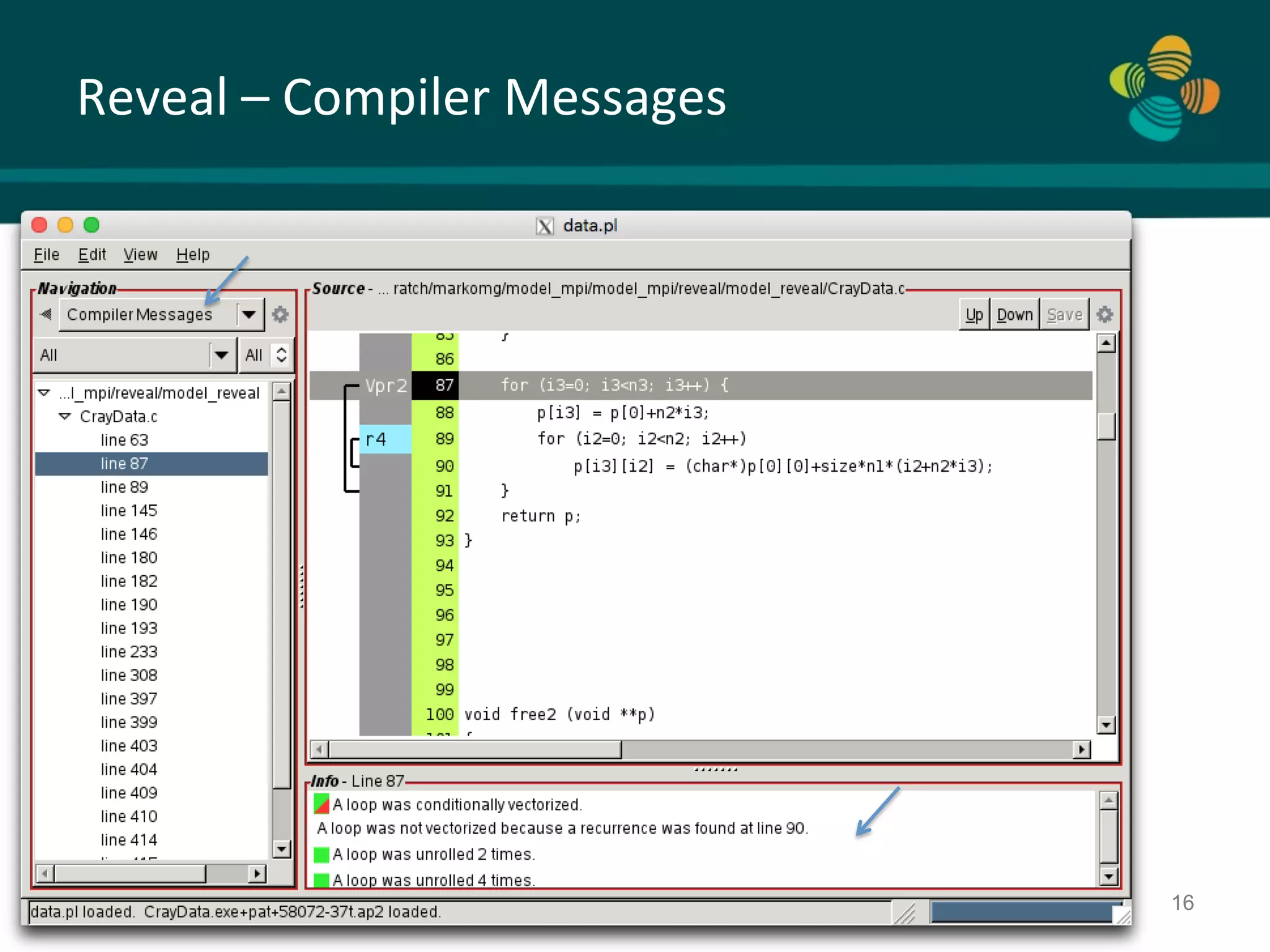

- 16. Reveal – Compiler Messages KAUST King AbdullahUniversity of Science and Technology 16

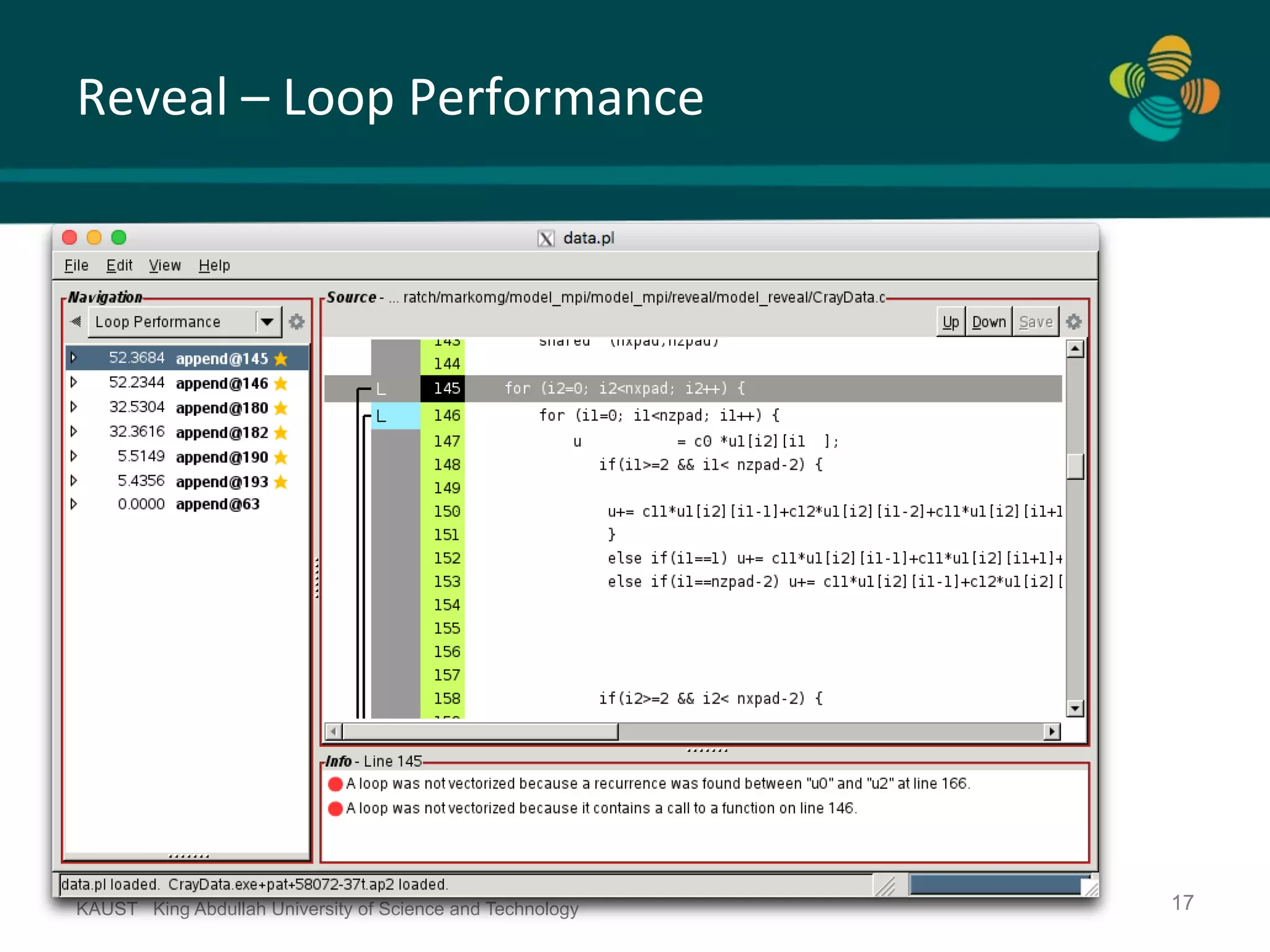

- 17. Reveal – Loop Performance KAUST King AbdullahUniversity of Science and Technology 17

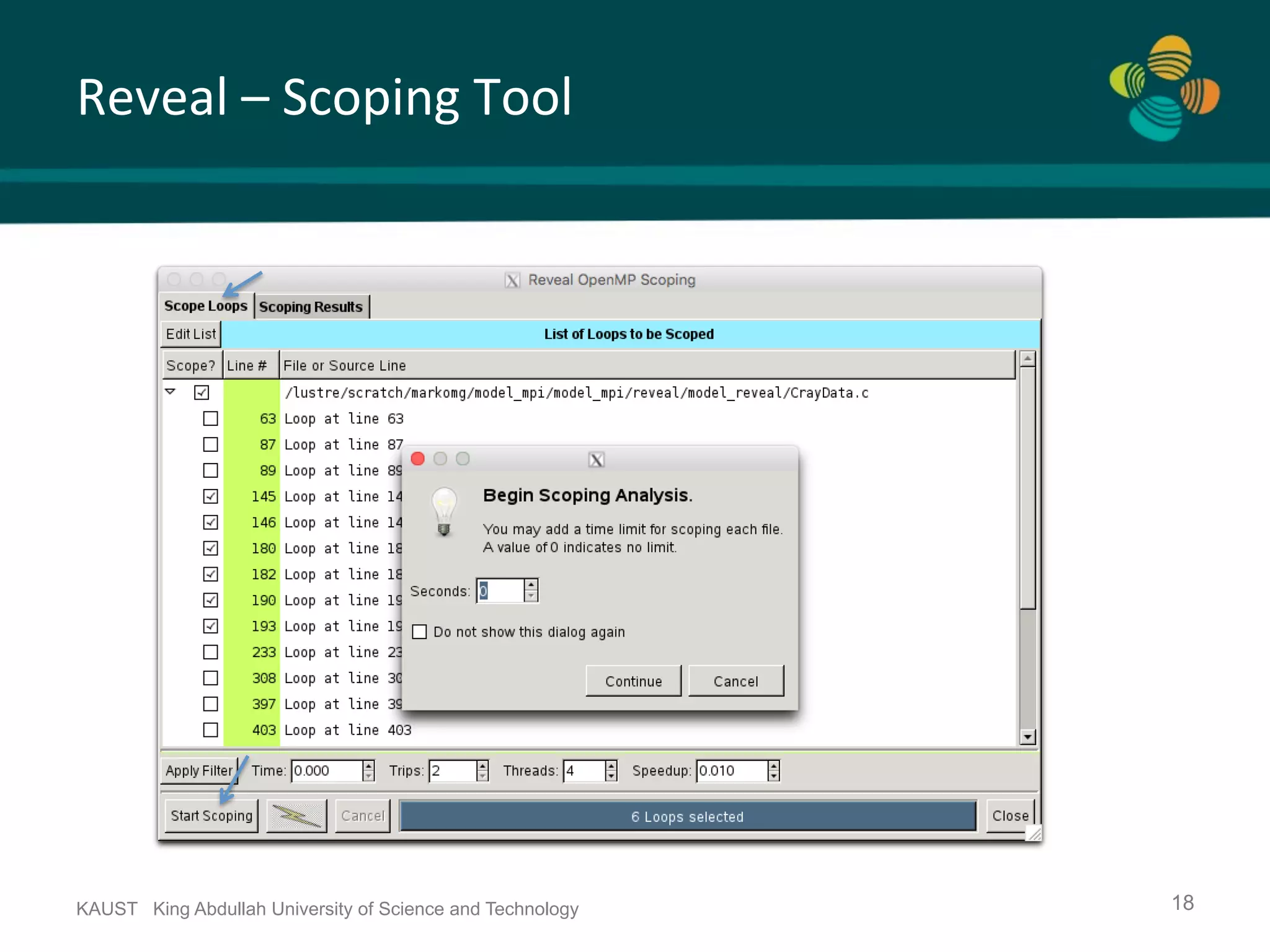

- 18. Reveal – Scoping Tool KAUST King AbdullahUniversity of Science and Technology 18

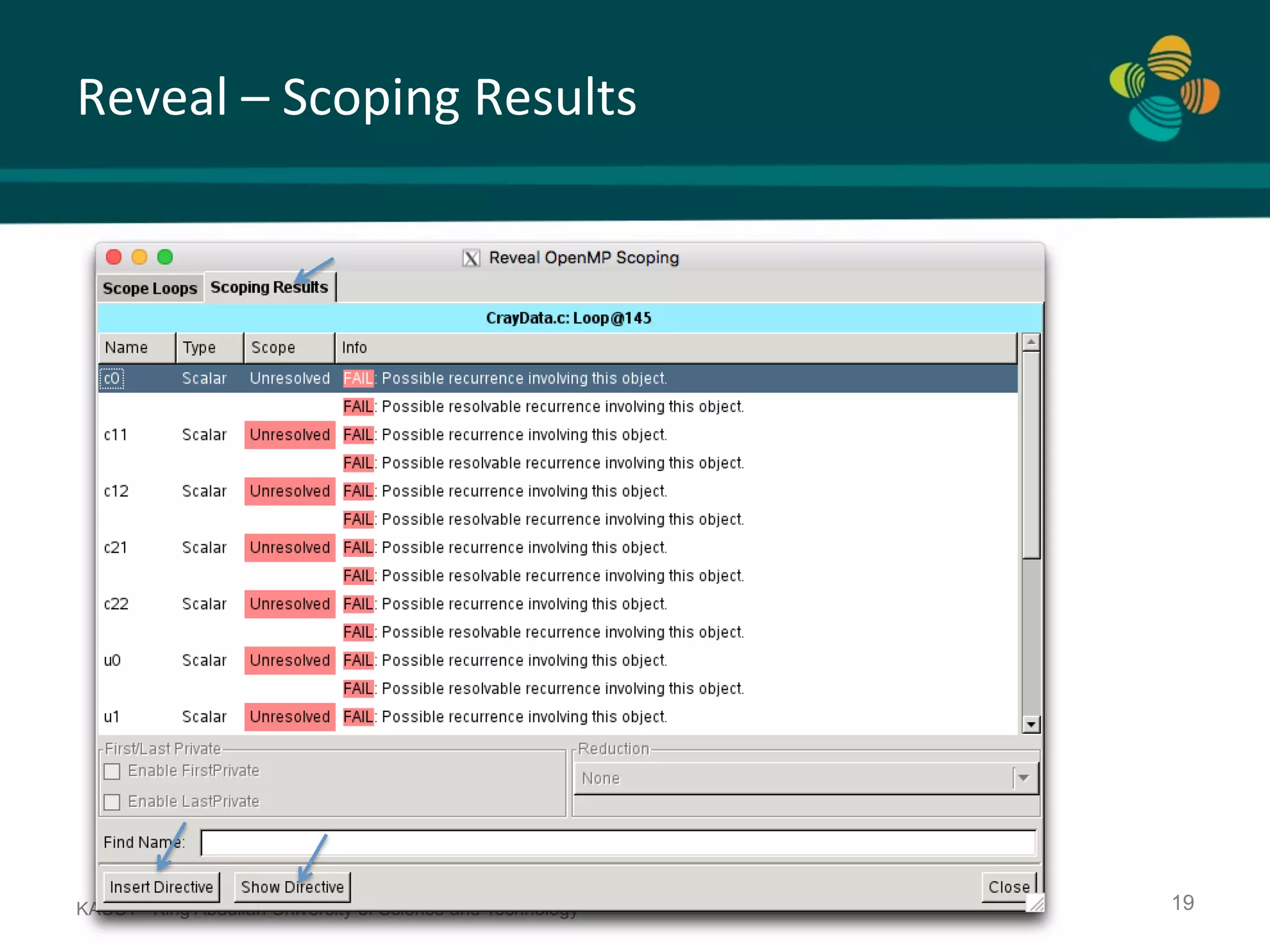

- 19. Reveal – Scoping Results KAUST King AbdullahUniversity of Science and Technology 19

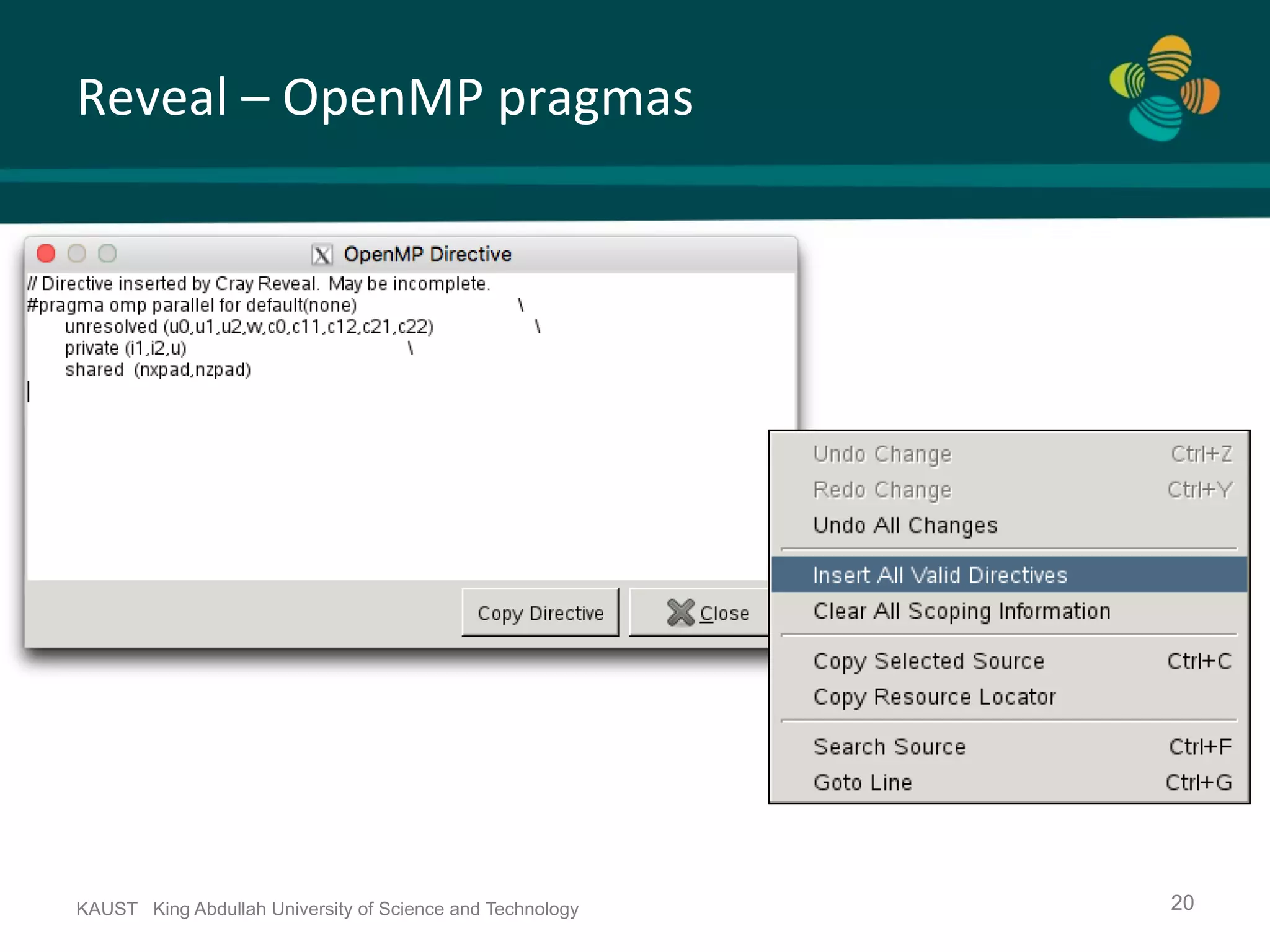

- 20. Reveal – OpenMP pragmas KAUST King AbdullahUniversity of Science and Technology 20

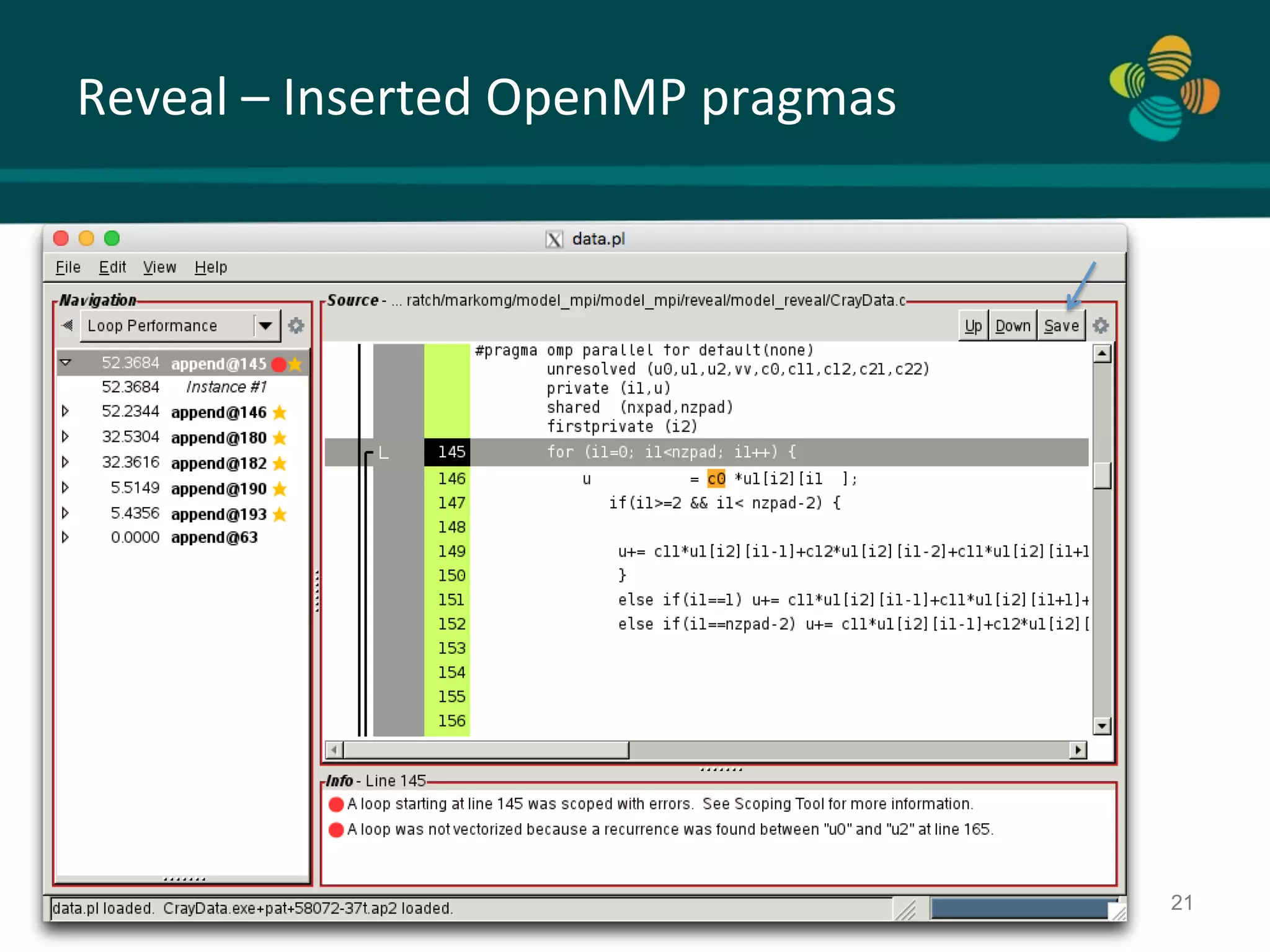

- 21. Reveal – Inserted OpenMP pragmas KAUST King AbdullahUniversity of Science and Technology 21

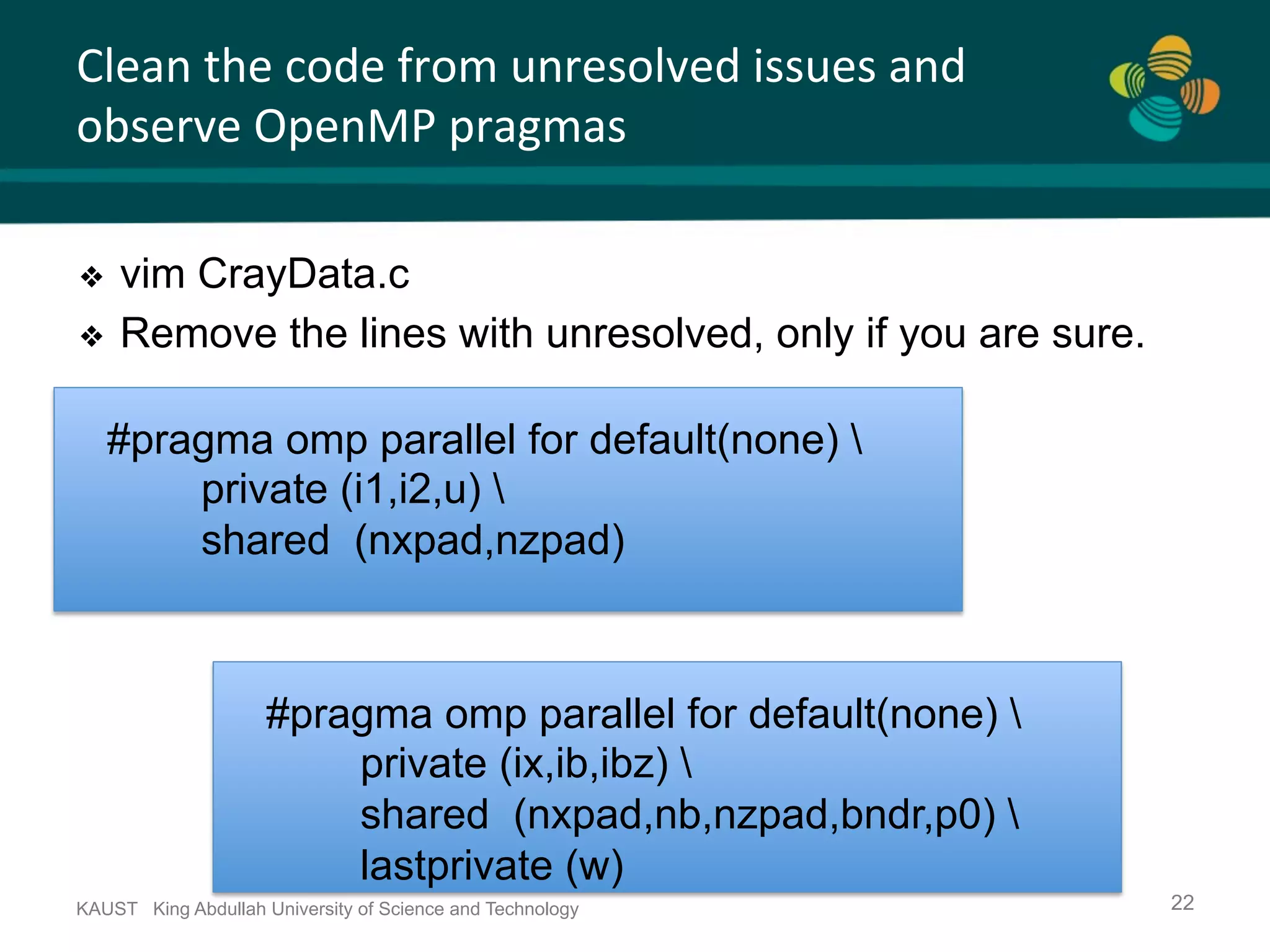

- 22. Clean the code from unresolved issues and observe OpenMP pragmas KAUST King AbdullahUniversity of Science and Technology 22 ❖ vim CrayData.c ❖ Remove the lines with unresolved, only if you are sure. #pragma omp parallel for default(none) private (i1,i2,u) shared (nxpad,nzpad) #pragma omp parallel for default(none) private (ix,ib,ibz) shared (nxpad,nb,nzpad,bndr,p0) lastprivate (w)

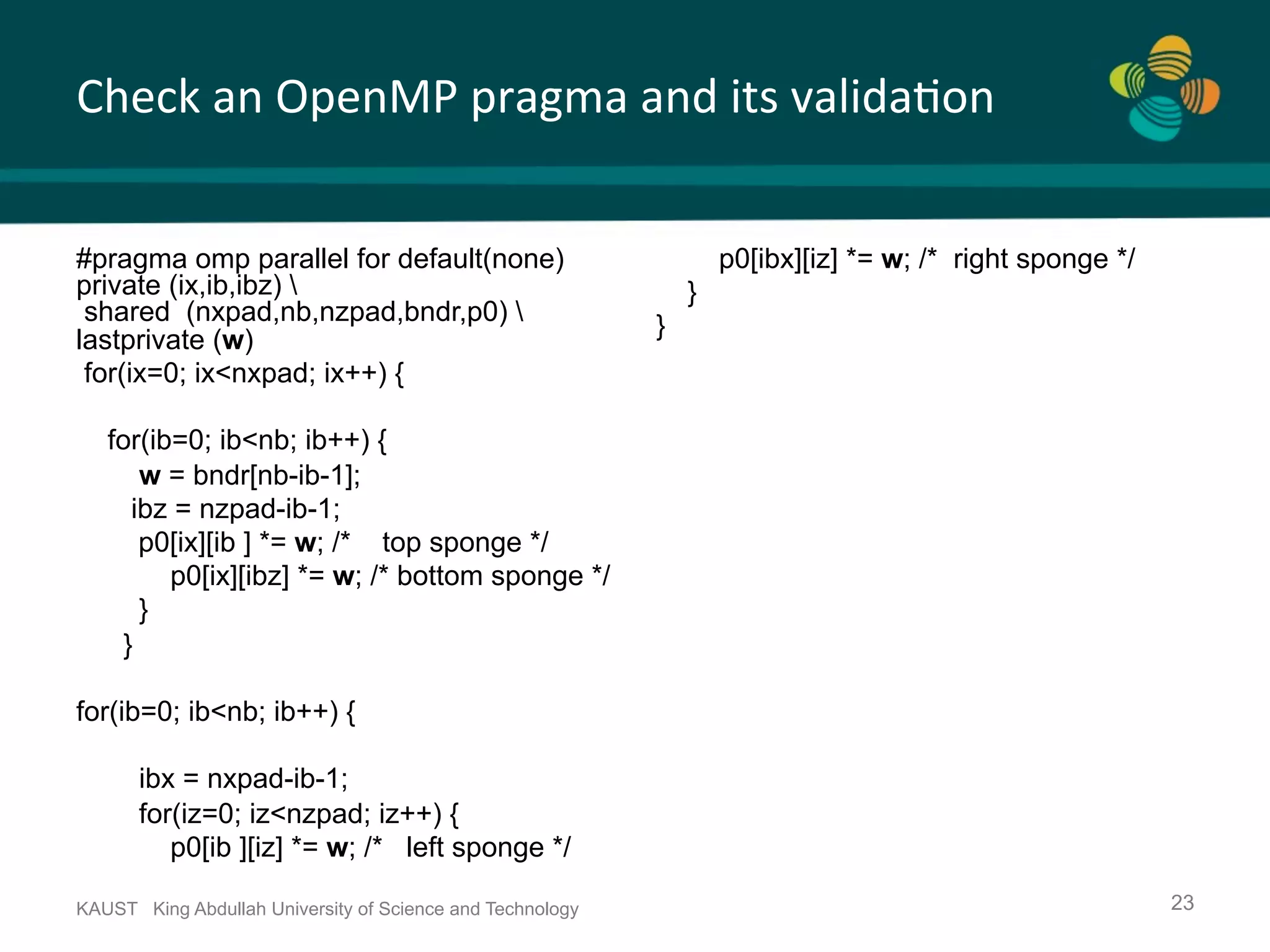

- 23. Check an OpenMP pragma and its valida.on KAUST King AbdullahUniversity of Science and Technology 23 #pragma omp parallel for default(none) private (ix,ib,ibz) shared (nxpad,nb,nzpad,bndr,p0) lastprivate (w) for(ix=0; ix<nxpad; ix++) { for(ib=0; ib<nb; ib++) { w = bndr[nb-ib-1]; ibz = nzpad-ib-1; p0[ix][ib ] *= w; /* top sponge */ p0[ix][ibz] *= w; /* bottom sponge */ } } for(ib=0; ib<nb; ib++) { ibx = nxpad-ib-1; for(iz=0; iz<nzpad; iz++) { p0[ib ][iz] *= w; /* left sponge */ p0[ibx][iz] *= w; /* right sponge */ } }

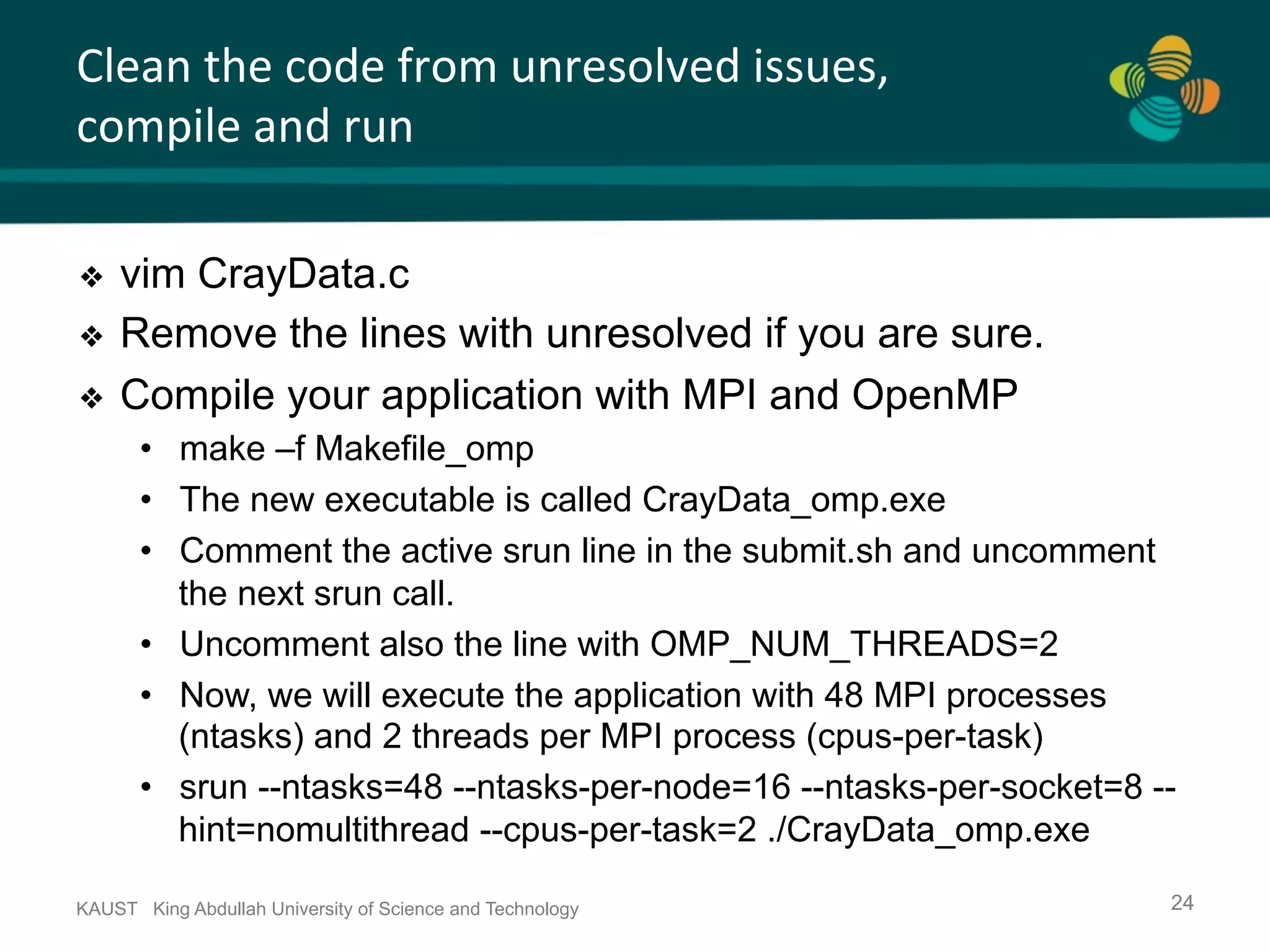

- 24. Clean the code from unresolved issues, compile and run KAUST King AbdullahUniversity of Science and Technology 24 ❖ vim CrayData.c ❖ Remove the lines with unresolved if you are sure. ❖ Compile your application with MPI and OpenMP • make –f Makefile_omp • The new executable is called CrayData_omp.exe • Comment the active srun line in the submit.sh and uncomment the next srun call. • Uncomment also the line with OMP_NUM_THREADS=2 • Now, we will execute the application with 48 MPI processes (ntasks) and 2 threads per MPI process (cpus-per-task) • srun --ntasks=48 --ntasks-per-node=16 --ntasks-per-socket=8 -- hint=nomultithread --cpus-per-task=2 ./CrayData_omp.exe

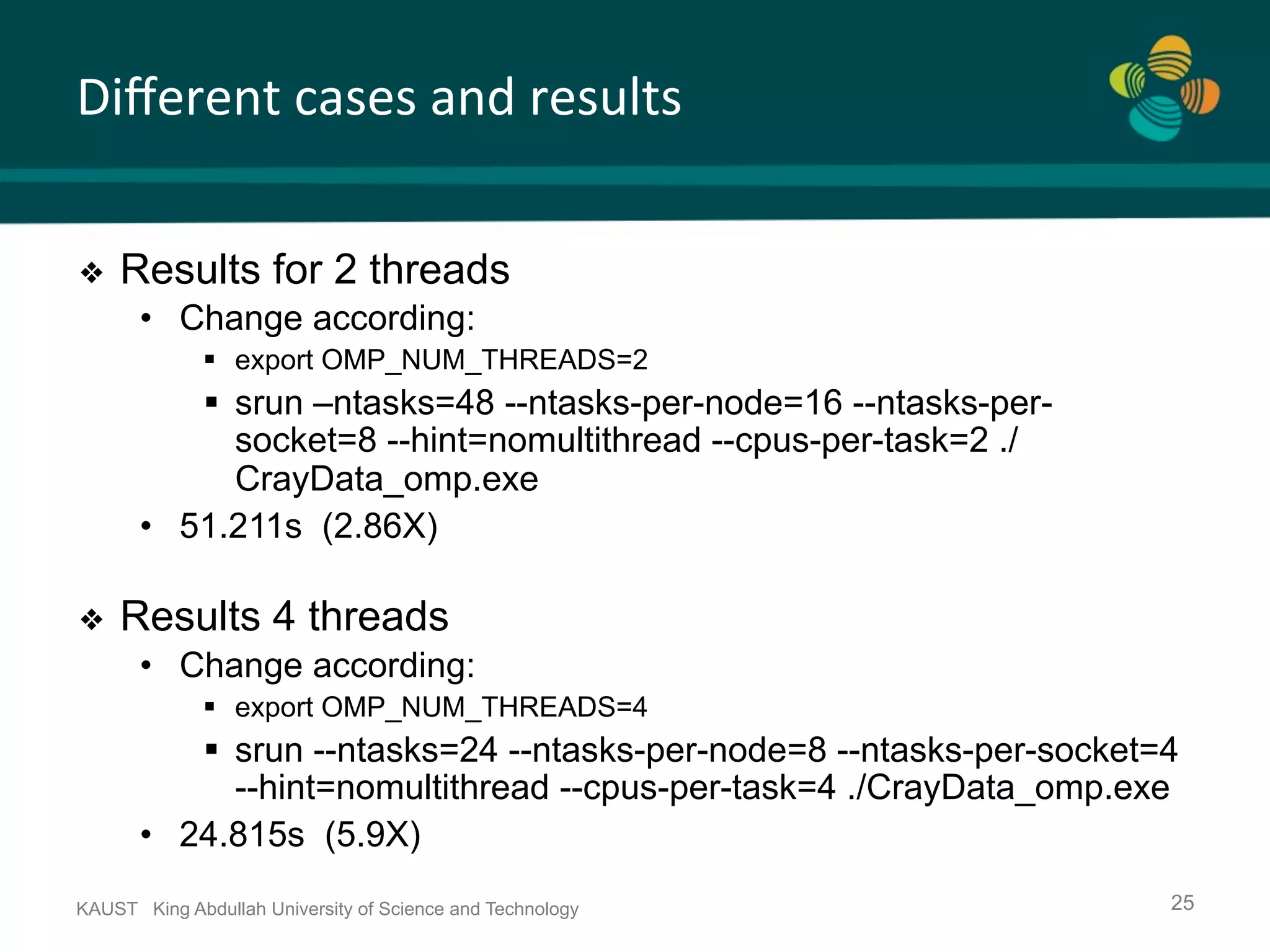

- 25. Different cases and results KAUST King AbdullahUniversity of Science and Technology 25 ❖ Results for 2 threads • Change according: § export OMP_NUM_THREADS=2 § srun –ntasks=48 --ntasks-per-node=16 --ntasks-per- socket=8 --hint=nomultithread --cpus-per-task=2 ./ CrayData_omp.exe • 51.211s (2.86X) ❖ Results 4 threads • Change according: § export OMP_NUM_THREADS=4 § srun --ntasks=24 --ntasks-per-node=8 --ntasks-per-socket=4 --hint=nomultithread --cpus-per-task=4 ./CrayData_omp.exe • 24.815s (5.9X)

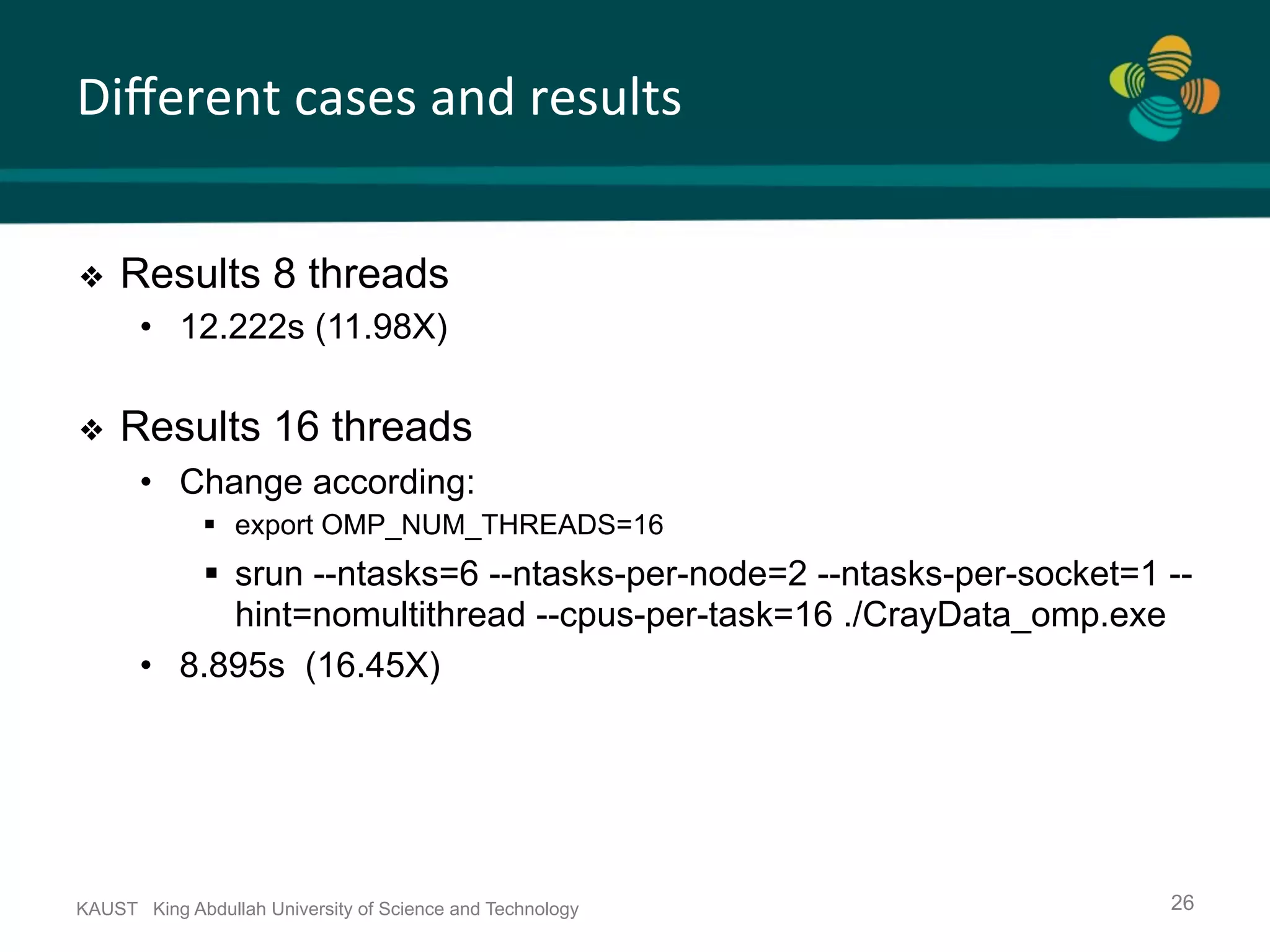

- 26. Different cases and results KAUST King AbdullahUniversity of Science and Technology 26 ❖ Results 8 threads • 12.222s (11.98X) ❖ Results 16 threads • Change according: § export OMP_NUM_THREADS=16 § srun --ntasks=6 --ntasks-per-node=2 --ntasks-per-socket=1 -- hint=nomultithread --cpus-per-task=16 ./CrayData_omp.exe • 8.895s (16.45X)

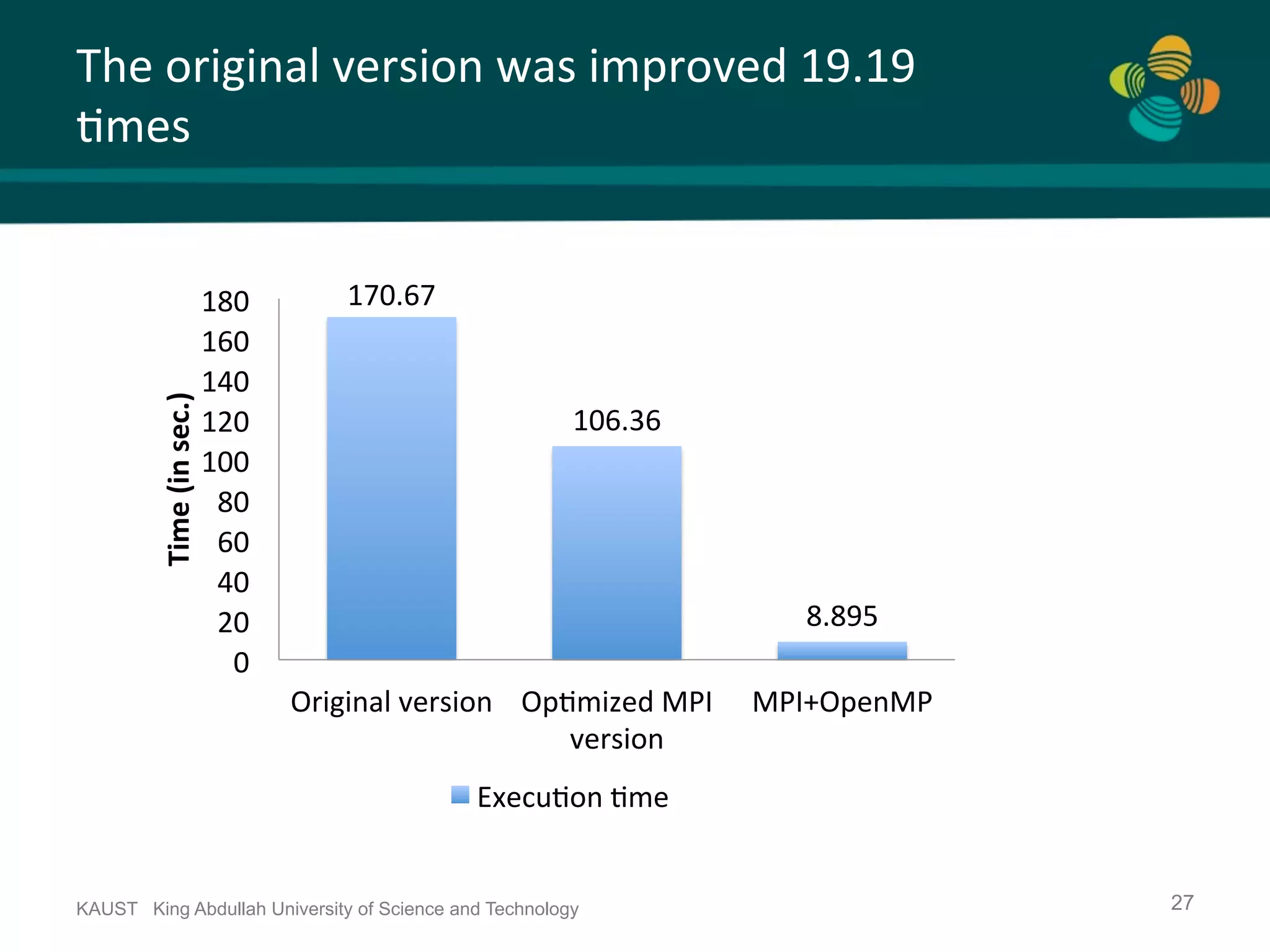

- 27. The original version was improved 19.19 .mes KAUST King AbdullahUniversity of Science and Technology 27 170.67 106.36 8.895 0 20 40 60 80 100 120 140 160 180 Original version Op.mized MPI version MPI+OpenMP Time (in sec.) Execu.on .me

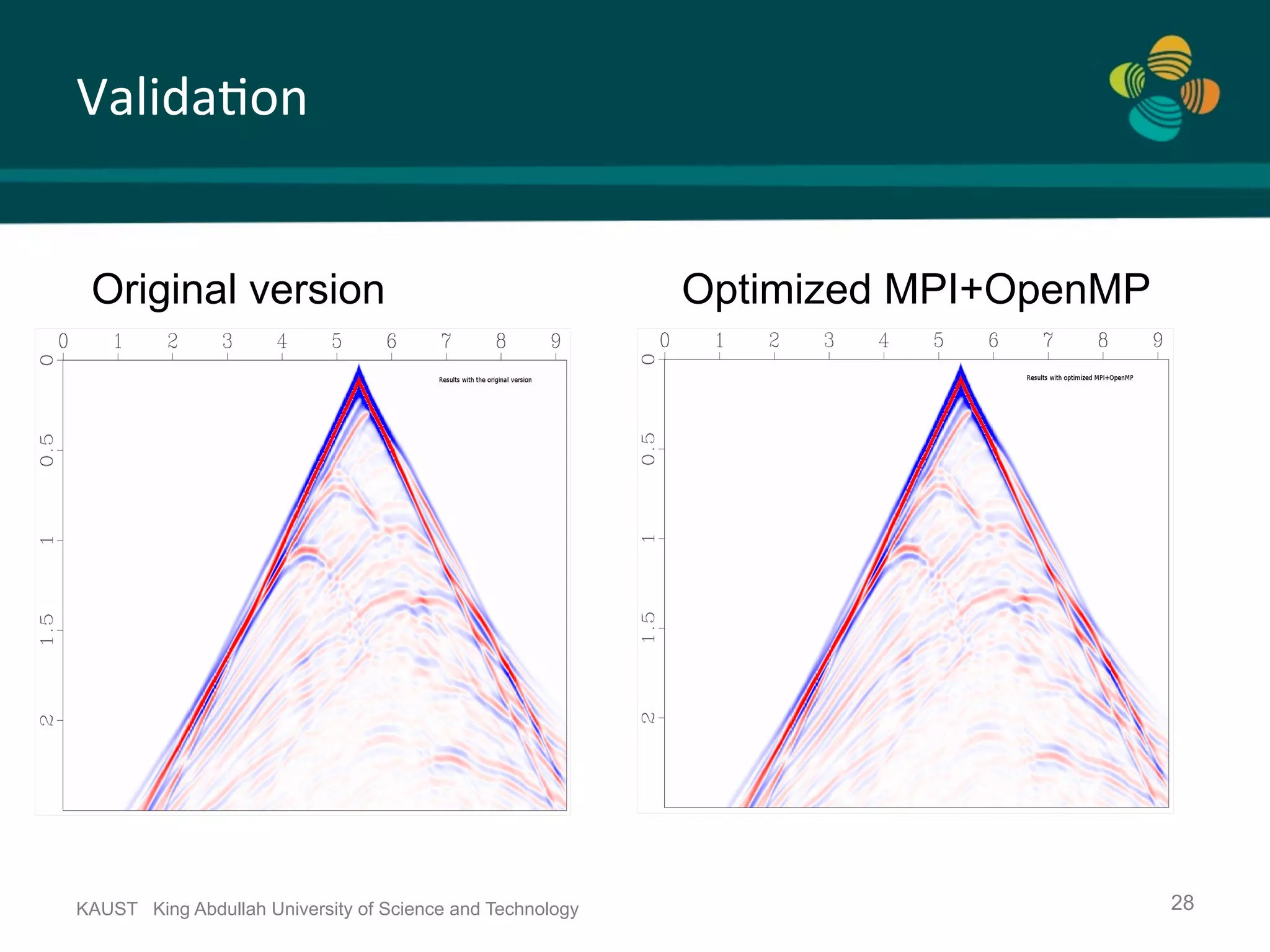

- 28. Valida.on KAUST King AbdullahUniversity of Science and Technology 28 Original version Optimized MPI+OpenMP

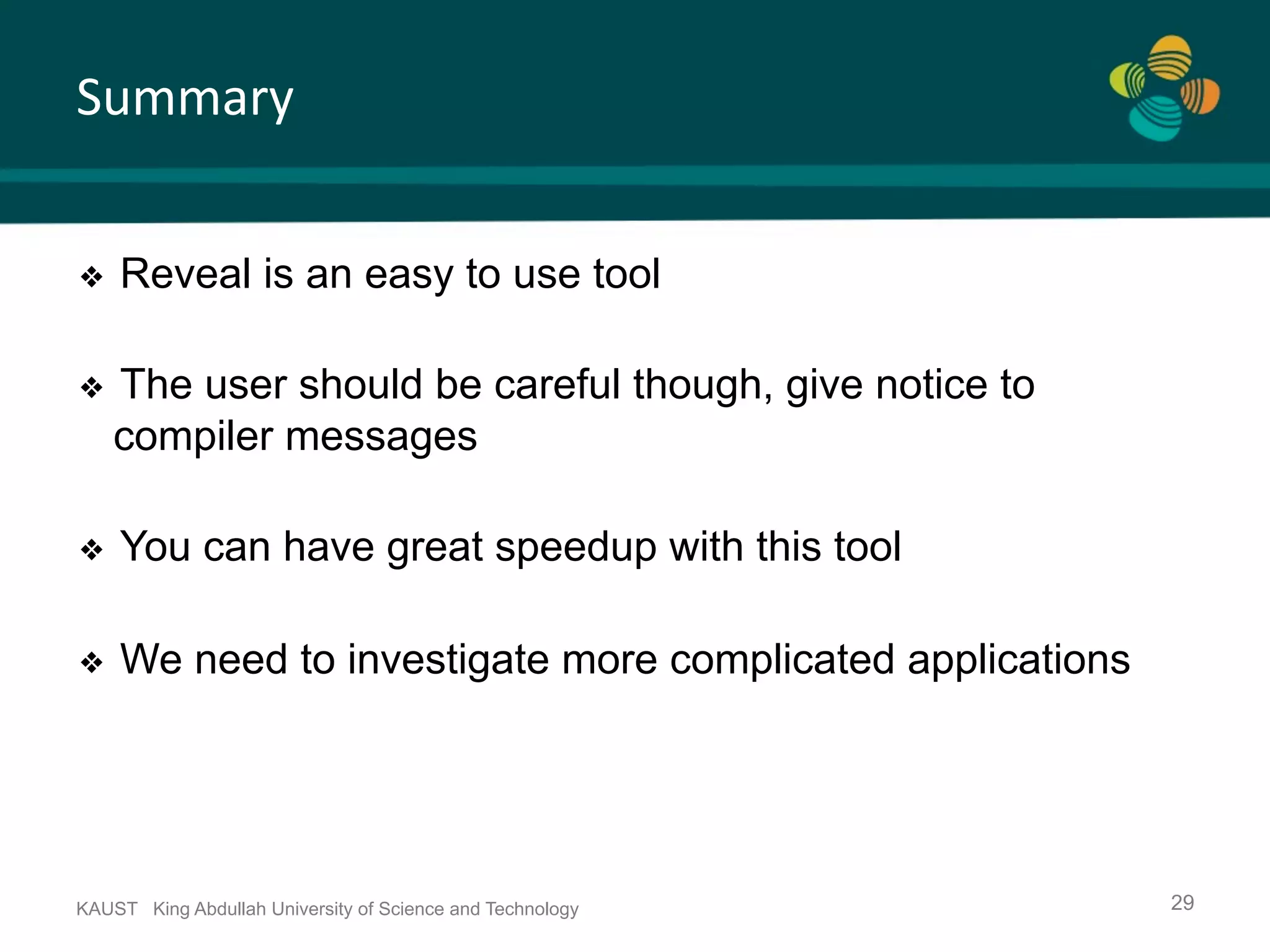

- 29. Summary KAUST King AbdullahUniversity of Science and Technology 29 ❖ Reveal is an easy to use tool ❖ The user should be careful though, give notice to compiler messages ❖ You can have great speedup with this tool ❖ We need to investigate more complicated applications

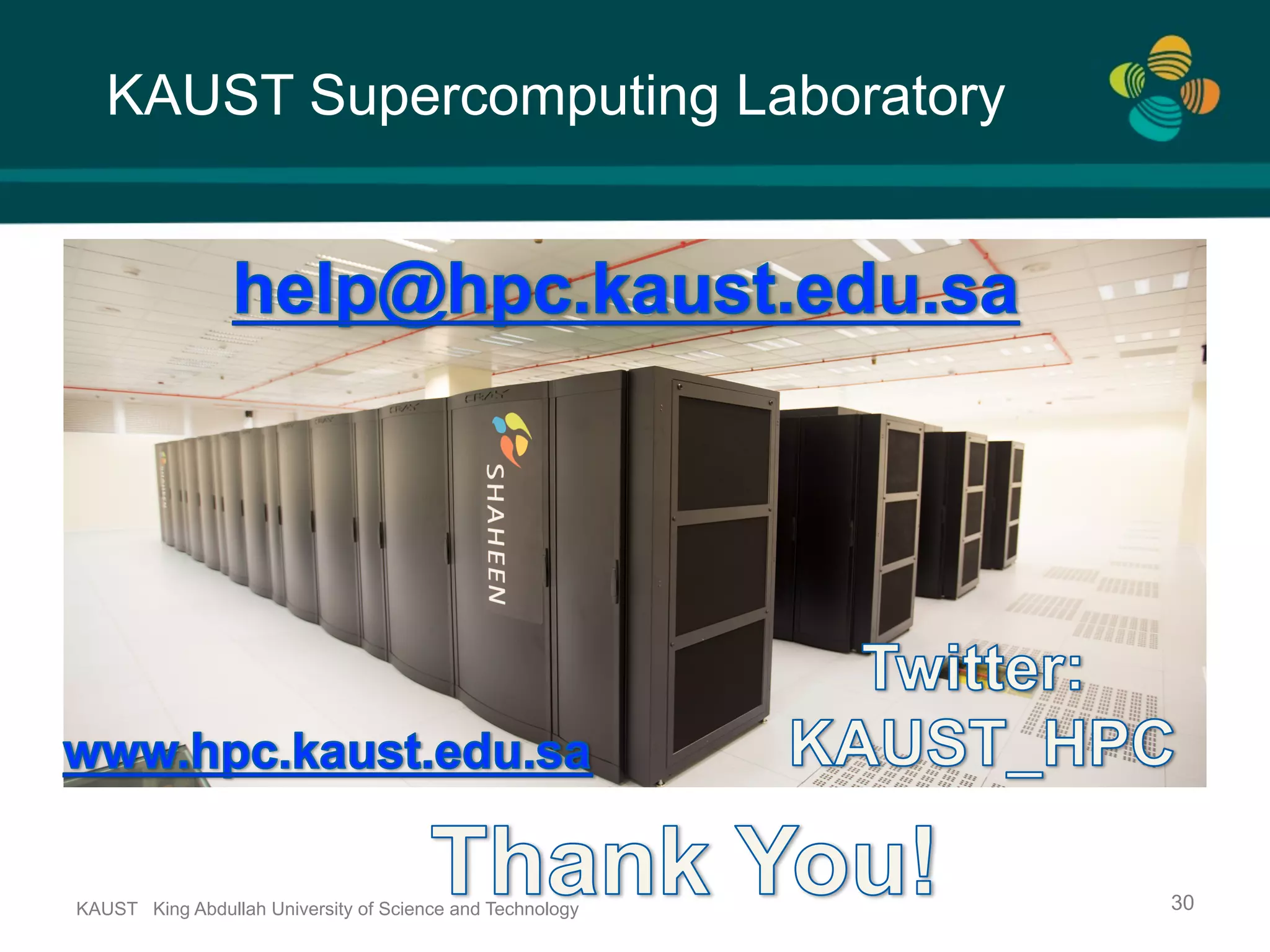

- 30. KAUST Supercomputing Laboratory KAUSTKing Abdullah University of Science and Technology 30
