Plugin-based software design with Ruby and RubyGems
The document discusses plugin-based software architecture, specifically in the context of Ruby, RubyGems, and its applications in frameworks like Fluentd and Embulk. It outlines the benefits of plugin architecture, different design patterns, and the challenges faced in implementation, including version conflicts and performance issues. The presenter emphasizes the importance of modular design and community support in crafting effective plugin systems.
Plugin-based software design with Ruby and RubyGems
- 1. Plugin-based software design withRuby and RubyGems Sadayuki Furuhashi Founder & Software Architect RubyKaigi 2015
- 2. A little aboutme… Sadayuki Furuhashi github: @frsyuki Fluentd - Unifid log collection infrastracture Embulk - Plugin-based parallel ETL Founder & Software Architect
- 3. It's like JSON. butfast and small. A little about me…

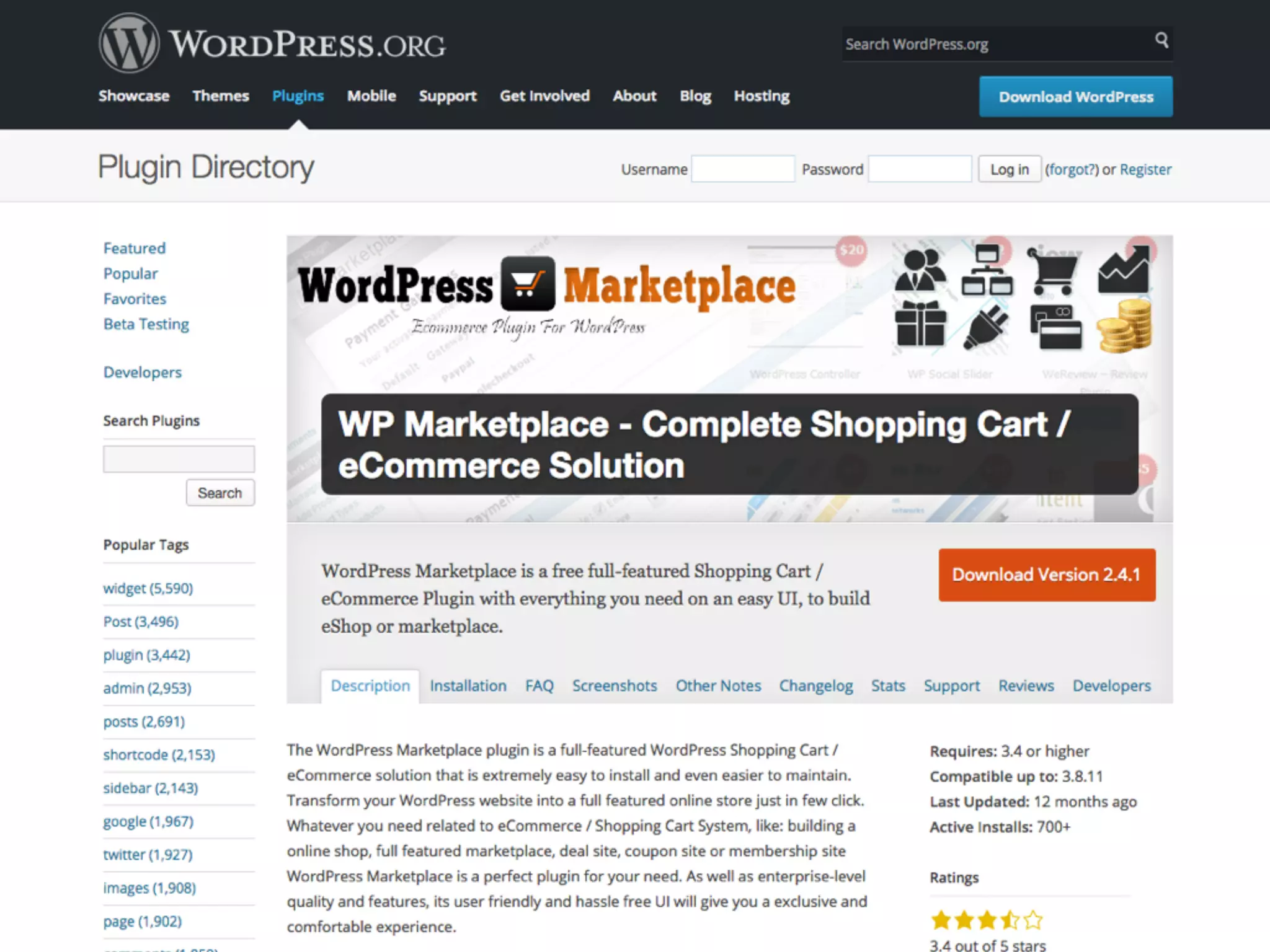

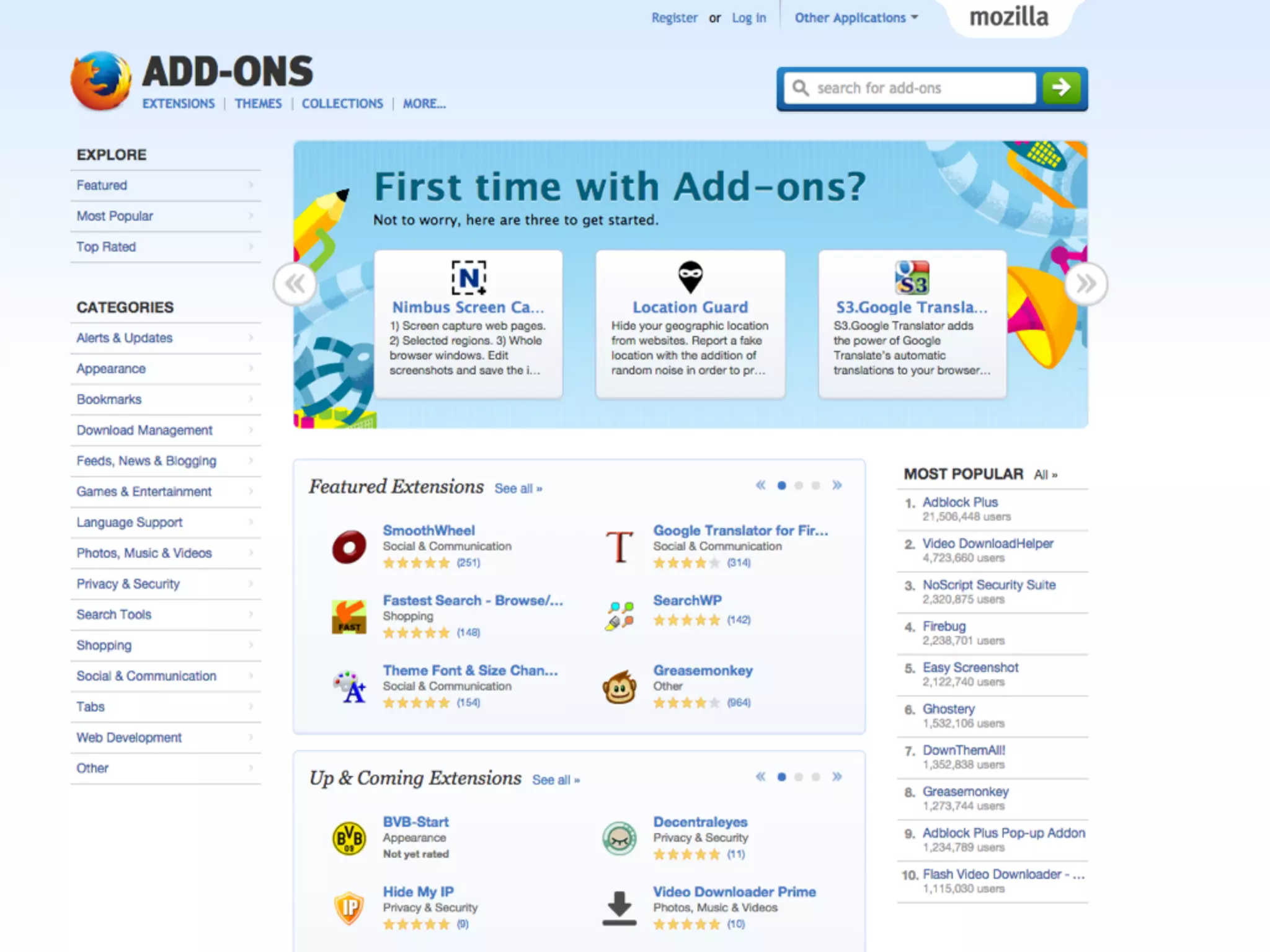

- 4.

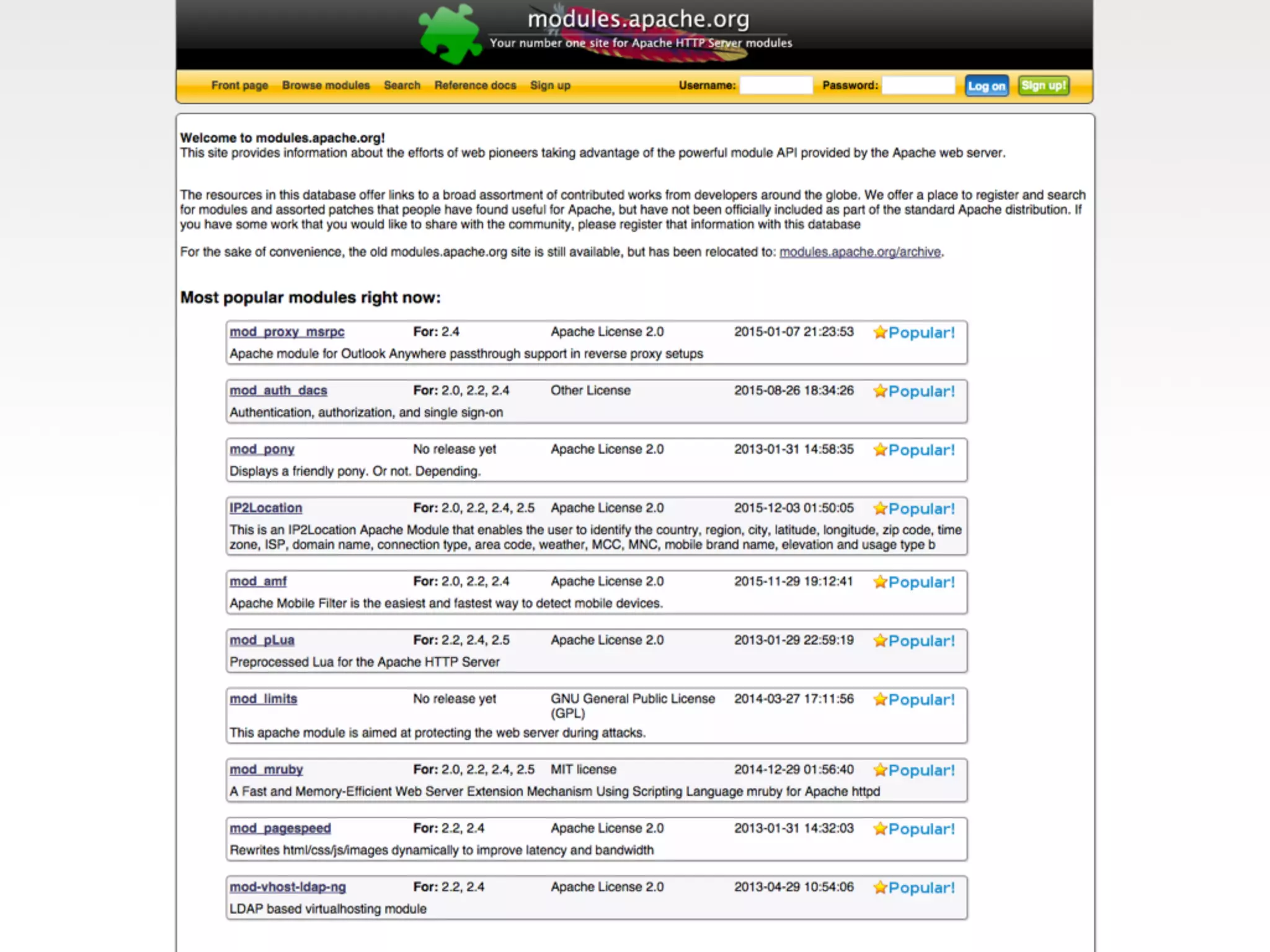

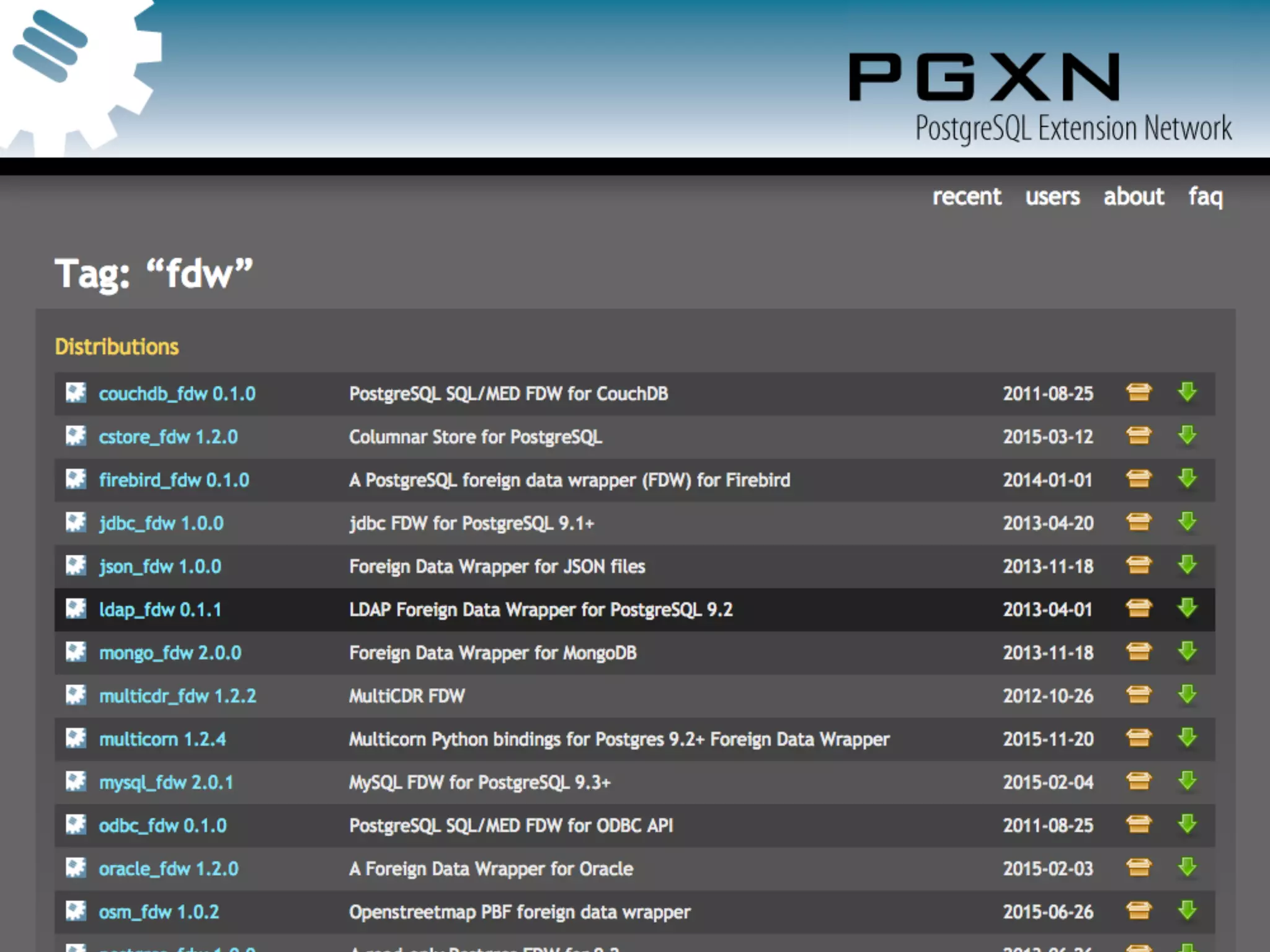

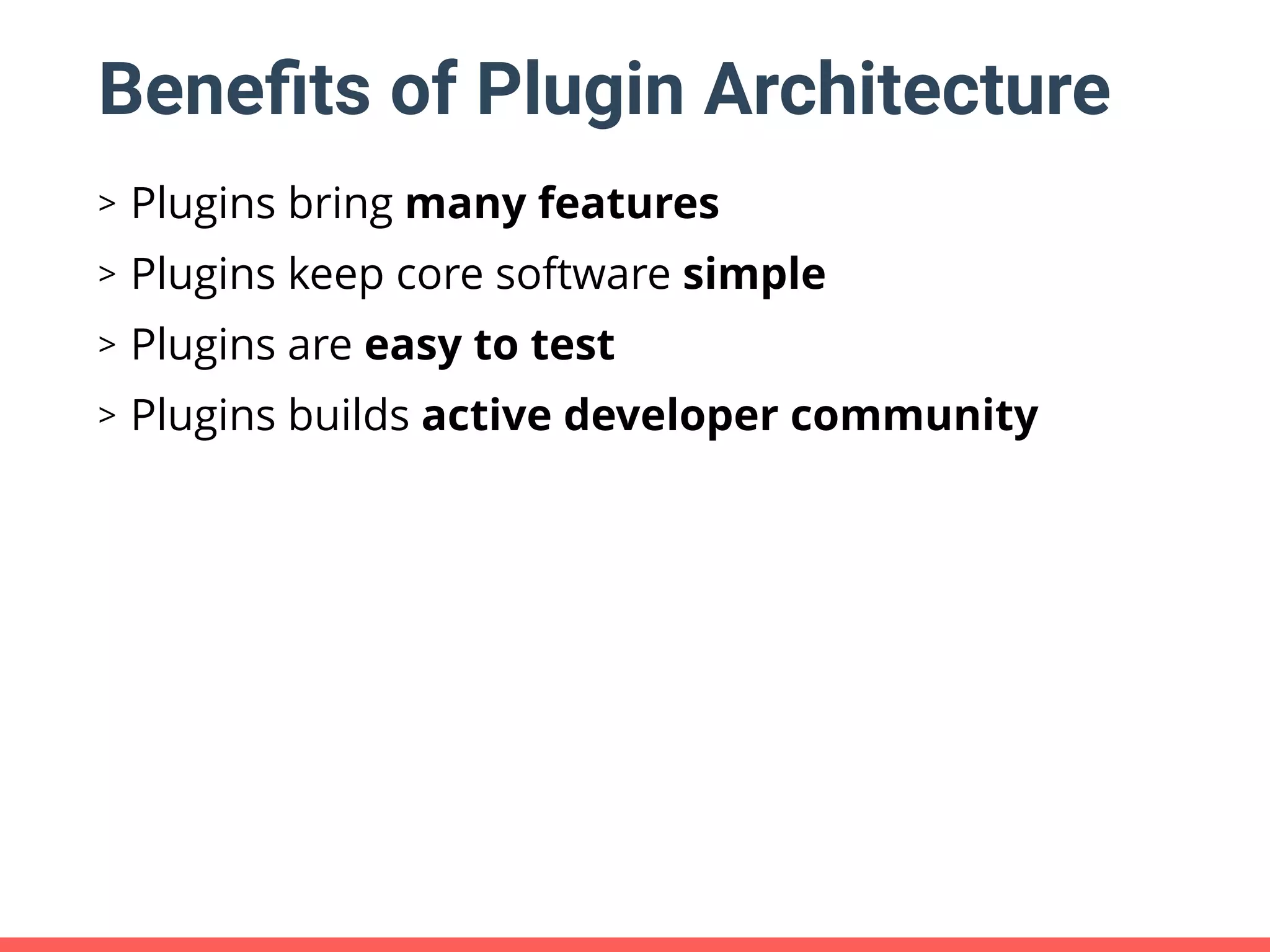

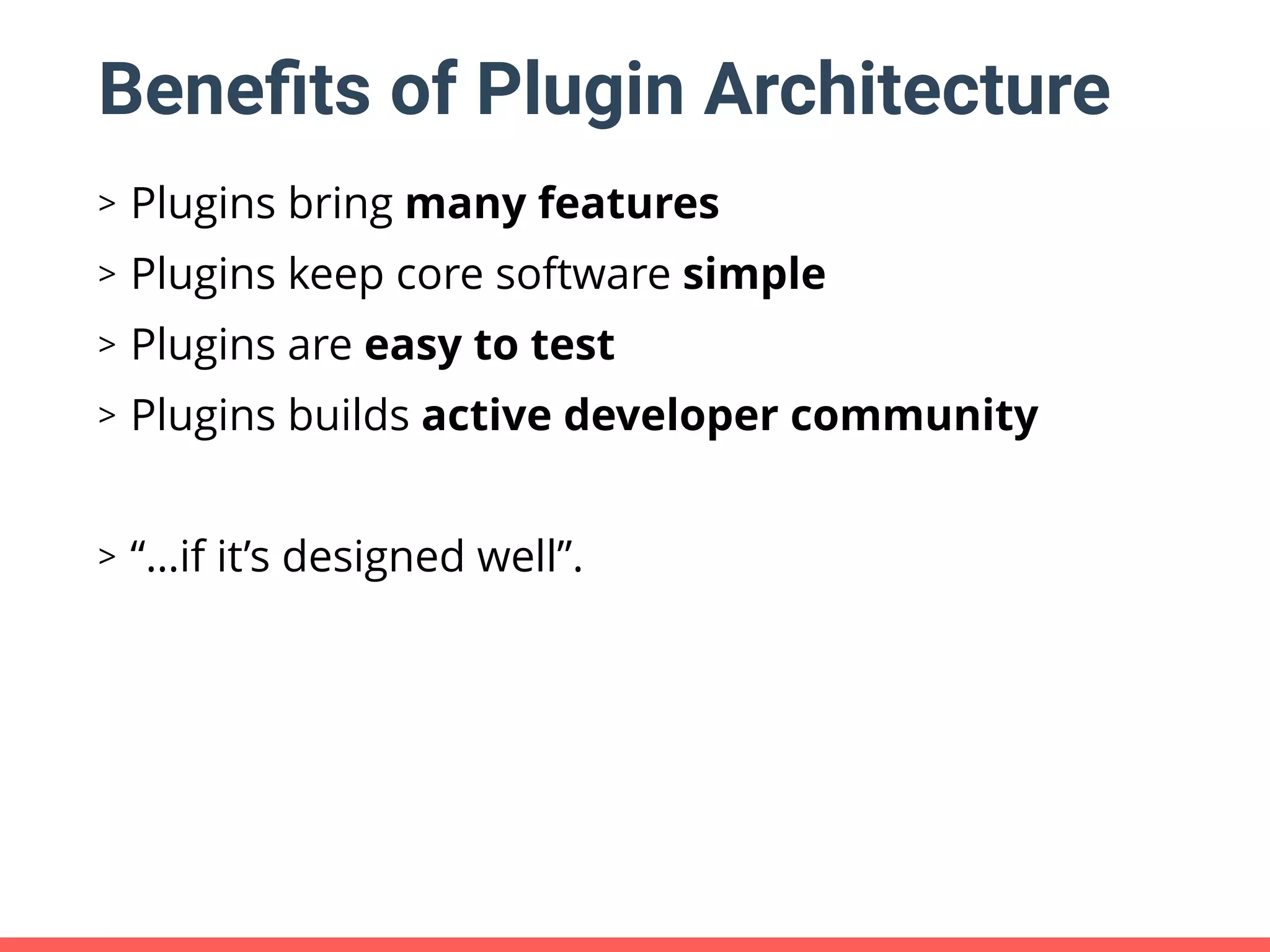

- 11. Benefits of PluginArchitecture > Plugins bring many features > Plugins keep core software simple > Plugins are easy to test > Plugins builds active developer community
- 12. Benefits of PluginArchitecture > Plugins bring many features > Plugins keep core software simple > Plugins are easy to test > Plugins builds active developer community > “…if it’s designed well”.
- 13.
- 14. plugin architecture? How didI design How to design

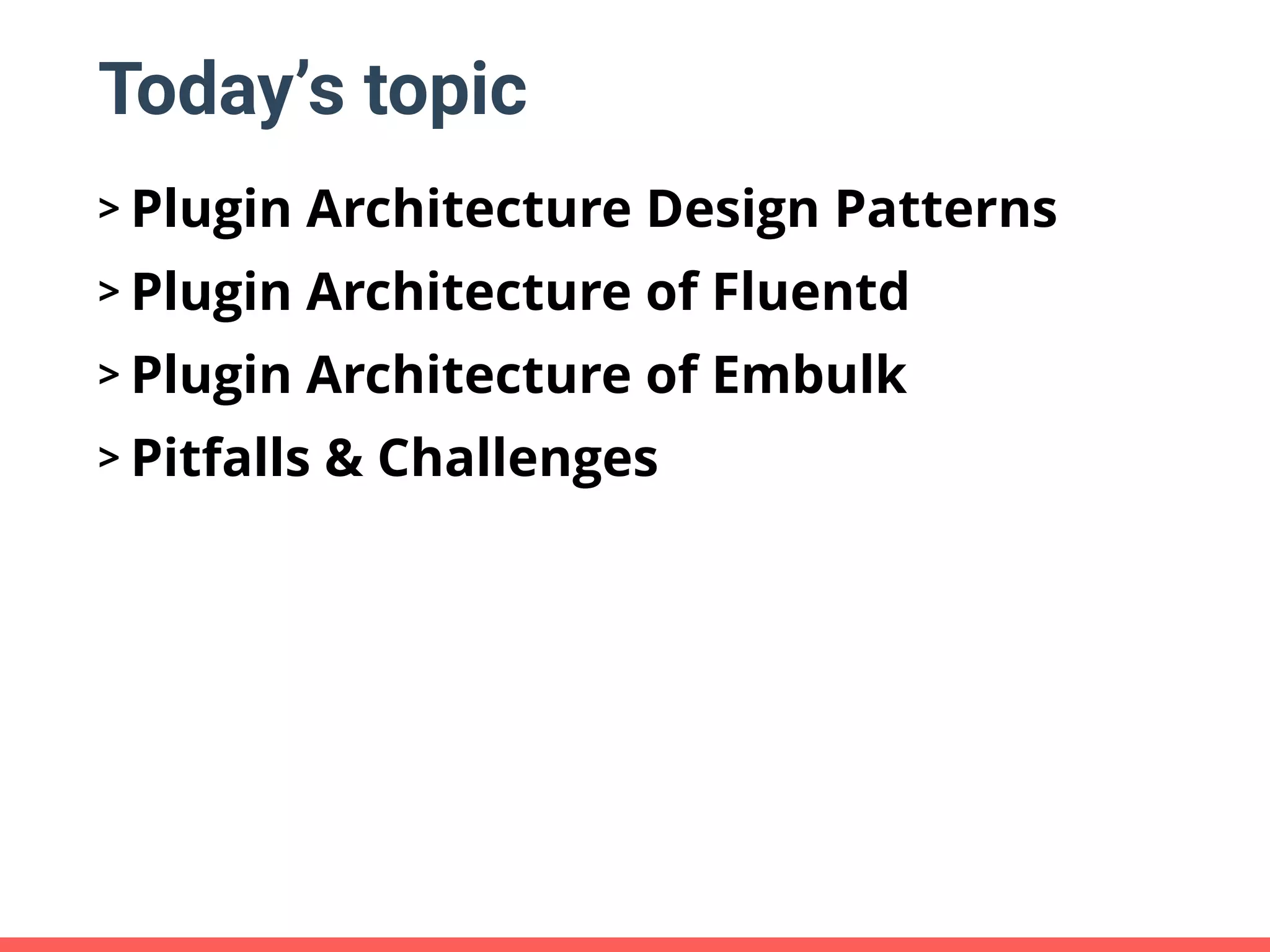

- 15. Today’s topic > PluginArchitecture Design Patterns > Plugin Architecture of Fluentd > Plugin Architecture of Embulk > Pitfalls & Challenges
- 16.

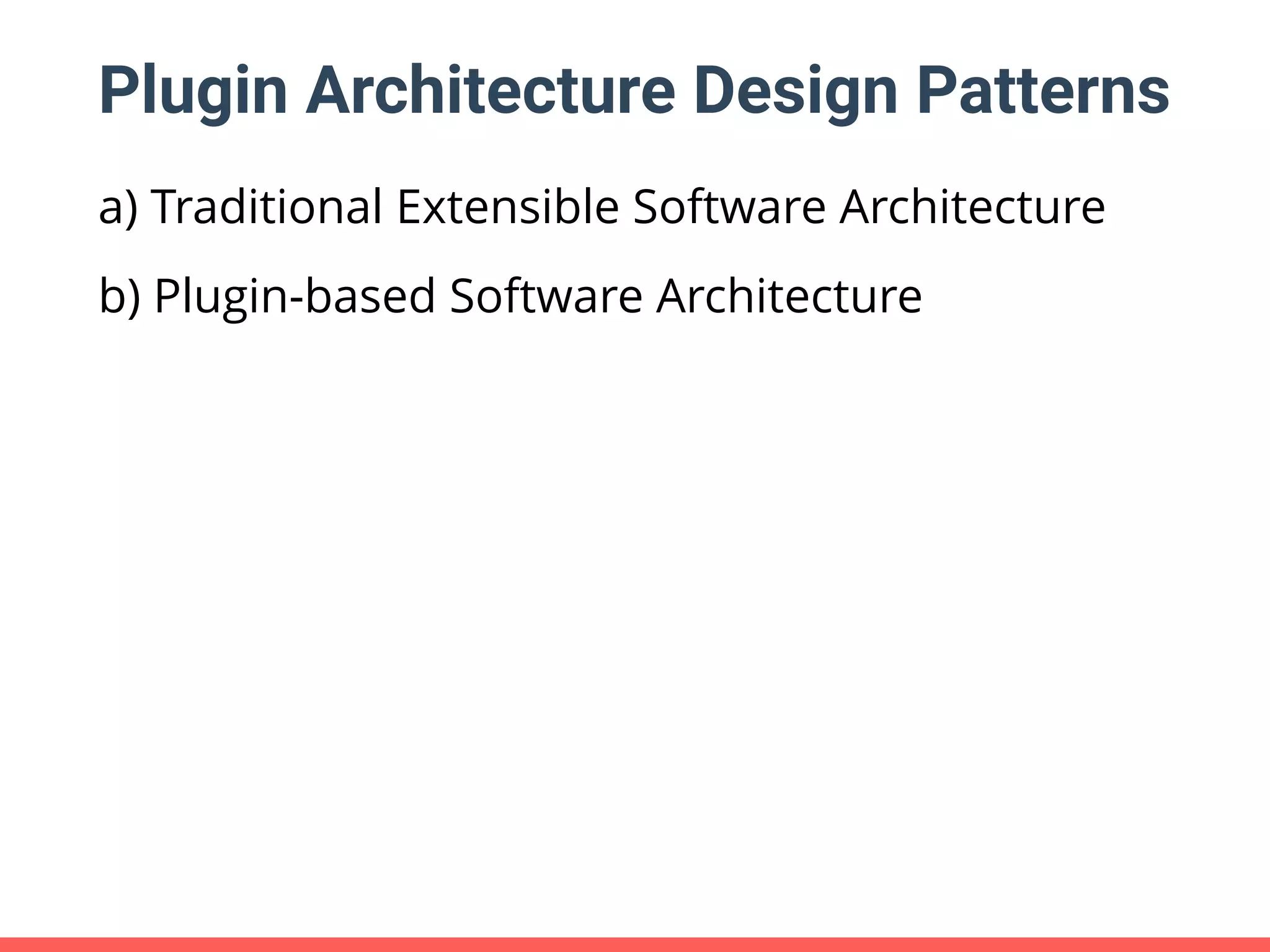

- 17. Plugin Architecture DesignPatterns a) Traditional Extensible Software Architecture b) Plugin-based Software Architecture

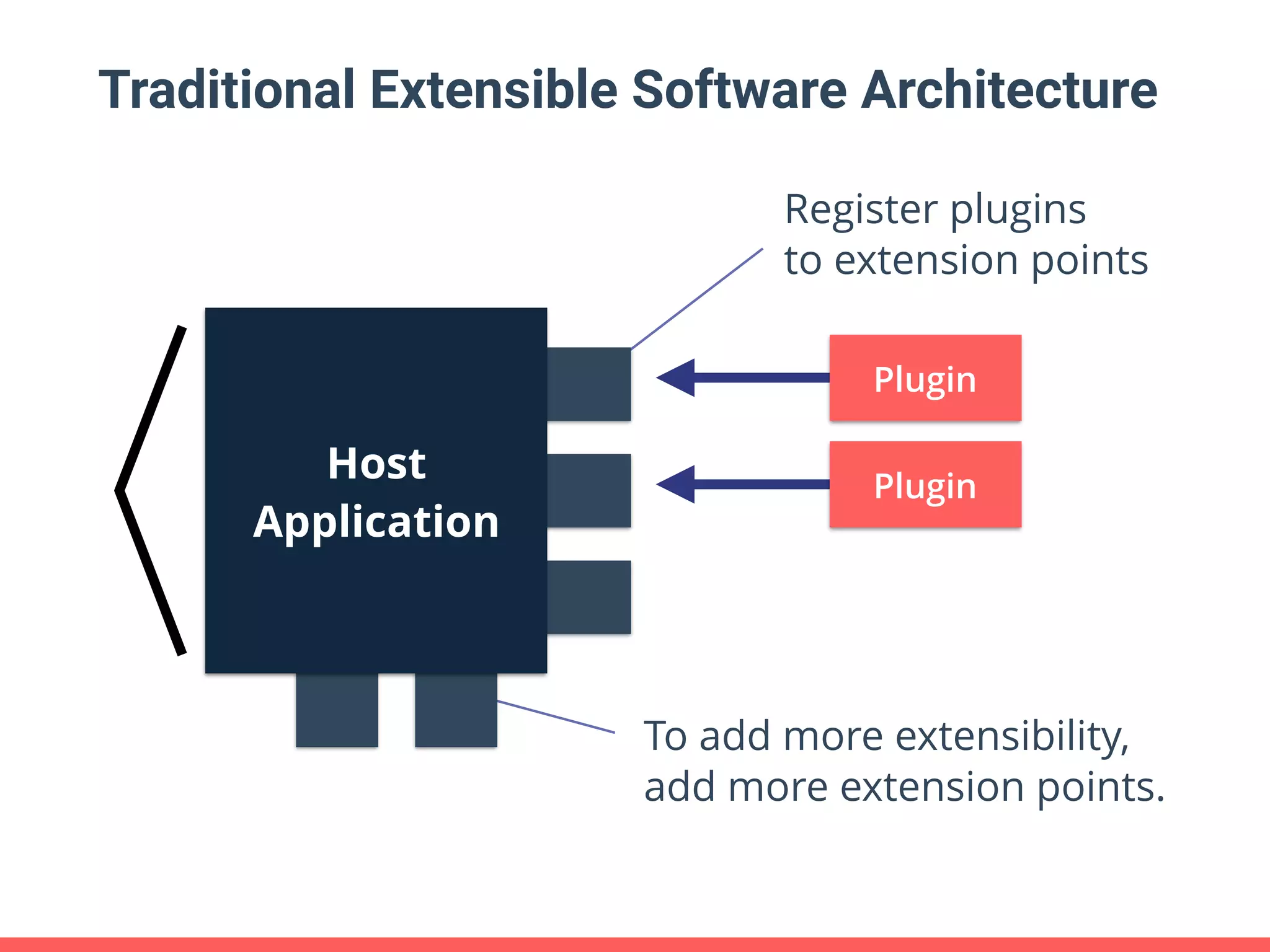

- 18. Traditional Extensible SoftwareArchitecture Host Application Plugin Plugin Register plugins to extension points To add more extensibility, add more extension points.

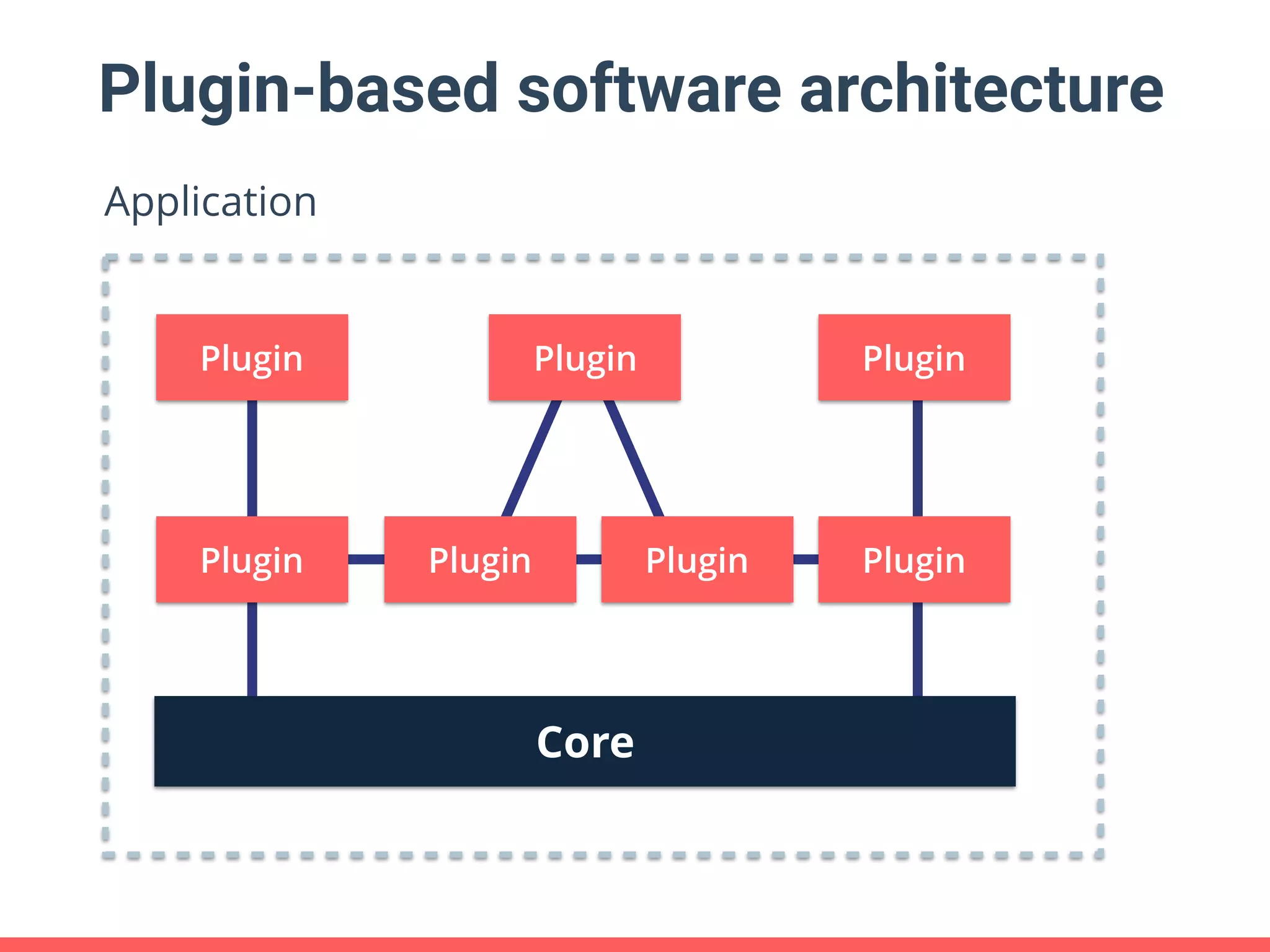

- 19. Plugin-based software architecture Core Plugin Plugin PluginPlugin Plugin Plugin Plugin Application

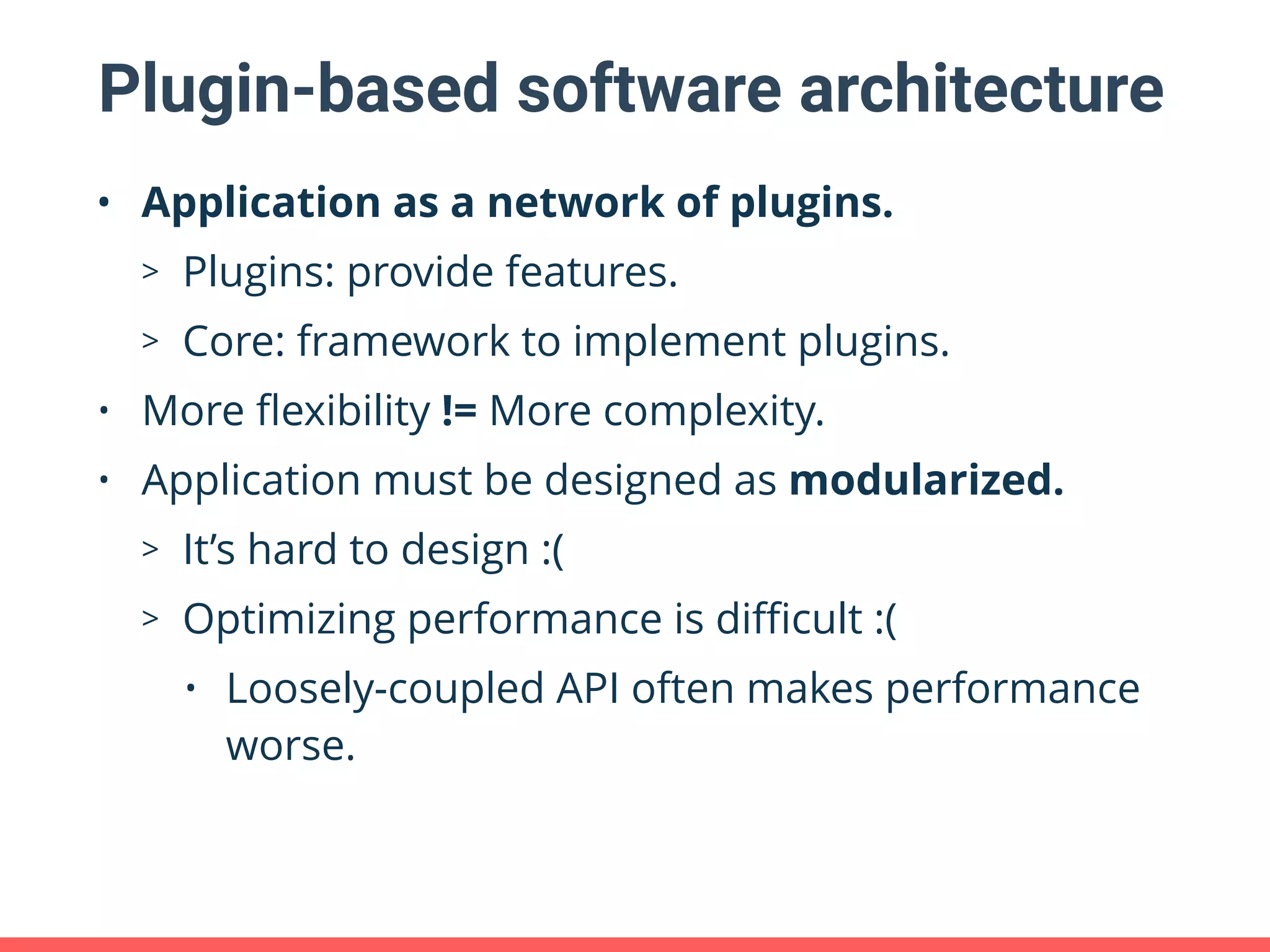

- 20. Plugin-based software architecture •Application as a network of plugins. > Plugins: provide features. > Core: framework to implement plugins. • More flexibility != More complexity. • Application must be designed as modularized. > It’s hard to design :( > Optimizing performance is difficult :( • Loosely-coupled API often makes performance worse.

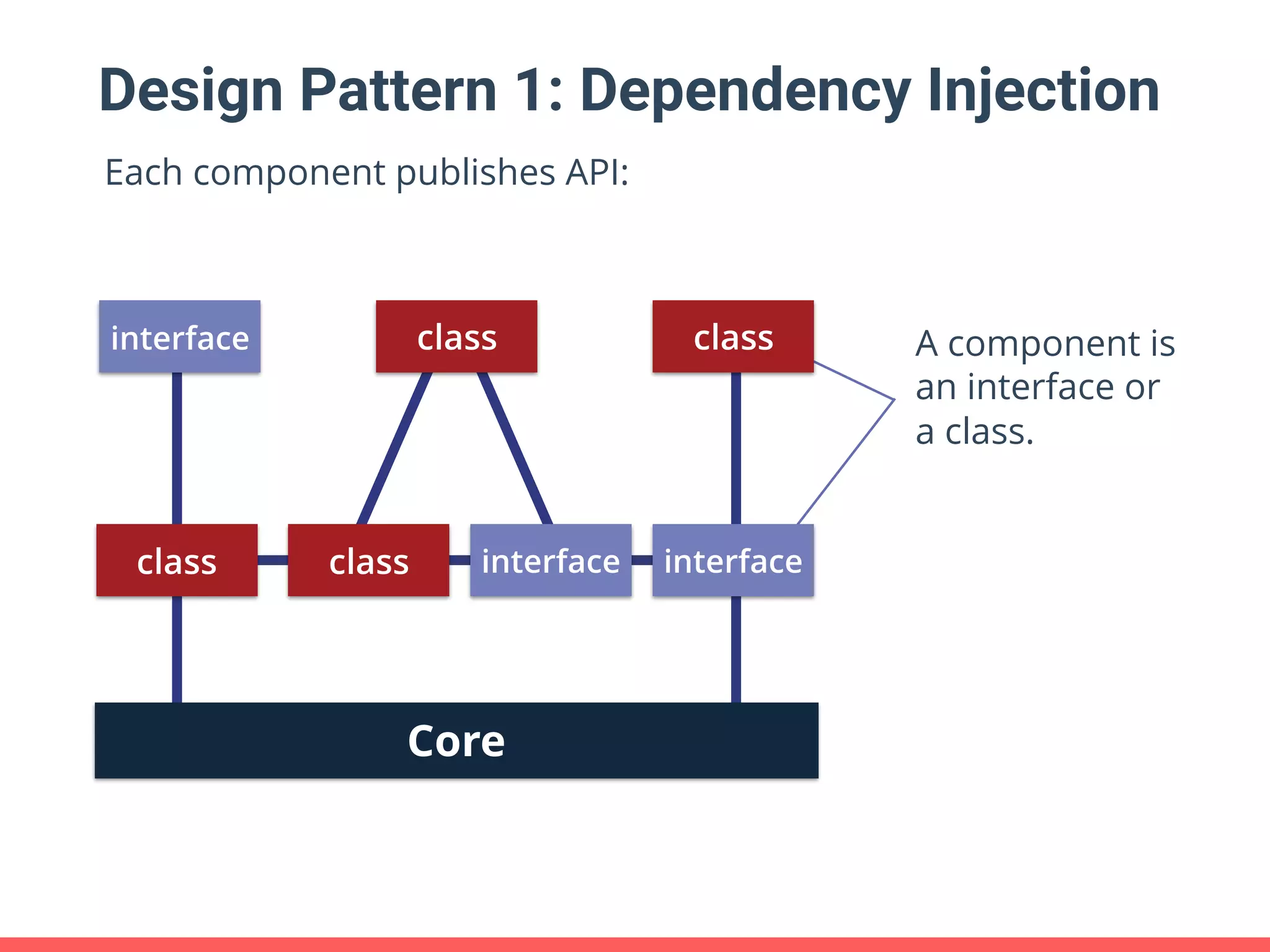

- 21. Design Pattern 1:Dependency Injection Core class interface class interface interface class class A component is an interface or a class. Each component publishes API:

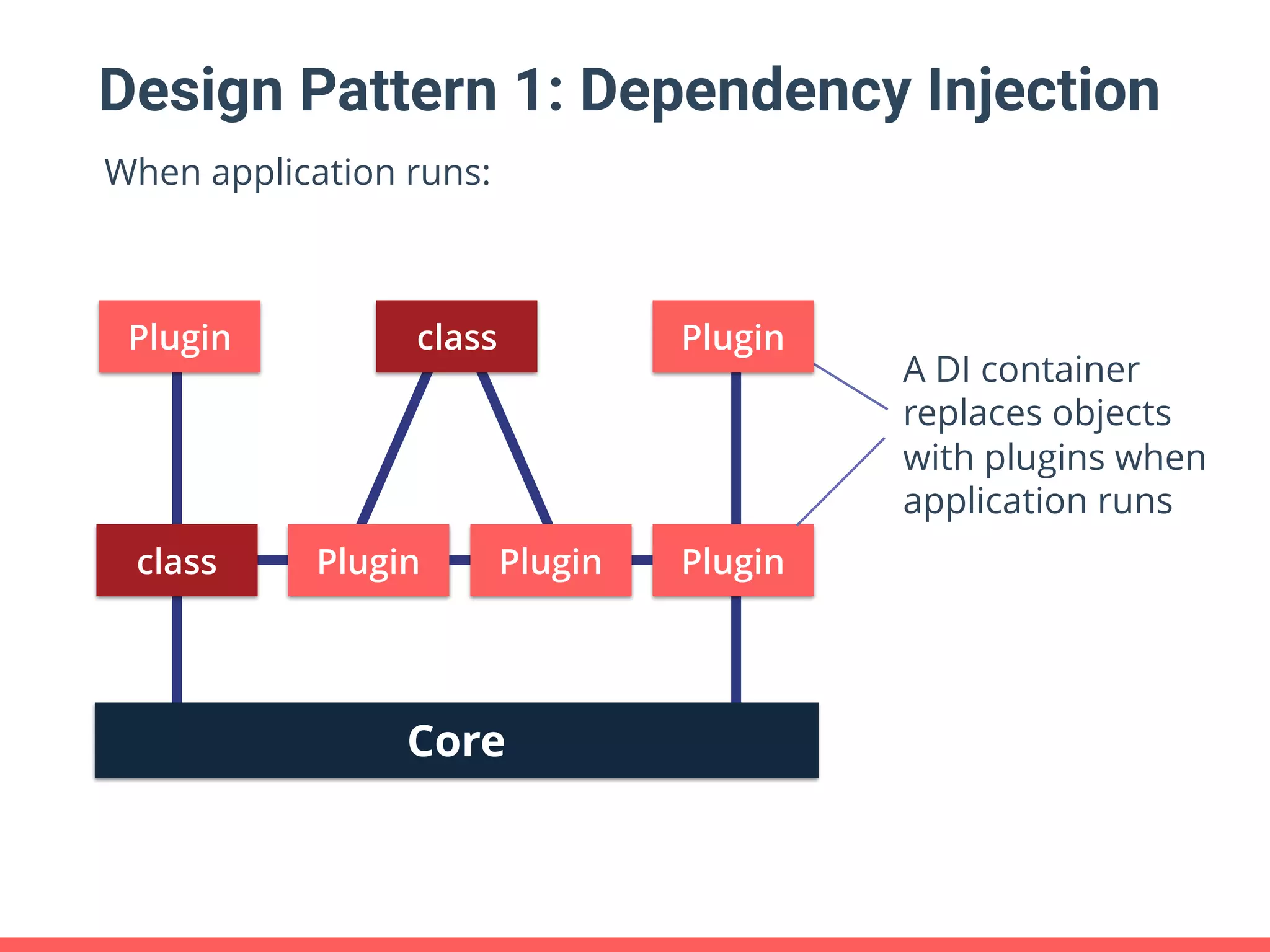

- 22. Design Pattern 1:Dependency Injection Core class Plugin Plugin Plugin Plugin class Plugin When application runs: A DI container replaces objects with plugins when application runs

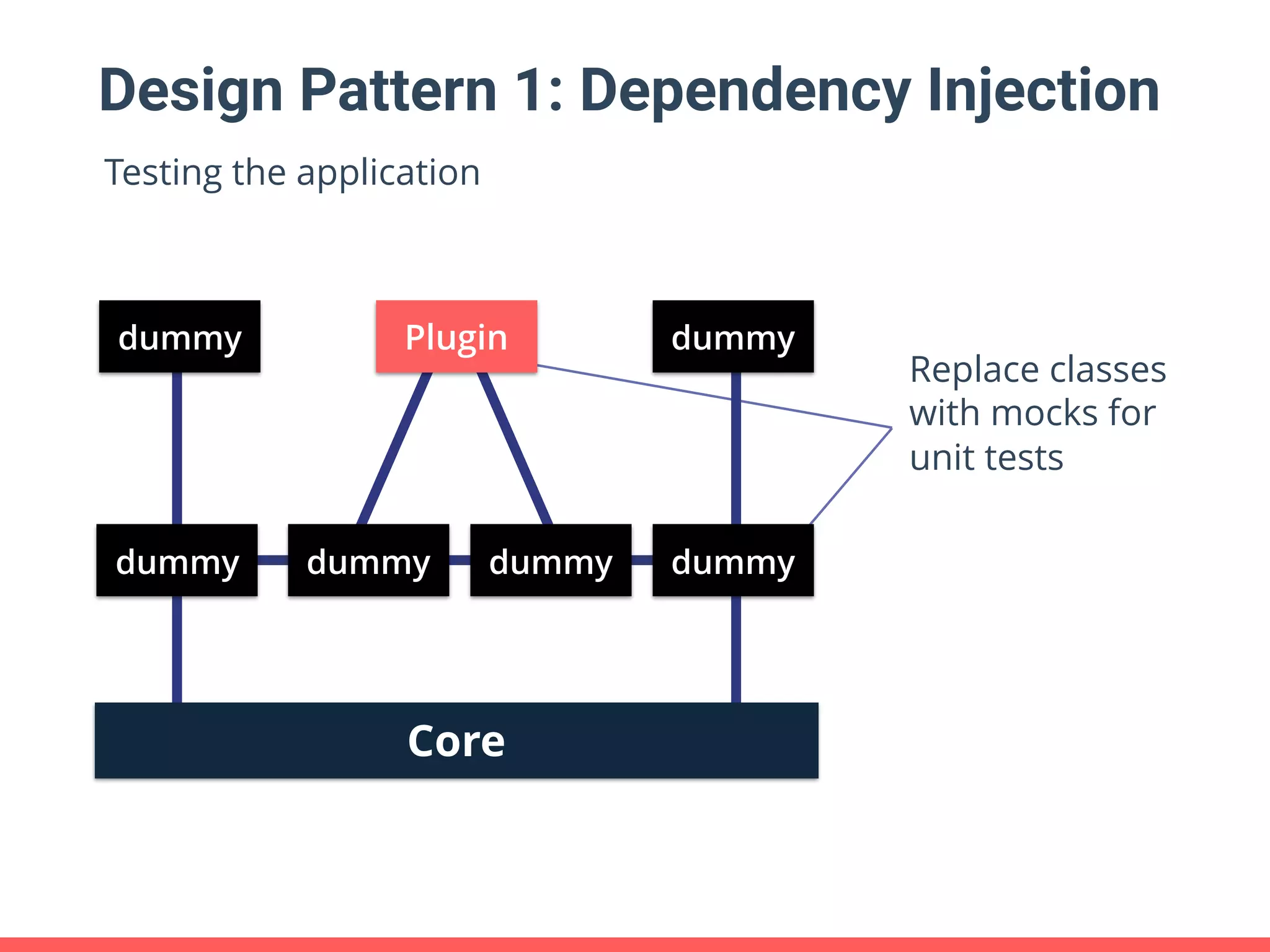

- 23. Replace classes with mocksfor unit tests Design Pattern 1: Dependency Injection Core dummy dummy dummy dummy dummy Plugin dummy Testing the application

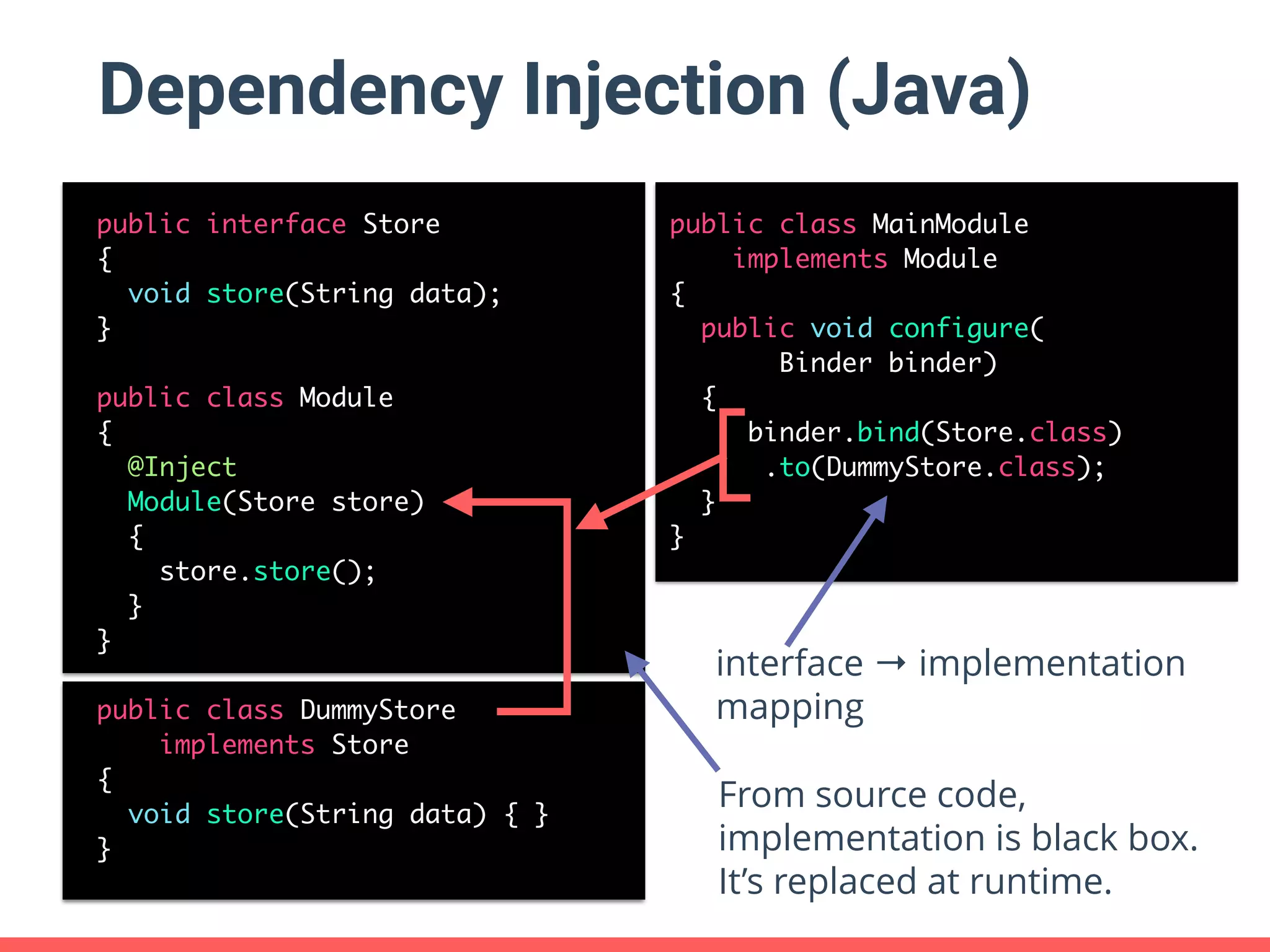

- 24. Dependency Injection (Java) publicinterface Store { void store(String data); } public class Module { @Inject Module(Store store) { store.store(); } } public class DummyStore implements Store { void store(String data) { } } public class MainModule implements Module { public void configure( Binder binder) { binder.bind(Store.class) .to(DummyStore.class); } } interface → implementation mapping From source code, implementation is black box. It’s replaced at runtime.

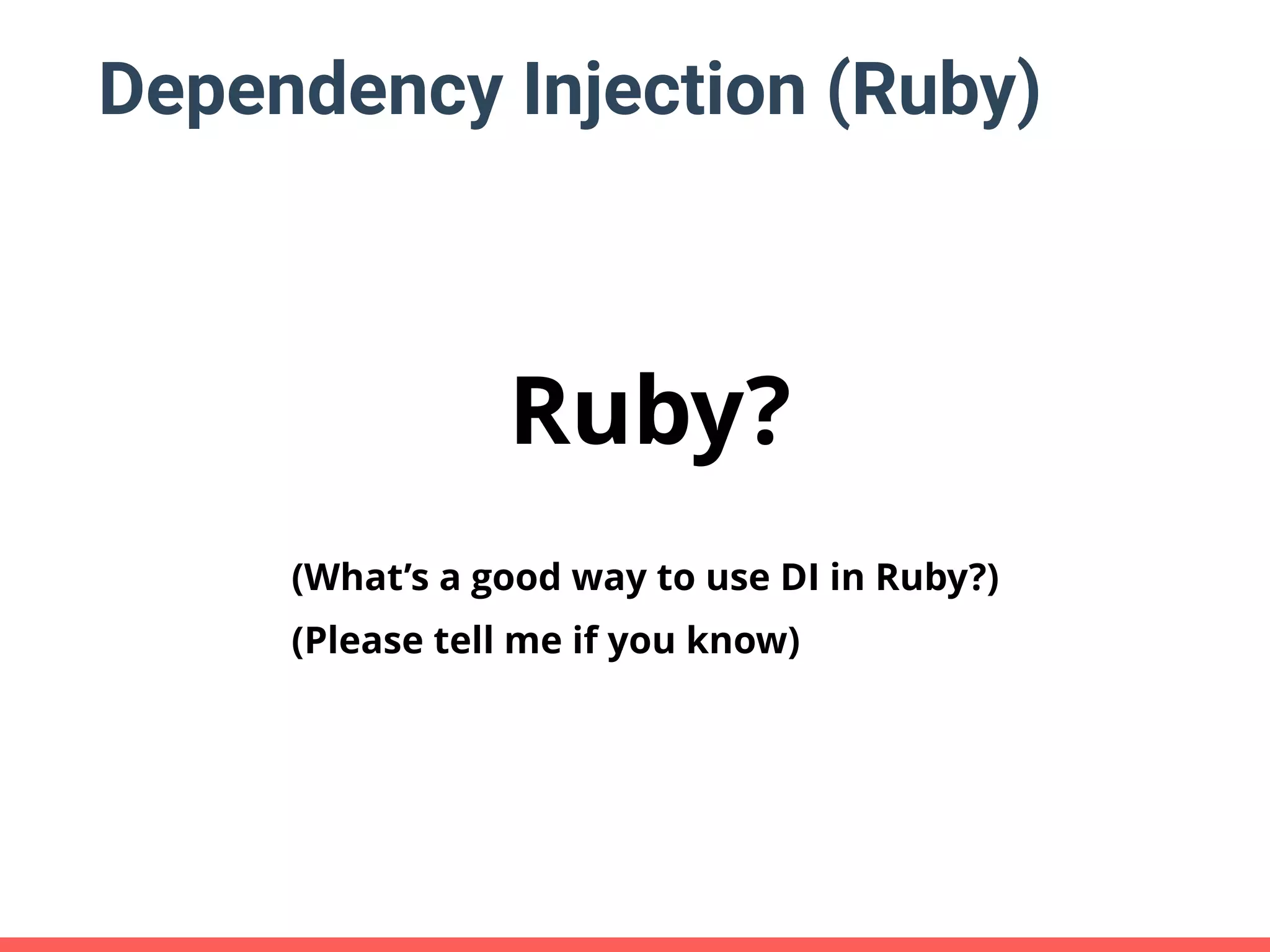

- 25. Dependency Injection (Ruby) Ruby? (What’sa good way to use DI in Ruby?) (Please tell me if you know)
- 26. Dependency Injection (Ruby) classModule def initialize(store: DummyStore.new) store.store(”data”) end end class DummyStore def store(data) end end injector = Injector.new. bind(store: DBStore) object = injector.get(Module) class DBStore def initialize(db: DBM.new) @db = db end def store(data) @db.insert(data) end end injector = Injector.new. bind(store: DBStore). bind(db: SqliteDBImpl) object = injector.get(Module) I want to do this: Keyword arguments {:keyword => class} mapping at runtime

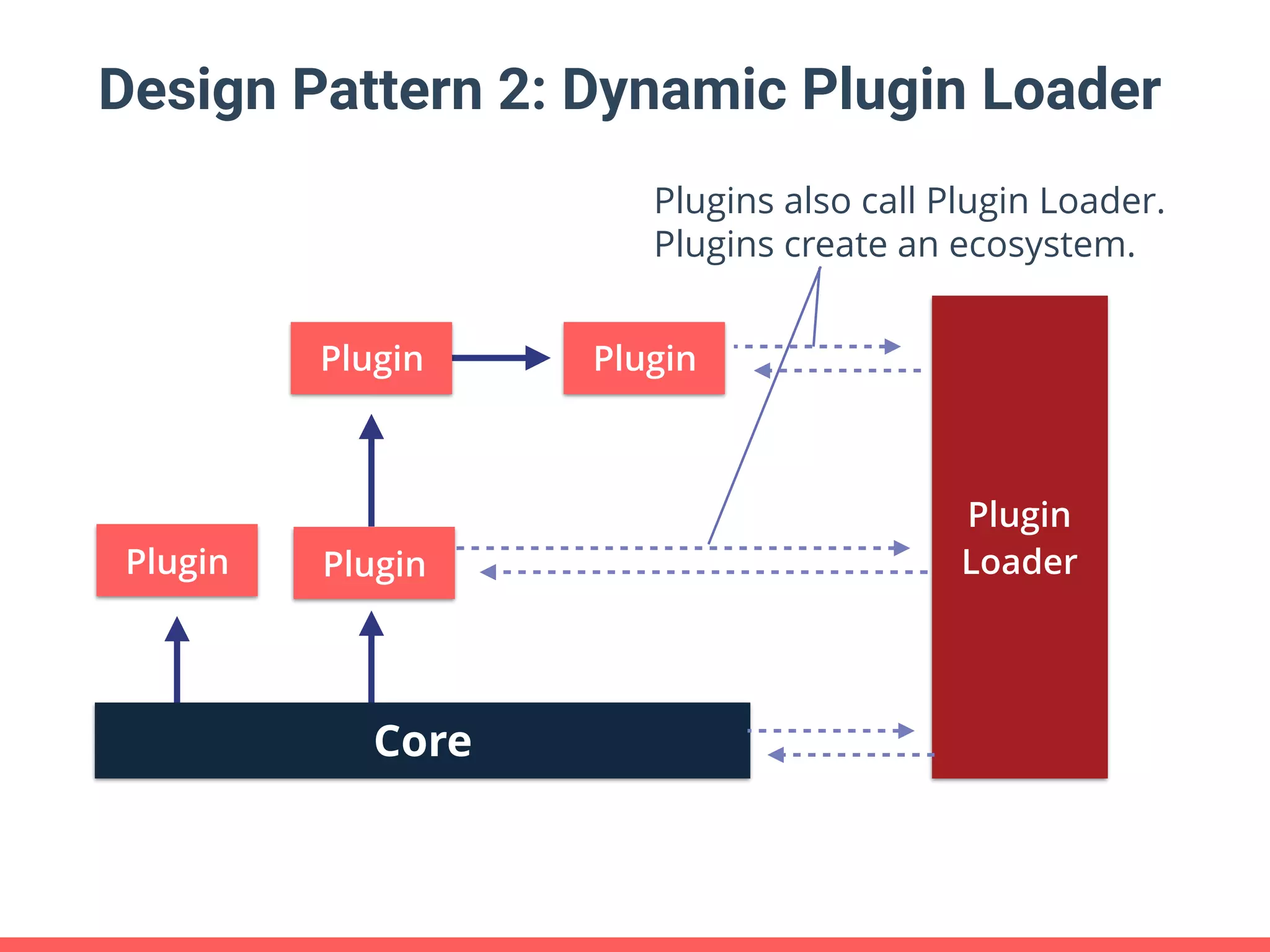

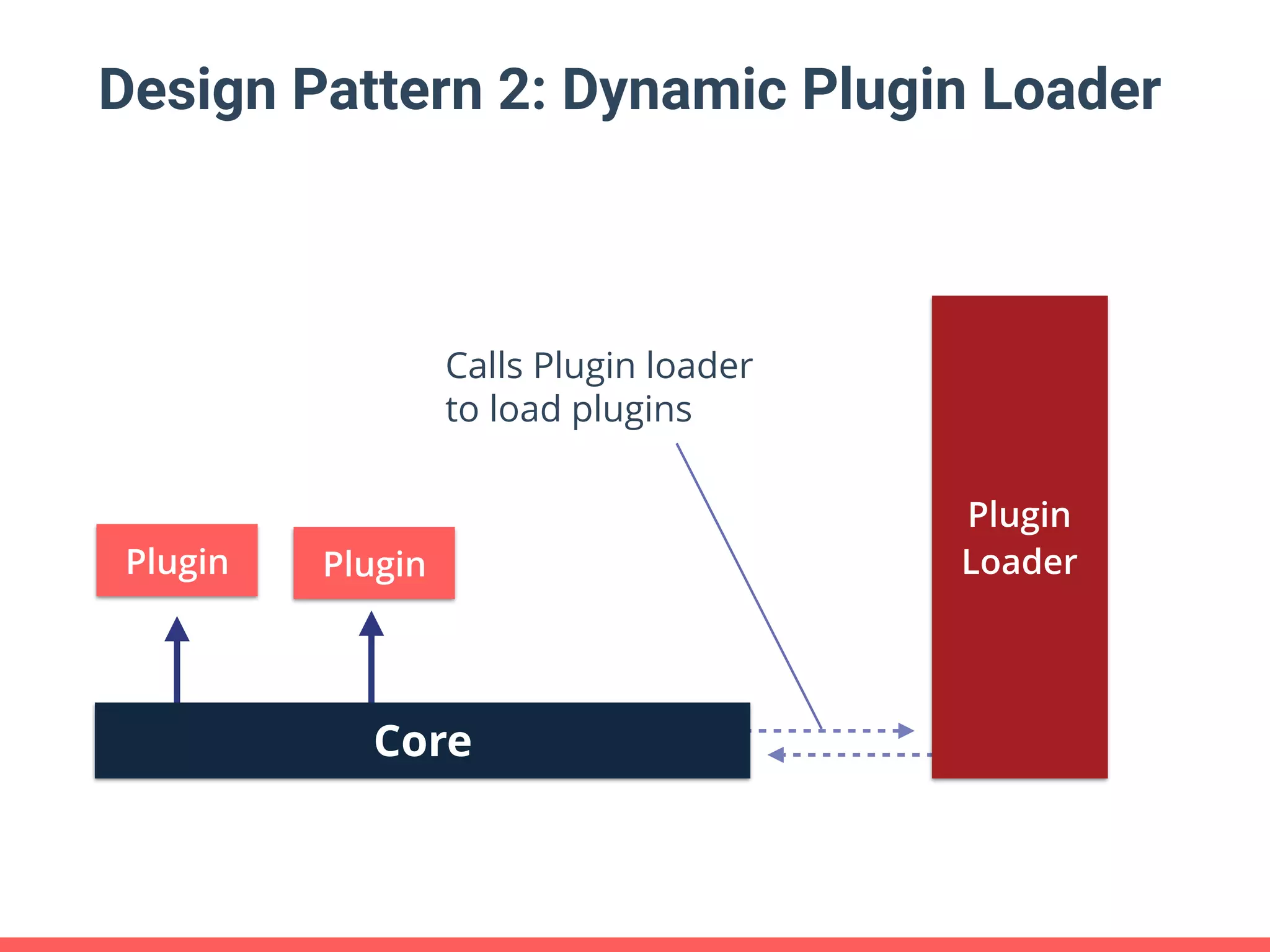

- 27. Design Pattern 2:Dynamic Plugin Loader Core Plugin Plugin Calls Plugin loader to load plugins Plugin Loader
- 28. Design Pattern 2:Dynamic Plugin Loader Core Plugin Plugin Plugins also call Plugin Loader. Plugins create an ecosystem. Plugin Loader Plugin Plugin

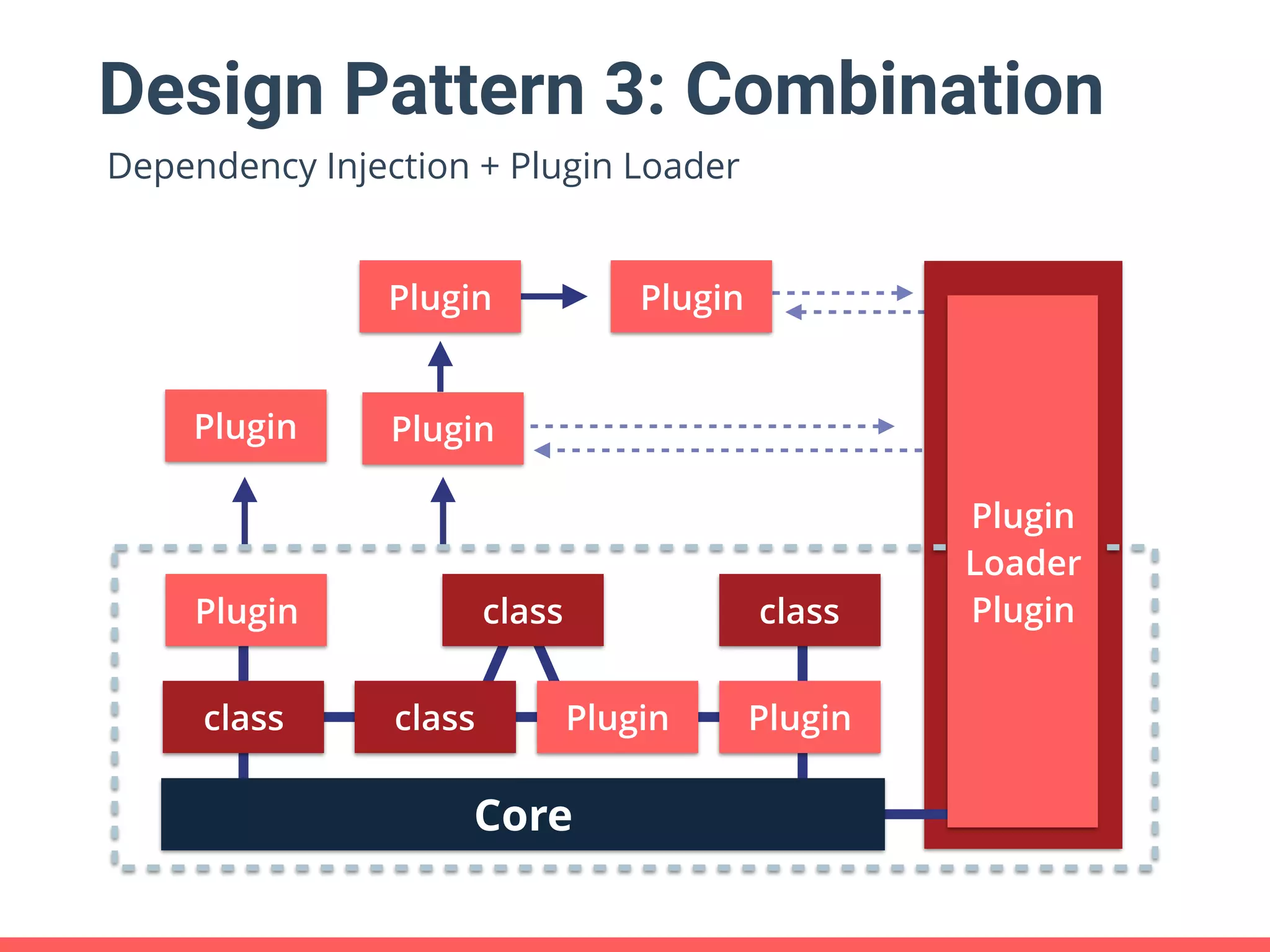

- 29. Design Pattern 3:Combination Core class Plugin class Plugin Plugin class class Plugin Loader Plugin Plugin Plugin Plugin Plugin Dependency Injection + Plugin Loader

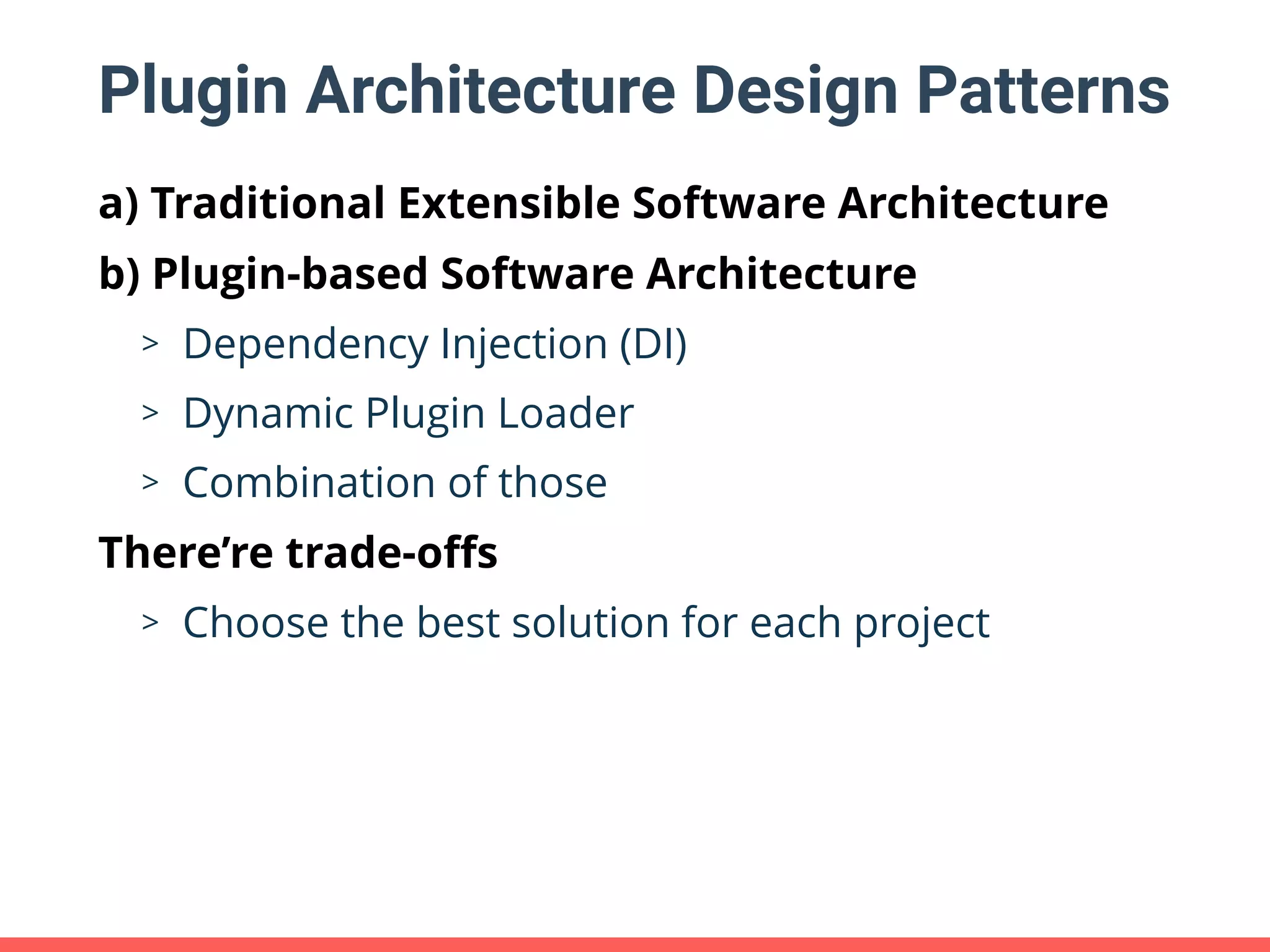

- 30. Plugin Architecture DesignPatterns a) Traditional Extensible Software Architecture b) Plugin-based Software Architecture > Dependency Injection (DI) > Dynamic Plugin Loader > Combination of those There’re trade-offs > Choose the best solution for each project
- 31.

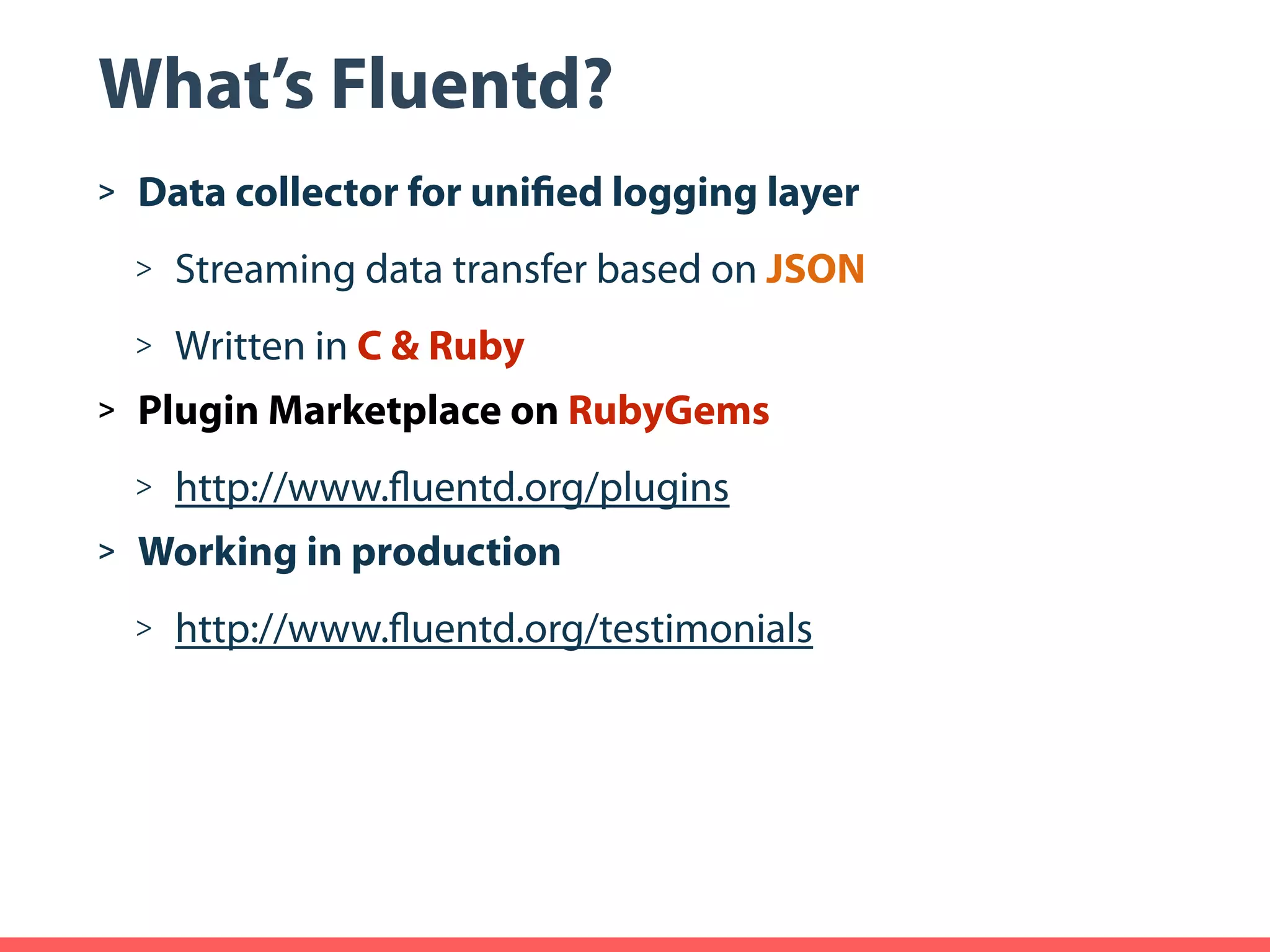

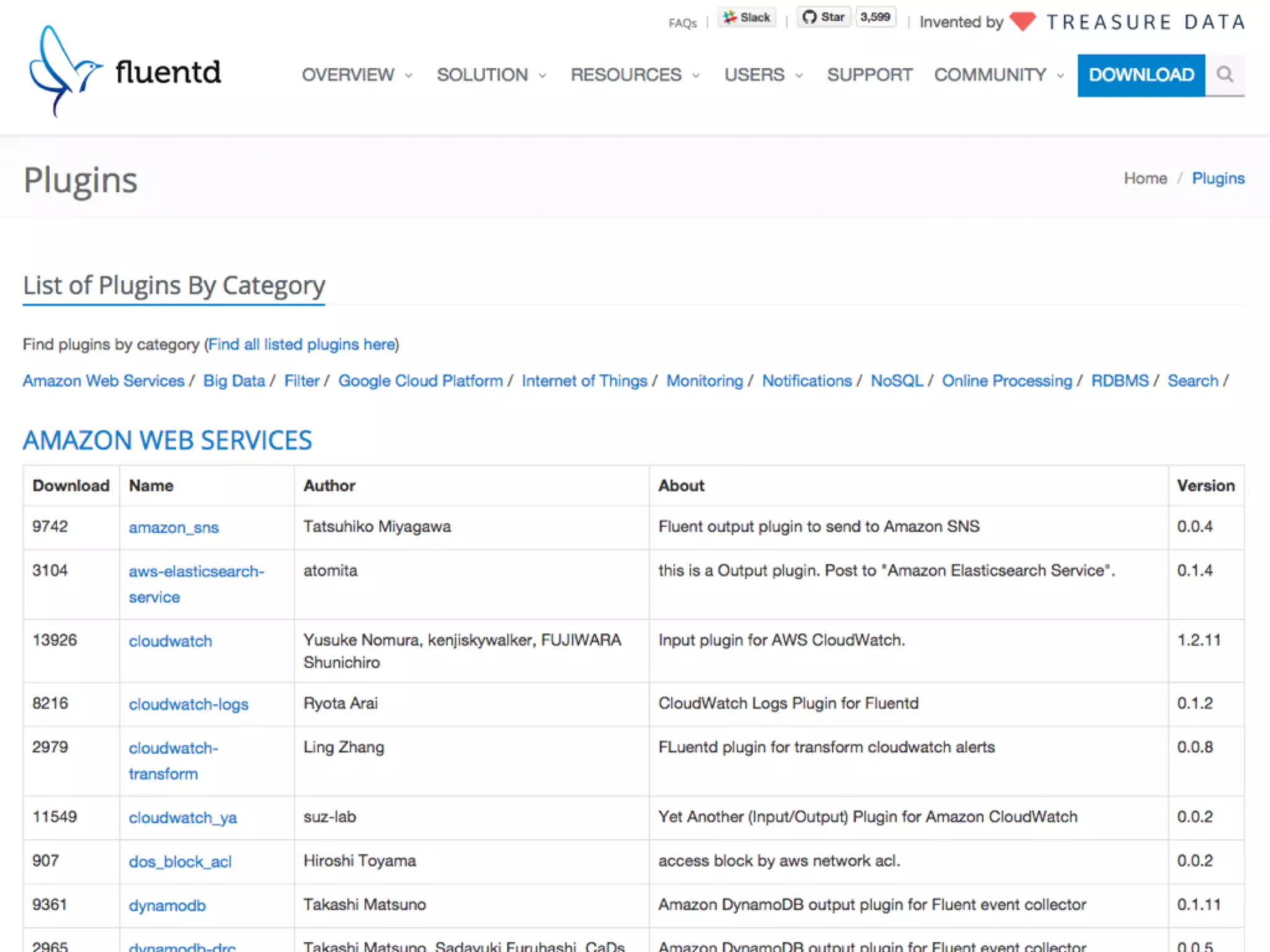

- 32. What’s Fluentd? > Datacollector for unified logging layer > Streaming data transfer based on JSON > Written in C & Ruby > Plugin Marketplace on RubyGems > http://www.fluentd.org/plugins > Working in production > http://www.fluentd.org/testimonials
- 33.
- 34.

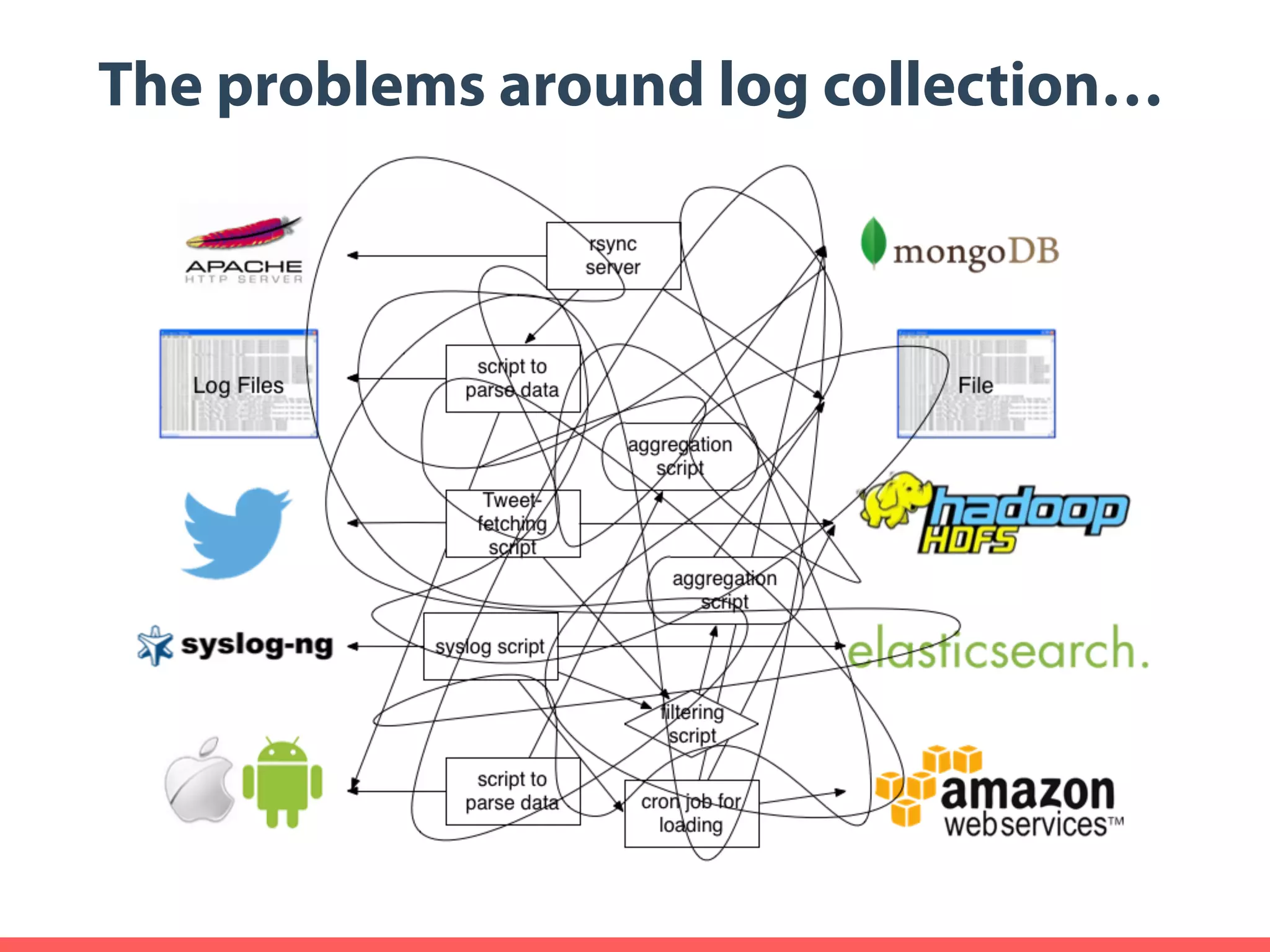

- 35. The problems aroundlog collection…

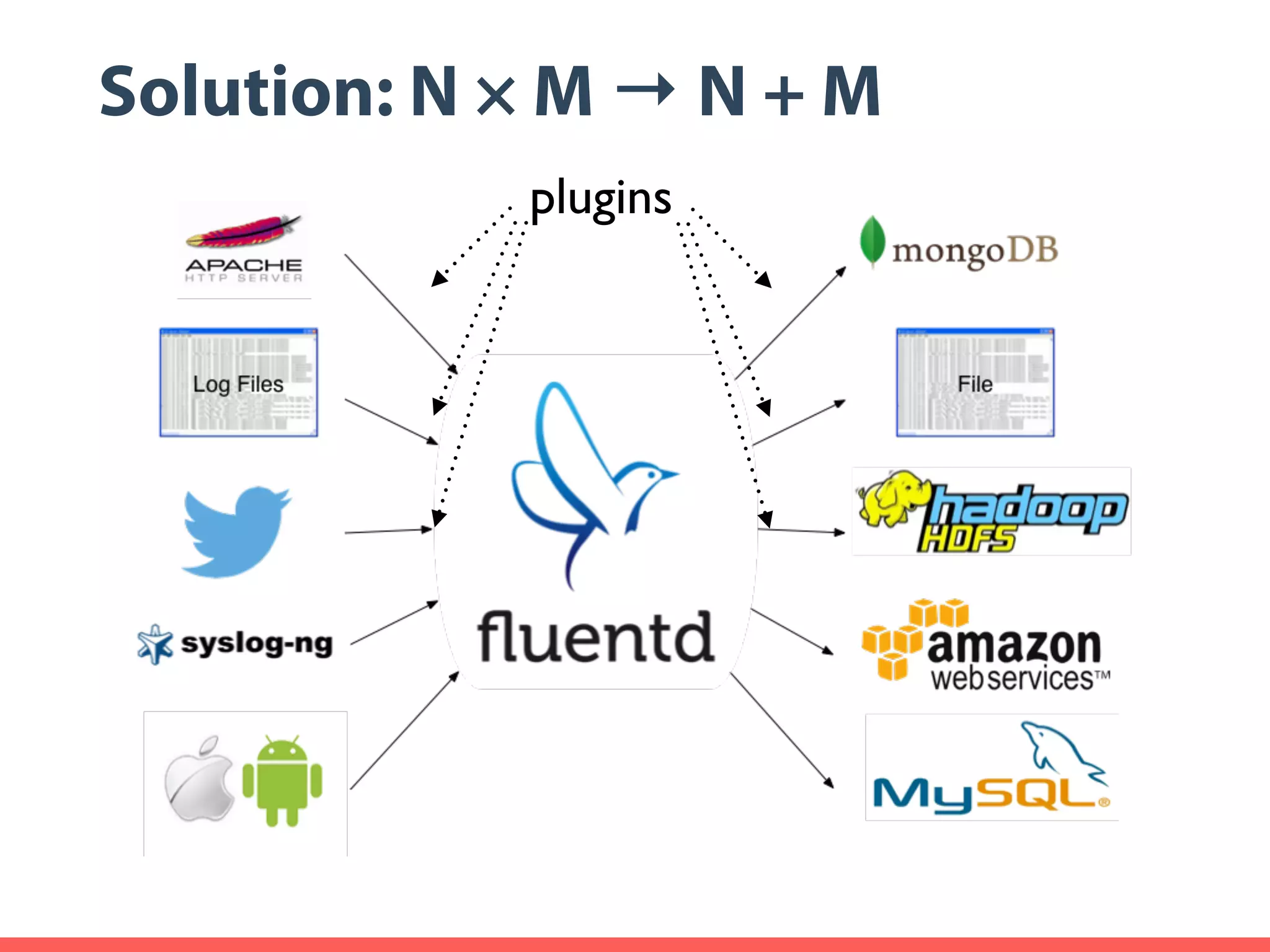

- 36. Solution: N ×M → N + M plugins

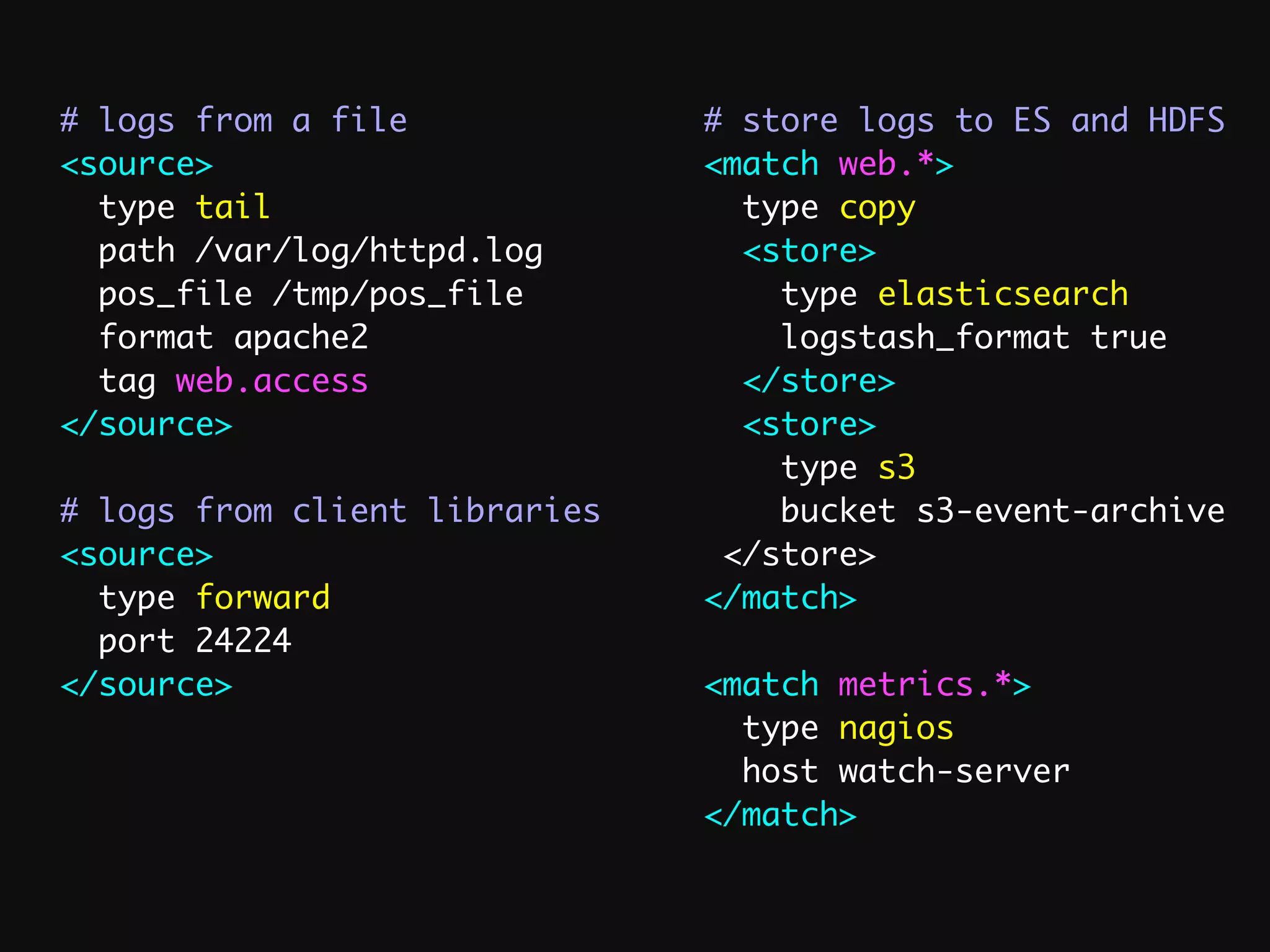

- 37. # logs froma file <source> type tail path /var/log/httpd.log pos_file /tmp/pos_file format apache2 tag web.access </source> # logs from client libraries <source> type forward port 24224 </source> # store logs to ES and HDFS <match web.*> type copy <store> type elasticsearch logstash_format true </store> <store> type s3 bucket s3-event-archive </store> </match> <match metrics.*> type nagios host watch-server </match>

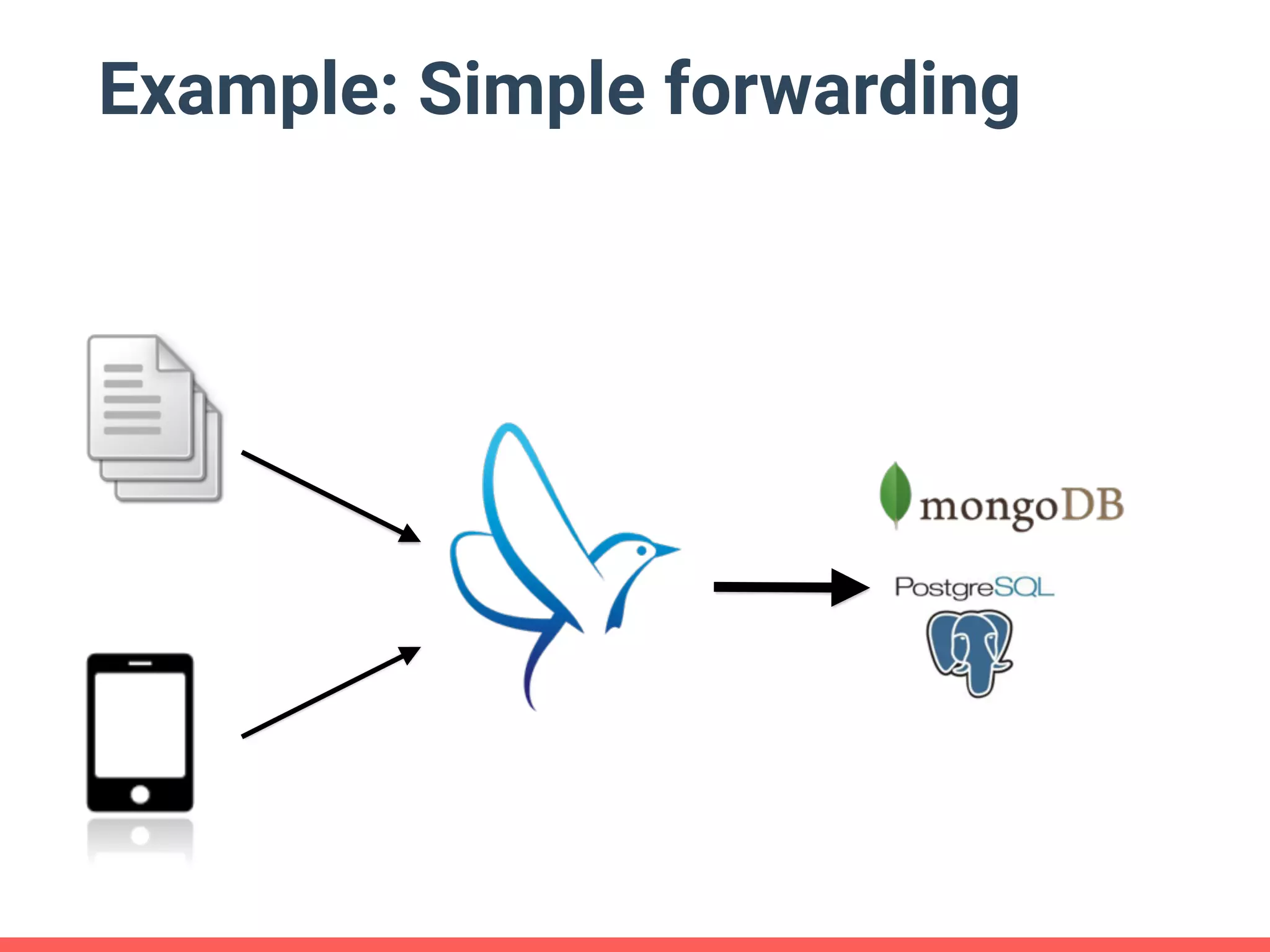

- 38.

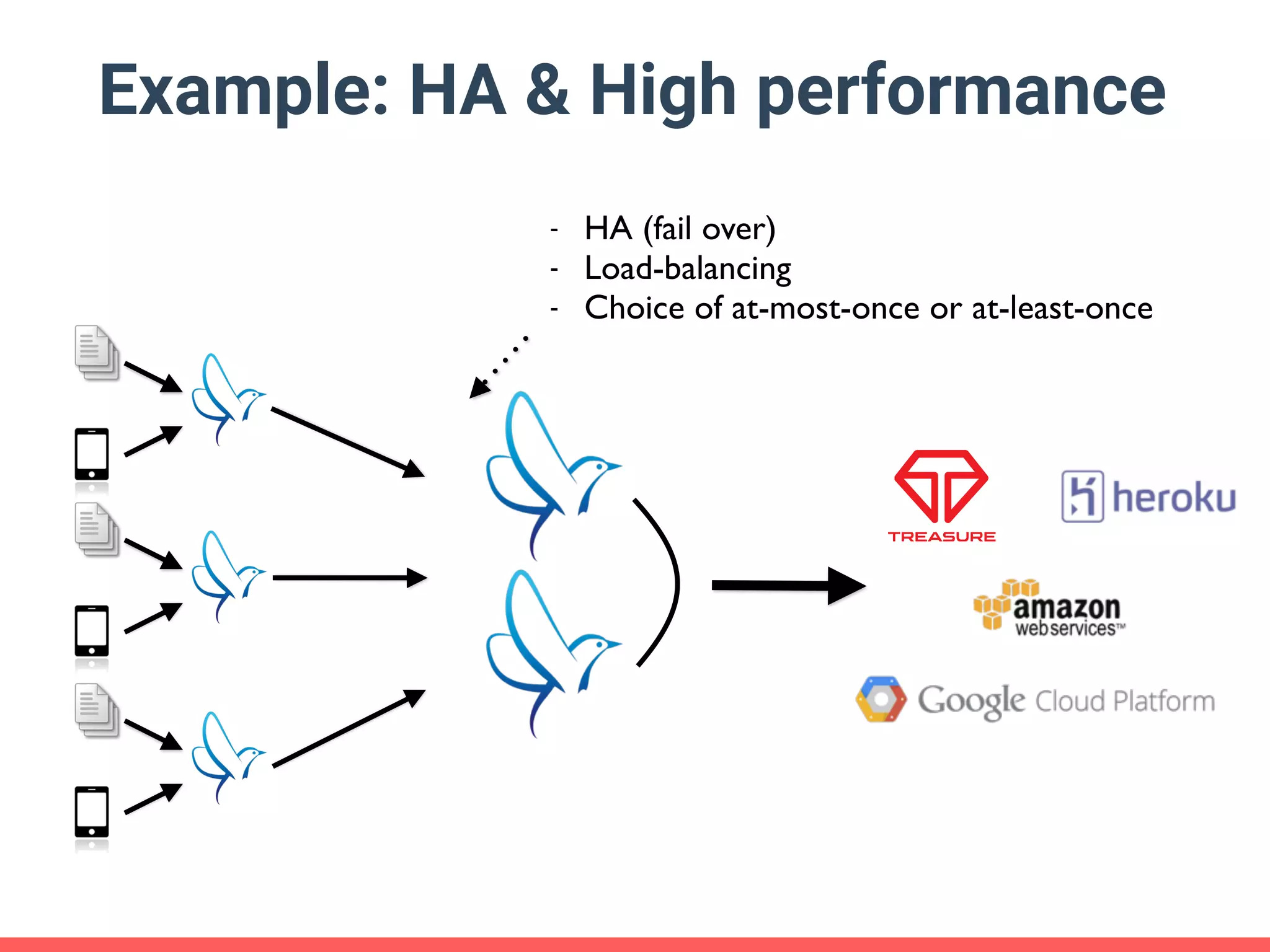

- 39. Example: HA &High performance - HA (fail over) - Load-balancing - Choice of at-most-once or at-least-once

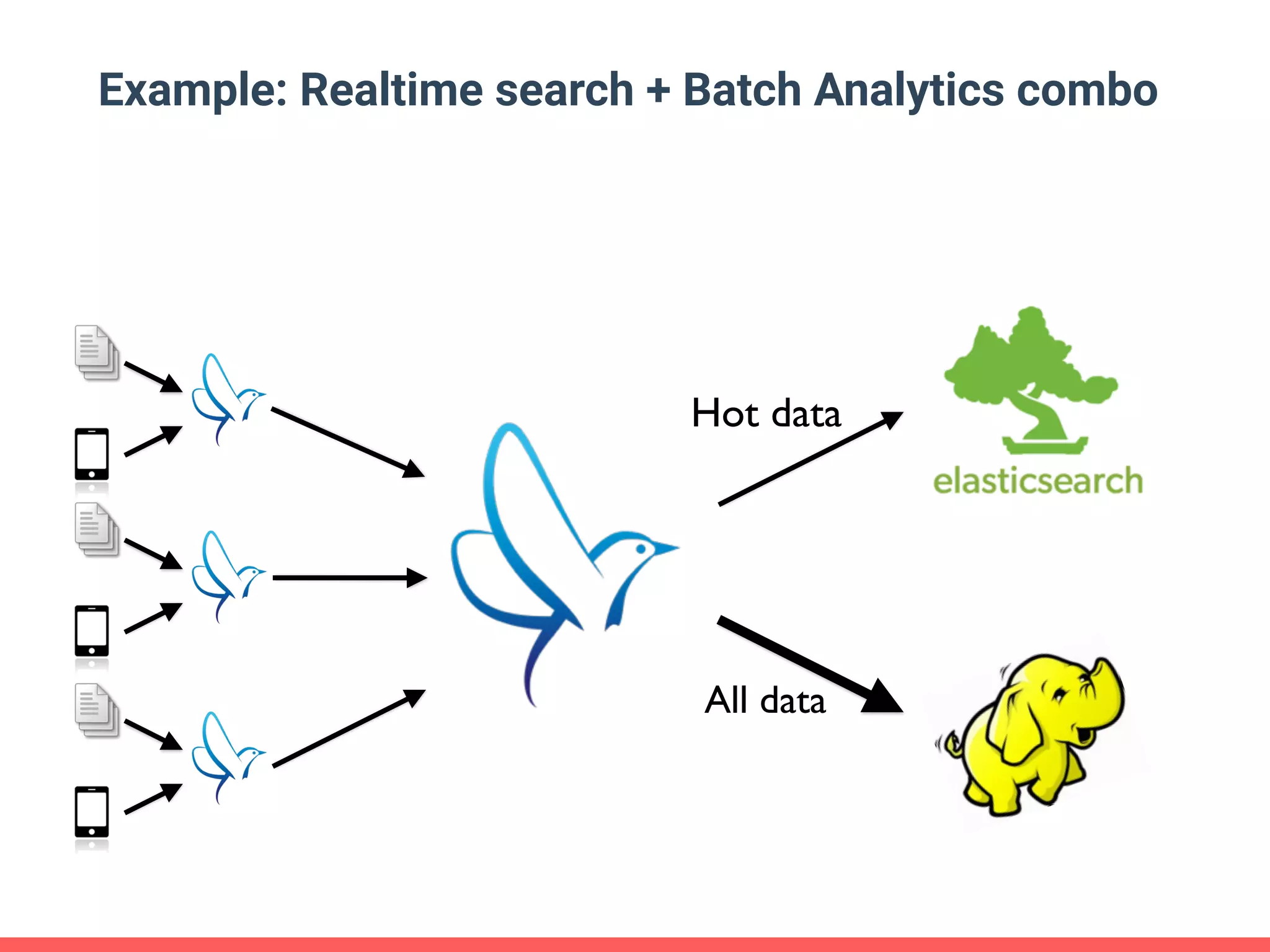

- 40. Example: Realtime search+ Batch Analytics combo All data Hot data

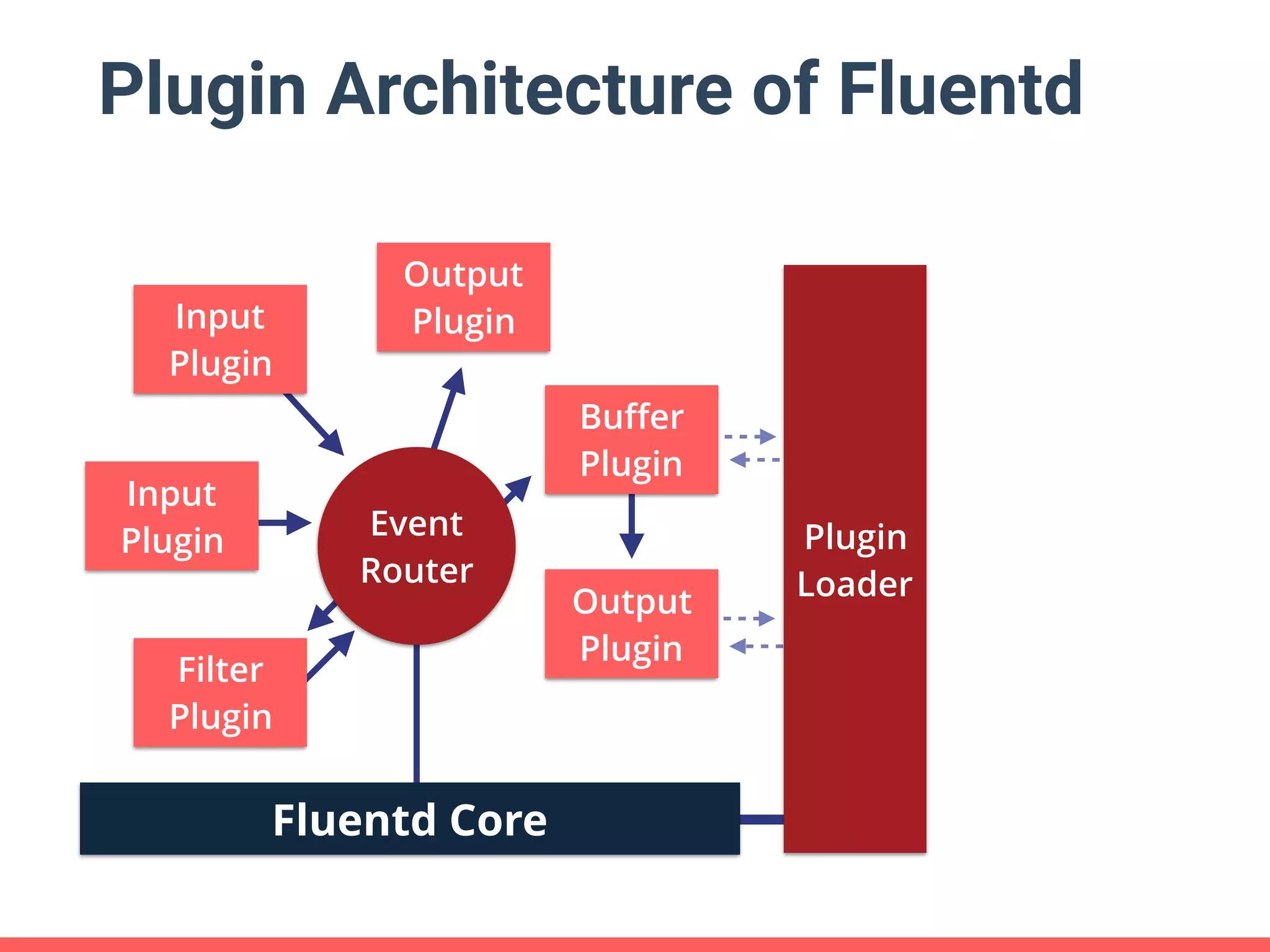

- 41.

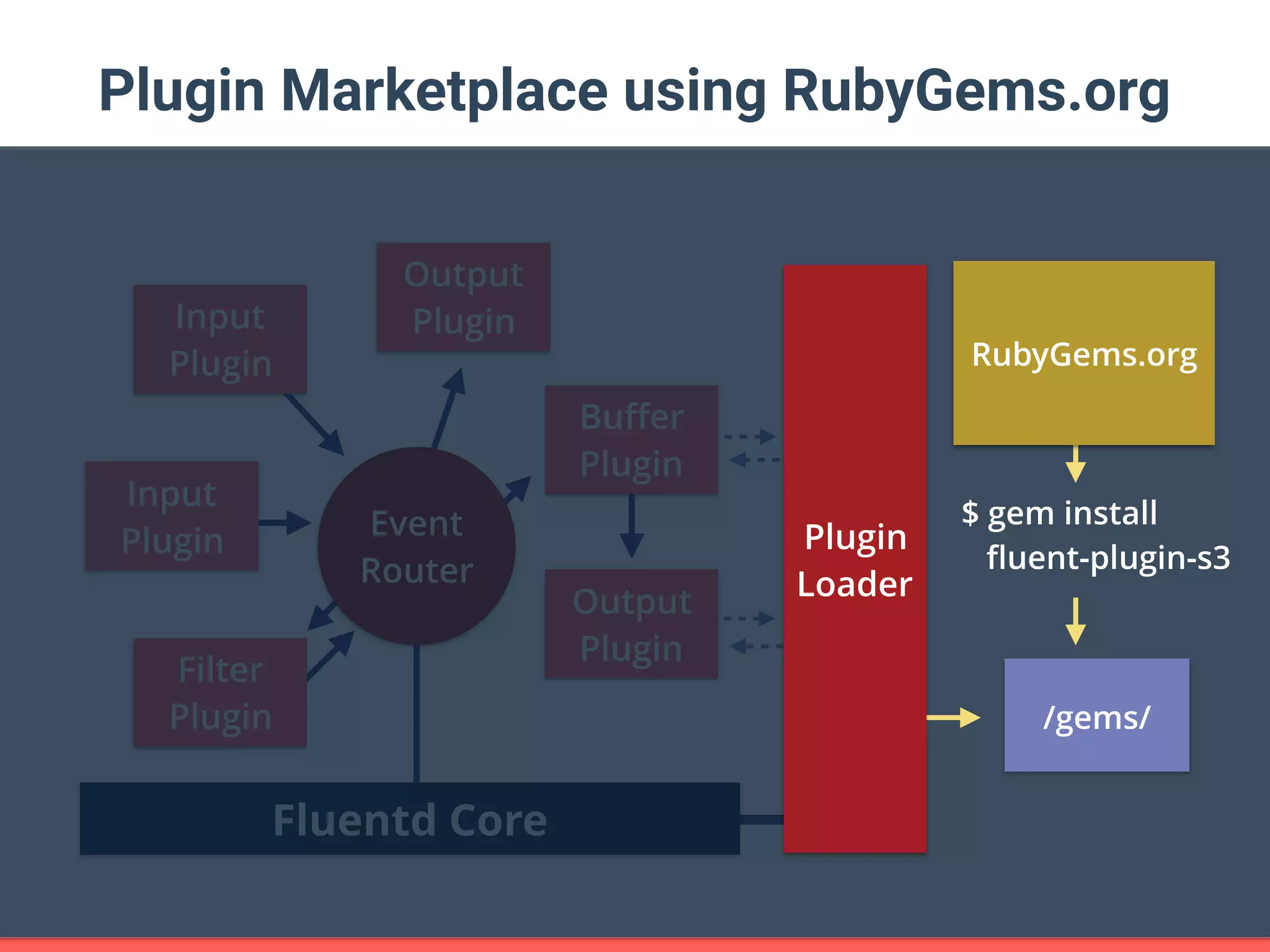

- 42. Fluentd Core Event Router Input Plugin Output Plugin Filter Plugin Buffer Plugin Output Plugin Input Plugin Plugin Marketplaceusing RubyGems.org $ gem install fluent-plugin-s3 Plugin Loader /gems/ RubyGems.org

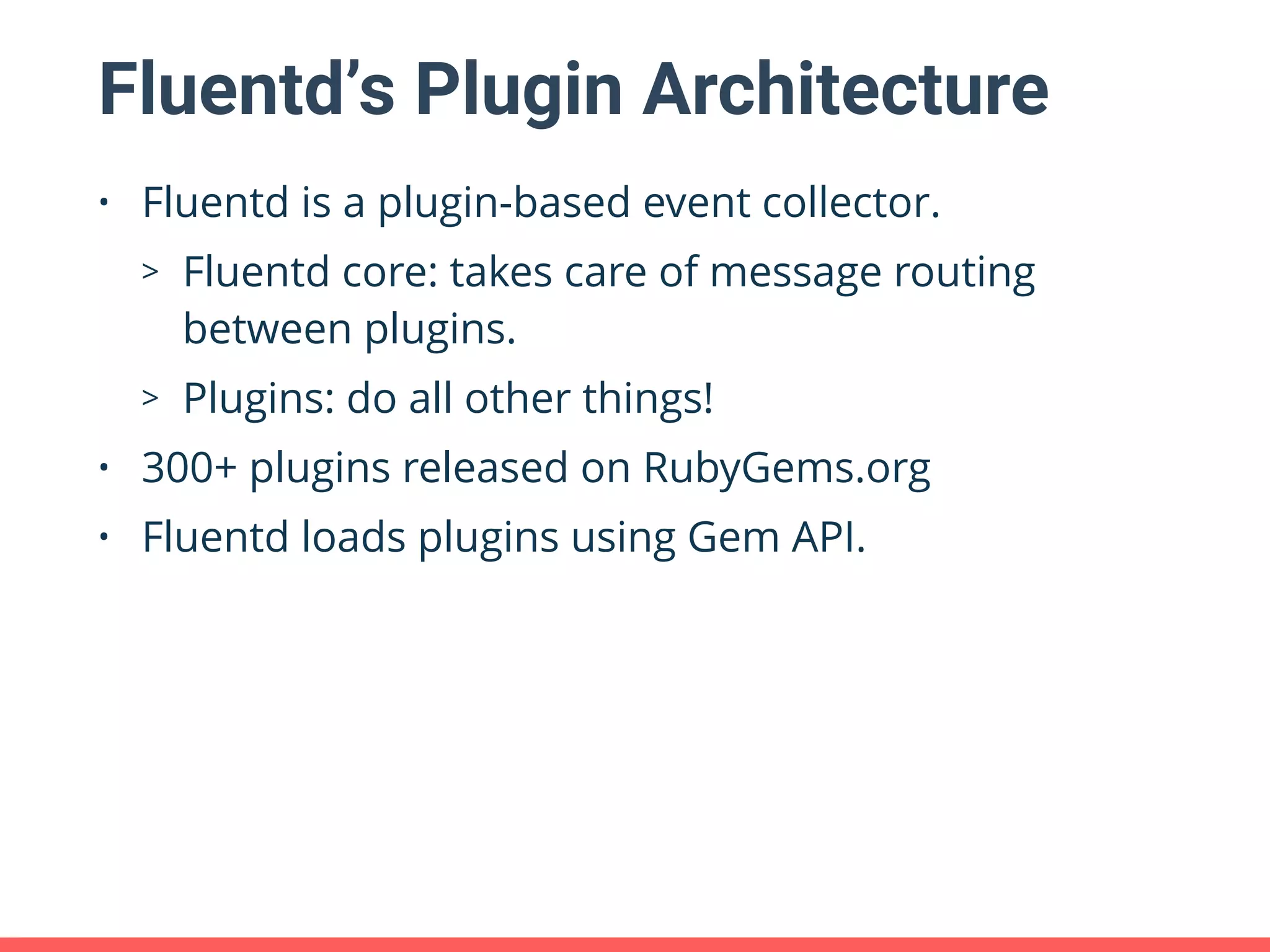

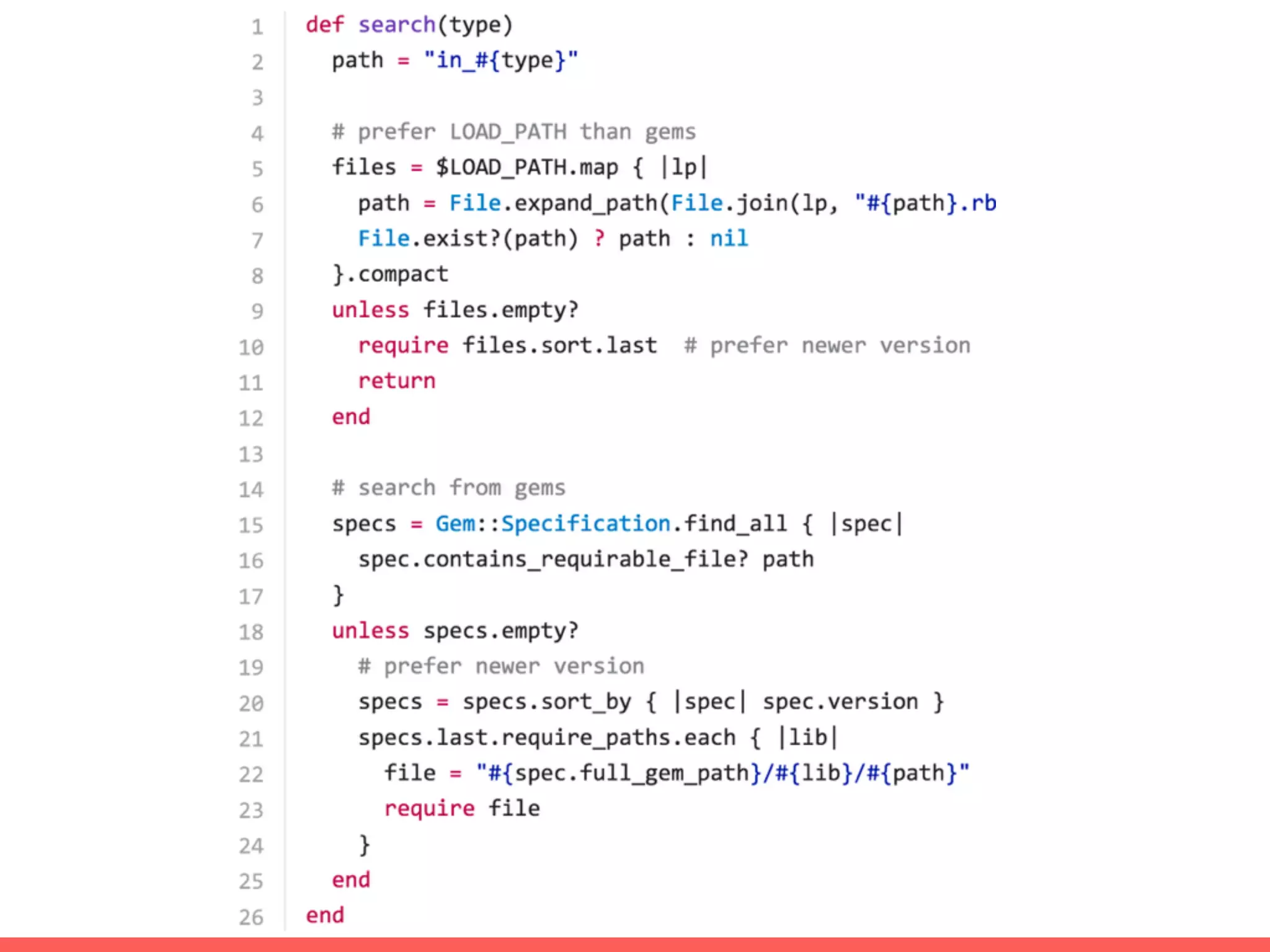

- 44. Fluentd’s Plugin Architecture •Fluentd is a plugin-based event collector. > Fluentd core: takes care of message routing between plugins. > Plugins: do all other things! • 300+ plugins released on RubyGems.org • Fluentd loads plugins using Gem API.
- 45.
- 46. Embulk: Open-source Bulk DataLoader written in Java & JRuby

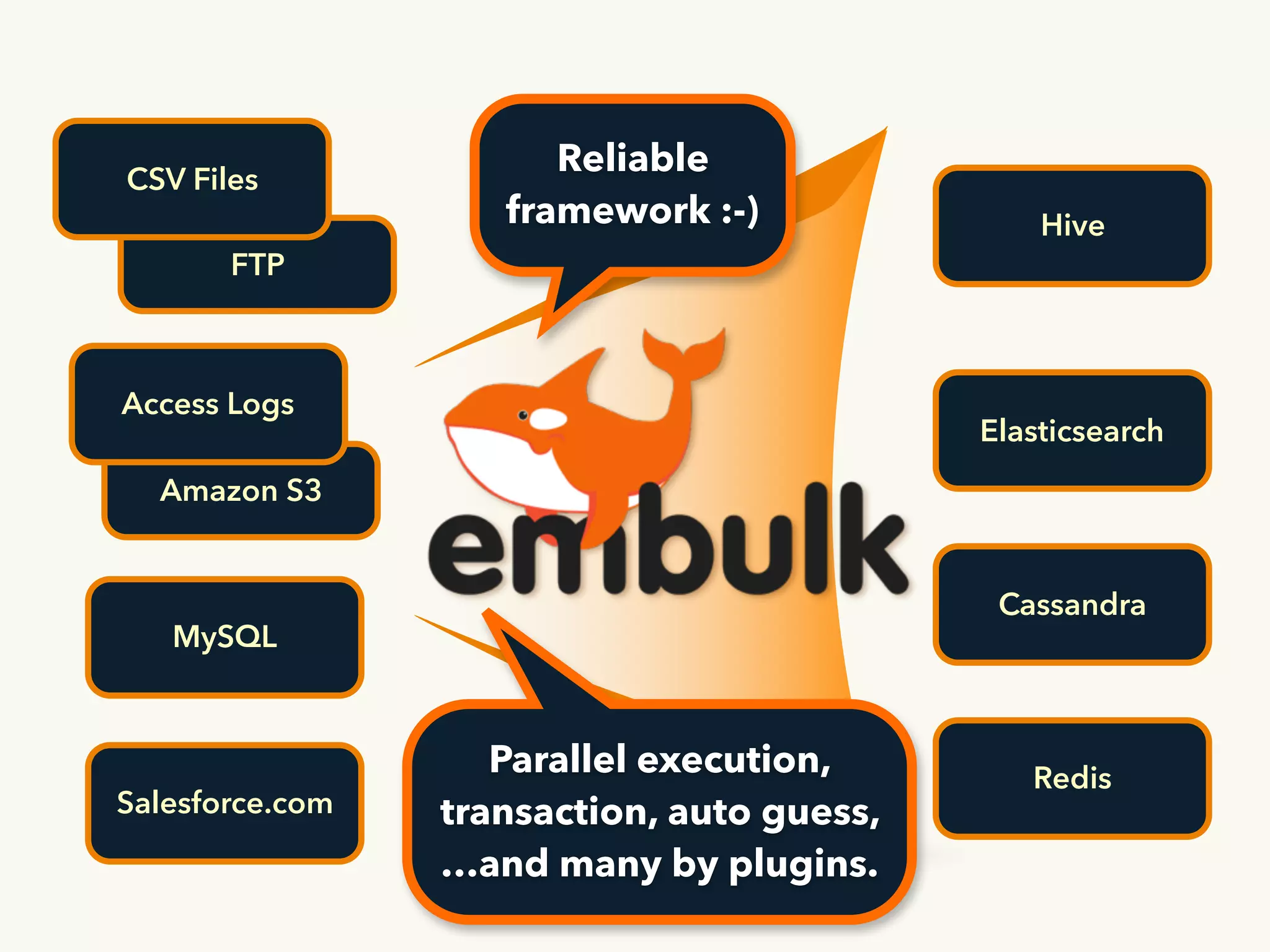

- 47. Amazon S3 MySQL FTP CSV Files AccessLogs Salesforce.com Elasticsearch Cassandra Hive Redis Reliable framework :-) Parallel execution, transaction, auto guess, …and many by plugins.
- 48.

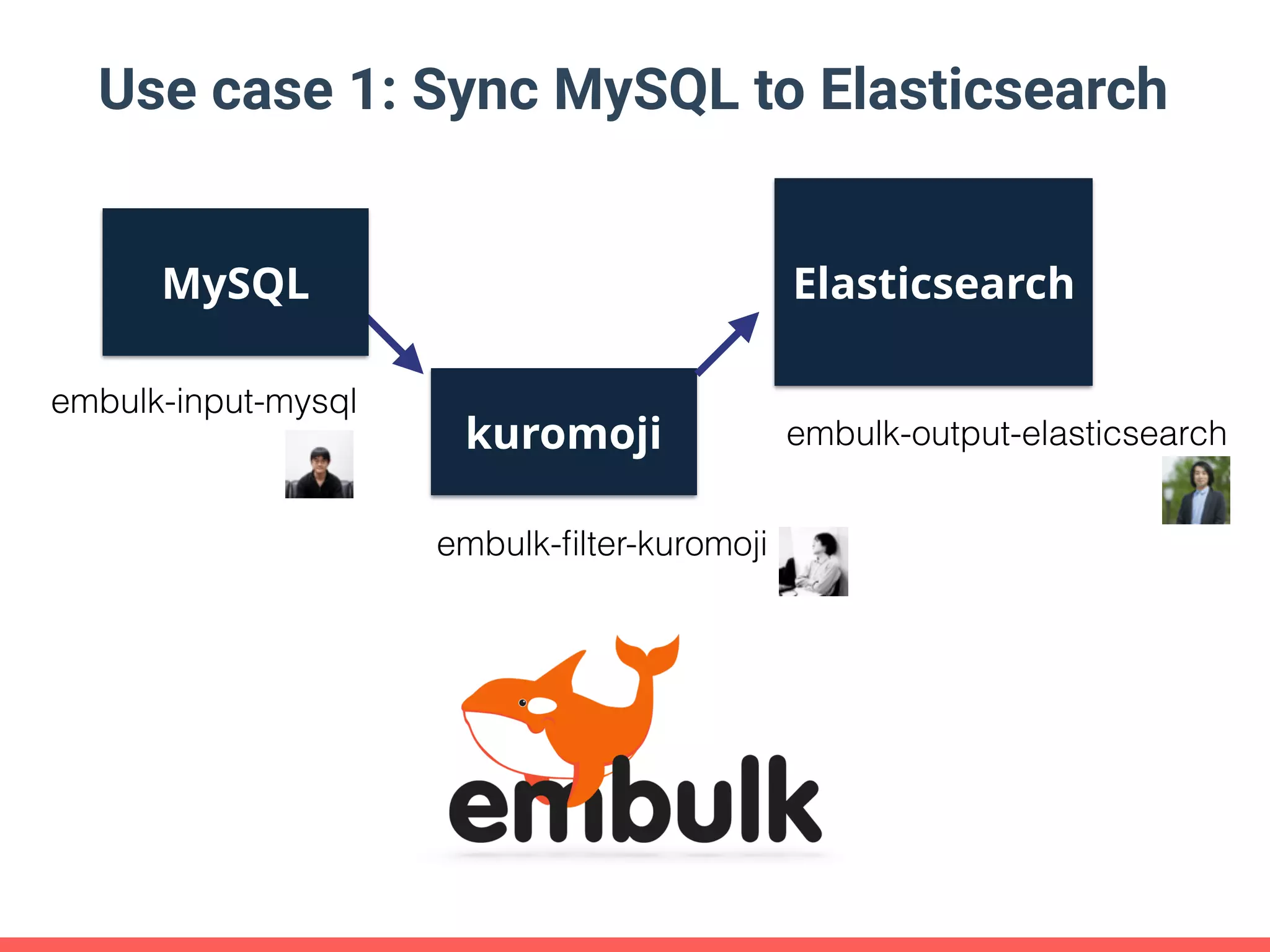

- 49. Use case 1:Sync MySQL to Elasticsearch embulk-input-mysql embulk-filter-kuromoji embulk-output-elasticsearch MySQL kuromoji Elasticsearch

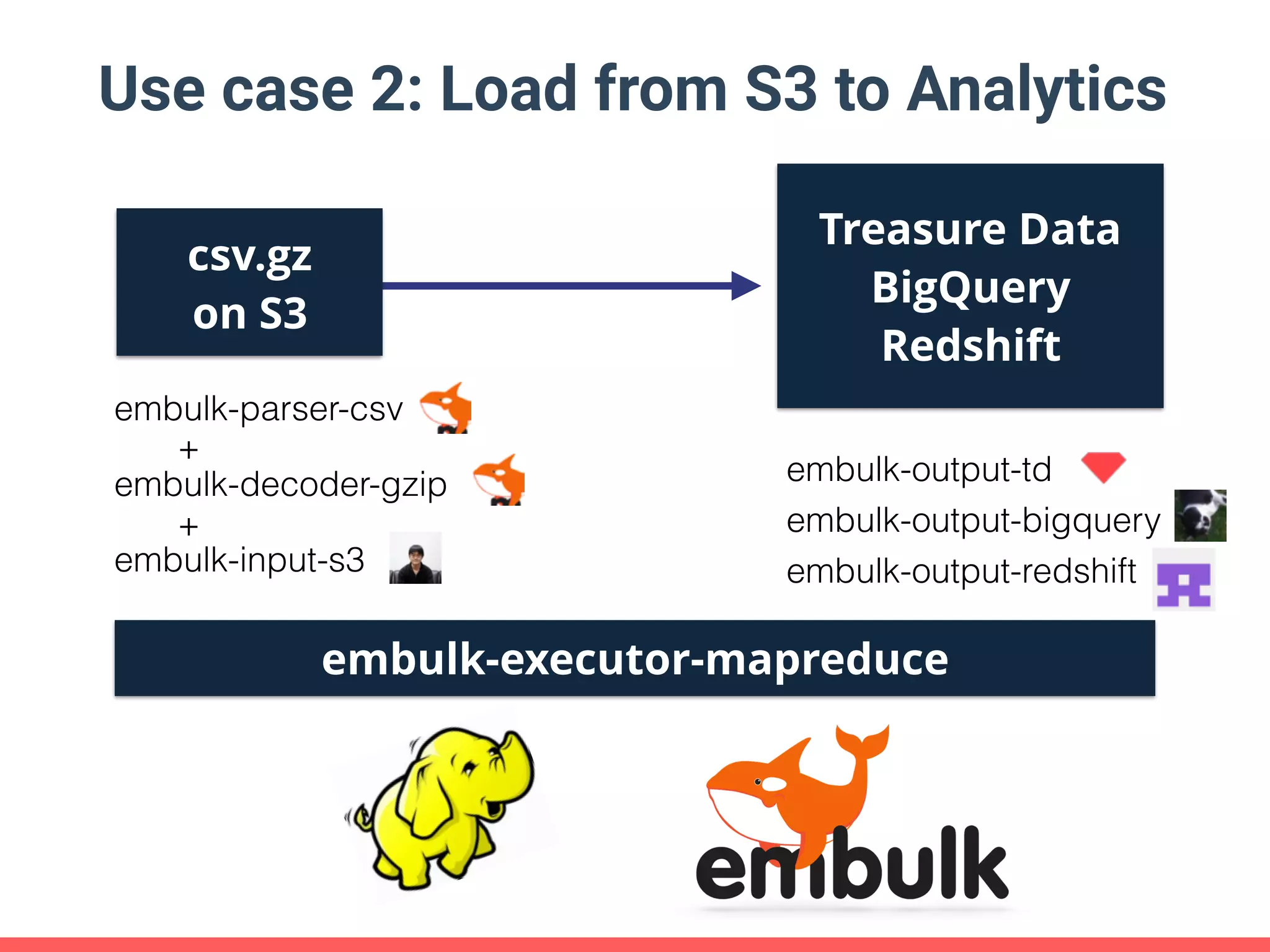

- 50. Use case 2:Load from S3 to Analytics embulk-parser-csv embulk-decoder-gzip embulk-input-s3 csv.gz on S3 Treasure Data BigQuery Redshift + + embulk-output-td embulk-output-bigquery embulk-output-redshift embulk-executor-mapreduce

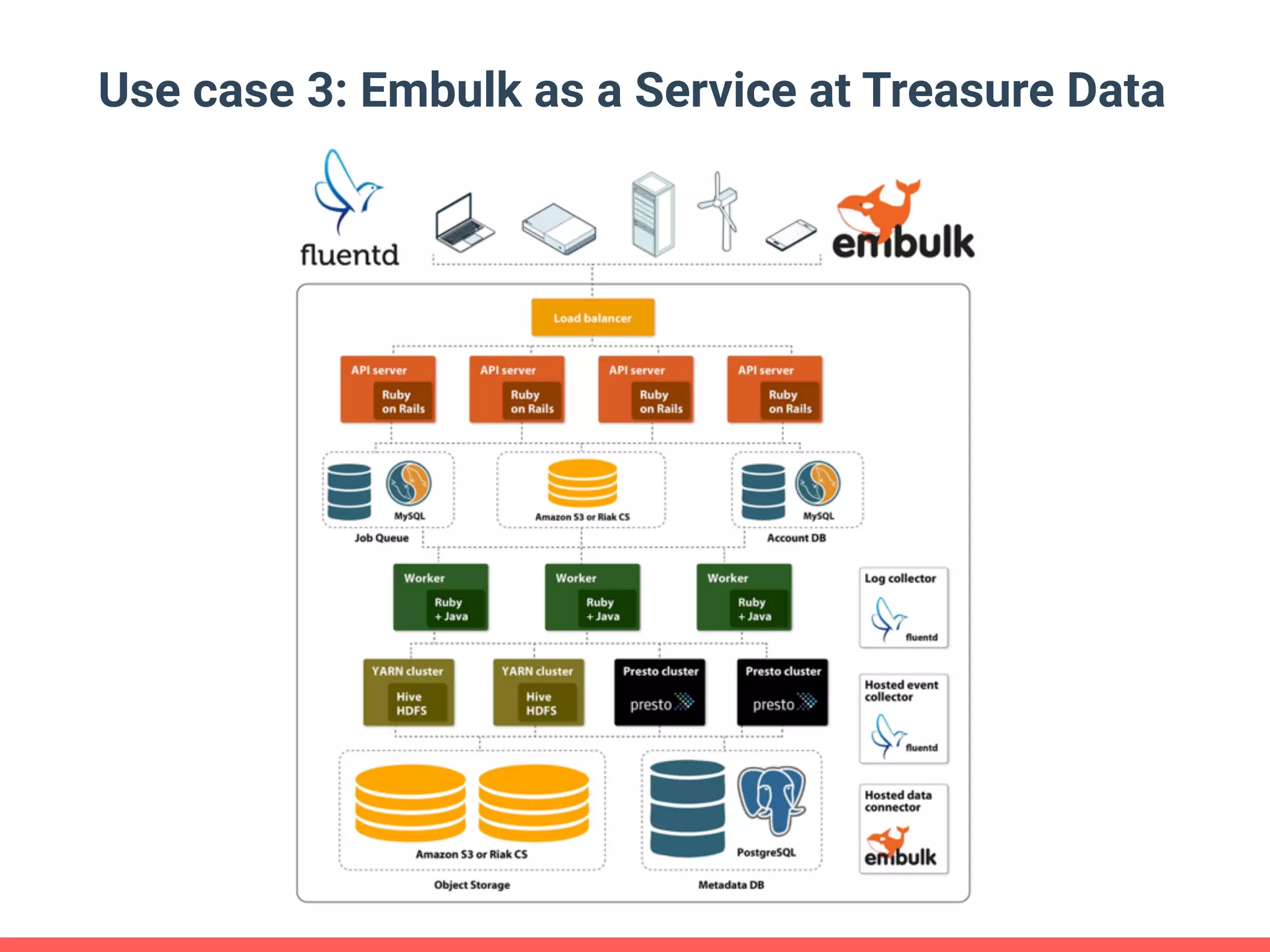

- 51. Use case 3:Embulk as a Service at Treasure Data

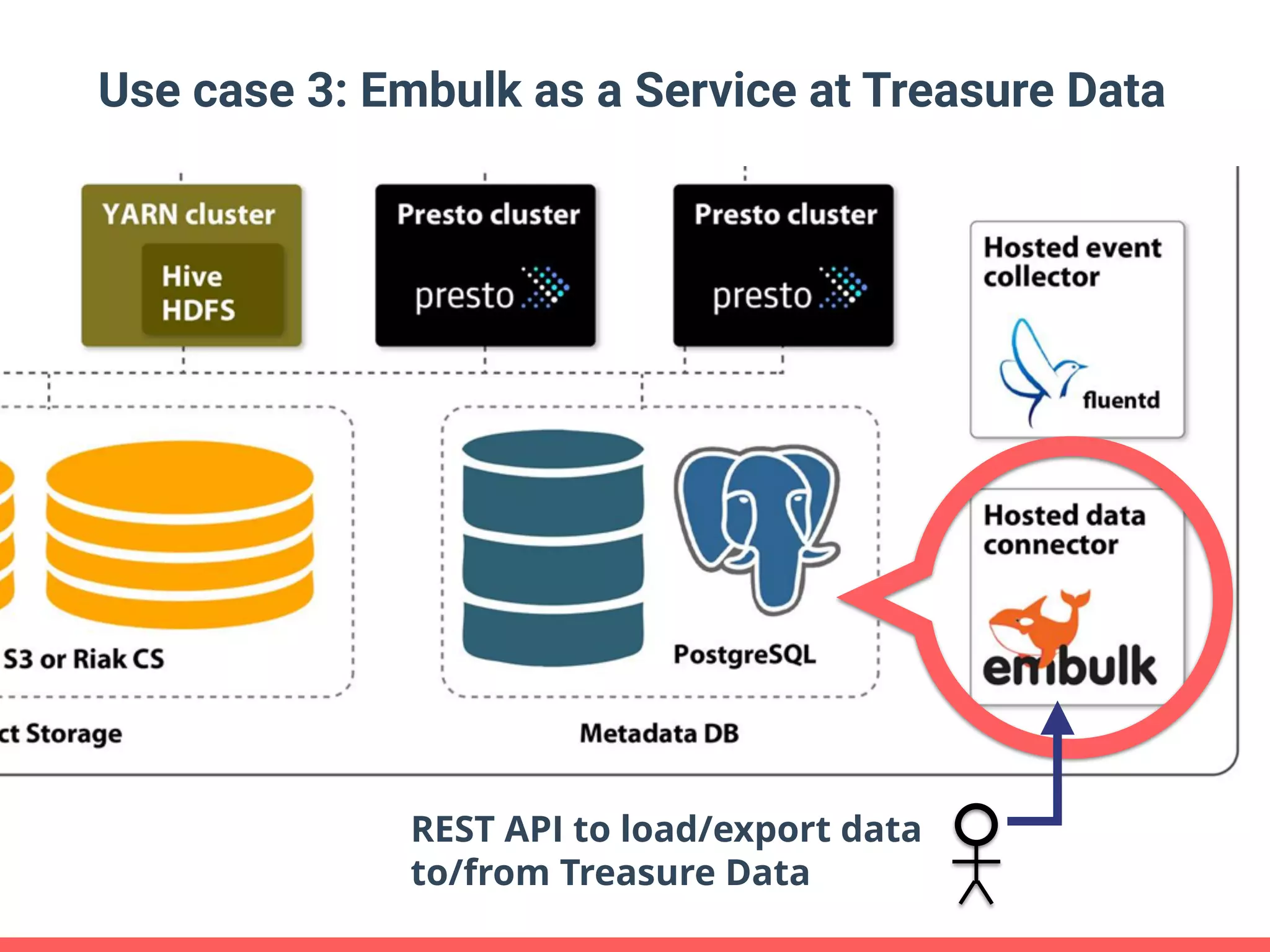

- 52. Use case 3:Embulk as a Service at Treasure Data REST API to load/export data to/from Treasure Data

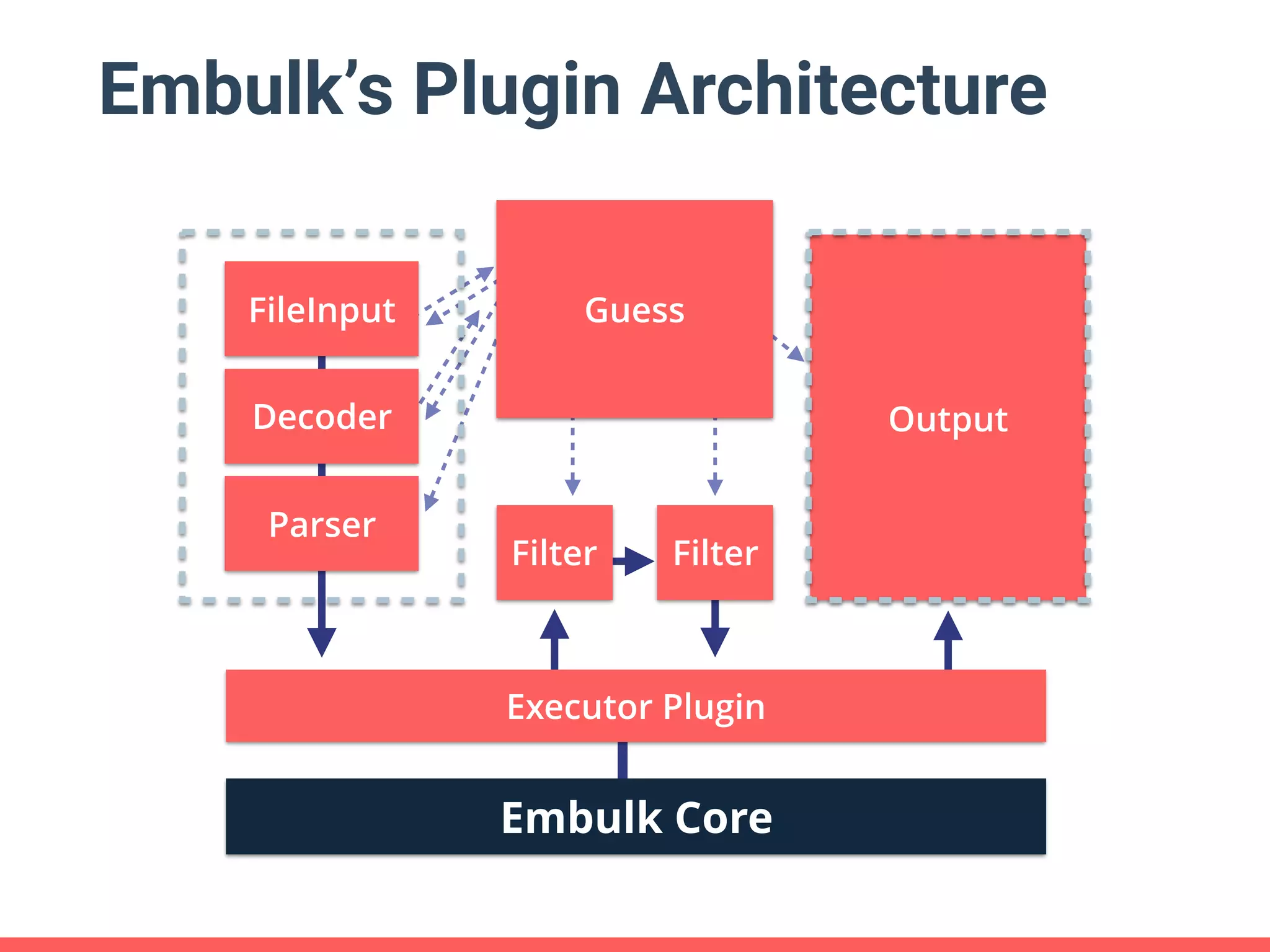

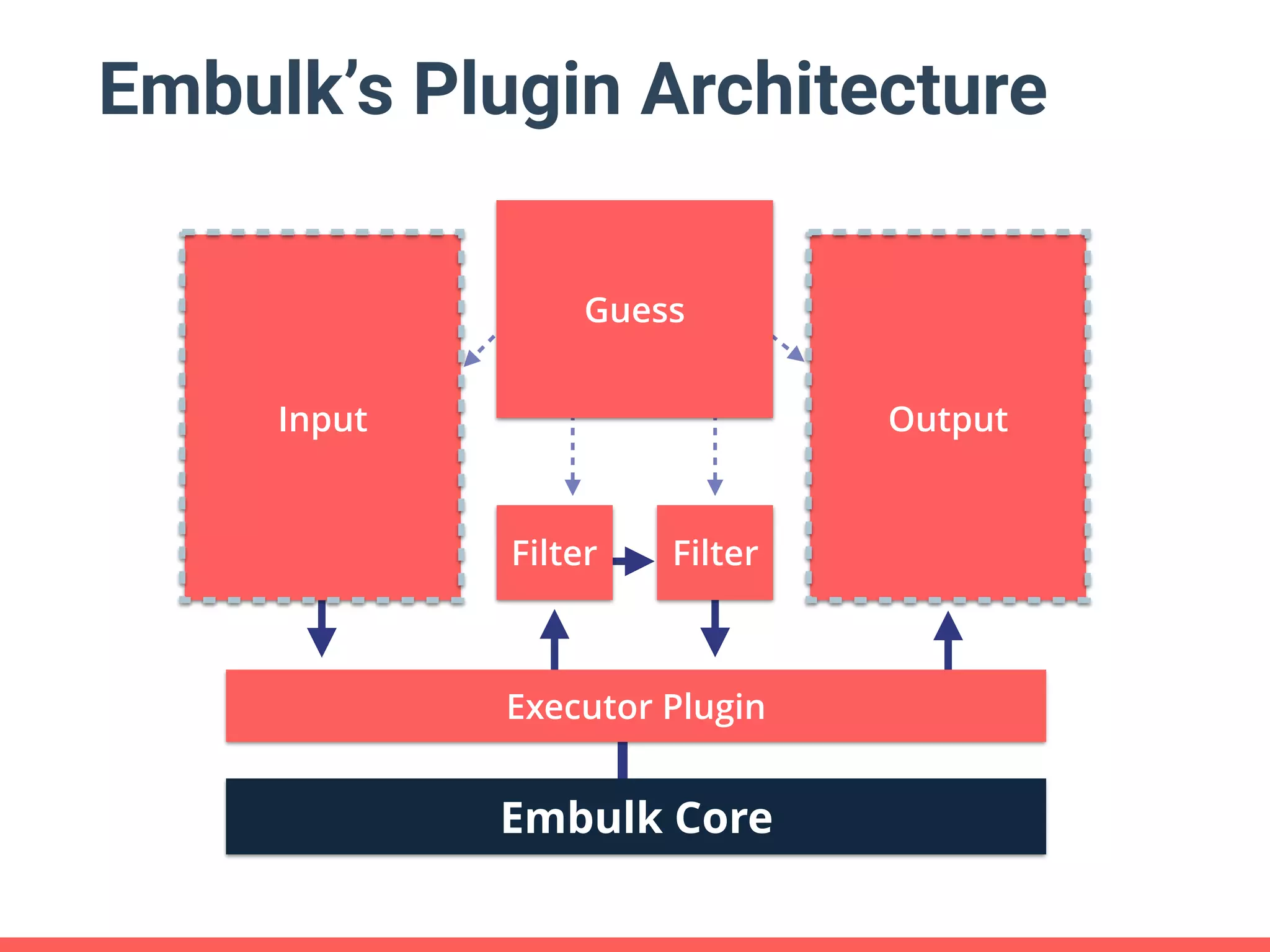

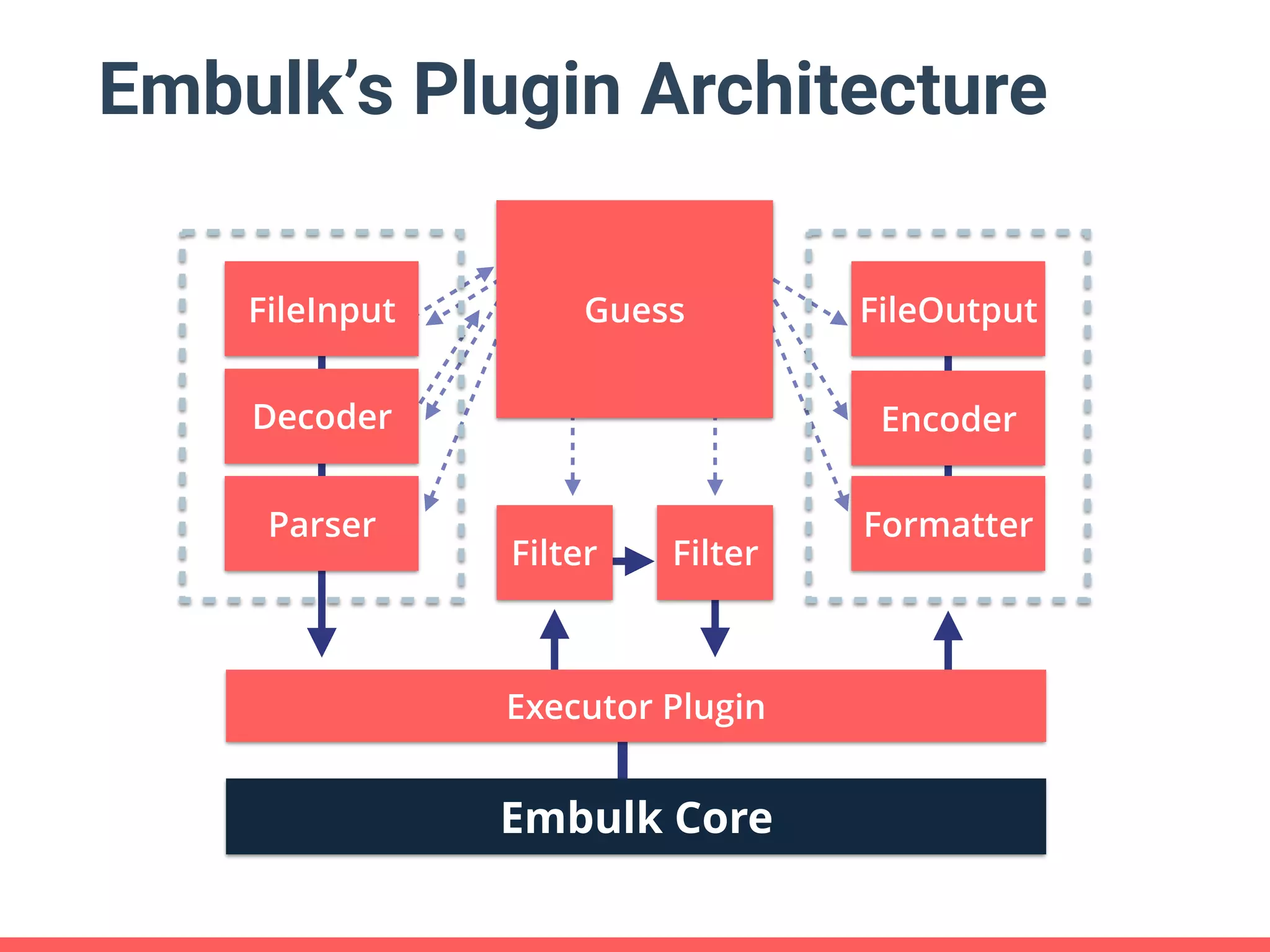

- 53. Input Output Embulk’s PluginArchitecture Embulk Core Executor Plugin Filter Filter Guess
- 54. Output Embulk’s Plugin Architecture EmbulkCore Executor Plugin Filter Filter GuessFileInput Parser Decoder
- 55. Guess Embulk’s Plugin Architecture EmbulkCore FileInput Executor Plugin Parser Decoder FileOutput Formatter Encoder Filter Filter

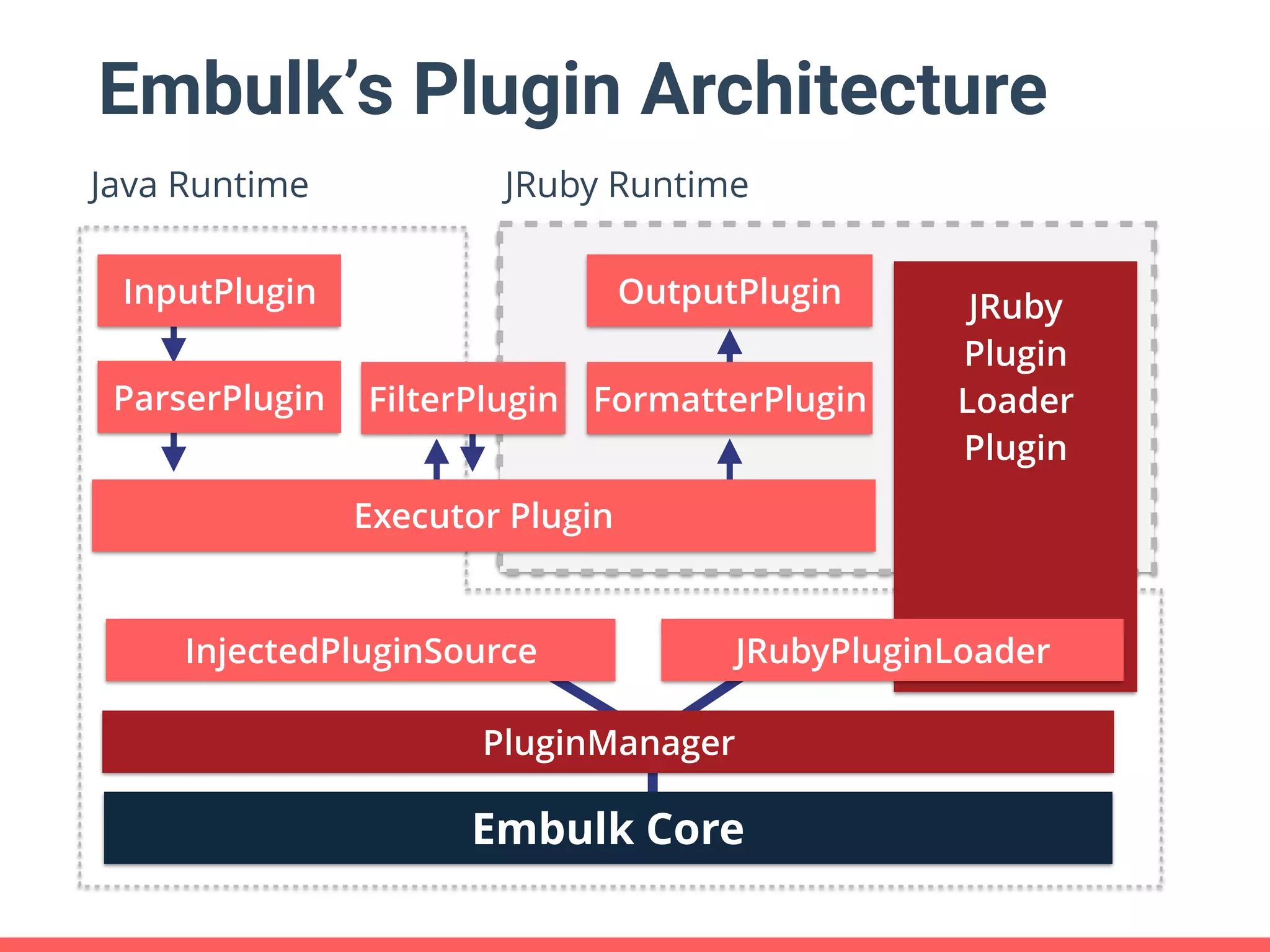

- 56. Embulk’s Plugin Architecture EmbulkCore PluginManager Executor Plugin InjectedPluginSource ParserPlugin JRubyPluginLoader FormatterPlugin JRuby Plugin Loader Plugin FilterPlugin OutputPluginInputPlugin JRuby RuntimeJava Runtime

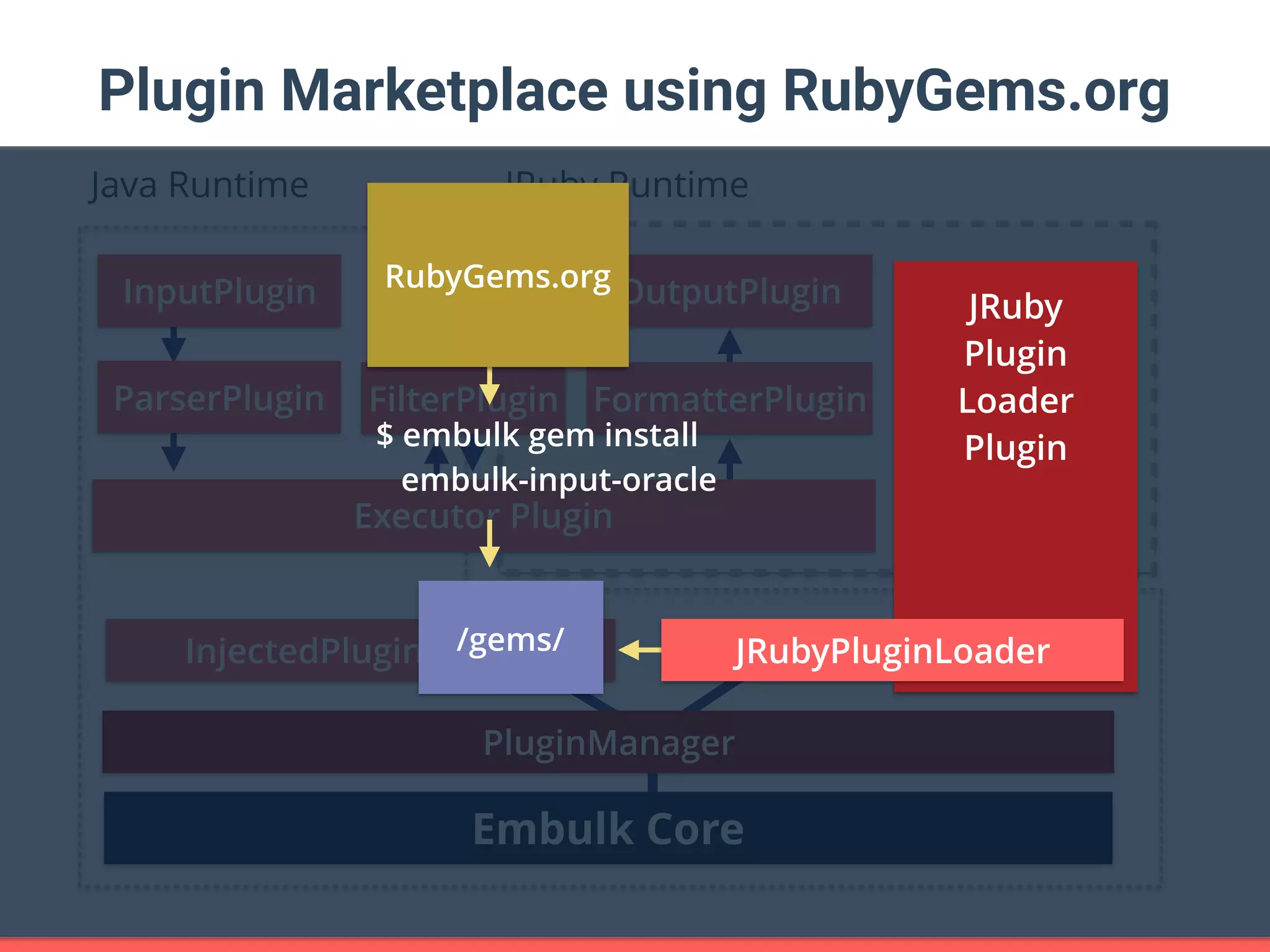

- 57. Plugin Marketplace usingRubyGems.org Embulk Core PluginManager Executor Plugin InjectedPluginSource ParserPlugin FormatterPluginFilterPlugin OutputPluginInputPlugin JRuby RuntimeJava Runtime $ embulk gem install embulk-input-oracle /gems/ RubyGems.org JRubyPluginLoader JRuby Plugin Loader Plugin

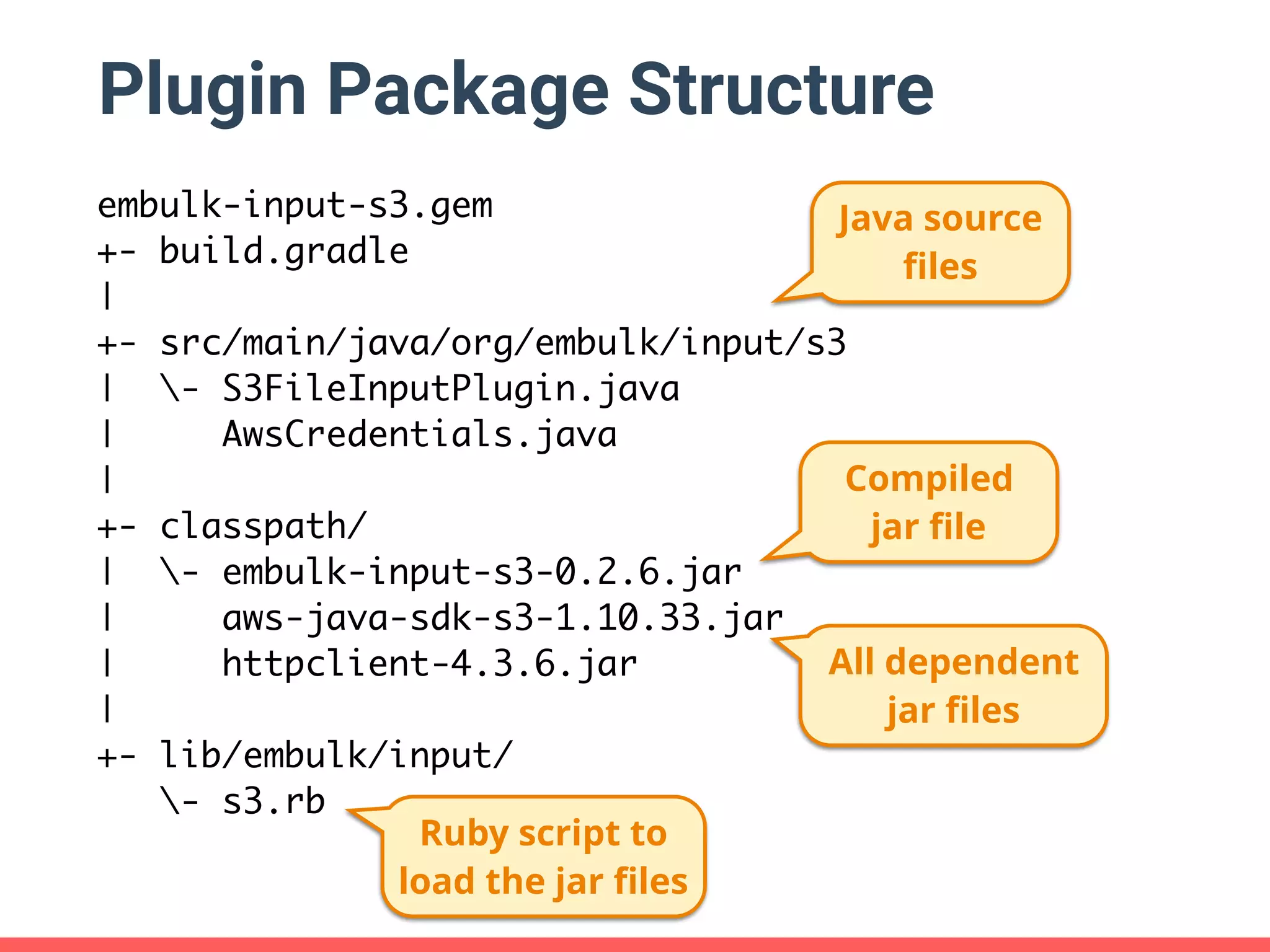

- 58. Plugin Package Structure embulk-input-s3.gem +-build.gradle | +- src/main/java/org/embulk/input/s3 | - S3FileInputPlugin.java | AwsCredentials.java | +- classpath/ | - embulk-input-s3-0.2.6.jar | aws-java-sdk-s3-1.10.33.jar | httpclient-4.3.6.jar | +- lib/embulk/input/ - s3.rb Java source files Compiled jar file All dependent jar files Ruby script to load the jar files

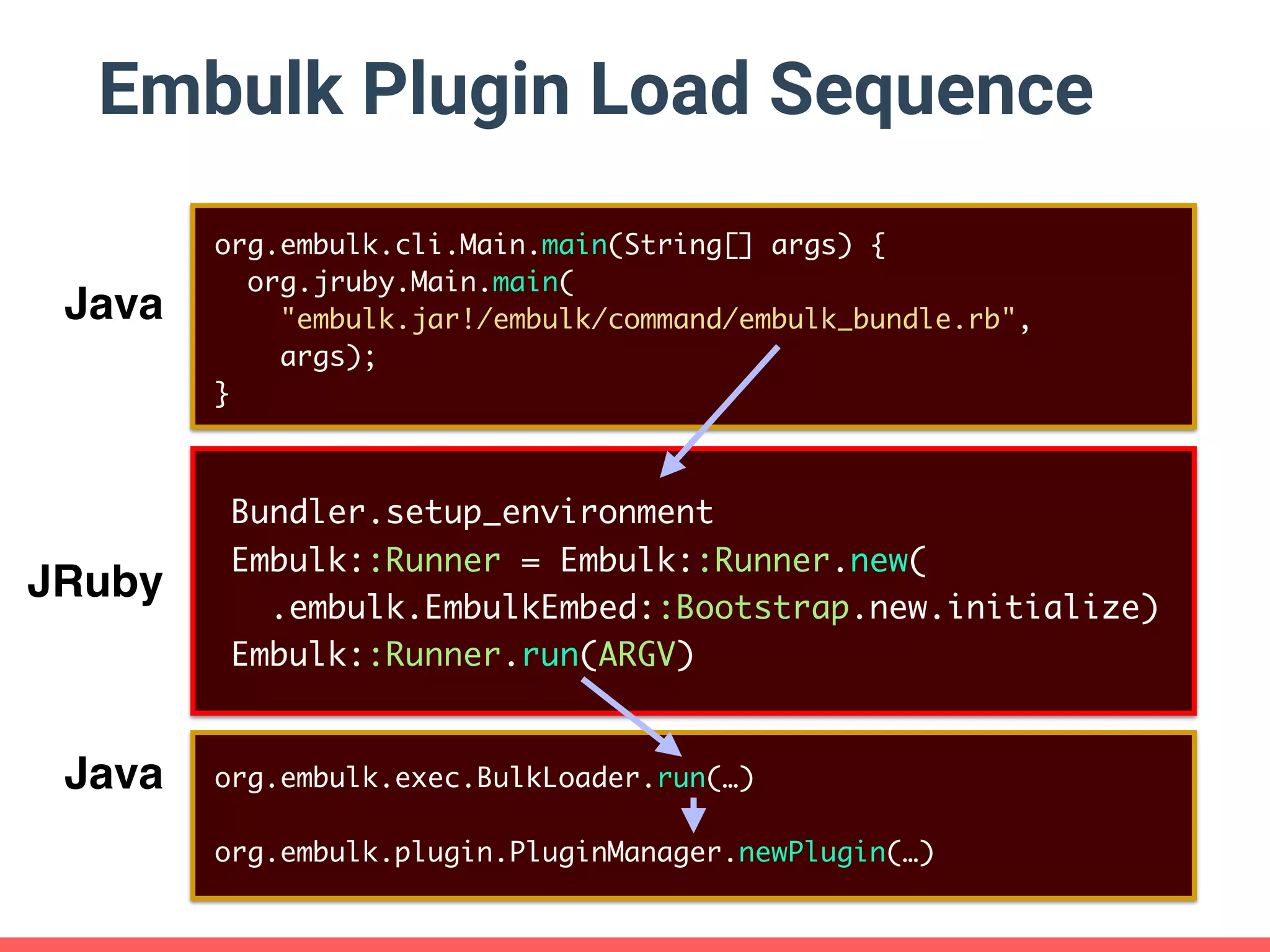

- 59. Embulk Plugin LoadSequence Bundler.setup_environment Embulk::Runner = Embulk::Runner.new( .embulk.EmbulkEmbed::Bootstrap.new.initialize) Embulk::Runner.run(ARGV) Java JRuby Java org.embulk.cli.Main.main(String[] args) { org.jruby.Main.main( "embulk.jar!/embulk/command/embulk_bundle.rb", args); } org.embulk.exec.BulkLoader.run(…) org.embulk.plugin.PluginManager.newPlugin(…)

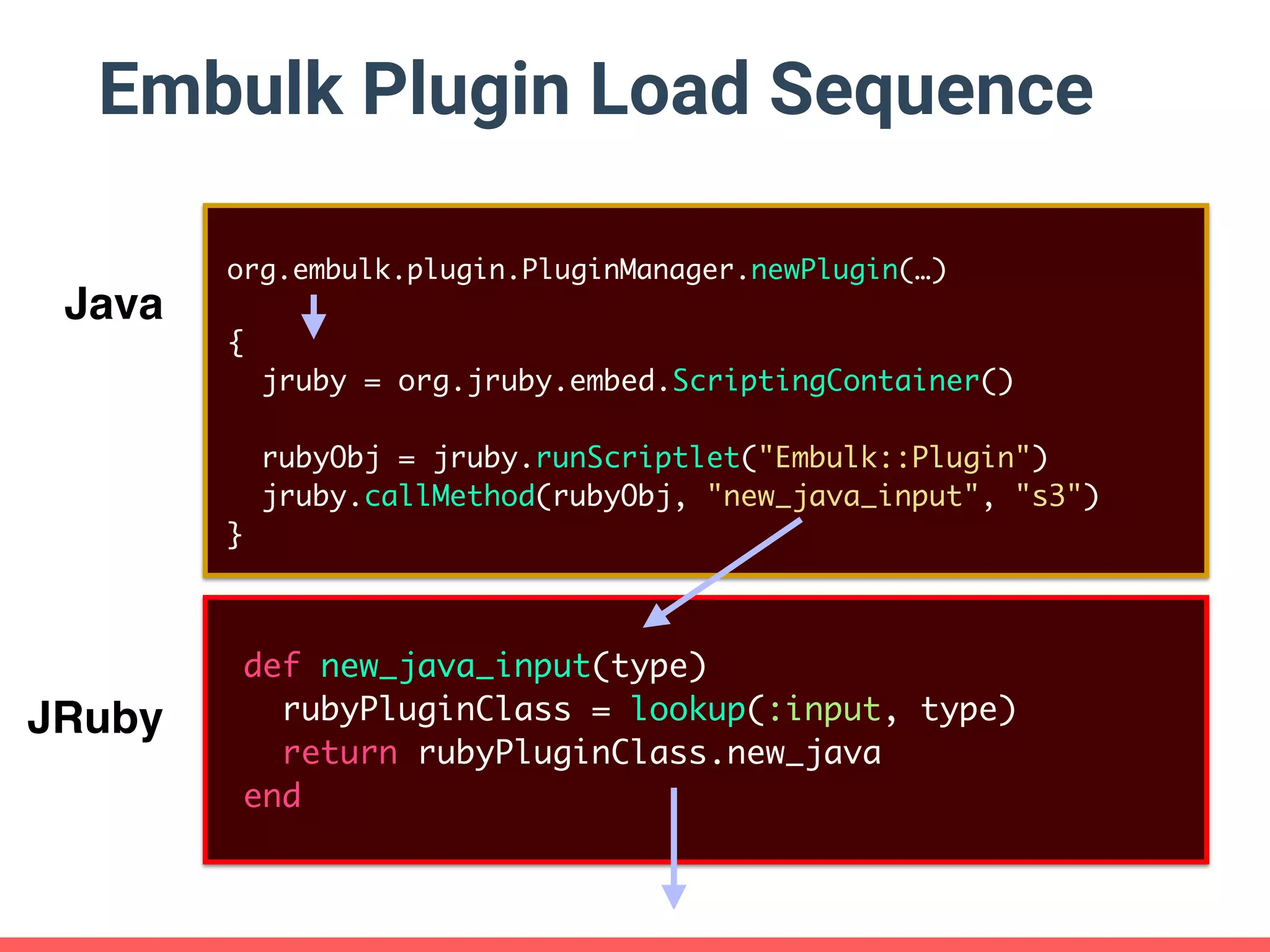

- 60. { jruby = org.jruby.embed.ScriptingContainer() rubyObj= jruby.runScriptlet("Embulk::Plugin") jruby.callMethod(rubyObj, "new_java_input", "s3") } Embulk Plugin Load Sequence def new_java_input(type) rubyPluginClass = lookup(:input, type) return rubyPluginClass.new_java end Java JRuby org.embulk.plugin.PluginManager.newPlugin(…)

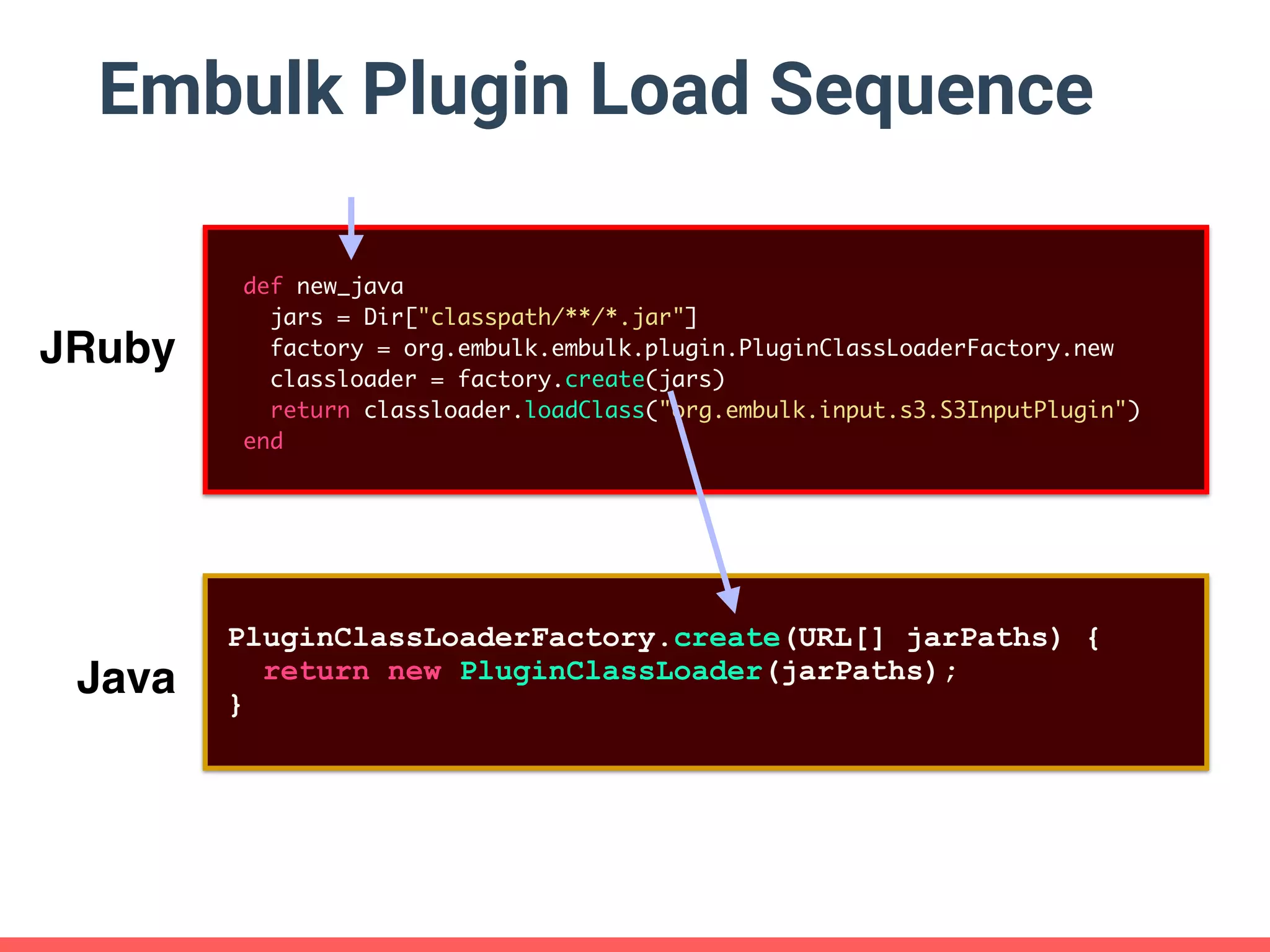

- 61. Embulk Plugin LoadSequence def new_java jars = Dir["classpath/**/*.jar"] factory = org.embulk.embulk.plugin.PluginClassLoaderFactory.new classloader = factory.create(jars) return classloader.loadClass("org.embulk.input.s3.S3InputPlugin") end Java JRuby PluginClassLoaderFactory.create(URL[] jarPaths) { return new PluginClassLoader(jarPaths); }

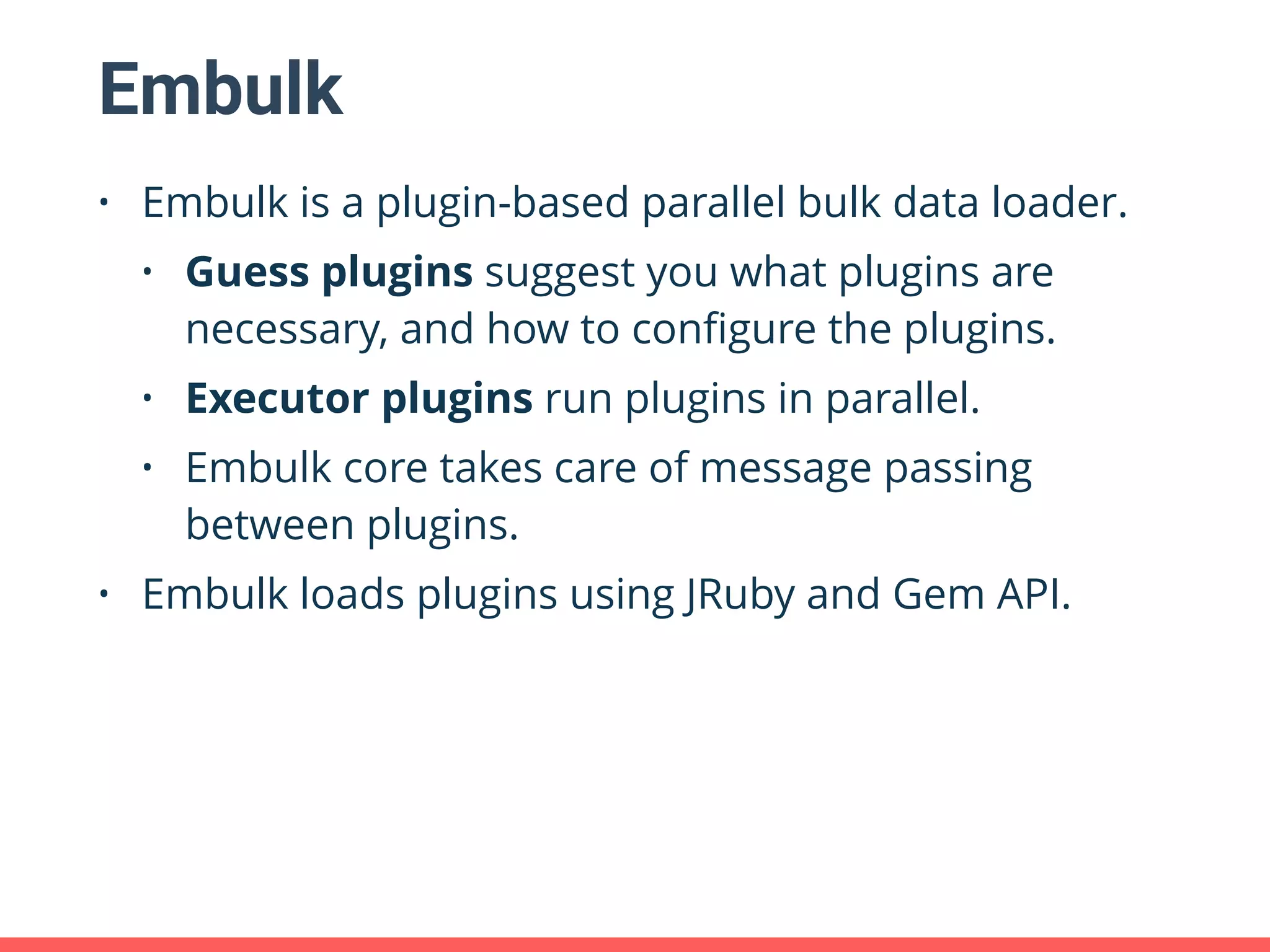

- 62. Embulk • Embulk isa plugin-based parallel bulk data loader. • Guess plugins suggest you what plugins are necessary, and how to configure the plugins. • Executor plugins run plugins in parallel. • Embulk core takes care of message passing between plugins. • Embulk loads plugins using JRuby and Gem API.

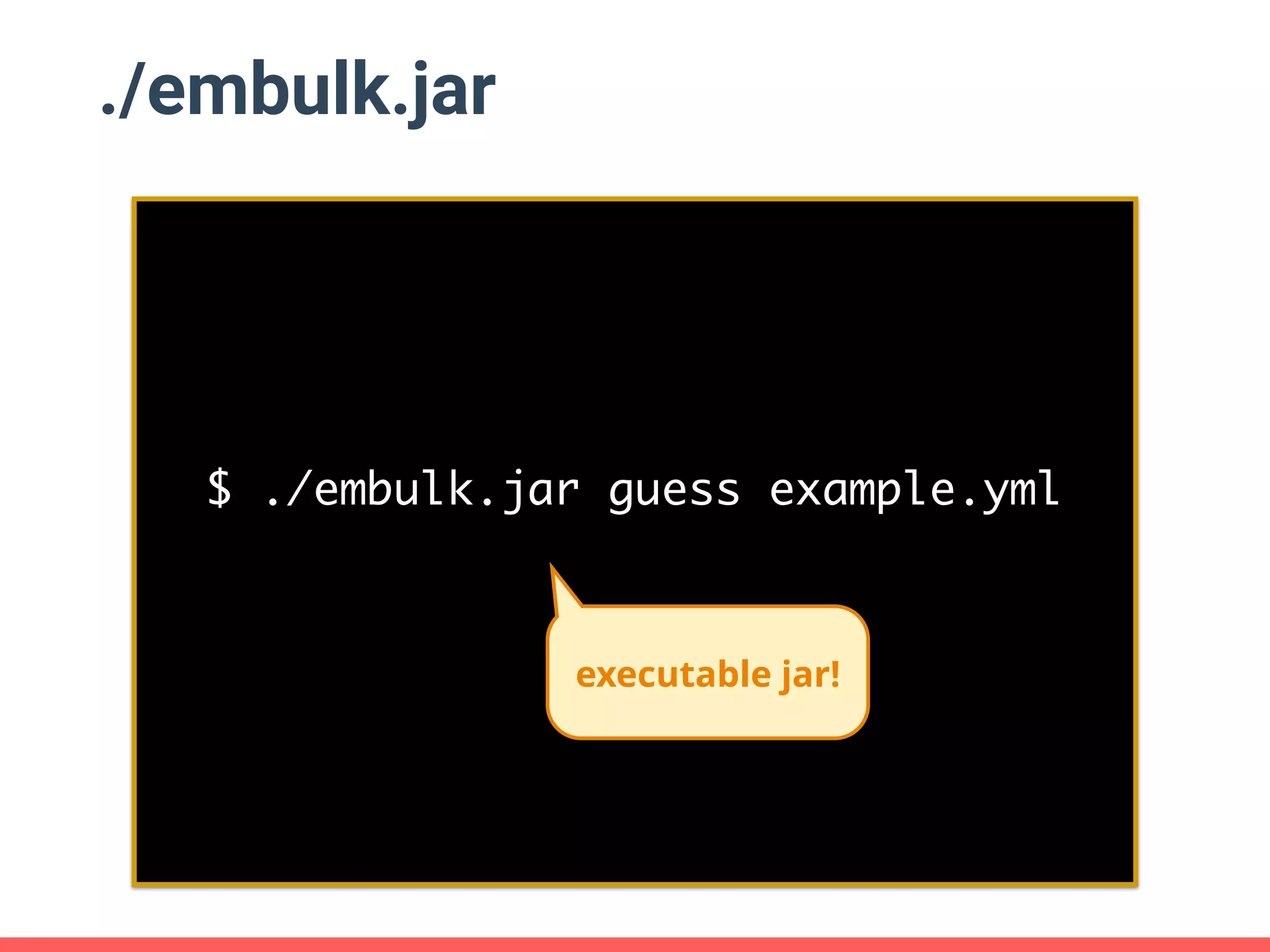

- 63. ./embulk.jar $ ./embulk.jar guessexample.yml executable jar!

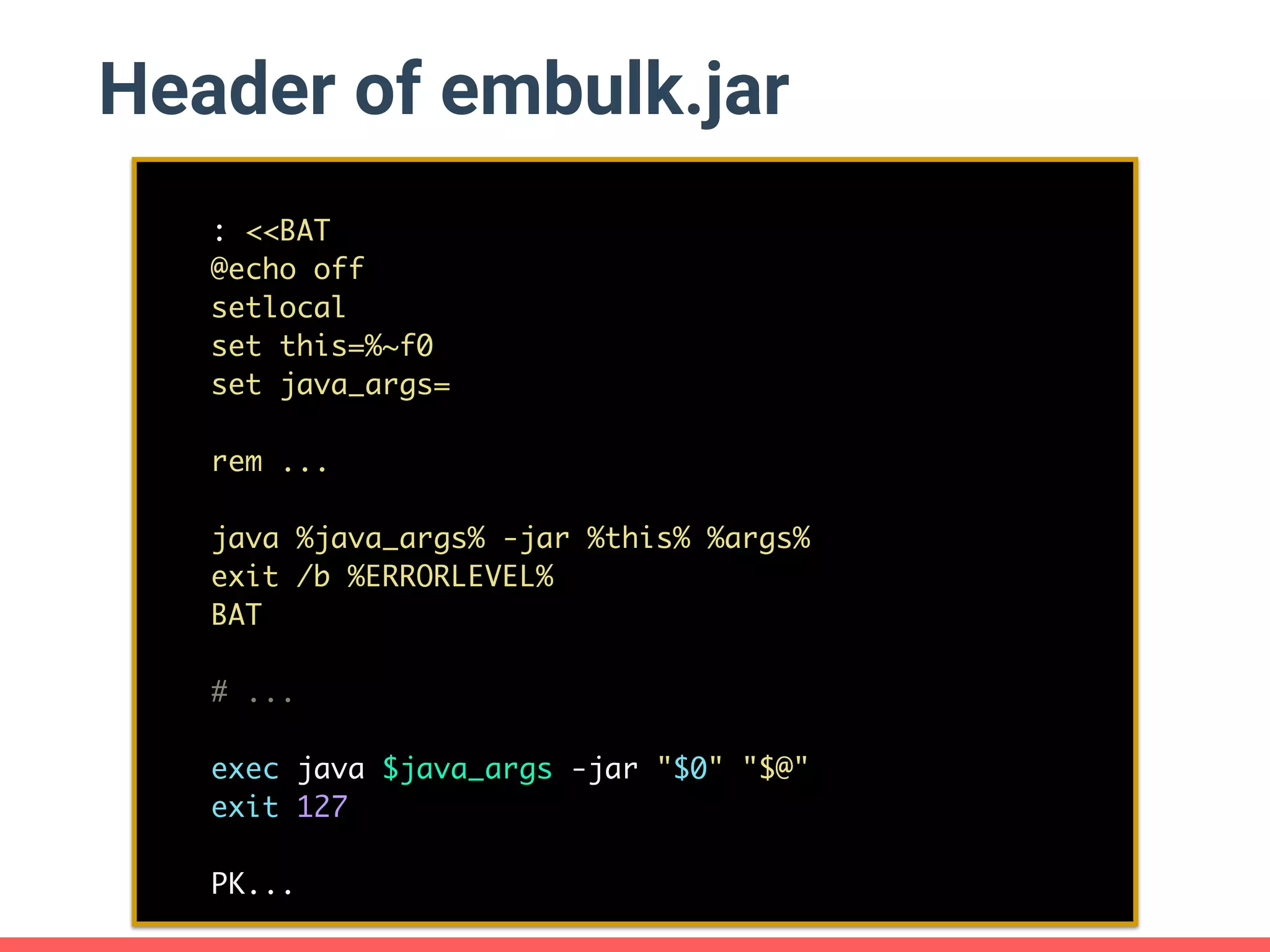

- 64. Header of embulk.jar :<<BAT @echo off setlocal set this=%~f0 set java_args= rem ... java %java_args% -jar %this% %args% exit /b %ERRORLEVEL% BAT # ... exec java $java_args -jar "$0" "$@" exit 127 PK...

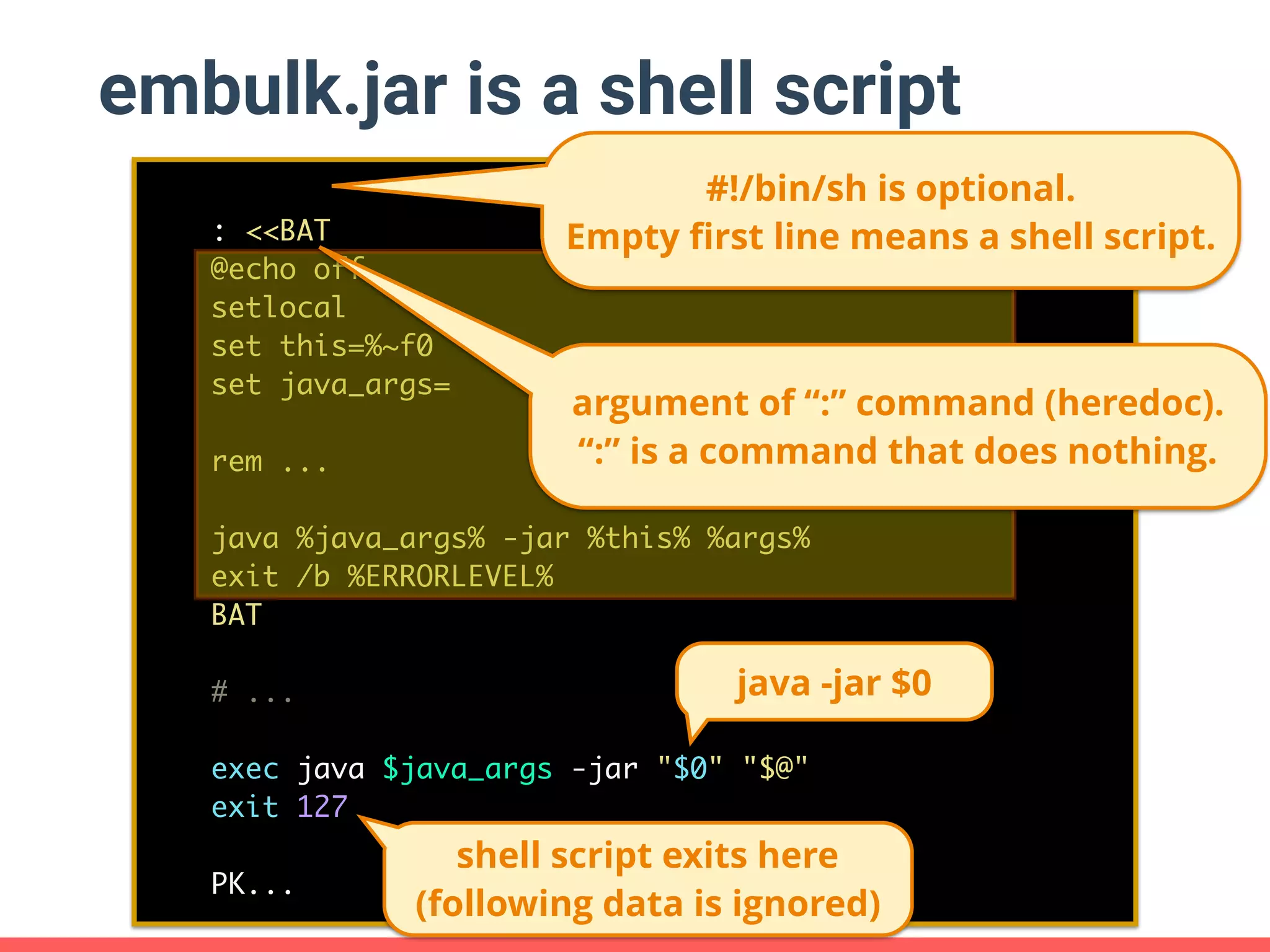

- 65. embulk.jar is ashell script : <<BAT @echo off setlocal set this=%~f0 set java_args= rem ... java %java_args% -jar %this% %args% exit /b %ERRORLEVEL% BAT # ... exec java $java_args -jar "$0" "$@" exit 127 PK... argument of “:” command (heredoc). “:” is a command that does nothing. #!/bin/sh is optional. Empty first line means a shell script. java -jar $0 shell script exits here (following data is ignored)

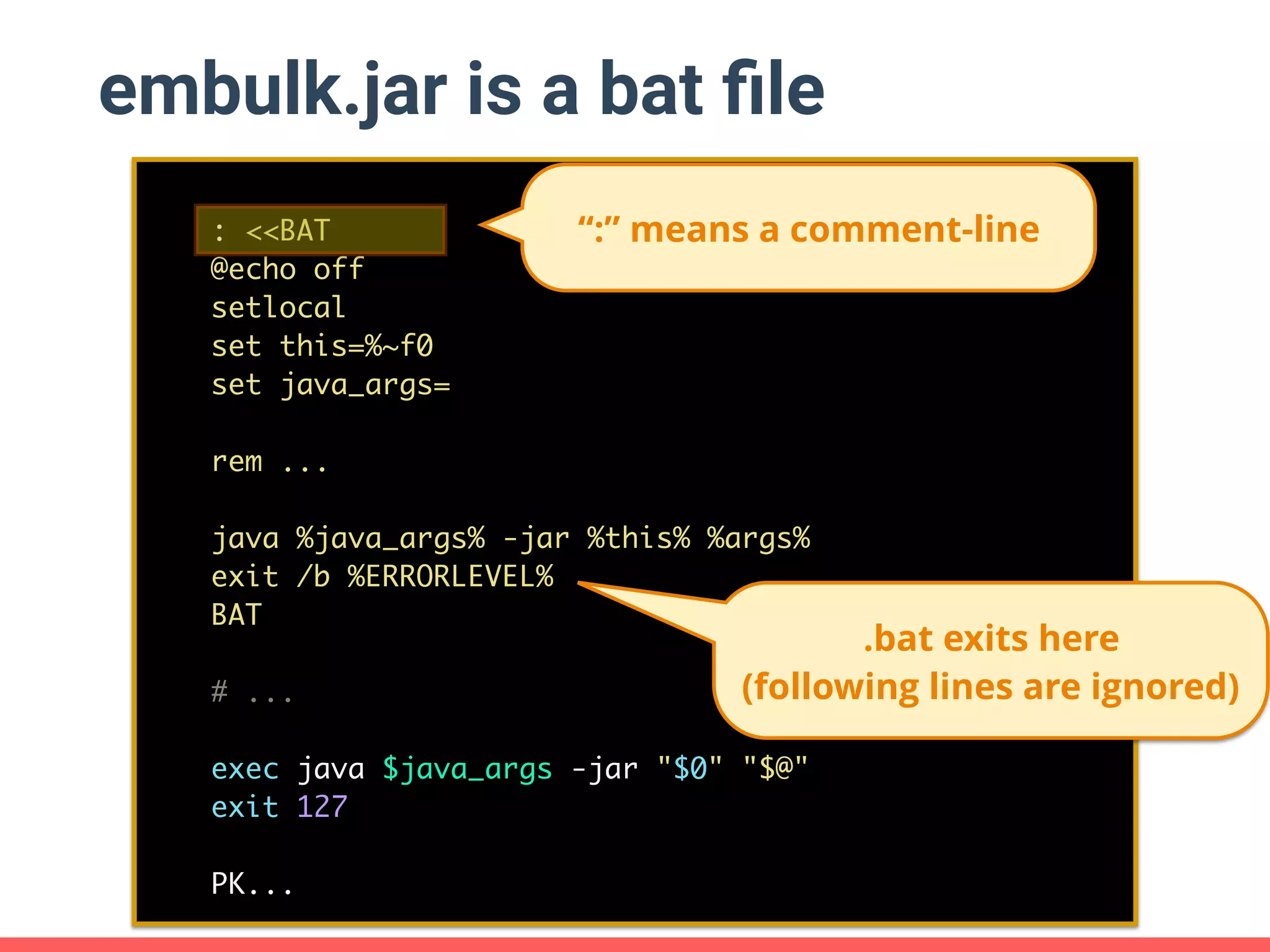

- 66. embulk.jar is abat file : <<BAT @echo off setlocal set this=%~f0 set java_args= rem ... java %java_args% -jar %this% %args% exit /b %ERRORLEVEL% BAT # ... exec java $java_args -jar "$0" "$@" exit 127 PK... .bat exits here (following lines are ignored) “:” means a comment-line

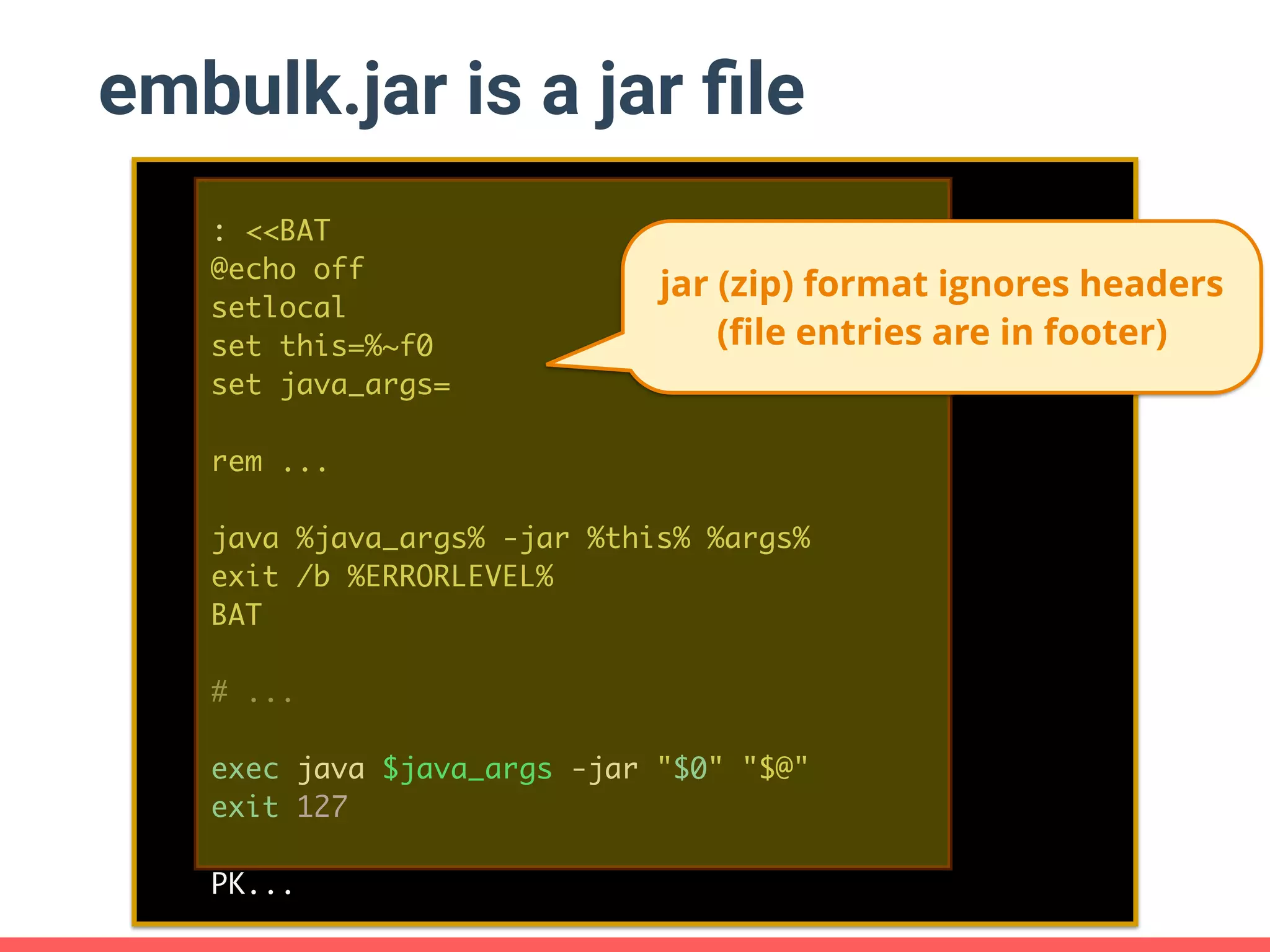

- 67. embulk.jar is ajar file : <<BAT @echo off setlocal set this=%~f0 set java_args= rem ... java %java_args% -jar %this% %args% exit /b %ERRORLEVEL% BAT # ... exec java $java_args -jar "$0" "$@" exit 127 PK... jar (zip) format ignores headers (file entries are in footer)
- 68.

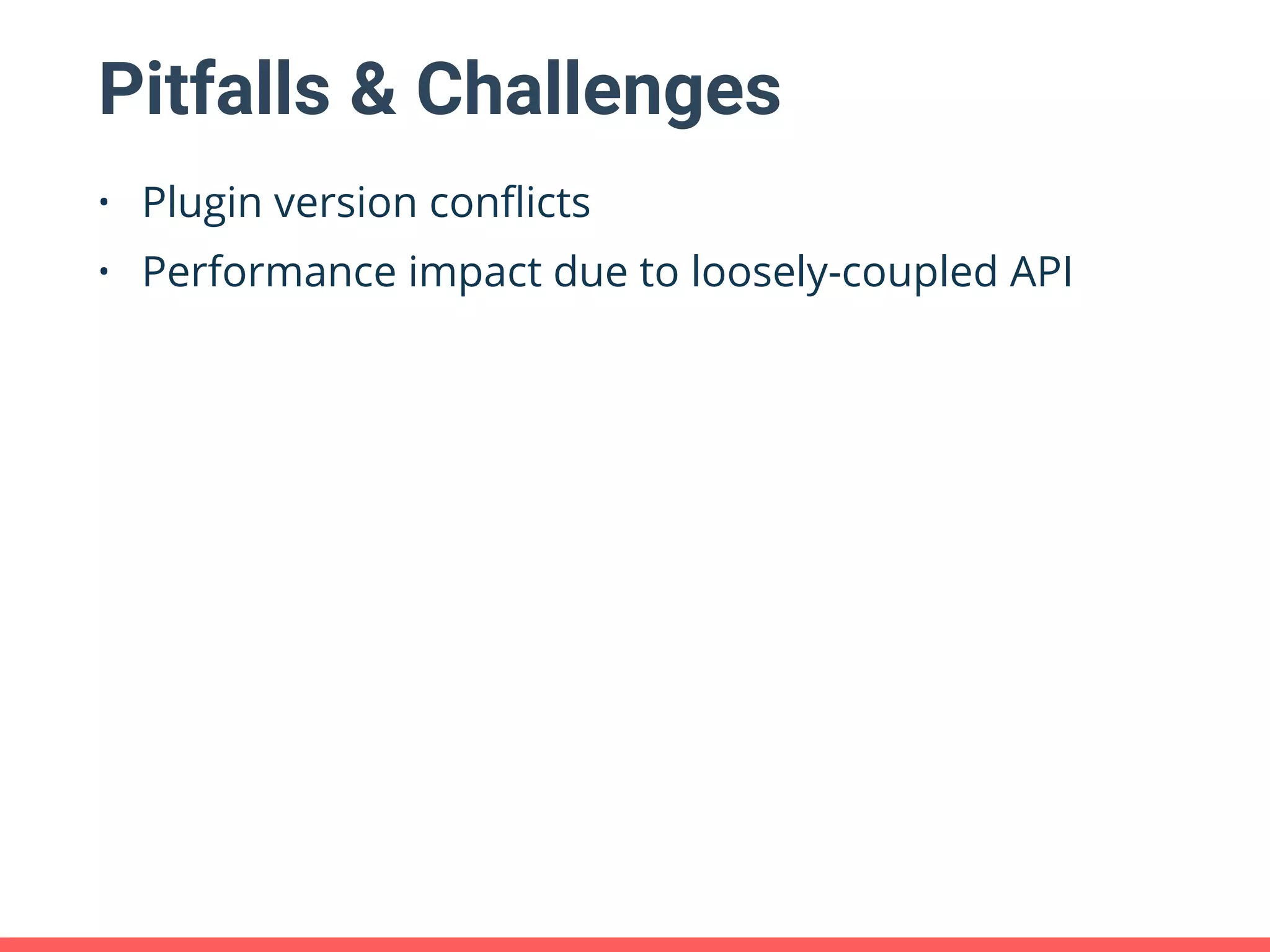

- 69. Pitfalls & Challenges •Plugin version conflicts • Performance impact due to loosely-coupled API

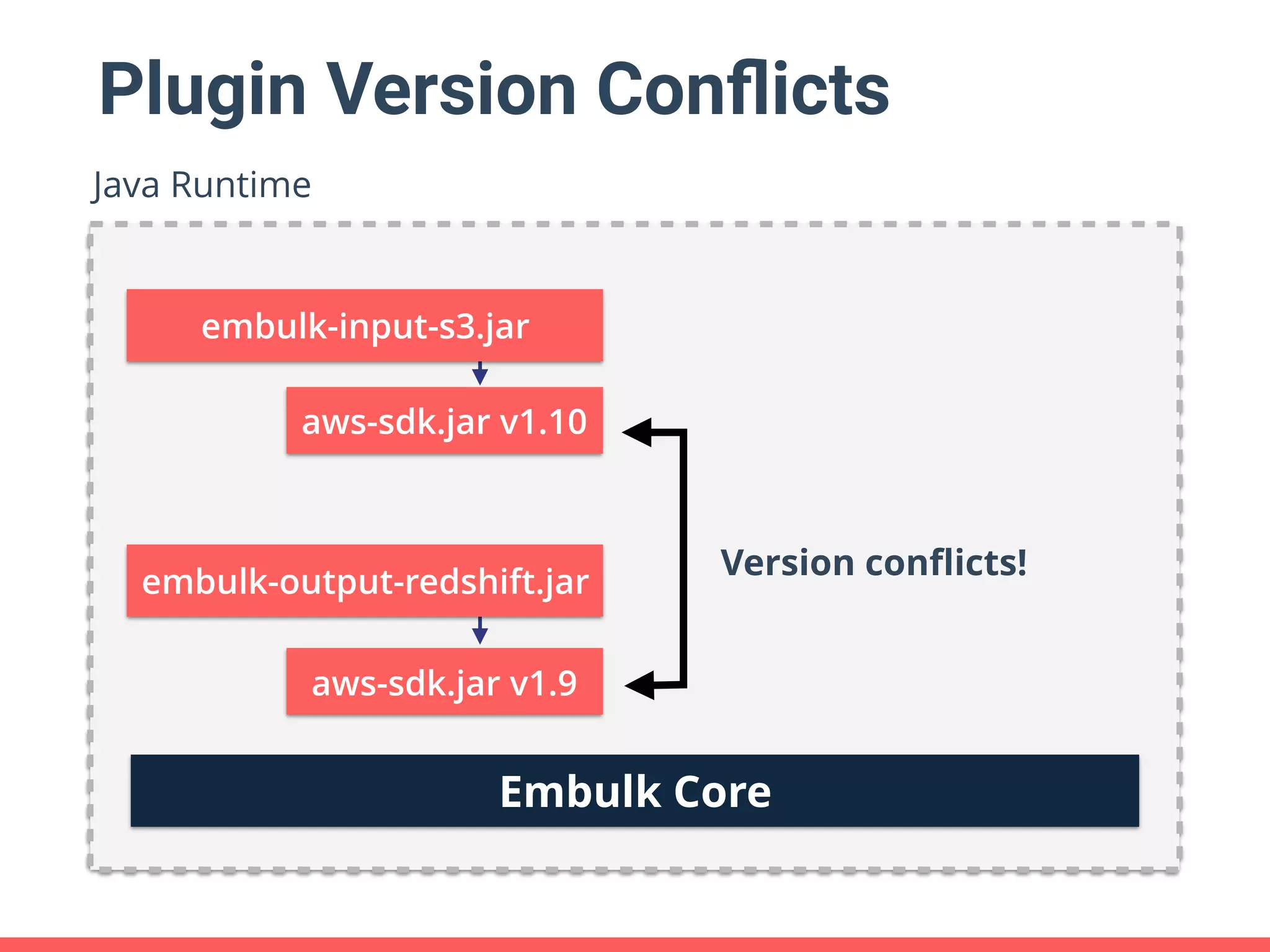

- 70. Plugin Version Conflicts EmbulkCore Java Runtime aws-sdk.jar v1.9 embulk-input-s3.jar Version conflicts! aws-sdk.jar v1.10 embulk-output-redshift.jar

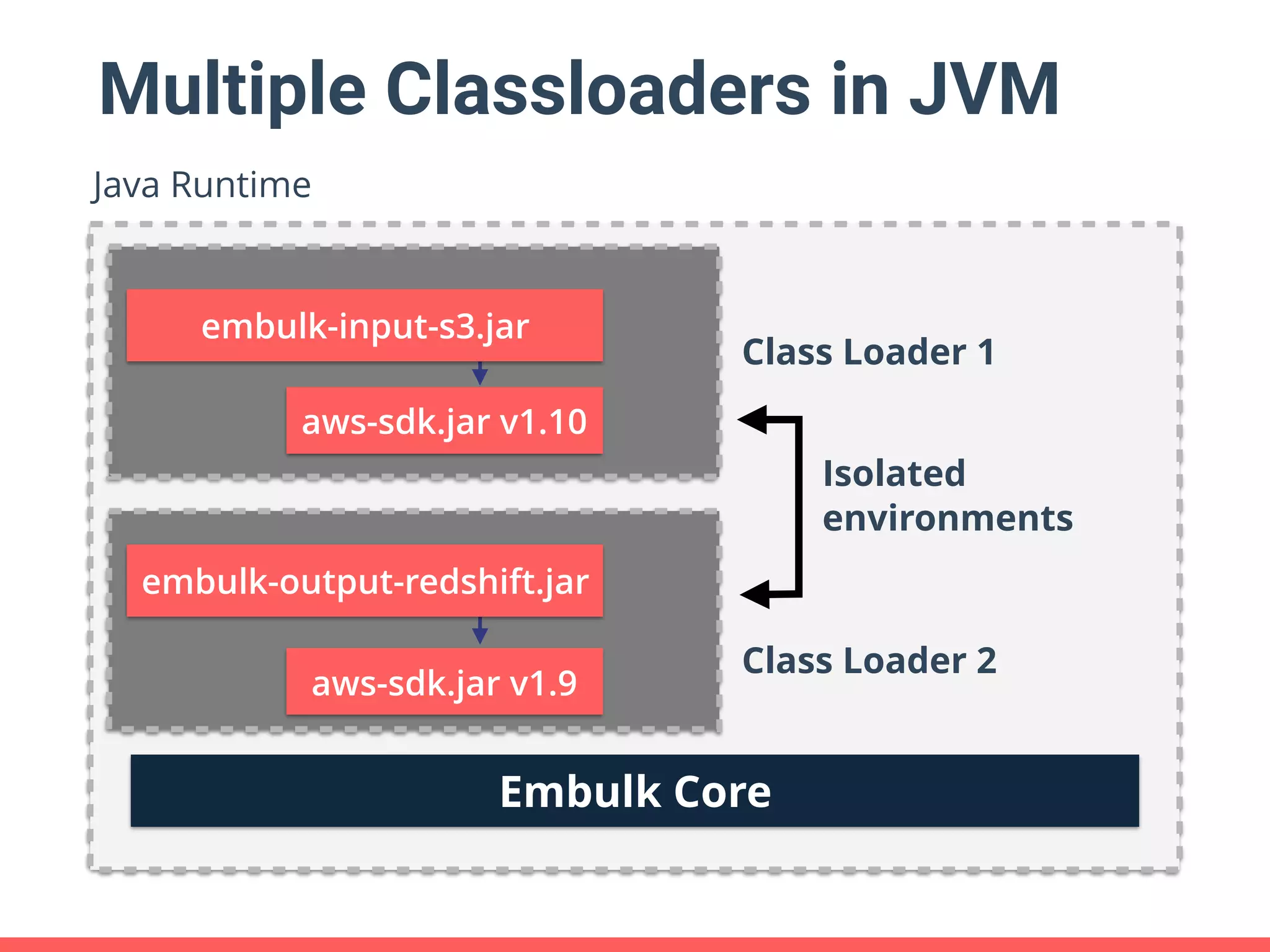

- 71. Multiple Classloaders inJVM Embulk Core Java Runtime aws-sdk.jar v1.9 embulk-input-s3.jar Isolated environments aws-sdk.jar v1.10 embulk-output-redshift.jar Class Loader 1 Class Loader 2

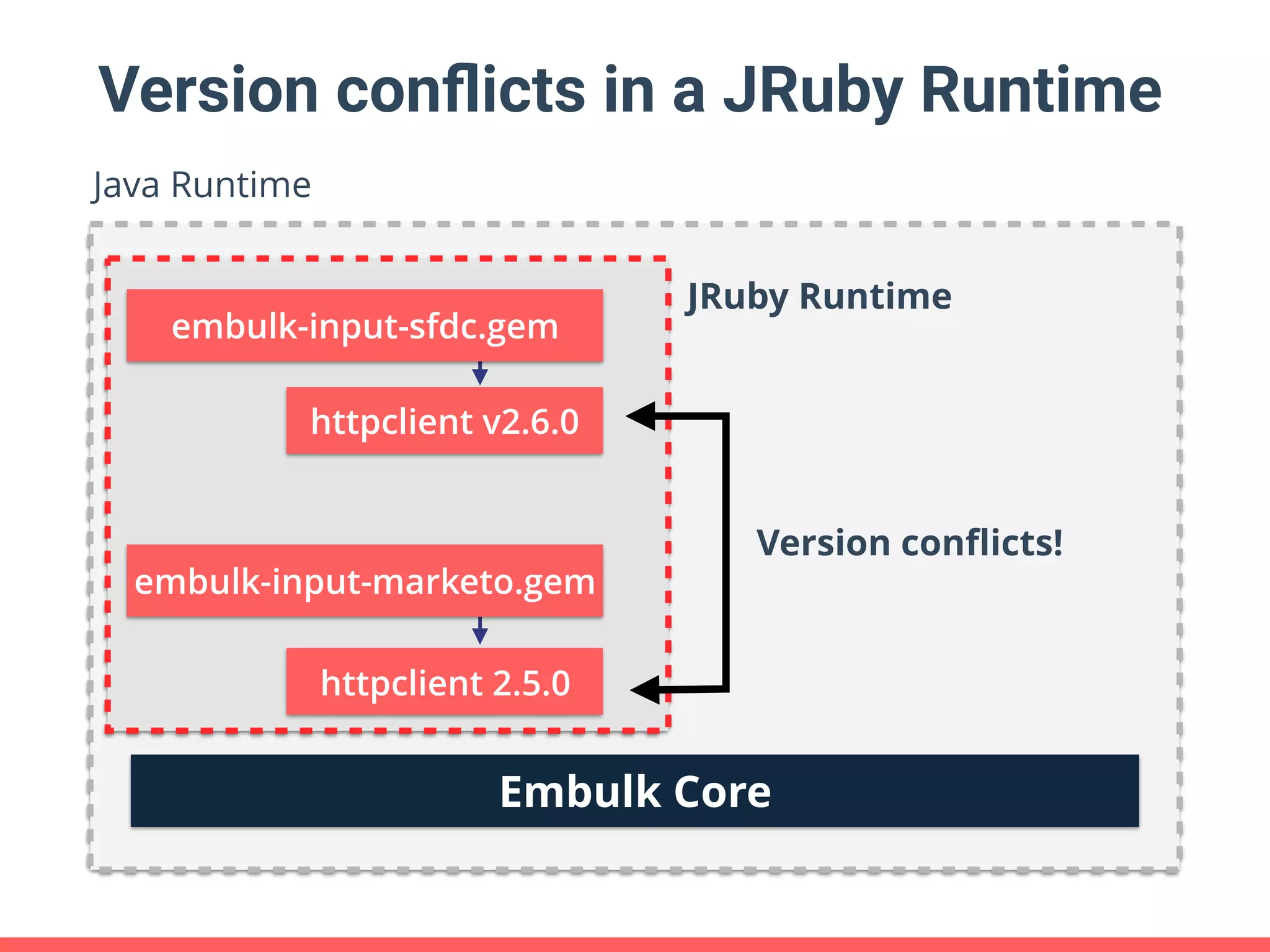

- 72. Version conflicts ina JRuby Runtime Embulk Core Java Runtime httpclient 2.5.0 embulk-input-sfdc.gem Version conflicts! httpclient v2.6.0 embulk-input-marketo.gem JRuby Runtime

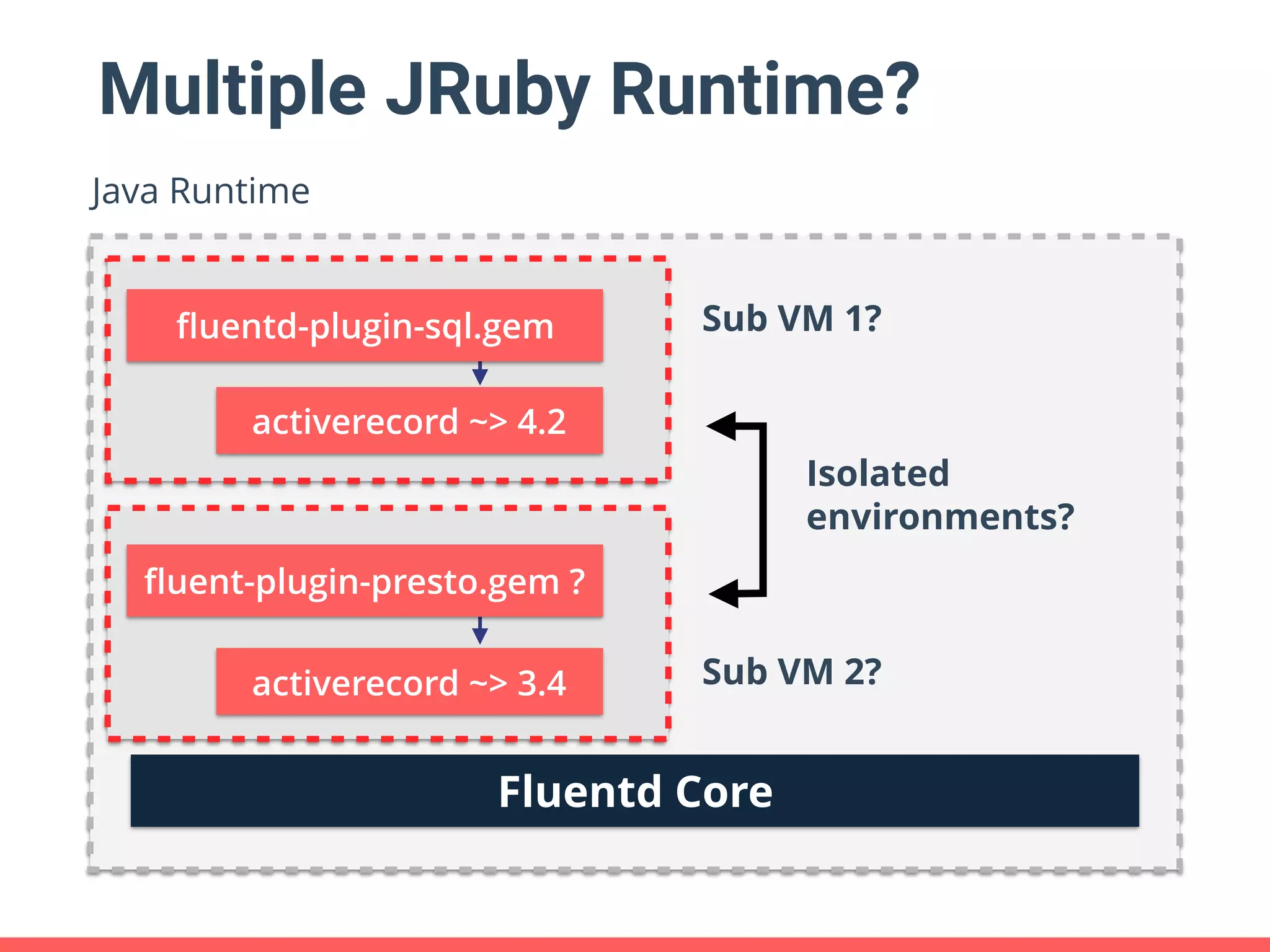

- 73. Java Runtime Multiple JRubyRuntime? Fluentd Core activerecord ~> 3.4 fluentd-plugin-sql.gem Isolated environments? activerecord ~> 4.2 fluent-plugin-presto.gem ? Sub VM 1? Sub VM 2?

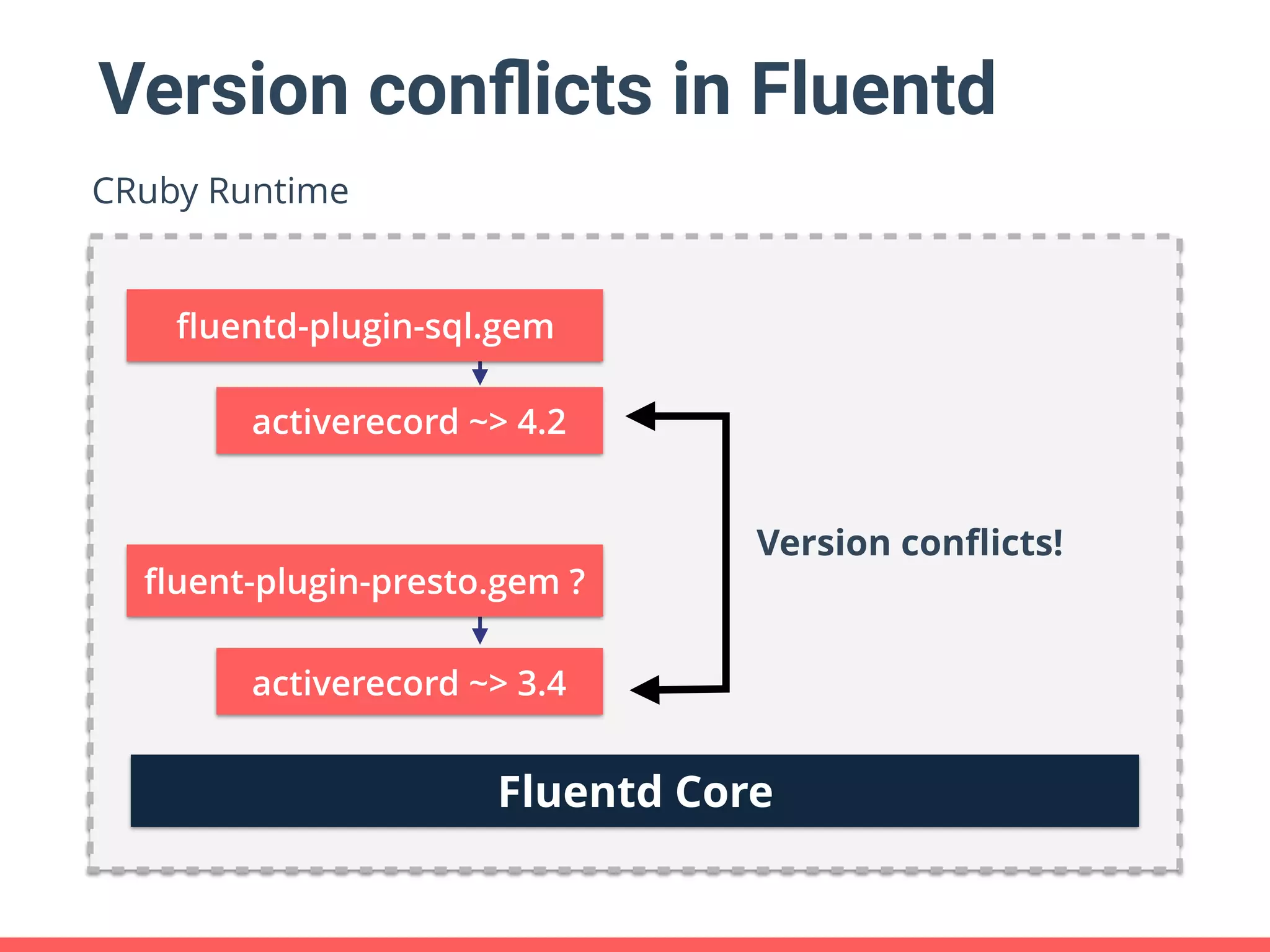

- 74. Version conflicts inFluentd Fluentd Core CRuby Runtime activerecord ~> 3.4 fluentd-plugin-sql.gem Version conflicts! activerecord ~> 4.2 fluent-plugin-presto.gem ?

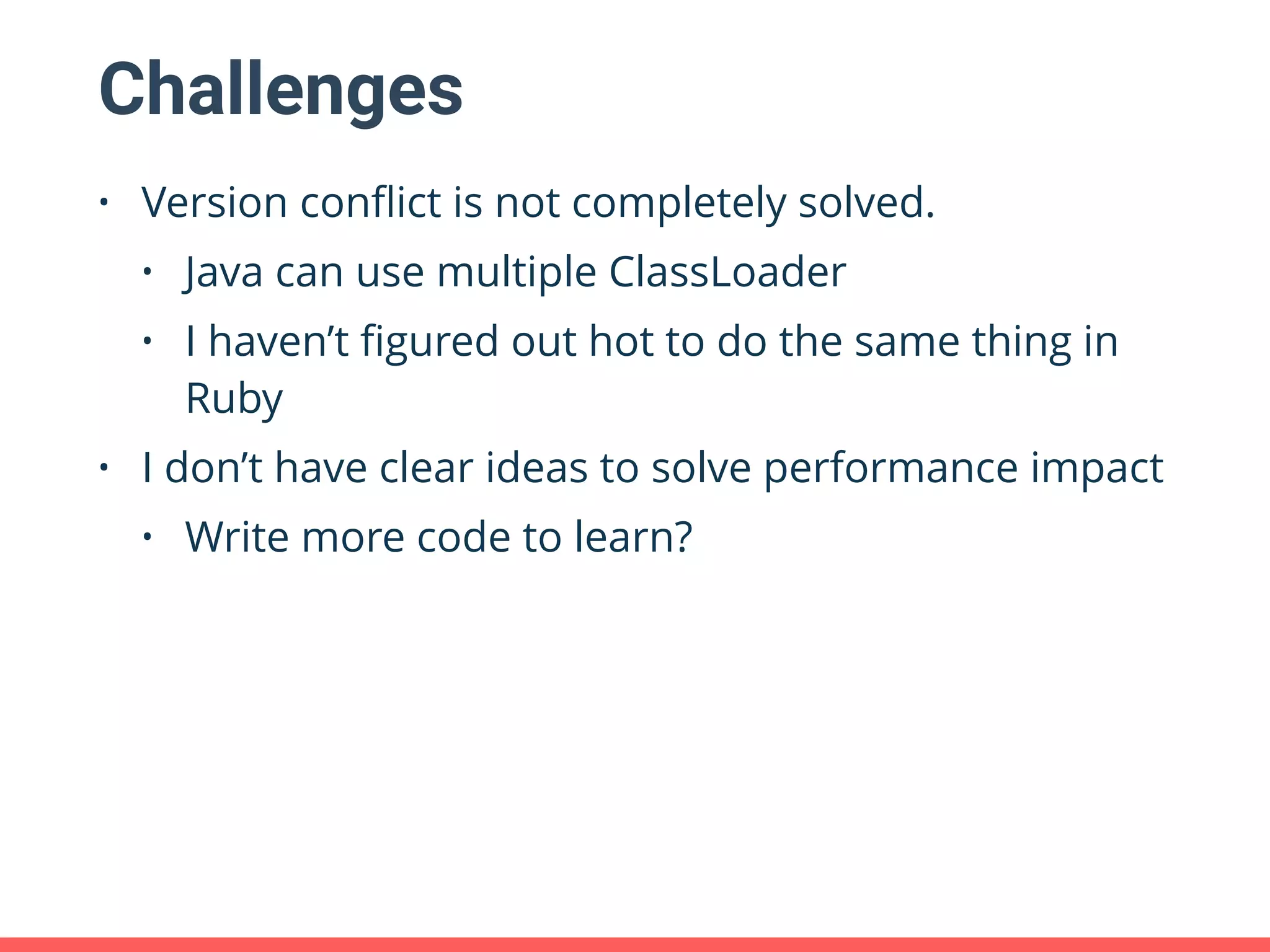

- 75. Challenges • Version conflictis not completely solved. • Java can use multiple ClassLoader • I haven’t figured out hot to do the same thing in Ruby • I don’t have clear ideas to solve performance impact • Write more code to learn?
- 76.

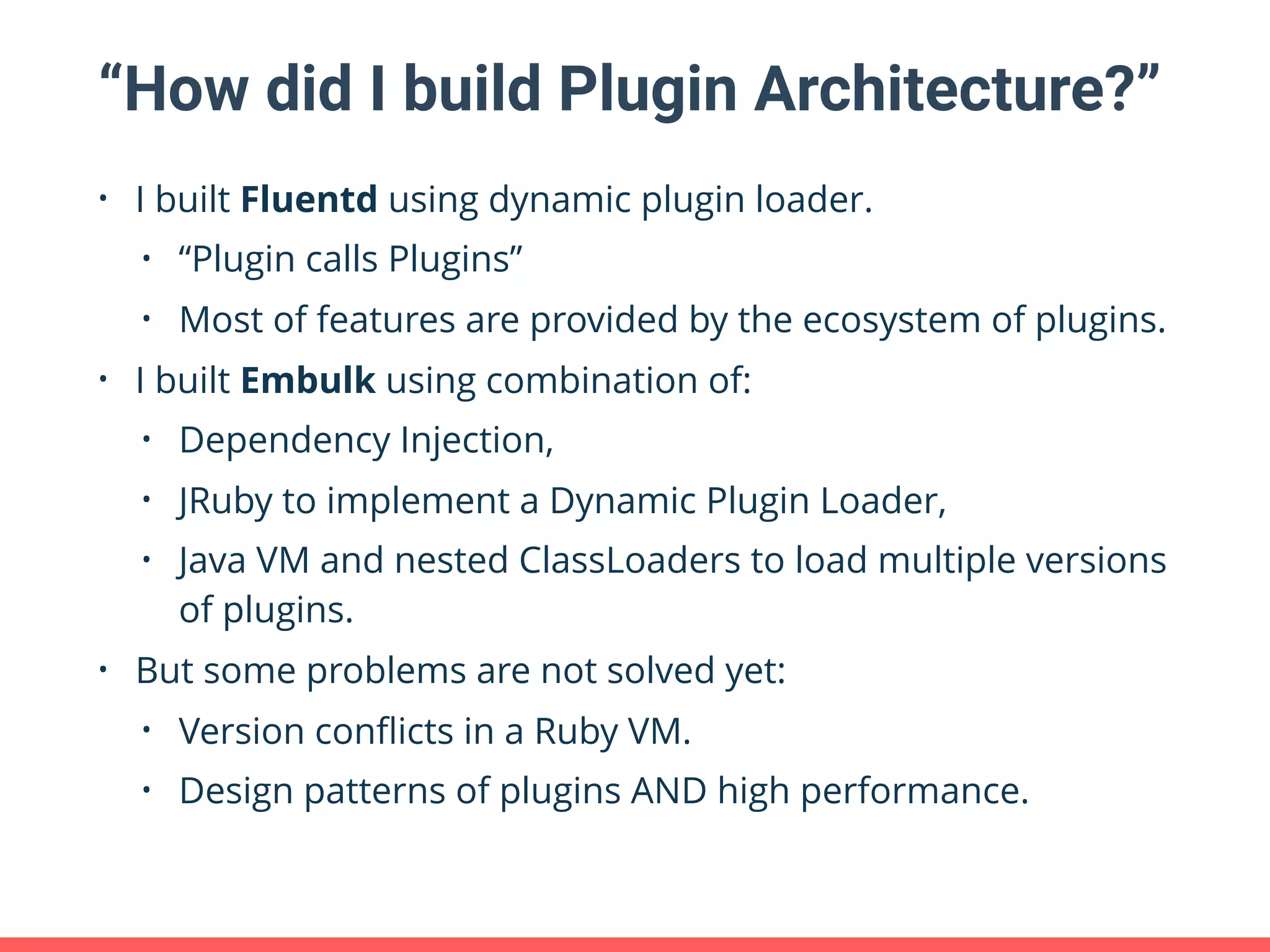

- 77. “How did Ibuild Plugin Architecture?” • I built Fluentd using dynamic plugin loader. • “Plugin calls Plugins” • Most of features are provided by the ecosystem of plugins. • I built Embulk using combination of: • Dependency Injection, • JRuby to implement a Dynamic Plugin Loader, • Java VM and nested ClassLoaders to load multiple versions of plugins. • But some problems are not solved yet: • Version conflicts in a Ruby VM. • Design patterns of plugins AND high performance.

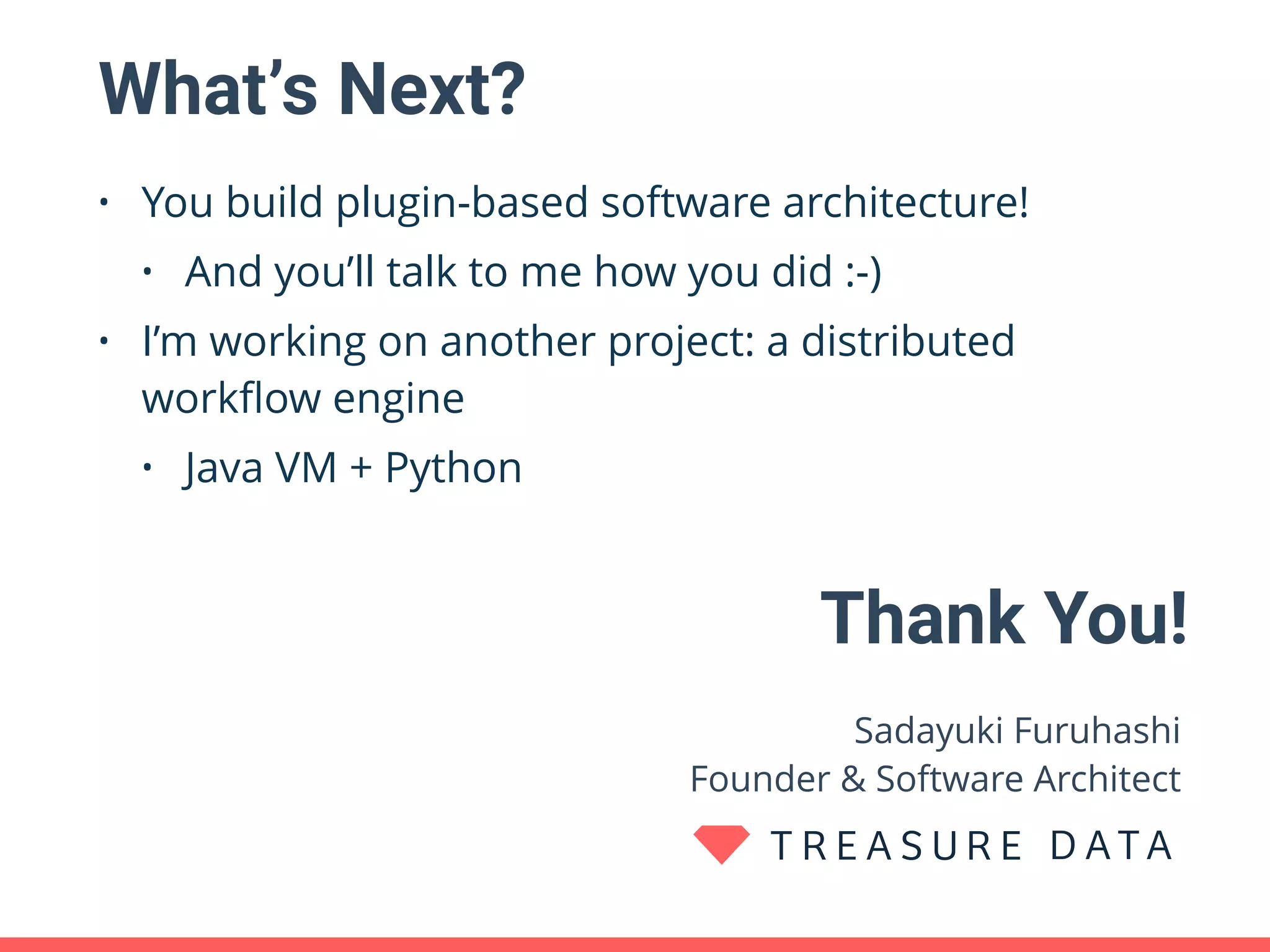

- 78. What’s Next? • Youbuild plugin-based software architecture! • And you’ll talk to me how you did :-) • I’m working on another project: a distributed workflow engine • Java VM + Python Thank You! Sadayuki Furuhashi Founder & Software Architect
