Part 2 - Local Name Resolution in Windows Networks

Men & Mice Webinar Trilogy Rethinking Name Resolution in Local Networks Local Name Resolution in Windows Networks

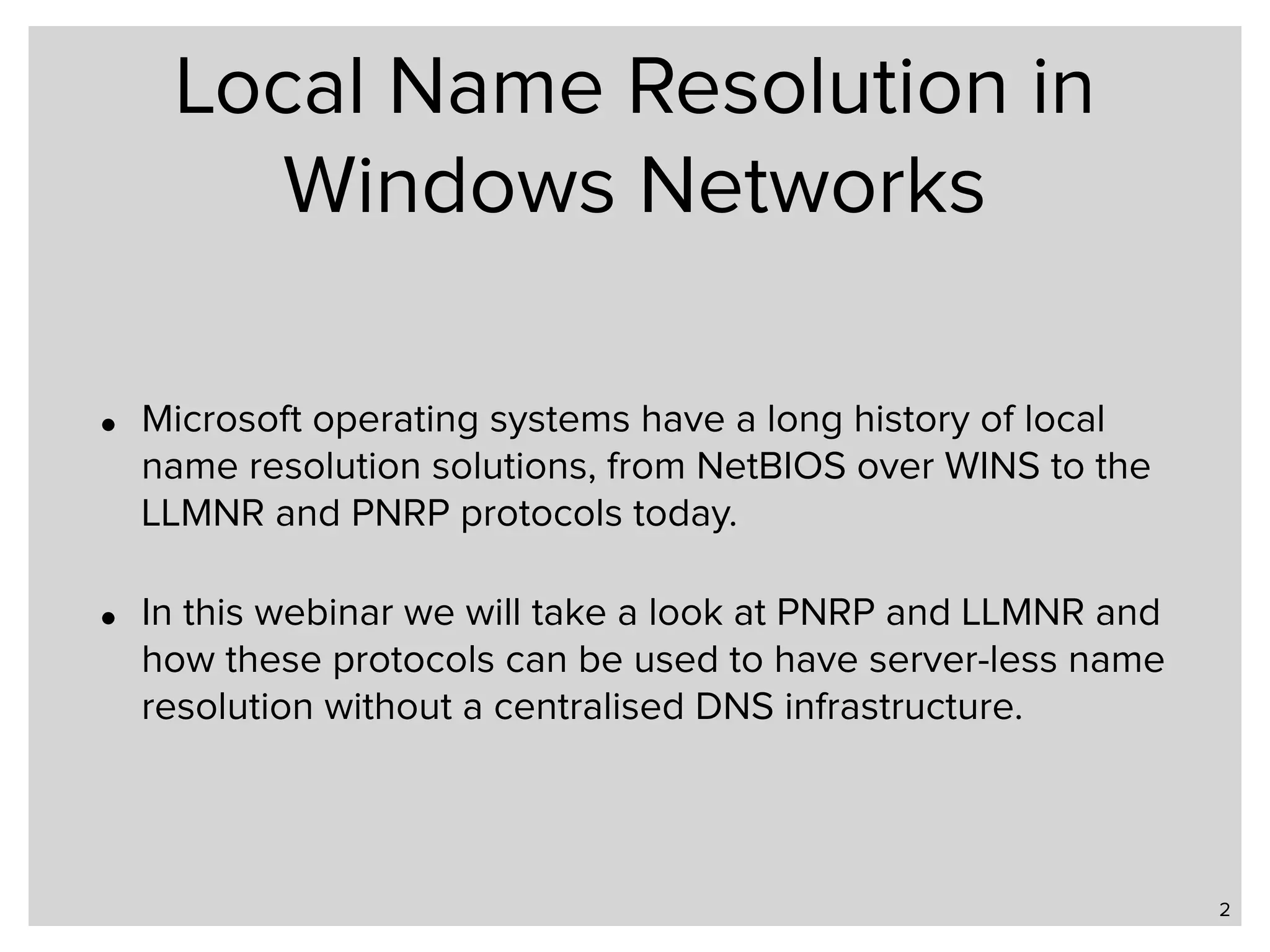

Local Name Resolution in Windows Networks • Microsoft operating systems have a long history of local name resolution solutions, from NetBIOS over WINS to the LLMNR and PNRP protocols today. • In this webinar we will take a look at PNRP and LLMNR and how these protocols can be used to have server-less name resolution without a centralised DNS infrastructure. 2

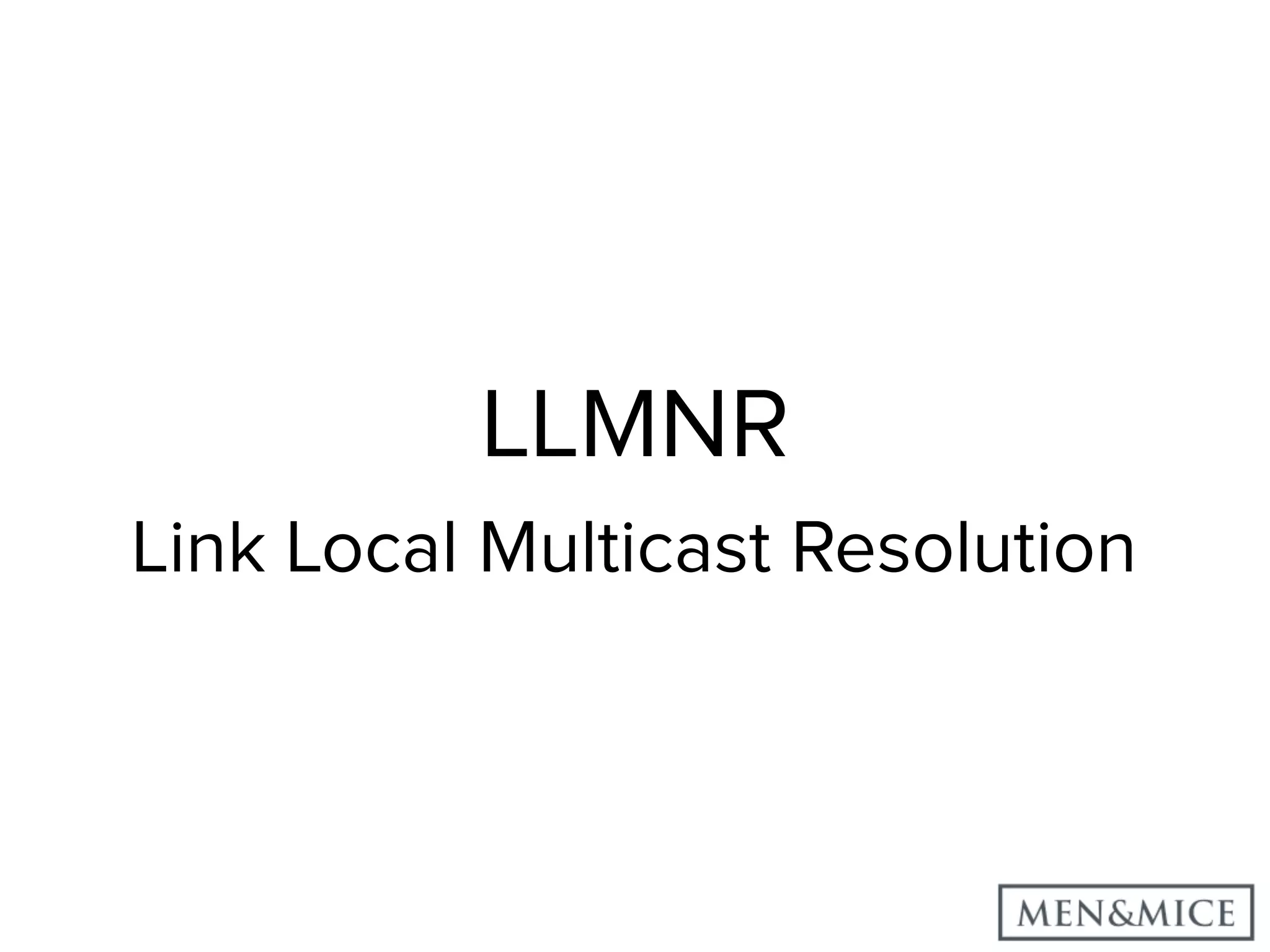

LLMNR Link Local Multicast Resolution

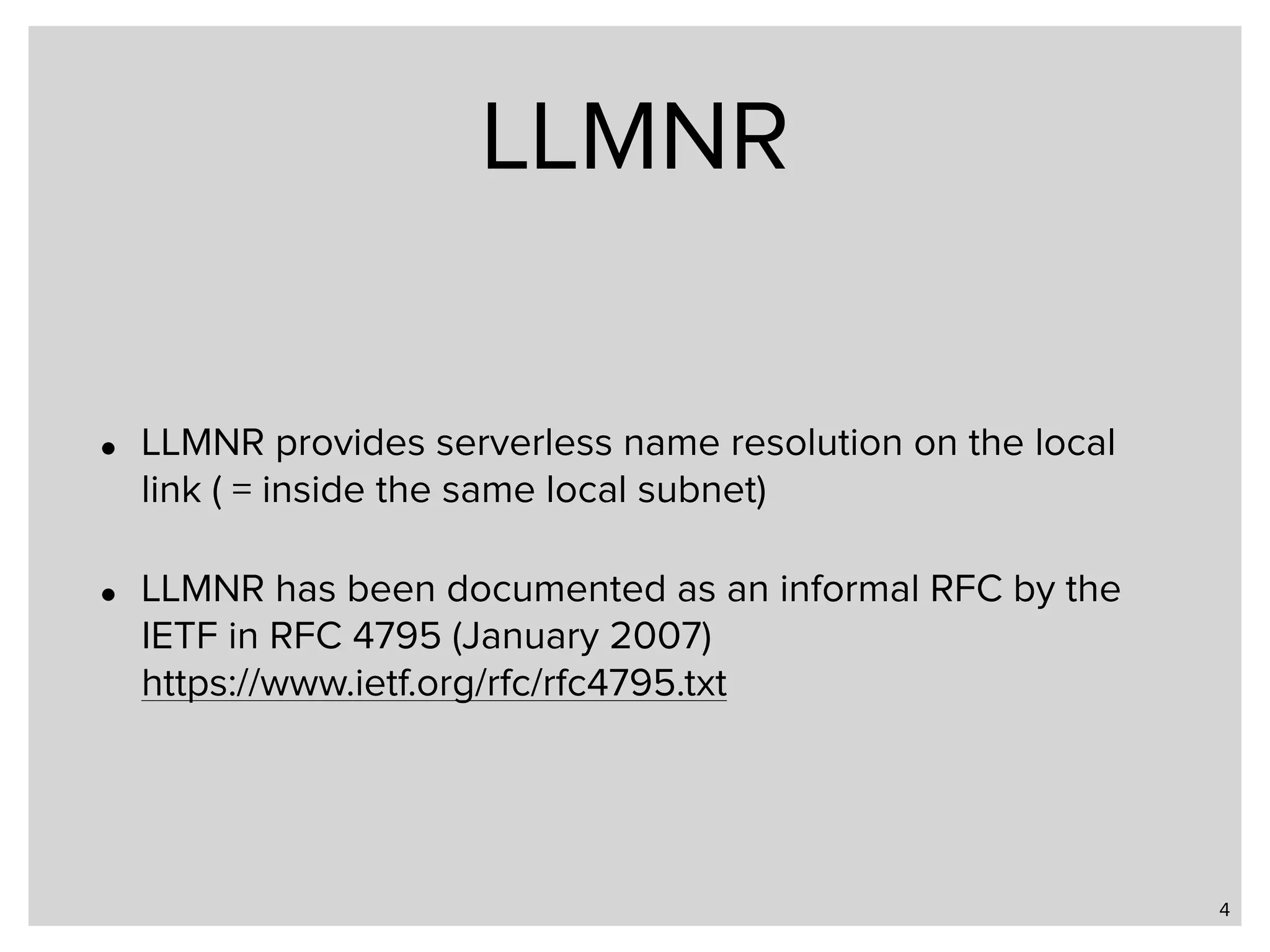

LLMNR 4 • LLMNR provides serverless name resolution on the local link ( = inside the same local subnet) • LLMNR has been documented as an informal RFC by the IETF in RFC 4795 (January 2007)  https://www.ietf.org/rfc/rfc4795.txt

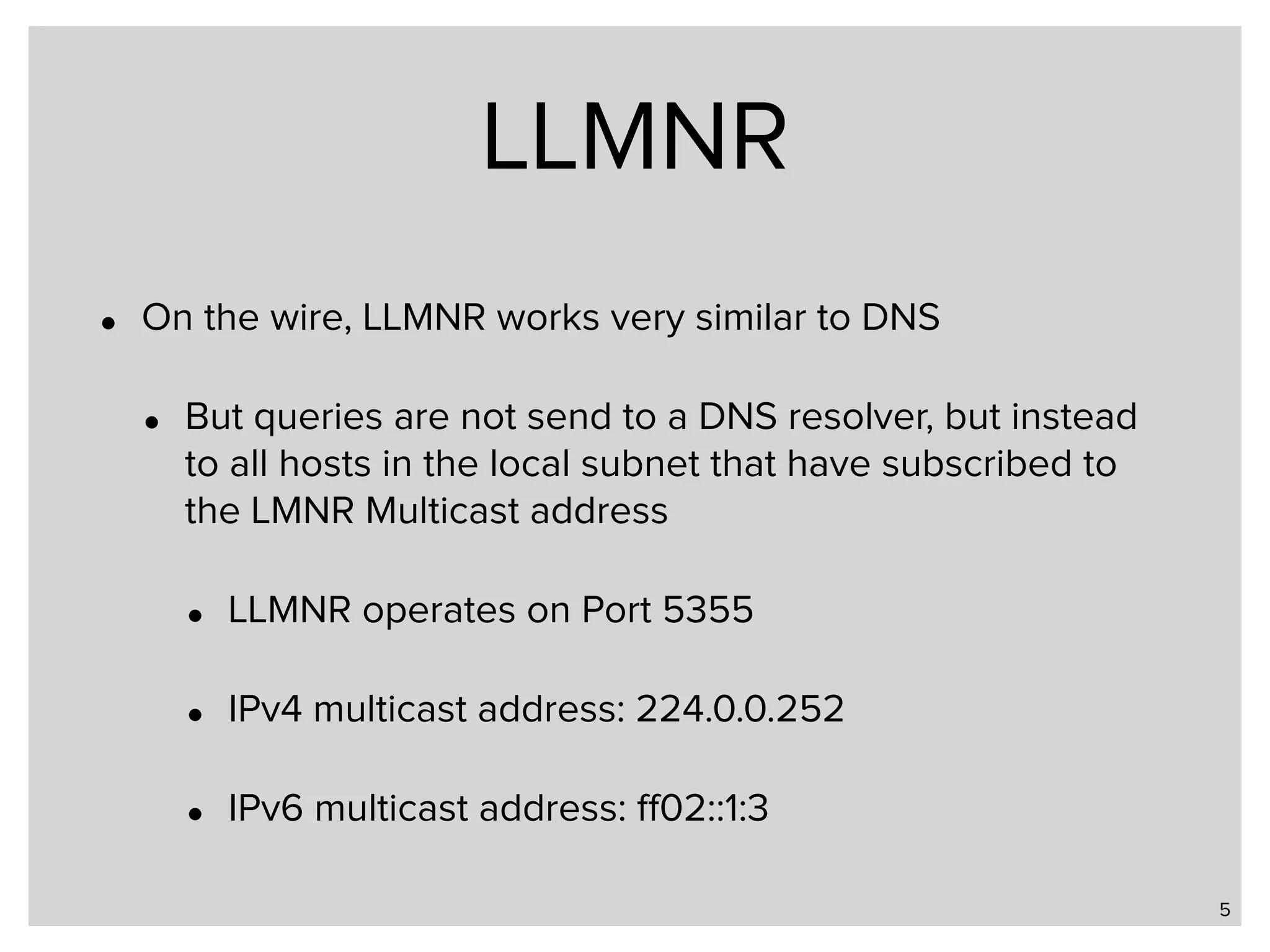

LLMNR • On the wire, LLMNR works very similar to DNS • But queries are not send to a DNS resolver, but instead to all hosts in the local subnet that have subscribed to the LMNR Multicast address • LLMNR operates on Port 5355 • IPv4 multicast address: 224.0.0.252 • IPv6 multicast address: ﬀ02::1:3 5

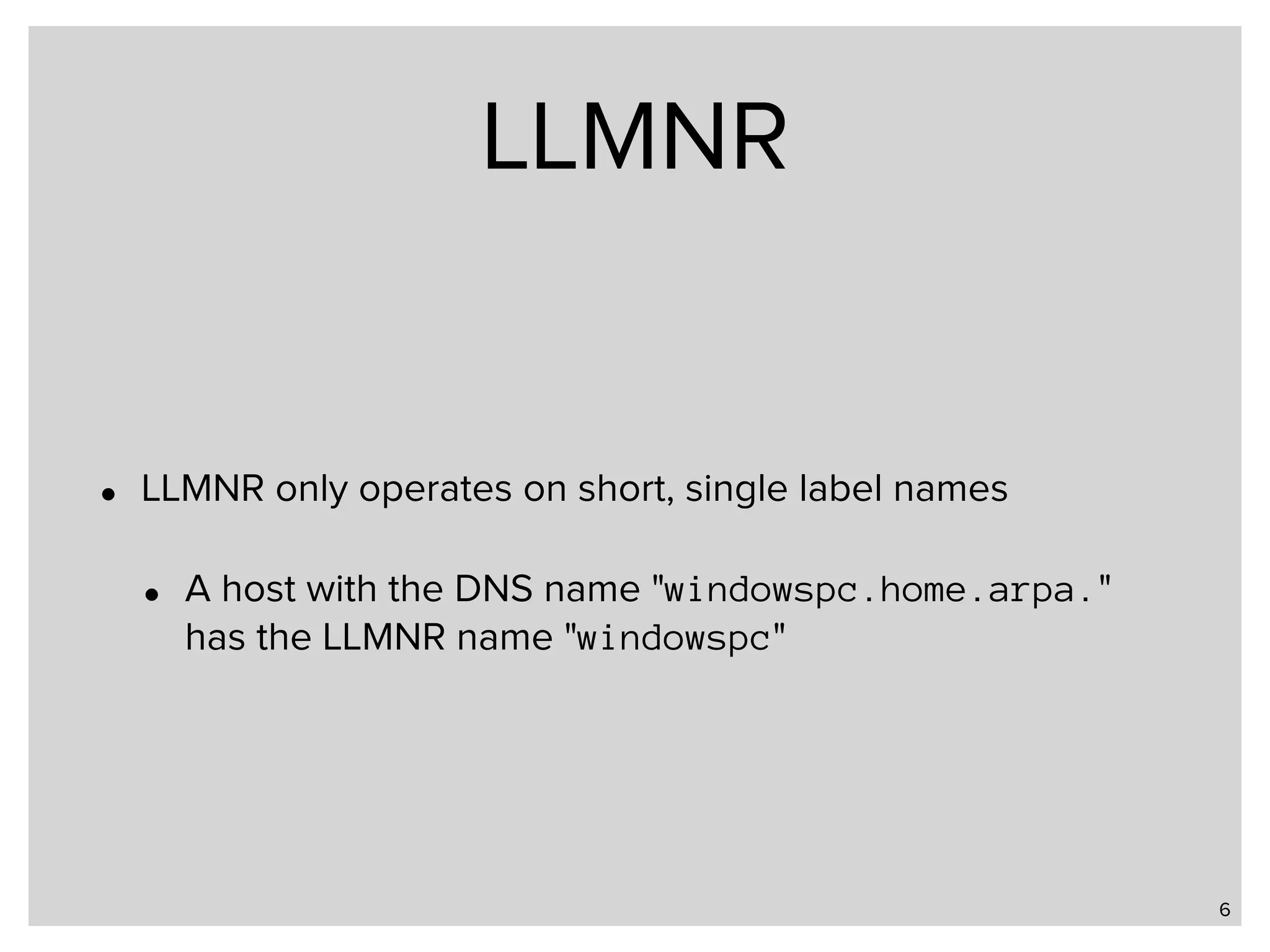

LLMNR • LLMNR only operates on short, single label names • A host with the DNS name "windowspc.home.arpa." has the LLMNR name "windowspc" 6

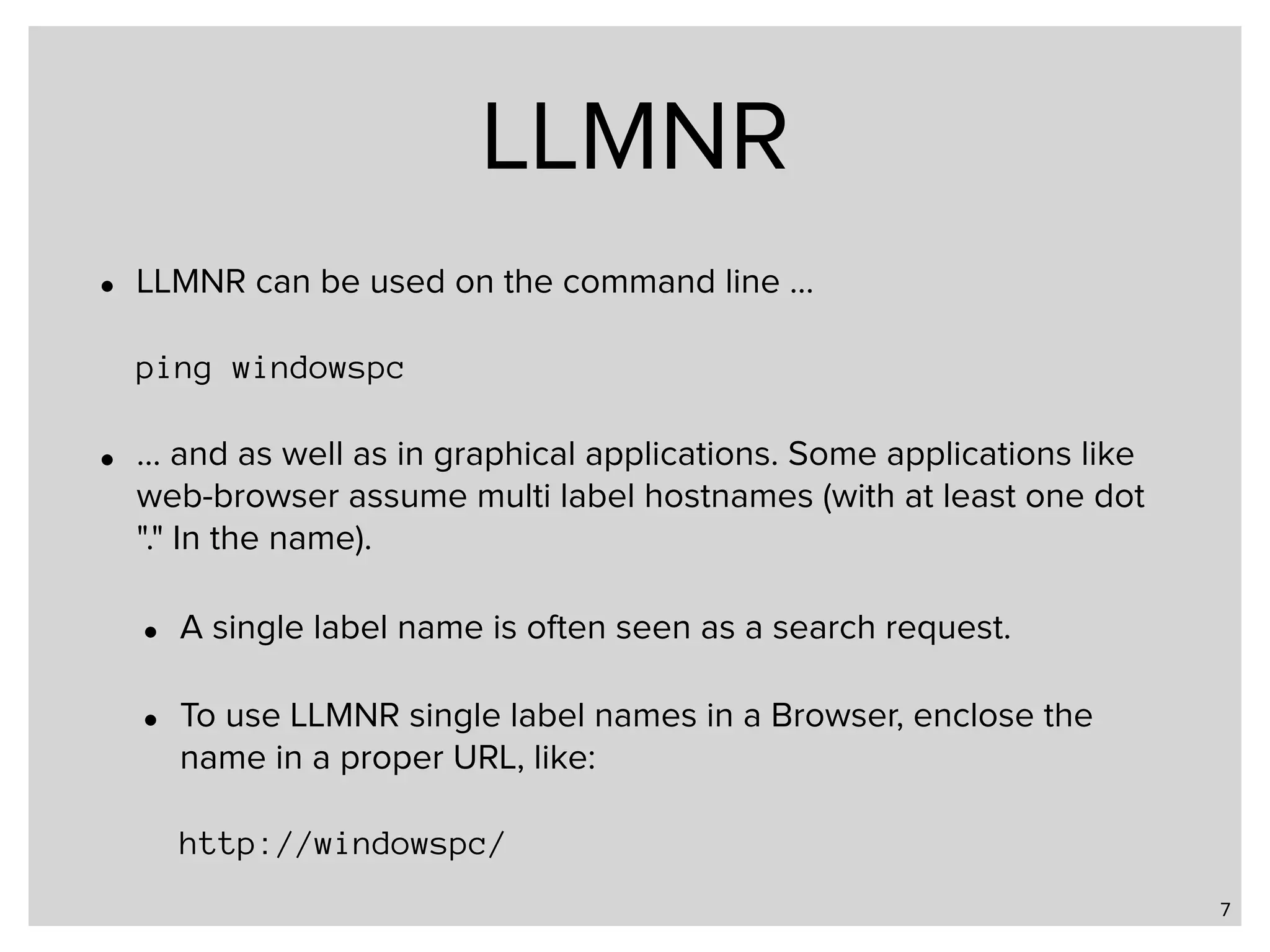

LLMNR • LLMNR can be used on the command line …    ping windowspc • … and as well as in graphical applications. Some applications like web-browser assume multi label hostnames (with at least one dot "." In the name). • A single label name is often seen as a search request. • To use LLMNR single label names in a Browser, enclose the name in a proper URL, like:    http://windowspc/ 7

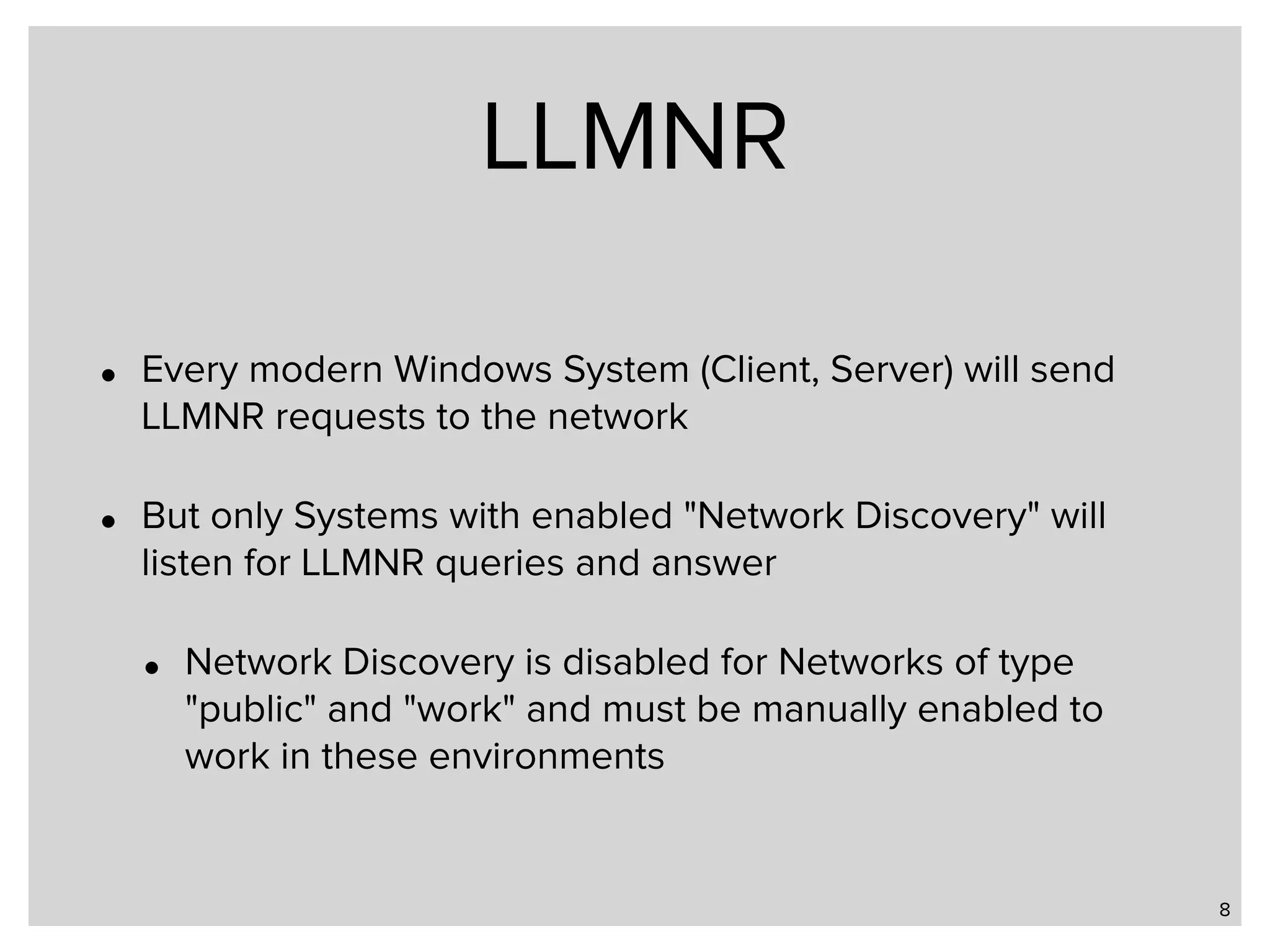

LLMNR • Every modern Windows System (Client, Server) will send LLMNR requests to the network • But only Systems with enabled "Network Discovery" will listen for LLMNR queries and answer • Network Discovery is disabled for Networks of type "public" and "work" and must be manually enabled to work in these environments 8

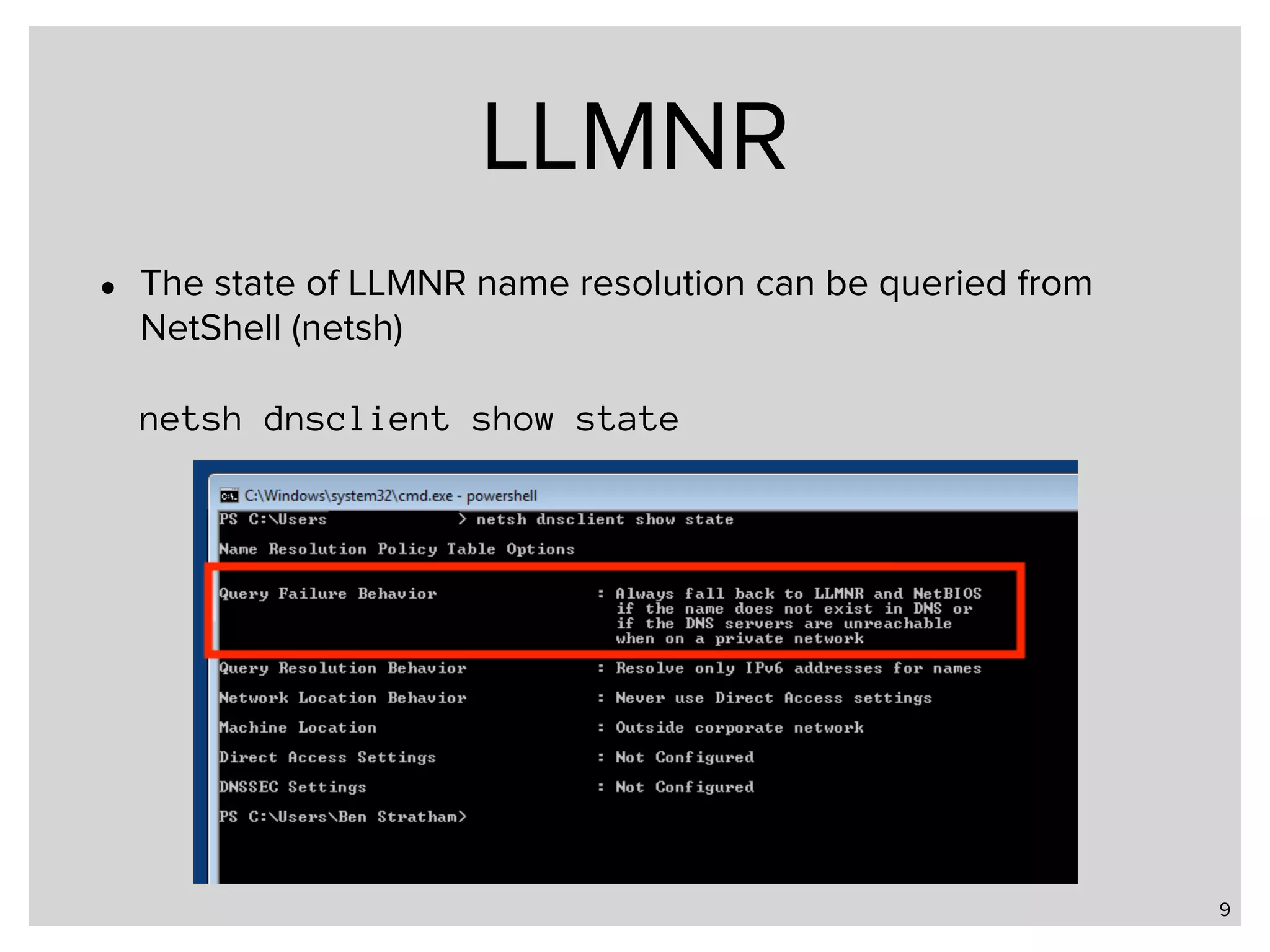

LLMNR • The state of LLMNR name resolution can be queried from NetShell (netsh)    netsh dnsclient show state 9

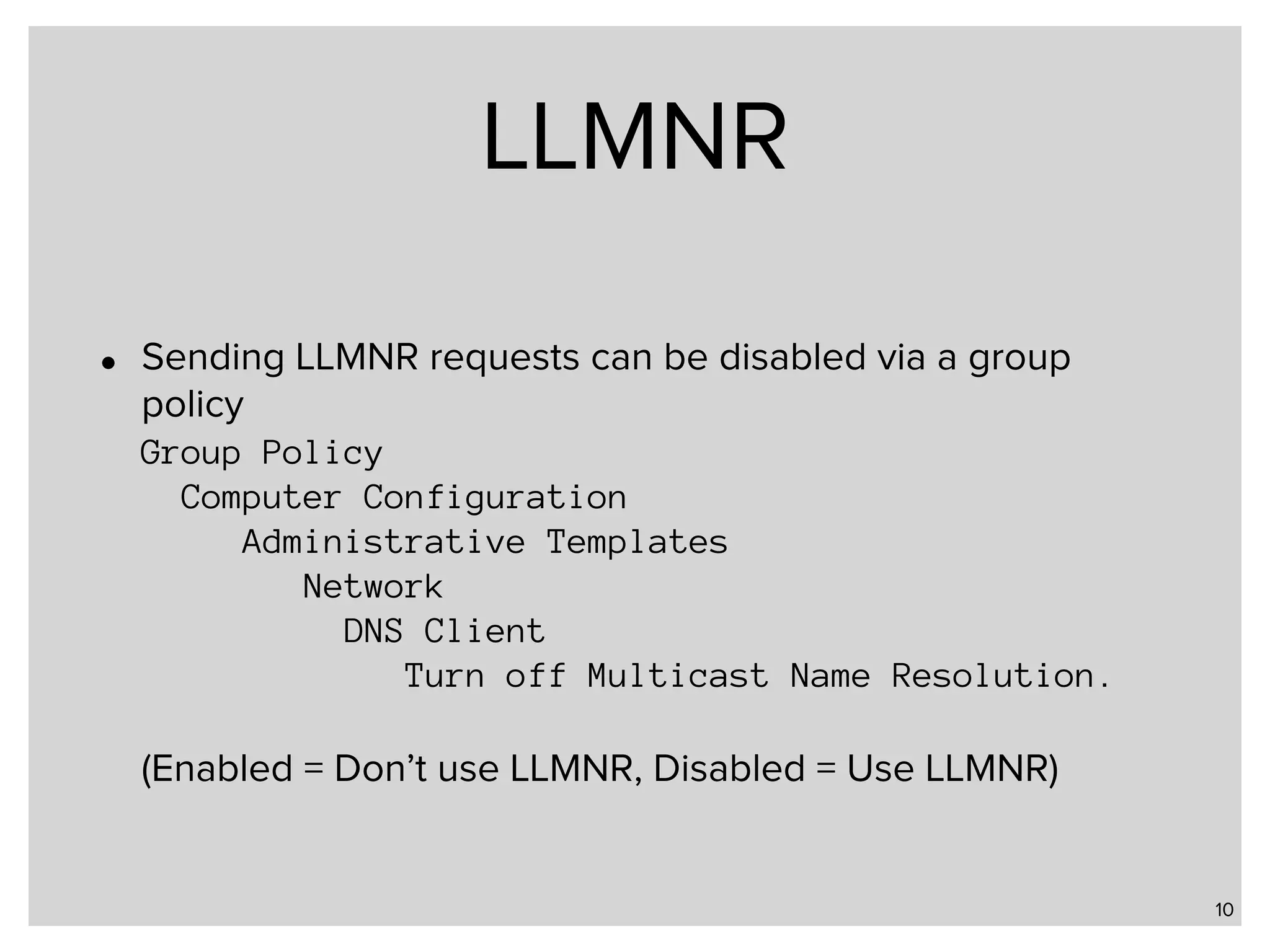

LLMNR • Sending LLMNR requests can be disabled via a group policy  Group Policy  Computer Configuration  Administrative Templates  Network  DNS Client  Turn off Multicast Name Resolution.     (Enabled = Don’t use LLMNR, Disabled = Use LLMNR) 10

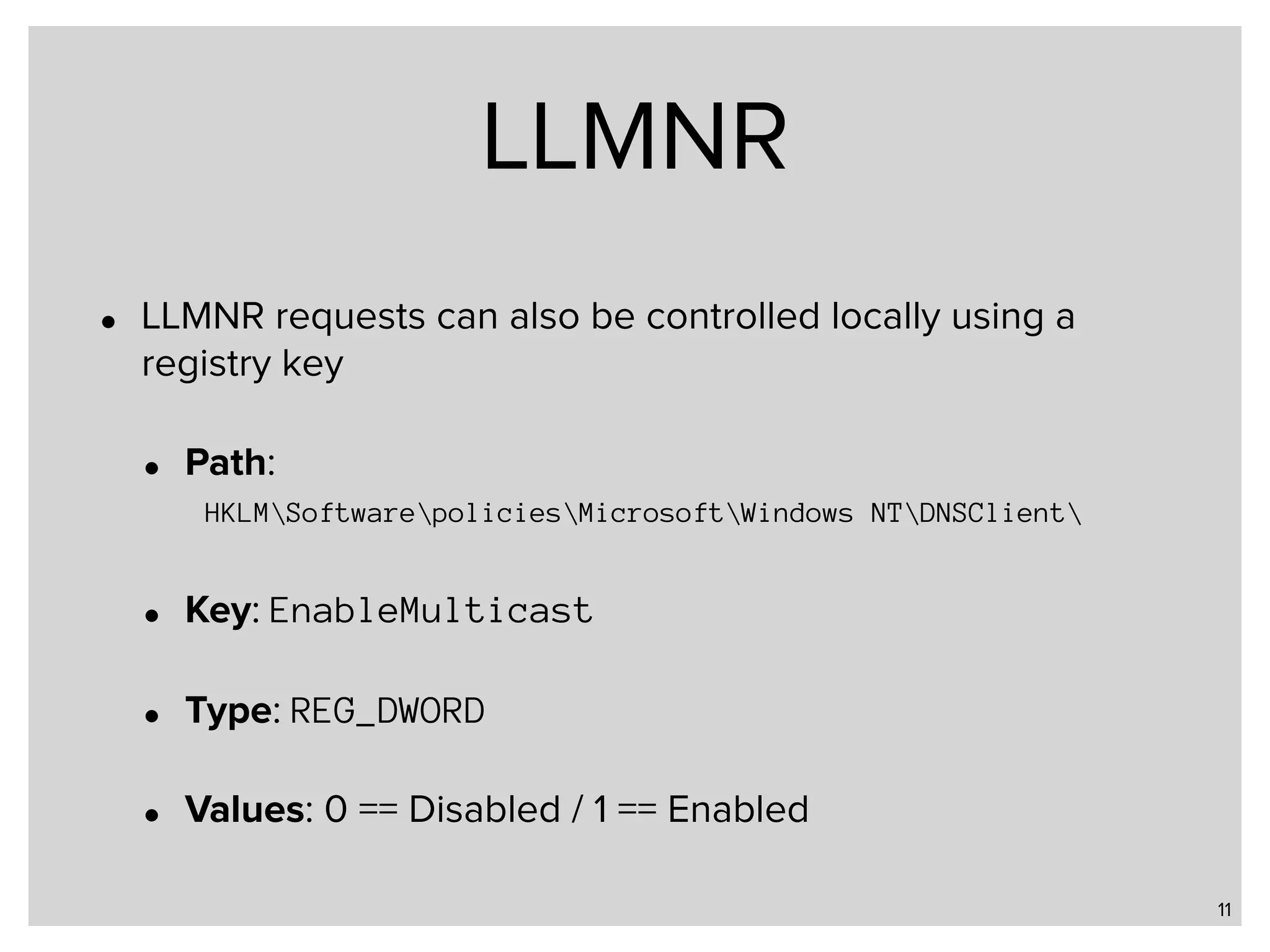

LLMNR • LLMNR requests can also be controlled locally using a registry key • Path:   HKLMSoftwarepoliciesMicrosoftWindows NTDNSClient • Key: EnableMulticast • Type: REG_DWORD • Values: 0 == Disabled / 1 == Enabled 11

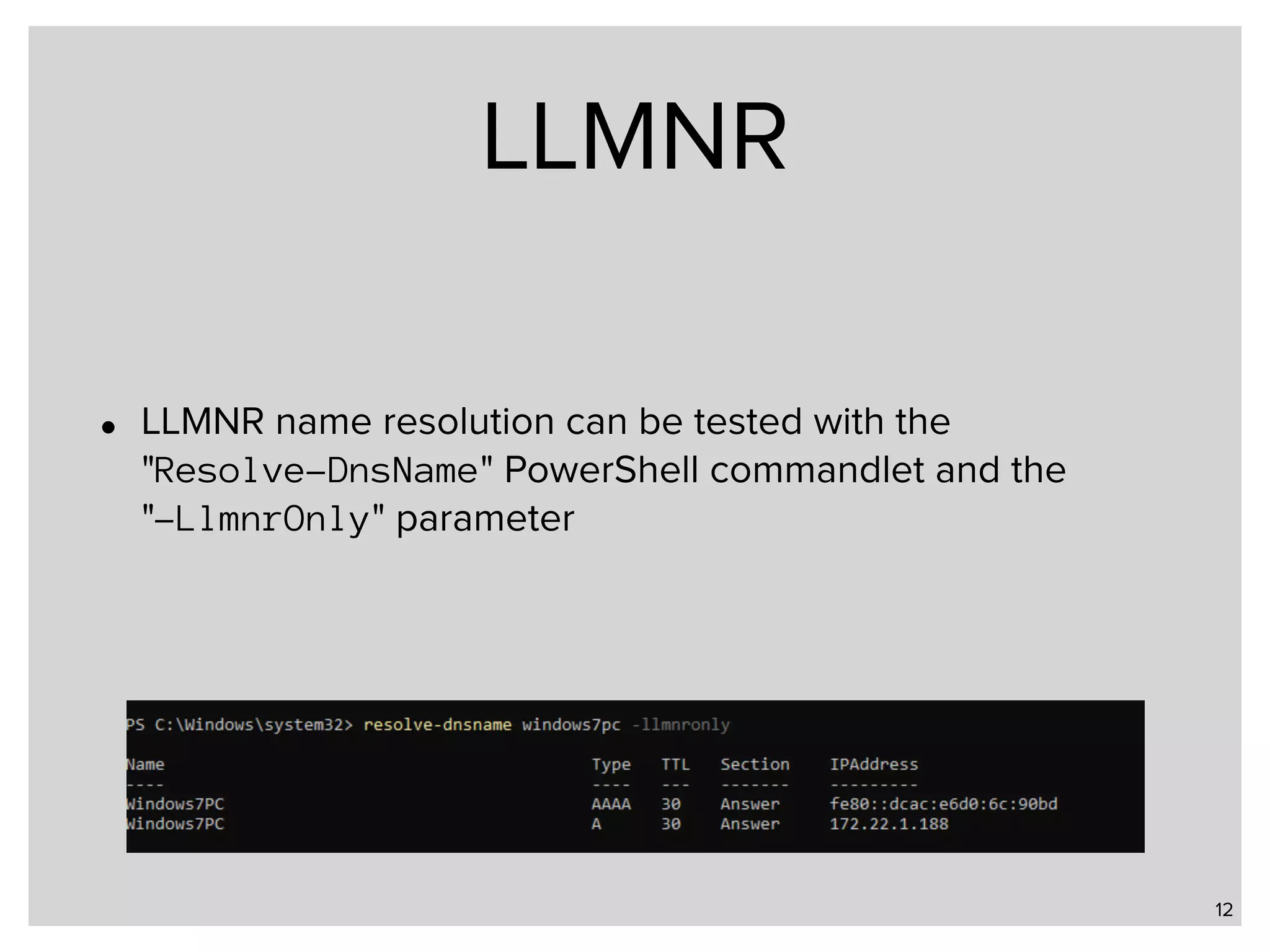

LLMNR • LLMNR name resolution can be tested with the   "Resolve-DnsName" PowerShell commandlet and the   "-LlmnrOnly" parameter 12

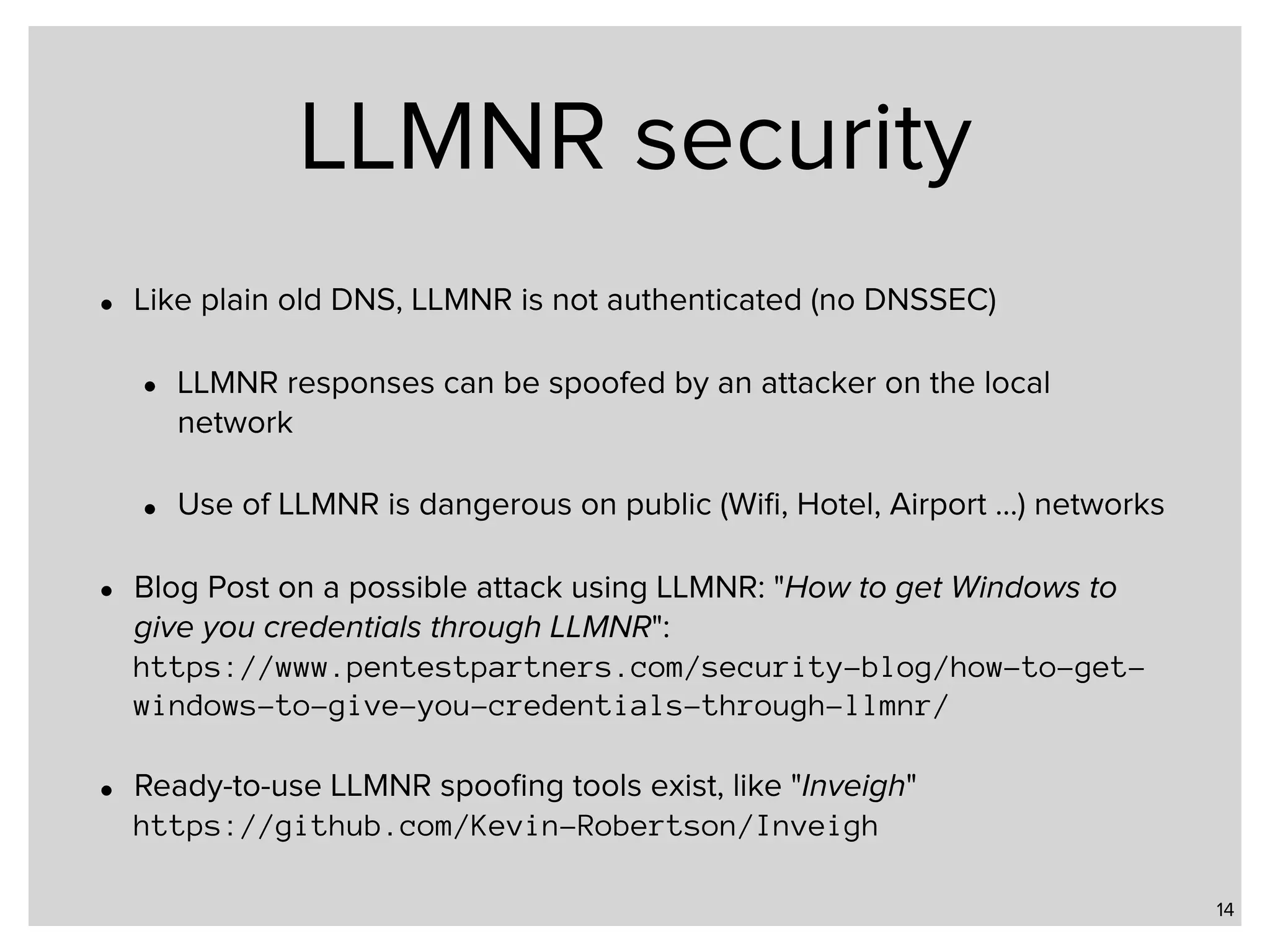

LLMNR security • Like plain old DNS, LLMNR is not authenticated (no DNSSEC) • LLMNR responses can be spoofed by an attacker on the local network • Use of LLMNR is dangerous on public (Wiﬁ, Hotel, Airport …) networks • Blog Post on a possible attack using LLMNR: "How to get Windows to give you credentials through LLMNR":  https://www.pentestpartners.com/security-blog/how-to-get- windows-to-give-you-credentials-through-llmnr/ • Ready-to-use LLMNR spooﬁng tools exist, like "Inveigh"  https://github.com/Kevin-Robertson/Inveigh 14

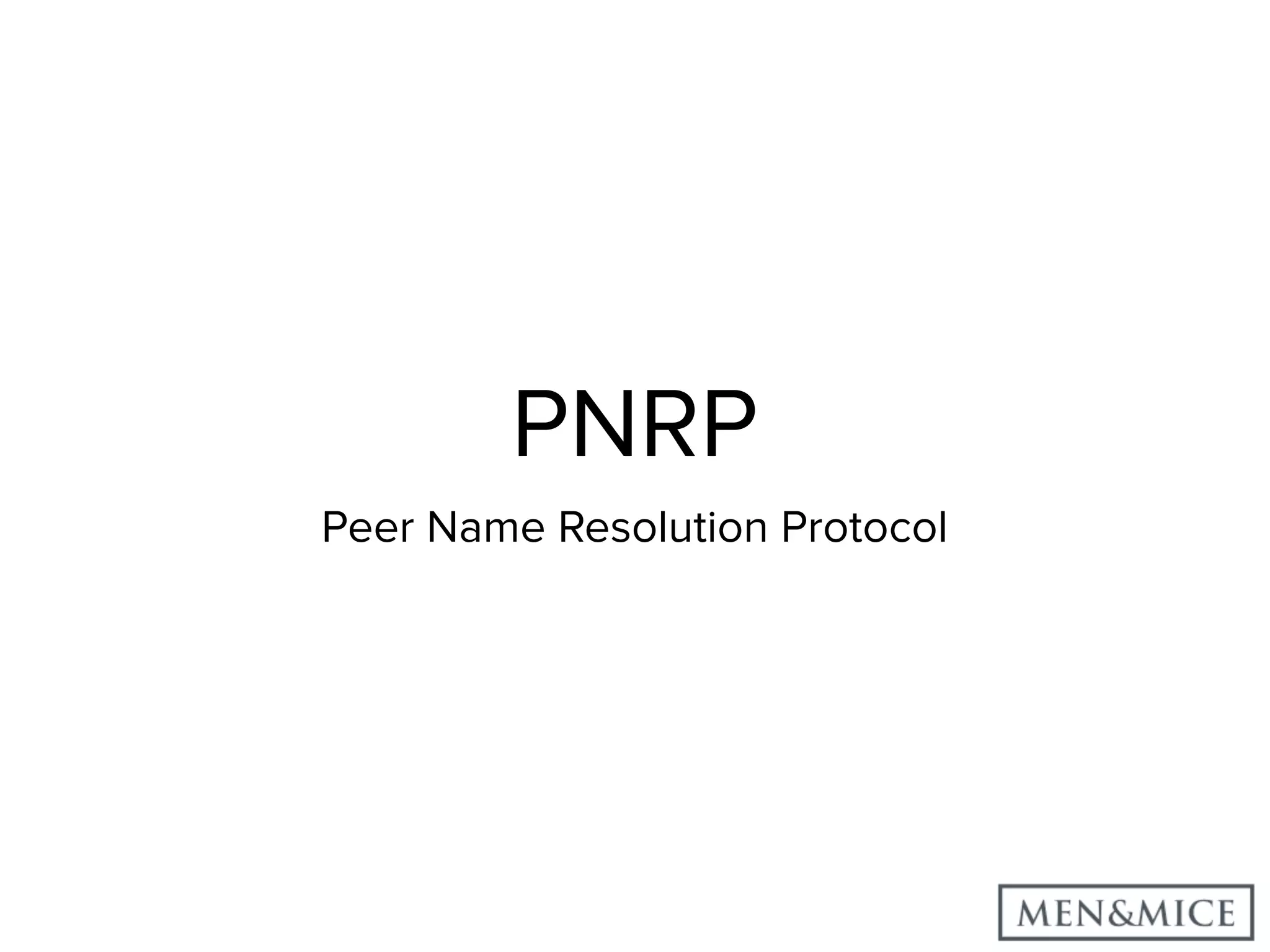

PNRP Peer Name Resolution Protocol

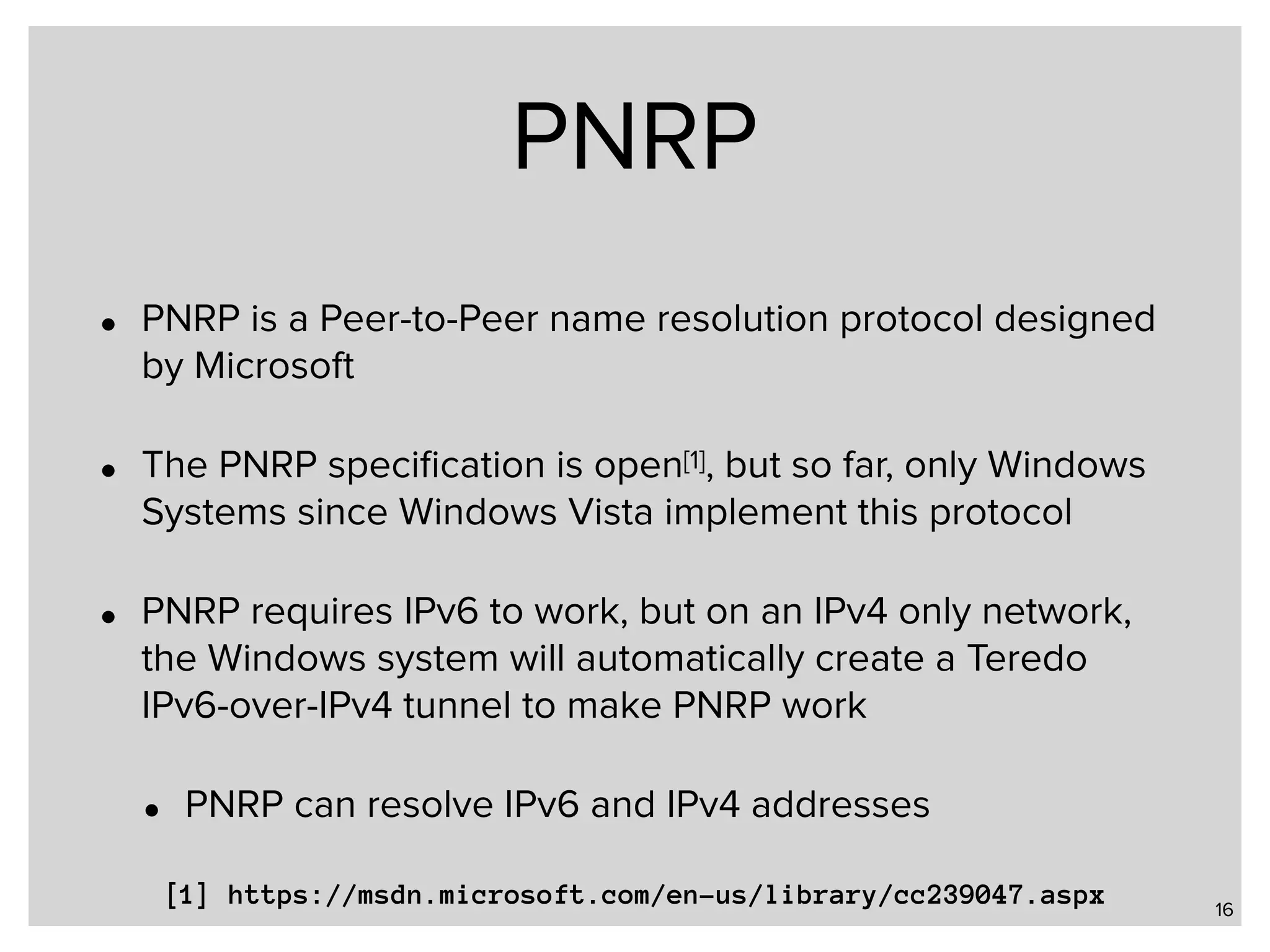

PNRP • PNRP is a Peer-to-Peer name resolution protocol designed by Microsoft • The PNRP speciﬁcation is open[1], but so far, only Windows Systems since Windows Vista implement this protocol • PNRP requires IPv6 to work, but on an IPv4 only network, the Windows system will automatically create a Teredo IPv6-over-IPv4 tunnel to make PNRP work • PNRP can resolve IPv6 and IPv4 addresses 16 [1] https://msdn.microsoft.com/en-us/library/cc239047.aspx

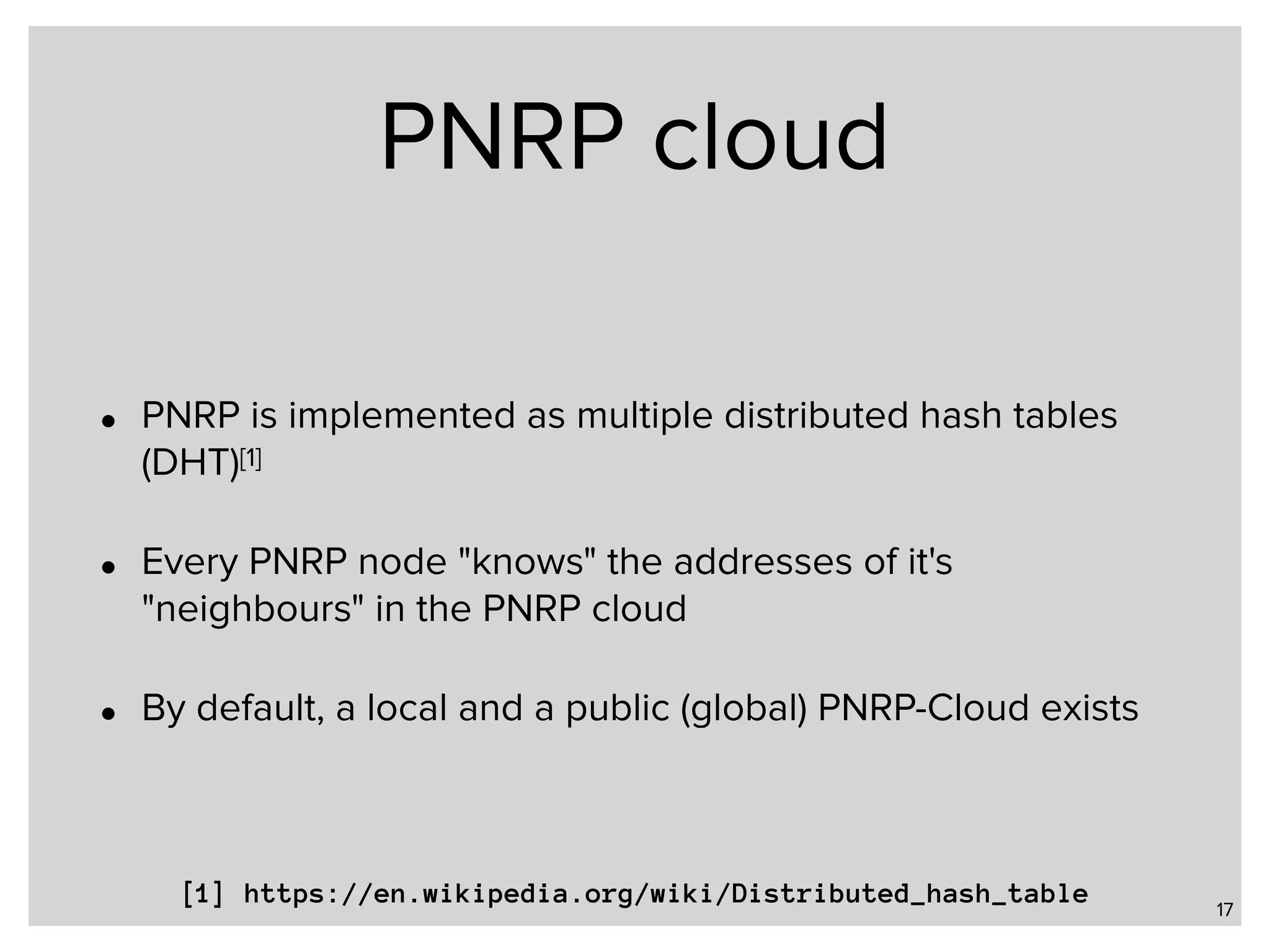

PNRP cloud • PNRP is implemented as multiple distributed hash tables (DHT)[1] • Every PNRP node "knows" the addresses of it's "neighbours" in the PNRP cloud • By default, a local and a public (global) PNRP-Cloud exists 17 [1] https://en.wikipedia.org/wiki/Distributed_hash_table

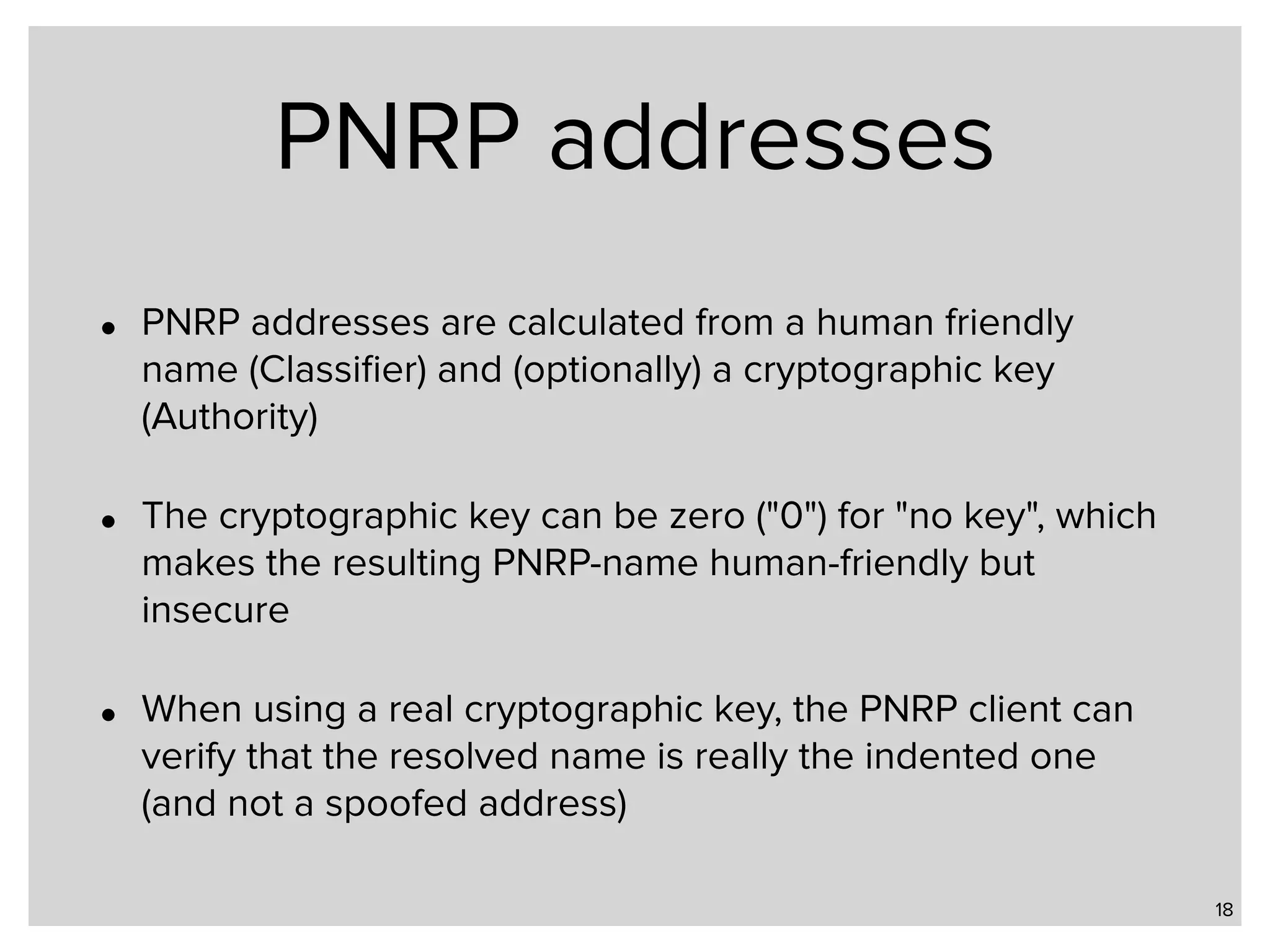

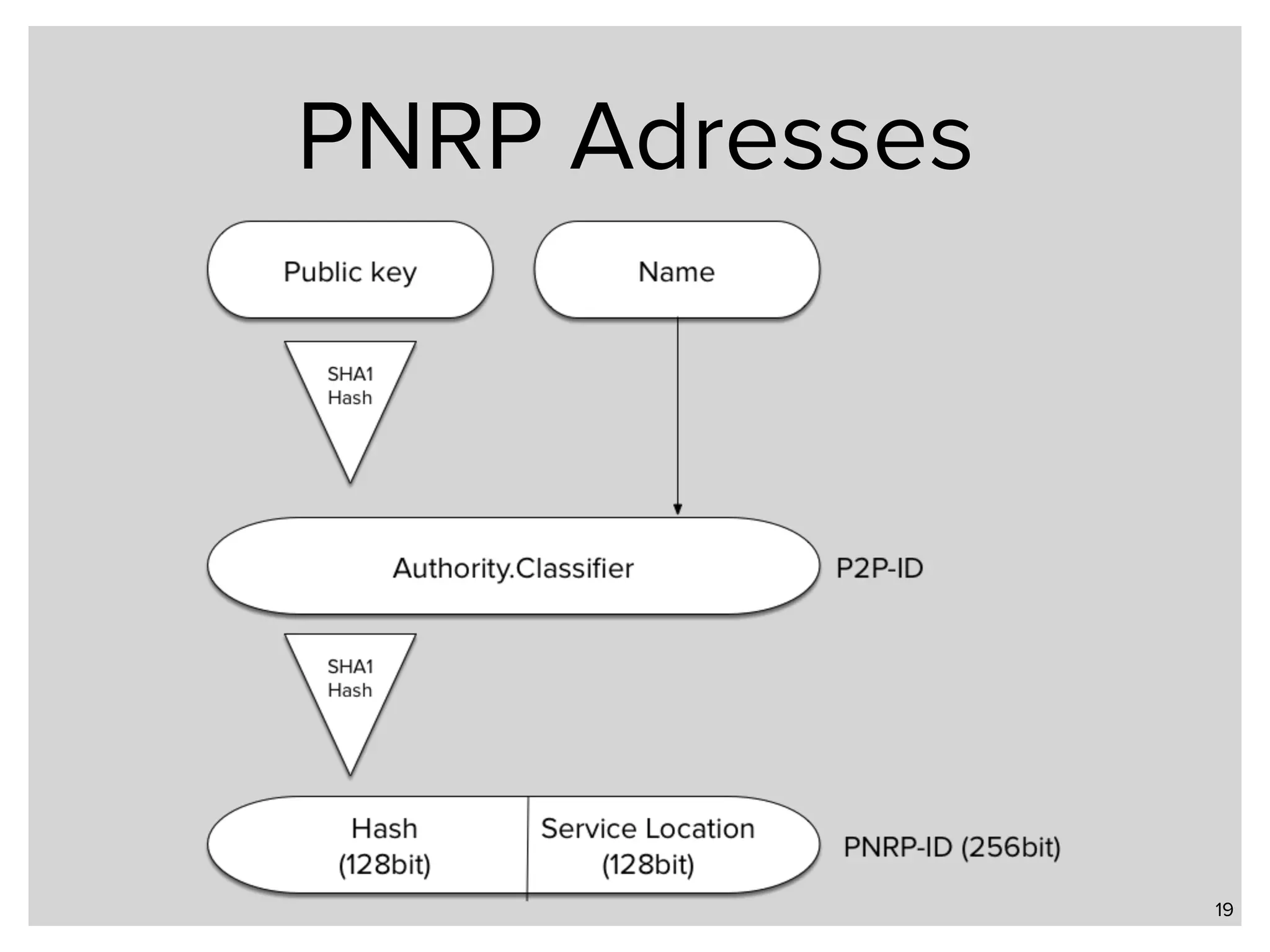

PNRP addresses • PNRP addresses are calculated from a human friendly name (Classiﬁer) and (optionally) a cryptographic key (Authority) • The cryptographic key can be zero ("0") for "no key", which makes the resulting PNRP-name human-friendly but insecure • When using a real cryptographic key, the PNRP client can verify that the resolved name is really the indented one (and not a spoofed address) 18

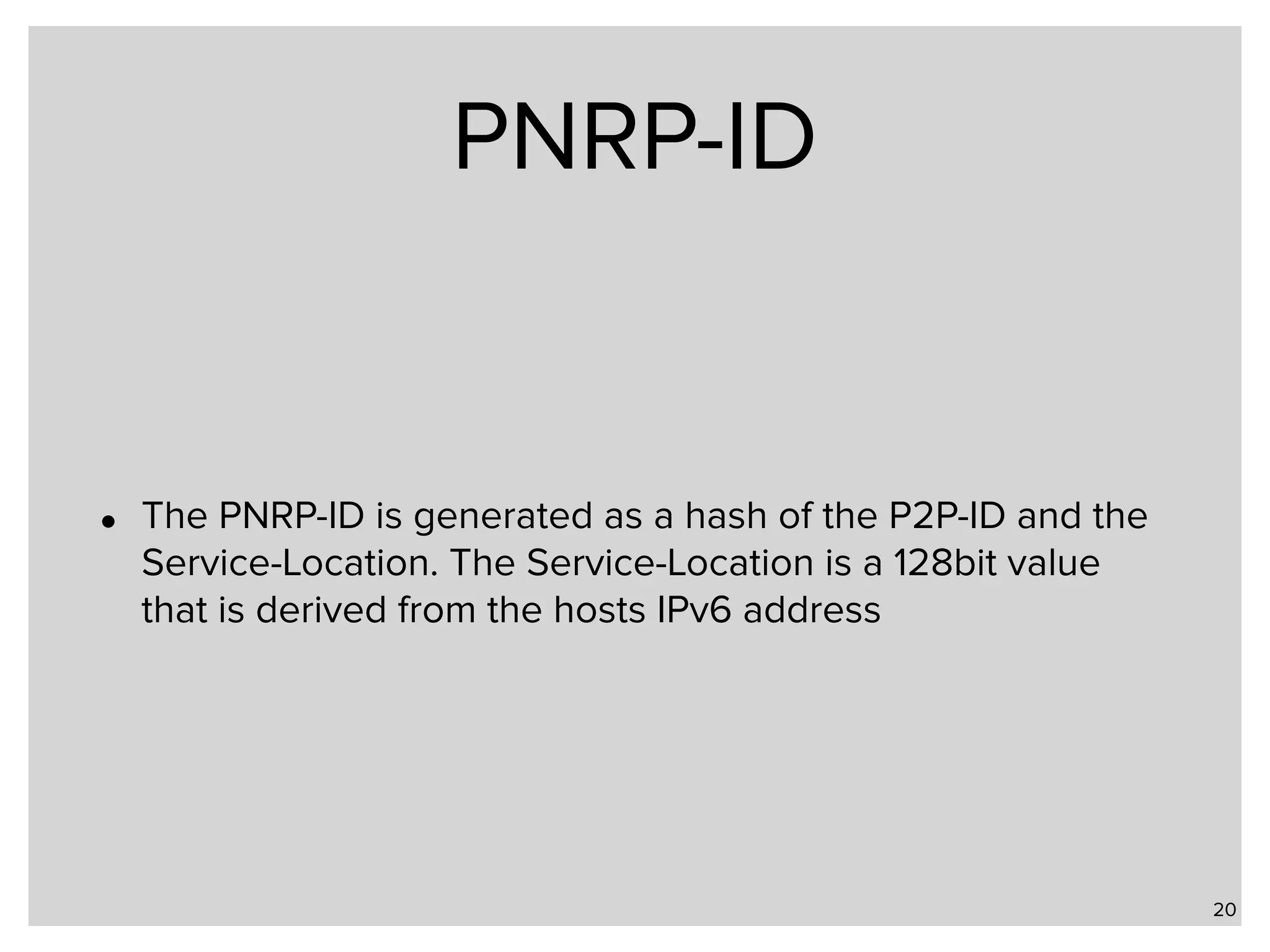

PNRP-ID • The PNRP-ID is generated as a hash of the P2P-ID and the Service-Location. The Service-Location is a 128bit value that is derived from the hosts IPv6 address 20

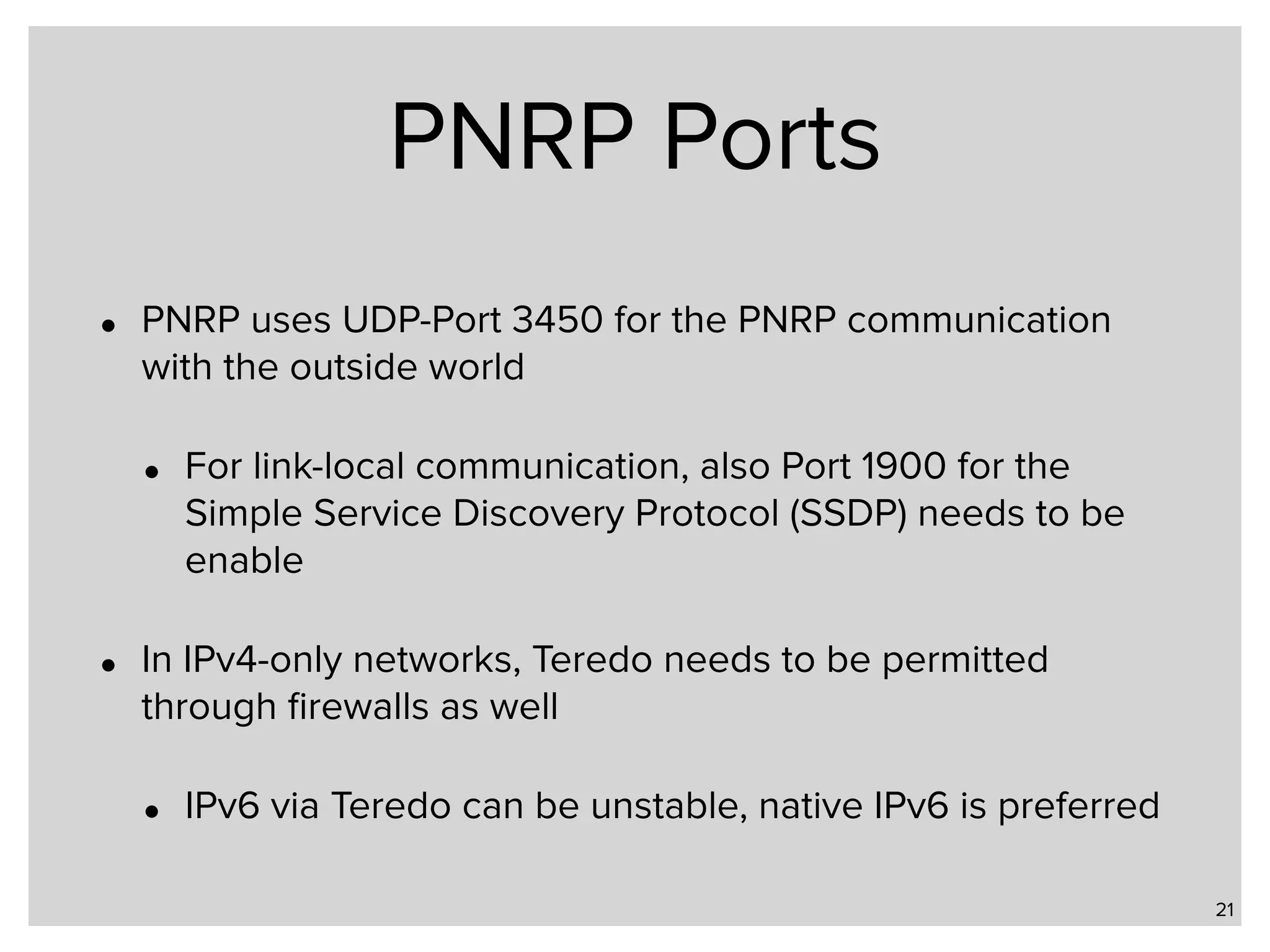

PNRP Ports • PNRP uses UDP-Port 3450 for the PNRP communication with the outside world • For link-local communication, also Port 1900 for the Simple Service Discovery Protocol (SSDP) needs to be enable • In IPv4-only networks, Teredo needs to be permitted through ﬁrewalls as well • IPv6 via Teredo can be unstable, native IPv6 is preferred 21

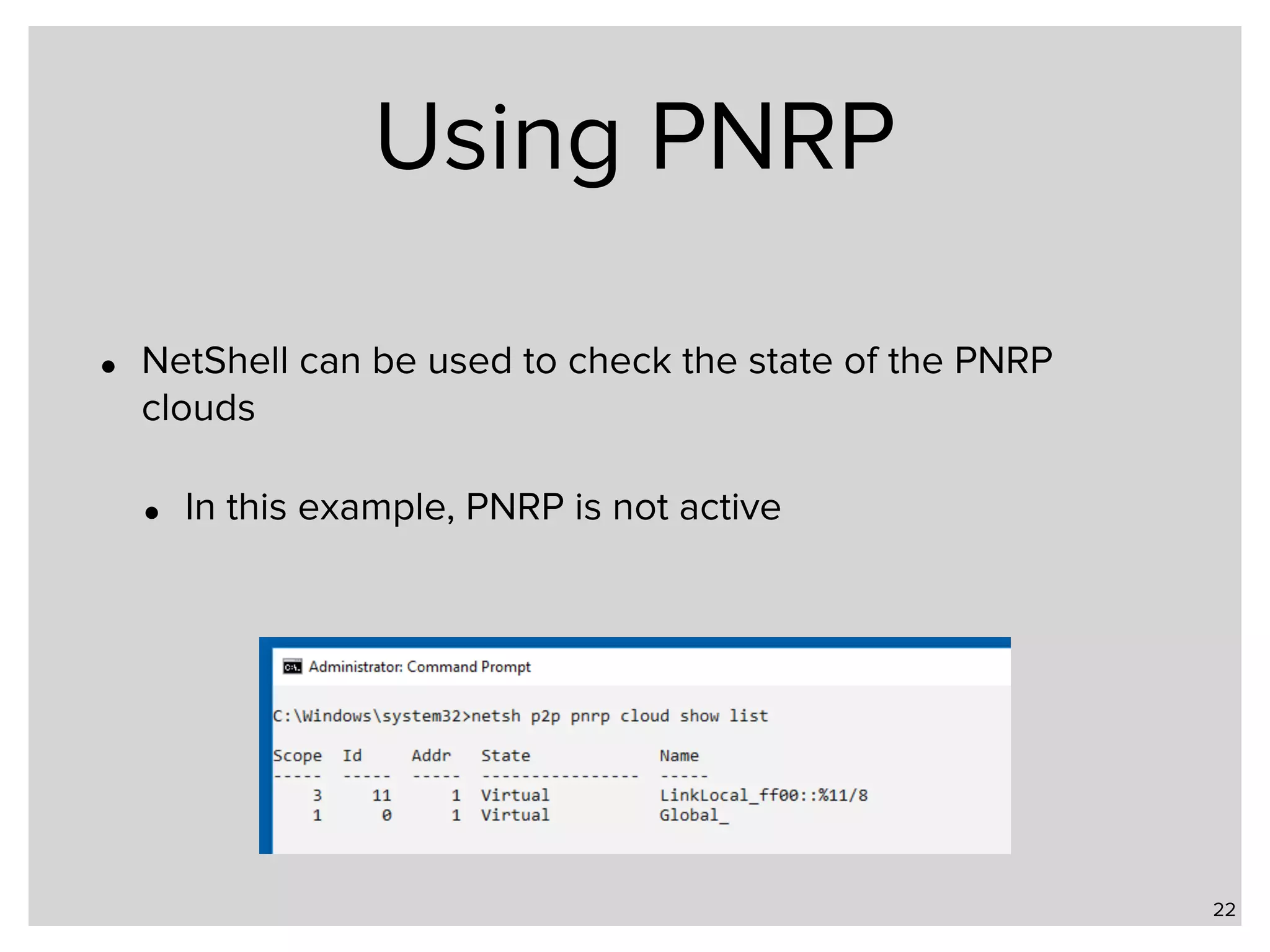

Using PNRP • NetShell can be used to check the state of the PNRP clouds • In this example, PNRP is not active 22

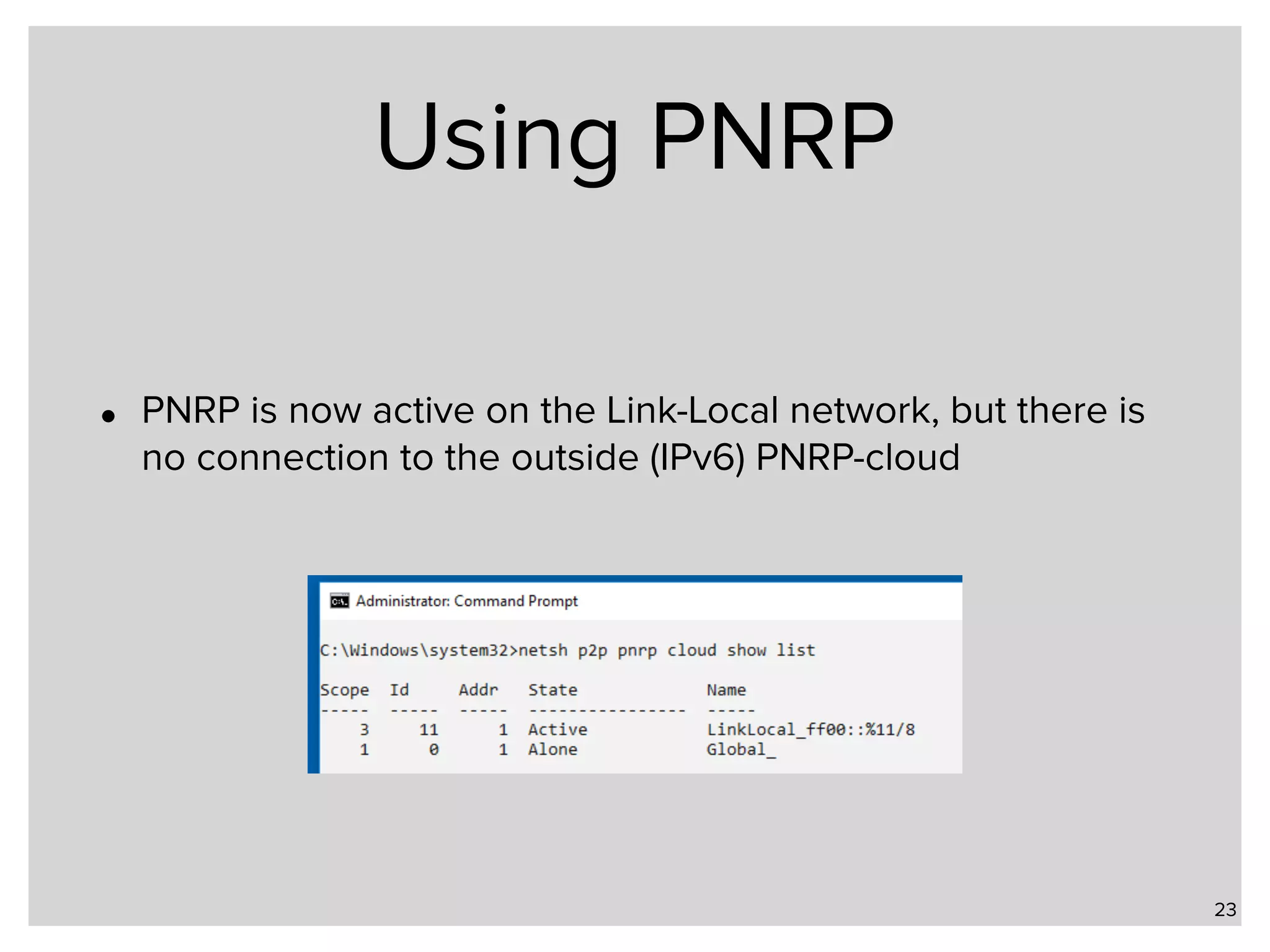

Using PNRP • PNRP is now active on the Link-Local network, but there is no connection to the outside (IPv6) PNRP-cloud 23

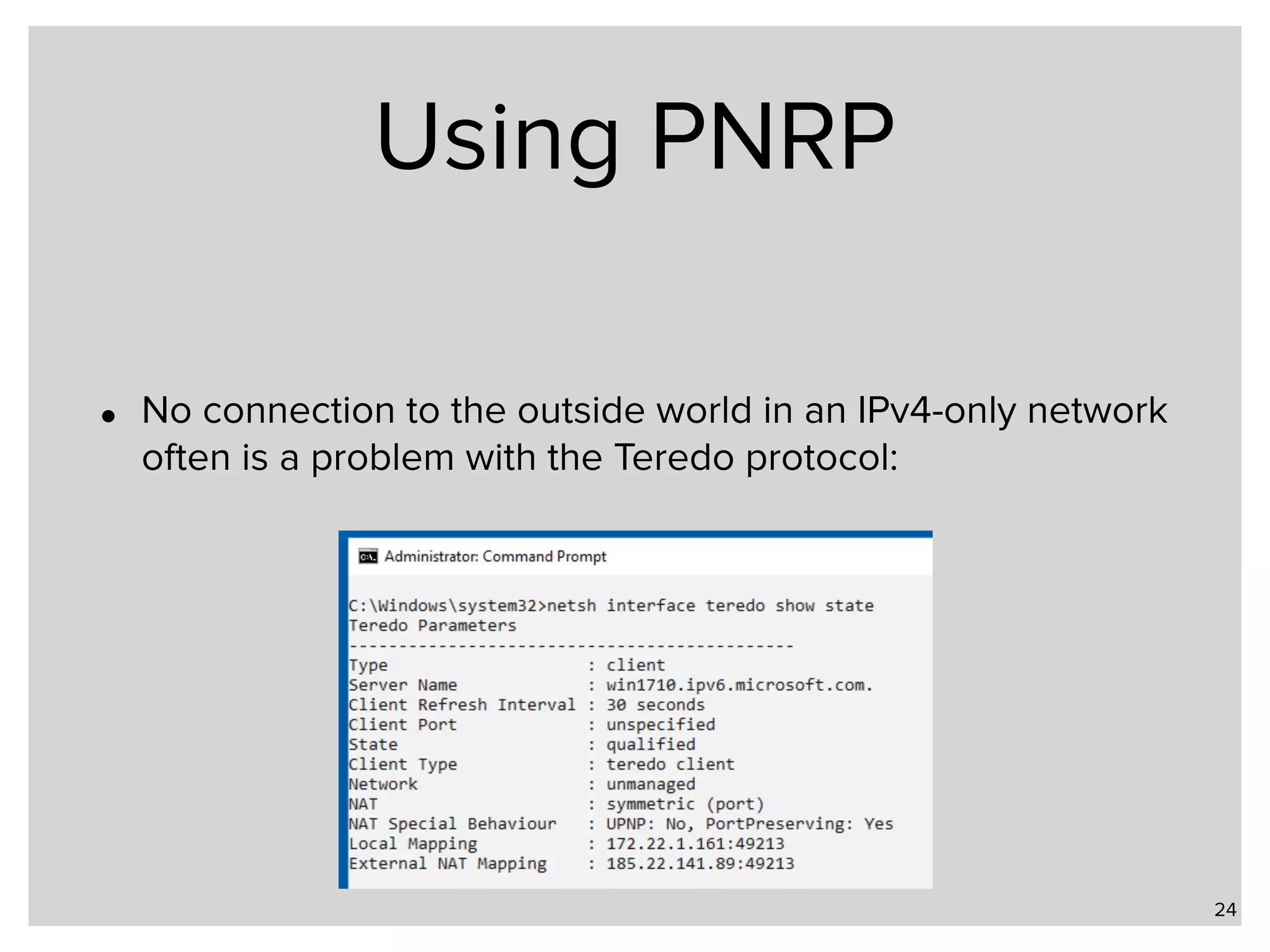

Using PNRP • No connection to the outside world in an IPv4-only network often is a problem with the Teredo protocol: 24

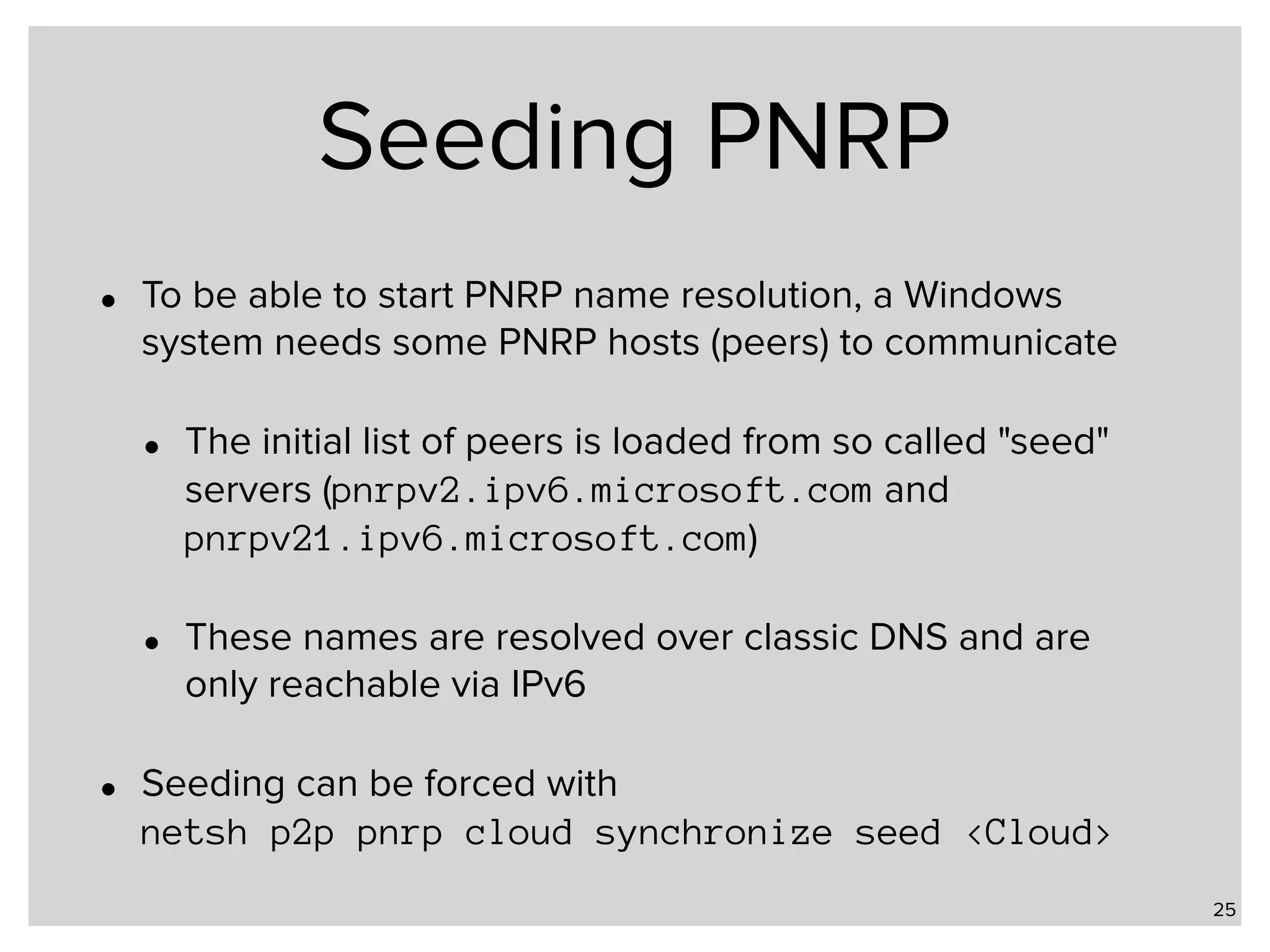

Seeding PNRP • To be able to start PNRP name resolution, a Windows system needs some PNRP hosts (peers) to communicate • The initial list of peers is loaded from so called "seed" servers (pnrpv2.ipv6.microsoft.com and pnrpv21.ipv6.microsoft.com) • These names are resolved over classic DNS and are only reachable via IPv6 • Seeding can be forced with   netsh p2p pnrp cloud synchronize seed <Cloud> 25

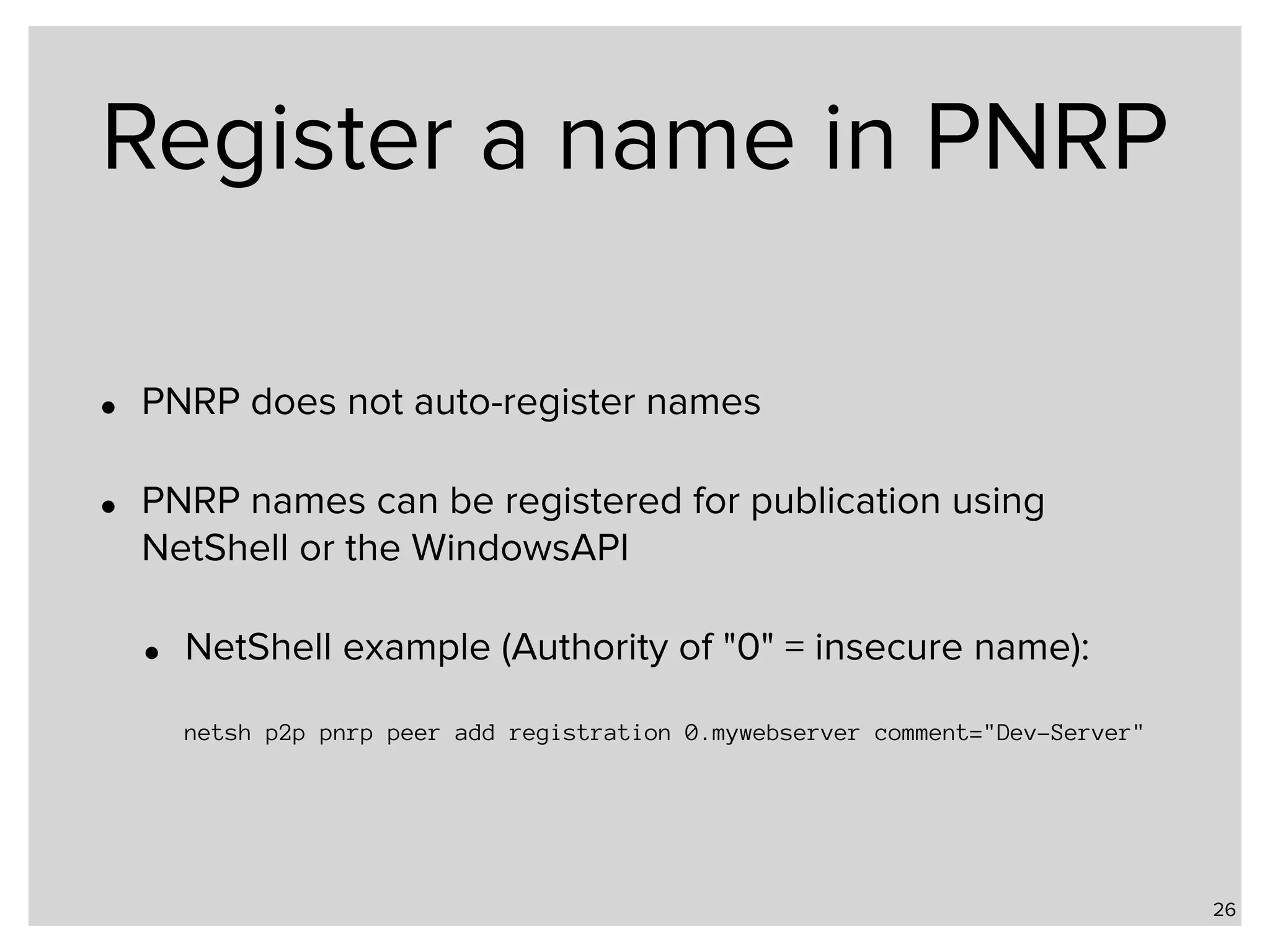

Register a name in PNRP • PNRP does not auto-register names • PNRP names can be registered for publication using NetShell or the WindowsAPI • NetShell example (Authority of "0" = insecure name):    netsh p2p pnrp peer add registration 0.mywebserver comment="Dev-Server" 26

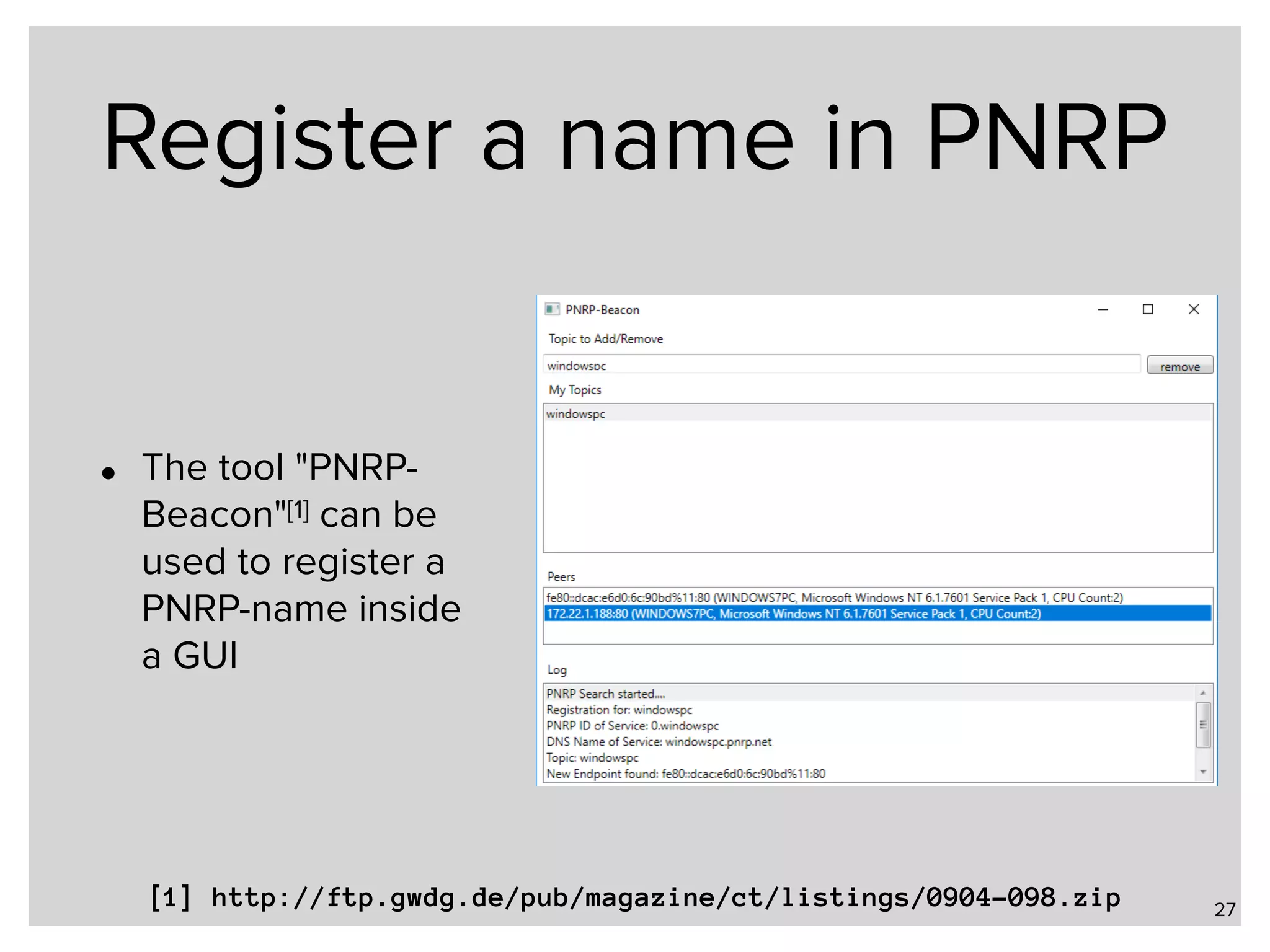

Register a name in PNRP • The tool "PNRP- Beacon"[1] can be used to register a PNRP-name inside a GUI 27 [1] http://ftp.gwdg.de/pub/magazine/ct/listings/0904-098.zip

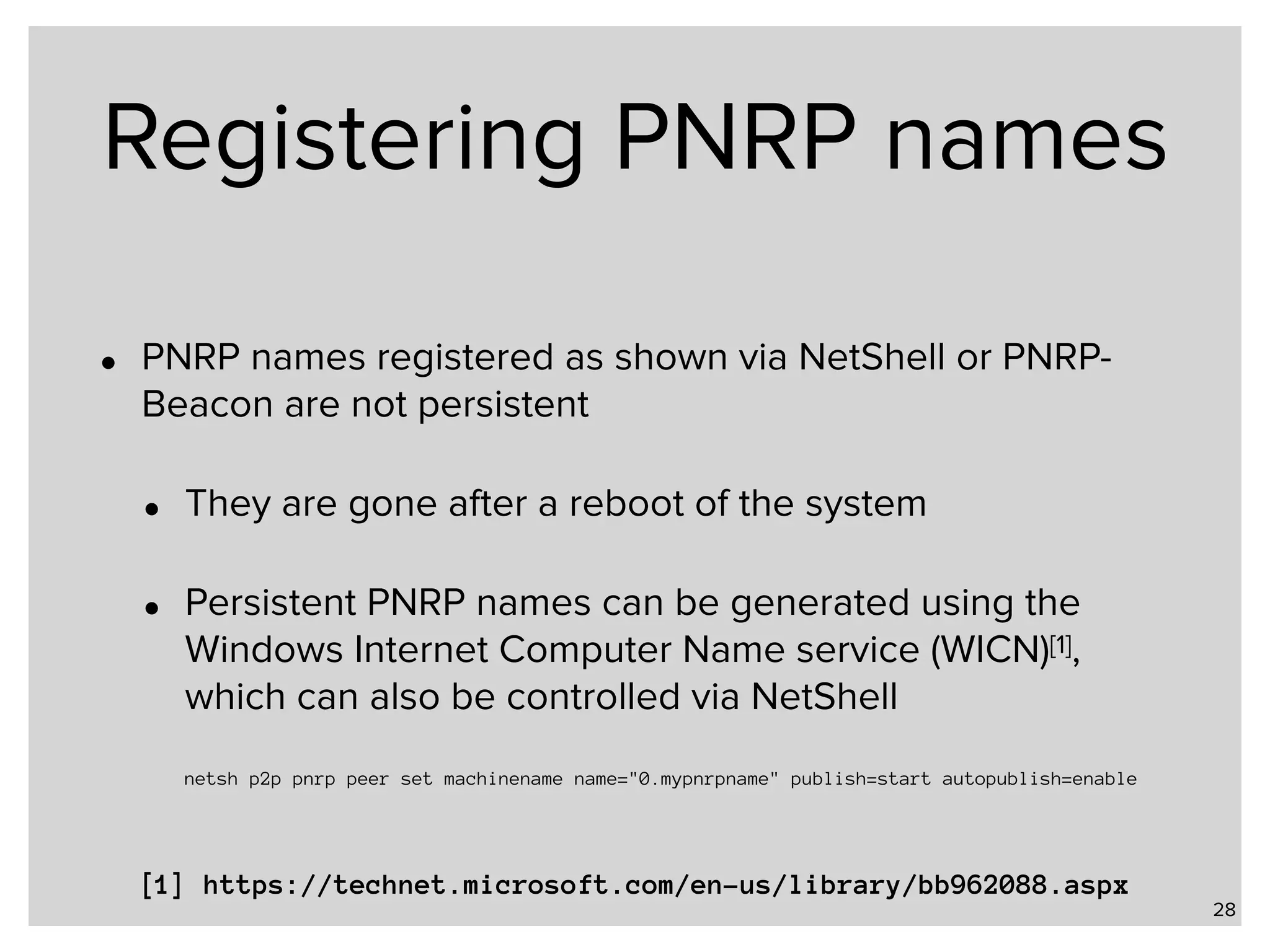

Registering PNRP names • PNRP names registered as shown via NetShell or PNRP- Beacon are not persistent • They are gone after a reboot of the system • Persistent PNRP names can be generated using the Windows Internet Computer Name service (WICN)[1], which can also be controlled via NetShell    netsh p2p pnrp peer set machinename name="0.mypnrpname" publish=start autopublish=enable 28 [1] https://technet.microsoft.com/en-us/library/bb962088.aspx

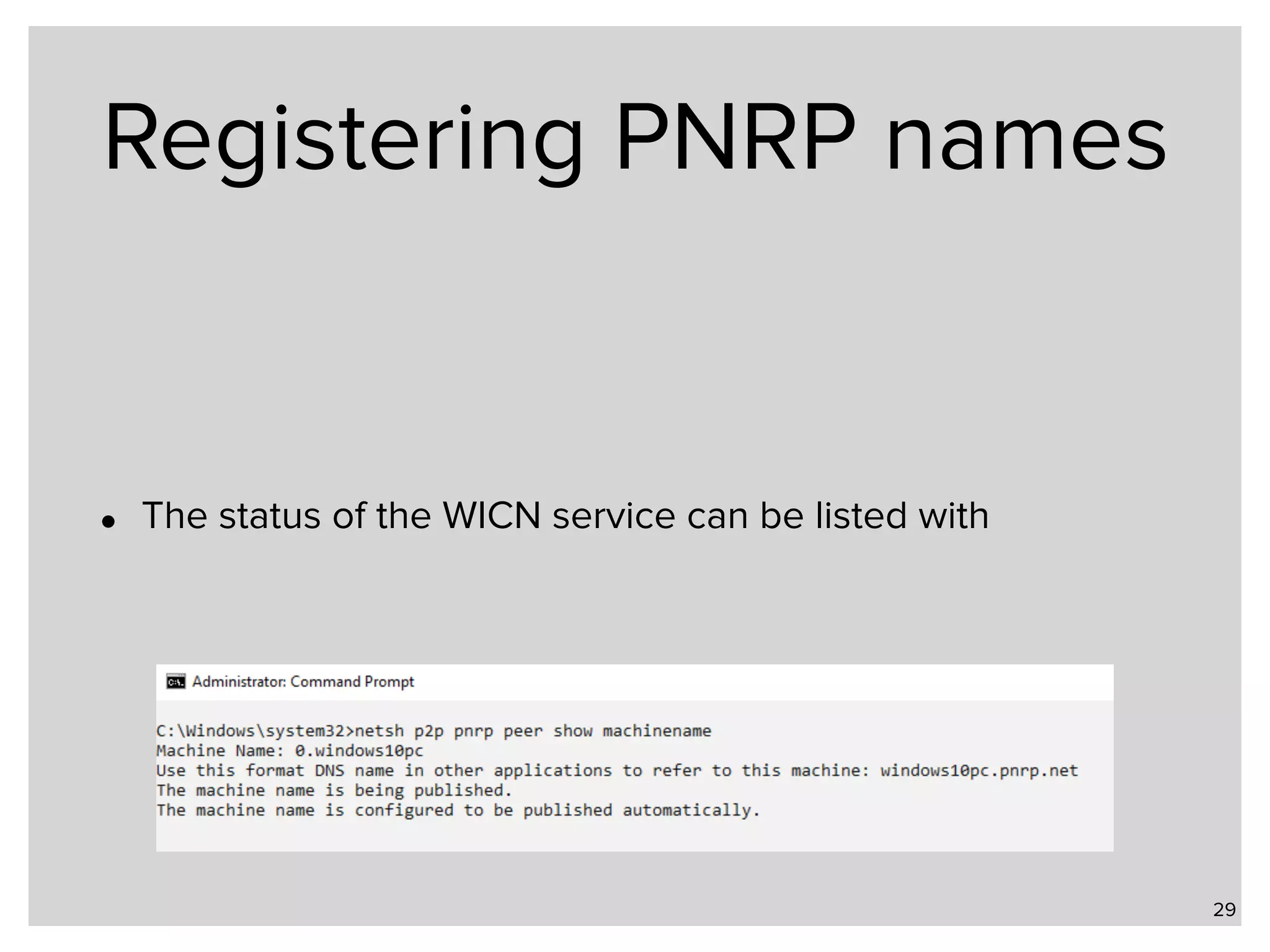

Registering PNRP names • The status of the WICN service can be listed with     29

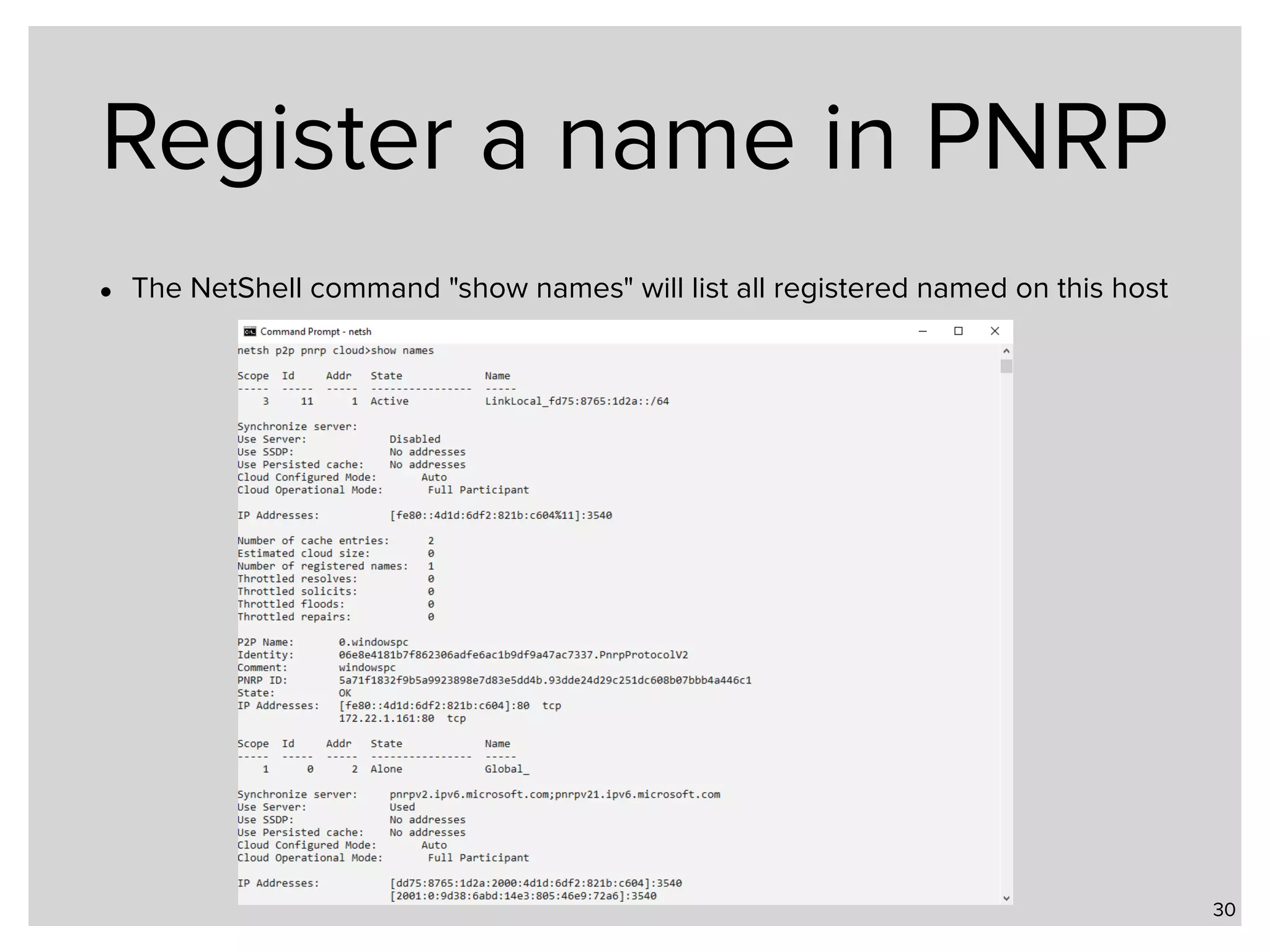

Register a name in PNRP • The NetShell command "show names" will list all registered named on this host 30

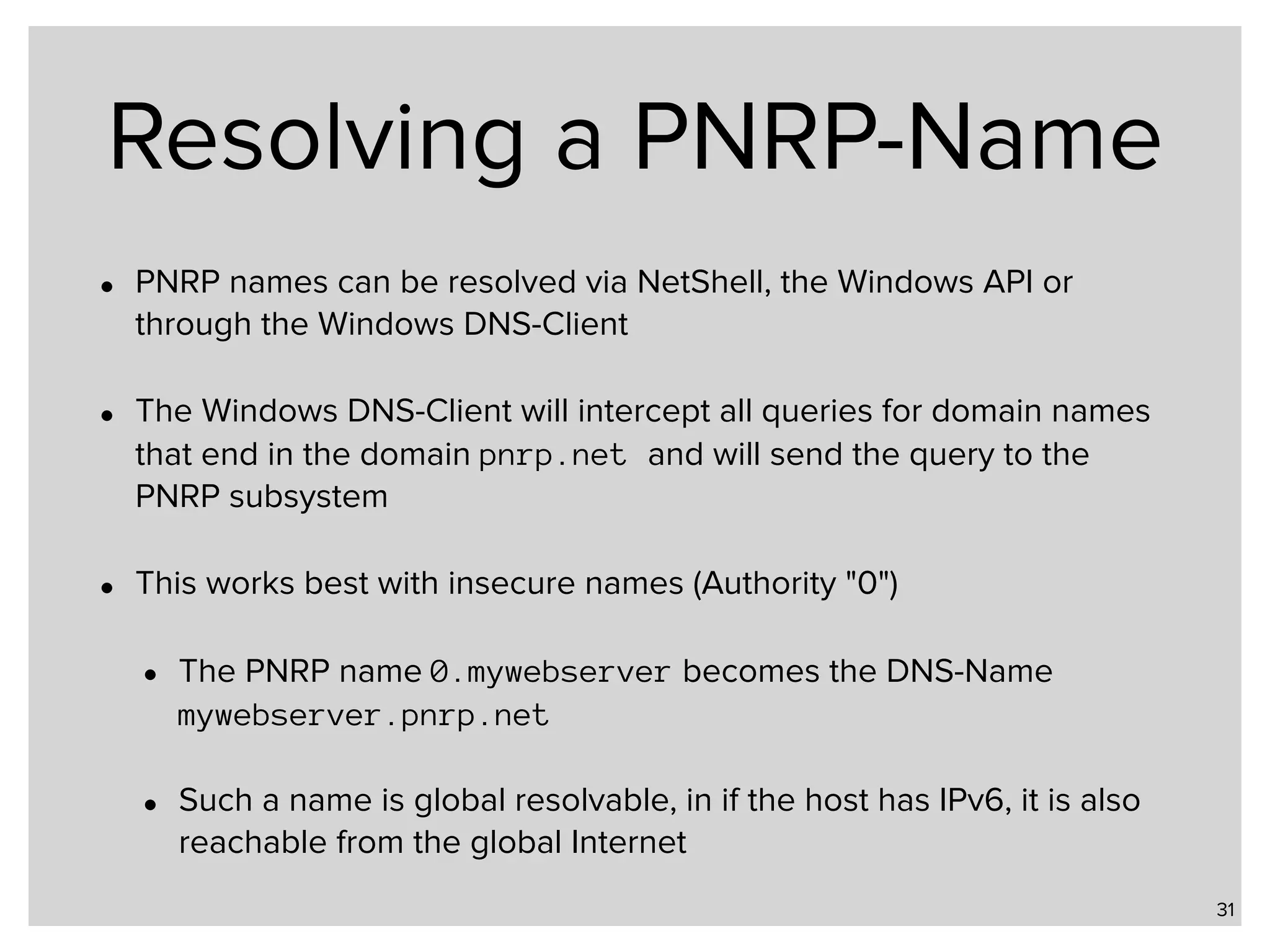

Resolving a PNRP-Name • PNRP names can be resolved via NetShell, the Windows API or through the Windows DNS-Client • The Windows DNS-Client will intercept all queries for domain names that end in the domain pnrp.net and will send the query to the PNRP subsystem • This works best with insecure names (Authority "0") • The PNRP name 0.mywebserver becomes the DNS-Name mywebserver.pnrp.net • Such a name is global resolvable, in if the host has IPv6, it is also reachable from the global Internet 31

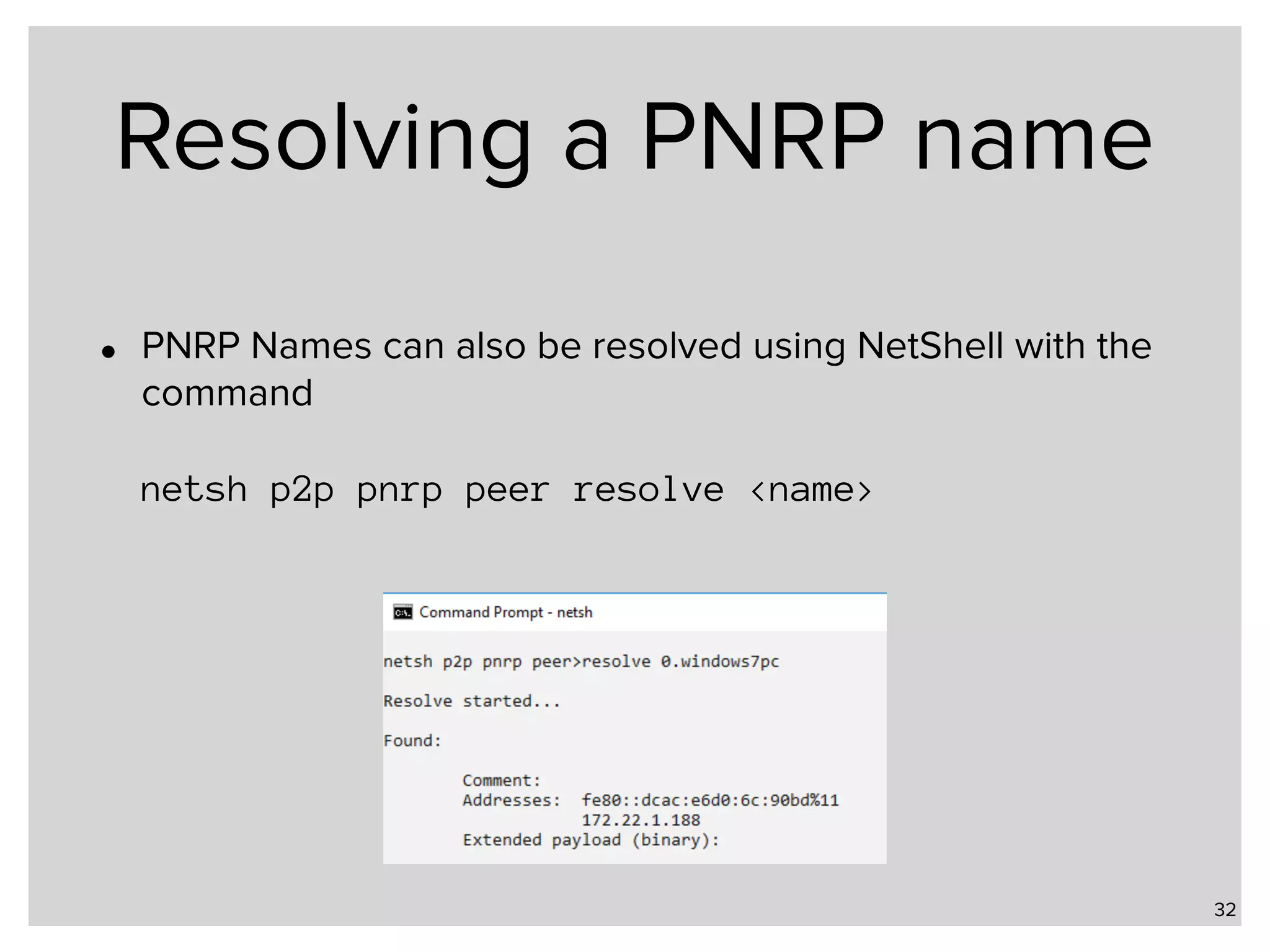

Resolving a PNRP name • PNRP Names can also be resolved using NetShell with the command    netsh p2p pnrp peer resolve <name> 32

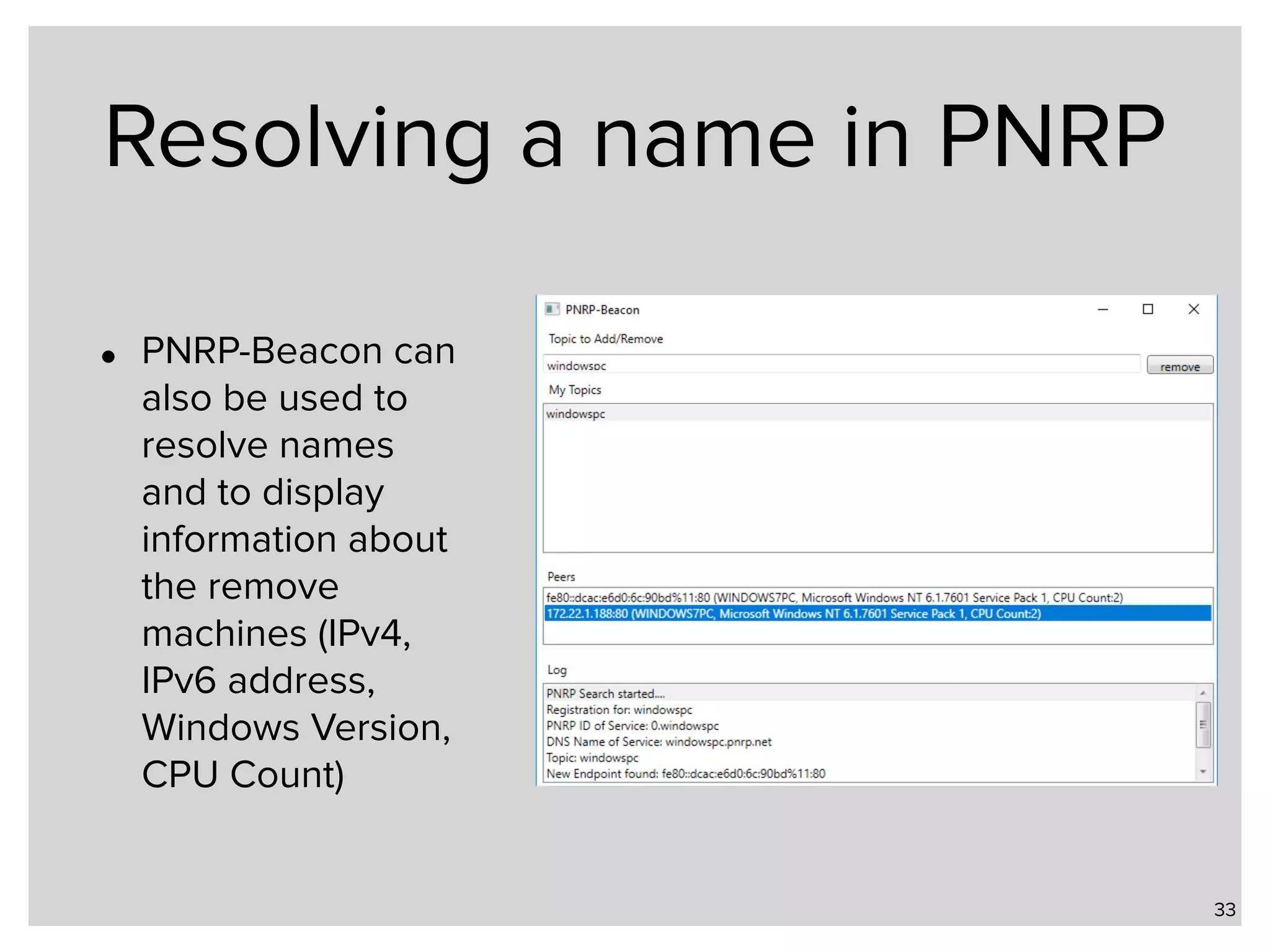

Resolving a name in PNRP • PNRP-Beacon can also be used to resolve names and to display information about the remove machines (IPv4, IPv6 address, Windows Version, CPU Count) 33

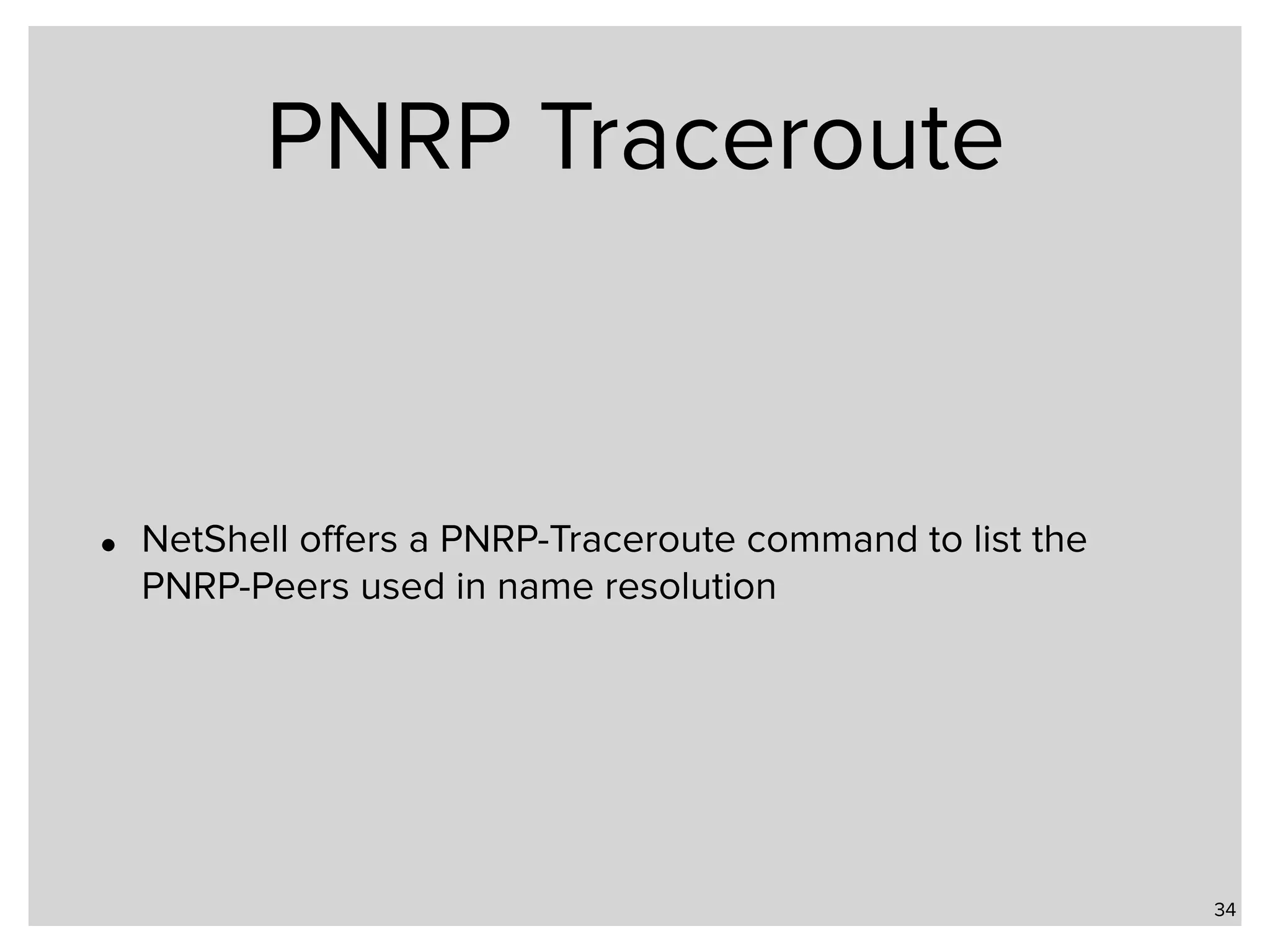

PNRP Traceroute • NetShell oﬀers a PNRP-Traceroute command to list the PNRP-Peers used in name resolution 34

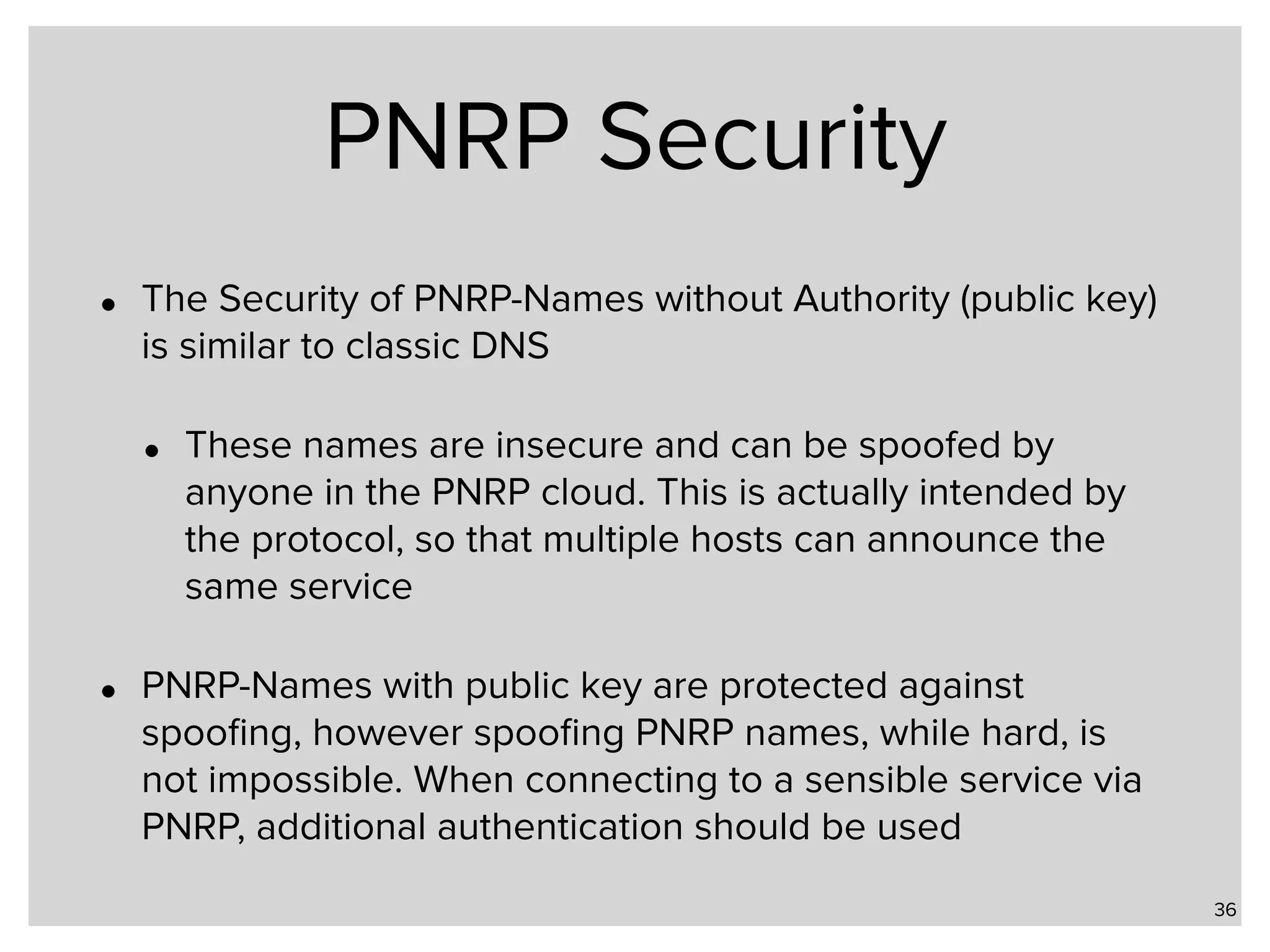

PNRP Security • The Security of PNRP-Names without Authority (public key) is similar to classic DNS • These names are insecure and can be spoofed by anyone in the PNRP cloud. This is actually intended by the protocol, so that multiple hosts can announce the same service • PNRP-Names with public key are protected against spooﬁng, however spooﬁng PNRP names, while hard, is not impossible. When connecting to a sensible service via PNRP, additional authentication should be used 36

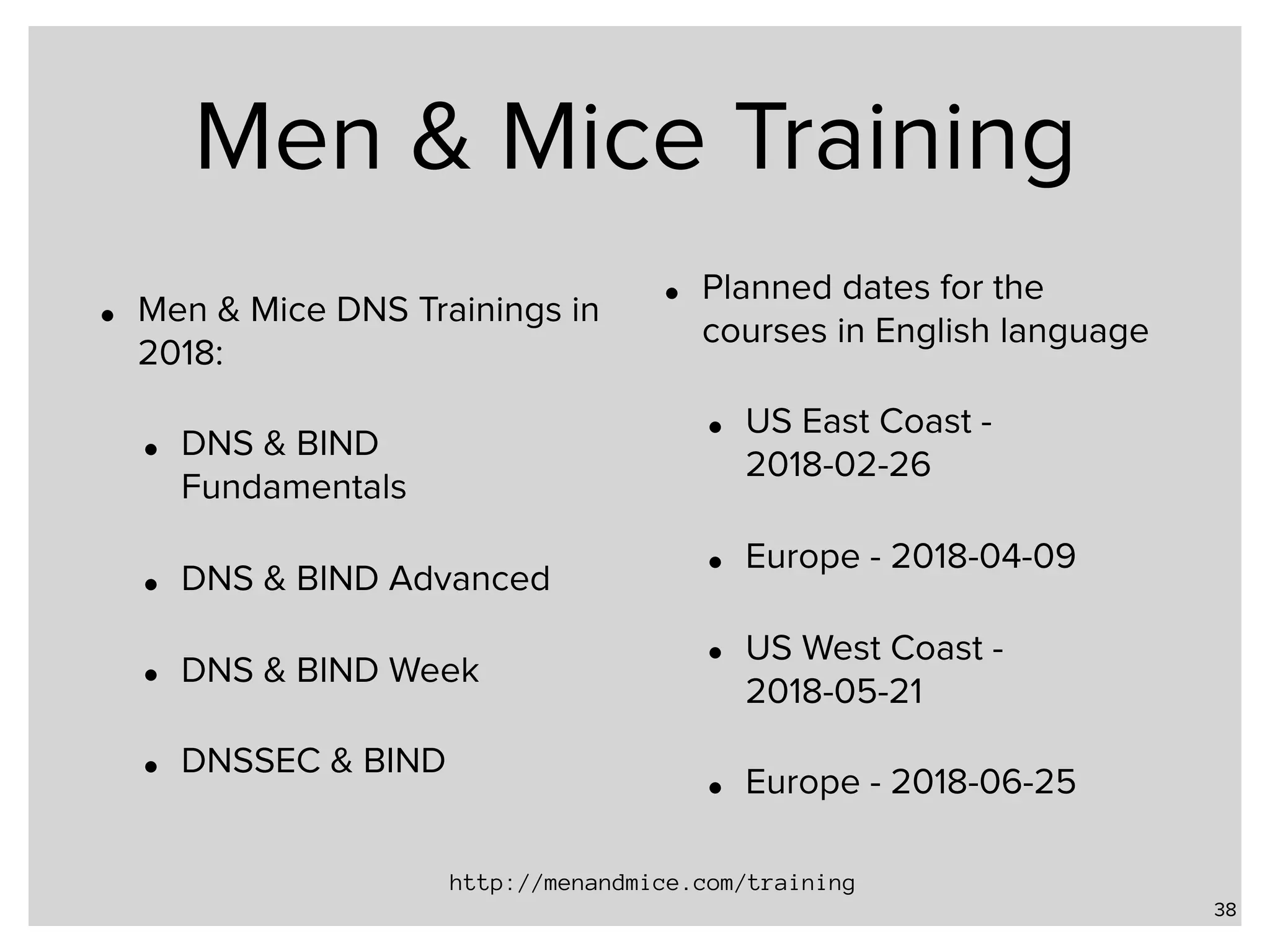

Men & Mice Training • Men & Mice DNS Trainings in 2018: • DNS & BIND Fundamentals • DNS & BIND Advanced • DNS & BIND Week • DNSSEC & BIND • Planned dates for the courses in English language • US East Coast - 2018-02-26 • Europe - 2018-04-09 • US West Coast - 2018-05-21 • Europe - 2018-06-25 38 http://menandmice.com/training

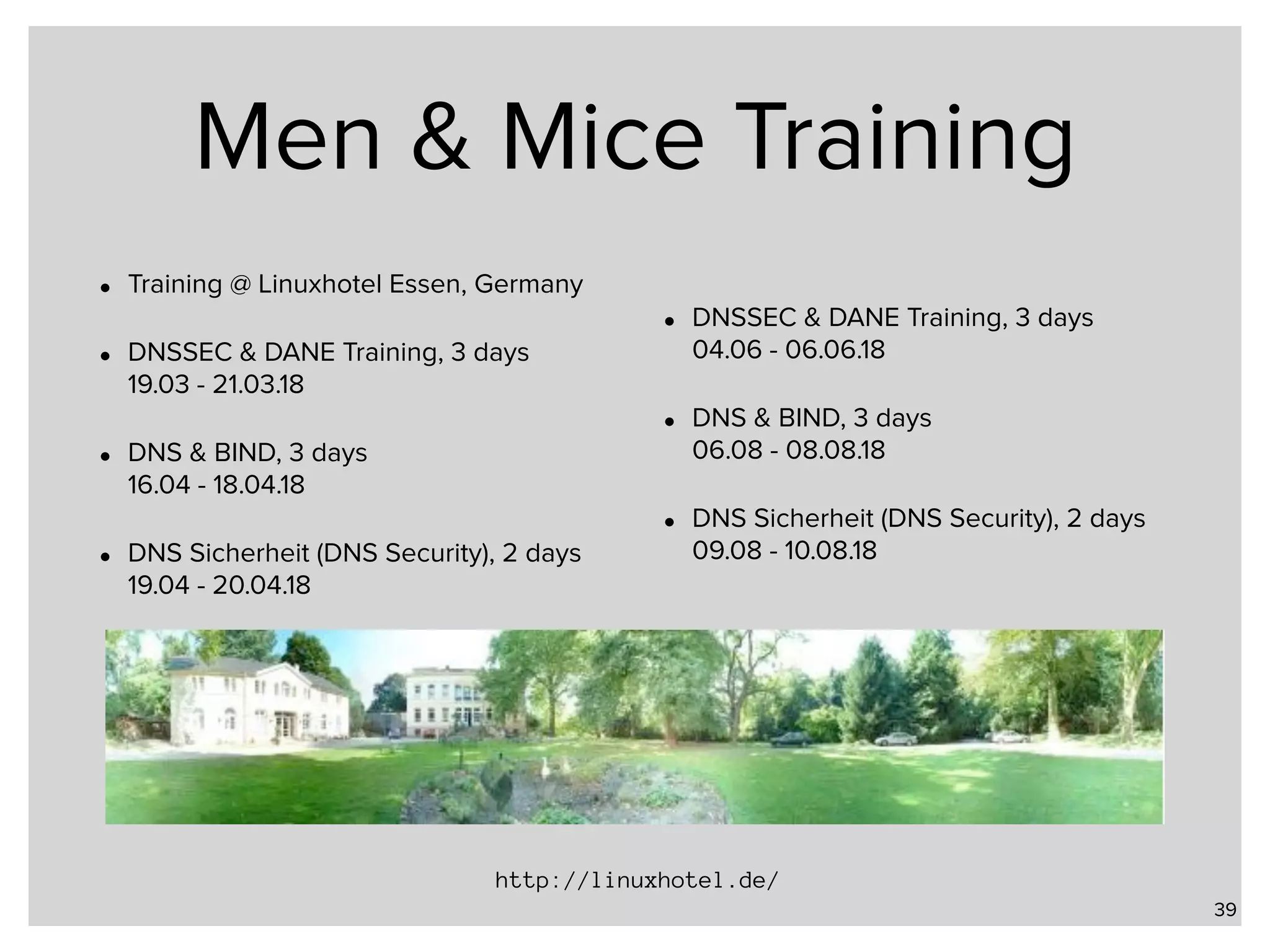

Men & Mice Training • Training @ Linuxhotel Essen, Germany • DNSSEC & DANE Training, 3 days  19.03 - 21.03.18 • DNS & BIND, 3 days   16.04 - 18.04.18 • DNS Sicherheit (DNS Security), 2 days  19.04 - 20.04.18 • DNSSEC & DANE Training, 3 days  04.06 - 06.06.18 • DNS & BIND, 3 days  06.08 - 08.08.18 • DNS Sicherheit (DNS Security), 2 days  09.08 - 10.08.18 39 http://linuxhotel.de/

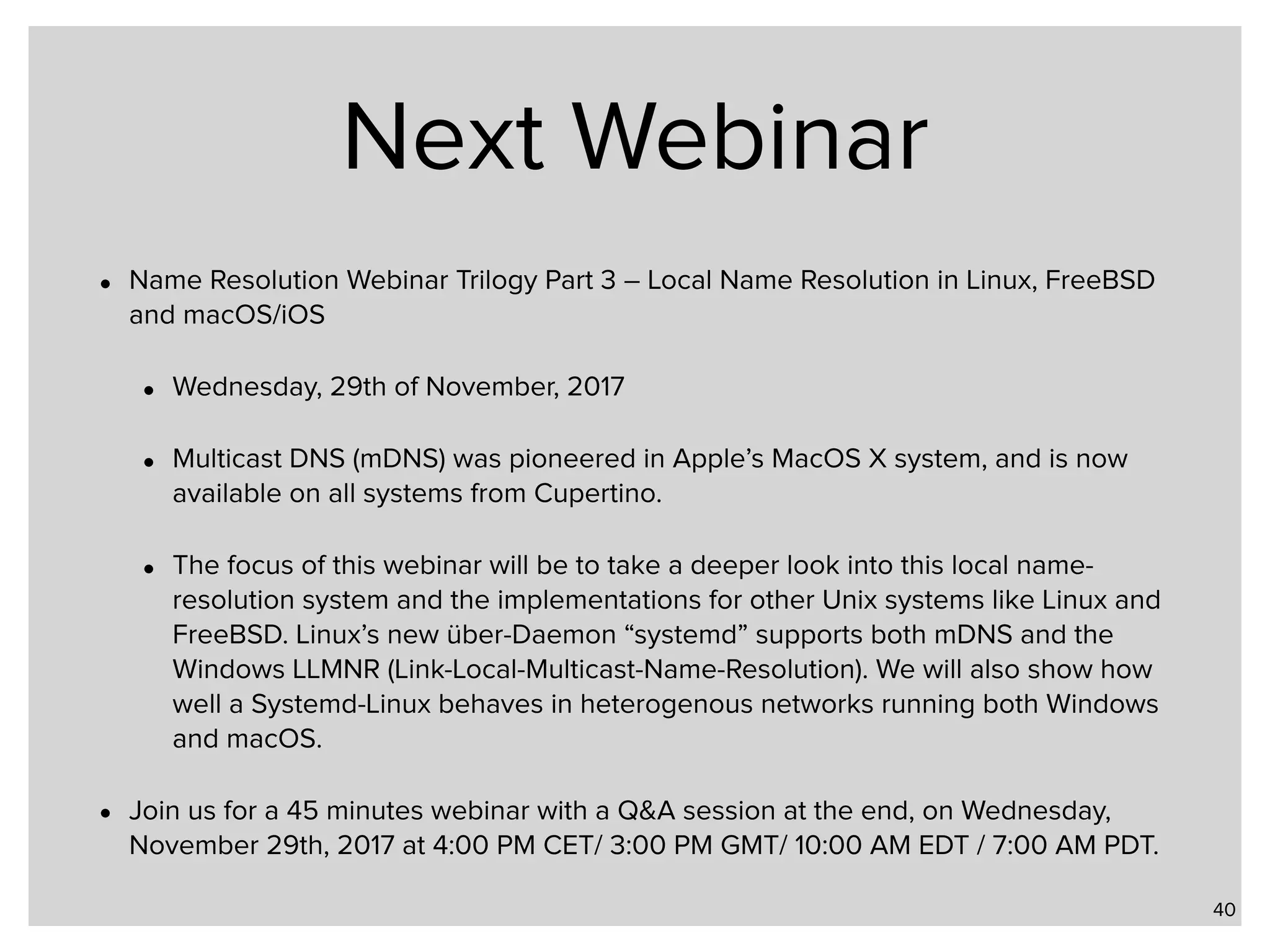

Next Webinar • Name Resolution Webinar Trilogy Part 3 – Local Name Resolution in Linux, FreeBSD and macOS/iOS • Wednesday, 29th of November, 2017 • Multicast DNS (mDNS) was pioneered in Apple’s MacOS X system, and is now available on all systems from Cupertino. • The focus of this webinar will be to take a deeper look into this local name- resolution system and the implementations for other Unix systems like Linux and FreeBSD. Linux’s new über-Daemon “systemd” supports both mDNS and the Windows LLMNR (Link-Local-Multicast-Name-Resolution). We will also show how well a Systemd-Linux behaves in heterogenous networks running both Windows and macOS. • Join us for a 45 minutes webinar with a Q&A session at the end, on Wednesday, November 29th, 2017 at 4:00 PM CET/ 3:00 PM GMT/ 10:00 AM EDT / 7:00 AM PDT. 40
