Open Source Tools for Materials Informatics

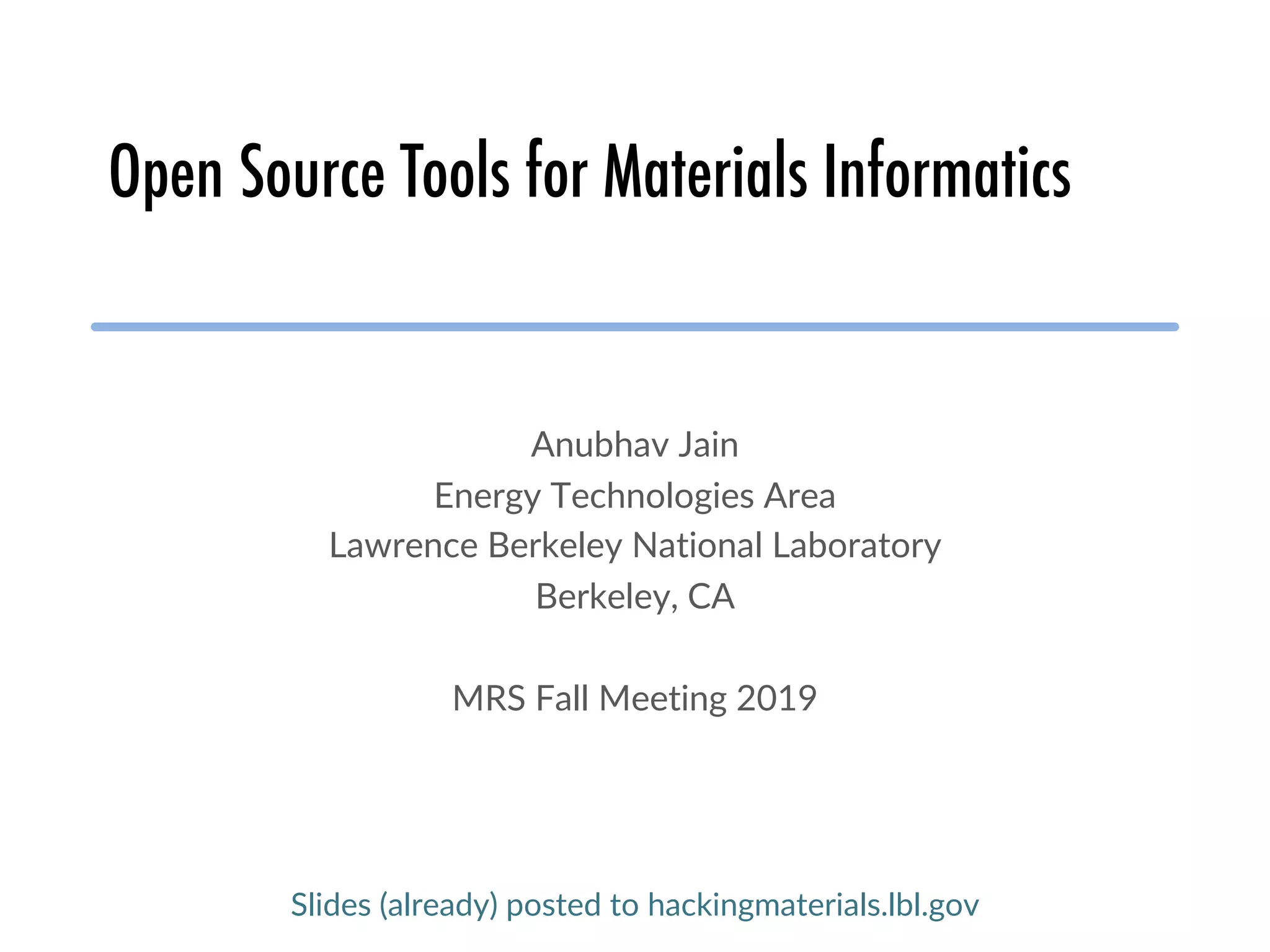

- 1. Open Source Toolsfor Materials Informatics Anubhav Jain Energy Technologies Area Lawrence Berkeley National Laboratory Berkeley, CA MRS Fall Meeting 2019 Slides (already) posted to hackingmaterials.lbl.gov

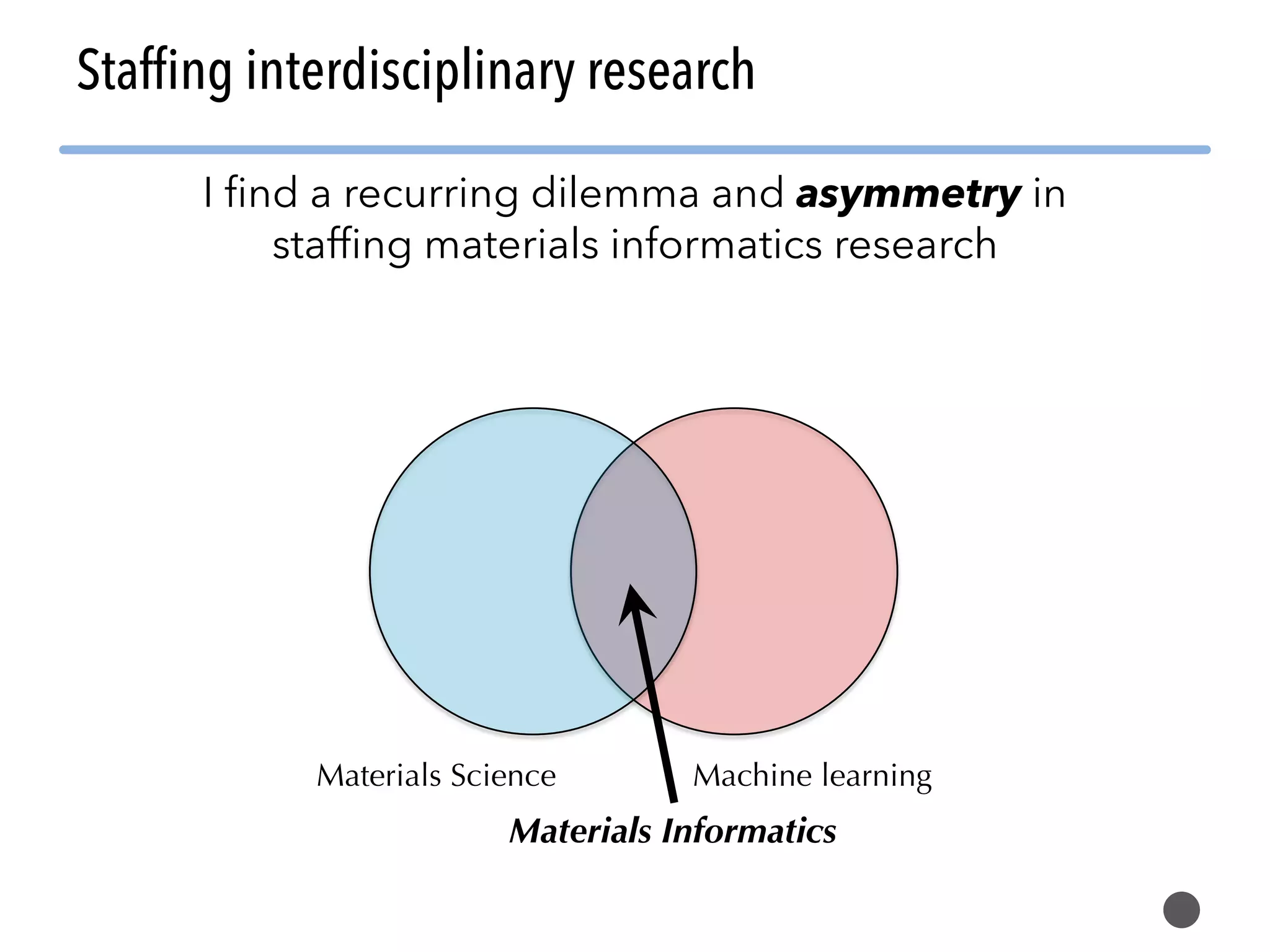

- 2. Staffing interdisciplinary research MachinelearningMaterials Science I find a recurring dilemma and asymmetry in staffing materials informatics research Materials Informatics
- 3. 3 Who has atougher job to get started? MS&E major CS major • Already has background in the material science aspects of the project • But needs to learn the machine learning and software engineering aspects • Already has background in software engineering and appropriate machine learning • But needs to learn the materials science aspects

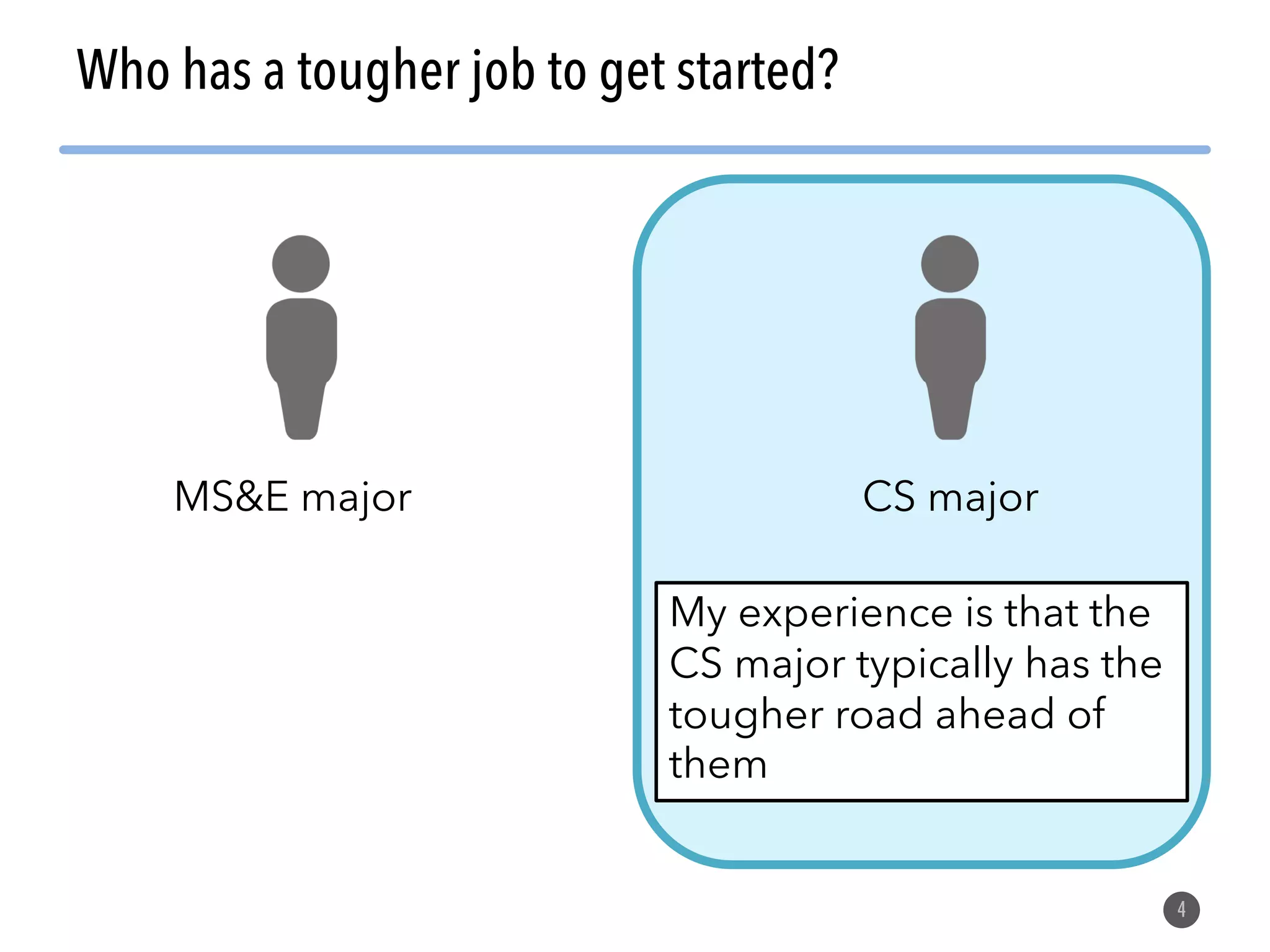

- 4. 4 MS&E major CSmajor My experience is that the CS major typically has the tougher road ahead of them Who has a tougher job to get started?

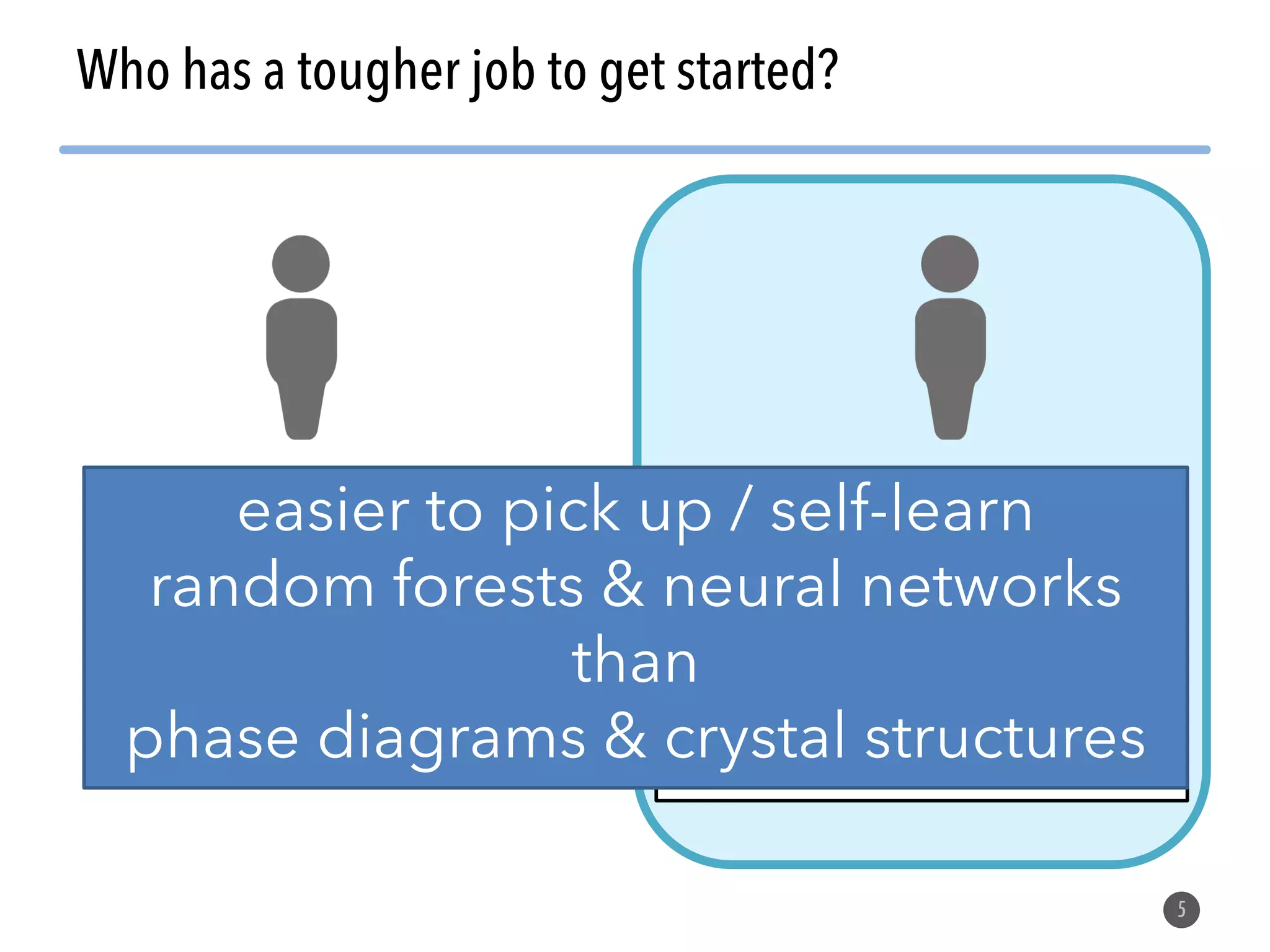

- 5. 5 MS&E major CSmajor My experience is that the CS major typically has the tougher road ahead of them Who has a tougher job to get started? easier to pick up / self-learn random forests & neural networks than phase diagrams & crystal structures

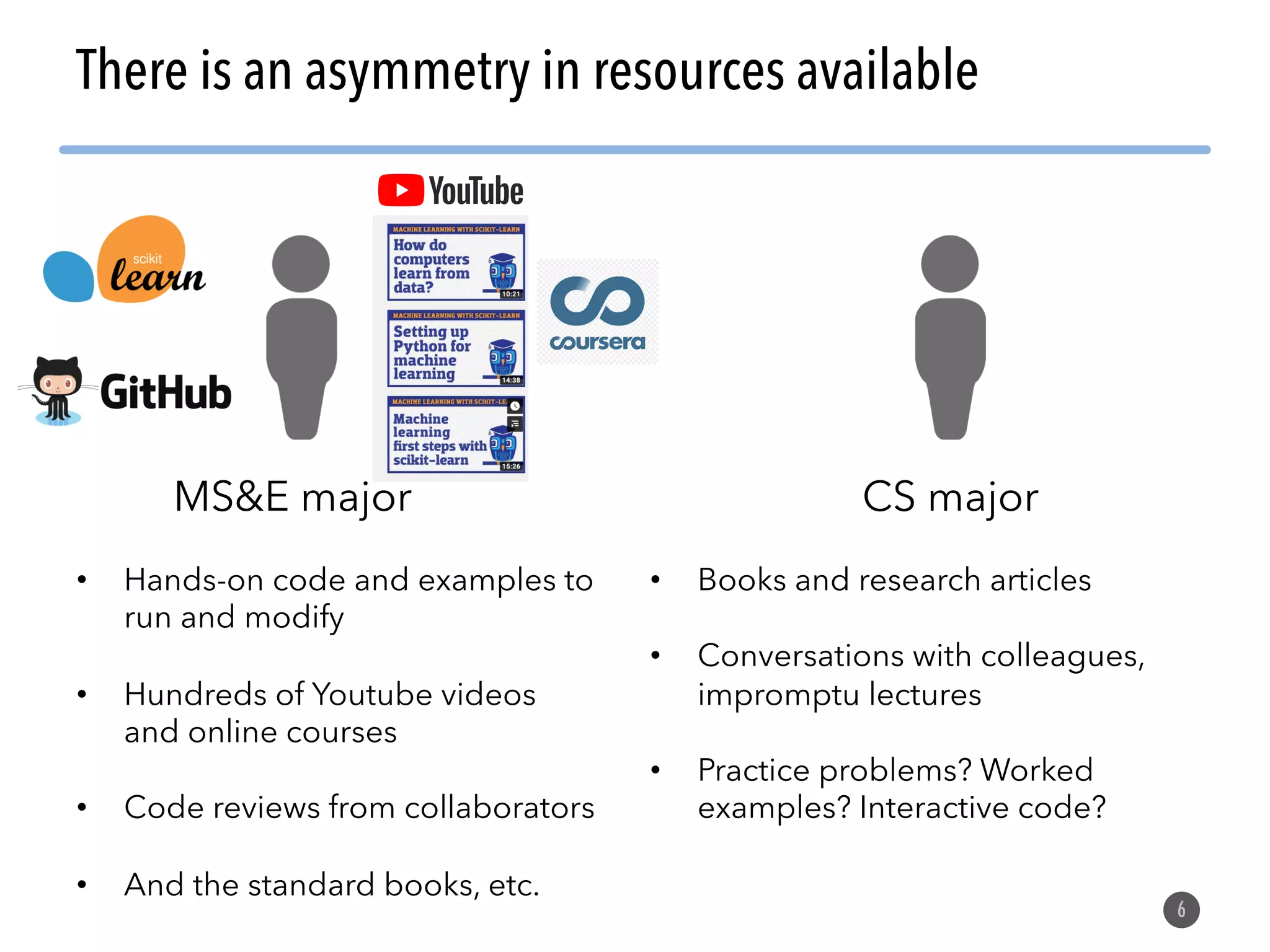

- 6. 6 There is anasymmetry in resources available MS&E major CS major • Hands-on code and examples to run and modify • Hundreds of Youtube videos and online courses • Code reviews from collaborators • And the standard books, etc. • Books and research articles • Conversations with colleagues, impromptu lectures • Practice problems? Worked examples? Interactive code?

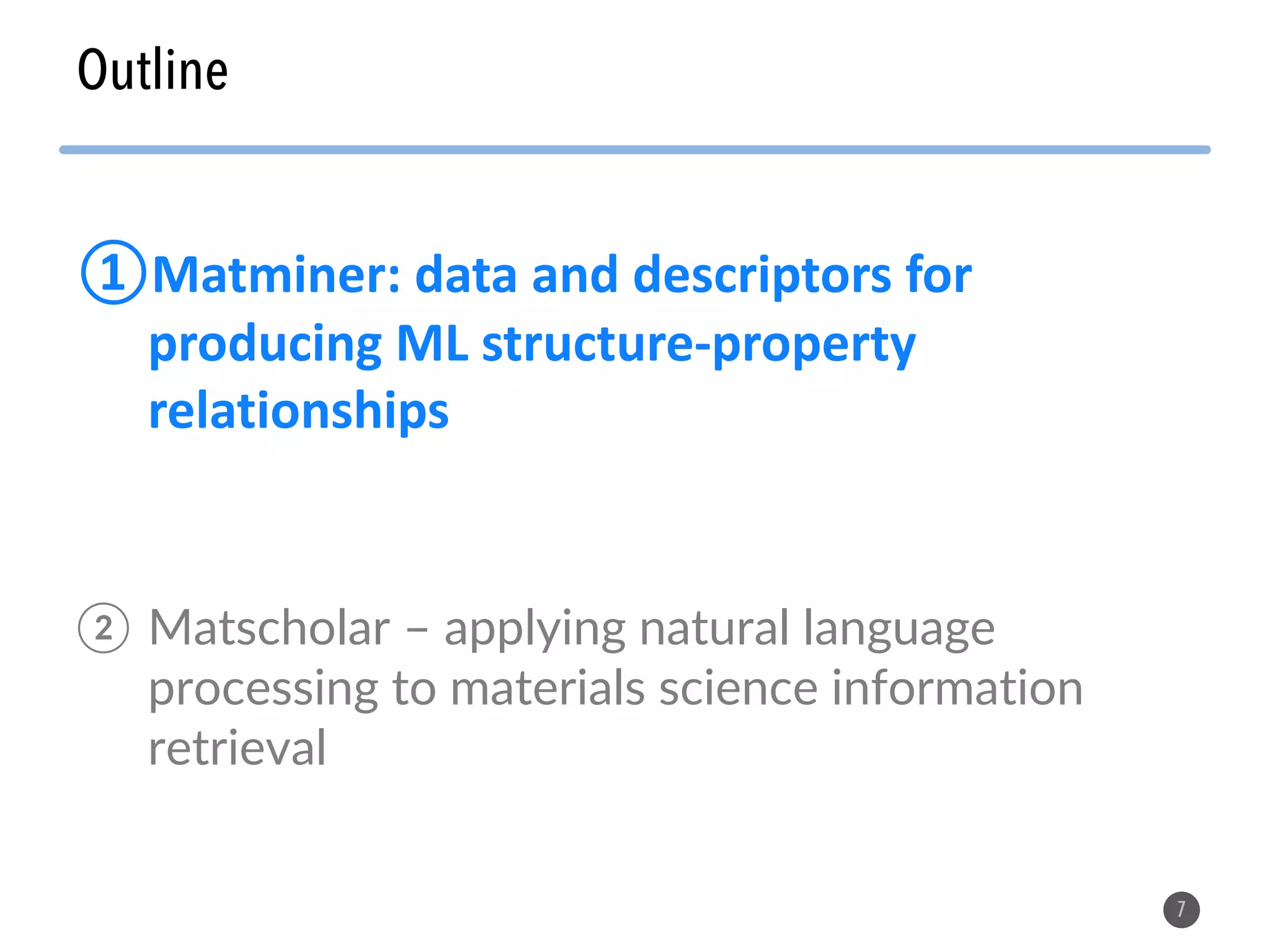

- 7. Outline 7 ①Matminer: data anddescriptors for producing ML structure-property relationships ② Matscholar – applying natural language processing to materials science information retrieval

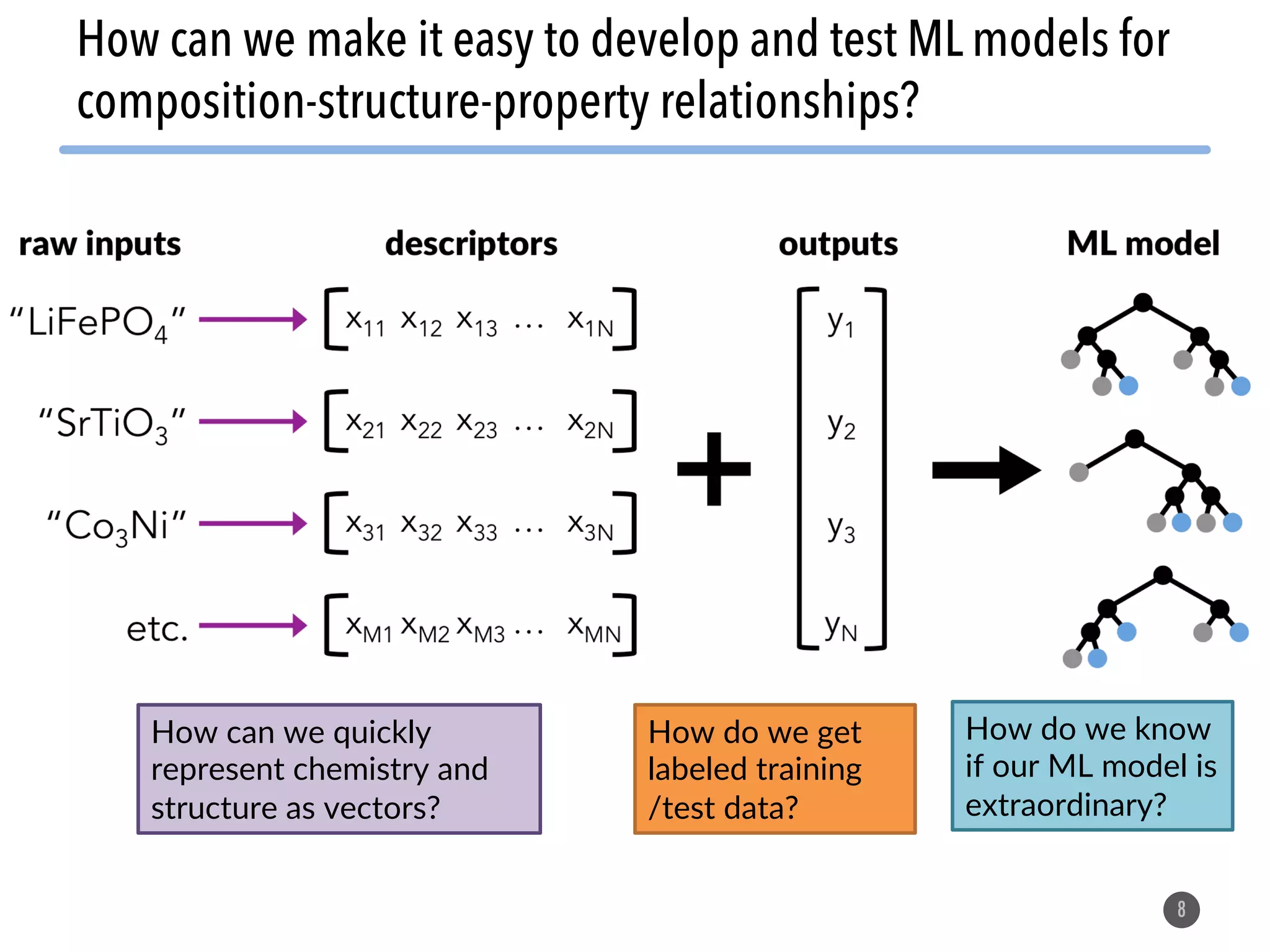

- 8. 8 How can wemake it easy to develop and test ML models for composition-structure-property relationships? How can we quickly represent chemistry and structure as vectors? How do we get labeled training /test data? How do we know if our ML model is extraordinary?

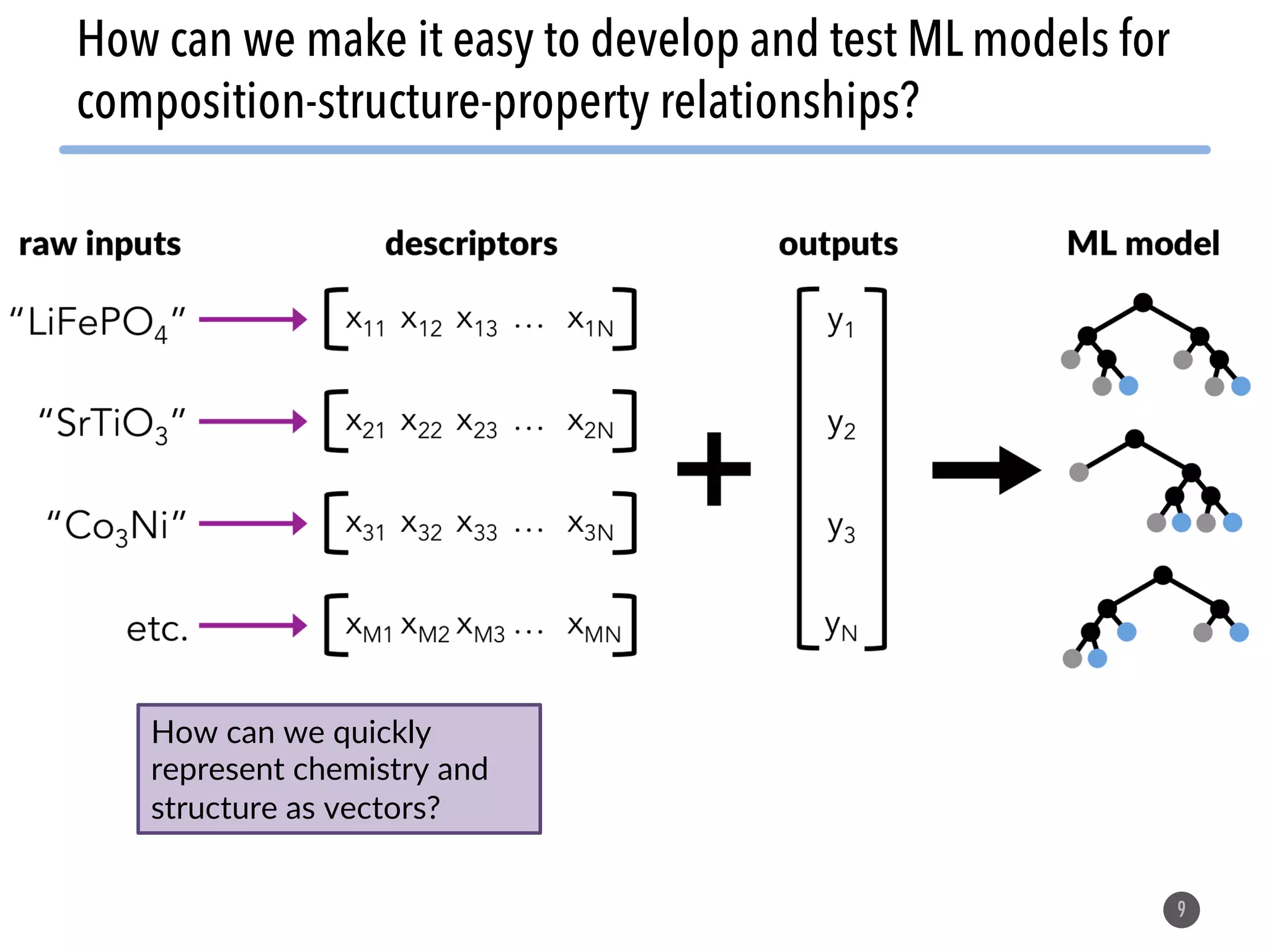

- 9. 9 How can wemake it easy to develop and test ML models for composition-structure-property relationships? How can we quickly represent chemistry and structure as vectors?

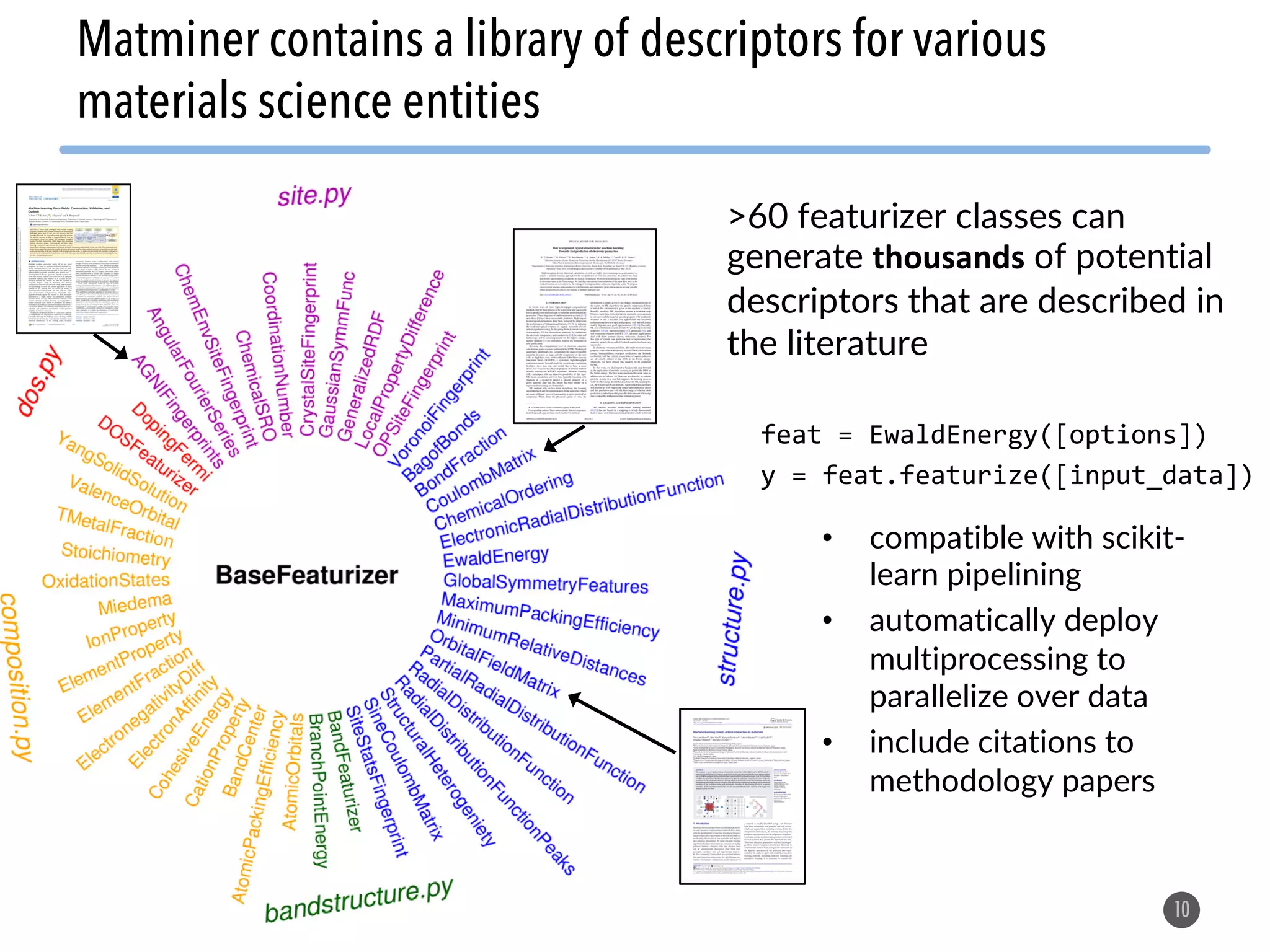

- 10. >60 featurizer classescan generate thousands of potential descriptors that are described in the literature 10 Matminer contains a library of descriptors for various materials science entities feat = EwaldEnergy([options]) y = feat.featurize([input_data]) • compatible with scikit- learn pipelining • automatically deploy multiprocessing to parallelize over data • include citations to methodology papers

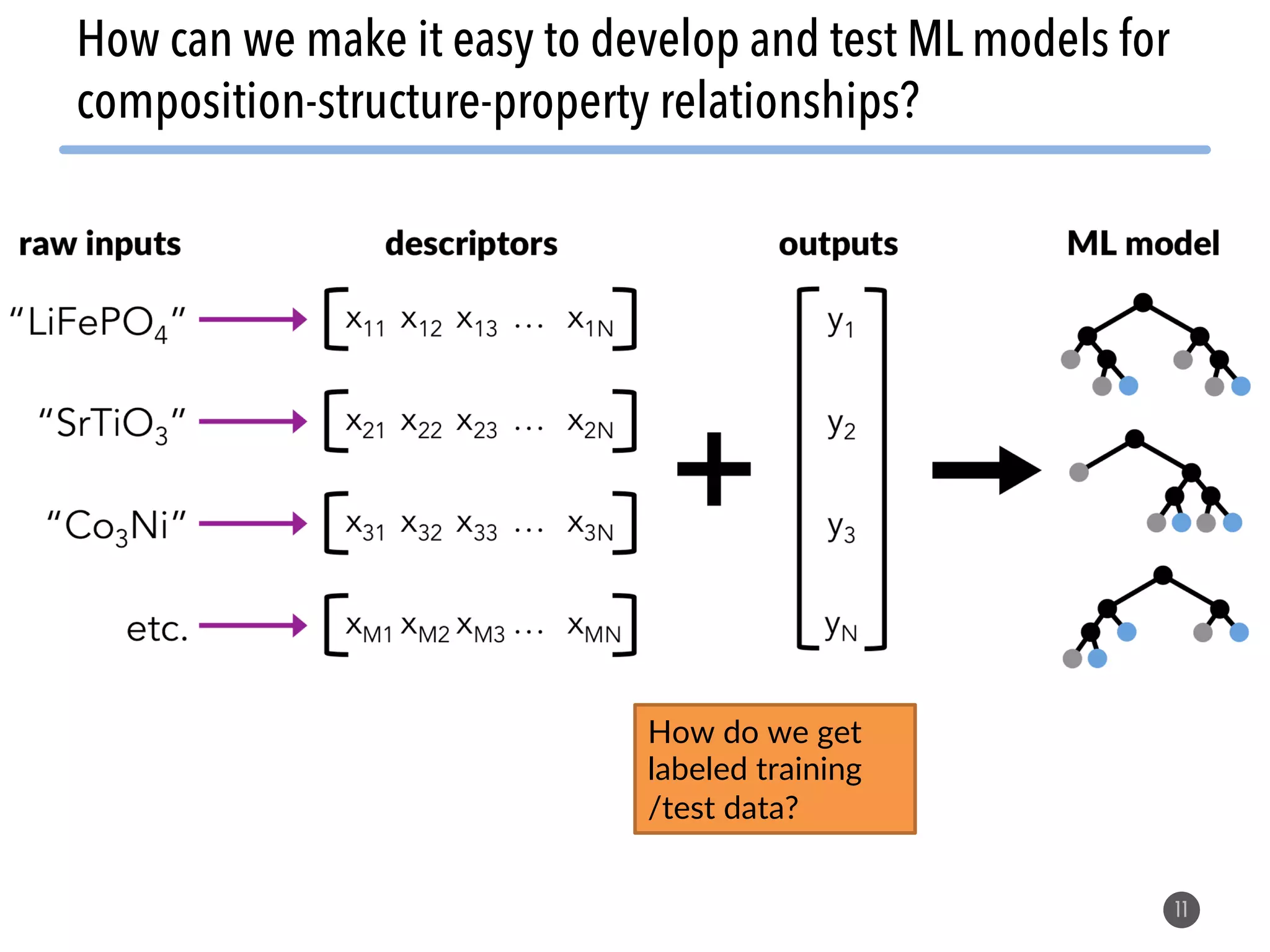

- 11. 11 How can wemake it easy to develop and test ML models for composition-structure-property relationships? How do we get labeled training /test data?

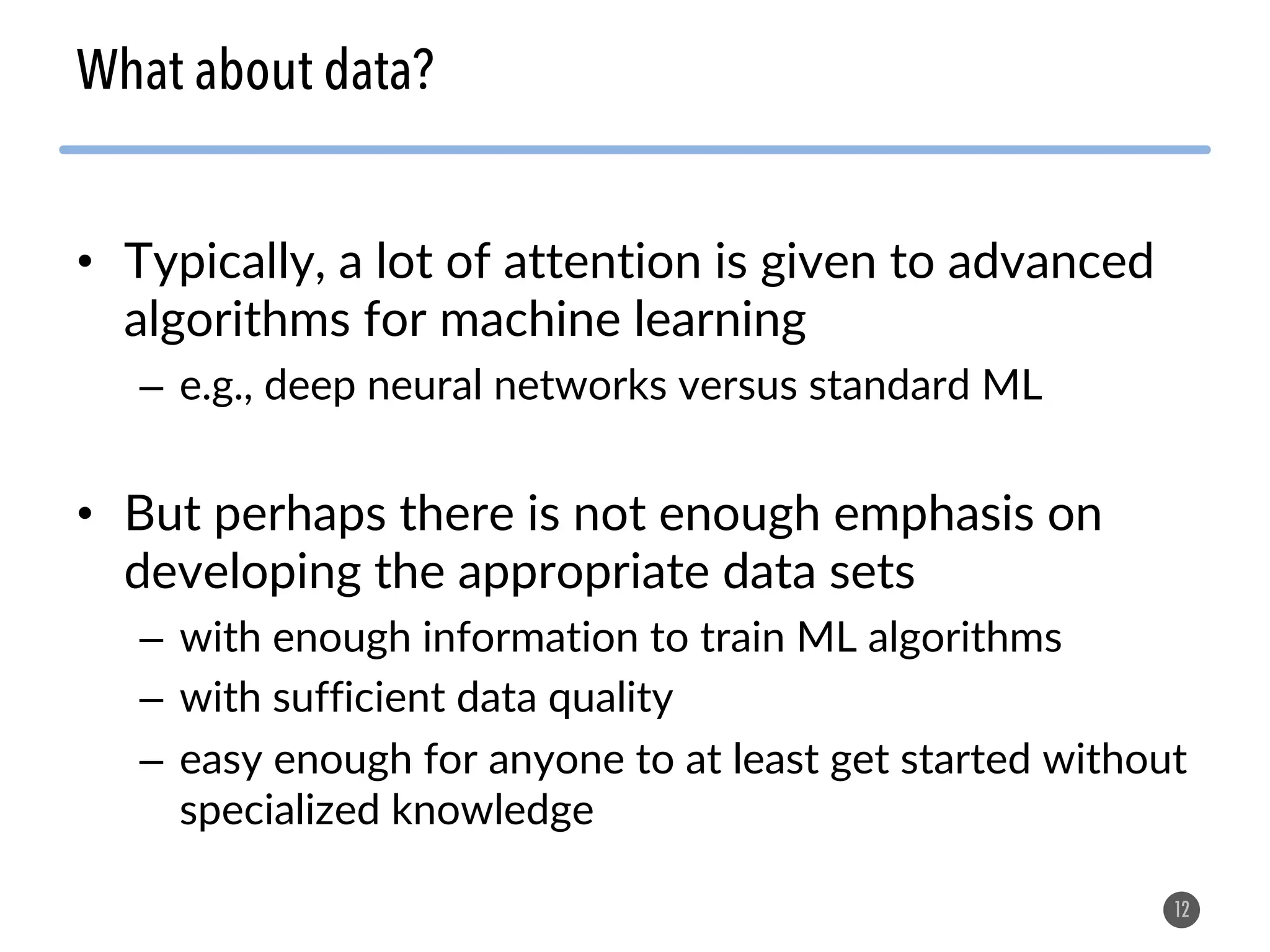

- 12. • Typically, alot of attention is given to advanced algorithms for machine learning – e.g., deep neural networks versus standard ML • But perhaps there is not enough emphasis on developing the appropriate data sets – with enough information to train ML algorithms – with sufficient data quality – easy enough for anyone to at least get started without specialized knowledge 12 What about data?

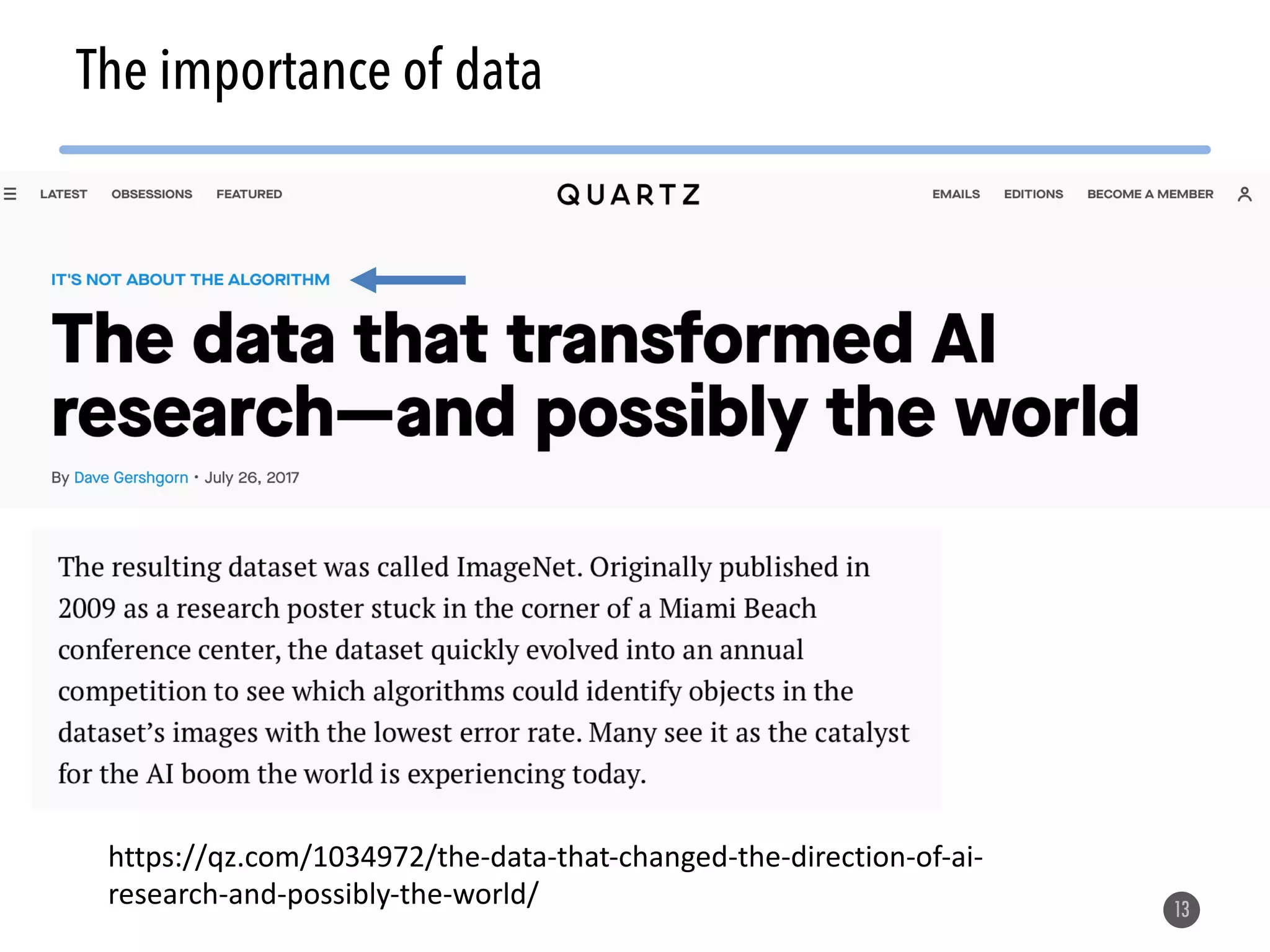

- 13. The importance ofdata 13 https://qz.com/1034972/the-data-that-changed-the-direction-of-ai- research-and-possibly-the-world/
- 14. 14 What is ImageNet? TheImageNet data set collected and hand-labeled (e.g., via Amazon Mechanical Turk). The latest version has over 14 million hand-annotated images, organized into ~20,000 categories

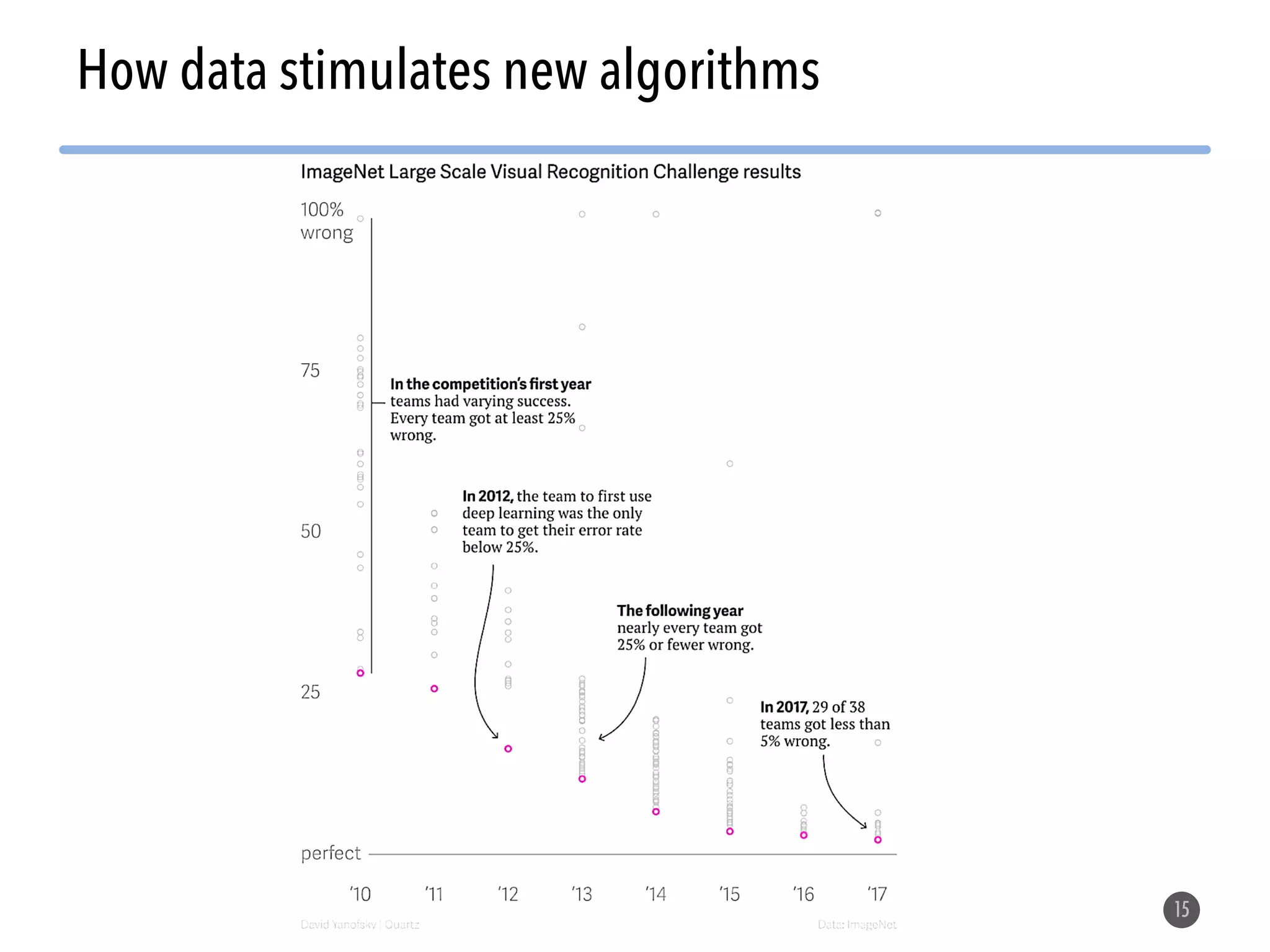

- 15. How data stimulatesnew algorithms 15

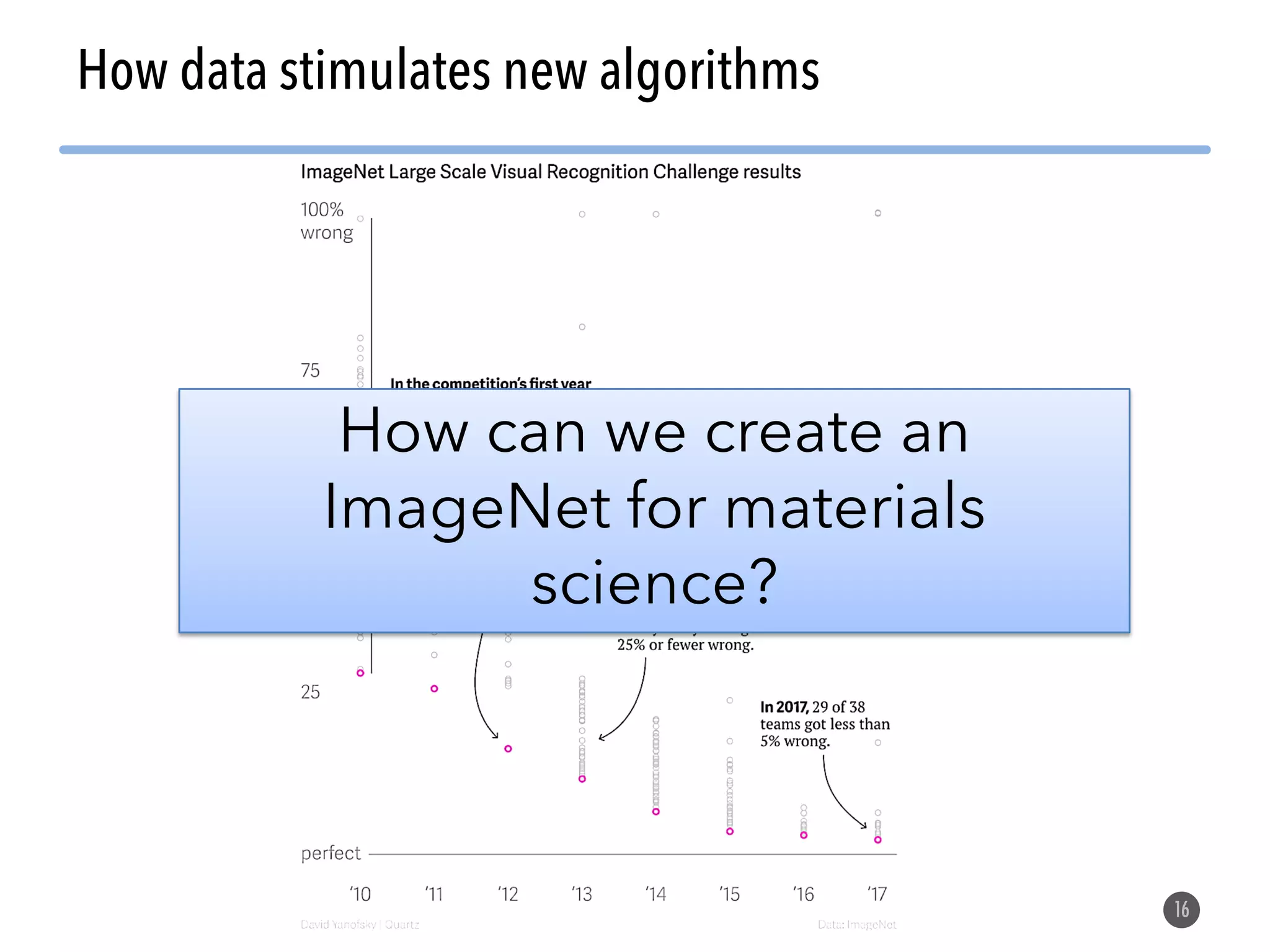

- 16. How data stimulatesnew algorithms 16 How can we create an ImageNet for materials science?

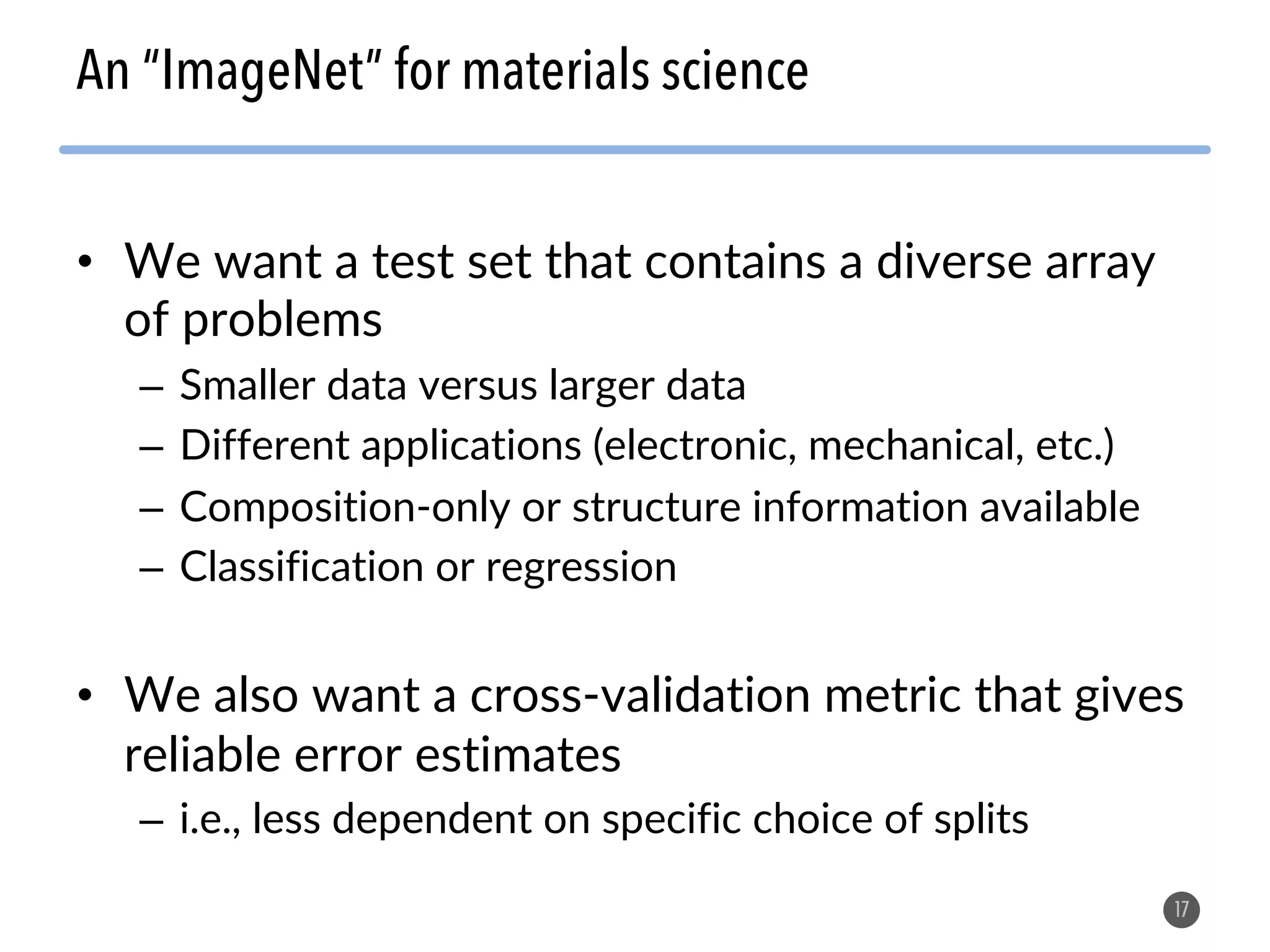

- 17. • We wanta test set that contains a diverse array of problems – Smaller data versus larger data – Different applications (electronic, mechanical, etc.) – Composition-only or structure information available – Classification or regression • We also want a cross-validation metric that gives reliable error estimates – i.e., less dependent on specific choice of splits 17 An “ImageNet” for materials science

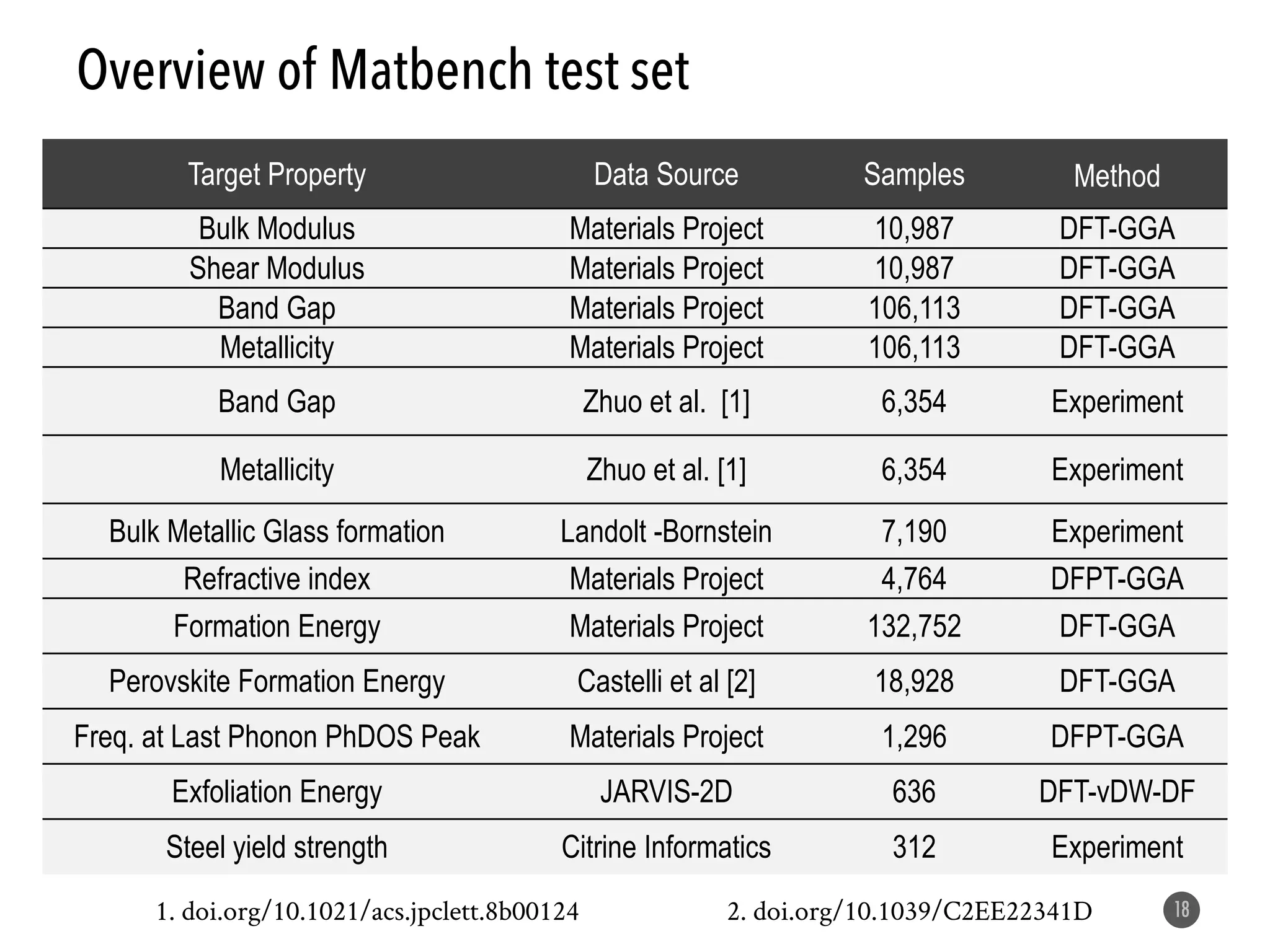

- 18. 18 Overview of Matbenchtest set Target Property Data Source Samples Method Bulk Modulus Materials Project 10,987 DFT-GGA Shear Modulus Materials Project 10,987 DFT-GGA Band Gap Materials Project 106,113 DFT-GGA Metallicity Materials Project 106,113 DFT-GGA Band Gap Zhuo et al. [1] 6,354 Experiment Metallicity Zhuo et al. [1] 6,354 Experiment Bulk Metallic Glass formation Landolt -Bornstein 7,190 Experiment Refractive index Materials Project 4,764 DFPT-GGA Formation Energy Materials Project 132,752 DFT-GGA Perovskite Formation Energy Castelli et al [2] 18,928 DFT-GGA Freq. at Last Phonon PhDOS Peak Materials Project 1,296 DFPT-GGA Exfoliation Energy JARVIS-2D 636 DFT-vDW-DF Steel yield strength Citrine Informatics 312 Experiment 1. doi.org/10.1021/acs.jpclett.8b00124 2. doi.org/10.1039/C2EE22341D

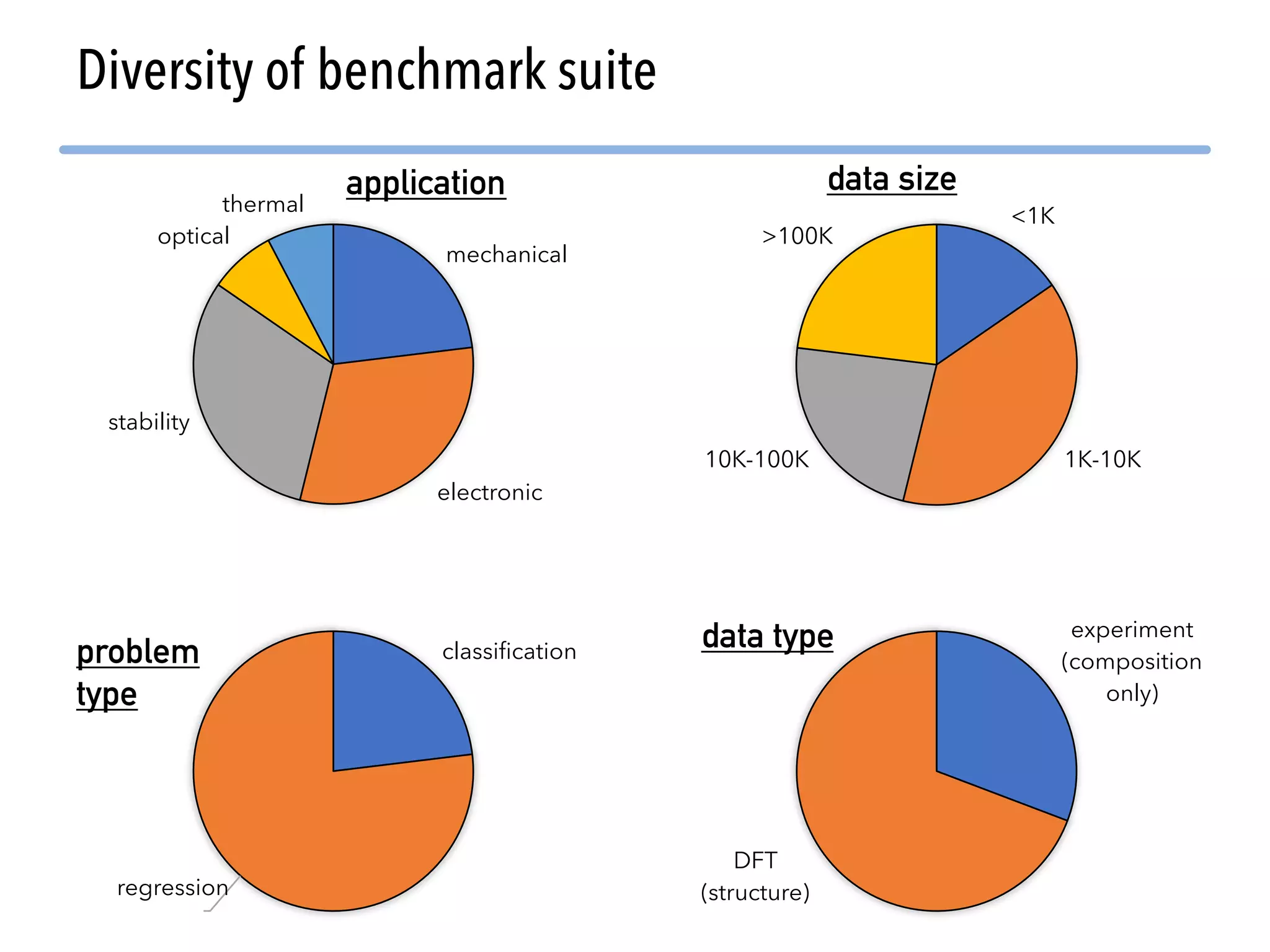

- 19. <1K 1K-10K10K-100K >100K 19 Diversity of benchmarksuite mechanical electronic stability optical thermal classification regression experiment (composition only) DFT (structure) application data size problem type data type

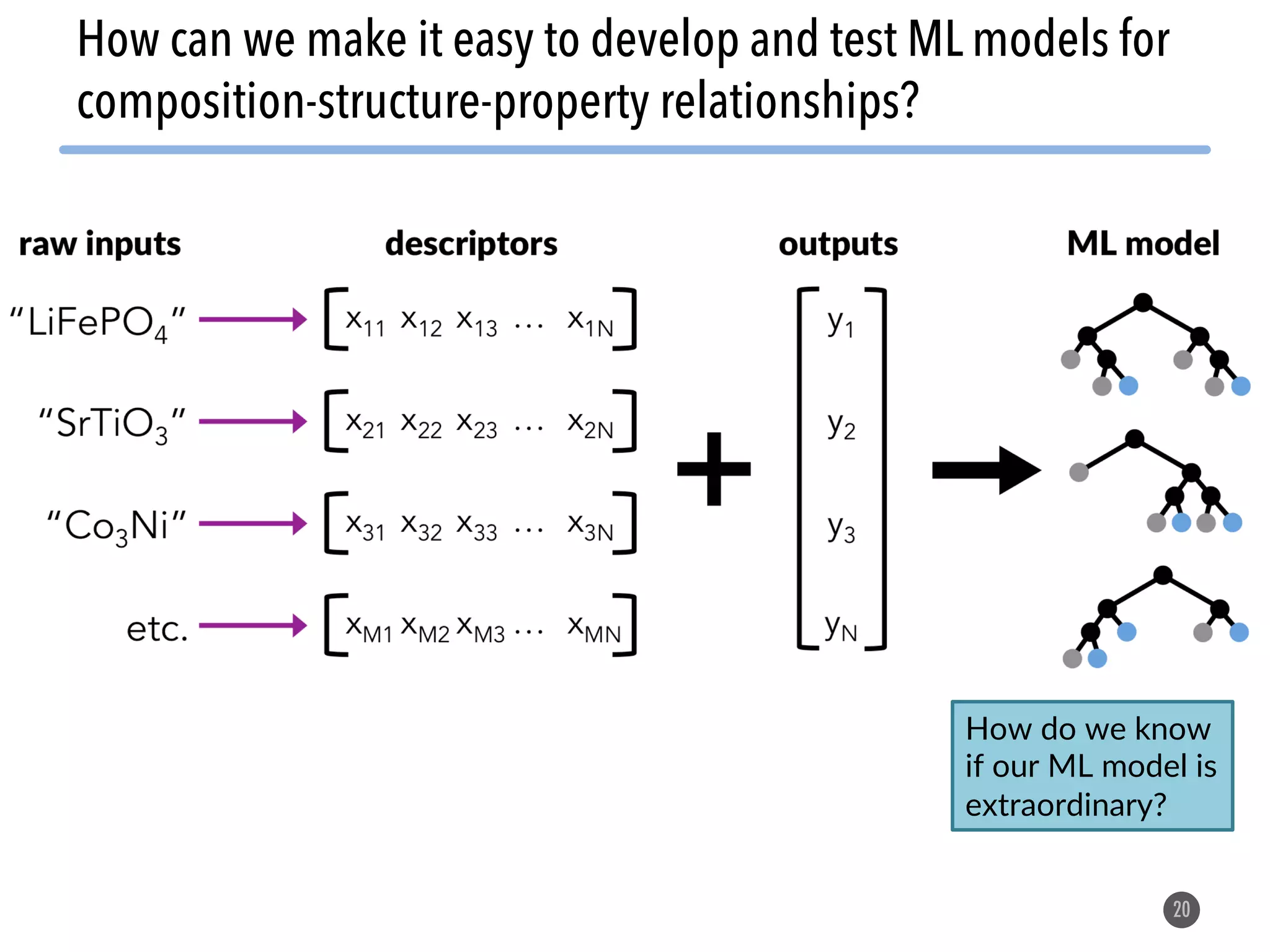

- 20. 20 How can wemake it easy to develop and test ML models for composition-structure-property relationships? How do we know if our ML model is extraordinary?

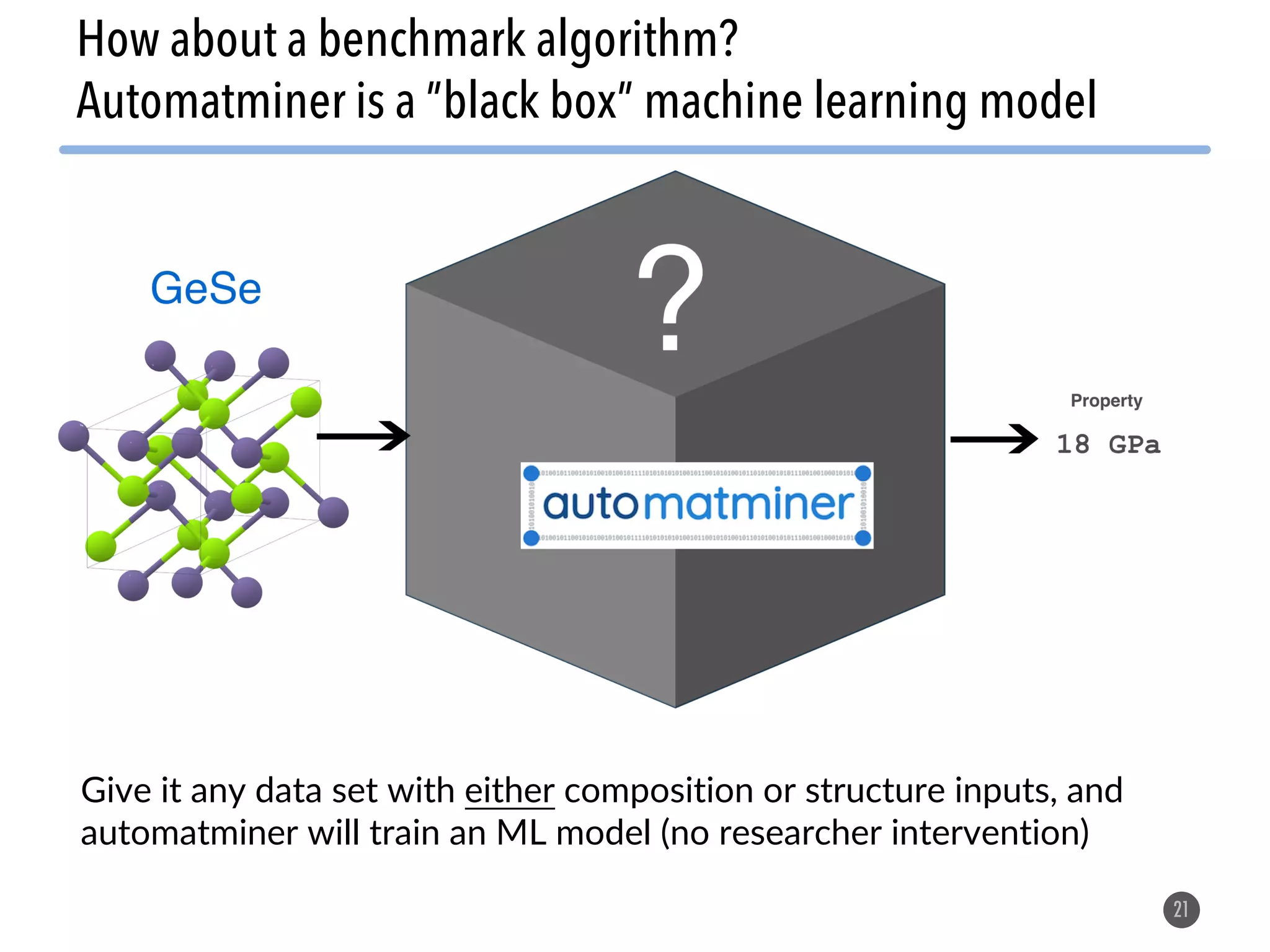

- 21. 21 How about abenchmark algorithm? Automatminer is a ”black box” machine learning model Give it any data set with either composition or structure inputs, and automatminer will train an ML model (no researcher intervention)

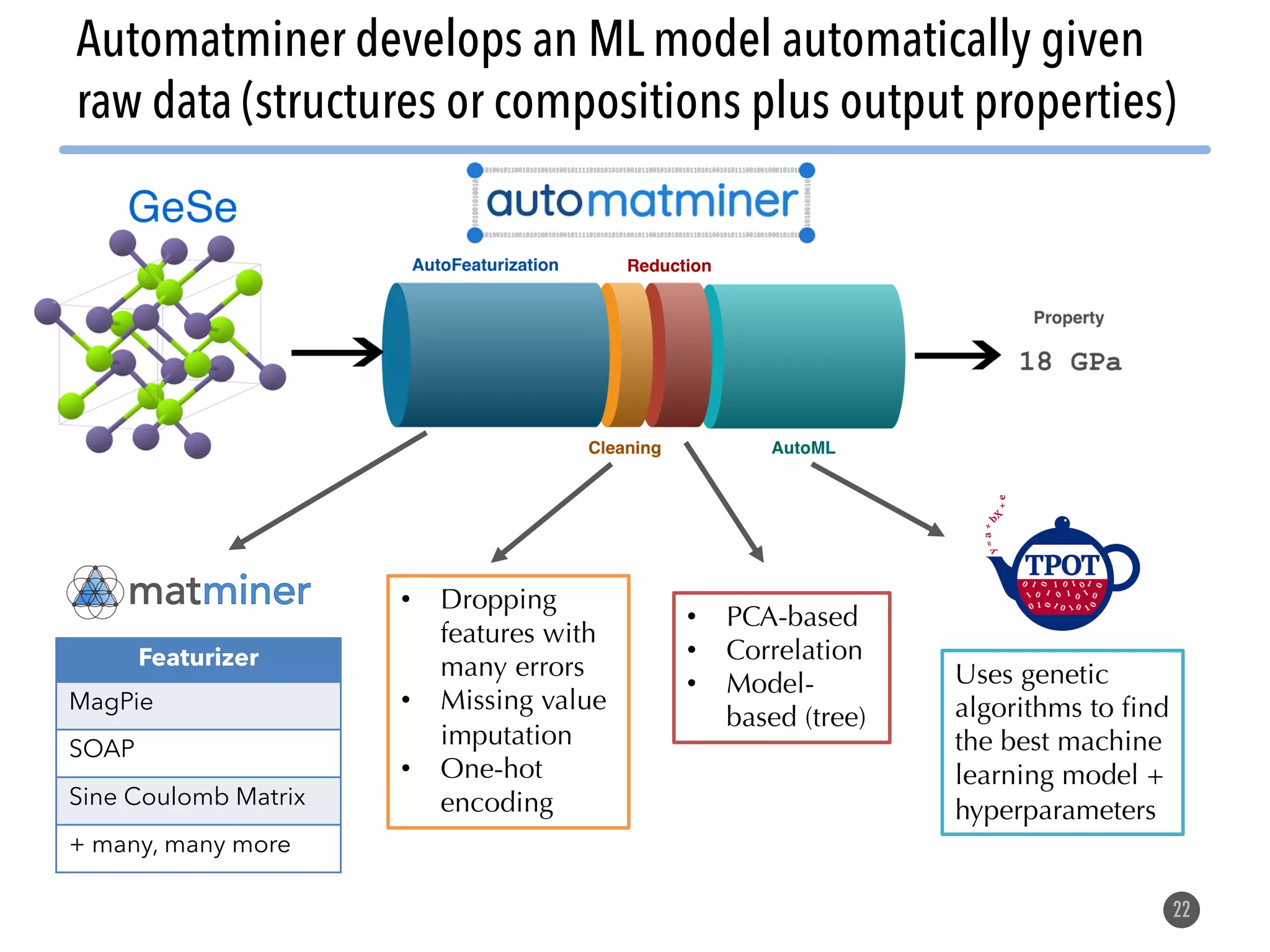

- 22. 22 Automatminer develops anML model automatically given raw data (structures or compositions plus output properties) Featurizer MagPie SOAP Sine Coulomb Matrix + many, many more • Dropping features with many errors • Missing value imputation • One-hot encoding • PCA-based • Correlation • Model- based (tree) Uses genetic algorithms to find the best machine learning model + hyperparameters

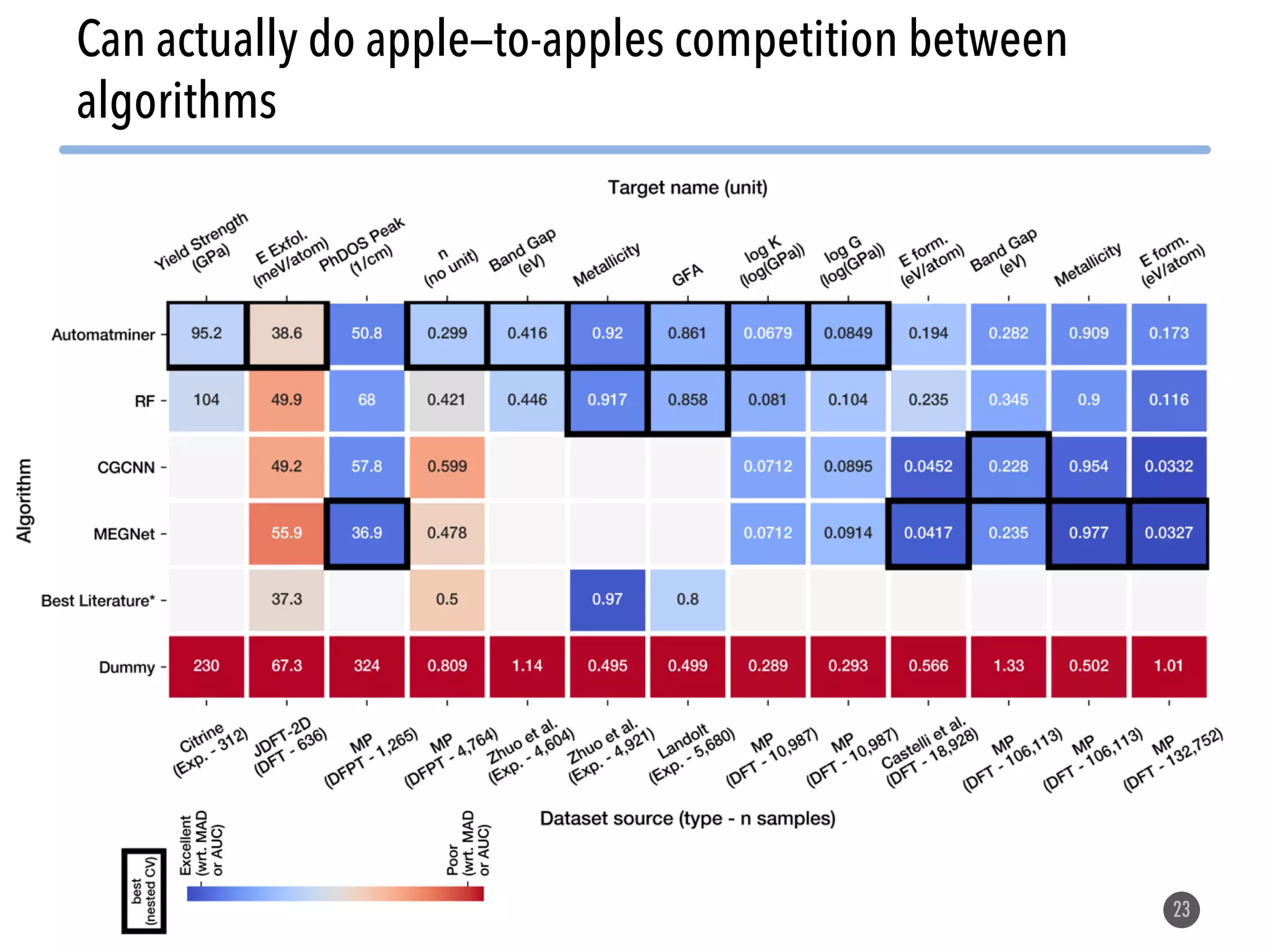

- 23. 23 Can actually doapple—to-apples competition between algorithms

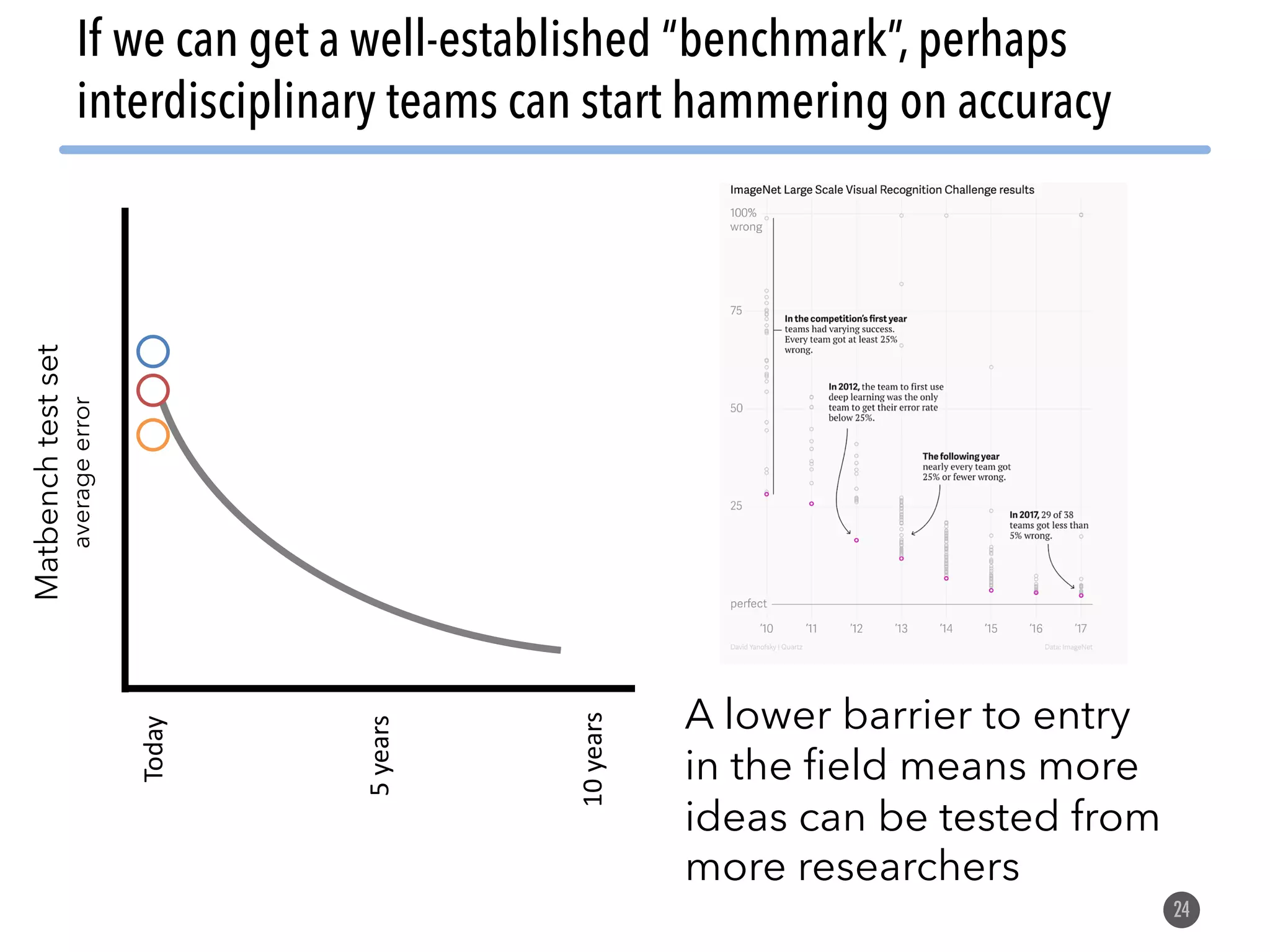

- 24. 24 If we canget a well-established “benchmark”, perhaps interdisciplinary teams can start hammering on accuracy Today 5years 10years A lower barrier to entry in the field means more ideas can be tested from more researchers Matbenchtestset averageerror
- 25. 25 Matminer, matbench, andautomatminer can all be accessed, used, and modified by anyone Code / Examples all on Github • github.com/hackingmaterials/matminer • github.com/hackingmaterials/matminer_examples • github.com/hackingmaterials/automatminer Matbench data on Figshare • (coming soon, still finalizing) Free support via Discourse • https://discuss.matsci.org

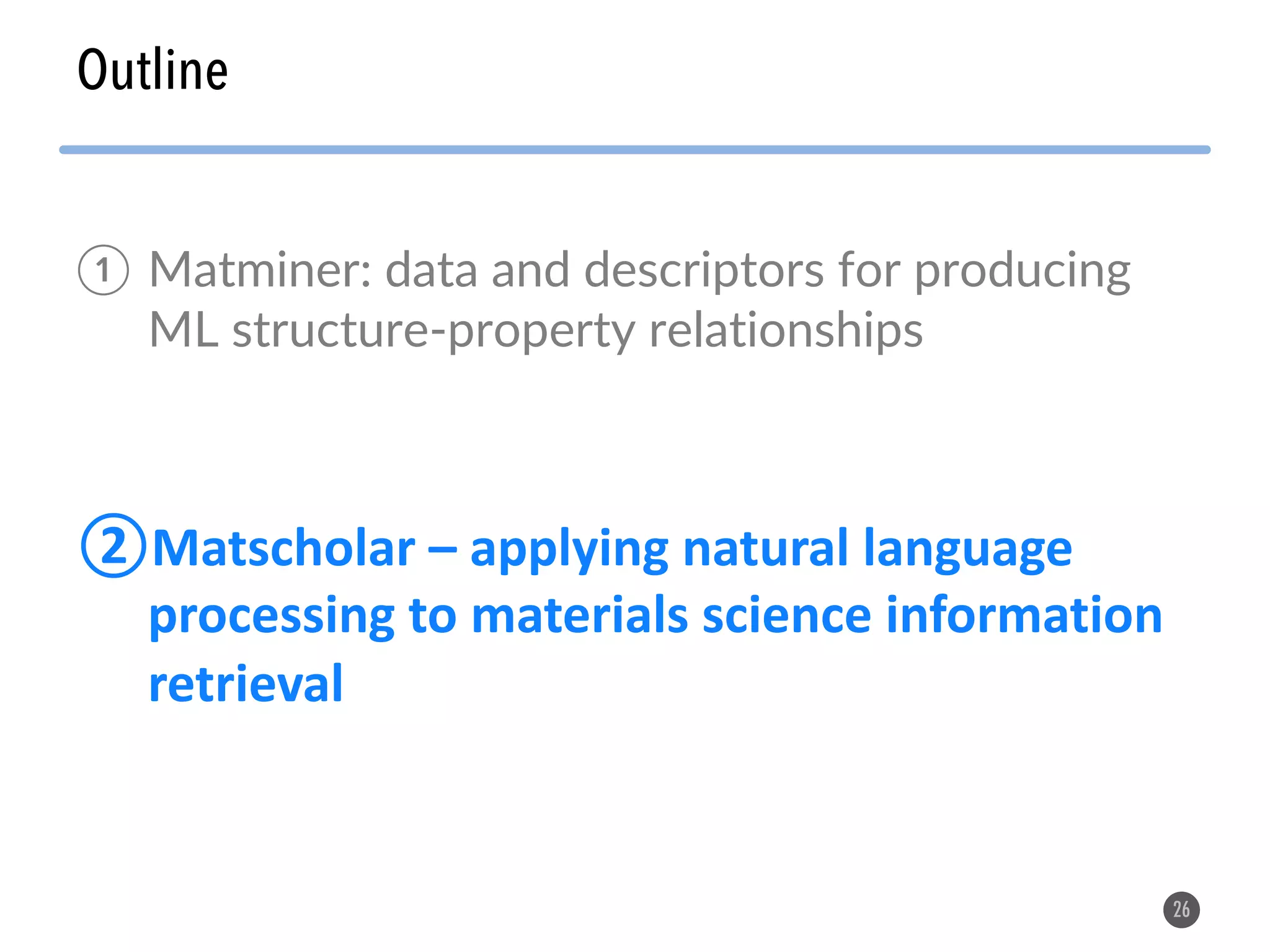

- 26. Outline 26 ① Matminer: dataand descriptors for producing ML structure-property relationships ②Matscholar – applying natural language processing to materials science information retrieval

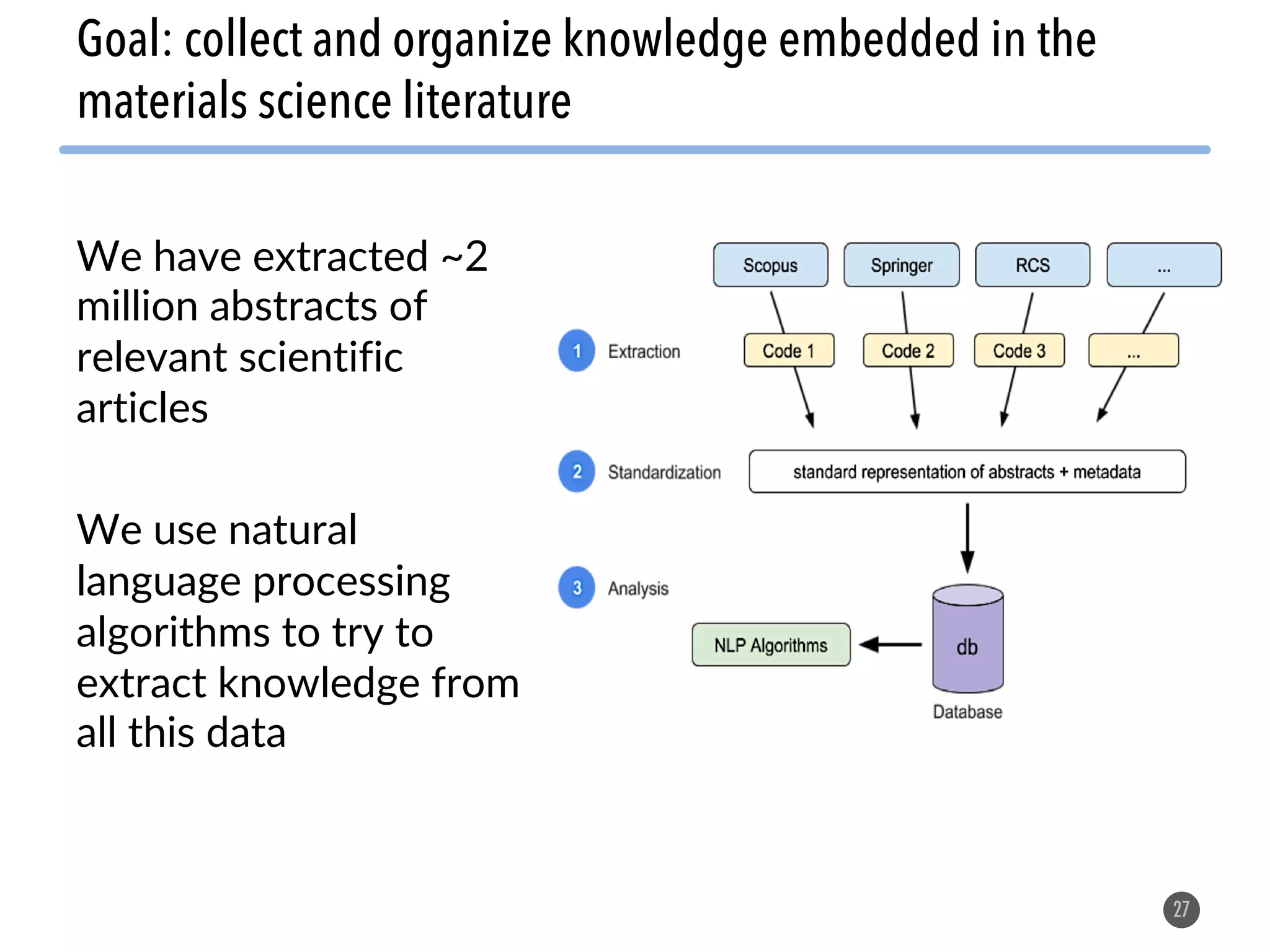

- 27. We have extracted~2 million abstracts of relevant scientific articles We use natural language processing algorithms to try to extract knowledge from all this data 27 Goal: collect and organize knowledge embedded in the materials science literature

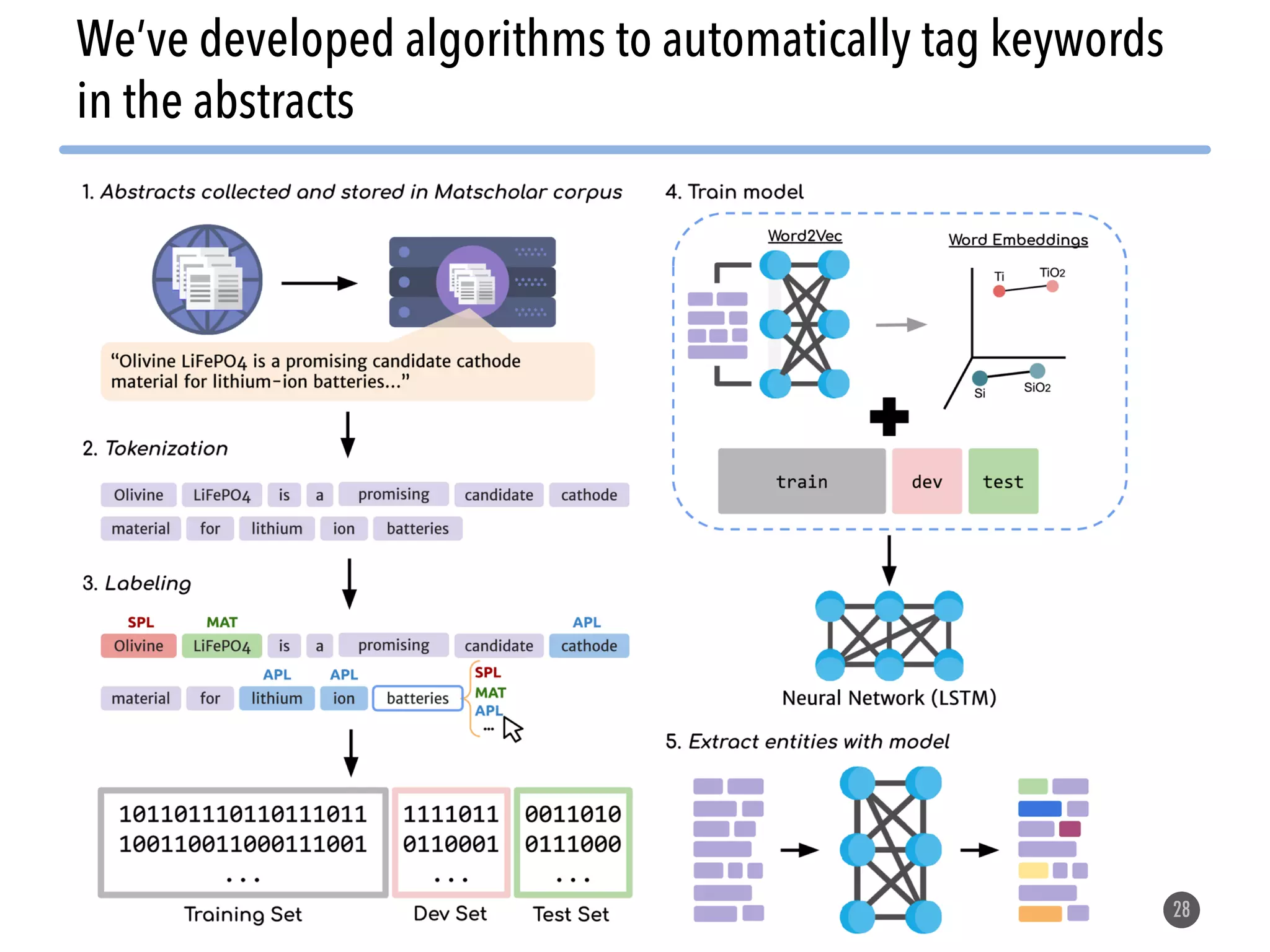

- 28. 28 We’ve developed algorithmsto automatically tag keywords in the abstracts

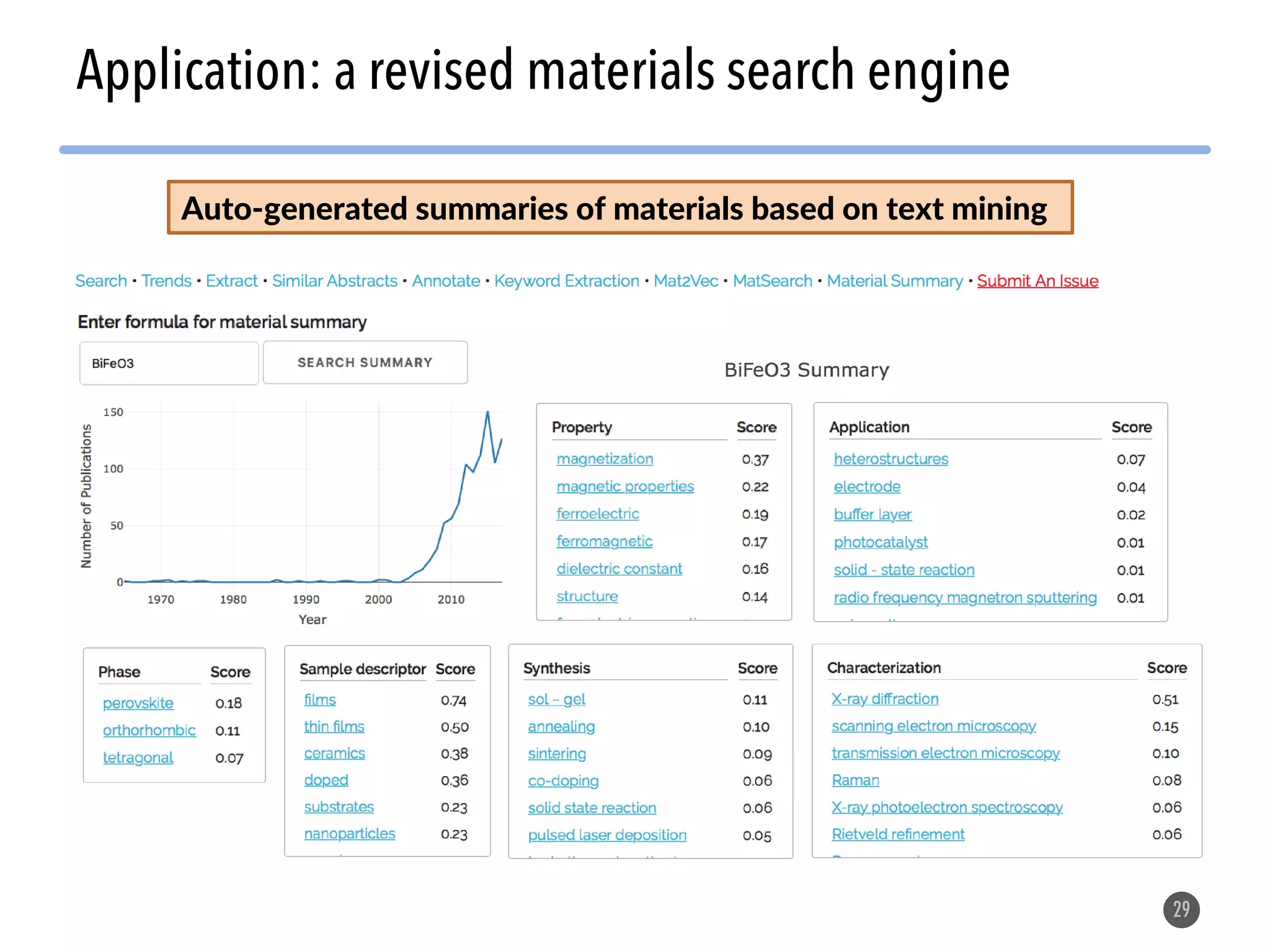

- 29. 29 Application: a revisedmaterials search engine Auto-generated summaries of materials based on text mining

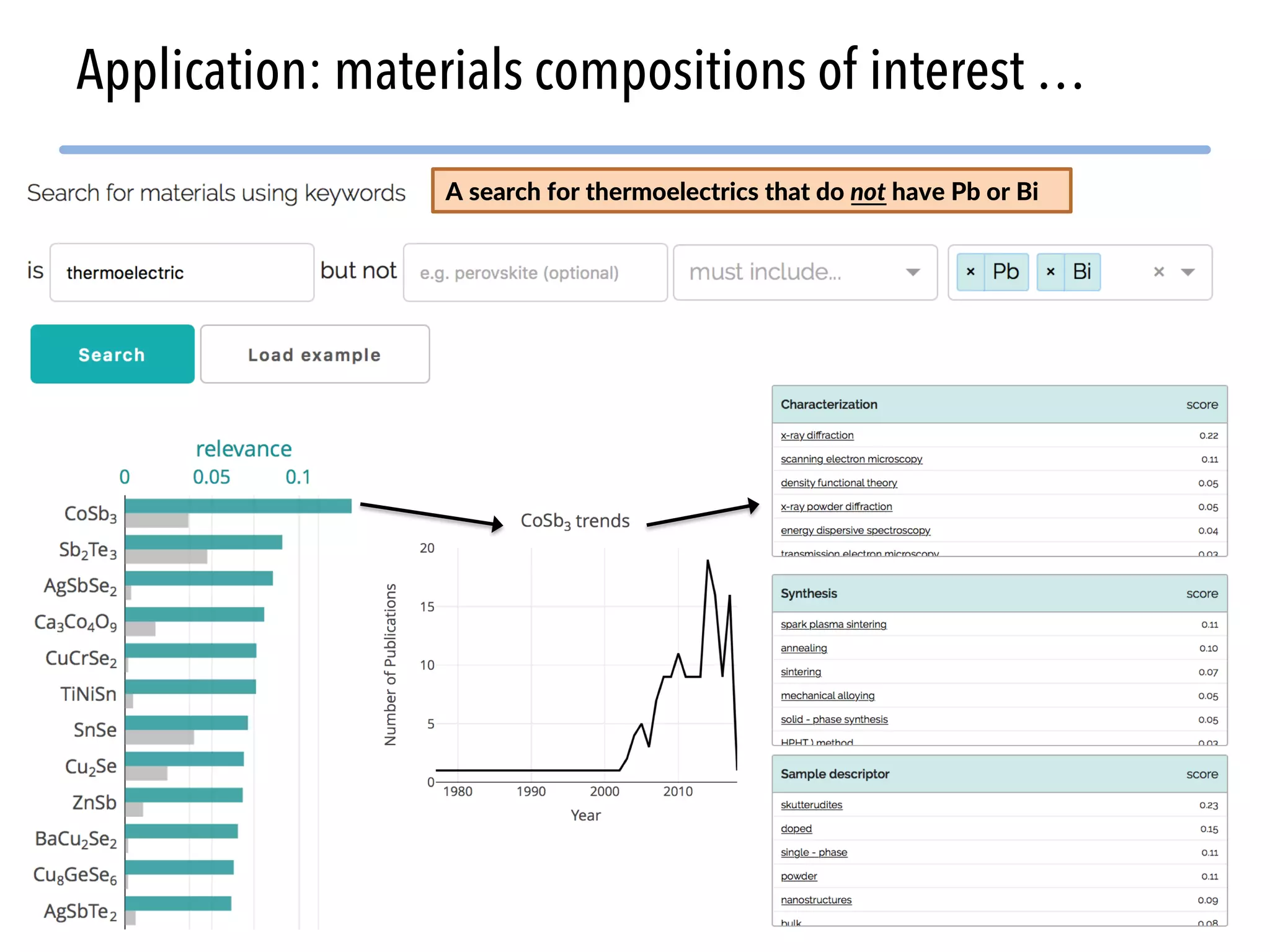

- 30. 30 Application: materials compositionsof interest … A search for thermoelectrics that do not have Pb or Bi
- 31. • How dowe get more people benefitting from this work and involved in improving it? • One solution - expose an easy-to-use web frontend, with links to all the backend codes in case people want to dive further – New tools like Plotly Dash make this easier than ever 31 Using a web site as a “gateway” into the algorithms frontend backend

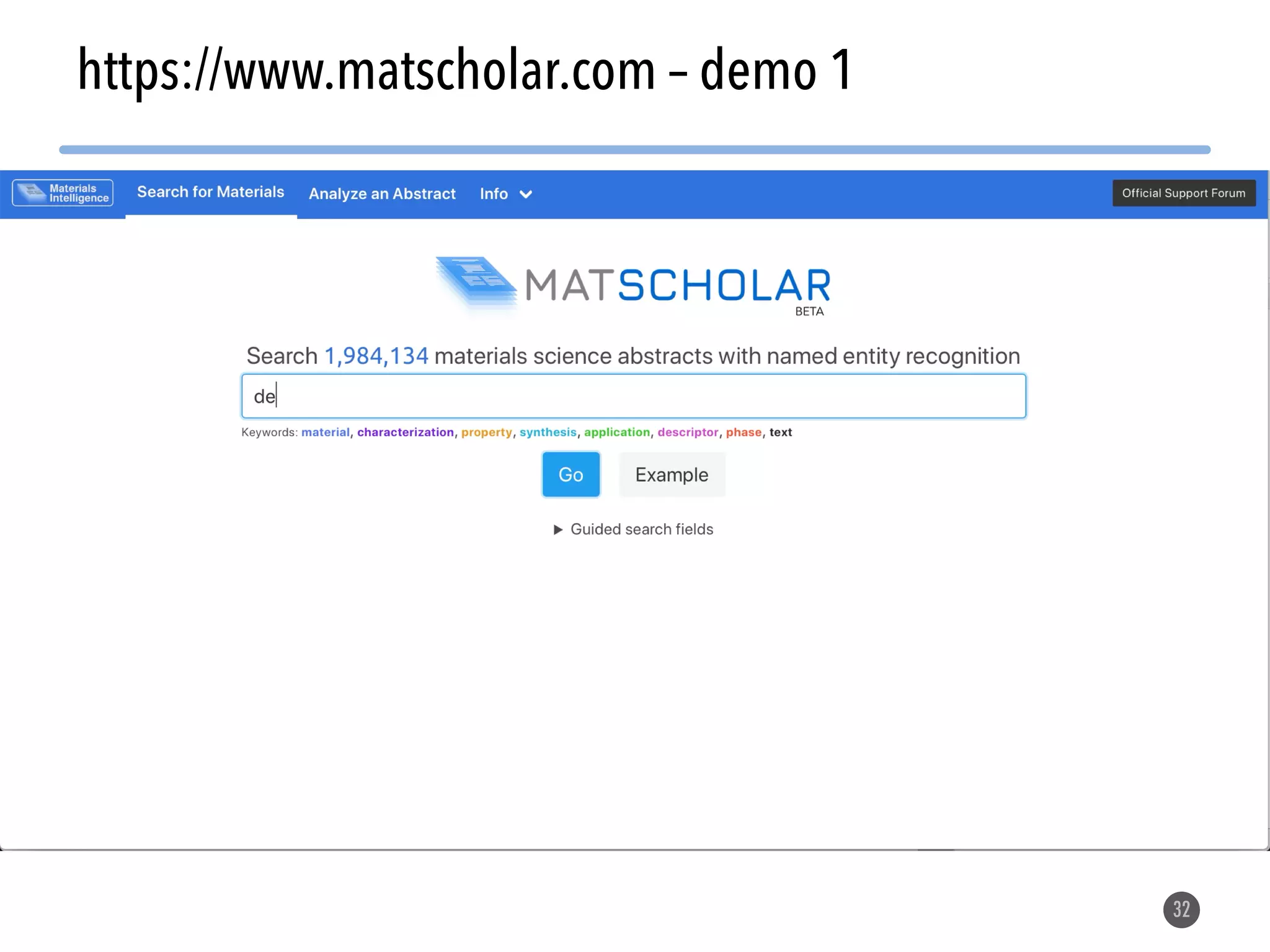

- 32.

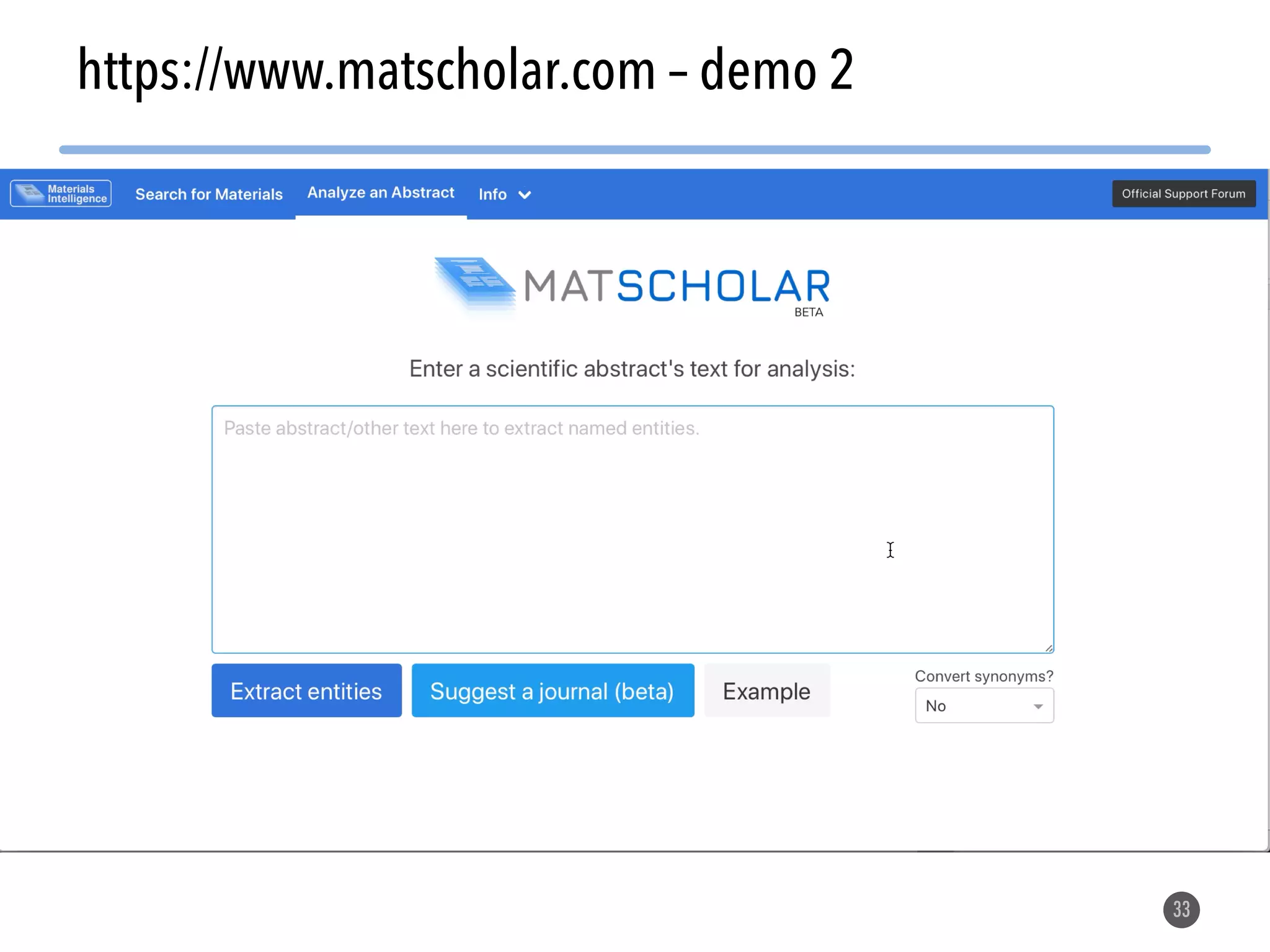

- 33.

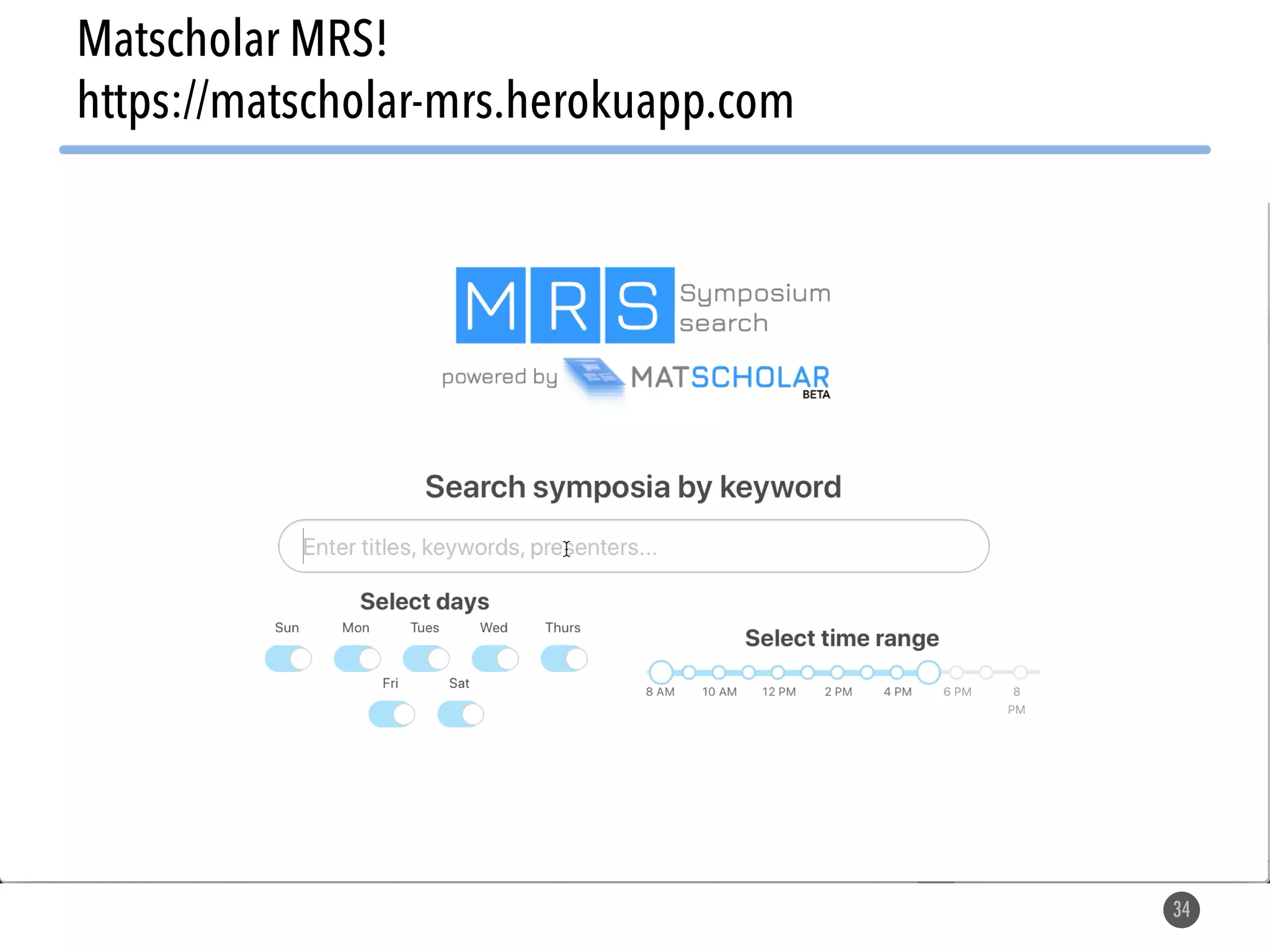

- 34.

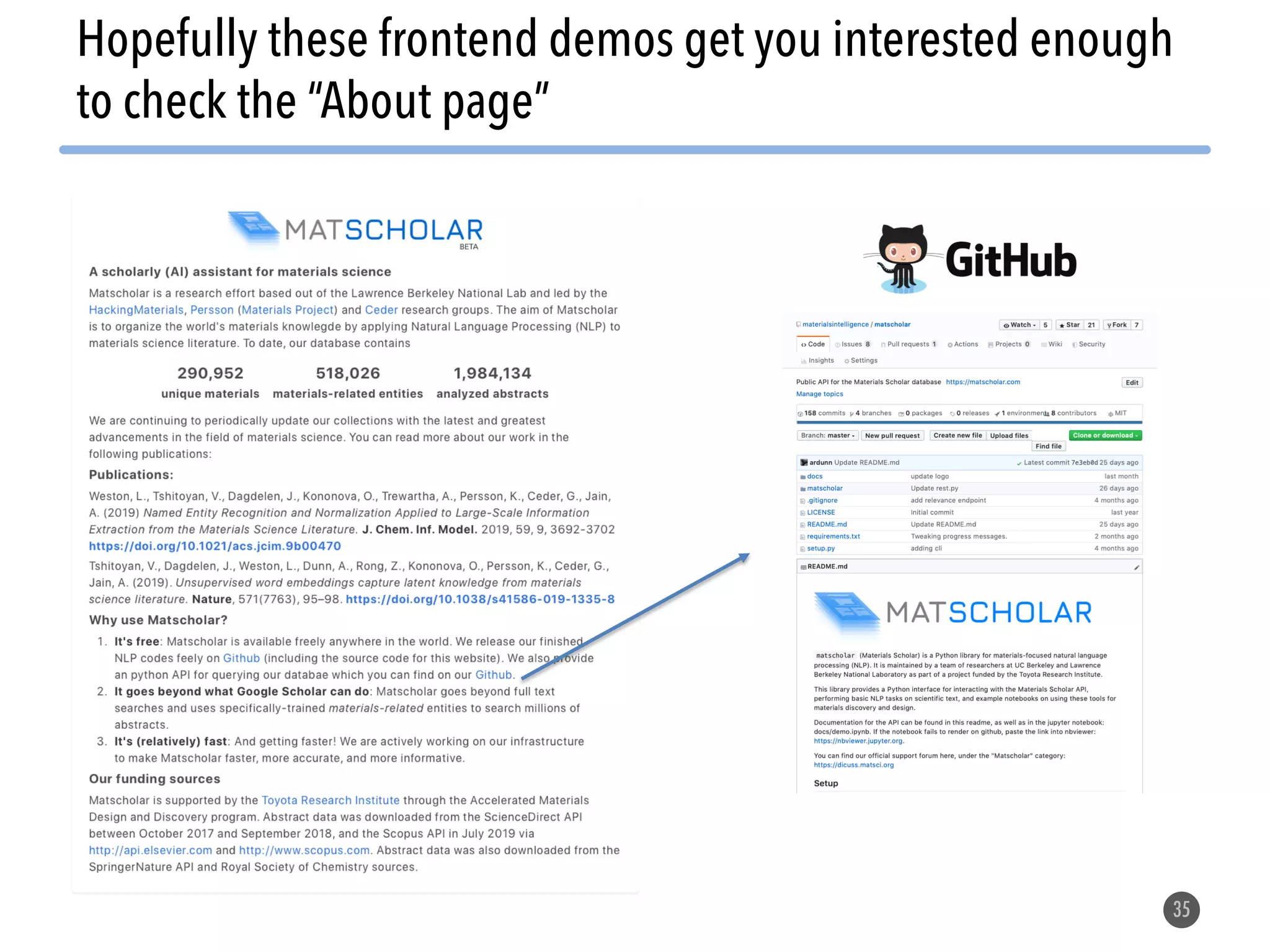

- 35. 35 Hopefully these frontenddemos get you interested enough to check the “About page”

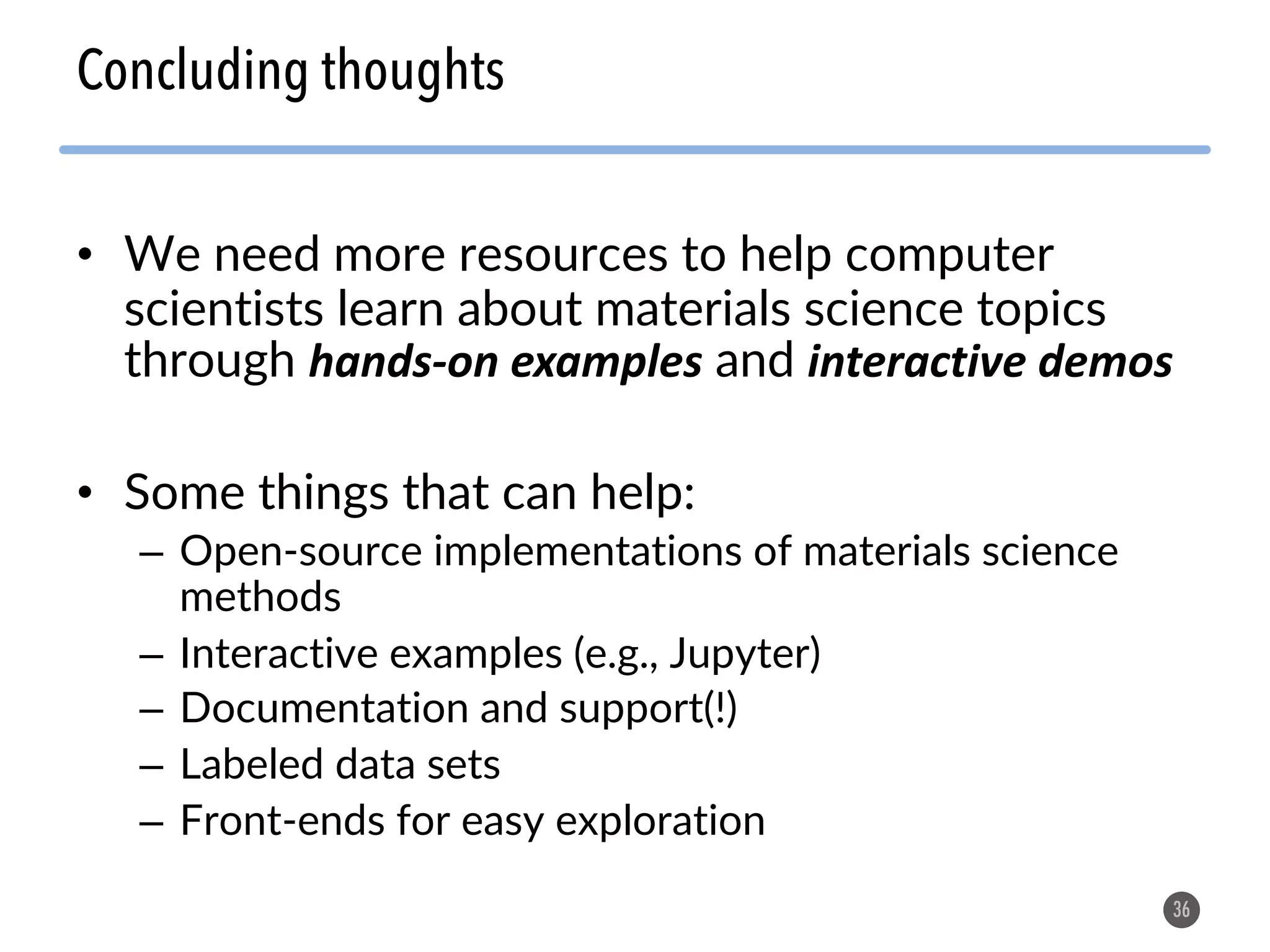

- 36. • We needmore resources to help computer scientists learn about materials science topics through hands-on examples and interactive demos • Some things that can help: – Open-source implementations of materials science methods – Interactive examples (e.g., Jupyter) – Documentation and support(!) – Labeled data sets – Front-ends for easy exploration 36 Concluding thoughts
- 37. 37 Funding acknowledgements Slides (already)posted to hackingmaterials.lbl.gov • Matminer – U.S. Department of Energy, Materials Science Division • Matscholar – Toyota Research Institutes
