• 1.
  Please do notcopy without permission. © ExploreAI 2023. Logic operators Querying data
• 2.

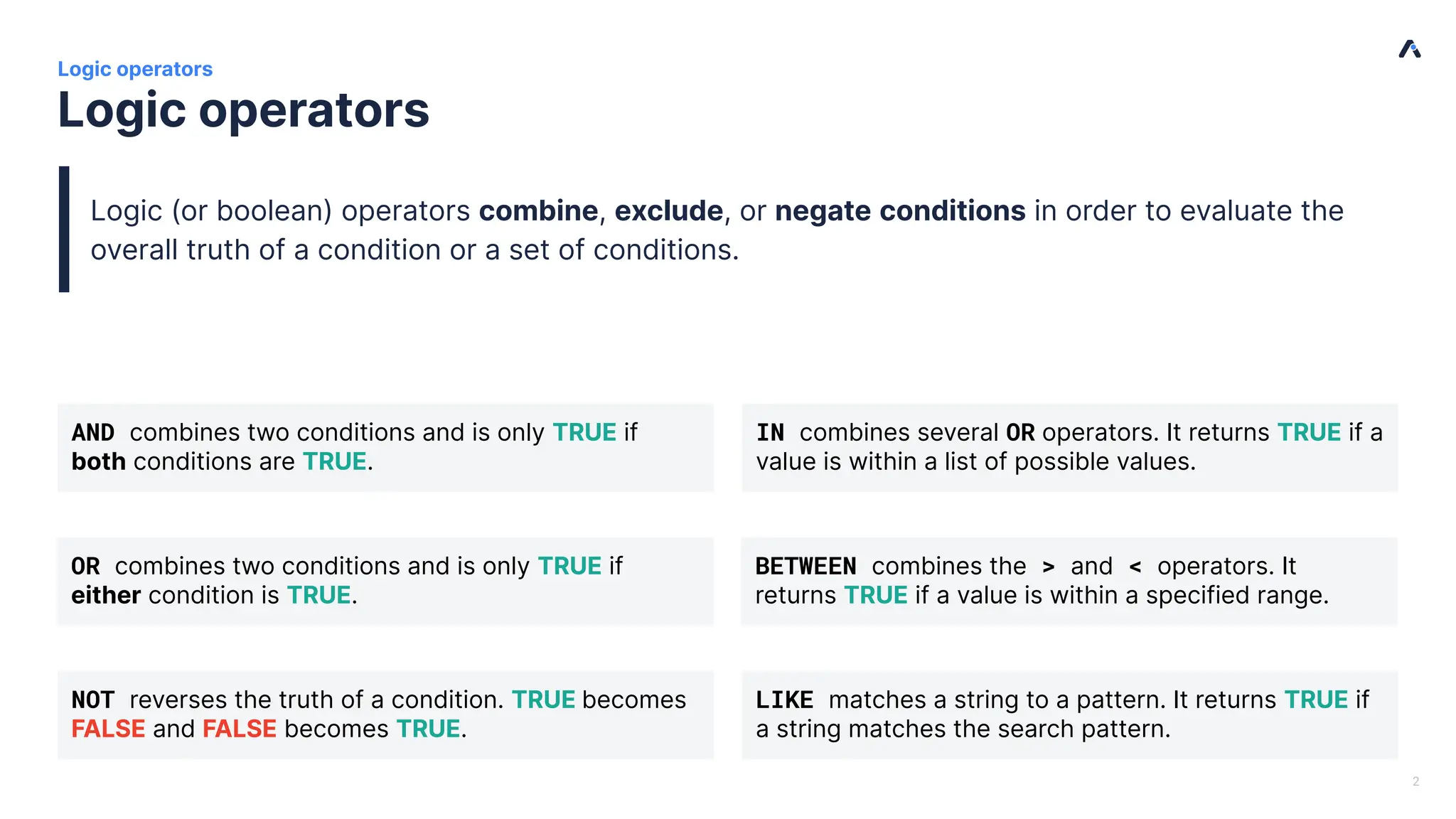

  | Logic operators Logic operators 2 ANDcombines two conditions and is only TRUE if both conditions are TRUE. NOT reverses the truth of a condition. TRUE becomes FALSE and FALSE becomes TRUE. BETWEEN combines the > and < operators. It returns TRUE if a value is within a specified range. IN combines several OR operators. It returns TRUE if a value is within a list of possible values. LIKE matches a string to a pattern. It returns TRUE if a string matches the search pattern. OR combines two conditions and is only TRUE if either condition is TRUE. Logic (or boolean) operators combine, exclude, or negate conditions in order to evaluate the overall truth of a condition or a set of conditions.
• 3.

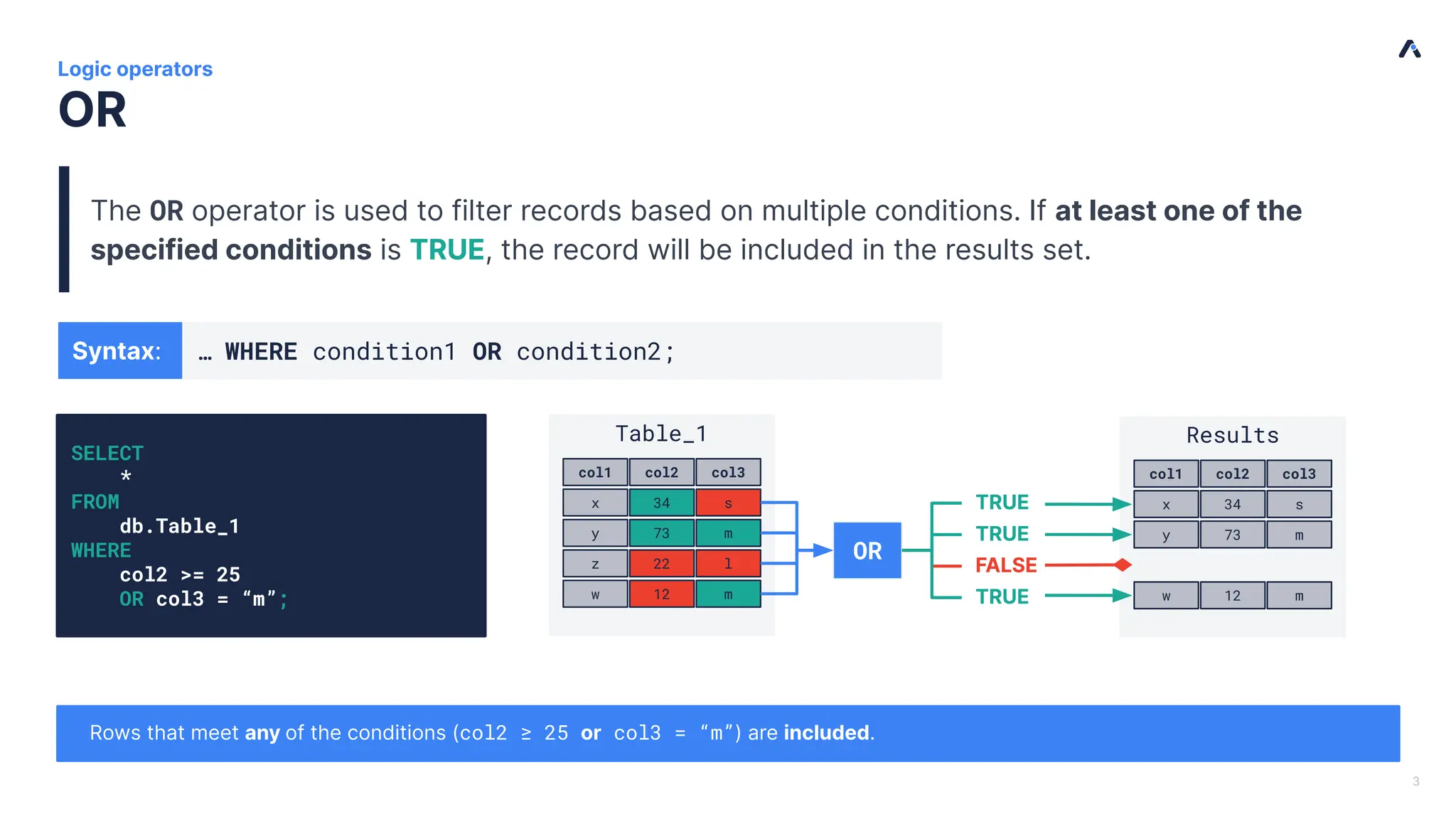

  | OR Logic operators The ORoperator is used to filter records based on multiple conditions. If at least one of the specified conditions is TRUE, the record will be included in the results set. 3 Rows that meet any of the conditions (col2 ≥ 25 or col3 = “m”) are included. Table_1 col1 col2 col3 x 34 s y 73 m z 22 l w 12 m TRUE TRUE TRUE FALSE OR Results col1 col2 col3 x 34 s y 73 m w 12 m SELECT * FROM db.Table_1 WHERE col2 >= 25 OR col3 = “m”; Syntax: … WHERE condition1 OR condition2;
• 4.

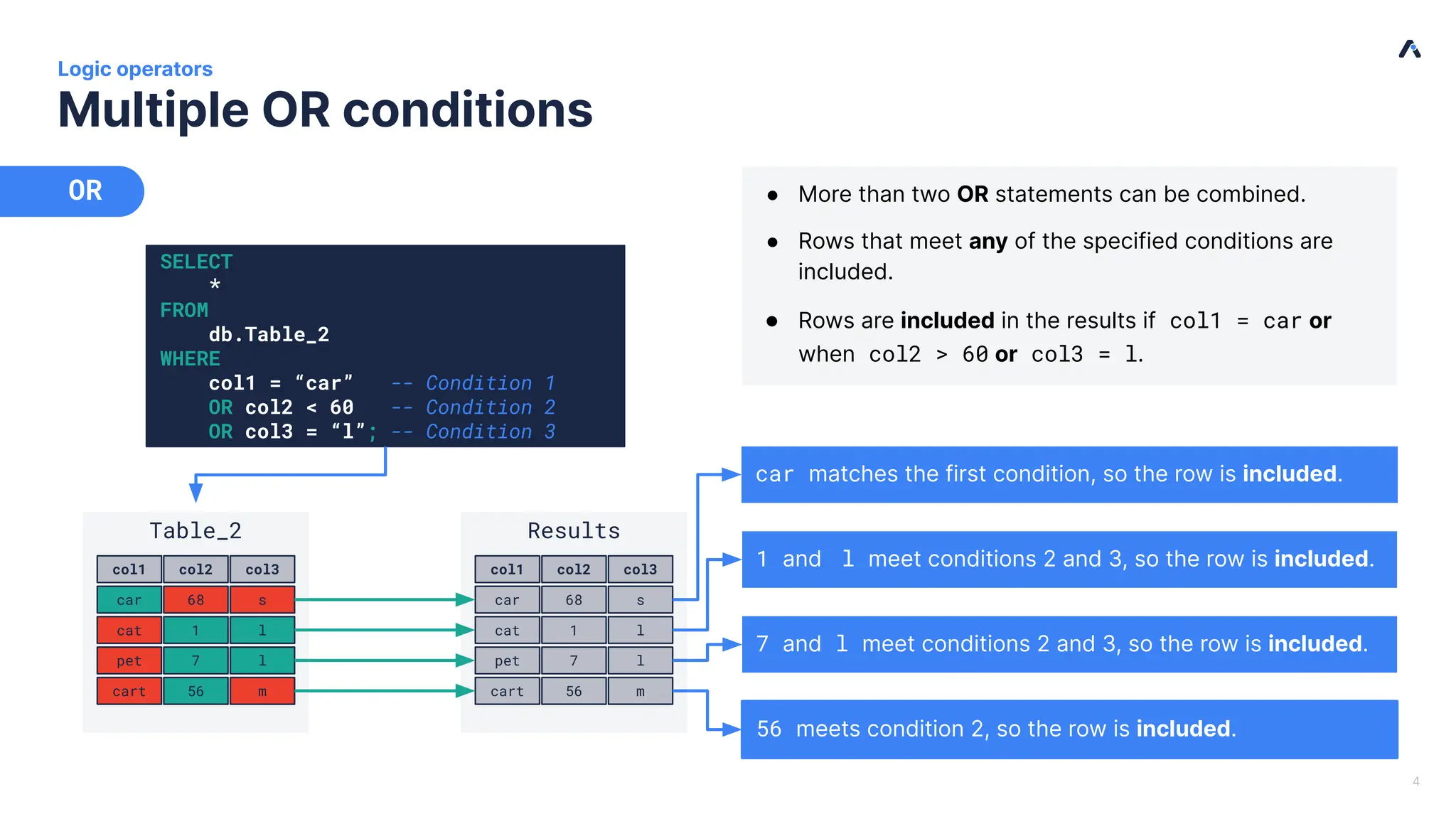

  Multiple OR conditions Logicoperators SELECT * FROM db.Table_2 WHERE col1 = “car” -- Condition 1 OR col2 < 60 -- Condition 2 OR col3 = “l”; -- Condition 3 Results col1 col2 col3 car 68 s cat 1 l pet 7 l cart 56 m Table_2 col1 col2 col3 car 68 s cat 1 l pet 7 l cart 56 m 4 ● More than two OR statements can be combined. ● Rows that meet any of the specified conditions are included. ● Rows are included in the results if col1 = car or when col2 > 60 or col3 = l. 56 meets condition 2, so the row is included. car matches the first condition, so the row is included. 1 and l meet conditions 2 and 3, so the row is included. 7 and l meet conditions 2 and 3, so the row is included. OR
• 5.

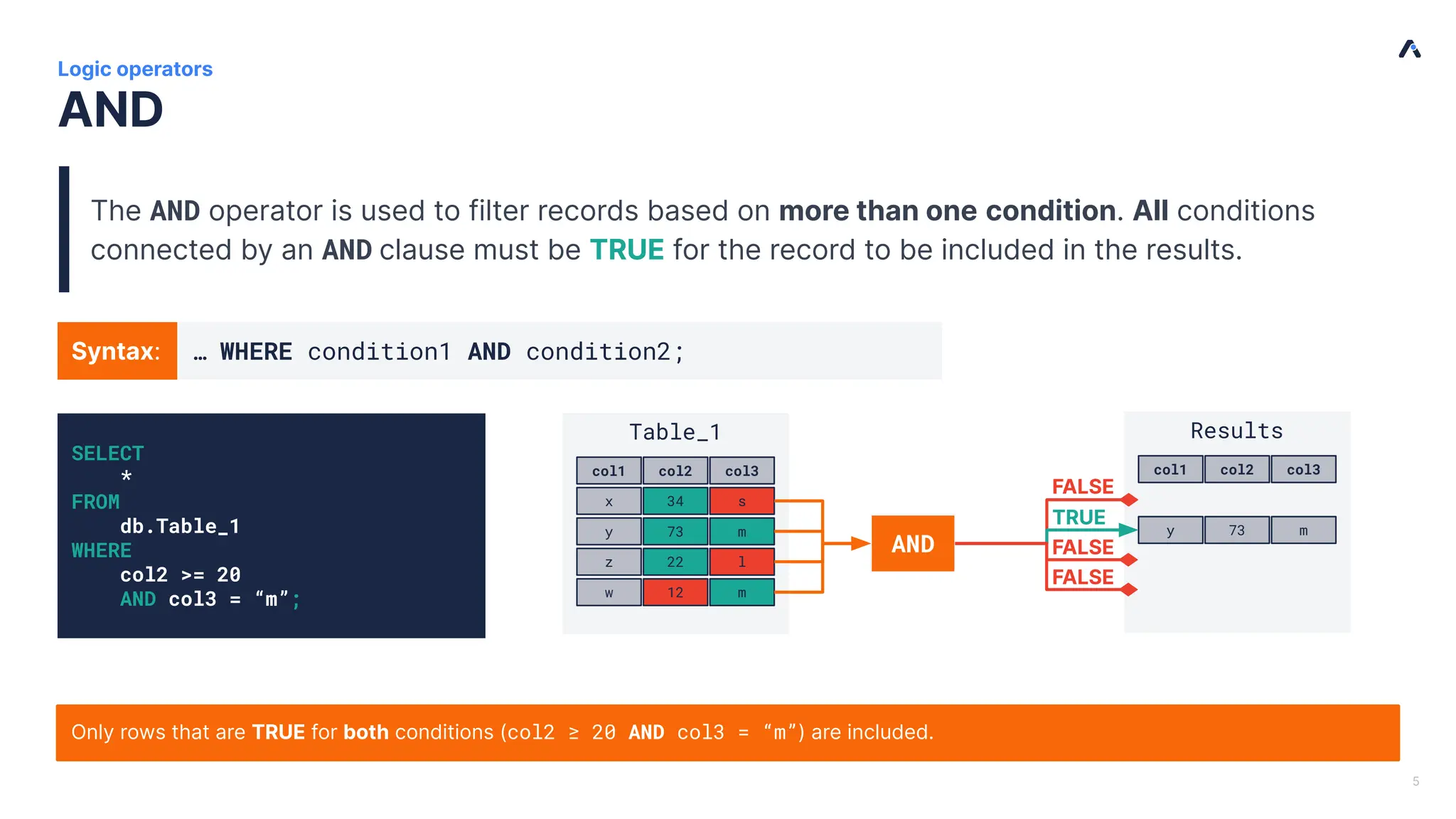

  | SELECT * FROM db.Table_1 WHERE col2 >= 20 ANDcol3 = “m”; Table_1 col1 col2 col3 x 34 s y 73 m z 22 l w 12 m FALSE FALSE TRUE FALSE AND Results col1 col2 col3 y 73 m AND Logic operators The AND operator is used to filter records based on more than one condition. All conditions connected by an AND clause must be TRUE for the record to be included in the results. 5 Only rows that are TRUE for both conditions (col2 ≥ 20 AND col3 = “m”) are included. Syntax: … WHERE condition1 AND condition2;
• 6.

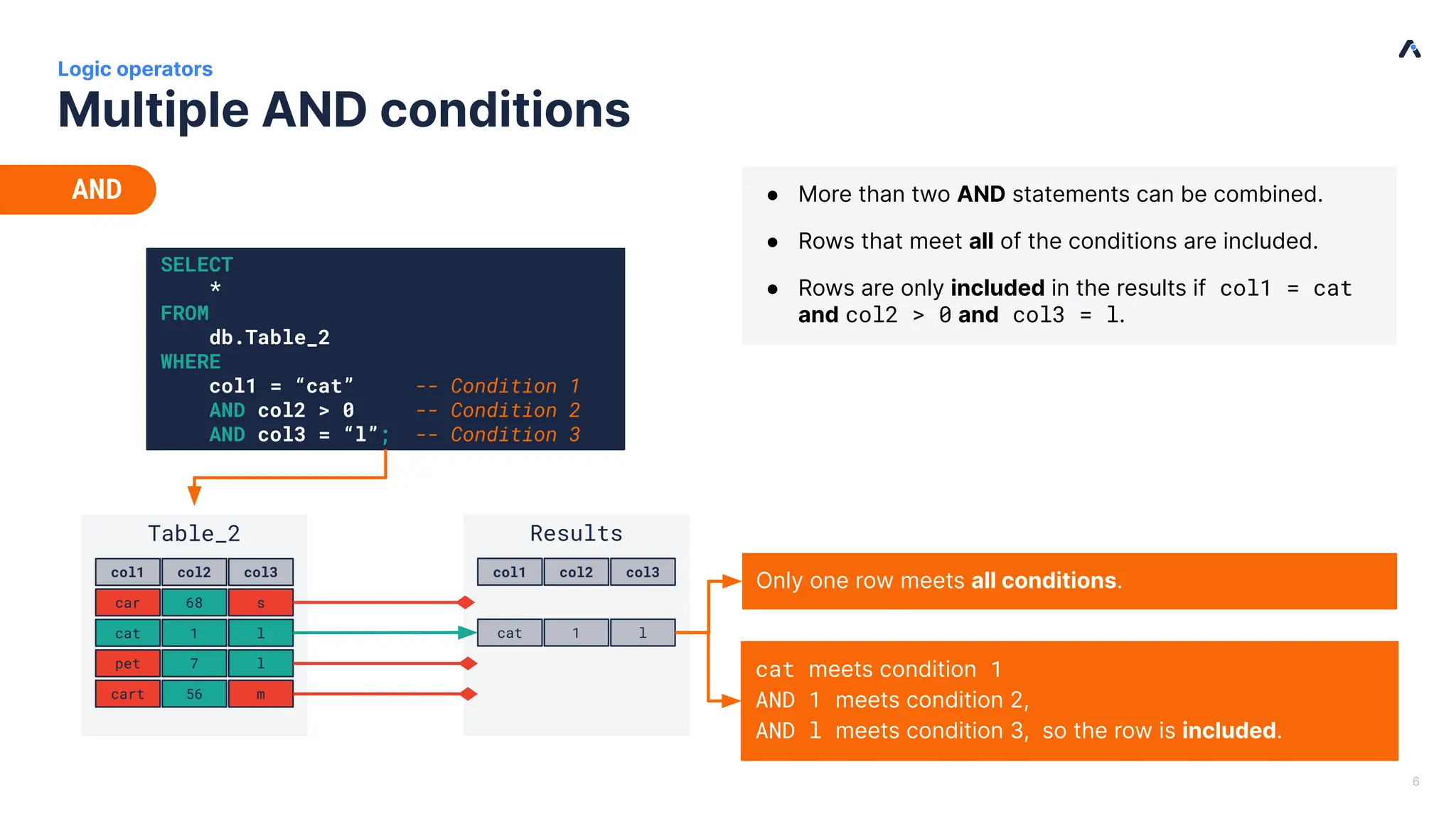

  Logic operators 6 Multiple ANDconditions Results col1 col2 col3 cat 1 l SELECT * FROM db.Table_2 WHERE col1 = “cat” -- Condition 1 AND col2 > 0 -- Condition 2 AND col3 = “l”; -- Condition 3 Table_2 col1 col2 col3 car 68 s cat 1 l pet 7 l cart 56 m AND ● More than two AND statements can be combined. ● Rows that meet all of the conditions are included. ● Rows are only included in the results if col1 = cat and col2 > 0 and col3 = l. cat meets condition 1 AND 1 meets condition 2, AND l meets condition 3, so the row is included. Only one row meets all conditions.
• 7.

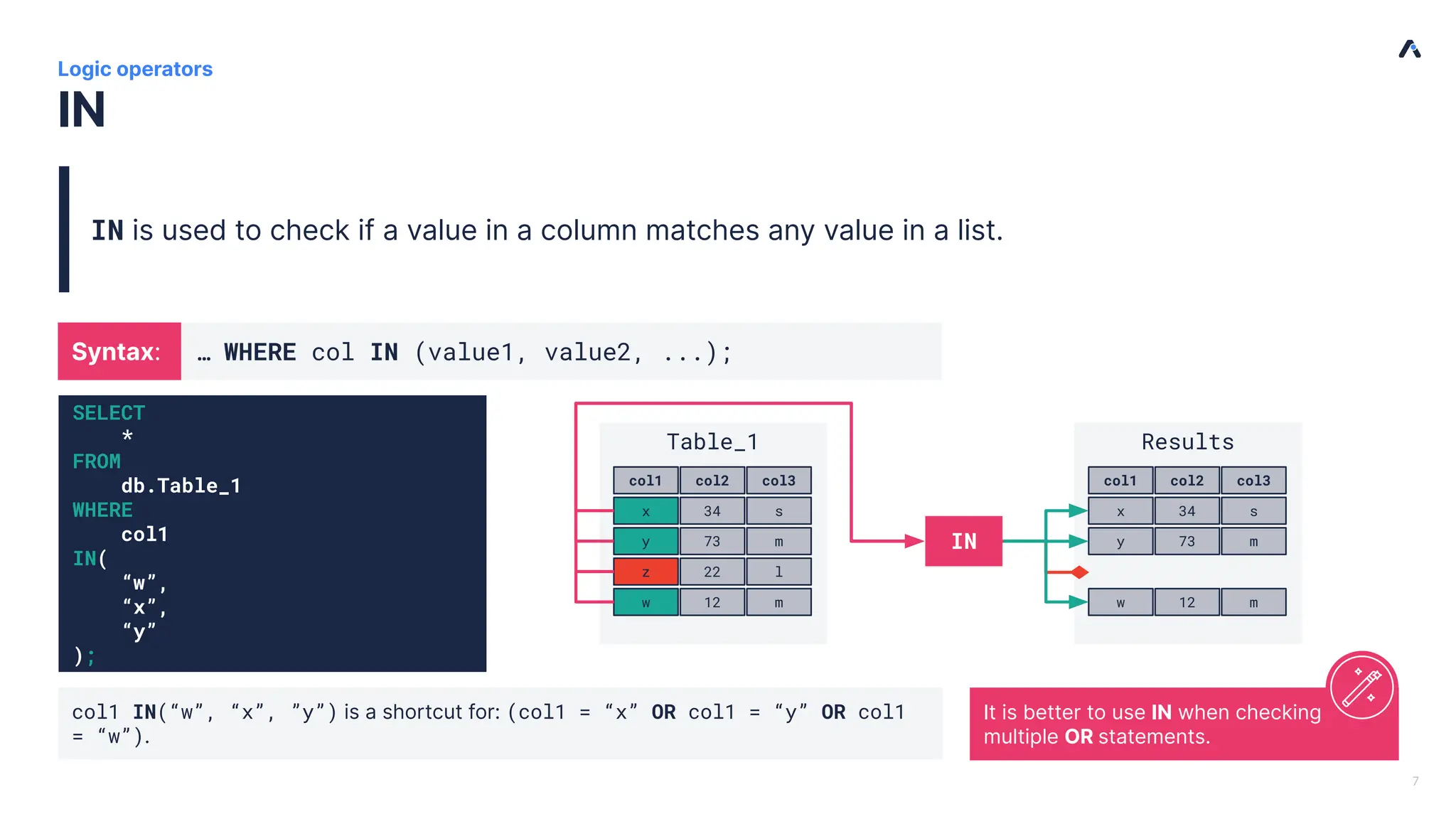

  | IN Logic operators IN isused to check if a value in a column matches any value in a list. 7 Table_1 col1 col2 col3 x 34 s y 73 m z 22 l w 12 m Results col1 col2 col3 x 34 s y 73 m w 12 m SELECT * FROM db.Table_1 WHERE col1 IN( “w”, “x”, “y” ); IN col1 IN(“w”, “x”, ”y”) is a shortcut for: (col1 = “x” OR col1 = “y” OR col1 = “w”). It is better to use IN when checking multiple OR statements. Syntax: … WHERE col IN (value1, value2, ...);
• 8.

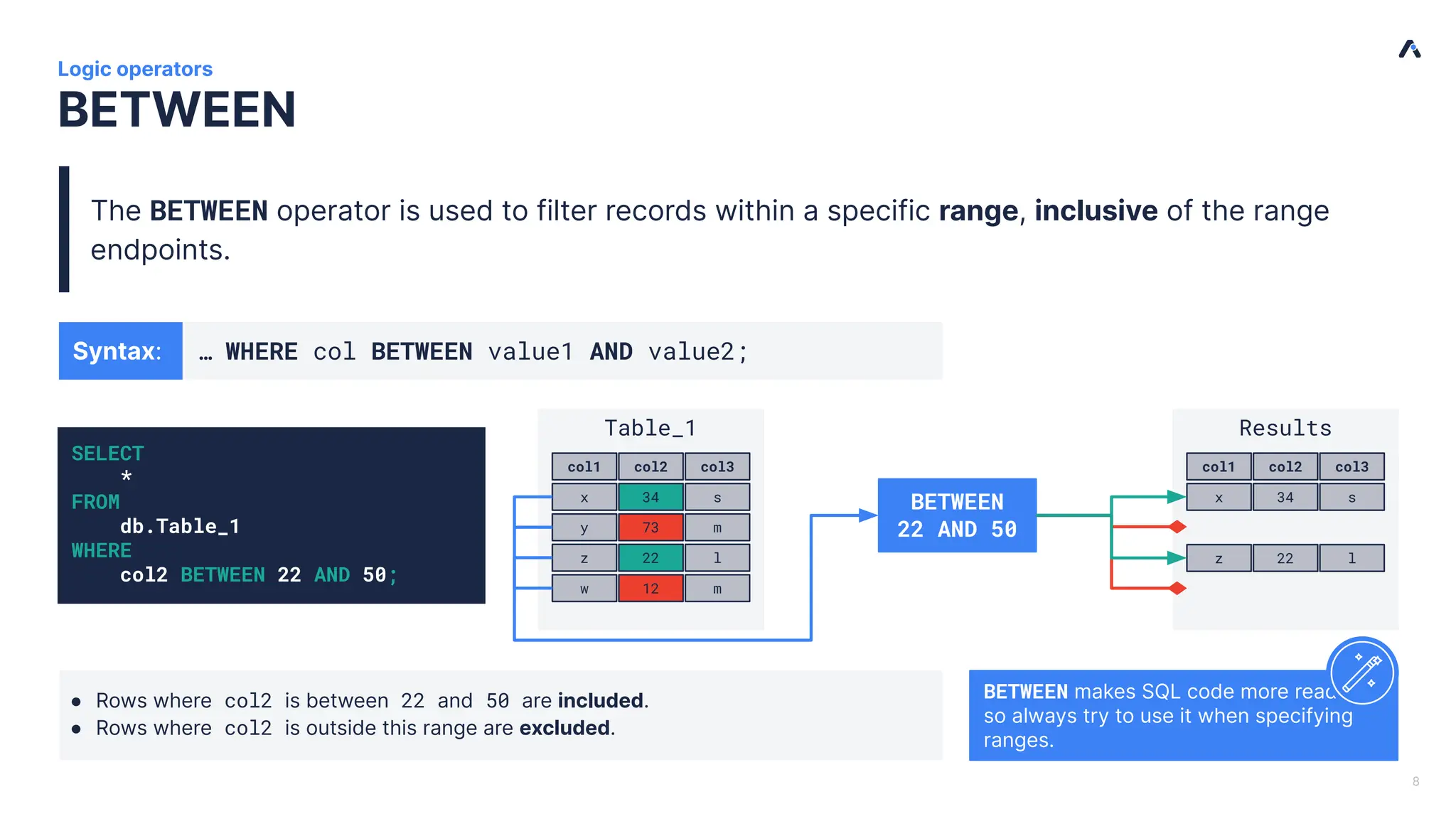

  | Results col1 col2 col3 x34 s z 22 l BETWEEN Logic operators The BETWEEN operator is used to filter records within a specific range, inclusive of the range endpoints. 8 Table_1 col1 col2 col3 x 34 s y 73 m z 22 l w 12 m SELECT * FROM db.Table_1 WHERE col2 BETWEEN 22 AND 50; BETWEEN 22 AND 50 BETWEEN makes SQL code more readable, so always try to use it when specifying ranges. ● Rows where col2 is between 22 and 50 are included. ● Rows where col2 is outside this range are excluded. Syntax: … WHERE col BETWEEN value1 AND value2;
• 9.

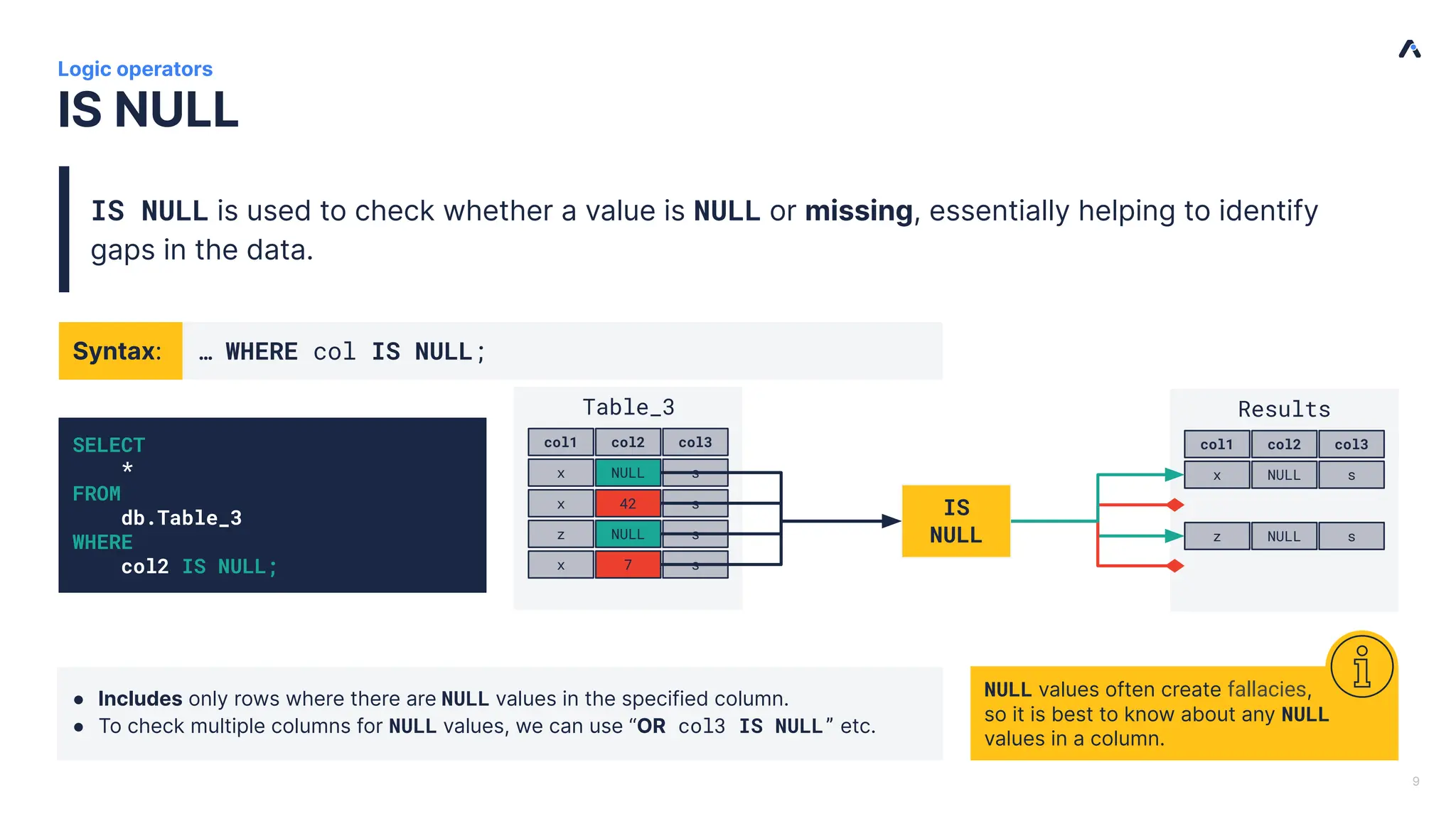

  | IS NULL Logic operators ISNULL is used to check whether a value is NULL or missing, essentially helping to identify gaps in the data. 9 SELECT * FROM db.Table_3 WHERE col2 IS NULL; IS NULL ● Includes only rows where there are NULL values in the specified column. ● To check multiple columns for NULL values, we can use “OR col3 IS NULL” etc. Table_3 col1 col2 col3 x NULL s x 42 s z NULL s x 7 s Results col1 col2 col3 x NULL s z NULL s NULL values often create fallacies, so it is best to know about any NULL values in a column. Syntax: … WHERE col IS NULL;
• 10.

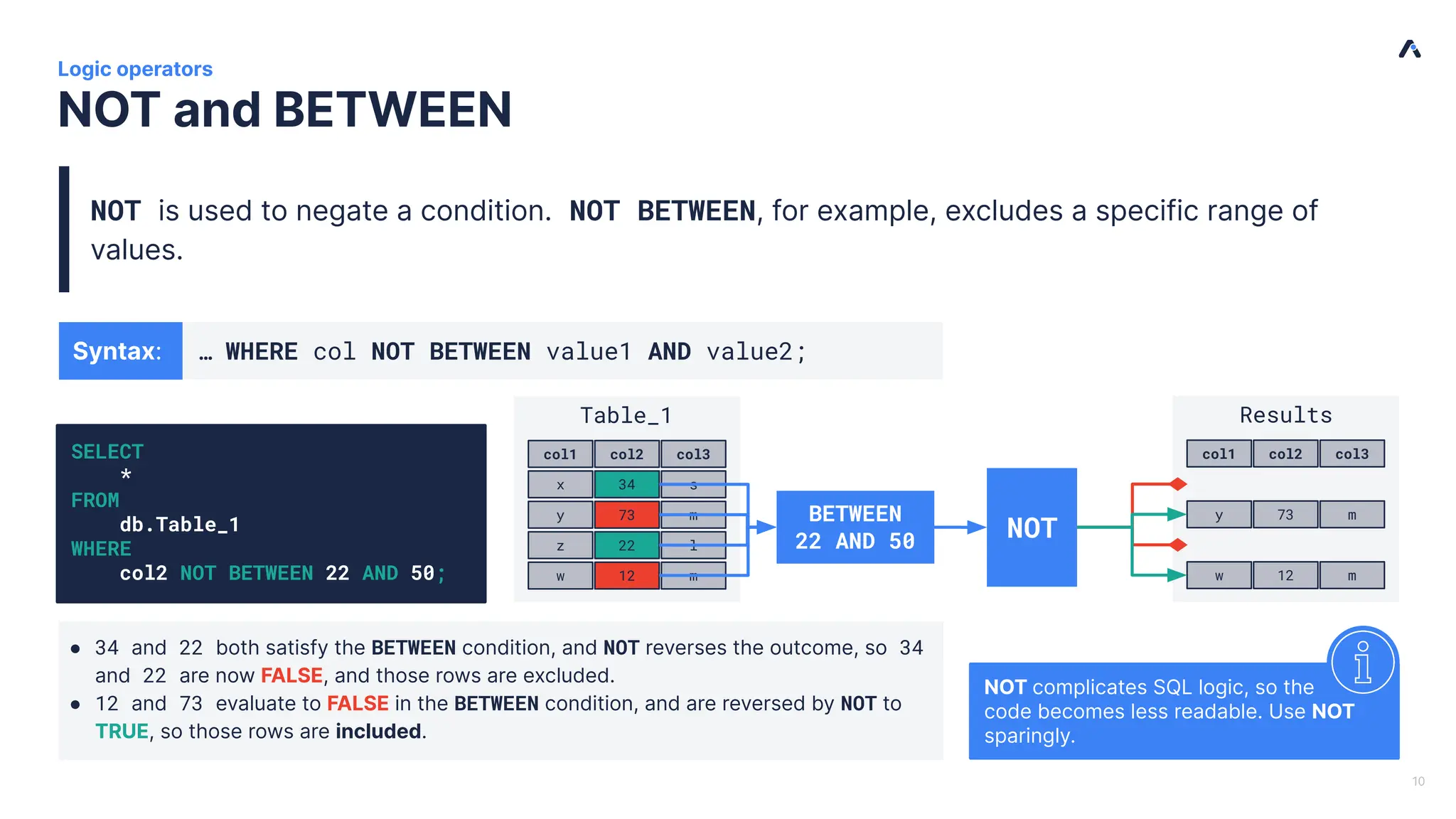

  | NOT and BETWEEN Logicoperators NOT is used to negate a condition. NOT BETWEEN, for example, excludes a specific range of values. 10 Table_1 col1 col2 col3 x 34 s y 73 m z 22 l w 12 m ● 34 and 22 both satisfy the BETWEEN condition, and NOT reverses the outcome, so 34 and 22 are now FALSE, and those rows are excluded. ● 12 and 73 evaluate to FALSE in the BETWEEN condition, and are reversed by NOT to TRUE, so those rows are included. NOT complicates SQL logic, so the code becomes less readable. Use NOT sparingly. SELECT * FROM db.Table_1 WHERE col2 NOT BETWEEN 22 AND 50; Results col1 col2 col3 y 73 m w 12 m NOT BETWEEN 22 AND 50 Syntax: … WHERE col NOT BETWEEN value1 AND value2;
• 11.

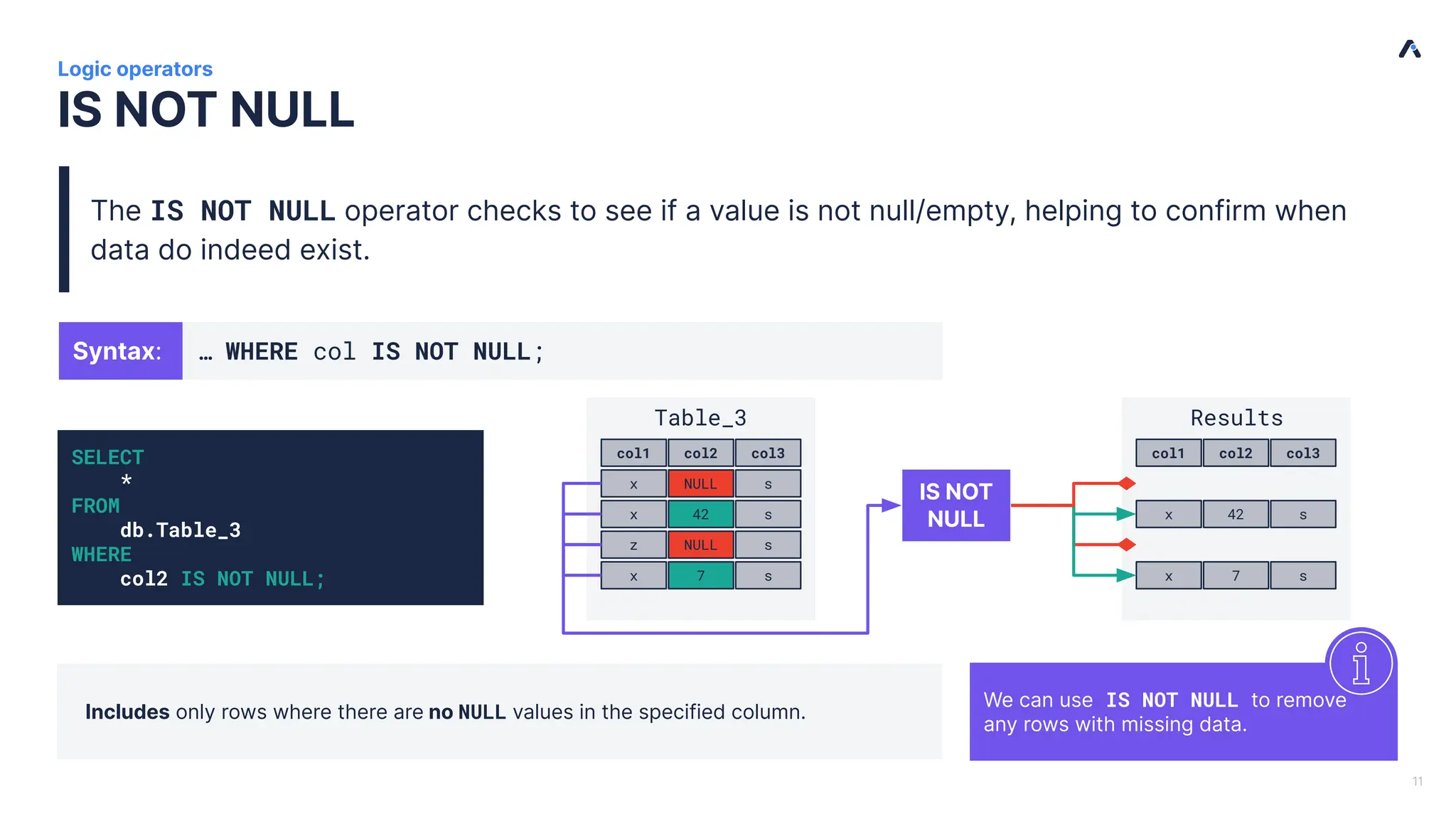

  | Results col1 col2 col3 x42 s x 7 s IS NOT NULL Logic operators The IS NOT NULL operator checks to see if a value is not null/empty, helping to confirm when data do indeed exist. 11 SELECT * FROM db.Table_3 WHERE col2 IS NOT NULL; IS NOT NULL Includes only rows where there are no NULL values in the specified column. Table_3 col1 col2 col3 x NULL s x 42 s z NULL s x 7 s We can use IS NOT NULL to remove any rows with missing data. Syntax: … WHERE col IS NOT NULL;
• 12.

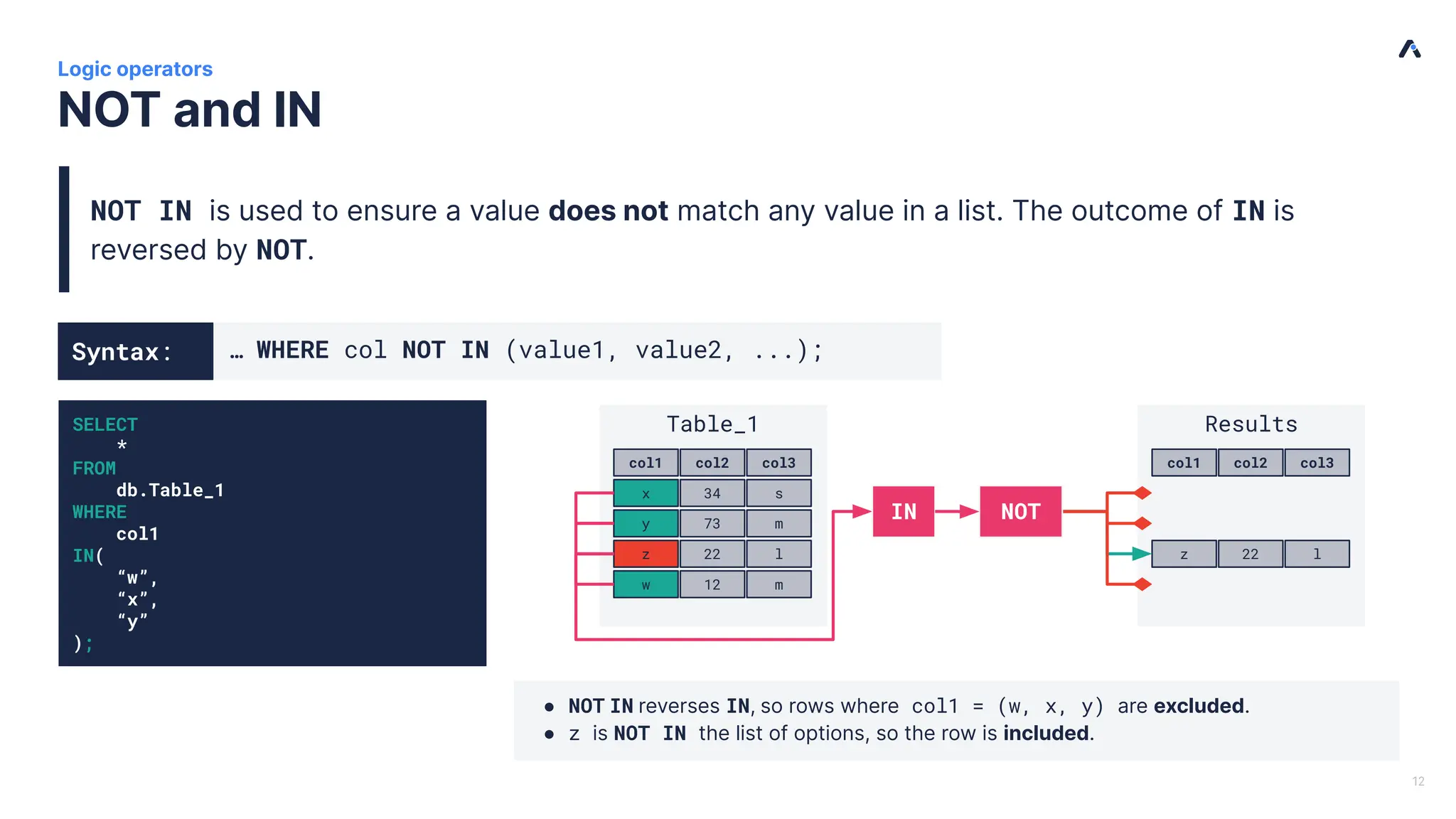

  | Results col1 col2 col3 z22 l NOT and IN Logic operators NOT IN is used to ensure a value does not match any value in a list. The outcome of IN is reversed by NOT. 12 Table_1 col1 col2 col3 x 34 s y 73 m z 22 l w 12 m SELECT * FROM db.Table_1 WHERE col1 IN( “w”, “x”, “y” ); Syntax: … WHERE col NOT IN (value1, value2, ...); ● NOT IN reverses IN, so rows where col1 = (w, x, y) are excluded. ● z is NOT IN the list of options, so the row is included. IN NOT
• 13.

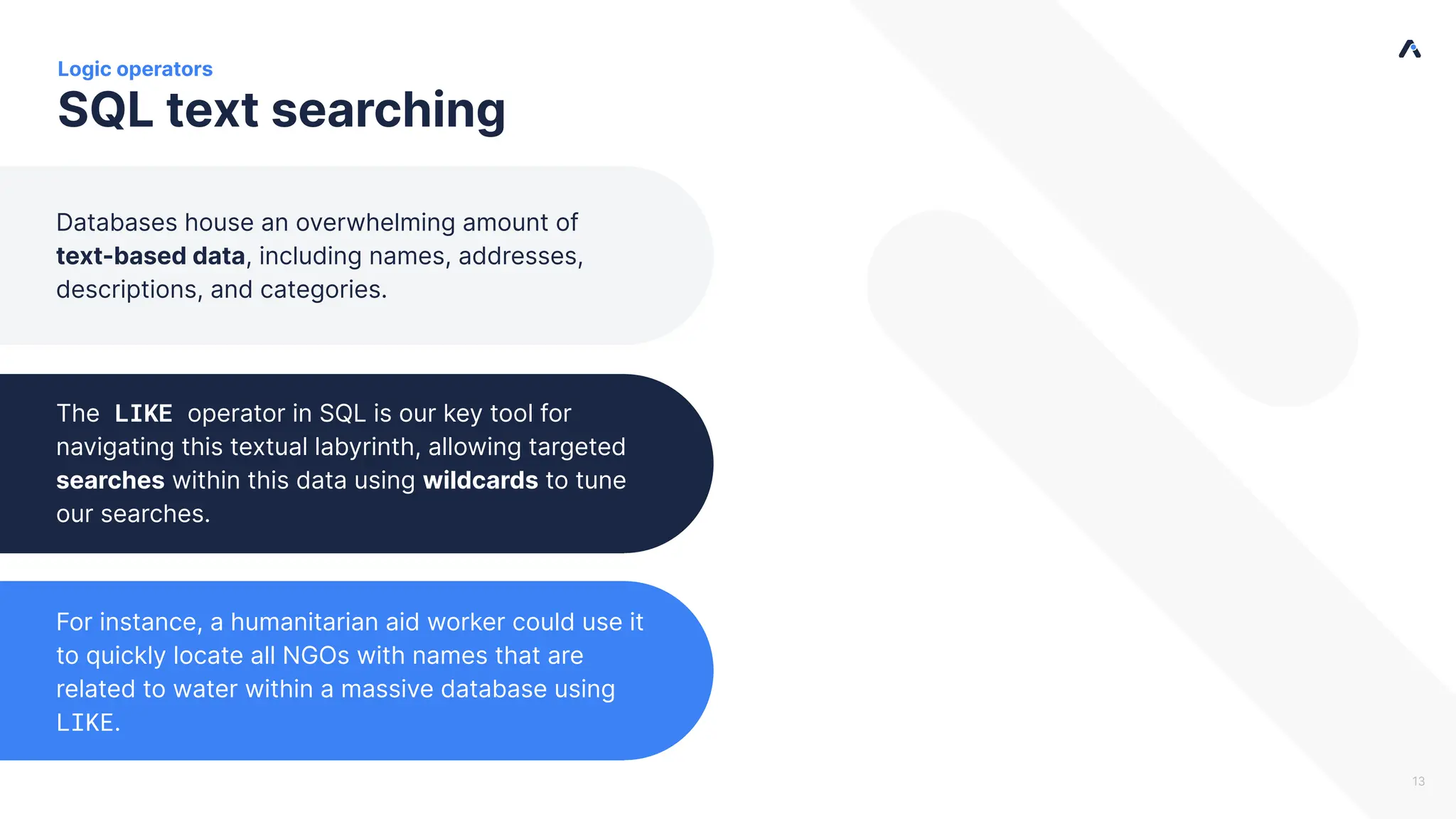

  SQL text searching TheLIKE operator in SQL is our key tool for navigating this textual labyrinth, allowing targeted searches within this data using wildcards to tune our searches. Logic operators Databases house an overwhelming amount of text-based data, including names, addresses, descriptions, and categories. For instance, a humanitarian aid worker could use it to quickly locate all NGOs with names that are related to water within a massive database using LIKE. 13
• 14.

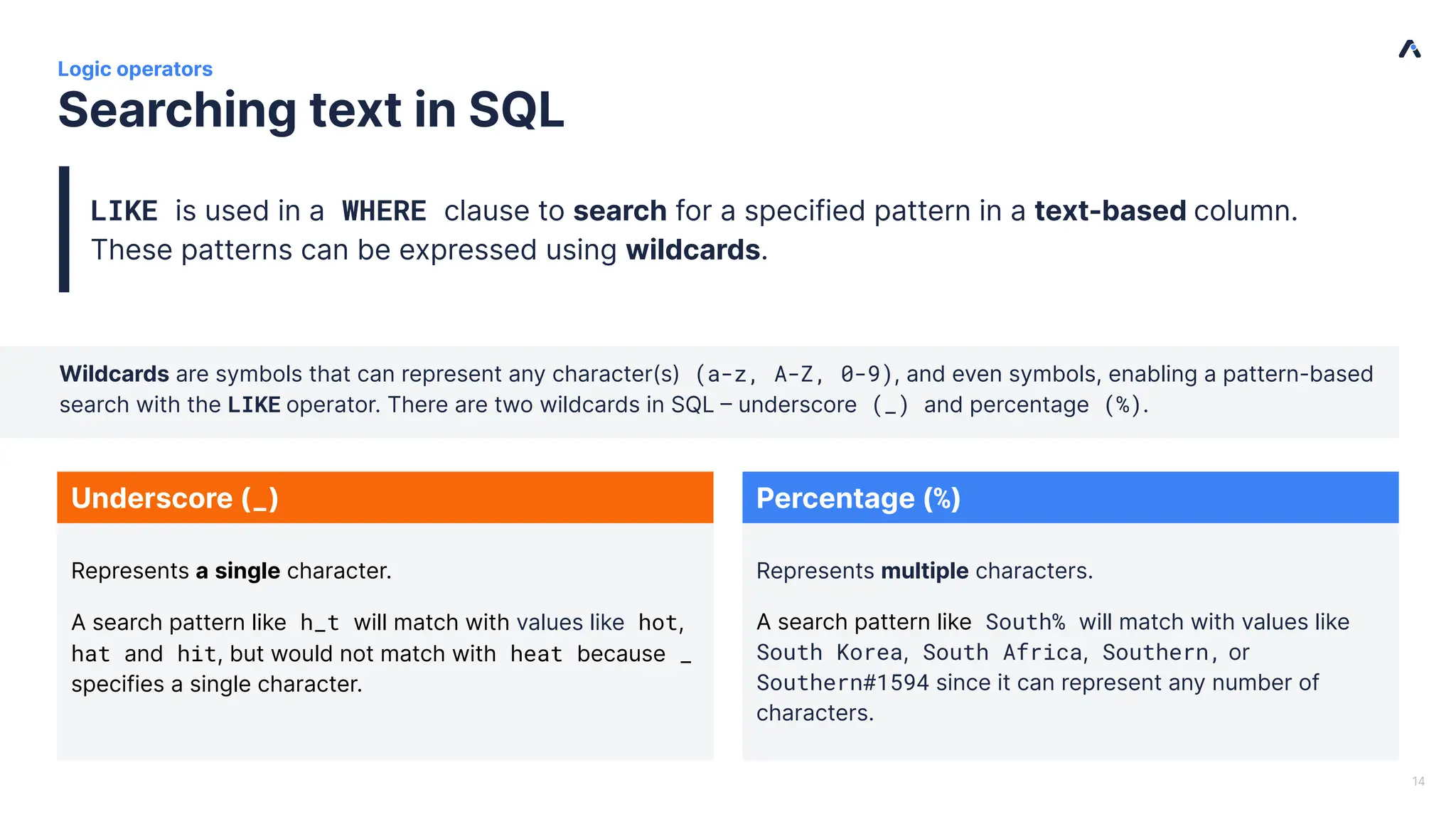

  | Searching text inSQL Logic operators Wildcards are symbols that can represent any character(s) (a-z, A-Z, 0-9), and even symbols, enabling a pattern-based search with the LIKE operator. There are two wildcards in SQL – underscore (_) and percentage (%). LIKE is used in a WHERE clause to search for a specified pattern in a text-based column. These patterns can be expressed using wildcards. 14 Percentage (%) Underscore (_) Represents multiple characters. A search pattern like South% will match with values like South Korea, South Africa, Southern, or Southern#1594 since it can represent any number of characters. Represents a single character. A search pattern like h_t will match with values like hot, hat and hit, but would not match with heat because _ specifies a single character.
• 15.

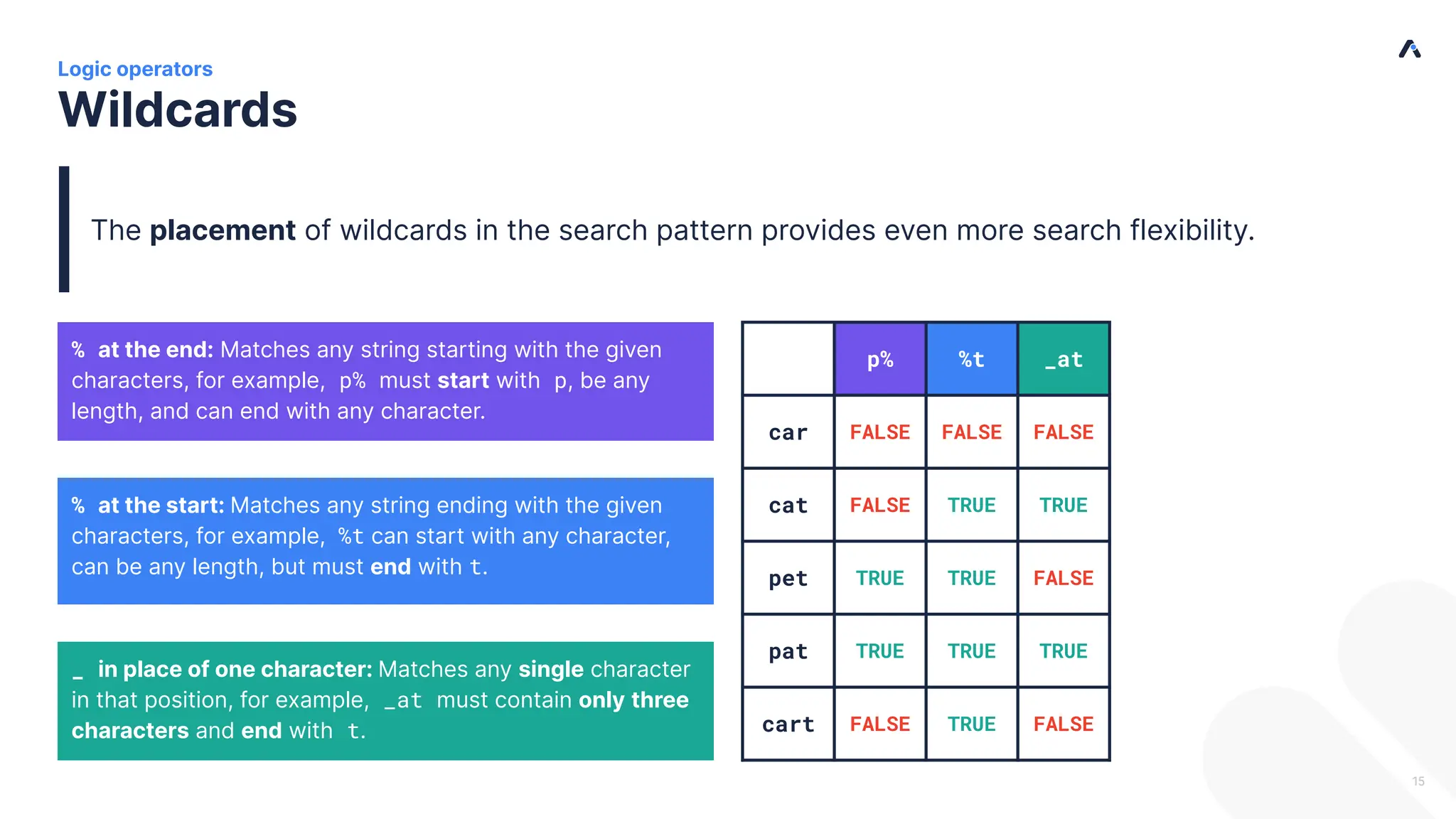

  | % at thestart: Matches any string ending with the given characters, for example, %t can start with any character, can be any length, but must end with t. Wildcards Logic operators 15 % at the end: Matches any string starting with the given characters, for example, p% must start with p, be any length, and can end with any character. _ in place of one character: Matches any single character in that position, for example, _at must contain only three characters and end with t. The placement of wildcards in the search pattern provides even more search flexibility. p% %t _at car FALSE FALSE FALSE cat FALSE TRUE TRUE pet TRUE TRUE FALSE pat TRUE TRUE TRUE cart FALSE TRUE FALSE
• 16.

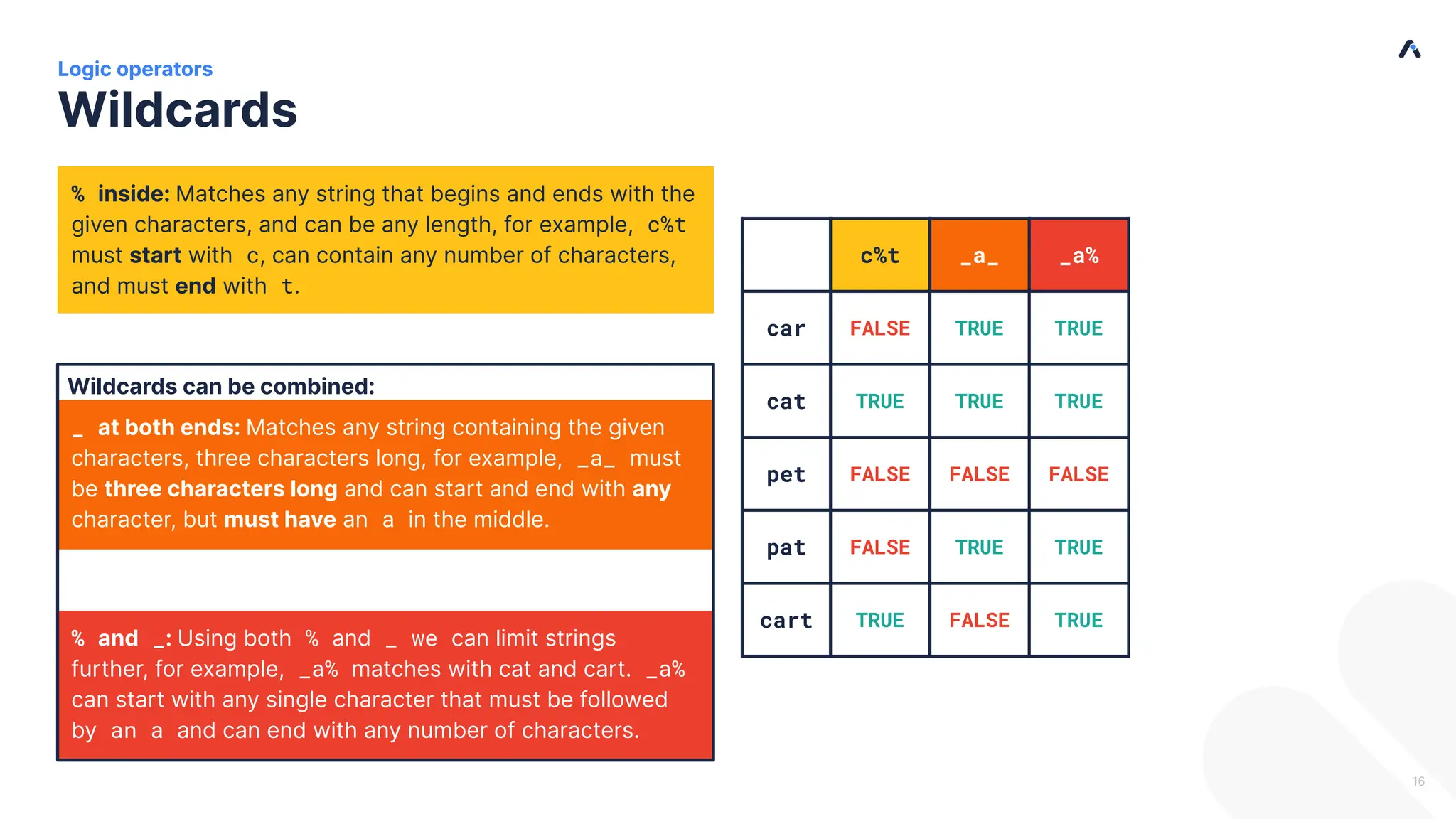

  % inside: Matchesany string that begins and ends with the given characters, and can be any length, for example, c%t must start with c, can contain any number of characters, and must end with t. Wildcards Logic operators 16 % and _: Using both % and _ we can limit strings further, for example, _a% matches with cat and cart. _a% can start with any single character that must be followed by an a and can end with any number of characters. _ at both ends: Matches any string containing the given characters, three characters long, for example, _a_ must be three characters long and can start and end with any character, but must have an a in the middle. Wildcards can be combined: c%t _a_ _a% car FALSE TRUE TRUE cat TRUE TRUE TRUE pet FALSE FALSE FALSE pat FALSE TRUE TRUE cart TRUE FALSE TRUE
• 17.

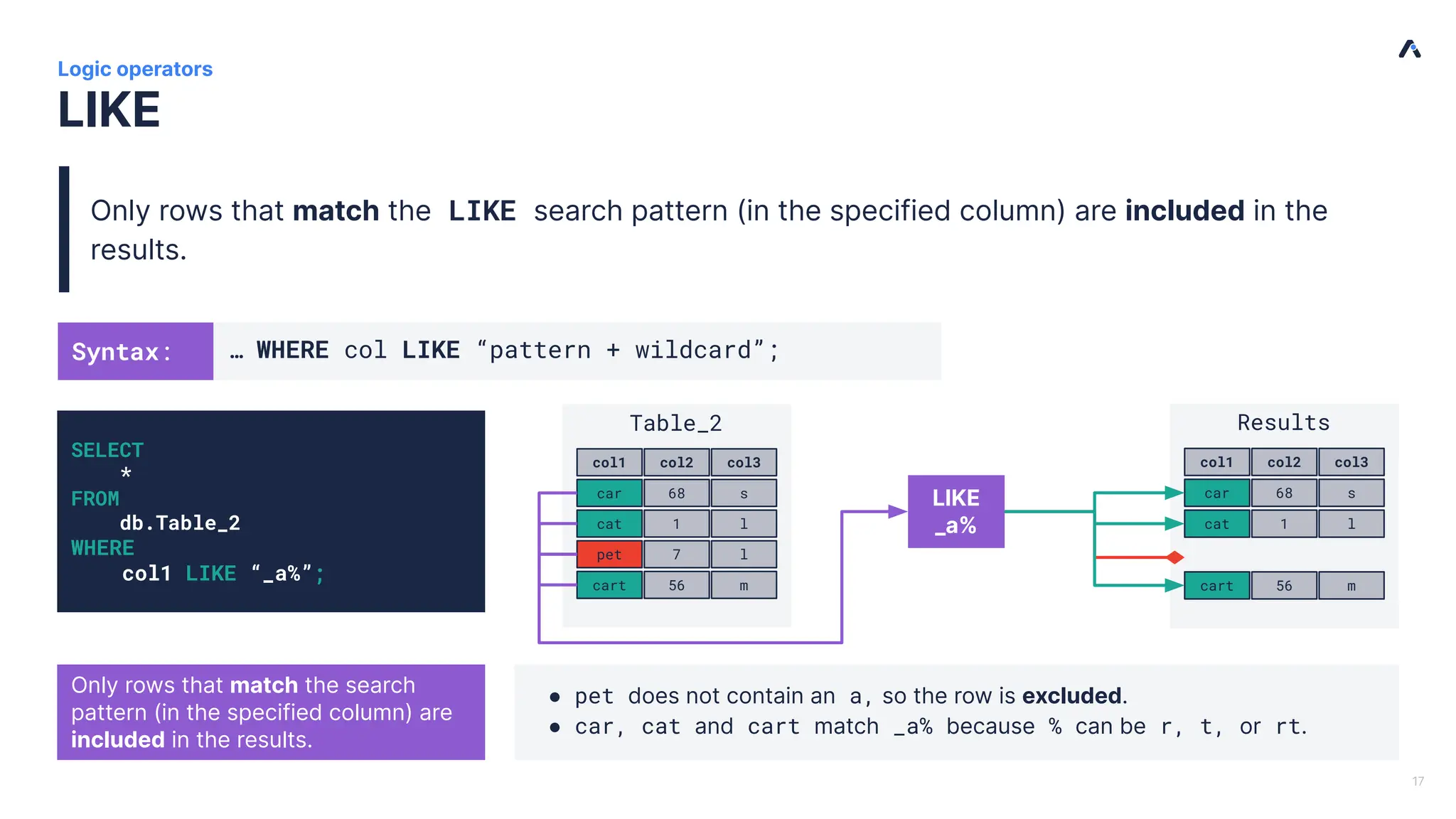

  | Results col1 col2 col3 car68 s cat 1 l cart 56 m LIKE Logic operators Only rows that match the LIKE search pattern (in the specified column) are included in the results. 17 Table_2 col1 col2 col3 car 68 s cat 1 l pet 7 l cart 56 m SELECT * FROM db.Table_2 WHERE col1 LIKE “_a%”; Only rows that match the search pattern (in the specified column) are included in the results. LIKE _a% ● pet does not contain an a, so the row is excluded. ● car, cat and cart match _a% because % can be r, t, or rt. Syntax: … WHERE col LIKE “pattern + wildcard”;
• 18.

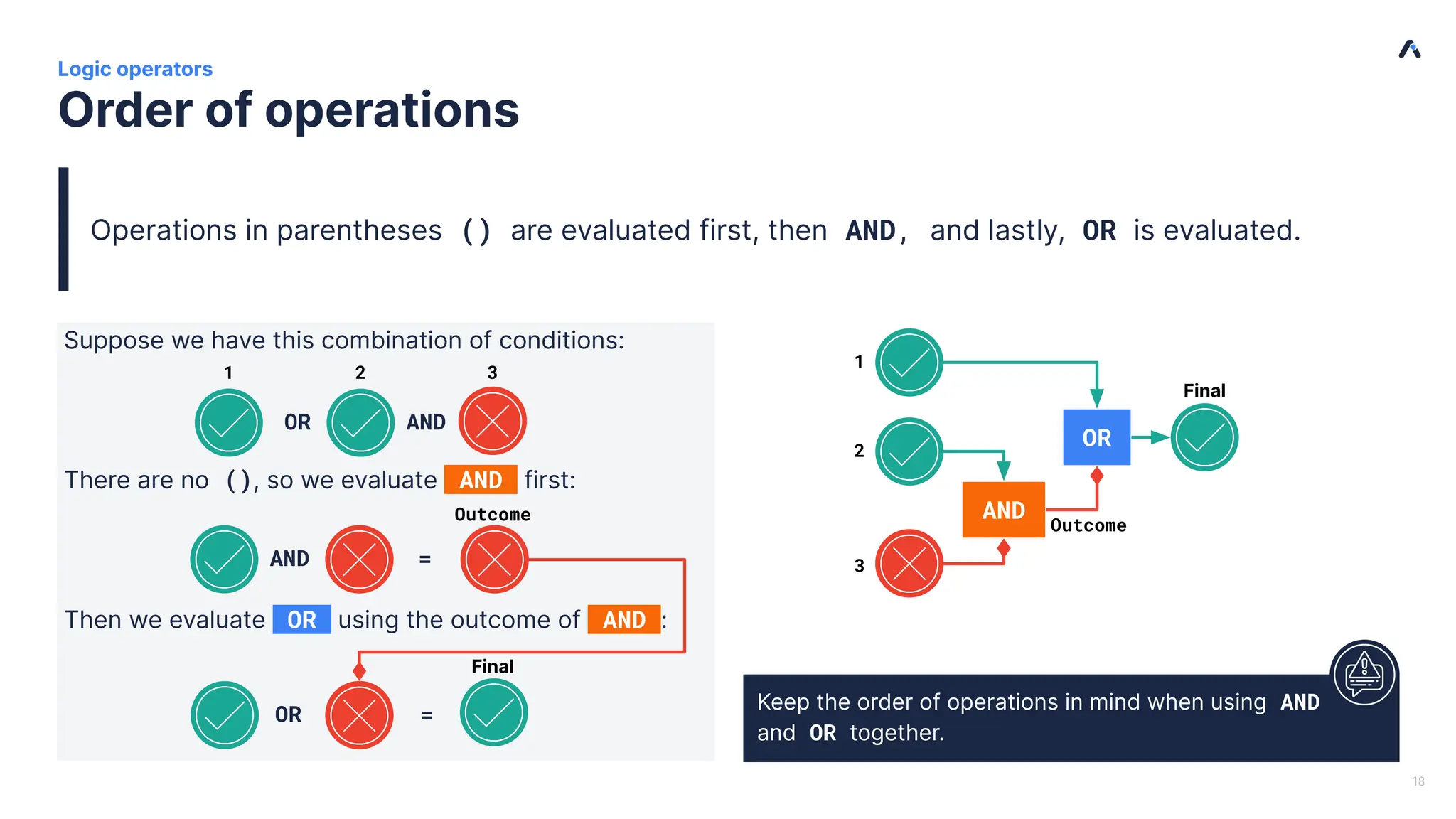

  | | Logic operators 18 Order ofoperations Operations in parentheses () are evaluated first, then AND, and lastly, OR is evaluated. Suppose we have this combination of conditions: There are no (), so we evaluate AND first: Then we evaluate OR using the outcome of AND : AND OR OR AND AND = OR = Keep the order of operations in mind when using AND and OR together. 1 2 3 1 2 3 Outcome Final Final Outcome
• 19.

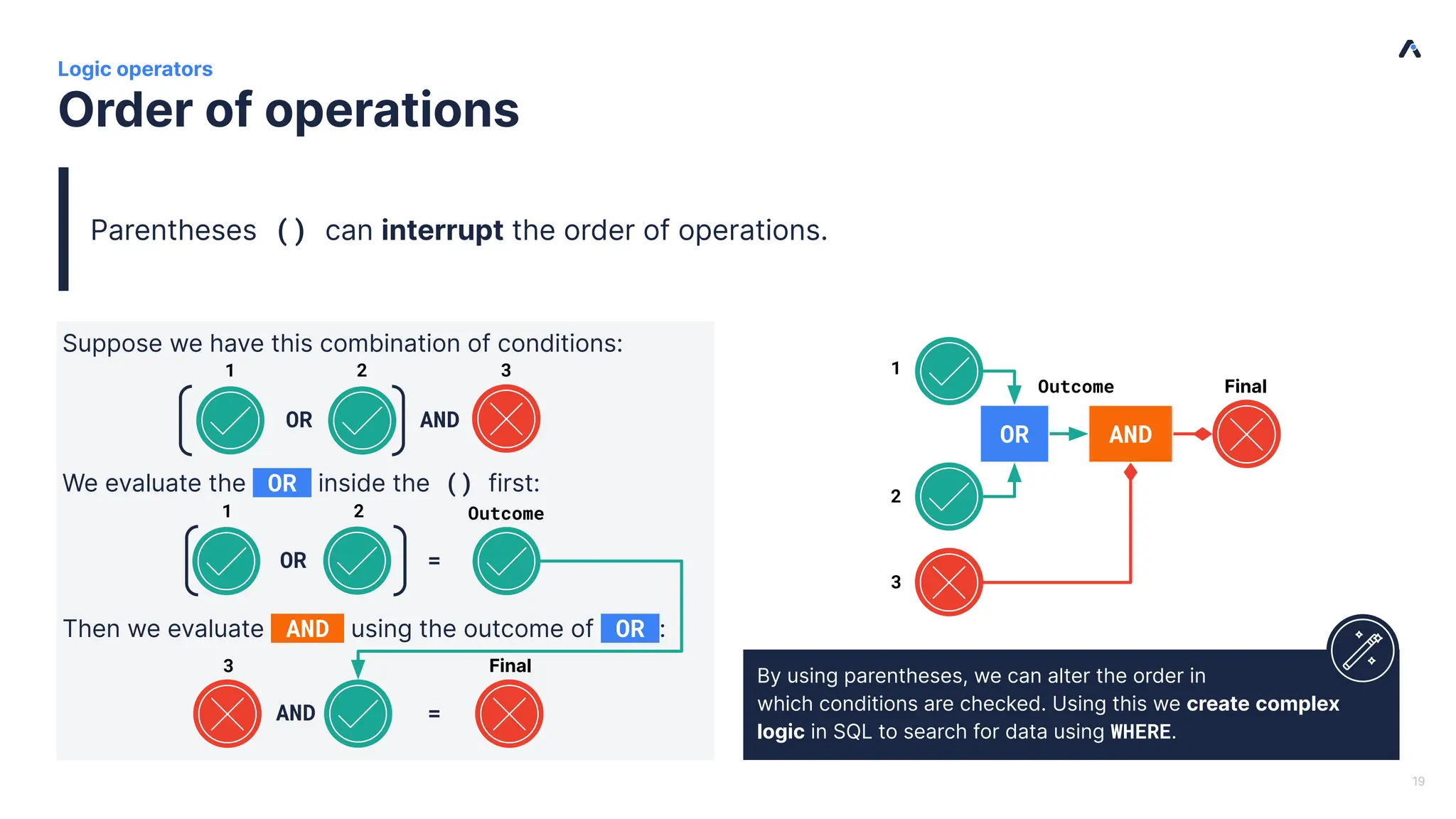

  | | Logic operators 19 Order ofoperations Parentheses () can interrupt the order of operations. Suppose we have this combination of conditions: We evaluate the OR inside the () first: Then we evaluate AND using the outcome of OR : OR AND 1 2 3 OR = 1 2 AND = 3 AND OR 1 2 3 By using parentheses, we can alter the order in which conditions are checked. Using this we create complex logic in SQL to search for data using WHERE. Outcome Final Final Outcome
• 20.

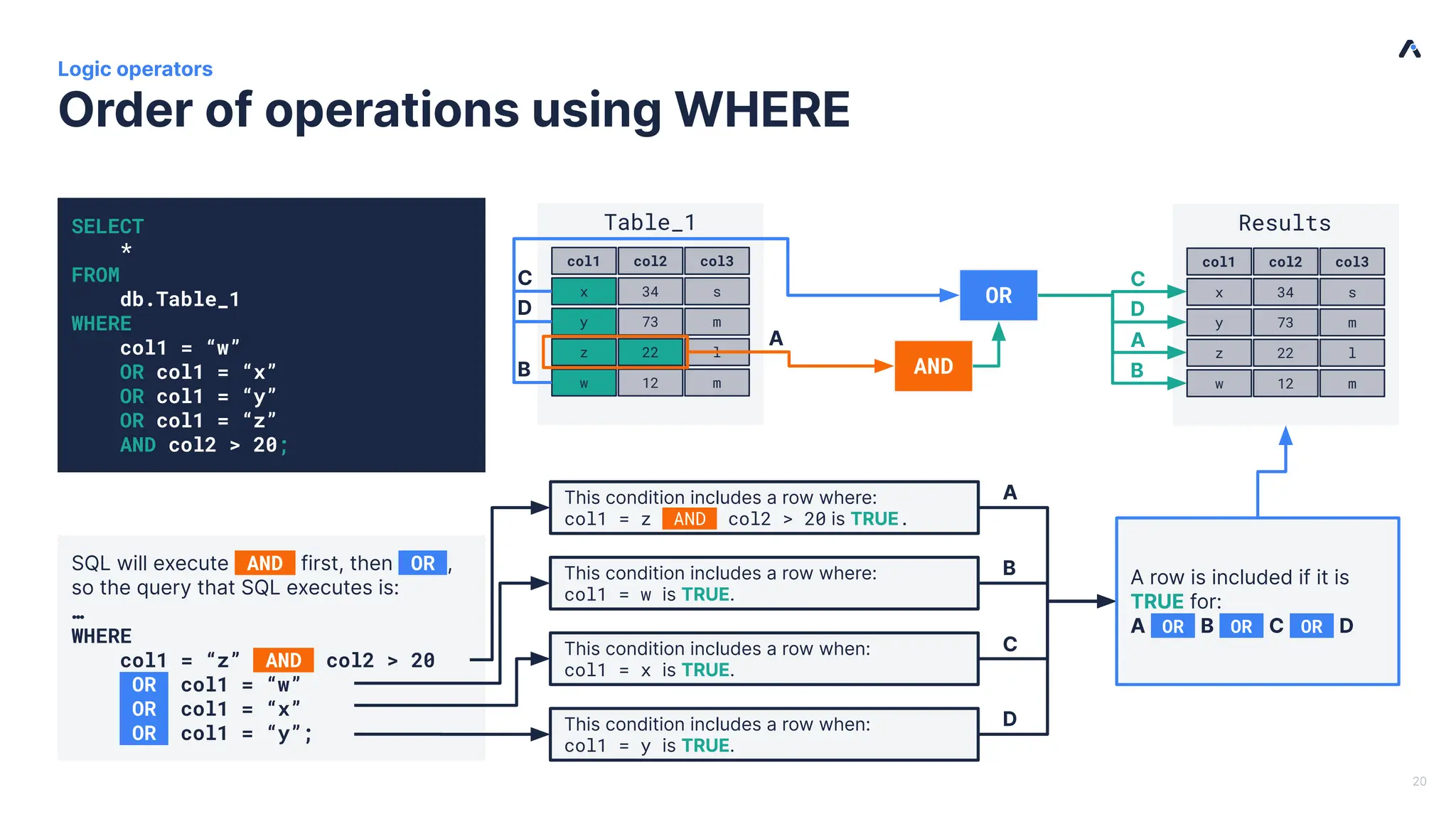

  Results col1 col2 col3 x34 s y 73 m z 22 l w 12 m Order of operations using WHERE Logic operators 20 SELECT * FROM db.Table_1 WHERE col1 = “w” OR col1 = “x” OR col1 = “y” OR col1 = “z” AND col2 > 20; Table_1 col1 col2 col3 x 34 s y 73 m z 22 l w 12 m AND OR SQL will execute AND first, then OR , so the query that SQL executes is: … WHERE col1 = “z” AND col2 > 20 OR col1 = “w” OR col1 = “x” OR col1 = “y”; This condition includes a row where: col1 = z AND col2 > 20 is TRUE. This condition includes a row where: col1 = w is TRUE. This condition includes a row when: col1 = x is TRUE. This condition includes a row when: col1 = y is TRUE. A row is included if it is TRUE for: A OR B OR C OR D A B C D A B C D A B C D
• 21.

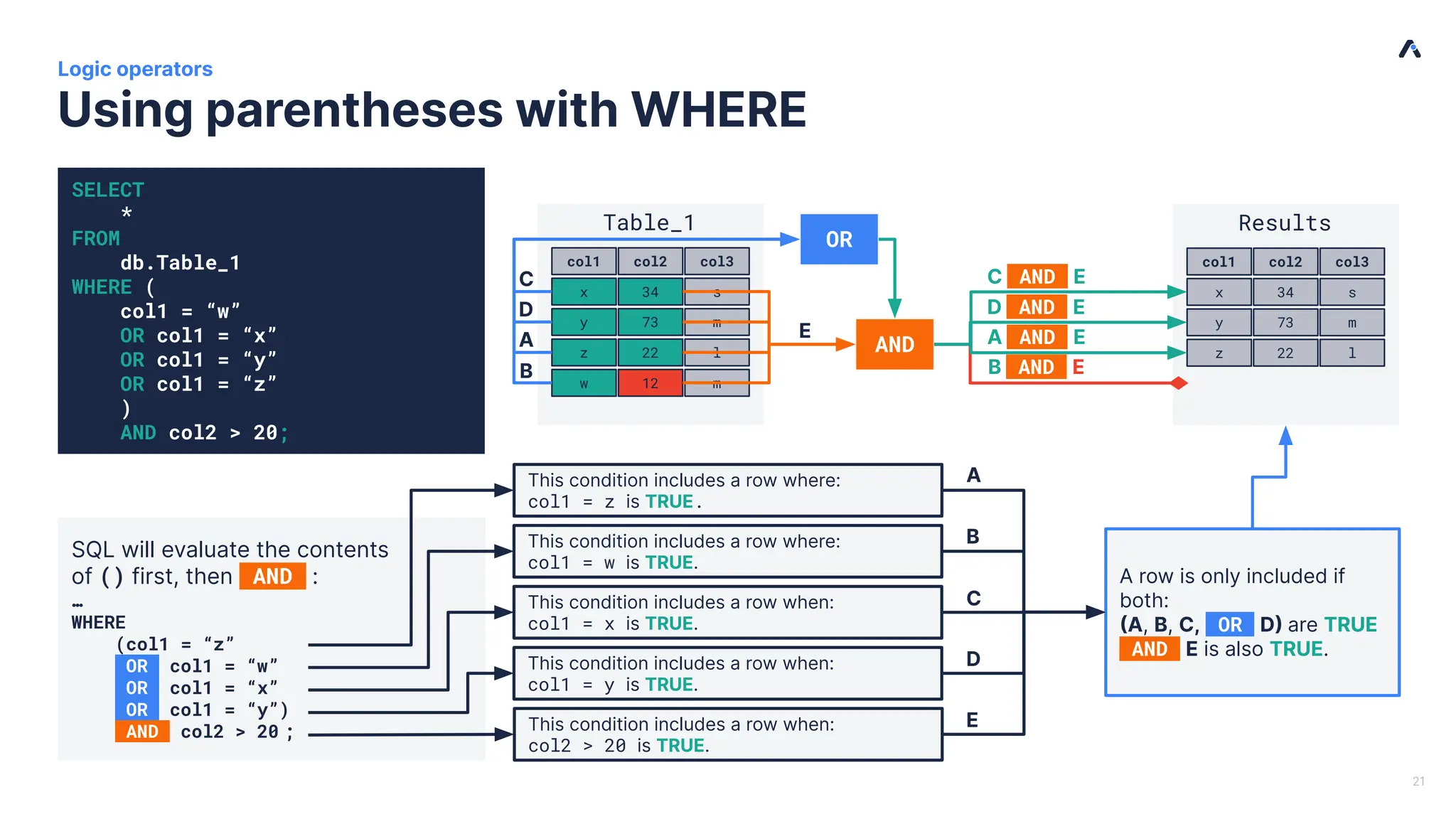

  B SQL will evaluatethe contents of () first, then AND : … WHERE (col1 = “z” OR col1 = “w” OR col1 = “x” OR col1 = “y”) AND col2 > 20 ; Using parentheses with WHERE Logic operators 21 Results col1 col2 col3 x 34 s y 73 m z 22 l SELECT * FROM db.Table_1 WHERE ( col1 = “w” OR col1 = “x” OR col1 = “y” OR col1 = “z” ) AND col2 > 20; Table_1 col1 col2 col3 x 34 s y 73 m z 22 l w 12 m AND OR This condition includes a row where: col1 = z is TRUE. This condition includes a row where: col1 = w is TRUE. This condition includes a row when: col1 = x is TRUE. This condition includes a row when: col1 = y is TRUE. A row is only included if both: (A, B, C, OR D) are TRUE AND E is also TRUE. A B C D This condition includes a row when: col2 > 20 is TRUE. E A C D E C AND E D AND E A AND E B AND E
