Liquibase for java developers By Illia Seleznov

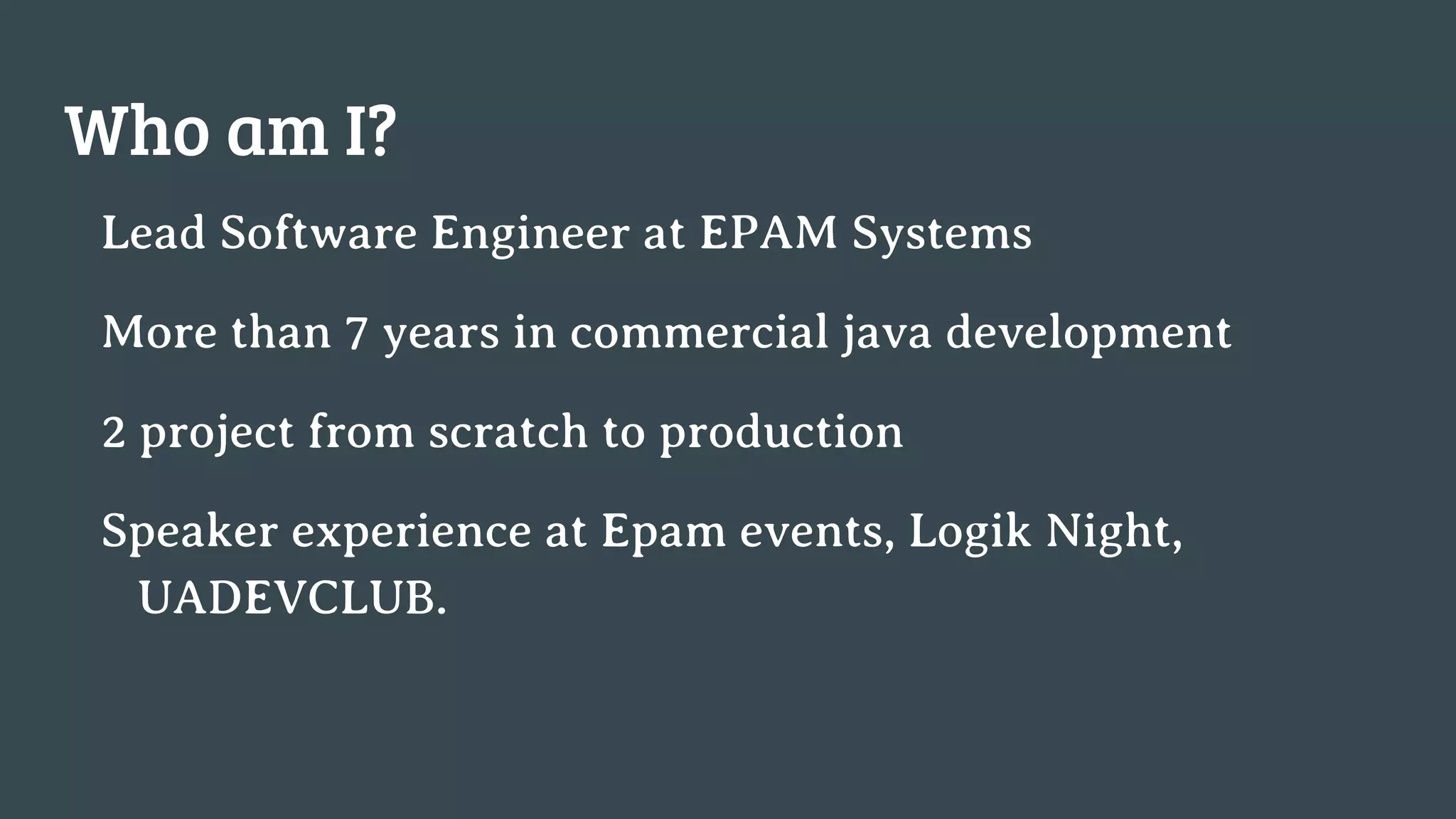

Who am I? Lead Software Engineer at EPAM Systems More than 7 years in commercial java development 2 project from scratch to production Speaker experience at Epam events, Logik Night, UADEVCLUB.

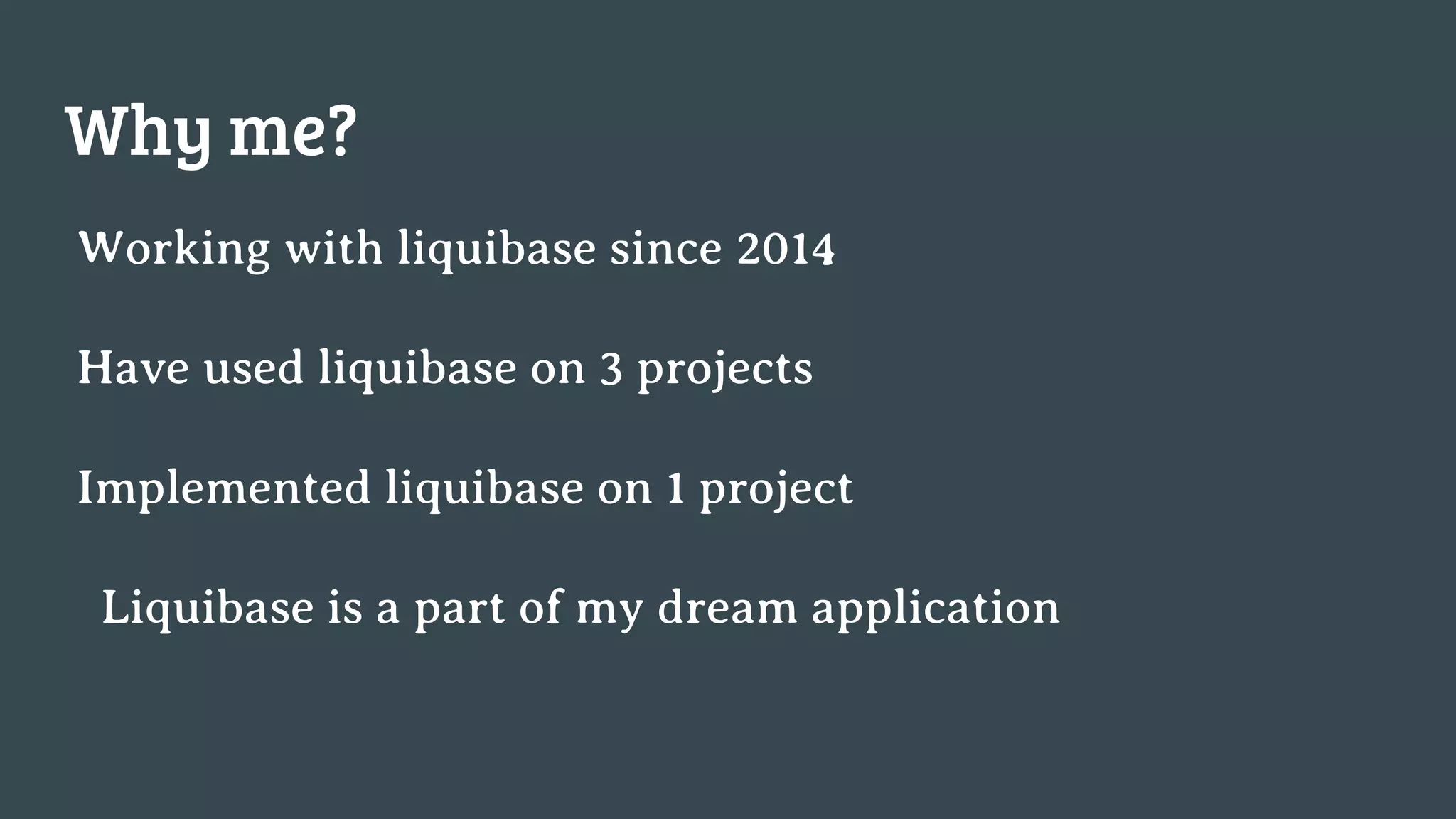

Why me? Working with liquibase since 2014 Have used liquibase on 3 projects Implemented liquibase on 1 project Liquibase is a part of my dream application

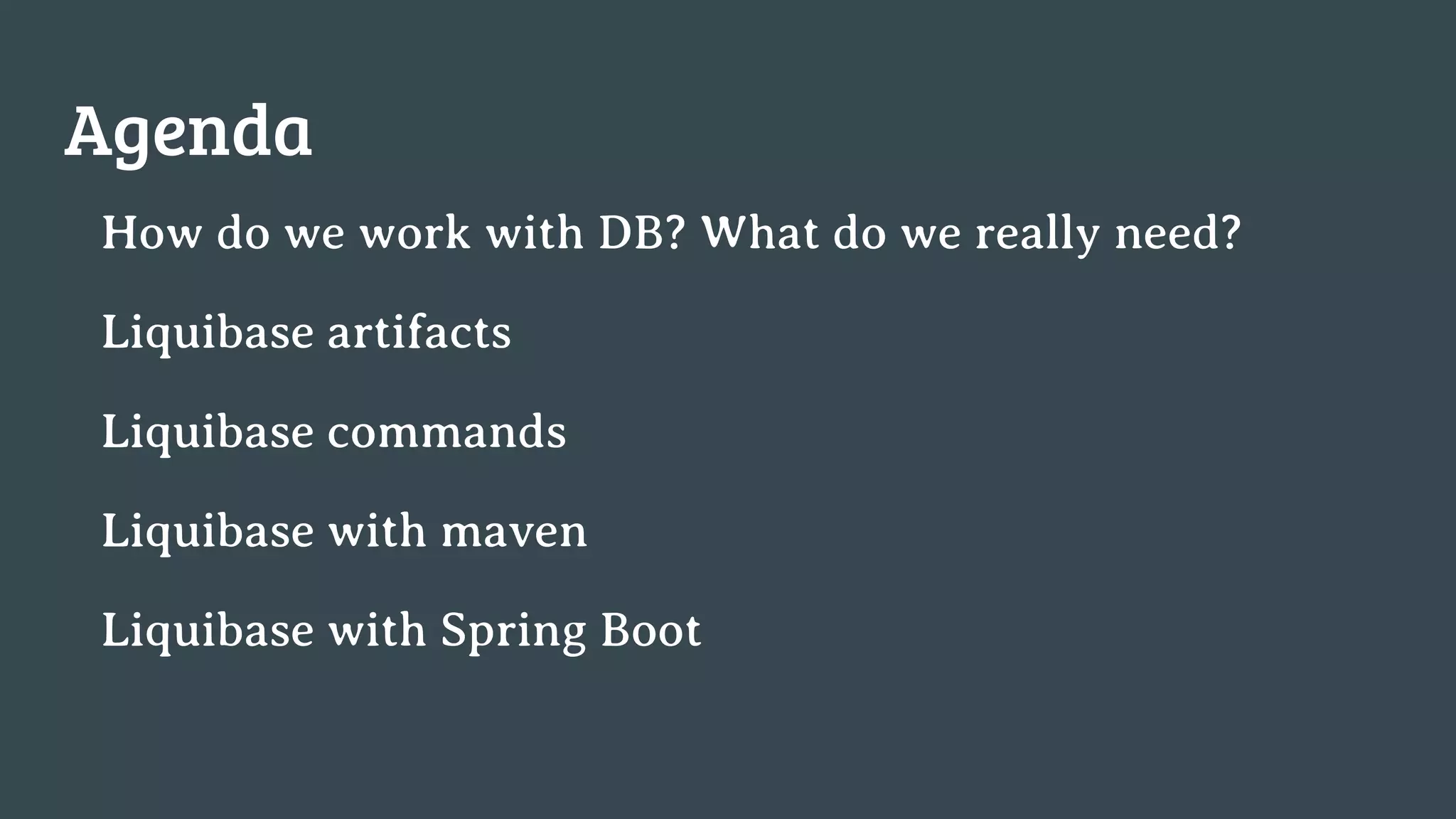

Agenda How do we work with DB? What do we really need? Liquibase artifacts Liquibase commands Liquibase with maven Liquibase with Spring Boot

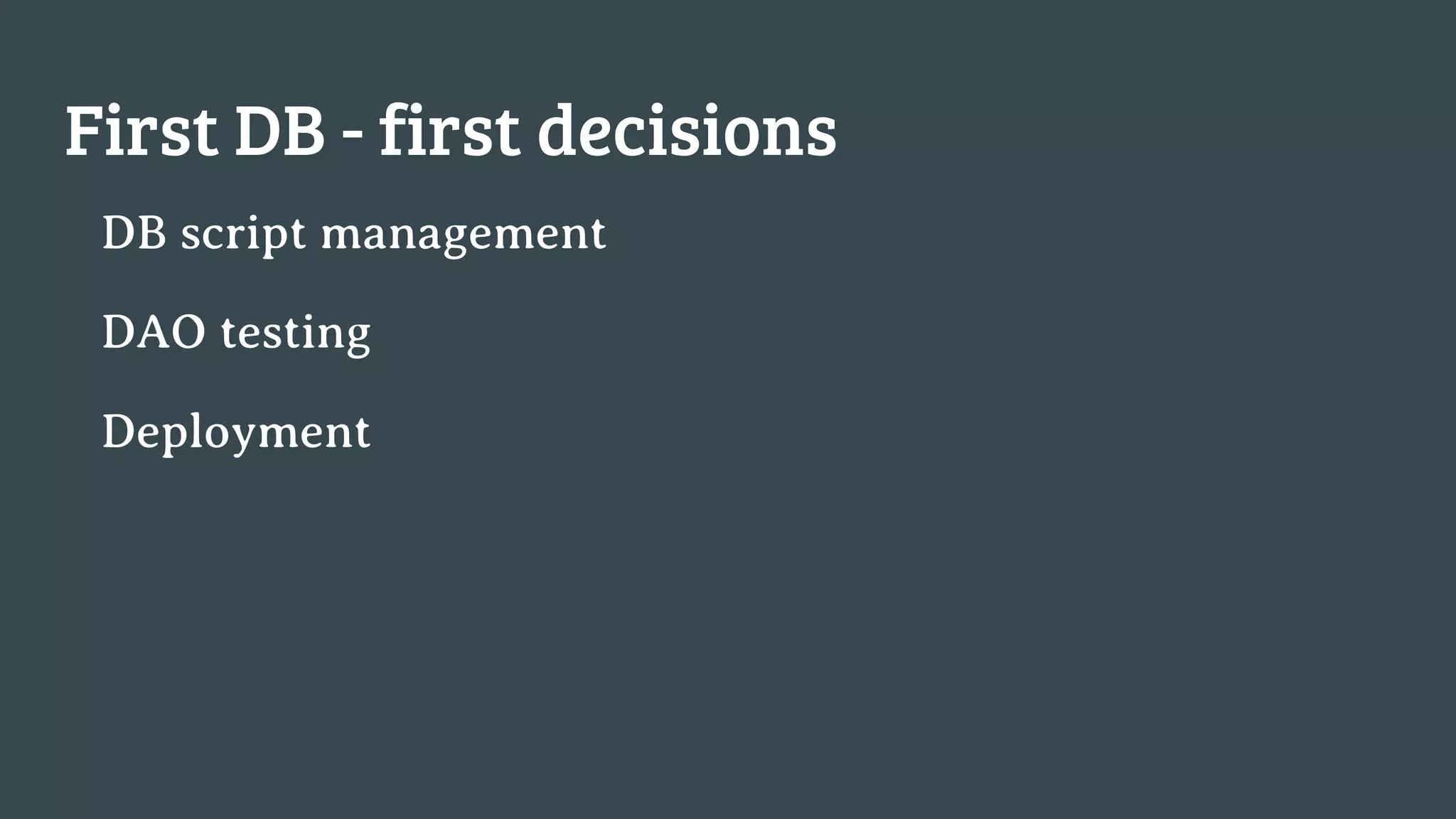

First DB - first decisions DB script management DAO testing Deployment

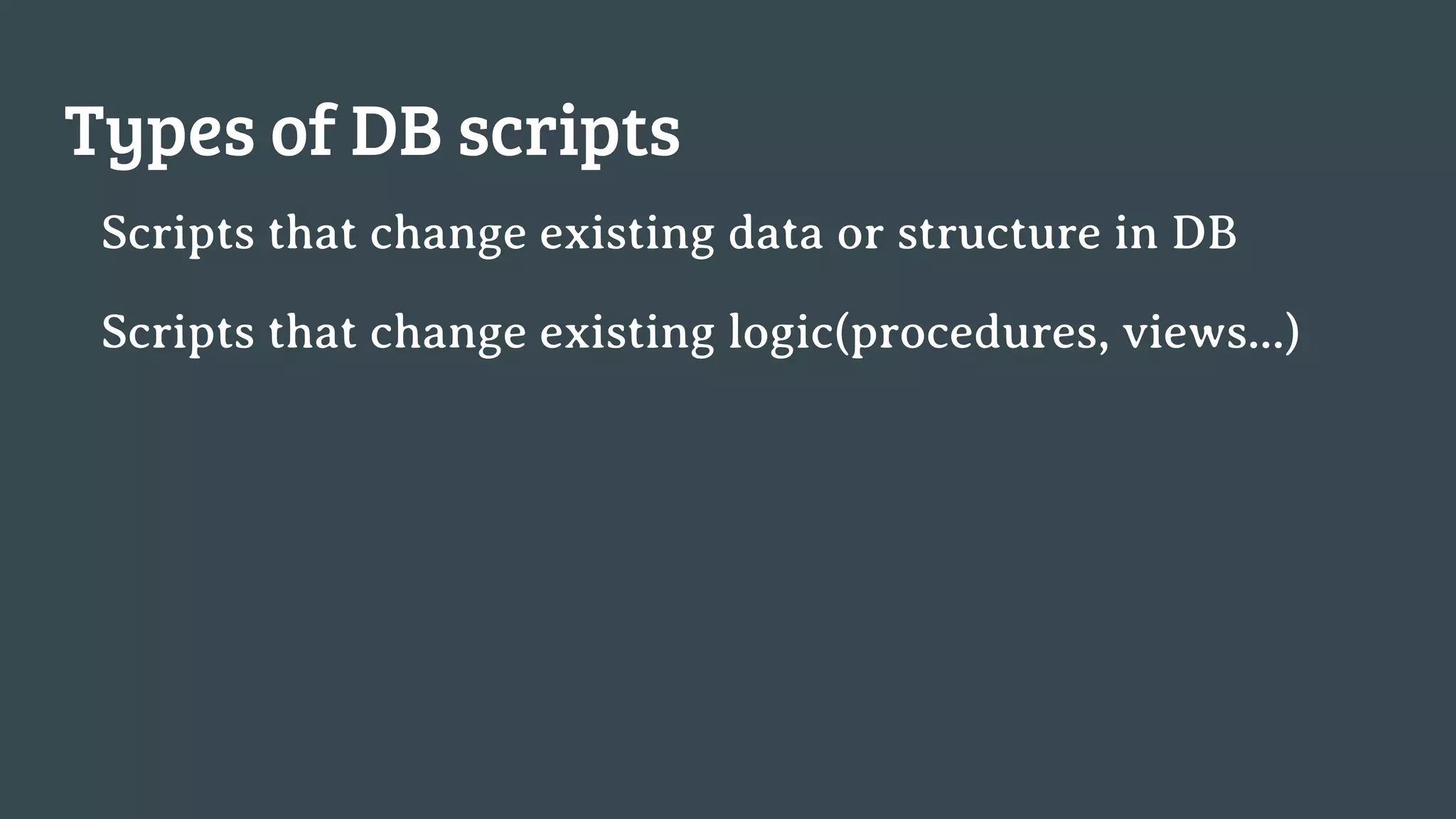

Types of DB scripts Scripts that change existing data or structure in DB Scripts that change existing logic(procedures, views...)

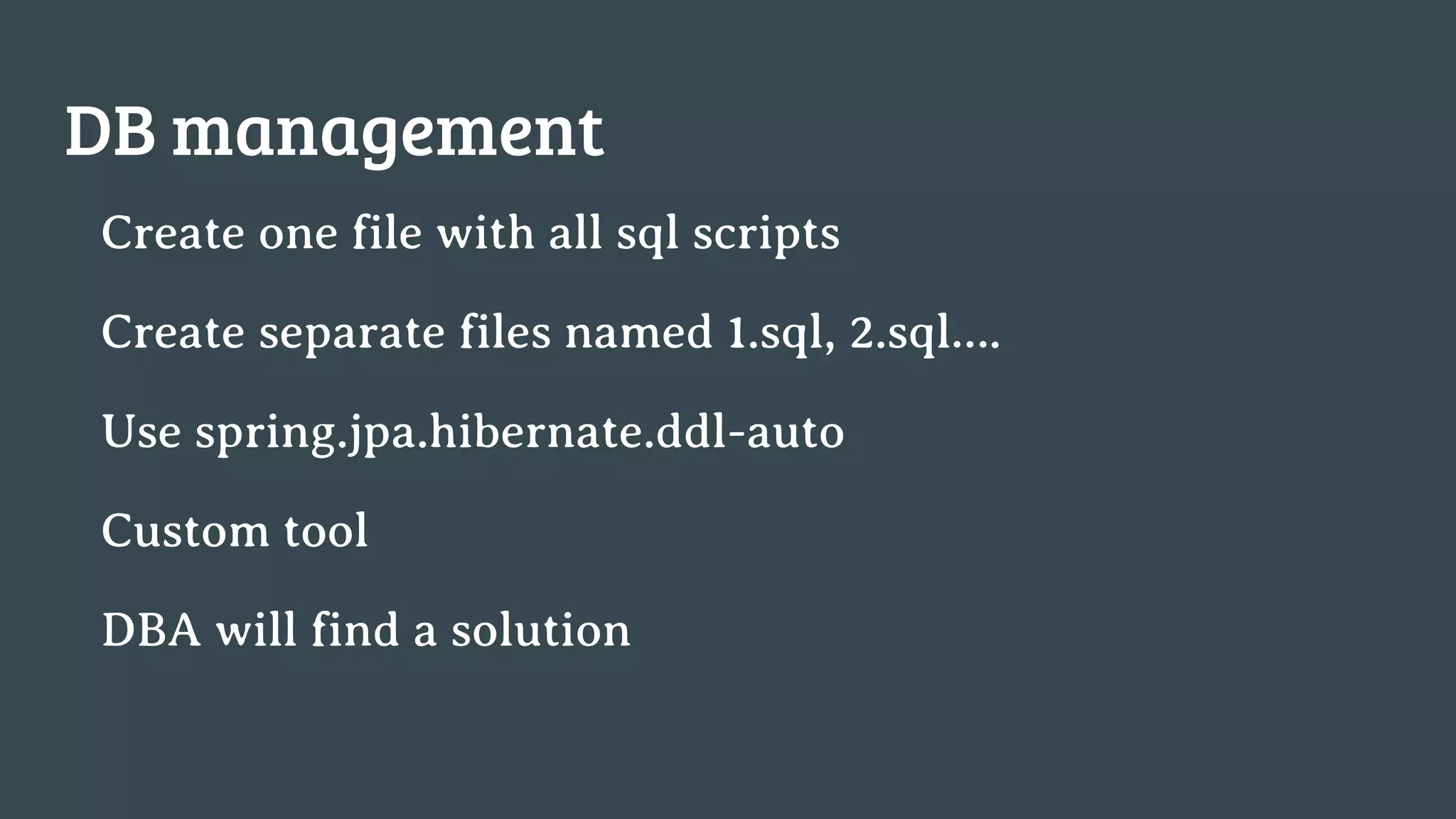

DB management Create one file with all sql scripts Create separate files named 1.sql, 2.sql…. Use spring.jpa.hibernate.ddl-auto Custom tool DBA will find a solution

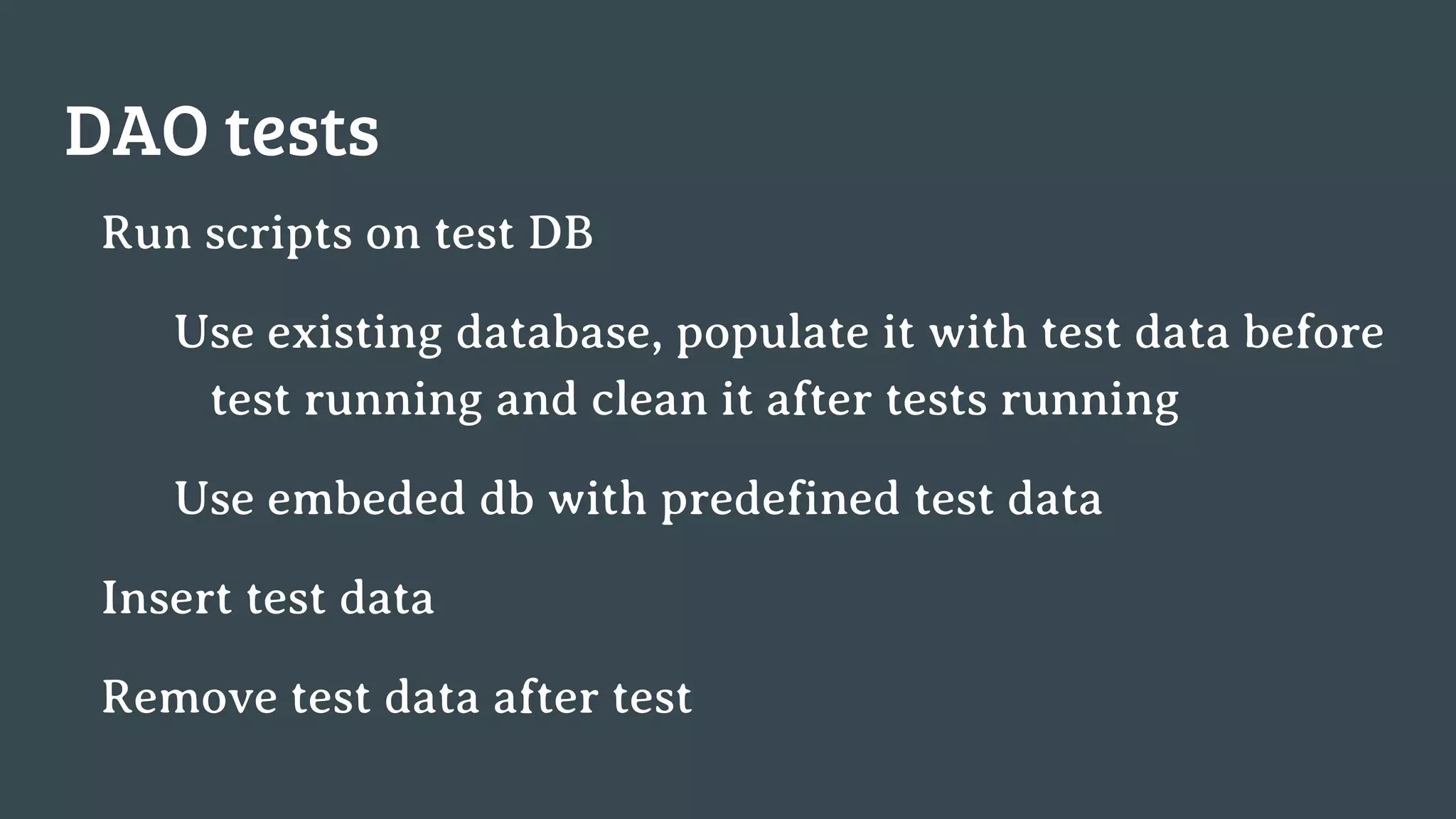

DAO tests Run scripts on test DB Use existing database, populate it with test data before test running and clean it after tests running Use embeded db with predefined test data Insert test data Remove test data after test

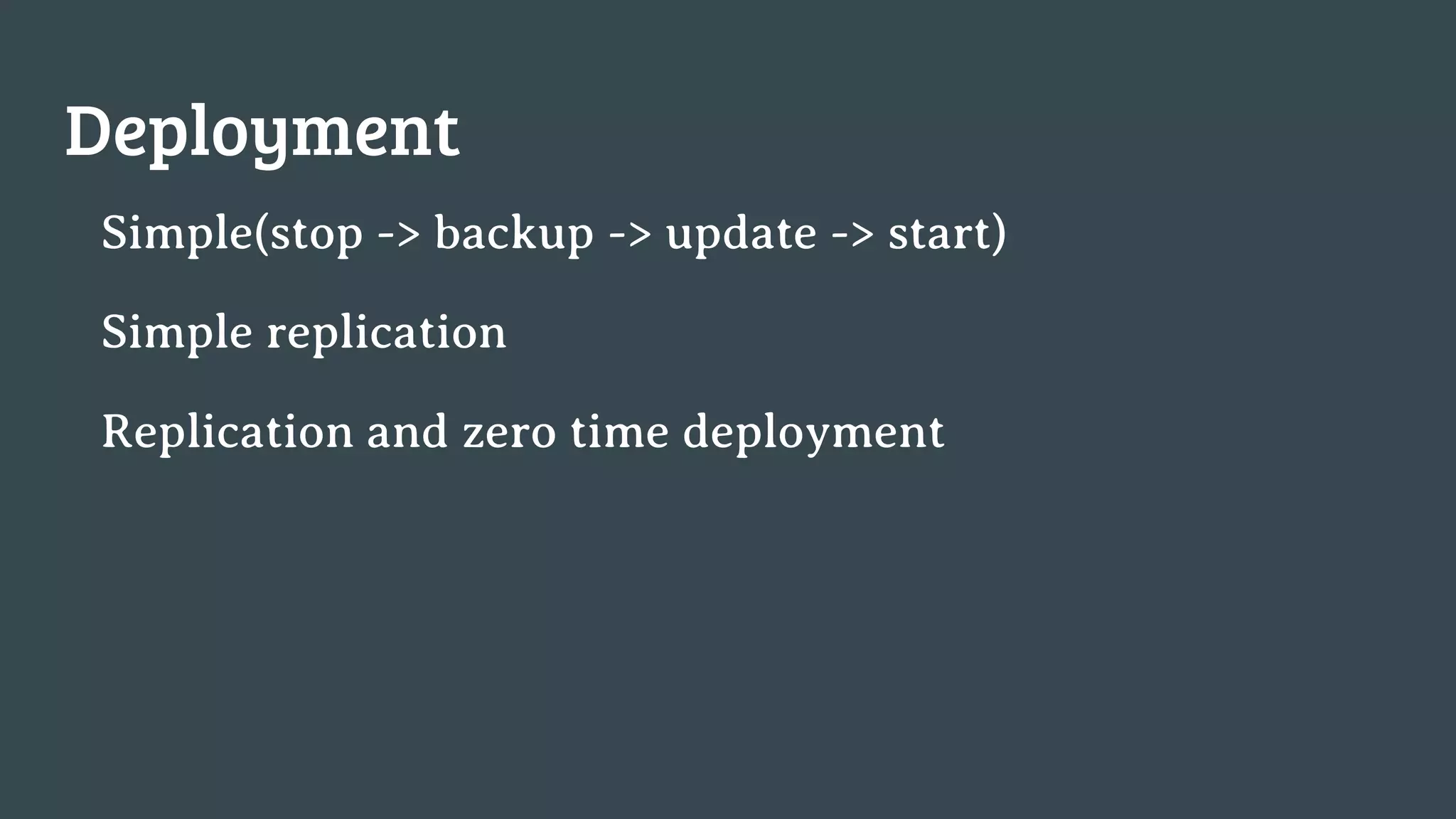

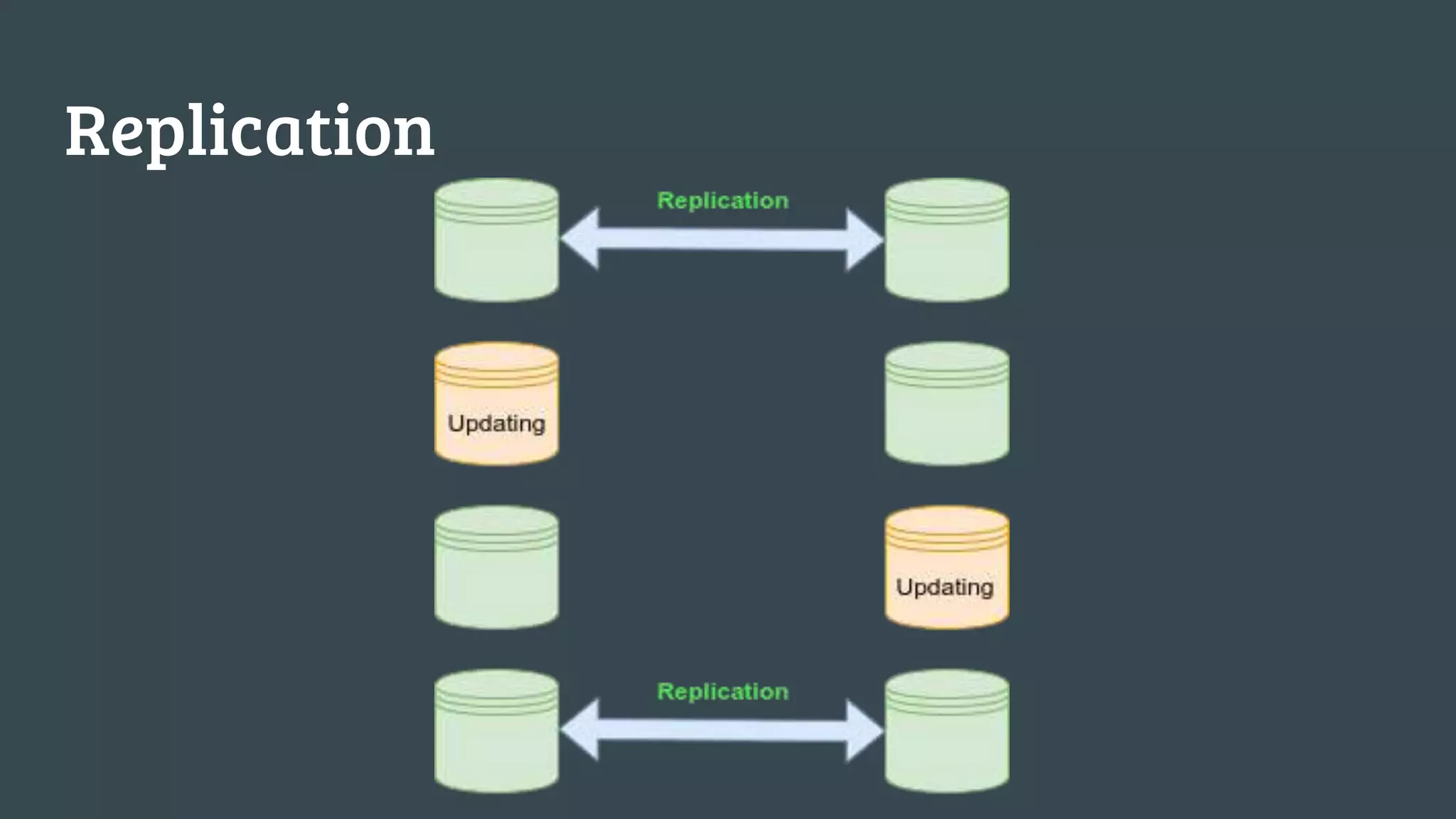

Deployment Simple(stop -> backup -> update -> start) Simple replication Replication and zero time deployment

Liquibase is open sources Founded in 2006 year Author is Nathan Voxland Github: https://github.com/liquibase

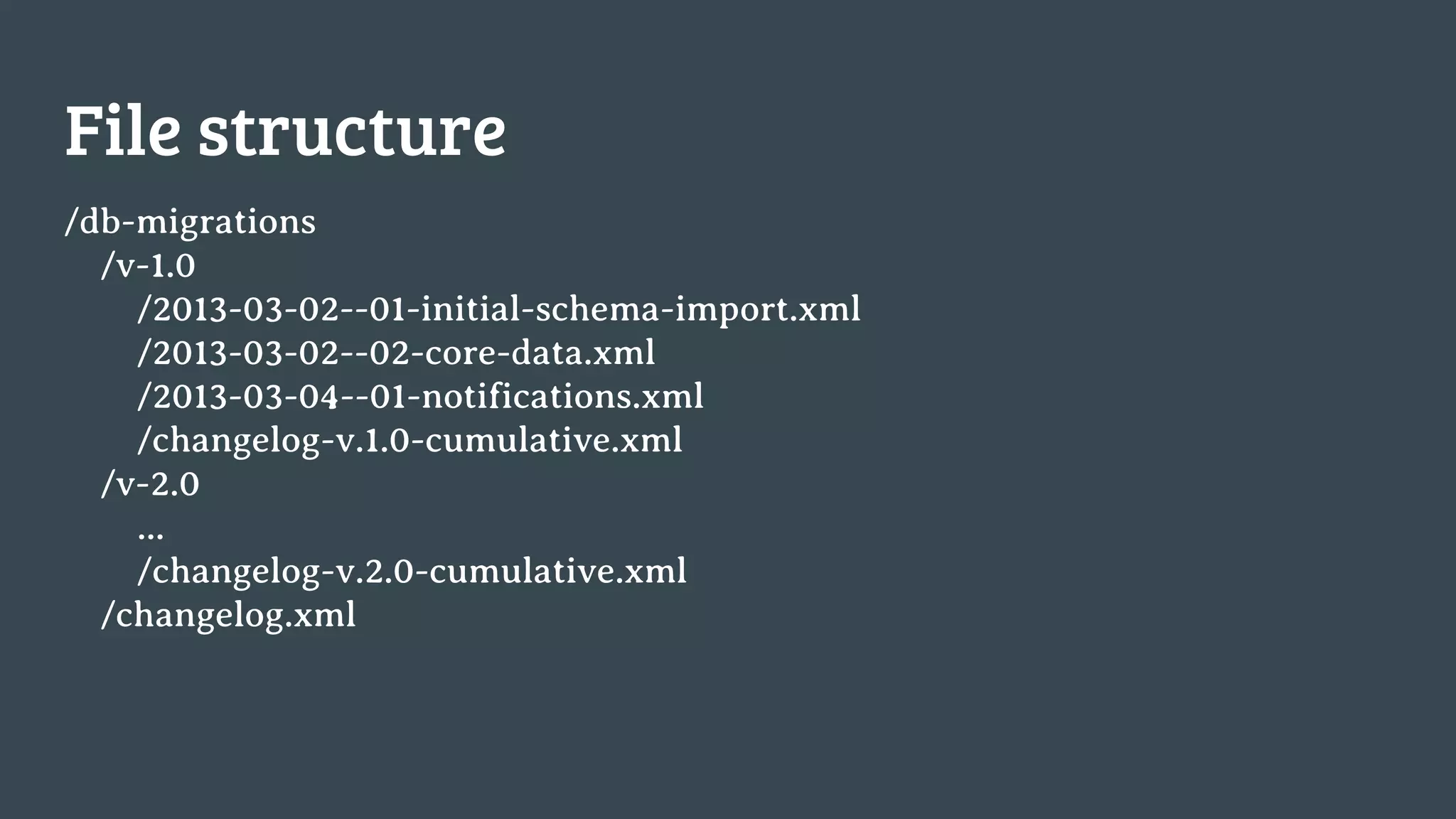

File structure /db-migrations /v-1.0 /2013-03-02--01-initial-schema-import.xml /2013-03-02--02-core-data.xml /2013-03-04--01-notifications.xml /changelog-v.1.0-cumulative.xml /v-2.0 ... /changelog-v.2.0-cumulative.xml /changelog.xml

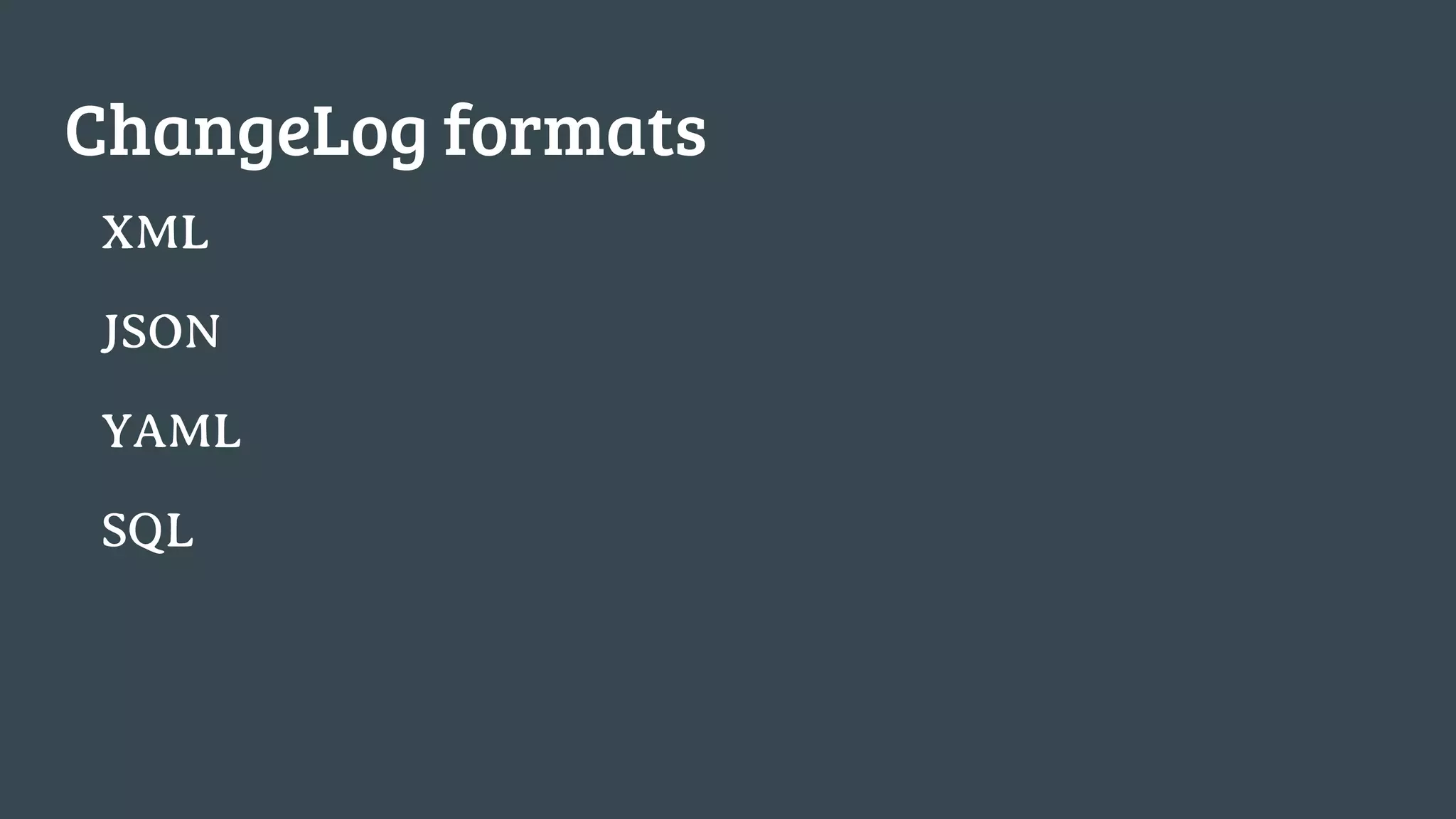

ChangeLog formats XML JSON YAML SQL

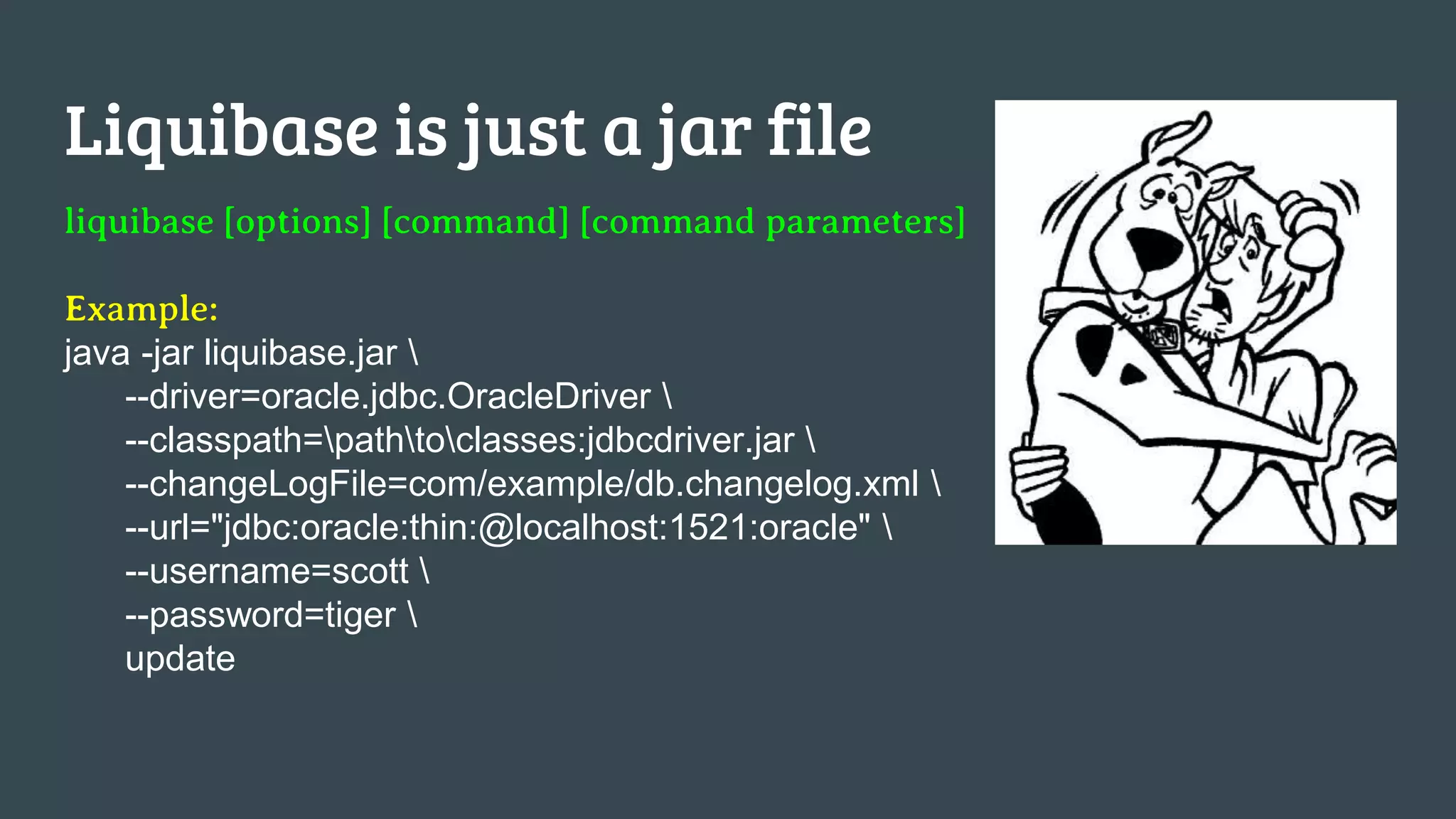

Liquibase is just a jar file liquibase [options] [command] [command parameters] Example: java -jar liquibase.jar --driver=oracle.jdbc.OracleDriver --classpath=pathtoclasses:jdbcdriver.jar --changeLogFile=com/example/db.changelog.xml --url="jdbc:oracle:thin:@localhost:1521:oracle" --username=scott --password=tiger update

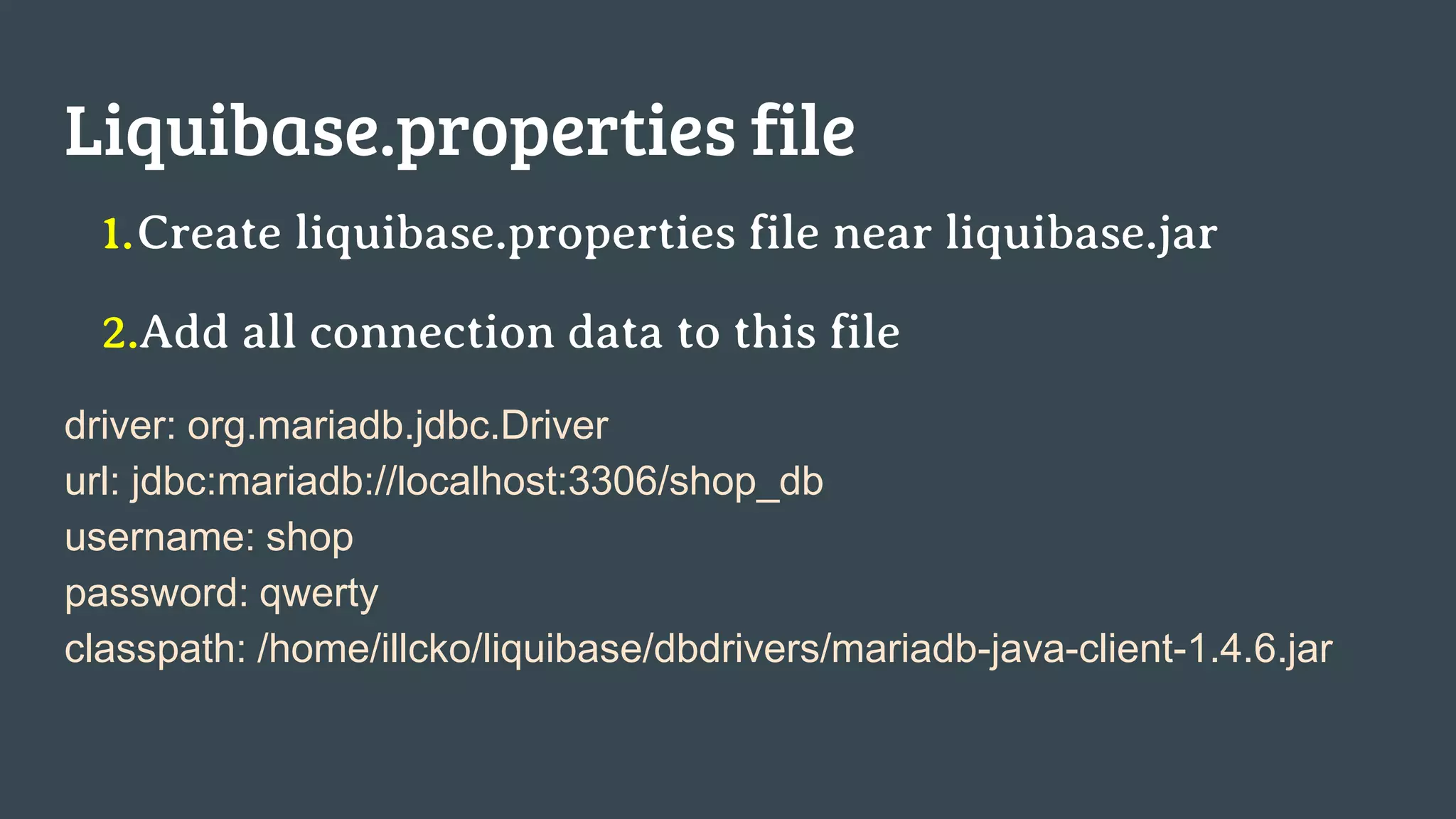

Liquibase.properties file 1.Create liquibase.properties file near liquibase.jar 2.Add all connection data to this file driver: org.mariadb.jdbc.Driver url: jdbc:mariadb://localhost:3306/shop_db username: shop password: qwerty classpath: /home/illcko/liquibase/dbdrivers/mariadb-java-client-1.4.6.jar

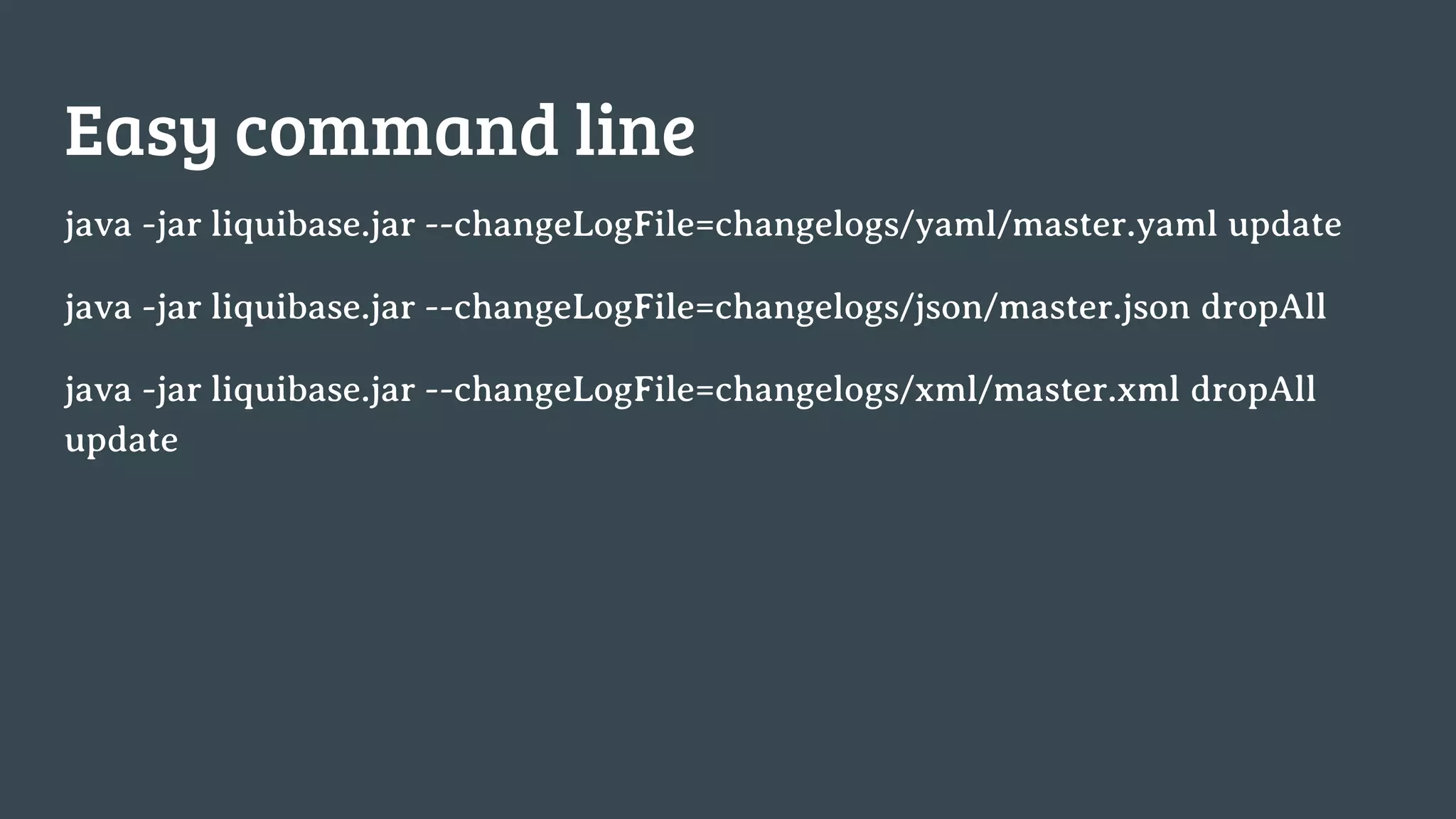

Easy command line java -jar liquibase.jar --changeLogFile=changelogs/yaml/master.yaml update java -jar liquibase.jar --changeLogFile=changelogs/json/master.json dropAll java -jar liquibase.jar --changeLogFile=changelogs/xml/master.xml dropAll update

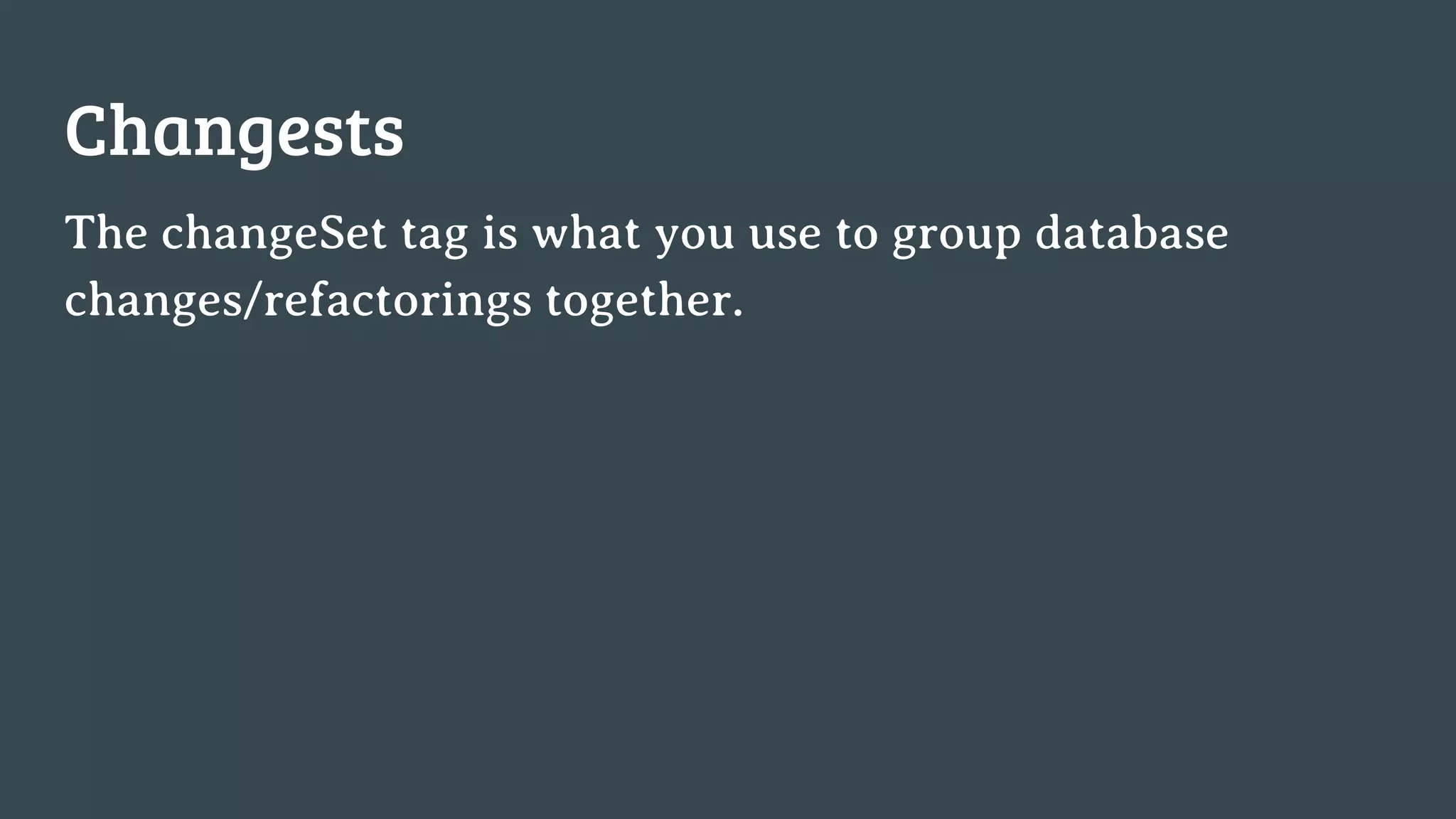

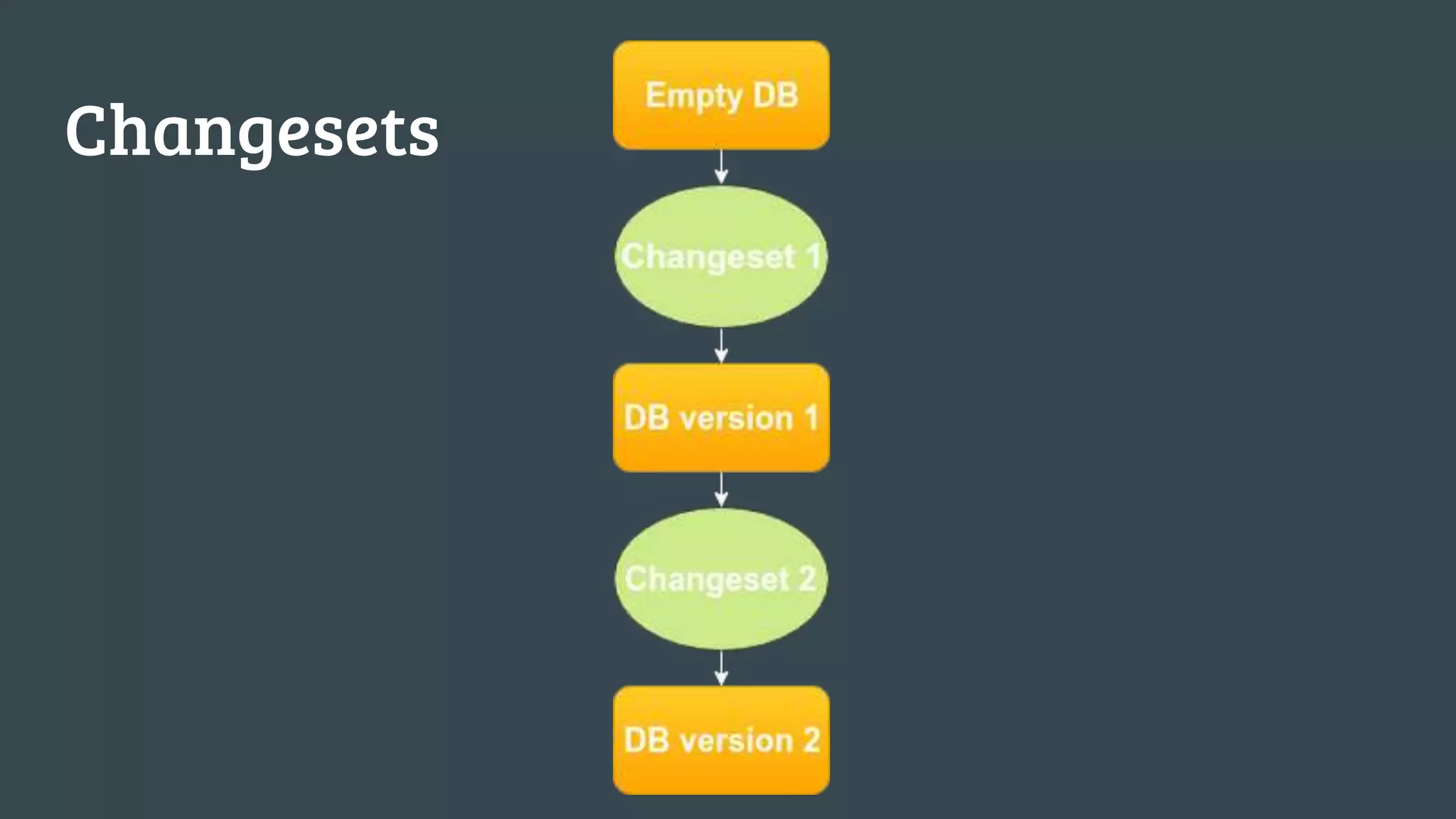

Changests The changeSet tag is what you use to group database changes/refactorings together.

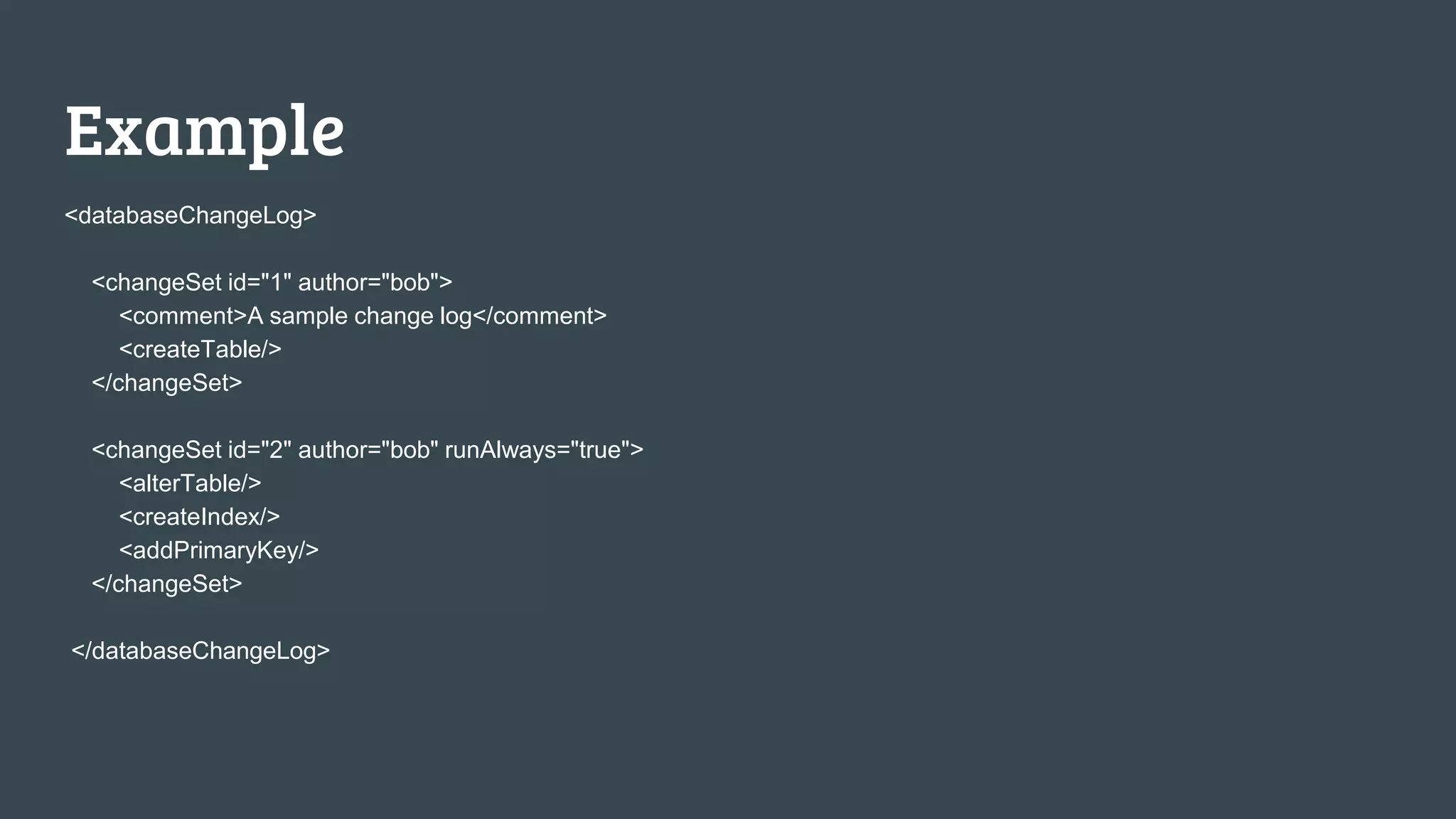

Example <databaseChangeLog> <changeSet id="1" author="bob"> <comment>A sample change log</comment> <createTable/> </changeSet> <changeSet id="2" author="bob" runAlways="true"> <alterTable/> <createIndex/> <addPrimaryKey/> </changeSet> </databaseChangeLog>

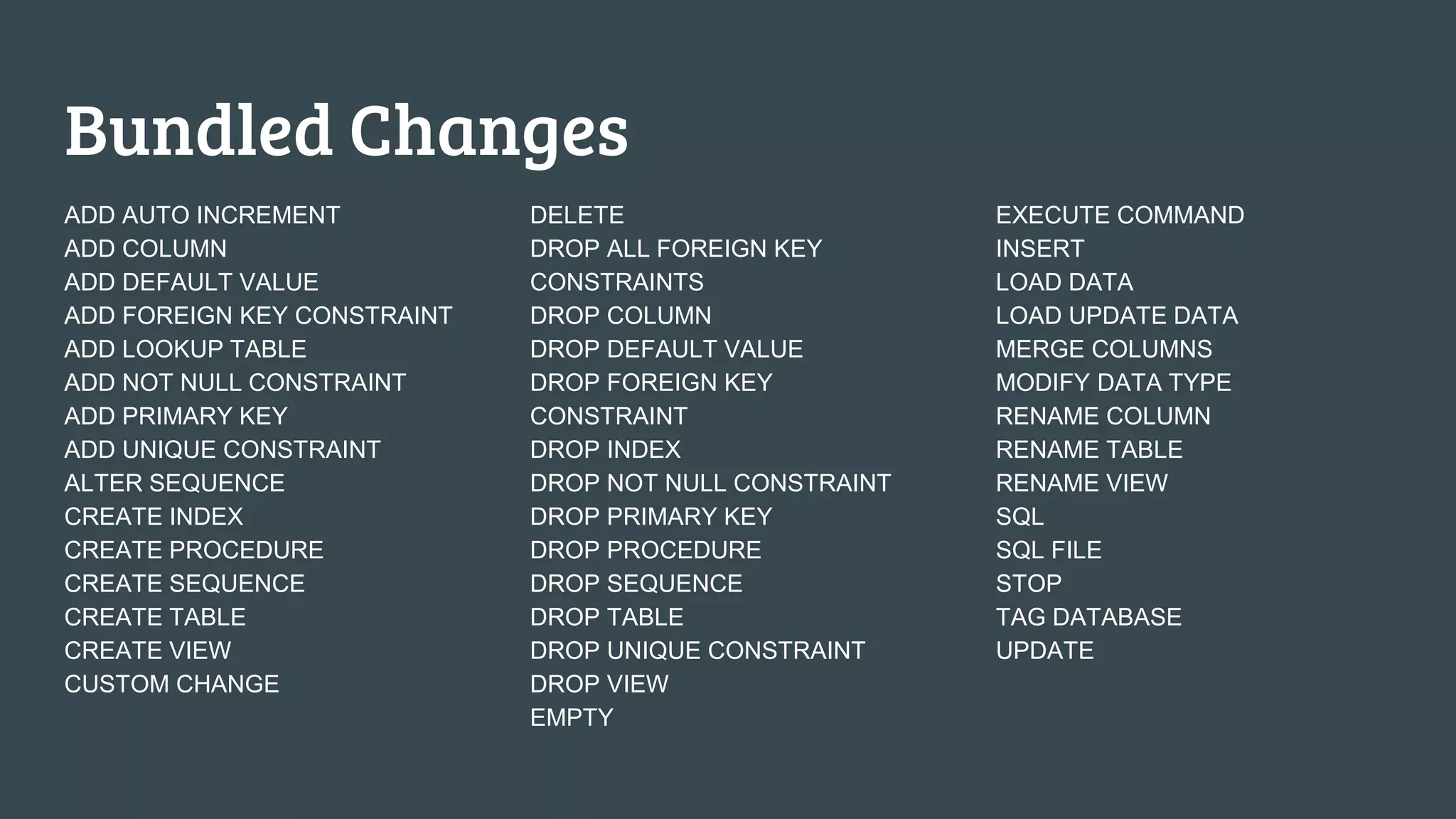

Bundled Changes ADD AUTO INCREMENT ADD COLUMN ADD DEFAULT VALUE ADD FOREIGN KEY CONSTRAINT ADD LOOKUP TABLE ADD NOT NULL CONSTRAINT ADD PRIMARY KEY ADD UNIQUE CONSTRAINT ALTER SEQUENCE CREATE INDEX CREATE PROCEDURE CREATE SEQUENCE CREATE TABLE CREATE VIEW CUSTOM CHANGE DELETE DROP ALL FOREIGN KEY CONSTRAINTS DROP COLUMN DROP DEFAULT VALUE DROP FOREIGN KEY CONSTRAINT DROP INDEX DROP NOT NULL CONSTRAINT DROP PRIMARY KEY DROP PROCEDURE DROP SEQUENCE DROP TABLE DROP UNIQUE CONSTRAINT DROP VIEW EMPTY EXECUTE COMMAND INSERT LOAD DATA LOAD UPDATE DATA MERGE COLUMNS MODIFY DATA TYPE RENAME COLUMN RENAME TABLE RENAME VIEW SQL SQL FILE STOP TAG DATABASE UPDATE

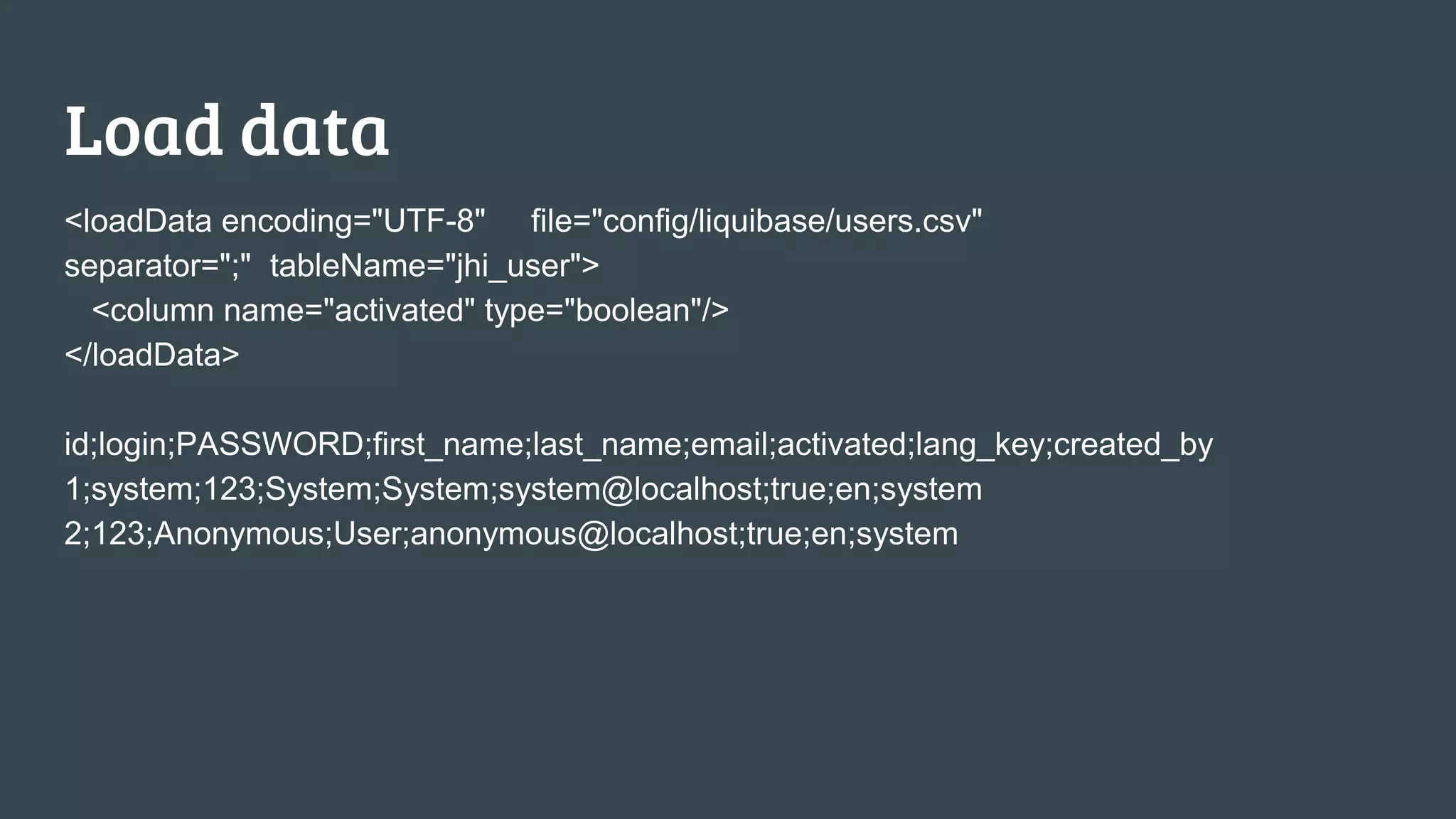

Load data <loadData encoding="UTF-8" file="config/liquibase/users.csv" separator=";" tableName="jhi_user"> <column name="activated" type="boolean"/> </loadData> id;login;PASSWORD;first_name;last_name;email;activated;lang_key;created_by 1;system;123;System;System;system@localhost;true;en;system 2;123;Anonymous;User;anonymous@localhost;true;en;system

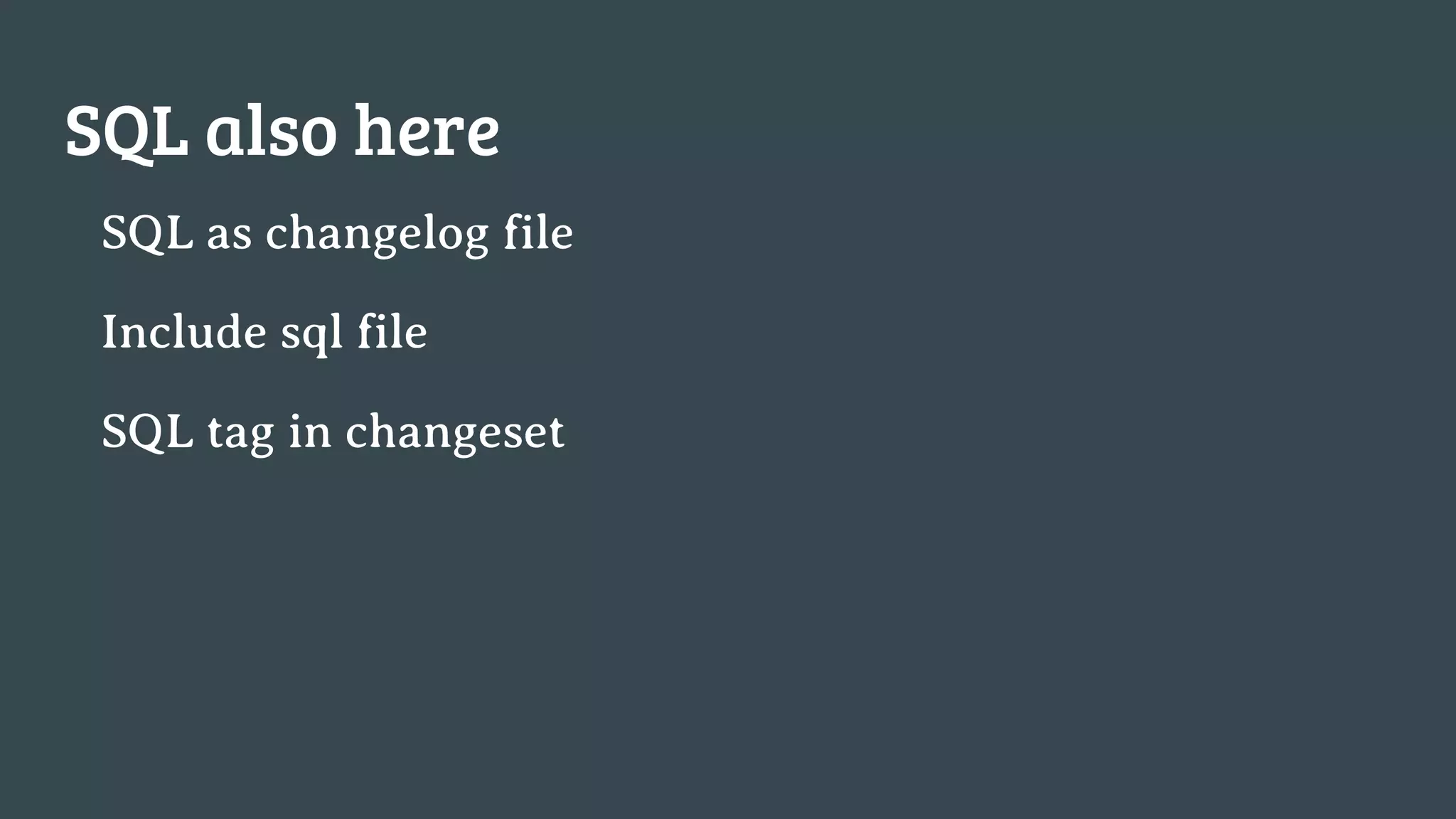

SQL also here SQL as changelog file Include sql file SQL tag in changeset

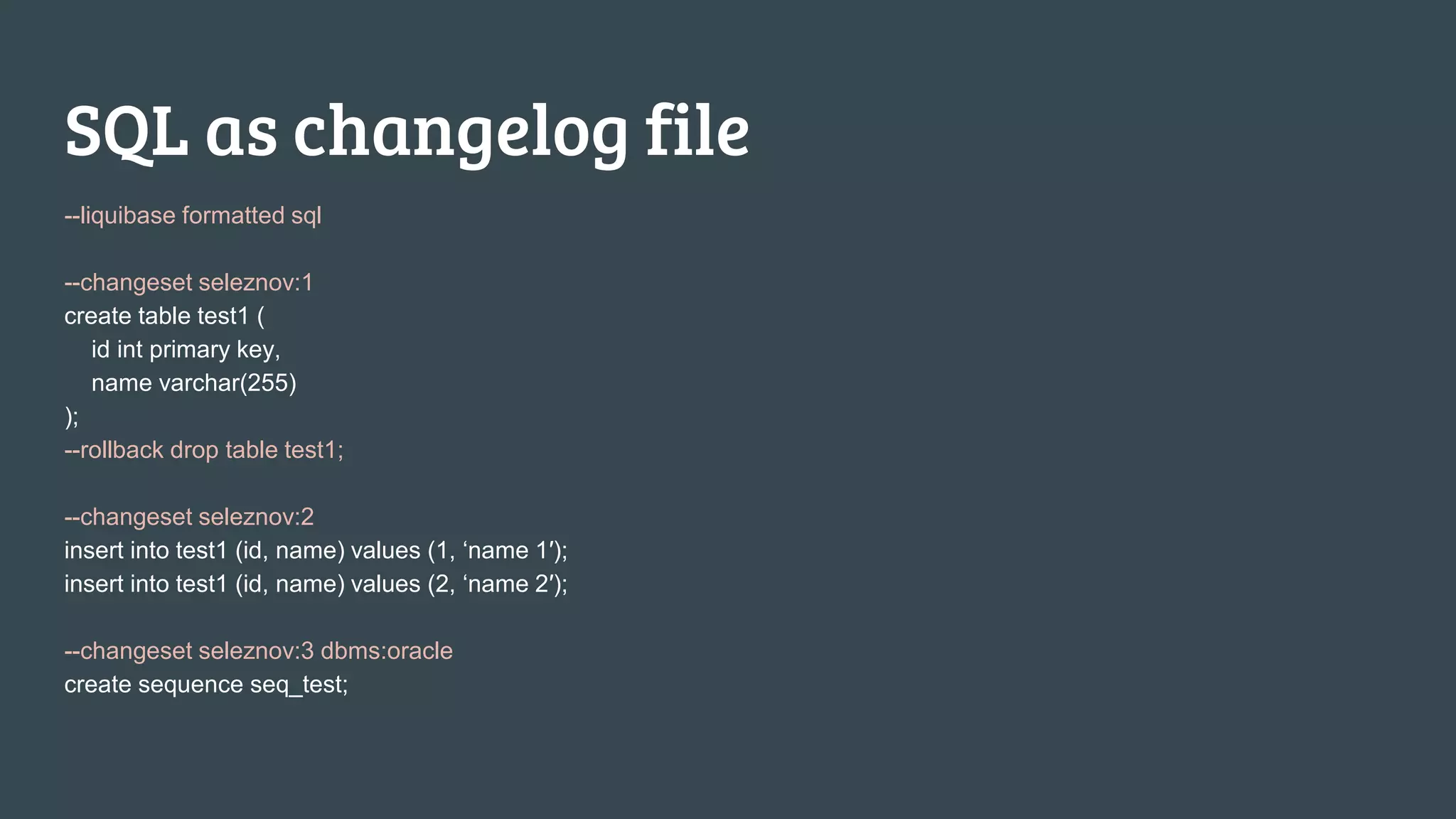

SQL as changelog file --liquibase formatted sql --changeset seleznov:1 create table test1 ( id int primary key, name varchar(255) ); --rollback drop table test1; --changeset seleznov:2 insert into test1 (id, name) values (1, ‘name 1′); insert into test1 (id, name) values (2, ‘name 2′); --changeset seleznov:3 dbms:oracle create sequence seq_test;

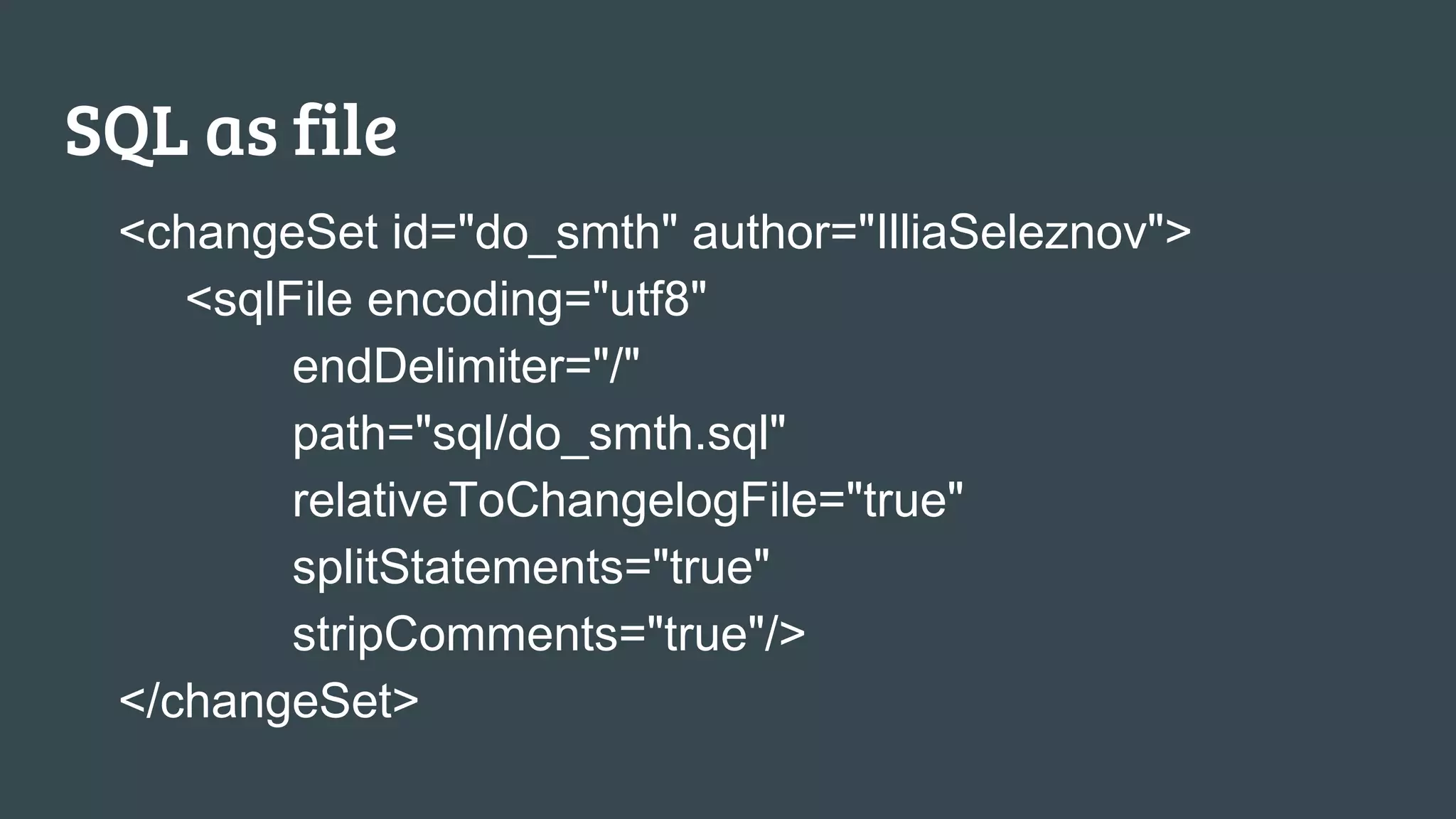

SQL as file <changeSet id="do_smth" author="IlliaSeleznov"> <sqlFile encoding="utf8" endDelimiter="/" path="sql/do_smth.sql" relativeToChangelogFile="true" splitStatements="true" stripComments="true"/> </changeSet>

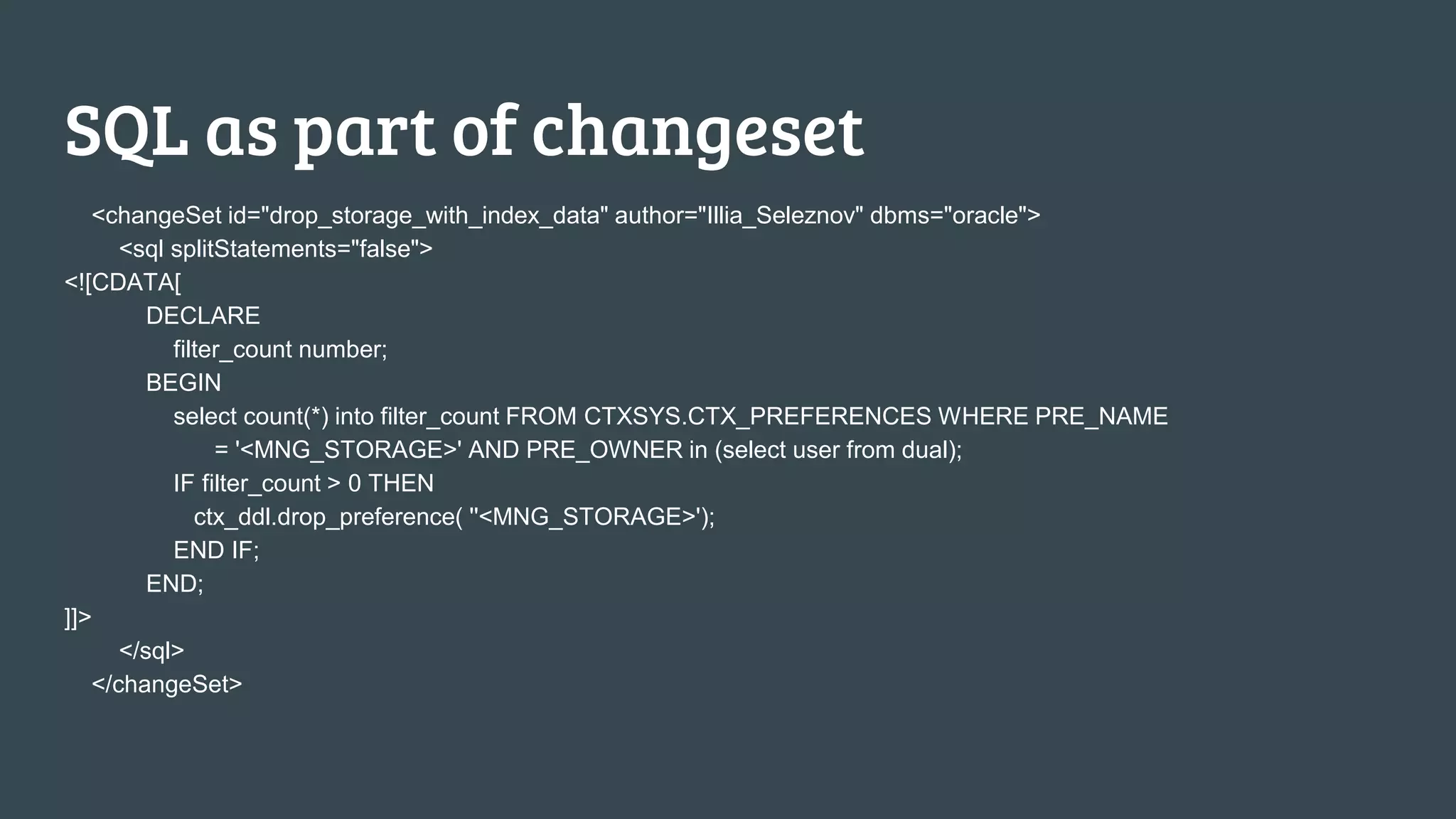

SQL as part of changeset <changeSet id="drop_storage_with_index_data" author="Illia_Seleznov" dbms="oracle"> <sql splitStatements="false"> <![CDATA[ DECLARE filter_count number; BEGIN select count(*) into filter_count FROM CTXSYS.CTX_PREFERENCES WHERE PRE_NAME = '<MNG_STORAGE>' AND PRE_OWNER in (select user from dual); IF filter_count > 0 THEN ctx_ddl.drop_preference( ''<MNG_STORAGE>'); END IF; END; ]]> </sql> </changeSet>

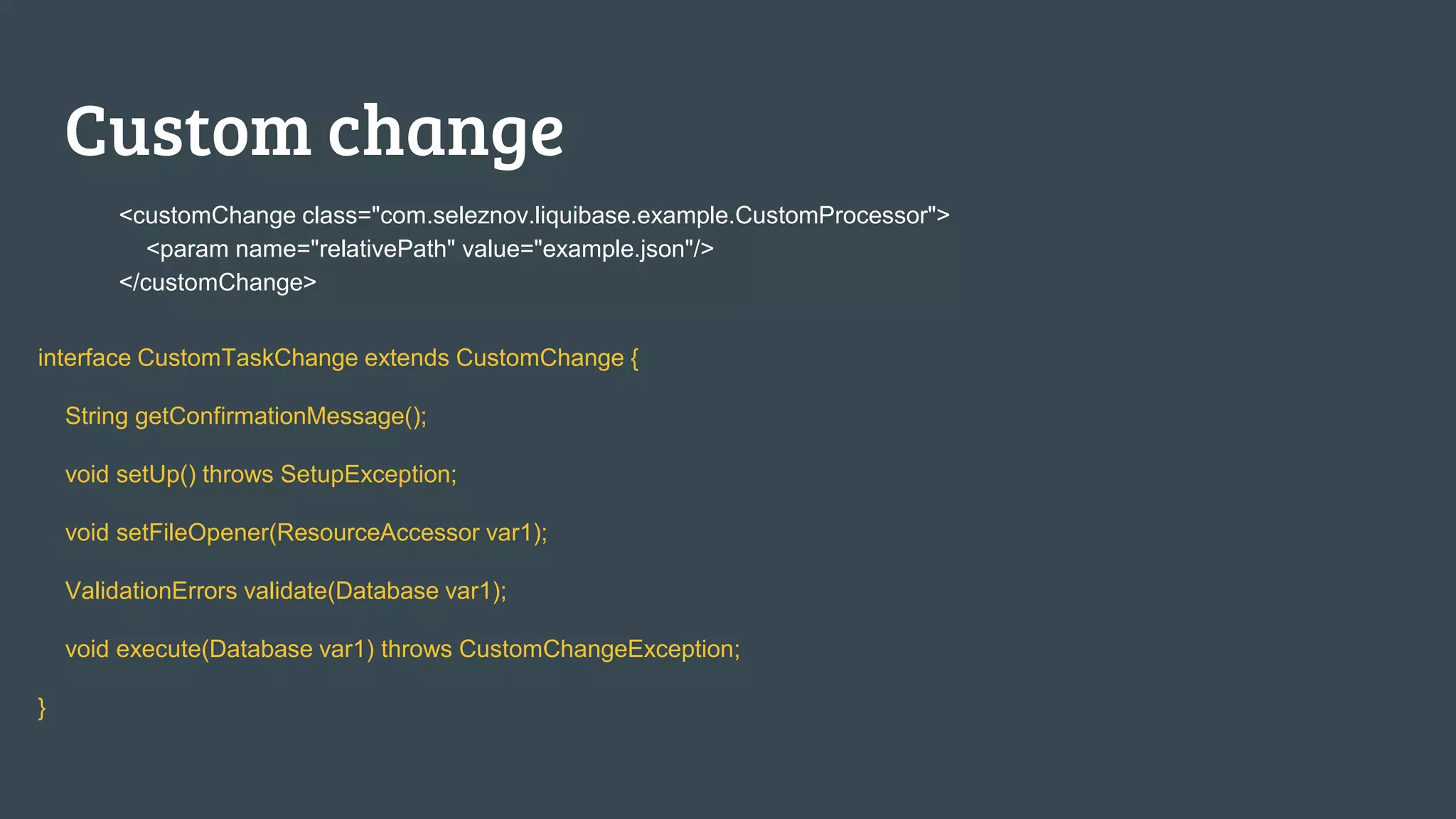

Custom change <customChange class="com.seleznov.liquibase.example.CustomProcessor"> <param name="relativePath" value="example.json"/> </customChange> interface CustomTaskChange extends CustomChange { String getConfirmationMessage(); void setUp() throws SetupException; void setFileOpener(ResourceAccessor var1); ValidationErrors validate(Database var1); void execute(Database var1) throws CustomChangeException; }

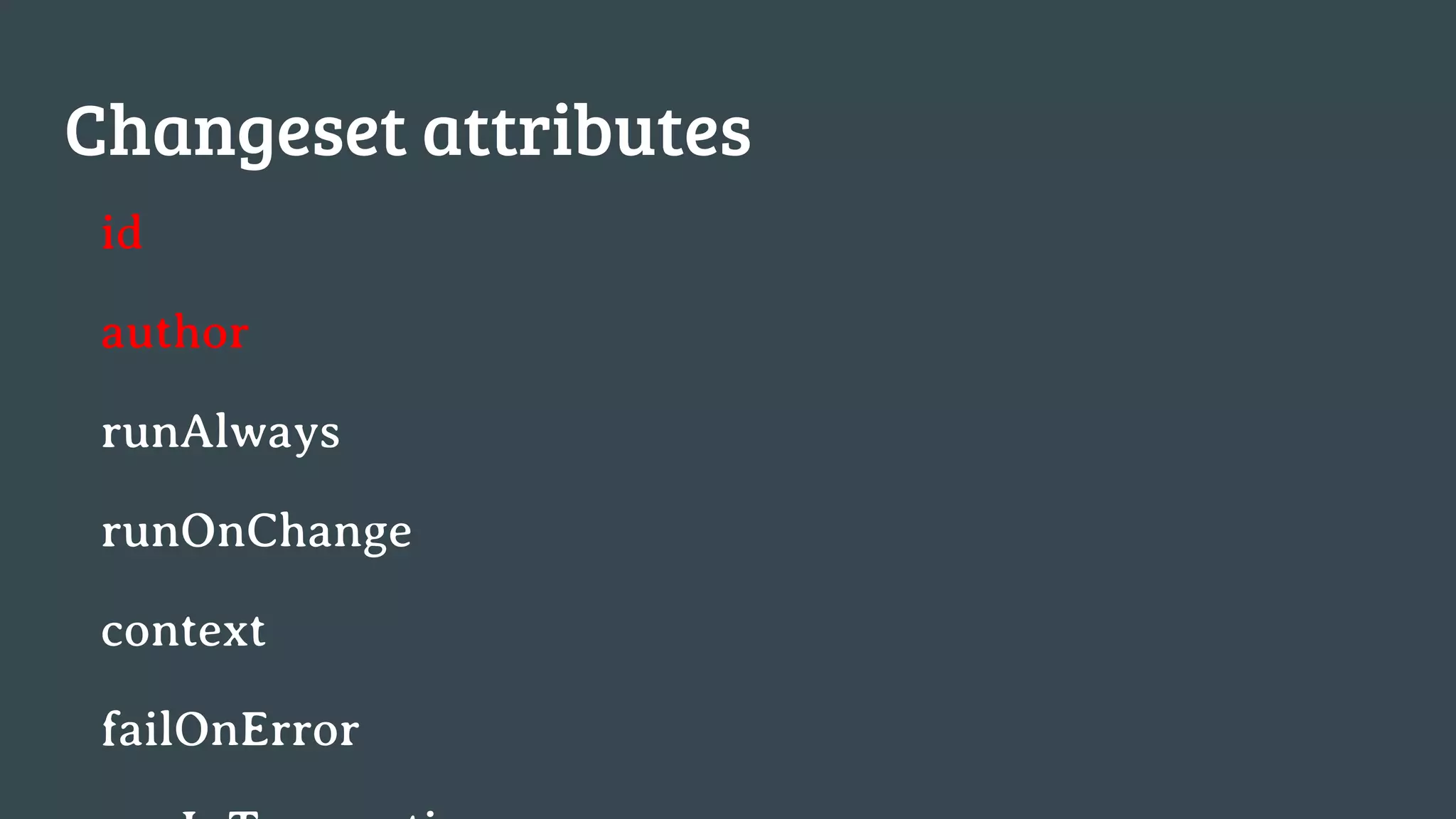

Changeset attributes id author runAlways runOnChange context failOnError

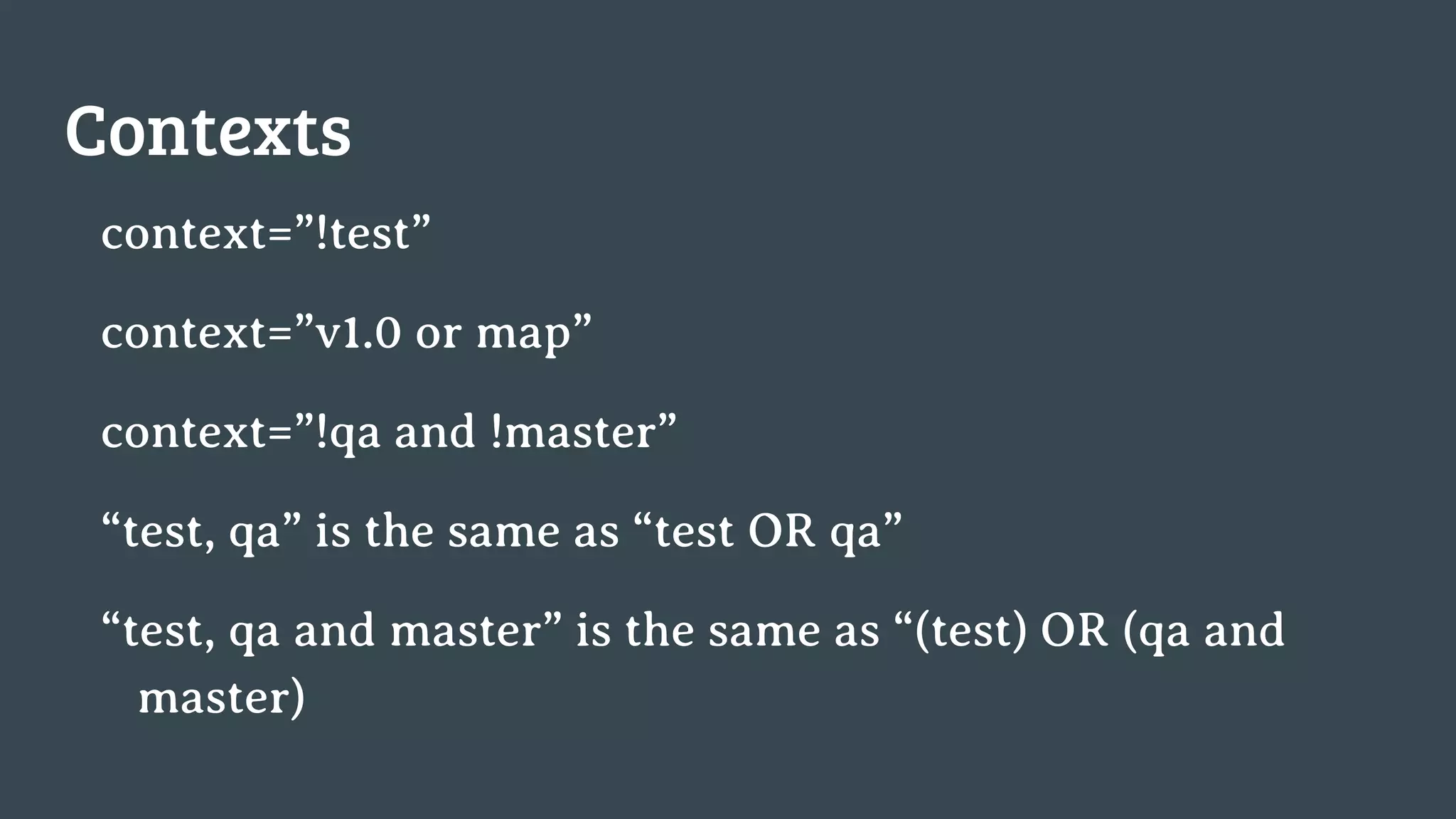

Contexts context=”!test” context=”v1.0 or map” context=”!qa and !master” “test, qa” is the same as “test OR qa” “test, qa and master” is the same as “(test) OR (qa and master)

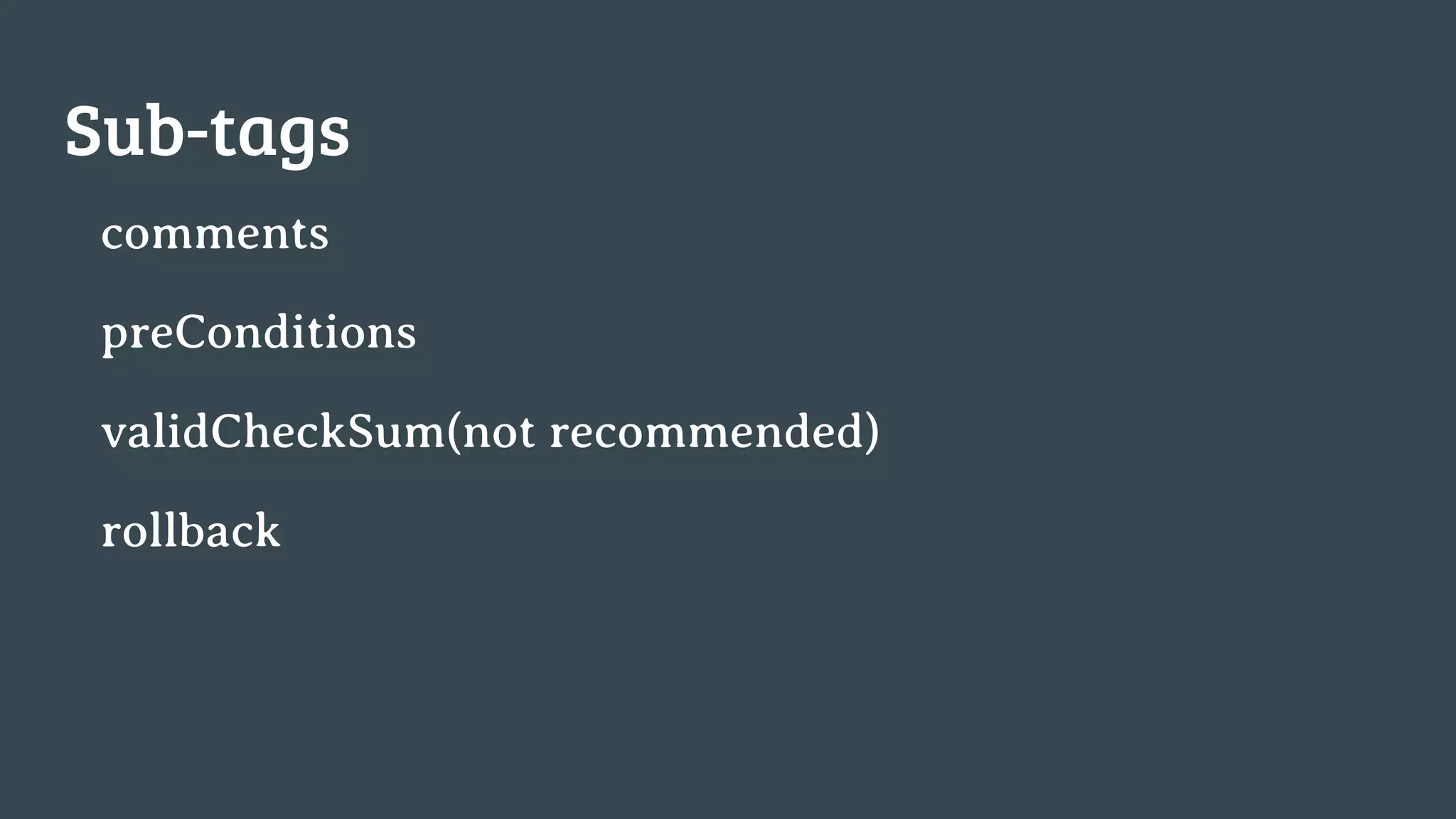

Sub-tags comments preConditions validCheckSum(not recommended) rollback

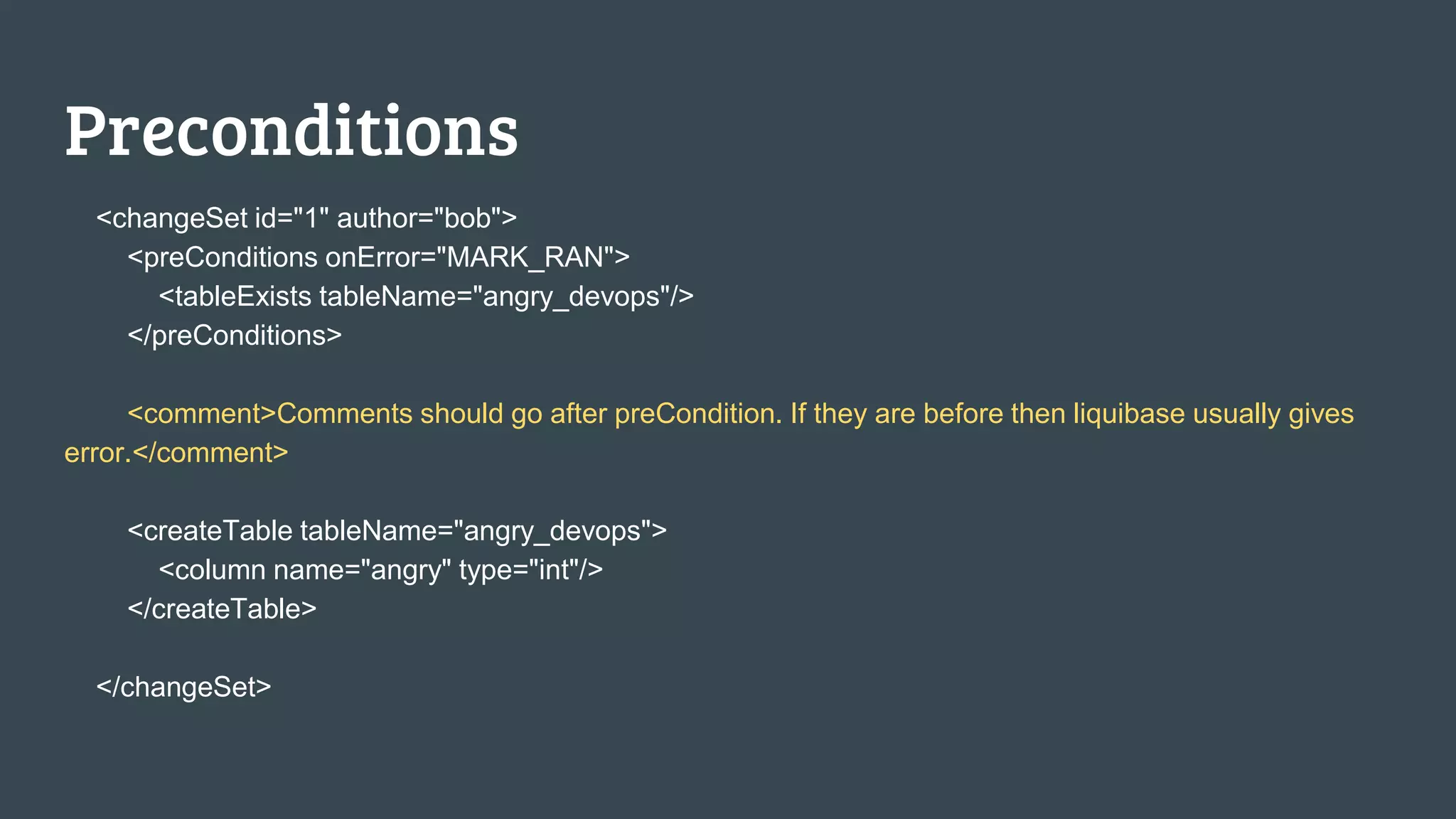

Preconditions <changeSet id="1" author="bob"> <preConditions onError="MARK_RAN"> <tableExists tableName="angry_devops"/> </preConditions> <comment>Comments should go after preCondition. If they are before then liquibase usually gives error.</comment> <createTable tableName="angry_devops"> <column name="angry" type="int"/> </createTable> </changeSet>

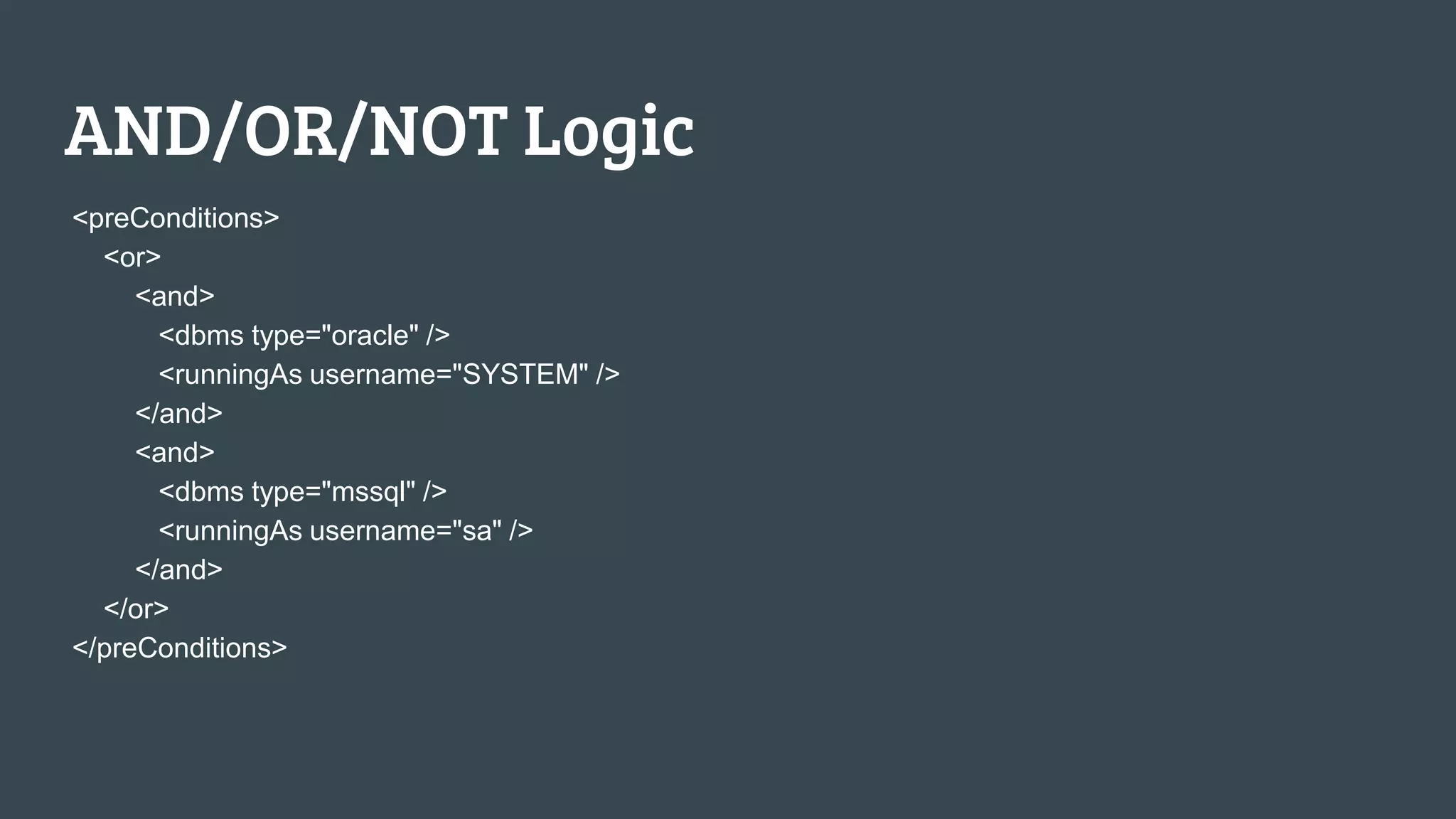

AND/OR/NOT Logic <preConditions> <or> <and> <dbms type="oracle" /> <runningAs username="SYSTEM" /> </and> <and> <dbms type="mssql" /> <runningAs username="sa" /> </and> </or> </preConditions>

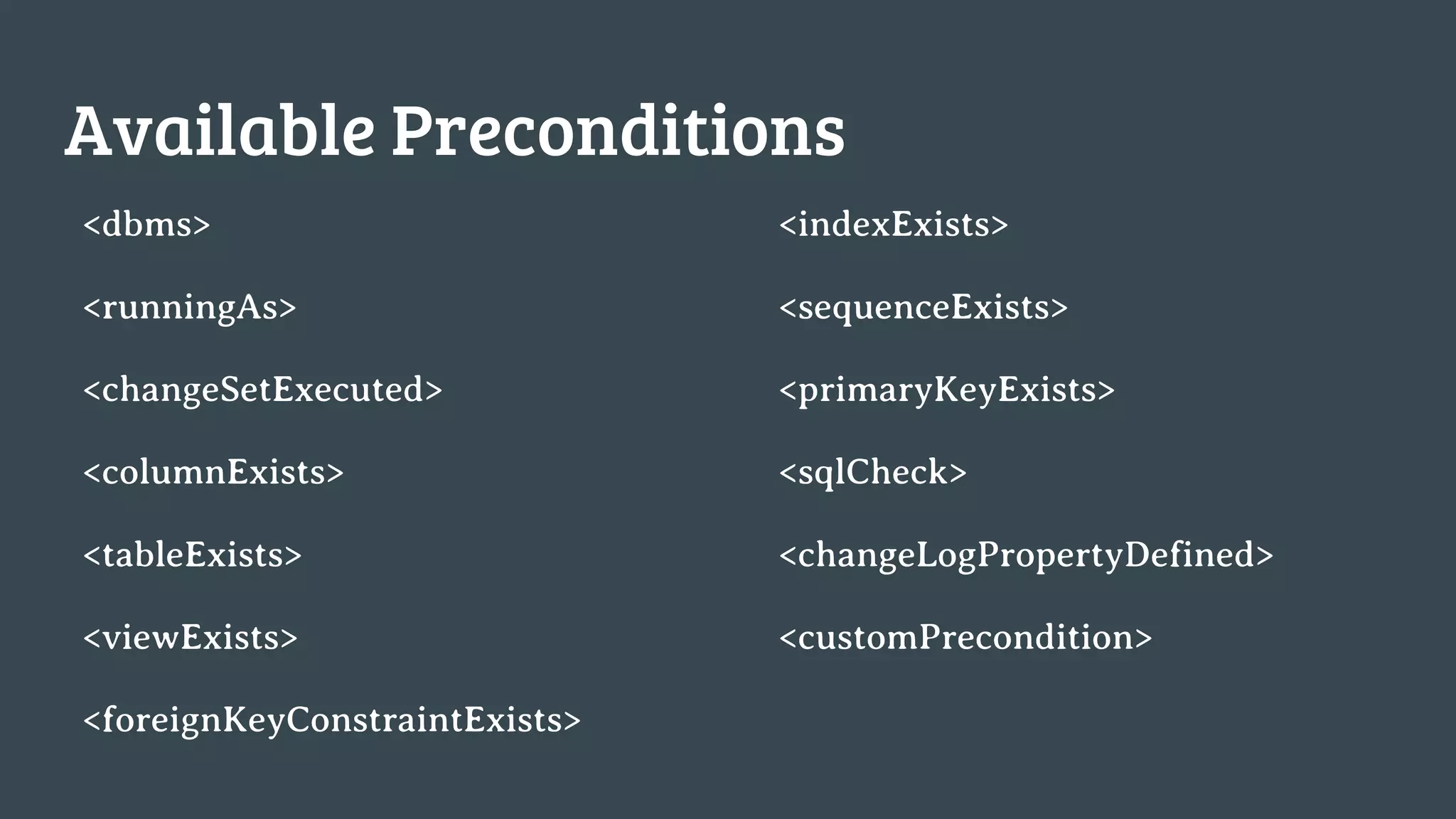

Available Preconditions <dbms> <runningAs> <changeSetExecuted> <columnExists> <tableExists> <viewExists> <foreignKeyConstraintExists> <indexExists> <sequenceExists> <primaryKeyExists> <sqlCheck> <changeLogPropertyDefined> <customPrecondition>

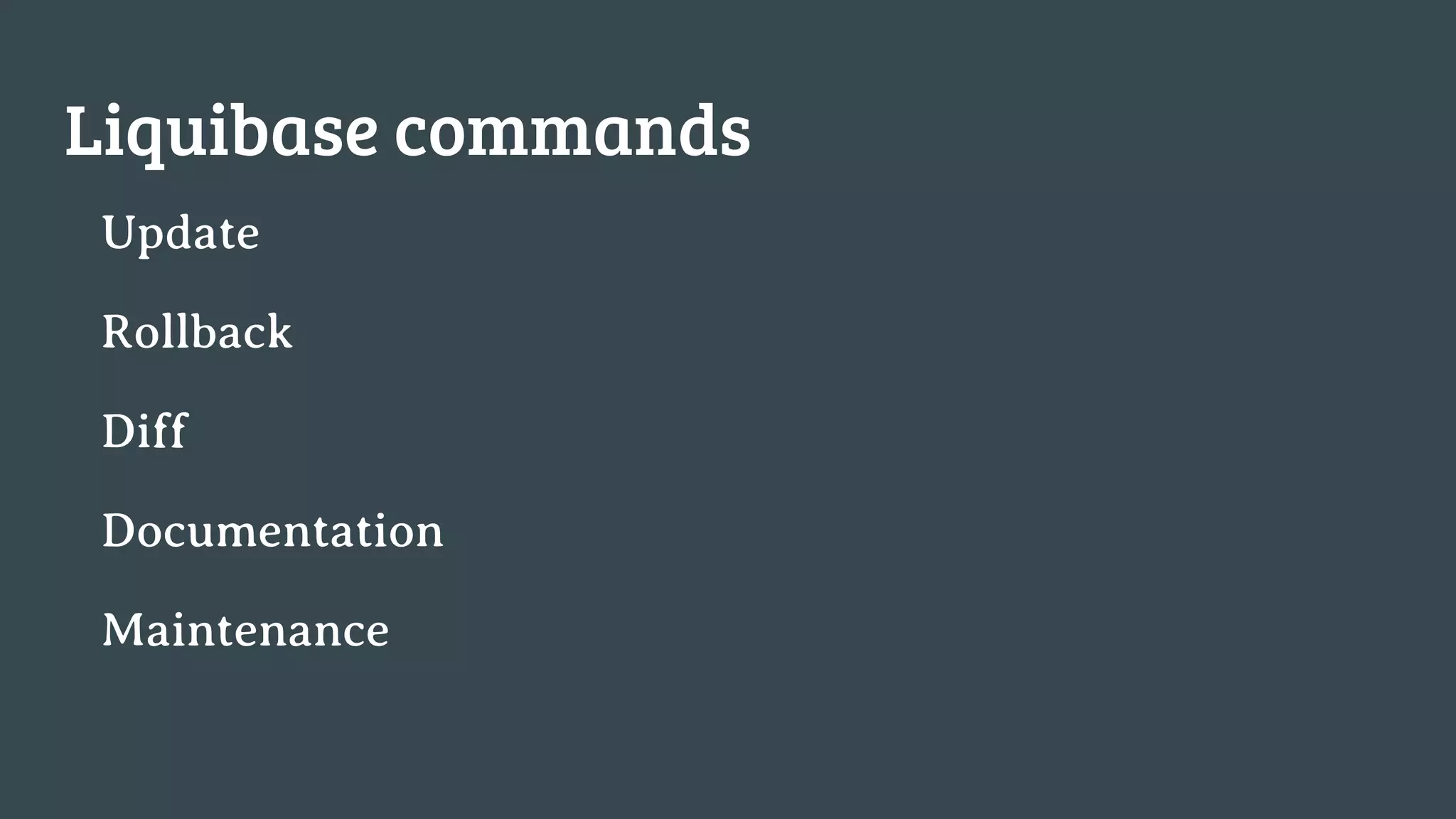

Liquibase commands Update Rollback Diff Documentation Maintenance

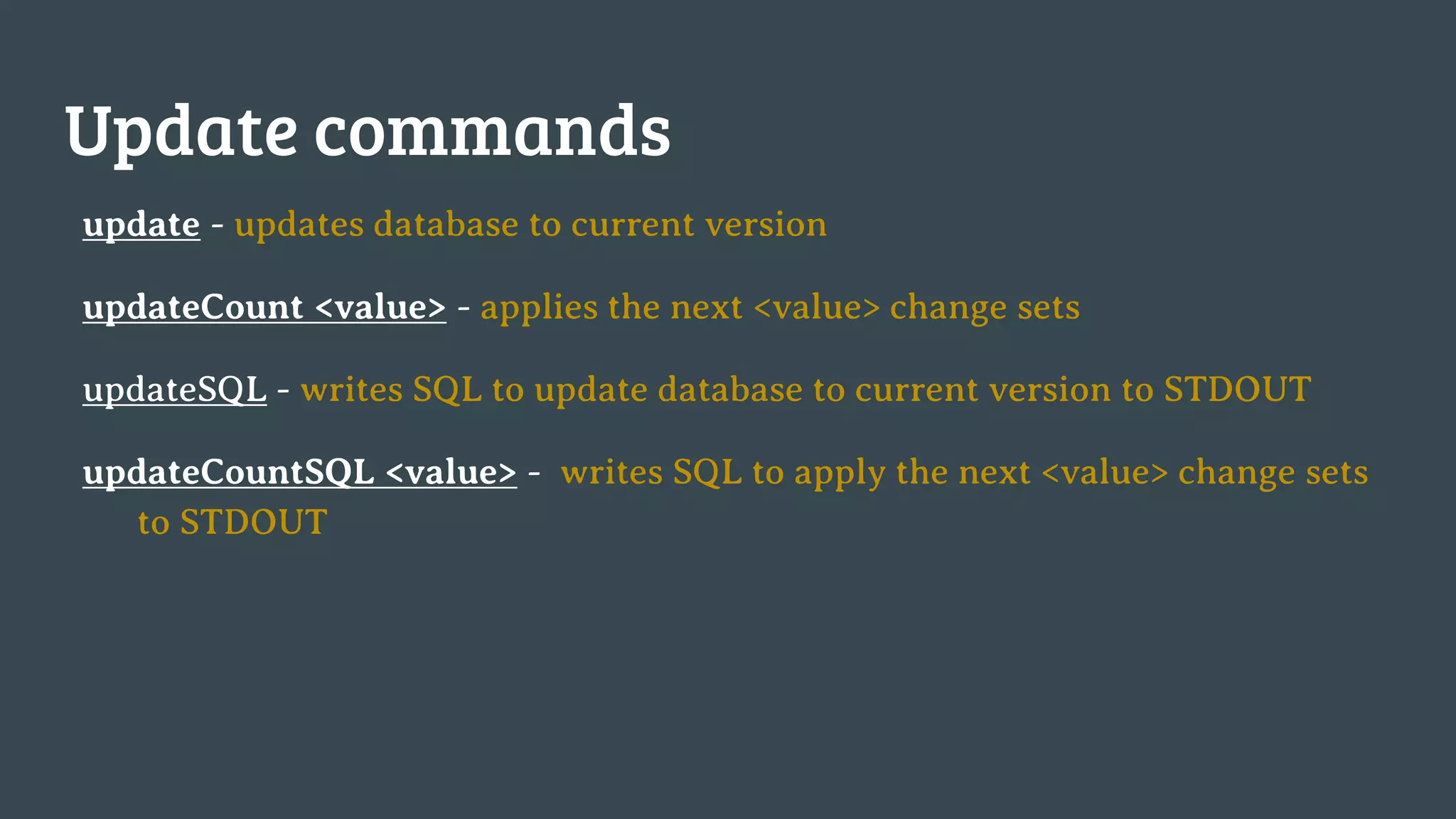

Update commands update - updates database to current version updateCount <value> - applies the next <value> change sets updateSQL - writes SQL to update database to current version to STDOUT updateCountSQL <value> - writes SQL to apply the next <value> change sets to STDOUT

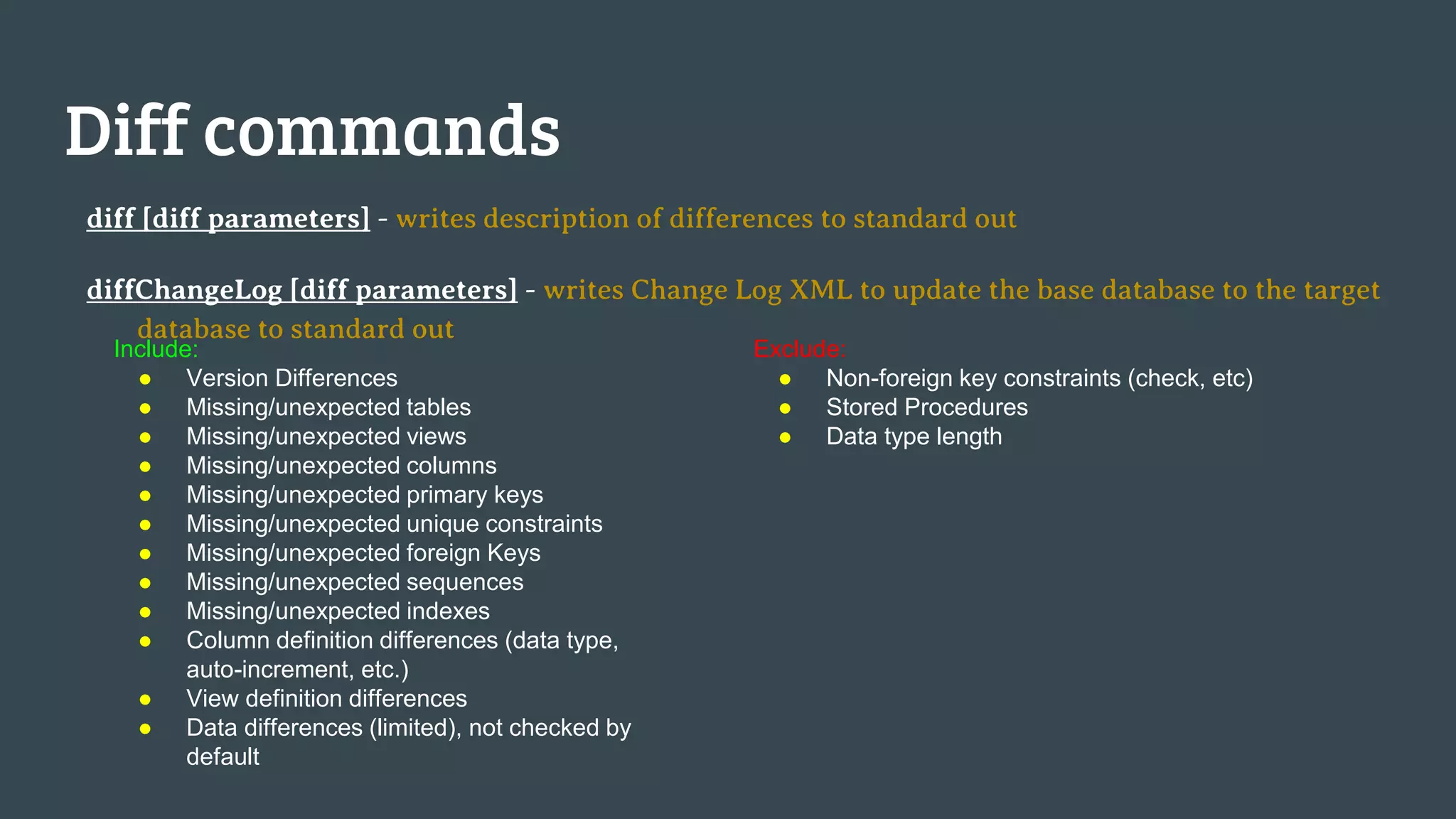

Diff commands diff [diff parameters] - writes description of differences to standard out diffChangeLog [diff parameters] - writes Change Log XML to update the base database to the target database to standard out Include: ● Version Differences ● Missing/unexpected tables ● Missing/unexpected views ● Missing/unexpected columns ● Missing/unexpected primary keys ● Missing/unexpected unique constraints ● Missing/unexpected foreign Keys ● Missing/unexpected sequences ● Missing/unexpected indexes ● Column definition differences (data type, auto-increment, etc.) ● View definition differences ● Data differences (limited), not checked by default Exclude: ● Non-foreign key constraints (check, etc) ● Stored Procedures ● Data type length

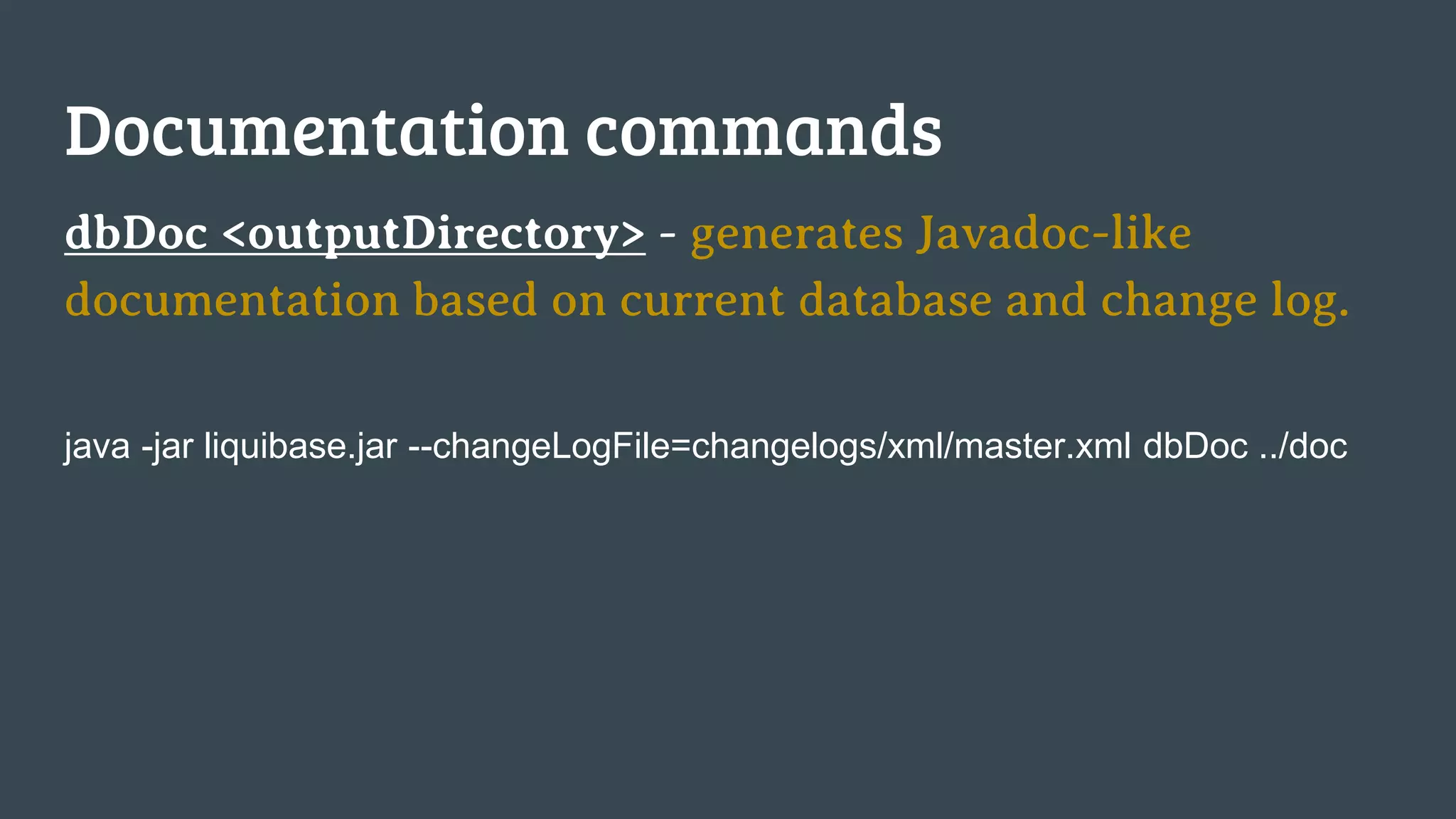

Documentation commands dbDoc <outputDirectory> - generates Javadoc-like documentation based on current database and change log. java -jar liquibase.jar --changeLogFile=changelogs/xml/master.xml dbDoc ../doc

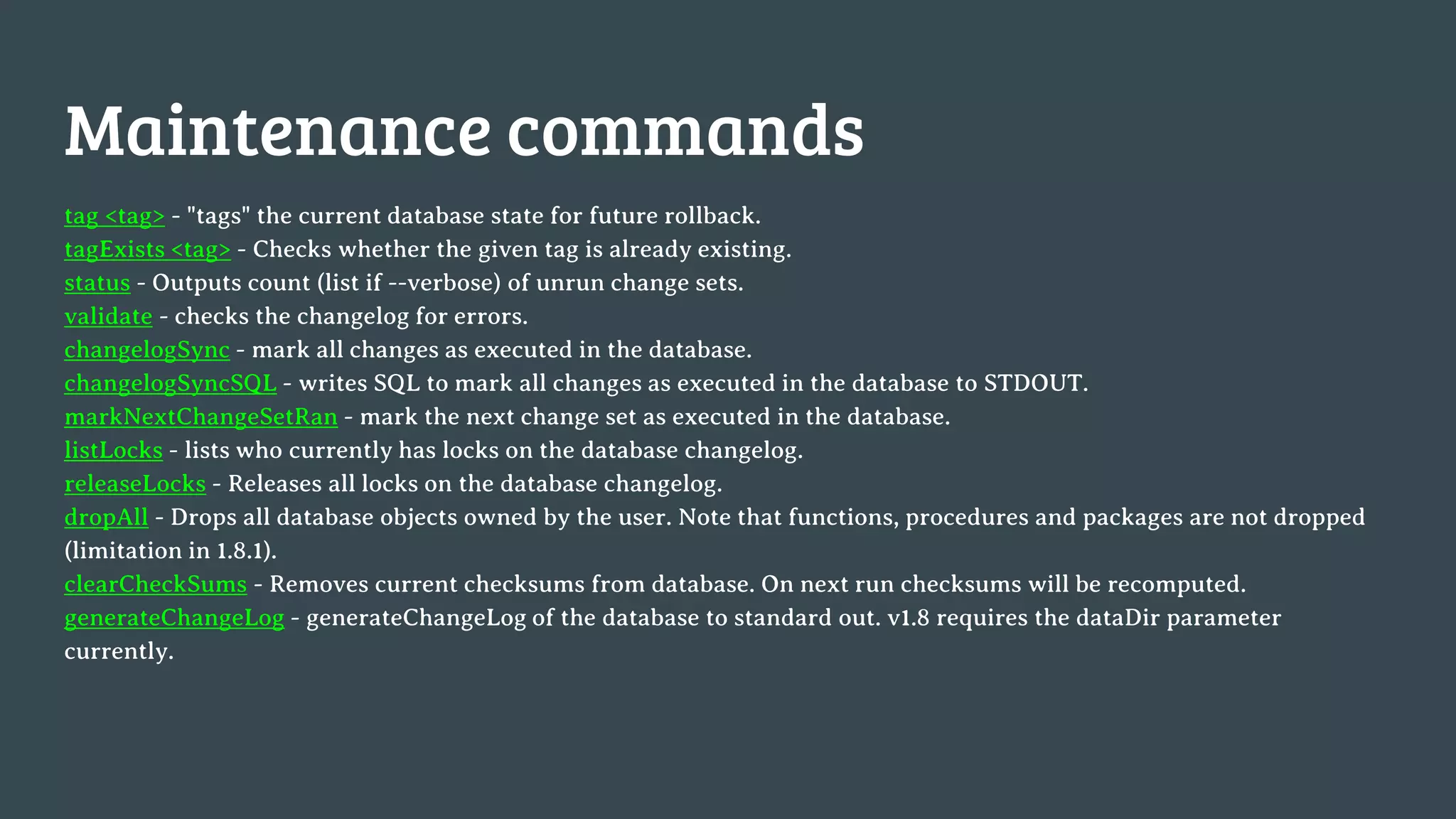

Maintenance commands tag <tag> - "tags" the current database state for future rollback. tagExists <tag> - Checks whether the given tag is already existing. status - Outputs count (list if --verbose) of unrun change sets. validate - checks the changelog for errors. changelogSync - mark all changes as executed in the database. changelogSyncSQL - writes SQL to mark all changes as executed in the database to STDOUT. markNextChangeSetRan - mark the next change set as executed in the database. listLocks - lists who currently has locks on the database changelog. releaseLocks - Releases all locks on the database changelog. dropAll - Drops all database objects owned by the user. Note that functions, procedures and packages are not dropped (limitation in 1.8.1). clearCheckSums - Removes current checksums from database. On next run checksums will be recomputed. generateChangeLog - generateChangeLog of the database to standard out. v1.8 requires the dataDir parameter currently.

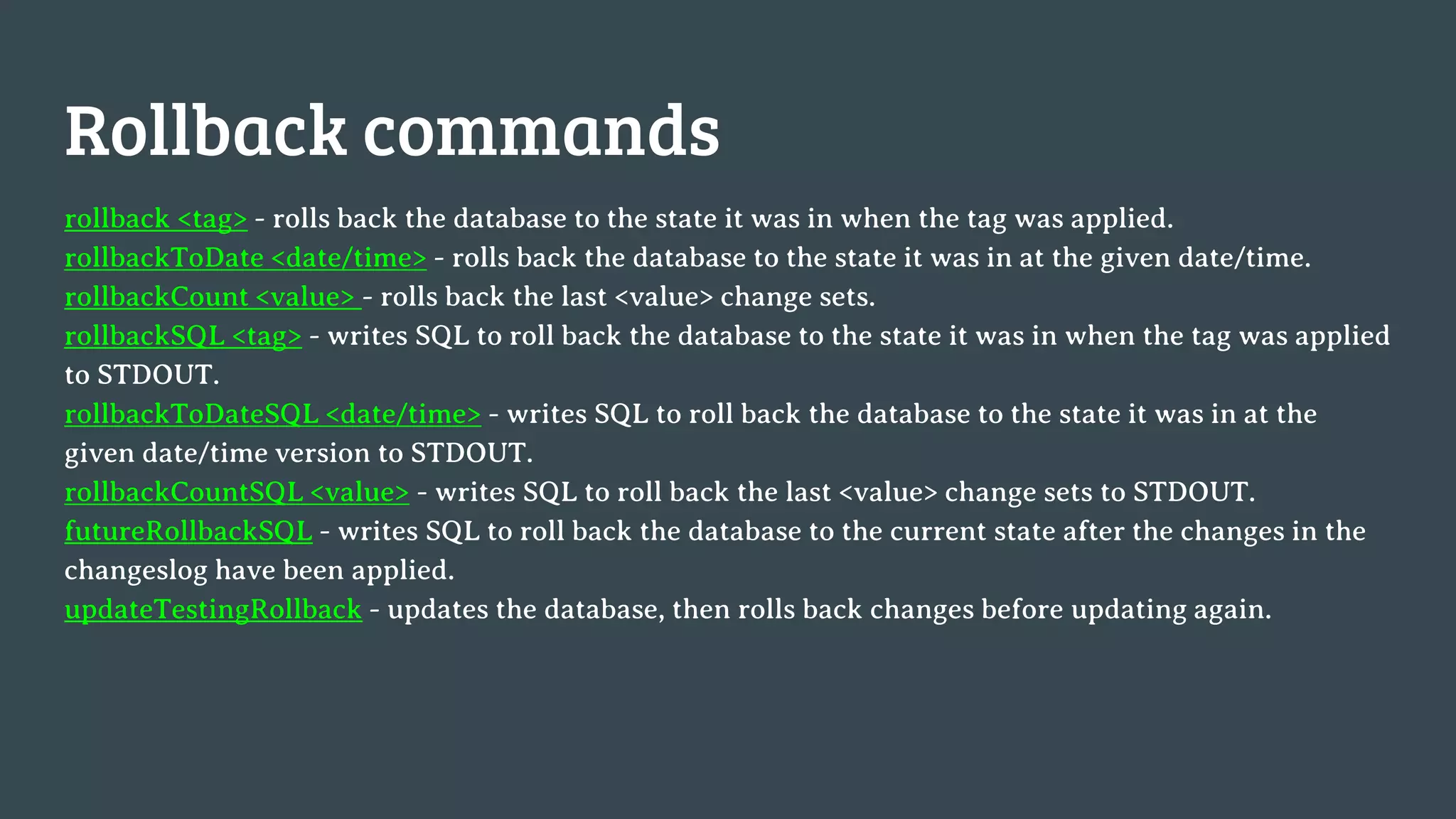

Rollback commands rollback <tag> - rolls back the database to the state it was in when the tag was applied. rollbackToDate <date/time> - rolls back the database to the state it was in at the given date/time. rollbackCount <value> - rolls back the last <value> change sets. rollbackSQL <tag> - writes SQL to roll back the database to the state it was in when the tag was applied to STDOUT. rollbackToDateSQL <date/time> - writes SQL to roll back the database to the state it was in at the given date/time version to STDOUT. rollbackCountSQL <value> - writes SQL to roll back the last <value> change sets to STDOUT. futureRollbackSQL - writes SQL to roll back the database to the current state after the changes in the changeslog have been applied. updateTestingRollback - updates the database, then rolls back changes before updating again.

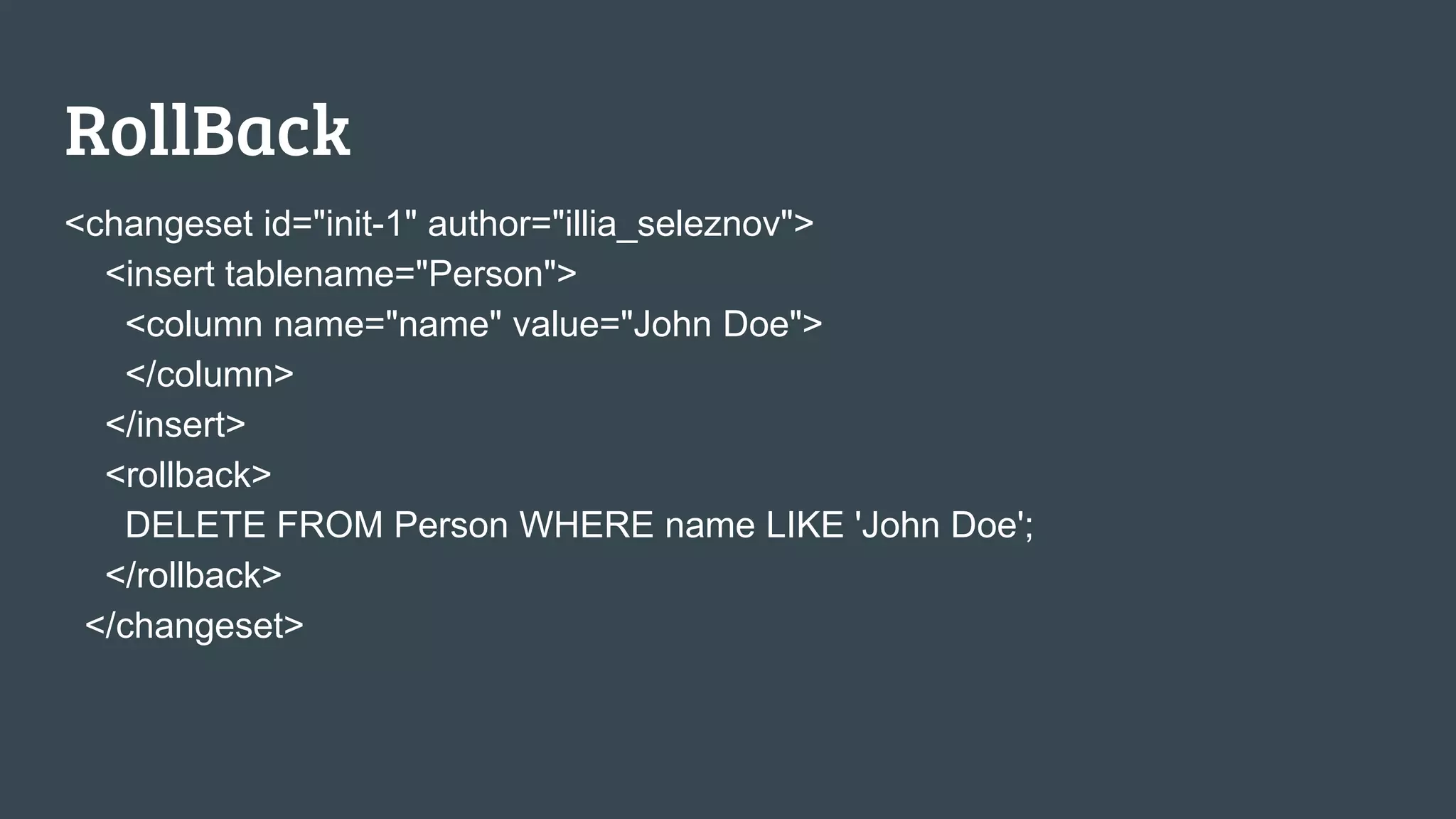

RollBack <changeset id="init-1" author="illia_seleznov"> <insert tablename="Person"> <column name="name" value="John Doe"> </column> </insert> <rollback> DELETE FROM Person WHERE name LIKE 'John Doe'; </rollback> </changeset>

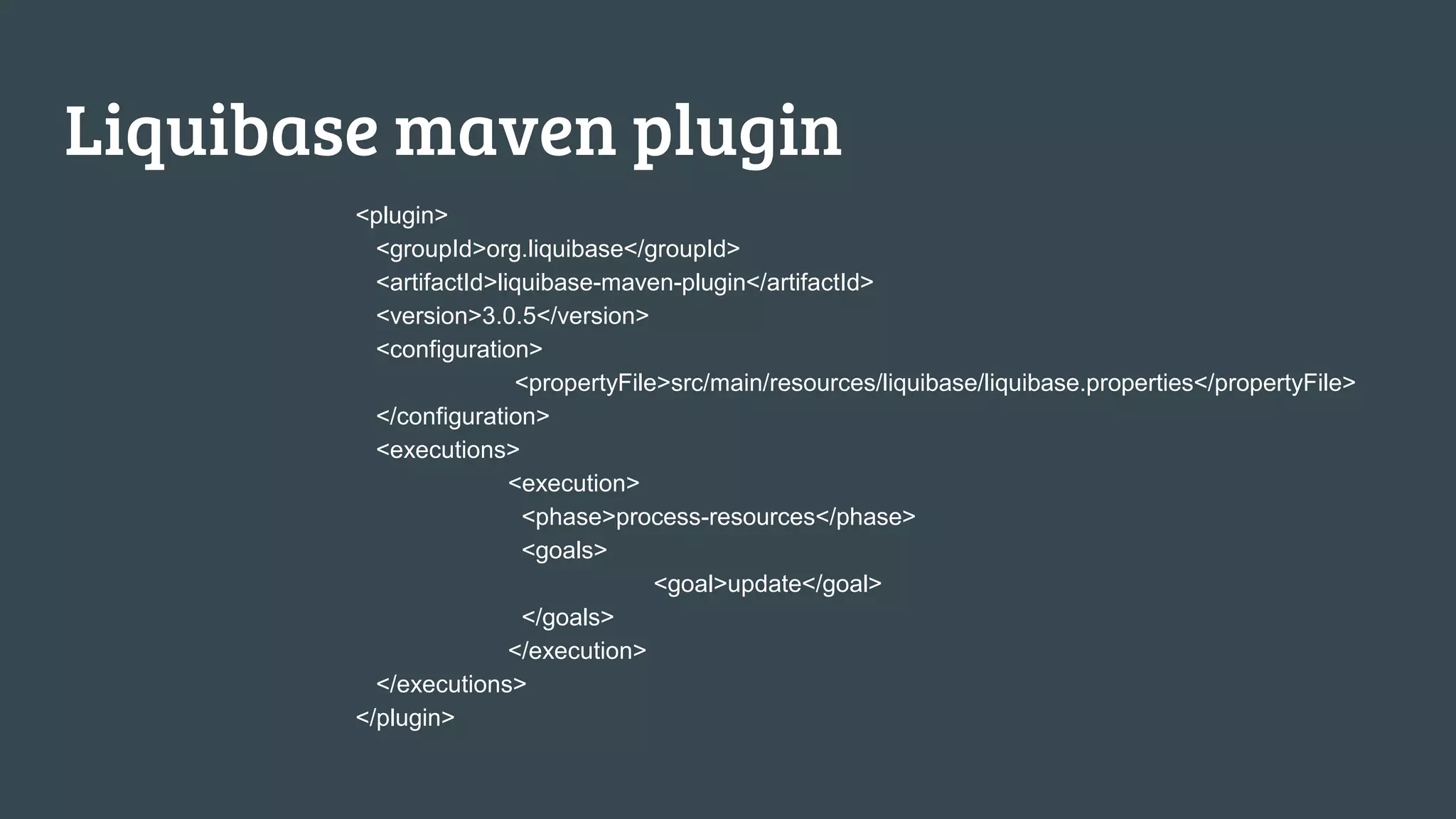

Liquibase maven plugin <plugin> <groupId>org.liquibase</groupId> <artifactId>liquibase-maven-plugin</artifactId> <version>3.0.5</version> <configuration> <propertyFile>src/main/resources/liquibase/liquibase.properties</propertyFile> </configuration> <executions> <execution> <phase>process-resources</phase> <goals> <goal>update</goal> </goals> </execution> </executions> </plugin>

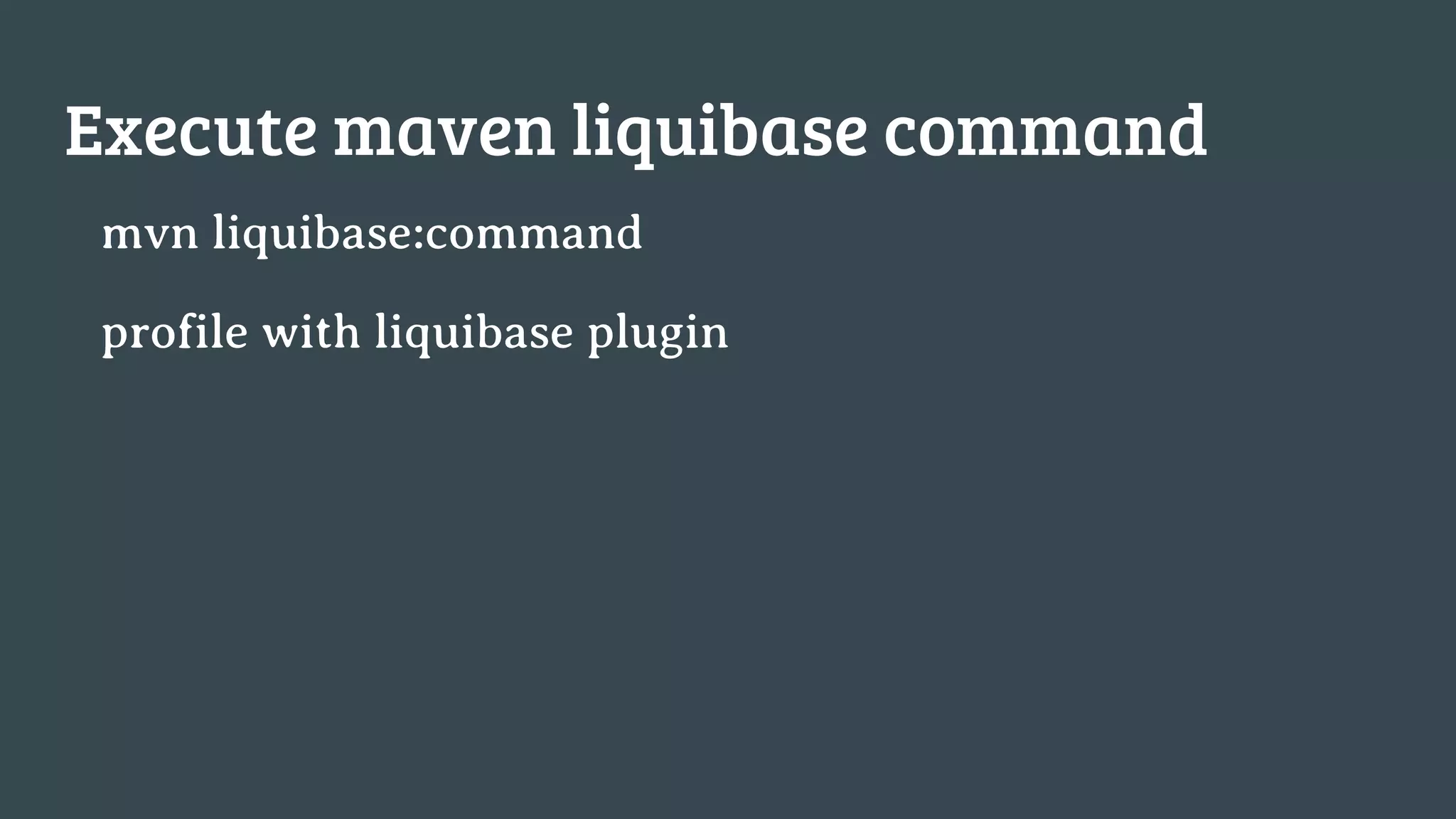

Execute maven liquibase command mvn liquibase:command profile with liquibase plugin

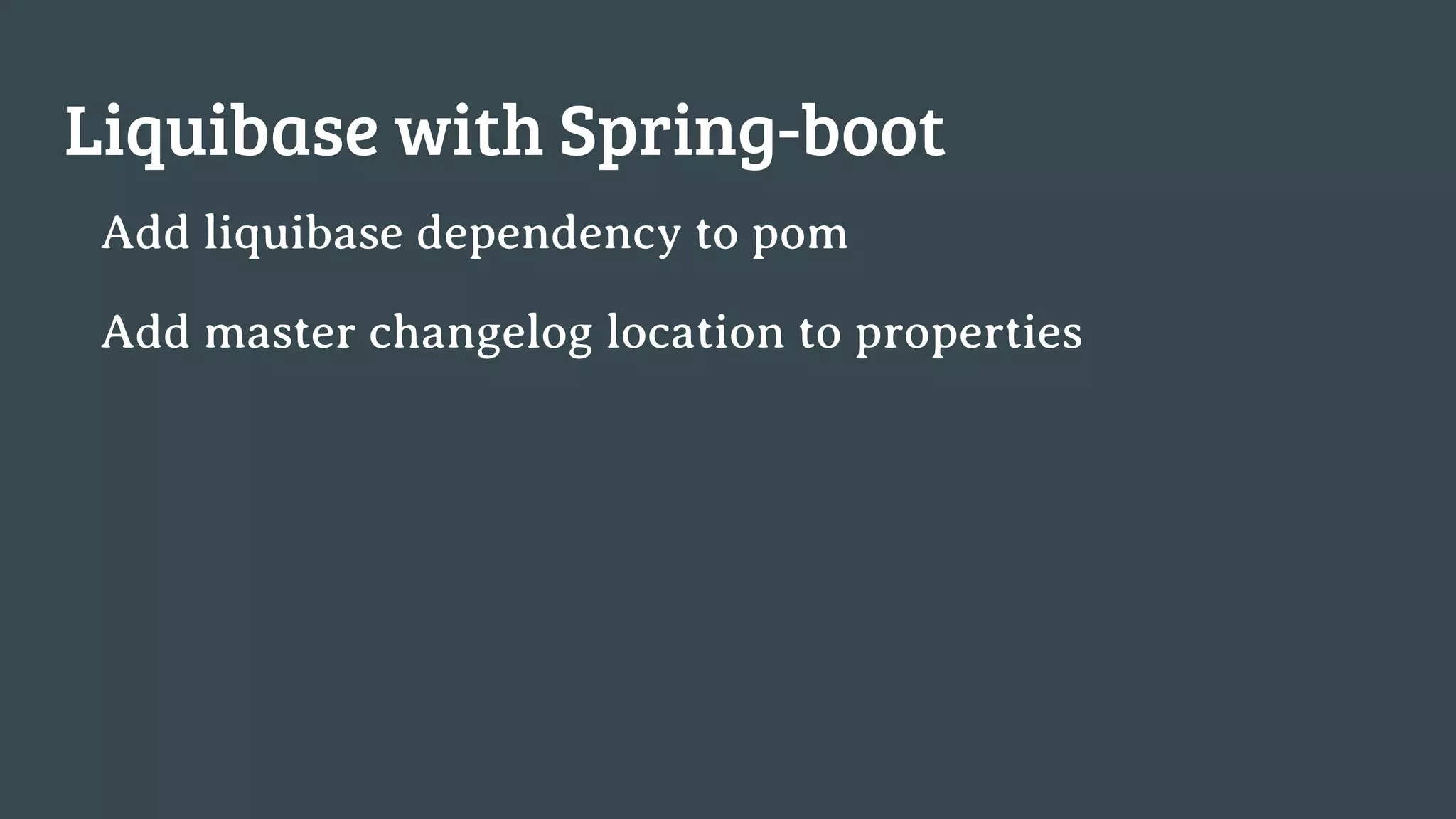

Liquibase with Spring-boot Add liquibase dependency to pom Add master changelog location to properties

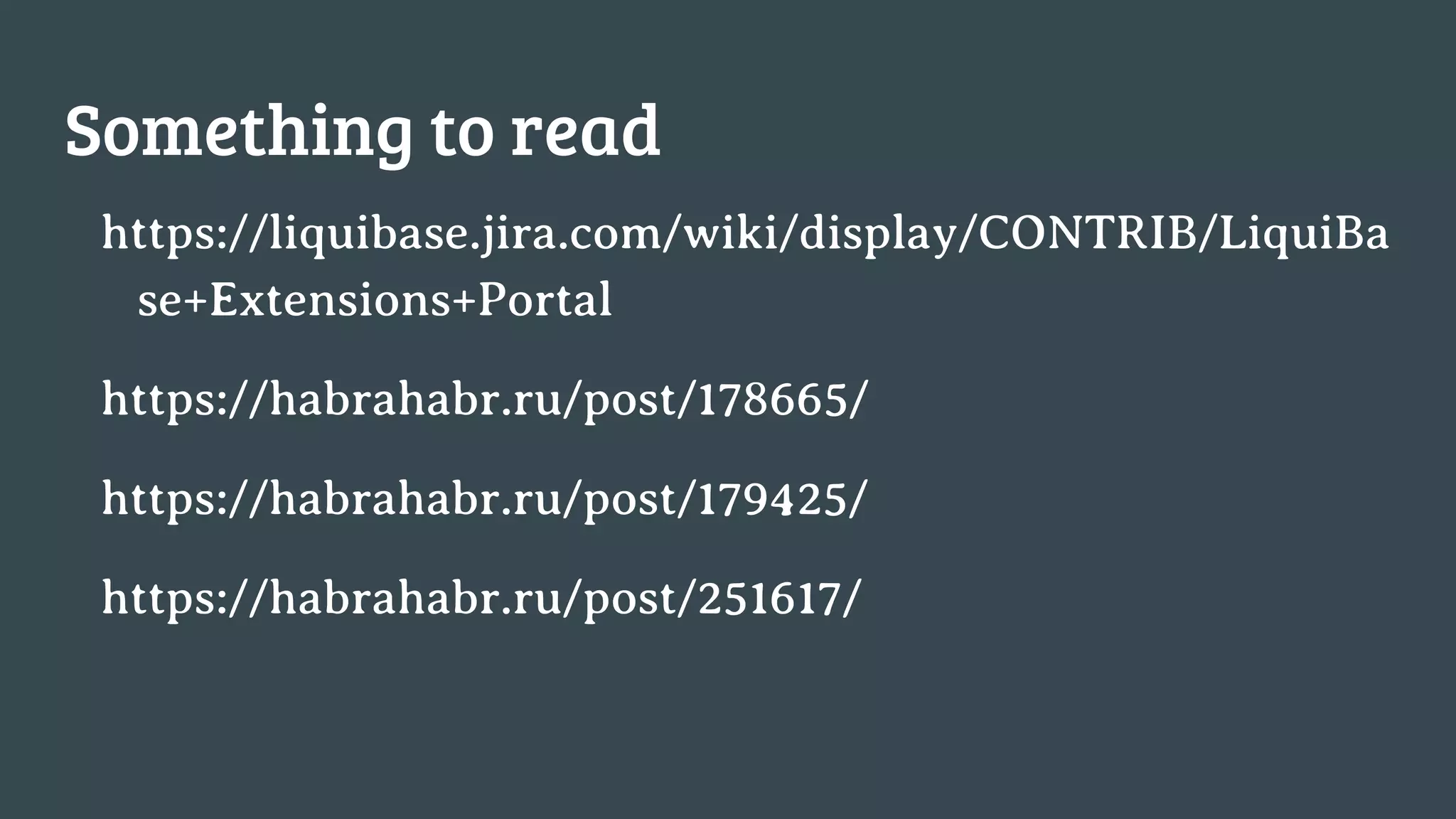

Something to read https://liquibase.jira.com/wiki/display/CONTRIB/LiquiBa se+Extensions+Portal https://habrahabr.ru/post/178665/ https://habrahabr.ru/post/179425/ https://habrahabr.ru/post/251617/

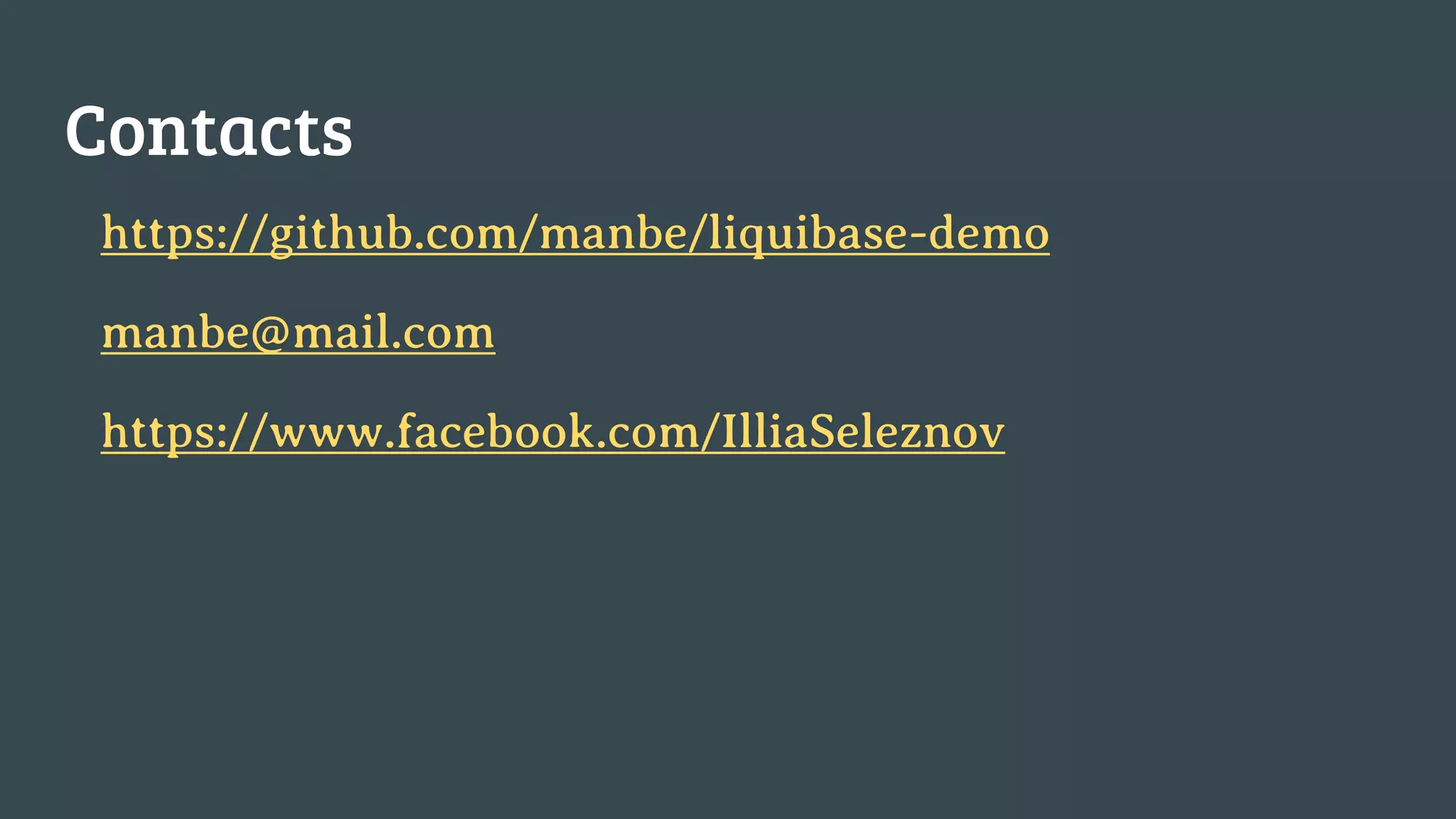

Contacts https://github.com/manbe/liquibase-demo manbe@mail.com https://www.facebook.com/IlliaSeleznov
