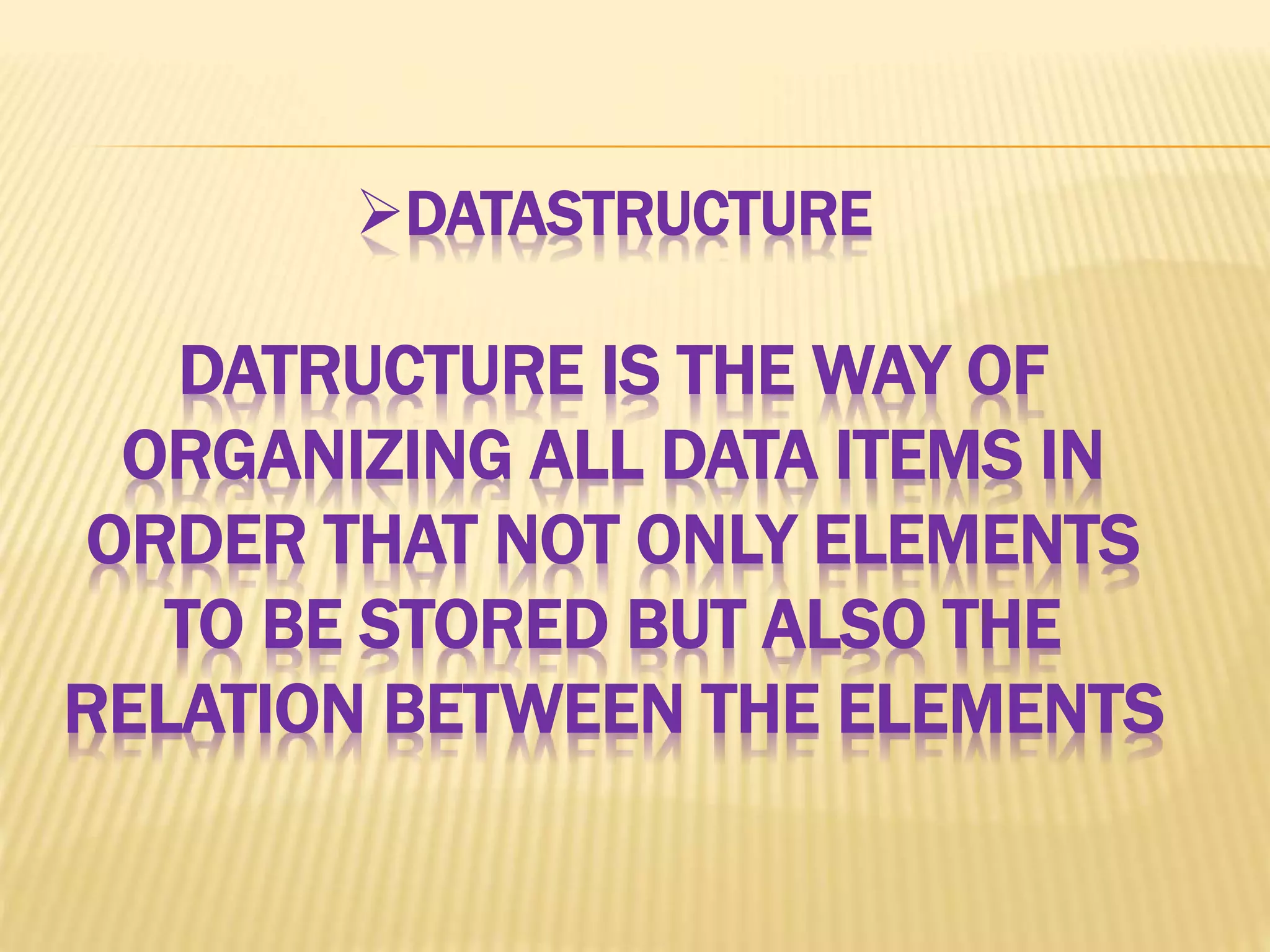

DATASTRUCTURE DATRUCTURE IS THE WAY OF ORGANIZING ALL DATA ITEMS IN ORDER THAT NOT ONLY ELEMENTS TO BE STORED BUT ALSO THE RELATION BETWEEN THE ELEMENTS

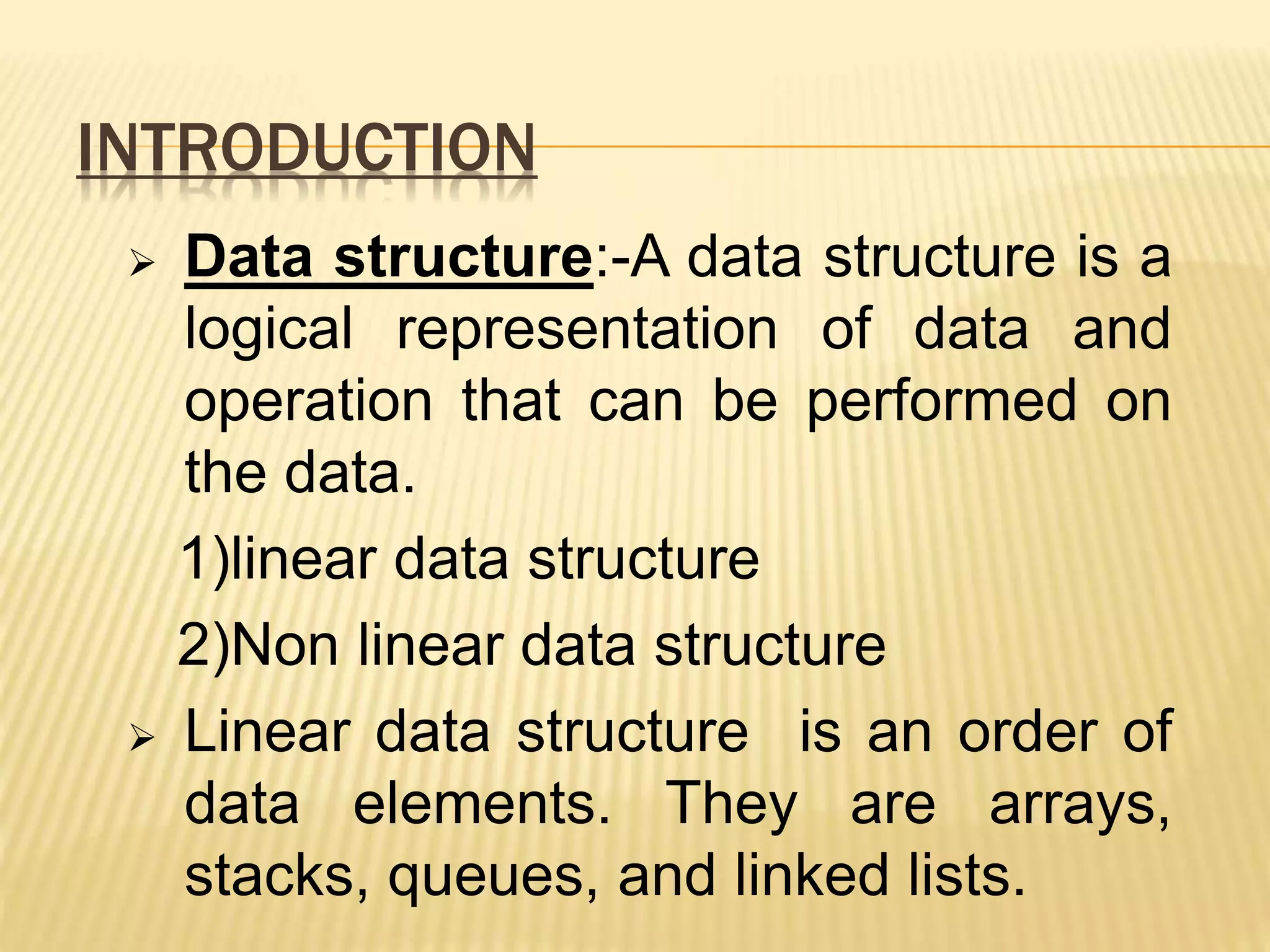

INTRODUCTION  Data structure:-A data structure is a logical representation of data and operation that can be performed on the data. 1)linear data structure 2)Non linear data structure  Linear data structure is an order of data elements. They are arrays, stacks, queues, and linked lists.

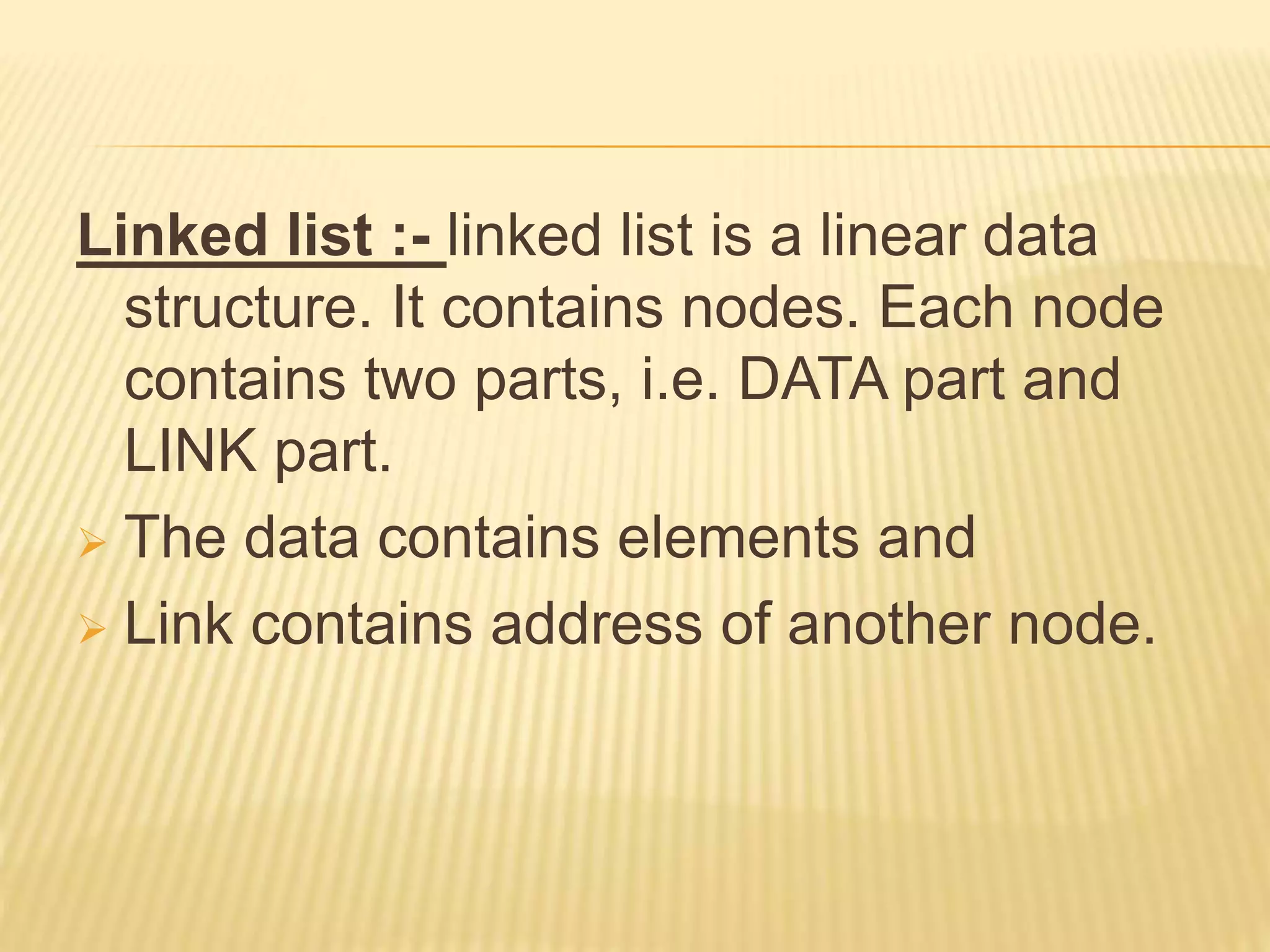

Linked list :- linked list is a linear data structure. It contains nodes. Each node contains two parts, i.e. DATA part and LINK part.  The data contains elements and  Link contains address of another node.

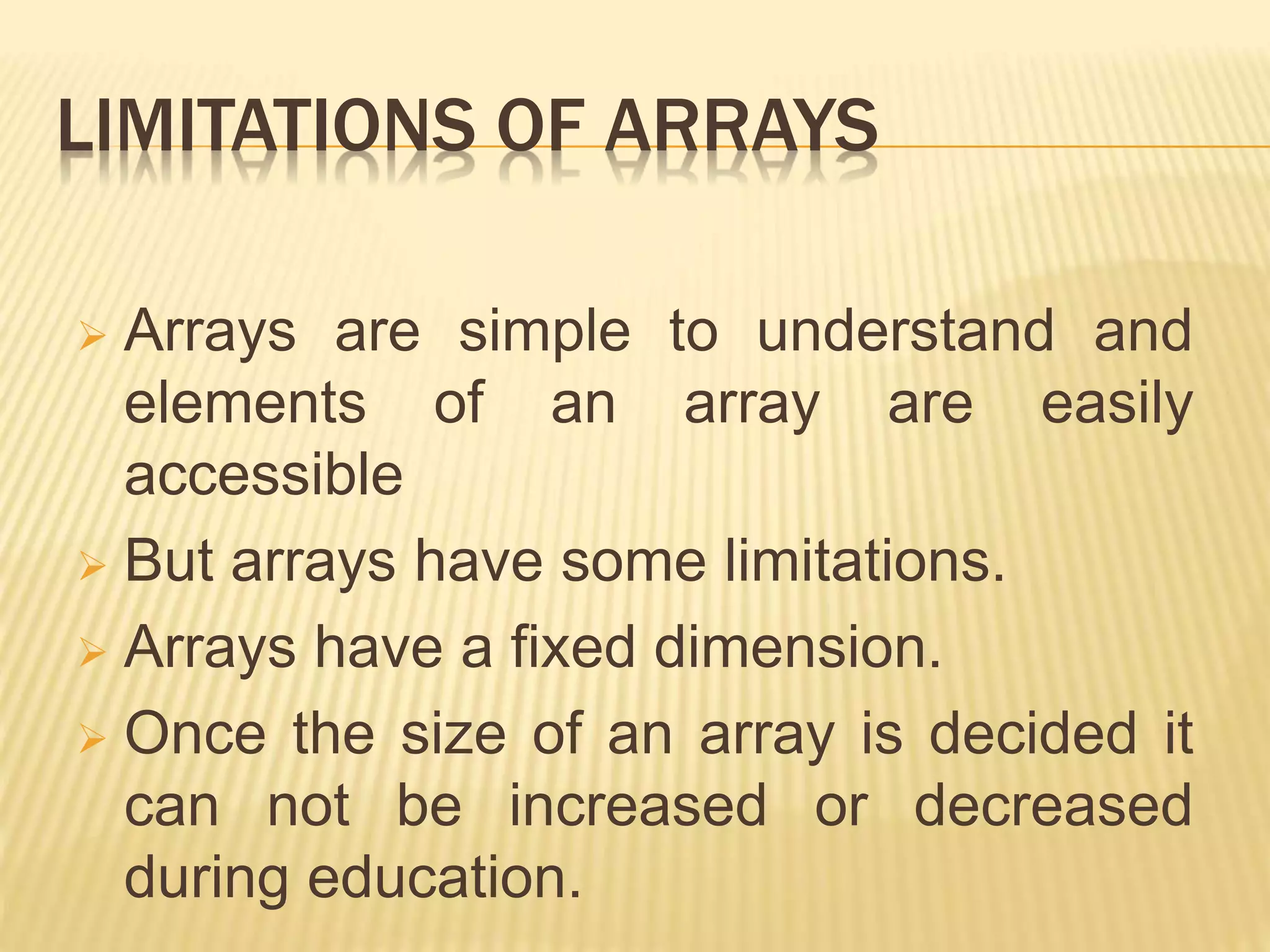

LIMITATIONS OF ARRAYS  Arrays are simple to understand and elements of an array are easily accessible  But arrays have some limitations.  Arrays have a fixed dimension.  Once the size of an array is decided it can not be increased or decreased during education.

 Array elements are always stored in contiguous memory locations.  Operations like insertion or deletion of the array are pretty tedious.  To over come this limitations we use linked list.

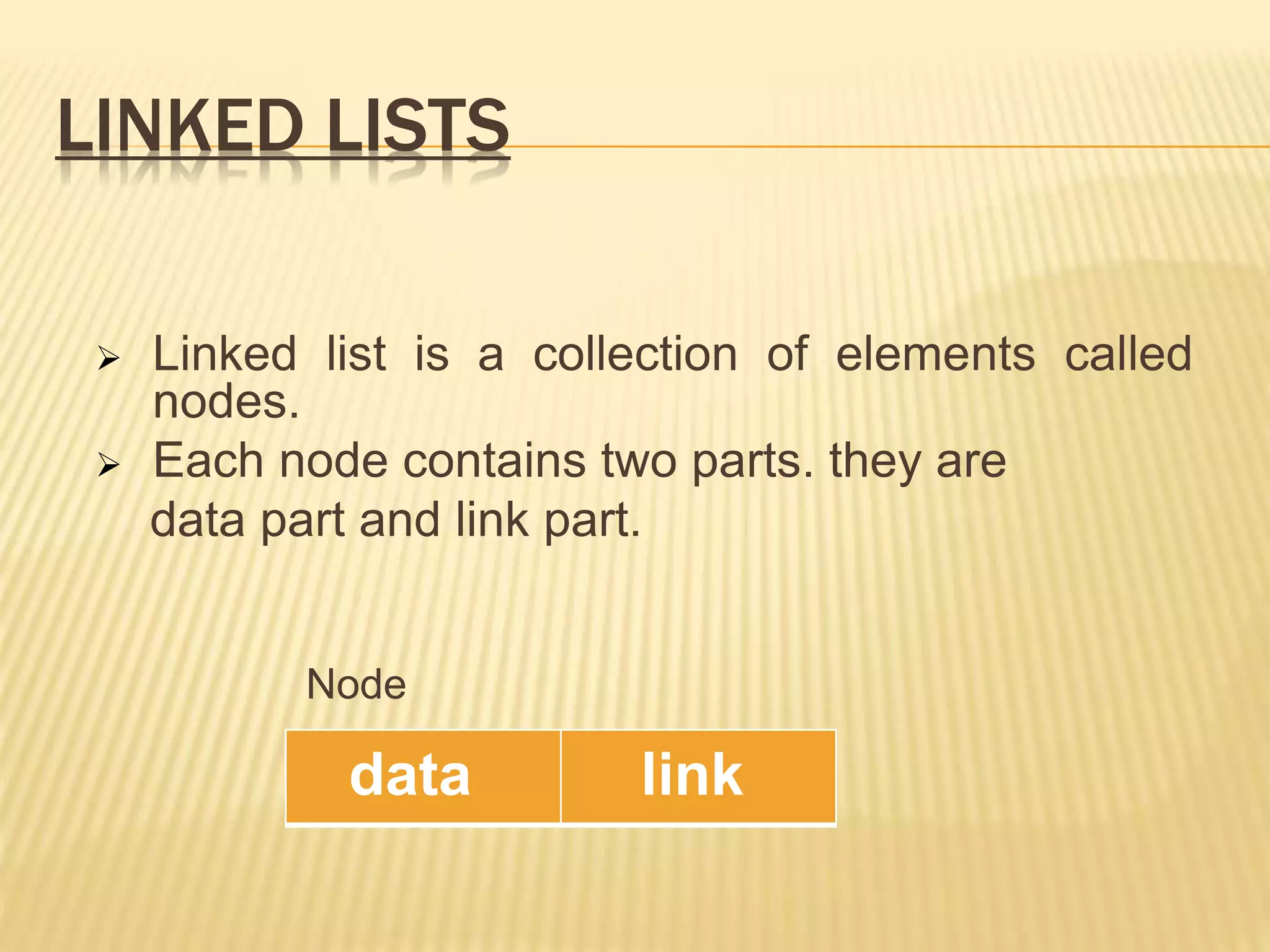

LINKED LISTS  Linked list is a collection of elements called nodes.  Each node contains two parts. they are data part and link part. Node data link

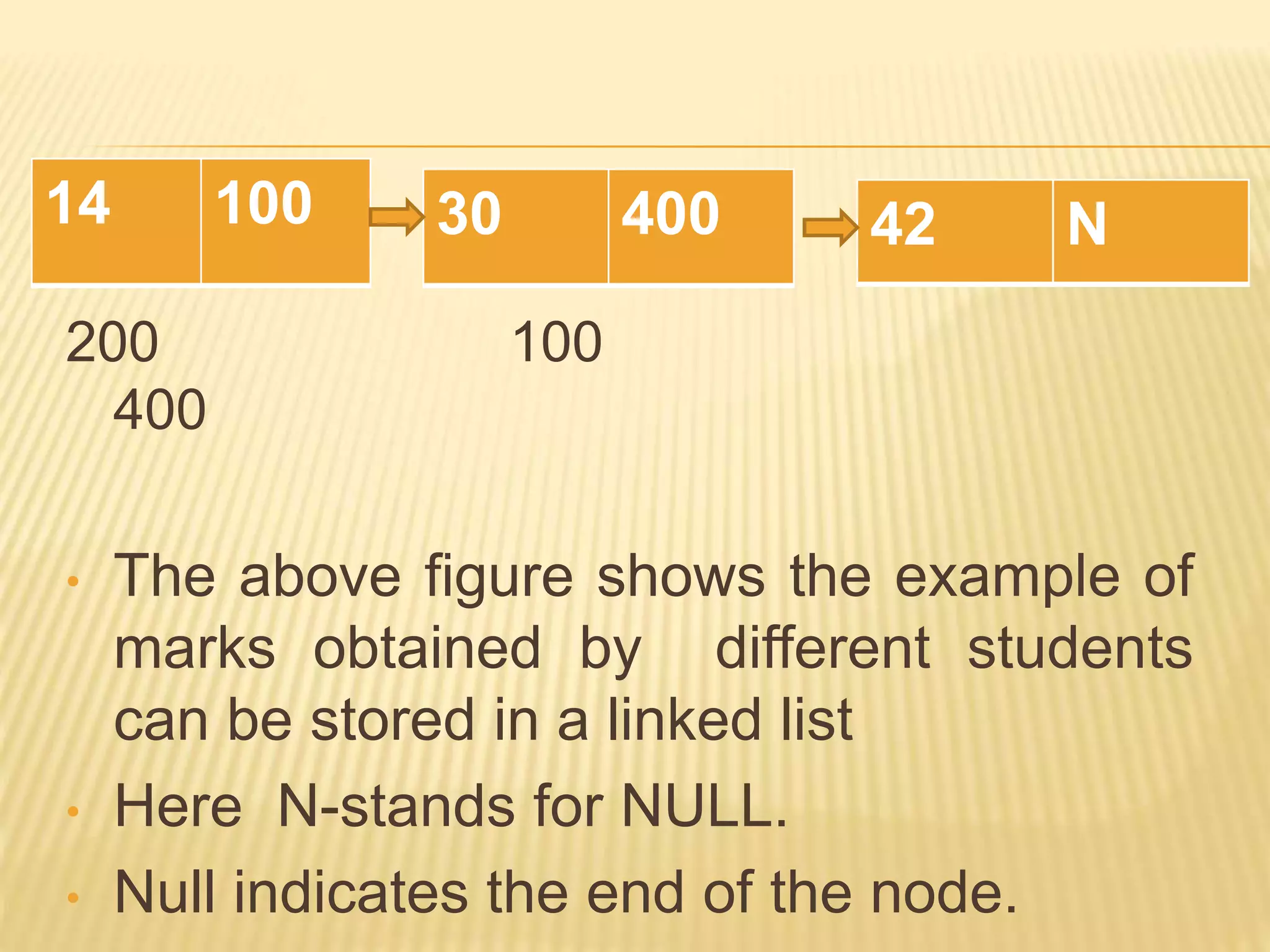

200 100 400 • The above figure shows the example of marks obtained by different students can be stored in a linked list • Here N-stands for NULL. • Null indicates the end of the node. 14 100 30 400 42 N

WHAT ARE LINKED LISTS  A linked list is a linear data structure.  Nodes make up linked lists.  Nodes are structures made up of data and a pointer to another node.  Usually the pointer is called next.

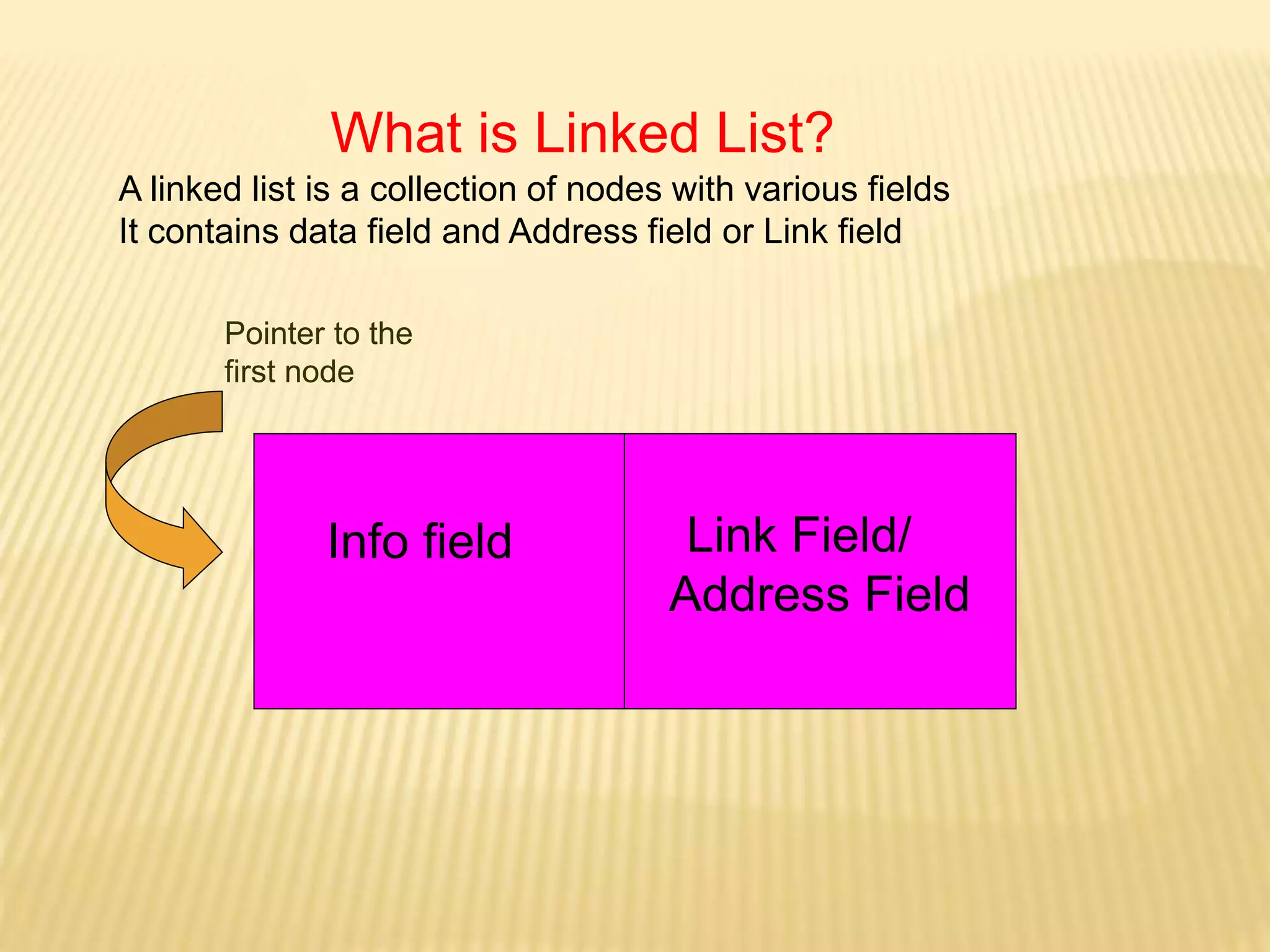

What is Linked List? A linked list is a collection of nodes with various fields It contains data field and Address field or Link field Info field Link Field/ Address Field Pointer to the first node

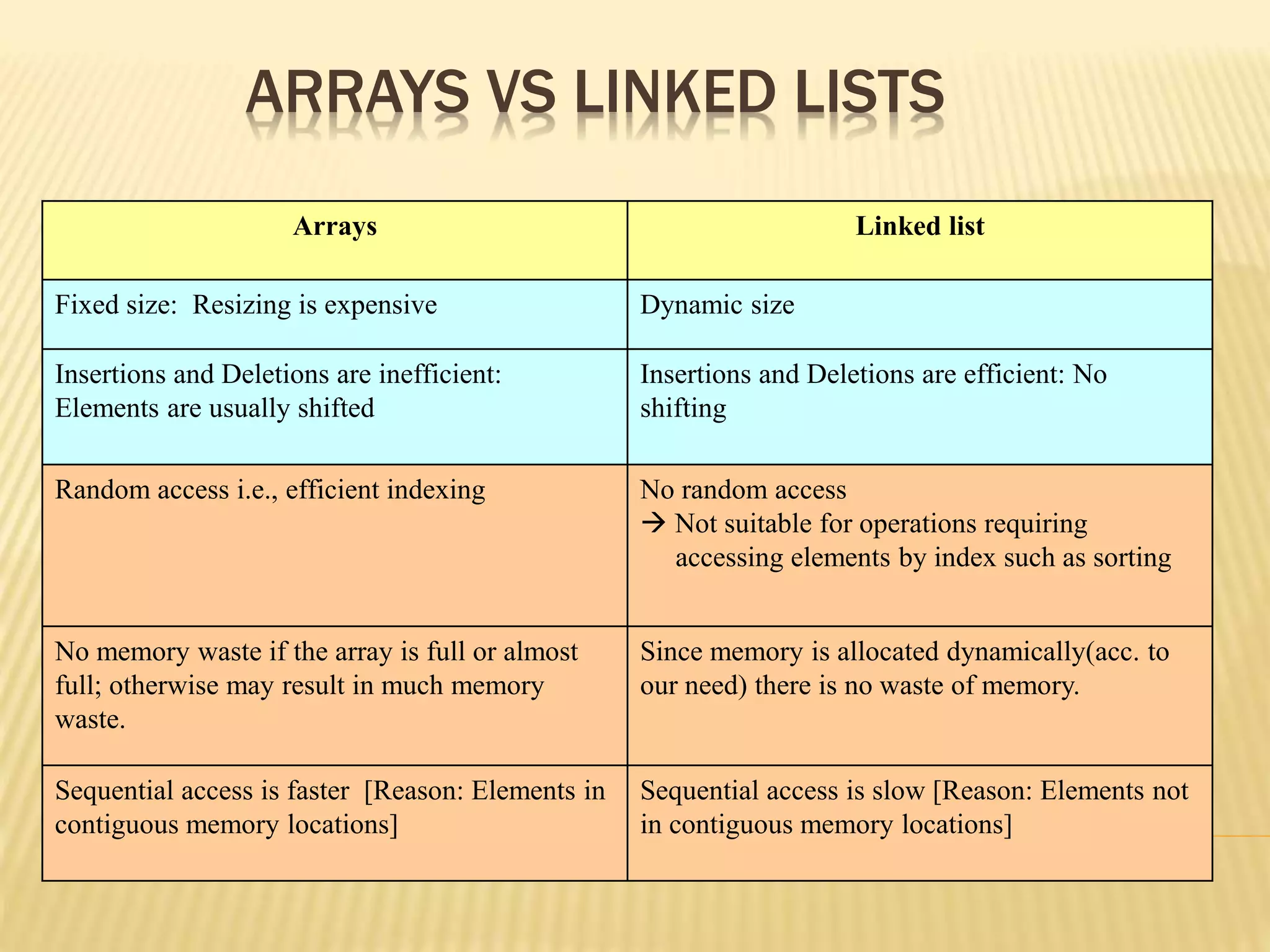

ARRAYS VS LINKED LISTS Arrays Linked list Fixed size: Resizing is expensive Dynamic size Insertions and Deletions are inefficient: Elements are usually shifted Insertions and Deletions are efficient: No shifting Random access i.e., efficient indexing No random access  Not suitable for operations requiring accessing elements by index such as sorting No memory waste if the array is full or almost full; otherwise may result in much memory waste. Since memory is allocated dynamically(acc. to our need) there is no waste of memory. Sequential access is faster [Reason: Elements in contiguous memory locations] Sequential access is slow [Reason: Elements not in contiguous memory locations]

TYPES OF LINKED LISTS 1. Single linked list 2. Double linked list 3. Circular linked list 4. Circular double linked list

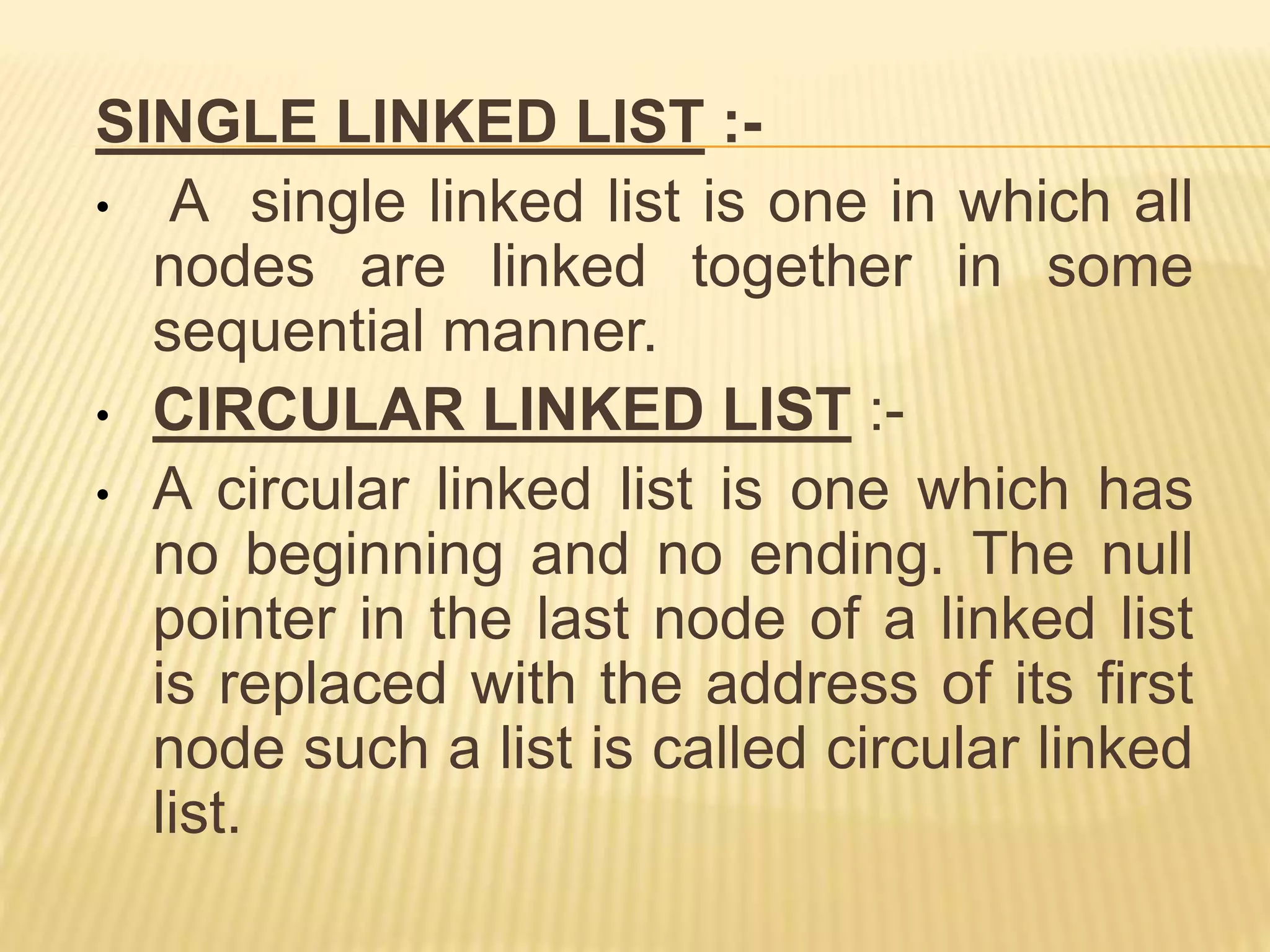

SINGLE LINKED LIST :- • A single linked list is one in which all nodes are linked together in some sequential manner. • CIRCULAR LINKED LIST :- • A circular linked list is one which has no beginning and no ending. The null pointer in the last node of a linked list is replaced with the address of its first node such a list is called circular linked list.

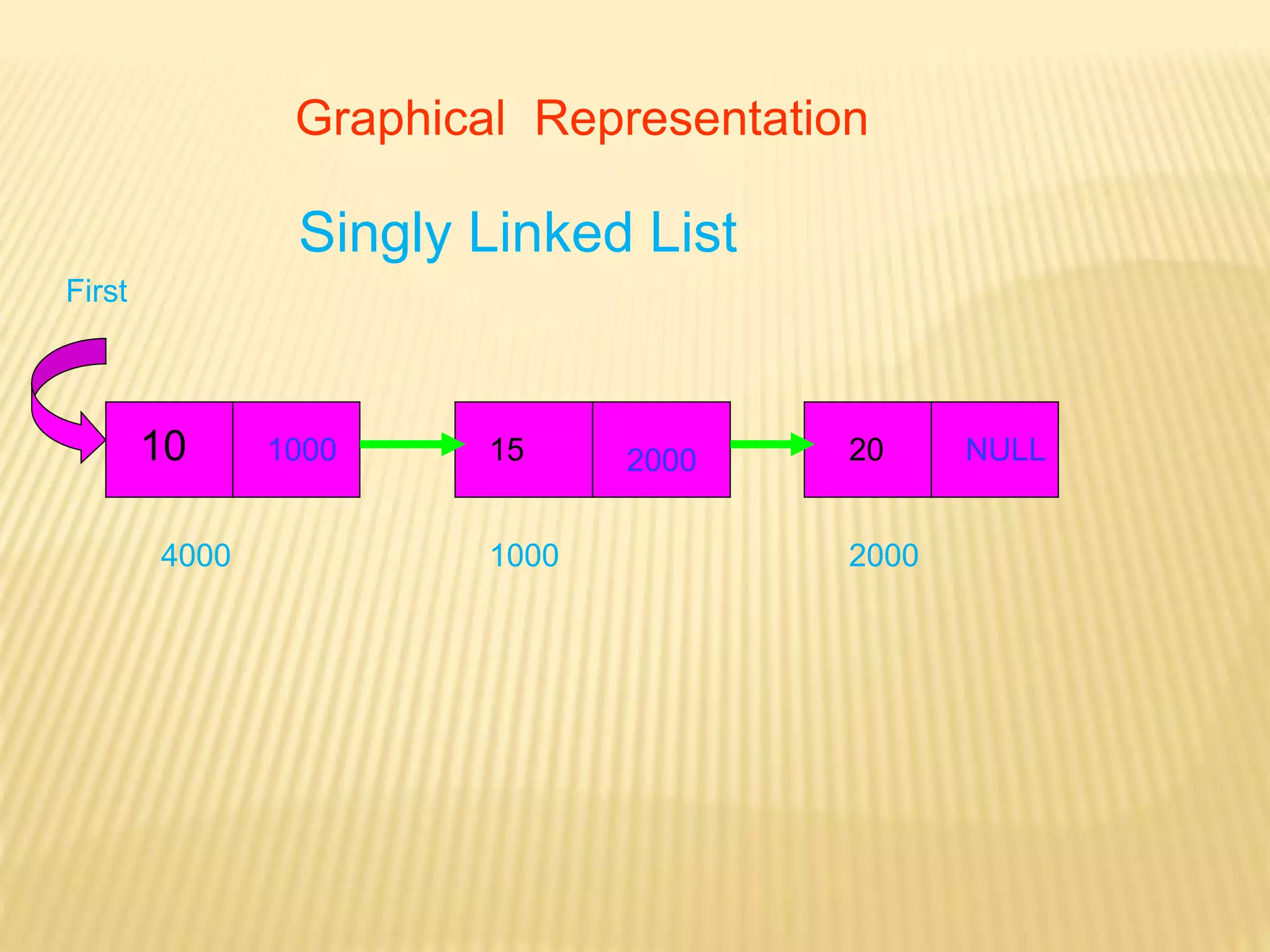

Graphical Representation 10 1000 1000 2000 200015 NULL20 4000 Singly Linked List First

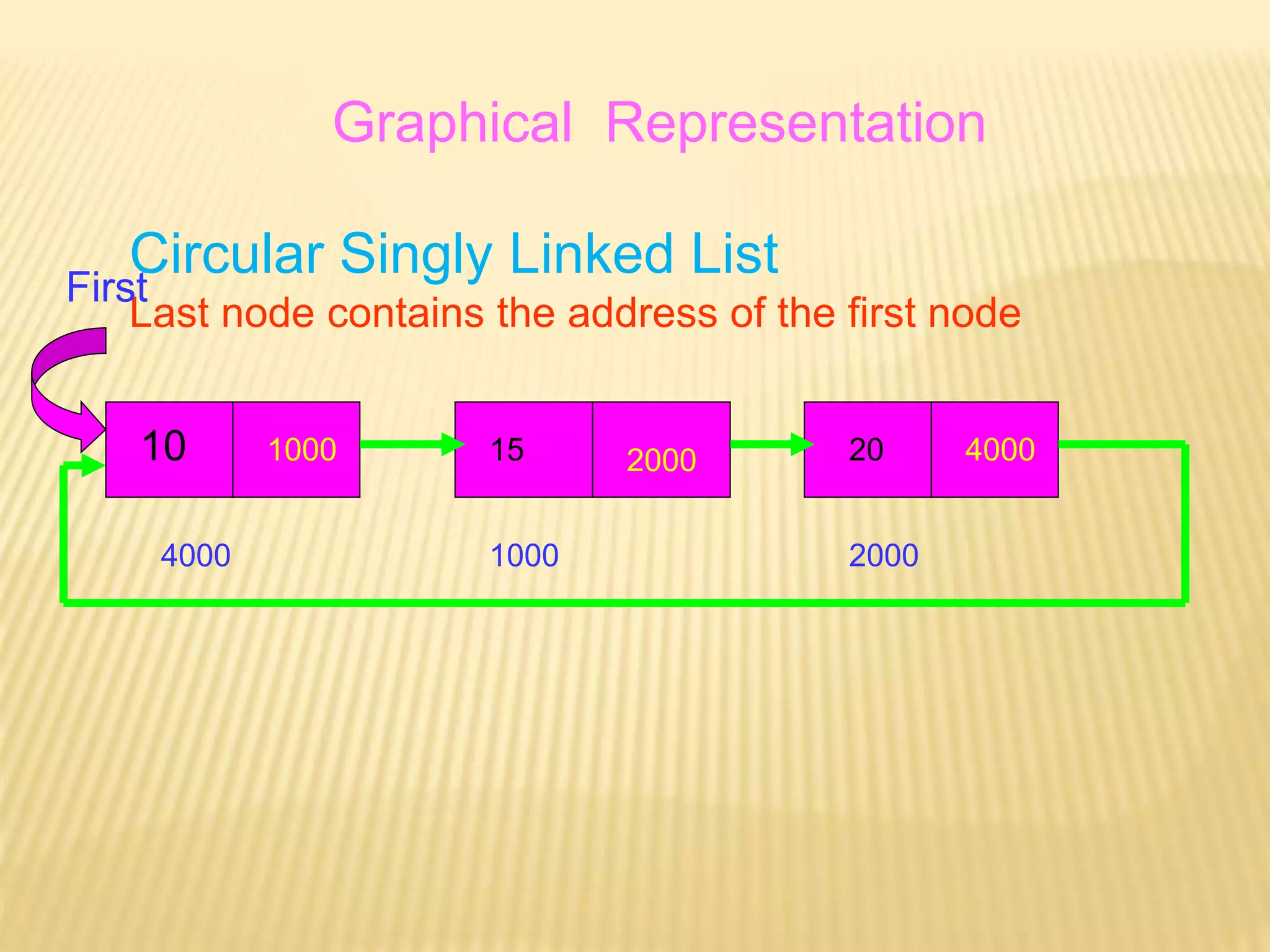

Graphical Representation 10 1000 1000 2000 200015 400020 4000 Circular Singly Linked List Last node contains the address of the first node First

SINGLE LINKED LIST : Start CIRCULAR LINKED LIST:- 400 100 200 35 N60 200 45 100 60 200 35 40045 100 500

Inserting a new node : Before inserting: 400 100 200 After inserting: 400 100 200 20 N35 20014 100 20 N35 20030 100 75 400

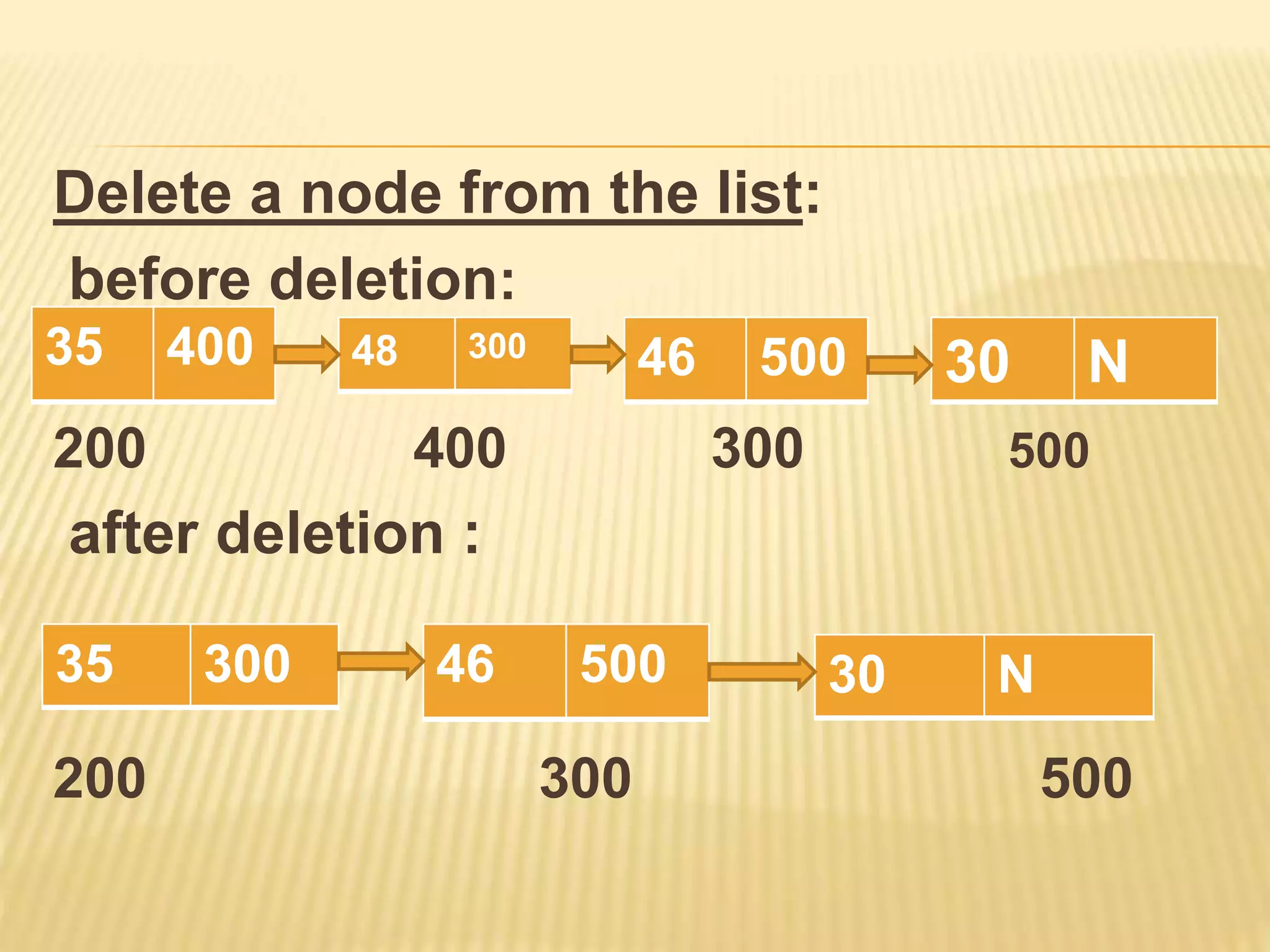

Delete a node from the list: before deletion: 200 400 300 500 after deletion : 200 300 500 46 50048 30035 400 30 N 30 N46 50035 300

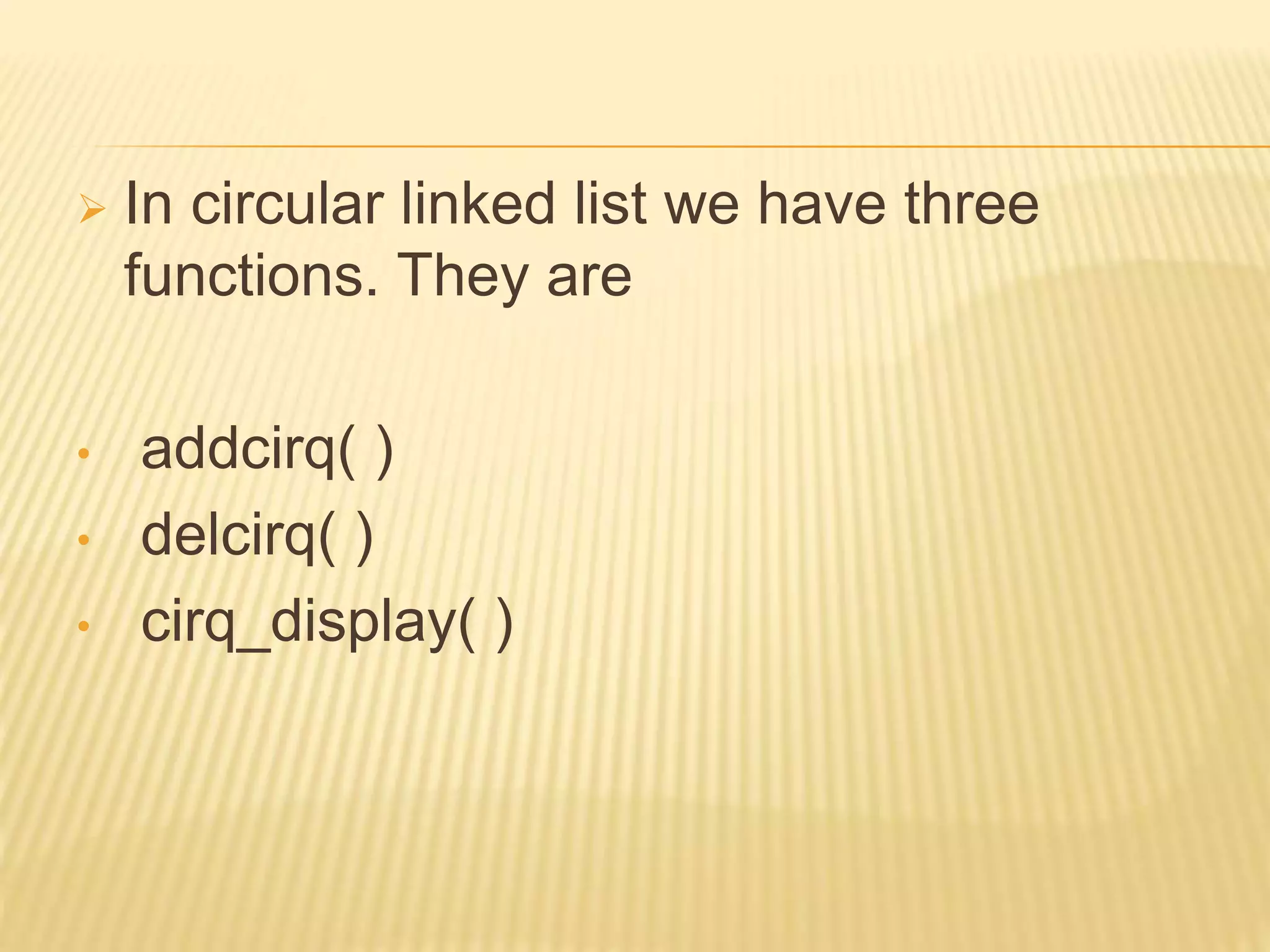

 In circular linked list we have three functions. They are • addcirq( ) • delcirq( ) • cirq_display( )

addcirq( ) :- This function accepts three parameters.  First parameter receives the address of the first node.  The second parameter receives the address of the pointer to the last node.

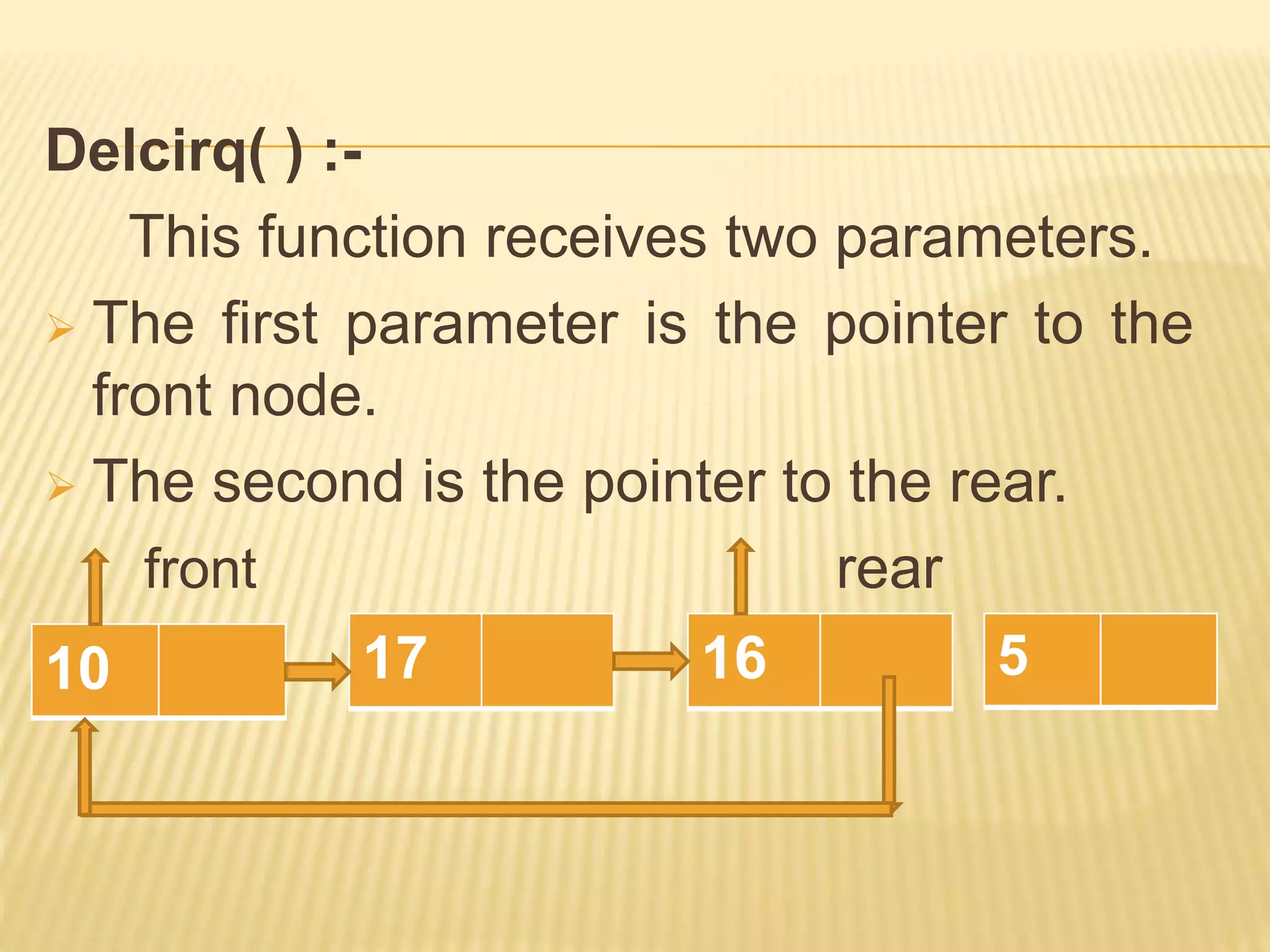

Delcirq( ) :- This function receives two parameters.  The first parameter is the pointer to the front node.  The second is the pointer to the rear. front rear 10 51617

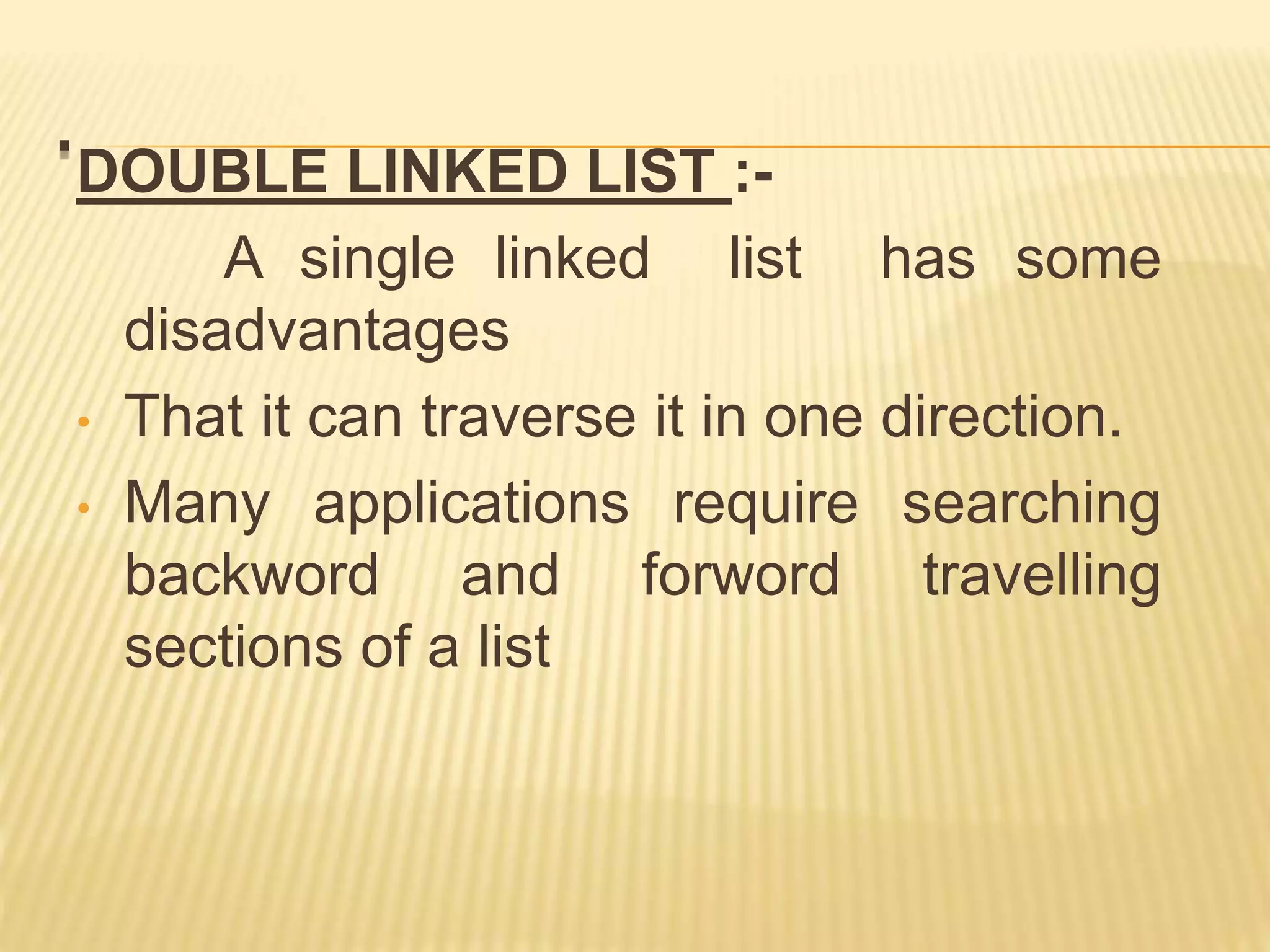

. DOUBLE LINKED LIST :- A single linked list has some disadvantages • That it can traverse it in one direction. • Many applications require searching backword and forword travelling sections of a list

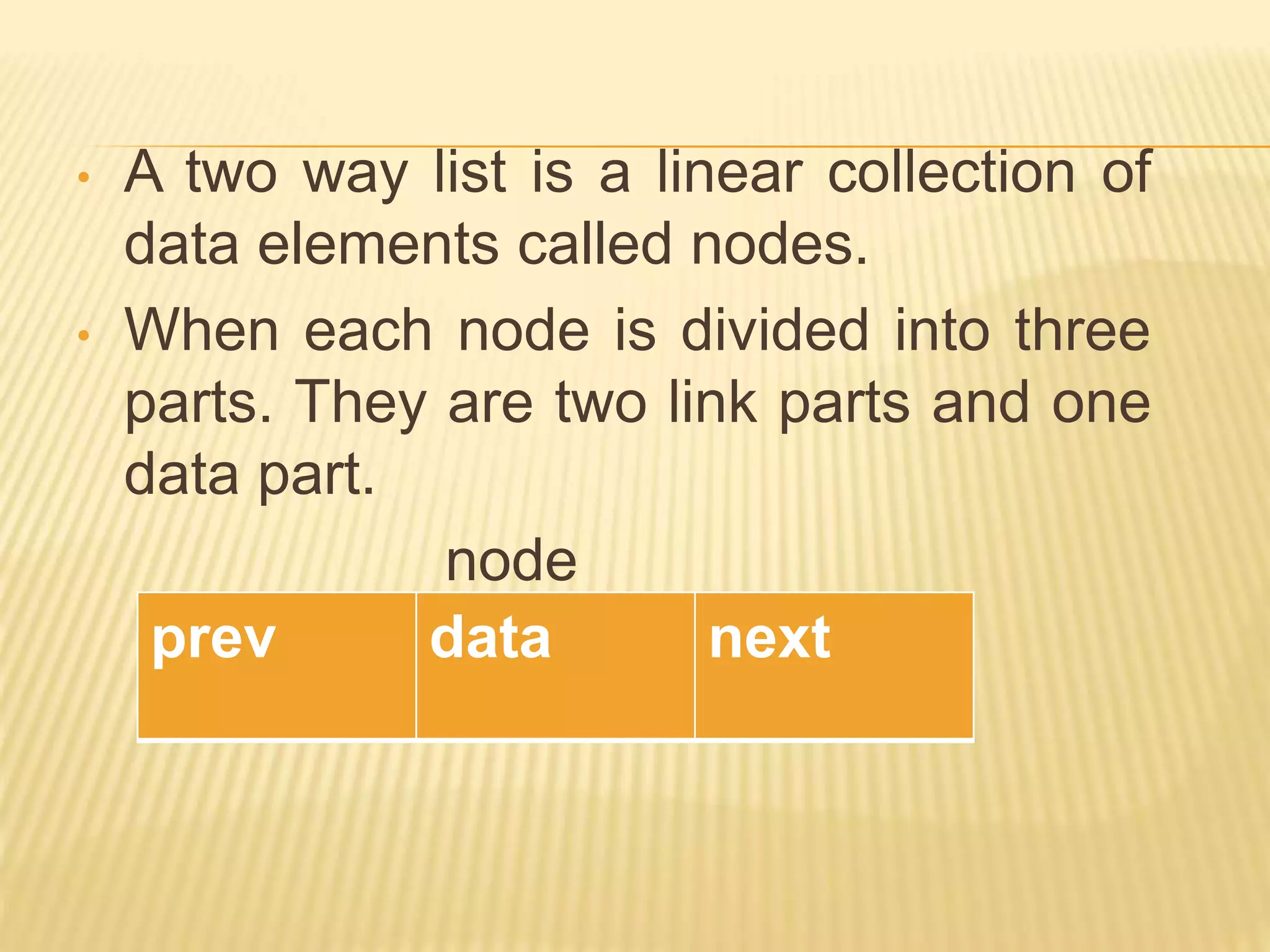

• A two way list is a linear collection of data elements called nodes. • When each node is divided into three parts. They are two link parts and one data part. node prev data next

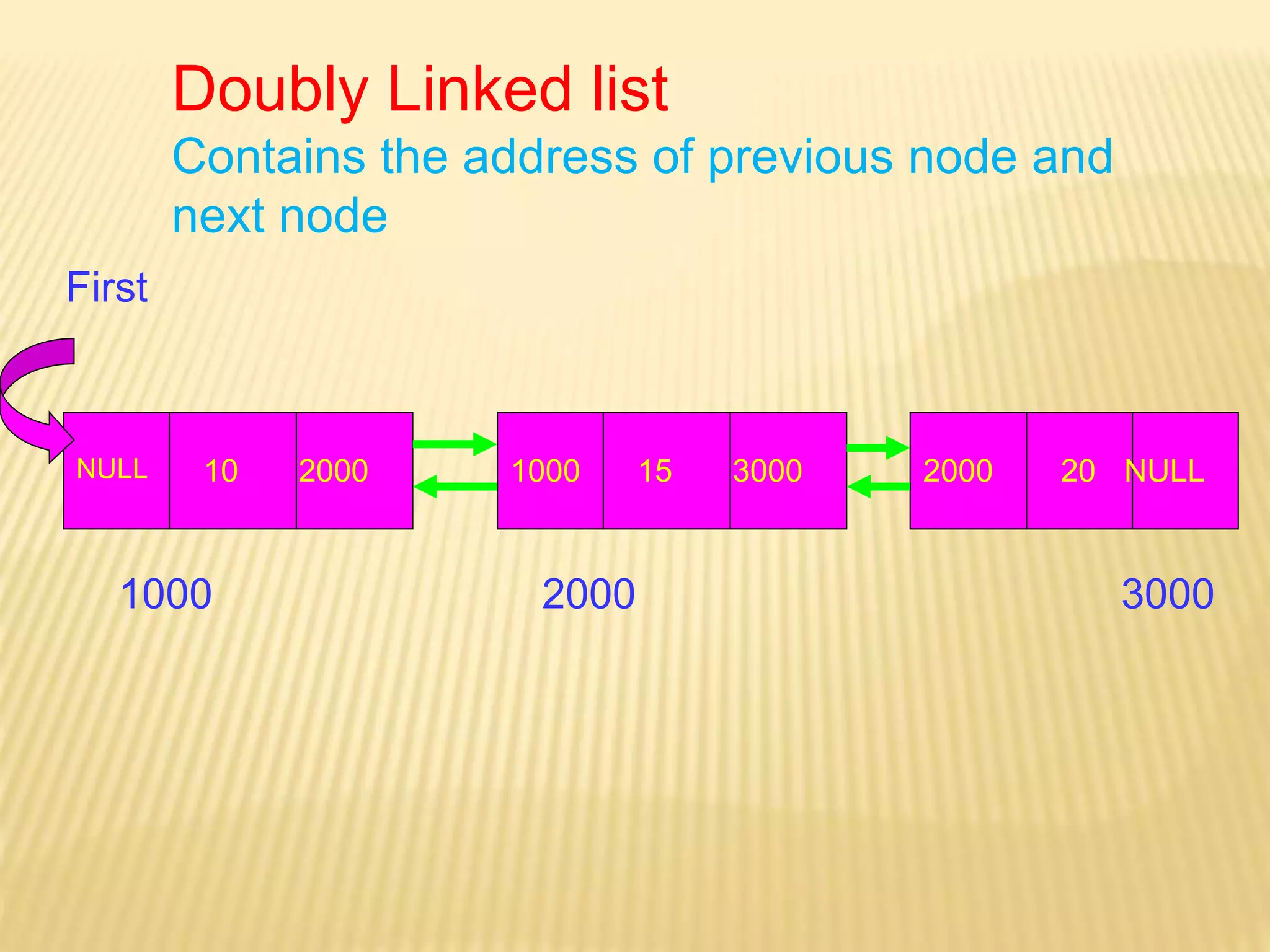

Doubly Linked list Contains the address of previous node and next node NULL 2000 30001000 10 15 202000 1000 2000 NULL3000 First

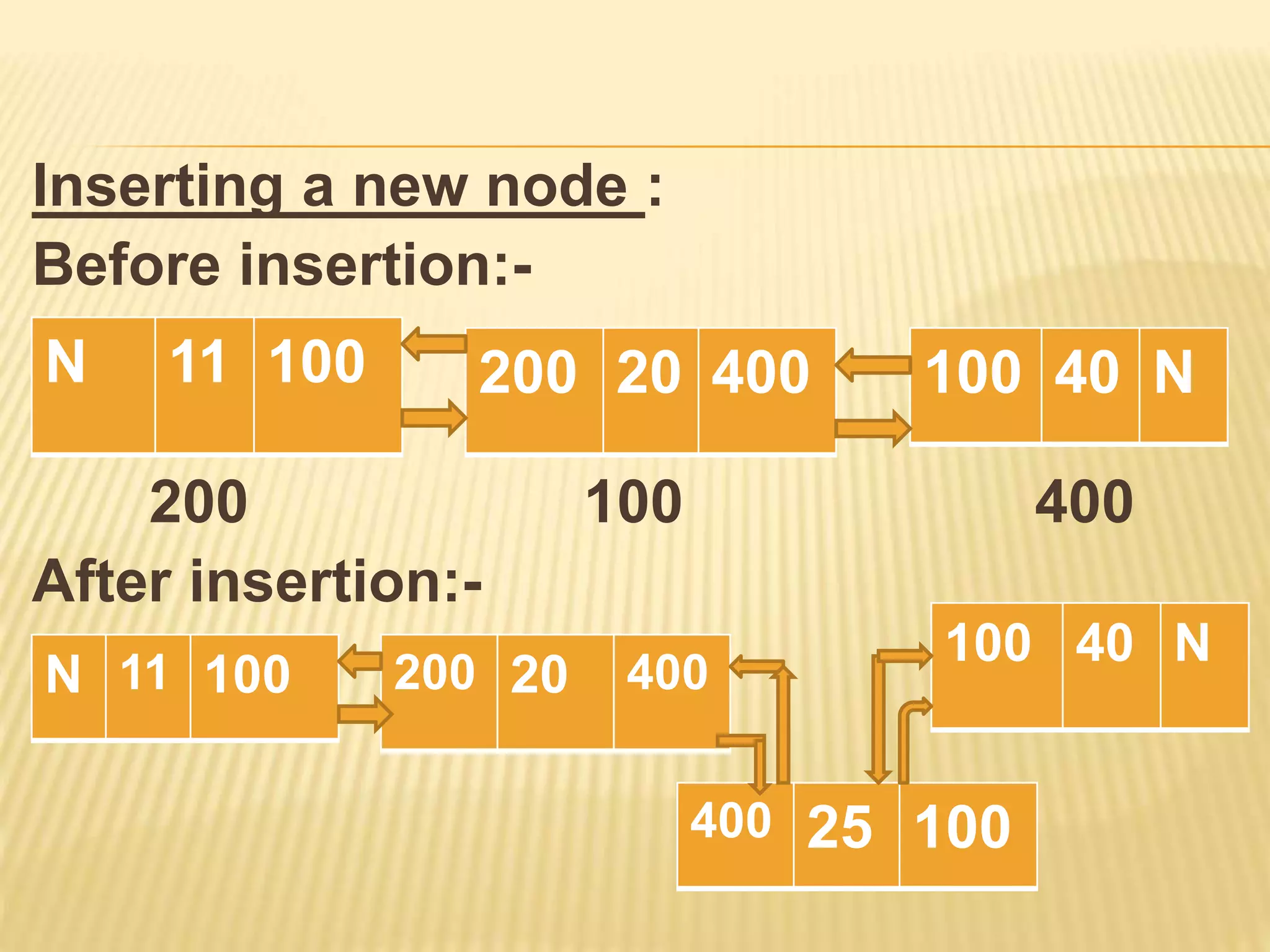

Inserting a new node : Before insertion:- 200 100 400 After insertion:- 100 40 N200 20 400N 11 100 100 40 N 400 25 100 N 11 100 200 20 400

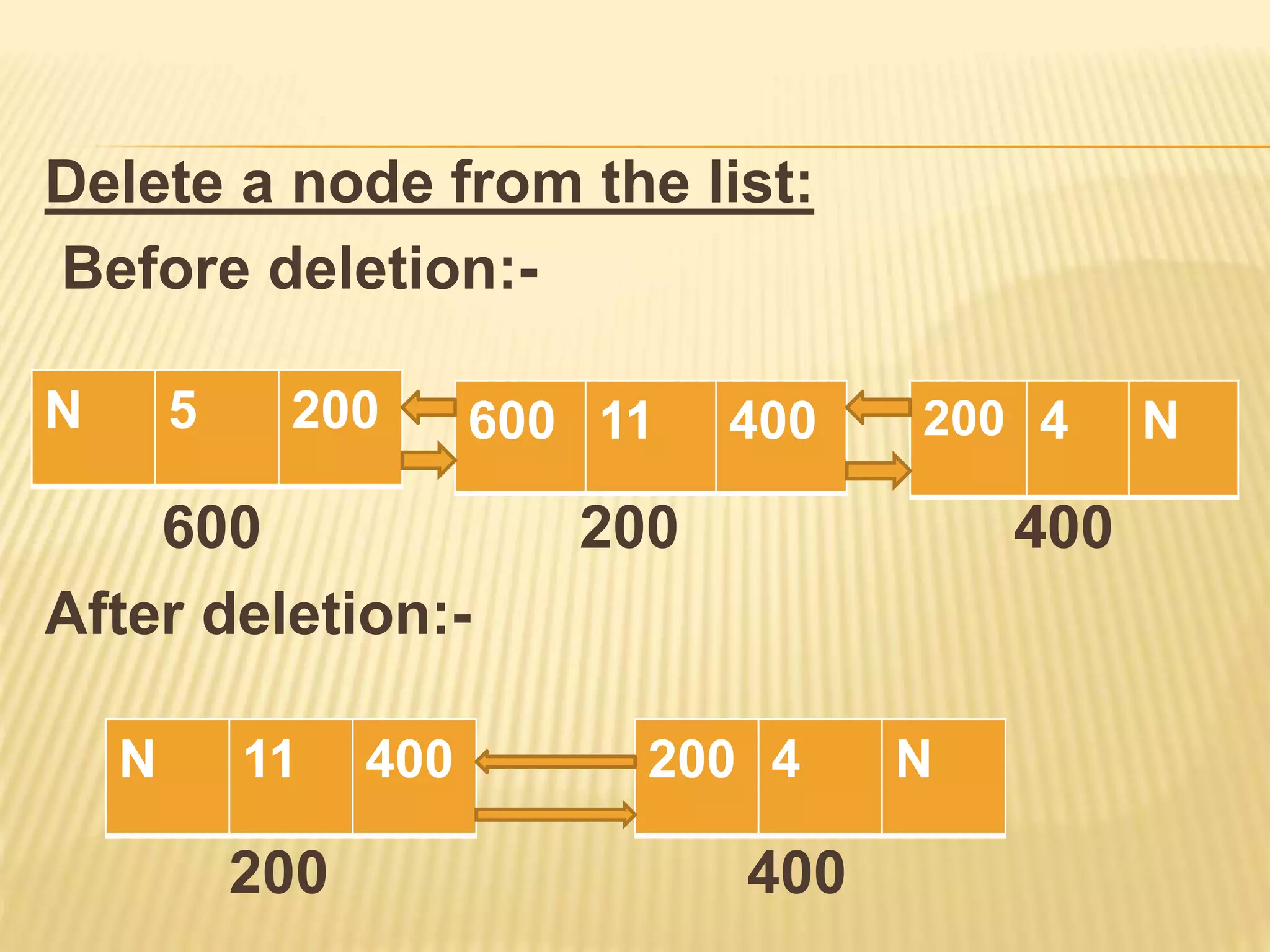

Delete a node from the list: Before deletion:- 600 200 400 After deletion:- 200 400 200 4 N600 11 400N 5 200 N 11 400 200 4 N

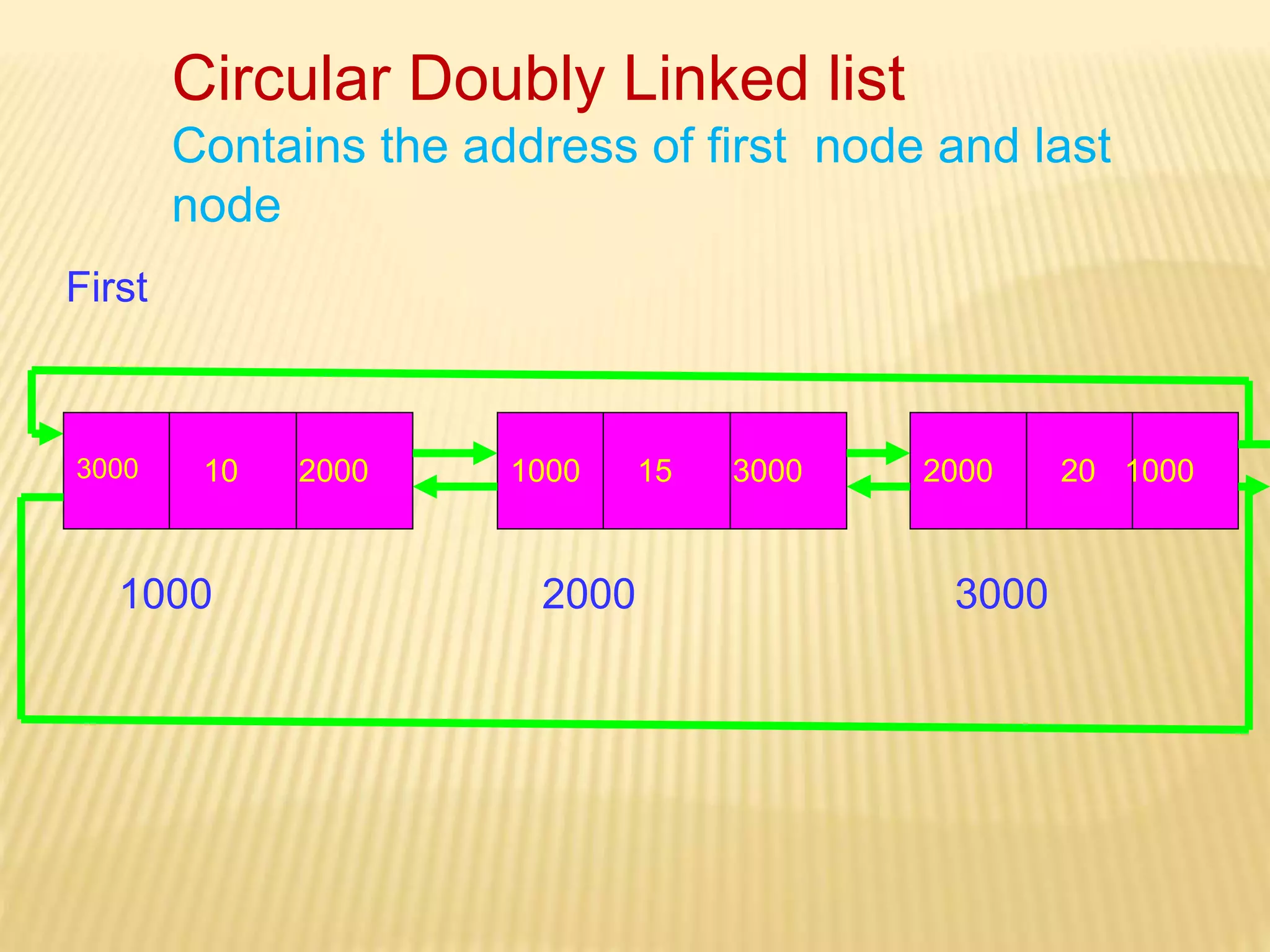

Circular Doubly Linked list Contains the address of first node and last node 3000 2000 30001000 10 15 202000 1000 2000 10003000 First

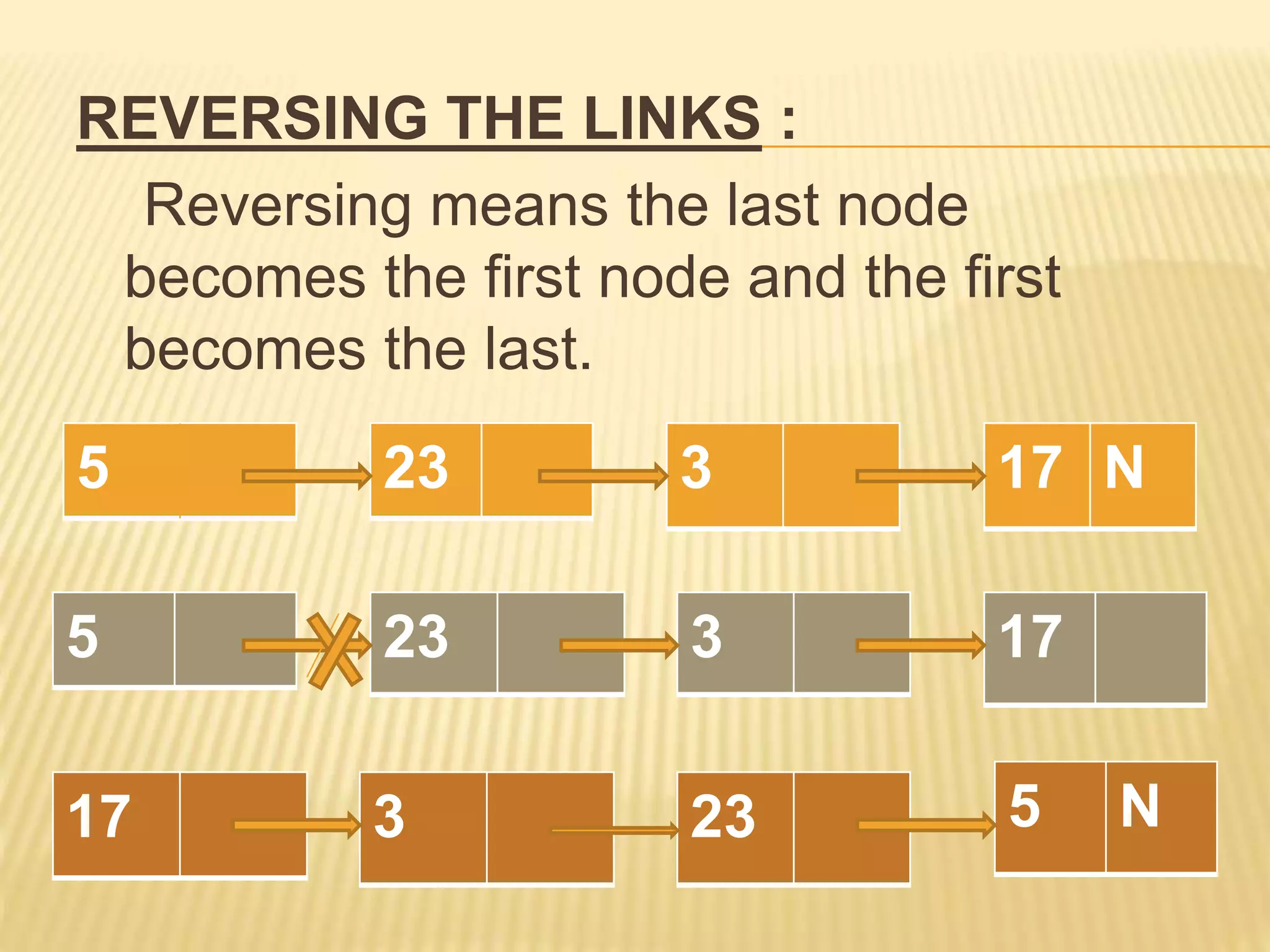

REVERSING THE LINKS : Reversing means the last node becomes the first node and the first becomes the last. 5 17 N323 17323 5 N23317 5

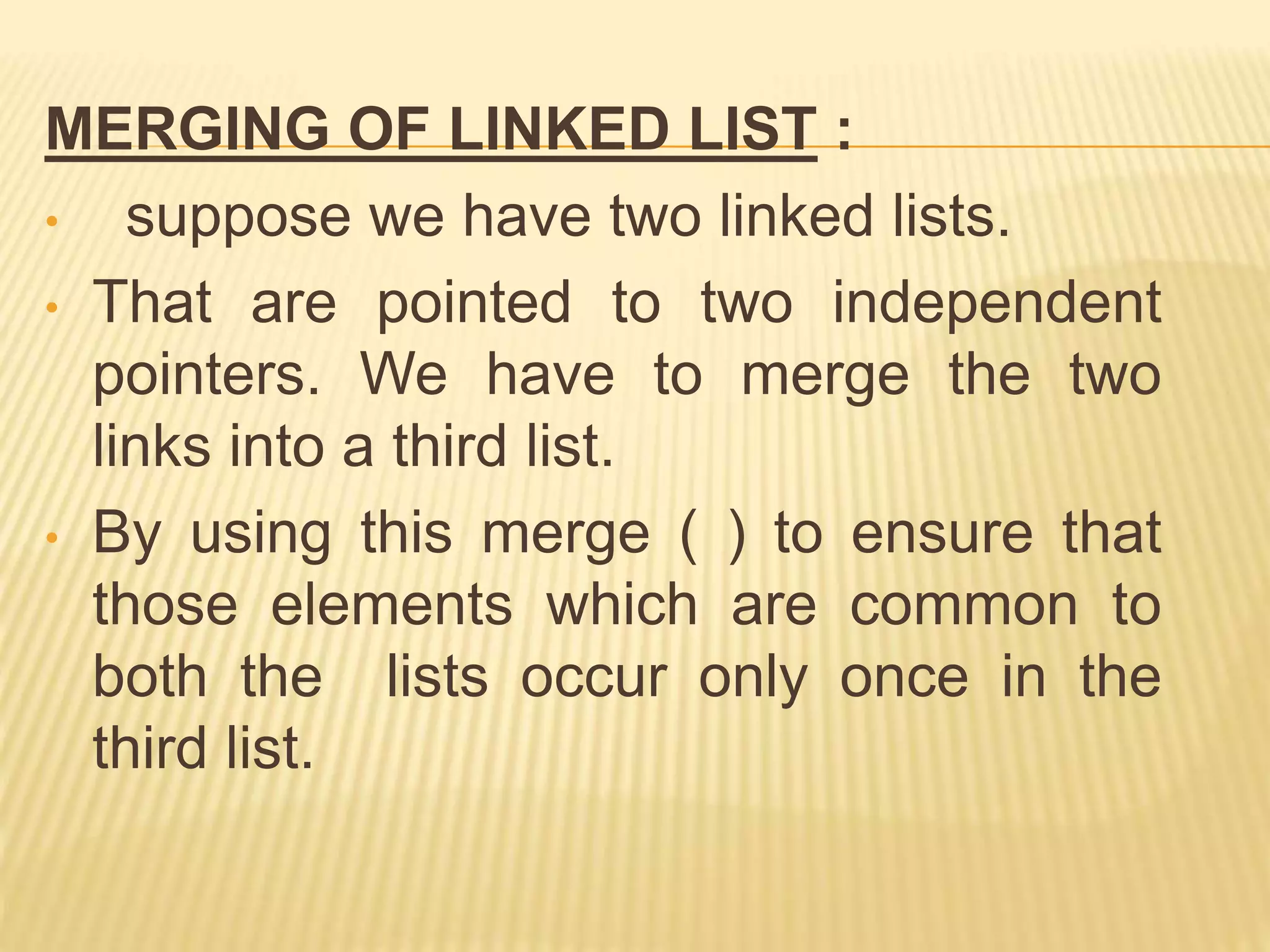

MERGING OF LINKED LIST : • suppose we have two linked lists. • That are pointed to two independent pointers. We have to merge the two links into a third list. • By using this merge ( ) to ensure that those elements which are common to both the lists occur only once in the third list.

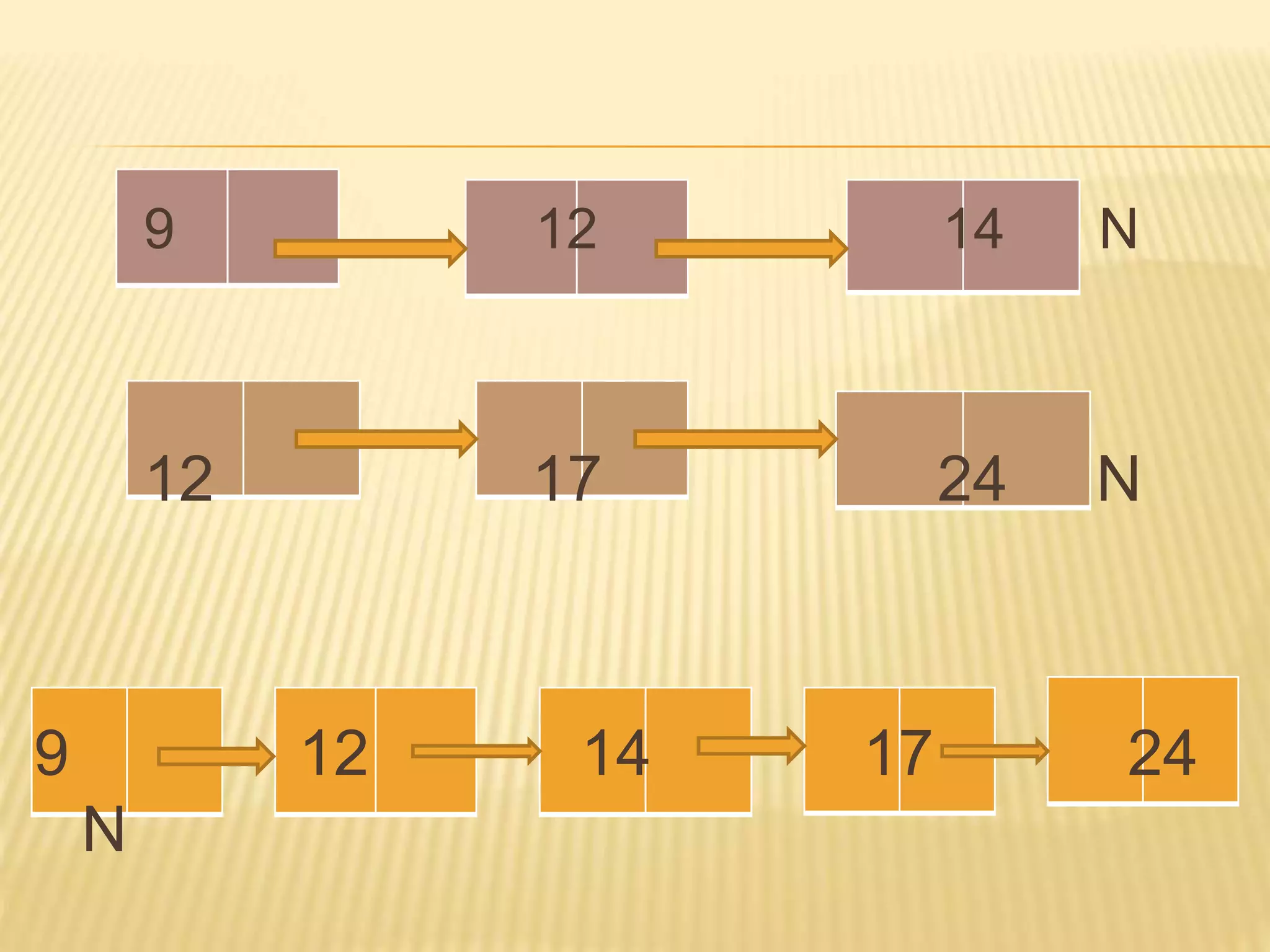

9 12 14 N 12 17 24 N 9 12 14 17 24 N

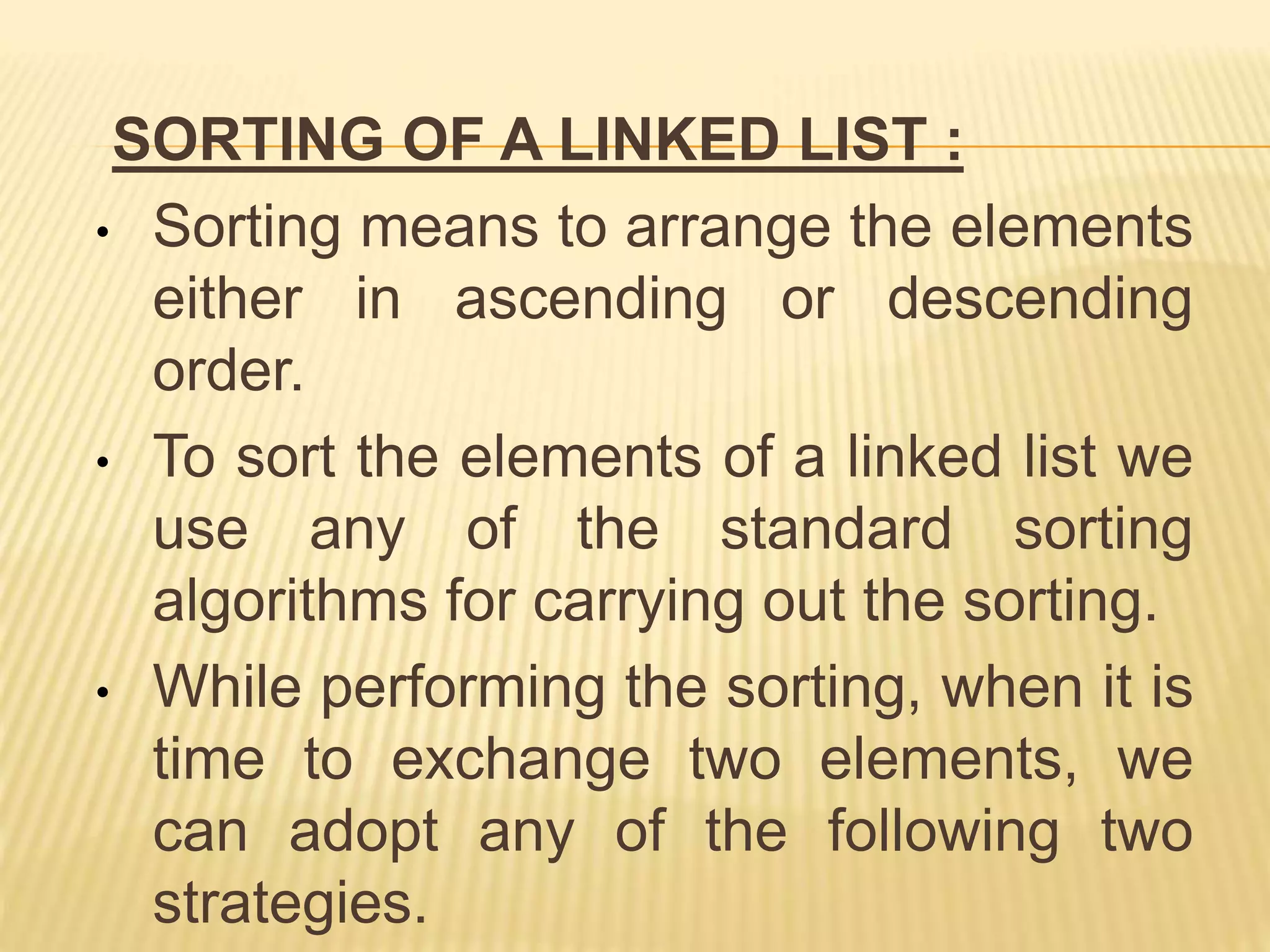

SORTING OF A LINKED LIST : • Sorting means to arrange the elements either in ascending or descending order. • To sort the elements of a linked list we use any of the standard sorting algorithms for carrying out the sorting. • While performing the sorting, when it is time to exchange two elements, we can adopt any of the following two strategies.

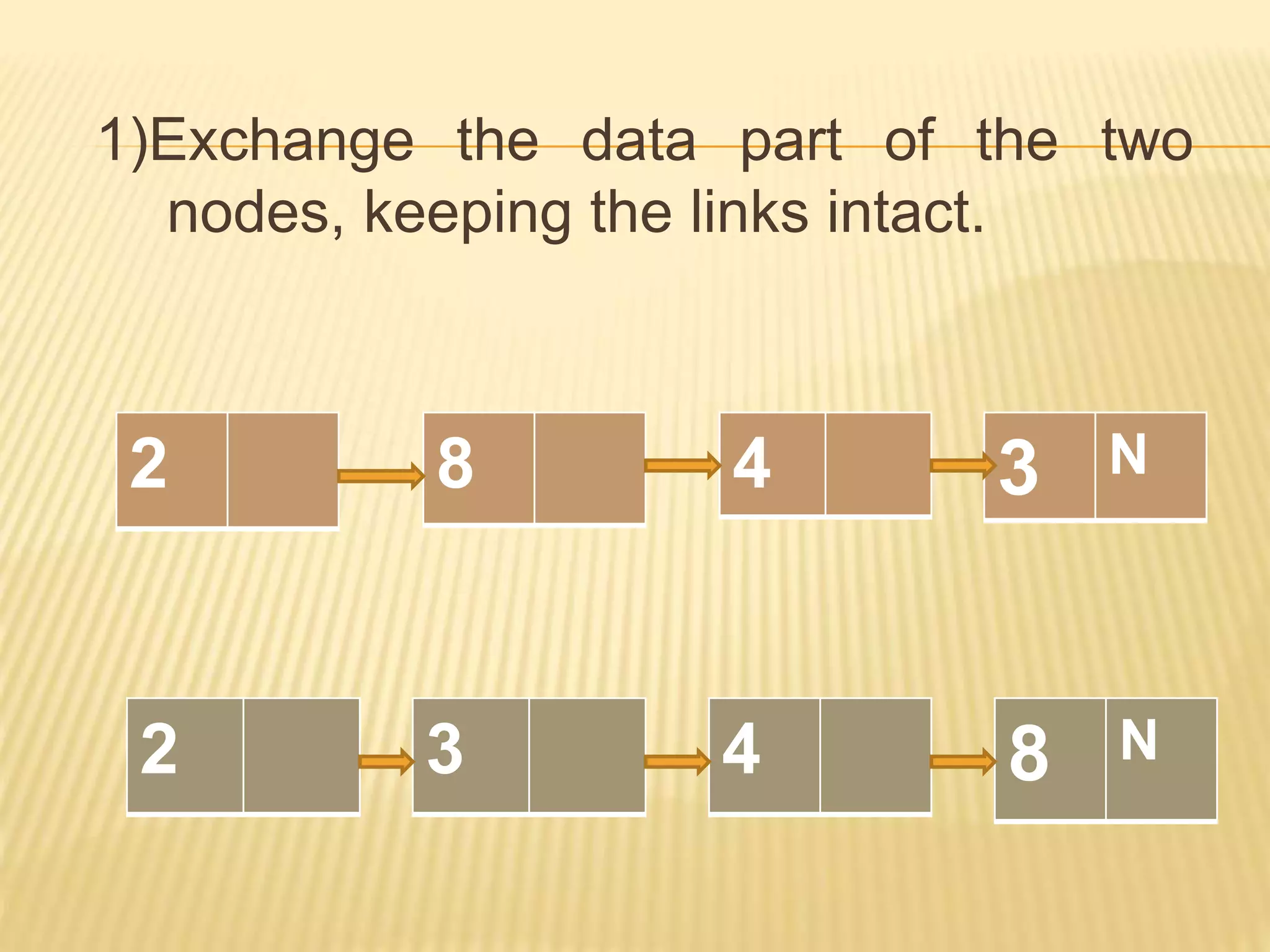

1)Exchange the data part of the two nodes, keeping the links intact. 8 N432 3 N482

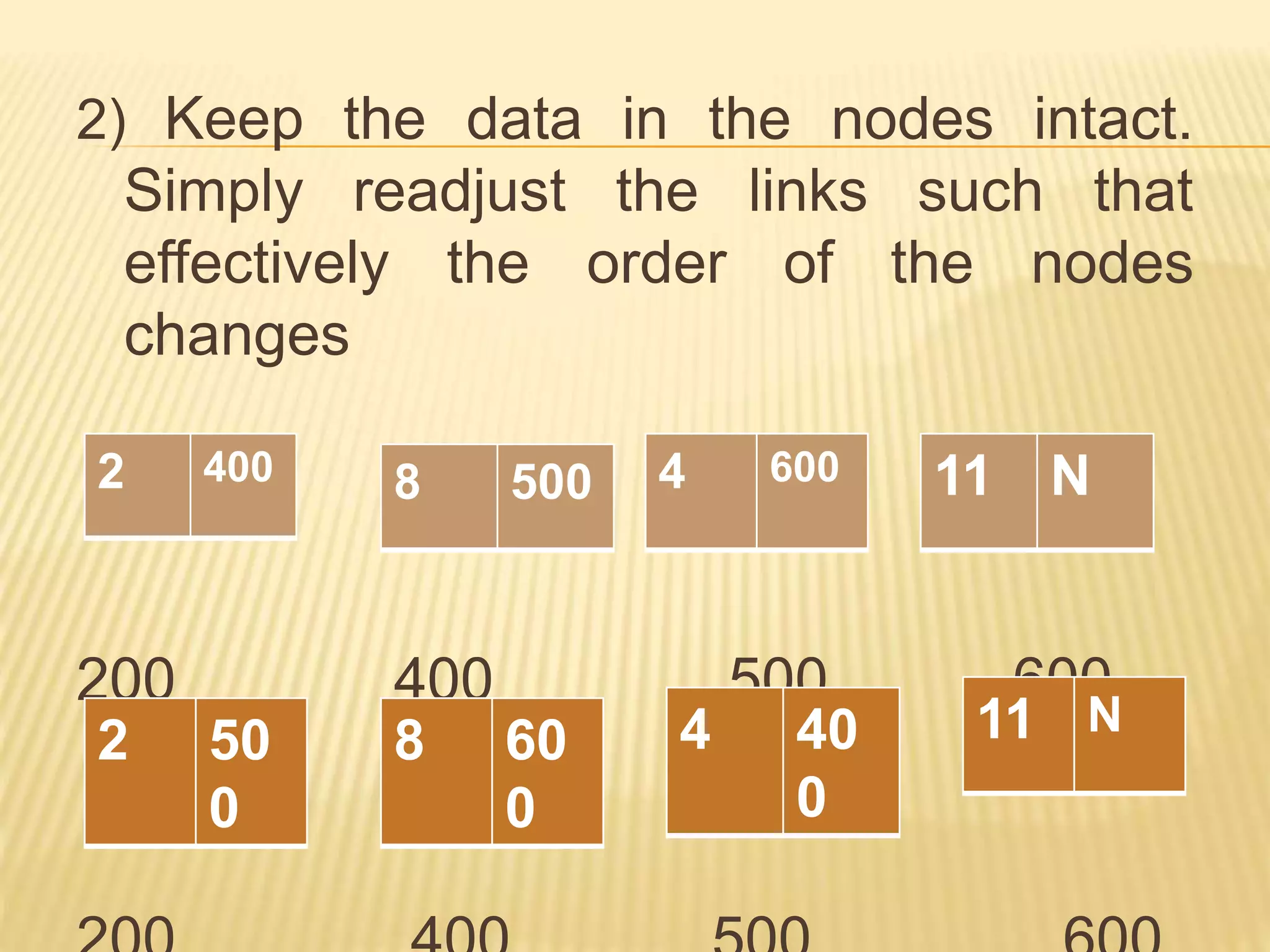

2) Keep the data in the nodes intact. Simply readjust the links such that effectively the order of the nodes changes 200 400 500 600 11 N4 40 0 8 60 0 2 50 0 11 N4 6008 5002 400

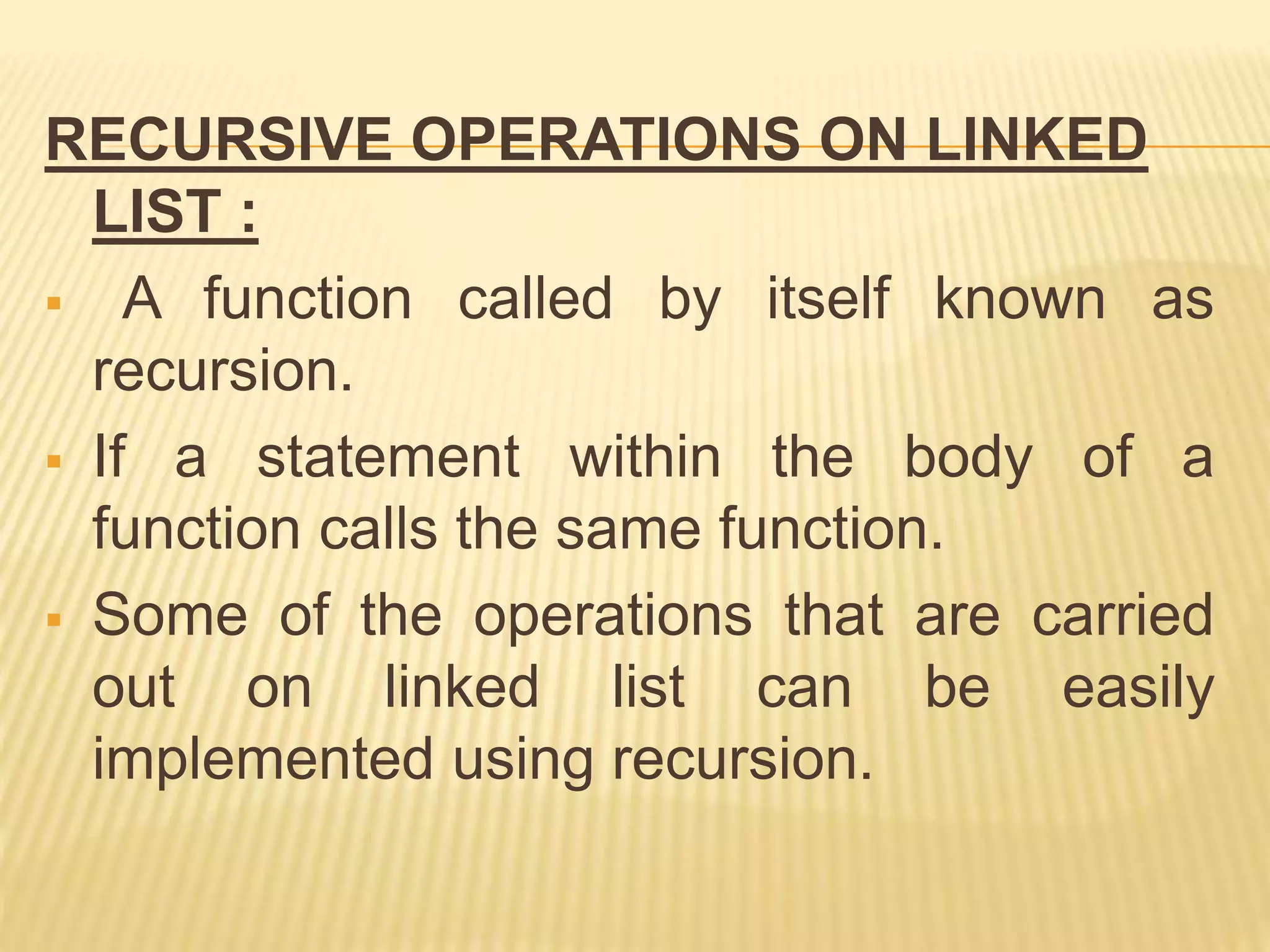

RECURSIVE OPERATIONS ON LINKED LIST :  A function called by itself known as recursion.  If a statement within the body of a function calls the same function.  Some of the operations that are carried out on linked list can be easily implemented using recursion.

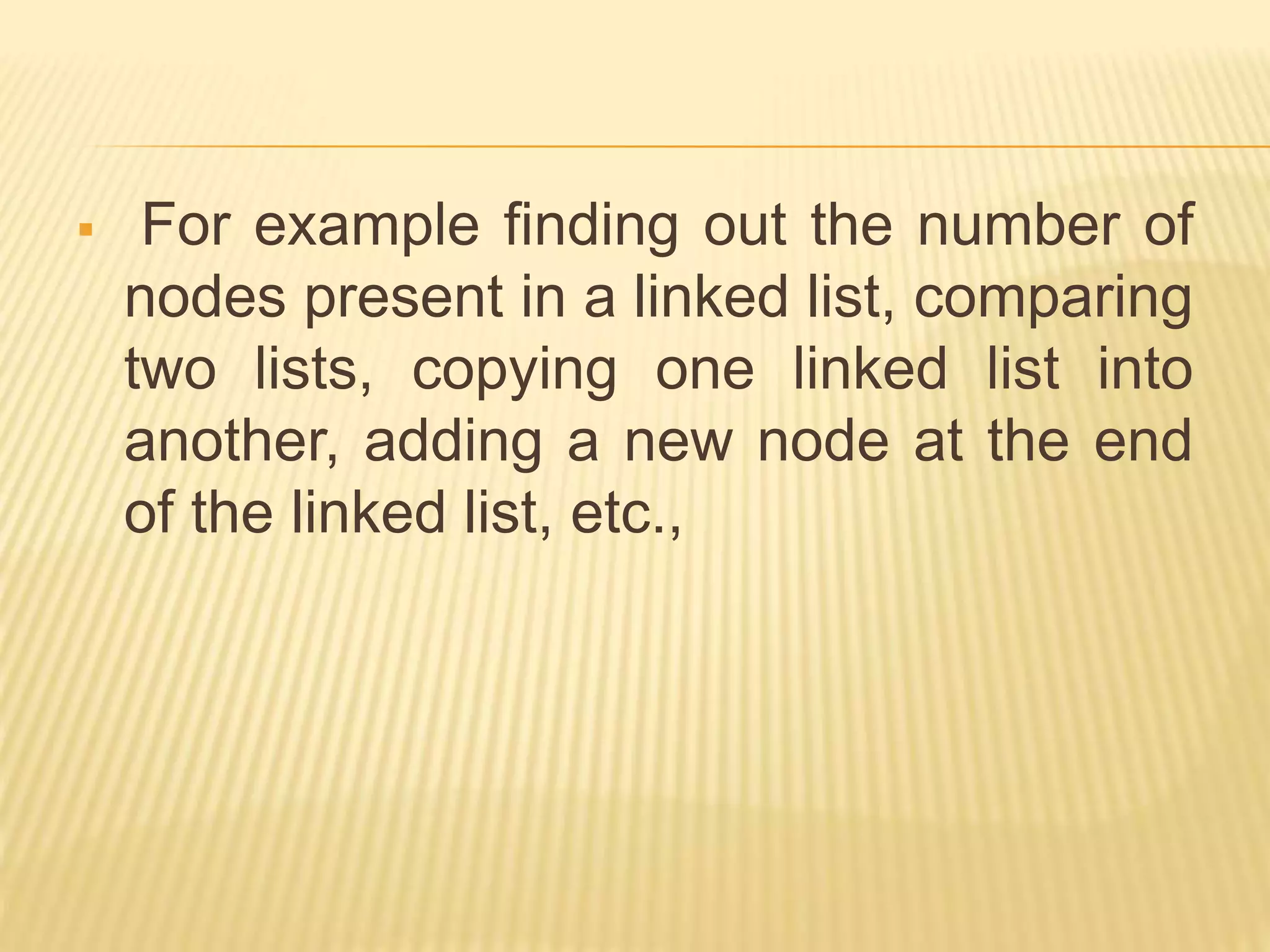

 For example finding out the number of nodes present in a linked list, comparing two lists, copying one linked list into another, adding a new node at the end of the linked list, etc.,

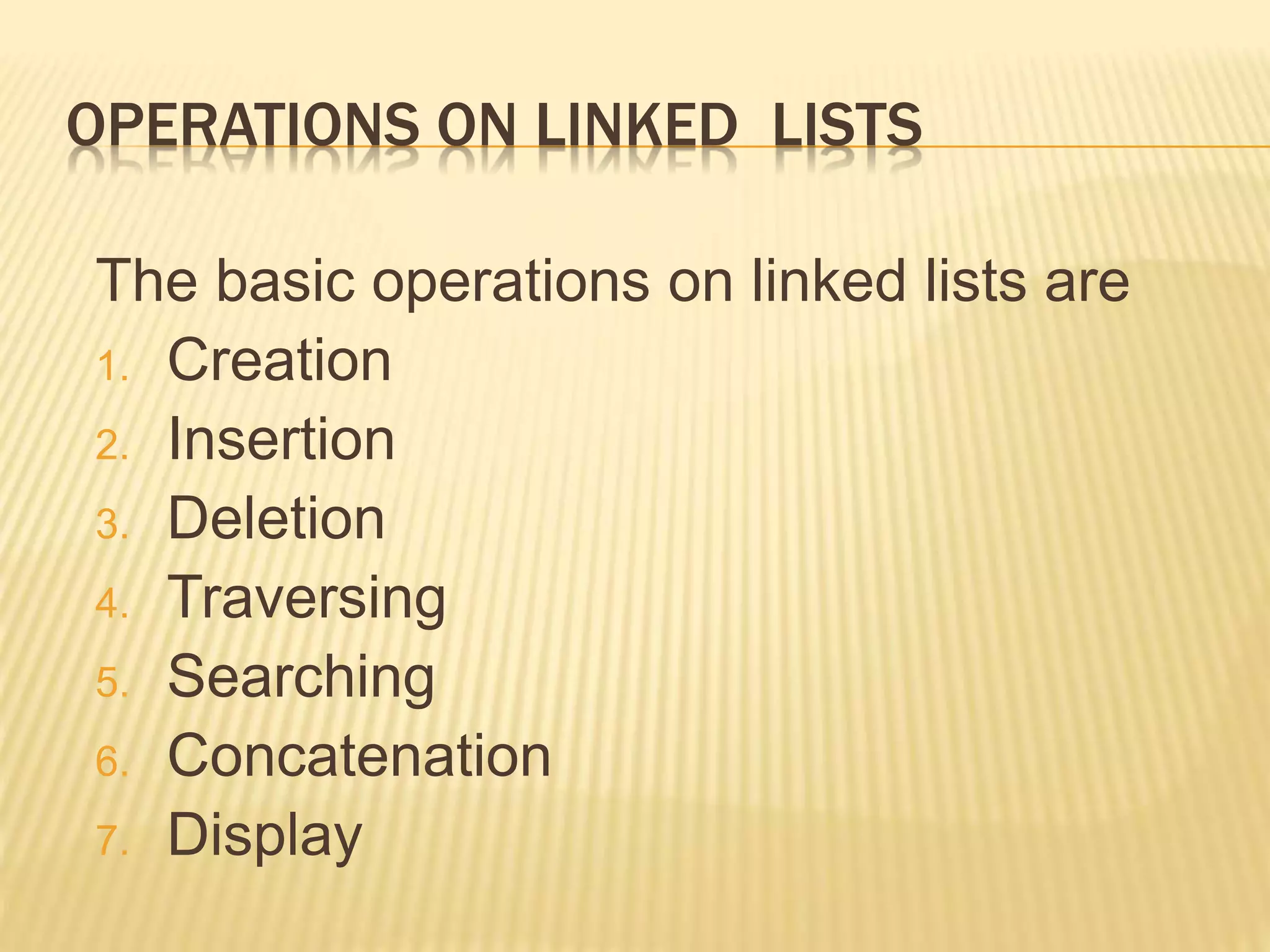

OPERATIONS ON LINKED LISTS The basic operations on linked lists are 1. Creation 2. Insertion 3. Deletion 4. Traversing 5. Searching 6. Concatenation 7. Display

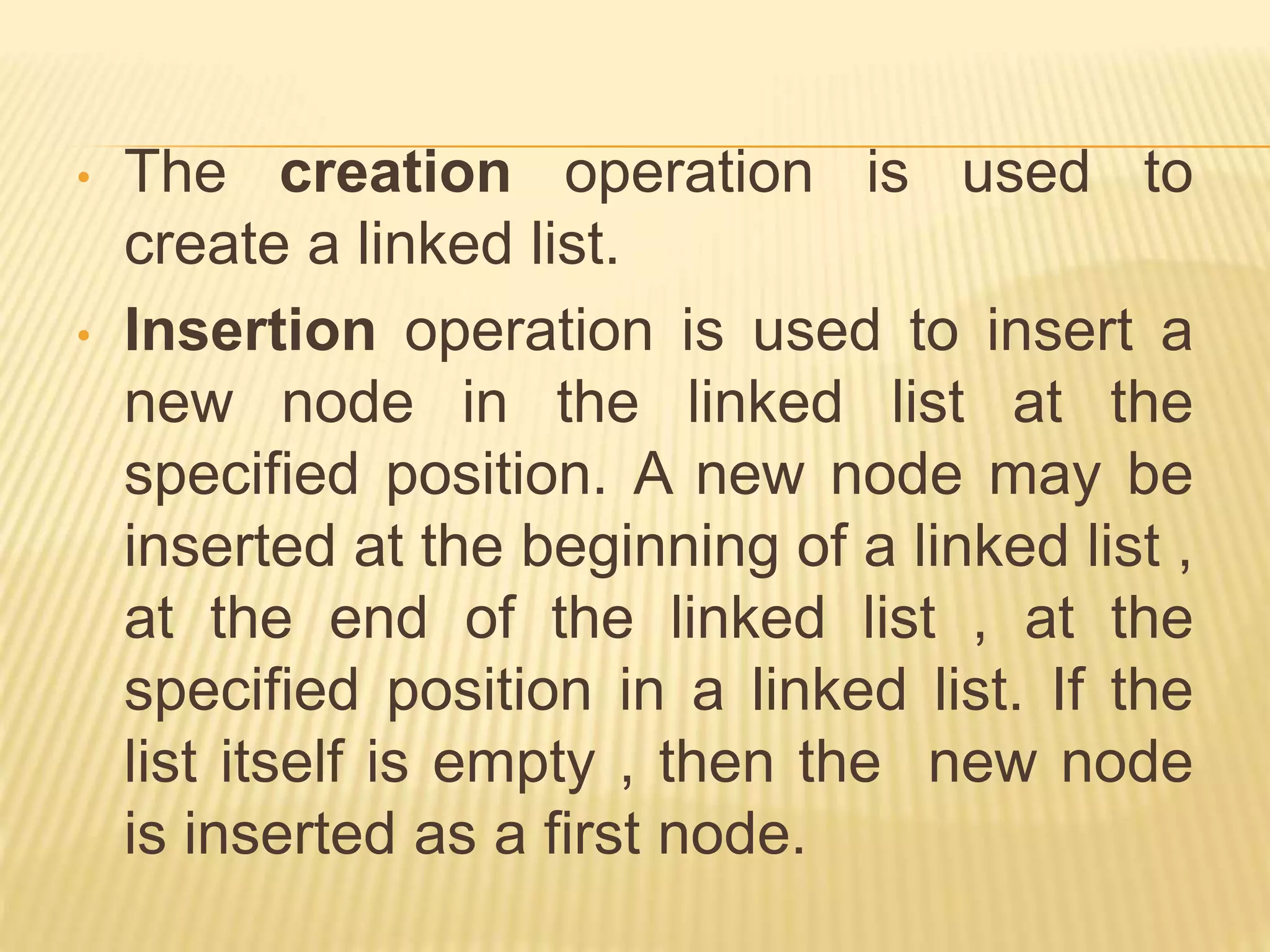

• The creation operation is used to create a linked list. • Insertion operation is used to insert a new node in the linked list at the specified position. A new node may be inserted at the beginning of a linked list , at the end of the linked list , at the specified position in a linked list. If the list itself is empty , then the new node is inserted as a first node.

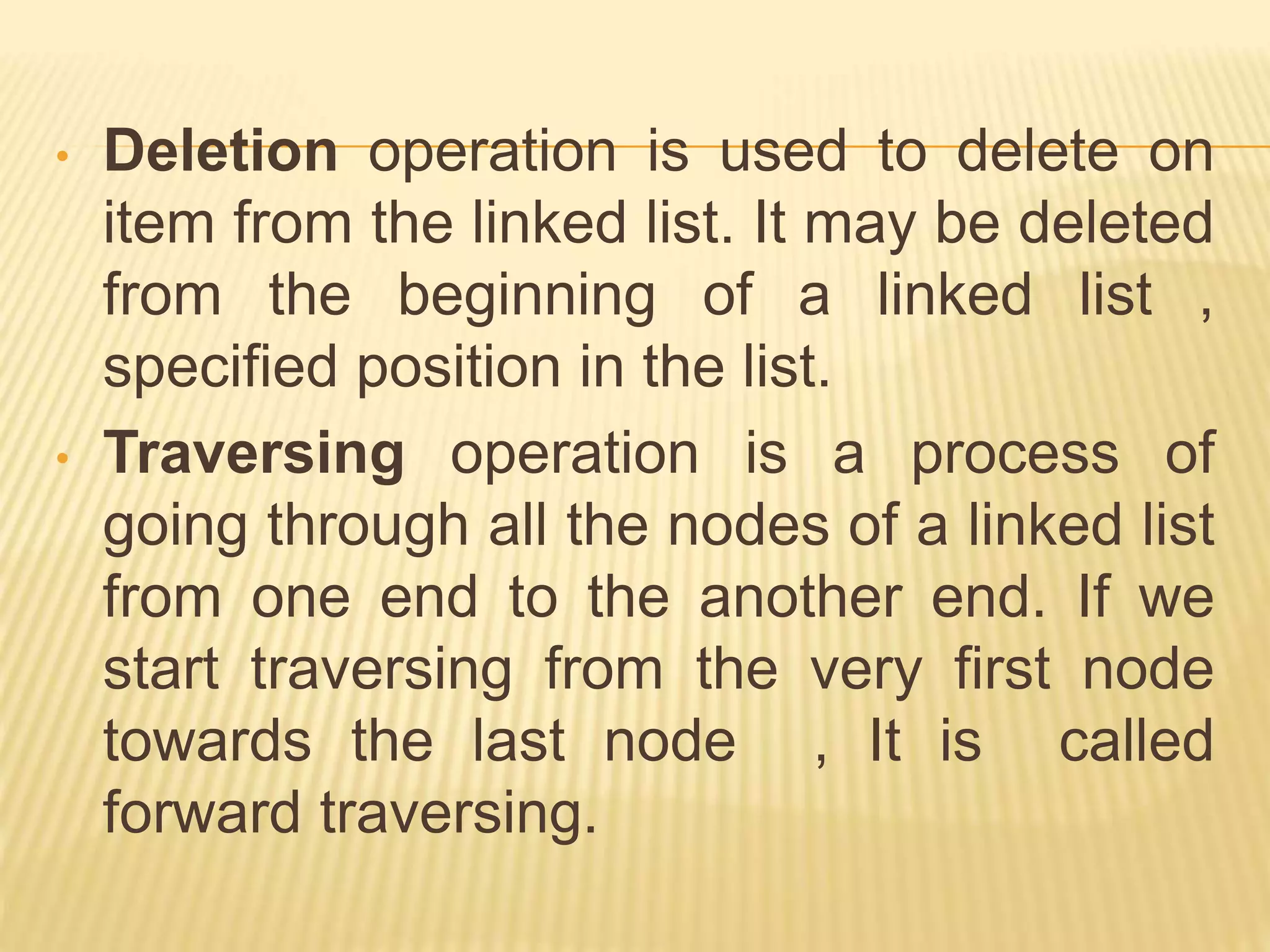

• Deletion operation is used to delete on item from the linked list. It may be deleted from the beginning of a linked list , specified position in the list. • Traversing operation is a process of going through all the nodes of a linked list from one end to the another end. If we start traversing from the very first node towards the last node , It is called forward traversing.

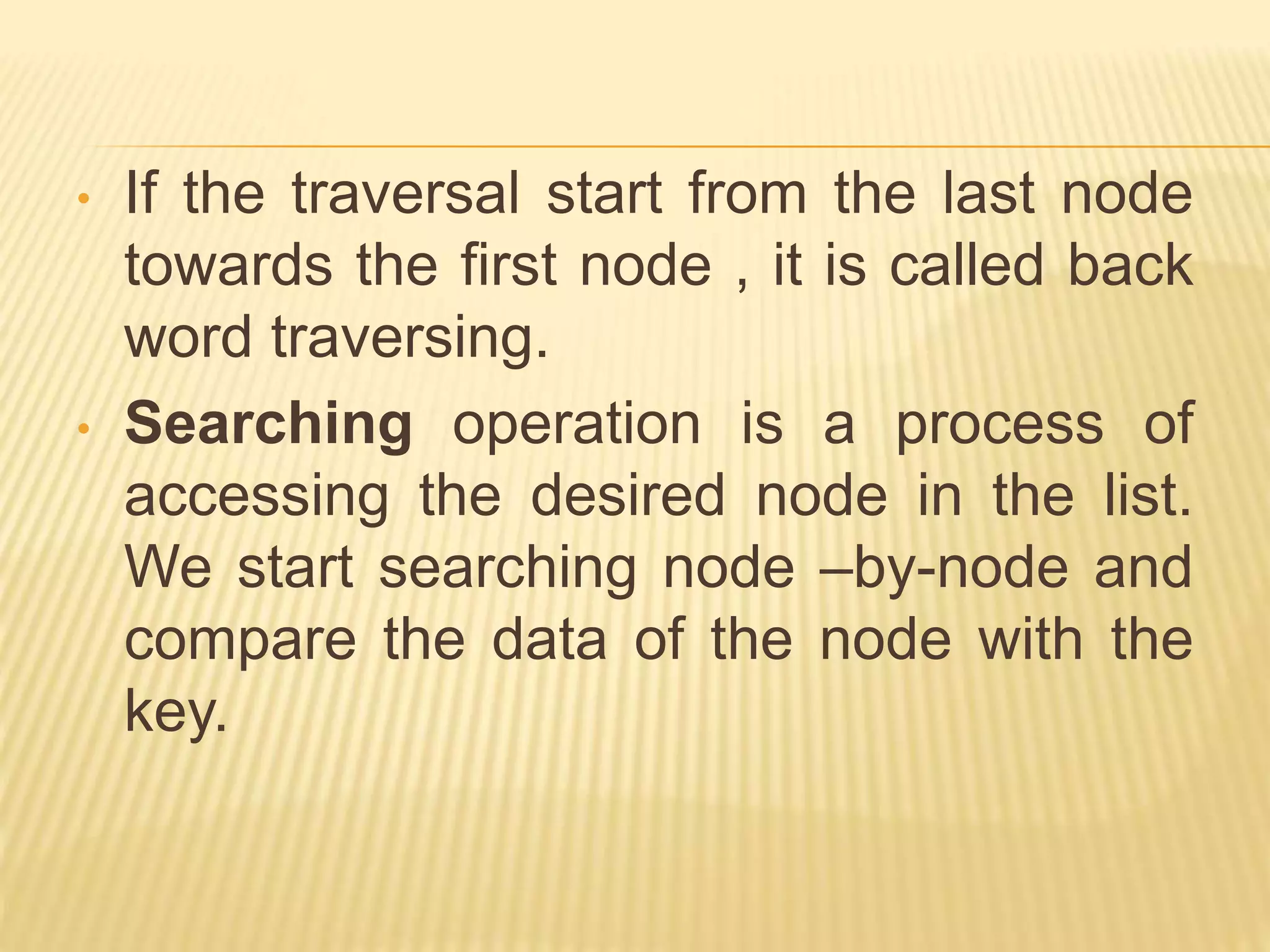

• If the traversal start from the last node towards the first node , it is called back word traversing. • Searching operation is a process of accessing the desired node in the list. We start searching node –by-node and compare the data of the node with the key.

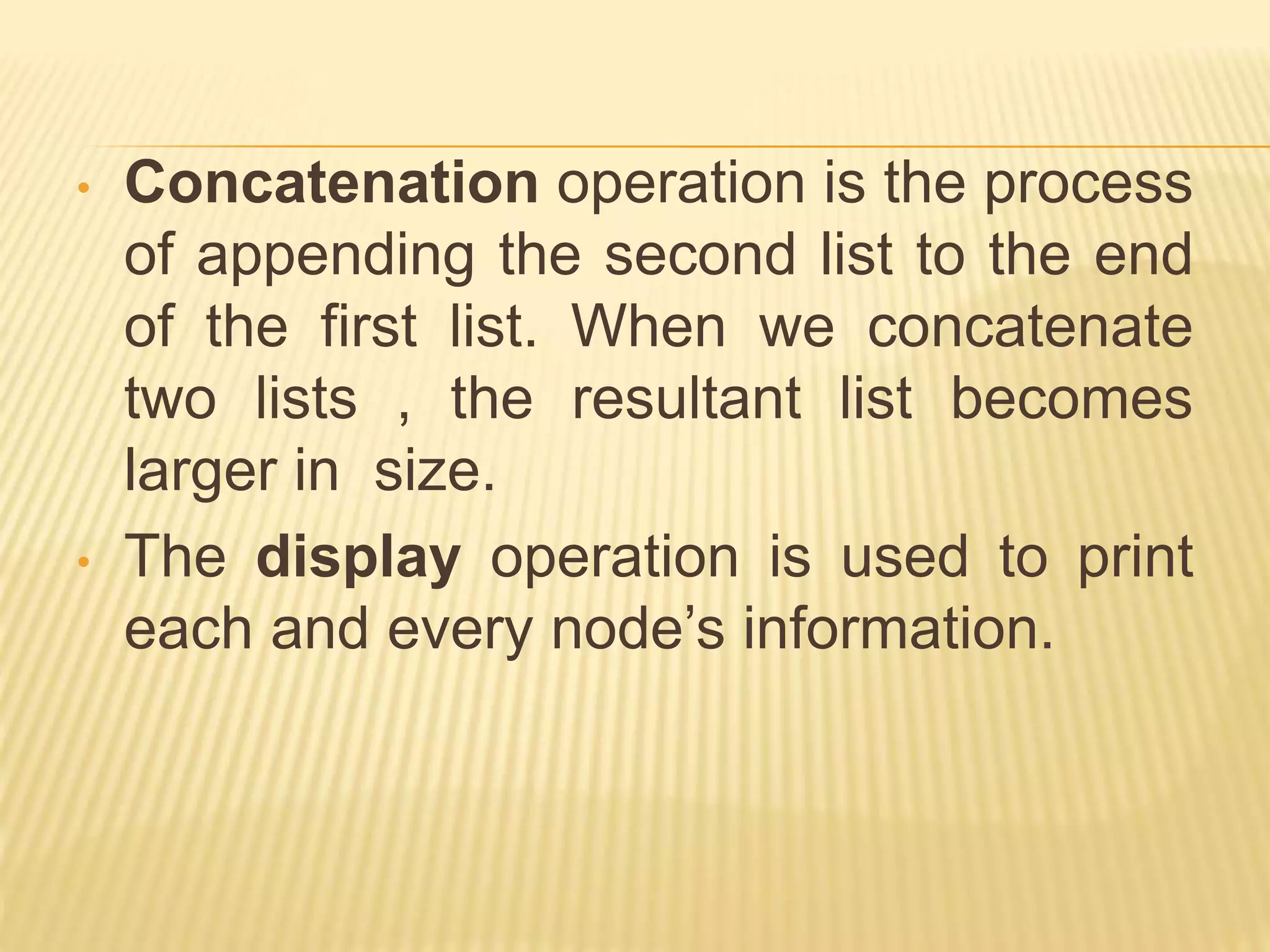

• Concatenation operation is the process of appending the second list to the end of the first list. When we concatenate two lists , the resultant list becomes larger in size. • The display operation is used to print each and every node’s information.

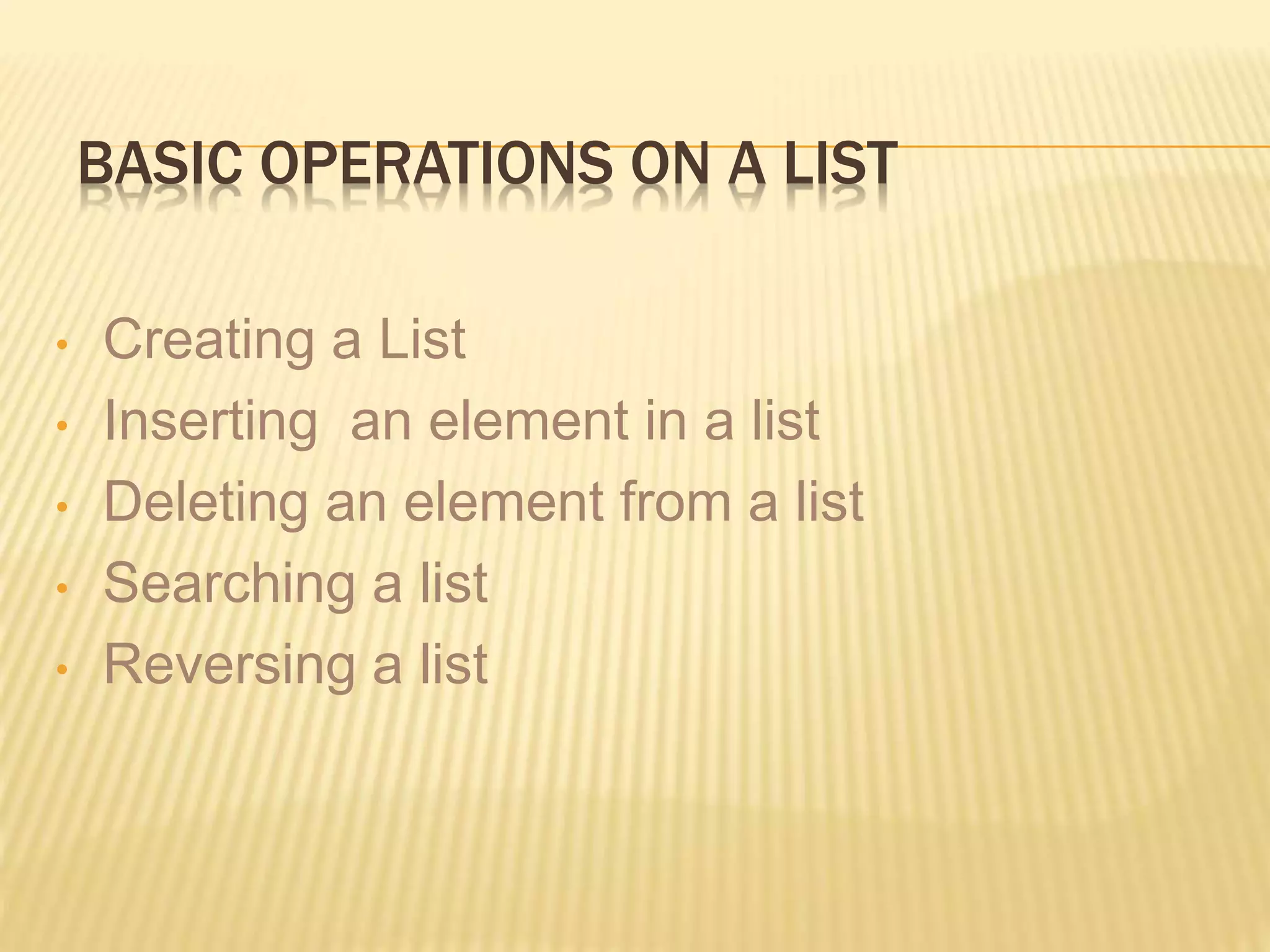

BASIC OPERATIONS ON A LIST • Creating a List • Inserting an element in a list • Deleting an element from a list • Searching a list • Reversing a list

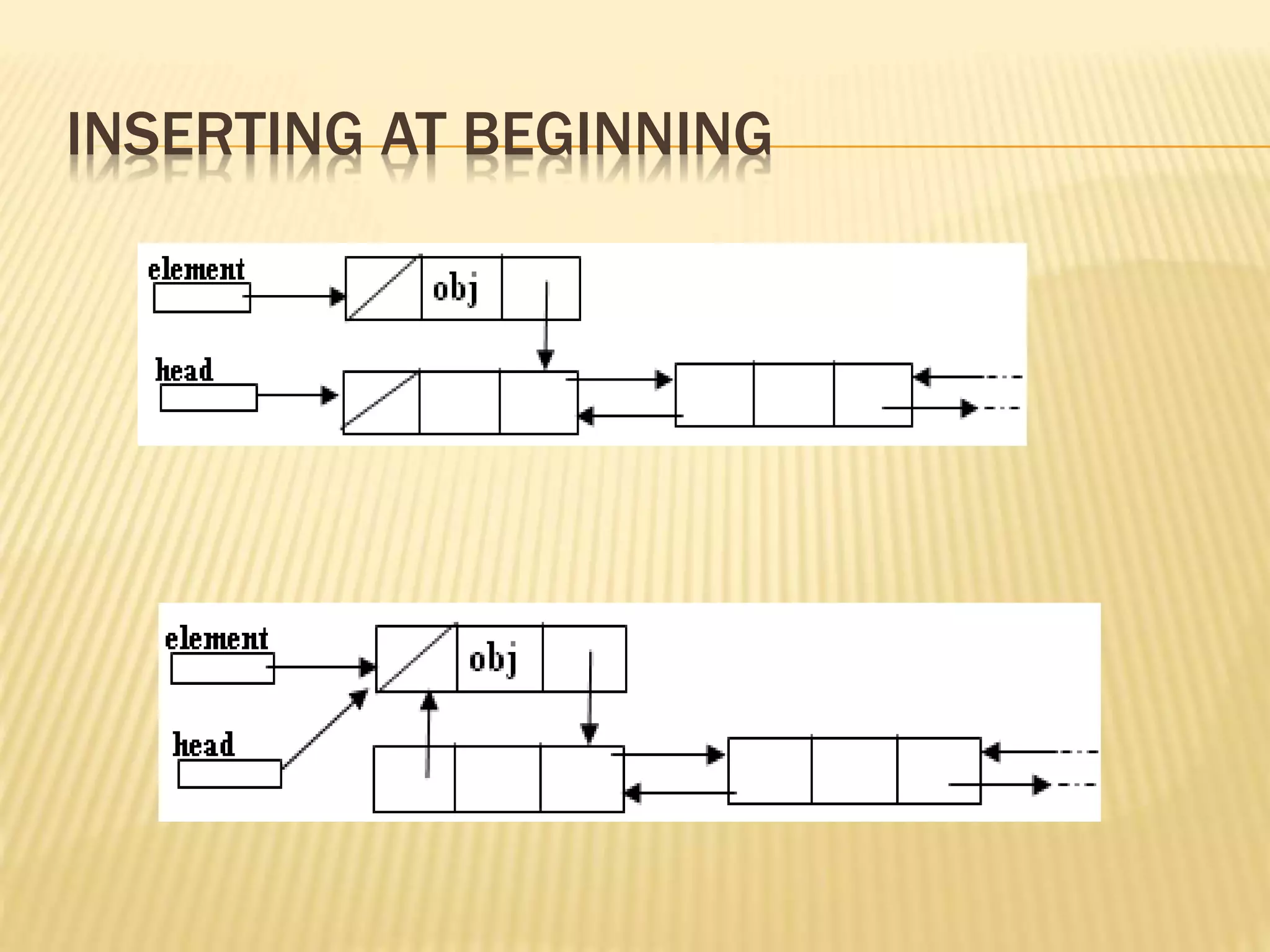

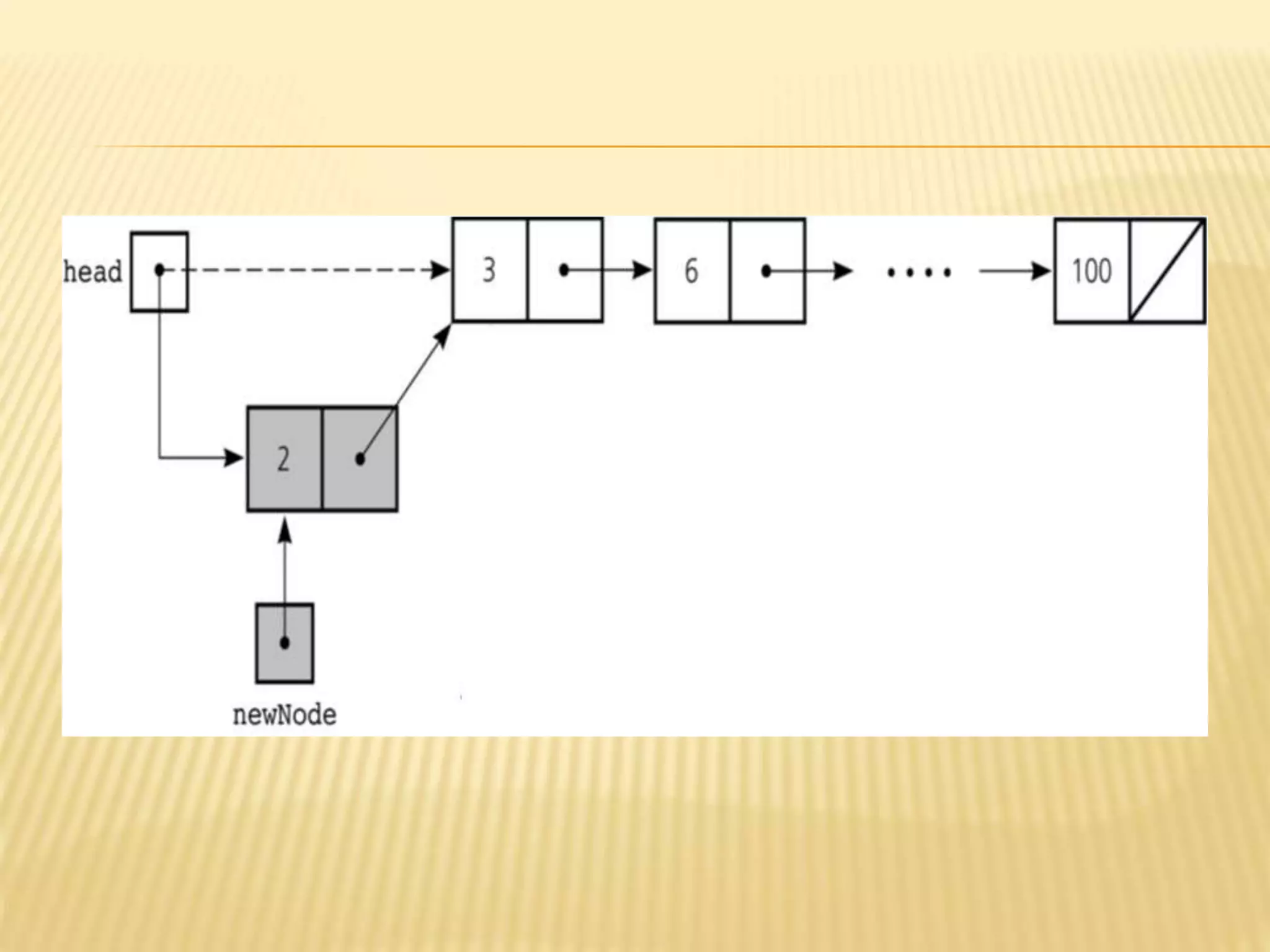

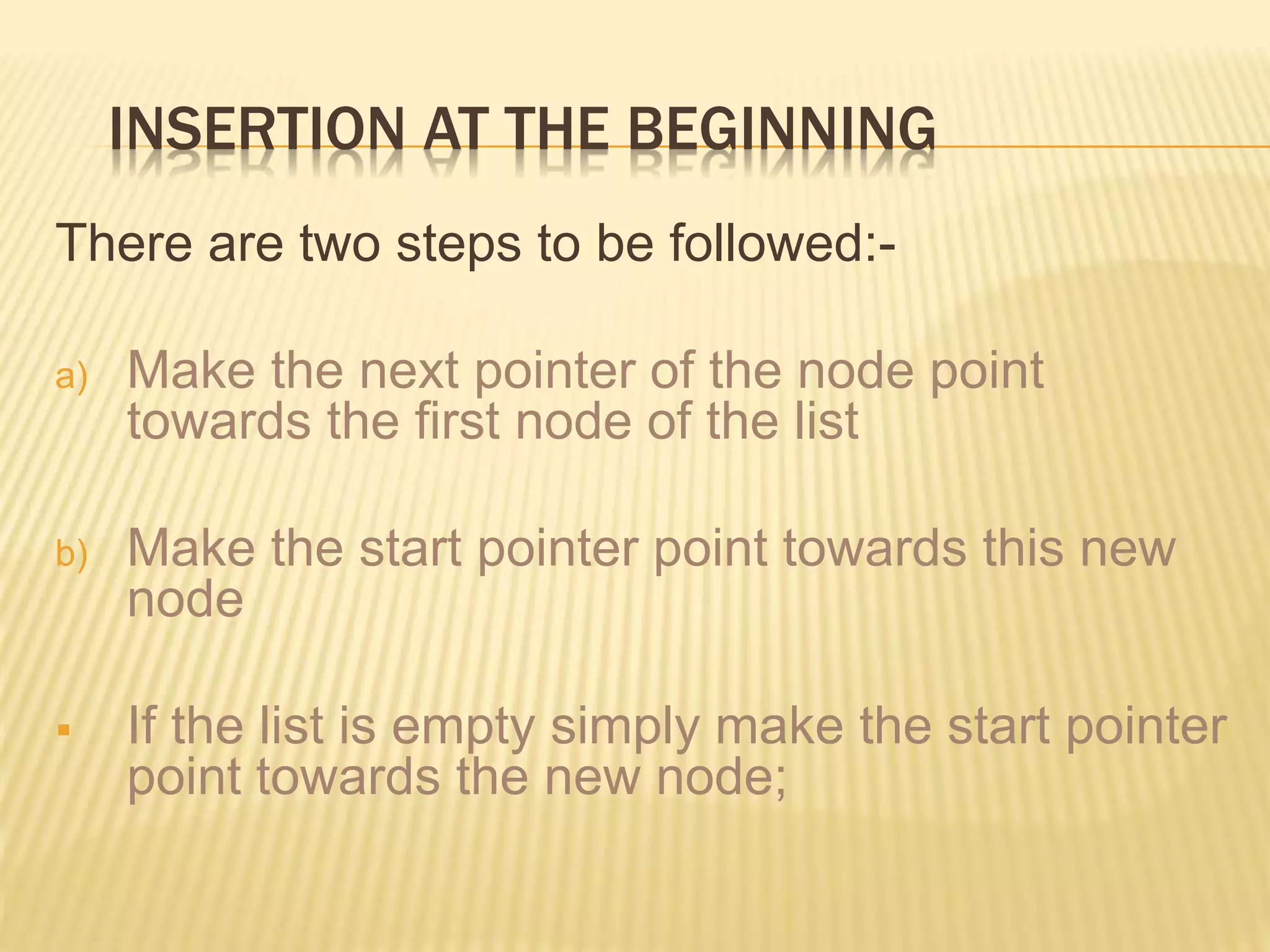

INSERTION AT THE BEGINNING There are two steps to be followed:- a) Make the next pointer of the node point towards the first node of the list b) Make the start pointer point towards this new node  If the list is empty simply make the start pointer point towards the new node;

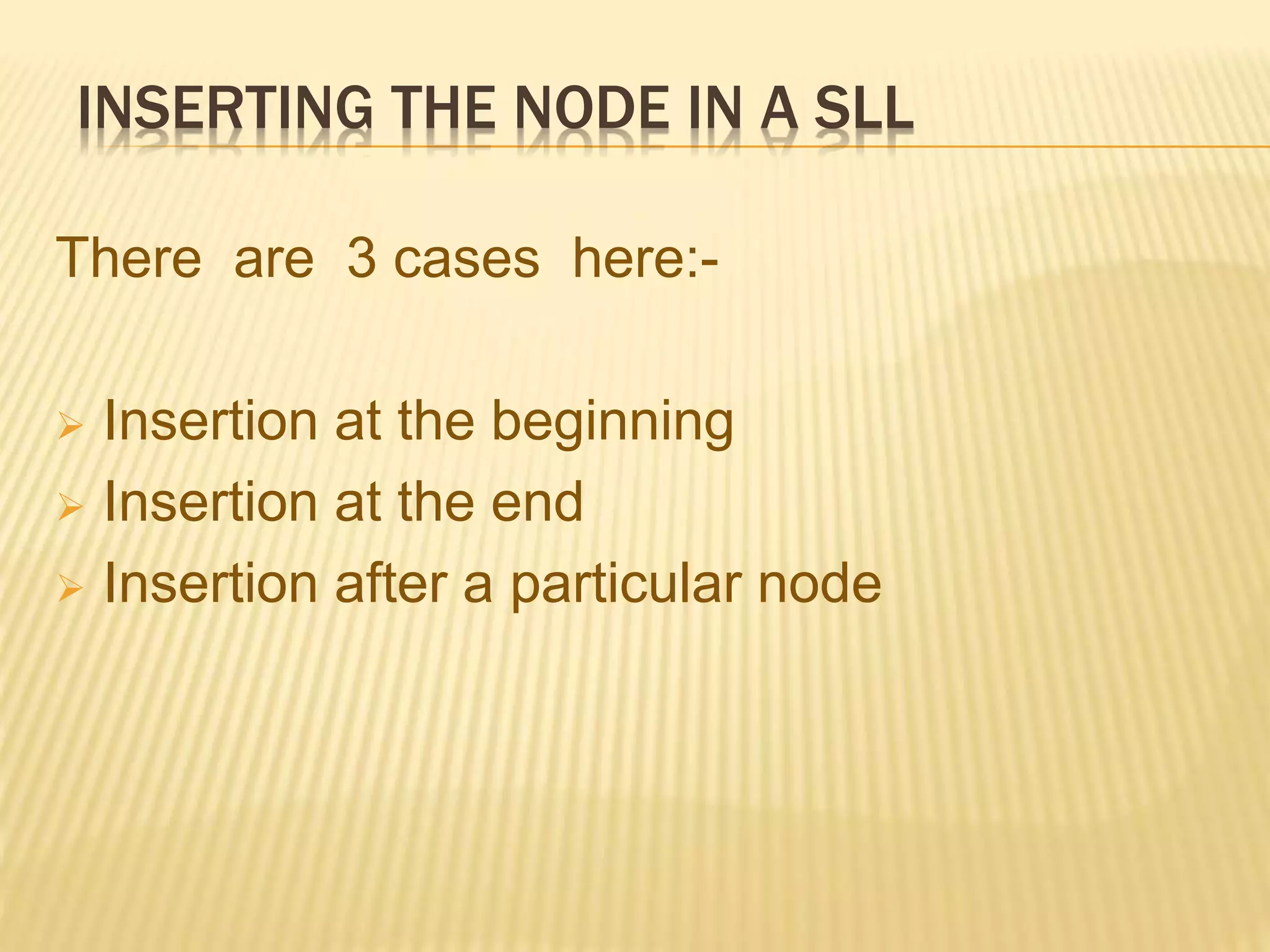

INSERTING THE NODE IN A SLL There are 3 cases here:-  Insertion at the beginning  Insertion at the end  Insertion after a particular node

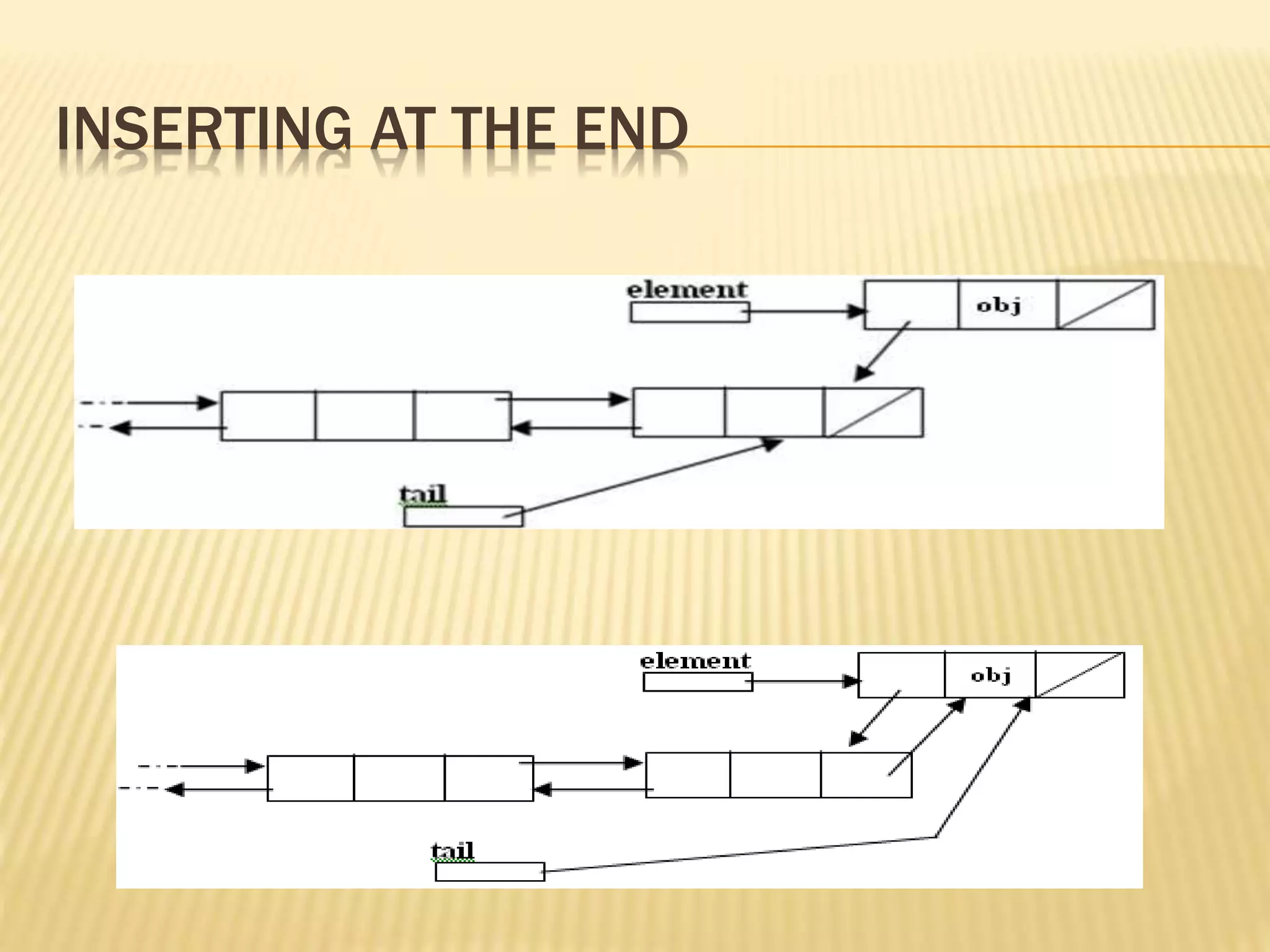

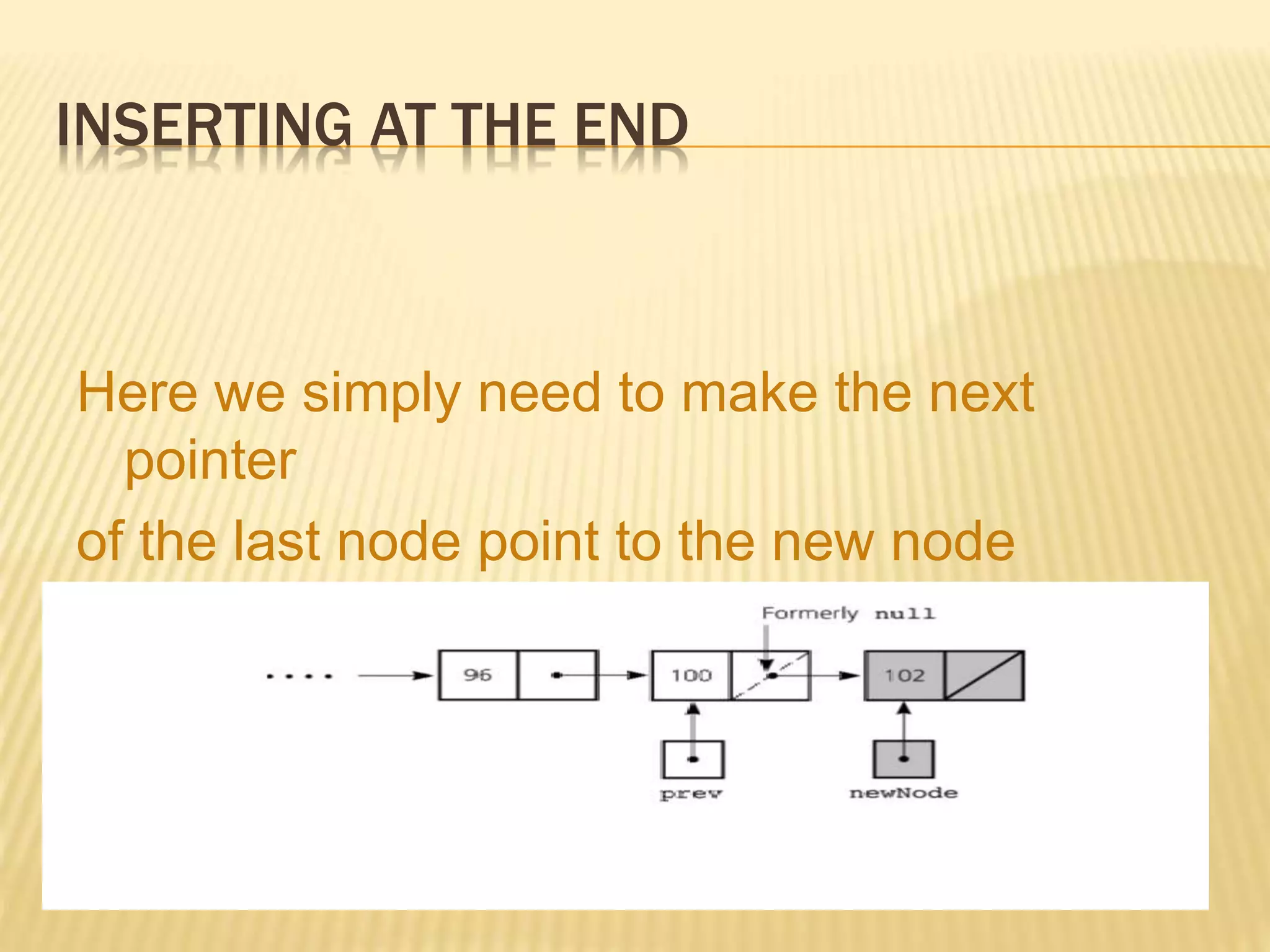

INSERTING AT THE END Here we simply need to make the next pointer of the last node point to the new node

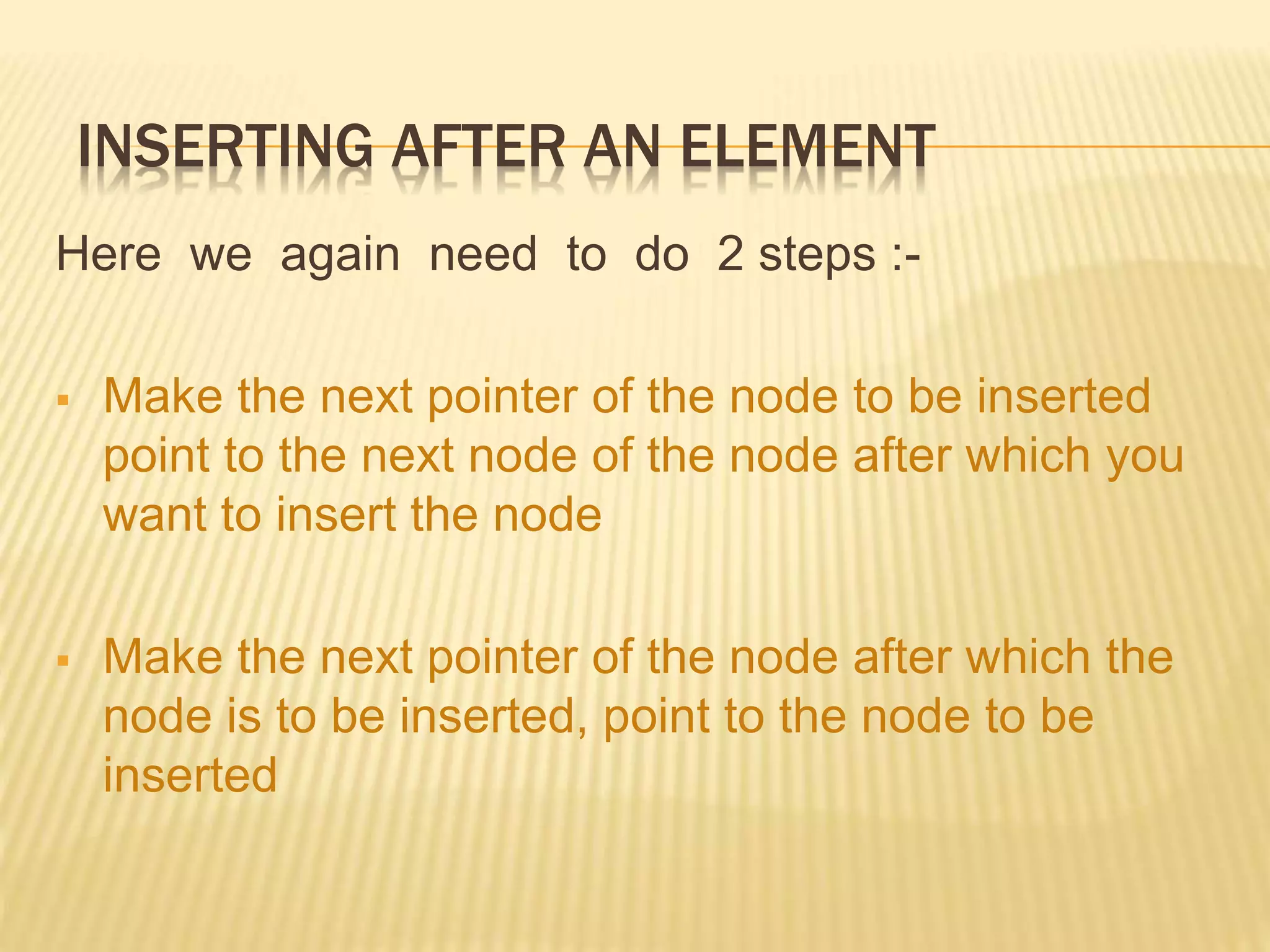

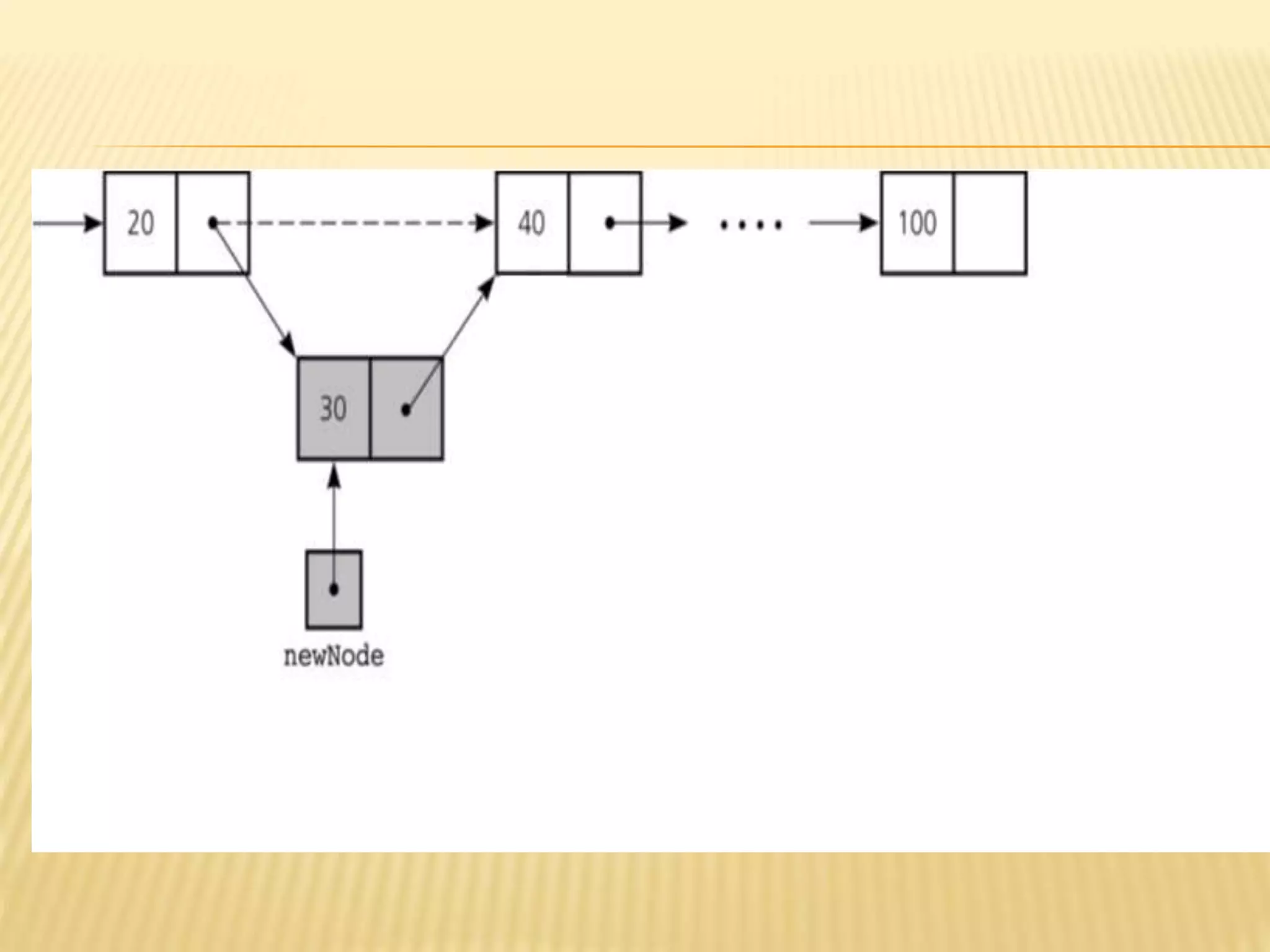

INSERTING AFTER AN ELEMENT Here we again need to do 2 steps :-  Make the next pointer of the node to be inserted point to the next node of the node after which you want to insert the node  Make the next pointer of the node after which the node is to be inserted, point to the node to be inserted

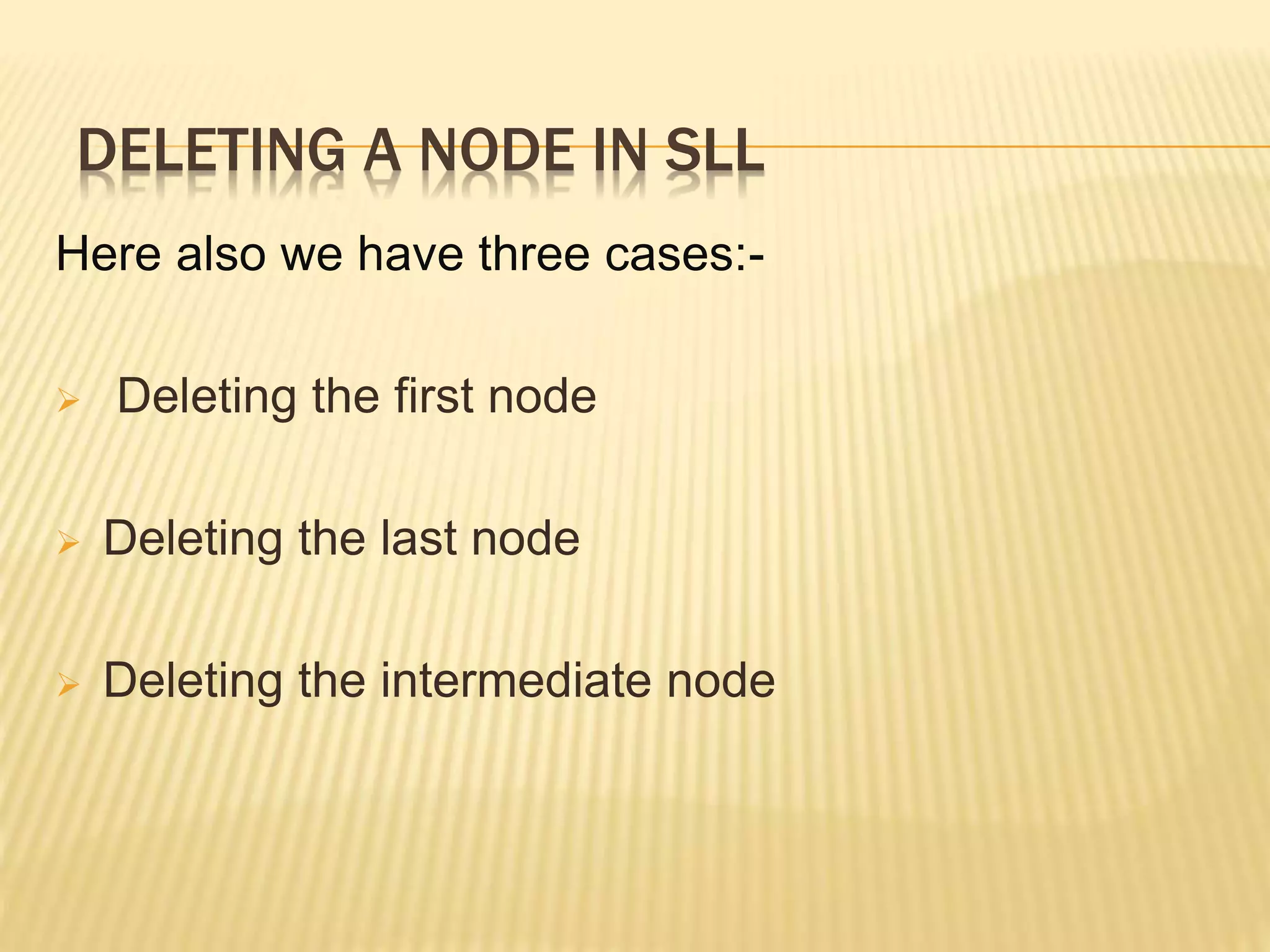

DELETING A NODE IN SLL Here also we have three cases:-  Deleting the first node  Deleting the last node  Deleting the intermediate node

DELETING THE FIRST NODE Here we apply 2 steps:-  Making the start pointer point towards the 2nd node  Deleting the first node using delete keyword threetwoone start

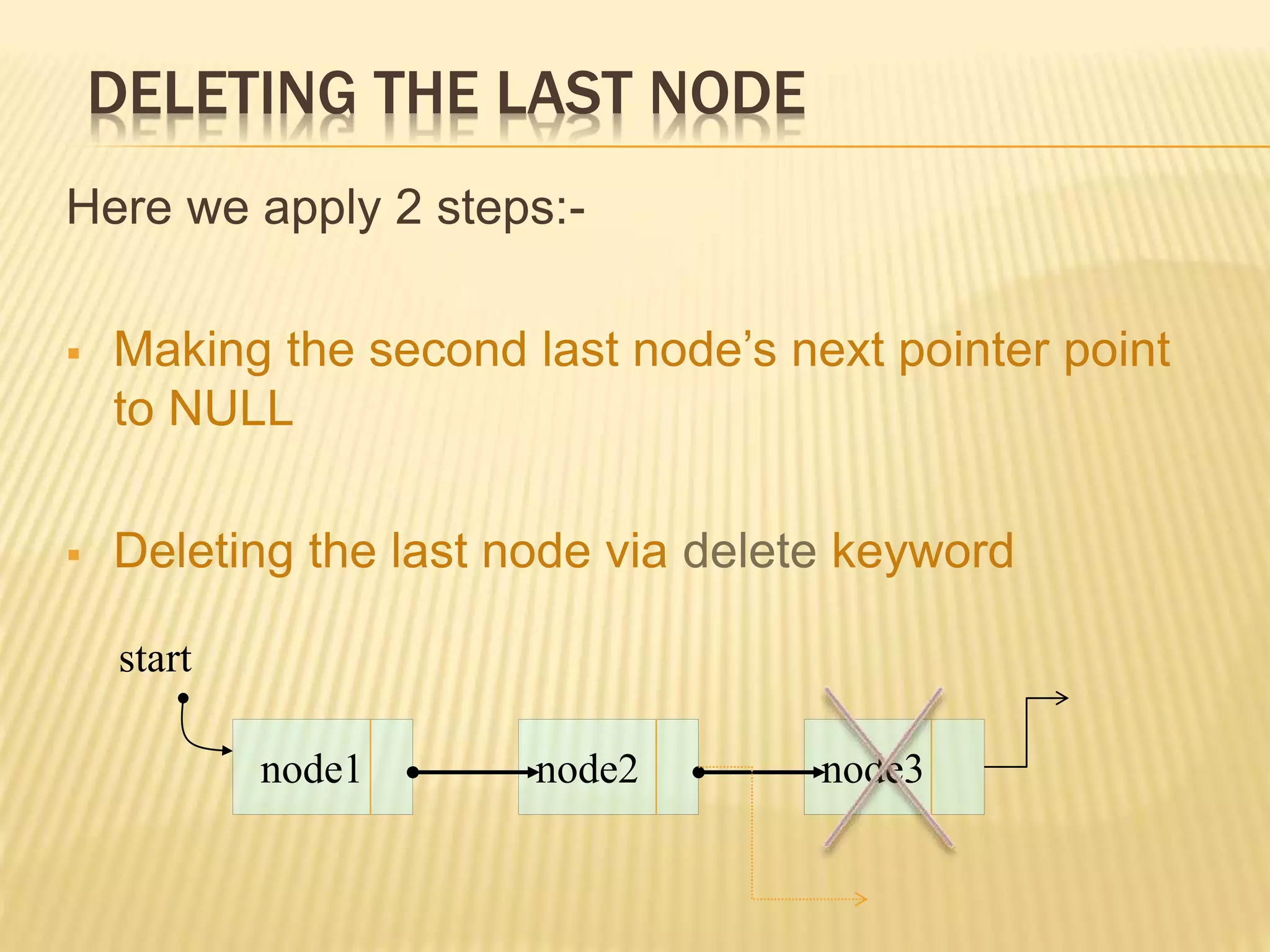

DELETING THE LAST NODE Here we apply 2 steps:-  Making the second last node’s next pointer point to NULL  Deleting the last node via delete keyword node3node2node1 start

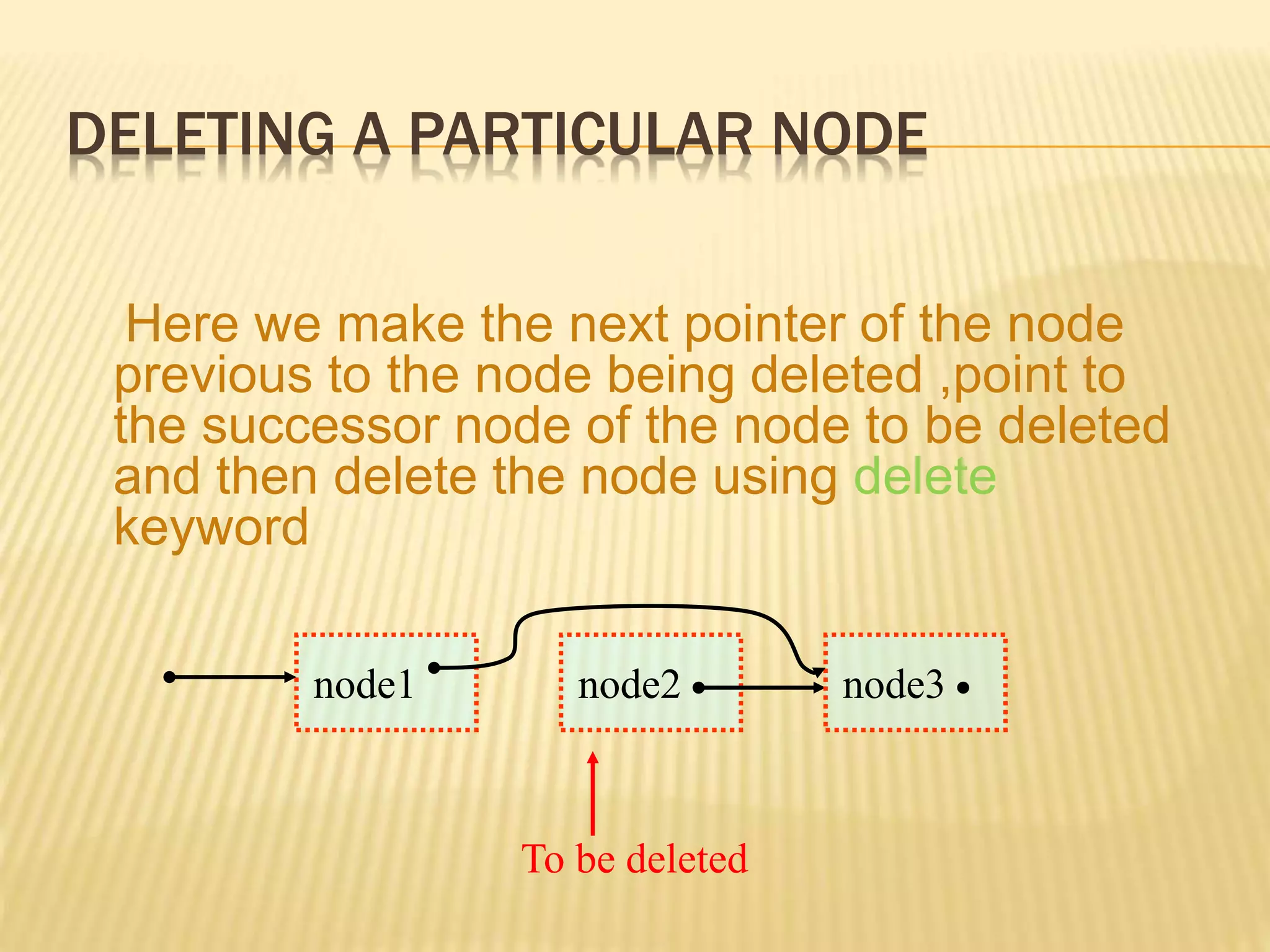

DELETING A PARTICULAR NODE Here we make the next pointer of the node previous to the node being deleted ,point to the successor node of the node to be deleted and then delete the node using delete keyword node1 node2 node3 To be deleted

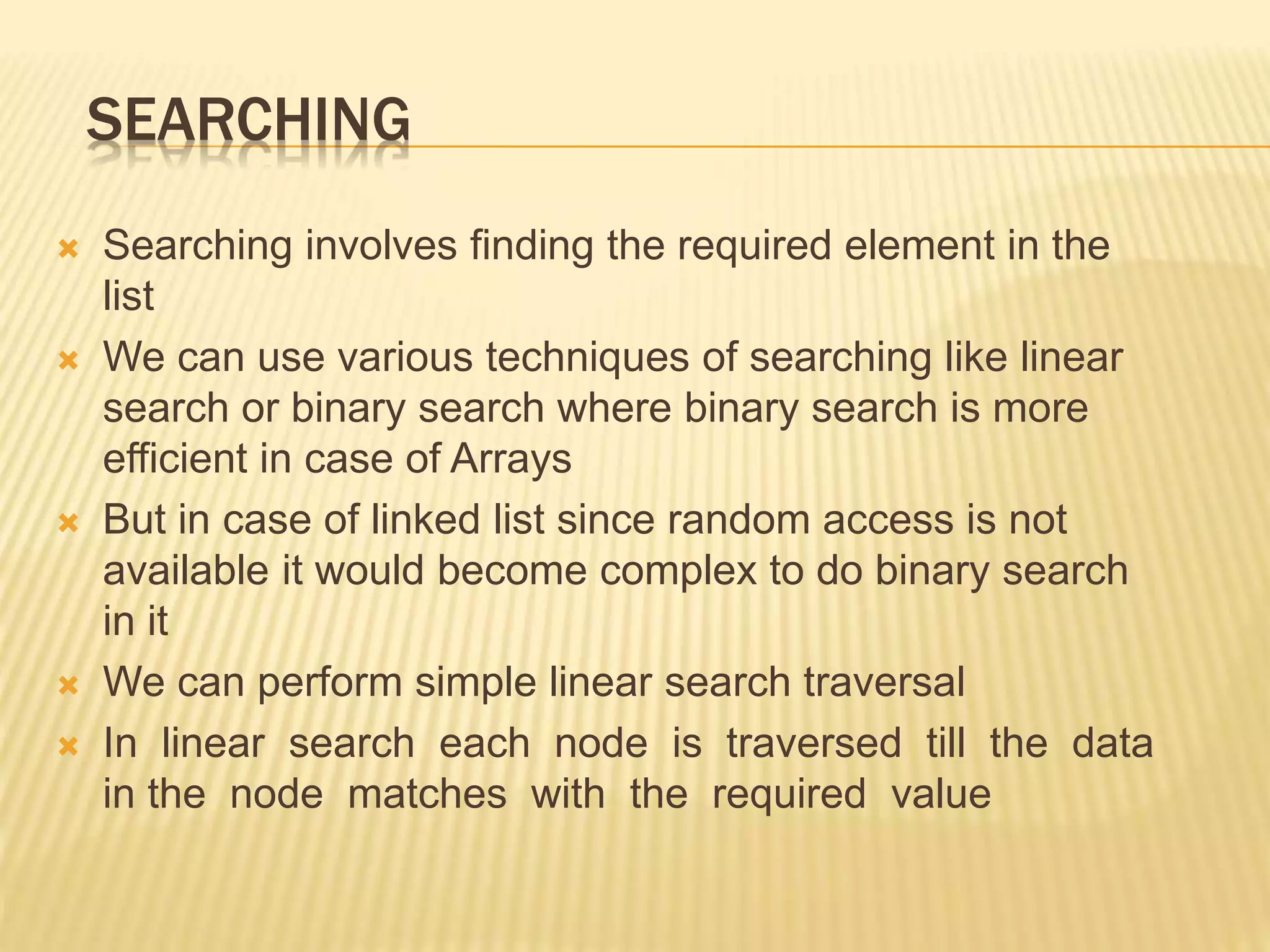

SEARCHING  Searching involves finding the required element in the list  We can use various techniques of searching like linear search or binary search where binary search is more efficient in case of Arrays  But in case of linked list since random access is not available it would become complex to do binary search in it  We can perform simple linear search traversal  In linear search each node is traversed till the data in the node matches with the required value

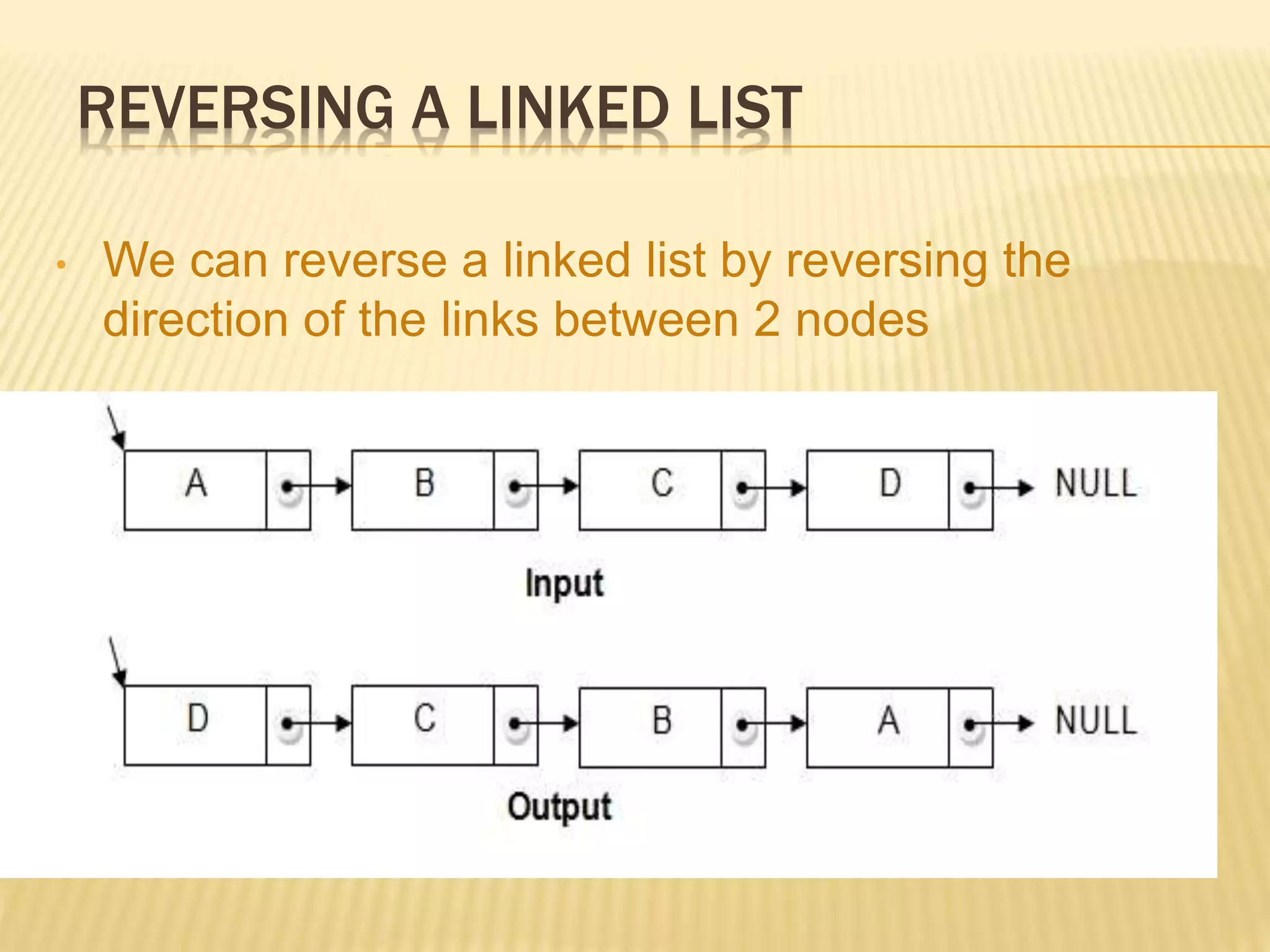

REVERSING A LINKED LIST • We can reverse a linked list by reversing the direction of the links between 2 nodes

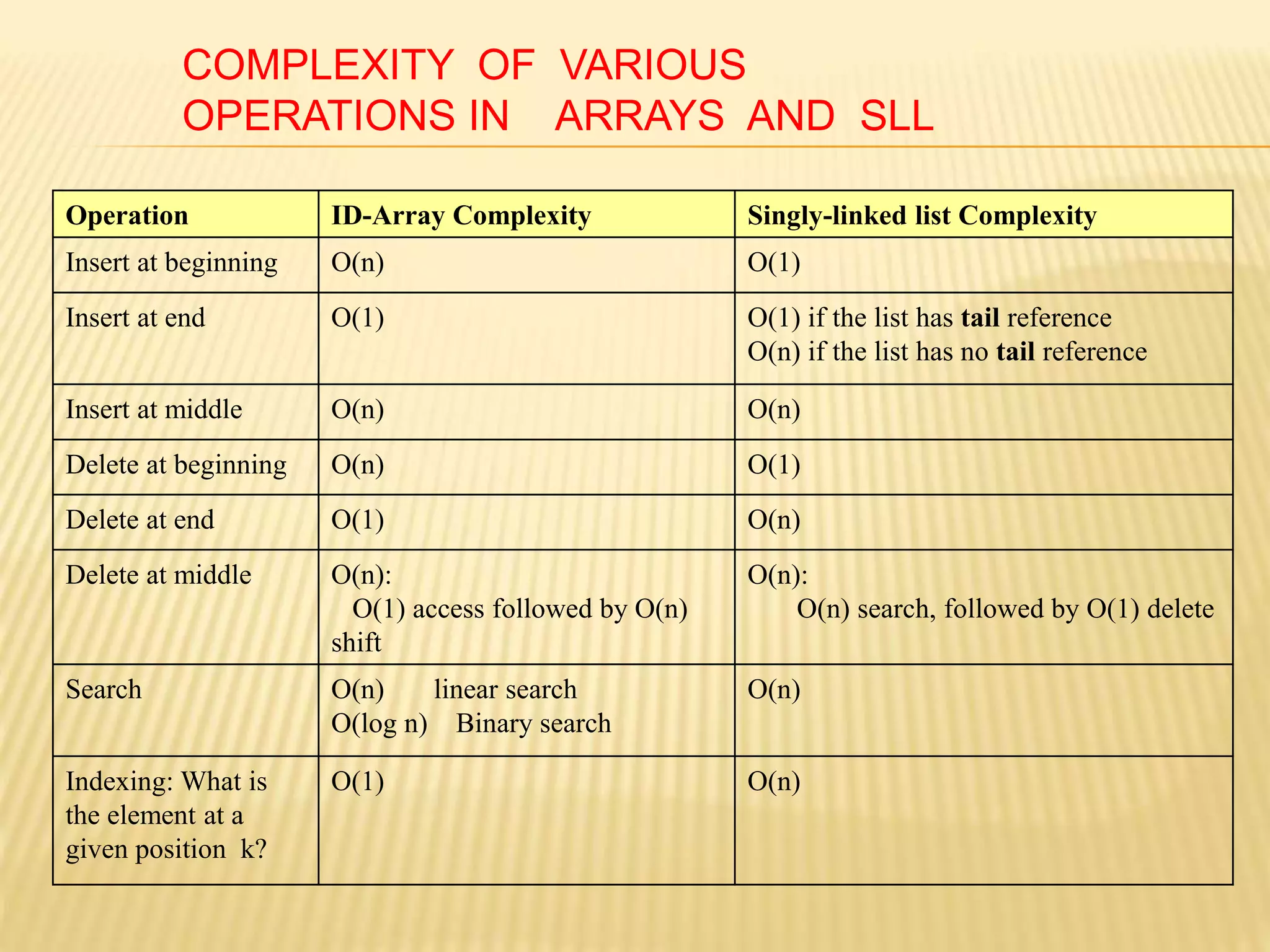

Operation ID-Array Complexity Singly-linked list Complexity Insert at beginning O(n) O(1) Insert at end O(1) O(1) if the list has tail reference O(n) if the list has no tail reference Insert at middle O(n) O(n) Delete at beginning O(n) O(1) Delete at end O(1) O(n) Delete at middle O(n): O(1) access followed by O(n) shift O(n): O(n) search, followed by O(1) delete Search O(n) linear search O(log n) Binary search O(n) Indexing: What is the element at a given position k? O(1) O(n) COMPLEXITY OF VARIOUS OPERATIONS IN ARRAYS AND SLL

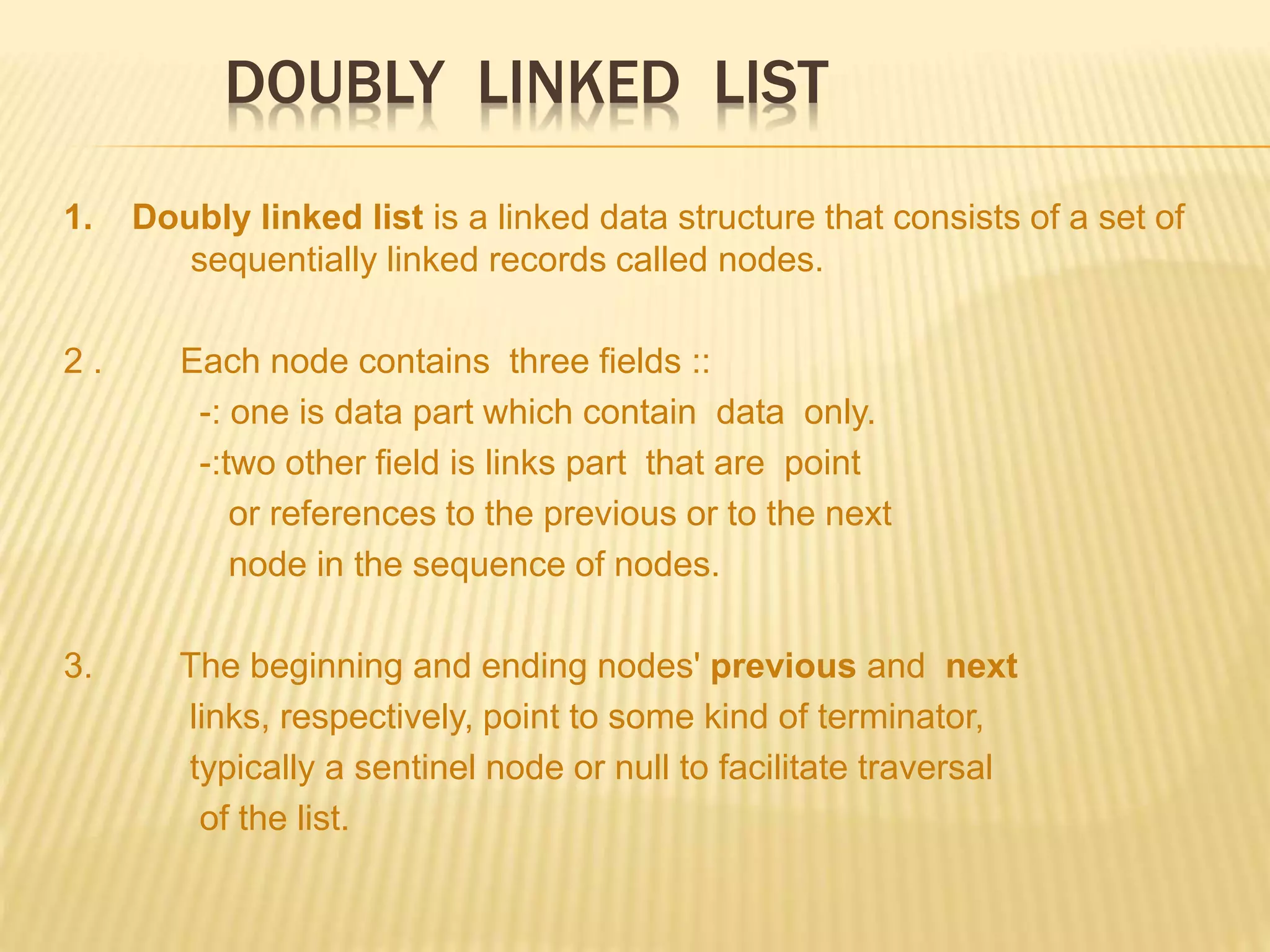

DOUBLY LINKED LIST 1. Doubly linked list is a linked data structure that consists of a set of sequentially linked records called nodes. 2 . Each node contains three fields :: -: one is data part which contain data only. -:two other field is links part that are point or references to the previous or to the next node in the sequence of nodes. 3. The beginning and ending nodes' previous and next links, respectively, point to some kind of terminator, typically a sentinel node or null to facilitate traversal of the list.

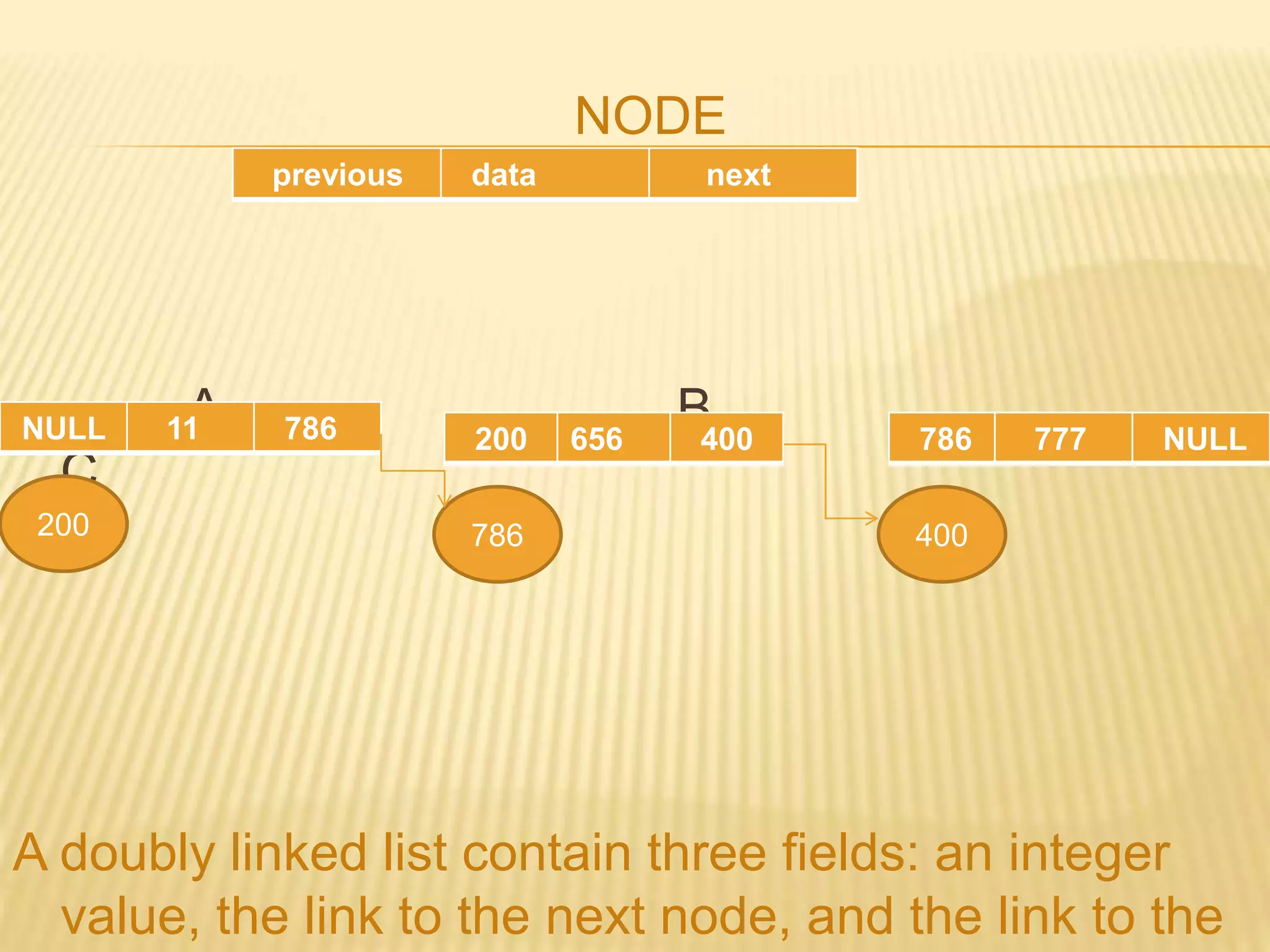

NODE A B C A doubly linked list contain three fields: an integer value, the link to the next node, and the link to the previous data next NULL 11 786 786200 400 200 656 400 786 777 NULL

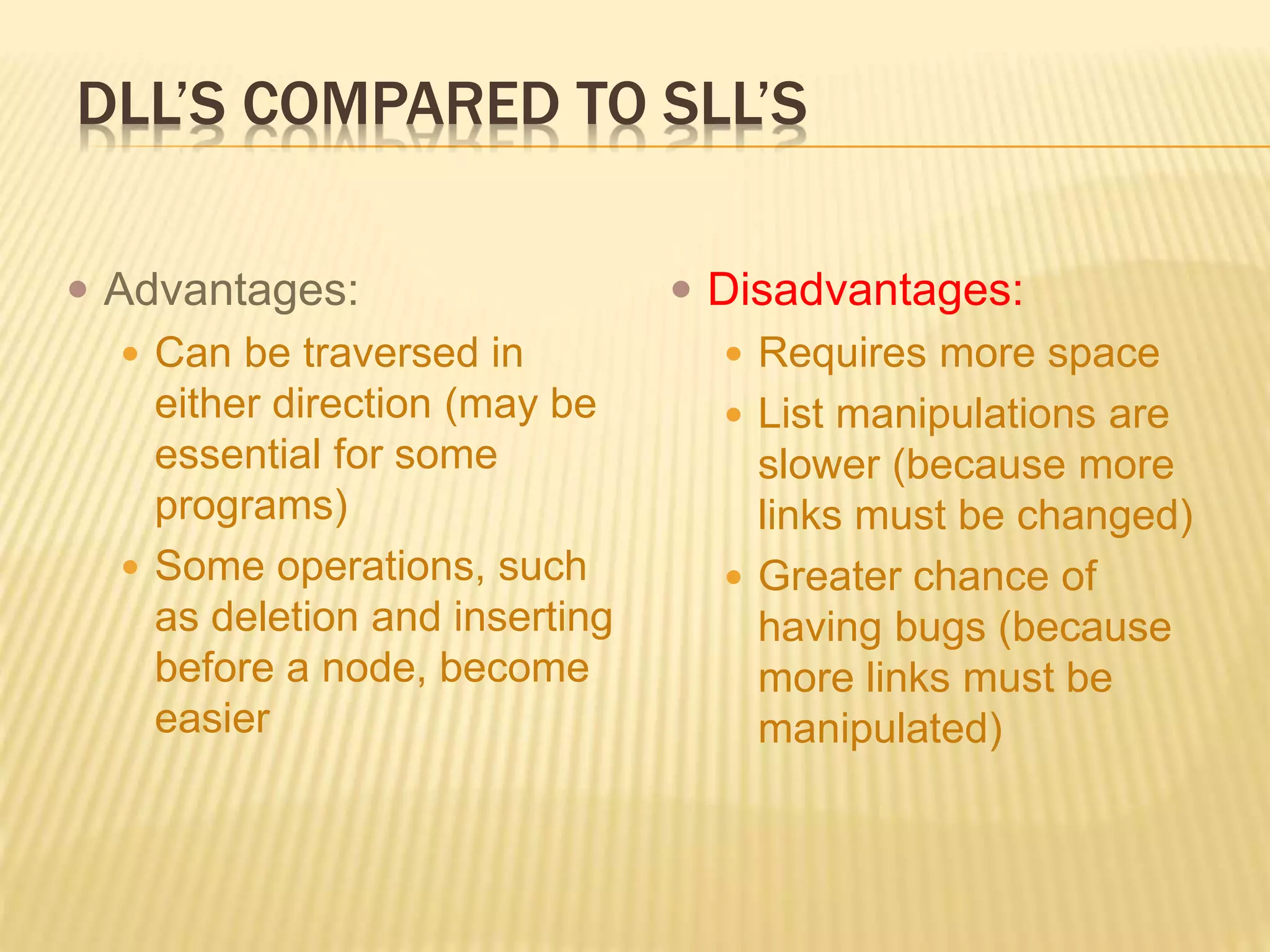

DLL’S COMPARED TO SLL’S  Advantages:  Can be traversed in either direction (may be essential for some programs)  Some operations, such as deletion and inserting before a node, become easier  Disadvantages:  Requires more space  List manipulations are slower (because more links must be changed)  Greater chance of having bugs (because more links must be manipulated)

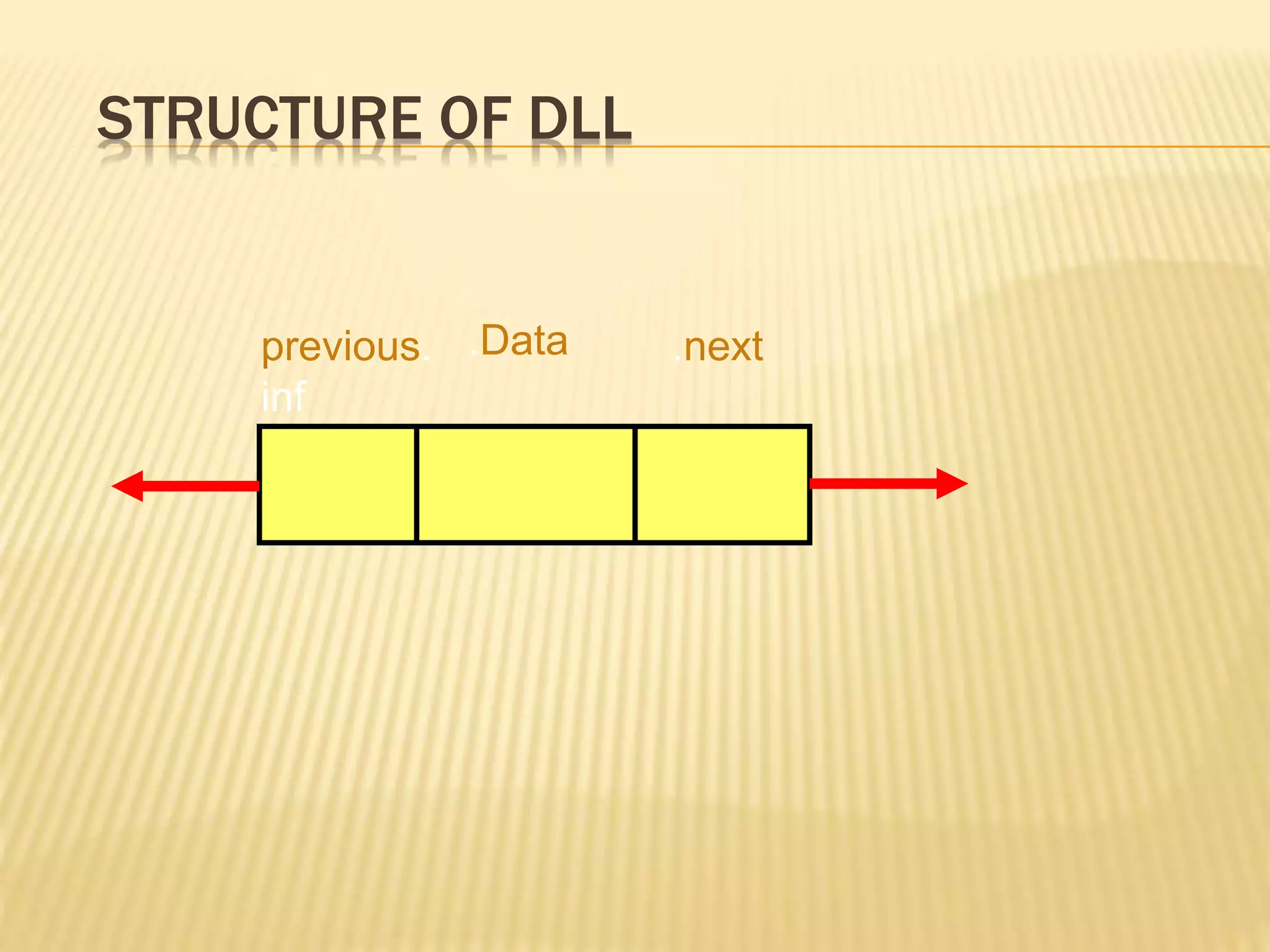

STRUCTURE OF DLL .Data .nextprevious. inf

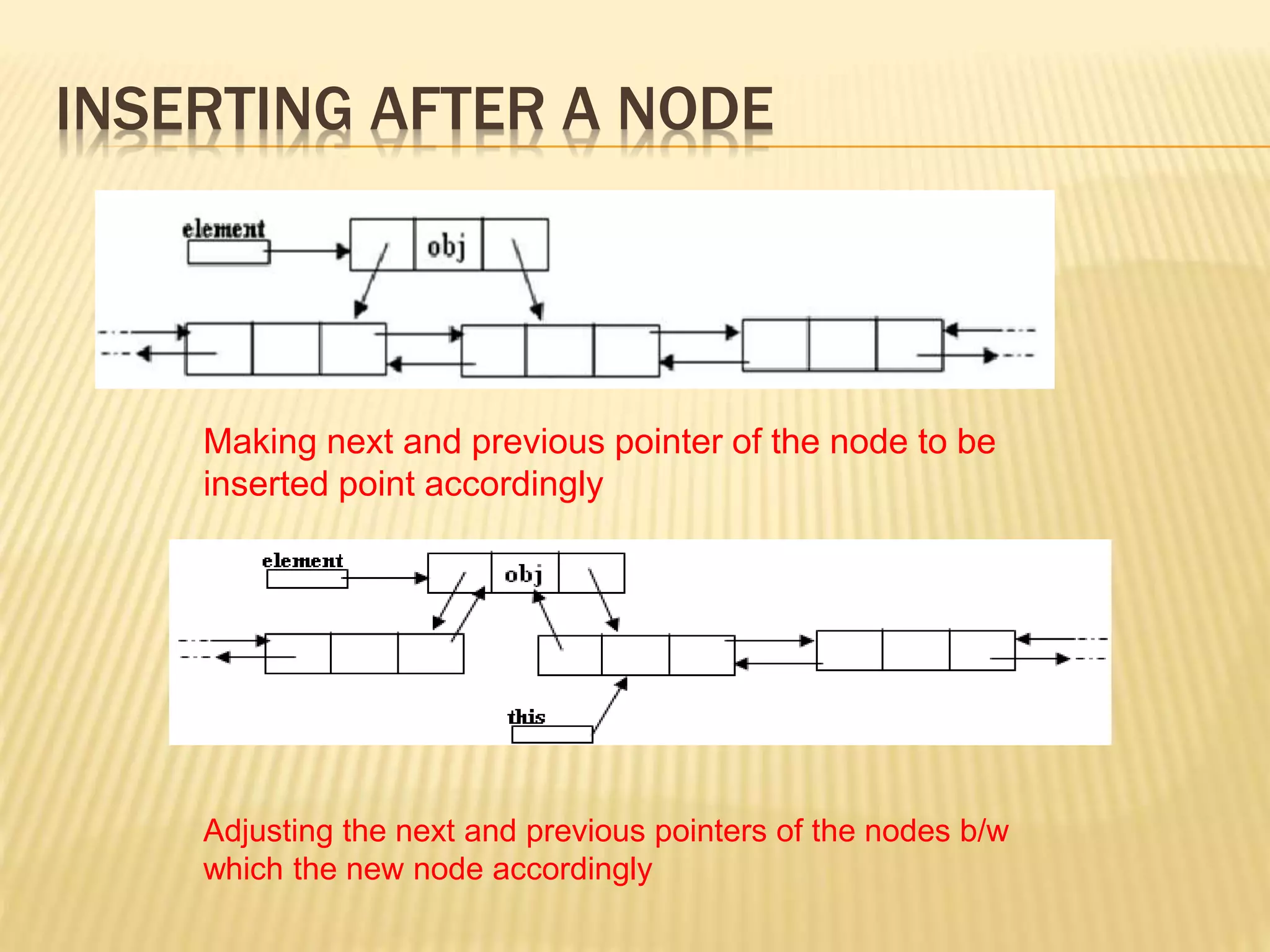

Making next and previous pointer of the node to be inserted point accordingly Adjusting the next and previous pointers of the nodes b/w which the new node accordingly INSERTING AFTER A NODE

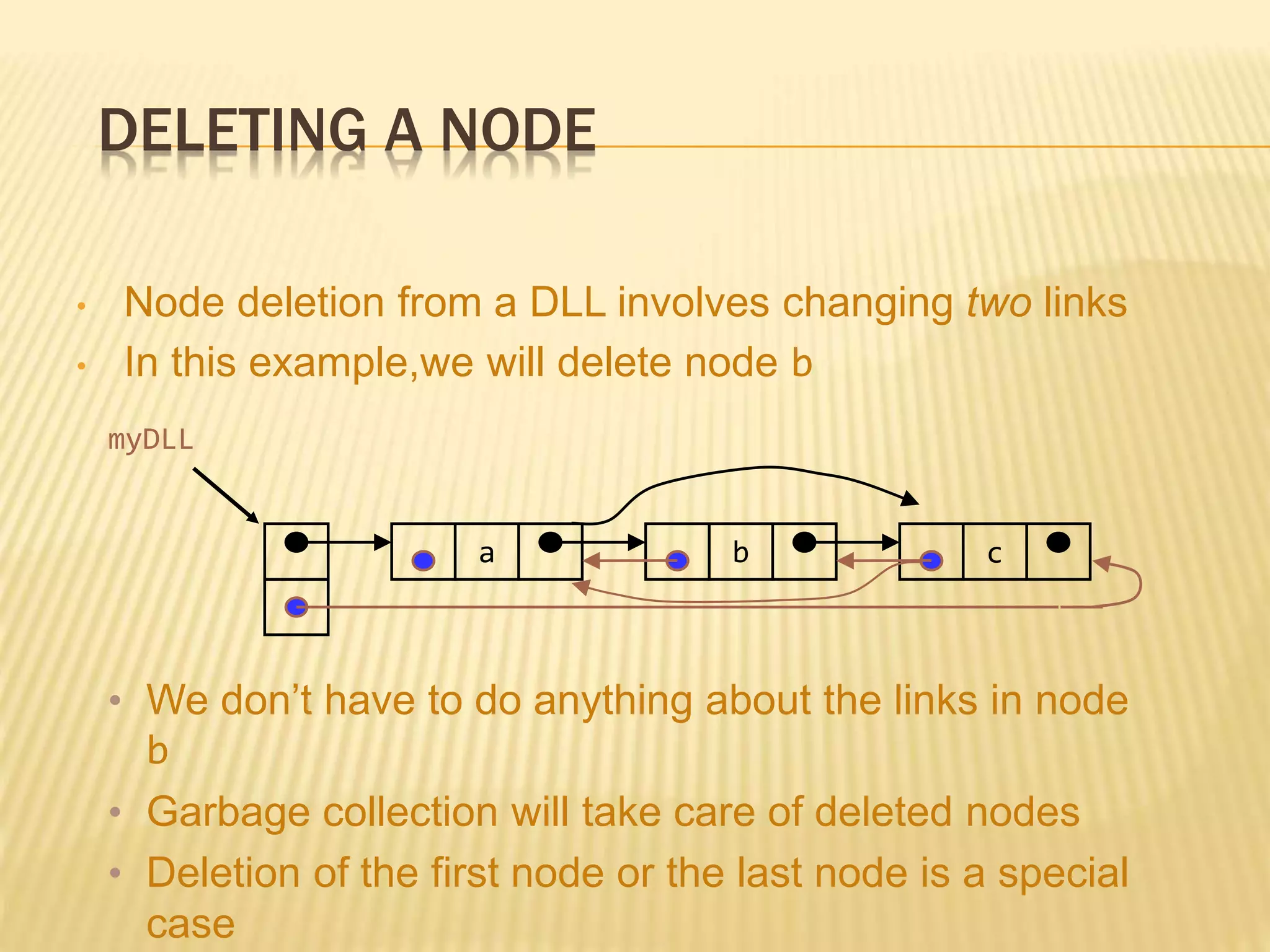

DELETING A NODE • Node deletion from a DLL involves changing two links • In this example,we will delete node b myDLL a b c • We don’t have to do anything about the links in node b • Garbage collection will take care of deleted nodes • Deletion of the first node or the last node is a special case

ADVANTAGES OF LINKED LISTS •We can dynamically allocate memory space as needed •We can release the unused space in the situation where the allocated space seems to be more. •Operation related to data elements like insertions or deletion are more simplified.

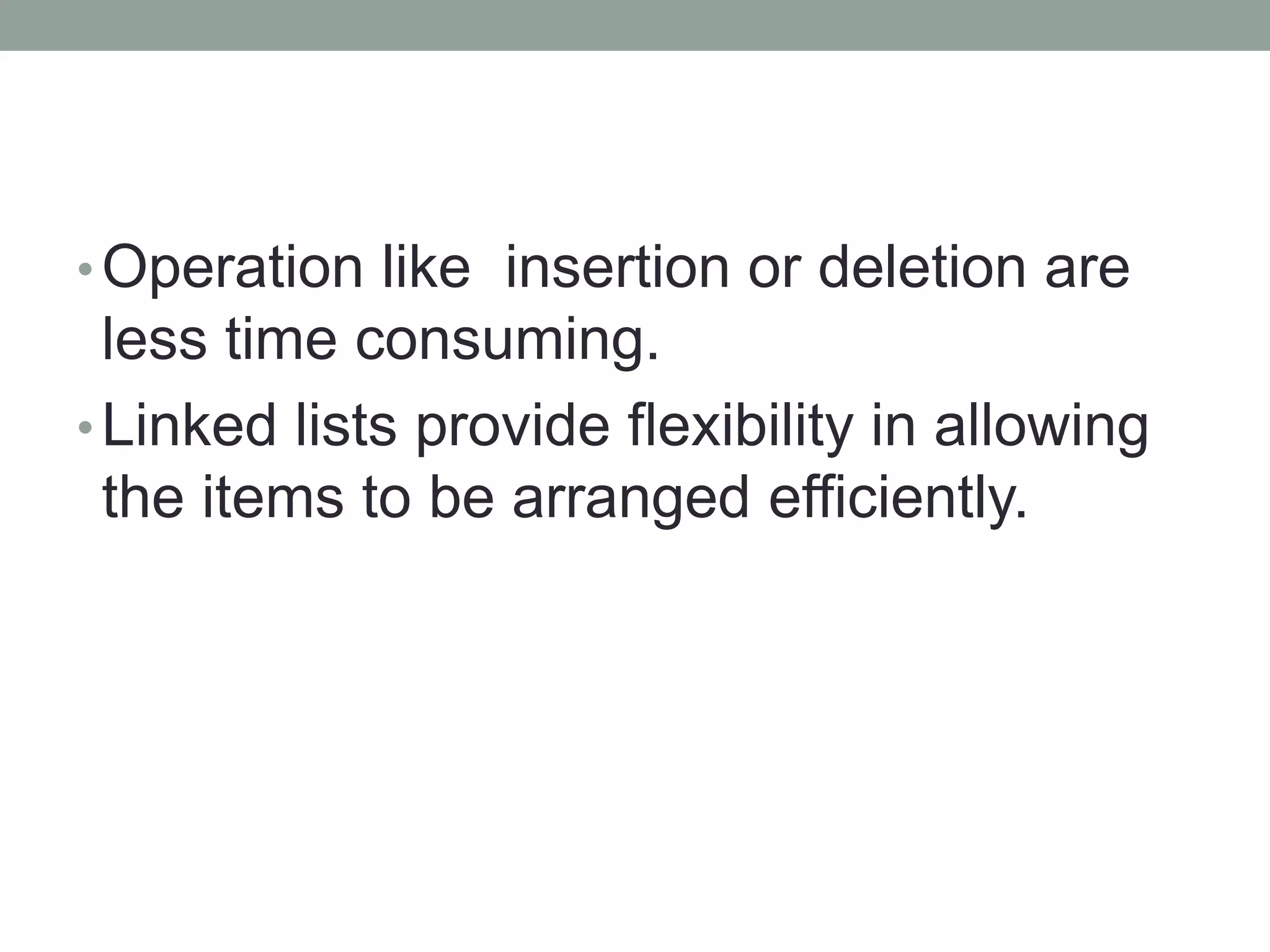

•Operation like insertion or deletion are less time consuming. •Linked lists provide flexibility in allowing the items to be arranged efficiently.
