Let’s go reactive with JAVA
- 1. Let’s go reactivewith JAVA Presented By : Vinisha Sharma Software consultant - Knoldus Inc
- 2. © 2018 Minimal –Presentation template 2 Agenda ● Reactive Programming ● Reactive Streams Specification ● Project Reactor ● Mono/ Flux ● Spring Boot Webflux ● Demo
- 3.
- 4. 4 ❑ Programming paradigmoriented around - data flows and propagation of change. ❑ Asynchronous and Non Blocking. ❑ Data flow as an Event/Message Driven stream Reactive Programming
- 5.
- 6.

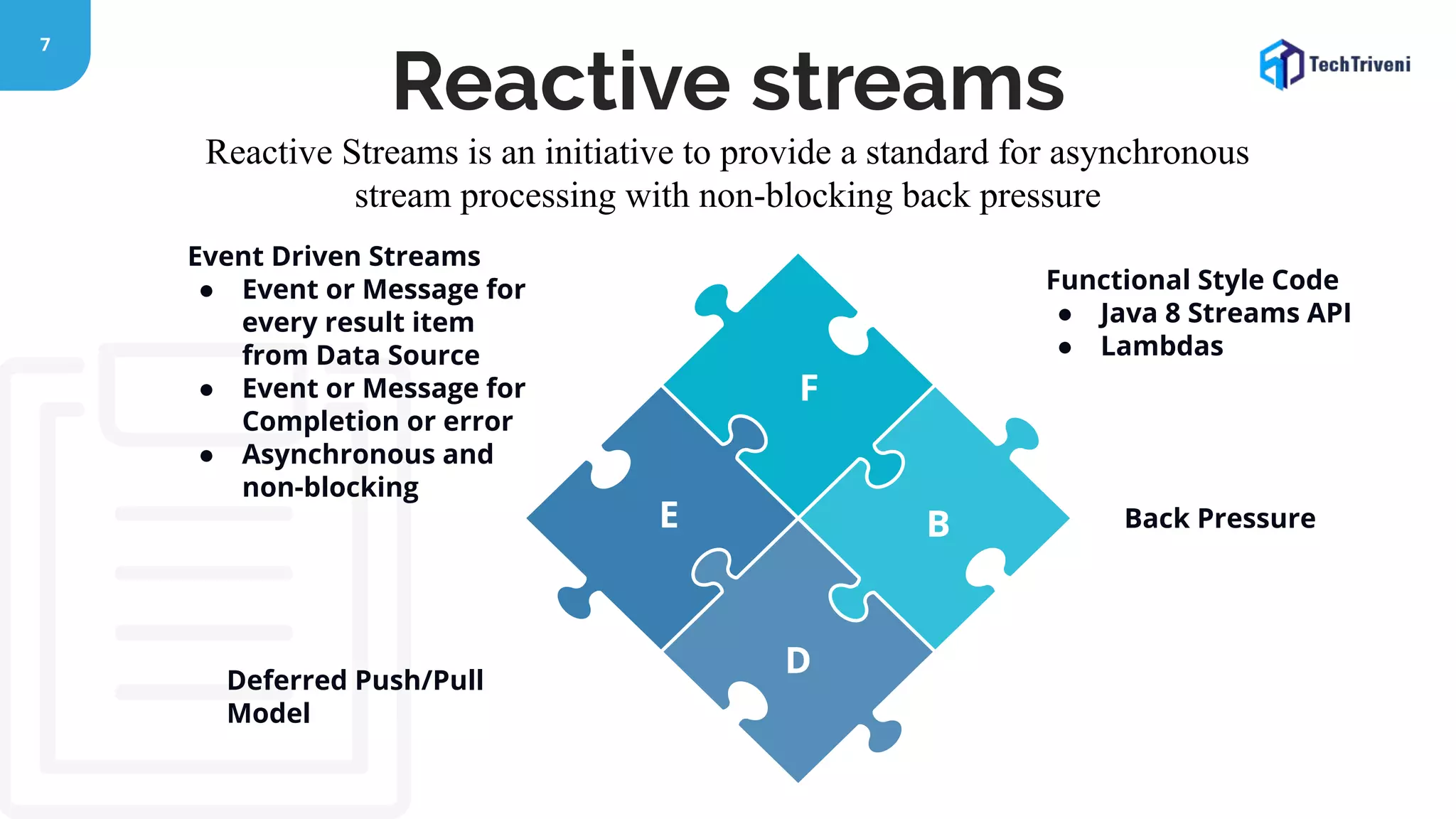

- 7. 7 Reactive streams Reactive Streamsis an initiative to provide a standard for asynchronous stream processing with non-blocking back pressure Functional Style Code ● Java 8 Streams API ● Lambdas Event Driven Streams ● Event or Message for every result item from Data Source ● Event or Message for Completion or error ● Asynchronous and non-blocking Deferred Push/Pull Model Back Pressure F BE D
- 8.
- 9.

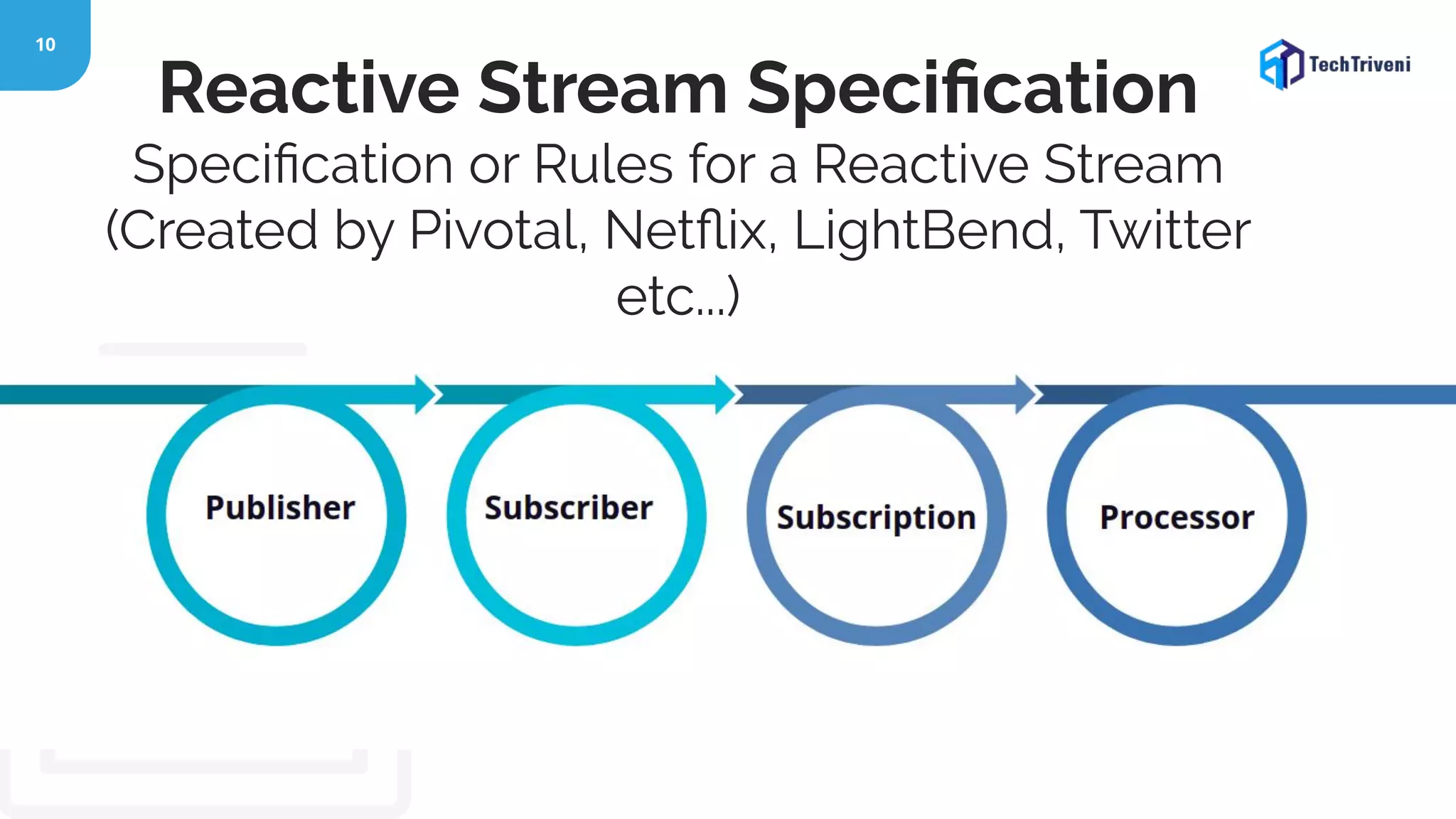

- 10. 10 Reactive Stream Specification Specificationor Rules for a Reactive Stream (Created by Pivotal, Netflix, LightBend, Twitter etc...)

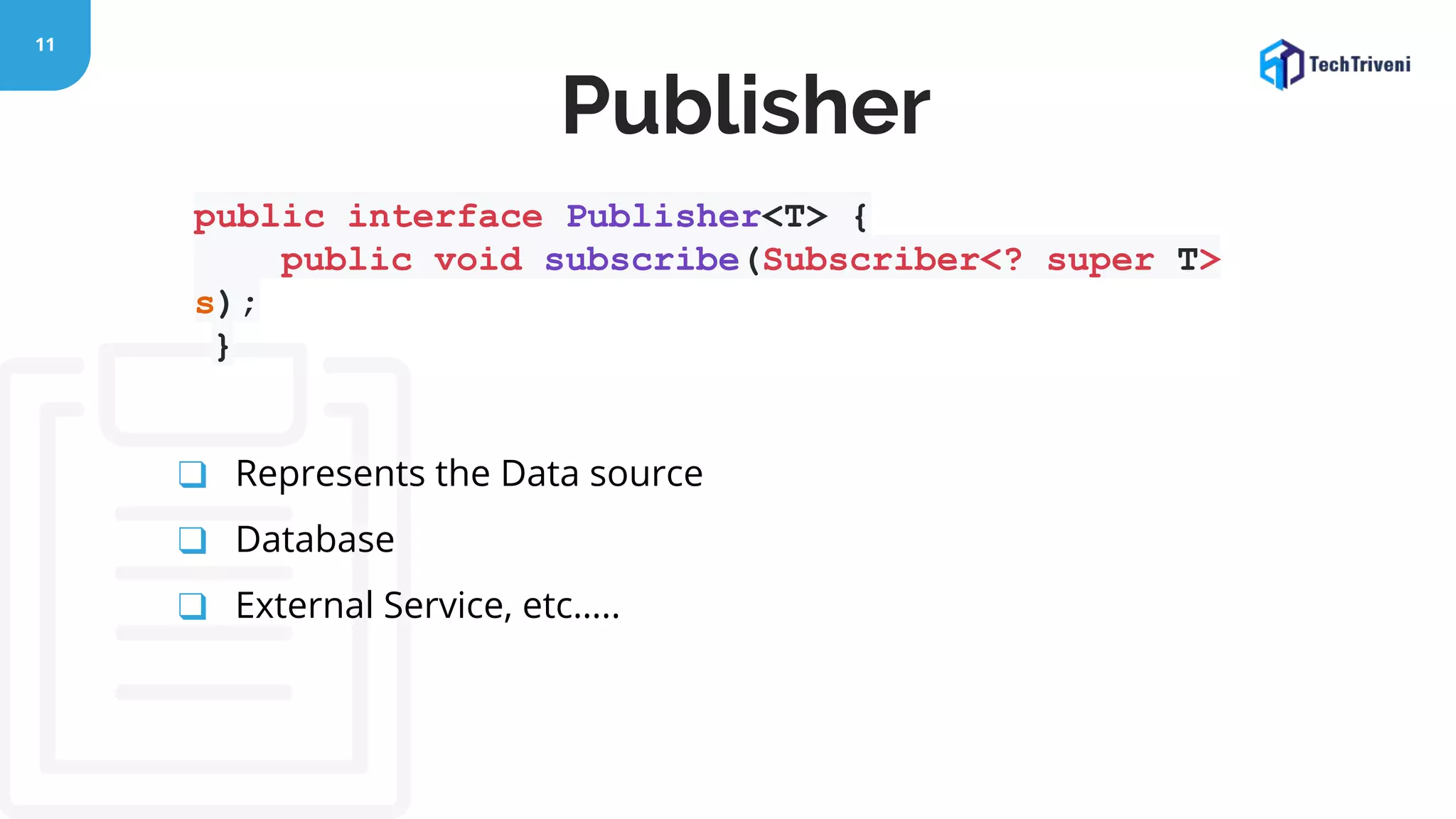

- 11. 11 public interface Publisher<T>{ public void subscribe(Subscriber<? super T> s); } ❑ Represents the Data source ❑ Database ❑ External Service, etc….. Publisher

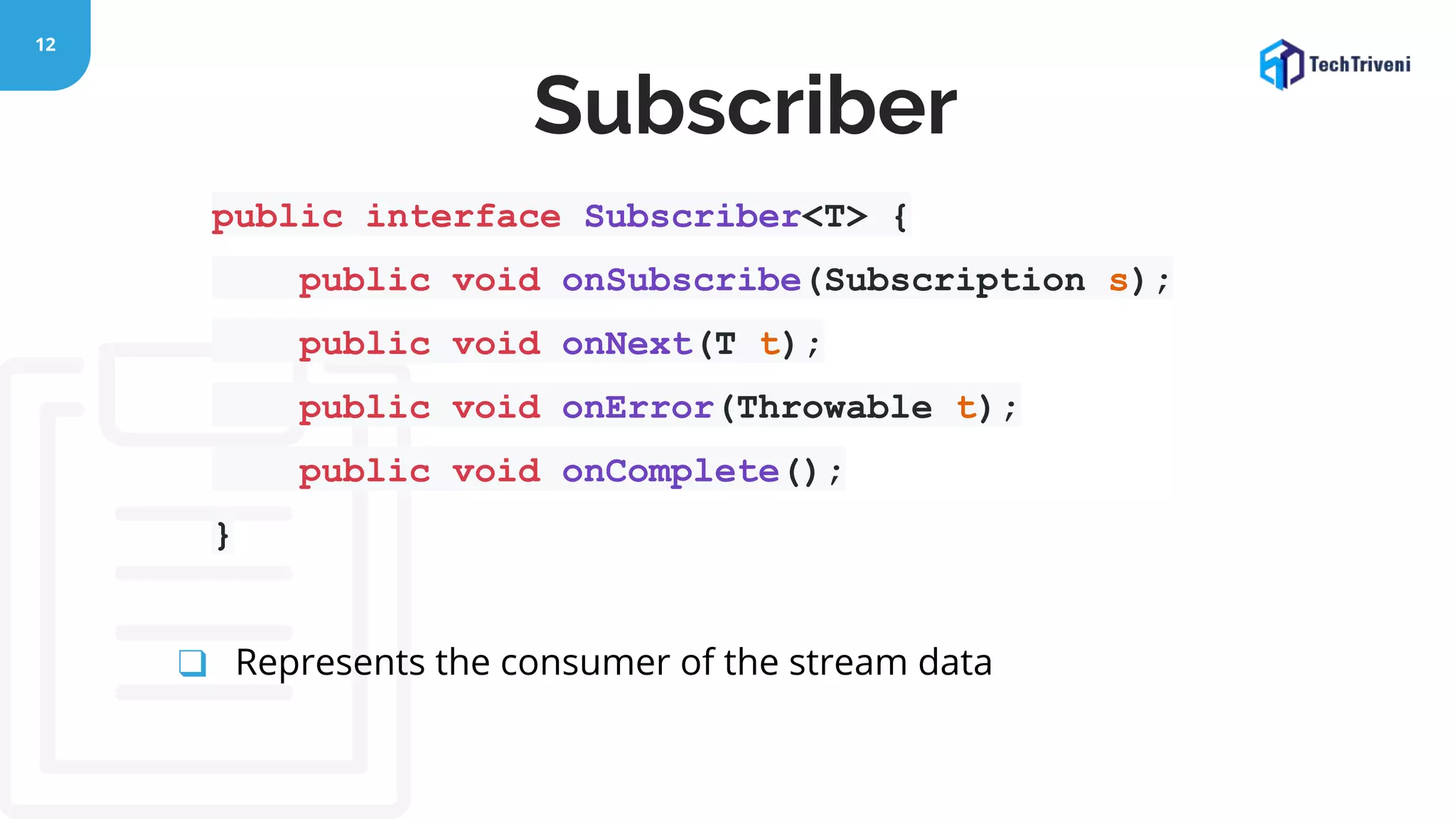

- 12. 12 public interface Subscriber<T>{ public void onSubscribe(Subscription s); public void onNext(T t); public void onError(Throwable t); public void onComplete(); } ❑ Represents the consumer of the stream data Subscriber

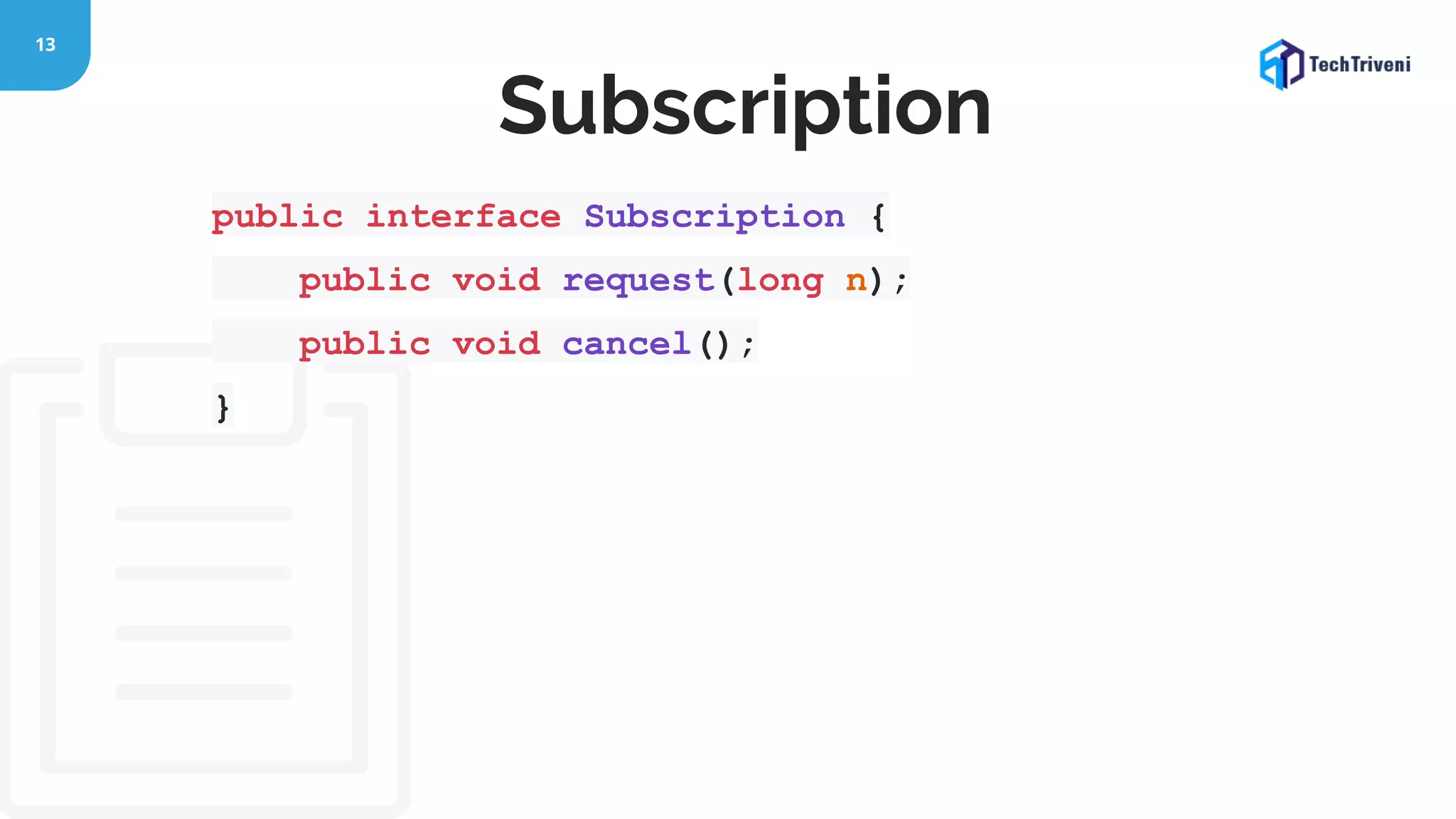

- 13. 13 public interface Subscription{ public void request(long n); public void cancel(); } Subscription

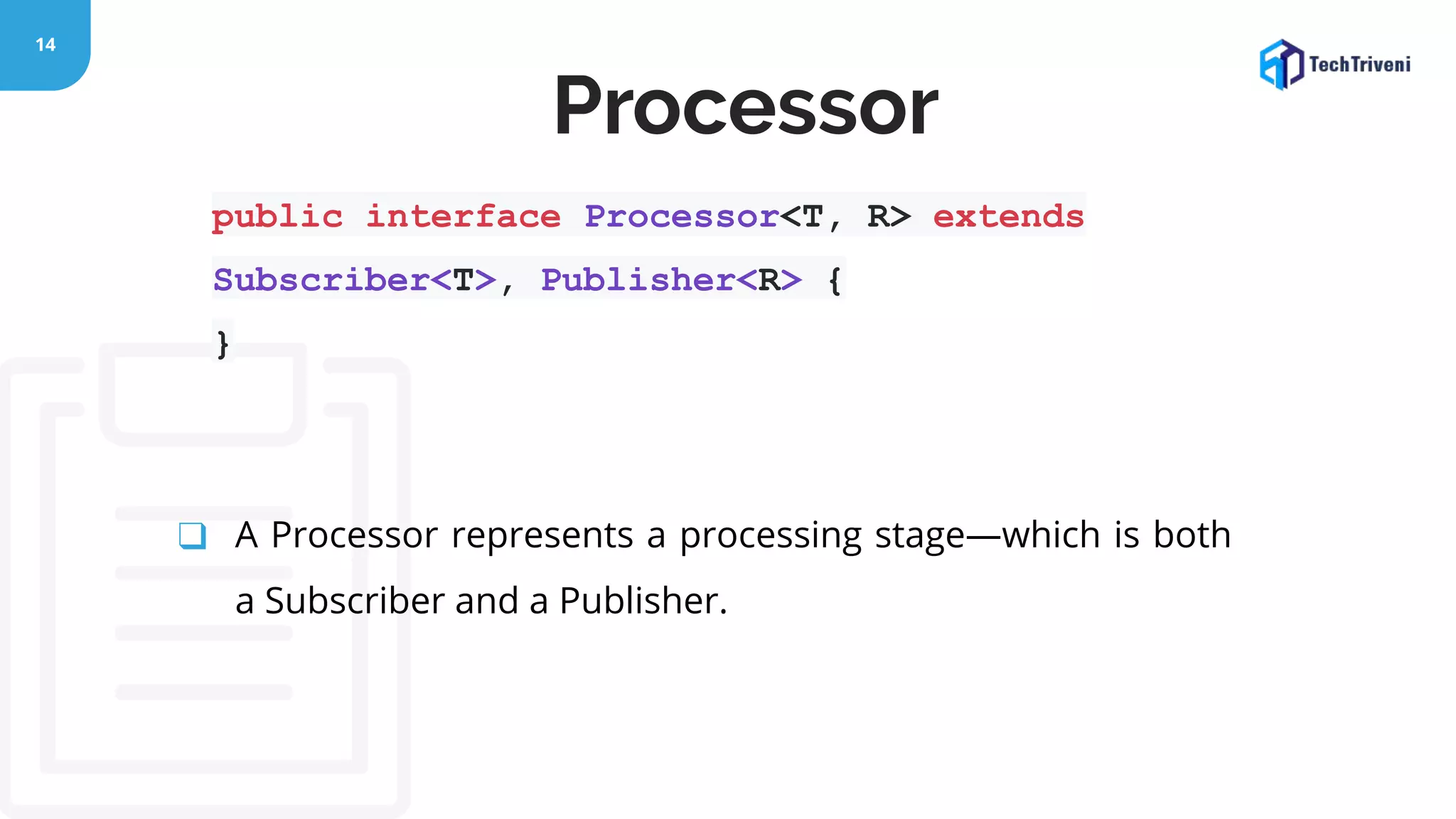

- 14. 14 public interface Processor<T,R> extends Subscriber<T>, Publisher<R> { } ❑ A Processor represents a processing stage—which is both a Subscriber and a Publisher. Processor

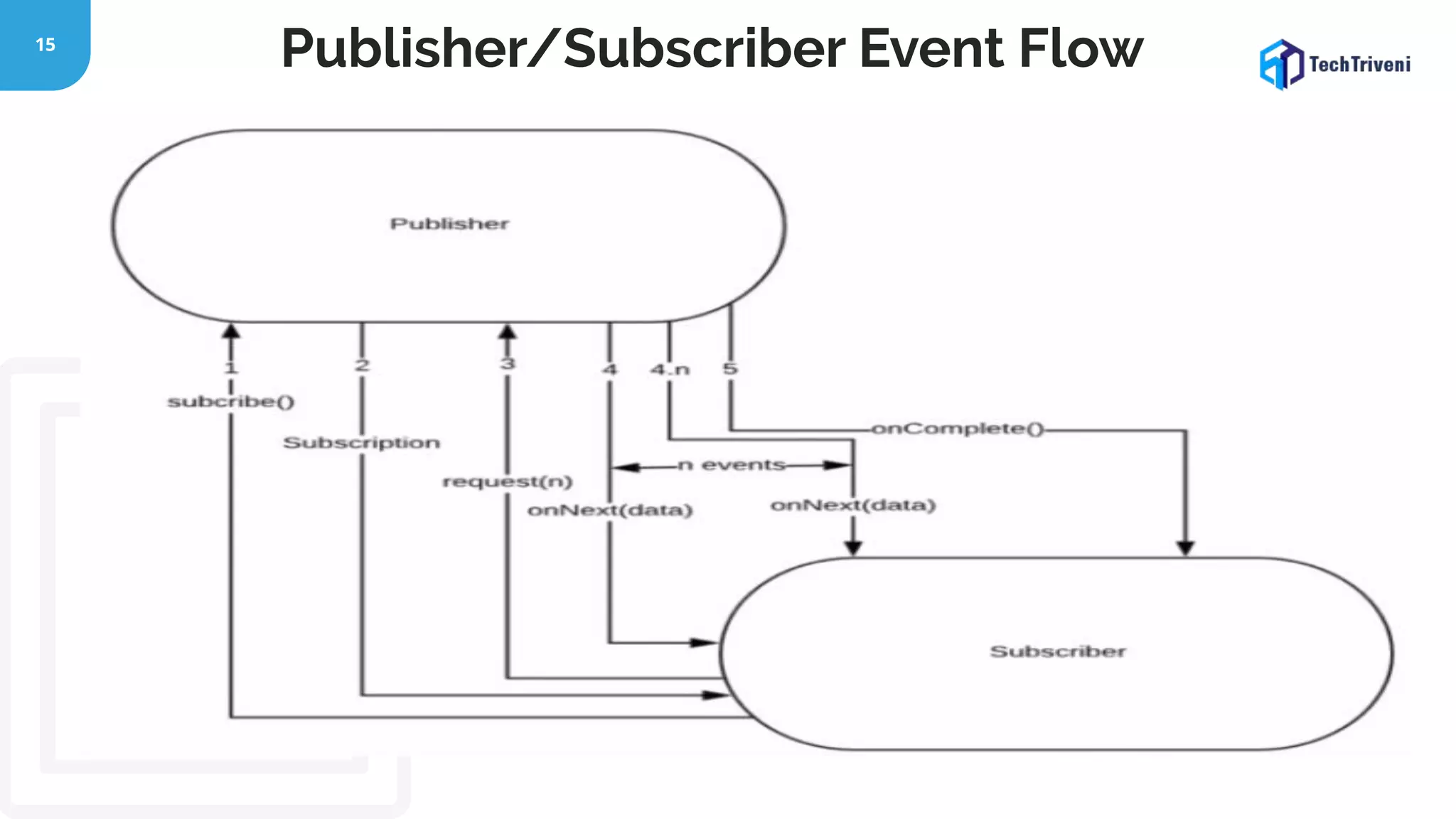

- 15.
- 16.

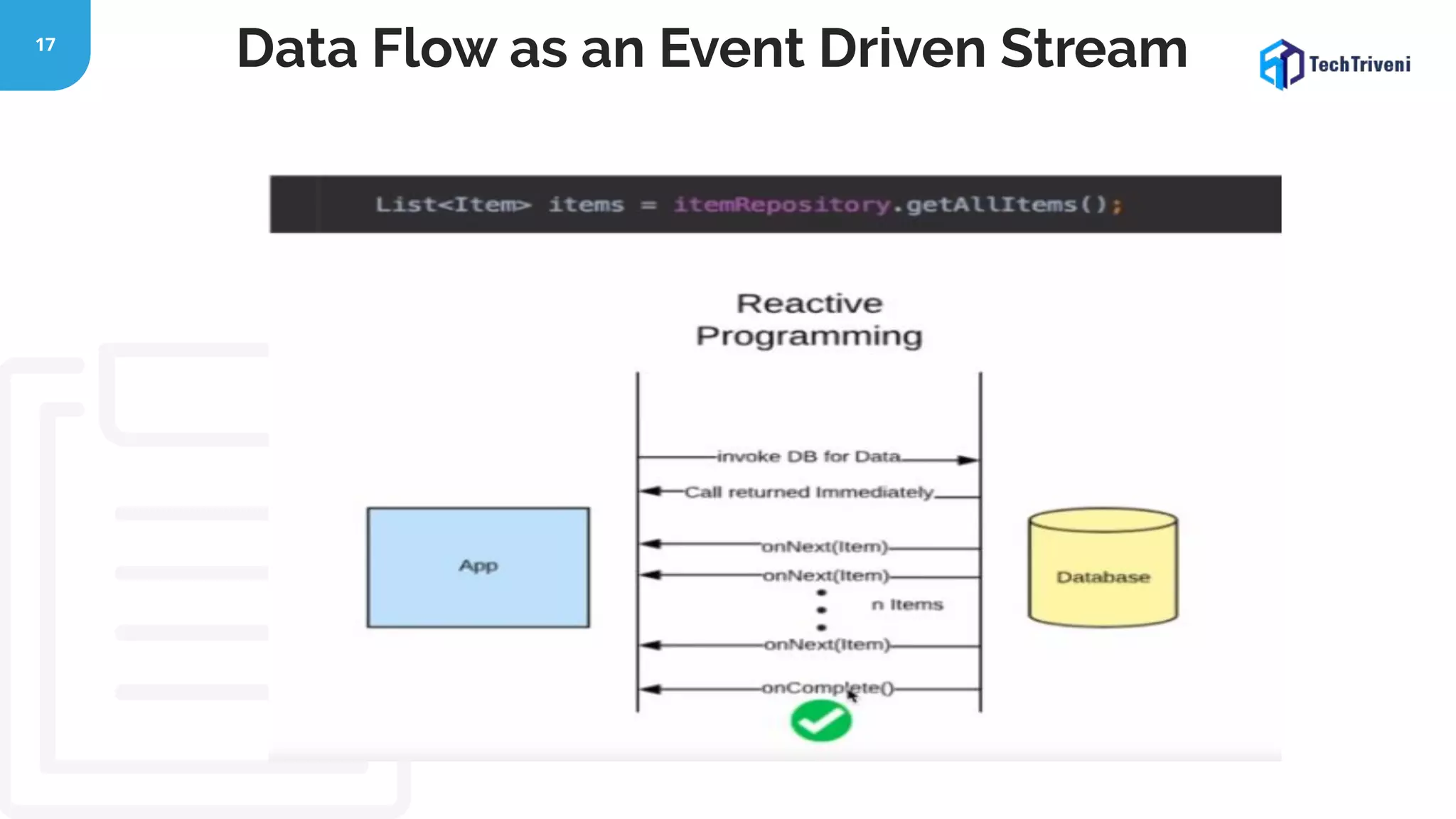

- 17. 17 Data Flow asan Event Driven Stream

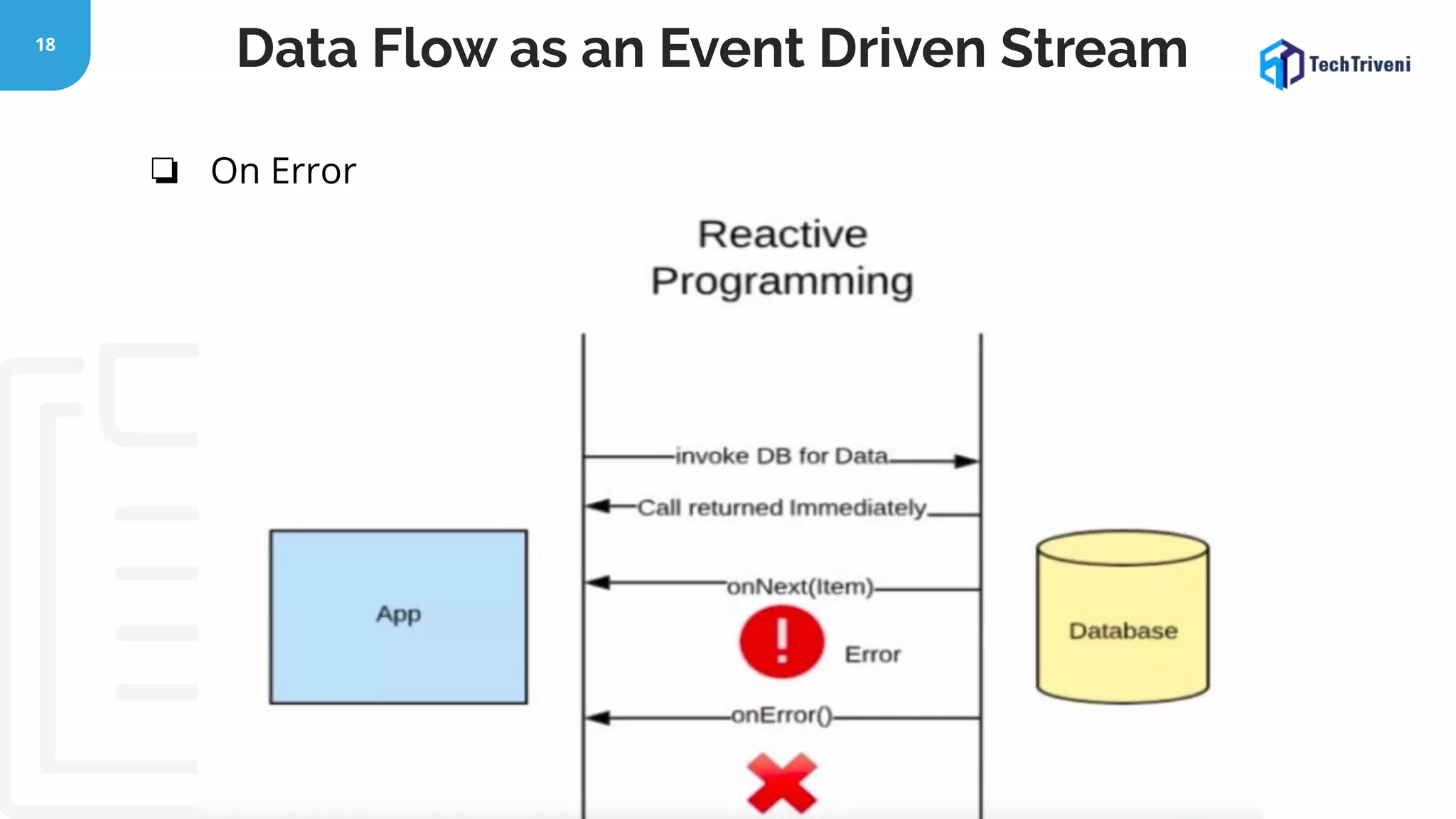

- 18. 18 Data Flow asan Event Driven Stream ❏ On Error

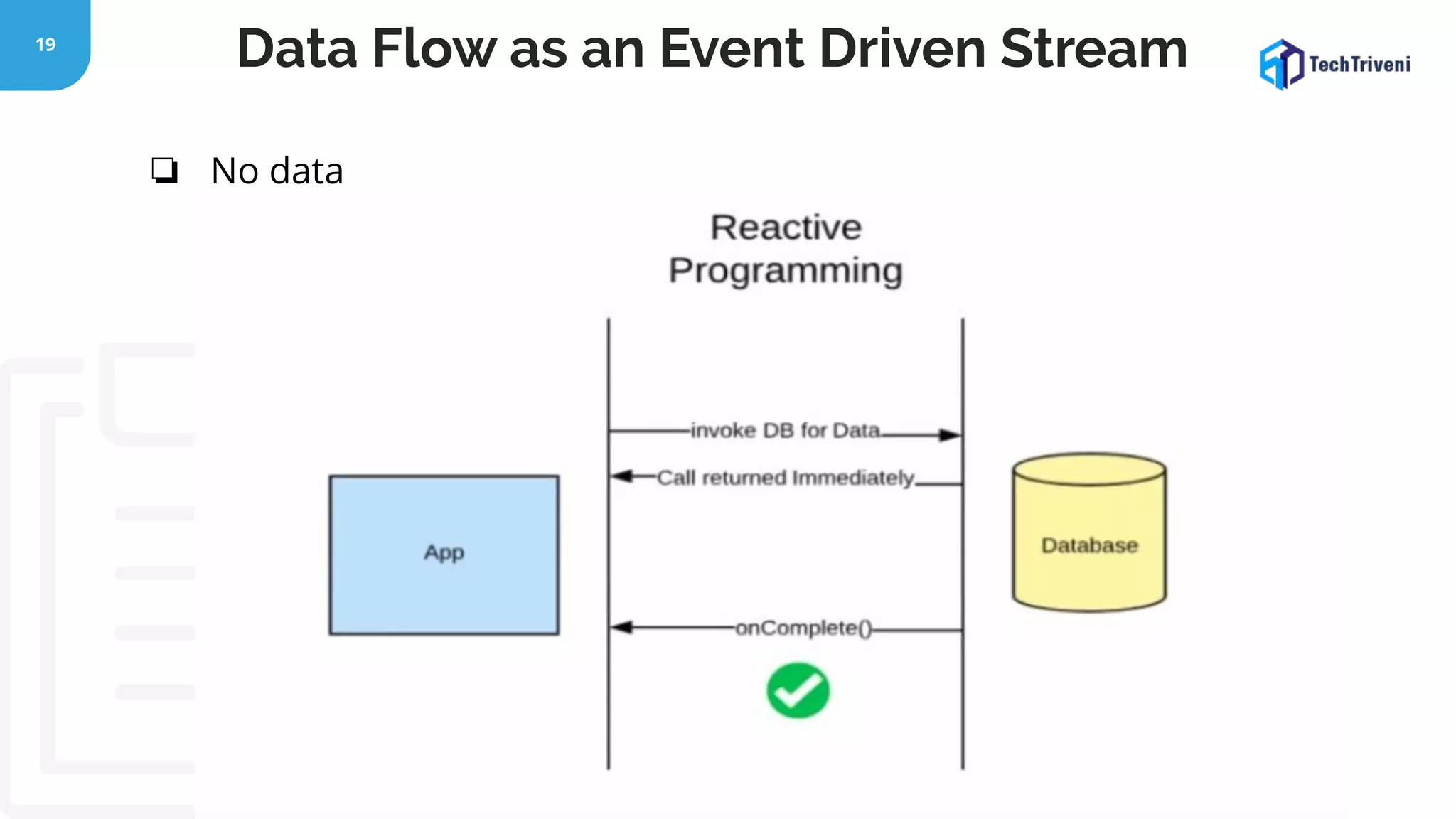

- 19. 19 Data Flow asan Event Driven Stream ❏ No data
- 20.
- 21.

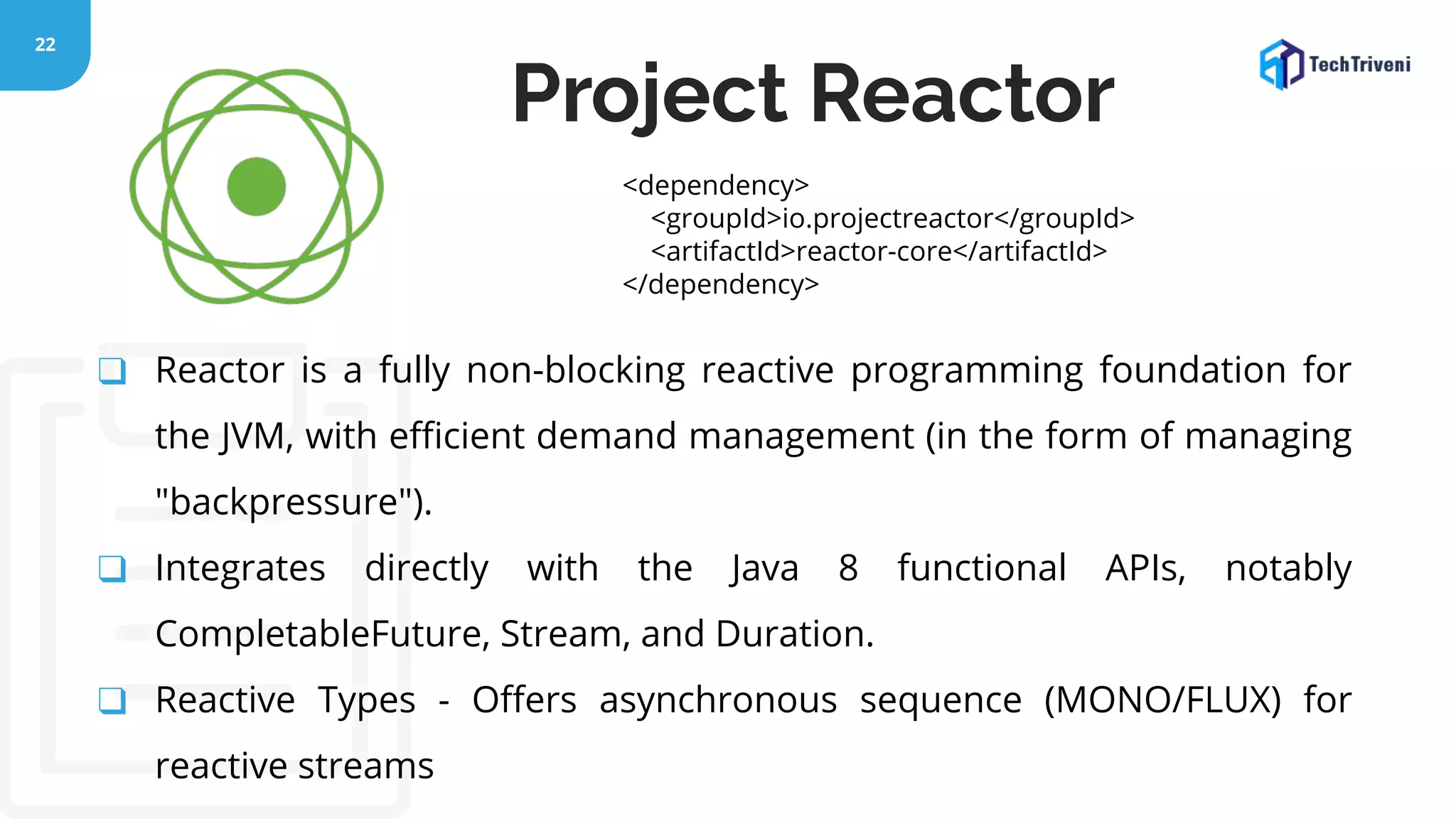

- 22. 22 ❑ Reactor isa fully non-blocking reactive programming foundation for the JVM, with efficient demand management (in the form of managing "backpressure"). ❑ Integrates directly with the Java 8 functional APIs, notably CompletableFuture, Stream, and Duration. ❑ Reactive Types - Offers asynchronous sequence (MONO/FLUX) for reactive streams Project Reactor <dependency> <groupId>io.projectreactor</groupId> <artifactId>reactor-core</artifactId> </dependency>

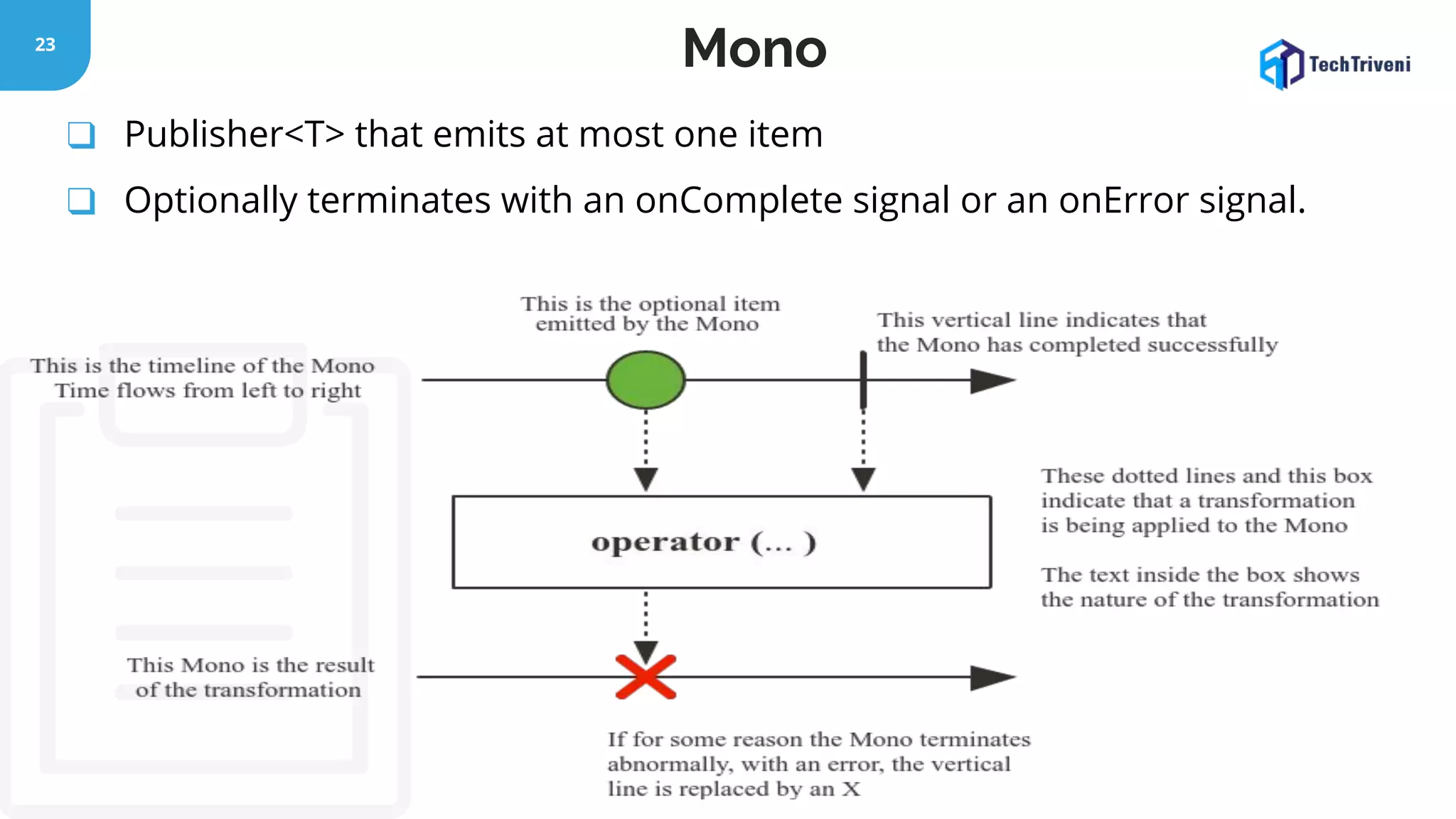

- 23. 23 ❑ Publisher<T> thatemits at most one item ❑ Optionally terminates with an onComplete signal or an onError signal. Mono

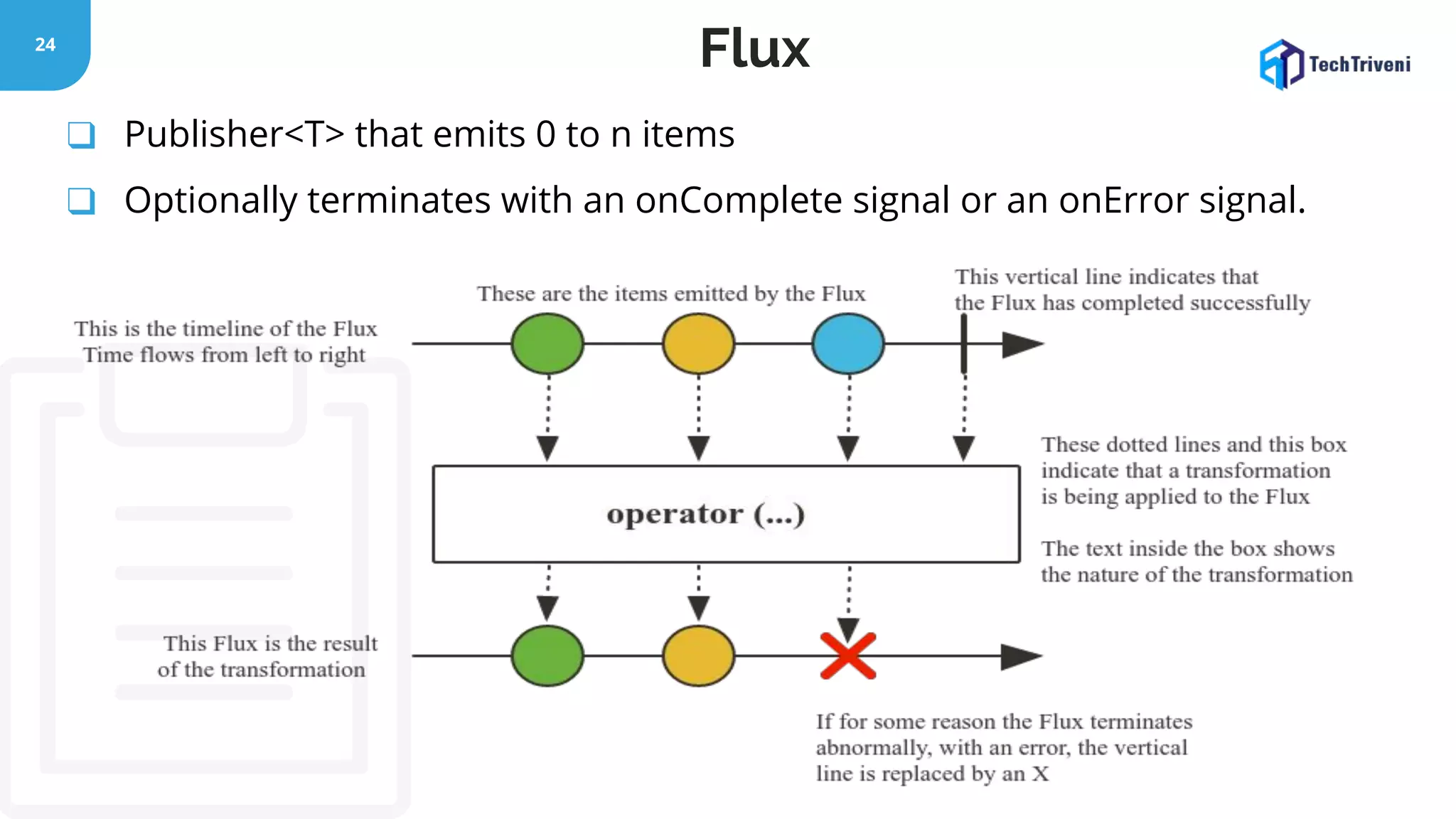

- 24. 24 ❑ Publisher<T> thatemits 0 to n items ❑ Optionally terminates with an onComplete signal or an onError signal. Flux
- 25. 25 Mono Vs Flux Mono<Student>Flux<Student>

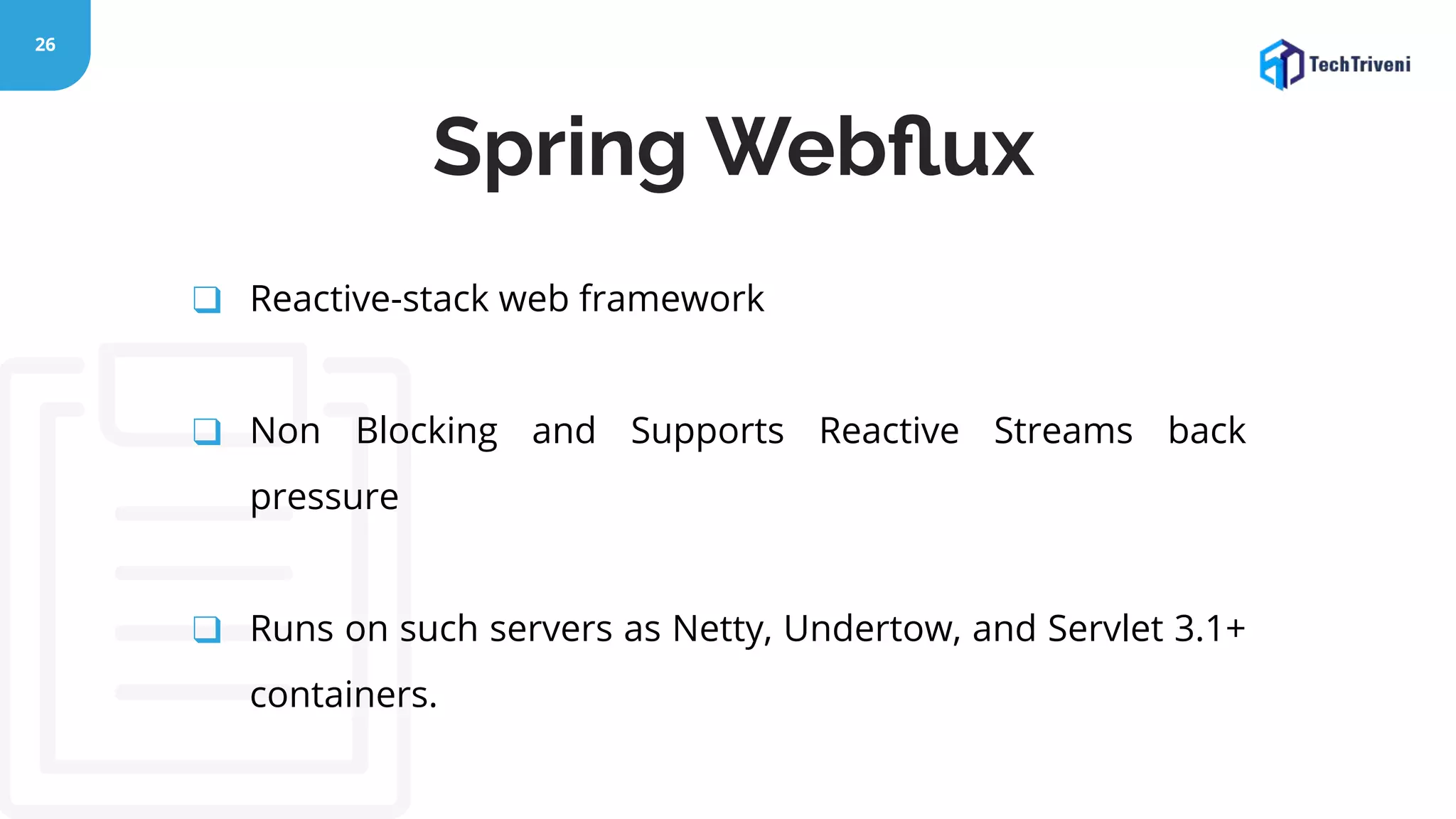

- 26. 26 ❑ Reactive-stack webframework ❑ Non Blocking and Supports Reactive Streams back pressure ❑ Runs on such servers as Netty, Undertow, and Servlet 3.1+ containers. Spring Webflux
- 27.

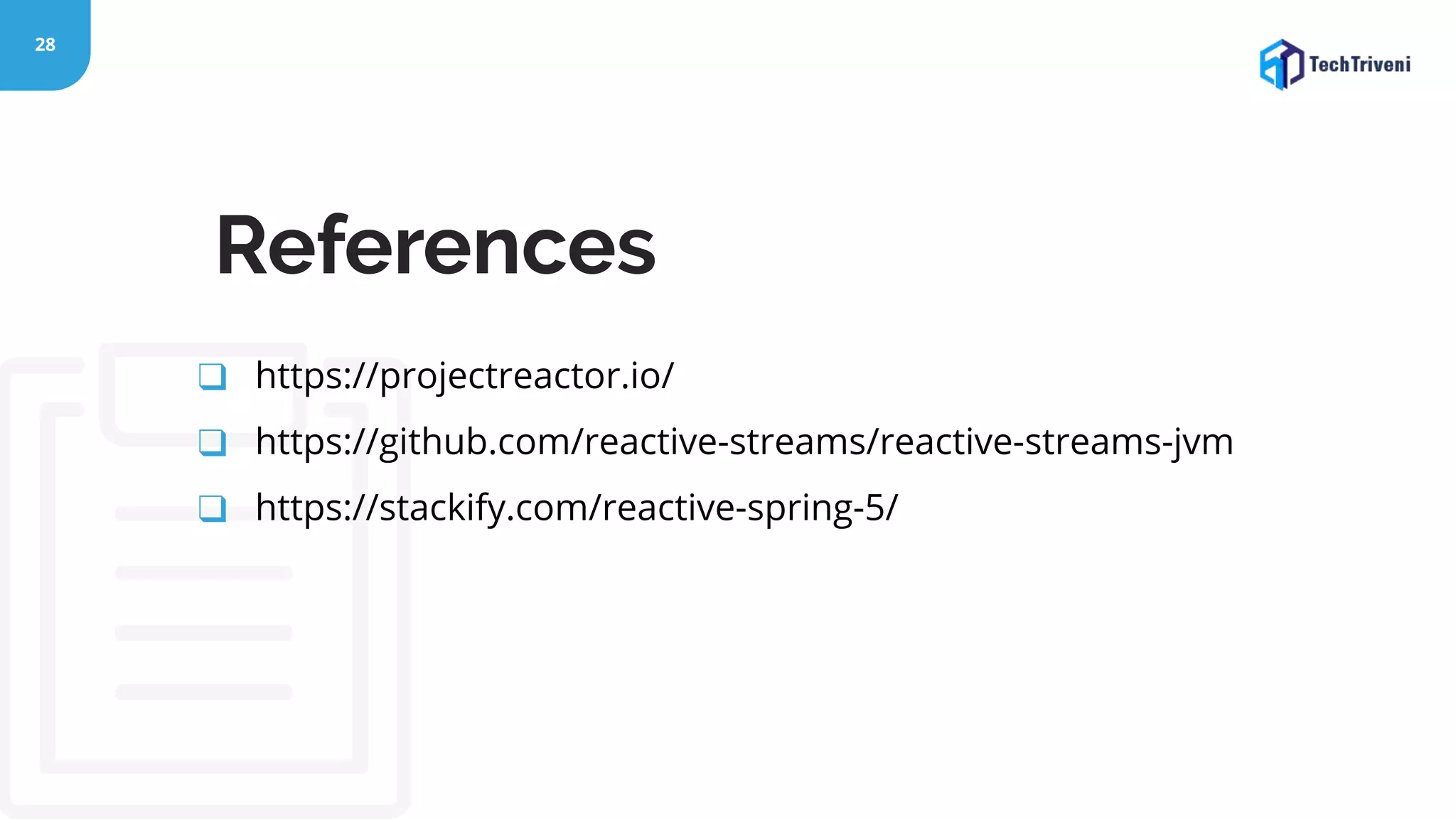

- 28. 28 ❑ https://projectreactor.io/ ❑ https://github.com/reactive-streams/reactive-streams-jvm ❑https://stackify.com/reactive-spring-5/ References
- 29.
- 30. 30 Stay in touch ContactDetails: vinsha.sharma@knoldus.com or linkedin.com/in/vinisha-sharma-26538a135
