- 1. ALGORITHMS AND FLOWCHARTS Lecture 1:Problem Analysis

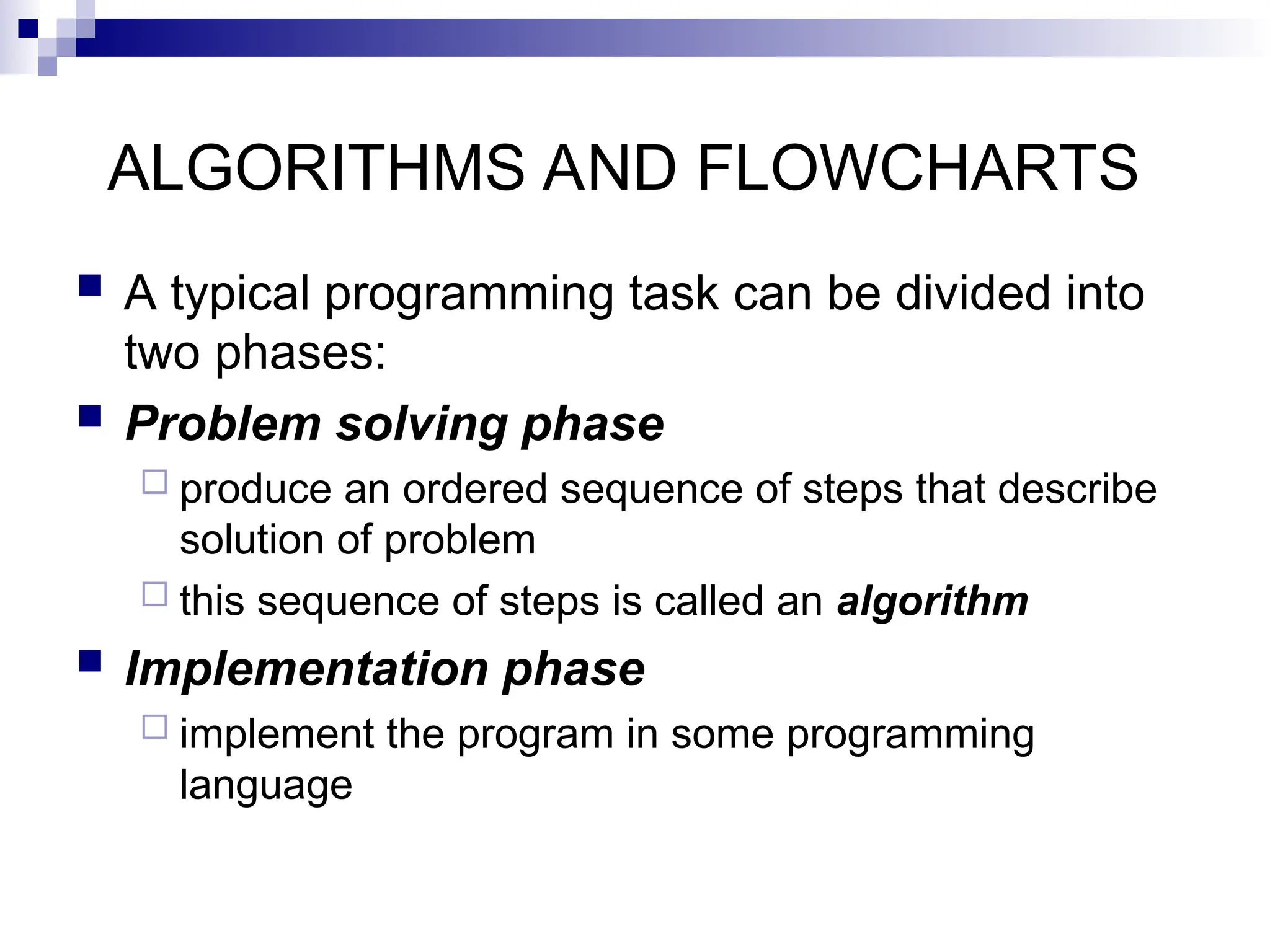

- 2. ALGORITHMS AND FLOWCHARTS A typical programming task can be divided into two phases: Problem solving phase produce an ordered sequence of steps that describe solution of problem this sequence of steps is called an algorithm Implementation phase implement the program in some programming language

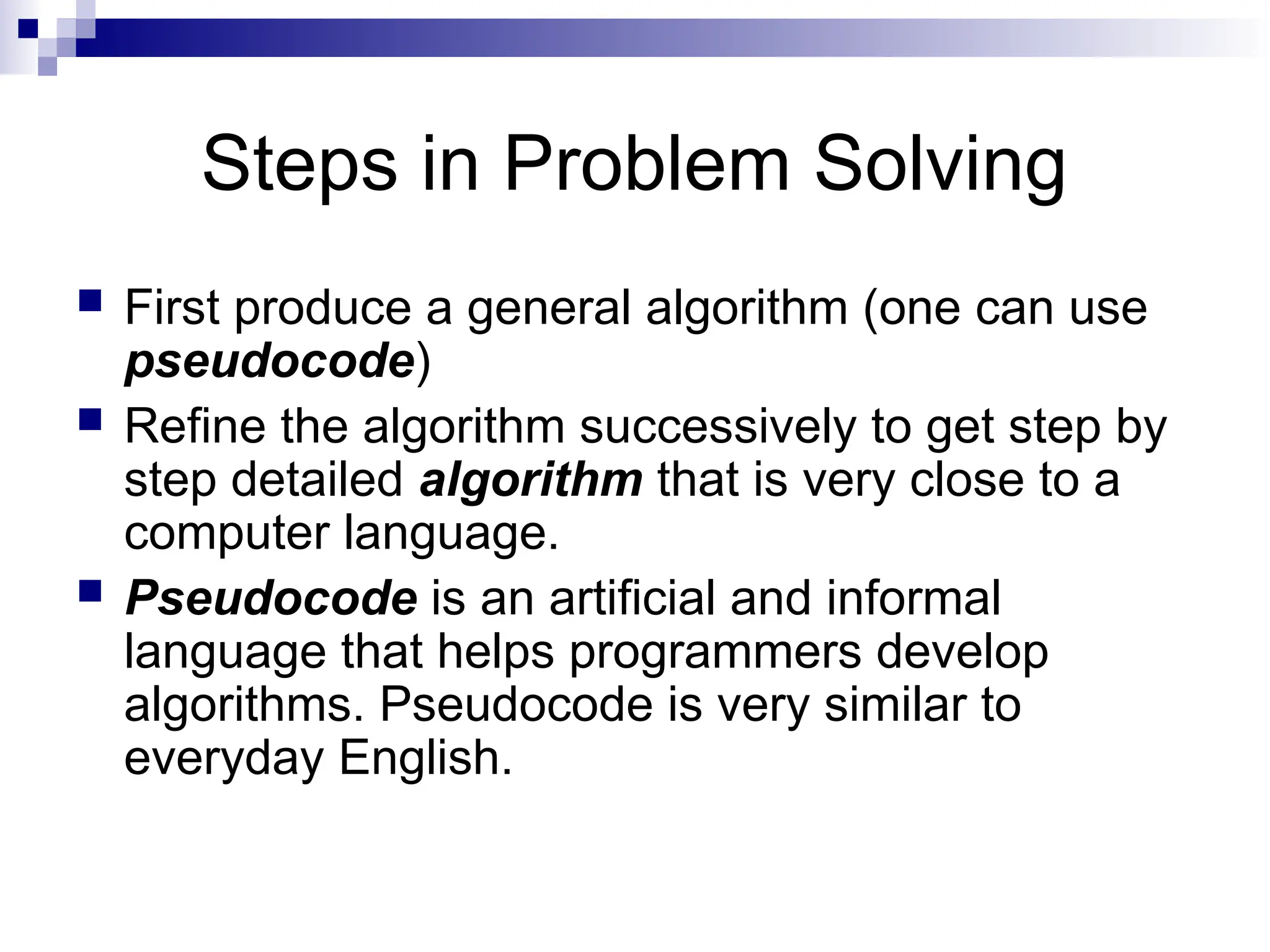

- 3. Steps in ProblemSolving First produce a general algorithm (one can use pseudocode) Refine the algorithm successively to get step by step detailed algorithm that is very close to a computer language. Pseudocode is an artificial and informal language that helps programmers develop algorithms. Pseudocode is very similar to everyday English.

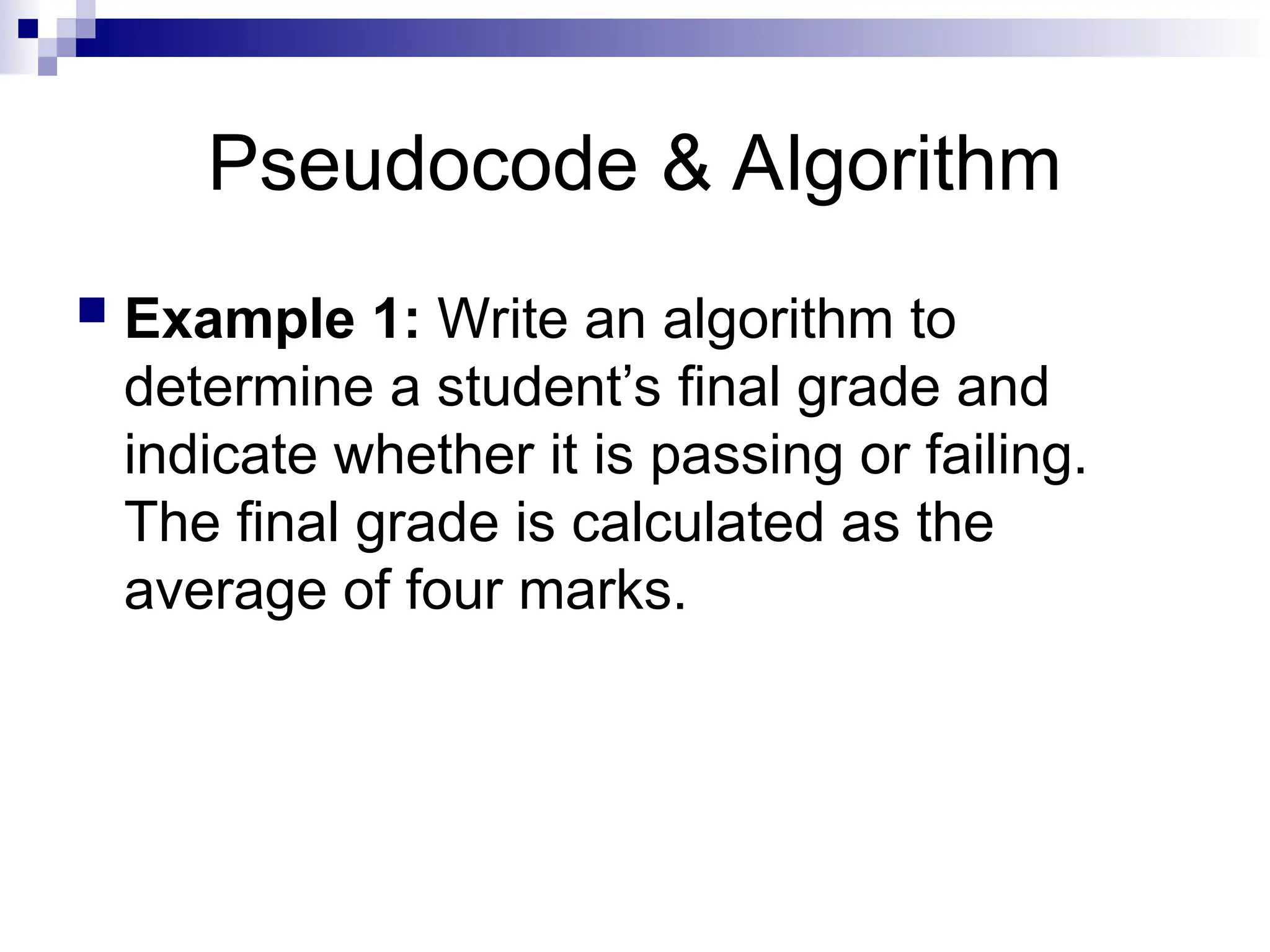

- 4. Pseudocode & Algorithm Example 1: Write an algorithm to determine a student’s final grade and indicate whether it is passing or failing. The final grade is calculated as the average of four marks.

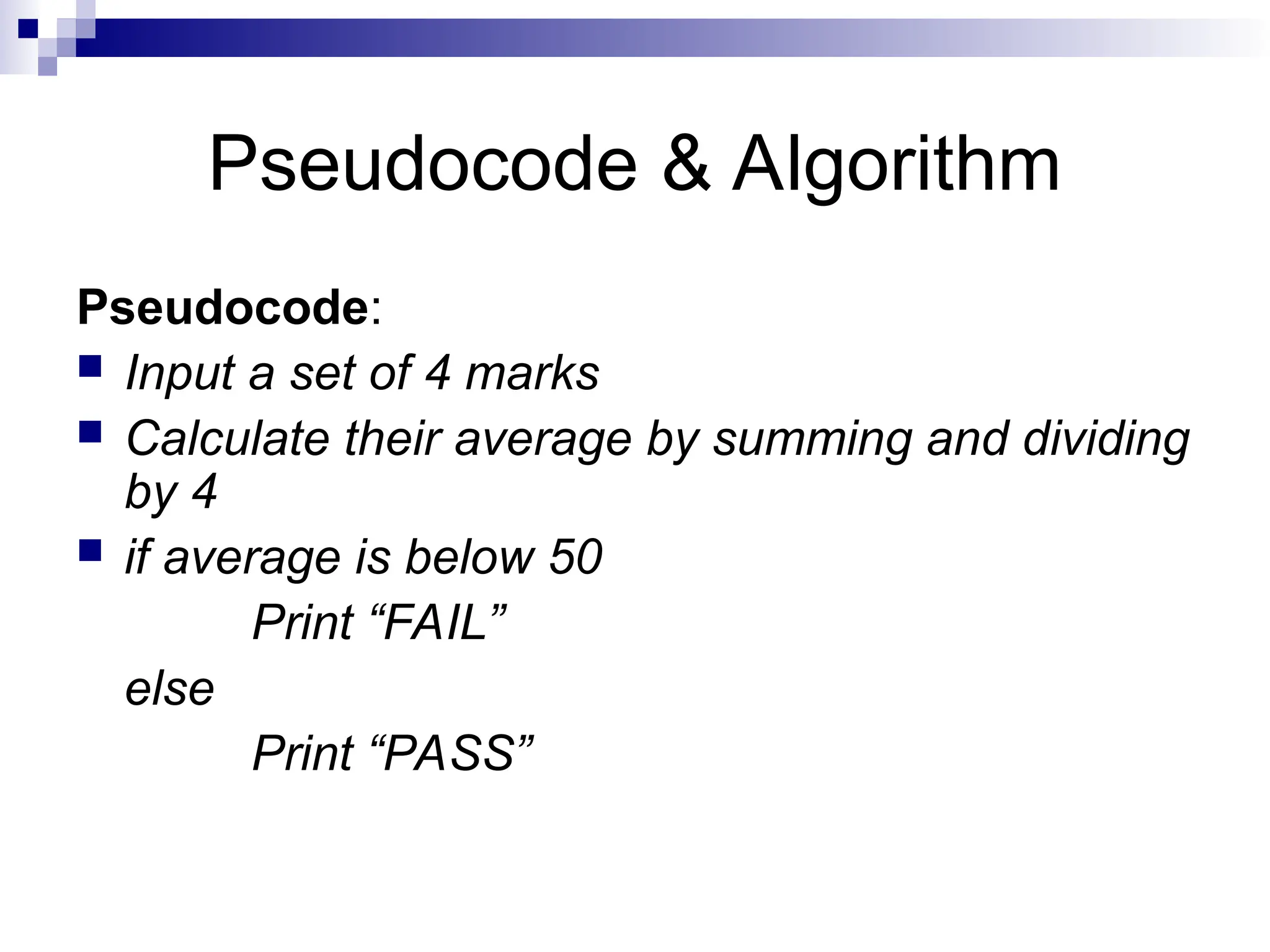

- 5. Pseudocode & Algorithm Pseudocode: Input a set of 4 marks Calculate their average by summing and dividing by 4 if average is below 50 Print “FAIL” else Print “PASS”

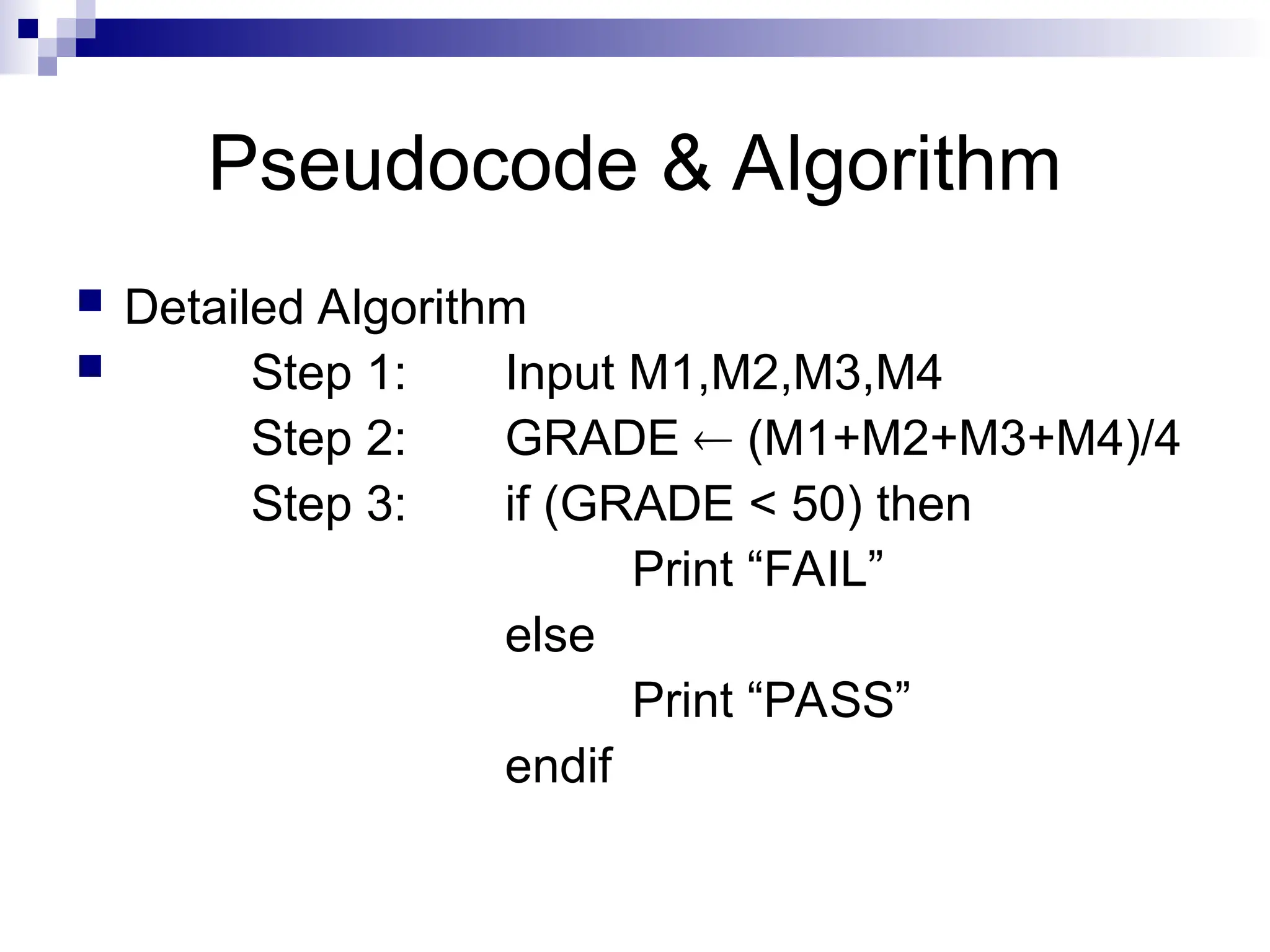

- 6. Pseudocode & Algorithm Detailed Algorithm Step 1: Input M1,M2,M3,M4 Step 2: GRADE (M1+M2+M3+M4)/4 Step 3: if (GRADE < 50) then Print “FAIL” else Print “PASS” endif

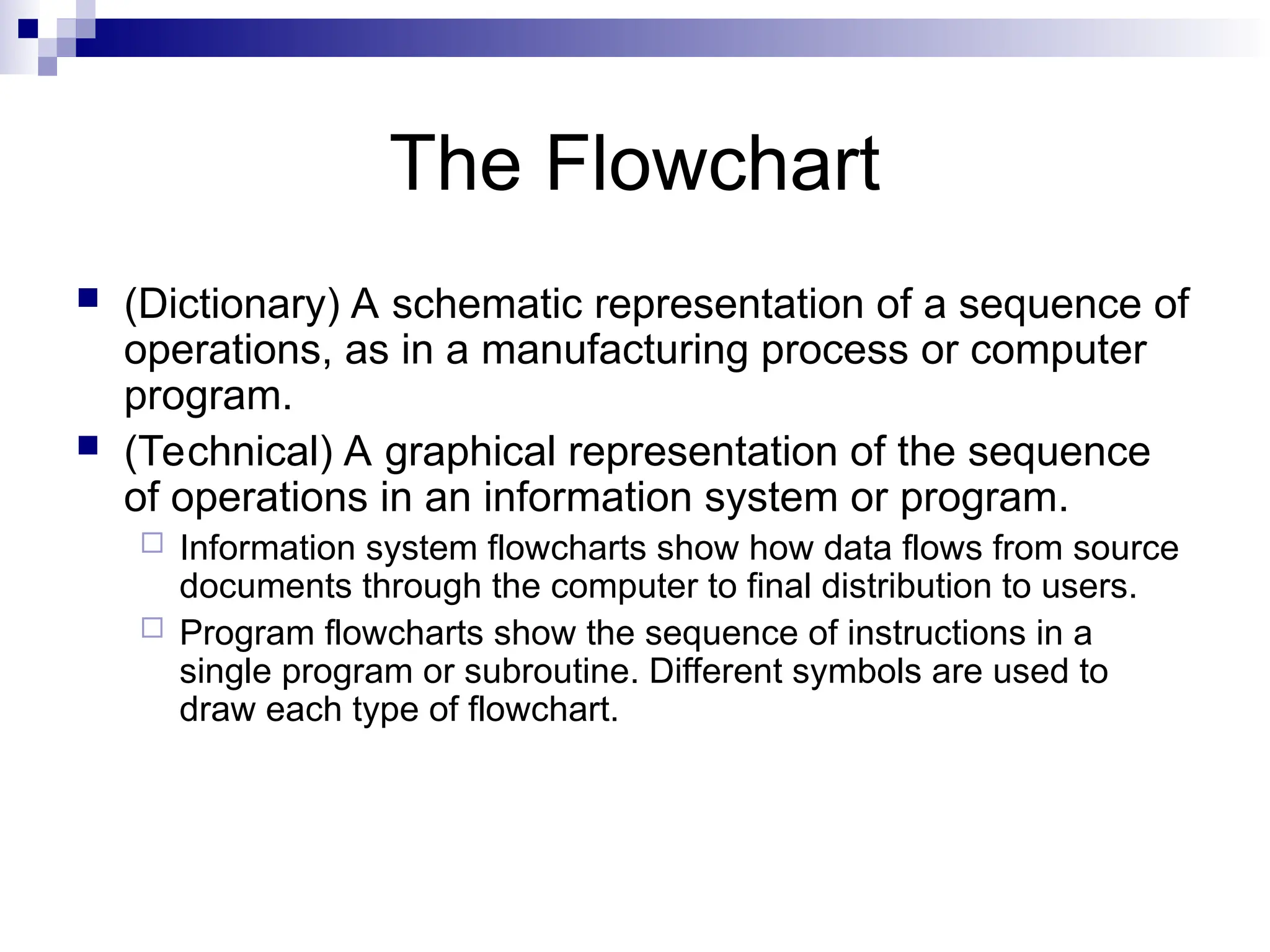

- 7. The Flowchart (Dictionary)A schematic representation of a sequence of operations, as in a manufacturing process or computer program. (Technical) A graphical representation of the sequence of operations in an information system or program. Information system flowcharts show how data flows from source documents through the computer to final distribution to users. Program flowcharts show the sequence of instructions in a single program or subroutine. Different symbols are used to draw each type of flowchart.

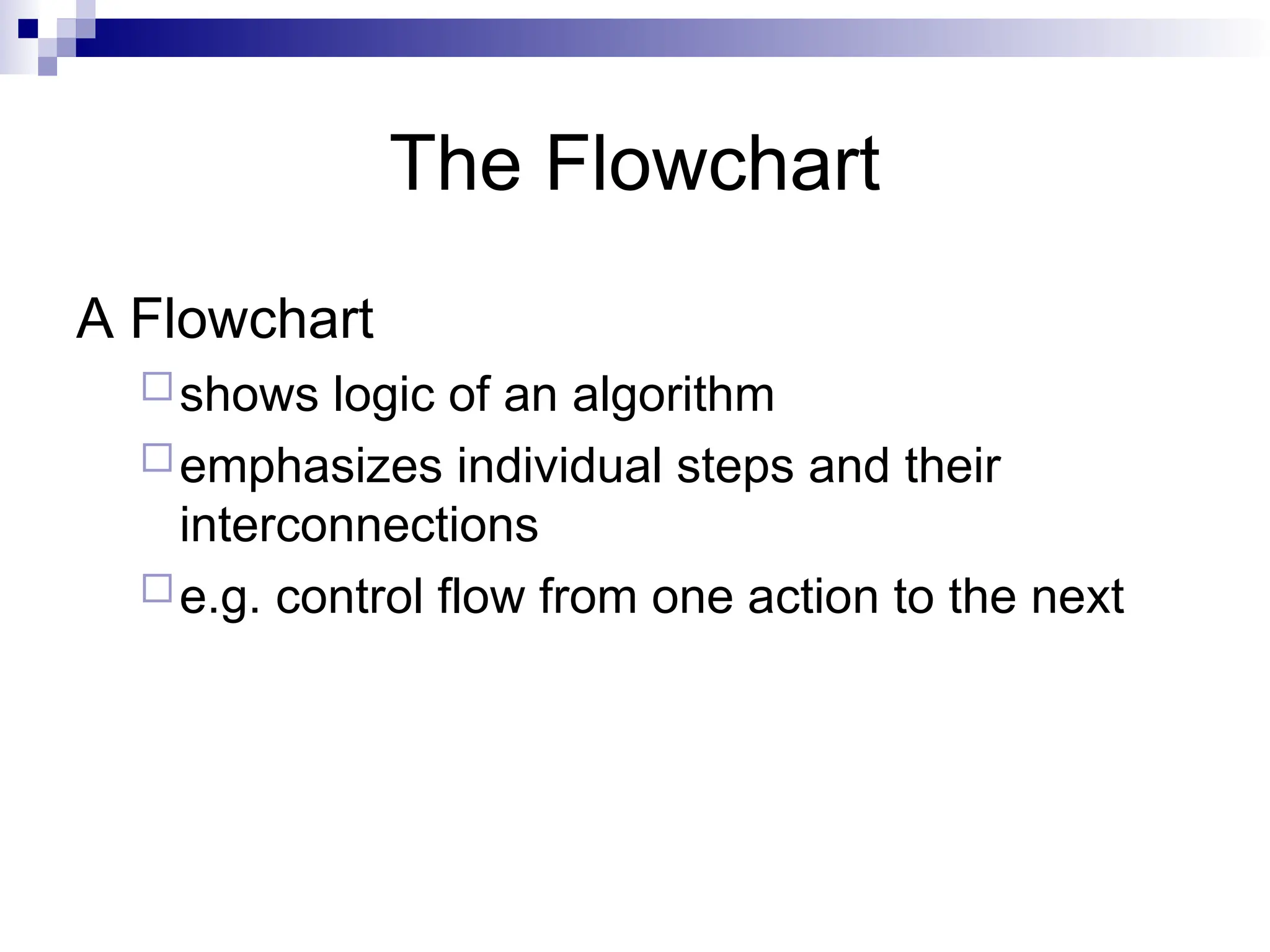

- 8. The Flowchart A Flowchart showslogic of an algorithm emphasizes individual steps and their interconnections e.g. control flow from one action to the next

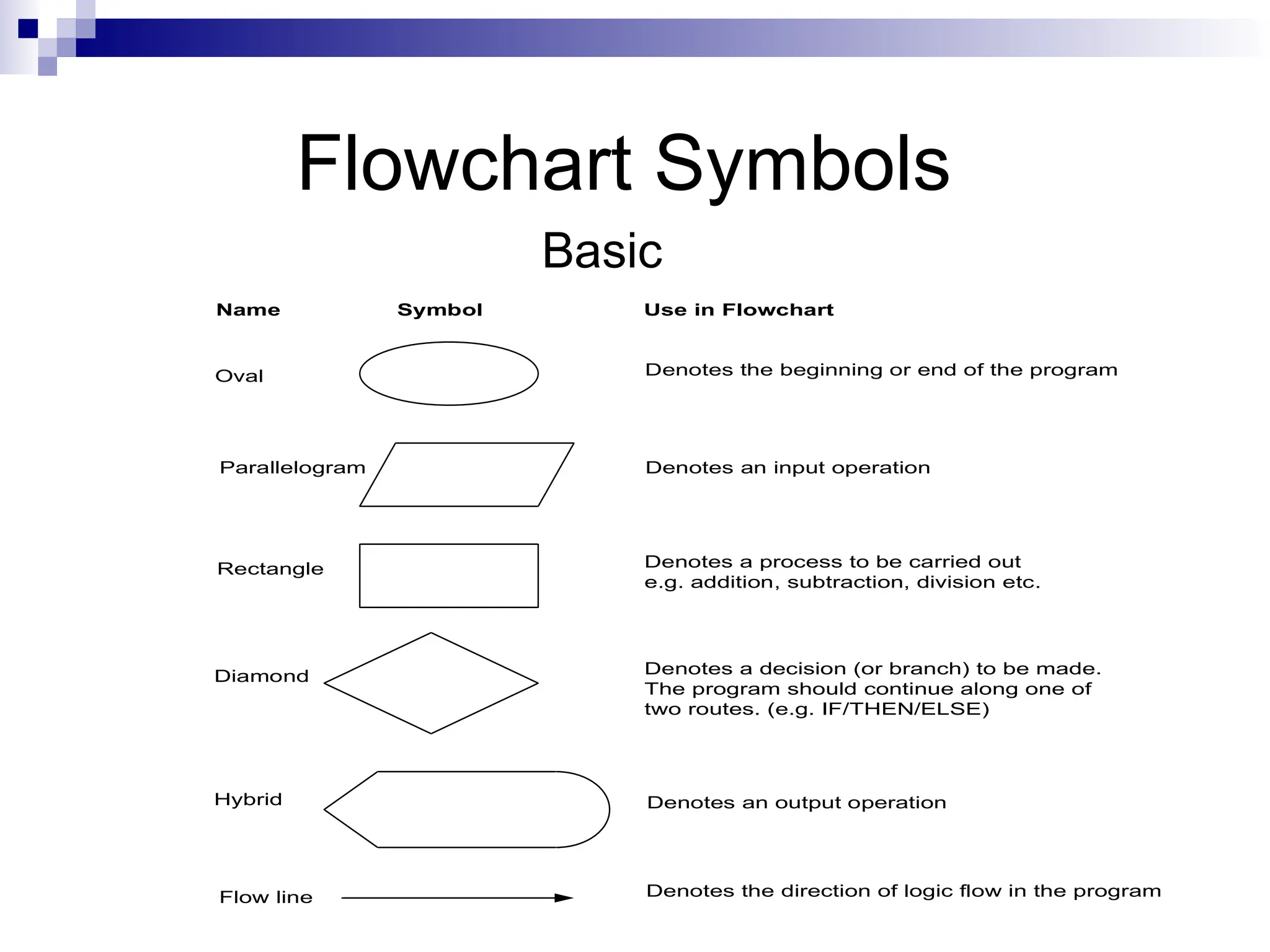

- 9. Flowchart Symbols Basic Oval Parallelogram Rectangle Diamond Hybrid Name SymbolUse in Flowchart Denotes the beginning or end of the program Denotes an input operation Denotes an output operation Denotes a decision (or branch) to be made. The program should continue along one of two routes. (e.g. IF/THEN/ELSE) Denotes a process to be carried out e.g. addition, subtraction, division etc. Flow line Denotes the direction of logic flow in the program

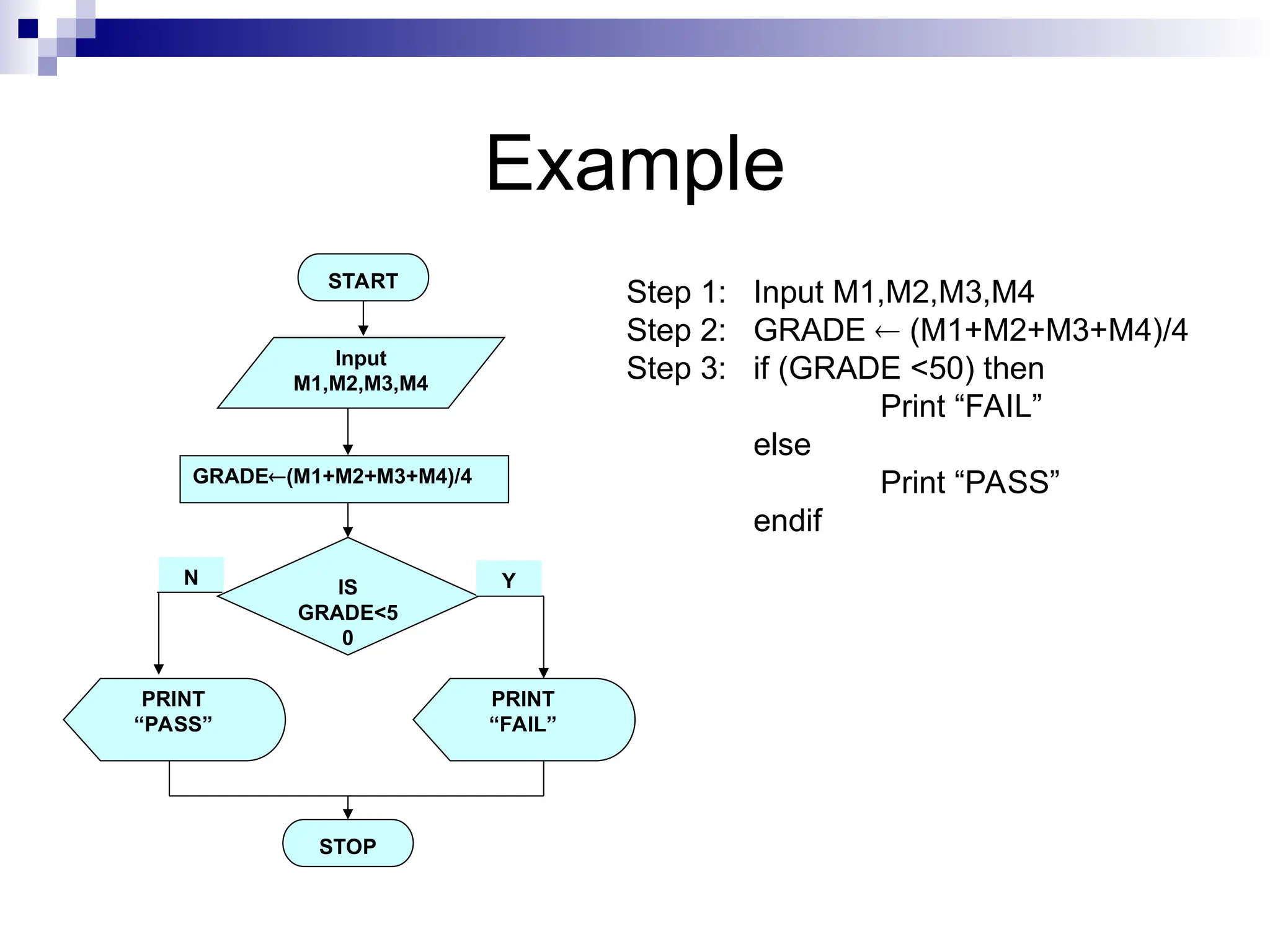

- 10. Example PRINT “PASS” Step 1: InputM1,M2,M3,M4 Step 2: GRADE (M1+M2+M3+M4)/4 Step 3: if (GRADE <50) then Print “FAIL” else Print “PASS” endif START Input M1,M2,M3,M4 GRADE(M1+M2+M3+M4)/4 IS GRADE<5 0 PRINT “FAIL” STOP Y N

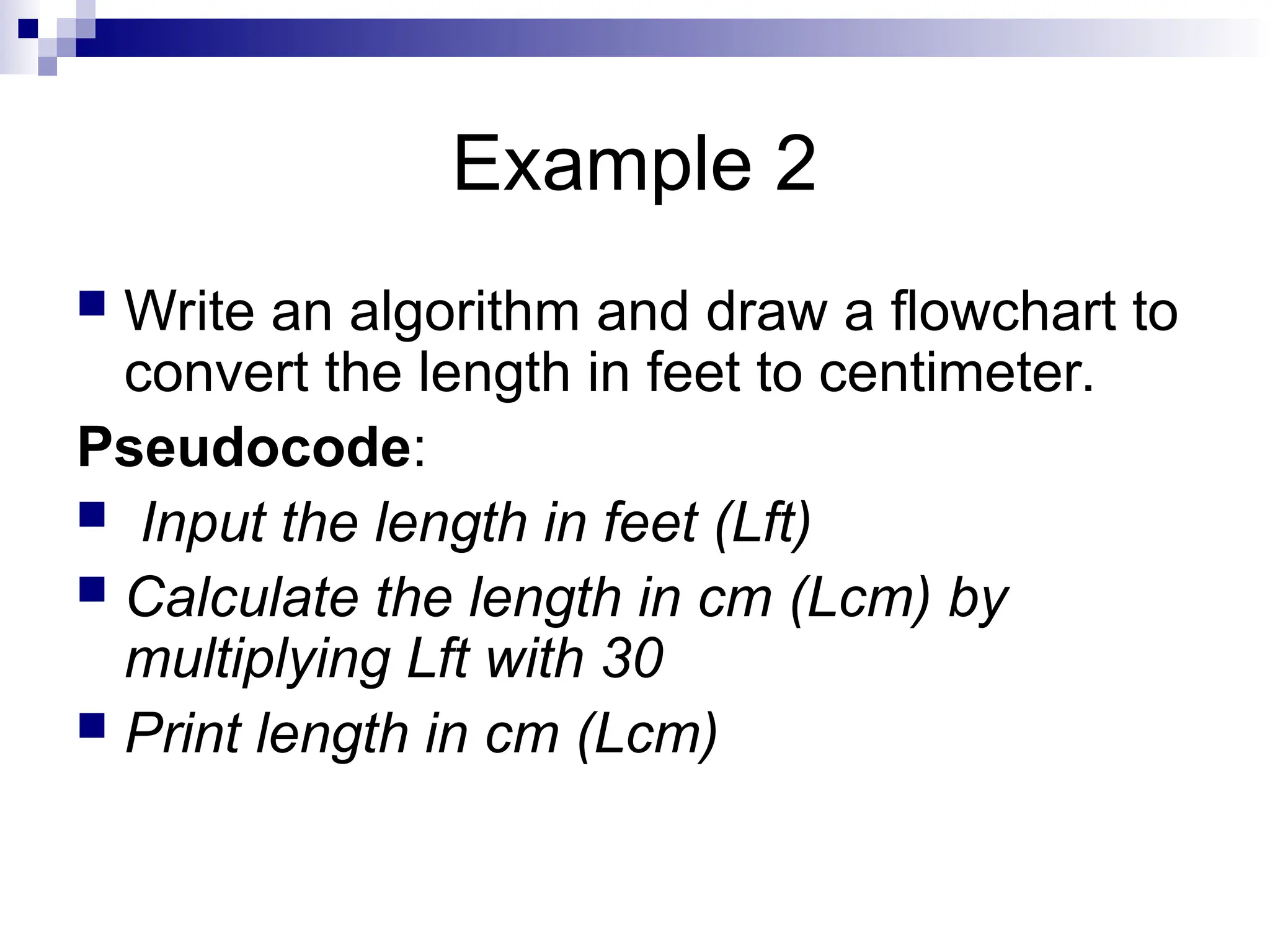

- 11. Example 2 Writean algorithm and draw a flowchart to convert the length in feet to centimeter. Pseudocode: Input the length in feet (Lft) Calculate the length in cm (Lcm) by multiplying Lft with 30 Print length in cm (Lcm)

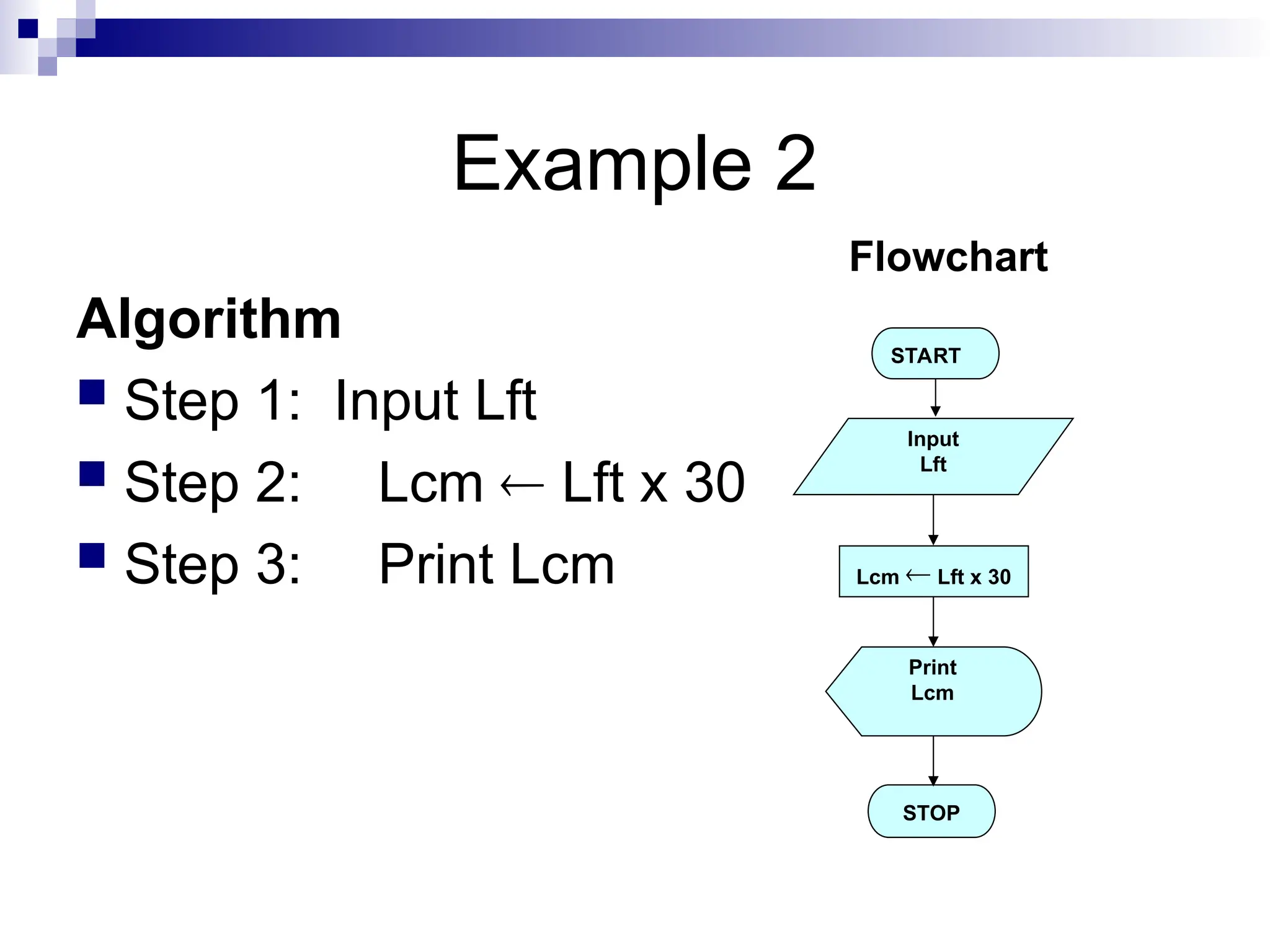

- 12. Example 2 Algorithm Step1: Input Lft Step 2: Lcm Lft x 30 Step 3: Print Lcm START Input Lft Lcm Lft x 30 Print Lcm STOP Flowchart

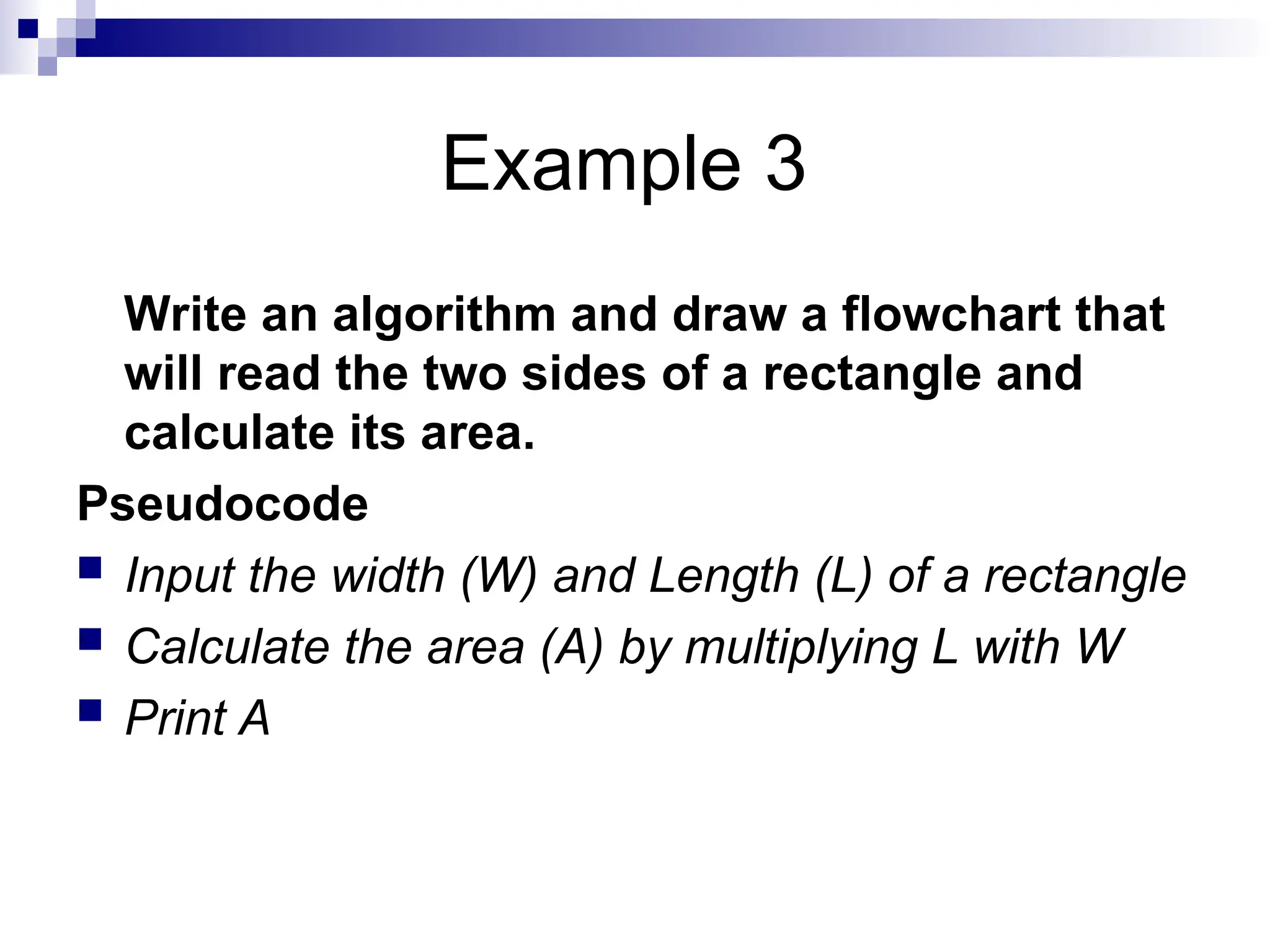

- 13. Example 3 Write analgorithm and draw a flowchart that will read the two sides of a rectangle and calculate its area. Pseudocode Input the width (W) and Length (L) of a rectangle Calculate the area (A) by multiplying L with W Print A

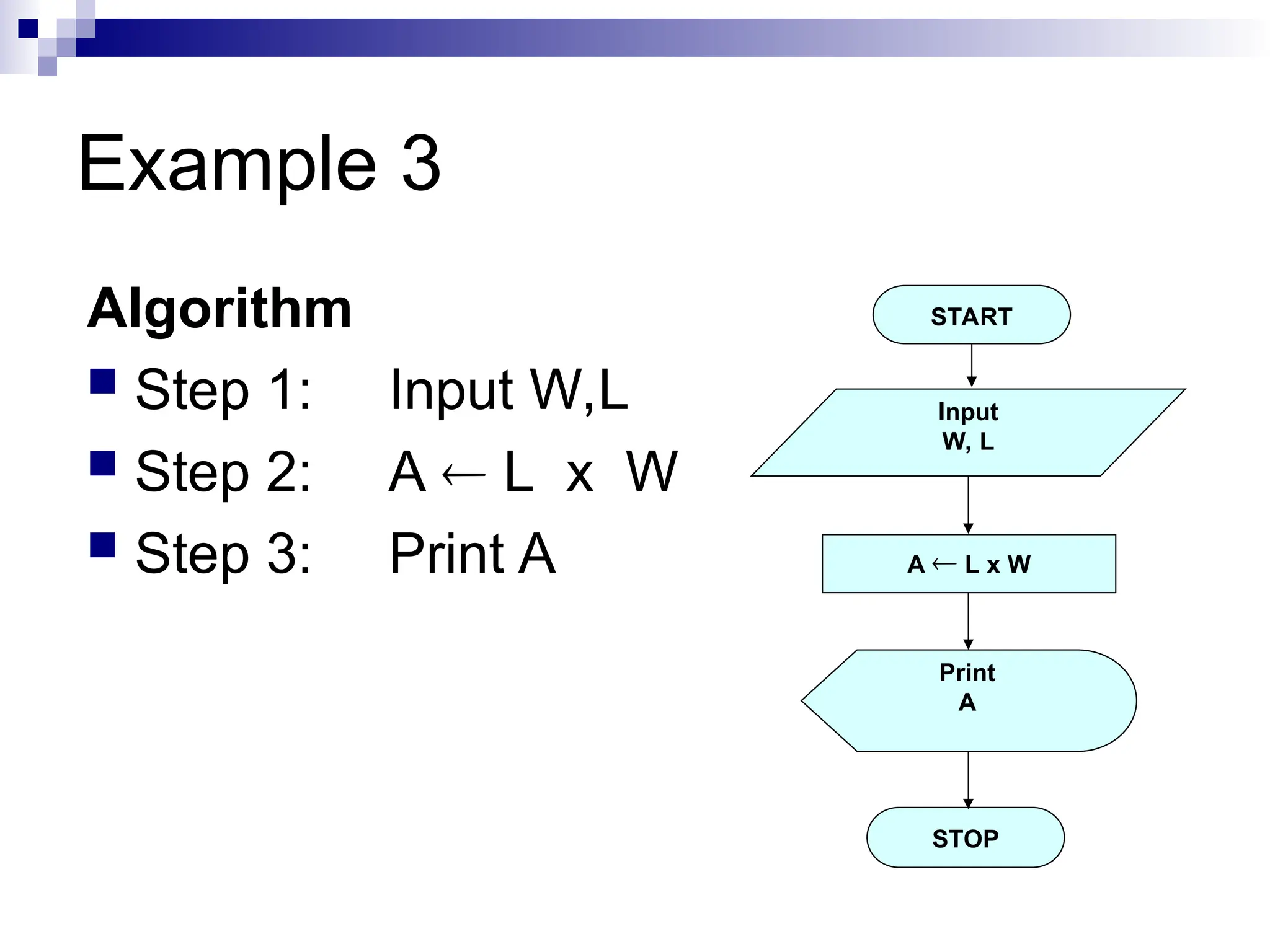

- 14. Example 3 Algorithm Step1: Input W,L Step 2: A L x W Step 3: Print A START Input W, L A L x W Print A STOP

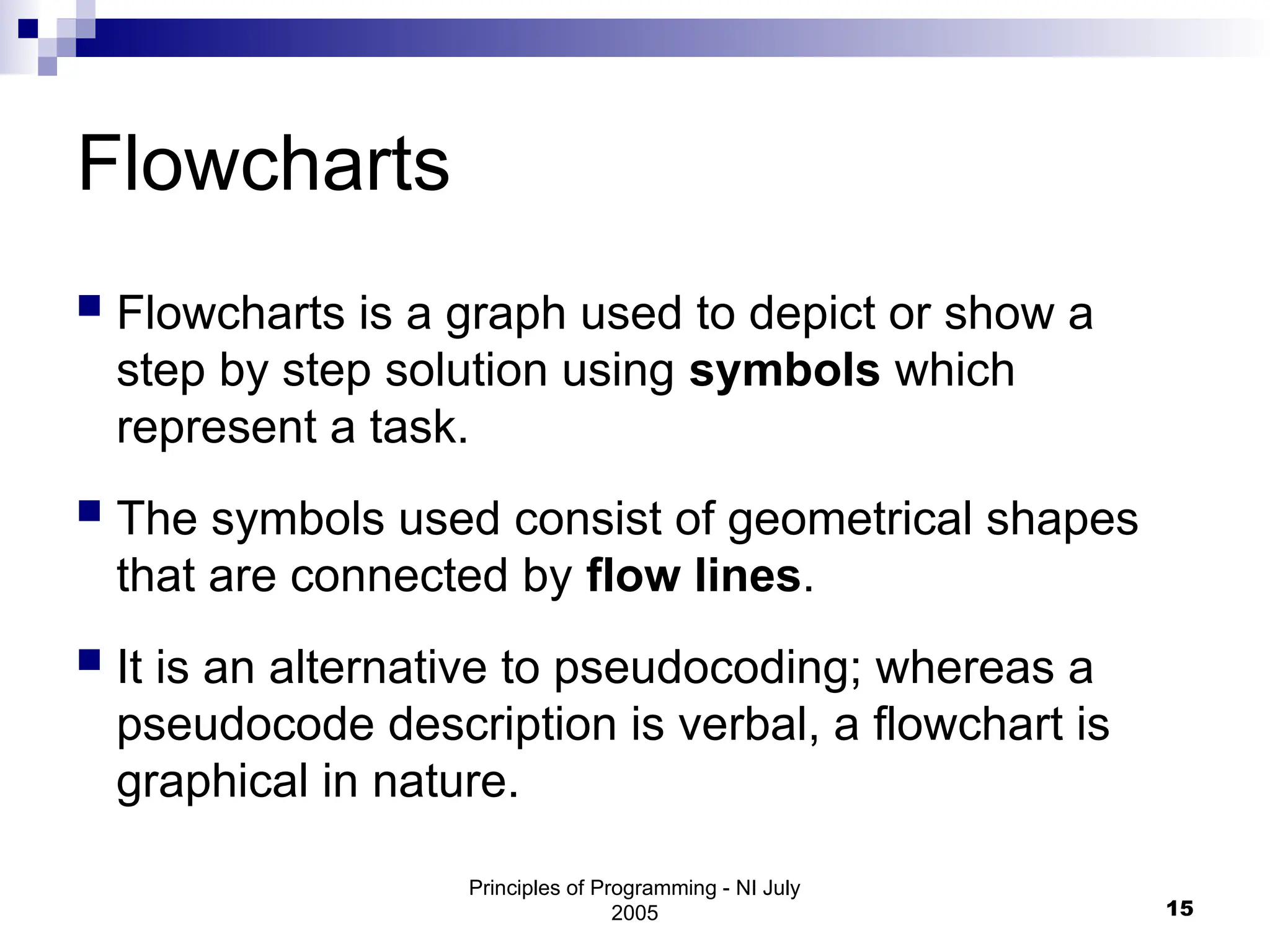

- 15. Principles of Programming- NI July 2005 15 Flowcharts Flowcharts is a graph used to depict or show a step by step solution using symbols which represent a task. The symbols used consist of geometrical shapes that are connected by flow lines. It is an alternative to pseudocoding; whereas a pseudocode description is verbal, a flowchart is graphical in nature.

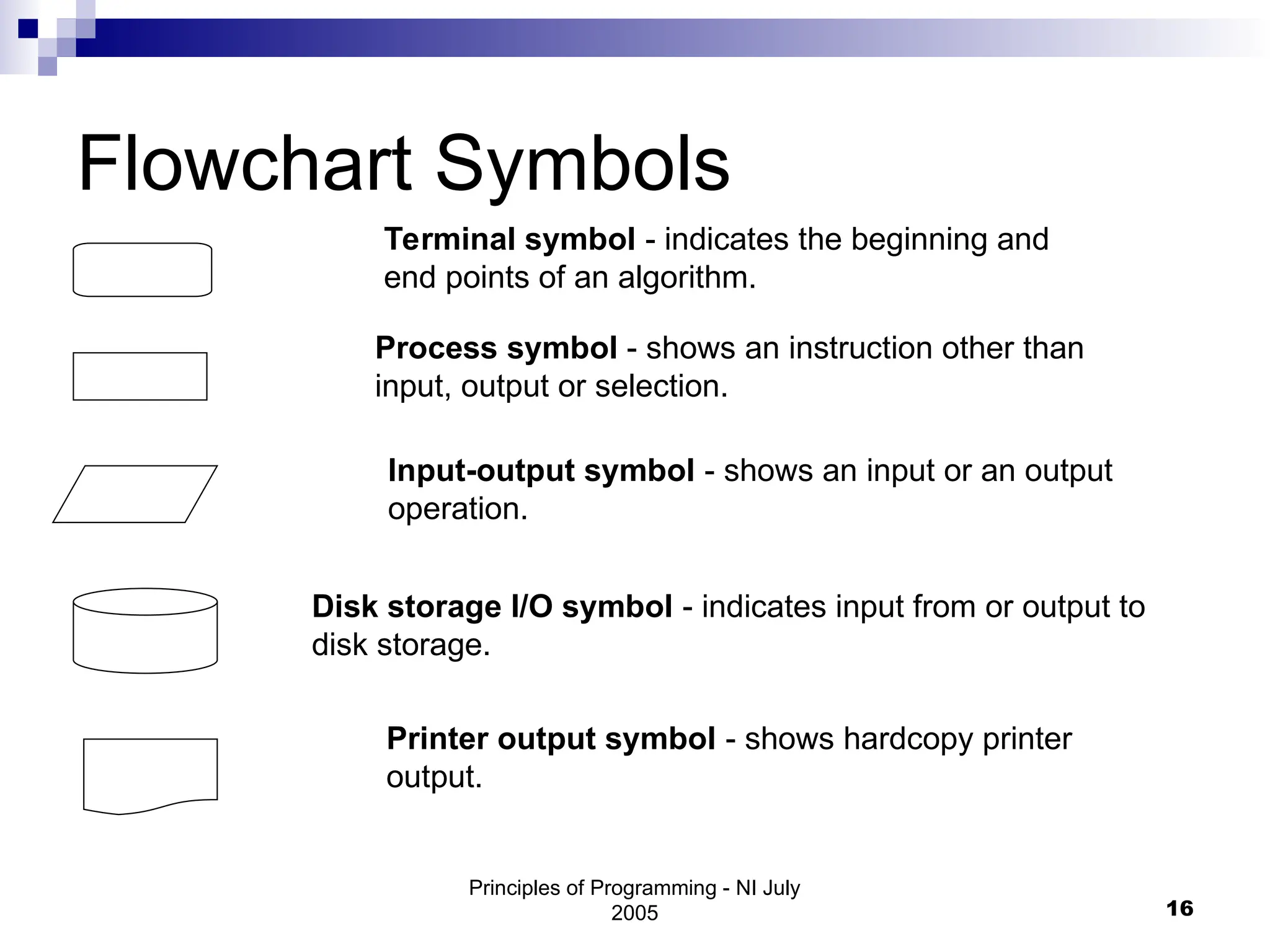

- 16. Principles of Programming- NI July 2005 16 Flowchart Symbols Terminal symbol - indicates the beginning and end points of an algorithm. Process symbol - shows an instruction other than input, output or selection. Input-output symbol - shows an input or an output operation. Disk storage I/O symbol - indicates input from or output to disk storage. Printer output symbol - shows hardcopy printer output.

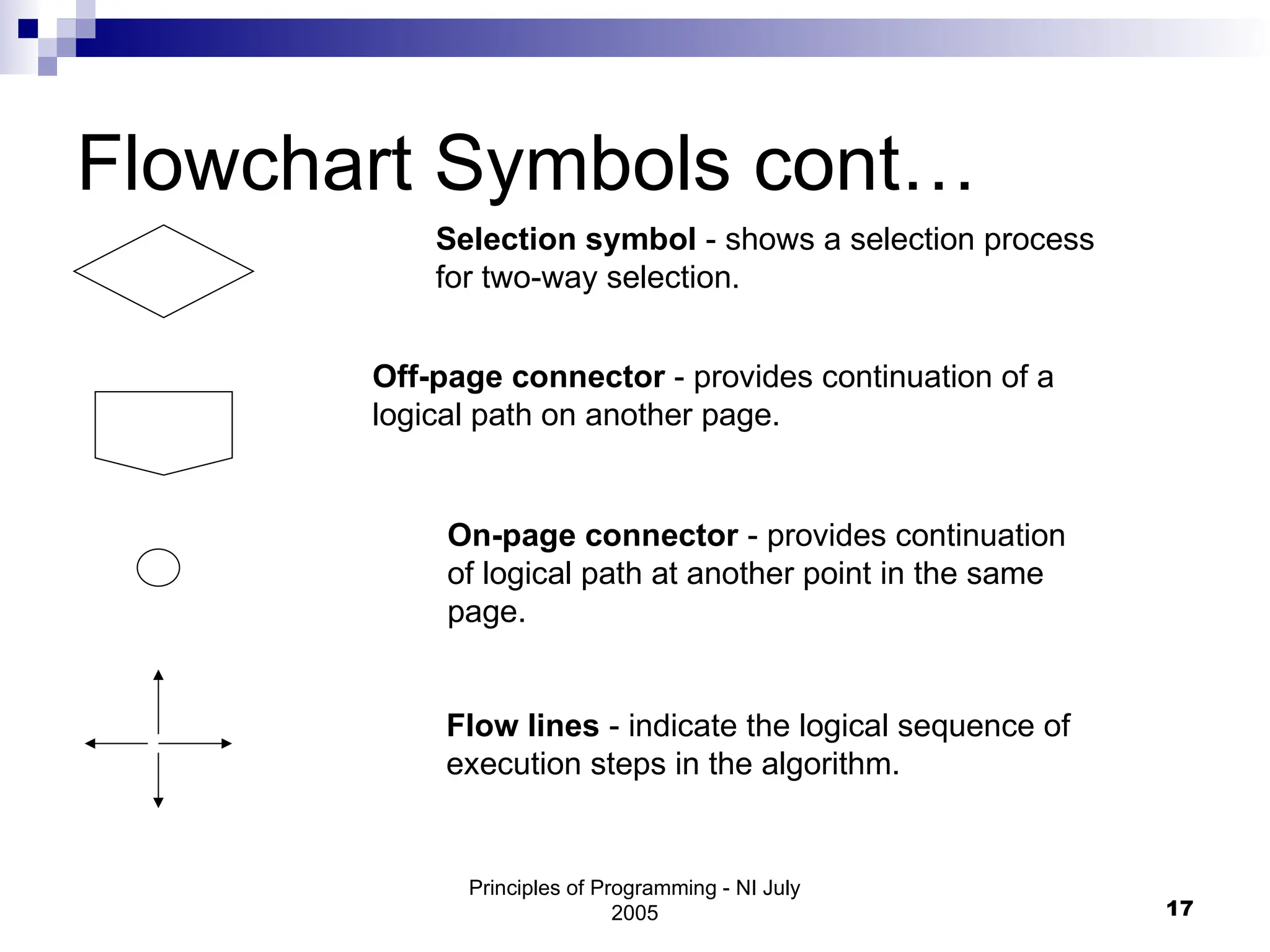

- 17. Principles of Programming- NI July 2005 17 Flowchart Symbols cont… Selection symbol - shows a selection process for two-way selection. Off-page connector - provides continuation of a logical path on another page. On-page connector - provides continuation of logical path at another point in the same page. Flow lines - indicate the logical sequence of execution steps in the algorithm.

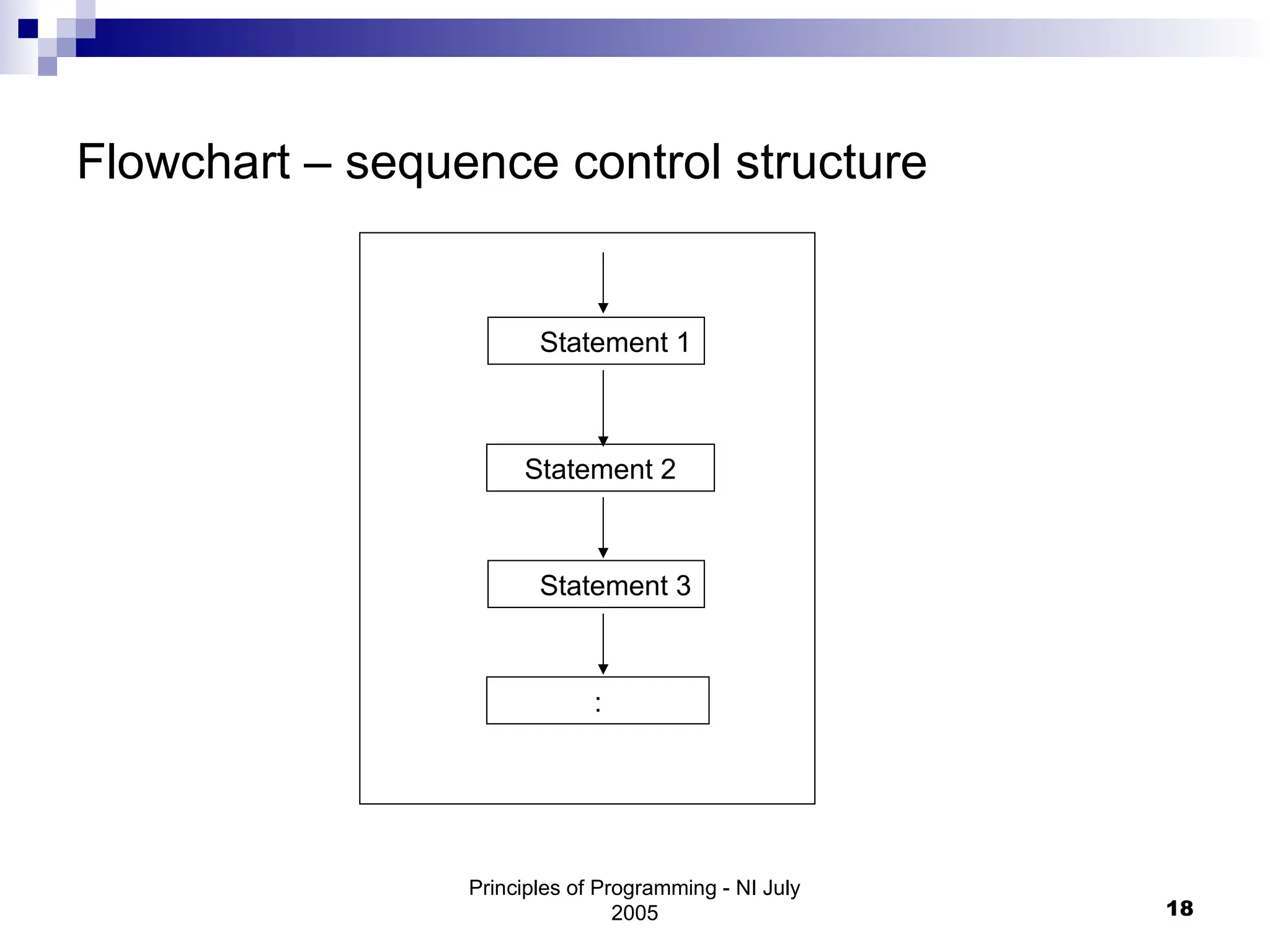

- 18. Principles of Programming- NI July 2005 18 Flowchart – sequence control structure Statement 2 Statement 1 Statement 3 :

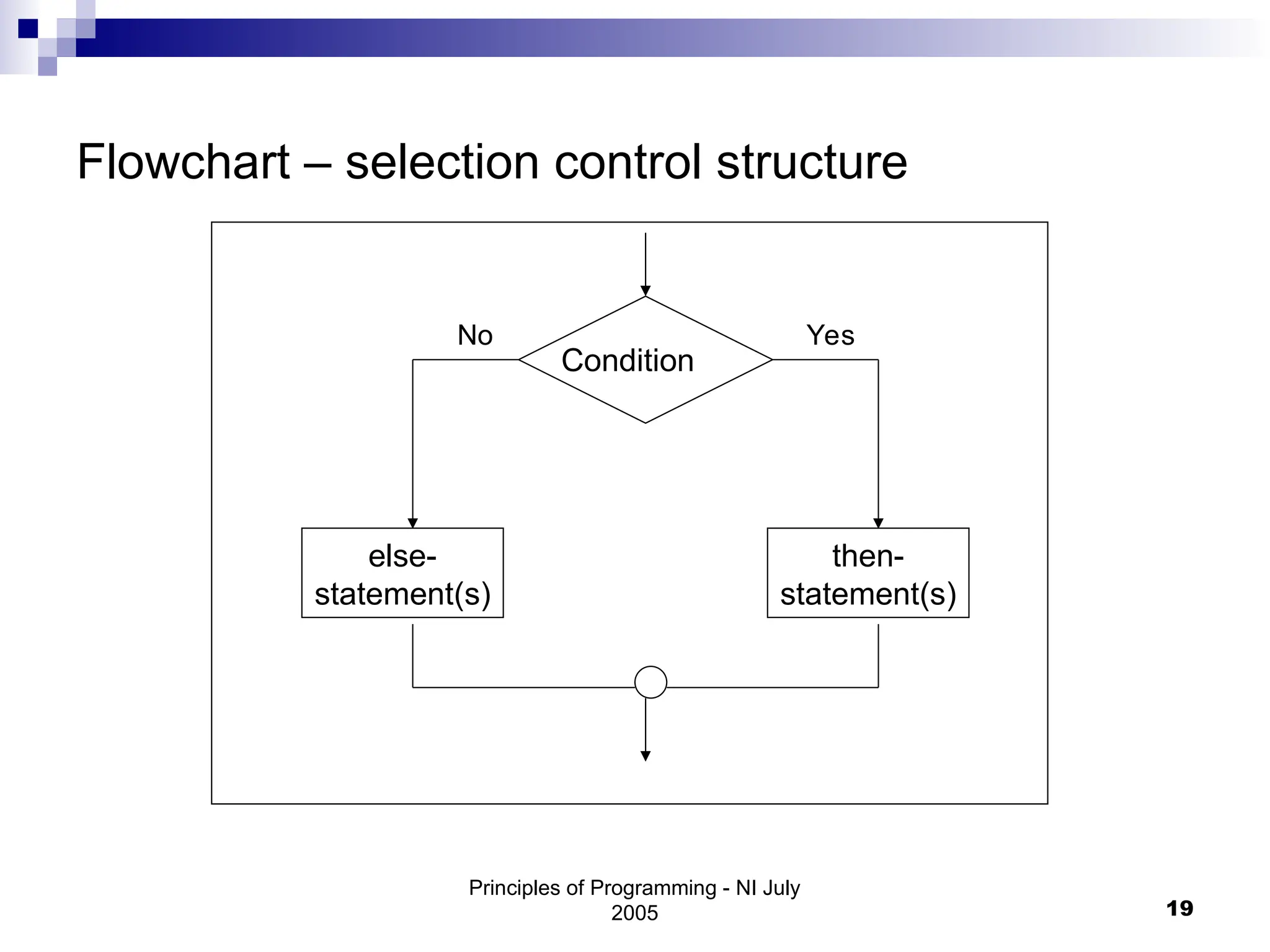

- 19. Principles of Programming- NI July 2005 19 Flowchart – selection control structure Condition else- statement(s) then- statement(s) Yes No

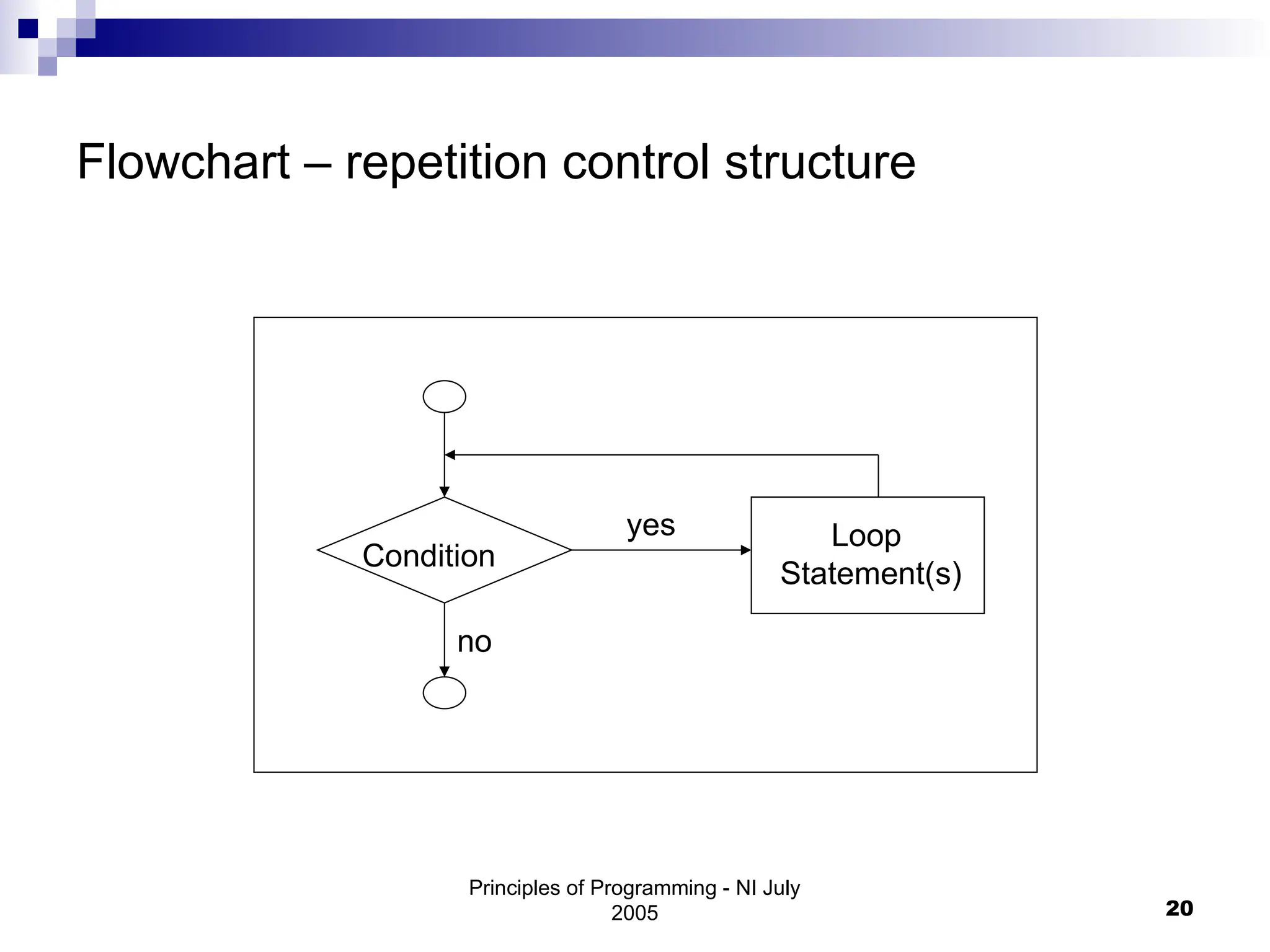

- 20. Principles of Programming- NI July 2005 20 Flowchart – repetition control structure Condition Loop Statement(s) yes no

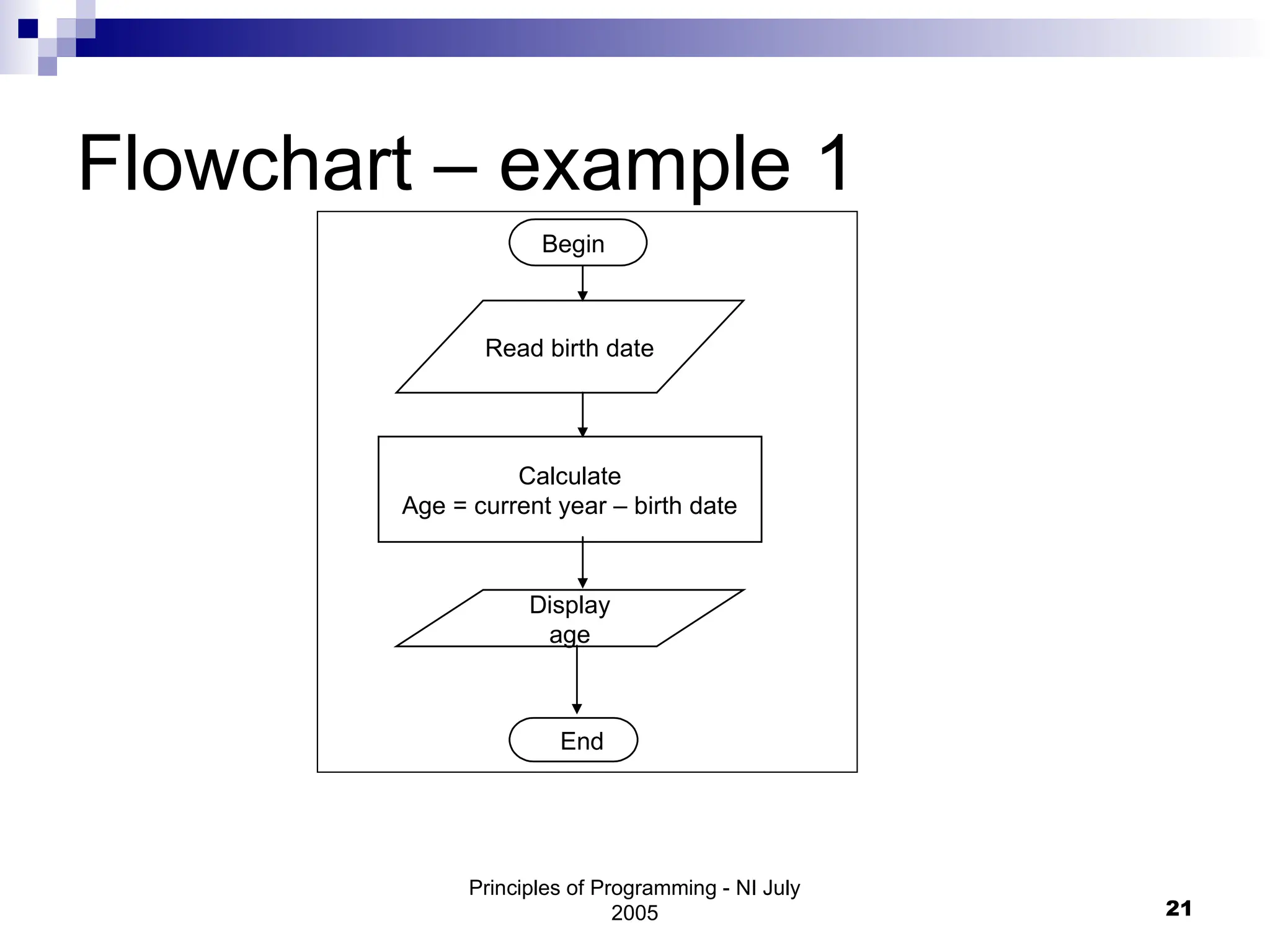

- 21. Principles of Programming- NI July 2005 21 Flowchart – example 1 Begin Read birth date Calculate Age = current year – birth date Display age End

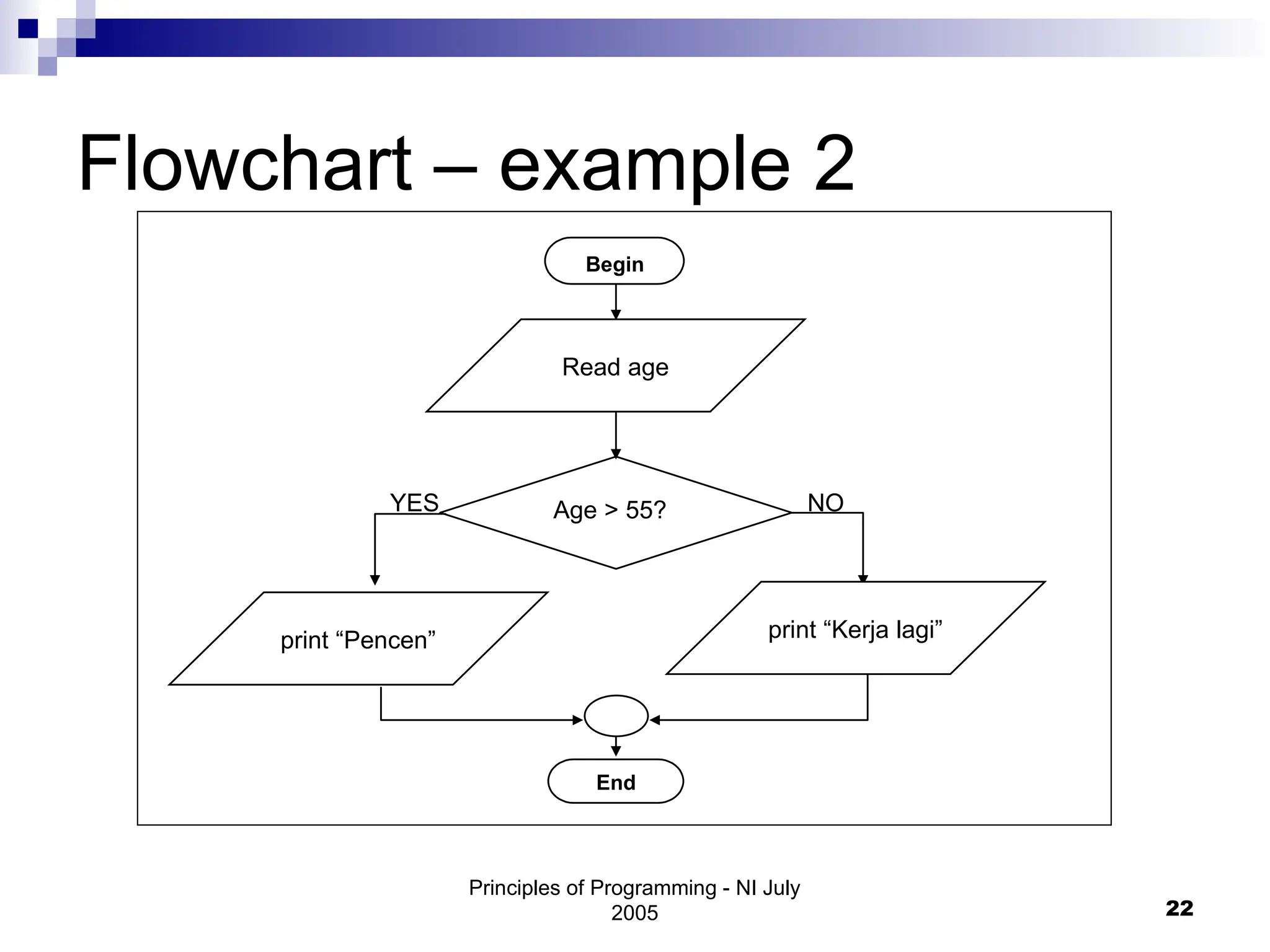

- 22. Principles of Programming- NI July 2005 22 Flowchart – example 2 Begin Read age End Age > 55? NO YES print “Pencen” print “Kerja lagi”

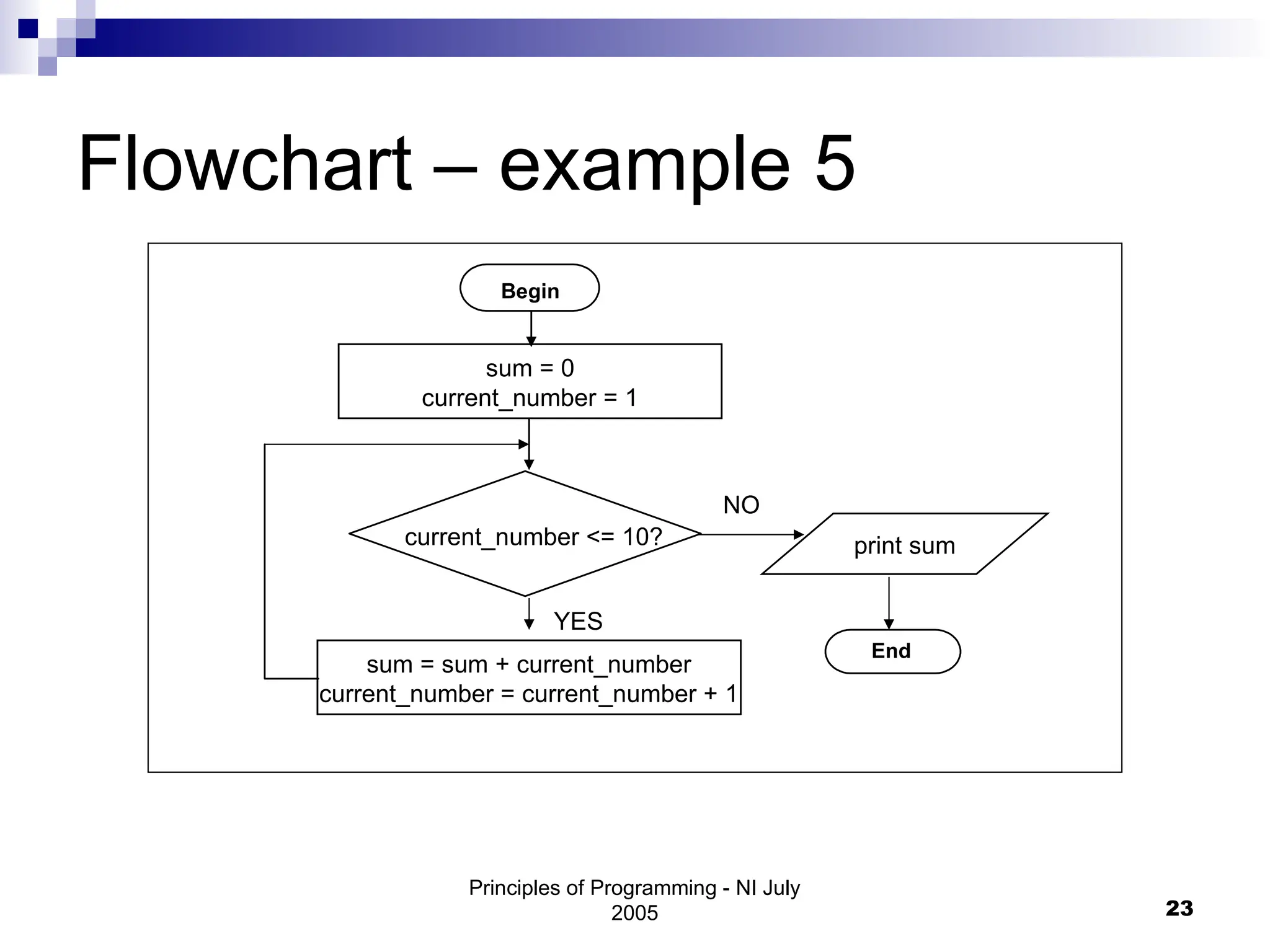

- 23. Principles of Programming- NI July 2005 23 Flowchart – example 5 Begin End current_number <= 10? NO YES sum = 0 current_number = 1 sum = sum + current_number current_number = current_number + 1 print sum

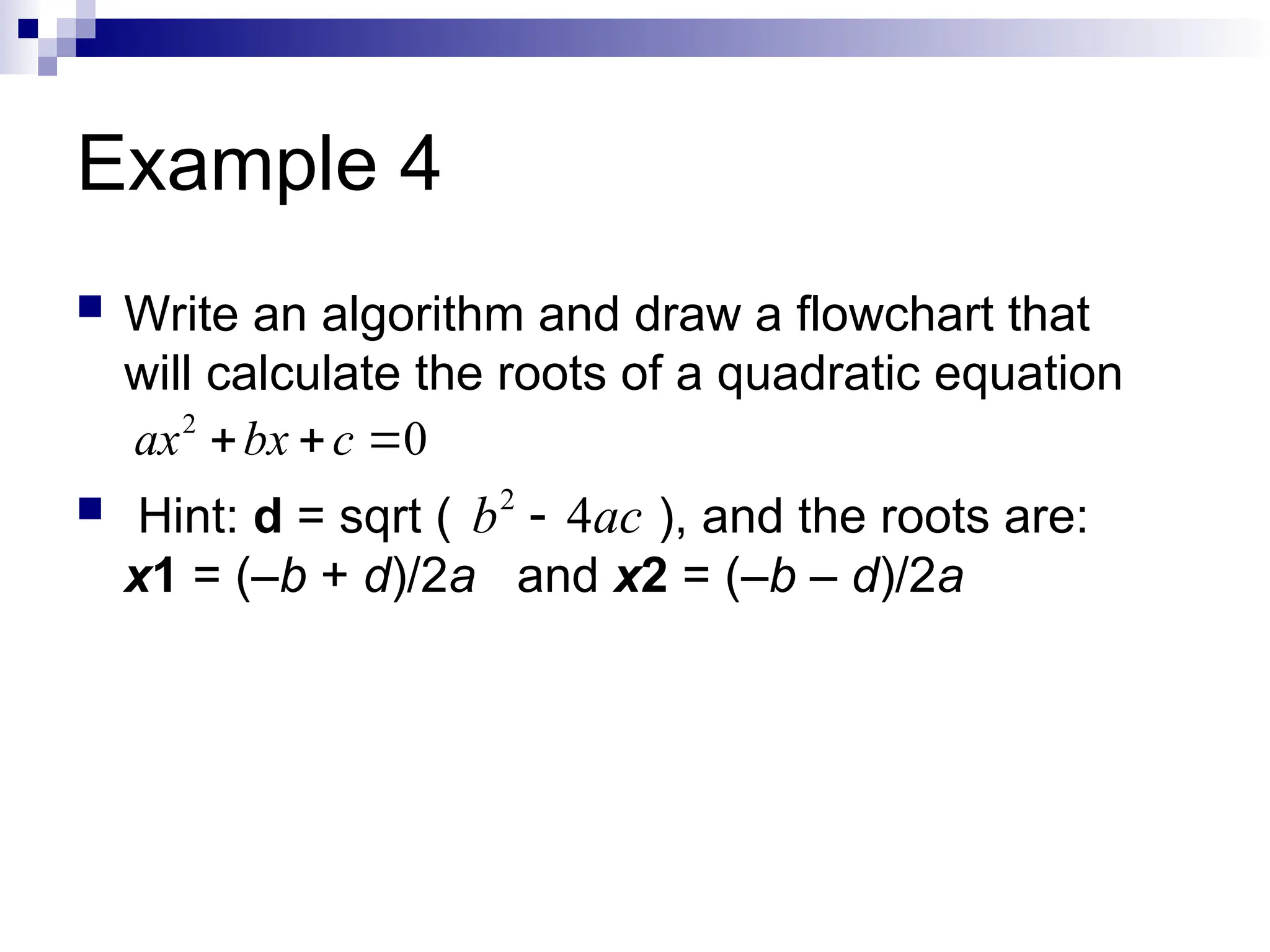

- 24. Example 4 Writean algorithm and draw a flowchart that will calculate the roots of a quadratic equation Hint: d = sqrt ( ), and the roots are: x1 = (–b + d)/2a and x2 = (–b – d)/2a 2 0 ax bx c 2 4 b ac

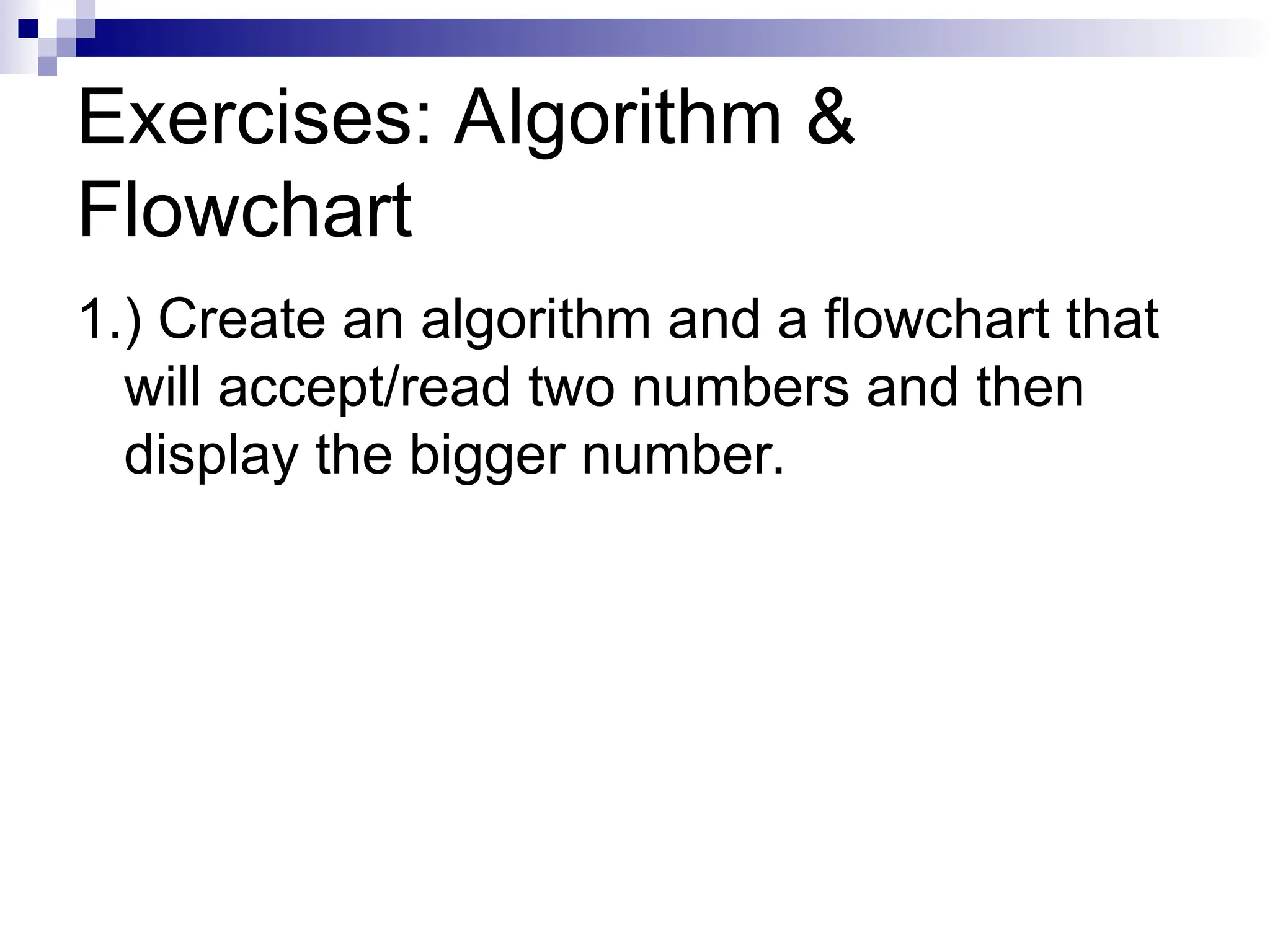

- 25. Exercises: Algorithm & Flowchart 1.)Create an algorithm and a flowchart that will accept/read two numbers and then display the bigger number.

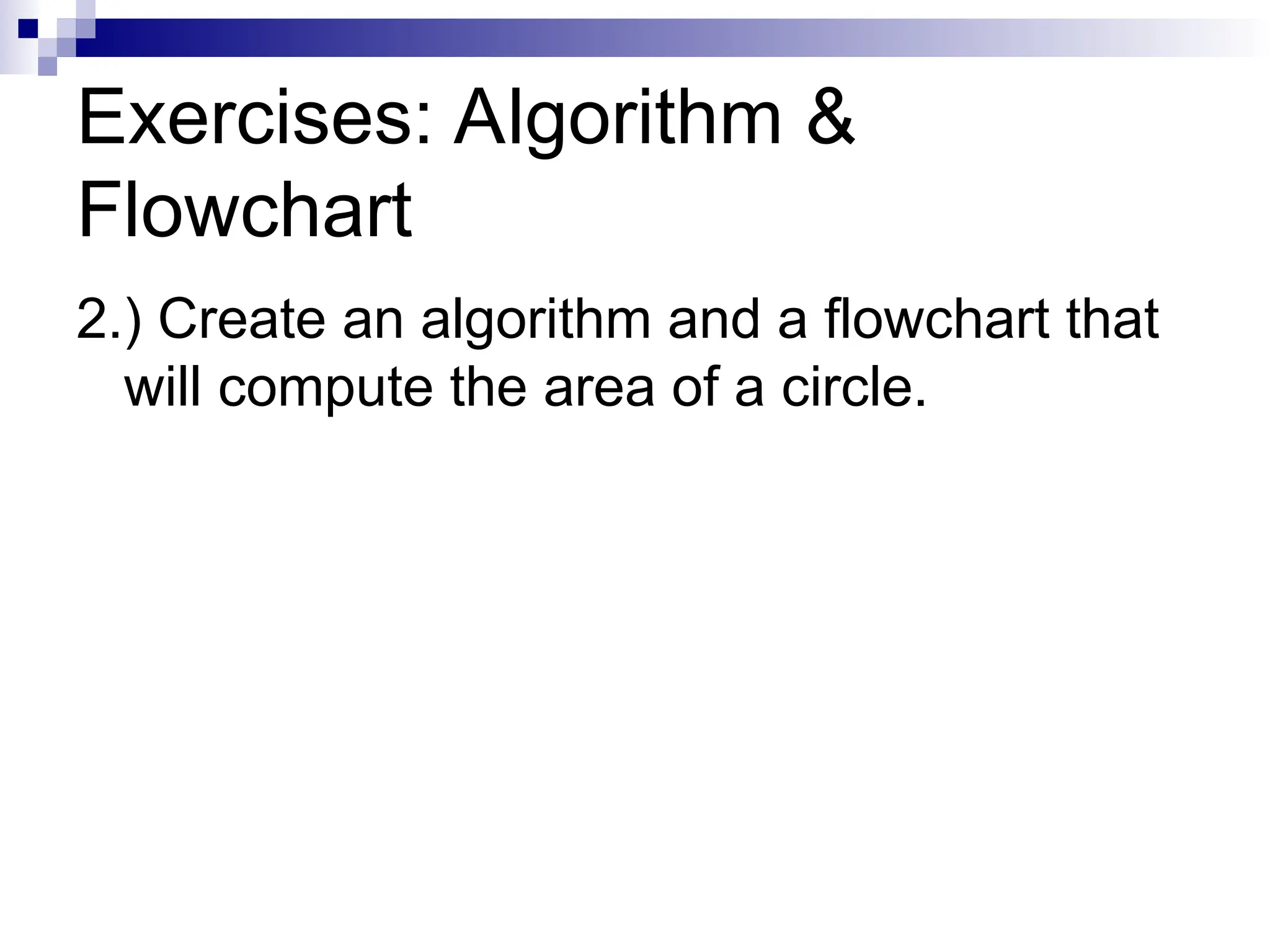

- 26. Exercises: Algorithm & Flowchart 2.)Create an algorithm and a flowchart that will compute the area of a circle.

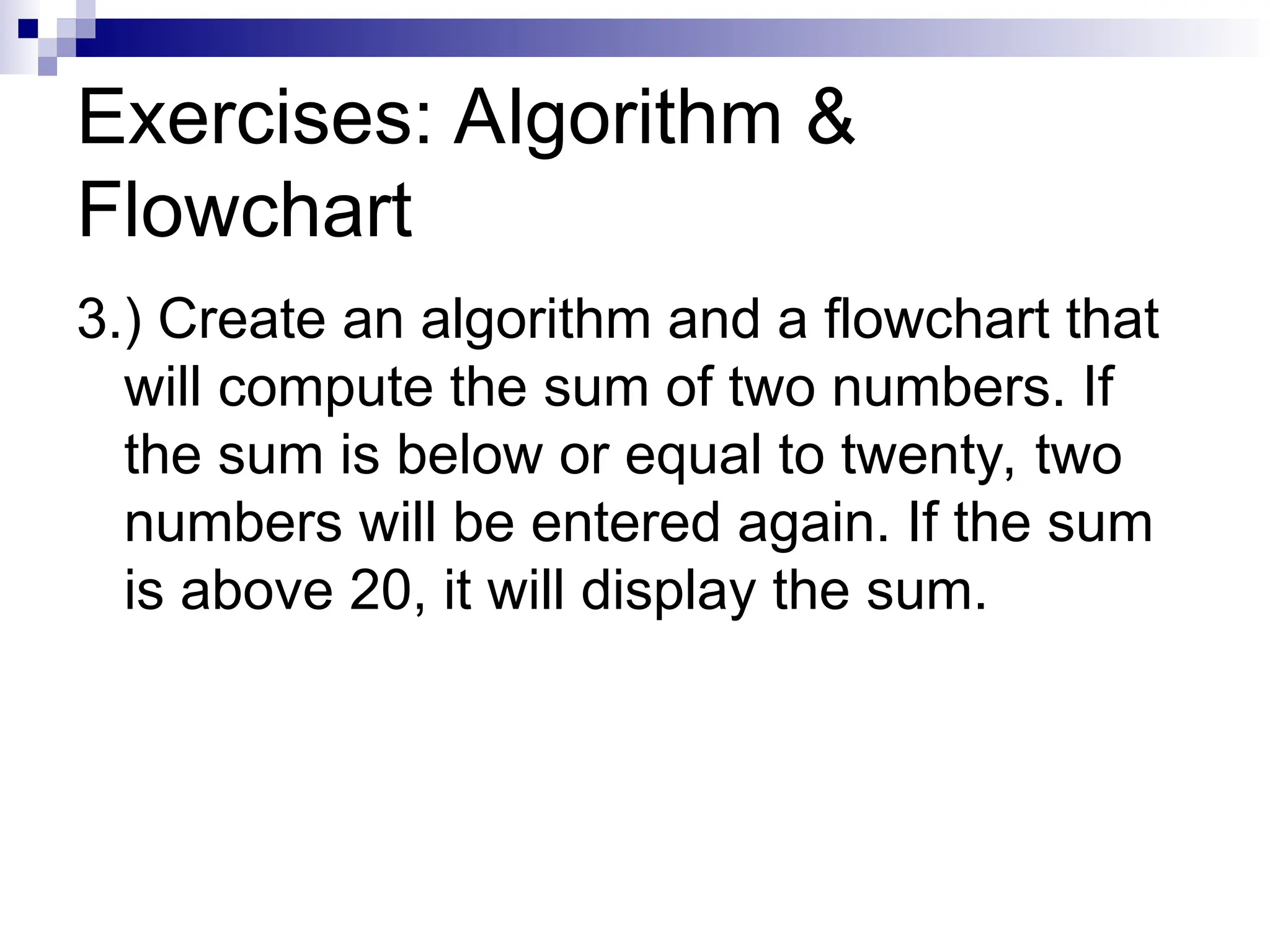

- 27. Exercises: Algorithm & Flowchart 3.)Create an algorithm and a flowchart that will compute the sum of two numbers. If the sum is below or equal to twenty, two numbers will be entered again. If the sum is above 20, it will display the sum.

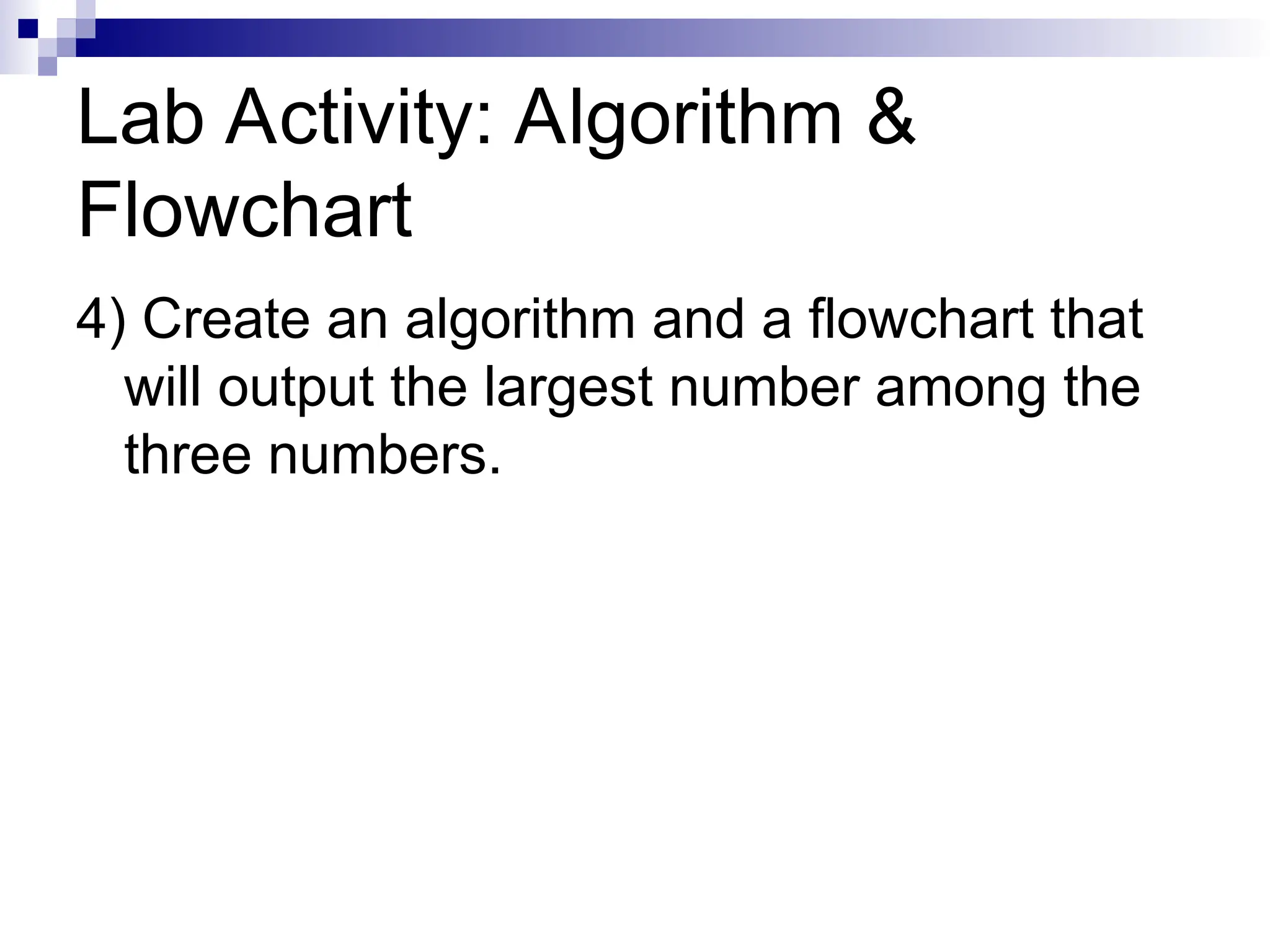

- 28. Lab Activity: Algorithm& Flowchart 4) Create an algorithm and a flowchart that will output the largest number among the three numbers.

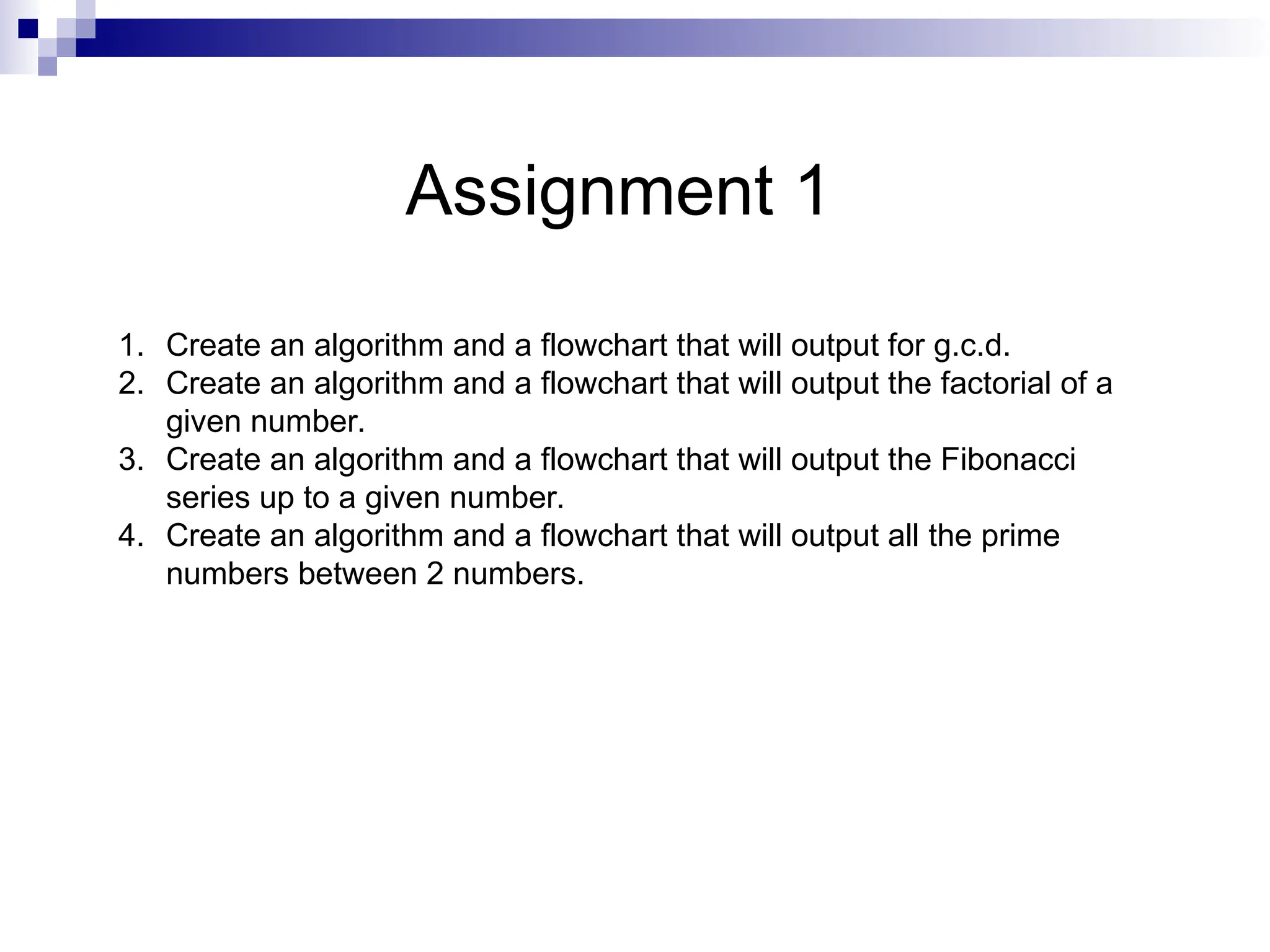

- 29. Assignment 1 1. Createan algorithm and a flowchart that will output for g.c.d. 2. Create an algorithm and a flowchart that will output the factorial of a given number. 3. Create an algorithm and a flowchart that will output the Fibonacci series up to a given number. 4. Create an algorithm and a flowchart that will output all the prime numbers between 2 numbers.
