Kubernetes and the NGINX Plus Ingress Controller
- 1. Welcome to TechTalks! Atlanta, Georgia Roger Cheeks May 2, 2018
- 2. Empowers the creatorsof the new Digital Worlds
- 4. 4 High Performance Webserverand Reverse Proxy Web Server
- 5. 5 Flawless Application Deliveryfor the Modern Web Load Balancer Content Cache Web Server Monitoring & Management Security Controls
- 6. NGINX Application Platform 6 A suite of technologiesto develop and deliver digital experiences that span from legacy, monolithic apps to modern, microservices apps.

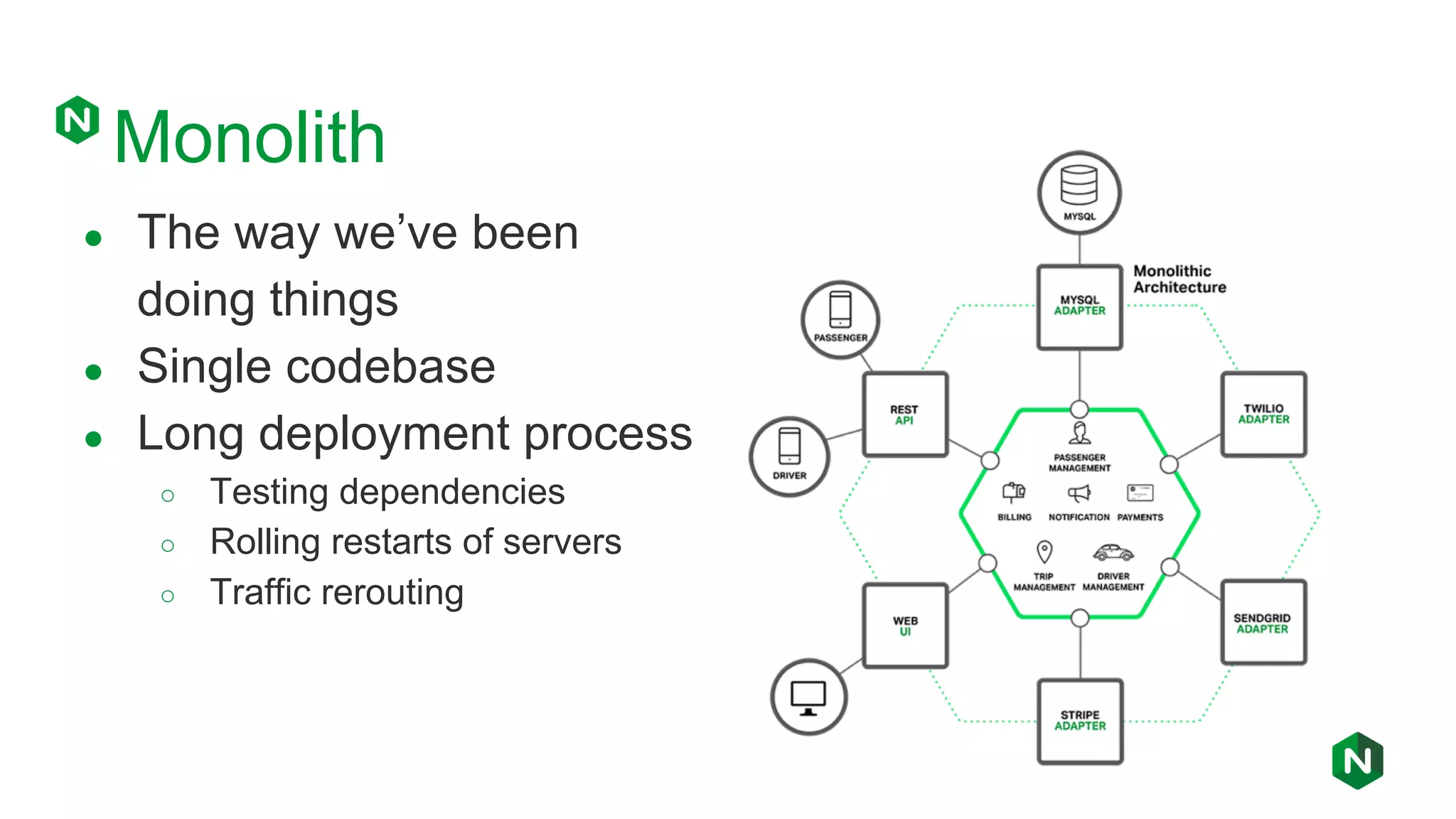

- 7. Monolith ● The waywe’ve been doing things ● Single codebase ● Long deployment process ○ Testing dependencies ○ Rolling restarts of servers ○ Traffic rerouting

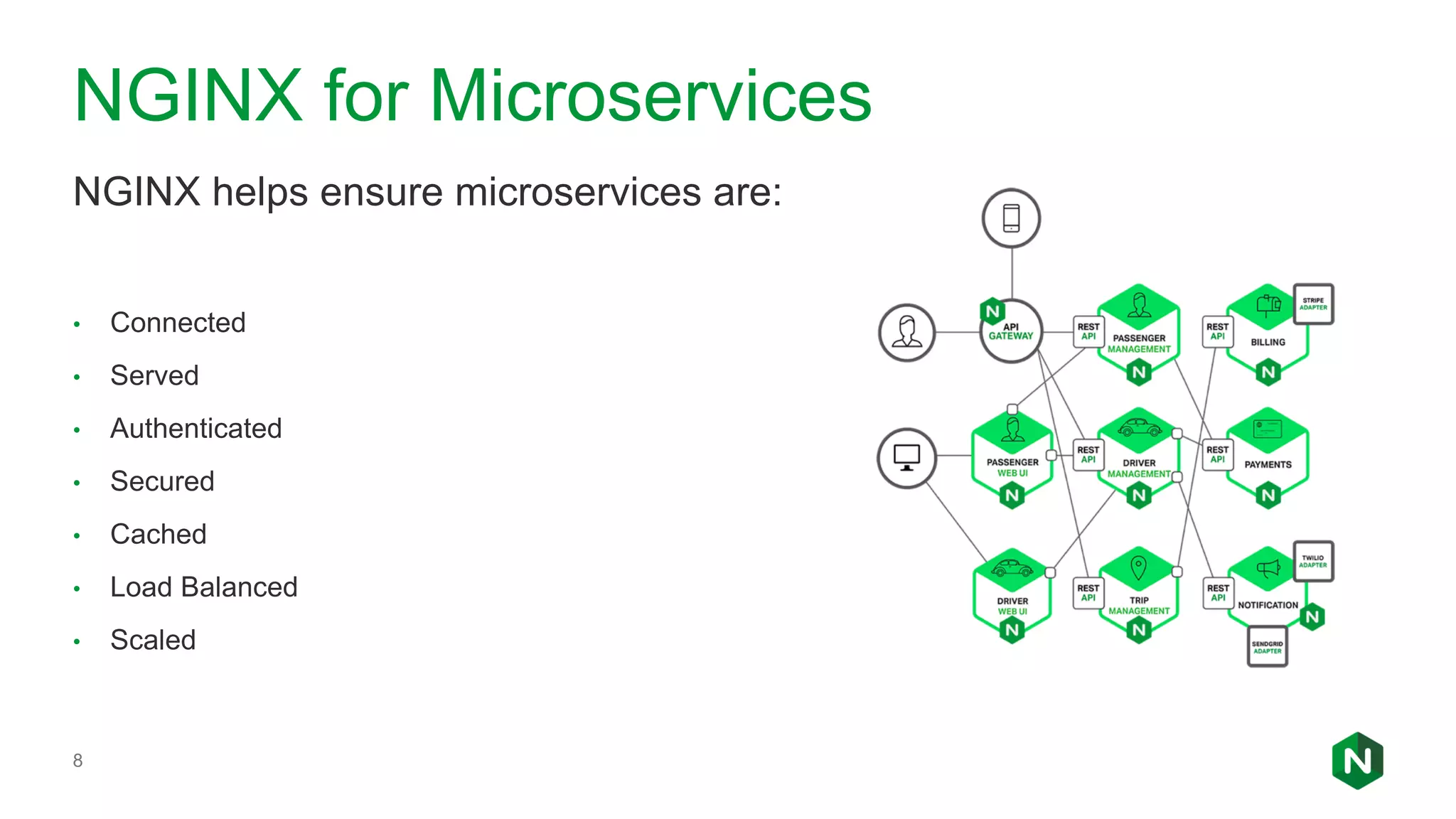

- 8. NGINX for Microservices 8 NGINXhelps ensure microservices are: • Connected • Served • Authenticated • Secured • Cached • Load Balanced • Scaled

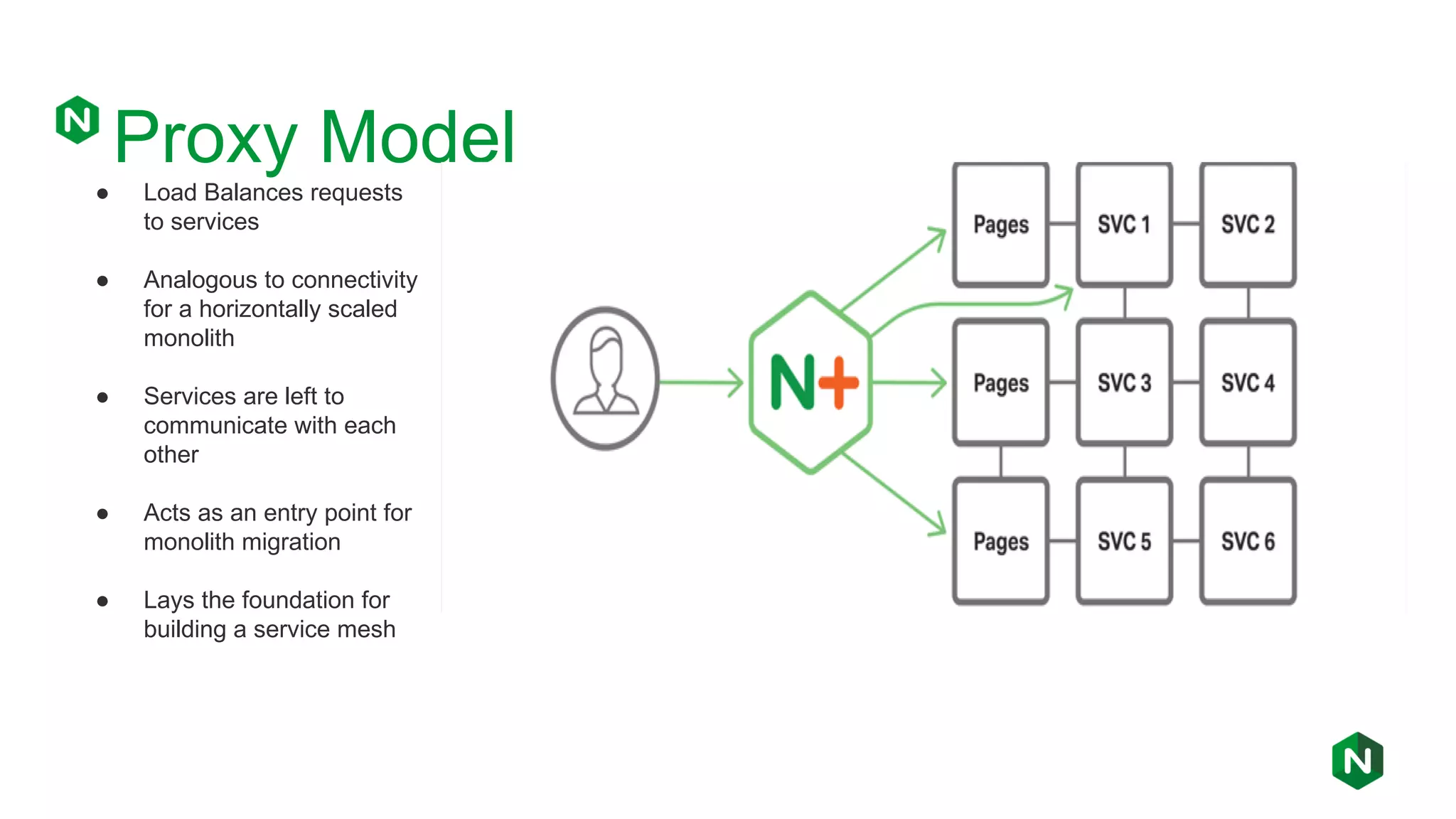

- 9. Proxy Model ● LoadBalances requests to services ● Analogous to connectivity for a horizontally scaled monolith ● Services are left to communicate with each other ● Acts as an entry point for monolith migration ● Lays the foundation for building a service mesh

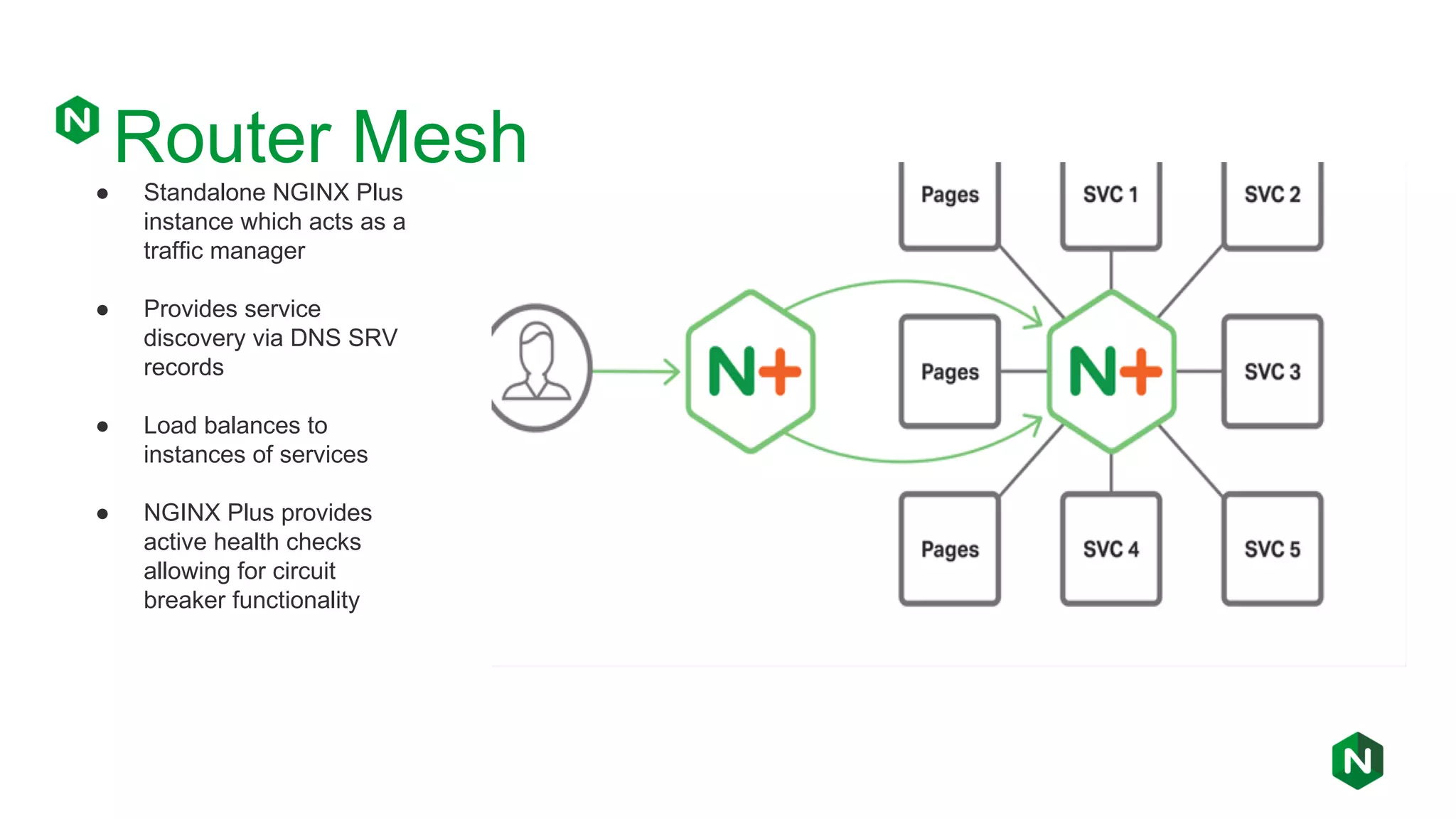

- 10. Router Mesh ● StandaloneNGINX Plus instance which acts as a traffic manager ● Provides service discovery via DNS SRV records ● Load balances to instances of services ● NGINX Plus provides active health checks allowing for circuit breaker functionality

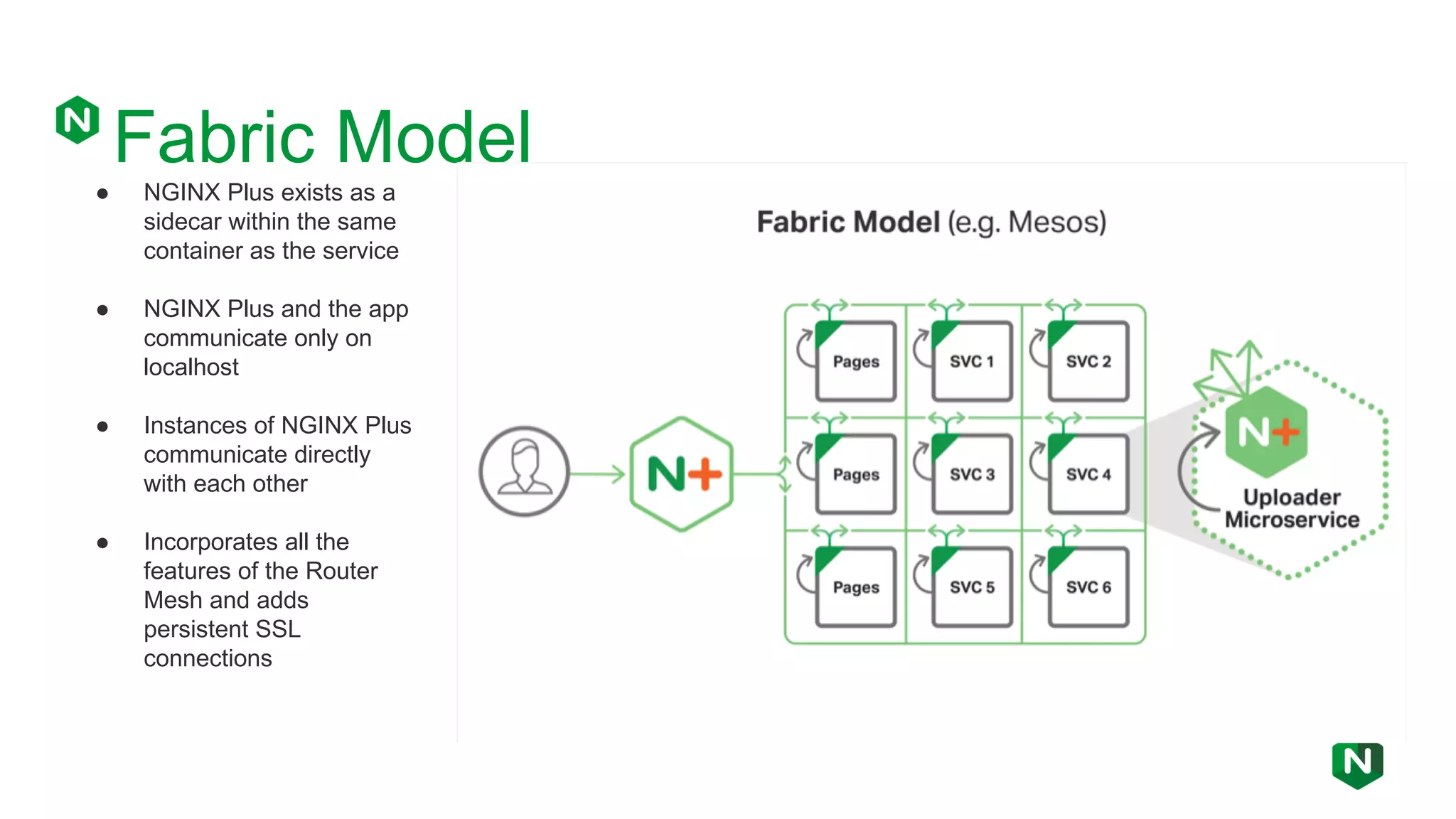

- 11. Fabric Model ● NGINXPlus exists as a sidecar within the same container as the service ● NGINX Plus and the app communicate only on localhost ● Instances of NGINX Plus communicate directly with each other ● Incorporates all the features of the Router Mesh and adds persistent SSL connections
- 12. Persistent SSL Connections ●An SSL handshake requires as few as seven steps or as many as 10 ● NGINX Plus uses a keepalive mechanism to persist connections between instances ● The number of handshakes is greatly reduced, thereby decreasing overall latency while maintaining encrypted transmission 1 SYN > 2 < SYN/ACK 3 ACK > 4 ClientHello > 5 < ServerHello < Certificate < ServerKeyExchange < ServerHelloDone 6 ClientKeyExchange > ChangeCipherSpec >ClientFinished > 7 < ChangeCipherSpec < ServerFinished
- 13.
- 14.
- 15. 15 Kubernetes is systemfor automating deployment, scaling, and management of containerized applications
- 16. Kubernetes makes opseasy… • Run anywhere • Rolling updates • Fault Tolerant • Horizontally scalable • Simple Load Balancing • YAML… and more! 16

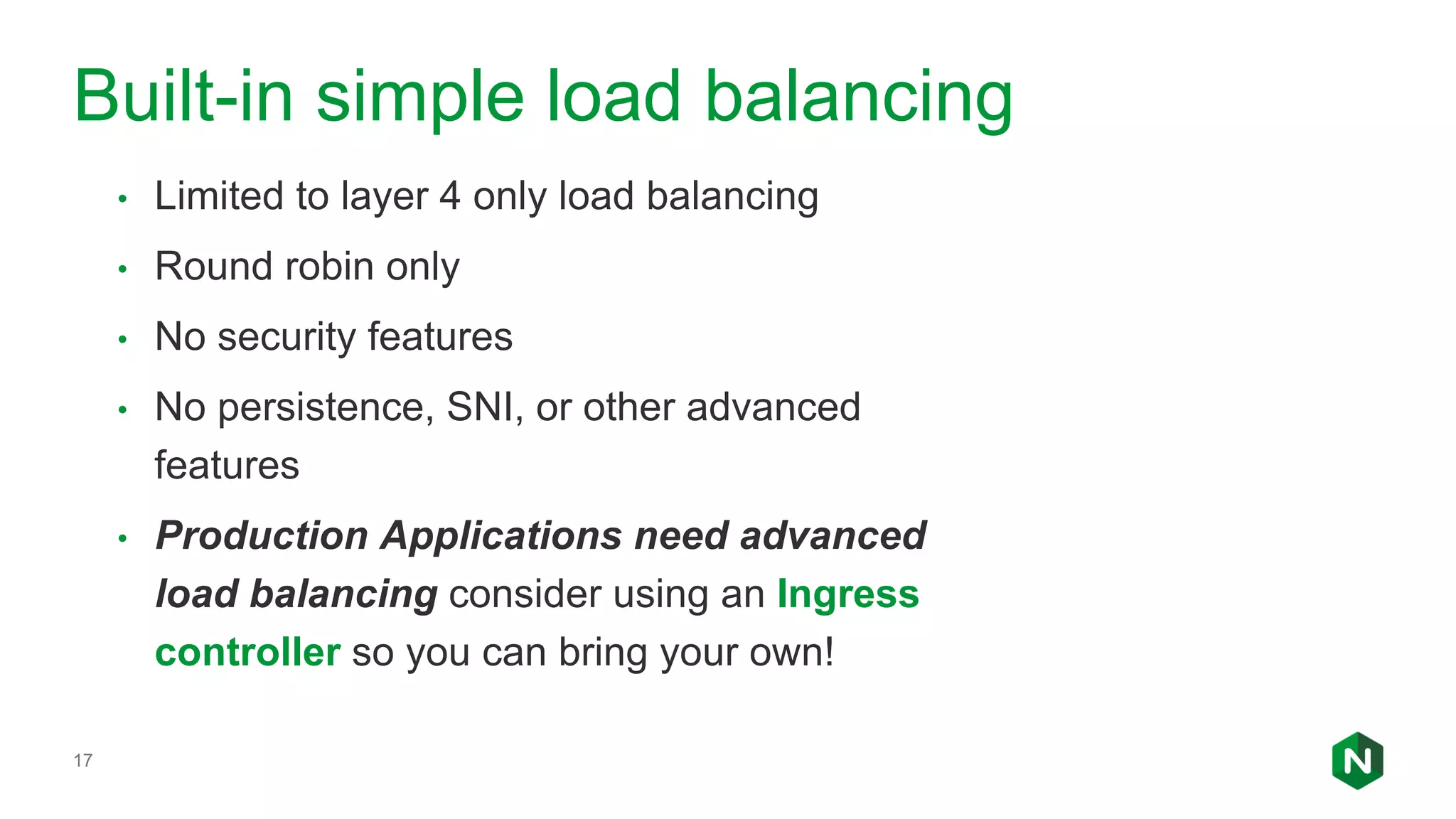

- 17. 17 • Limited tolayer 4 only load balancing • Round robin only • No security features • No persistence, SNI, or other advanced features • Production Applications need advanced load balancing consider using an Ingress controller so you can bring your own! Built-in simple load balancing
- 18. Why use anIngress?
- 19. 19 Ingress • Kubernetes resource •Benefits • Externally reachable URLs • Advanced L7 Load Balancing • SSL/TLS • SNI (hostname based routing) • Security features
- 20. 20 Ingress Example –Basic
- 21. 21 Ingress Example –URL based routing

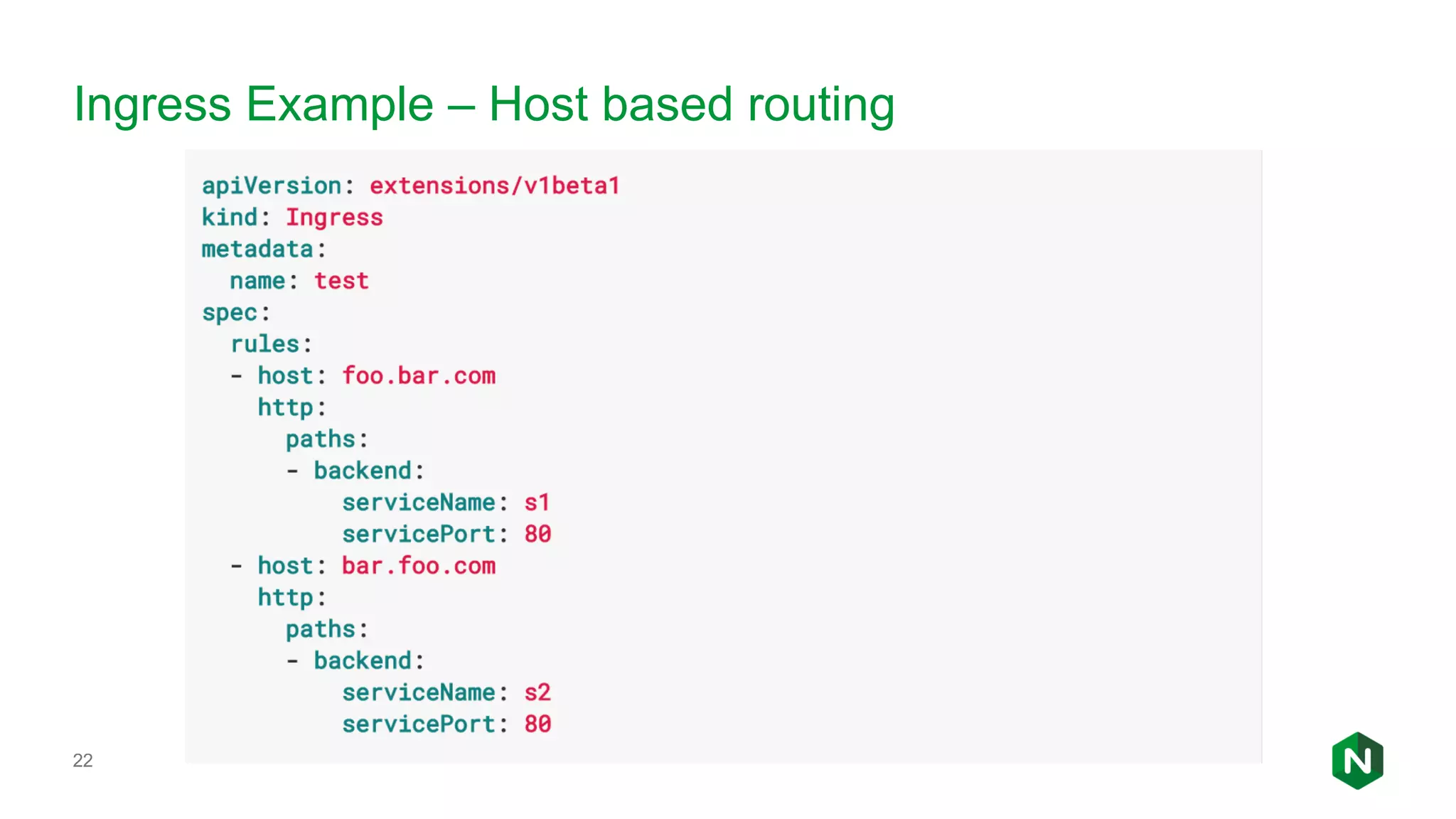

- 22. 22 Ingress Example –Host based routing
- 23. 23 Ingress Example –SSL offloading
- 24. Deploying NGINX Plusas an Ingress Controller
- 25. NGINX Plus 25 NGINX Plus •Load balancing w/ SSL/TLS termination • WebSocket and HTTP/2 support • Layer 7 Routing / Modification • Session persistence • JWT authentication • 24/7 support, no additional cost • Advanced Monitoring… and more!

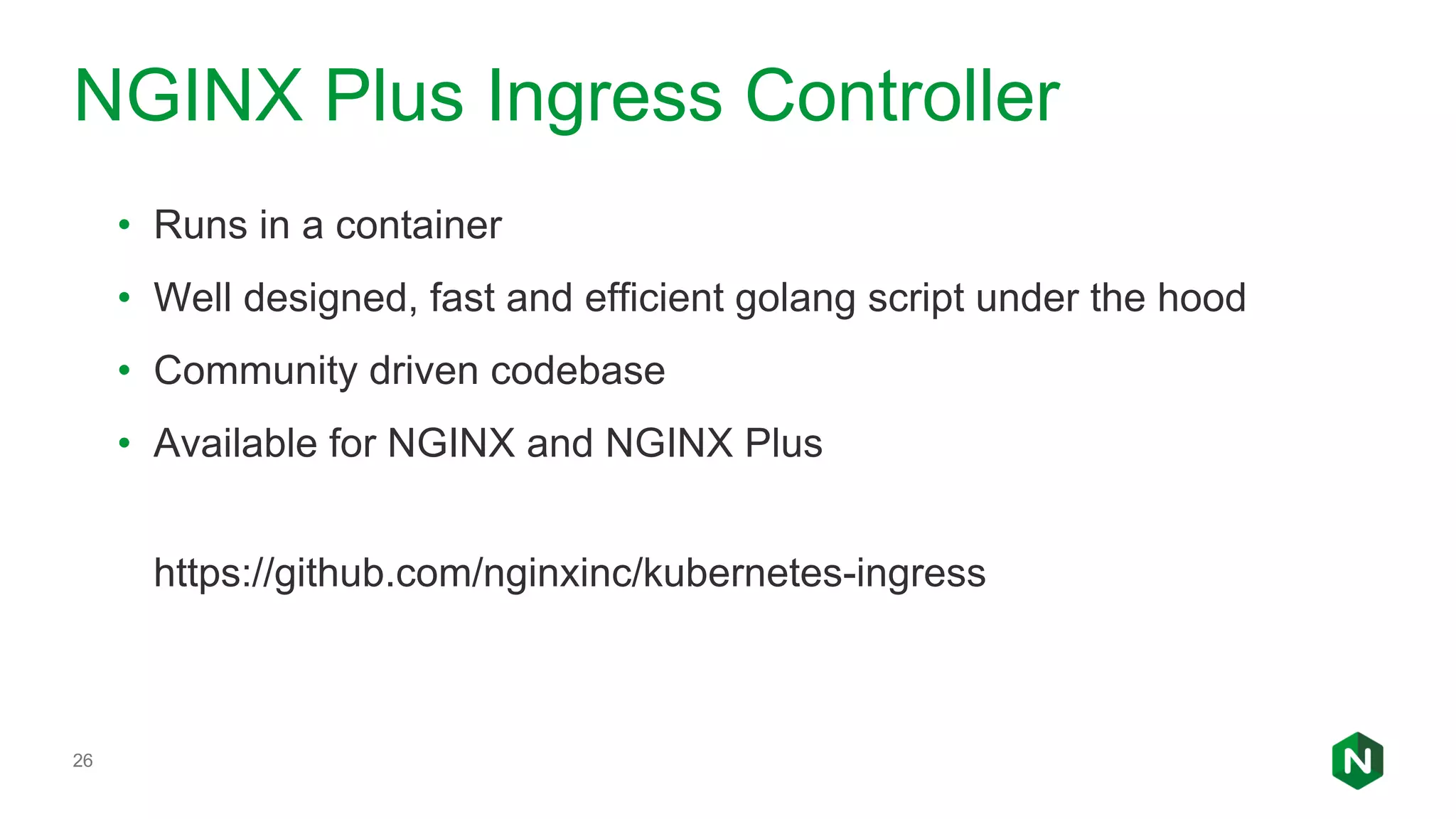

- 26. 26 NGINX Plus IngressController • Runs in a container • Well designed, fast and efficient golang script under the hood • Community driven codebase • Available for NGINX and NGINX Plus https://github.com/nginxinc/kubernetes-ingress
- 27. 27 NGINX Plus IngressController
- 28. Configuring NGINX Pluswithout Ingress
- 29. 29 Data store +template • Register services with a data store (aka etcd or consul) • Template the NGINX configuration and manage NGINX service via CLI (confd or consul template) datastore Services (containers) NGINX Open Source
- 30. 30 We love APIs! •Services availability is managed by kubernetes and available via API • Orchestration script can be in any language • NGINX Plus upstreams managed dynamically without configuration reload Services (containers) NGINX Plus API Kubernetes API Orchestration (script)
- 31. 31 Service Discovery ;D •Built in DNS resolver • Control over TTL • Easily Integrates with existing DNS based service discovery tools
- 32. 32 My demo today… •URL based routing • Hostname based routing • SSL termination at LB • Support for scaling of replicas at LB via dynamic reconfiguration • Available on github within the Ingress Controller repository ../examples/complete-example/
- 33. 33 Café Simulation • Caféthemed application • Two services (URL routing) ◦ /Tea ◦ /Coffee
- 34.
- 35. Get a NGINXPlus developer license now! Link: https://www.nginx.com/developer-license PW: k8sontop18
- 36. Roger Cheeks roger.cheeks@nginx.com Thank You! Learnmore at nginx.com
