Java FX 2.0 - A Developer's Guide

JavaFX 2.0 – A Java Developer's Guide Stephen Chin Chief Agile Methodologist, GXS http://steveonjava.com @steveonjava Peter Pilgrim Oracle Java Champion http://www.xenonique.co.uk/blog/ @peter_pilgrim

Meet the Presenters Stephen Chin Peter Pilgrim @steveonjava @peter_pilgrim Football, Music & Partner Family Man Motorcyclist

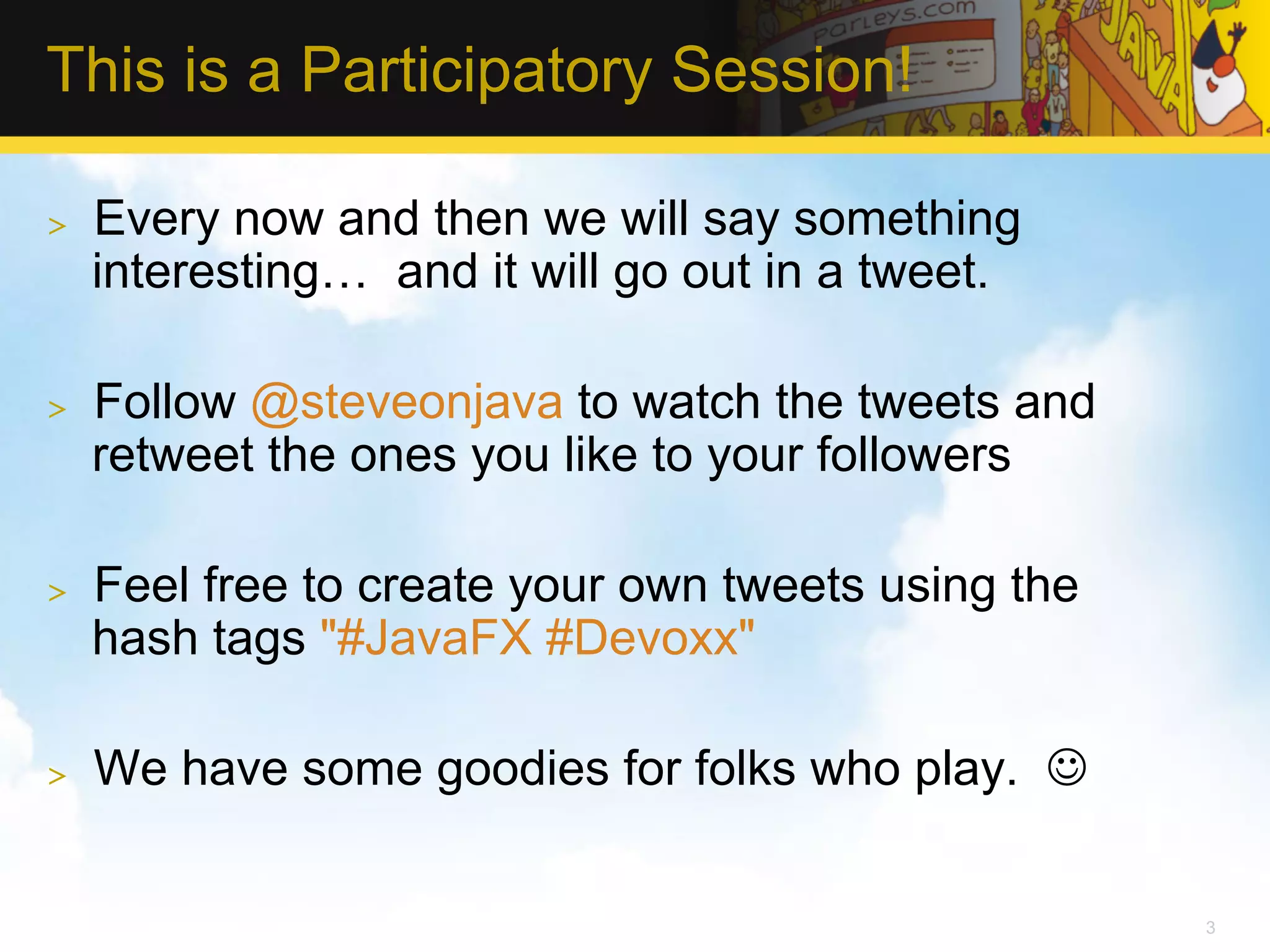

This is a Participatory Session! >  Every now and then we will say something interesting… and it will go out in a tweet. >  Follow @steveonjava to watch the tweets and retweet the ones you like to your followers >  Feel free to create your own tweets using the hash tags "#JavaFX #Devoxx" >  We have some goodies for folks who play. J 3

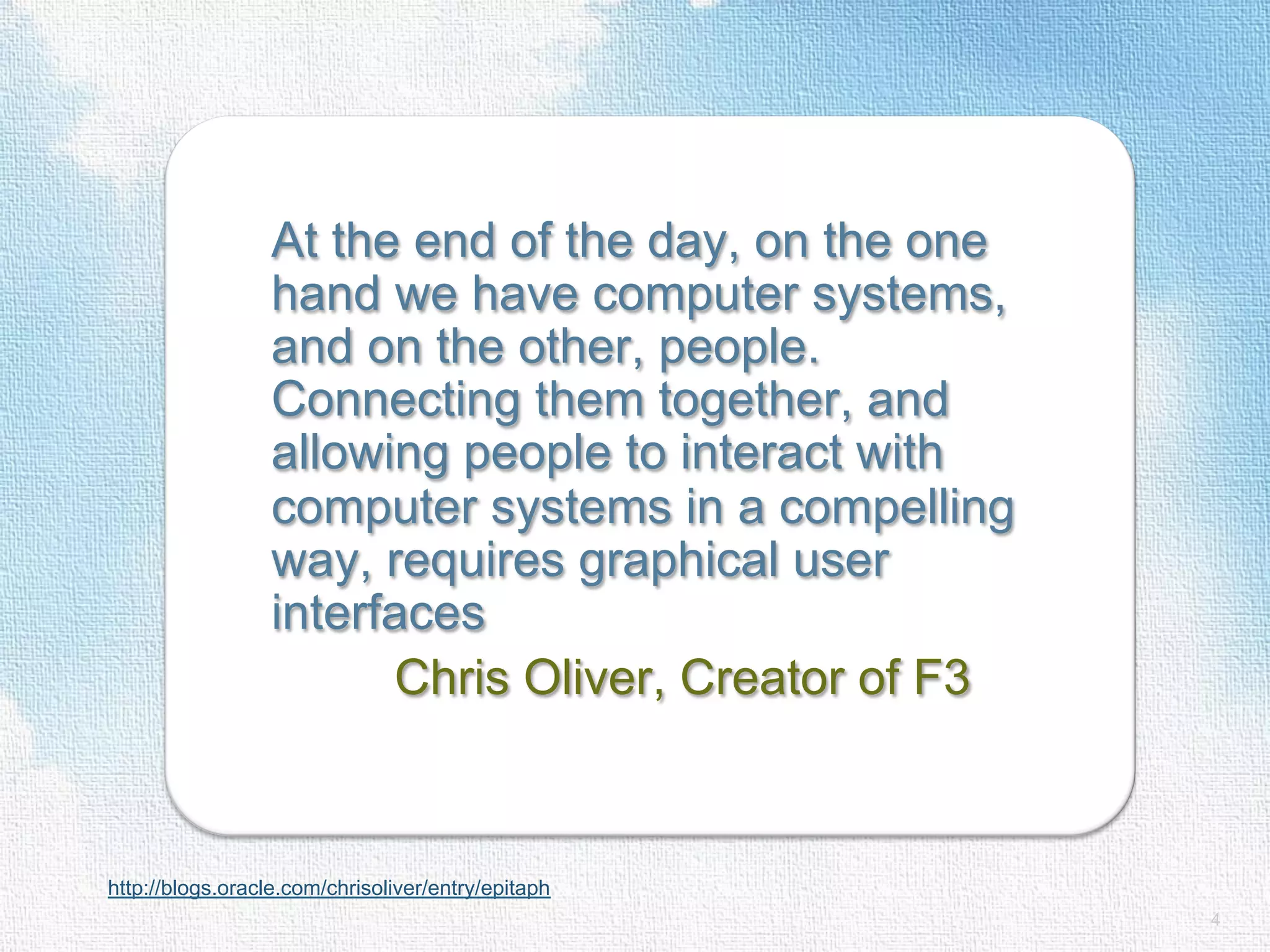

At the end of the day, on the one hand we have computer systems, and on the other, people. Connecting them together, and allowing people to interact with computer systems in a compelling way, requires graphical user interfaces Chris Oliver, Creator of F3 http://blogs.oracle.com/chrisoliver/entry/epitaph 4

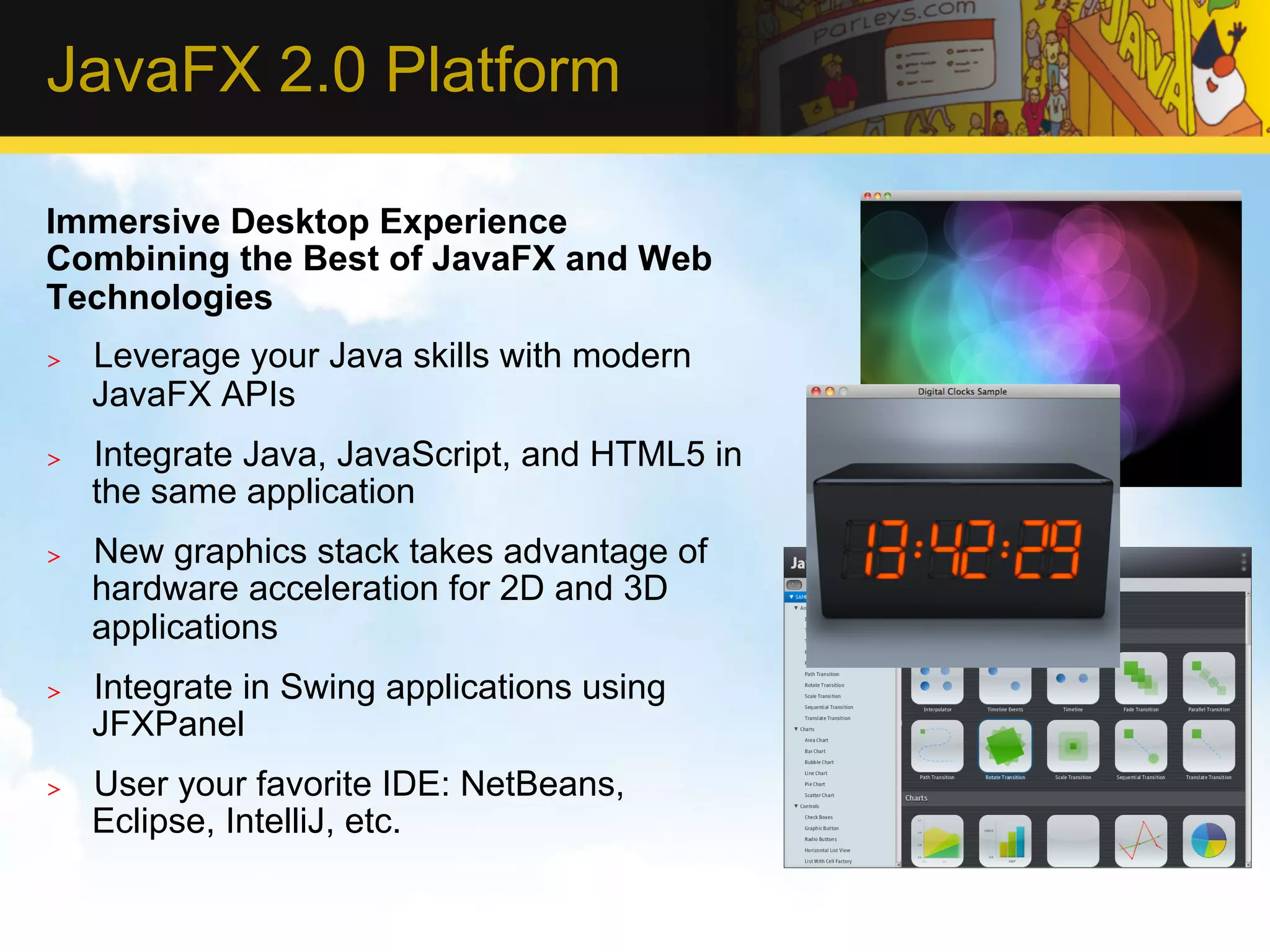

JavaFX 2.0 Platform Immersive Desktop Experience Combining the Best of JavaFX and Web Technologies >  Leverage your Java skills with modern JavaFX APIs >  Integrate Java, JavaScript, and HTML5 in the same application >  New graphics stack takes advantage of hardware acceleration for 2D and 3D applications >  Integrate in Swing applications using JFXPanel >  User your favorite IDE: NetBeans, Eclipse, IntelliJ, etc.

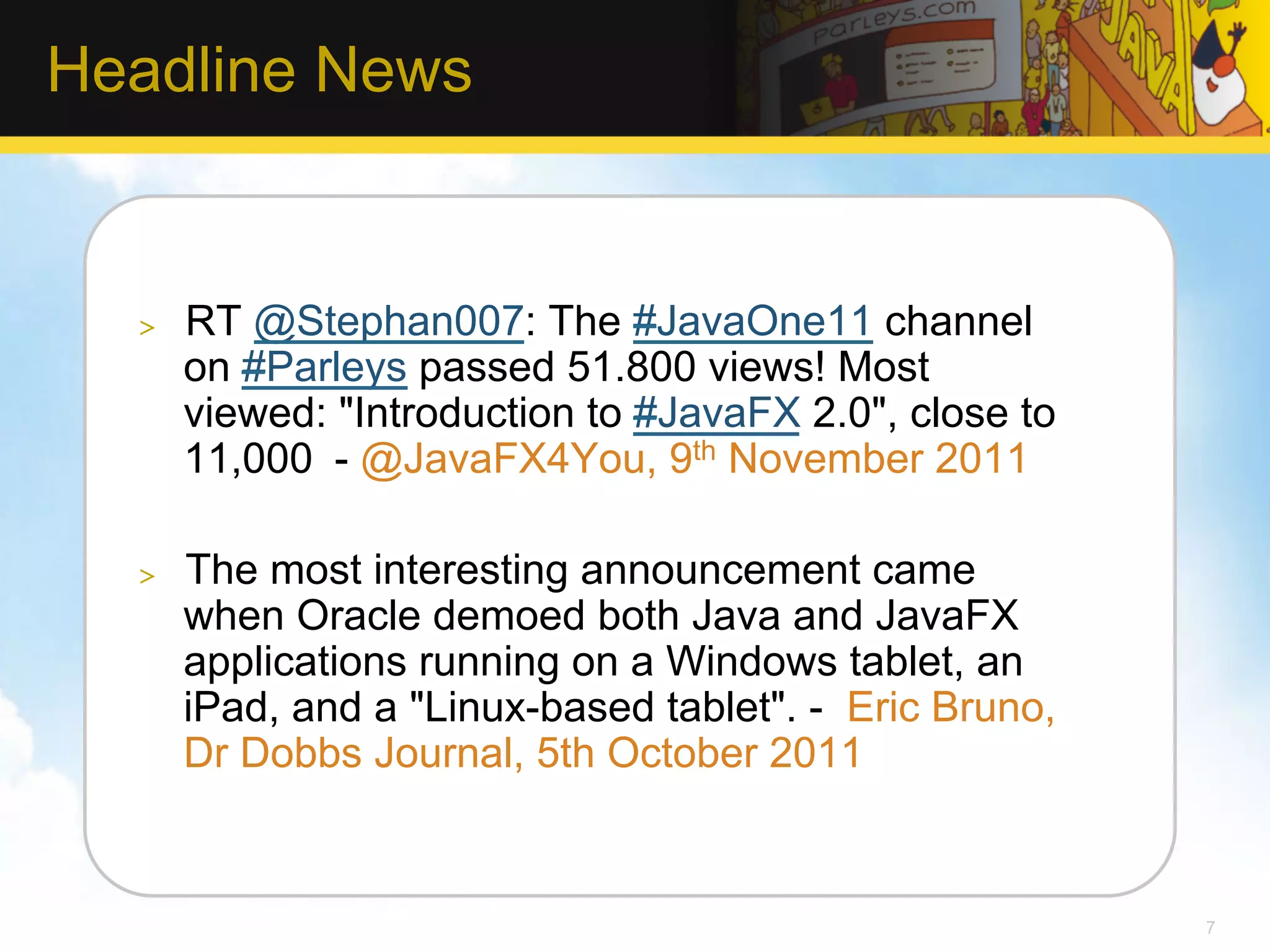

Headline News >  RT @Stephan007: The #JavaOne11 channel on #Parleys passed 51.800 views! Most viewed: "Introduction to #JavaFX 2.0", close to 11,000 - @JavaFX4You, 9th November 2011 >  The most interesting announcement came when Oracle demoed both Java and JavaFX applications running on a Windows tablet, an iPad, and a "Linux-based tablet". - Eric Bruno, Dr Dobbs Journal, 5th October 2011 7

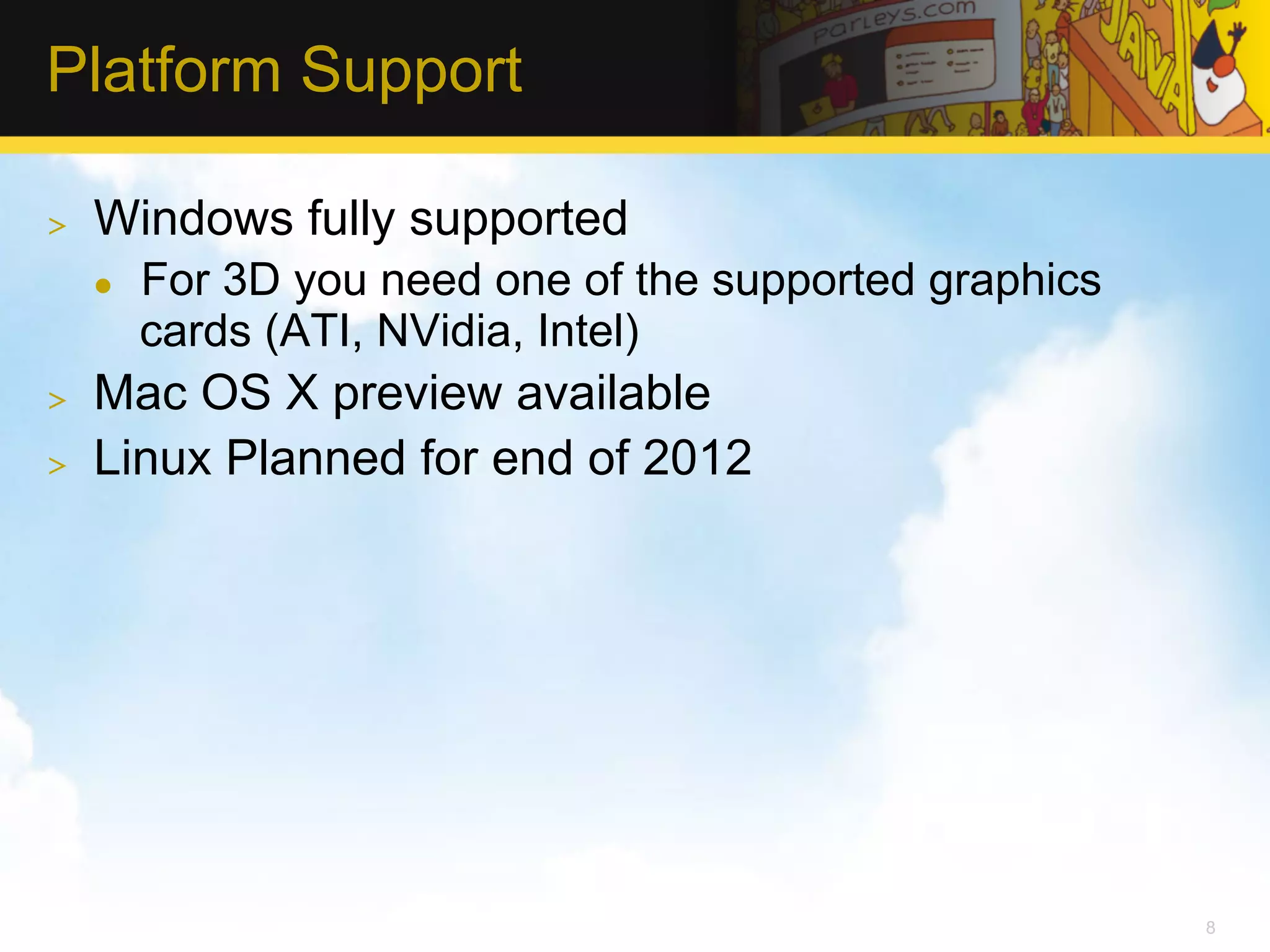

Platform Support >  Windows fully supported l  For 3D you need one of the supported graphics cards (ATI, NVidia, Intel) >  Mac OS X preview available >  Linux Planned for end of 2012 8

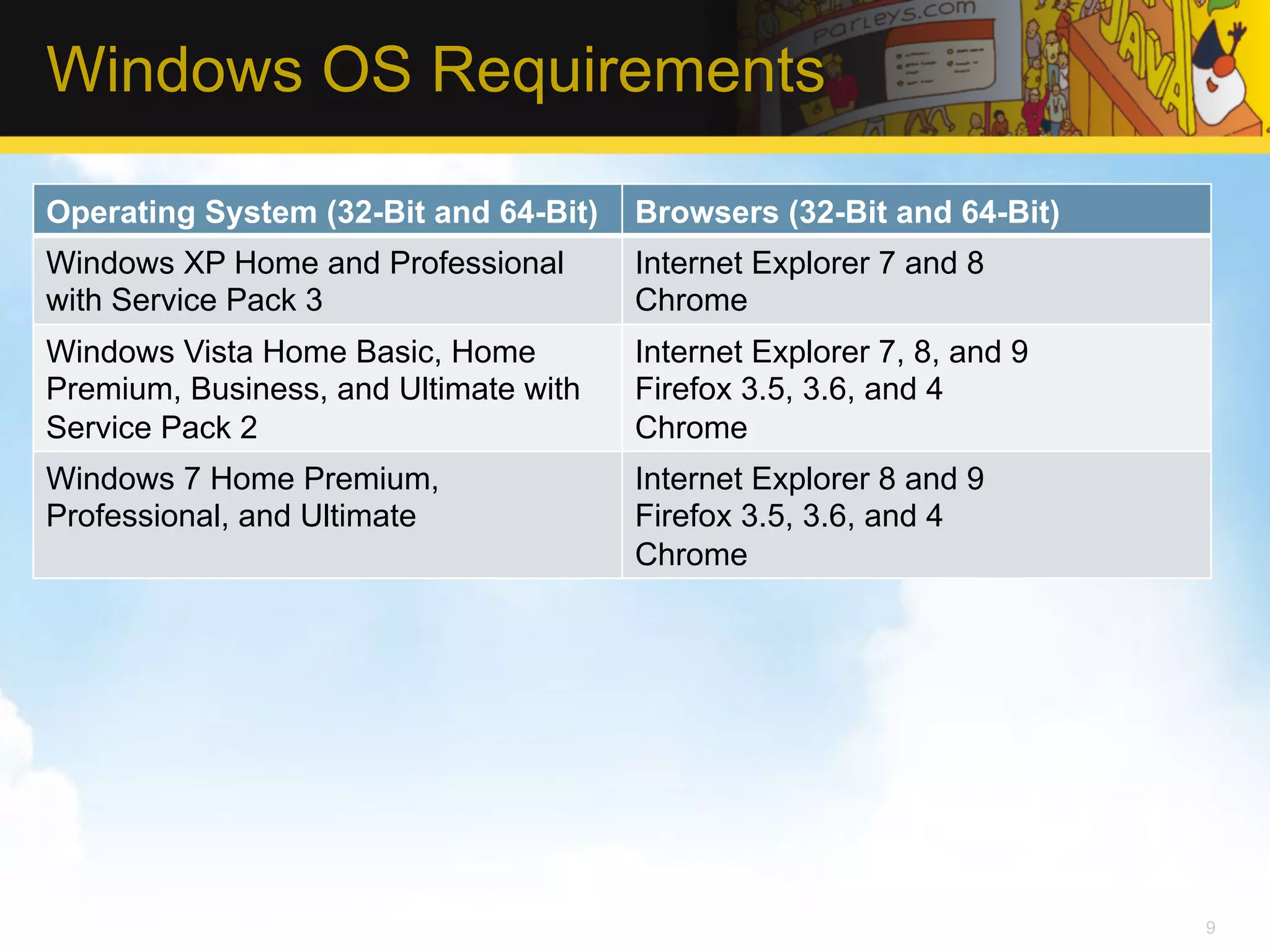

Windows OS Requirements Operating System (32-Bit and 64-Bit) Browsers (32-Bit and 64-Bit) Windows XP Home and Professional Internet Explorer 7 and 8 with Service Pack 3 Chrome Windows Vista Home Basic, Home Internet Explorer 7, 8, and 9 Premium, Business, and Ultimate with Firefox 3.5, 3.6, and 4 Service Pack 2 Chrome Windows 7 Home Premium, Internet Explorer 8 and 9 Professional, and Ultimate Firefox 3.5, 3.6, and 4 Chrome 9

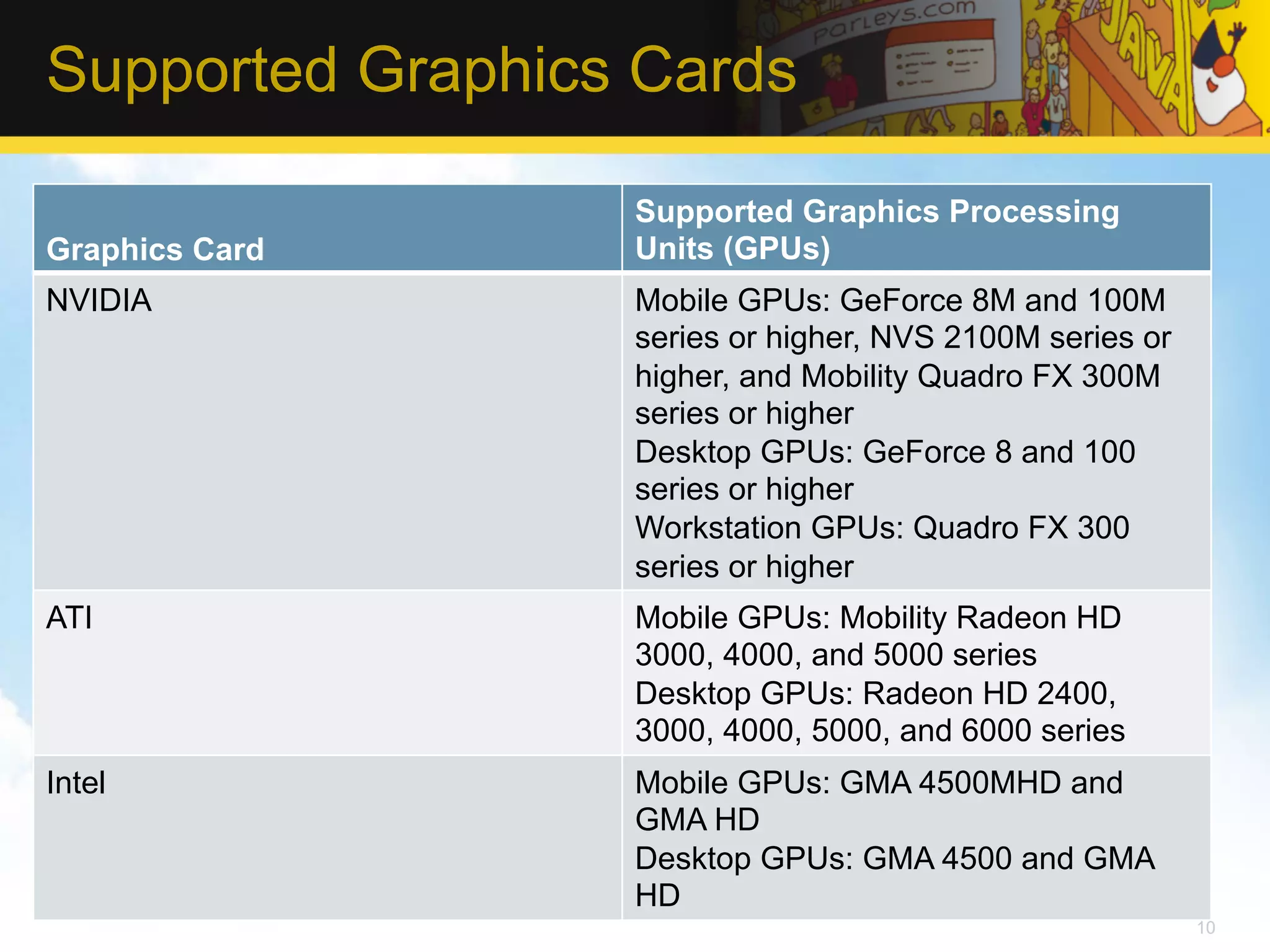

Supported Graphics Cards Supported Graphics Processing Graphics Card Units (GPUs) NVIDIA Mobile GPUs: GeForce 8M and 100M series or higher, NVS 2100M series or higher, and Mobility Quadro FX 300M series or higher Desktop GPUs: GeForce 8 and 100 series or higher Workstation GPUs: Quadro FX 300 series or higher ATI Mobile GPUs: Mobility Radeon HD 3000, 4000, and 5000 series Desktop GPUs: Radeon HD 2400, 3000, 4000, 5000, and 6000 series Intel Mobile GPUs: GMA 4500MHD and GMA HD Desktop GPUs: GMA 4500 and GMA HD 10

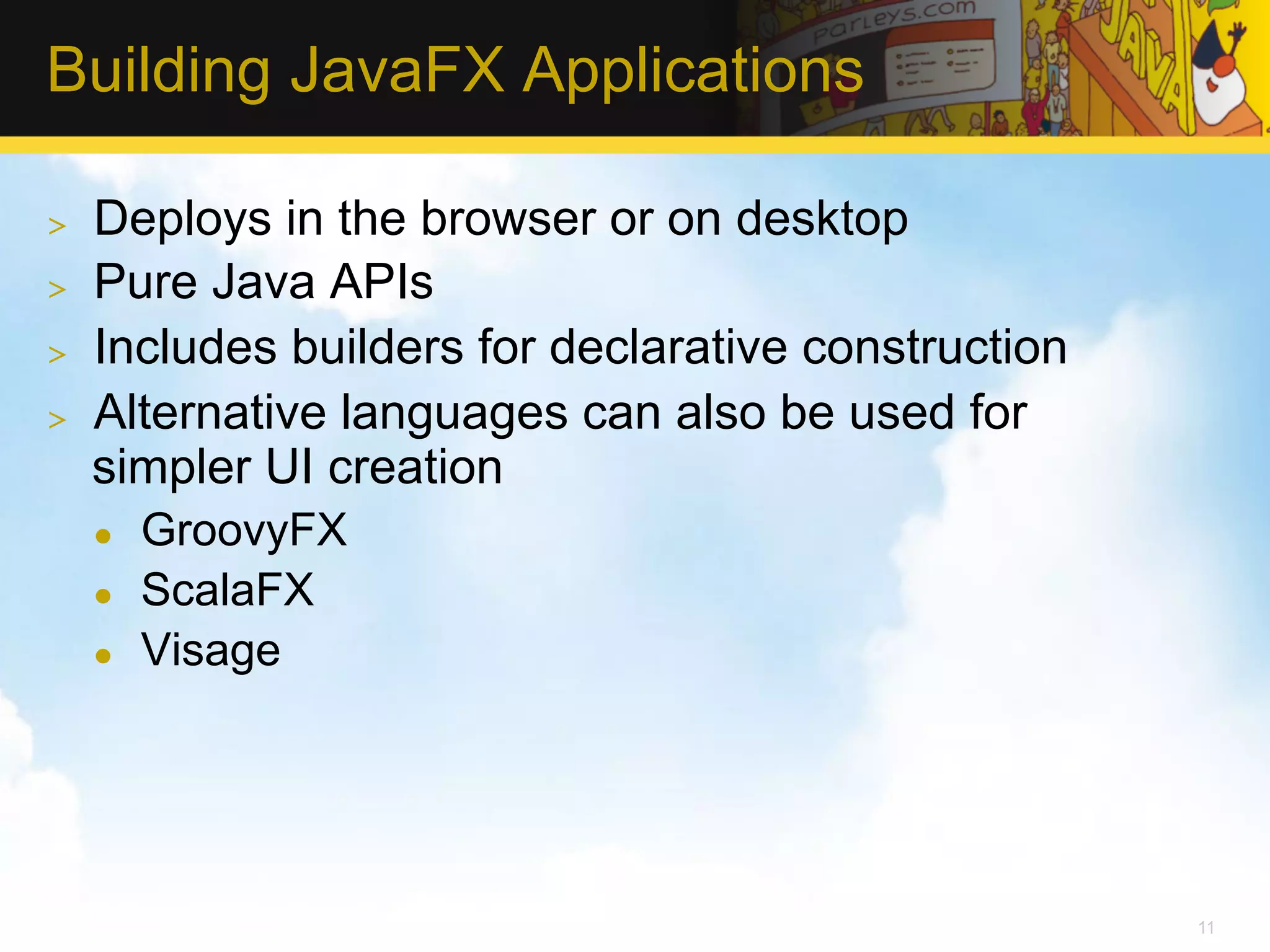

Building JavaFX Applications >  Deploys in the browser or on desktop >  Pure Java APIs >  Includes builders for declarative construction >  Alternative languages can also be used for simpler UI creation l  GroovyFX l  ScalaFX l  Visage 11

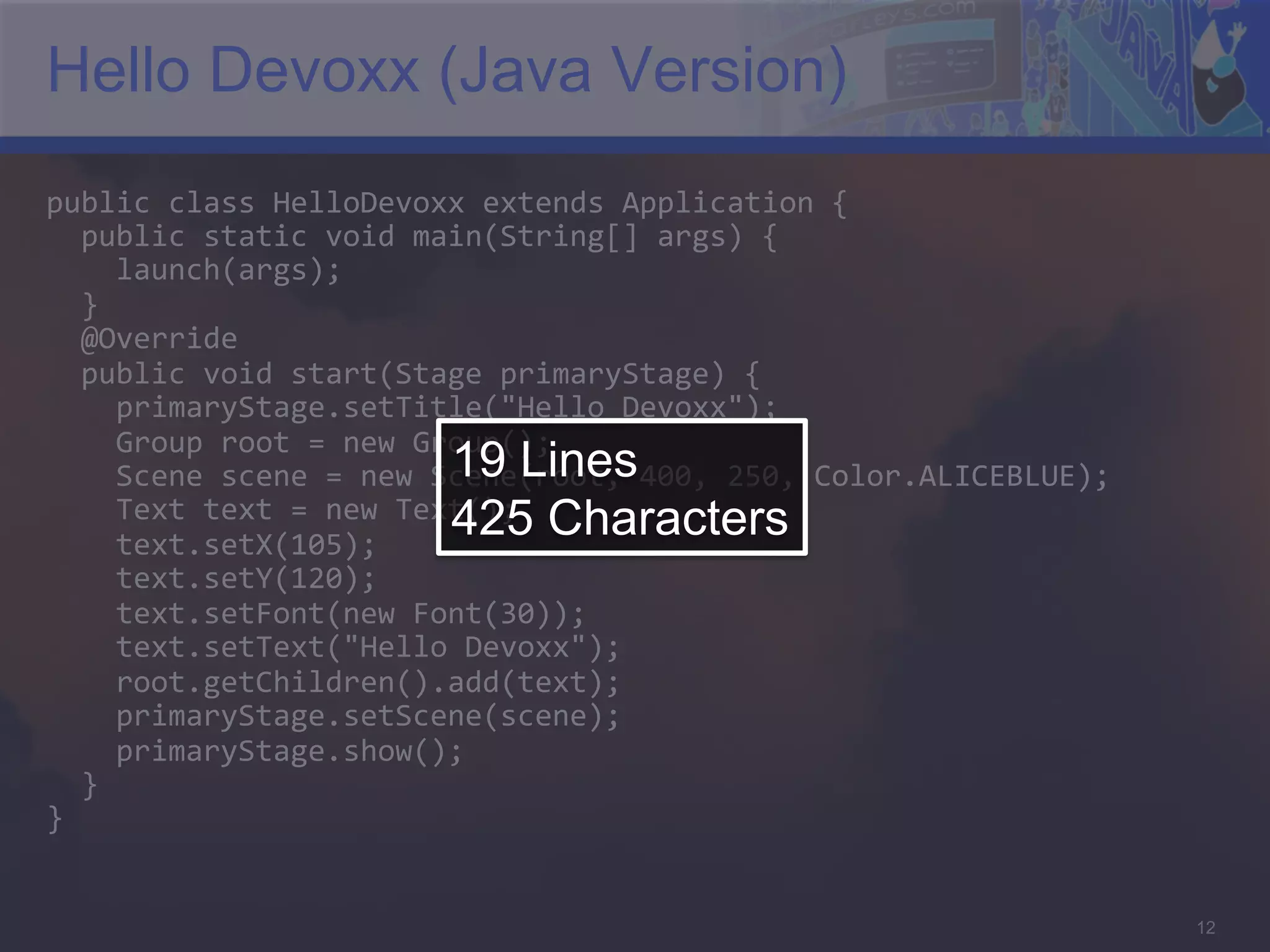

Hello Devoxx (Java Version) public class HelloDevoxx extends Application { public static void main(String[] args) { launch(args); } @Override public void start(Stage primaryStage) { primaryStage.setTitle("Hello Devoxx"); Group root = new Group(); 19 Lines Scene scene = new Scene(root, 400, 250, Color.ALICEBLUE); Text text = new Text(); Characters 425 text.setX(105); text.setY(120); text.setFont(new Font(30)); text.setText("Hello Devoxx"); root.getChildren().add(text); primaryStage.setScene(scene); primaryStage.show(); } } 12

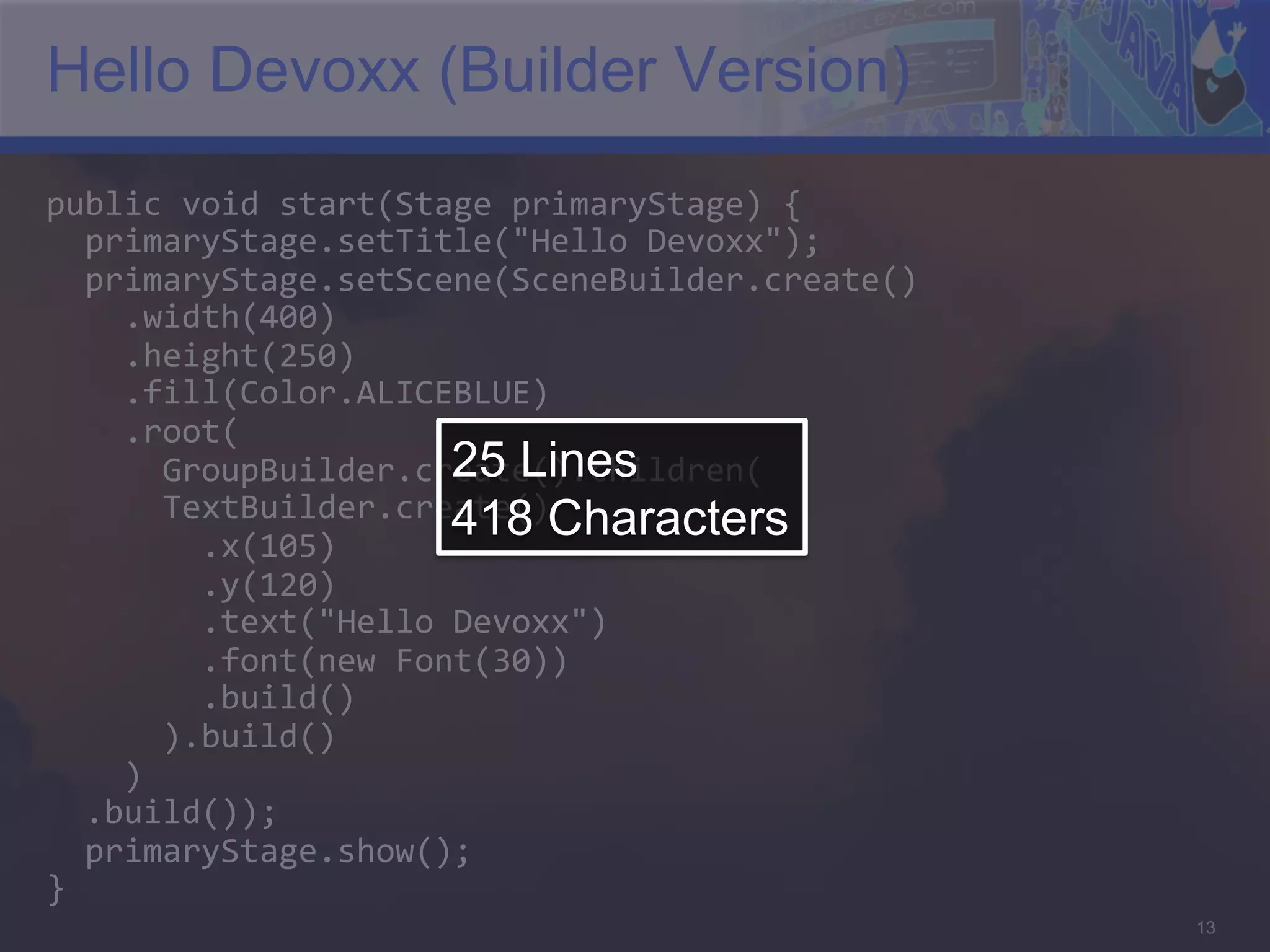

Hello Devoxx (Builder Version) public void start(Stage primaryStage) { primaryStage.setTitle("Hello Devoxx"); primaryStage.setScene(SceneBuilder.create() .width(400) .height(250) .fill(Color.ALICEBLUE) .root( 25 Lines GroupBuilder.create().children( TextBuilder.create() .x(105) 418 Characters .y(120) .text("Hello Devoxx") .font(new Font(30)) .build() ).build() ) .build()); primaryStage.show(); } 13

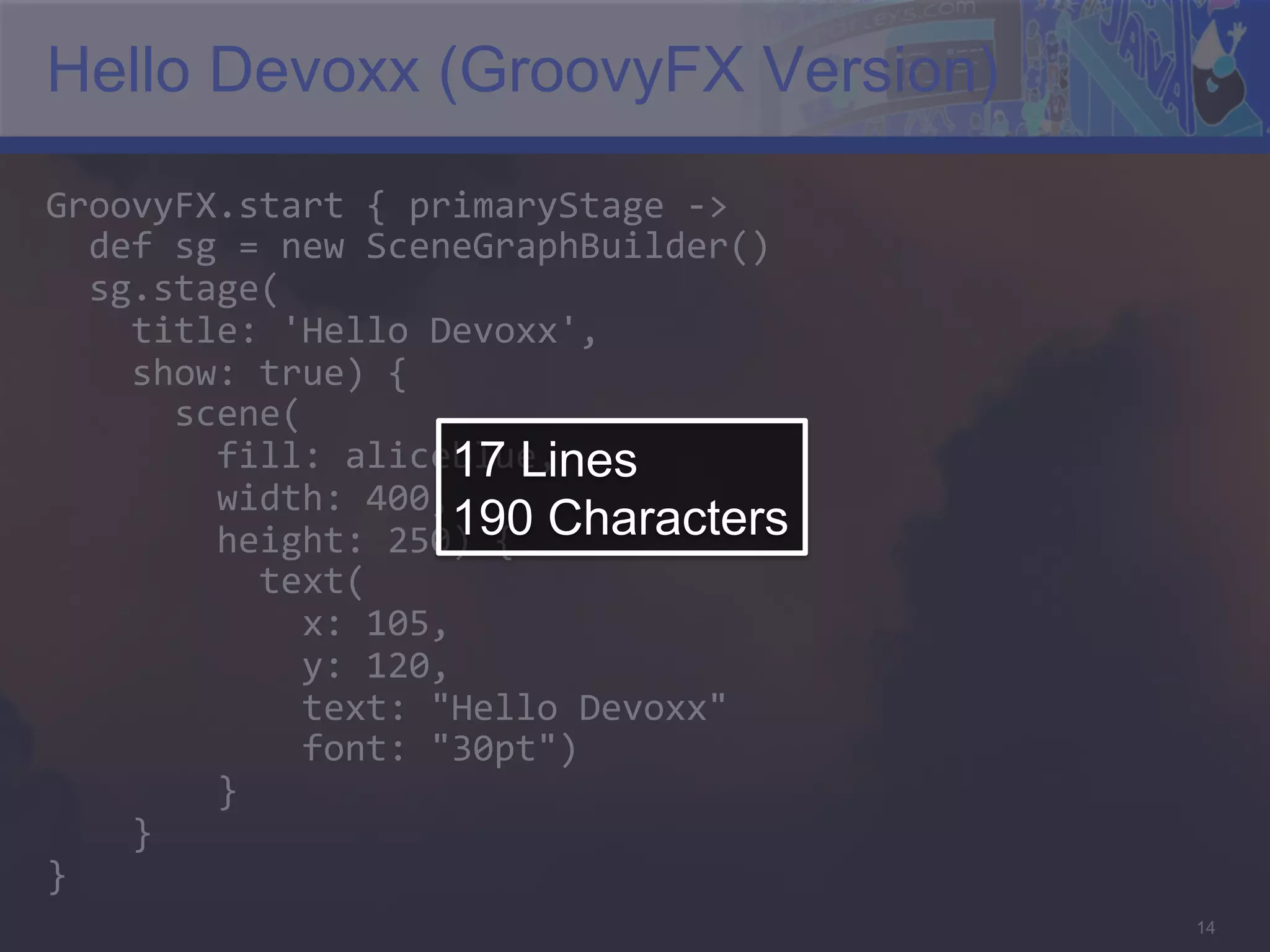

Hello Devoxx (GroovyFX Version) GroovyFX.start { primaryStage -‐> def sg = new SceneGraphBuilder() sg.stage( title: 'Hello Devoxx', show: true) { scene( fill: aliceblue, 17 Lines width: 400, height: 250) { Characters 190 text( x: 105, y: 120, text: "Hello Devoxx" font: "30pt") } } } 14

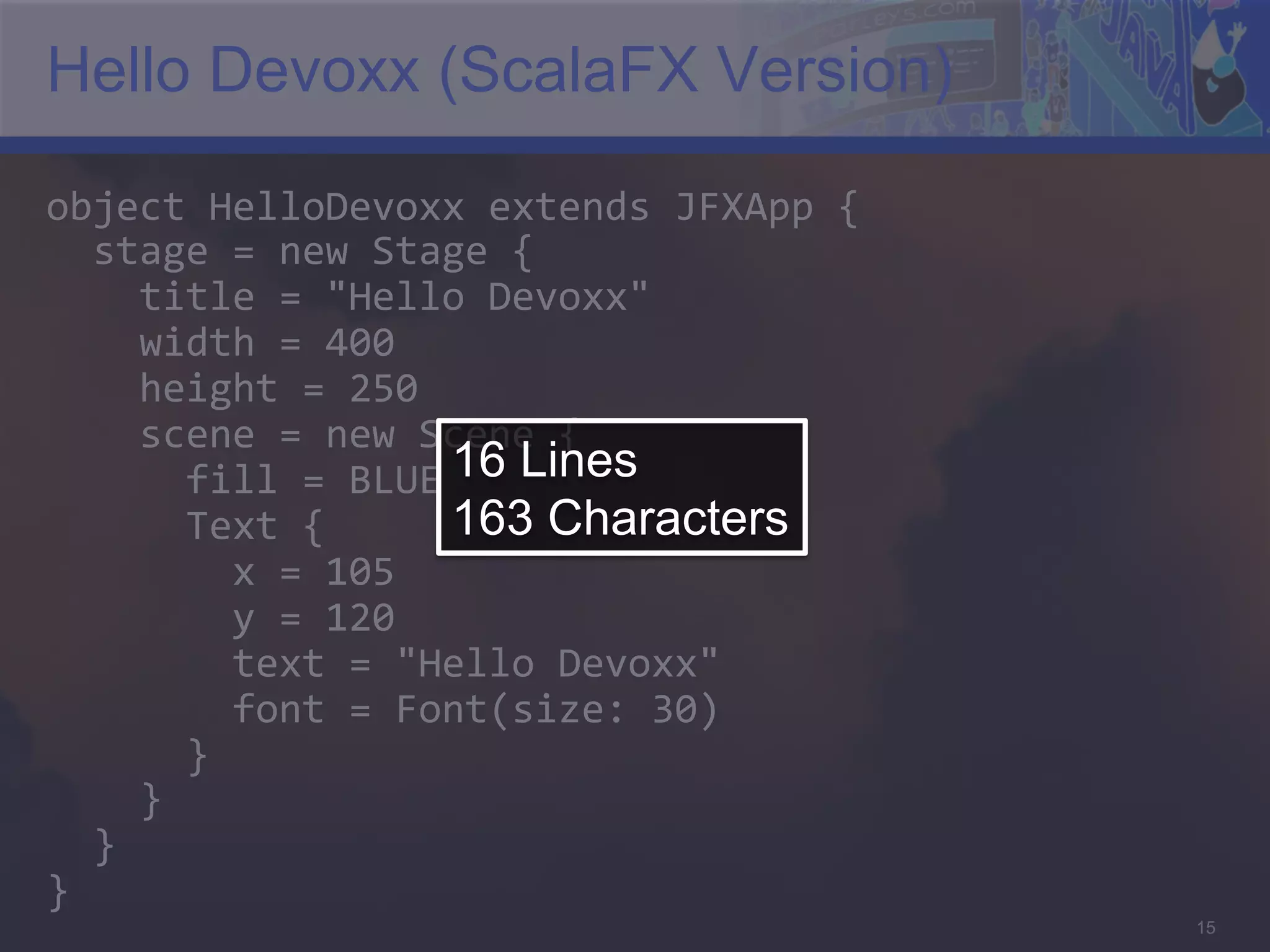

Hello Devoxx (ScalaFX Version) object HelloDevoxx extends JFXApp { stage = new Stage { title = "Hello Devoxx" width = 400 height = 250 scene = new Scene { fill = BLUE Lines 16 Text { 163 Characters x = 105 y = 120 text = "Hello Devoxx" font = Font(size: 30) } } } } 15

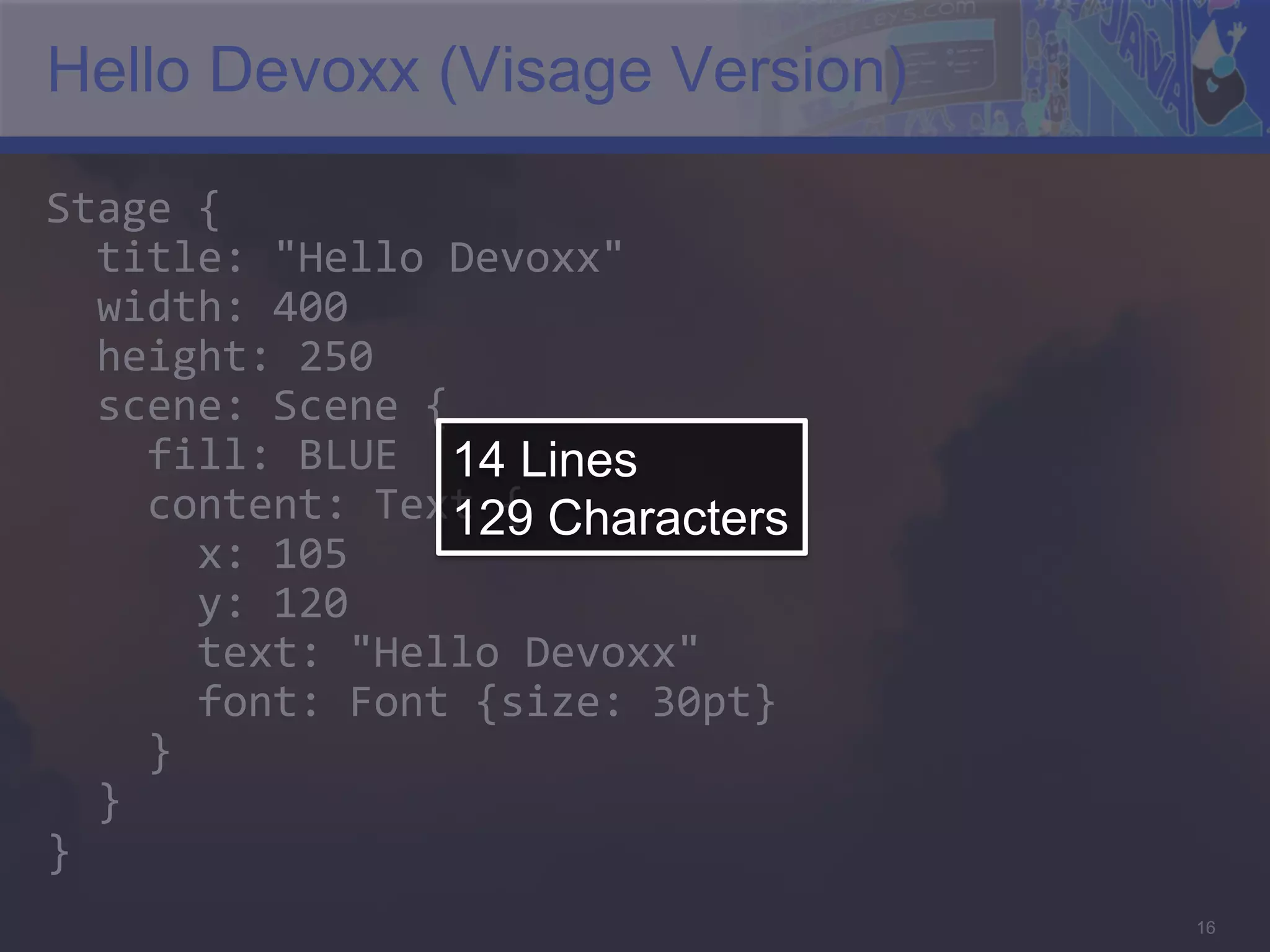

Hello Devoxx (Visage Version) Stage { title: "Hello Devoxx" width: 400 height: 250 scene: Scene { fill: BLUE 14 Lines content: Text { Characters 129 x: 105 y: 120 text: "Hello Devoxx" font: Font {size: 30pt} } } } 16

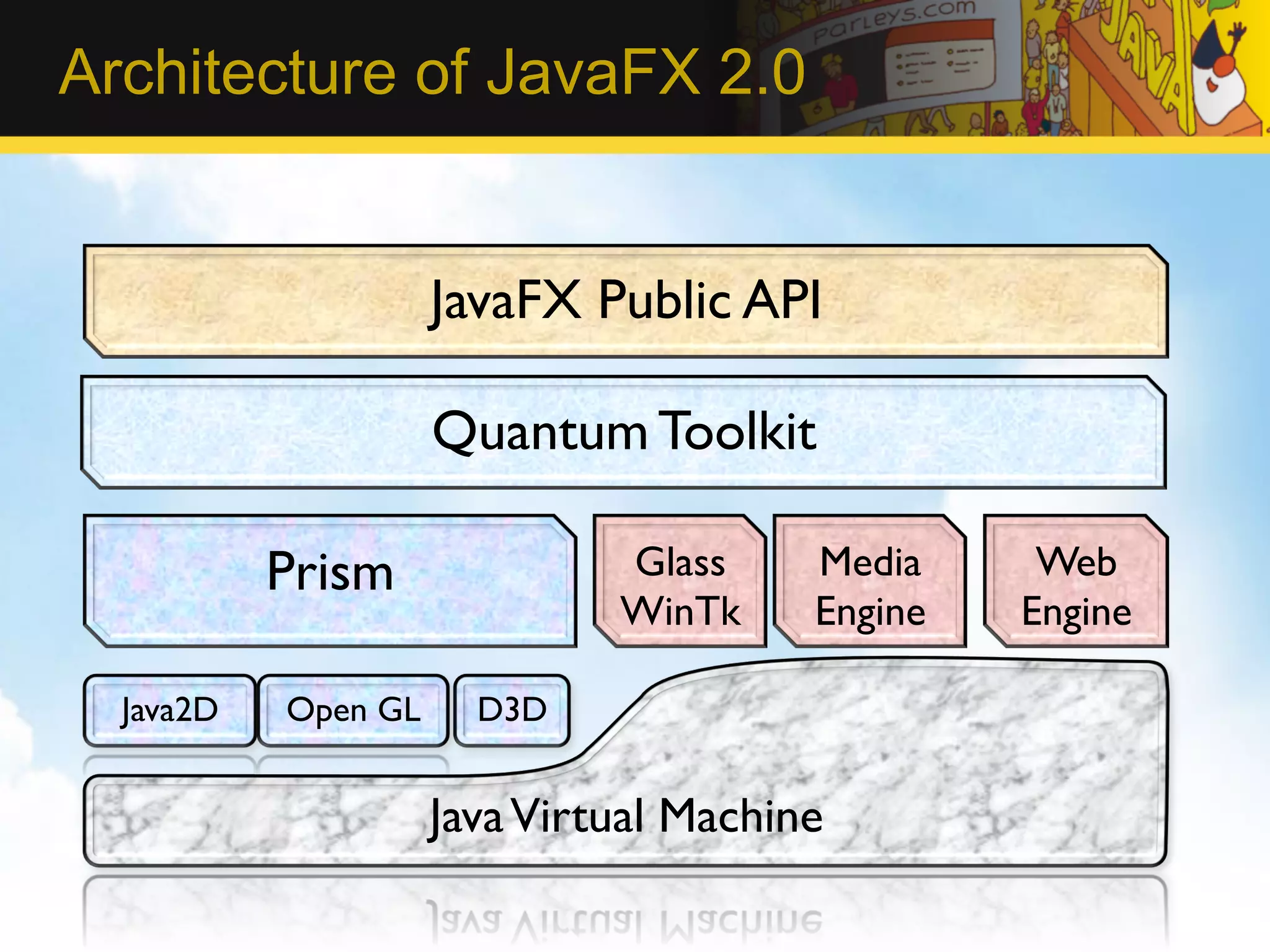

Architecture of JavaFX 2.0 JavaFX Public API Quantum Toolkit Prism Glass Media Web WinTk Engine Engine Java2D Open GL D3D Java Virtual Machine

JavaFX 2.0 Fundamentals Properties, Lists, Binding 18

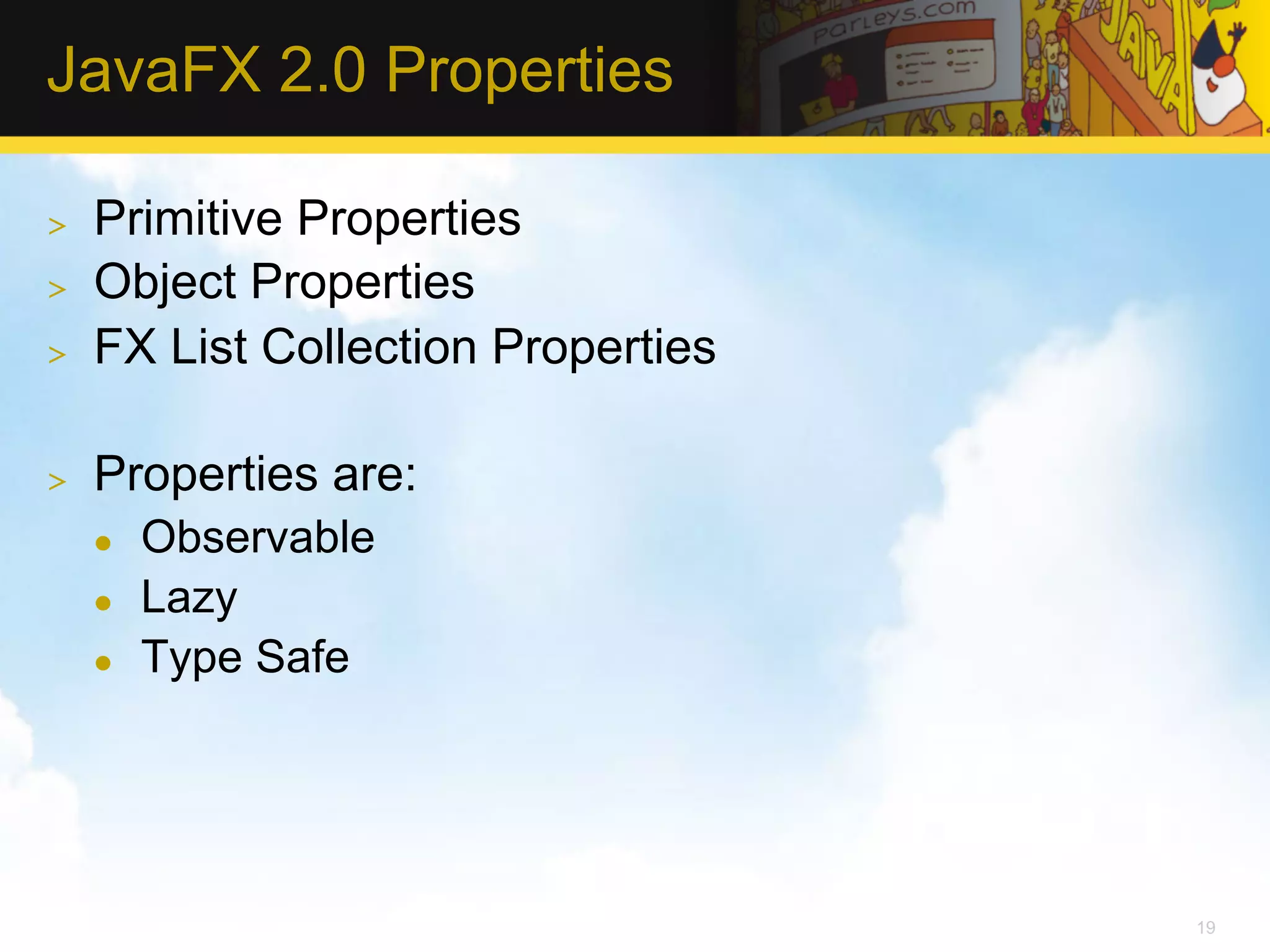

JavaFX 2.0 Properties >  Primitive Properties >  Object Properties >  FX List Collection Properties >  Properties are: l  Observable l  Lazy l  Type Safe 19

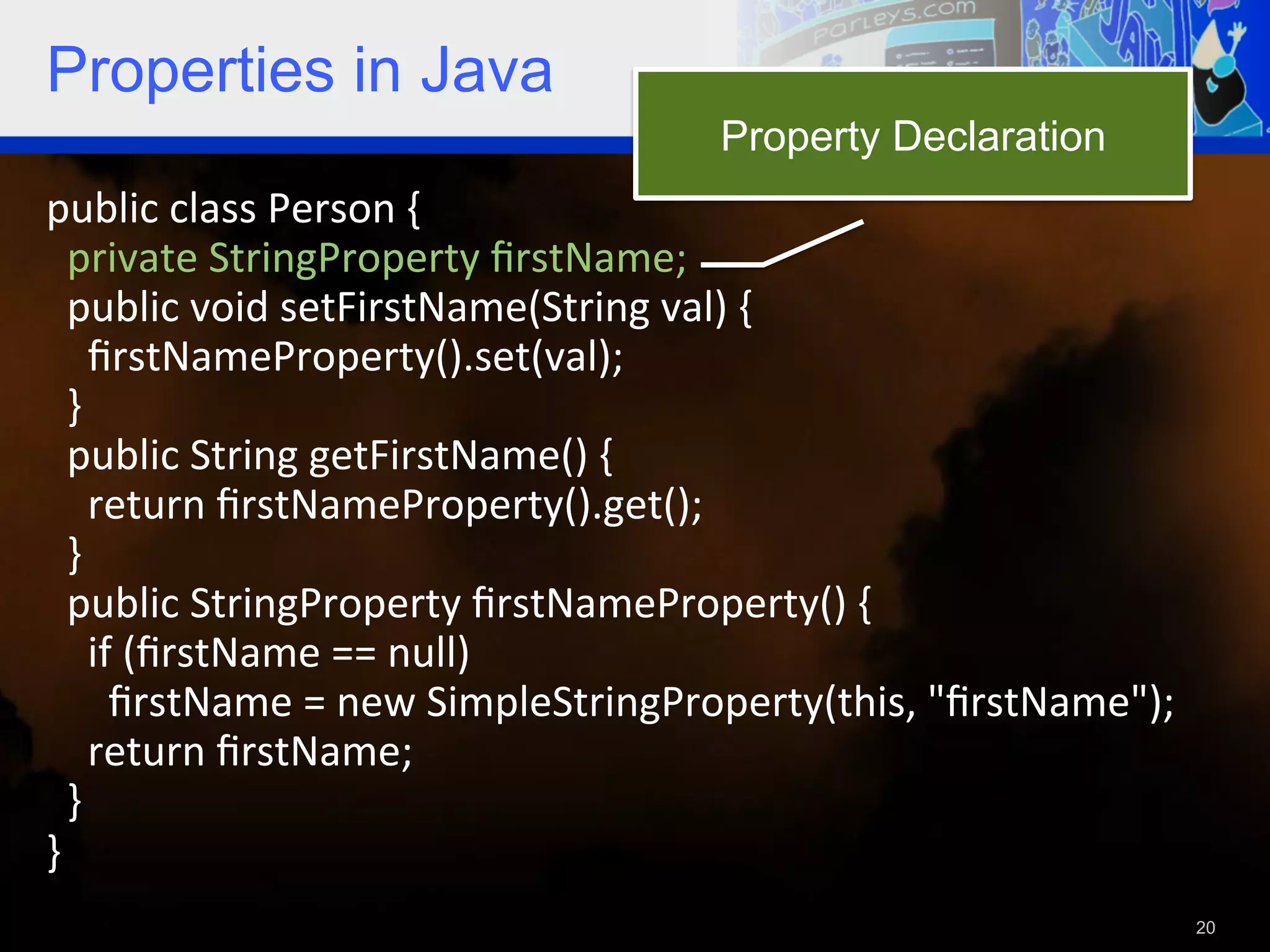

Properties in Java Property Declaration public class Person { private StringProperty firstName; public void setFirstName(String val) { firstNameProperty().set(val); } public String getFirstName() { return firstNameProperty().get(); } public StringProperty firstNameProperty() { if (firstName == null) firstName = new SimpleStringProperty(this, "firstName"); return firstName; } } 20

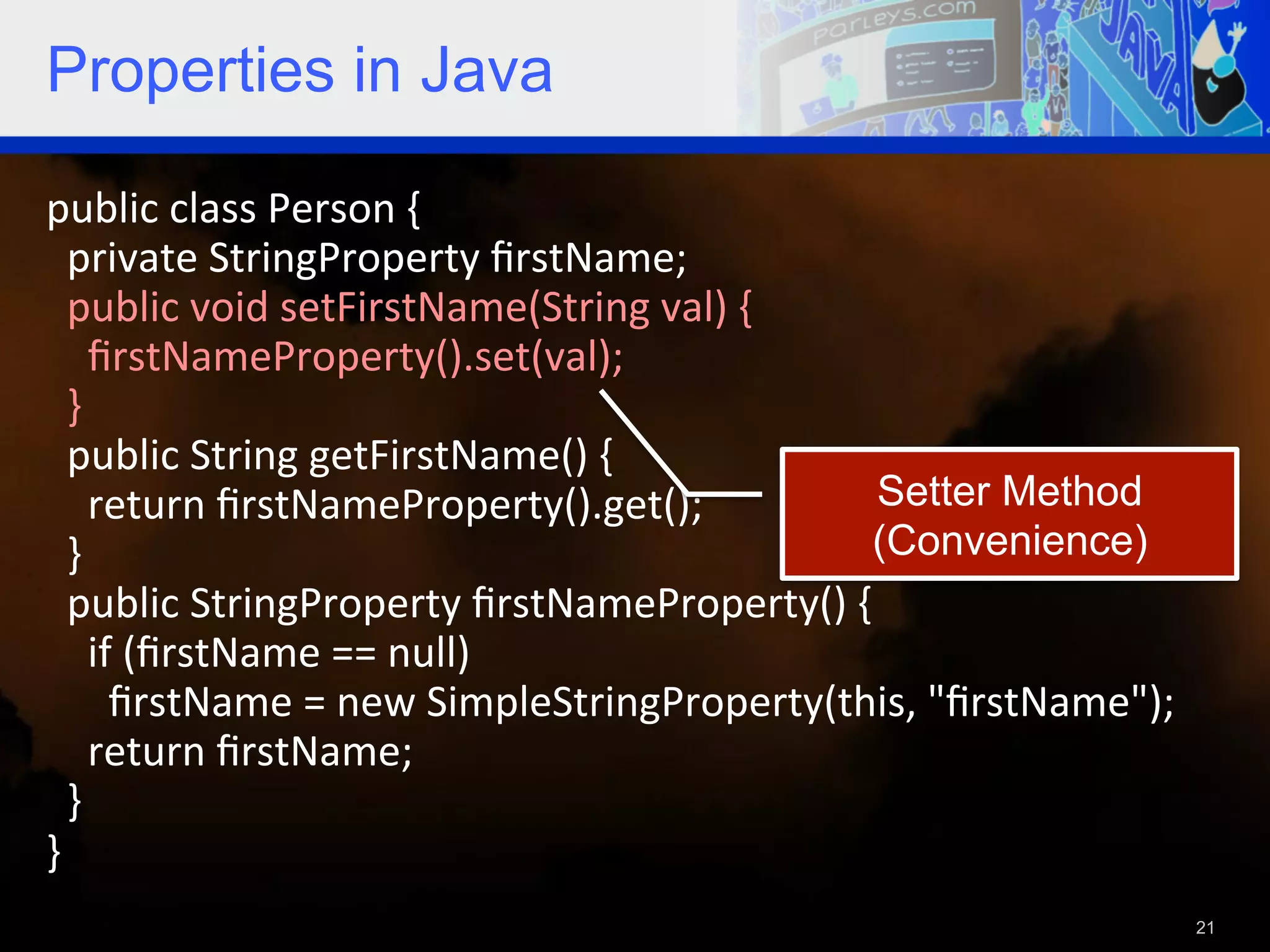

Properties in Java public class Person { private StringProperty firstName; public void setFirstName(String val) { firstNameProperty().set(val); } public String getFirstName() { return firstNameProperty().get(); Setter Method } (Convenience) public StringProperty firstNameProperty() { if (firstName == null) firstName = new SimpleStringProperty(this, "firstName"); return firstName; } } 21

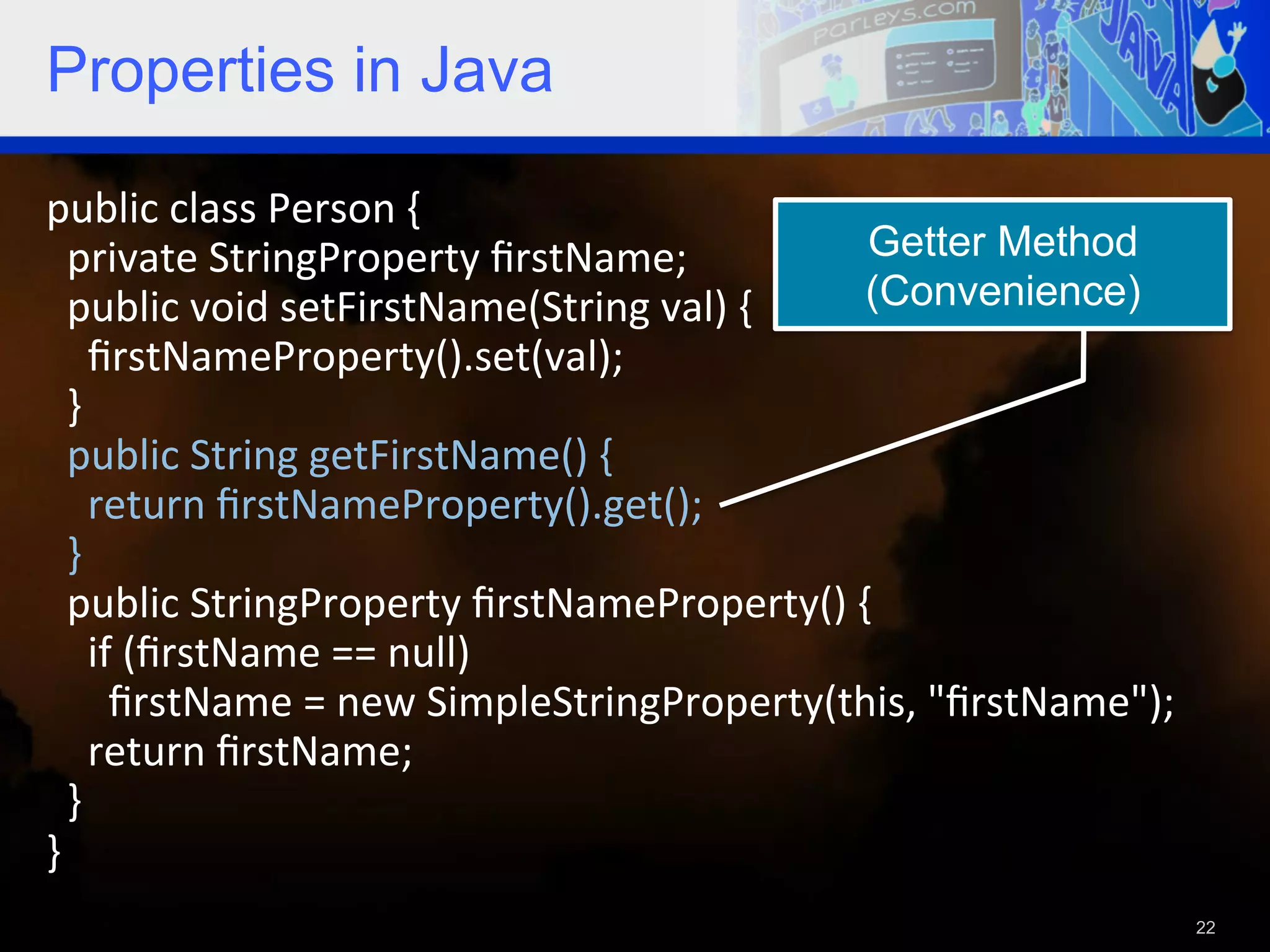

Properties in Java public class Person { private StringProperty firstName; Getter Method public void setFirstName(String val) { (Convenience) firstNameProperty().set(val); } public String getFirstName() { return firstNameProperty().get(); } public StringProperty firstNameProperty() { if (firstName == null) firstName = new SimpleStringProperty(this, "firstName"); return firstName; } } 22

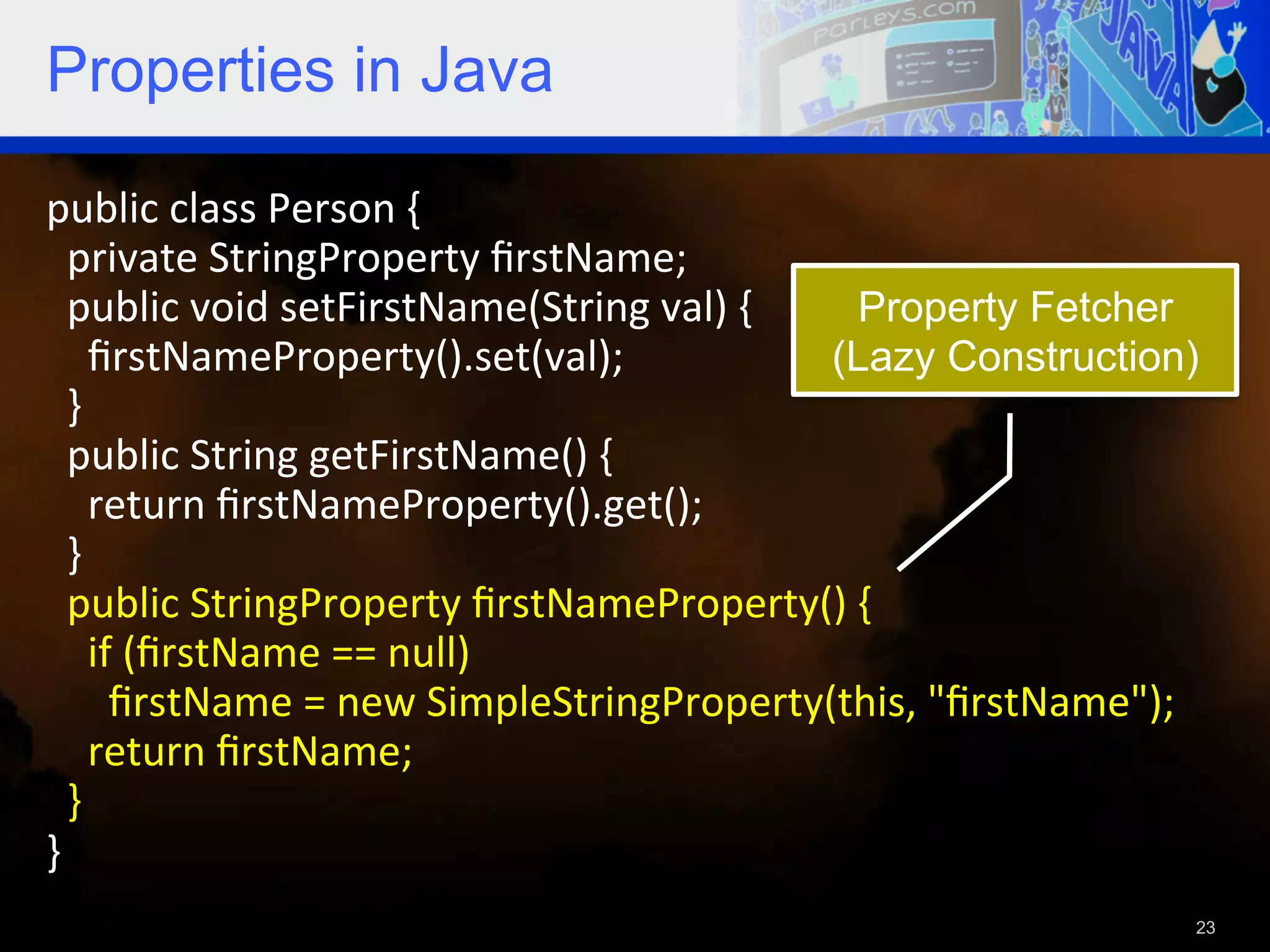

Properties in Java public class Person { private StringProperty firstName; public void setFirstName(String val) { Property Fetcher firstNameProperty().set(val); (Lazy Construction) } public String getFirstName() { return firstNameProperty().get(); } public StringProperty firstNameProperty() { if (firstName == null) firstName = new SimpleStringProperty(this, "firstName"); return firstName; } } 23

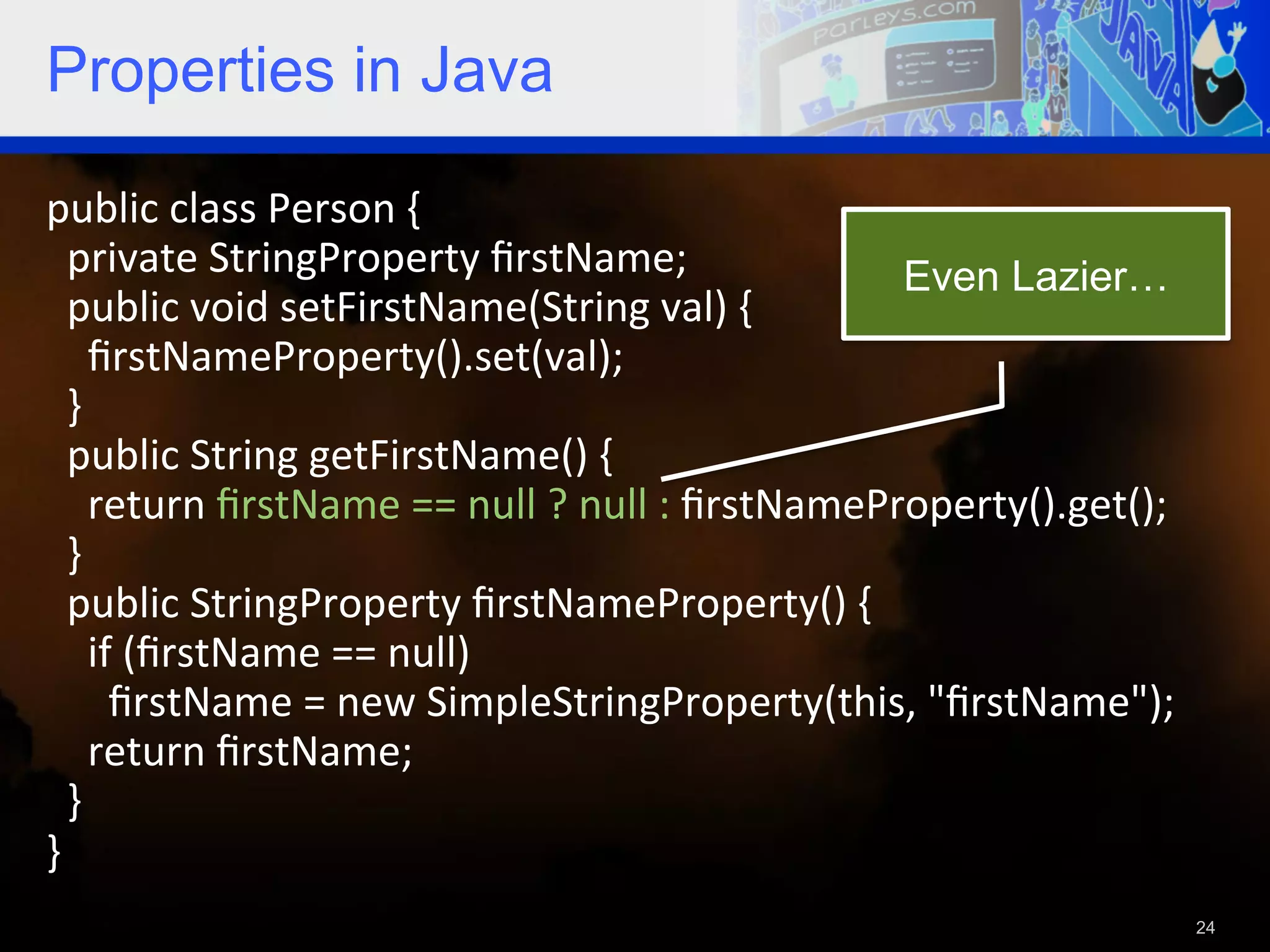

Properties in Java public class Person { private StringProperty firstName; Even Lazier… public void setFirstName(String val) { firstNameProperty().set(val); } public String getFirstName() { return firstName == null ? null : firstNameProperty().get(); } public StringProperty firstNameProperty() { if (firstName == null) firstName = new SimpleStringProperty(this, "firstName"); return firstName; } } 24

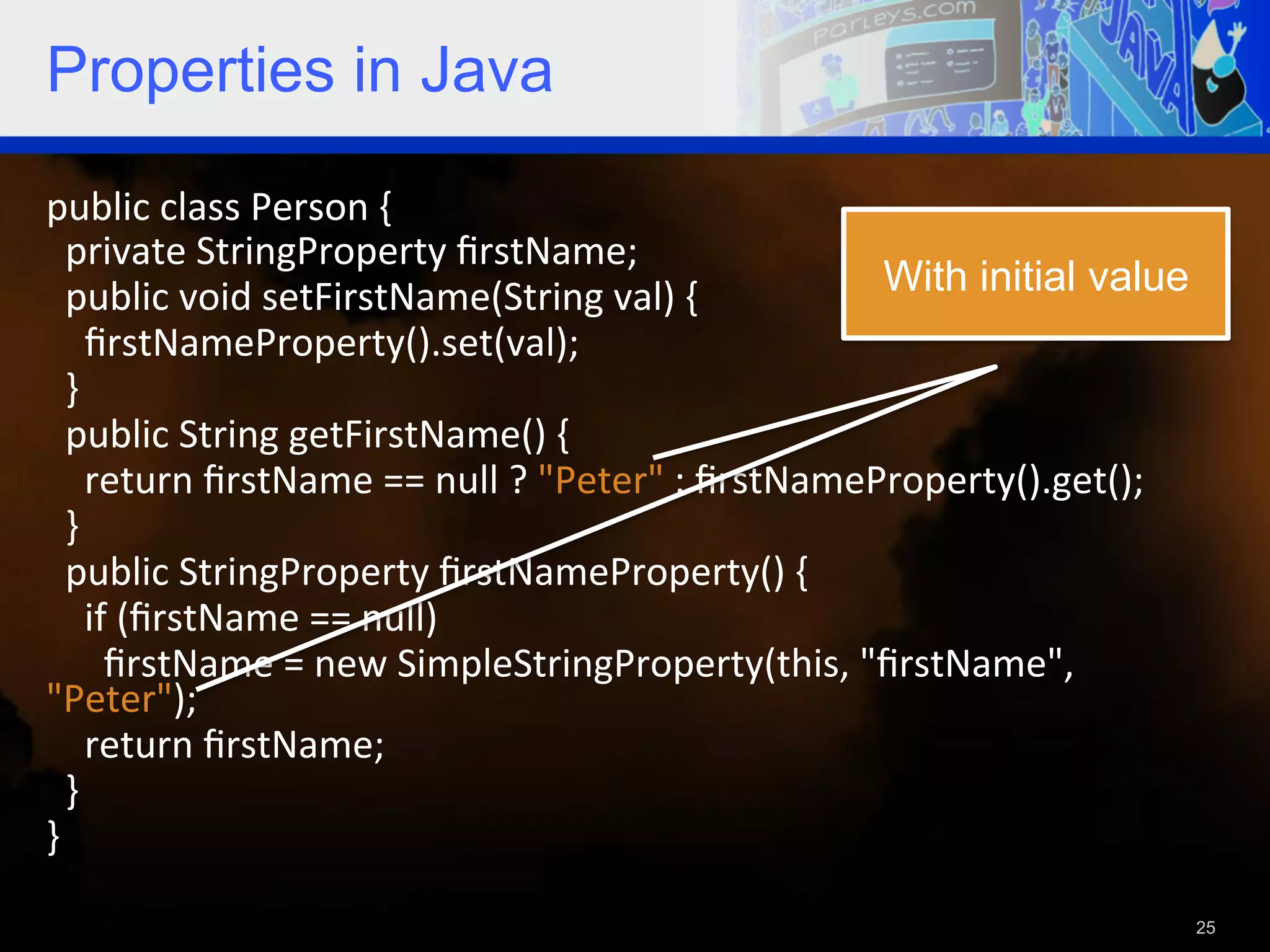

Properties in Java public class Person { private StringProperty firstName; public void setFirstName(String val) { With initial value firstNameProperty().set(val); } public String getFirstName() { return firstName == null ? "Peter" : firstNameProperty().get(); } public StringProperty firstNameProperty() { if (firstName == null) firstName = new SimpleStringProperty(this, "firstName", "Peter"); return firstName; } } 25

Demo Properties Undirectional, Bidirectional and Lazy binding in Java

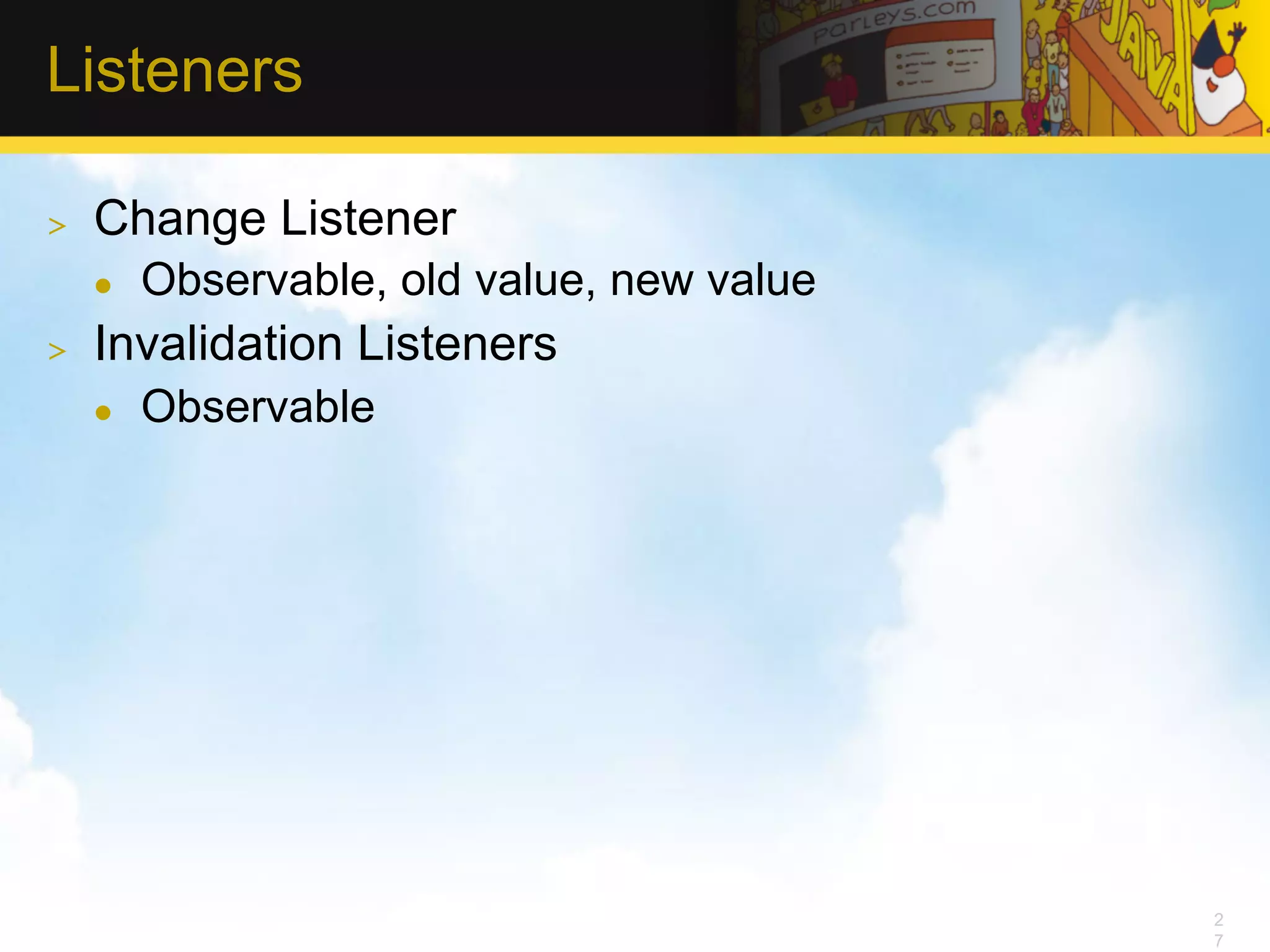

Listeners >  Change Listener l  Observable, old value, new value >  Invalidation Listeners l  Observable 2 7

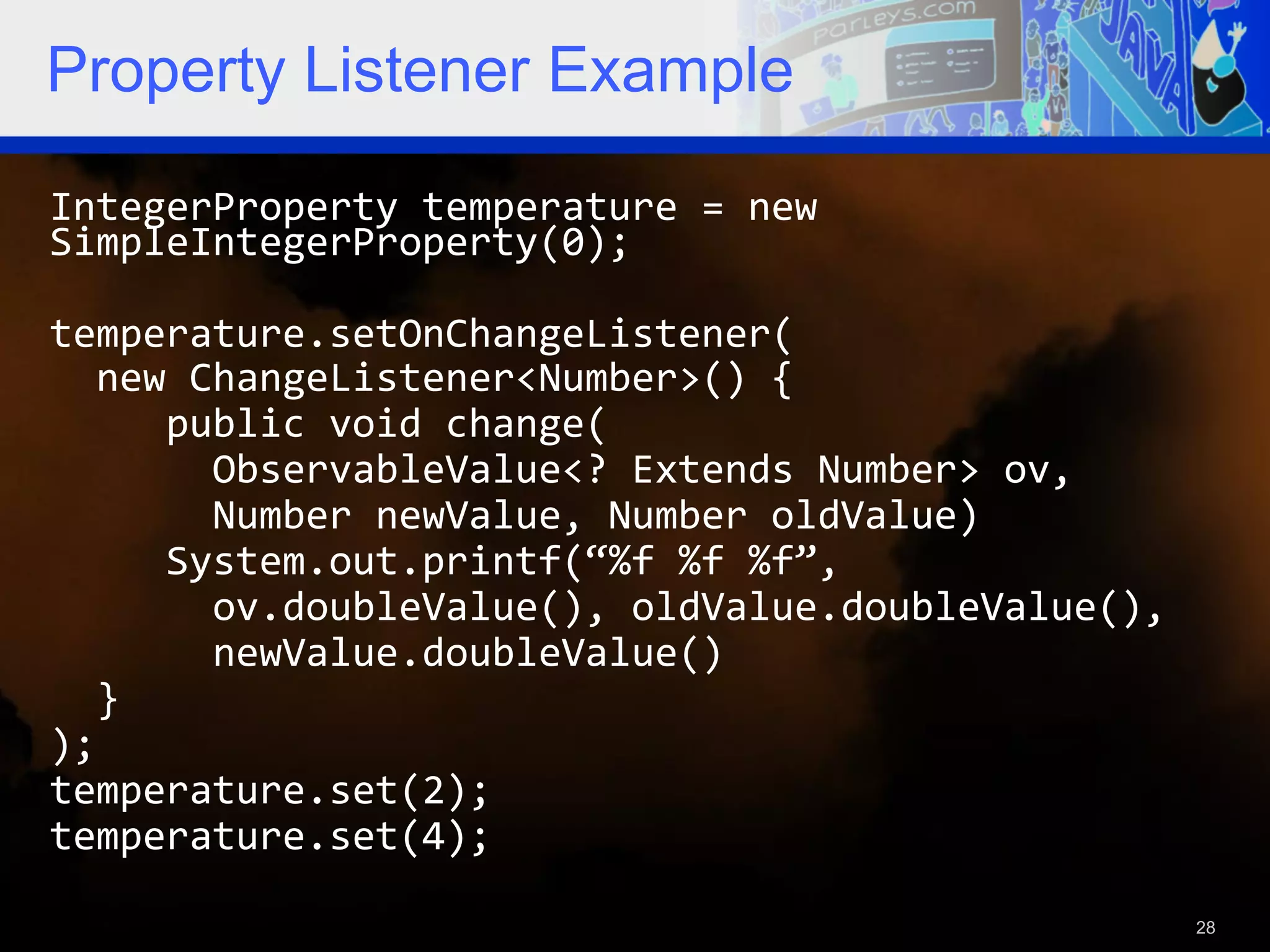

Property Listener Example IntegerProperty temperature = new SimpleIntegerProperty(0); temperature.setOnChangeListener( new ChangeListener<Number>() { public void change( ObservableValue<? Extends Number> ov, Number newValue, Number oldValue) System.out.printf(“%f %f %f”, ov.doubleValue(), oldValue.doubleValue(), newValue.doubleValue() } ); temperature.set(2); temperature.set(4); 28

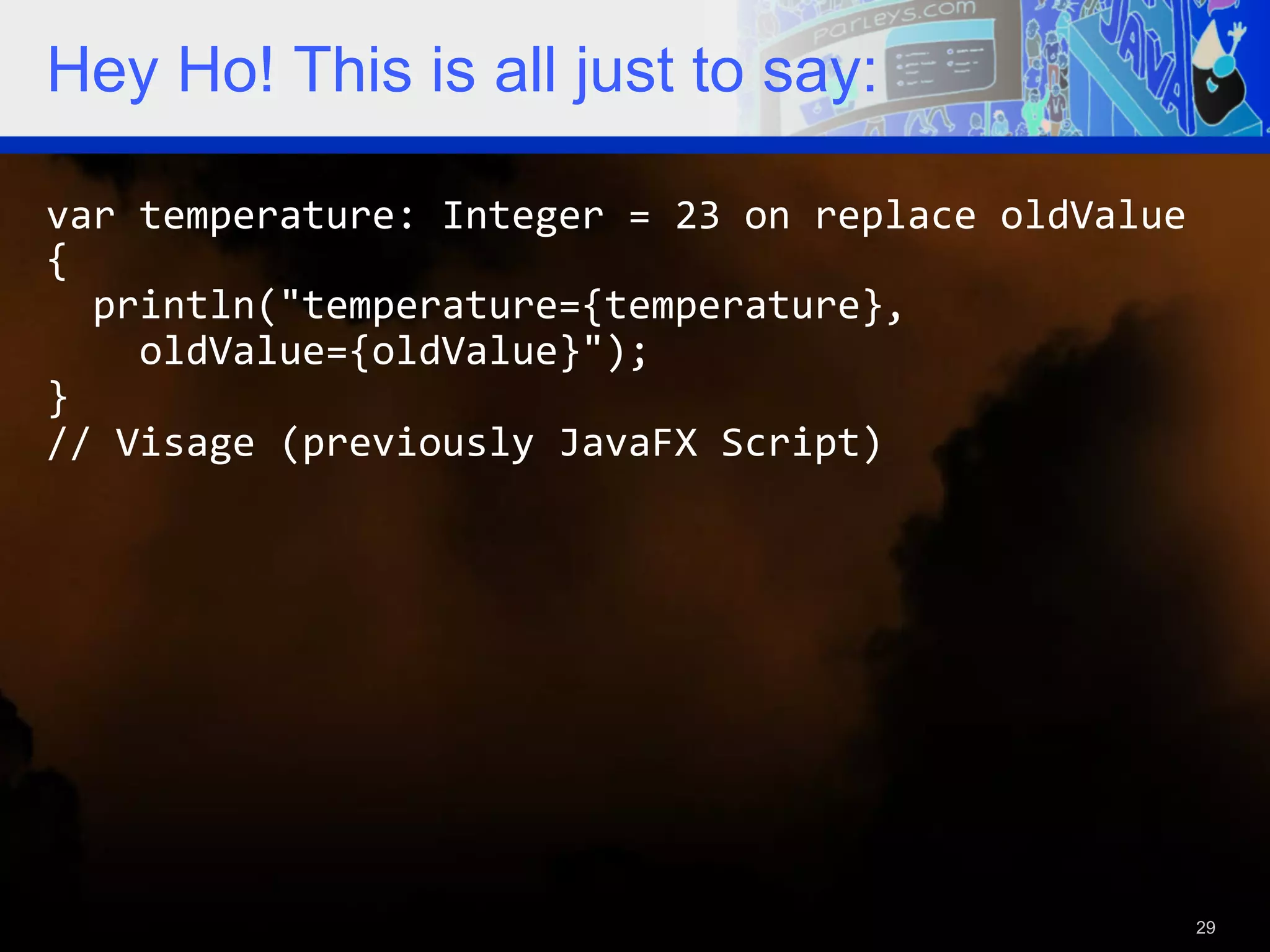

Hey Ho! This is all just to say: var temperature: Integer = 23 on replace oldValue { println("temperature={temperature}, oldValue={oldValue}"); } // Visage (previously JavaFX Script) 29

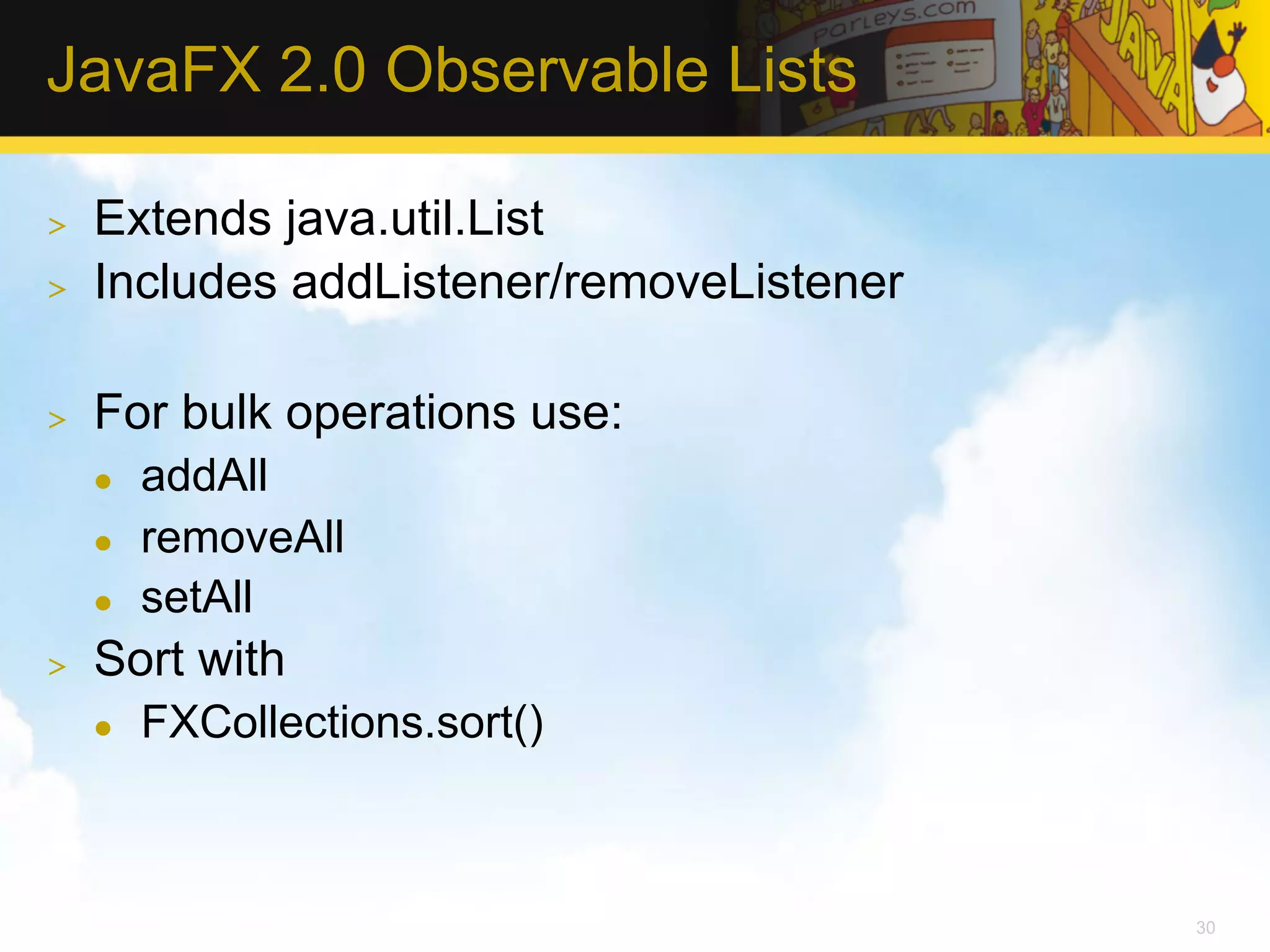

JavaFX 2.0 Observable Lists >  Extends java.util.List >  Includes addListener/removeListener >  For bulk operations use: l  addAll l  removeAll l  setAll >  Sort with l  FXCollections.sort() 30

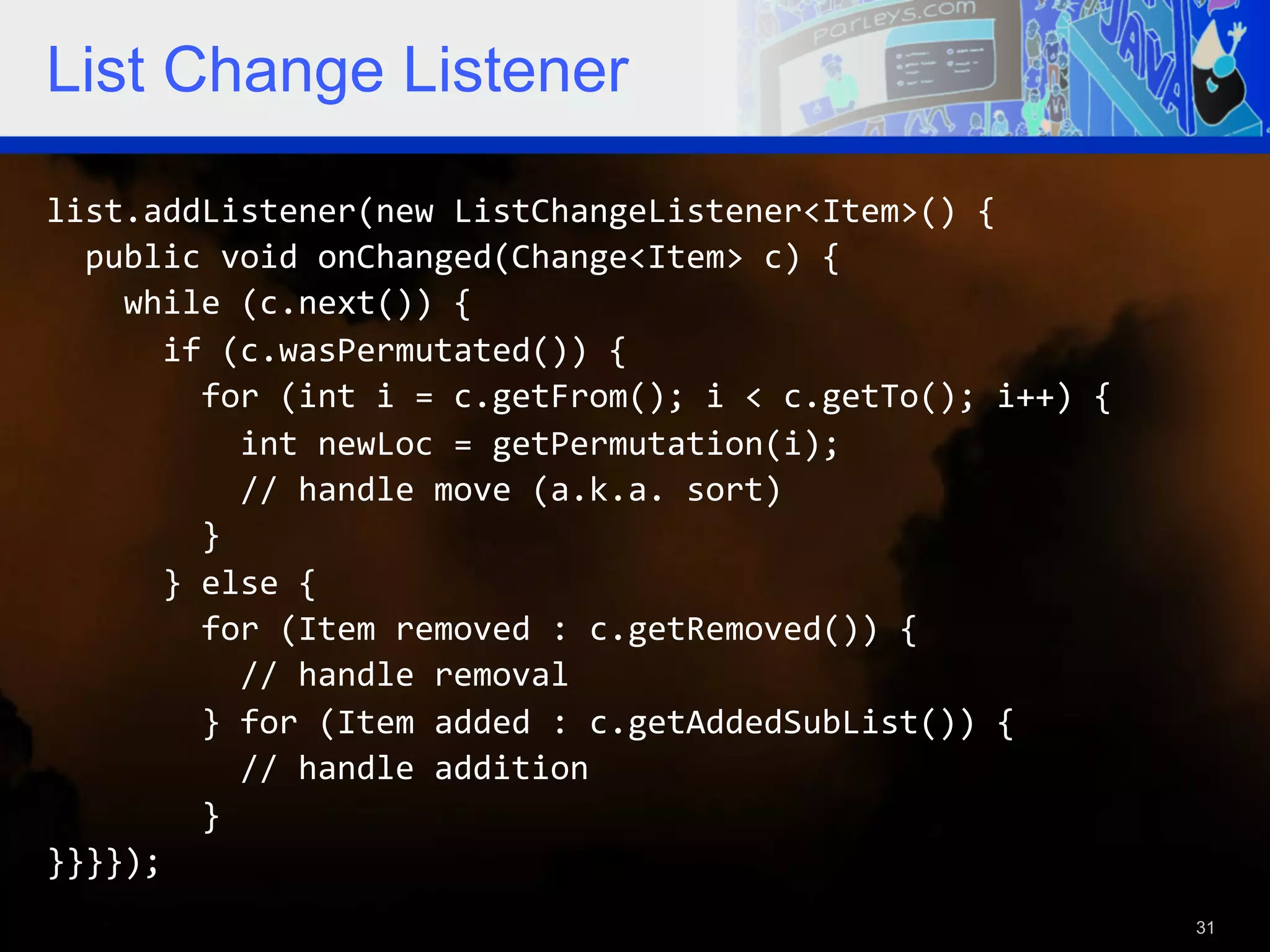

List Change Listener list.addListener(new ListChangeListener<Item>() { public void onChanged(Change<Item> c) { while (c.next()) { if (c.wasPermutated()) { for (int i = c.getFrom(); i < c.getTo(); i++) { int newLoc = getPermutation(i); // handle move (a.k.a. sort) } } else { for (Item removed : c.getRemoved()) { // handle removal } for (Item added : c.getAddedSubList()) { // handle addition } }}}}); 31

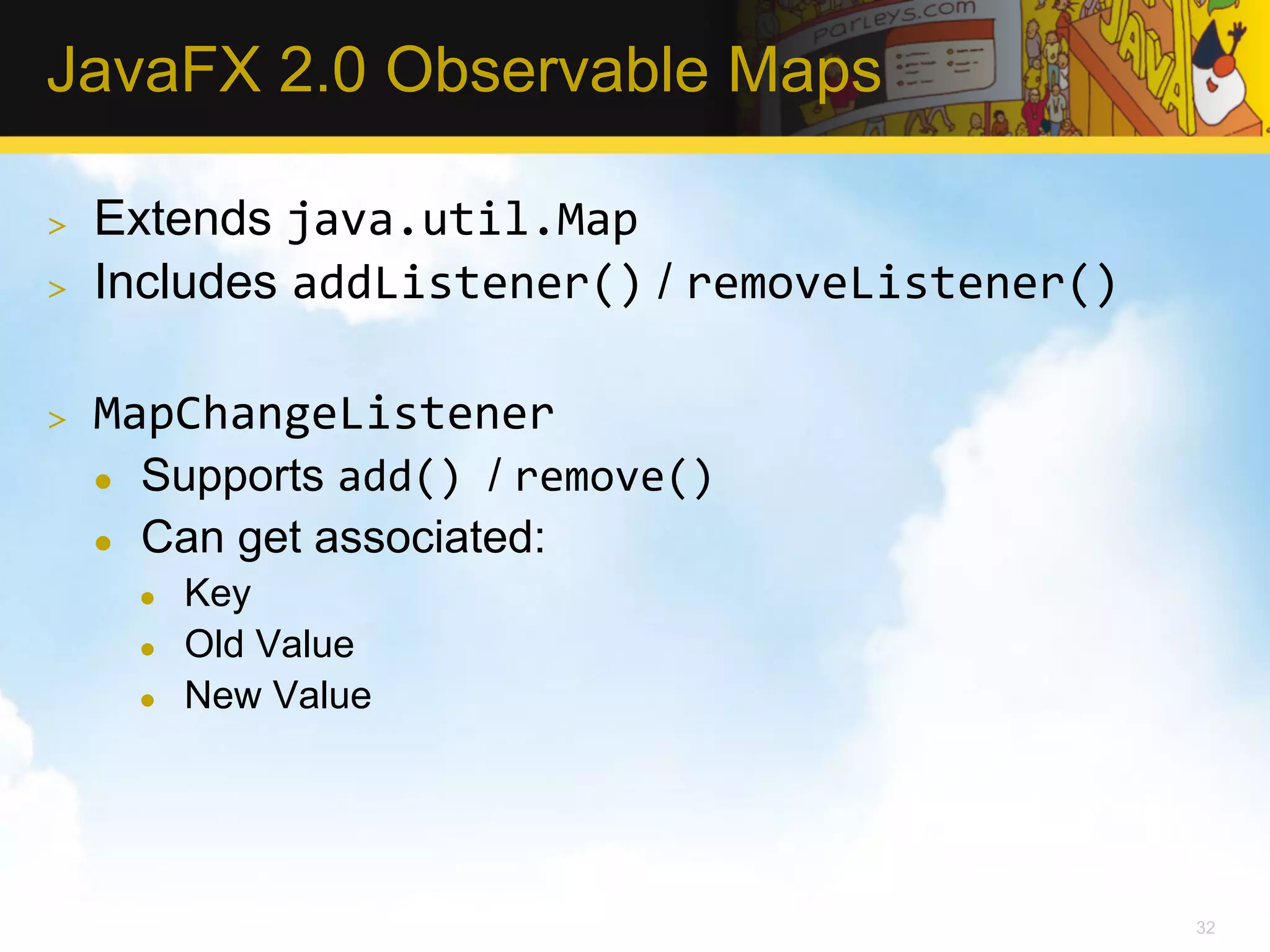

JavaFX 2.0 Observable Maps >  Extends java.util.Map >  Includes addListener() / removeListener() >  MapChangeListener l  Supports add() / remove() l  Can get associated: l  Key l  Old Value l  New Value 32

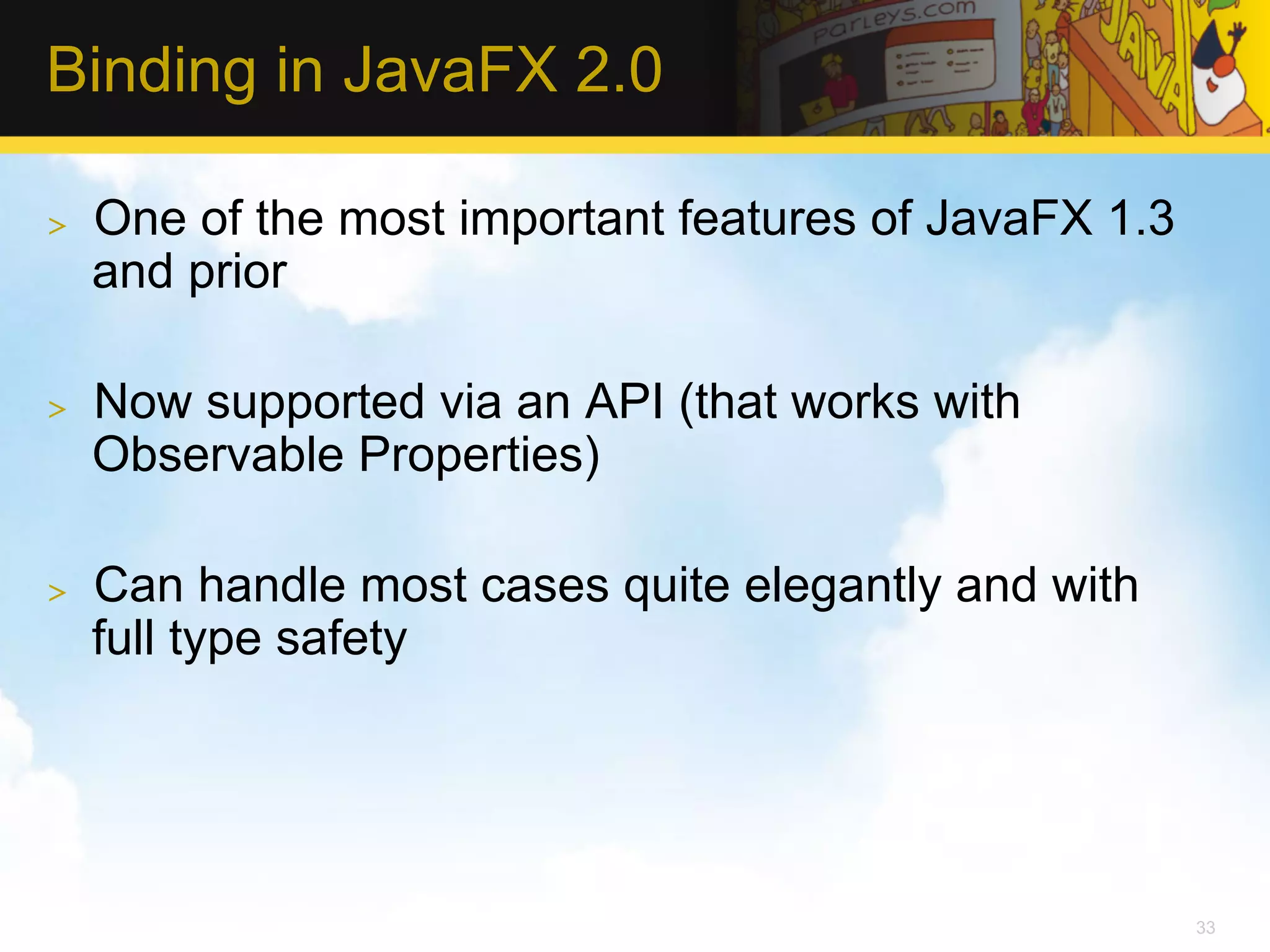

Binding in JavaFX 2.0 >  One of the most important features of JavaFX 1.3 and prior >  Now supported via an API (that works with Observable Properties) >  Can handle most cases quite elegantly and with full type safety 33

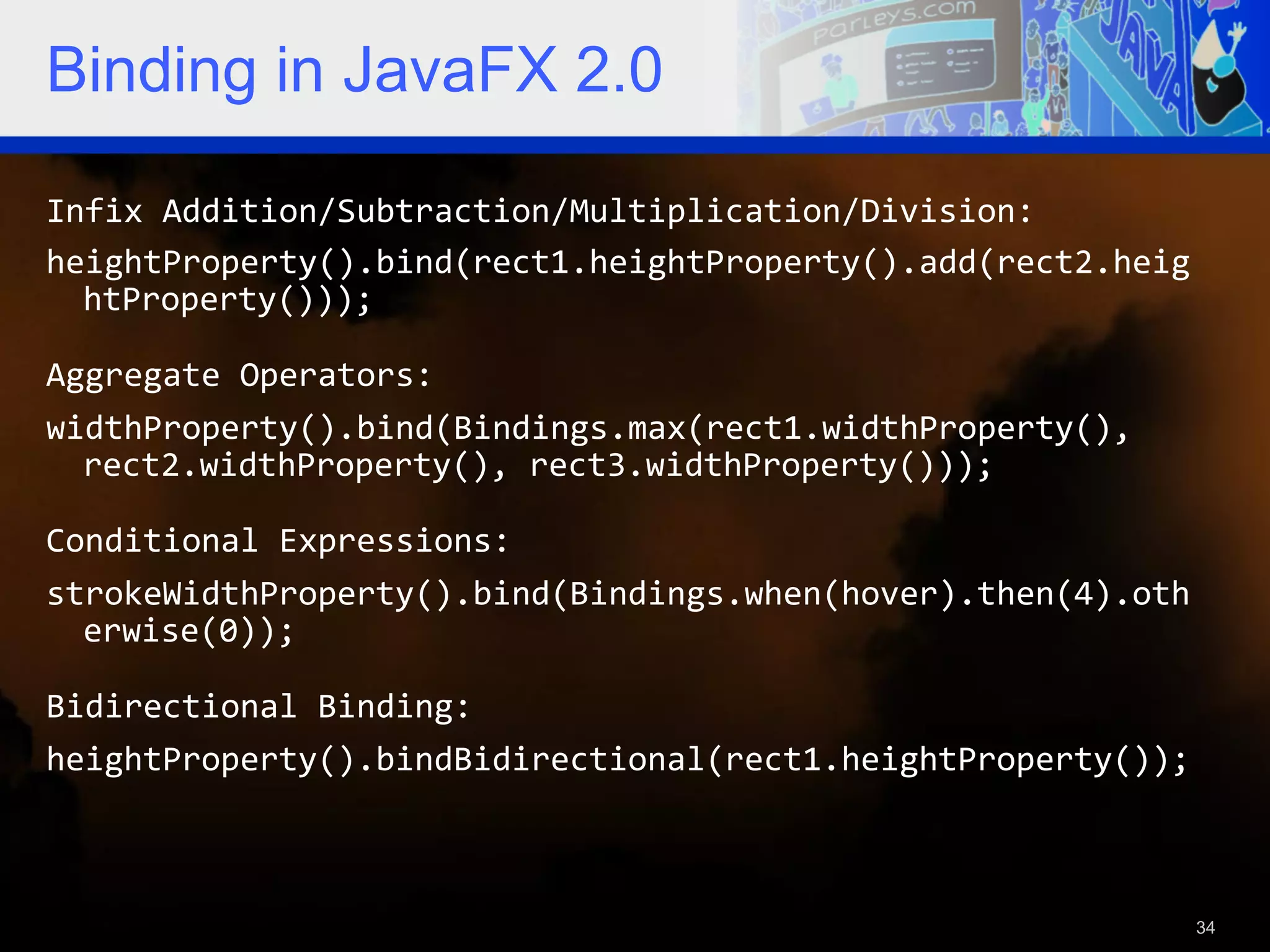

Binding in JavaFX 2.0 Infix Addition/Subtraction/Multiplication/Division: heightProperty().bind(rect1.heightProperty().add(rect2.heig htProperty())); Aggregate Operators: widthProperty().bind(Bindings.max(rect1.widthProperty(), rect2.widthProperty(), rect3.widthProperty())); Conditional Expressions: strokeWidthProperty().bind(Bindings.when(hover).then(4).oth erwise(0)); Bidirectional Binding: heightProperty().bindBidirectional(rect1.heightProperty()); 34

Demo Image Fracture Life is like a bowl of cherries

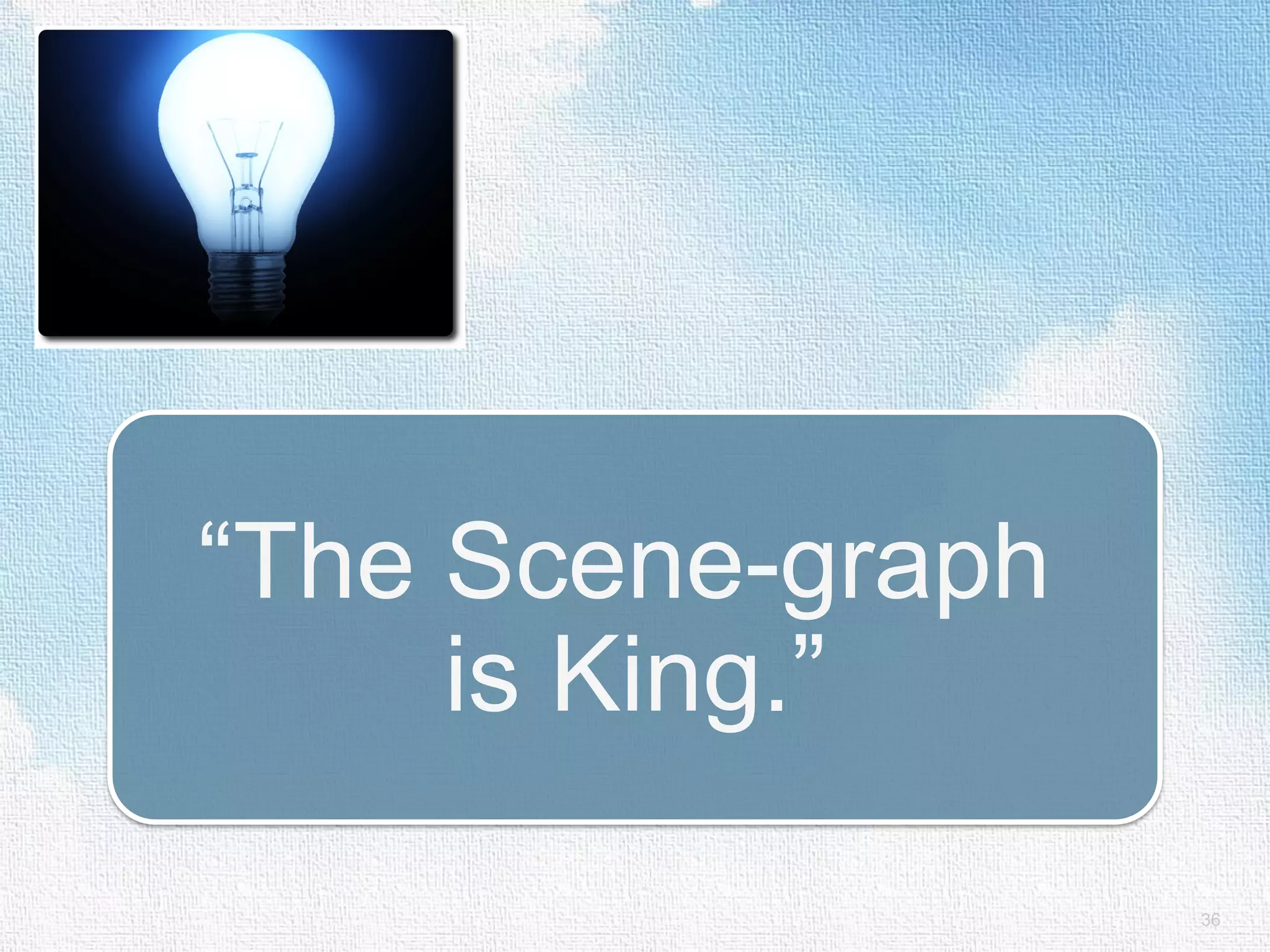

“The Scene-graph is King.” 36

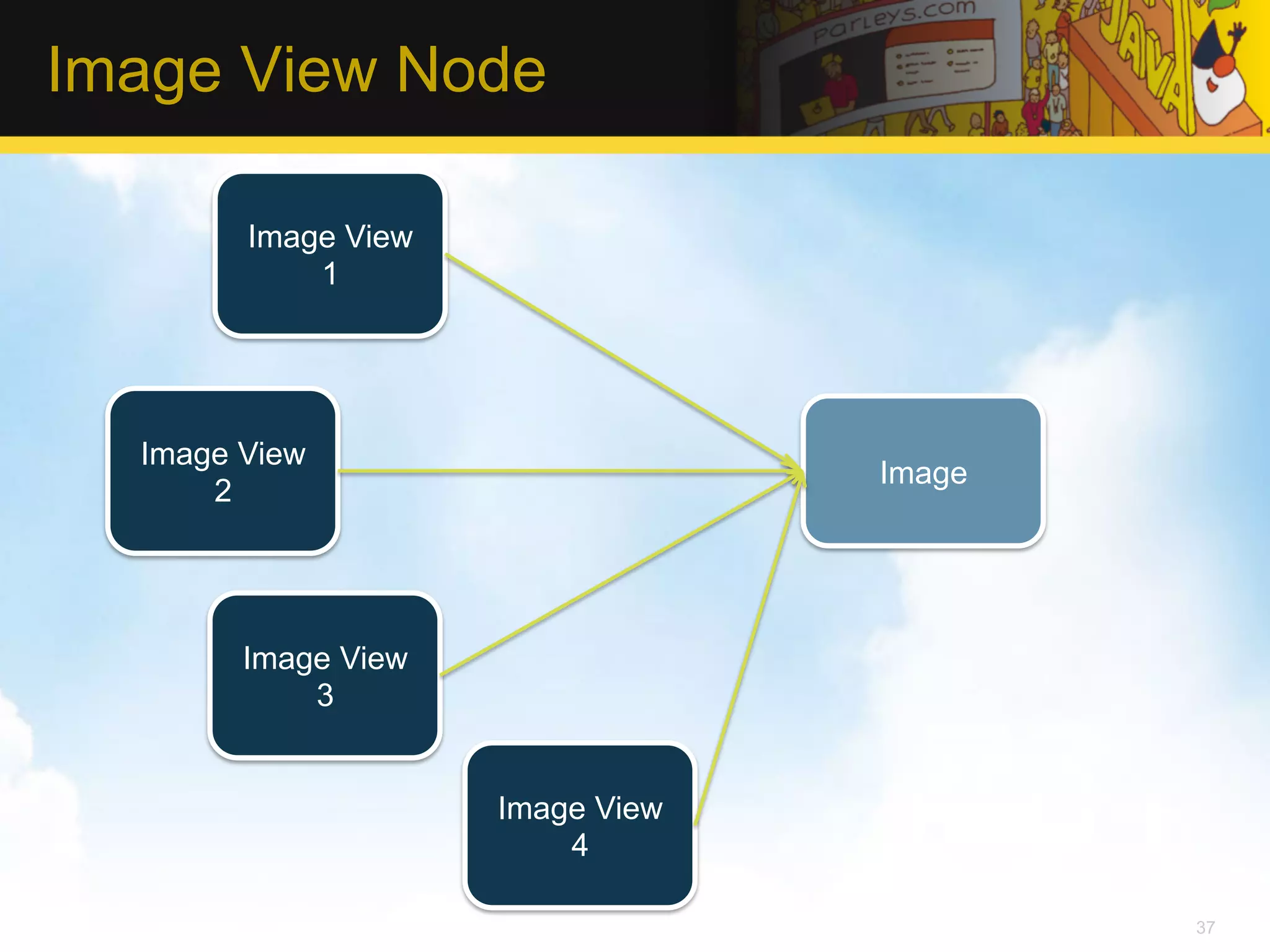

Image View Node Image View 1 Image View Image 2 Image View 3 Image View 4 37

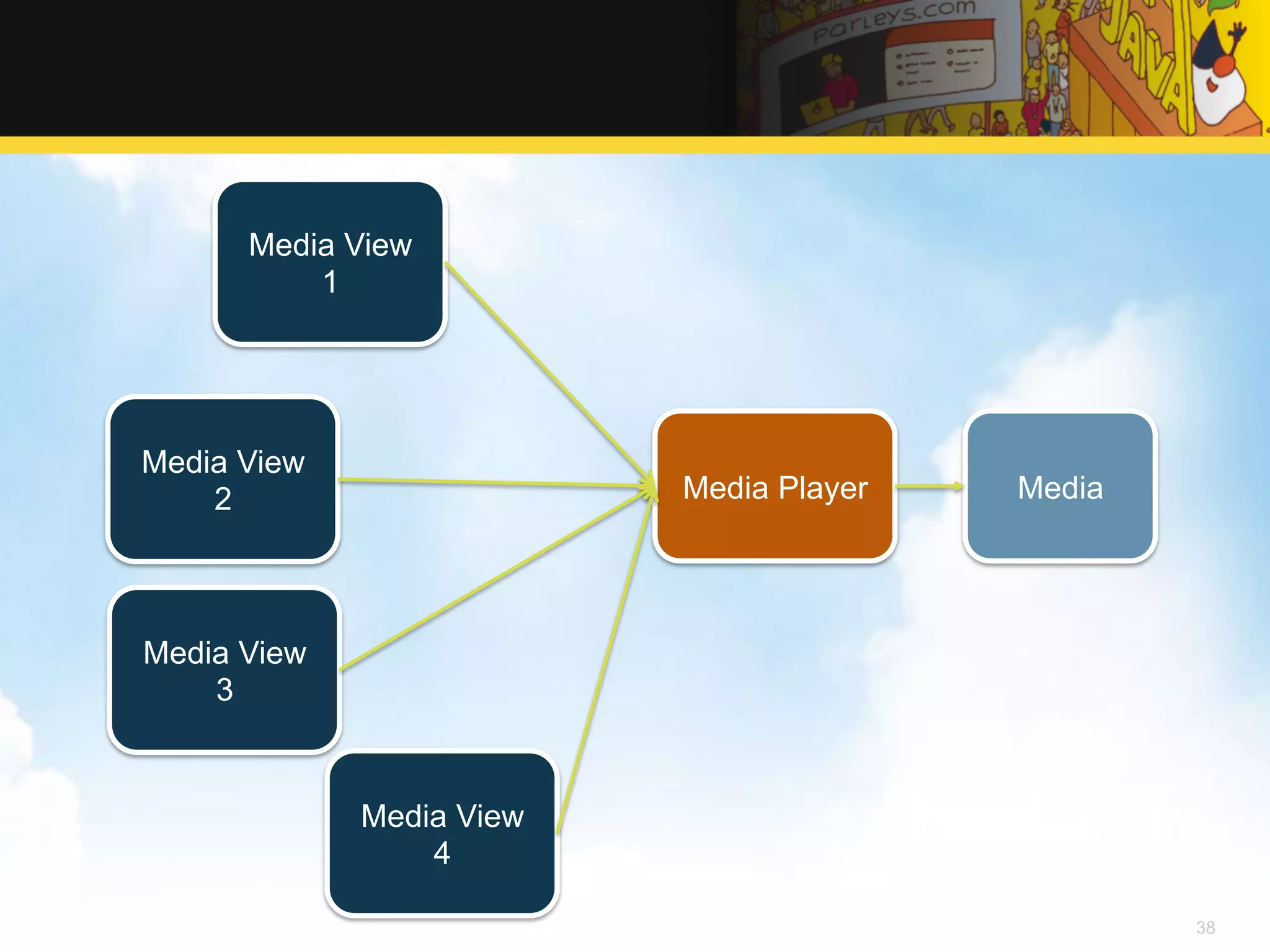

Media View 1 Media View 2 Media Player Media Media View 3 Media View 4 38

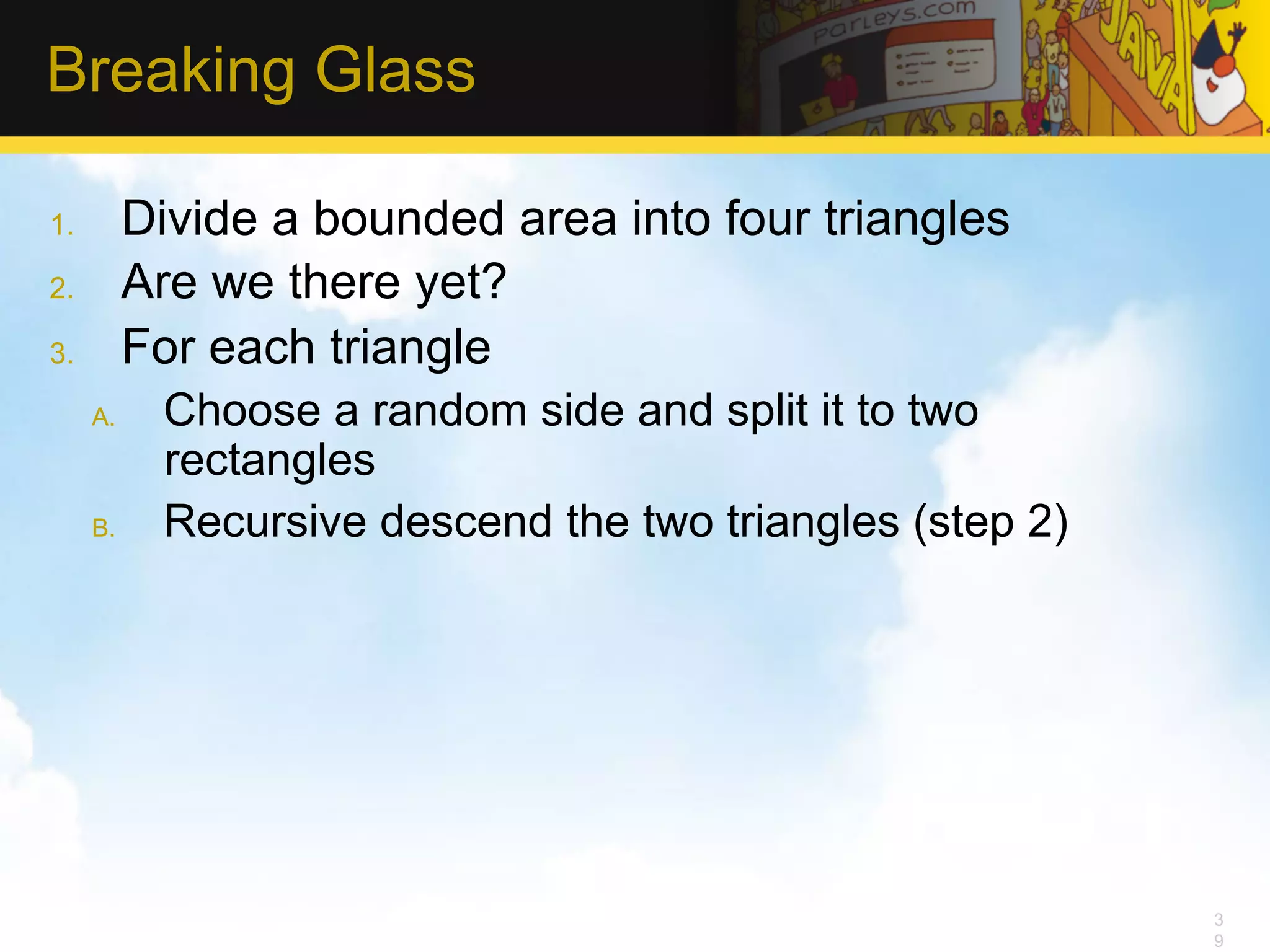

Breaking Glass 1.  Divide a bounded area into four triangles 2.  Are we there yet? 3.  For each triangle A.  Choose a random side and split it to two rectangles B.  Recursive descend the two triangles (step 2) 3 9

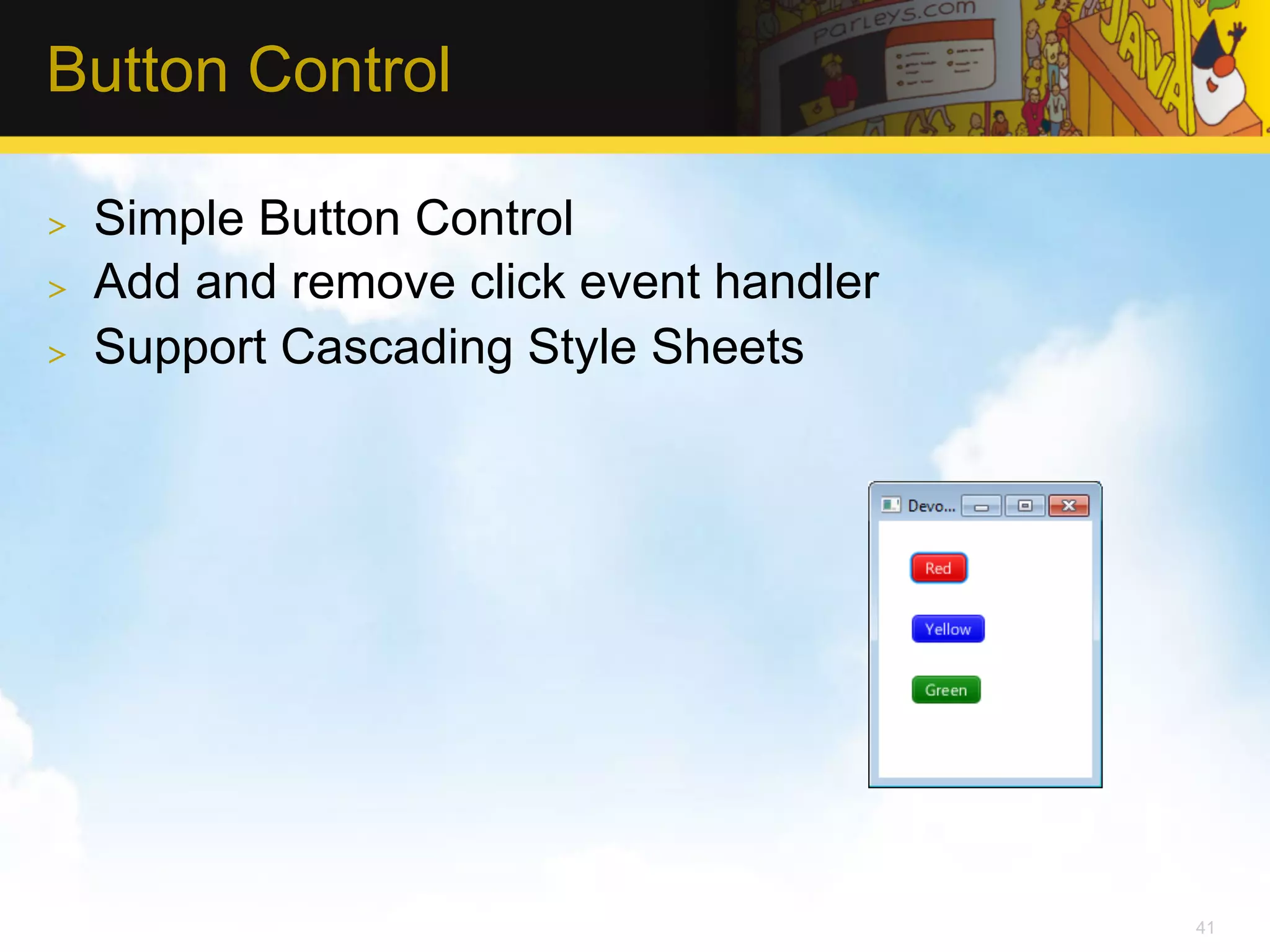

Button Control >  Simple Button Control >  Add and remove click event handler >  Support Cascading Style Sheets 41

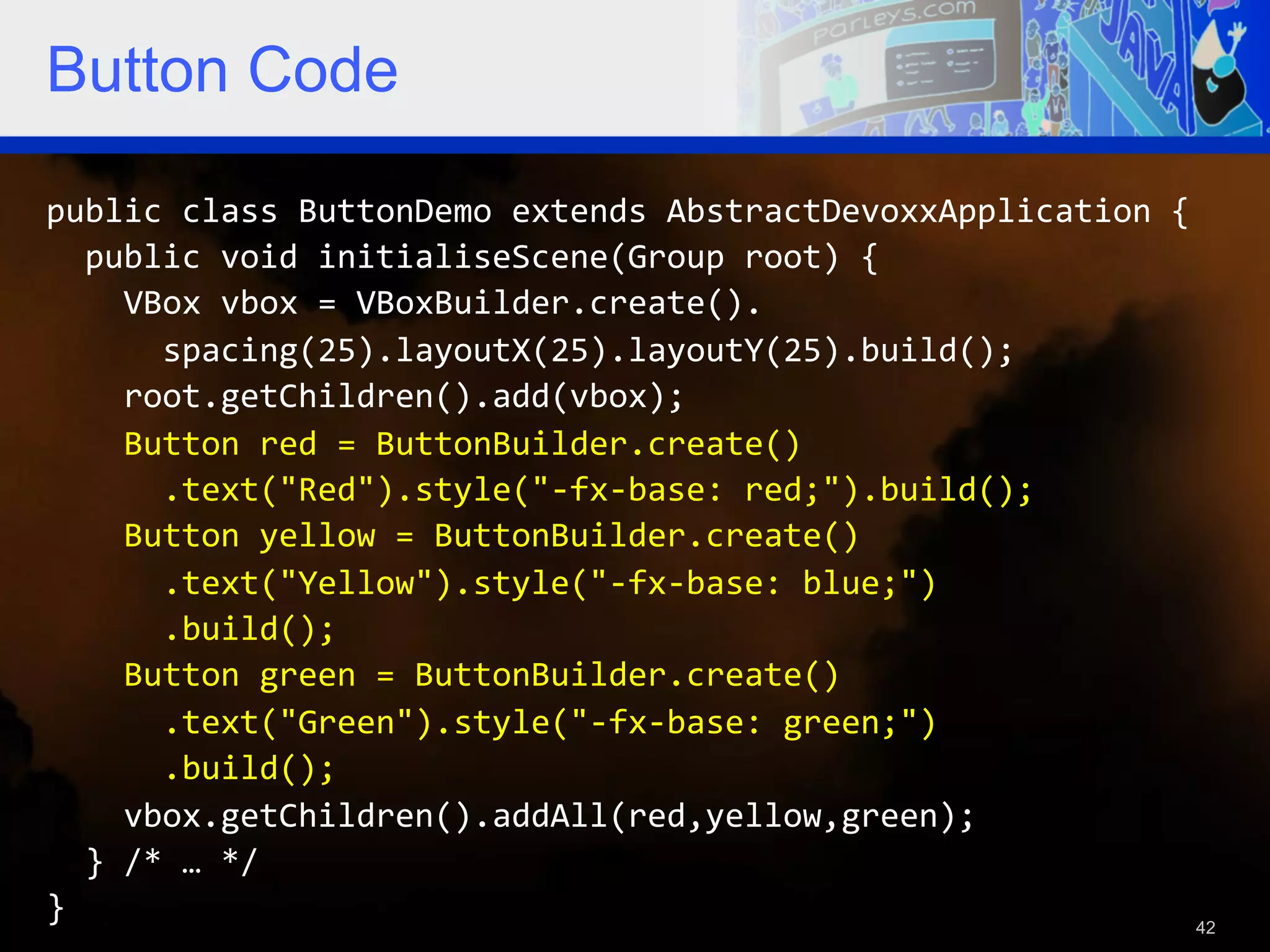

Button Code public class ButtonDemo extends AbstractDevoxxApplication { public void initialiseScene(Group root) { VBox vbox = VBoxBuilder.create(). spacing(25).layoutX(25).layoutY(25).build(); root.getChildren().add(vbox); Button red = ButtonBuilder.create() .text("Red").style("-‐fx-‐base: red;").build(); Button yellow = ButtonBuilder.create() .text("Yellow").style("-‐fx-‐base: blue;") .build(); Button green = ButtonBuilder.create() .text("Green").style("-‐fx-‐base: green;") .build(); vbox.getChildren().addAll(red,yellow,green); } /* … */ } 42

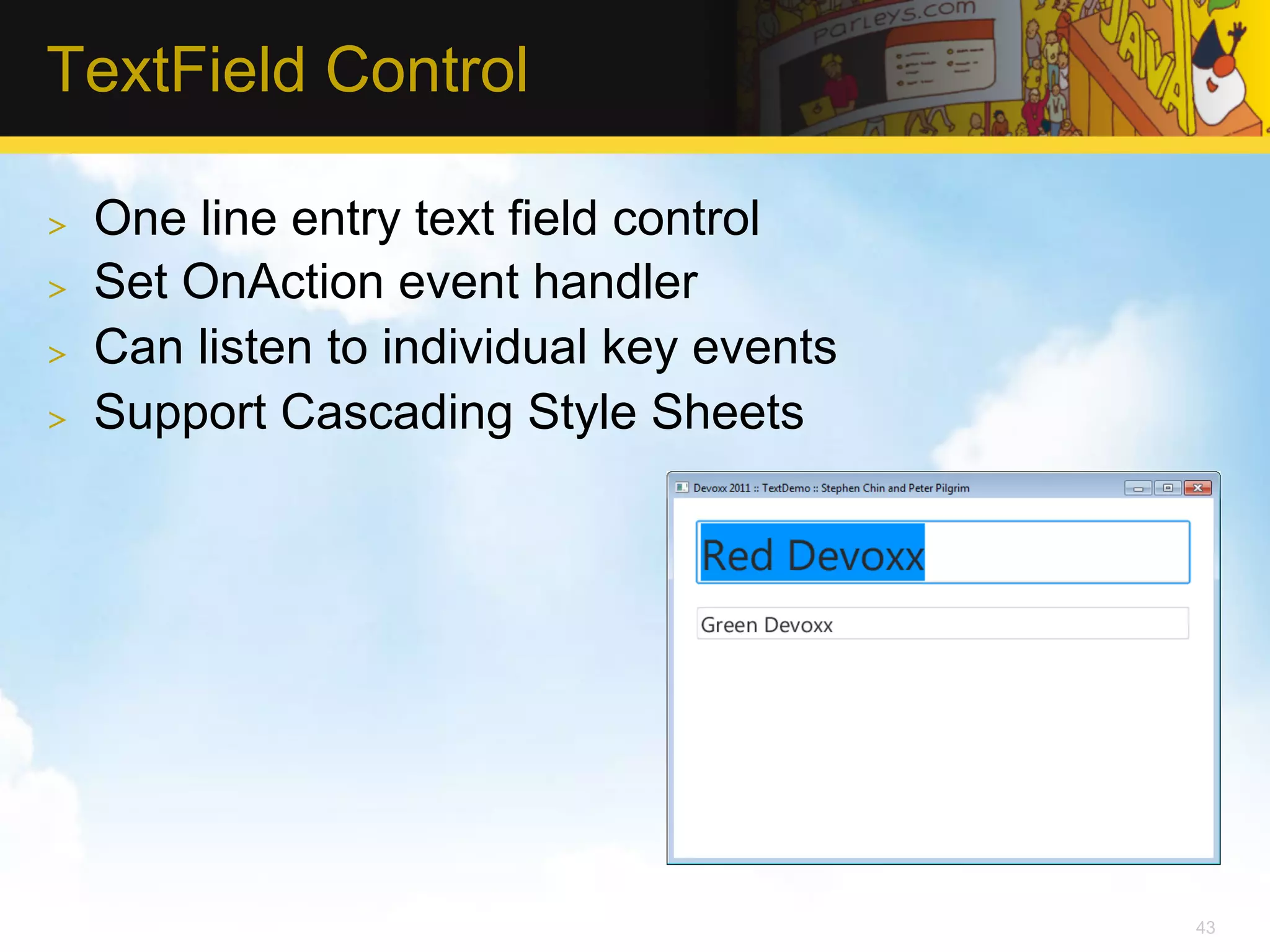

TextField Control >  One line entry text field control >  Set OnAction event handler >  Can listen to individual key events >  Support Cascading Style Sheets 43

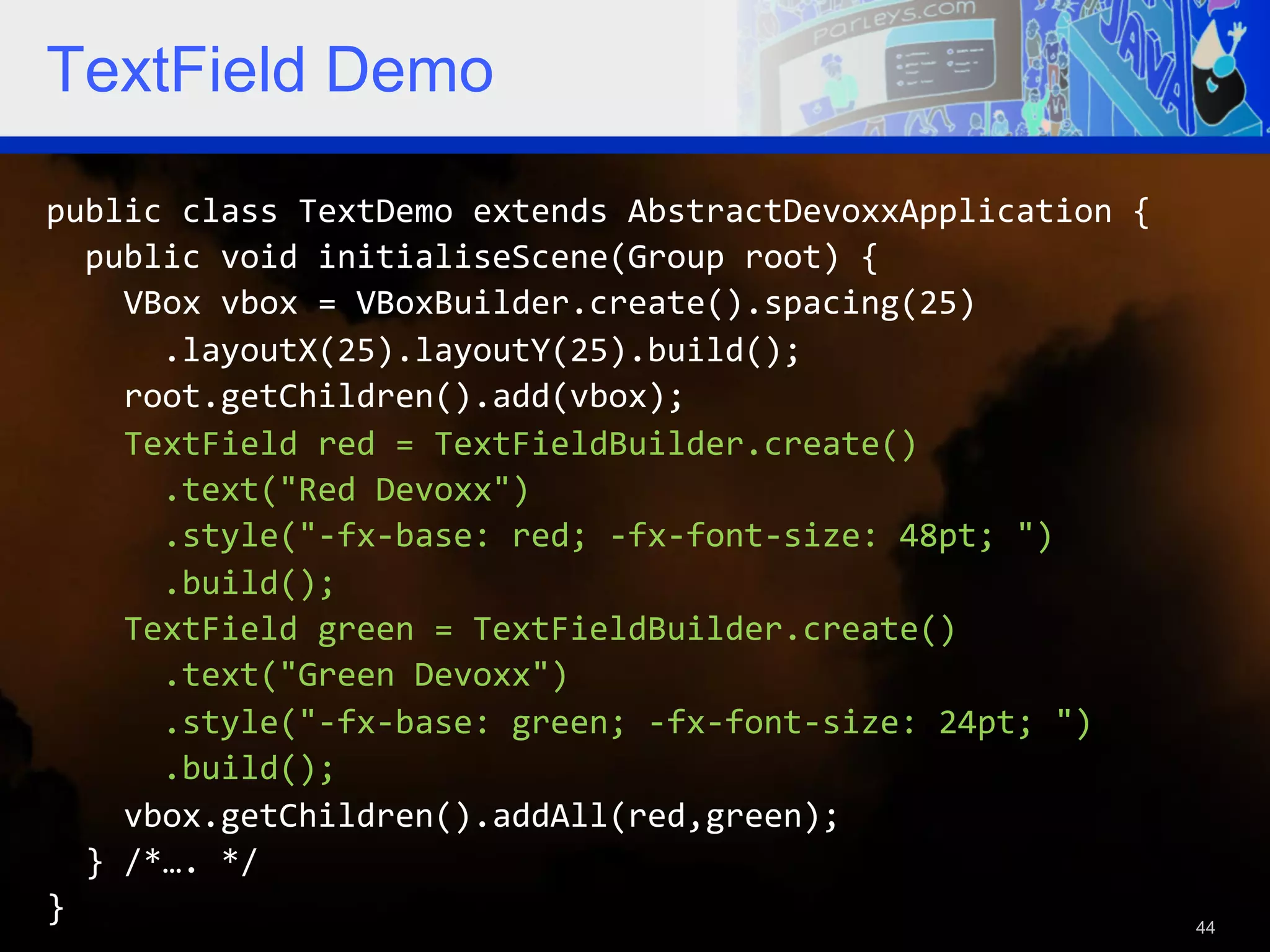

TextField Demo public class TextDemo extends AbstractDevoxxApplication { public void initialiseScene(Group root) { VBox vbox = VBoxBuilder.create().spacing(25) .layoutX(25).layoutY(25).build(); root.getChildren().add(vbox); TextField red = TextFieldBuilder.create() .text("Red Devoxx") .style("-‐fx-‐base: red; -‐fx-‐font-‐size: 48pt; ") .build(); TextField green = TextFieldBuilder.create() .text("Green Devoxx") .style("-‐fx-‐base: green; -‐fx-‐font-‐size: 24pt; ") .build(); vbox.getChildren().addAll(red,green); } /*…. */ } 44

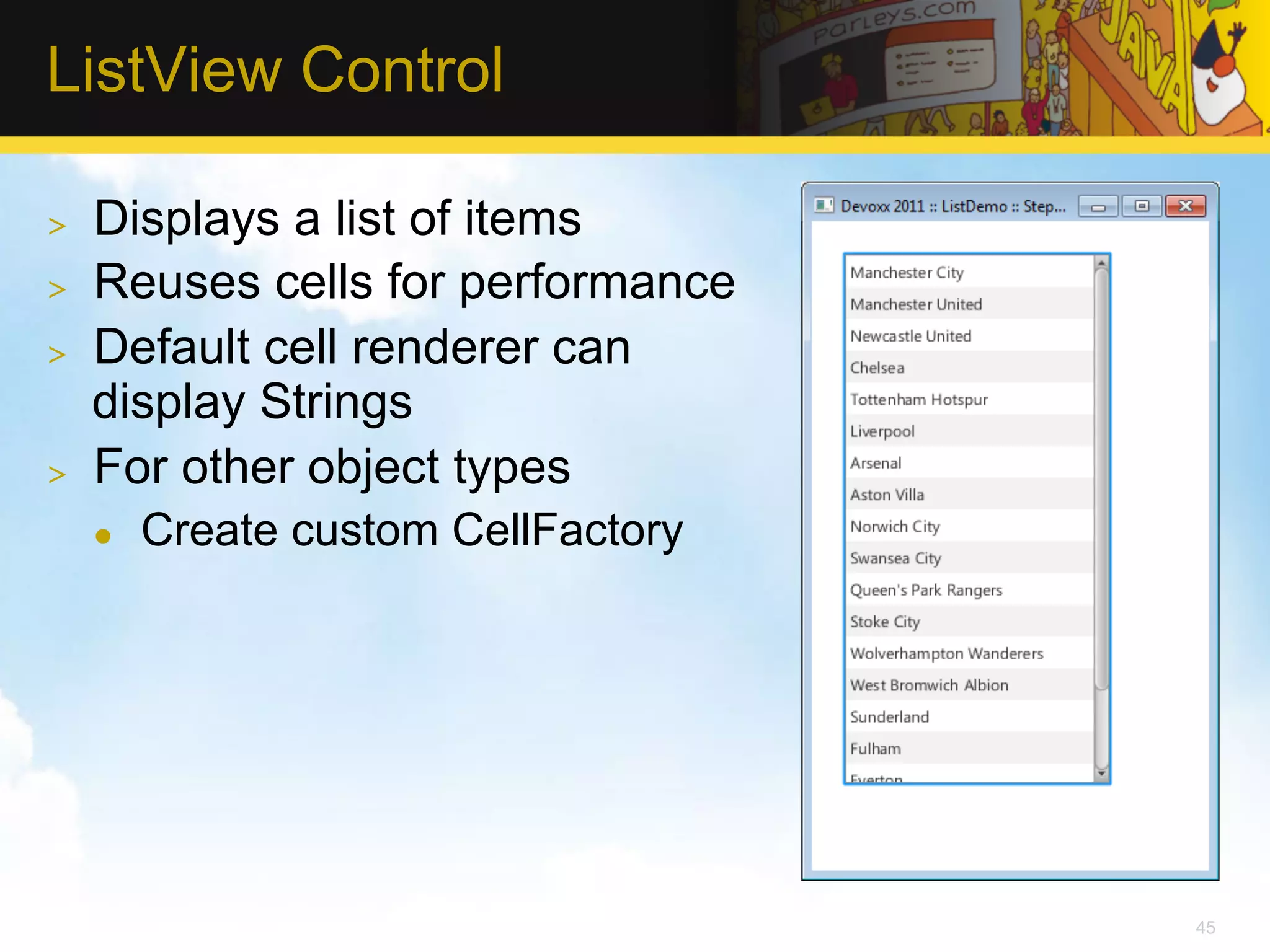

ListView Control >  Displays a list of items >  Reuses cells for performance >  Default cell renderer can display Strings >  For other object types l  Create custom CellFactory 45

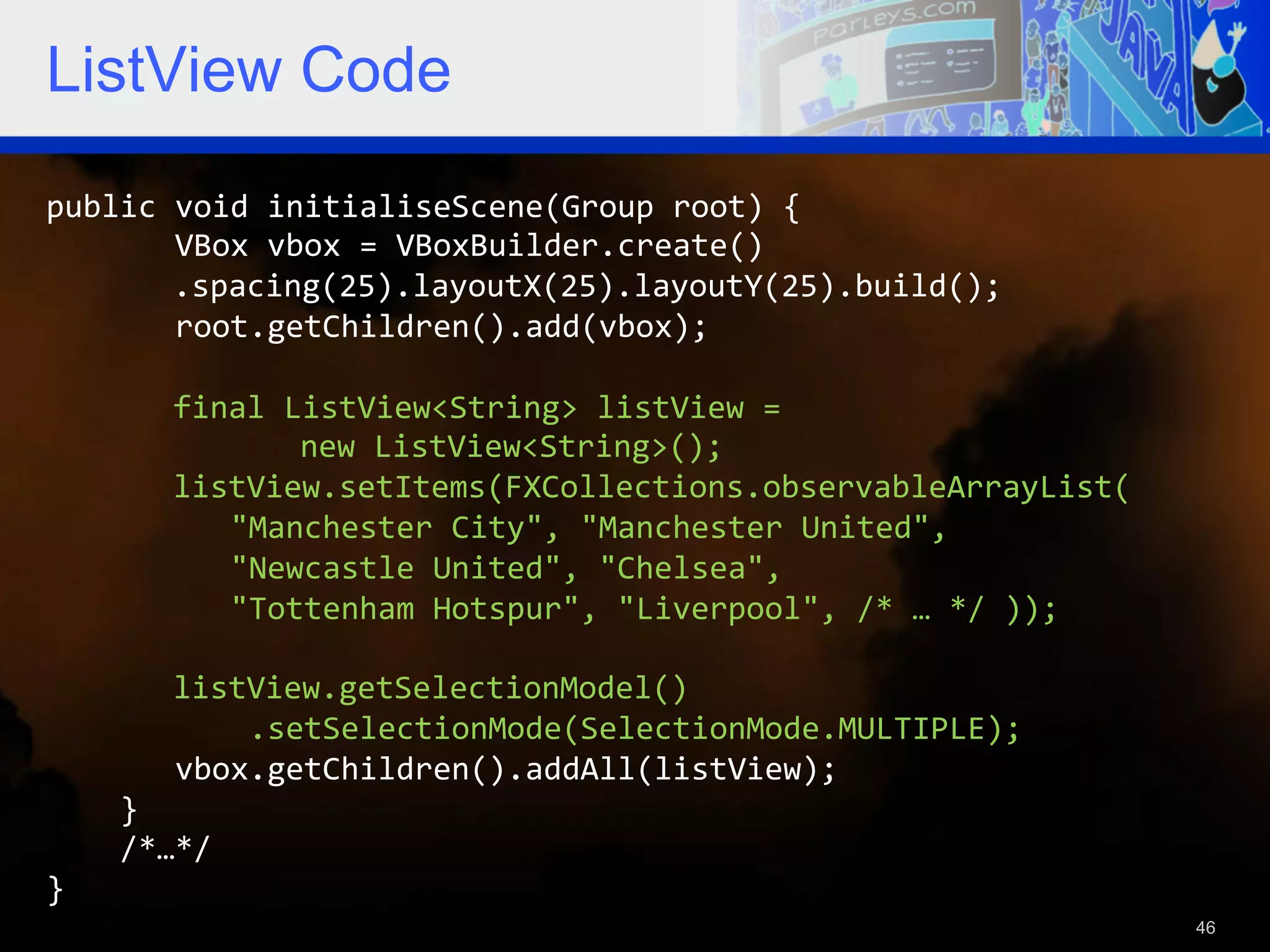

ListView Code public void initialiseScene(Group root) { VBox vbox = VBoxBuilder.create() .spacing(25).layoutX(25).layoutY(25).build(); root.getChildren().add(vbox); final ListView<String> listView = new ListView<String>(); listView.setItems(FXCollections.observableArrayList( "Manchester City", "Manchester United", "Newcastle United", "Chelsea", "Tottenham Hotspur", "Liverpool", /* … */ )); listView.getSelectionModel() .setSelectionMode(SelectionMode.MULTIPLE); vbox.getChildren().addAll(listView); } /*…*/ } 46

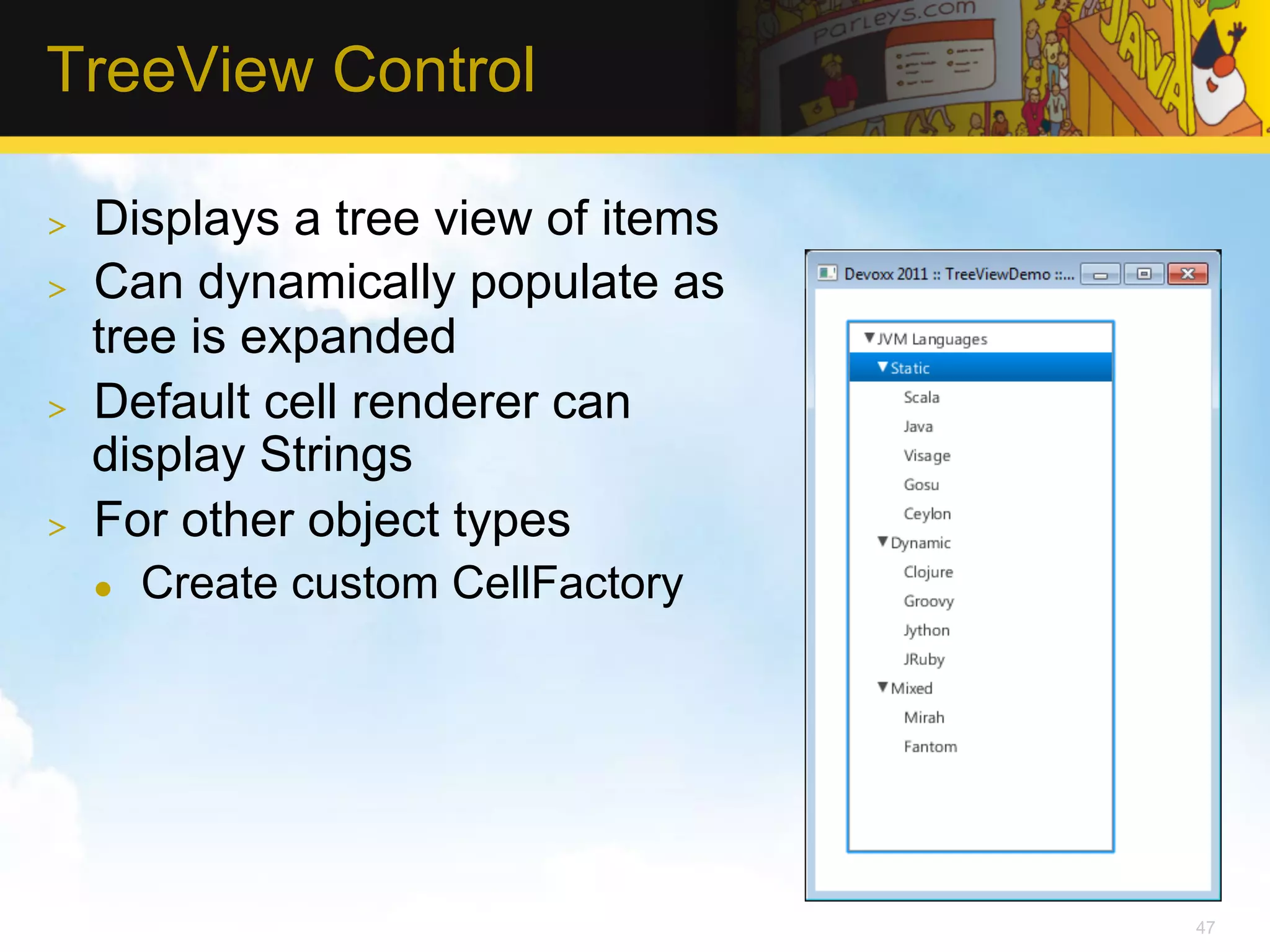

TreeView Control >  Displays a tree view of items >  Can dynamically populate as tree is expanded >  Default cell renderer can display Strings >  For other object types l  Create custom CellFactory 47

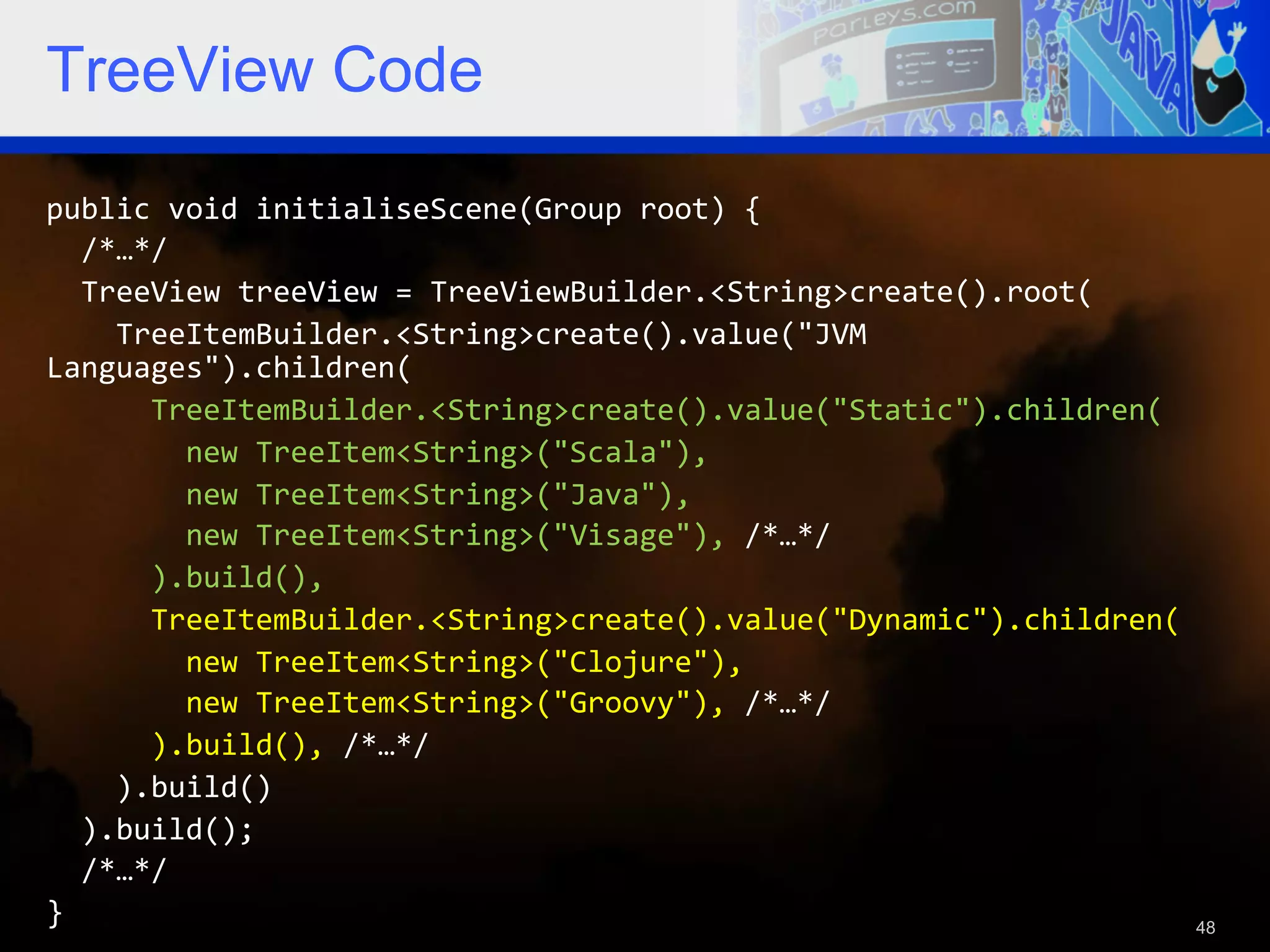

TreeView Code public void initialiseScene(Group root) { /*…*/ TreeView treeView = TreeViewBuilder.<String>create().root( TreeItemBuilder.<String>create().value("JVM Languages").children( TreeItemBuilder.<String>create().value("Static").children( new TreeItem<String>("Scala"), new TreeItem<String>("Java"), new TreeItem<String>("Visage"), /*…*/ ).build(), TreeItemBuilder.<String>create().value("Dynamic").children( new TreeItem<String>("Clojure"), new TreeItem<String>("Groovy"), /*…*/ ).build(), /*…*/ ).build() ).build(); /*…*/ } 48

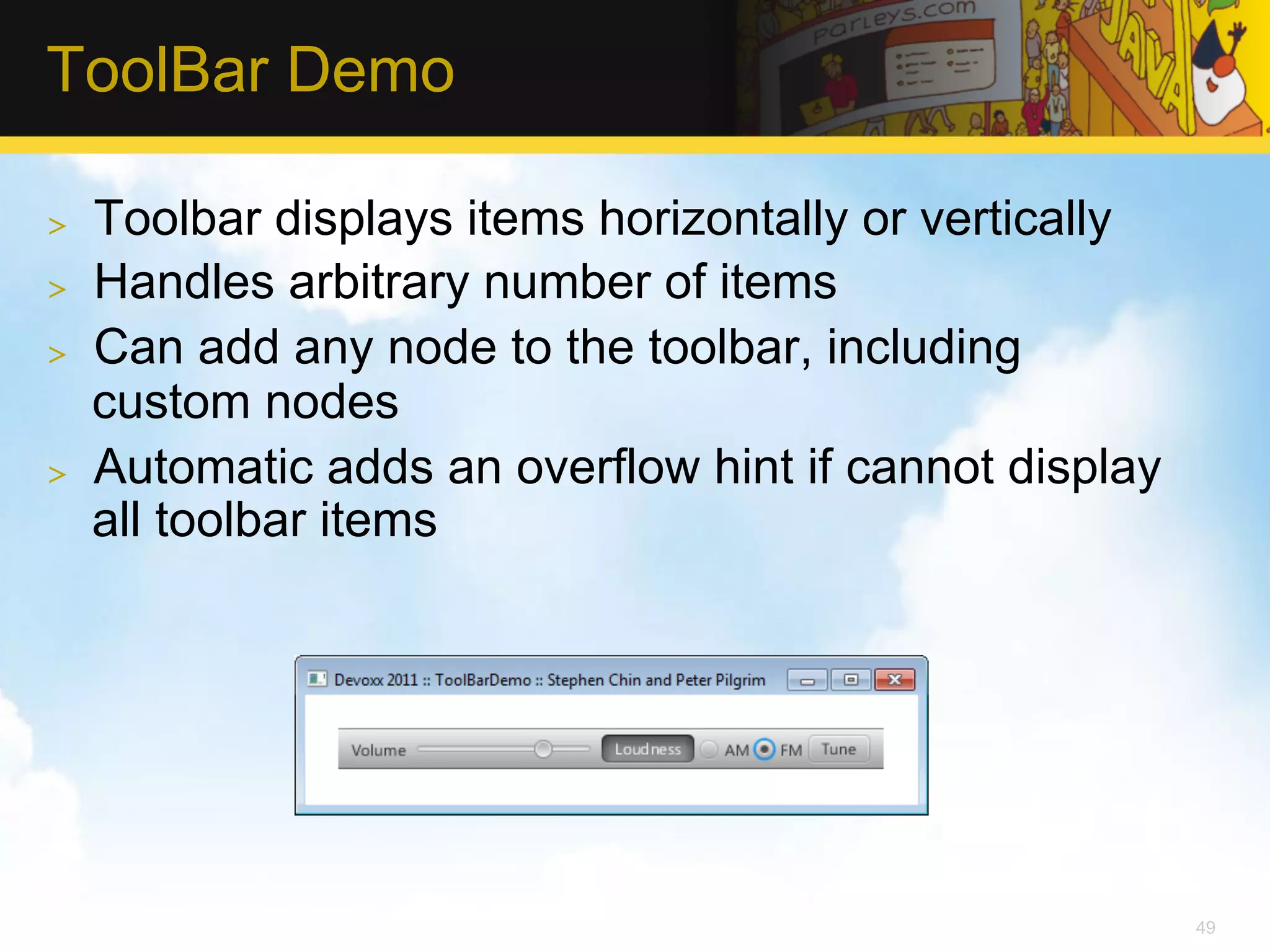

ToolBar Demo >  Toolbar displays items horizontally or vertically >  Handles arbitrary number of items >  Can add any node to the toolbar, including custom nodes >  Automatic adds an overflow hint if cannot display all toolbar items 49

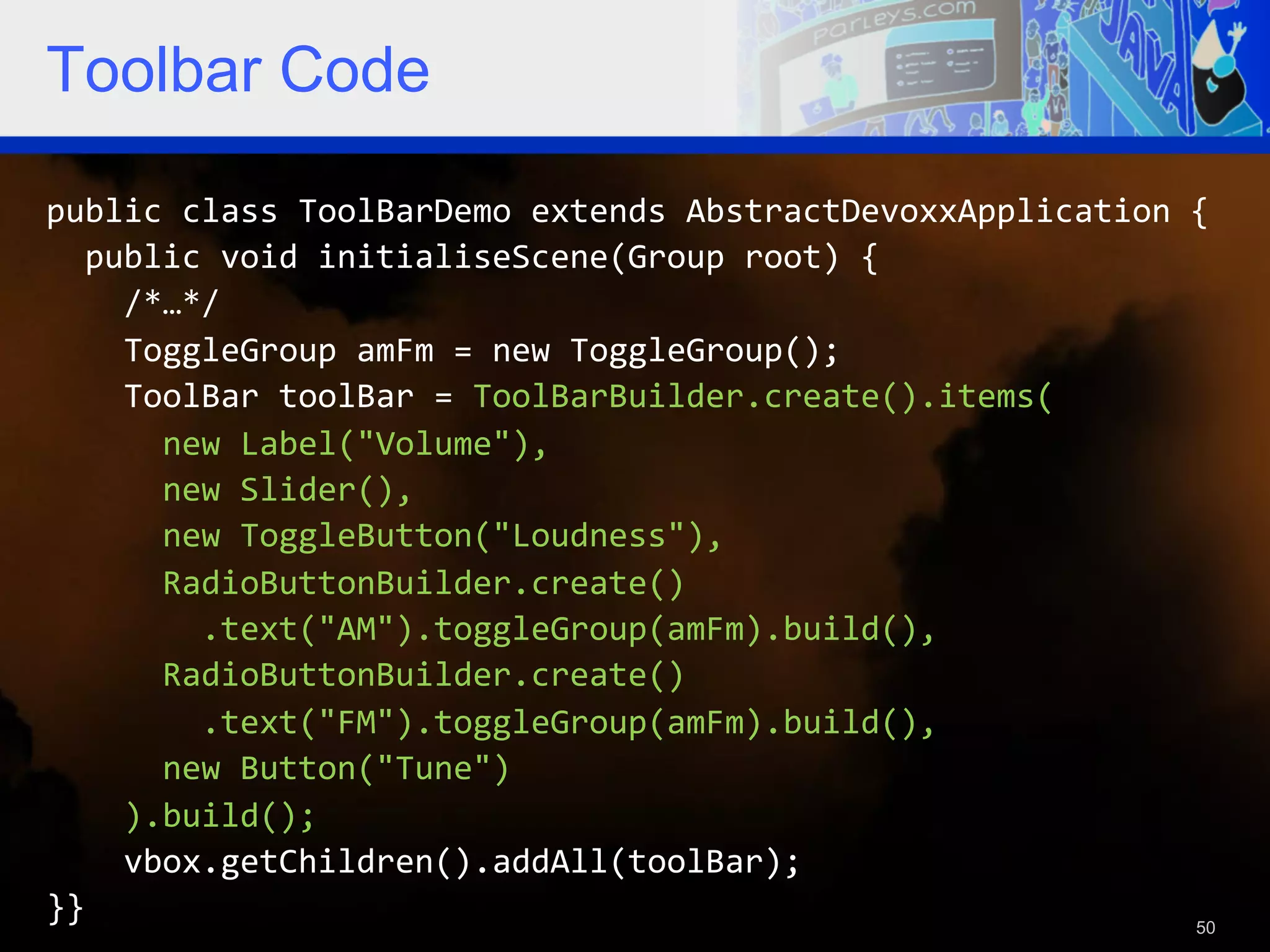

Toolbar Code public class ToolBarDemo extends AbstractDevoxxApplication { public void initialiseScene(Group root) { /*…*/ ToggleGroup amFm = new ToggleGroup(); ToolBar toolBar = ToolBarBuilder.create().items( new Label("Volume"), new Slider(), new ToggleButton("Loudness"), RadioButtonBuilder.create() .text("AM").toggleGroup(amFm).build(), RadioButtonBuilder.create() .text("FM").toggleGroup(amFm).build(), new Button("Tune") ).build(); vbox.getChildren().addAll(toolBar); }} 50

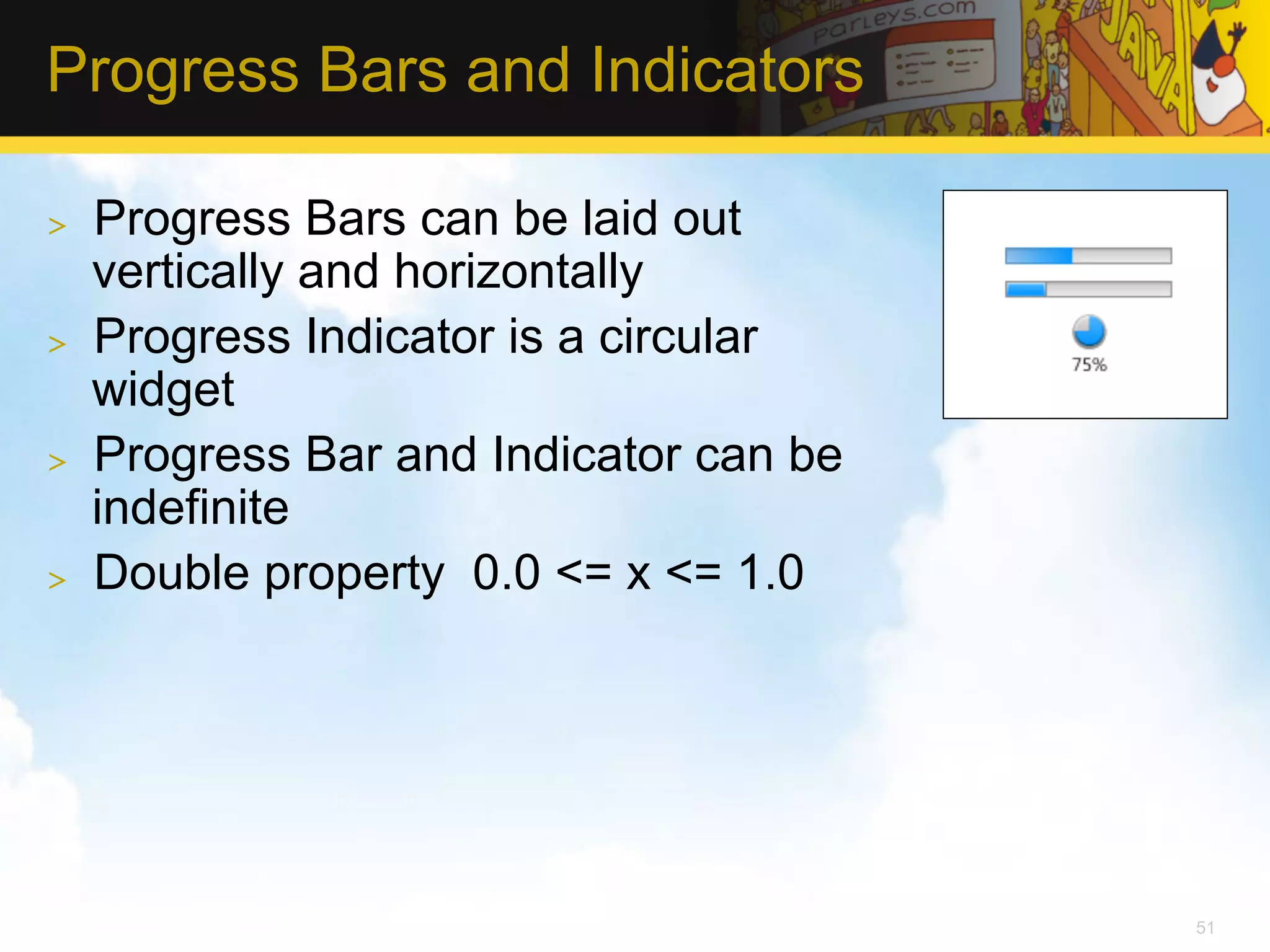

Progress Bars and Indicators >  Progress Bars can be laid out vertically and horizontally >  Progress Indicator is a circular widget >  Progress Bar and Indicator can be indefinite >  Double property 0.0 <= x <= 1.0 51

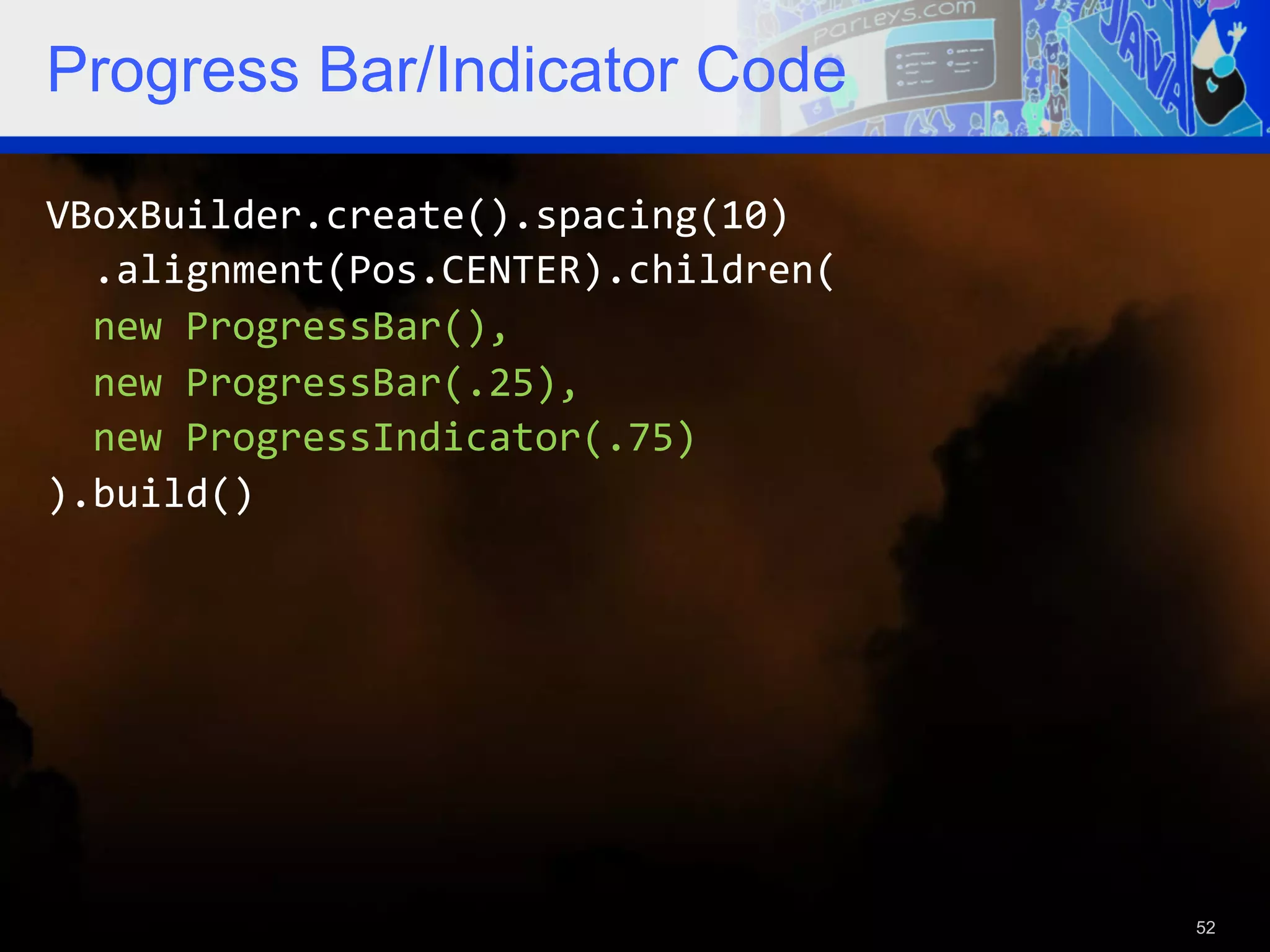

Progress Bar/Indicator Code VBoxBuilder.create().spacing(10) .alignment(Pos.CENTER).children( new ProgressBar(), new ProgressBar(.25), new ProgressIndicator(.75) ).build() 52

Accordion Control >  Accordion is a space saving components >  Accordian accept only TitledPanes >  Each TitledPane managed one scenegraph node >  Can choose the titled pane expanded by default 53

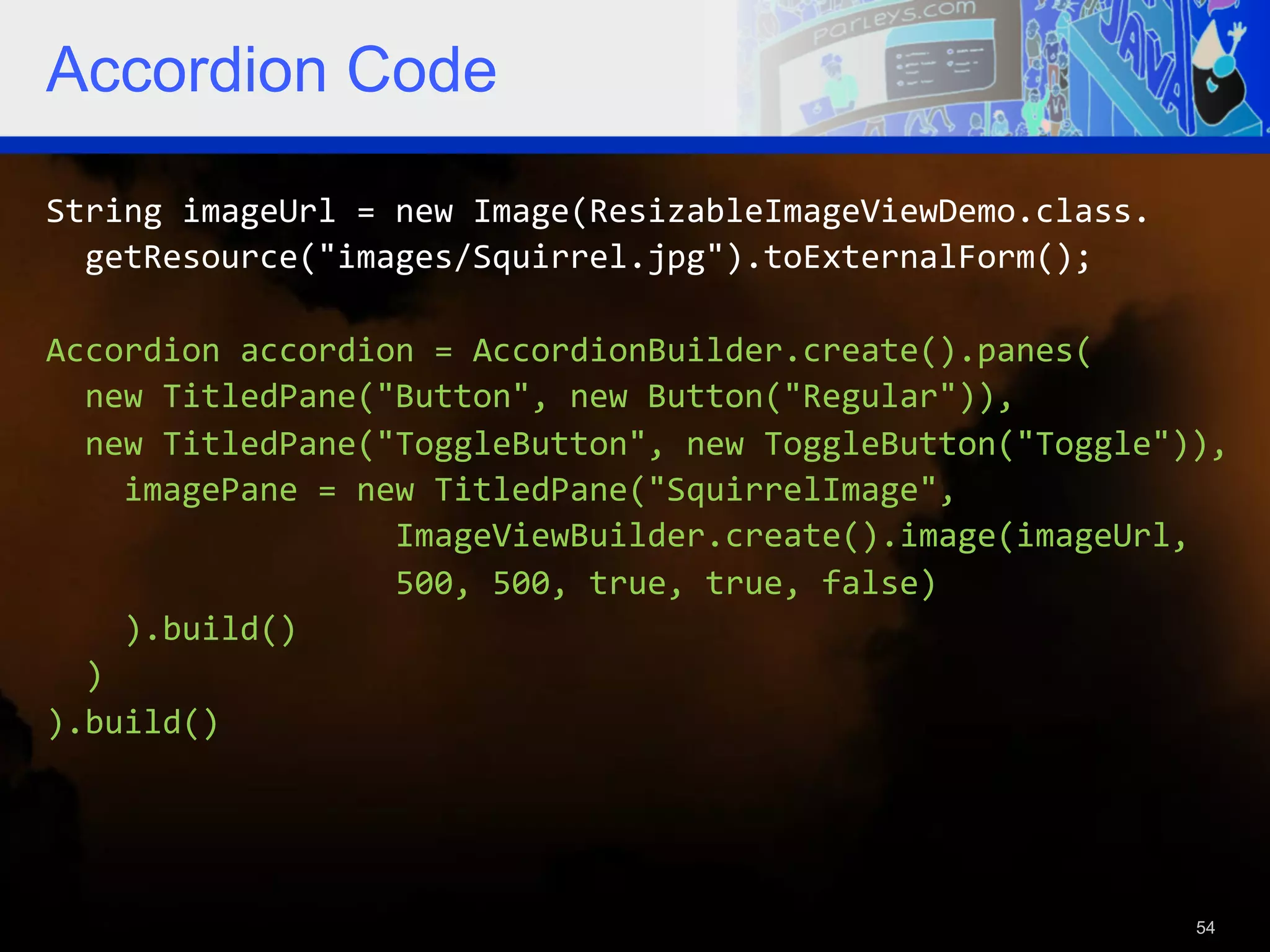

Accordion Code String imageUrl = new Image(ResizableImageViewDemo.class. getResource("images/Squirrel.jpg").toExternalForm(); Accordion accordion = AccordionBuilder.create().panes( new TitledPane("Button", new Button("Regular")), new TitledPane("ToggleButton", new ToggleButton("Toggle")), imagePane = new TitledPane("SquirrelImage", ImageViewBuilder.create().image(imageUrl, 500, 500, true, true, false) ).build() ) ).build() 54

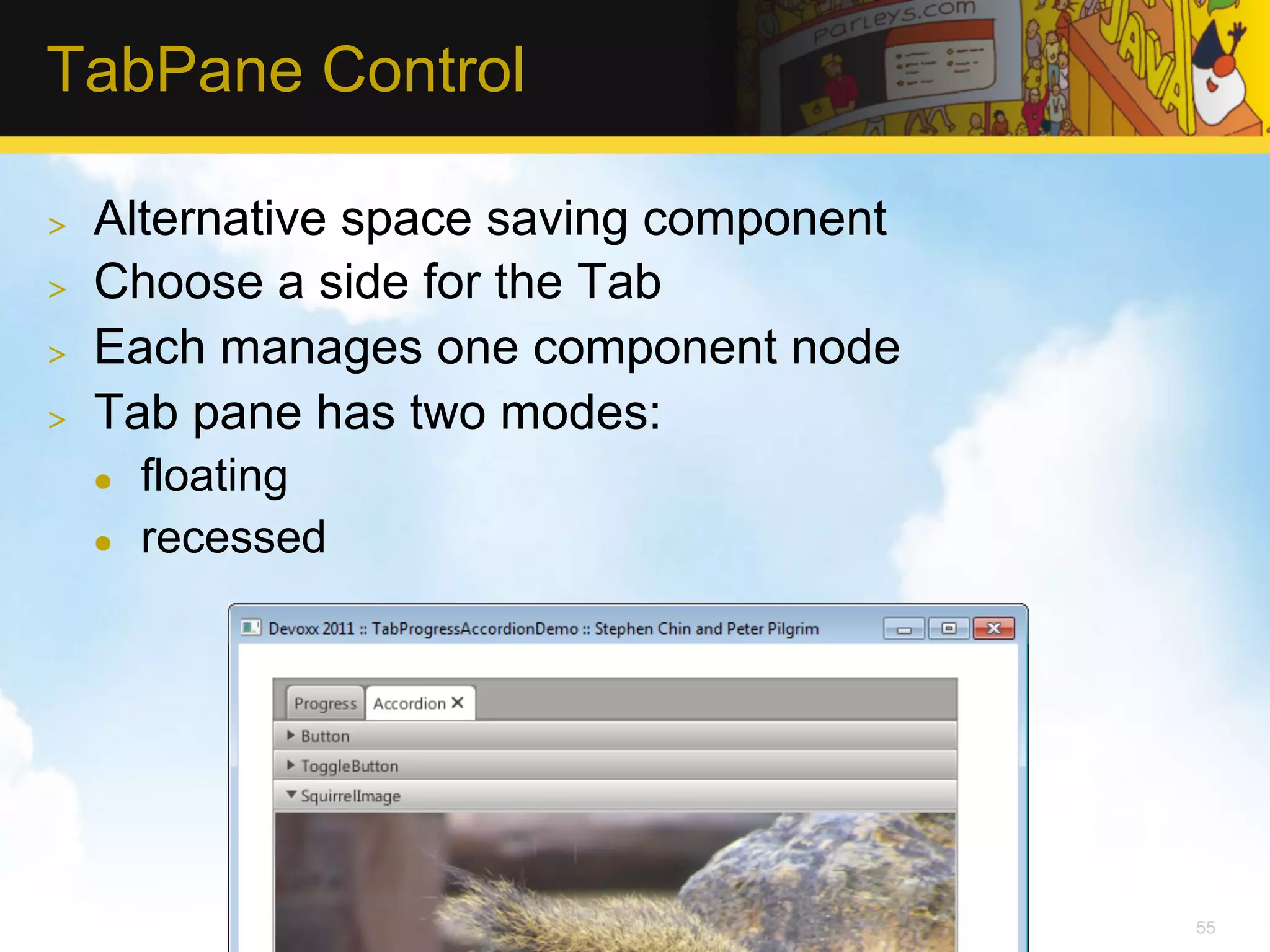

TabPane Control >  Alternative space saving component >  Choose a side for the Tab >  Each manages one component node >  Tab pane has two modes: l  floating l  recessed 55

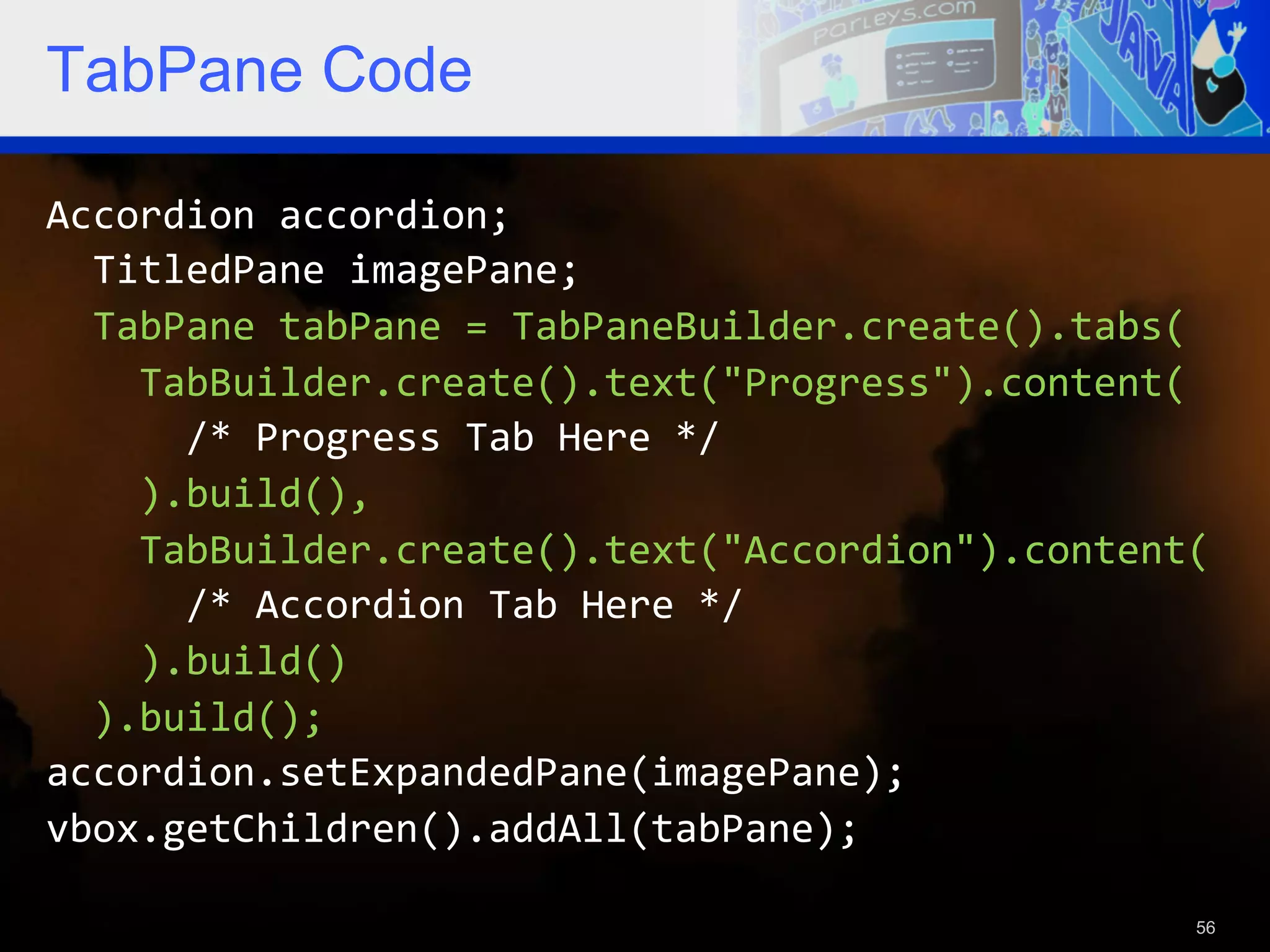

TabPane Code Accordion accordion; TitledPane imagePane; TabPane tabPane = TabPaneBuilder.create().tabs( TabBuilder.create().text("Progress").content( /* Progress Tab Here */ ).build(), TabBuilder.create().text("Accordion").content( /* Accordion Tab Here */ ).build() ).build(); accordion.setExpandedPane(imagePane); vbox.getChildren().addAll(tabPane); 56

Pens, papers and inks, first! 58

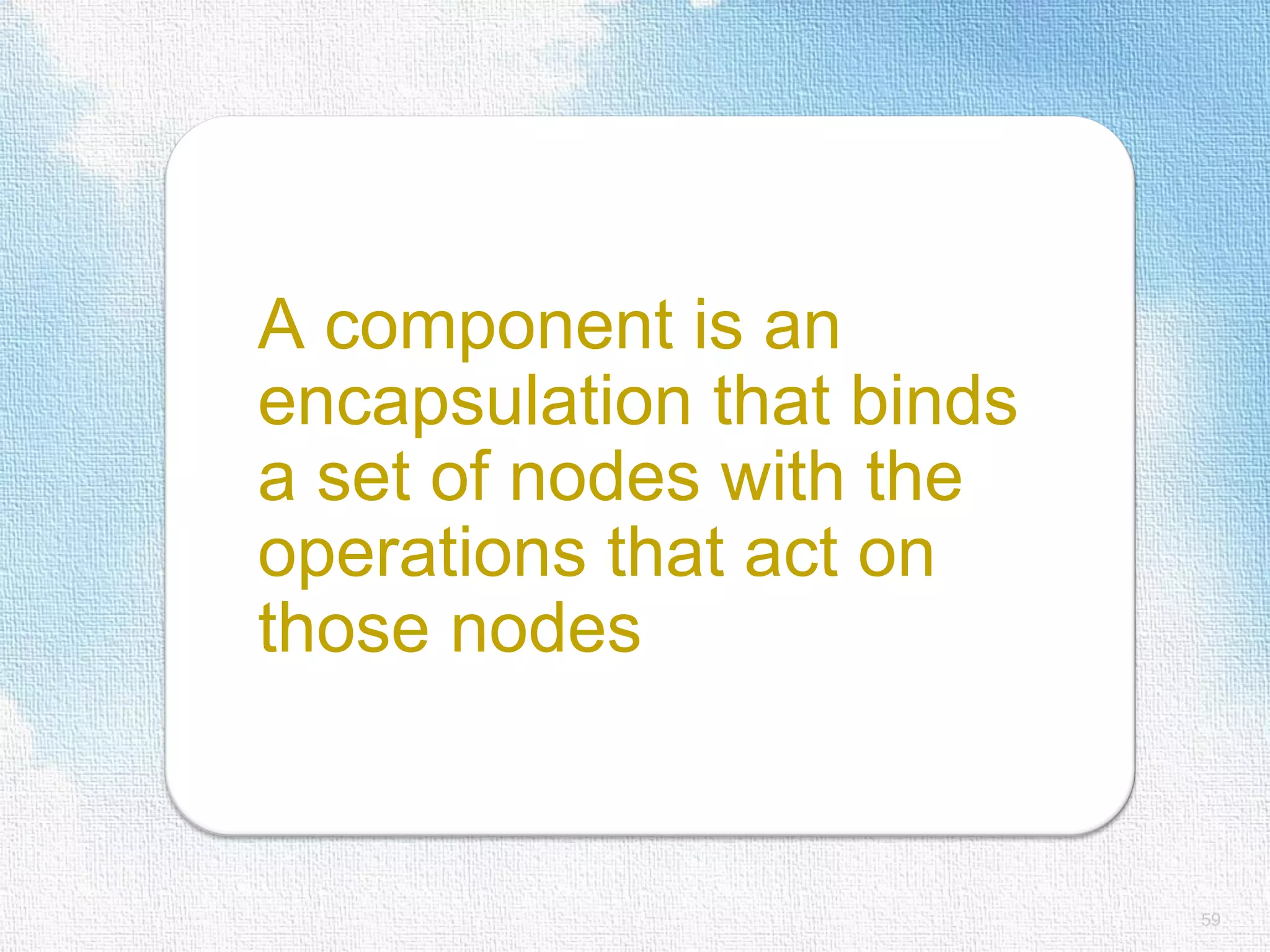

A component is an encapsulation that binds a set of nodes with the operations that act on those nodes 59

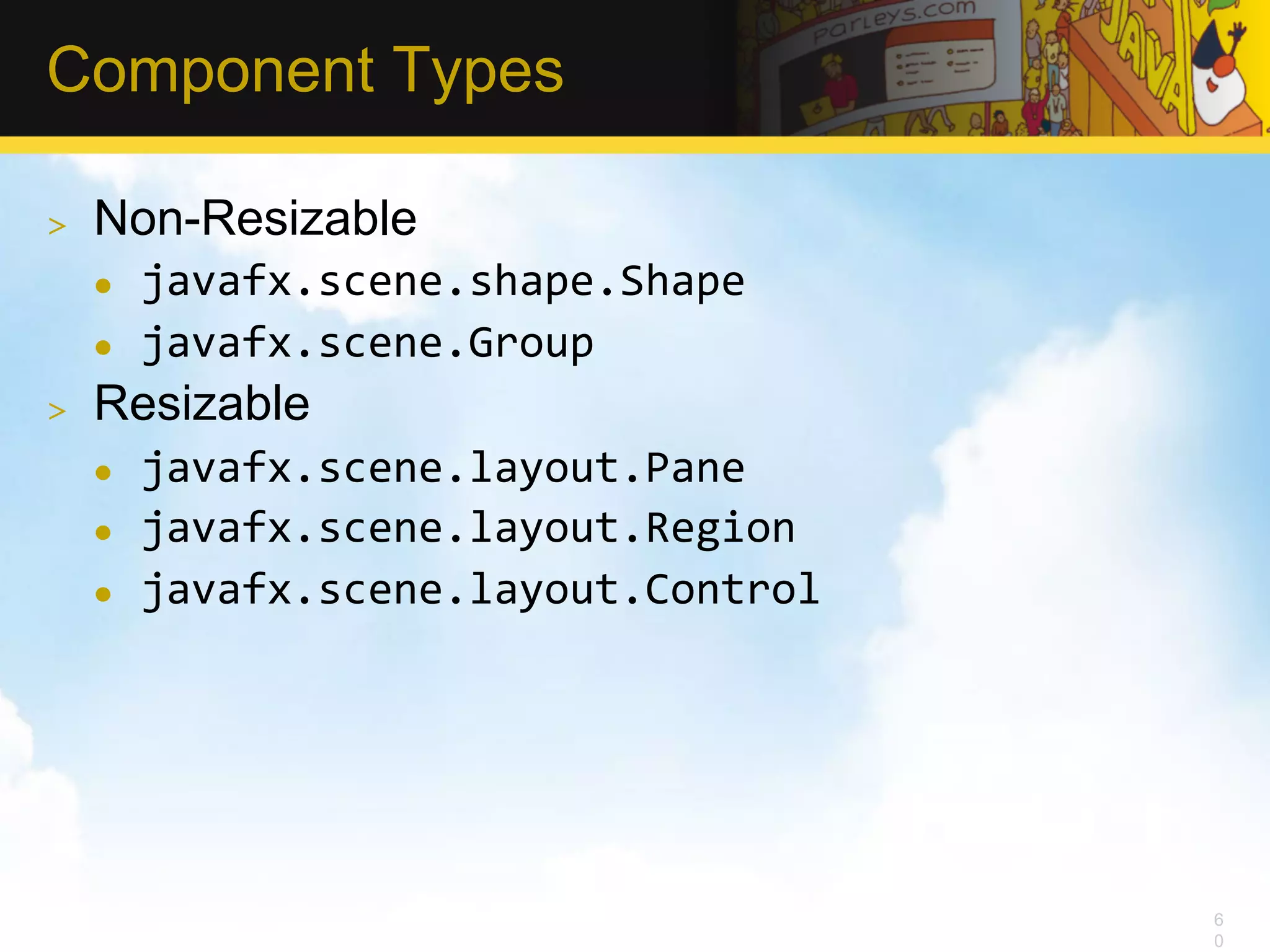

Component Types >  Non-Resizable l  javafx.scene.shape.Shape l  javafx.scene.Group >  Resizable l  javafx.scene.layout.Pane l  javafx.scene.layout.Region l  javafx.scene.layout.Control 6 0

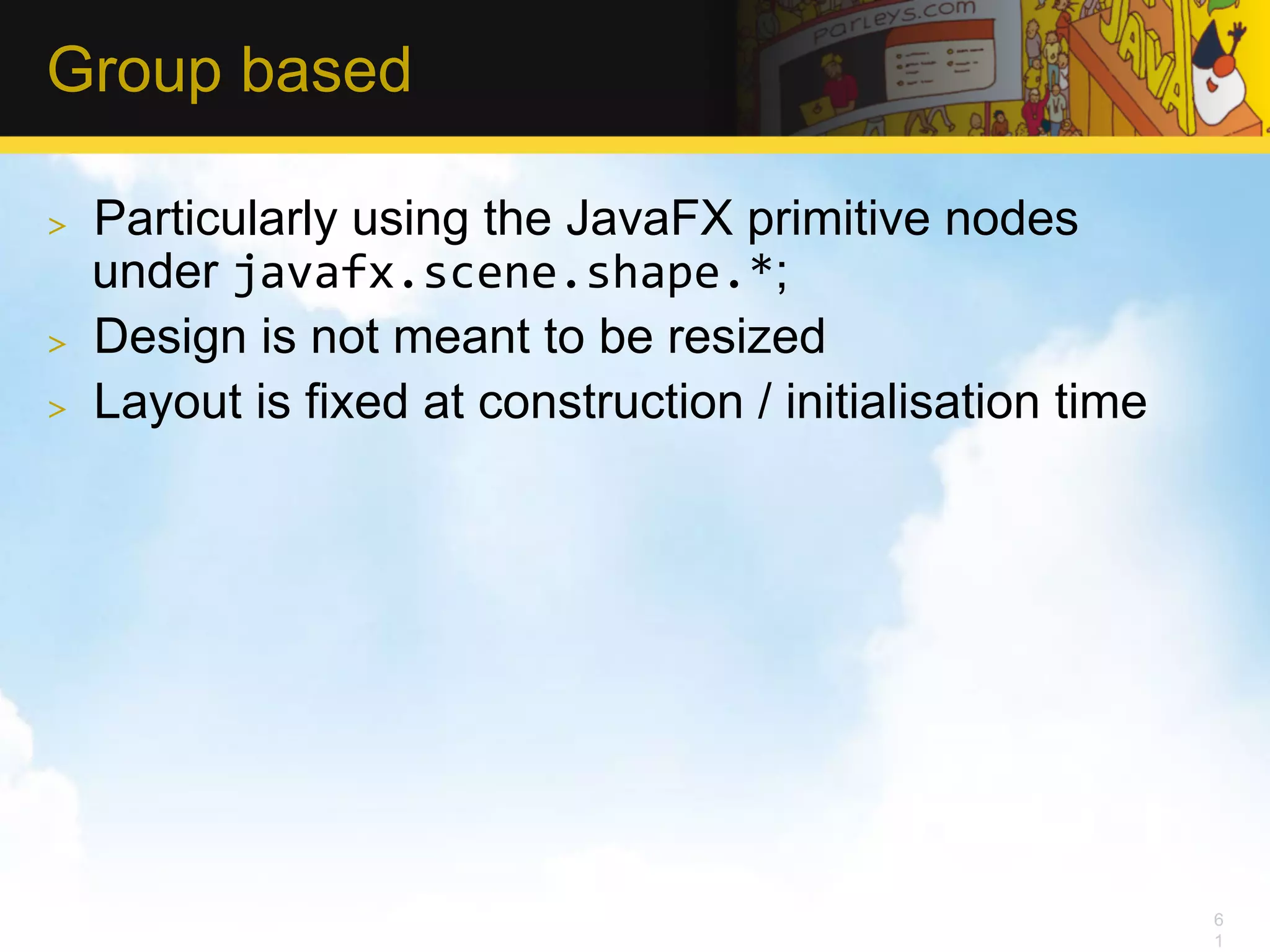

Group based >  Particularly using the JavaFX primitive nodes under javafx.scene.shape.*; >  Design is not meant to be resized >  Layout is fixed at construction / initialisation time 6 1

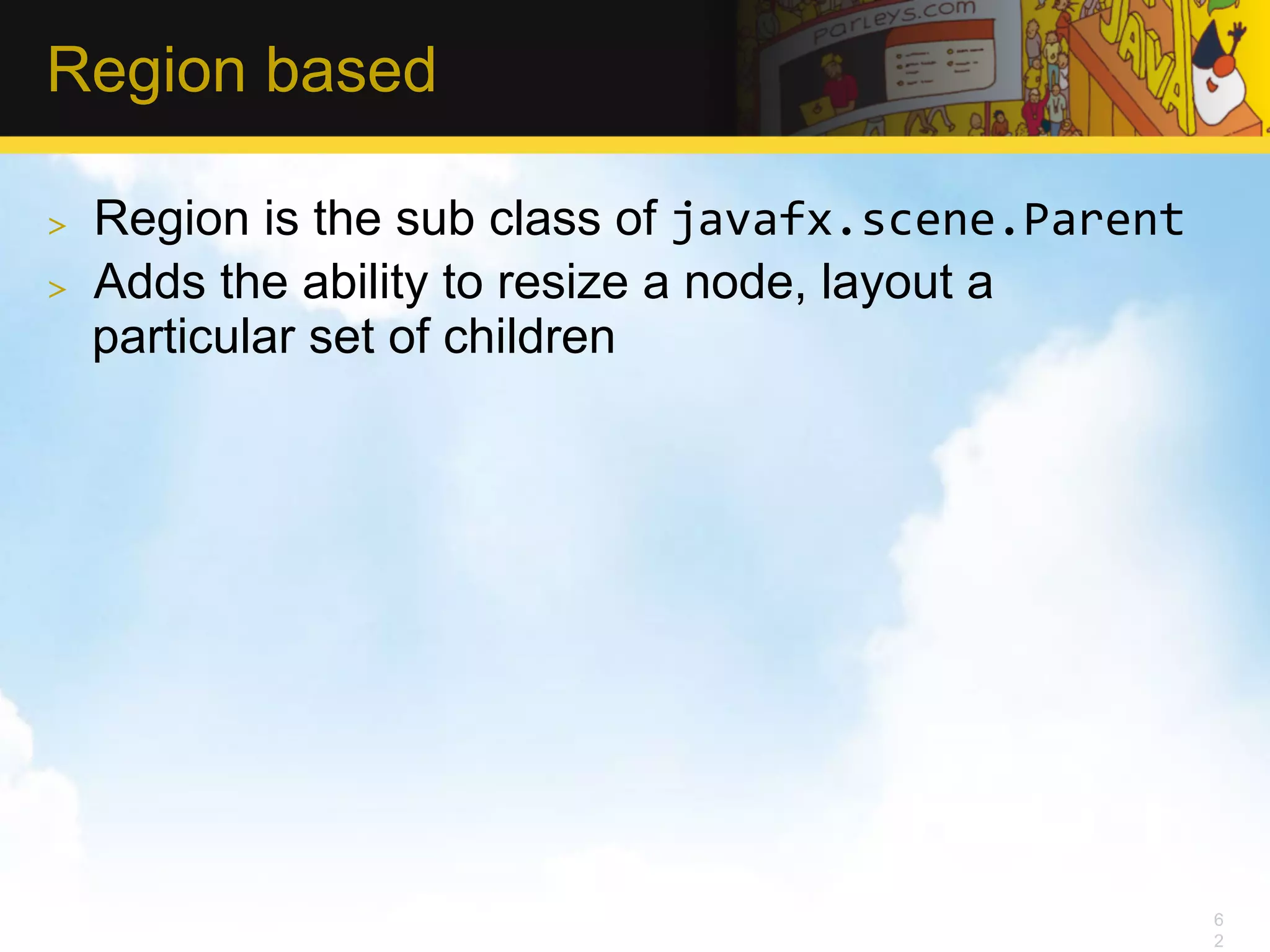

Region based >  Region is the sub class of javafx.scene.Parent >  Adds the ability to resize a node, layout a particular set of children 6 2

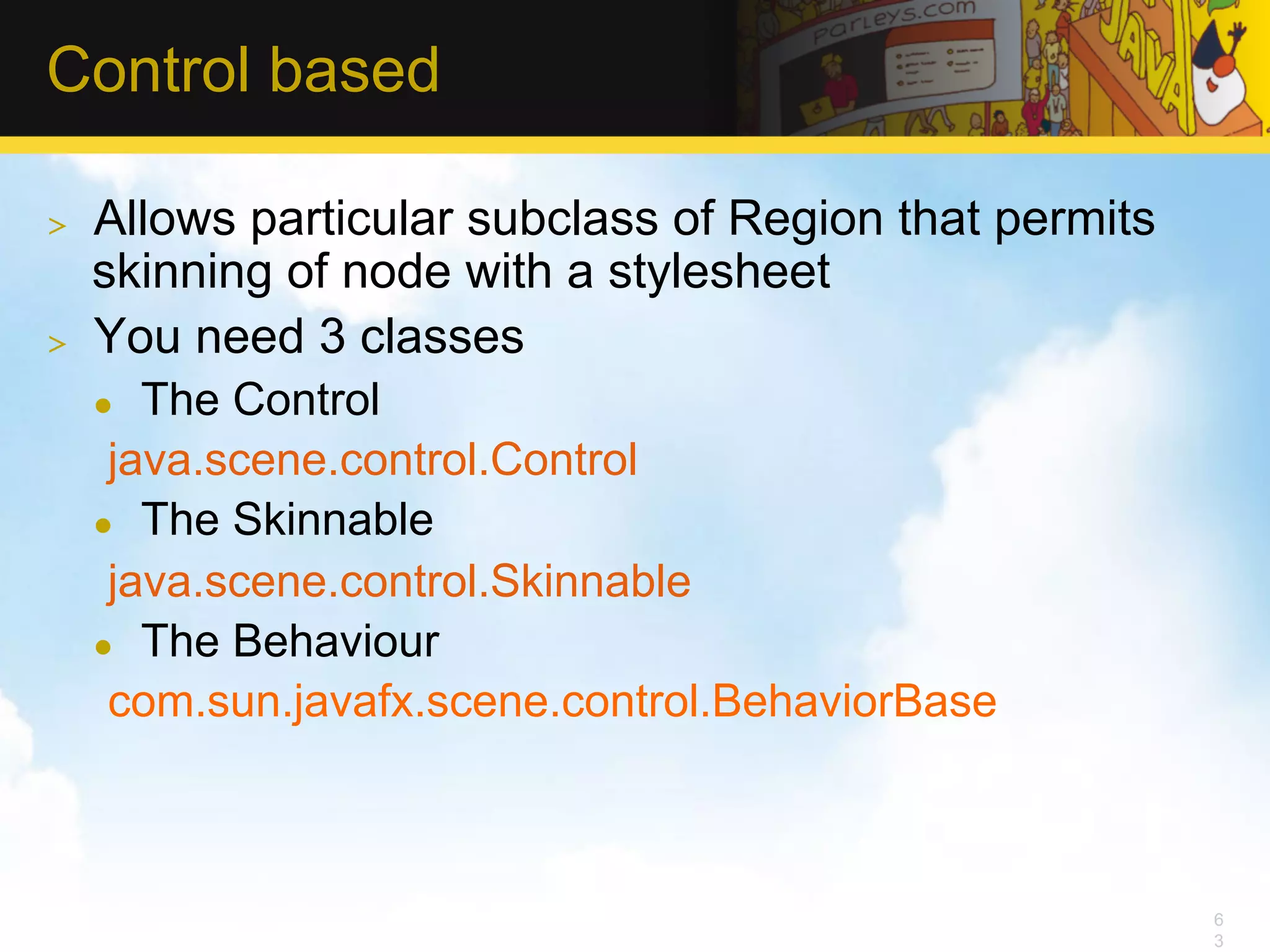

Control based >  Allows particular subclass of Region that permits skinning of node with a stylesheet >  You need 3 classes l  The Control java.scene.control.Control l  The Skinnable java.scene.control.Skinnable l  The Behaviour com.sun.javafx.scene.control.BehaviorBase 6 3

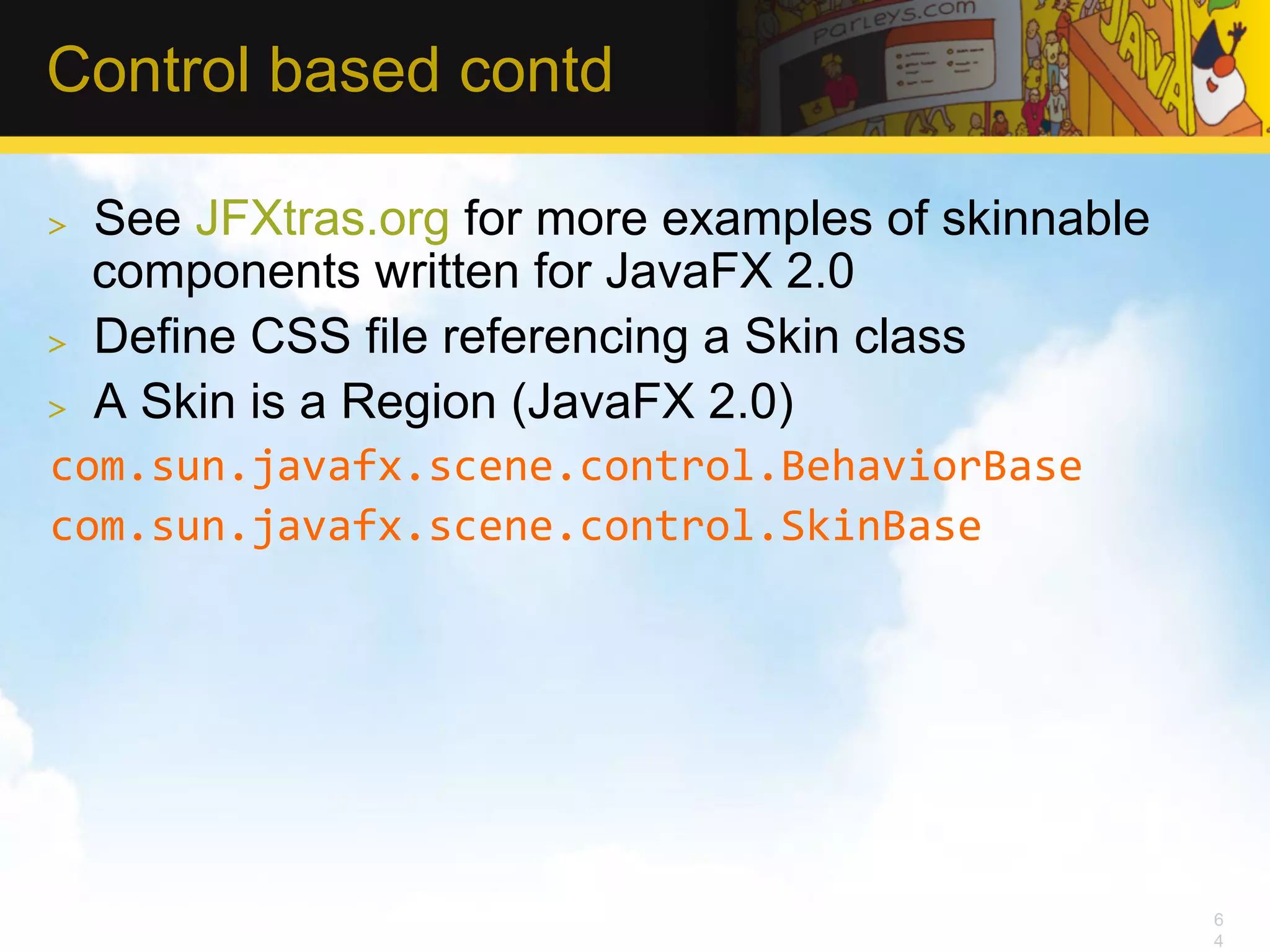

Control based contd >  See JFXtras.org for more examples of skinnable components written for JavaFX 2.0 >  Define CSS file referencing a Skin class >  A Skin is a Region (JavaFX 2.0) com.sun.javafx.scene.control.BehaviorBase com.sun.javafx.scene.control.SkinBase 6 4

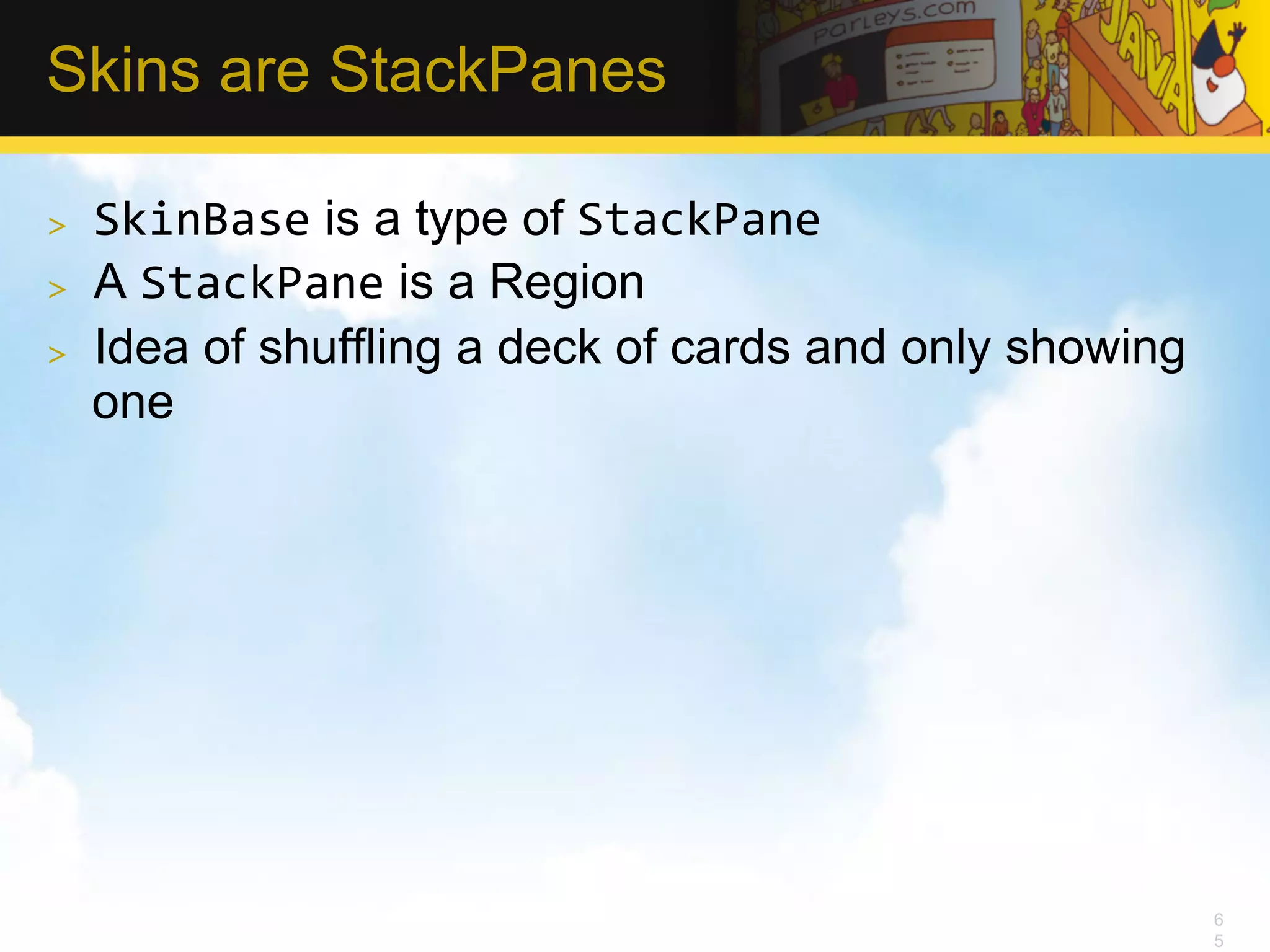

Skins are StackPanes >  SkinBase is a type of StackPane >  A StackPane is a Region >  Idea of shuffling a deck of cards and only showing one 6 5

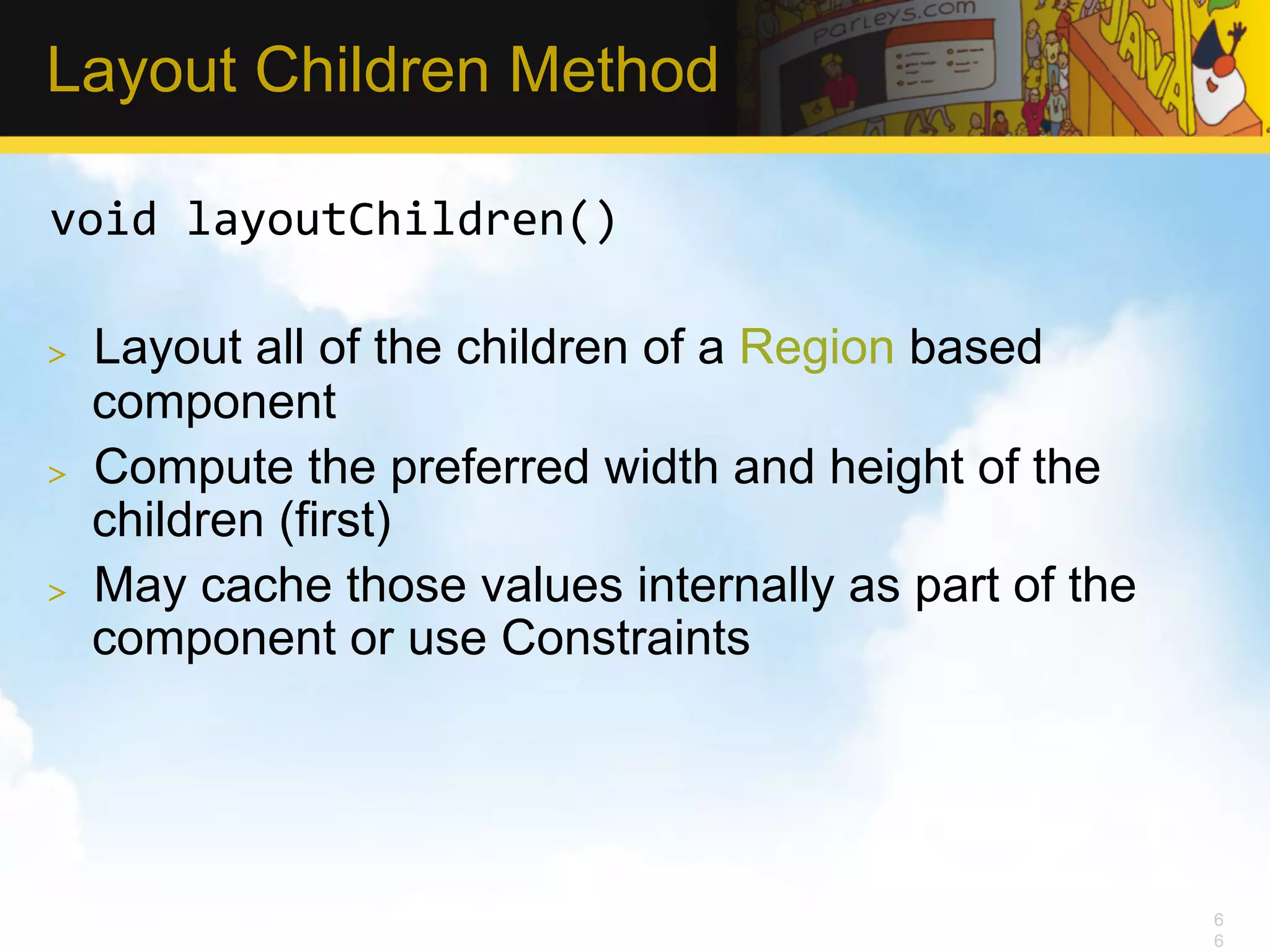

Layout Children Method void layoutChildren() >  Layout all of the children of a Region based component >  Compute the preferred width and height of the children (first) >  May cache those values internally as part of the component or use Constraints 6 6

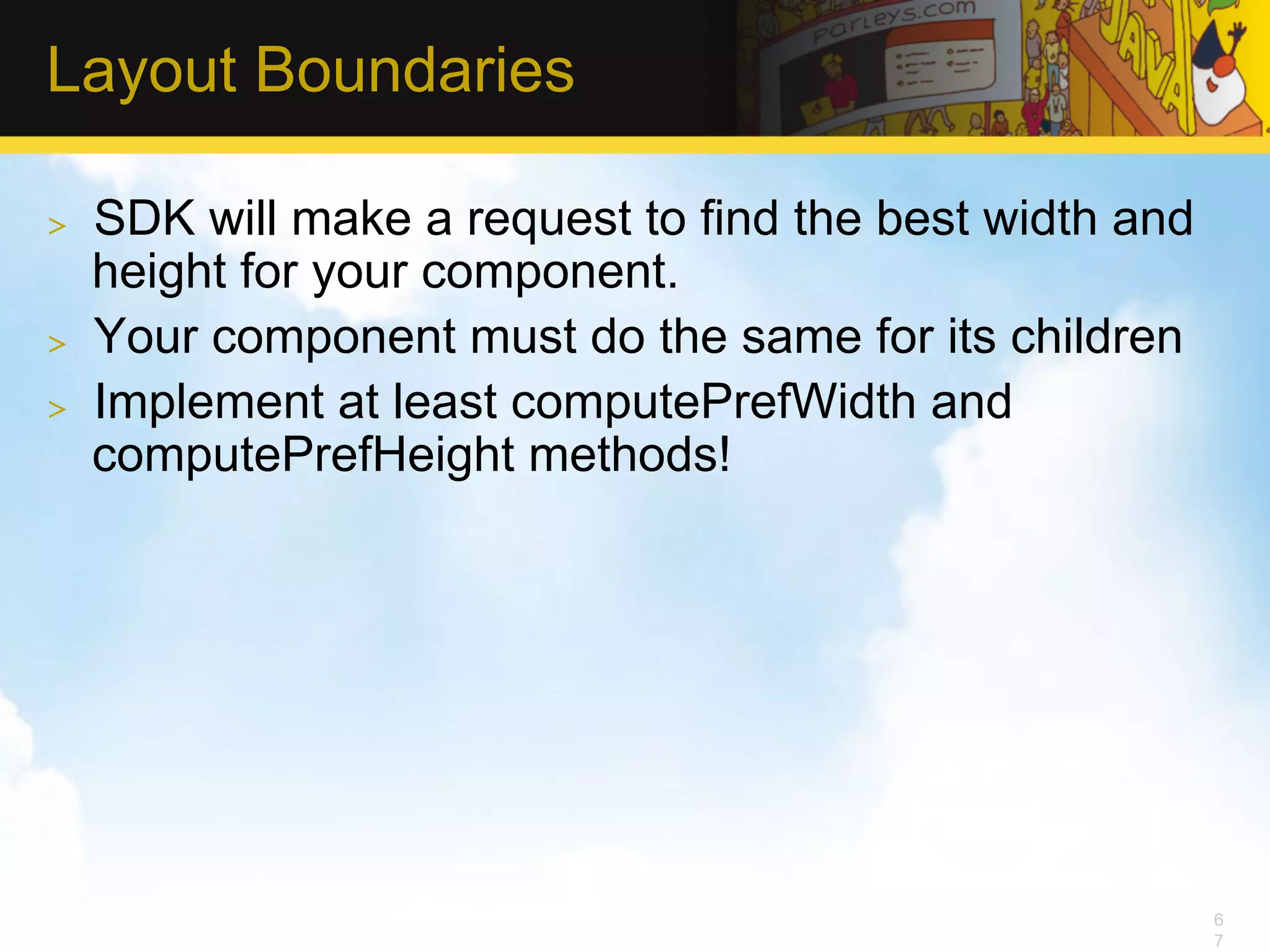

Layout Boundaries >  SDK will make a request to find the best width and height for your component. >  Your component must do the same for its children >  Implement at least computePrefWidth and computePrefHeight methods! 6 7

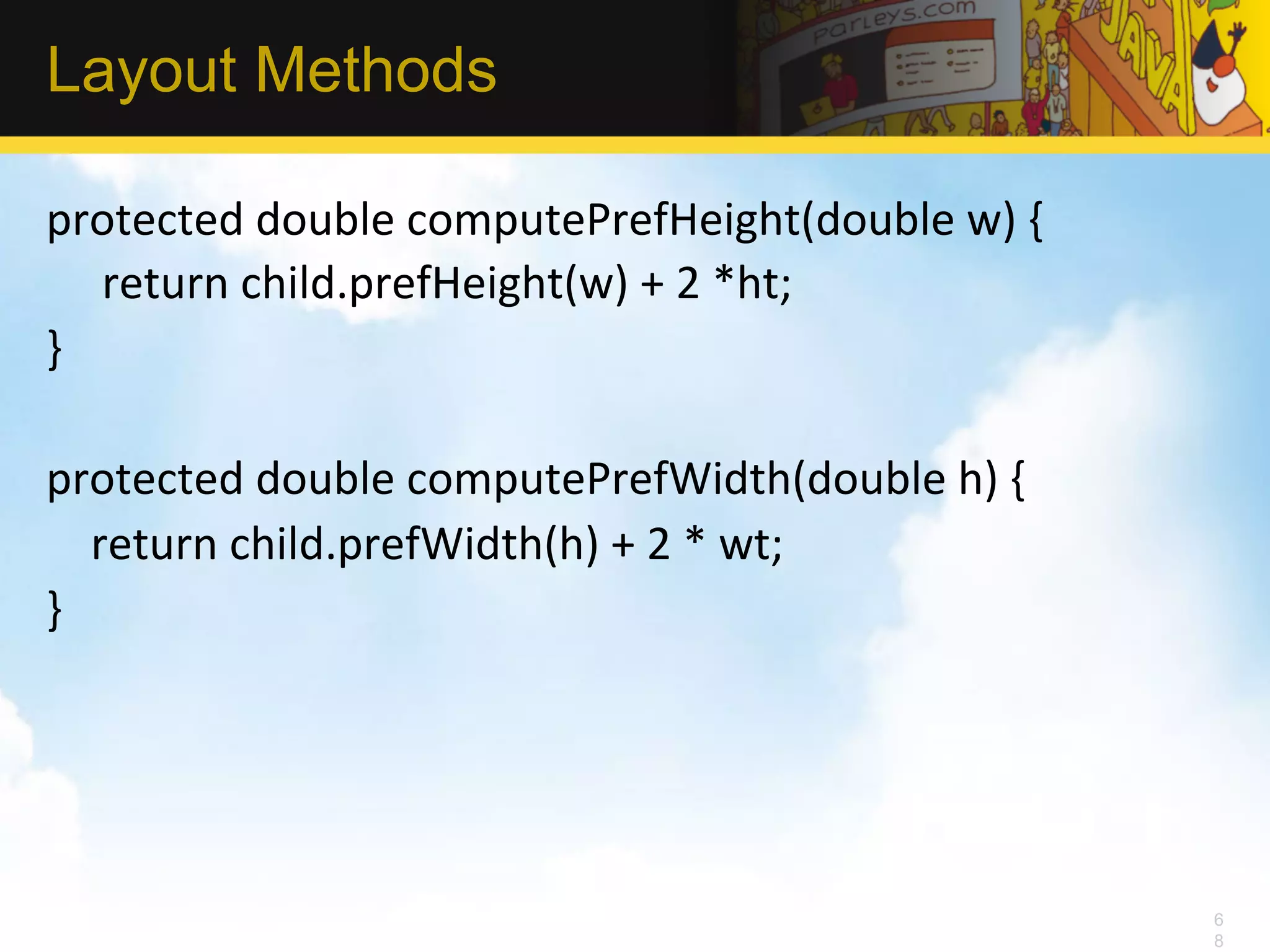

Layout Methods protected double computePrefHeight(double w) { return child.prefHeight(w) + 2 *ht; } protected double computePrefWidth(double h) { return child.prefWidth(h) + 2 * wt; } 6 8

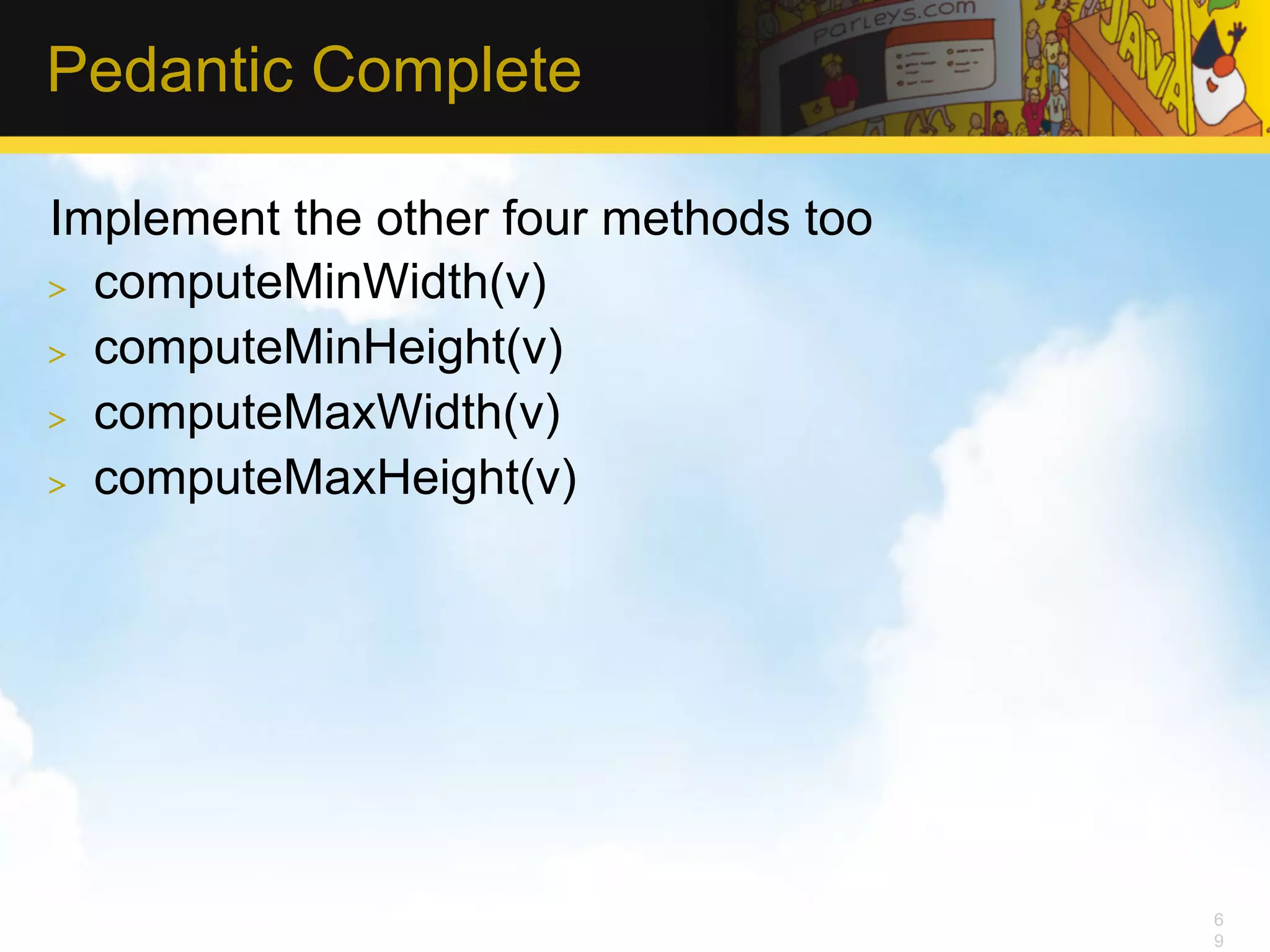

Pedantic Complete Implement the other four methods too >  computeMinWidth(v) >  computeMinHeight(v) >  computeMaxWidth(v) >  computeMaxHeight(v) 6 9

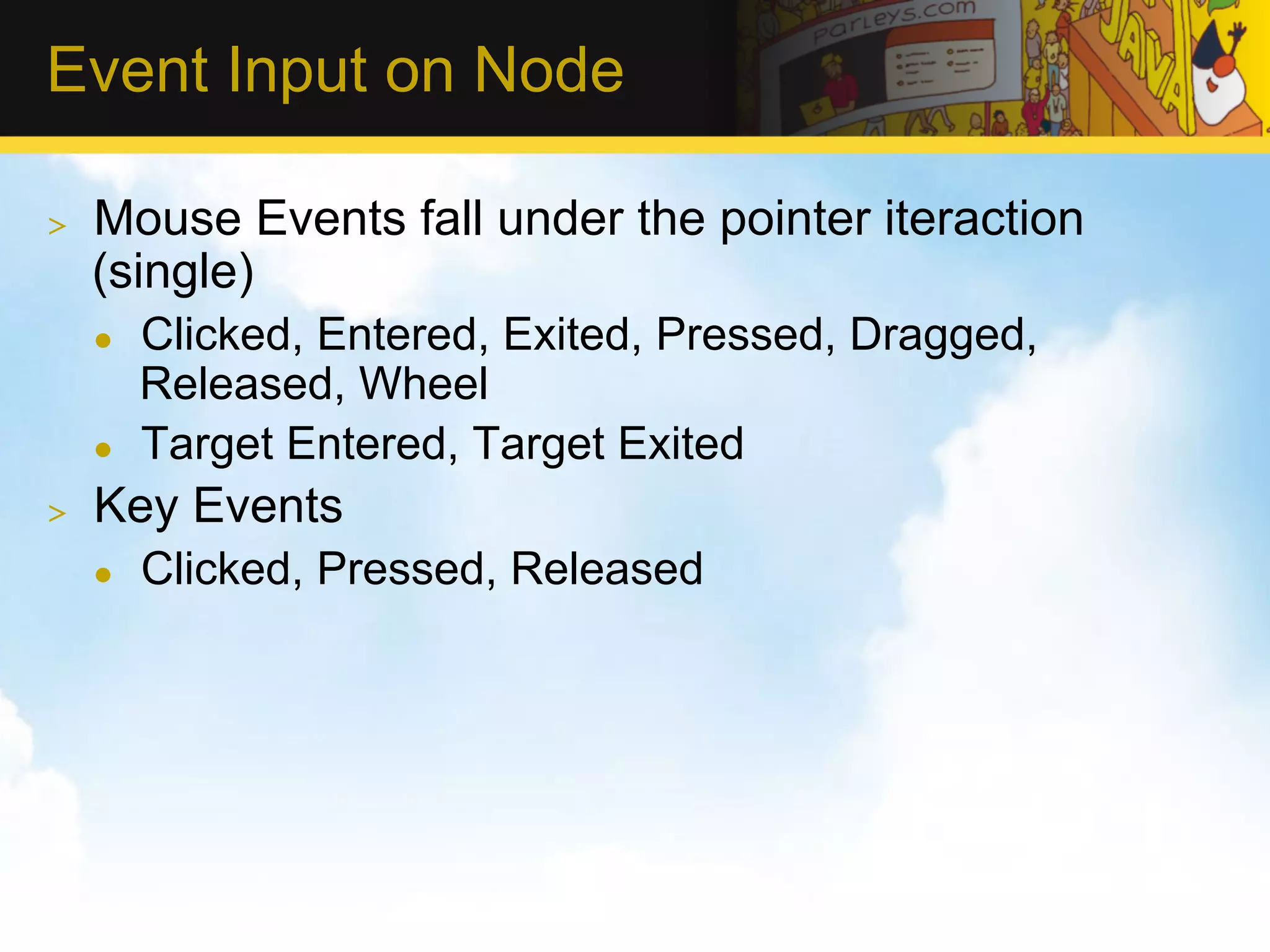

Event Input on Node >  Mouse Events fall under the pointer iteraction (single) l  Clicked, Entered, Exited, Pressed, Dragged, Released, Wheel l  Target Entered, Target Exited >  Key Events l  Clicked, Pressed, Released

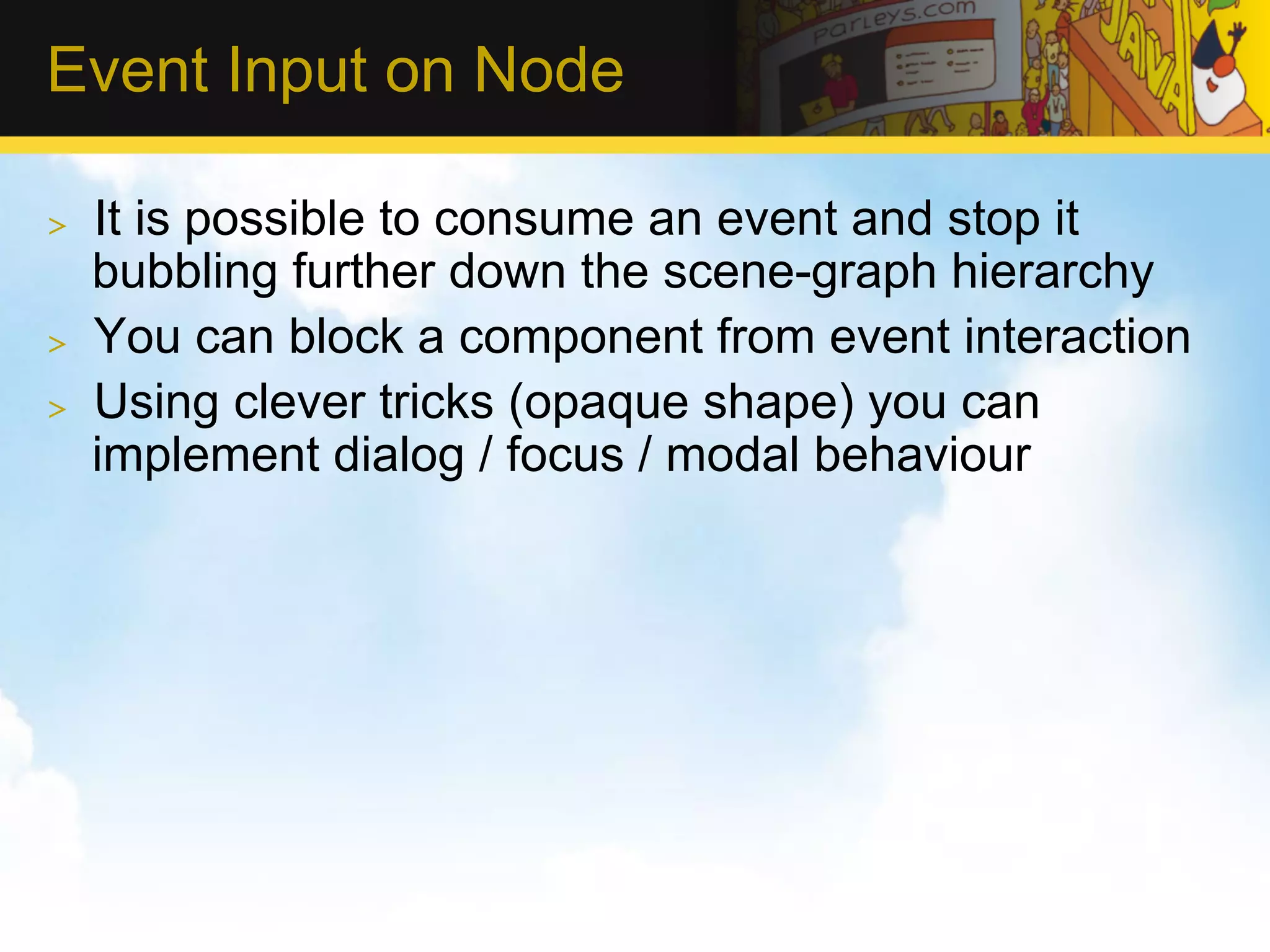

Event Input on Node >  It is possible to consume an event and stop it bubbling further down the scene-graph hierarchy >  You can block a component from event interaction >  Using clever tricks (opaque shape) you can implement dialog / focus / modal behaviour

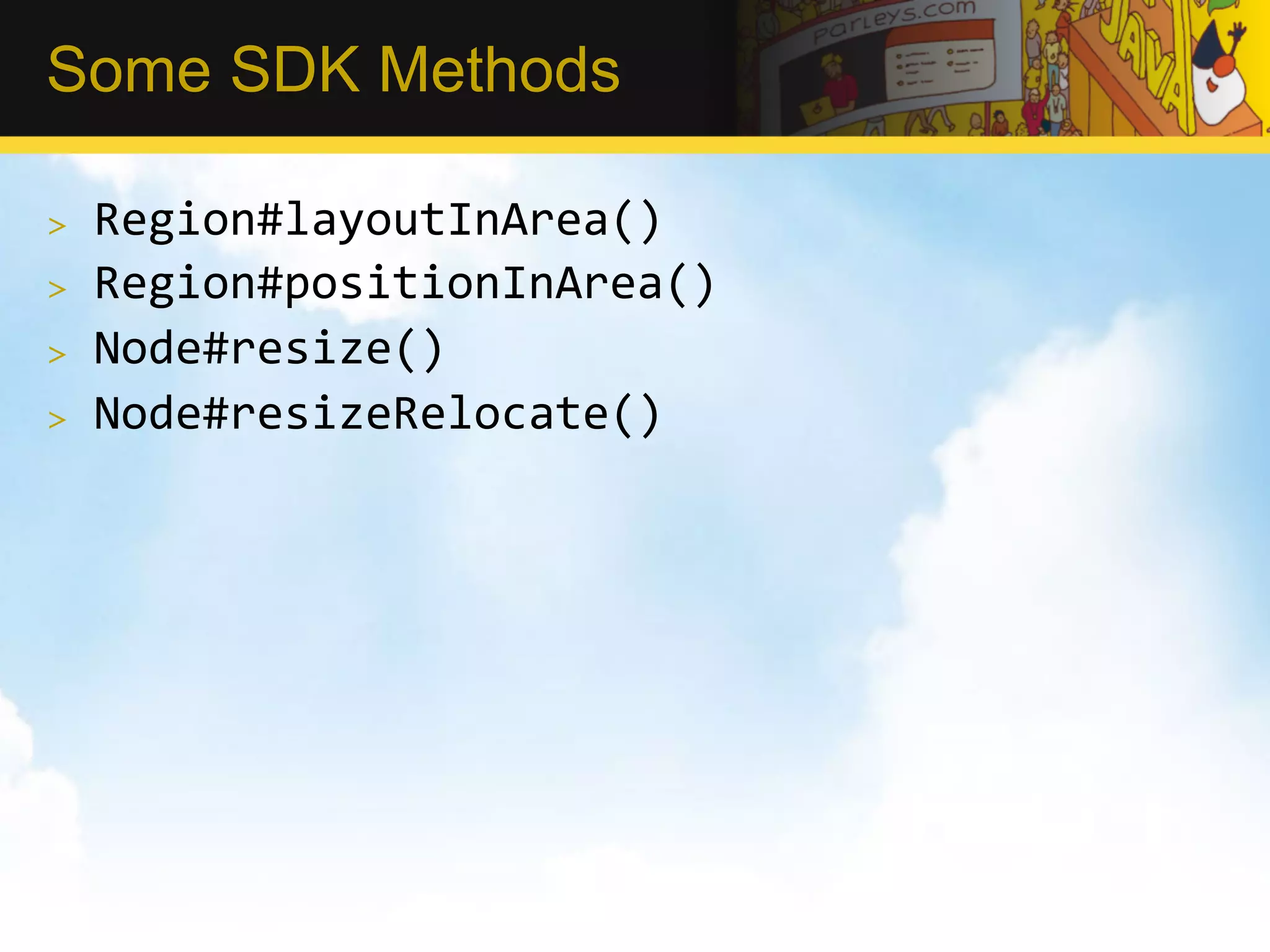

Some SDK Methods >  Region#layoutInArea() >  Region#positionInArea() >  Node#resize() >  Node#resizeRelocate()

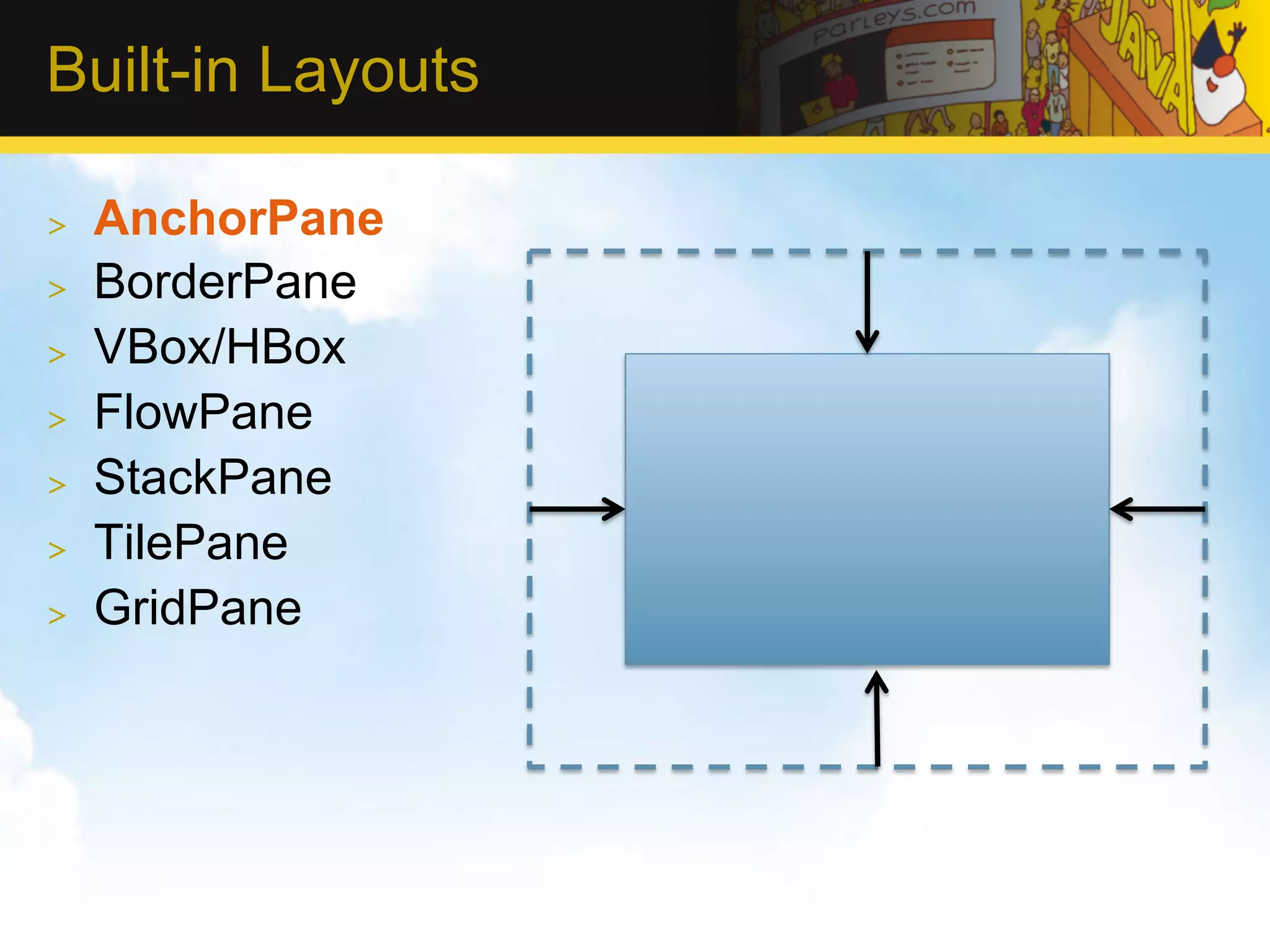

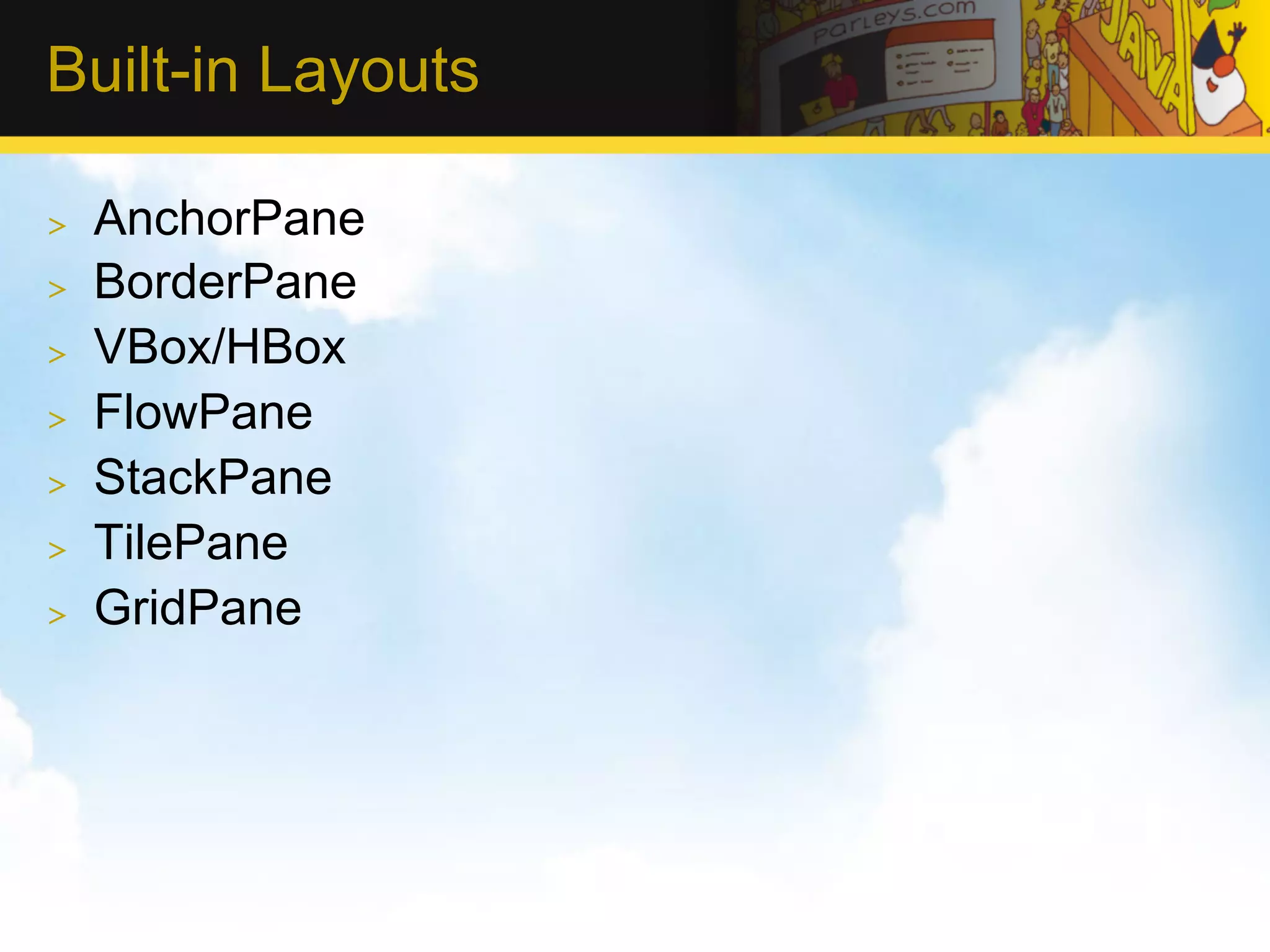

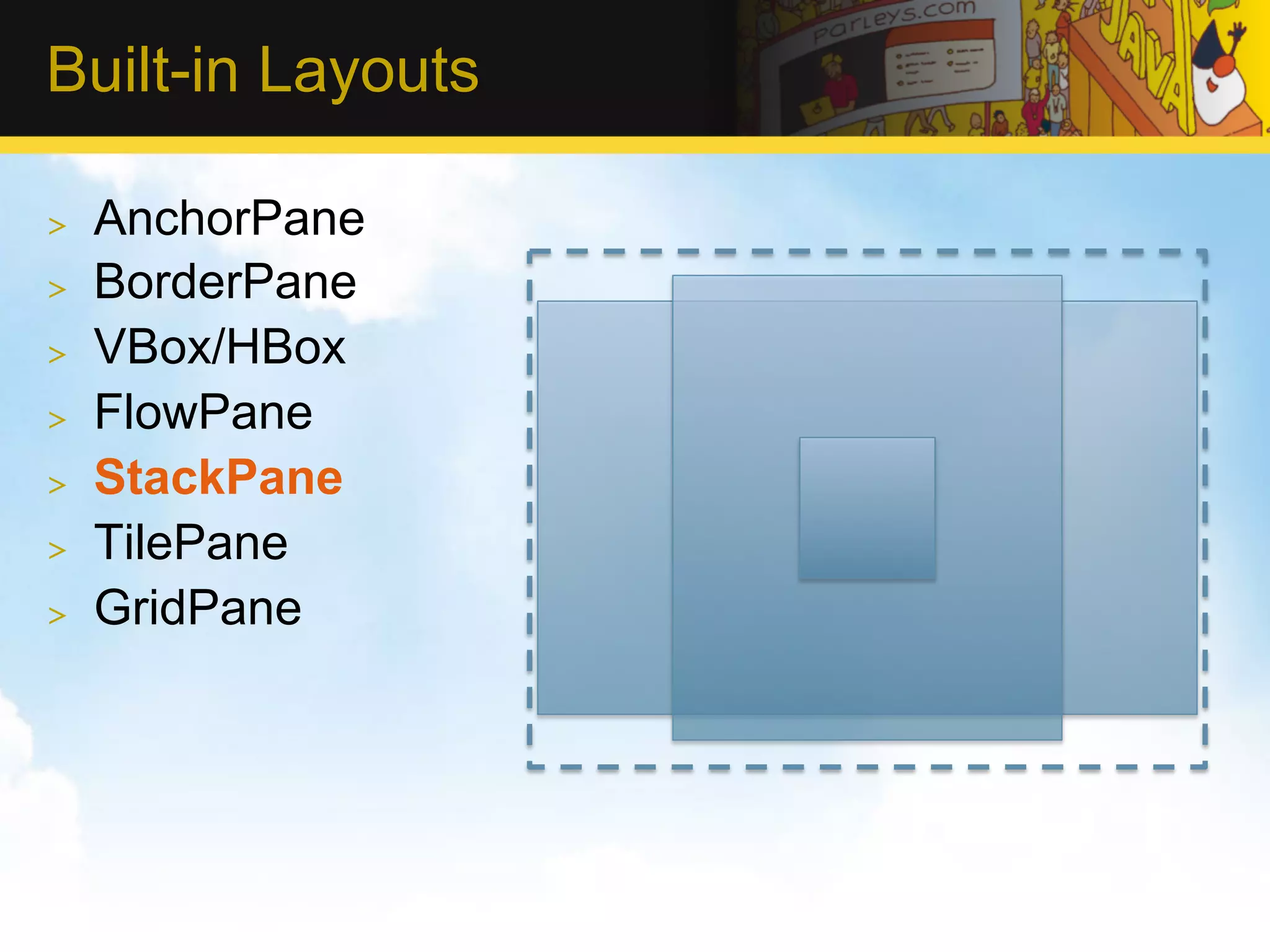

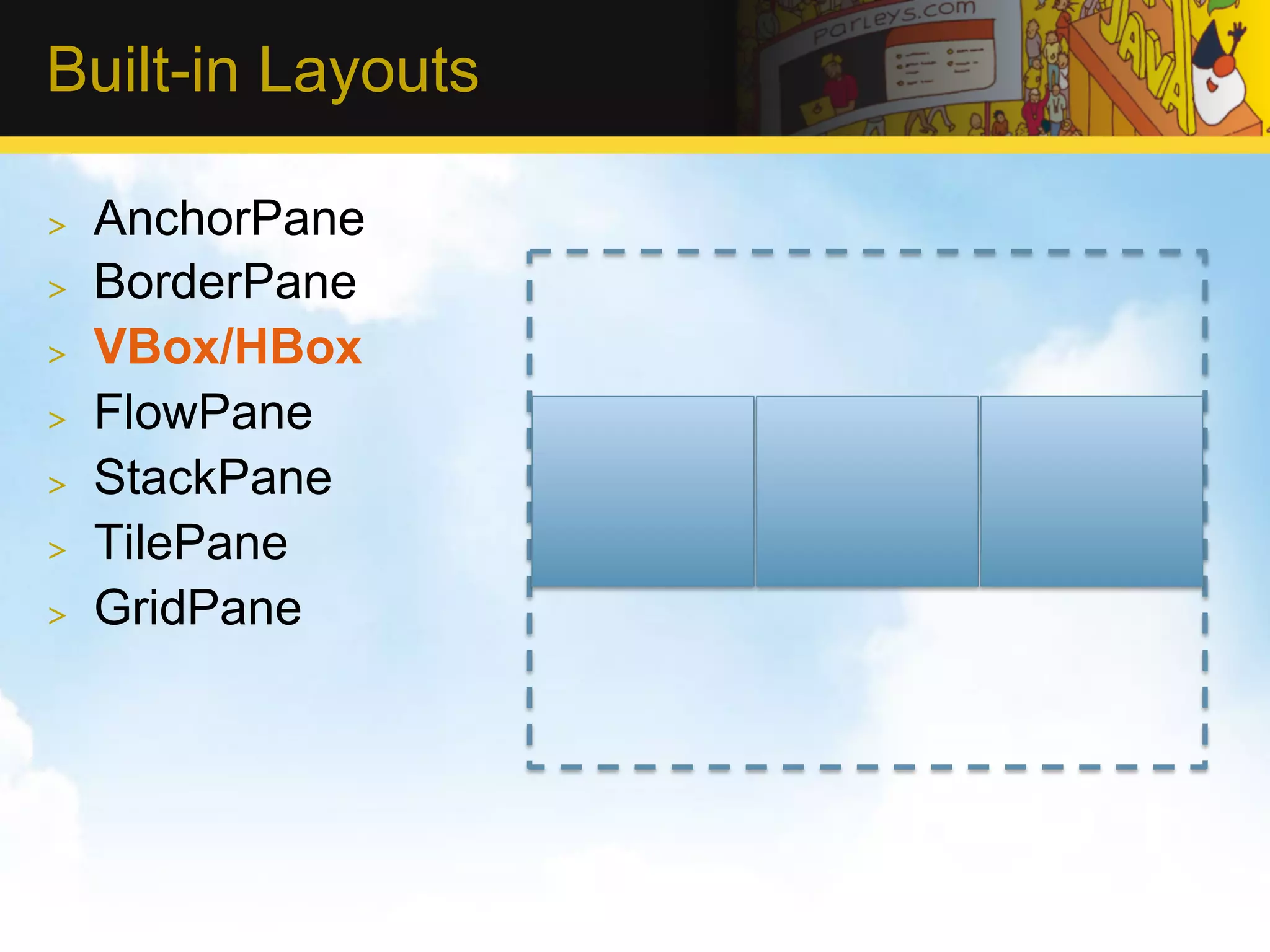

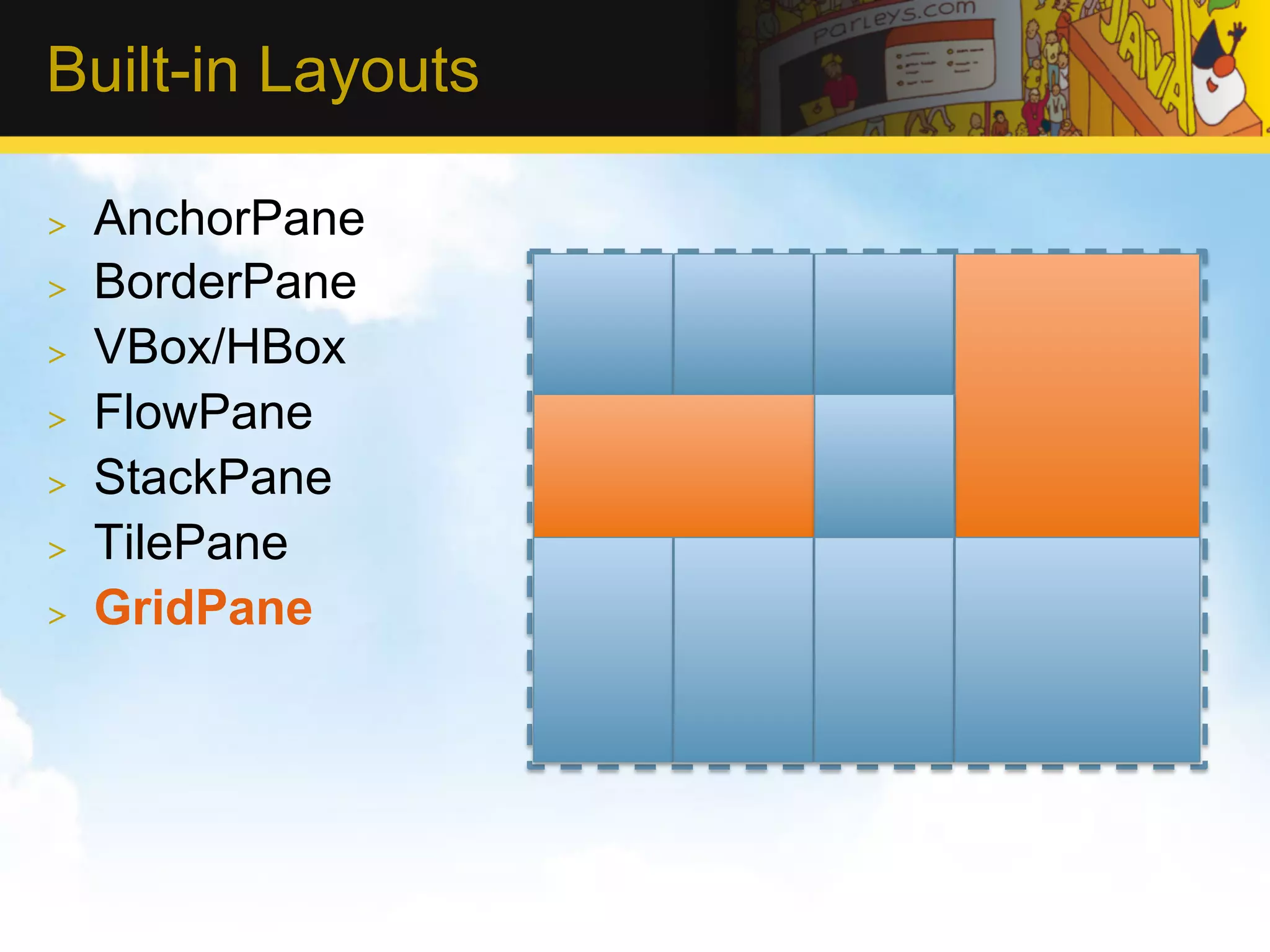

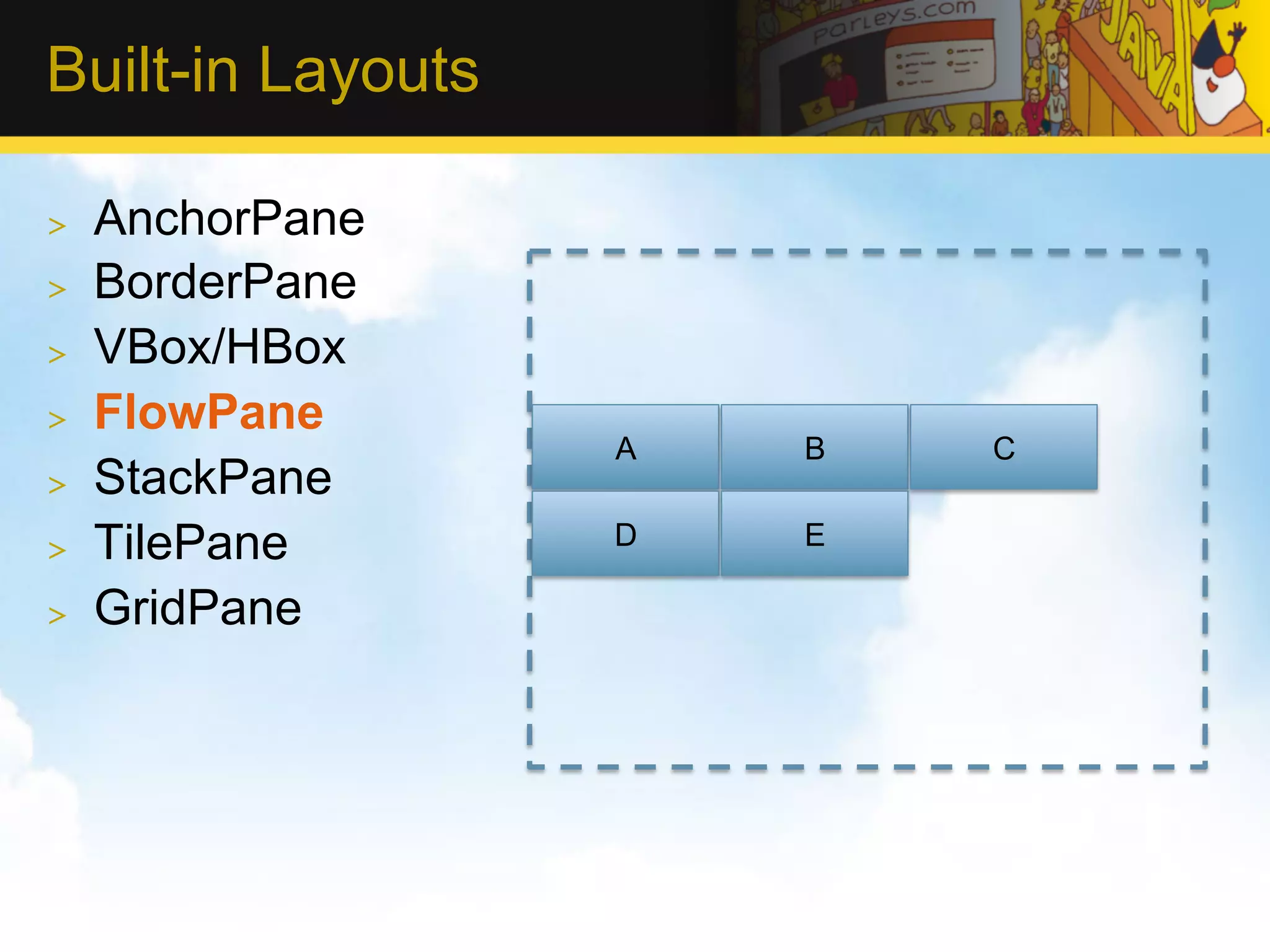

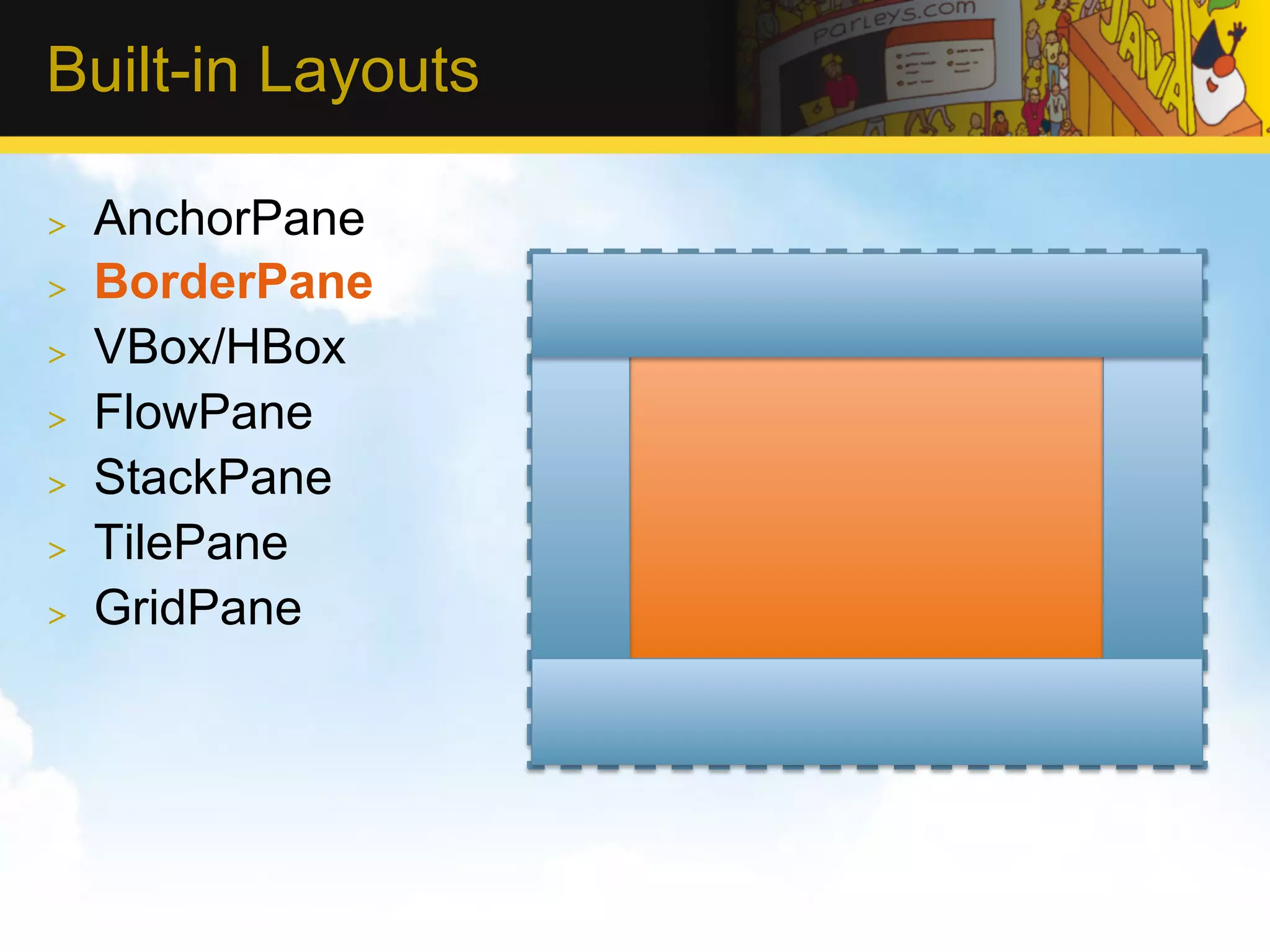

Built-in Layouts >  AnchorPane >  BorderPane >  VBox/HBox >  FlowPane >  StackPane >  TilePane >  GridPane

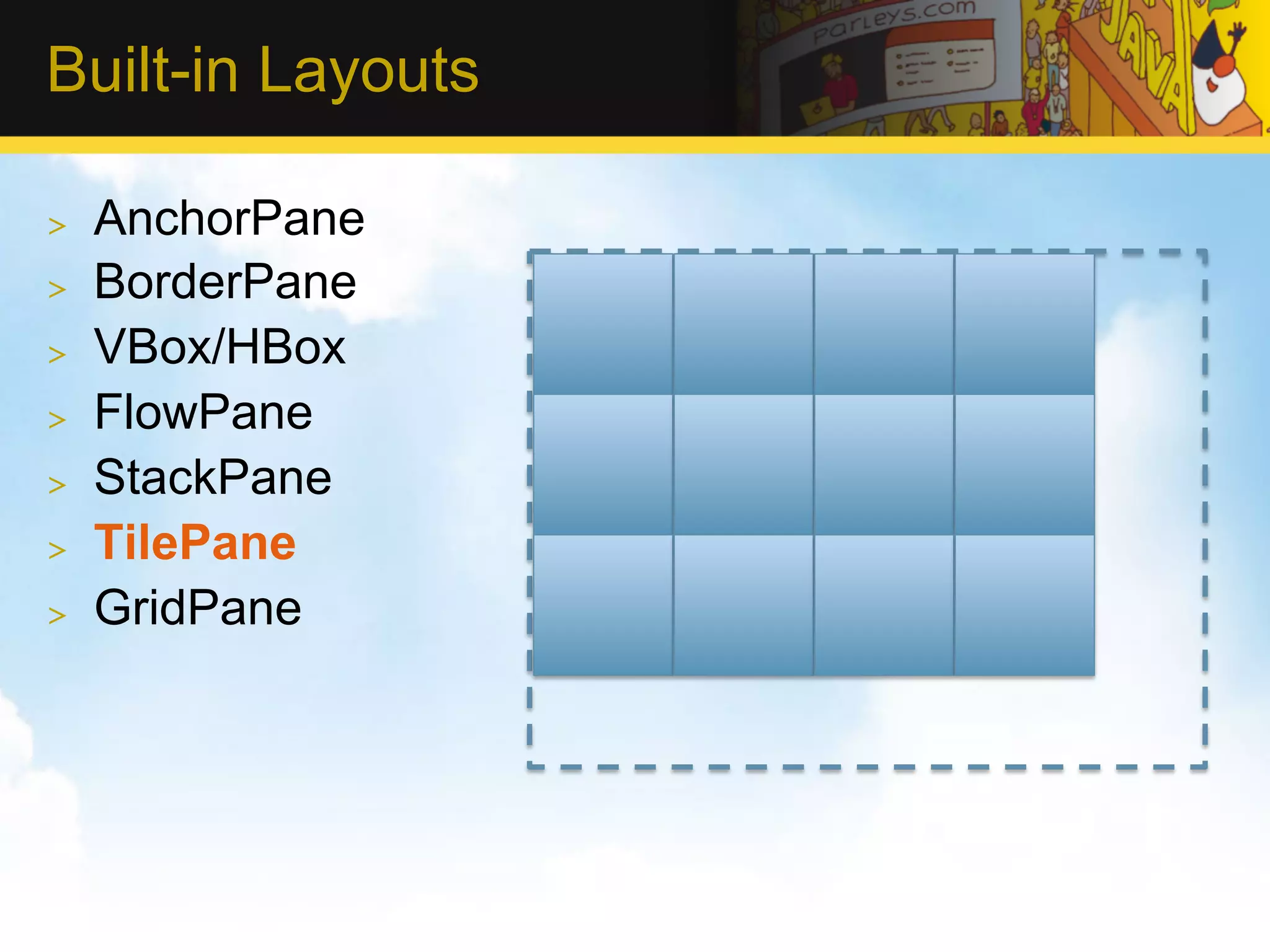

Built-in Layouts >  AnchorPane >  BorderPane >  VBox/HBox >  FlowPane A B C >  StackPane >  TilePane D E >  GridPane

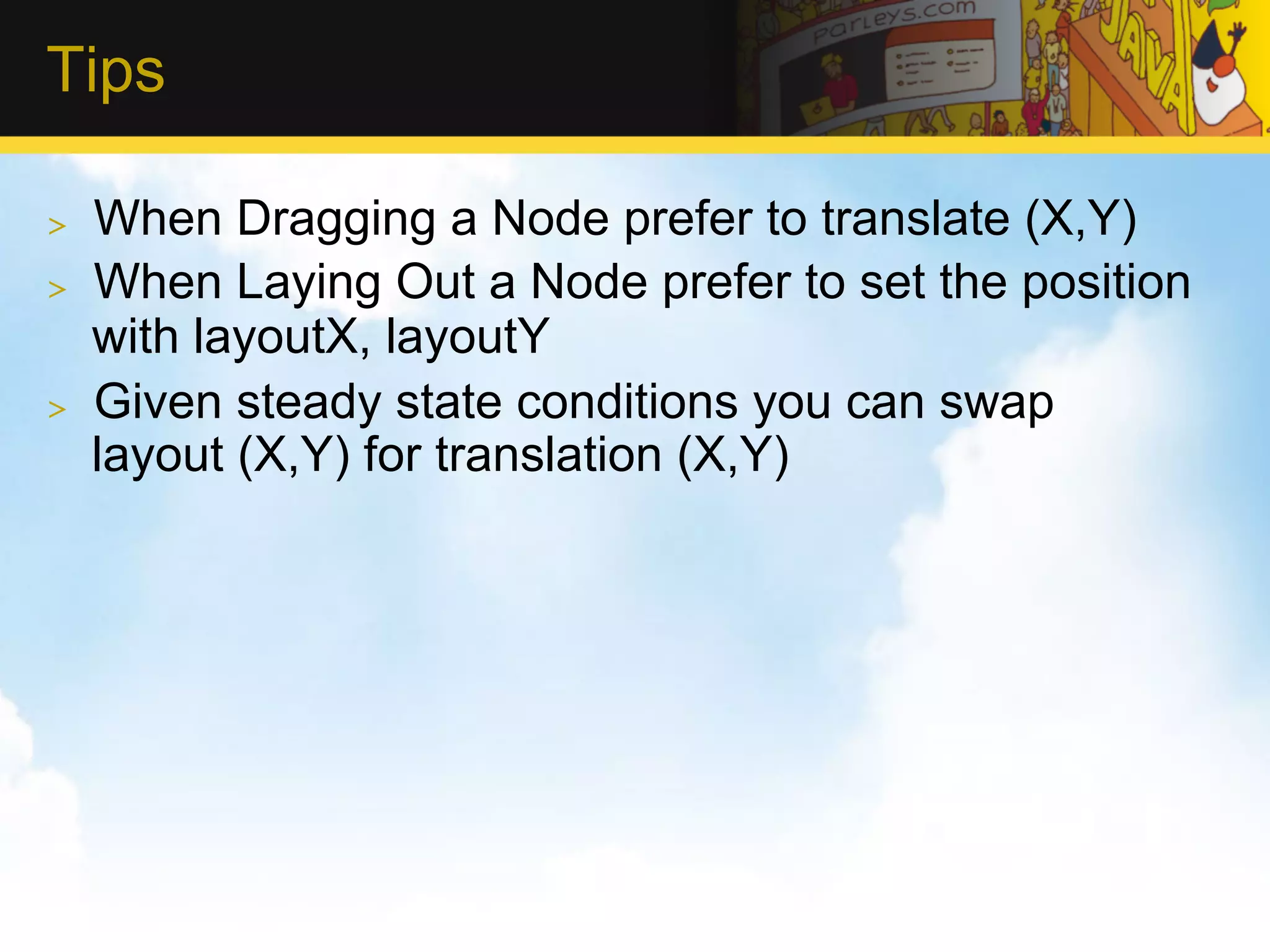

Tips >  When Dragging a Node prefer to translate (X,Y) >  When Laying Out a Node prefer to set the position with layoutX, layoutY >  Given steady state conditions you can swap layout (X,Y) for translation (X,Y)

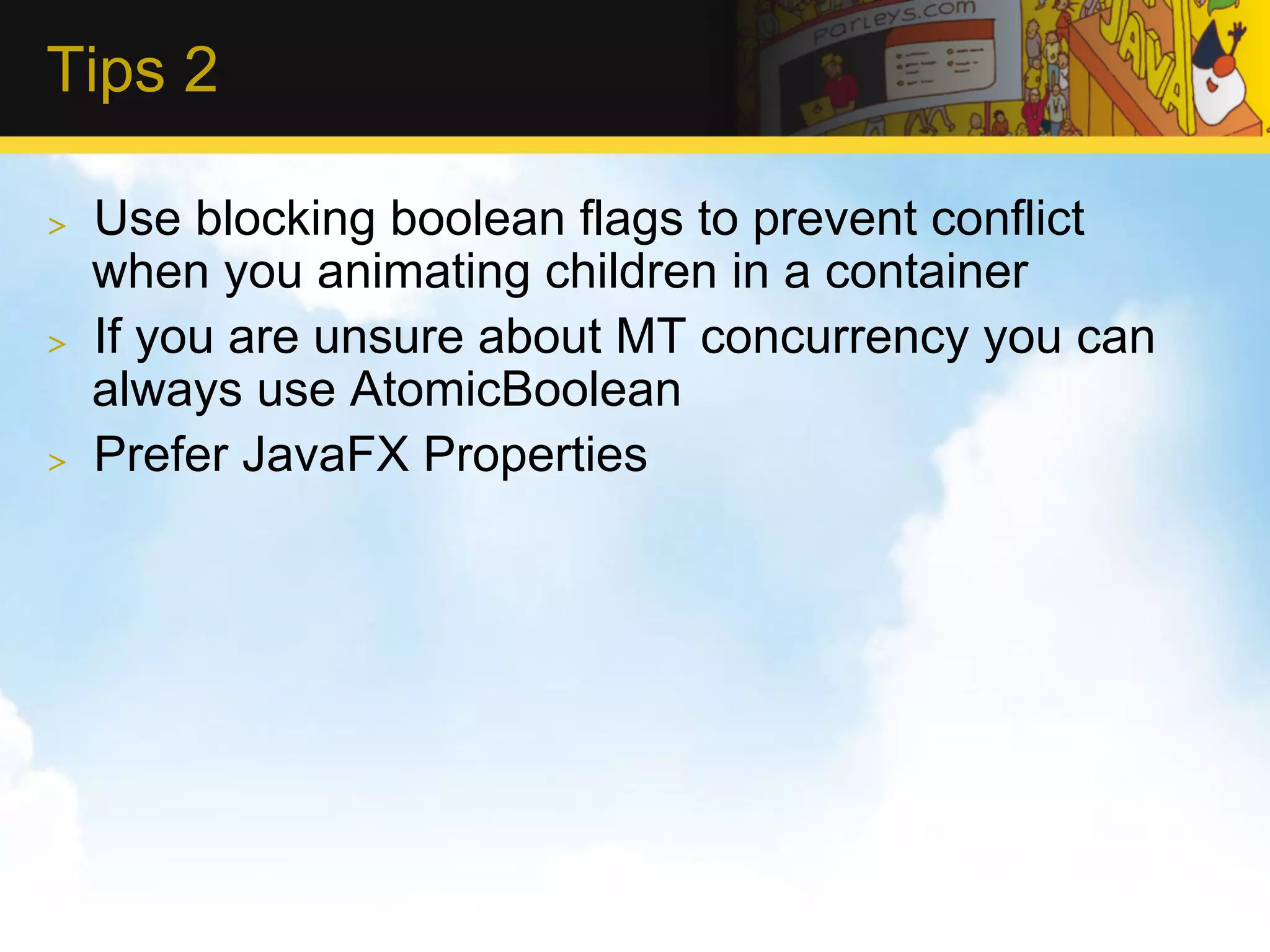

Tips 2 >  Use blocking boolean flags to prevent conflict when you animating children in a container >  If you are unsure about MT concurrency you can always use AtomicBoolean >  Prefer JavaFX Properties

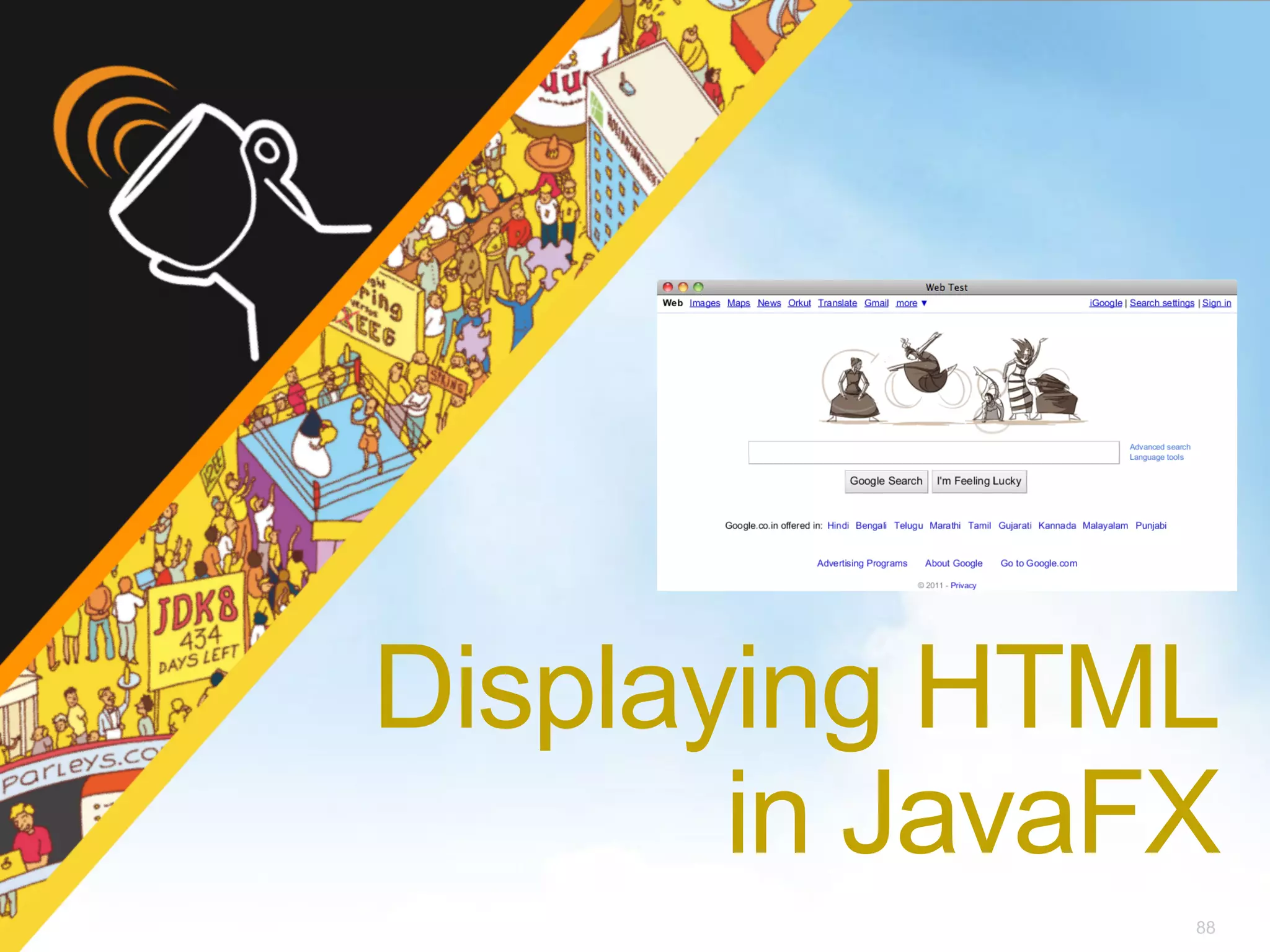

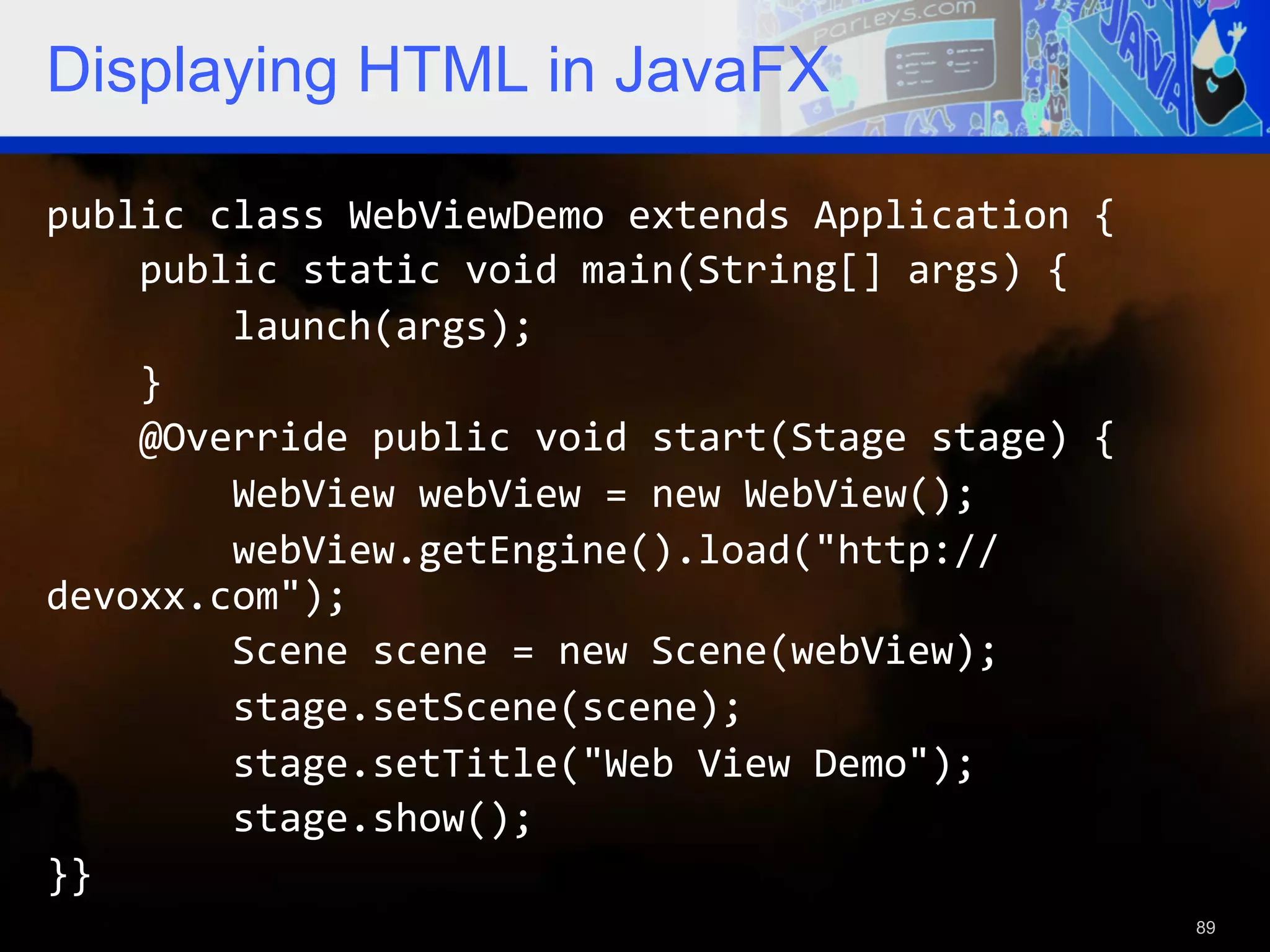

Displaying HTML in JavaFX public class WebViewDemo extends Application { public static void main(String[] args) { launch(args); } @Override public void start(Stage stage) { WebView webView = new WebView(); webView.getEngine().load("http:// devoxx.com"); Scene scene = new Scene(webView); stage.setScene(scene); stage.setTitle("Web View Demo"); stage.show(); }} 89

For more info on Web/HTML5… Moving to the Client – JavaFX and HTML5 Stephen Chin Kevin Nilson Thursday 10:50 AM, Room 7 10 / 10 Break 90

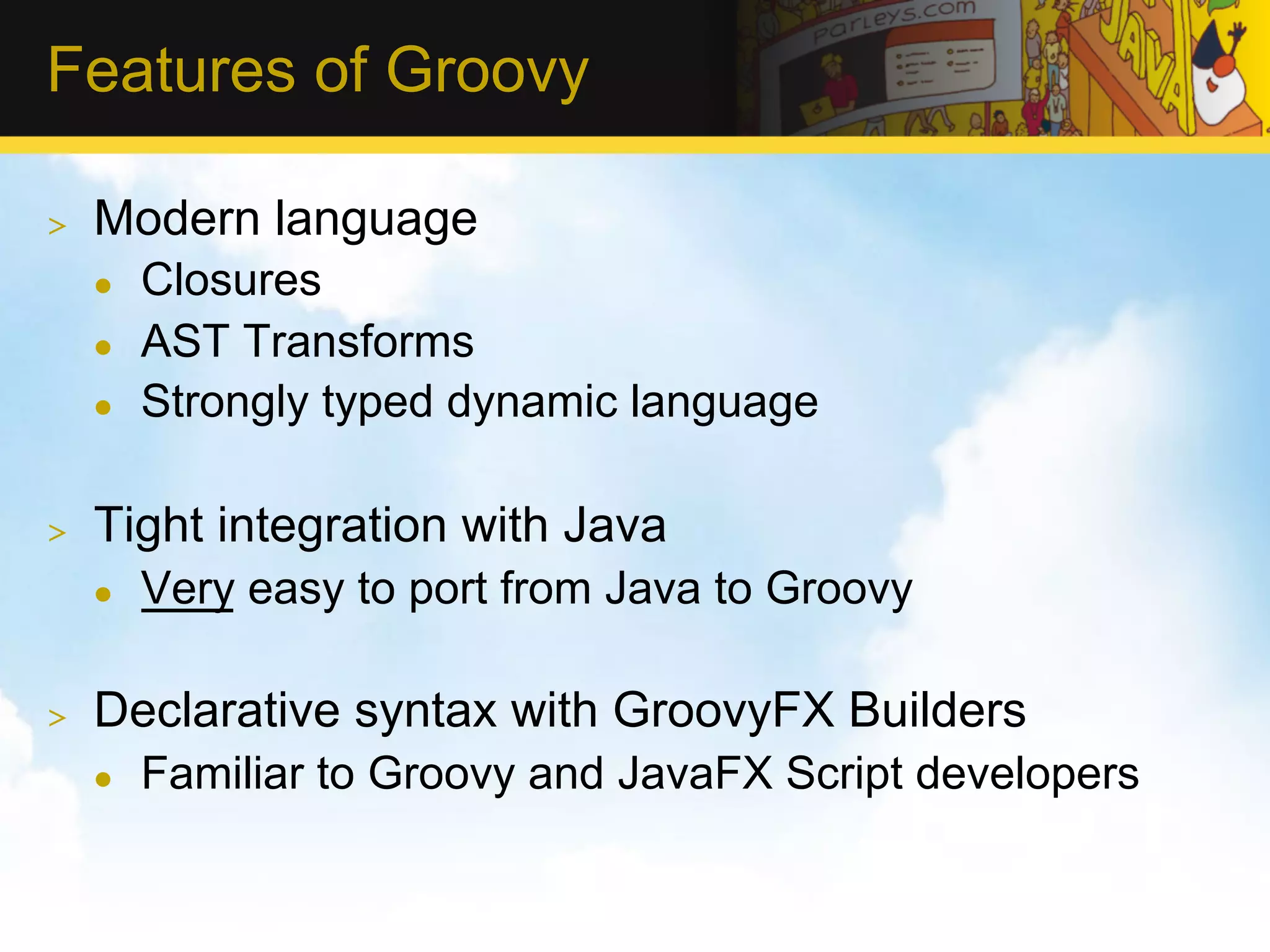

Features of Groovy >  Modern language l  Closures l  AST Transforms l  Strongly typed dynamic language >  Tight integration with Java l  Very easy to port from Java to Groovy >  Declarative syntax with GroovyFX Builders l  Familiar to Groovy and JavaFX Script developers

Java vs. GroovyFX DSL public class HelloStage extends Application { GroovyFX.start { stage -‐> def sg = new SceneGraphBuilder(stage) public void start(Stage stage) { stage.setTitle("Hello Stage"); sg.stage(title: “Hello Stage”, width: 600, stage.setWidth(600); height: 450) { stage.setHeight(450); scene(fill: groovyblue) { Scene scene = new Scene(); rectangle(x: 25, y: 40, width: 100, scene.setFill(Color.LIGHTGREEN); height: 50, fill: red) 21 Lines Rectangle rect = new Rectangle(); rect.setX(25); 8 Lines } } 430 Characters rect.setY(40); rect.setWidth(100); rect.setHeight(50); } 180 Characters rect.setFill(Color.RED); scene.setRoot(new Group(rect)); stage.setScene(scene); stage.show(); } public static void main(String[] args) { launch(HelloStage.class, args); } } 93

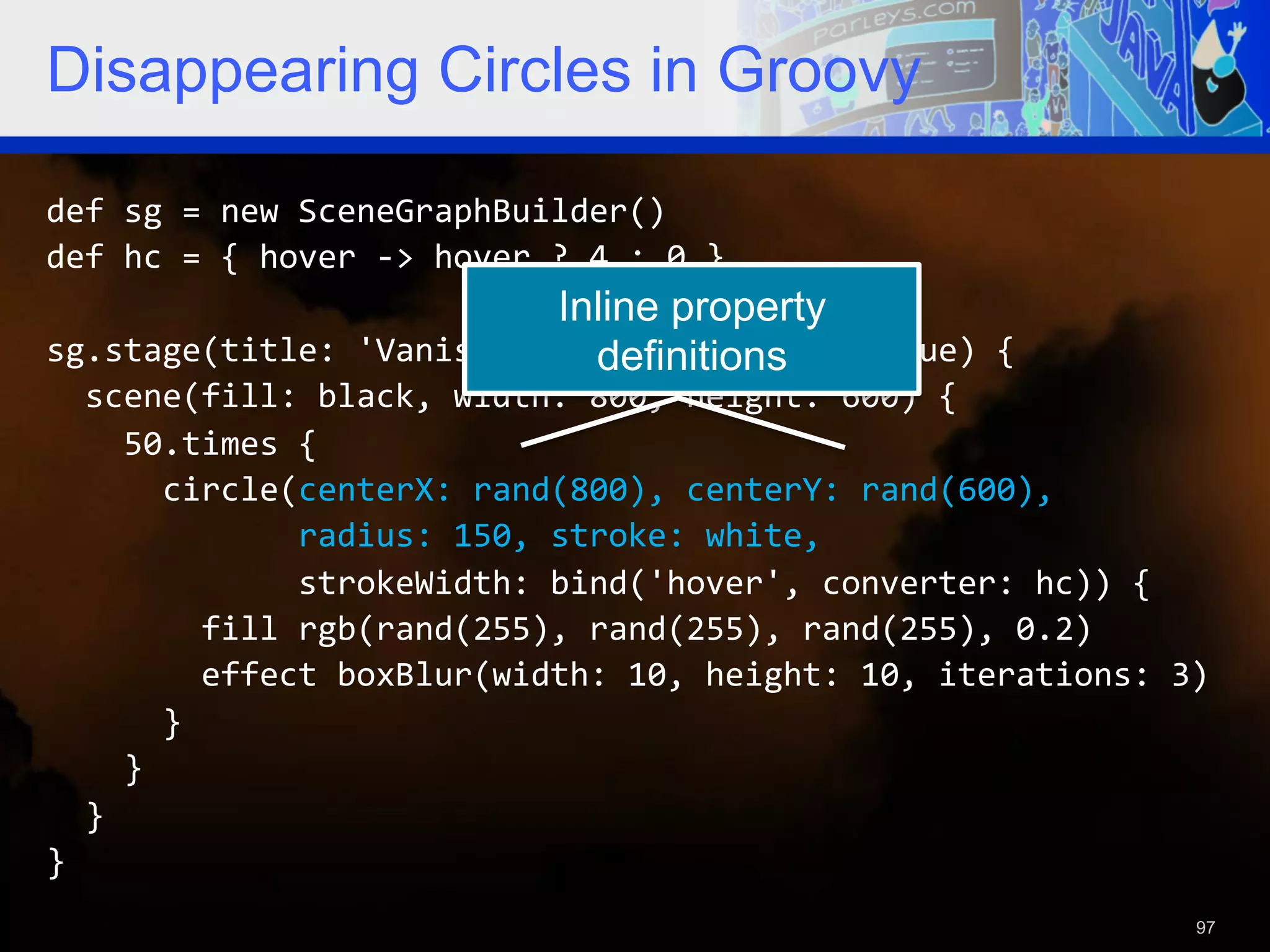

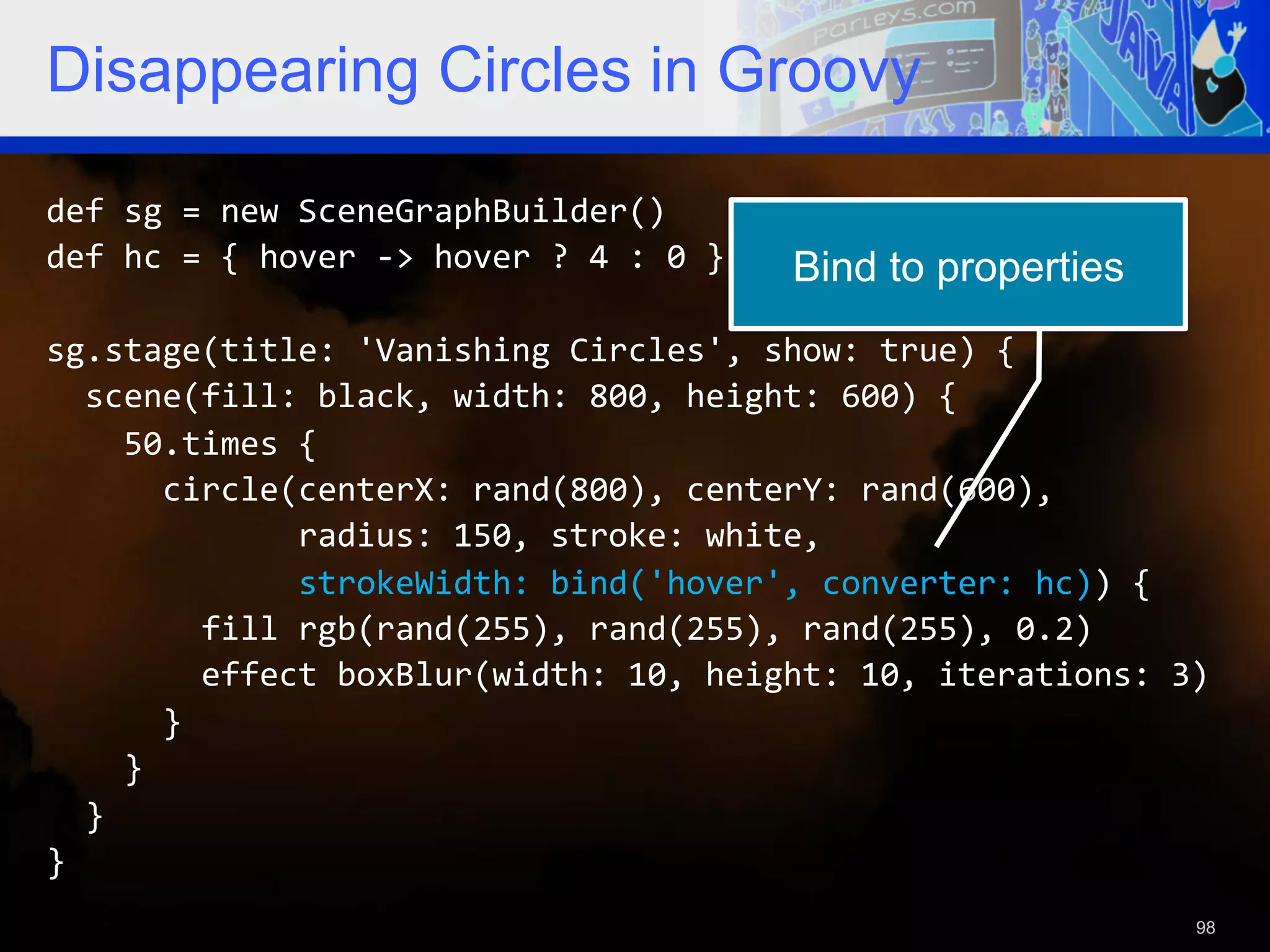

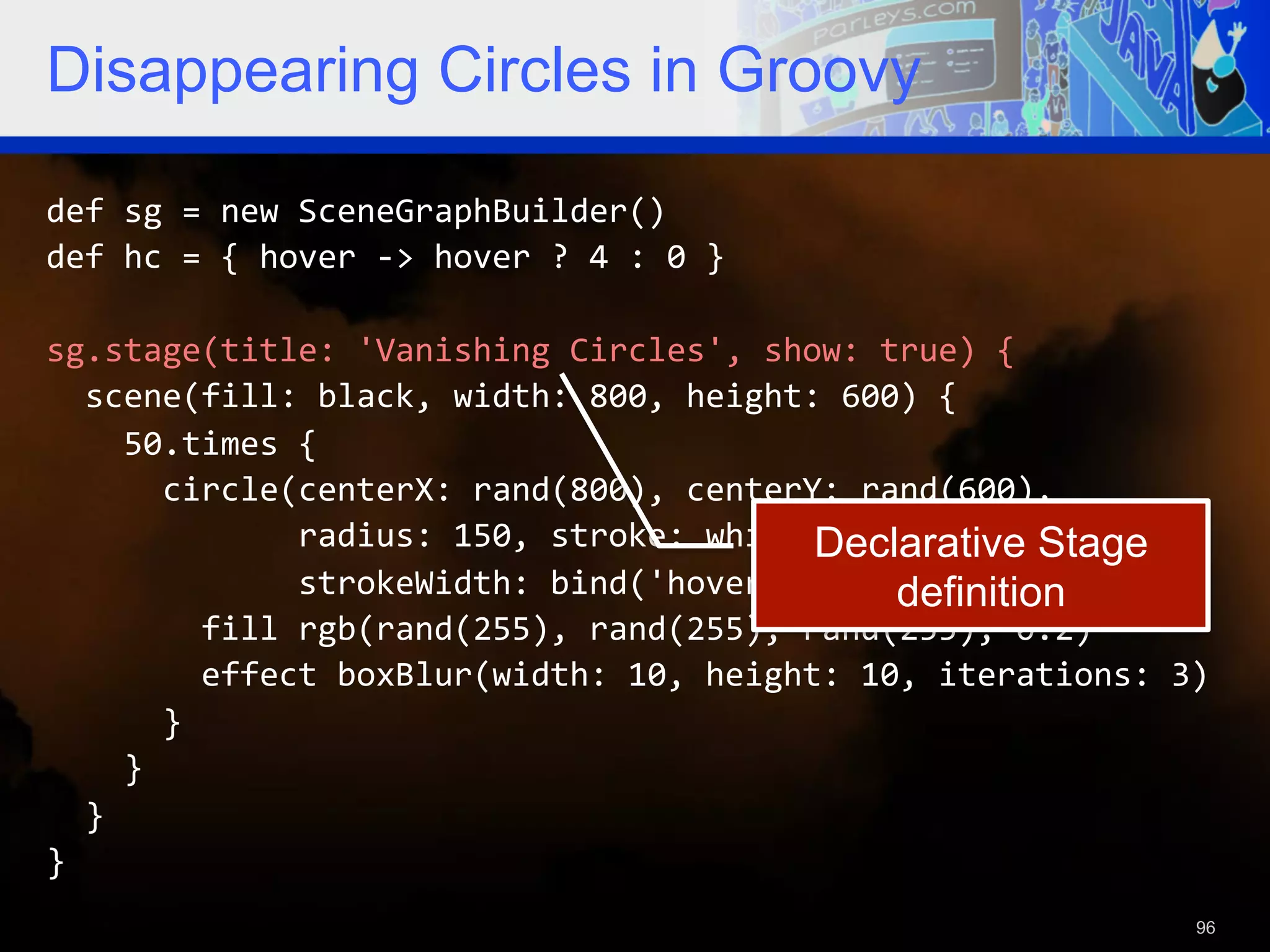

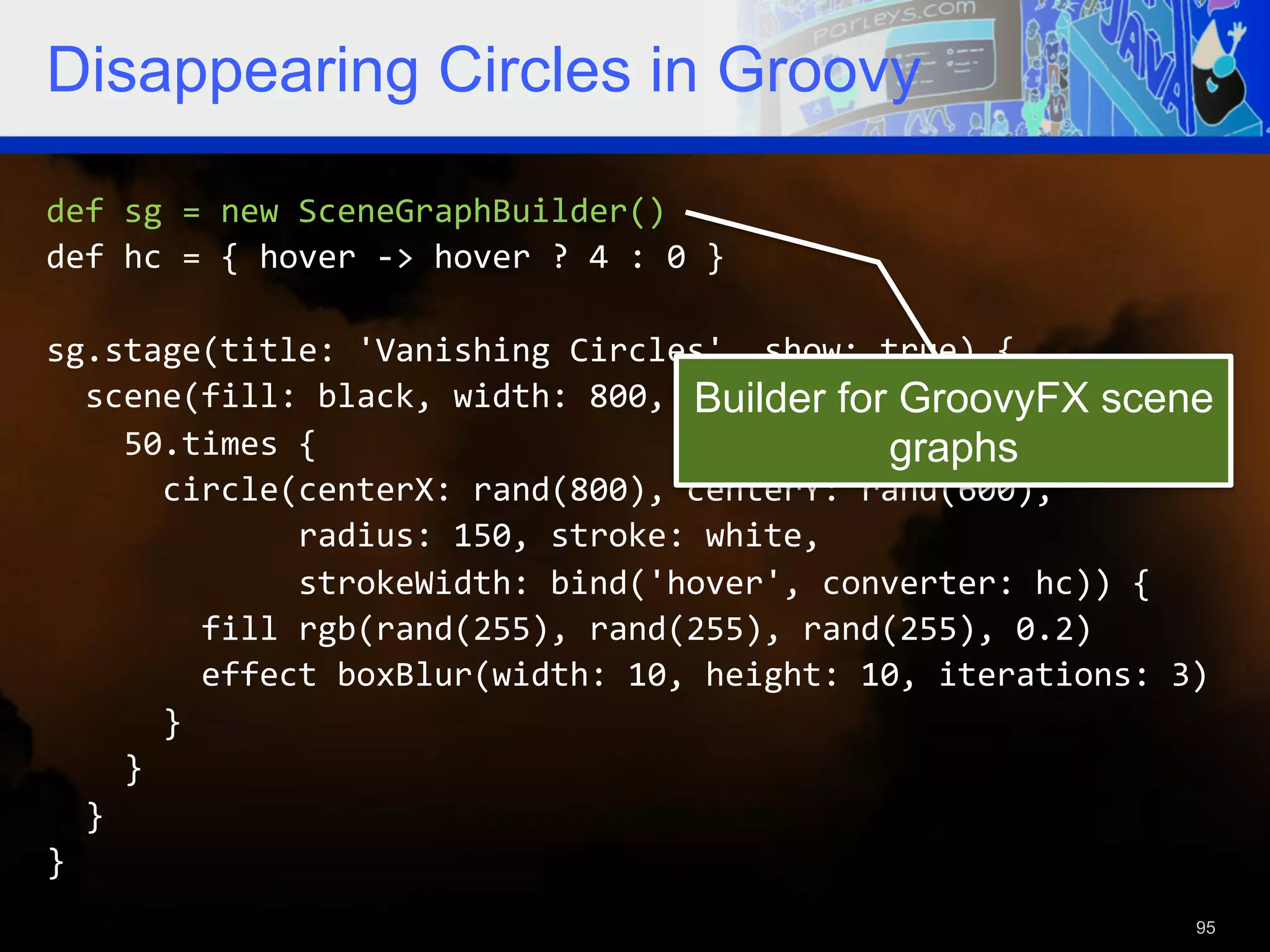

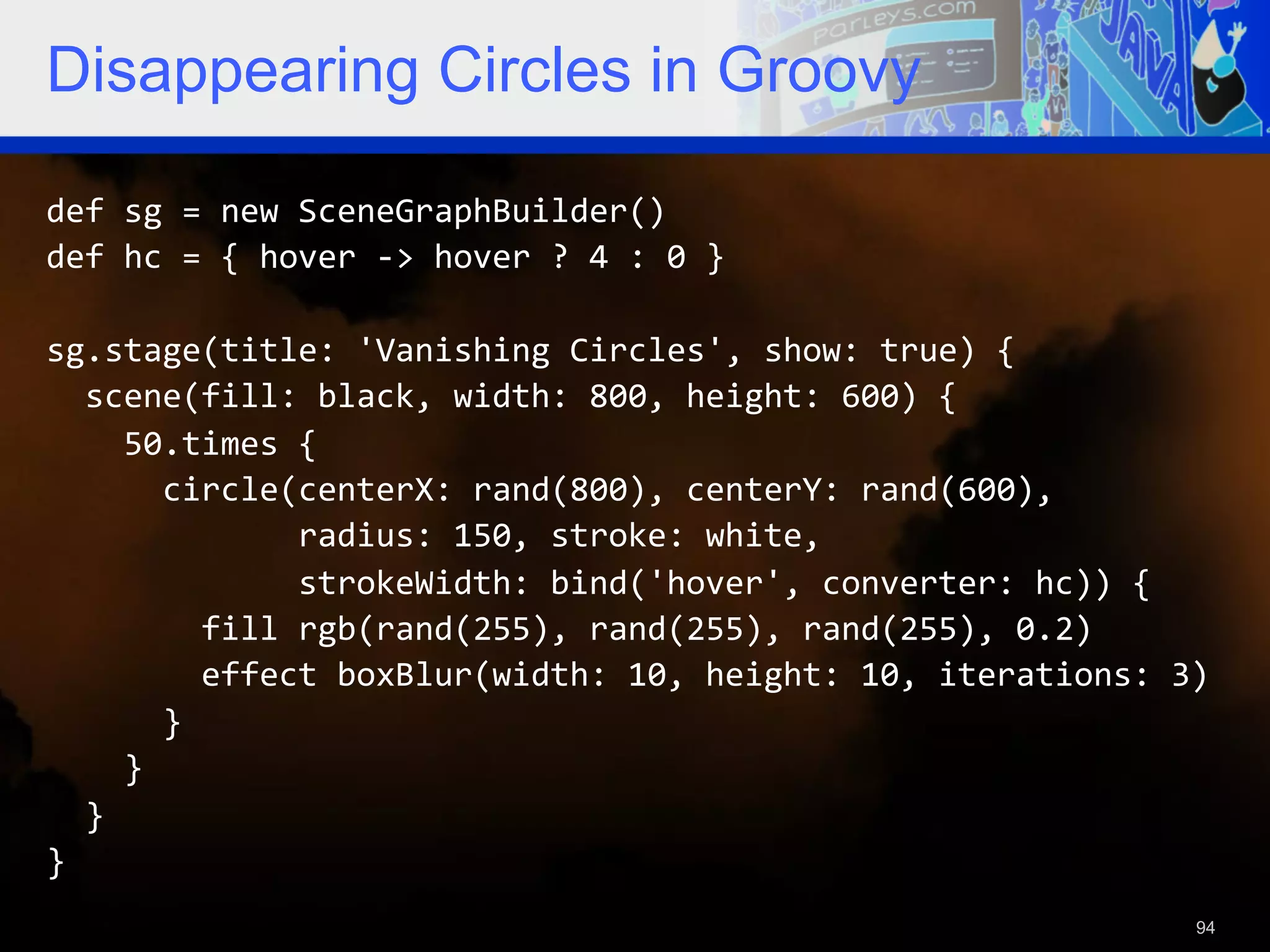

Disappearing Circles in Groovy def sg = new SceneGraphBuilder() def hc = { hover -‐> hover ? 4 : 0 } sg.stage(title: 'Vanishing Circles', show: true) { scene(fill: black, width: 800, height: 600) { 50.times { circle(centerX: rand(800), centerY: rand(600), radius: 150, stroke: white, strokeWidth: bind('hover', converter: hc)) { fill rgb(rand(255), rand(255), rand(255), 0.2) effect boxBlur(width: 10, height: 10, iterations: 3) } } } } 94

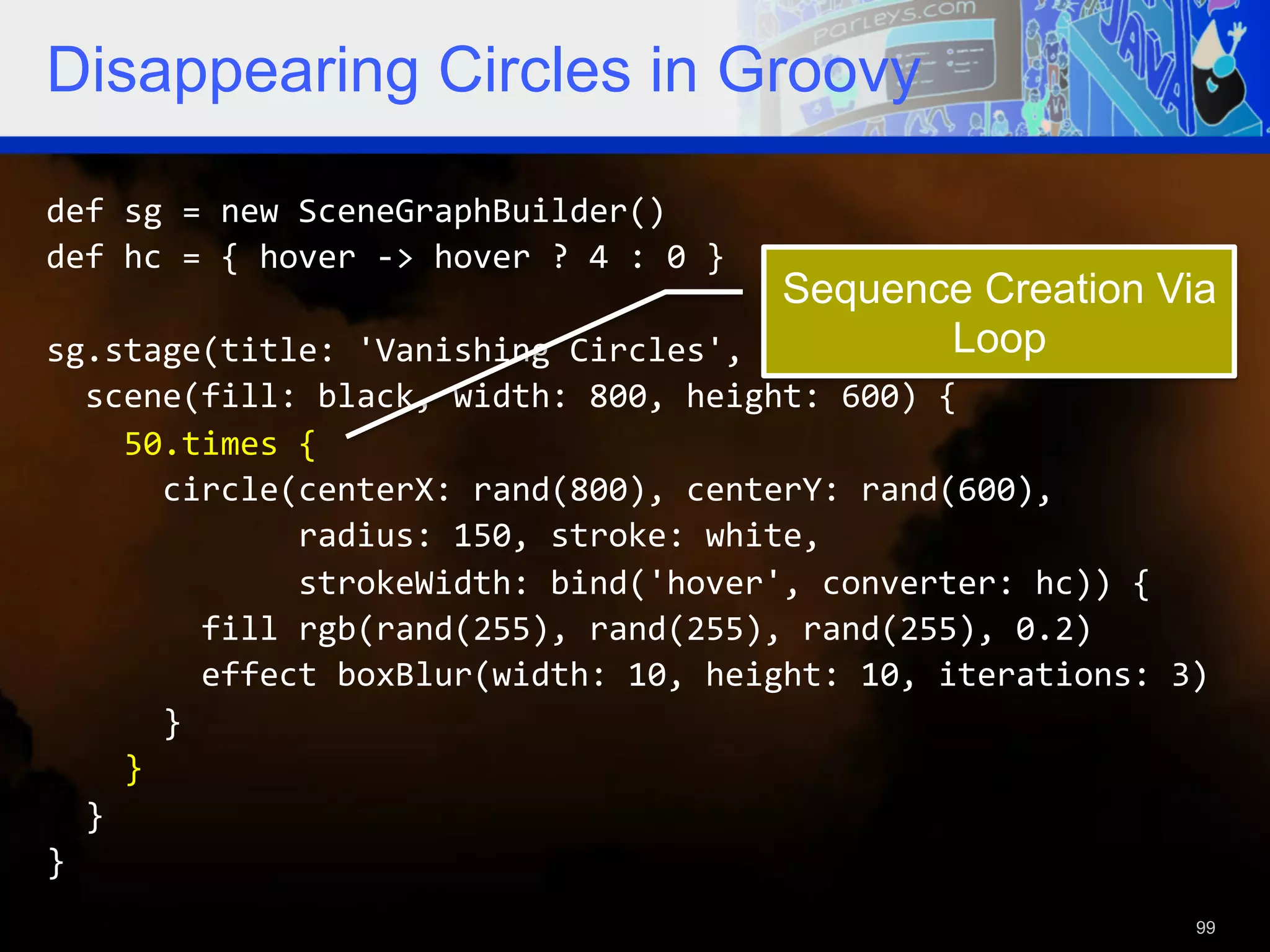

Disappearing Circles in Groovy def sg = new SceneGraphBuilder() def hc = { hover -‐> hover ? 4 : 0 } sg.stage(title: 'Vanishing Circles', show: true) { scene(fill: black, width: 800, height: 600) { Builder for GroovyFX scene 50.times { graphs circle(centerX: rand(800), centerY: rand(600), radius: 150, stroke: white, strokeWidth: bind('hover', converter: hc)) { fill rgb(rand(255), rand(255), rand(255), 0.2) effect boxBlur(width: 10, height: 10, iterations: 3) } } } } 95

Disappearing Circles in Groovy def sg = new SceneGraphBuilder() def hc = { hover -‐> hover ? 4 : 0 } sg.stage(title: 'Vanishing Circles', show: true) { scene(fill: black, width: 800, height: 600) { 50.times { circle(centerX: rand(800), centerY: rand(600), Declarative Stage radius: 150, stroke: white, strokeWidth: bind('hover', converter: hc)) { definition fill rgb(rand(255), rand(255), rand(255), 0.2) effect boxBlur(width: 10, height: 10, iterations: 3) } } } } 96

Disappearing Circles in Groovy def sg = new SceneGraphBuilder() def hc = { hover -‐> hover ? 4 : 0 } Inline property sg.stage(title: 'Vanishing Circles', show: true) { definitions scene(fill: black, width: 800, height: 600) { 50.times { circle(centerX: rand(800), centerY: rand(600), radius: 150, stroke: white, strokeWidth: bind('hover', converter: hc)) { fill rgb(rand(255), rand(255), rand(255), 0.2) effect boxBlur(width: 10, height: 10, iterations: 3) } } } } 97

Disappearing Circles in Groovy def sg = new SceneGraphBuilder() def hc = { hover -‐> hover ? 4 : 0 } Bind to properties sg.stage(title: 'Vanishing Circles', show: true) { scene(fill: black, width: 800, height: 600) { 50.times { circle(centerX: rand(800), centerY: rand(600), radius: 150, stroke: white, strokeWidth: bind('hover', converter: hc)) { fill rgb(rand(255), rand(255), rand(255), 0.2) effect boxBlur(width: 10, height: 10, iterations: 3) } } } } 98

Disappearing Circles in Groovy def sg = new SceneGraphBuilder() def hc = { hover -‐> hover ? 4 : 0 } Sequence Creation Via sg.stage(title: 'Vanishing Circles', show: true) { Loop scene(fill: black, width: 800, height: 600) { 50.times { circle(centerX: rand(800), centerY: rand(600), radius: 150, stroke: white, strokeWidth: bind('hover', converter: hc)) { fill rgb(rand(255), rand(255), rand(255), 0.2) effect boxBlur(width: 10, height: 10, iterations: 3) } } } } 99

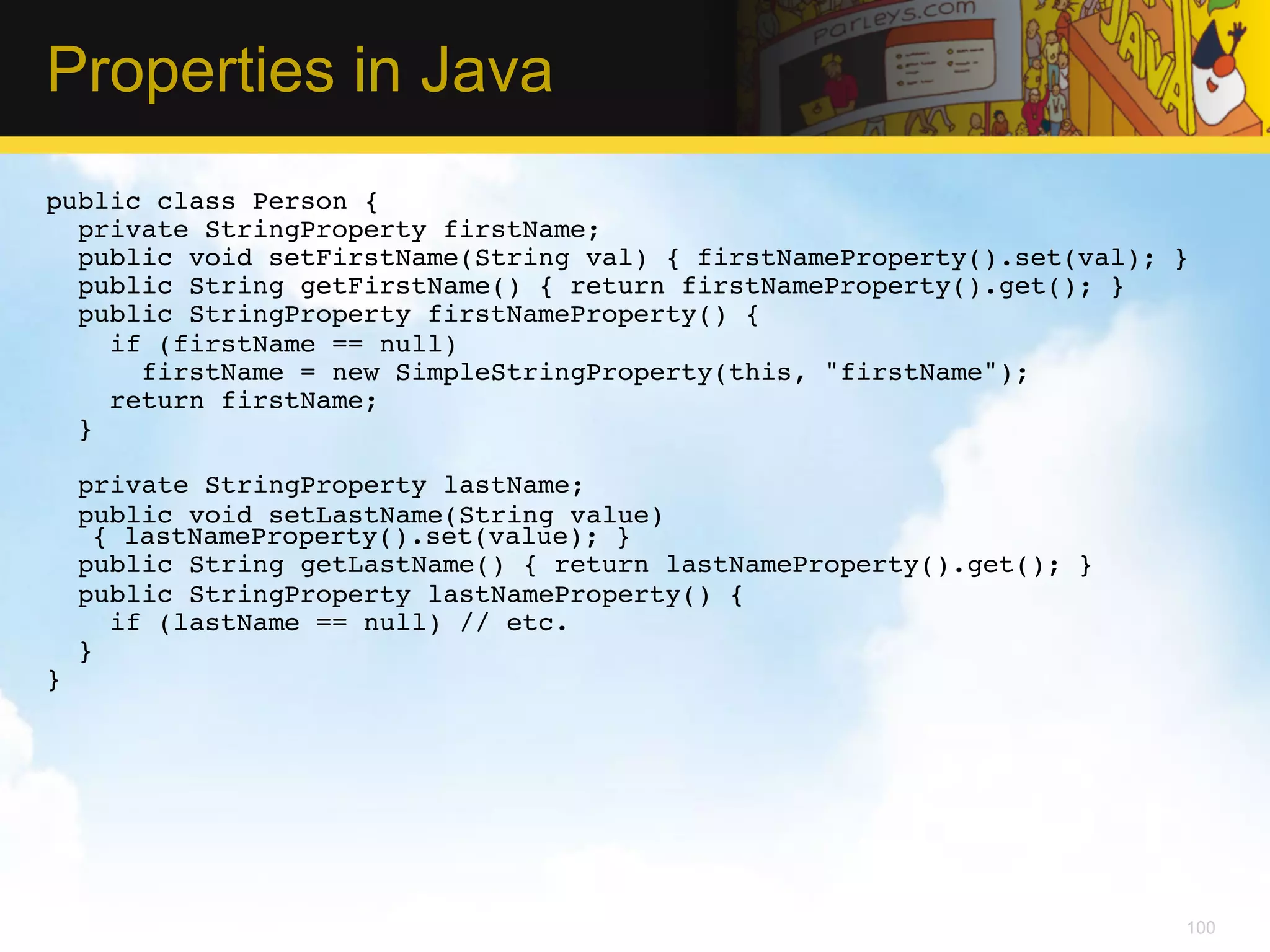

Properties in Java public class Person {! private StringProperty firstName;! public void setFirstName(String val) { firstNameProperty().set(val); }! public String getFirstName() { return firstNameProperty().get(); }! public StringProperty firstNameProperty() { ! if (firstName == null) ! firstName = new SimpleStringProperty(this, "firstName");! return firstName; ! }! ! private StringProperty lastName;! public void setLastName(String value) { lastNameProperty().set(value); }! public String getLastName() { return lastNameProperty().get(); }! public StringProperty lastNameProperty() { ! if (lastName == null) // etc.! } ! }! 100

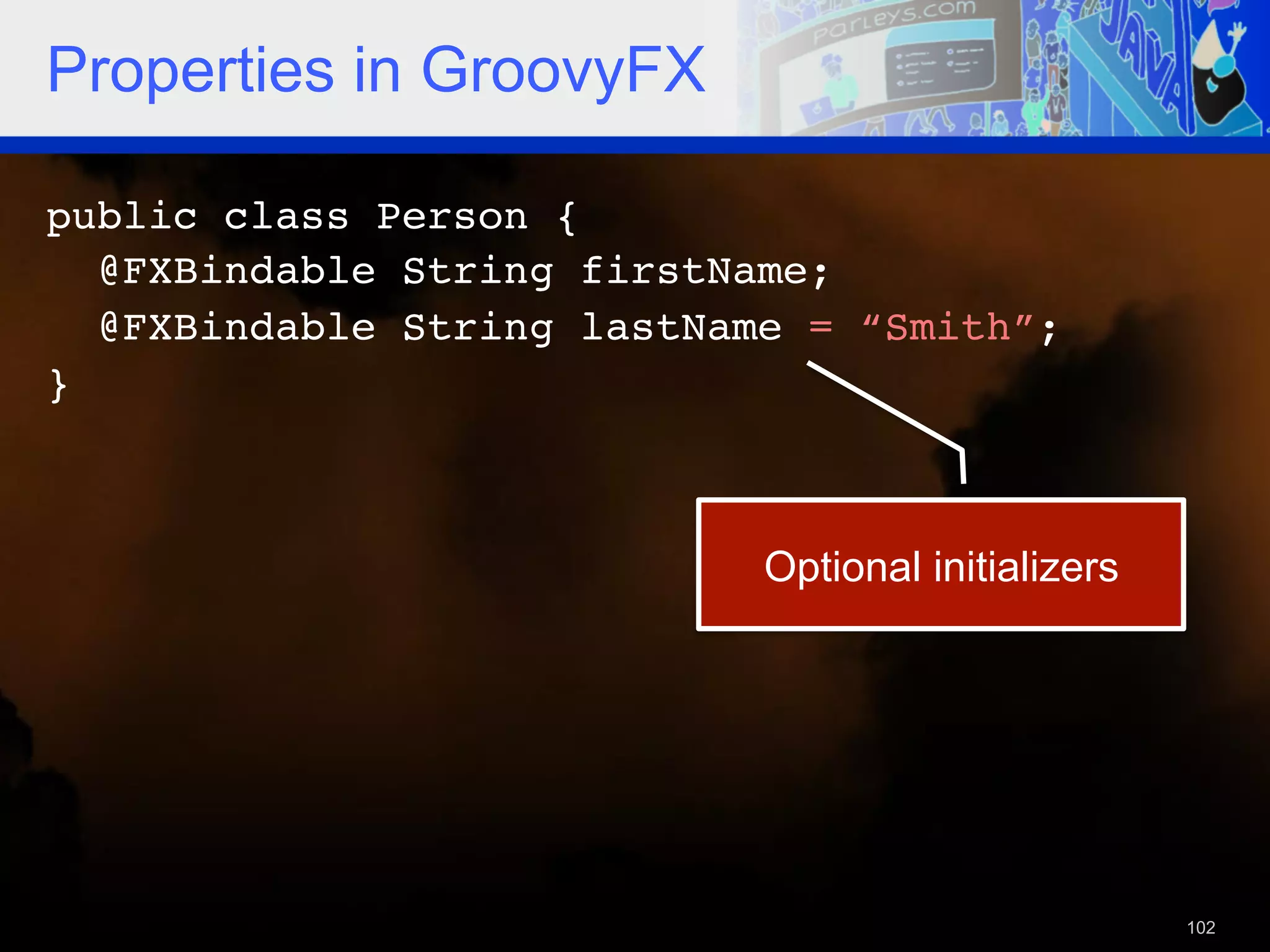

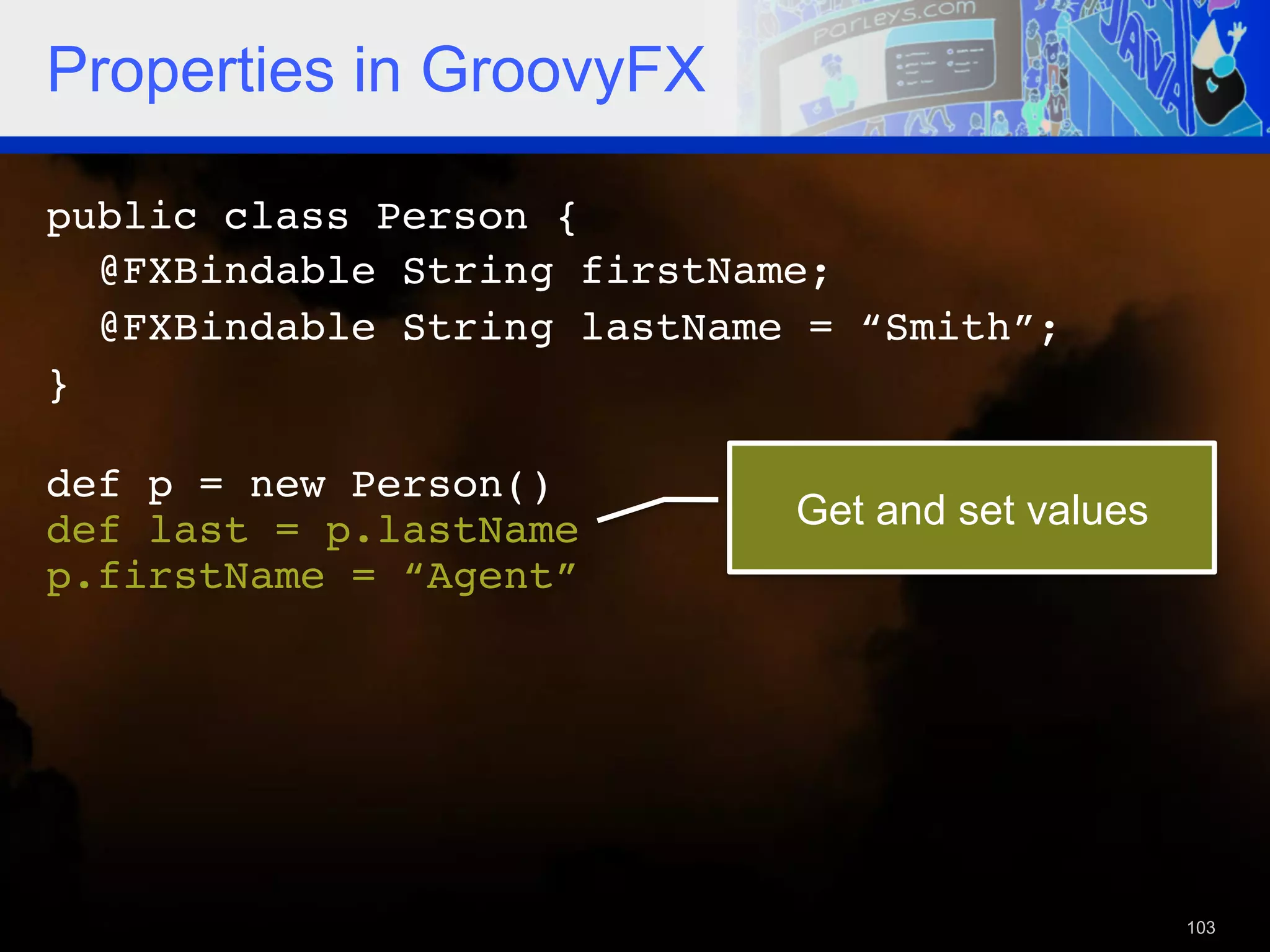

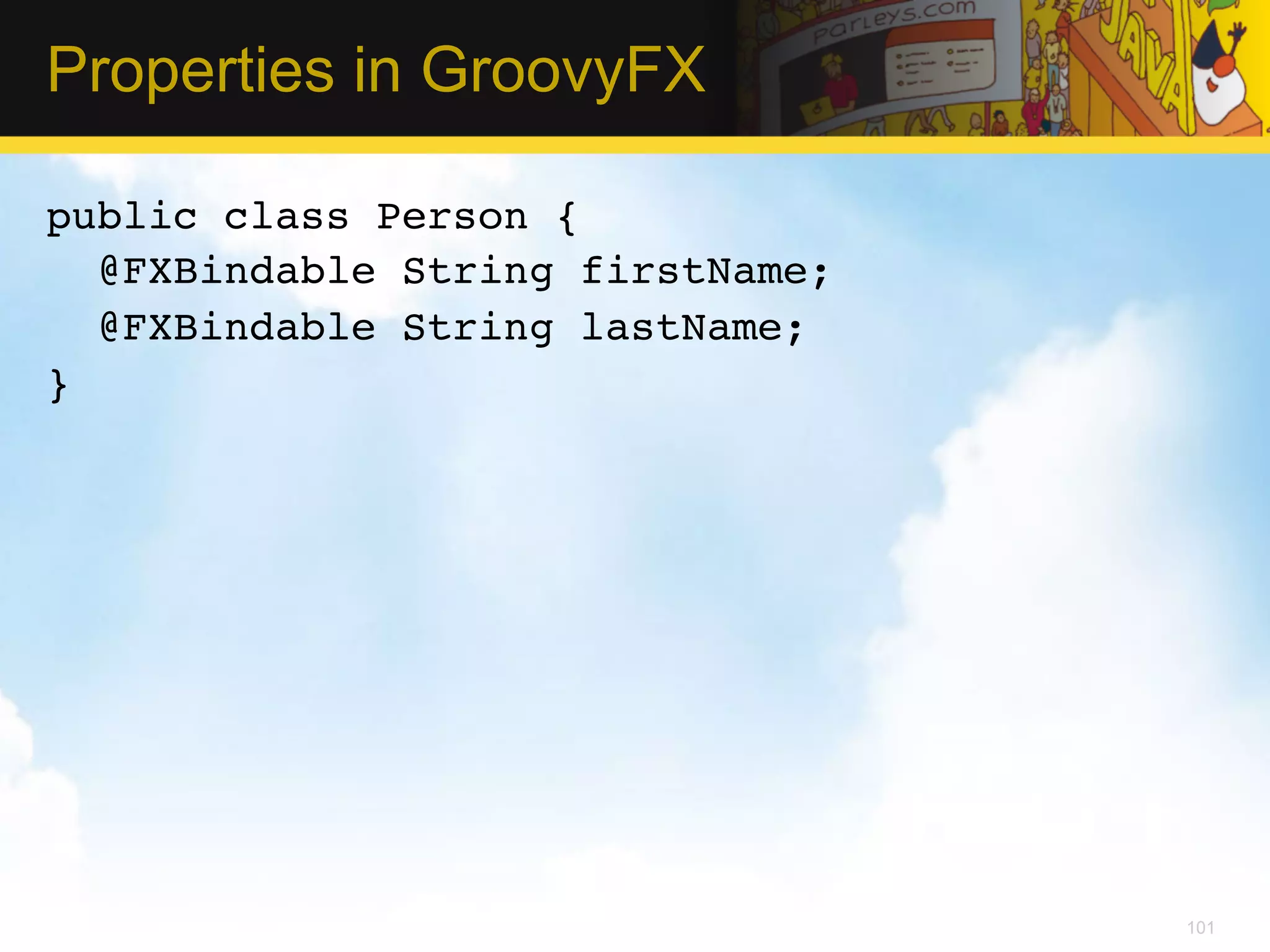

Properties in GroovyFX public class Person {! @FXBindable String firstName; ! @FXBindable String lastName;! }! 101

Properties in GroovyFX public class Person {! @FXBindable String firstName; ! @FXBindable String lastName = “Smith”;! }! Optional initializers 102

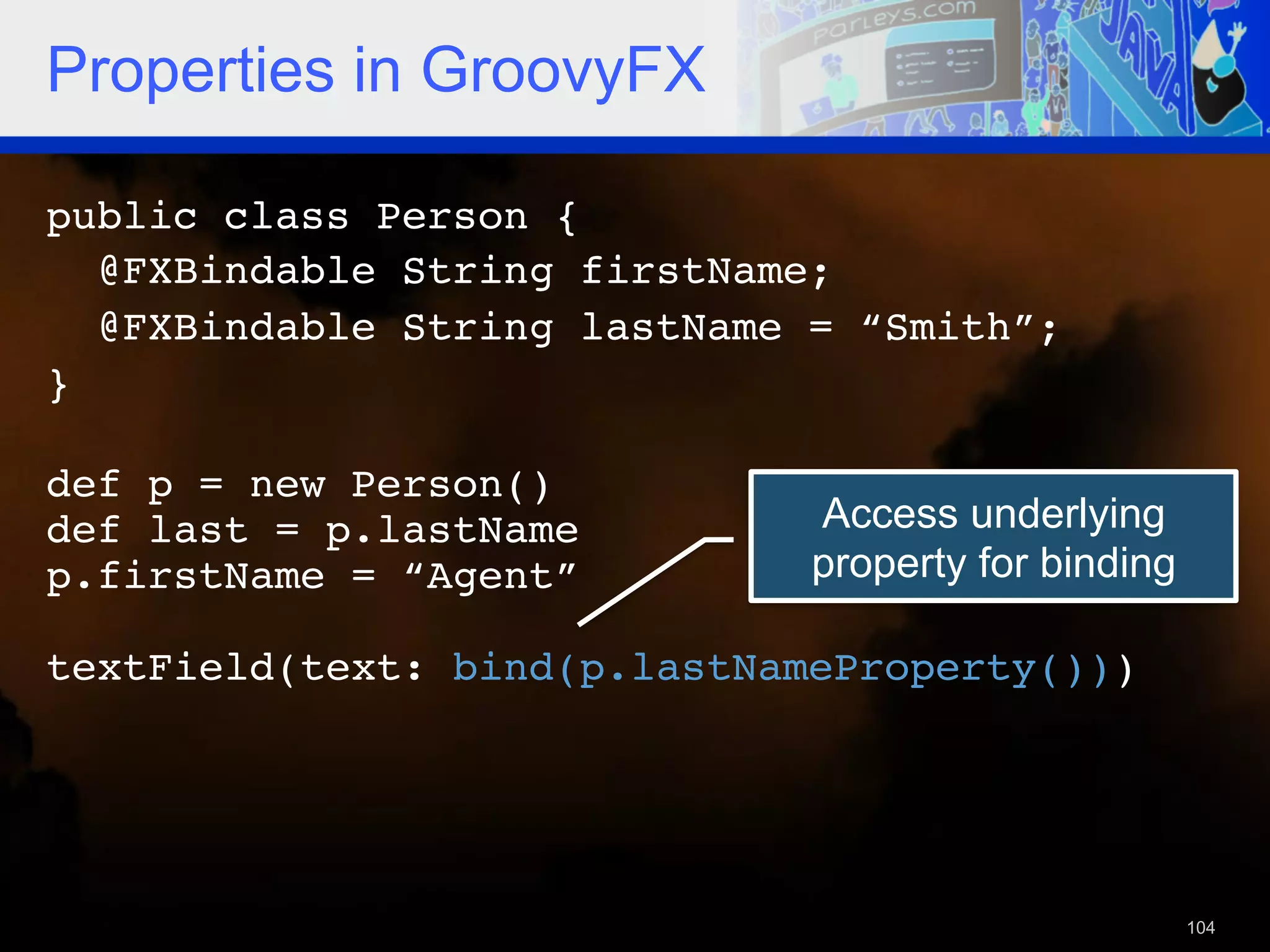

Properties in GroovyFX public class Person {! @FXBindable String firstName; ! @FXBindable String lastName = “Smith”;! }! ! def p = new Person()! def last = p.lastName! Get and set values p.firstName = “Agent”! ! 103

Properties in GroovyFX public class Person {! @FXBindable String firstName; ! @FXBindable String lastName = “Smith”;! }! ! def p = new Person()! def last = p.lastName! Access underlying p.firstName = “Agent”! property for binding ! textField(text: bind(p.lastNameProperty()))! ! 104

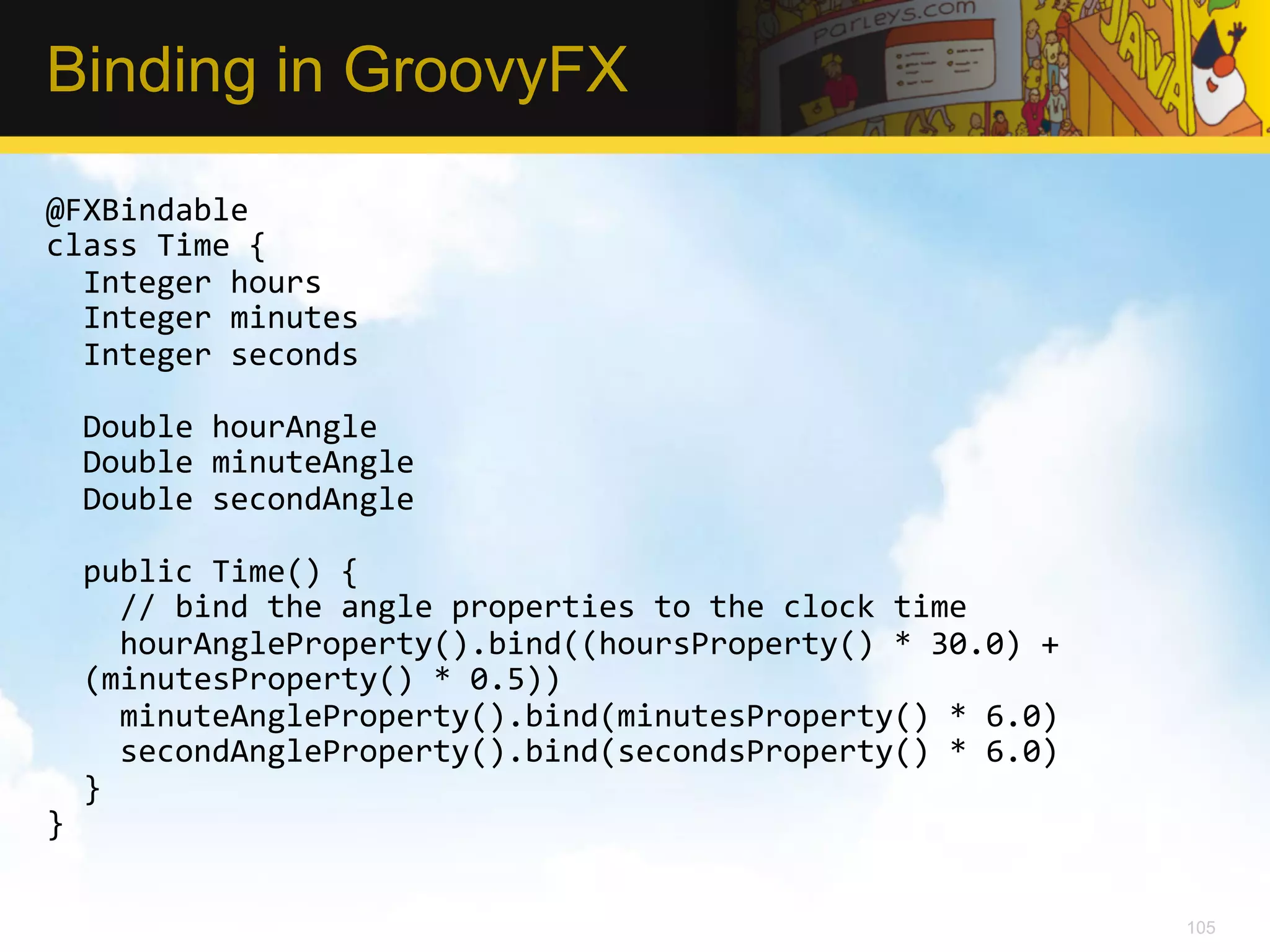

Binding in GroovyFX @FXBindable class Time { Integer hours Integer minutes Integer seconds Double hourAngle Double minuteAngle Double secondAngle public Time() { // bind the angle properties to the clock time hourAngleProperty().bind((hoursProperty() * 30.0) + (minutesProperty() * 0.5)) minuteAngleProperty().bind(minutesProperty() * 6.0) secondAngleProperty().bind(secondsProperty() * 6.0) } } 105

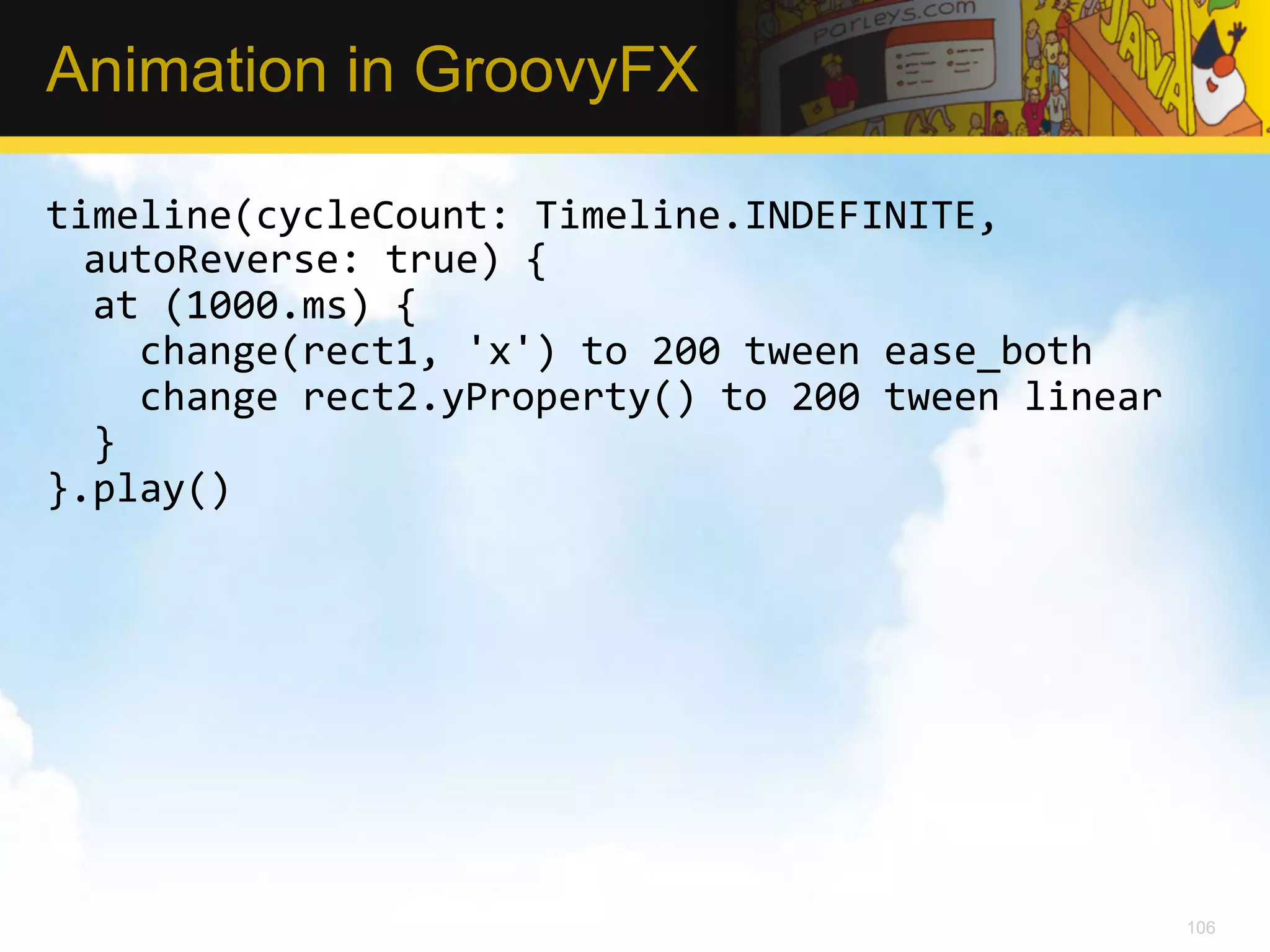

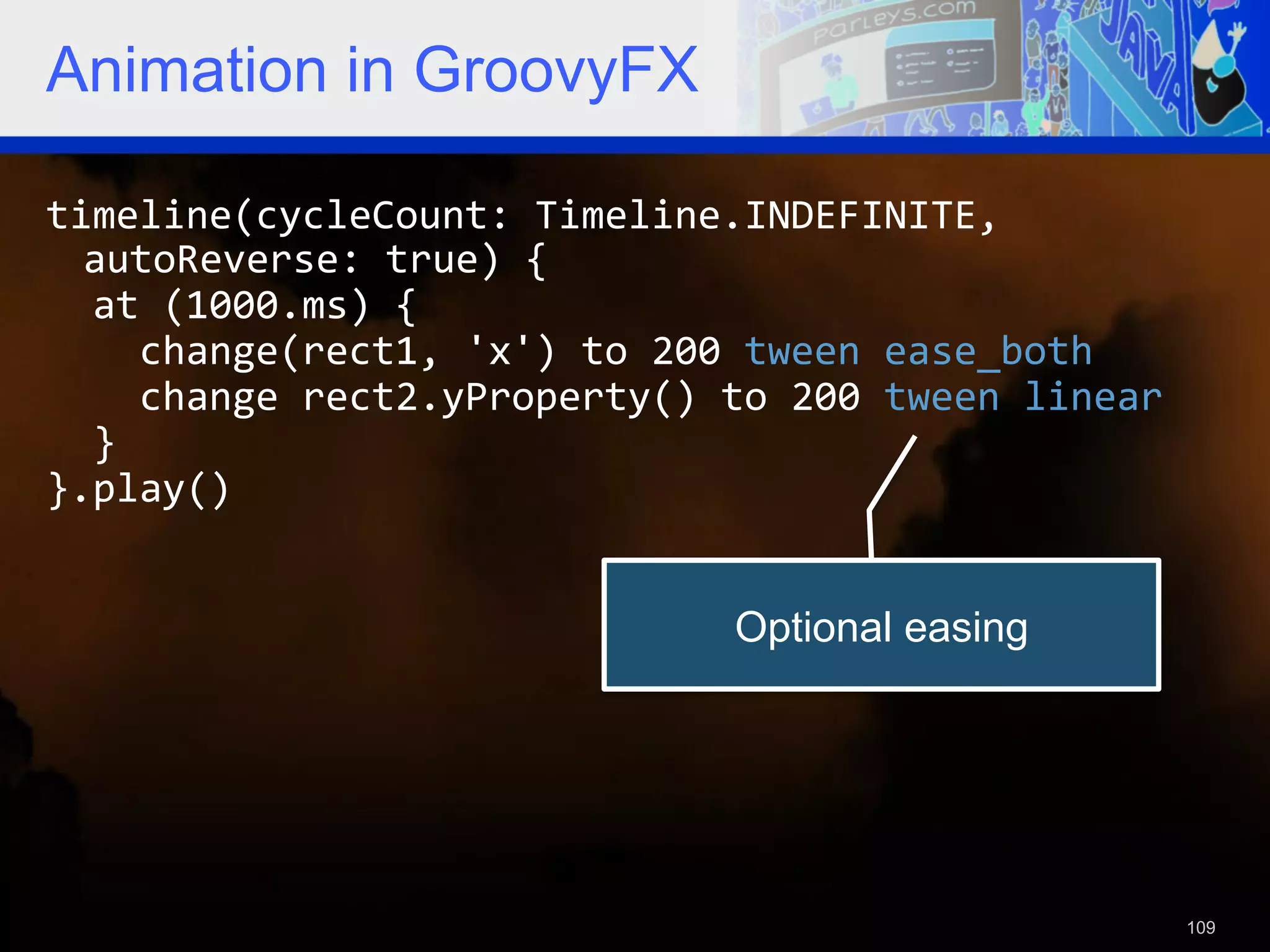

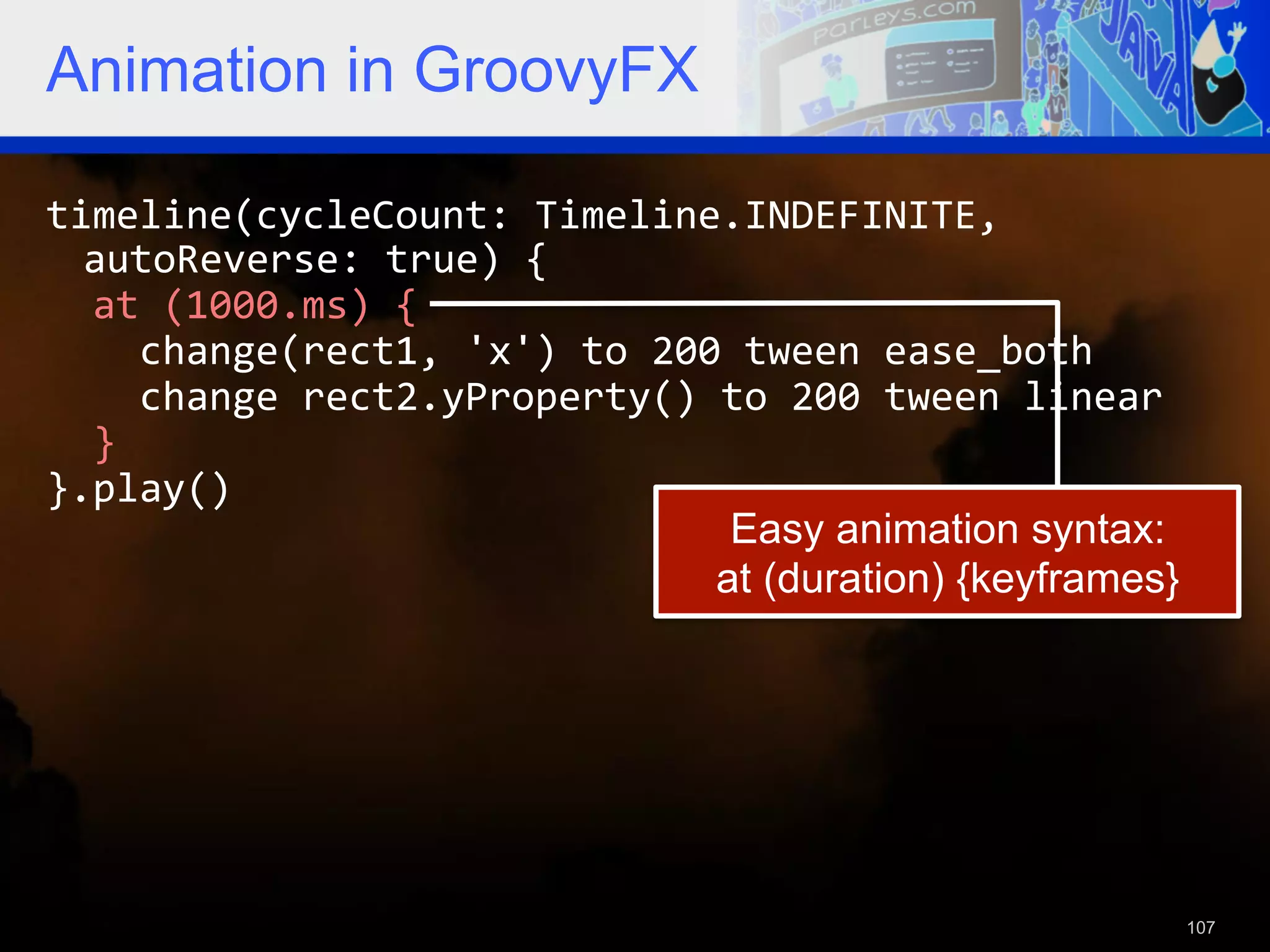

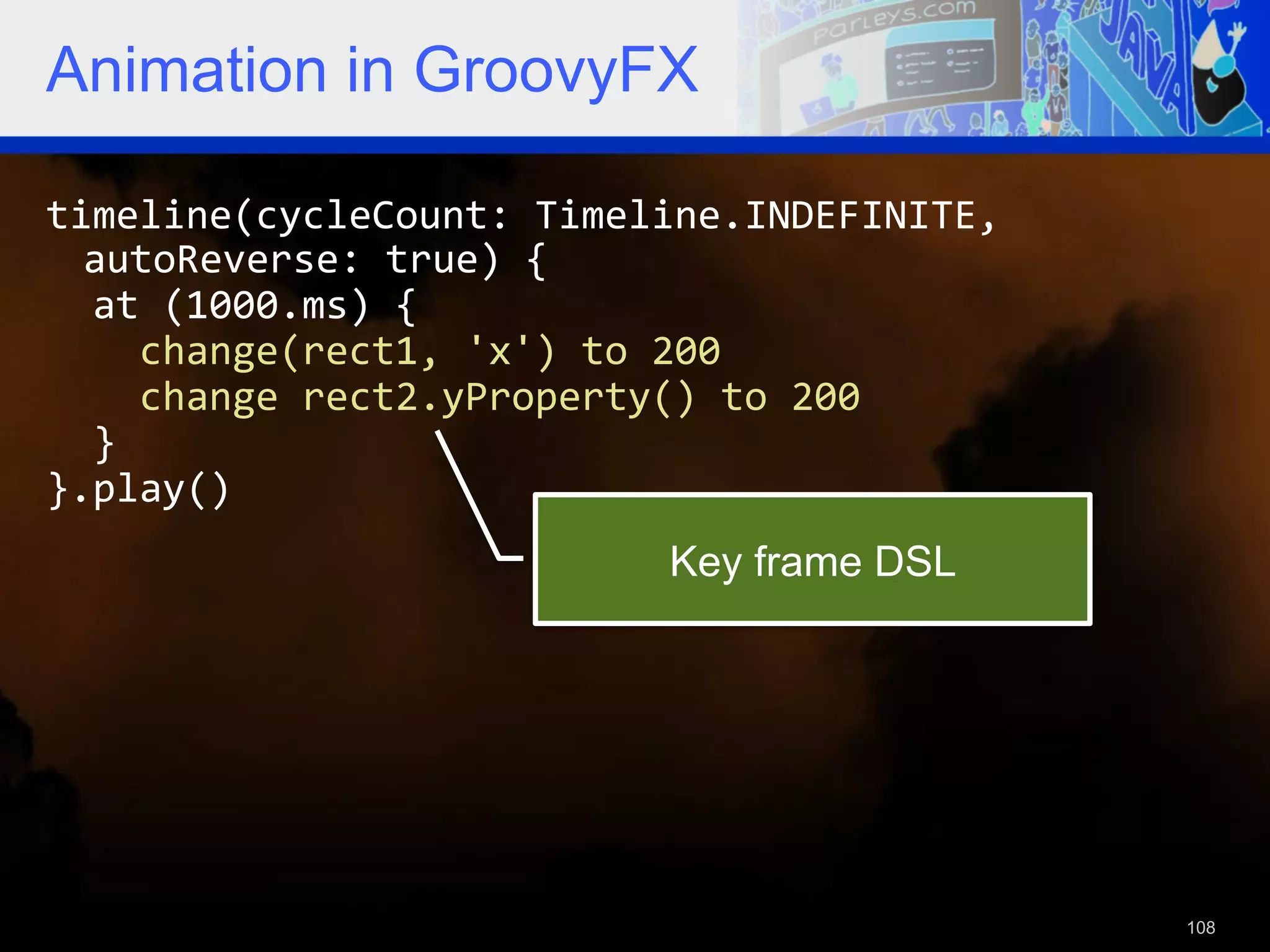

Animation in GroovyFX timeline(cycleCount: Timeline.INDEFINITE, autoReverse: true) { at (1000.ms) { change(rect1, 'x') to 200 tween ease_both change rect2.yProperty() to 200 tween linear } }.play() 106

Animation in GroovyFX timeline(cycleCount: Timeline.INDEFINITE, autoReverse: true) { at (1000.ms) { change(rect1, 'x') to 200 tween ease_both change rect2.yProperty() to 200 tween linear } }.play() Easy animation syntax: at (duration) {keyframes} 107

Animation in GroovyFX timeline(cycleCount: Timeline.INDEFINITE, autoReverse: true) { at (1000.ms) { change(rect1, 'x') to 200 change rect2.yProperty() to 200 } }.play() Key frame DSL 108

Animation in GroovyFX timeline(cycleCount: Timeline.INDEFINITE, autoReverse: true) { at (1000.ms) { change(rect1, 'x') to 200 tween ease_both change rect2.yProperty() to 200 tween linear } }.play() Optional easing 109

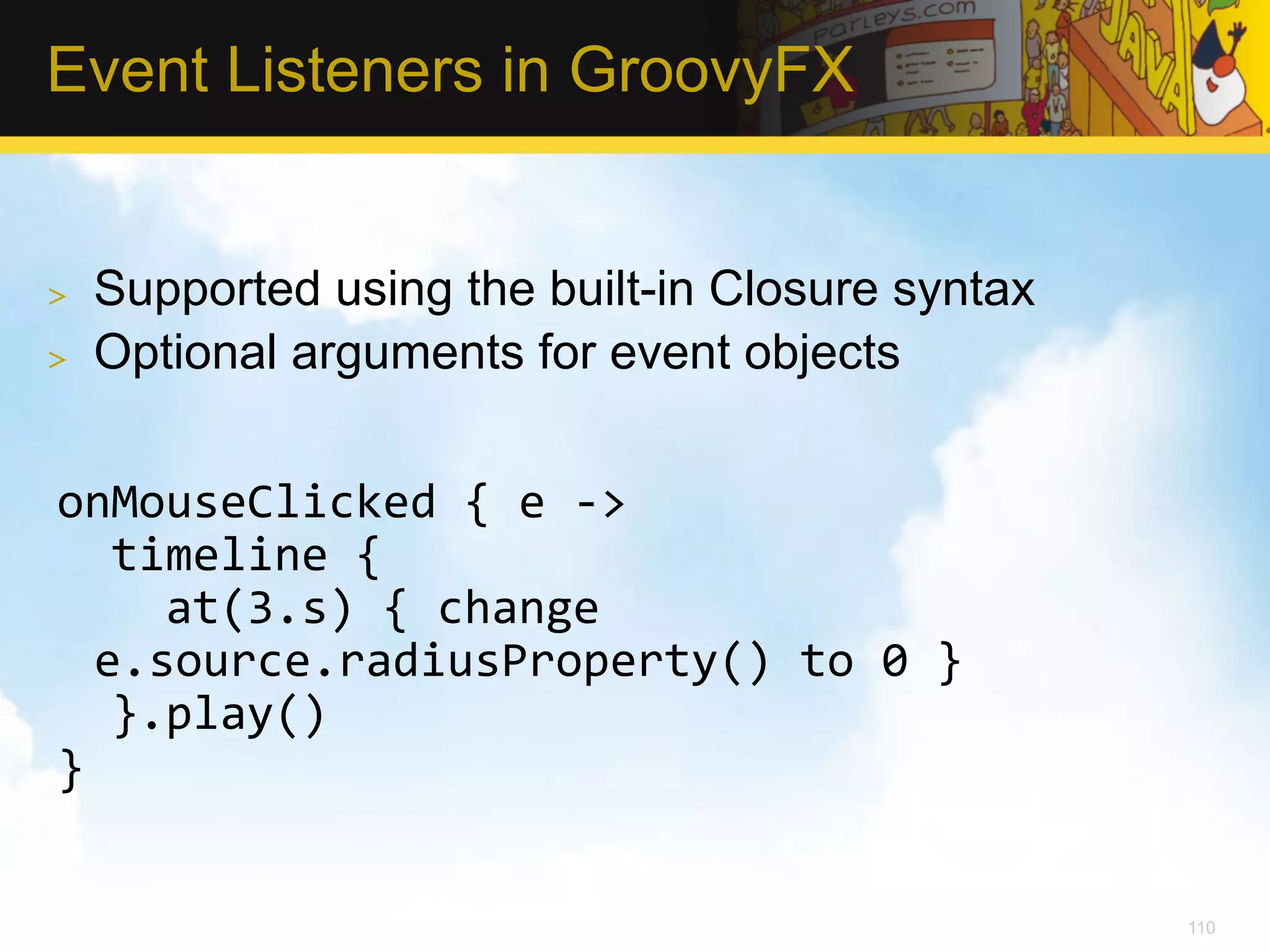

Event Listeners in GroovyFX >  Supported using the built-in Closure syntax >  Optional arguments for event objects onMouseClicked { e -‐> timeline { at(3.s) { change e.source.radiusProperty() to 0 } }.play() } 110

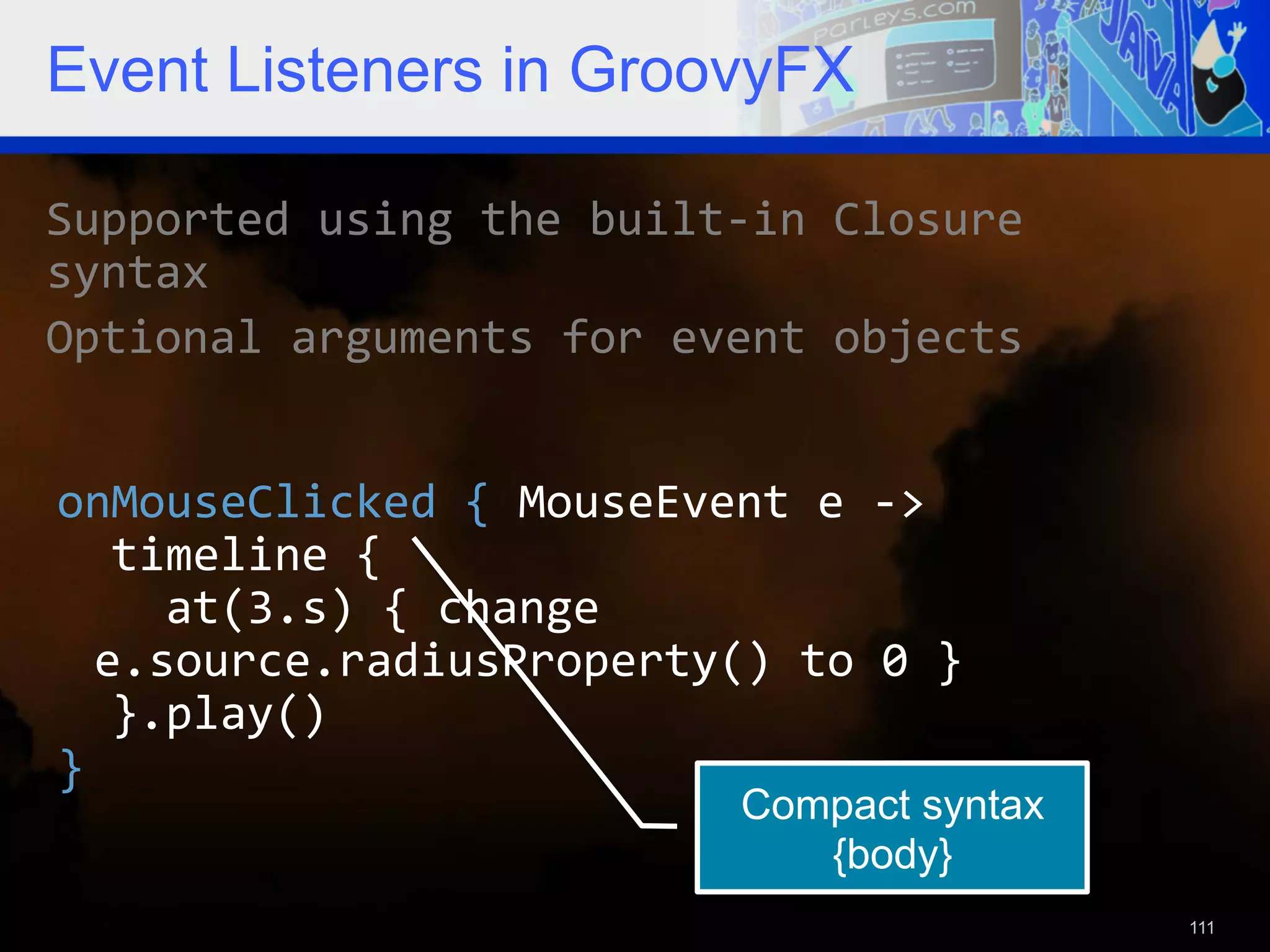

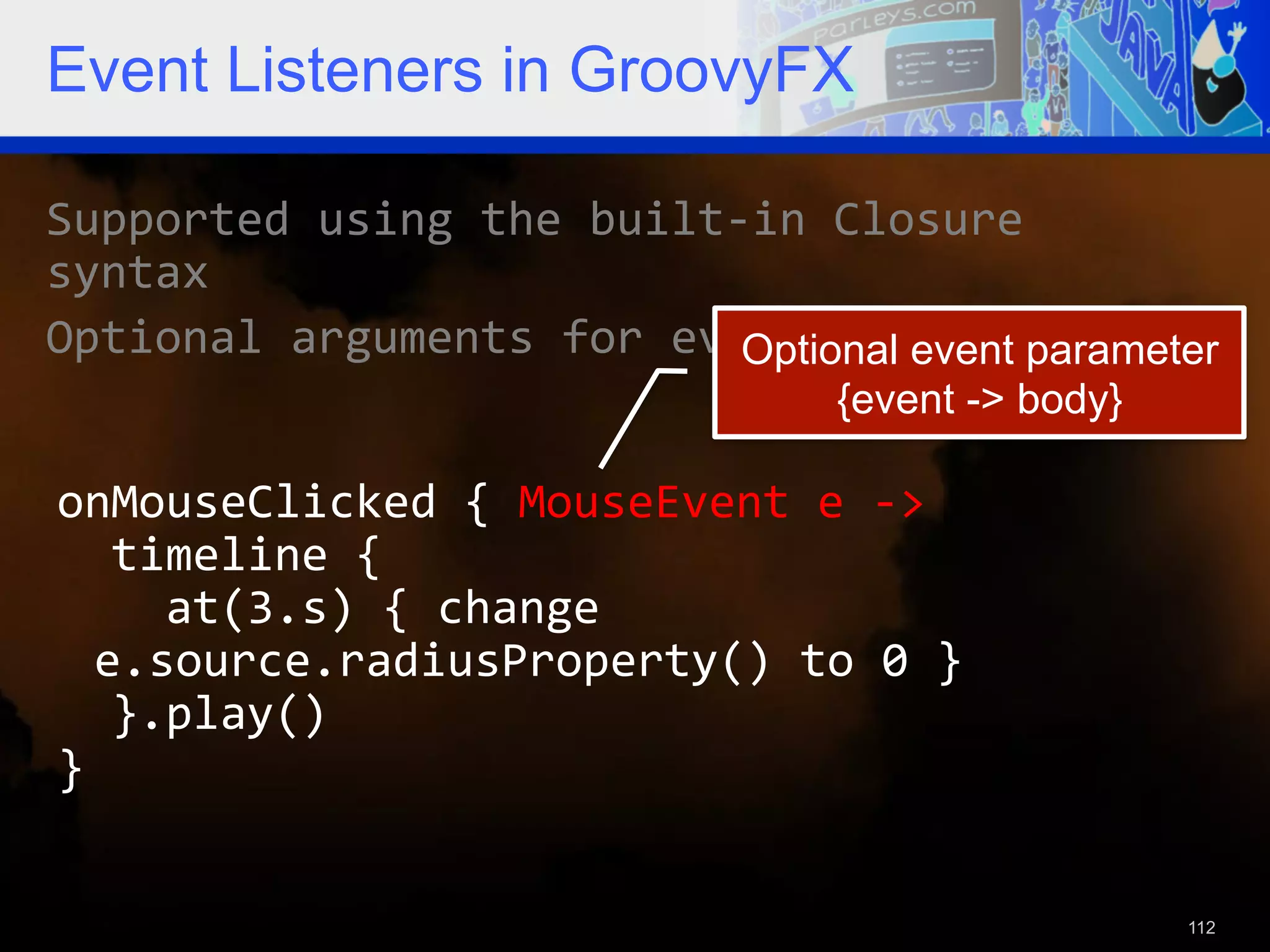

Event Listeners in GroovyFX Supported using the built-‐in Closure syntax Optional arguments for event objects onMouseClicked { MouseEvent e -‐> timeline { at(3.s) { change e.source.radiusProperty() to 0 } }.play() } Compact syntax {body} 111

Event Listeners in GroovyFX Supported using the built-‐in Closure syntax Optional arguments for event objects Optional event parameter {event -> body} onMouseClicked { MouseEvent e -‐> timeline { at(3.s) { change e.source.radiusProperty() to 0 } }.play() } 112

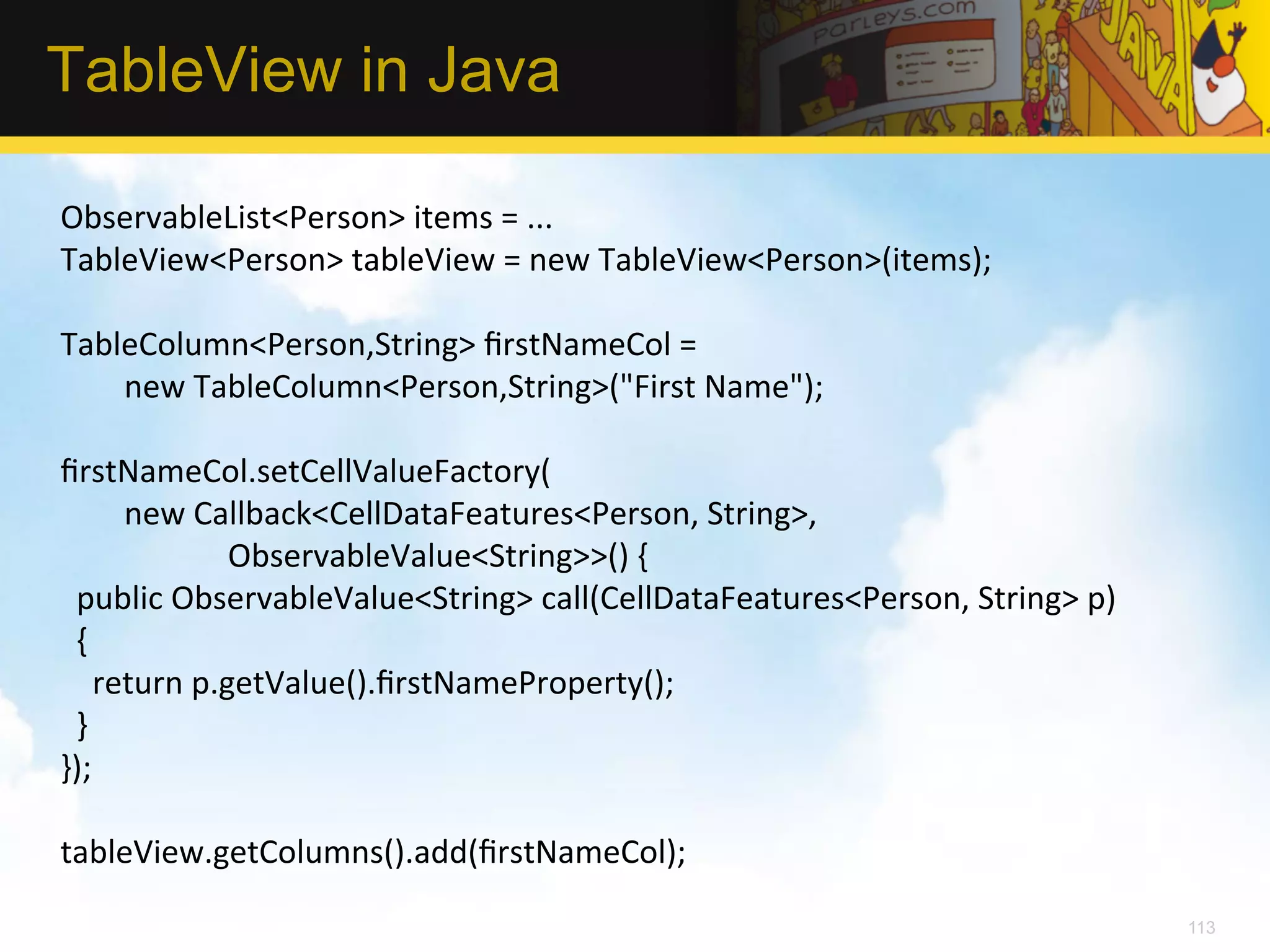

TableView in Java ObservableList<Person> items = ... TableView<Person> tableView = new TableView<Person>(items); TableColumn<Person,String> firstNameCol = new TableColumn<Person,String>("First Name"); firstNameCol.setCellValueFactory( new Callback<CellDataFeatures<Person, String>, ObservableValue<String>>() { public ObservableValue<String> call(CellDataFeatures<Person, String> p) { return p.getValue().firstNameProperty(); } }); tableView.getColumns().add(firstNameCol); 113

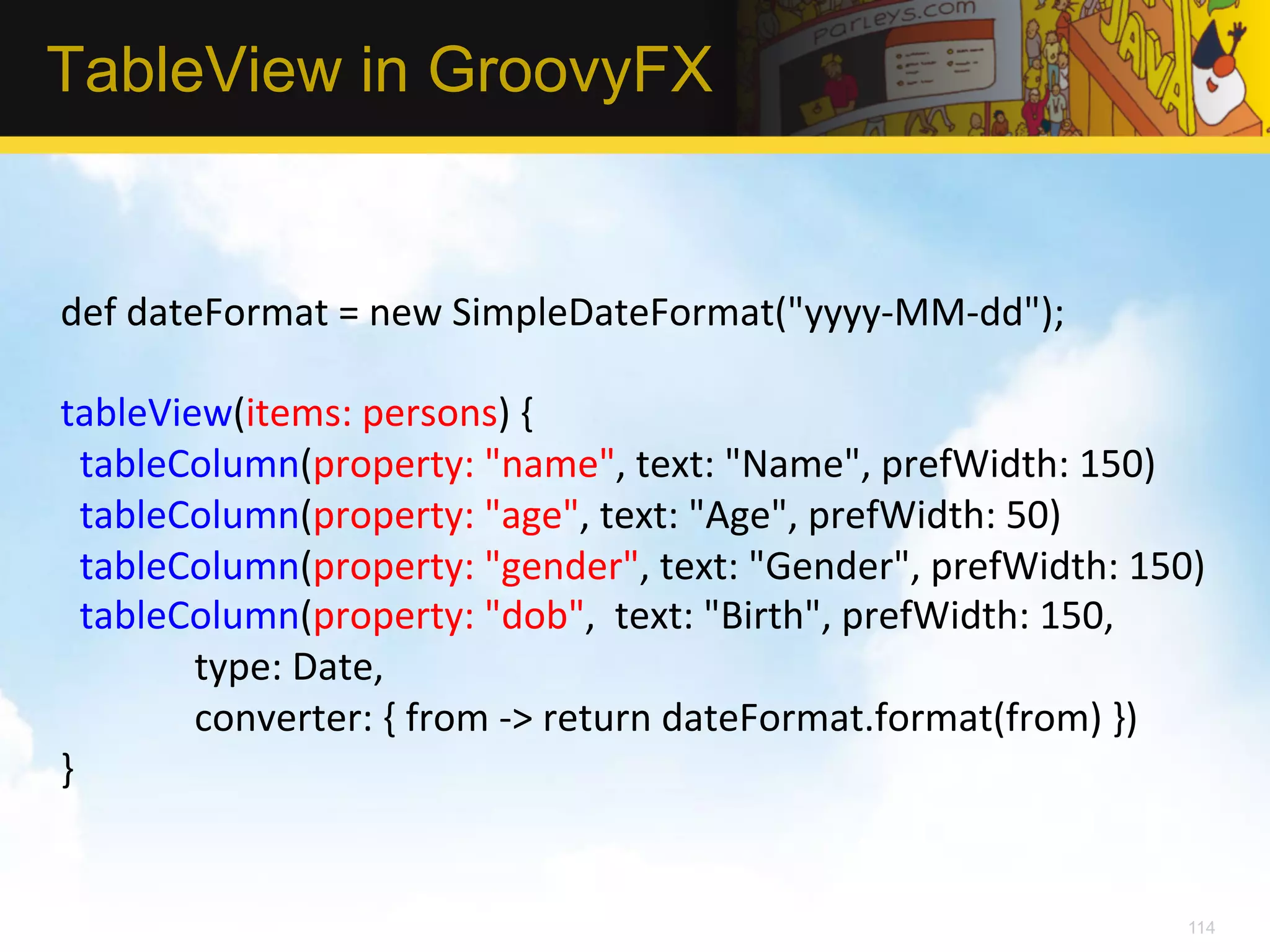

TableView in GroovyFX def dateFormat = new SimpleDateFormat("yyyy-‐MM-‐dd"); tableView(items: persons) { tableColumn(property: "name", text: "Name", prefWidth: 150) tableColumn(property: "age", text: "Age", prefWidth: 50) tableColumn(property: "gender", text: "Gender", prefWidth: 150) tableColumn(property: "dob", text: "Birth", prefWidth: 150, type: Date, converter: { from -‐> return dateFormat.format(from) }) } 114

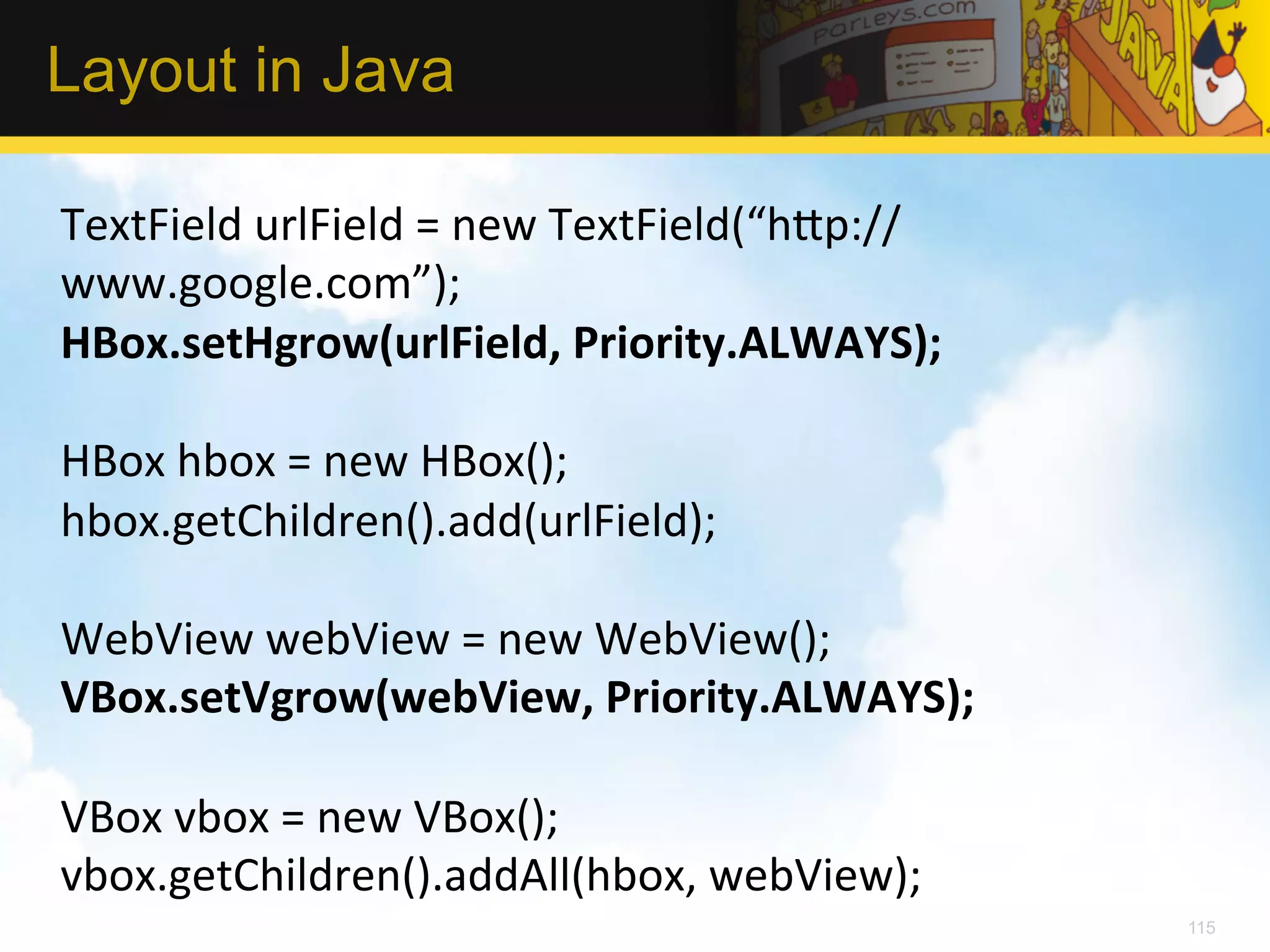

Layout in Java TextField urlField = new TextField(“h_p:// www.google.com”); HBox.setHgrow(urlField, Priority.ALWAYS); HBox hbox = new HBox(); hbox.getChildren().add(urlField); WebView webView = new WebView(); VBox.setVgrow(webView, Priority.ALWAYS); VBox vbox = new VBox(); vbox.getChildren().addAll(hbox, webView); 115

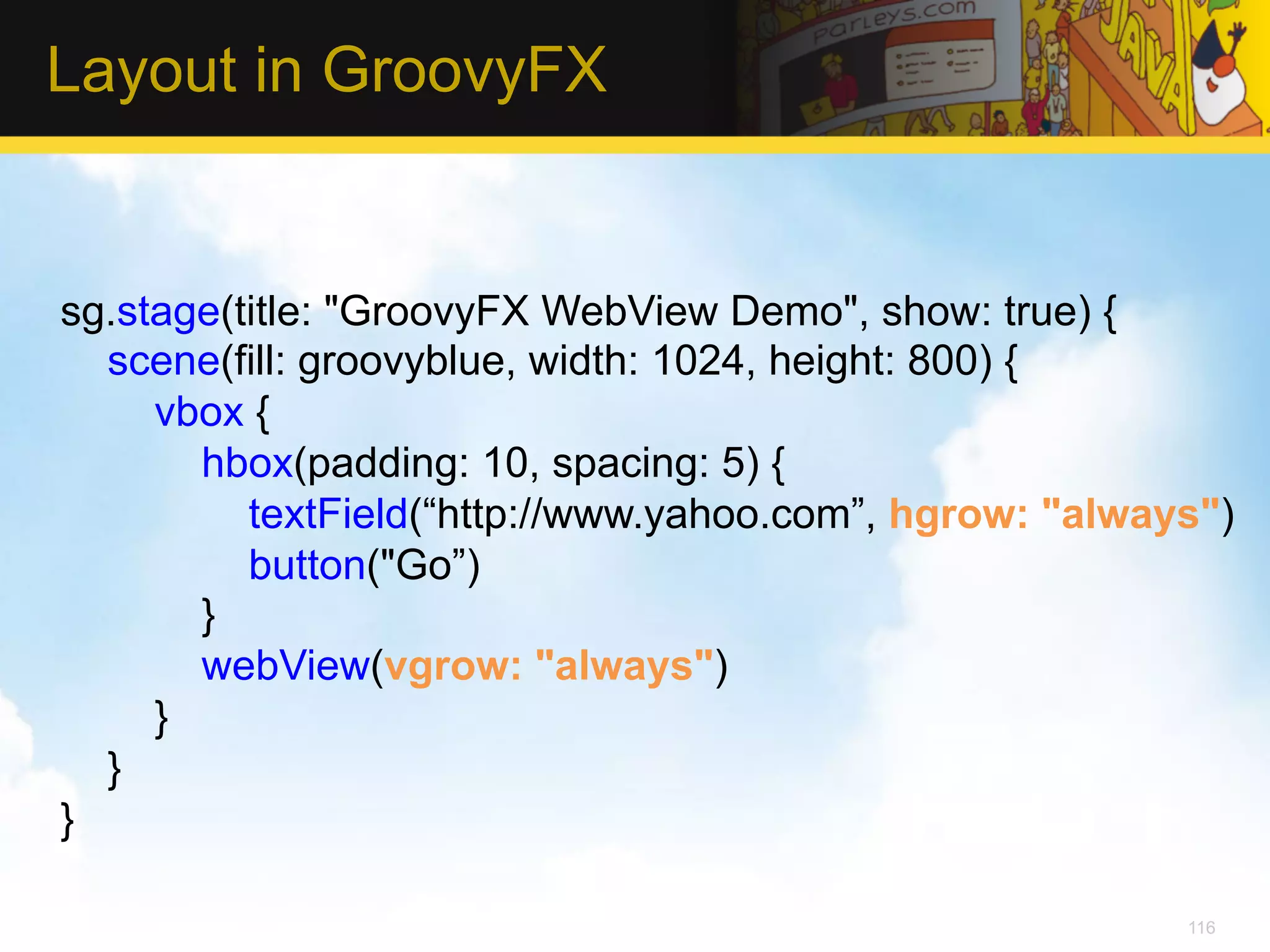

Layout in GroovyFX sg.stage(title: "GroovyFX WebView Demo", show: true) { scene(fill: groovyblue, width: 1024, height: 800) { vbox { hbox(padding: 10, spacing: 5) { textField(“http://www.yahoo.com”, hgrow: "always") button("Go”) } webView(vgrow: "always") } } } 116

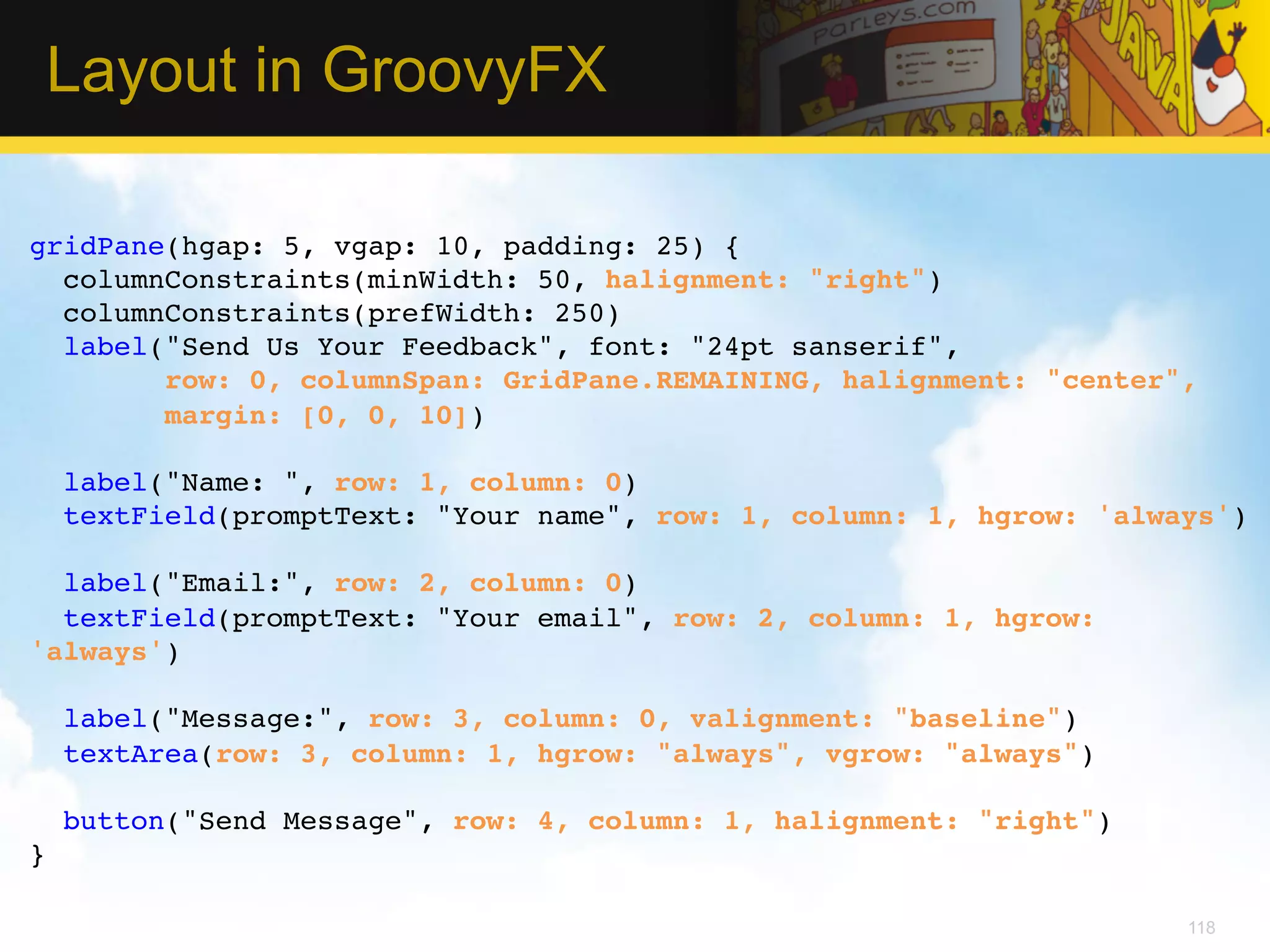

Layout in GroovyFX gridPane(hgap: 5, vgap: 10, padding: 25) {! columnConstraints(minWidth: 50, halignment: "right")! columnConstraints(prefWidth: 250)! label("Send Us Your Feedback", font: "24pt sanserif", ! row: 0, columnSpan: GridPane.REMAINING, halignment: "center",! margin: [0, 0, 10])! ! label("Name: ", row: 1, column: 0)! textField(promptText: "Your name", row: 1, column: 1, hgrow: 'always')! ! label("Email:", row: 2, column: 0)! textField(promptText: "Your email", row: 2, column: 1, hgrow: 'always')! ! label("Message:", row: 3, column: 0, valignment: "baseline")! textArea(row: 3, column: 1, hgrow: "always", vgrow: "always")! ! button("Send Message", row: 4, column: 1, halignment: "right")! }! 118

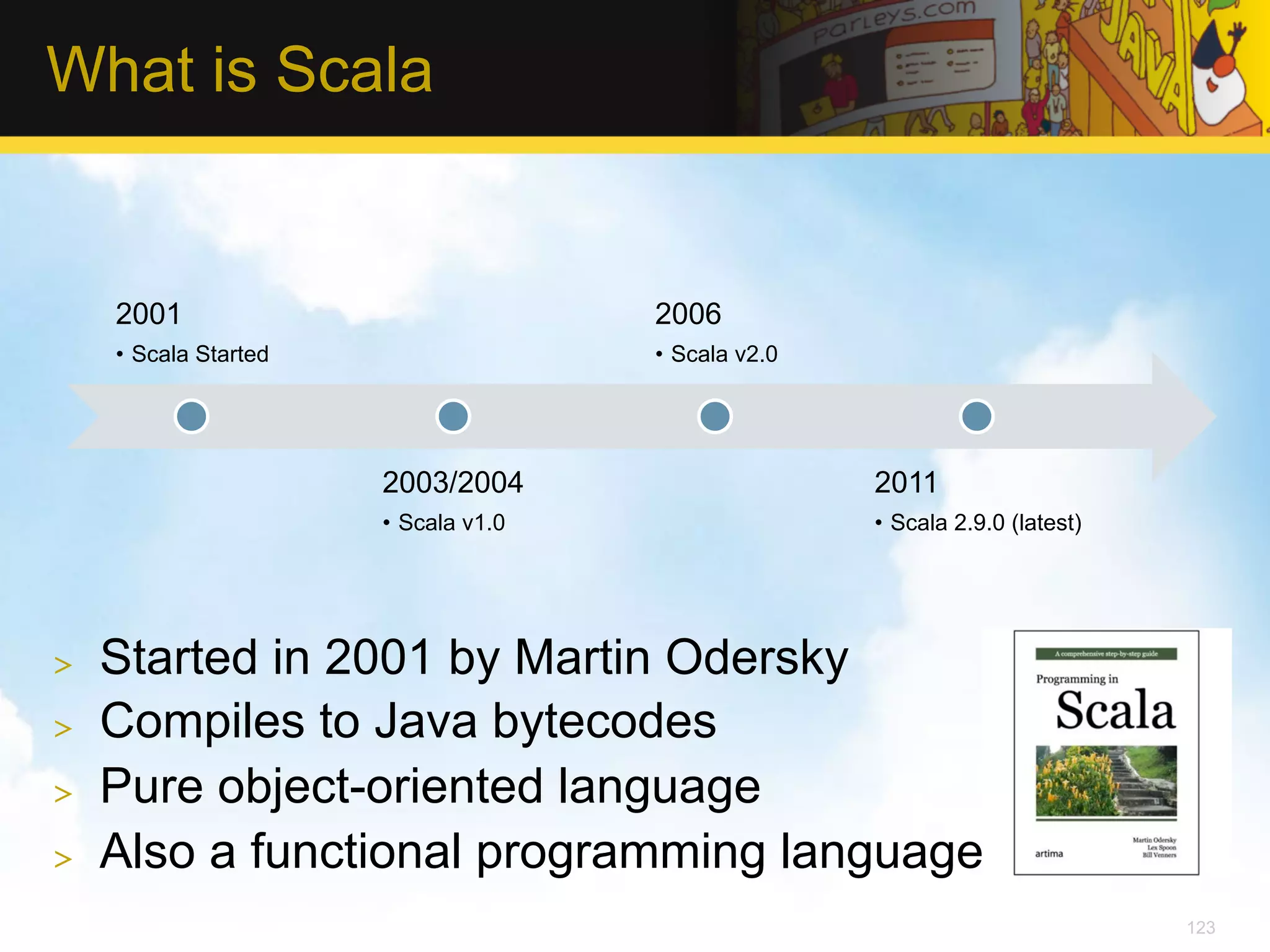

What is Scala 2001 2006 •  Scala Started •  Scala v2.0 2003/2004 2011 •  Scala v1.0 •  Scala 2.9.0 (latest) >  Started in 2001 by Martin Odersky >  Compiles to Java bytecodes >  Pure object-oriented language >  Also a functional programming language 123

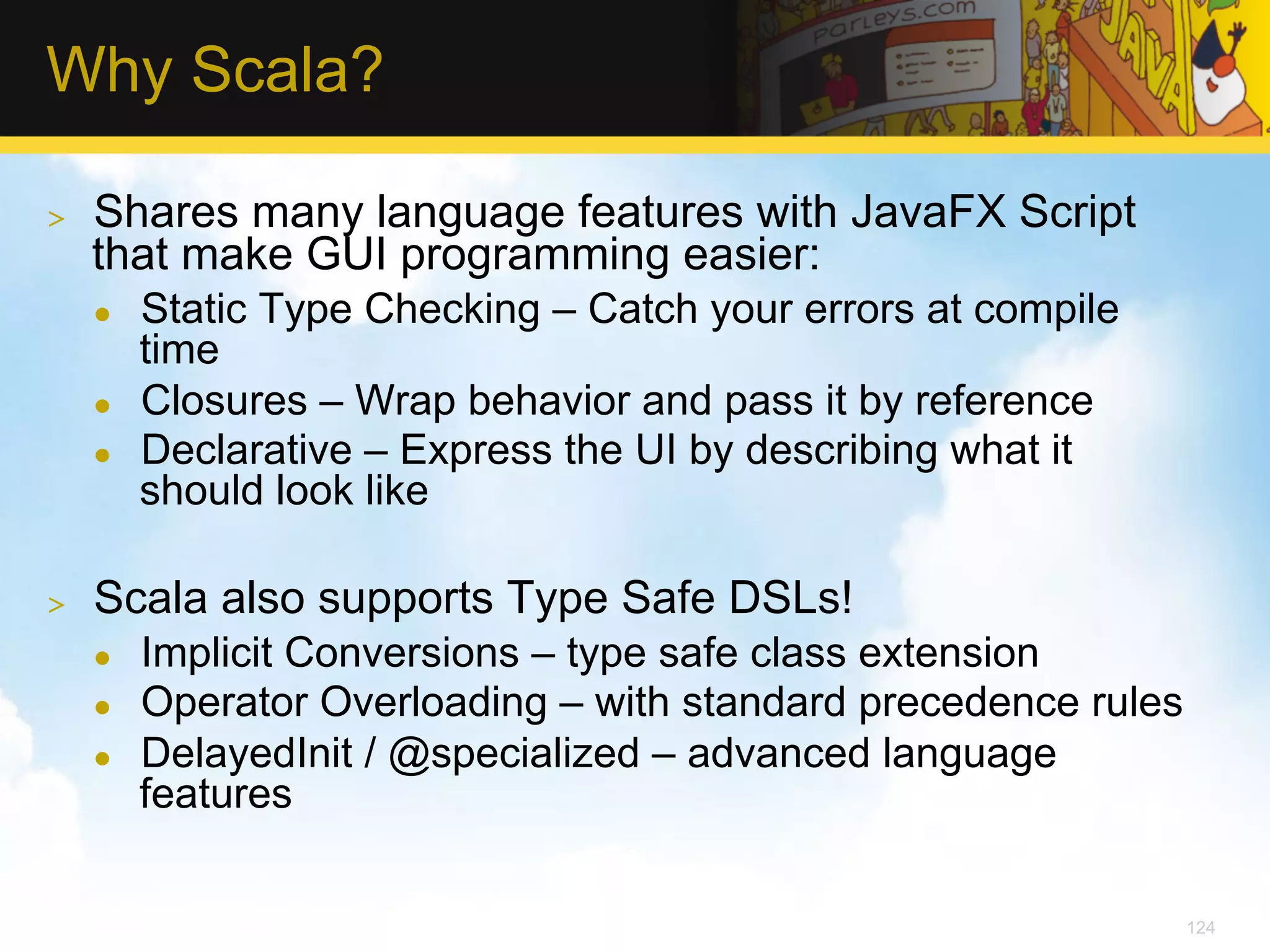

Why Scala? >  Shares many language features with JavaFX Script that make GUI programming easier: l  Static Type Checking – Catch your errors at compile time l  Closures – Wrap behavior and pass it by reference l  Declarative – Express the UI by describing what it should look like >  Scala also supports Type Safe DSLs! l  Implicit Conversions – type safe class extension l  Operator Overloading – with standard precedence rules l  DelayedInit / @specialized – advanced language features 124

Java vs. Scala DSL public class HelloStage extends Application { object HelloJavaFX extends JFXApp { stage = new Stage { public void start(Stage stage) { title = "Hello Stage" stage.setTitle("Hello Stage"); width = 600 stage.setWidth(600); height = 450 stage.setHeight(450); scene = new Scene { Scene scene = new Scene(); fill = LIGHTGREEN scene.setFill(Color.LIGHTGREEN); content = Seq(new Rectangle { 21 Lines Rectangle rect = new Rectangle(); rect.setX(25); rect.setY(40); 17 Lines x = 25 y = 40 width = 100 430 Characters rect.setWidth(100); rect.setHeight(50); 177 Characters height = 50 fill = RED rect.setFill(Color.RED); }) scene.setRoot(new Group(rect)); } stage.setScene(scene); } stage.show(); } } public static void main(String[] args) { launch(HelloStage.class, args); } } 125

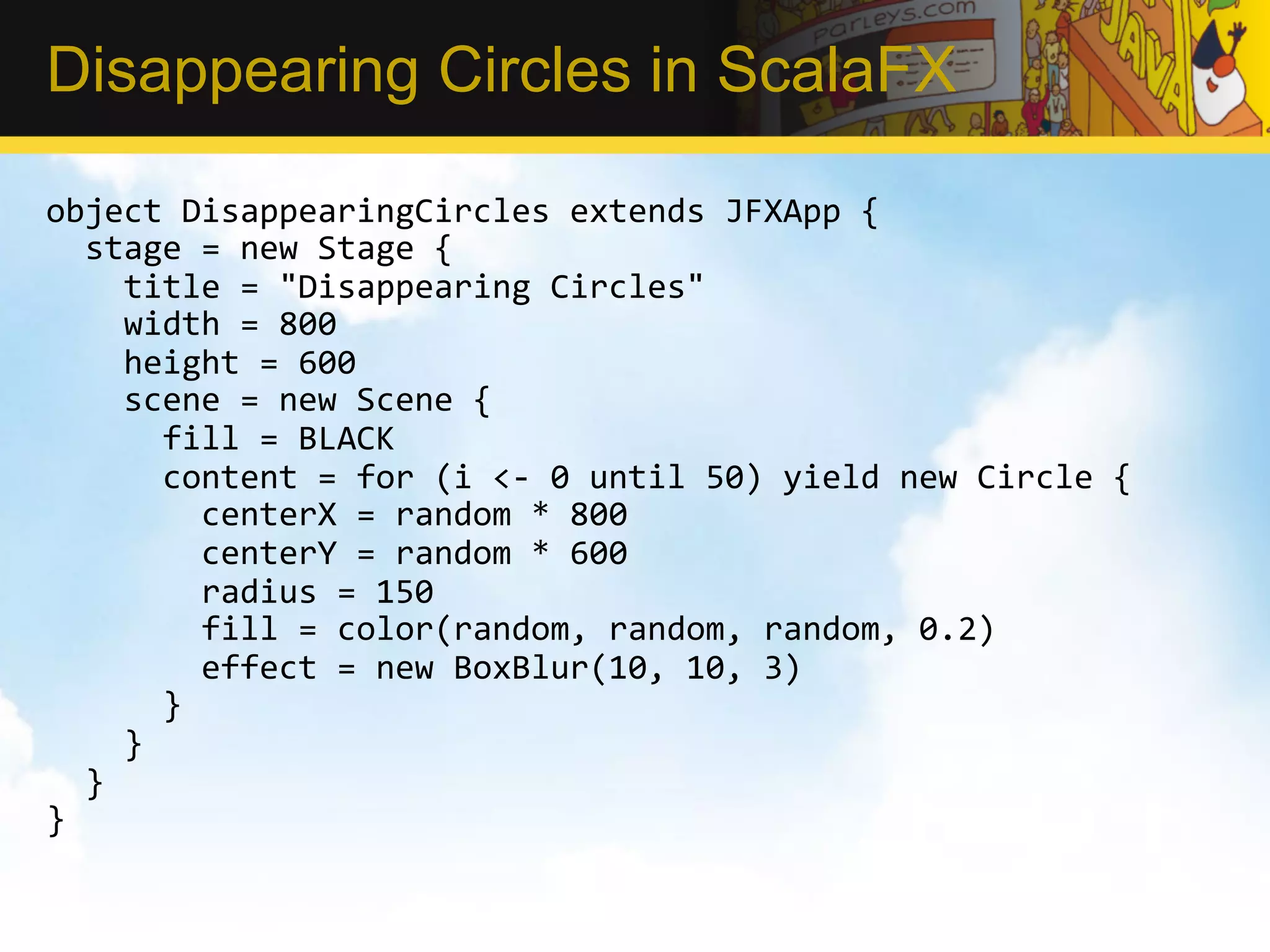

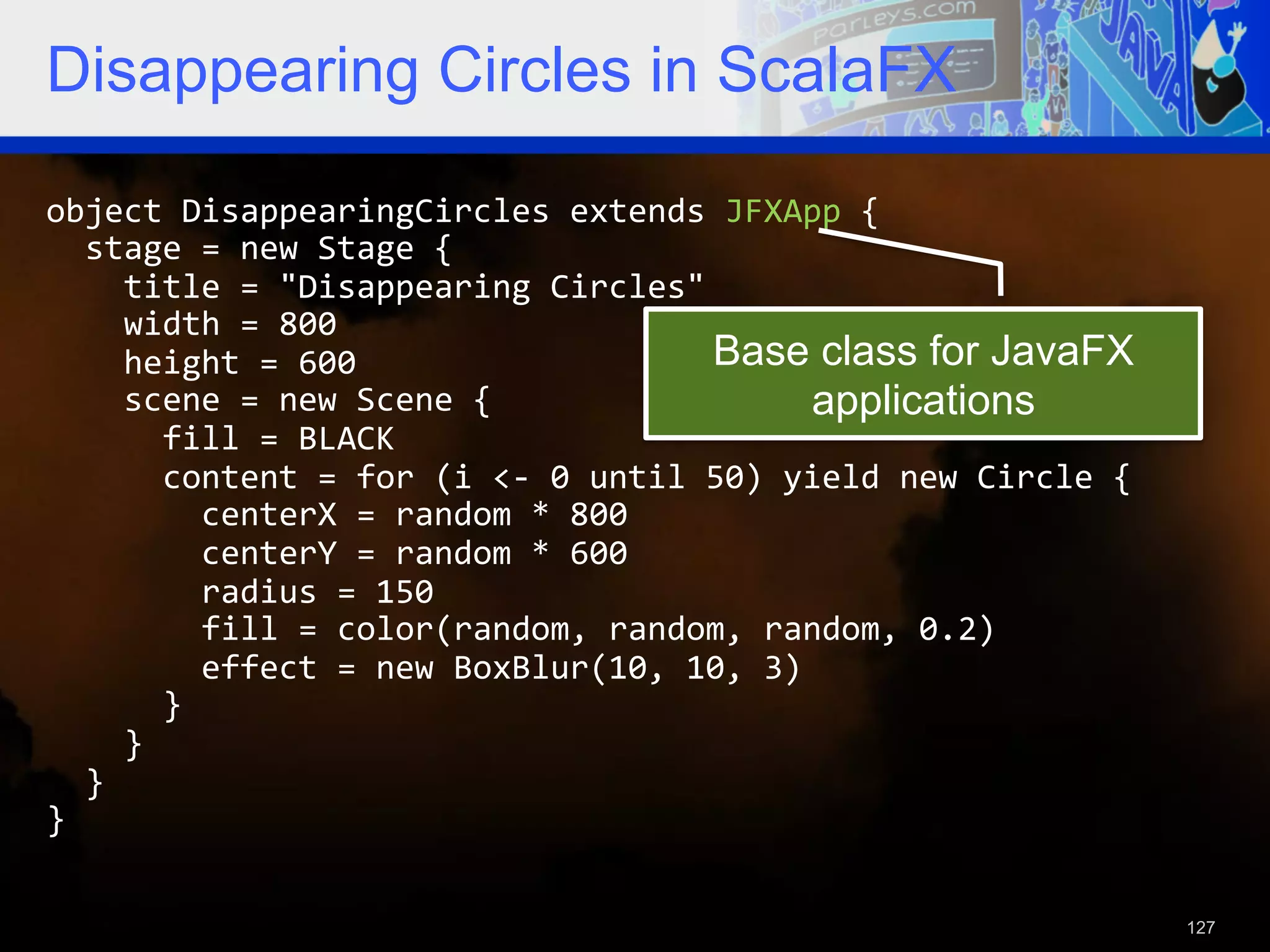

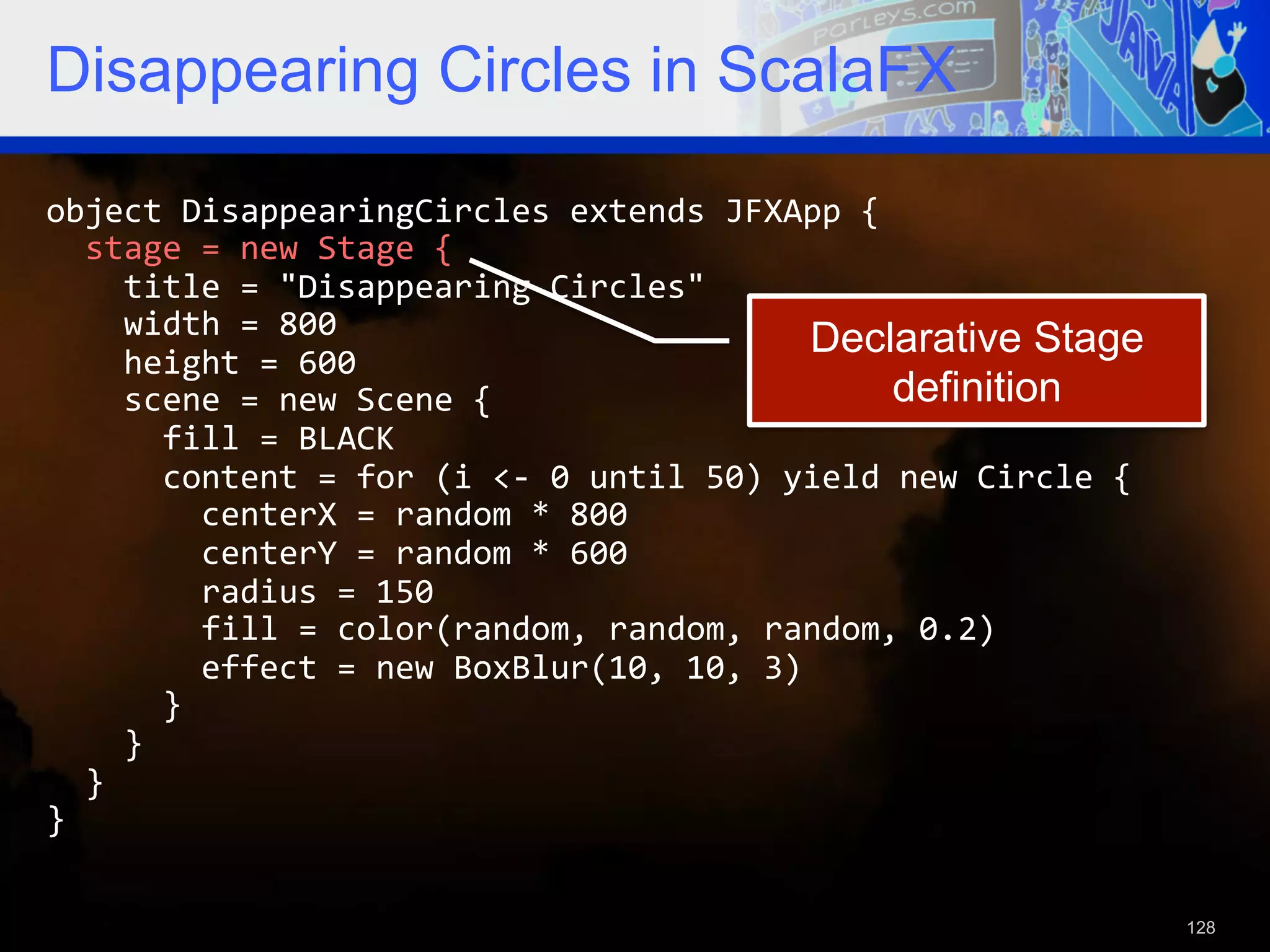

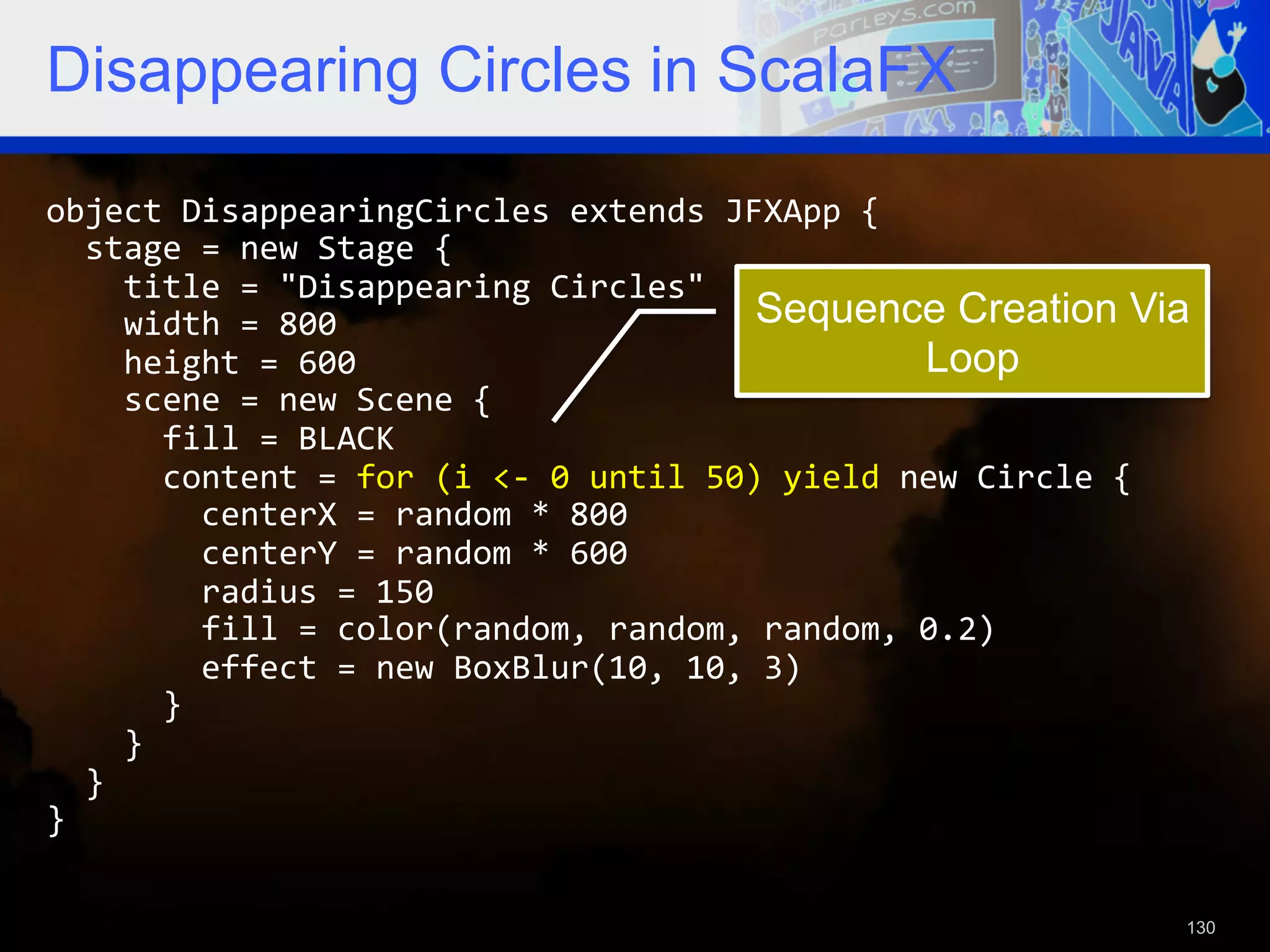

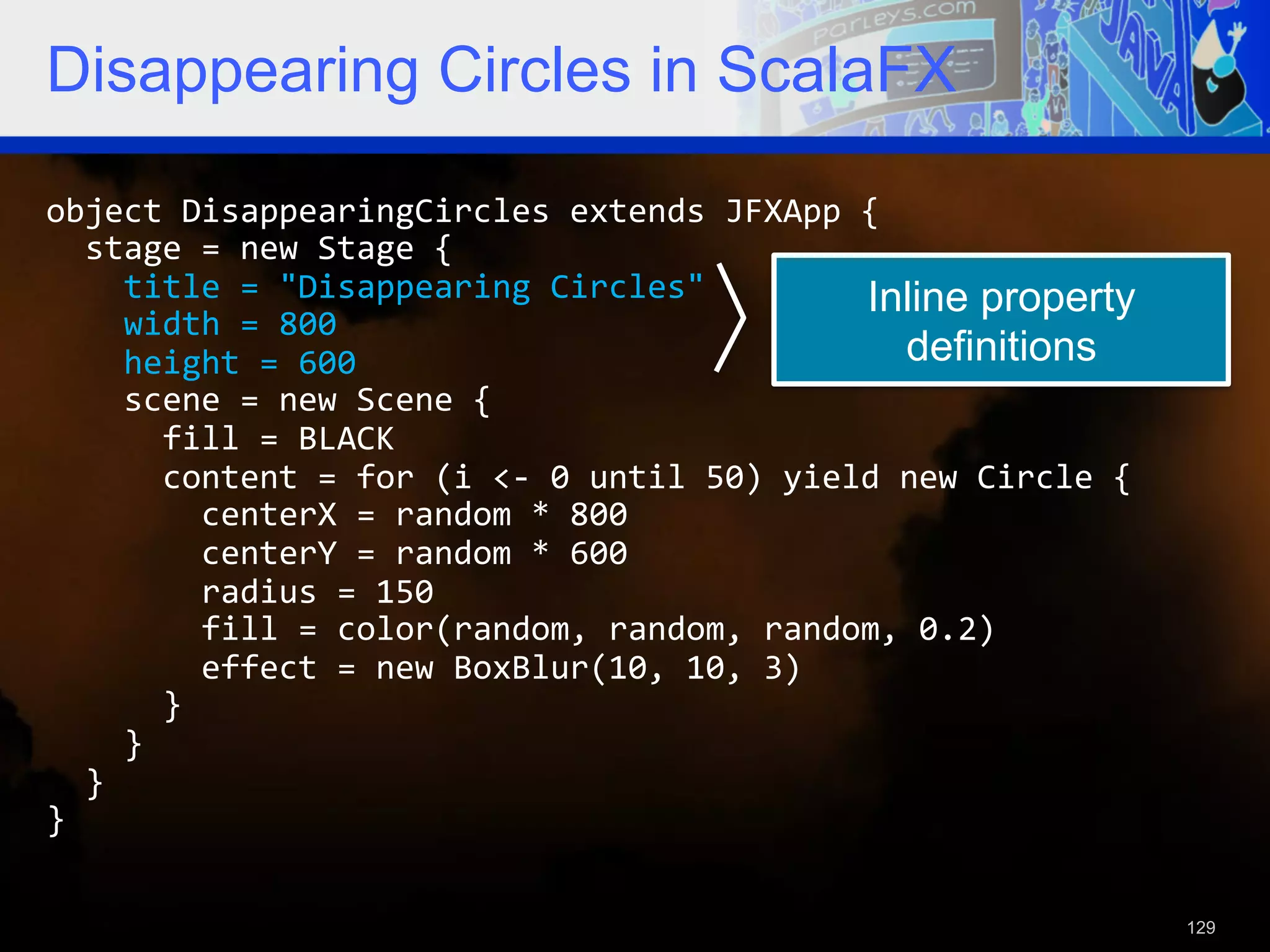

Disappearing Circles in ScalaFX object DisappearingCircles extends JFXApp { stage = new Stage { title = "Disappearing Circles" width = 800 height = 600 scene = new Scene { fill = BLACK content = for (i <-‐ 0 until 50) yield new Circle { centerX = random * 800 centerY = random * 600 radius = 150 fill = color(random, random, random, 0.2) effect = new BoxBlur(10, 10, 3) } } } }

Disappearing Circles in ScalaFX object DisappearingCircles extends JFXApp { stage = new Stage { title = "Disappearing Circles" width = 800 height = 600 Base class for JavaFX scene = new Scene { applications fill = BLACK content = for (i <-‐ 0 until 50) yield new Circle { centerX = random * 800 centerY = random * 600 radius = 150 fill = color(random, random, random, 0.2) effect = new BoxBlur(10, 10, 3) } } } } 127

Disappearing Circles in ScalaFX object DisappearingCircles extends JFXApp { stage = new Stage { title = "Disappearing Circles" width = 800 Declarative Stage height = 600 scene = new Scene { definition fill = BLACK content = for (i <-‐ 0 until 50) yield new Circle { centerX = random * 800 centerY = random * 600 radius = 150 fill = color(random, random, random, 0.2) effect = new BoxBlur(10, 10, 3) } } } } 128

Disappearing Circles in ScalaFX object DisappearingCircles extends JFXApp { stage = new Stage { title = "Disappearing Circles" Inline property width = 800 height = 600 definitions scene = new Scene { fill = BLACK content = for (i <-‐ 0 until 50) yield new Circle { centerX = random * 800 centerY = random * 600 radius = 150 fill = color(random, random, random, 0.2) effect = new BoxBlur(10, 10, 3) } } } } 129

Disappearing Circles in ScalaFX object DisappearingCircles extends JFXApp { stage = new Stage { title = "Disappearing Circles" width = 800 Sequence Creation Via height = 600 Loop scene = new Scene { fill = BLACK content = for (i <-‐ 0 until 50) yield new Circle { centerX = random * 800 centerY = random * 600 radius = 150 fill = color(random, random, random, 0.2) effect = new BoxBlur(10, 10, 3) } } } } 130

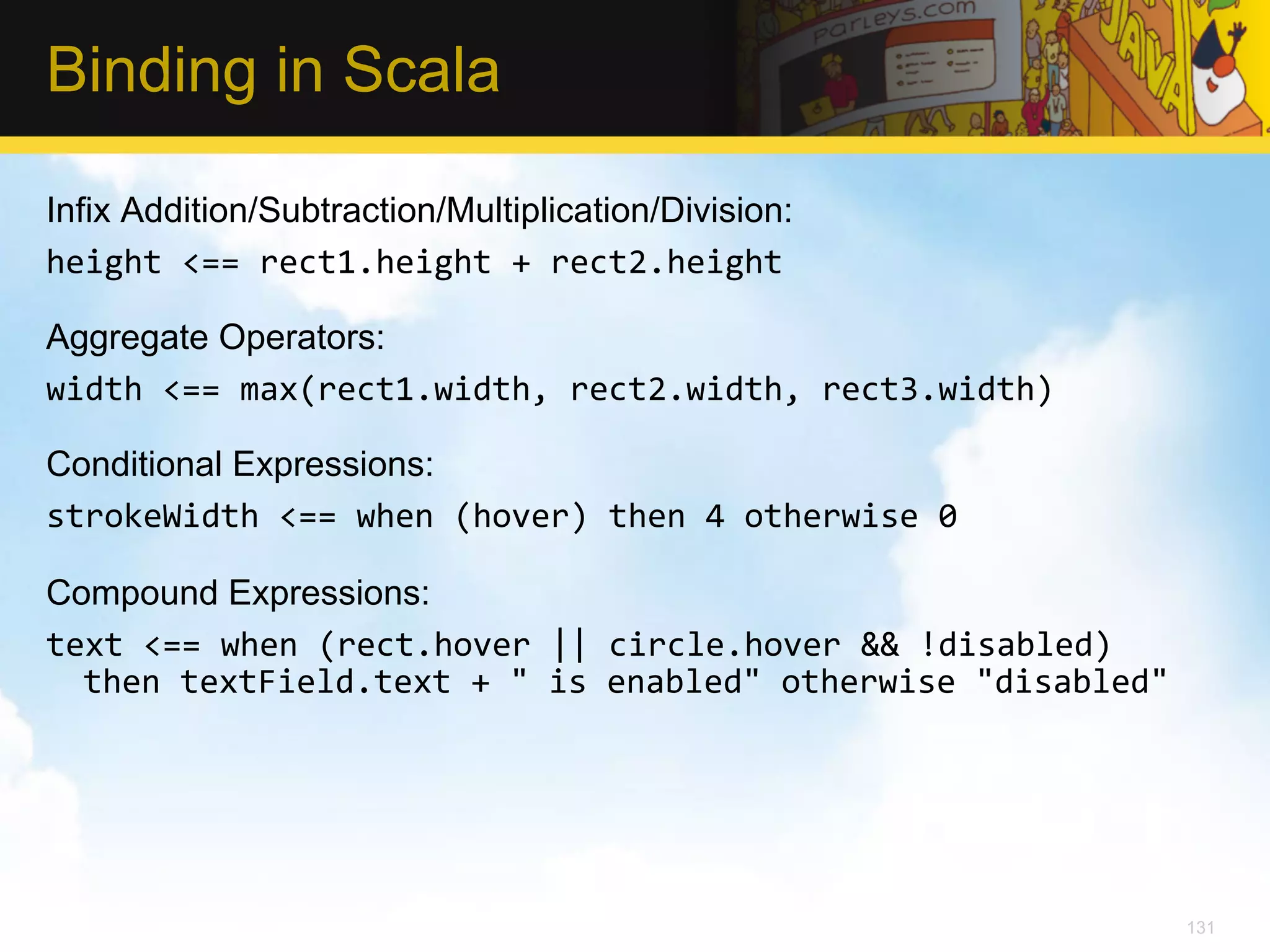

Binding in Scala Infix Addition/Subtraction/Multiplication/Division: height <== rect1.height + rect2.height Aggregate Operators: width <== max(rect1.width, rect2.width, rect3.width) Conditional Expressions: strokeWidth <== when (hover) then 4 otherwise 0 Compound Expressions: text <== when (rect.hover || circle.hover && !disabled) then textField.text + " is enabled" otherwise "disabled" 131

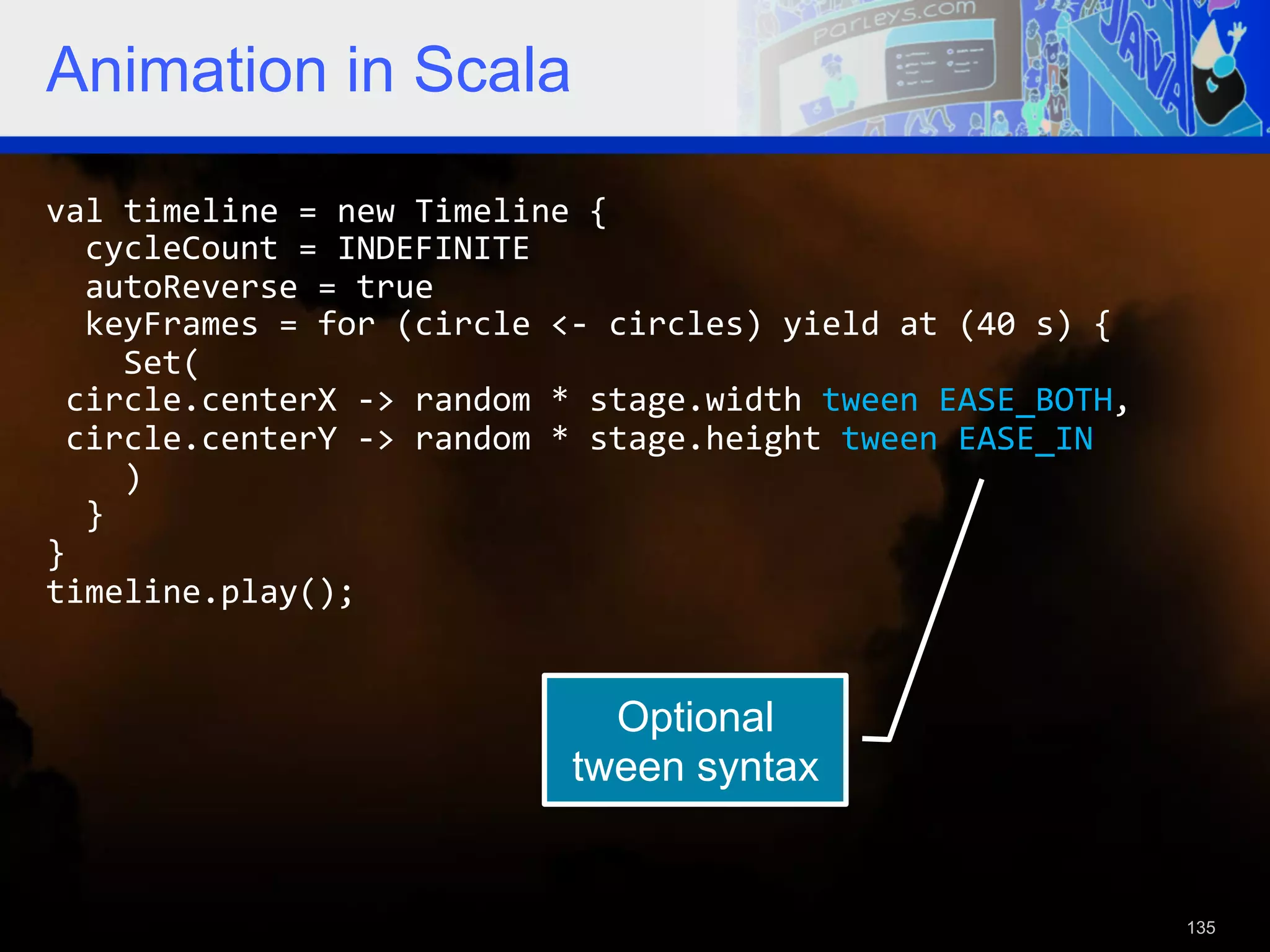

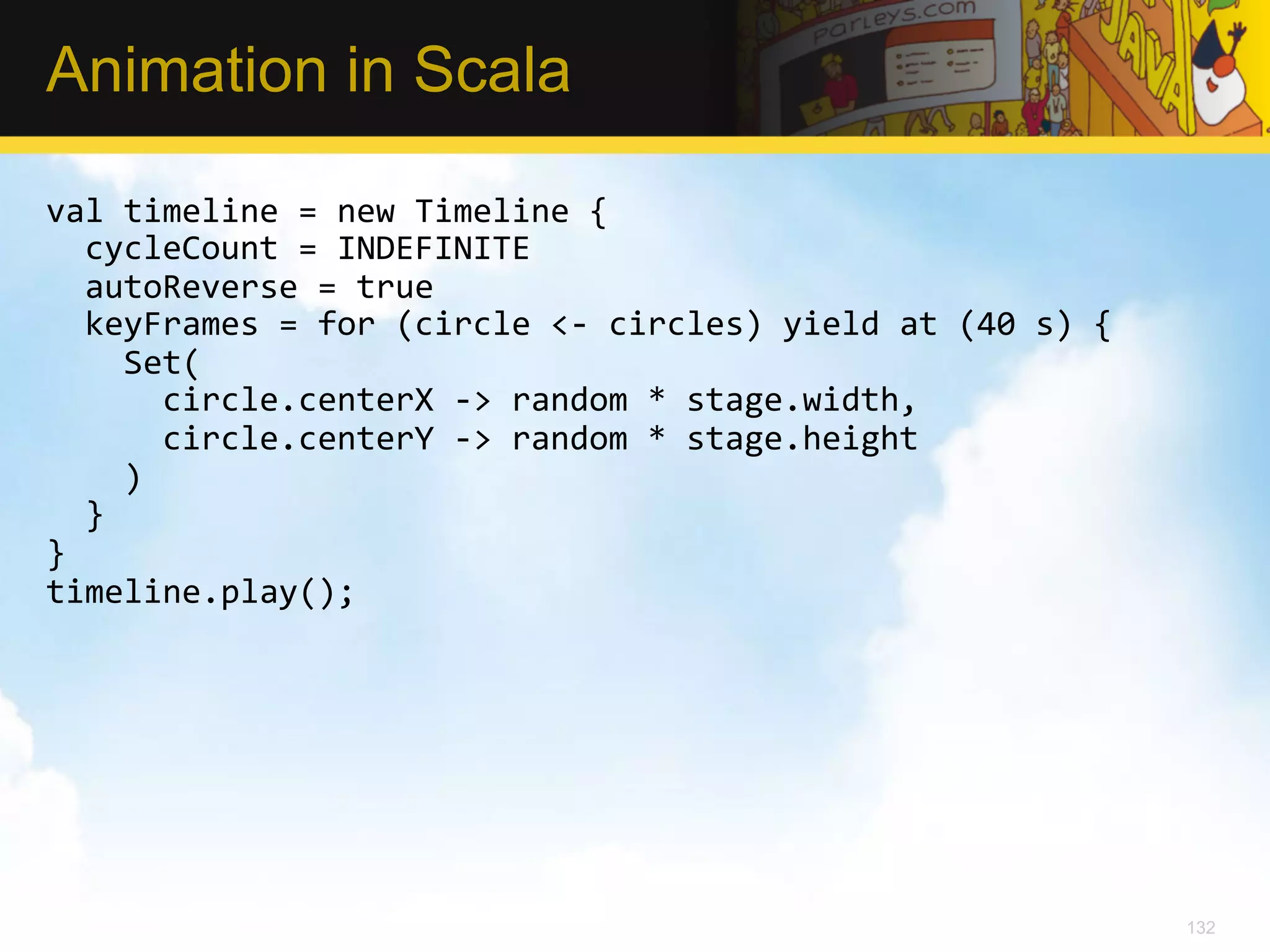

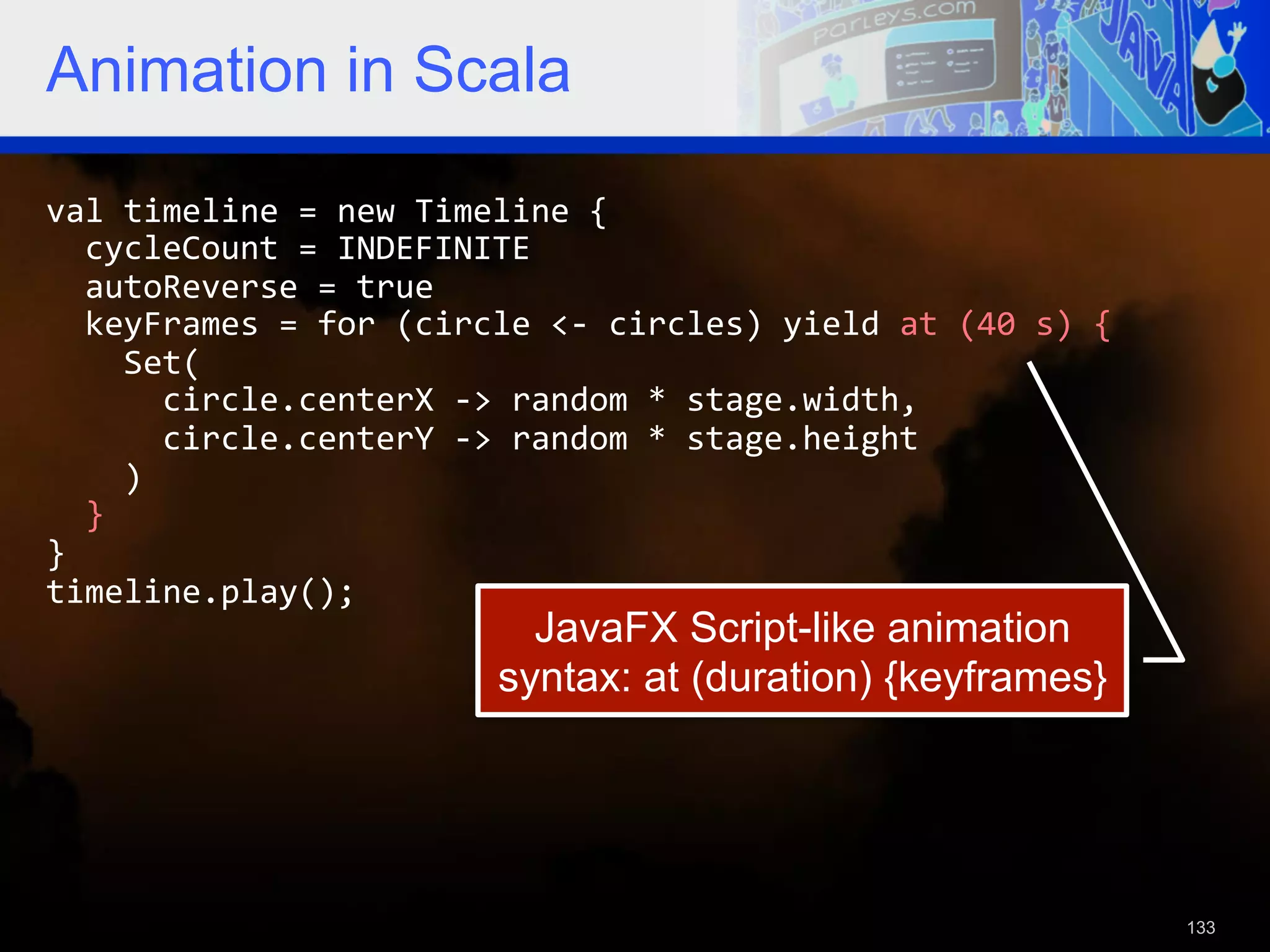

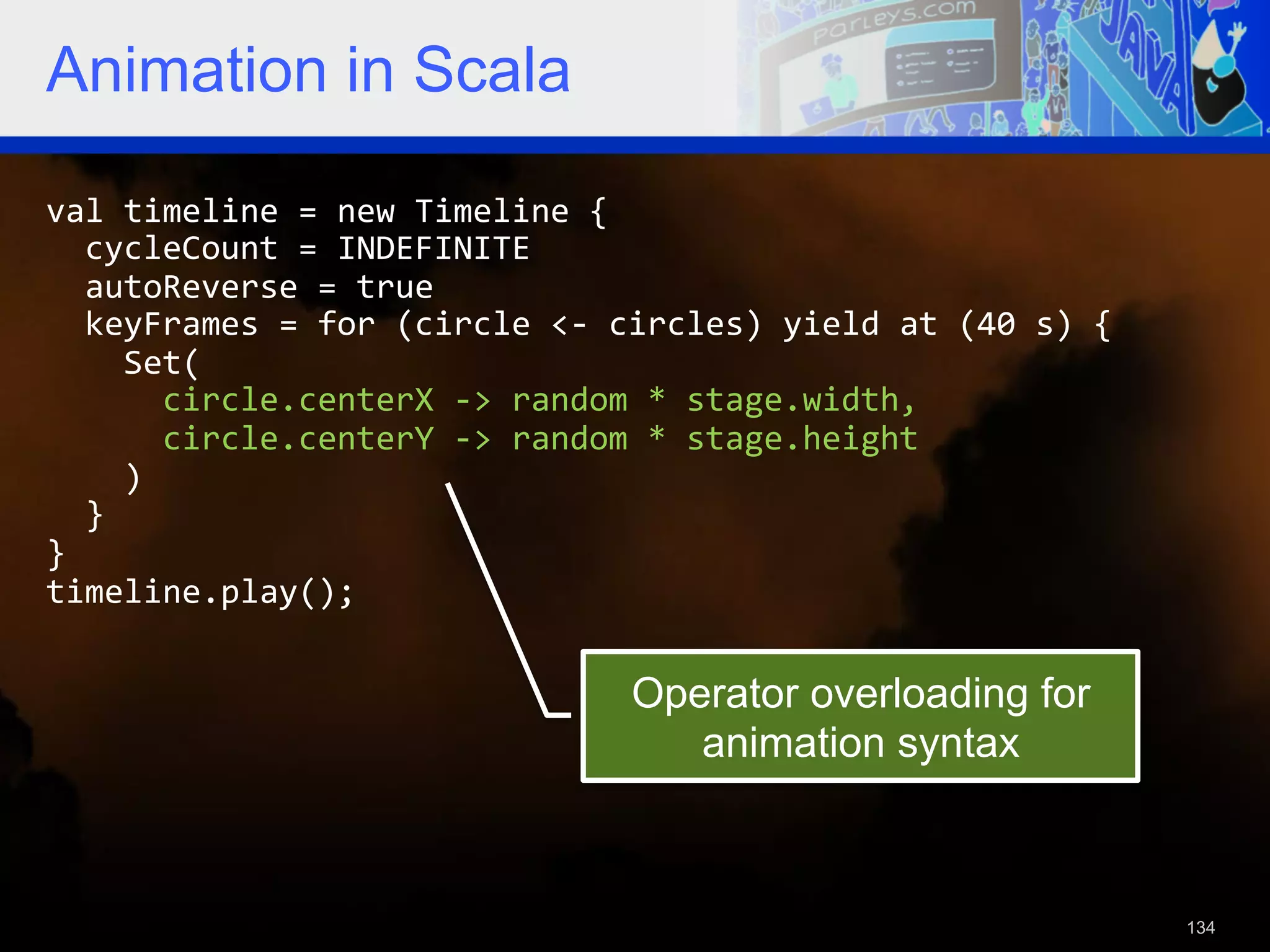

Animation in Scala val timeline = new Timeline { cycleCount = INDEFINITE autoReverse = true keyFrames = for (circle <-‐ circles) yield at (40 s) { Set( circle.centerX -‐> random * stage.width, circle.centerY -‐> random * stage.height ) } } timeline.play(); 132

Animation in Scala val timeline = new Timeline { cycleCount = INDEFINITE autoReverse = true keyFrames = for (circle <-‐ circles) yield at (40 s) { Set( circle.centerX -‐> random * stage.width, circle.centerY -‐> random * stage.height ) } } timeline.play(); JavaFX Script-like animation syntax: at (duration) {keyframes} 133

Animation in Scala val timeline = new Timeline { cycleCount = INDEFINITE autoReverse = true keyFrames = for (circle <-‐ circles) yield at (40 s) { Set( circle.centerX -‐> random * stage.width, circle.centerY -‐> random * stage.height ) } } timeline.play(); Operator overloading for animation syntax 134

Animation in Scala val timeline = new Timeline { cycleCount = INDEFINITE autoReverse = true keyFrames = for (circle <-‐ circles) yield at (40 s) { Set( circle.centerX -‐> random * stage.width tween EASE_BOTH, circle.centerY -‐> random * stage.height tween EASE_IN ) } } timeline.play(); Optional tween syntax 135

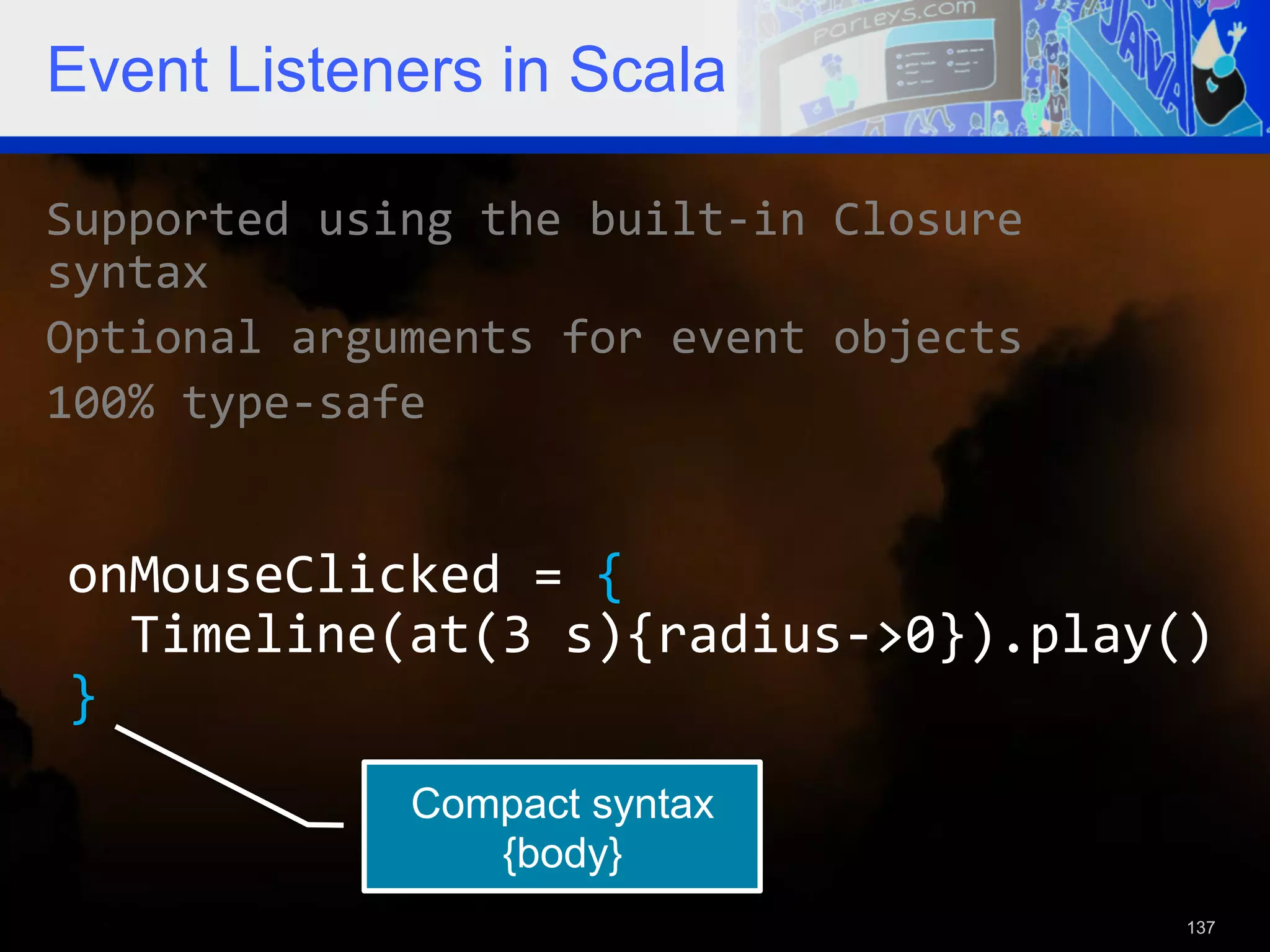

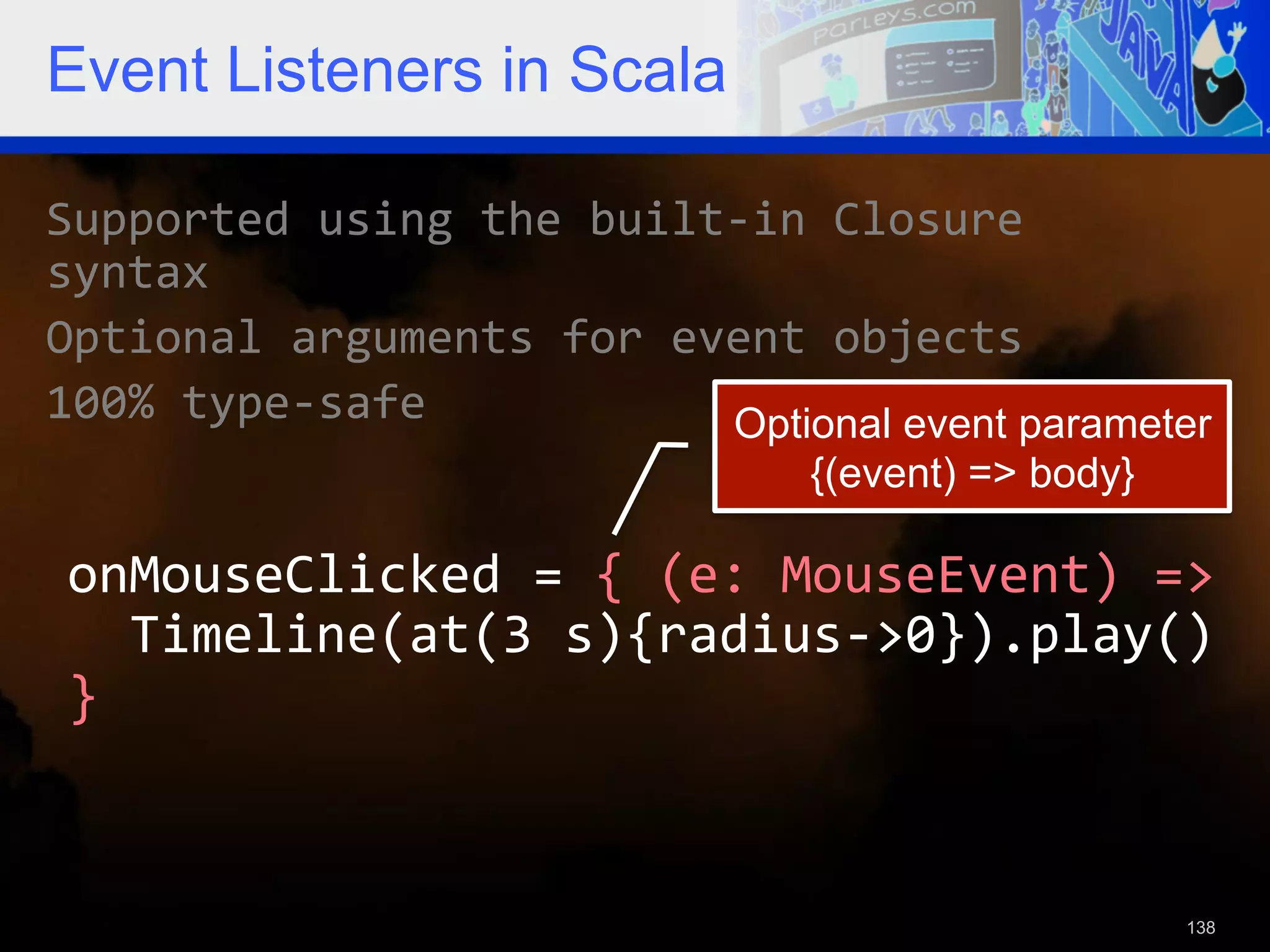

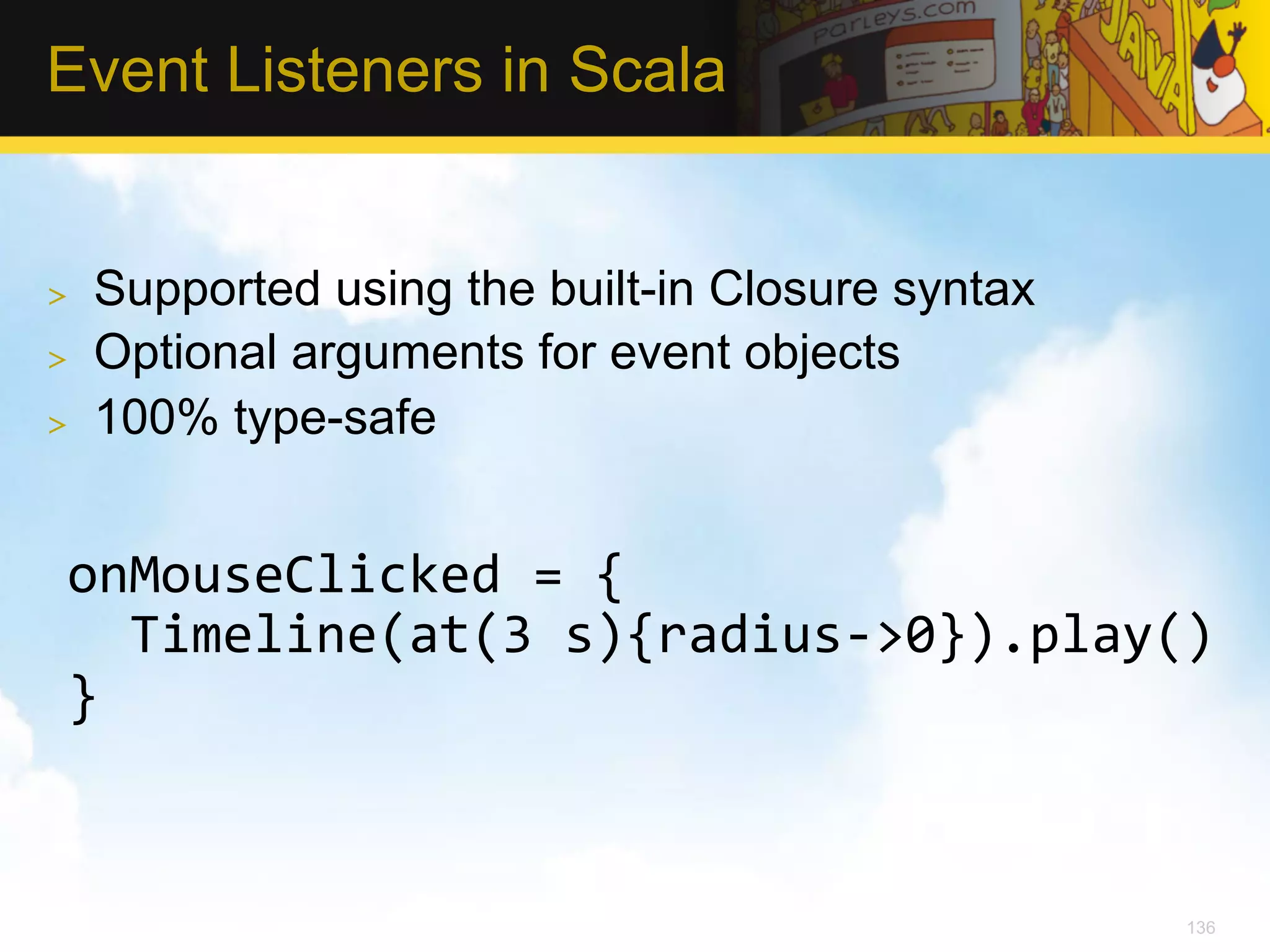

Event Listeners in Scala >  Supported using the built-in Closure syntax >  Optional arguments for event objects >  100% type-safe onMouseClicked = { Timeline(at(3 s){radius-‐>0}).play() } 136

Event Listeners in Scala Supported using the built-‐in Closure syntax Optional arguments for event objects 100% type-‐safe onMouseClicked = { Timeline(at(3 s){radius-‐>0}).play() } Compact syntax {body} 137

Event Listeners in Scala Supported using the built-‐in Closure syntax Optional arguments for event objects 100% type-‐safe Optional event parameter {(event) => body} onMouseClicked = { (e: MouseEvent) => Timeline(at(3 s){radius-‐>0}).play() } 138

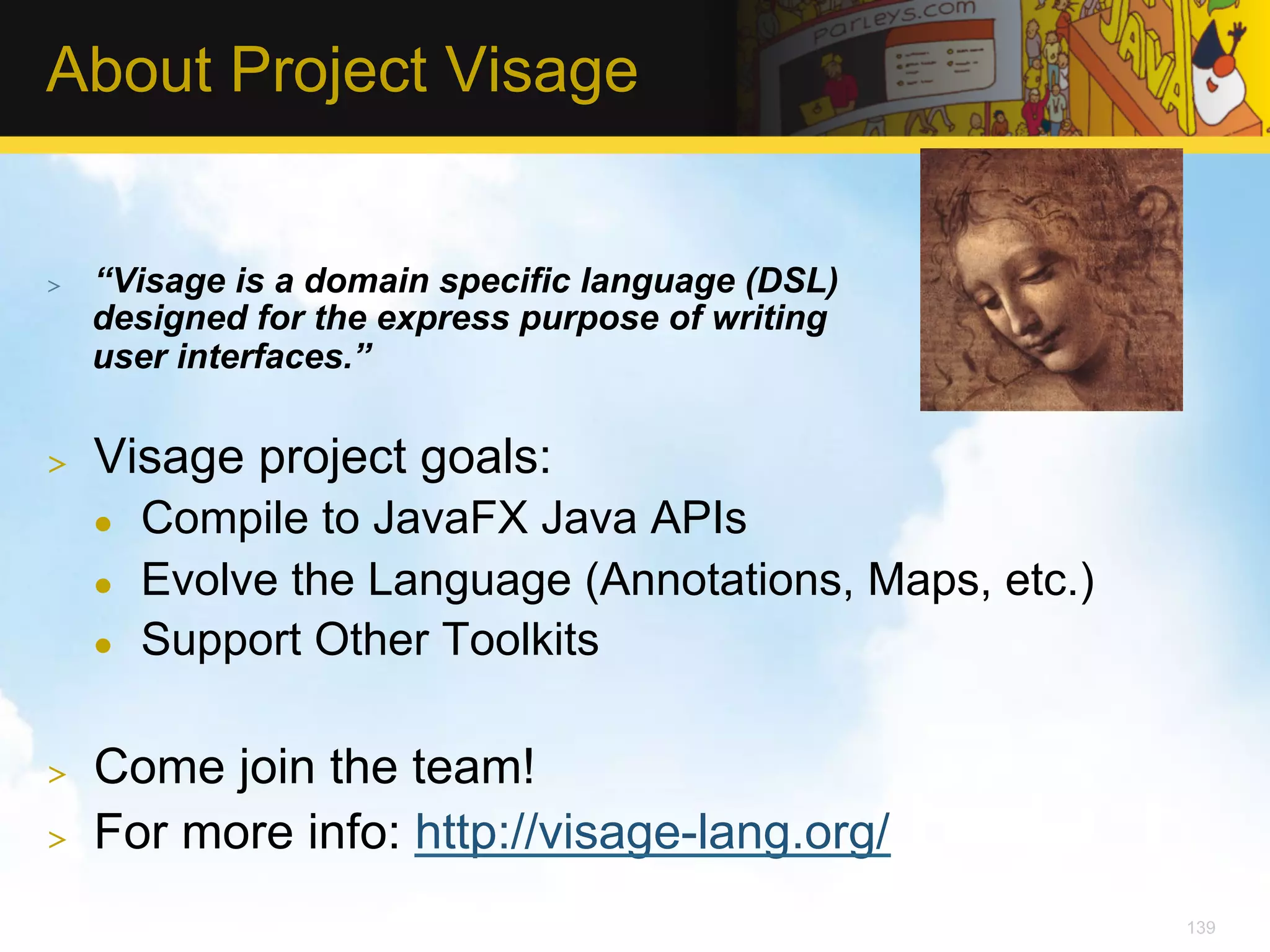

About Project Visage >  “Visage is a domain specific language (DSL) designed for the express purpose of writing user interfaces.” >  Visage project goals: l  Compile to JavaFX Java APIs l  Evolve the Language (Annotations, Maps, etc.) l  Support Other Toolkits >  Come join the team! >  For more info: http://visage-lang.org/ 139

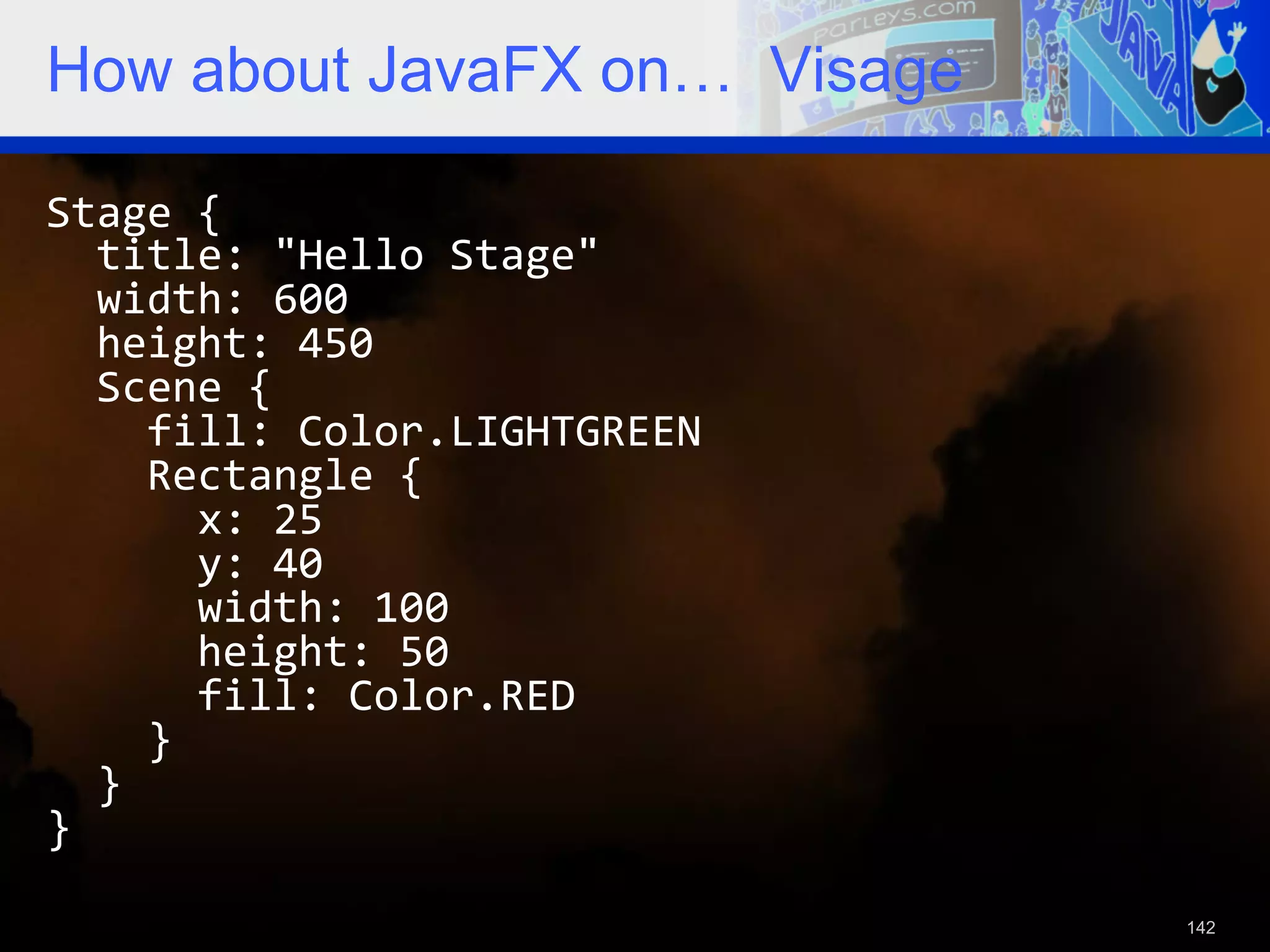

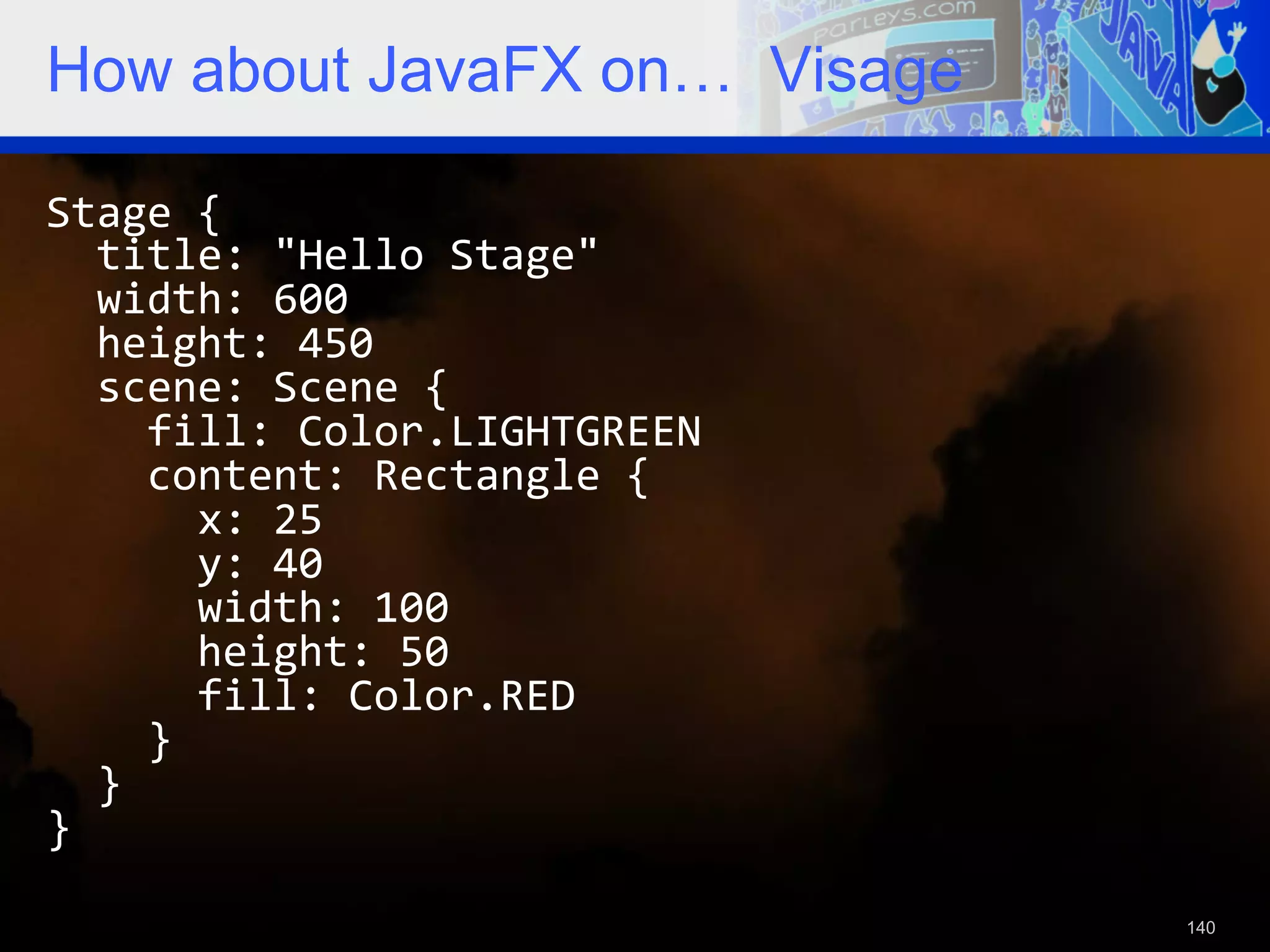

How about JavaFX on… Visage Stage { title: "Hello Stage" width: 600 height: 450 scene: Scene { fill: Color.LIGHTGREEN content: Rectangle { x: 25 y: 40 width: 100 height: 50 fill: Color.RED } } } 140

How about JavaFX on… Visage Stage { title: "Hello Stage" width: 600 height: 450 scene: Scene { fill: Color.LIGHTGREEN content: Rectangle { x: 25 y: 40 width: 100 height: 50 fill: Color.RED } } } 141

How about JavaFX on… Visage Stage { title: "Hello Stage" width: 600 height: 450 Scene { fill: Color.LIGHTGREEN Rectangle { x: 25 y: 40 width: 100 height: 50 fill: Color.RED } } } 142

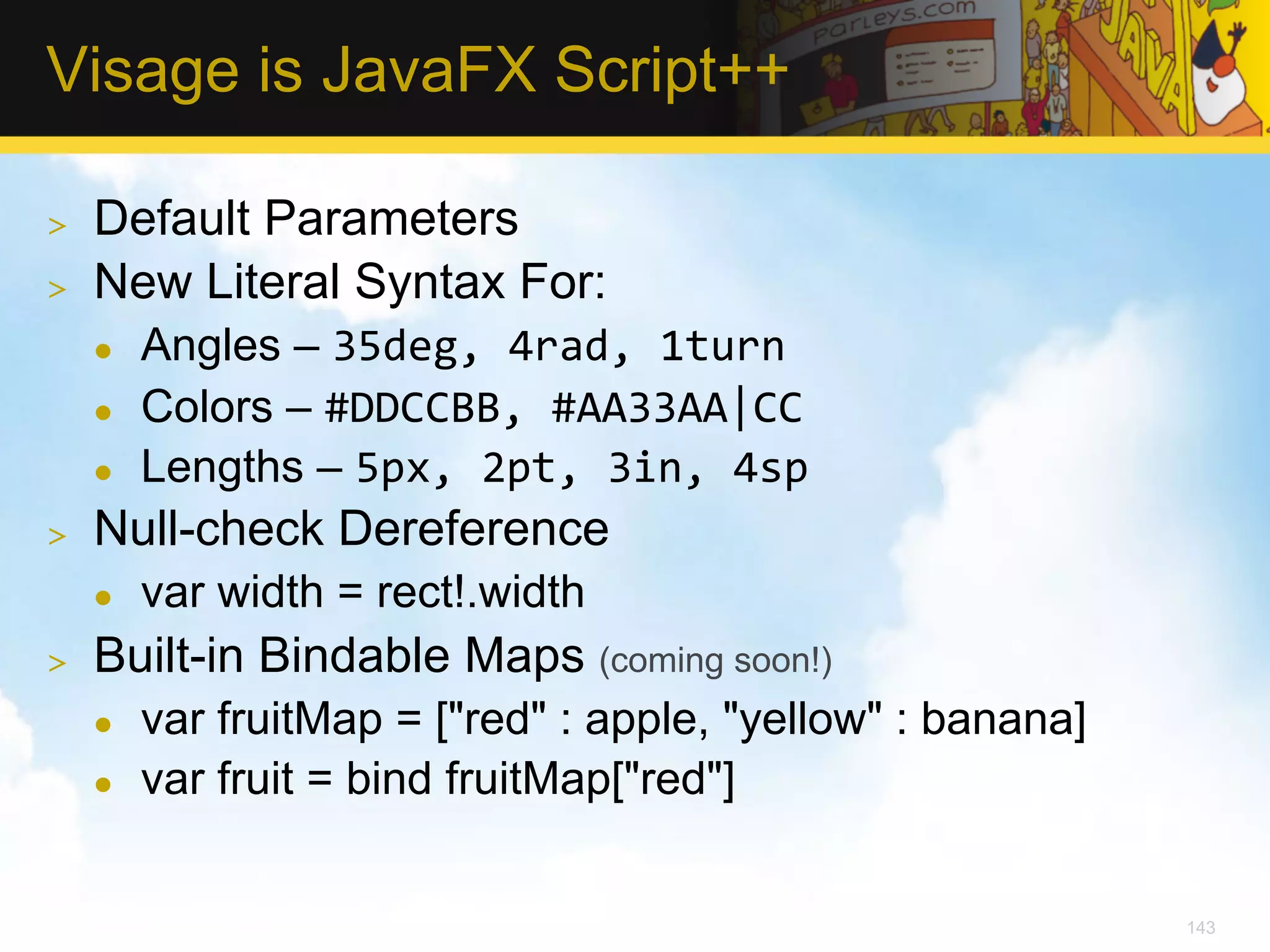

Visage is JavaFX Script++ >  Default Parameters >  New Literal Syntax For: l  Angles – 35deg, 4rad, 1turn l  Colors – #DDCCBB, #AA33AA|CC l  Lengths – 5px, 2pt, 3in, 4sp >  Null-check Dereference l  var width = rect!.width >  Built-in Bindable Maps (coming soon!) l  var fruitMap = ["red" : apple, "yellow" : banana] l  var fruit = bind fruitMap["red"] 143

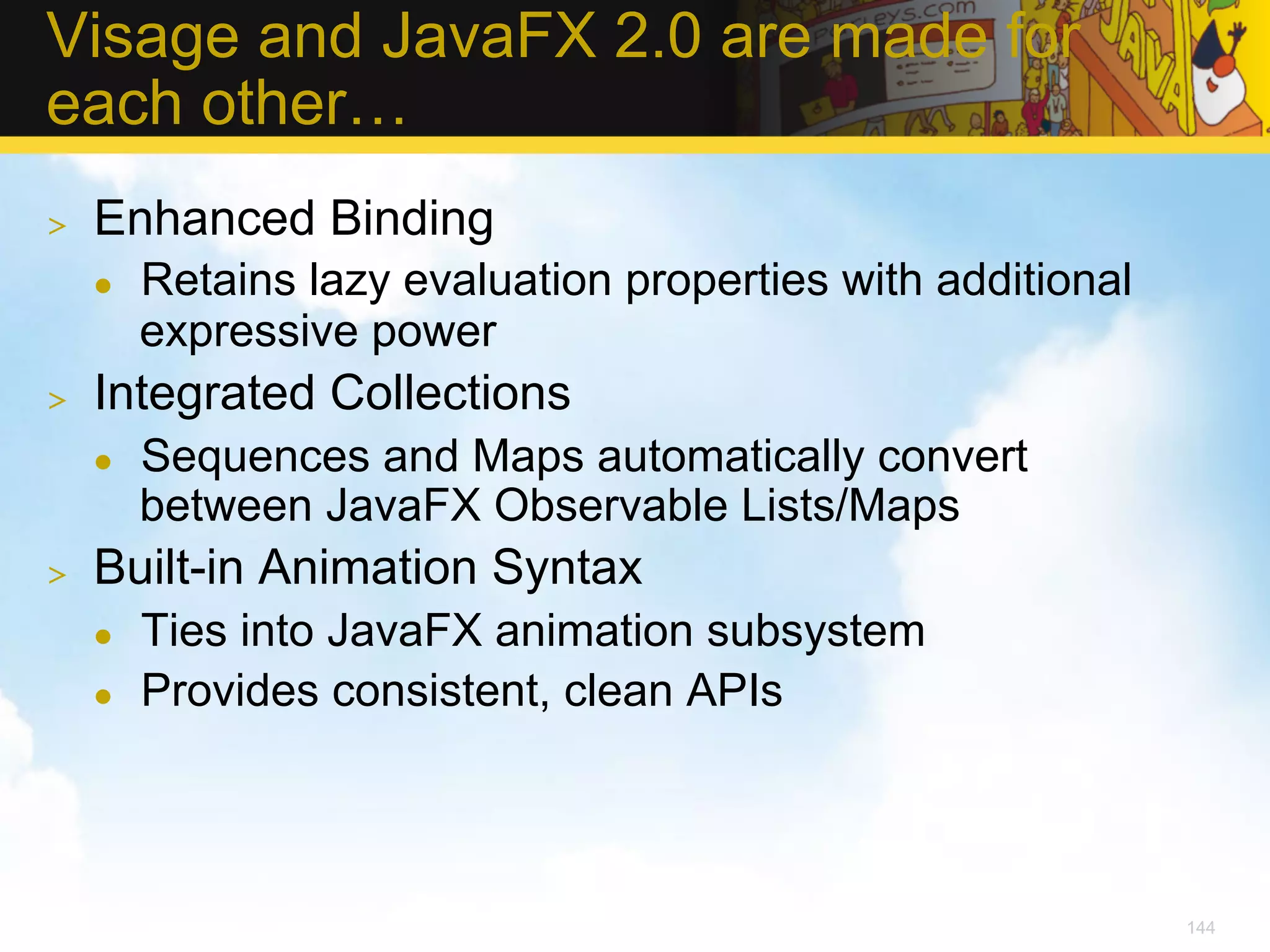

Visage and JavaFX 2.0 are made for each other… >  Enhanced Binding l  Retains lazy evaluation properties with additional expressive power >  Integrated Collections l  Sequences and Maps automatically convert between JavaFX Observable Lists/Maps >  Built-in Animation Syntax l  Ties into JavaFX animation subsystem l  Provides consistent, clean APIs 144

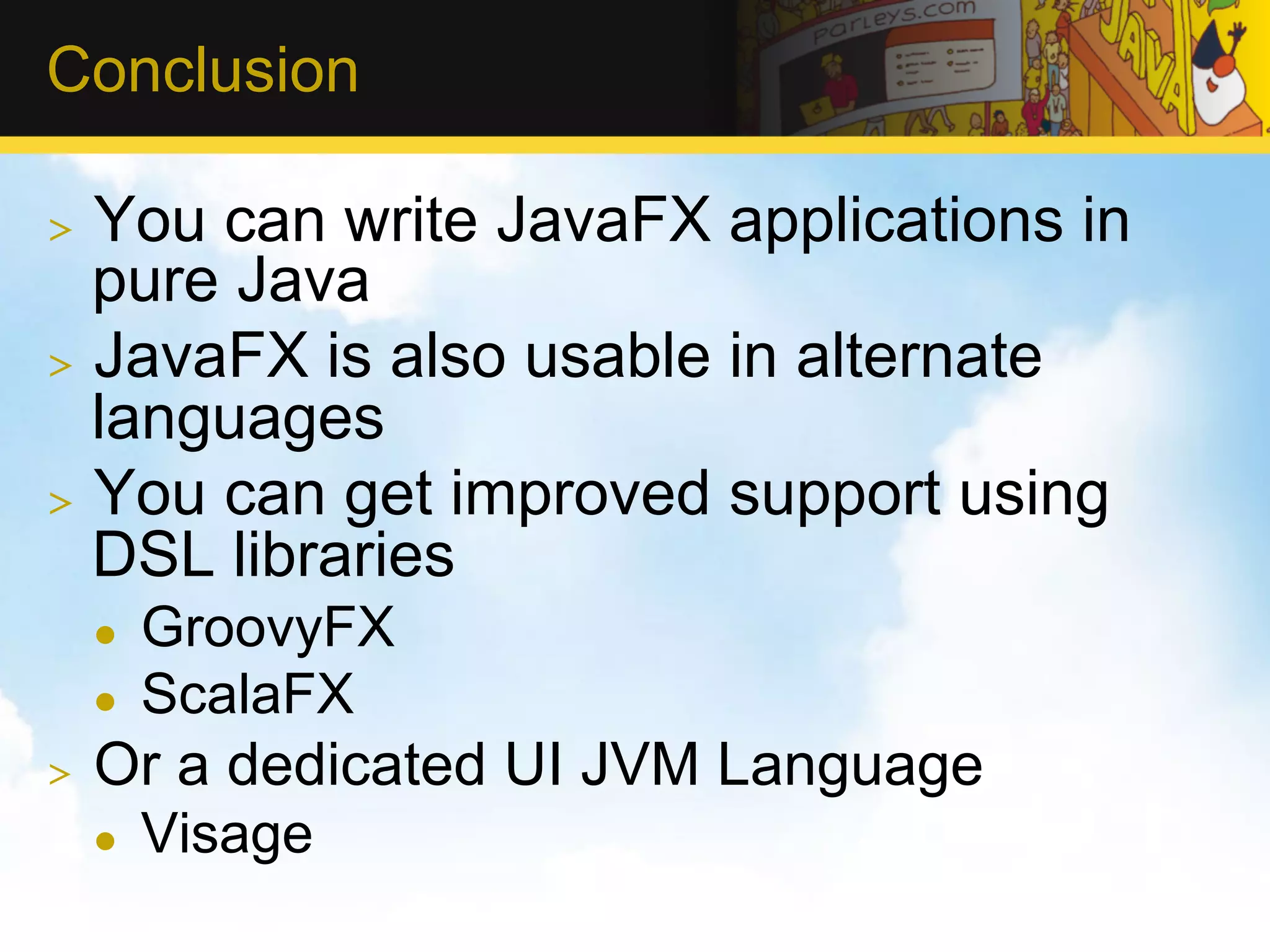

Conclusion >  You can write JavaFX applications in pure Java >  JavaFX is also usable in alternate languages >  You can get improved support using DSL libraries l  GroovyFX l  ScalaFX >  Or a dedicated UI JVM Language l  Visage

Pro JavaFX 2 Platform Coming Soon! >  Coming 1st Quarter 2012 >  All examples rewritten in Java >  Covers the new JavaFX 2.0 APIs >  Will includes ScalaFX, GroovyFX, and Visage 146

Professional Services peter.pilgrim@gmail.com JavaFX 2.0 in Enterprises Financial Services in London Training with Consultancy Technical Leadership 147

JavaFX 2.0 – A Java Developer's Guide Thank You Stephen Chin Peter Pilgrim Chief Agile Methodologist, GXS Oracle Java Champion http://steveonjava.com @steveonjava http://www.xenonique.co.uk/blog/ @peter_pilgrim

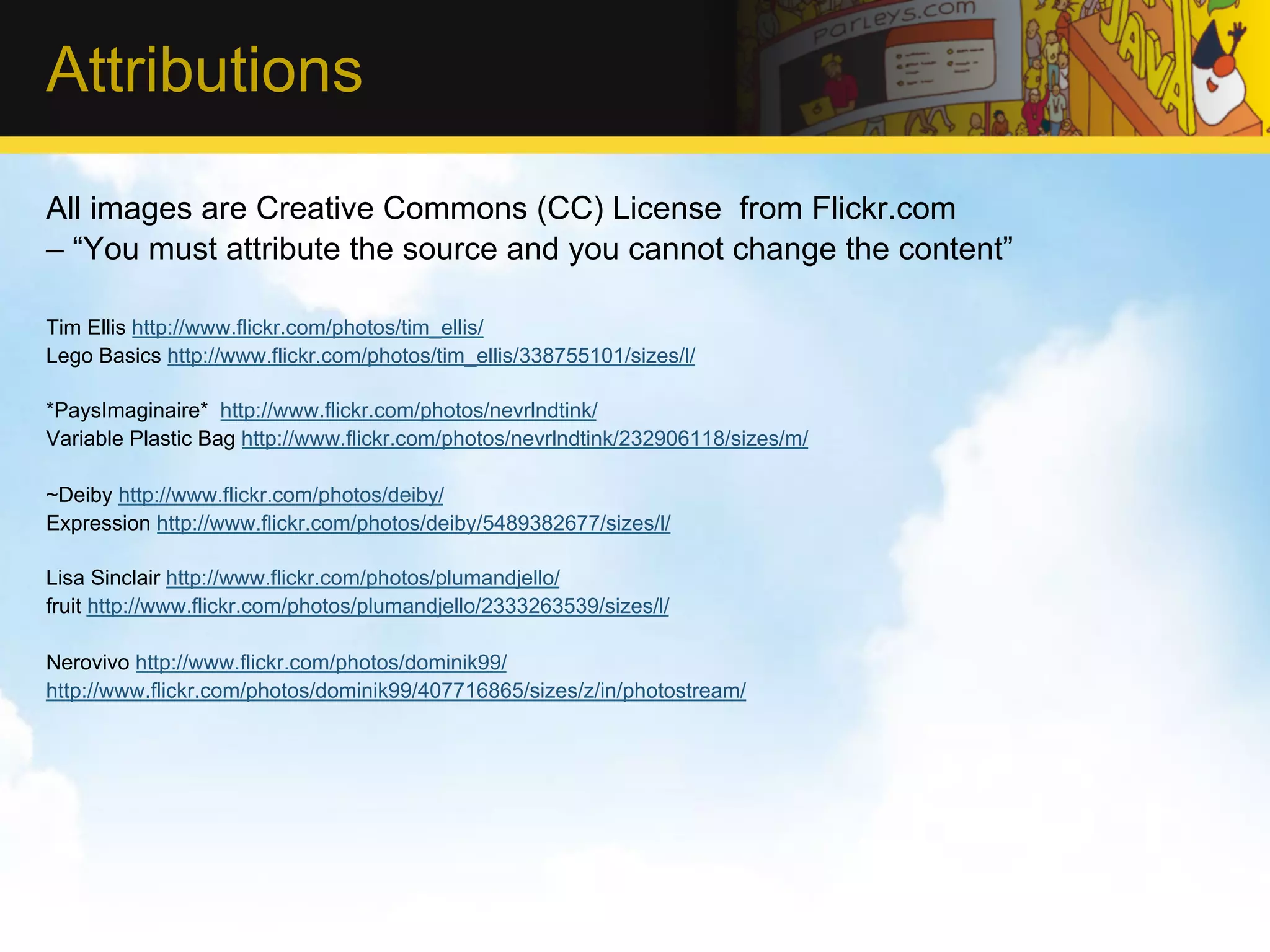

Attributions All images are Creative Commons (CC) License from Flickr.com – “You must attribute the source and you cannot change the content” Tim Ellis http://www.flickr.com/photos/tim_ellis/ Lego Basics http://www.flickr.com/photos/tim_ellis/338755101/sizes/l/ *PaysImaginaire* http://www.flickr.com/photos/nevrlndtink/ Variable Plastic Bag http://www.flickr.com/photos/nevrlndtink/232906118/sizes/m/ ~Deiby http://www.flickr.com/photos/deiby/ Expression http://www.flickr.com/photos/deiby/5489382677/sizes/l/ Lisa Sinclair http://www.flickr.com/photos/plumandjello/ fruit http://www.flickr.com/photos/plumandjello/2333263539/sizes/l/ Nerovivo http://www.flickr.com/photos/dominik99/ http://www.flickr.com/photos/dominik99/407716865/sizes/z/in/photostream/
