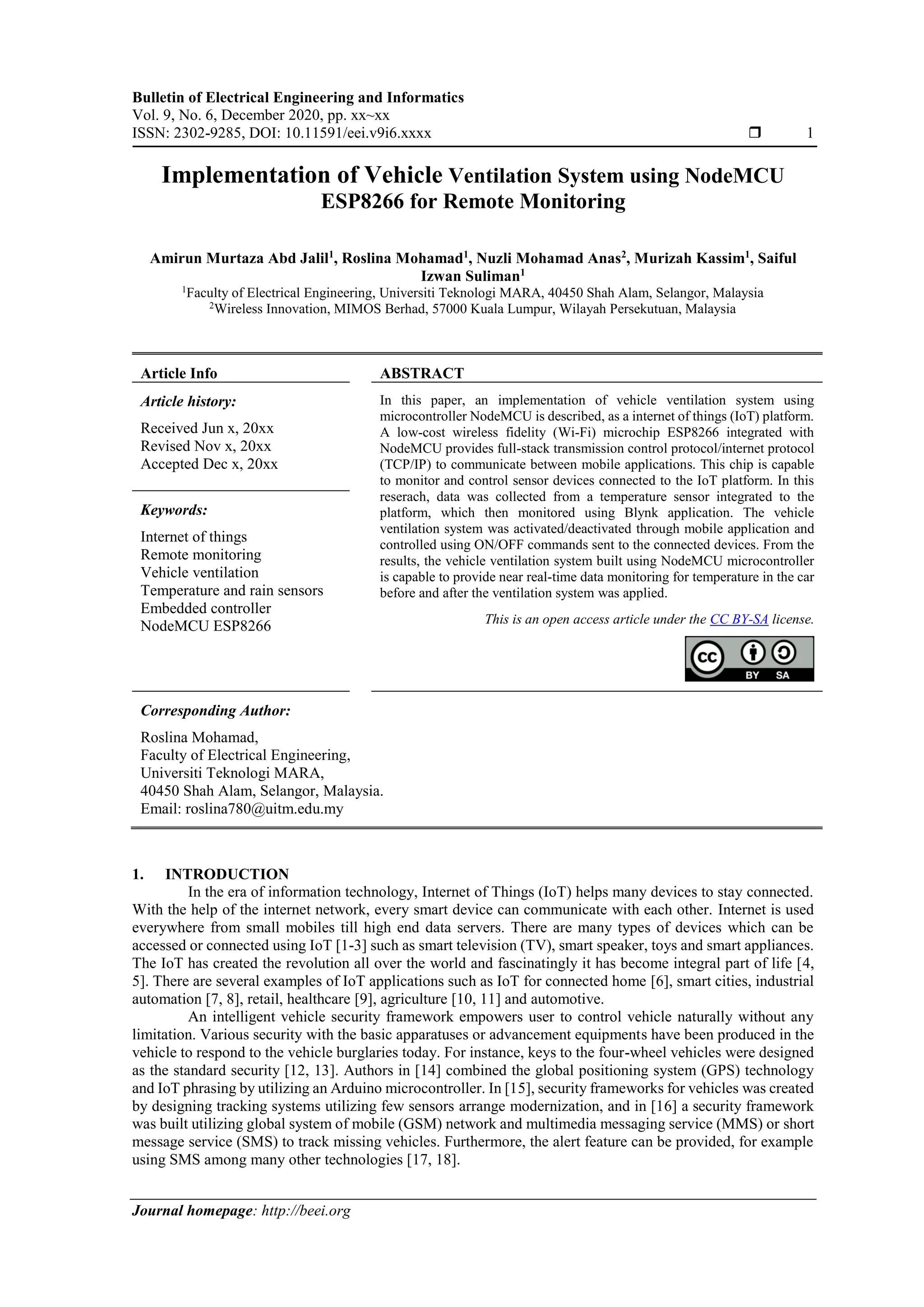

  Bulletin of ElectricalEngineering and Informatics Vol. 9, No. 6, December 2020, pp. xx~xx ISSN: 2302-9285, DOI: 10.11591/eei.v9i6.xxxx  1 Journal homepage: http://beei.org Implementation of Vehicle Ventilation System using NodeMCU ESP8266 for Remote Monitoring Amirun Murtaza Abd Jalil1 , Roslina Mohamad1 , Nuzli Mohamad Anas2 , Murizah Kassim1 , Saiful Izwan Suliman1 1 Faculty of Electrical Engineering, Universiti Teknologi MARA, 40450 Shah Alam, Selangor, Malaysia 2 Wireless Innovation, MIMOS Berhad, 57000 Kuala Lumpur, Wilayah Persekutuan, Malaysia Article Info ABSTRACT Article history: Received Jun x, 20xx Revised Nov x, 20xx Accepted Dec x, 20xx In this paper, an implementation of vehicle ventilation system using microcontroller NodeMCU is described, as a internet of things (IoT) platform. A low-cost wireless fidelity (Wi-Fi) microchip ESP8266 integrated with NodeMCU provides full-stack transmission control protocol/internet protocol (TCP/IP) to communicate between mobile applications. This chip is capable to monitor and control sensor devices connected to the IoT platform. In this reserach, data was collected from a temperature sensor integrated to the platform, which then monitored using Blynk application. The vehicle ventilation system was activated/deactivated through mobile application and controlled using ON/OFF commands sent to the connected devices. From the results, the vehicle ventilation system built using NodeMCU microcontroller is capable to provide near real-time data monitoring for temperature in the car before and after the ventilation system was applied. Keywords: Internet of things Remote monitoring Vehicle ventilation Temperature and rain sensors Embedded controller NodeMCU ESP8266 This is an open access article under the CC BY-SA license. Corresponding Author: Roslina Mohamad, Faculty of Electrical Engineering, Universiti Teknologi MARA, 40450 Shah Alam, Selangor, Malaysia. Email: roslina780@uitm.edu.my 1. INTRODUCTION In the era of information technology, Internet of Things (IoT) helps many devices to stay connected. With the help of the internet network, every smart device can communicate with each other. Internet is used everywhere from small mobiles till high end data servers. There are many types of devices which can be accessed or connected using IoT [1-3] such as smart television (TV), smart speaker, toys and smart appliances. The IoT has created the revolution all over the world and fascinatingly it has become integral part of life [4, 5]. There are several examples of IoT applications such as IoT for connected home [6], smart cities, industrial automation [7, 8], retail, healthcare [9], agriculture [10, 11] and automotive. An intelligent vehicle security framework empowers user to control vehicle naturally without any limitation. Various security with the basic apparatuses or advancement equipments have been produced in the vehicle to respond to the vehicle burglaries today. For instance, keys to the four-wheel vehicles were designed as the standard security [12, 13]. Authors in [14] combined the global positioning system (GPS) technology and IoT phrasing by utilizing an Arduino microcontroller. In [15], security frameworks for vehicles was created by designing tracking systems utilizing few sensors arrange modernization, and in [16] a security framework was built utilizing global system of mobile (GSM) network and multimedia messaging service (MMS) or short message service (SMS) to track missing vehicles. Furthermore, the alert feature can be provided, for example using SMS among many other technologies [17, 18].
• 2.

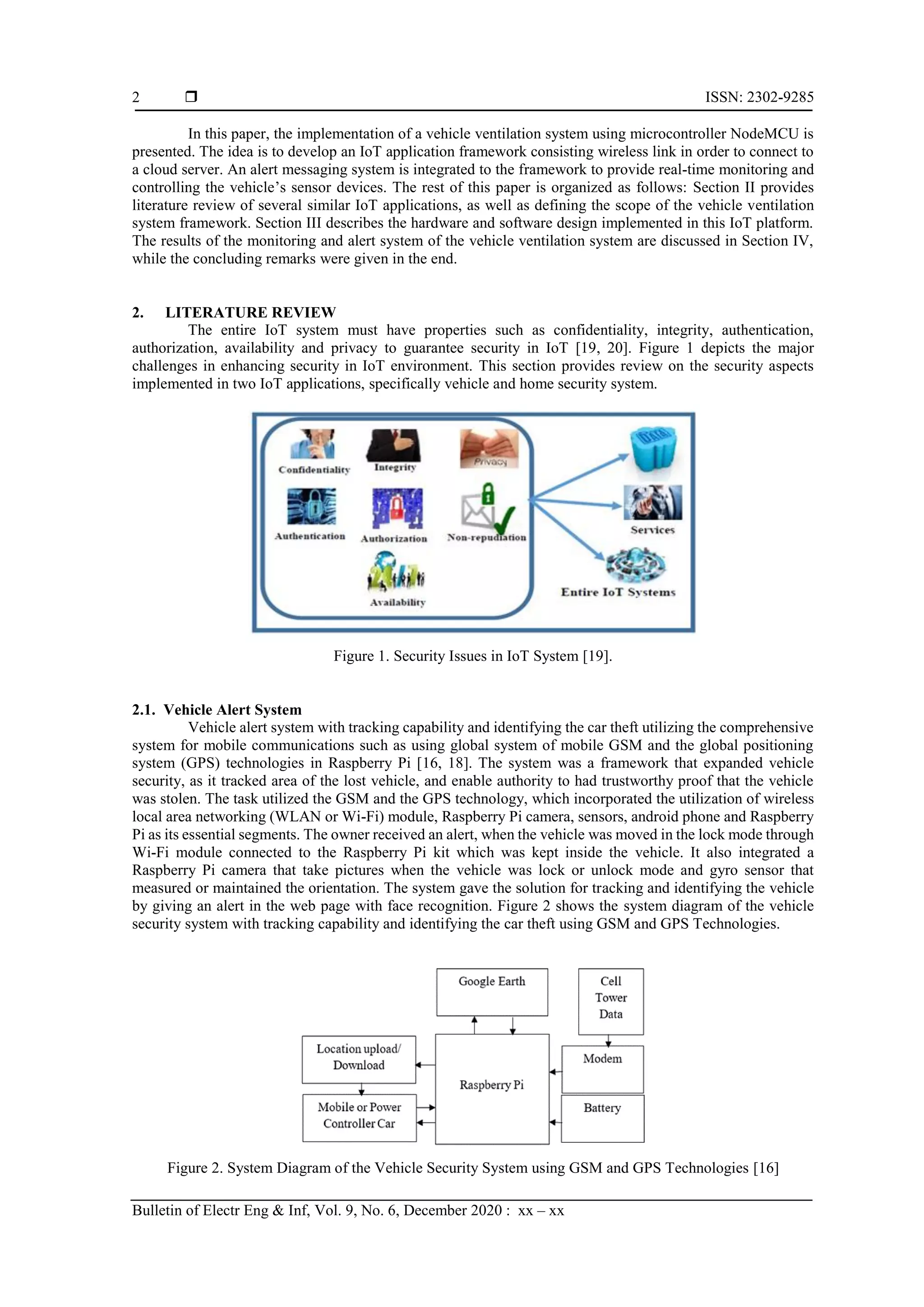

   ISSN: 2302-9285 Bulletinof Electr Eng & Inf, Vol. 9, No. 6, December 2020 : xx – xx 2 In this paper, the implementation of a vehicle ventilation system using microcontroller NodeMCU is presented. The idea is to develop an IoT application framework consisting wireless link in order to connect to a cloud server. An alert messaging system is integrated to the framework to provide real-time monitoring and controlling the vehicle’s sensor devices. The rest of this paper is organized as follows: Section II provides literature review of several similar IoT applications, as well as defining the scope of the vehicle ventilation system framework. Section III describes the hardware and software design implemented in this IoT platform. The results of the monitoring and alert system of the vehicle ventilation system are discussed in Section IV, while the concluding remarks were given in the end. 2. LITERATURE REVIEW The entire IoT system must have properties such as confidentiality, integrity, authentication, authorization, availability and privacy to guarantee security in IoT [19, 20]. Figure 1 depicts the major challenges in enhancing security in IoT environment. This section provides review on the security aspects implemented in two IoT applications, specifically vehicle and home security system. Figure 1. Security Issues in IoT System [19]. 2.1. Vehicle Alert System Vehicle alert system with tracking capability and identifying the car theft utilizing the comprehensive system for mobile communications such as using global system of mobile GSM and the global positioning system (GPS) technologies in Raspberry Pi [16, 18]. The system was a framework that expanded vehicle security, as it tracked area of the lost vehicle, and enable authority to had trustworthy proof that the vehicle was stolen. The task utilized the GSM and the GPS technology, which incorporated the utilization of wireless local area networking (WLAN or Wi-Fi) module, Raspberry Pi camera, sensors, android phone and Raspberry Pi as its essential segments. The owner received an alert, when the vehicle was moved in the lock mode through Wi-Fi module connected to the Raspberry Pi kit which was kept inside the vehicle. It also integrated a Raspberry Pi camera that take pictures when the vehicle was lock or unlock mode and gyro sensor that measured or maintained the orientation. The system gave the solution for tracking and identifying the vehicle by giving an alert in the web page with face recognition. Figure 2 shows the system diagram of the vehicle security system with tracking capability and identifying the car theft using GSM and GPS Technologies. Figure 2. System Diagram of the Vehicle Security System using GSM and GPS Technologies [16]
• 3.
  Bulletin of ElectrEng & Inf ISSN: 2302-9285  Title of manuscript is short and clear, implies research results (First Author) 3 Authors in [21] focused on the method and performance of a microcontroller based smart car security system with SMS or utilizing portable application intrusion alert capability. In the event that the auto entryway was wrongly opened or the auto was vibrated, an alert flag proposed and it sent SMS message to the owner's mobile phone quickly. A micro-controller Arduino Uno R3, radio frequency identification (RFID) reader, RFID label data and a GSM modem were used for the hardware implementation of the system. The satellite recognized the closeness of a GPS recipient and transmitted data in National Marine Electronics Association (NMEA) organize and Global Positioning System Fix or Accuracy Data (GGA). The data was then process into Arduino Uno R3. Output subsystem comprised of minimum output, relay action and GSM communication subsystems. There were light-emitting diode (LED) and buzzer on minimum output subsystems as pointers that showed the data and a liquid-crystal display (LCD) to demonstrate the data watcher yield. Figure 3 shows the block diagram of an smart vehicle security system. Figure 3. Block Diagram of a Smart Vehicle Security System [21]. 2.2. Home Alert System Design and implementation of Raspberry Pi based monitoring and controlling home automation system from an android application has been presented in [22]. This system used Wi-Fi technology to connect the system components between the internal network communication and external network communication. Android application in smartphone acted to give orders to the units to control the home appliances. Raspberry Pi functioned to coordinate the sensors and appliances of a home automation system and communicated it with android application through wireless technology. Python was used and written in the system for running the server on Raspberry Pi device. The objective of this system was to reduce the total energy consumed by the home appliances. Authors in [23] presented a system for the users to control home electronic appliances with the security system using mobile platform. Internet network helped the devices to be controlled in the Raspberry Pi micro- controller. The micro-controller board received commands (orders) sent by the user from an android mobile application to turn home appliances ON and OFF. This user-friendly android application had several buttons to control the appliances remotely. The Raspberry Pi connected to the home appliances using relays and a communication module interfaced to a cloud service of Microsoft azure. To connect with Raspberry Pi’s general purpose input output (IO) pins, the Python GPIO library provides the interface to the IoT platform, such that the ON or OFF states were controlled by the Raspberry Pi through an electromagnetic relay. The objective of this system was to optimize the energy consumption based on the calculation of the total power consumption of the home appliances that had been made. Figure 4 shows the system diagram for Raspberry Pi subsystem remote control using android application.
• 4.

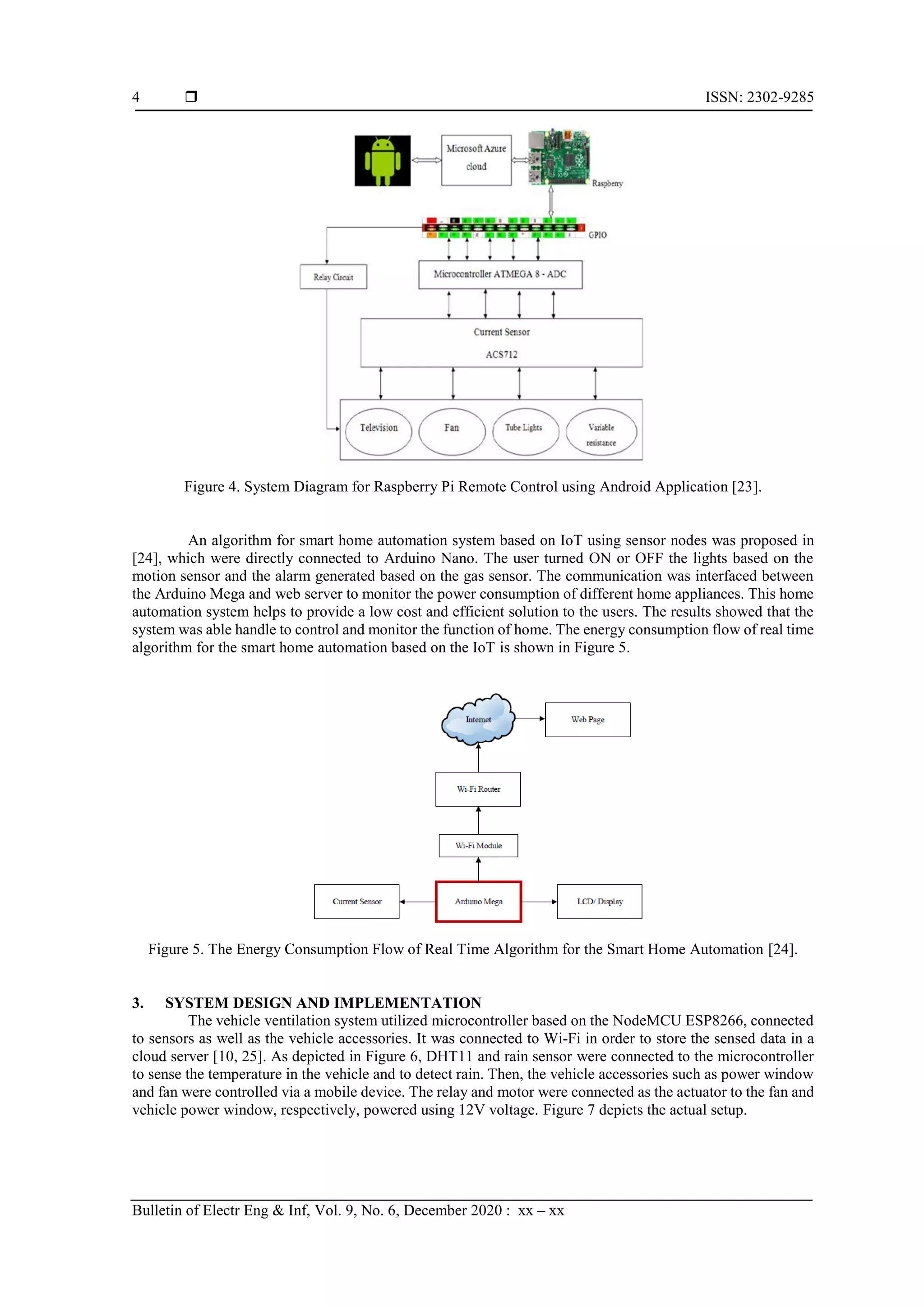

   ISSN: 2302-9285 Bulletinof Electr Eng & Inf, Vol. 9, No. 6, December 2020 : xx – xx 4 Figure 4. System Diagram for Raspberry Pi Remote Control using Android Application [23]. An algorithm for smart home automation system based on IoT using sensor nodes was proposed in [24], which were directly connected to Arduino Nano. The user turned ON or OFF the lights based on the motion sensor and the alarm generated based on the gas sensor. The communication was interfaced between the Arduino Mega and web server to monitor the power consumption of different home appliances. This home automation system helps to provide a low cost and efficient solution to the users. The results showed that the system was able handle to control and monitor the function of home. The energy consumption flow of real time algorithm for the smart home automation based on the IoT is shown in Figure 5. Figure 5. The Energy Consumption Flow of Real Time Algorithm for the Smart Home Automation [24]. 3. SYSTEM DESIGN AND IMPLEMENTATION The vehicle ventilation system utilized microcontroller based on the NodeMCU ESP8266, connected to sensors as well as the vehicle accessories. It was connected to Wi-Fi in order to store the sensed data in a cloud server [10, 25]. As depicted in Figure 6, DHT11 and rain sensor were connected to the microcontroller to sense the temperature in the vehicle and to detect rain. Then, the vehicle accessories such as power window and fan were controlled via a mobile device. The relay and motor were connected as the actuator to the fan and vehicle power window, respectively, powered using 12V voltage. Figure 7 depicts the actual setup.
• 5.

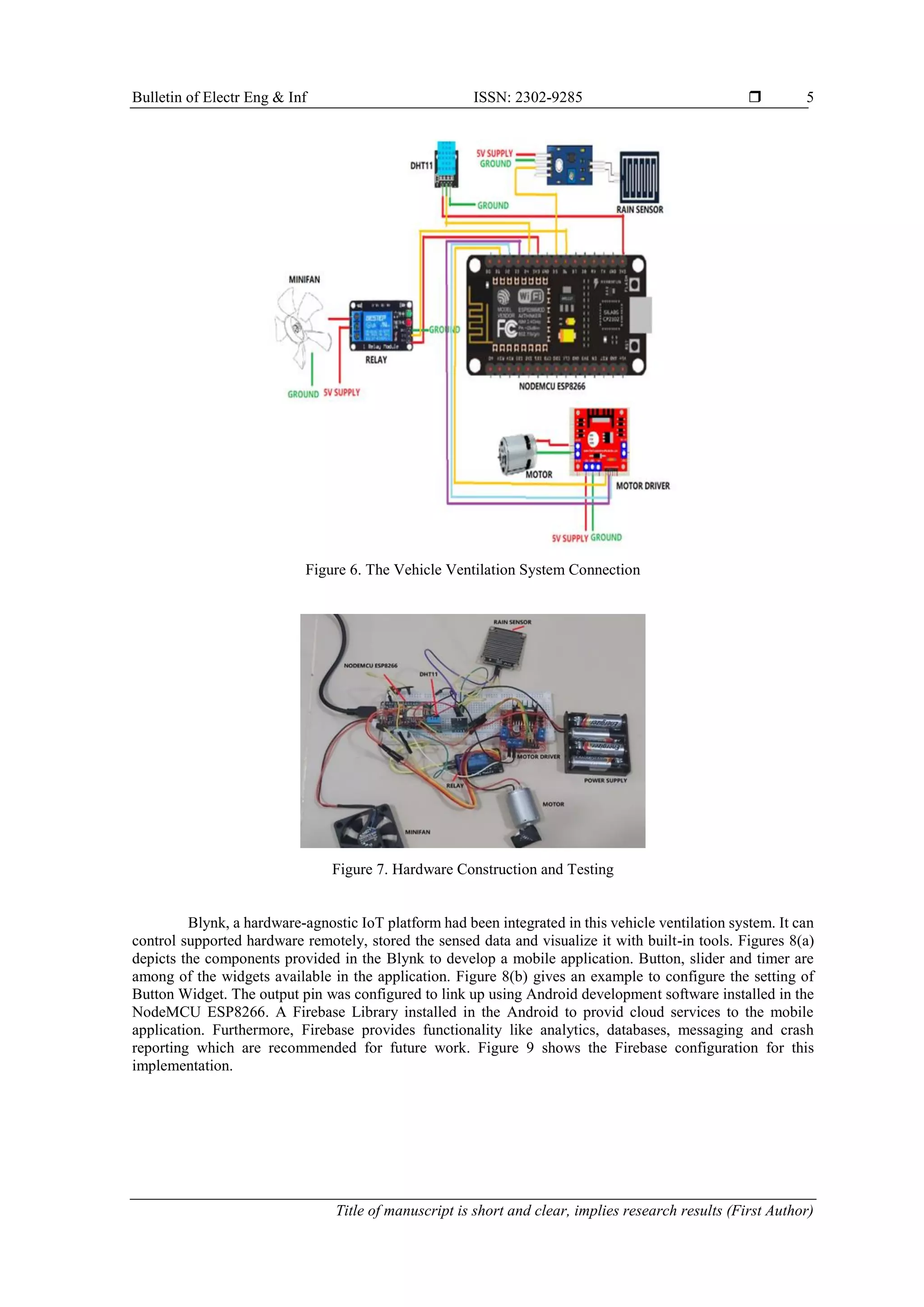

  Bulletin of ElectrEng & Inf ISSN: 2302-9285  Title of manuscript is short and clear, implies research results (First Author) 5 Figure 6. The Vehicle Ventilation System Connection Figure 7. Hardware Construction and Testing Blynk, a hardware-agnostic IoT platform had been integrated in this vehicle ventilation system. It can control supported hardware remotely, stored the sensed data and visualize it with built-in tools. Figures 8(a) depicts the components provided in the Blynk to develop a mobile application. Button, slider and timer are among of the widgets available in the application. Figure 8(b) gives an example to configure the setting of Button Widget. The output pin was configured to link up using Android development software installed in the NodeMCU ESP8266. A Firebase Library installed in the Android to provid cloud services to the mobile application. Furthermore, Firebase provides functionality like analytics, databases, messaging and crash reporting which are recommended for future work. Figure 9 shows the Firebase configuration for this implementation.
• 6.
   ISSN: 2302-9285 Bulletinof Electr Eng & Inf, Vol. 9, No. 6, December 2020 : xx – xx 6 (a) (b) Figure 8. Blynk Application a) Components of the Widget Box b) Settings of Button Widget Figure 9. The Firebase Platform 4. SYSTEM MONITORING AND PRESENTATION A mobile application was developed for the vehicle ventilation system that includes an alert messaging system. The mobile application was developed using Blynk while the measured data from the temperature sensors were presented in the Reading Temperature page, as shown in Figure 9 (a). Figure 9(b) shows the Control Accessories page, as defined, to control the vehicle accessories connected to the NodeMCU controller. Notifications were sent to the mobile plaltform whenever the temperature exceeds a pre-defined threshold and/or rain starts to fall. These would allow the users to control the vehicle accessories according to the received notifications. Figures 10 (a) and (b) depict the notification when the temperature exceeds 35 o C and when rain starts to fall. Graph in Figure 11 presents the results obtained by collecting the temperature reading in a vehicle. The average temperature before the ventilation system in the morning is 28.5°C while after the ventilation, its average is 24.2°C which about 4.3°C difference. In the noon, the average temperature is 51.2°C before the ventilation system and 38.8°C after the ventilation which about 12.4°C difference. The average temperature stated that in evening is 40.4°C while is 33.3°C after turning on the ventilation system with 7.1°C difference. The temperature is reduced about 19.8%.
• 7.

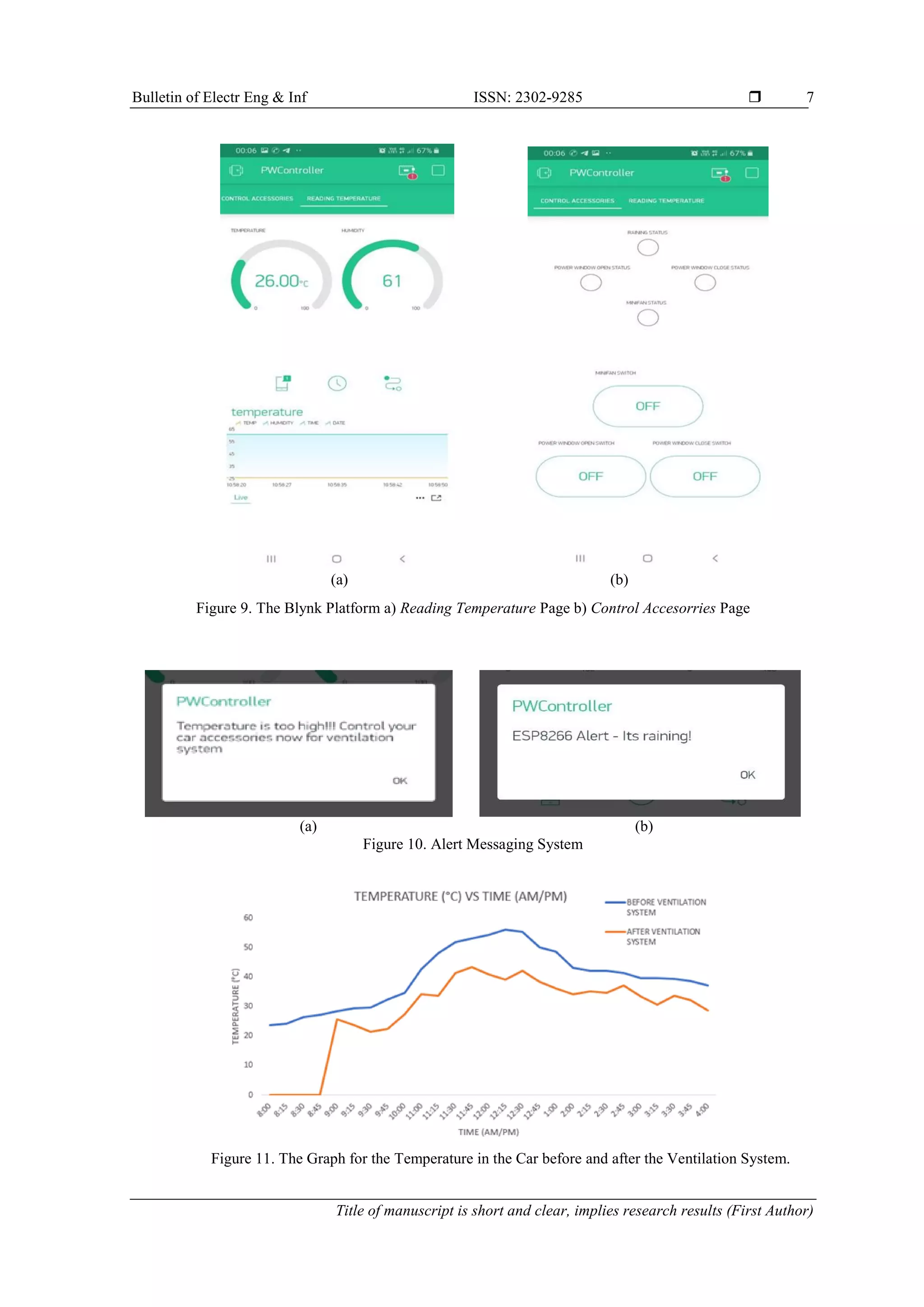

  Bulletin of ElectrEng & Inf ISSN: 2302-9285  Title of manuscript is short and clear, implies research results (First Author) 7 (a) (b) Figure 9. The Blynk Platform a) Reading Temperature Page b) Control Accesorries Page (a) (b) Figure 10. Alert Messaging System Figure 11. The Graph for the Temperature in the Car before and after the Ventilation System.
• 8.

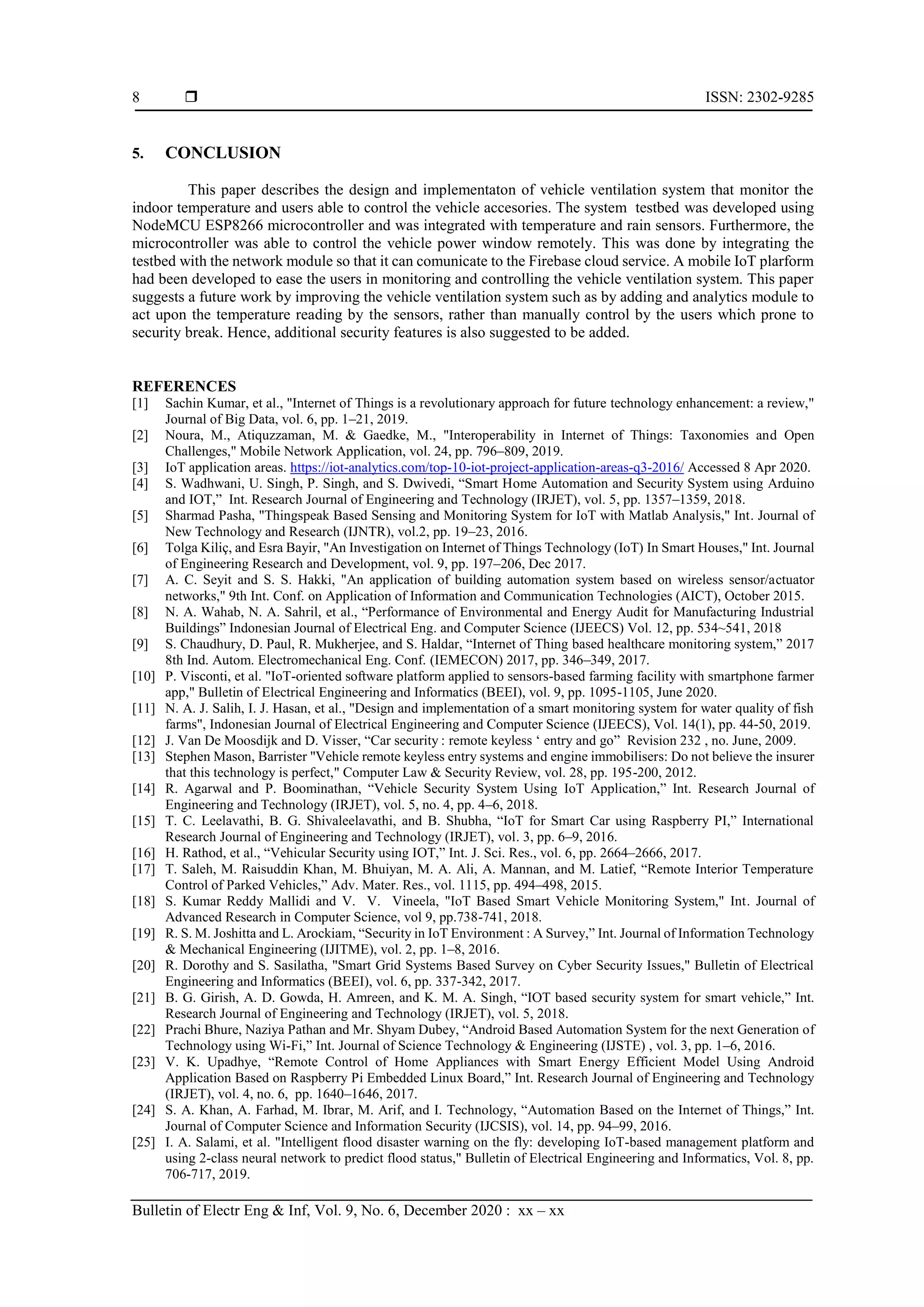

   ISSN: 2302-9285 Bulletinof Electr Eng & Inf, Vol. 9, No. 6, December 2020 : xx – xx 8 5. CONCLUSION This paper describes the design and implementaton of vehicle ventilation system that monitor the indoor temperature and users able to control the vehicle accesories. The system testbed was developed using NodeMCU ESP8266 microcontroller and was integrated with temperature and rain sensors. Furthermore, the microcontroller was able to control the vehicle power window remotely. This was done by integrating the testbed with the network module so that it can comunicate to the Firebase cloud service. A mobile IoT plarform had been developed to ease the users in monitoring and controlling the vehicle ventilation system. This paper suggests a future work by improving the vehicle ventilation system such as by adding and analytics module to act upon the temperature reading by the sensors, rather than manually control by the users which prone to security break. Hence, additional security features is also suggested to be added. REFERENCES [1] Sachin Kumar, et al., "Internet of Things is a revolutionary approach for future technology enhancement: a review," Journal of Big Data, vol. 6, pp. 1–21, 2019. [2] Noura, M., Atiquzzaman, M. & Gaedke, M., "Interoperability in Internet of Things: Taxonomies and Open Challenges," Mobile Network Application, vol. 24, pp. 796–809, 2019. [3] IoT application areas. https://iot-analytics.com/top-10-iot-project-application-areas-q3-2016/ Accessed 8 Apr 2020. [4] S. Wadhwani, U. Singh, P. Singh, and S. Dwivedi, “Smart Home Automation and Security System using Arduino and IOT,” Int. Research Journal of Engineering and Technology (IRJET), vol. 5, pp. 1357–1359, 2018. [5] Sharmad Pasha, "Thingspeak Based Sensing and Monitoring System for IoT with Matlab Analysis," Int. Journal of New Technology and Research (IJNTR), vol.2, pp. 19–23, 2016. [6] Tolga Kiliç, and Esra Bayir, "An Investigation on Internet of Things Technology (IoT) In Smart Houses," Int. Journal of Engineering Research and Development, vol. 9, pp. 197–206, Dec 2017. [7] A. C. Seyit and S. S. Hakki, "An application of building automation system based on wireless sensor/actuator networks," 9th Int. Conf. on Application of Information and Communication Technologies (AICT), October 2015. [8] N. A. Wahab, N. A. Sahril, et al., “Performance of Environmental and Energy Audit for Manufacturing Industrial Buildings” Indonesian Journal of Electrical Eng. and Computer Science (IJEECS) Vol. 12, pp. 534~541, 2018 [9] S. Chaudhury, D. Paul, R. Mukherjee, and S. Haldar, “Internet of Thing based healthcare monitoring system,” 2017 8th Ind. Autom. Electromechanical Eng. Conf. (IEMECON) 2017, pp. 346–349, 2017. [10] P. Visconti, et al. "IoT-oriented software platform applied to sensors-based farming facility with smartphone farmer app," Bulletin of Electrical Engineering and Informatics (BEEI), vol. 9, pp. 1095-1105, June 2020. [11] N. A. J. Salih, I. J. Hasan, et al., "Design and implementation of a smart monitoring system for water quality of fish farms", Indonesian Journal of Electrical Engineering and Computer Science (IJEECS), Vol. 14(1), pp. 44-50, 2019. [12] J. Van De Moosdijk and D. Visser, “Car security : remote keyless ‘ entry and go” Revision 232 , no. June, 2009. [13] Stephen Mason, Barrister "Vehicle remote keyless entry systems and engine immobilisers: Do not believe the insurer that this technology is perfect," Computer Law & Security Review, vol. 28, pp. 195-200, 2012. [14] R. Agarwal and P. Boominathan, “Vehicle Security System Using IoT Application,” Int. Research Journal of Engineering and Technology (IRJET), vol. 5, no. 4, pp. 4–6, 2018. [15] T. C. Leelavathi, B. G. Shivaleelavathi, and B. Shubha, “IoT for Smart Car using Raspberry PI,” International Research Journal of Engineering and Technology (IRJET), vol. 3, pp. 6–9, 2016. [16] H. Rathod, et al., “Vehicular Security using IOT,” Int. J. Sci. Res., vol. 6, pp. 2664–2666, 2017. [17] T. Saleh, M. Raisuddin Khan, M. Bhuiyan, M. A. Ali, A. Mannan, and M. Latief, “Remote Interior Temperature Control of Parked Vehicles,” Adv. Mater. Res., vol. 1115, pp. 494–498, 2015. [18] S. Kumar Reddy Mallidi and V. V. Vineela, "IoT Based Smart Vehicle Monitoring System," Int. Journal of Advanced Research in Computer Science, vol 9, pp.738-741, 2018. [19] R. S. M. Joshitta and L. Arockiam, “Security in IoT Environment : A Survey,” Int. Journal of Information Technology & Mechanical Engineering (IJITME), vol. 2, pp. 1–8, 2016. [20] R. Dorothy and S. Sasilatha, "Smart Grid Systems Based Survey on Cyber Security Issues," Bulletin of Electrical Engineering and Informatics (BEEI), vol. 6, pp. 337-342, 2017. [21] B. G. Girish, A. D. Gowda, H. Amreen, and K. M. A. Singh, “IOT based security system for smart vehicle,” Int. Research Journal of Engineering and Technology (IRJET), vol. 5, 2018. [22] Prachi Bhure, Naziya Pathan and Mr. Shyam Dubey, “Android Based Automation System for the next Generation of Technology using Wi-Fi,” Int. Journal of Science Technology & Engineering (IJSTE) , vol. 3, pp. 1–6, 2016. [23] V. K. Upadhye, “Remote Control of Home Appliances with Smart Energy Efficient Model Using Android Application Based on Raspberry Pi Embedded Linux Board,” Int. Research Journal of Engineering and Technology (IRJET), vol. 4, no. 6, pp. 1640–1646, 2017. [24] S. A. Khan, A. Farhad, M. Ibrar, M. Arif, and I. Technology, “Automation Based on the Internet of Things,” Int. Journal of Computer Science and Information Security (IJCSIS), vol. 14, pp. 94–99, 2016. [25] I. A. Salami, et al. "Intelligent flood disaster warning on the fly: developing IoT-based management platform and using 2-class neural network to predict flood status," Bulletin of Electrical Engineering and Informatics, Vol. 8, pp. 706-717, 2019.
