- 4. © DataStax, AllRights Reserved.ConfidentialConfidential © DataStax, All Rights Reserved. Agenda ● Challenges ● Context of Architectures of Business Intelligence ● What does the Big Data world offer? ● Tools based on the use case ● What did DataStax do? ● Where to start with DSE? ● Use Case - Building it
- 5. CHALLENGES Context of Architecturesof Business Intelligence

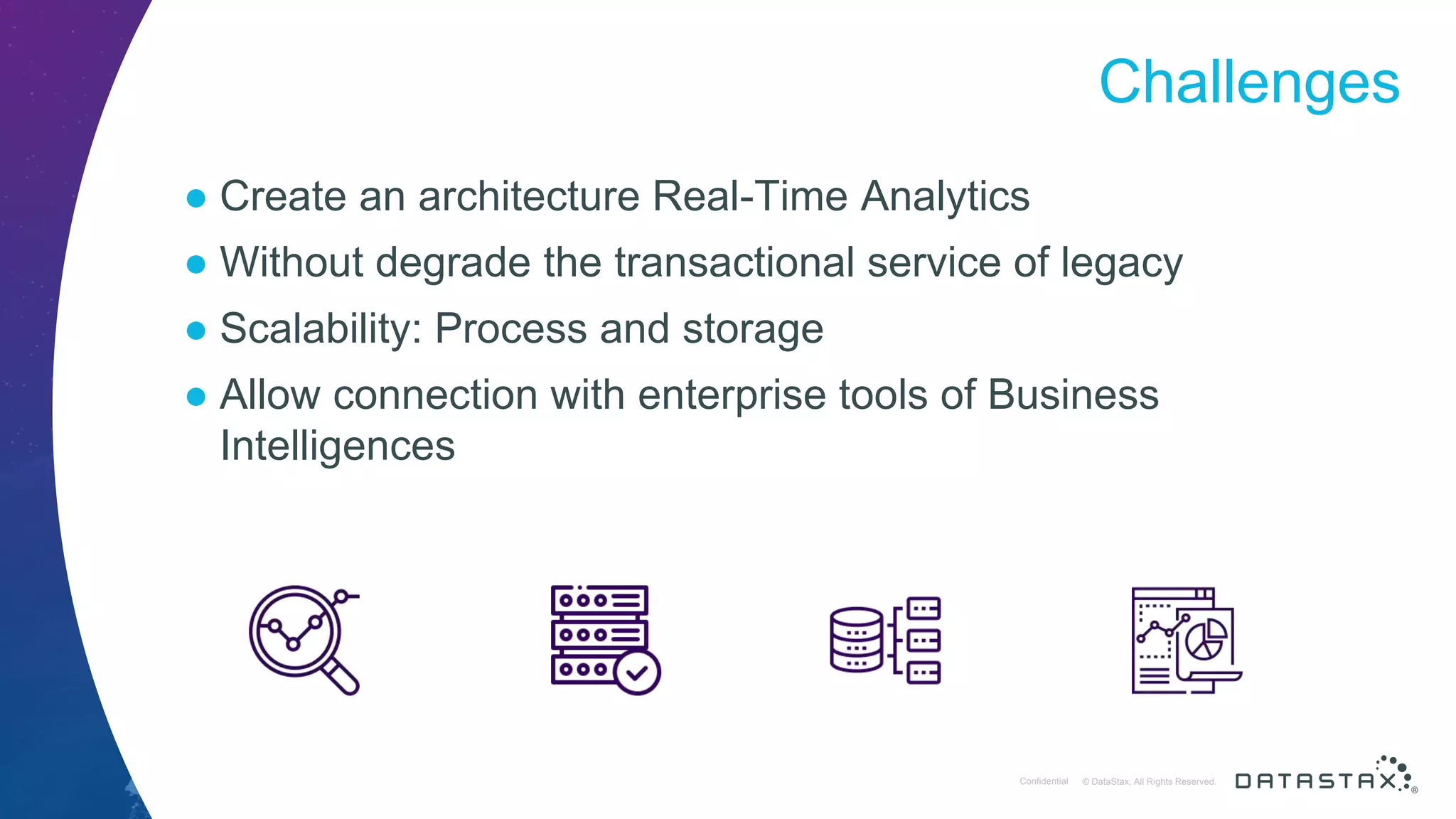

- 6. © DataStax, AllRights Reserved.ConfidentialConfidential © DataStax, All Rights Reserved. Challenges ● Create an architecture Real-Time Analytics ● Without degrade the transactional service of legacy ● Scalability: Process and storage ● Allow connection with enterprise tools of Business Intelligences

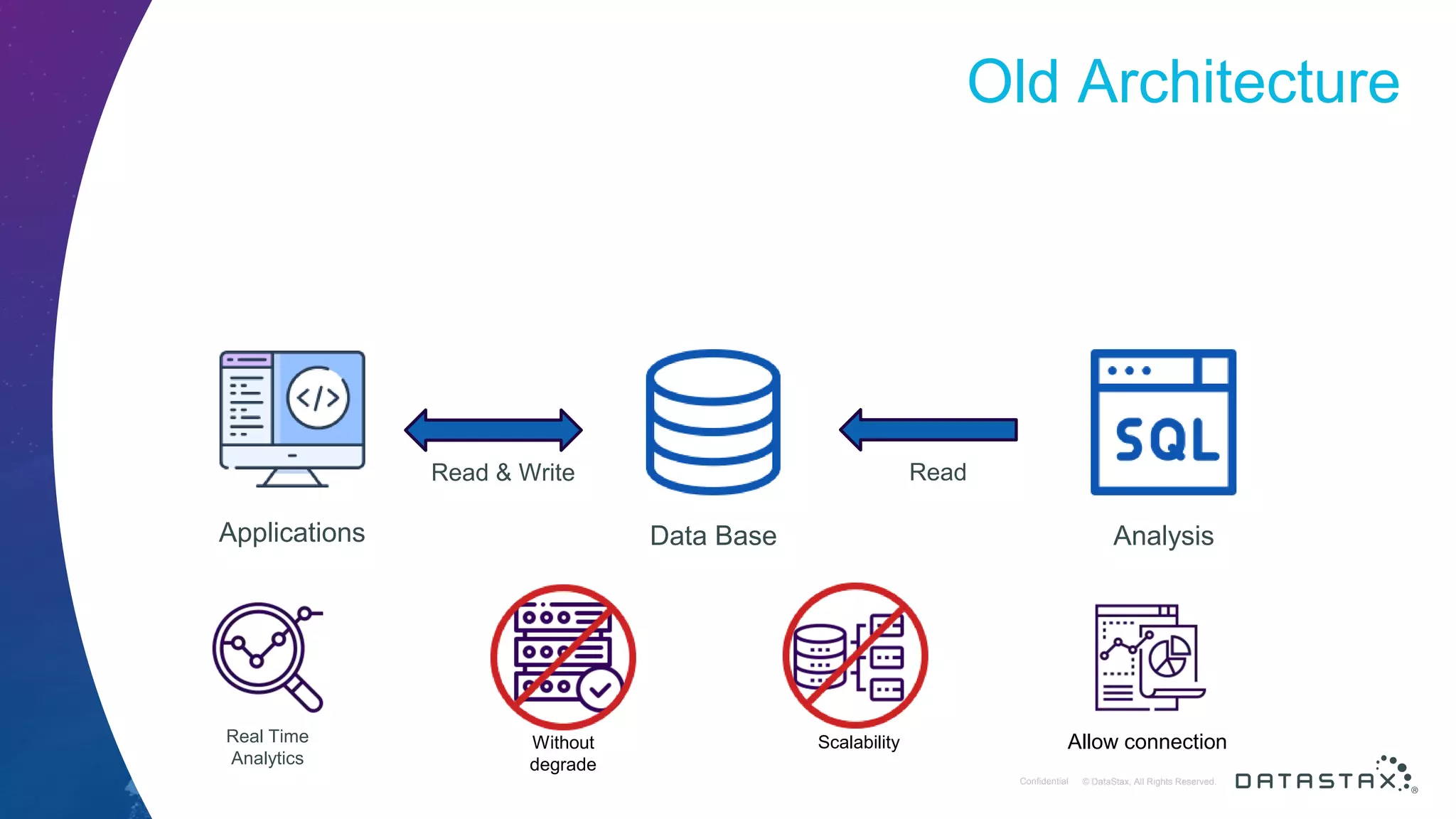

- 7. © DataStax, AllRights Reserved.ConfidentialConfidential © DataStax, All Rights Reserved. Old Architecture Data BaseApplications Analysis Read & Write Read Real Time Analytics Without degrade Scalability Allow connection

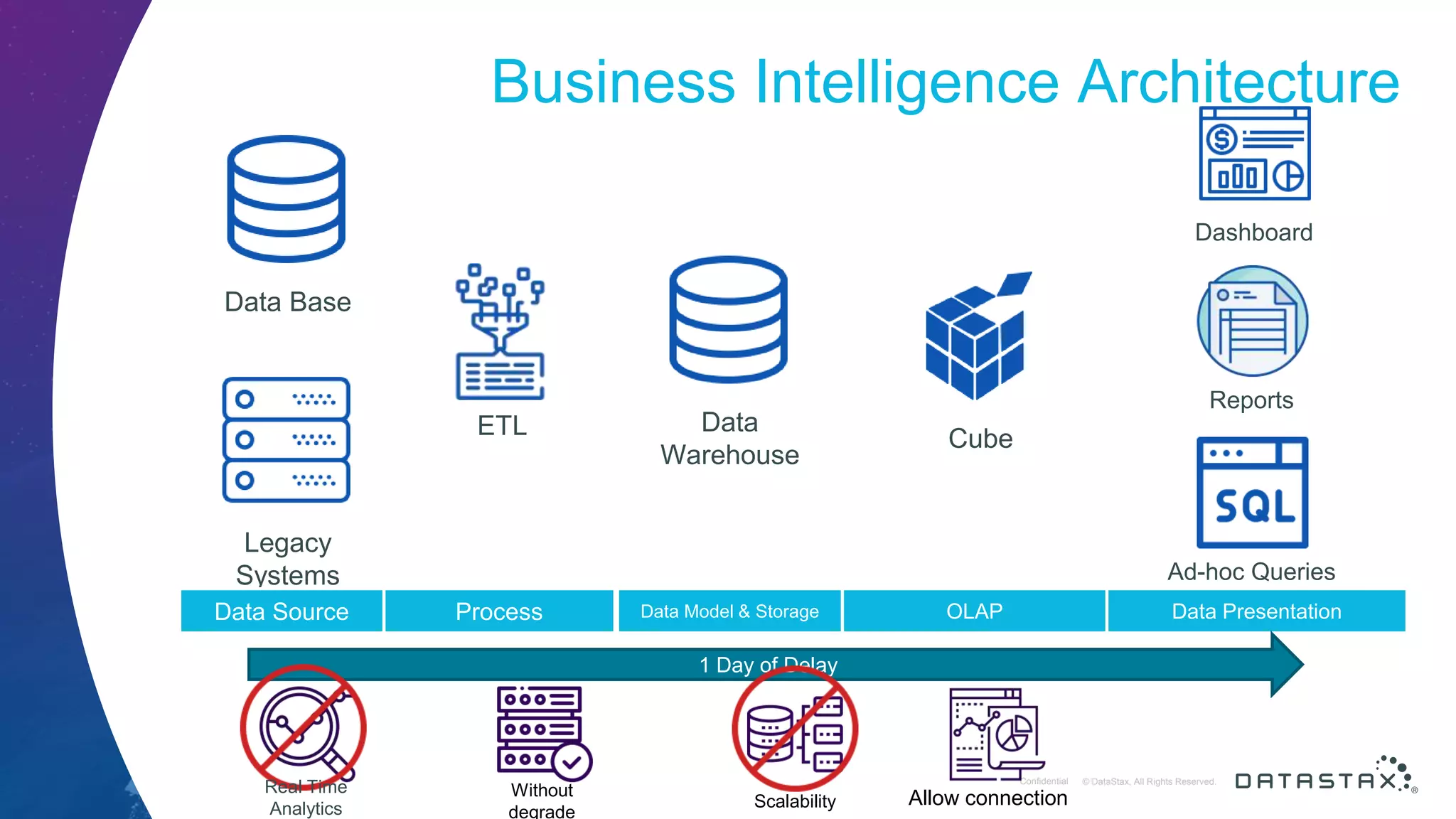

- 8. © DataStax, AllRights Reserved.ConfidentialConfidential © DataStax, All Rights Reserved. Business Intelligence Architecture Data Warehouse Data Base Legacy Systems Data Source ETL Cube Process Data Model & Storage OLAP Data Presentation Dashboard Reports Ad-hoc Queries 1 Day of Delay Real Time Analytics Without degrade Scalability Allow connection
- 9. BIG DATA WORLD Toolsbased on the use case
- 10. © DataStax, AllRights Reserved.ConfidentialConfidential © DataStax, All Rights Reserved. What does the Big Data world offer?

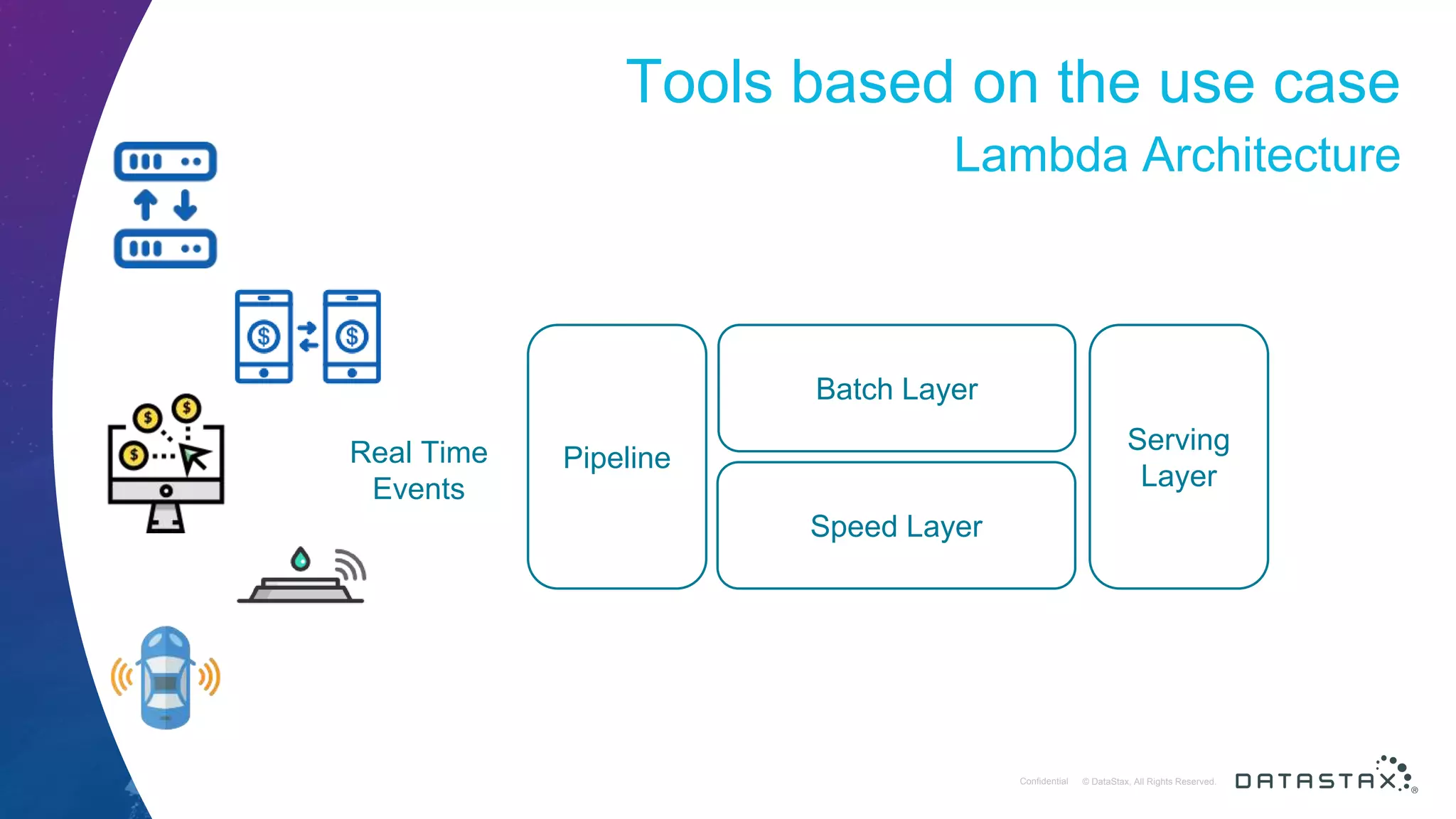

- 11. © DataStax, AllRights Reserved.ConfidentialConfidential © DataStax, All Rights Reserved. Tools based on the use case Batch Layer Speed Layer Serving Layer PipelineReal Time Events Lambda Architecture

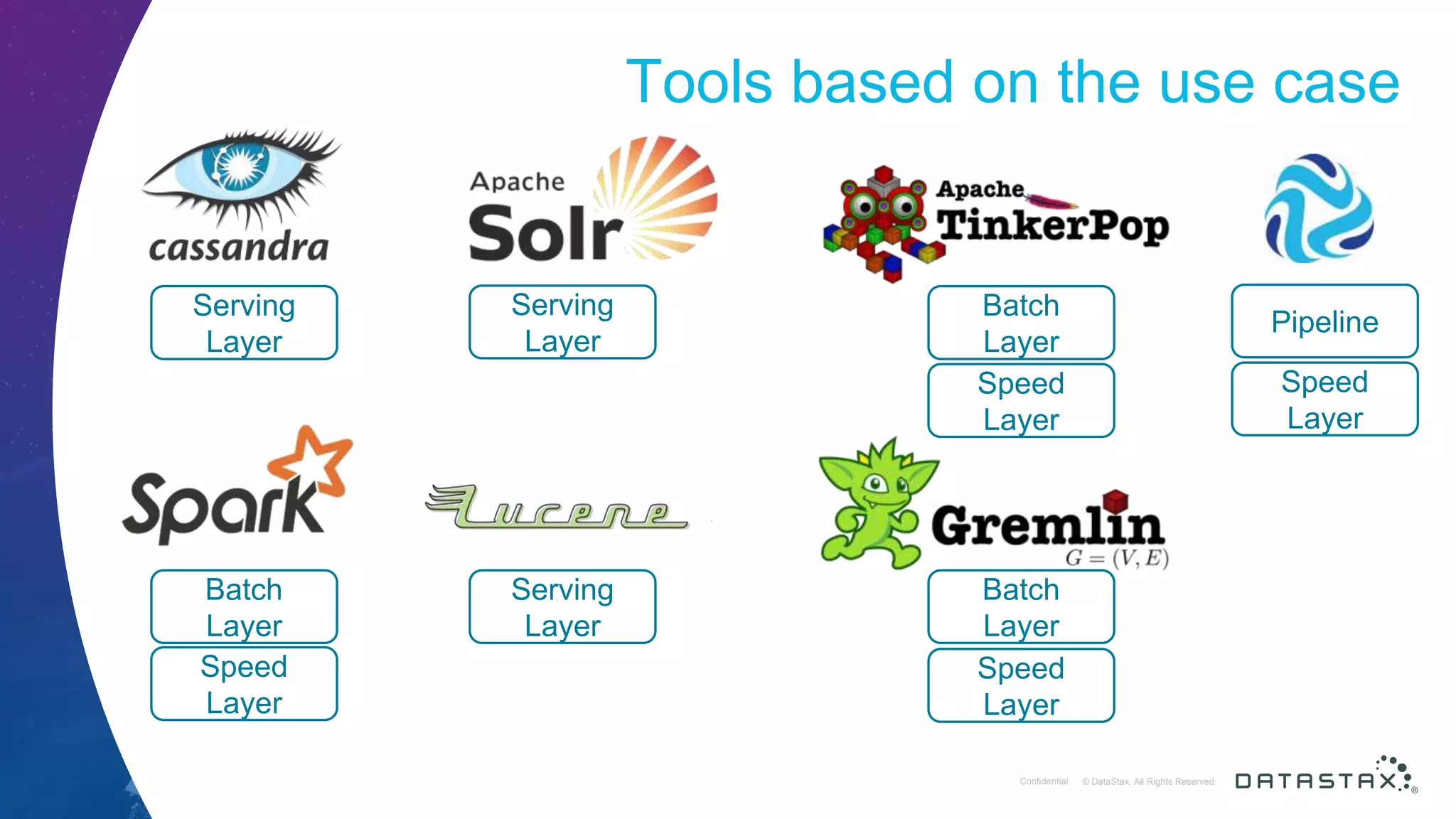

- 12. © DataStax, AllRights Reserved.ConfidentialConfidential © DataStax, All Rights Reserved. Tools based on the use case Serving Layer Batch Layer Speed Layer Serving Layer Serving Layer Batch Layer Speed Layer Batch Layer Speed Layer Pipeline Speed Layer
- 13. DATASTAX ENTERPRISE Tools basedon the use case

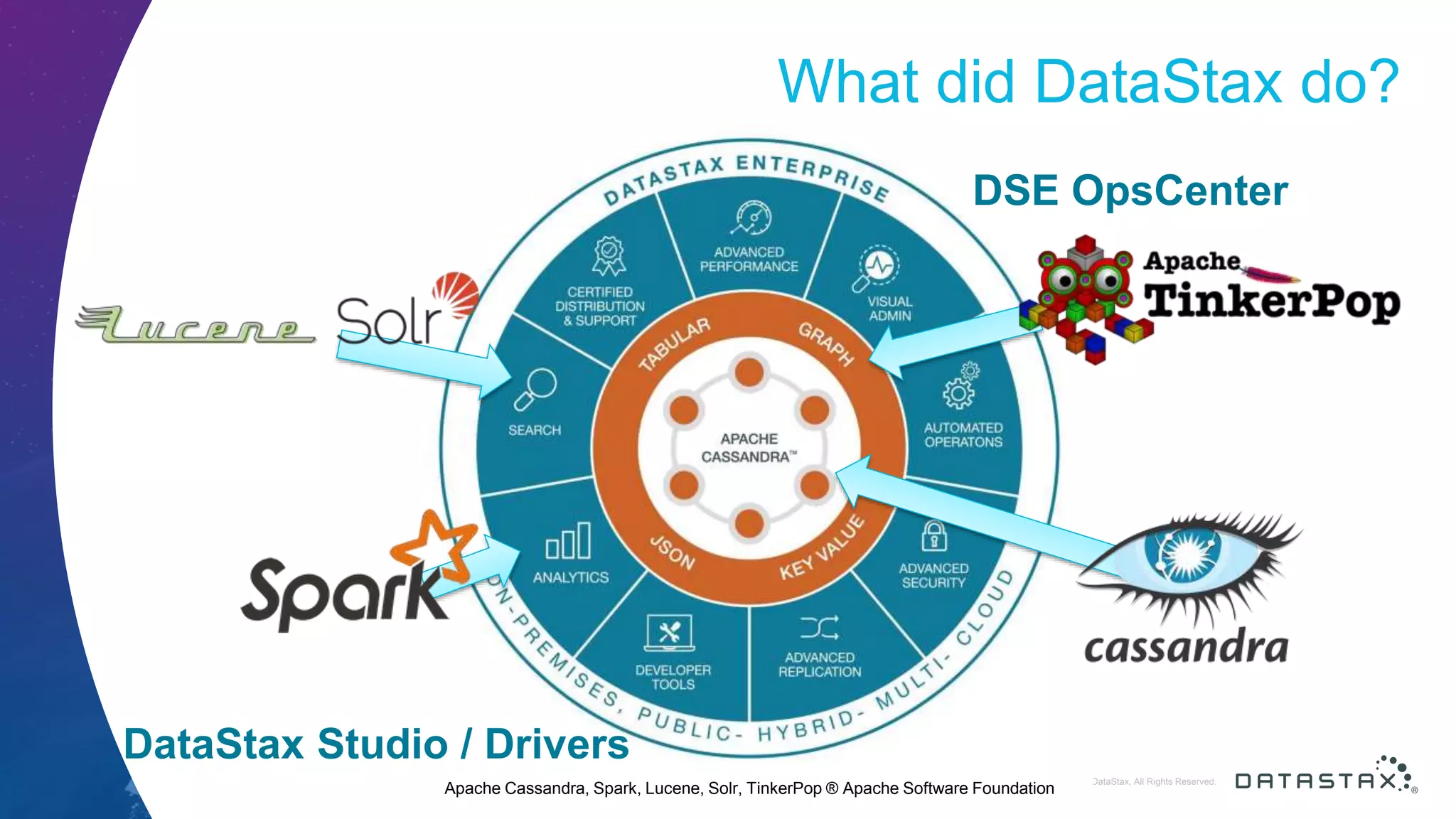

- 14. © DataStax, AllRights Reserved.ConfidentialConfidential © DataStax, All Rights Reserved. What did DataStax do? Apache Cassandra, Spark, Lucene, Solr, TinkerPop ® Apache Software Foundation DSE OpsCenter DataStax Studio / Drivers
- 15. © DataStax, AllRights Reserved.ConfidentialConfidential © DataStax, All Rights Reserved. Where to start with DSE? ● Recap Cassandra Topology ● Data replication ● Type of workload Datacenter

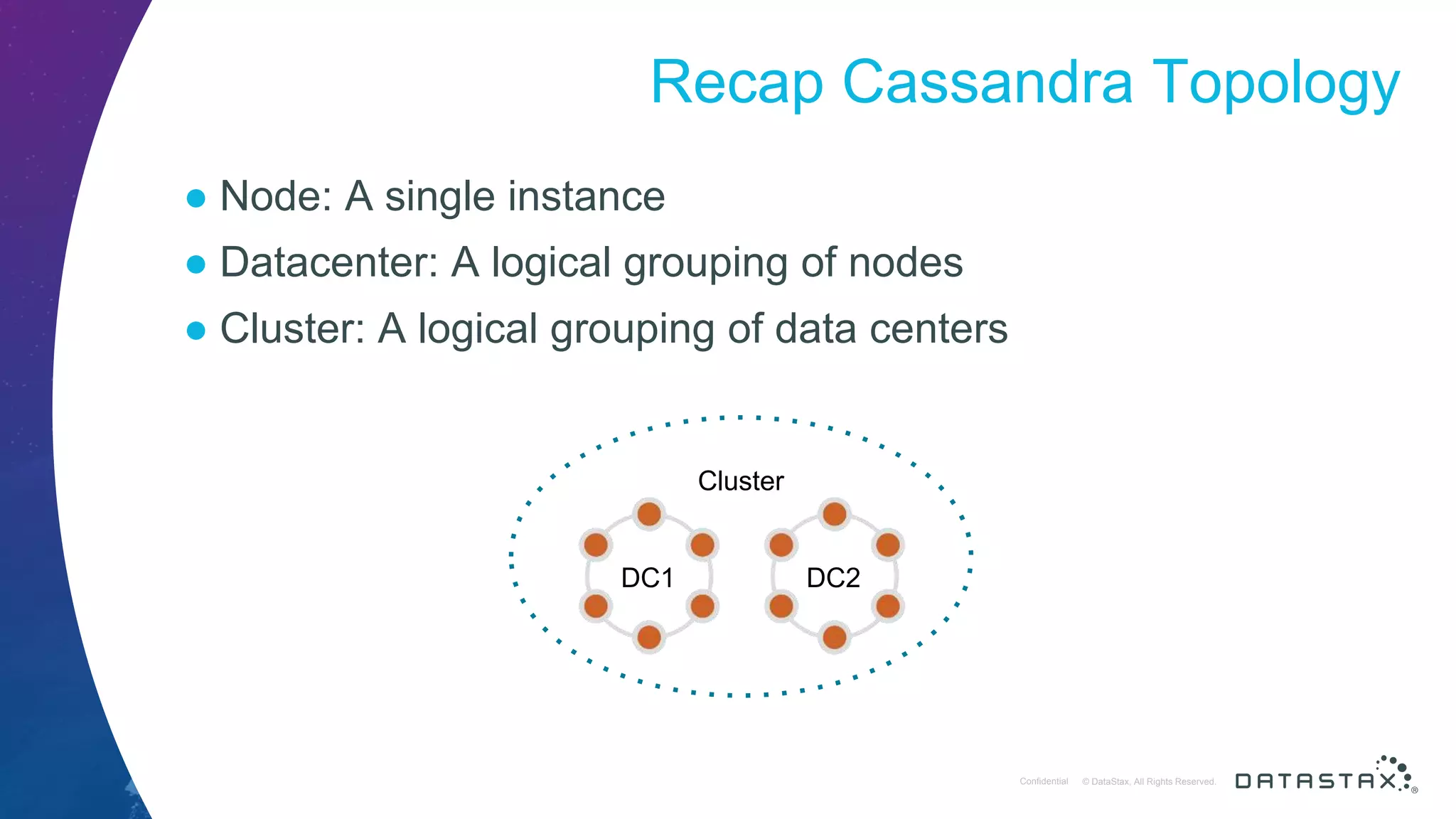

- 16. © DataStax, AllRights Reserved.ConfidentialConfidential © DataStax, All Rights Reserved. Recap Cassandra Topology DC1 DC2 Cluster ● Node: A single instance ● Datacenter: A logical grouping of nodes ● Cluster: A logical grouping of data centers

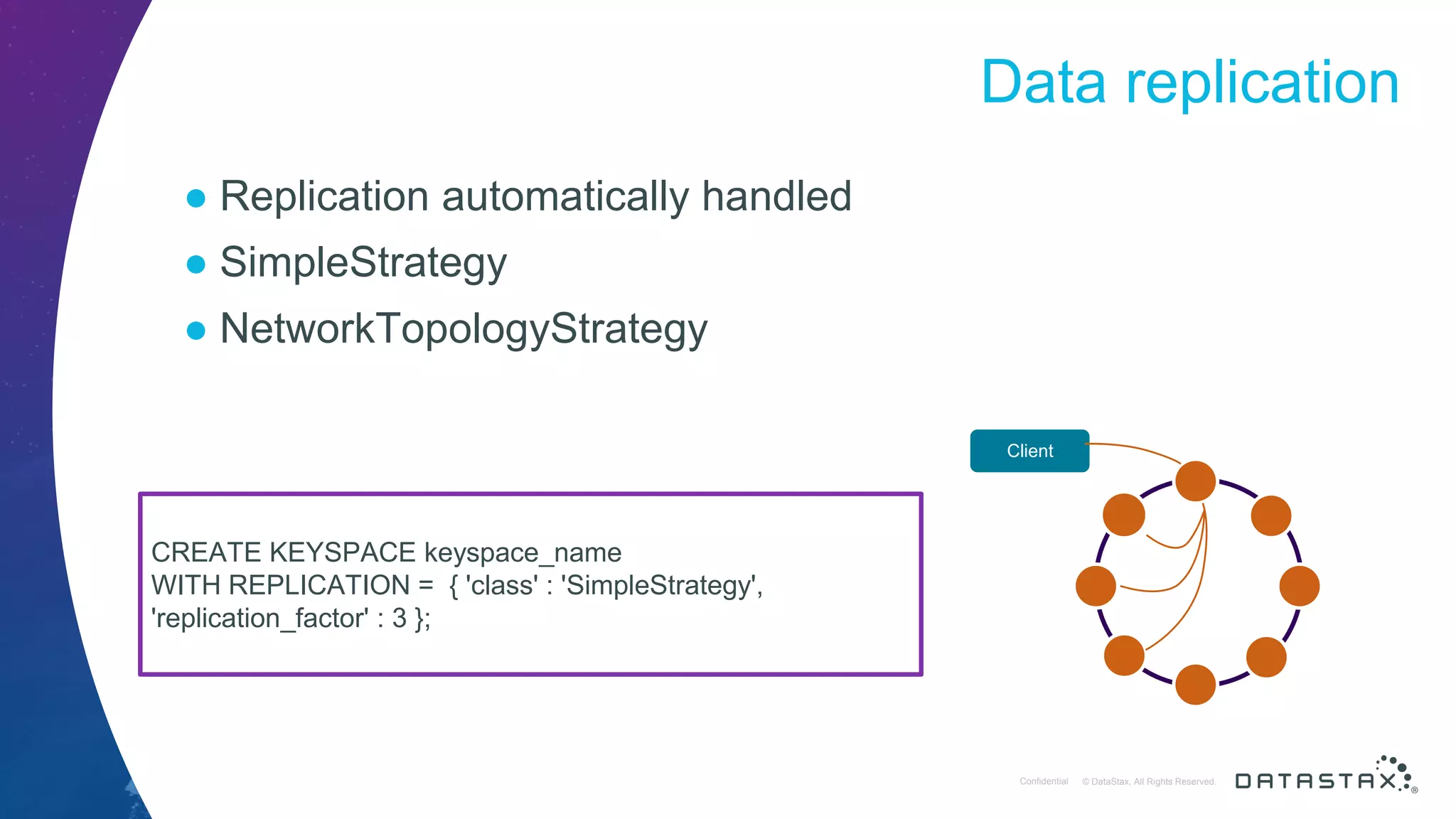

- 17. © DataStax, AllRights Reserved.ConfidentialConfidential © DataStax, All Rights Reserved. Data replication ● Replication automatically handled ● SimpleStrategy ● NetworkTopologyStrategy 80 Client CREATE KEYSPACE keyspace_name WITH REPLICATION = { 'class' : 'SimpleStrategy', 'replication_factor' : 3 };

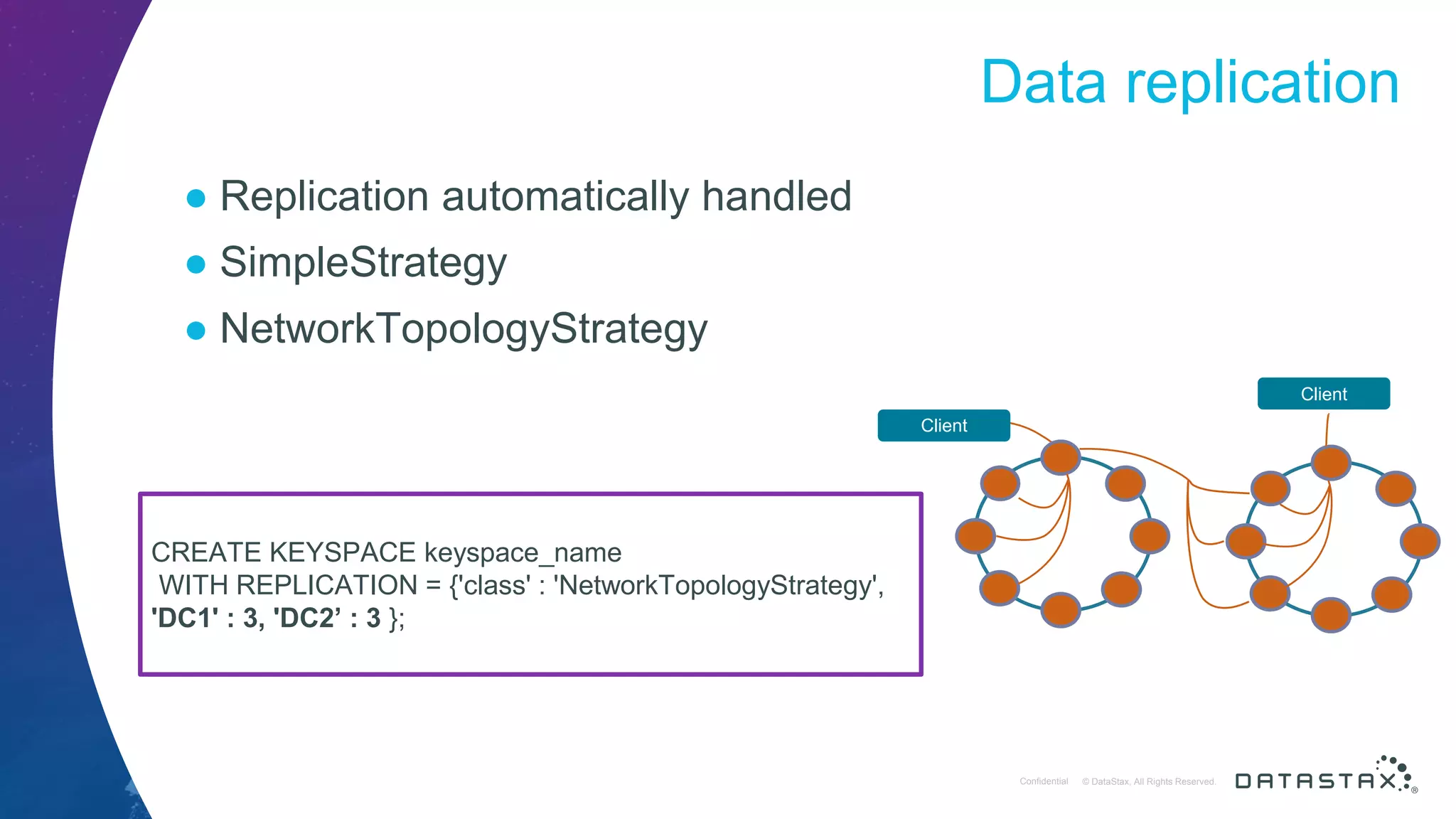

- 18. © DataStax, AllRights Reserved.ConfidentialConfidential © DataStax, All Rights Reserved. Data replication ● Replication automatically handled ● SimpleStrategy ● NetworkTopologyStrategy CREATE KEYSPACE keyspace_name WITH REPLICATION = {'class' : 'NetworkTopologyStrategy', 'DC1' : 3, 'DC2’ : 3 }; Client Client

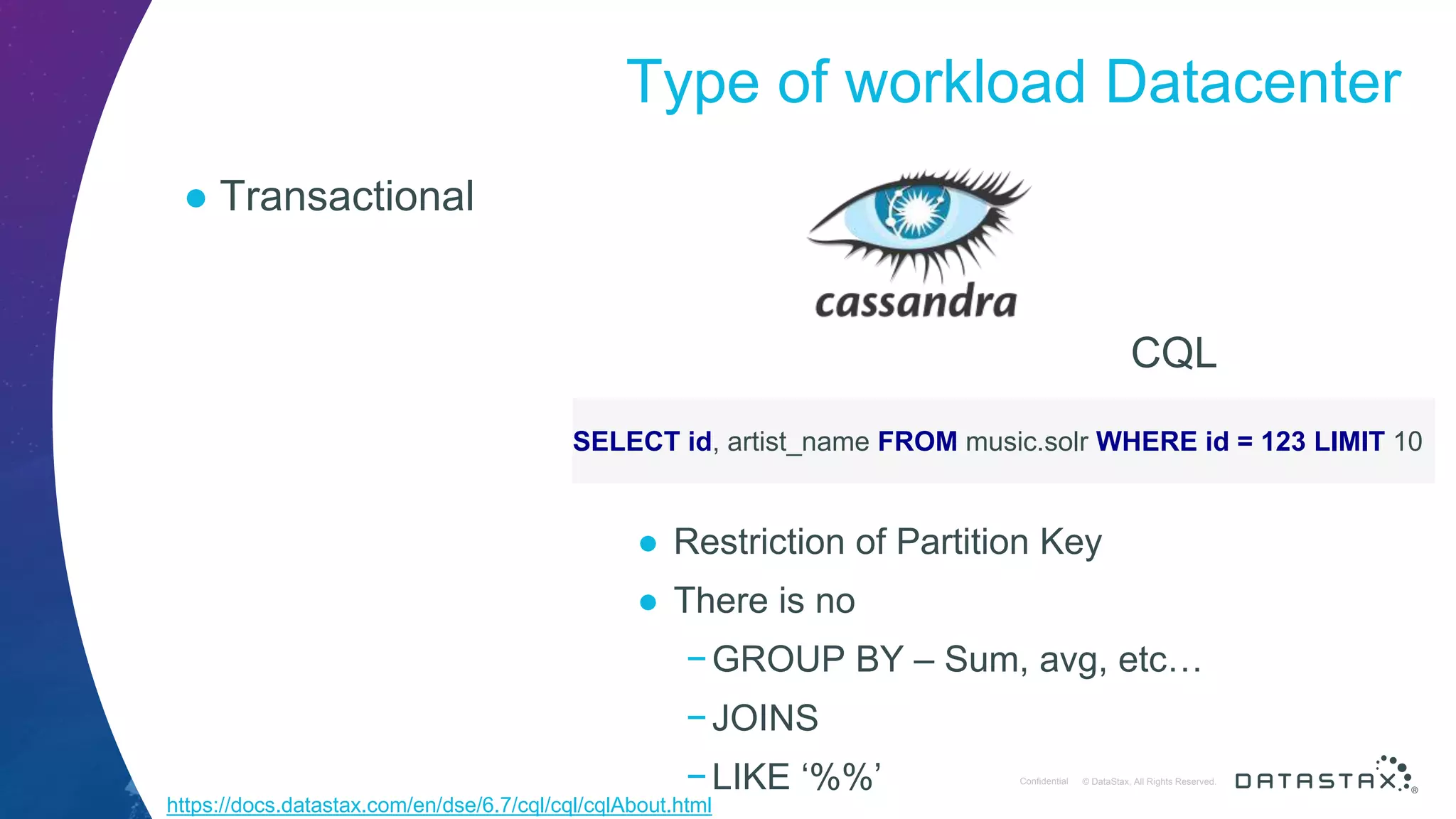

- 19. © DataStax, AllRights Reserved.ConfidentialConfidential © DataStax, All Rights Reserved. Type of workload Datacenter ● Transactional CQL SELECT id, artist_name FROM music.solr WHERE id = 123 LIMIT 10 ● Restriction of Partition Key ● There is no −GROUP BY – Sum, avg, etc… −JOINS −LIKE ‘%%’ https://docs.datastax.com/en/dse/6.7/cql/cql/cqlAbout.html

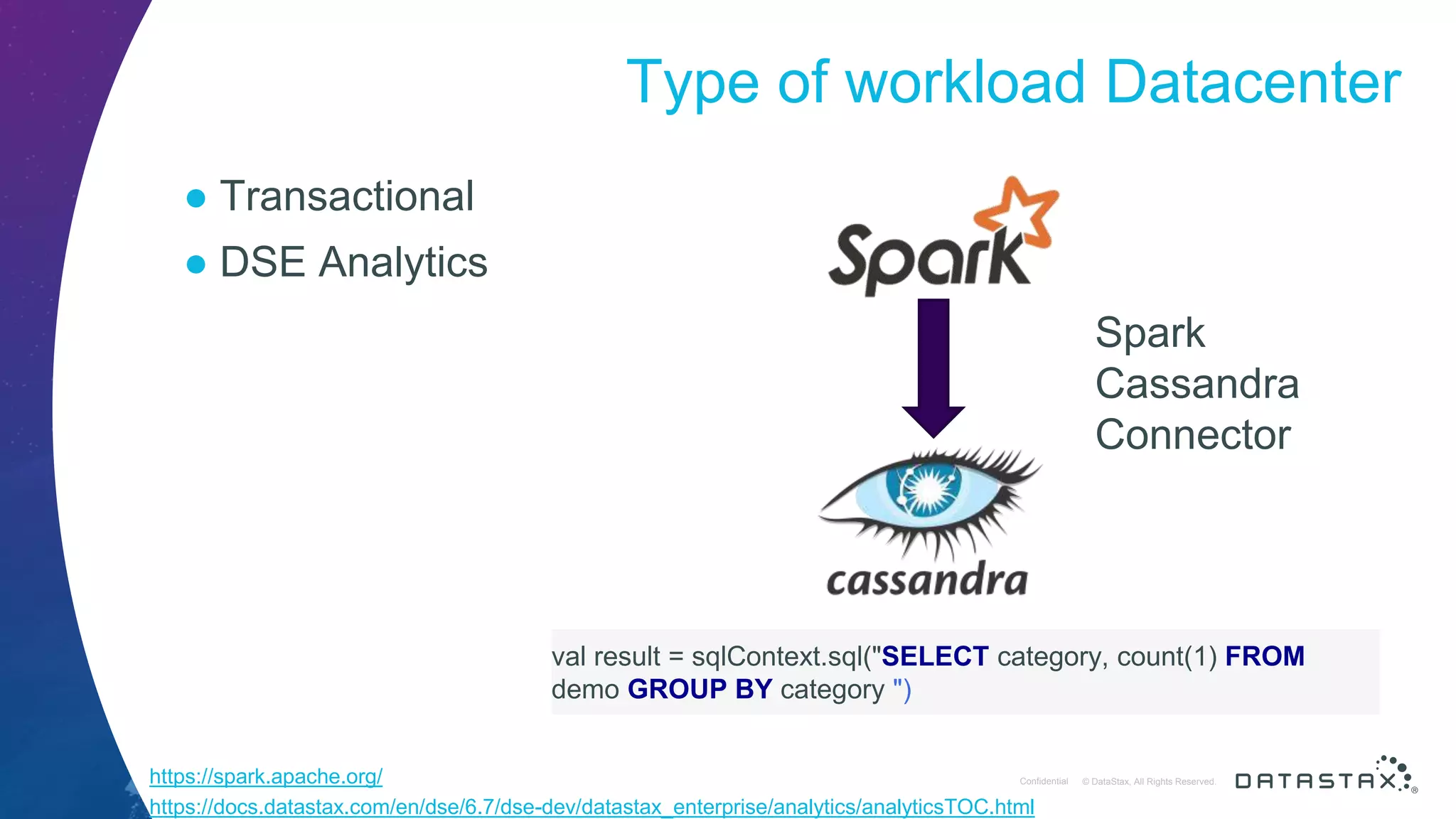

- 20. © DataStax, AllRights Reserved.ConfidentialConfidential © DataStax, All Rights Reserved. Type of workload Datacenter ● Transactional ● DSE Analytics Spark Cassandra Connector val result = sqlContext.sql("SELECT category, count(1) FROM demo GROUP BY category ") https://spark.apache.org/ https://docs.datastax.com/en/dse/6.7/dse-dev/datastax_enterprise/analytics/analyticsTOC.html

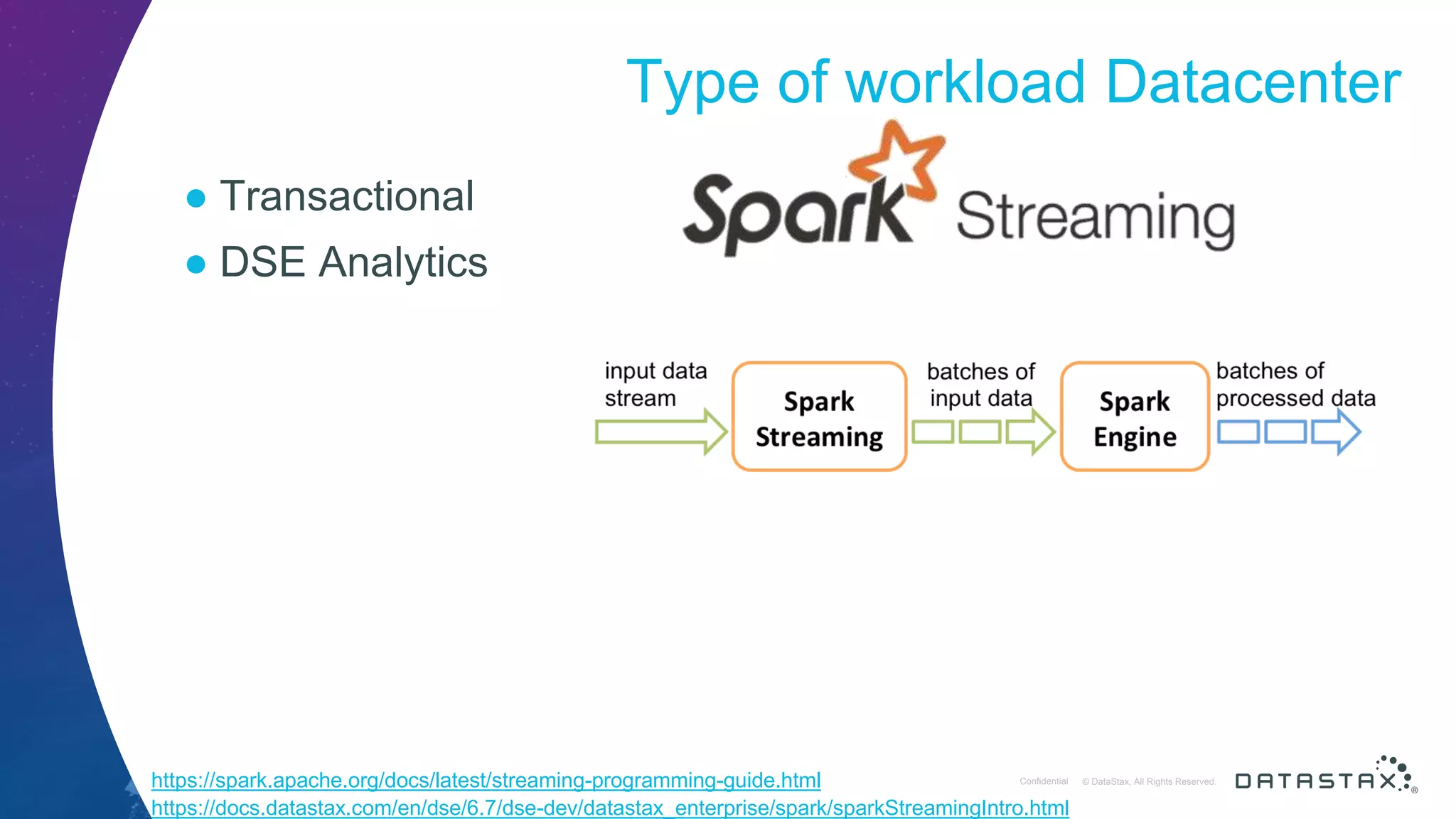

- 21. © DataStax, AllRights Reserved.ConfidentialConfidential © DataStax, All Rights Reserved. Type of workload Datacenter ● Transactional ● DSE Analytics https://spark.apache.org/docs/latest/streaming-programming-guide.html https://docs.datastax.com/en/dse/6.7/dse-dev/datastax_enterprise/spark/sparkStreamingIntro.html

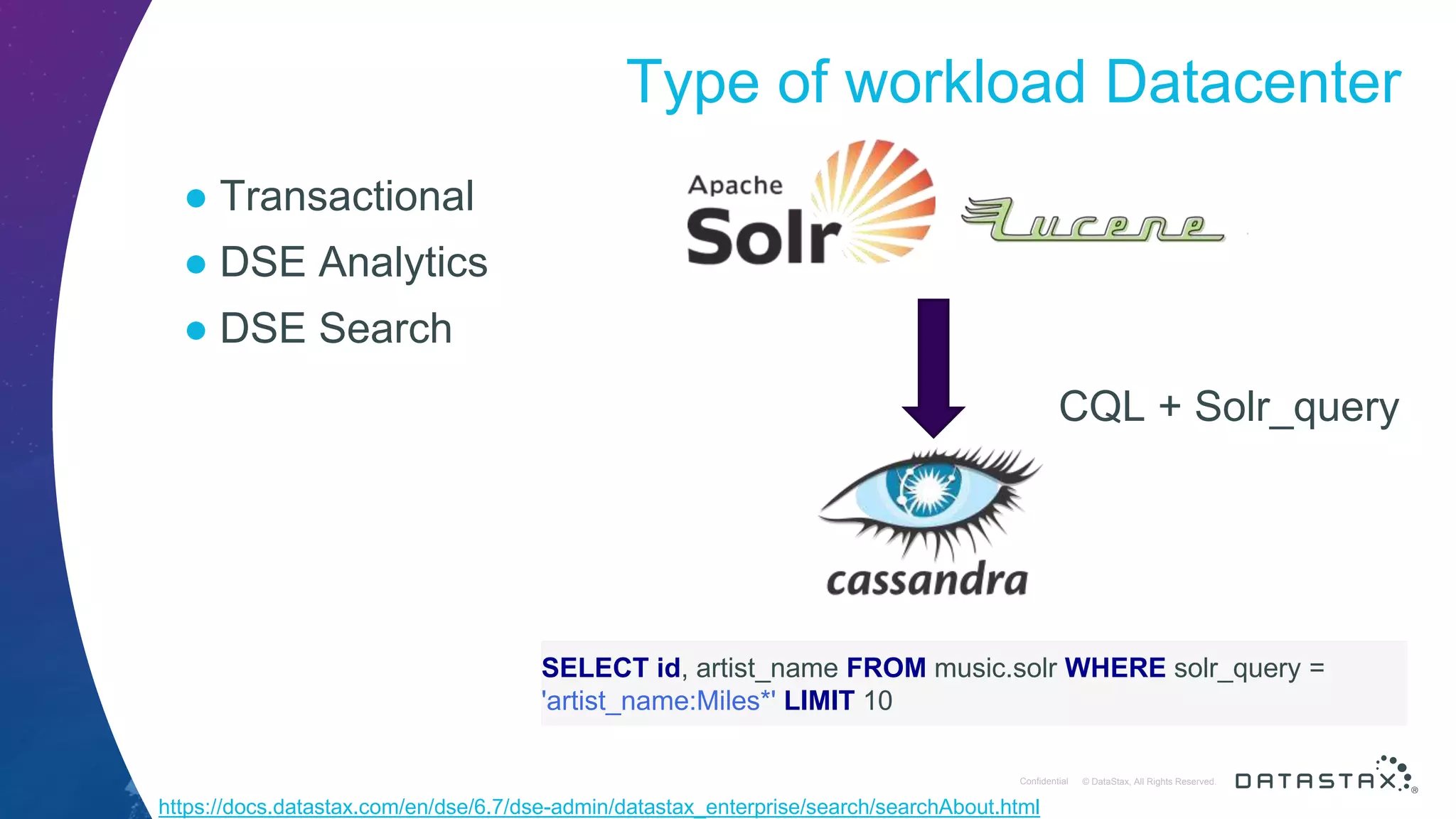

- 22. © DataStax, AllRights Reserved.ConfidentialConfidential © DataStax, All Rights Reserved. Type of workload Datacenter ● Transactional ● DSE Analytics ● DSE Search SELECT id, artist_name FROM music.solr WHERE solr_query = 'artist_name:Miles*' LIMIT 10 CQL + Solr_query https://docs.datastax.com/en/dse/6.7/dse-admin/datastax_enterprise/search/searchAbout.html

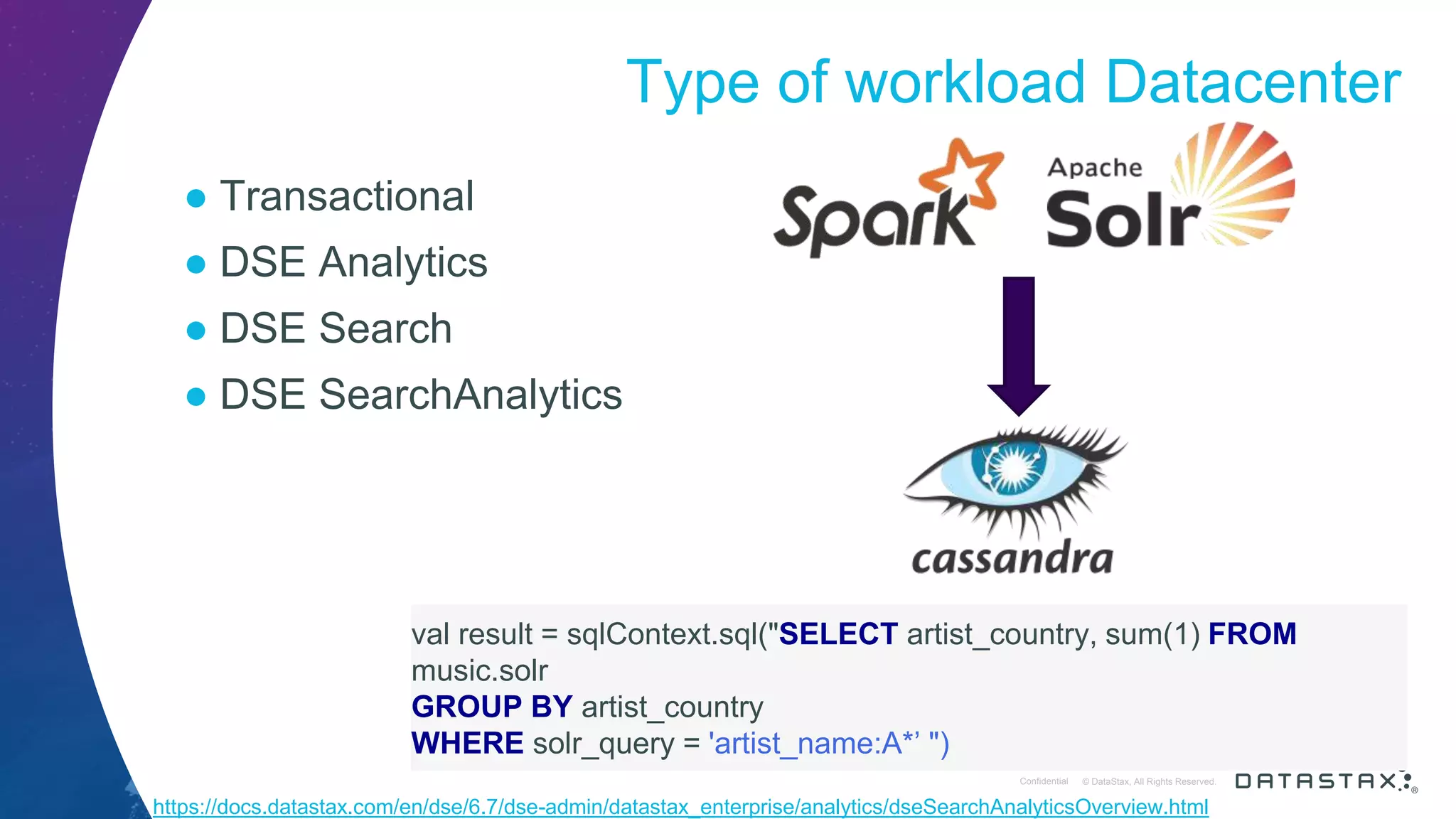

- 23. © DataStax, AllRights Reserved.ConfidentialConfidential © DataStax, All Rights Reserved. Type of workload Datacenter ● Transactional ● DSE Analytics ● DSE Search ● DSE SearchAnalytics val result = sqlContext.sql("SELECT artist_country, sum(1) FROM music.solr GROUP BY artist_country WHERE solr_query = 'artist_name:A*’ ") https://docs.datastax.com/en/dse/6.7/dse-admin/datastax_enterprise/analytics/dseSearchAnalyticsOverview.html

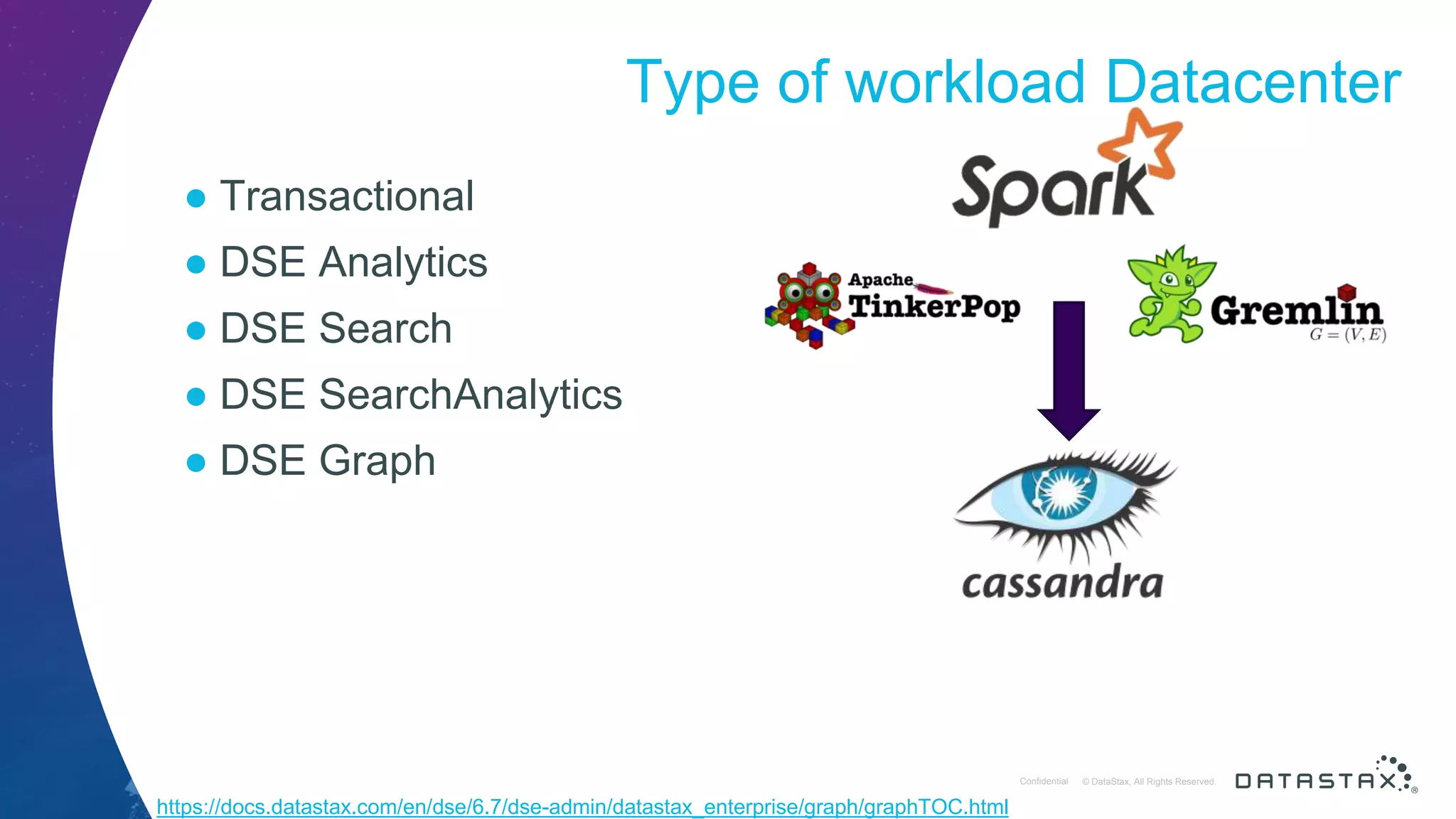

- 24. © DataStax, AllRights Reserved.ConfidentialConfidential © DataStax, All Rights Reserved. Type of workload Datacenter ● Transactional ● DSE Analytics ● DSE Search ● DSE SearchAnalytics ● DSE Graph https://docs.datastax.com/en/dse/6.7/dse-admin/datastax_enterprise/graph/graphTOC.html

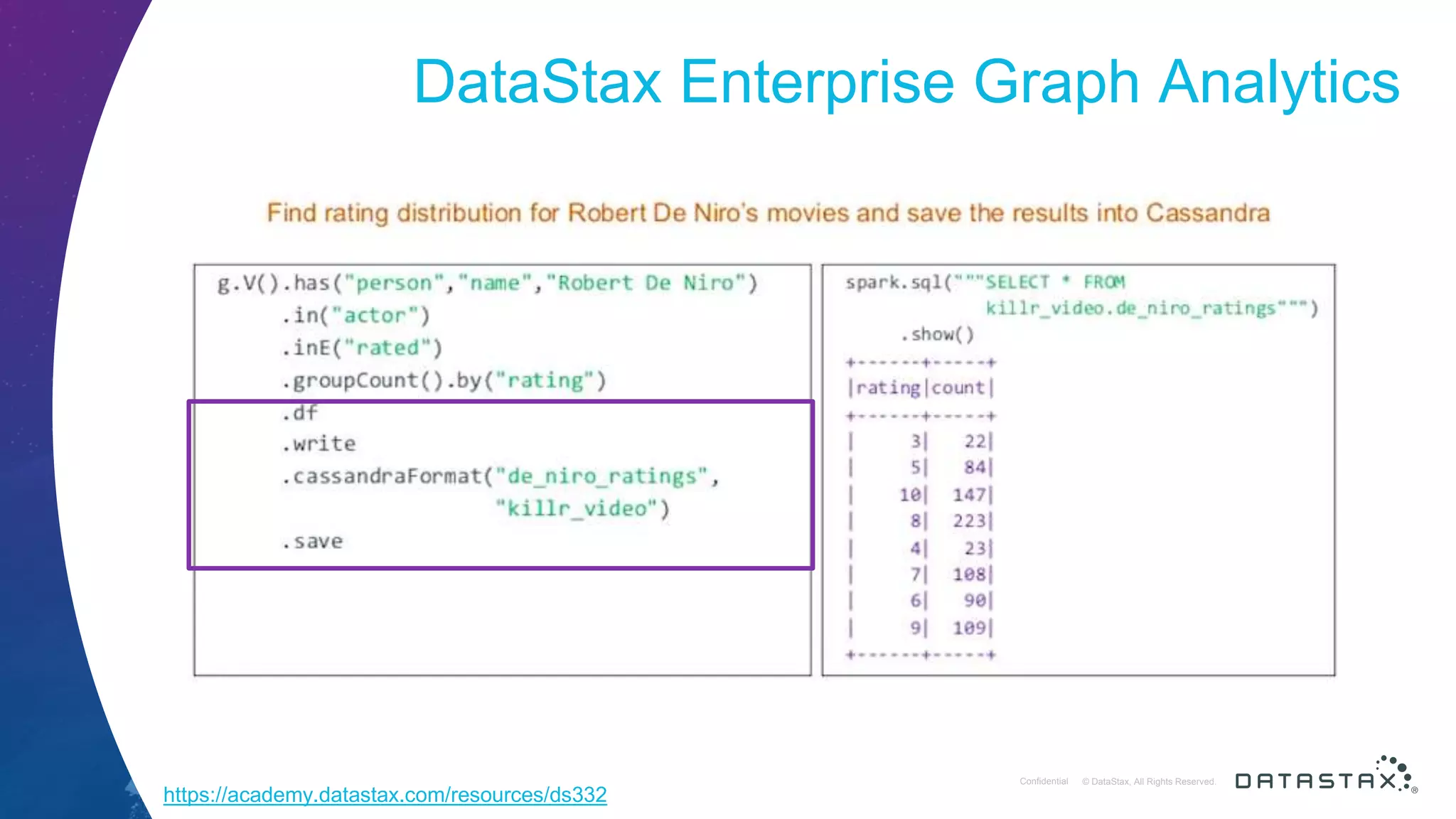

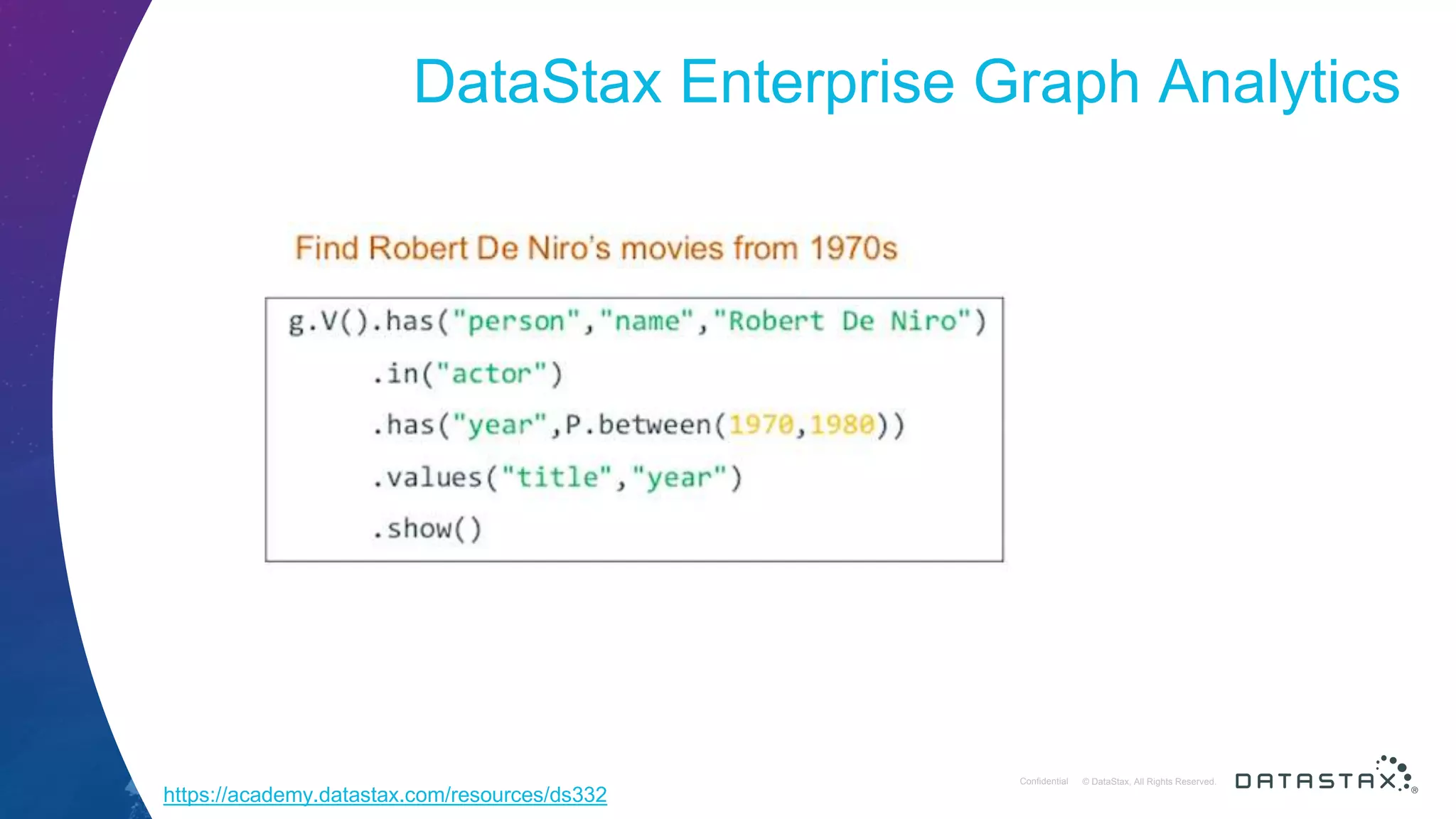

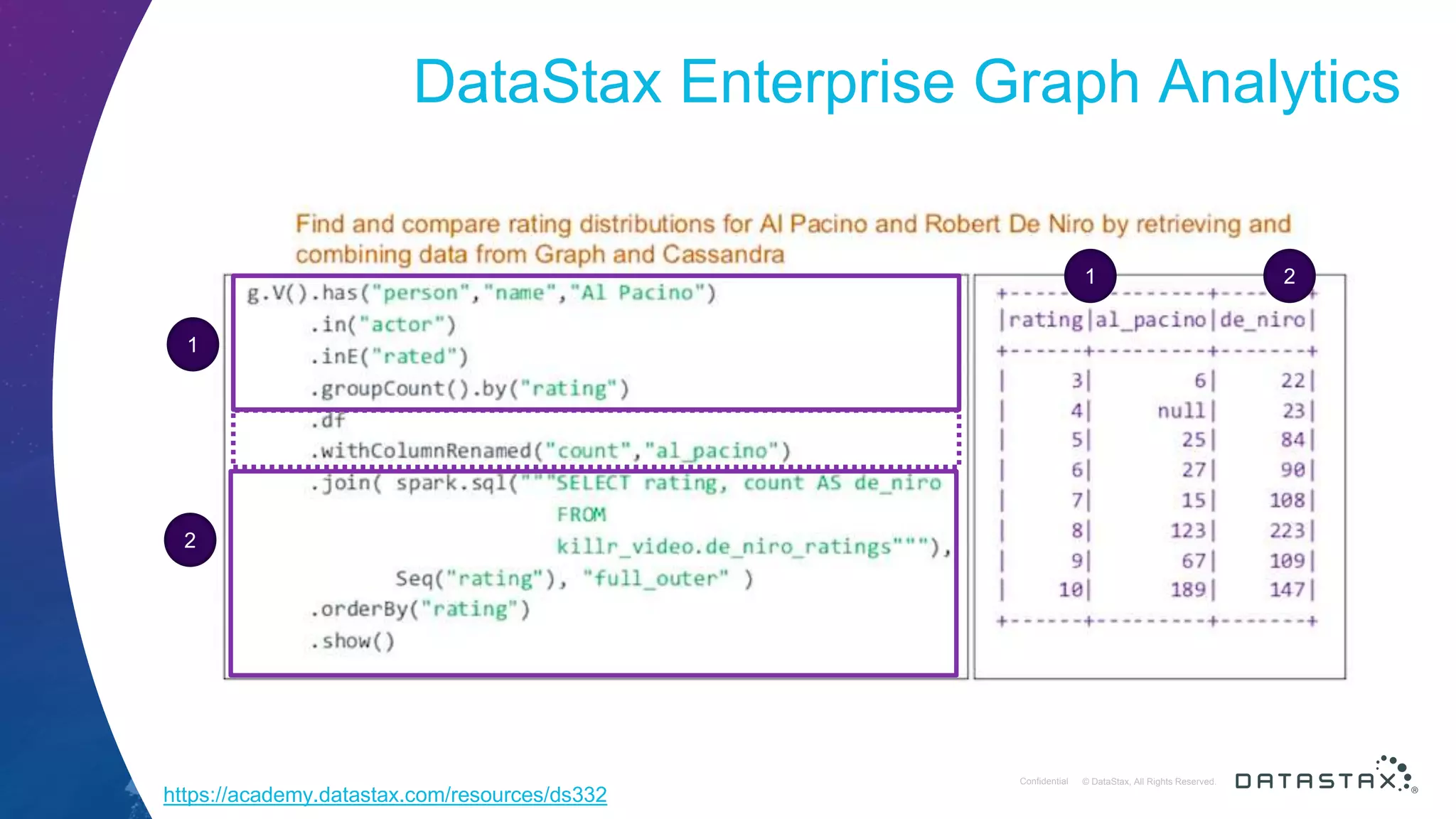

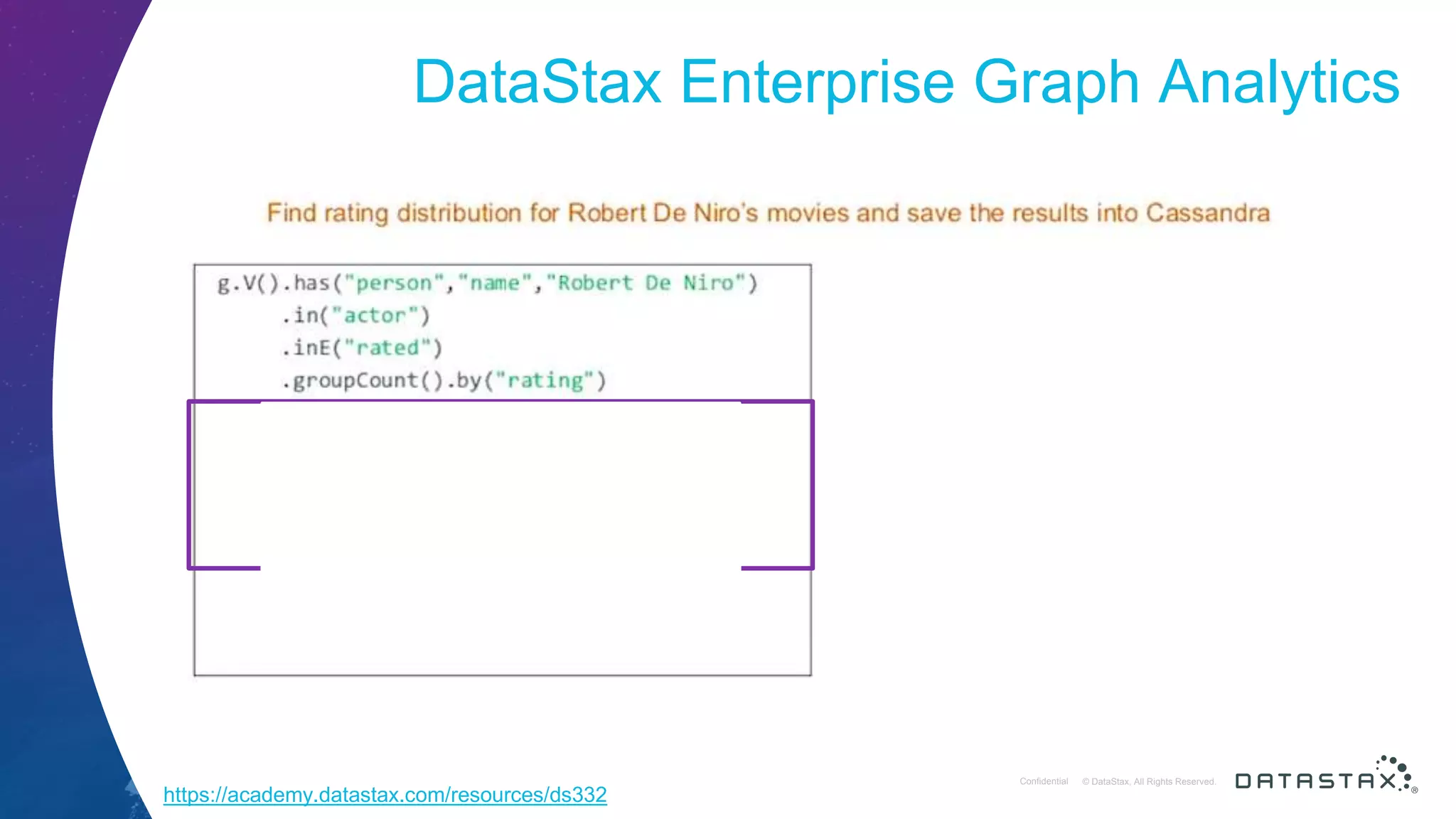

- 25. © DataStax, AllRights Reserved.ConfidentialConfidential © DataStax, All Rights Reserved. DataStax Enterprise Graph Analytics https://academy.datastax.com/resources/ds332

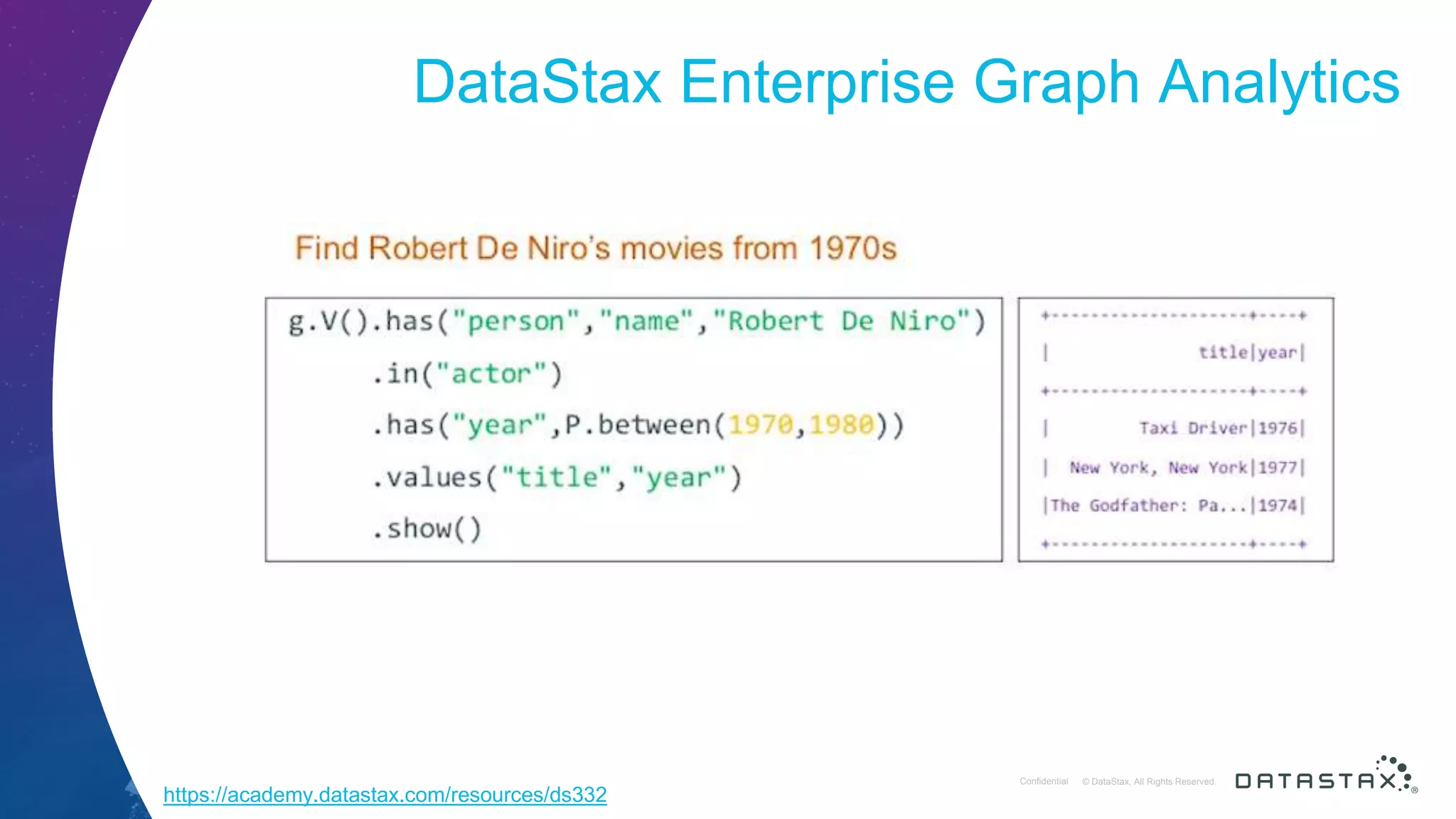

- 26. © DataStax, AllRights Reserved.ConfidentialConfidential © DataStax, All Rights Reserved. DataStax Enterprise Graph Analytics https://academy.datastax.com/resources/ds332
- 27. © DataStax, AllRights Reserved.ConfidentialConfidential © DataStax, All Rights Reserved. DataStax Enterprise Graph Analytics https://academy.datastax.com/resources/ds332
- 28. © DataStax, AllRights Reserved.ConfidentialConfidential © DataStax, All Rights Reserved. DataStax Enterprise Graph Analytics https://academy.datastax.com/resources/ds332
- 29. © DataStax, AllRights Reserved.ConfidentialConfidential © DataStax, All Rights Reserved. DataStax Enterprise Graph Analytics https://academy.datastax.com/resources/ds332 1 1 2 2

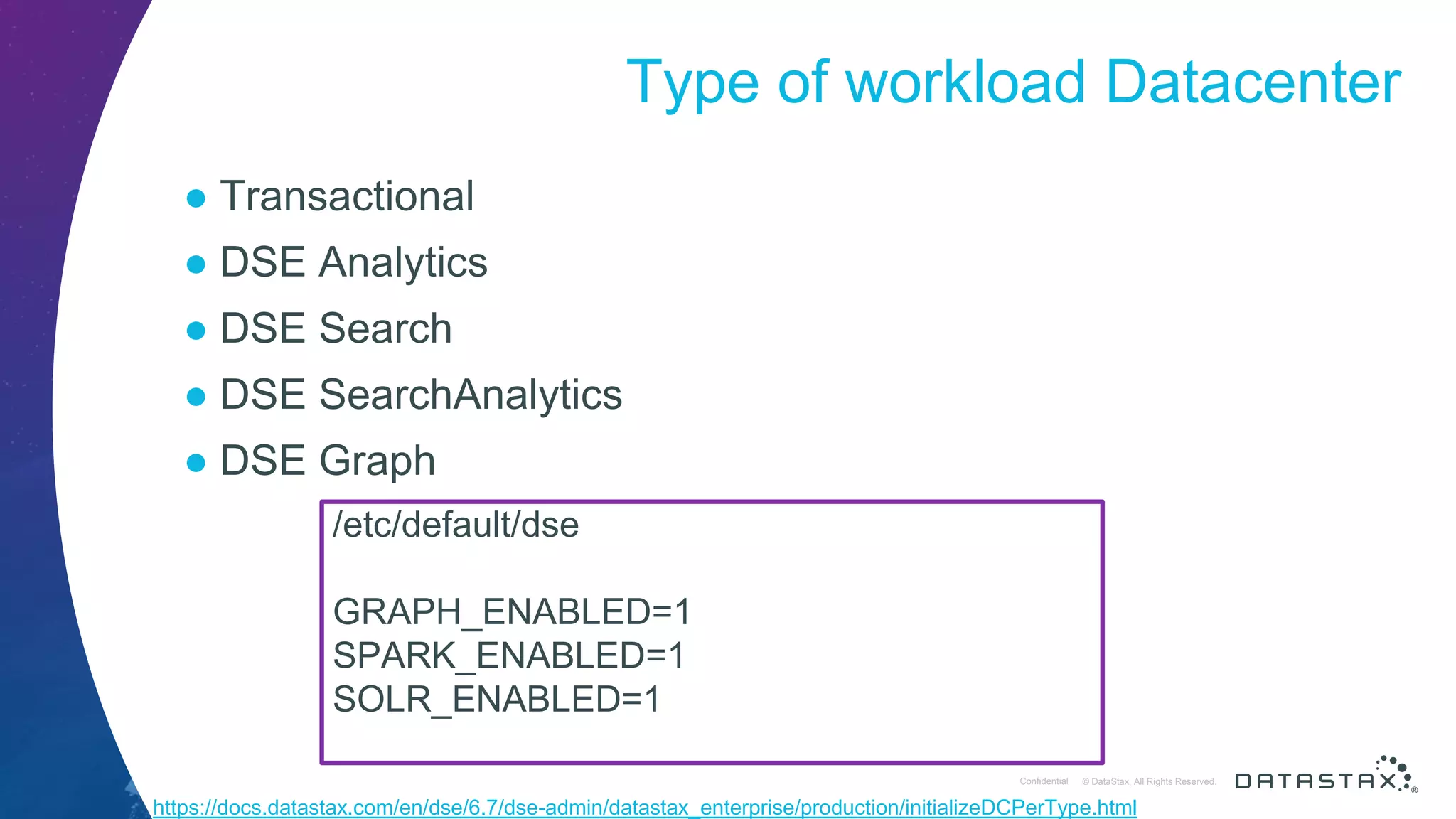

- 30. © DataStax, AllRights Reserved.ConfidentialConfidential © DataStax, All Rights Reserved. Type of workload Datacenter ● Transactional ● DSE Analytics ● DSE Search ● DSE SearchAnalytics ● DSE Graph /etc/default/dse GRAPH_ENABLED=1 SPARK_ENABLED=1 SOLR_ENABLED=1 https://docs.datastax.com/en/dse/6.7/dse-admin/datastax_enterprise/production/initializeDCPerType.html

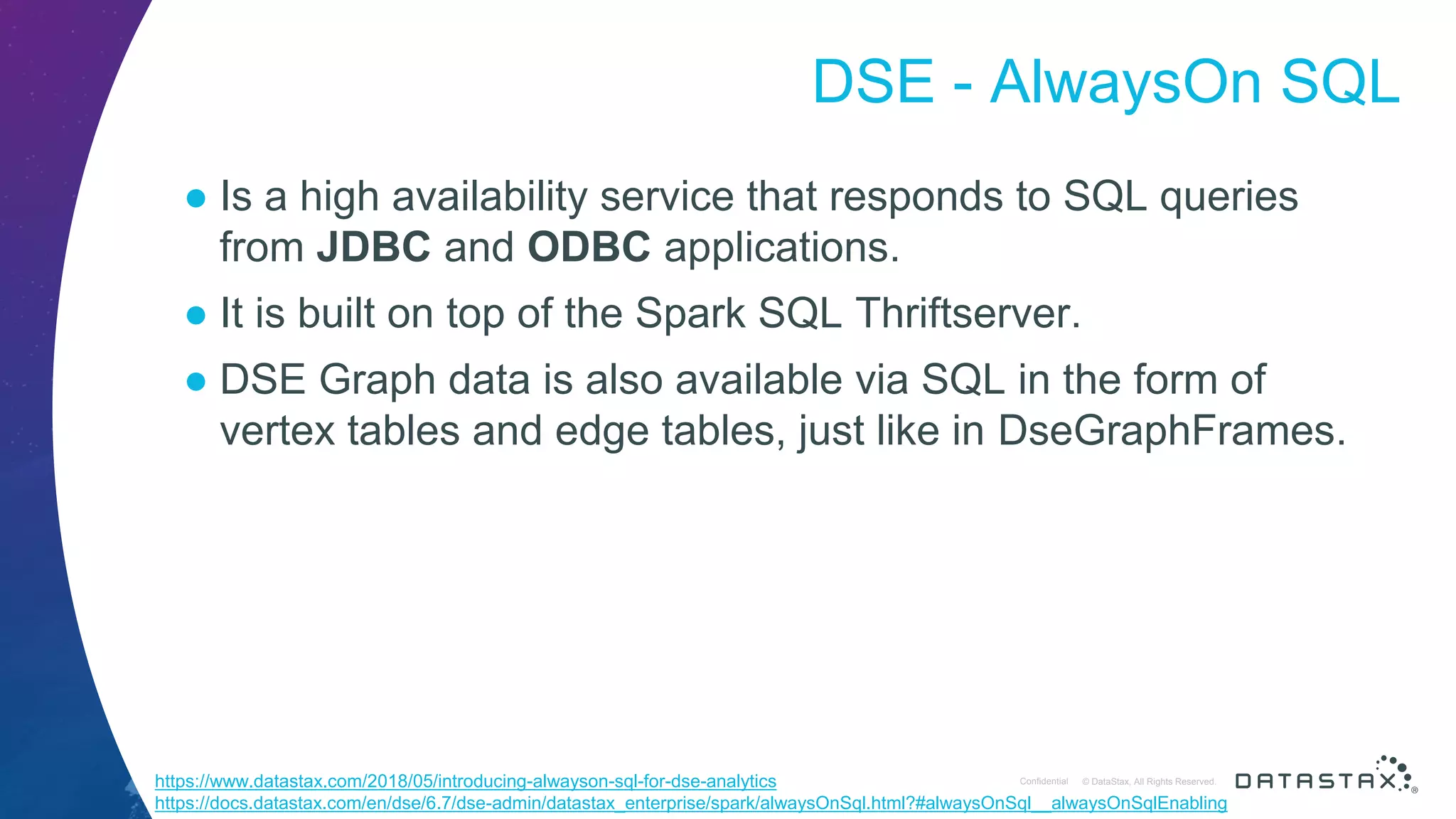

- 31. © DataStax, AllRights Reserved.ConfidentialConfidential © DataStax, All Rights Reserved. DSE - AlwaysOn SQL ● Is a high availability service that responds to SQL queries from JDBC and ODBC applications. ● It is built on top of the Spark SQL Thriftserver. ● DSE Graph data is also available via SQL in the form of vertex tables and edge tables, just like in DseGraphFrames. https://www.datastax.com/2018/05/introducing-alwayson-sql-for-dse-analytics https://docs.datastax.com/en/dse/6.7/dse-admin/datastax_enterprise/spark/alwaysOnSql.html?#alwaysOnSql__alwaysOnSqlEnabling

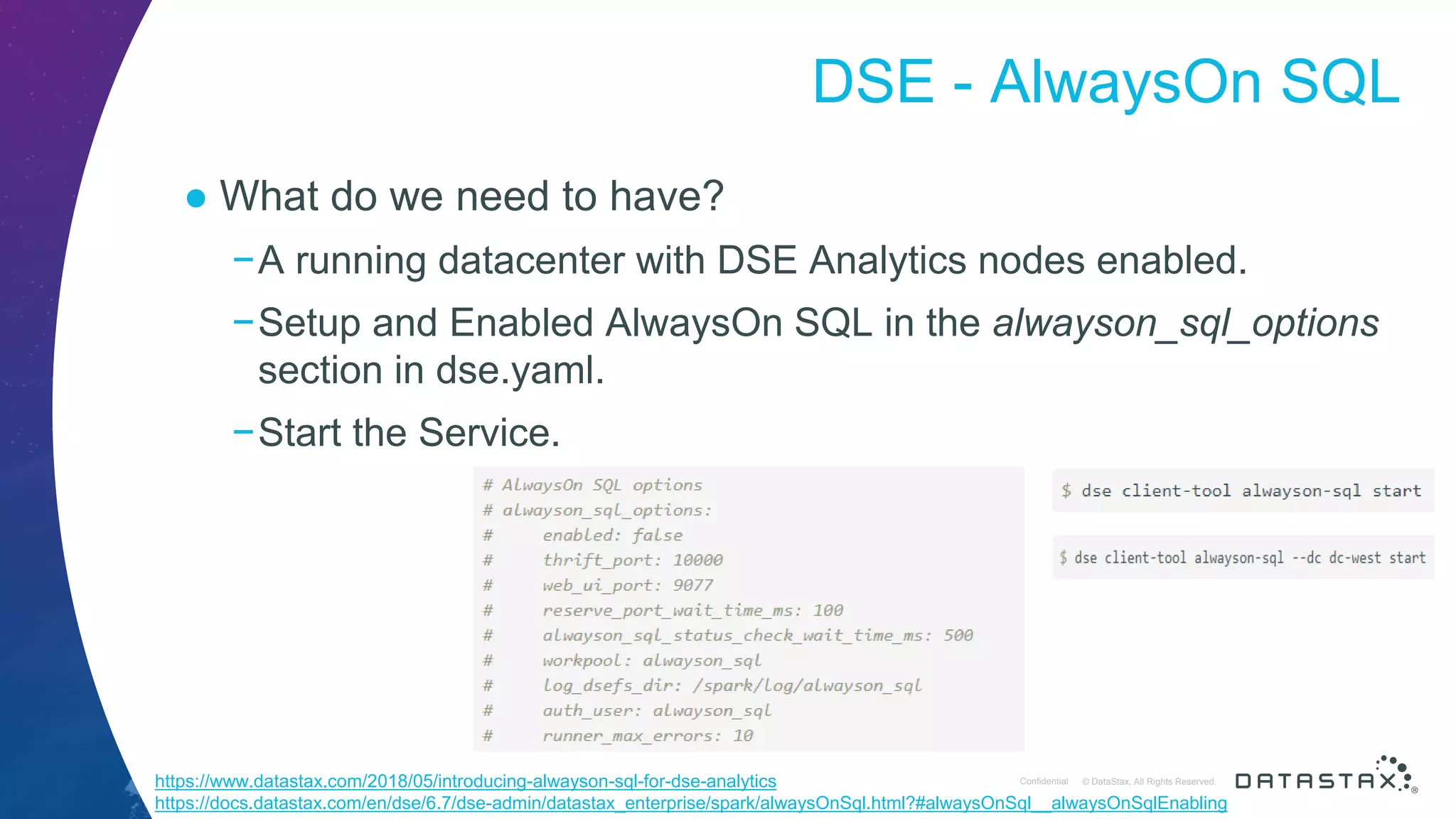

- 32. © DataStax, AllRights Reserved.ConfidentialConfidential © DataStax, All Rights Reserved. DSE - AlwaysOn SQL ● What do we need to have? −A running datacenter with DSE Analytics nodes enabled. −Setup and Enabled AlwaysOn SQL in the alwayson_sql_options section in dse.yaml. −Start the Service. https://www.datastax.com/2018/05/introducing-alwayson-sql-for-dse-analytics https://docs.datastax.com/en/dse/6.7/dse-admin/datastax_enterprise/spark/alwaysOnSql.html?#alwaysOnSql__alwaysOnSqlEnabling
- 33.
- 34. © DataStax, AllRights Reserved.ConfidentialConfidential © DataStax, All Rights Reserved. Use Case ● A telco company needs to implement a Big Data Real Time analytics architecture in order to monitor effective SMS campaigns. ● It is important to have a real-time dashboard and available connections to perform custom analyzes.

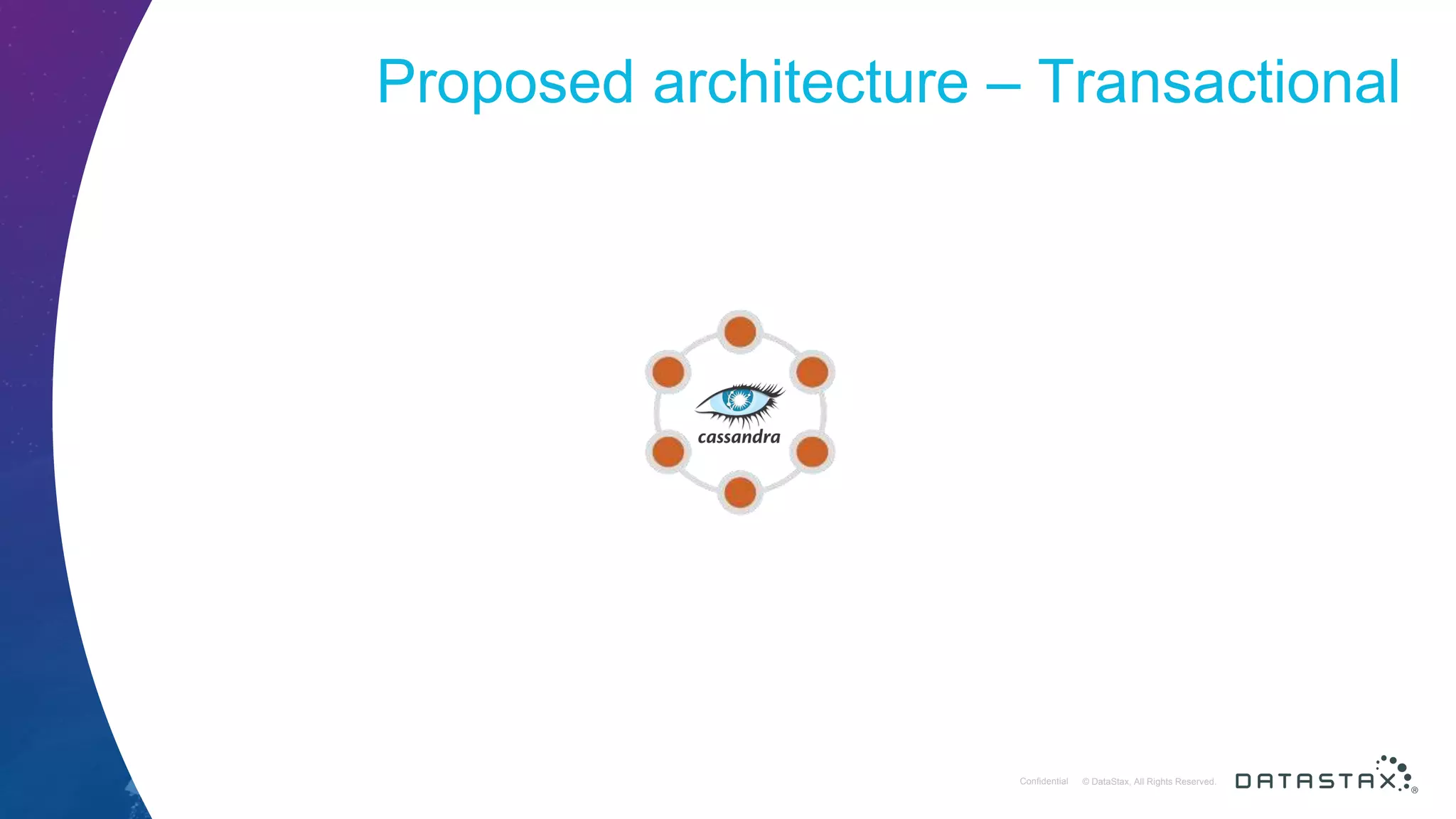

- 35. © DataStax, AllRights Reserved.ConfidentialConfidential © DataStax, All Rights Reserved. Proposed architecture – Transactional

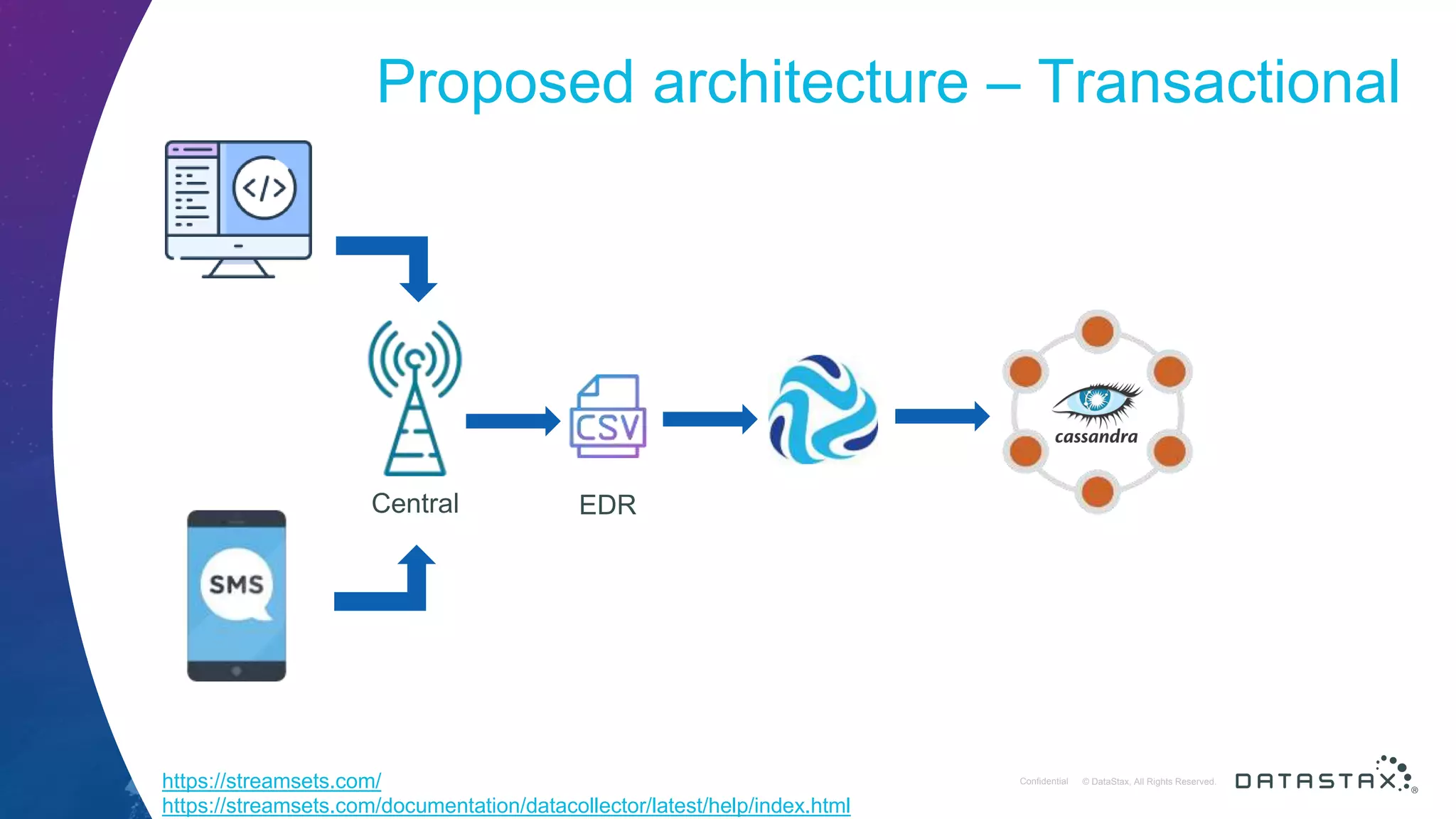

- 36. © DataStax, AllRights Reserved.ConfidentialConfidential © DataStax, All Rights Reserved. Proposed architecture – Transactional Central EDR https://streamsets.com/ https://streamsets.com/documentation/datacollector/latest/help/index.html

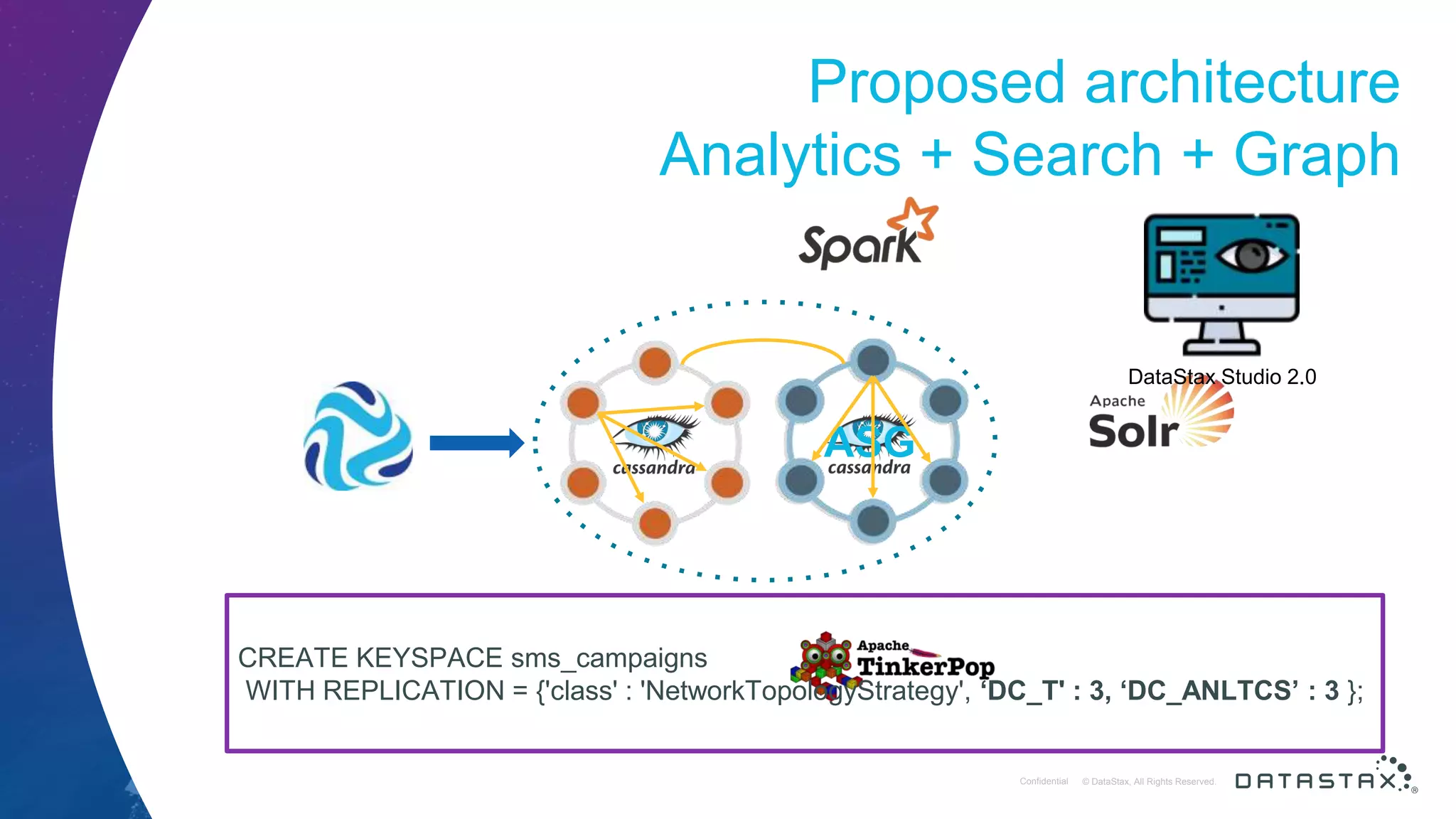

- 37. © DataStax, AllRights Reserved.ConfidentialConfidential © DataStax, All Rights Reserved. Proposed architecture Analytics + Search + Graph ASG DataStax Studio 2.0 CREATE KEYSPACE sms_campaigns WITH REPLICATION = {'class' : 'NetworkTopologyStrategy', ‘DC_T' : 3, ‘DC_ANLTCS’ : 3 };

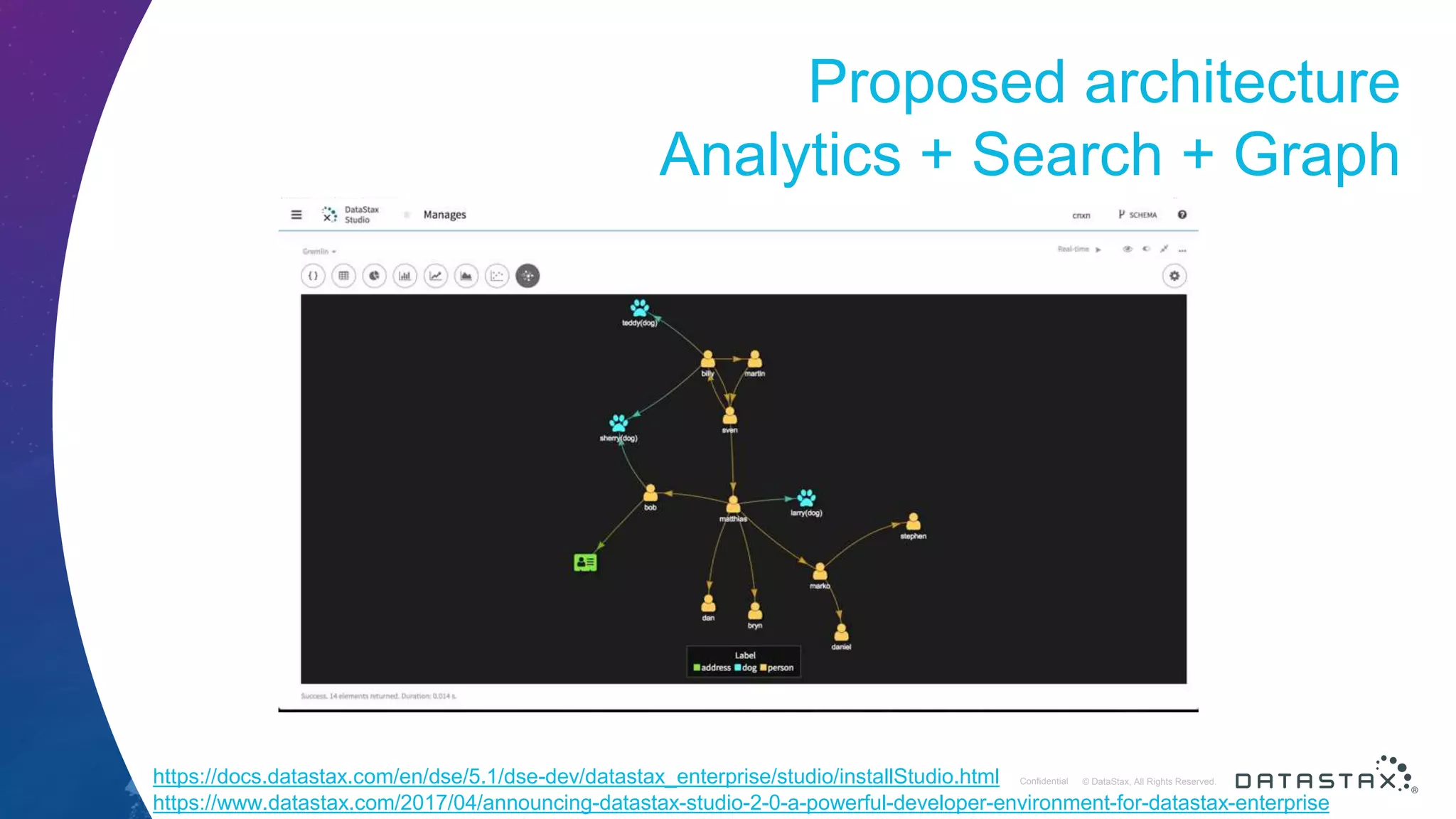

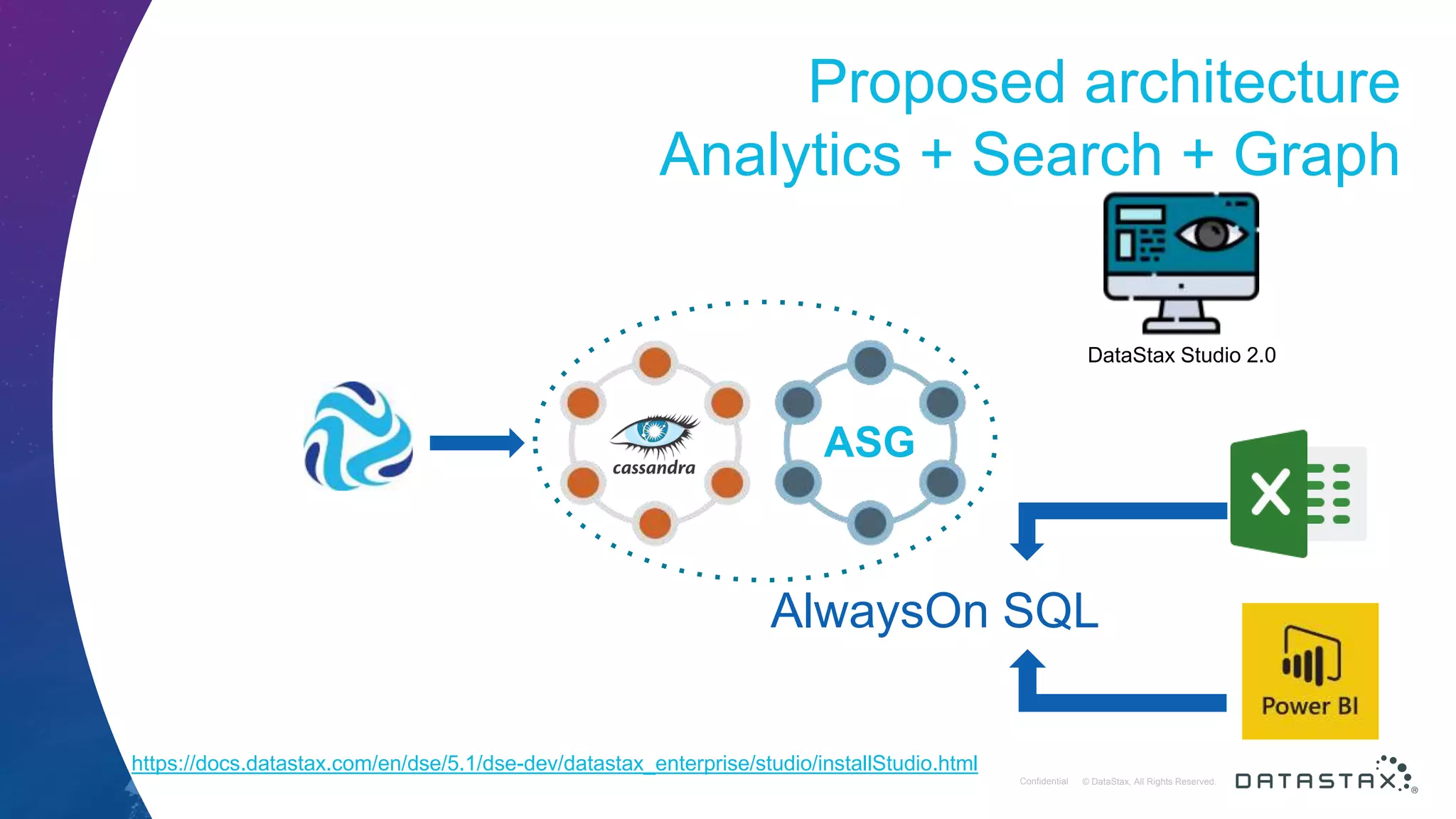

- 38. © DataStax, AllRights Reserved.ConfidentialConfidential © DataStax, All Rights Reserved. Proposed architecture Analytics + Search + Graph https://docs.datastax.com/en/dse/5.1/dse-dev/datastax_enterprise/studio/installStudio.html https://www.datastax.com/2017/04/announcing-datastax-studio-2-0-a-powerful-developer-environment-for-datastax-enterprise
- 39. © DataStax, AllRights Reserved.ConfidentialConfidential © DataStax, All Rights Reserved. Proposed architecture Analytics + Search + Graph https://docs.datastax.com/en/dse/5.1/dse-dev/datastax_enterprise/studio/installStudio.html DataStax Studio 2.0 ASG AlwaysOn SQL

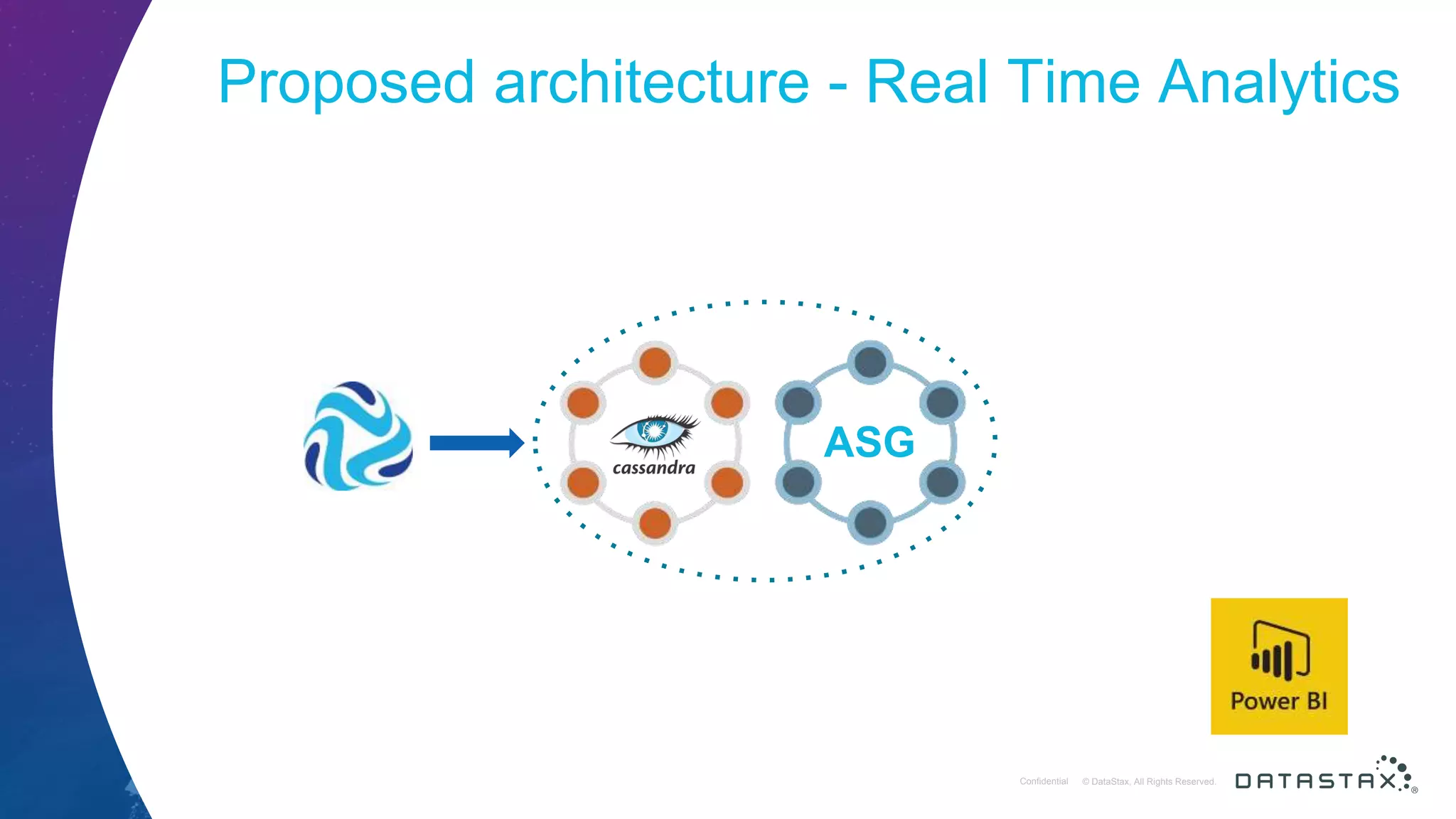

- 40. © DataStax, AllRights Reserved.ConfidentialConfidential © DataStax, All Rights Reserved. Proposed architecture - Real Time Analytics ASG

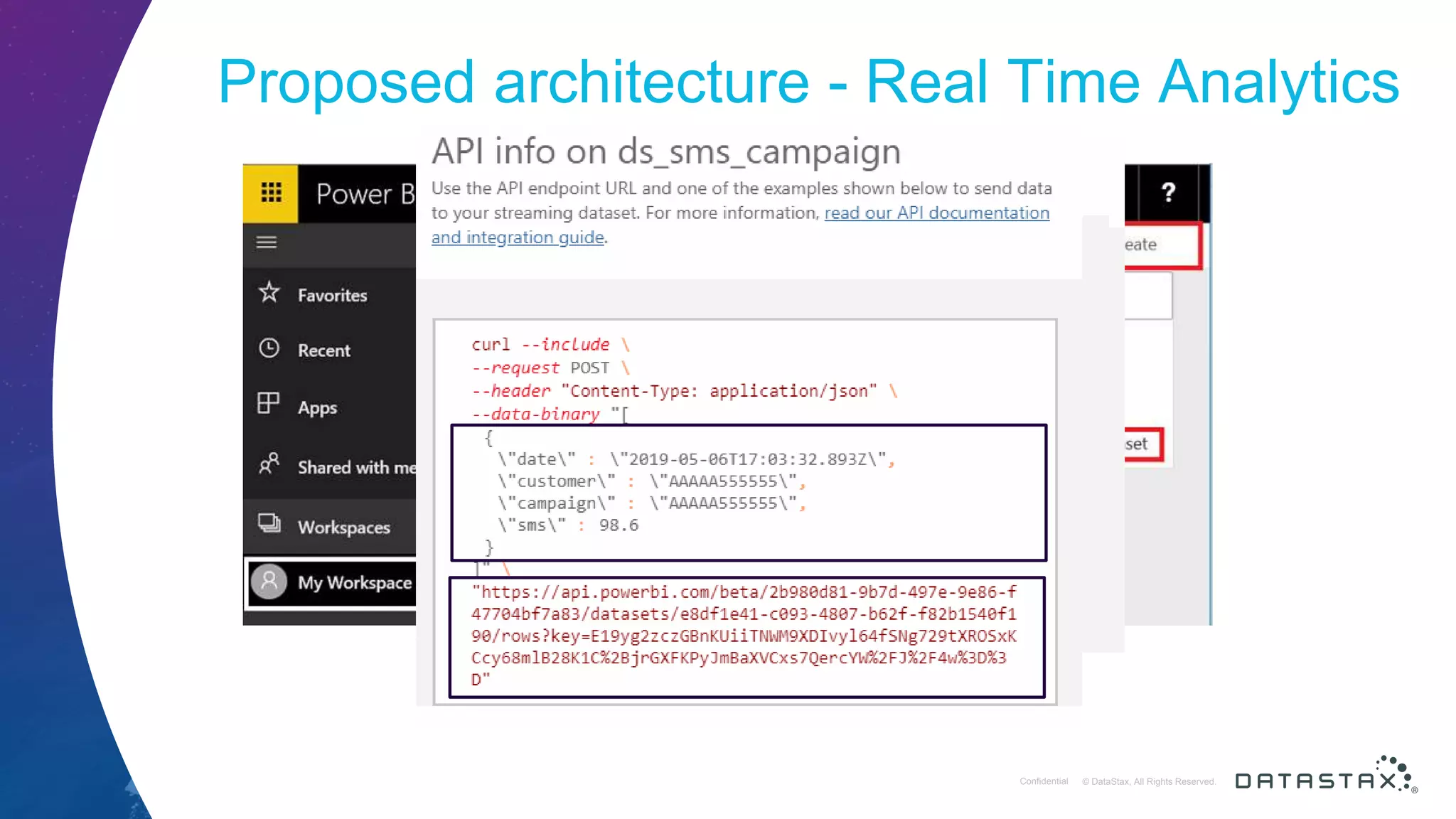

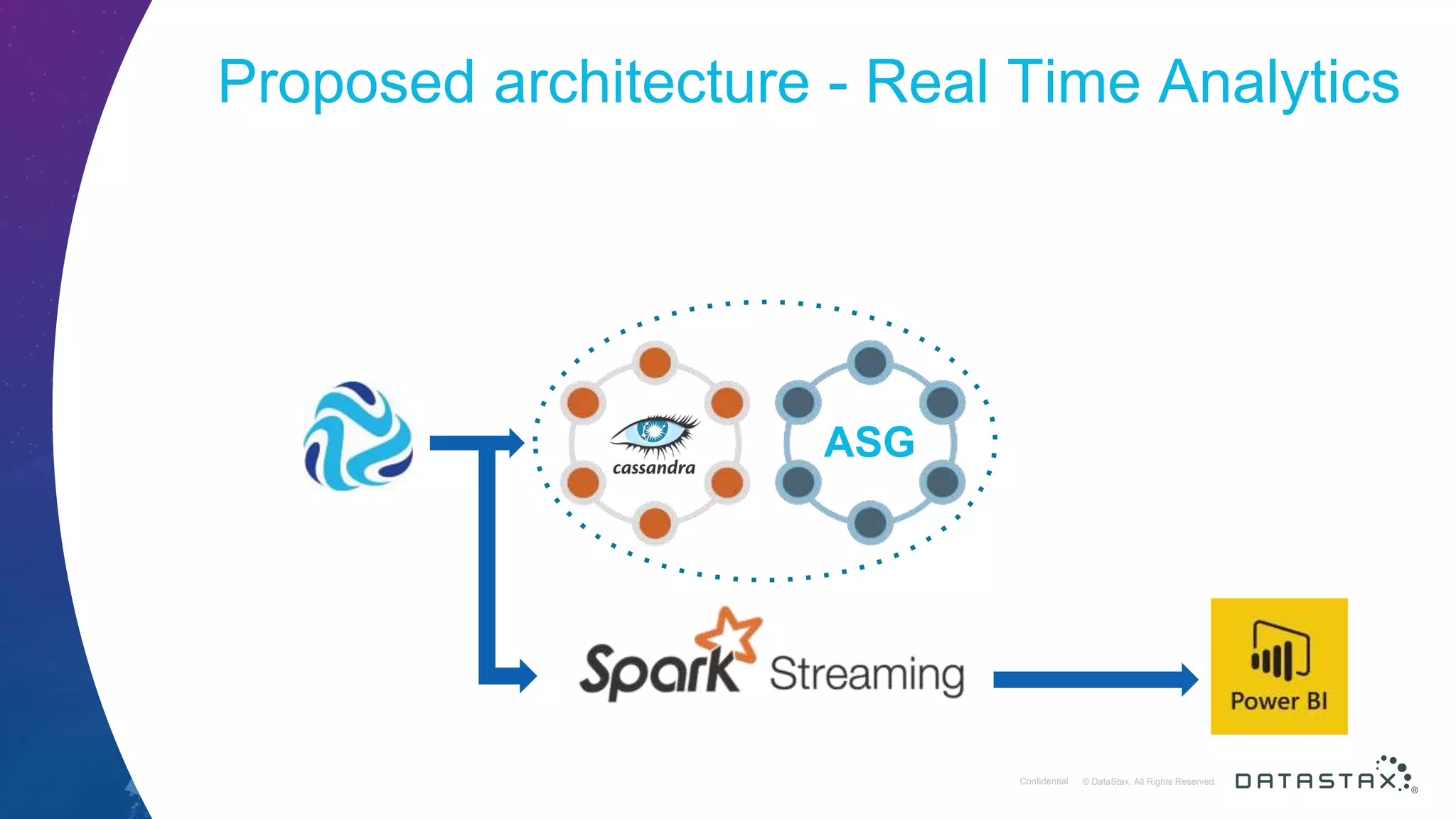

- 41. © DataStax, AllRights Reserved.ConfidentialConfidential © DataStax, All Rights Reserved. Proposed architecture - Real Time Analytics
- 42. © DataStax, AllRights Reserved.ConfidentialConfidential © DataStax, All Rights Reserved. Proposed architecture - Real Time Analytics ASG

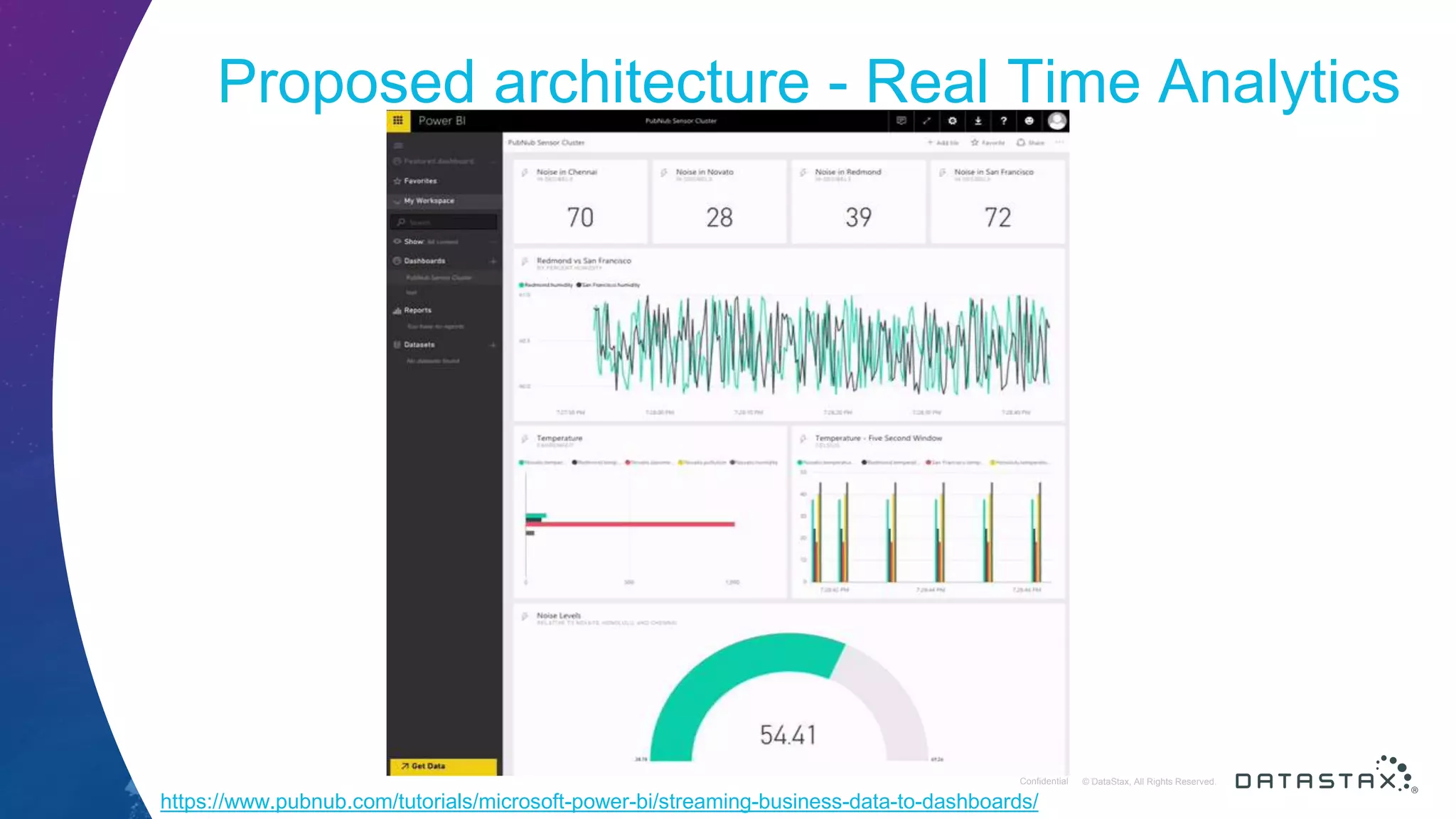

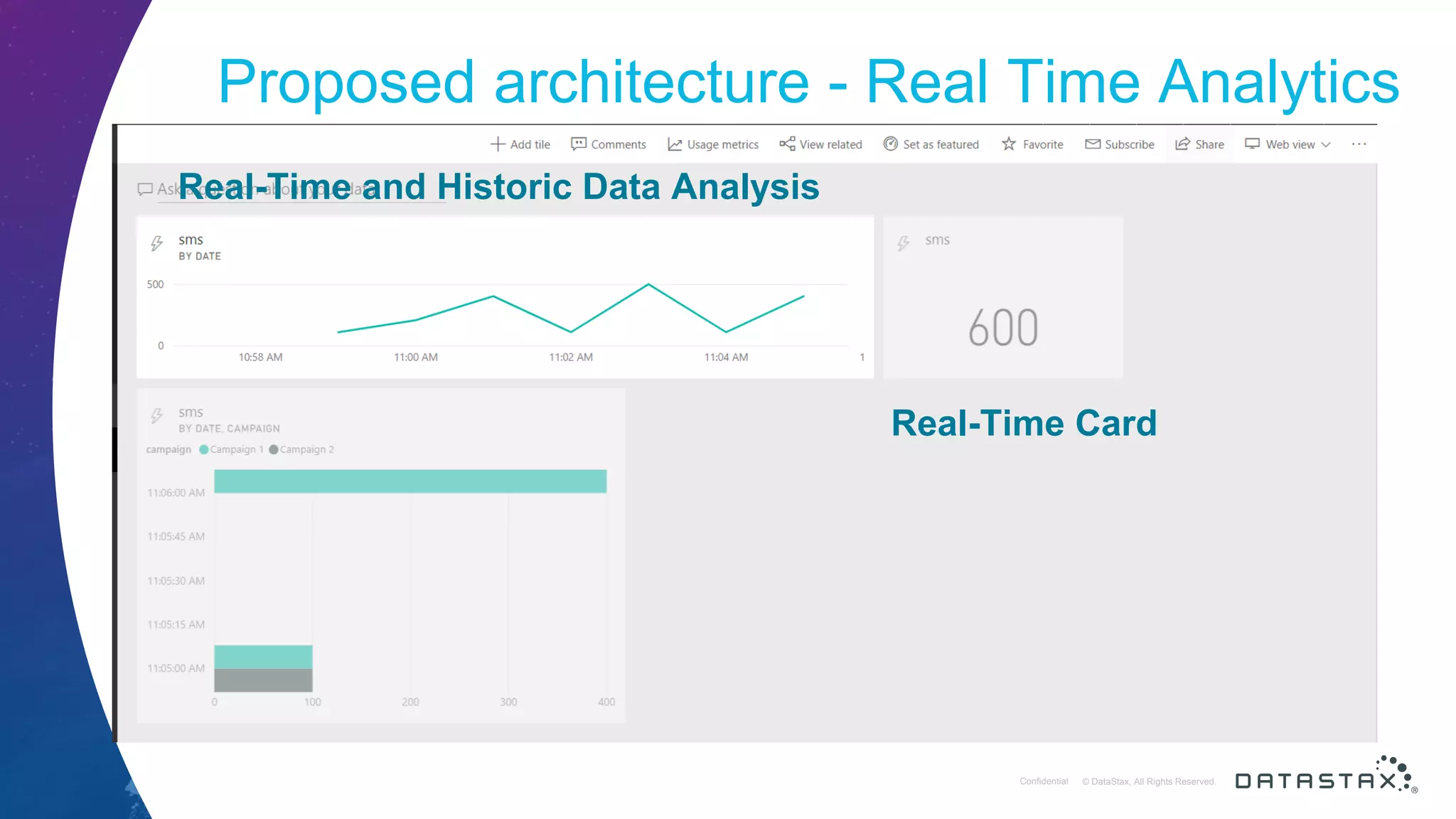

- 43. © DataStax, AllRights Reserved.ConfidentialConfidential © DataStax, All Rights Reserved. Proposed architecture - Real Time Analytics Real-Time Card Real-Time and Historic Data Analysis
- 44. © DataStax, AllRights Reserved.ConfidentialConfidential © DataStax, All Rights Reserved. Proposed architecture - Real Time Analytics https://www.pubnub.com/tutorials/microsoft-power-bi/streaming-business-data-to-dashboards/

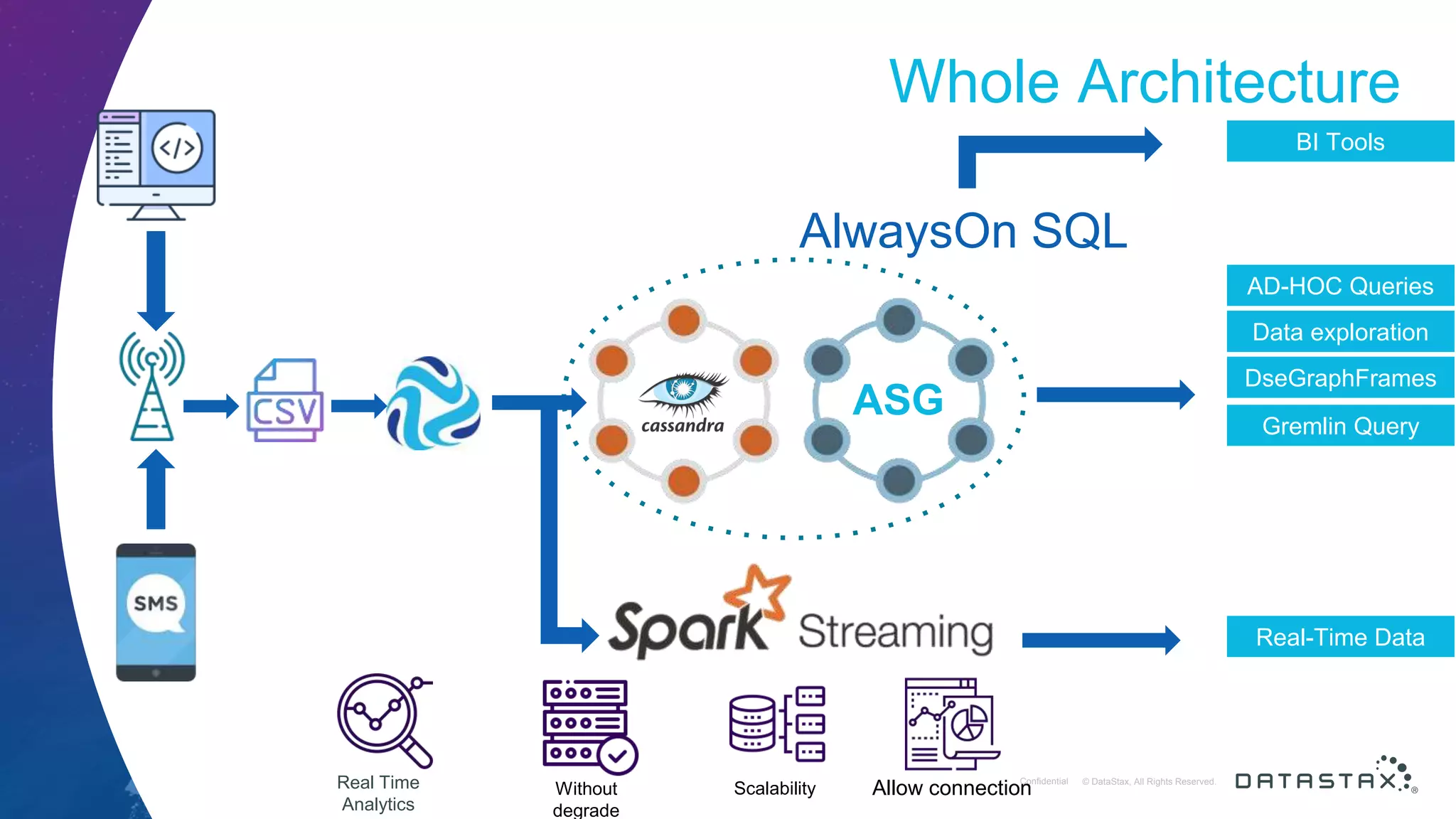

- 45. © DataStax, AllRights Reserved.ConfidentialConfidential © DataStax, All Rights Reserved. Whole Architecture ASG AlwaysOn SQL BI Tools AD-HOC Queries Data exploration Real-Time Data DseGraphFrames Gremlin Query Real Time Analytics Without degrade Scalability Allow connection
