Gitlab ci e kubernetes, build test and deploy your projects like a pro

GitlabCI and Kubernetes #build #test and #deploy your projects like a #pro

Paolo Mainardi (@paolomainardi) ● CTO @sparkfabrik ● OSS developer, devops automation engineer ● Checkout my projects here: github.com/paolomainardi

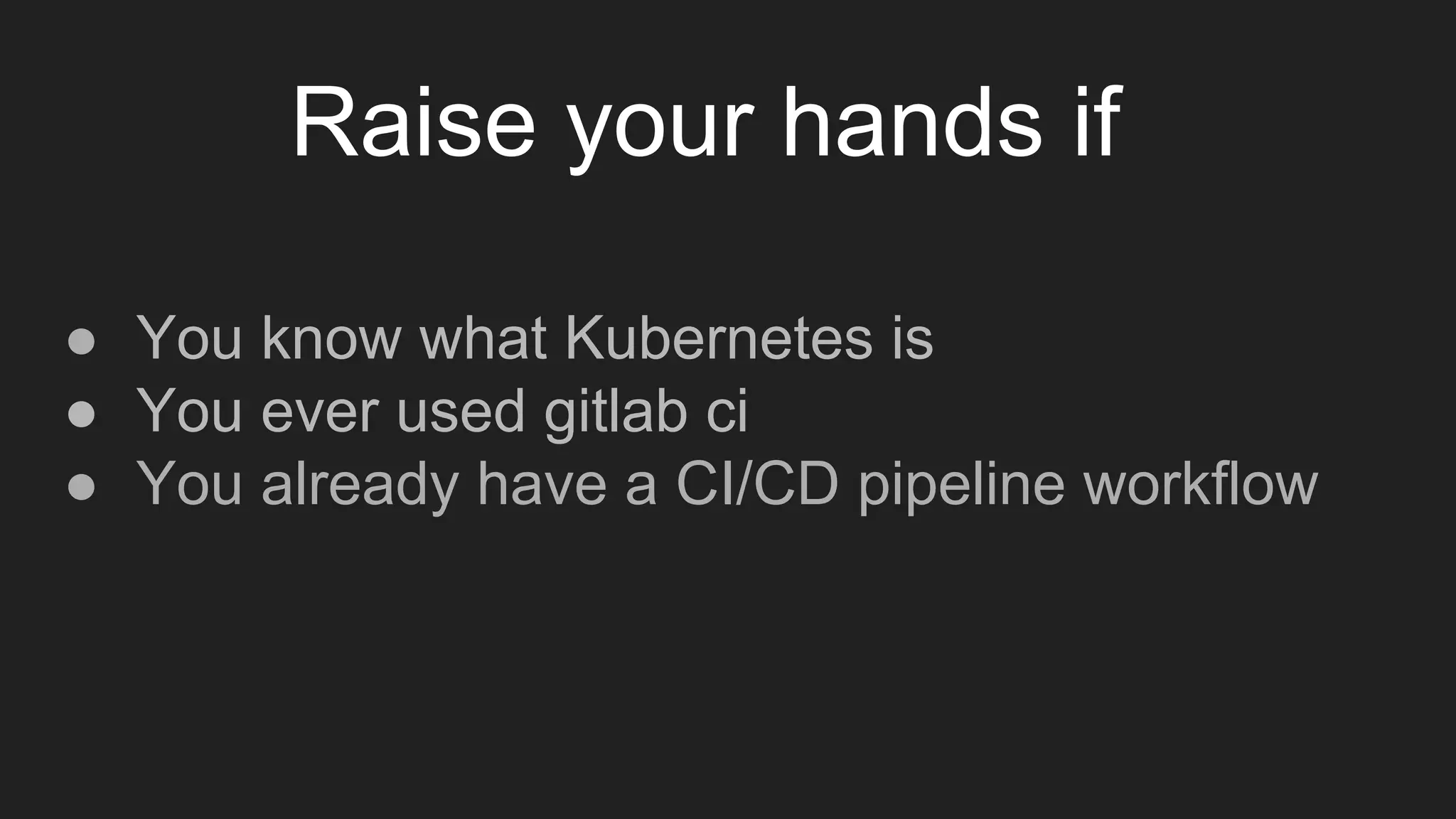

● You know what Kubernetes is ● You ever used gitlab ci ● You already have a CI/CD pipeline workflow Raise your hands if

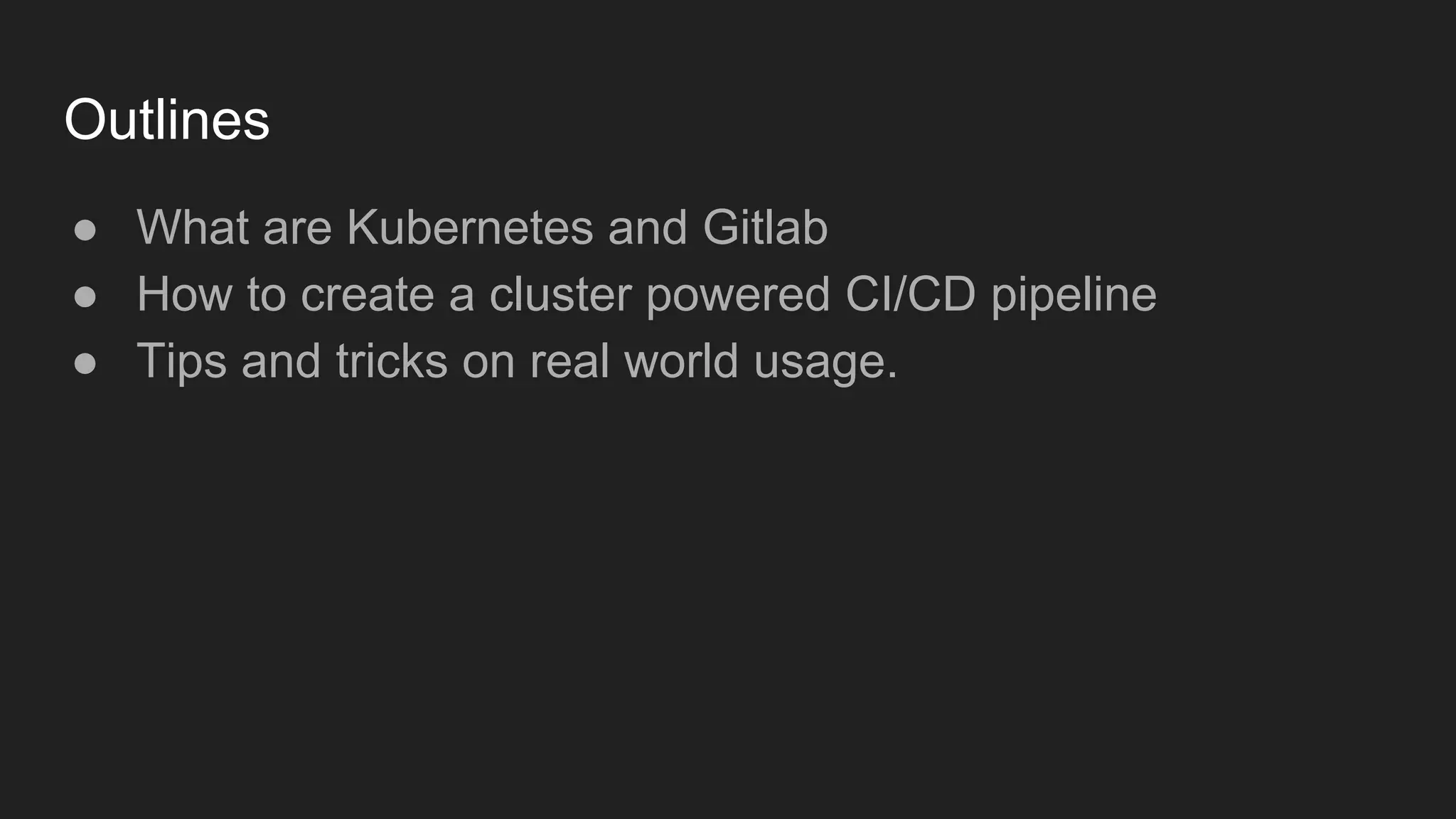

Outlines ● What are Kubernetes and Gitlab ● How to create a cluster powered CI/CD pipeline ● Tips and tricks on real world usage.

Continuous integration is a tough job... Credits: deis.com/blog/2016/kubernetes-illustrated-guide/

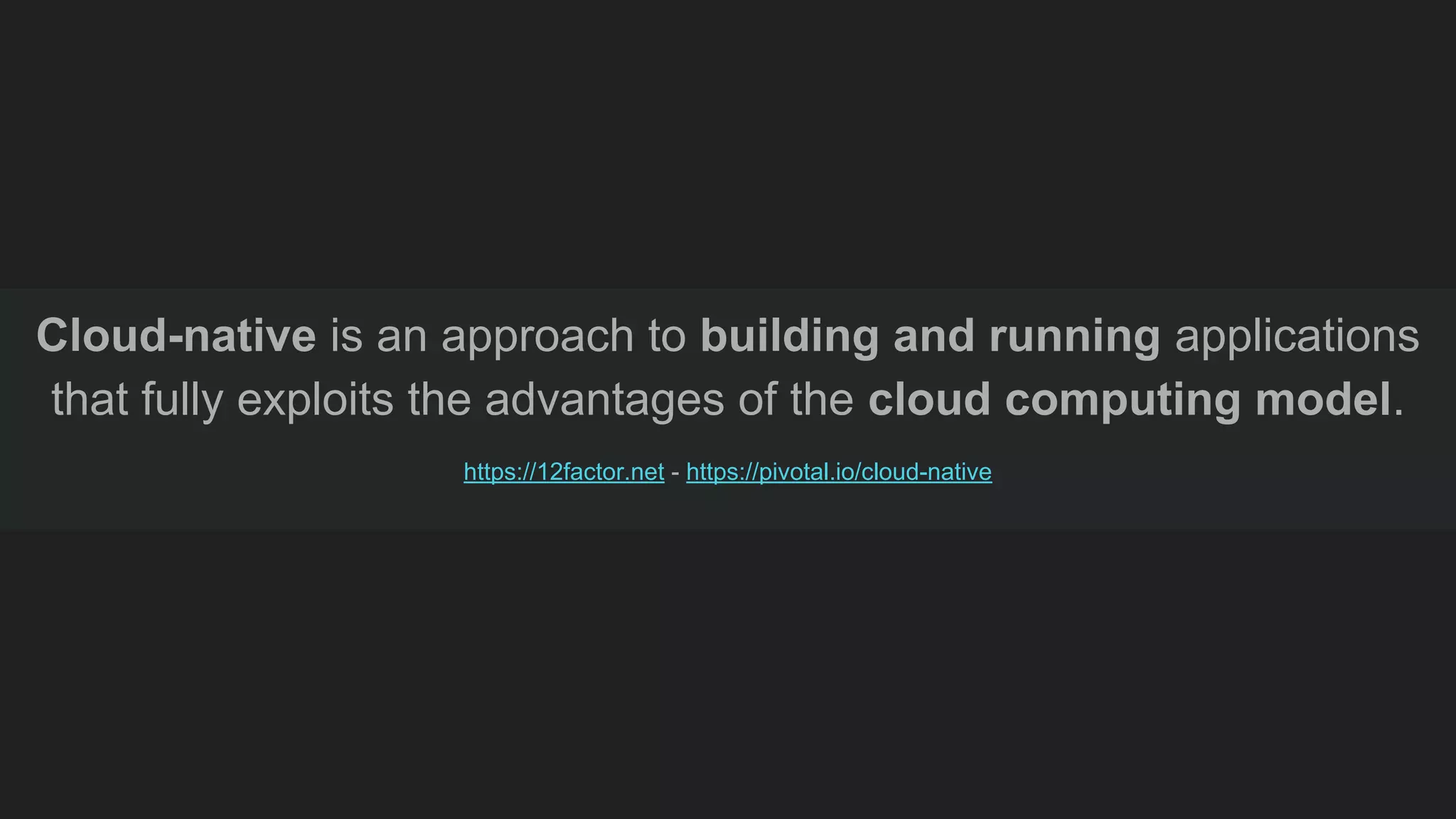

Cloud-native is an approach to building and running applications that fully exploits the advantages of the cloud computing model. https://12factor.net - https://pivotal.io/cloud-native

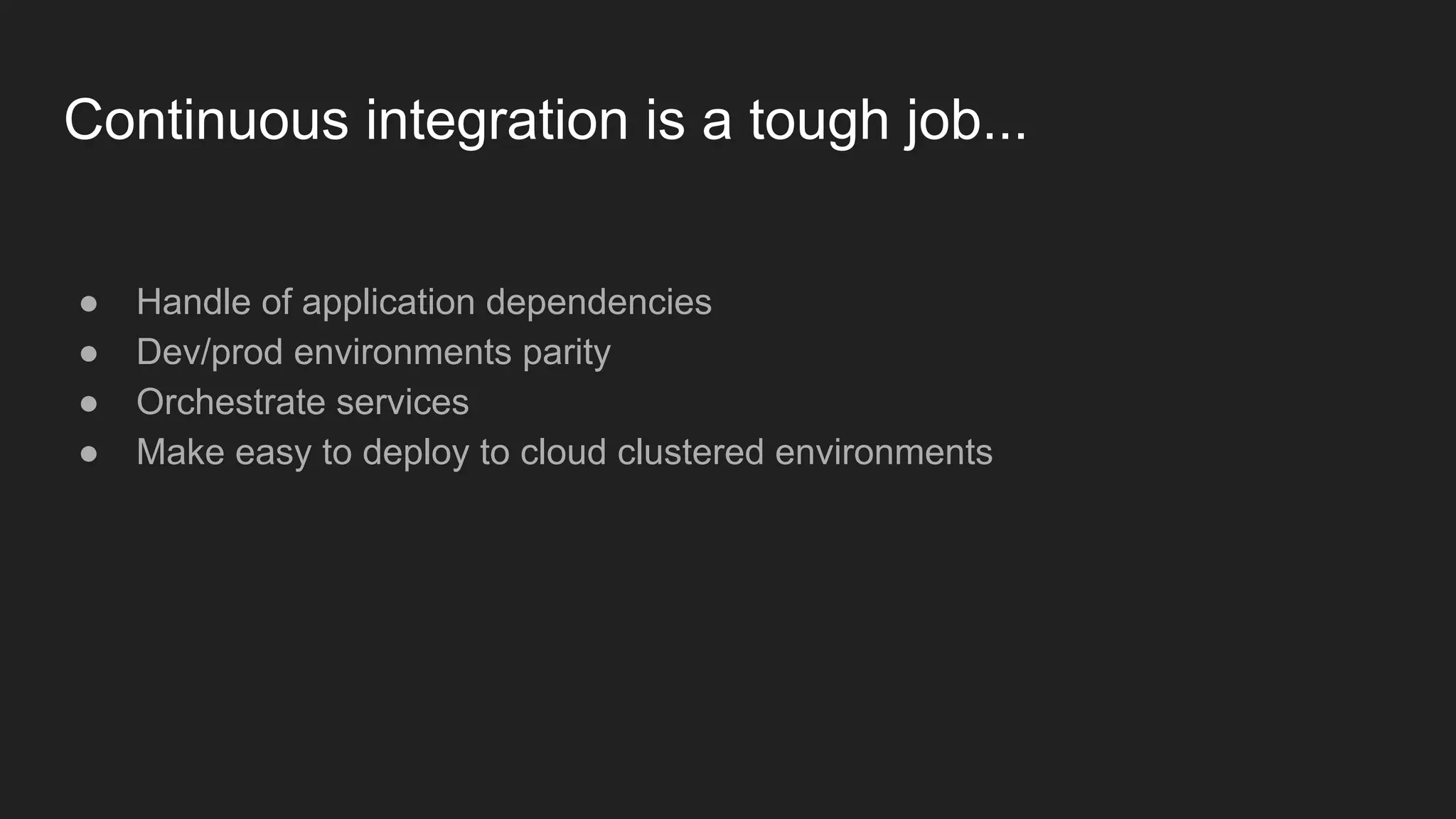

● Handle of application dependencies ● Dev/prod environments parity ● Orchestrate services ● Make easy to deploy to cloud clustered environments Continuous integration is a tough job...

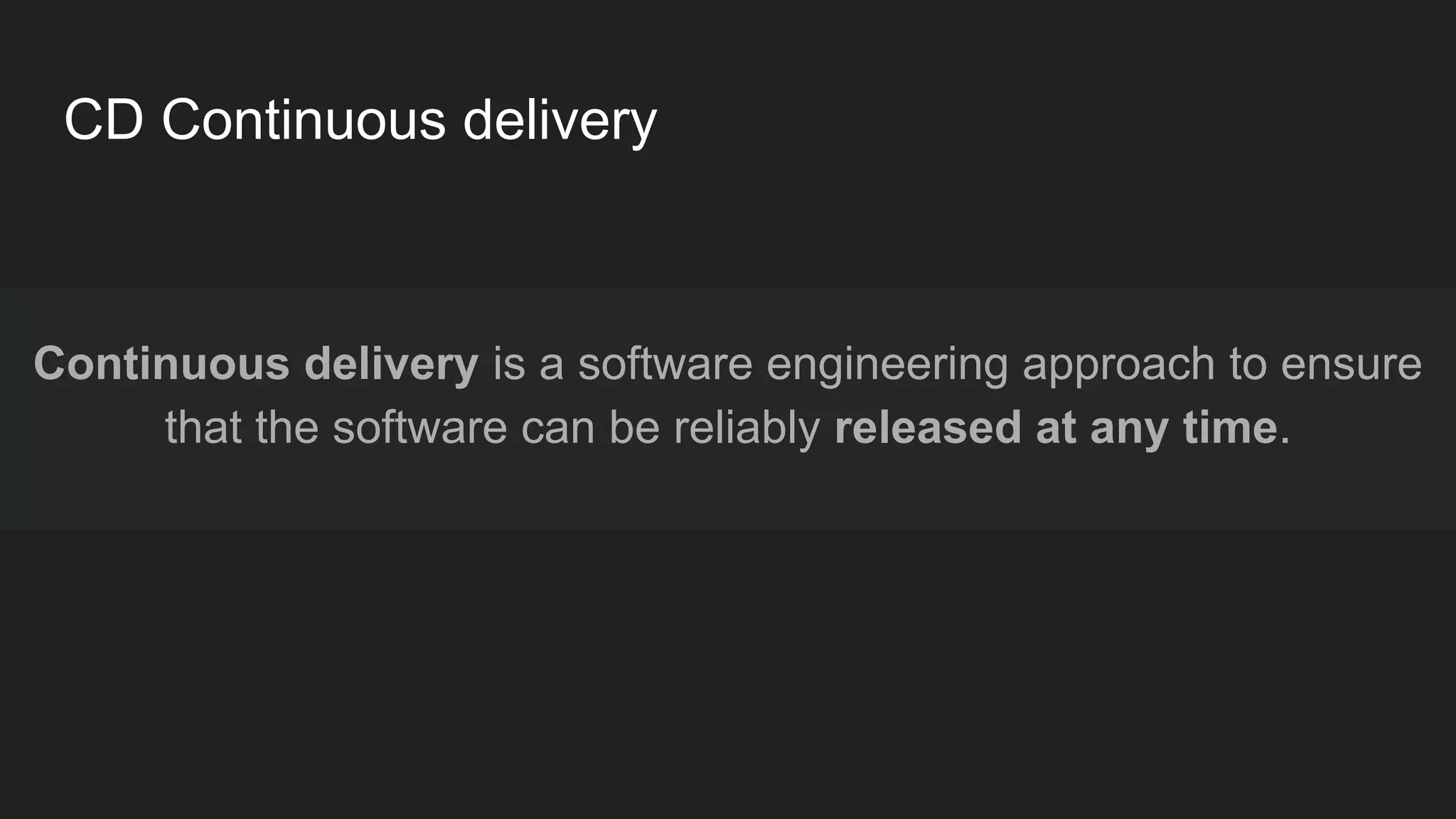

Continuous delivery is a software engineering approach to ensure that the software can be reliably released at any time. CD Continuous delivery

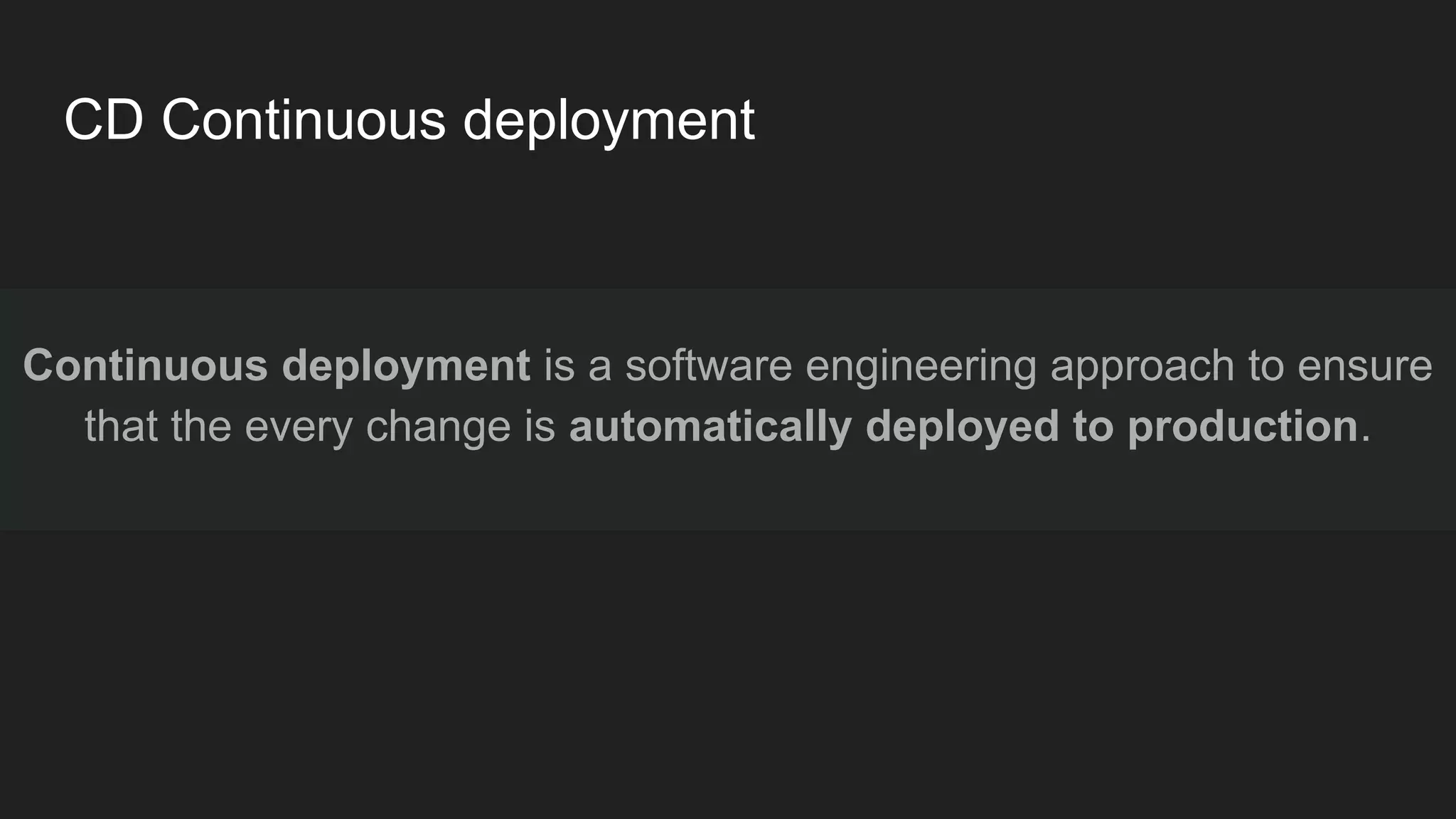

Continuous deployment is a software engineering approach to ensure that the every change is automatically deployed to production. CD Continuous deployment

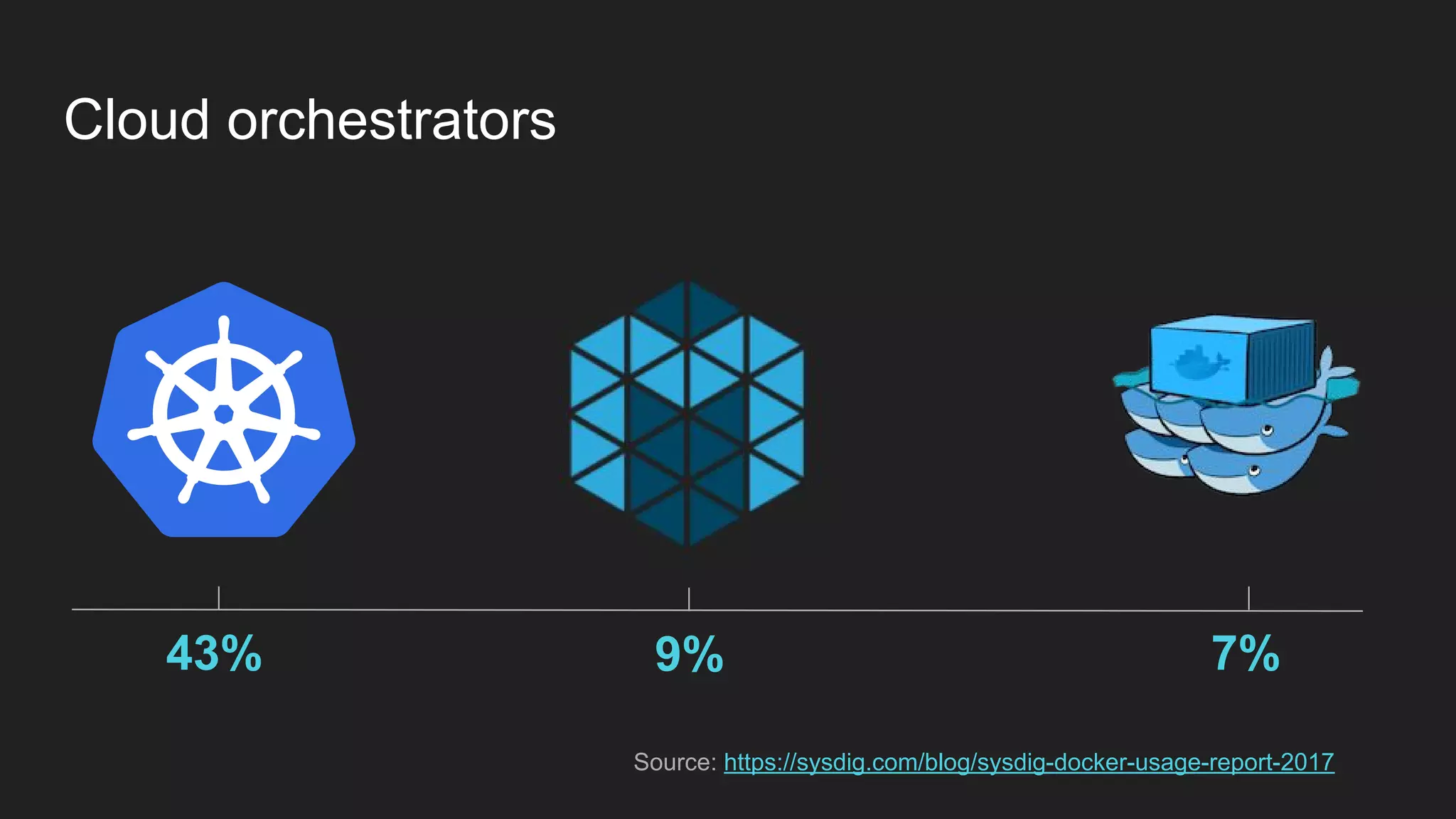

Cloud orchestrators 9%43% 7% Source: https://sysdig.com/blog/sysdig-docker-usage-report-2017

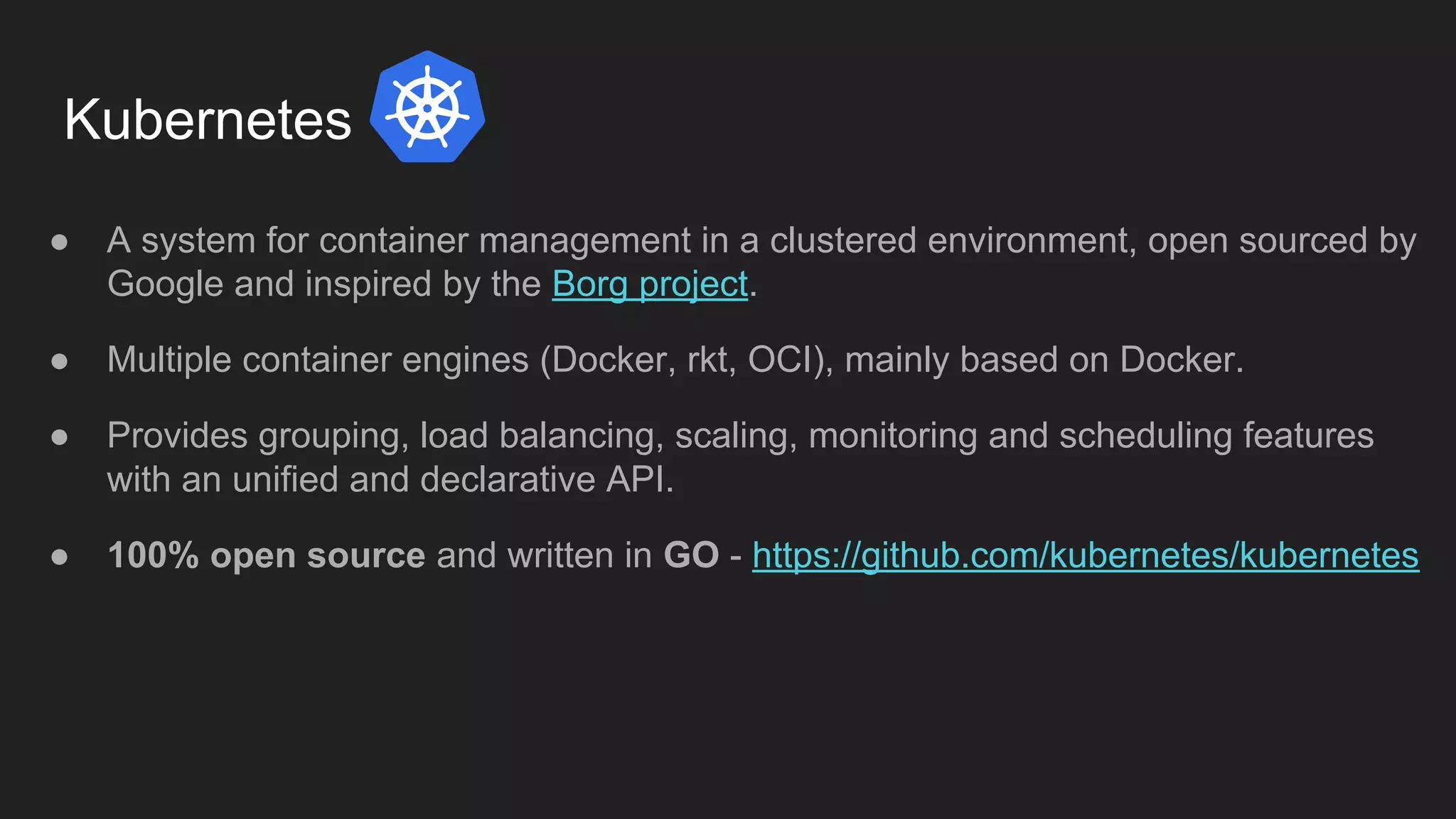

Kubernetes ● A system for container management in a clustered environment, open sourced by Google and inspired by the Borg project. ● Multiple container engines (Docker, rkt, OCI), mainly based on Docker. ● Provides grouping, load balancing, scaling, monitoring and scheduling features with an unified and declarative API. ● 100% open source and written in GO - https://github.com/kubernetes/kubernetes

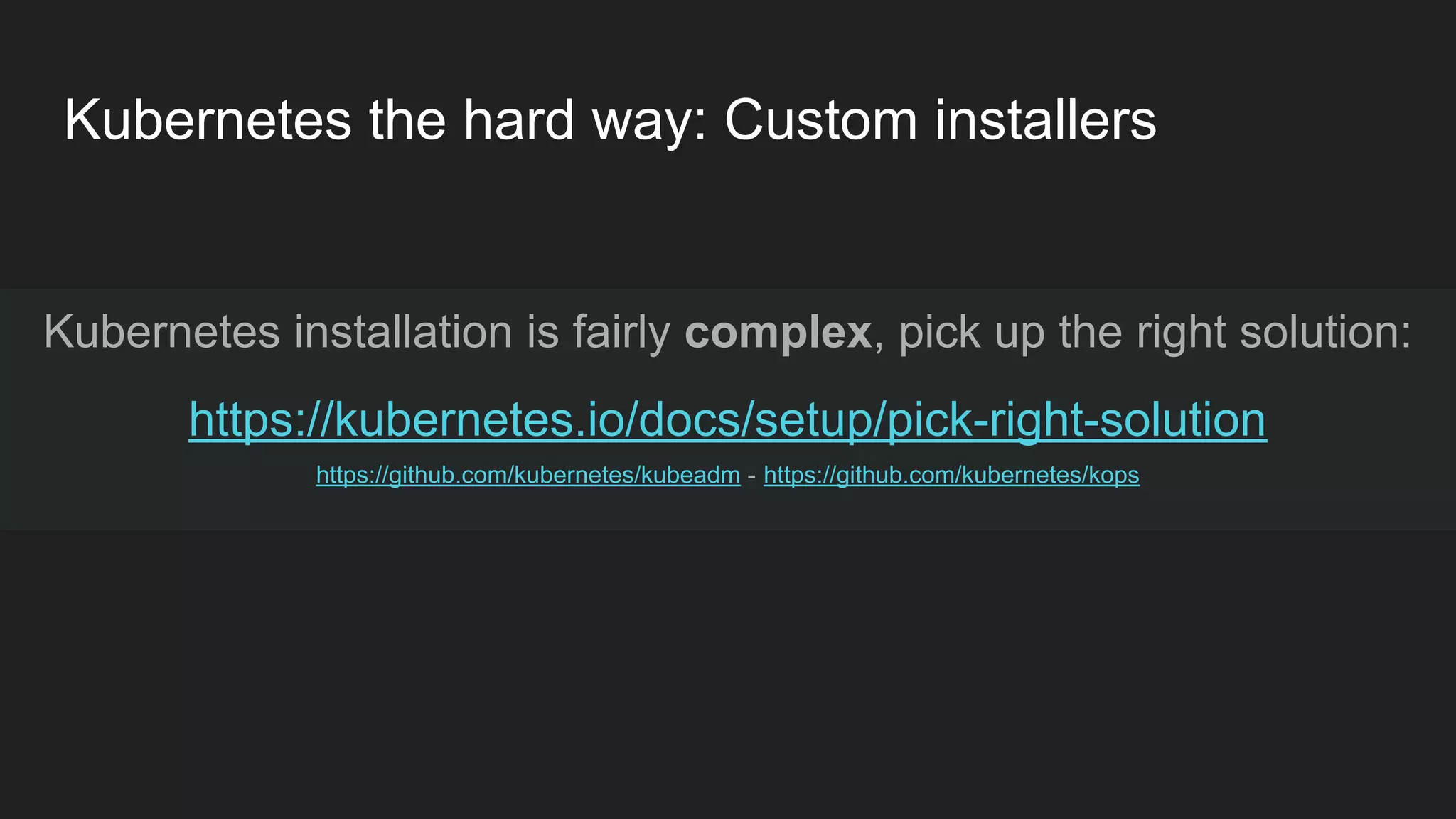

Kubernetes the hard way: Custom installers Kubernetes installation is fairly complex, pick up the right solution: https://kubernetes.io/docs/setup/pick-right-solution https://github.com/kubernetes/kubeadm - https://github.com/kubernetes/kops

Kubernetes the easier way: Google GKE One-click Kubernetes clusters, managed by Google: https://cloud.google.com/container-engine

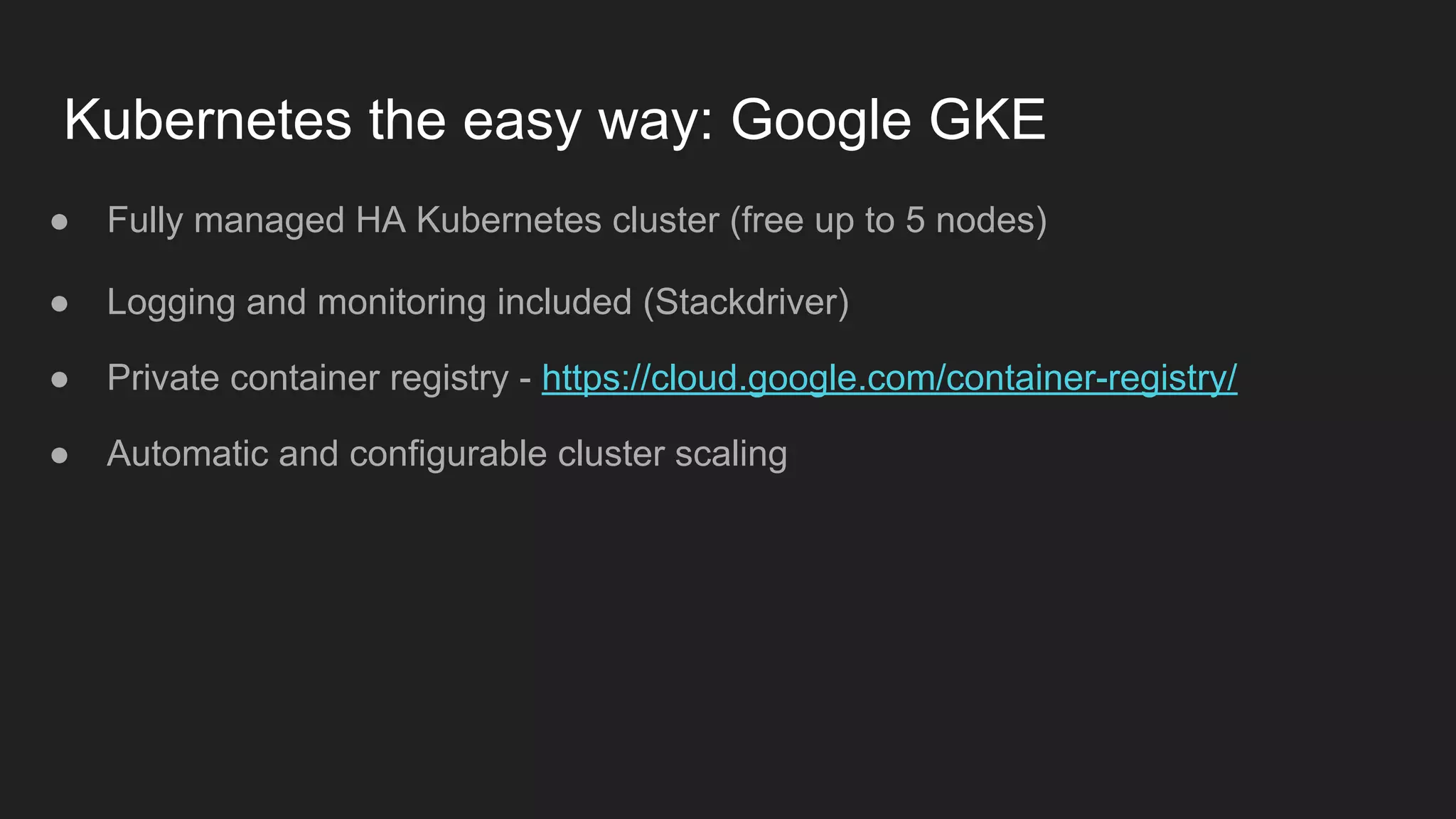

Kubernetes the easy way: Google GKE ● Fully managed HA Kubernetes cluster (free up to 5 nodes) ● Logging and monitoring included (Stackdriver) ● Private container registry - https://cloud.google.com/container-registry/ ● Automatic and configurable cluster scaling

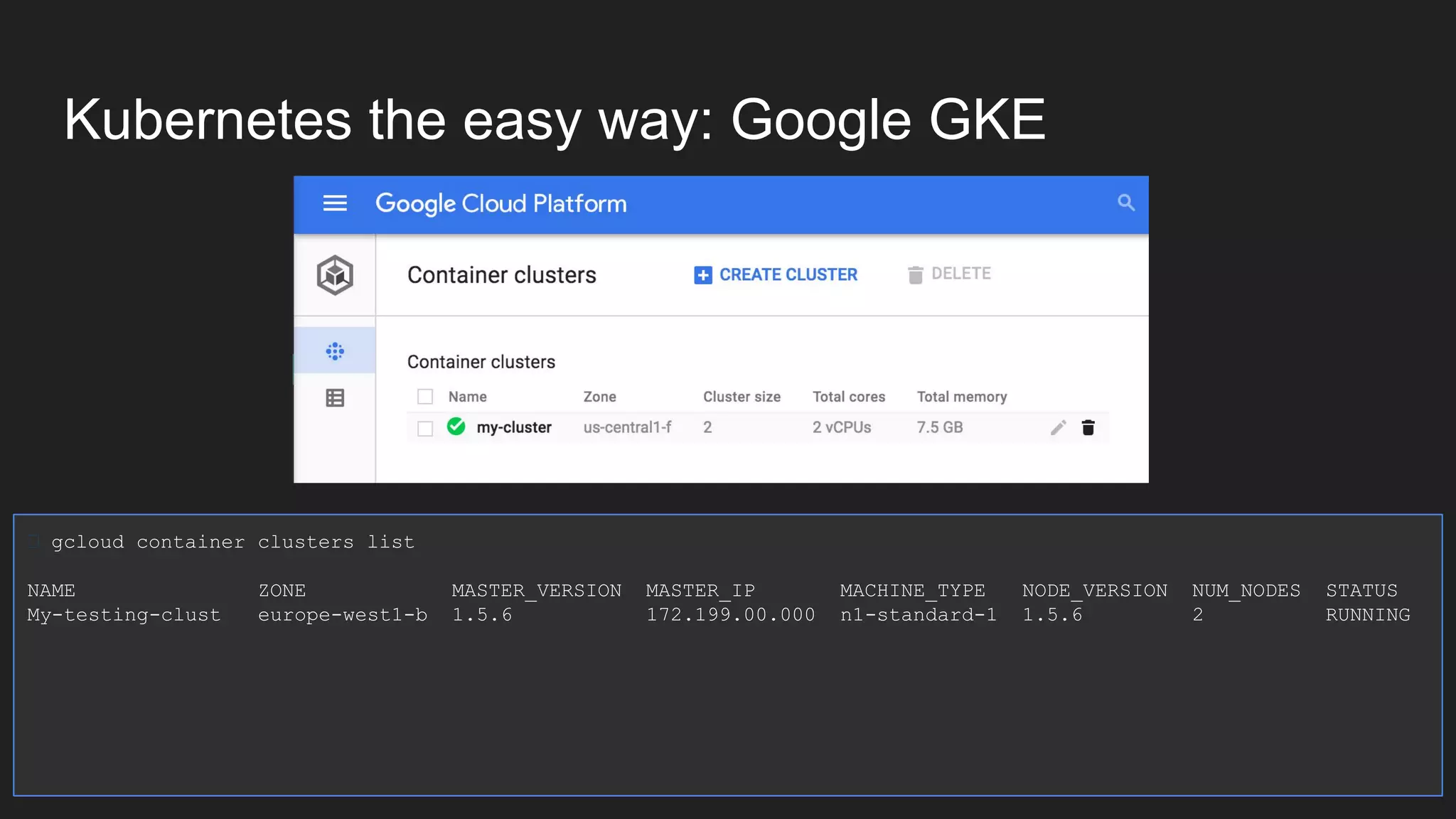

Kubernetes the easy way: Google GKE gcloud container clusters list NAME ZONE MASTER_VERSION MASTER_IP MACHINE_TYPE NODE_VERSION NUM_NODES STATUS My-testing-clust europe-west1-b 1.5.6 172.199.00.000 n1-standard-1 1.5.6 2 RUNNING

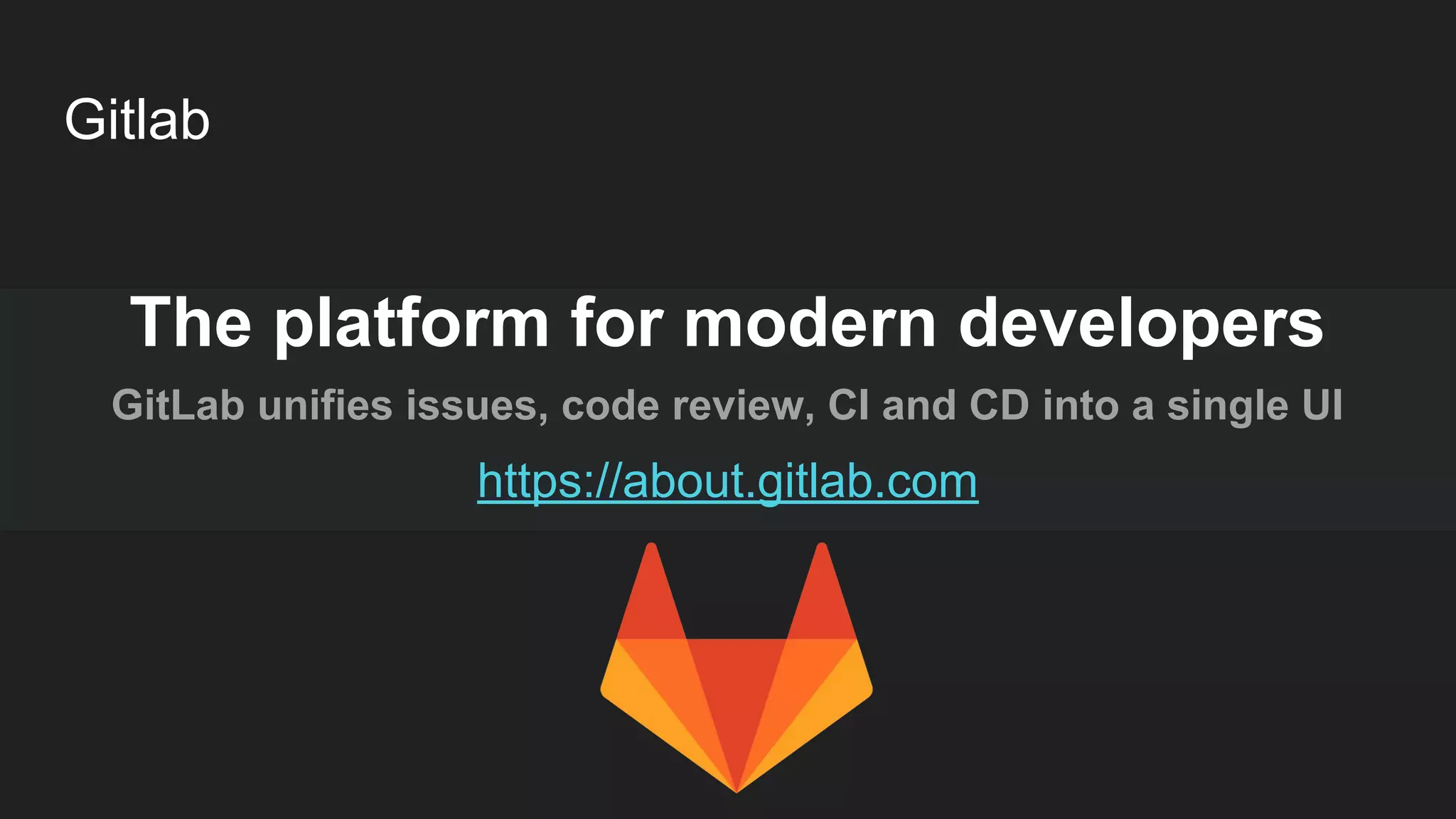

Gitlab The platform for modern developers GitLab unifies issues, code review, CI and CD into a single UI https://about.gitlab.com

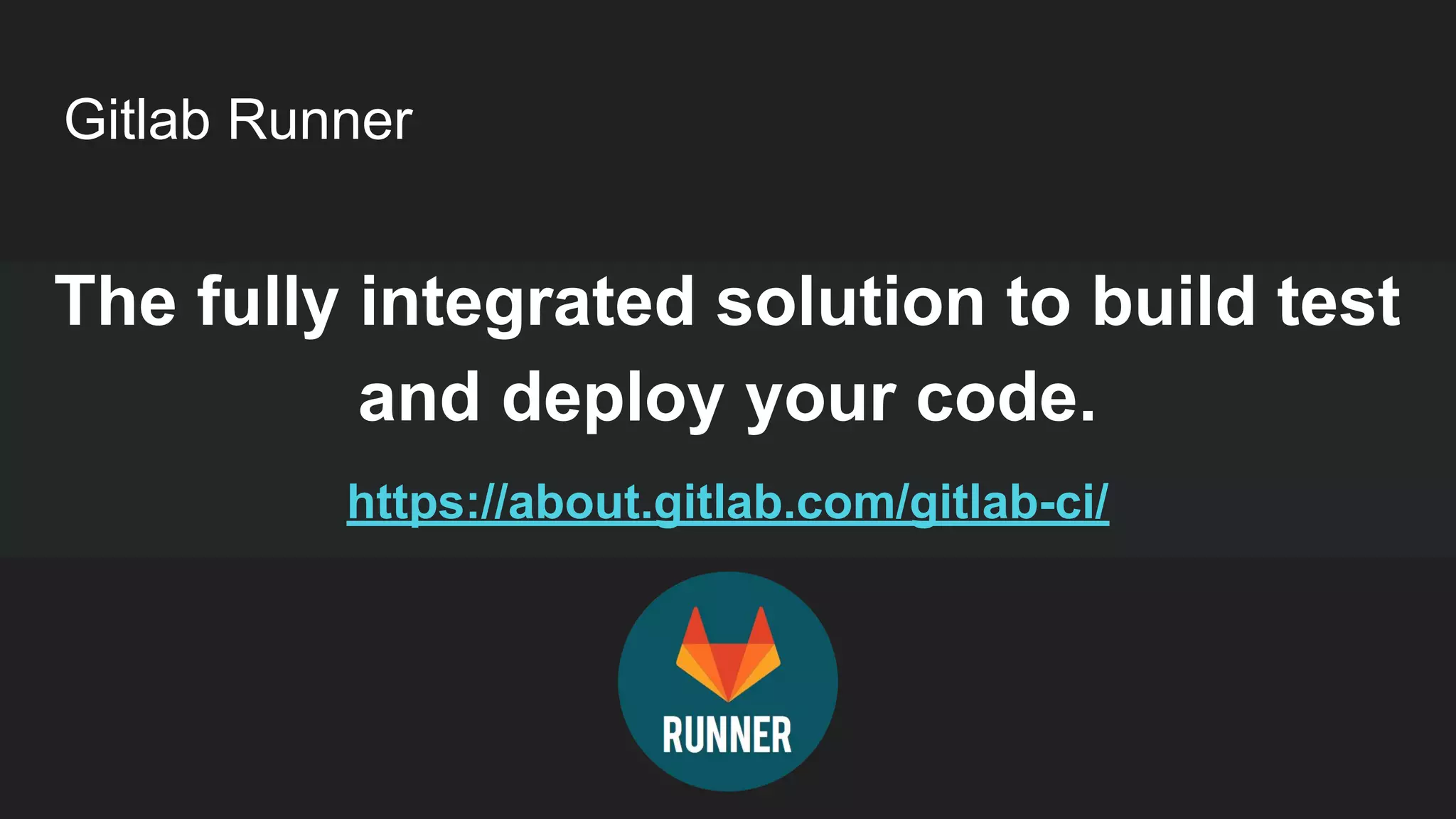

Gitlab Runner The fully integrated solution to build test and deploy your code. https://about.gitlab.com/gitlab-ci/

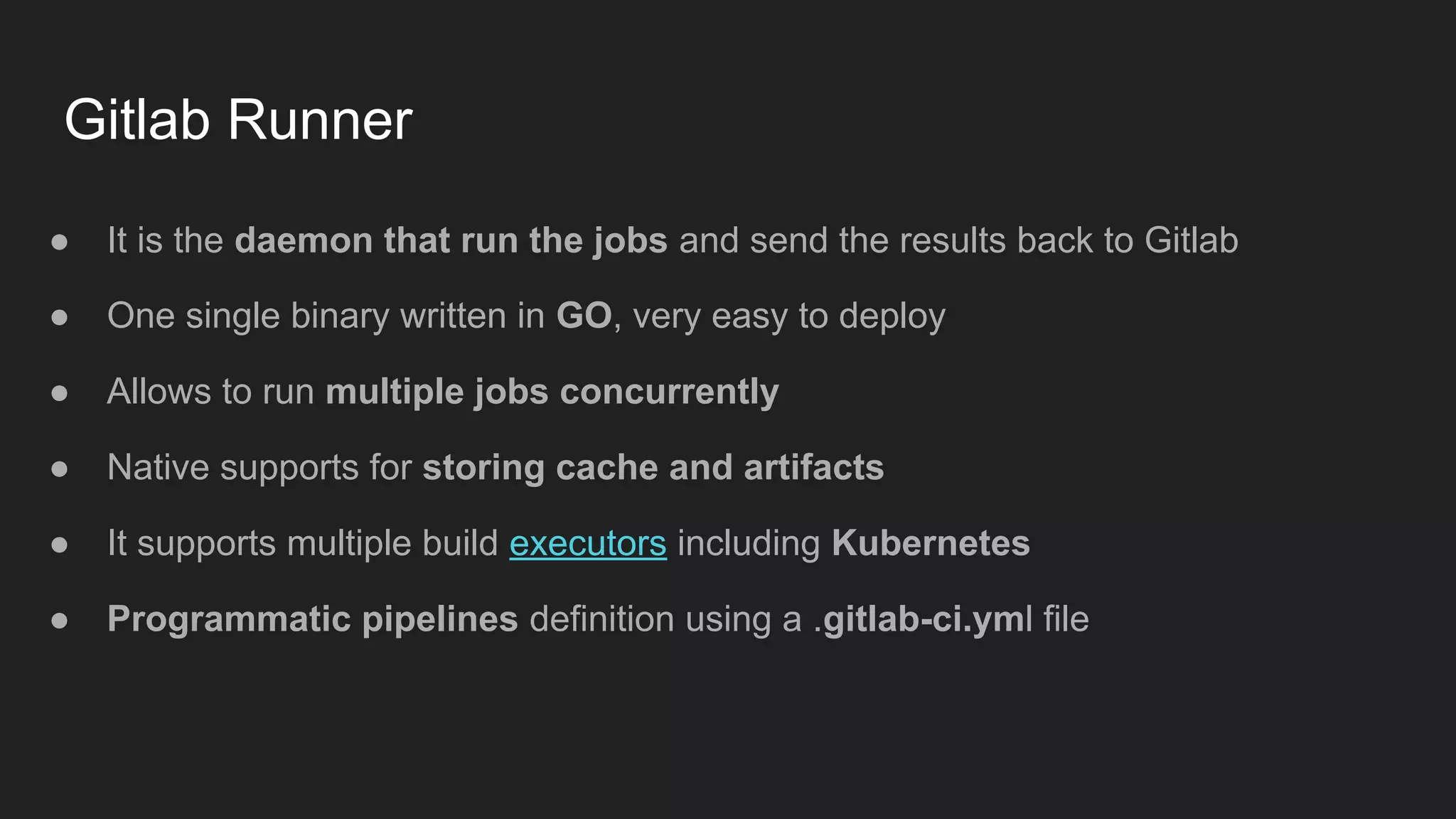

Gitlab Runner ● It is the daemon that run the jobs and send the results back to Gitlab ● One single binary written in GO, very easy to deploy ● Allows to run multiple jobs concurrently ● Native supports for storing cache and artifacts ● It supports multiple build executors including Kubernetes ● Programmatic pipelines definition using a .gitlab-ci.yml file

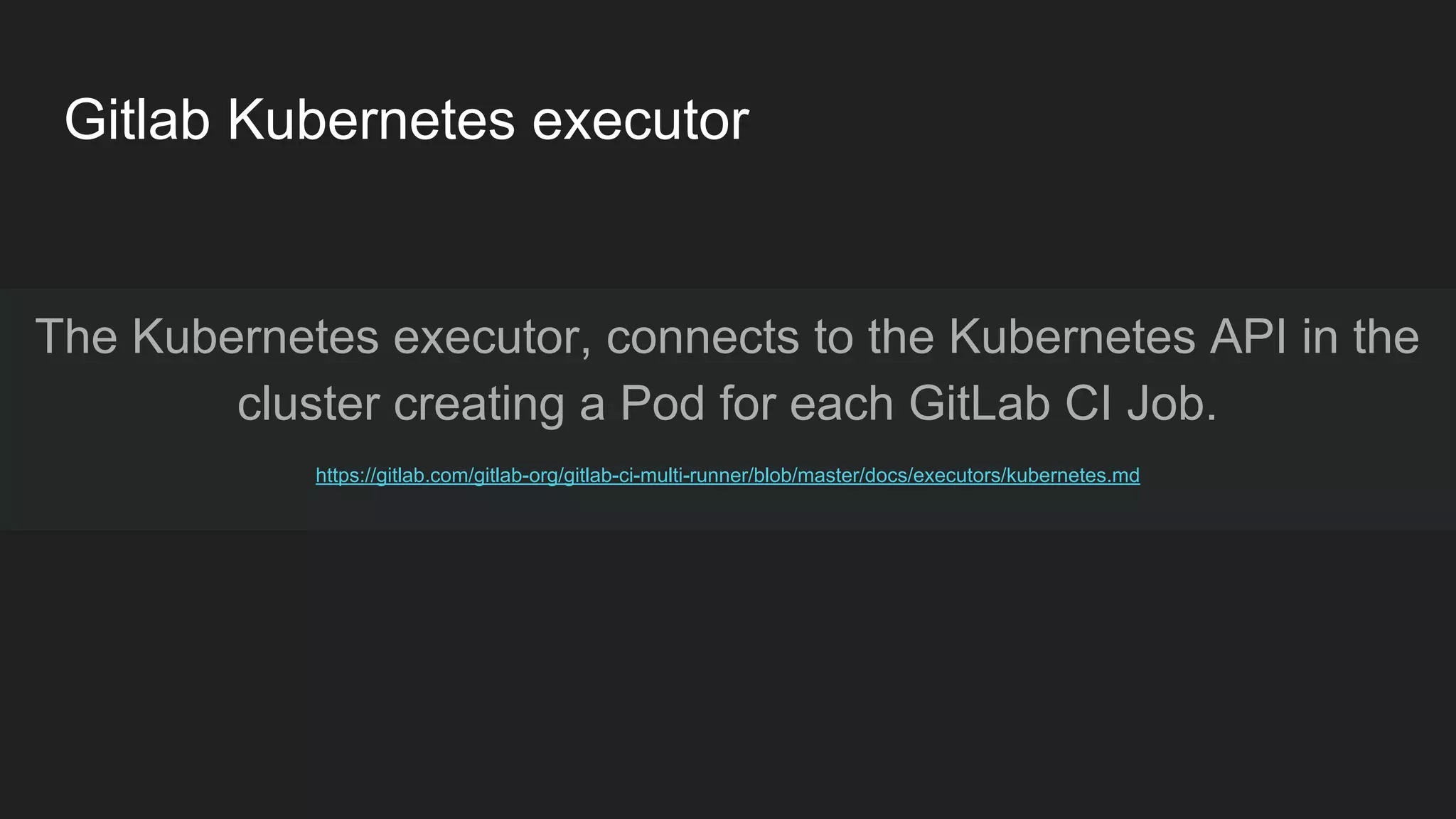

Gitlab Kubernetes executor The Kubernetes executor, connects to the Kubernetes API in the cluster creating a Pod for each GitLab CI Job. https://gitlab.com/gitlab-org/gitlab-ci-multi-runner/blob/master/docs/executors/kubernetes.md

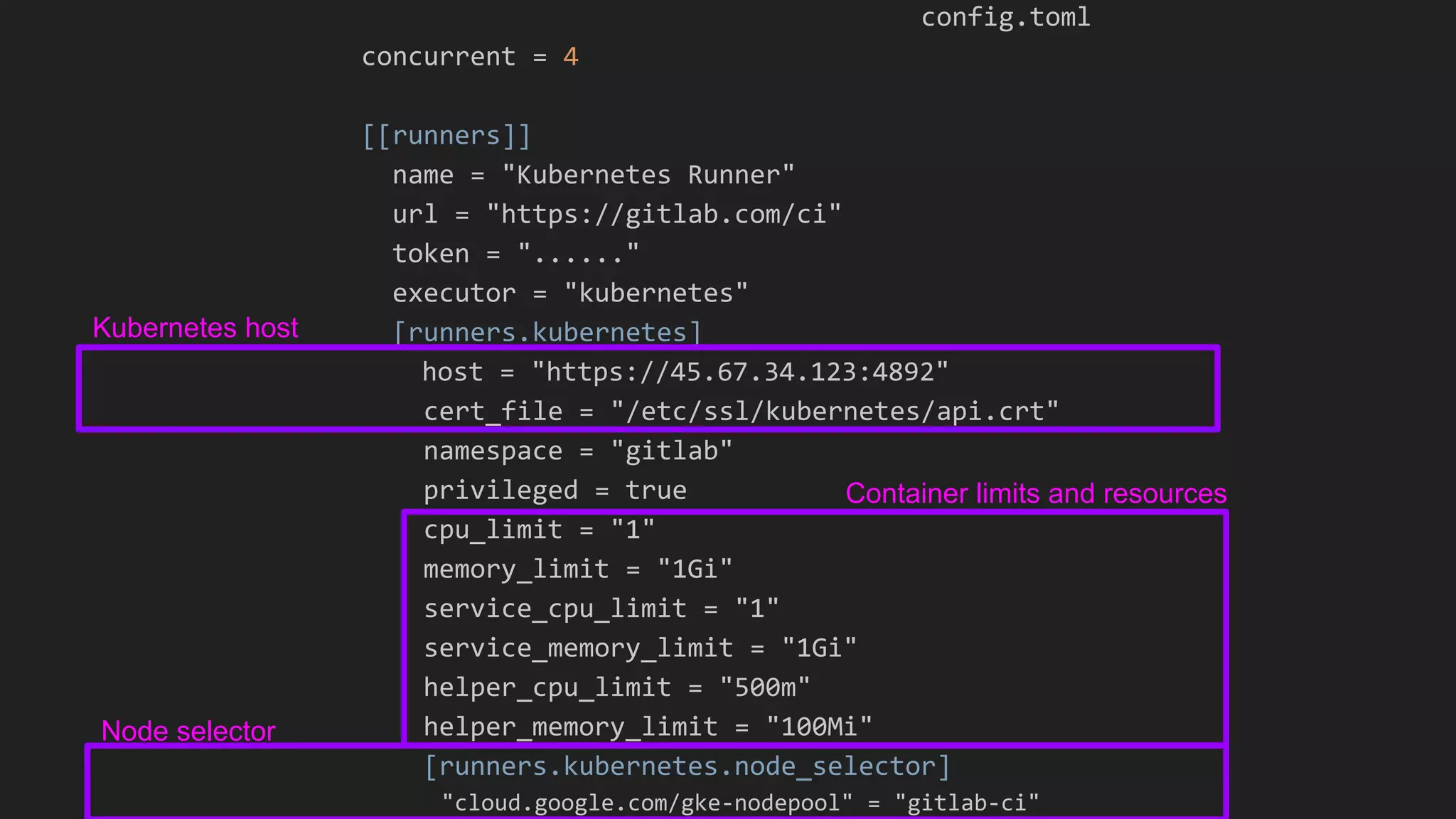

config.toml concurrent = 4 [[runners]] name = "Kubernetes Runner" url = "https://gitlab.com/ci" token = "......" executor = "kubernetes" [runners.kubernetes] host = "https://45.67.34.123:4892" cert_file = "/etc/ssl/kubernetes/api.crt" namespace = "gitlab" privileged = true cpu_limit = "1" memory_limit = "1Gi" service_cpu_limit = "1" service_memory_limit = "1Gi" helper_cpu_limit = "500m" helper_memory_limit = "100Mi" [runners.kubernetes.node_selector] "cloud.google.com/gke-nodepool" = "gitlab-ci" Container limits and resources Node selector Kubernetes host

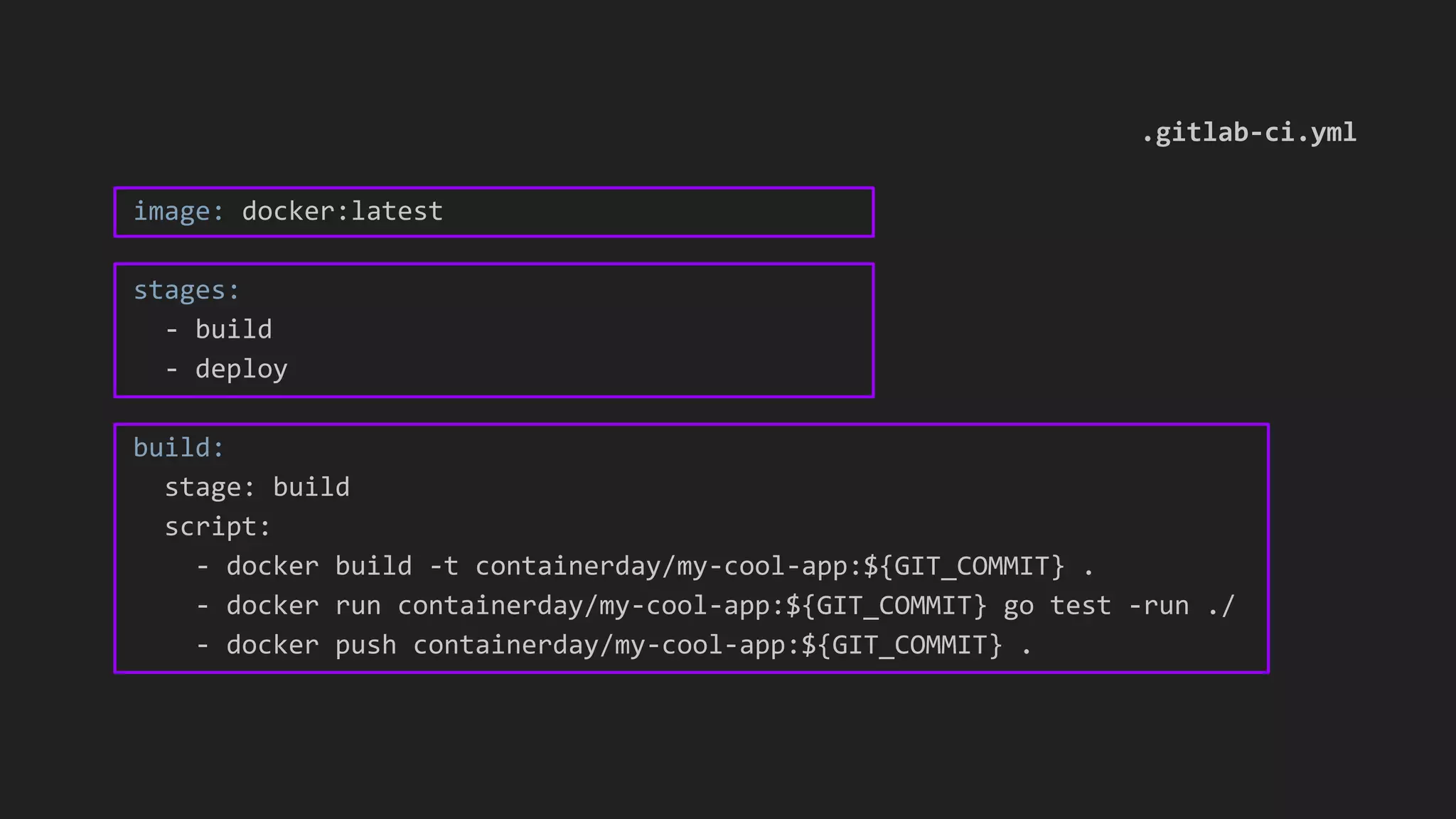

.gitlab-ci.yml image: docker:latest stages: - build - deploy build: stage: build script: - docker build -t containerday/my-cool-app:${GIT_COMMIT} . - docker run containerday/my-cool-app:${GIT_COMMIT} go test -run ./ - docker push containerday/my-cool-app:${GIT_COMMIT} .

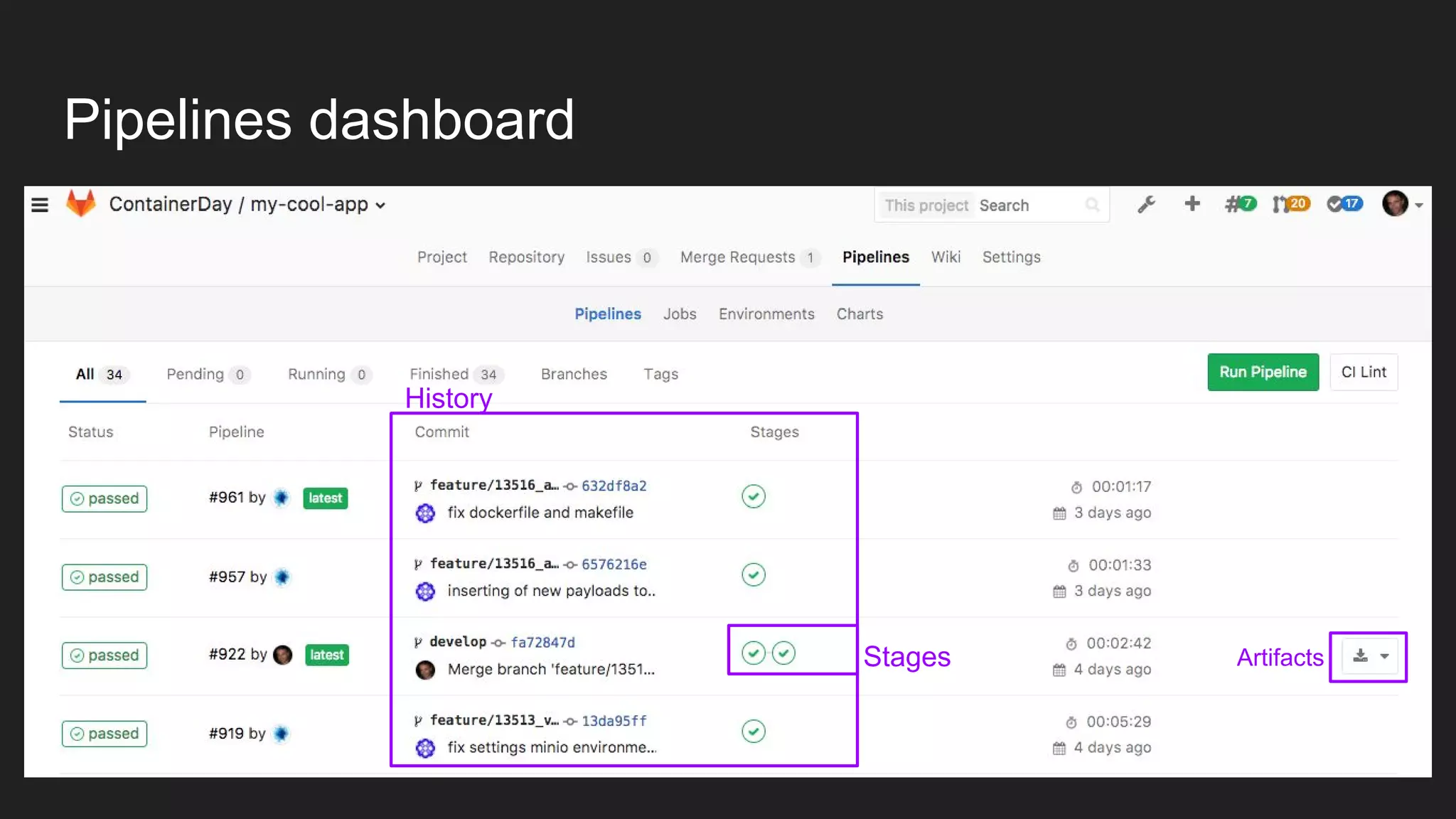

Pipelines dashboard ArtifactsStages History

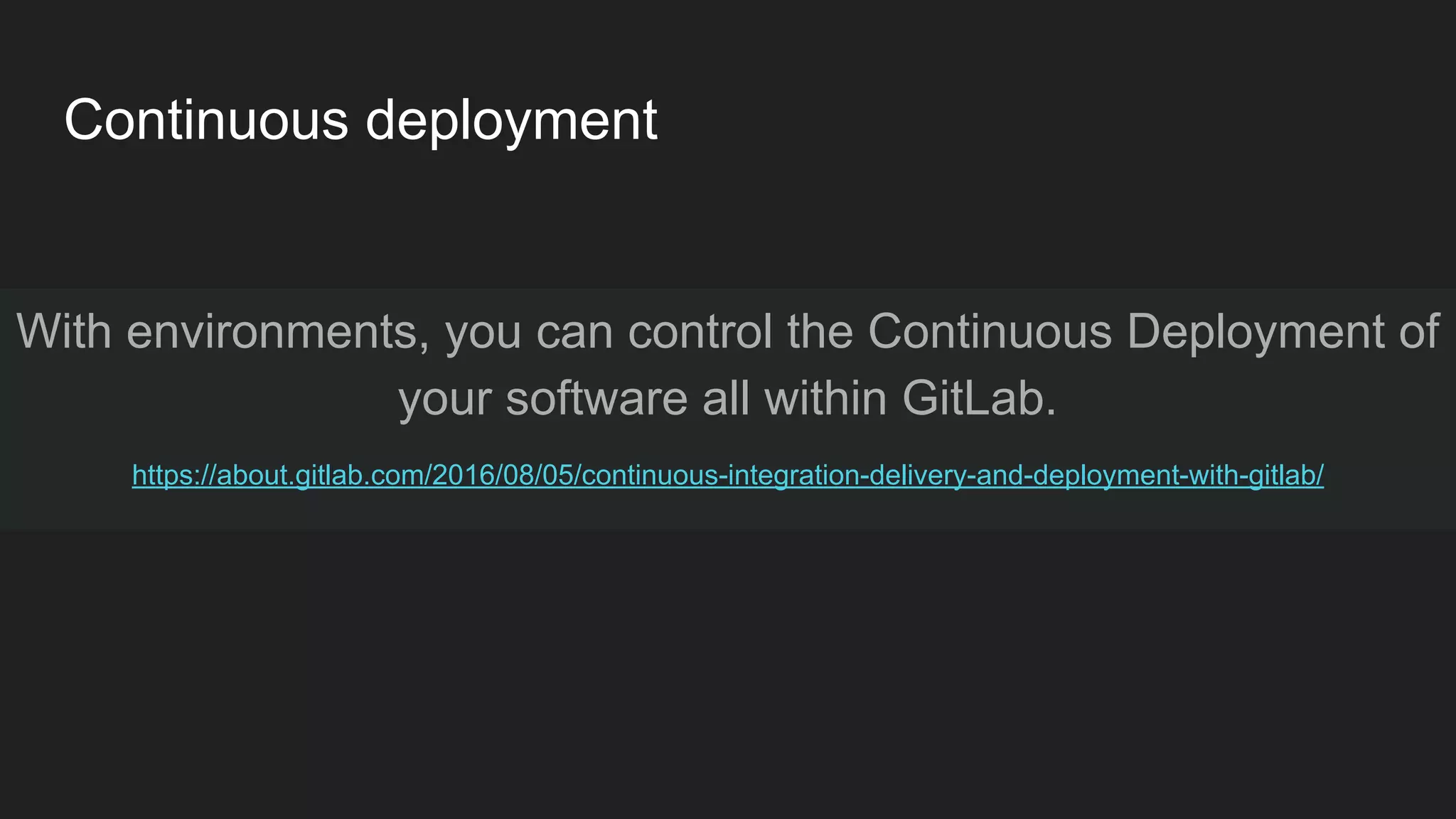

Continuous deployment With environments, you can control the Continuous Deployment of your software all within GitLab. https://about.gitlab.com/2016/08/05/continuous-integration-delivery-and-deployment-with-gitlab/

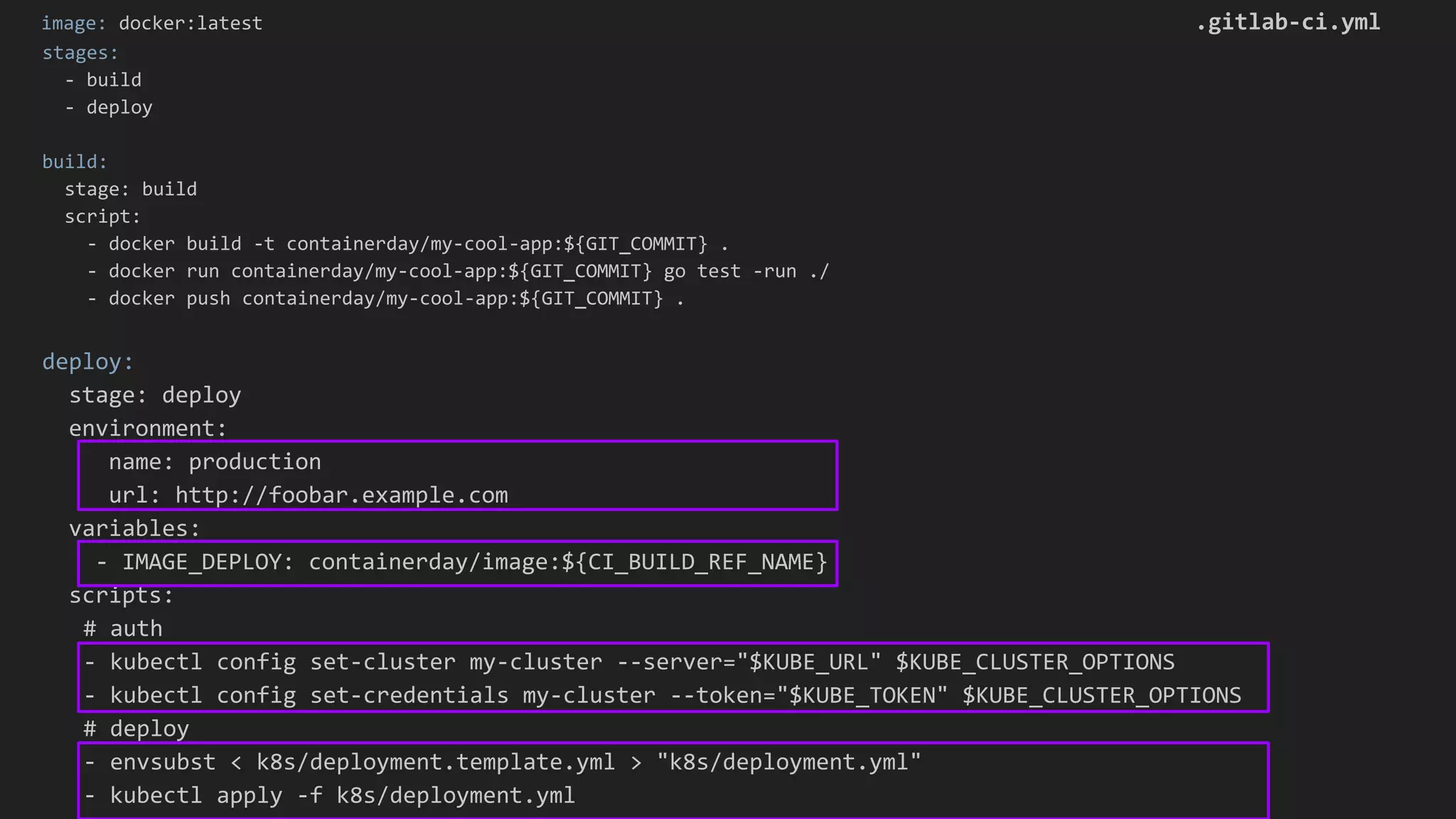

image: docker:latest .gitlab-ci.yml stages: - build - deploy build: stage: build script: - docker build -t containerday/my-cool-app:${GIT_COMMIT} . - docker run containerday/my-cool-app:${GIT_COMMIT} go test -run ./ - docker push containerday/my-cool-app:${GIT_COMMIT} . deploy: stage: deploy environment: name: production url: http://foobar.example.com variables: - IMAGE_DEPLOY: containerday/image:${CI_BUILD_REF_NAME} scripts: # auth - kubectl config set-cluster my-cluster --server="$KUBE_URL" $KUBE_CLUSTER_OPTIONS - kubectl config set-credentials my-cluster --token="$KUBE_TOKEN" $KUBE_CLUSTER_OPTIONS # deploy - envsubst < k8s/deployment.template.yml > "k8s/deployment.yml" - kubectl apply -f k8s/deployment.yml

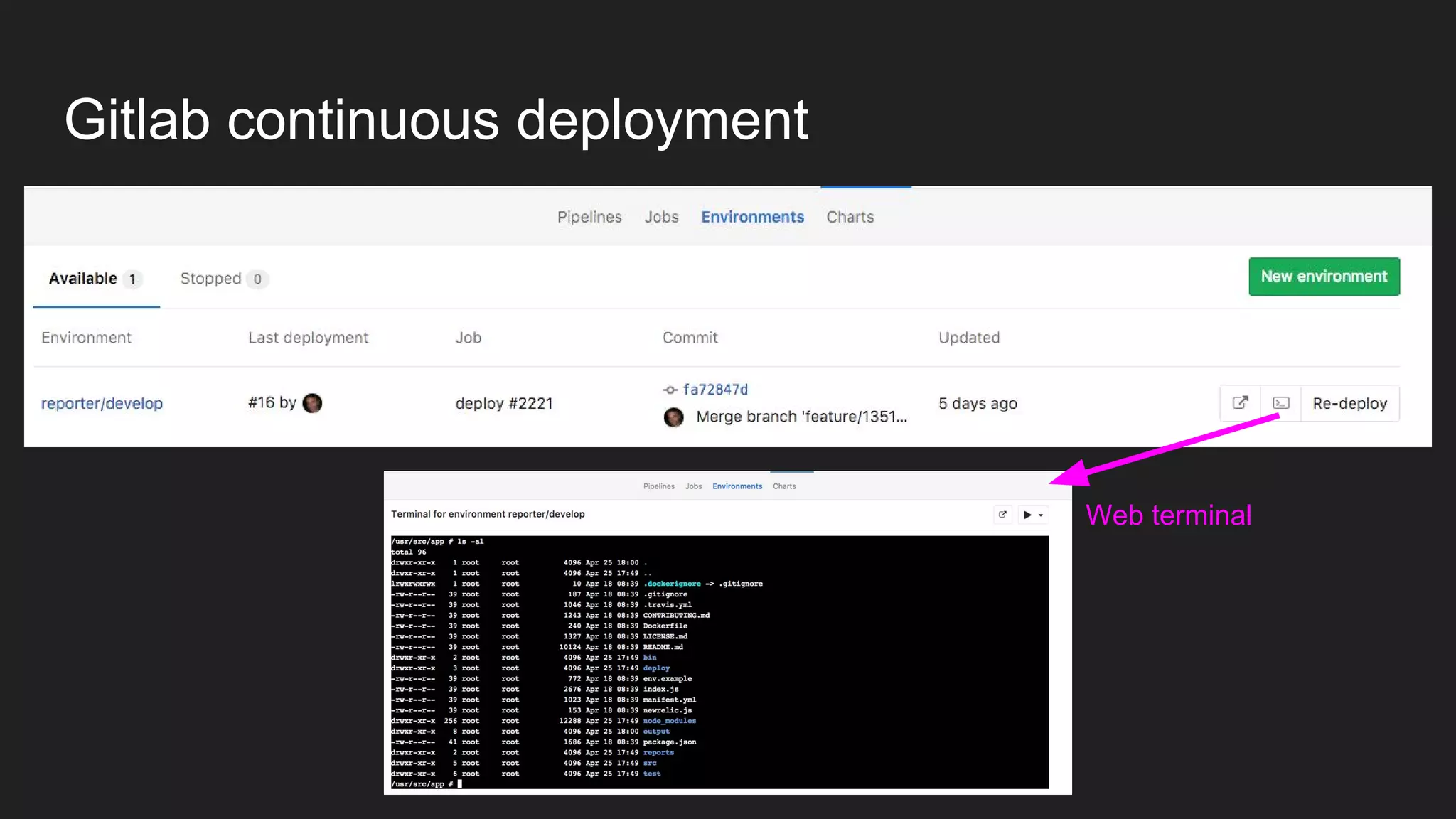

Gitlab continuous deployment Web terminal

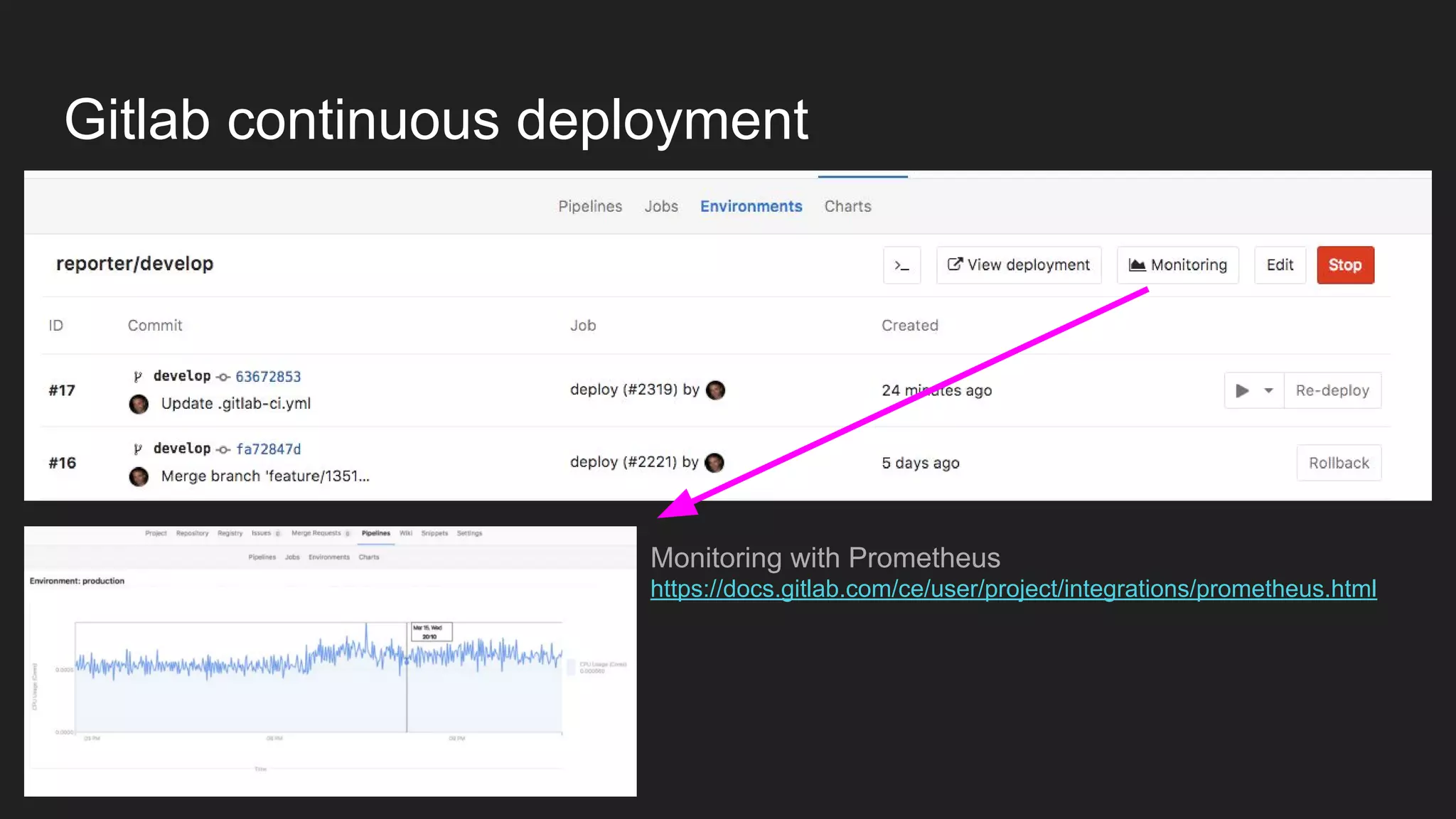

Gitlab continuous deployment Monitoring with Prometheus https://docs.gitlab.com/ce/user/project/integrations/prometheus.html

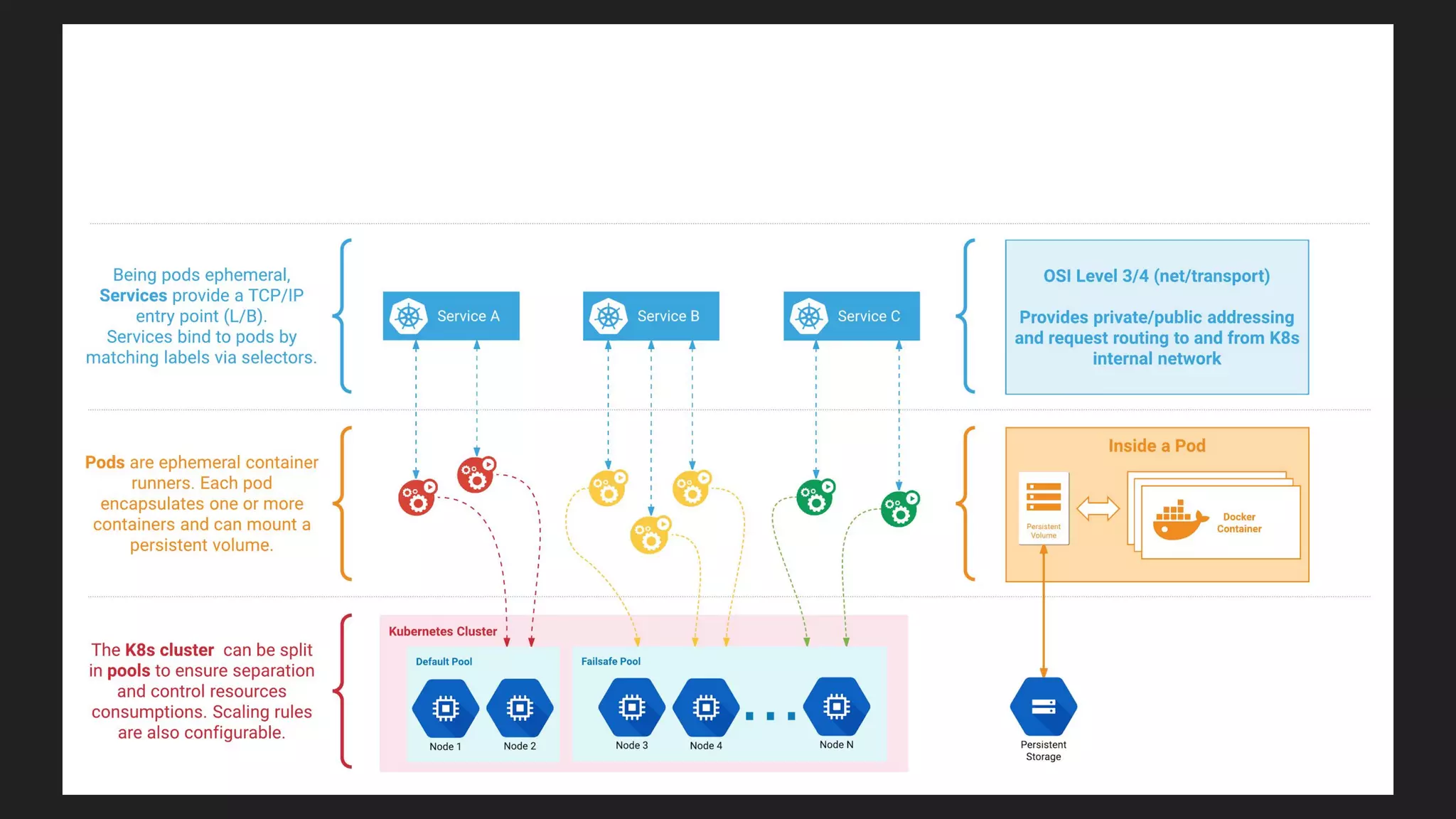

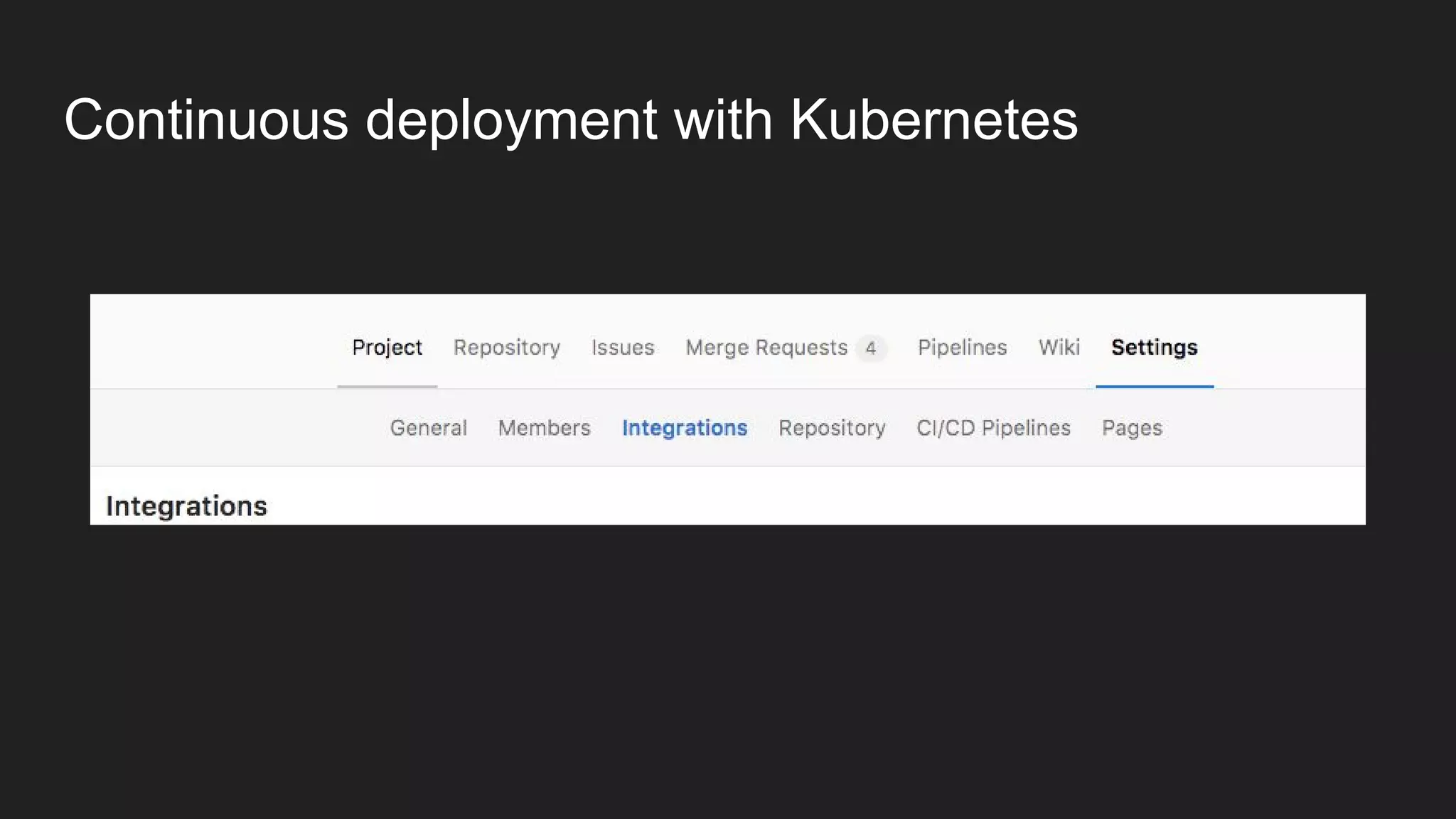

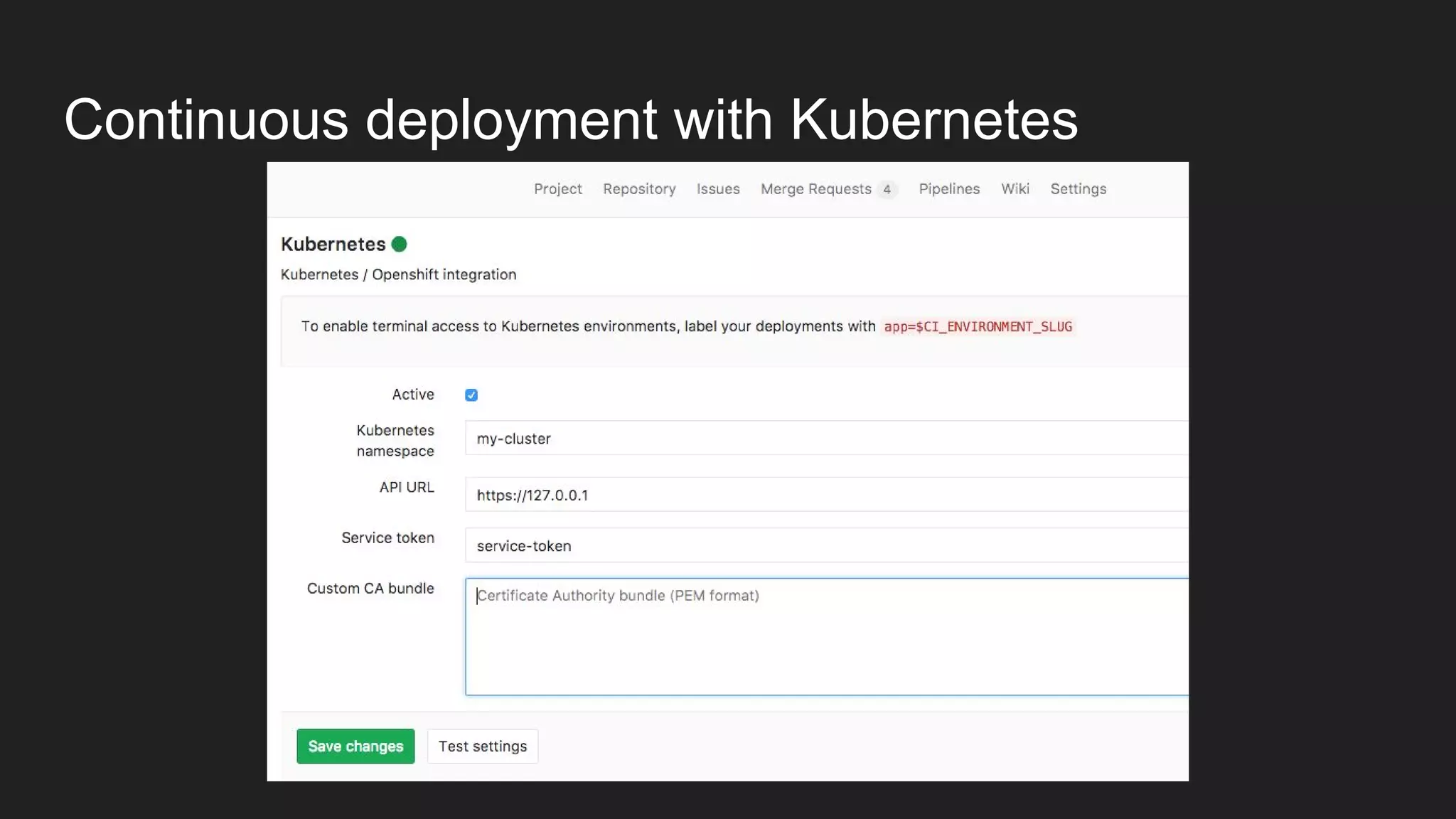

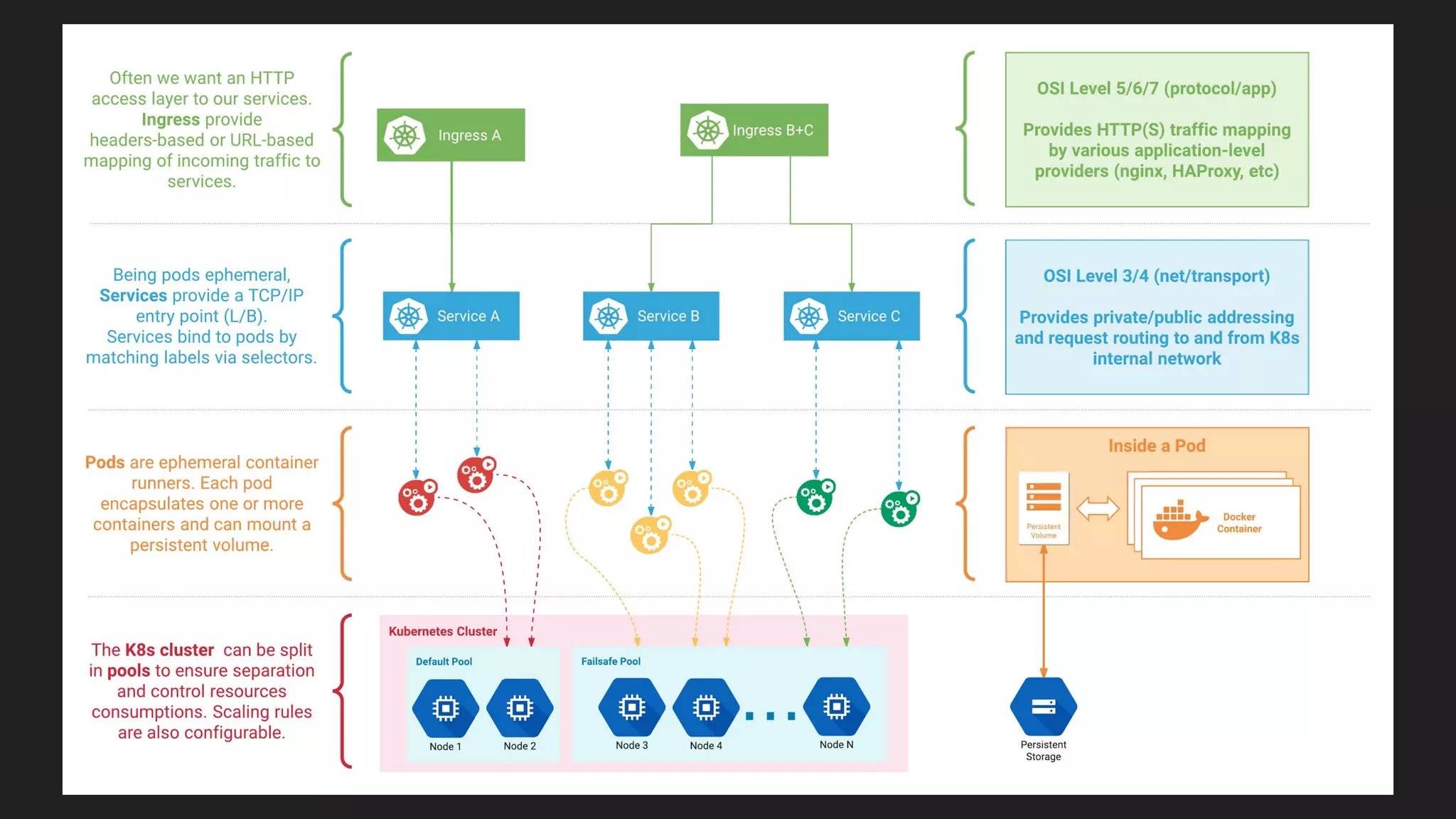

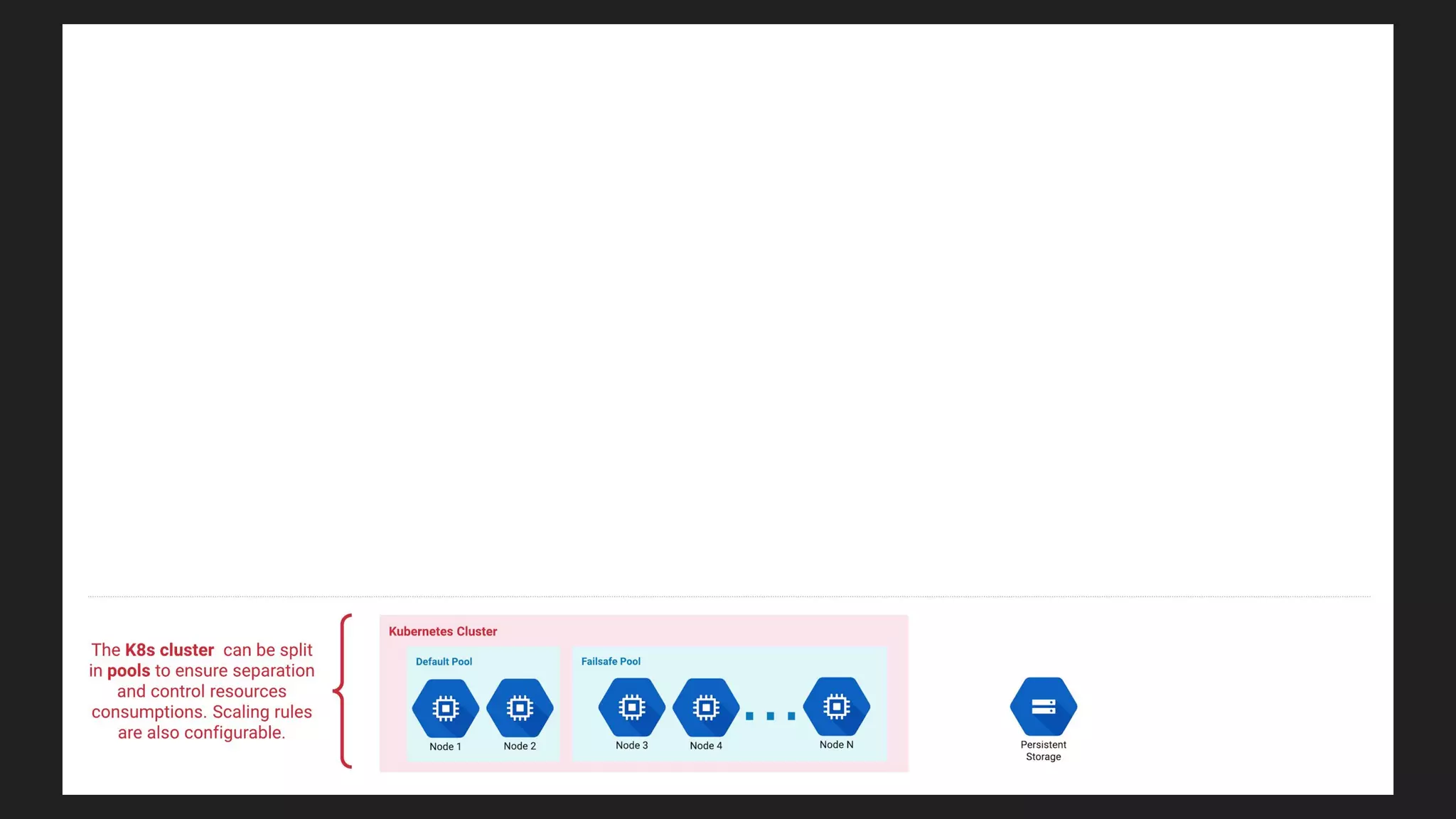

Continuous deployment with Kubernetes

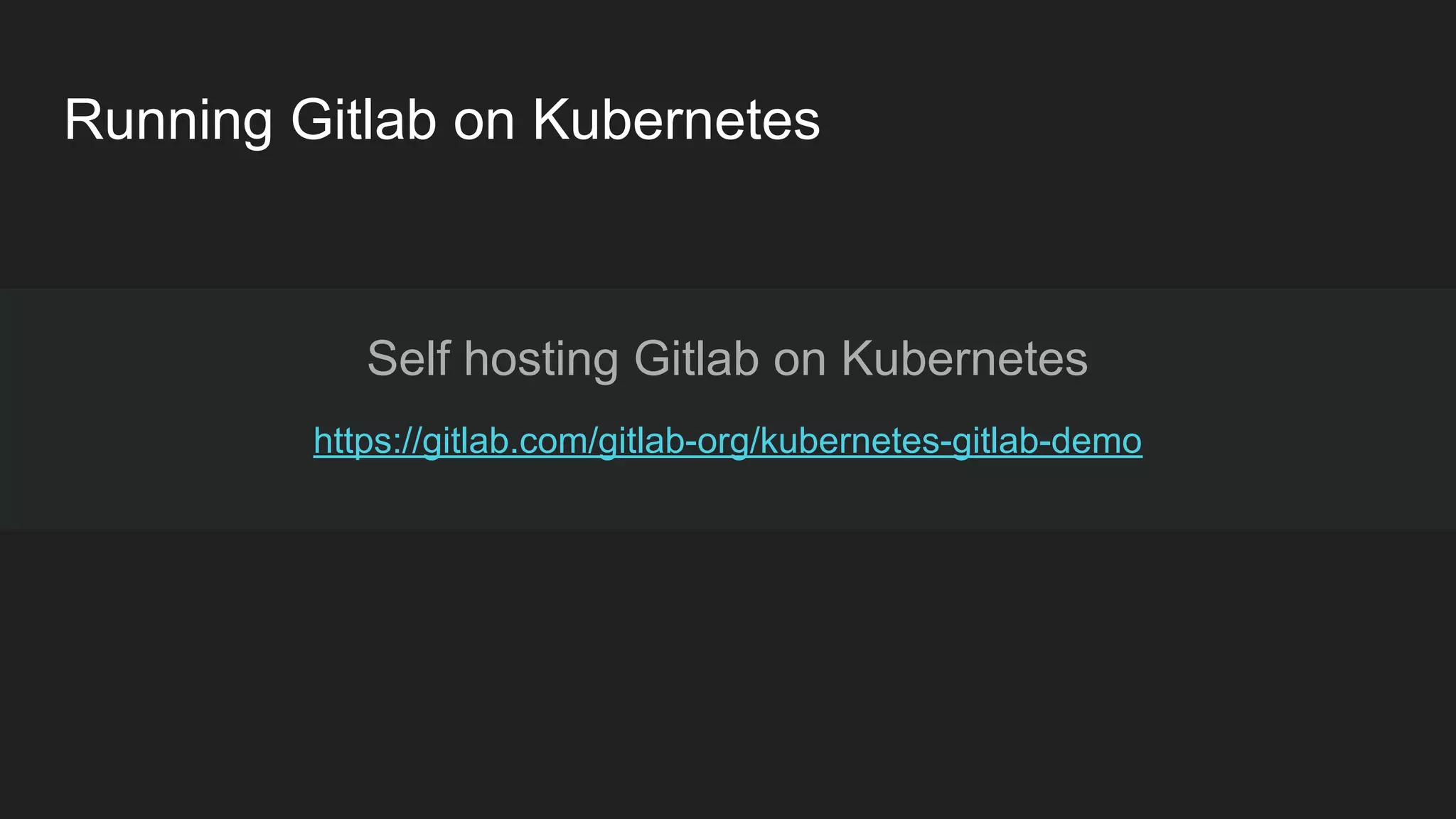

Running Gitlab on Kubernetes Self hosting Gitlab on Kubernetes https://gitlab.com/gitlab-org/kubernetes-gitlab-demo

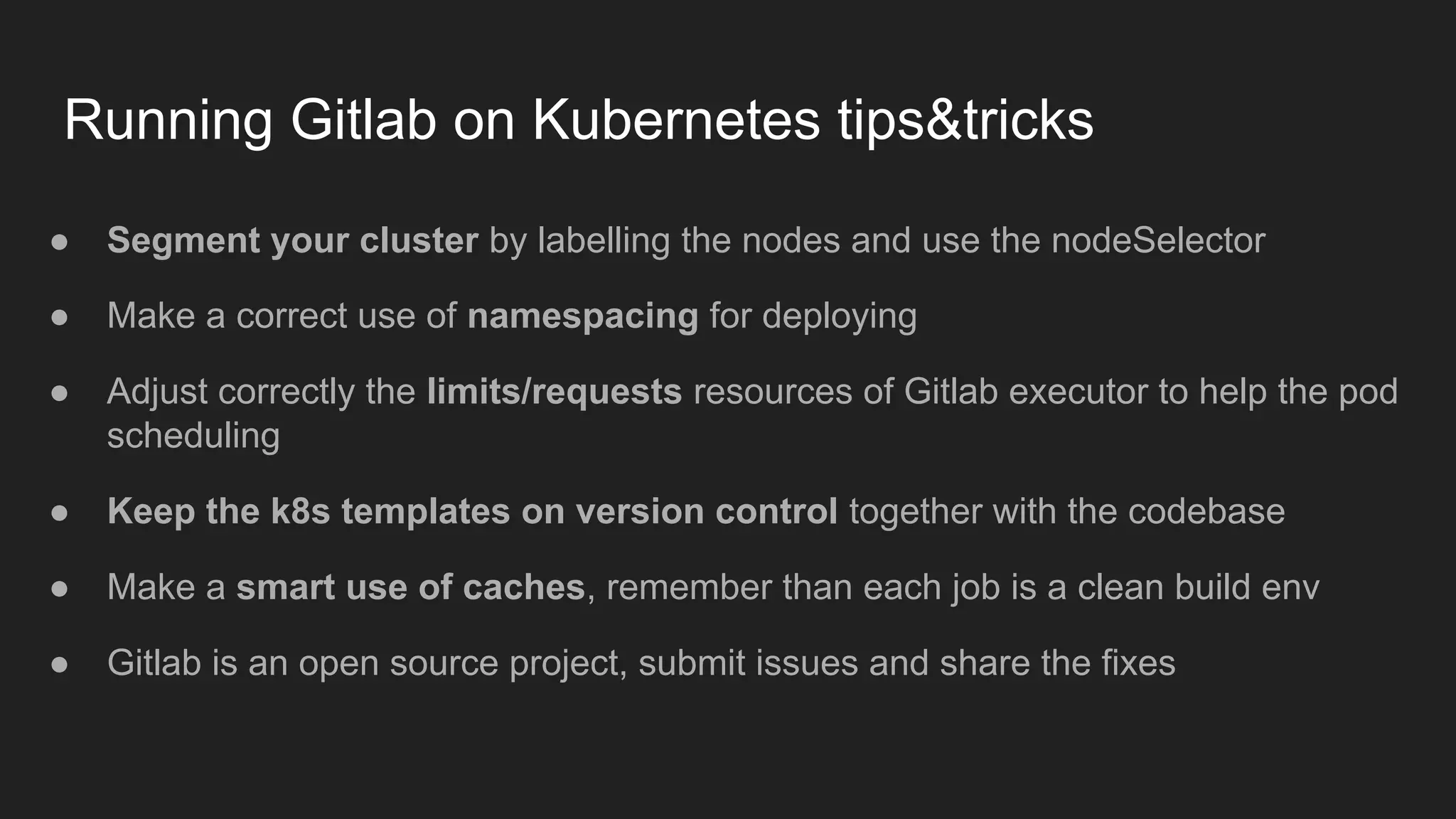

Running Gitlab on Kubernetes tips&tricks ● Segment your cluster by labelling the nodes and use the nodeSelector ● Make a correct use of namespacing for deploying ● Adjust correctly the limits/requests resources of Gitlab executor to help the pod scheduling ● Keep the k8s templates on version control together with the codebase ● Make a smart use of caches, remember than each job is a clean build env ● Gitlab is an open source project, submit issues and share the fixes

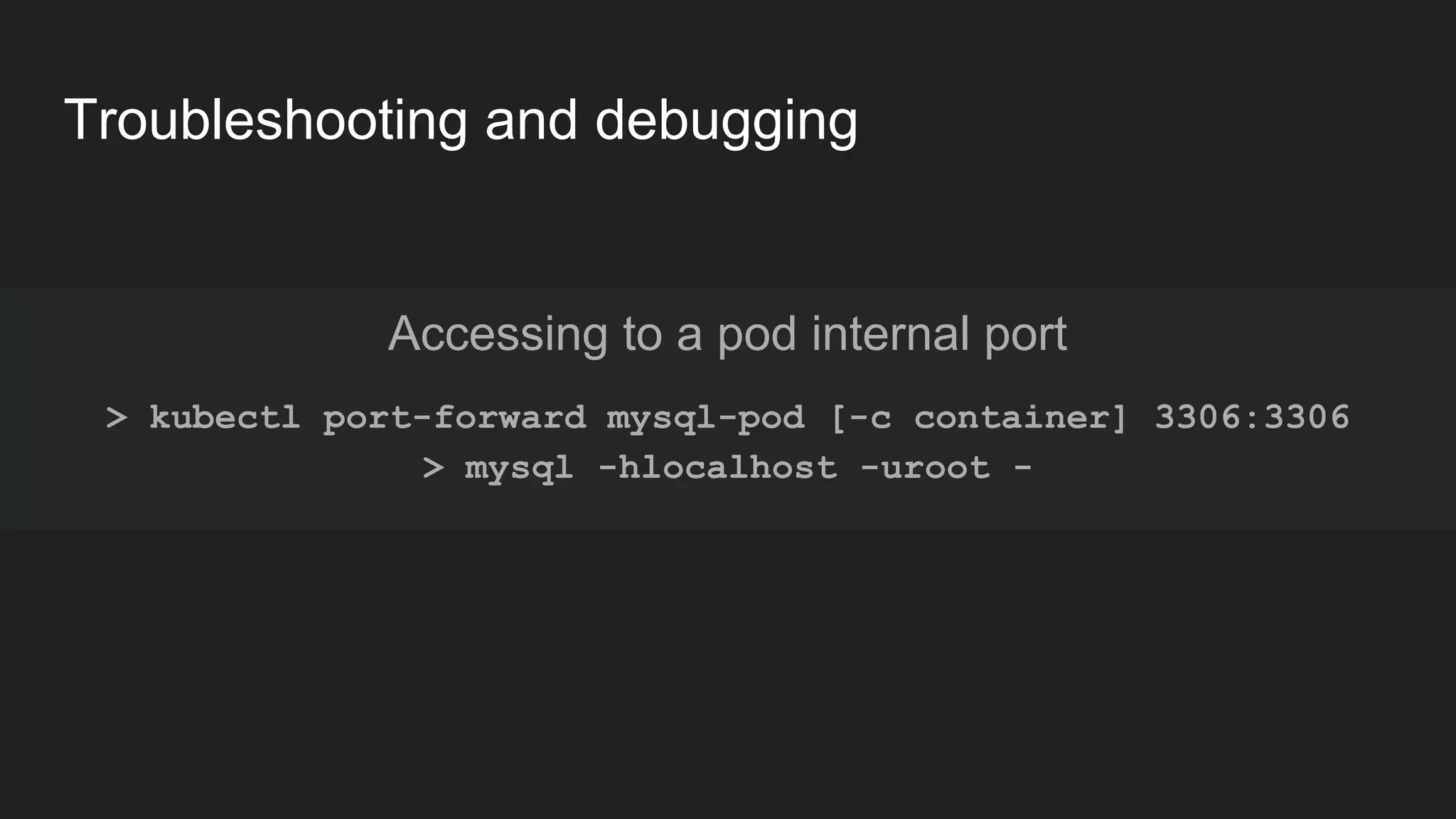

Troubleshooting and debugging Accessing to a pod internal port > kubectl port-forward mysql-pod [-c container] 3306:3306 > mysql -hlocalhost -uroot -

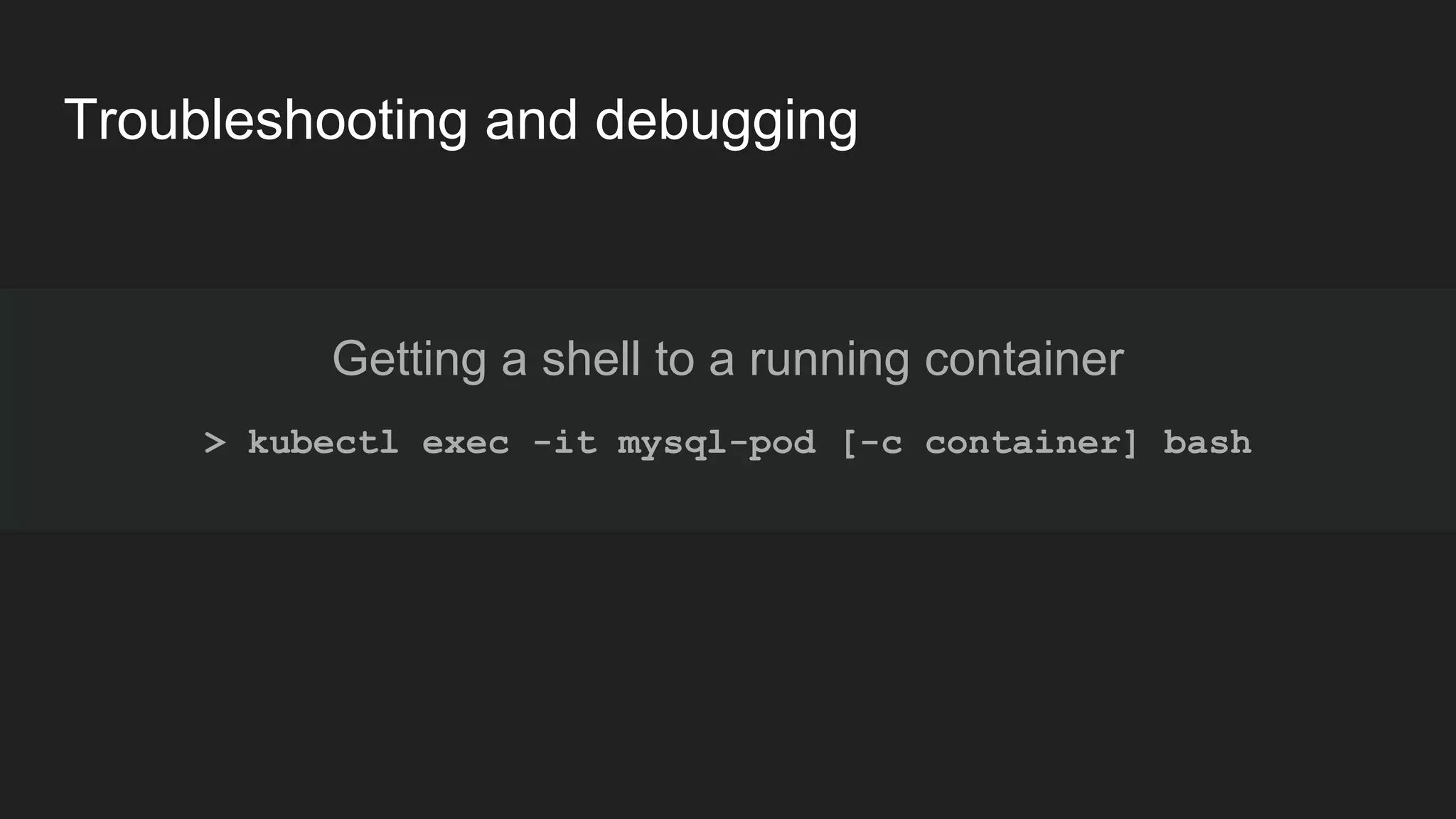

Troubleshooting and debugging Getting a shell to a running container > kubectl exec -it mysql-pod [-c container] bash

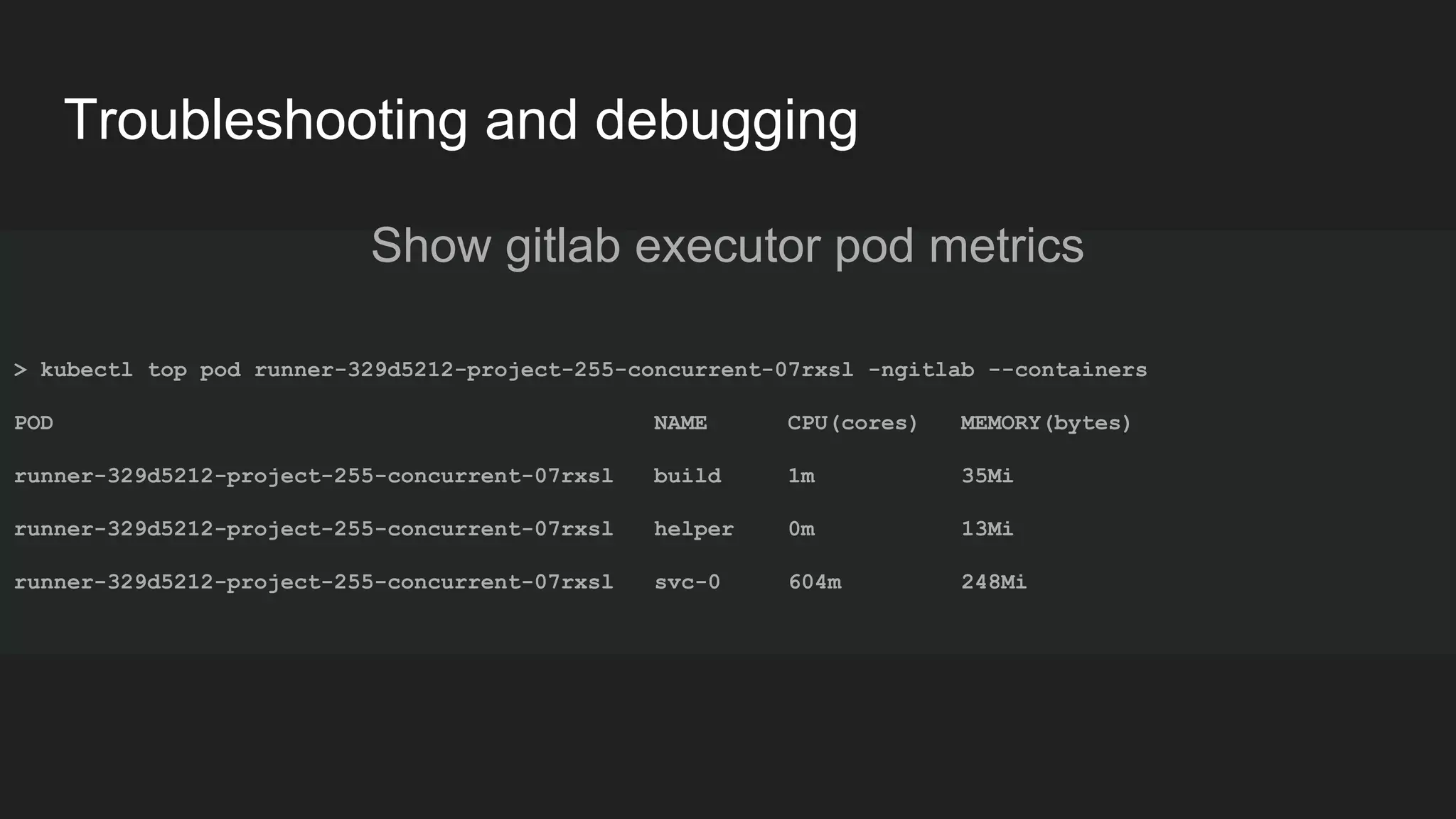

Troubleshooting and debugging Show gitlab executor pod metrics > kubectl top pod runner-329d5212-project-255-concurrent-07rxsl -ngitlab --containers POD NAME CPU(cores) MEMORY(bytes) runner-329d5212-project-255-concurrent-07rxsl build 1m 35Mi runner-329d5212-project-255-concurrent-07rxsl helper 0m 13Mi runner-329d5212-project-255-concurrent-07rxsl svc-0 604m 248Mi

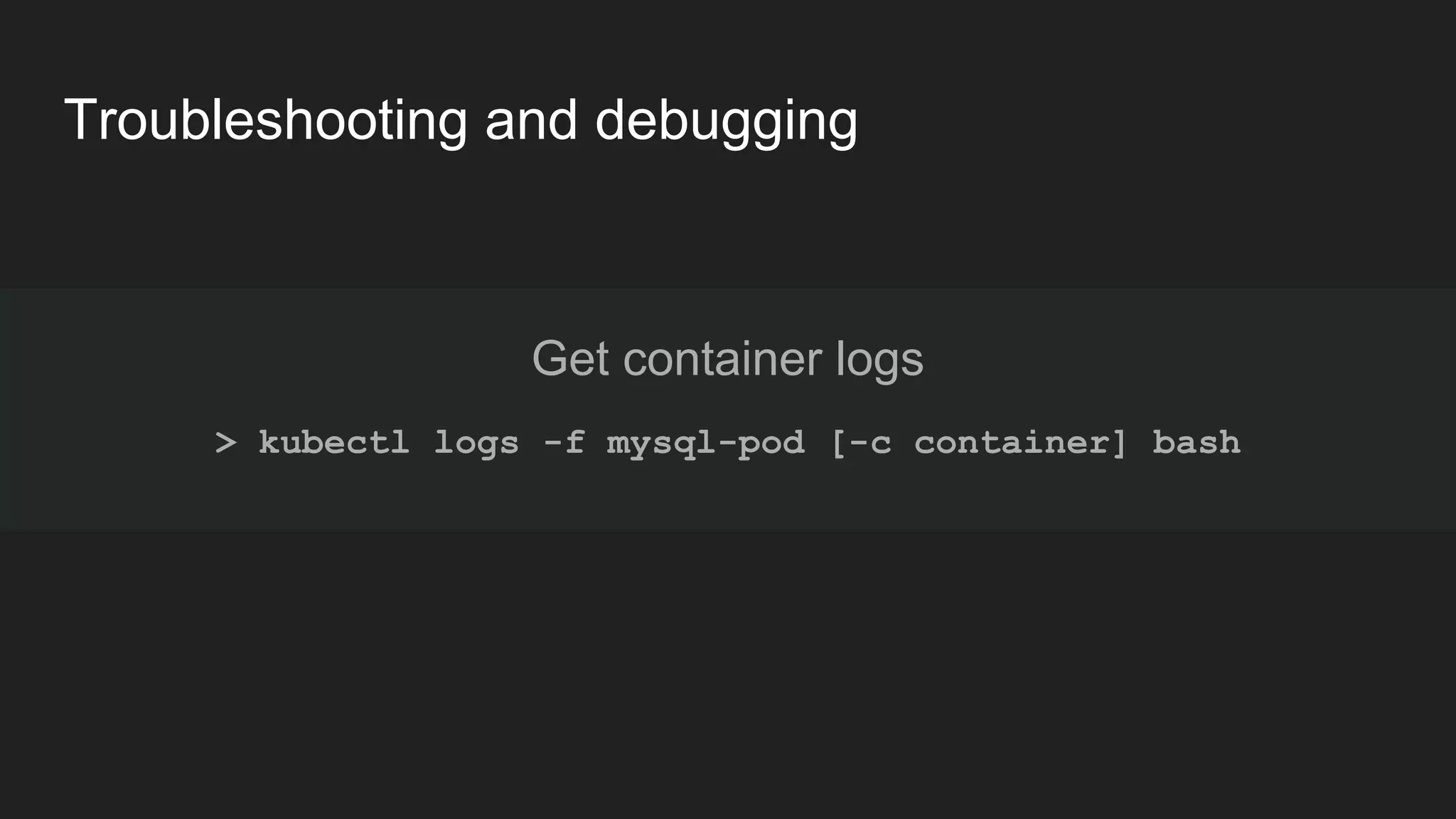

Troubleshooting and debugging Get container logs > kubectl logs -f mysql-pod [-c container] bash

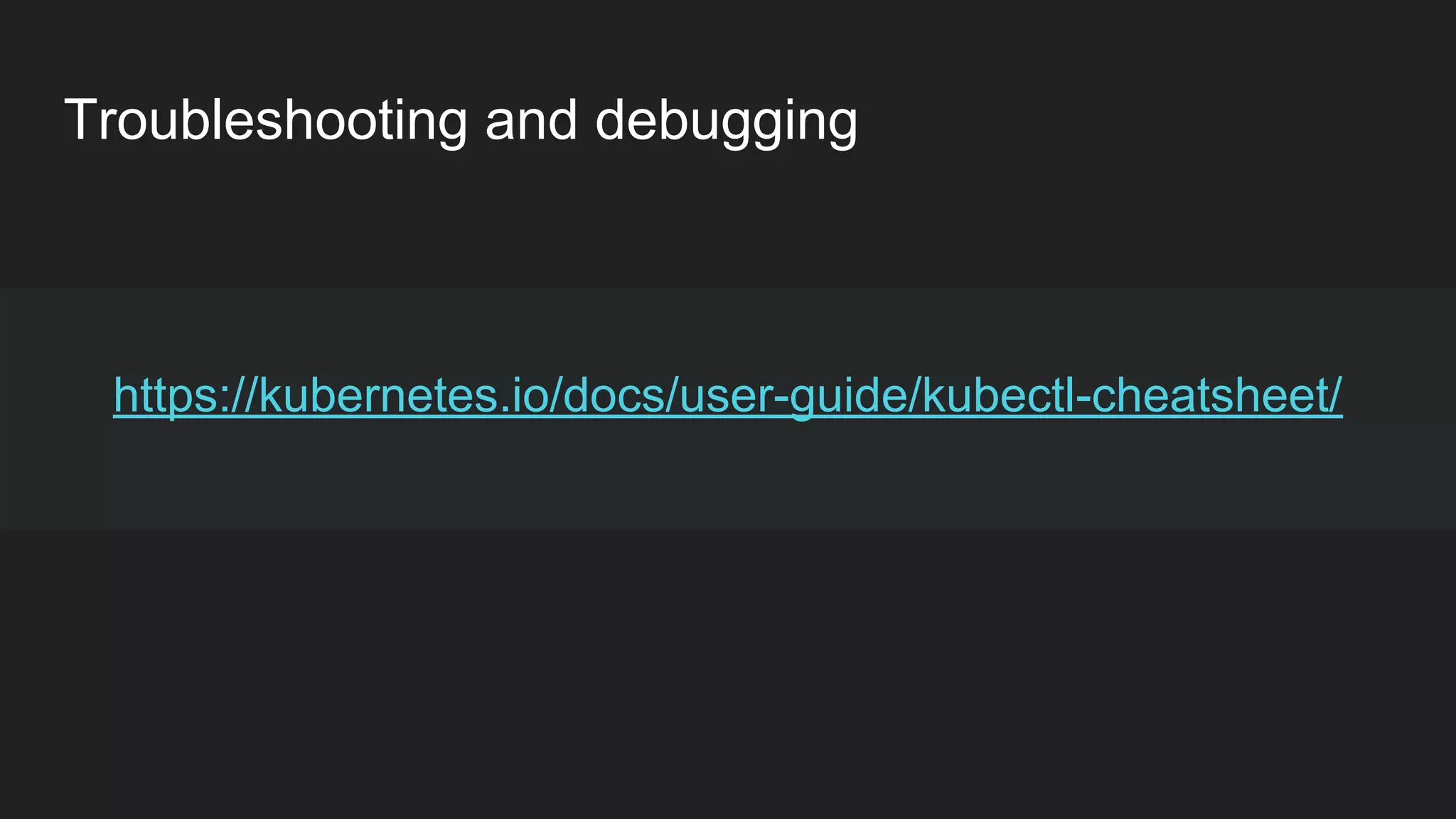

Troubleshooting and debugging https://kubernetes.io/docs/user-guide/kubectl-cheatsheet/
