From Zero to Iterators: Building and Extending the Iterator Hierarchy in a Modern, Multicore World

From Zero to Iterators Building and Extending the Iterator Hierarchy in a Modern, Multicore World Patrick M. Niedzielski pniedzielski.net

I’ve heard of iterators before. 0

I’ve used iterators before. 0

I think iterators are fundamental to computer science. 0

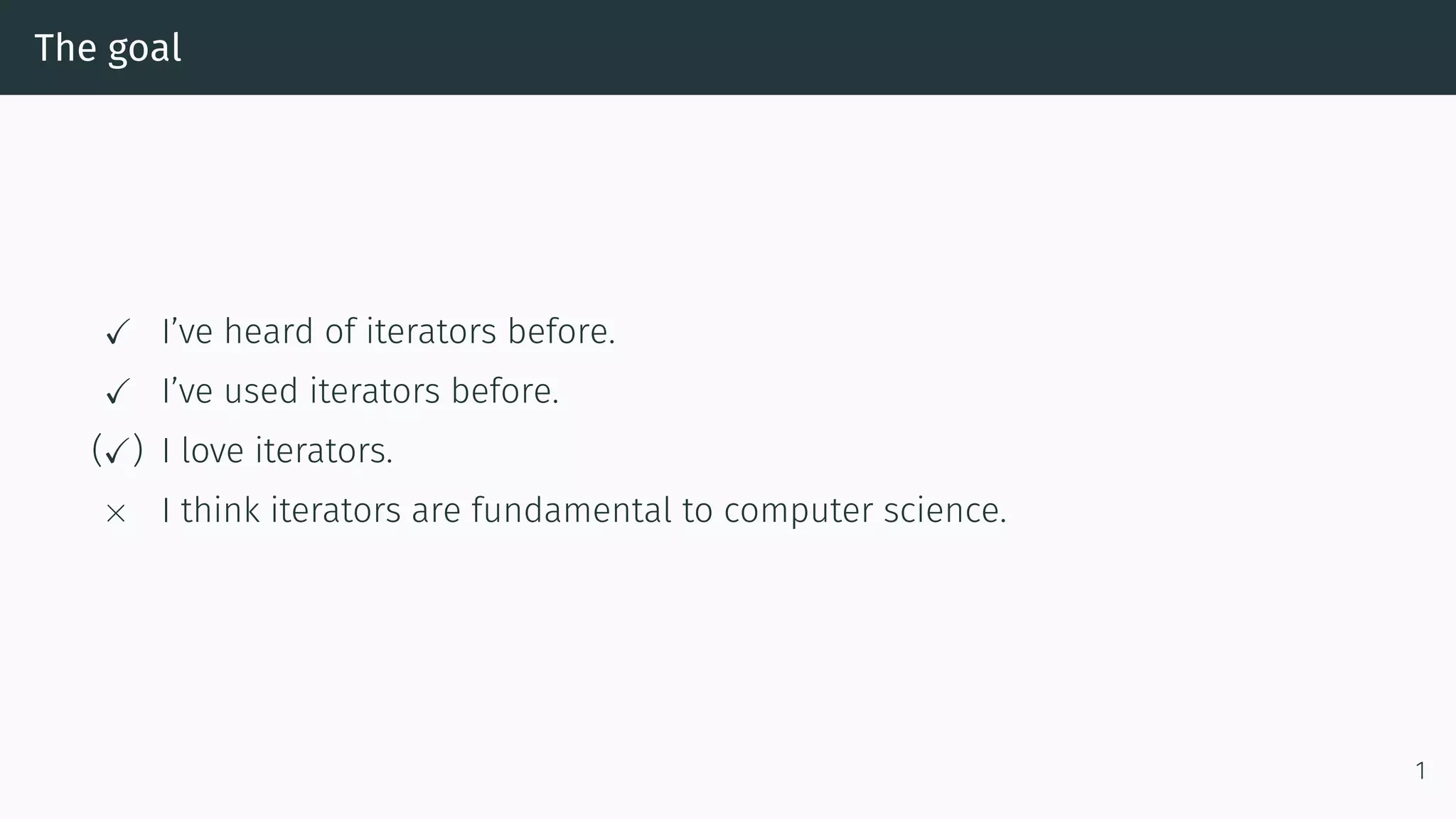

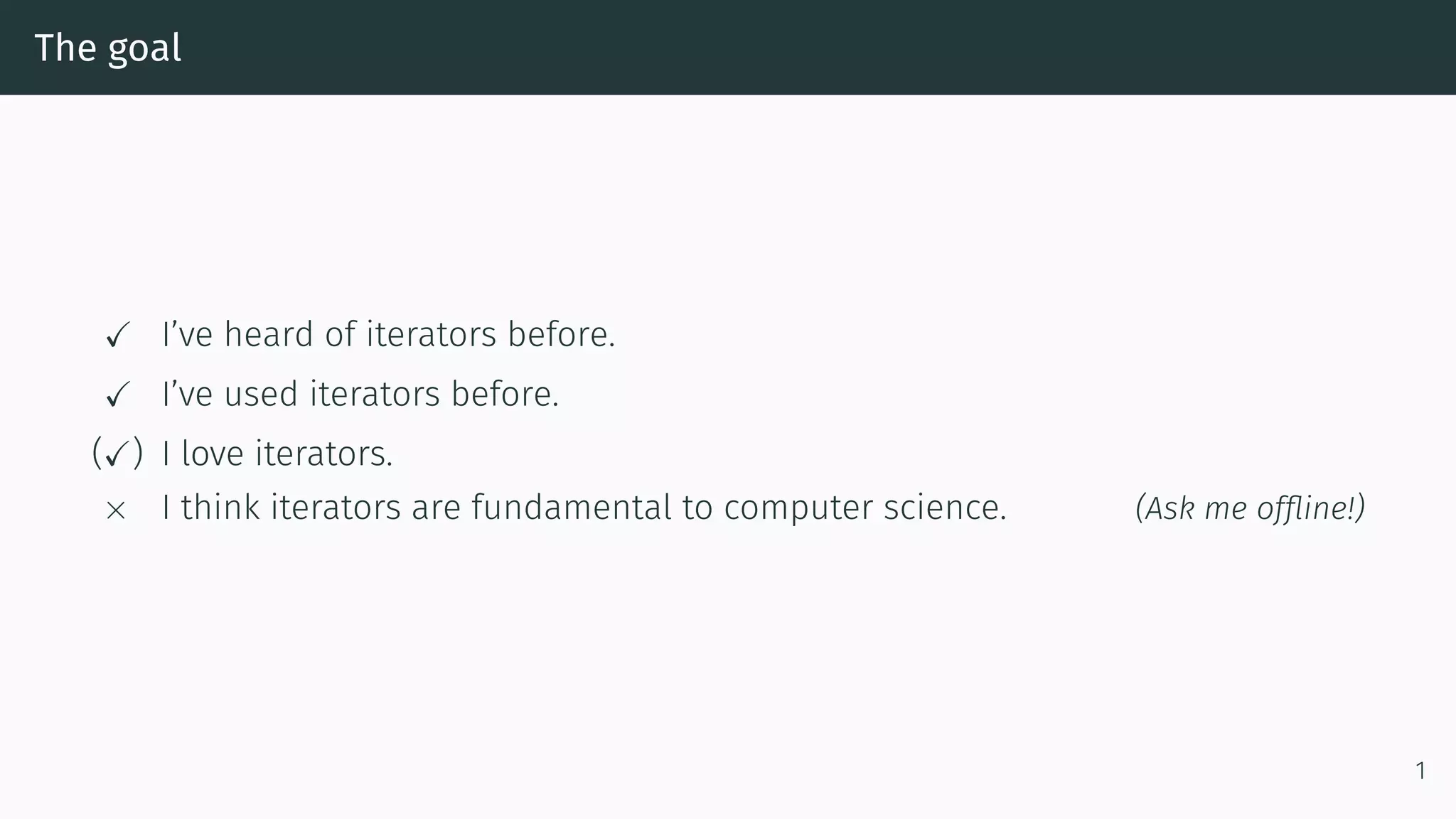

The goal ✓ I’ve heard of iterators before. ✓ I’ve used iterators before. (✓) I love iterators. × I think iterators are fundamental to computer science. 1

The goal ✓ I’ve heard of iterators before. ✓ I’ve used iterators before. (✓) I love iterators. × I think iterators are fundamental to computer science. (Ask me ofﬂine!) 1

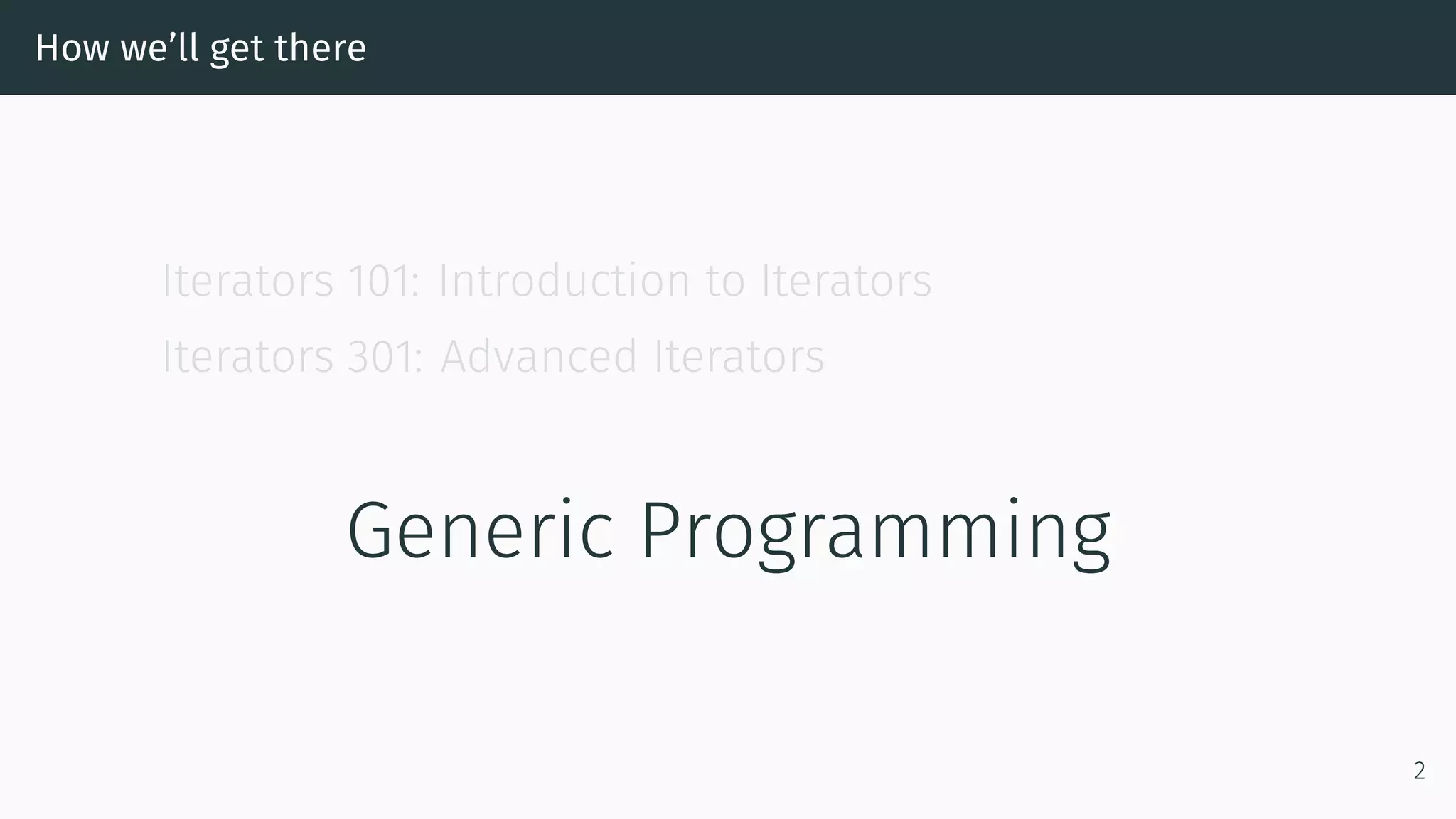

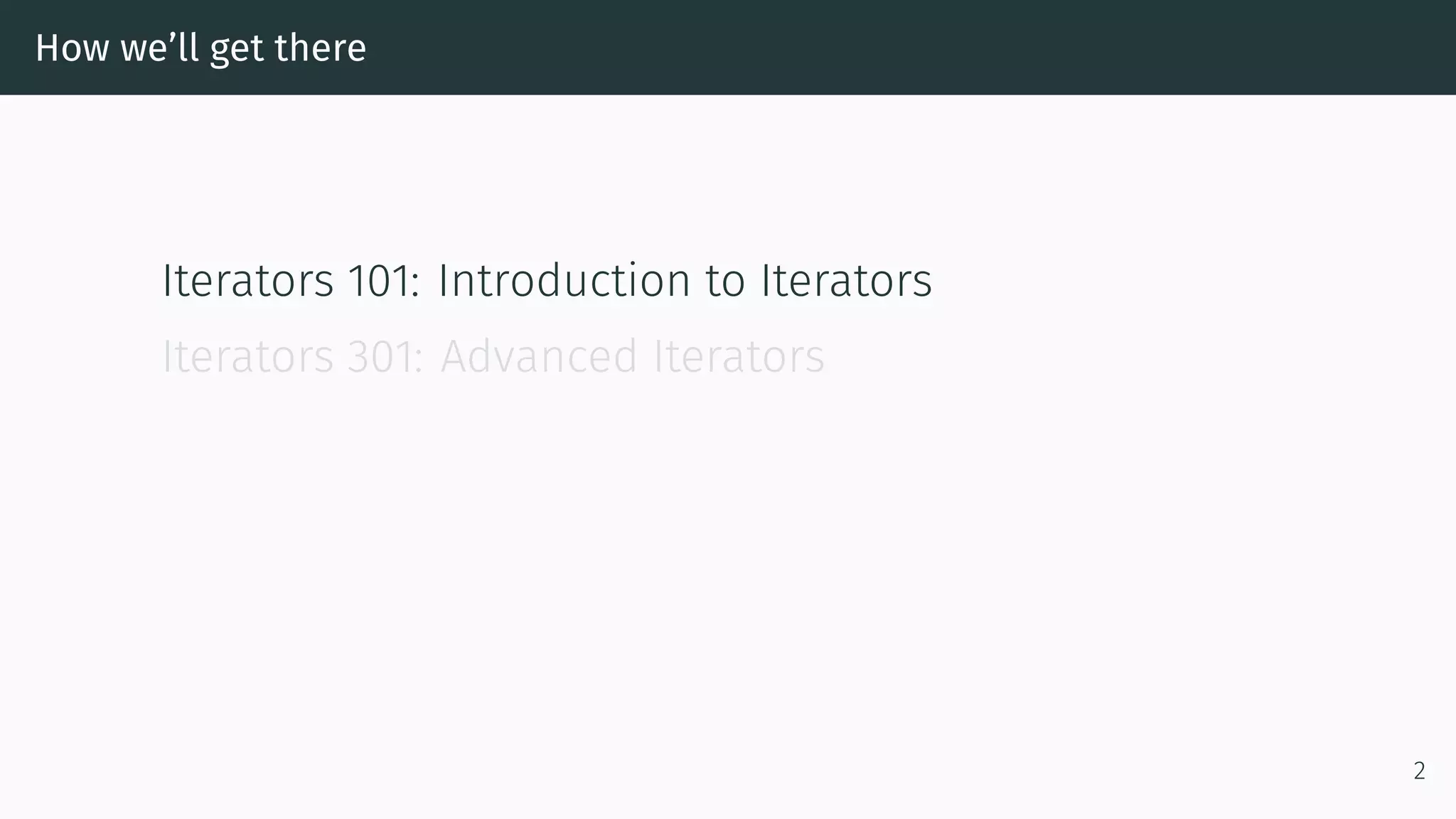

How we’ll get there Iterators 101: Introduction to Iterators Iterators 301: Advanced Iterators 2

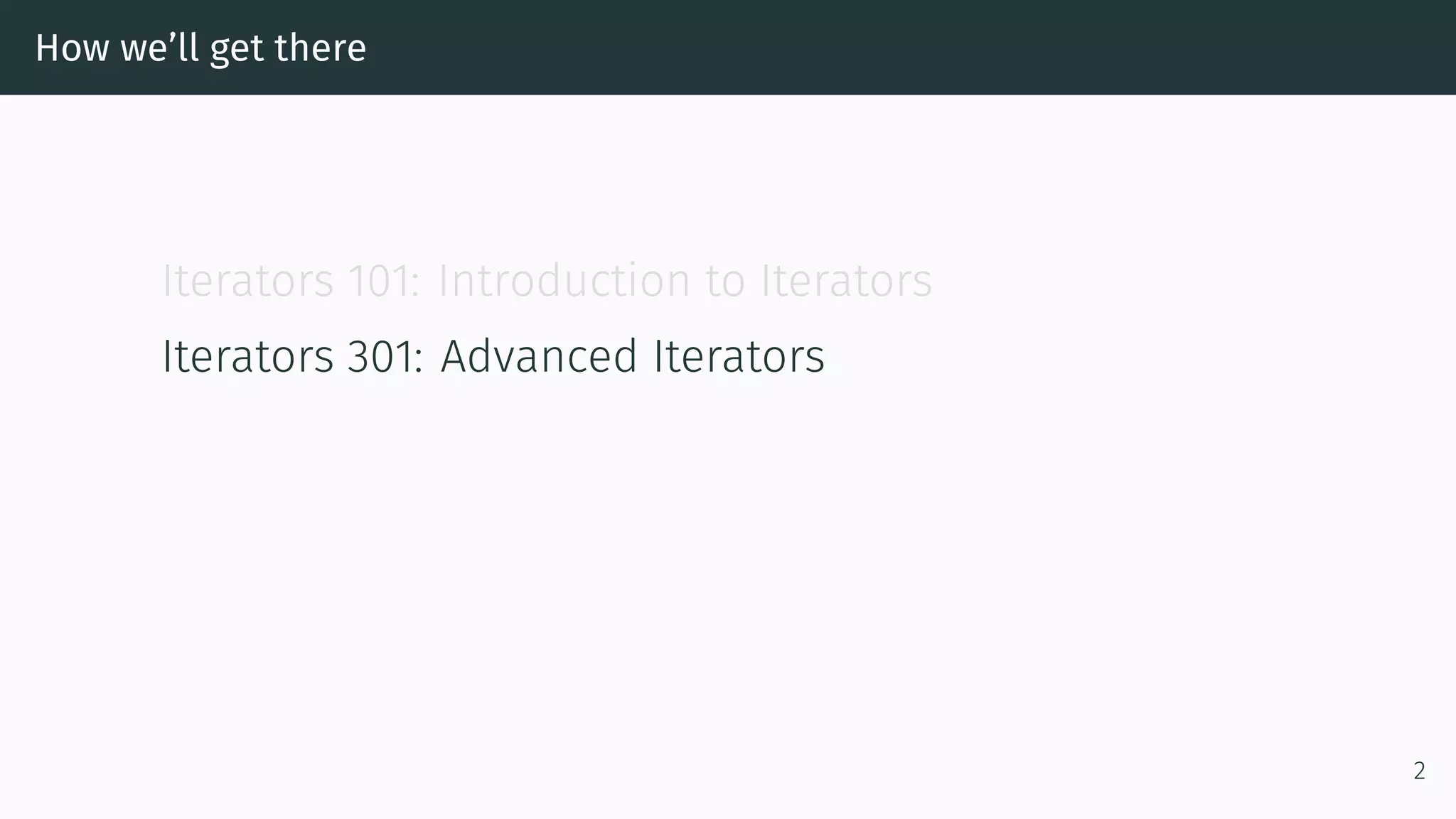

How we’ll get there Iterators 101: Introduction to Iterators Iterators 301: Advanced Iterators Generic Programming 2

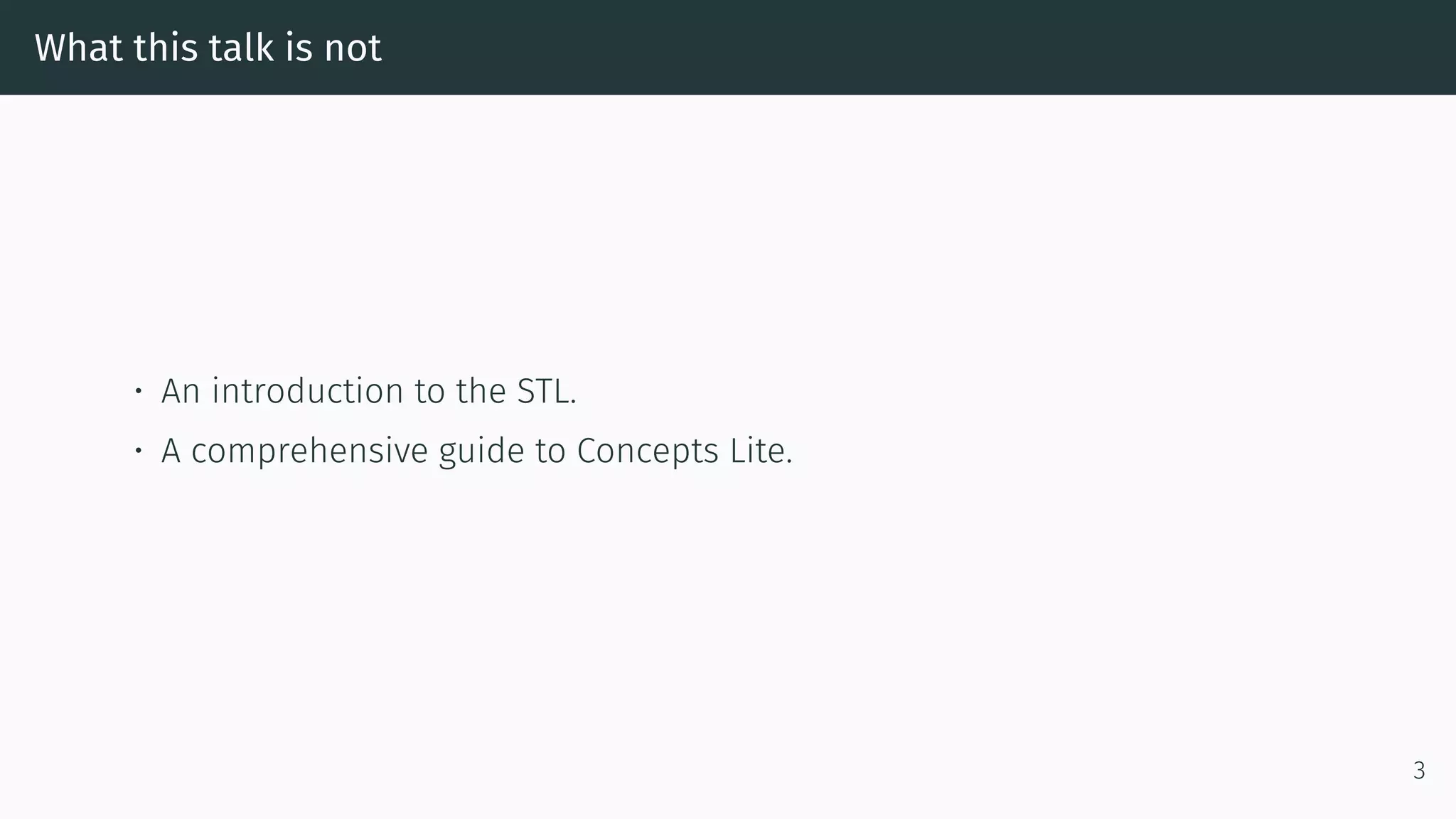

What this talk is not • An introduction to the STL. • A comprehensive guide to Concepts Lite. 3

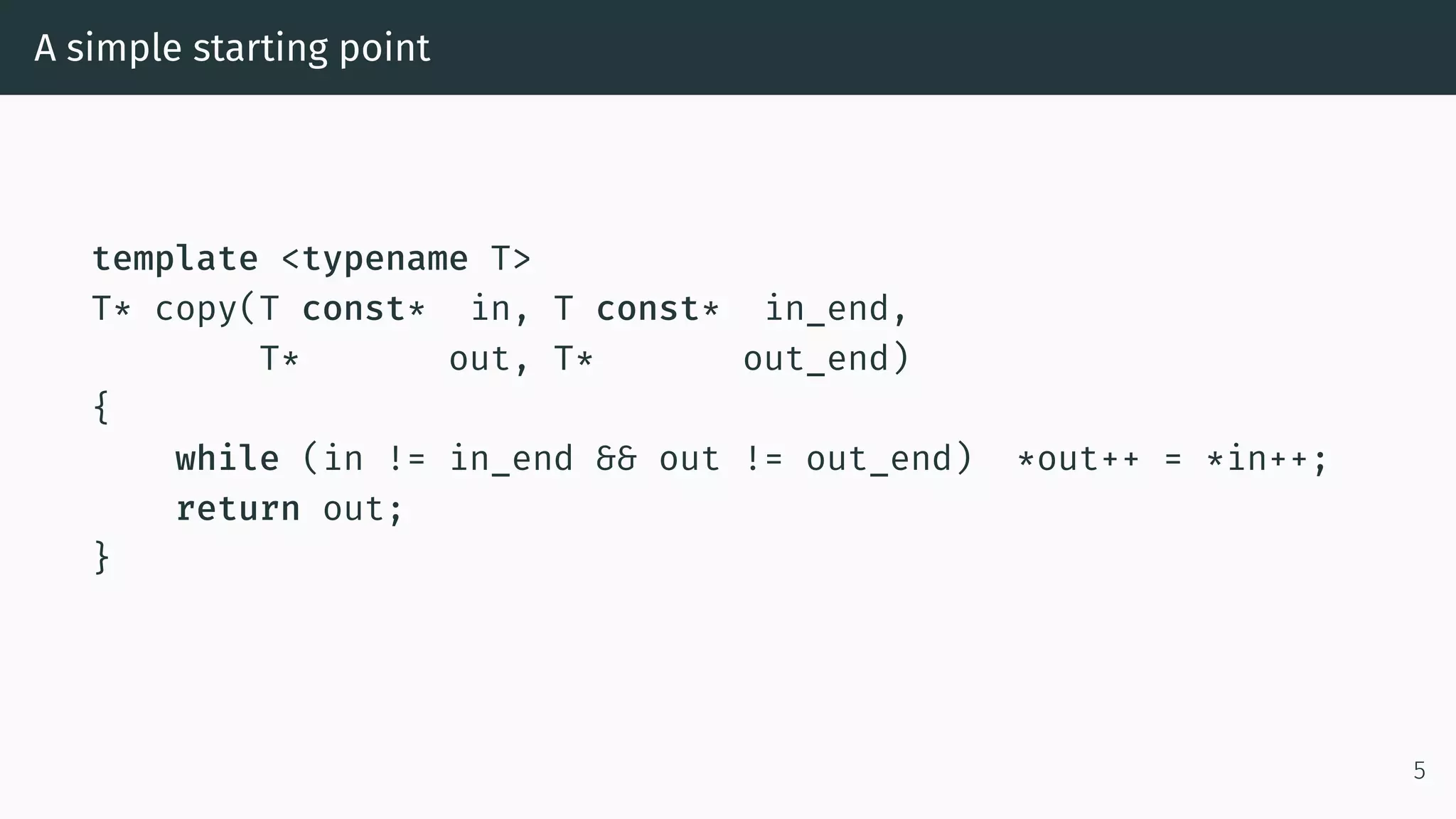

A simple starting point template <typename T> T* copy(T const* in, T const* in_end, T* out, T* out_end) { while (in != in_end && out != out_end) *out++ = *in++; return out; } 5

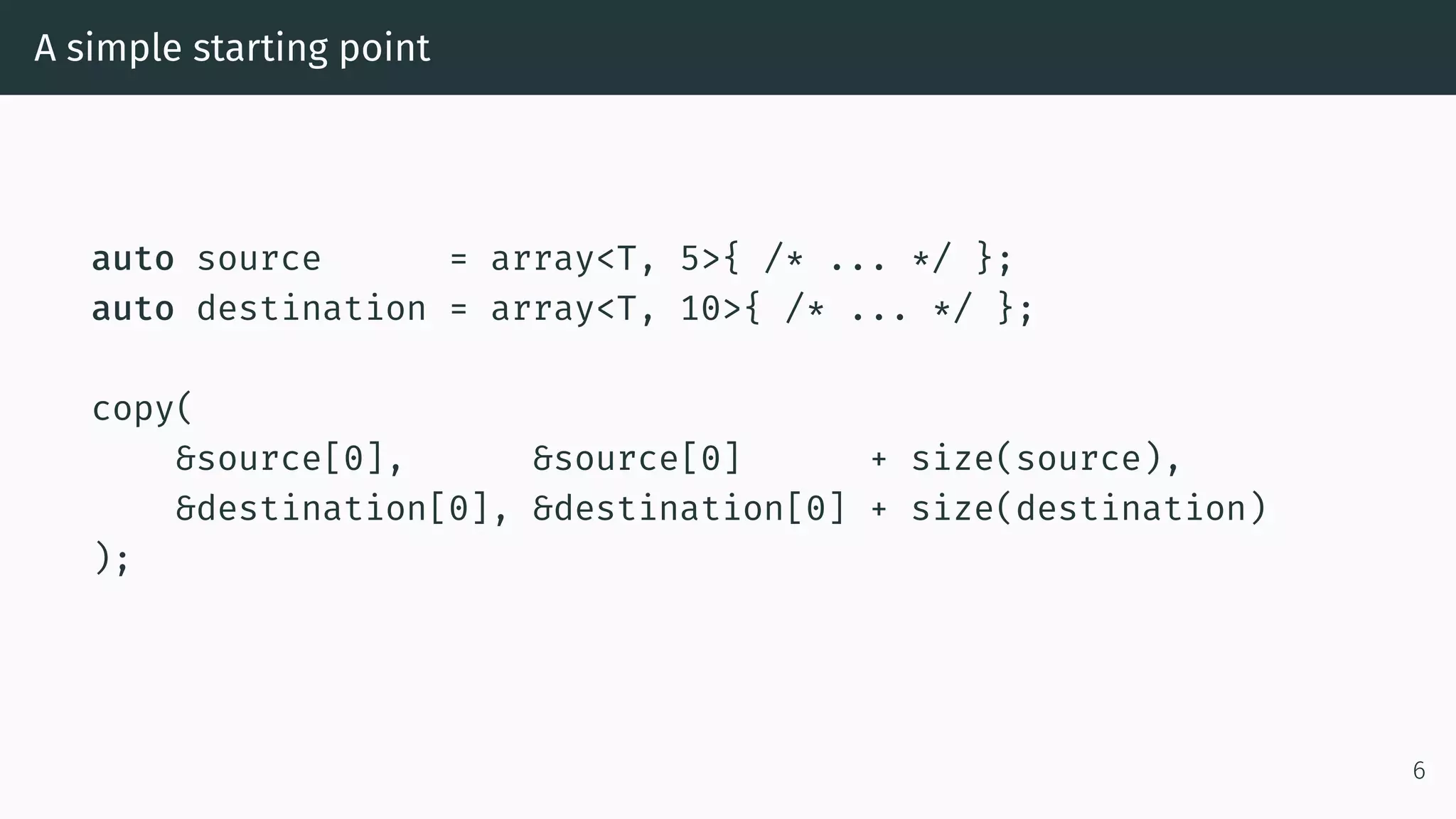

A simple starting point auto source = array<T, 5>{ /* ... */ }; auto destination = array<T, 10>{ /* ... */ }; copy( &source[0], &source[0] + size(source), &destination[0], &destination[0] + size(destination) ); 6

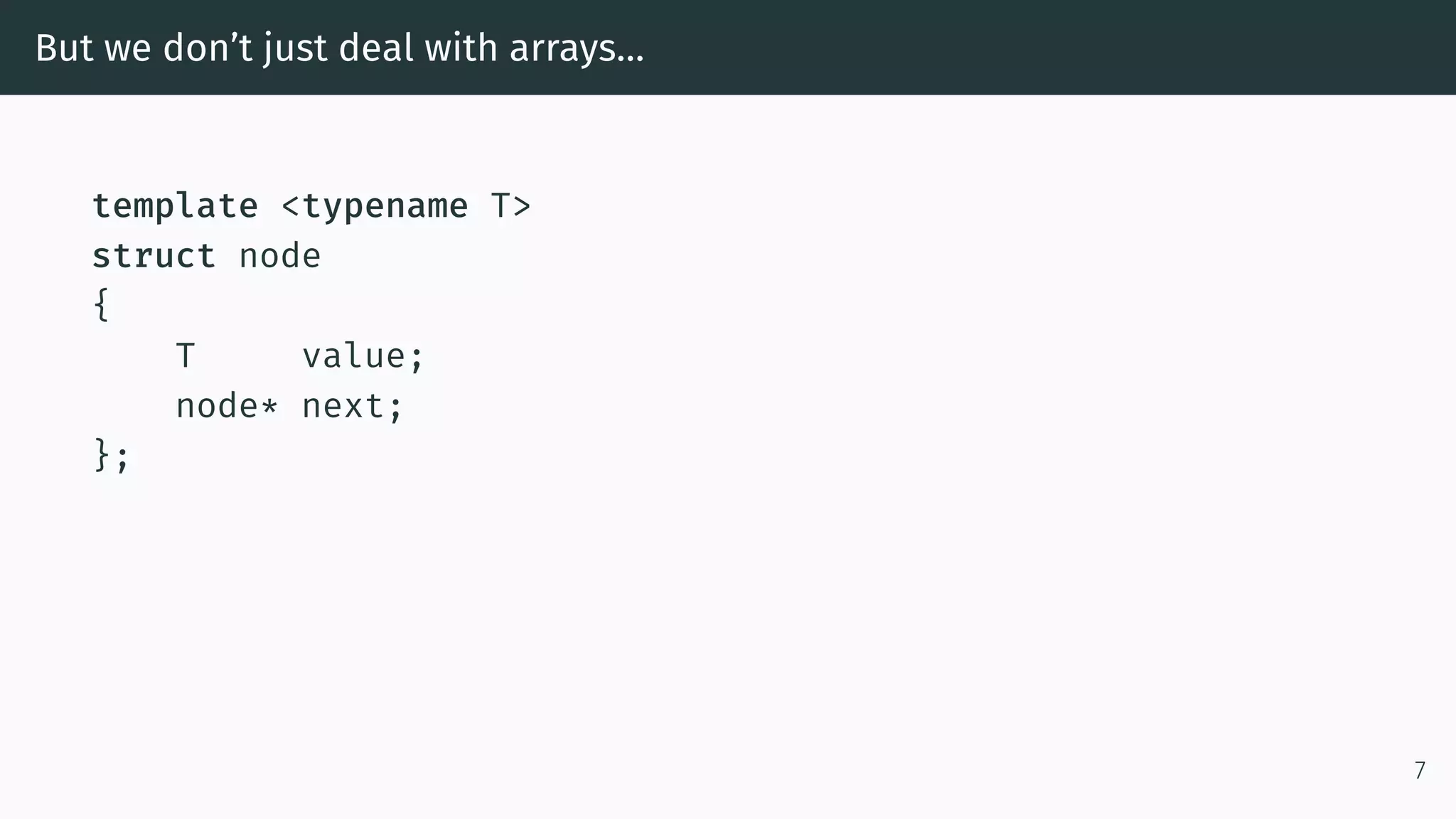

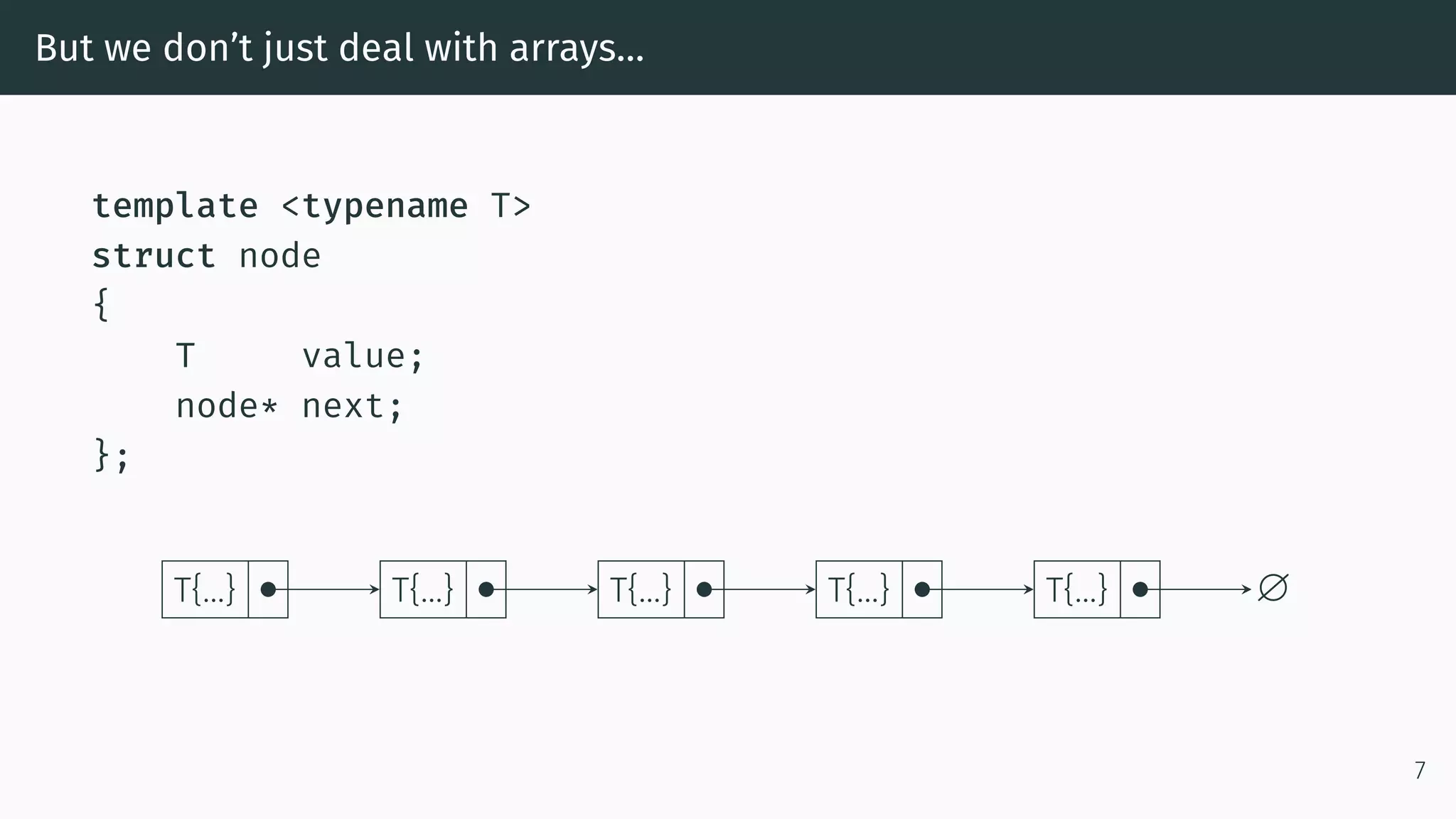

But we don’t just deal with arrays… template <typename T> struct node { T value; node* next; }; 7

But we don’t just deal with arrays… template <typename T> struct node { T value; node* next; }; T{…} T{…} T{…} T{…} T{…} ∅ 7

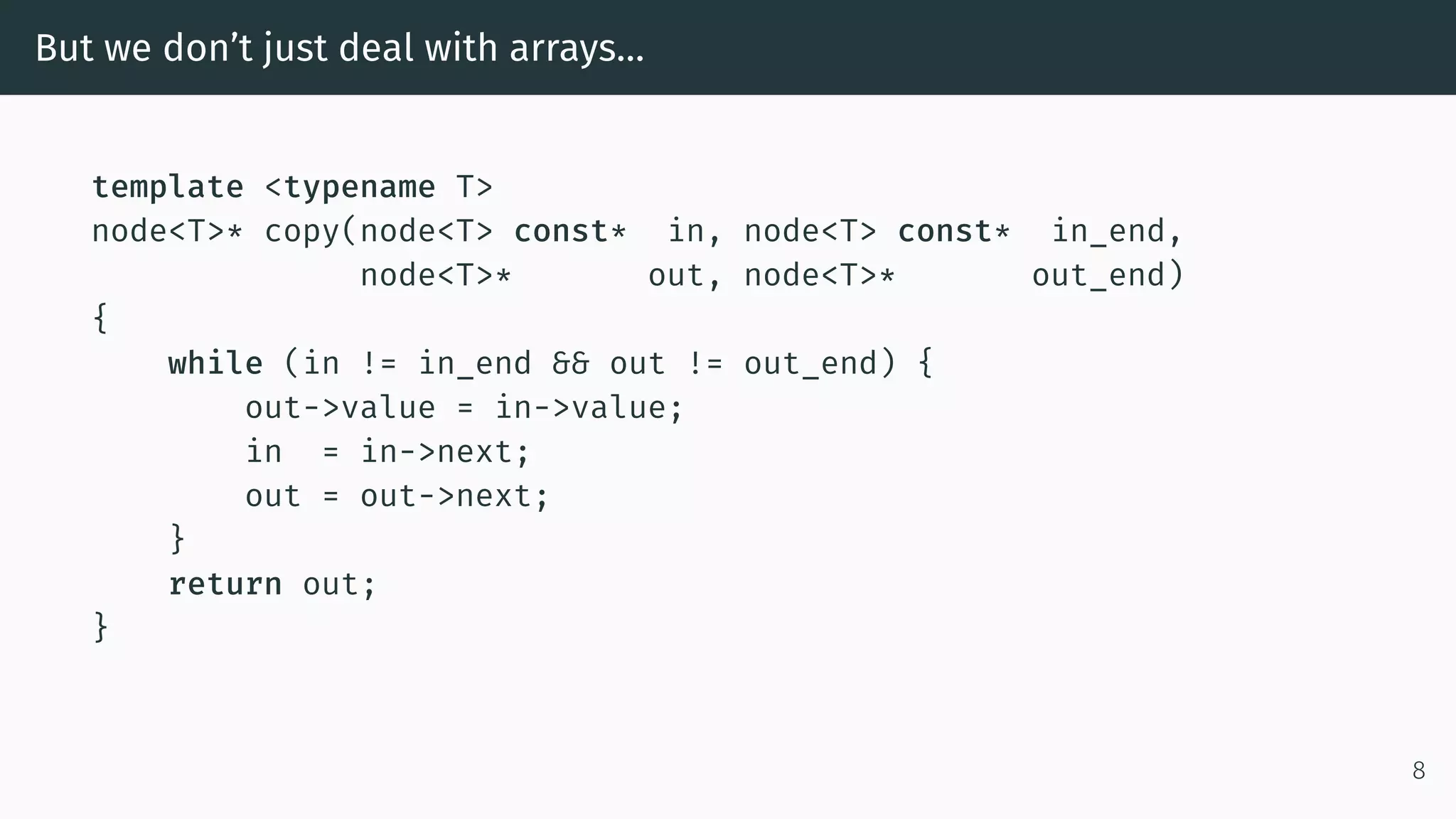

But we don’t just deal with arrays… template <typename T> node<T>* copy(node<T> const* in, node<T> const* in_end, node<T>* out, node<T>* out_end) { while (in != in_end && out != out_end) { out->value = in->value; in = in->next; out = out->next; } return out; } 8

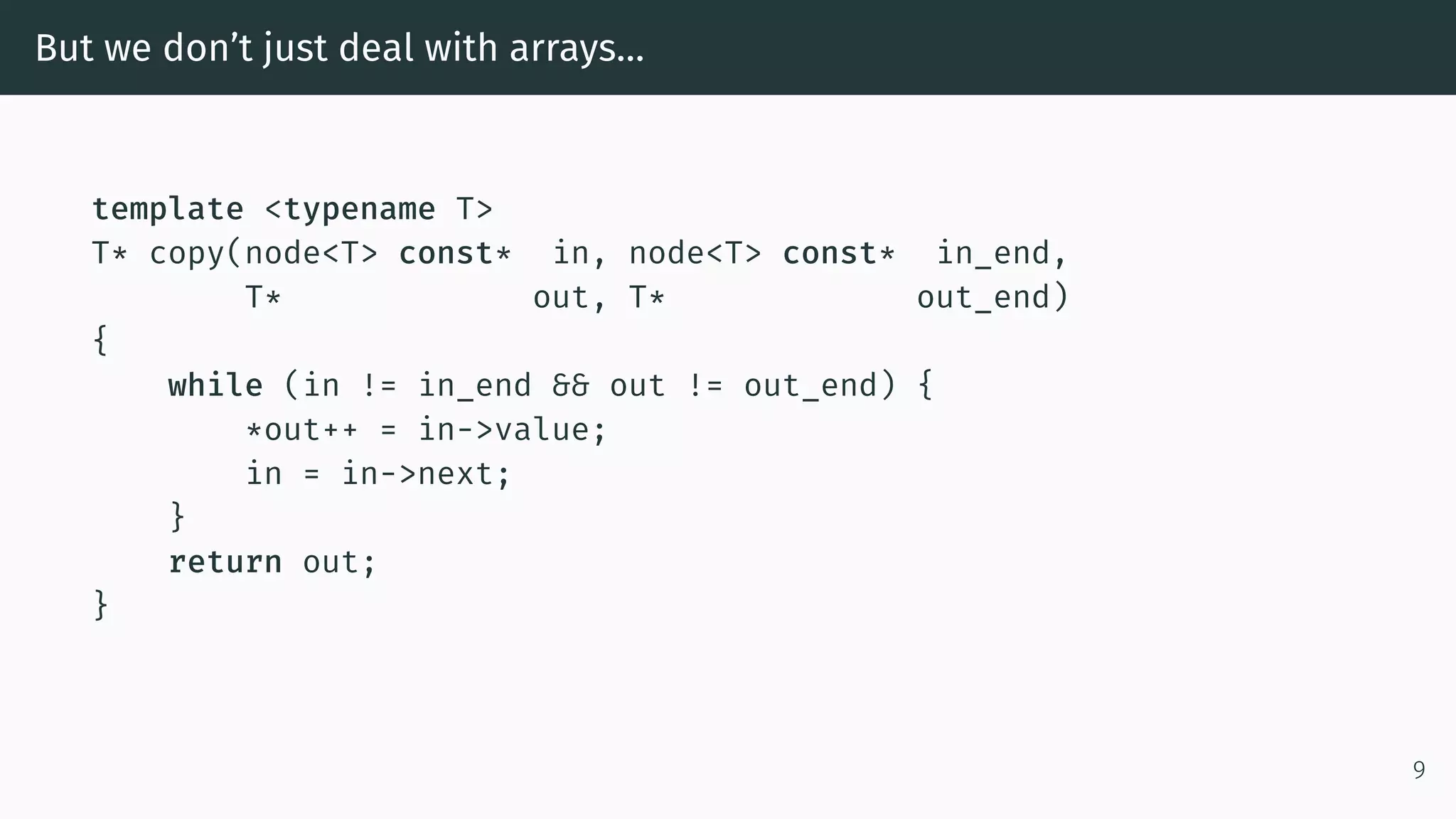

But we don’t just deal with arrays… template <typename T> T* copy(node<T> const* in, node<T> const* in_end, T* out, T* out_end) { while (in != in_end && out != out_end) { *out++ = in->value; in = in->next; } return out; } 9

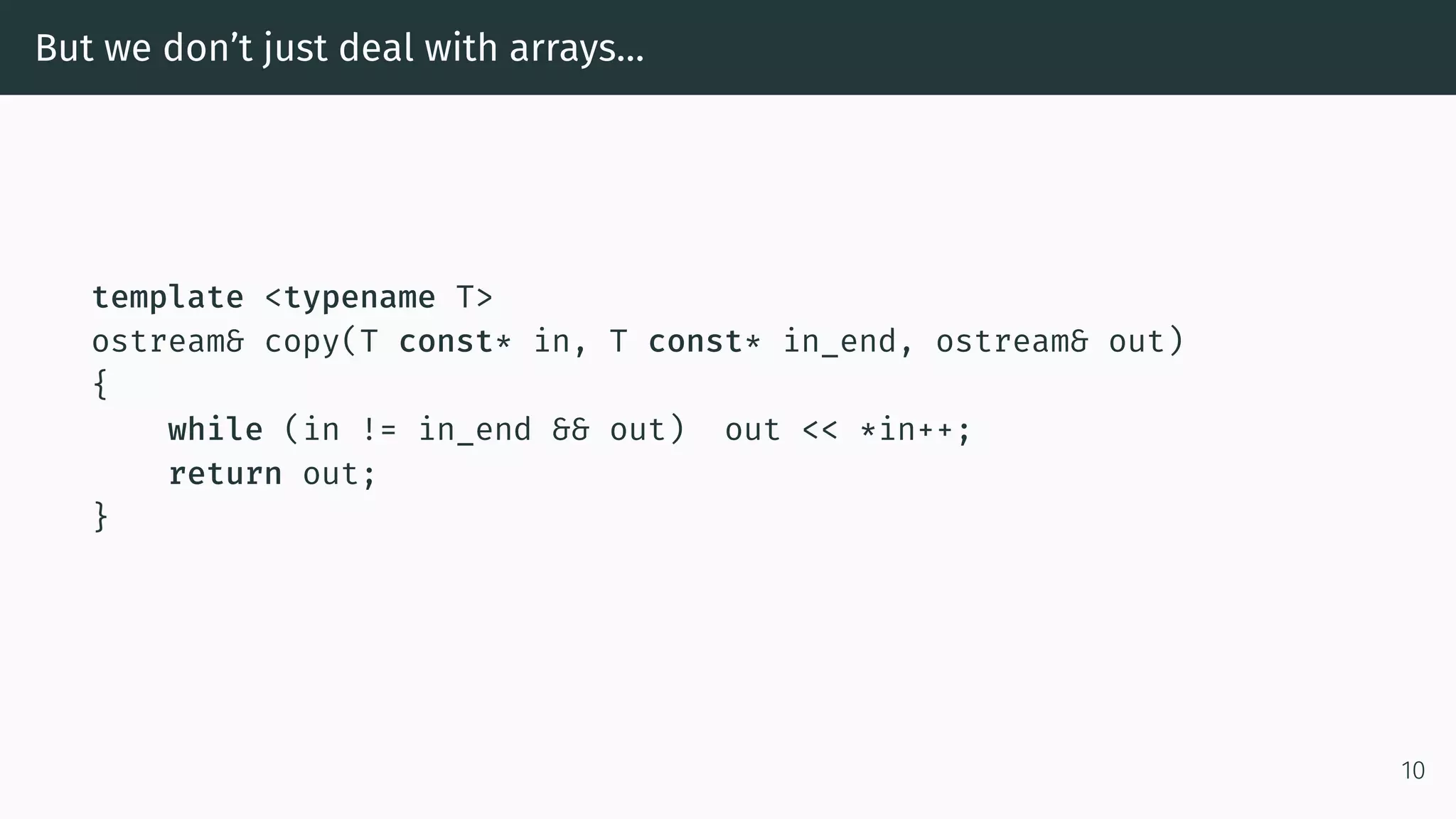

But we don’t just deal with arrays… template <typename T> ostream& copy(T const* in, T const* in_end, ostream& out) { while (in != in_end && out) out << *in++; return out; } 10

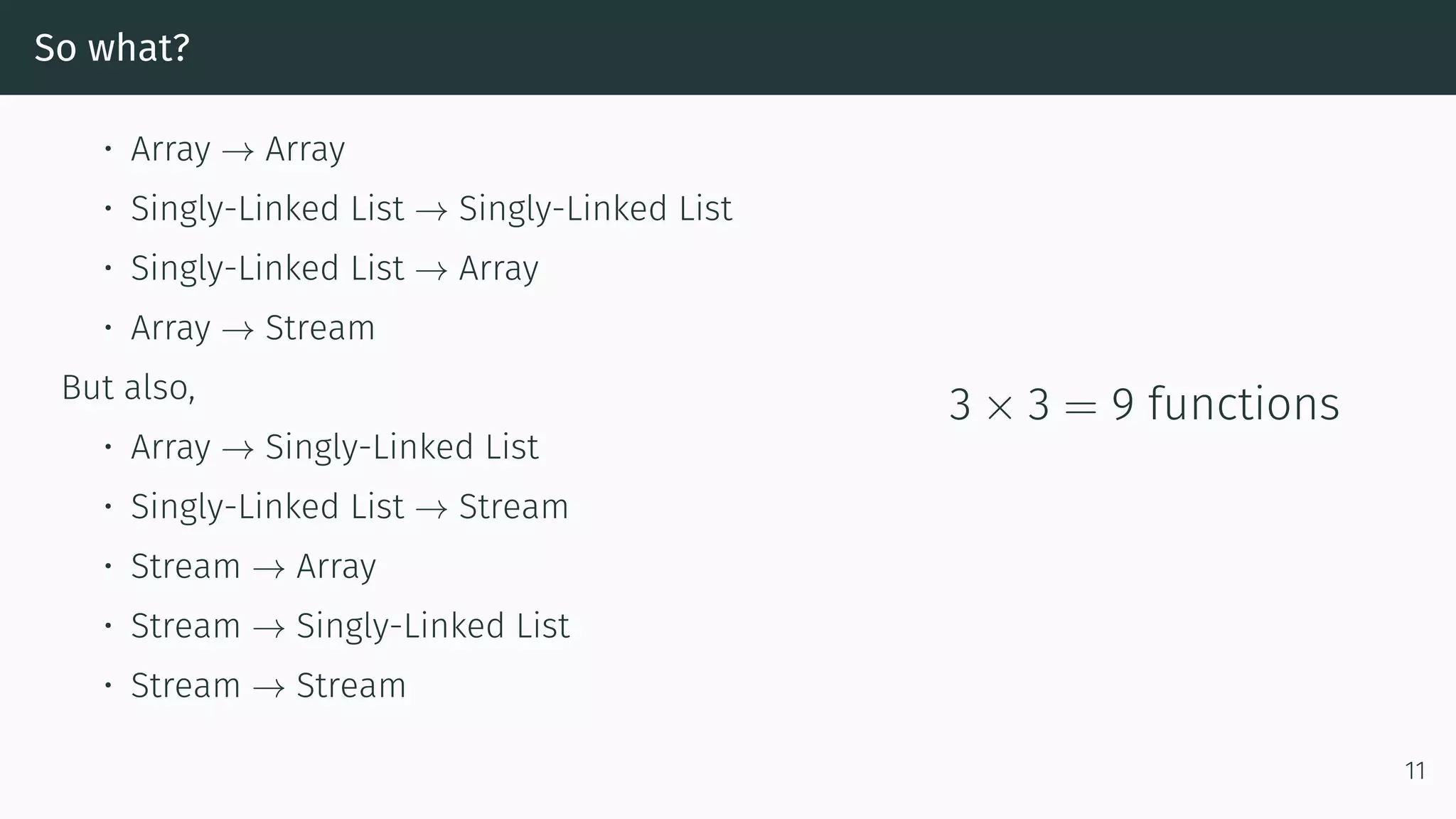

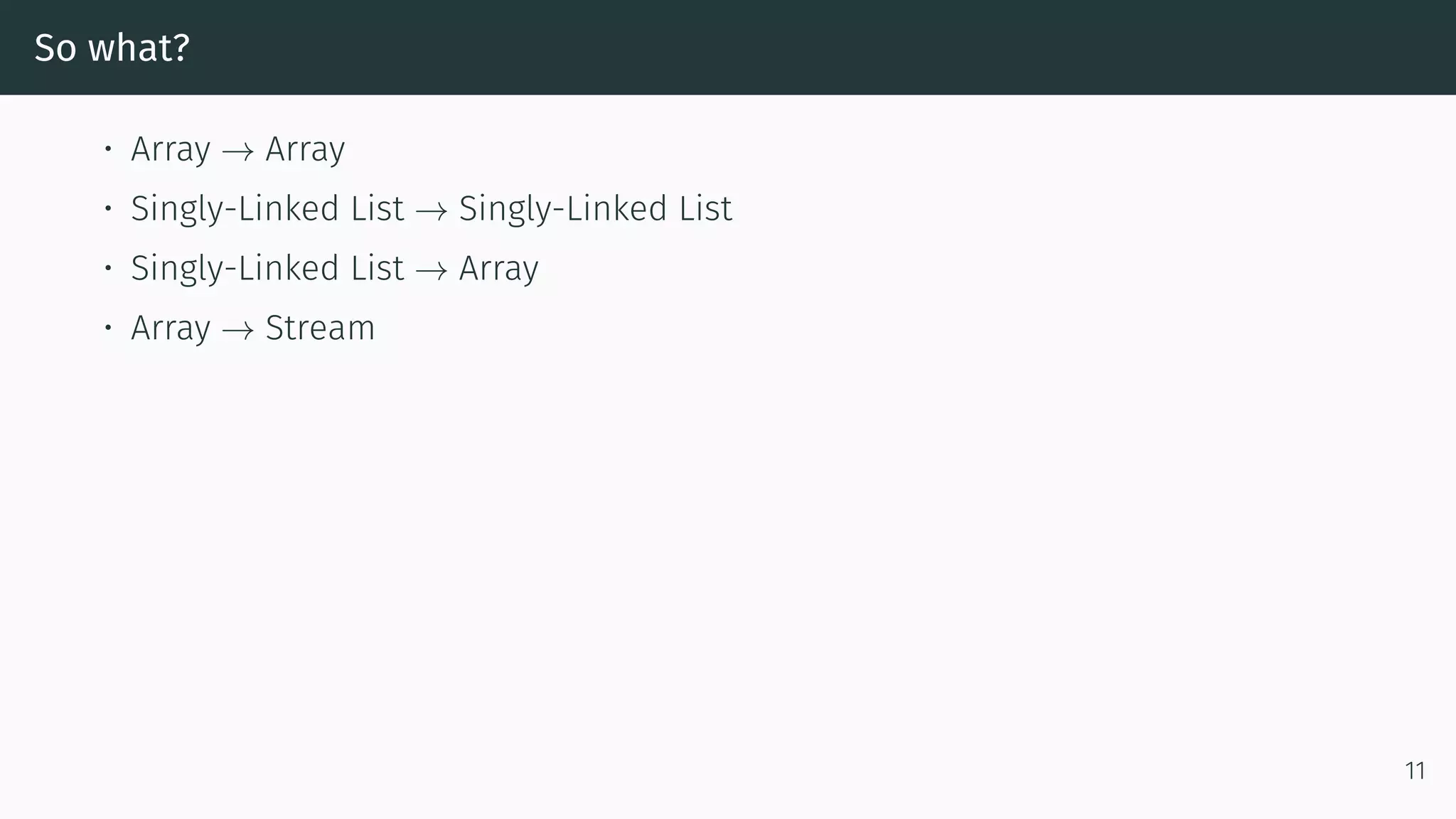

So what? • Array → Array • Singly-Linked List → Singly-Linked List • Singly-Linked List → Array • Array → Stream 11

So what? • Array → Array • Singly-Linked List → Singly-Linked List • Singly-Linked List → Array • Array → Stream But also, • Array → Singly-Linked List • Singly-Linked List → Stream • Stream → Array • Stream → Singly-Linked List • Stream → Stream 3 × 3 = 9 functions 11

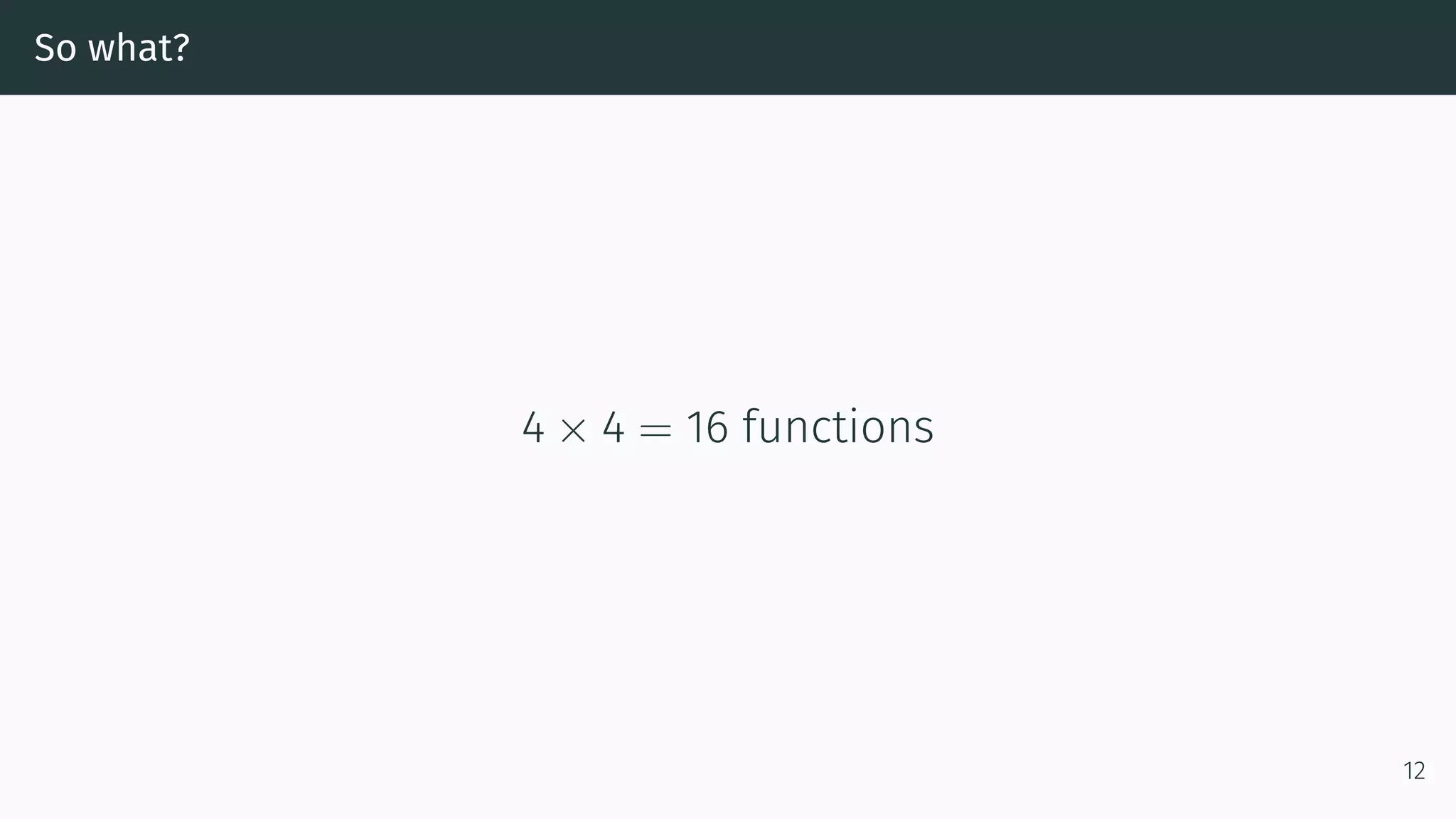

So what? 4 × 4 = 16 functions 12

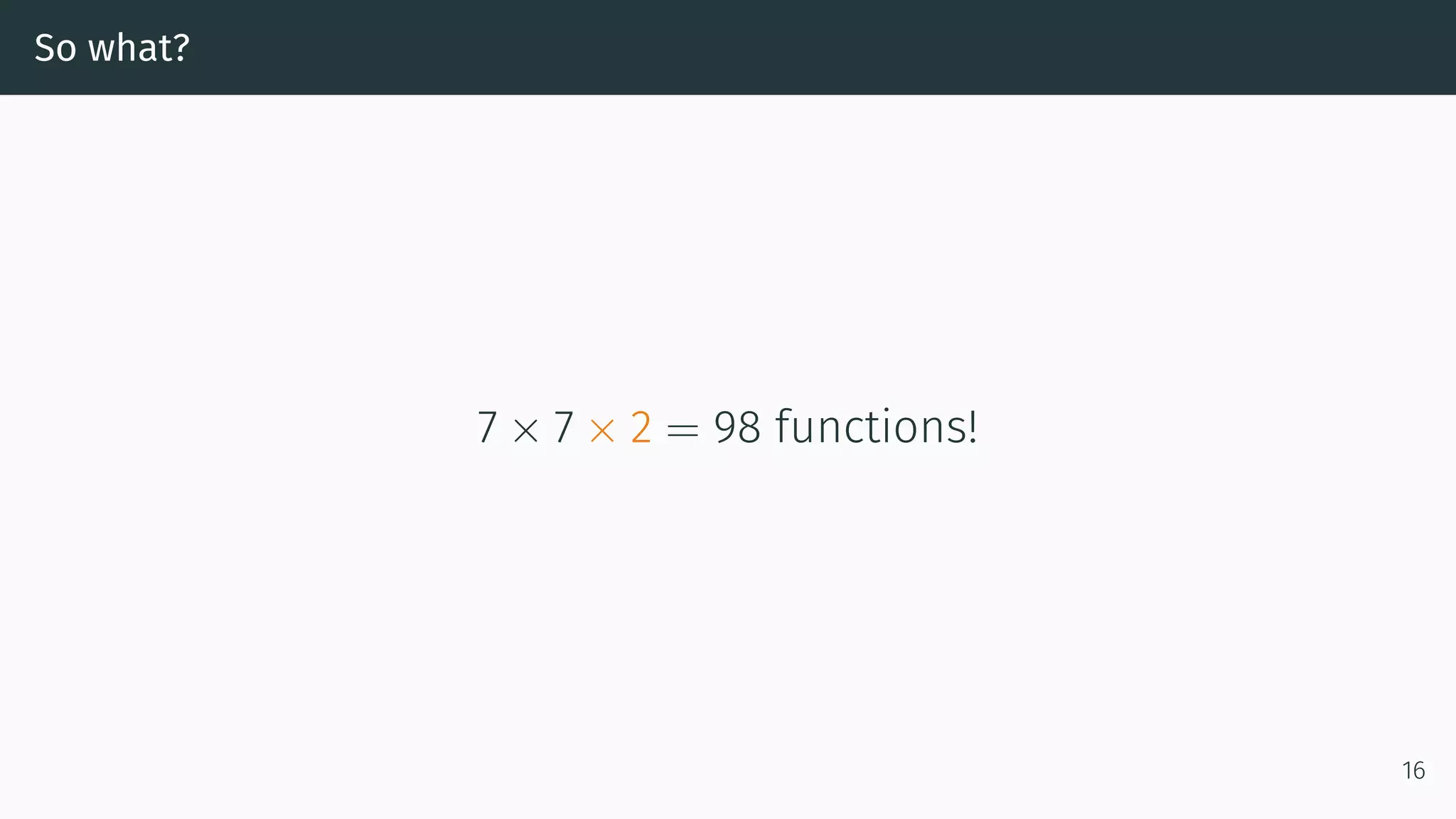

So what? 7 × 7 × 2 = 98 functions! 16

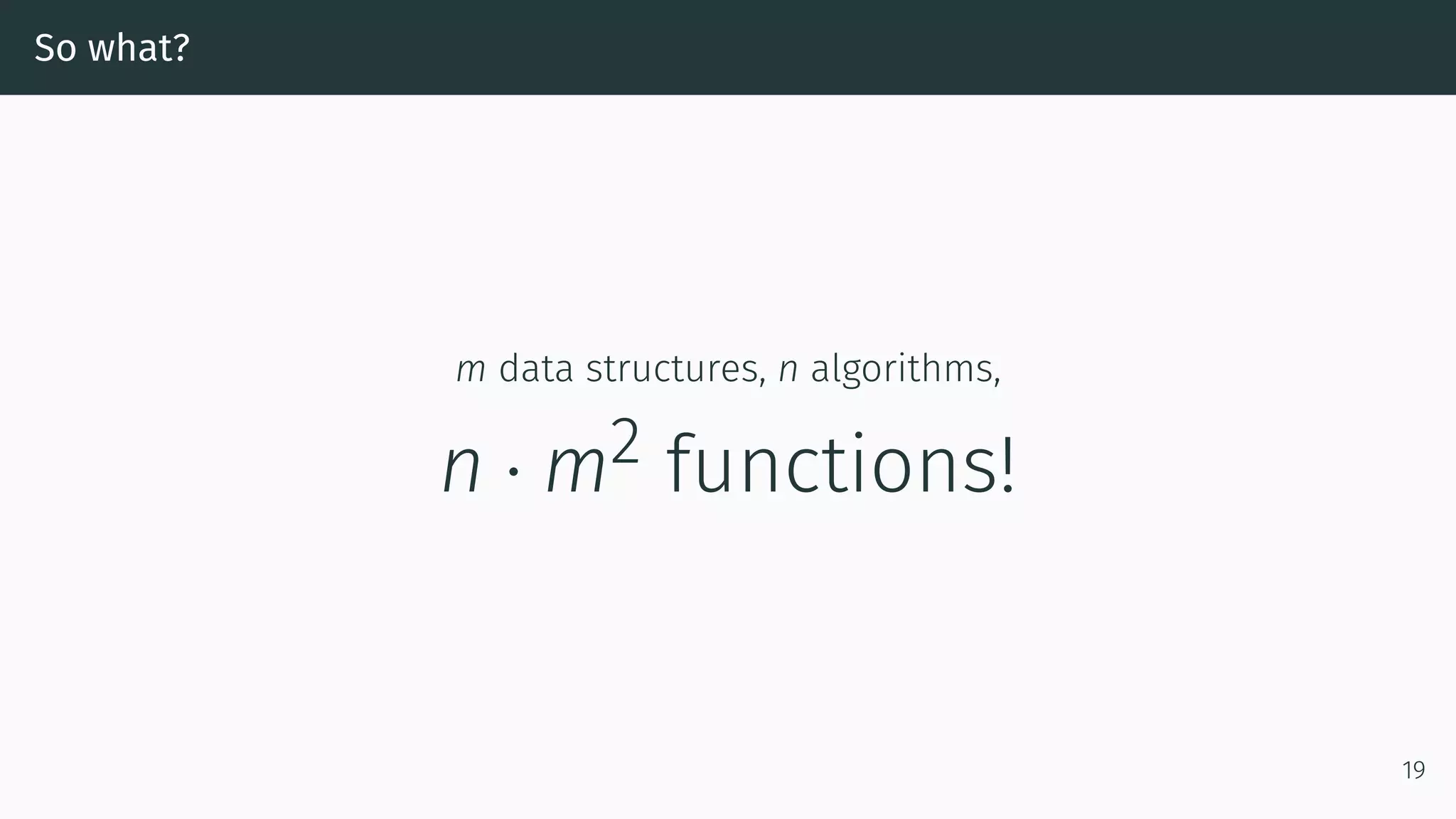

So what? m data structures, n algorithms, n · m2 functions! 19

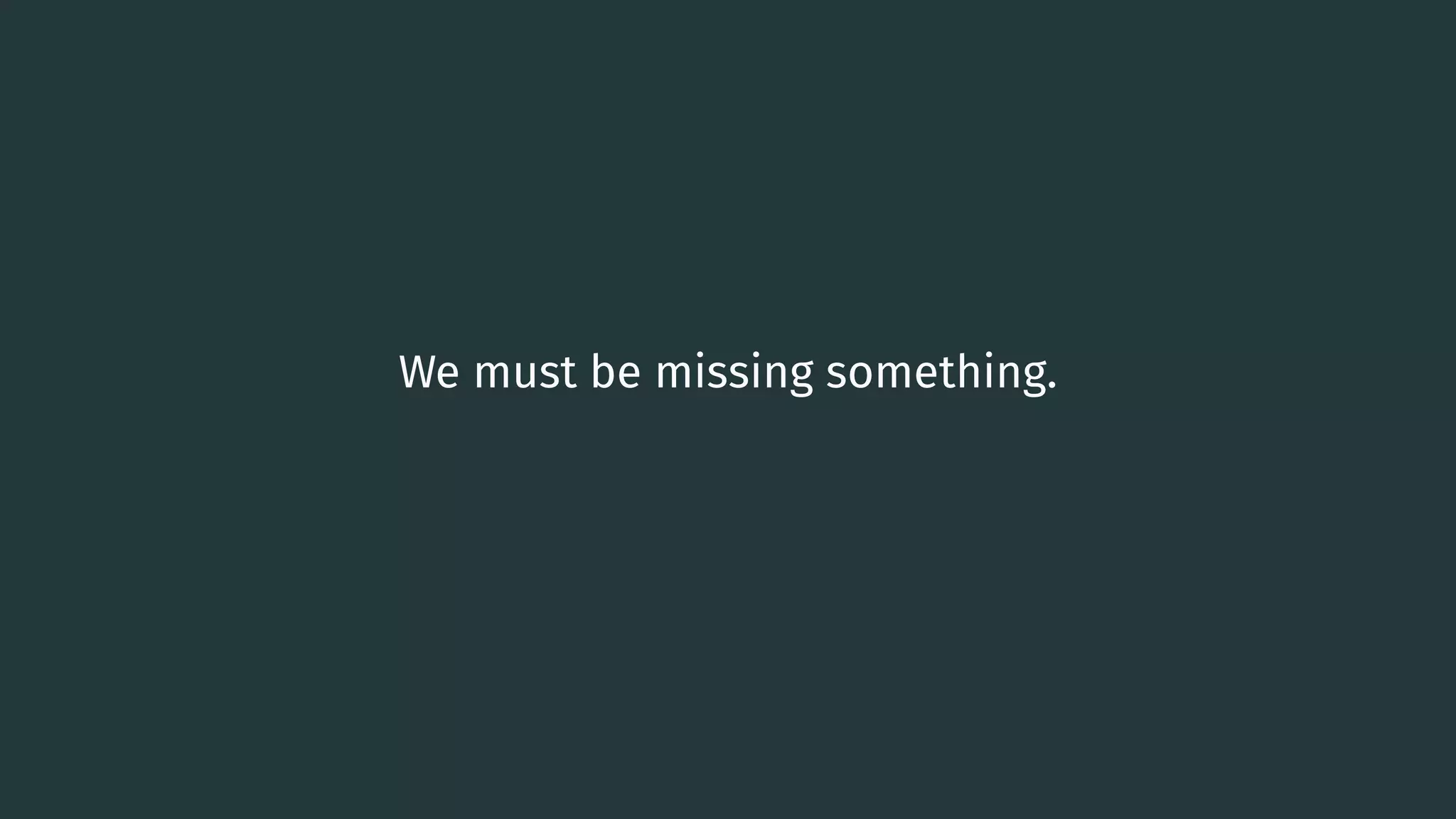

We must be missing something. 19

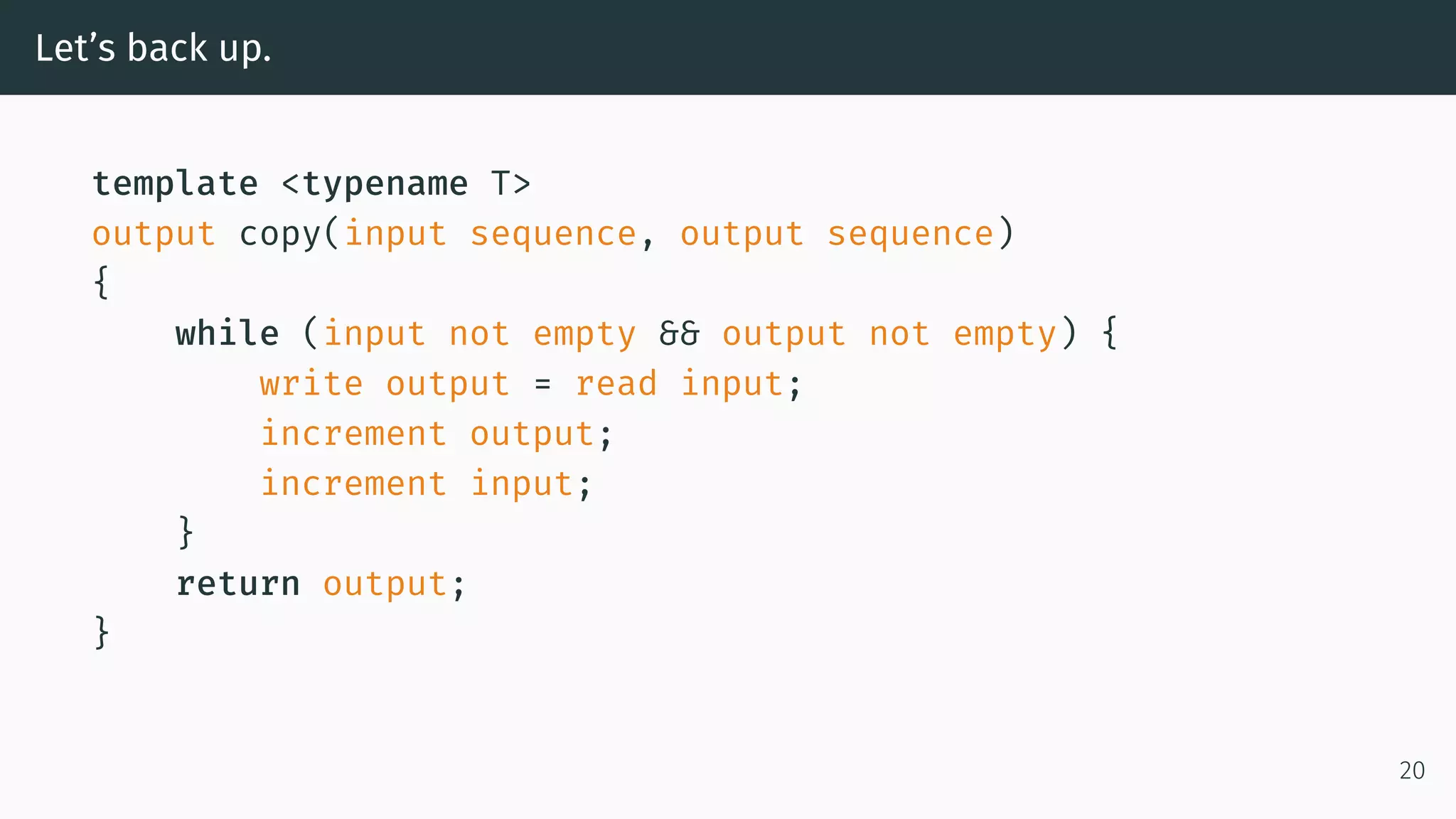

Let’s back up. template <typename T> output copy(input sequence, output sequence) { while (input not empty && output not empty) { write output = read input; increment output; increment input; } return output; } 20

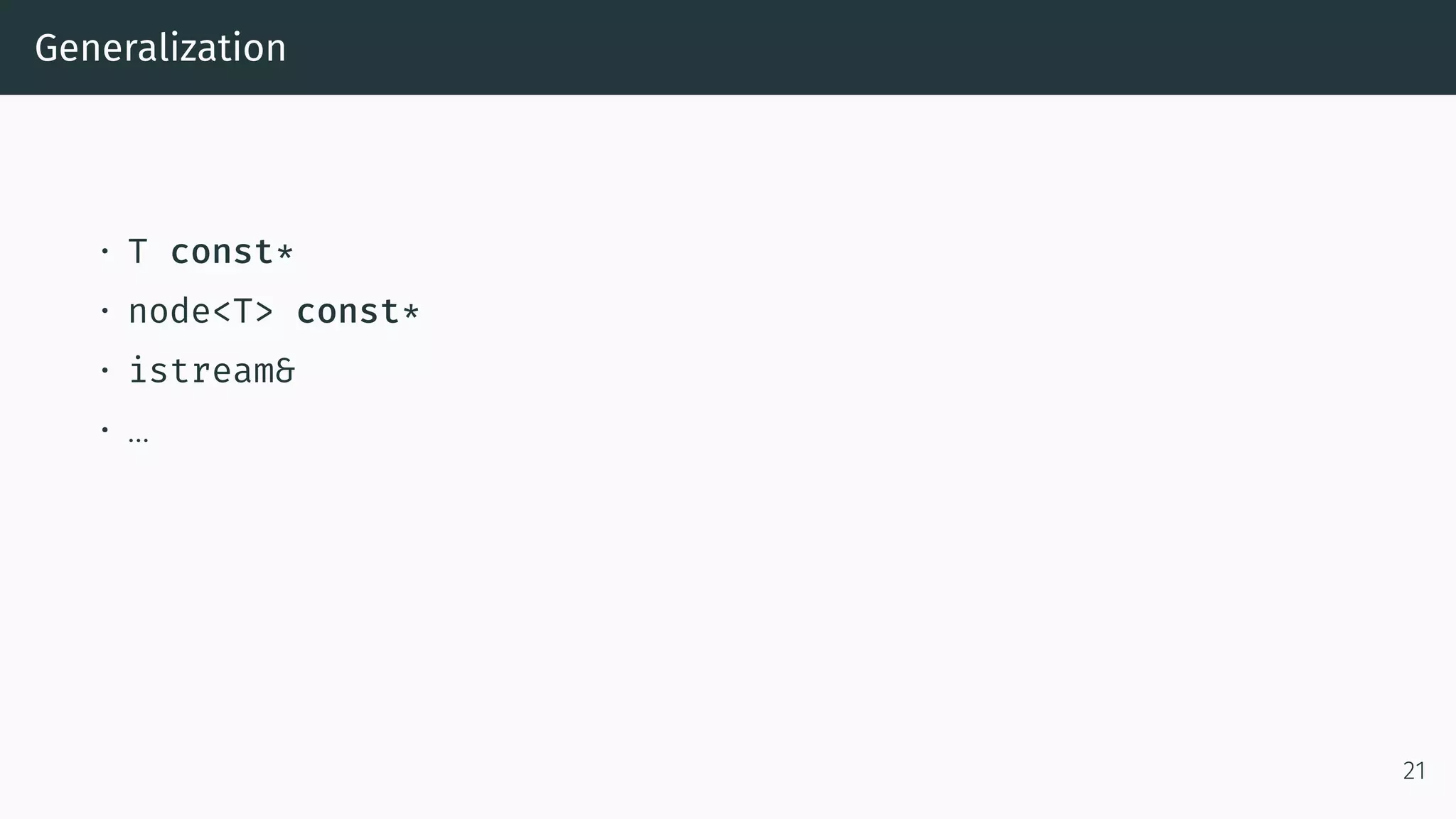

Generalization • T const* • node<T> const* • istream& • … 21

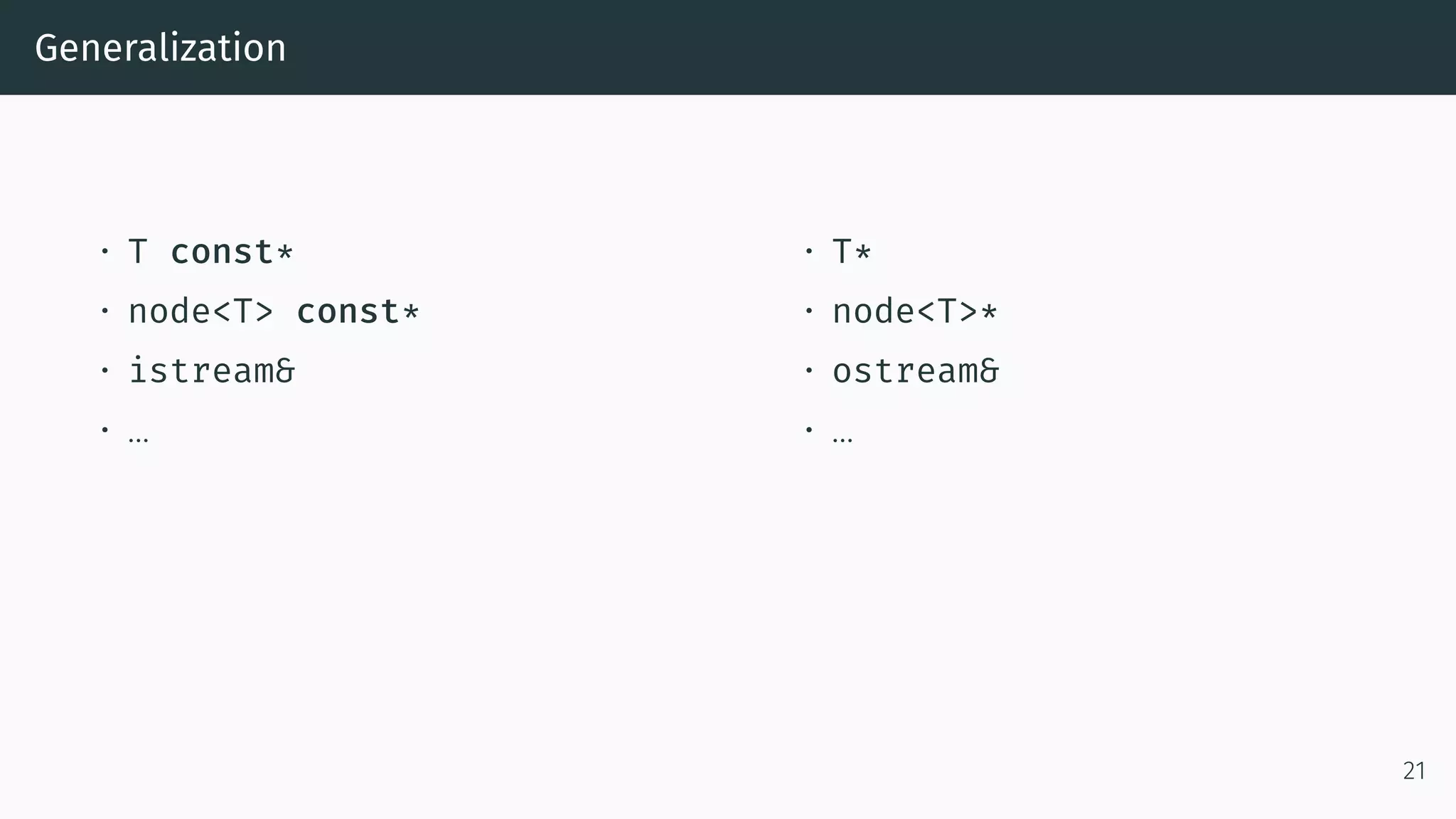

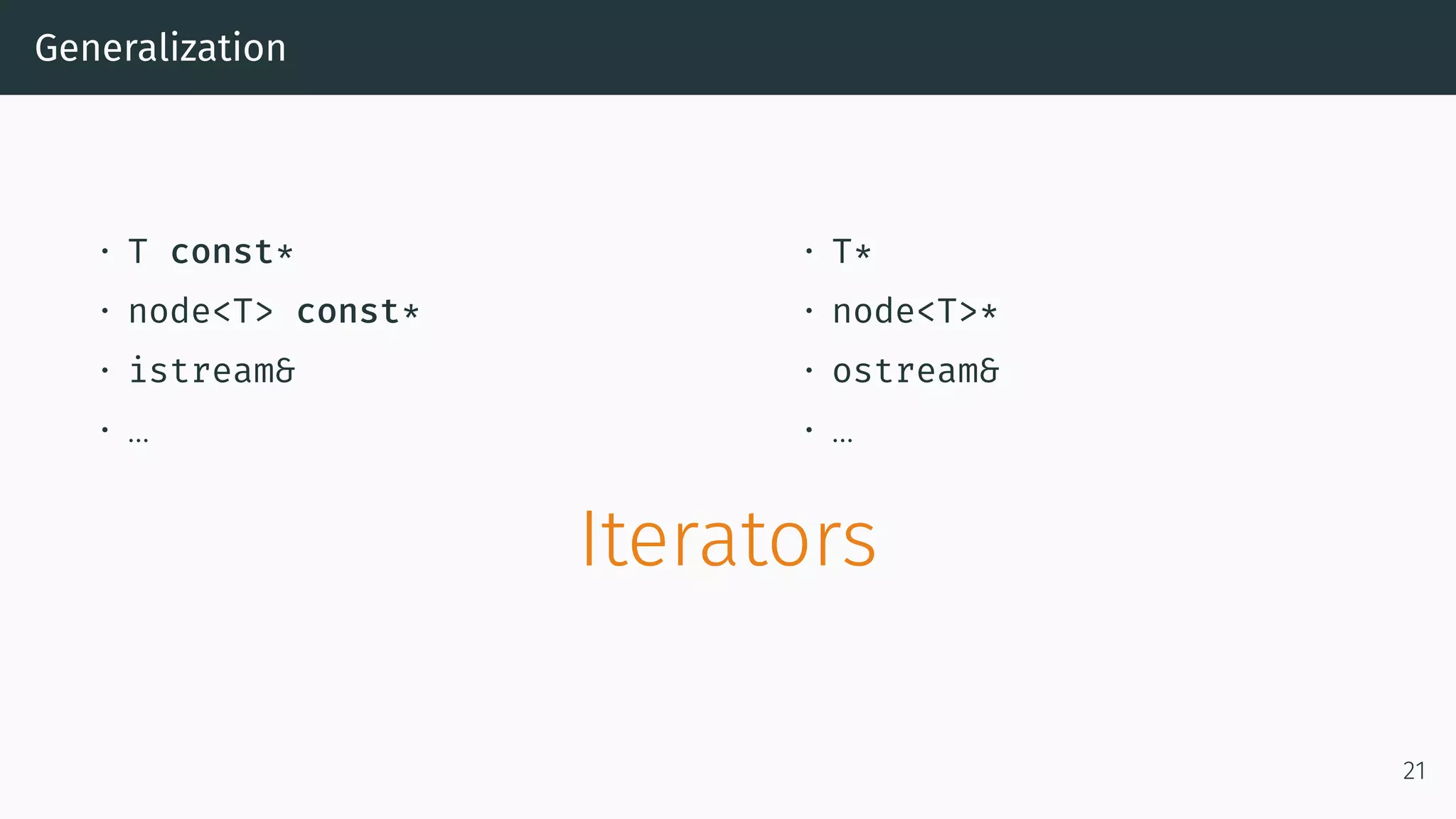

Generalization • T const* • node<T> const* • istream& • … • T* • node<T>* • ostream& • … 21

Generalization • T const* • node<T> const* • istream& • … • T* • node<T>* • ostream& • … Iterators 21

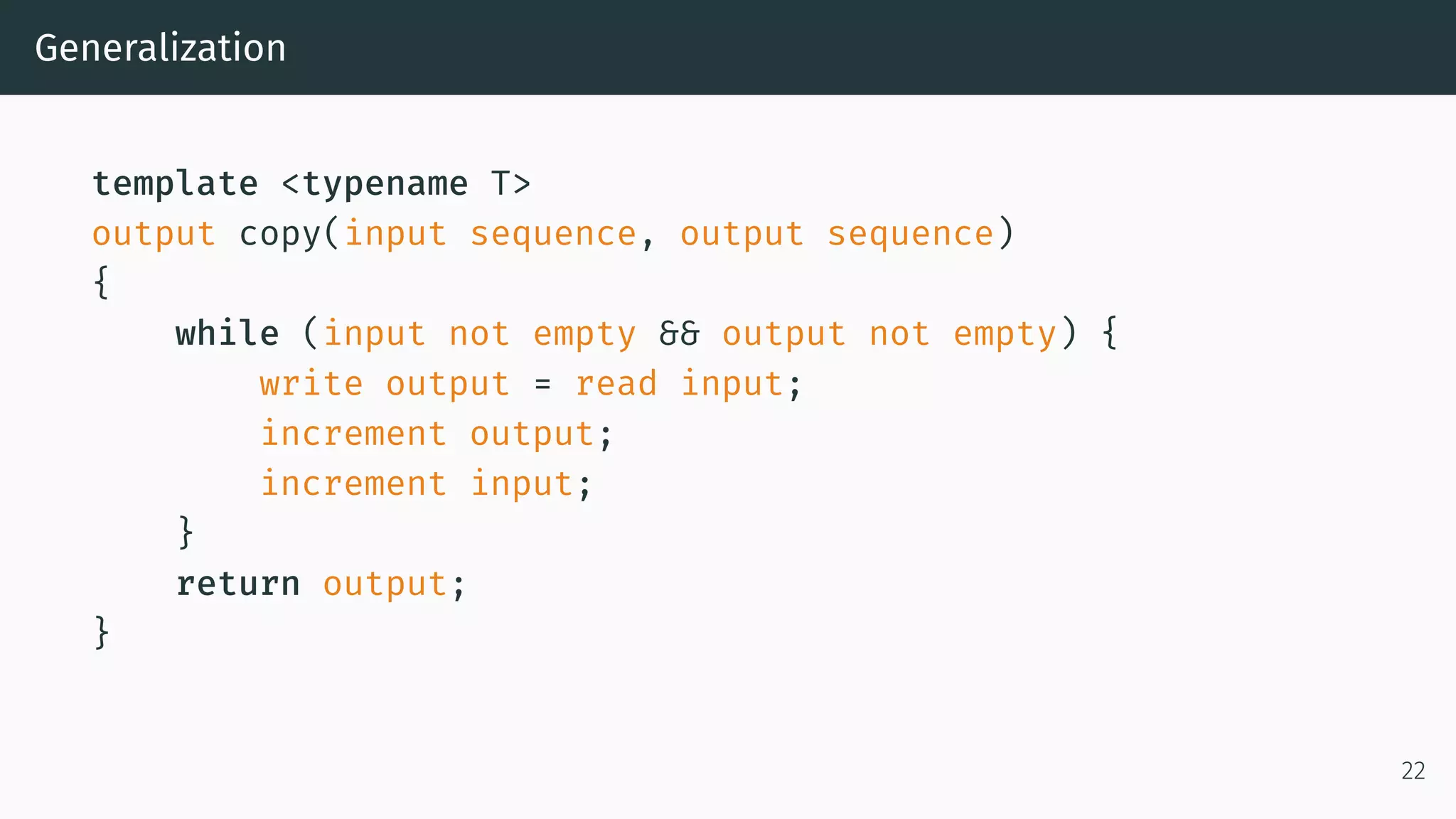

Generalization template <typename T> output copy(input sequence, output sequence) { while (input not empty && output not empty) { write output = read input; increment output; increment input; } return output; } 22

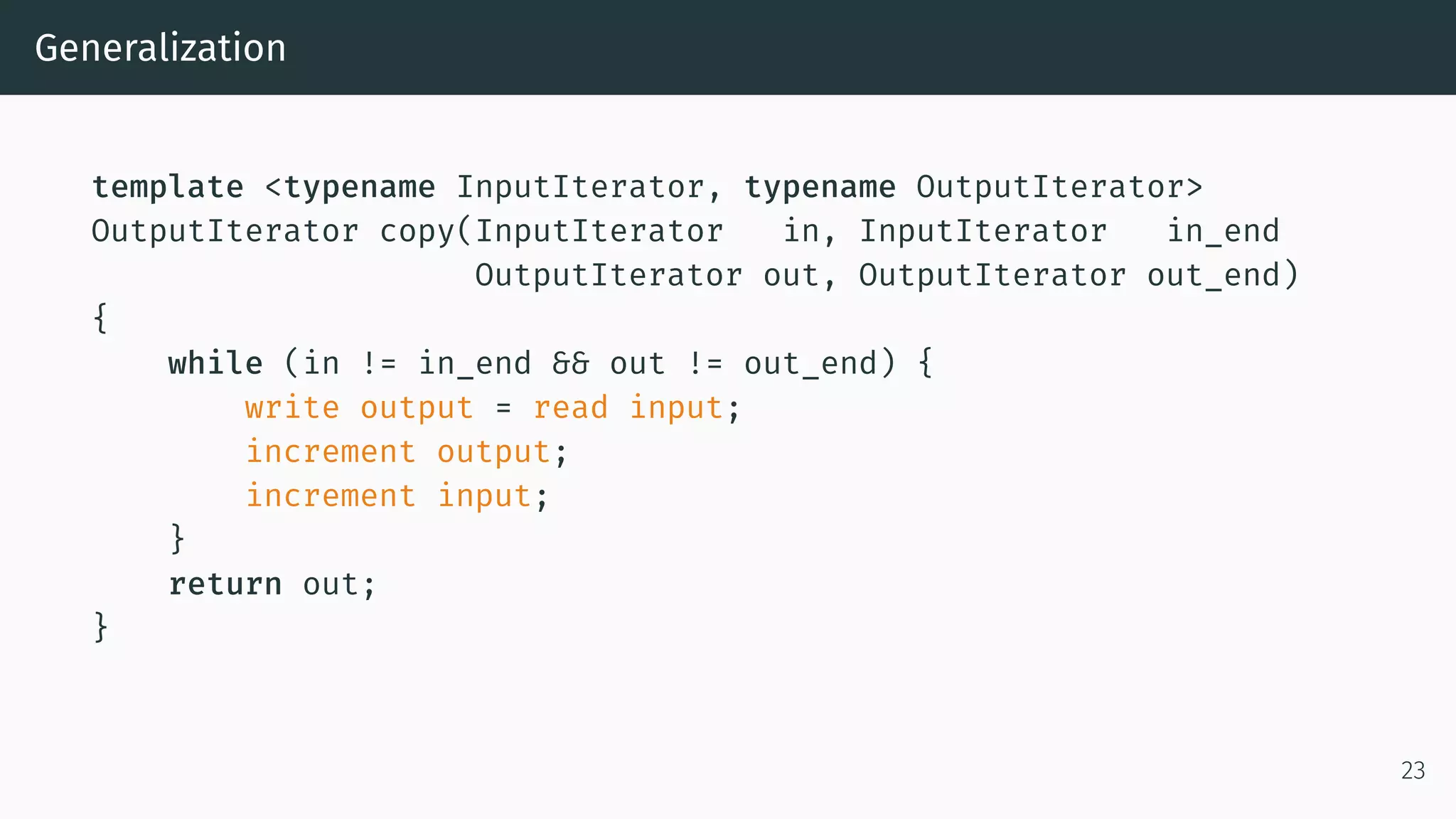

Generalization template <typename InputIterator, typename OutputIterator> OutputIterator copy(InputIterator in, InputIterator in_end OutputIterator out, OutputIterator out_end) { while (in != in_end && out != out_end) { write output = read input; increment output; increment input; } return out; } 23

Generalization template <typename InputIterator, typename OutputIterator> OutputIterator copy(InputIterator in, InputIterator in_end OutputIterator out, OutputIterator out_end) { while (in != in_end && out != out_end) { write output = source(in); // e.g., *in increment output; increment input; } return out; } 24

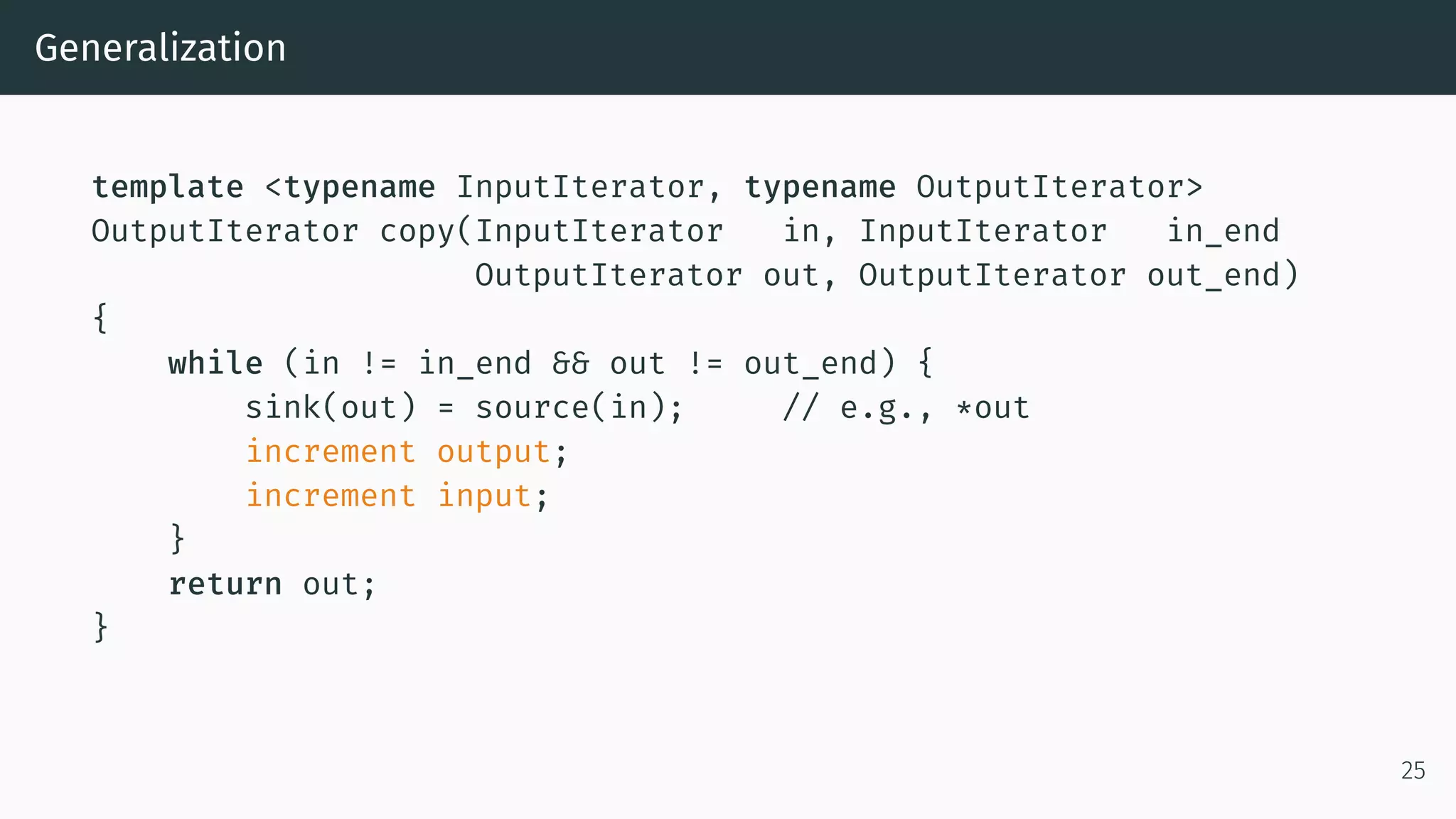

Generalization template <typename InputIterator, typename OutputIterator> OutputIterator copy(InputIterator in, InputIterator in_end OutputIterator out, OutputIterator out_end) { while (in != in_end && out != out_end) { sink(out) = source(in); // e.g., *out increment output; increment input; } return out; } 25

Generalization template <typename InputIterator, typename OutputIterator> OutputIterator copy(InputIterator in, InputIterator in_end OutputIterator out, OutputIterator out_end) { while (in != in_end && out != out_end) { sink(out) = source(in); out = successor(out); in = successor(in); } return out; } 26

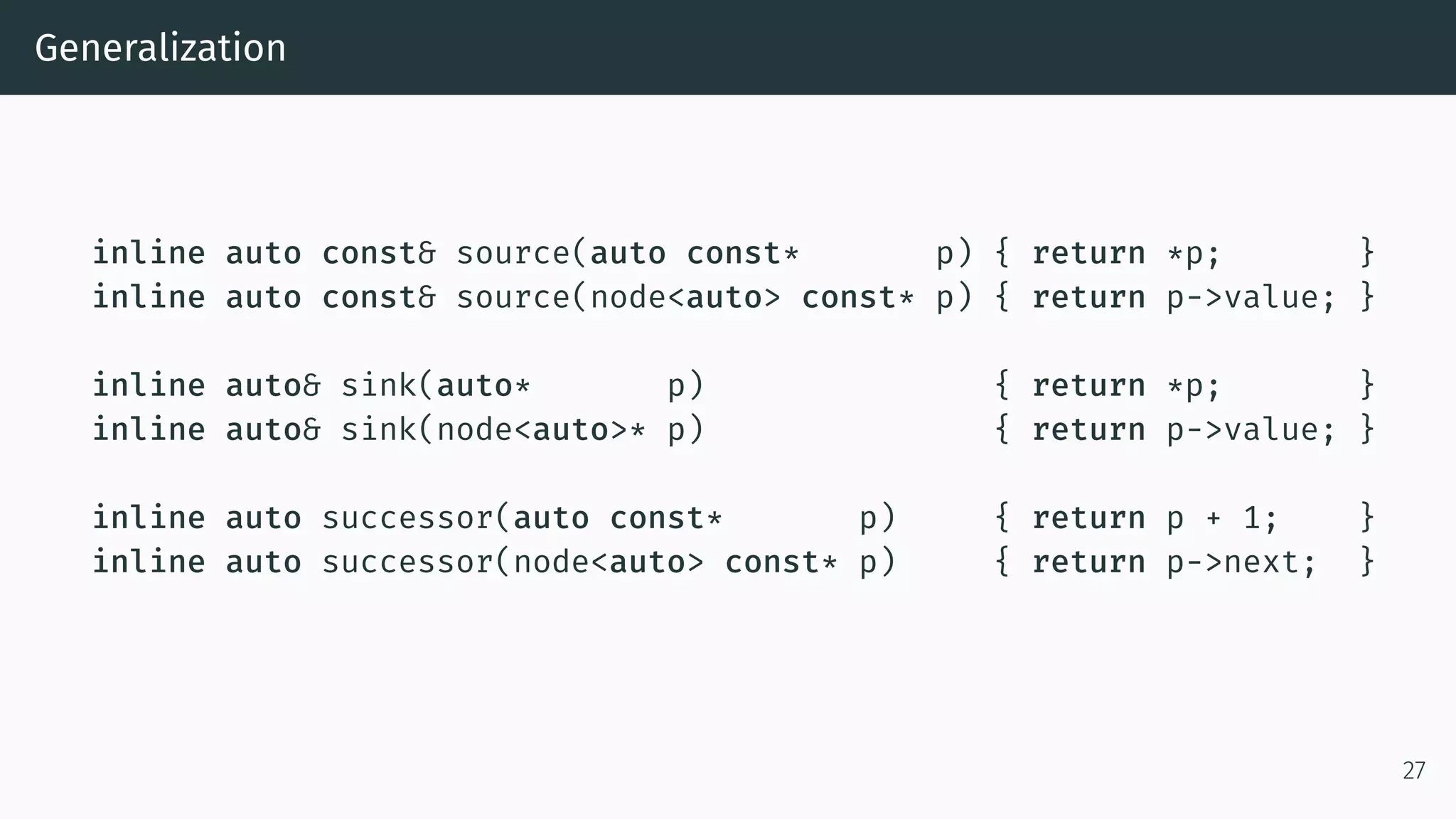

Generalization inline auto const& source(auto const* p) { return *p; } inline auto const& source(node<auto> const* p) { return p->value; } inline auto& sink(auto* p) { return *p; } inline auto& sink(node<auto>* p) { return p->value; } inline auto successor(auto const* p) { return p + 1; } inline auto successor(node<auto> const* p) { return p->next; } 27

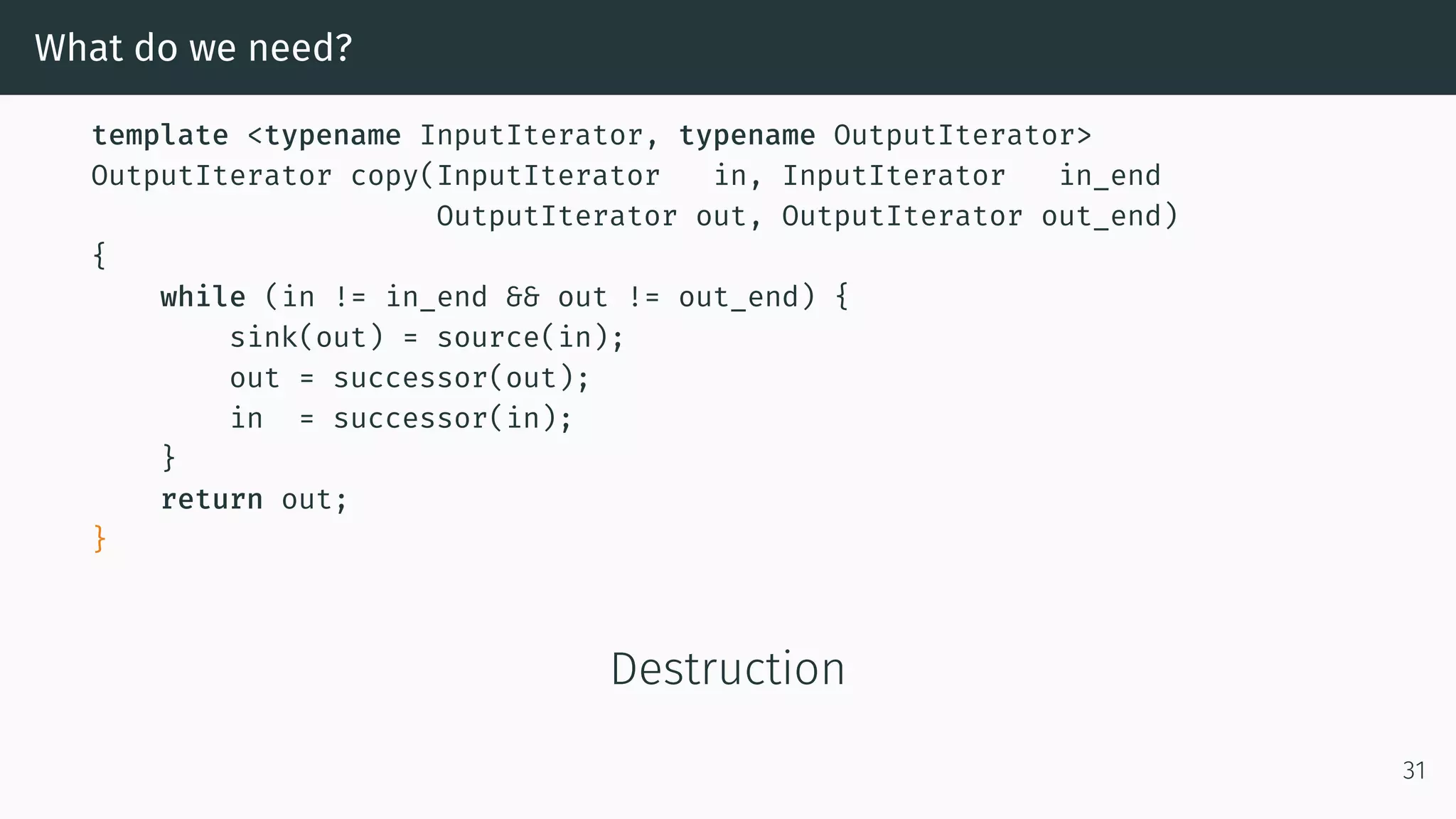

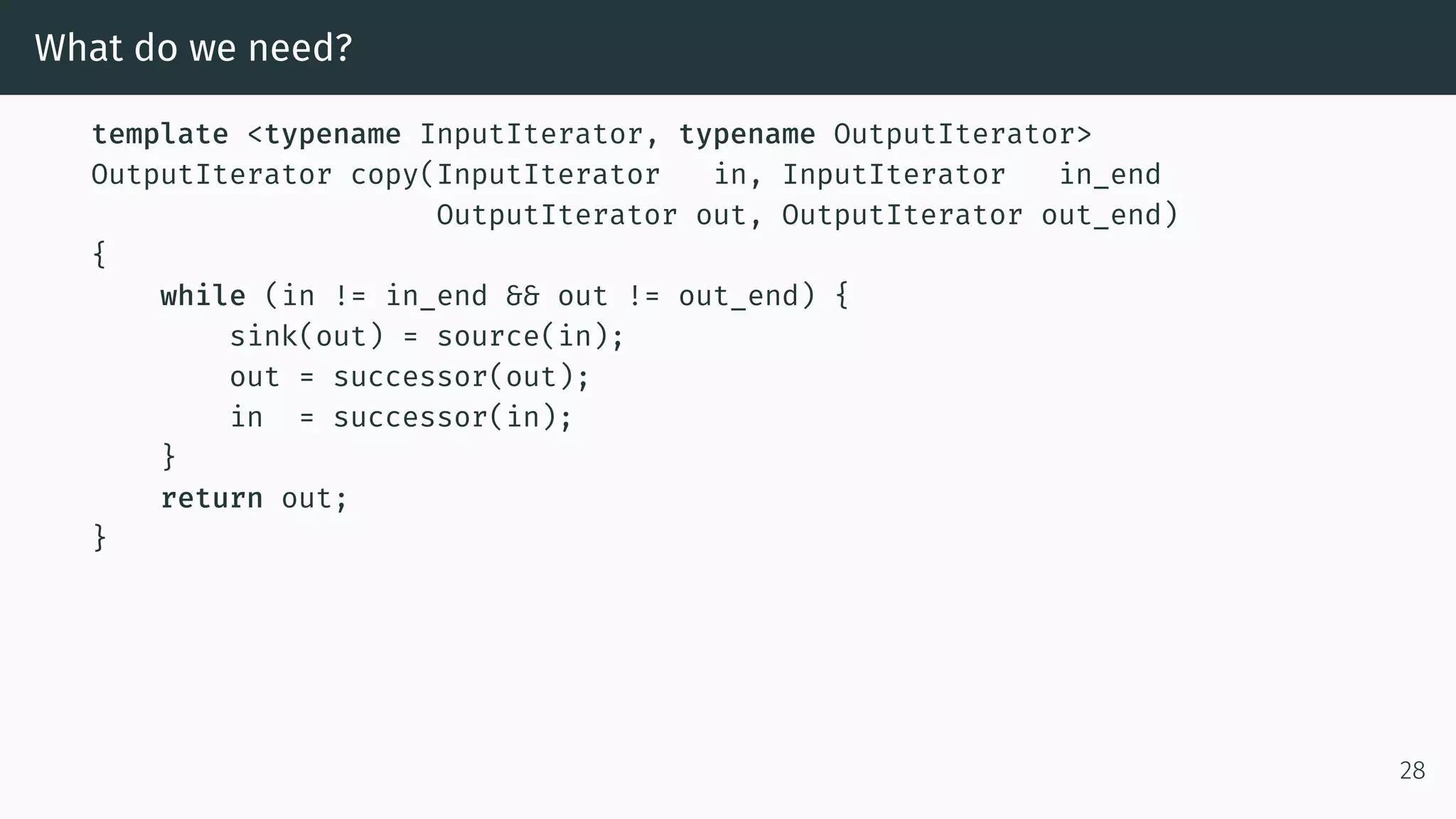

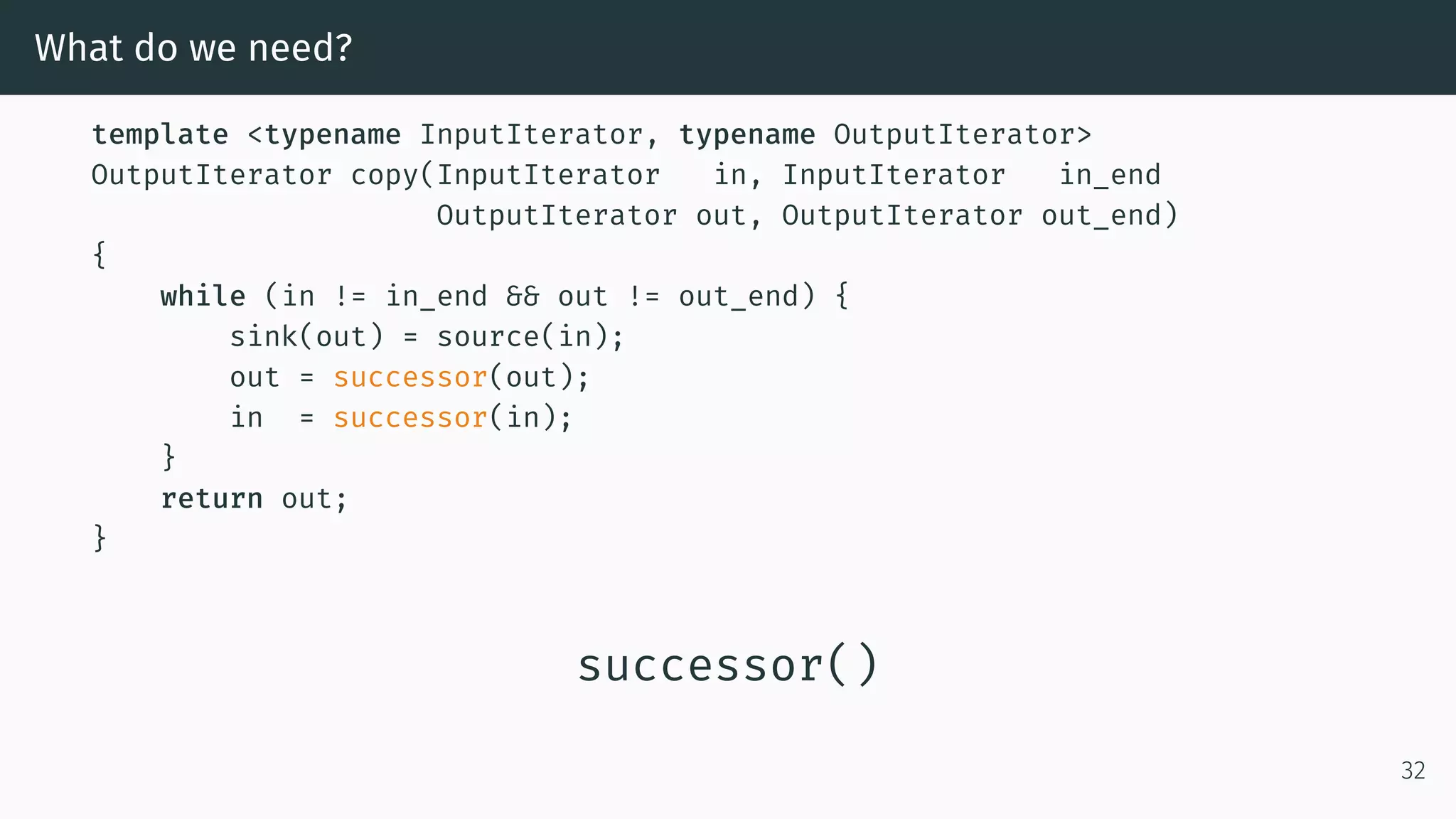

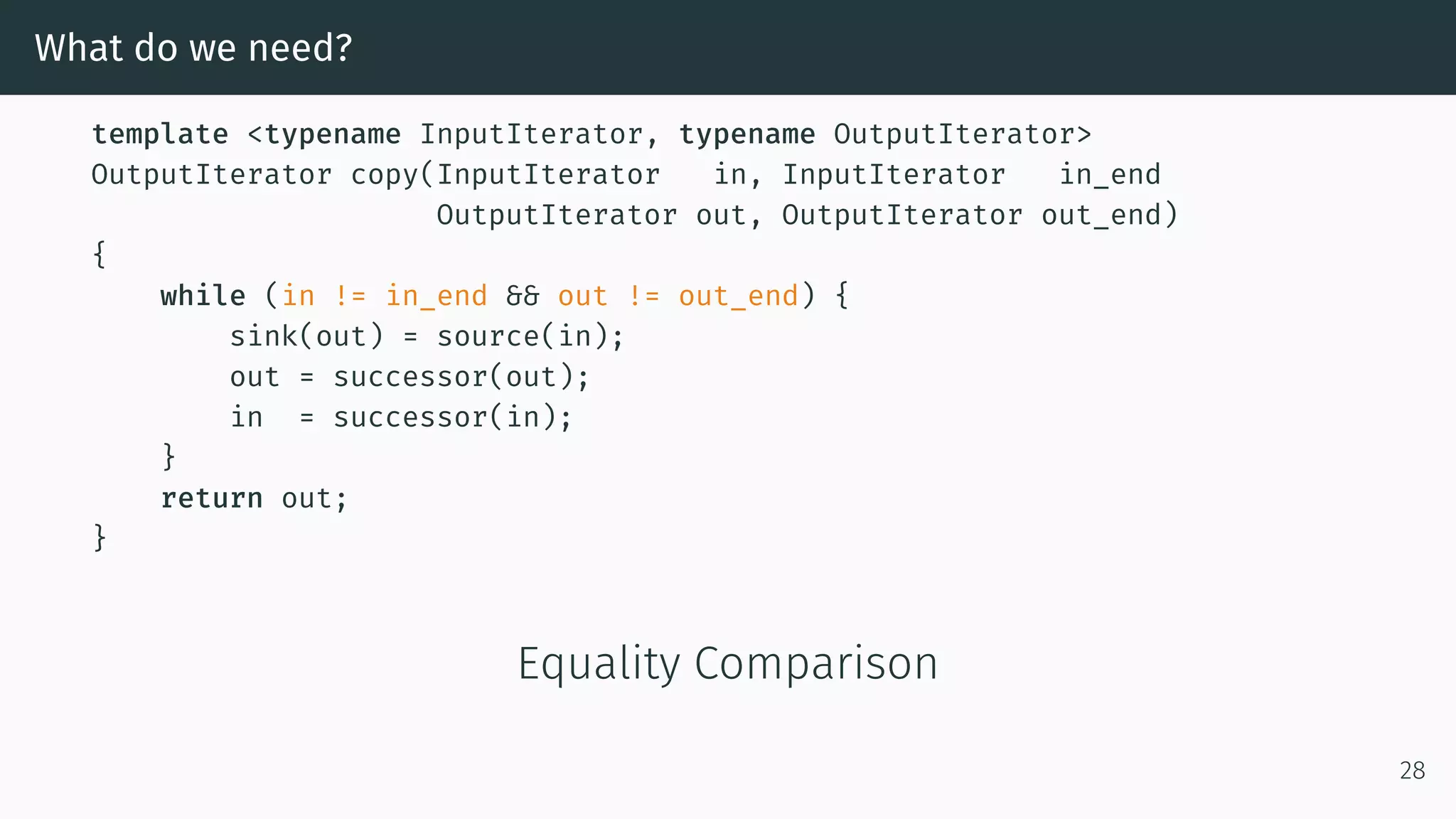

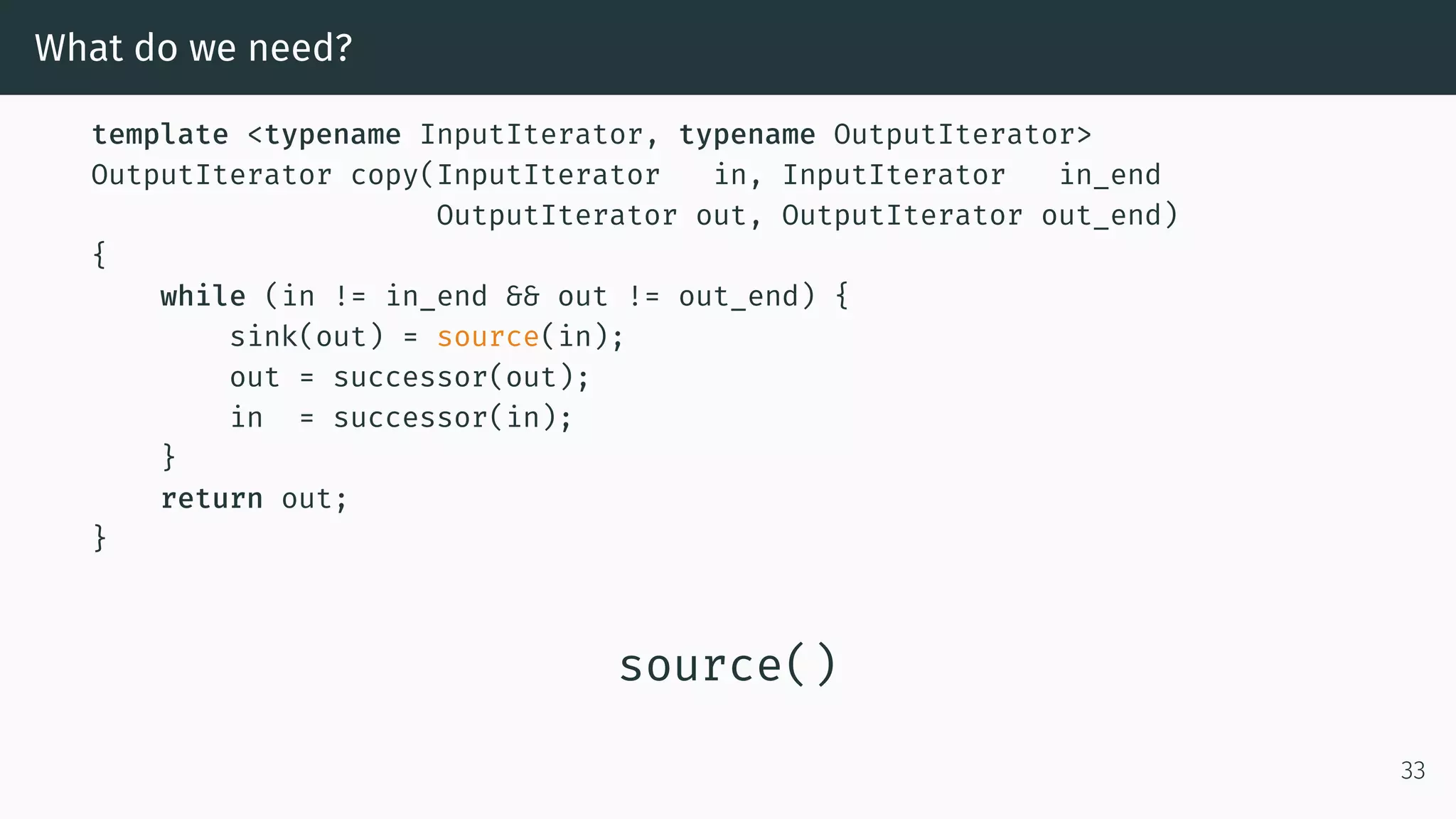

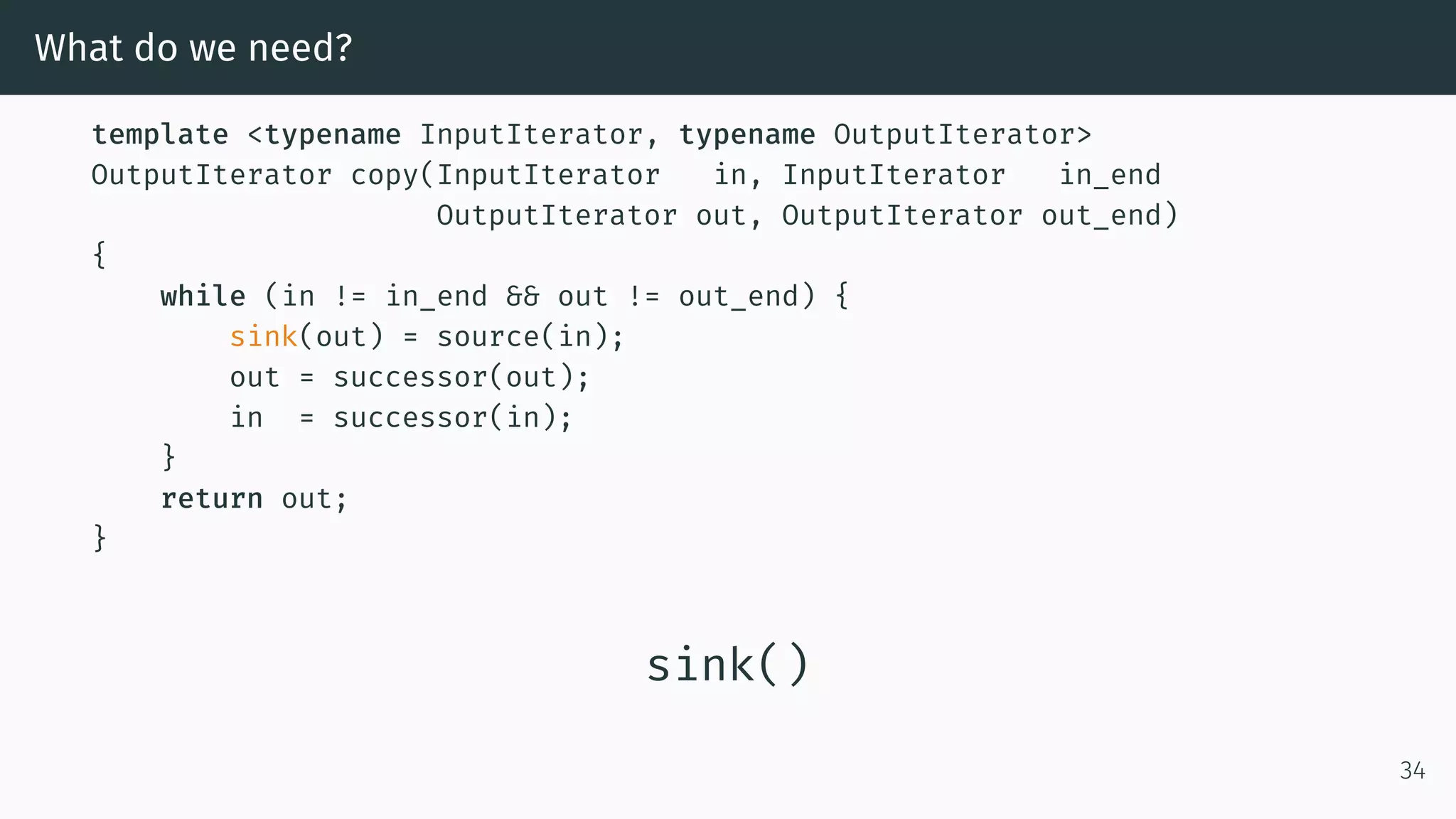

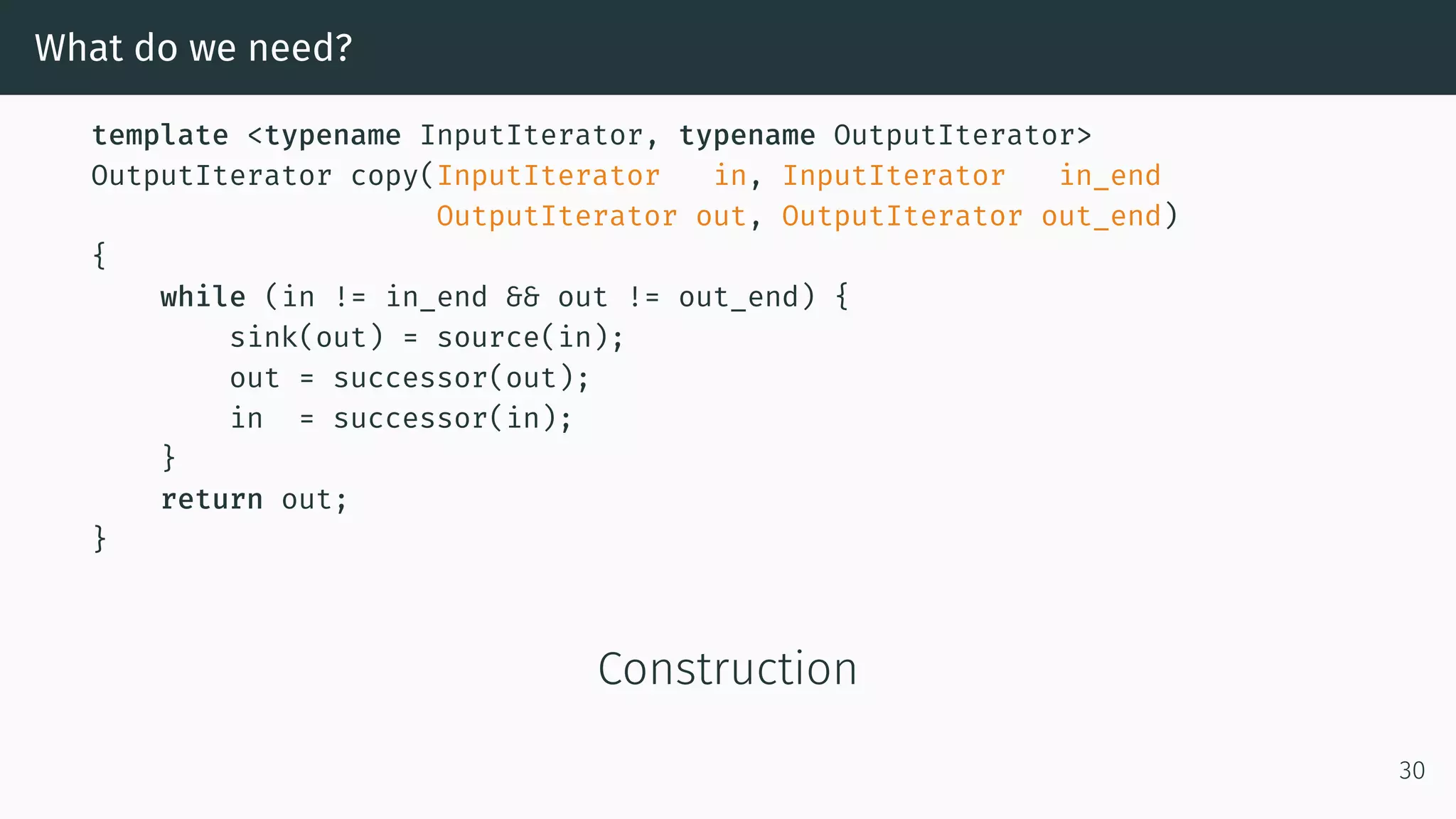

What do we need? template <typename InputIterator, typename OutputIterator> OutputIterator copy(InputIterator in, InputIterator in_end OutputIterator out, OutputIterator out_end) { while (in != in_end && out != out_end) { sink(out) = source(in); out = successor(out); in = successor(in); } return out; } 28

What do we need? template <typename InputIterator, typename OutputIterator> OutputIterator copy(InputIterator in, InputIterator in_end OutputIterator out, OutputIterator out_end) { while (in != in_end && out != out_end) { sink(out) = source(in); out = successor(out); in = successor(in); } return out; } Equality Comparison 28

What do we need? template <typename InputIterator, typename OutputIterator> OutputIterator copy(InputIterator in, InputIterator in_end OutputIterator out, OutputIterator out_end) { while (in != in_end && out != out_end) { sink(out) = source(in); out = successor(out); in = successor(in); } return out; } Assignment 29

What do we need? template <typename InputIterator, typename OutputIterator> OutputIterator copy(InputIterator in, InputIterator in_end OutputIterator out, OutputIterator out_end) { while (in != in_end && out != out_end) { sink(out) = source(in); out = successor(out); in = successor(in); } return out; } Construction 30

What do we need? template <typename InputIterator, typename OutputIterator> OutputIterator copy(InputIterator in, InputIterator in_end OutputIterator out, OutputIterator out_end) { while (in != in_end && out != out_end) { sink(out) = source(in); out = successor(out); in = successor(in); } return out; } Destruction 31

What do we need? template <typename InputIterator, typename OutputIterator> OutputIterator copy(InputIterator in, InputIterator in_end OutputIterator out, OutputIterator out_end) { while (in != in_end && out != out_end) { sink(out) = source(in); out = successor(out); in = successor(in); } return out; } successor() 32

What do we need? template <typename InputIterator, typename OutputIterator> OutputIterator copy(InputIterator in, InputIterator in_end OutputIterator out, OutputIterator out_end) { while (in != in_end && out != out_end) { sink(out) = source(in); out = successor(out); in = successor(in); } return out; } source() 33

What do we need? template <typename InputIterator, typename OutputIterator> OutputIterator copy(InputIterator in, InputIterator in_end OutputIterator out, OutputIterator out_end) { while (in != in_end && out != out_end) { sink(out) = source(in); out = successor(out); in = successor(in); } return out; } sink() 34

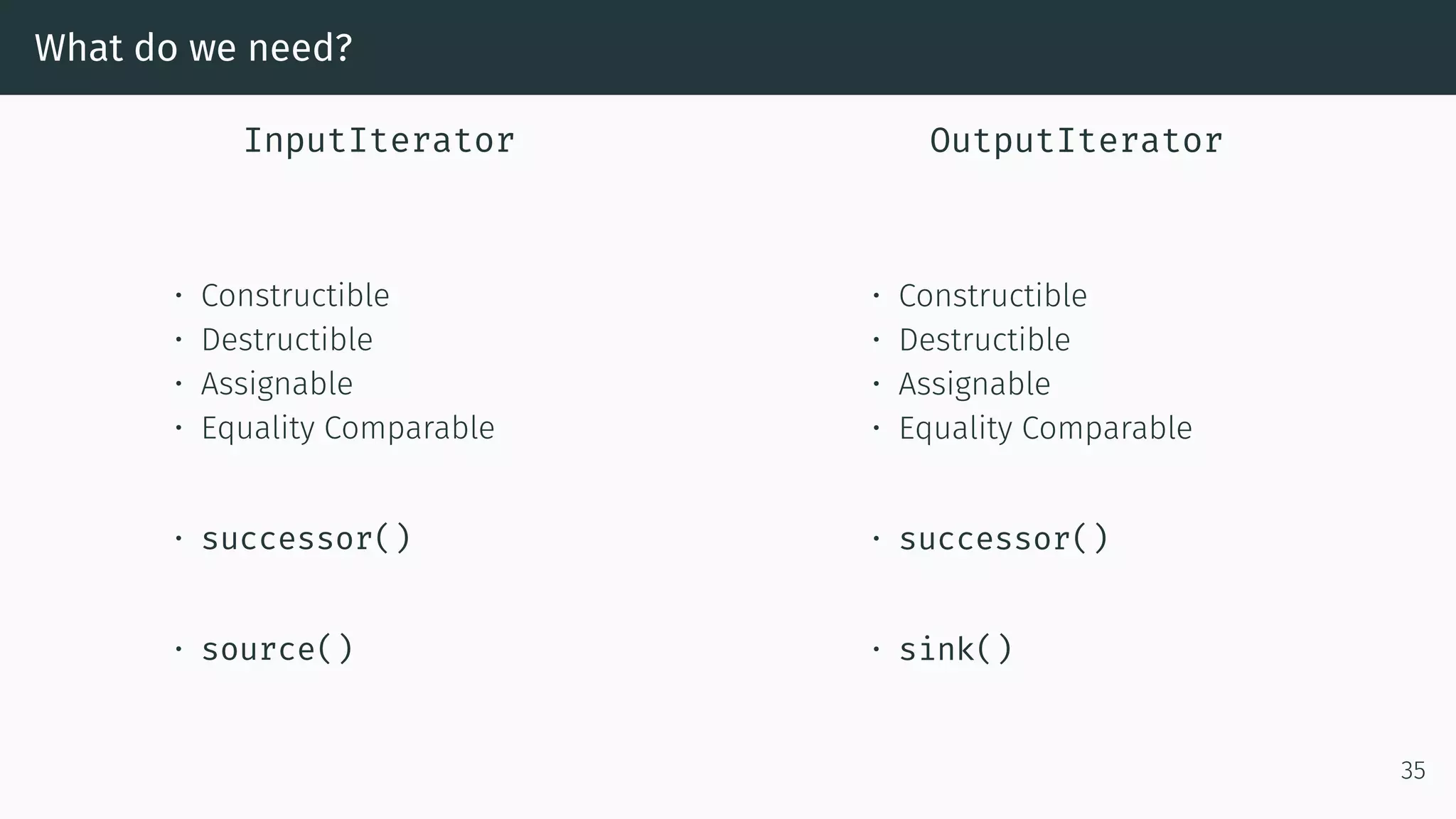

What do we need? InputIterator • Constructible • Destructible • Assignable • Equality Comparable • successor() • source() OutputIterator • Constructible • Destructible • Assignable • Equality Comparable • successor() • sink() 35

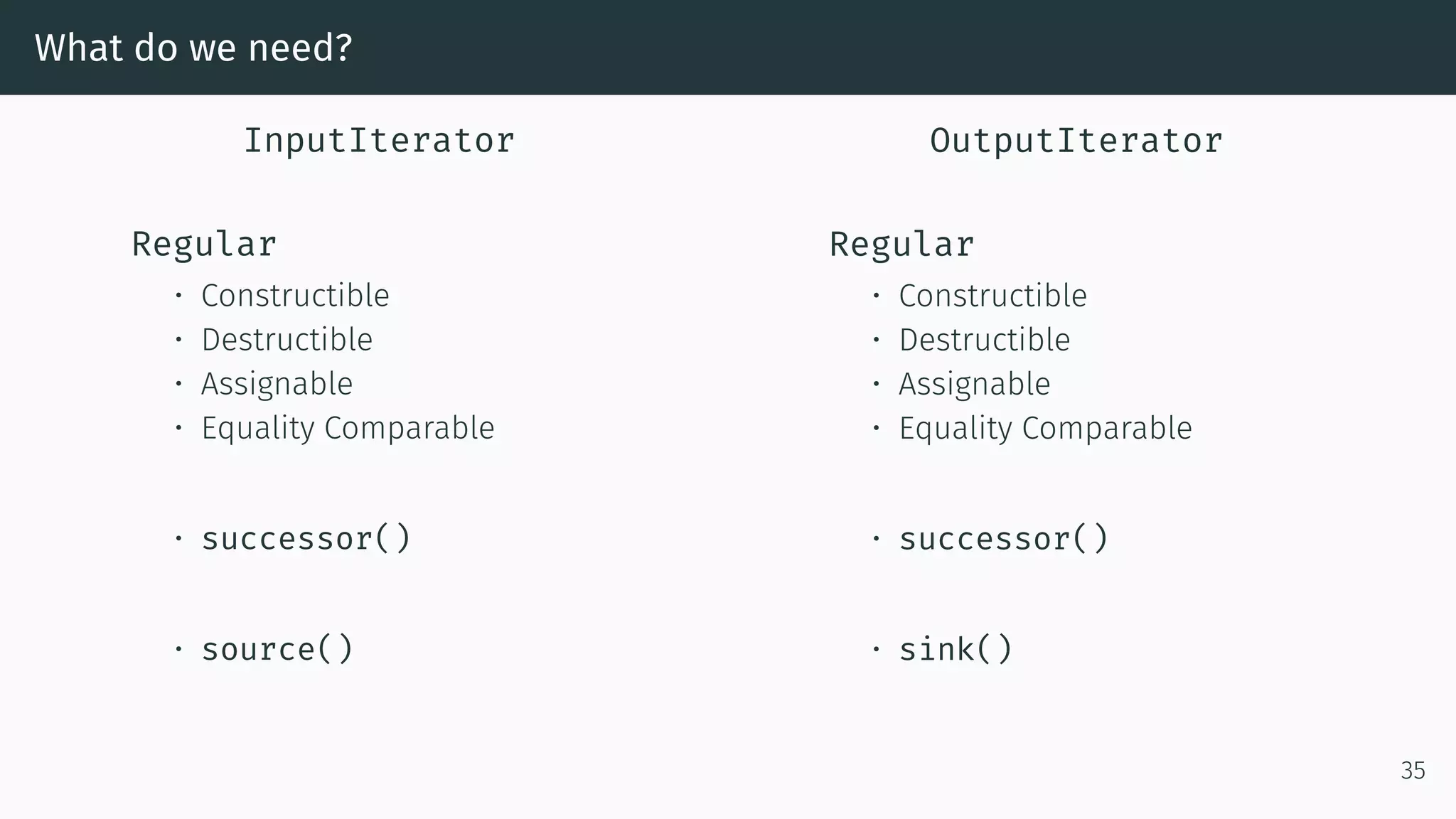

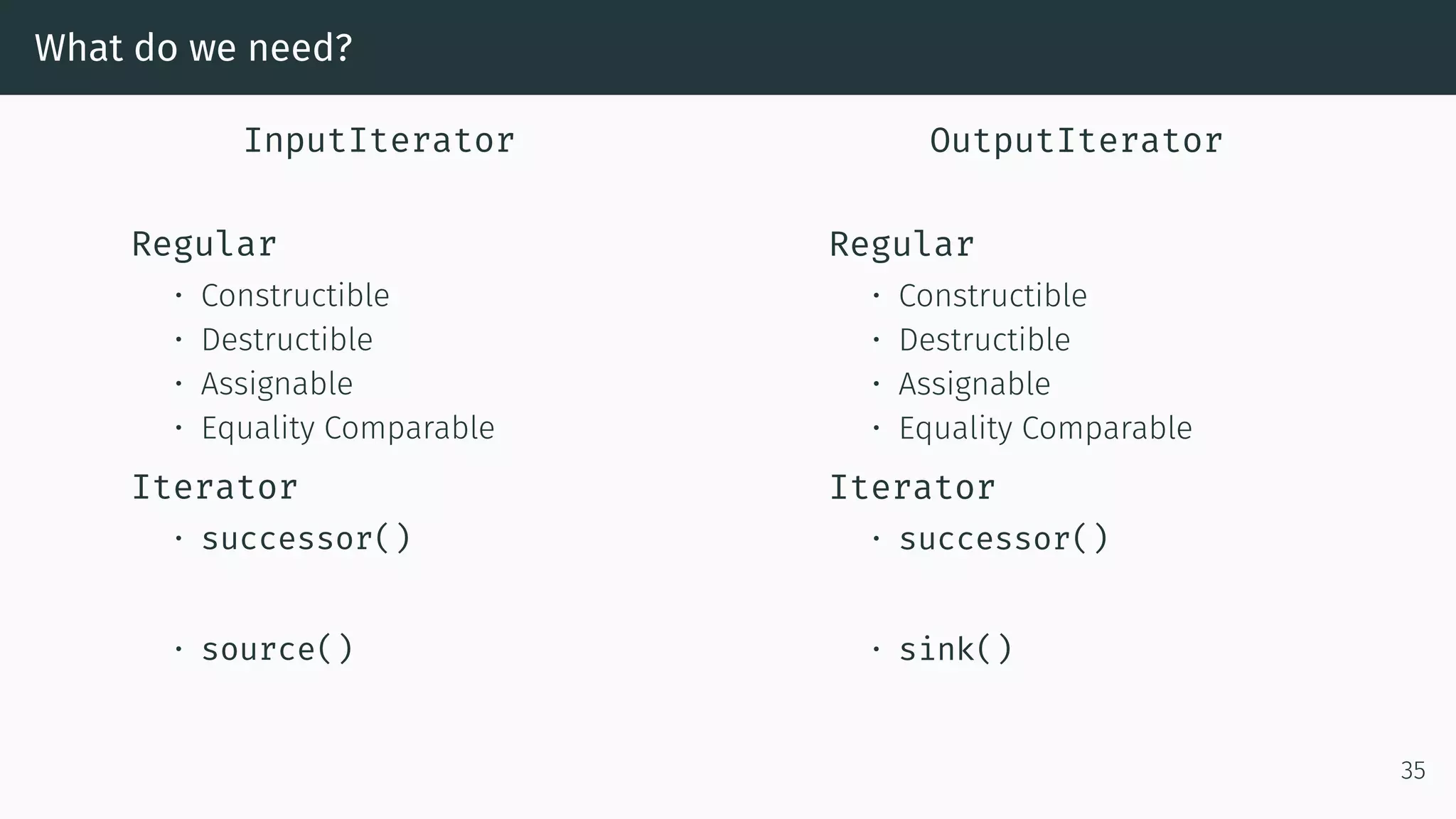

What do we need? InputIterator Regular • Constructible • Destructible • Assignable • Equality Comparable • successor() • source() OutputIterator Regular • Constructible • Destructible • Assignable • Equality Comparable • successor() • sink() 35

What do we need? InputIterator Regular • Constructible • Destructible • Assignable • Equality Comparable Iterator • successor() • source() OutputIterator Regular • Constructible • Destructible • Assignable • Equality Comparable Iterator • successor() • sink() 35

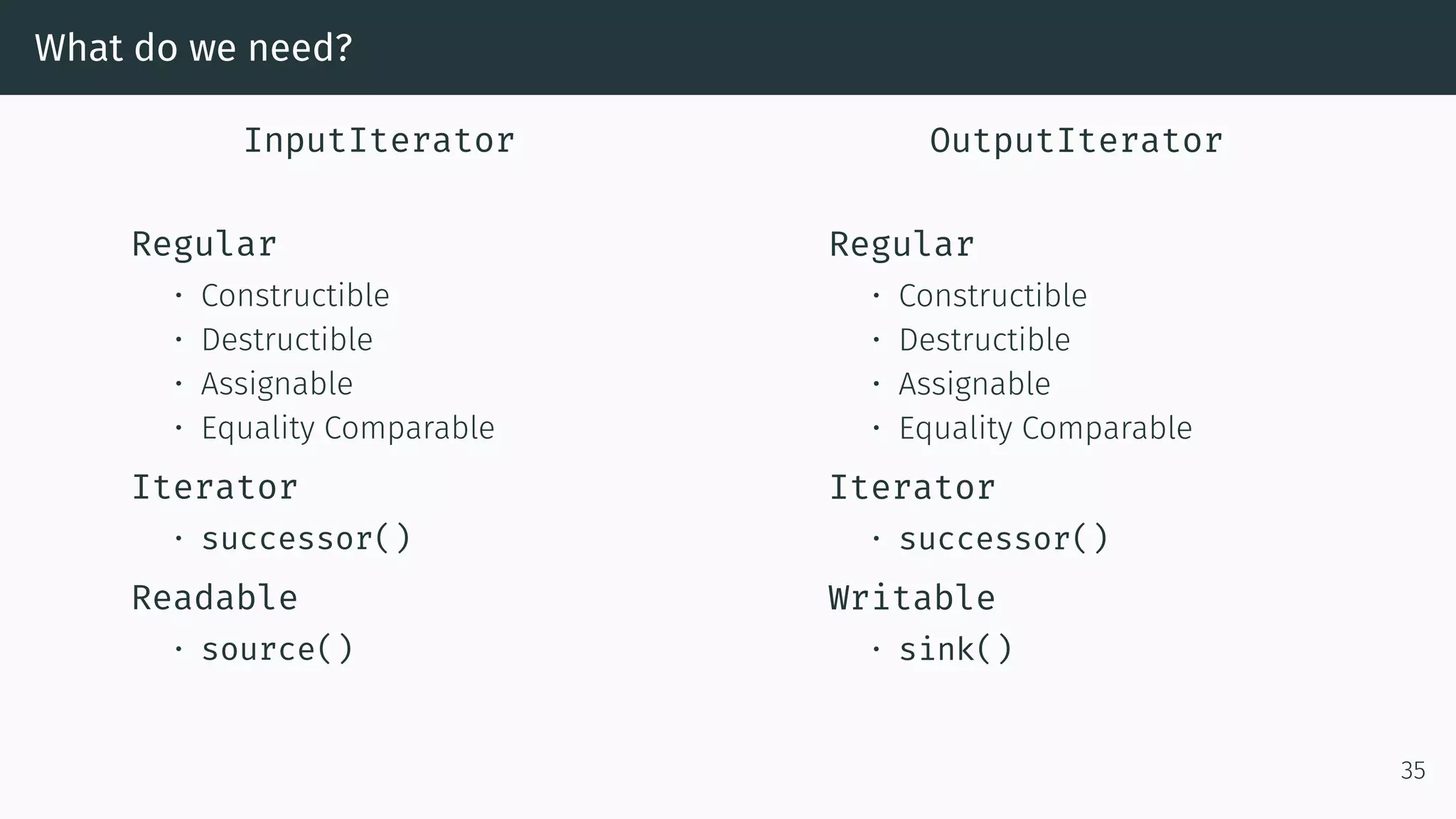

What do we need? InputIterator Regular • Constructible • Destructible • Assignable • Equality Comparable Iterator • successor() Readable • source() OutputIterator Regular • Constructible • Destructible • Assignable • Equality Comparable Iterator • successor() Writable • sink() 35

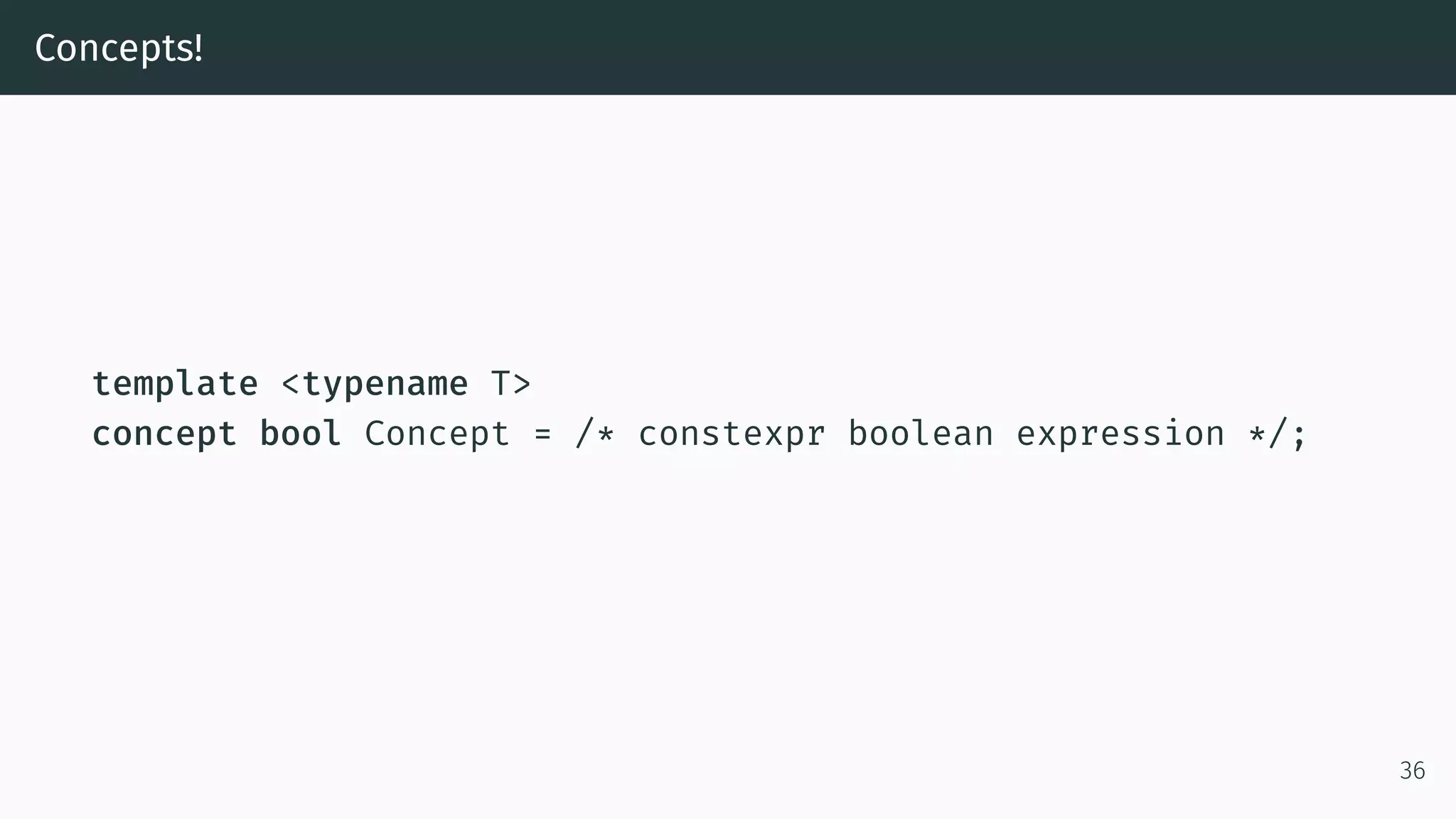

Concepts! template <typename T> concept bool Concept = /* constexpr boolean expression */; 36

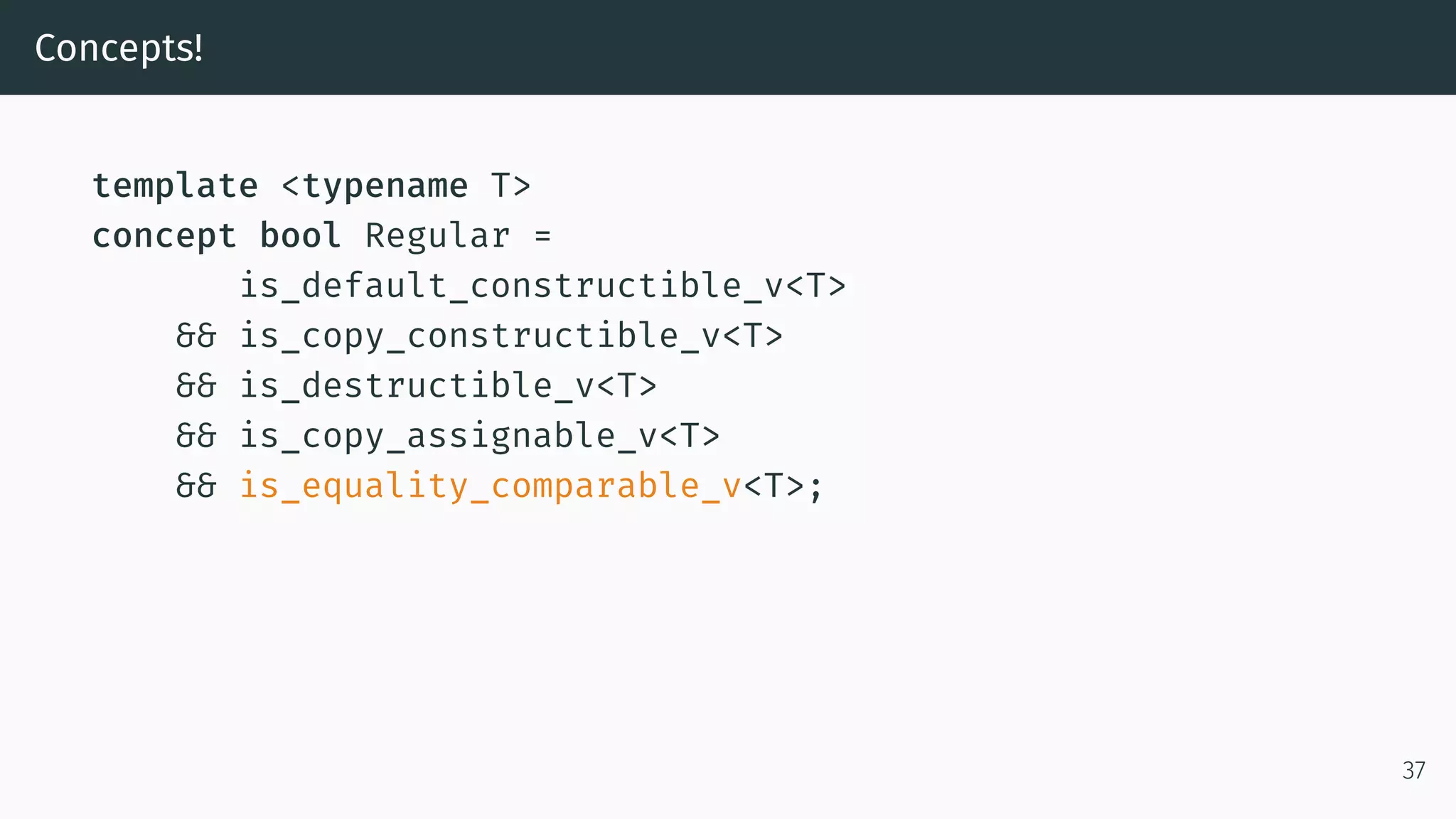

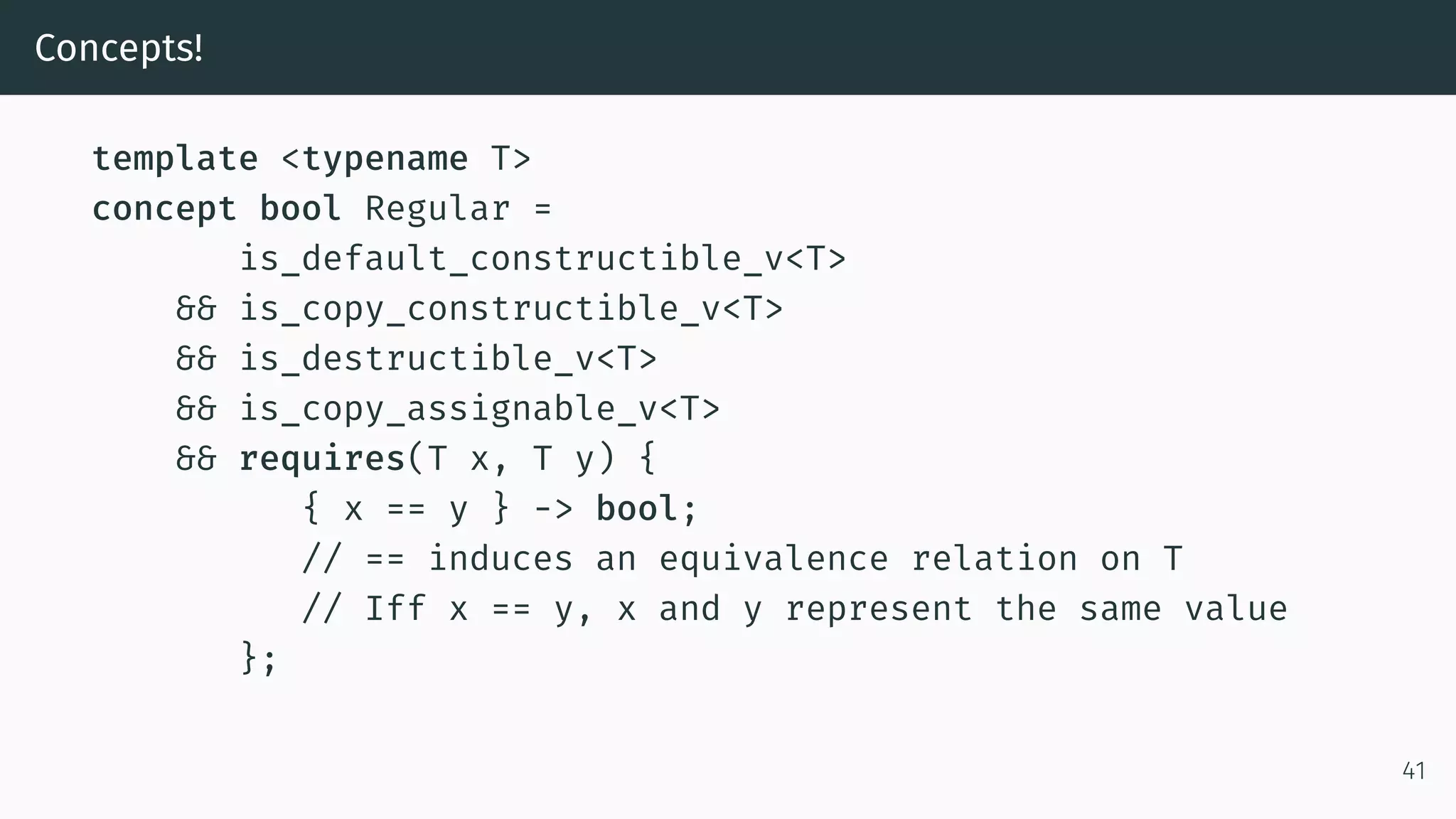

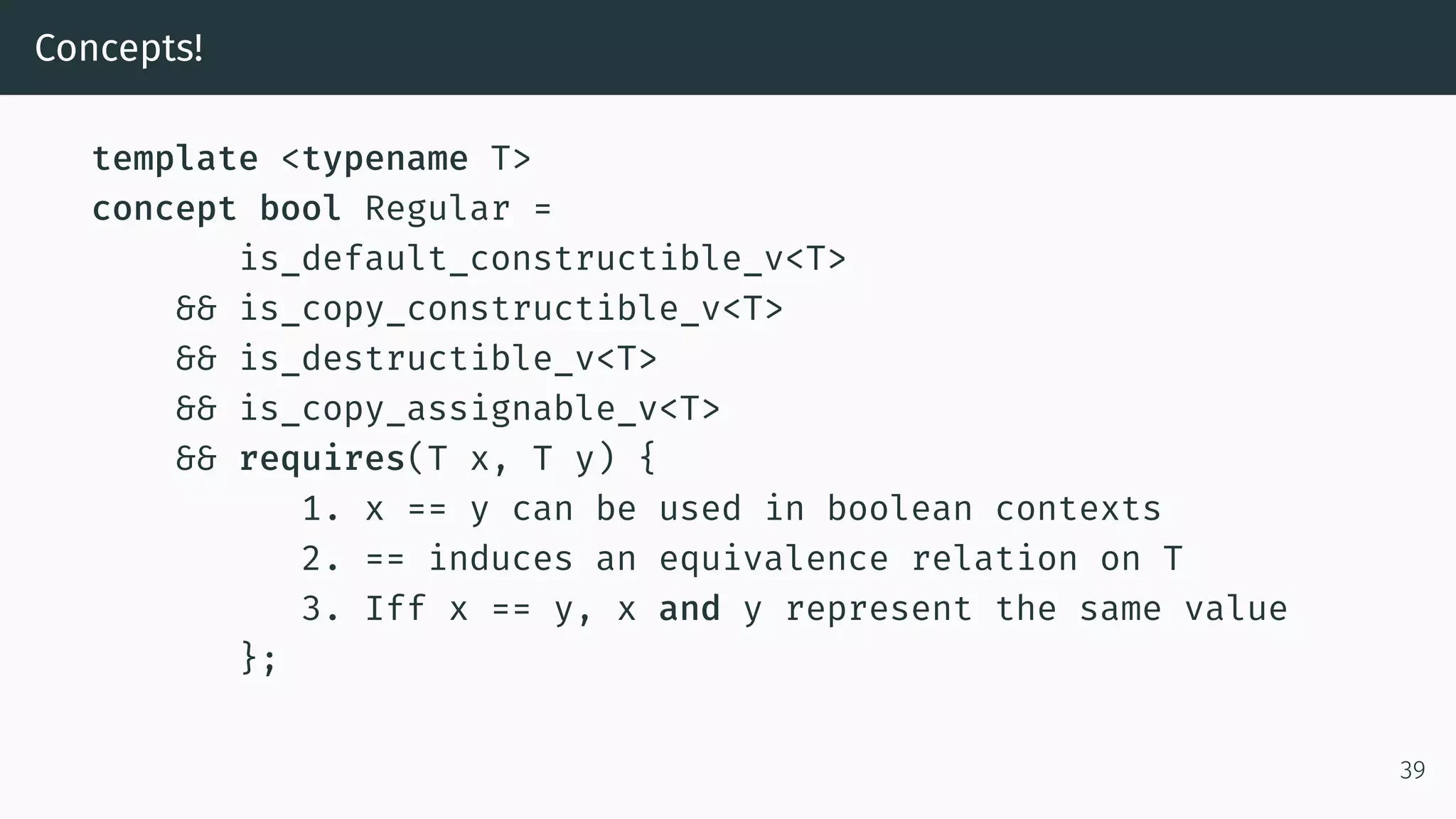

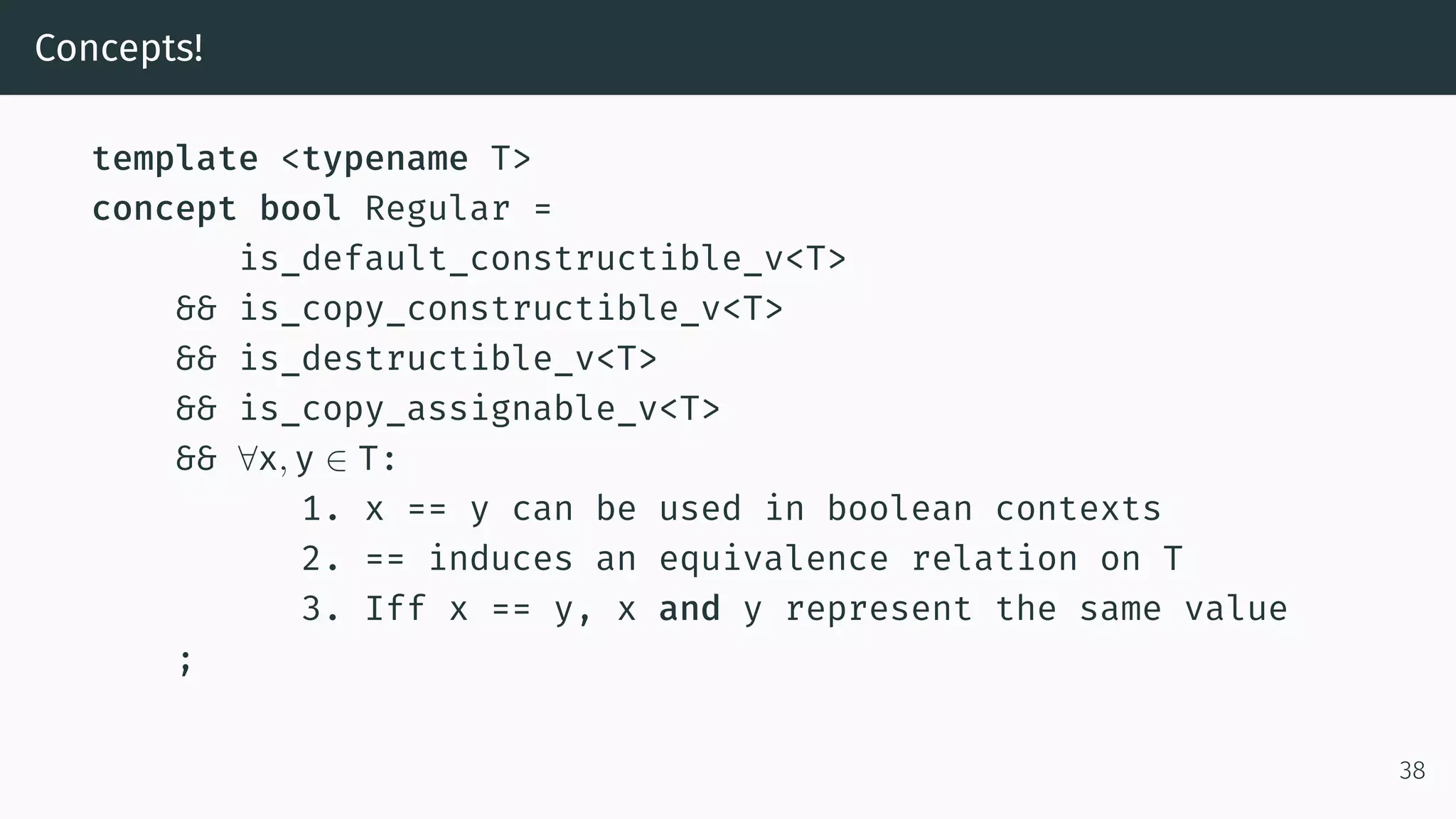

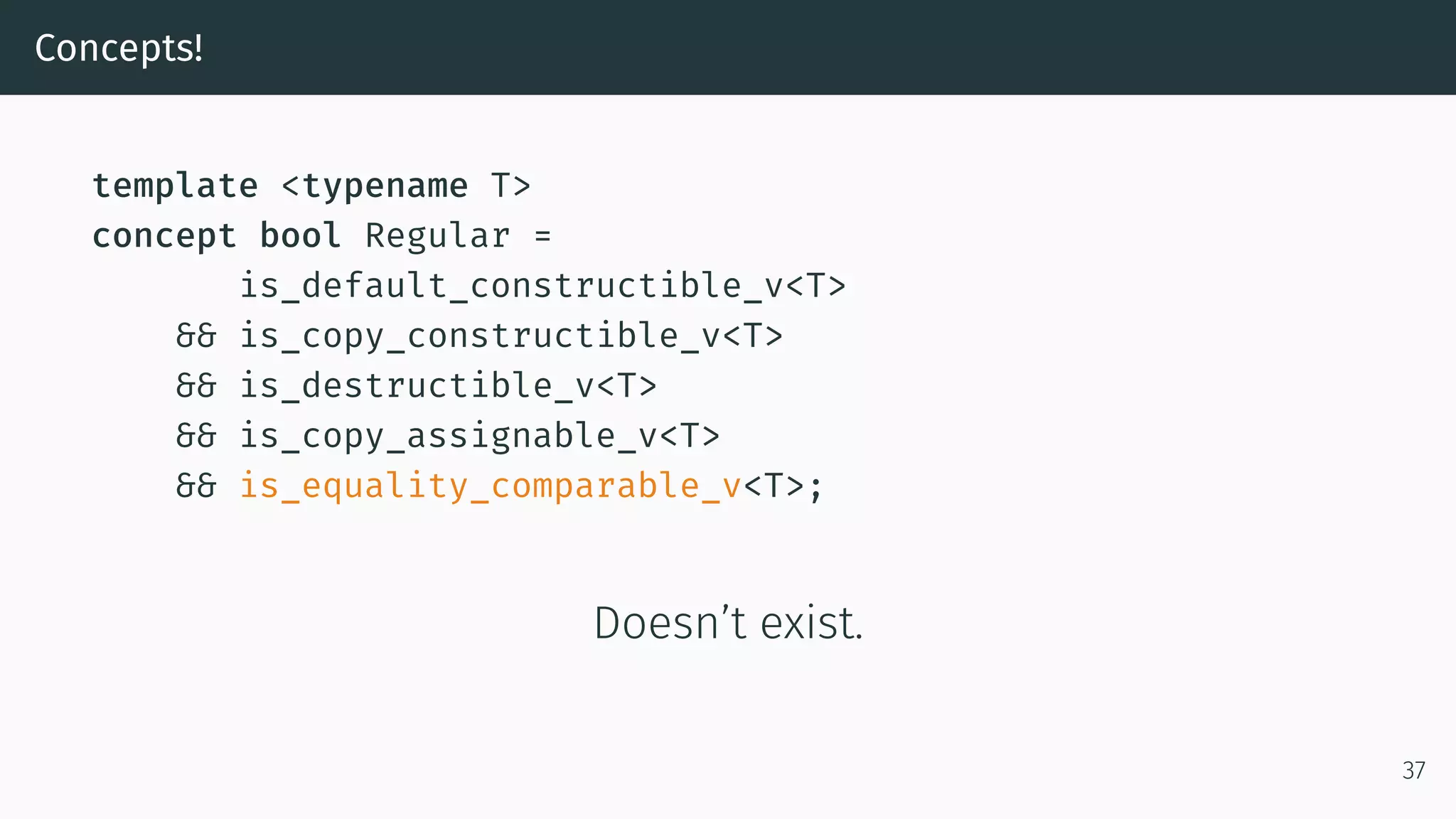

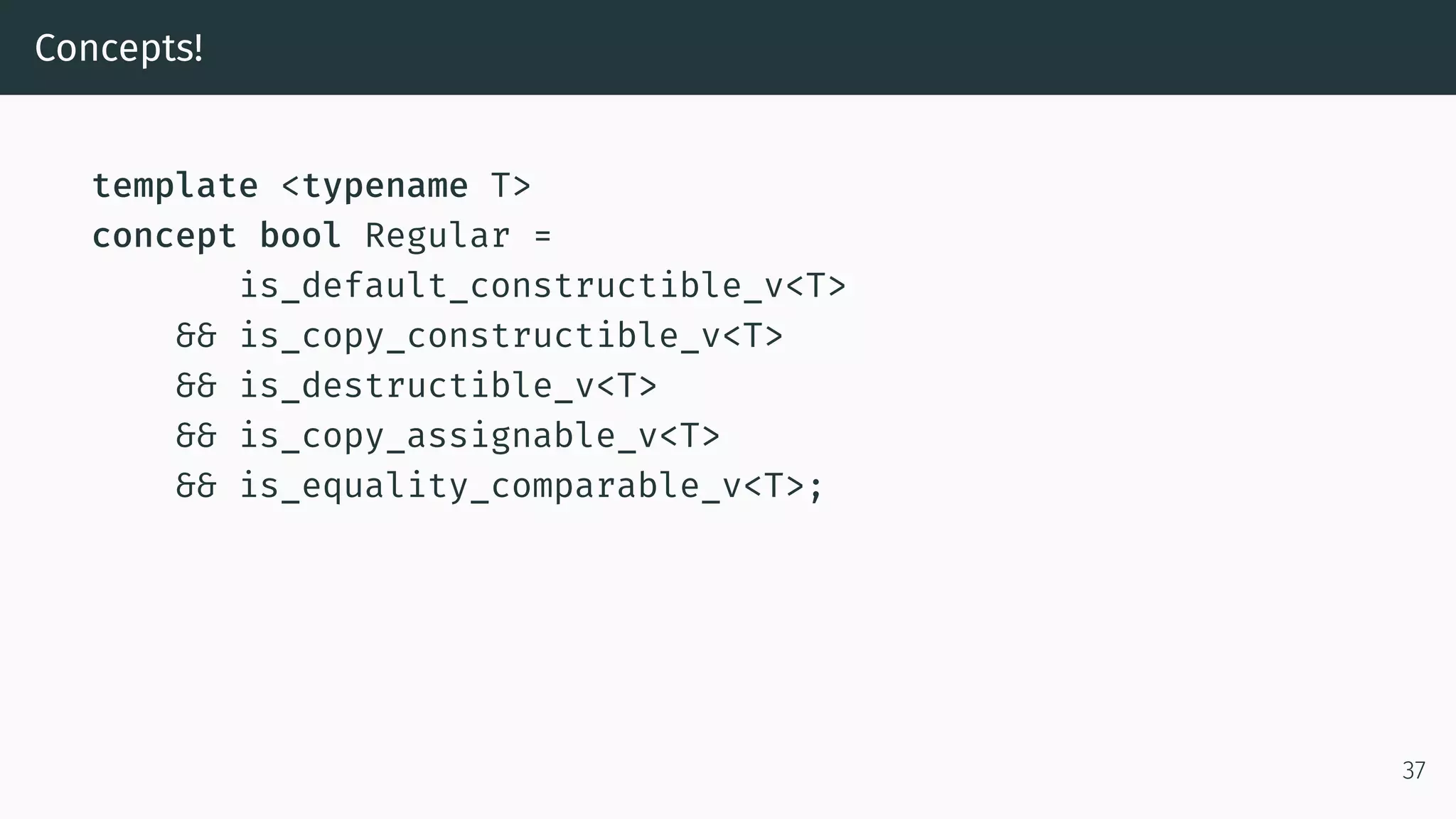

Concepts! template <typename T> concept bool Regular = is_default_constructible_v<T> && is_copy_constructible_v<T> && is_destructible_v<T> && is_copy_assignable_v<T> && is_equality_comparable_v<T>; 37

Concepts! template <typename T> concept bool Regular = is_default_constructible_v<T> && is_copy_constructible_v<T> && is_destructible_v<T> && is_copy_assignable_v<T> && is_equality_comparable_v<T>; Doesn’t exist. 37

Concepts! template <typename T> concept bool Regular = is_default_constructible_v<T> && is_copy_constructible_v<T> && is_destructible_v<T> && is_copy_assignable_v<T> && ∀x, y ∈ T: 1. x == y can be used in boolean contexts 2. == induces an equivalence relation on T 3. Iff x == y, x and y represent the same value ; 38

Concepts! template <typename T> concept bool Regular = is_default_constructible_v<T> && is_copy_constructible_v<T> && is_destructible_v<T> && is_copy_assignable_v<T> && requires(T x, T y) { 1. x == y can be used in boolean contexts 2. == induces an equivalence relation on T 3. Iff x == y, x and y represent the same value }; 39

Concepts! template <typename T> concept bool Regular = is_default_constructible_v<T> && is_copy_constructible_v<T> && is_destructible_v<T> && is_copy_assignable_v<T> && requires(T x, T y) { { x == y } -> bool; 2. == induces an equivalence relation on T 3. Iff x == y, x and y represent the same value }; 40

Concepts! template <typename T> concept bool Regular = is_default_constructible_v<T> && is_copy_constructible_v<T> && is_destructible_v<T> && is_copy_assignable_v<T> && requires(T x, T y) { { x == y } -> bool; // == induces an equivalence relation on T // Iff x == y, x and y represent the same value }; 41

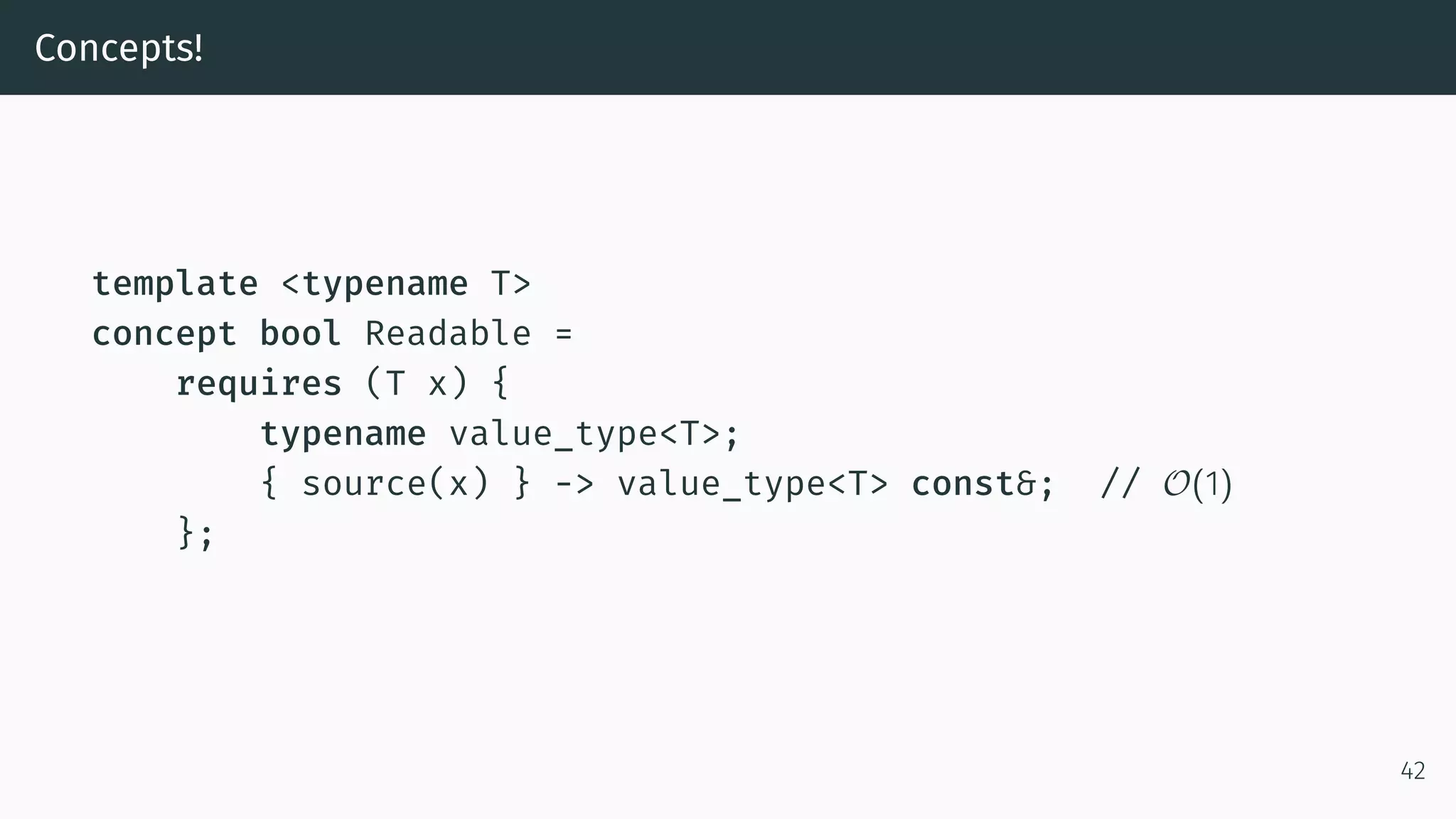

Concepts! template <typename T> concept bool Readable = requires (T x) { typename value_type<T>; { source(x) } -> value_type<T> const&; // O(1) }; 42

Concepts! template <typename T> concept bool Writable = requires (T x) { typename value_type<T>; { sink(x) } -> value_type<T>&; // O(1) }; 43

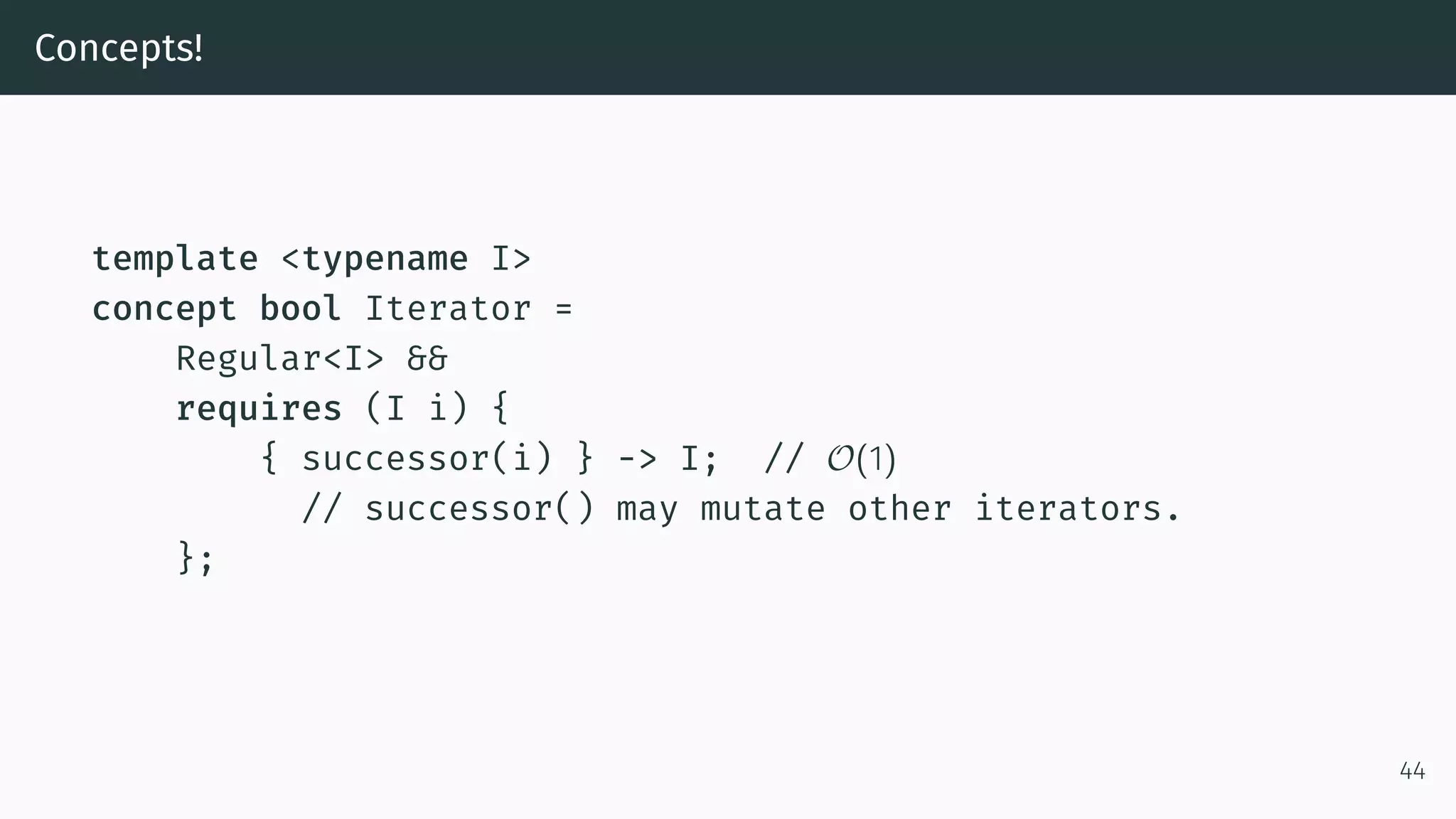

Concepts! template <typename I> concept bool Iterator = Regular && requires (I i) { { successor(i) } -> I; // O(1) // successor() may mutate other iterators. }; 44

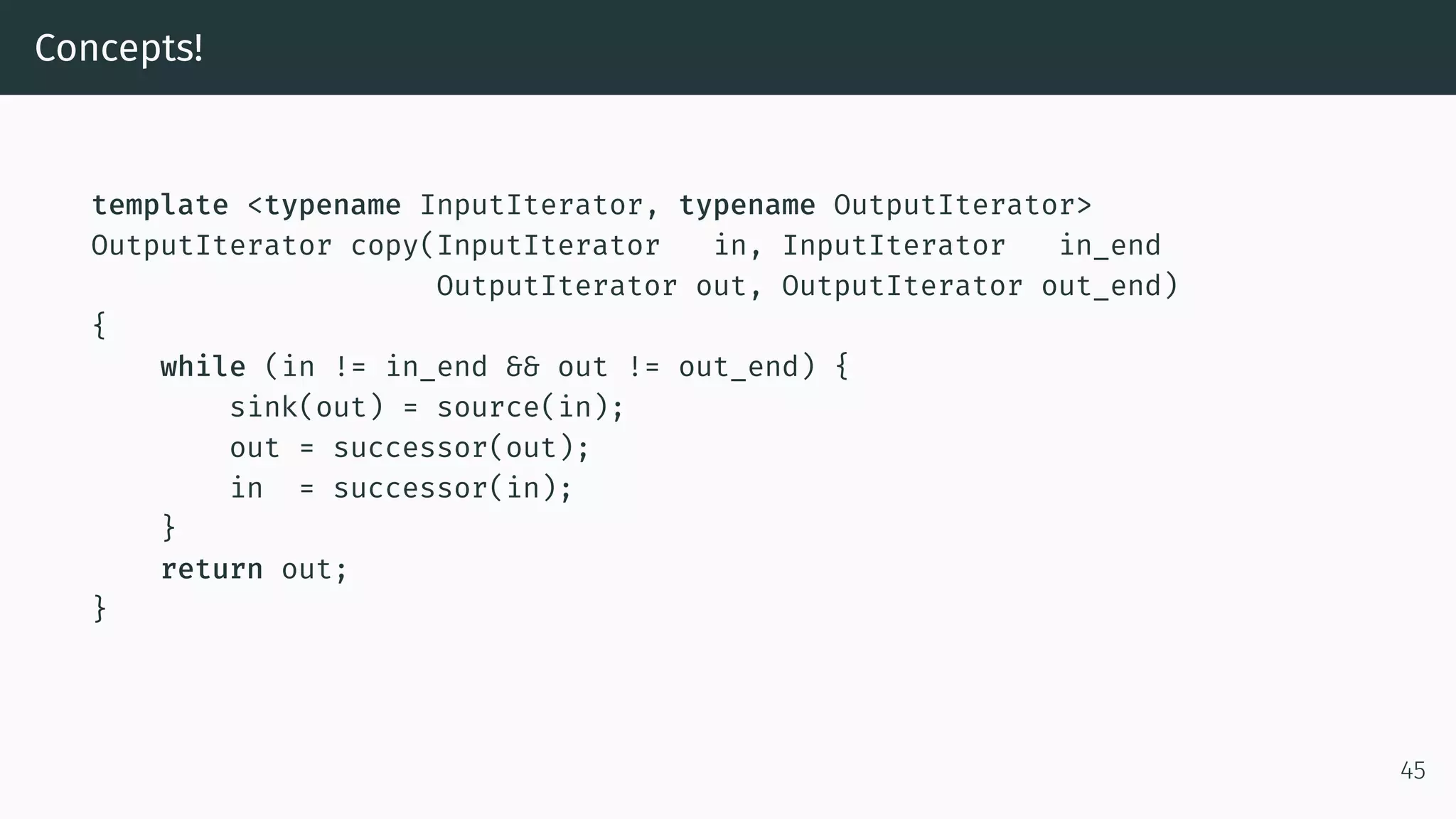

Concepts! template <typename InputIterator, typename OutputIterator> OutputIterator copy(InputIterator in, InputIterator in_end OutputIterator out, OutputIterator out_end) { while (in != in_end && out != out_end) { sink(out) = source(in); out = successor(out); in = successor(in); } return out; } 45

Concepts! template <typename InputIterator, typename OutputIterator> requires Iterator<InputIterator> && Readable<InputIterator> && Iterator<OutputIterator> && Writable<OutputIterator> OutputIterator copy(InputIterator in, InputIterator in_end OutputIterator out, OutputIterator out_end) { while (in != in_end && out != out_end) { sink(out) = source(in); out = successor(out); in = successor(in); } return out; } 46

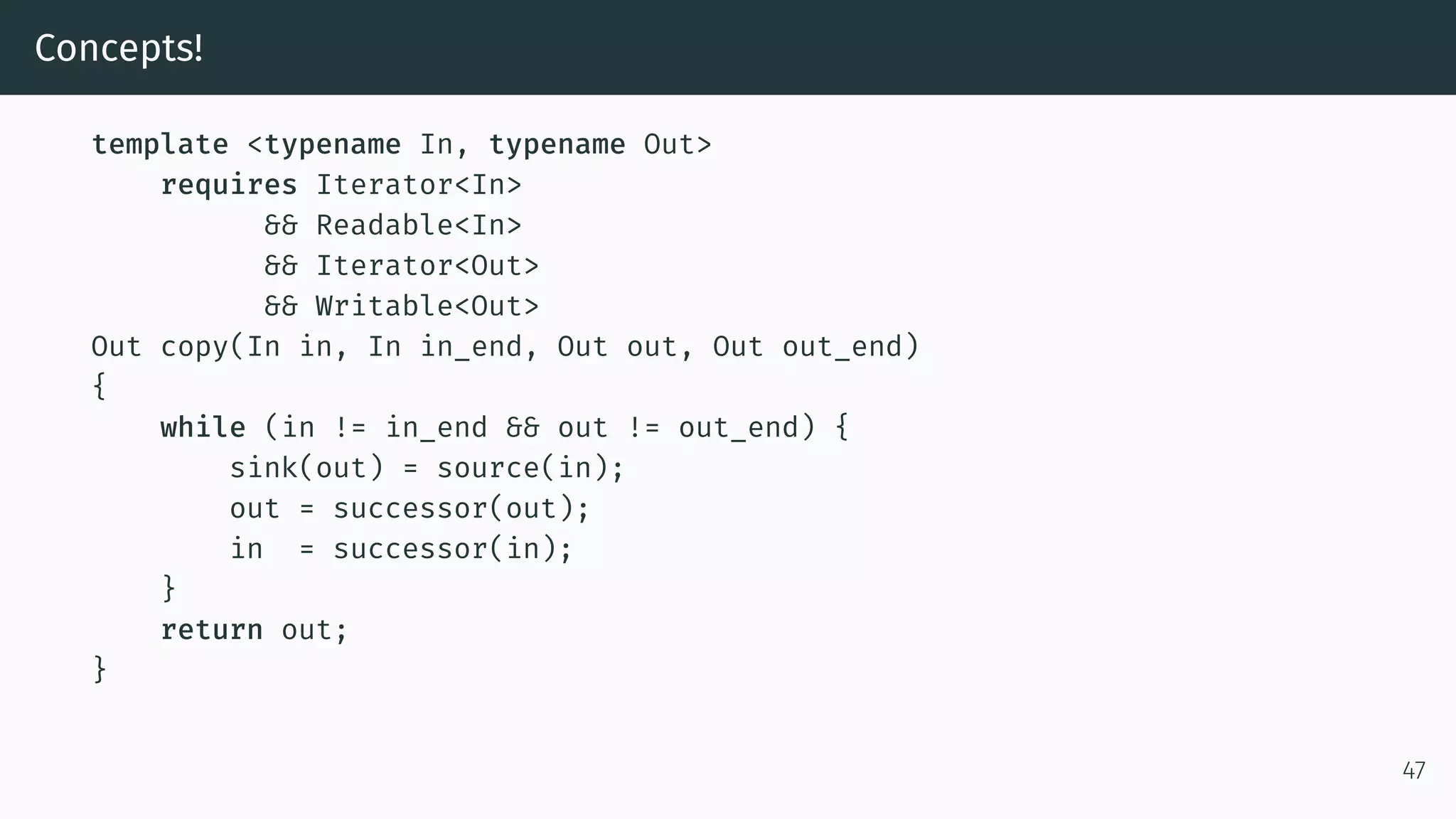

Concepts! template <typename In, typename Out> requires Iterator<In> && Readable<In> && Iterator<Out> && Writable<Out> Out copy(In in, In in_end, Out out, Out out_end) { while (in != in_end && out != out_end) { sink(out) = source(in); out = successor(out); in = successor(in); } return out; } 47

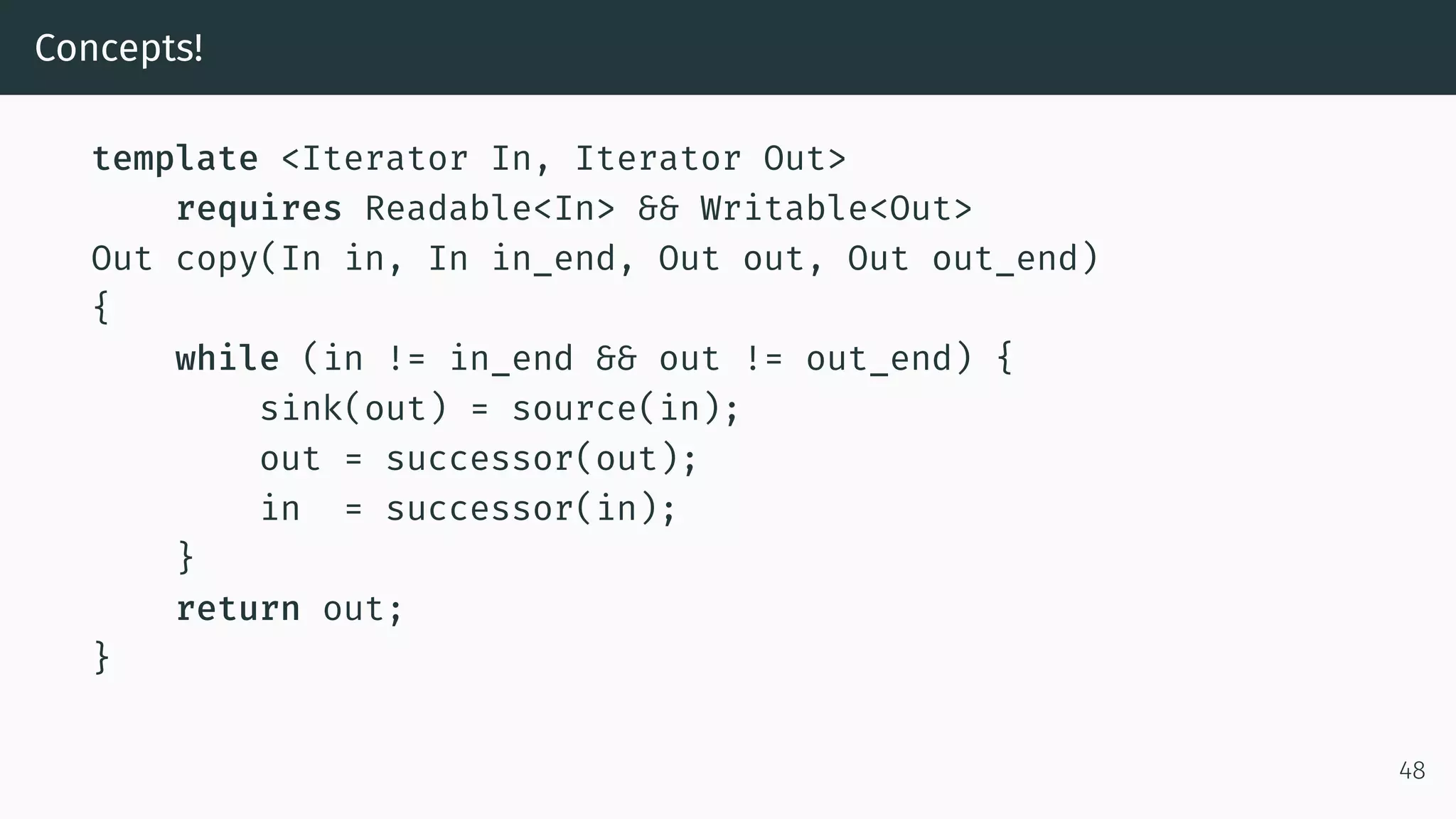

Concepts! template <Iterator In, Iterator Out> requires Readable<In> && Writable<Out> Out copy(In in, In in_end, Out out, Out out_end) { while (in != in_end && out != out_end) { sink(out) = source(in); out = successor(out); in = successor(in); } return out; } 48

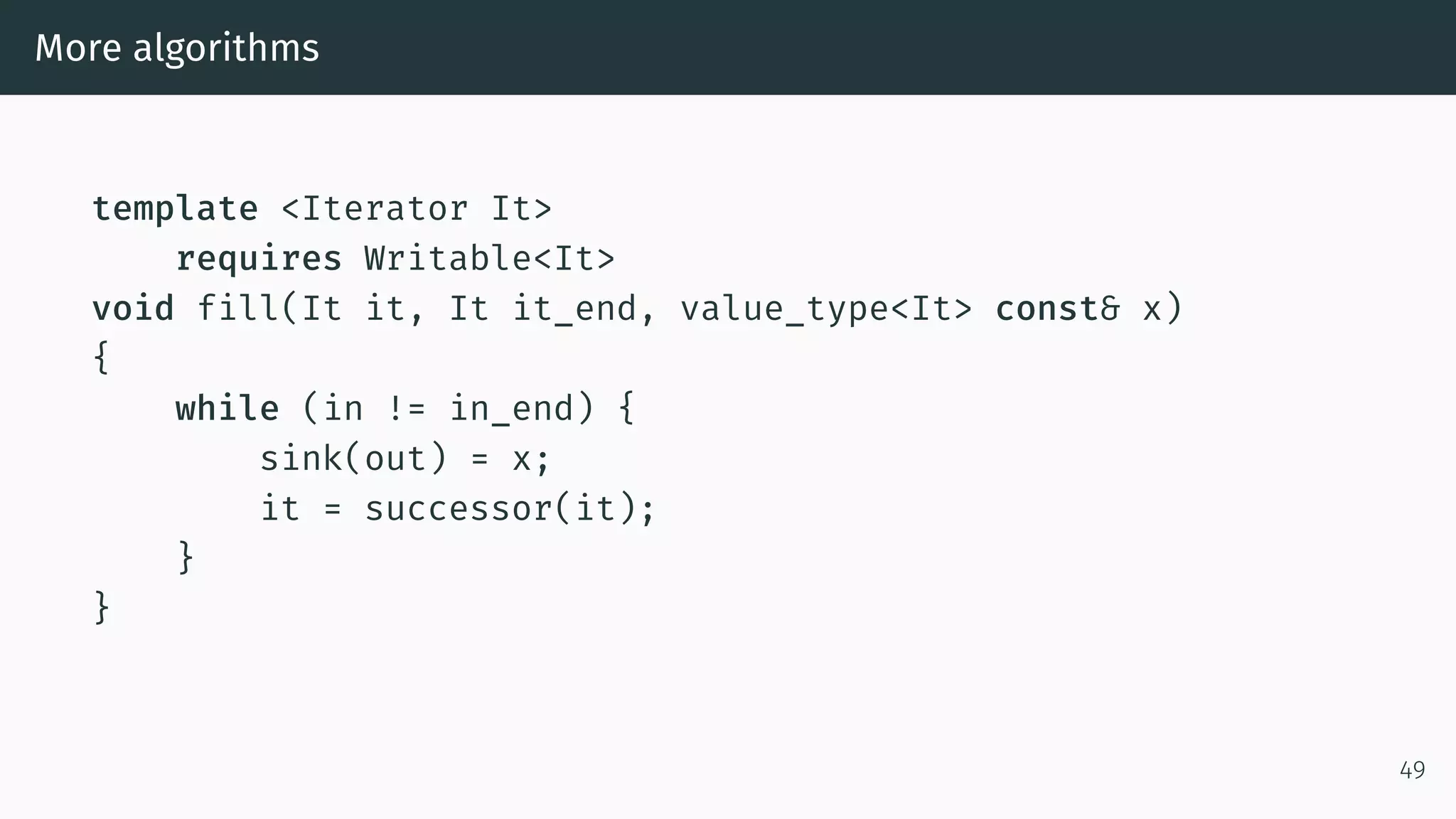

More algorithms template <Iterator It> requires Writable<It> void fill(It it, It it_end, value_type<It> const& x) { while (in != in_end) { sink(out) = x; it = successor(it); } } 49

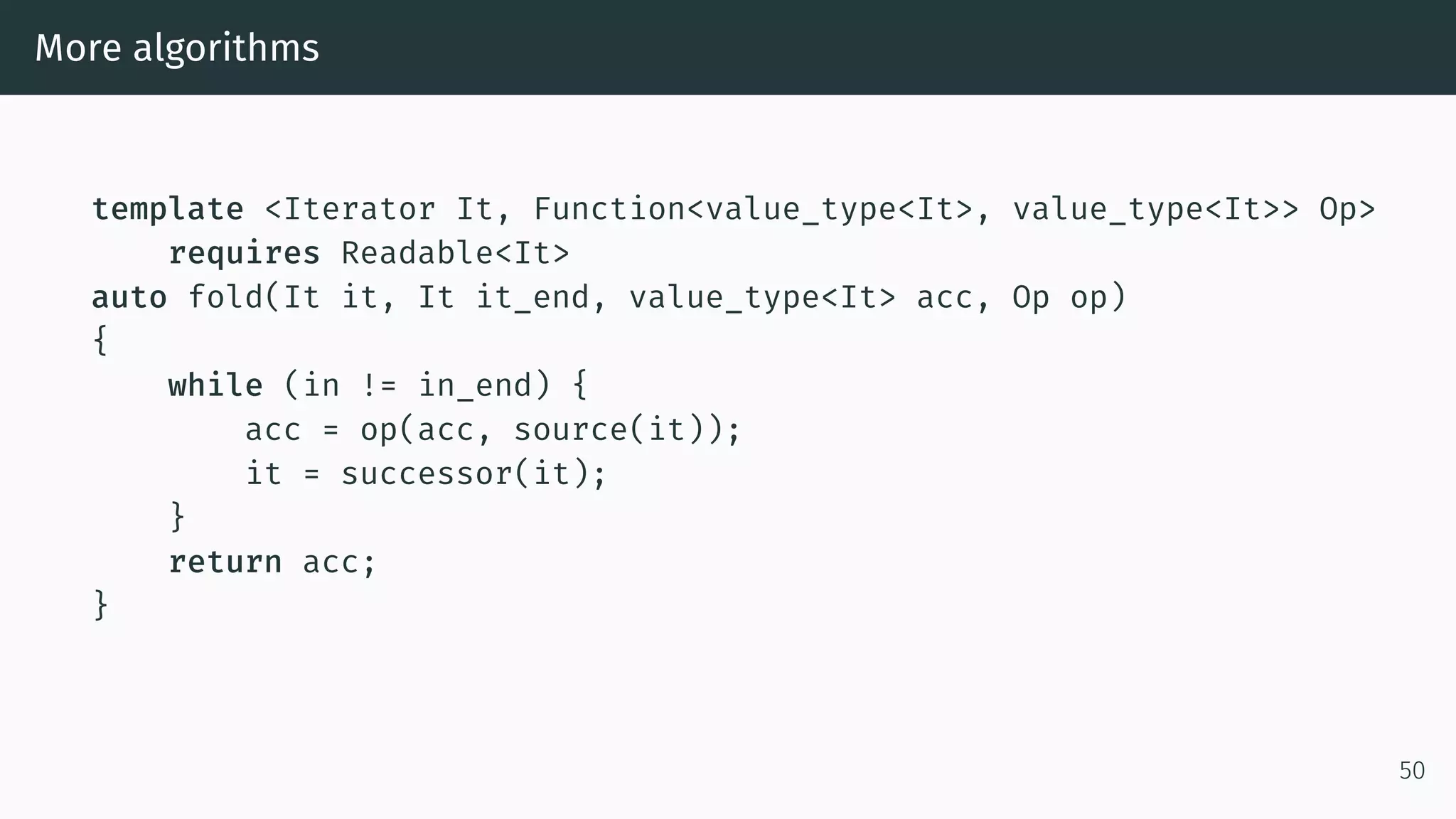

More algorithms template <Iterator It, Function<value_type<It>, value_type<It>> Op> requires Readable<It> auto fold(It it, It it_end, value_type<It> acc, Op op) { while (in != in_end) { acc = op(acc, source(it)); it = successor(it); } return acc; } 50

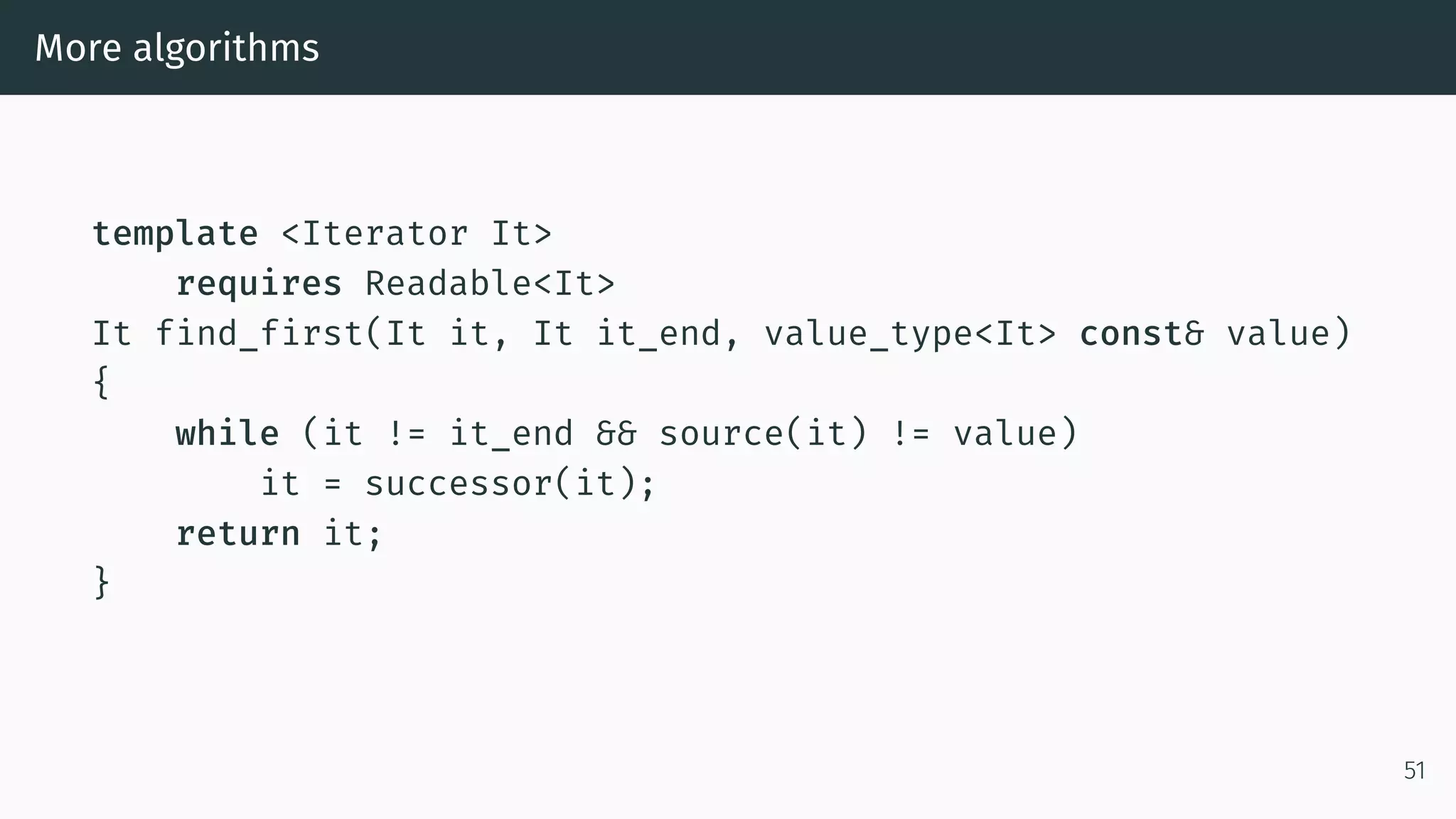

More algorithms template <Iterator It> requires Readable<It> It find_first(It it, It it_end, value_type<It> const& value) { while (it != it_end && source(it) != value) it = successor(it); return it; } 51

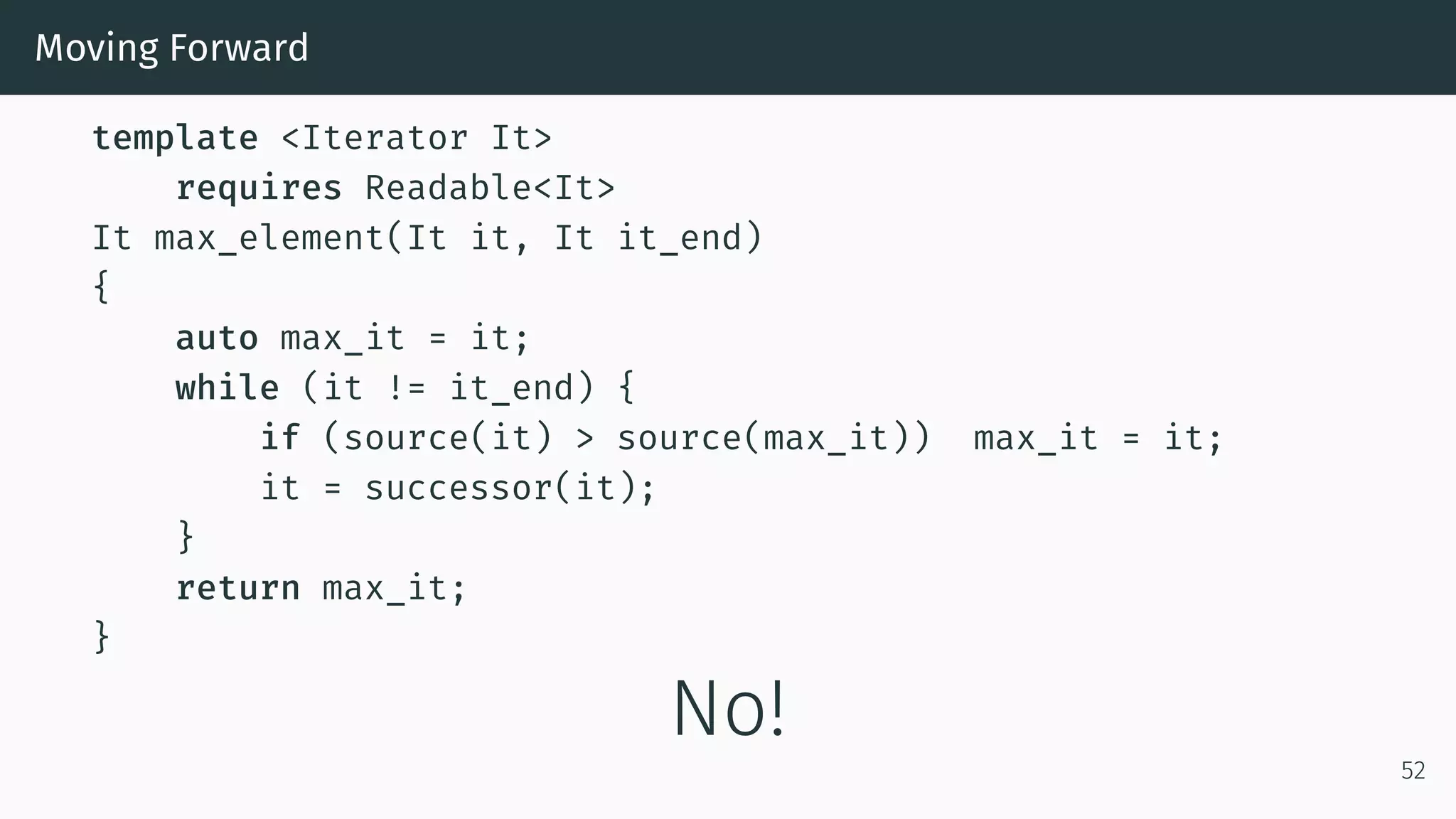

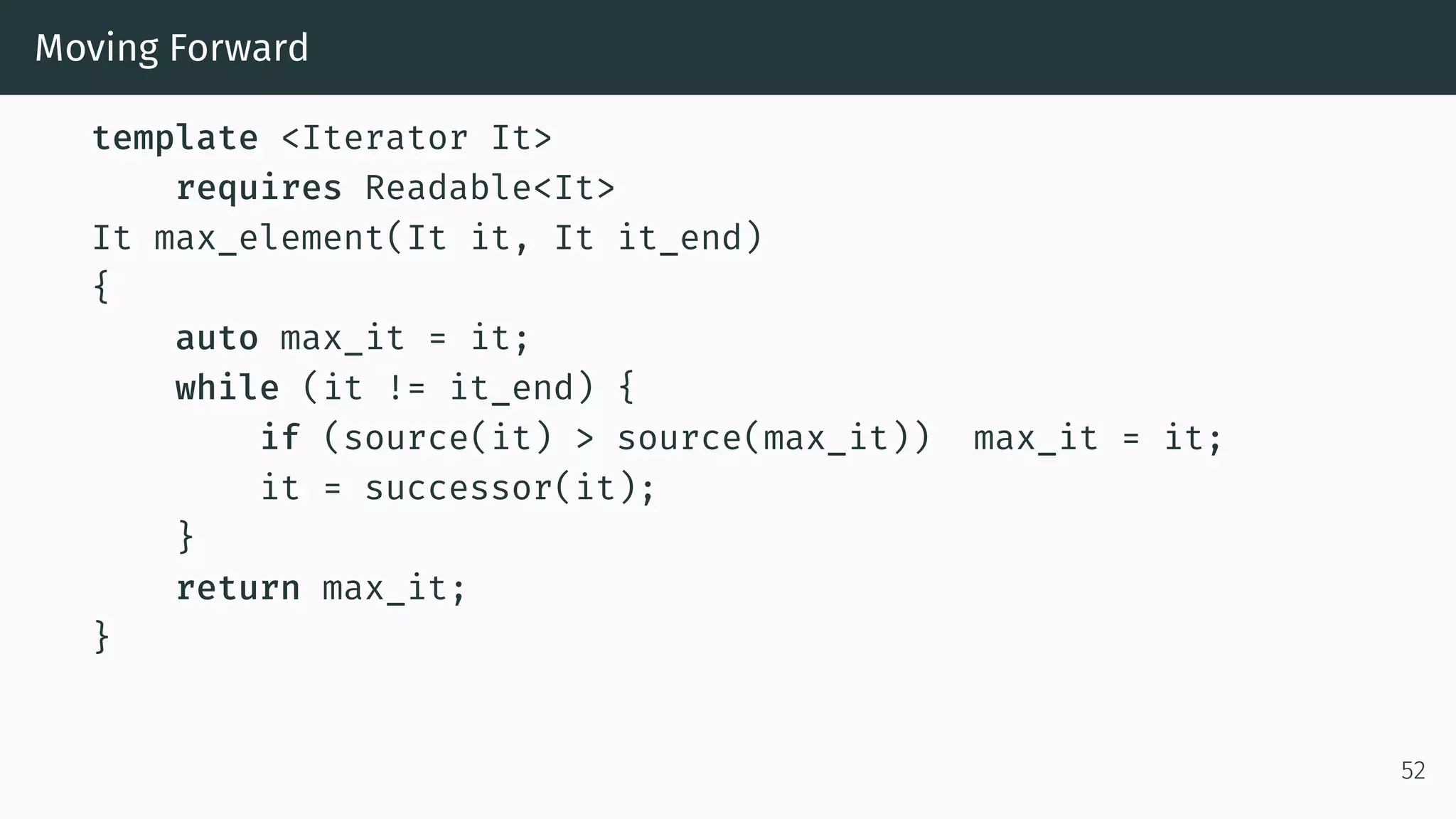

Moving Forward template <Iterator It> requires Readable<It> It max_element(It it, It it_end) { auto max_it = it; while (it != it_end) { if (source(it) > source(max_it)) max_it = it; it = successor(it); } return max_it; } 52

Moving Forward template <Iterator It> requires Readable<It> It max_element(It it, It it_end) { auto max_it = it; while (it != it_end) { if (source(it) > source(max_it)) max_it = it; it = successor(it); } return max_it; } No! 52

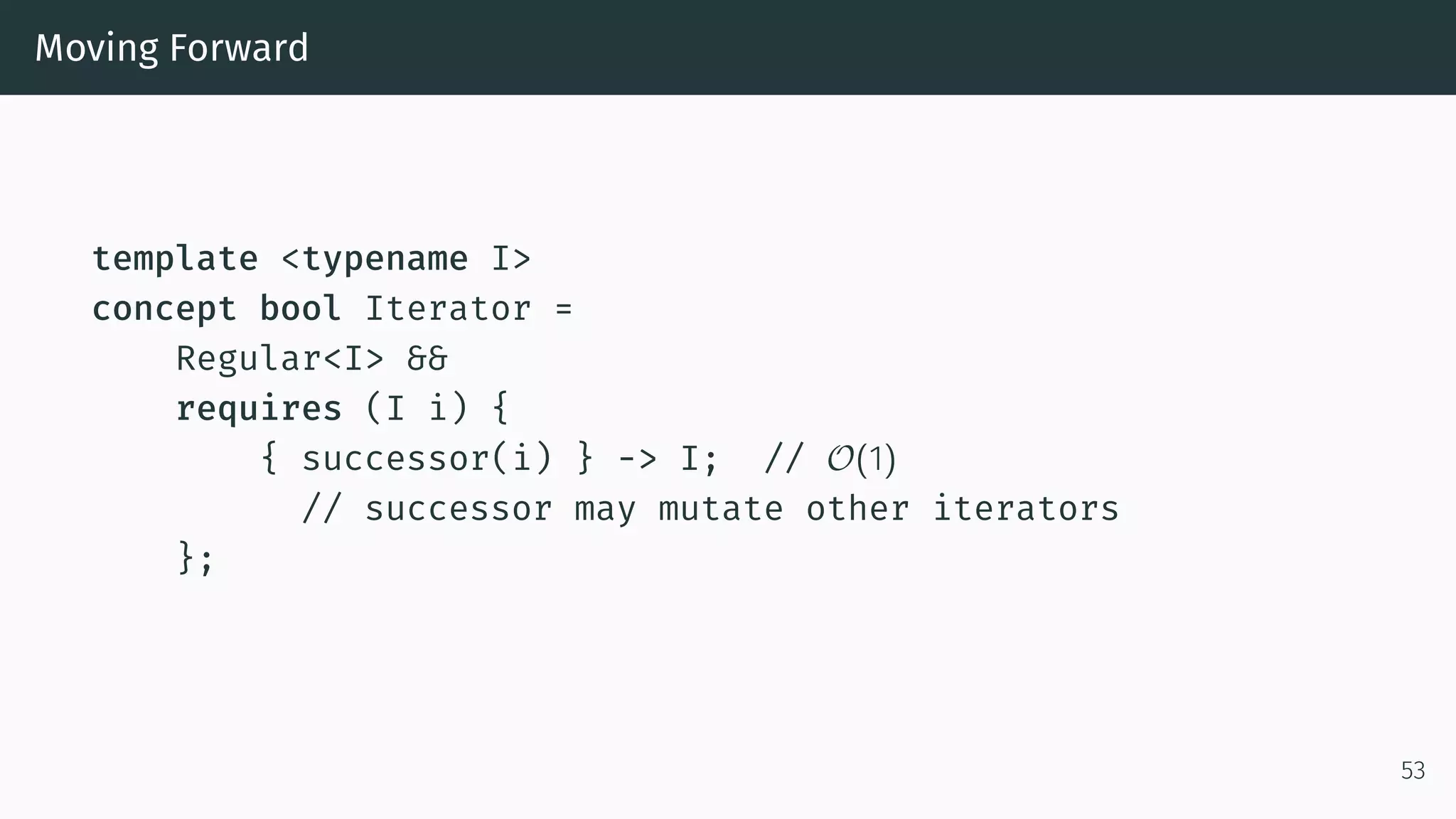

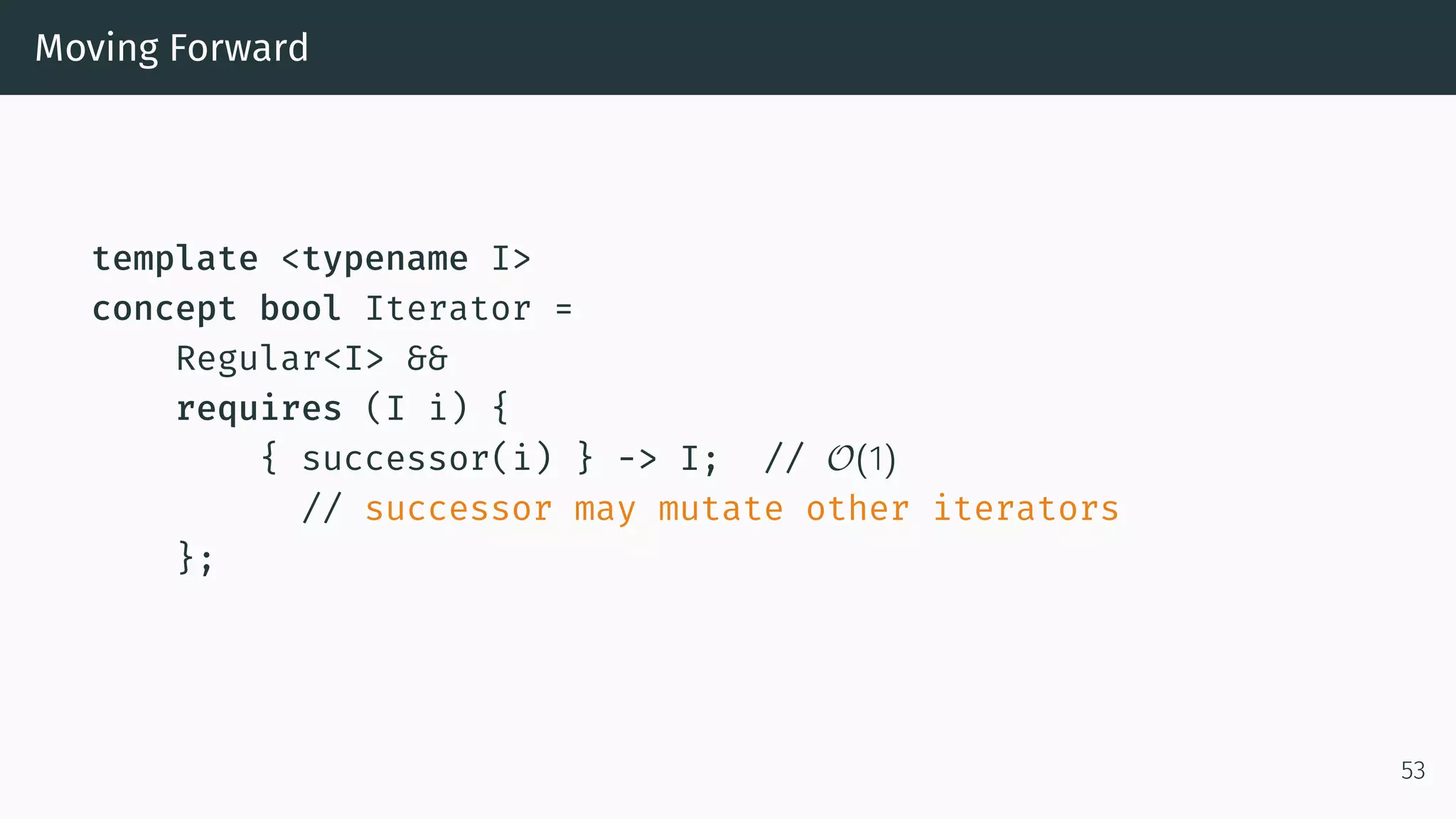

Moving Forward template <typename I> concept bool Iterator = Regular && requires (I i) { { successor(i) } -> I; // O(1) // successor may mutate other iterators }; 53

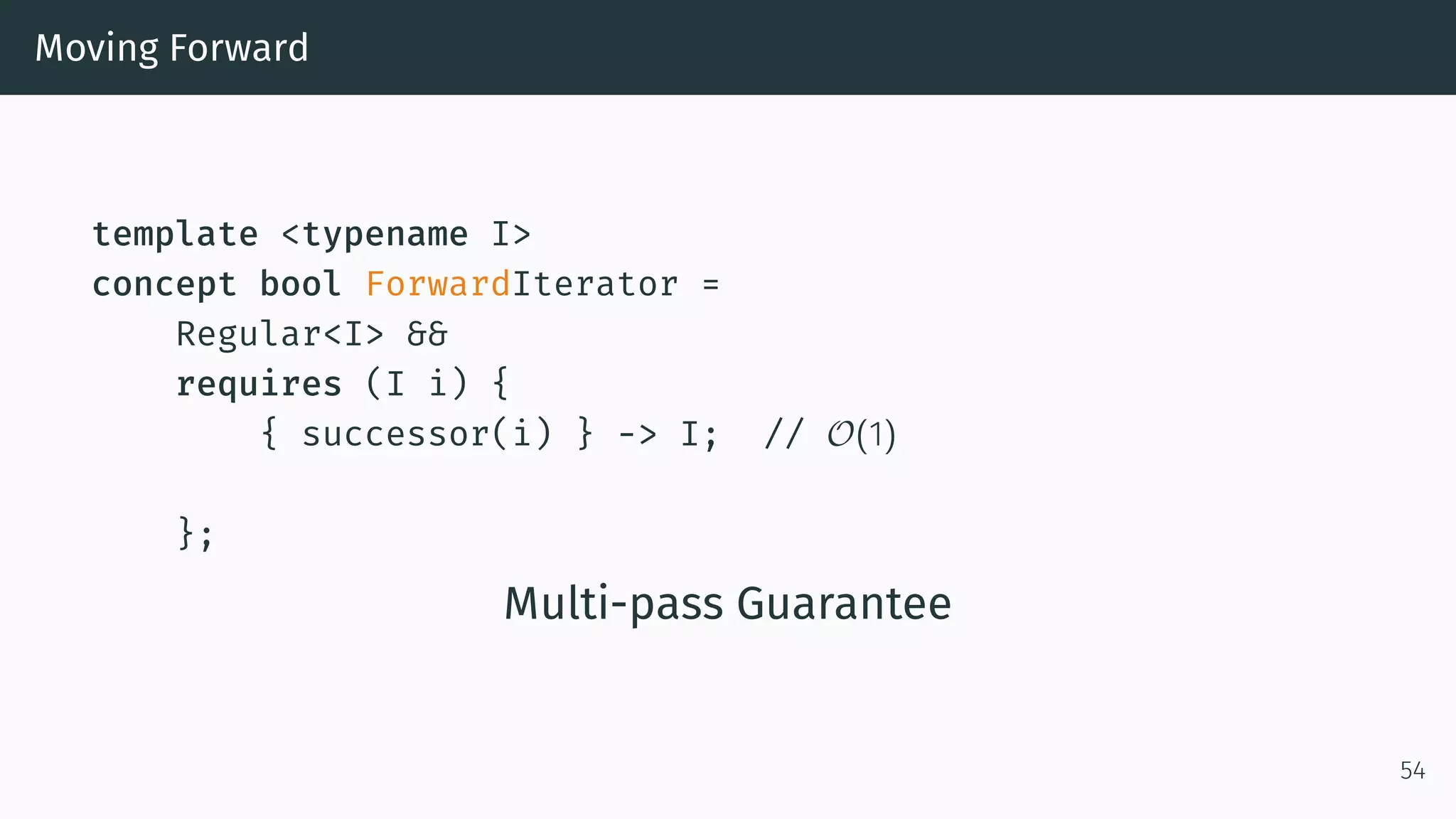

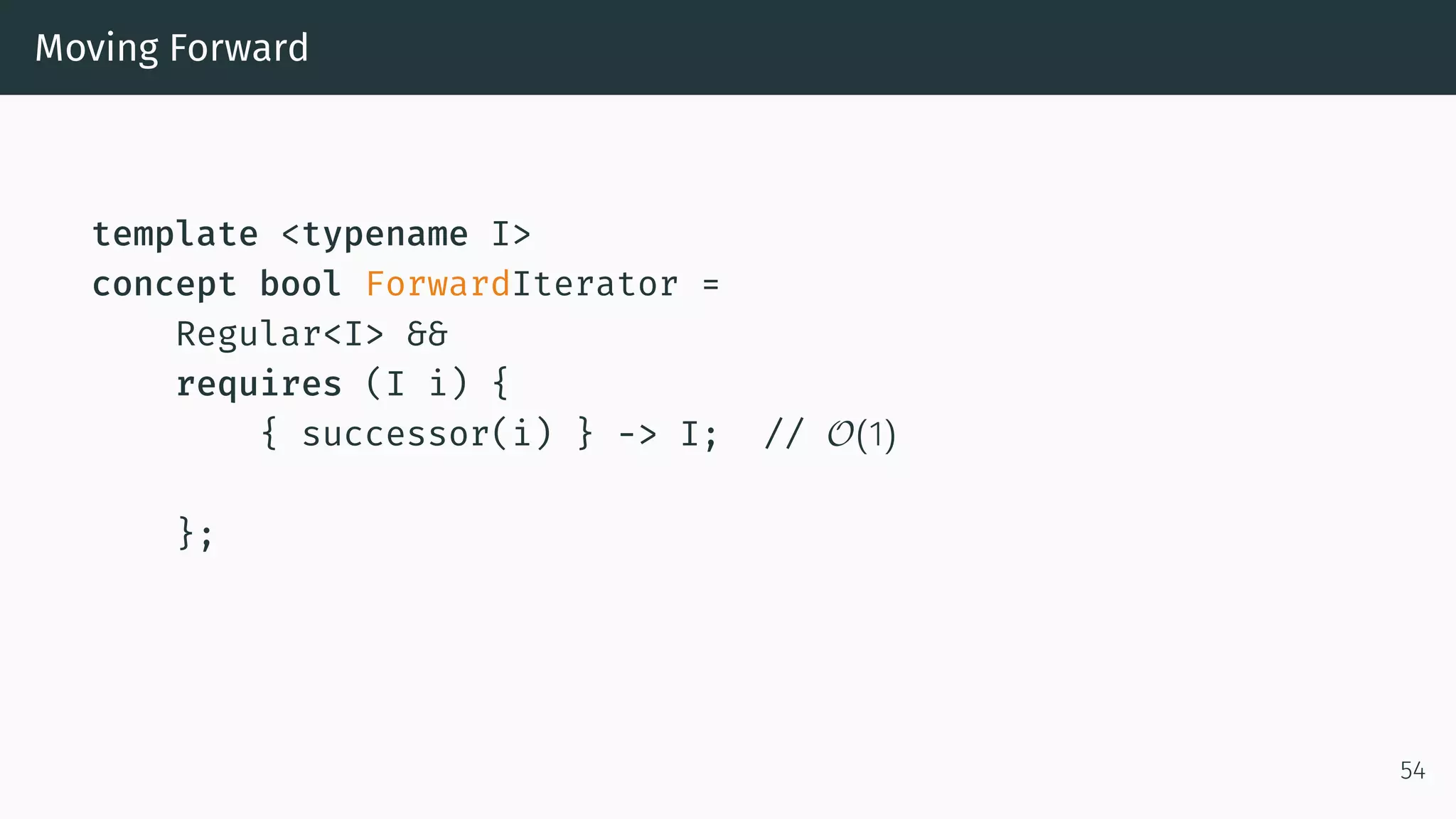

Moving Forward template <typename I> concept bool ForwardIterator = Regular && requires (I i) { { successor(i) } -> I; // O(1) }; 54

Moving Forward template <typename I> concept bool ForwardIterator = Regular && requires (I i) { { successor(i) } -> I; // O(1) }; Multi-pass Guarantee 54

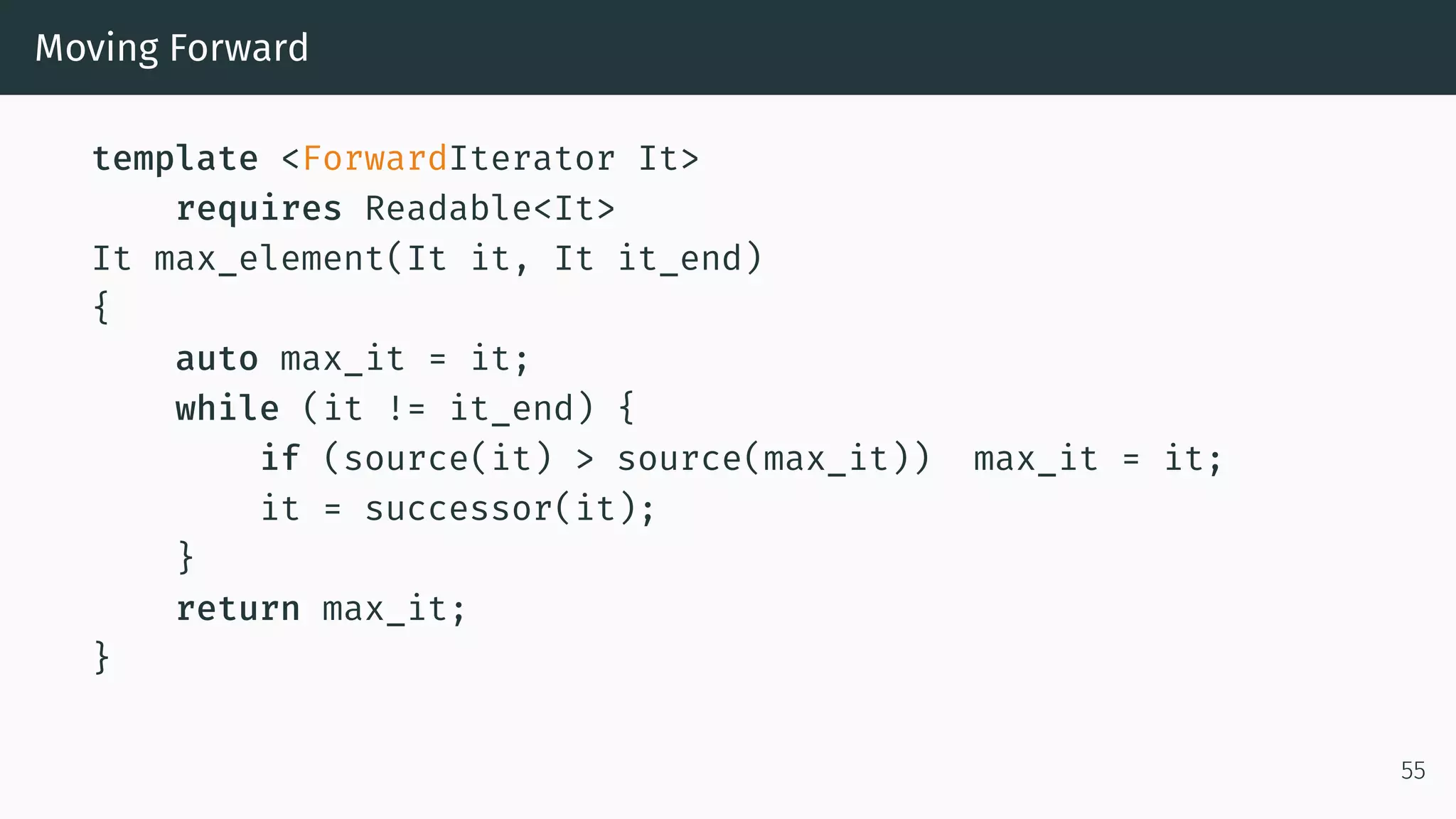

Moving Forward template <ForwardIterator It> requires Readable<It> It max_element(It it, It it_end) { auto max_it = it; while (it != it_end) { if (source(it) > source(max_it)) max_it = it; it = successor(it); } return max_it; } 55

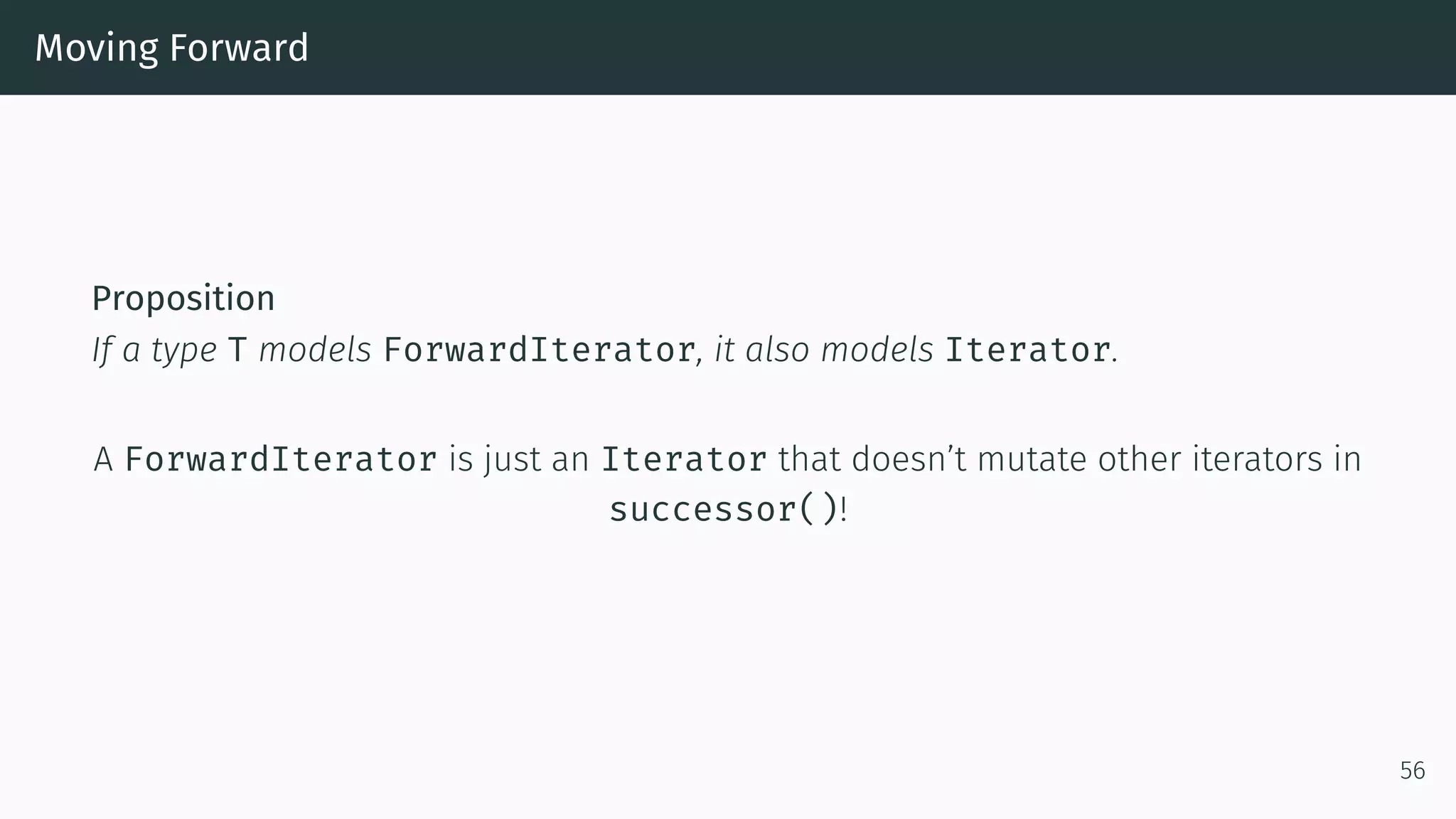

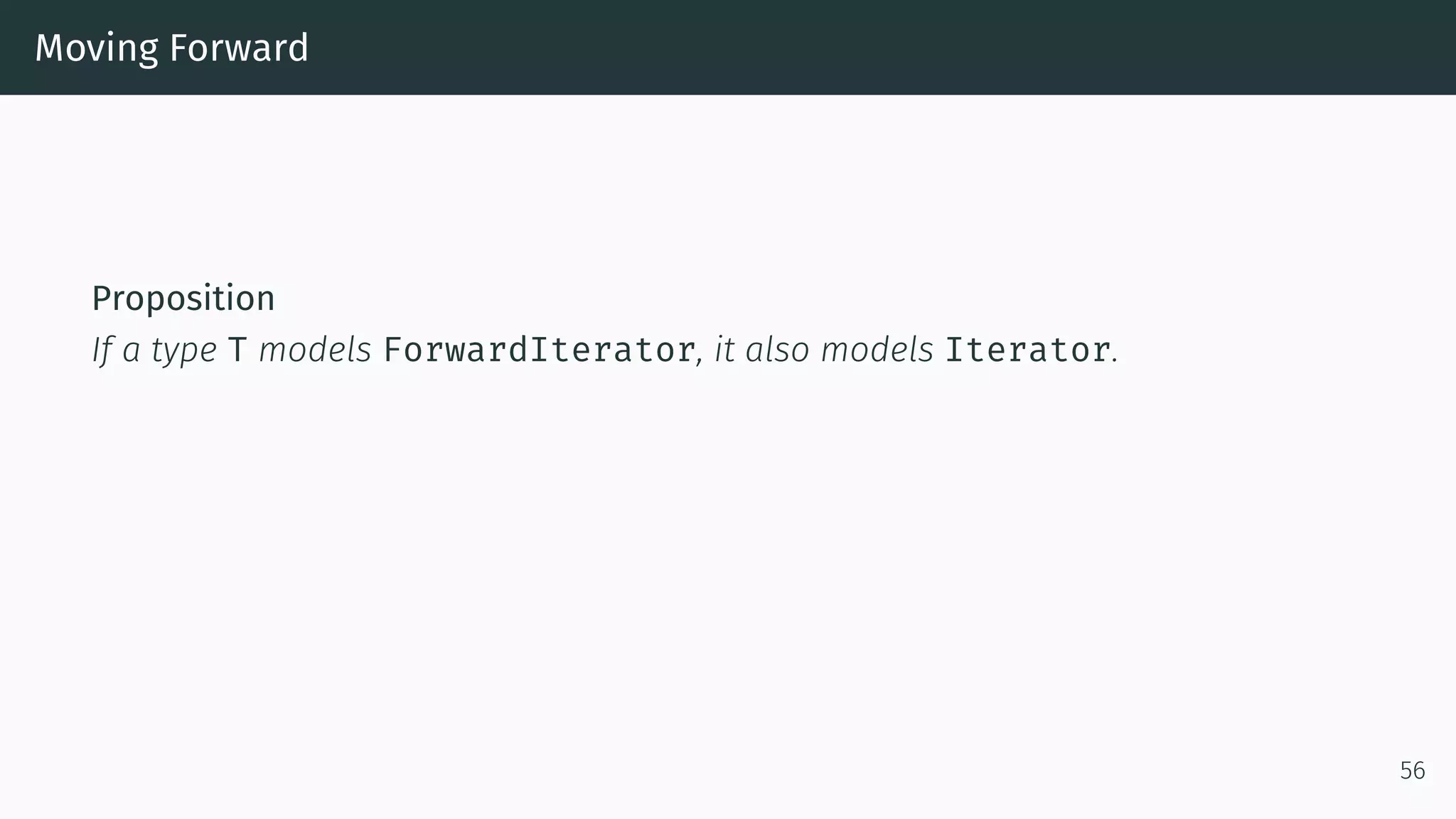

Moving Forward Proposition If a type T models ForwardIterator, it also models Iterator. 56

Moving Forward Proposition If a type T models ForwardIterator, it also models Iterator. A ForwardIterator is just an Iterator that doesn’t mutate other iterators in successor()! 56

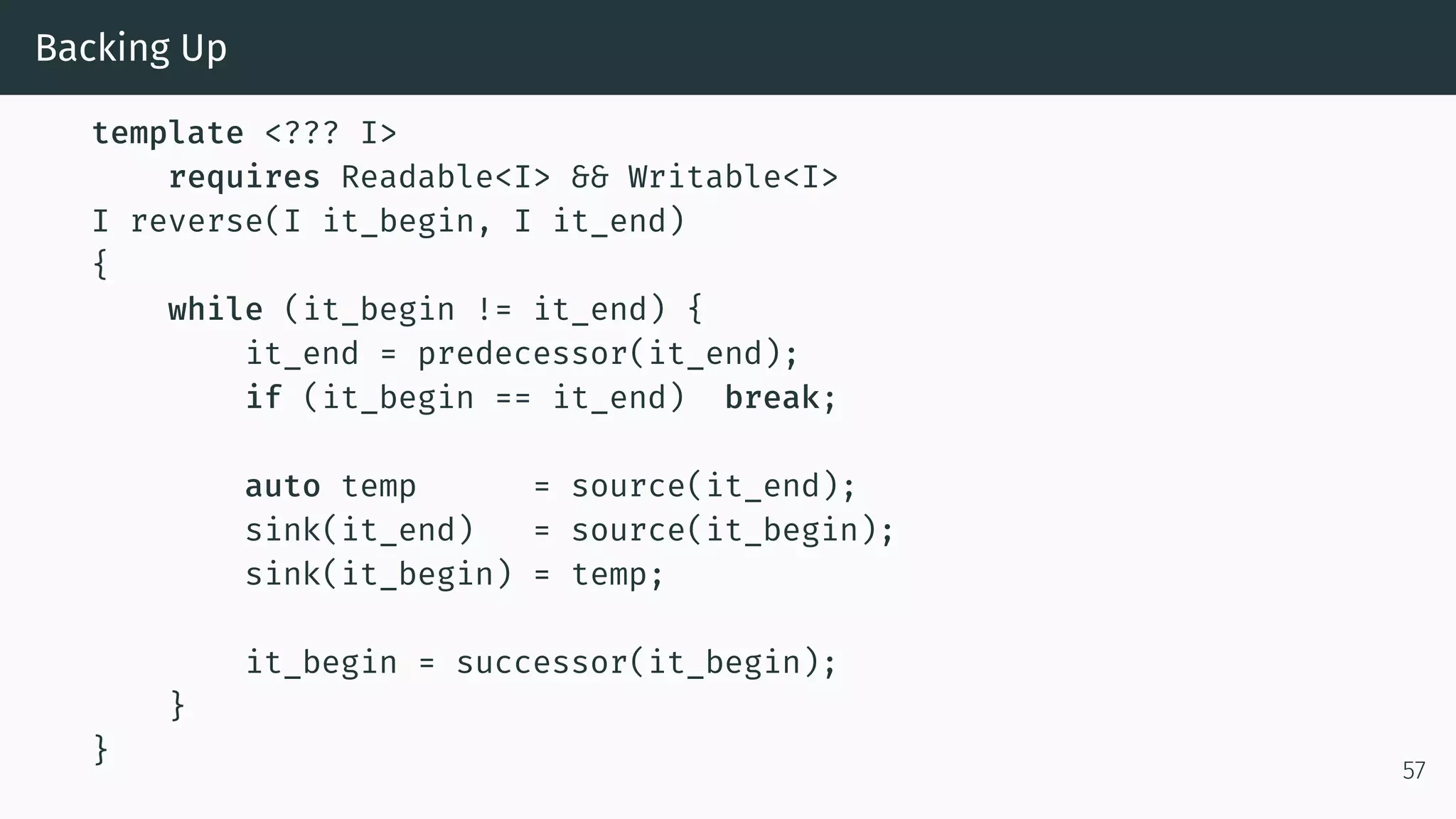

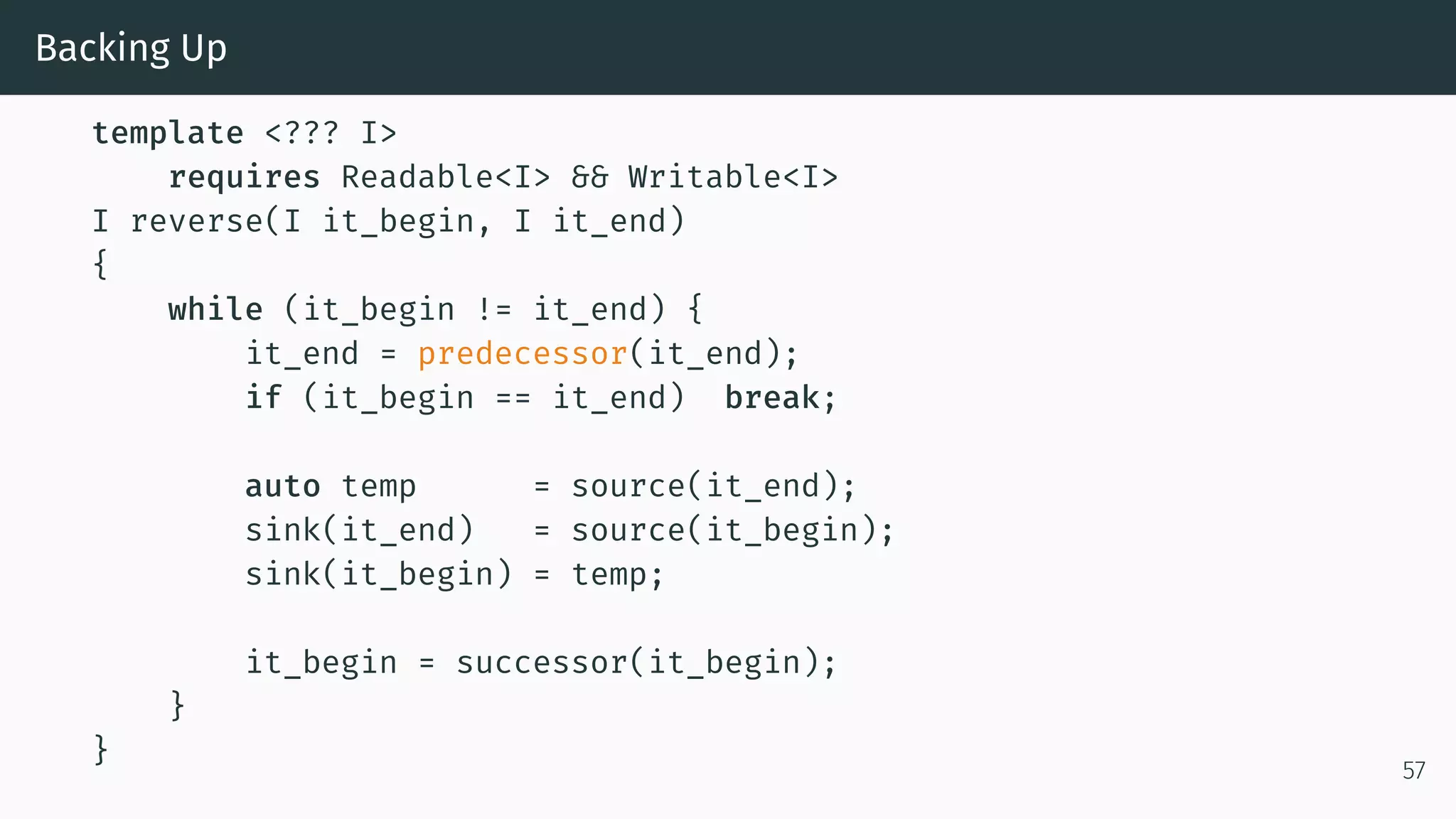

Backing Up template <??? I> requires Readable && Writable I reverse(I it_begin, I it_end) { while (it_begin != it_end) { it_end = predecessor(it_end); if (it_begin == it_end) break; auto temp = source(it_end); sink(it_end) = source(it_begin); sink(it_begin) = temp; it_begin = successor(it_begin); } } 57

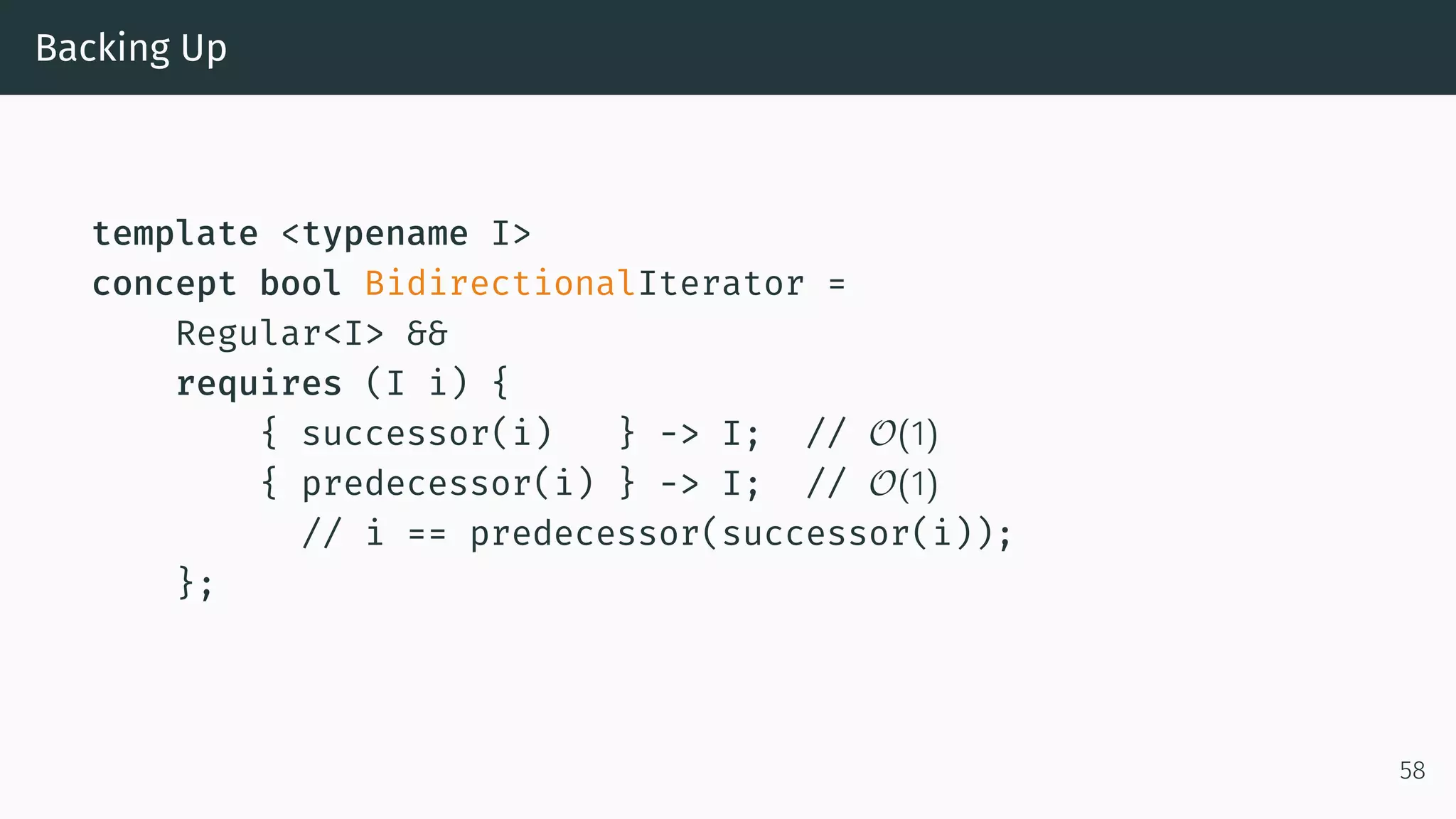

Backing Up template <typename I> concept bool BidirectionalIterator = Regular && requires (I i) { { successor(i) } -> I; // O(1) { predecessor(i) } -> I; // O(1) // i == predecessor(successor(i)); }; 58

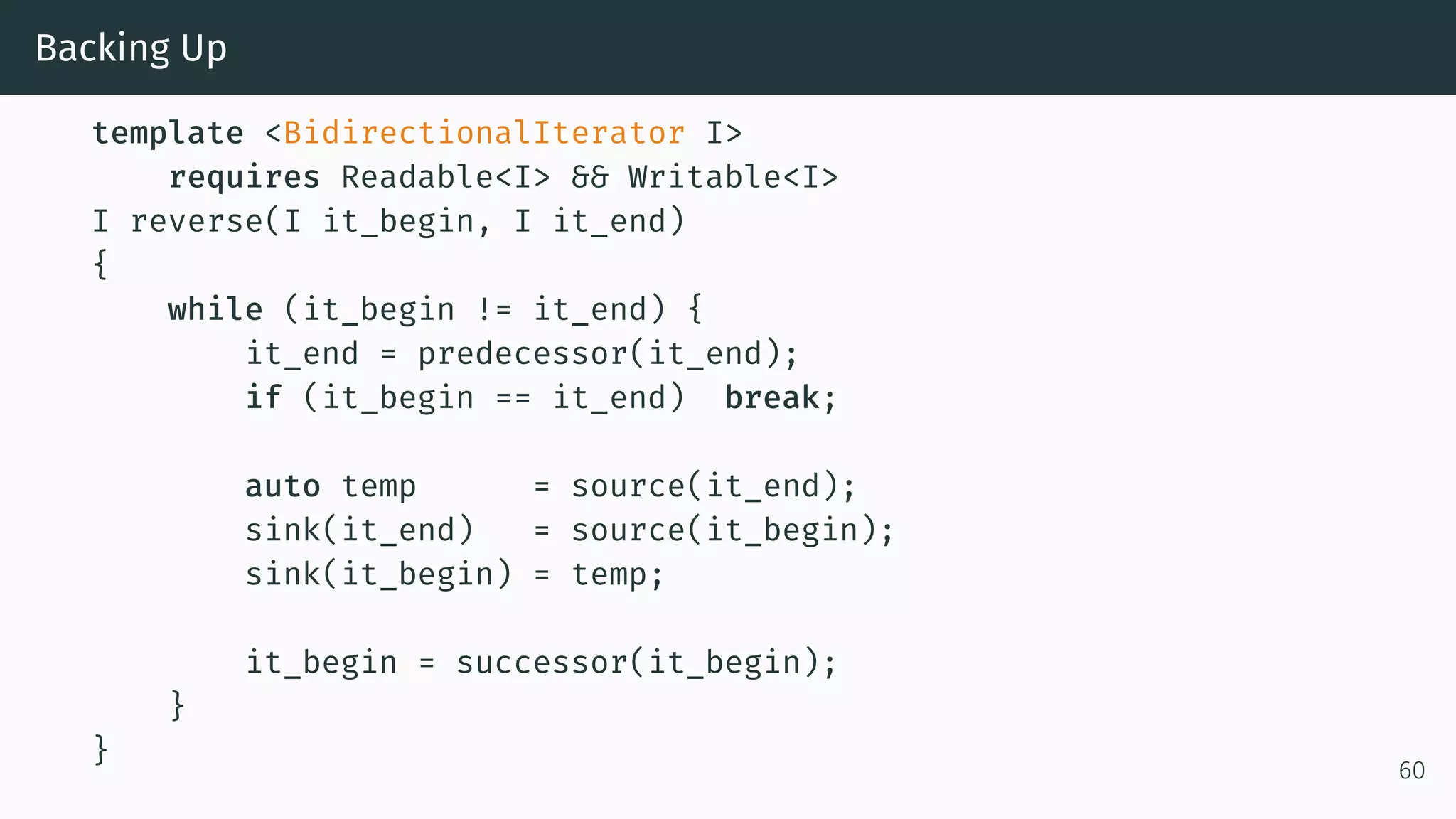

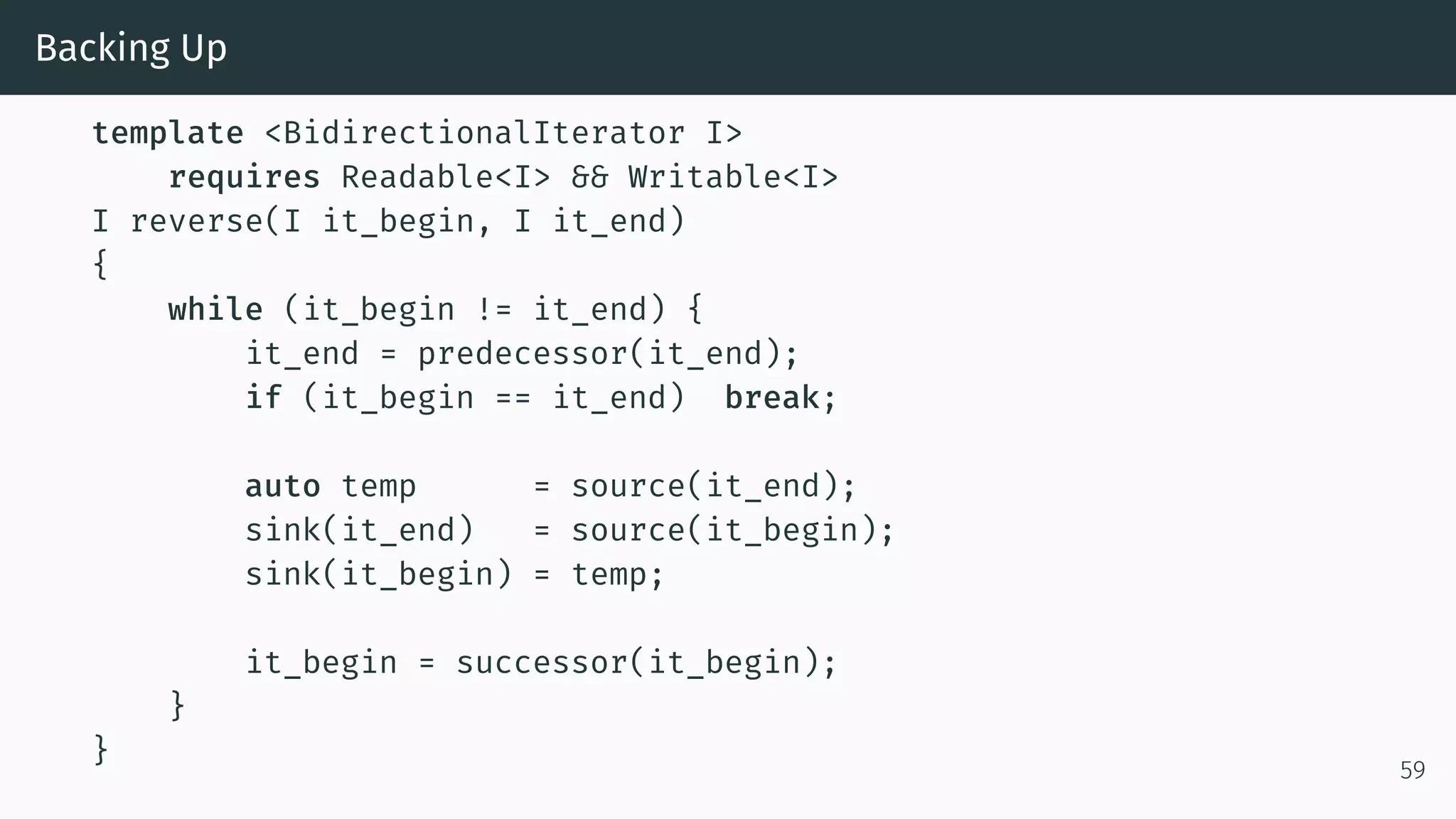

Backing Up template <BidirectionalIterator I> requires Readable && Writable I reverse(I it_begin, I it_end) { while (it_begin != it_end) { it_end = predecessor(it_end); if (it_begin == it_end) break; auto temp = source(it_end); sink(it_end) = source(it_begin); sink(it_begin) = temp; it_begin = successor(it_begin); } } 59

Backing Up template <BidirectionalIterator I> requires Readable && Writable I reverse(I it_begin, I it_end) { while (it_begin != it_end) { it_end = predecessor(it_end); if (it_begin == it_end) break; auto temp = source(it_end); sink(it_end) = source(it_begin); sink(it_begin) = temp; it_begin = successor(it_begin); } } 60

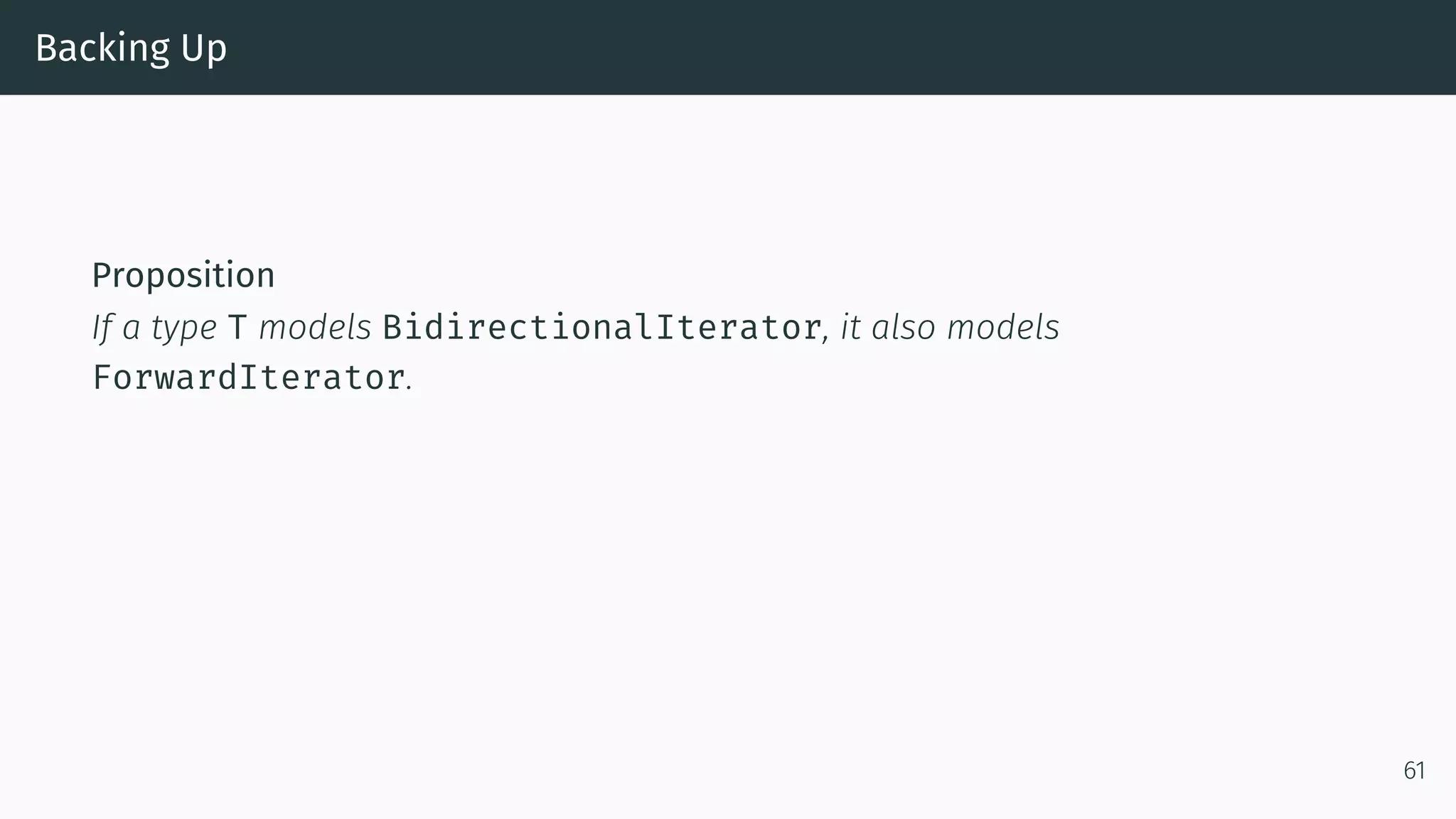

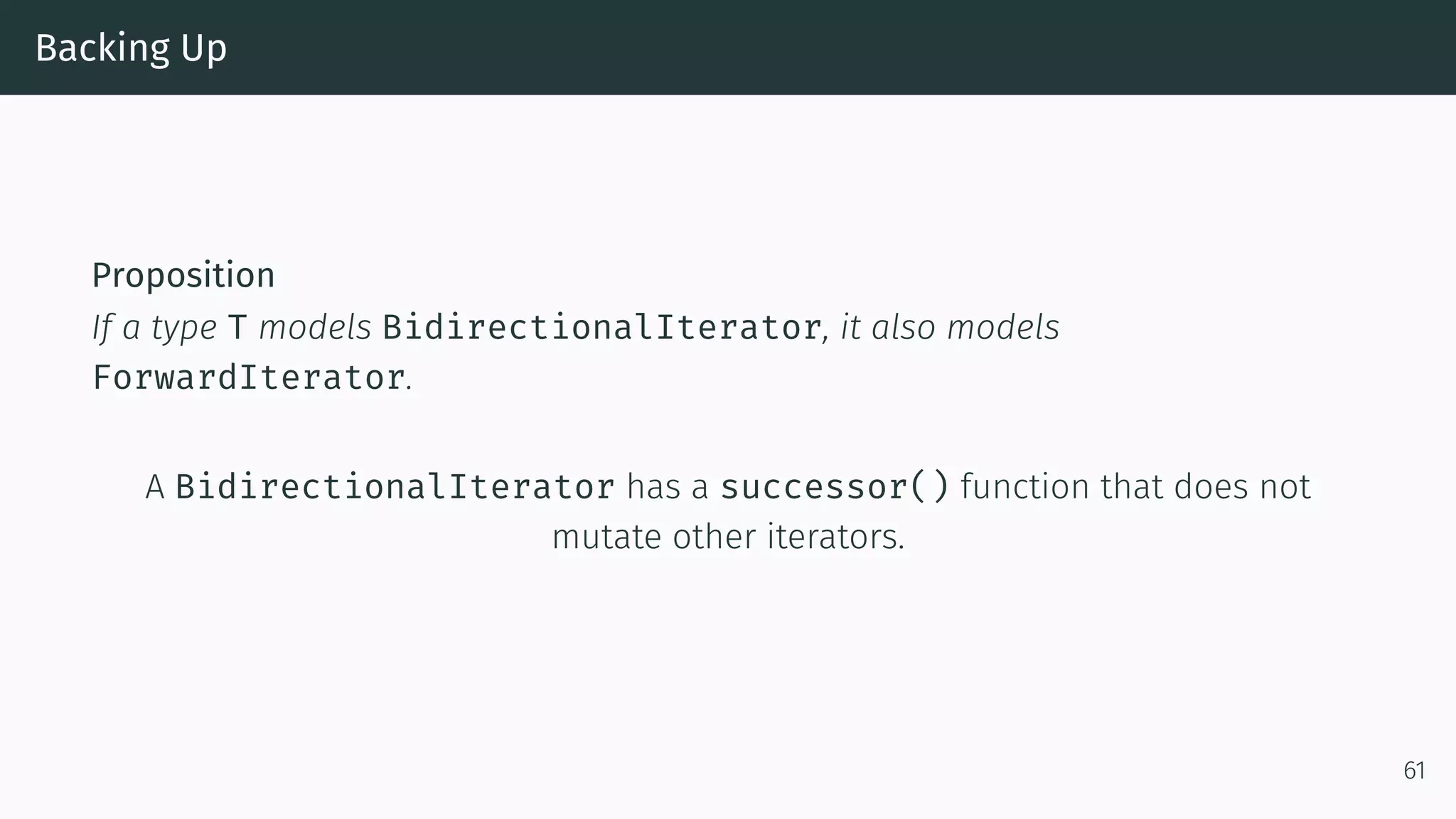

Backing Up Proposition If a type T models BidirectionalIterator, it also models ForwardIterator. 61

Backing Up Proposition If a type T models BidirectionalIterator, it also models ForwardIterator. A BidirectionalIterator has a successor() function that does not mutate other iterators. 61

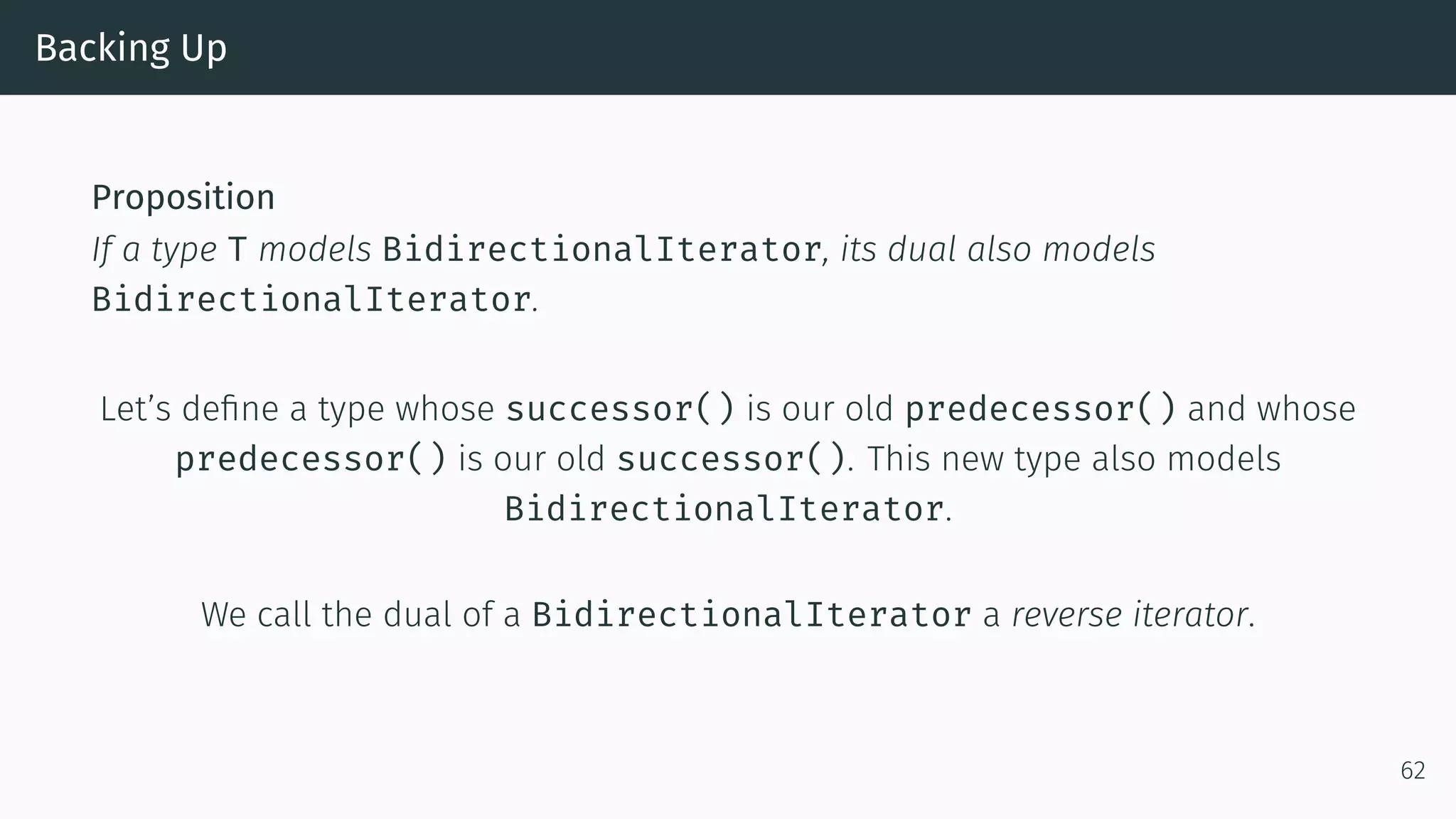

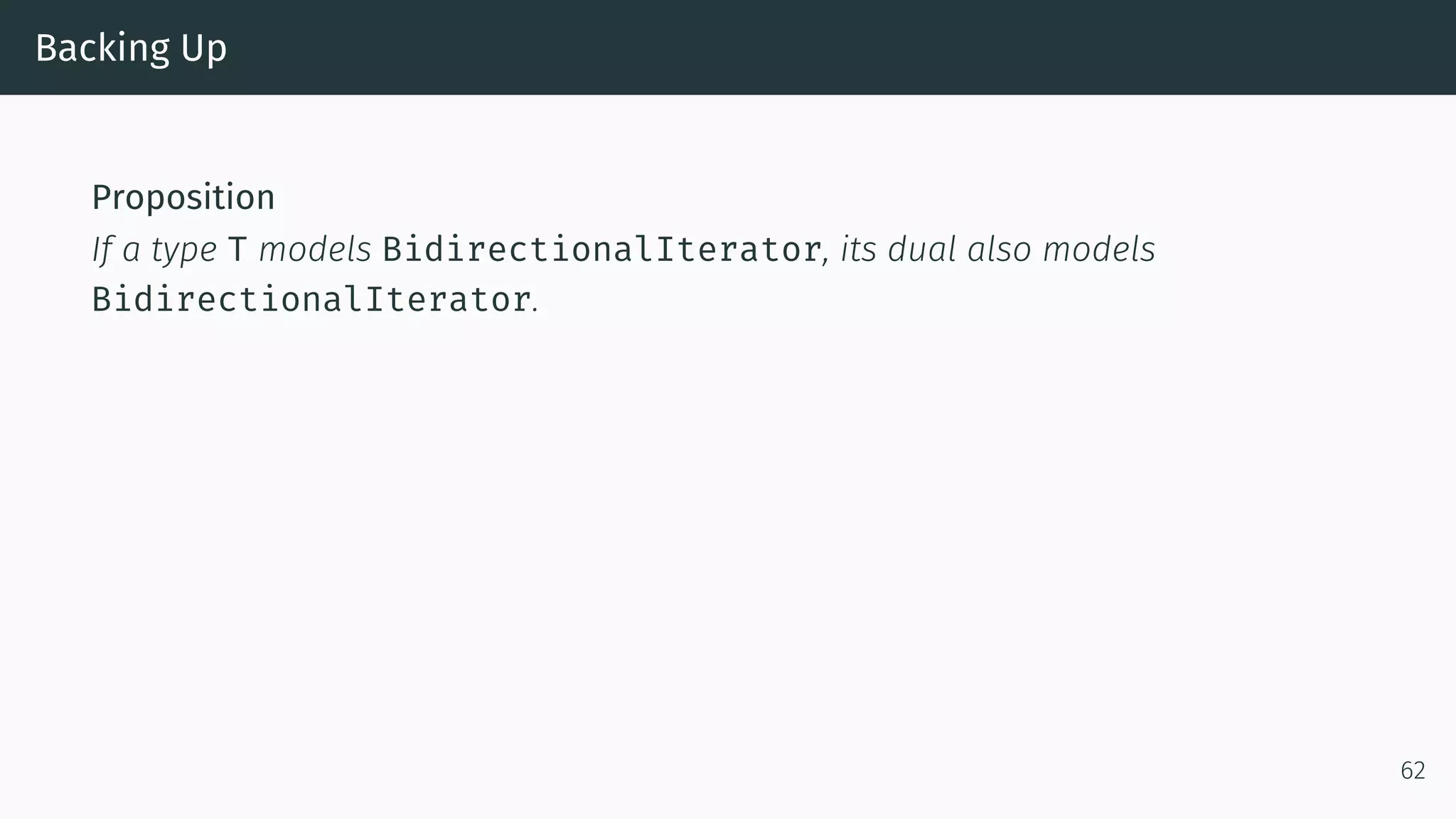

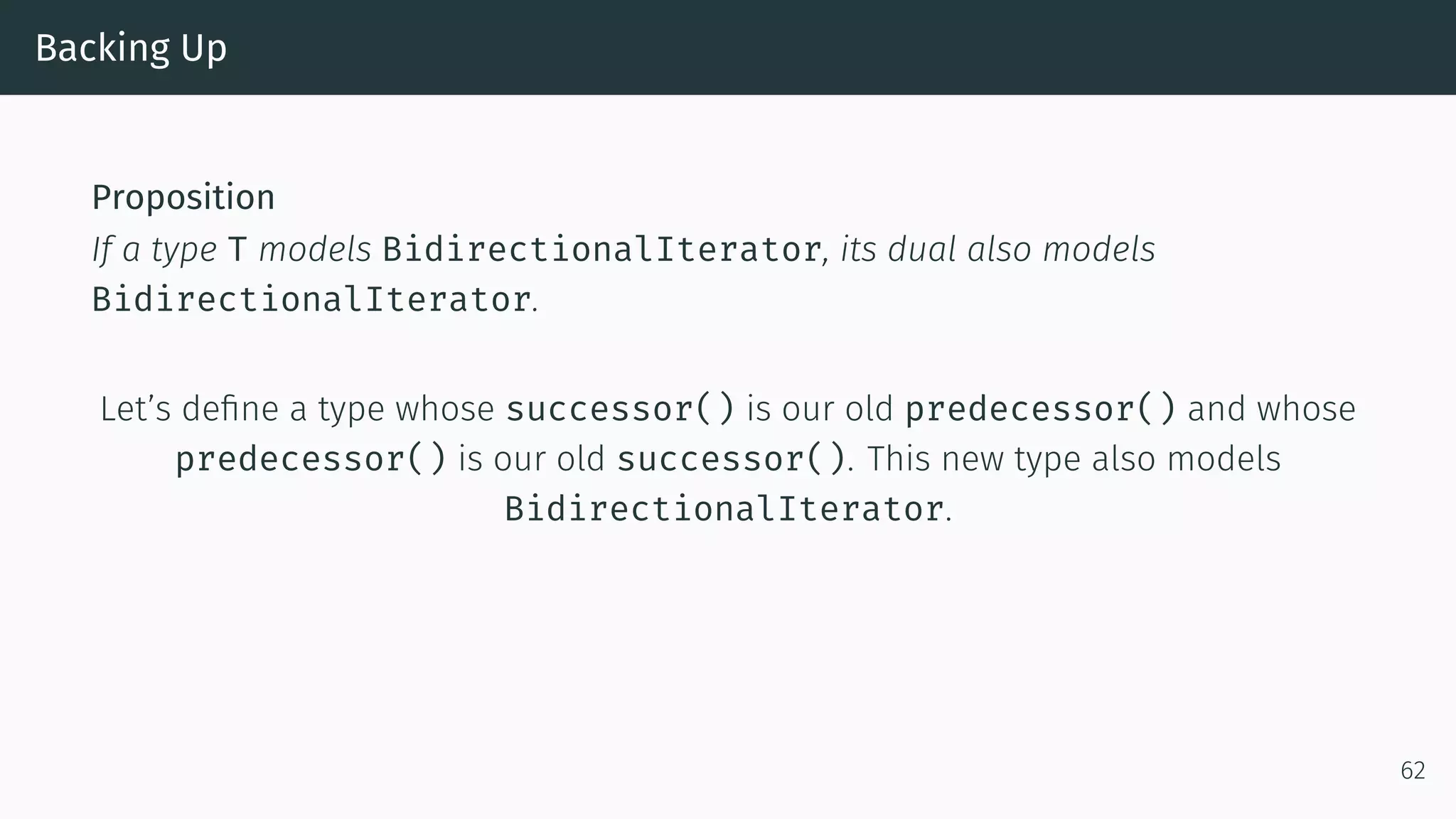

Backing Up Proposition If a type T models BidirectionalIterator, its dual also models BidirectionalIterator. 62

Backing Up Proposition If a type T models BidirectionalIterator, its dual also models BidirectionalIterator. Let’s deﬁne a type whose successor() is our old predecessor() and whose predecessor() is our old successor(). This new type also models BidirectionalIterator. 62

Backing Up Proposition If a type T models BidirectionalIterator, its dual also models BidirectionalIterator. Let’s deﬁne a type whose successor() is our old predecessor() and whose predecessor() is our old successor(). This new type also models BidirectionalIterator. We call the dual of a BidirectionalIterator a reverse iterator. 62

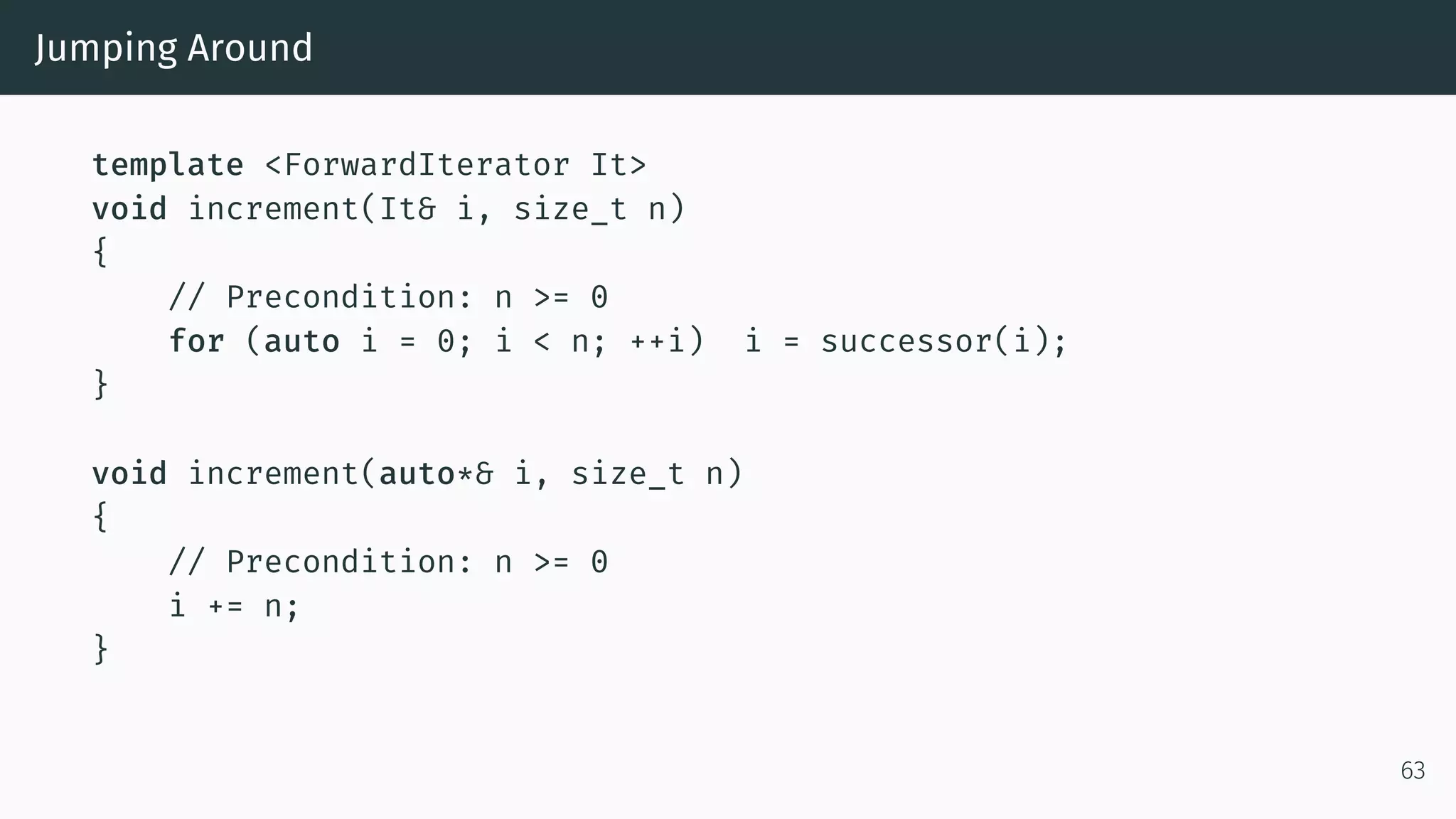

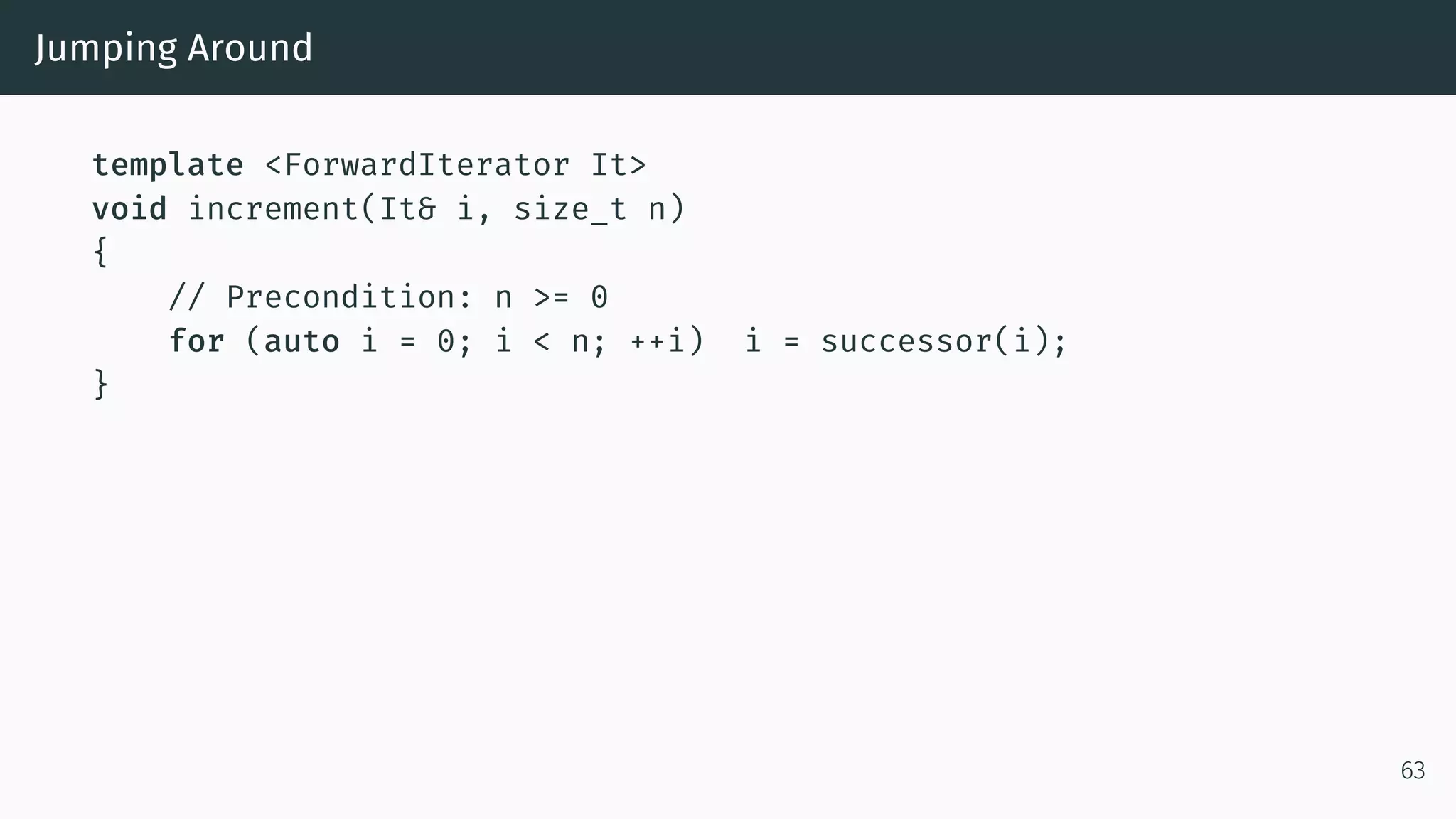

Jumping Around template <ForwardIterator It> void increment(It& i, size_t n) { // Precondition: n >= 0 for (auto i = 0; i < n; ++i) i = successor(i); } 63

Jumping Around template <ForwardIterator It> void increment(It& i, size_t n) { // Precondition: n >= 0 for (auto i = 0; i < n; ++i) i = successor(i); } void increment(auto*& i, size_t n) { // Precondition: n >= 0 i += n; } 63

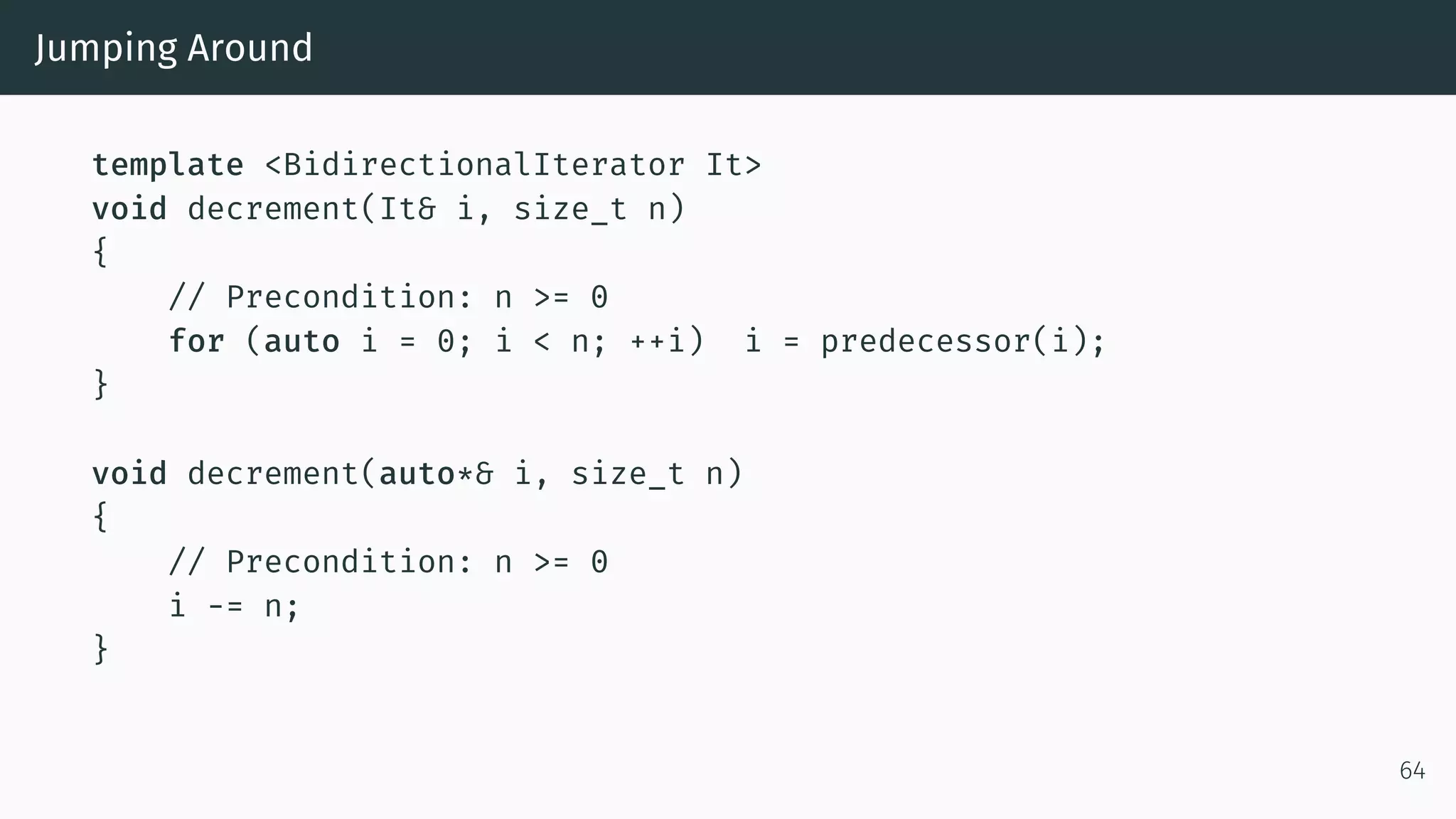

Jumping Around template <BidirectionalIterator It> void decrement(It& i, size_t n) { // Precondition: n >= 0 for (auto i = 0; i < n; ++i) i = predecessor(i); } void decrement(auto*& i, size_t n) { // Precondition: n >= 0 i -= n; } 64

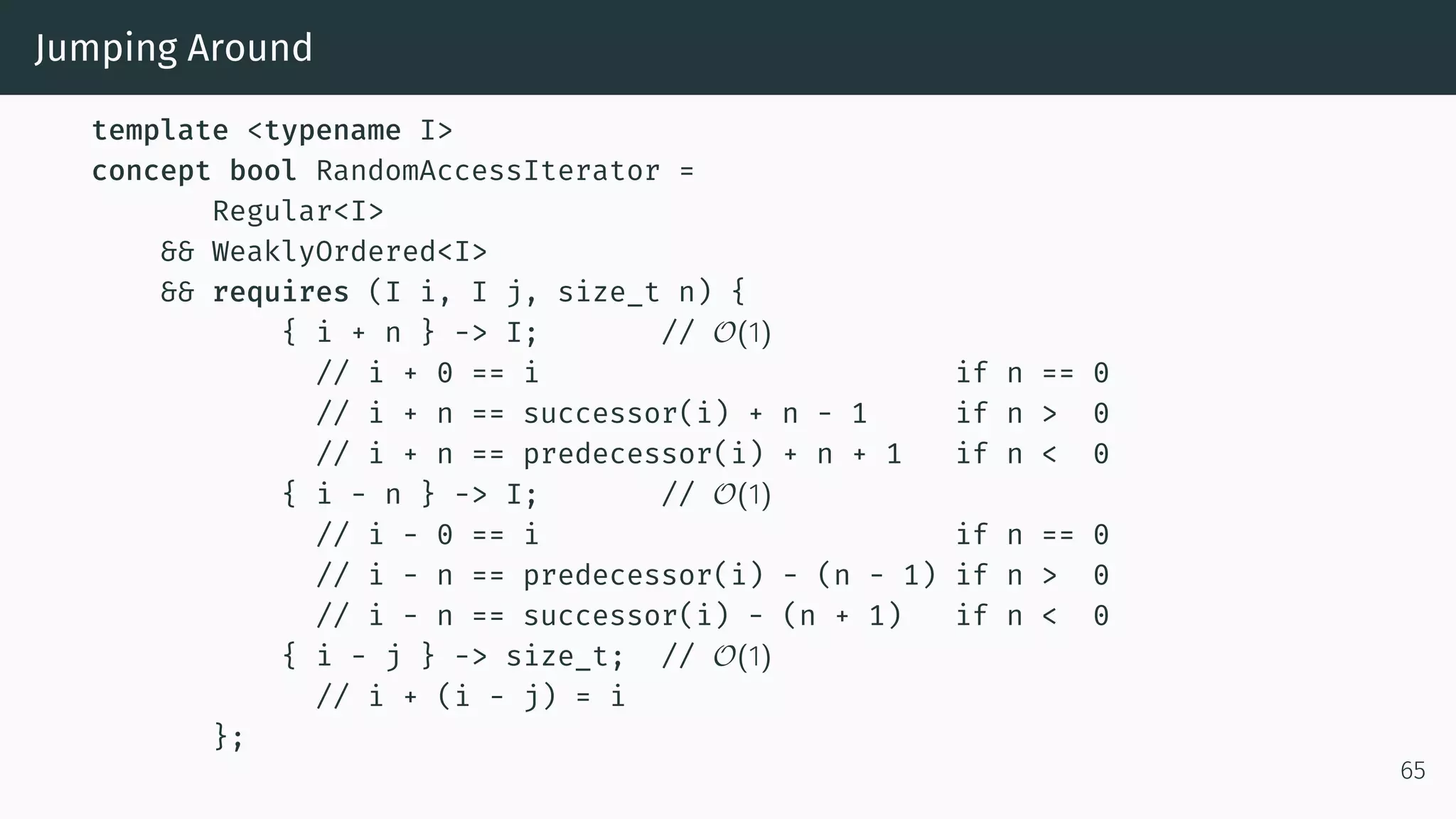

Jumping Around template <typename I> concept bool RandomAccessIterator = Regular && WeaklyOrdered && requires (I i, I j, size_t n) { { i + n } -> I; // O(1) // i + 0 == i if n == 0 // i + n == successor(i) + n - 1 if n > 0 // i + n == predecessor(i) + n + 1 if n < 0 { i - n } -> I; // O(1) // i - 0 == i if n == 0 // i - n == predecessor(i) - (n - 1) if n > 0 // i - n == successor(i) - (n + 1) if n < 0 { i - j } -> size_t; // O(1) // i + (i - j) = i }; 65

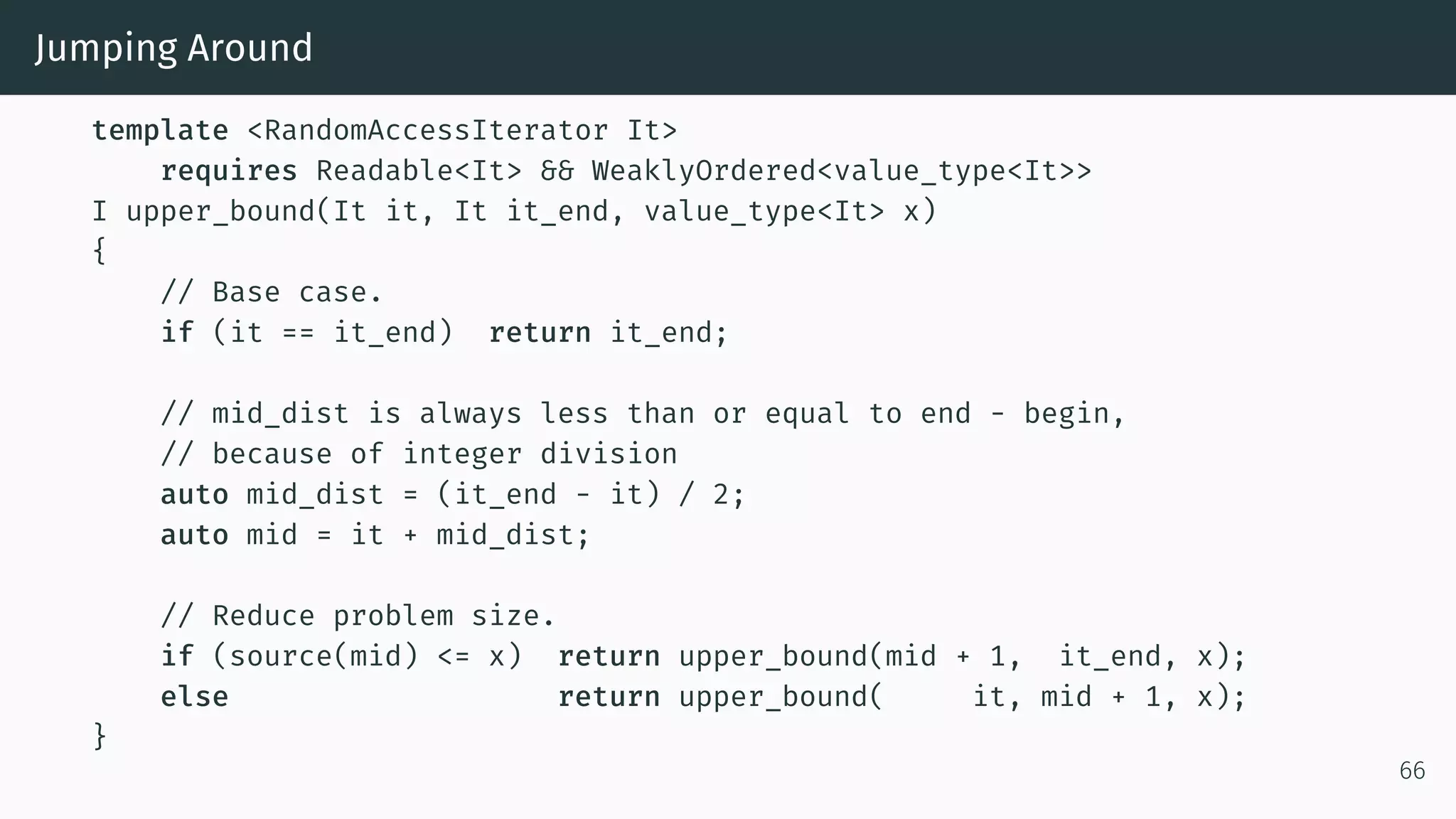

Jumping Around template <RandomAccessIterator It> requires Readable<It> && WeaklyOrdered<value_type<It>> I upper_bound(It it, It it_end, value_type<It> x) { // Base case. if (it == it_end) return it_end; // mid_dist is always less than or equal to end - begin, // because of integer division auto mid_dist = (it_end - it) / 2; auto mid = it + mid_dist; // Reduce problem size. if (source(mid) <= x) return upper_bound(mid + 1, it_end, x); else return upper_bound( it, mid + 1, x); } 66

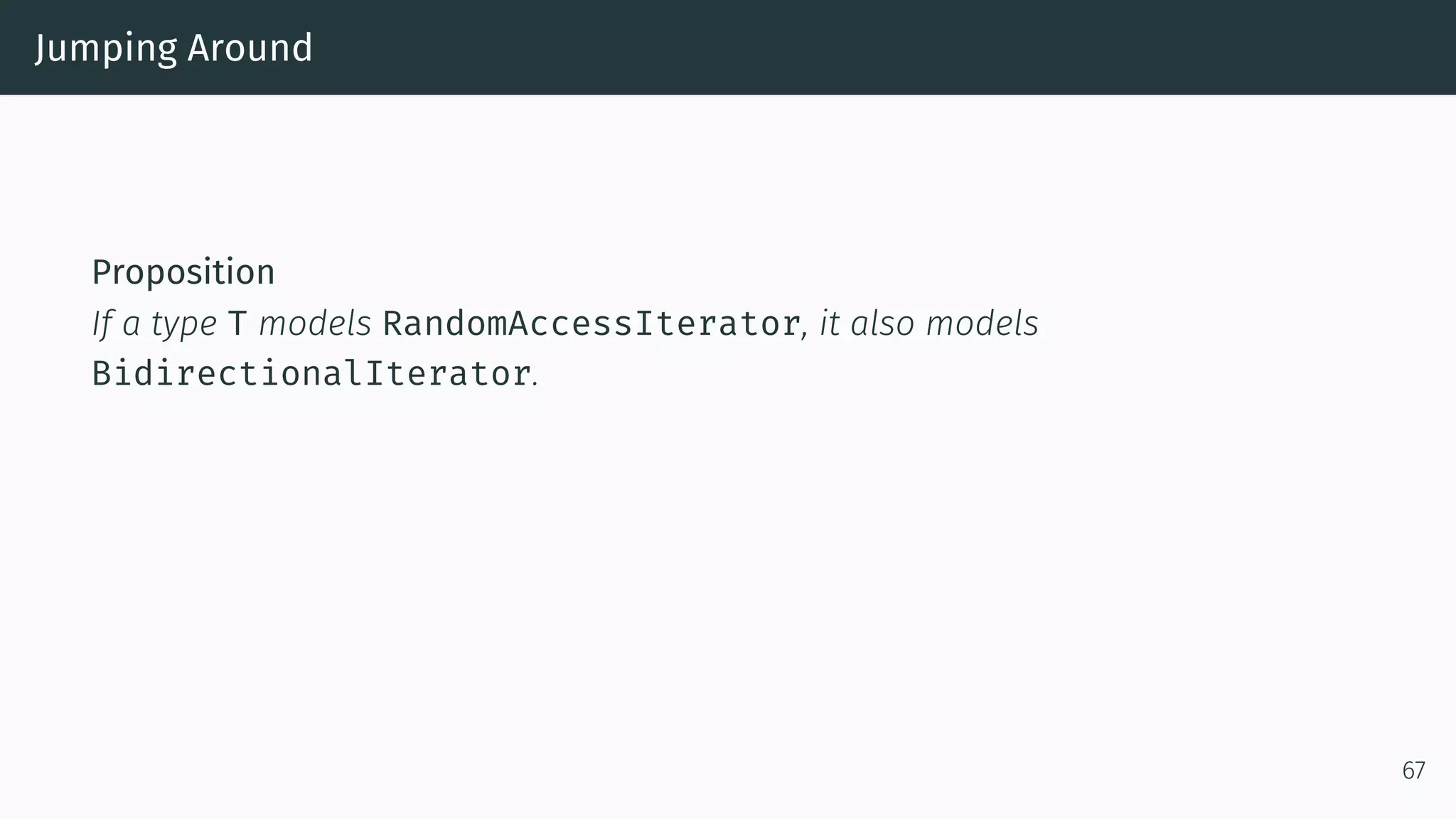

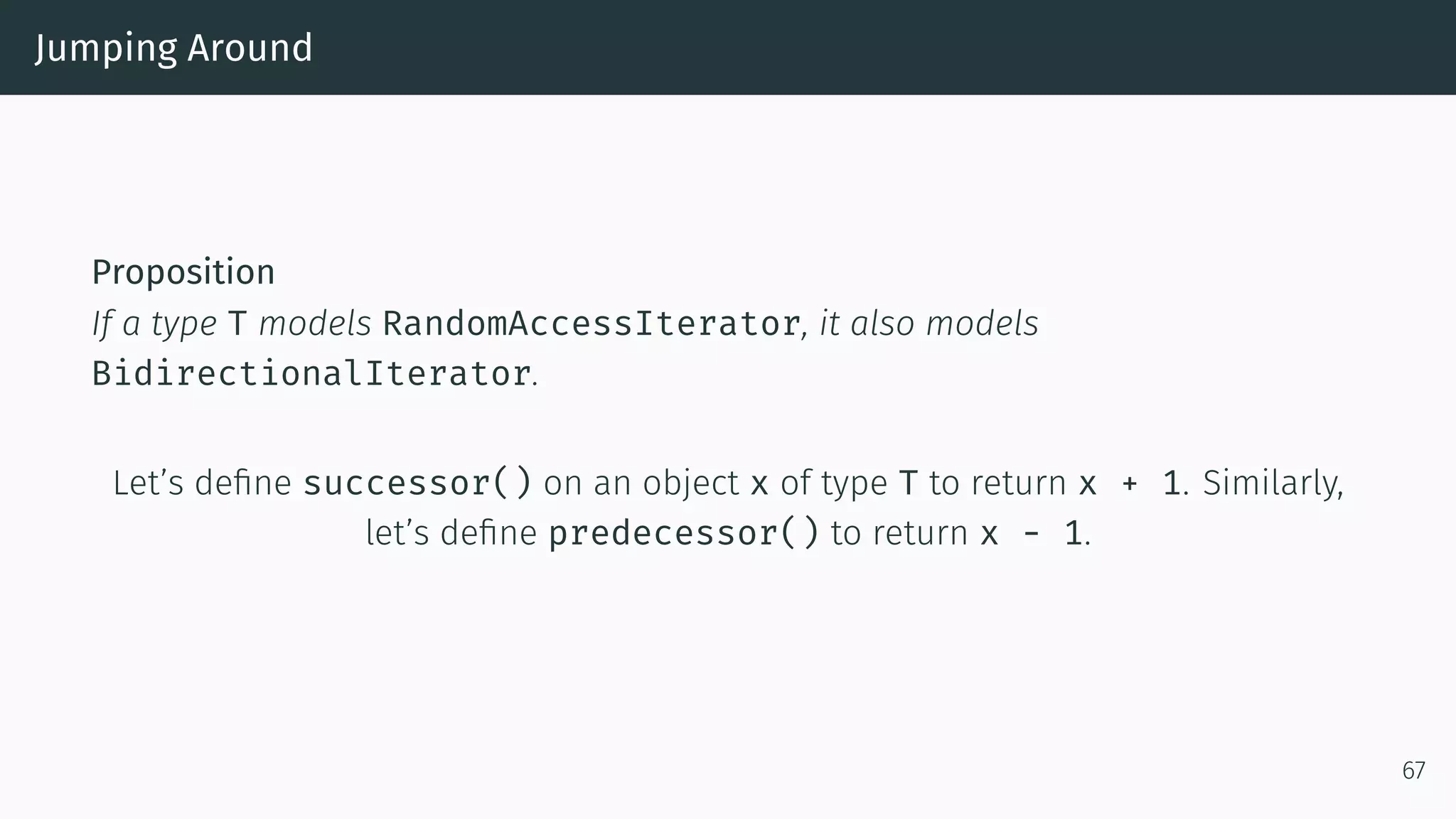

Jumping Around Proposition If a type T models RandomAccessIterator, it also models BidirectionalIterator. 67

Jumping Around Proposition If a type T models RandomAccessIterator, it also models BidirectionalIterator. Let’s deﬁne successor() on an object x of type T to return x + 1. Similarly, let’s deﬁne predecessor() to return x - 1. 67

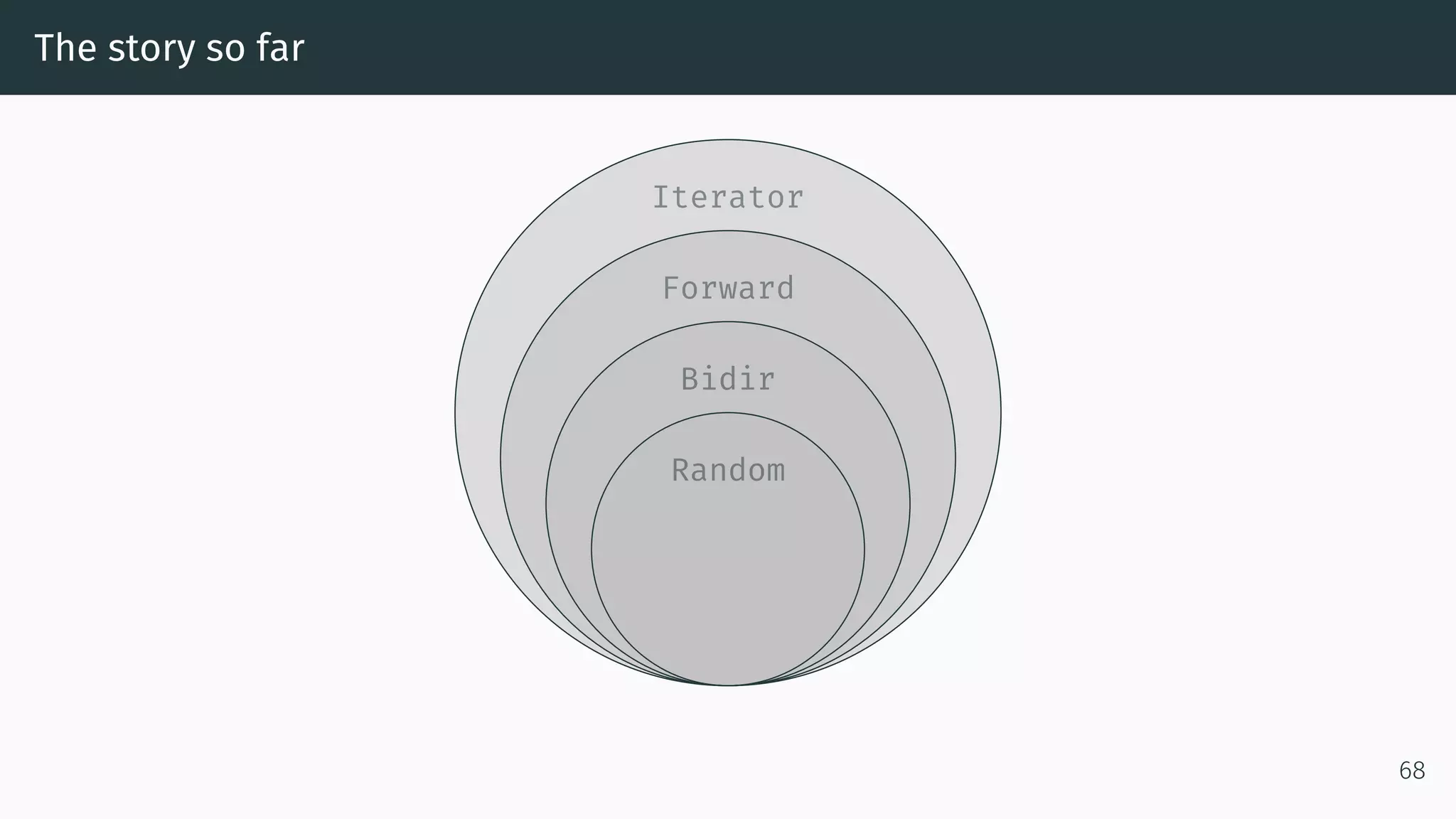

The story so far Iterator Forward Bidir Random 68

Extending the Iterator Hierarchy

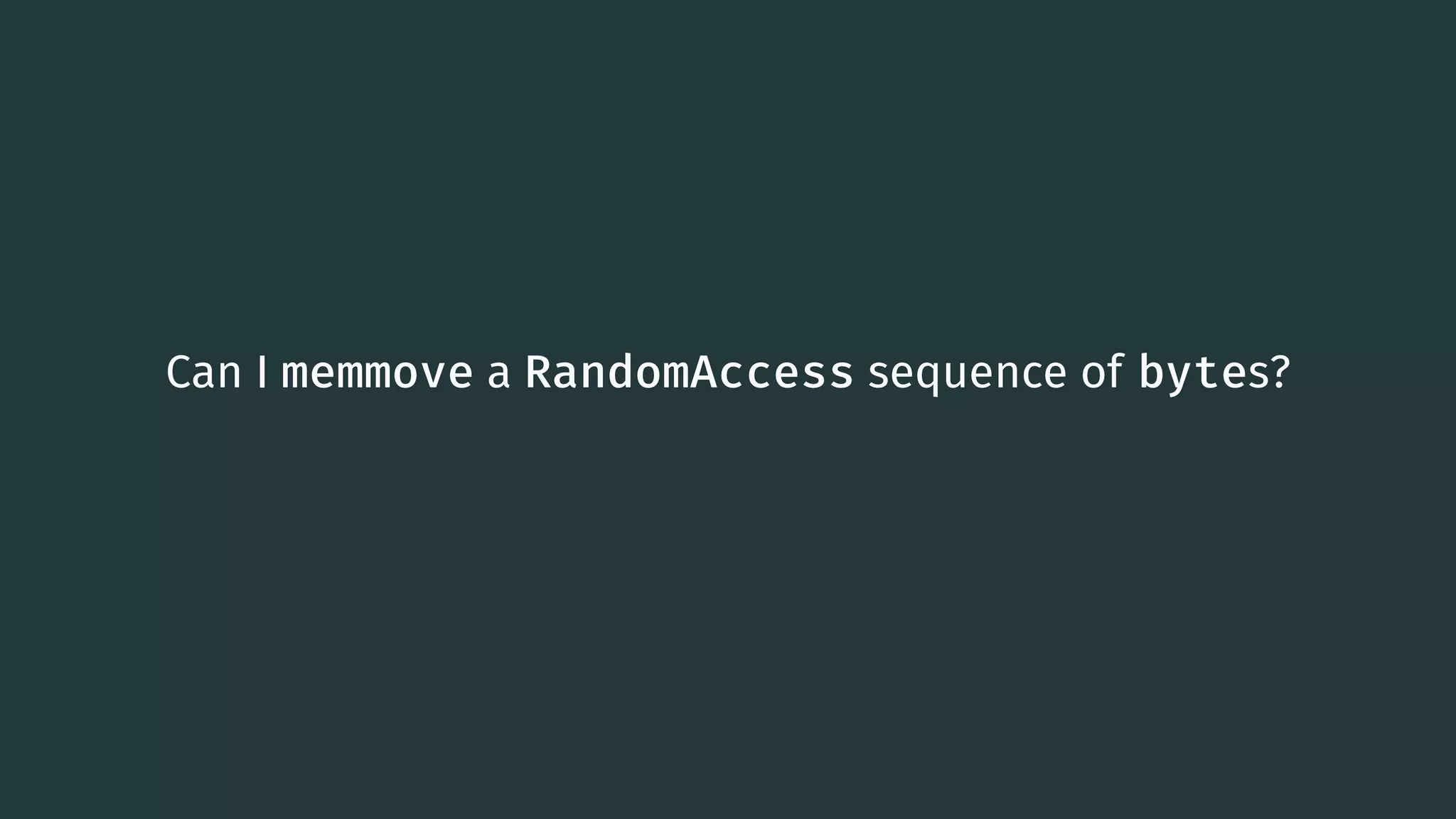

Can I memmove a RandomAccess sequence of bytes? 68

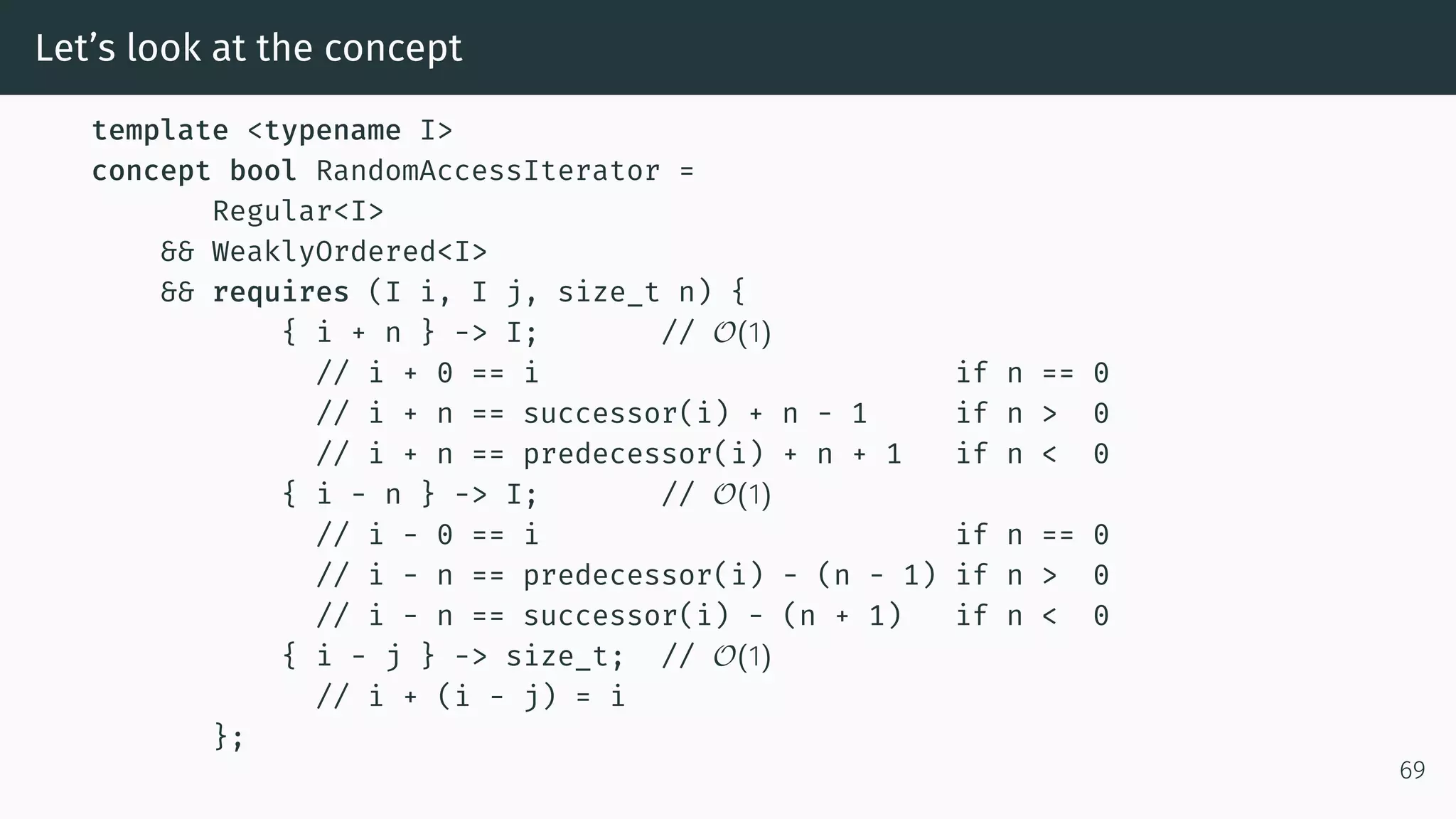

Let’s look at the concept template <typename I> concept bool RandomAccessIterator = Regular && WeaklyOrdered && requires (I i, I j, size_t n) { { i + n } -> I; // O(1) // i + 0 == i if n == 0 // i + n == successor(i) + n - 1 if n > 0 // i + n == predecessor(i) + n + 1 if n < 0 { i - n } -> I; // O(1) // i - 0 == i if n == 0 // i - n == predecessor(i) - (n - 1) if n > 0 // i - n == successor(i) - (n + 1) if n < 0 { i - j } -> size_t; // O(1) // i + (i - j) = i }; 69

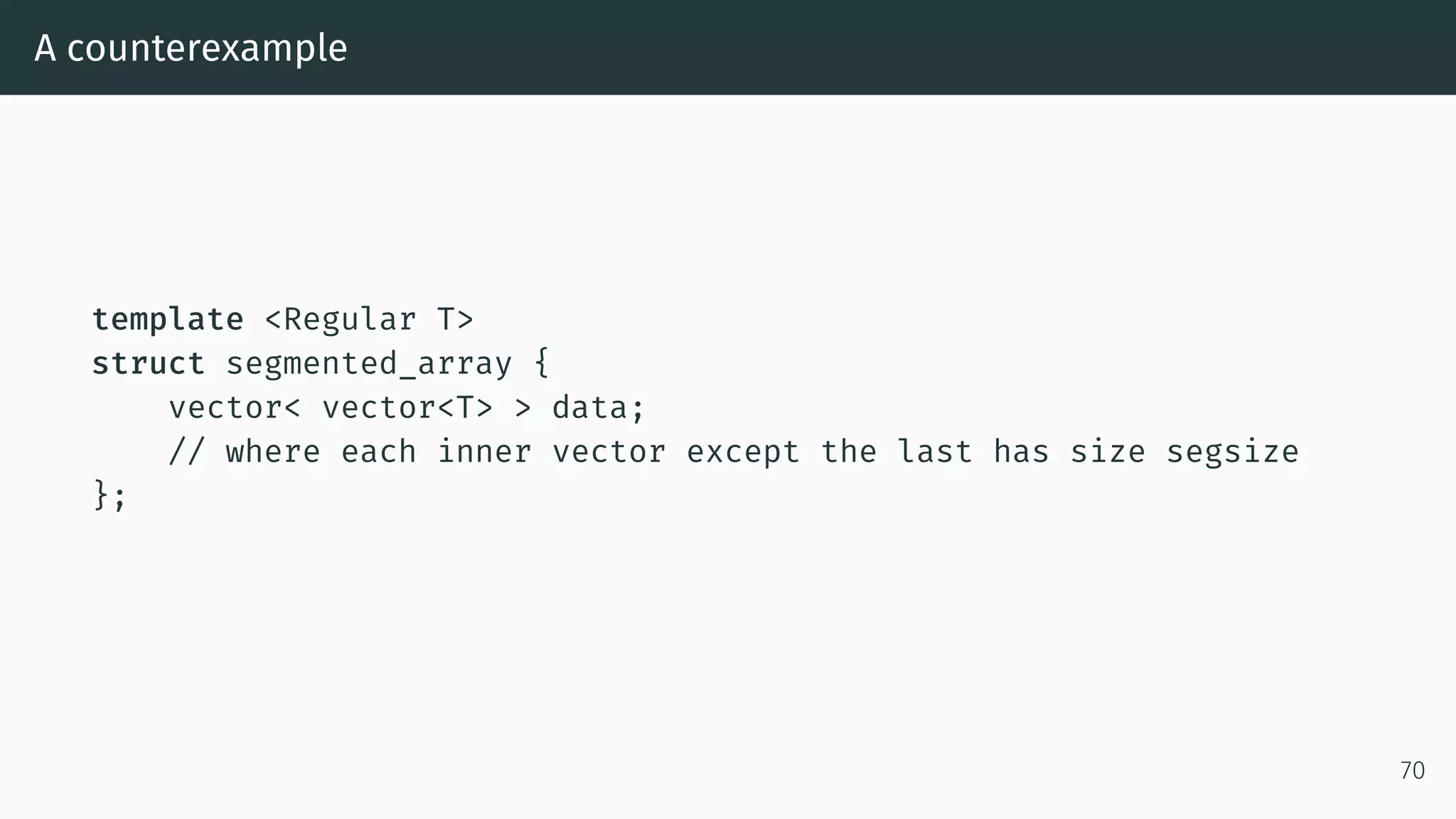

A counterexample template <Regular T> struct segmented_array { vector< vector<T> > data; // where each inner vector except the last has size segsize }; 70

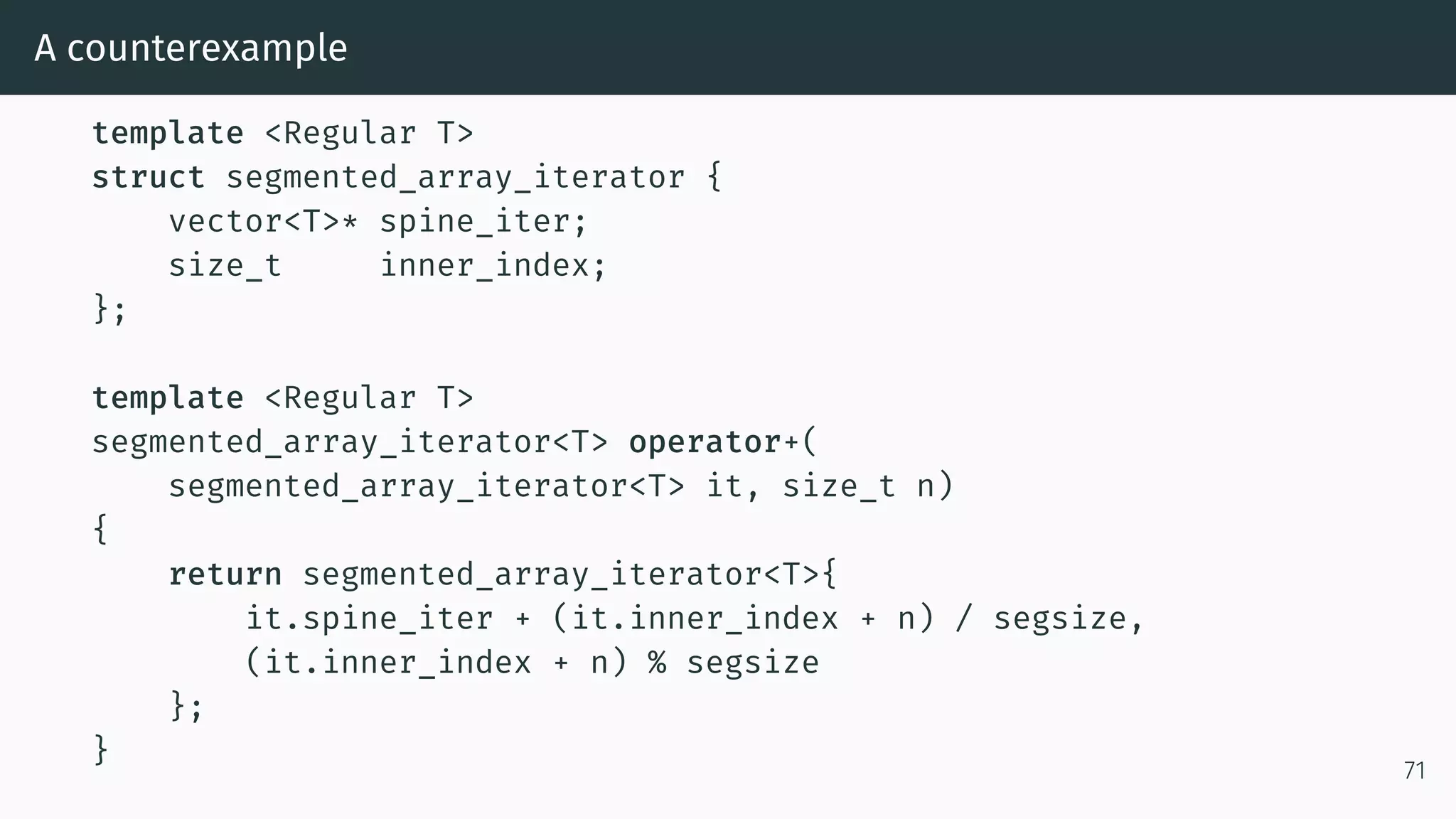

A counterexample template <Regular T> struct segmented_array_iterator { vector<T>* spine_iter; size_t inner_index; }; template <Regular T> segmented_array_iterator<T> operator+( segmented_array_iterator<T> it, size_t n) { return segmented_array_iterator<T>{ it.spine_iter + (it.inner_index + n) / segsize, (it.inner_index + n) % segsize }; } 71

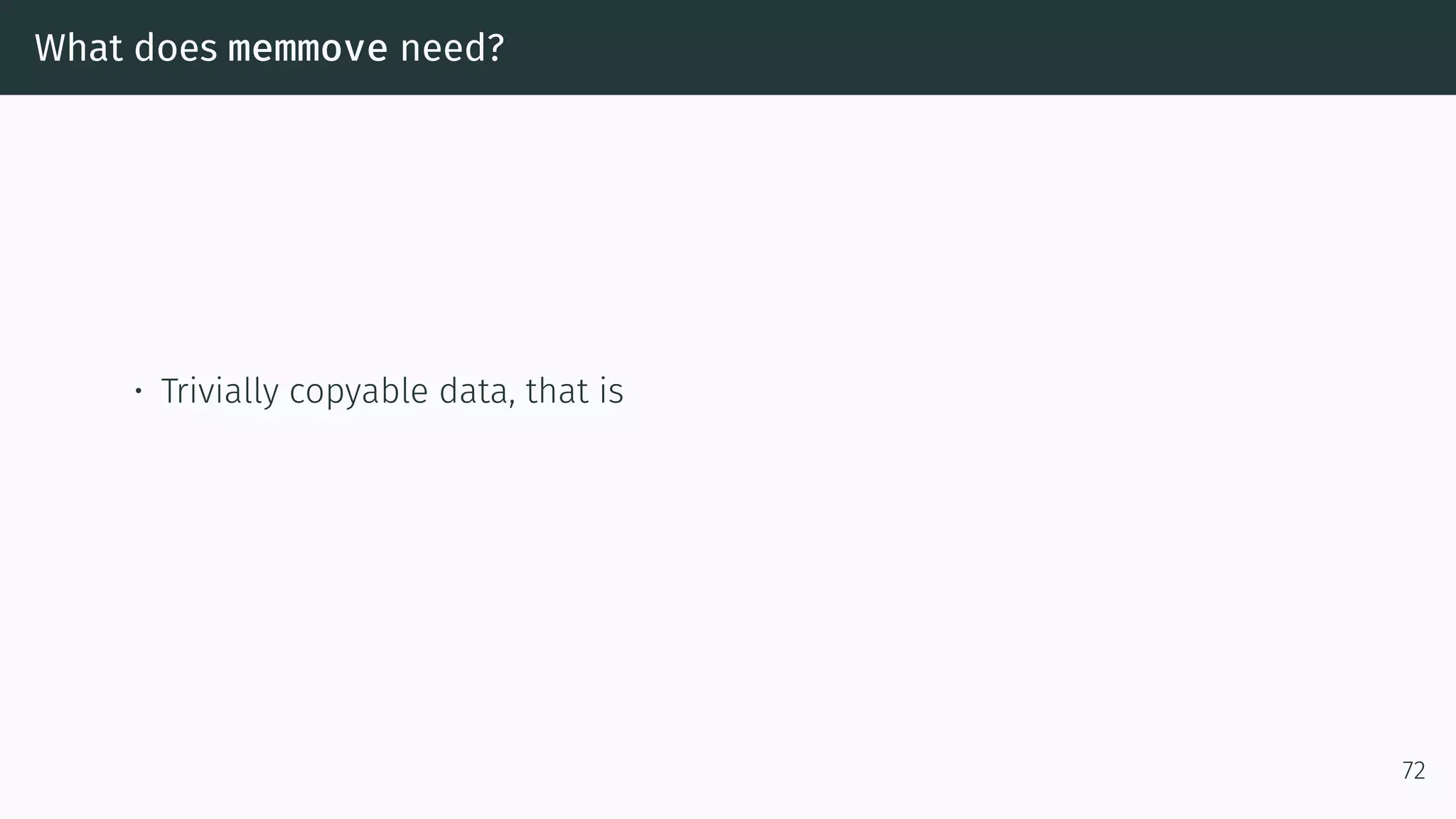

What does memmove need? • Trivially copyable data, that is 72

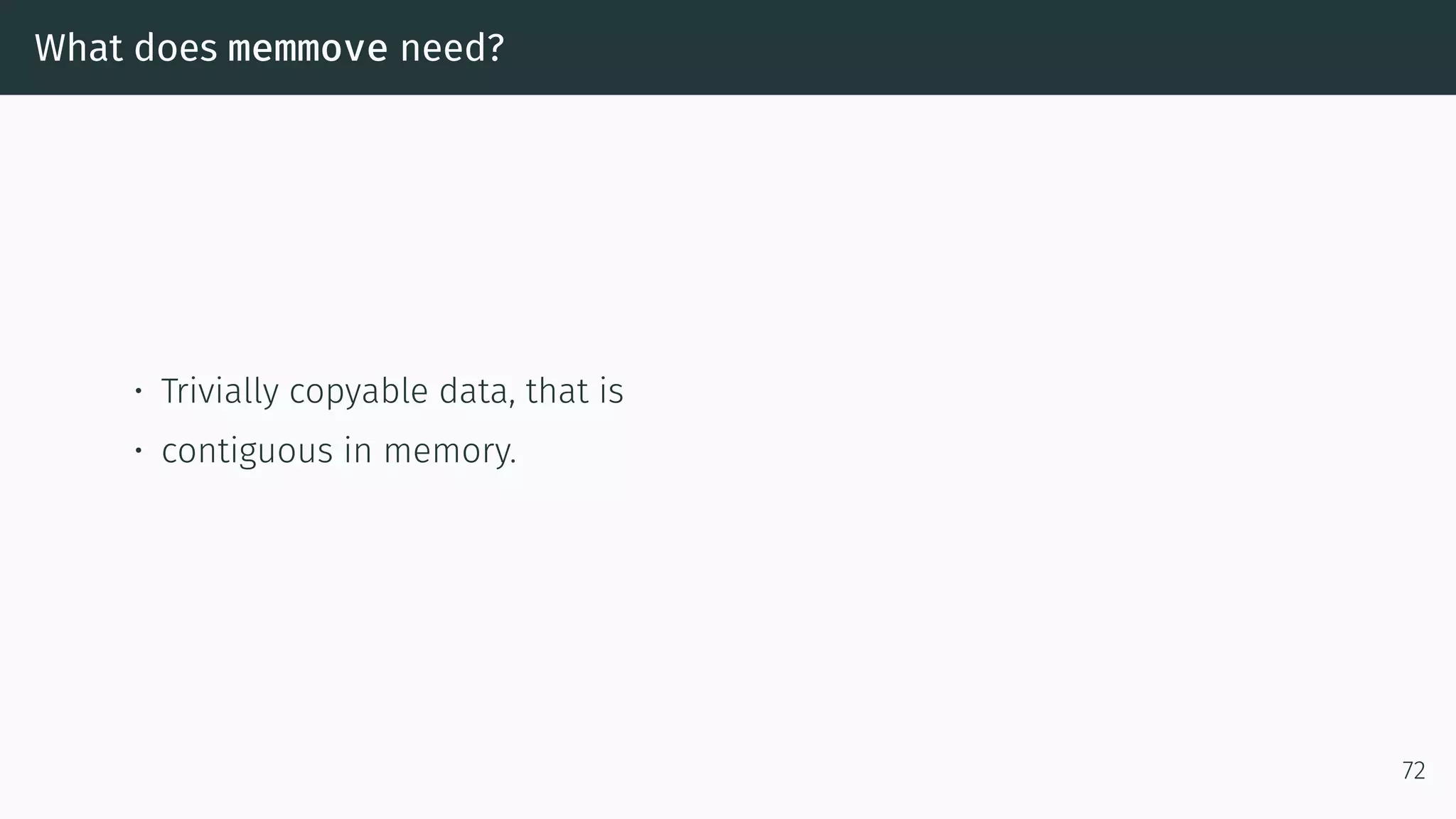

What does memmove need? • Trivially copyable data, that is • contiguous in memory. 72

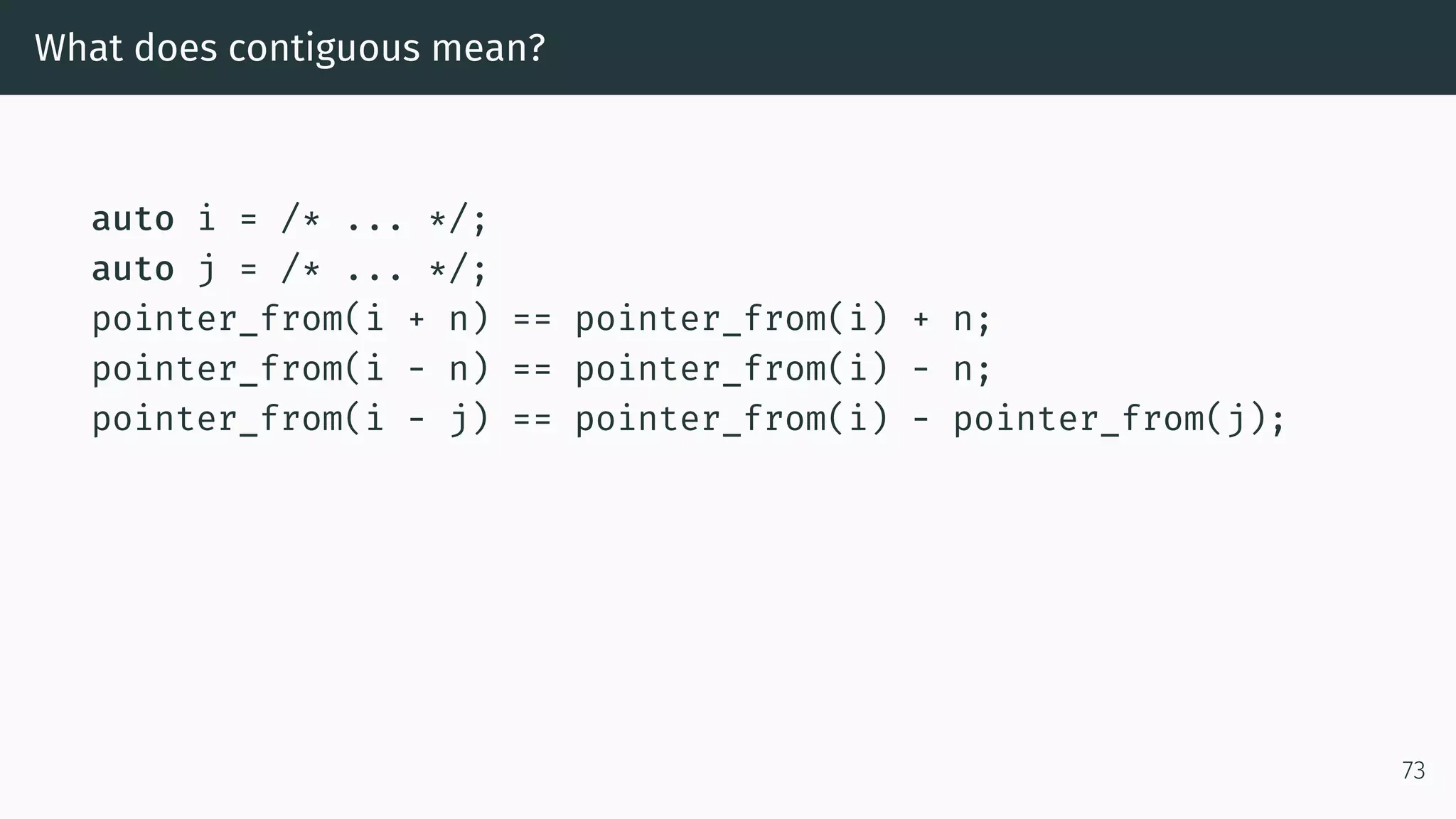

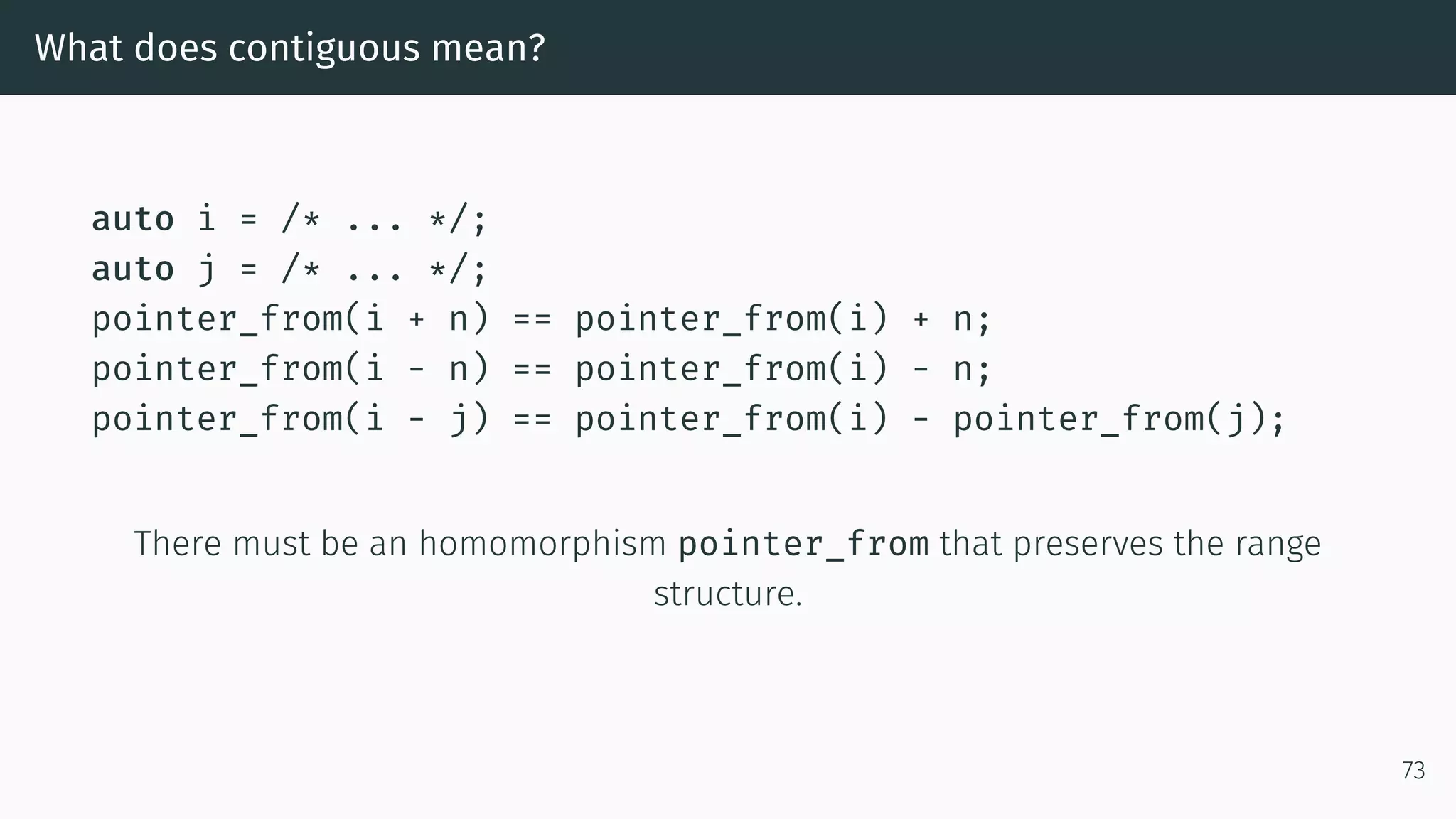

What does contiguous mean? auto i = /* ... */; auto j = /* ... */; pointer_from(i + n) == pointer_from(i) + n; pointer_from(i - n) == pointer_from(i) - n; pointer_from(i - j) == pointer_from(i) - pointer_from(j); 73

What does contiguous mean? auto i = /* ... */; auto j = /* ... */; pointer_from(i + n) == pointer_from(i) + n; pointer_from(i - n) == pointer_from(i) - n; pointer_from(i - j) == pointer_from(i) - pointer_from(j); There must be an homomorphism pointer_from that preserves the range structure. 73

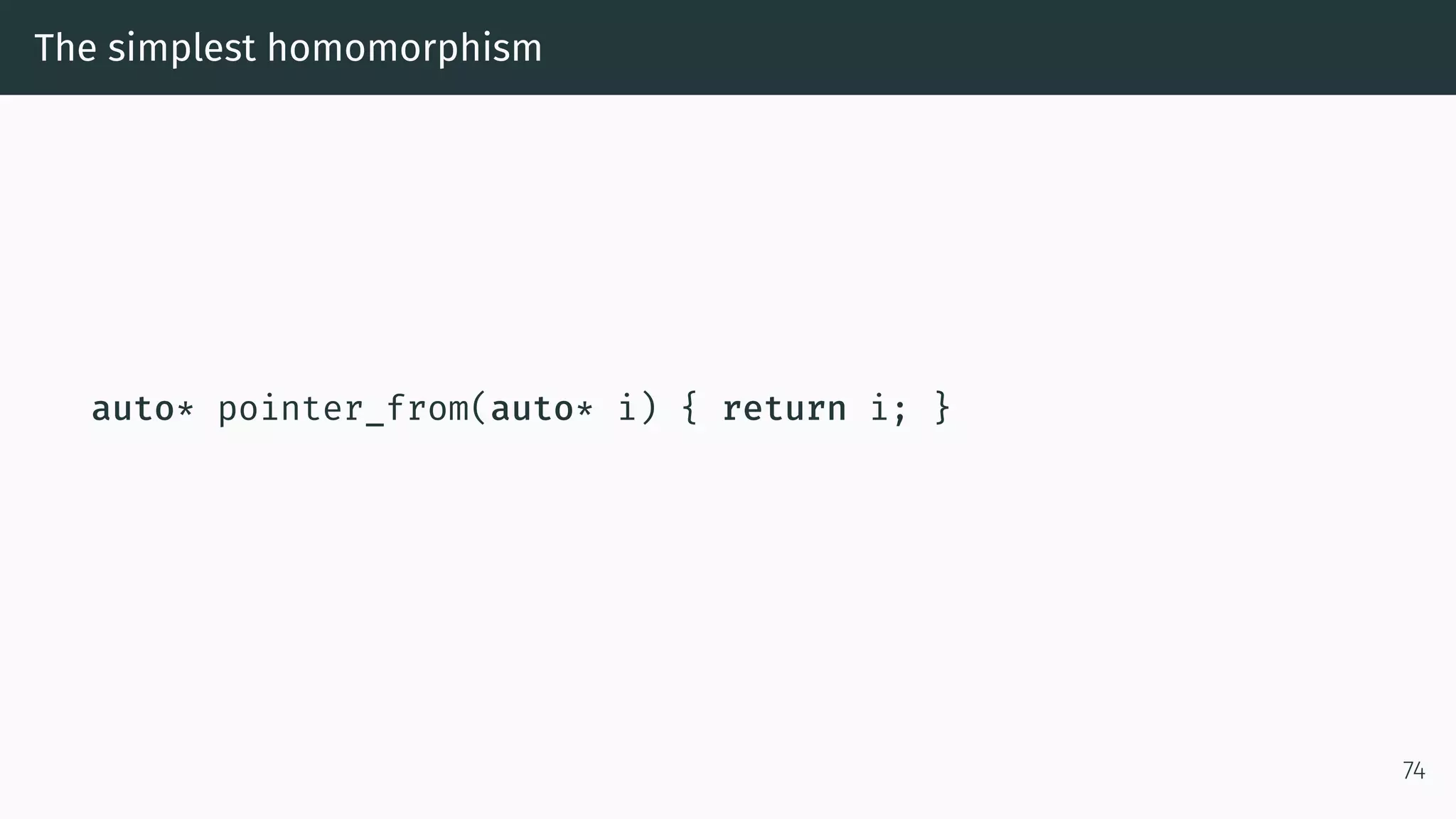

The simplest homomorphism auto* pointer_from(auto* i) { return i; } 74

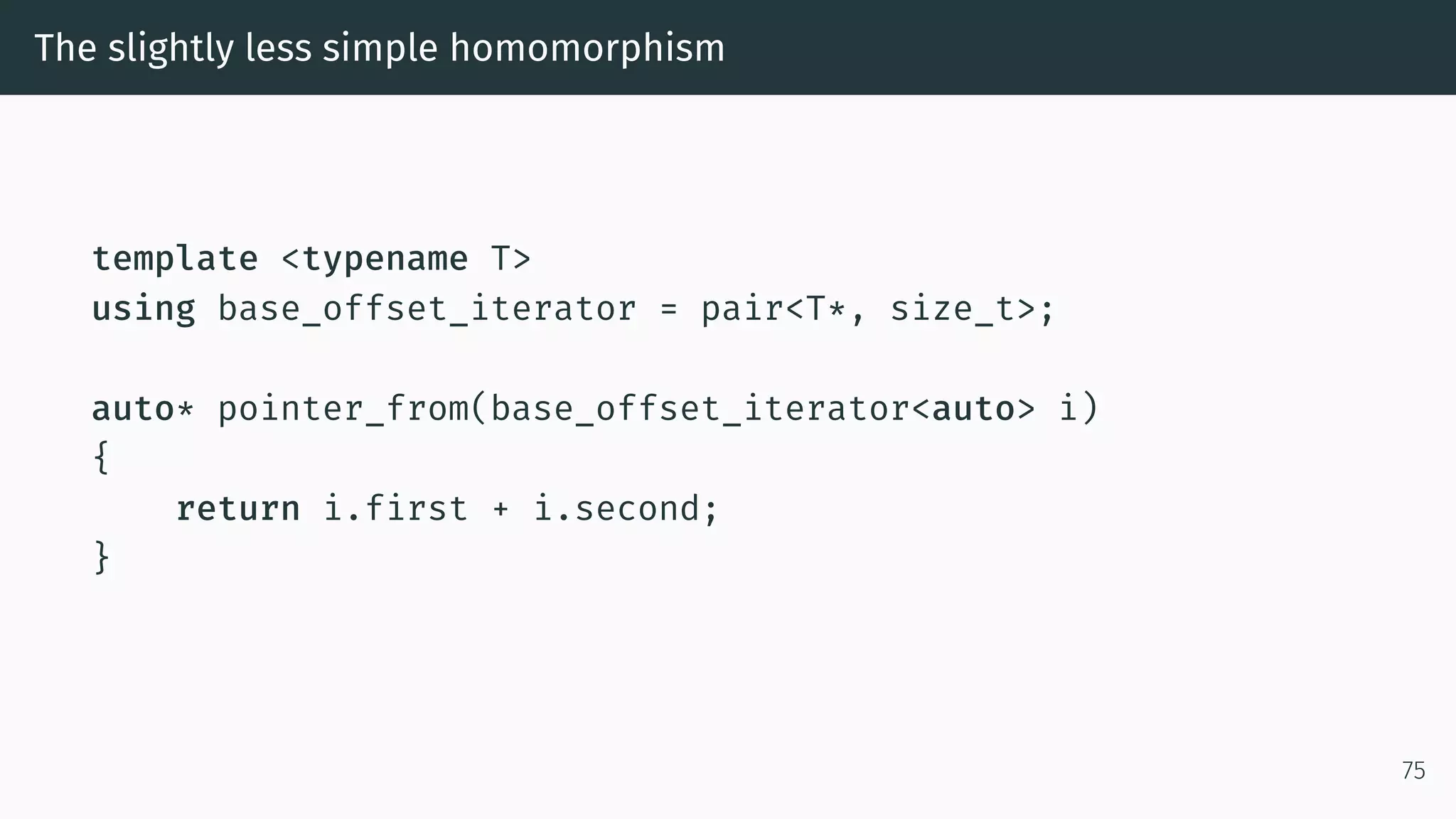

The slightly less simple homomorphism template <typename T> using base_offset_iterator = pair<T*, size_t>; auto* pointer_from(base_offset_iterator<auto> i) { return i.first + i.second; } 75

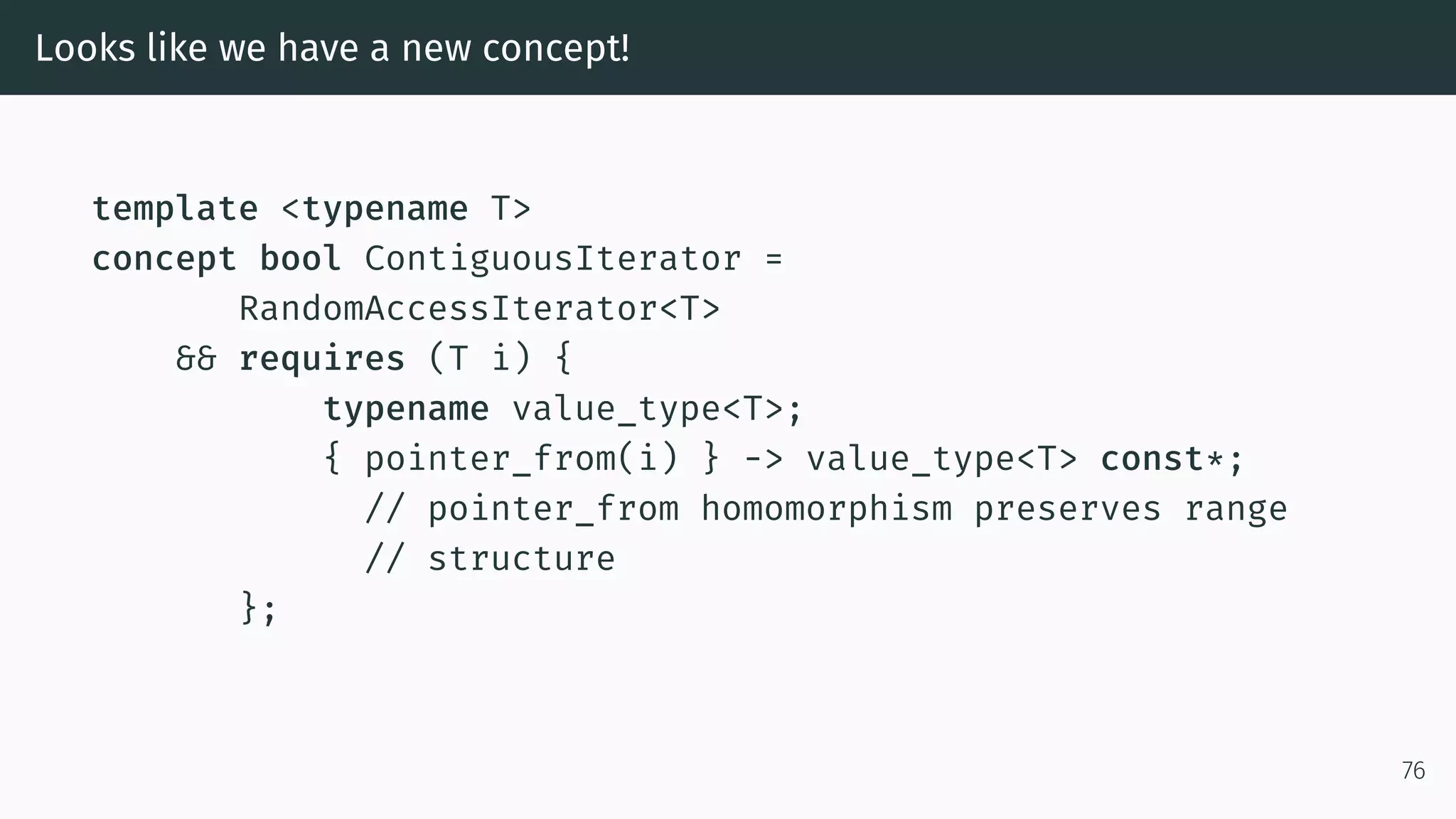

Looks like we have a new concept! template <typename T> concept bool ContiguousIterator = RandomAccessIterator<T> && requires (T i) { typename value_type<T>; { pointer_from(i) } -> value_type<T> const*; // pointer_from homomorphism preserves range // structure }; 76

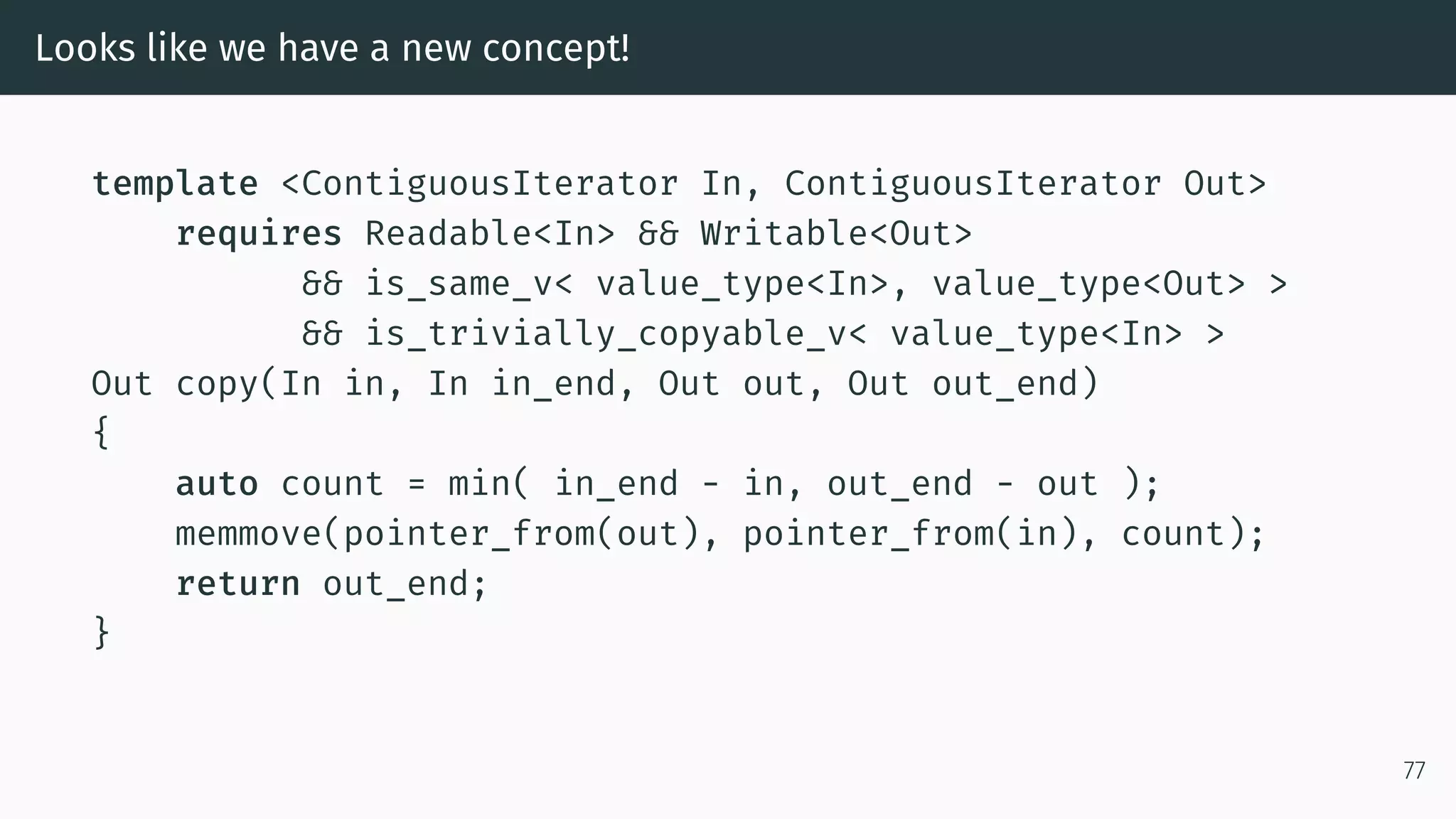

Looks like we have a new concept! template <ContiguousIterator In, ContiguousIterator Out> requires Readable<In> && Writable<Out> && is_same_v< value_type<In>, value_type<Out> > && is_trivially_copyable_v< value_type<In> > Out copy(In in, In in_end, Out out, Out out_end) { auto count = min( in_end - in, out_end - out ); memmove(pointer_from(out), pointer_from(in), count); return out_end; } 77

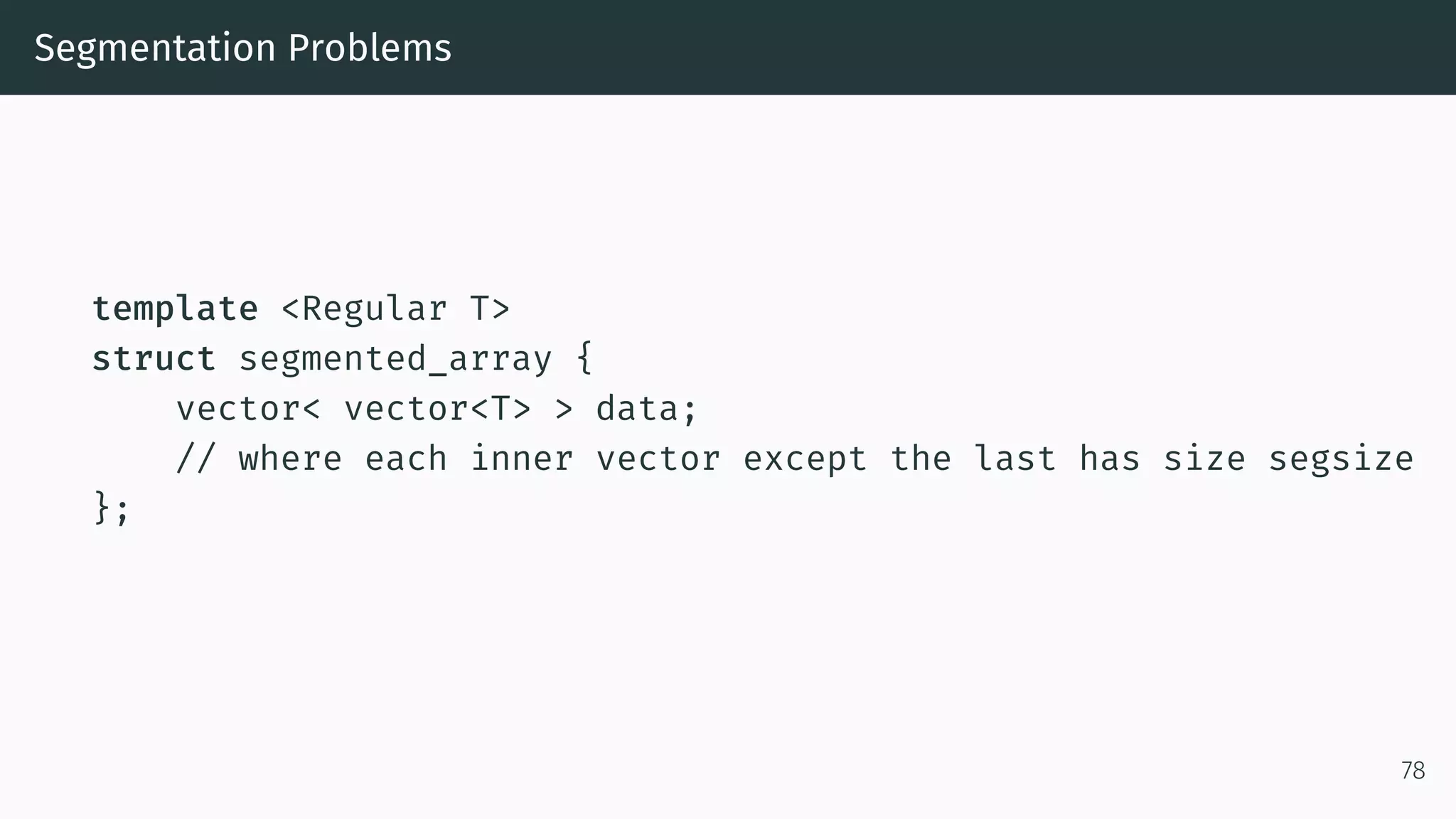

Segmentation Problems template <Regular T> struct segmented_array { vector< vector<T> > data; // where each inner vector except the last has size segsize }; 78

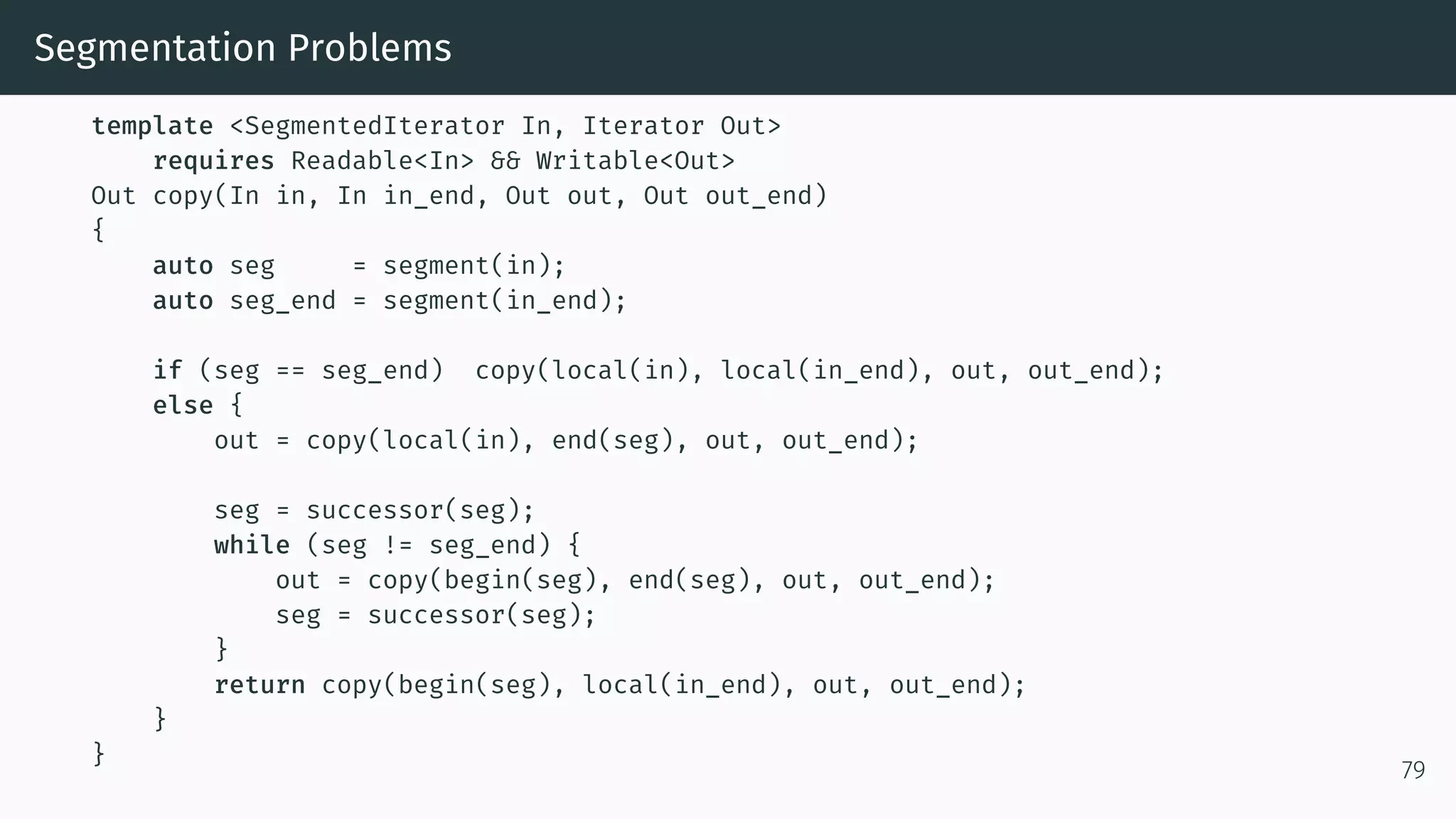

Segmentation Problems template <SegmentedIterator In, Iterator Out> requires Readable<In> && Writable<Out> Out copy(In in, In in_end, Out out, Out out_end) { auto seg = segment(in); auto seg_end = segment(in_end); if (seg == seg_end) copy(local(in), local(in_end), out, out_end); else { out = copy(local(in), end(seg), out, out_end); seg = successor(seg); while (seg != seg_end) { out = copy(begin(seg), end(seg), out, out_end); seg = successor(seg); } return copy(begin(seg), local(in_end), out, out_end); } } 79

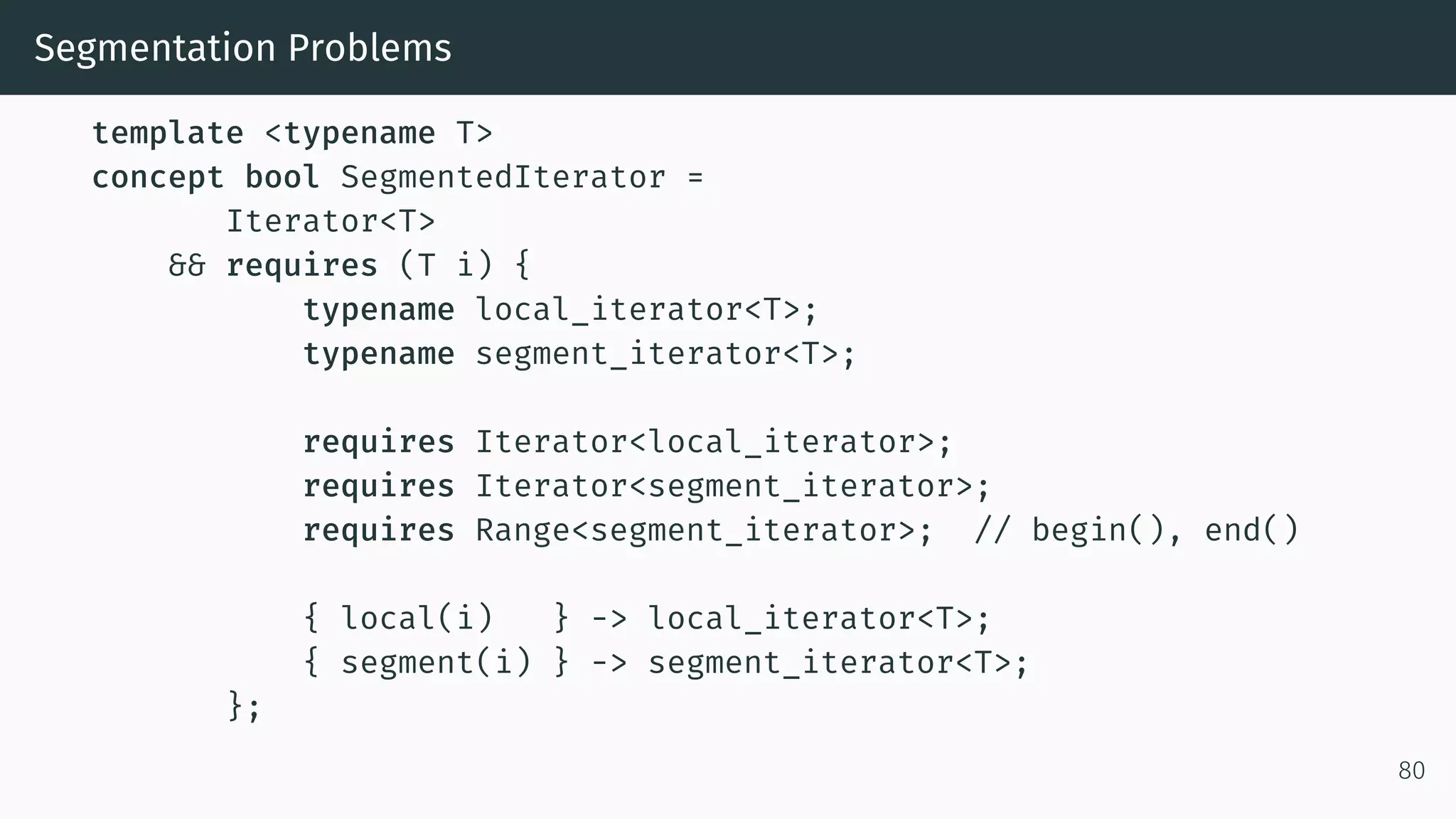

Segmentation Problems template <typename T> concept bool SegmentedIterator = Iterator<T> && requires (T i) { typename local_iterator<T>; typename segment_iterator<T>; requires Iterator<local_iterator>; requires Iterator<segment_iterator>; requires Range<segment_iterator>; // begin(), end() { local(i) } -> local_iterator<T>; { segment(i) } -> segment_iterator<T>; }; 80

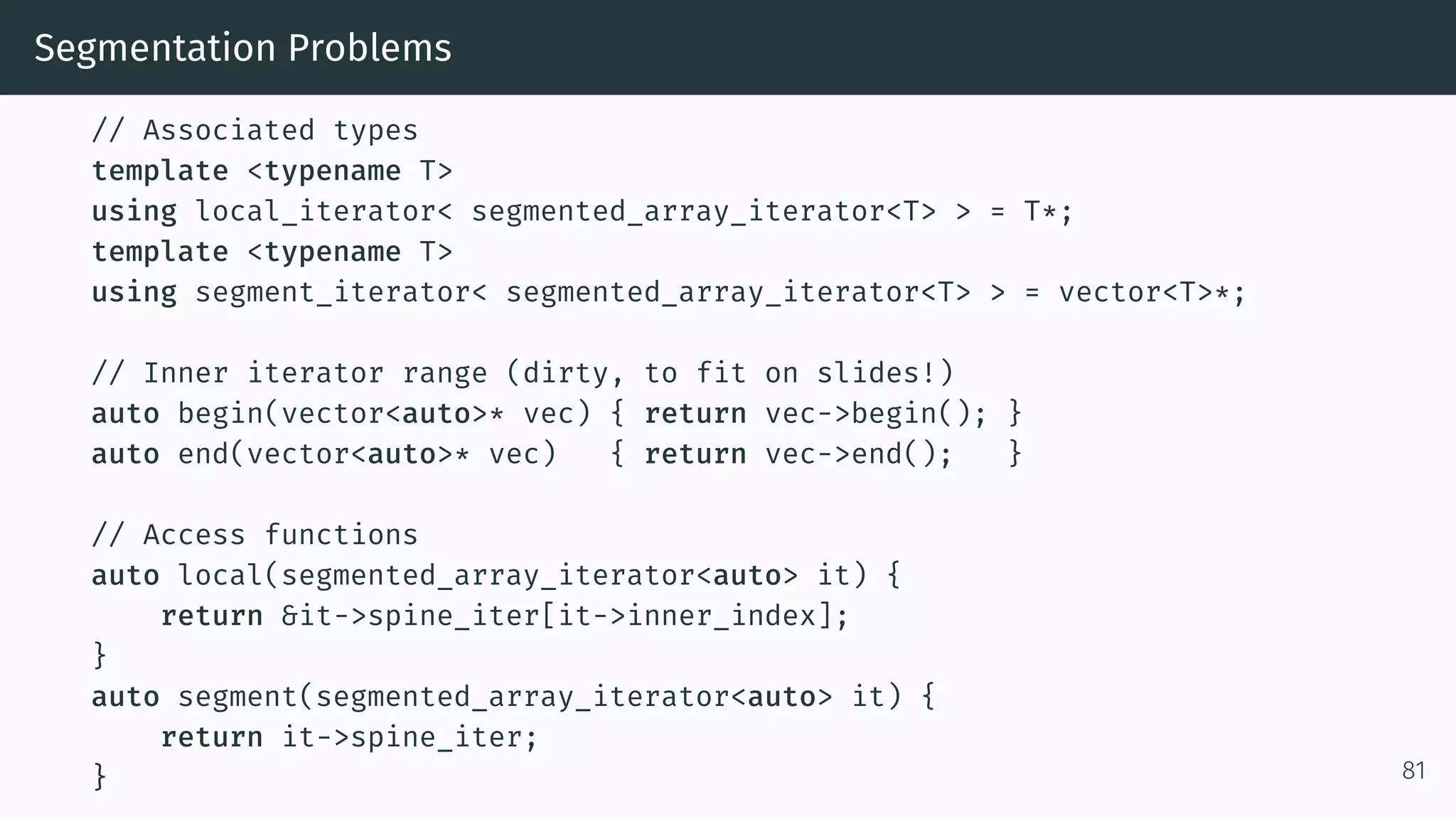

Segmentation Problems // Associated types template <typename T> using local_iterator< segmented_array_iterator<T> > = T*; template <typename T> using segment_iterator< segmented_array_iterator<T> > = vector<T>*; // Inner iterator range (dirty, to fit on slides!) auto begin(vector<auto>* vec) { return vec->begin(); } auto end(vector<auto>* vec) { return vec->end(); } // Access functions auto local(segmented_array_iterator<auto> it) { return &it->spine_iter[it->inner_index]; } auto segment(segmented_array_iterator<auto> it) { return it->spine_iter; } 81

SegmentedIterators are great for parallelization. 82

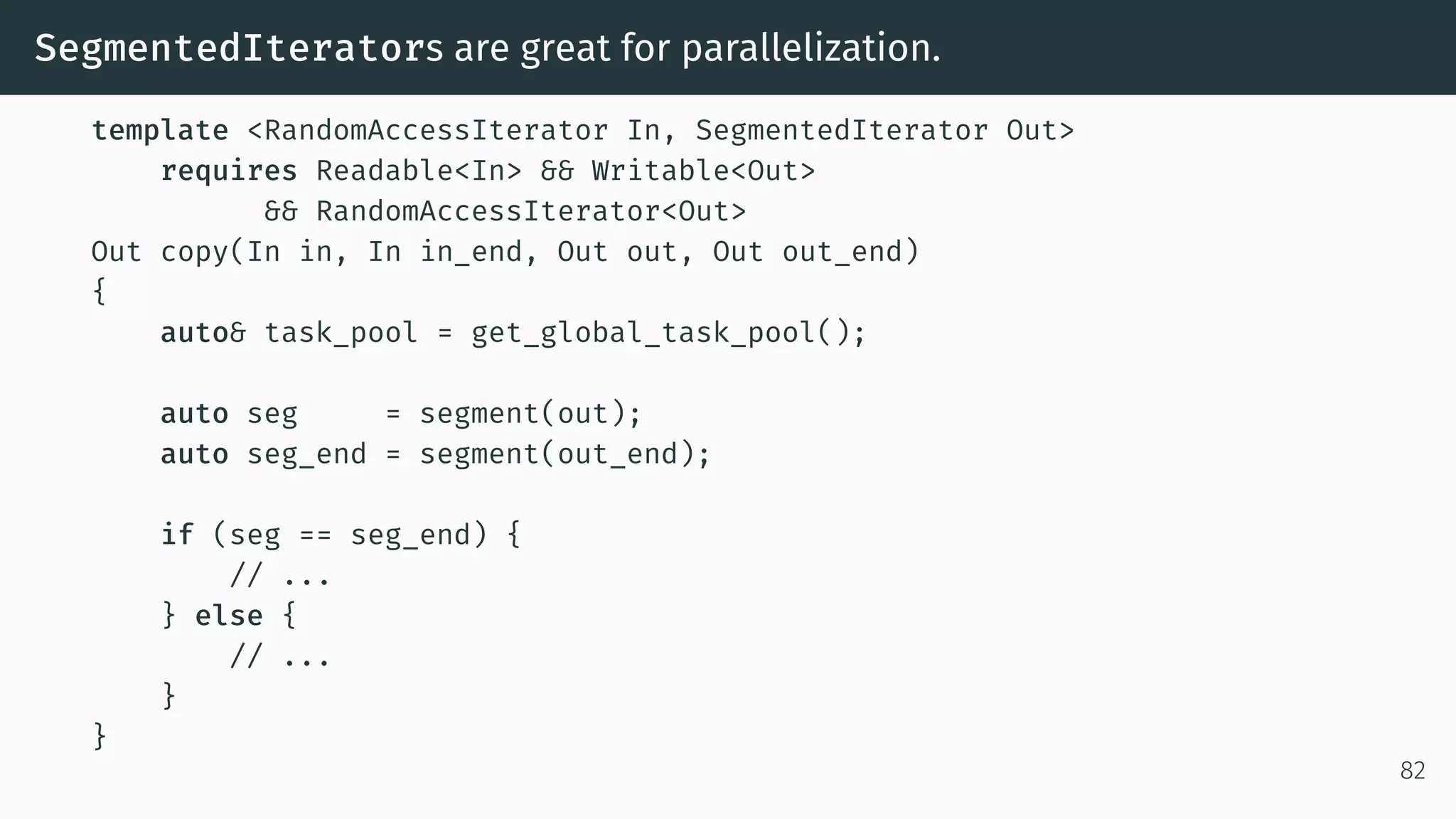

SegmentedIterators are great for parallelization. template <RandomAccessIterator In, SegmentedIterator Out> requires Readable<In> && Writable<Out> && RandomAccessIterator<Out> Out copy(In in, In in_end, Out out, Out out_end) { auto& task_pool = get_global_task_pool(); auto seg = segment(out); auto seg_end = segment(out_end); if (seg == seg_end) { // ... } else { // ... } } 82

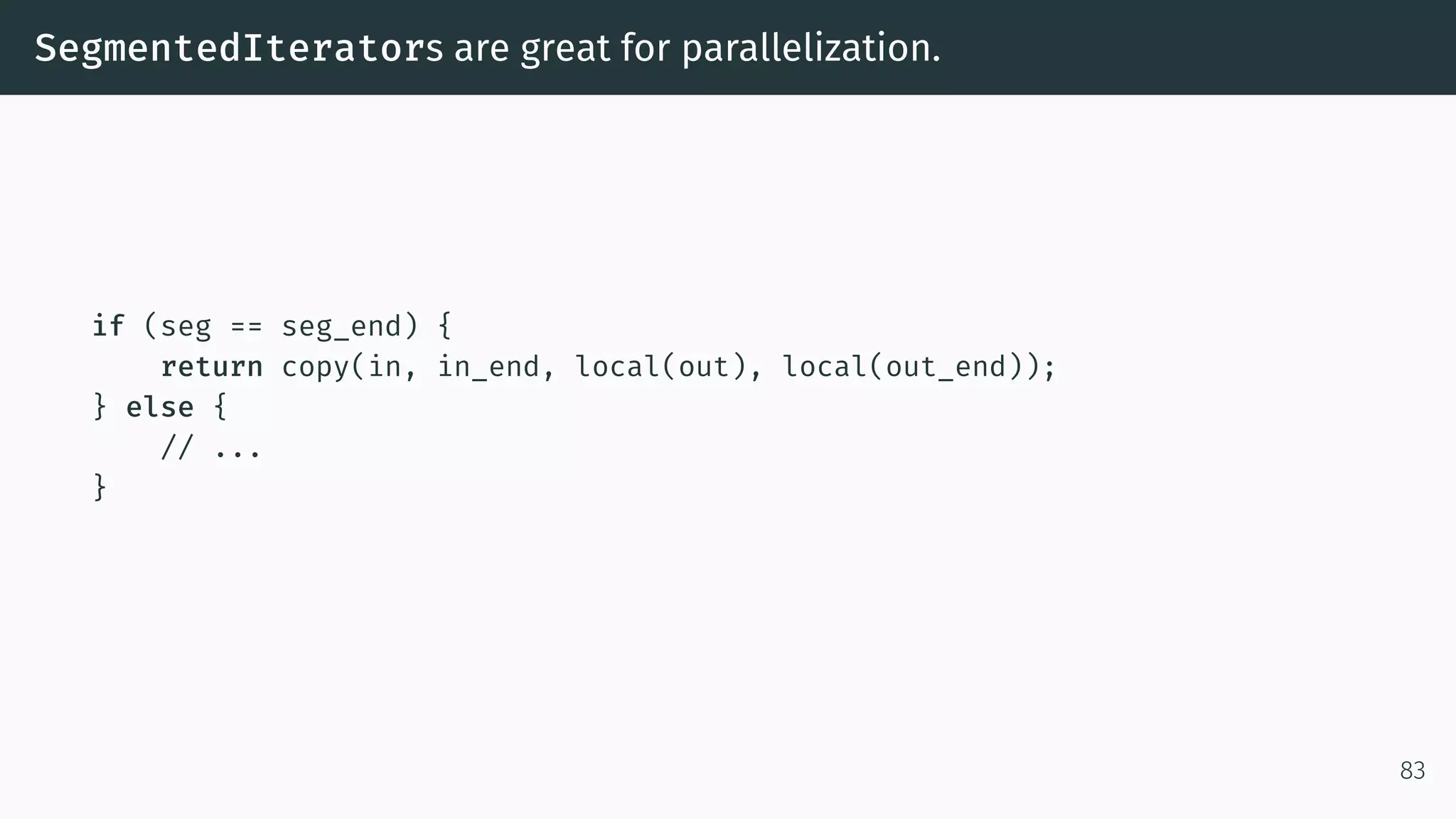

SegmentedIterators are great for parallelization. if (seg == seg_end) { return copy(in, in_end, local(out), local(out_end)); } else { // ... } 83

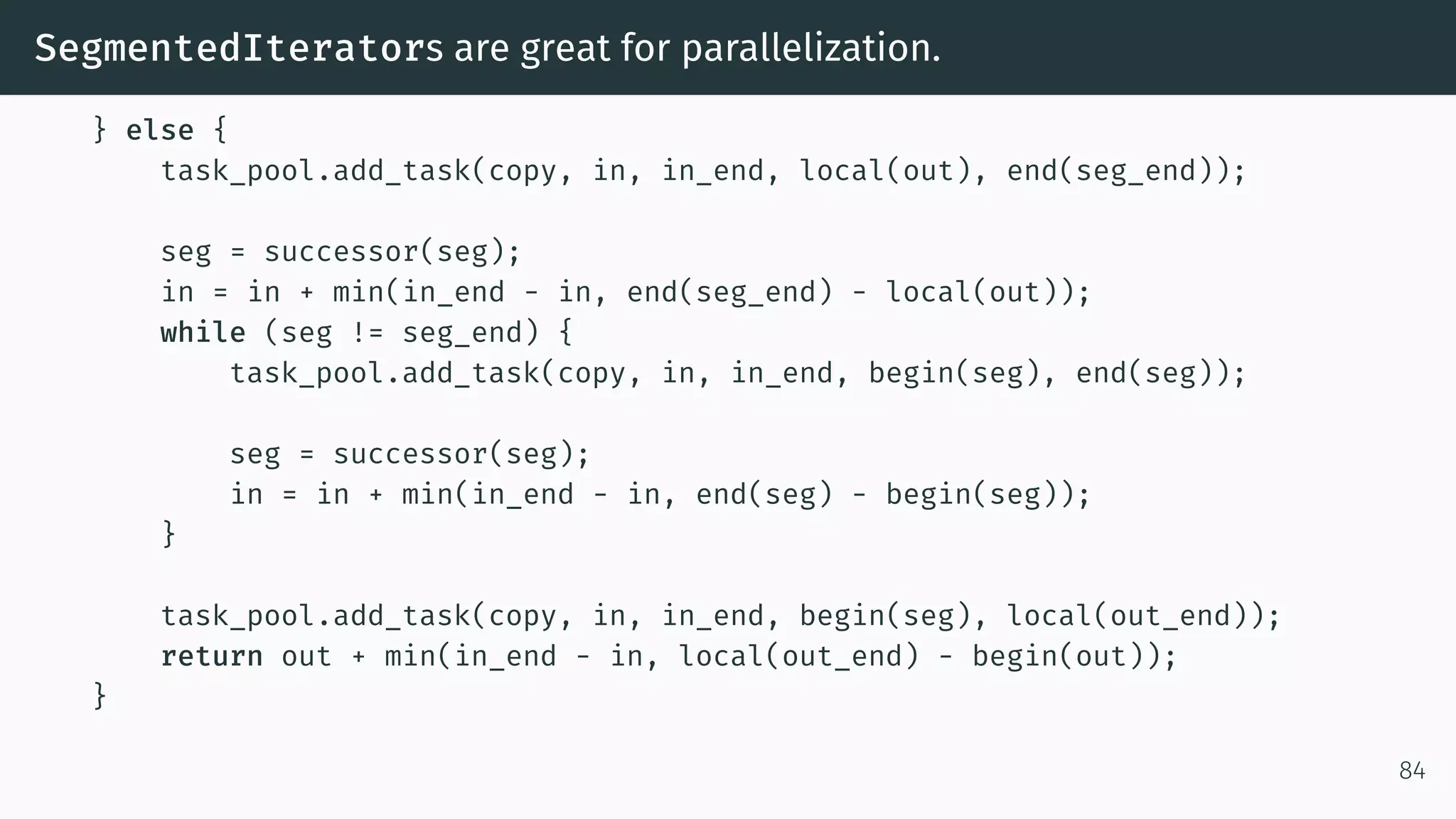

SegmentedIterators are great for parallelization. } else { task_pool.add_task(copy, in, in_end, local(out), end(seg_end)); seg = successor(seg); in = in + min(in_end - in, end(seg_end) - local(out)); while (seg != seg_end) { task_pool.add_task(copy, in, in_end, begin(seg), end(seg)); seg = successor(seg); in = in + min(in_end - in, end(seg) - begin(seg)); } task_pool.add_task(copy, in, in_end, begin(seg), local(out_end)); return out + min(in_end - in, local(out_end) - begin(out)); } 84

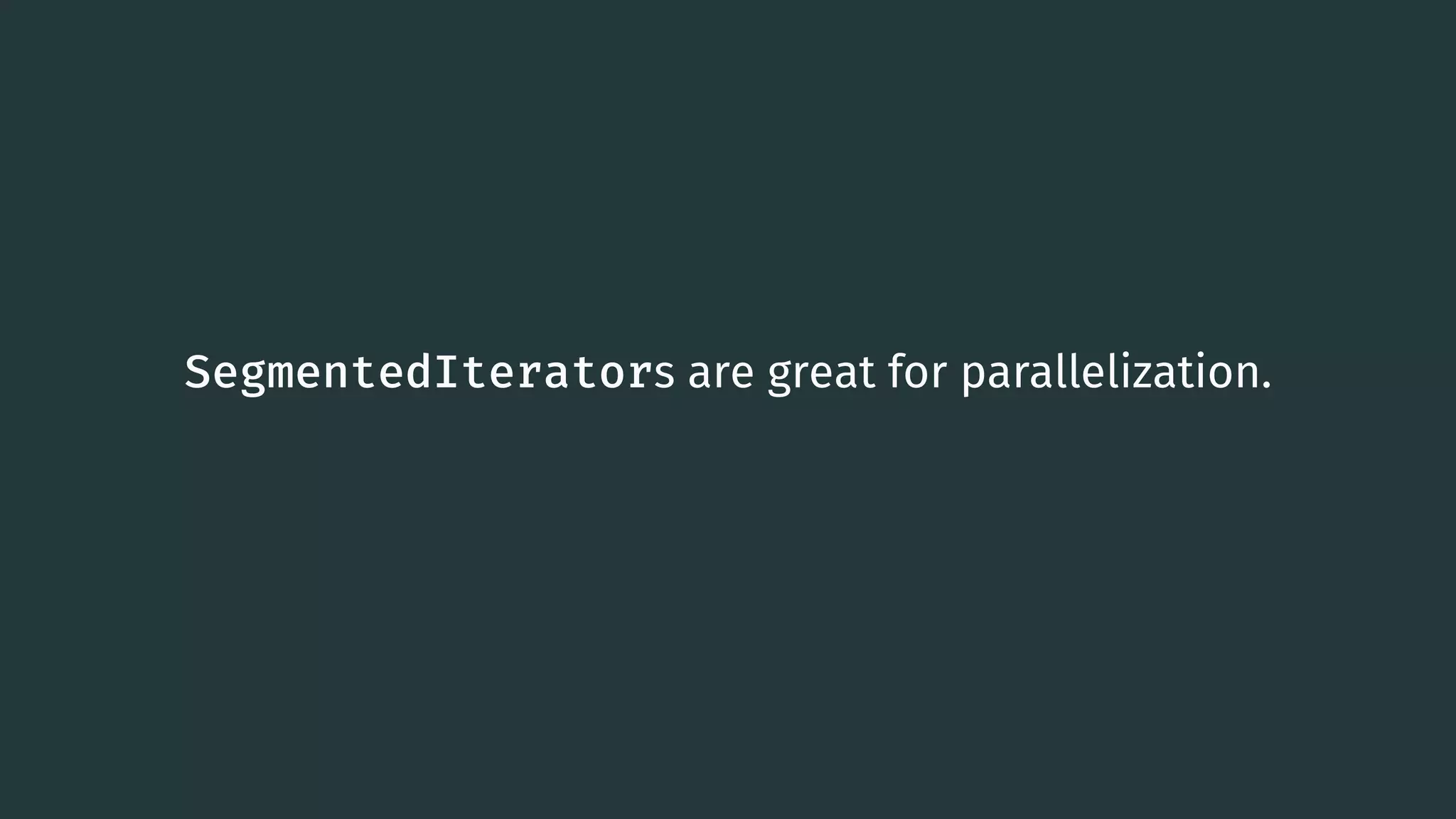

SegmentedIterators are great for parallelization. 84

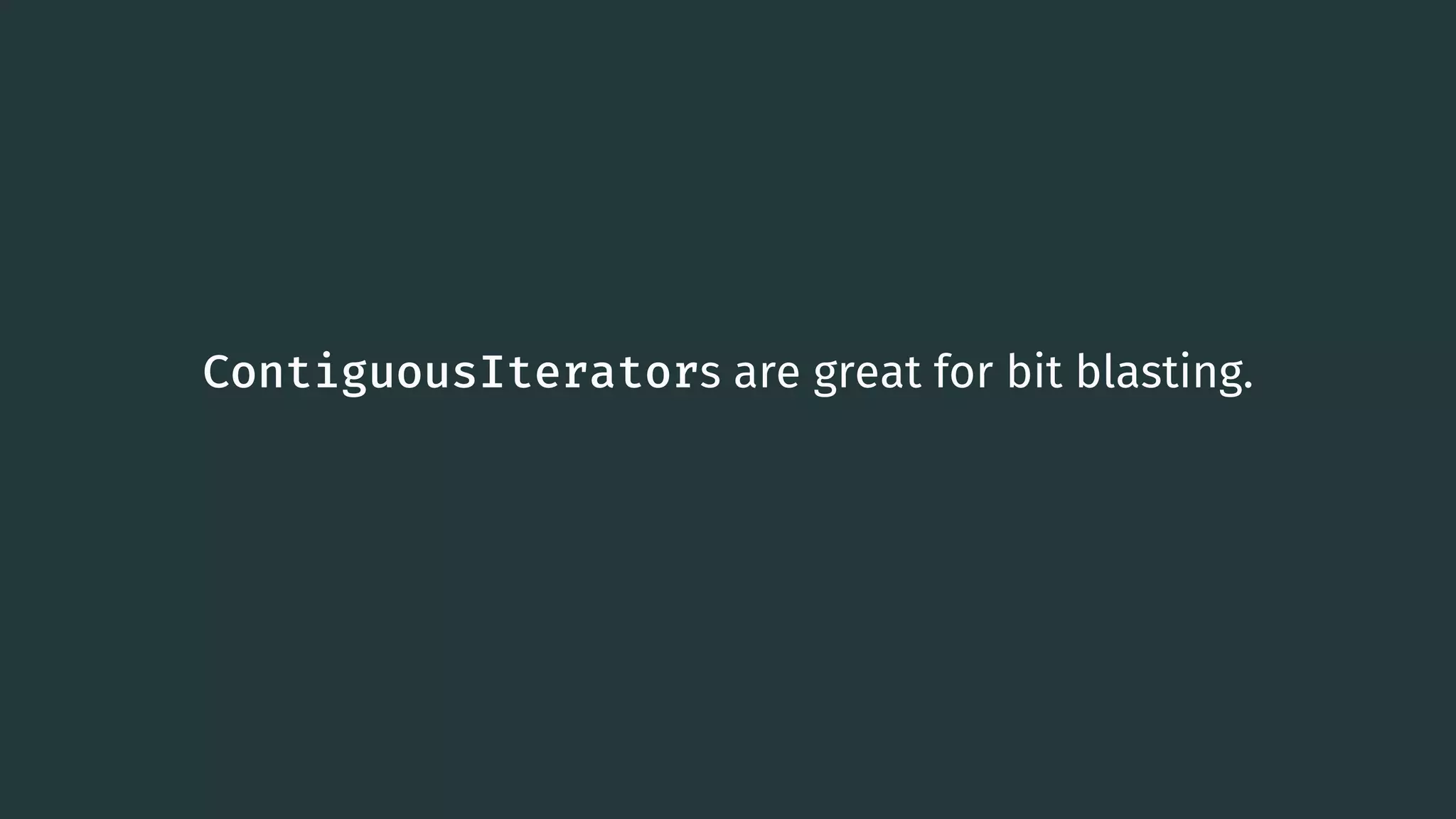

ContiguousIterators are great for bit blasting. 84

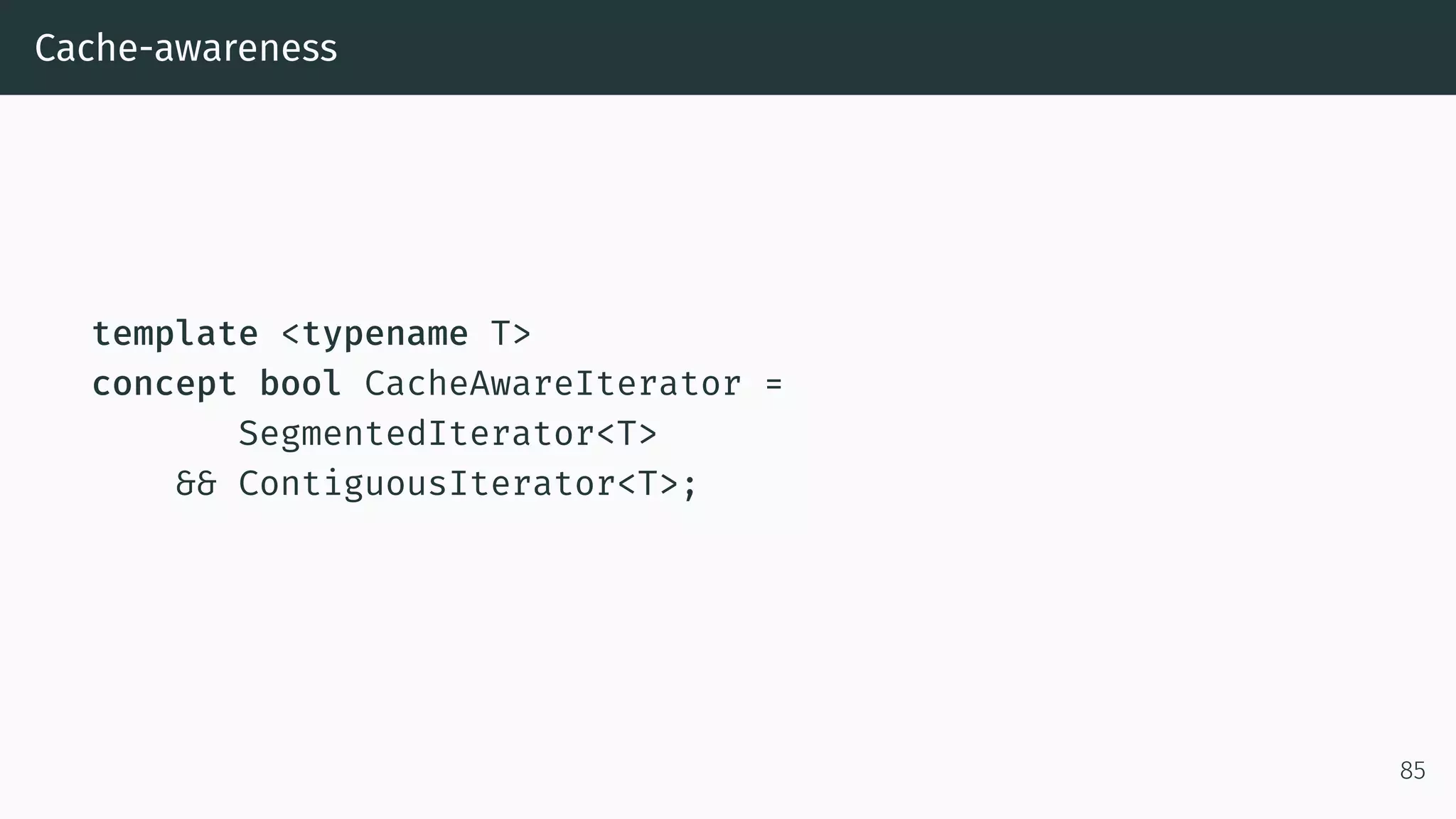

Cache-awareness template <typename T> concept bool CacheAwareIterator = SegmentedIterator<T> && ContiguousIterator<T>; 85

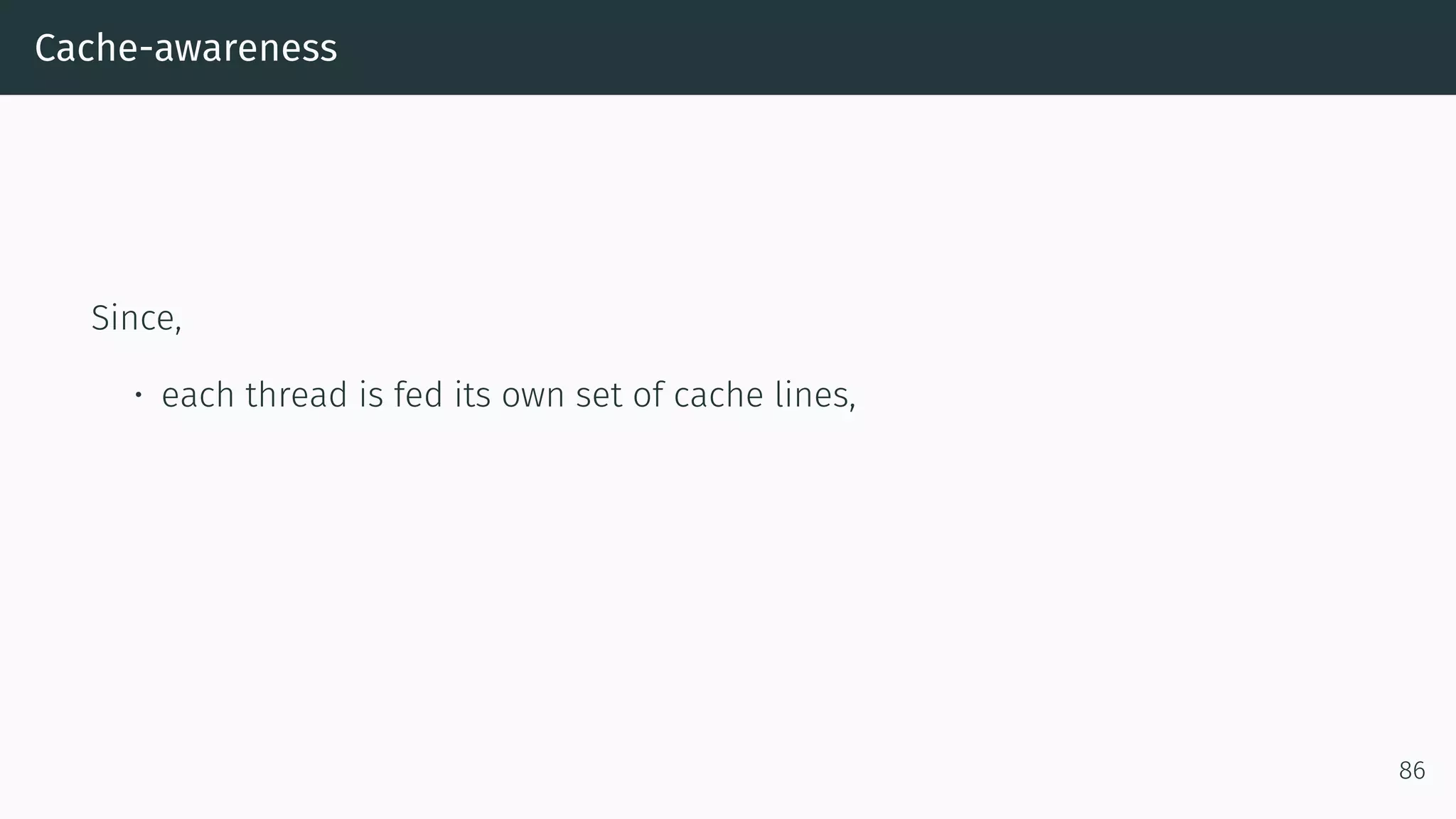

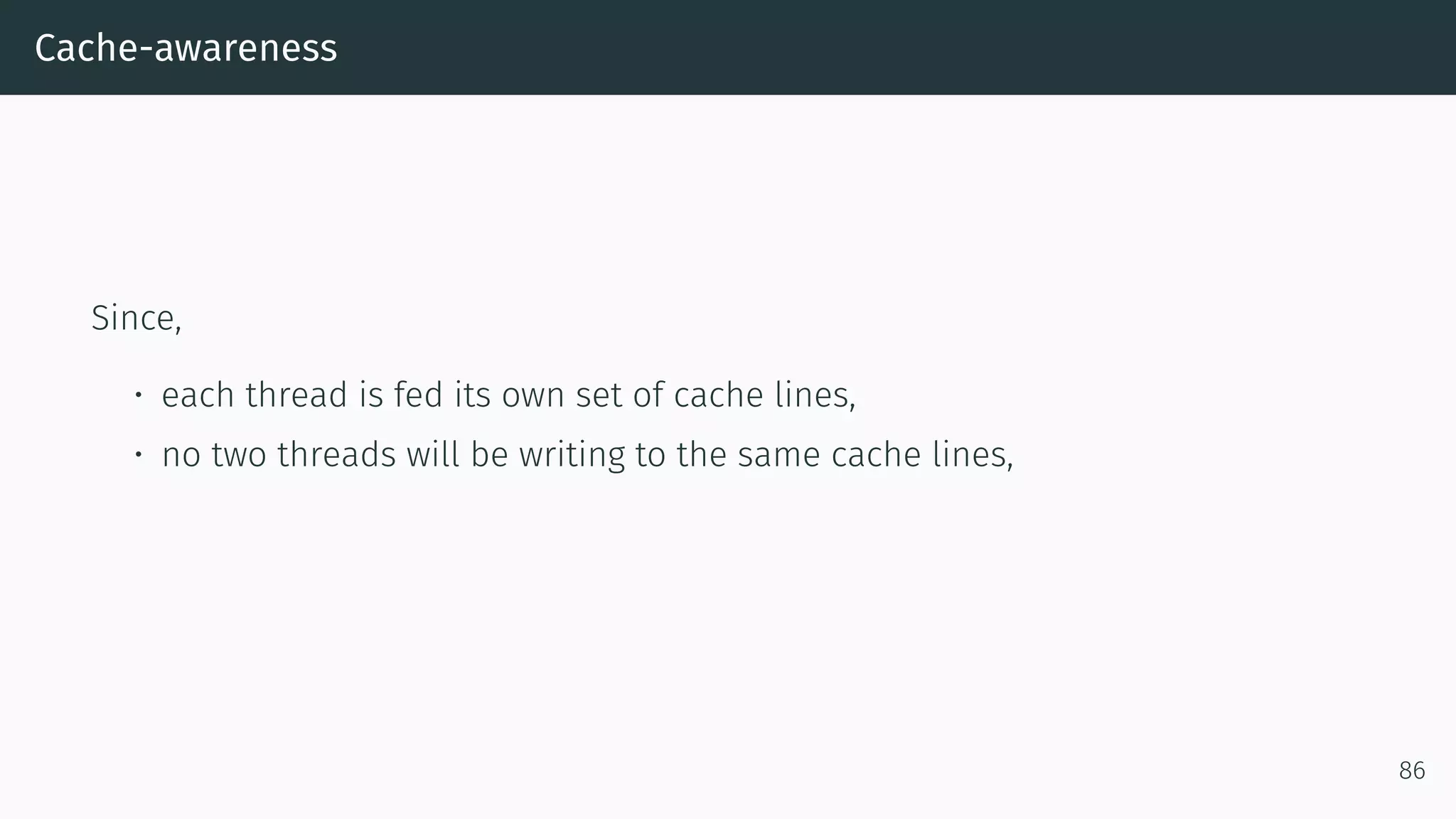

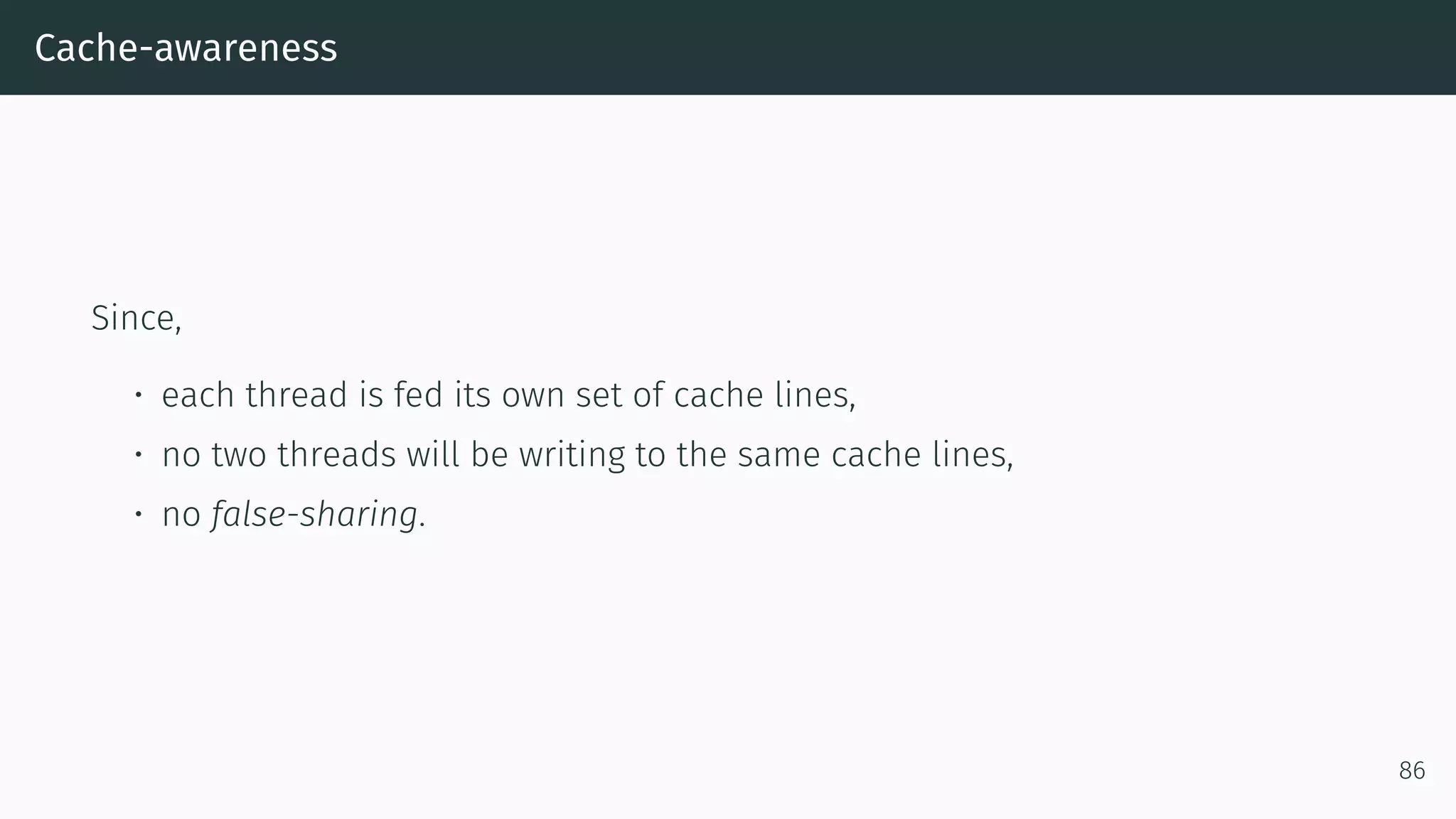

Cache-awareness Since, • each thread is fed its own set of cache lines, 86

Cache-awareness Since, • each thread is fed its own set of cache lines, • no two threads will be writing to the same cache lines, 86

Cache-awareness Since, • each thread is fed its own set of cache lines, • no two threads will be writing to the same cache lines, • no false-sharing. 86

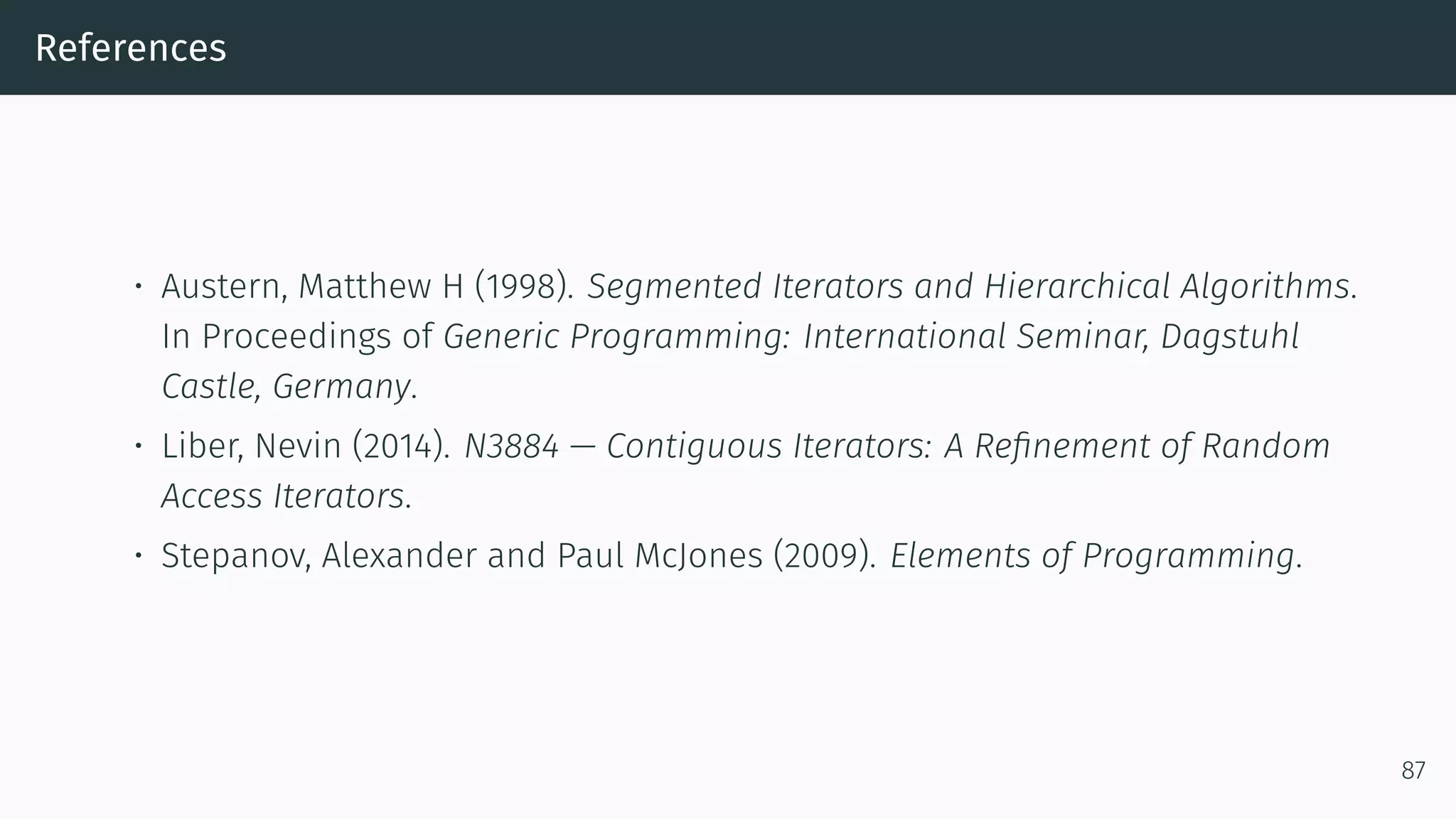

References • Austern, Matthew H (1998). Segmented Iterators and Hierarchical Algorithms. In Proceedings of Generic Programming: International Seminar, Dagstuhl Castle, Germany. • Liber, Nevin (2014). N3884 — Contiguous Iterators: A Reﬁnement of Random Access Iterators. • Stepanov, Alexander and Paul McJones (2009). Elements of Programming. 87

Patrick M. Niedzielski pniedzielski.net This work is licensed under a Creative Commons “Attribution 4.0 Inter- national” license. 87
