Parallel Computer Architecture • A parallel computer is a collection of processing elements that cooperate to solve large problems fast • Broad issues involved: • Resource Allocation: • Number of processing elements (PEs). • Computing power of each element. • Amount of physical memory used. • Data access, Communication and Synchronization • How the elements cooperate and communicate. • How data is transmitted between processors. • Abstractions and primitives for cooperation. • Performance and Scalability • Performance enhancement of parallelism: Speedup. • Scalabilty of performance to larger systems/problems.

Exploiting Program Parallelism Instruction Loop Thread Process Levels of Parallelism Grain Size (instructions) 1 10 100 1K 10K 100K 1M

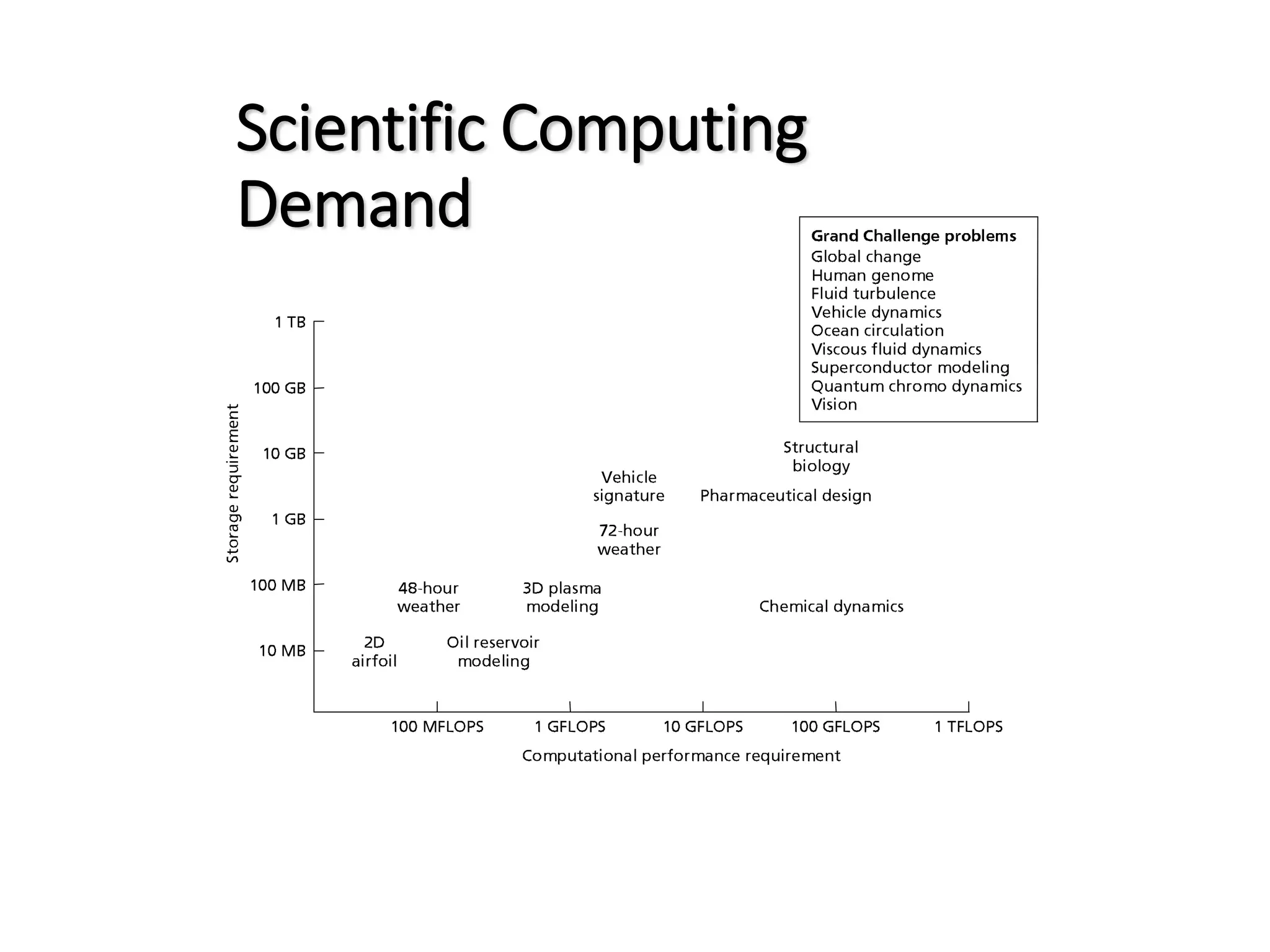

The Need And Feasibility of Parallel Computing • Application demands: More computing cycles: • Scientific computing: CFD, Biology, Chemistry, Physics, ... • General-purpose computing: Video, Graphics, CAD, Databases, Transaction Processing, Gaming… • Mainstream multithreaded programs, are similar to parallel programs • Technology Trends • Number of transistors on chip growing rapidly • Clock rates expected to go up but only slowly • Architecture Trends • Instruction-level parallelism is valuable but limited • Coarser-level parallelism, as in MPs, the most viable approach • Economics: • Today’s microprocessors have multiprocessor support eliminating the need for designing expensive custom PEs • Lower parallel system cost. • Multiprocessor systems to offer a cost-effective replacement of uniprocessor systems in mainstream computing.

Scientific Supercomputing Trends • Proving ground and driver for innovative architecture and advanced techniques: • Market is much smaller relative to commercial segment • Dominated by vector machines starting in 70s • Meanwhile, microprocessors have made huge gains in floating-point performance • High clock rates. • Pipelined floating point units. • Instruction-level parallelism. • Effective use of caches. • Large-scale multiprocessors replace vector supercomputers • Well under way already

Raw Uniprocessor Performance: LINPACK LINPACK (MFLOPS)                  1 10 100 1,000 10,000 1975 1980 1985 1990 1995 2000  CRAY n = 100  CRAY n = 1,000  Micro n = 100  Micro n = 1,000 CRAY 1s Xmp/14se Xmp/416 Ymp C90 T94 DEC 8200 IBM Pow er2/990 MIPS R4400 HP9000/735 DEC Alpha DEC Alpha AXP HP 9000/750 IBM RS6000/540 MIPS M/2000 MIPS M/120 Sun 4/260                 

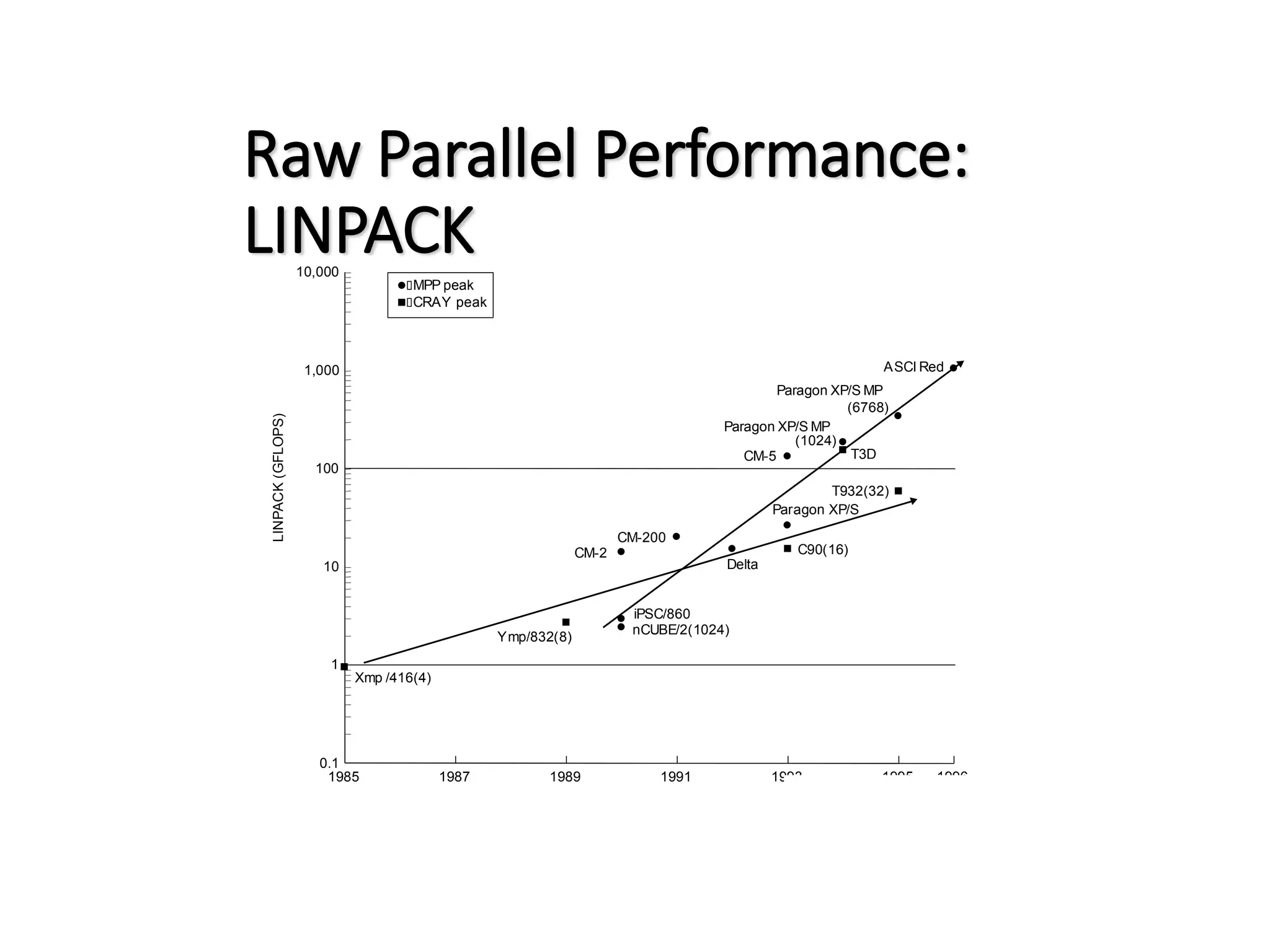

Raw Parallel Performance: LINPACK LINPACK (GFLOPS)  CRAY peak  MPP peak Xmp /416(4) Ymp/832(8) nCUBE/2(1024) iPSC/860 CM-2 CM-200 Delta Paragon XP/S C90(16) CM-5 ASCI Red T932(32) T3D Paragon XP/S MP (1024) Paragon XP/S MP (6768)                0.1 1 10 100 1,000 10,000 1985 1987 1989 1991 1993 1995 1996

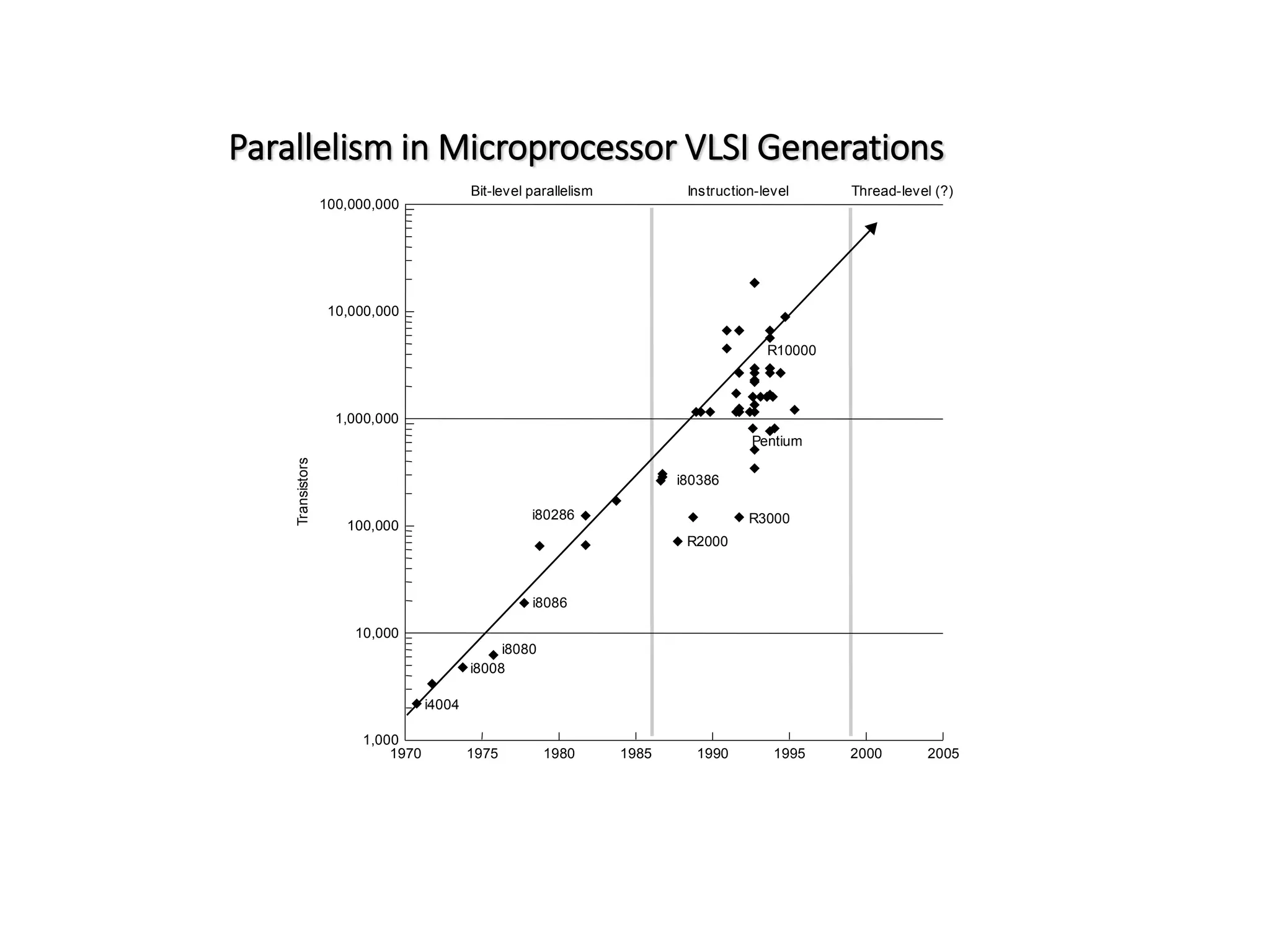

Transistors                                                                   1,000 10,000 100,000 1,000,000 10,000,000 100,000,000 1970 1975 1980 1985 1990 1995 2000 2005 Bit-level parallelism Instruction-level Thread-level (?) i4004 i8008 i8080 i8086 i80286 i80386 R2000 Pentium R10000 R3000 Parallelism in Microprocessor VLSI Generations

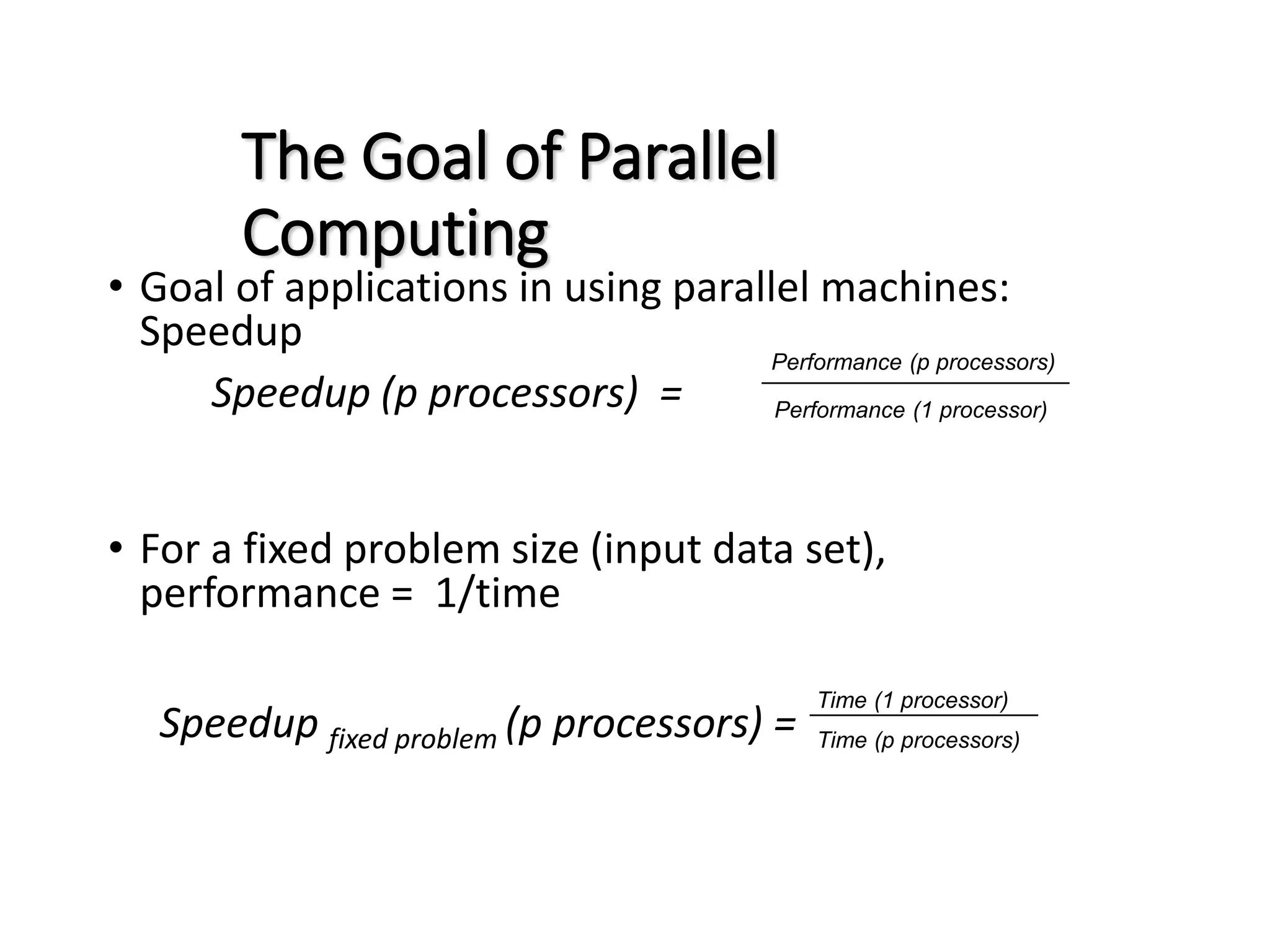

The Goal of Parallel Computing • Goal of applications in using parallel machines: Speedup Speedup (p processors) = • For a fixed problem size (input data set), performance = 1/time Speedup fixed problem (p processors) = Performance (p processors) Performance (1 processor) Time (1 processor) Time (p processors)

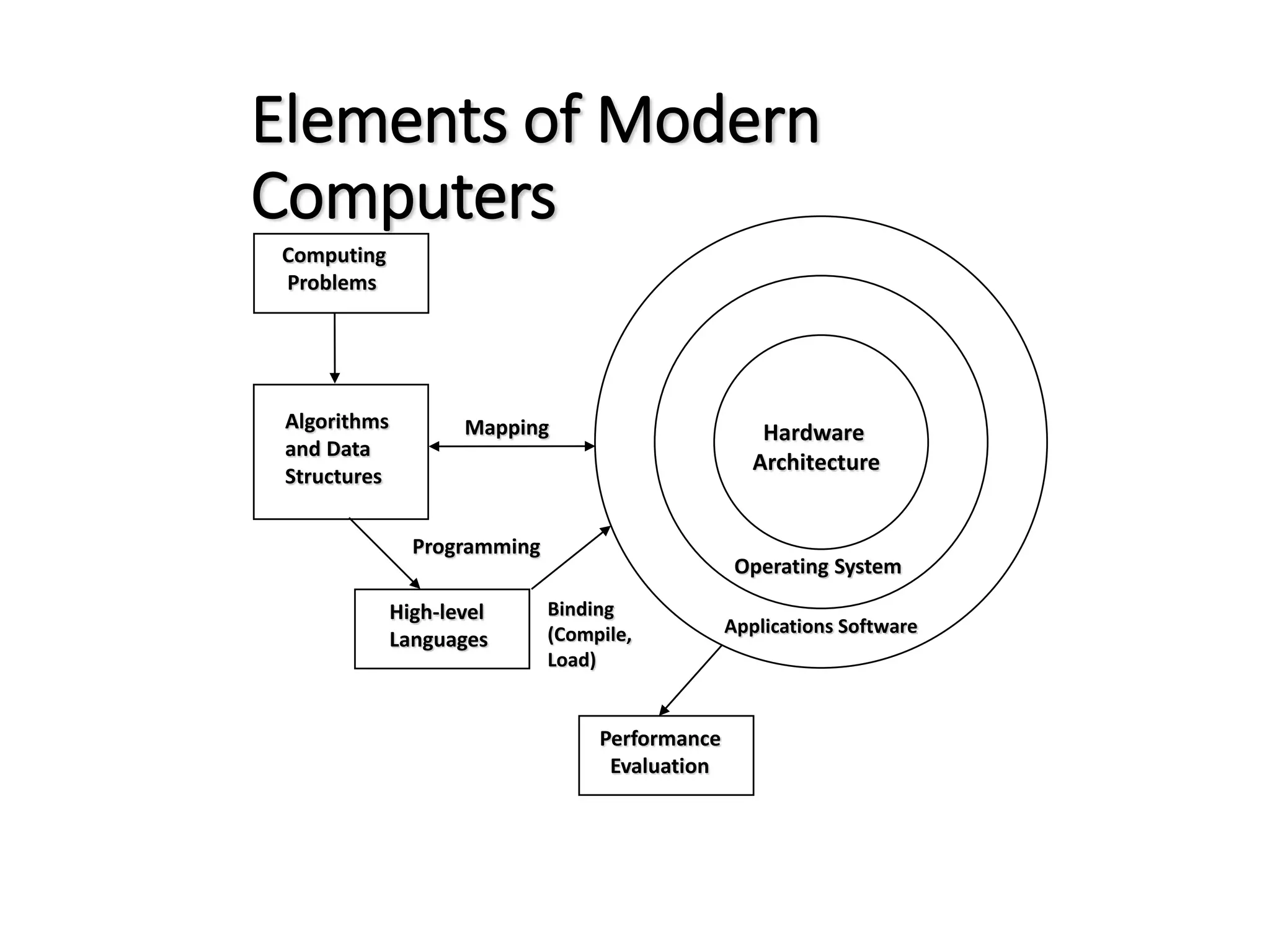

Elements of Modern Computers Hardware Architecture Operating System Applications Software Computing Problems Algorithms and Data Structures High-level Languages Performance Evaluation Mapping Programming Binding (Compile, Load)

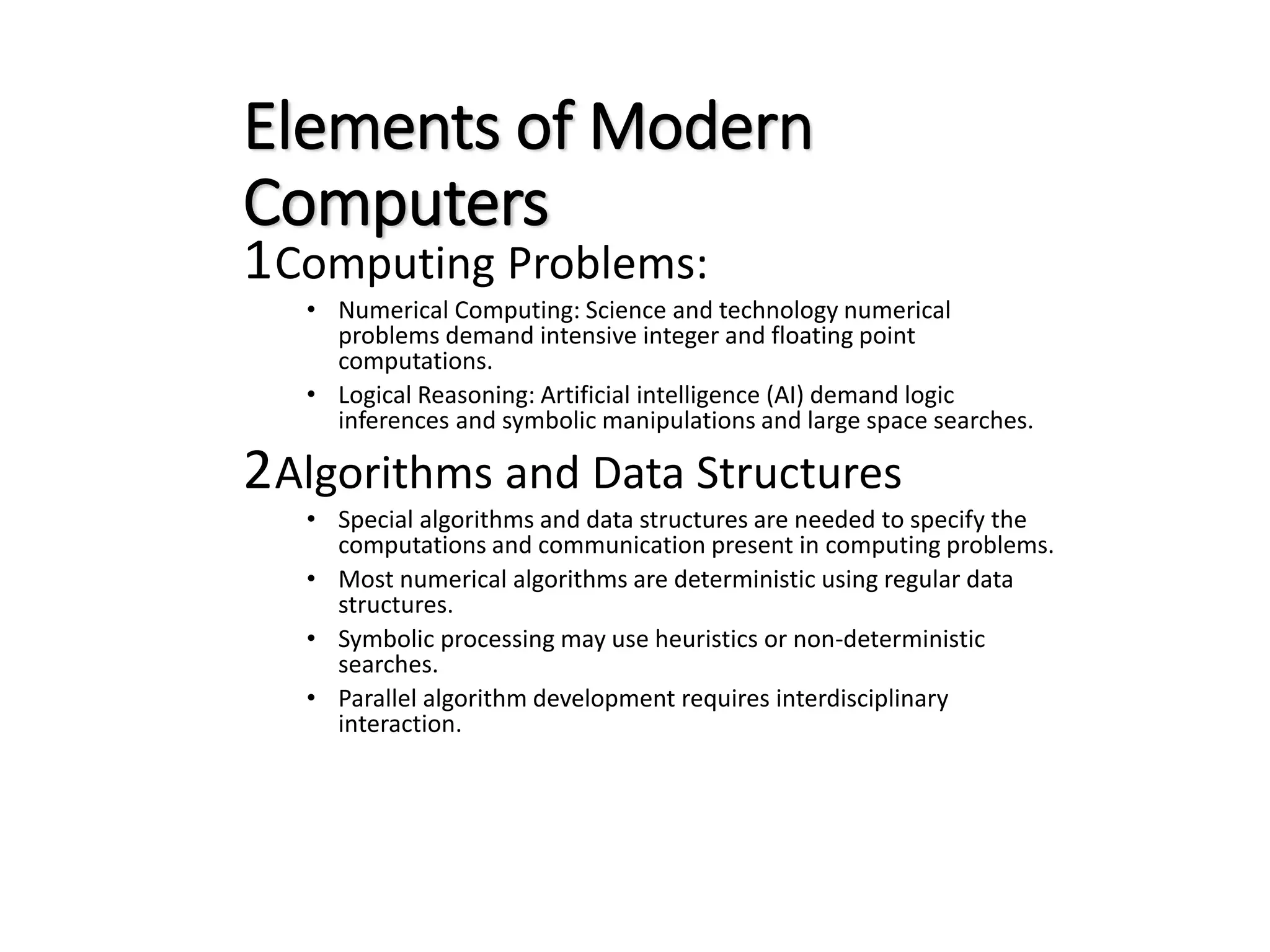

Elements of Modern Computers 1Computing Problems: • Numerical Computing: Science and technology numerical problems demand intensive integer and floating point computations. • Logical Reasoning: Artificial intelligence (AI) demand logic inferences and symbolic manipulations and large space searches. 2Algorithms and Data Structures • Special algorithms and data structures are needed to specify the computations and communication present in computing problems. • Most numerical algorithms are deterministic using regular data structures. • Symbolic processing may use heuristics or non-deterministic searches. • Parallel algorithm development requires interdisciplinary interaction.

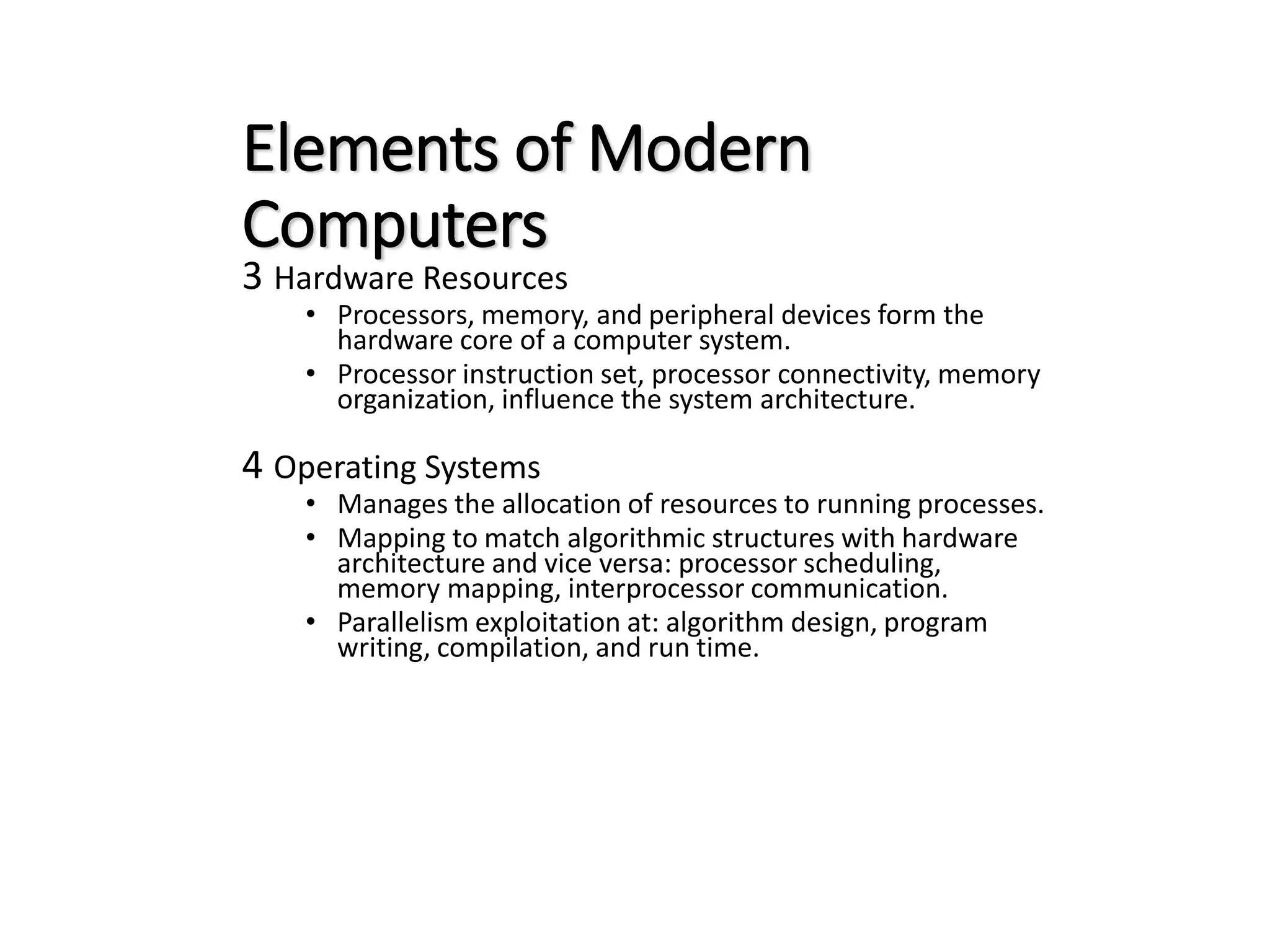

Elements of Modern Computers 3 Hardware Resources • Processors, memory, and peripheral devices form the hardware core of a computer system. • Processor instruction set, processor connectivity, memory organization, influence the system architecture. 4 Operating Systems • Manages the allocation of resources to running processes. • Mapping to match algorithmic structures with hardware architecture and vice versa: processor scheduling, memory mapping, interprocessor communication. • Parallelism exploitation at: algorithm design, program writing, compilation, and run time.

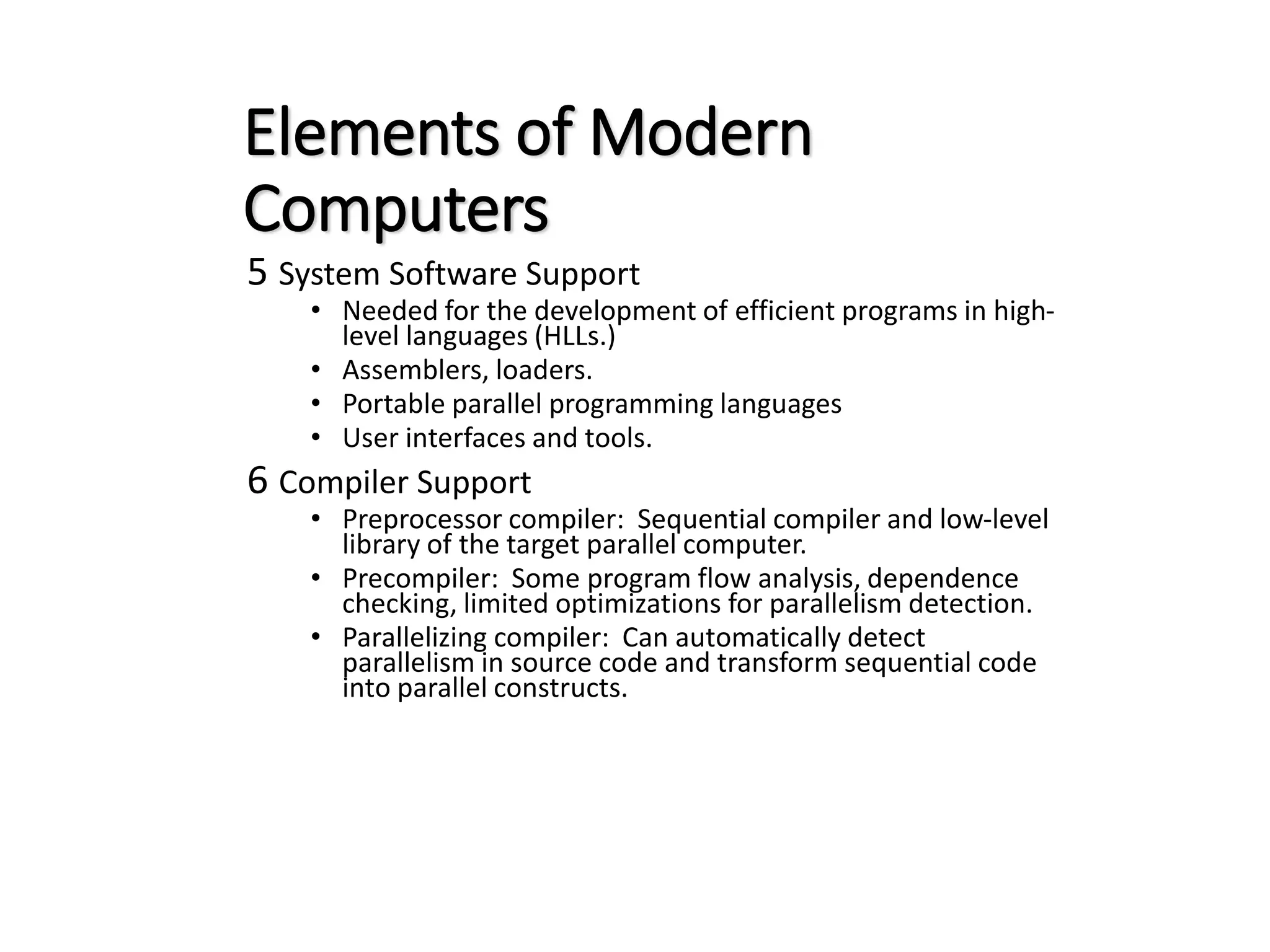

Elements of Modern Computers 5 System Software Support • Needed for the development of efficient programs in high- level languages (HLLs.) • Assemblers, loaders. • Portable parallel programming languages • User interfaces and tools. 6 Compiler Support • Preprocessor compiler: Sequential compiler and low-level library of the target parallel computer. • Precompiler: Some program flow analysis, dependence checking, limited optimizations for parallelism detection. • Parallelizing compiler: Can automatically detect parallelism in source code and transform sequential code into parallel constructs.

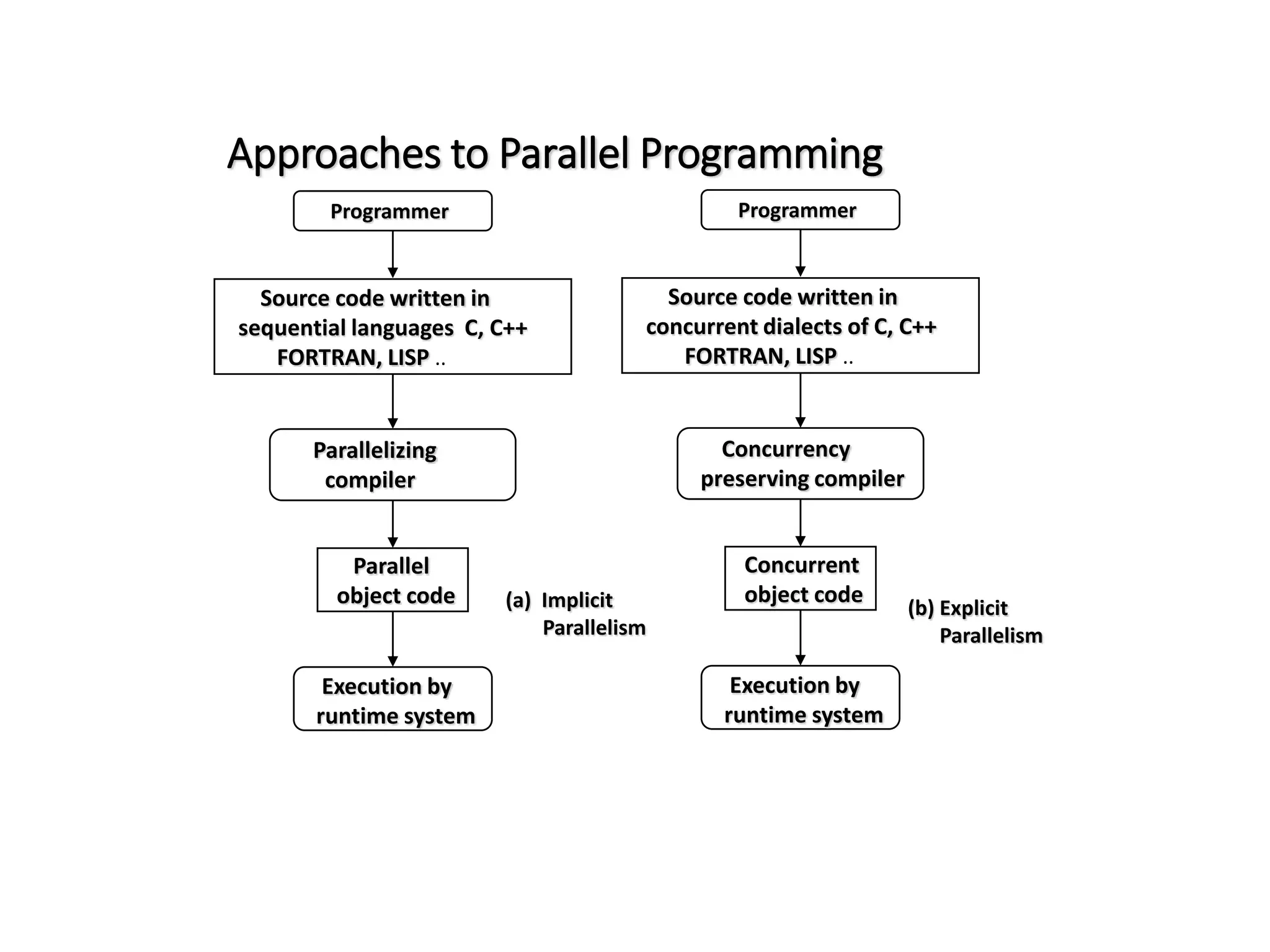

Approaches to Parallel Programming Source code written in concurrent dialects of C, C++ FORTRAN, LISP .. Programmer Concurrency preserving compiler Concurrent object code Execution by runtime system Source code written in sequential languages C, C++ FORTRAN, LISP .. Programmer Parallelizing compiler Parallel object code Execution by runtime system (a) Implicit Parallelism (b) Explicit Parallelism

Evolution of Computer Architecture Scalar Sequential Lookahead I/E Overlap Functional Parallelism Multiple Func. Units Pipeline Implicit Vector Explicit Vector MIMD SIMD Multiprocessor Multicomputer Register-to -Register Memory-to -Memory Processor Array Associative Processor Massively Parallel Processors (MPPs) I/E: Instruction Fetch and Execute SIMD: Single Instruction stream over Multiple Data streams MIMD: Multiple Instruction streams over Multiple Data streams

Parallel Architectures History Application Software System Software SIMD Message Passing Shared Memory Dataflow Systolic Arrays Architecture Historically, parallel architectures tied to programming models • Divergent architectures, with no predictable pattern of growth.

Programming Models • Programming methodology used in coding applications • Specifies communication and synchronization • Examples: • Multiprogramming: No communication or synchronization at program level • Shared memory address space: • Message passing: Explicit point to point communication • Data parallel: More regimented, global actions on data • Implemented with shared address space or message passing

Flynn’s 1972 Classification of Computer Architecture • Single Instruction stream over a Single Data stream (SISD): Conventional sequential machines. • Single Instruction stream over Multiple Data streams (SIMD): Vector computers, array of synchronized processing elements. • Multiple Instruction streams and a Single Data stream (MISD): Systolic arrays for pipelined execution. • Multiple Instruction streams over Multiple Data streams (MIMD): Parallel computers: • Shared memory multiprocessors. • Multicomputers: Unshared distributed memory, message-passing used instead.

Flynn’s Classification of Computer Architecture Fig. 1.3 page 12 in Advanced Computer Architecture: Parallelism, Scalability, Programmability, Hwang, 1993.

Current Trends In Parallel Architectures • The extension of “computer architecture” to support communication and cooperation: • OLD: Instruction Set Architecture • NEW: Communication Architecture • Defines: • Critical abstractions, boundaries, and primitives (interfaces) • Organizational structures that implement interfaces (hardware or software) • Compilers, libraries and OS are important bridges today

Modern Parallel Architecture Layered Framework CAD Multiprogramming Shared address Message passing Data parallel Database Scientific modeling Parallel applications Programming models Communication abstraction User/system boundary Compilation or library Operating systems support Communication hardware Physical communication medium Hardware/software boundary

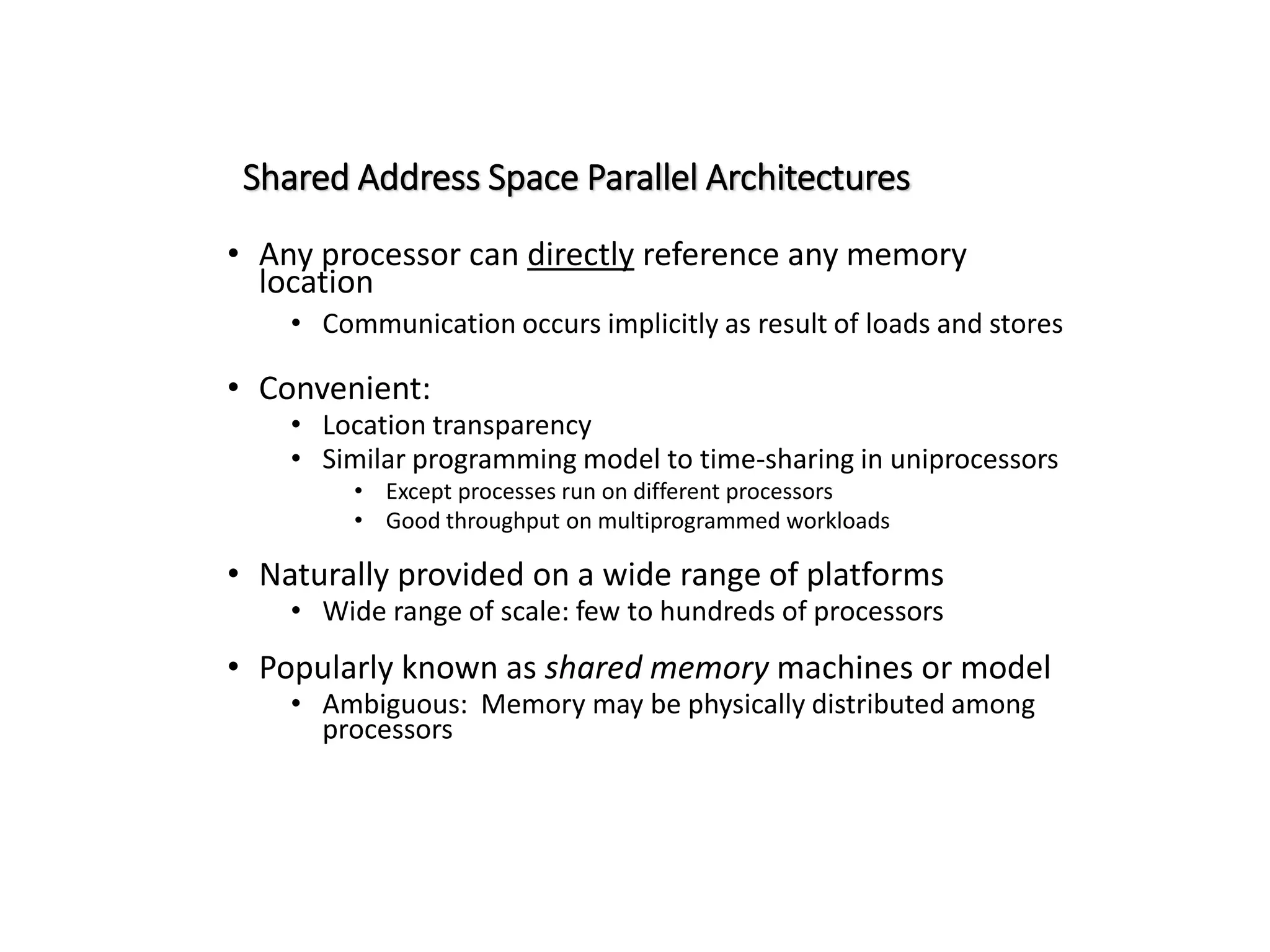

Shared Address Space Parallel Architectures • Any processor can directly reference any memory location • Communication occurs implicitly as result of loads and stores • Convenient: • Location transparency • Similar programming model to time-sharing in uniprocessors • Except processes run on different processors • Good throughput on multiprogrammed workloads • Naturally provided on a wide range of platforms • Wide range of scale: few to hundreds of processors • Popularly known as shared memory machines or model • Ambiguous: Memory may be physically distributed among processors

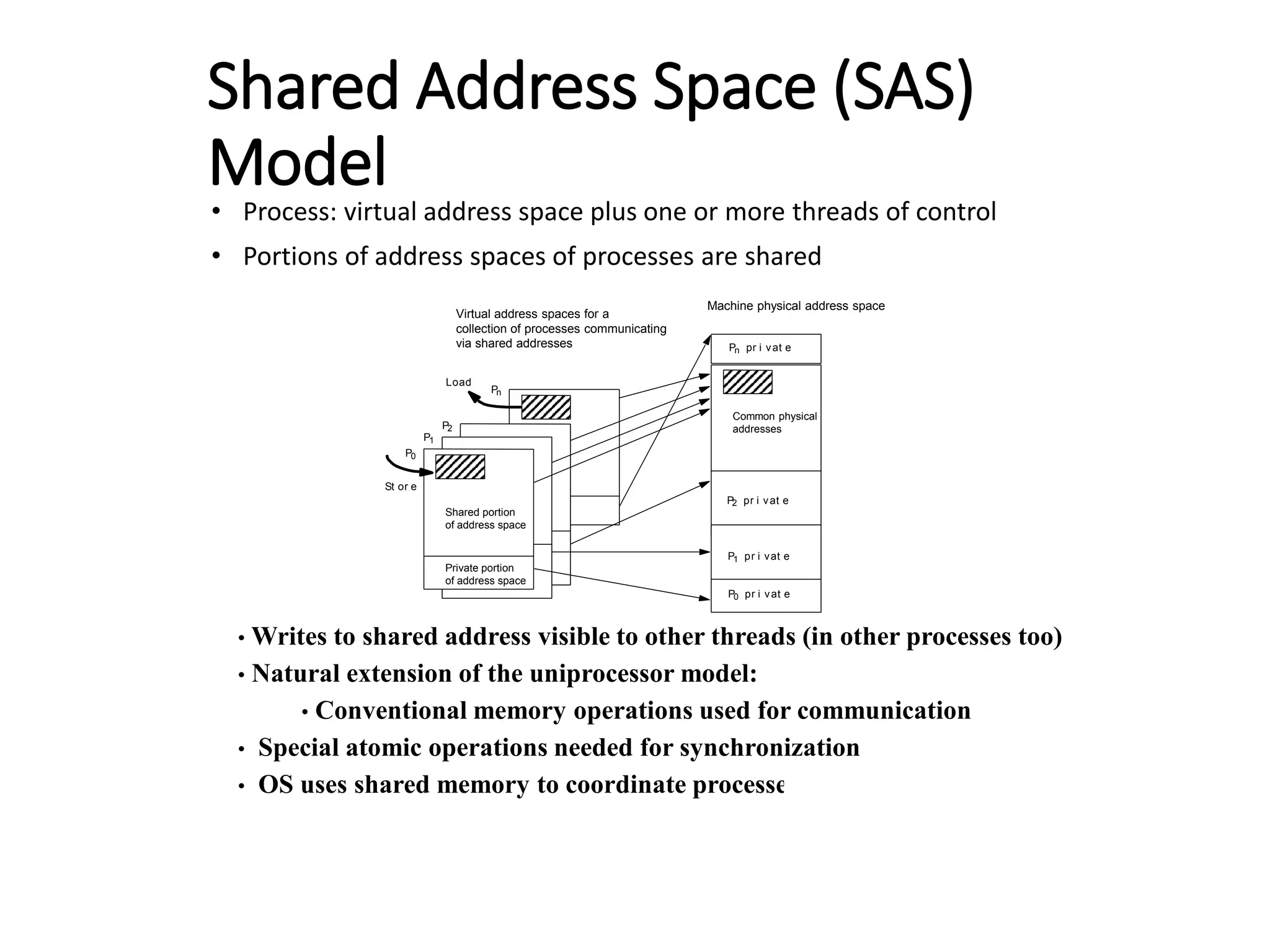

Shared Address Space (SAS) Model • Process: virtual address space plus one or more threads of control • Portions of address spaces of processes are shared • Writes to shared address visible to other threads (in other processes too) • Natural extension of the uniprocessor model: • Conventional memory operations used for communication • Special atomic operations needed for synchronization • OS uses shared memory to coordinate processes St or e P1 P2 Pn P0 Load P0 pr i vat e P1 pr i vat e P2 pr i vat e Pn pr i vat e Virtual address spaces for a collection of processes communicating via shared addresses Machine physical address space Shared portion of address space Private portion of address space Common physical addresses

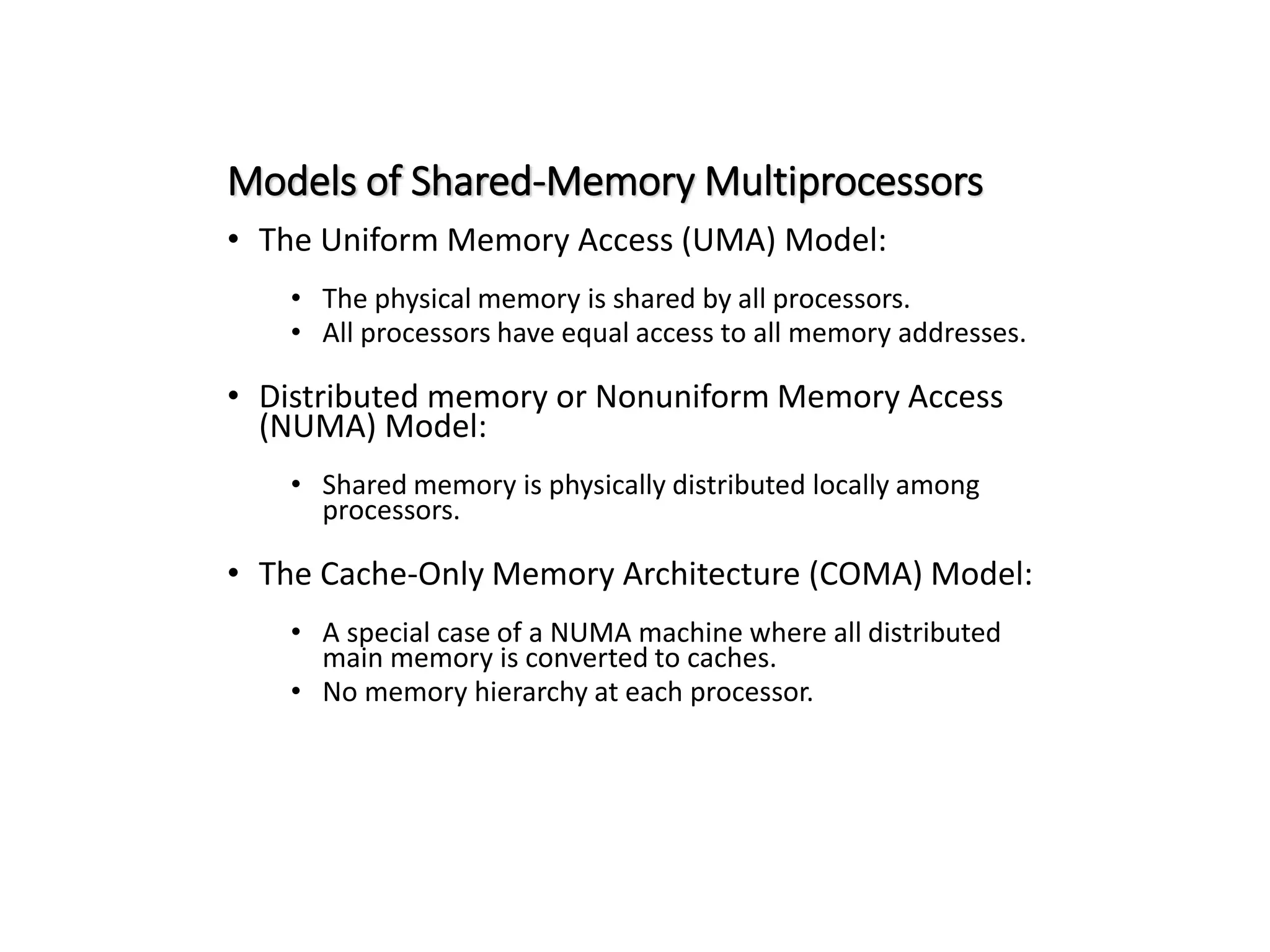

Models of Shared-Memory Multiprocessors • The Uniform Memory Access (UMA) Model: • The physical memory is shared by all processors. • All processors have equal access to all memory addresses. • Distributed memory or Nonuniform Memory Access (NUMA) Model: • Shared memory is physically distributed locally among processors. • The Cache-Only Memory Architecture (COMA) Model: • A special case of a NUMA machine where all distributed main memory is converted to caches. • No memory hierarchy at each processor.

Models of Shared-Memory Multiprocessors I/O ctrl Mem Mem Mem Interconnect Mem I/O ctrl Processor Processor Interconnect I/O devices M  M M Network P $ P $ P $  Network D P C D P C D P C Distributed memory or Nonuniform Memory Access (NUMA) Model Uniform Memory Access (UMA) Model Interconnect: Bus, Crossbar, Multistage network P: Processor M: Memory C: Cache D: Cache directory Cache-Only Memory Architecture (COMA)

Uniform Memory Access Example: Intel Pentium Pro Quad • All coherence and multiprocessing glue in processor module • Highly integrated, targeted at high volume • Low latency and bandwidth P-Pr o bus (64-bit data, 36-bit addr ess, 66 MHz) CPU Bus interface MIU P-Pr o module P-Pr o module P-Pr o module 256-KB L2 $ Interrupt controller PCI bridge PCI bridge Memory controller 1-, 2-, or 4-w ay interleaved DRAM PCI bus PCI bus PCI I/O cards

Uniform Memory Access Example: SUN Enterprise • 16 cards of either type: processors + memory, or I/O • All memory accessed over bus, so symmetric • Higher bandwidth, higher latency bus Gigaplane bus (256 data, 41 address, 83 MHz) SBUS SBUS SBUS 2 FiberChannel 100bT, SCSI Bus interface CPU/mem cards P $2 $ P $2 $ Mem ctrl Bus interface/sw itch I/O cards

Distributed Shared-Memory Multiprocessor System Example: Cray T3E • Scale up to 1024 processors, 480MB/s links • Memory controller generates communication requests for nonlocal references • No hardware mechanism for coherence (SGI Origin etc. provide this) Sw itch P $ XY Z External I/O Mem ctrl and NI Mem

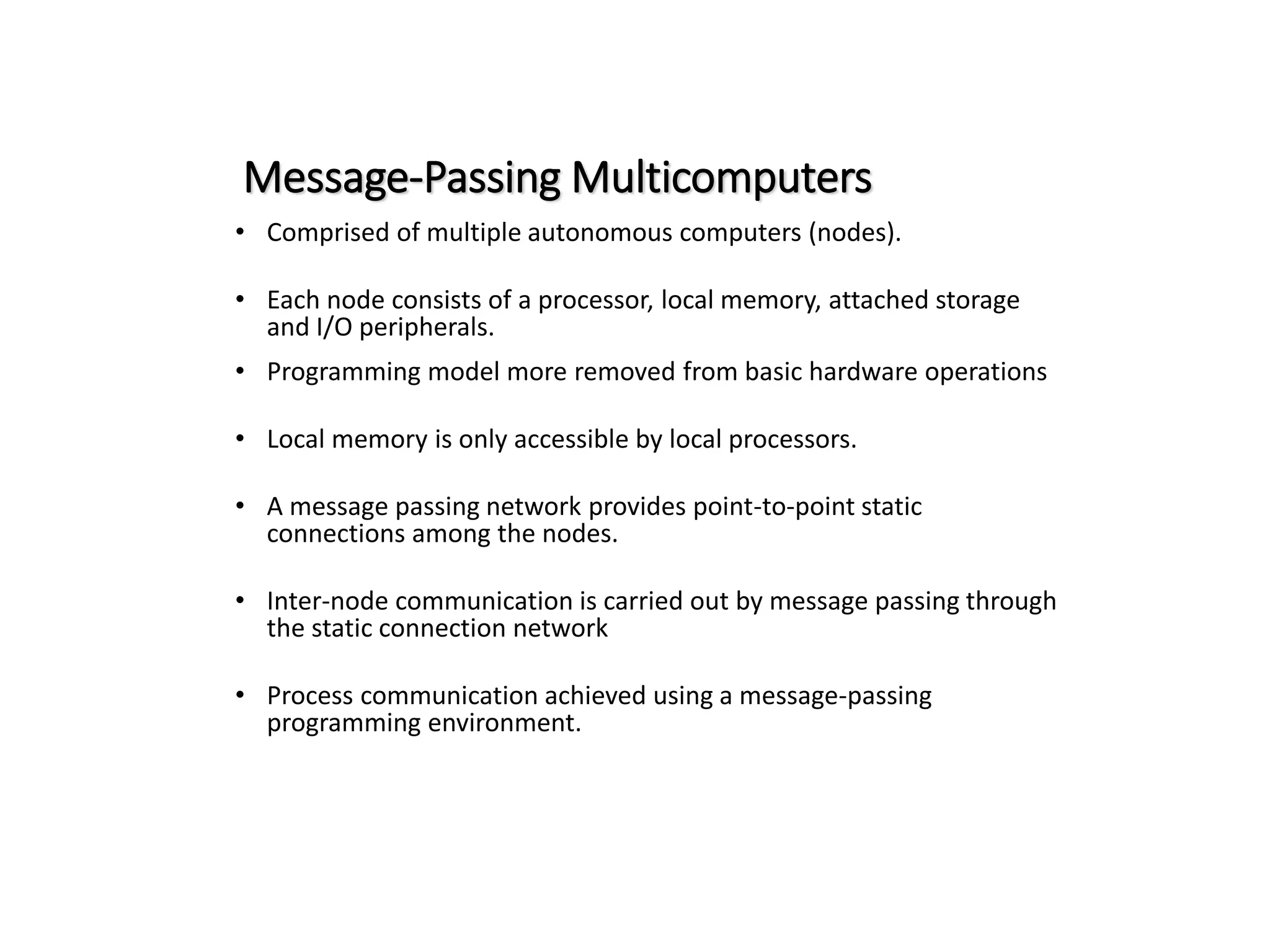

Message-Passing Multicomputers • Comprised of multiple autonomous computers (nodes). • Each node consists of a processor, local memory, attached storage and I/O peripherals. • Programming model more removed from basic hardware operations • Local memory is only accessible by local processors. • A message passing network provides point-to-point static connections among the nodes. • Inter-node communication is carried out by message passing through the static connection network • Process communication achieved using a message-passing programming environment.

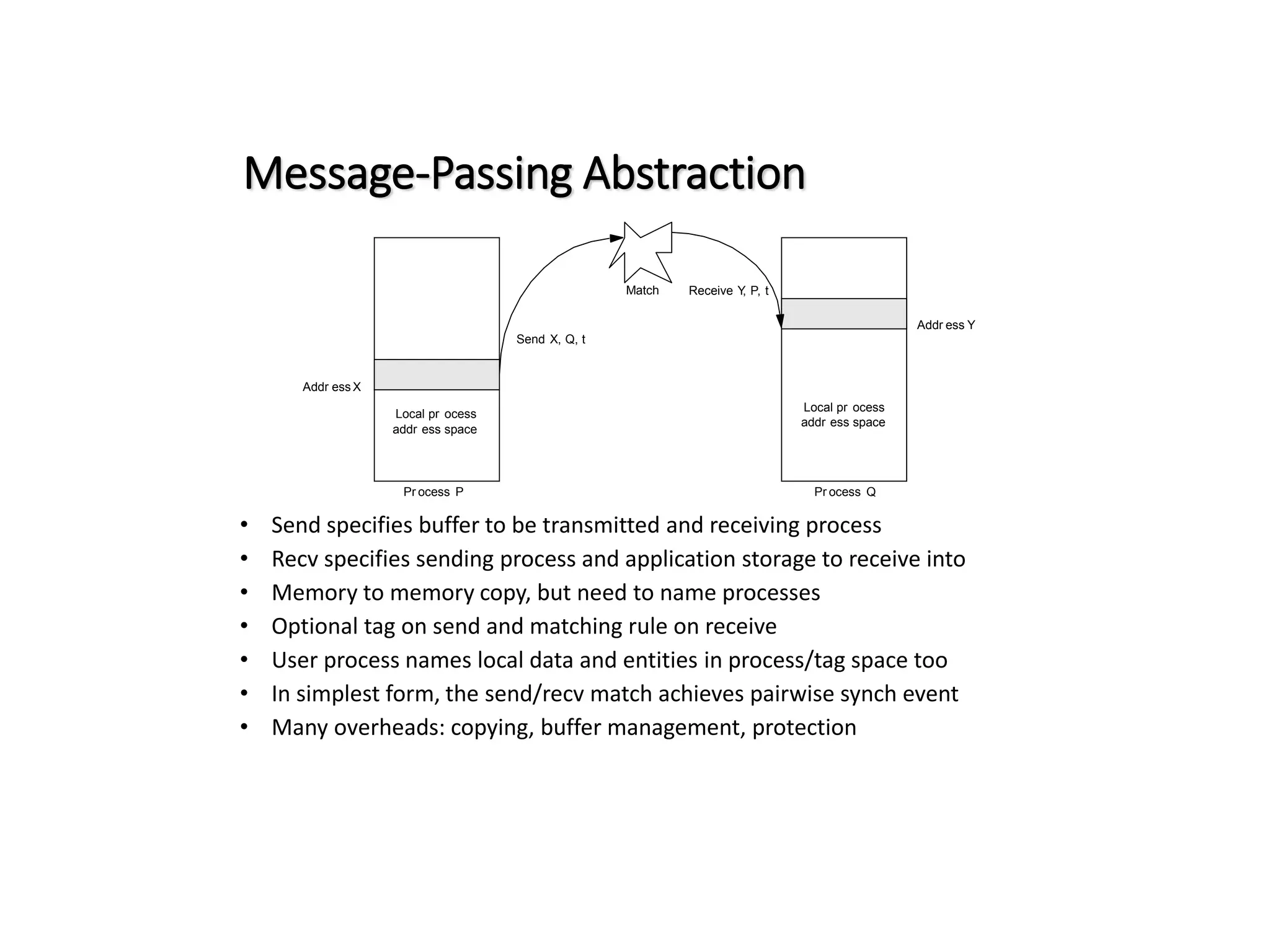

Message-Passing Abstraction • Send specifies buffer to be transmitted and receiving process • Recv specifies sending process and application storage to receive into • Memory to memory copy, but need to name processes • Optional tag on send and matching rule on receive • User process names local data and entities in process/tag space too • In simplest form, the send/recv match achieves pairwise synch event • Many overheads: copying, buffer management, protection Pr ocess P Pr ocess Q Addr ess Y Addr ess X Send X, Q, t Receive Y , P, t Match Local pr ocess addr ess space Local pr ocess addr ess space

Message-Passing Example: IBM SP-2 • Made out of essentially complete RS6000 workstations • Network interface integrated in I/O bus (bandwidth limited by I/O bus) Memory bus MicroChannel bus I/O i860 NI DMA DRAM IBM SP-2 node L2 $ Pow er 2 CPU Memory controller 4-w ay interleaved DRAM General interconnection netw ork formed fr om 8-port sw itches NIC

Message-Passing Example: Intel Paragon Memory bus (64-bit, 50 MHz) i860 L1 $ NI DMA i860 L1 $ Driver Mem ctrl 4-w ay interleaved DRAM Intel Paragon node 8 bits, 175 MHz, bidirectional 2D grid netw ork w ith pr ocessing node attached to every sw itch Sandia’ s Intel Paragon XP/S-based Super computer

Message-Passing Programming Tools • Message-passing programming libraries include: • Message Passing Interface (MPI): • Provides a standard for writing concurrent message- passing programs. • MPI implementations include parallel libraries used by existing programming languages. • Parallel Virtual Machine (PVM): • Enables a collection of heterogeneous computers to used as a coherent and flexible concurrent computational resource. • PVM support software executes on each machine in a user-configurable pool, and provides a computational environment of concurrent applications. • User programs written for example in C, Fortran or Java are provided access to PVM through the use of calls to PVM library routines.

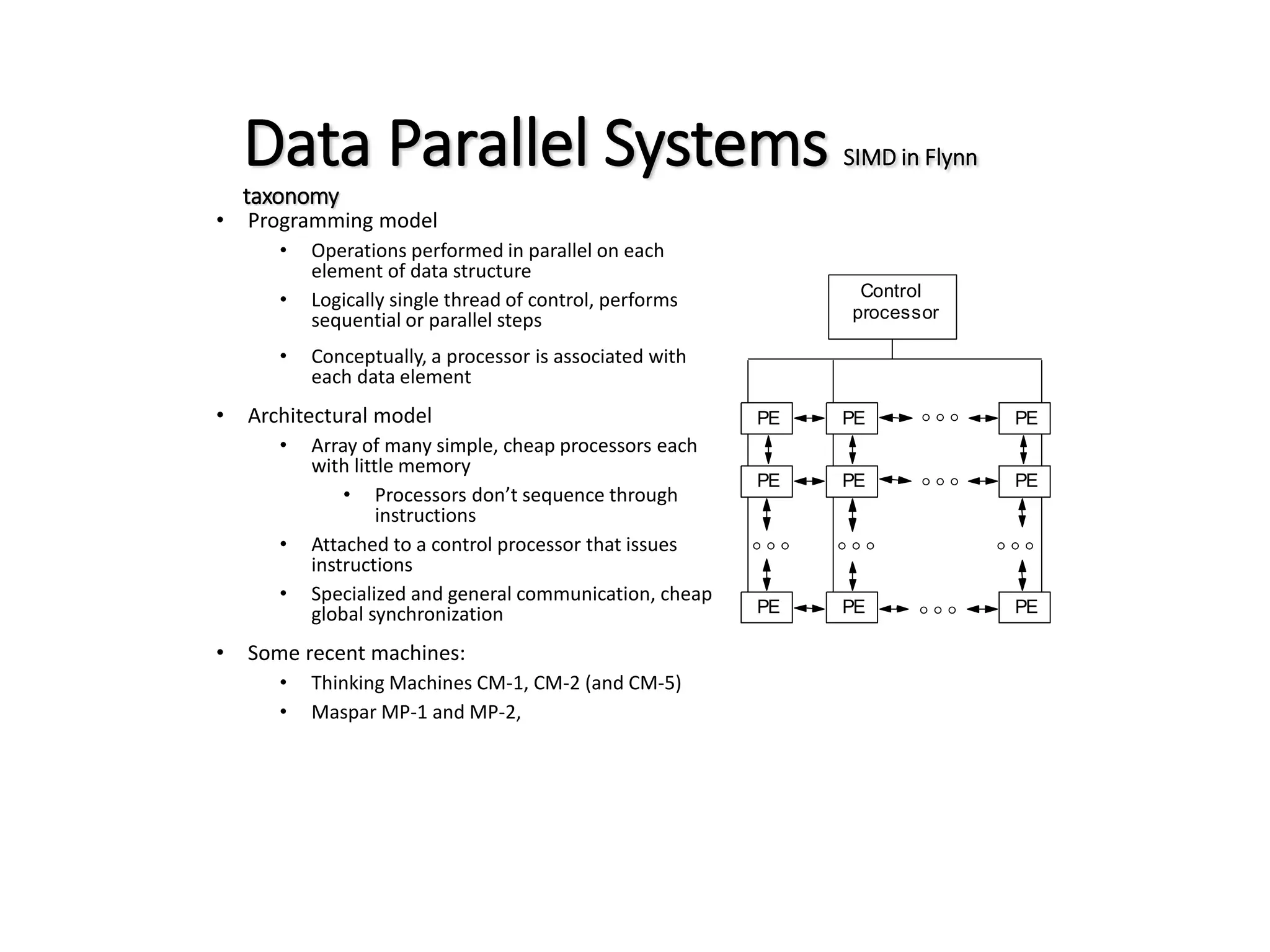

Data Parallel Systems SIMD in Flynn taxonomy • Programming model • Operations performed in parallel on each element of data structure • Logically single thread of control, performs sequential or parallel steps • Conceptually, a processor is associated with each data element • Architectural model • Array of many simple, cheap processors each with little memory • Processors don’t sequence through instructions • Attached to a control processor that issues instructions • Specialized and general communication, cheap global synchronization • Some recent machines: • Thinking Machines CM-1, CM-2 (and CM-5) • Maspar MP-1 and MP-2, PE PE PE  PE PE PE  PE PE PE     Control processor

Dataflow Architectures • Represent computation as a graph of essential dependences • Logical processor at each node, activated by availability of operands • Message (tokens) carrying tag of next instruction sent to next processor • Tag compared with others in matching store; match fires execution 1 b a +     c e d f Dataflow graph f = a  d Netw ork Token store Waiting Matching Instruction fetch Execute Token queue Form token Netw ork Netw ork Program store a = (b +1)  (b  c) d = c  e

Systolic Architectures • Replace single processor with an array of regular processing elements • Orchestrate data flow for high throughput with less memory access M PE M PE PE PE • Different from pipelining – Nonlinear array structure, multidirection data flow, each PE may have (small) local instruction and data memory • Different from SIMD: each PE may do something different • Initial motivation: VLSI enables inexpensive special-purpose chips • Represent algorithms directly by chips connected in regular pattern

Parallel Programs • Conditions of Parallelism: • Data Dependence • Control Dependence • Resource Dependence • Bernstein’s Conditions • Asymptotic Notations for Algorithm Analysis • Parallel Random-Access Machine (PRAM) • Example: sum algorithm on P processor PRAM • Network Model of Message-Passing Multicomputers • Example: Asynchronous Matrix Vector Product on a Ring • Levels of Parallelism in Program Execution • Hardware Vs. Software Parallelism • Parallel Task Grain Size • Example Motivating Problems With high levels of concurrency • Limited Concurrency: Amdahl’s Law • Parallel Performance Metrics: Degree of Parallelism (DOP) • Concurrency Profile • Steps in Creating a Parallel Program: • Decomposition, Assignment, Orchestration, Mapping • Program Partitioning Example • Static Multiprocessor Scheduling Example

Conditions of Parallelism: Data Dependence 1True Data or Flow Dependence: A statement S2 is data dependent on statement S1 if an execution path exists from S1 to S2 and if at least one output variable of S1 feeds in as an input operand used by S2 denoted by S1 S2 2Antidependence: Statement S2 is antidependent on S1 if S2 follows S1 in program order and if the output of S2 overlaps the input of S1 denoted by S1  S2 3Output dependence: Two statements are output dependent if they produce the same output variable denoted by S1  S2

Conditions of Parallelism: Data Dependence 4I/O dependence: Read and write are I/O statements. I/O dependence occurs not because the same variable is involved but because the same file is referenced by both I/O statements. 5Unknown dependence: • Subscript of a variable is subscribed (indirect addressing) • The subscript does not contain the loop index. • A variable appears more than once with subscripts having different coefficients of the loop variable. • The subscript is nonlinear in the loop index variable.

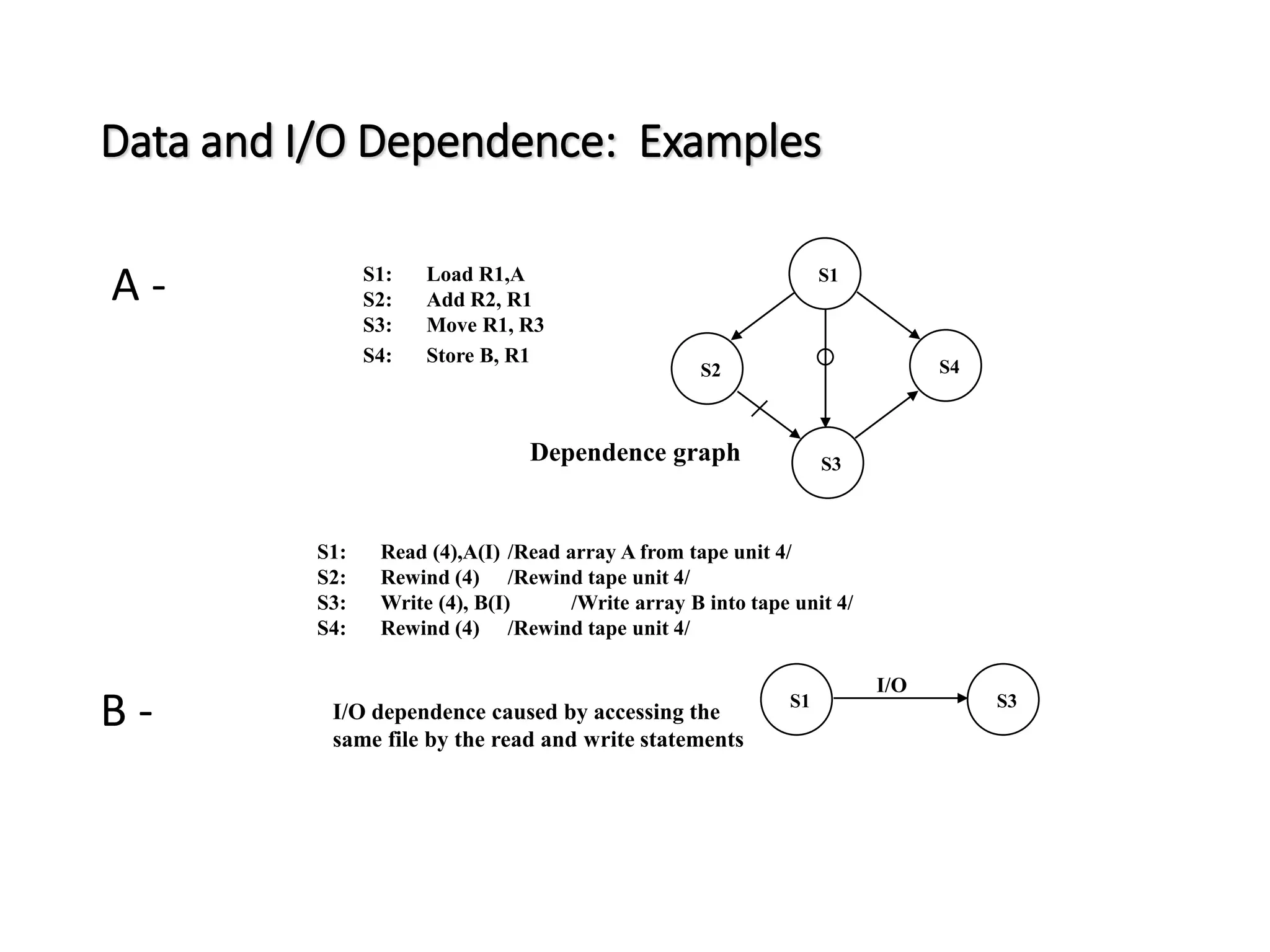

Data and I/O Dependence: Examples A - B - S1: Load R1,A S2: Add R2, R1 S3: Move R1, R3 S4: Store B, R1 S1: Read (4),A(I) /Read array A from tape unit 4/ S2: Rewind (4) /Rewind tape unit 4/ S3: Write (4), B(I) /Write array B into tape unit 4/ S4: Rewind (4) /Rewind tape unit 4/ S1 S3 S4 S2 Dependence graph S1 S3 I/O I/O dependence caused by accessing the same file by the read and write statements

Conditions of Parallelism • Control Dependence: • Order of execution cannot be determined before runtime due to conditional statements. • Resource Dependence: • Concerned with conflicts in using shared resources including functional units (integer, floating point), memory areas, among parallel tasks. • Bernstein’s Conditions: Two processes P1 , P2 with input sets I1, I2 and output sets O1, O2 can execute in parallel (denoted by P1 || P2) if: I1 O2 =  I2 O1 =  O1 O2 = 

Bernstein’s Conditions: An Example • For the following instructions P1, P2, P3, P4, P5 in program order and • Instructions are in program order • Each instruction requires one step to execute • Two adders are available P1 : C = D x E P2 : M = G + C P3 : A = B + C P4 : C = L + M P5 : F = G  E Using Bernstein’s Conditions after checking statement pairs: P1 || P5 , P2 || P3 , P2 || P5 , P5 || P3 , P4 || P5 X P1 D E +3 P4 +2 P3 +1 P2 C B G L  P5 G E F A C X P1 D E +1 P2 +3 P4  P5 G B F C +2 P3 A L E G C M Parallel execution in three steps assuming two adders are available per step Sequential execution Time X P1  P5 +2 +3 +1 P2 P4 P3 Dependence graph: Data dependence (solid lines) Resource dependence (dashed lines)

Asymptotic Notations for Algorithm Analysis Asymptotic analysis of computing time of an algorithm f(n) ignores constant execution factors and concentrates on determining the order of magnitude of algorithm performance. Upper bound: Used in worst case analysis of algorithm performance. f(n) = O(g(n)) iff there exist two positive constants c and n0 such that | f(n) | c | g(n) | for all n > n0  i.e. g(n) an upper bound on f(n) O(1) < O(log n) < O(n) < O(n log n) < O (n2) < O(n3) < O(2n)

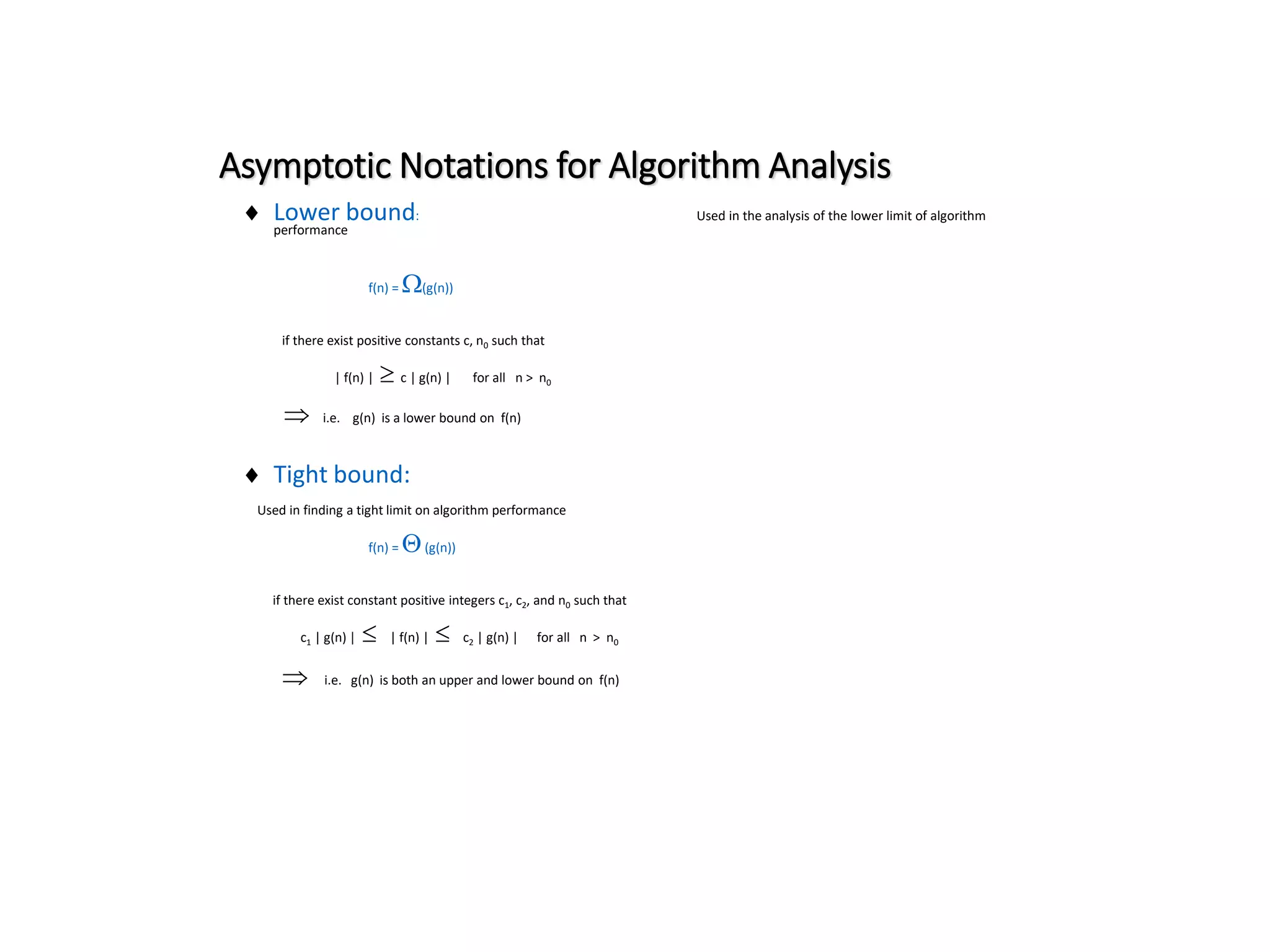

Asymptotic Notations for Algorithm Analysis  Lower bound: Used in the analysis of the lower limit of algorithm performance f(n) = (g(n)) if there exist positive constants c, n0 such that | f(n) |  c | g(n) | for all n > n0 i.e. g(n) is a lower bound on f(n)  Tight bound: Used in finding a tight limit on algorithm performance f(n) = (g(n)) if there exist constant positive integers c1, c2, and n0 such that c1 | g(n) | | f(n) | c2 | g(n) | for all n > n0 i.e. g(n) is both an upper and lower bound on f(n)

The Growth Rate of Common Computing Functions log n n n log n n2 n3 2n 0 1 0 1 1 2 1 2 2 4 8 4 2 4 8 16 64 16 3 8 24 64 512 256 4 16 64 256 4096 65536 5 32 160 1024 32768 4294967296

Theoretical Models of Parallel Computers • Parallel Random-Access Machine (PRAM): • n processor, global shared memory model. • Models idealized parallel computers with zero synchronization or memory access overhead. • Utilized parallel algorithm development and scalability and complexity analysis. • PRAM variants: More realistic models than pure PRAM • EREW-PRAM: Simultaneous memory reads or writes to/from the same memory location are not allowed. • CREW-PRAM: Simultaneous memory writes to the same location is not allowed. • ERCW-PRAM: Simultaneous reads from the same memory location are not allowed. • CRCW-PRAM: Concurrent reads or writes to/from the same memory location are allowed.

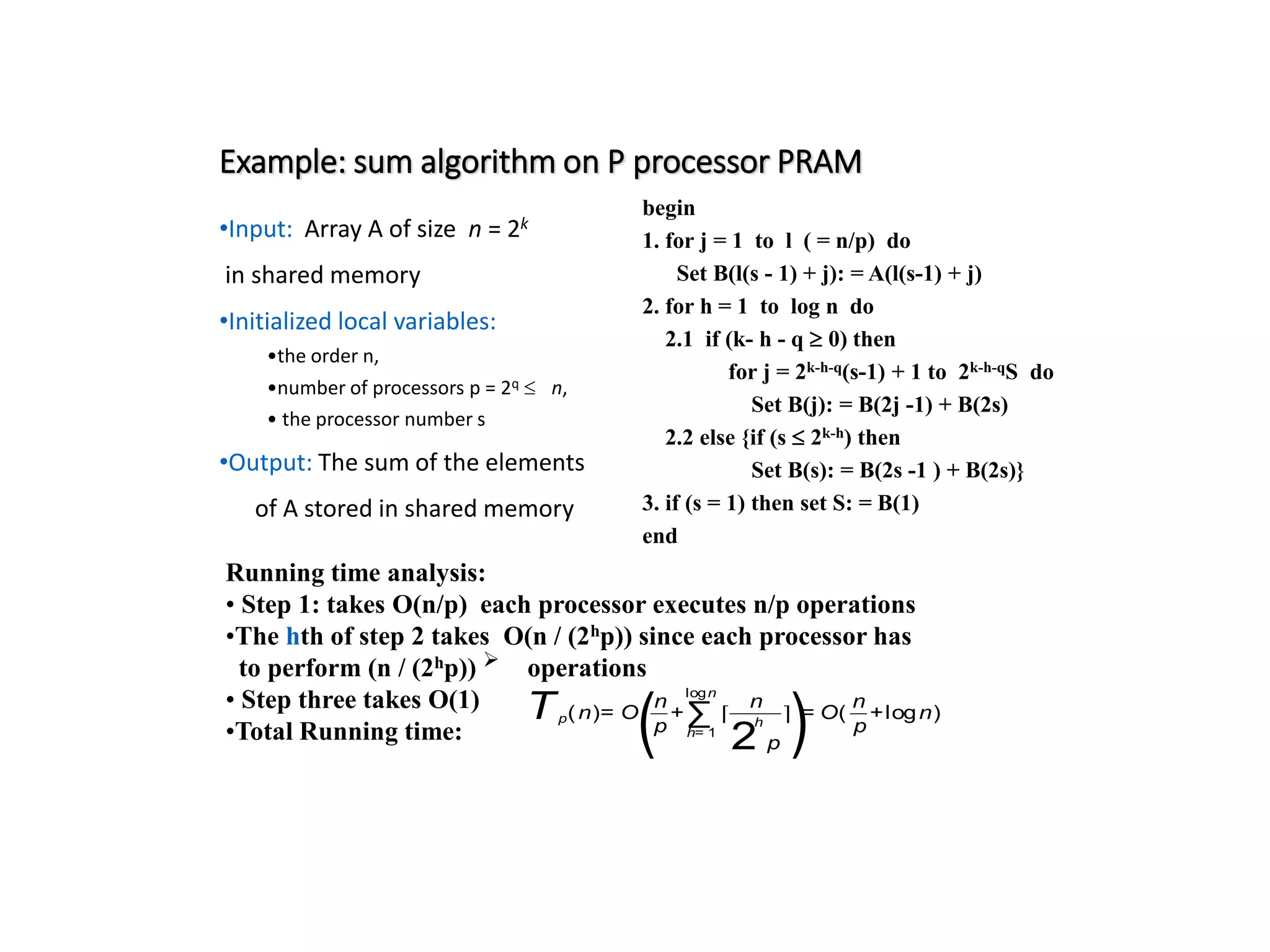

Example: sum algorithm on P processor PRAM •Input: Array A of size n = 2k in shared memory •Initialized local variables: •the order n, •number of processors p = 2q n, • the processor number s •Output: The sum of the elements of A stored in shared memory begin 1. for j = 1 to l ( = n/p) do Set B(l(s - 1) + j): = A(l(s-1) + j) 2. for h = 1 to log n do 2.1 if (k- h - q 0) then for j = 2k-h-q(s-1) + 1 to 2k-h-qS do Set B(j): = B(2j -1) + B(2s) 2.2 else {if (s 2k-h) then Set B(s): = B(2s -1 ) + B(2s)} 3. if (s = 1) then set S: = B(1) end Running time analysis: • Step 1: takes O(n/p) each processor executes n/p operations •The hth of step 2 takes O(n / (2hp)) since each processor has to perform (n / (2hp))  operations • Step three takes O(1) •Total Running time: Tp(n)= O ( n p +∑ h= 1 logn ⌈ n 2 h p ⌉ )= O( n p +logn)

Example: Sum Algorithm on P Processor PRAM Operation represented by a node is executed by the processor indicated below the node. B(6) =A(6) P3 B(5) =A(5) P3 P3 B(3) B(8) =A(8) P4 B(7) =A(7) P4 P4 B(4) B(2) =A(2) P1 B(1) =A(1) P1 P1 B(1) B(4) =A(4) P2 B(3) =A(3) P2 P2 B(2) B(2) P2 B(1) P1 B(1) P1 S= B(1) P1 For n = 8 p = 4 Processor allocation for computing the sum of 8 elements on 4 processor PRAM 5 4 3 2 1 Time Unit

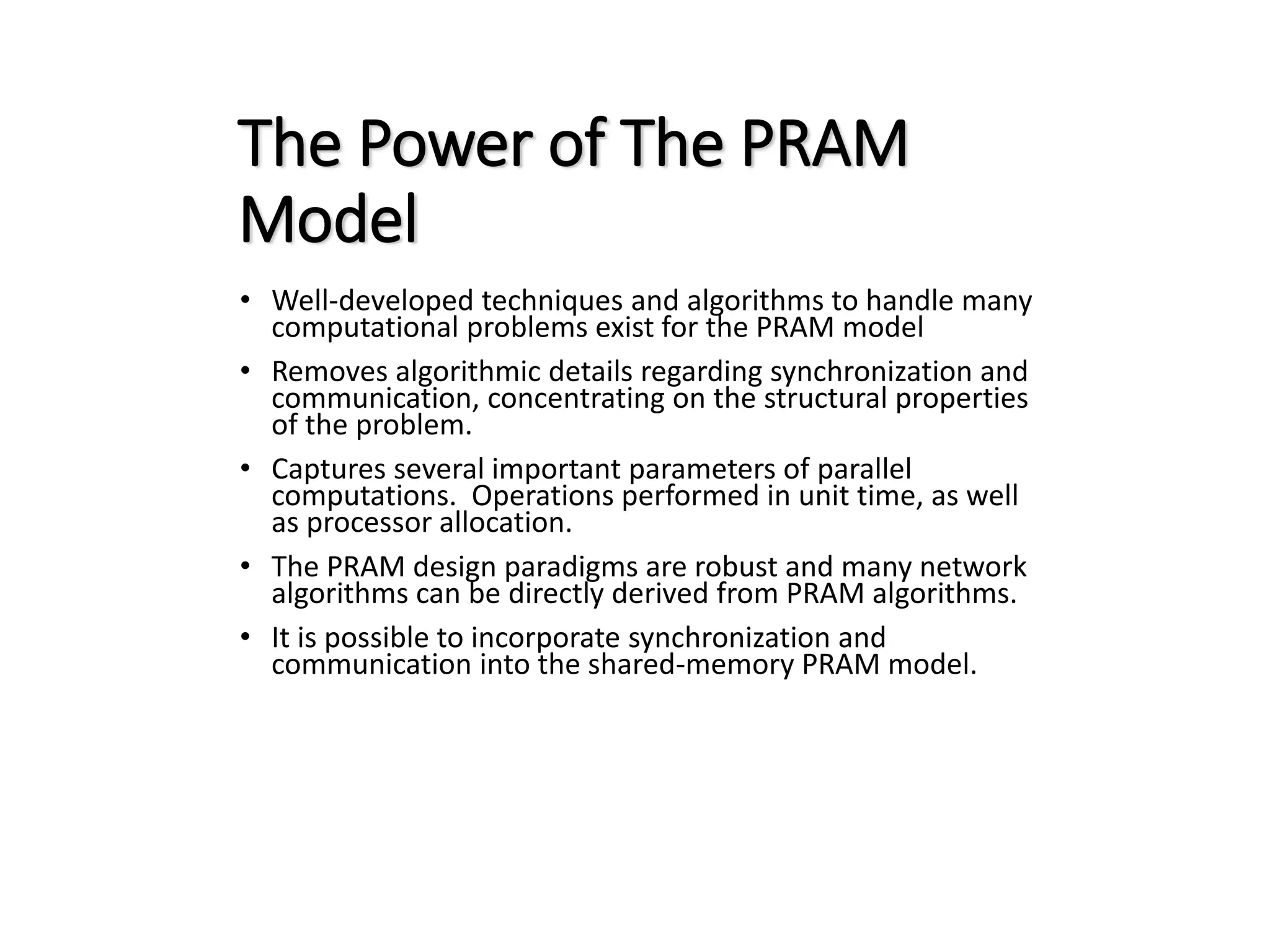

The Power of The PRAM Model • Well-developed techniques and algorithms to handle many computational problems exist for the PRAM model • Removes algorithmic details regarding synchronization and communication, concentrating on the structural properties of the problem. • Captures several important parameters of parallel computations. Operations performed in unit time, as well as processor allocation. • The PRAM design paradigms are robust and many network algorithms can be directly derived from PRAM algorithms. • It is possible to incorporate synchronization and communication into the shared-memory PRAM model.

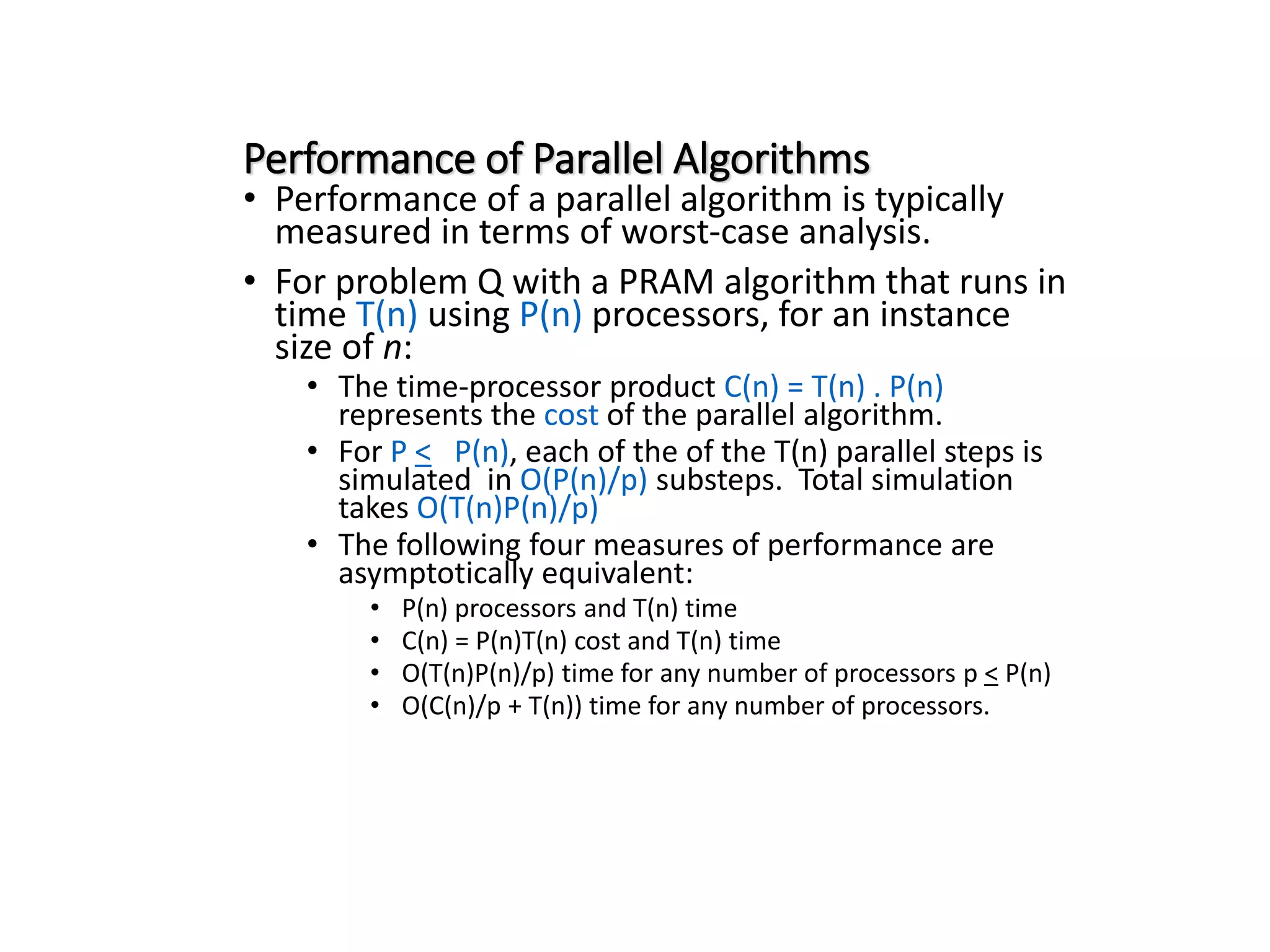

Performance of Parallel Algorithms • Performance of a parallel algorithm is typically measured in terms of worst-case analysis. • For problem Q with a PRAM algorithm that runs in time T(n) using P(n) processors, for an instance size of n: • The time-processor product C(n) = T(n) . P(n) represents the cost of the parallel algorithm. • For P < P(n), each of the of the T(n) parallel steps is simulated in O(P(n)/p) substeps. Total simulation takes O(T(n)P(n)/p) • The following four measures of performance are asymptotically equivalent: • P(n) processors and T(n) time • C(n) = P(n)T(n) cost and T(n) time • O(T(n)P(n)/p) time for any number of processors p < P(n) • O(C(n)/p + T(n)) time for any number of processors.

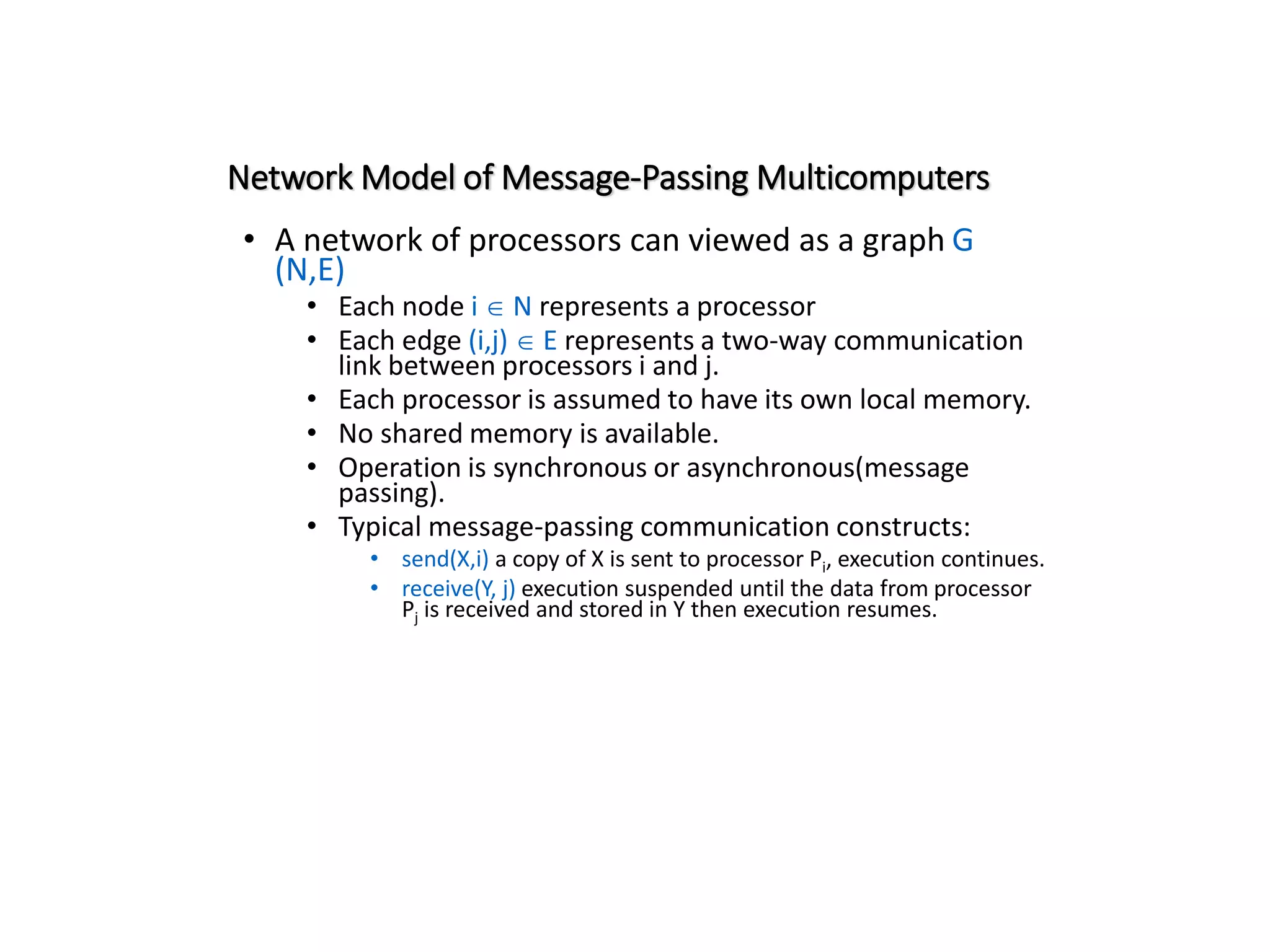

Network Model of Message-Passing Multicomputers • A network of processors can viewed as a graph G (N,E) • Each node i  N represents a processor • Each edge (i,j)  E represents a two-way communication link between processors i and j. • Each processor is assumed to have its own local memory. • No shared memory is available. • Operation is synchronous or asynchronous(message passing). • Typical message-passing communication constructs: • send(X,i) a copy of X is sent to processor Pi, execution continues. • receive(Y, j) execution suspended until the data from processor Pj is received and stored in Y then execution resumes.

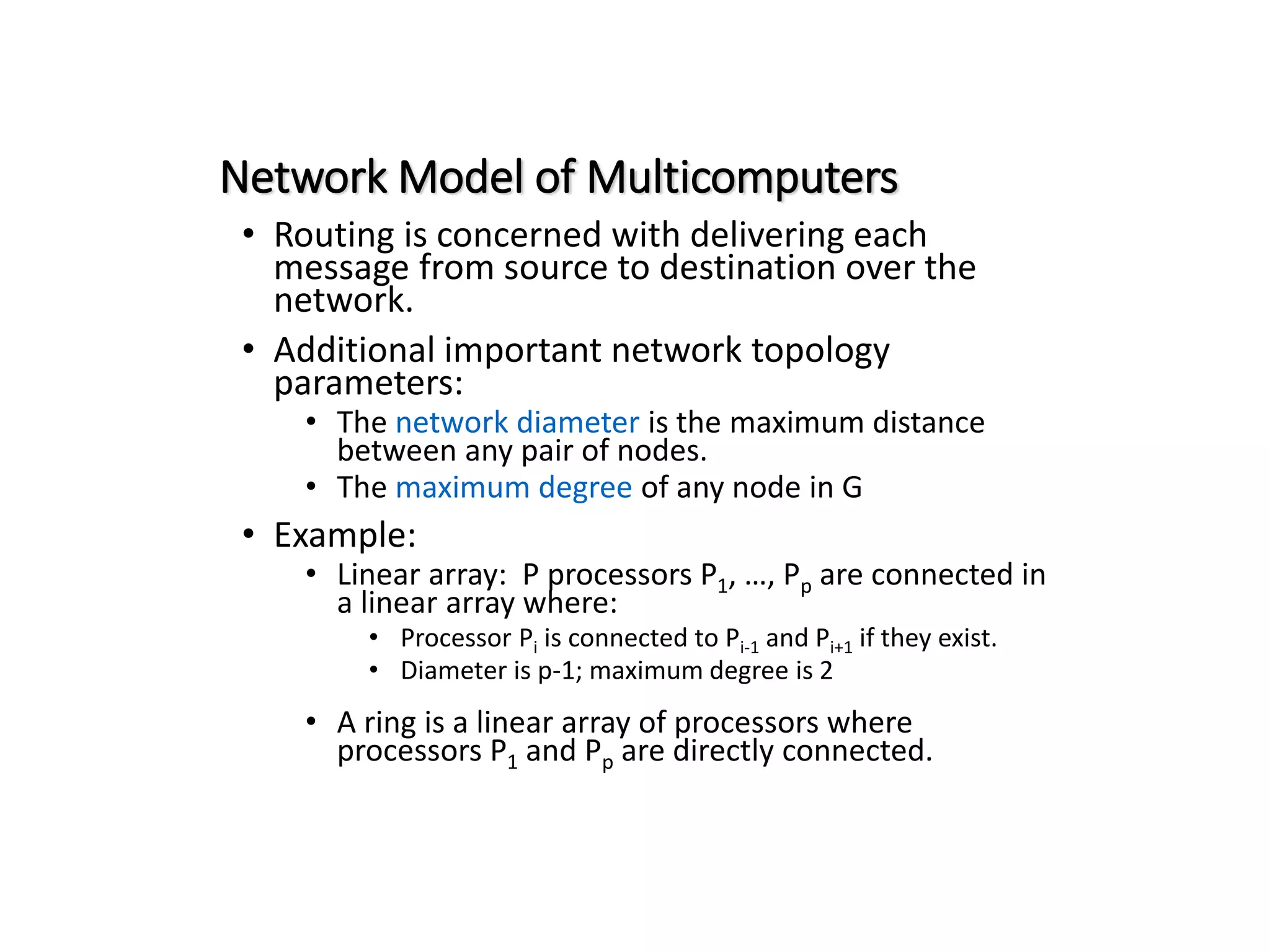

Network Model of Multicomputers • Routing is concerned with delivering each message from source to destination over the network. • Additional important network topology parameters: • The network diameter is the maximum distance between any pair of nodes. • The maximum degree of any node in G • Example: • Linear array: P processors P1, …, Pp are connected in a linear array where: • Processor Pi is connected to Pi-1 and Pi+1 if they exist. • Diameter is p-1; maximum degree is 2 • A ring is a linear array of processors where processors P1 and Pp are directly connected.

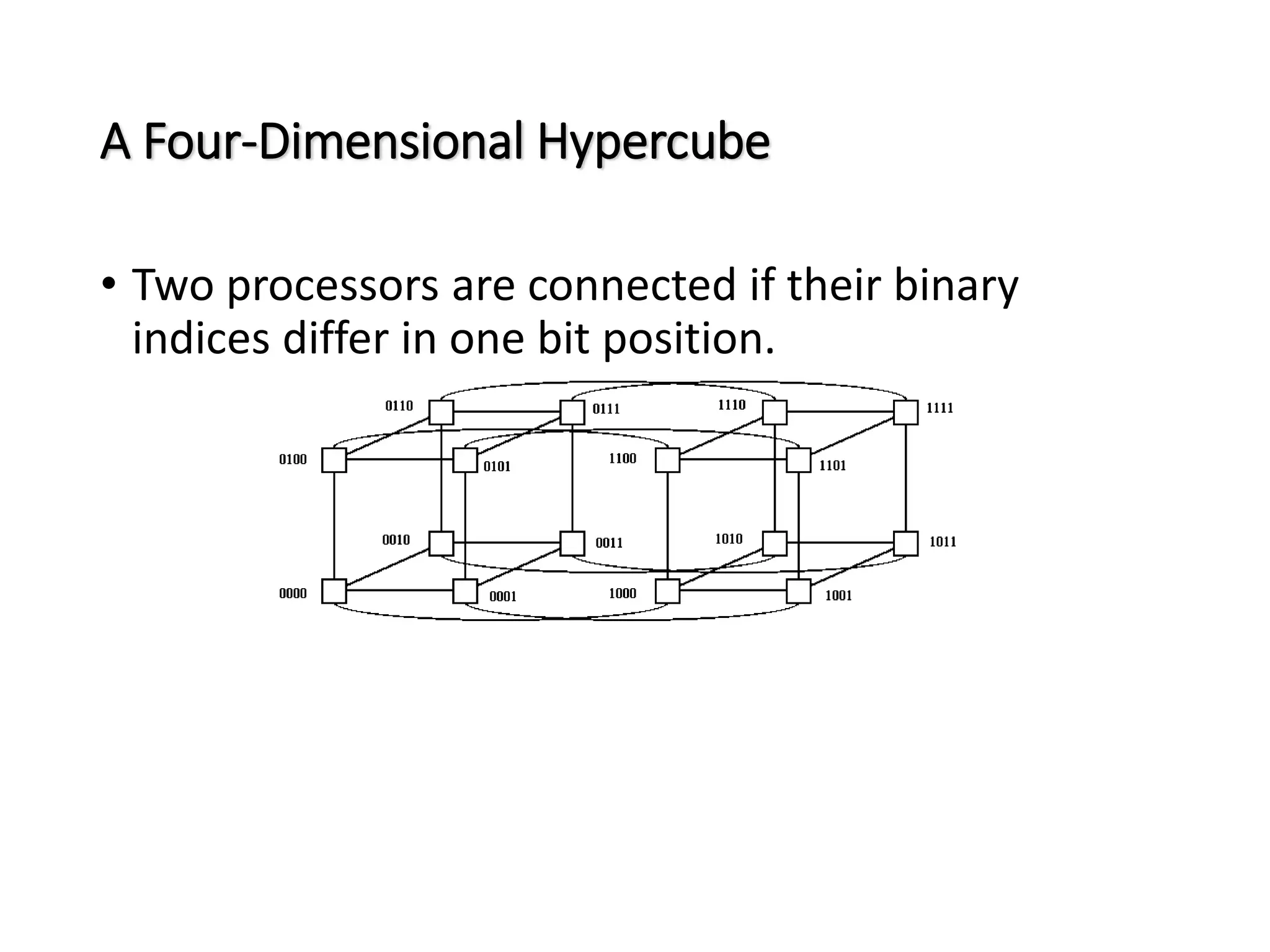

A Four-Dimensional Hypercube • Two processors are connected if their binary indices differ in one bit position.

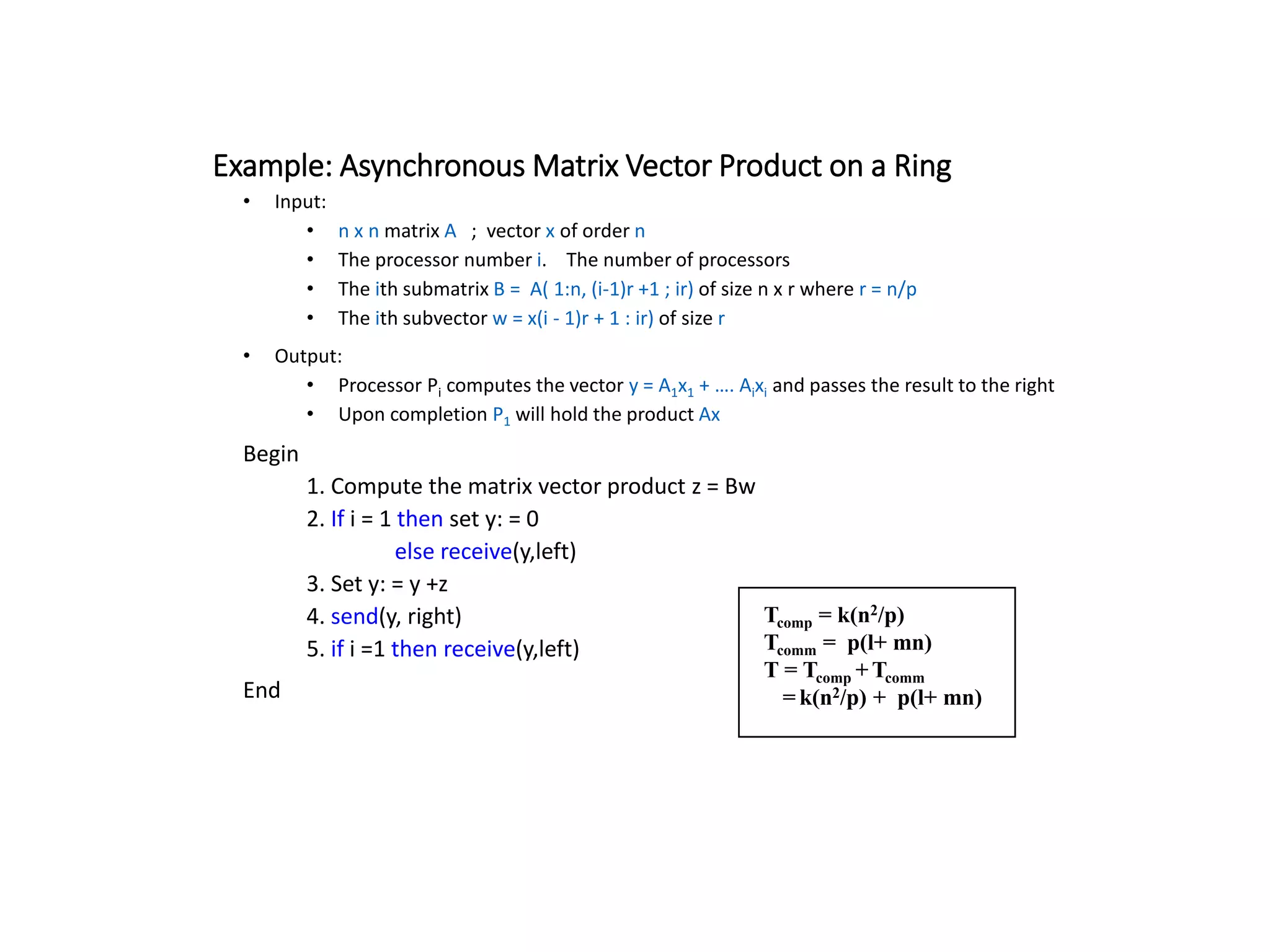

Example: Asynchronous Matrix Vector Product on a Ring • Input: • n x n matrix A ; vector x of order n • The processor number i. The number of processors • The ith submatrix B = A( 1:n, (i-1)r +1 ; ir) of size n x r where r = n/p • The ith subvector w = x(i - 1)r + 1 : ir) of size r • Output: • Processor Pi computes the vector y = A1x1 + …. Aixi and passes the result to the right • Upon completion P1 will hold the product Ax Begin 1. Compute the matrix vector product z = Bw 2. If i = 1 then set y: = 0 else receive(y,left) 3. Set y: = y +z 4. send(y, right) 5. if i =1 then receive(y,left) End Tcomp = k(n2/p) Tcomm = p(l+ mn) T = Tcomp + Tcomm = k(n2/p) + p(l+ mn)

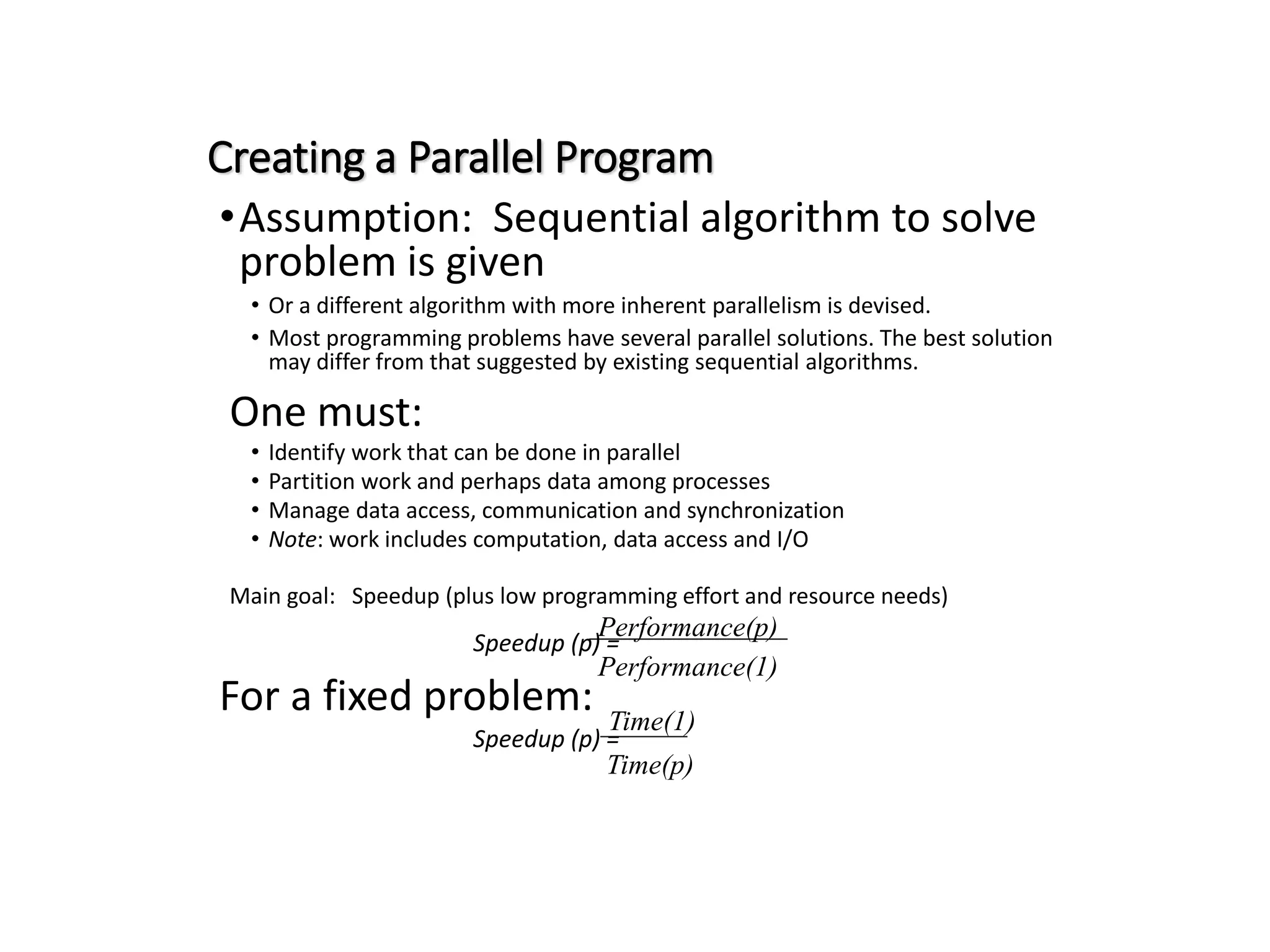

Creating a Parallel Program •Assumption: Sequential algorithm to solve problem is given • Or a different algorithm with more inherent parallelism is devised. • Most programming problems have several parallel solutions. The best solution may differ from that suggested by existing sequential algorithms. One must: • Identify work that can be done in parallel • Partition work and perhaps data among processes • Manage data access, communication and synchronization • Note: work includes computation, data access and I/O Main goal: Speedup (plus low programming effort and resource needs) Speedup (p) = For a fixed problem: Speedup (p) = Performance(p) Performance(1) Time(1) Time(p)

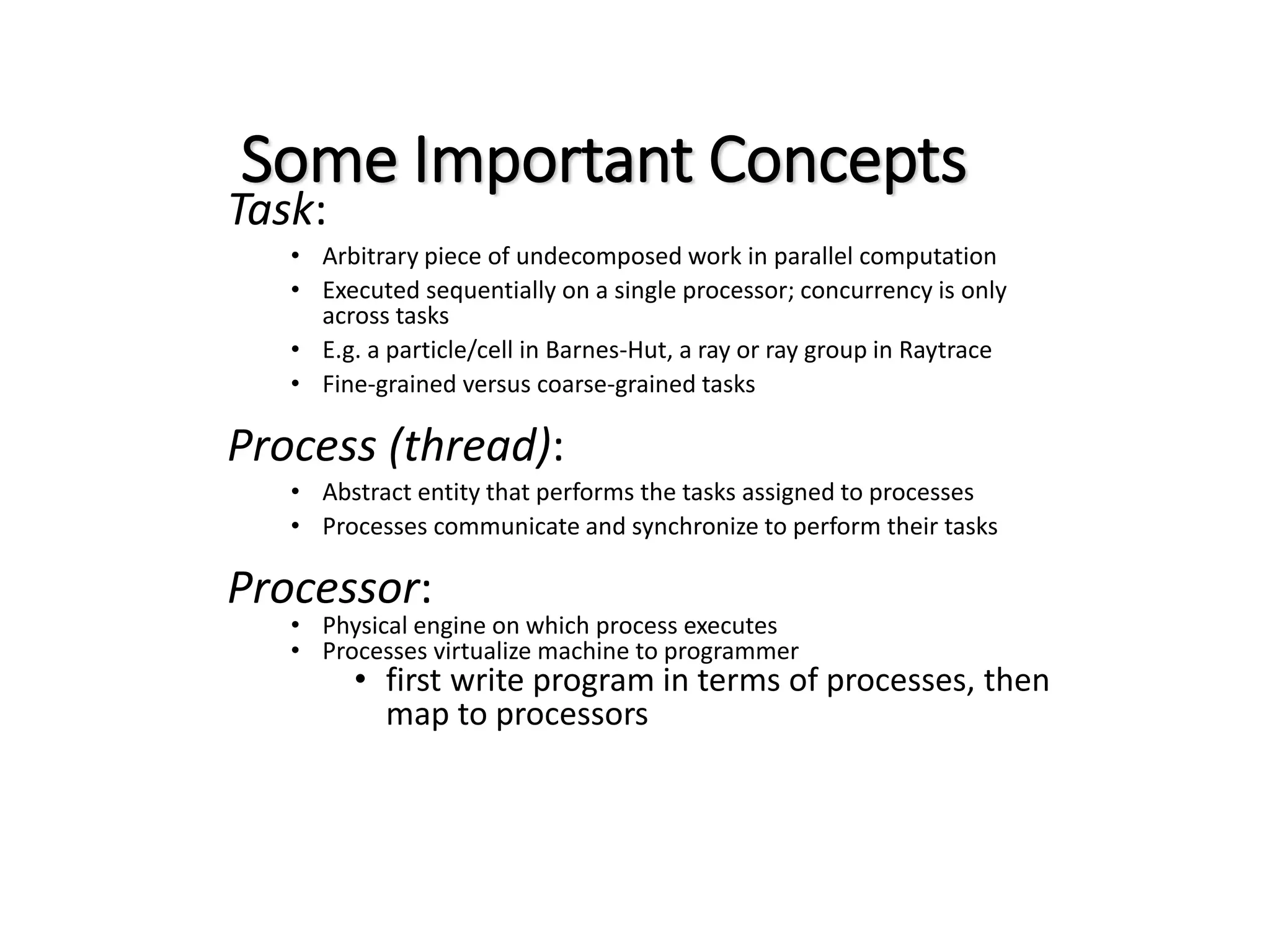

Some Important Concepts Task: • Arbitrary piece of undecomposed work in parallel computation • Executed sequentially on a single processor; concurrency is only across tasks • E.g. a particle/cell in Barnes-Hut, a ray or ray group in Raytrace • Fine-grained versus coarse-grained tasks Process (thread): • Abstract entity that performs the tasks assigned to processes • Processes communicate and synchronize to perform their tasks Processor: • Physical engine on which process executes • Processes virtualize machine to programmer • first write program in terms of processes, then map to processors

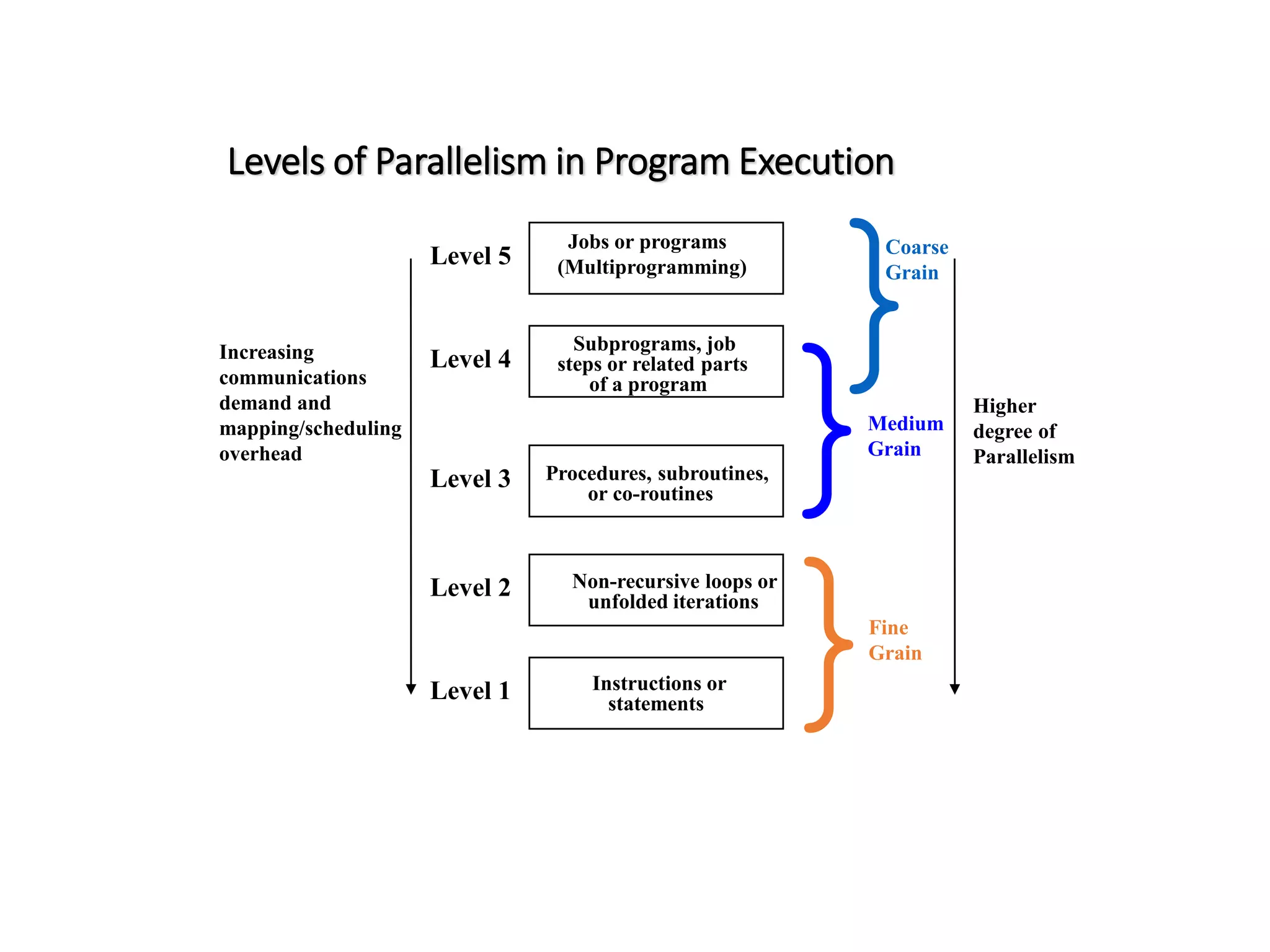

Levels of Parallelism in Program Execution Jobs or programs (Multiprogramming) Level 5 Subprograms, job steps or related parts of a program Level 4 Procedures, subroutines, or co-routines Level 3 Non-recursive loops or unfolded iterations Level 2 Instructions or statements Level 1 Increasing communications demand and mapping/scheduling overhead } } } Higher degree of Parallelism Medium Grain Coarse Grain Fine Grain

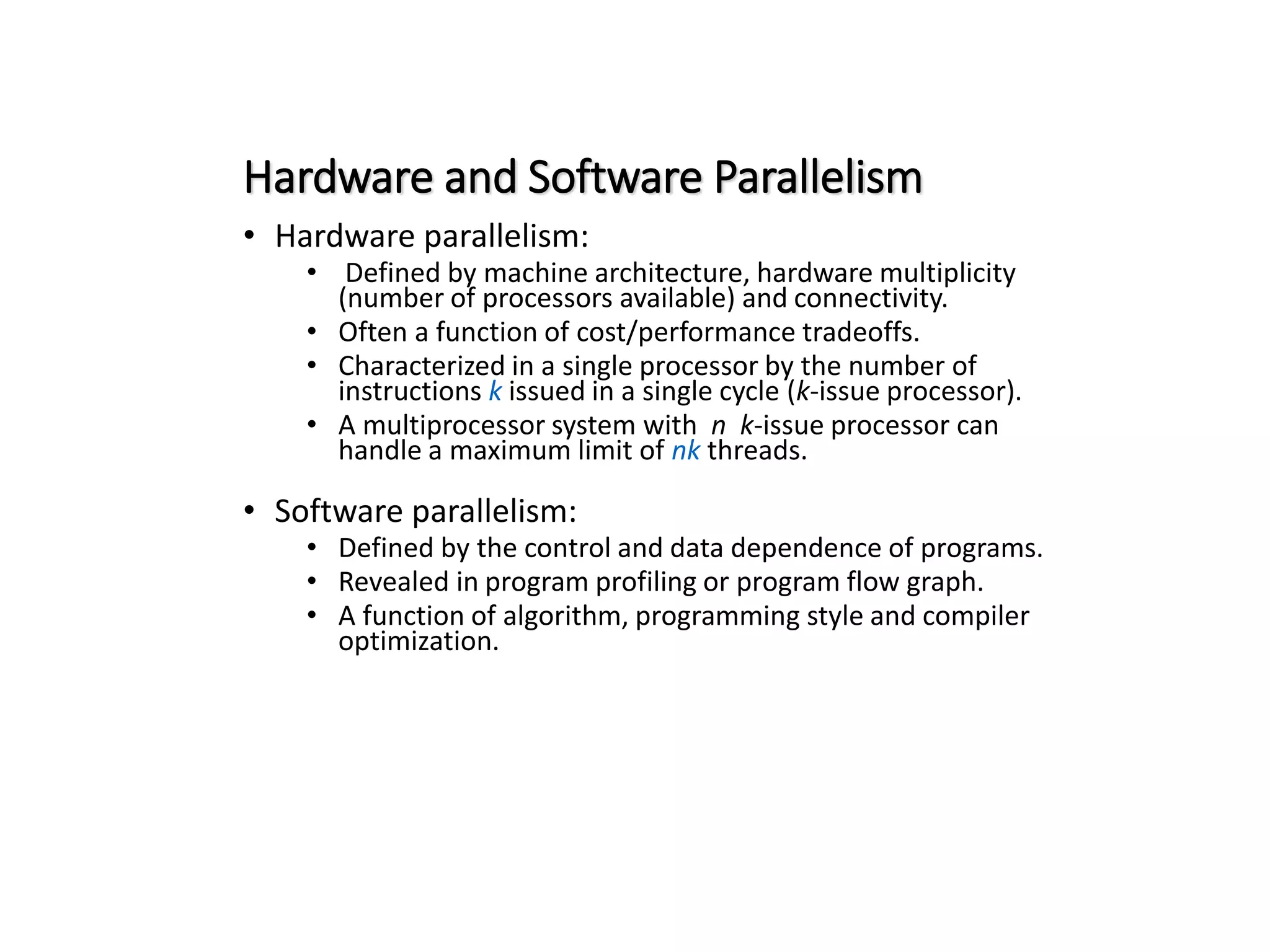

Hardware and Software Parallelism • Hardware parallelism: • Defined by machine architecture, hardware multiplicity (number of processors available) and connectivity. • Often a function of cost/performance tradeoffs. • Characterized in a single processor by the number of instructions k issued in a single cycle (k-issue processor). • A multiprocessor system with n k-issue processor can handle a maximum limit of nk threads. • Software parallelism: • Defined by the control and data dependence of programs. • Revealed in program profiling or program flow graph. • A function of algorithm, programming style and compiler optimization.

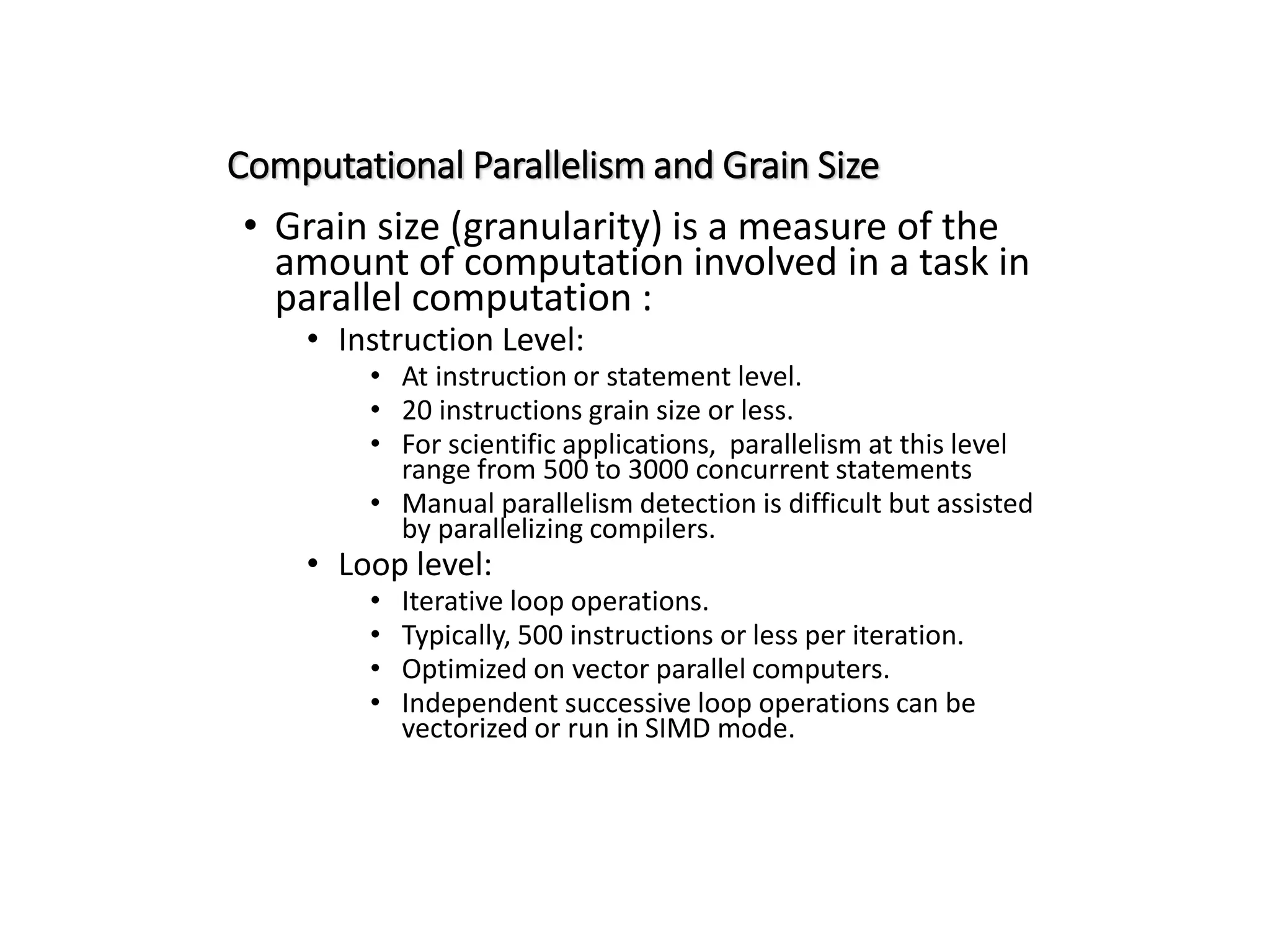

Computational Parallelism and Grain Size • Grain size (granularity) is a measure of the amount of computation involved in a task in parallel computation : • Instruction Level: • At instruction or statement level. • 20 instructions grain size or less. • For scientific applications, parallelism at this level range from 500 to 3000 concurrent statements • Manual parallelism detection is difficult but assisted by parallelizing compilers. • Loop level: • Iterative loop operations. • Typically, 500 instructions or less per iteration. • Optimized on vector parallel computers. • Independent successive loop operations can be vectorized or run in SIMD mode.

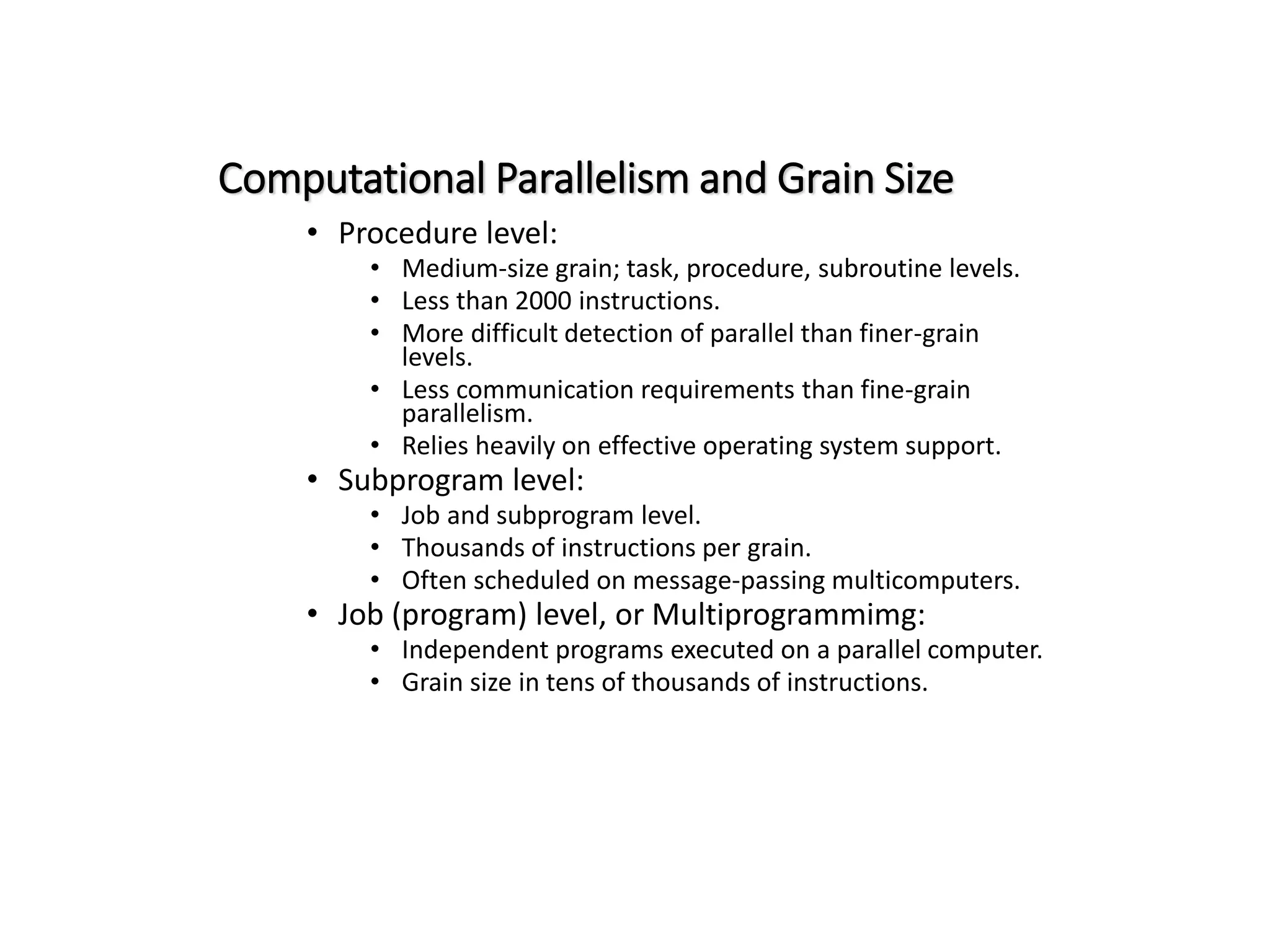

Computational Parallelism and Grain Size • Procedure level: • Medium-size grain; task, procedure, subroutine levels. • Less than 2000 instructions. • More difficult detection of parallel than finer-grain levels. • Less communication requirements than fine-grain parallelism. • Relies heavily on effective operating system support. • Subprogram level: • Job and subprogram level. • Thousands of instructions per grain. • Often scheduled on message-passing multicomputers. • Job (program) level, or Multiprogrammimg: • Independent programs executed on a parallel computer. • Grain size in tens of thousands of instructions.

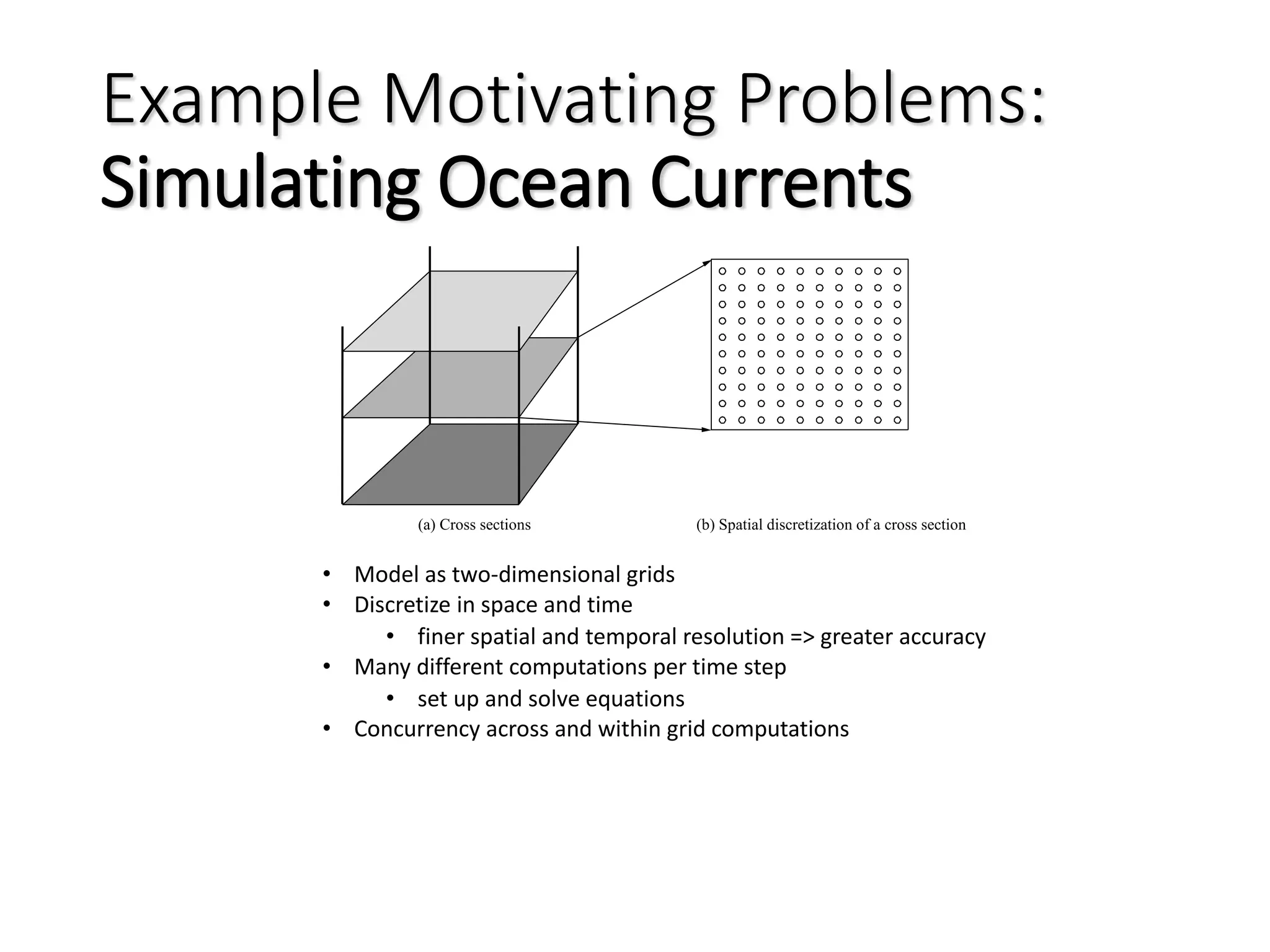

Example Motivating Problems: Simulating Ocean Currents • Model as two-dimensional grids • Discretize in space and time • finer spatial and temporal resolution => greater accuracy • Many different computations per time step • set up and solve equations • Concurrency across and within grid computations (a) Cross sections (b) Spatial discretization of a cross section

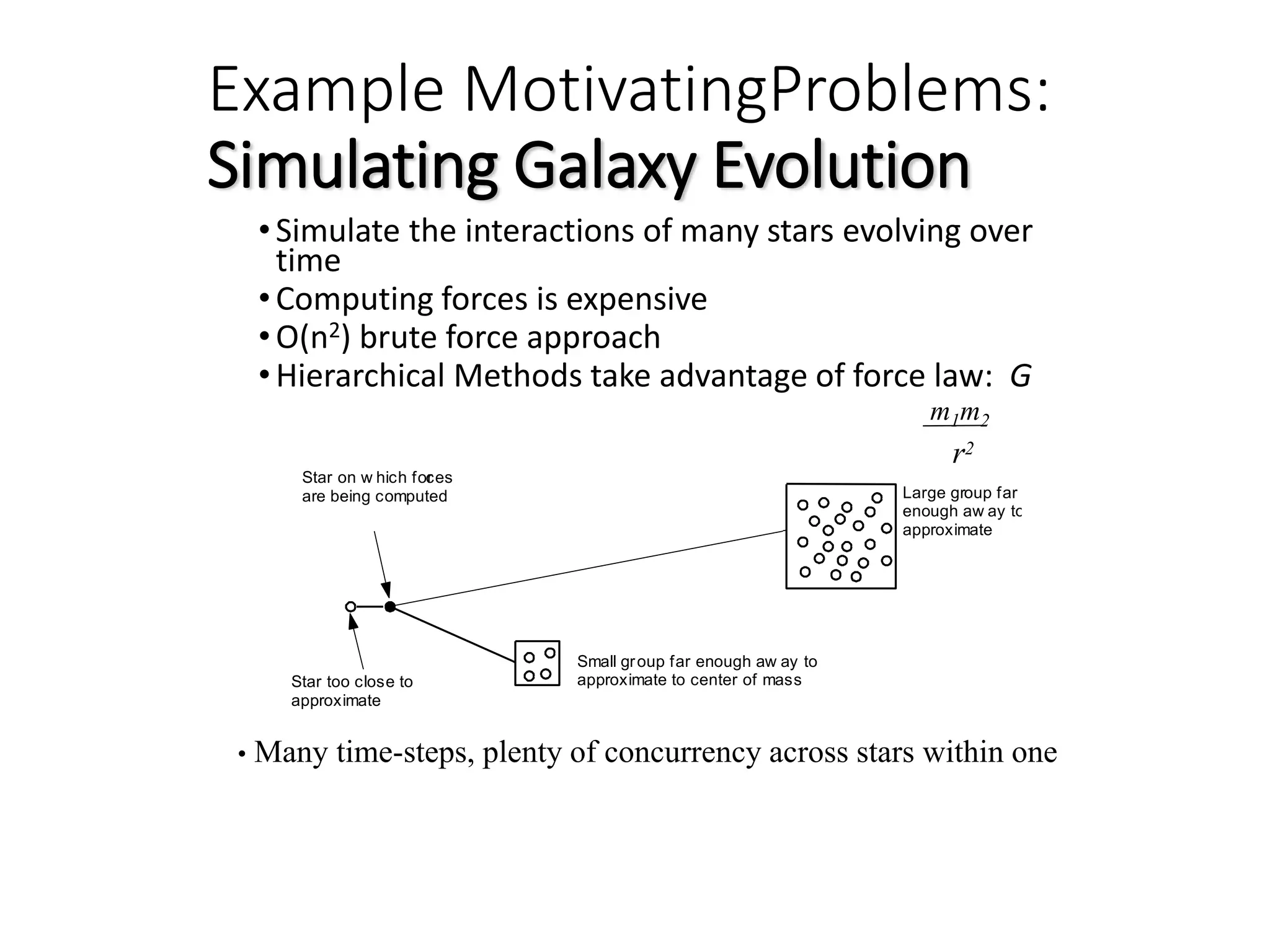

Example MotivatingProblems: Simulating Galaxy Evolution •Simulate the interactions of many stars evolving over time •Computing forces is expensive •O(n2) brute force approach •Hierarchical Methods take advantage of force law: G m1m2 r2 • Many time-steps, plenty of concurrency across stars within one Star on w hich for ces are being computed Star too close to approximate Small group far enough aw ay to approximate to center of mass Large group far enough aw ay to approximate

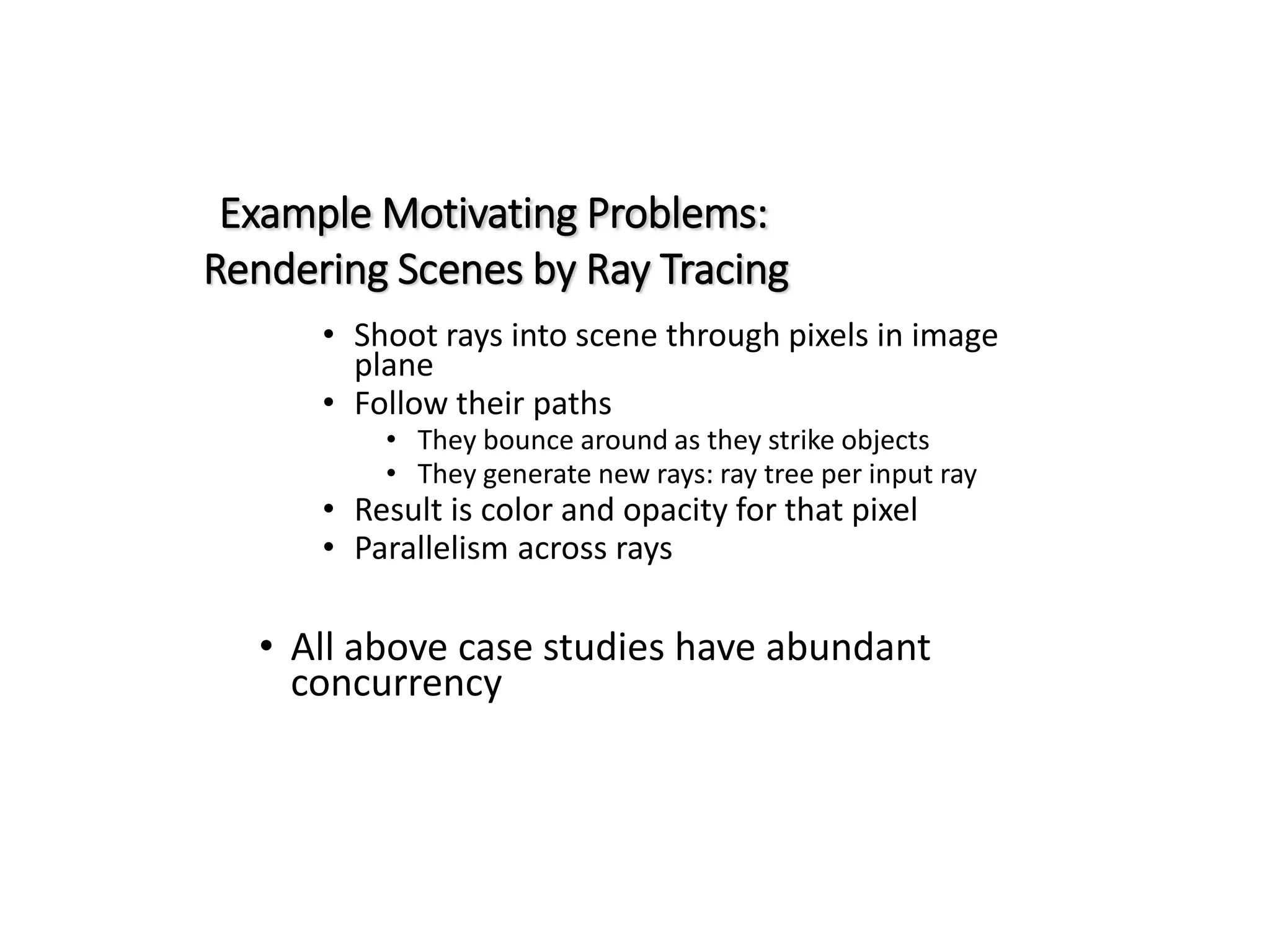

Example Motivating Problems: Rendering Scenes by Ray Tracing • Shoot rays into scene through pixels in image plane • Follow their paths • They bounce around as they strike objects • They generate new rays: ray tree per input ray • Result is color and opacity for that pixel • Parallelism across rays • All above case studies have abundant concurrency

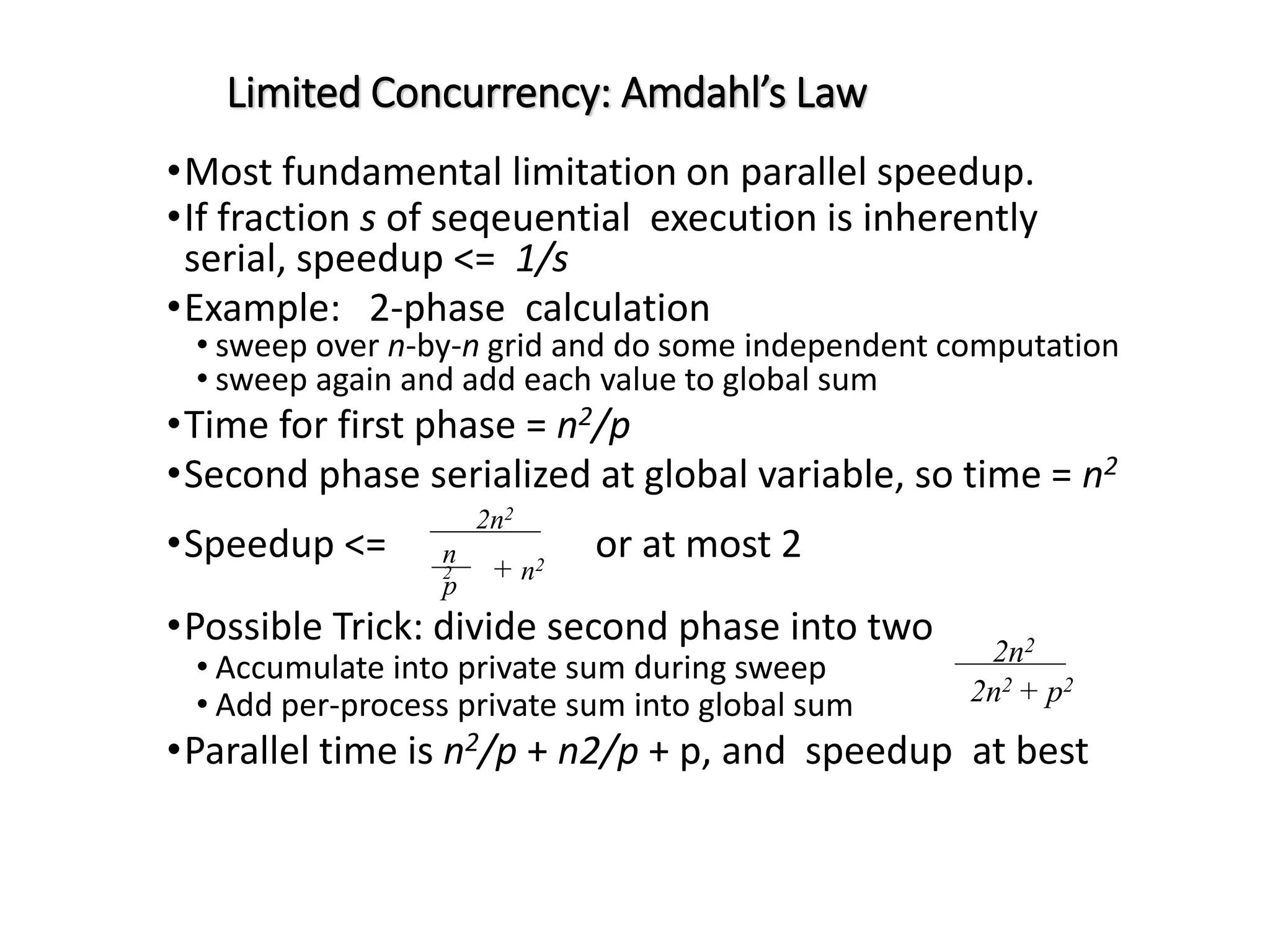

Limited Concurrency: Amdahl’s Law •Most fundamental limitation on parallel speedup. •If fraction s of seqeuential execution is inherently serial, speedup <= 1/s •Example: 2-phase calculation • sweep over n-by-n grid and do some independent computation • sweep again and add each value to global sum •Time for first phase = n2/p •Second phase serialized at global variable, so time = n2 •Speedup <= or at most 2 •Possible Trick: divide second phase into two • Accumulate into private sum during sweep • Add per-process private sum into global sum •Parallel time is n2/p + n2/p + p, and speedup at best 2n2 n 2 p + n2 2n2 2n2 + p2

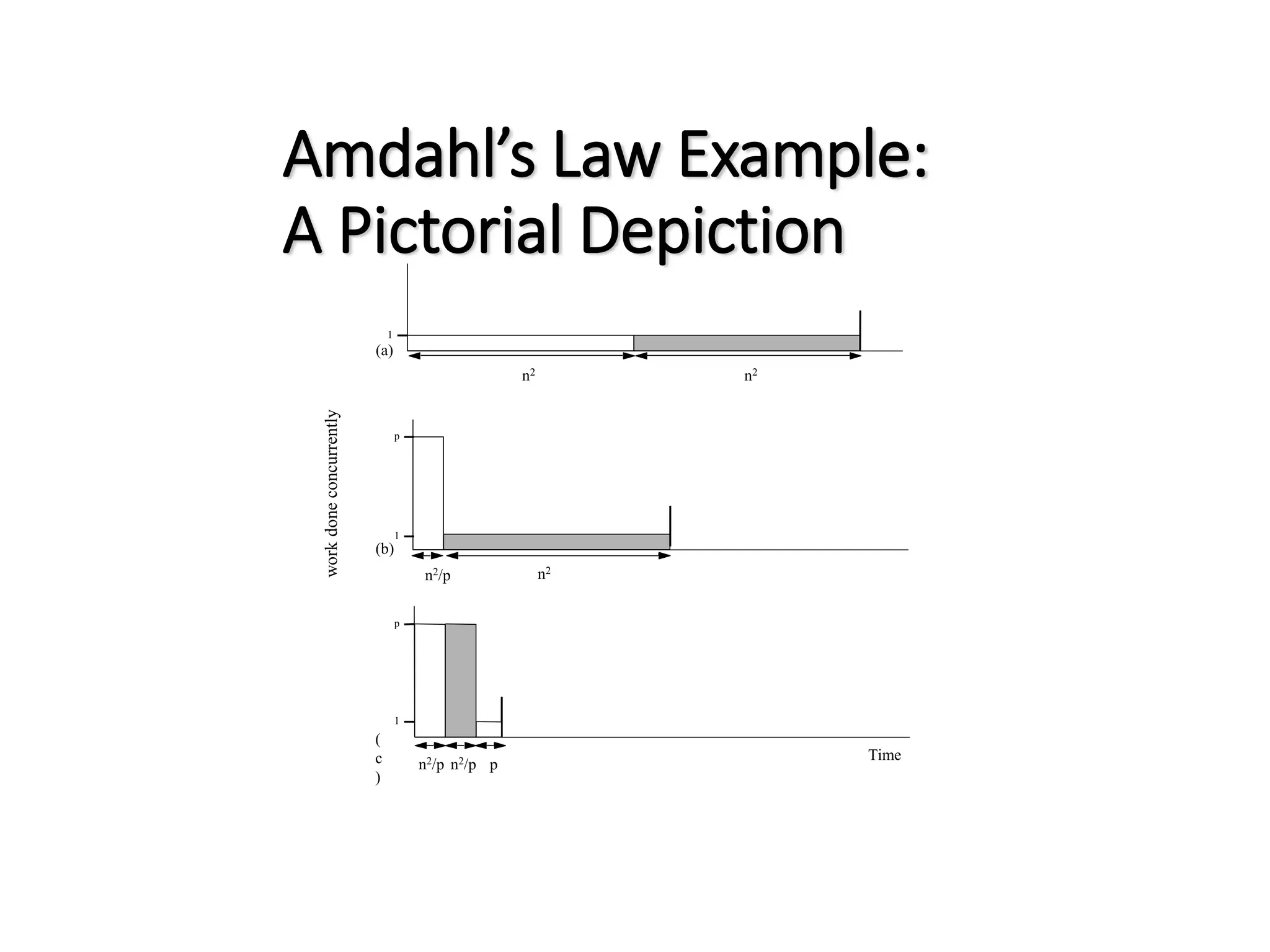

Amdahl’s Law Example: A Pictorial Depiction 1 p 1 p 1 n2/p n2 p work done concurrently n2 n2 Time n2/p n2/p ( c ) (b) (a)

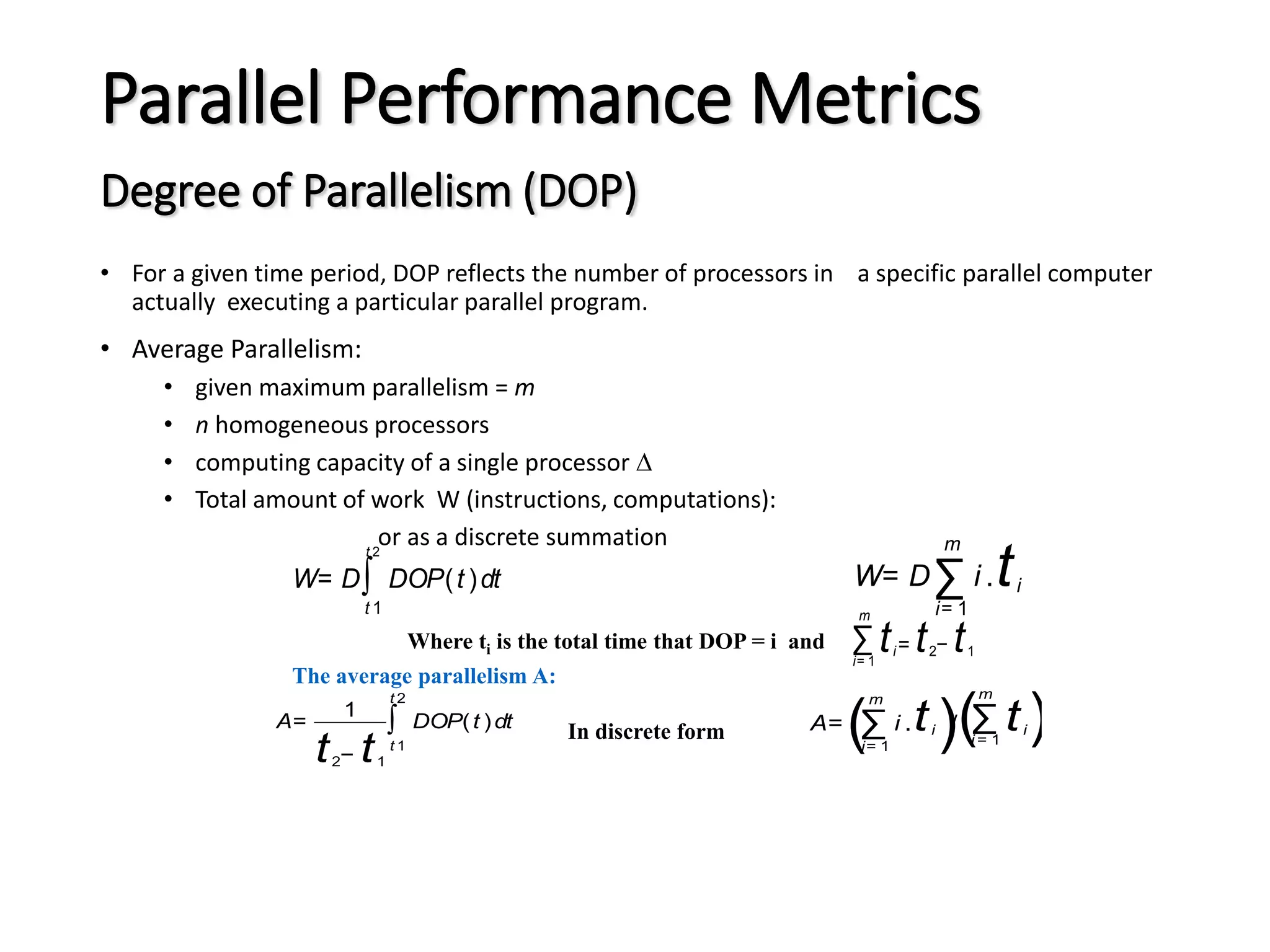

Parallel Performance Metrics Degree of Parallelism (DOP) • For a given time period, DOP reflects the number of processors in a specific parallel computer actually executing a particular parallel program. • Average Parallelism: • given maximum parallelism = m • n homogeneous processors • computing capacity of a single processor  • Total amount of work W (instructions, computations): or as a discrete summation W= D∑ i= 1 m i .ti W= D∫ t 1 t 2 DOP(t )dt A= 1 t2− t1 ∫ t 1 t 2 DOP(t )dt A= (∑ i= 1 m i .ti )/(∑ i = 1 m ti) ∑ i= 1 m ti= t2− t1 Where ti is the total time that DOP = i and The average parallelism A: In discrete form

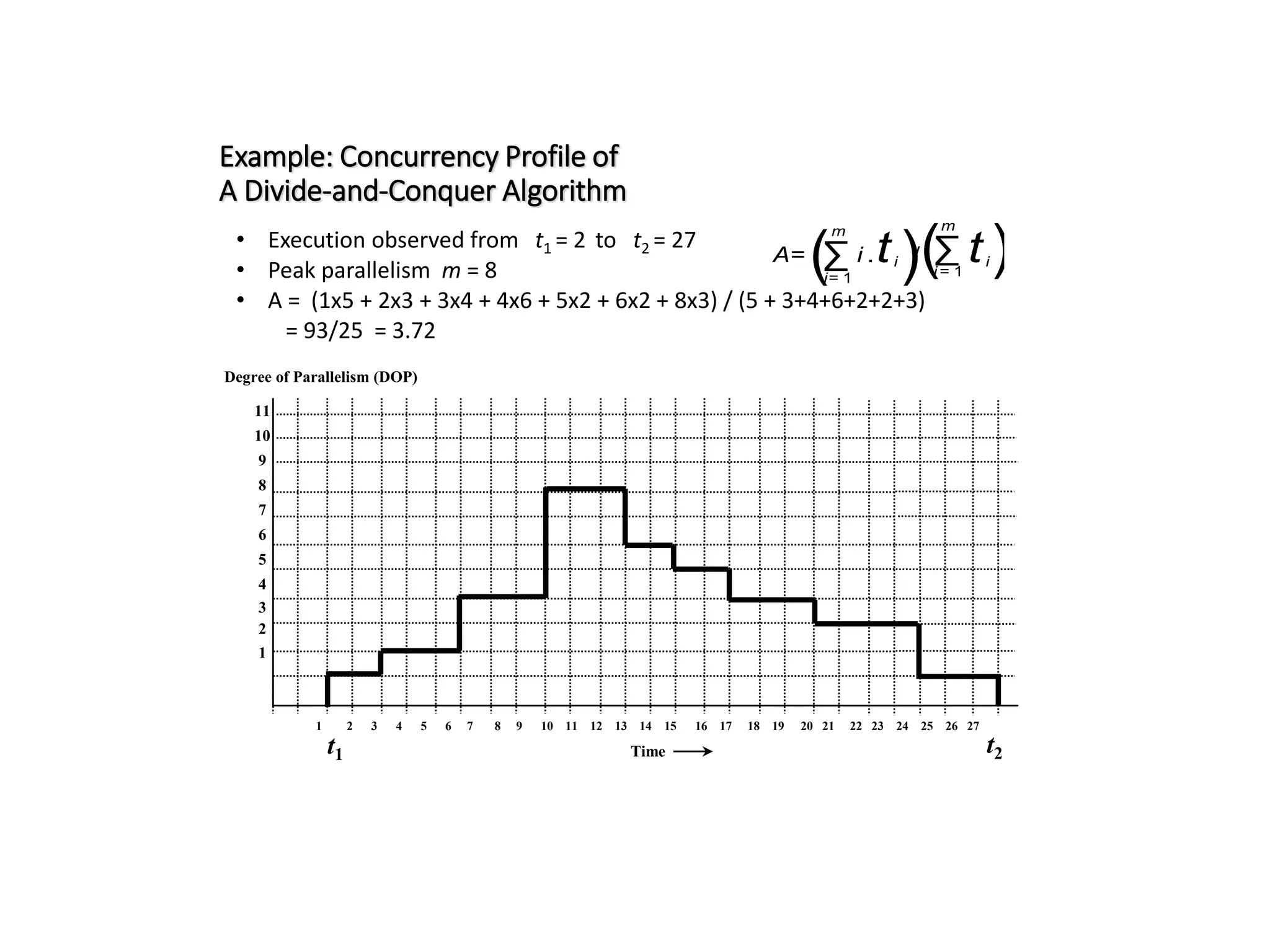

Example: Concurrency Profile of A Divide-and-Conquer Algorithm • Execution observed from t1 = 2 to t2 = 27 • Peak parallelism m = 8 • A = (1x5 + 2x3 + 3x4 + 4x6 + 5x2 + 6x2 + 8x3) / (5 + 3+4+6+2+2+3) = 93/25 = 3.72 Degree of Parallelism (DOP) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 11 10 9 8 7 6 5 4 3 2 1 Time t1 t2 A= (∑ i= 1 m i .ti )/(∑ i = 1 m ti)

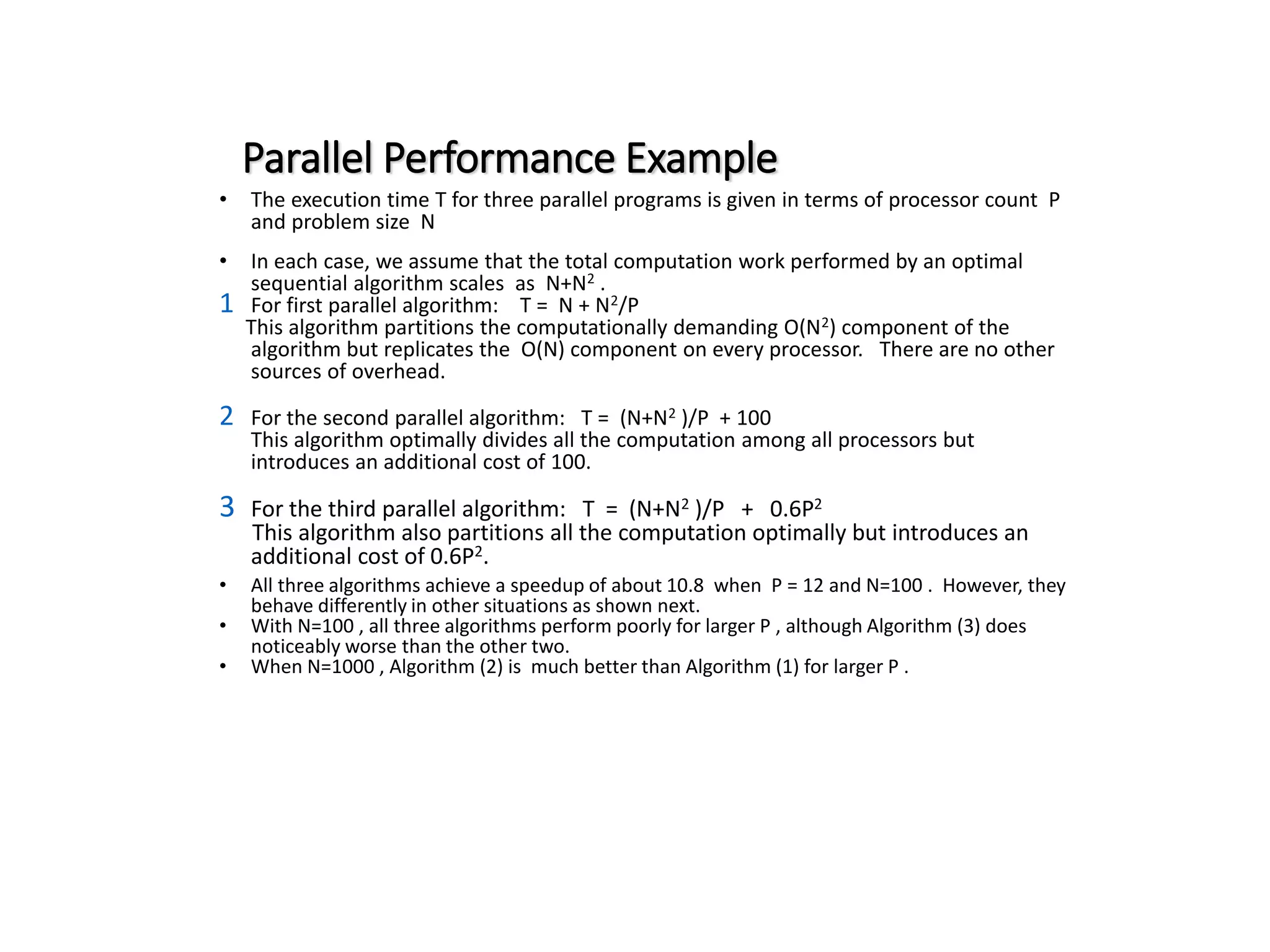

Parallel Performance Example • The execution time T for three parallel programs is given in terms of processor count P and problem size N • In each case, we assume that the total computation work performed by an optimal sequential algorithm scales as N+N2 . 1 For first parallel algorithm: T = N + N2/P This algorithm partitions the computationally demanding O(N2) component of the algorithm but replicates the O(N) component on every processor. There are no other sources of overhead. 2 For the second parallel algorithm: T = (N+N2 )/P + 100 This algorithm optimally divides all the computation among all processors but introduces an additional cost of 100. 3 For the third parallel algorithm: T = (N+N2 )/P + 0.6P2 This algorithm also partitions all the computation optimally but introduces an additional cost of 0.6P2. • All three algorithms achieve a speedup of about 10.8 when P = 12 and N=100 . However, they behave differently in other situations as shown next. • With N=100 , all three algorithms perform poorly for larger P , although Algorithm (3) does noticeably worse than the other two. • When N=1000 , Algorithm (2) is much better than Algorithm (1) for larger P .

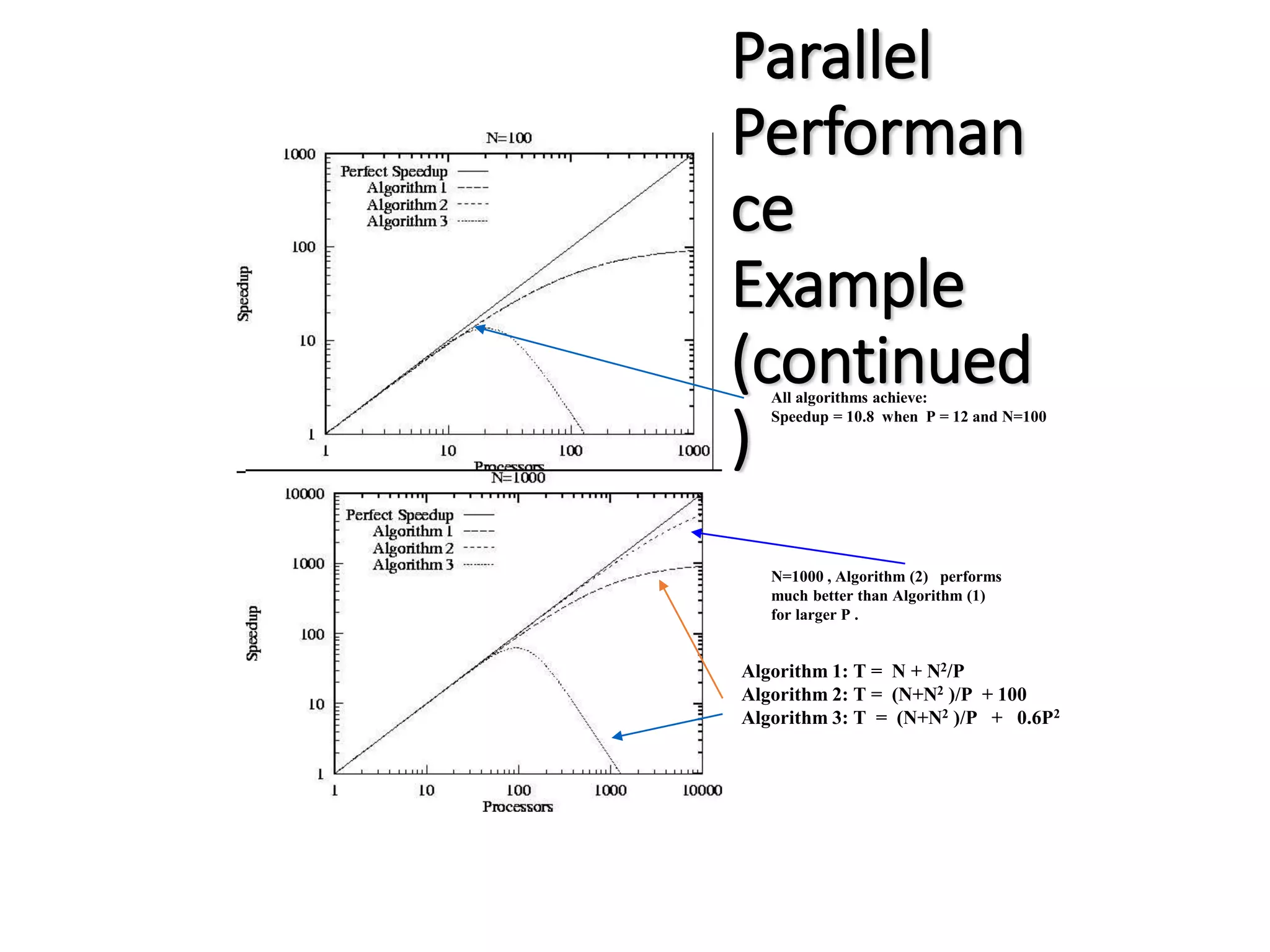

Parallel Performan ce Example (continued ) All algorithms achieve: Speedup = 10.8 when P = 12 and N=100 N=1000 , Algorithm (2) performs much better than Algorithm (1) for larger P . Algorithm 1: T = N + N2/P Algorithm 2: T = (N+N2 )/P + 100 Algorithm 3: T = (N+N2 )/P + 0.6P2

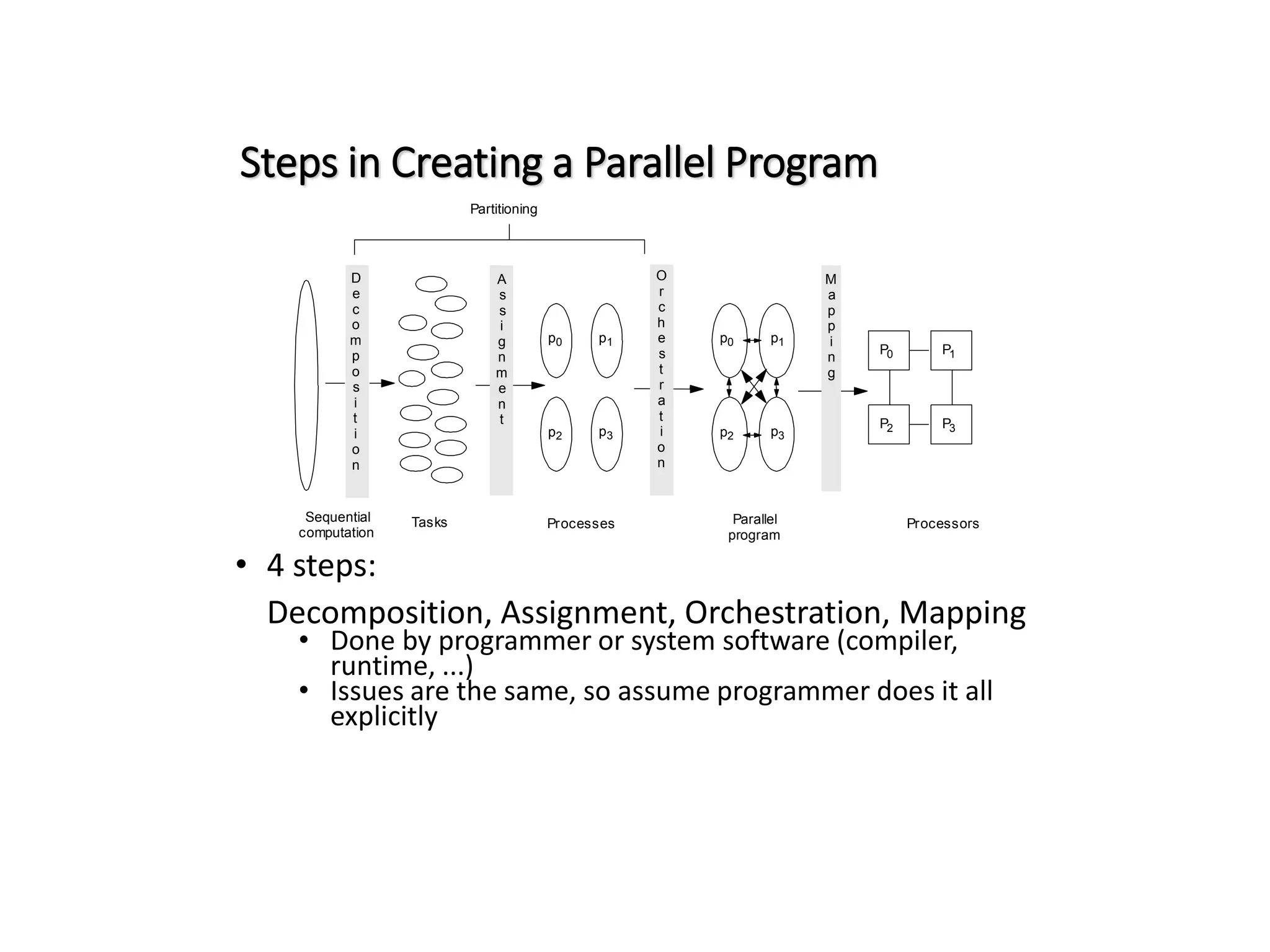

Steps in Creating a Parallel Program • 4 steps: Decomposition, Assignment, Orchestration, Mapping • Done by programmer or system software (compiler, runtime, ...) • Issues are the same, so assume programmer does it all explicitly P0 Tasks Processes Processors P1 P2 P3 p0 p1 p2 p3 p0 p1 p2 p3 Partitioning Sequential computation Parallel program A s s i g n m e n t D e c o m p o s i t i o n M a p p i n g O r c h e s t r a t i o n

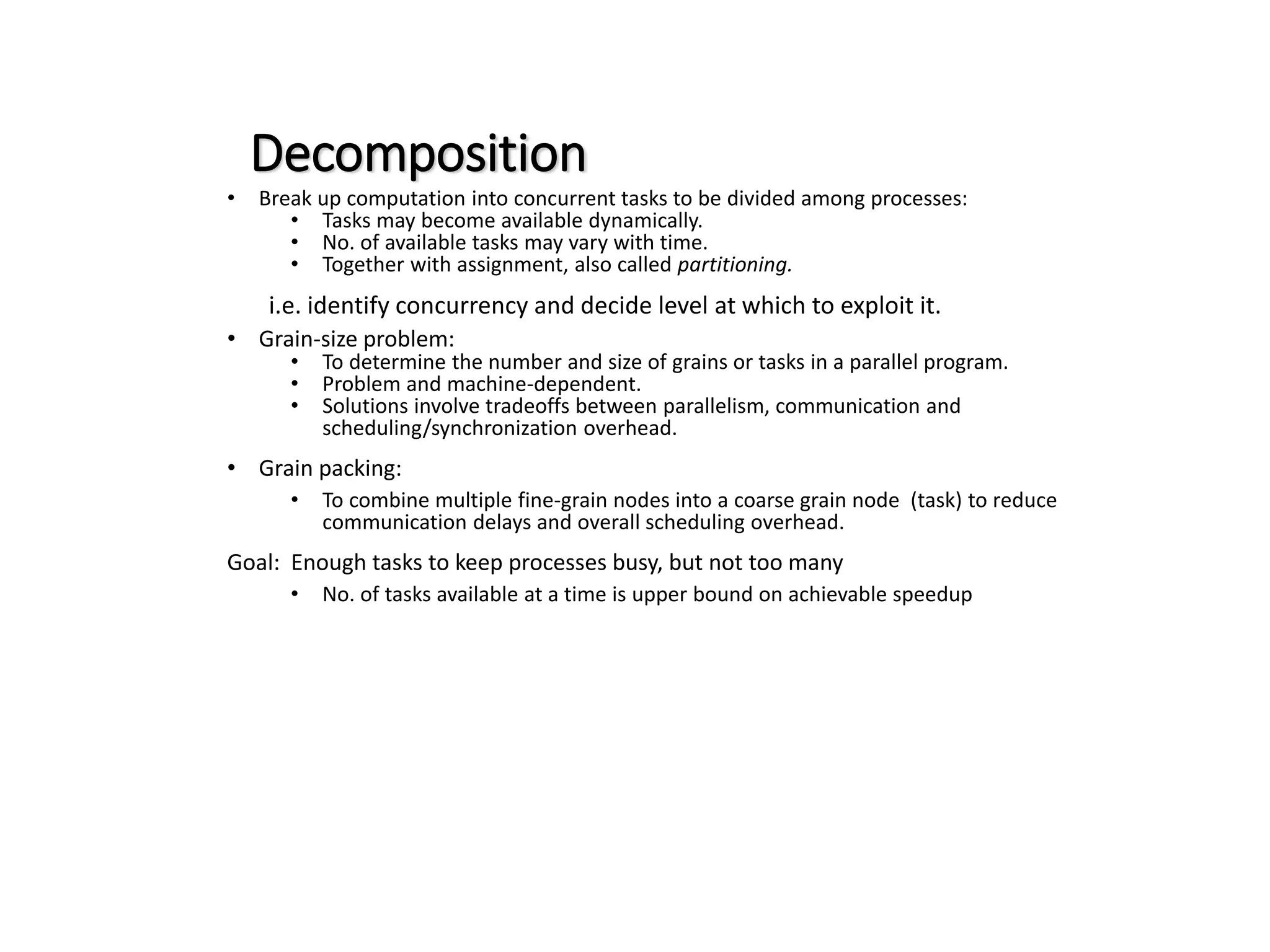

Decomposition • Break up computation into concurrent tasks to be divided among processes: • Tasks may become available dynamically. • No. of available tasks may vary with time. • Together with assignment, also called partitioning. i.e. identify concurrency and decide level at which to exploit it. • Grain-size problem: • To determine the number and size of grains or tasks in a parallel program. • Problem and machine-dependent. • Solutions involve tradeoffs between parallelism, communication and scheduling/synchronization overhead. • Grain packing: • To combine multiple fine-grain nodes into a coarse grain node (task) to reduce communication delays and overall scheduling overhead. Goal: Enough tasks to keep processes busy, but not too many • No. of tasks available at a time is upper bound on achievable speedup

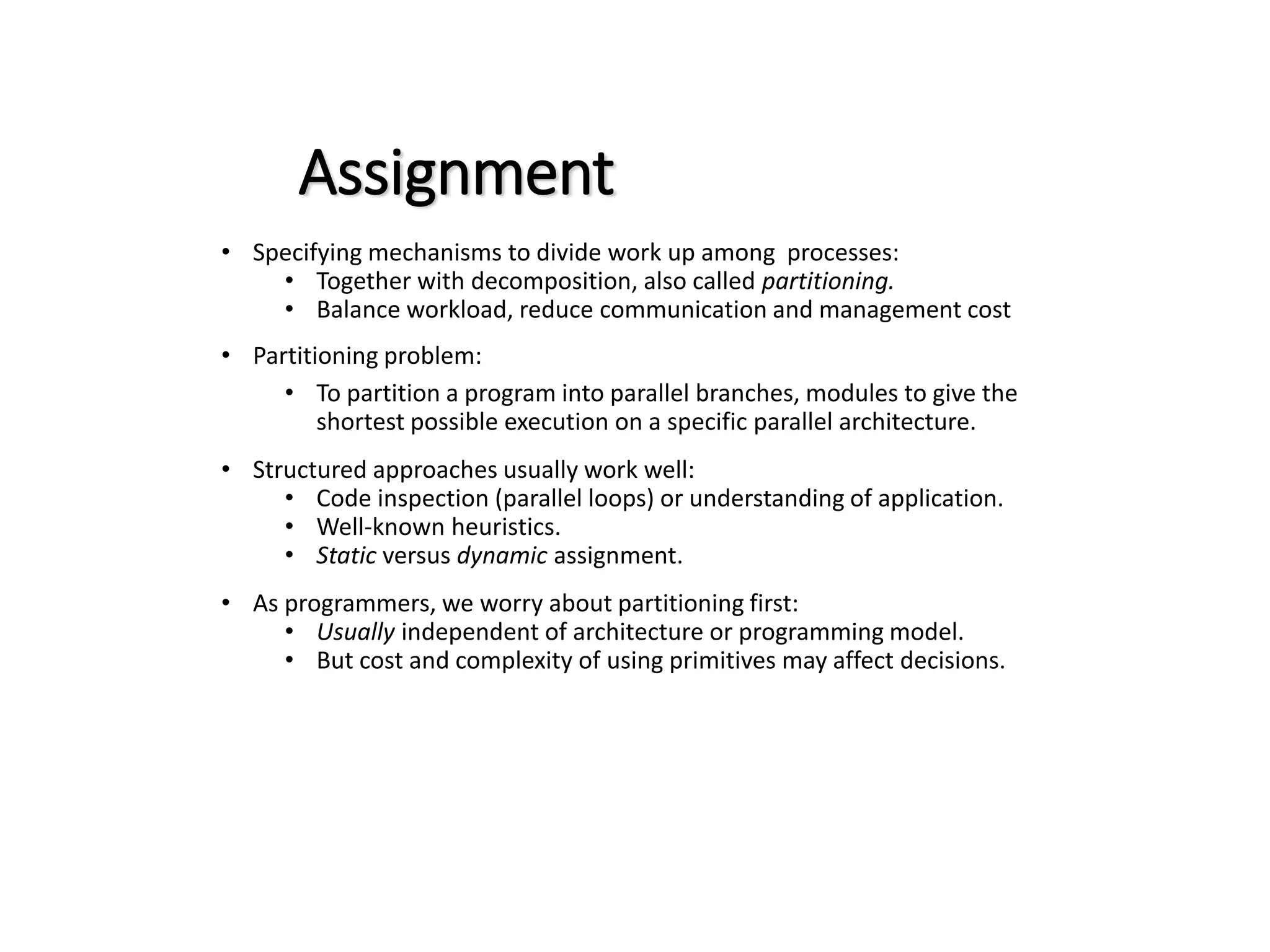

Assignment • Specifying mechanisms to divide work up among processes: • Together with decomposition, also called partitioning. • Balance workload, reduce communication and management cost • Partitioning problem: • To partition a program into parallel branches, modules to give the shortest possible execution on a specific parallel architecture. • Structured approaches usually work well: • Code inspection (parallel loops) or understanding of application. • Well-known heuristics. • Static versus dynamic assignment. • As programmers, we worry about partitioning first: • Usually independent of architecture or programming model. • But cost and complexity of using primitives may affect decisions.

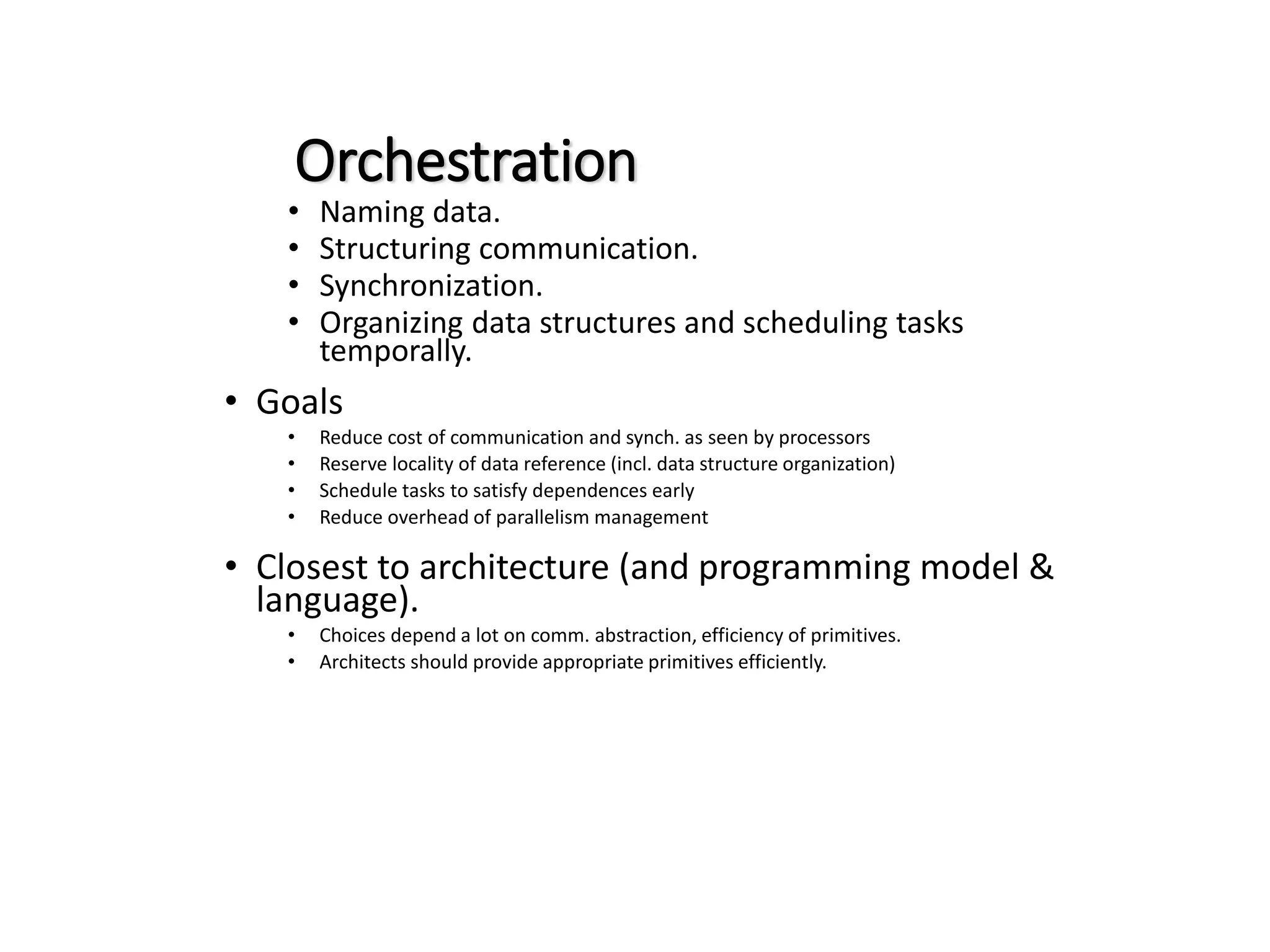

Orchestration • Naming data. • Structuring communication. • Synchronization. • Organizing data structures and scheduling tasks temporally. • Goals • Reduce cost of communication and synch. as seen by processors • Reserve locality of data reference (incl. data structure organization) • Schedule tasks to satisfy dependences early • Reduce overhead of parallelism management • Closest to architecture (and programming model & language). • Choices depend a lot on comm. abstraction, efficiency of primitives. • Architects should provide appropriate primitives efficiently.

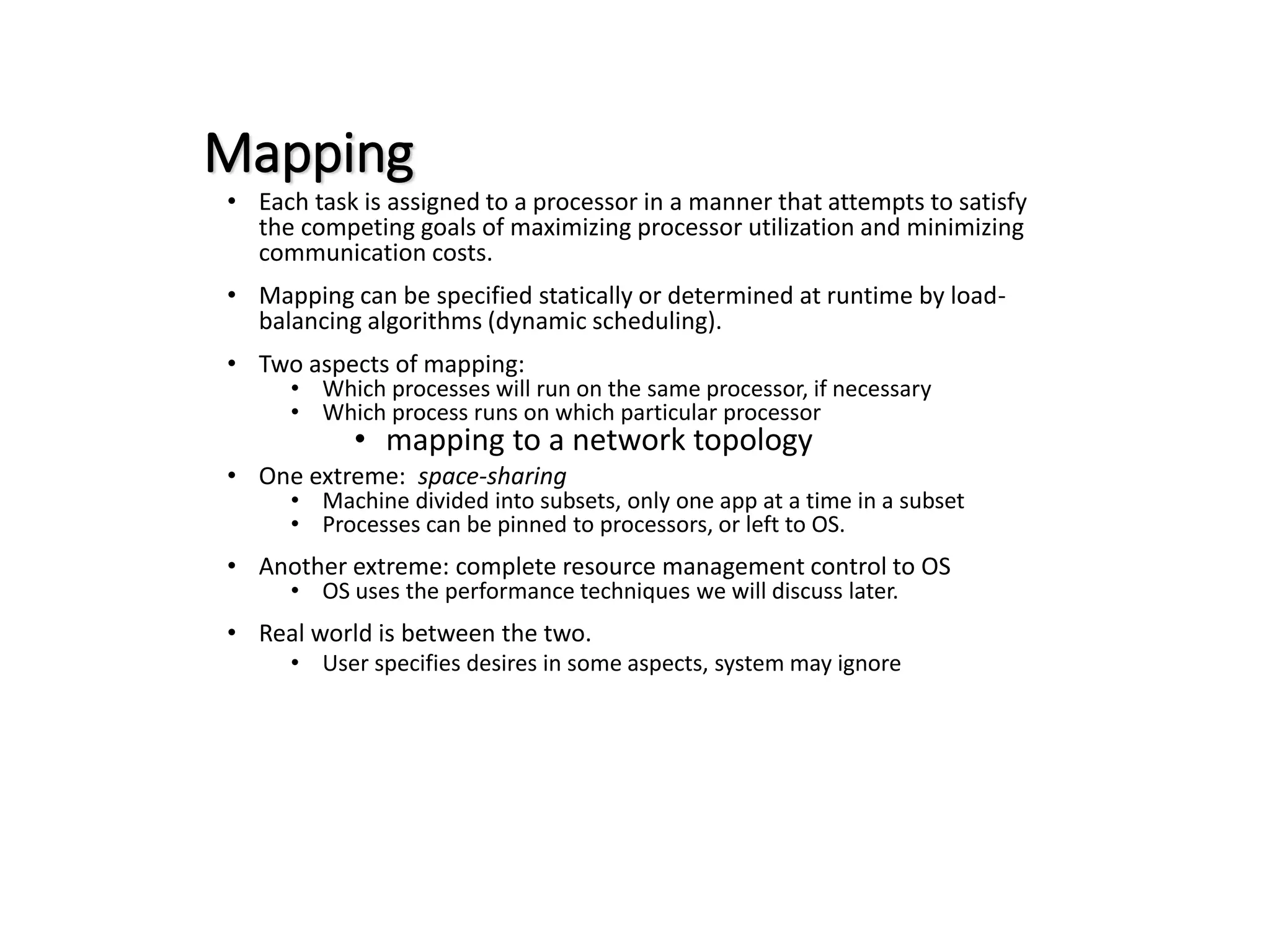

Mapping • Each task is assigned to a processor in a manner that attempts to satisfy the competing goals of maximizing processor utilization and minimizing communication costs. • Mapping can be specified statically or determined at runtime by load- balancing algorithms (dynamic scheduling). • Two aspects of mapping: • Which processes will run on the same processor, if necessary • Which process runs on which particular processor • mapping to a network topology • One extreme: space-sharing • Machine divided into subsets, only one app at a time in a subset • Processes can be pinned to processors, or left to OS. • Another extreme: complete resource management control to OS • OS uses the performance techniques we will discuss later. • Real world is between the two. • User specifies desires in some aspects, system may ignore

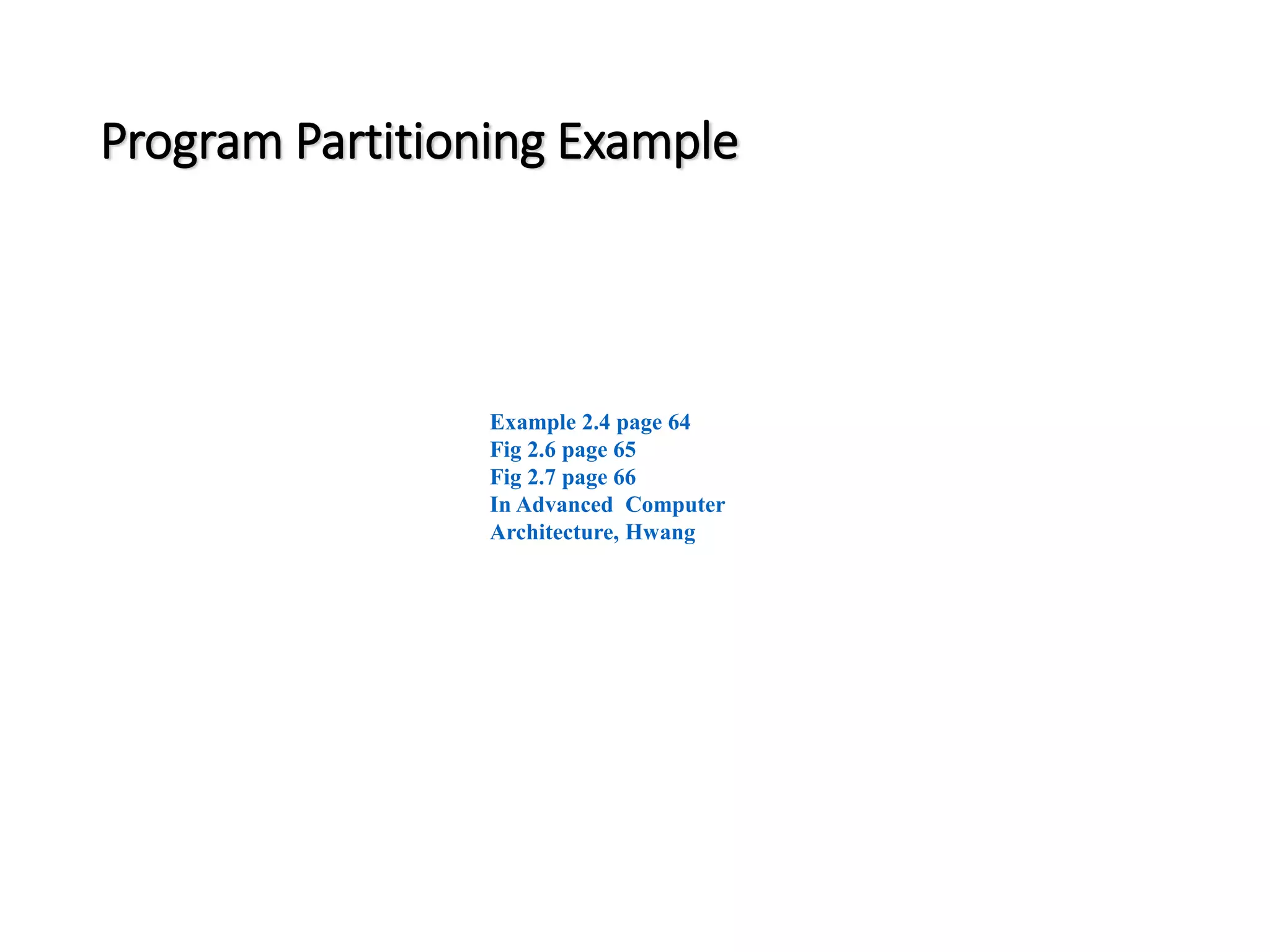

Program Partitioning Example Example 2.4 page 64 Fig 2.6 page 65 Fig 2.7 page 66 In Advanced Computer Architecture, Hwang

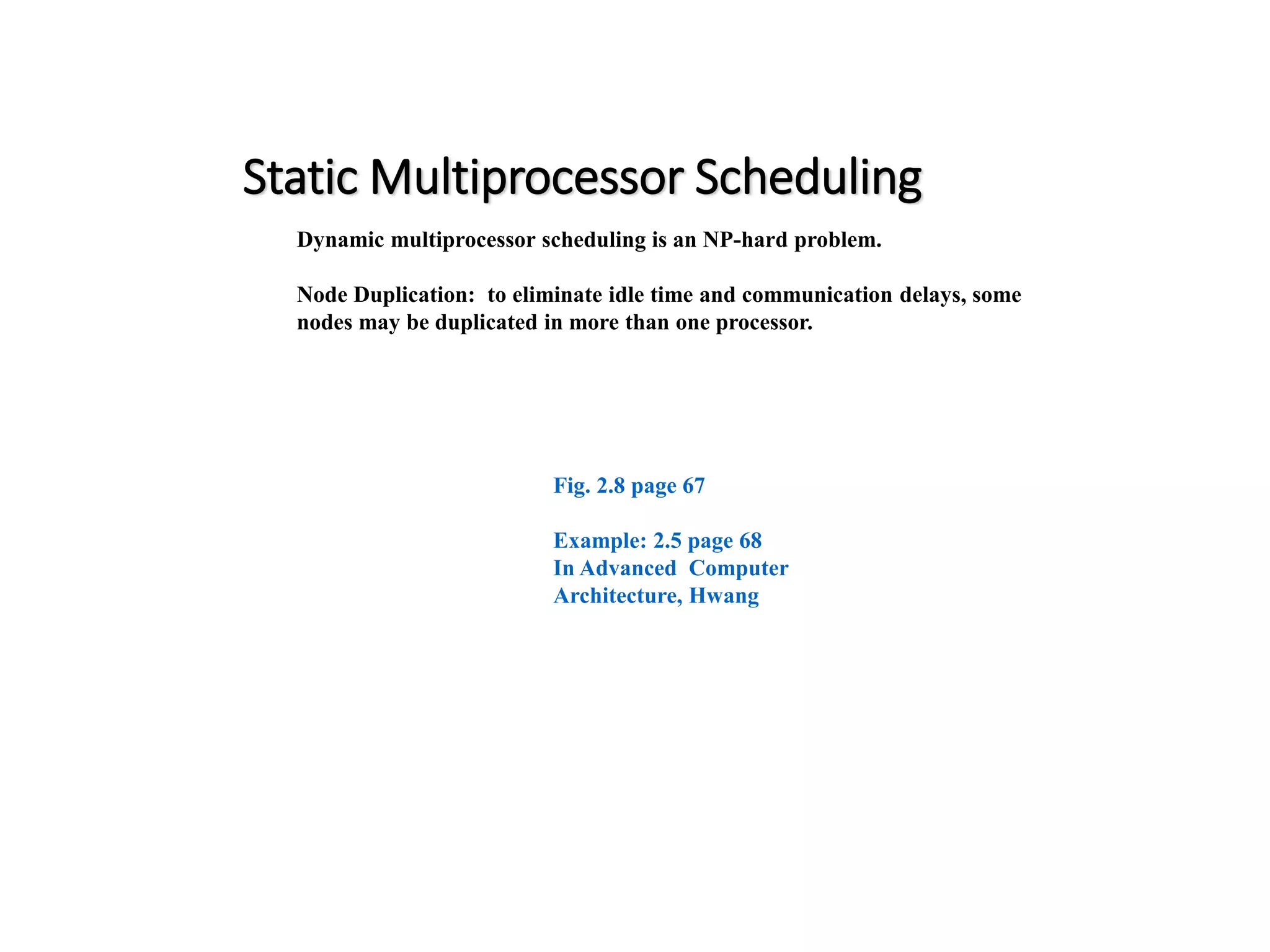

Static Multiprocessor Scheduling Dynamic multiprocessor scheduling is an NP-hard problem. Node Duplication: to eliminate idle time and communication delays, some nodes may be duplicated in more than one processor. Fig. 2.8 page 67 Example: 2.5 page 68 In Advanced Computer Architecture, Hwang

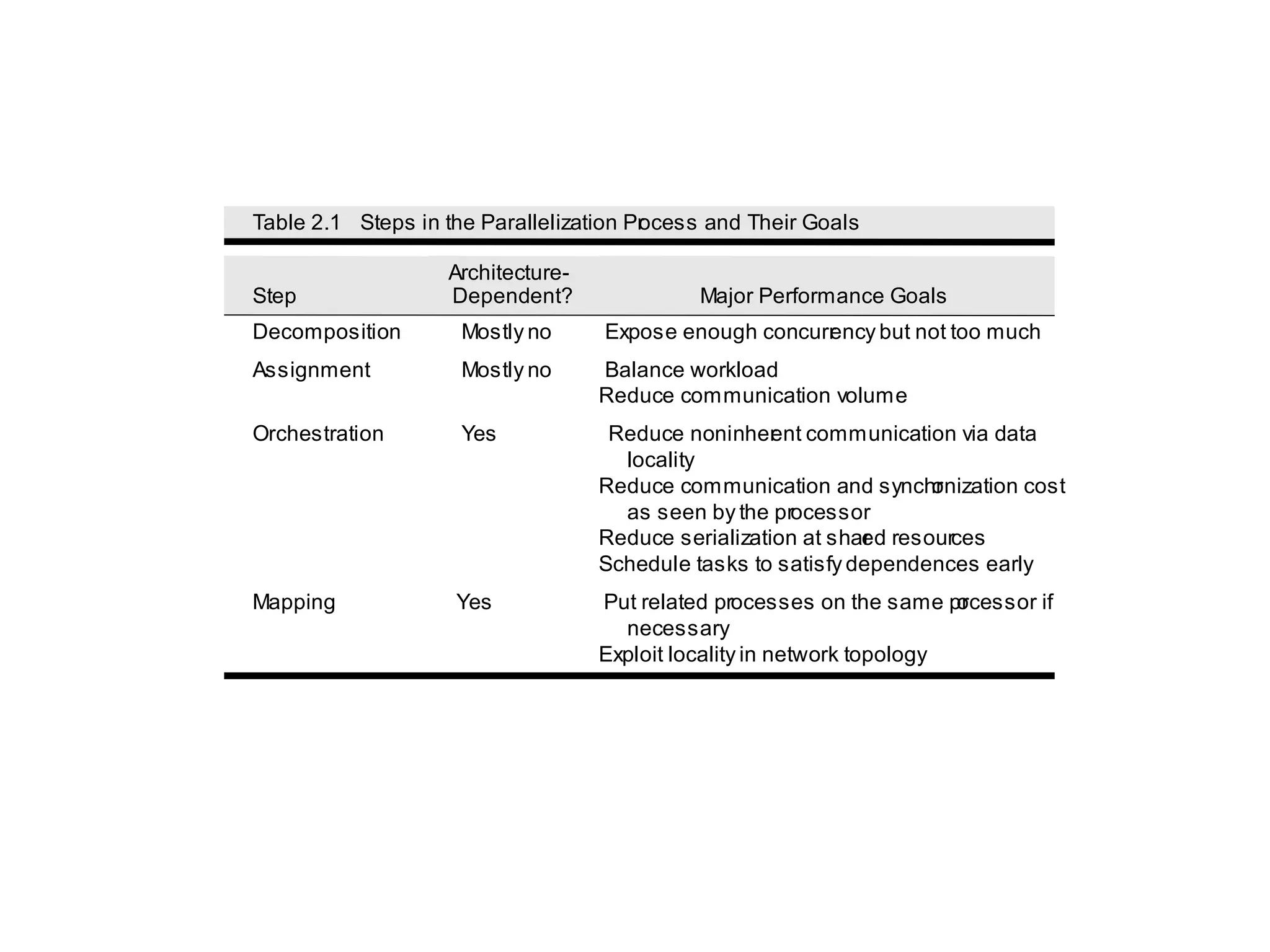

Table 2.1 Steps in the Parallelization Pr ocess and Their Goals Step Architecture- Dependent? Major Performance Goals Decomposition Mostly no Expose enough concurr ency but not too much Assignment Mostly no Balance workload Reduce communication volume Orchestration Yes Reduce noninher ent communication via data locality Reduce communication and synchr onization cost as seen by the processor Reduce serialization at shar ed resources Schedule tasks to satisfy dependences early Mapping Yes Put related processes on the same pr ocessor if necessary Exploit locality in network topology

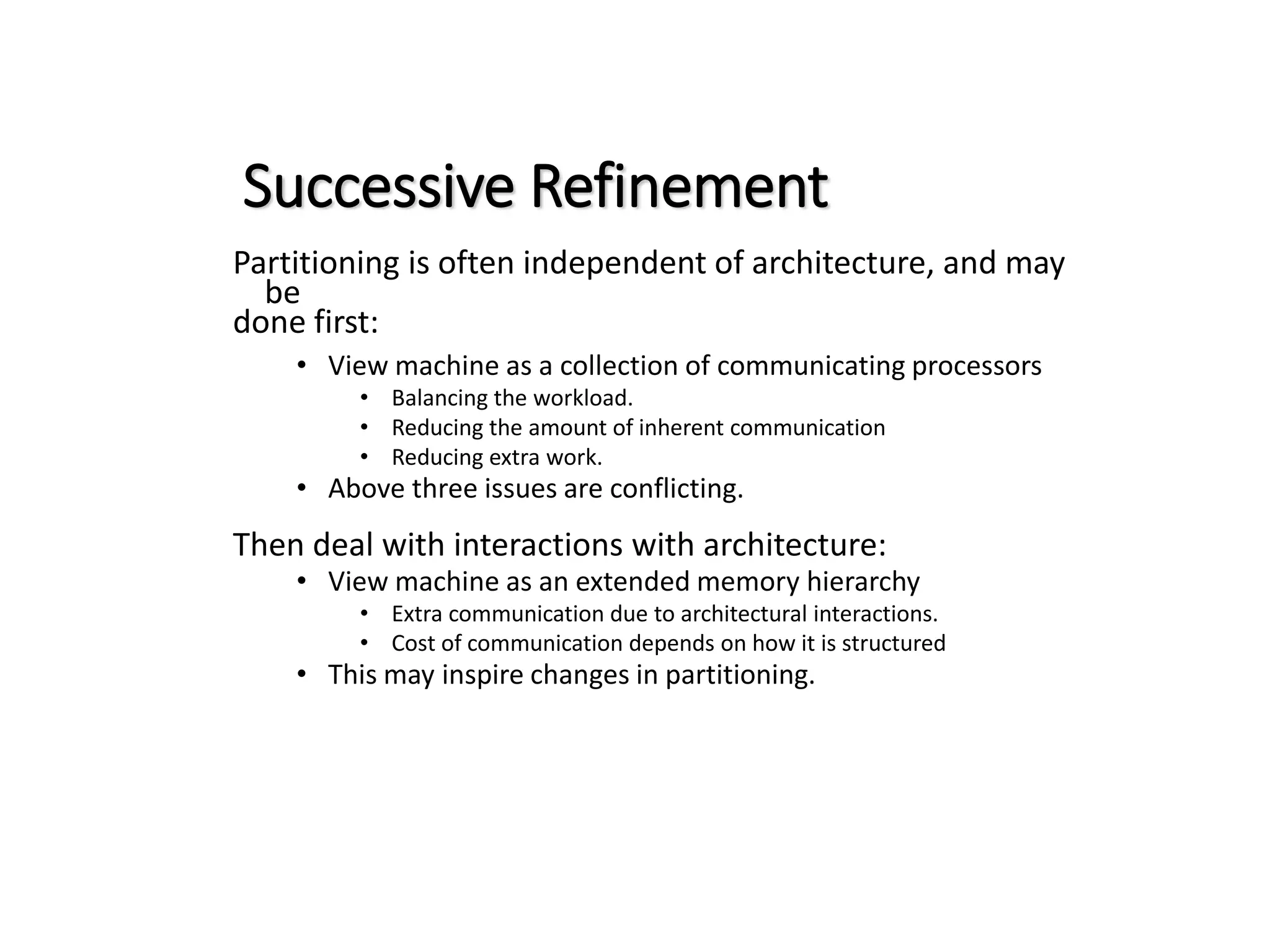

Successive Refinement Partitioning is often independent of architecture, and may be done first: • View machine as a collection of communicating processors • Balancing the workload. • Reducing the amount of inherent communication • Reducing extra work. • Above three issues are conflicting. Then deal with interactions with architecture: • View machine as an extended memory hierarchy • Extra communication due to architectural interactions. • Cost of communication depends on how it is structured • This may inspire changes in partitioning.

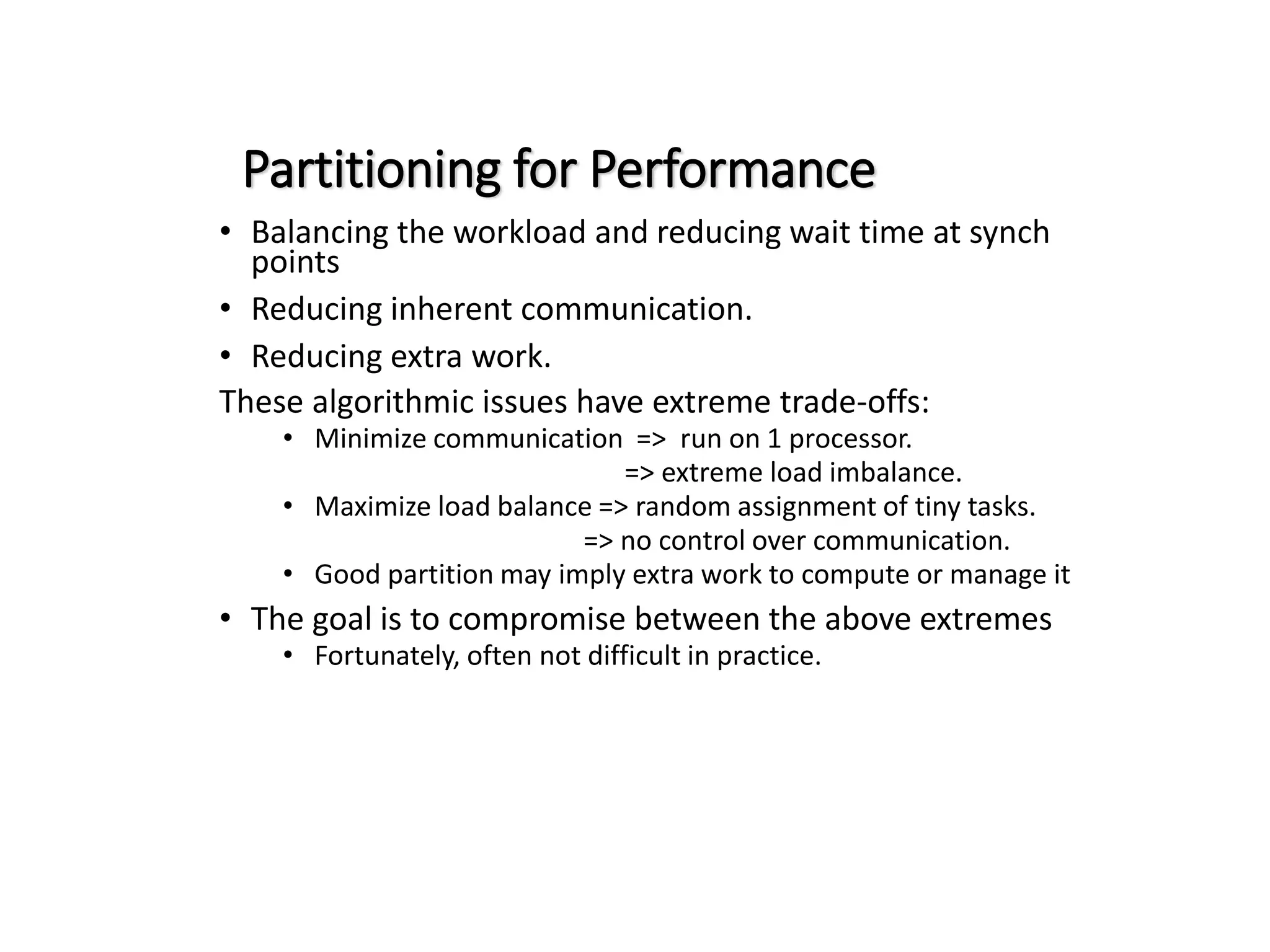

Partitioning for Performance • Balancing the workload and reducing wait time at synch points • Reducing inherent communication. • Reducing extra work. These algorithmic issues have extreme trade-offs: • Minimize communication => run on 1 processor. => extreme load imbalance. • Maximize load balance => random assignment of tiny tasks. => no control over communication. • Good partition may imply extra work to compute or manage it • The goal is to compromise between the above extremes • Fortunately, often not difficult in practice.

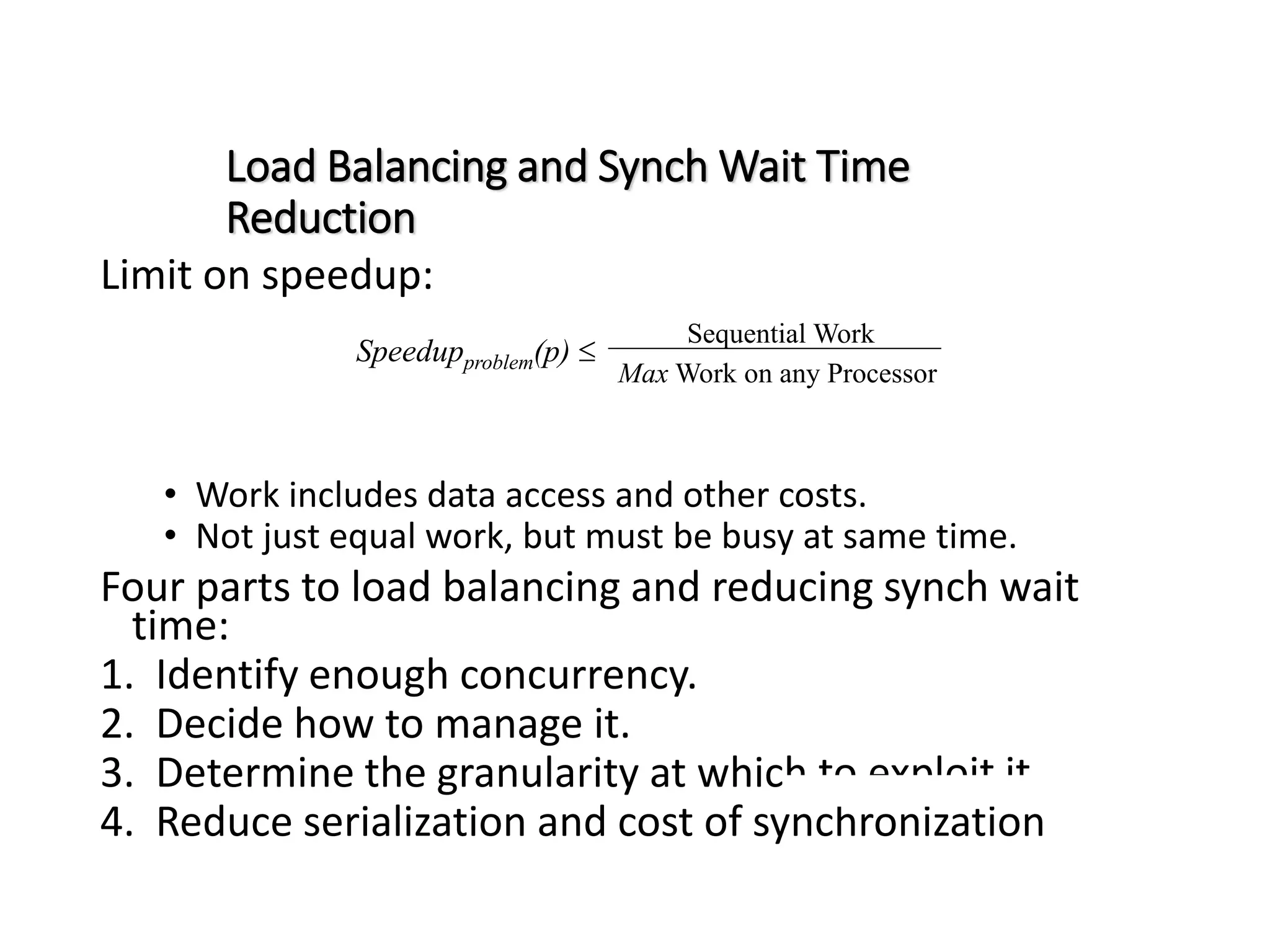

Load Balancing and Synch Wait Time Reduction Limit on speedup: • Work includes data access and other costs. • Not just equal work, but must be busy at same time. Four parts to load balancing and reducing synch wait time: 1. Identify enough concurrency. 2. Decide how to manage it. 3. Determine the granularity at which to exploit it 4. Reduce serialization and cost of synchronization Sequential Work Max Work on any Processor Speedupproblem(p) 

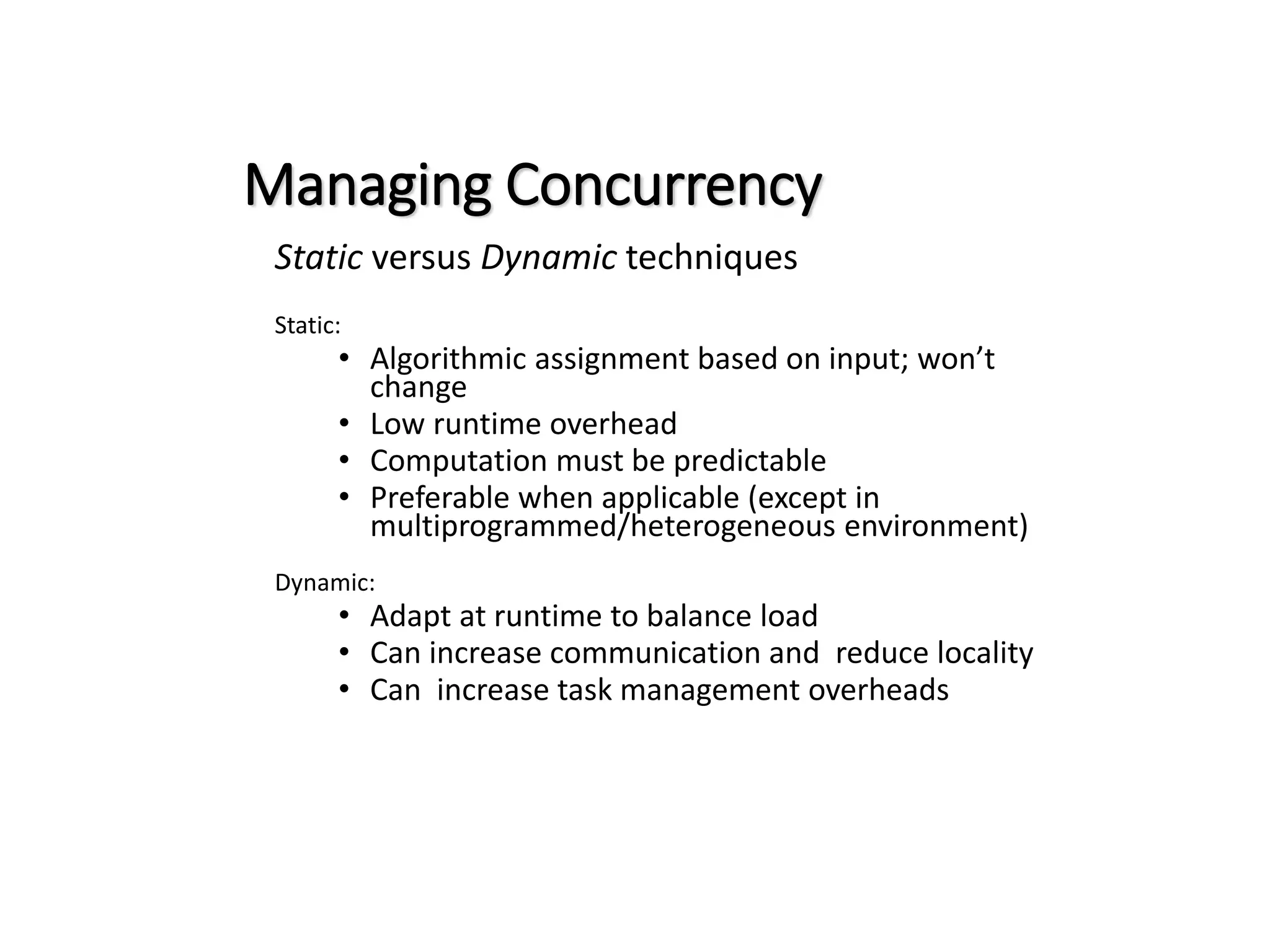

Managing Concurrency Static versus Dynamic techniques Static: • Algorithmic assignment based on input; won’t change • Low runtime overhead • Computation must be predictable • Preferable when applicable (except in multiprogrammed/heterogeneous environment) Dynamic: • Adapt at runtime to balance load • Can increase communication and reduce locality • Can increase task management overheads

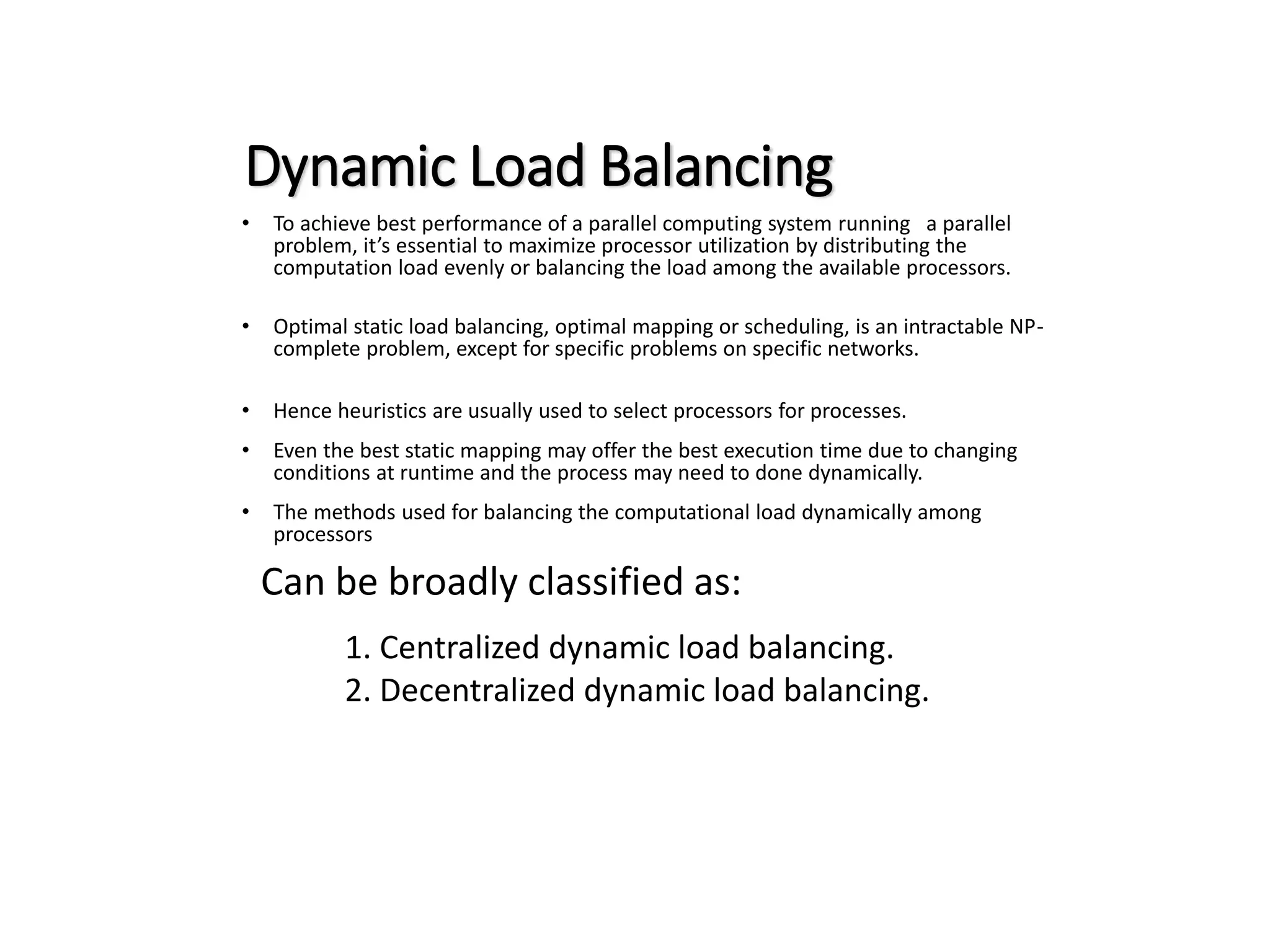

Dynamic Load Balancing • To achieve best performance of a parallel computing system running a parallel problem, it’s essential to maximize processor utilization by distributing the computation load evenly or balancing the load among the available processors. • Optimal static load balancing, optimal mapping or scheduling, is an intractable NP- complete problem, except for specific problems on specific networks. • Hence heuristics are usually used to select processors for processes. • Even the best static mapping may offer the best execution time due to changing conditions at runtime and the process may need to done dynamically. • The methods used for balancing the computational load dynamically among processors Can be broadly classified as: 1. Centralized dynamic load balancing. 2. Decentralized dynamic load balancing.

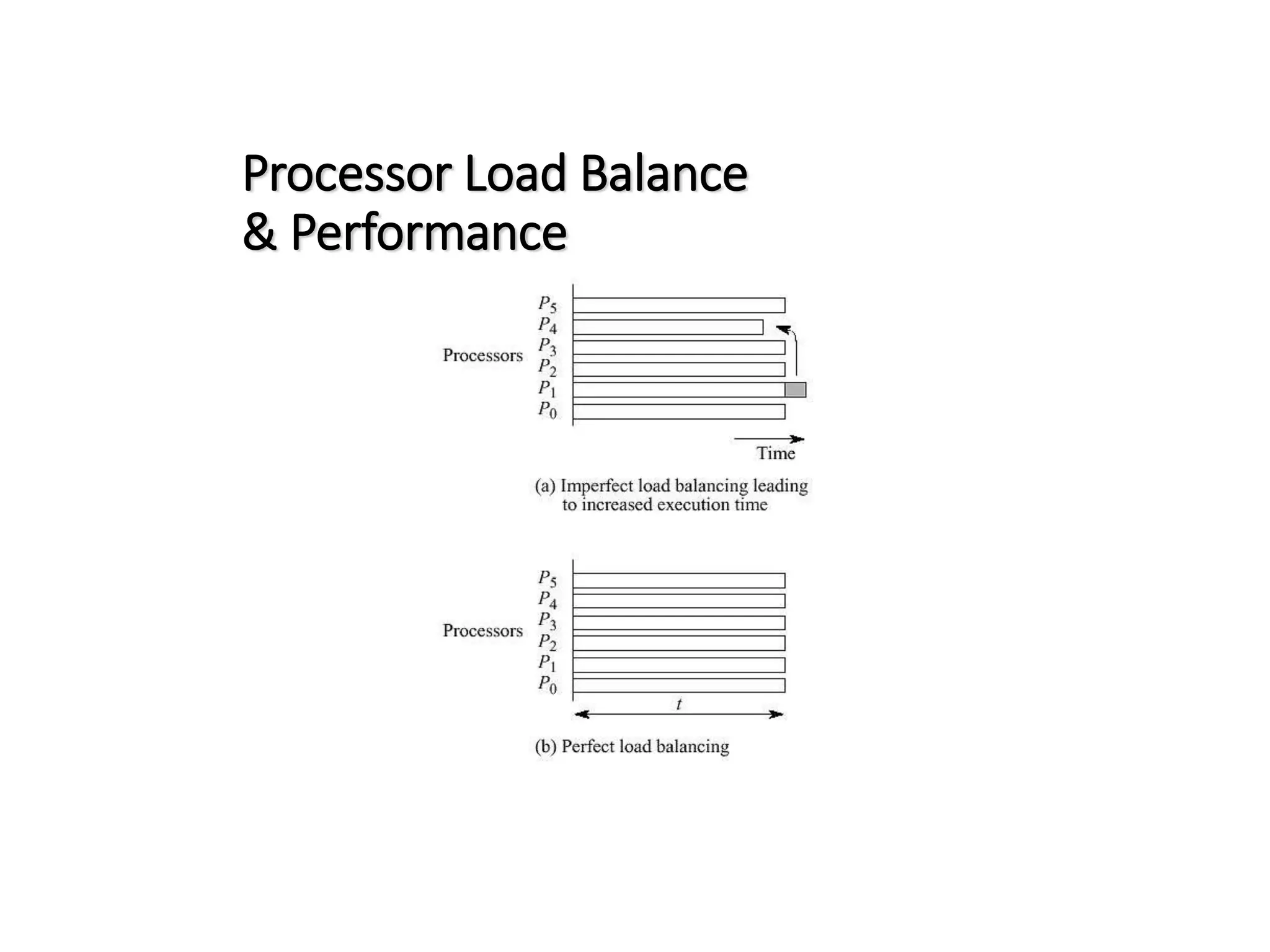

Processor Load Balance & Performance

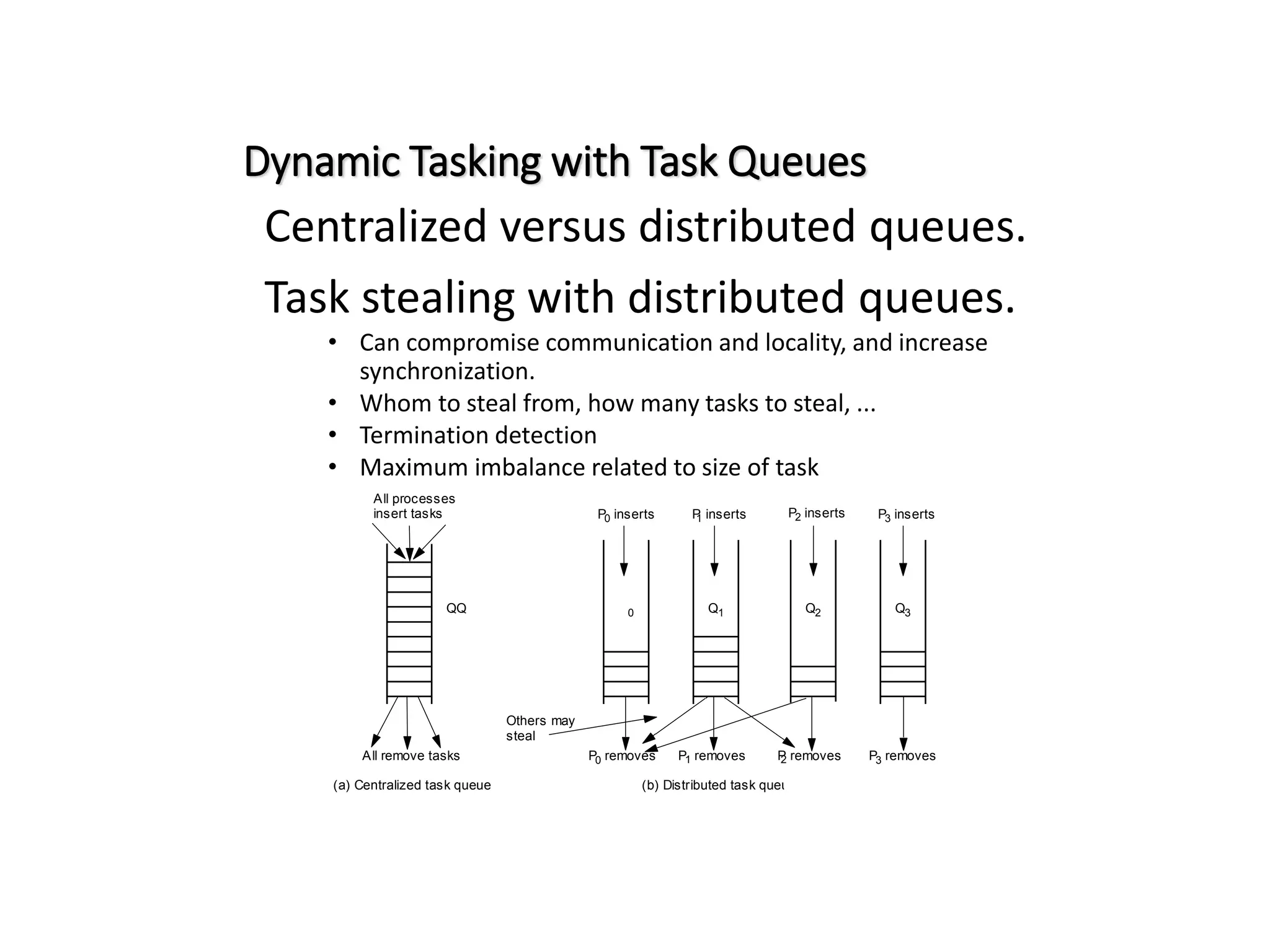

Dynamic Tasking with Task Queues Centralized versus distributed queues. Task stealing with distributed queues. • Can compromise communication and locality, and increase synchronization. • Whom to steal from, how many tasks to steal, ... • Termination detection • Maximum imbalance related to size of task QQ 0 Q2 Q1 Q3 All remove tasks P0 inserts P 1 inserts P2 inserts P3 inserts P0 removes P1 removes P 2 removes P3 removes (b) Distributed task queues (one per pr ocess) Others may steal All processes insert tasks (a) Centralized task queue

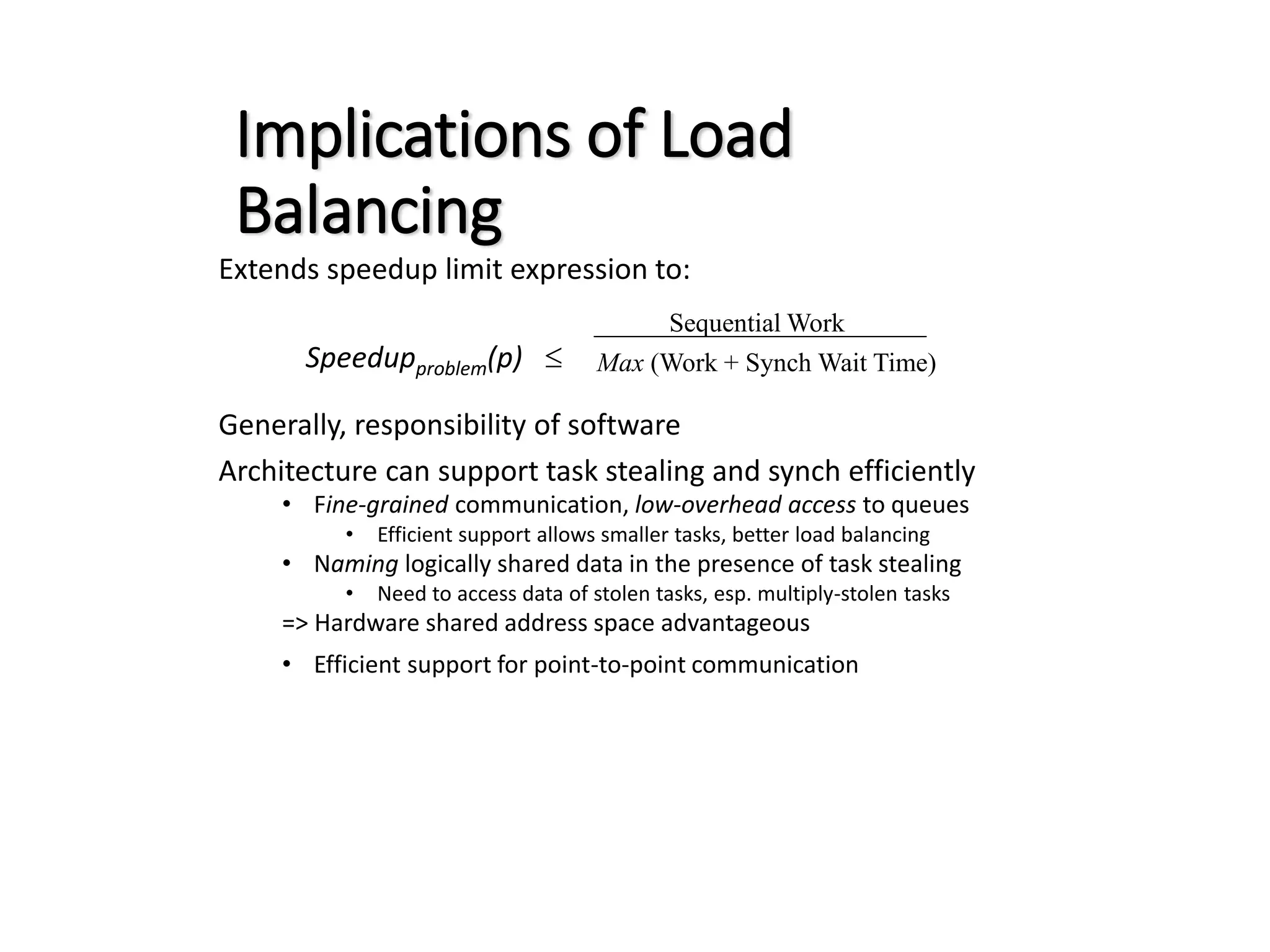

Implications of Load Balancing Extends speedup limit expression to: Speedupproblem(p)  Generally, responsibility of software Architecture can support task stealing and synch efficiently • Fine-grained communication, low-overhead access to queues • Efficient support allows smaller tasks, better load balancing • Naming logically shared data in the presence of task stealing • Need to access data of stolen tasks, esp. multiply-stolen tasks => Hardware shared address space advantageous • Efficient support for point-to-point communication Sequential Work Max (Work + Synch Wait Time)

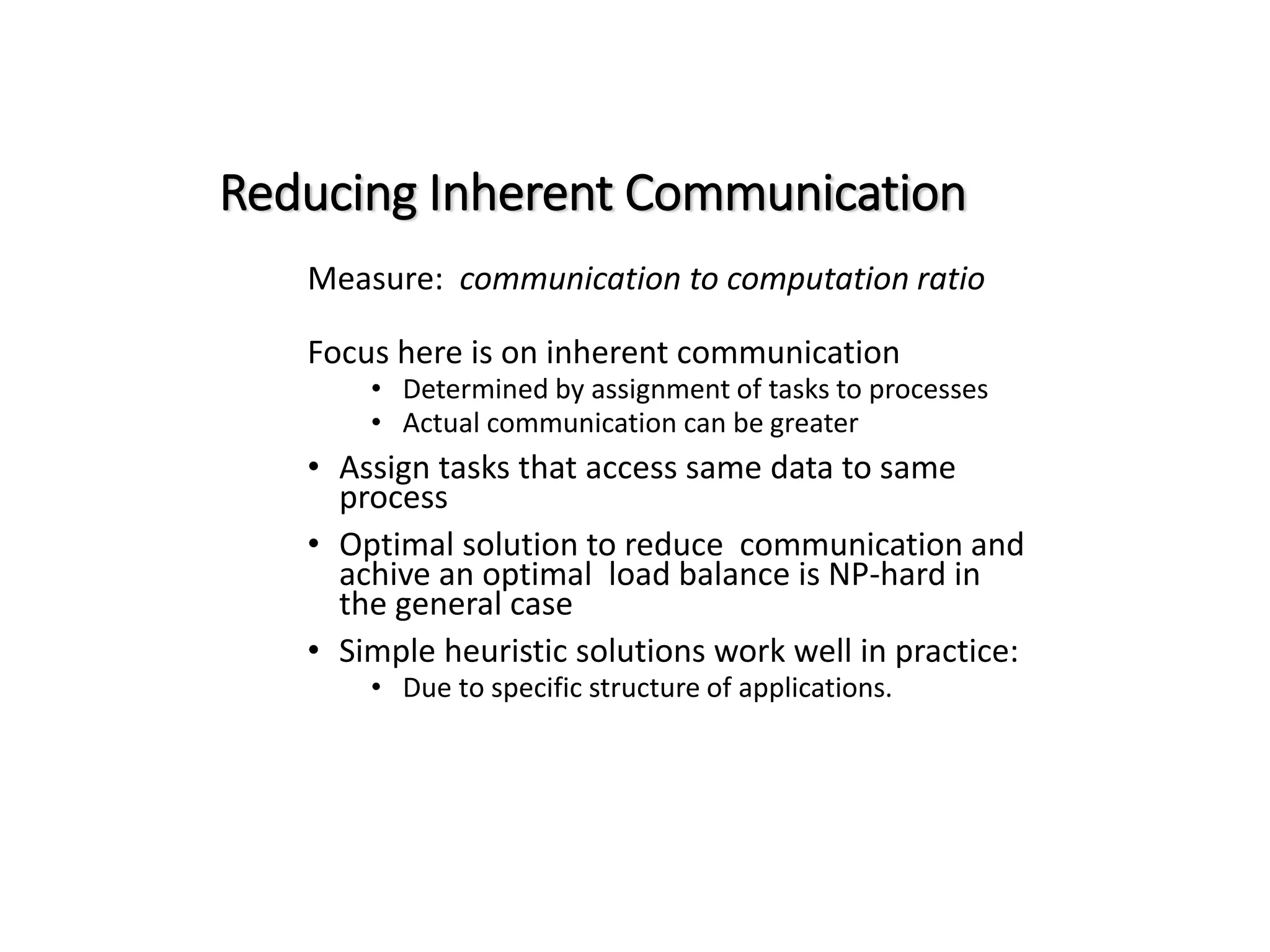

Reducing Inherent Communication Measure: communication to computation ratio Focus here is on inherent communication • Determined by assignment of tasks to processes • Actual communication can be greater • Assign tasks that access same data to same process • Optimal solution to reduce communication and achive an optimal load balance is NP-hard in the general case • Simple heuristic solutions work well in practice: • Due to specific structure of applications.

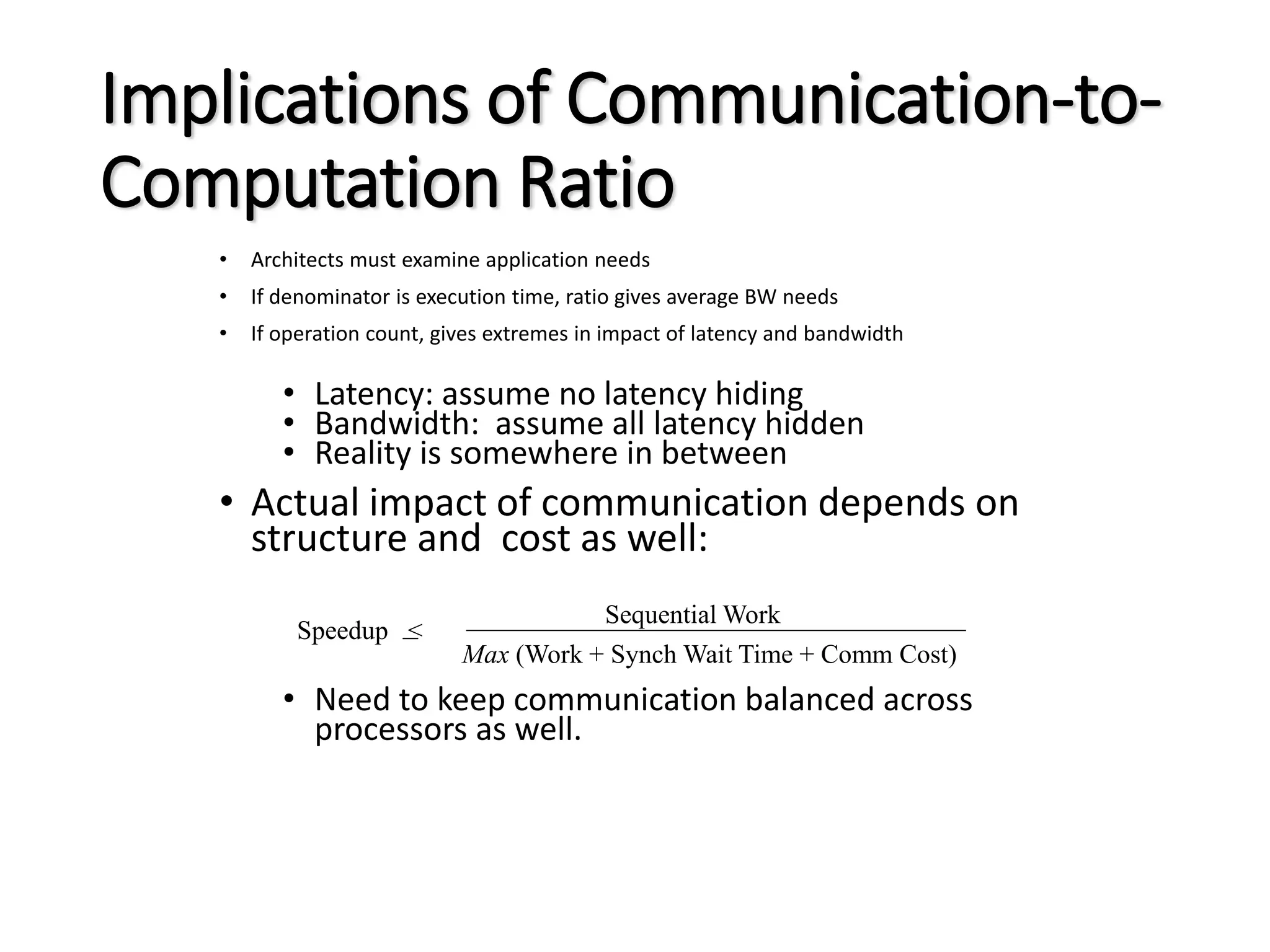

Implications of Communication-to- Computation Ratio • Architects must examine application needs • If denominator is execution time, ratio gives average BW needs • If operation count, gives extremes in impact of latency and bandwidth • Latency: assume no latency hiding • Bandwidth: assume all latency hidden • Reality is somewhere in between • Actual impact of communication depends on structure and cost as well: • Need to keep communication balanced across processors as well. Sequential Work Max (Work + Synch Wait Time + Comm Cost) Speedup <

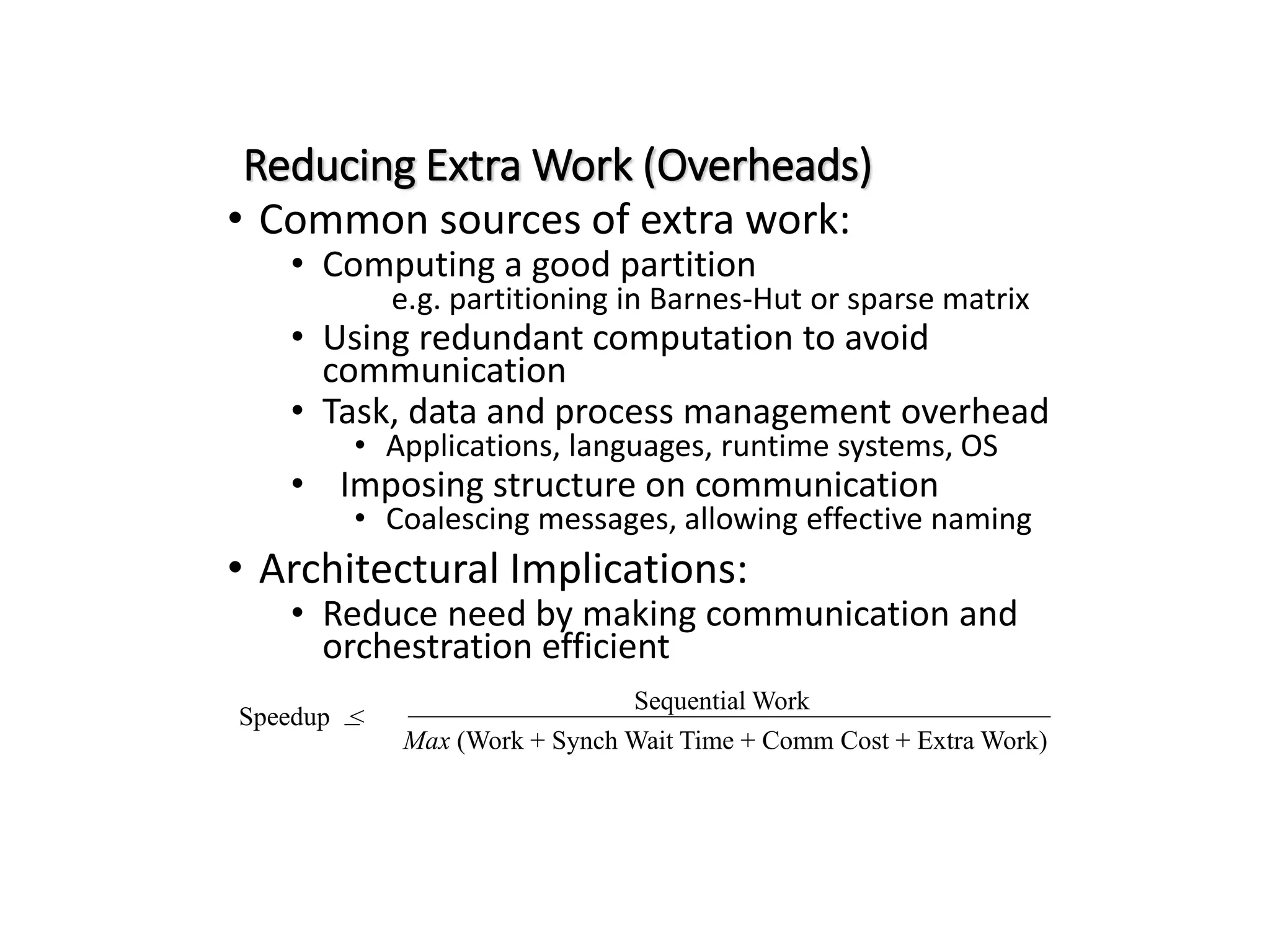

Reducing Extra Work (Overheads) • Common sources of extra work: • Computing a good partition e.g. partitioning in Barnes-Hut or sparse matrix • Using redundant computation to avoid communication • Task, data and process management overhead • Applications, languages, runtime systems, OS • Imposing structure on communication • Coalescing messages, allowing effective naming • Architectural Implications: • Reduce need by making communication and orchestration efficient Sequential Work Max (Work + Synch Wait Time + Comm Cost + Extra Work) Speedup <

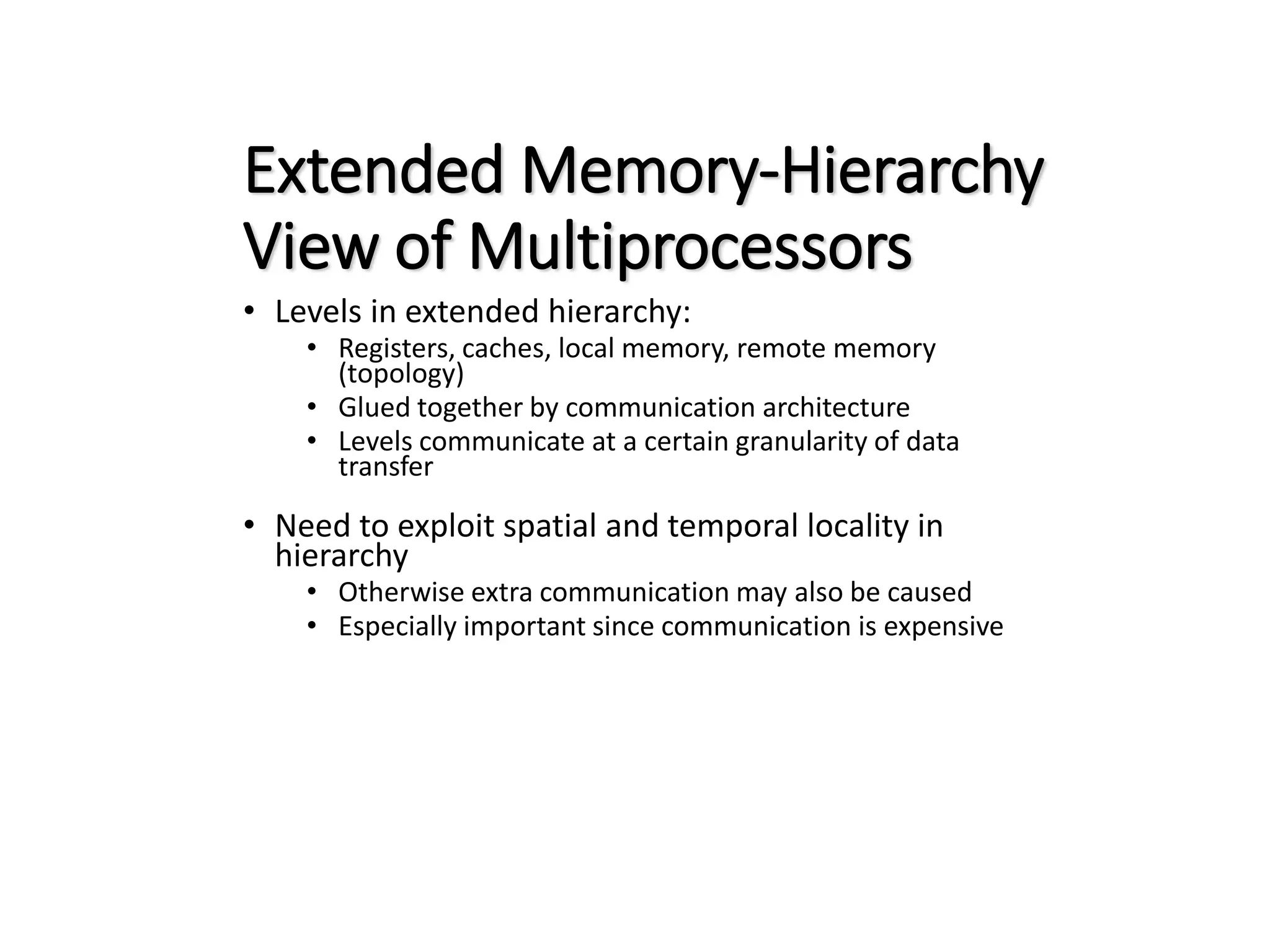

Extended Memory-Hierarchy View of Multiprocessors • Levels in extended hierarchy: • Registers, caches, local memory, remote memory (topology) • Glued together by communication architecture • Levels communicate at a certain granularity of data transfer • Need to exploit spatial and temporal locality in hierarchy • Otherwise extra communication may also be caused • Especially important since communication is expensive

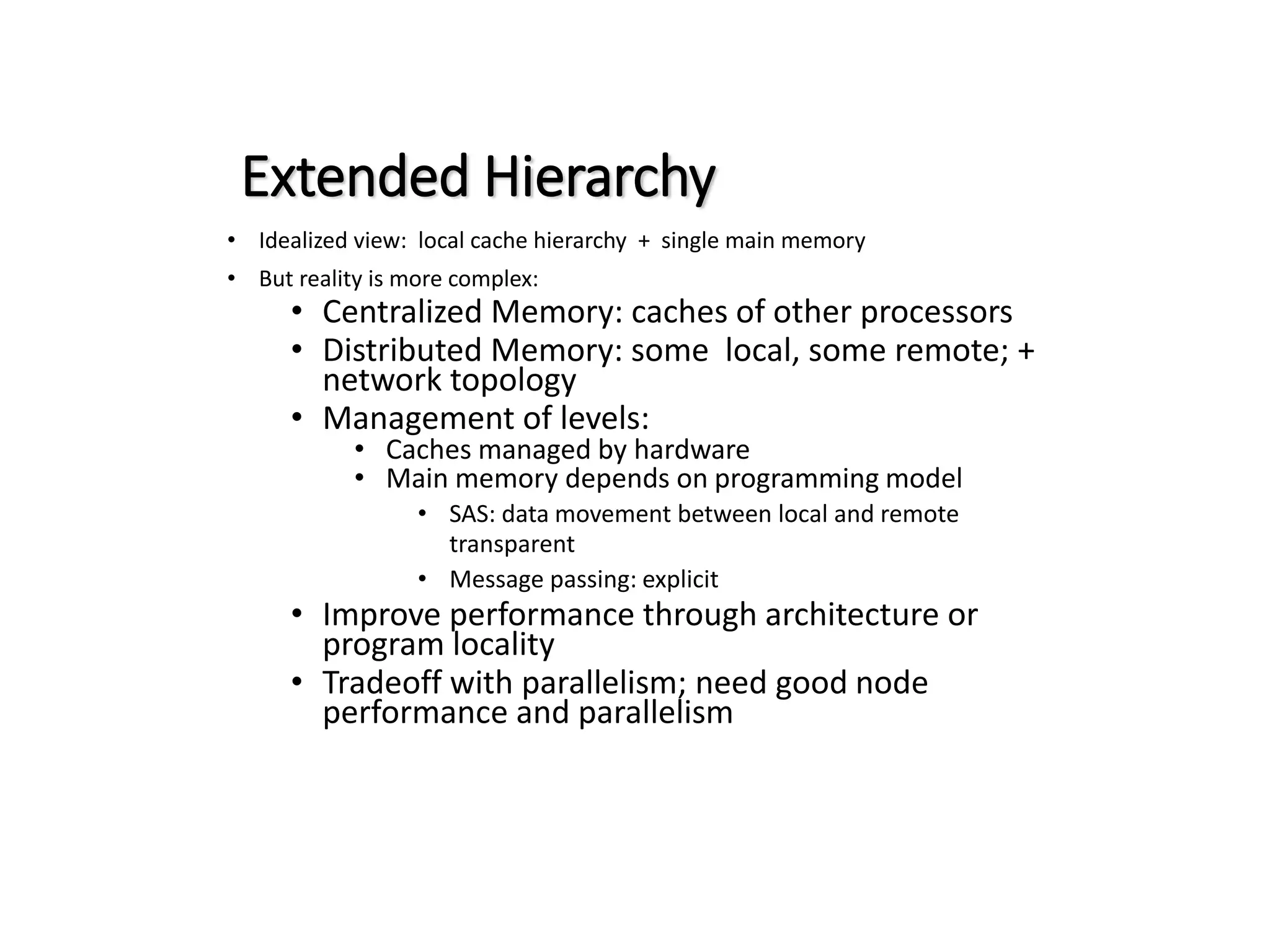

Extended Hierarchy • Idealized view: local cache hierarchy + single main memory • But reality is more complex: • Centralized Memory: caches of other processors • Distributed Memory: some local, some remote; + network topology • Management of levels: • Caches managed by hardware • Main memory depends on programming model • SAS: data movement between local and remote transparent • Message passing: explicit • Improve performance through architecture or program locality • Tradeoff with parallelism; need good node performance and parallelism

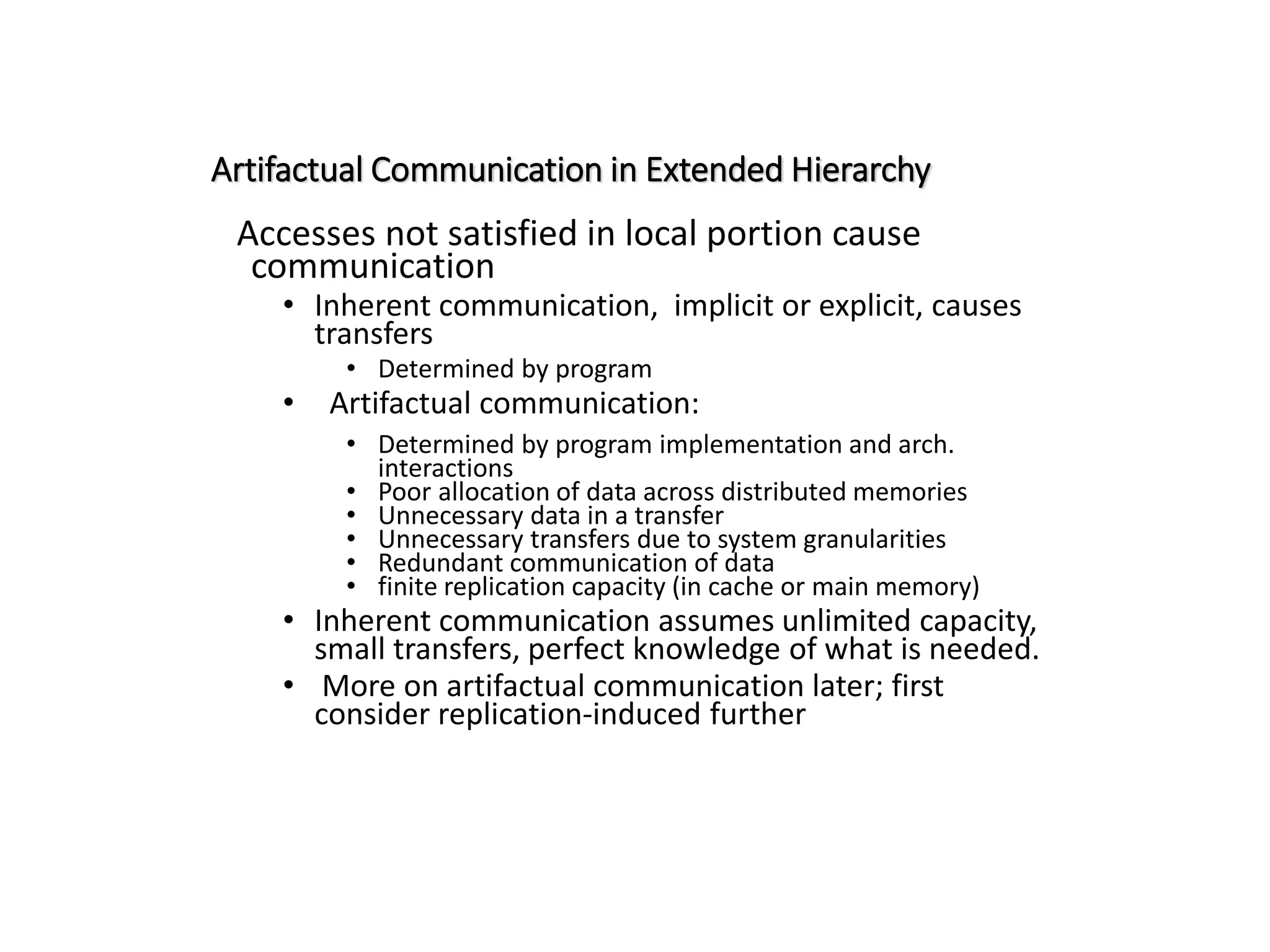

Artifactual Communication in Extended Hierarchy Accesses not satisfied in local portion cause communication • Inherent communication, implicit or explicit, causes transfers • Determined by program • Artifactual communication: • Determined by program implementation and arch. interactions • Poor allocation of data across distributed memories • Unnecessary data in a transfer • Unnecessary transfers due to system granularities • Redundant communication of data • finite replication capacity (in cache or main memory) • Inherent communication assumes unlimited capacity, small transfers, perfect knowledge of what is needed. • More on artifactual communication later; first consider replication-induced further

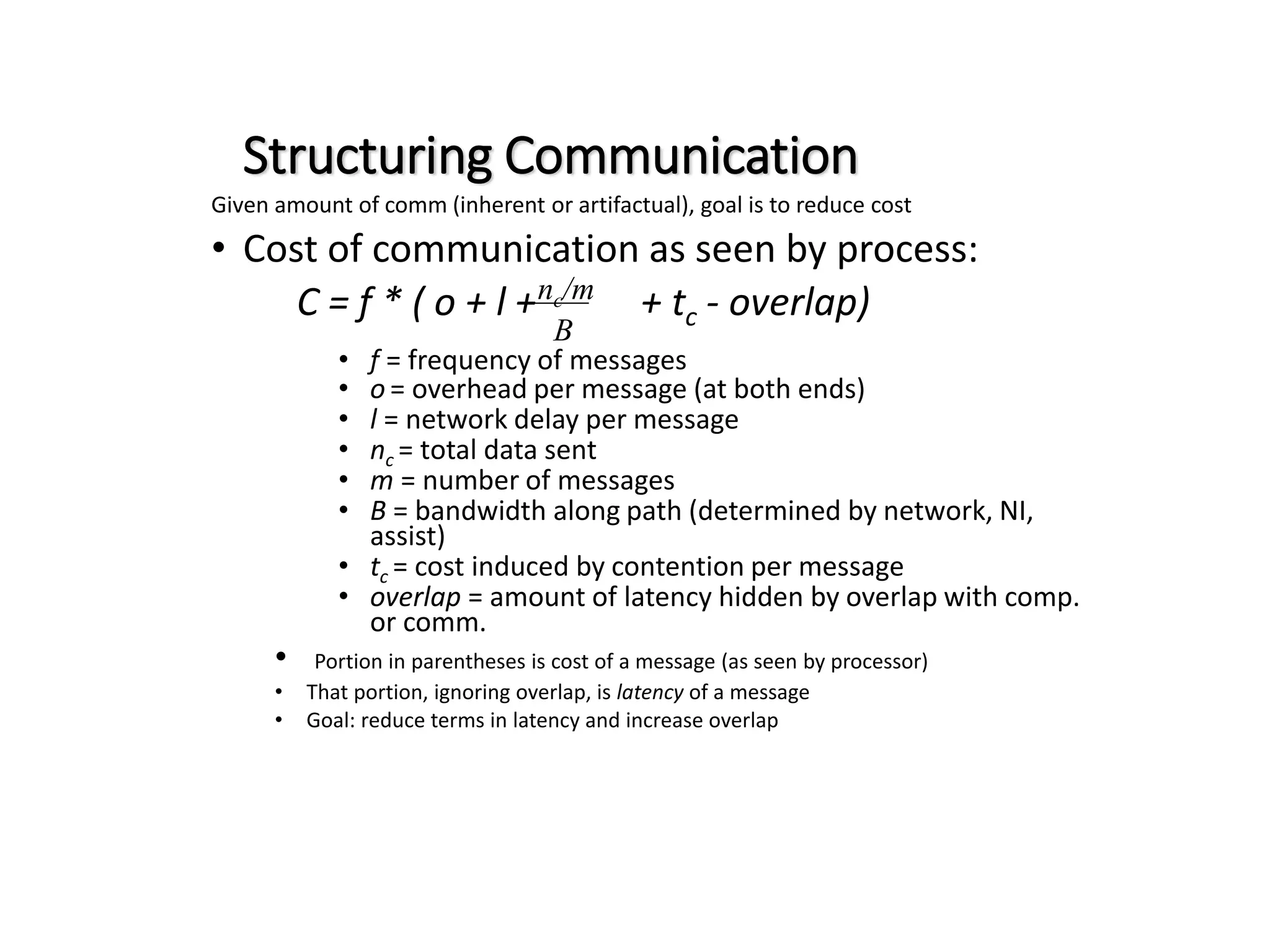

Structuring Communication Given amount of comm (inherent or artifactual), goal is to reduce cost • Cost of communication as seen by process: C = f * ( o + l + + tc - overlap) • f = frequency of messages • o = overhead per message (at both ends) • l = network delay per message • nc = total data sent • m = number of messages • B = bandwidth along path (determined by network, NI, assist) • tc = cost induced by contention per message • overlap = amount of latency hidden by overlap with comp. or comm. • Portion in parentheses is cost of a message (as seen by processor) • That portion, ignoring overlap, is latency of a message • Goal: reduce terms in latency and increase overlap nc/m B

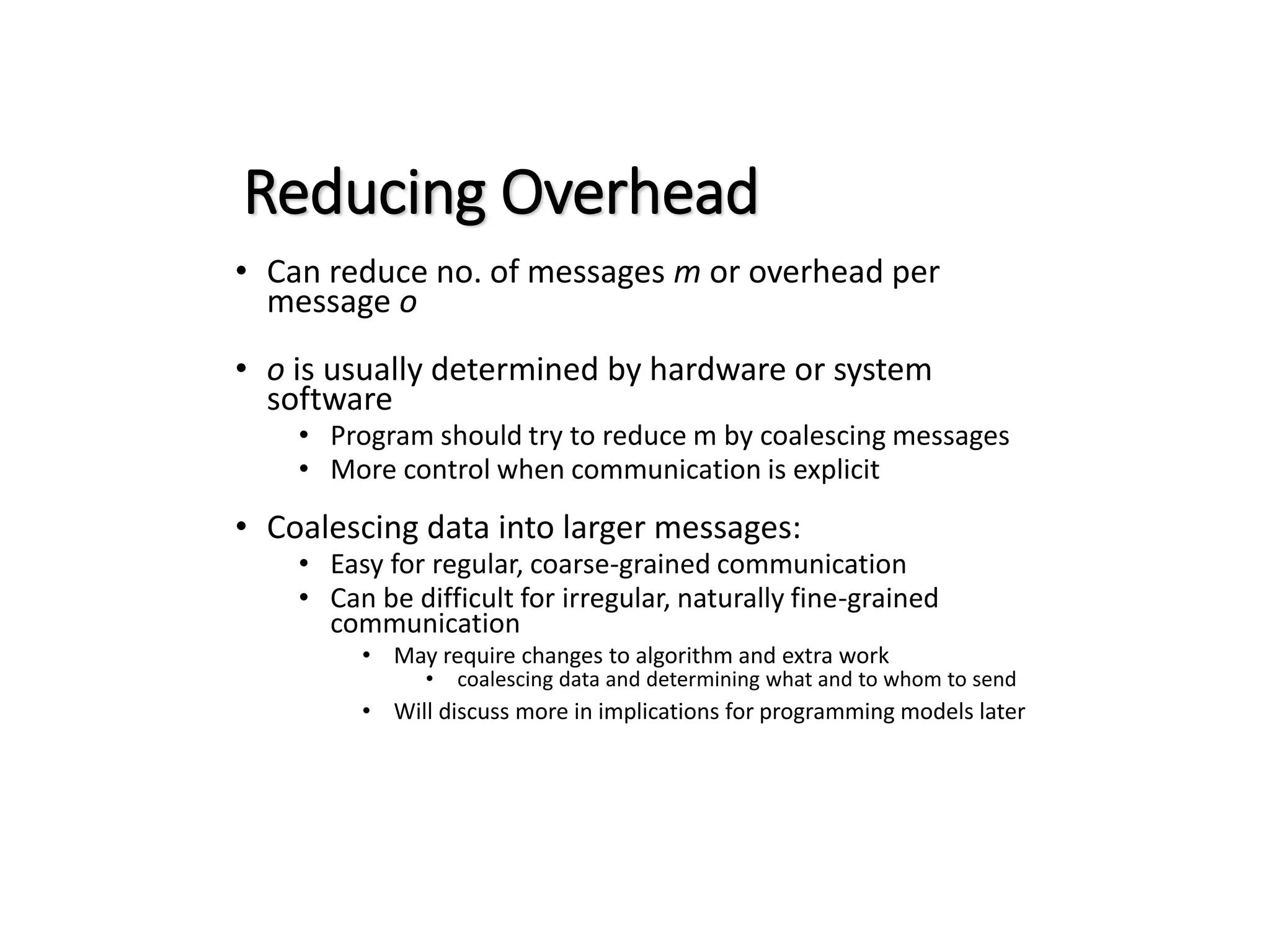

Reducing Overhead • Can reduce no. of messages m or overhead per message o • o is usually determined by hardware or system software • Program should try to reduce m by coalescing messages • More control when communication is explicit • Coalescing data into larger messages: • Easy for regular, coarse-grained communication • Can be difficult for irregular, naturally fine-grained communication • May require changes to algorithm and extra work • coalescing data and determining what and to whom to send • Will discuss more in implications for programming models later

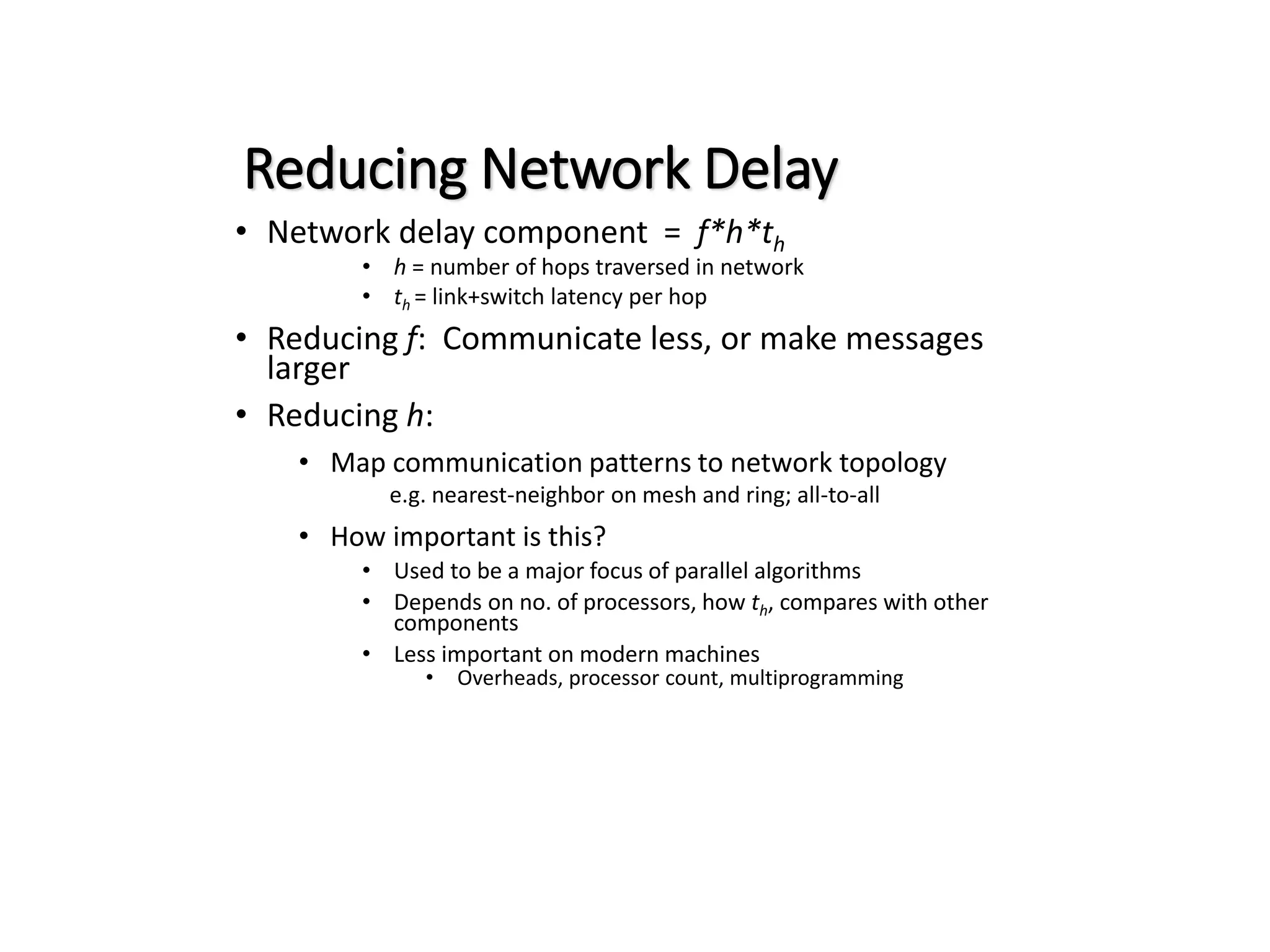

Reducing Network Delay • Network delay component = f*h*th • h = number of hops traversed in network • th = link+switch latency per hop • Reducing f: Communicate less, or make messages larger • Reducing h: • Map communication patterns to network topology e.g. nearest-neighbor on mesh and ring; all-to-all • How important is this? • Used to be a major focus of parallel algorithms • Depends on no. of processors, how th, compares with other components • Less important on modern machines • Overheads, processor count, multiprogramming

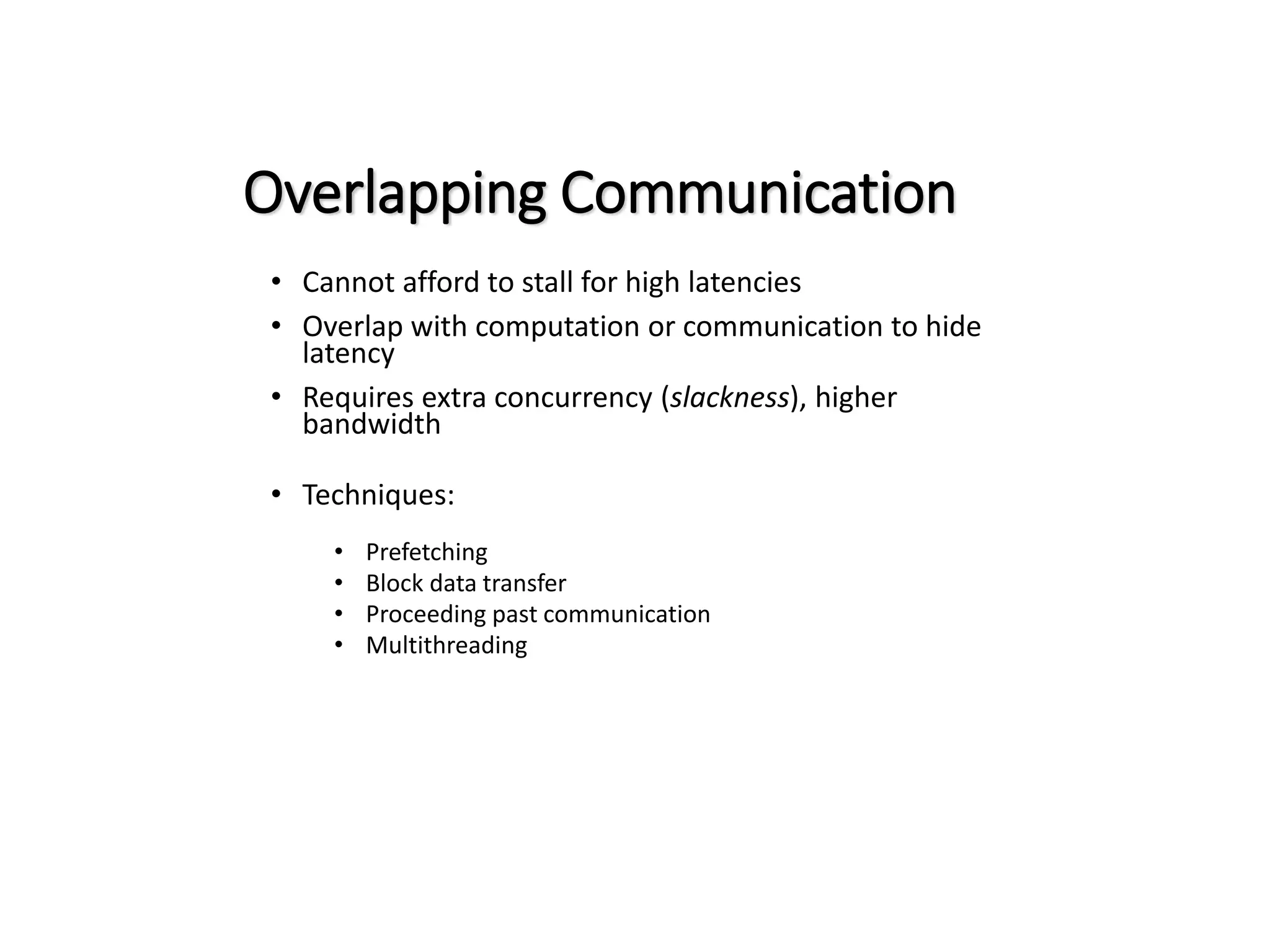

Overlapping Communication • Cannot afford to stall for high latencies • Overlap with computation or communication to hide latency • Requires extra concurrency (slackness), higher bandwidth • Techniques: • Prefetching • Block data transfer • Proceeding past communication • Multithreading

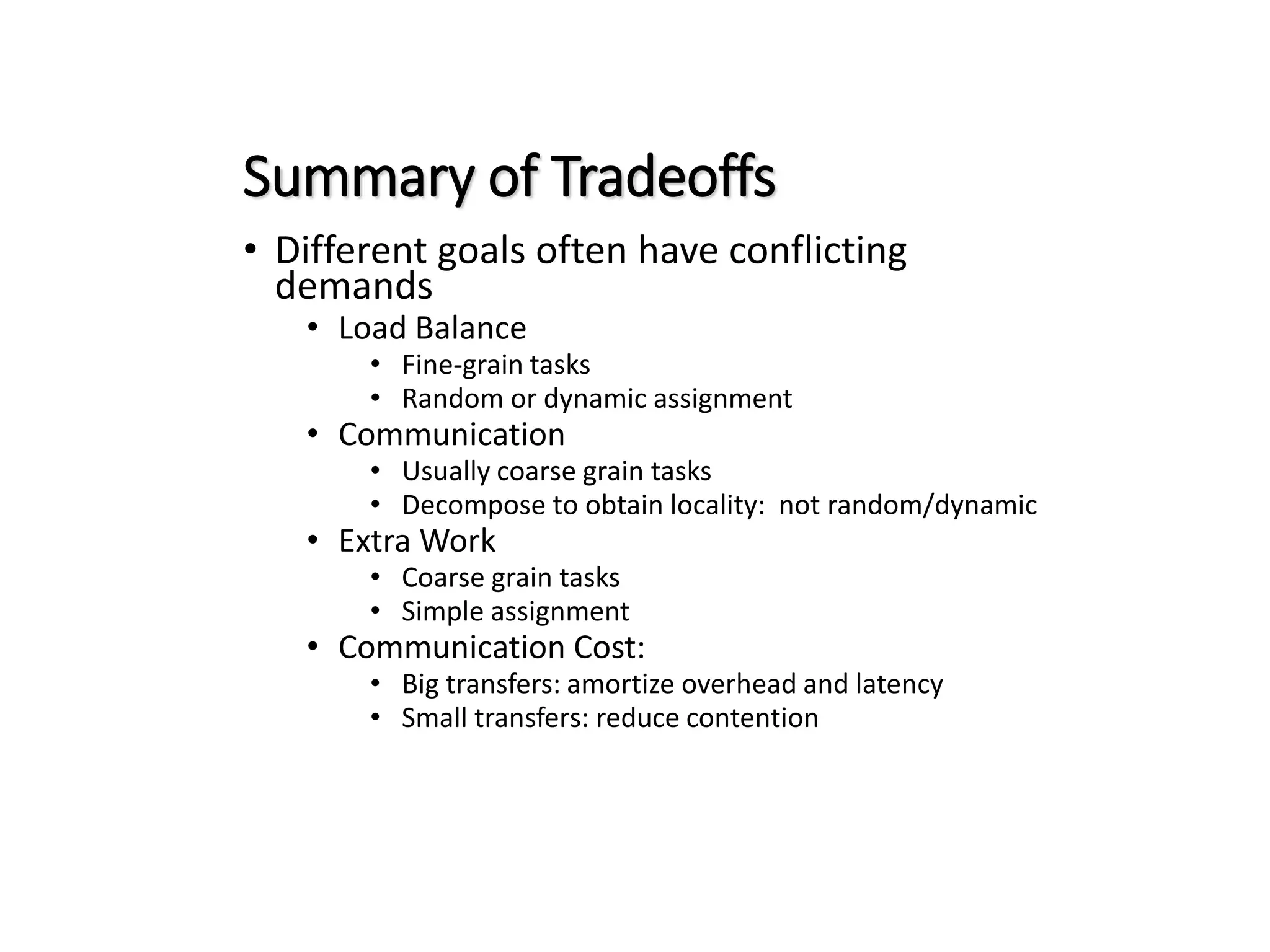

Summary of Tradeoffs • Different goals often have conflicting demands • Load Balance • Fine-grain tasks • Random or dynamic assignment • Communication • Usually coarse grain tasks • Decompose to obtain locality: not random/dynamic • Extra Work • Coarse grain tasks • Simple assignment • Communication Cost: • Big transfers: amortize overhead and latency • Small transfers: reduce contention

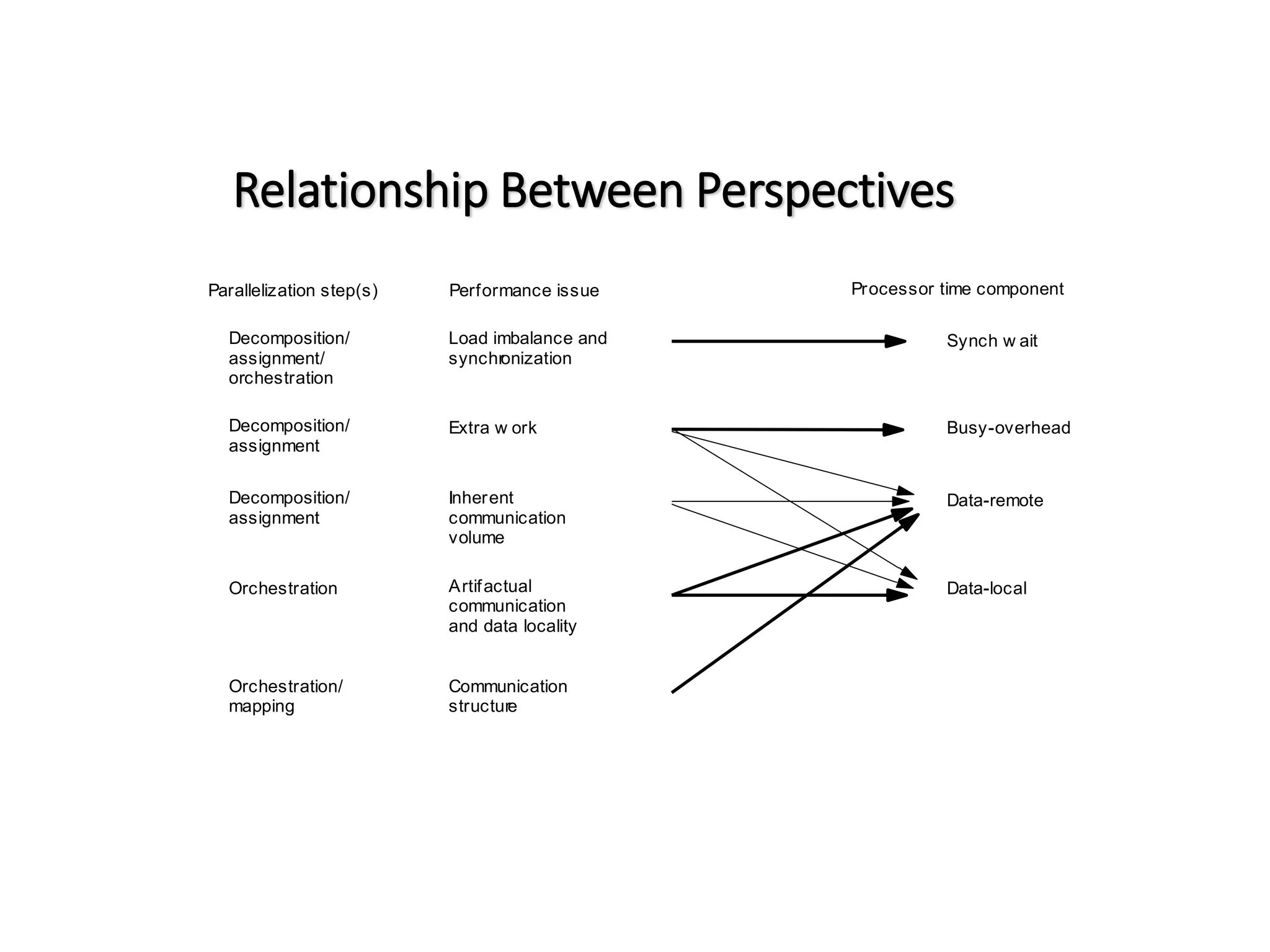

Relationship Between Perspectives Synch w ait Data-remote Data-local Orchestration Busy-overhead Extra w ork Performance issue Parallelization step(s) Processor time component Decomposition/ assignment/ orchestration Decomposition/ assignment Decomposition/ assignment Orchestration/ mapping Load imbalance and synchr onization Inherent communication volume Artifactual communication and data locality Communication structure

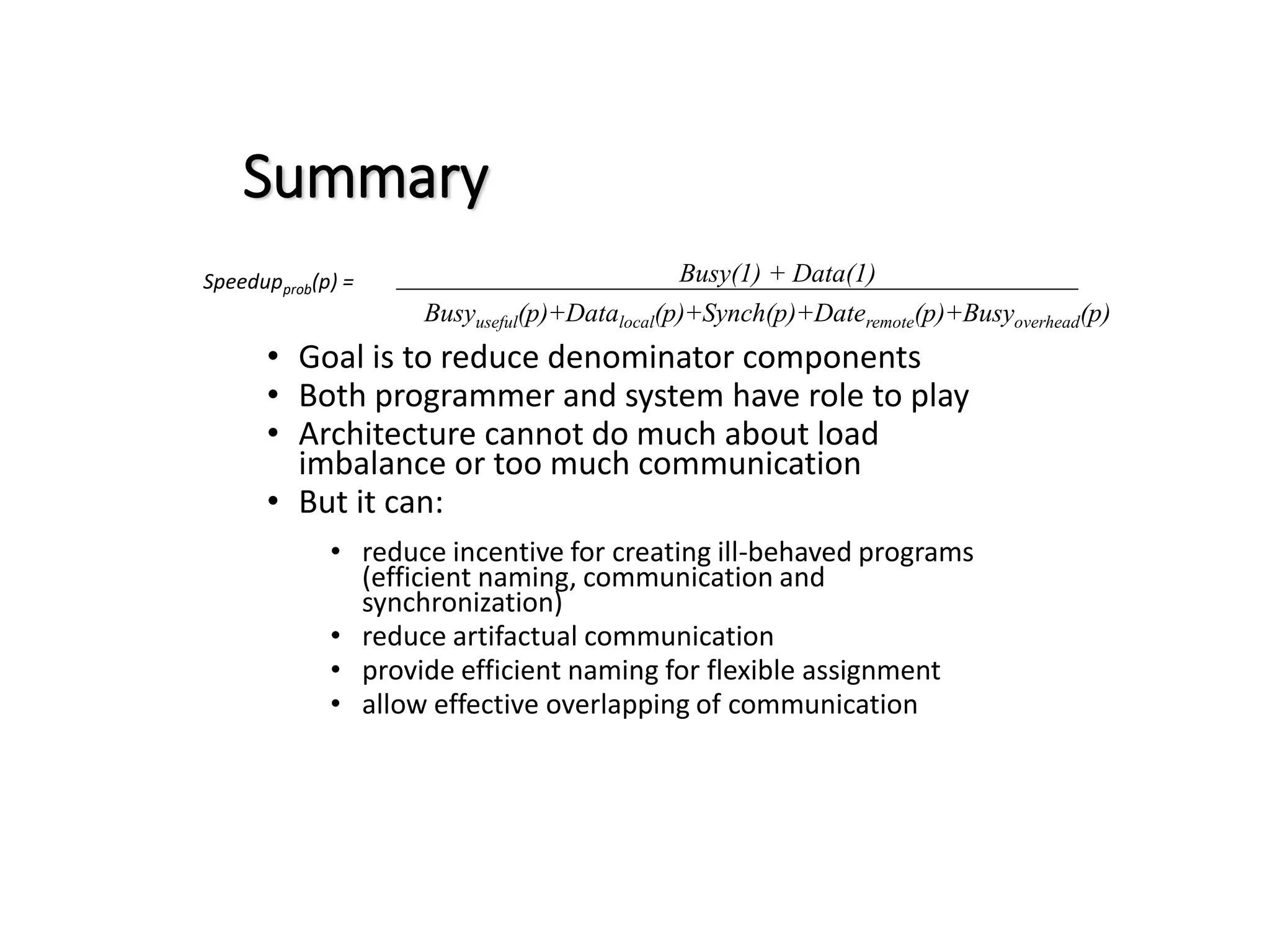

Summary Speedupprob(p) = • Goal is to reduce denominator components • Both programmer and system have role to play • Architecture cannot do much about load imbalance or too much communication • But it can: • reduce incentive for creating ill-behaved programs (efficient naming, communication and synchronization) • reduce artifactual communication • provide efficient naming for flexible assignment • allow effective overlapping of communication Busy(1) + Data(1) Busyuseful(p)+Datalocal(p)+Synch(p)+Dateremote(p)+Busyoverhead(p)

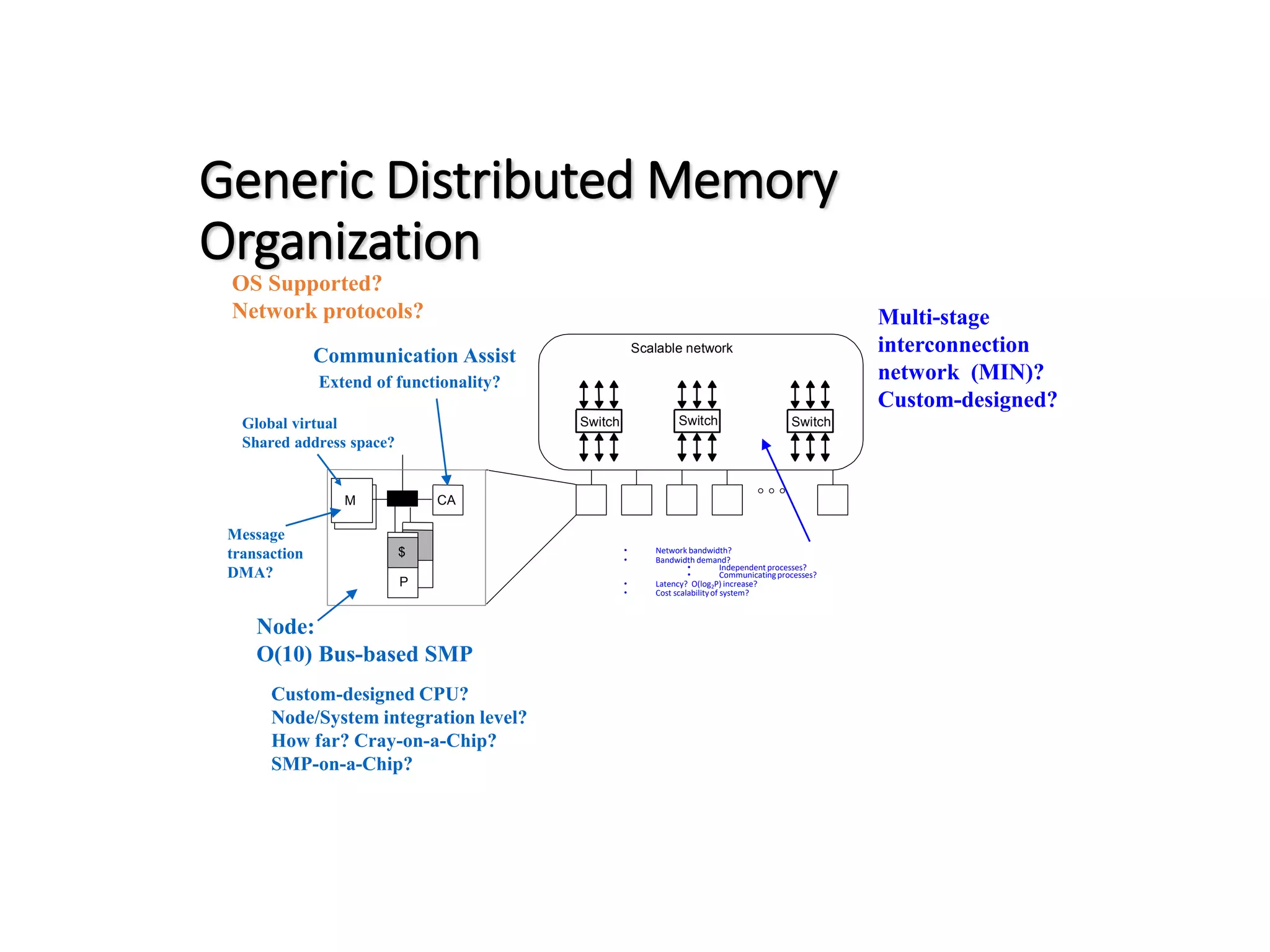

Generic Distributed Memory Organization • Network bandwidth? • Bandwidth demand? • Independent processes? • Communicatingprocesses? • Latency? O(log2P) increase? • Cost scalabilityof system?  Scalable network CA P $ Switch M Switch Switch Multi-stage interconnection network (MIN)? Custom-designed? Node: O(10) Bus-based SMP Custom-designed CPU? Node/System integration level? How far? Cray-on-a-Chip? SMP-on-a-Chip? OS Supported? Network protocols? Communication Assist Extend of functionality? Message transaction DMA? Global virtual Shared address space?
