elasticsearch basics workshop mathieu Elie at giroll mardi 17 décembre 13

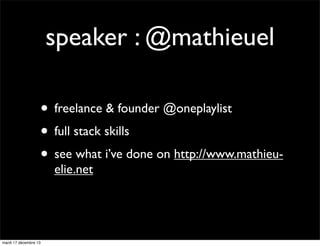

speaker : @mathieuel • freelance & founder @oneplaylist • full stack skills • see what i’ve done on http://www.mathieuelie.net mardi 17 décembre 13

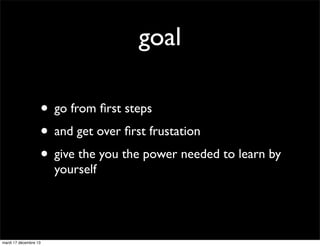

goal • go from ﬁrst steps • and get over ﬁrst frustation • give the you the power needed to learn by yourself mardi 17 décembre 13

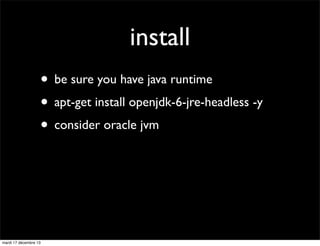

install • be sure you have java runtime • apt-get install openjdk-6-jre-headless -y • consider oracle jvm mardi 17 décembre 13

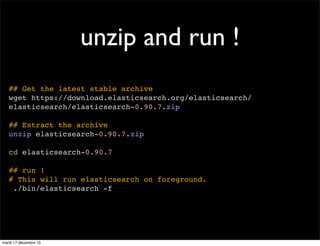

unzip and run ! ## Get the latest stable archive wget https://download.elasticsearch.org/elasticsearch/ elasticsearch/elasticsearch-0.90.7.zip ## Extract the archive unzip elasticsearch-0.90.7.zip cd elasticsearch-0.90.7 ## run ! # This will run elasticsearch on foreground. ./bin/elasticsearch -f mardi 17 décembre 13

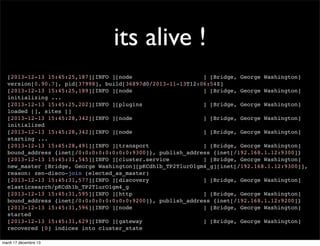

its alive ! [2013-12-13 15:45:25,187][INFO ][node ] [Bridge, George Washington] version[0.90.7], pid[37998], build[36897d0/2013-11-13T12:06:54Z] [2013-12-13 15:45:25,189][INFO ][node ] [Bridge, George Washington] initializing ... [2013-12-13 15:45:25,202][INFO ][plugins ] [Bridge, George Washington] loaded [], sites [] [2013-12-13 15:45:28,342][INFO ][node ] [Bridge, George Washington] initialized [2013-12-13 15:45:28,342][INFO ][node ] [Bridge, George Washington] starting ... [2013-12-13 15:45:28,491][INFO ][transport ] [Bridge, George Washington] bound_address {inet[/0:0:0:0:0:0:0:0:9300]}, publish_address {inet[/192.168.1.12:9300]} [2013-12-13 15:45:31,545][INFO ][cluster.service ] [Bridge, George Washington] new_master [Bridge, George Washington][pKCdh1b_TP2TlurO1gm4_g][inet[/192.168.1.12:9300]], reason: zen-disco-join (elected_as_master) [2013-12-13 15:45:31,577][INFO ][discovery ] [Bridge, George Washington] elasticsearch/pKCdh1b_TP2TlurO1gm4_g [2013-12-13 15:45:31,595][INFO ][http ] [Bridge, George Washington] bound_address {inet[/0:0:0:0:0:0:0:0:9200]}, publish_address {inet[/192.168.1.12:9200]} [2013-12-13 15:45:31,596][INFO ][node ] [Bridge, George Washington] started [2013-12-13 15:45:31,629][INFO ][gateway ] [Bridge, George Washington] recovered [0] indices into cluster_state mardi 17 décembre 13

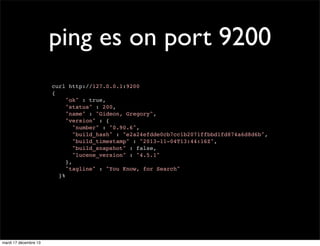

ping es on port 9200 curl http://127.0.0.1:9200 { "ok" : true, "status" : 200, "name" : "Gideon, Gregory", "version" : { "number" : "0.90.6", "build_hash" : "e2a24efdde0cb7cc1b2071ffbbd1fd874a6d8d6b", "build_timestamp" : "2013-11-04T13:44:16Z", "build_snapshot" : false, "lucene_version" : "4.5.1" }, "tagline" : "You Know, for Search" }% mardi 17 décembre 13

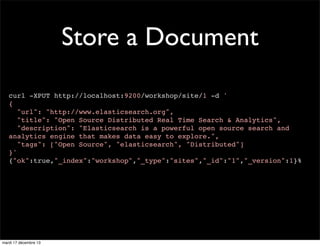

Store a Document curl -XPUT http://localhost:9200/workshop/site/1 -d ' { "url": "http://www.elasticsearch.org", "title": "Open Source Distributed Real Time Search & Analytics", "description": "Elasticsearch is a powerful open source search and analytics engine that makes data easy to explore.", "tags": ["Open Source", "elasticsearch", "Distributed"] }' {"ok":true,"_index":"workshop","_type":"sites","_id":"1","_version":1}% mardi 17 décembre 13

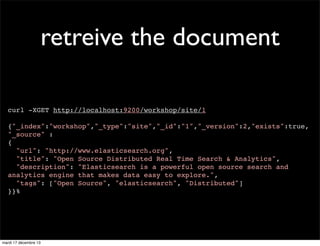

retreive the document curl -XGET http://localhost:9200/workshop/site/1 {"_index":"workshop","_type":"site","_id":"1","_version":2,"exists":true, "_source" : { "url": "http://www.elasticsearch.org", "title": "Open Source Distributed Real Time Search & Analytics", "description": "Elasticsearch is a powerful open source search and analytics engine that makes data easy to explore.", "tags": ["Open Source", "elasticsearch", "Distributed"] }}% mardi 17 décembre 13

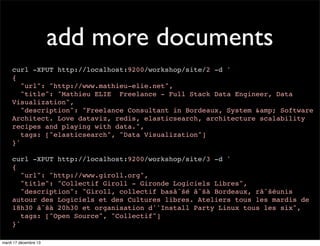

add more documents curl -XPUT http://localhost:9200/workshop/site/2 -d ' { "url": "http://www.mathieu-elie.net", "title": "Mathieu ELIE Freelance - Full Stack Data Engineer, Data Visualization", "description": "Freelance Consultant in Bordeaux, System & Software Architect. Love dataviz, redis, elasticsearch, architecture scalability recipes and playing with data.", tags: ["elasticsearch", "Data Visualization"] }' curl -XPUT http://localhost:9200/workshop/site/3 -d ' { "url": "http://www.giroll.org", "title": "Collectif Giroll - Gironde Logiciels Libres", "description": "Giroll, collectif basâˆšé âˆšà Bordeaux, râˆšéunis autour des Logiciels et des Cultures libres. Ateliers tous les mardis de 18h30 âˆšà 20h30 et organisation d''Install Party Linux tous les six", tags: ["Open Source", "Collectif"] }' mardi 17 décembre 13

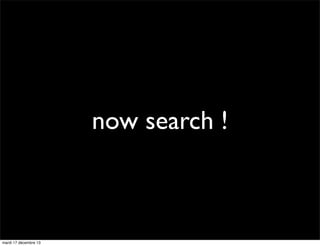

now search ! mardi 17 décembre 13

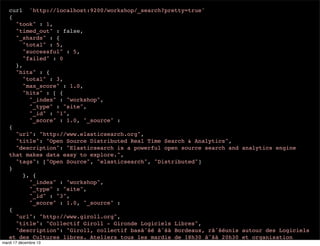

curl 'http://localhost:9200/workshop/_search?pretty=true' { "took" : 1, "timed_out" : false, "_shards" : { "total" : 5, "successful" : 5, "failed" : 0 }, "hits" : { "total" : 3, "max_score" : 1.0, "hits" : [ { "_index" : "workshop", "_type" : "site", "_id" : "1", "_score" : 1.0, "_source" : { "url": "http://www.elasticsearch.org", "title": "Open Source Distributed Real Time Search & Analytics", "description": "Elasticsearch is a powerful open source search and analytics engine that makes data easy to explore.", "tags": ["Open Source", "elasticsearch", "Distributed"] } }, { "_index" : "workshop", "_type" : "site", "_id" : "3", "_score" : 1.0, "_source" : { "url": "http://www.giroll.org", "title": "Collectif Giroll - Gironde Logiciels Libres", "description": "Giroll, collectif basâˆšé âˆšà Bordeaux, râˆšéunis autour des Logiciels et des Cultures libres. Ateliers tous les mardis de 18h30 âˆšà 20h30 et organisation mardi 17 décembre 13 dInstall Party Linux tous les six",

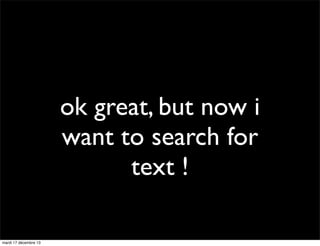

ok great, but now i want to search for text ! mardi 17 décembre 13

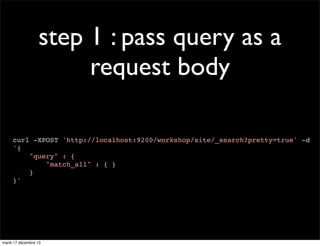

step 1 : pass query as a request body curl -XPOST 'http://localhost:9200/workshop/site/_search?pretty=true' -d '{ "query" : { "match_all" : { } } }' mardi 17 décembre 13

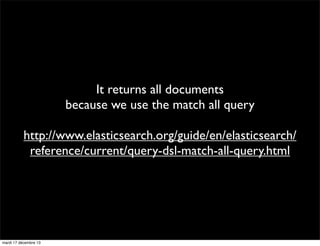

It returns all documents because we use the match all query http://www.elasticsearch.org/guide/en/elasticsearch/ reference/current/query-dsl-match-all-query.html mardi 17 décembre 13

match_all query is part of the queries dsl http://www.elasticsearch.org/guide/en/elasticsearch/ reference/current/query-dsl-queries.html mardi 17 décembre 13

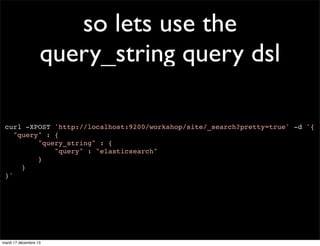

so lets use the query_string query dsl curl -XPOST 'http://localhost:9200/workshop/site/_search?pretty=true' -d '{ "query" : { "query_string" : { "query" : "elasticsearch" } } }' mardi 17 décembre 13

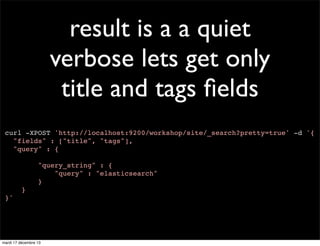

result is a a quiet verbose lets get only title and tags ﬁelds curl -XPOST 'http://localhost:9200/workshop/site/_search?pretty=true' -d '{ "fields" : ["title", "tags"], "query" : { "query_string" : { "query" : "elasticsearch" } } }' mardi 17 décembre 13

{ "took" : 6, "timed_out" : false, "_shards" : { "total" : 5, "successful" : 5, "failed" : 0 }, "hits" : { "total" : 2, "max_score" : 0.081366636, "hits" : [ { "_index" : "workshop", "_type" : "site", "_id" : "1", "_score" : 0.081366636, "fields" : { "tags" : [ "Open Source", "elasticsearch", "Distributed" ], "title" : "Open Source Distributed Real Time Search & Analytics" } }, { "_index" : "workshop", "_type" : "site", "_id" : "2", "_score" : 0.06780553, "fields" : { "tags" : [ "elasticsearch", "Data Visualization" ], "title" : "Mathieu ELIE Freelance - Full Stack Data Engineer, Data Visualization" } mardi 17 décembre 13

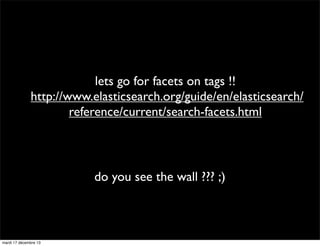

lets go for facets on tags !! http://www.elasticsearch.org/guide/en/elasticsearch/ reference/current/search-facets.html do you see the wall ??? ;) mardi 17 décembre 13

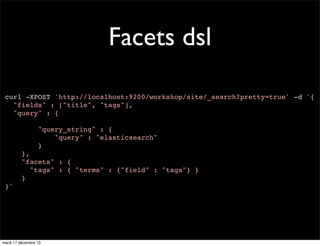

Facets dsl curl -XPOST 'http://localhost:9200/workshop/site/_search?pretty=true' -d '{ "fields" : ["title", "tags"], "query" : { "query_string" : { "query" : "elasticsearch" } }, "facets" : { "tags" : { "terms" : {"field" : "tags"} } } }' mardi 17 décembre 13

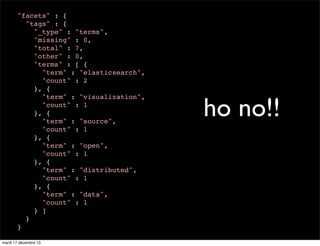

"facets" : { "tags" : { "_type" : "terms", "missing" : 0, "total" : 7, "other" : 0, "terms" : [ { "term" : "elasticsearch", "count" : 2 }, { "term" : "visualization", "count" : 1 }, { "term" : "source", "count" : 1 }, { "term" : "open", "count" : 1 }, { "term" : "distributed", "count" : 1 }, { "term" : "data", "count" : 1 } ] } } mardi 17 décembre 13 ho no!!

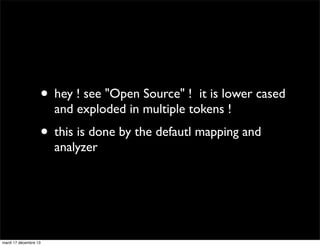

• hey ! see "Open Source" ! it is lower cased and exploded in multiple tokens ! • this is done by the defautl mapping and analyzer mardi 17 décembre 13

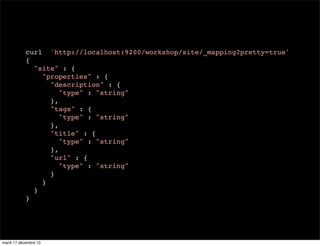

curl 'http://localhost:9200/workshop/site/_mapping?pretty=true' { "site" : { "properties" : { "description" : { "type" : "string" }, "tags" : { "type" : "string" }, "title" : { "type" : "string" }, "url" : { "type" : "string" } } } } mardi 17 décembre 13

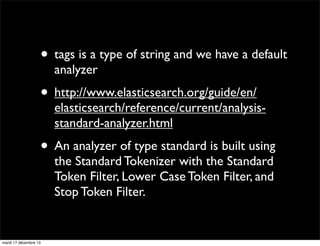

• tags is a type of string and we have a default analyzer • http://www.elasticsearch.org/guide/en/ elasticsearch/reference/current/analysisstandard-analyzer.html • An analyzer of type standard is built using the Standard Tokenizer with the Standard Token Filter, Lower Case Token Filter, and Stop Token Filter. mardi 17 décembre 13

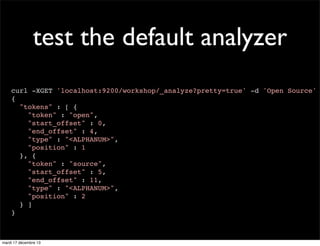

test the default analyzer curl -XGET 'localhost:9200/workshop/_analyze?pretty=true' -d 'Open Source' { "tokens" : [ { "token" : "open", "start_offset" : 0, "end_offset" : 4, "type" : "<ALPHANUM>", "position" : 1 }, { "token" : "source", "start_offset" : 5, "end_offset" : 11, "type" : "<ALPHANUM>", "position" : 2 } ] } mardi 17 décembre 13

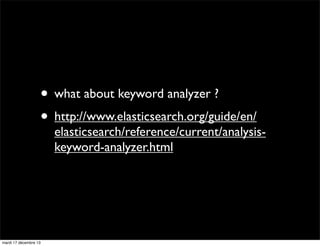

• what about keyword analyzer ? • http://www.elasticsearch.org/guide/en/ elasticsearch/reference/current/analysiskeyword-analyzer.html mardi 17 décembre 13

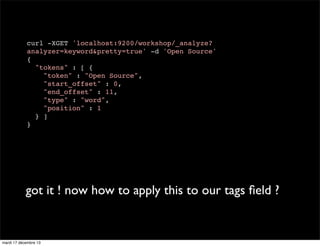

curl -XGET 'localhost:9200/workshop/_analyze? analyzer=keyword&pretty=true' -d 'Open Source' { "tokens" : [ { "token" : "Open Source", "start_offset" : 0, "end_offset" : 11, "type" : "word", "position" : 1 } ] } got it ! now how to apply this to our tags ﬁeld ? mardi 17 décembre 13

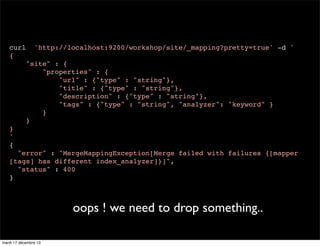

curl { 'http://localhost:9200/workshop/site/_mapping?pretty=true' -d ' "site" : { "properties" : { "url" : {"type" : "string"}, "title" : {"type" : "string"}, "description" : {"type" : "string"}, "tags" : {"type" : "string", "analyzer": "keyword" } } } } ' { "error" : "MergeMappingException[Merge failed with failures {[mapper [tags] has different index_analyzer]}]", "status" : 400 } oops ! we need to drop something.. mardi 17 décembre 13

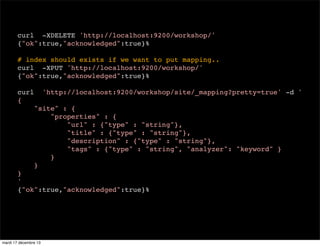

curl -XDELETE 'http://localhost:9200/workshop/' {"ok":true,"acknowledged":true}% # index should exists if we want to put mapping.. curl -XPUT 'http://localhost:9200/workshop/' {"ok":true,"acknowledged":true}% curl { 'http://localhost:9200/workshop/site/_mapping?pretty=true' -d ' "site" : { "properties" : { "url" : {"type" : "string"}, "title" : {"type" : "string"}, "description" : {"type" : "string"}, "tags" : {"type" : "string", "analyzer": "keyword" } } } } ' {"ok":true,"acknowledged":true}% mardi 17 décembre 13

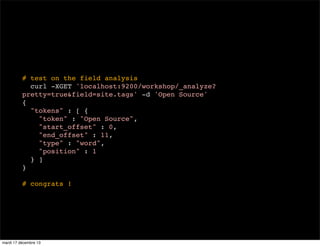

# test on the field analysis curl -XGET 'localhost:9200/workshop/_analyze? pretty=true&field=site.tags' -d 'Open Source' { "tokens" : [ { "token" : "Open Source", "start_offset" : 0, "end_offset" : 11, "type" : "word", "position" : 1 } ] } # congrats ! mardi 17 décembre 13

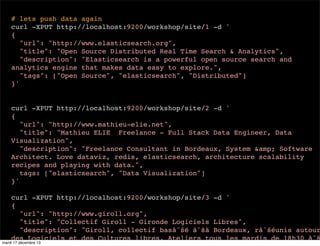

# lets push data again curl -XPUT http://localhost:9200/workshop/site/1 -d ' { "url": "http://www.elasticsearch.org", "title": "Open Source Distributed Real Time Search & Analytics", "description": "Elasticsearch is a powerful open source search and analytics engine that makes data easy to explore.", "tags": ["Open Source", "elasticsearch", "Distributed"] }' curl -XPUT http://localhost:9200/workshop/site/2 -d ' { "url": "http://www.mathieu-elie.net", "title": "Mathieu ELIE Freelance - Full Stack Data Engineer, Data Visualization", "description": "Freelance Consultant in Bordeaux, System & Software Architect. Love dataviz, redis, elasticsearch, architecture scalability recipes and playing with data.", tags: ["elasticsearch", "Data Visualization"] }' curl -XPUT http://localhost:9200/workshop/site/3 -d ' { "url": "http://www.giroll.org", "title": "Collectif Giroll - Gironde Logiciels Libres", "description": "Giroll, collectif basâˆšé âˆšà Bordeaux, râˆšéunis autour des Logiciels et des Cultures libres. Ateliers tous les mardis de 18h30 âˆš mardi 17 décembre 13

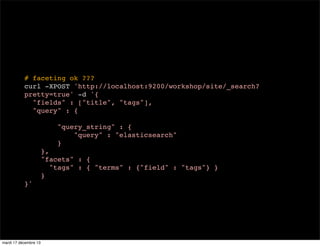

# faceting ok ??? curl -XPOST 'http://localhost:9200/workshop/site/_search? pretty=true' -d '{ "fields" : ["title", "tags"], "query" : { "query_string" : { "query" : "elasticsearch" } }, "facets" : { "tags" : { "terms" : {"field" : "tags"} } } }' mardi 17 décembre 13

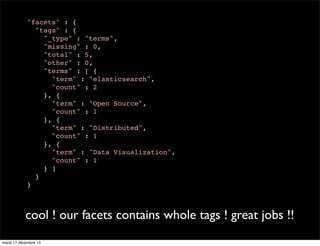

"facets" : { "tags" : { "_type" : "terms", "missing" : 0, "total" : 5, "other" : 0, "terms" : [ { "term" : "elasticsearch", "count" : 2 }, { "term" : "Open Source", "count" : 1 }, { "term" : "Distributed", "count" : 1 }, { "term" : "Data Visualization", "count" : 1 } ] } } cool ! our facets contains whole tags ! great jobs !! mardi 17 décembre 13

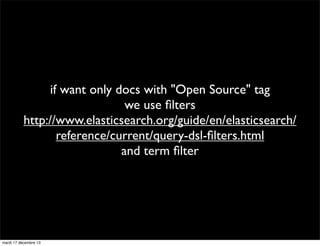

if want only docs with "Open Source" tag we use filters http://www.elasticsearch.org/guide/en/elasticsearch/ reference/current/query-dsl-filters.html and term filter mardi 17 décembre 13

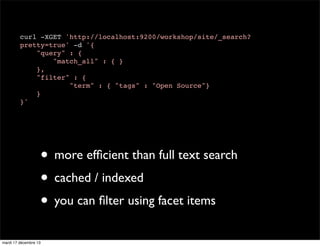

curl -XGET 'http://localhost:9200/workshop/site/_search? pretty=true' -d '{ "query" : { "match_all" : { } }, "filter" : { "term" : { "tags" : "Open Source"} } }' • more efﬁcient than full text search • cached / indexed • you can ﬁlter using facet items mardi 17 décembre 13

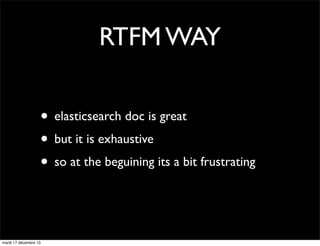

RTFM WAY • elasticsearch doc is great • but it is exhaustive • so at the beguining its a bit frustrating mardi 17 décembre 13

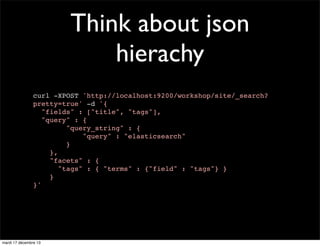

Think about json hierachy curl -XPOST 'http://localhost:9200/workshop/site/_search? pretty=true' -d '{ "fields" : ["title", "tags"], "query" : { "query_string" : { "query" : "elasticsearch" } }, "facets" : { "tags" : { "terms" : {"field" : "tags"} } } }' mardi 17 décembre 13

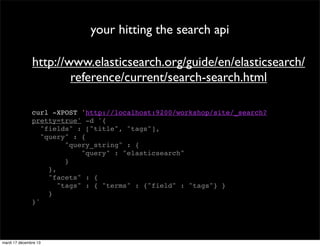

your hitting the search api http://www.elasticsearch.org/guide/en/elasticsearch/ reference/current/search-search.html curl -XPOST 'http://localhost:9200/workshop/site/_search? pretty=true' -d '{ "fields" : ["title", "tags"], "query" : { "query_string" : { "query" : "elasticsearch" } }, "facets" : { "tags" : { "terms" : {"field" : "tags"} } } }' mardi 17 décembre 13

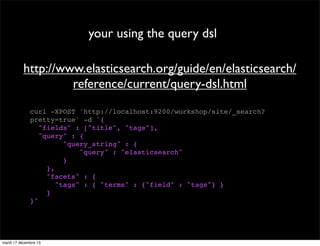

your using the query dsl http://www.elasticsearch.org/guide/en/elasticsearch/ reference/current/query-dsl.html curl -XPOST 'http://localhost:9200/workshop/site/_search? pretty=true' -d '{ "fields" : ["title", "tags"], "query" : { "query_string" : { "query" : "elasticsearch" } }, "facets" : { "tags" : { "terms" : {"field" : "tags"} } } }' mardi 17 décembre 13

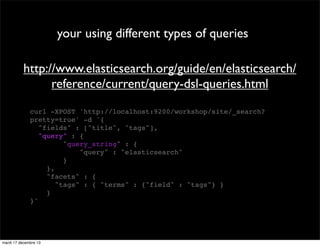

your using different types of queries http://www.elasticsearch.org/guide/en/elasticsearch/ reference/current/query-dsl-queries.html curl -XPOST 'http://localhost:9200/workshop/site/_search? pretty=true' -d '{ "fields" : ["title", "tags"], "query" : { "query_string" : { "query" : "elasticsearch" } }, "facets" : { "tags" : { "terms" : {"field" : "tags"} } } }' mardi 17 décembre 13

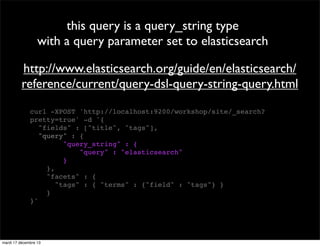

this query is a query_string type with a query parameter set to elasticsearch http://www.elasticsearch.org/guide/en/elasticsearch/ reference/current/query-dsl-query-string-query.html curl -XPOST 'http://localhost:9200/workshop/site/_search? pretty=true' -d '{ "fields" : ["title", "tags"], "query" : { "query_string" : { "query" : "elasticsearch" } }, "facets" : { "tags" : { "terms" : {"field" : "tags"} } } }' mardi 17 décembre 13

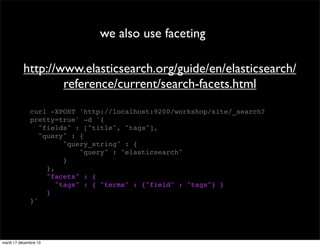

we also use faceting http://www.elasticsearch.org/guide/en/elasticsearch/ reference/current/search-facets.html curl -XPOST 'http://localhost:9200/workshop/site/_search? pretty=true' -d '{ "fields" : ["title", "tags"], "query" : { "query_string" : { "query" : "elasticsearch" } }, "facets" : { "tags" : { "terms" : {"field" : "tags"} } } }' mardi 17 décembre 13

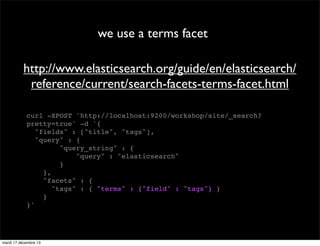

we use a terms facet http://www.elasticsearch.org/guide/en/elasticsearch/ reference/current/search-facets-terms-facet.html curl -XPOST 'http://localhost:9200/workshop/site/_search? pretty=true' -d '{ "fields" : ["title", "tags"], "query" : { "query_string" : { "query" : "elasticsearch" } }, "facets" : { "tags" : { "terms" : {"field" : "tags"} } } }' mardi 17 décembre 13

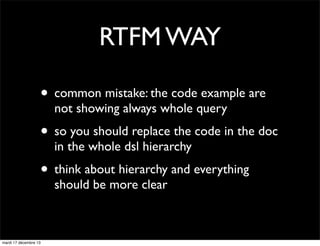

RTFM WAY • common mistake: the code example are not showing always whole query • so you should replace the code in the doc in the whole dsl hierarchy • think about hierarchy and everything should be more clear mardi 17 décembre 13

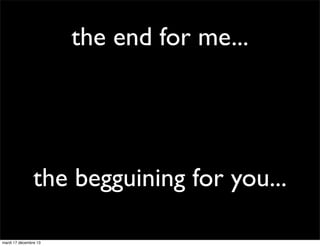

the end for me... the begguining for you... mardi 17 décembre 13

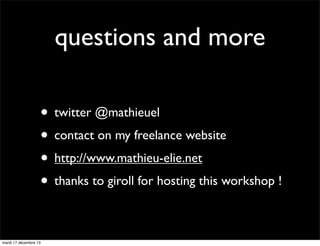

questions and more • twitter @mathieuel • contact on my freelance website • http://www.mathieu-elie.net • thanks to giroll for hosting this workshop ! mardi 17 décembre 13
