Dependency Injection in Apache Spark Applications
The document discusses dependency injection in Apache Spark applications, specifically within the Signals team at Salesforce. It covers the use of the Guice framework for managing dependencies, highlights potential pitfalls related to serialization of non-serializable dependencies, and introduces a custom library called Injector Provider that facilitates creating serializable injectors. The document concludes that while modular Spark jobs are challenging, using an Injector Provider enables effective dependency injection in Spark environments.
Dependency Injection in Apache Spark Applications
- 1. Dependency Injection in ApacheSpark Applications Sandeep Prabhakar & Shu Das

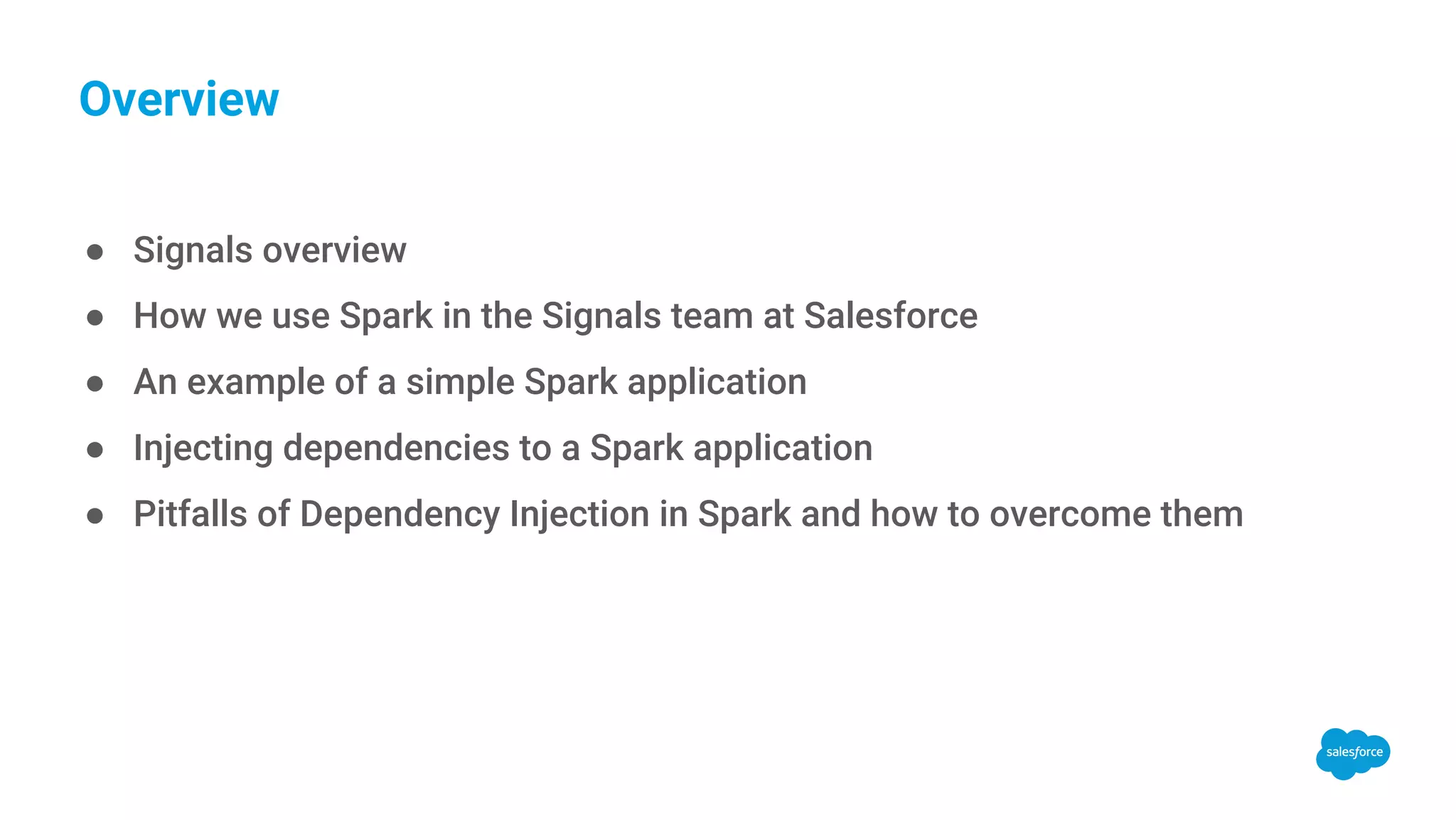

- 2. Overview ● Signals overview ●How we use Spark in the Signals team at Salesforce ● An example of a simple Spark application ● Injecting dependencies to a Spark application ● Pitfalls of Dependency Injection in Spark and how to overcome them

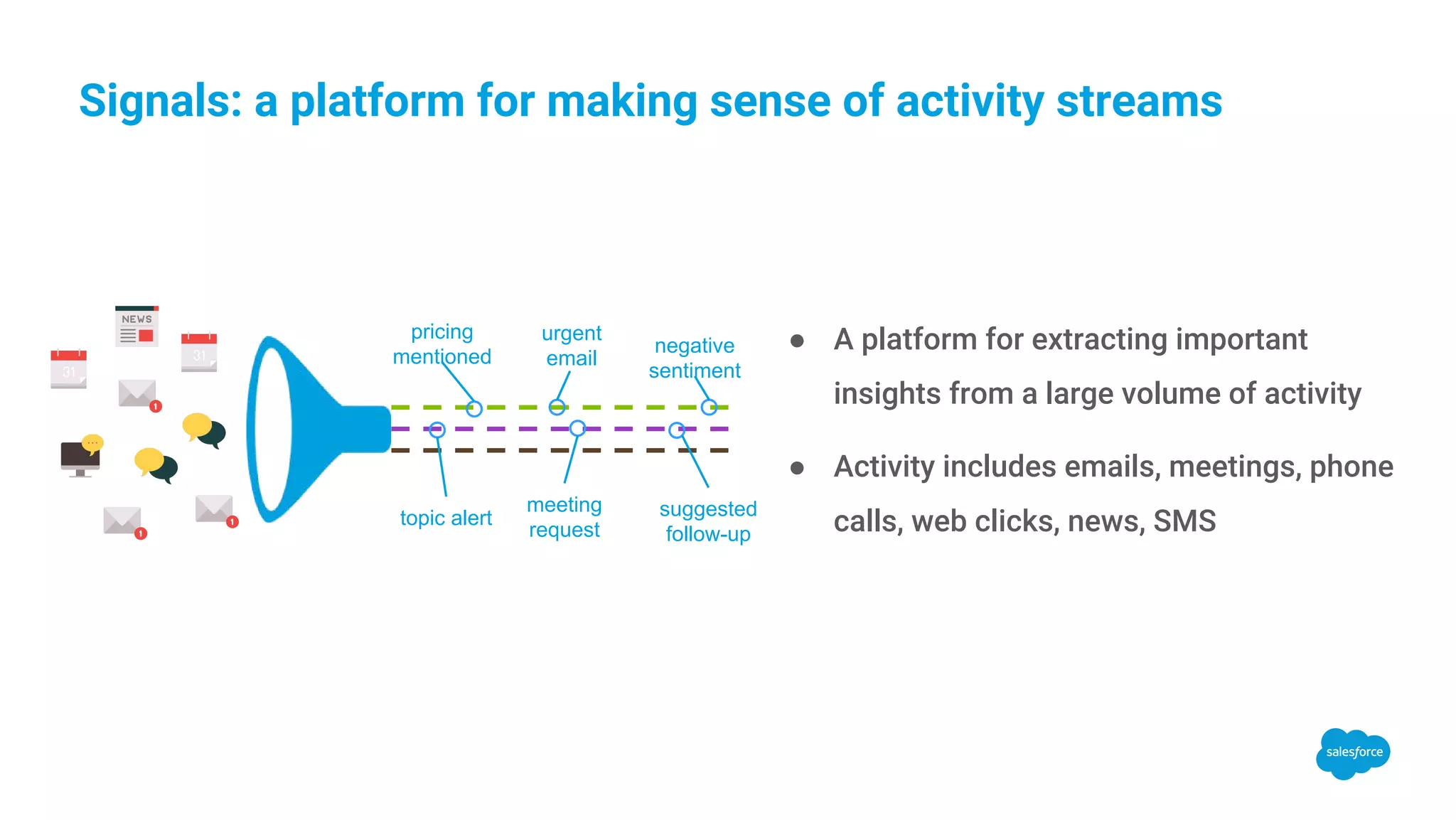

- 3. Signals: a platformfor making sense of activity streams ● A platform for extracting important insights from a large volume of activity ● Activity includes emails, meetings, phone calls, web clicks, news, SMS urgent email suggested follow-up topic alert pricing mentioned meeting request negative sentiment

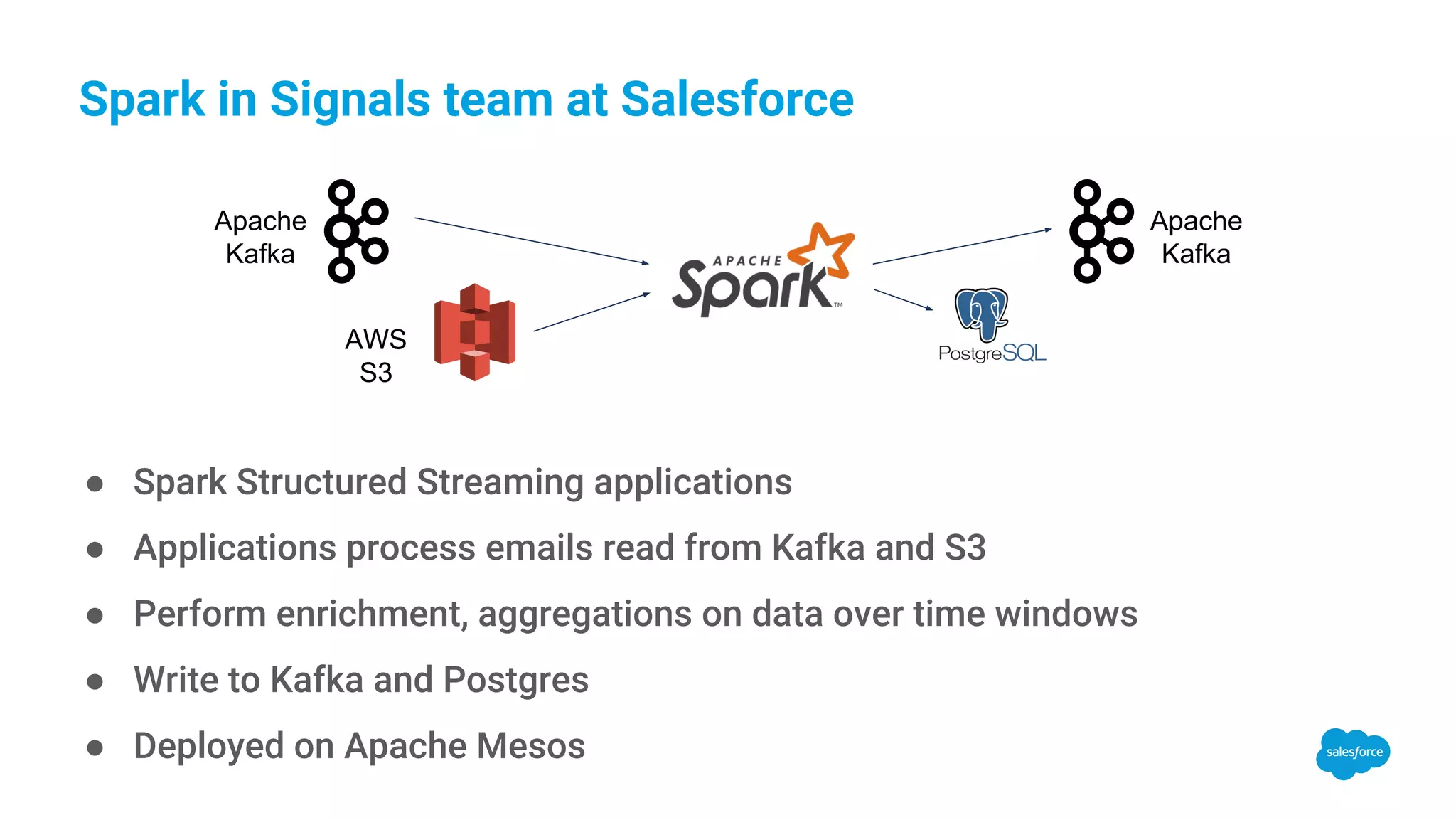

- 4. Spark in Signalsteam at Salesforce ● Spark Structured Streaming applications ● Applications process emails read from Kafka and S3 ● Perform enrichment, aggregations on data over time windows ● Write to Kafka and Postgres ● Deployed on Apache Mesos Apache Kafka AWS S3 Apache Kafka
- 5.

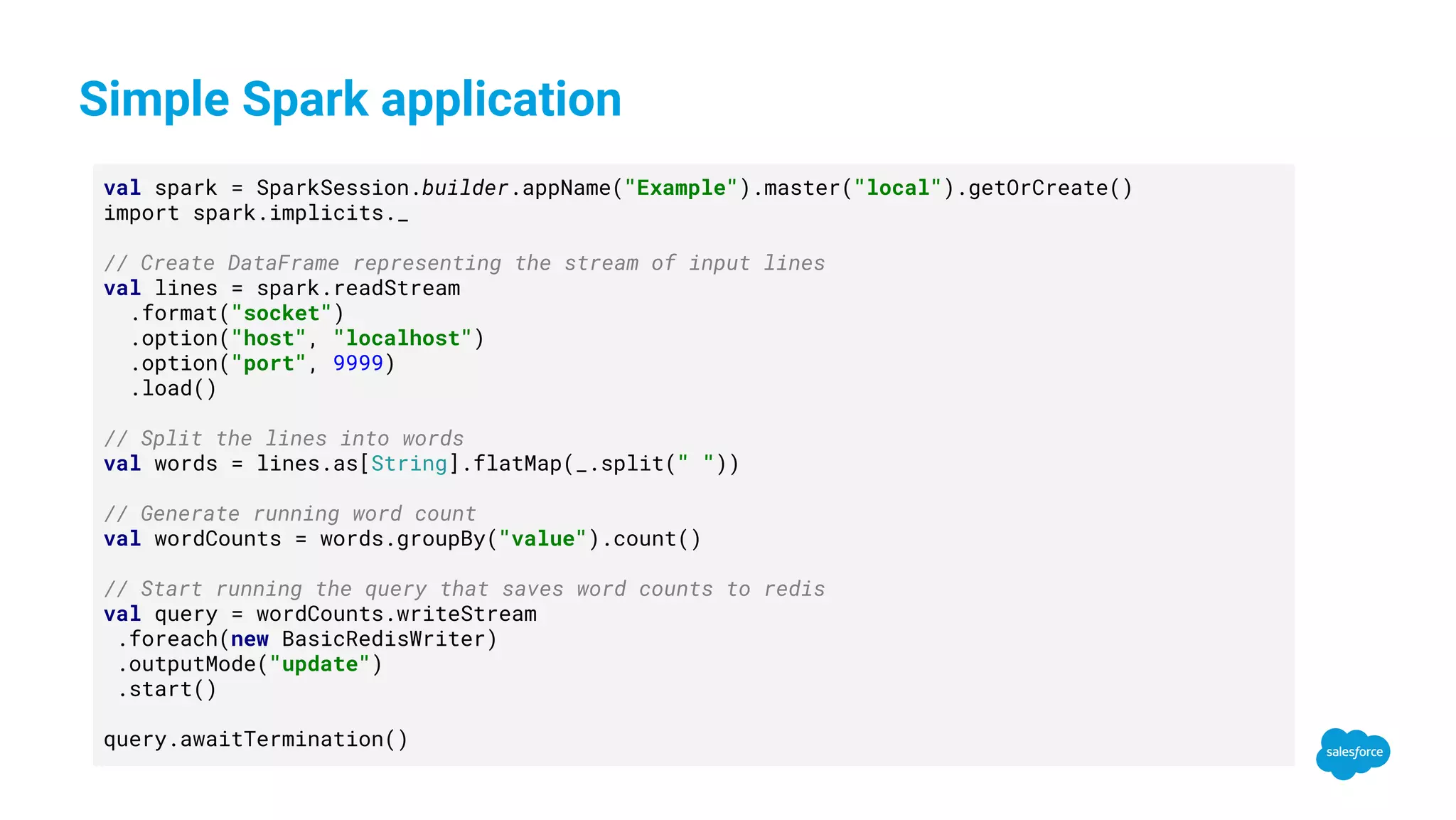

- 6. Simple Spark application valspark = SparkSession.builder.appName("Example").master("local").getOrCreate() import spark.implicits._ // Create DataFrame representing the stream of input lines val lines = spark.readStream .format("socket") .option("host", "localhost") .option("port", 9999) .load() // Split the lines into words val words = lines.as[String].flatMap(_.split(" ")) // Generate running word count val wordCounts = words.groupBy("value").count() // Start running the query that saves word counts to redis val query = wordCounts.writeStream .foreach(new BasicRedisWriter) .outputMode("update") .start() query.awaitTermination()

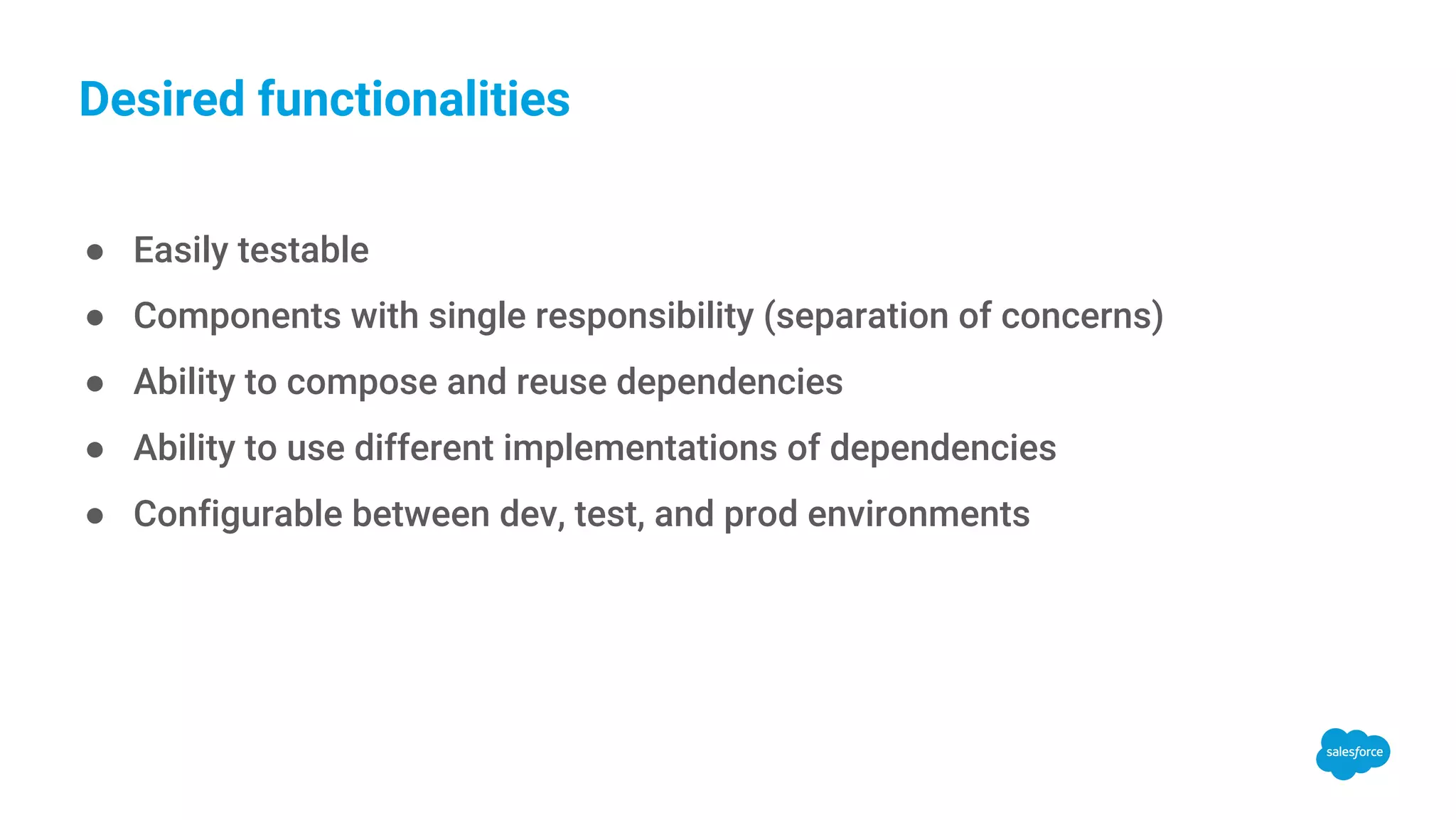

- 7. Desired functionalities ● Easilytestable ● Components with single responsibility (separation of concerns) ● Ability to compose and reuse dependencies ● Ability to use different implementations of dependencies ● Configurable between dev, test, and prod environments
- 8. Using Guice toinject dependencies

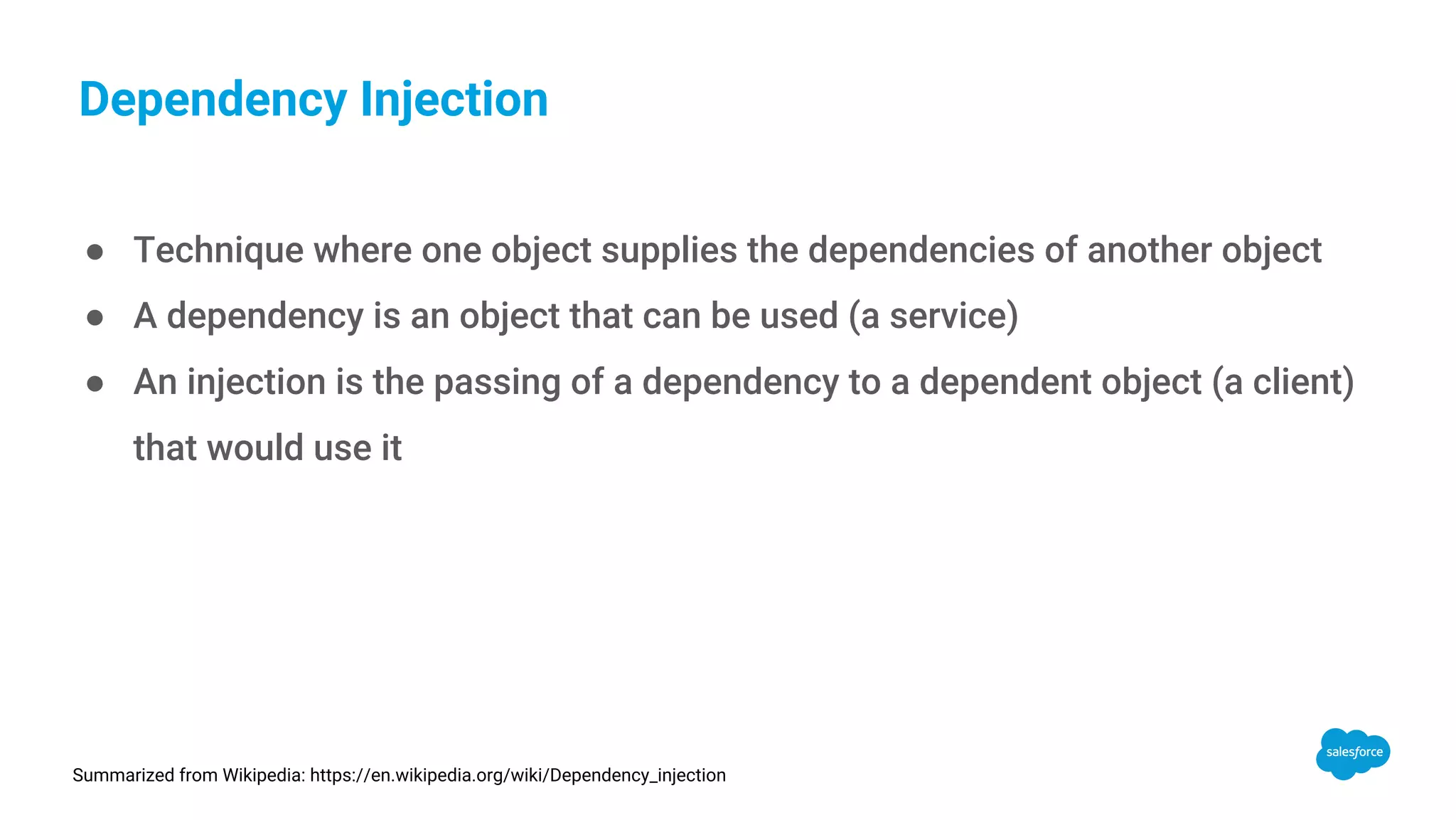

- 9. Dependency Injection ● Techniquewhere one object supplies the dependencies of another object ● A dependency is an object that can be used (a service) ● An injection is the passing of a dependency to a dependent object (a client) that would use it Summarized from Wikipedia: https://en.wikipedia.org/wiki/Dependency_injection

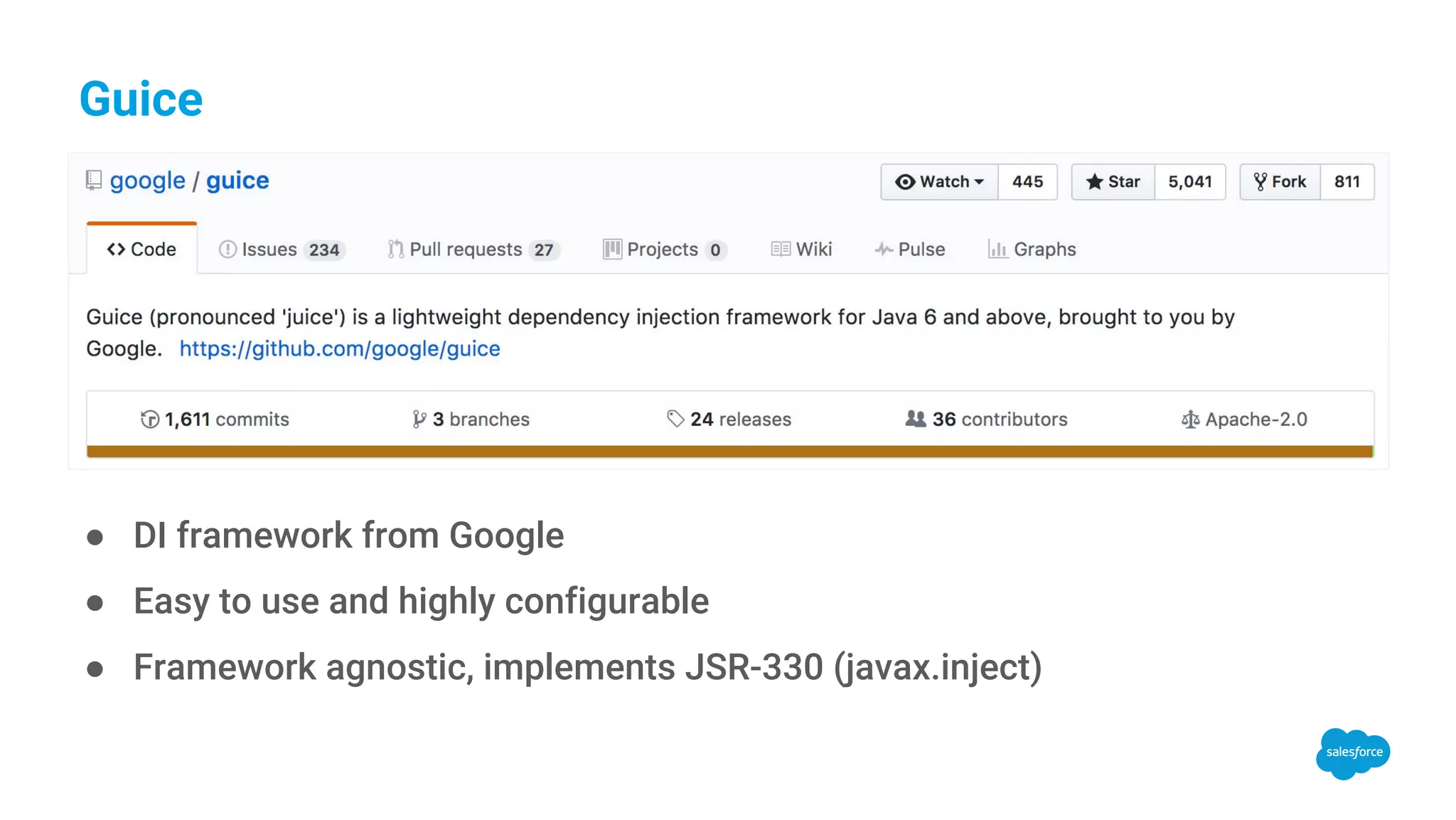

- 10. Guice ● DI frameworkfrom Google ● Easy to use and highly configurable ● Framework agnostic, implements JSR-330 (javax.inject)

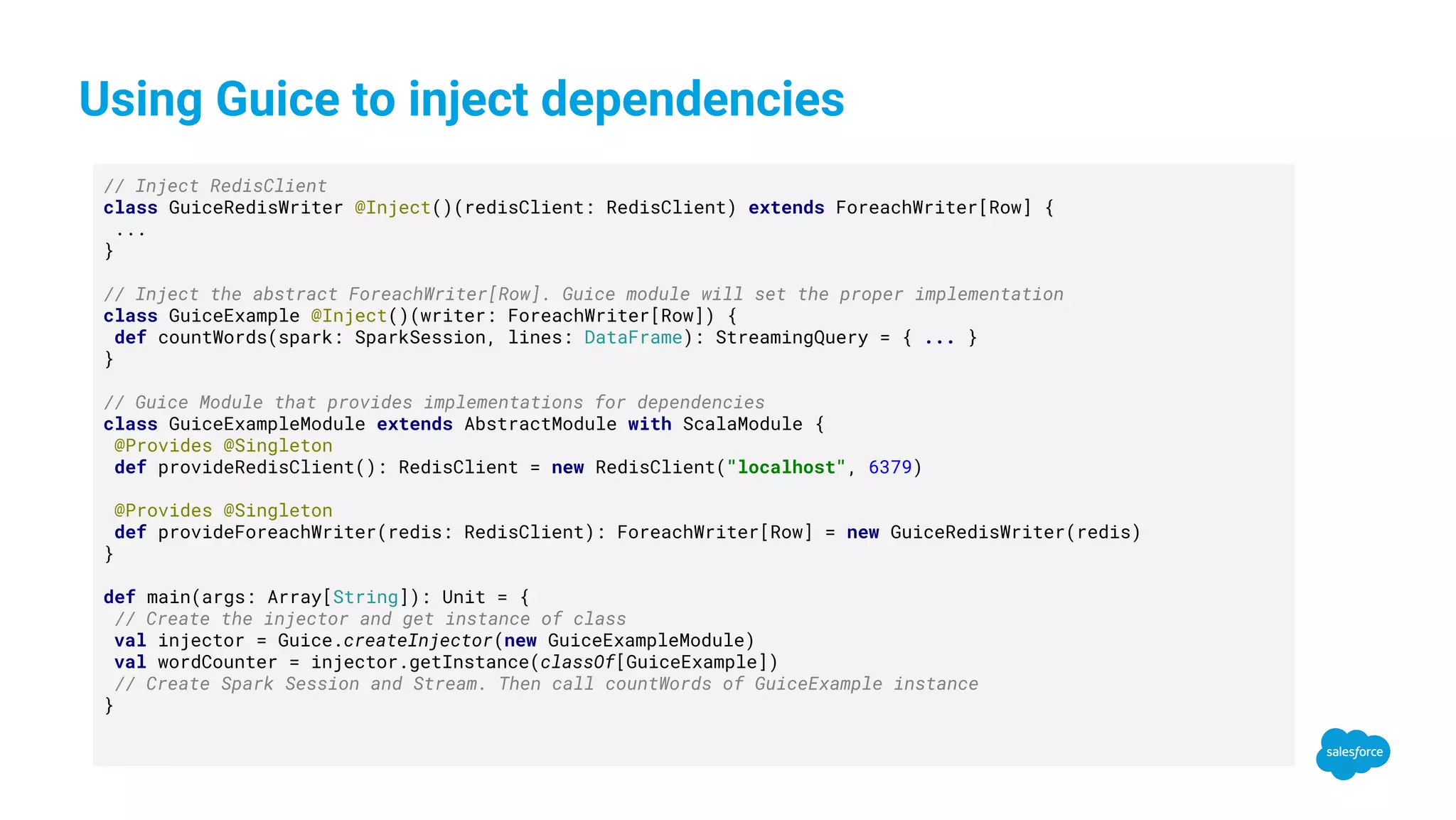

- 11. Using Guice toinject dependencies // Inject RedisClient class GuiceRedisWriter @Inject()(redisClient: RedisClient) extends ForeachWriter[Row] { ... } // Inject the abstract ForeachWriter[Row]. Guice module will set the proper implementation class GuiceExample @Inject()(writer: ForeachWriter[Row]) { def countWords(spark: SparkSession, lines: DataFrame): StreamingQuery = { ... } } // Guice Module that provides implementations for dependencies class GuiceExampleModule extends AbstractModule with ScalaModule { @Provides @Singleton def provideRedisClient(): RedisClient = new RedisClient("localhost", 6379) @Provides @Singleton def provideForeachWriter(redis: RedisClient): ForeachWriter[Row] = new GuiceRedisWriter(redis) } def main(args: Array[String]): Unit = { // Create the injector and get instance of class val injector = Guice.createInjector(new GuiceExampleModule) val wordCounter = injector.getInstance(classOf[GuiceExample]) // Create Spark Session and Stream. Then call countWords of GuiceExample instance }

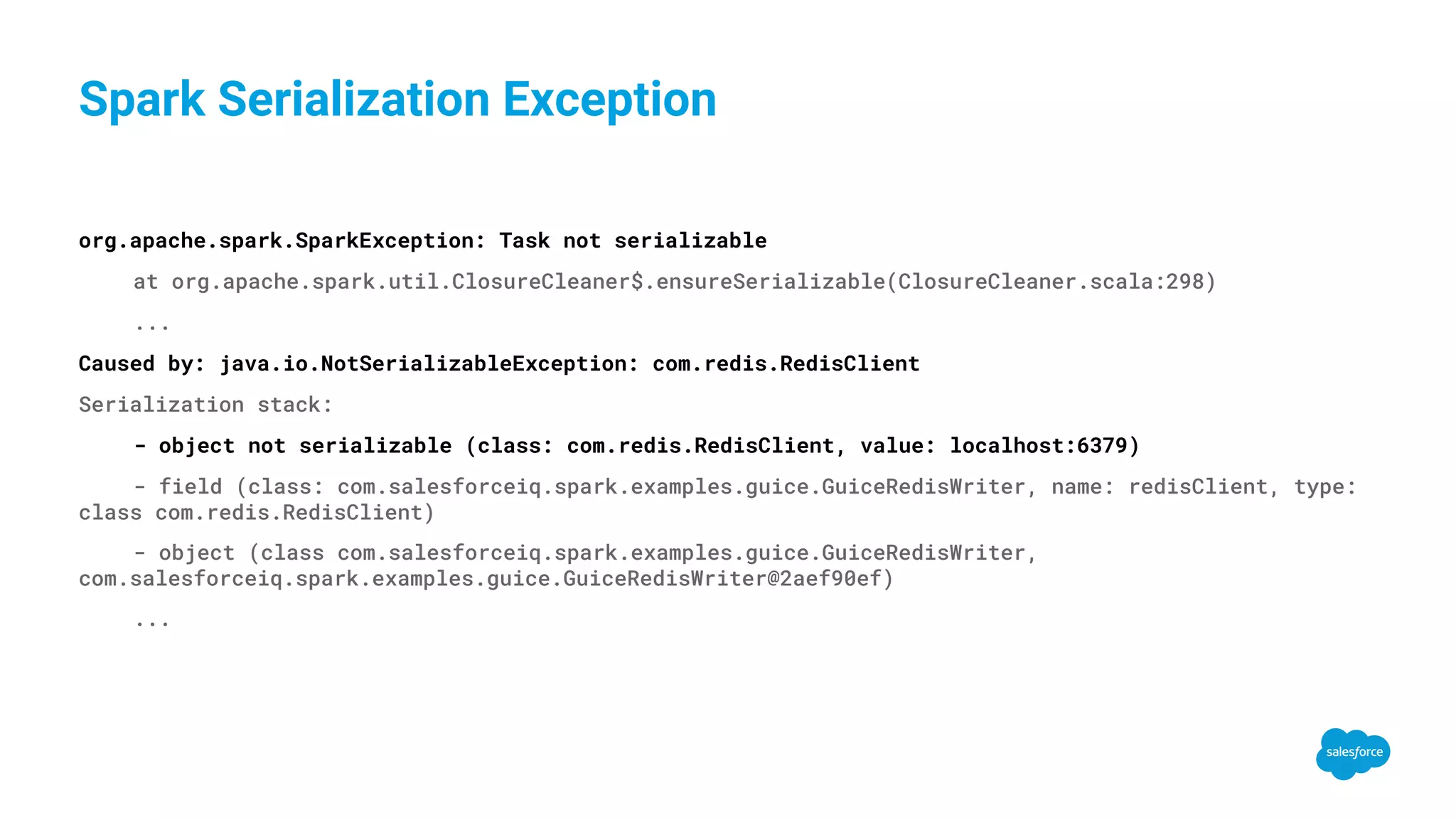

- 12. Spark Serialization Exception org.apache.spark.SparkException:Task not serializable at org.apache.spark.util.ClosureCleaner$.ensureSerializable(ClosureCleaner.scala:298) ... Caused by: java.io.NotSerializableException: com.redis.RedisClient Serialization stack: - object not serializable (class: com.redis.RedisClient, value: localhost:6379) - field (class: com.salesforceiq.spark.examples.guice.GuiceRedisWriter, name: redisClient, type: class com.redis.RedisClient) - object (class com.salesforceiq.spark.examples.guice.GuiceRedisWriter, com.salesforceiq.spark.examples.guice.GuiceRedisWriter@2aef90ef) ...

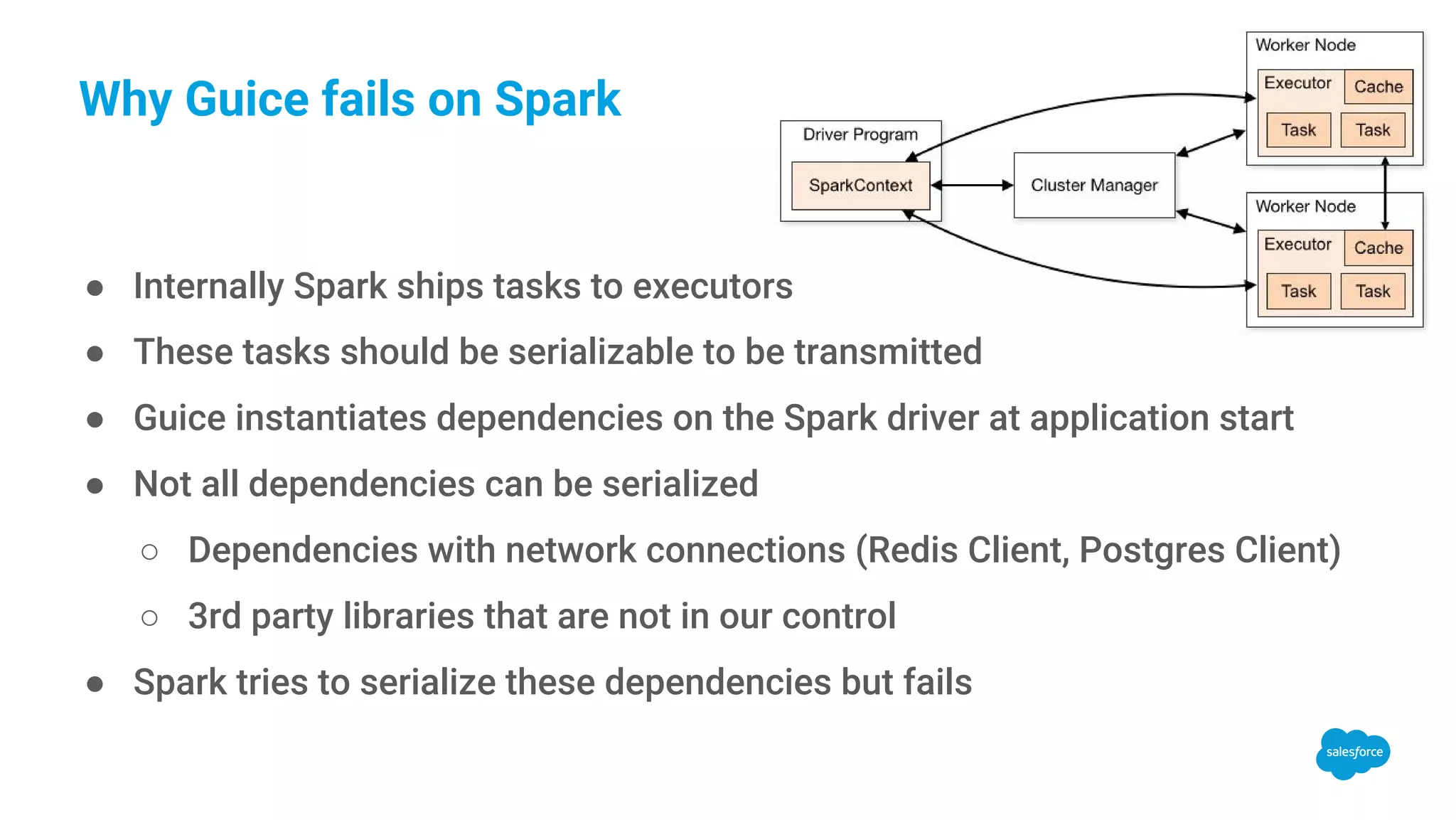

- 13. Why Guice failson Spark ● Internally Spark ships tasks to executors ● These tasks should be serializable to be transmitted ● Guice instantiates dependencies on the Spark driver at application start ● Not all dependencies can be serialized ○ Dependencies with network connections (Redis Client, Postgres Client) ○ 3rd party libraries that are not in our control ● Spark tries to serialize these dependencies but fails

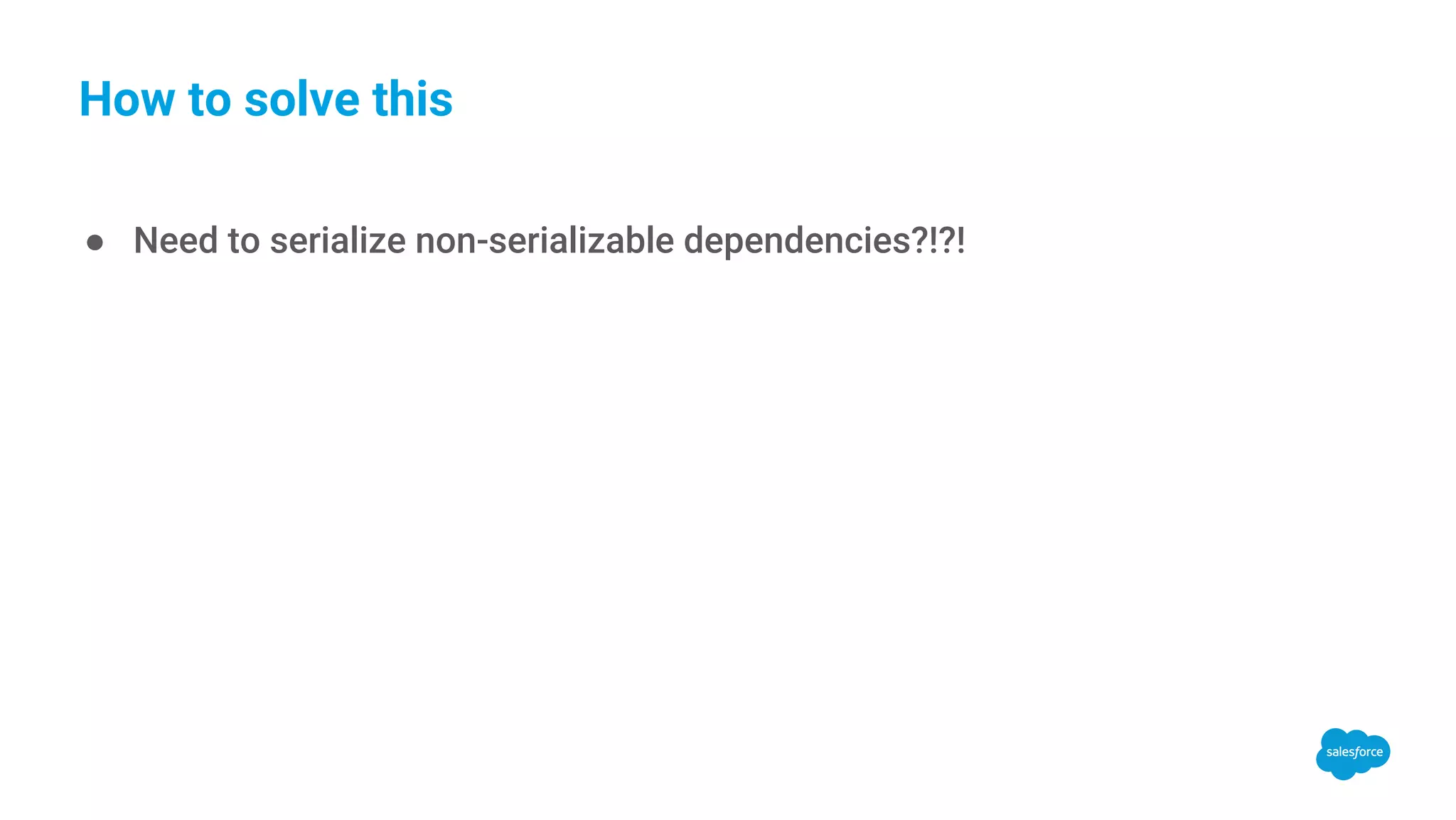

- 14. How to solvethis ● Need to serialize non-serializable dependencies?!?!

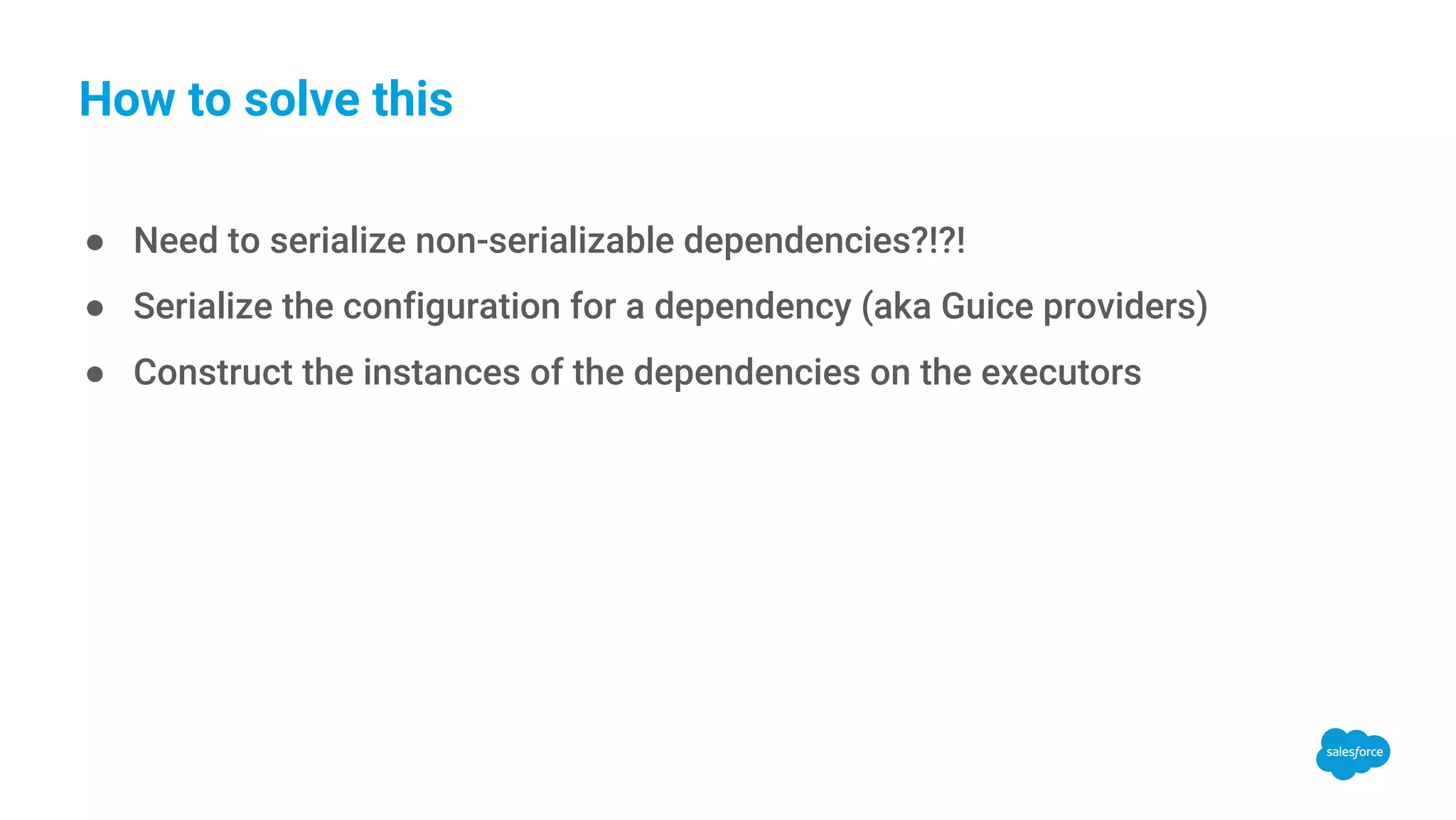

- 15. How to solvethis ● Need to serialize non-serializable dependencies?!?! ● Serialize the configuration for a dependency (aka Guice providers) ● Construct the instances of the dependencies on the executors

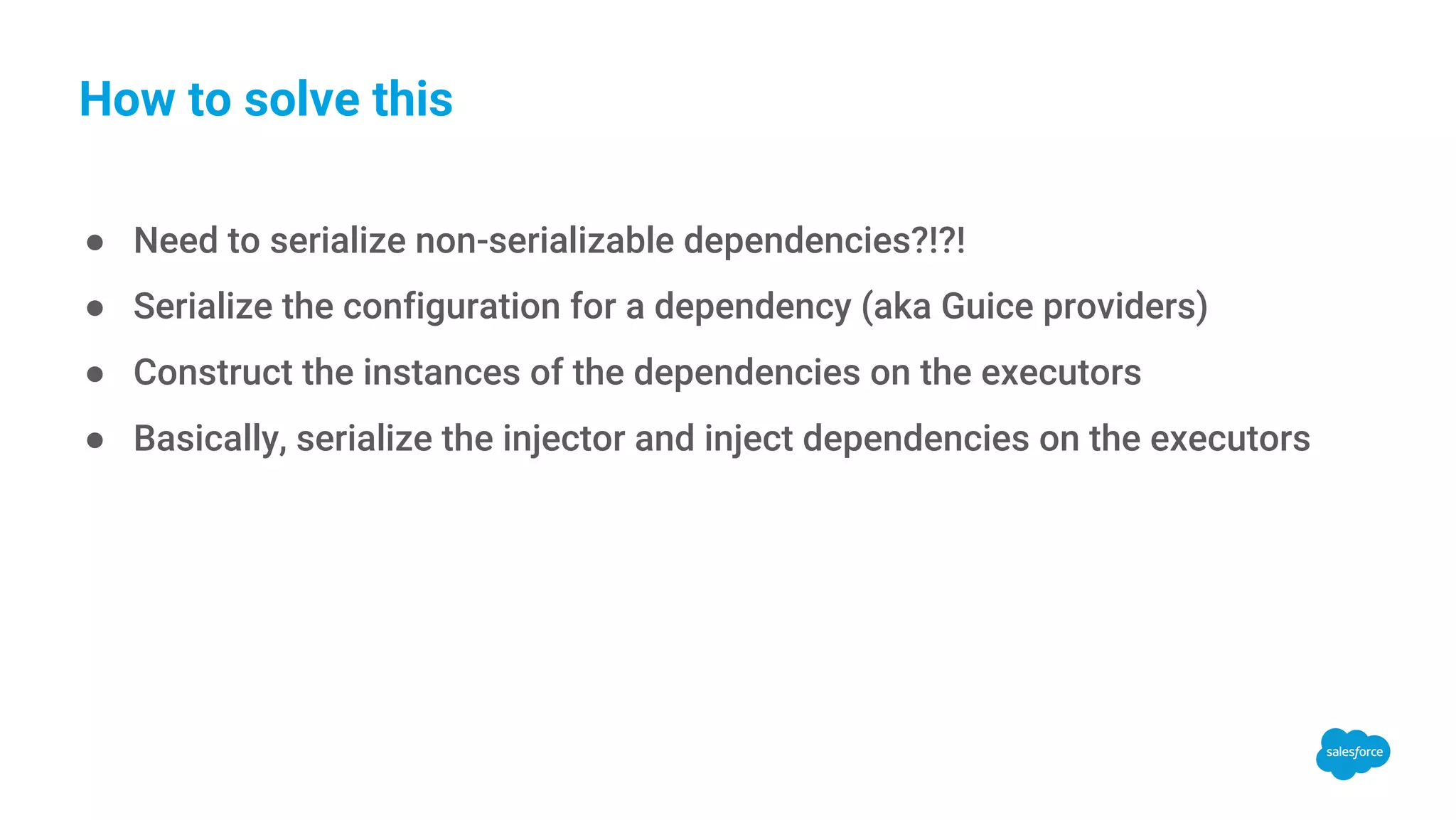

- 16. How to solvethis ● Need to serialize non-serializable dependencies?!?! ● Serialize the configuration for a dependency (aka Guice providers) ● Construct the instances of the dependencies on the executors ● Basically, serialize the injector and inject dependencies on the executors
- 17.

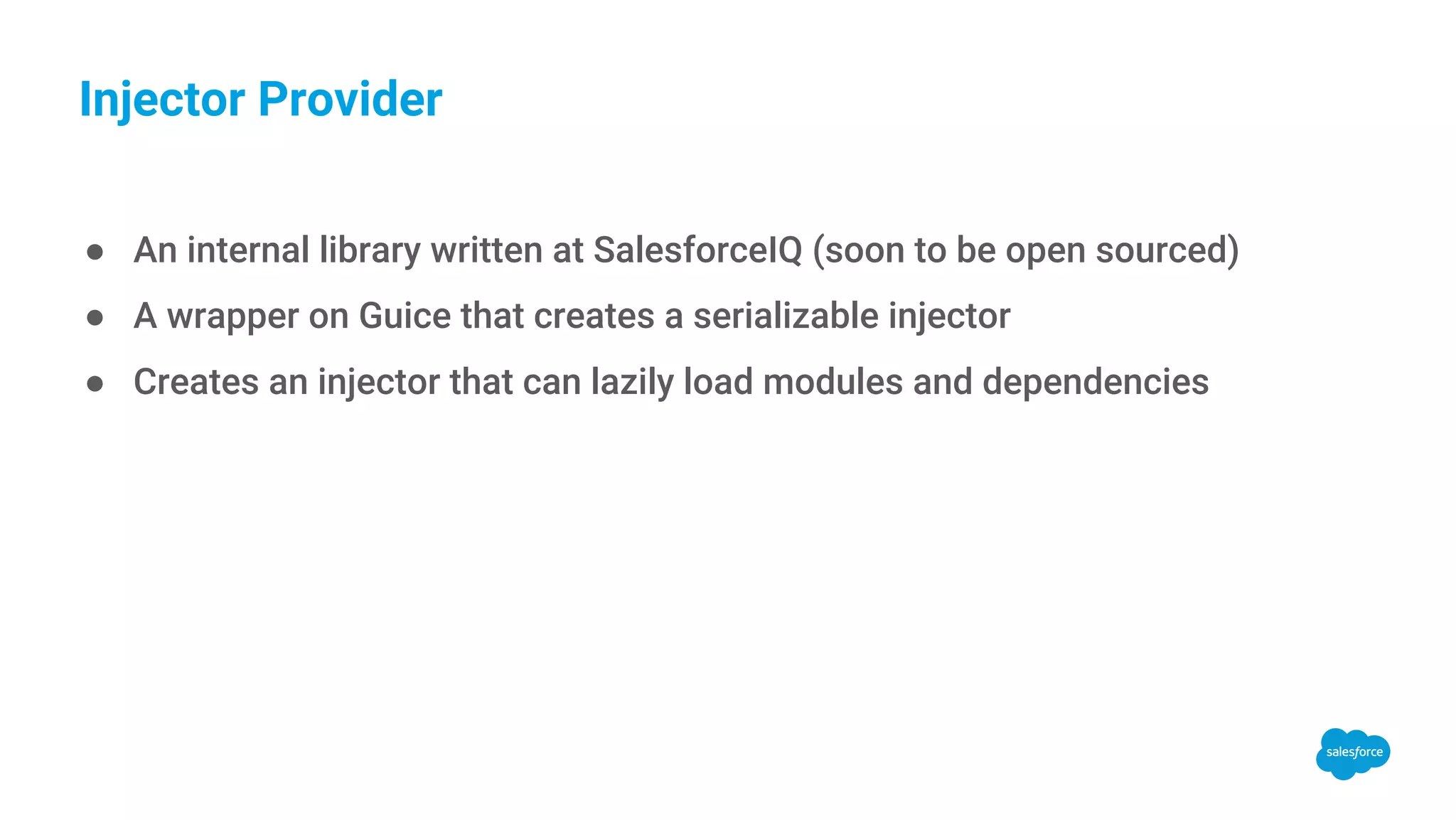

- 18. Injector Provider ● Aninternal library written at SalesforceIQ (soon to be open sourced) ● A wrapper on Guice that creates a serializable injector ● Creates an injector that can lazily load modules and dependencies

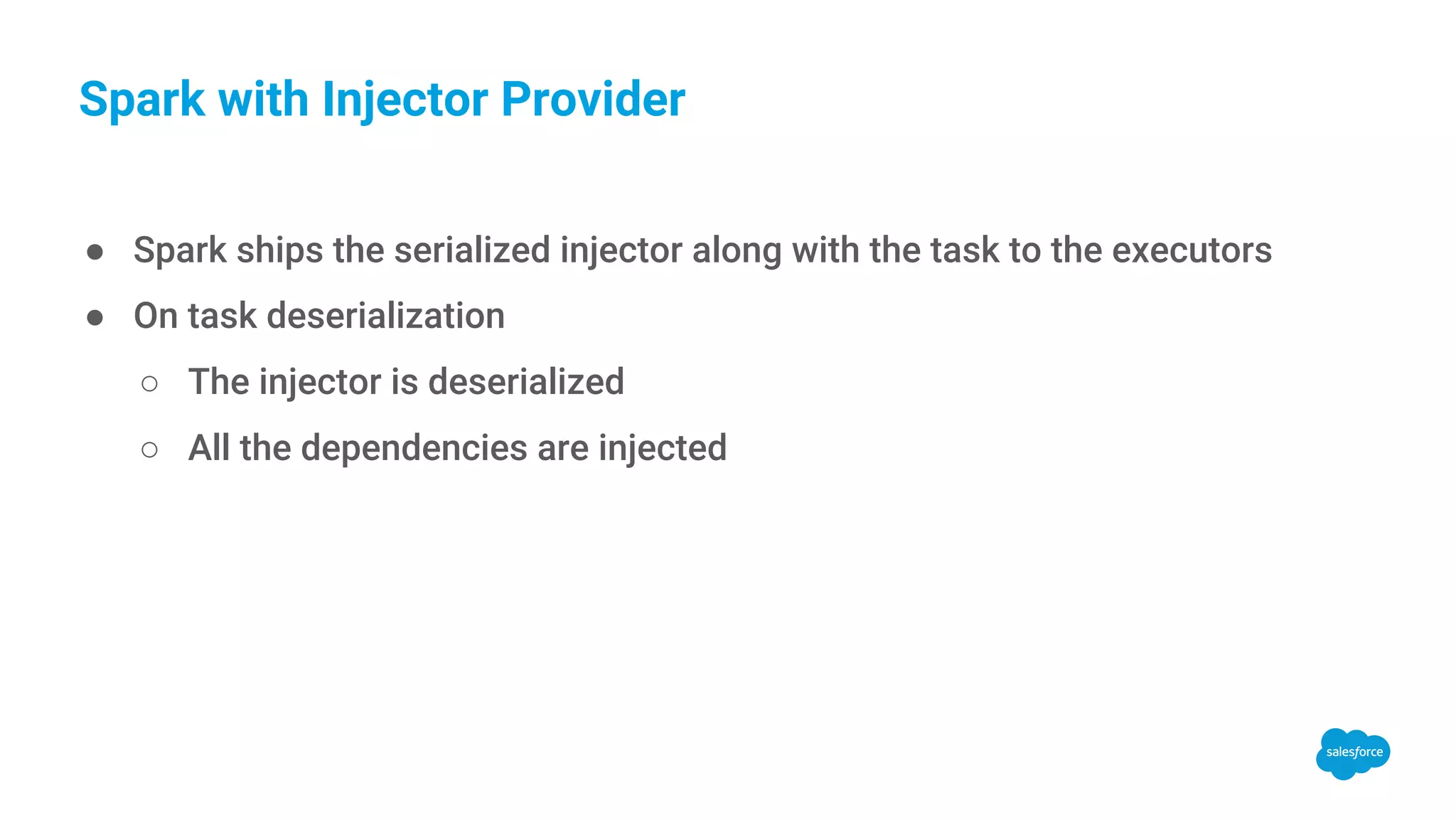

- 19. Spark with InjectorProvider ● Spark ships the serialized injector along with the task to the executors ● On task deserialization ○ The injector is deserialized ○ All the dependencies are injected

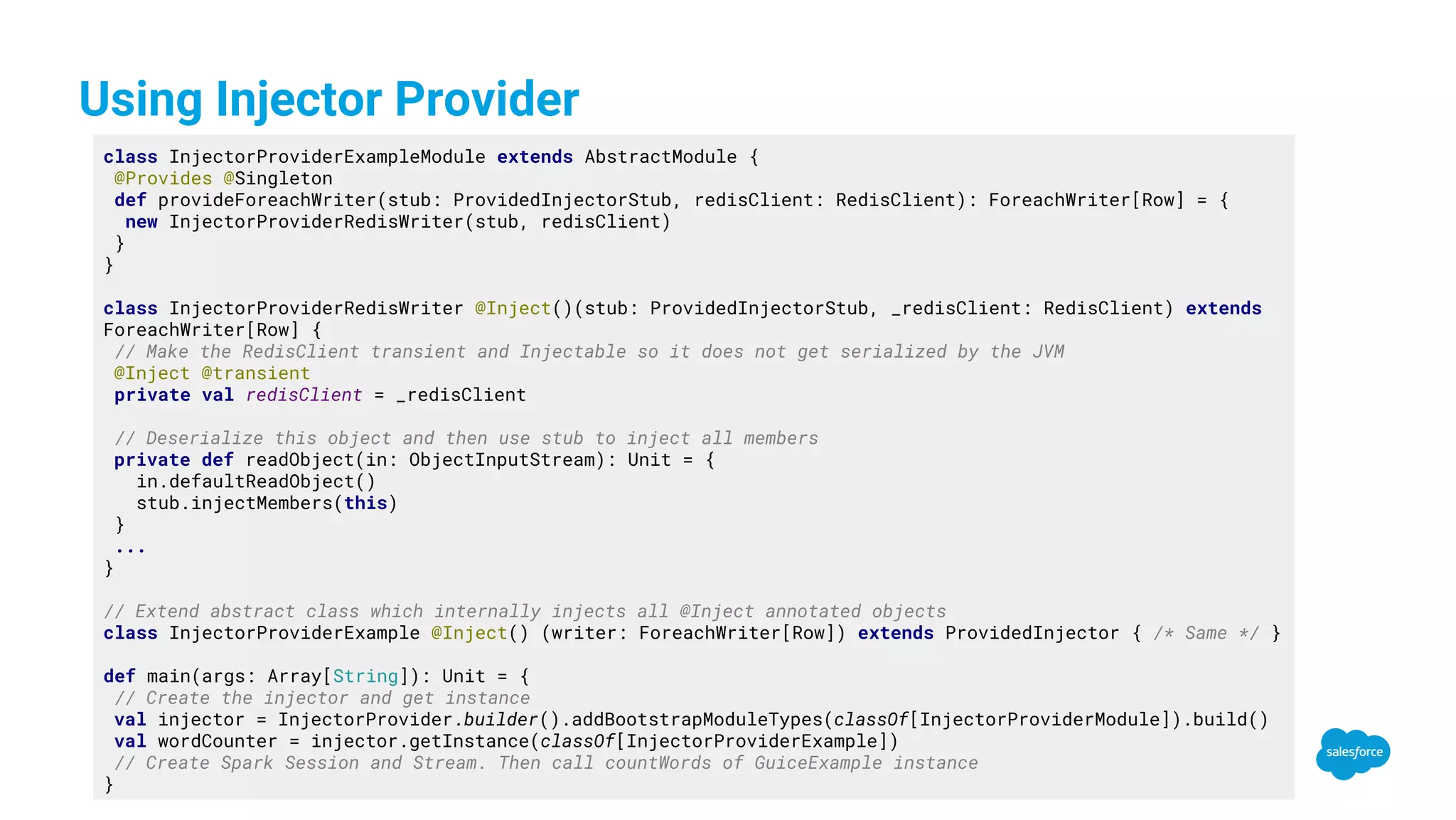

- 20. Using Injector Provider classInjectorProviderExampleModule extends AbstractModule { @Provides @Singleton def provideForeachWriter(stub: ProvidedInjectorStub, redisClient: RedisClient): ForeachWriter[Row] = { new InjectorProviderRedisWriter(stub, redisClient) } } class InjectorProviderRedisWriter @Inject()(stub: ProvidedInjectorStub, _redisClient: RedisClient) extends ForeachWriter[Row] { // Make the RedisClient transient and Injectable so it does not get serialized by the JVM @Inject @transient private val redisClient = _redisClient // Deserialize this object and then use stub to inject all members private def readObject(in: ObjectInputStream): Unit = { in.defaultReadObject() stub.injectMembers(this) } ... } // Extend abstract class which internally injects all @Inject annotated objects class InjectorProviderExample @Inject() (writer: ForeachWriter[Row]) extends ProvidedInjector { /* Same */ } def main(args: Array[String]): Unit = { // Create the injector and get instance val injector = InjectorProvider.builder().addBootstrapModuleTypes(classOf[InjectorProviderModule]).build() val wordCounter = injector.getInstance(classOf[InjectorProviderExample]) // Create Spark Session and Stream. Then call countWords of GuiceExample instance }

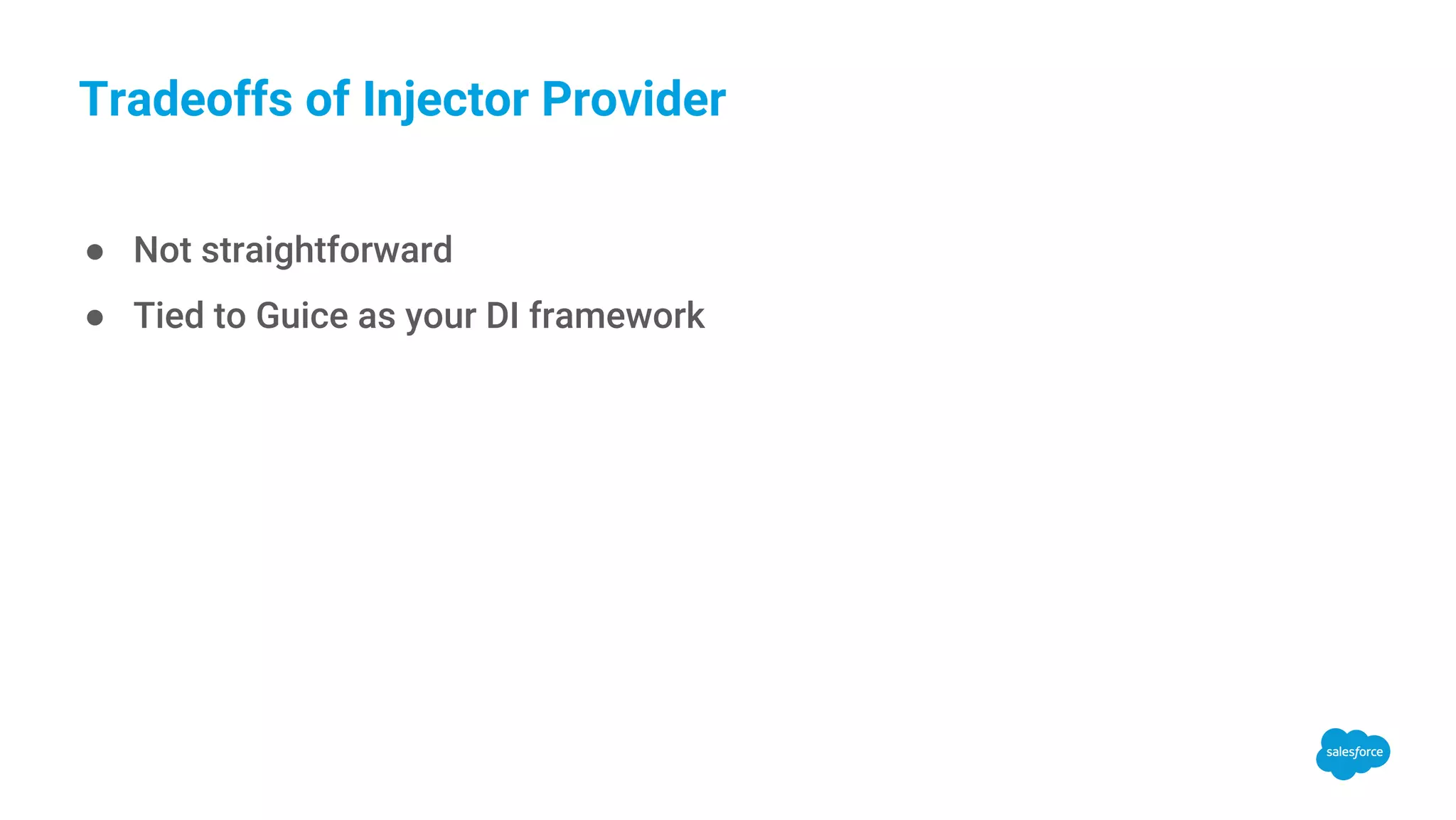

- 21. Tradeoffs of InjectorProvider ● Not straightforward ● Tied to Guice as your DI framework

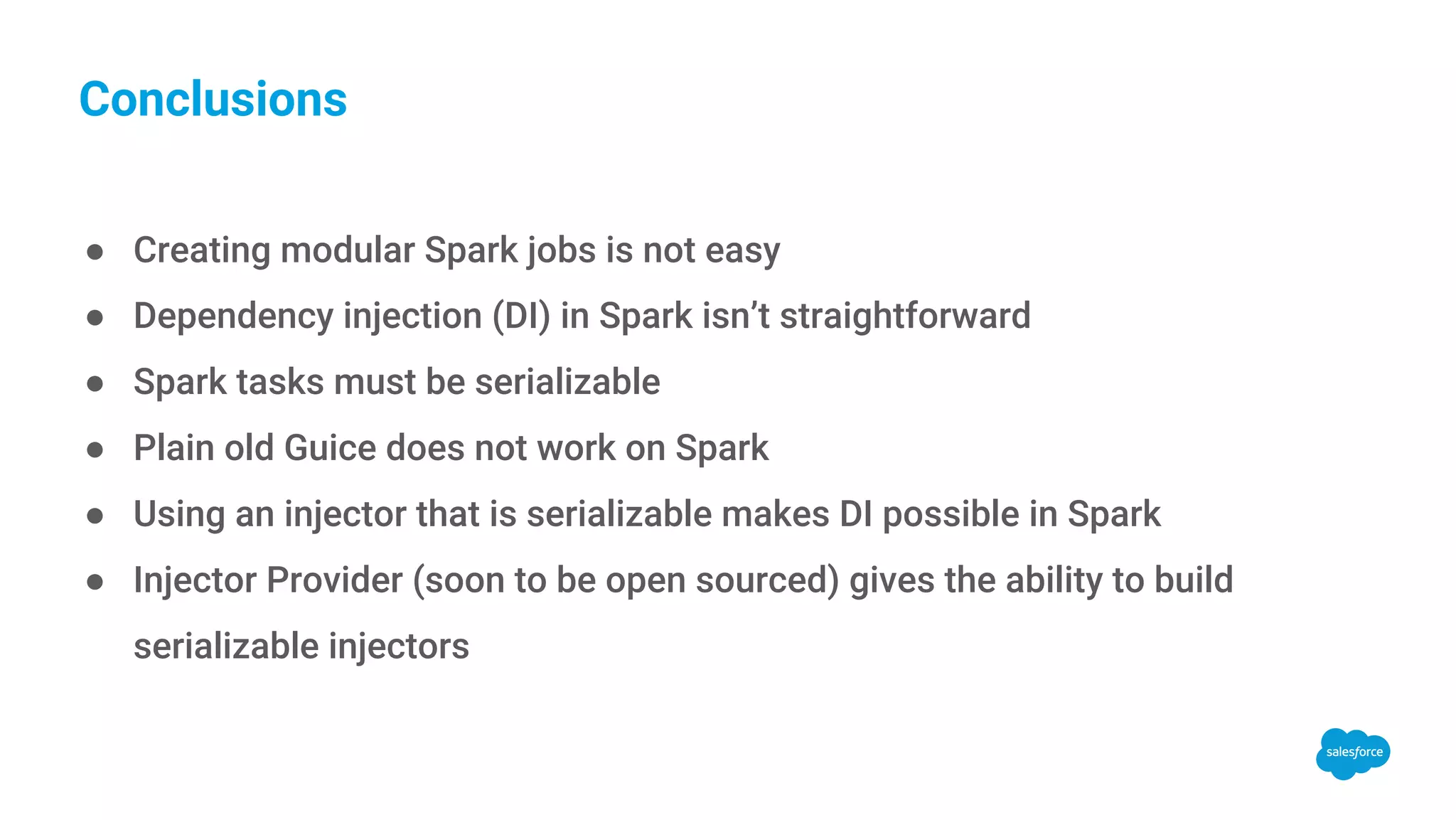

- 22. Conclusions ● Creating modularSpark jobs is not easy ● Dependency injection (DI) in Spark isn’t straightforward ● Spark tasks must be serializable ● Plain old Guice does not work on Spark ● Using an injector that is serializable makes DI possible in Spark ● Injector Provider (soon to be open sourced) gives the ability to build serializable injectors
