Data Federation with Apache Spark

Data Federation with Apache Spark

• 1.
  Data Federation withSpark Dan Marshall danmarshall07@gmail.com 06/13/2017
• 3.

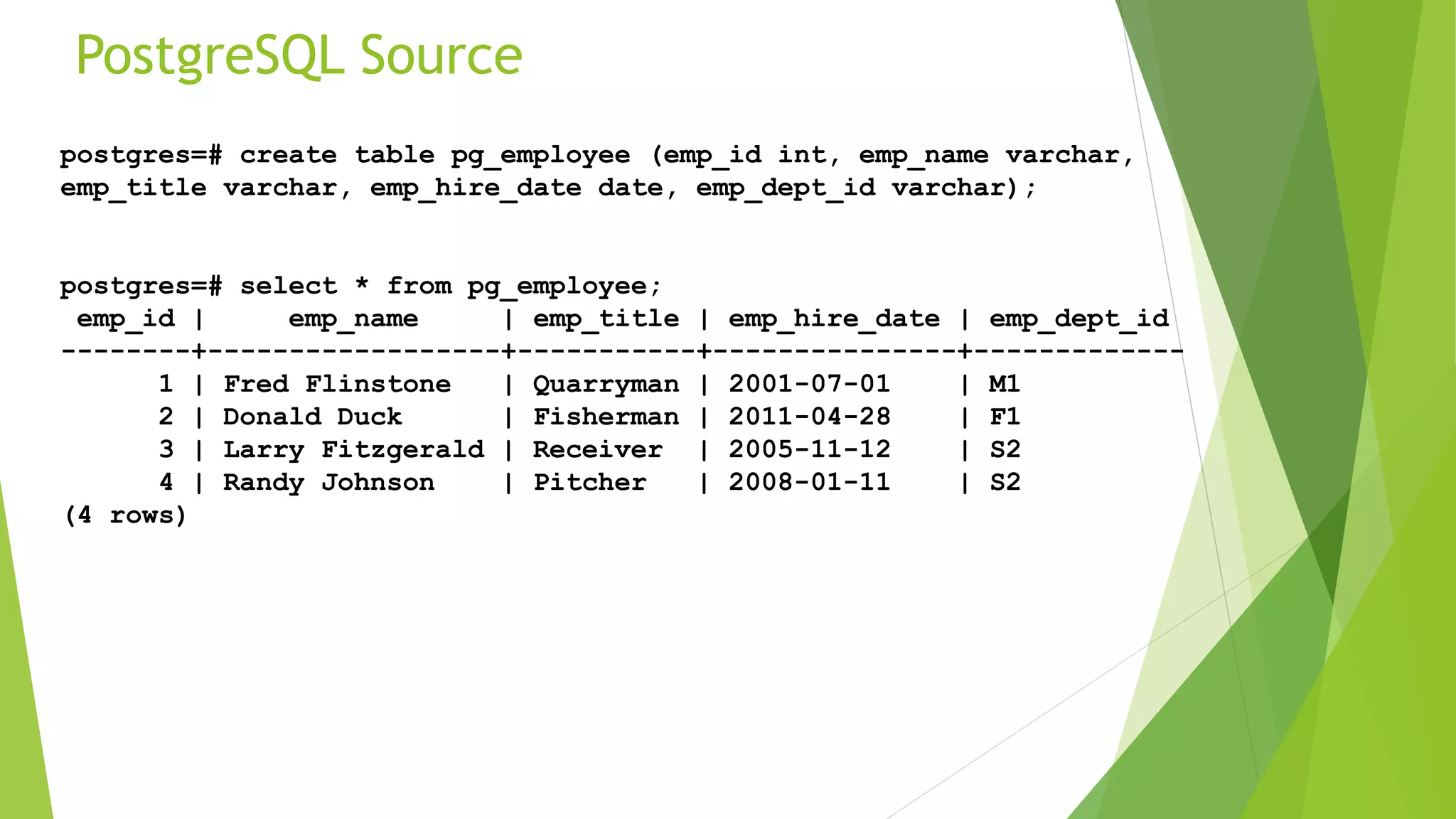

  PostgreSQL Source postgres=# createtable pg_employee (emp_id int, emp_name varchar, emp_title varchar, emp_hire_date date, emp_dept_id varchar); postgres=# select * from pg_employee; emp_id | emp_name | emp_title | emp_hire_date | emp_dept_id --------+------------------+-----------+---------------+------------- 1 | Fred Flinstone | Quarryman | 2001-07-01 | M1 2 | Donald Duck | Fisherman | 2011-04-28 | F1 3 | Larry Fitzgerald | Receiver | 2005-11-12 | S2 4 | Randy Johnson | Pitcher | 2008-01-11 | S2 (4 rows)
• 4.

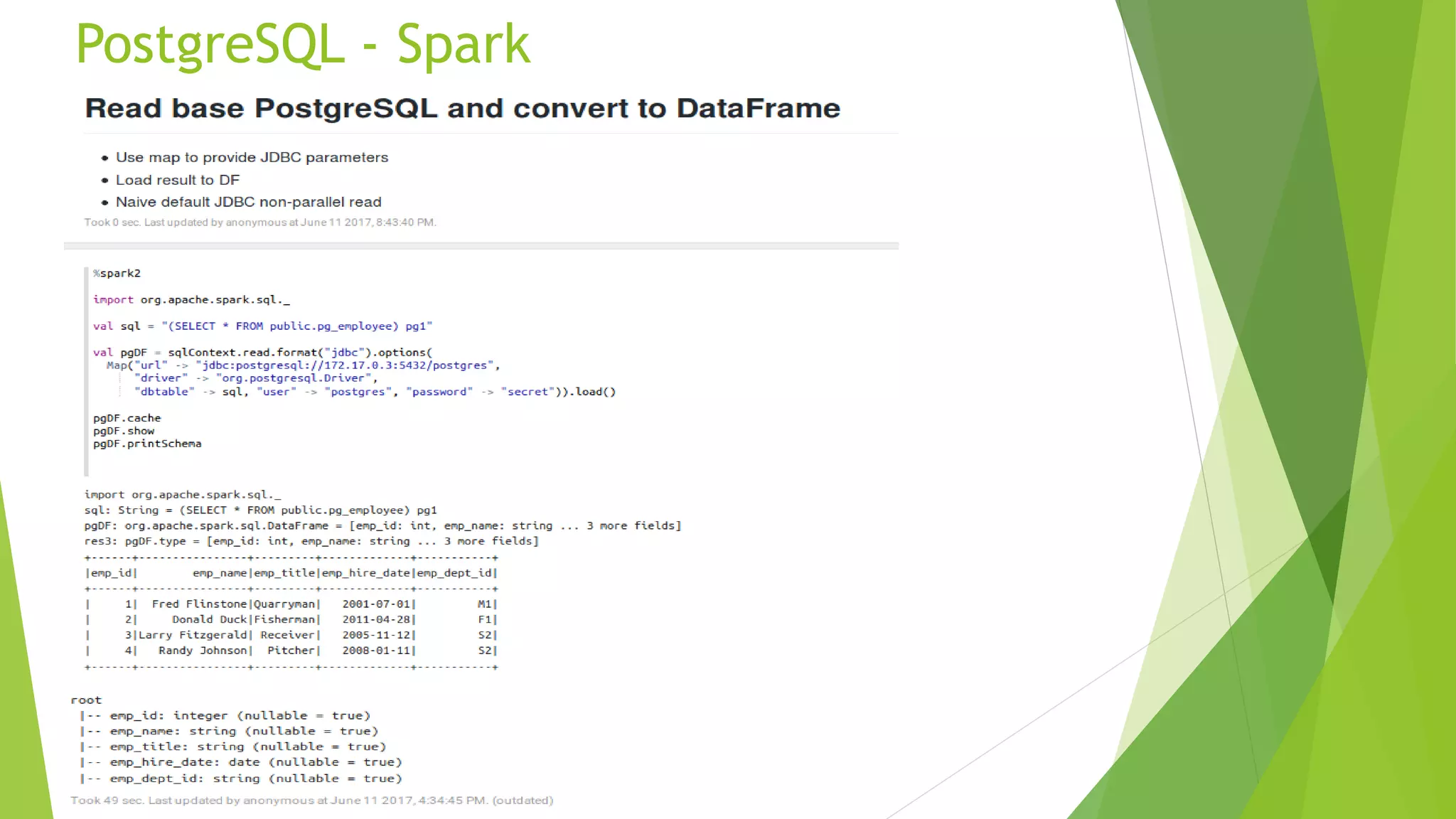

  PostgreSQL - Spark
• 5.

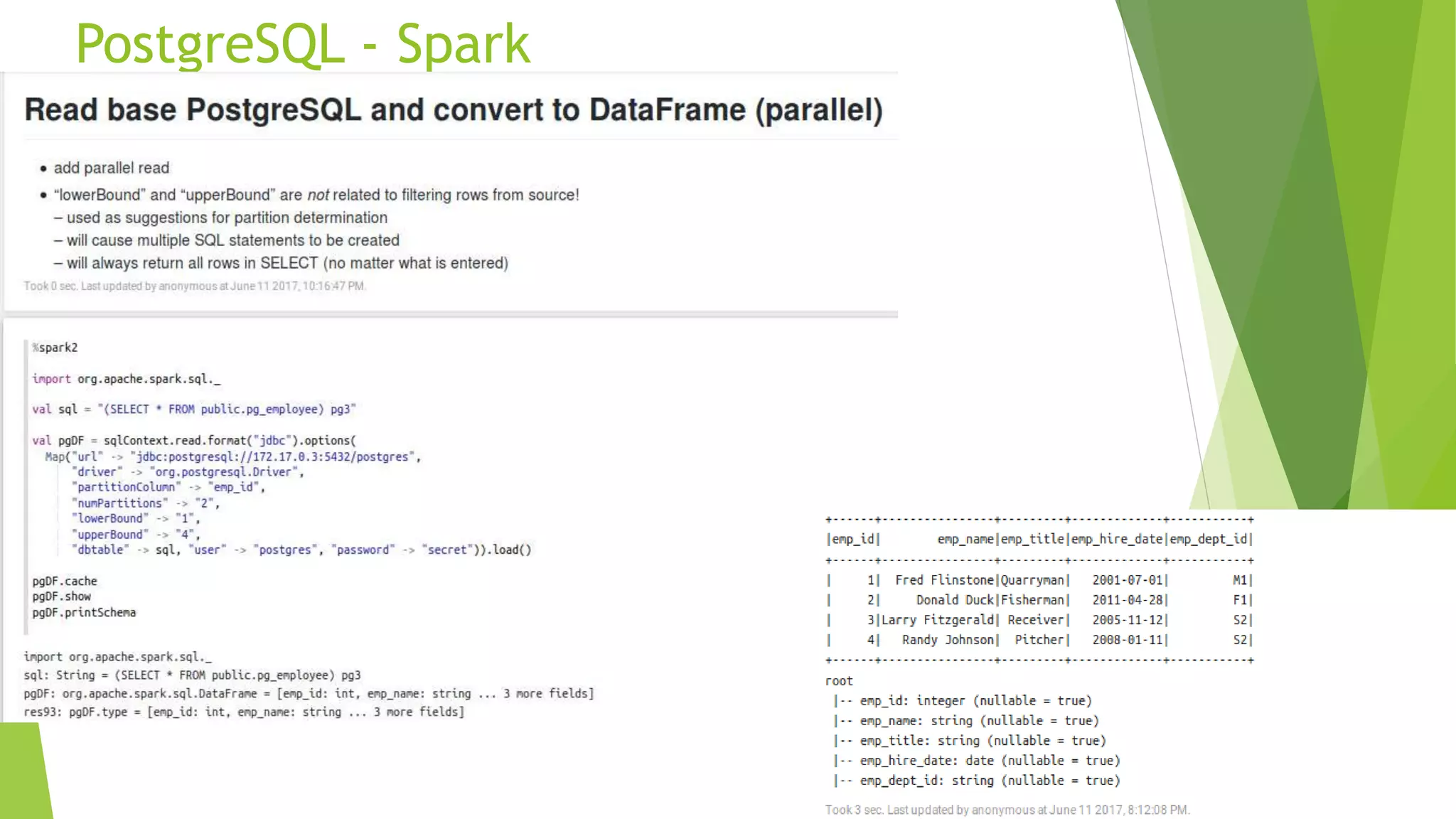

  PostgreSQL - Spark
• 6.

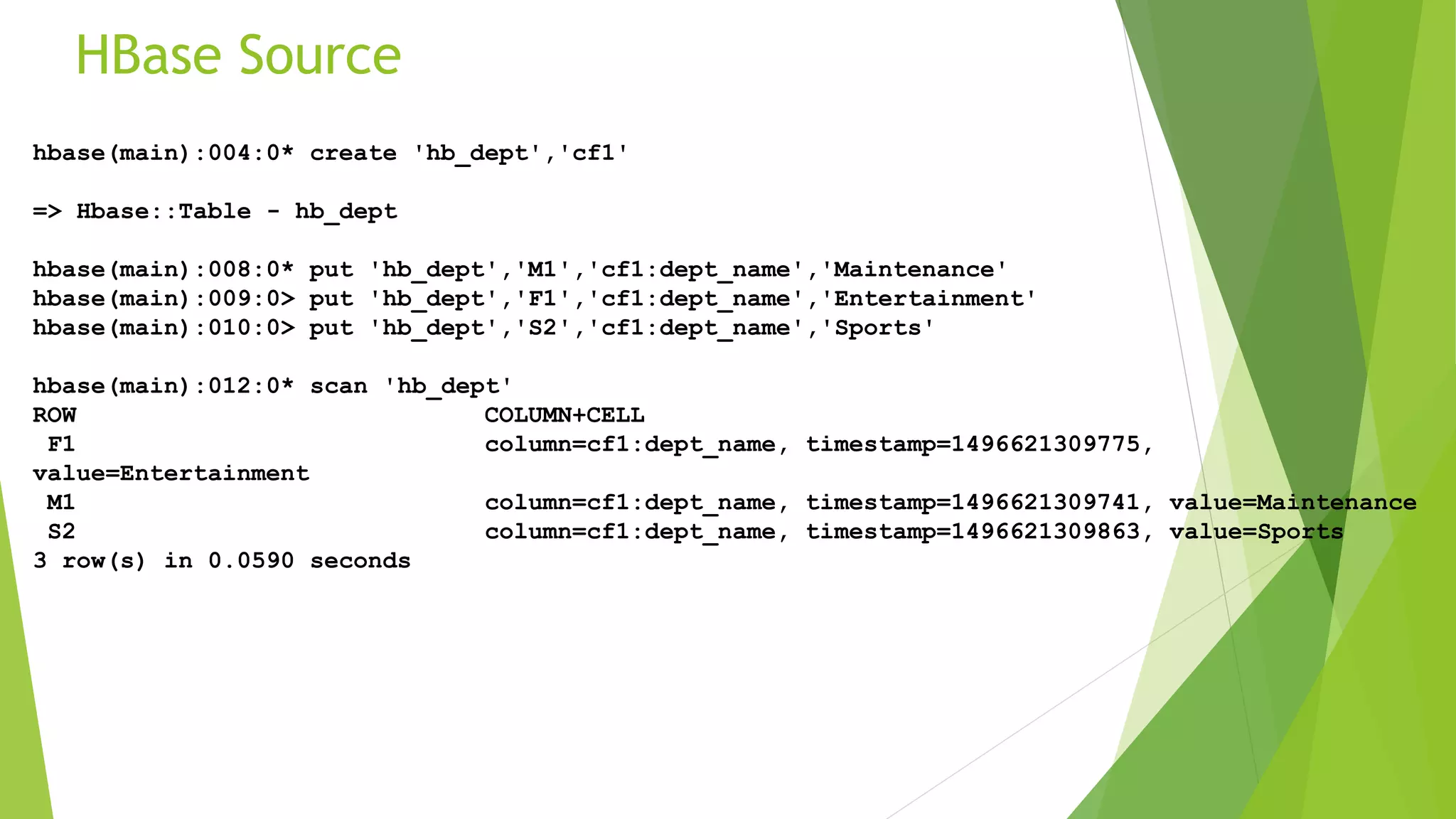

  HBase Source hbase(main):004:0* create'hb_dept','cf1' => Hbase::Table - hb_dept hbase(main):008:0* put 'hb_dept','M1','cf1:dept_name','Maintenance' hbase(main):009:0> put 'hb_dept','F1','cf1:dept_name','Entertainment' hbase(main):010:0> put 'hb_dept','S2','cf1:dept_name','Sports' hbase(main):012:0* scan 'hb_dept' ROW COLUMN+CELL F1 column=cf1:dept_name, timestamp=1496621309775, value=Entertainment M1 column=cf1:dept_name, timestamp=1496621309741, value=Maintenance S2 column=cf1:dept_name, timestamp=1496621309863, value=Sports 3 row(s) in 0.0590 seconds
• 7.

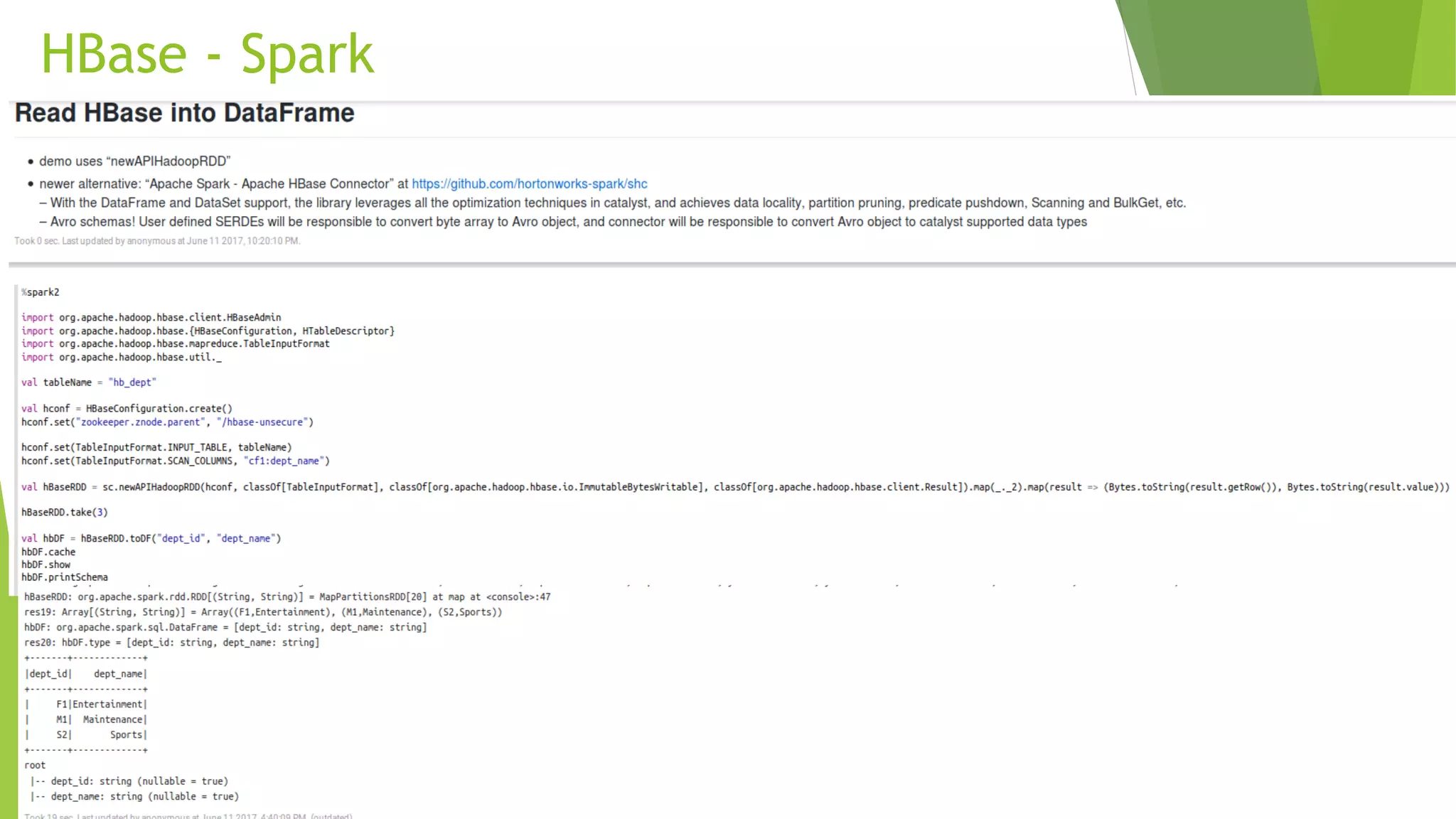

  HBase - Spark
• 8.

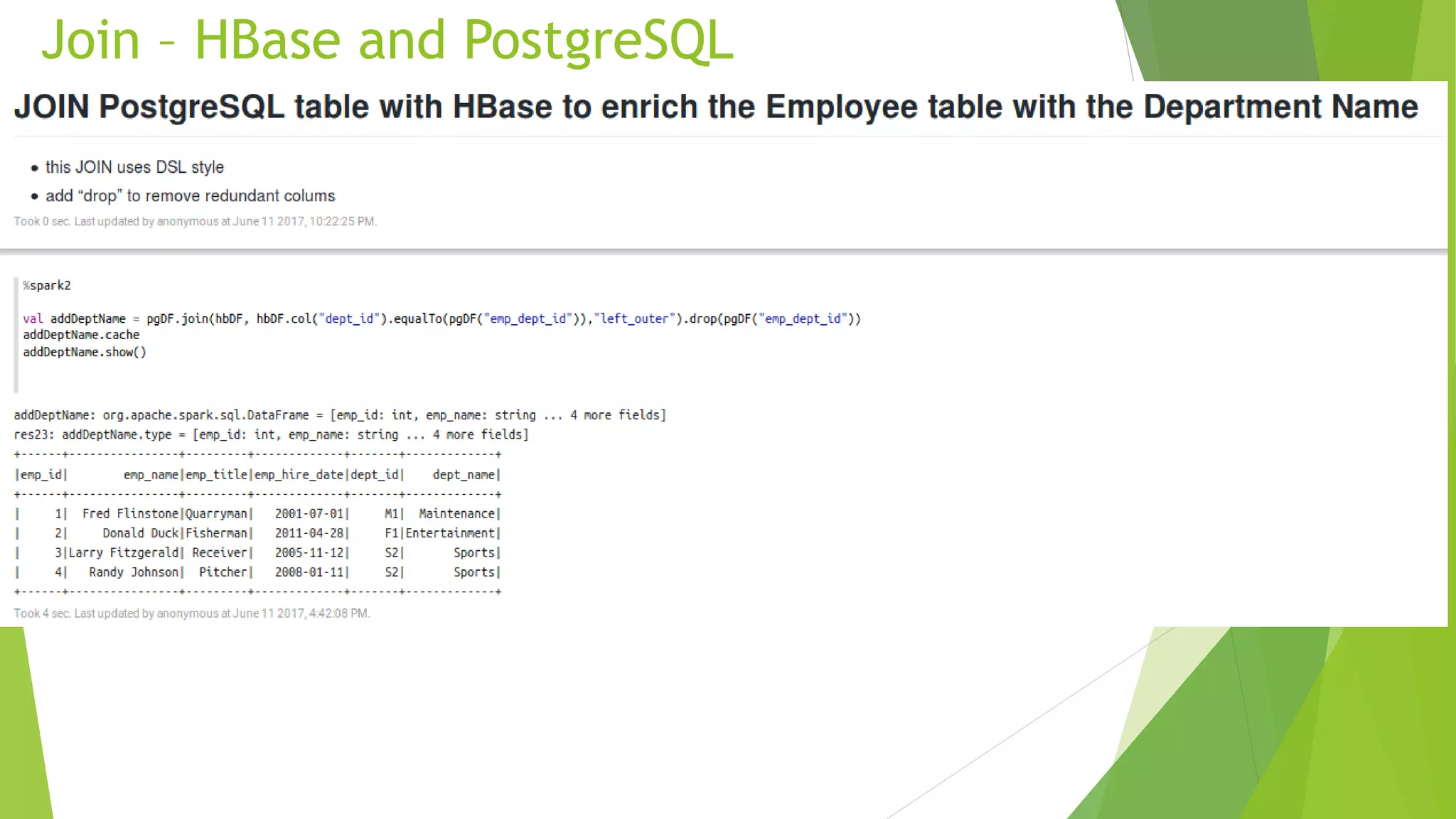

  Join – HBaseand PostgreSQL
• 9.

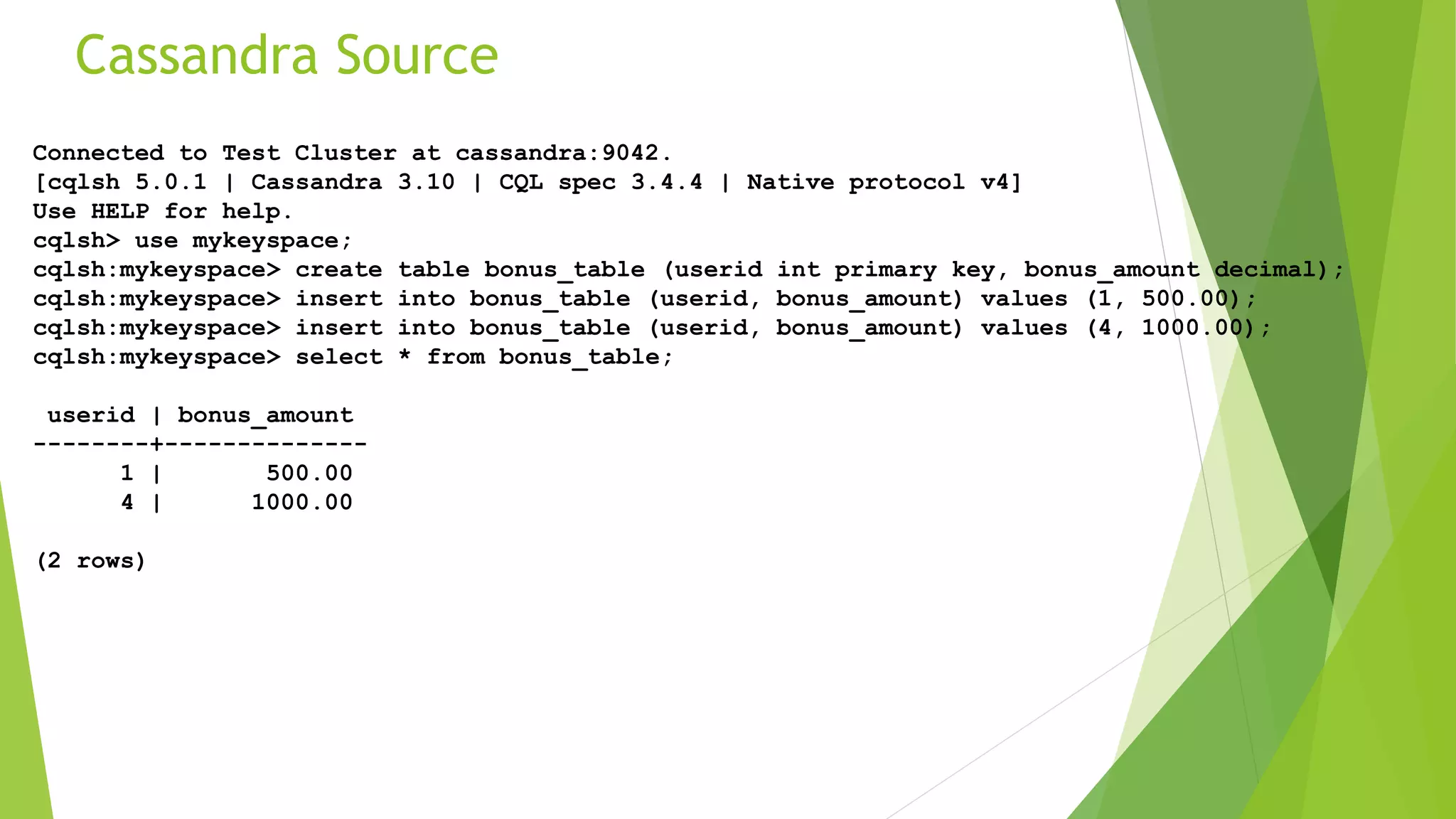

  Cassandra Source Connected toTest Cluster at cassandra:9042. [cqlsh 5.0.1 | Cassandra 3.10 | CQL spec 3.4.4 | Native protocol v4] Use HELP for help. cqlsh> use mykeyspace; cqlsh:mykeyspace> create table bonus_table (userid int primary key, bonus_amount decimal); cqlsh:mykeyspace> insert into bonus_table (userid, bonus_amount) values (1, 500.00); cqlsh:mykeyspace> insert into bonus_table (userid, bonus_amount) values (4, 1000.00); cqlsh:mykeyspace> select * from bonus_table; userid | bonus_amount --------+-------------- 1 | 500.00 4 | 1000.00 (2 rows)
• 10.

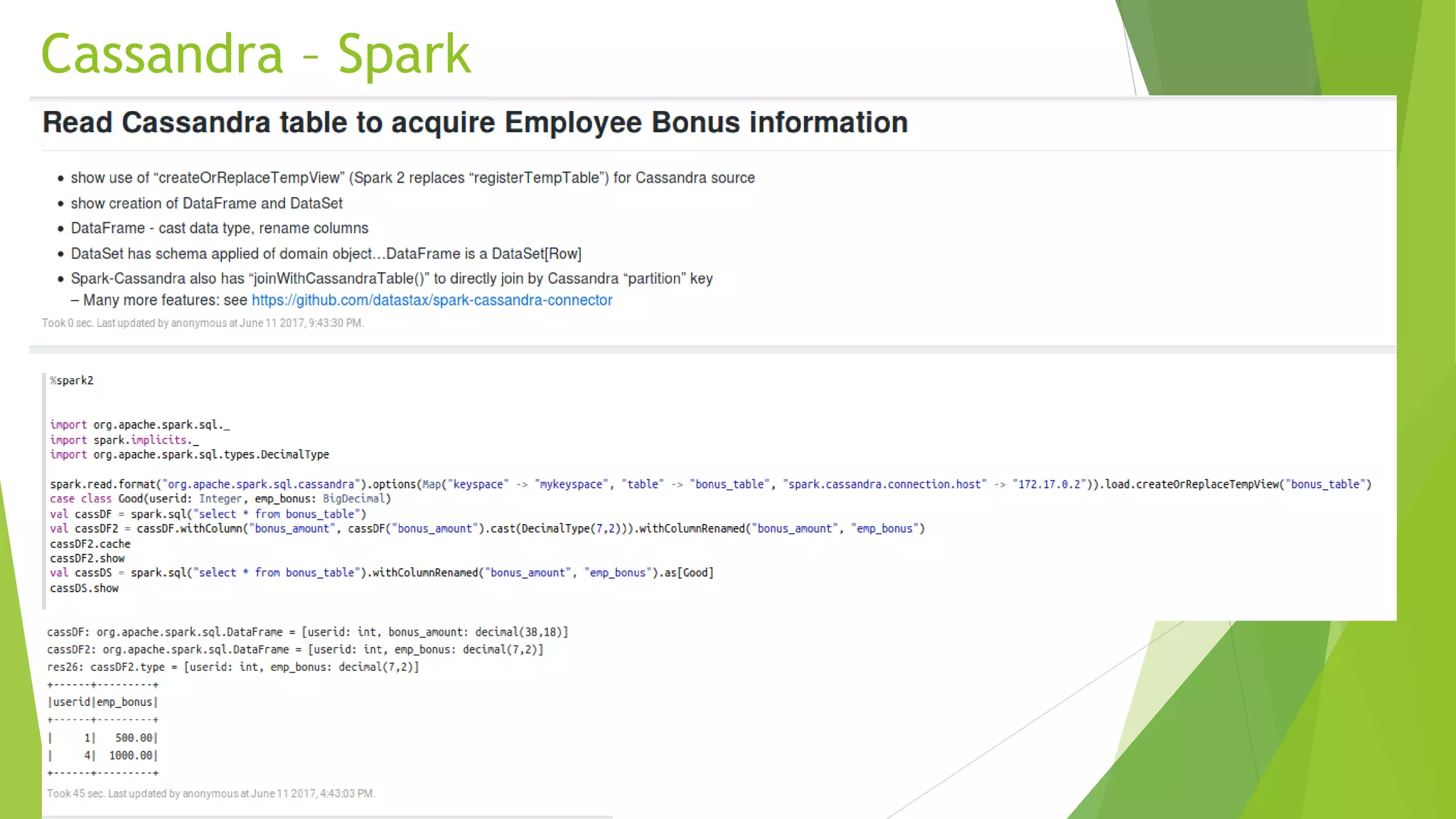

  Cassandra – Spark
• 11.

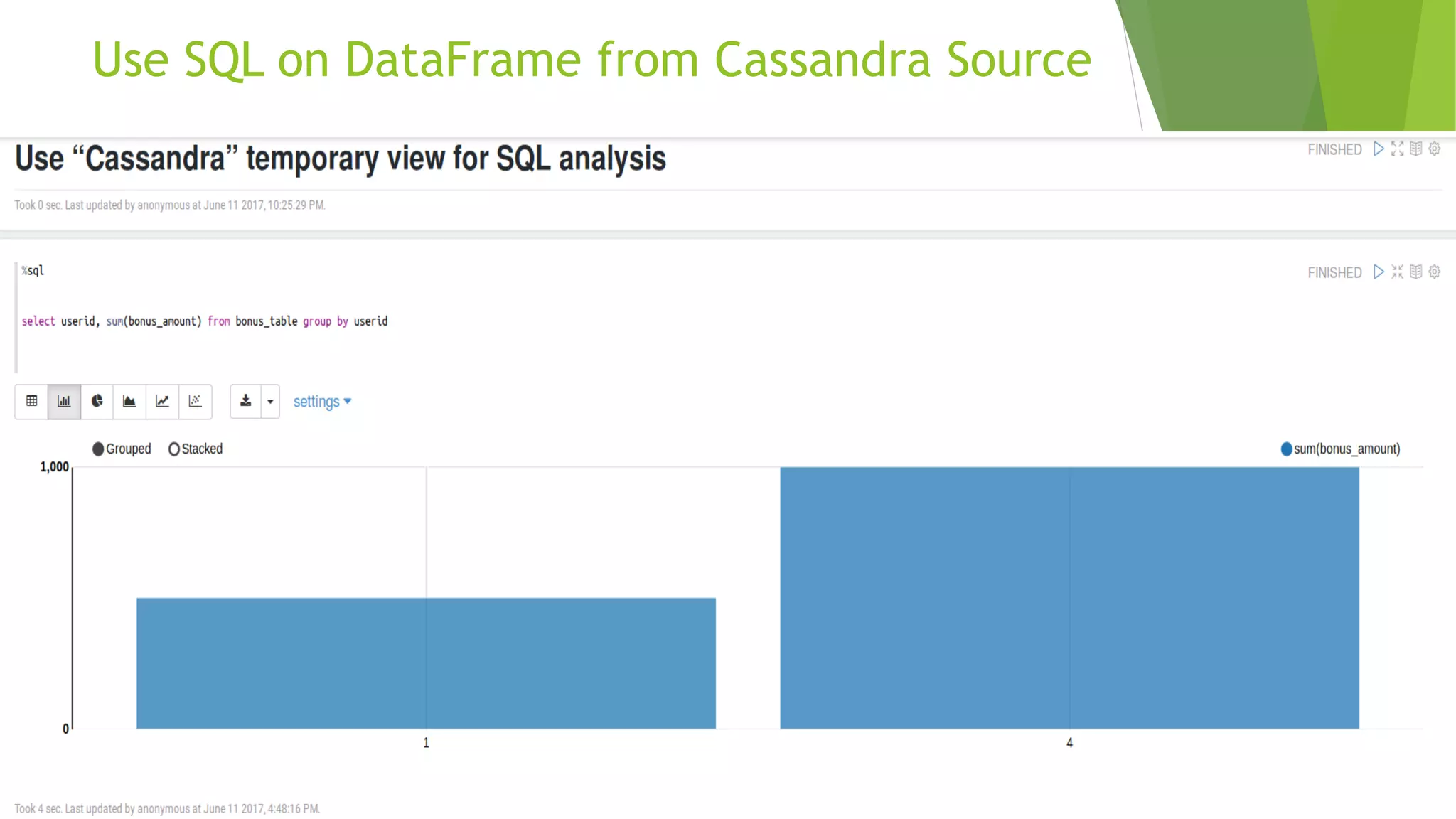

  Use SQL onDataFrame from Cassandra Source
• 12.

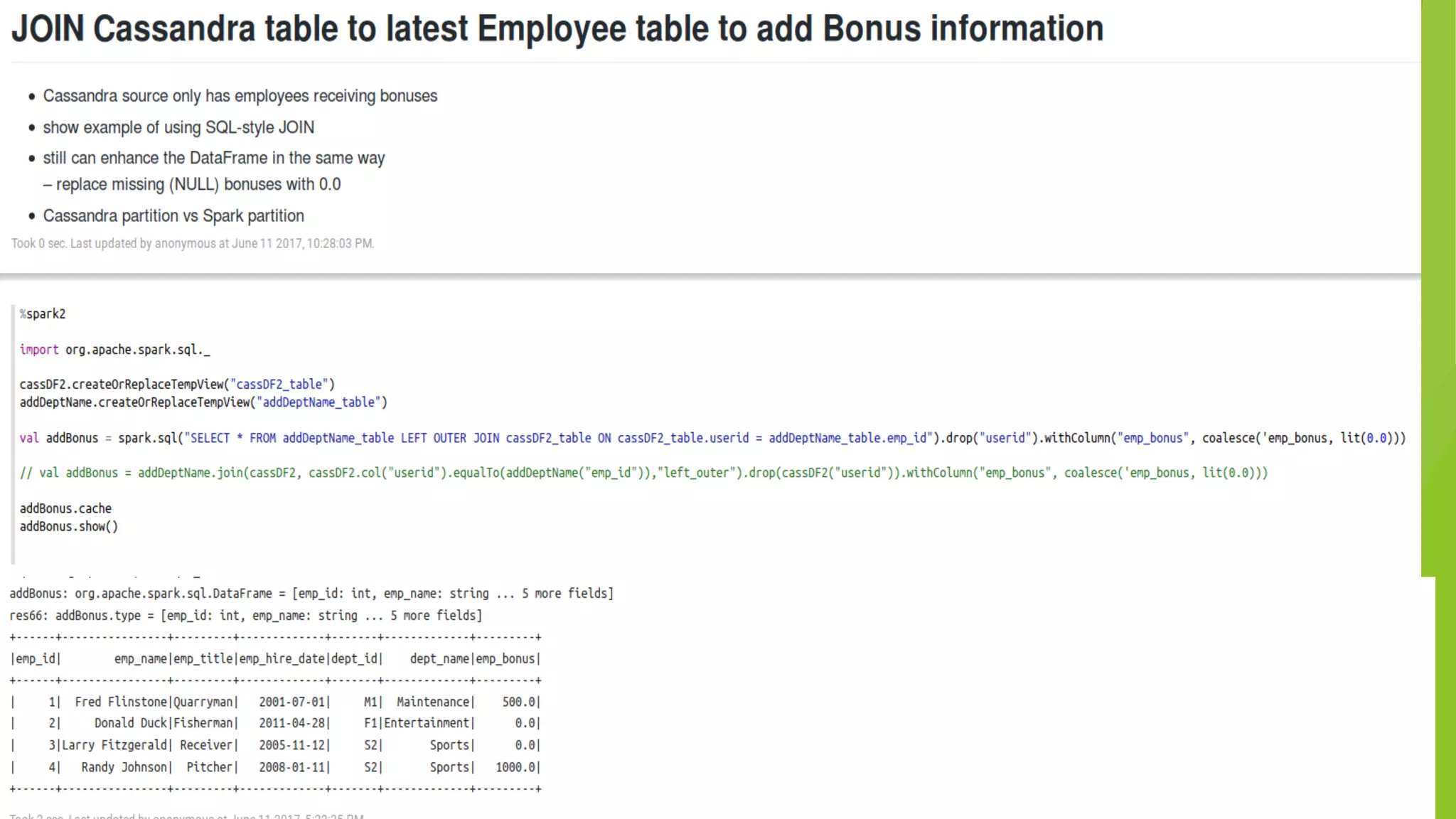

  Join – Hbase,PostgreSQL,Cassandra
• 13.

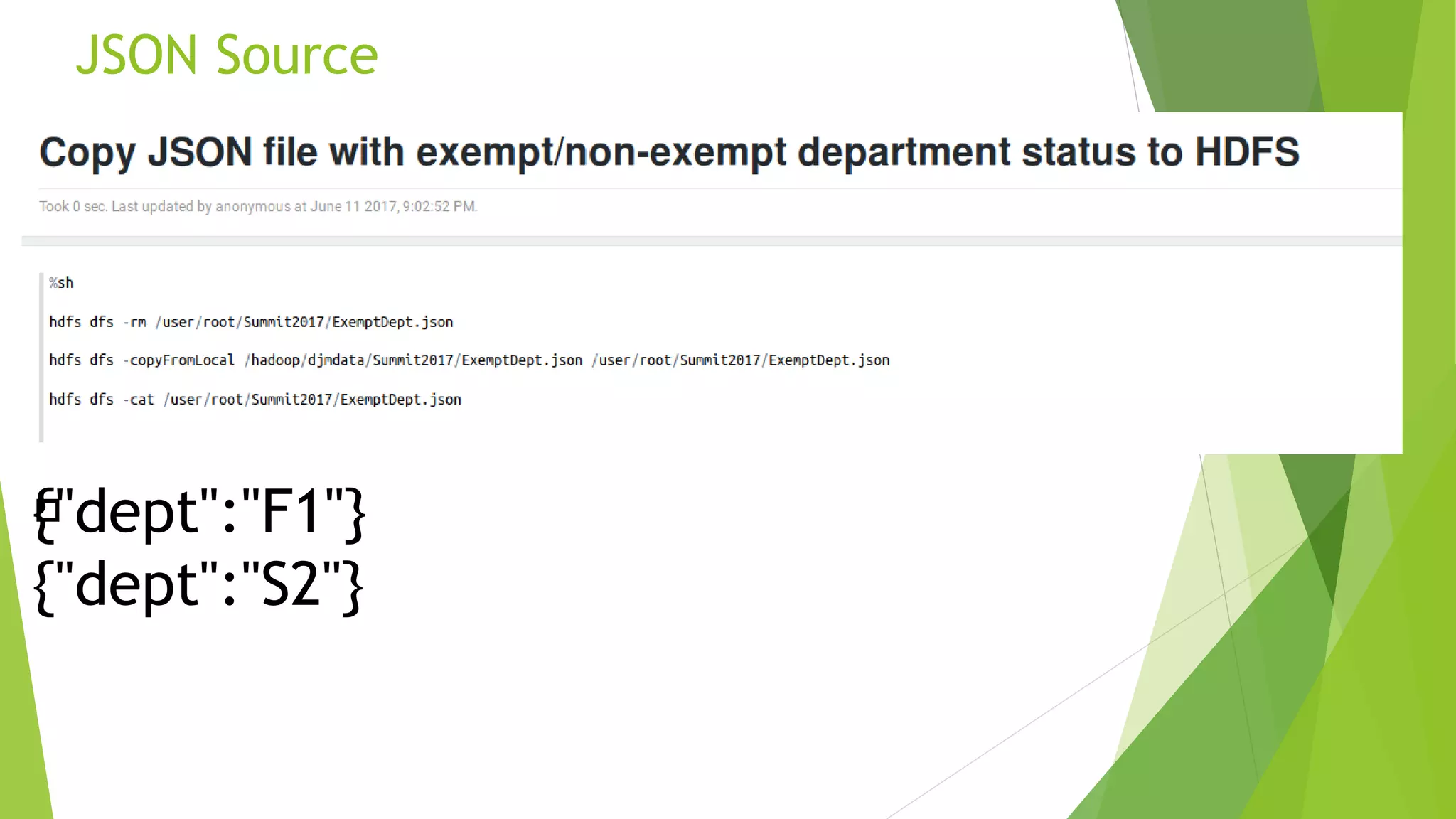

  JSON Source {"dept":"F1"} {"dept":"S2"}
• 14.

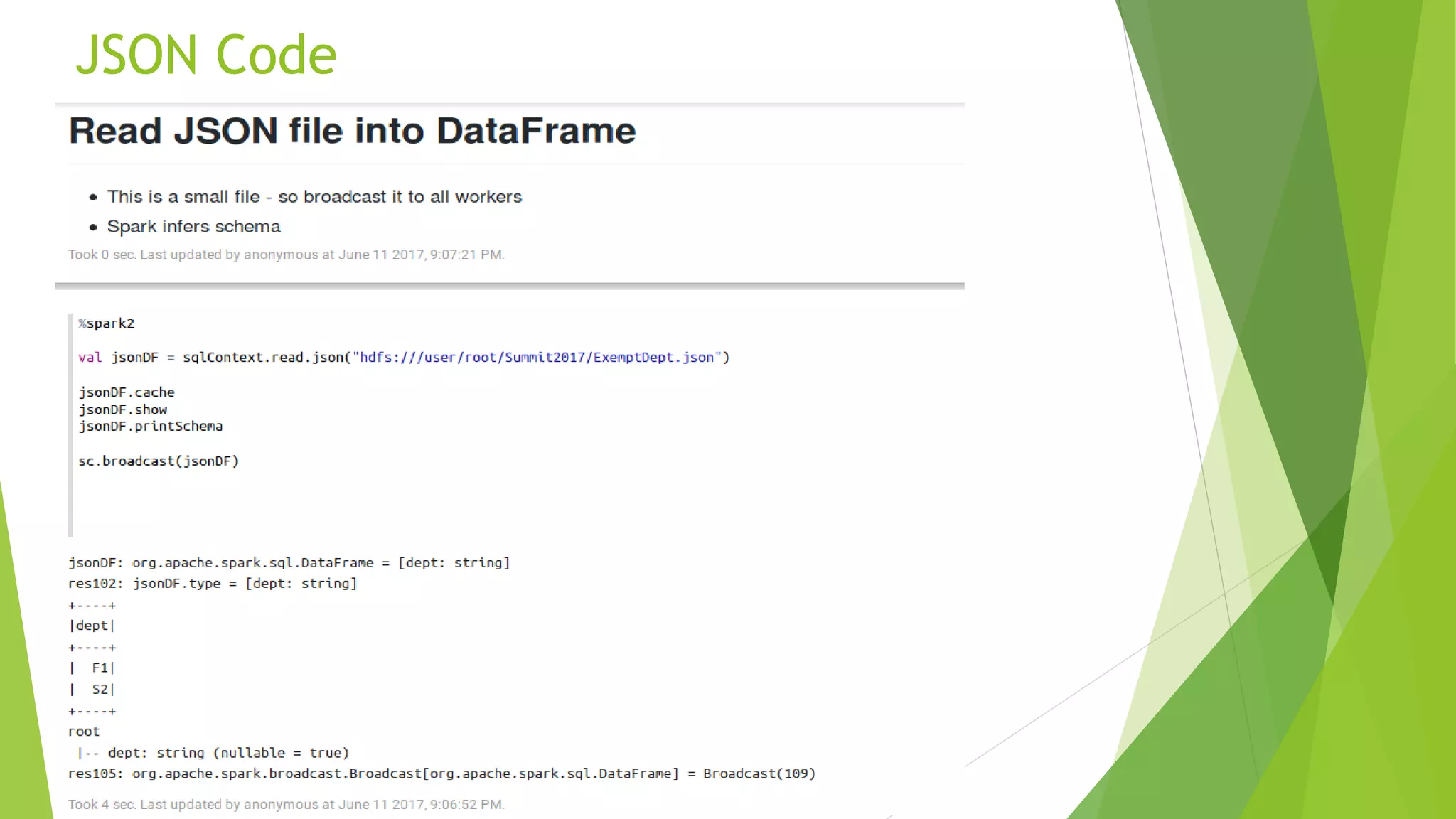

  JSON Code
• 15.

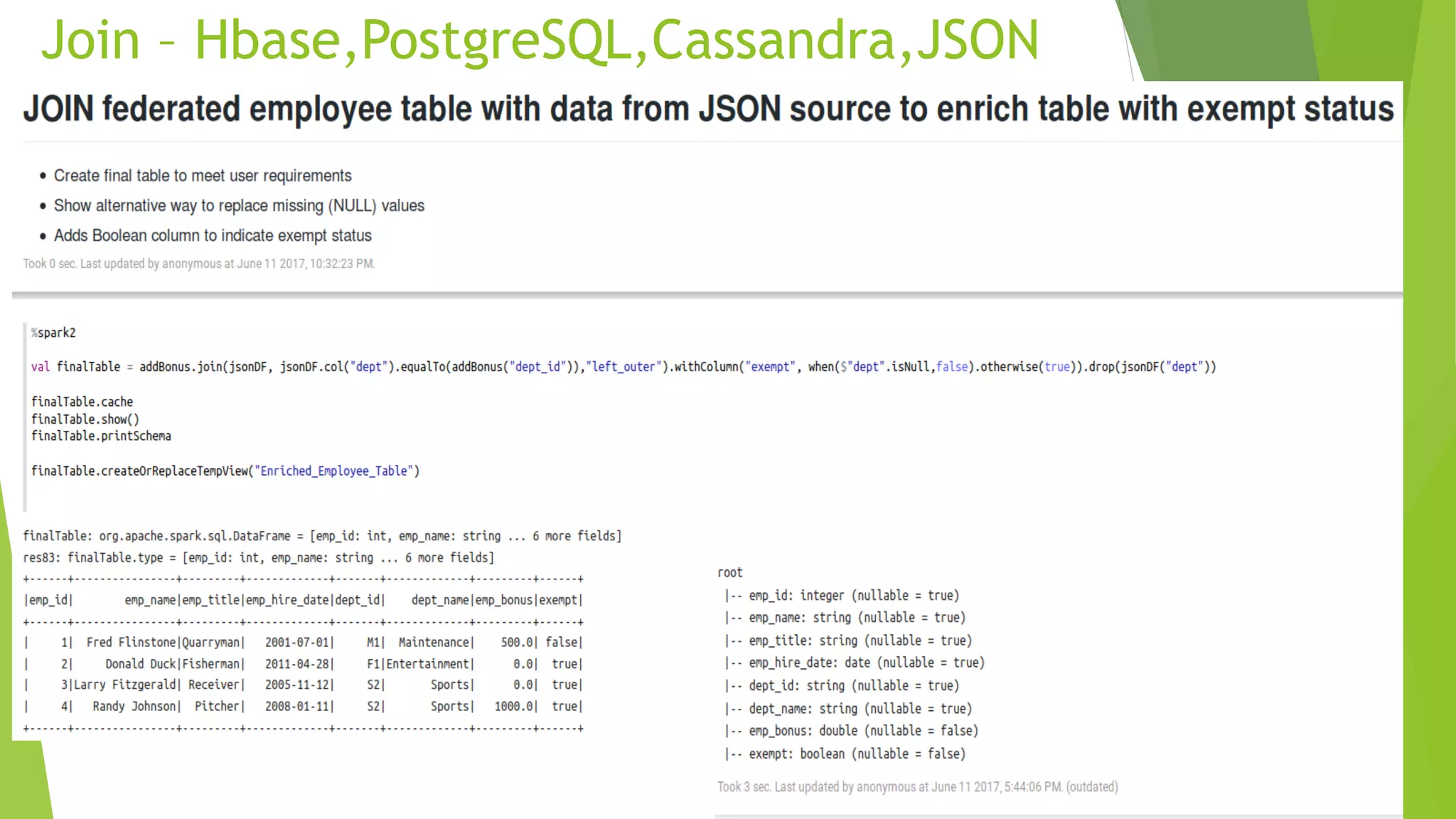

  Join – Hbase,PostgreSQL,Cassandra,JSON
• 16.

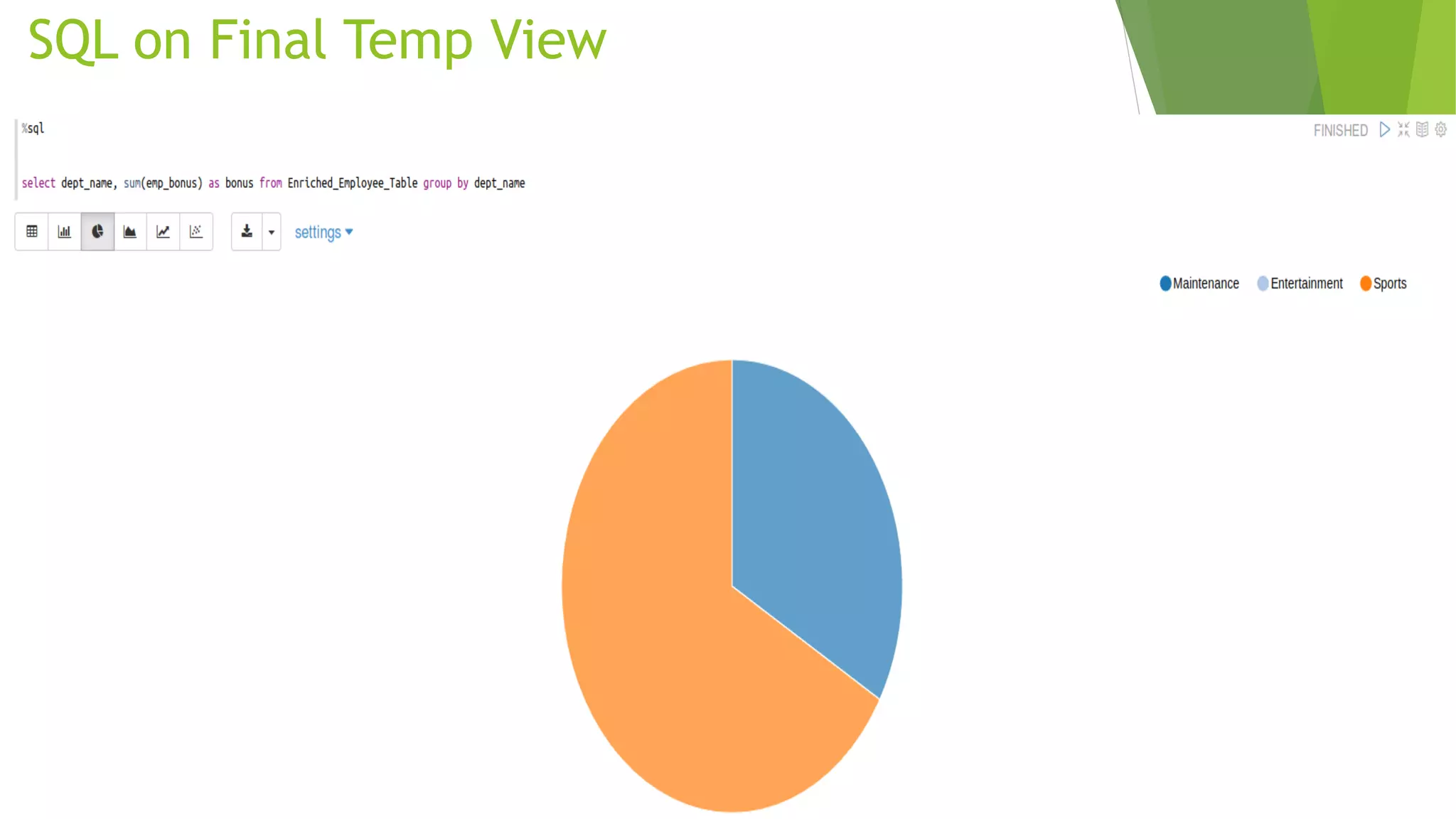

  SQL on FinalTemp View
• 17.

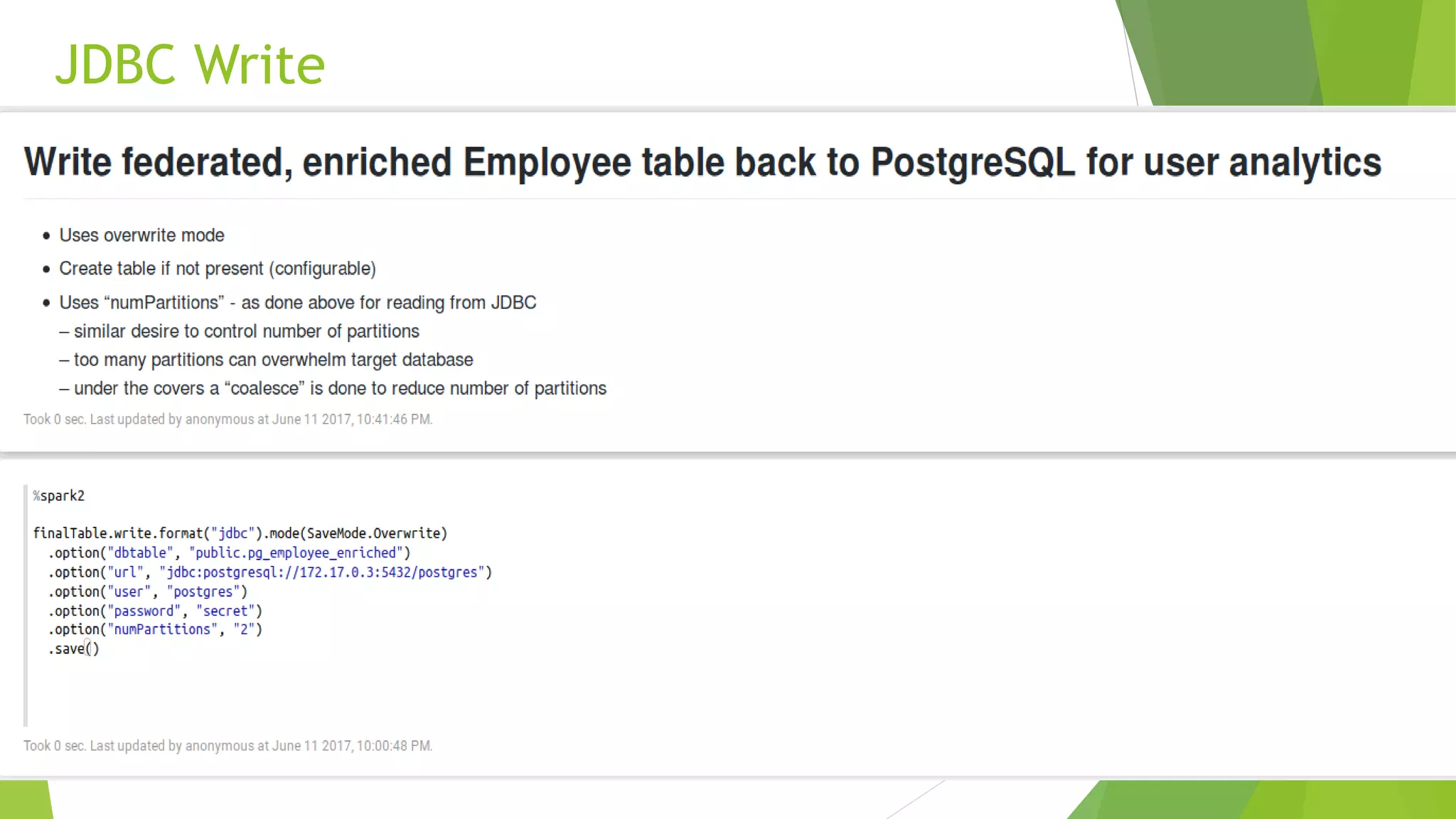

  JDBC Write
• 18.

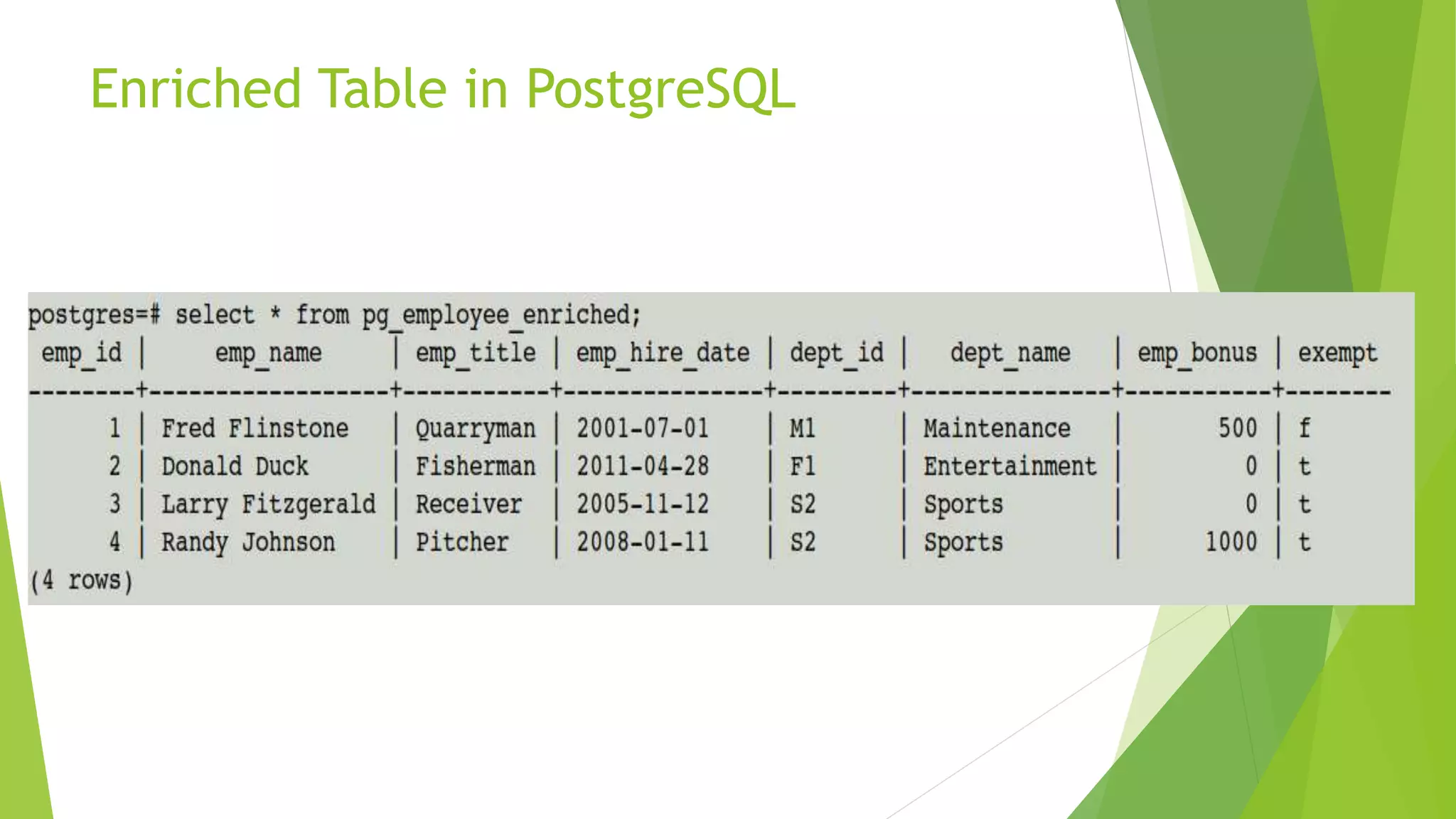

  Enriched Table inPostgreSQL
• 19.
  Data Federation withSpark Dan Marshall danmarshall07@gmail.com 06/13/2017
