CCNA ppt
The document outlines the requirements for obtaining Cisco's CCNA certification, which involves passing the ICND1 and ICND2 exams, covering topics like internetworking basics, routing, switching, and security. It details various networking concepts such as IP addressing, routing protocols like RIP, access control lists (ACLs), network address translation (NAT), and VLANs for managing traffic in local area networks. It also explains the significance of routers and switches in directing and managing network traffic effectively.
CCNA ppt
- 1. PRESENTED BY: SUMANT GARG K.I.T.MKurukshetra

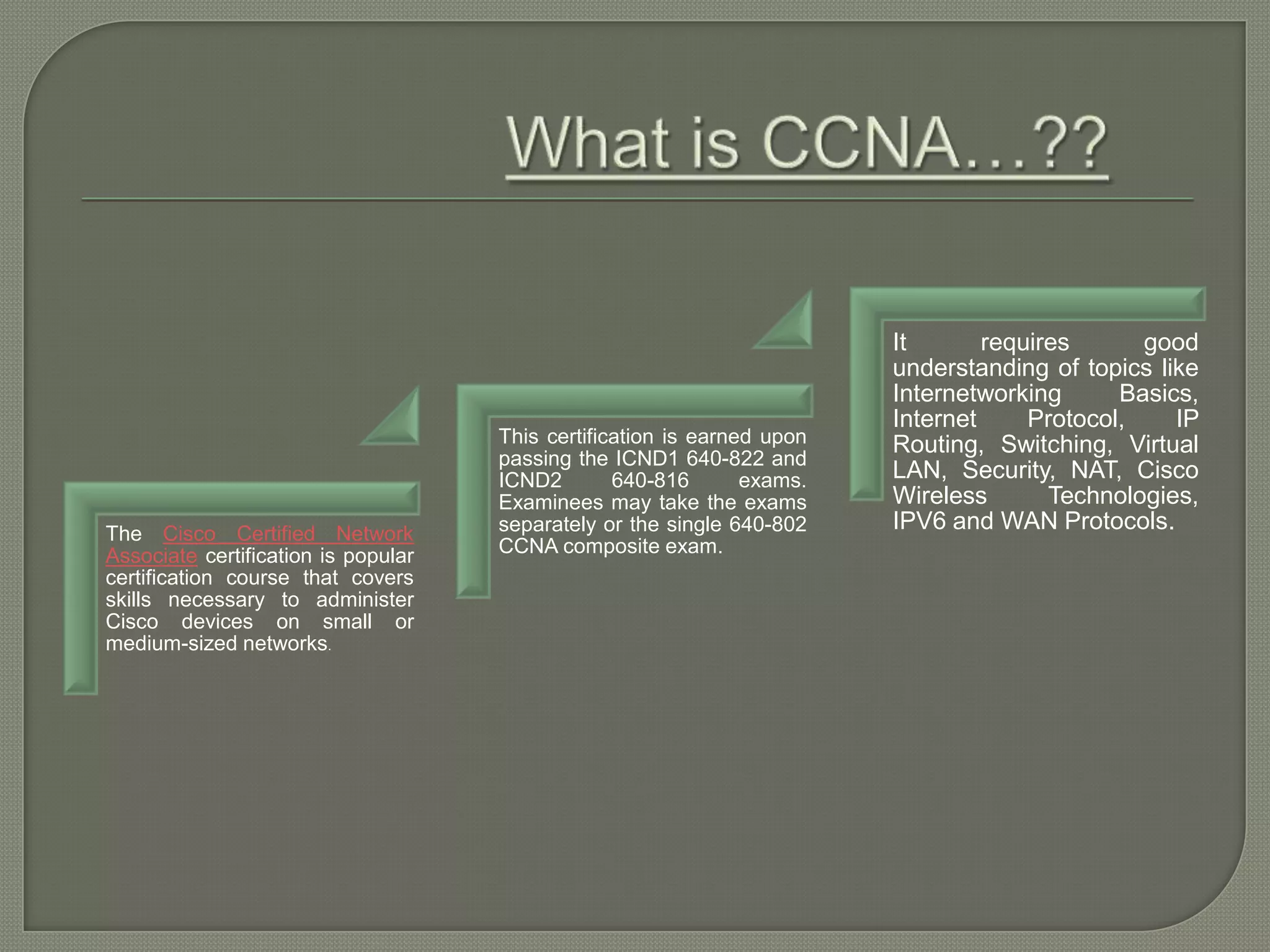

- 2. It requires good understanding of topics like Internetworking Basics, Internet Protocol, IP This certification is earned upon Routing, Switching, Virtual passing the ICND1 640-822 and ICND2 640-816 exams. LAN, Security, NAT, Cisco Examinees may take the exams Wireless Technologies, The Cisco Certified Network separately or the single 640-802 IPV6 and WAN Protocols. Associate certification is popular CCNA composite exam. certification course that covers skills necessary to administer Cisco devices on small or medium-sized networks.

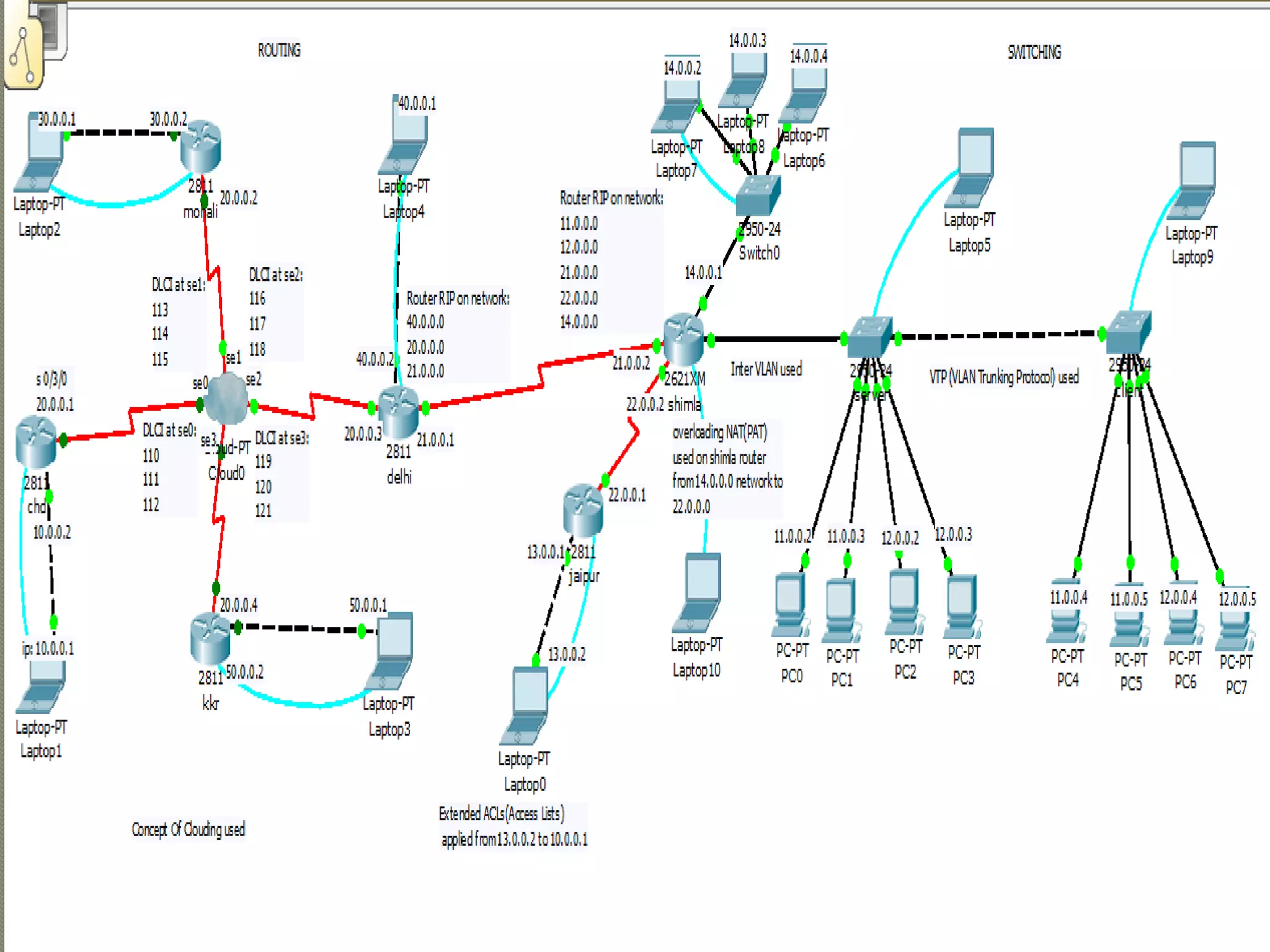

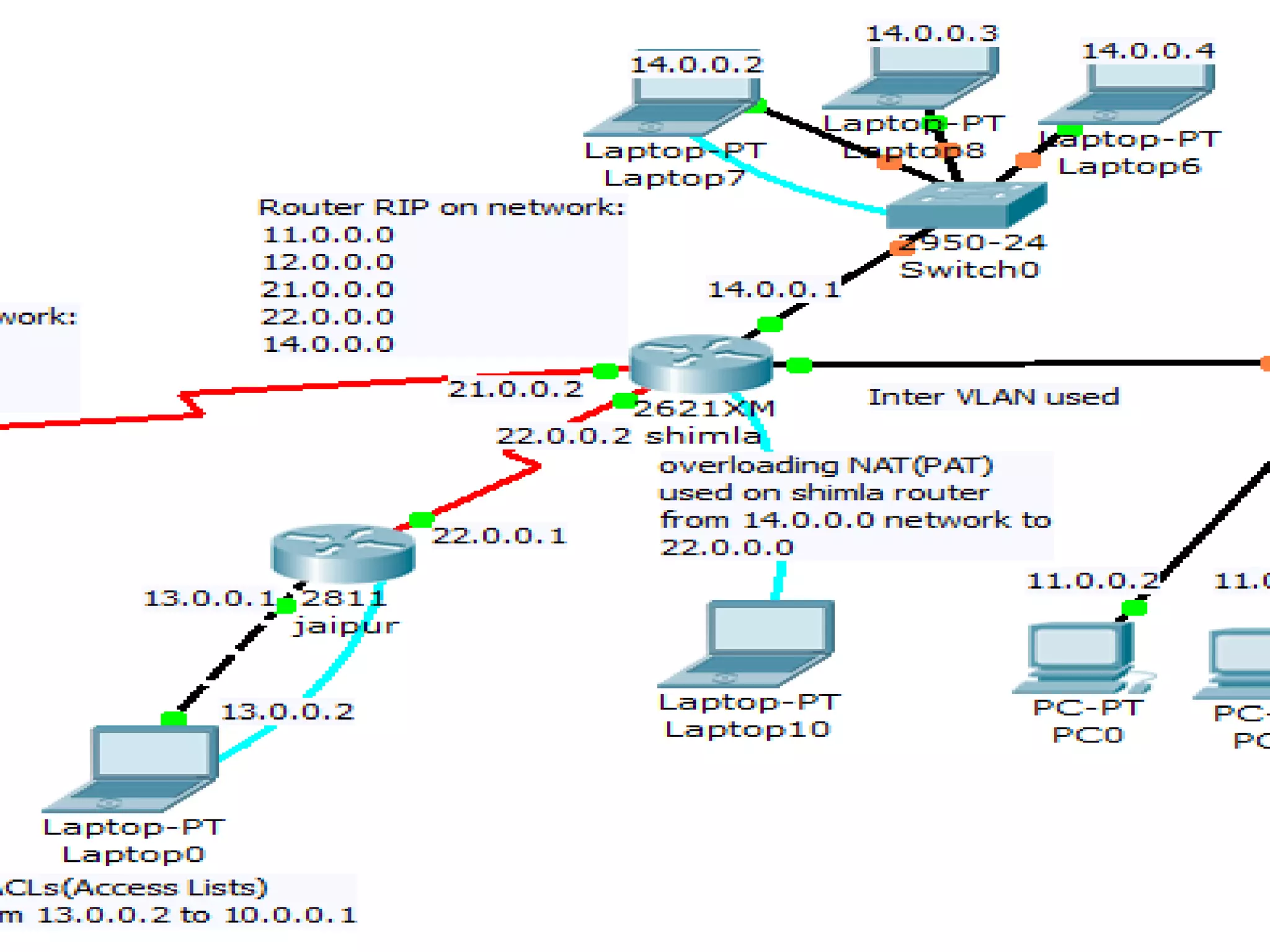

- 3. NAT(Network Project Router and Concept of Devices Used IP Addressing Access Lists Address Switching overview Routing Cloud Translation)
- 4.

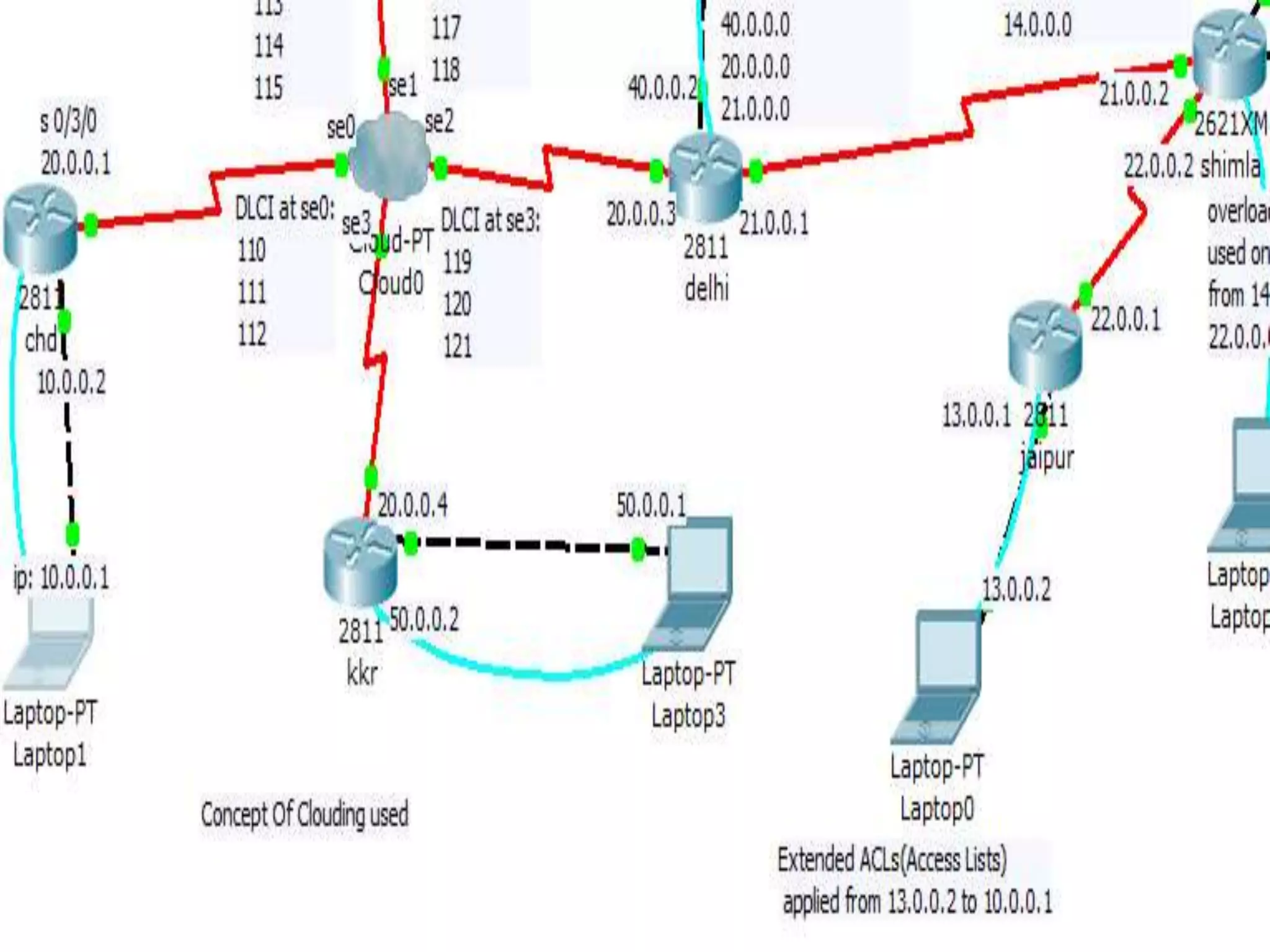

- 5. REMOTE CONNECTIVITY USING FRAME - RELAY

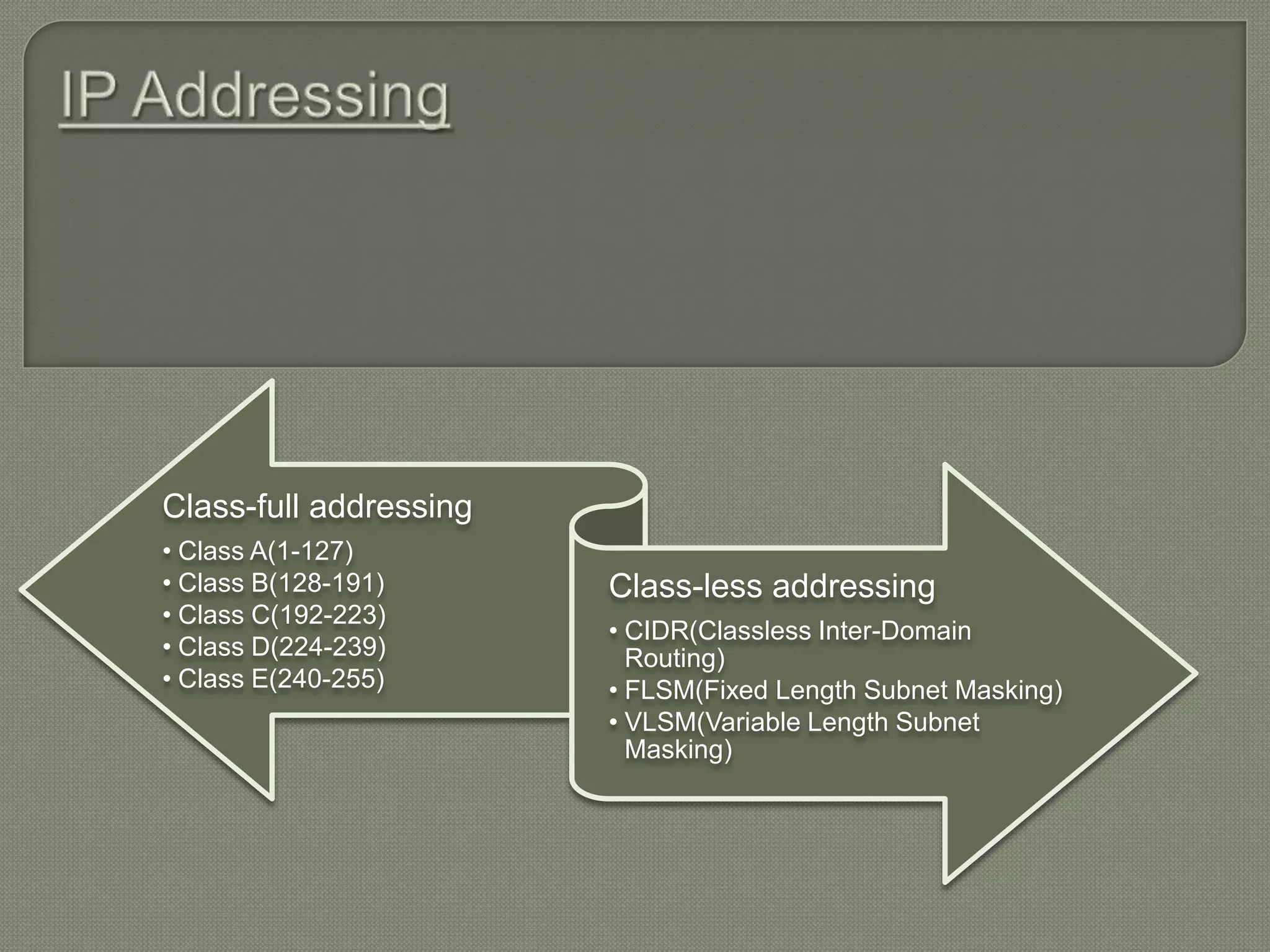

- 7. Class-full addressing • ClassA(1-127) • Class B(128-191) Class-less addressing • Class C(192-223) • CIDR(Classless Inter-Domain • Class D(224-239) Routing) • Class E(240-255) • FLSM(Fixed Length Subnet Masking) • VLSM(Variable Length Subnet Masking)
- 9. Data is sent in form of packets between 2 end devices Routers are used to direct packet to its destination

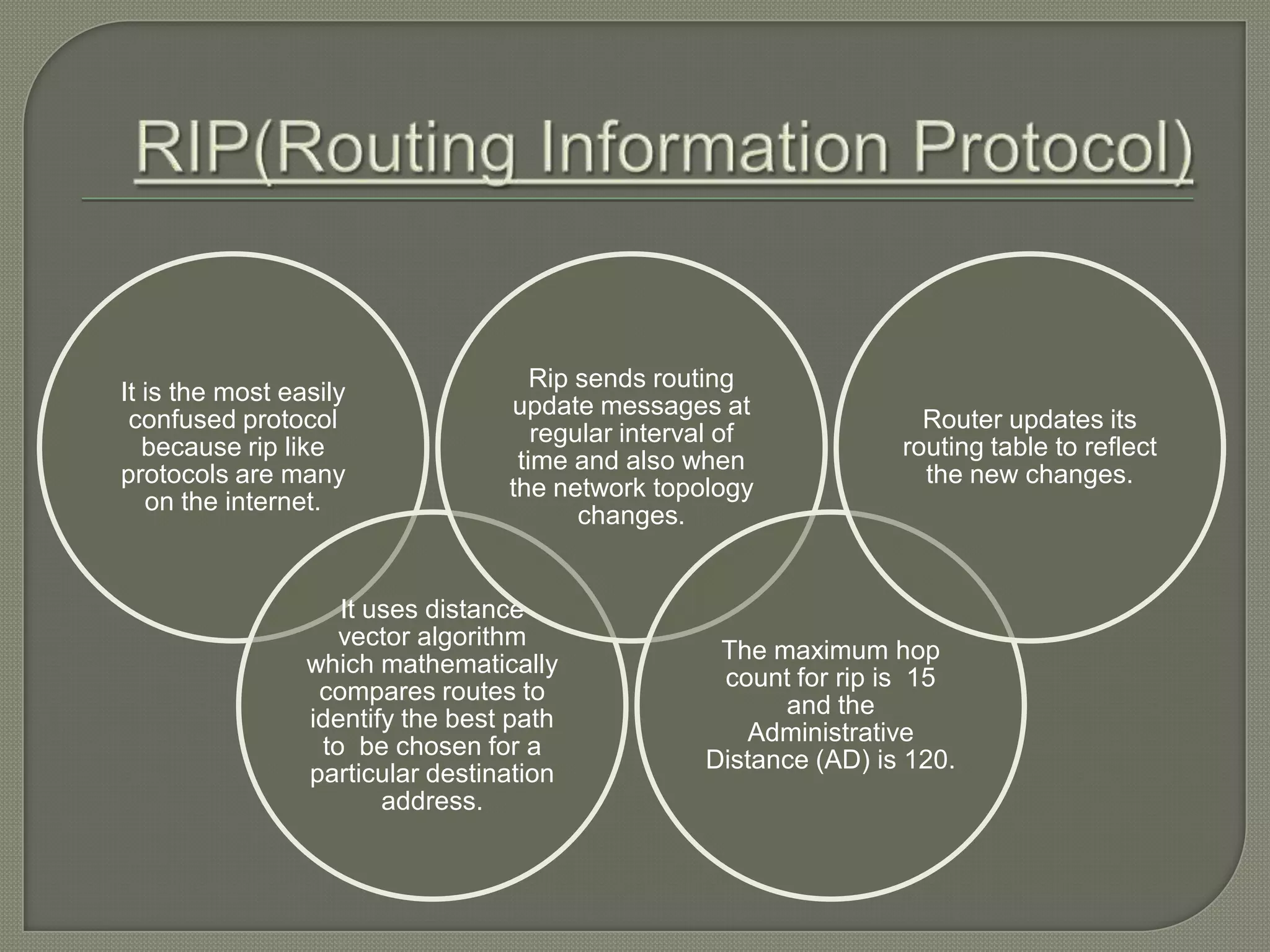

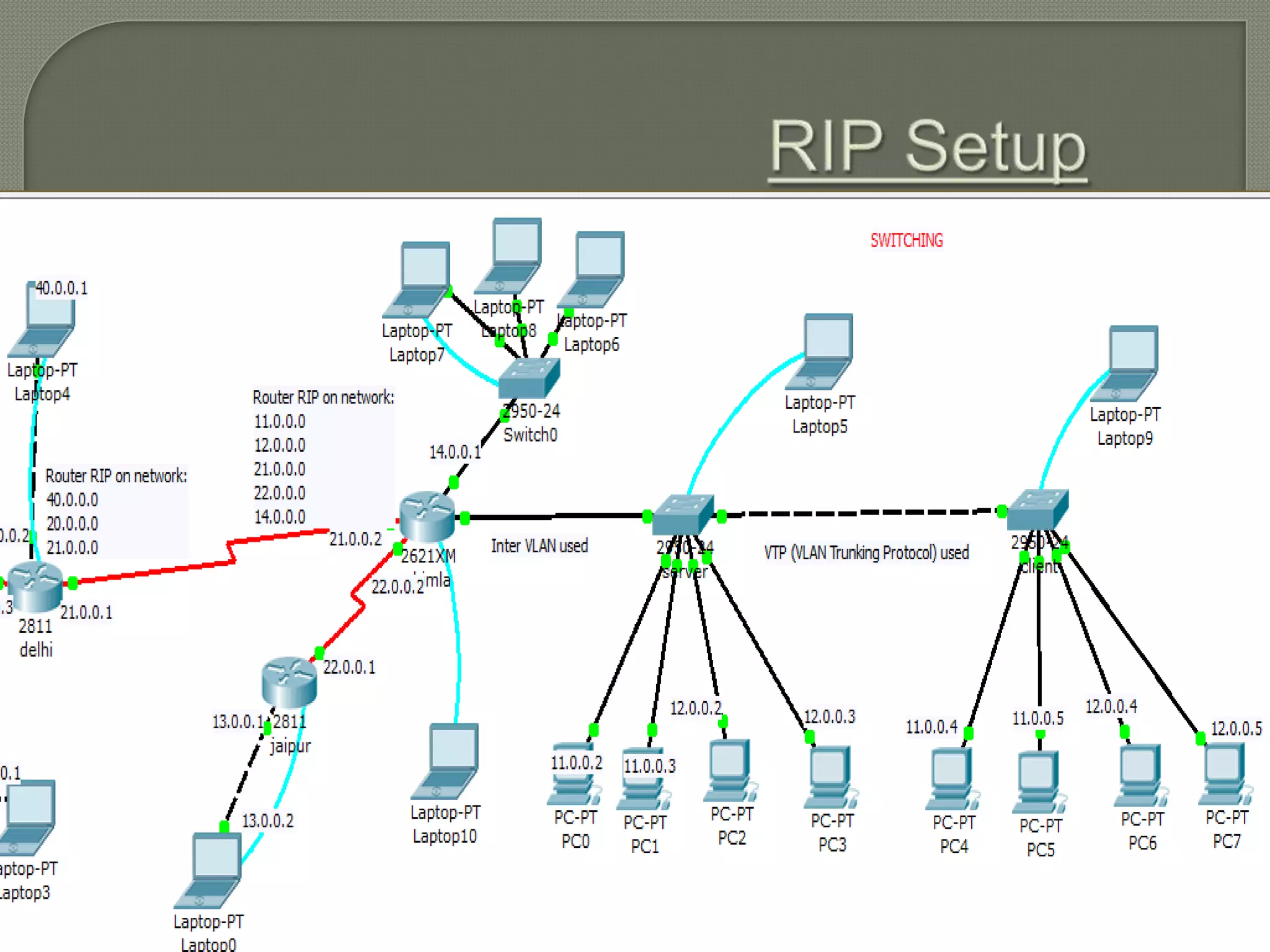

- 11. Rip sends routing Itis the most easily update messages at confused protocol Router updates its regular interval of because rip like routing table to reflect time and also when protocols are many the new changes. the network topology on the internet. changes. It uses distance vector algorithm The maximum hop which mathematically count for rip is 15 compares routes to and the identify the best path Administrative to be chosen for a Distance (AD) is 120. particular destination address.

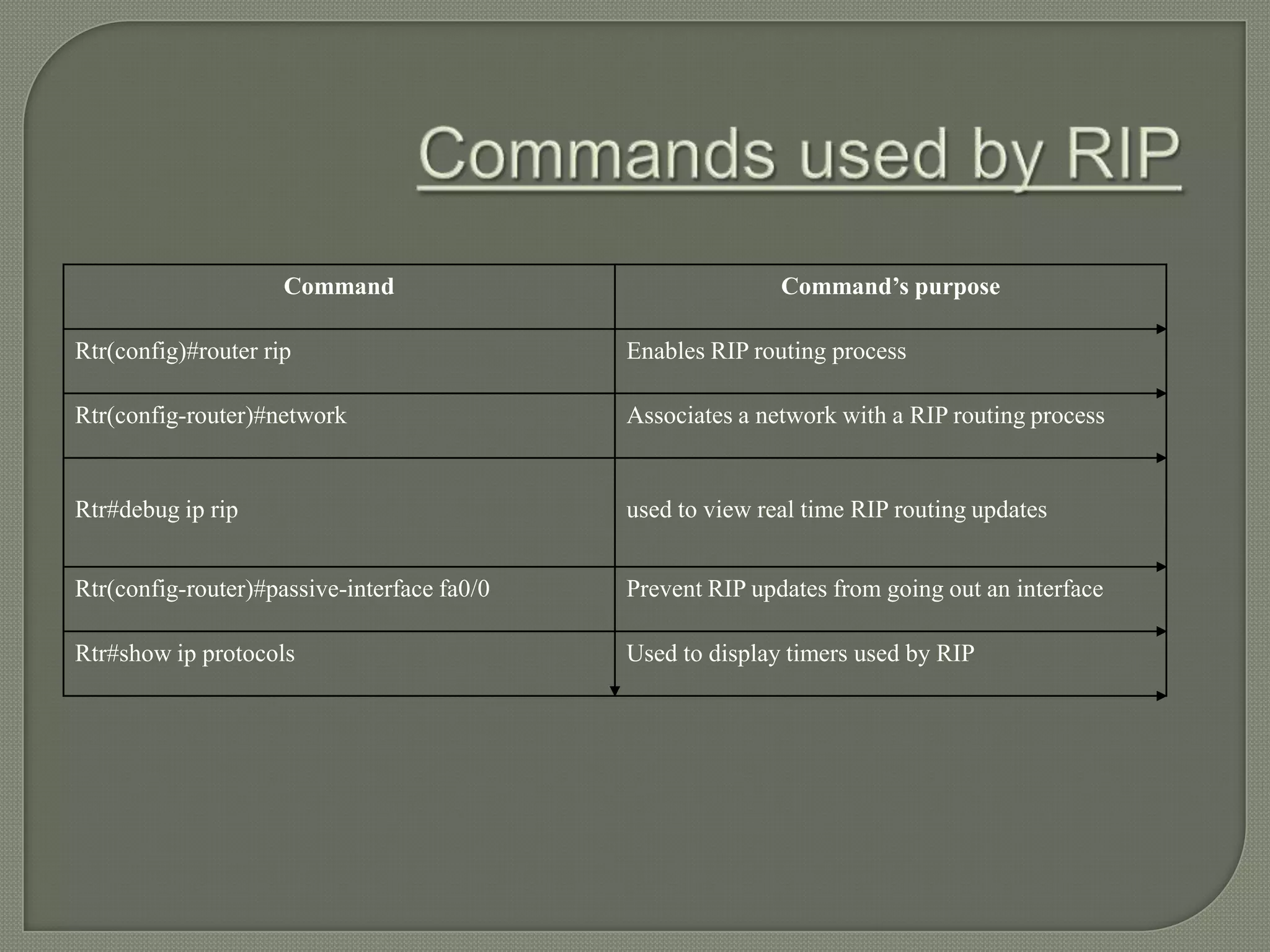

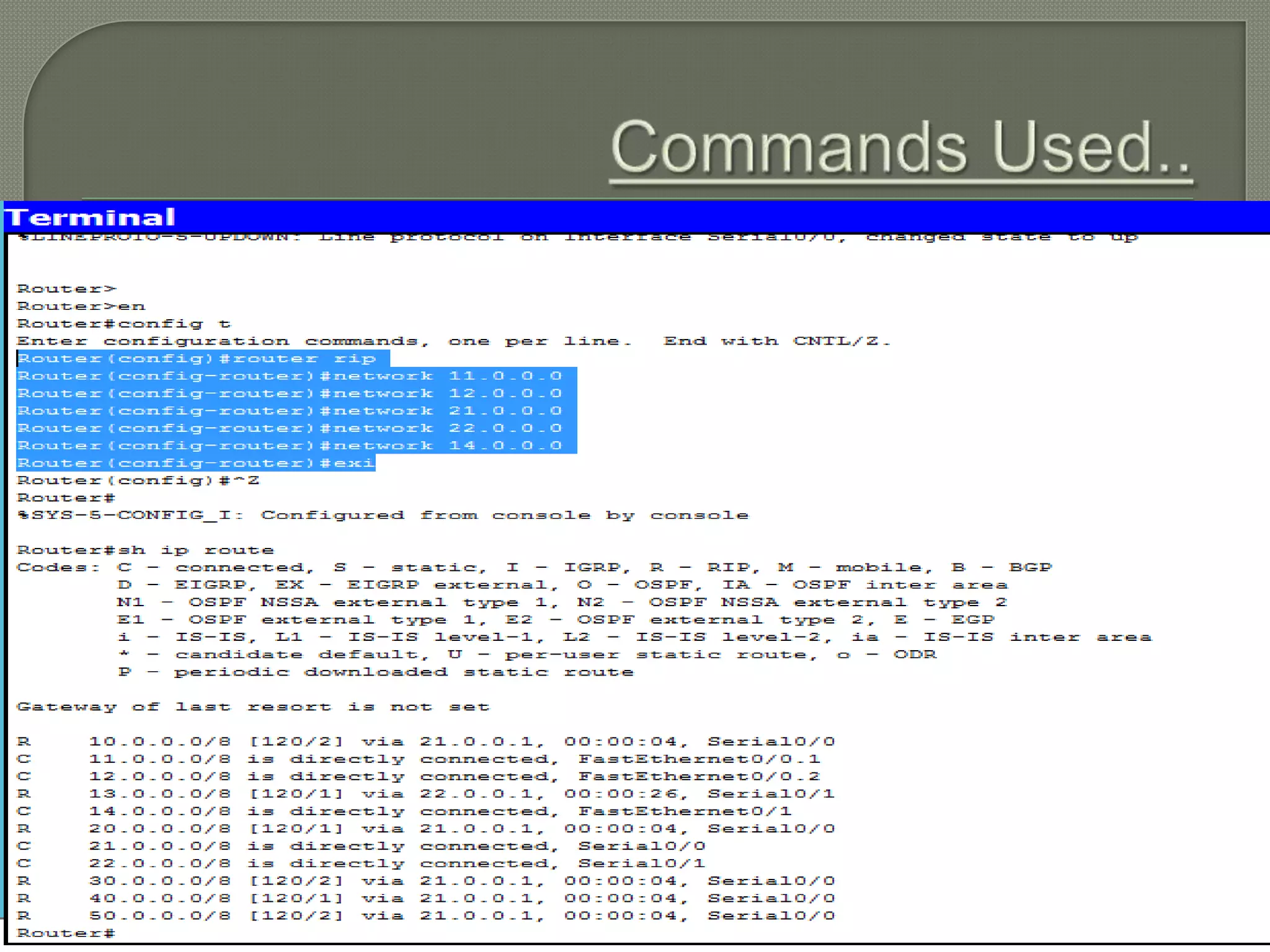

- 14. Command Command’s purpose Rtr(config)#router rip Enables RIP routing process Rtr(config-router)#network Associates a network with a RIP routing process Rtr#debug ip rip used to view real time RIP routing updates Rtr(config-router)#passive-interface fa0/0 Prevent RIP updates from going out an interface Rtr#show ip protocols Used to display timers used by RIP

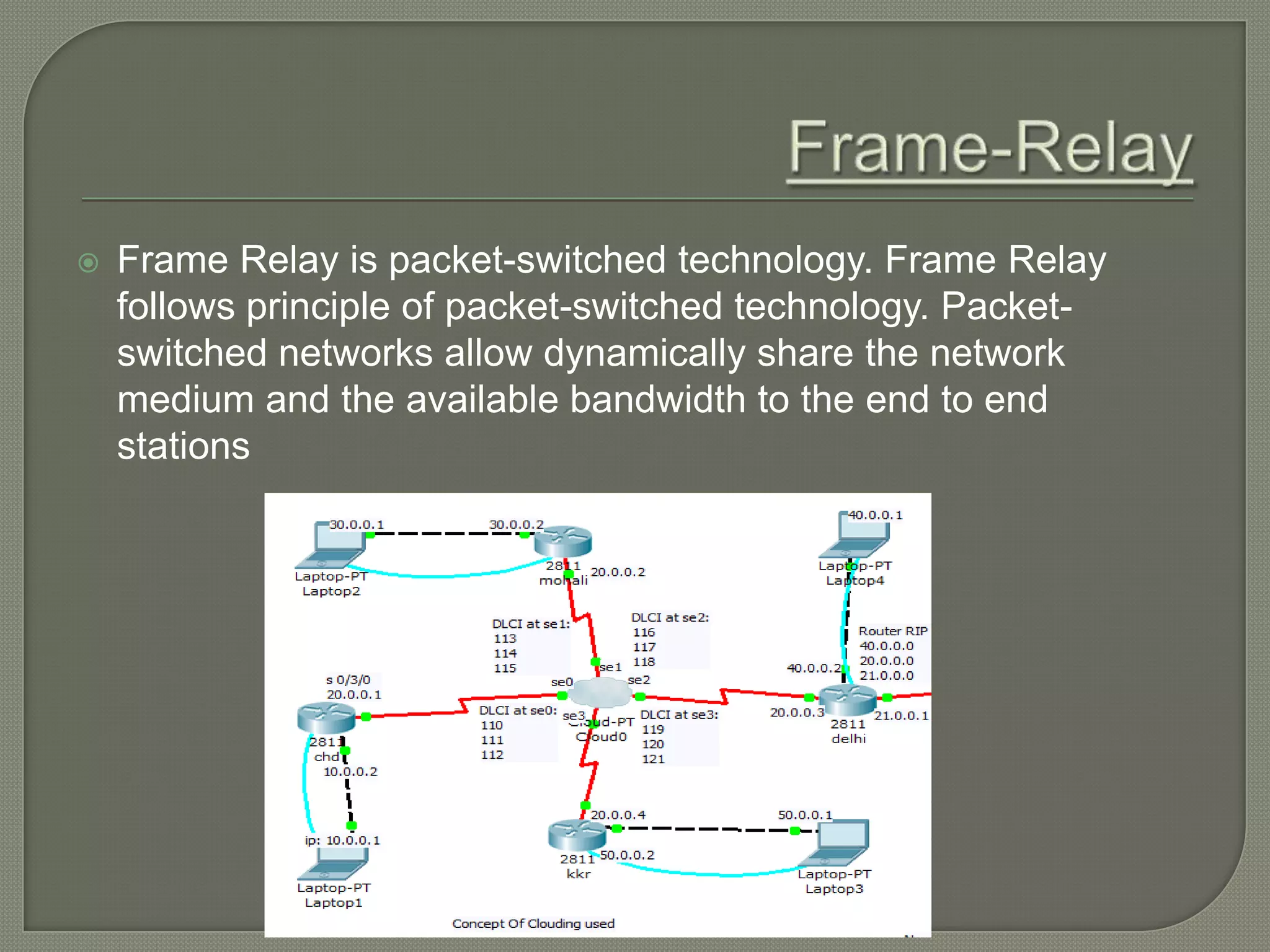

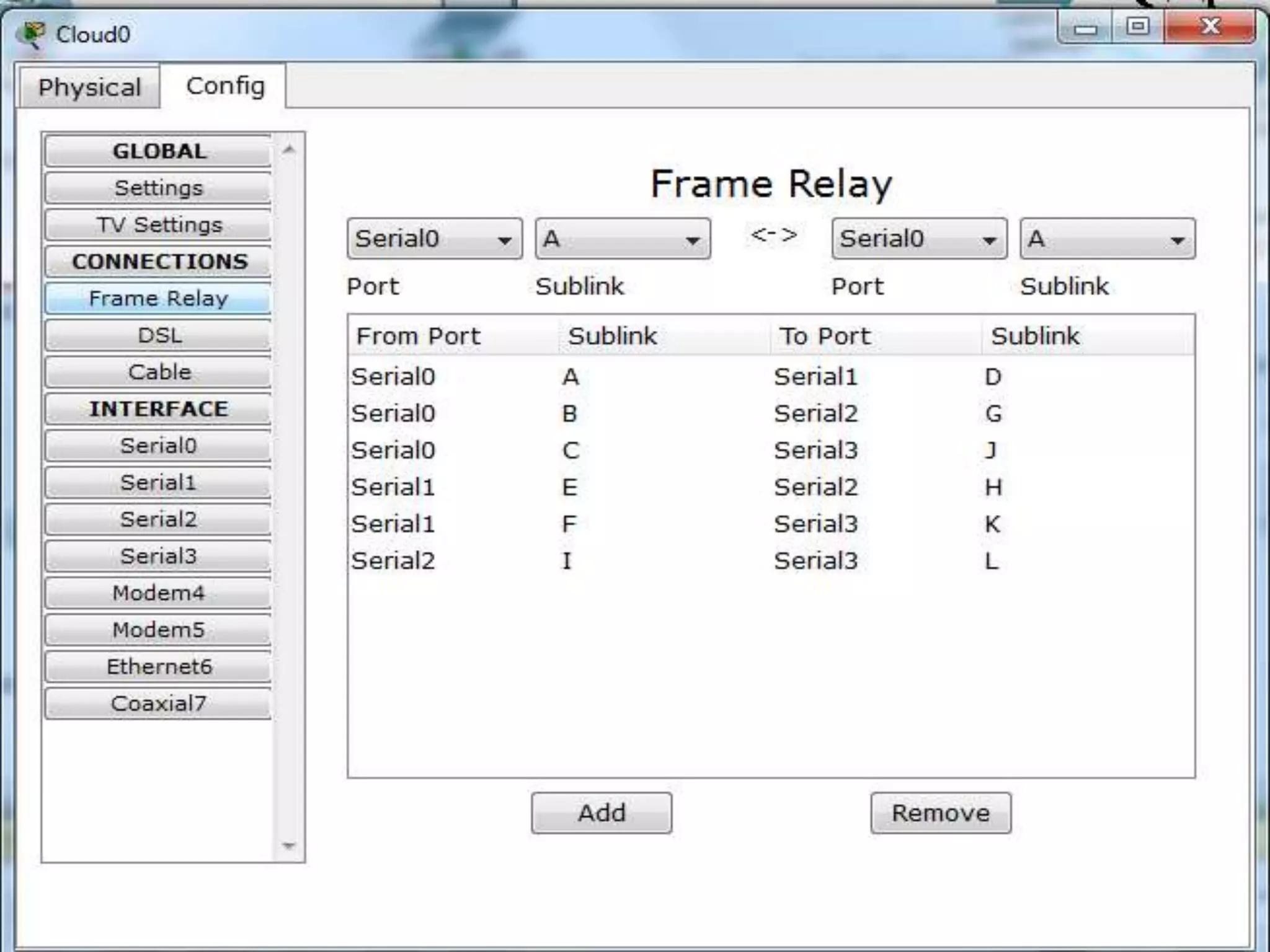

- 15. Frame Relay is packet-switched technology. Frame Relay follows principle of packet-switched technology. Packet- switched networks allow dynamically share the network medium and the available bandwidth to the end to end stations

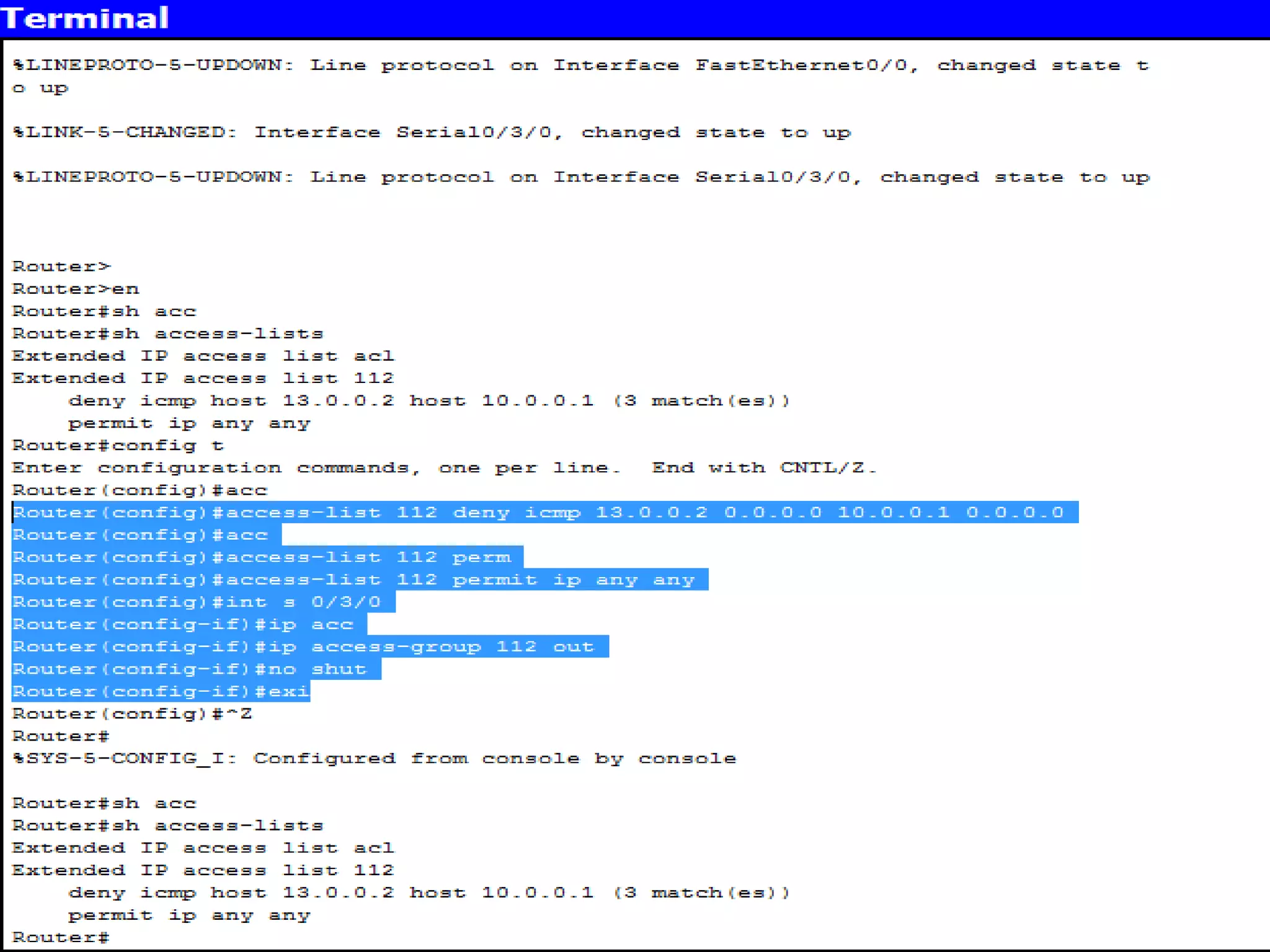

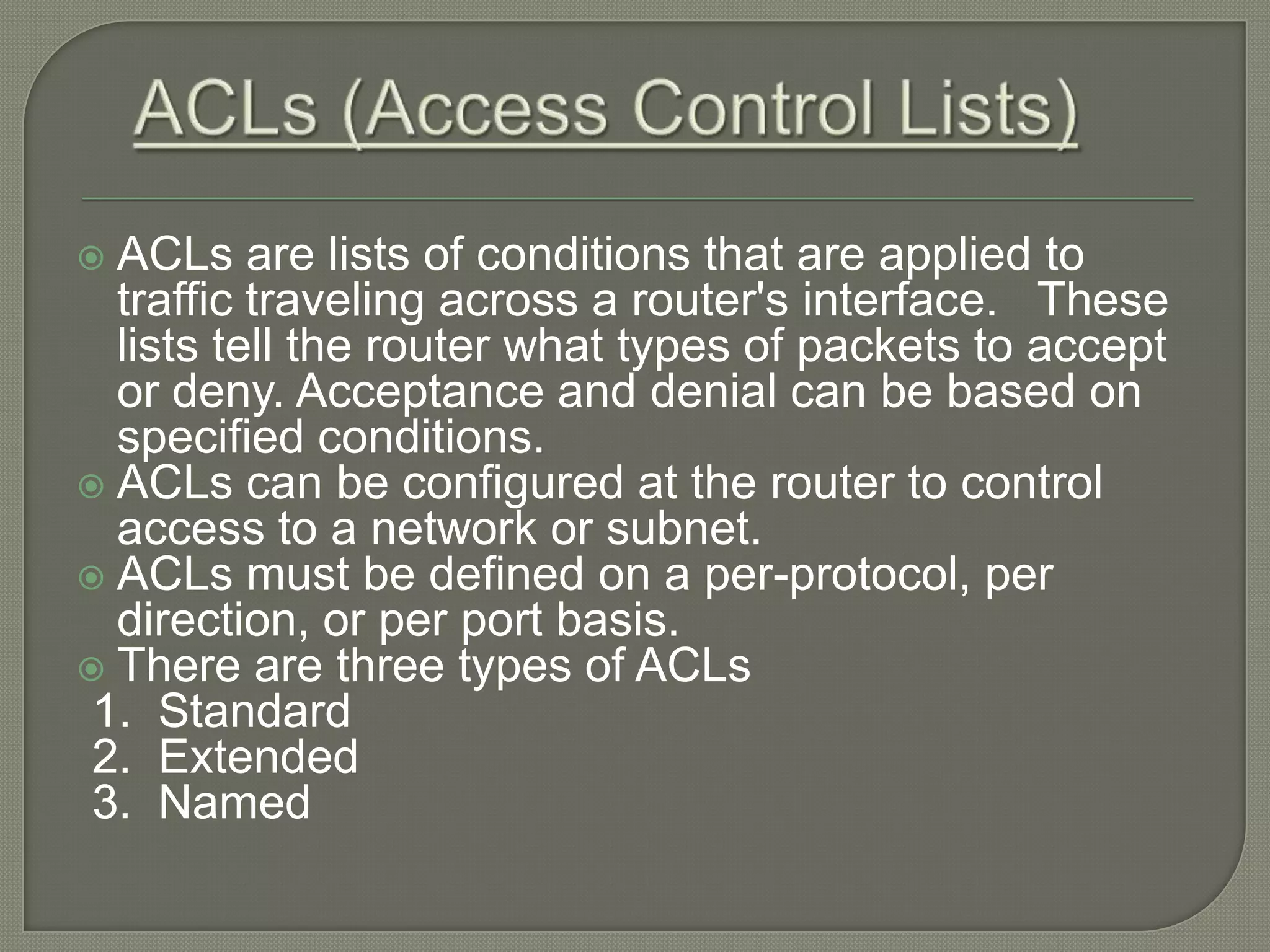

- 19. ACLs arelists of conditions that are applied to traffic traveling across a router's interface. These lists tell the router what types of packets to accept or deny. Acceptance and denial can be based on specified conditions. ACLs can be configured at the router to control access to a network or subnet. ACLs must be defined on a per-protocol, per direction, or per port basis. There are three types of ACLs 1. Standard 2. Extended 3. Named
- 20. 1. Limit networktraffic and increase network performance. 2. Provide traffic flow control. 3. Provide a basic level of security for network access. 4. Decide which types of traffic are forwarded or blocked at the router interfaces. For example: Permit e-mail traffic to be routed, but block all telnet traffic. 5. Allow an administrator to control what areas a client can access on a network. 6. If ACLs are not configured on the router, all packets passing through the router will be allowed onto all parts of the network.

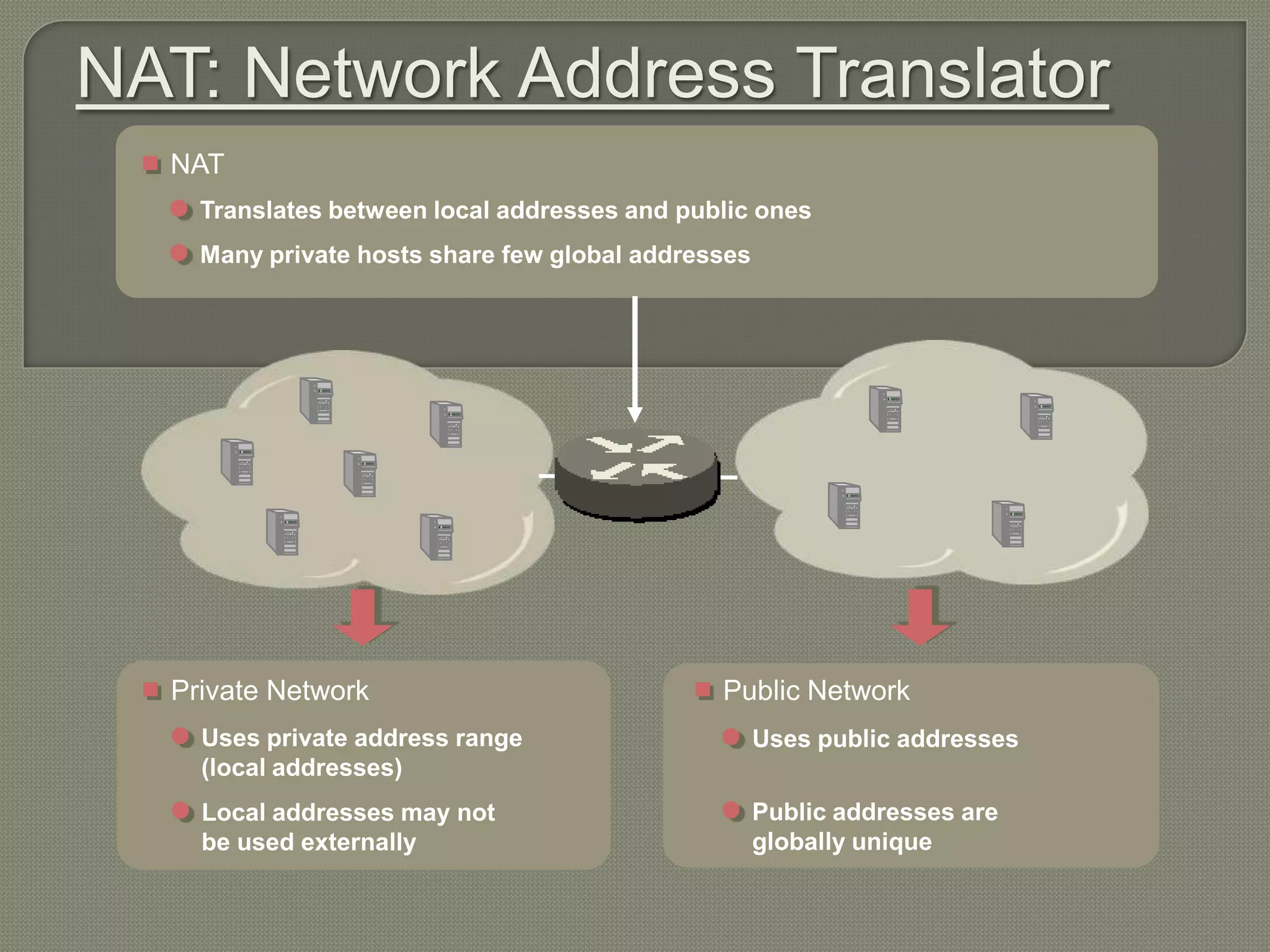

- 23. NAT: Network AddressTranslator NAT Translates between local addresses and public ones Many private hosts share few global addresses Private Network Public Network Uses private address range Uses public addresses (local addresses) Local addresses may not Public addresses are be used externally globally unique

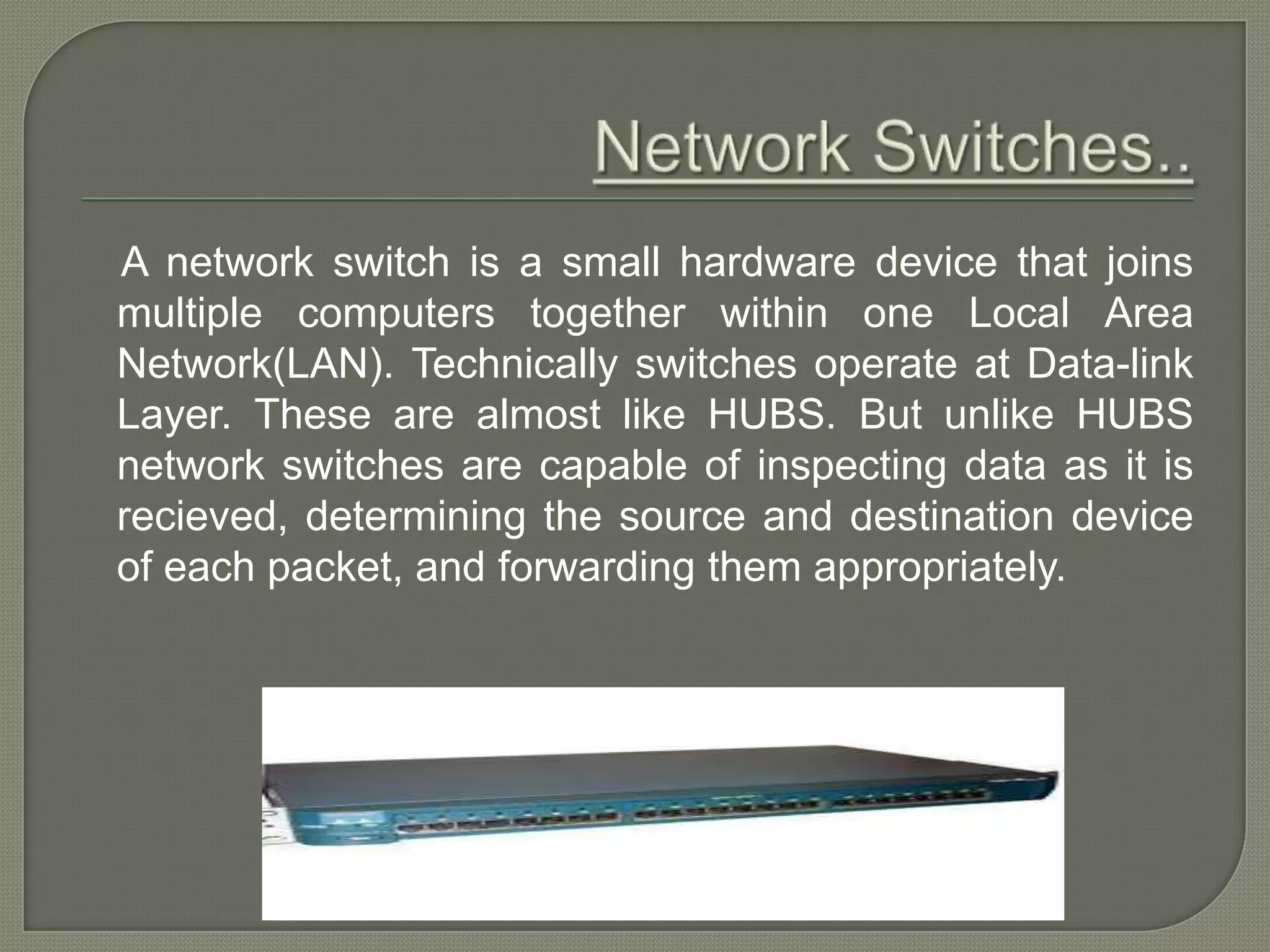

- 26. A network switchis a small hardware device that joins multiple computers together within one Local Area Network(LAN). Technically switches operate at Data-link Layer. These are almost like HUBS. But unlike HUBS network switches are capable of inspecting data as it is recieved, determining the source and destination device of each packet, and forwarding them appropriately.

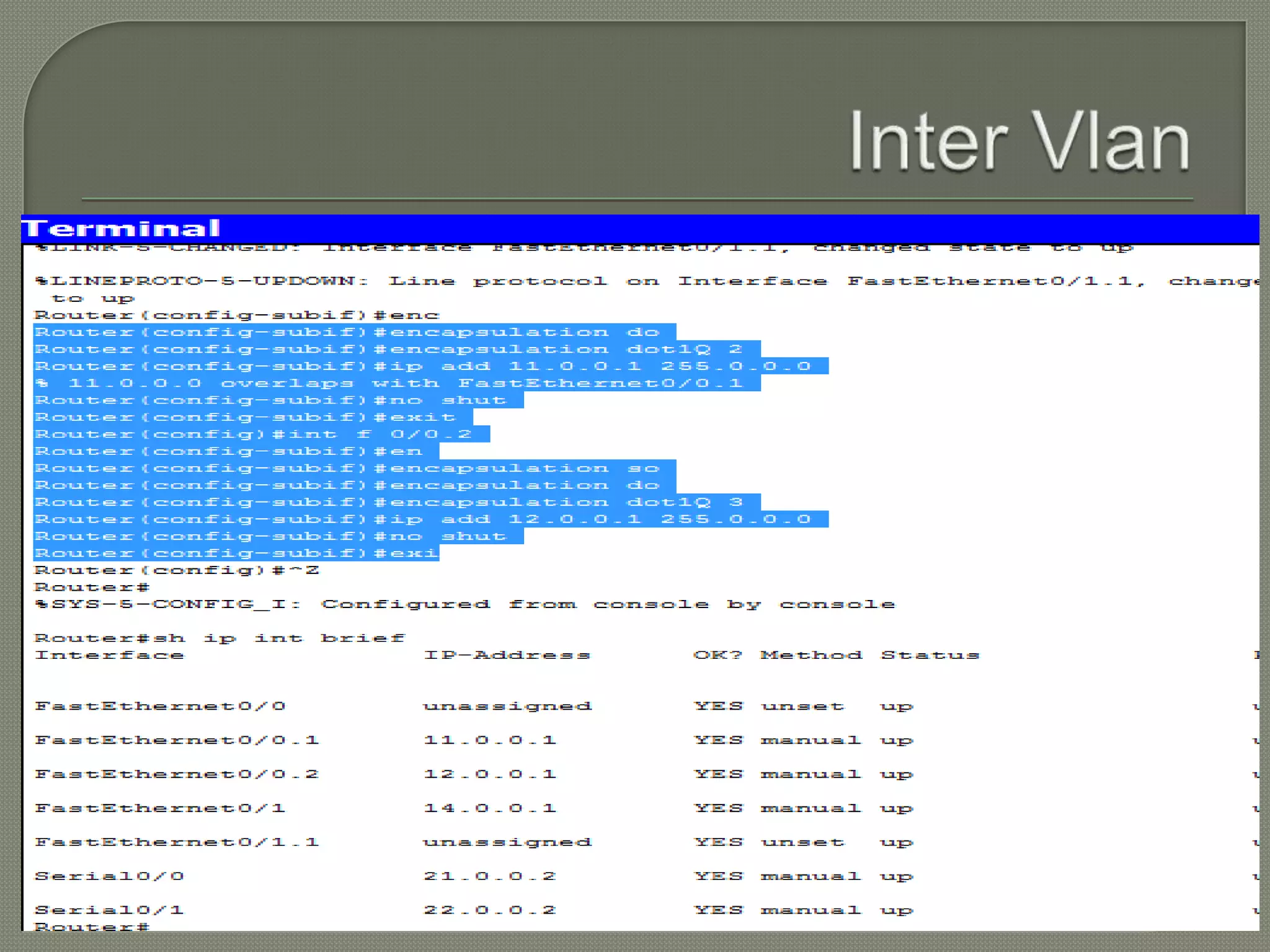

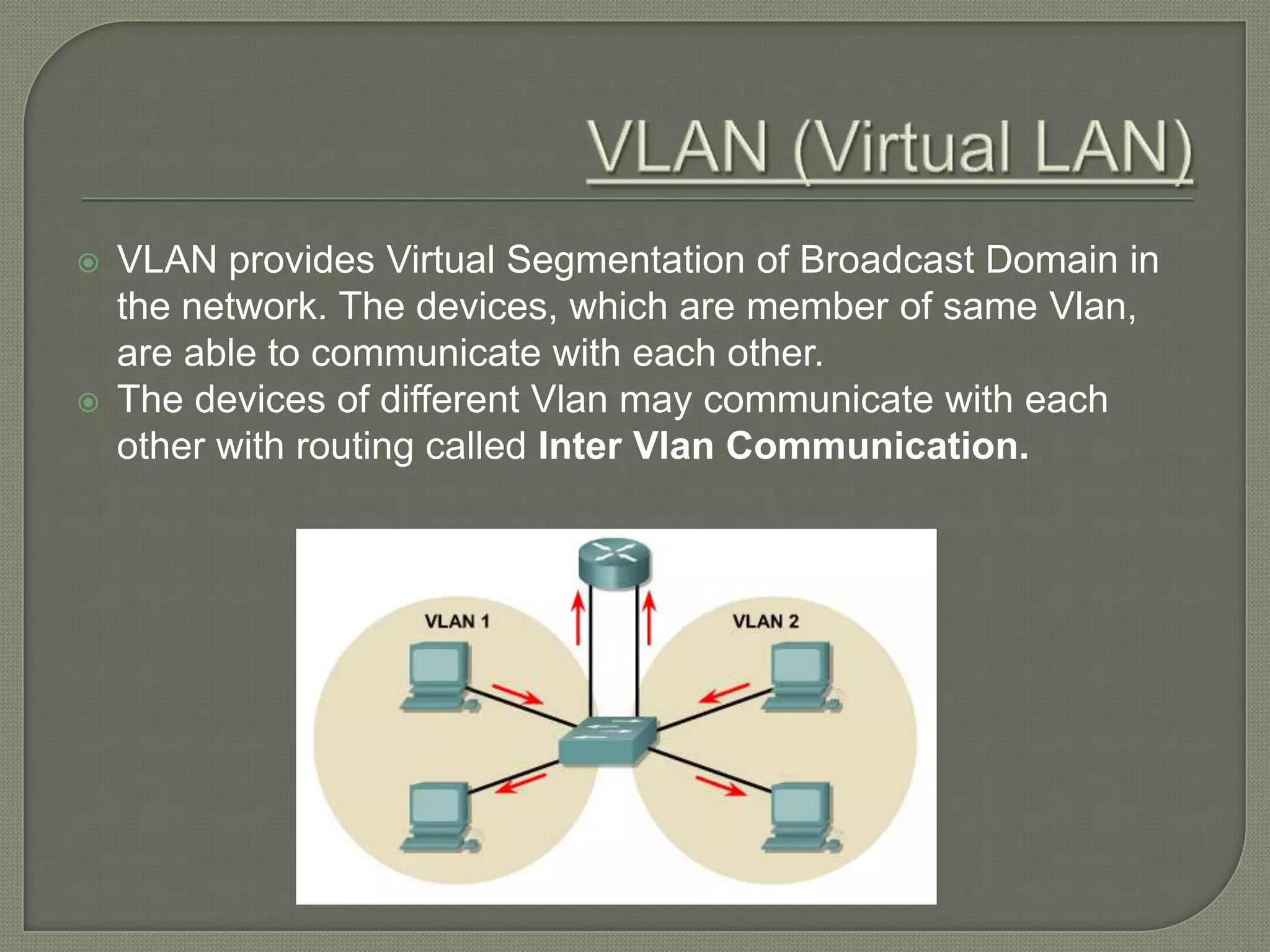

- 27. VLAN provides Virtual Segmentation of Broadcast Domain in the network. The devices, which are member of same Vlan, are able to communicate with each other. The devices of different Vlan may communicate with each other with routing called Inter Vlan Communication.

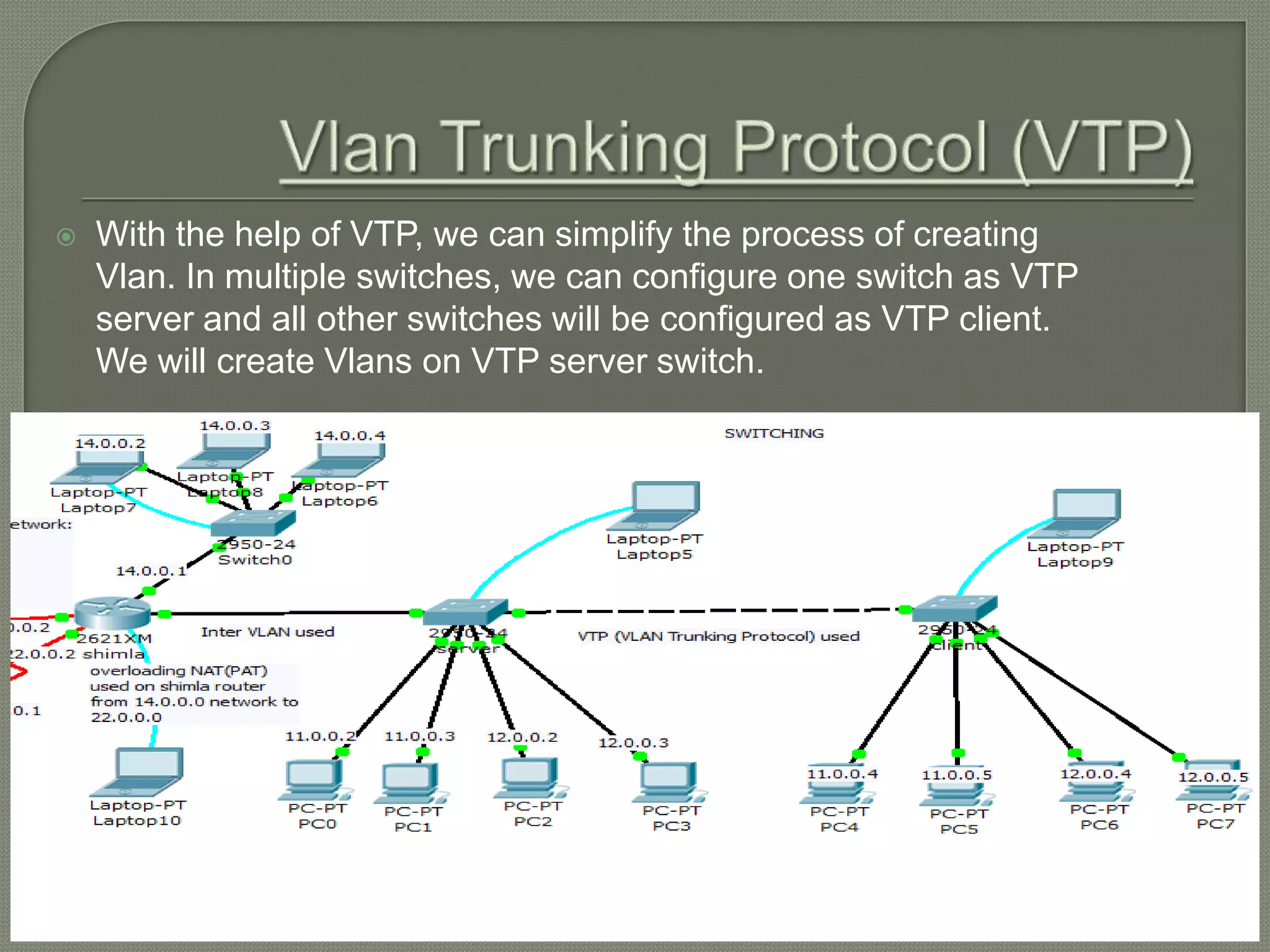

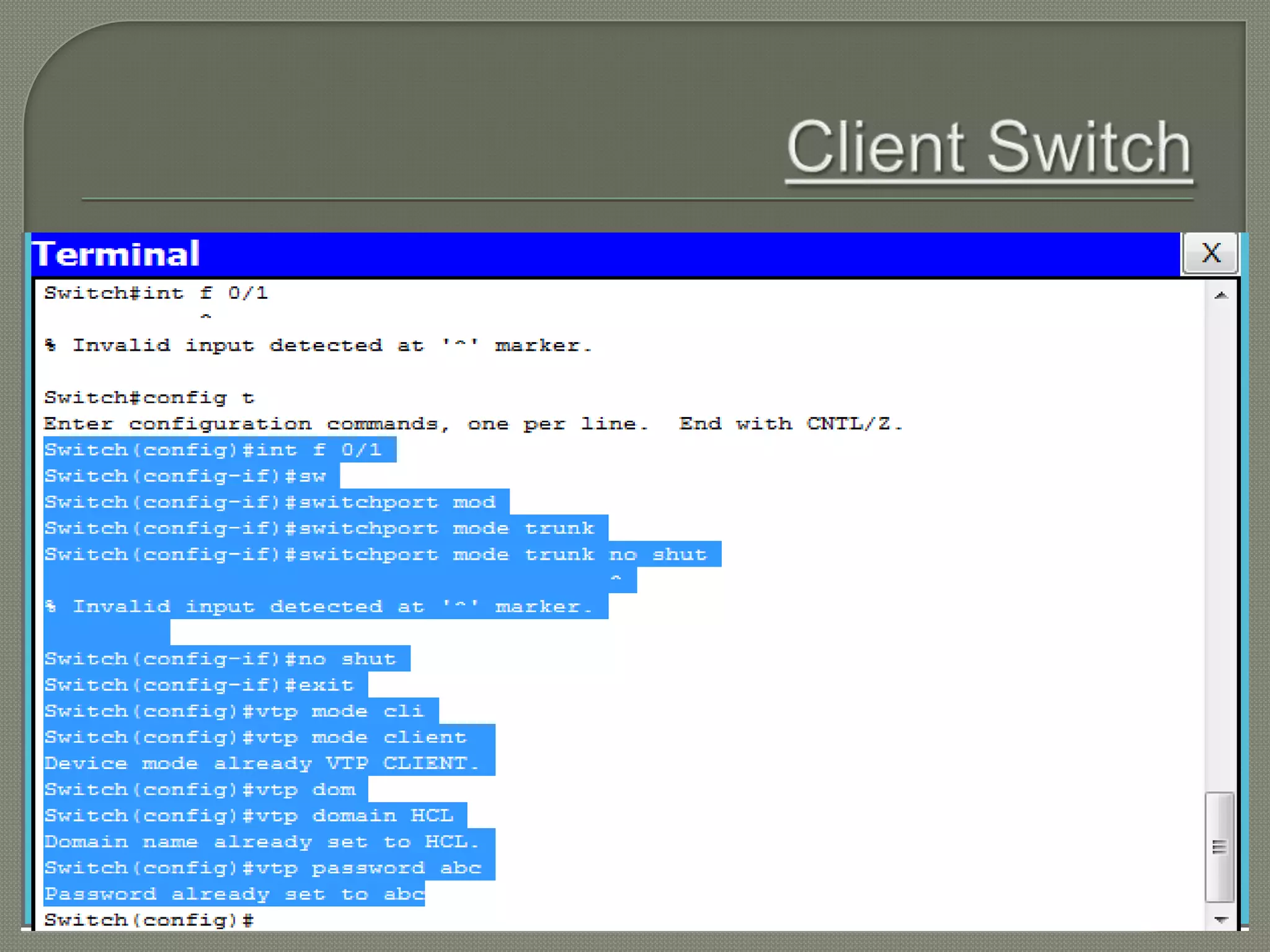

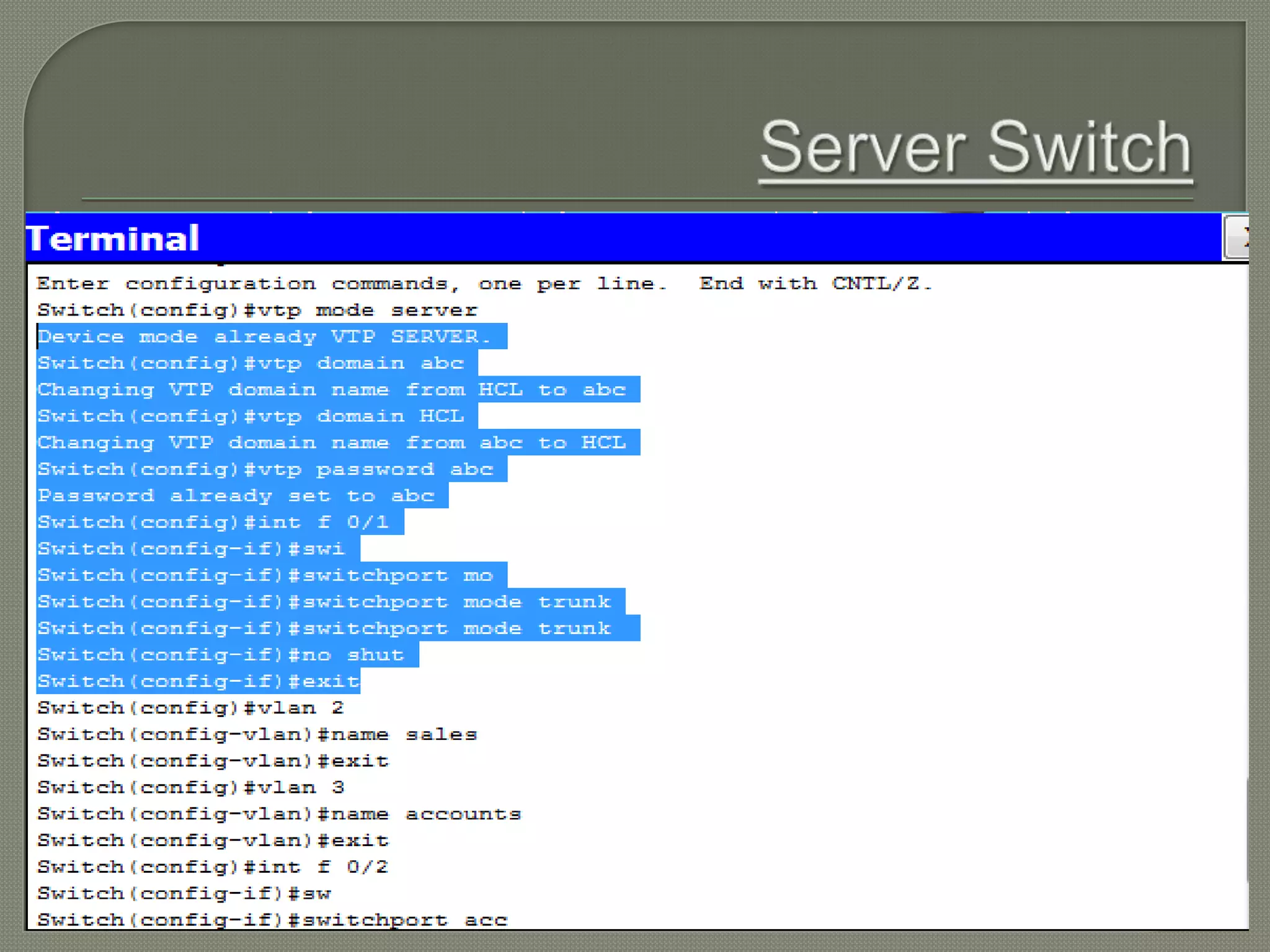

- 28. With the help of VTP, we can simplify the process of creating Vlan. In multiple switches, we can configure one switch as VTP server and all other switches will be configured as VTP client. We will create Vlans on VTP server switch.
