Building Modern Data Streaming Apps with Python

Building Modern Data Streaming Apps with Python Tim Spann Developer Advocate

2 Tim Spann Developer Advocate at StreamNative FLiP(N) Stack = Flink, Pulsar and NiFi Stack Streaming Systems & Data Architecture Expert Experience: ● 15+ years of experience with streaming technologies including Pulsar, Flink, Spark, NiFi, Big Data, Cloud, MXNet, IoT, Python and more. ● Today, he helps to grow the Pulsar community sharing rich technical knowledge and experience at both global conferences and through individual conversations.

https://bit.ly/32dAJft FLiP Stack Weekly This week in Apache Flink, Apache Pulsar, Apache NiFi, Apache Spark and open source friends.

4 Building Real-Time Requires a Team

Apache Pulsar has a vibrant community 560+ Contributors 10,000+ Commits 7,000+ Slack Members 1,000+ Organizations Using Pulsar

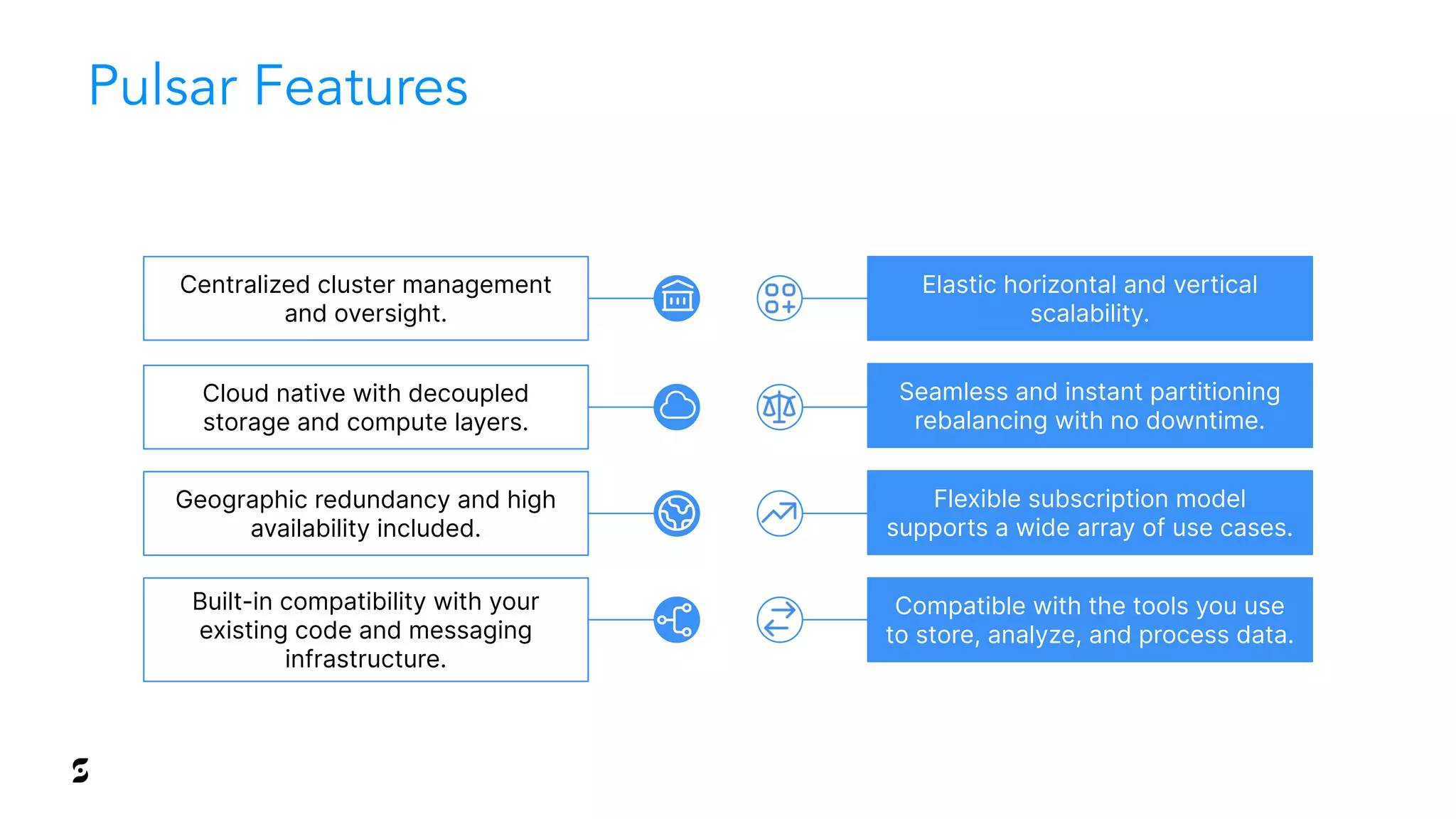

Cloud native with decoupled storage and compute layers. Built-in compatibility with your existing code and messaging infrastructure. Geographic redundancy and high availability included. Centralized cluster management and oversight. Elastic horizontal and vertical scalability. Seamless and instant partitioning rebalancing with no downtime. Flexible subscription model supports a wide array of use cases. Compatible with the tools you use to store, analyze, and process data. Pulsar Features

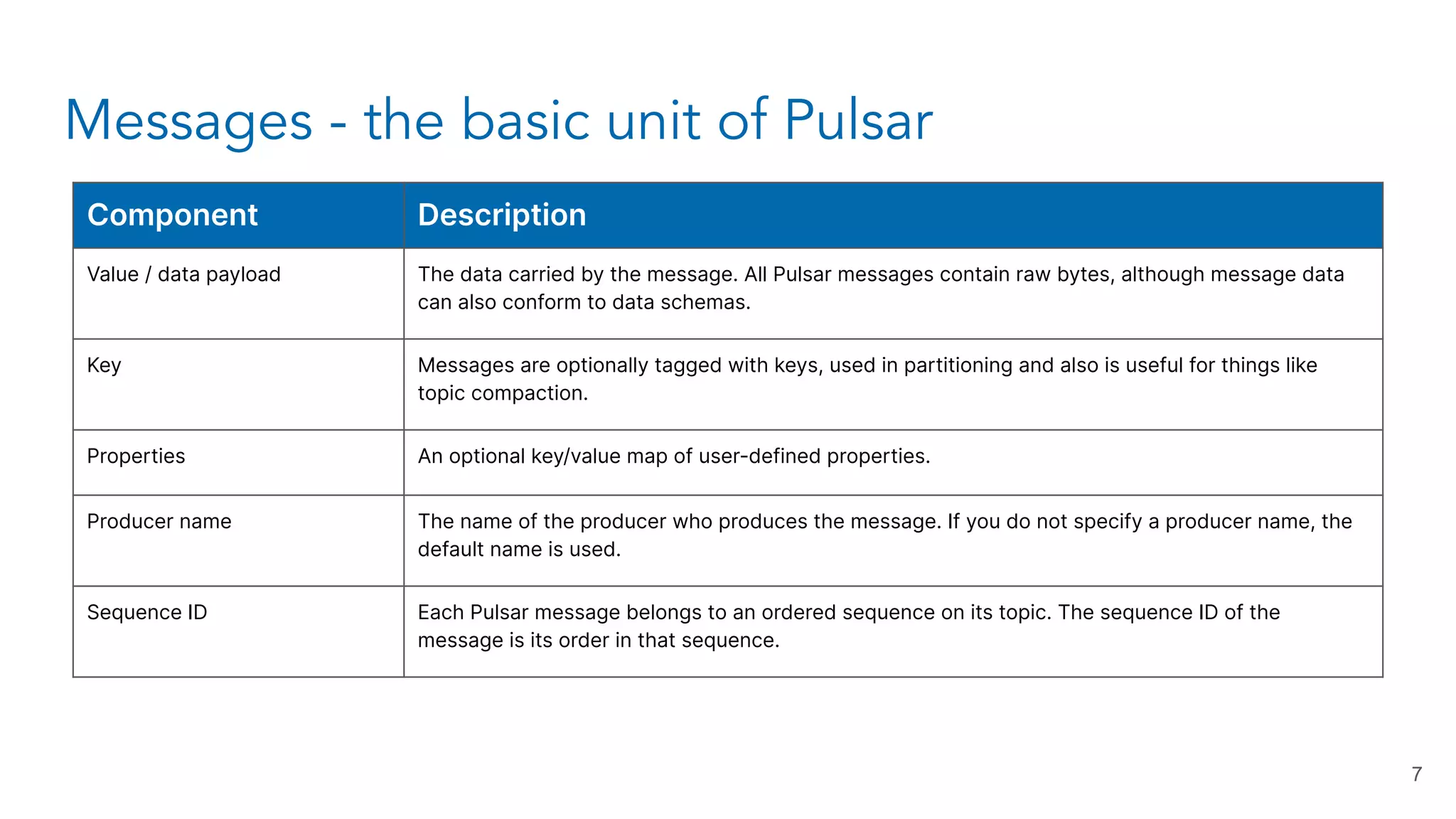

Messages - the basic unit of Pulsar 7 Component Description Value / data payload The data carried by the message. All Pulsar messages contain raw bytes, although message data can also conform to data schemas. Key Messages are optionally tagged with keys, used in partitioning and also is useful for things like topic compaction. Properties An optional key/value map of user-defined properties. Producer name The name of the producer who produces the message. If you do not specify a producer name, the default name is used. Sequence ID Each Pulsar message belongs to an ordered sequence on its topic. The sequence ID of the message is its order in that sequence.

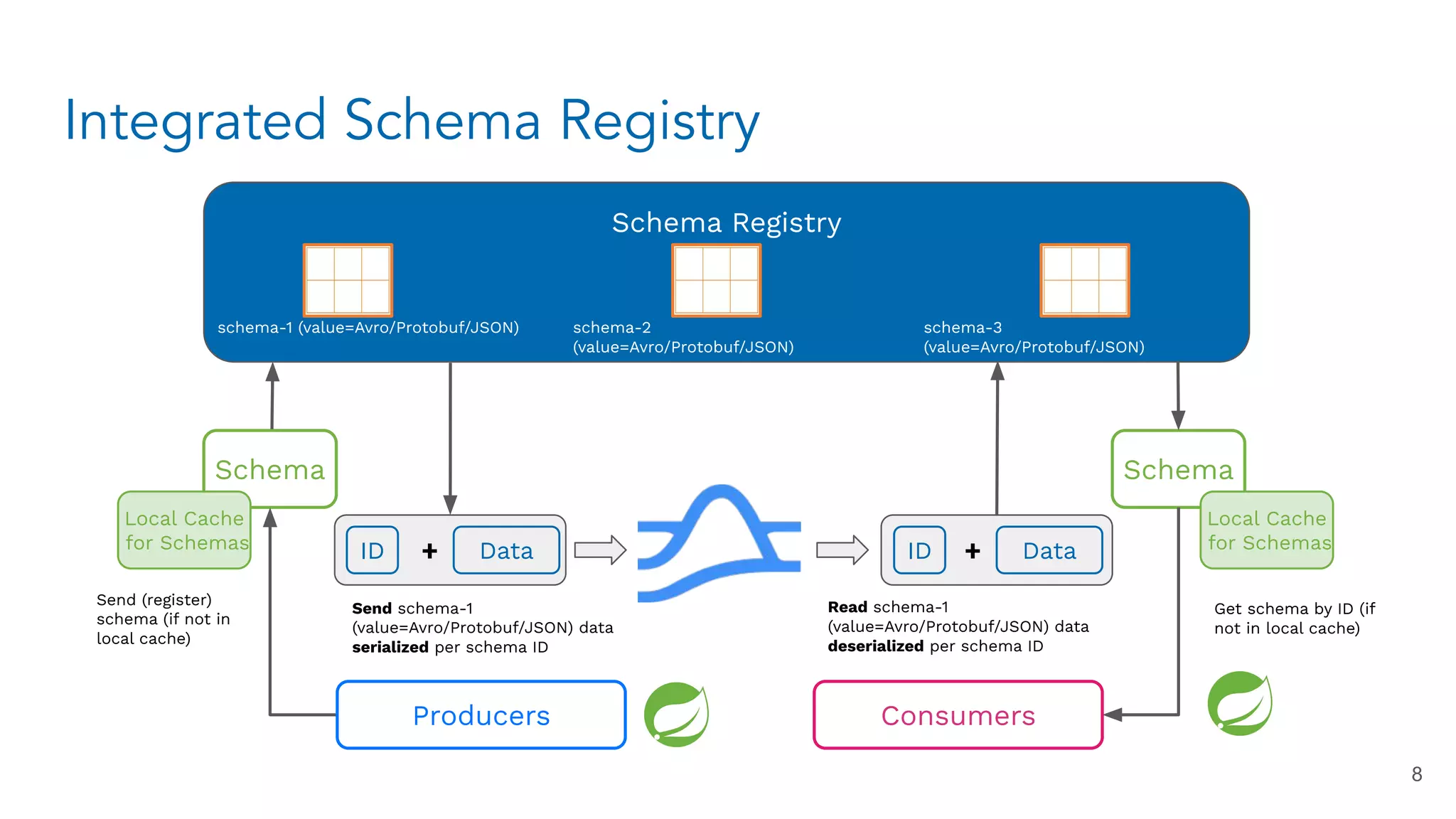

Integrated Schema Registry Schema Registry schema-1 (value=Avro/Protobuf/JSON) schema-2 (value=Avro/Protobuf/JSON) schema-3 (value=Avro/Protobuf/JSON) Schema Data ID Local Cache for Schemas + Schema Data ID + Local Cache for Schemas Send schema-1 (value=Avro/Protobuf/JSON) data serialized per schema ID Send (register) schema (if not in local cache) Read schema-1 (value=Avro/Protobuf/JSON) data deserialized per schema ID Get schema by ID (if not in local cache) Producers Consumers 8

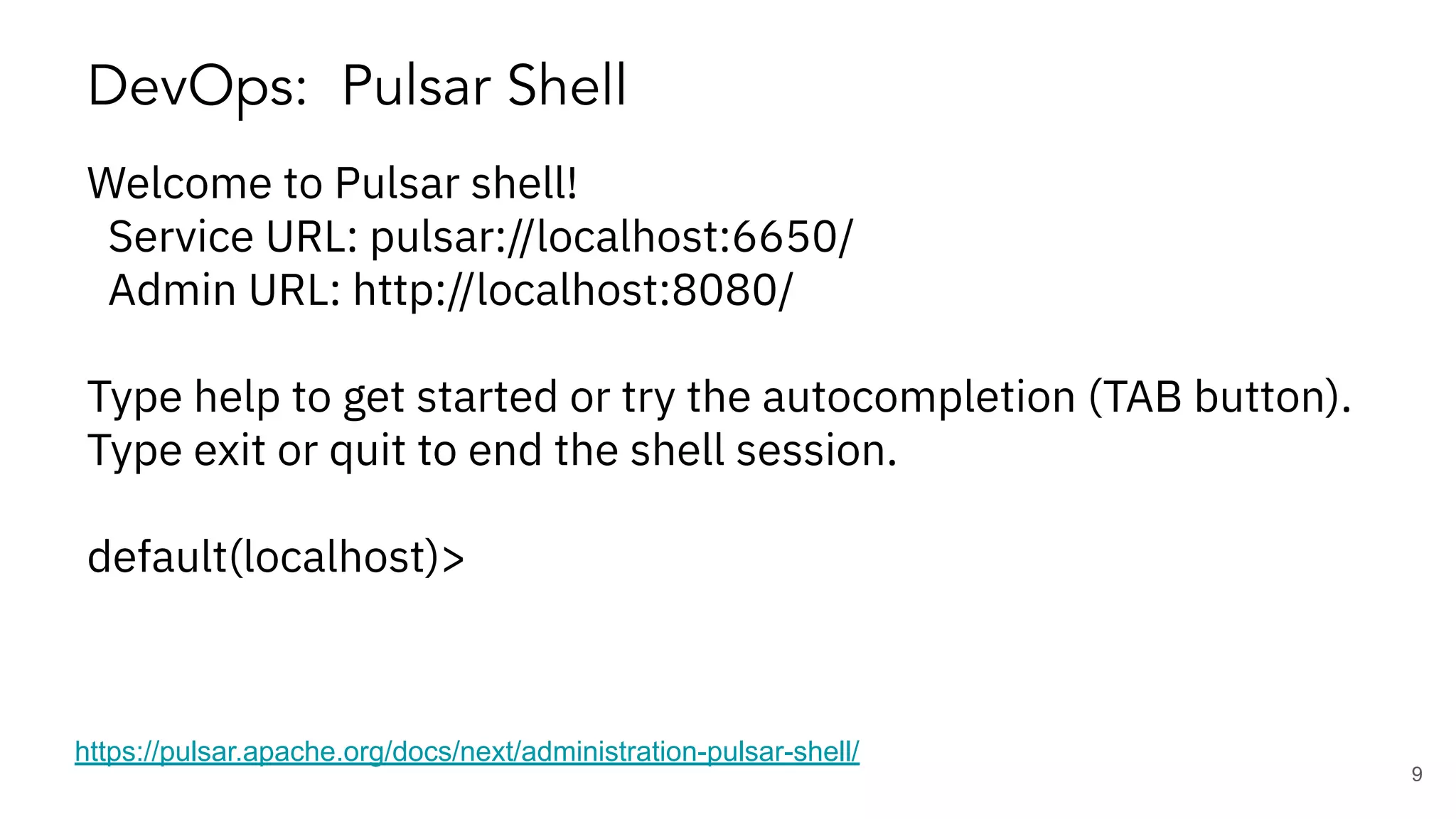

DevOps: Pulsar Shell https://pulsar.apache.org/docs/next/administration-pulsar-shell/ Welcome to Pulsar shell! Service URL: pulsar://localhost:6650/ Admin URL: http://localhost:8080/ Type help to get started or try the autocompletion (TAB button). Type exit or quit to end the shell session. default(localhost)> 9

The FliPN kitten crosses the stream 4 ways with Apache Pulsar 10

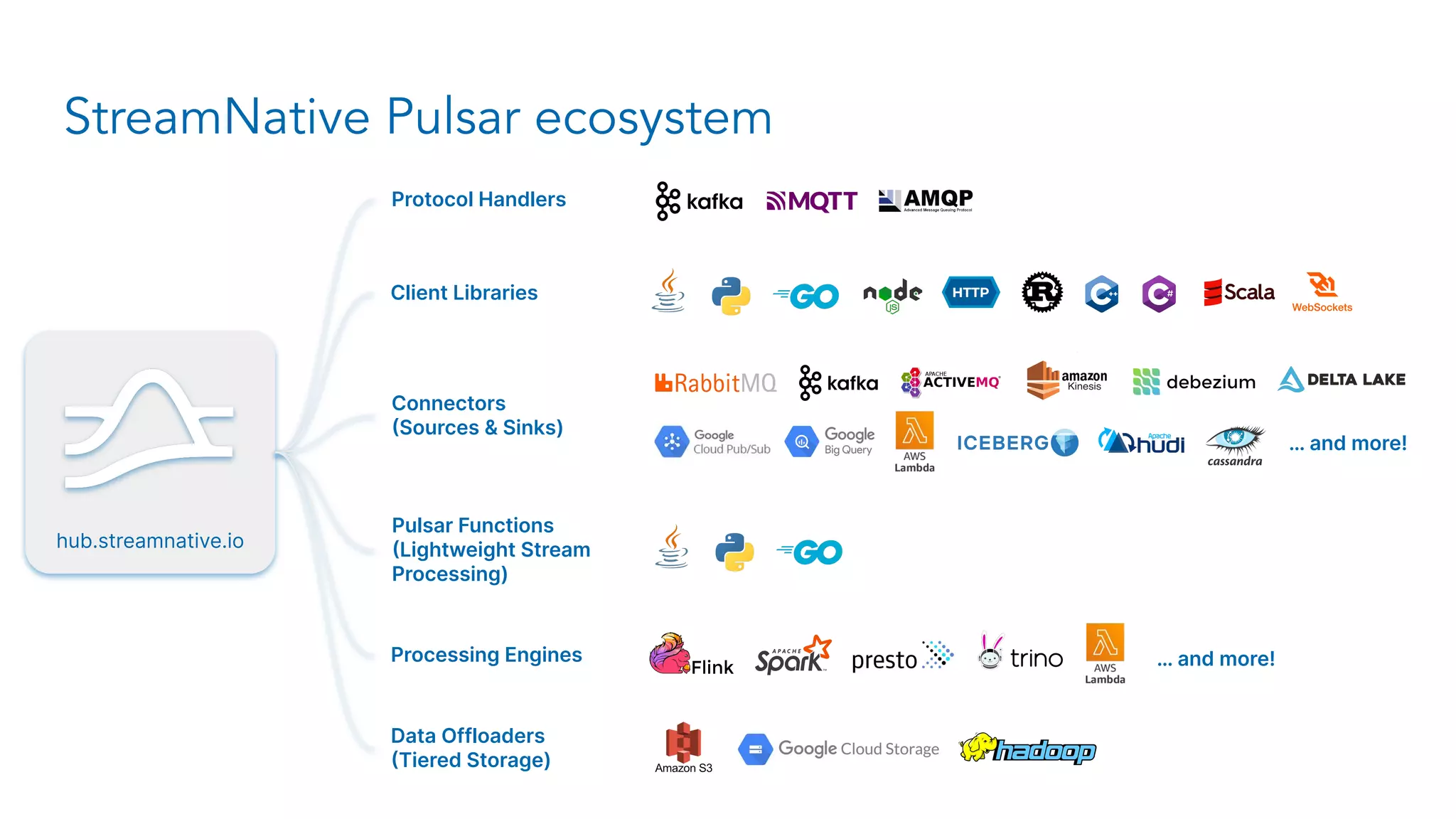

Data Offloaders (Tiered Storage) Client Libraries StreamNative Pulsar ecosystem hub.streamnative.io Connectors (Sources & Sinks) Protocol Handlers Pulsar Functions (Lightweight Stream Processing) Processing Engines … and more! … and more!

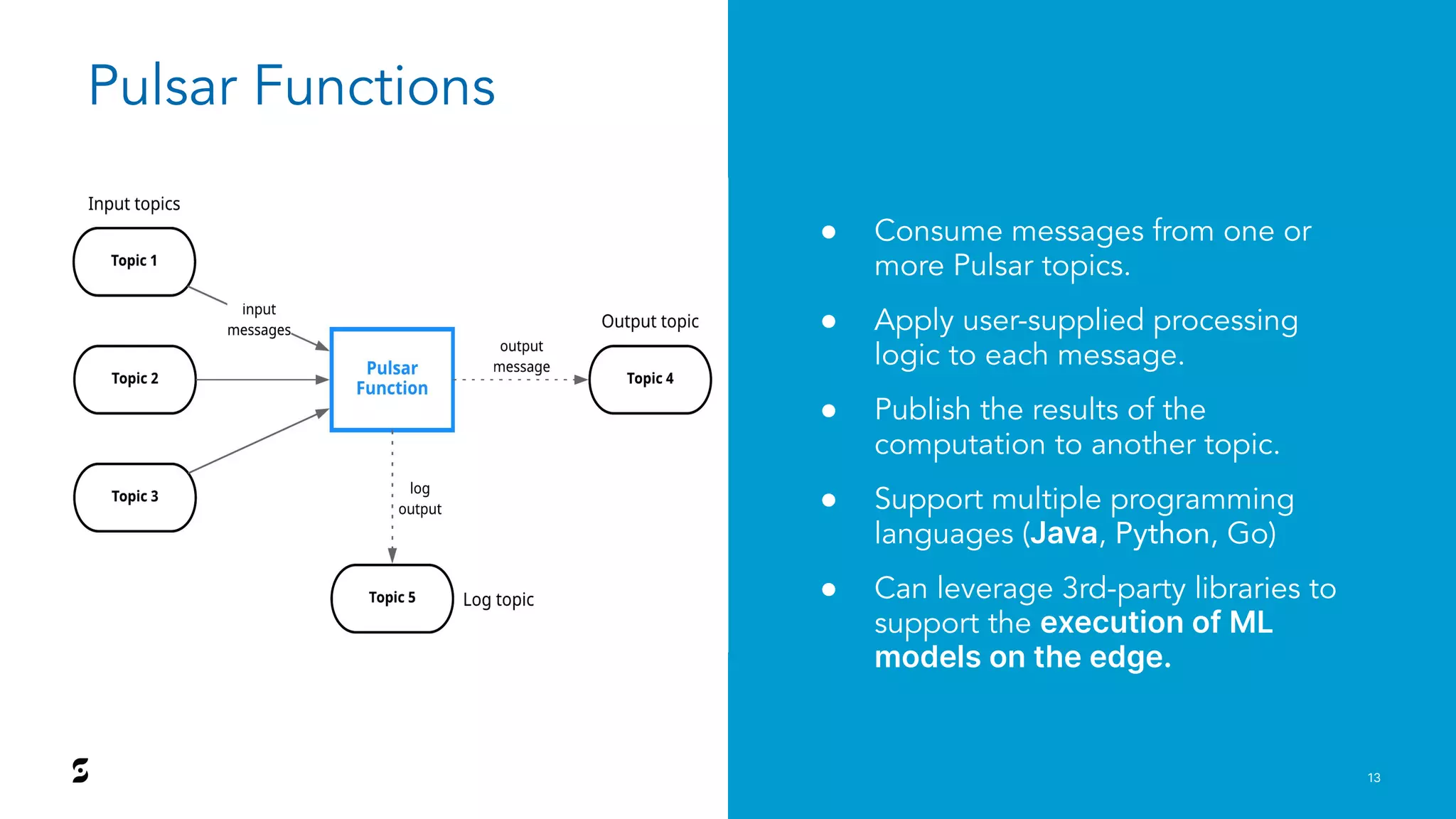

13 Pulsar Functions ● Consume messages from one or more Pulsar topics. ● Apply user-supplied processing logic to each message. ● Publish the results of the computation to another topic. ● Support multiple programming languages (Java, Python, Go) ● Can leverage 3rd-party libraries to support the execution of ML models on the edge.

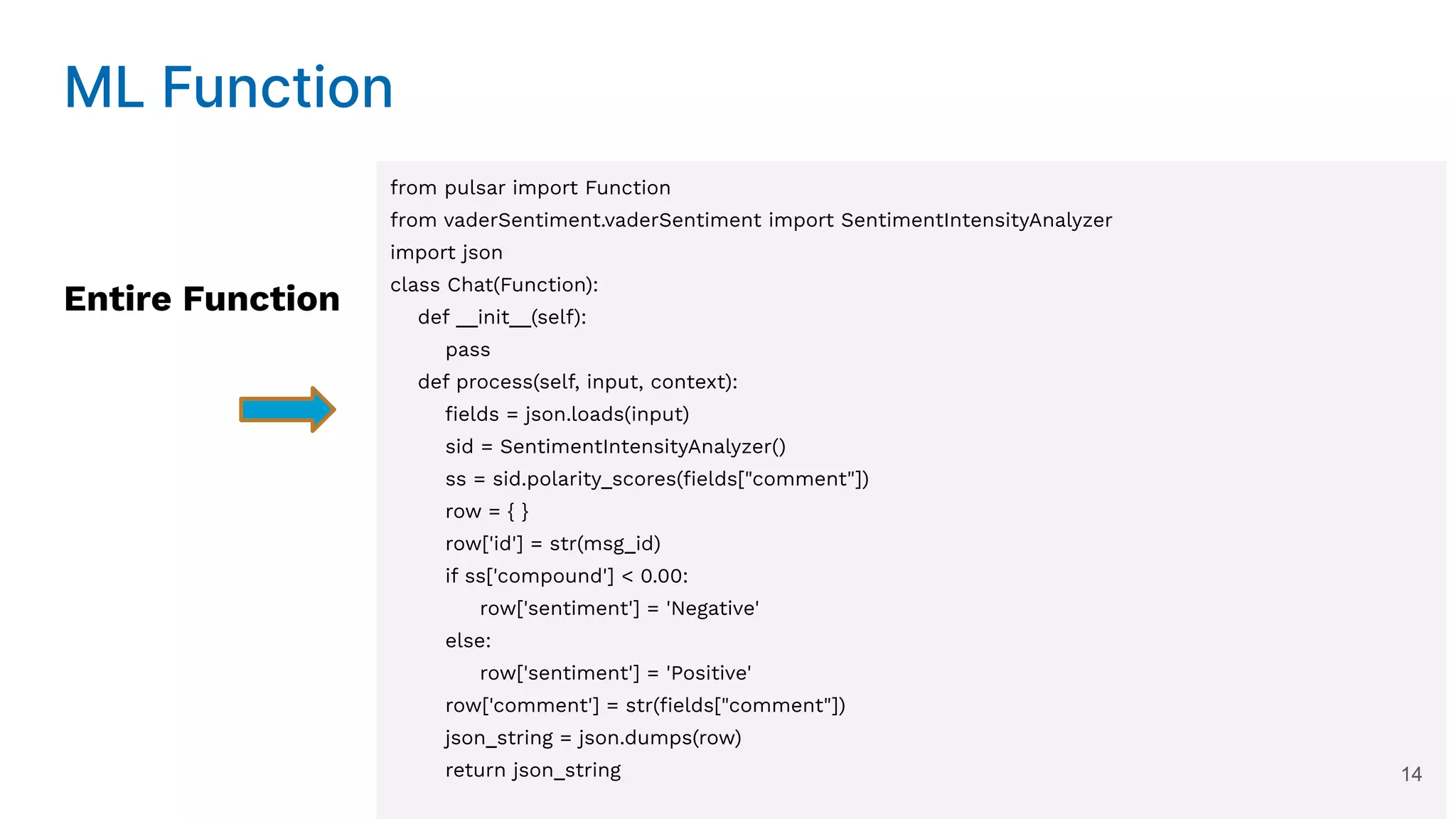

from pulsar import Function from vaderSentiment.vaderSentiment import SentimentIntensityAnalyzer import json class Chat(Function): def __init__(self): pass def process(self, input, context): fields = json.loads(input) sid = SentimentIntensityAnalyzer() ss = sid.polarity_scores(fields["comment"]) row = { } row['id'] = str(msg_id) if ss['compound'] < 0.00: row['sentiment'] = 'Negative' else: row['sentiment'] = 'Positive' row['comment'] = str(fields["comment"]) json_string = json.dumps(row) return json_string Entire Function ML Function 14

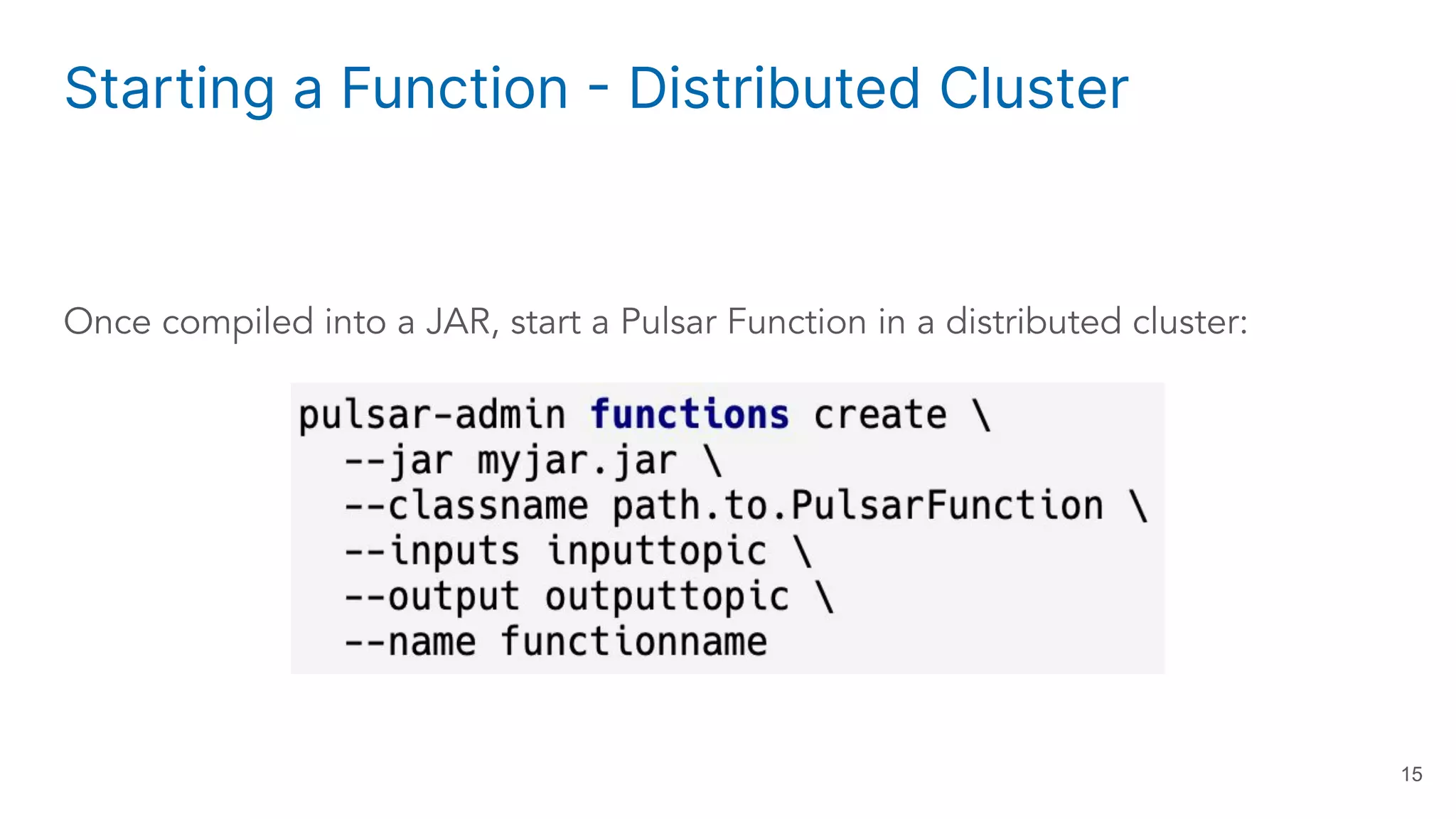

Starting a Function - Distributed Cluster Once compiled into a JAR, start a Pulsar Function in a distributed cluster: 15

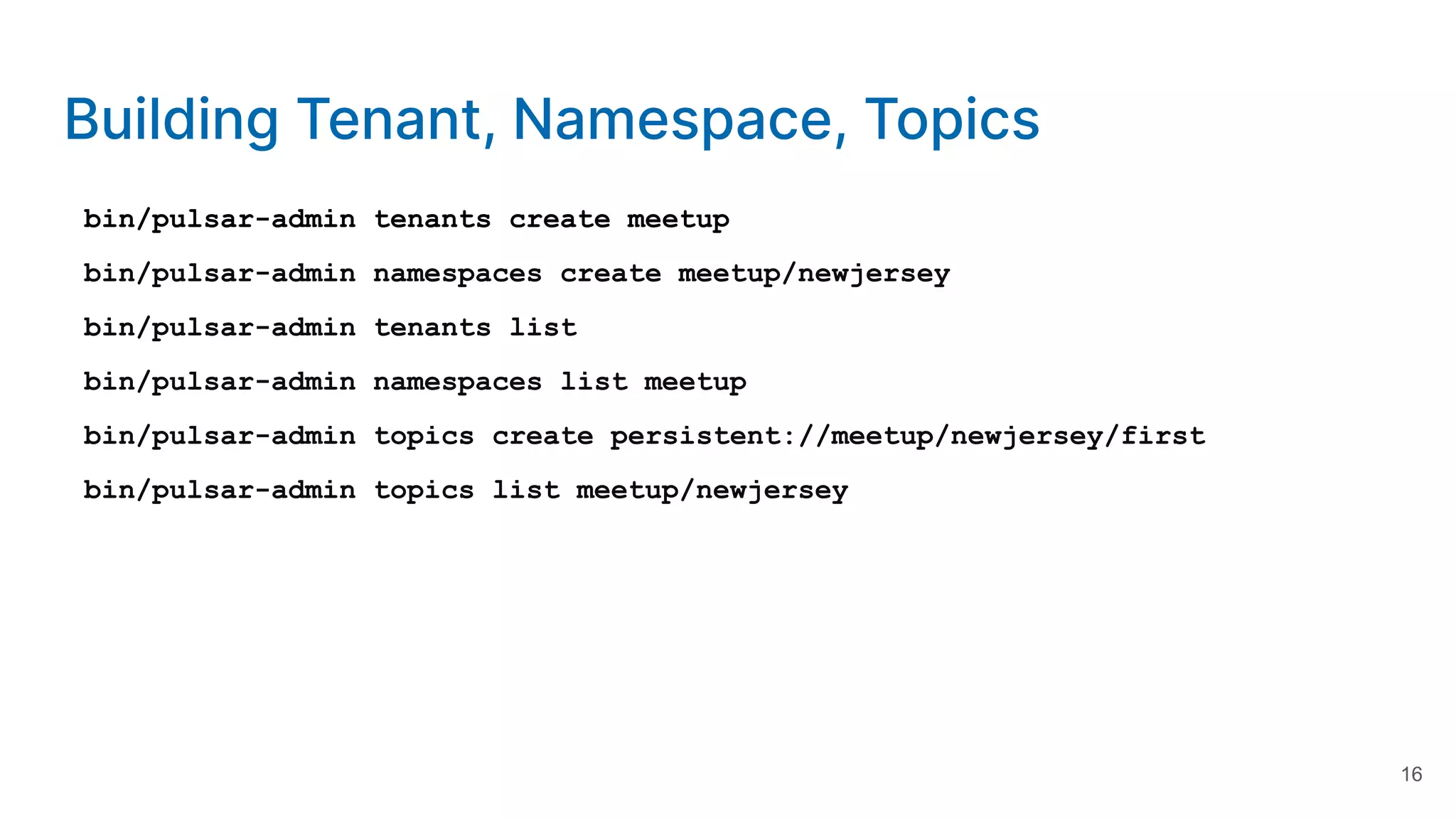

Building Tenant, Namespace, Topics bin/pulsar-admin tenants create meetup bin/pulsar-admin namespaces create meetup/newjersey bin/pulsar-admin tenants list bin/pulsar-admin namespaces list meetup bin/pulsar-admin topics create persistent://meetup/newjersey/first bin/pulsar-admin topics list meetup/newjersey 16

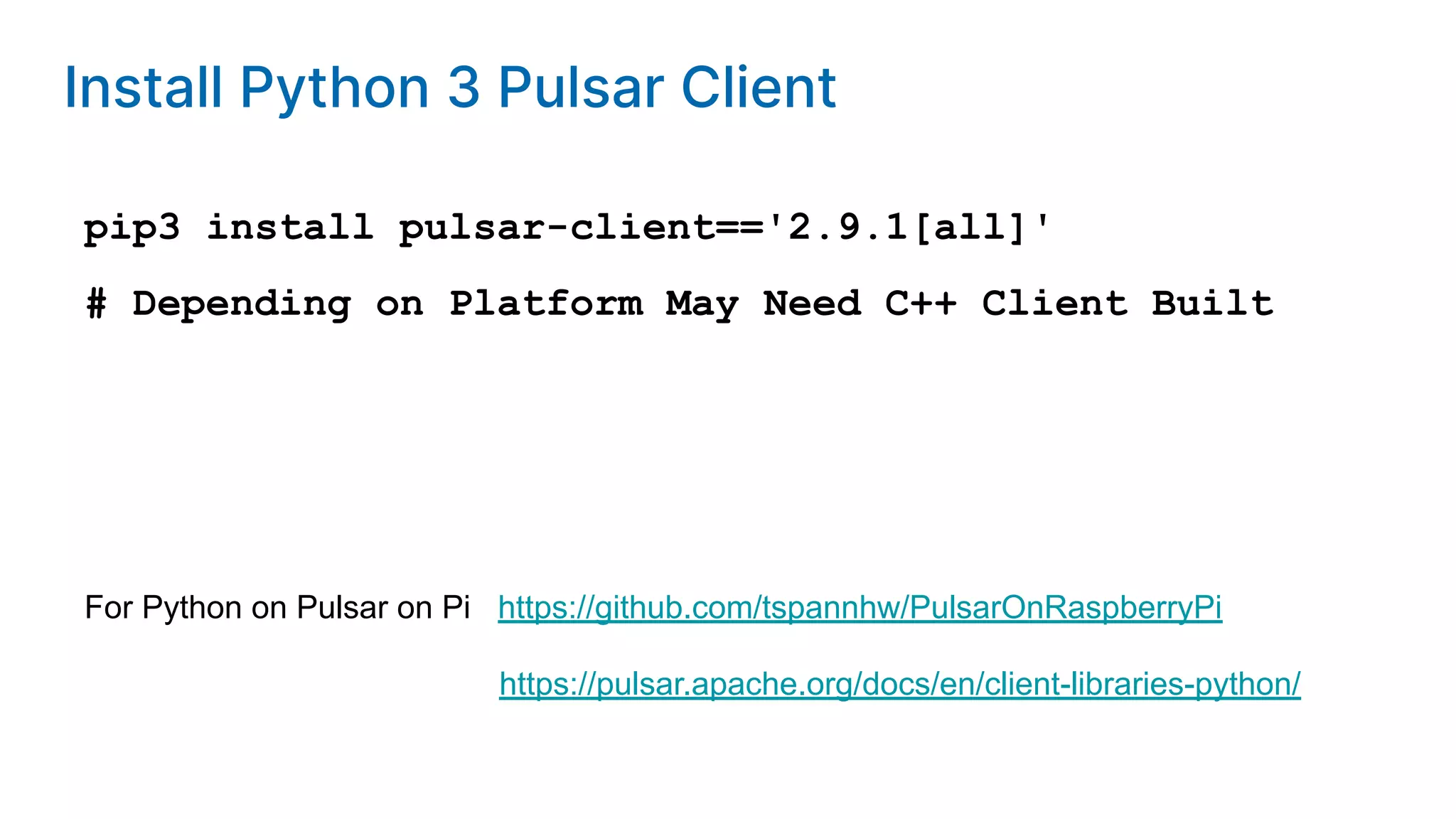

Install Python 3 Pulsar Client pip3 install pulsar-client=='2.9.1[all]' # Depending on Platform May Need C++ Client Built For Python on Pulsar on Pi https://github.com/tspannhw/PulsarOnRaspberryPi https://pulsar.apache.org/docs/en/client-libraries-python/

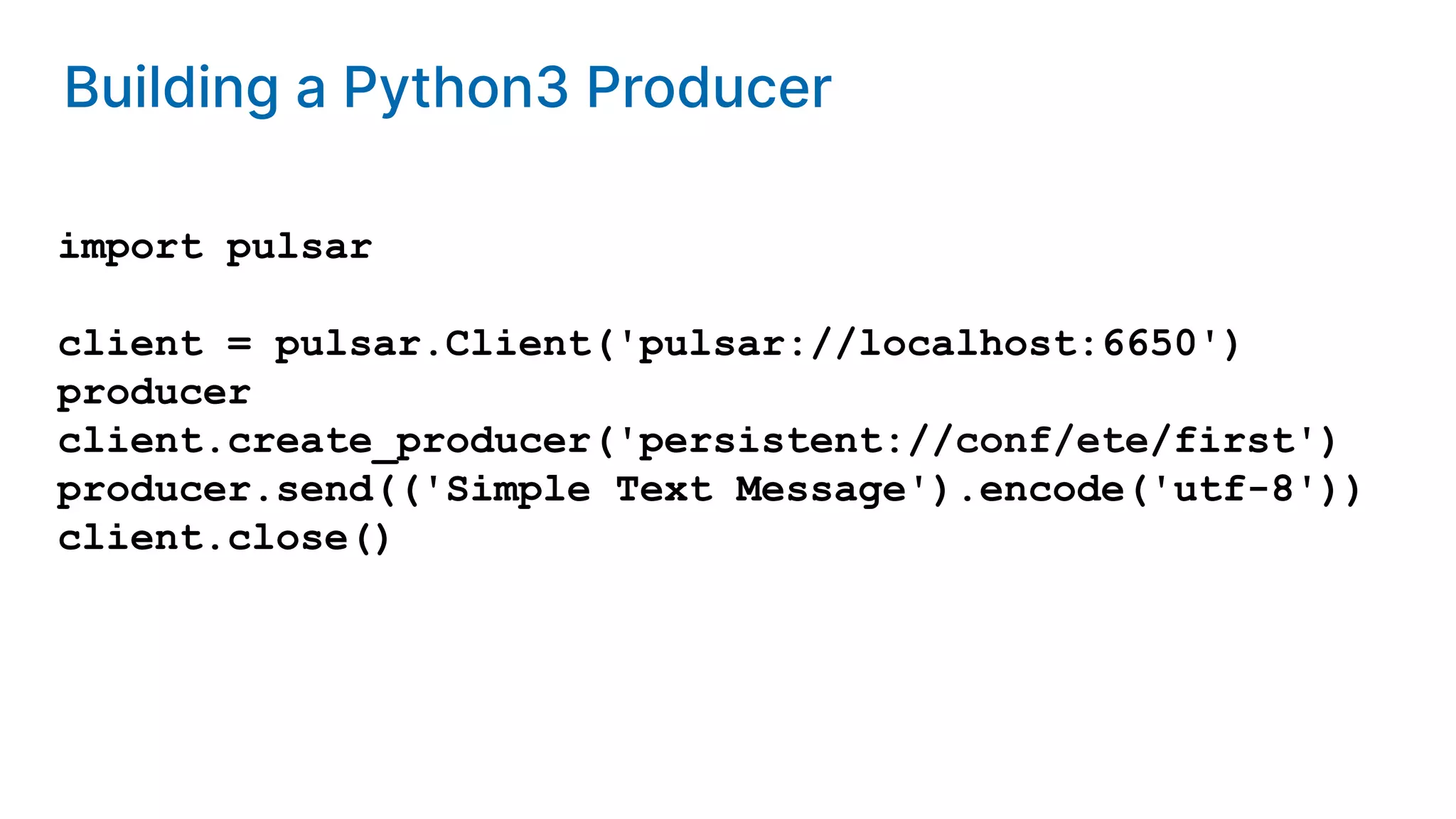

Building a Python3 Producer import pulsar client = pulsar.Client('pulsar://localhost:6650') producer client.create_producer('persistent://conf/ete/first') producer.send(('Simple Text Message').encode('utf-8')) client.close()

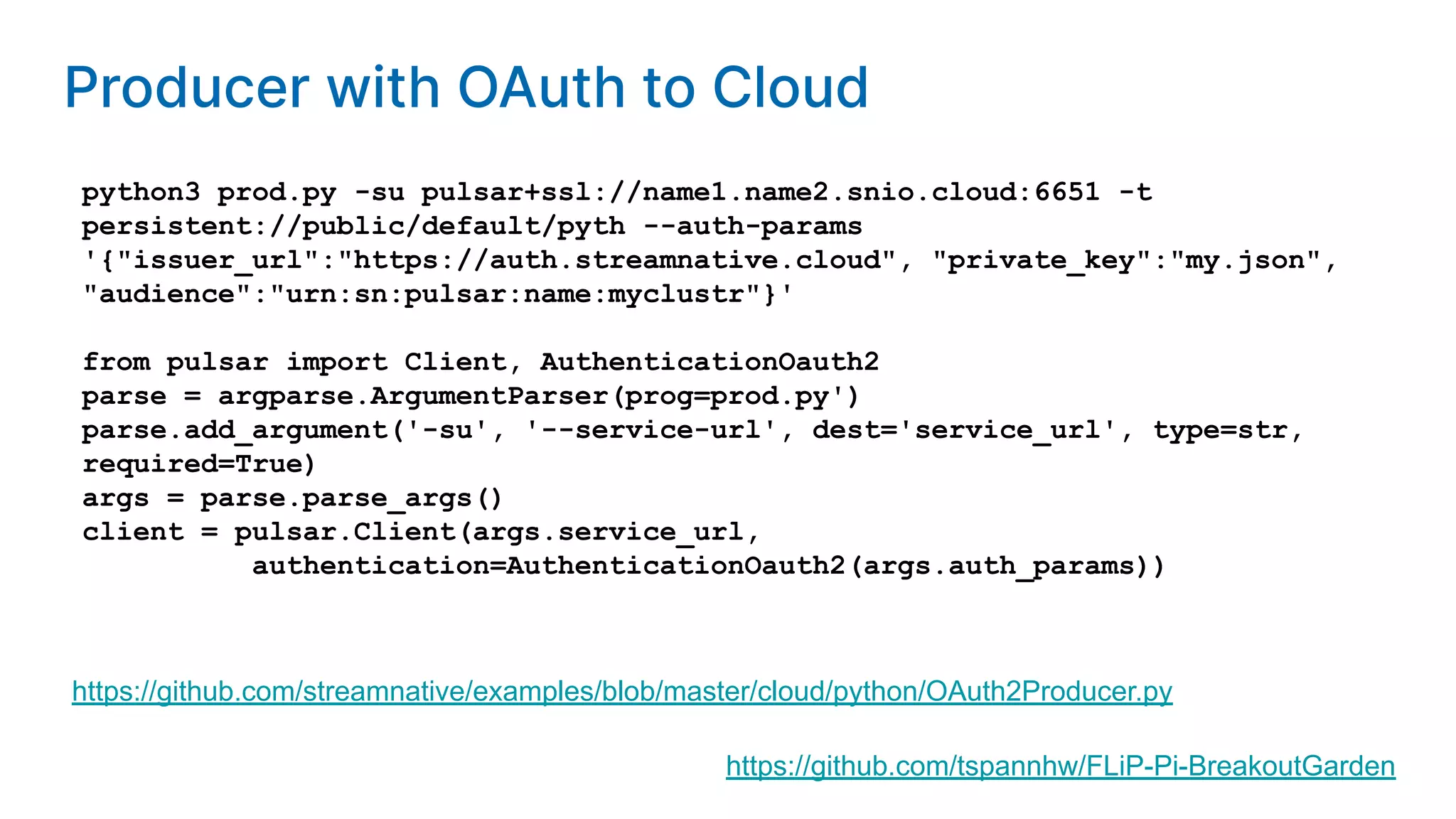

python3 prod.py -su pulsar+ssl://name1.name2.snio.cloud:6651 -t persistent://public/default/pyth --auth-params '{"issuer_url":"https://auth.streamnative.cloud", "private_key":"my.json", "audience":"urn:sn:pulsar:name:myclustr"}' from pulsar import Client, AuthenticationOauth2 parse = argparse.ArgumentParser(prog=prod.py') parse.add_argument('-su', '--service-url', dest='service_url', type=str, required=True) args = parse.parse_args() client = pulsar.Client(args.service_url, authentication=AuthenticationOauth2(args.auth_params)) https://github.com/streamnative/examples/blob/master/cloud/python/OAuth2Producer.py https://github.com/tspannhw/FLiP-Pi-BreakoutGarden Producer with OAuth to Cloud

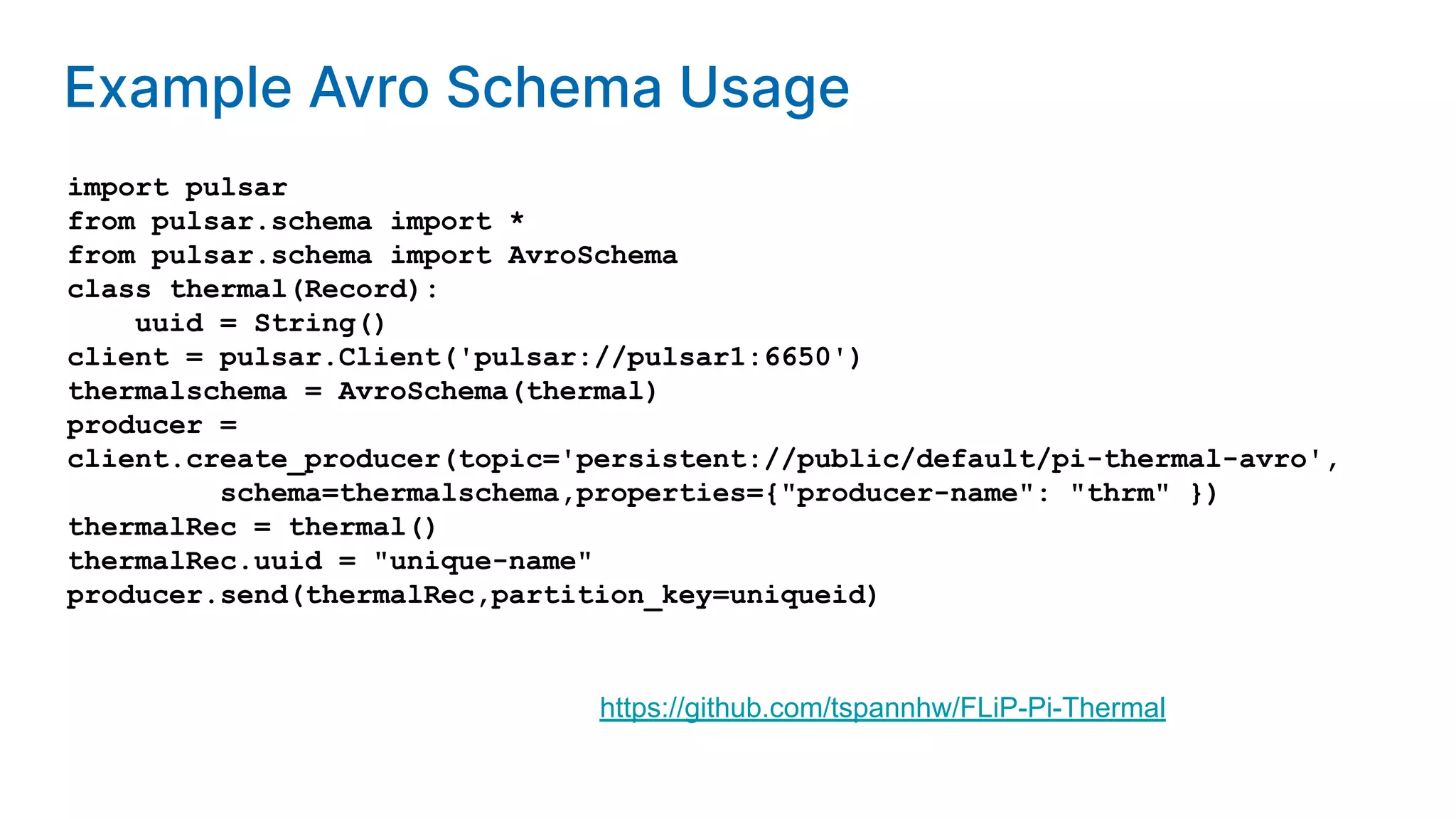

import pulsar from pulsar.schema import * from pulsar.schema import AvroSchema class thermal(Record): uuid = String() client = pulsar.Client('pulsar://pulsar1:6650') thermalschema = AvroSchema(thermal) producer = client.create_producer(topic='persistent://public/default/pi-thermal-avro', schema=thermalschema,properties={"producer-name": "thrm" }) thermalRec = thermal() thermalRec.uuid = "unique-name" producer.send(thermalRec,partition_key=uniqueid) https://github.com/tspannhw/FLiP-Pi-Thermal Example Avro Schema Usage

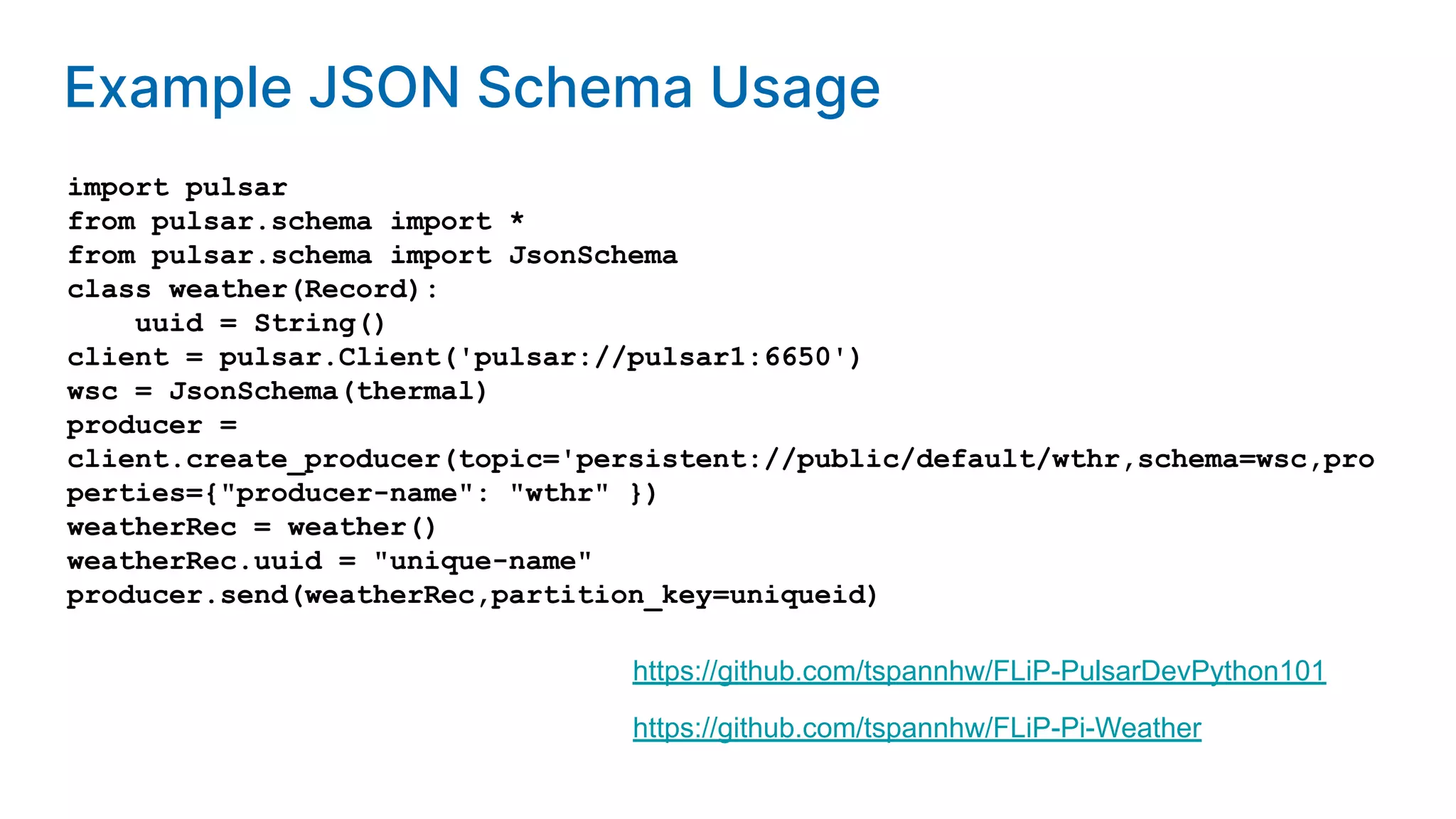

import pulsar from pulsar.schema import * from pulsar.schema import JsonSchema class weather(Record): uuid = String() client = pulsar.Client('pulsar://pulsar1:6650') wsc = JsonSchema(thermal) producer = client.create_producer(topic='persistent://public/default/wthr,schema=wsc,pro perties={"producer-name": "wthr" }) weatherRec = weather() weatherRec.uuid = "unique-name" producer.send(weatherRec,partition_key=uniqueid) https://github.com/tspannhw/FLiP-Pi-Weather https://github.com/tspannhw/FLiP-PulsarDevPython101 Example JSON Schema Usage

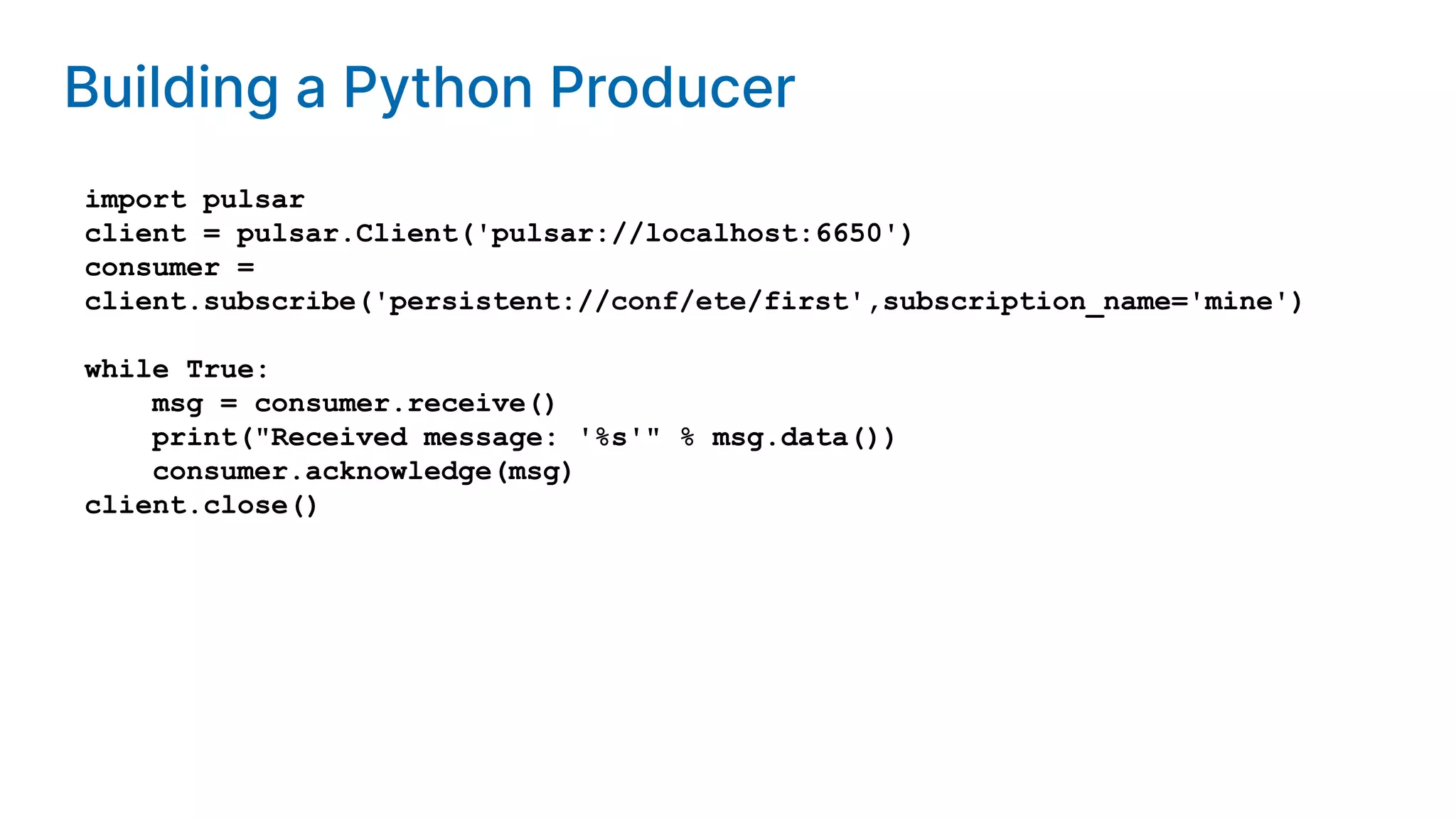

import pulsar client = pulsar.Client('pulsar://localhost:6650') consumer = client.subscribe('persistent://conf/ete/first',subscription_name='mine') while True: msg = consumer.receive() print("Received message: '%s'" % msg.data()) consumer.acknowledge(msg) client.close() Building a Python Producer

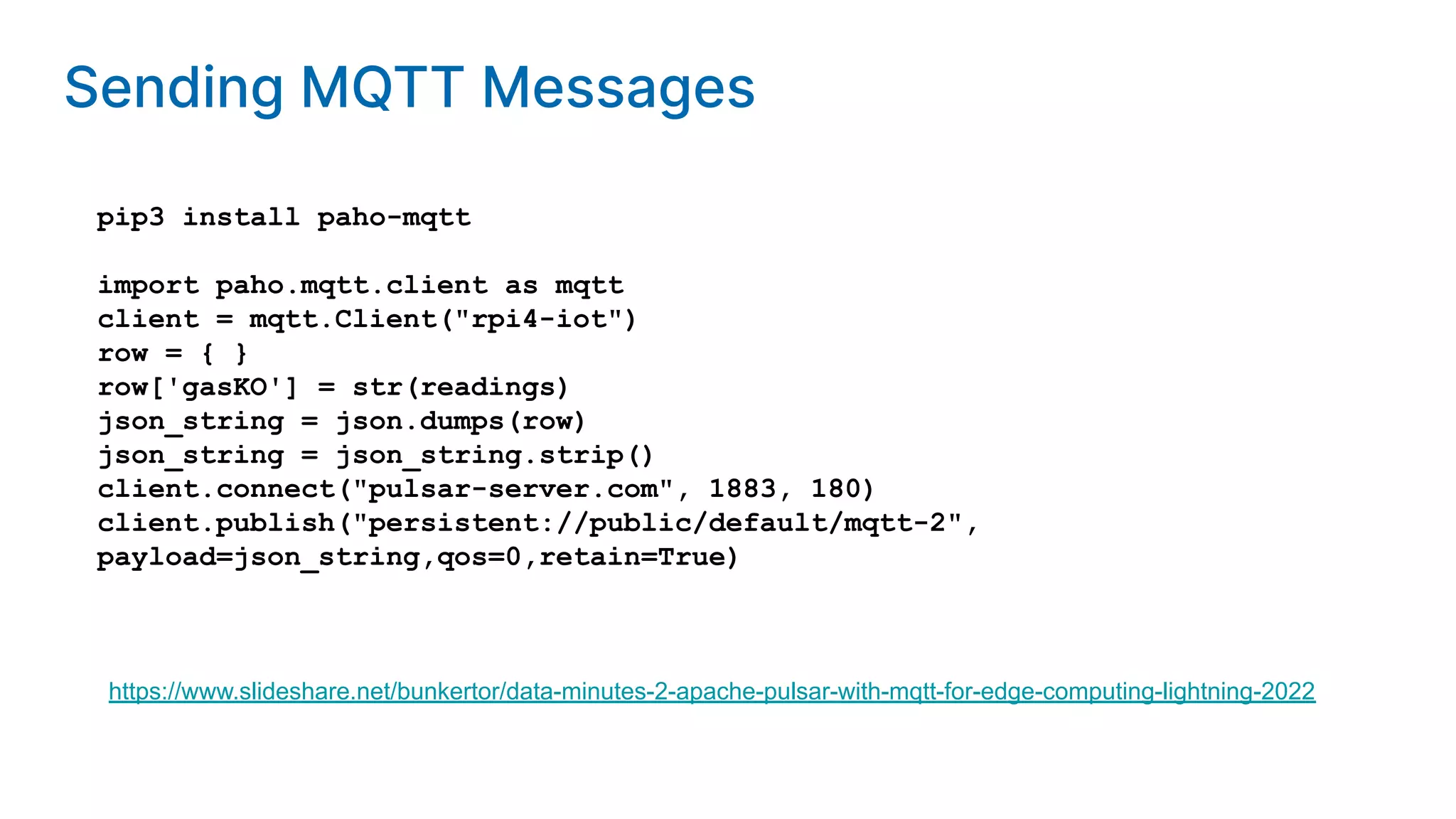

pip3 install paho-mqtt import paho.mqtt.client as mqtt client = mqtt.Client("rpi4-iot") row = { } row['gasKO'] = str(readings) json_string = json.dumps(row) json_string = json_string.strip() client.connect("pulsar-server.com", 1883, 180) client.publish("persistent://public/default/mqtt-2", payload=json_string,qos=0,retain=True) https://www.slideshare.net/bunkertor/data-minutes-2-apache-pulsar-with-mqtt-for-edge-computing-lightning-2022 Sending MQTT Messages

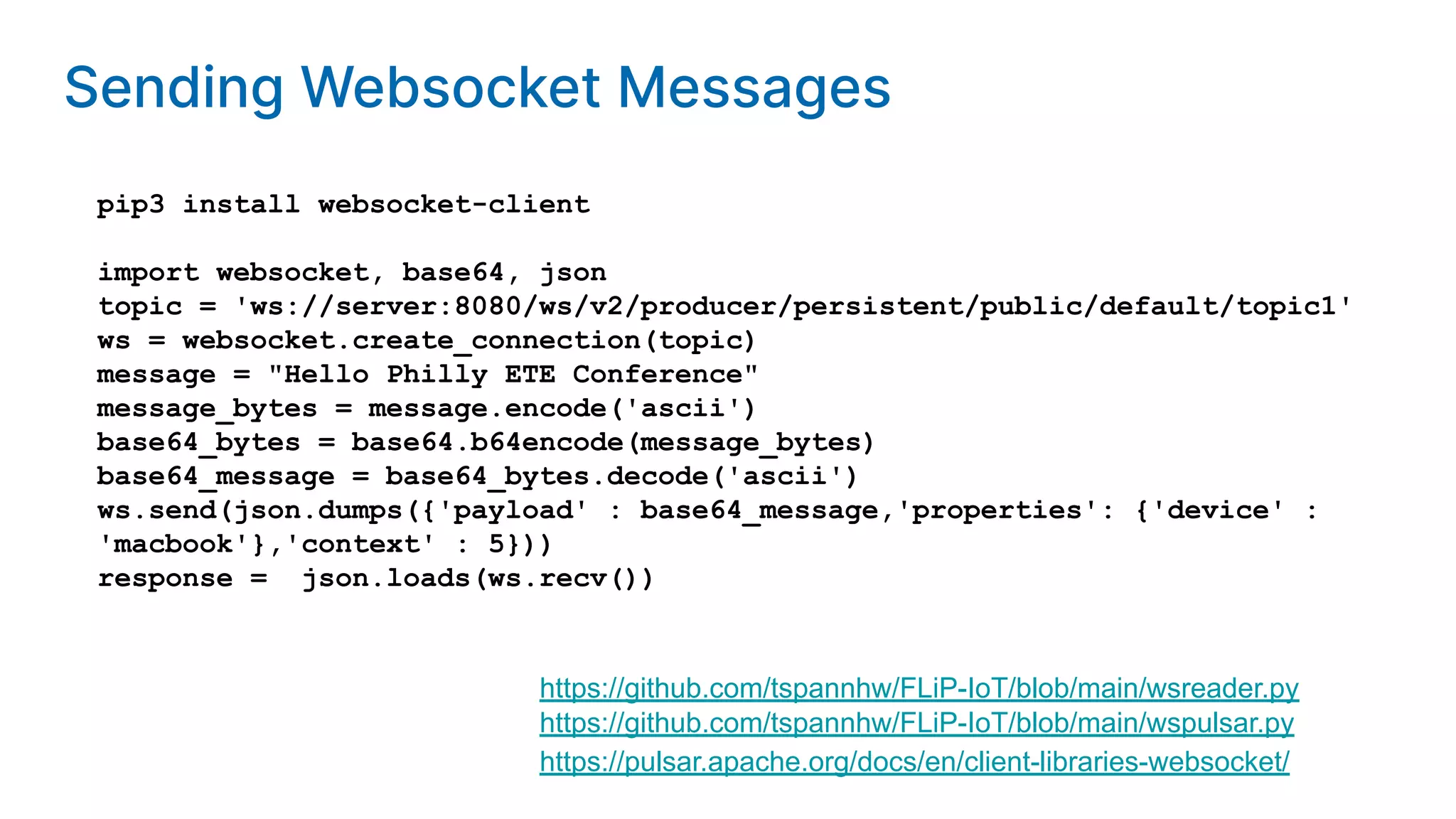

pip3 install websocket-client import websocket, base64, json topic = 'ws://server:8080/ws/v2/producer/persistent/public/default/topic1' ws = websocket.create_connection(topic) message = "Hello Philly ETE Conference" message_bytes = message.encode('ascii') base64_bytes = base64.b64encode(message_bytes) base64_message = base64_bytes.decode('ascii') ws.send(json.dumps({'payload' : base64_message,'properties': {'device' : 'macbook'},'context' : 5})) response = json.loads(ws.recv()) https://pulsar.apache.org/docs/en/client-libraries-websocket/ https://github.com/tspannhw/FLiP-IoT/blob/main/wspulsar.py https://github.com/tspannhw/FLiP-IoT/blob/main/wsreader.py Sending Websocket Messages

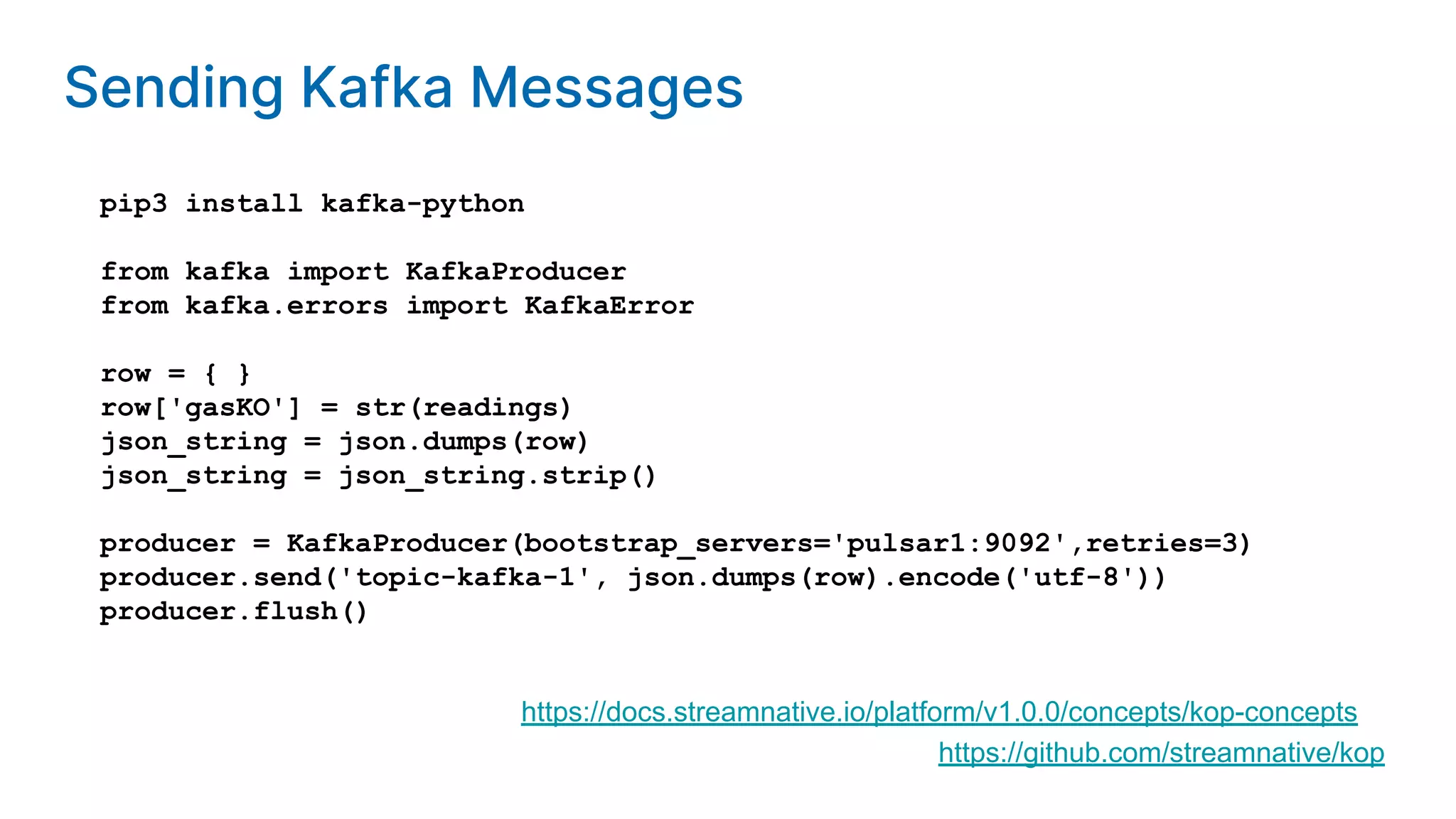

pip3 install kafka-python from kafka import KafkaProducer from kafka.errors import KafkaError row = { } row['gasKO'] = str(readings) json_string = json.dumps(row) json_string = json_string.strip() producer = KafkaProducer(bootstrap_servers='pulsar1:9092',retries=3) producer.send('topic-kafka-1', json.dumps(row).encode('utf-8')) producer.flush() https://github.com/streamnative/kop https://docs.streamnative.io/platform/v1.0.0/concepts/kop-concepts Sending Kafka Messages

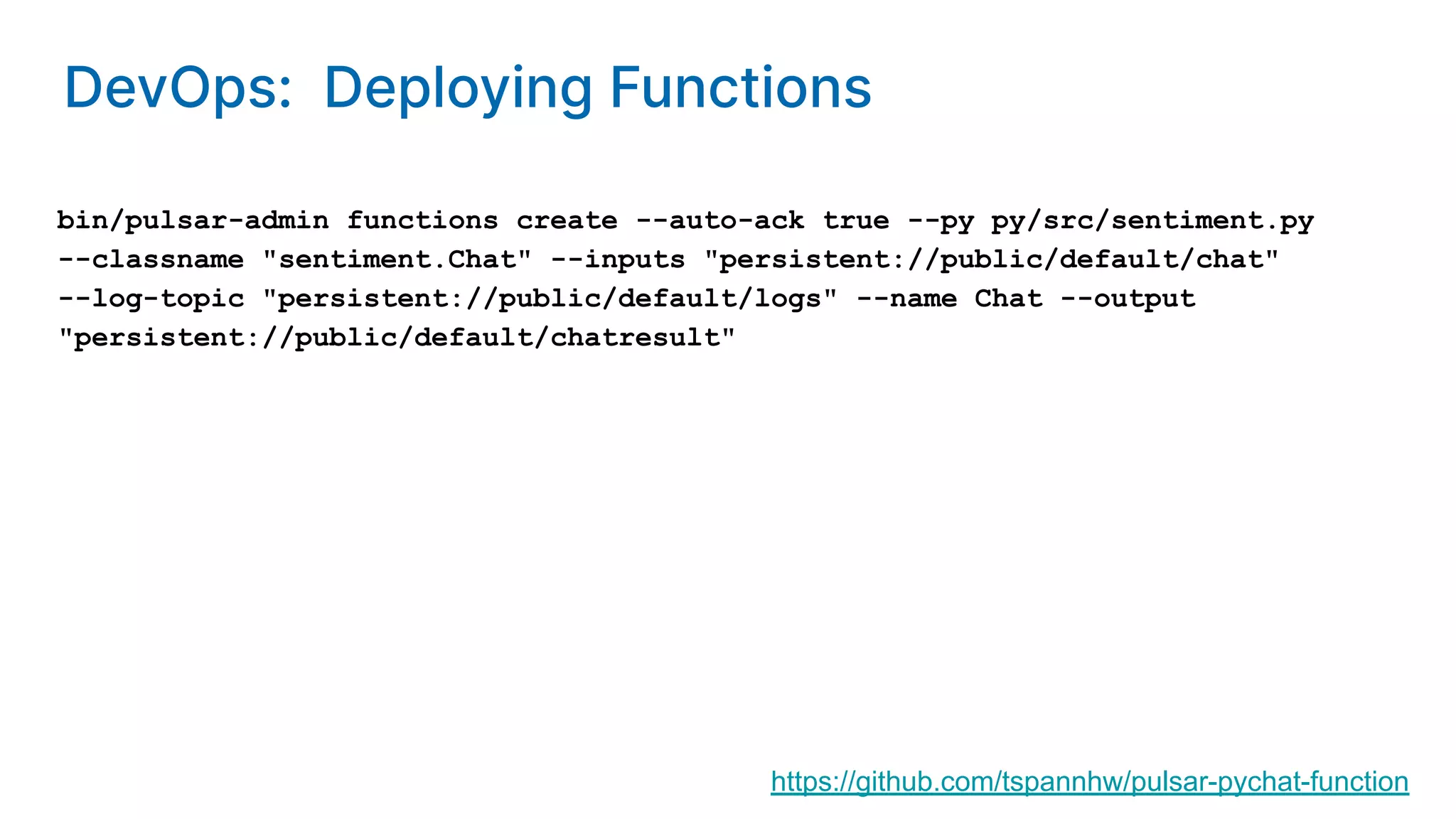

bin/pulsar-admin functions create --auto-ack true --py py/src/sentiment.py --classname "sentiment.Chat" --inputs "persistent://public/default/chat" --log-topic "persistent://public/default/logs" --name Chat --output "persistent://public/default/chatresult" https://github.com/tspannhw/pulsar-pychat-function DevOps: Deploying Functions

@PassDev https://www.linkedin.com/in/timothyspann https://github.com/tspannhw https://streamnative.io/pulsar-python/ 28 Tim Spann Developer Advocate at StreamNative
