  Building High Performance APIsin Go with gRPC and Protocol Buffers Shiju Varghese medium.com/@shijuvar GopherCon India 2017
• 2.

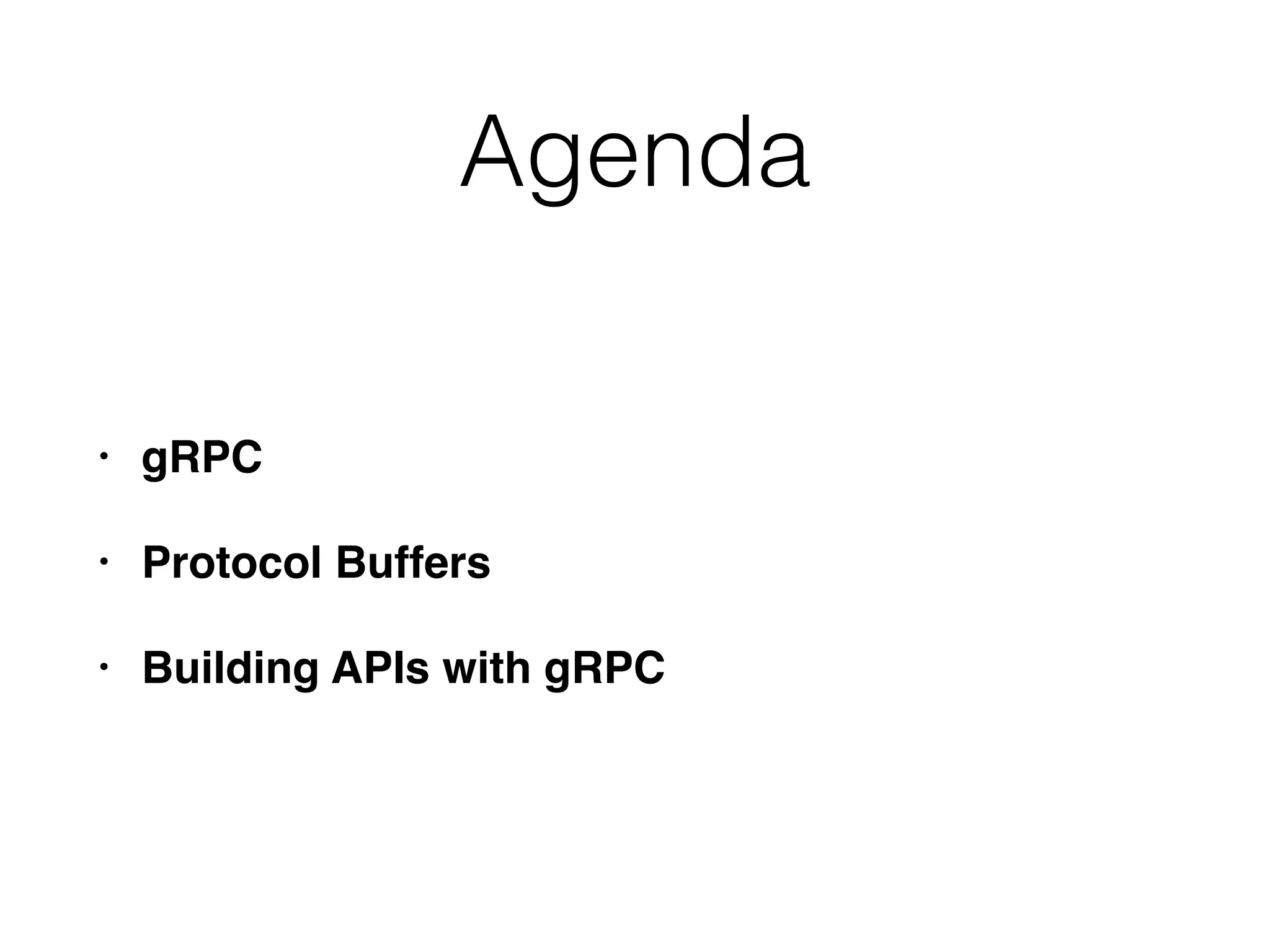

  Agenda • gRPC • ProtocolBuffers • Building APIs with gRPC
• 3.

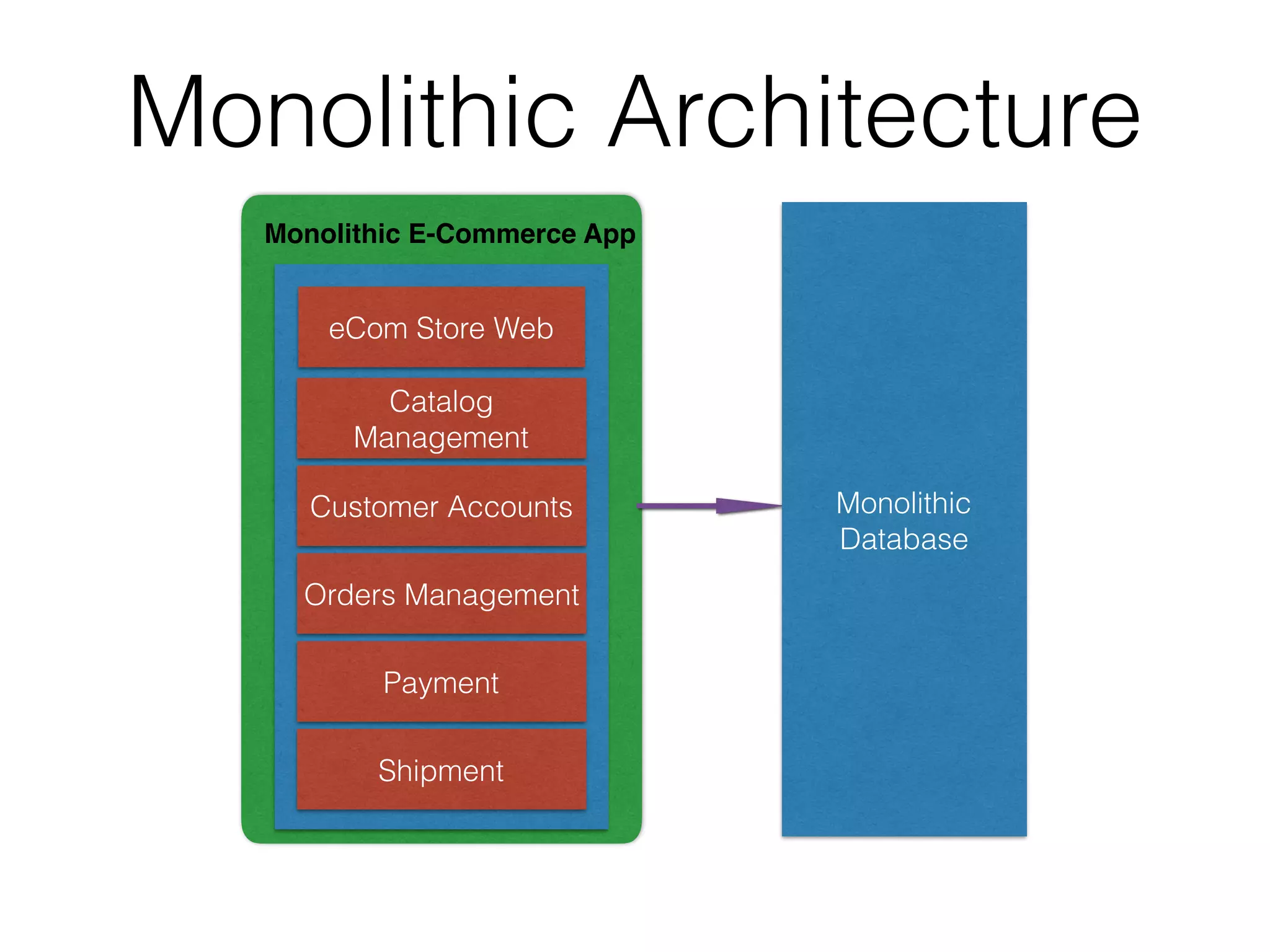

  Monolithic Architecture Catalog Management Customer Accounts OrdersManagement Payment Monolithic Database Monolithic E-Commerce App Shipment eCom Store Web
• 4.

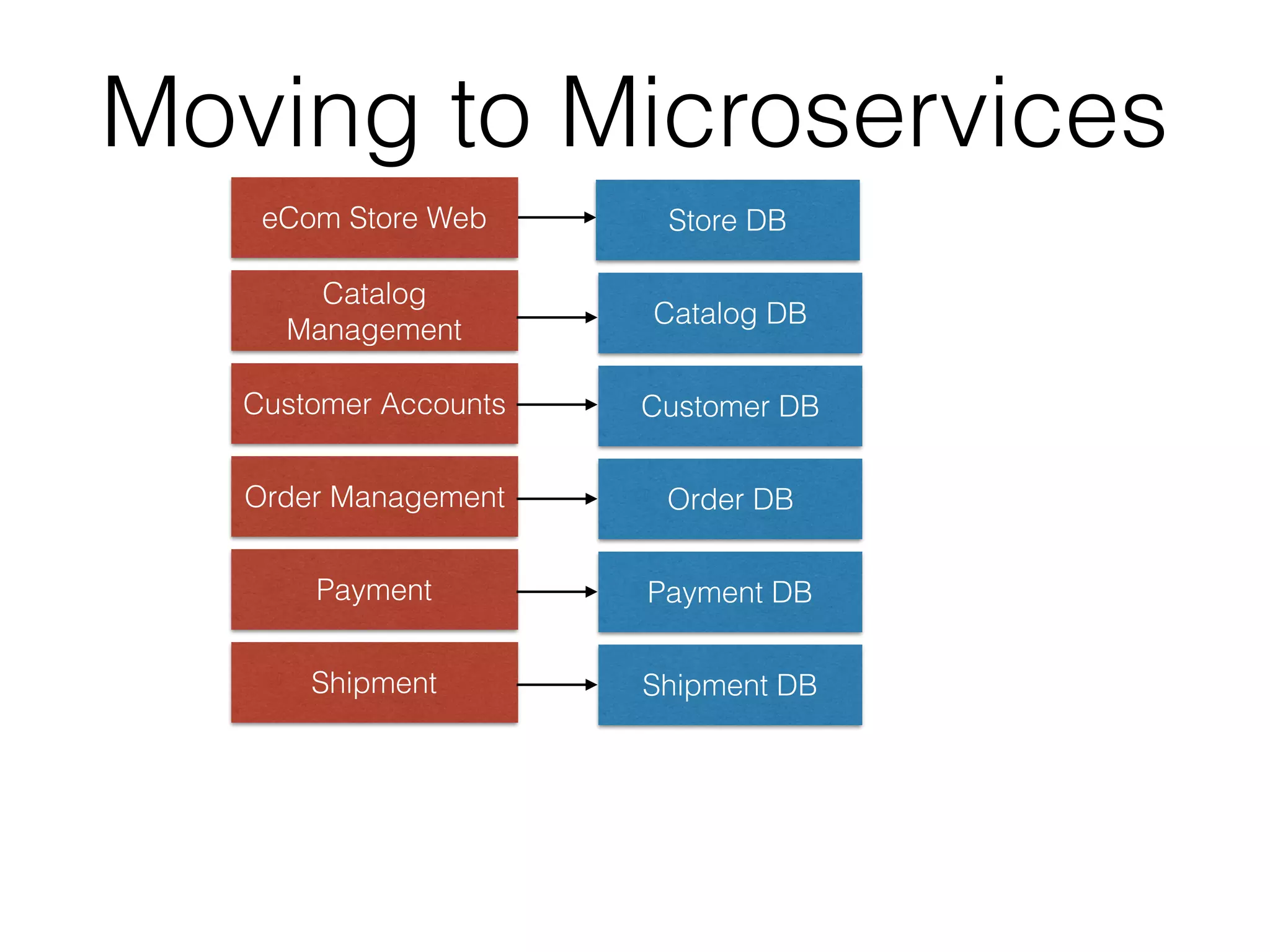

  Moving to Microservices eComStore Web Catalog Management Customer Accounts Order Management Payment Shipment Store DB Catalog DB Customer DB Order DB Payment DB Shipment DB
• 5.

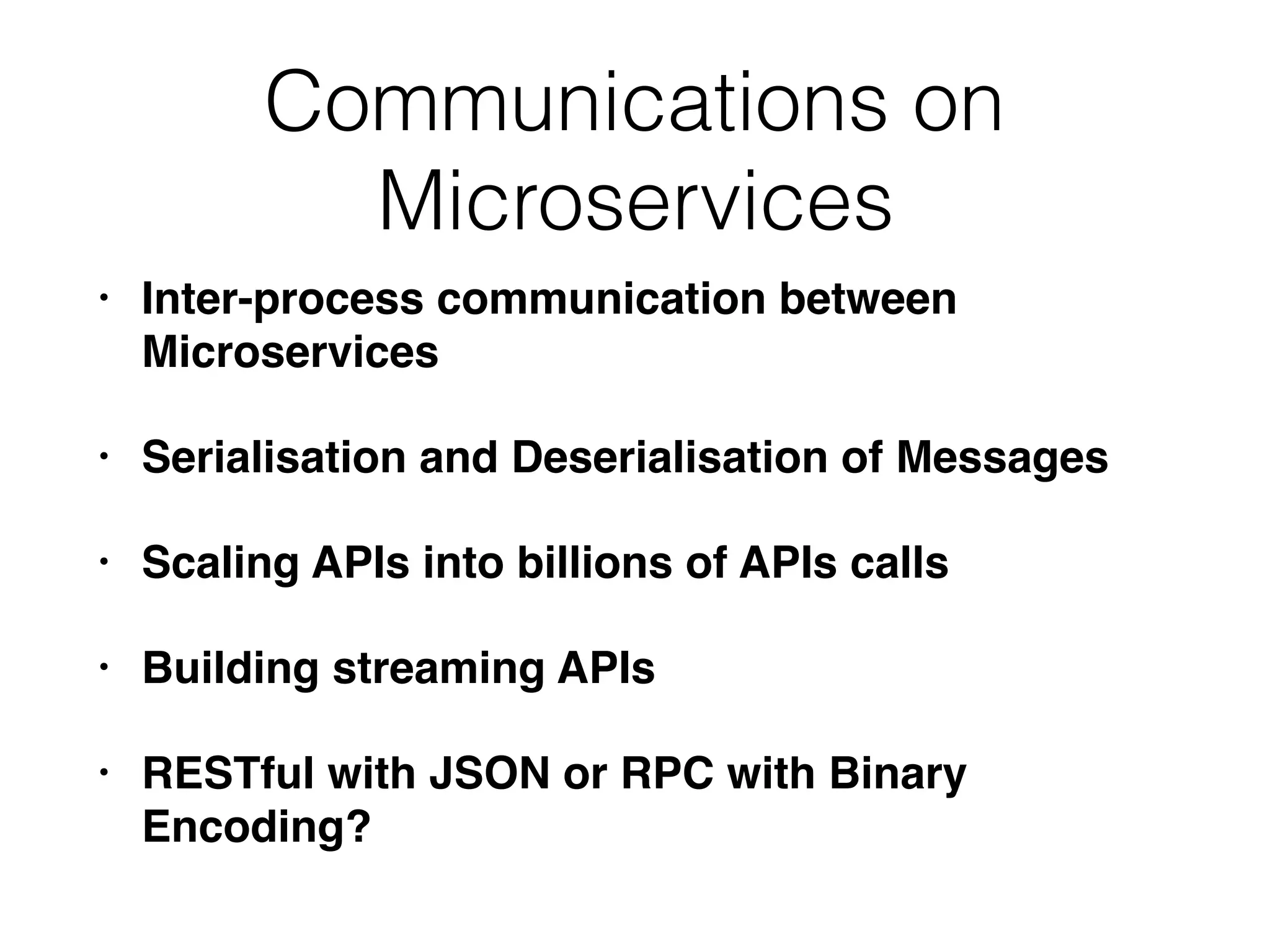

  Communications on Microservices • Inter-processcommunication between Microservices • Serialisation and Deserialisation of Messages • Scaling APIs into billions of APIs calls • Building streaming APIs • RESTful with JSON or RPC with Binary Encoding?
• 6.

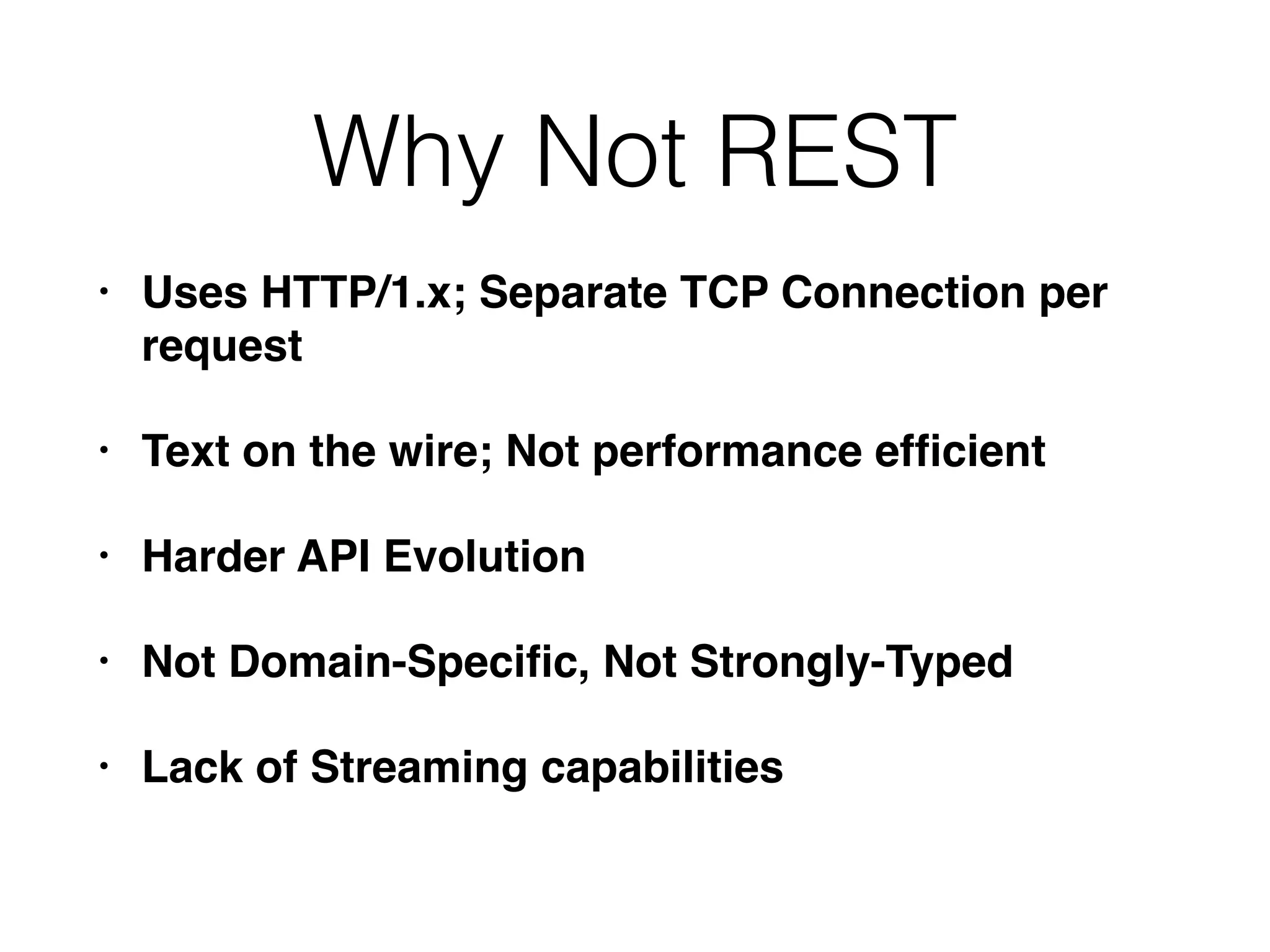

  Why Not REST •Uses HTTP/1.x; Separate TCP Connection per request • Text on the wire; Not performance efficient • Harder API Evolution • Not Domain-Specific, Not Strongly-Typed • Lack of Streaming capabilities
• 8.

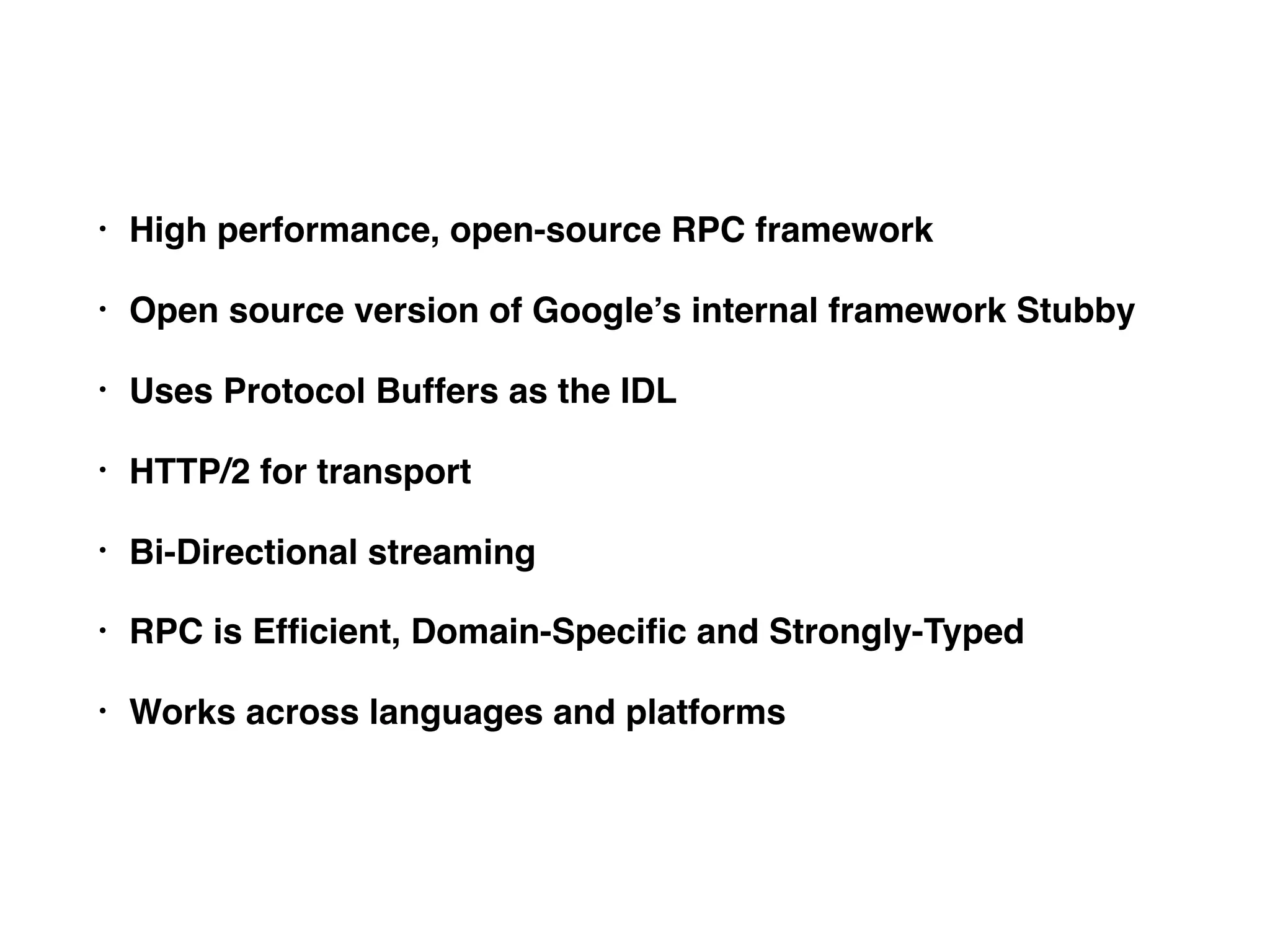

  • High performance,open-source RPC framework • Open source version of Google’s internal framework Stubby • Uses Protocol Buffers as the IDL • HTTP/2 for transport • Bi-Directional streaming • RPC is Efficient, Domain-Specific and Strongly-Typed • Works across languages and platforms
• 9.

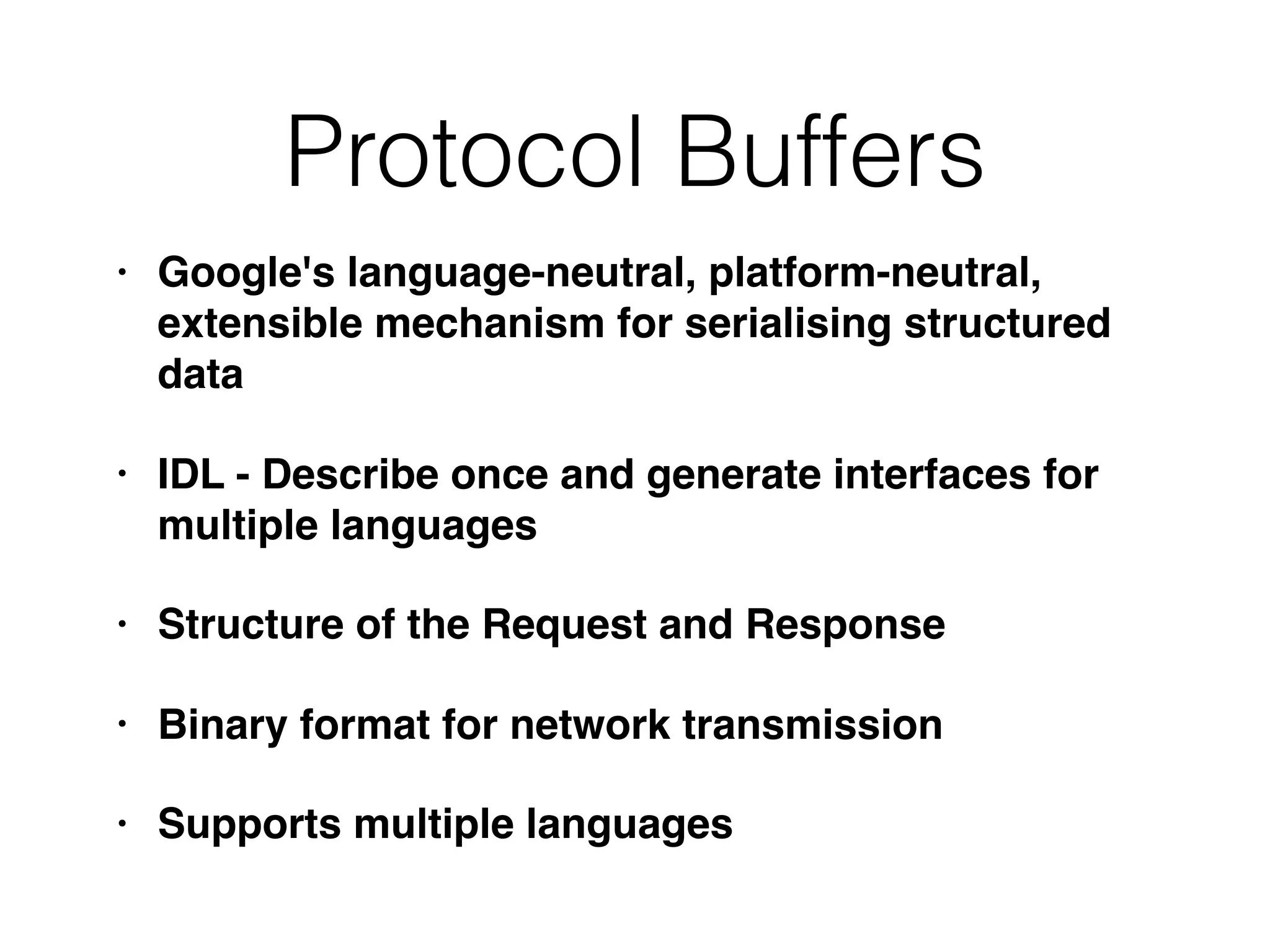

  • Google's language-neutral,platform-neutral, extensible mechanism for serialising structured data • IDL - Describe once and generate interfaces for multiple languages • Structure of the Request and Response • Binary format for network transmission • Supports multiple languages Protocol Buffers
• 10.

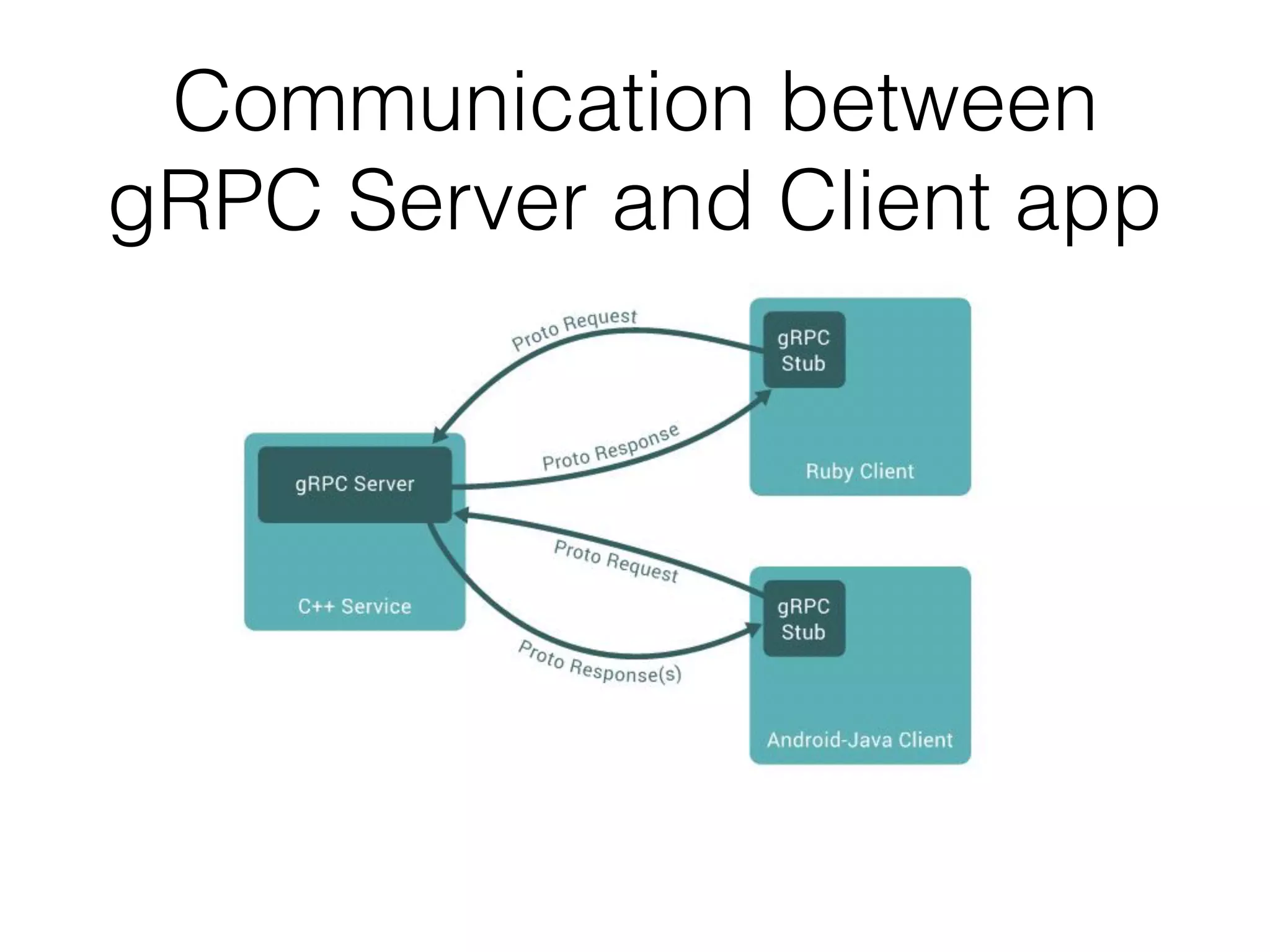

  Communication between gRPC Serverand Client app
• 11.

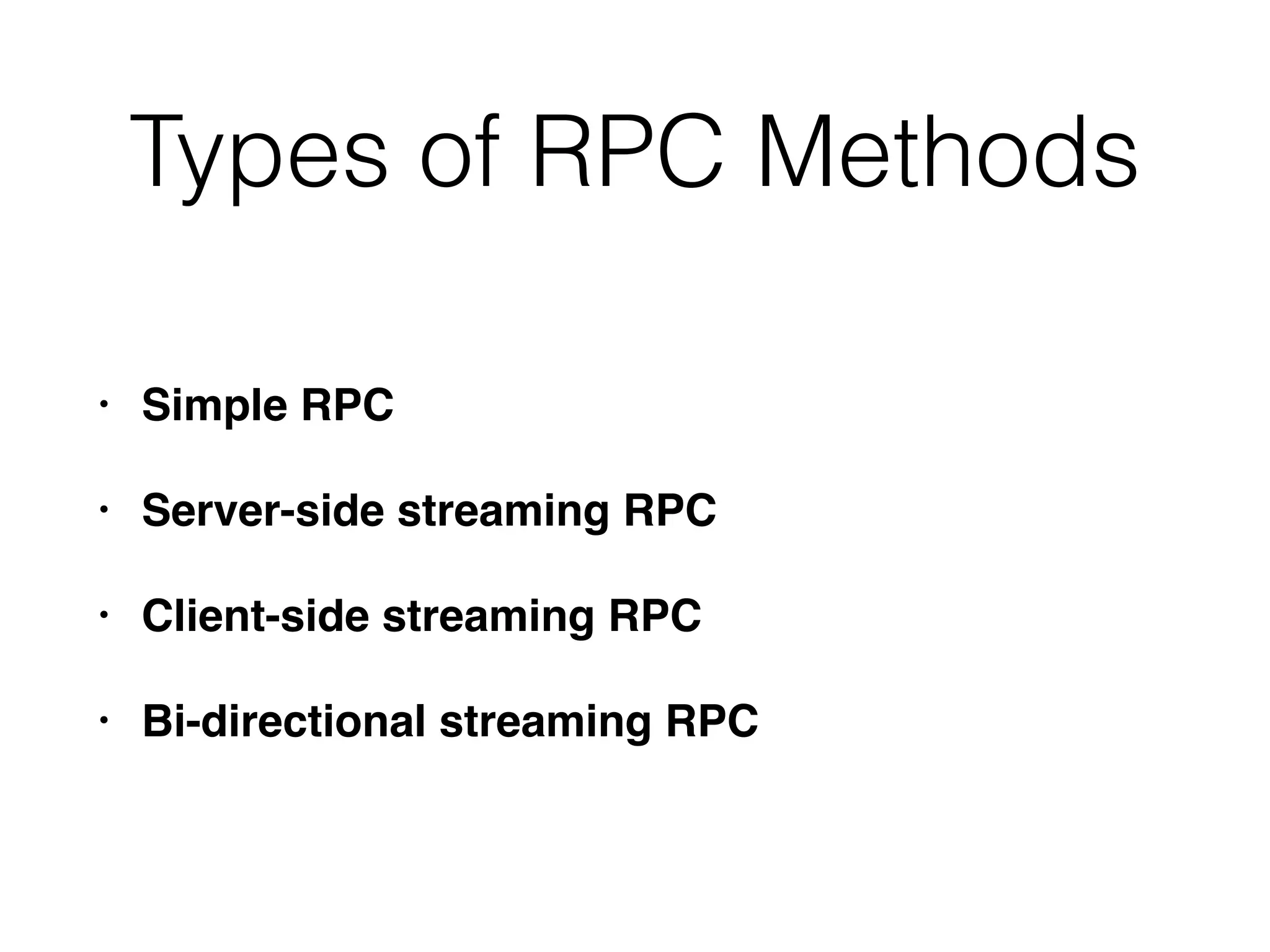

  Types of RPCMethods • Simple RPC • Server-side streaming RPC • Client-side streaming RPC • Bi-directional streaming RPC
• 12.

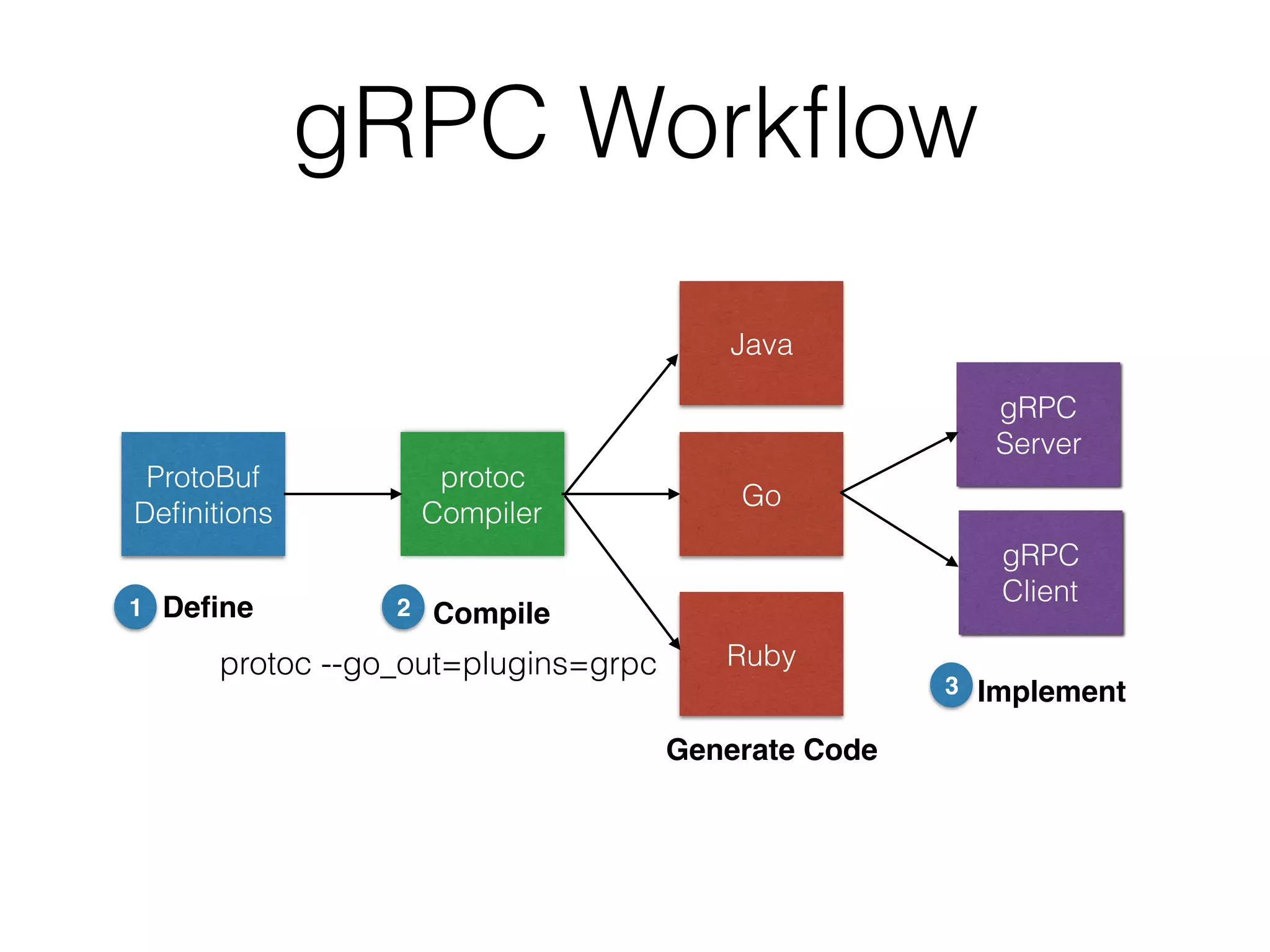

  gRPC Workflow ProtoBuf Definitions protoc Compiler Go Ruby Java gRPC Server gRPC Client Define1 Compile2 Implement3 GenerateCode protoc --go_out=plugins=grpc
• 13.

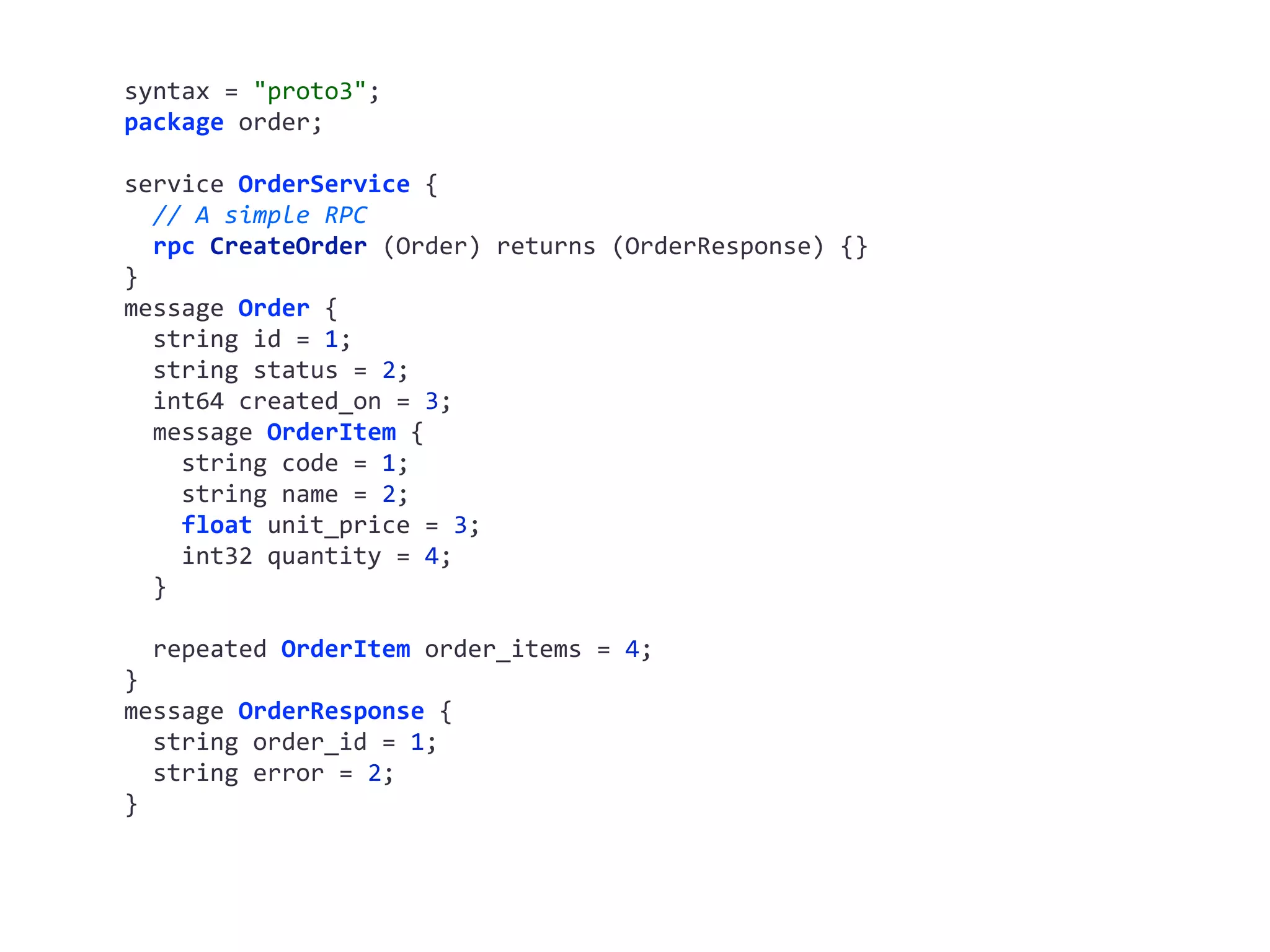

  syntax = "proto3"; package order; service OrderService { // A simple RPC rpc CreateOrder (Order) returns (OrderResponse) {} } message Order { string id = 1; string status = 2; int64 created_on = 3; message OrderItem { string code = 1; string name = 2; float unit_price = 3; int32 quantity = 4; } repeated OrderItem order_items = 4; } message OrderResponse { string order_id = 1; string error = 2; }
• 14.

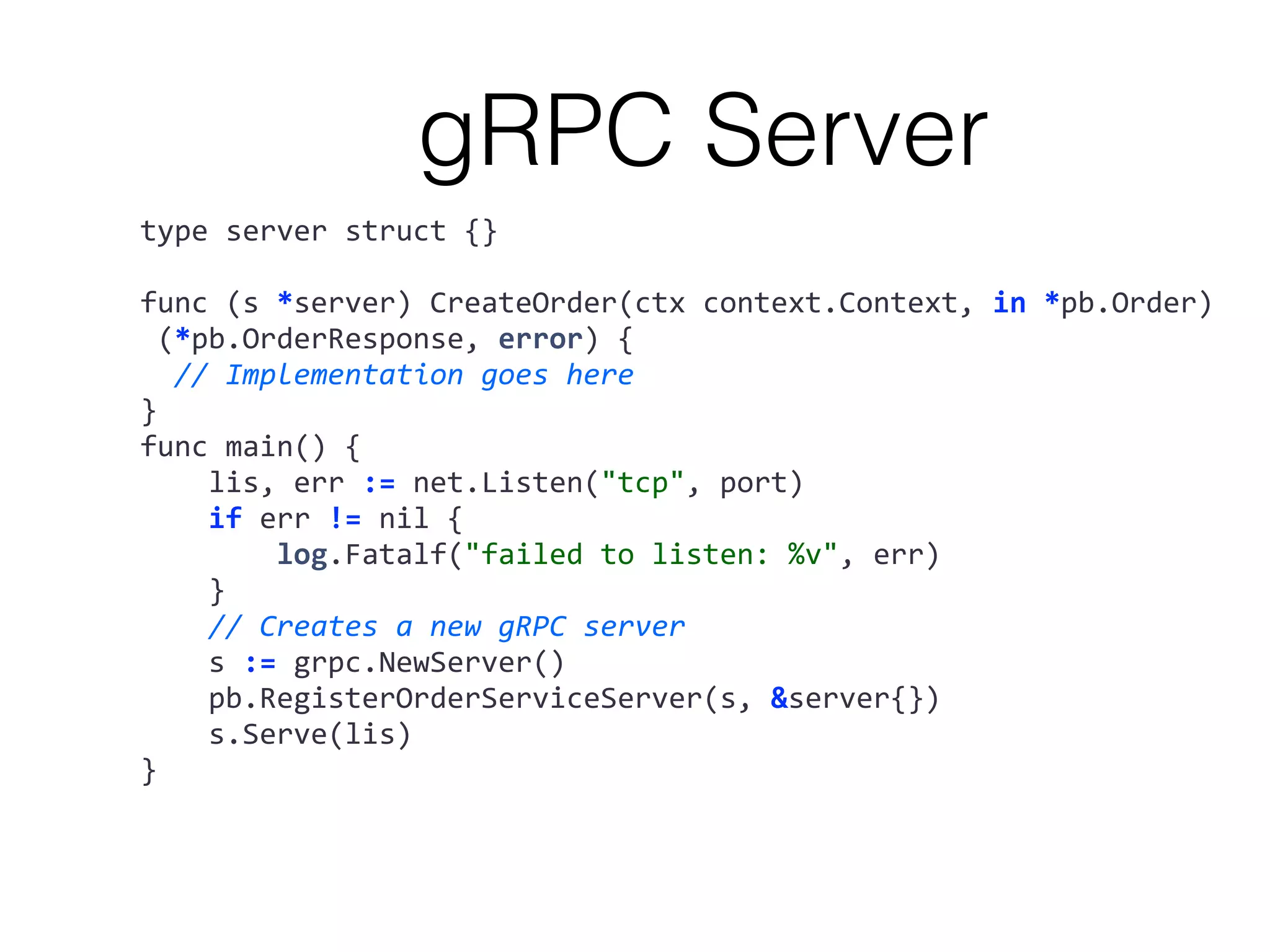

  type server struct {} func (s *server) CreateOrder(ctx context.Context, in *pb.Order) (*pb.OrderResponse, error) { // Implementation goes here } func main() { lis, err := net.Listen("tcp", port) if err != nil { log.Fatalf("failed to listen: %v", err) } // Creates a new gRPC server s := grpc.NewServer() pb.RegisterOrderServiceServer(s, &server{}) s.Serve(lis) } gRPC Server
• 15.

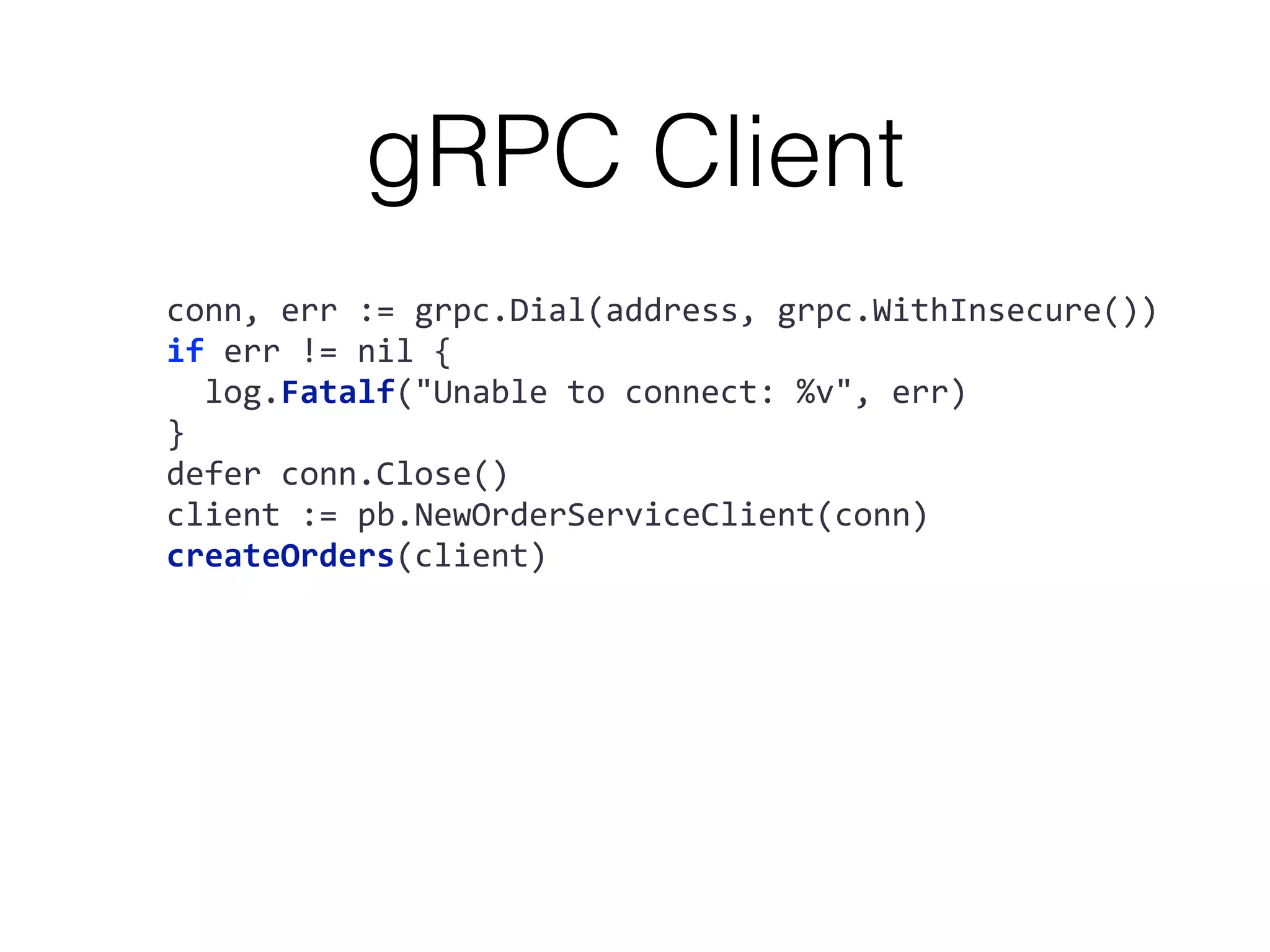

  gRPC Client conn, err := grpc.Dial(address, grpc.WithInsecure()) if err != nil { log.Fatalf("Unable to connect: %v", err) } defer conn.Close() client := pb.NewOrderServiceClient(conn) createOrders(client)
• 16.

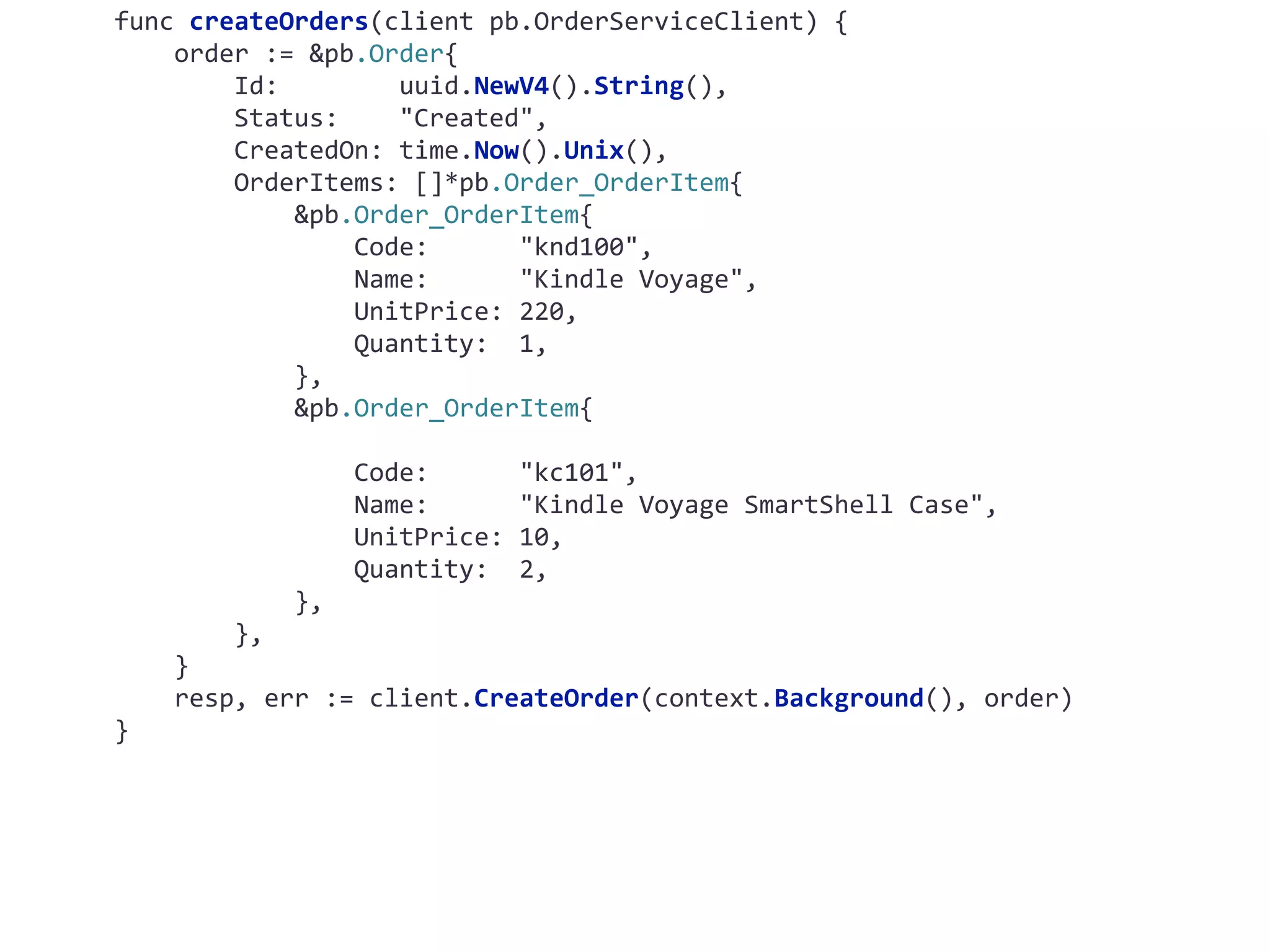

  func createOrders(client pb.OrderServiceClient) { order := &pb.Order{ Id: uuid.NewV4().String(), Status: "Created", CreatedOn: time.Now().Unix(), OrderItems: []*pb.Order_OrderItem{ &pb.Order_OrderItem{ Code: "knd100", Name: "Kindle Voyage", UnitPrice: 220, Quantity: 1, }, &pb.Order_OrderItem{ Code: "kc101", Name: "Kindle Voyage SmartShell Case", UnitPrice: 10, Quantity: 2, }, }, } resp, err := client.CreateOrder(context.Background(), order) }
• 17.

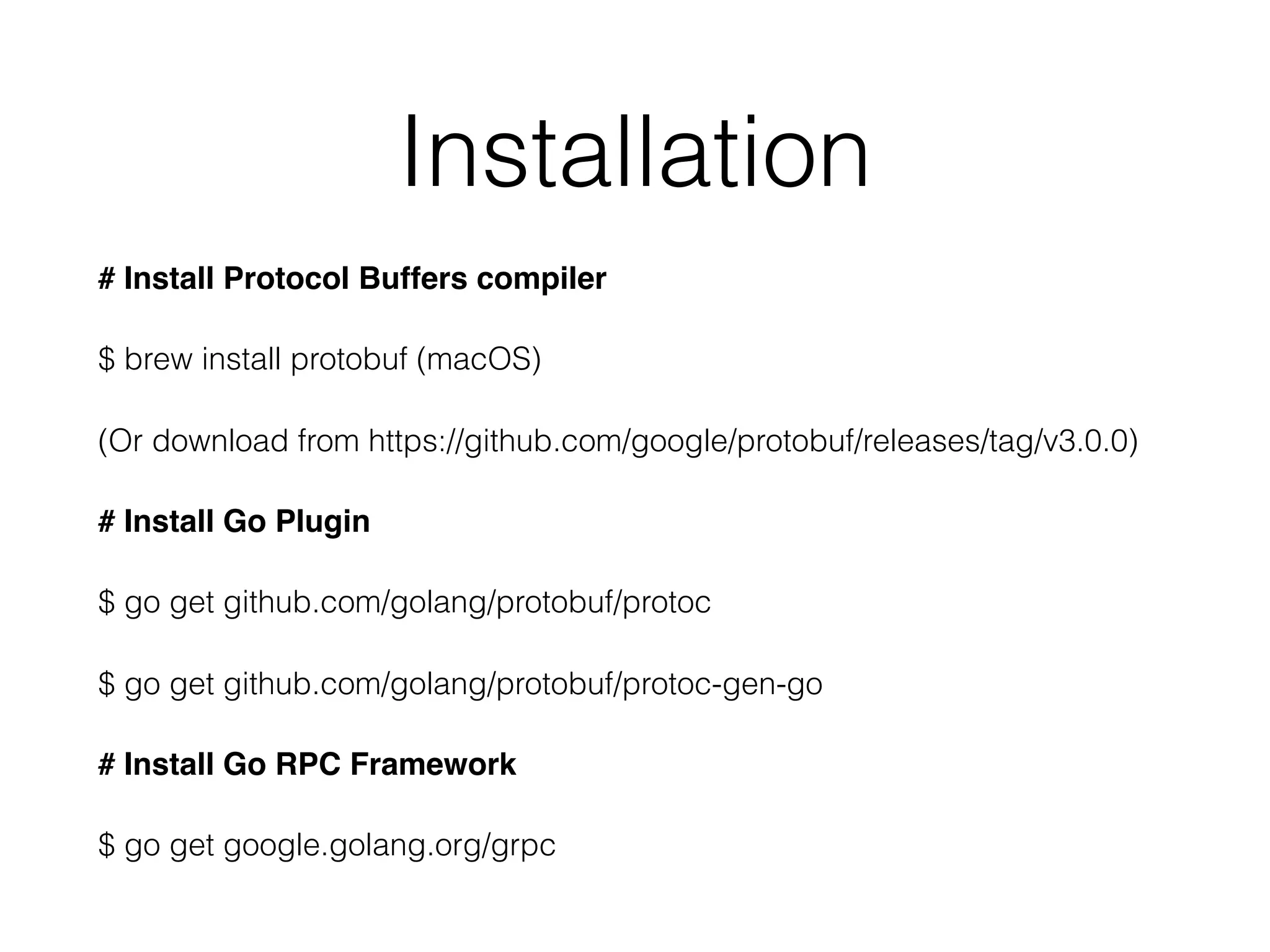

  Installation # Install ProtocolBuffers compiler $ brew install protobuf (macOS) (Or download from https://github.com/google/protobuf/releases/tag/v3.0.0) # Install Go Plugin $ go get github.com/golang/protobuf/protoc $ go get github.com/golang/protobuf/protoc-gen-go # Install Go RPC Framework $ go get google.golang.org/grpc
• 18.
  medium.com/@shijuvar linkedin.com/in/shijuvar email: gophermonk@gmail.com THANK YOU Articles: BuildingHigh Performance APIs In Go Using gRPC And Protocol Buffers Benchmarking Protocol Buffers, JSON and XML in Go
