BOYER–MOORE STRING SEARCH ALGORITHM SeyedHamid Shekarforoush Bowling Green State University

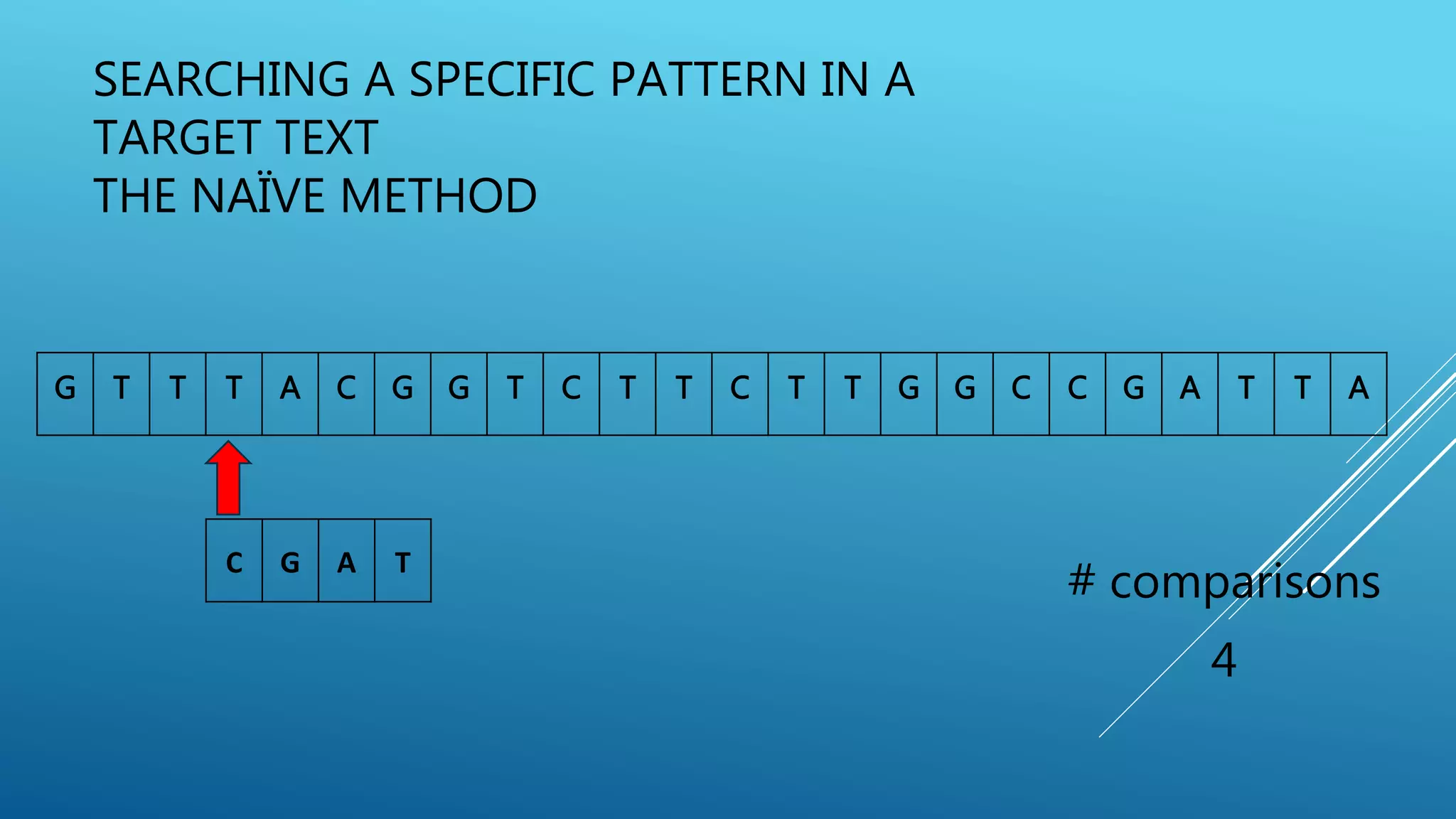

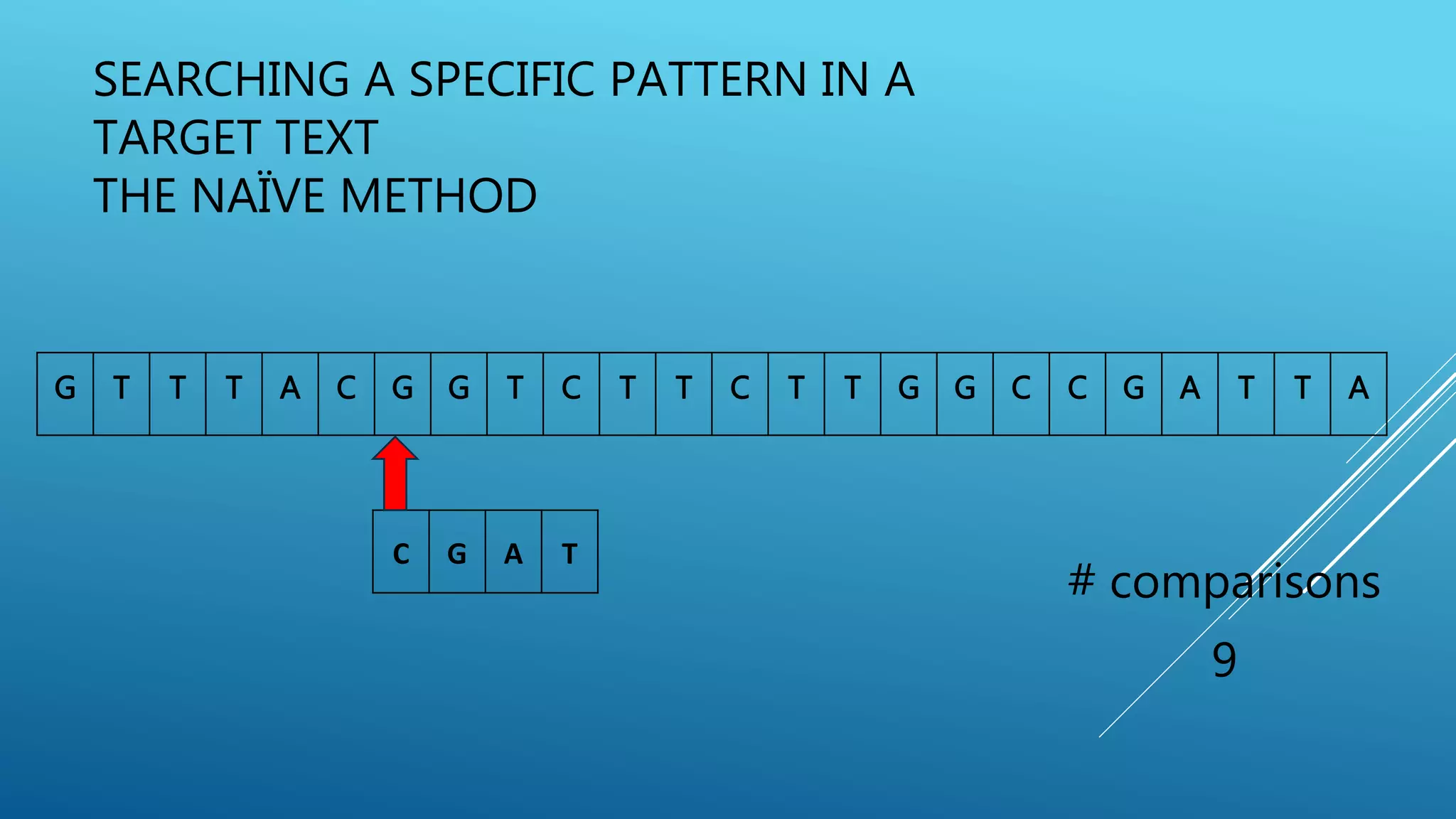

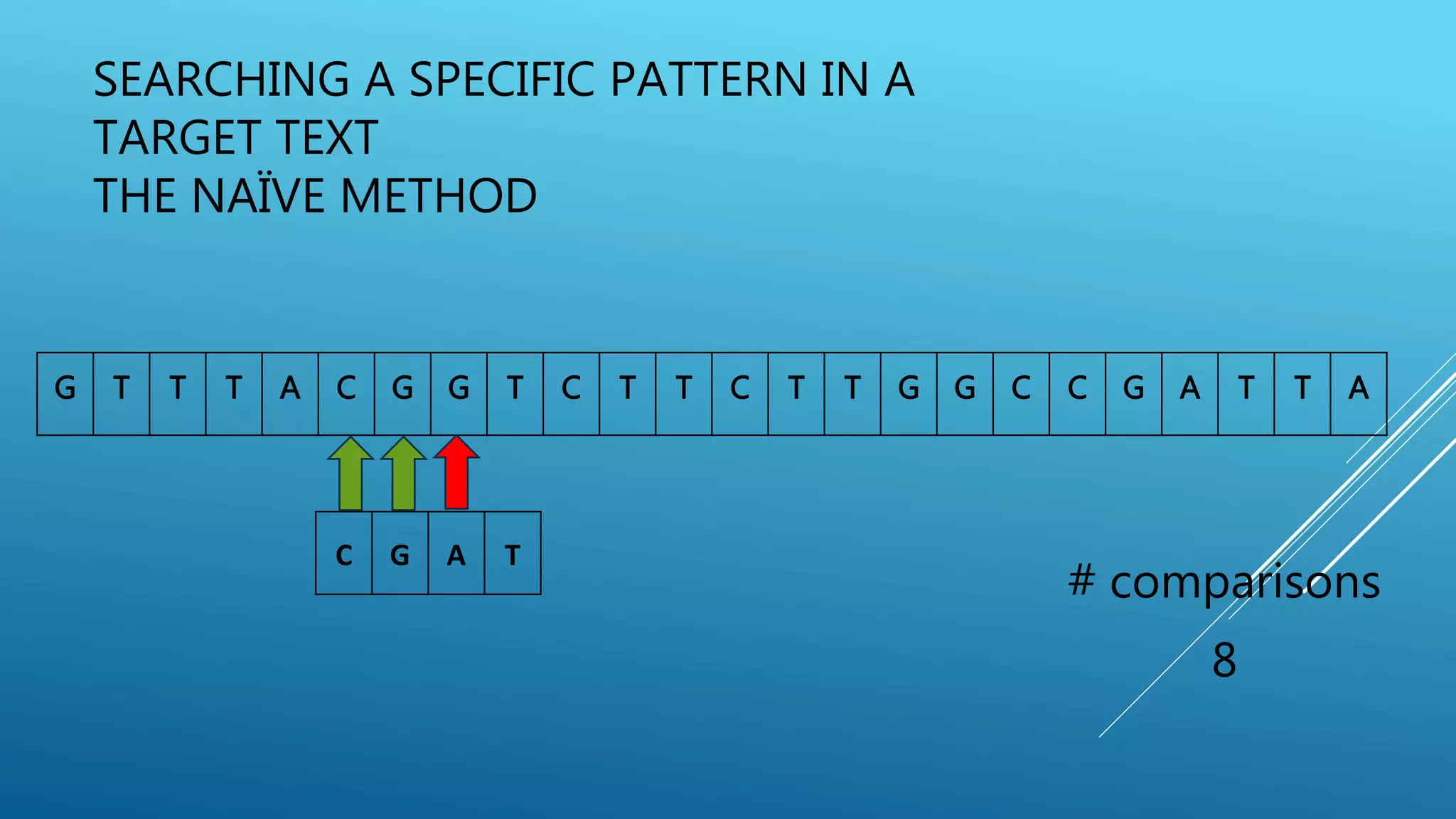

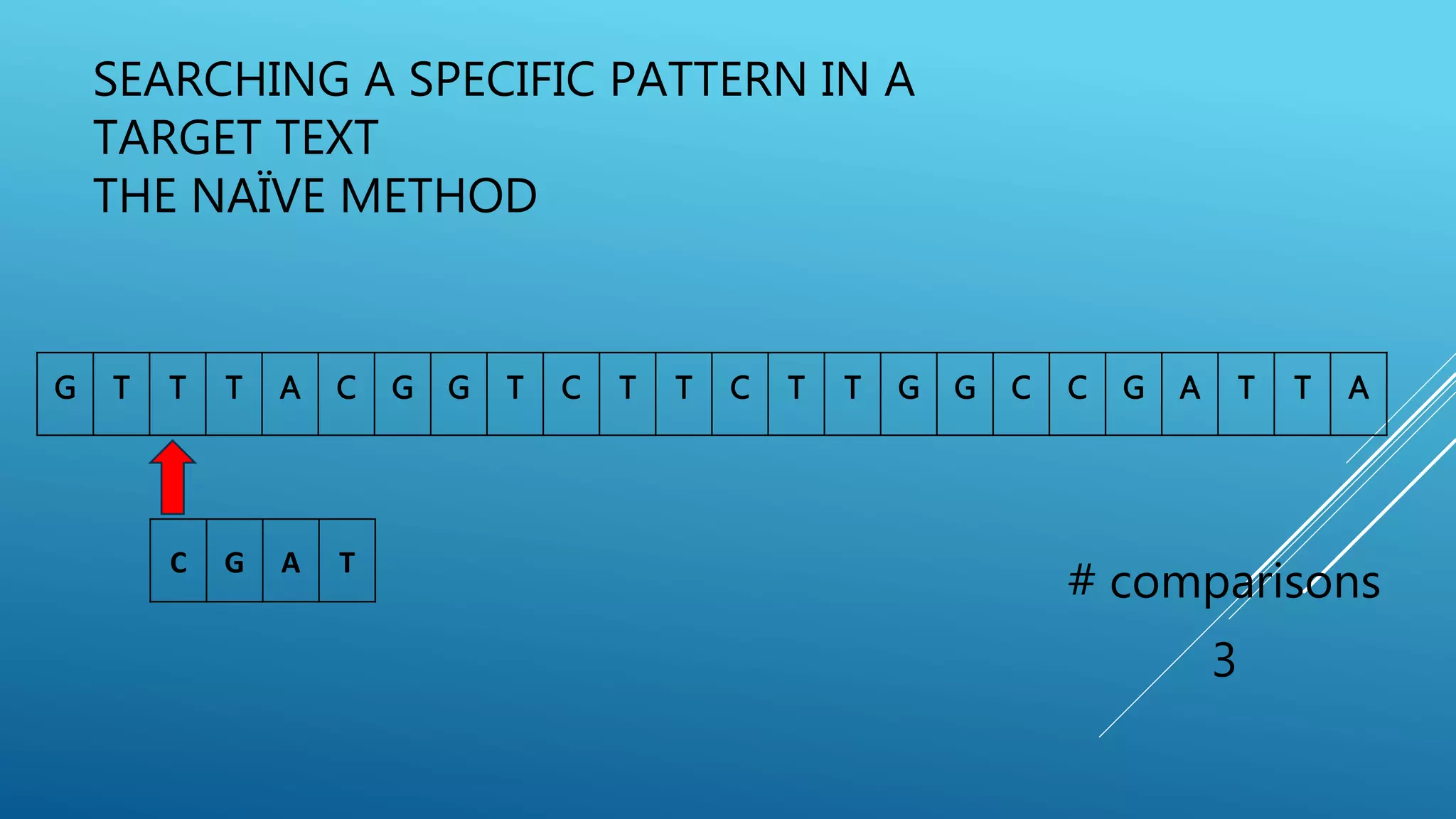

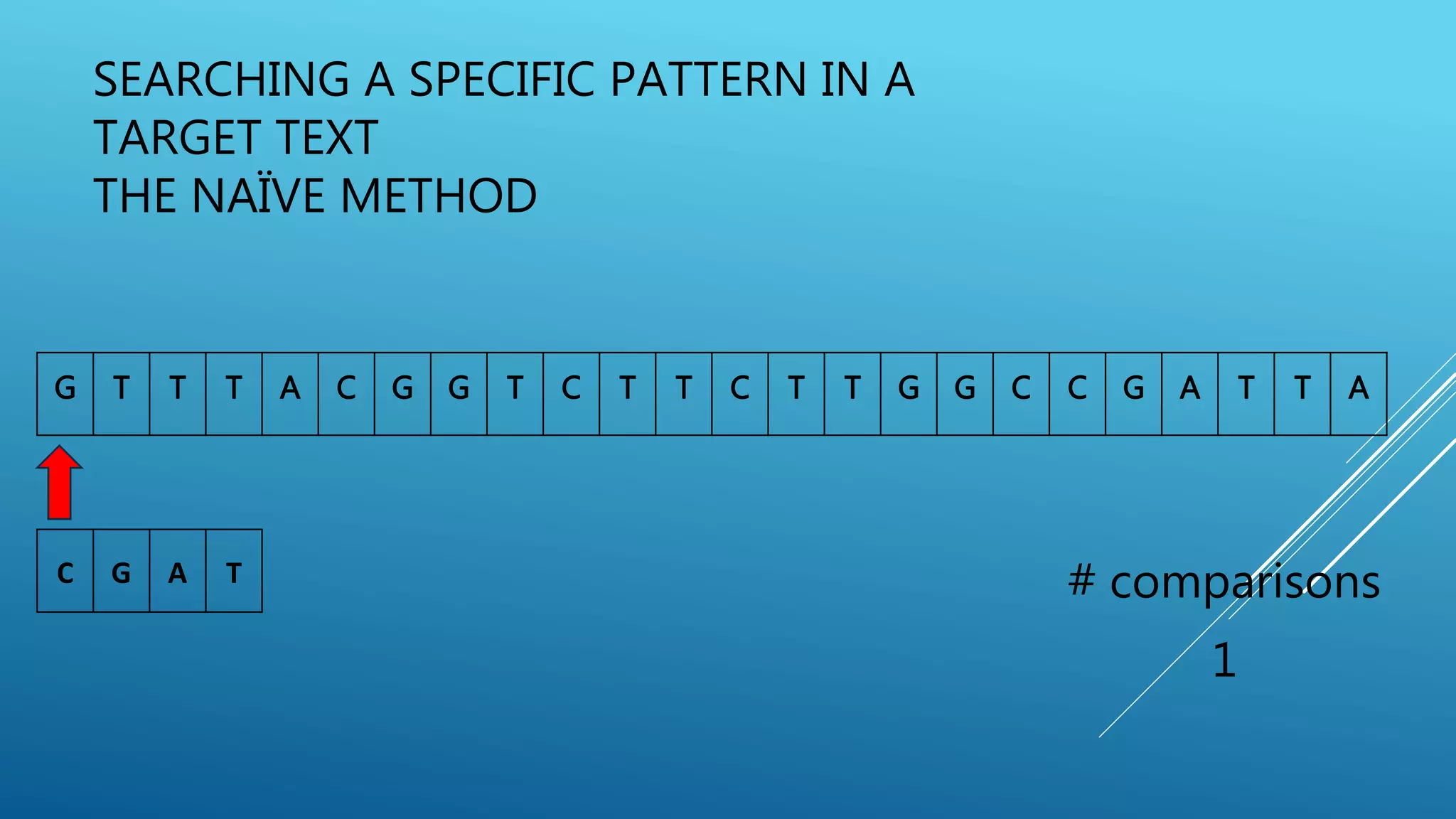

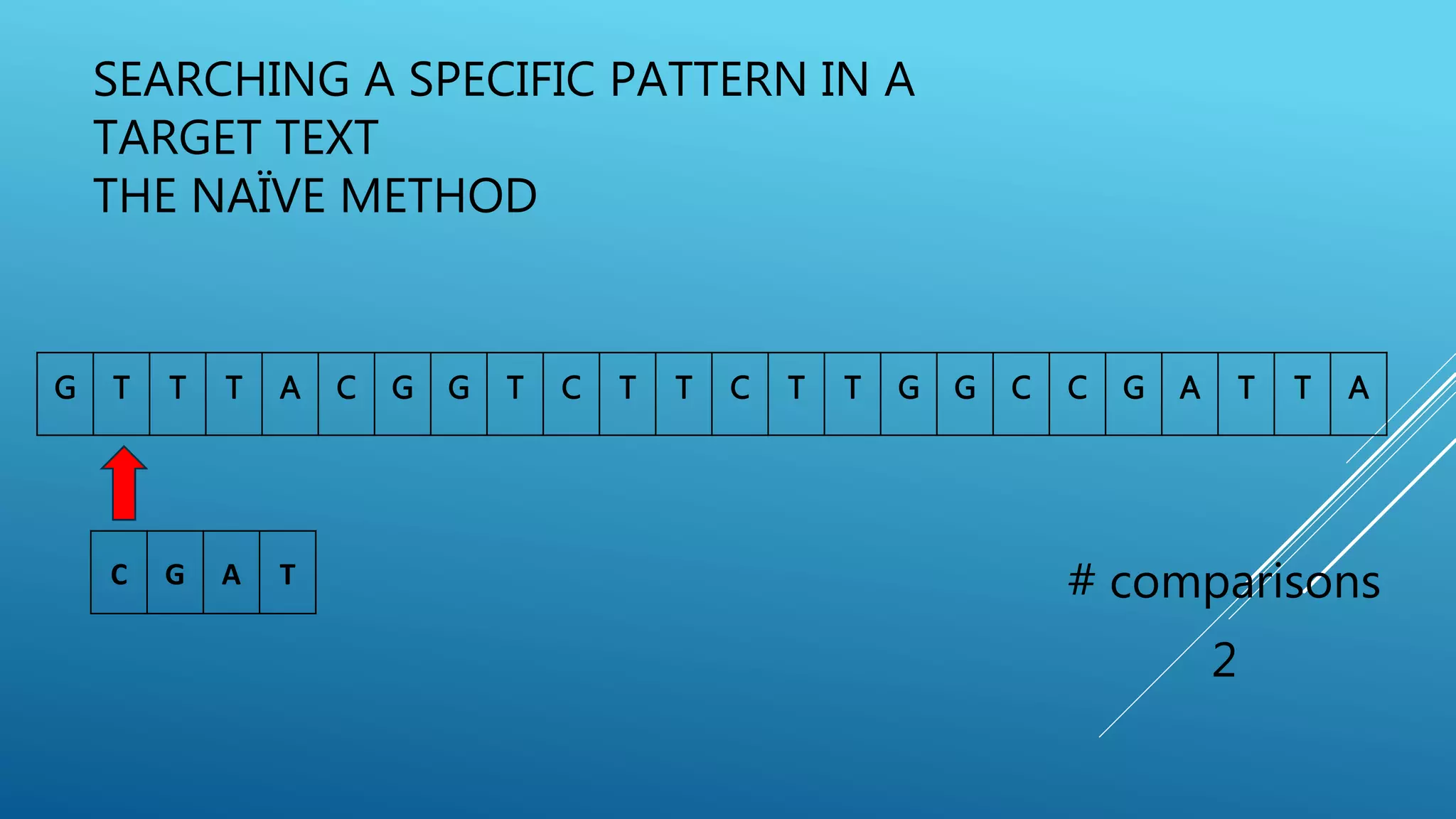

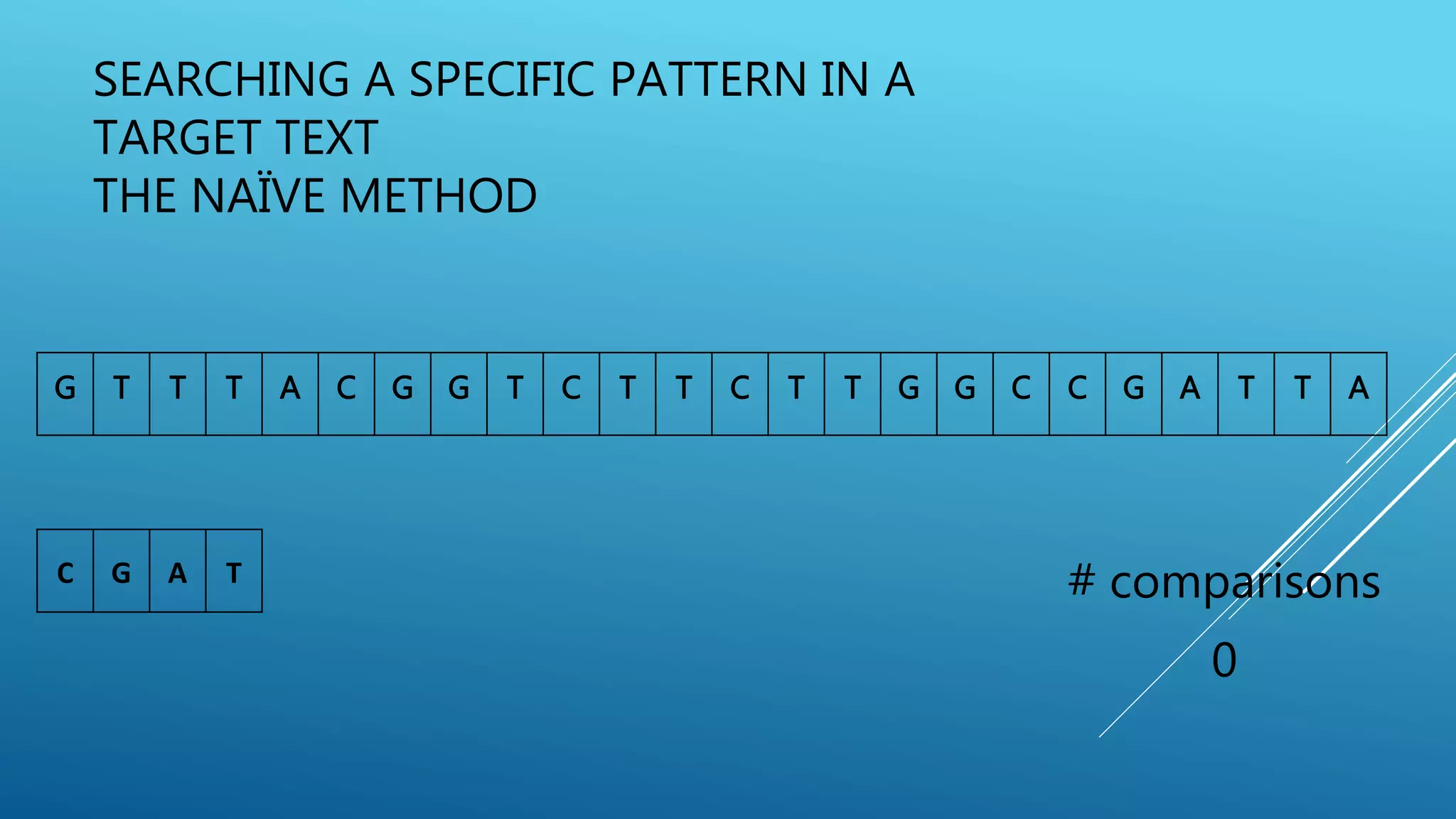

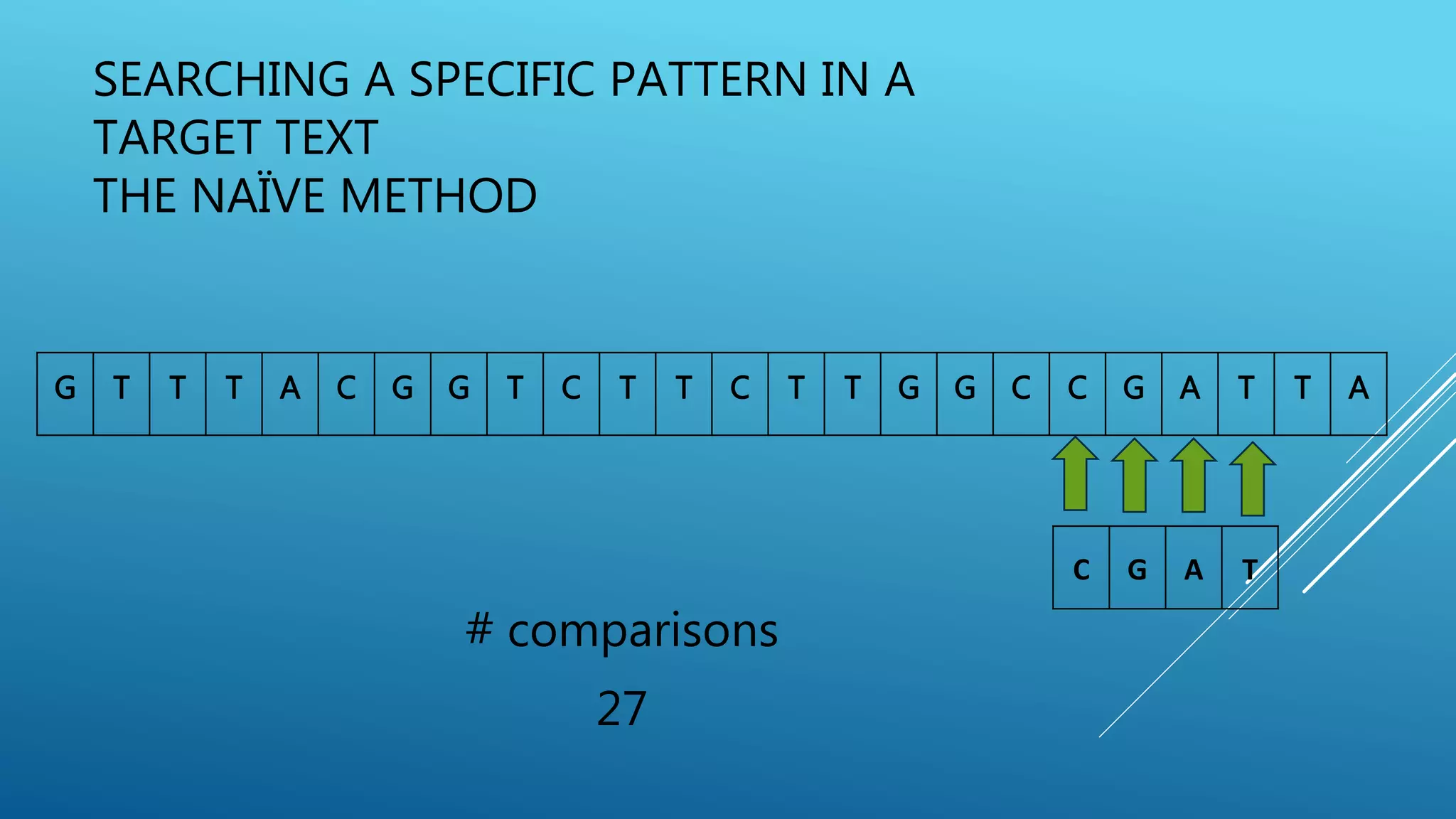

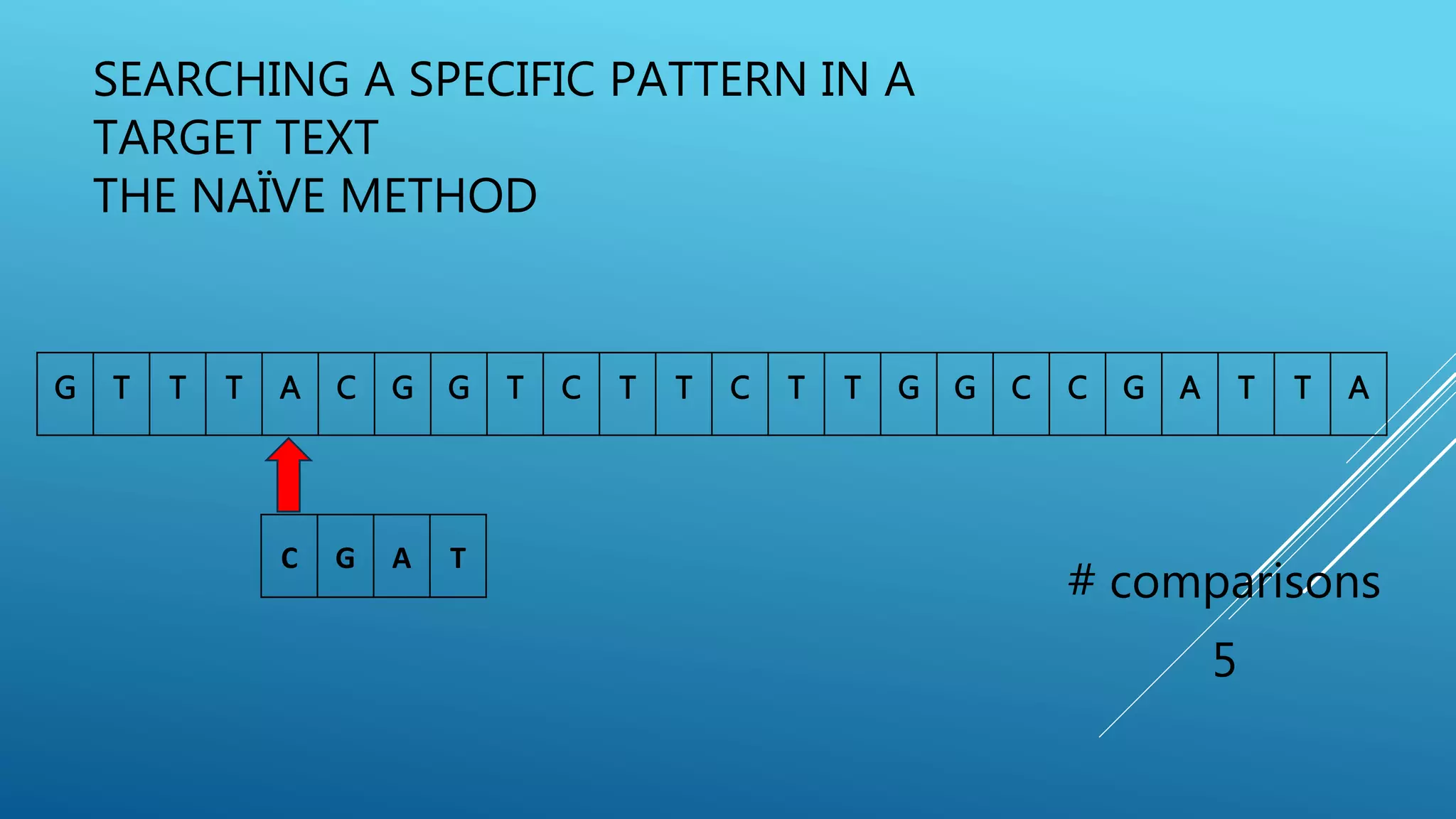

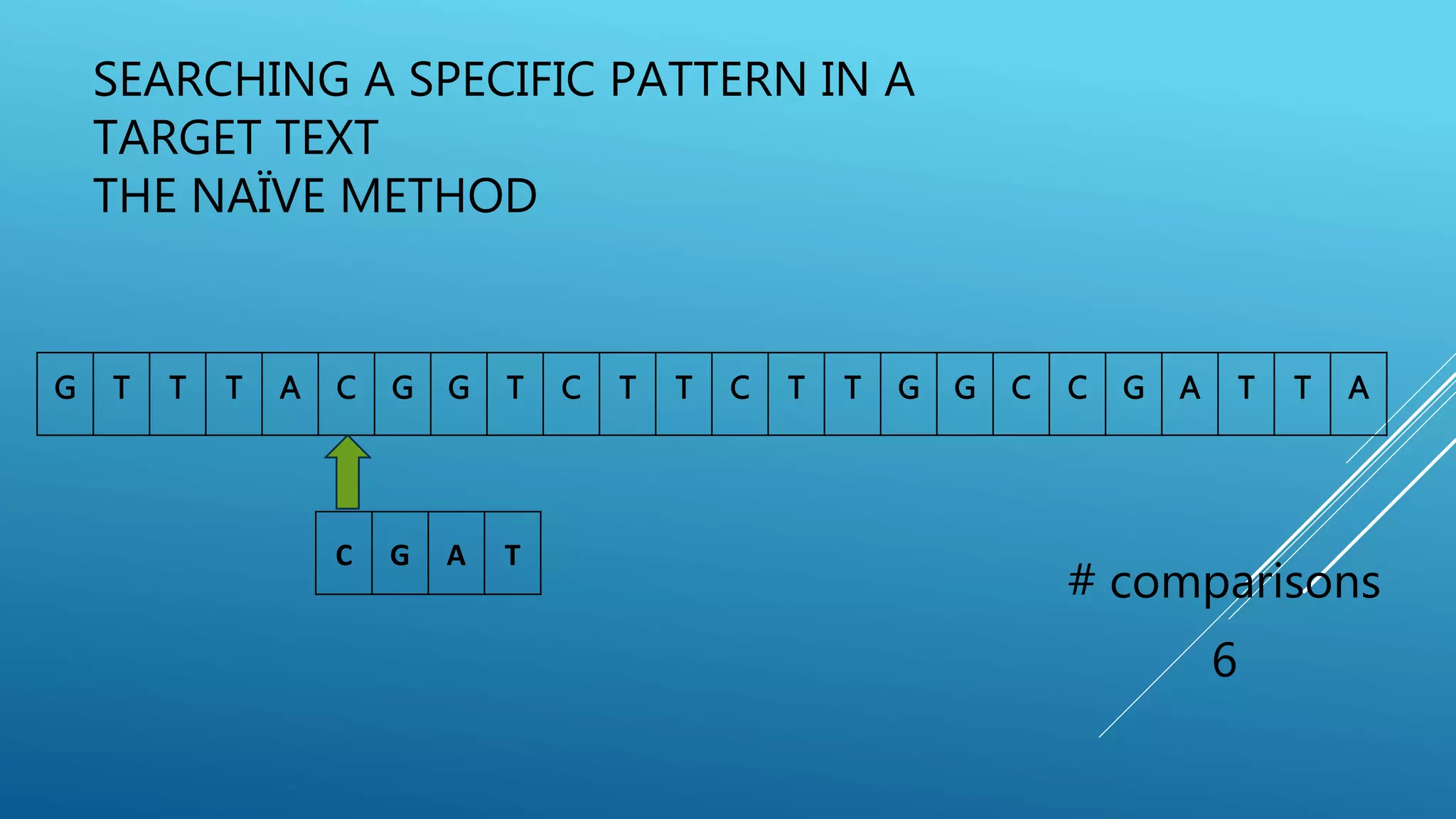

SEARCHING A SPECIFIC PATTERN IN A TARGET TEXT THE NAÏVE METHOD G T T T A C G G T C T T C T T G G C C G A T T A # comparisons 0 C G A T

BOYER–MOORE STRING SEARCH ALGORITHM  developed by Robert S. Boyer and J Strother Moore in 1977  Smart naïve method  tries to match the pattern with target text  Use two rules to skip unnecessary matches  Match from the end of pattern

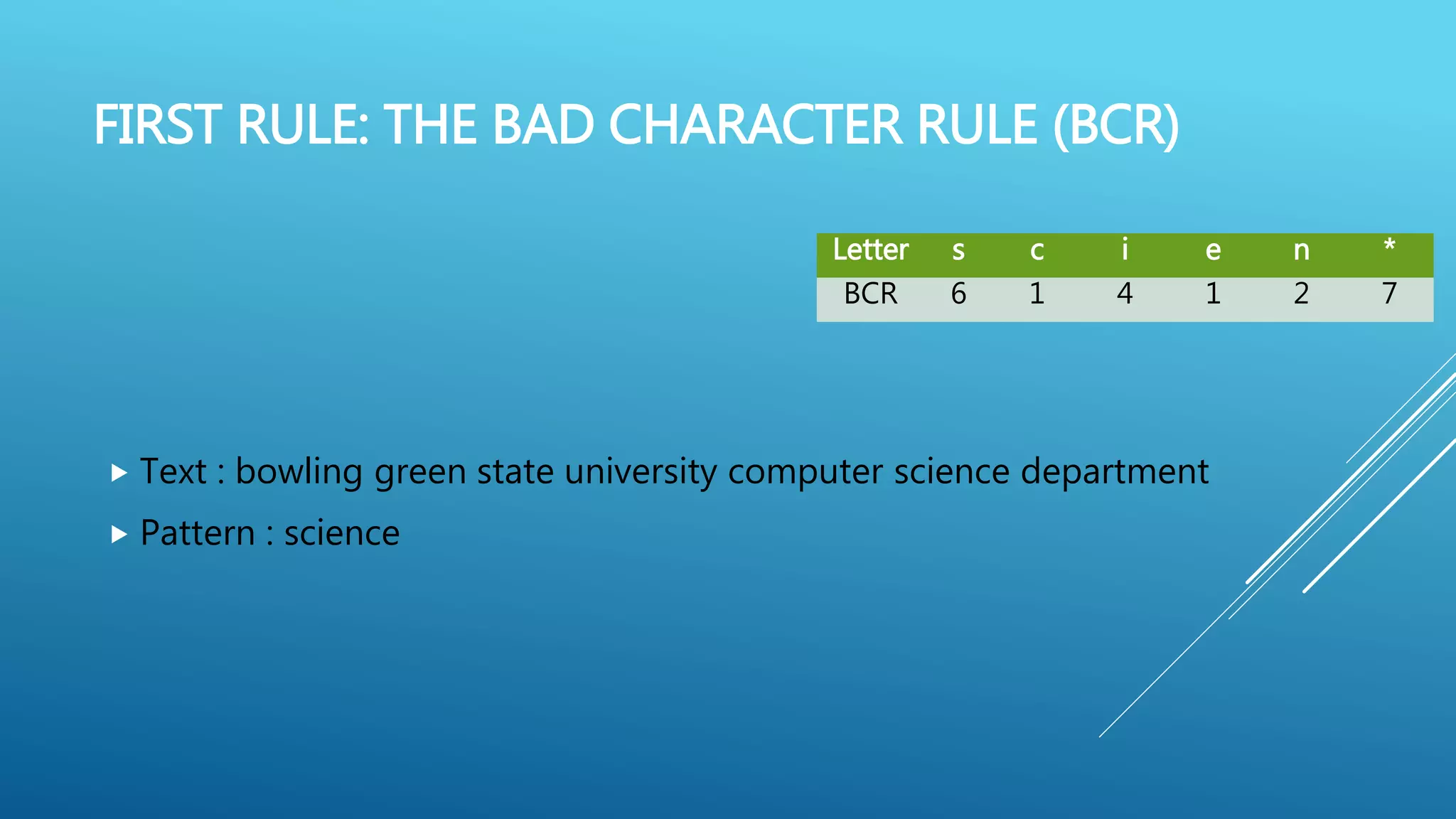

FIRST RULE: THE BAD CHARACTER RULE (BCR)  Text : bowling green state university computer science department  Pattern : science Letter s c i e n * BCR 6 1 4 1 2 7

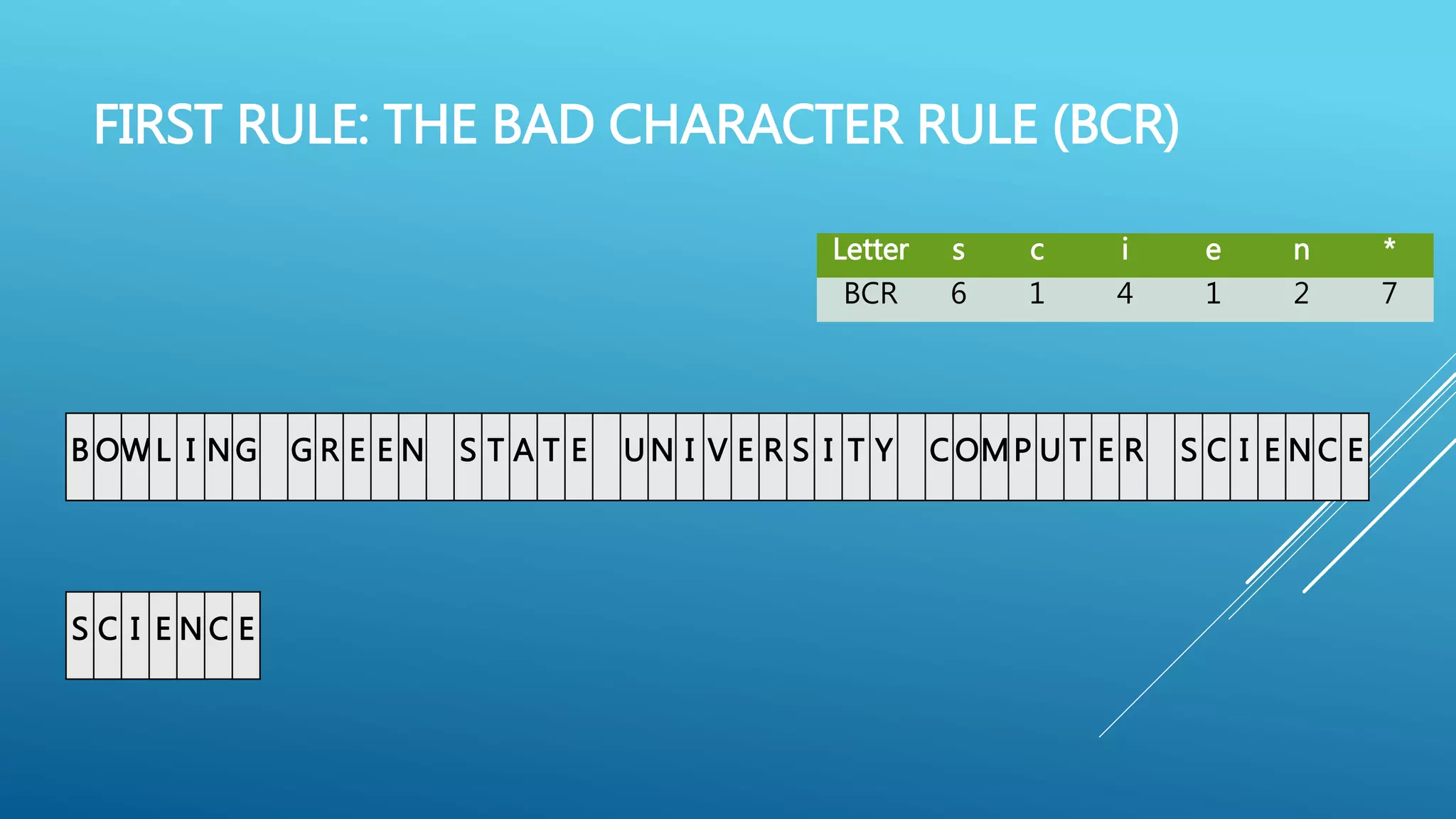

FIRST RULE: THE BAD CHARACTER RULE (BCR) B OW L I NG G R E E N S T A T E U N I V E R S I T Y C OMP U T E R S C I E N C E Letter s c i e n * BCR 6 1 4 1 2 7 S C I E N C E

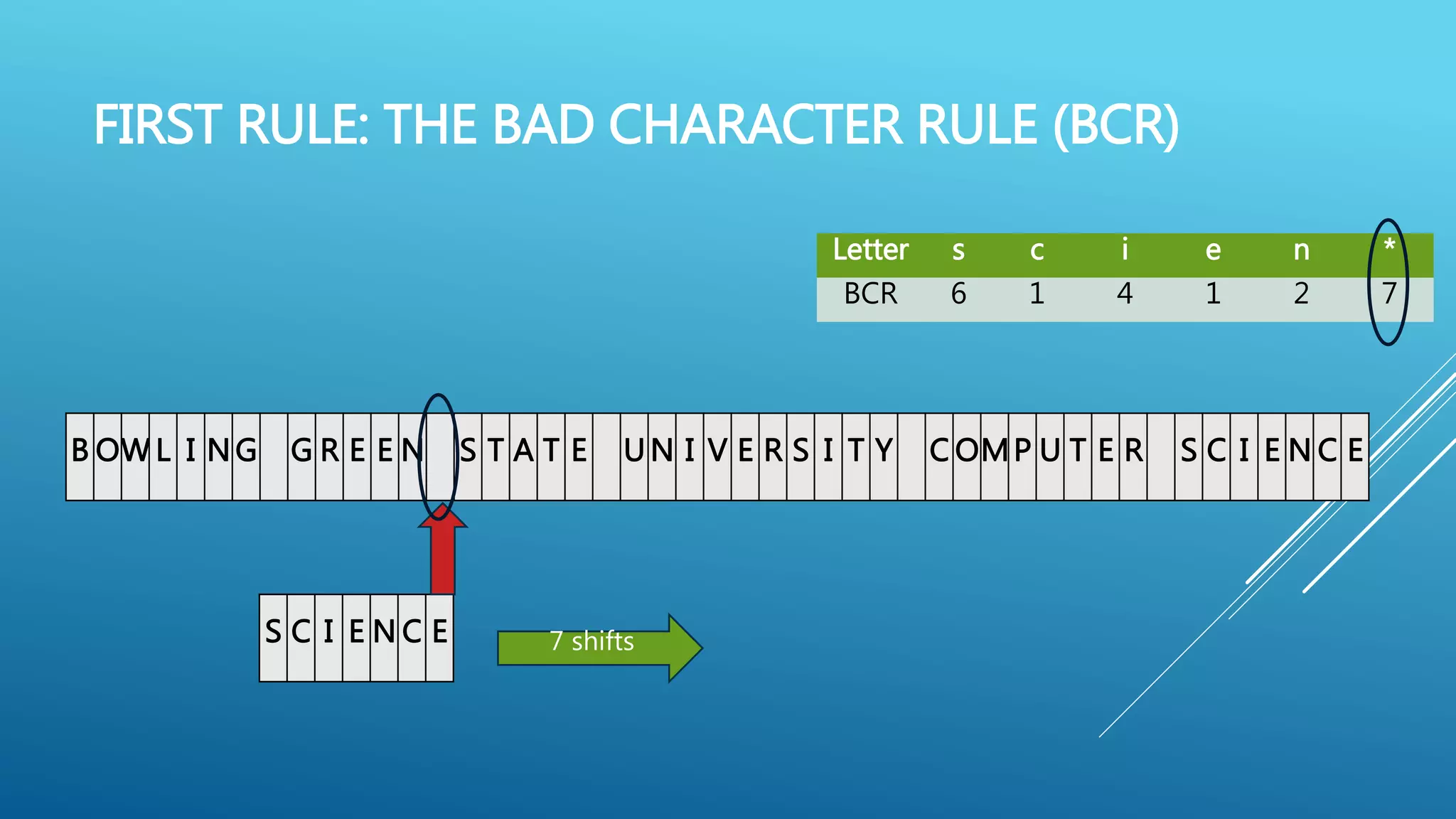

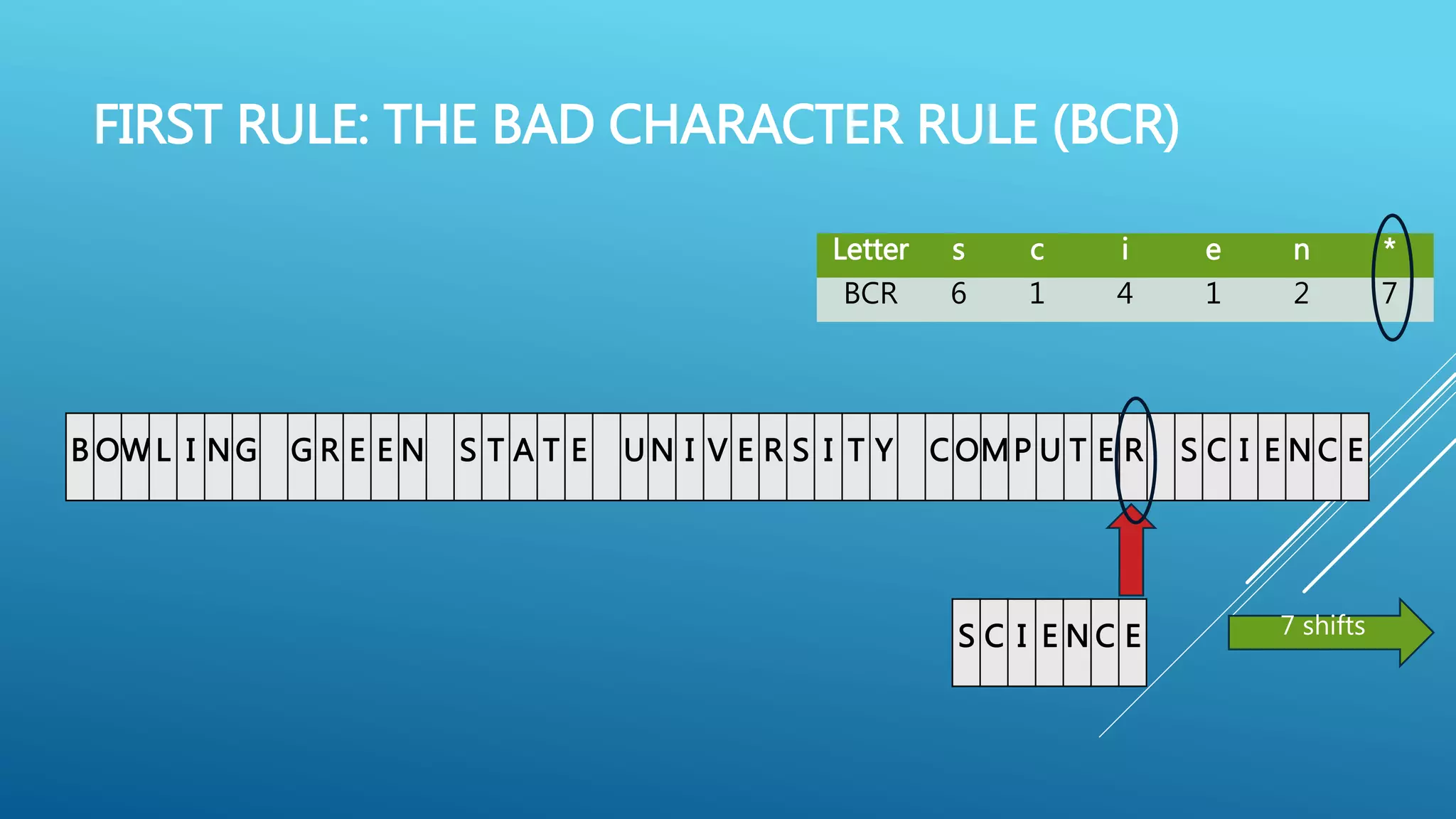

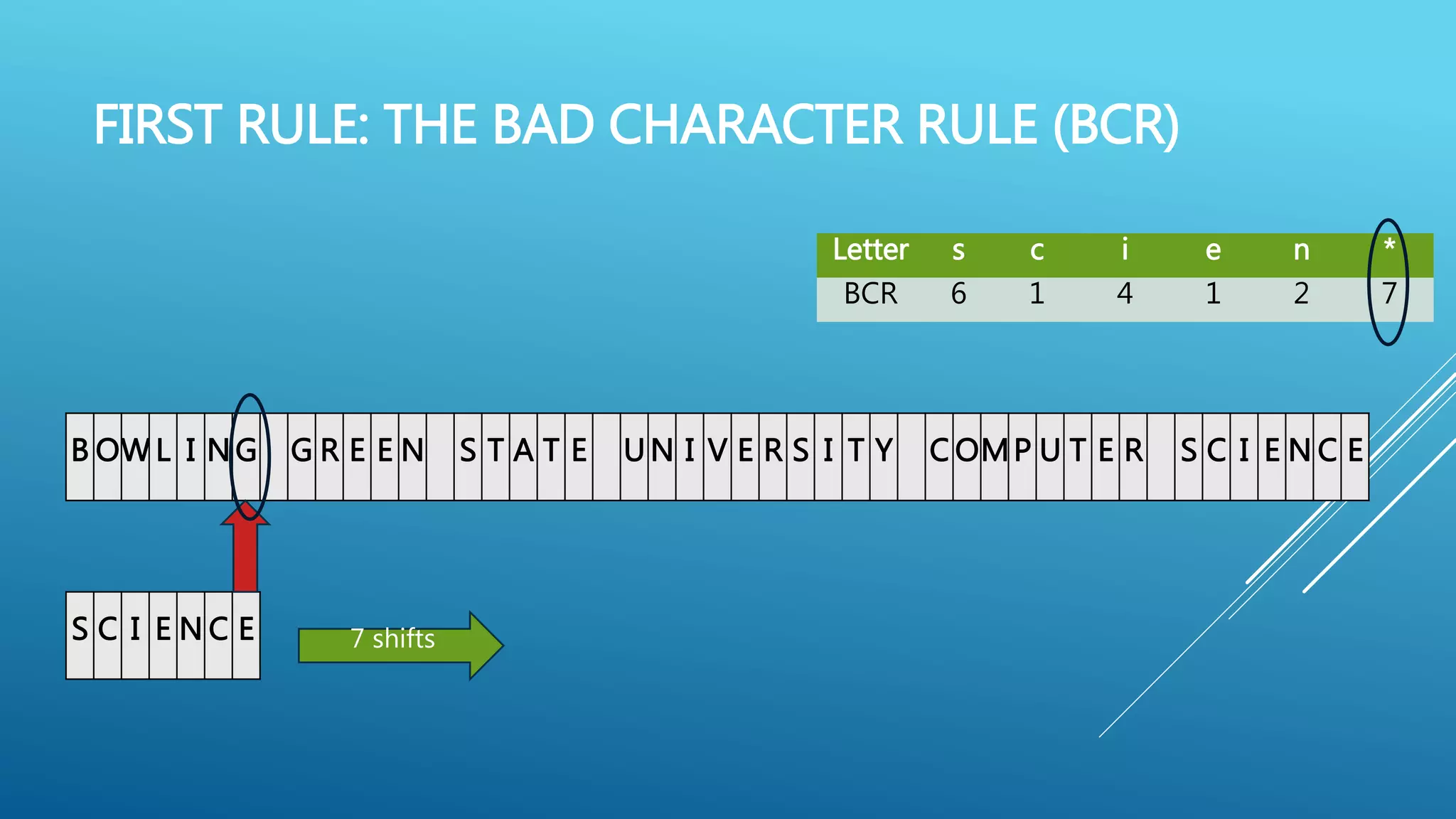

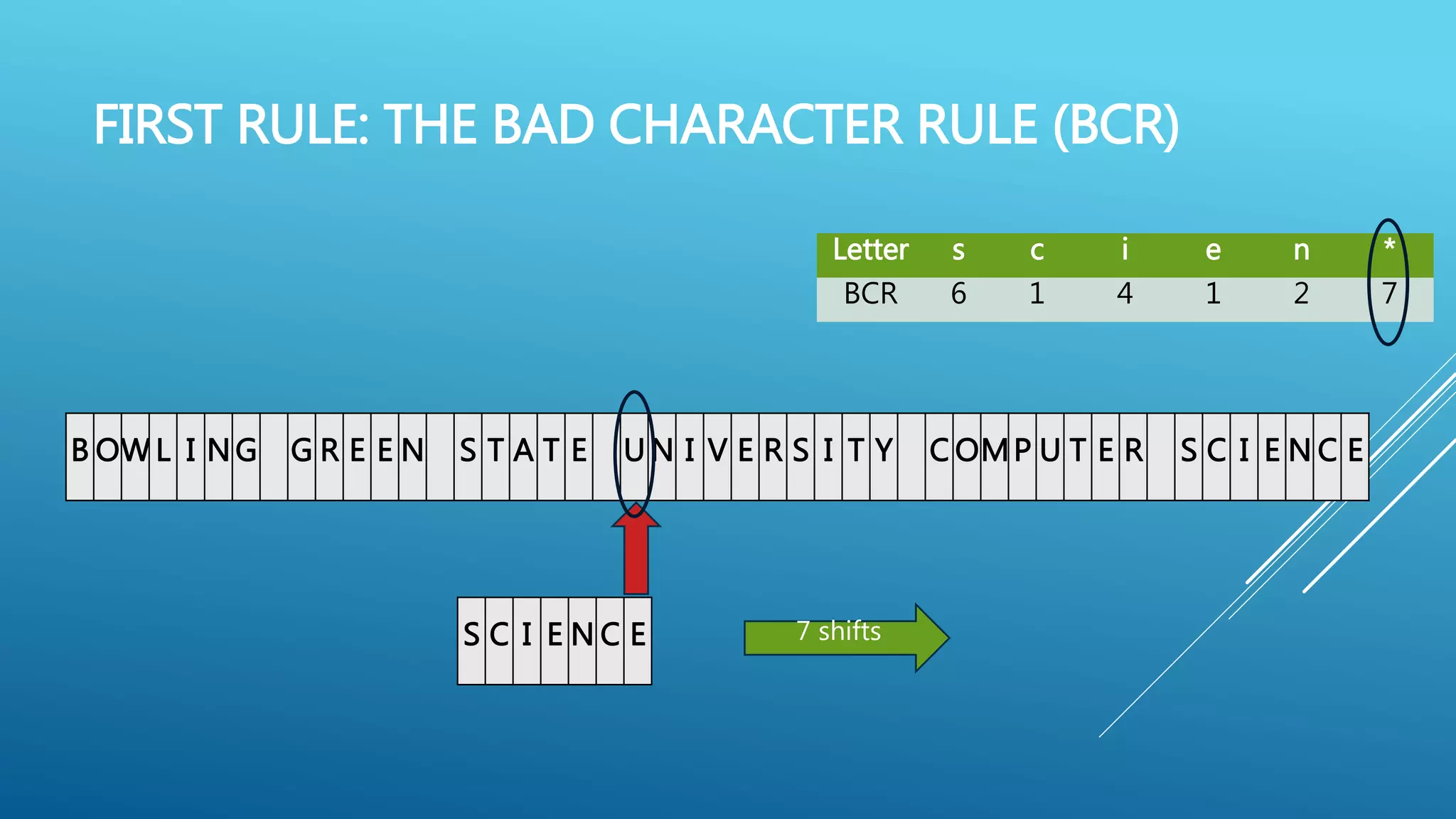

FIRST RULE: THE BAD CHARACTER RULE (BCR) B OW L I NG G R E E N S T A T E U N I V E R S I T Y C OMP U T E R S C I E N C E Letter s c i e n * BCR 6 1 4 1 2 7 S C I E N C E 7 shifts

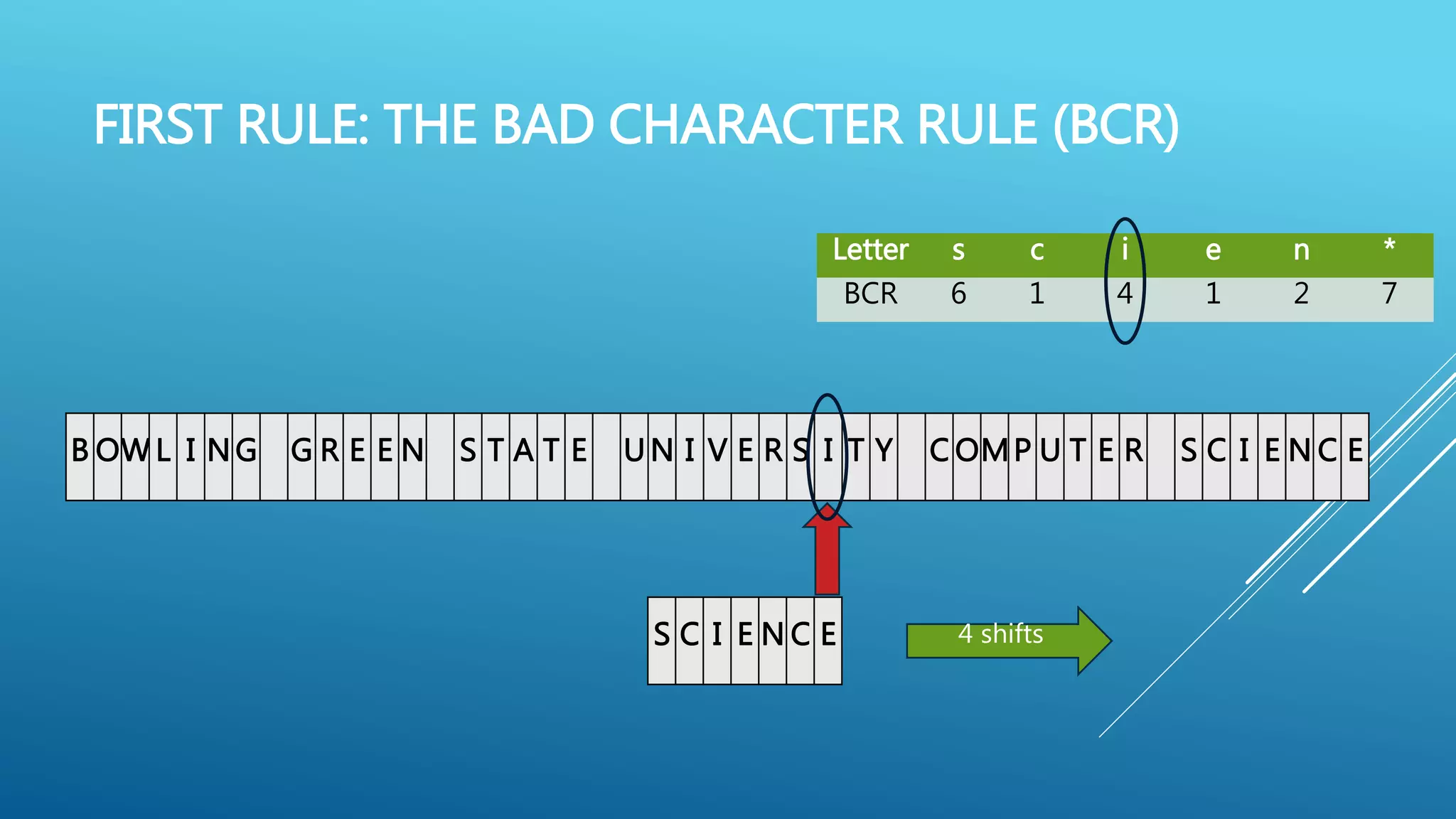

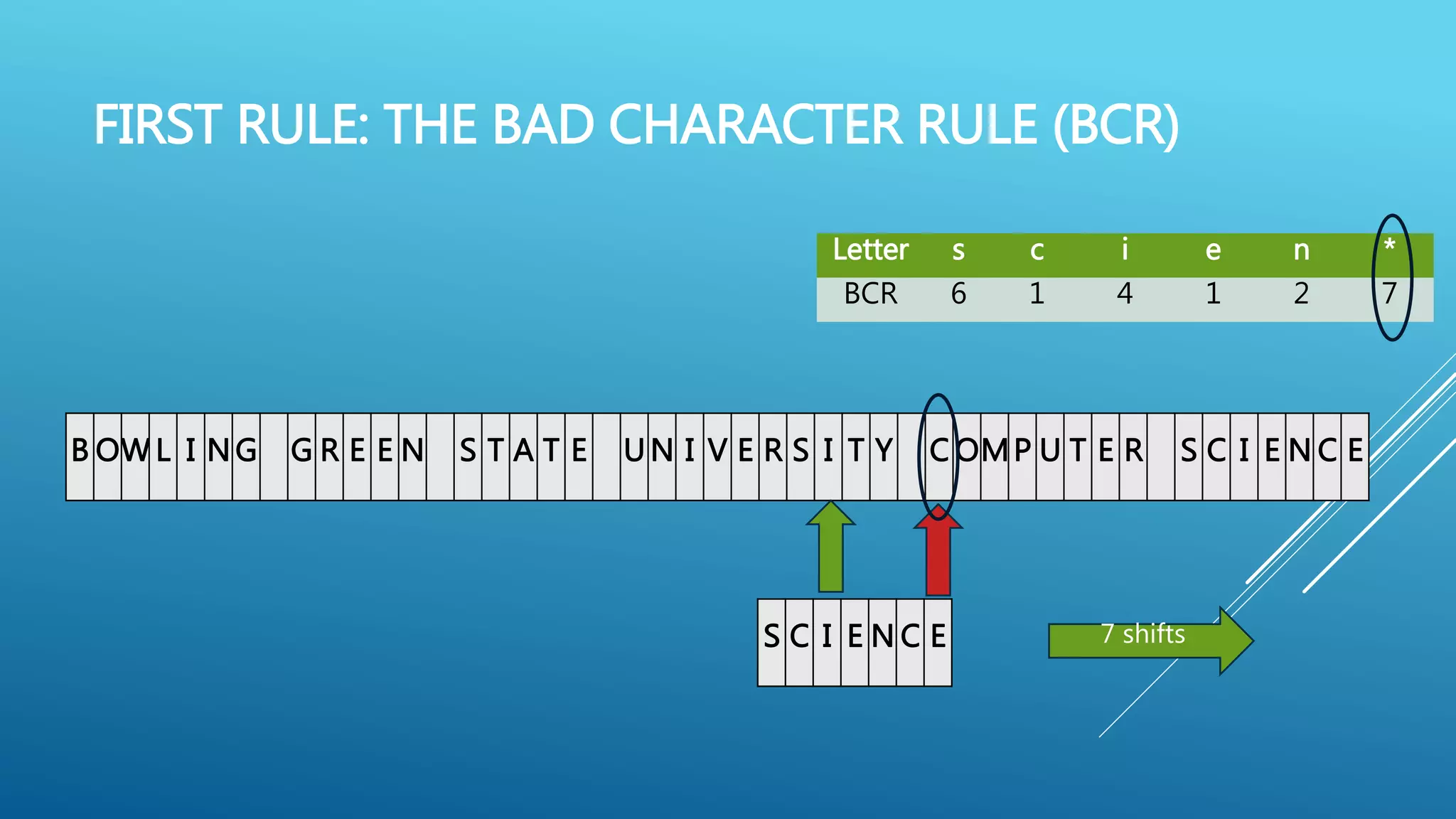

FIRST RULE: THE BAD CHARACTER RULE (BCR) B OW L I NG G R E E N S T A T E U N I V E R S I T Y C OMP U T E R S C I E N C E Letter s c i e n * BCR 6 1 4 1 2 7 S C I E N C E 4 shifts

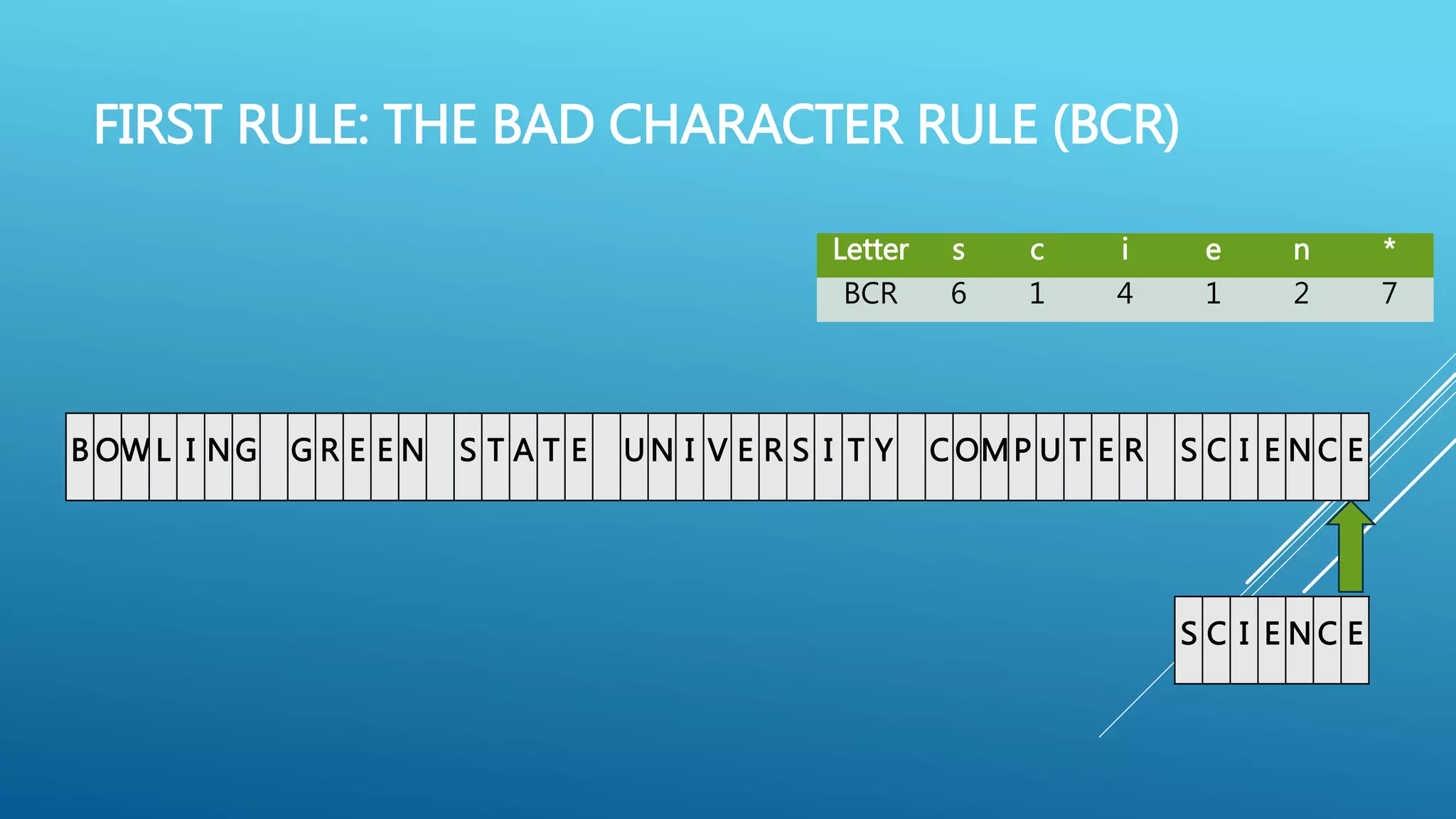

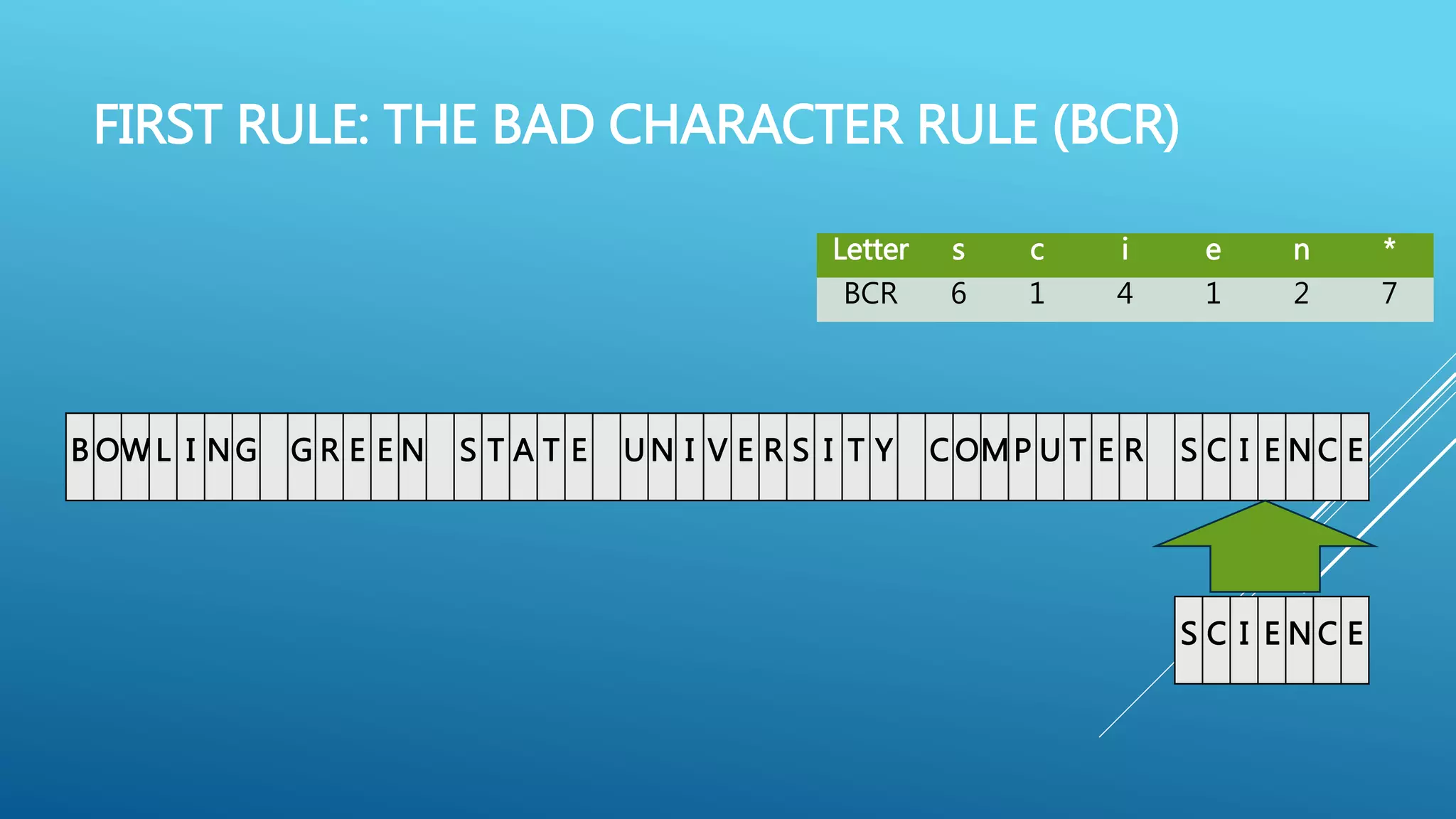

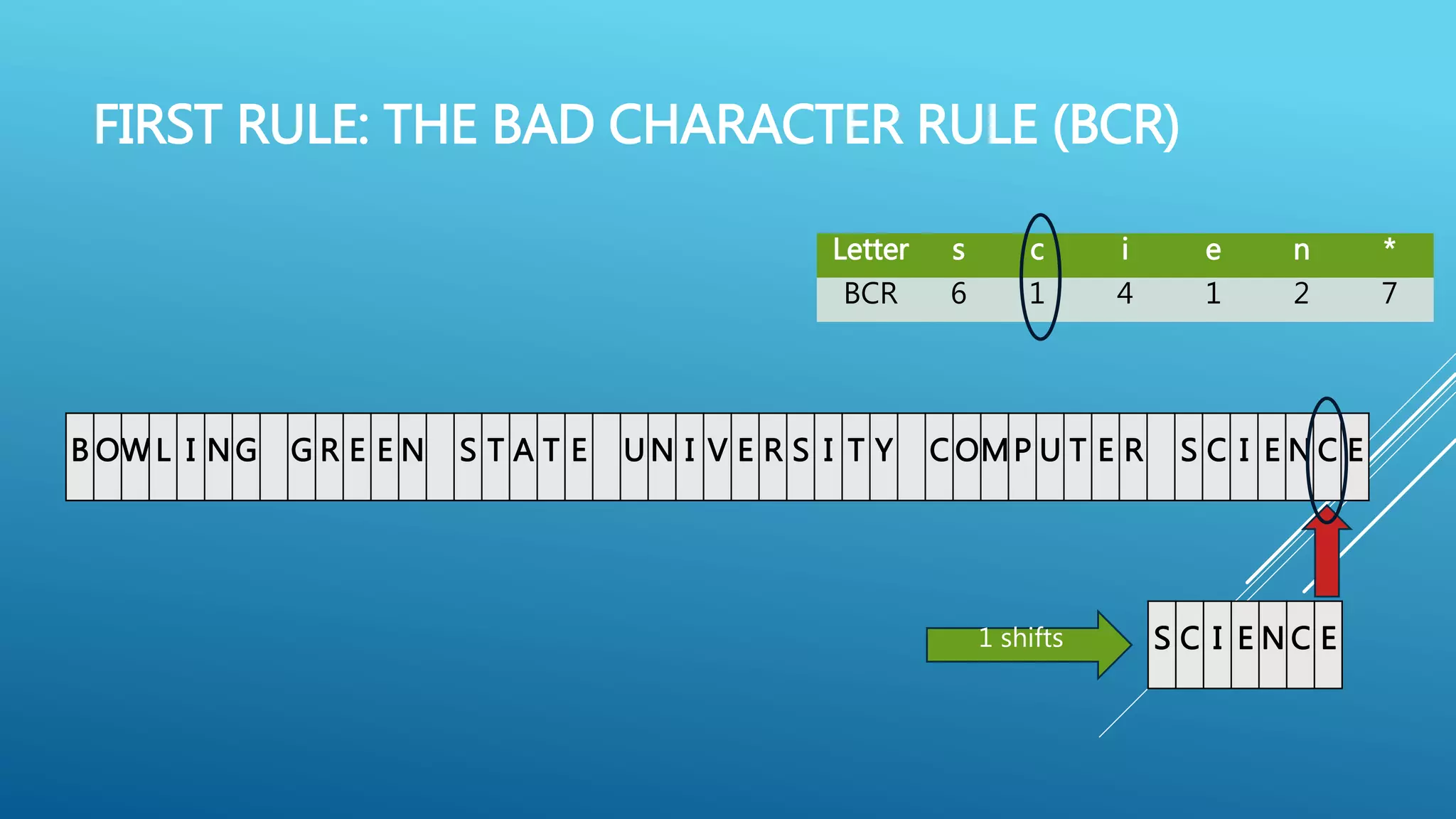

FIRST RULE: THE BAD CHARACTER RULE (BCR) B OW L I NG G R E E N S T A T E U N I V E R S I T Y C OMP U T E R S C I E N C E Letter s c i e n * BCR 6 1 4 1 2 7 S C I E N C E1 shifts

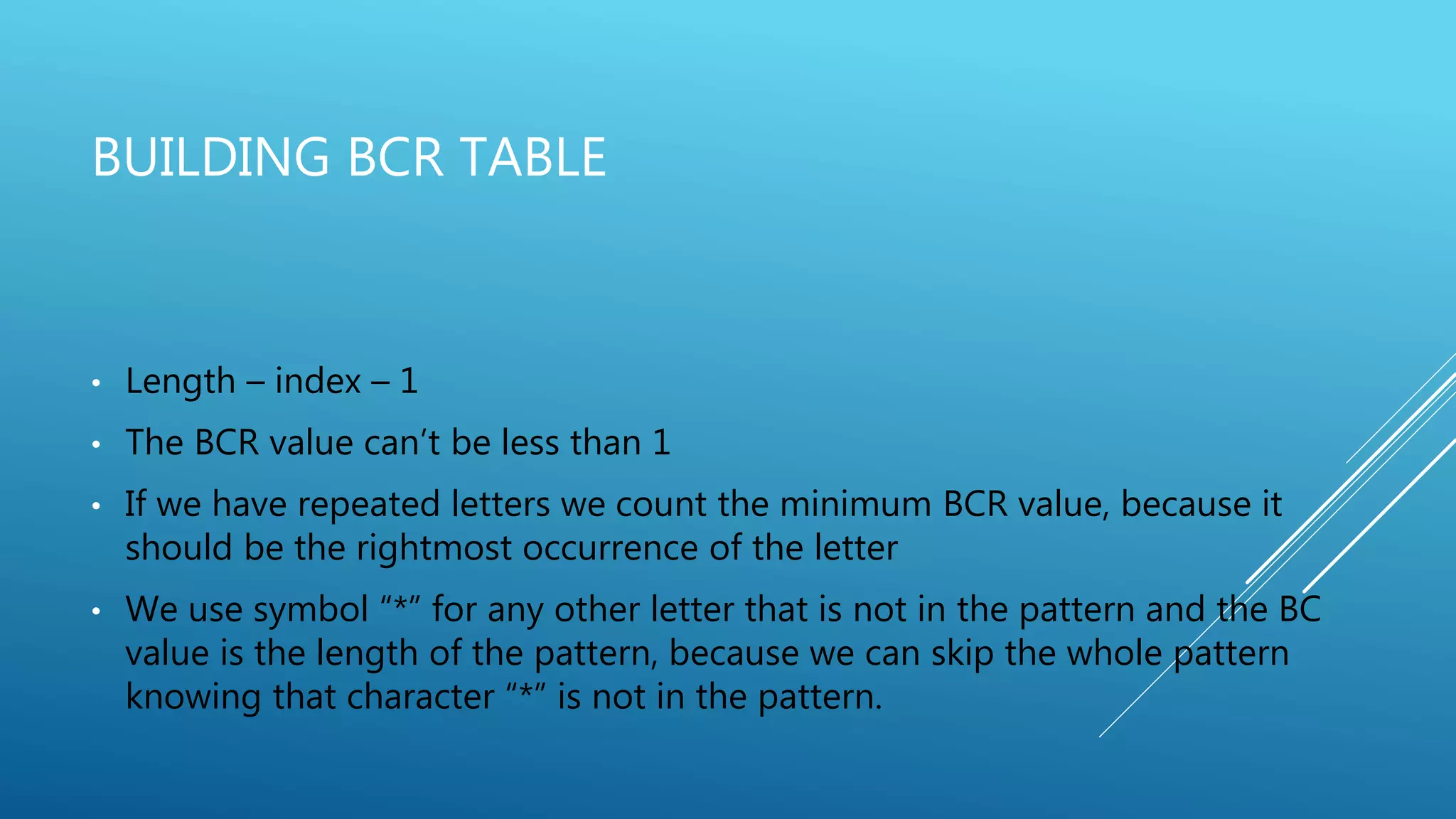

BUILDING BCR TABLE • Length – index – 1 • The BCR value can’t be less than 1 • If we have repeated letters we count the minimum BCR value, because it should be the rightmost occurrence of the letter • We use symbol “*” for any other letter that is not in the pattern and the BC value is the length of the pattern, because we can skip the whole pattern knowing that character “*” is not in the pattern.

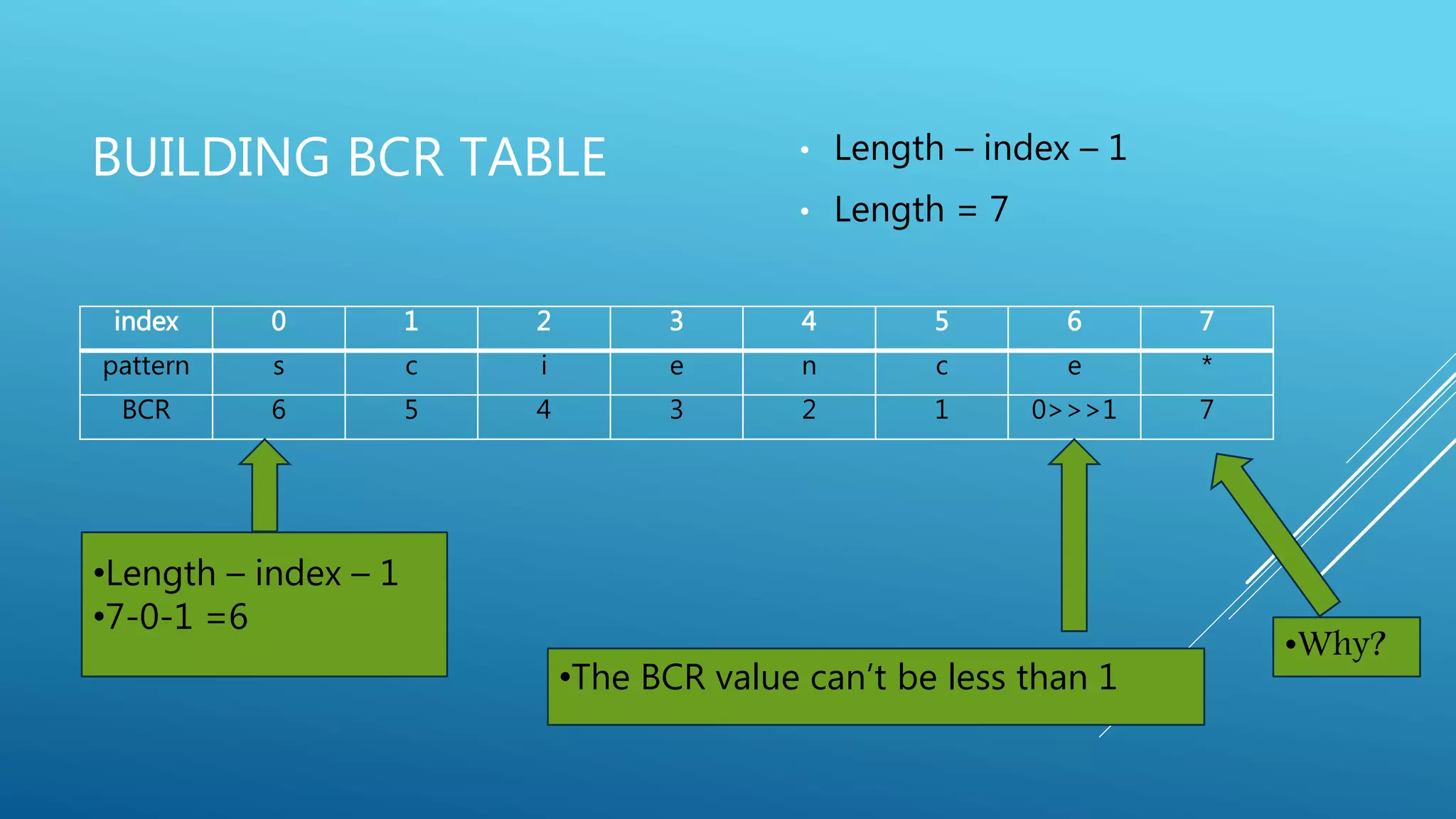

BUILDING BCR TABLE • Length – index – 1 • Length = 7 index 0 1 2 3 4 5 6 7 pattern s c i e n c e * BCR 6 5 4 3 2 1 0>>>1 7 •Length – index – 1 •7-0-1 =6 •The BCR value can’t be less than 1 •Why?

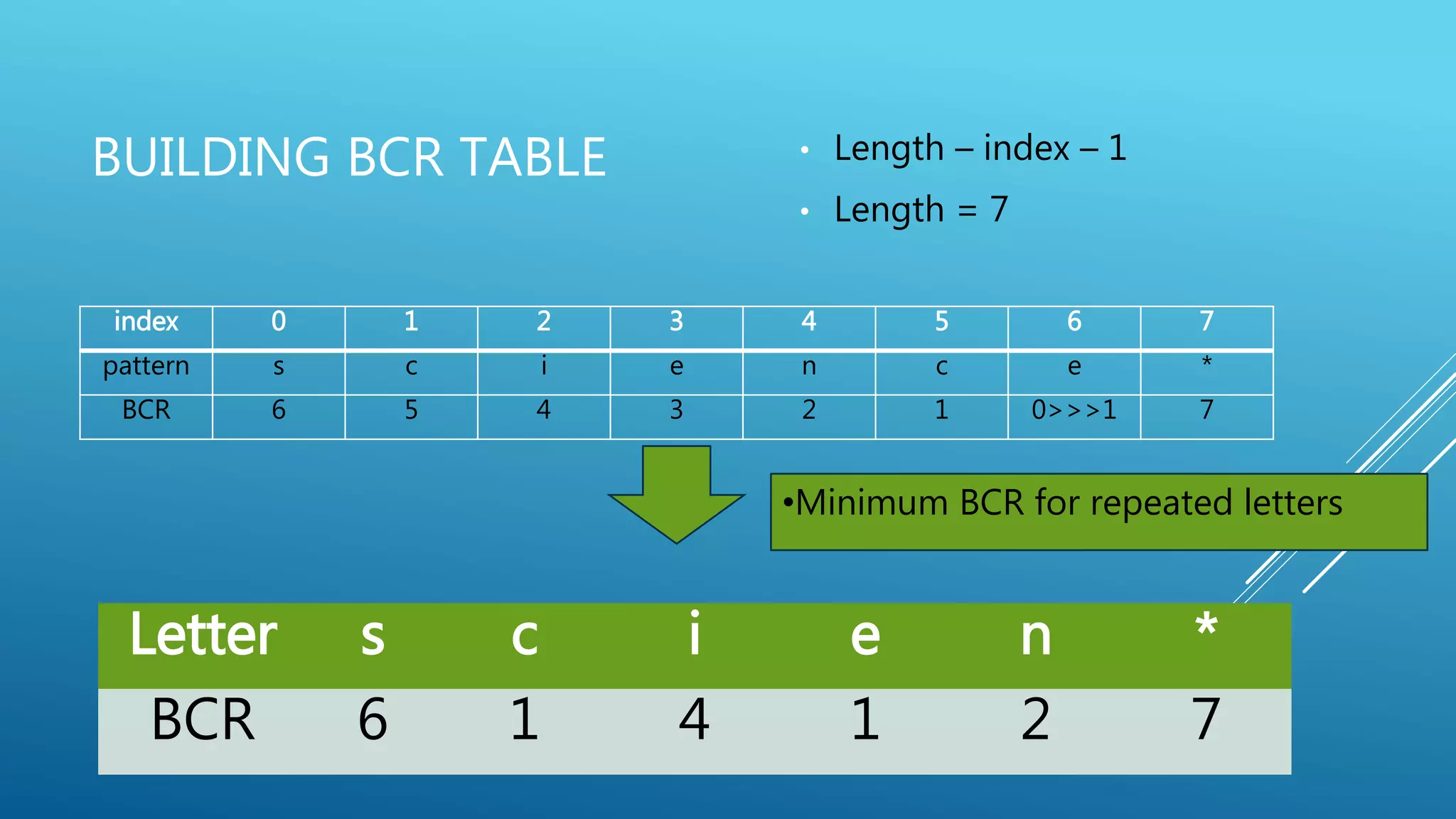

BUILDING BCR TABLE • Length – index – 1 • Length = 7 index 0 1 2 3 4 5 6 7 pattern s c i e n c e * BCR 6 5 4 3 2 1 0>>>1 7 •Minimum BCR for repeated letters Letter s c i e n * BCR 6 1 4 1 2 7

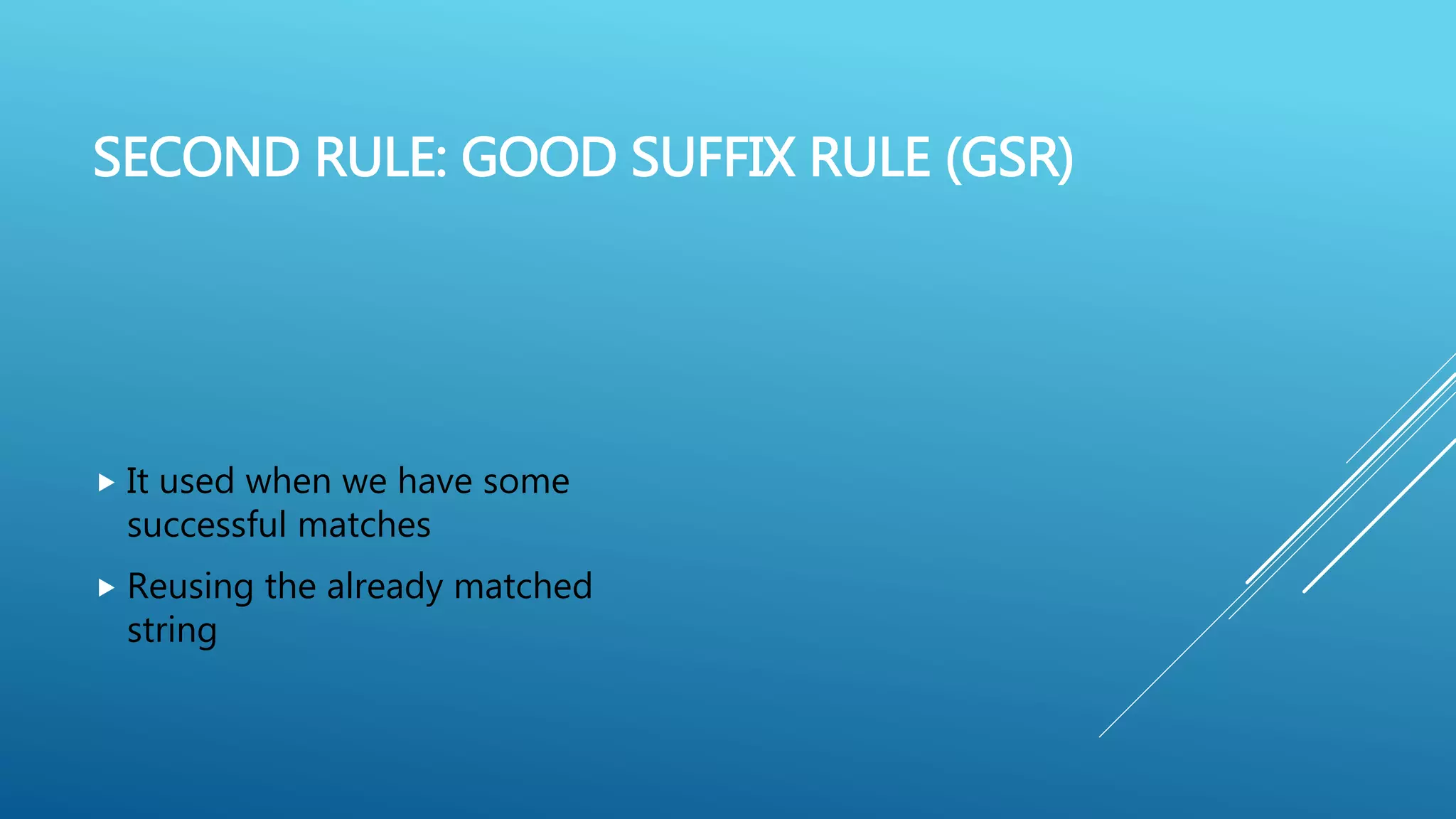

SECOND RULE: GOOD SUFFIX RULE (GSR)  It used when we have some successful matches  Reusing the already matched string

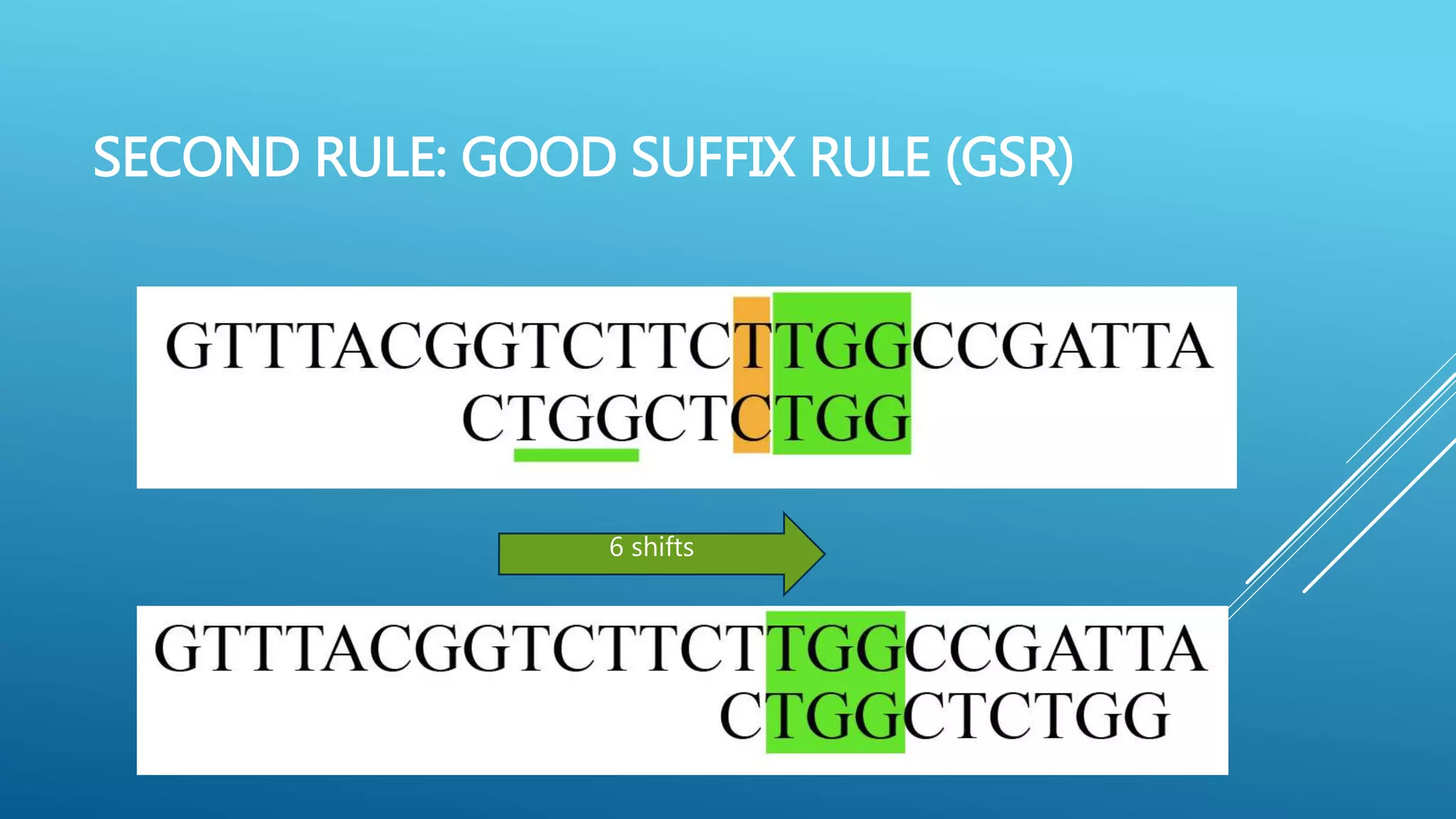

SECOND RULE: GOOD SUFFIX RULE (GSR) 6 shifts

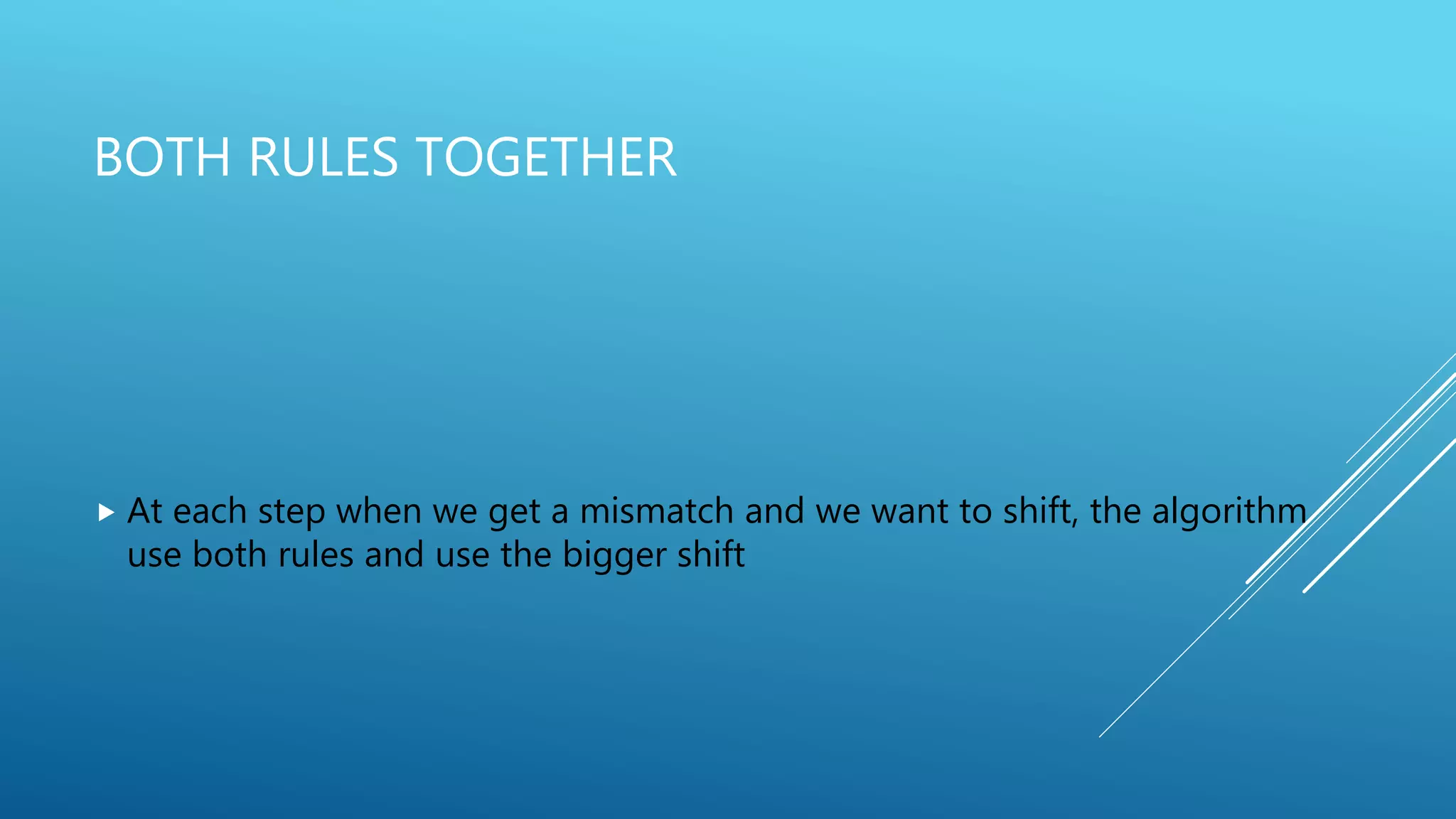

BOTH RULES TOGETHER  At each step when we get a mismatch and we want to shift, the algorithm use both rules and use the bigger shift

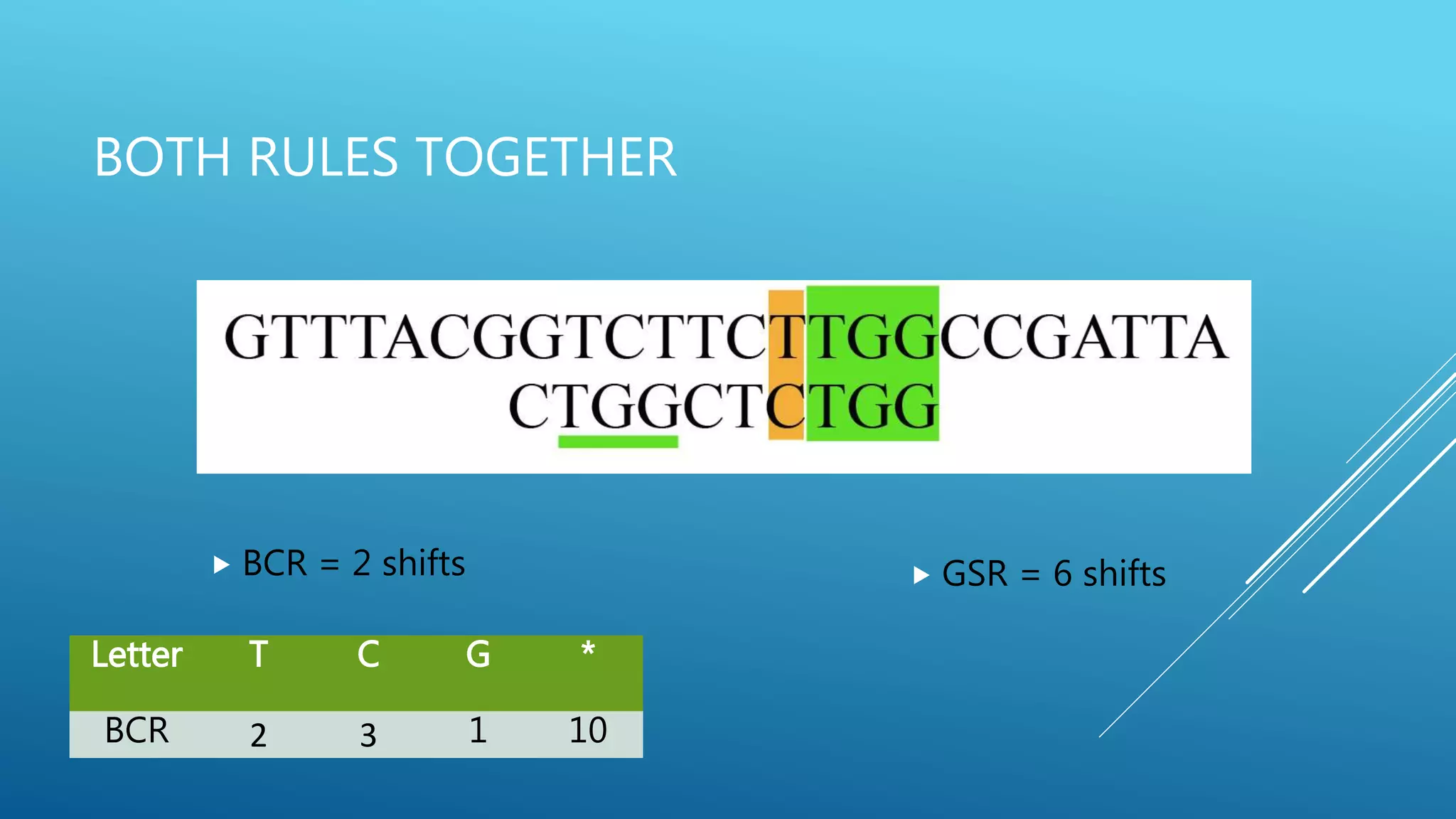

BOTH RULES TOGETHER Letter T C G * BCR 2 3 1 10  BCR = 2 shifts  GSR = 6 shifts

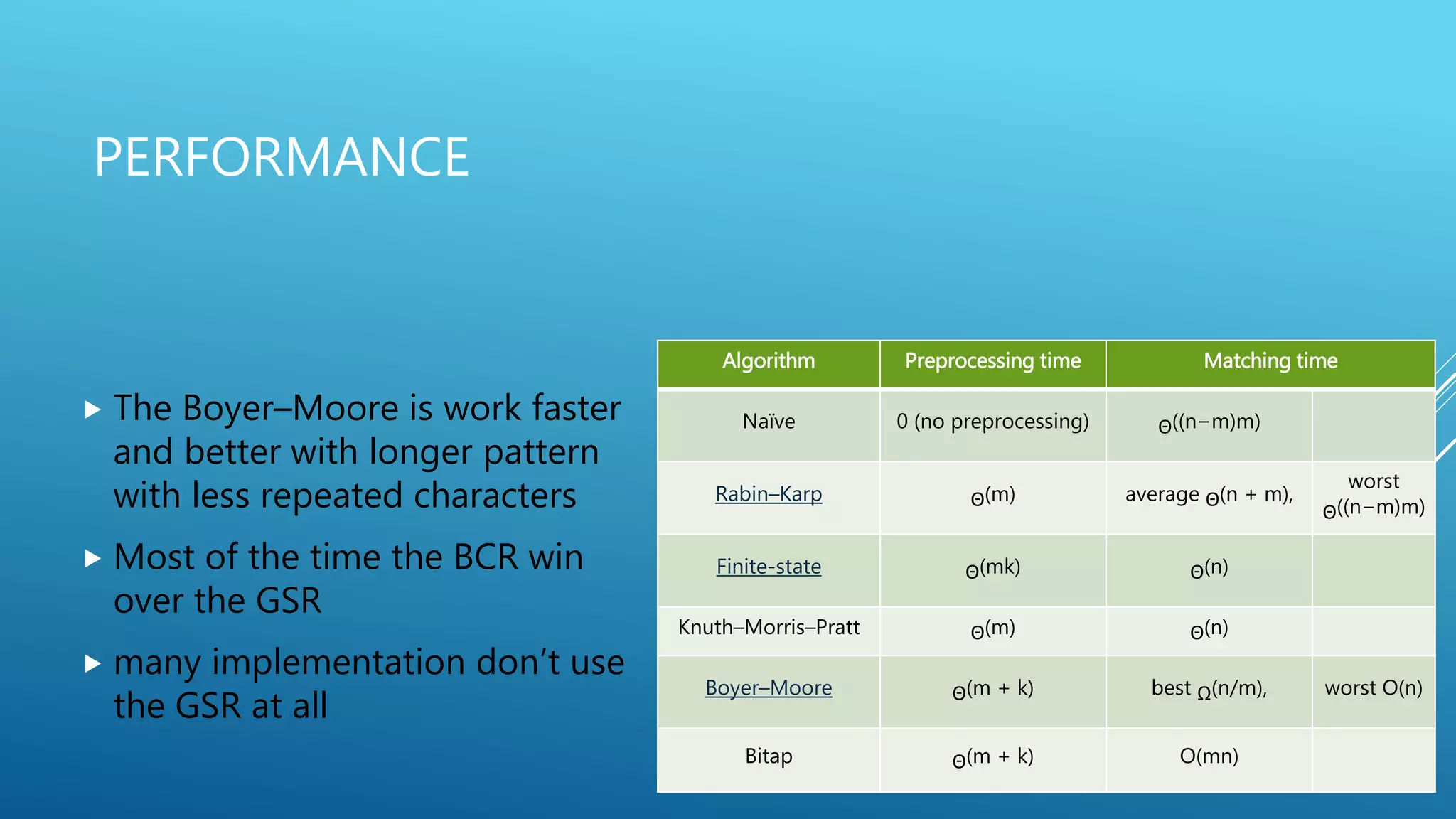

PERFORMANCE  The Boyer–Moore is work faster and better with longer pattern with less repeated characters  Most of the time the BCR win over the GSR  many implementation don’t use the GSR at all Algorithm Preprocessing time Matching time Naïve 0 (no preprocessing) Θ((n−m)m) Rabin–Karp Θ(m) average Θ(n + m), worst Θ((n−m)m) Finite-state Θ(mk) Θ(n) Knuth–Morris–Pratt Θ(m) Θ(n) Boyer–Moore Θ(m + k) best Ω(n/m), worst O(n) Bitap Θ(m + k) O(mn)

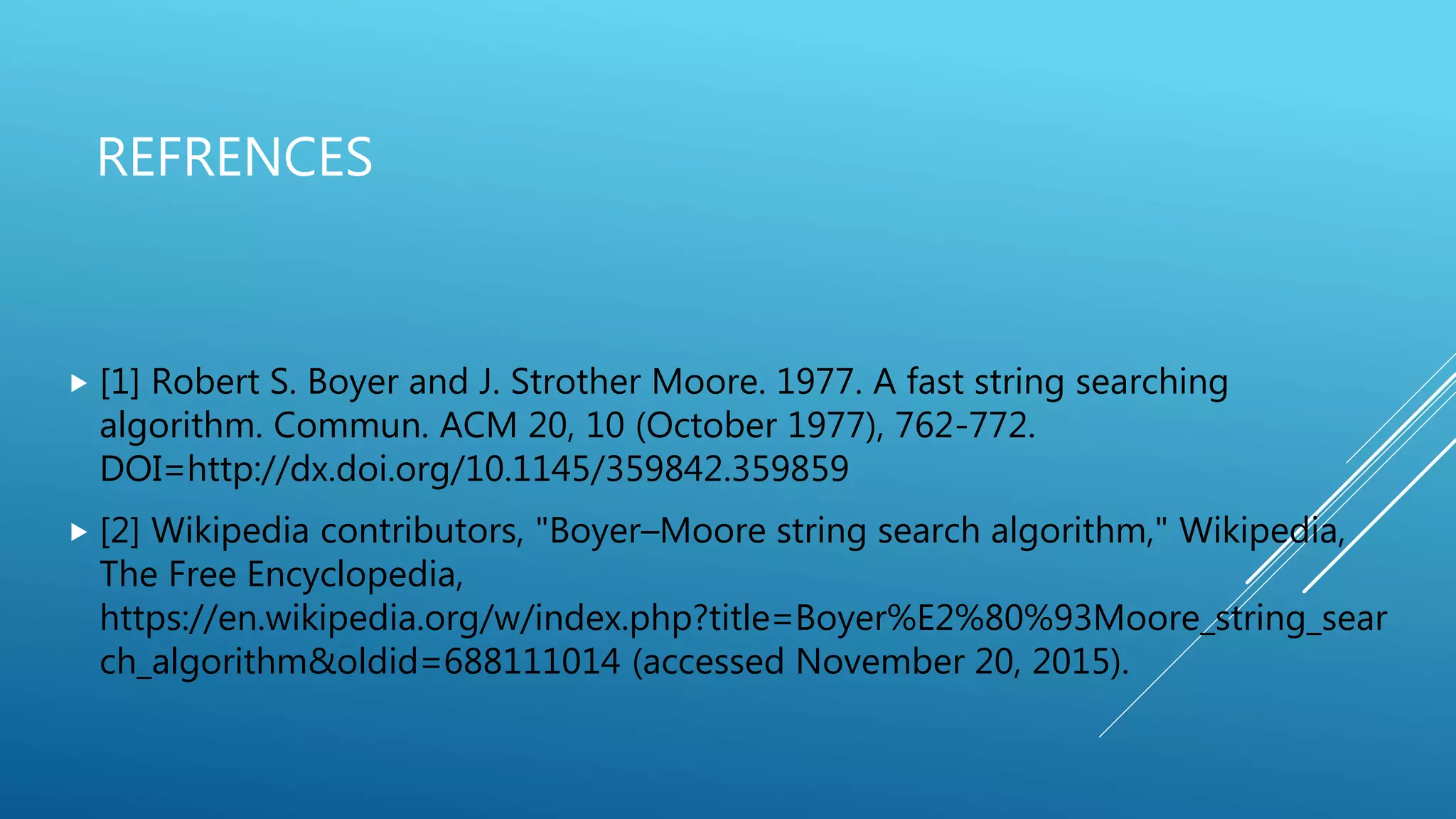

REFRENCES  [1] Robert S. Boyer and J. Strother Moore. 1977. A fast string searching algorithm. Commun. ACM 20, 10 (October 1977), 762-772. DOI=http://dx.doi.org/10.1145/359842.359859  [2] Wikipedia contributors, "Boyer–Moore string search algorithm," Wikipedia, The Free Encyclopedia, https://en.wikipedia.org/w/index.php?title=Boyer%E2%80%93Moore_string_sear ch_algorithm&oldid=688111014 (accessed November 20, 2015).
