• 1.
  PROJECT PRESENTATION ON Sumbittedby:- Abhishek Aman (19110128026) Aditya Dhanraj (19110128023) Ayush Kumar Pratik (19110128029) Raja Kumar (19110128044) Raushan Kumar(19110128031) Department of Electrical & Electronics Engineering Under the guidance of Proffesor Kumar Ask Department of Electrical an d electronics Autonomous Car
• 2.

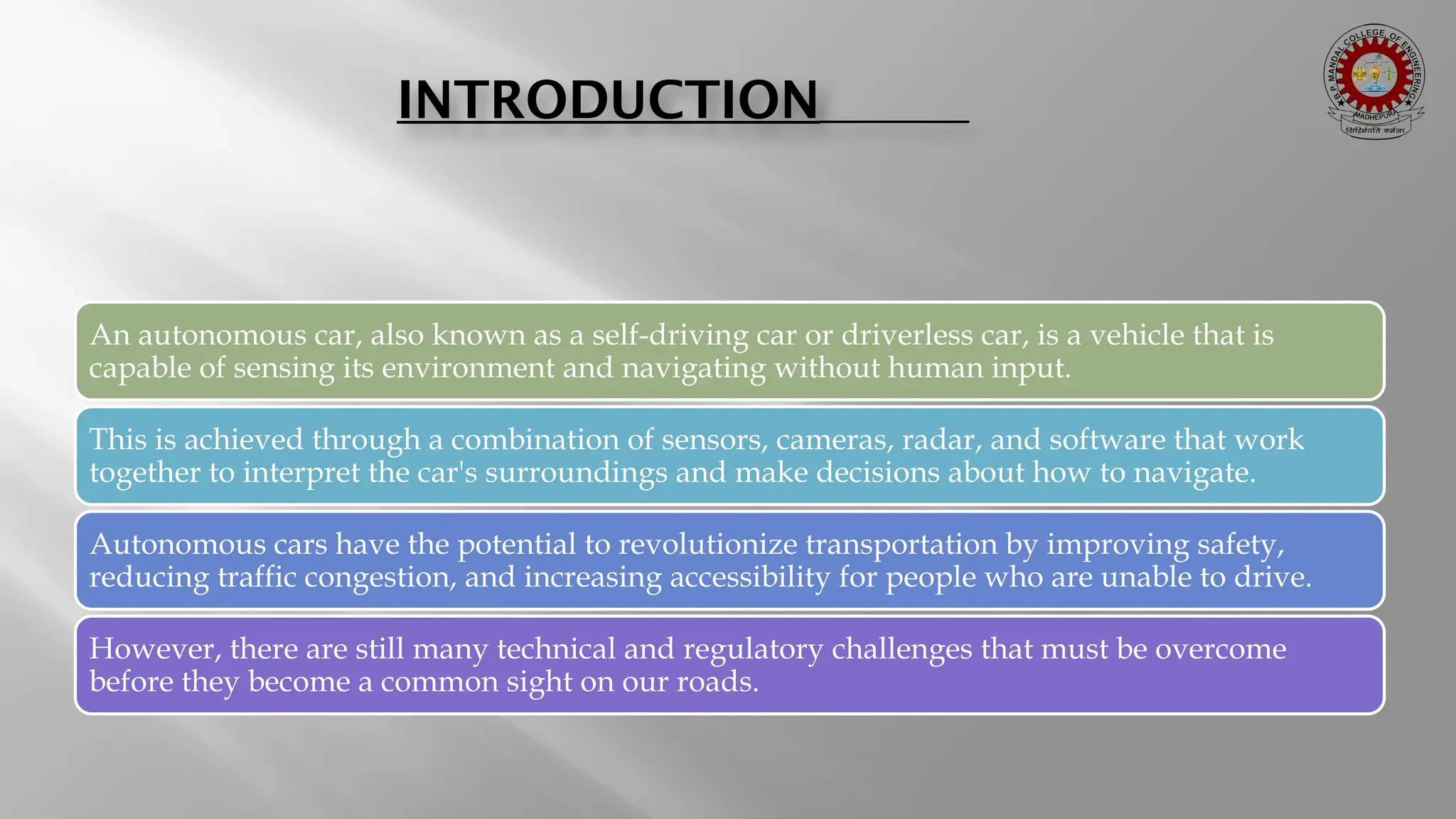

  INTRODUCTION An autonomous car,also known as a self-driving car or driverless car, is a vehicle that is capable of sensing its environment and navigating without human input. This is achieved through a combination of sensors, cameras, radar, and software that work together to interpret the car's surroundings and make decisions about how to navigate. Autonomous cars have the potential to revolutionize transportation by improving safety, reducing traffic congestion, and increasing accessibility for people who are unable to drive. However, there are still many technical and regulatory challenges that must be overcome before they become a common sight on our roads.
• 3.

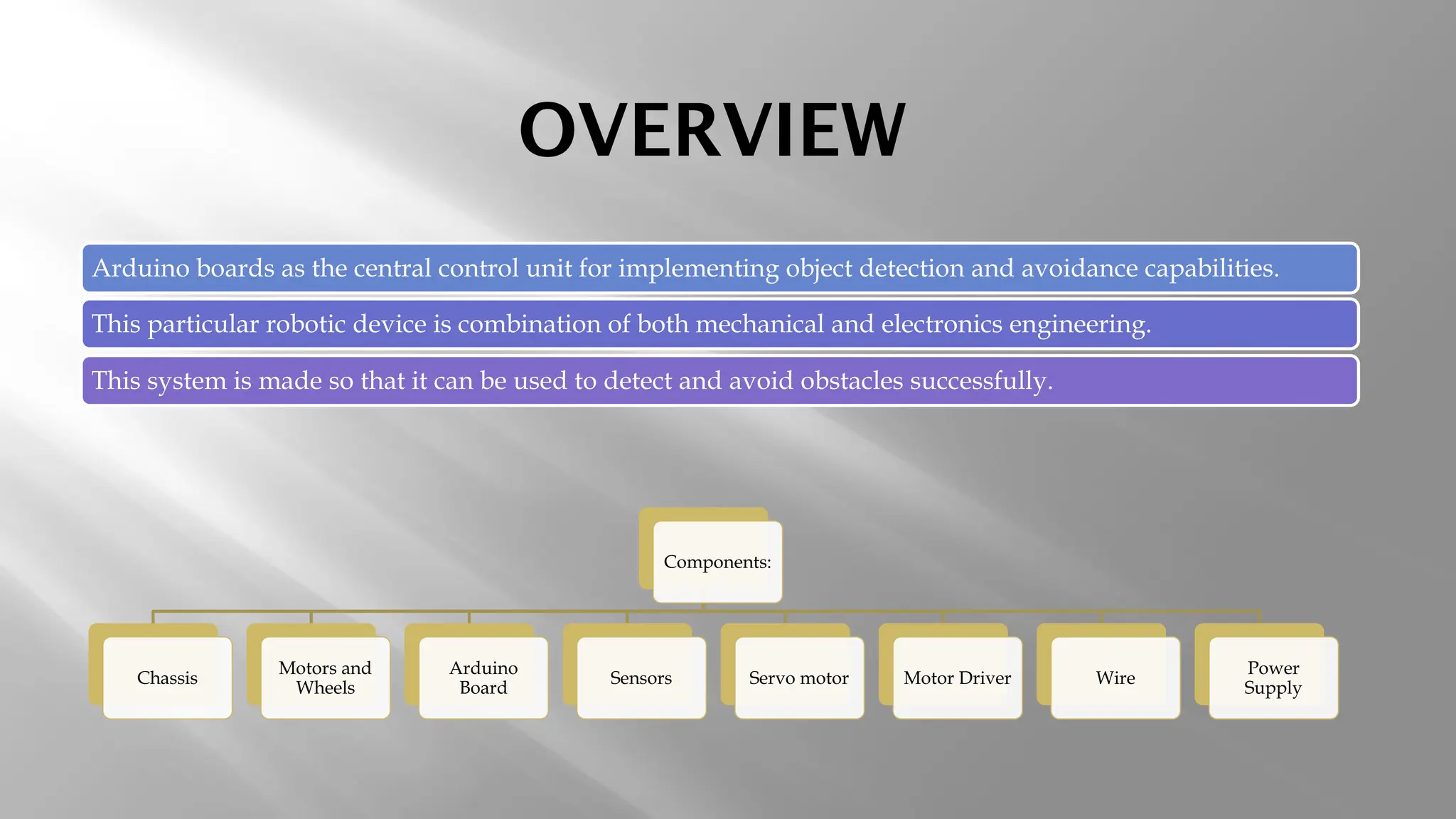

  OVERVIEW Components: Chassis Motors and Wheels Arduino Board Sensors Servomotor Motor Driver Wire Power Supply Arduino boards as the central control unit for implementing object detection and avoidance capabilities. This particular robotic device is combination of both mechanical and electronics engineering. This system is made so that it can be used to detect and avoid obstacles successfully.
• 4.

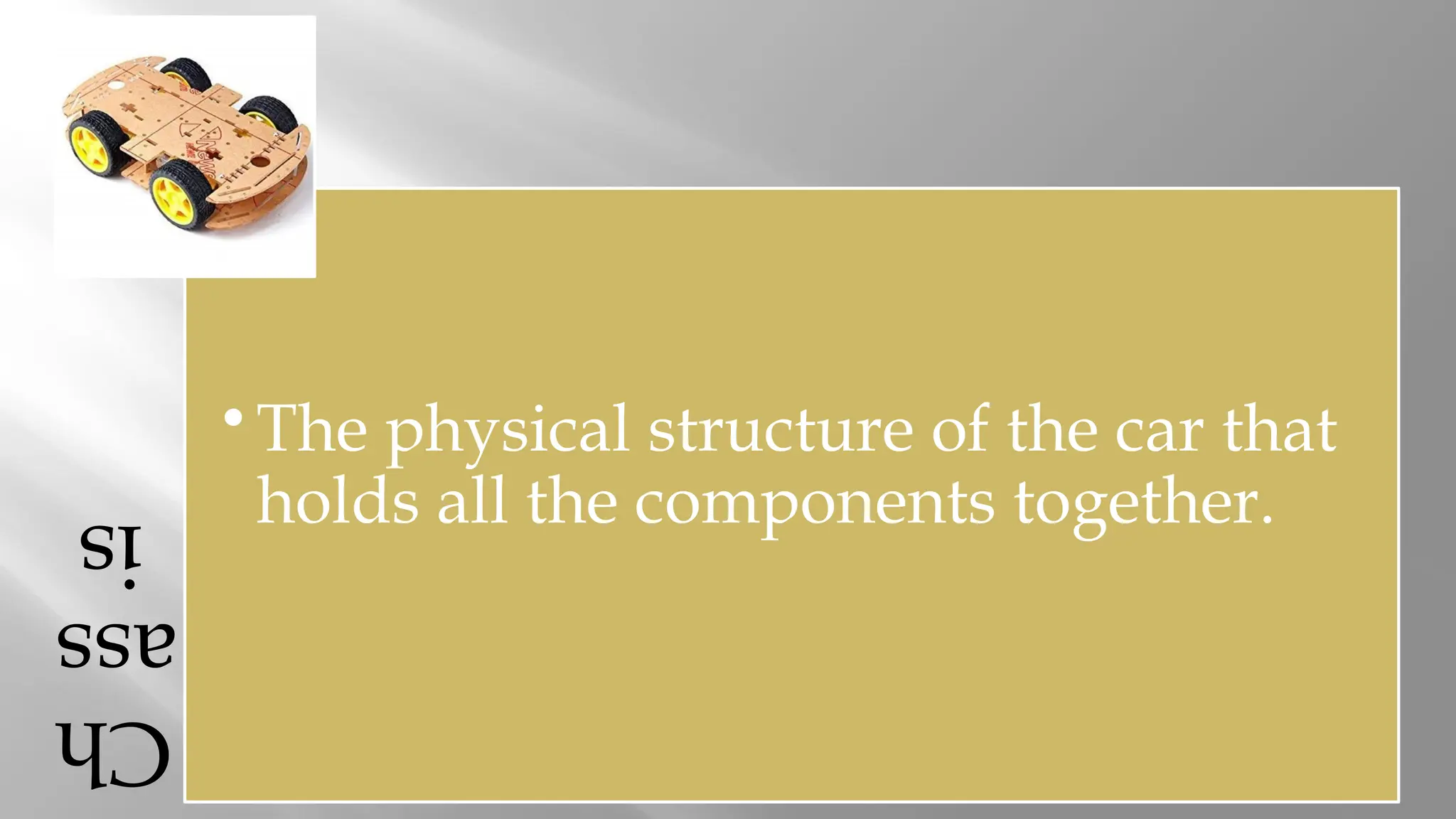

  Ch ass is • The physicalstructure of the car that holds all the components together.
• 5.

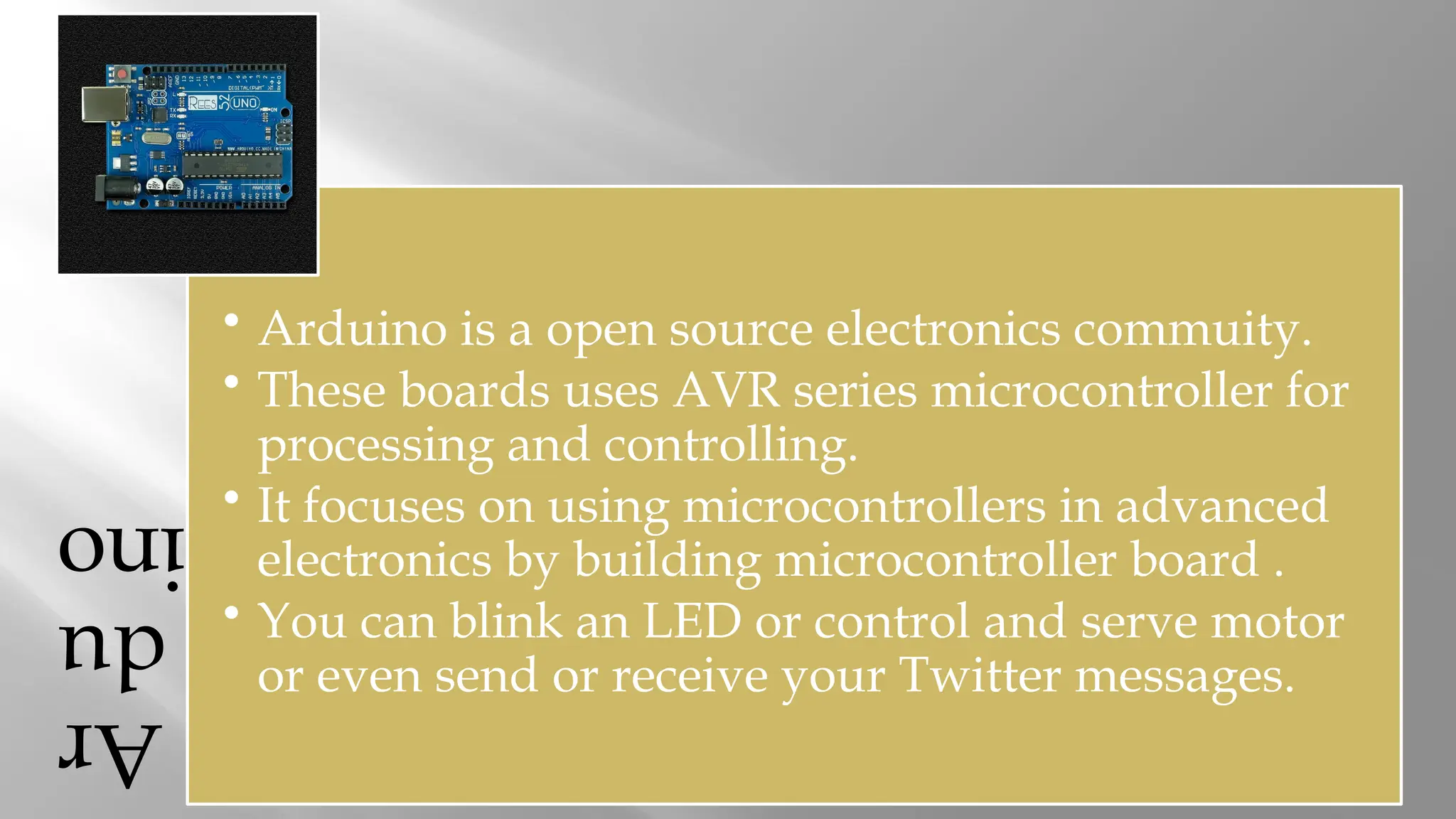

  Ar du ino • Arduino isa open source electronics commuity. • These boards uses AVR series microcontroller for processing and controlling. • It focuses on using microcontrollers in advanced electronics by building microcontroller board . • You can blink an LED or control and serve motor or even send or receive your Twitter messages.
• 6.

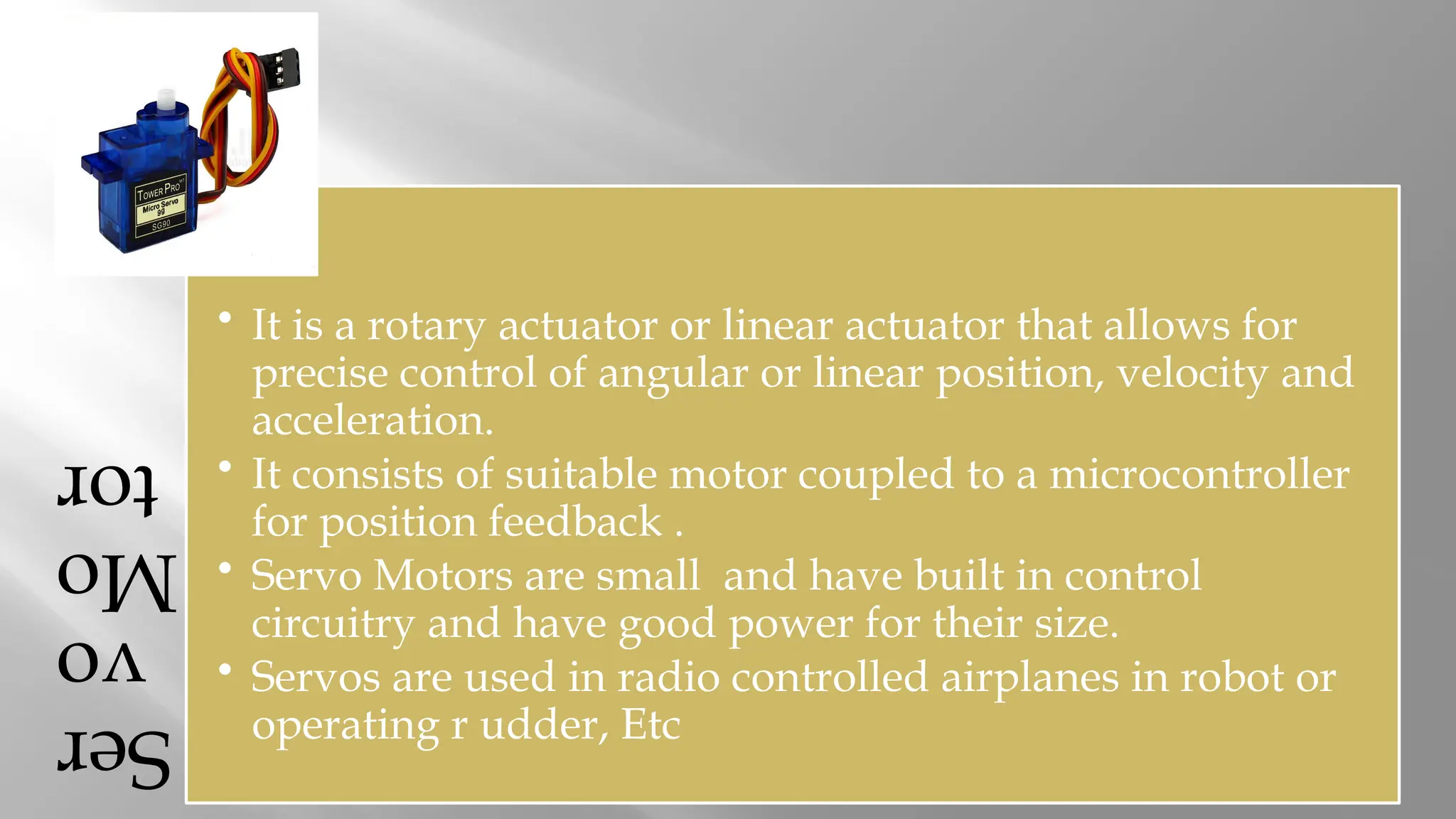

  Ser vo Mo tor • It isa rotary actuator or linear actuator that allows for precise control of angular or linear position, velocity and acceleration. • It consists of suitable motor coupled to a microcontroller for position feedback . • Servo Motors are small and have built in control circuitry and have good power for their size. • Servos are used in radio controlled airplanes in robot or operating r udder, Etc
• 7.

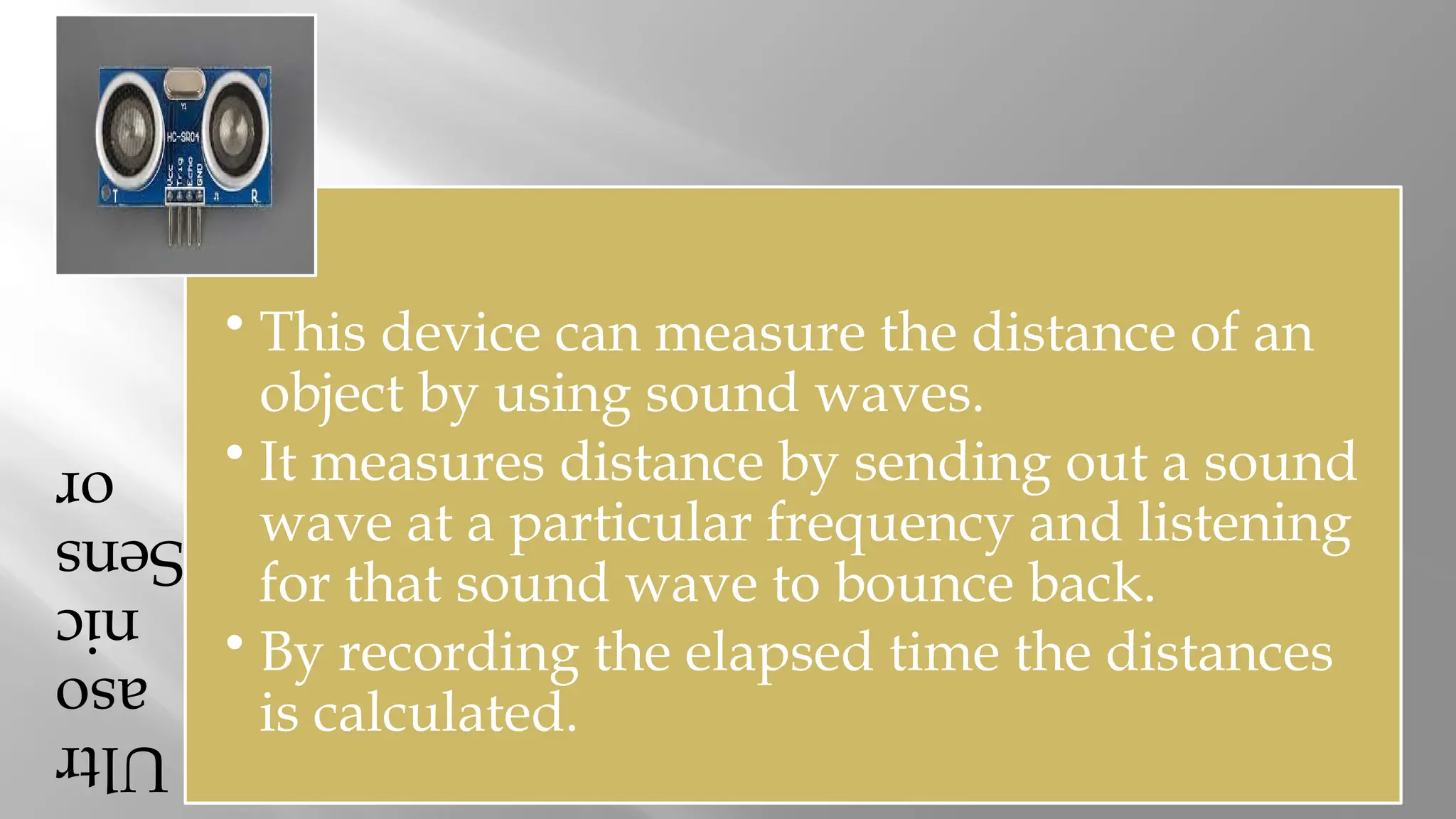

  Ultr aso nic Sens or • This devicecan measure the distance of an object by using sound waves. • It measures distance by sending out a sound wave at a particular frequency and listening for that sound wave to bounce back. • By recording the elapsed time the distances is calculated.
• 8.

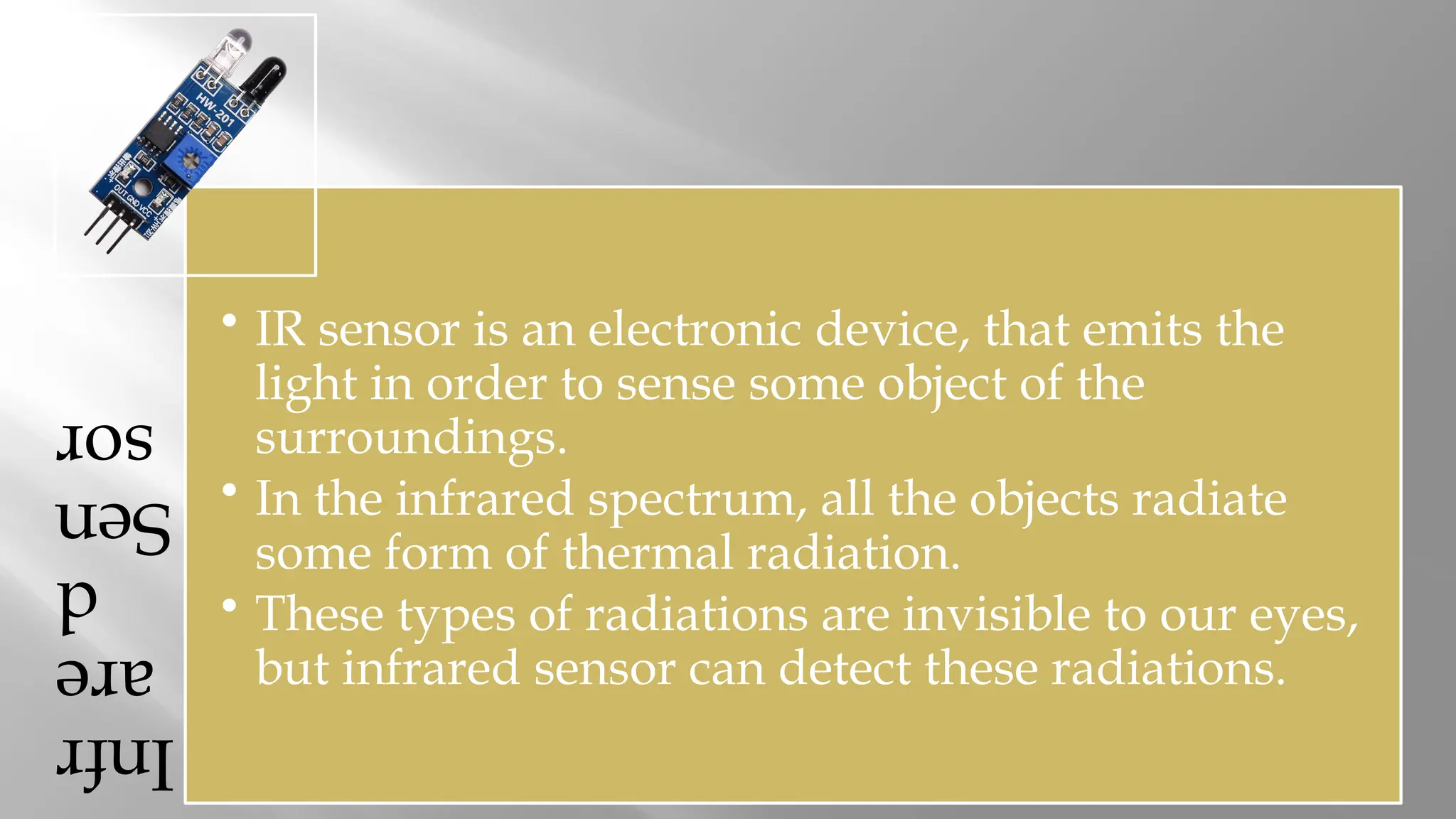

  Infr are d Sen sor • IR sensoris an electronic device, that emits the light in order to sense some object of the surroundings. • In the infrared spectrum, all the objects radiate some form of thermal radiation. • These types of radiations are invisible to our eyes, but infrared sensor can detect these radiations.
• 9.

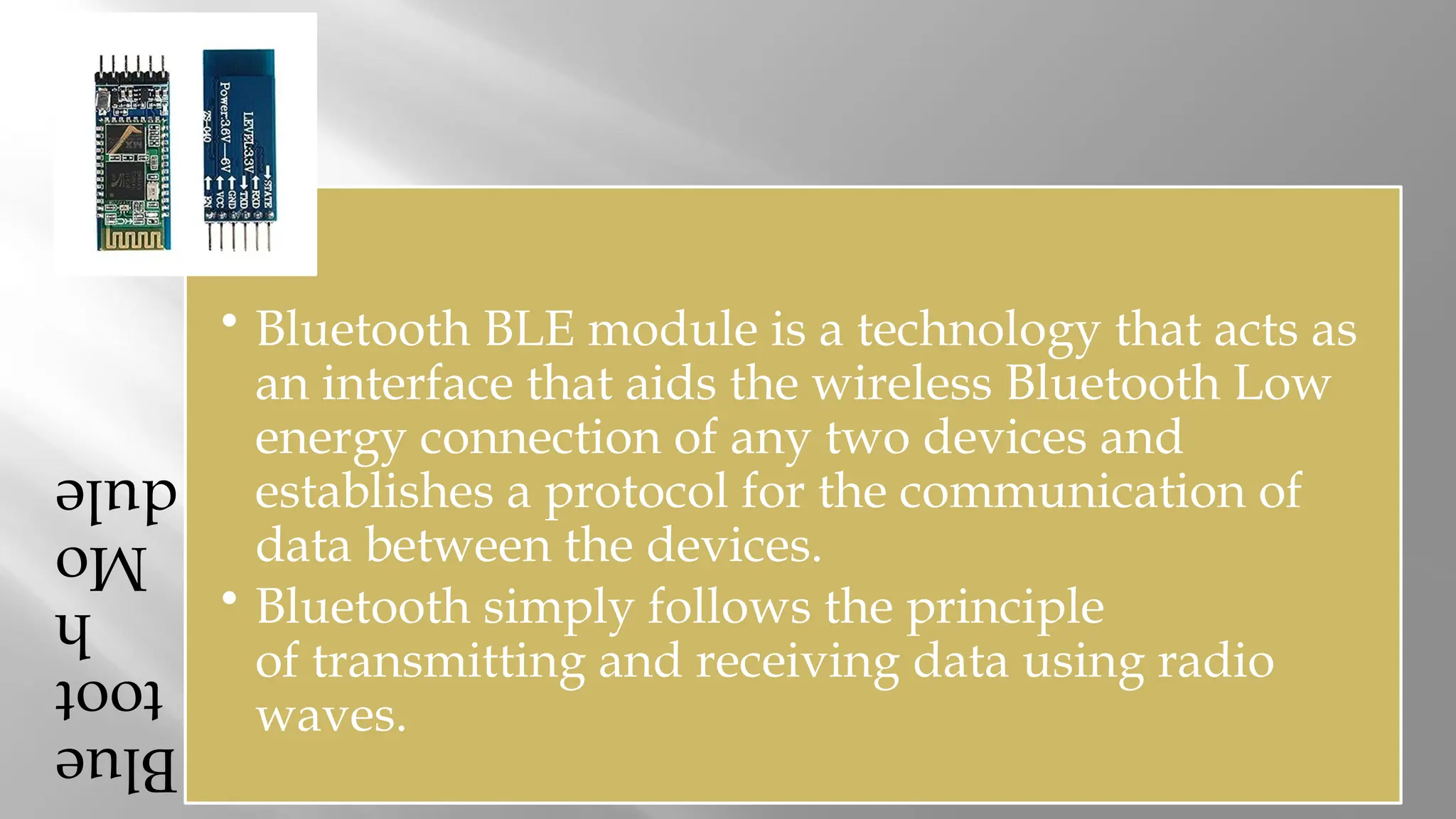

  Blue toot h Mo dule • Bluetooth BLEmodule is a technology that acts as an interface that aids the wireless Bluetooth Low energy connection of any two devices and establishes a protocol for the communication of data between the devices. • Bluetooth simply follows the principle of transmitting and receiving data using radio waves.
• 10.

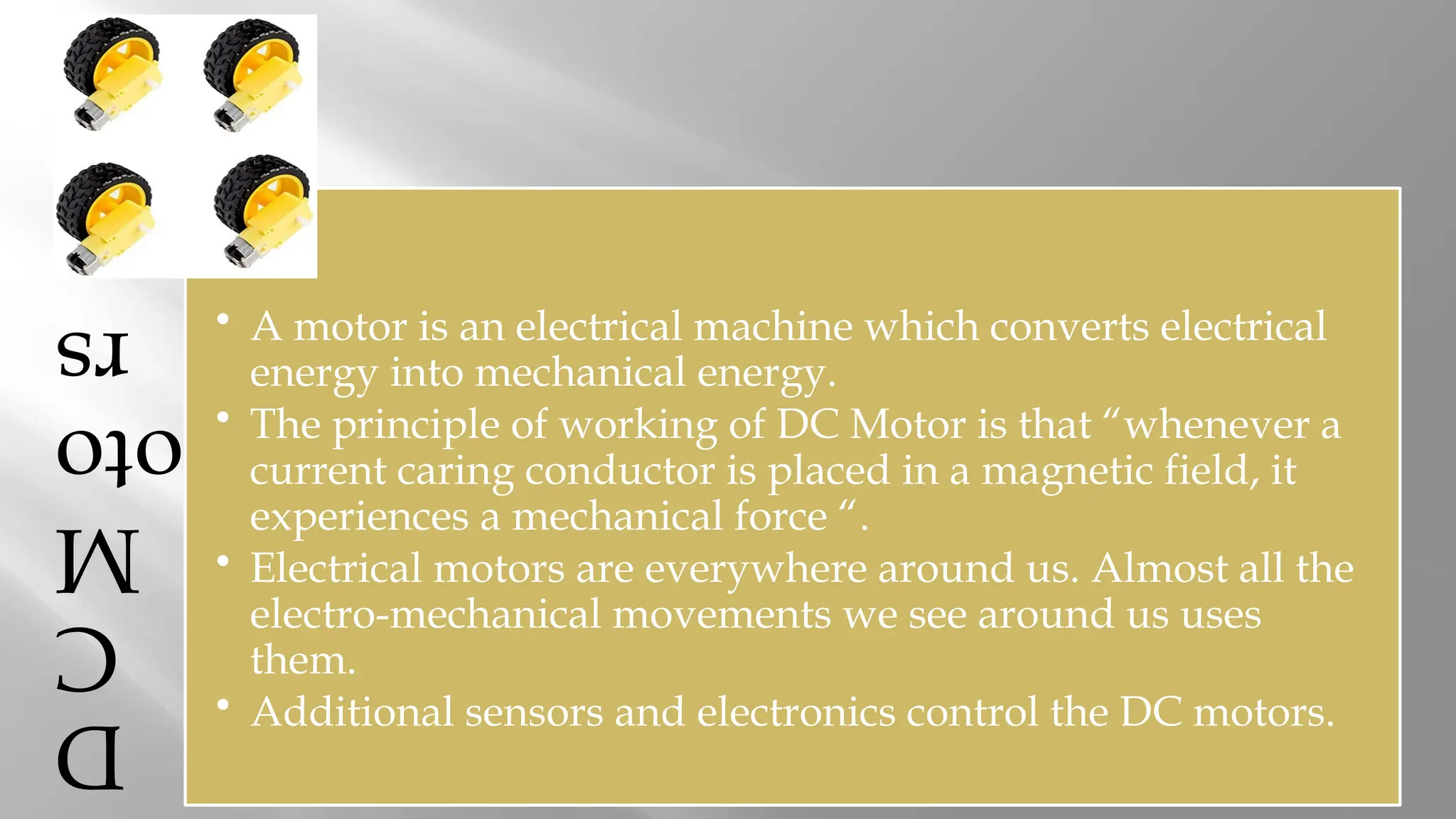

  D C M oto rs • Amotor is an electrical machine which converts electrical energy into mechanical energy. • The principle of working of DC Motor is that “whenever a current caring conductor is placed in a magnetic field, it experiences a mechanical force “. • Electrical motors are everywhere around us. Almost all the electro-mechanical movements we see around us uses them. • Additional sensors and electronics control the DC motors.
• 11.

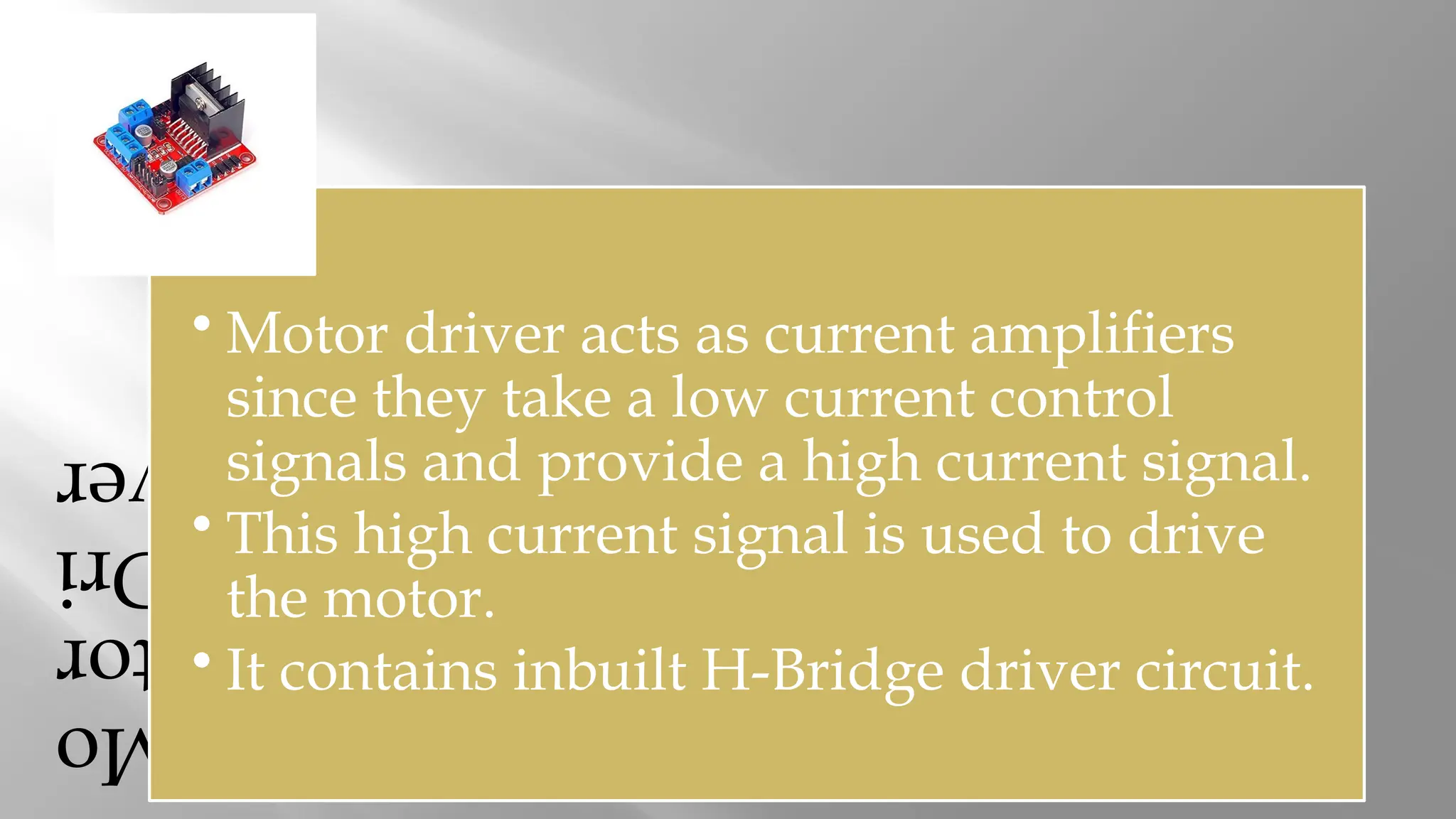

  Mo tor Dri ver • Motor driveracts as current amplifiers since they take a low current control signals and provide a high current signal. • This high current signal is used to drive the motor. • It contains inbuilt H-Bridge driver circuit.
• 12.

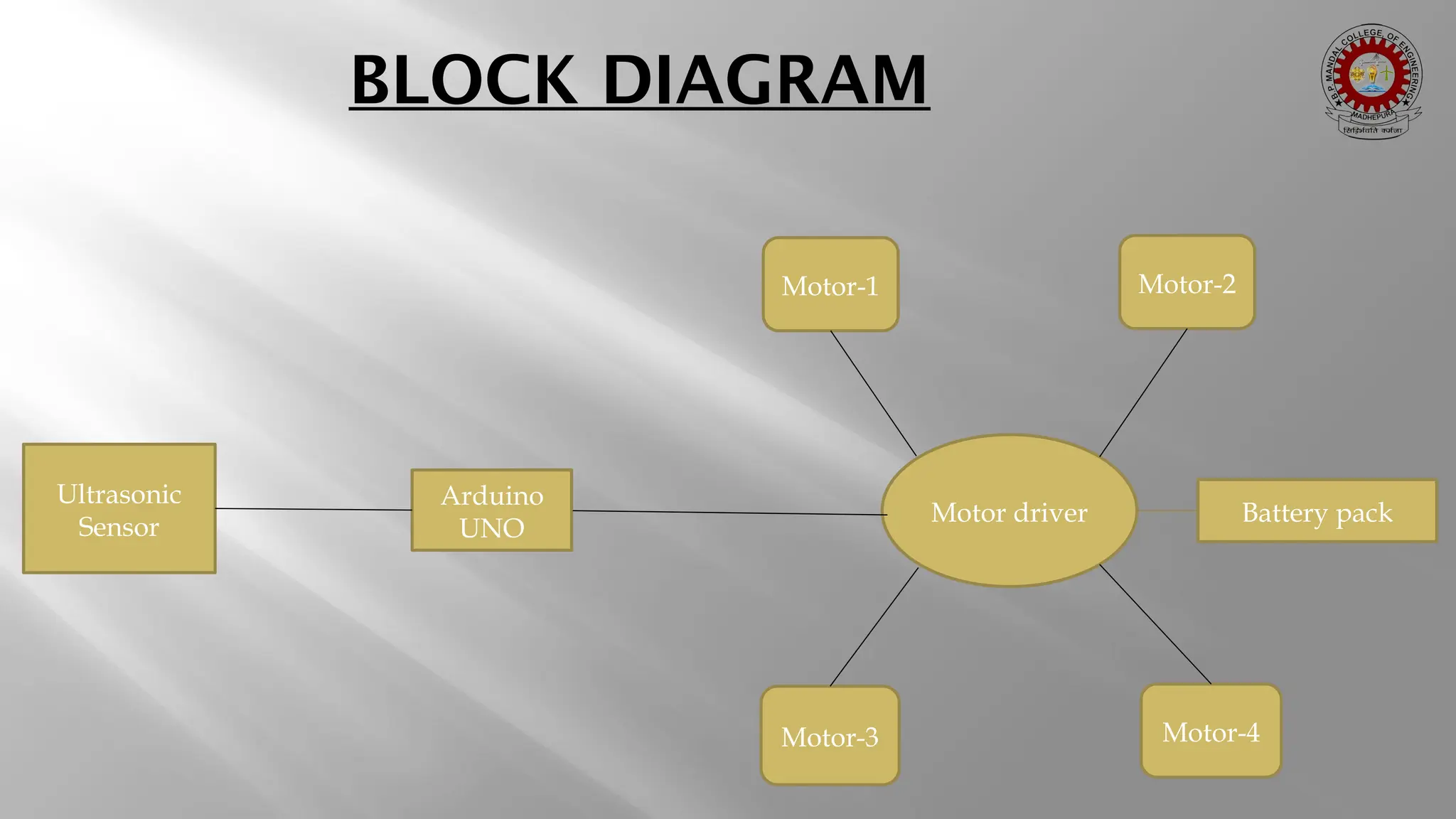

  BLOCK DIAGRAM Ultrasonic Sensor Arduino UNO Battery pack Motor-3Motor-4 Motor-2 Motor-1 Motor driver
• 13.

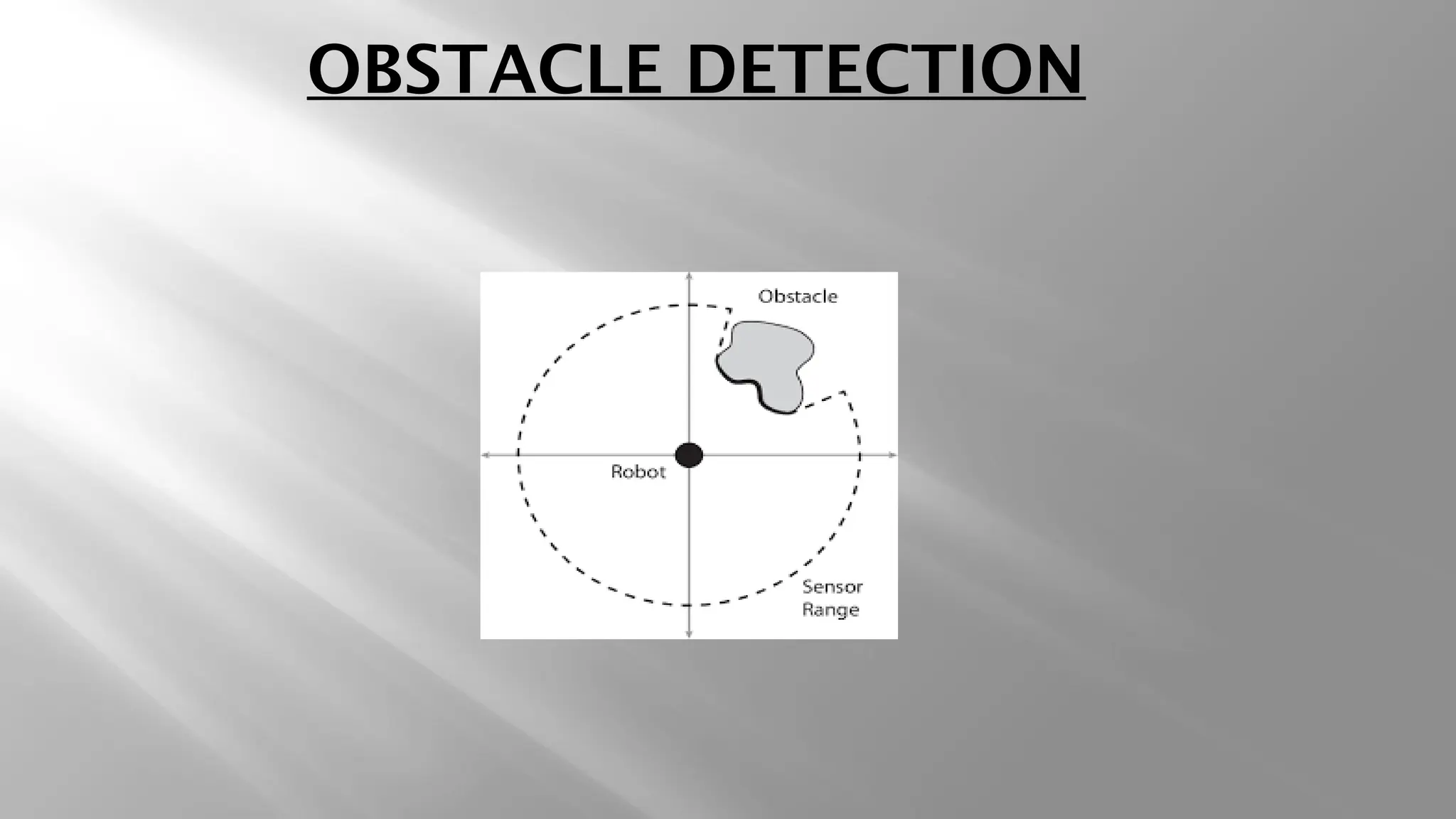

  OBSTACLE DETECTION
• 14.

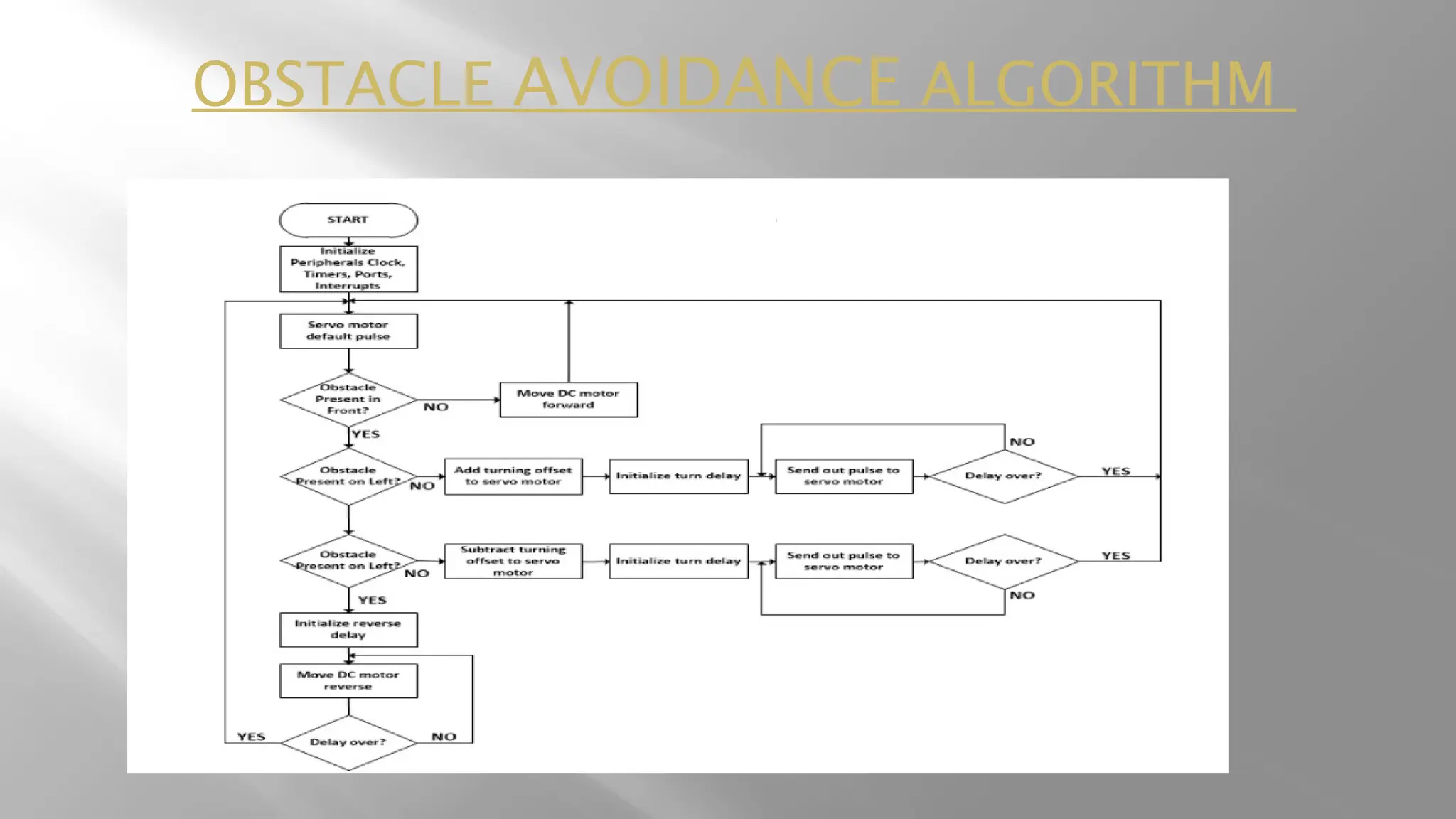

  OBSTACLE AVOIDANCE ALGORITHM
• 15.

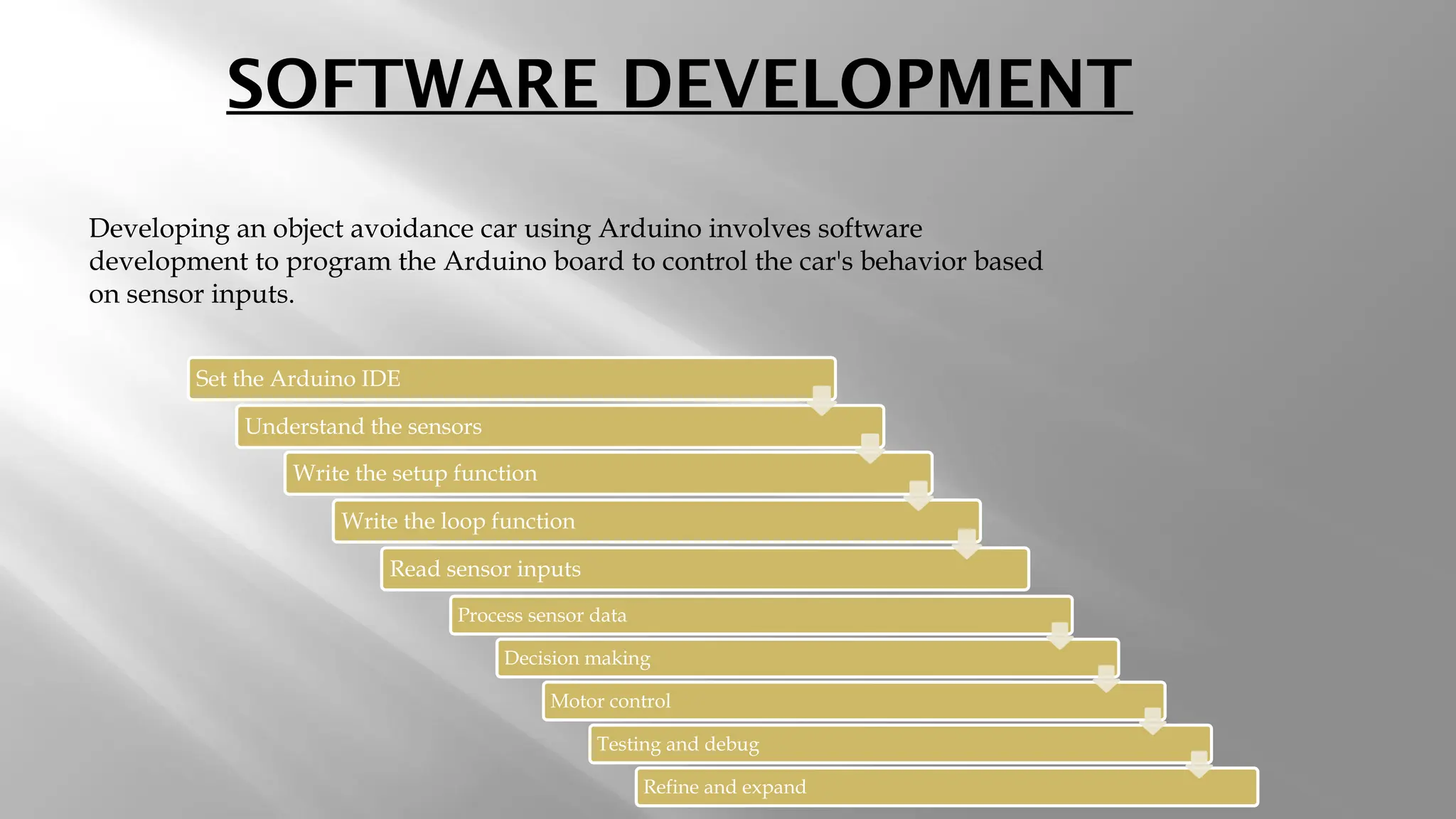

  SOFTWARE DEVELOPMENT Set theArduino IDE Understand the sensors Write the setup function Write the loop function Read sensor inputs Process sensor data Decision making Motor control Testing and debug Refine and expand Developing an object avoidance car using Arduino involves software development to program the Arduino board to control the car's behavior based on sensor inputs.
• 16.

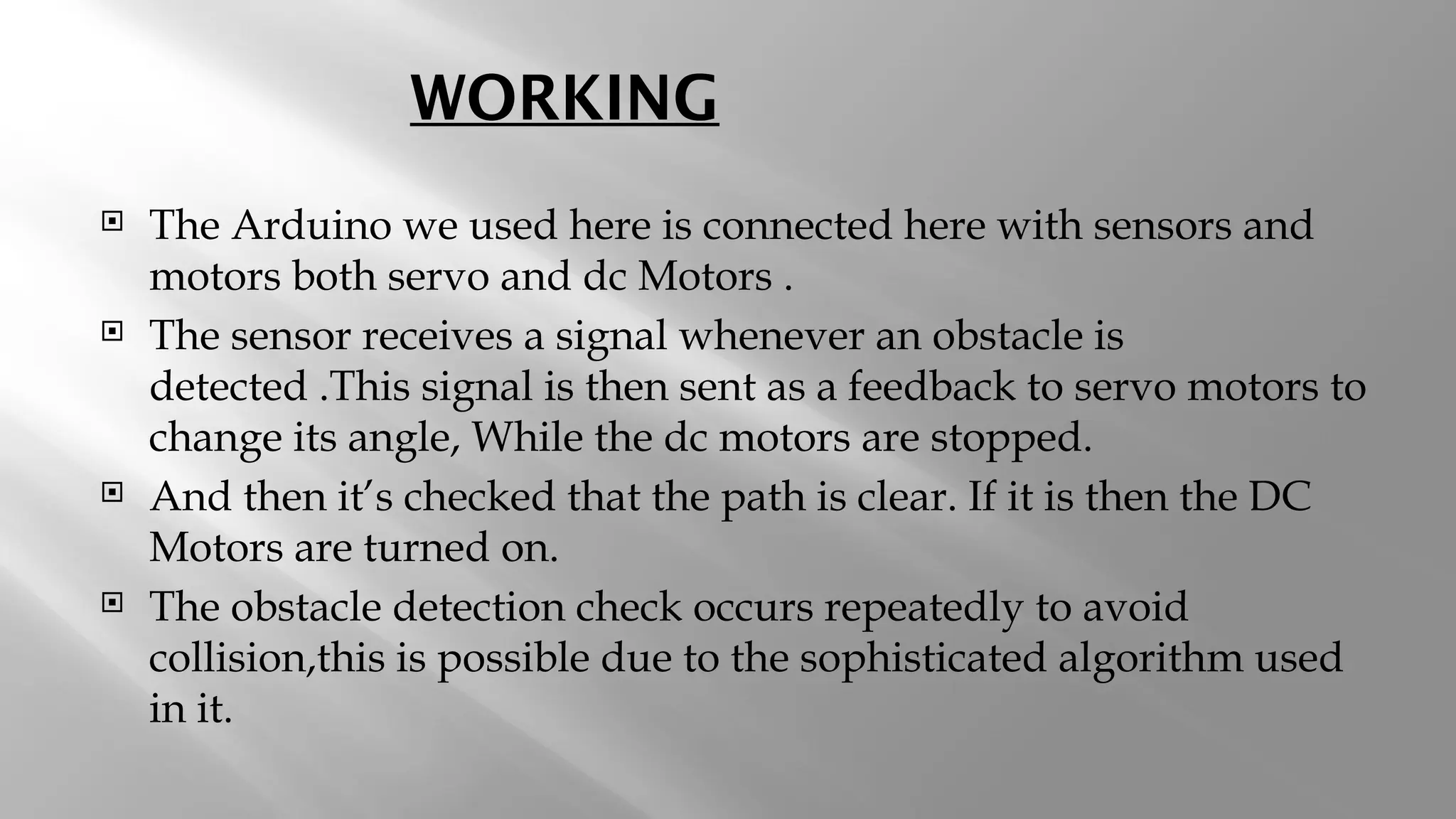

  WORKING  The Arduinowe used here is connected here with sensors and motors both servo and dc Motors .  The sensor receives a signal whenever an obstacle is detected .This signal is then sent as a feedback to servo motors to change its angle, While the dc motors are stopped.  And then it’s checked that the path is clear. If it is then the DC Motors are turned on.  The obstacle detection check occurs repeatedly to avoid collision,this is possible due to the sophisticated algorithm used in it.
• 17.

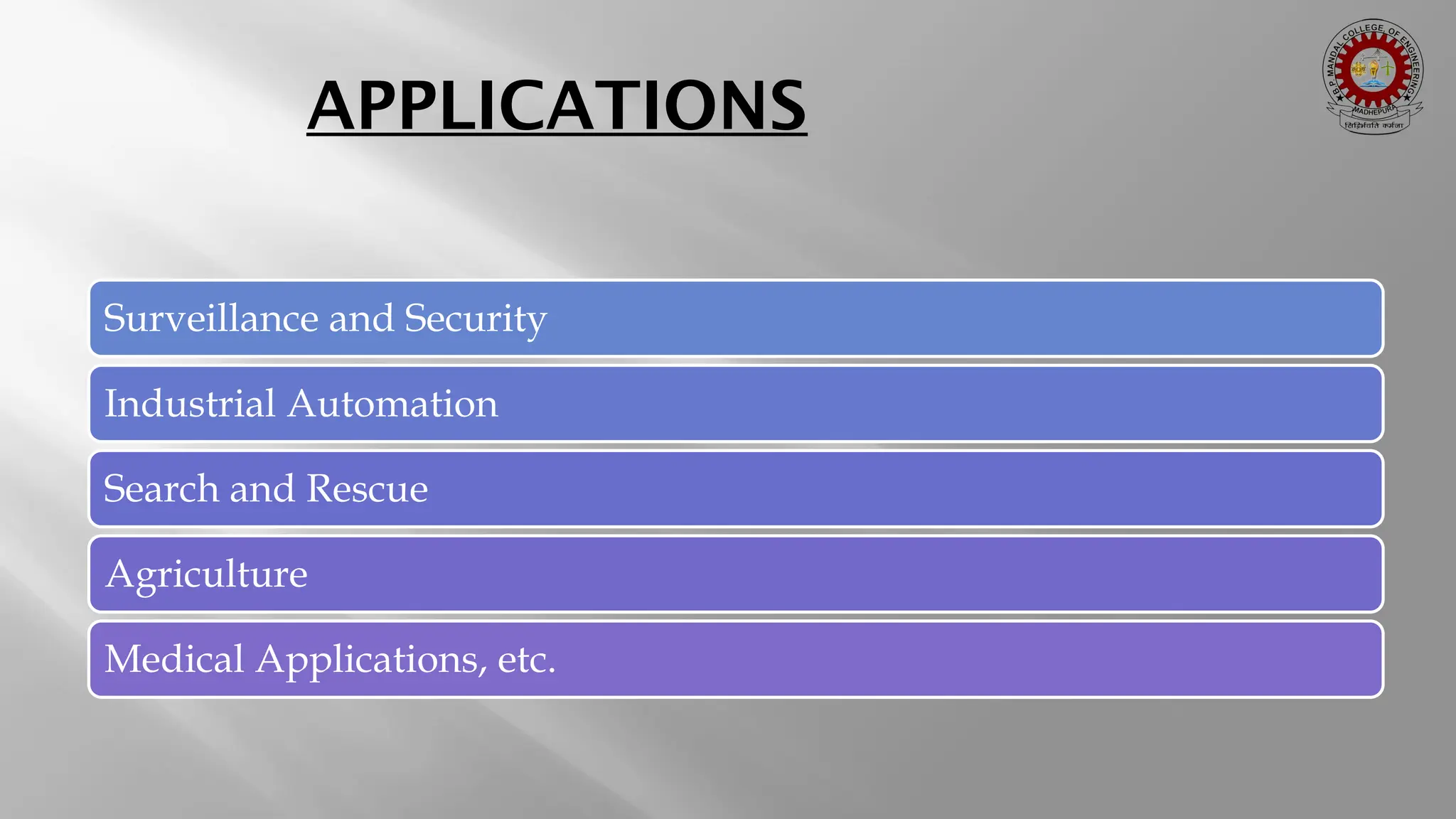

  APPLICATIONS Surveillance and Security IndustrialAutomation Search and Rescue Agriculture Medical Applications, etc.
• 18.
  Result
• 19.

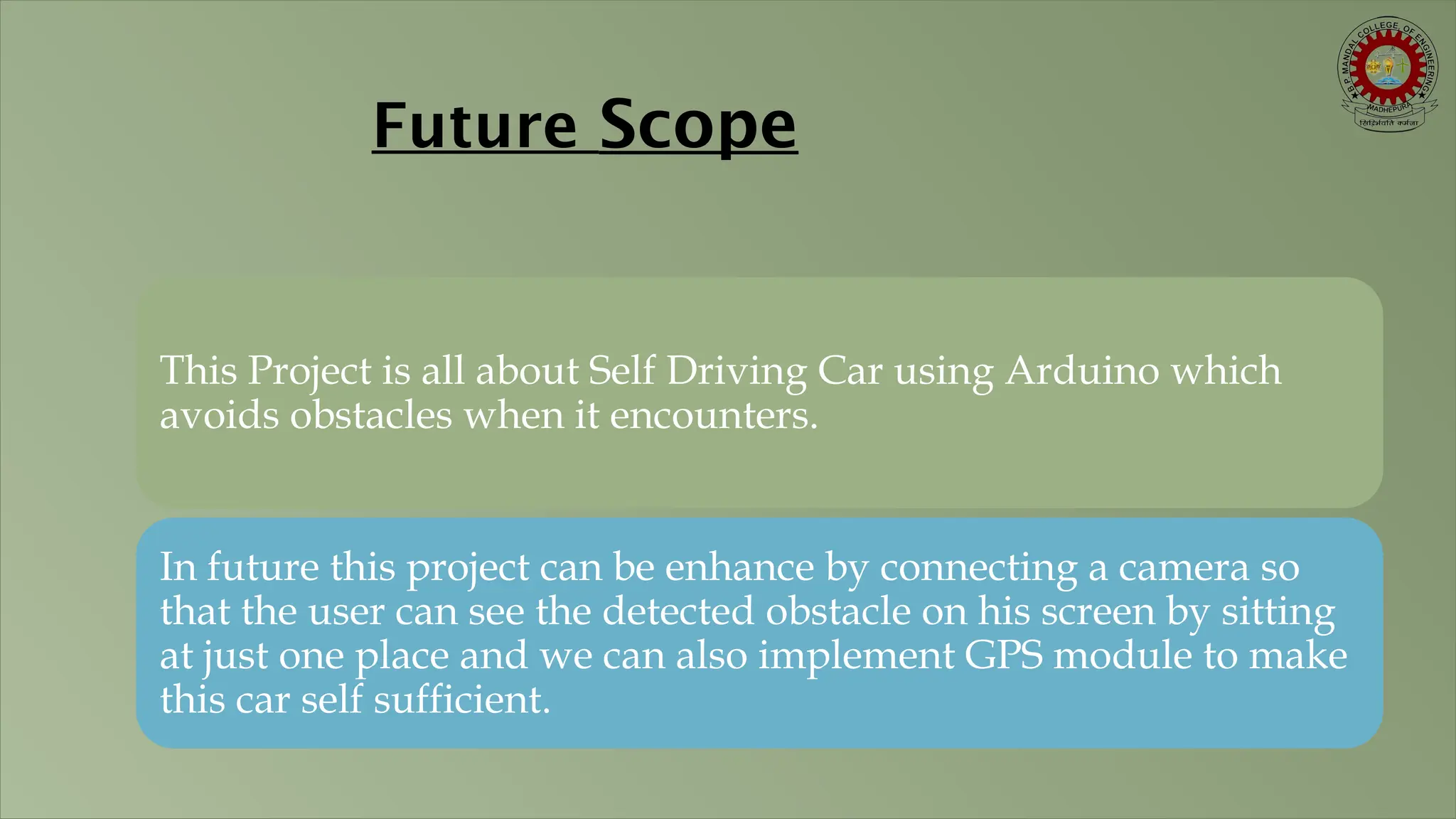

  Future Scope This Projectis all about Self Driving Car using Arduino which avoids obstacles when it encounters. In future this project can be enhance by connecting a camera so that the user can see the detected obstacle on his screen by sitting at just one place and we can also implement GPS module to make this car self sufficient.
• 20.
  Thank You
