Arduino delphi 2014_7_bonn
This document discusses connecting sensors and actuators to an Arduino board and controlling them through an HTTP server or COM port. It provides examples of coding an HTTP server and COM port control to turn an LED on and off from a web request or serial command. It also mentions using a starter kit to learn electronics and Arduino basics and provides several links for additional information on Arduino, Web of Things, software patterns, and other related topics.
Arduino delphi 2014_7_bonn
- 1. Es werde Lichtmit Arduino Yes, we scan… http://en.wikipedia.org/wiki/Web_of_Things Max Kleiner Script: 510_bonn_gpsdata_mX4.pas
- 2. World of Things are changing (Web of Things) 2 • You deal with physics and elements (xyz) • Lots of sensors & actuators to solder • Memory/energy on ucontroller is very small • Which Casing…, ex. 336_digiclock_3.txt • Push a Session or pull a Service ? • Call it Client to Device Ident (CD Host) • Which Use Case ex. App or DigiCam? http://en.wikipedia.org/wiki/Anti-pattern A Short History of Time 1991 Application Program 1995 Application 1998 Applet 2010 App 2015 A (Android, Arduino, ARM)

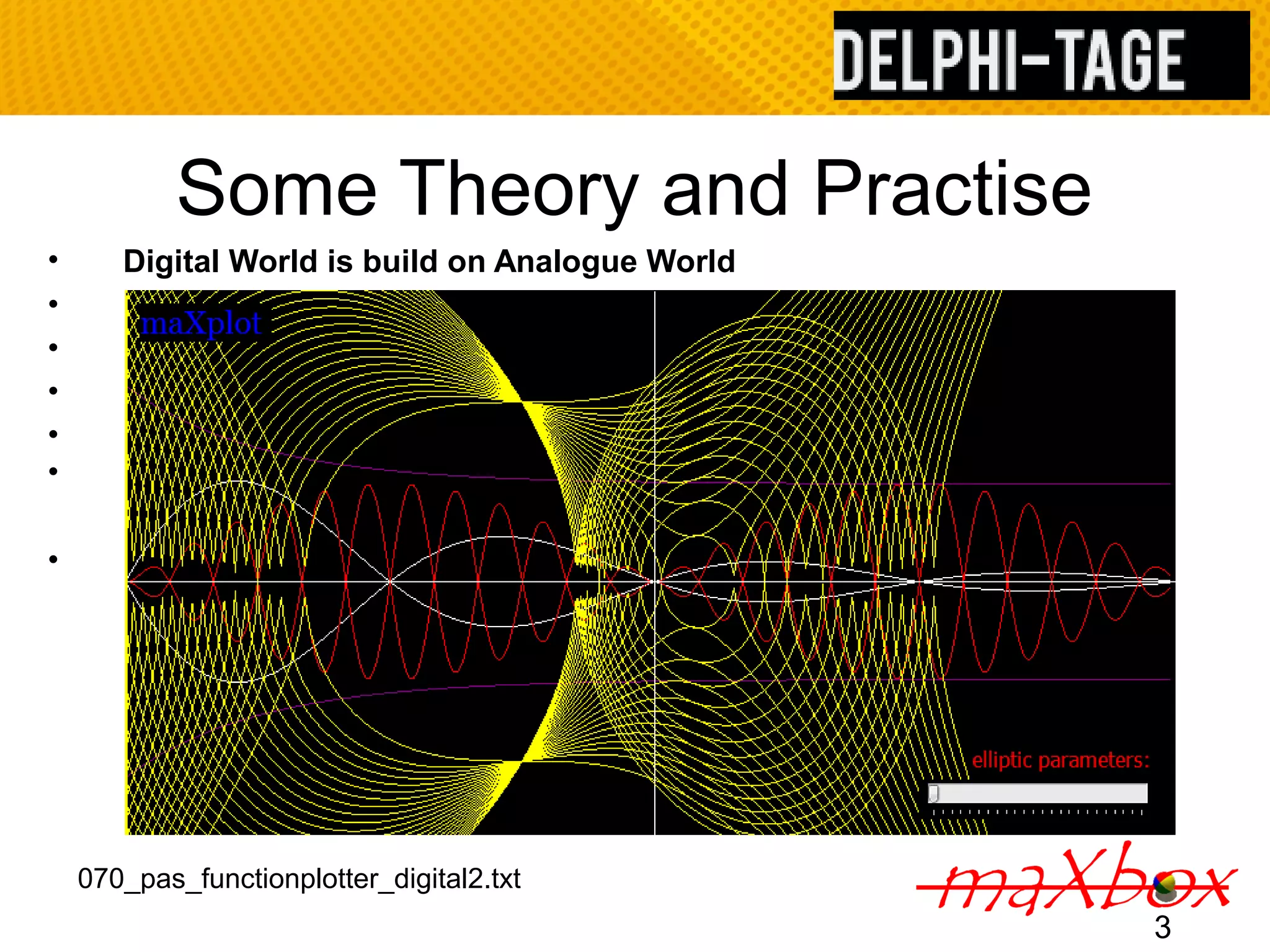

- 3. Some Theory andPractise • Digital World is build on Analogue World • • • •• • 3 070_pas_functionplotter_digital2.txt

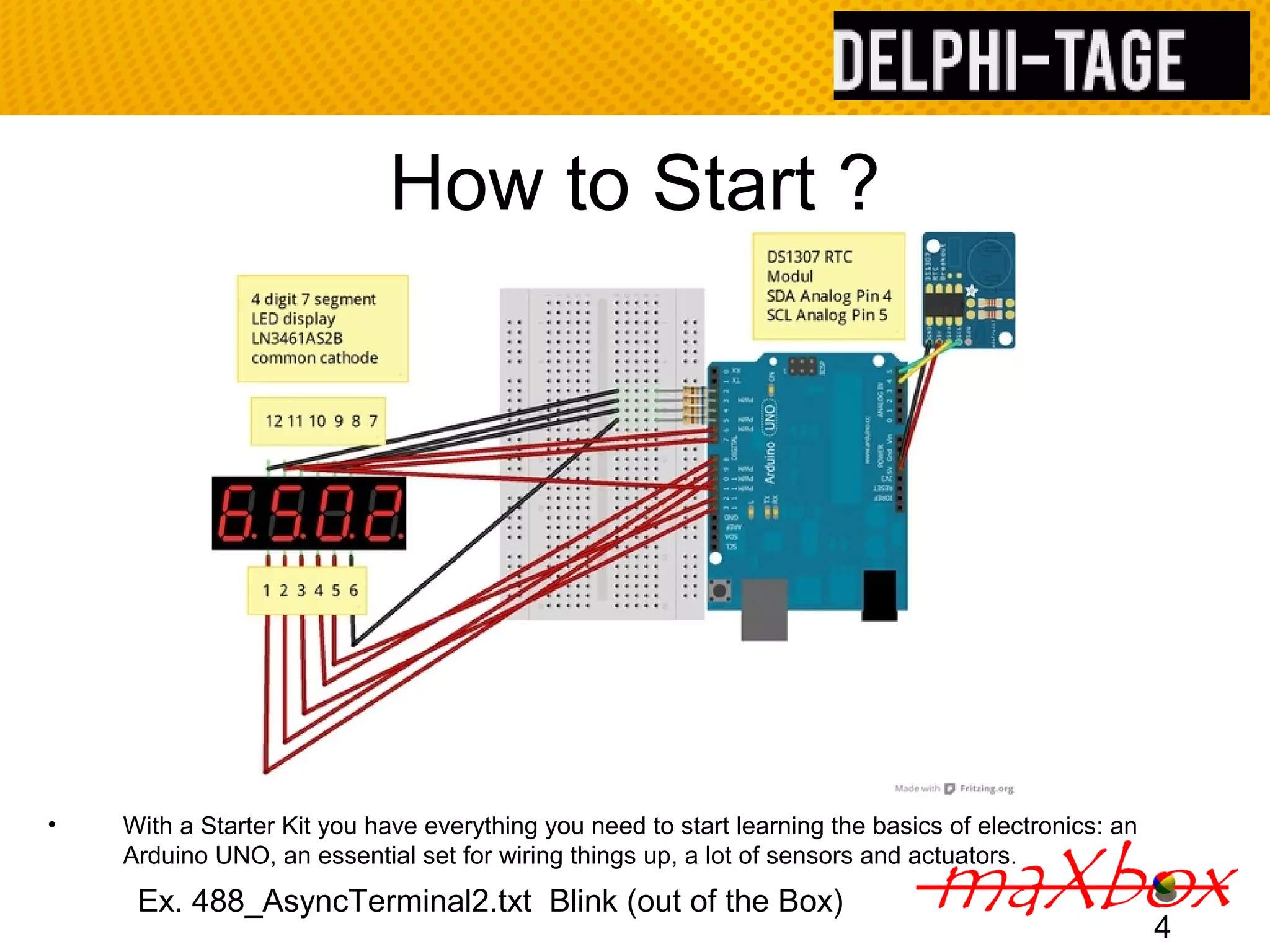

- 4. How to Start? • With a Starter Kit you have everything you need to start learning the basics of electronics: an Arduino UNO, an essential set for wiring things up, a lot of sensors and actuators. 4 Ex. 488_AsyncTerminal2.txt Blink (out of the Box)
- 5. Need Things RS232 TSerial, AsyncPro, CPort Oscilloscope Board & LED Editors 5

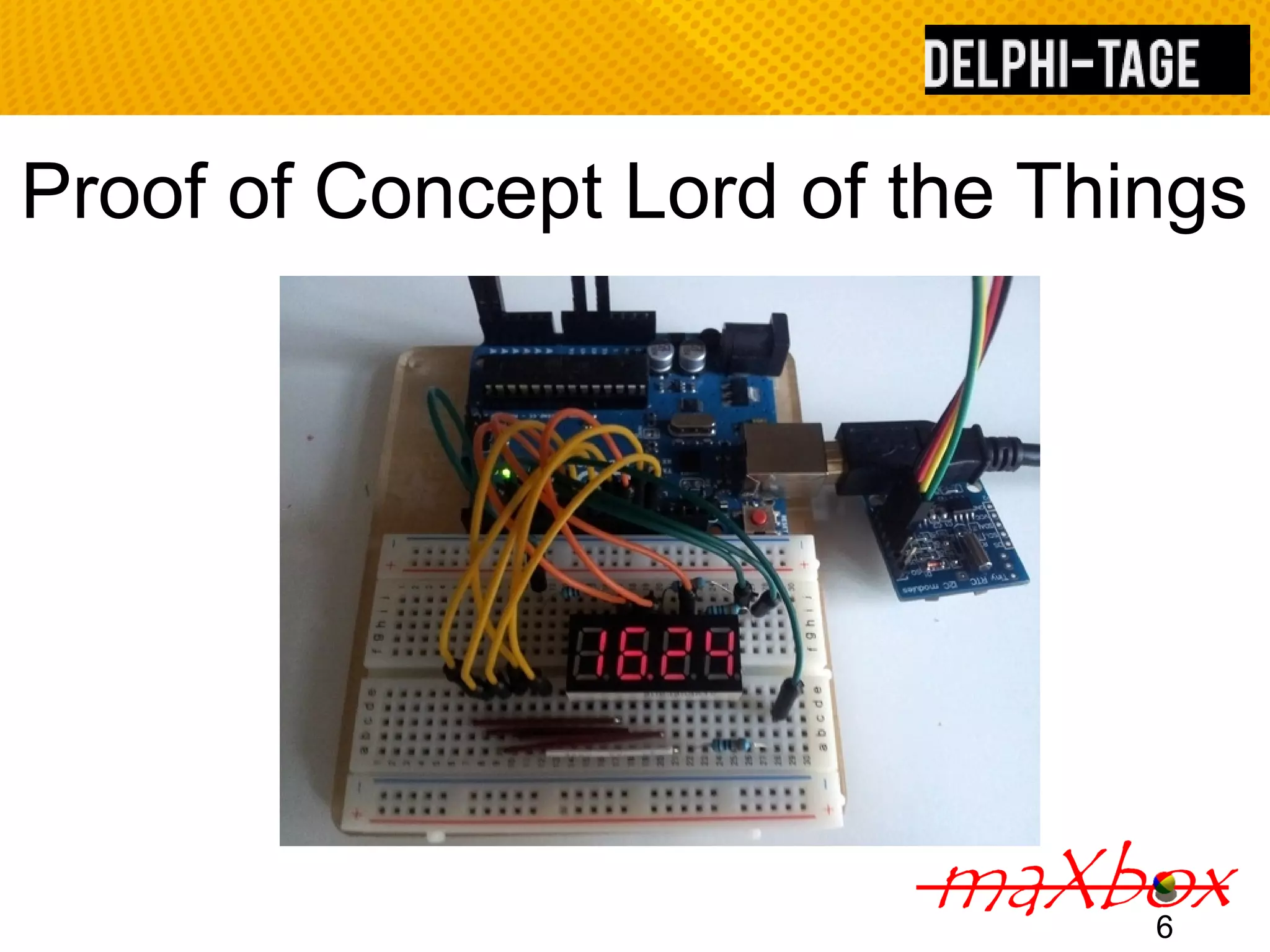

- 6. Proof of ConceptLord of the Things 6

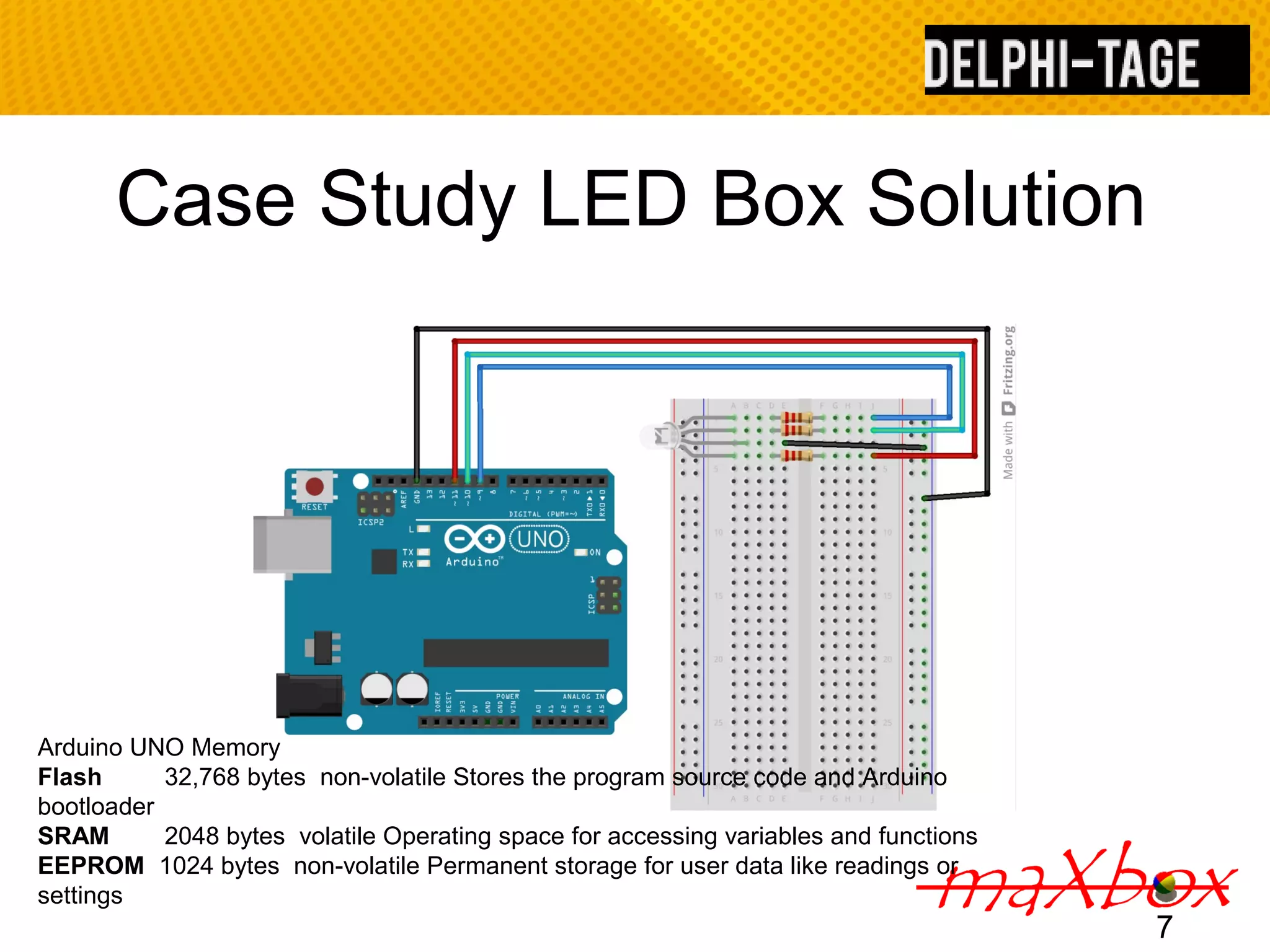

- 7. Case Study LEDBox Solution 7 Arduino UNO Memory Flash 32,768 bytes non-volatile Stores the program source code and Arduino bootloader SRAM 2048 bytes volatile Operating space for accessing variables and functions EEPROM 1024 bytes non-volatile Permanent storage for user data like readings or settings

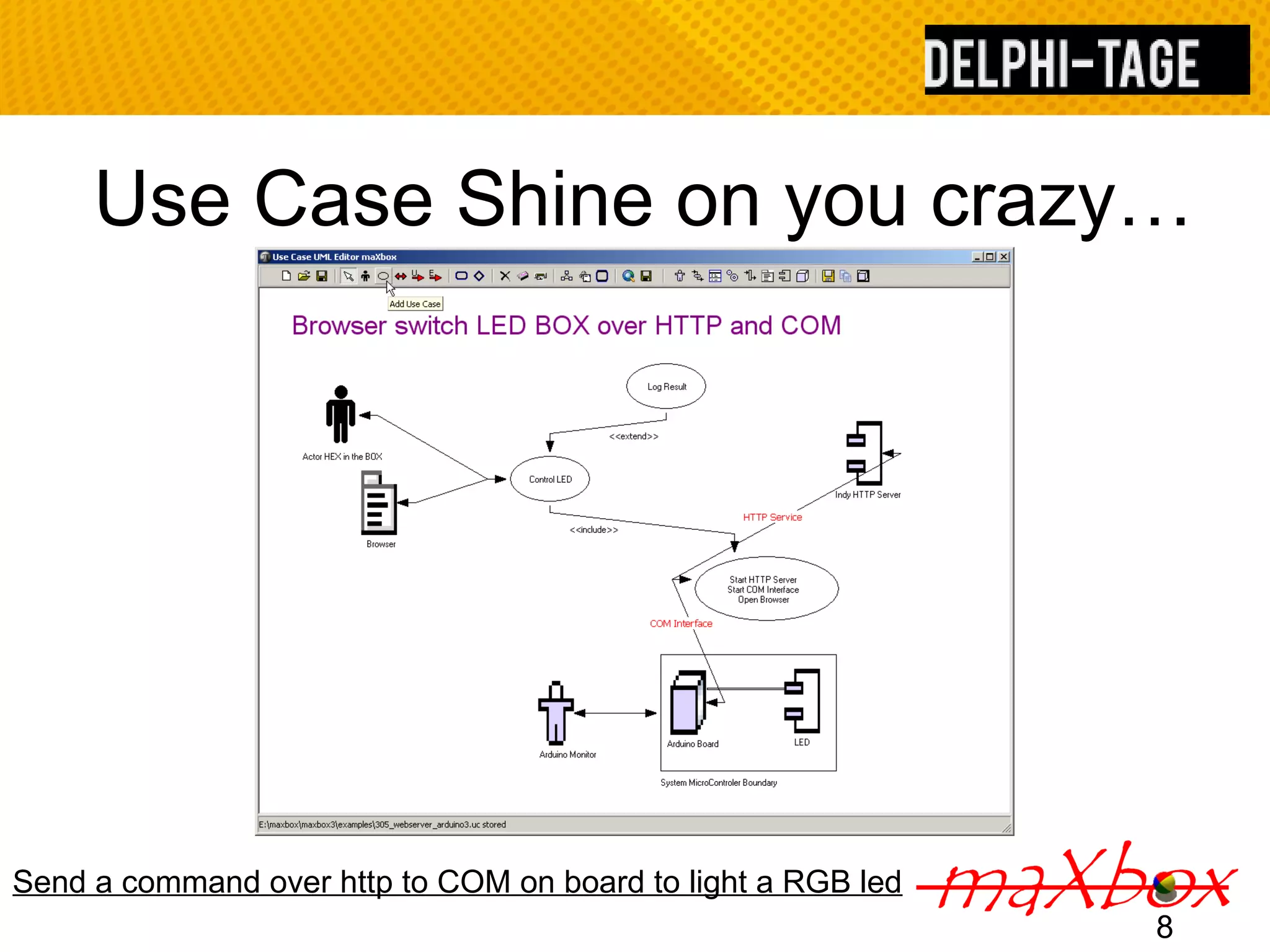

- 8. Use Case Shineon you crazy… 8 Send a command over http to COM on board to light a RGB led

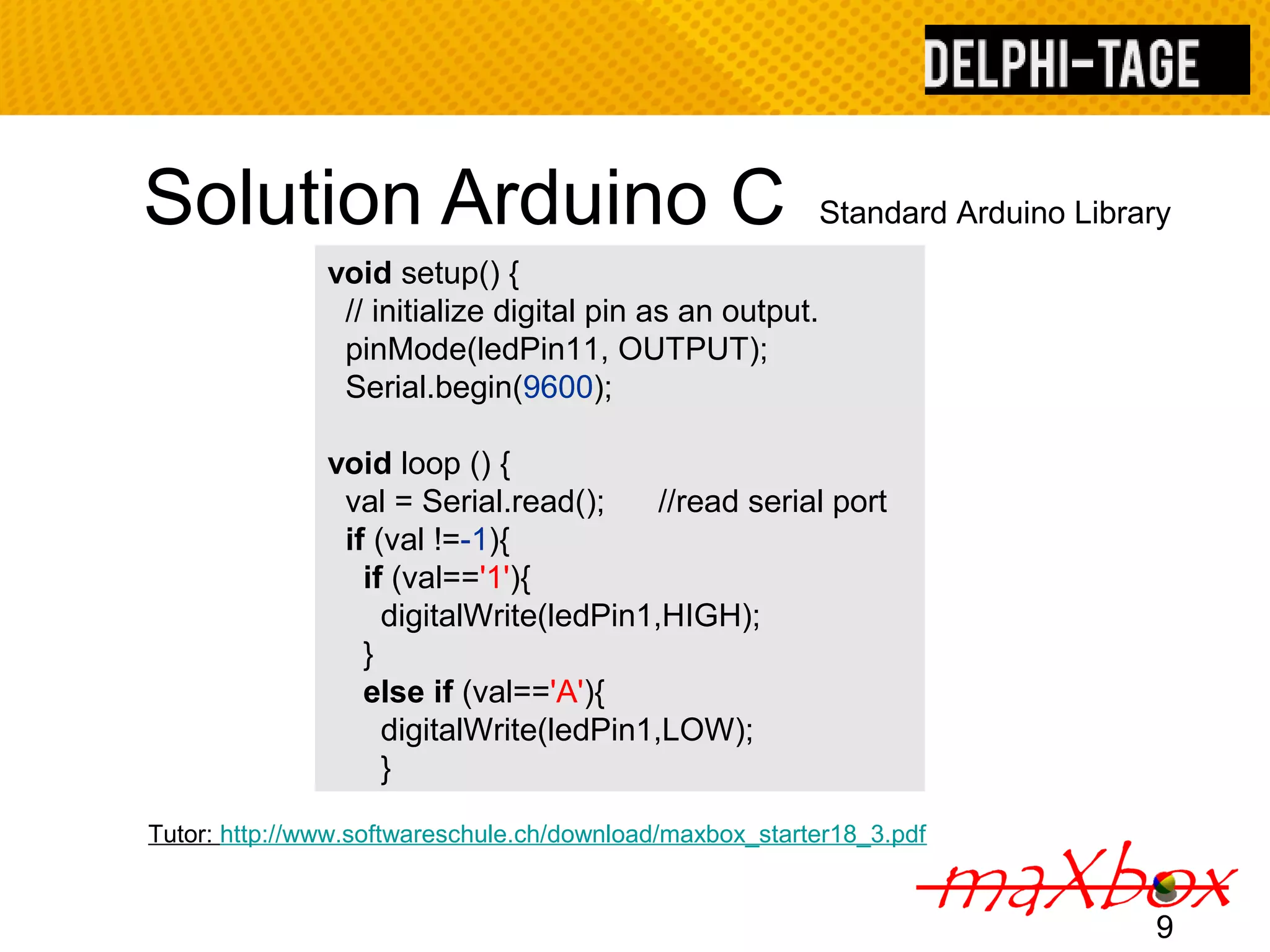

- 9. Solution Arduino C Standard Arduino Library 9 void setup() { // initialize digital pin as an output. pinMode(ledPin11, OUTPUT); Serial.begin(9600); void loop () { val = Serial.read(); //read serial port if (val !=-1){ if (val=='1'){ digitalWrite(ledPin1,HIGH); } else if (val=='A'){ digitalWrite(ledPin1,LOW); } Tutor: http://www.softwareschule.ch/download/maxbox_starter18_3.pdf

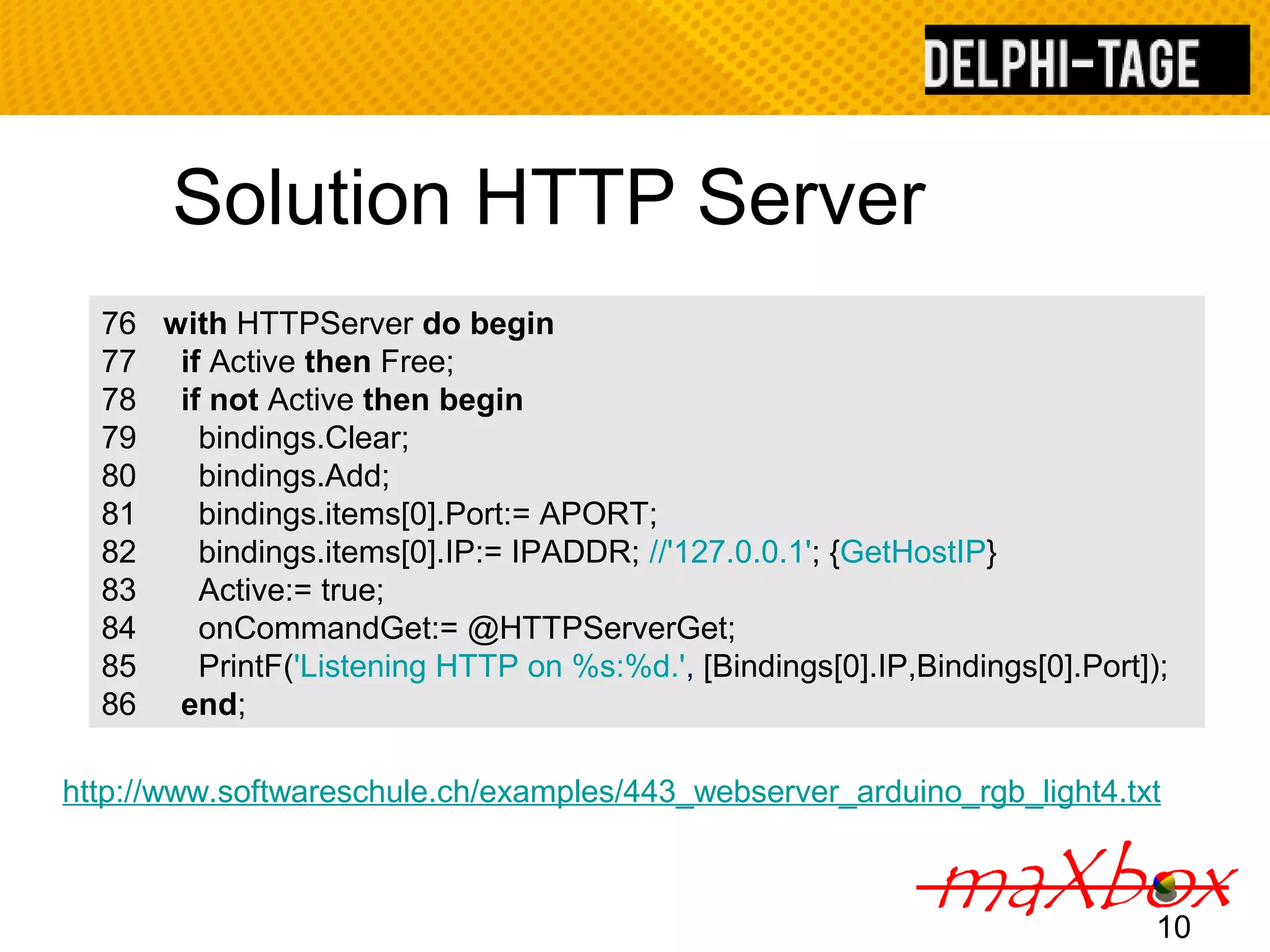

- 10. Solution HTTP Server 76 with HTTPServer do begin 77 if Active then Free; 78 if not Active then begin 79 bindings.Clear; 80 bindings.Add; 81 bindings.items[0].Port:= APORT; 82 bindings.items[0].IP:= IPADDR; //'127.0.0.1'; {GetHostIP} 83 Active:= true; 84 onCommandGet:= @HTTPServerGet; 85 PrintF('Listening HTTP on %s:%d.', [Bindings[0].IP,Bindings[0].Port]); 86 end; http://www.softwareschule.ch/examples/443_webserver_arduino_rgb_light4.txt 10

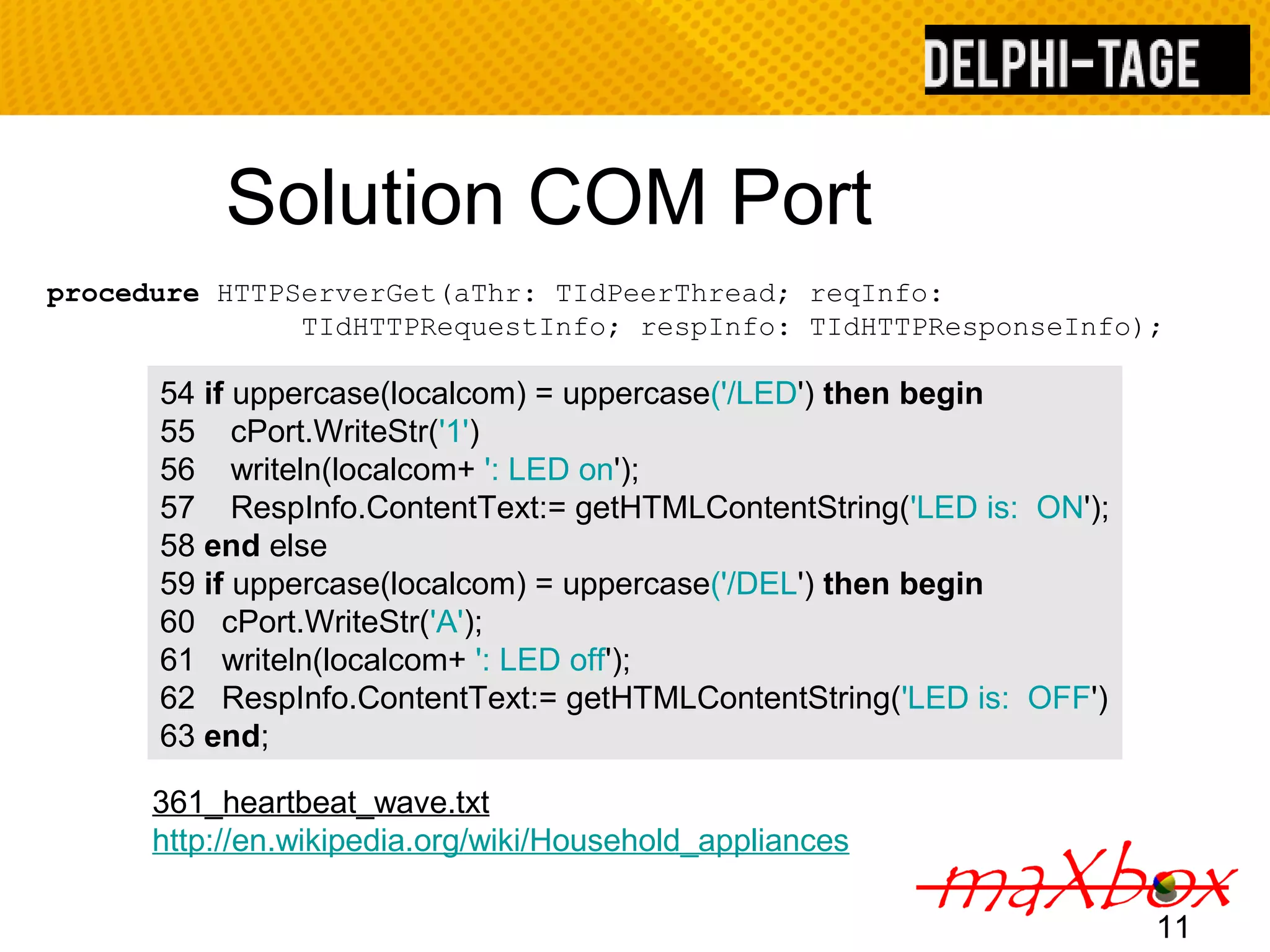

- 11. Solution COM Port TIdHTTPRequestInfo; respInfo: TIdHTTPResponseInfo); 11 procedure HTTPServerGet(aThr: TIdPeerThread; reqInfo: 54 if uppercase(localcom) = uppercase('/LED') then begin 55 cPort.WriteStr('1') 56 writeln(localcom+ ': LED on'); 57 RespInfo.ContentText:= getHTMLContentString('LED is: ON'); 58 end else 59 if uppercase(localcom) = uppercase('/DEL') then begin 60 cPort.WriteStr('A'); 61 writeln(localcom+ ': LED off'); 62 RespInfo.ContentText:= getHTMLContentString('LED is: OFF') 63 end; 361_heartbeat_wave.txt http://en.wikipedia.org/wiki/Household_appliances

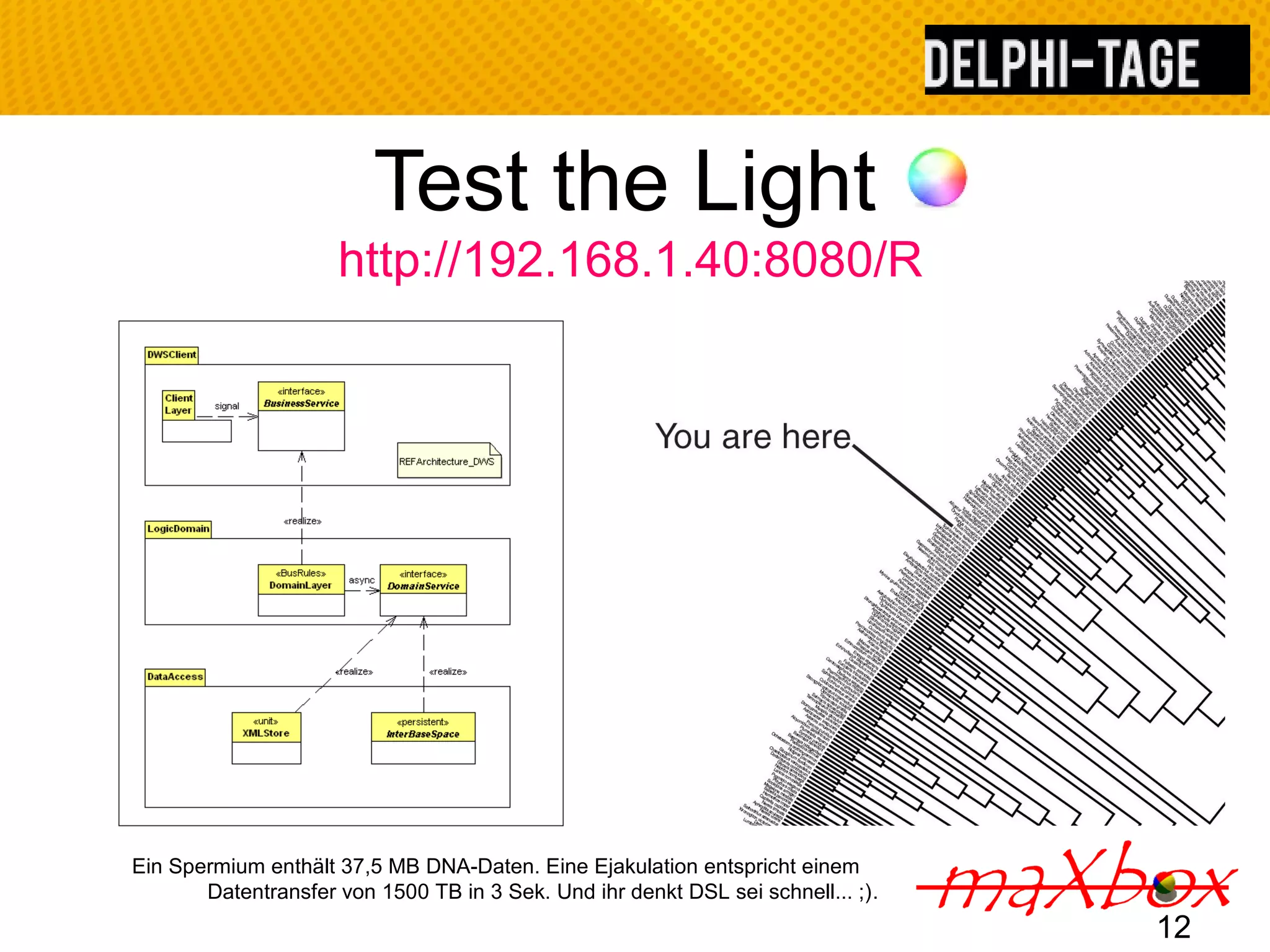

- 12. Test the Light http://192.168.1.40:8080/R 12 Ein Spermium enthält 37,5 MB DNA-Daten. Eine Ejakulation entspricht einem Datentransfer von 1500 TB in 3 Sek. Und ihr denkt DSL sei schnell... ;).
- 13. Thanks! Links toRights the source is the code http://www.softwareschule.ch/maxbox.htm http://sourceforge.net/projects/maxbox http://sourceforge.net/apps/mediawiki/maxbox/ http://en.wikipedia.org/wiki/Arduino http://www.softwareschule.ch/download/webofthings2013.pdf Book Patterns konkret http://www.amazon.de/Patterns-konkret-Max-Kleiner/dp/3935042469 maXbox https://github.com/maxkleiner/maXbox3/releases 13
- 14. Questions? Code aWorld hack the earth 14 Yes, we hack… https://github.com/maxkleiner/maXbox3/releases
