Using PostgreSQL With Docker & Kubernetes - July 2018
The document discusses the integration of PostgreSQL with Docker and Kubernetes, highlighting the advantages and challenges of containerization for database management. It covers setup procedures, the use of Crunchy Data's container suite for PostgreSQL, and describes how Kubernetes can aid in orchestrating these containers for scalability and management. Ultimately, it emphasizes the benefits of containerized environments and the potential for automating database tasks through operators.
Using PostgreSQL With Docker & Kubernetes - July 2018
- 1. An Introduction toUsing PostgreSQL with Docker & Kubernetes JONATHAN S. KATZ JULY 19, 2018 LOS ANGELES POSTGRESQL USER GROUP

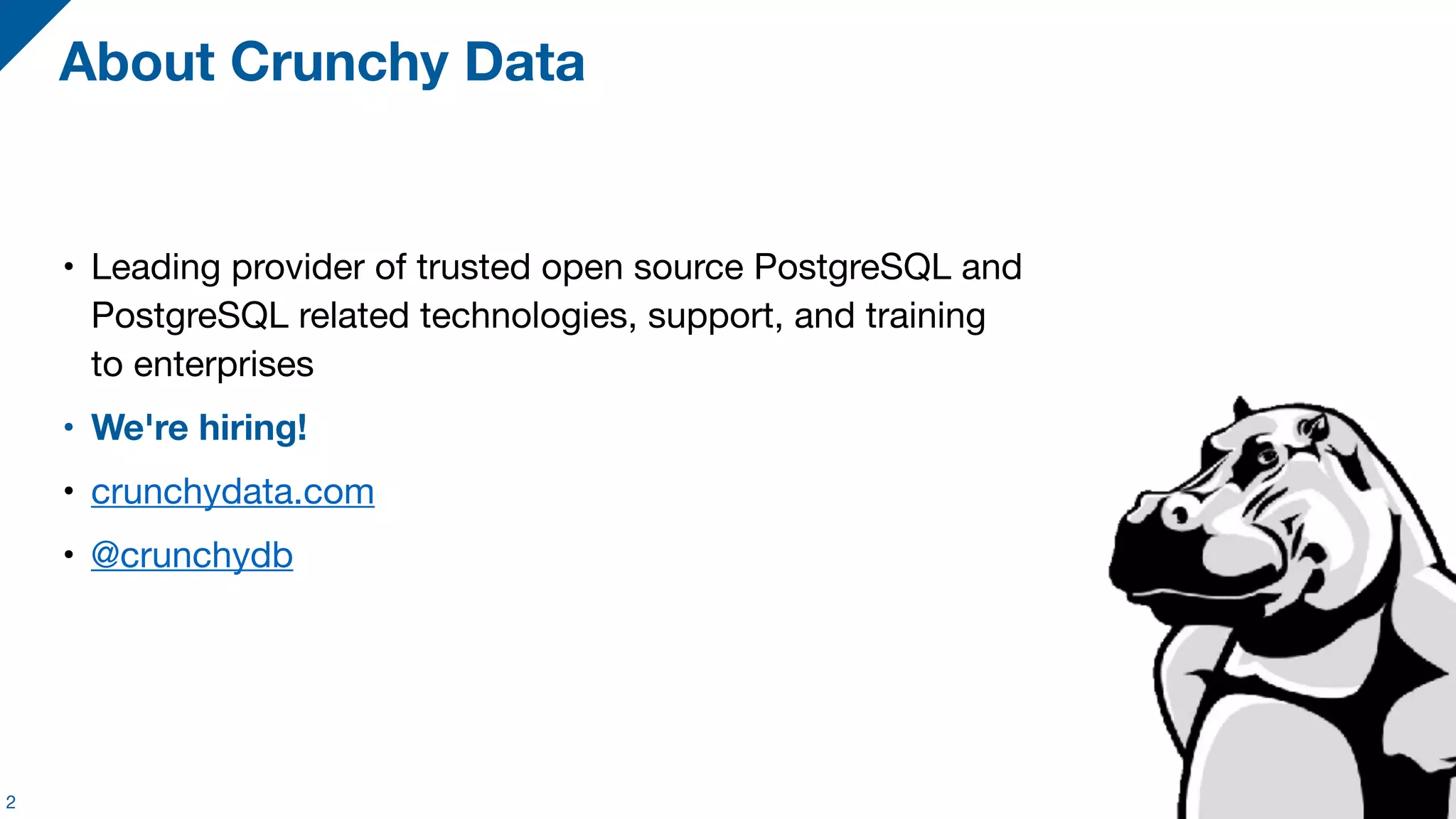

- 2. About Crunchy Data 2 •Leading provider of trusted open source PostgreSQL and PostgreSQL related technologies, support, and training to enterprises • We're hiring! • crunchydata.com • @crunchydb
- 3. • Director ofCommunications, Crunchy Data • Previously: Engineering leadership in startups • Longtime PostgreSQL community contributor • Advocacy & various committees for PGDG • @postgresql + .org content • Director, PgUS • Co-Organizer, NYCPUG • Conference organization + speaking • @jkatz05 About Me 3

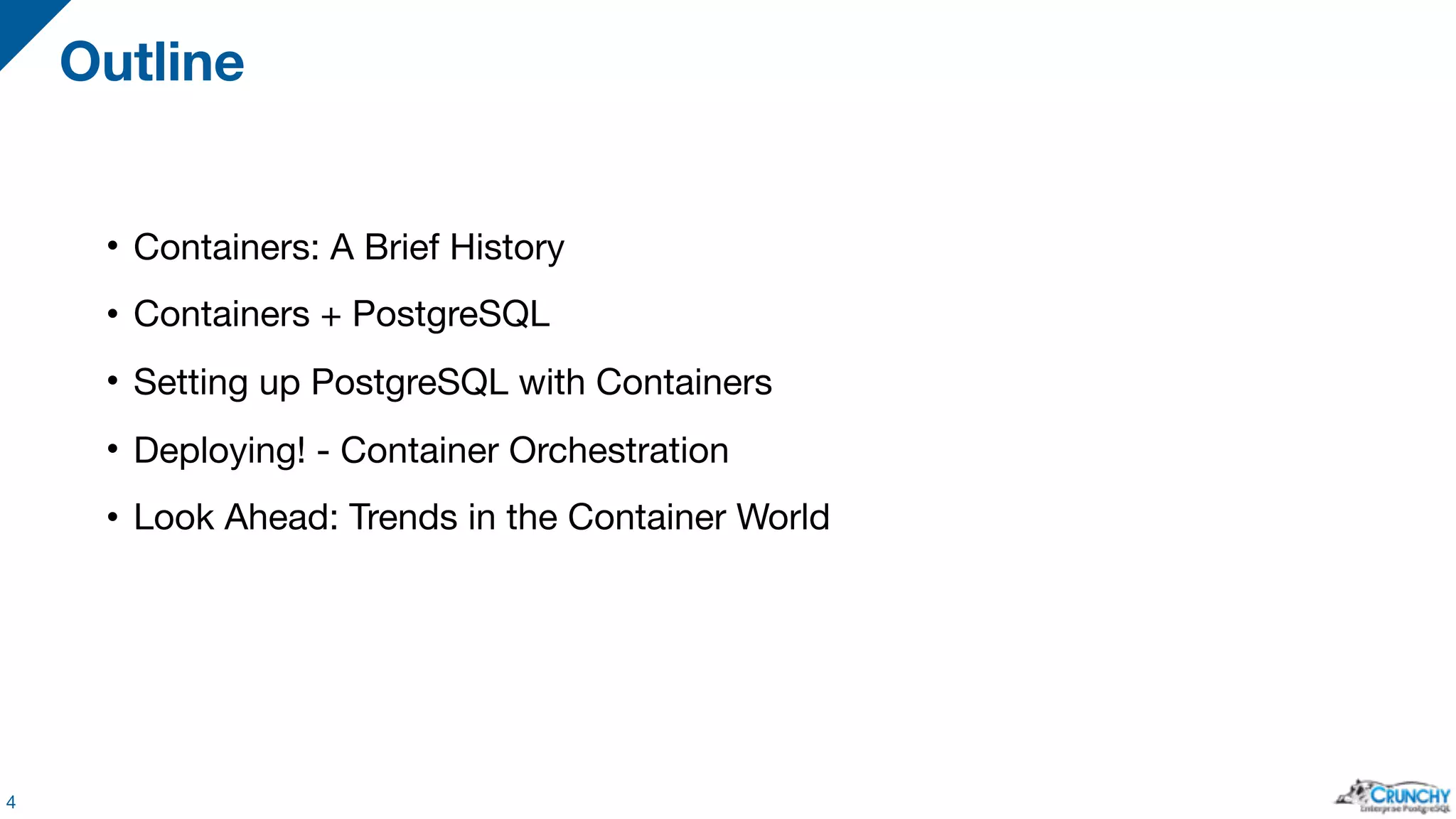

- 4. • Containers: ABrief History • Containers + PostgreSQL • Setting up PostgreSQL with Containers • Deploying! - Container Orchestration • Look Ahead: Trends in the Container World Outline 4

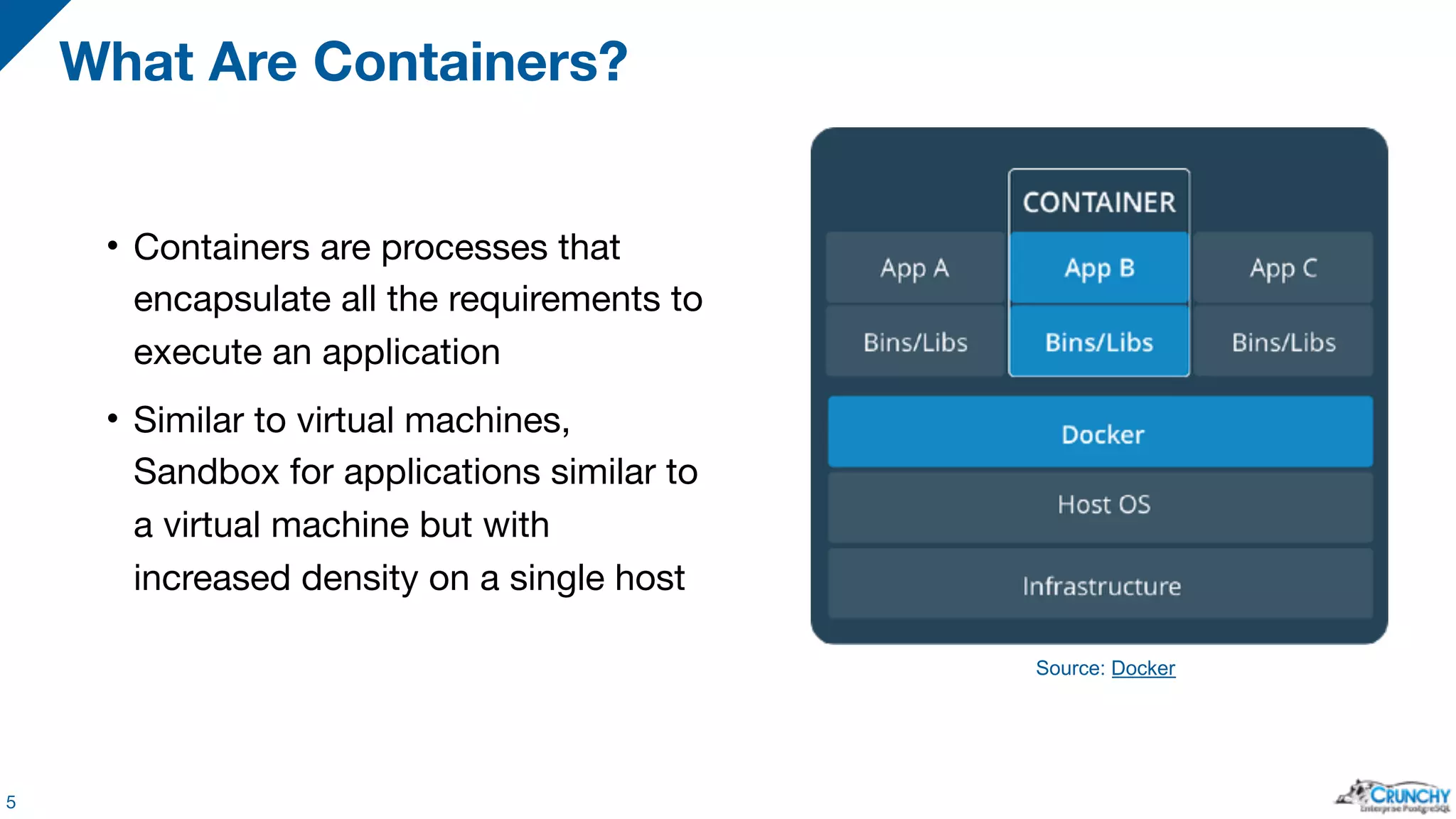

- 5. • Containers areprocesses that encapsulate all the requirements to execute an application • Similar to virtual machines, Sandbox for applications similar to a virtual machine but with increased density on a single host What Are Containers? 5 Source: Docker

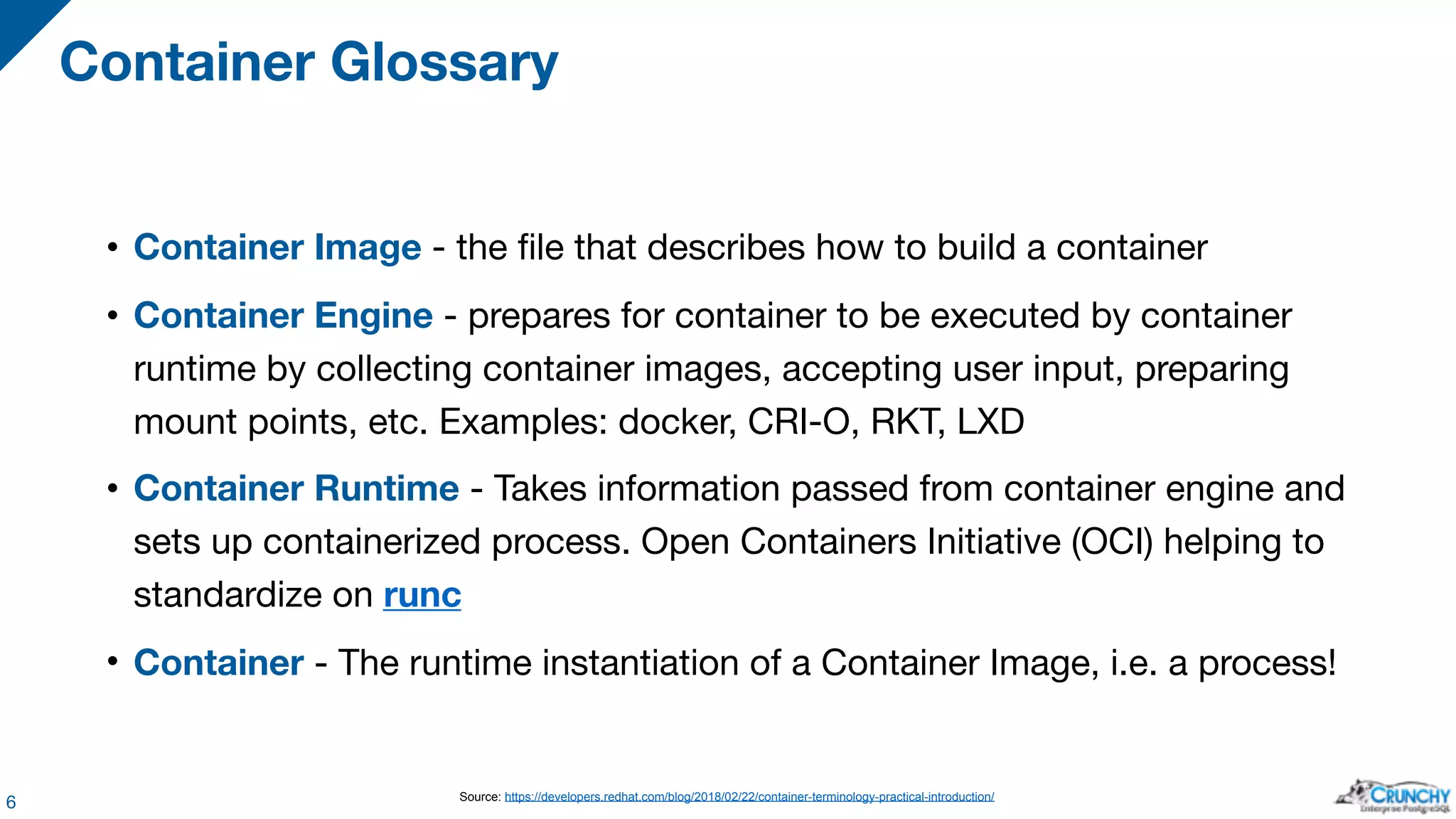

- 6. • Container Image- the file that describes how to build a container • Container Engine - prepares for container to be executed by container runtime by collecting container images, accepting user input, preparing mount points, etc. Examples: docker, CRI-O, RKT, LXD • Container Runtime - Takes information passed from container engine and sets up containerized process. Open Containers Initiative (OCI) helping to standardize on runc • Container - The runtime instantiation of a Container Image, i.e. a process! Container Glossary 6 Source: https://developers.redhat.com/blog/2018/02/22/container-terminology-practical-introduction/

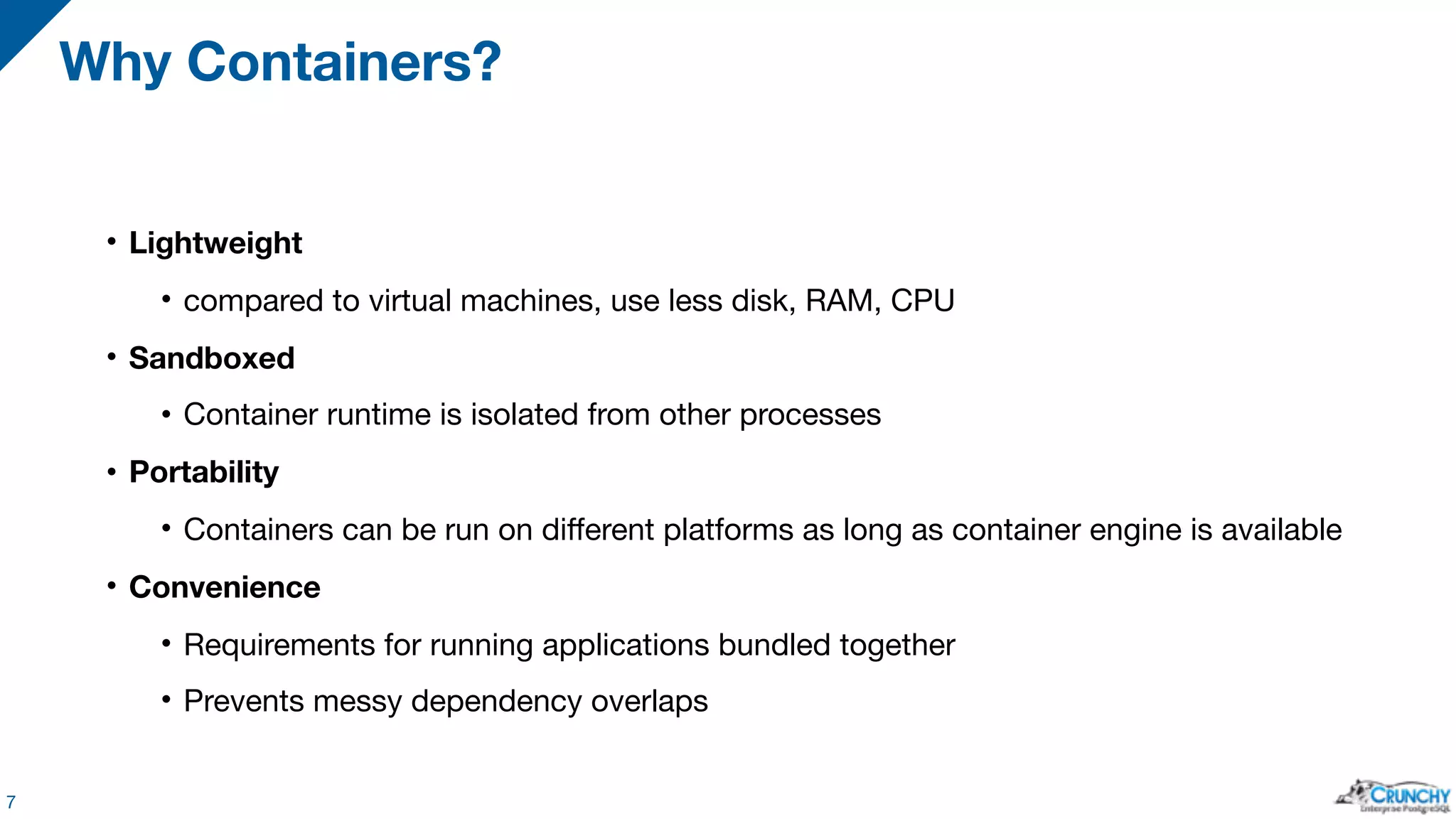

- 7. • Lightweight • comparedto virtual machines, use less disk, RAM, CPU • Sandboxed • Container runtime is isolated from other processes • Portability • Containers can be run on different platforms as long as container engine is available • Convenience • Requirements for running applications bundled together • Prevents messy dependency overlaps Why Containers? 7

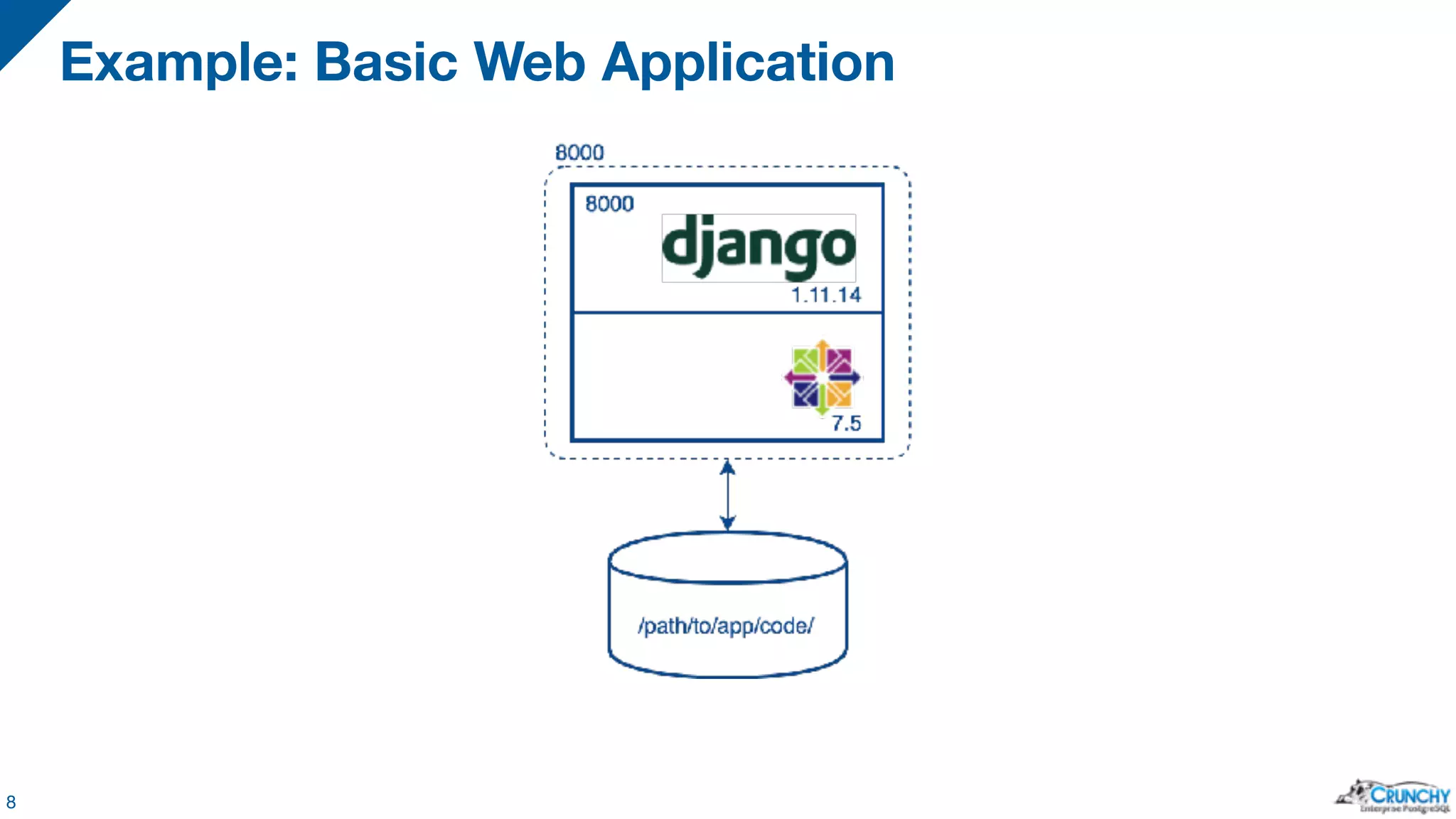

- 8. Example: Basic WebApplication 8

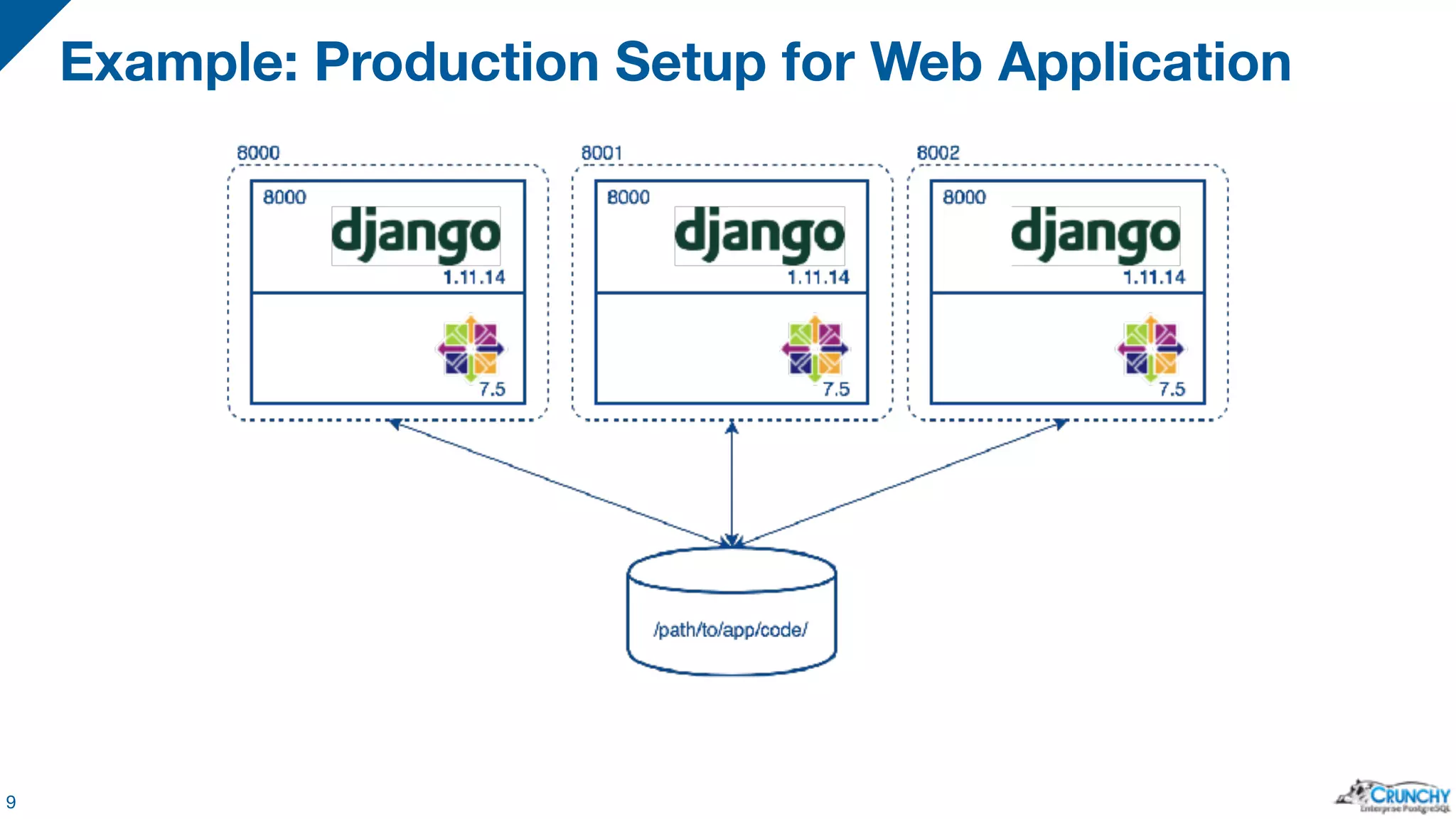

- 9. Example: Production Setupfor Web Application 9

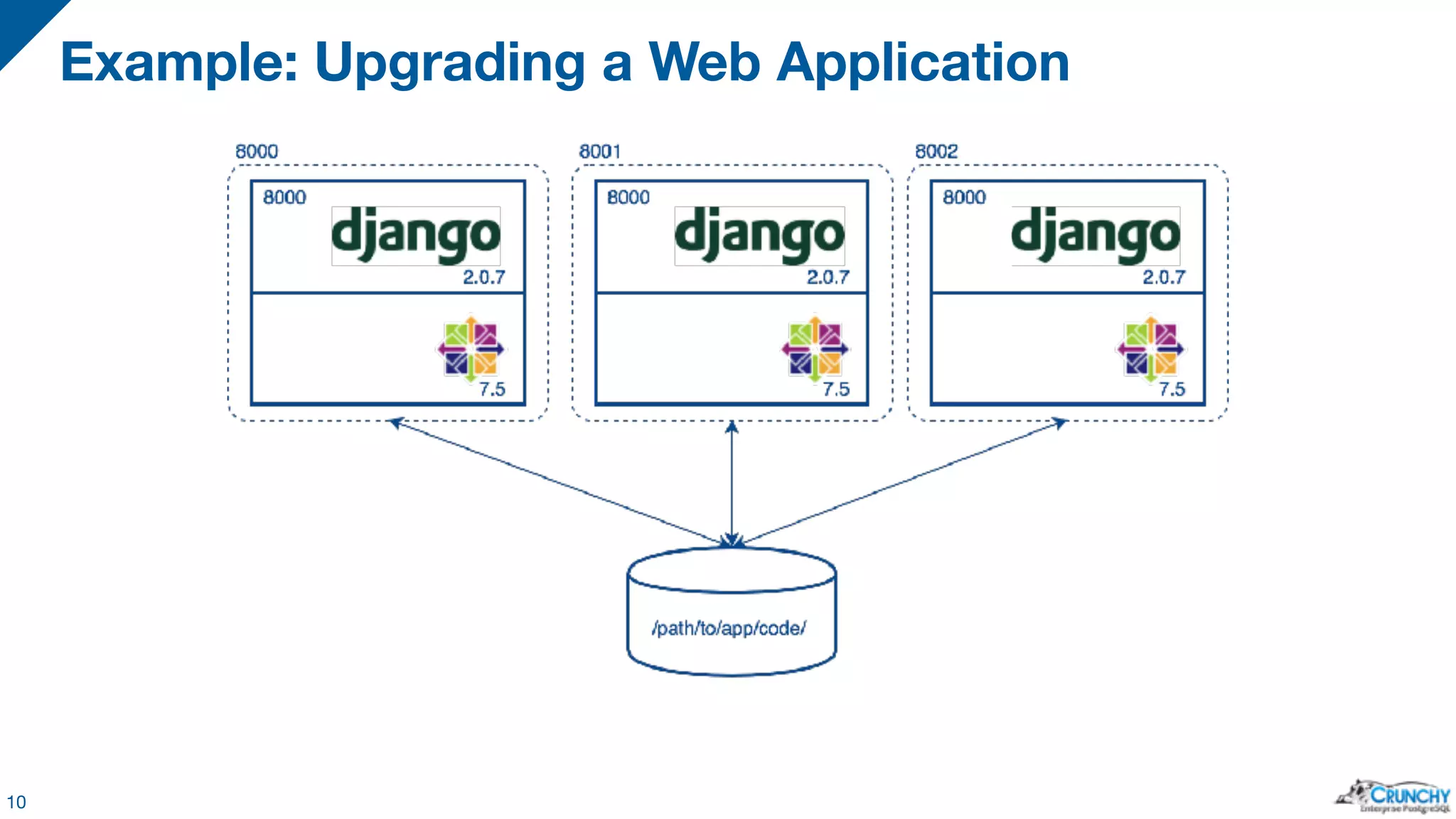

- 10. Example: Upgrading aWeb Application 10

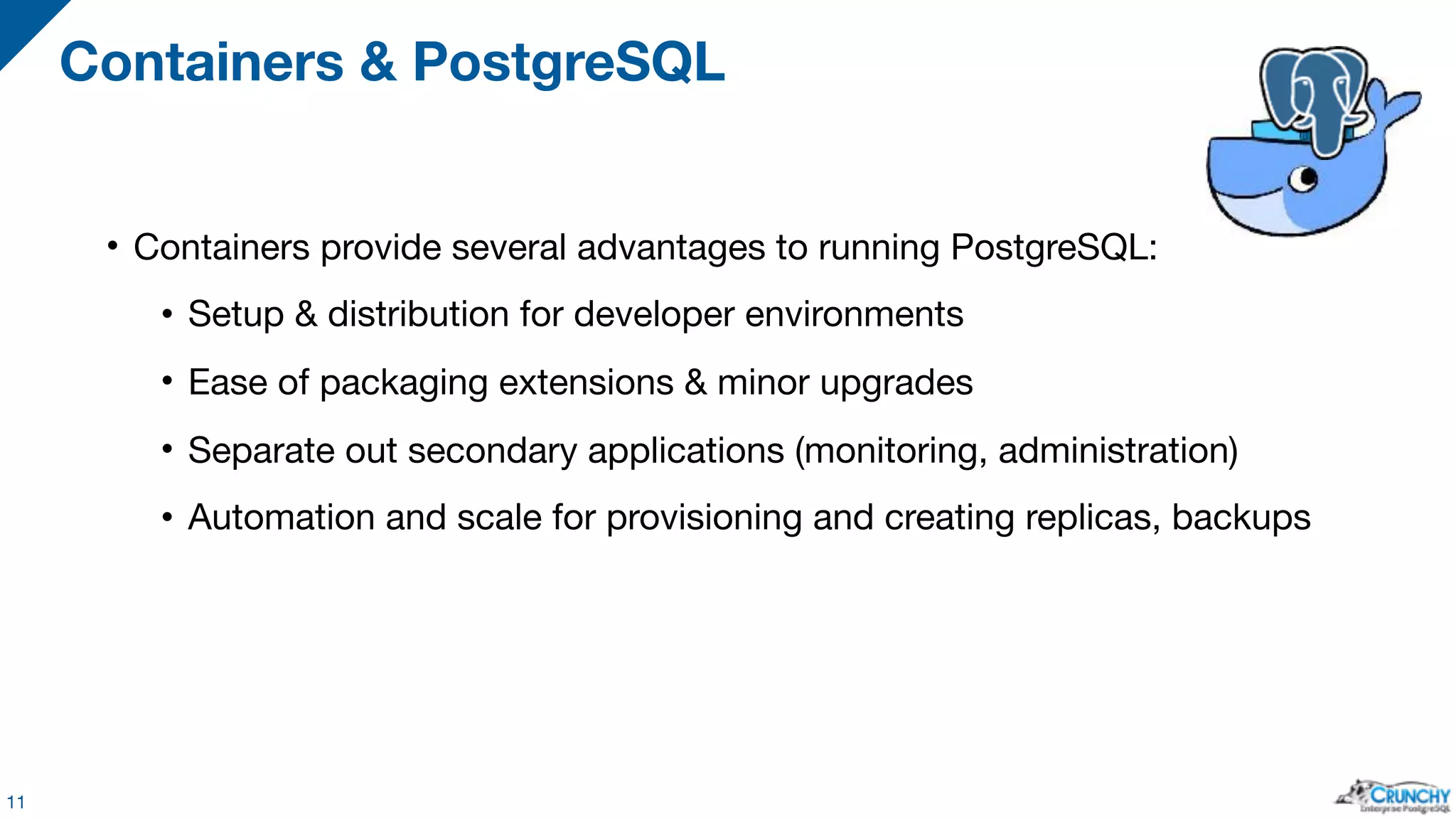

- 11. • Containers provideseveral advantages to running PostgreSQL: • Setup & distribution for developer environments • Ease of packaging extensions & minor upgrades • Separate out secondary applications (monitoring, administration) • Automation and scale for provisioning and creating replicas, backups Containers & PostgreSQL 11

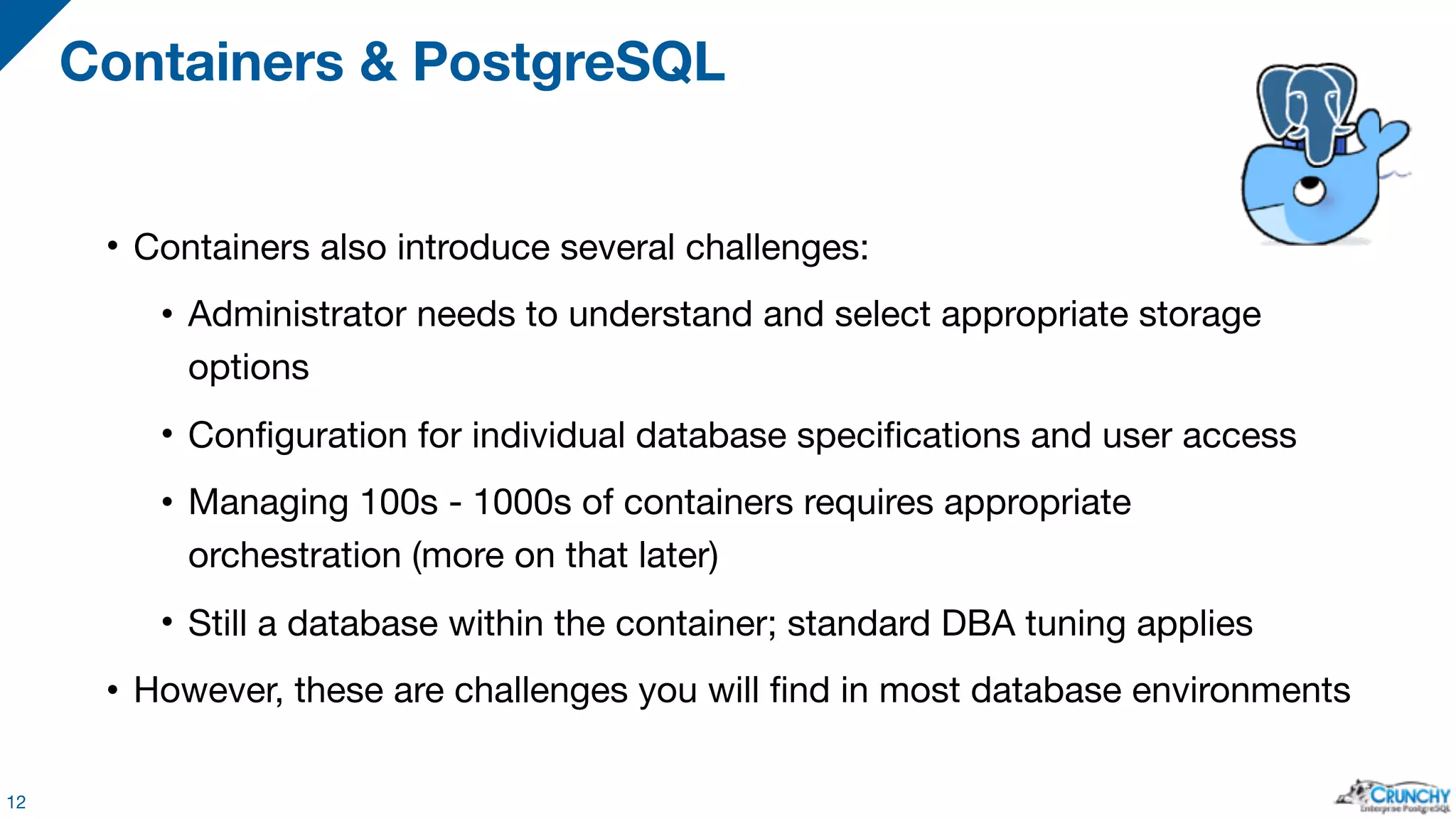

- 12. • Containers alsointroduce several challenges: • Administrator needs to understand and select appropriate storage options • Configuration for individual database specifications and user access • Managing 100s - 1000s of containers requires appropriate orchestration (more on that later) • Still a database within the container; standard DBA tuning applies • However, these are challenges you will find in most database environments Containers & PostgreSQL 12

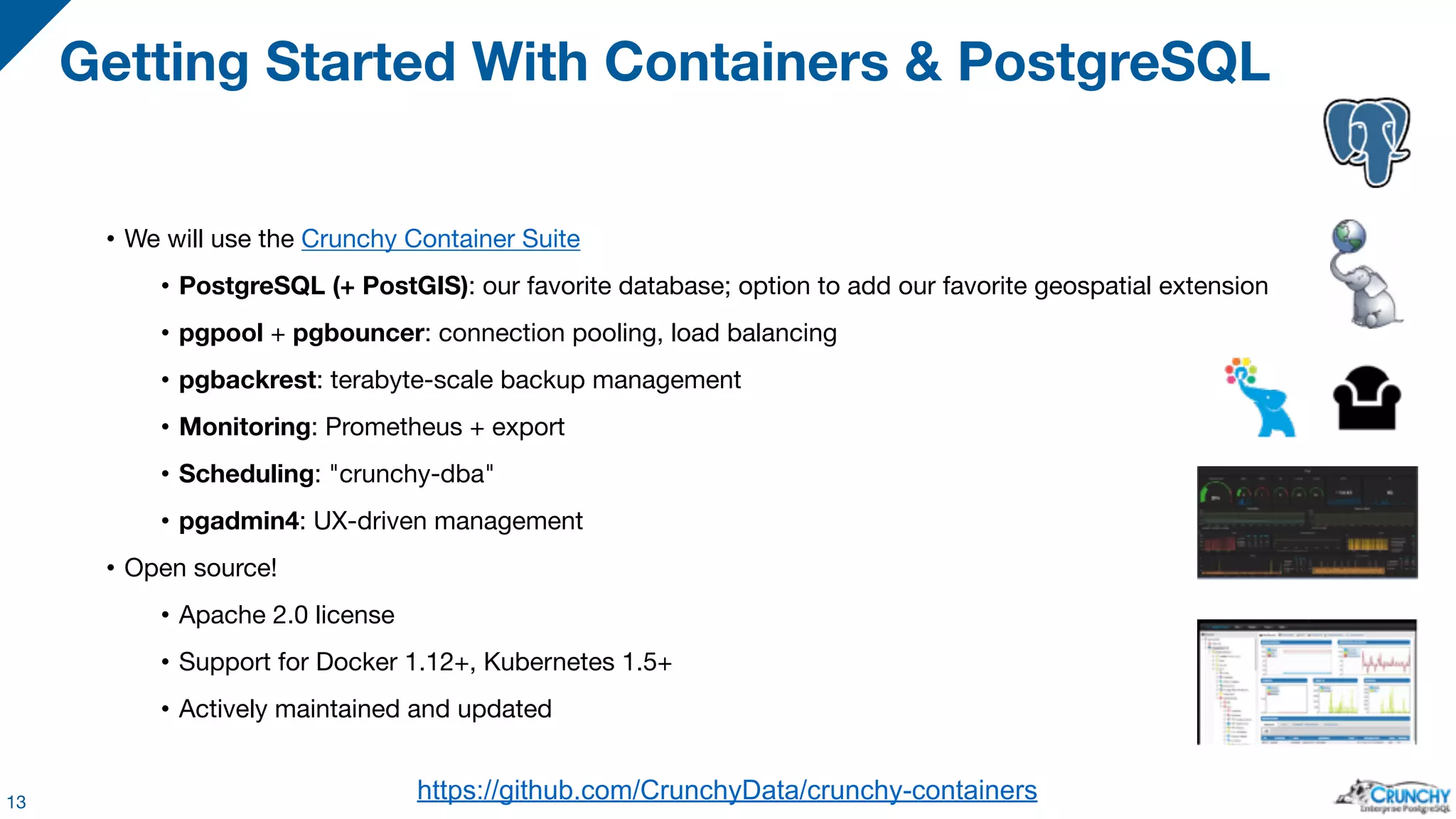

- 13. • We willuse the Crunchy Container Suite • PostgreSQL (+ PostGIS): our favorite database; option to add our favorite geospatial extension • pgpool + pgbouncer: connection pooling, load balancing • pgbackrest: terabyte-scale backup management • Monitoring: Prometheus + export • Scheduling: "crunchy-dba" • pgadmin4: UX-driven management • Open source! • Apache 2.0 license • Support for Docker 1.12+, Kubernetes 1.5+ • Actively maintained and updated Getting Started With Containers & PostgreSQL 13 https://github.com/CrunchyData/crunchy-containers

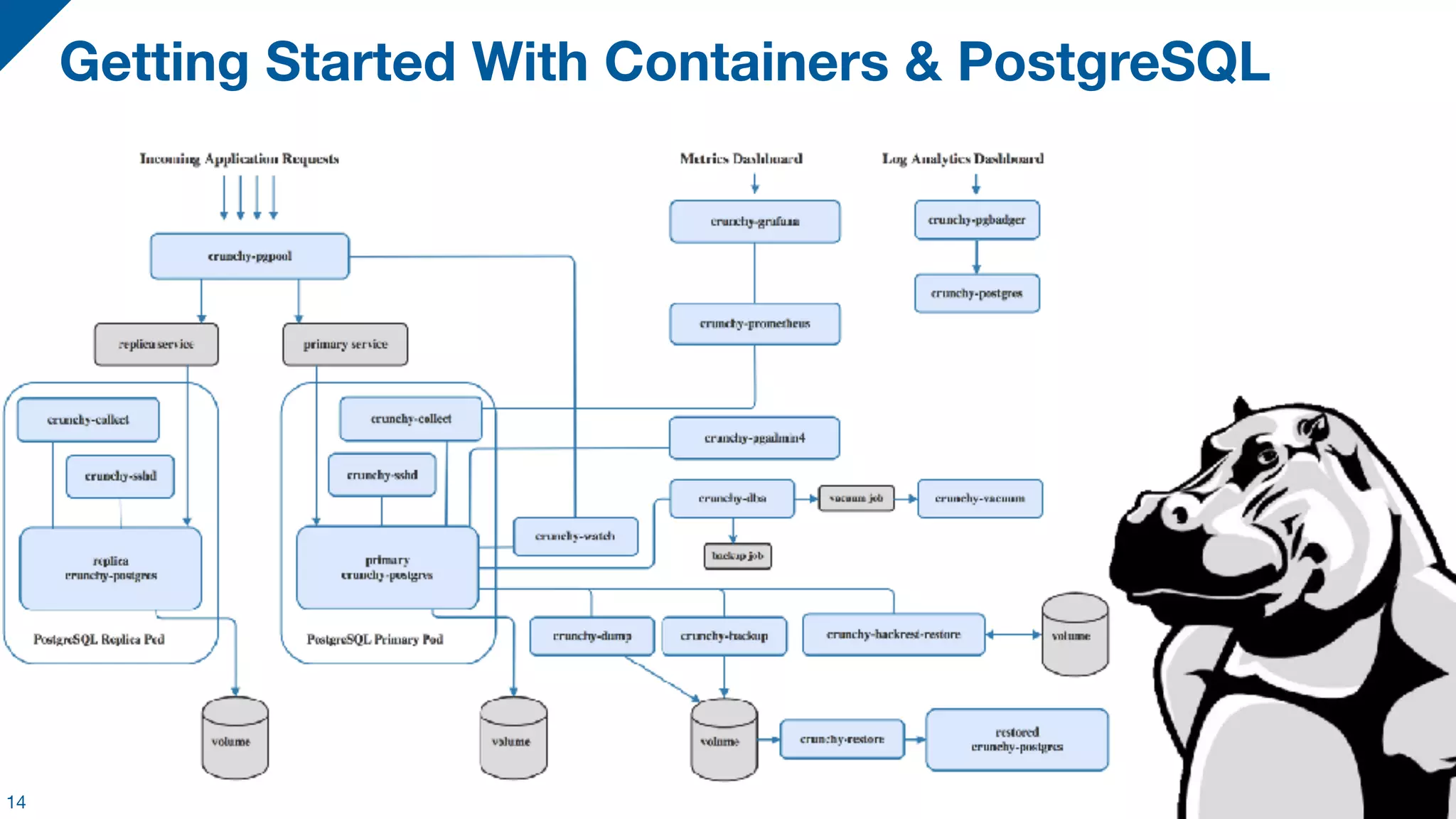

- 14. Getting Started WithContainers & PostgreSQL 14

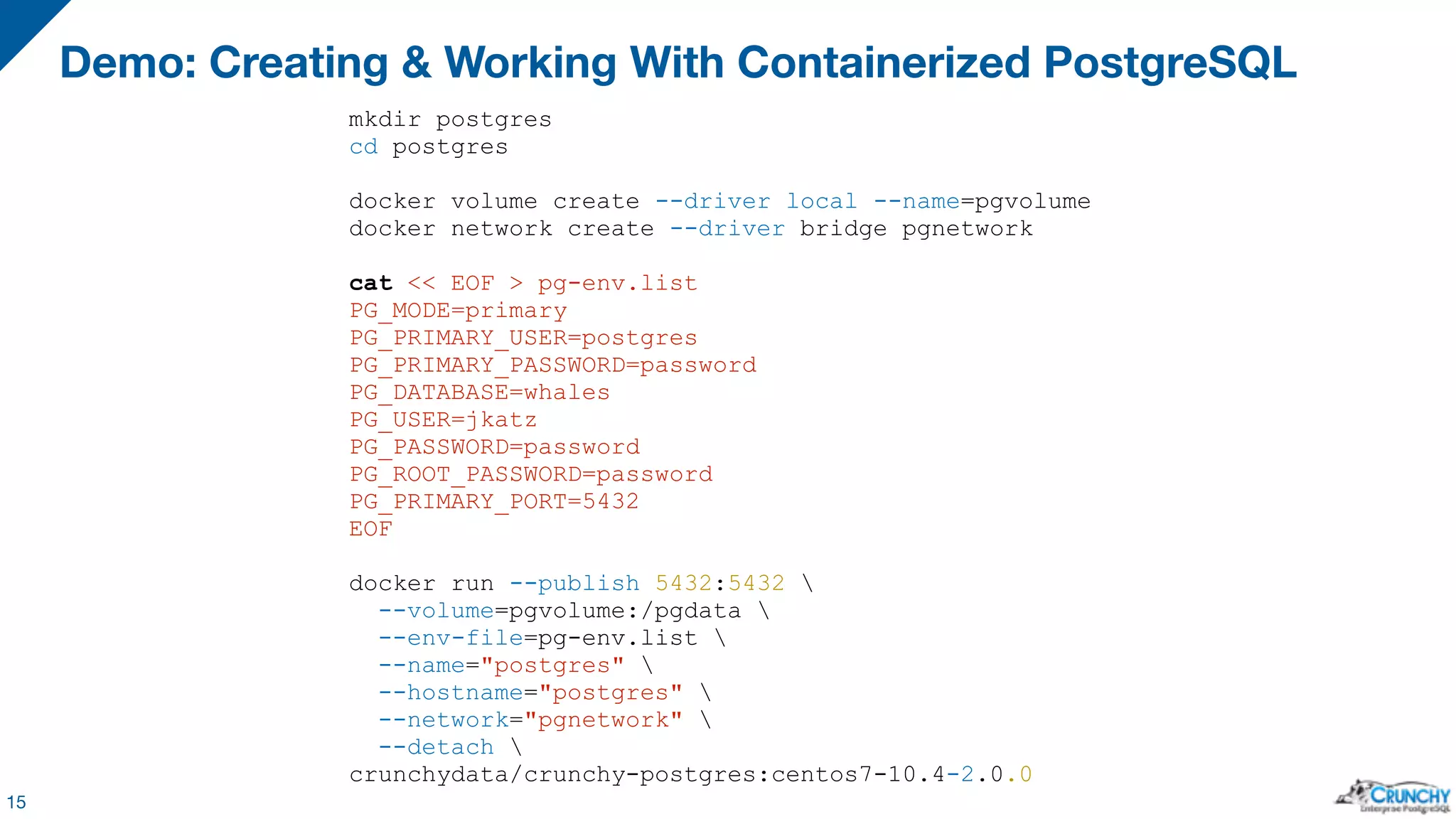

- 15. Demo: Creating &Working With Containerized PostgreSQL 15 mkdir postgres cd postgres docker volume create --driver local --name=pgvolume docker network create --driver bridge pgnetwork cat << EOF > pg-env.list PG_MODE=primary PG_PRIMARY_USER=postgres PG_PRIMARY_PASSWORD=password PG_DATABASE=whales PG_USER=jkatz PG_PASSWORD=password PG_ROOT_PASSWORD=password PG_PRIMARY_PORT=5432 EOF docker run --publish 5432:5432 --volume=pgvolume:/pgdata --env-file=pg-env.list --name="postgres" --hostname="postgres" --network="pgnetwork" --detach crunchydata/crunchy-postgres:centos7-10.4-2.0.0

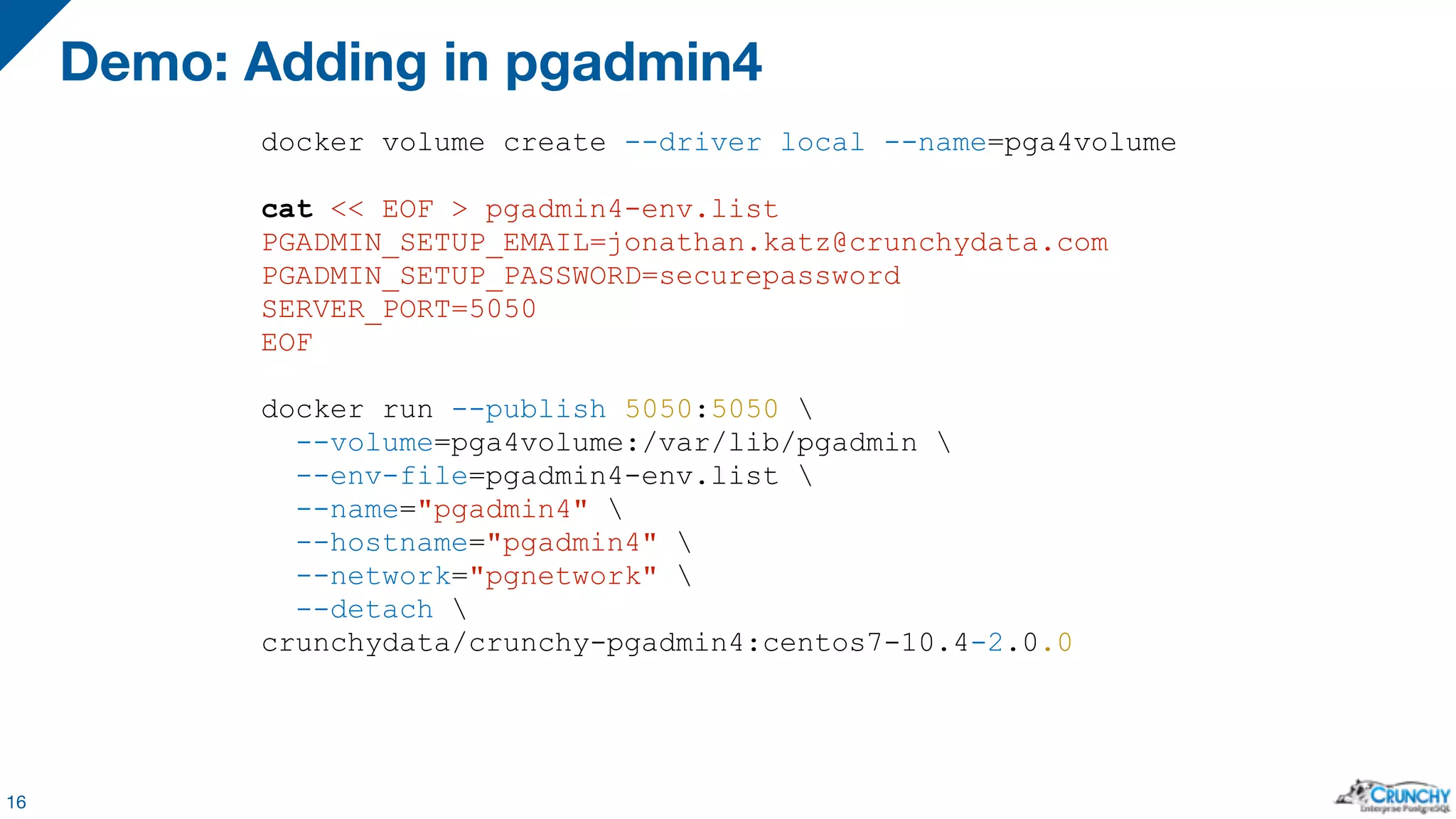

- 16. Demo: Adding inpgadmin4 16 docker volume create --driver local --name=pga4volume cat << EOF > pgadmin4-env.list PGADMIN_SETUP_EMAIL=jonathan.katz@crunchydata.com PGADMIN_SETUP_PASSWORD=securepassword SERVER_PORT=5050 EOF docker run --publish 5050:5050 --volume=pga4volume:/var/lib/pgadmin --env-file=pgadmin4-env.list --name="pgadmin4" --hostname="pgadmin4" --network="pgnetwork" --detach crunchydata/crunchy-pgadmin4:centos7-10.4-2.0.0

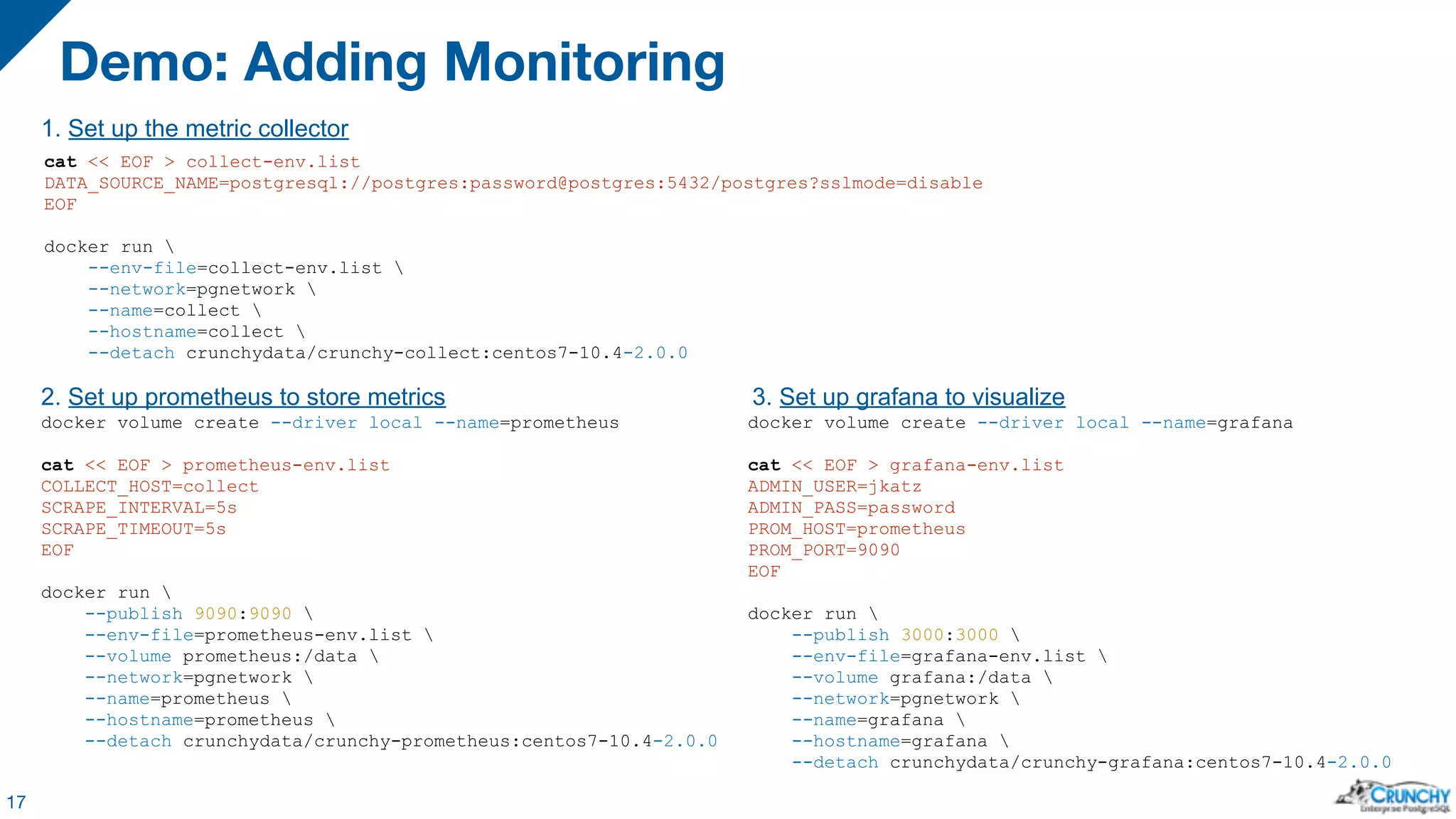

- 17. Demo: Adding Monitoring 17 cat<< EOF > collect-env.list DATA_SOURCE_NAME=postgresql://postgres:password@postgres:5432/postgres?sslmode=disable EOF docker run --env-file=collect-env.list --network=pgnetwork --name=collect --hostname=collect --detach crunchydata/crunchy-collect:centos7-10.4-2.0.0 docker volume create --driver local --name=prometheus cat << EOF > prometheus-env.list COLLECT_HOST=collect SCRAPE_INTERVAL=5s SCRAPE_TIMEOUT=5s EOF docker run --publish 9090:9090 --env-file=prometheus-env.list --volume prometheus:/data --network=pgnetwork --name=prometheus --hostname=prometheus --detach crunchydata/crunchy-prometheus:centos7-10.4-2.0.0 docker volume create --driver local --name=grafana cat << EOF > grafana-env.list ADMIN_USER=jkatz ADMIN_PASS=password PROM_HOST=prometheus PROM_PORT=9090 EOF docker run --publish 3000:3000 --env-file=grafana-env.list --volume grafana:/data --network=pgnetwork --name=grafana --hostname=grafana --detach crunchydata/crunchy-grafana:centos7-10.4-2.0.0 1. Set up the metric collector 2. Set up prometheus to store metrics 3. Set up grafana to visualize

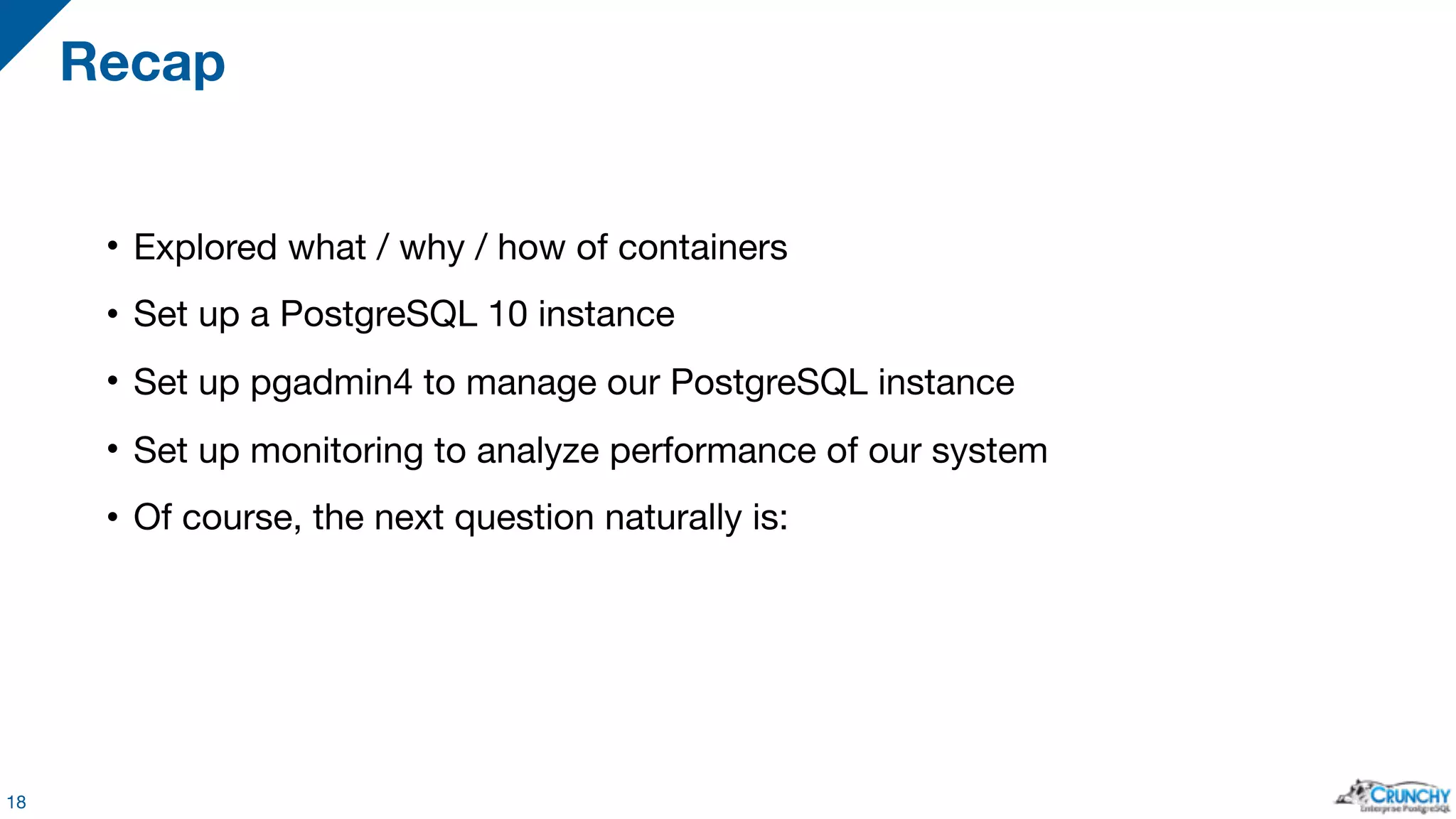

- 18. • Explored what/ why / how of containers • Set up a PostgreSQL 10 instance • Set up pgadmin4 to manage our PostgreSQL instance • Set up monitoring to analyze performance of our system • Of course, the next question naturally is: Recap 18
- 19. How do Imanage these things at scale?

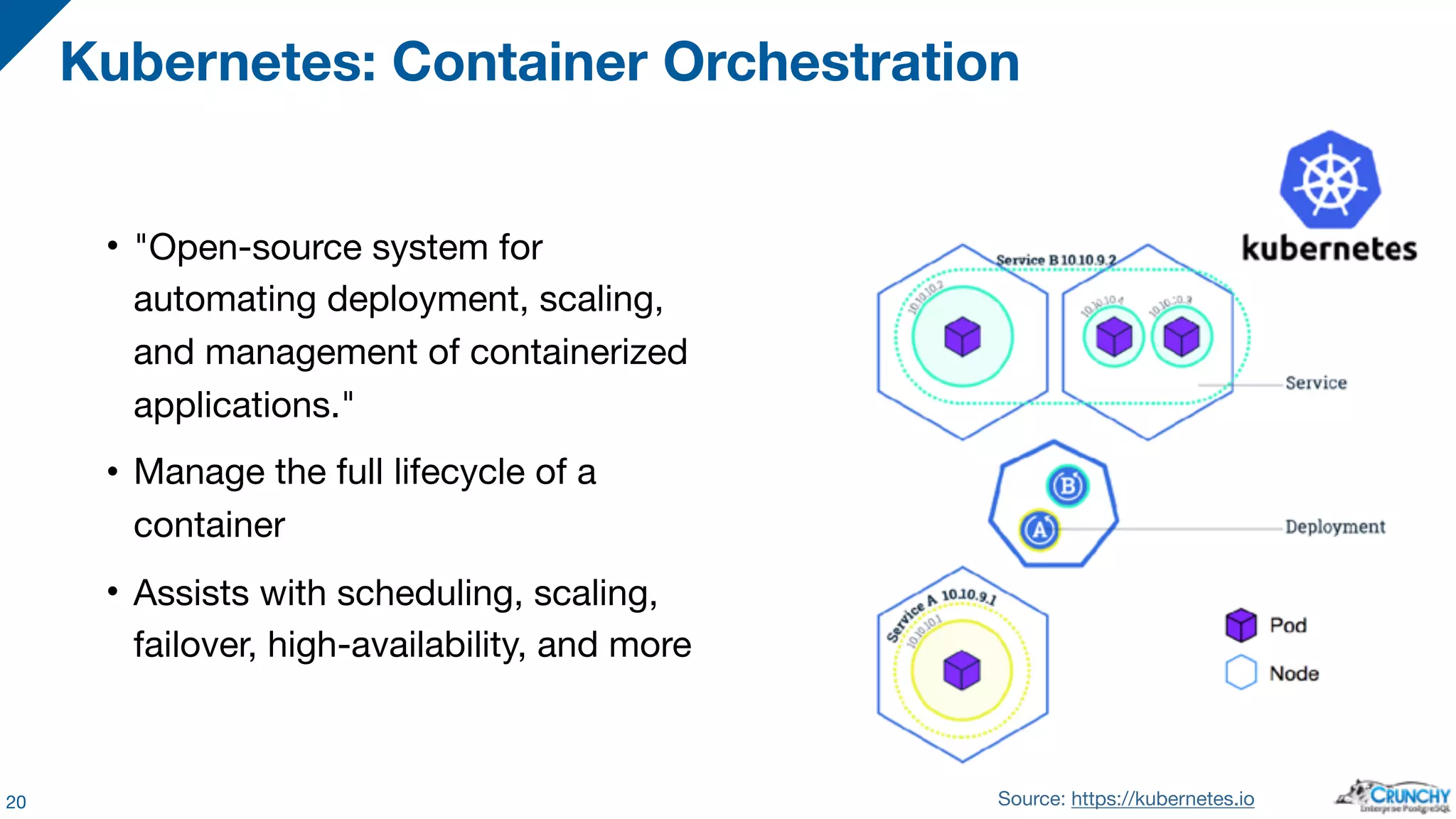

- 20. • "Open-source systemfor automating deployment, scaling, and management of containerized applications." • Manage the full lifecycle of a container • Assists with scheduling, scaling, failover, high-availability, and more Kubernetes: Container Orchestration 20 Source: https://kubernetes.io

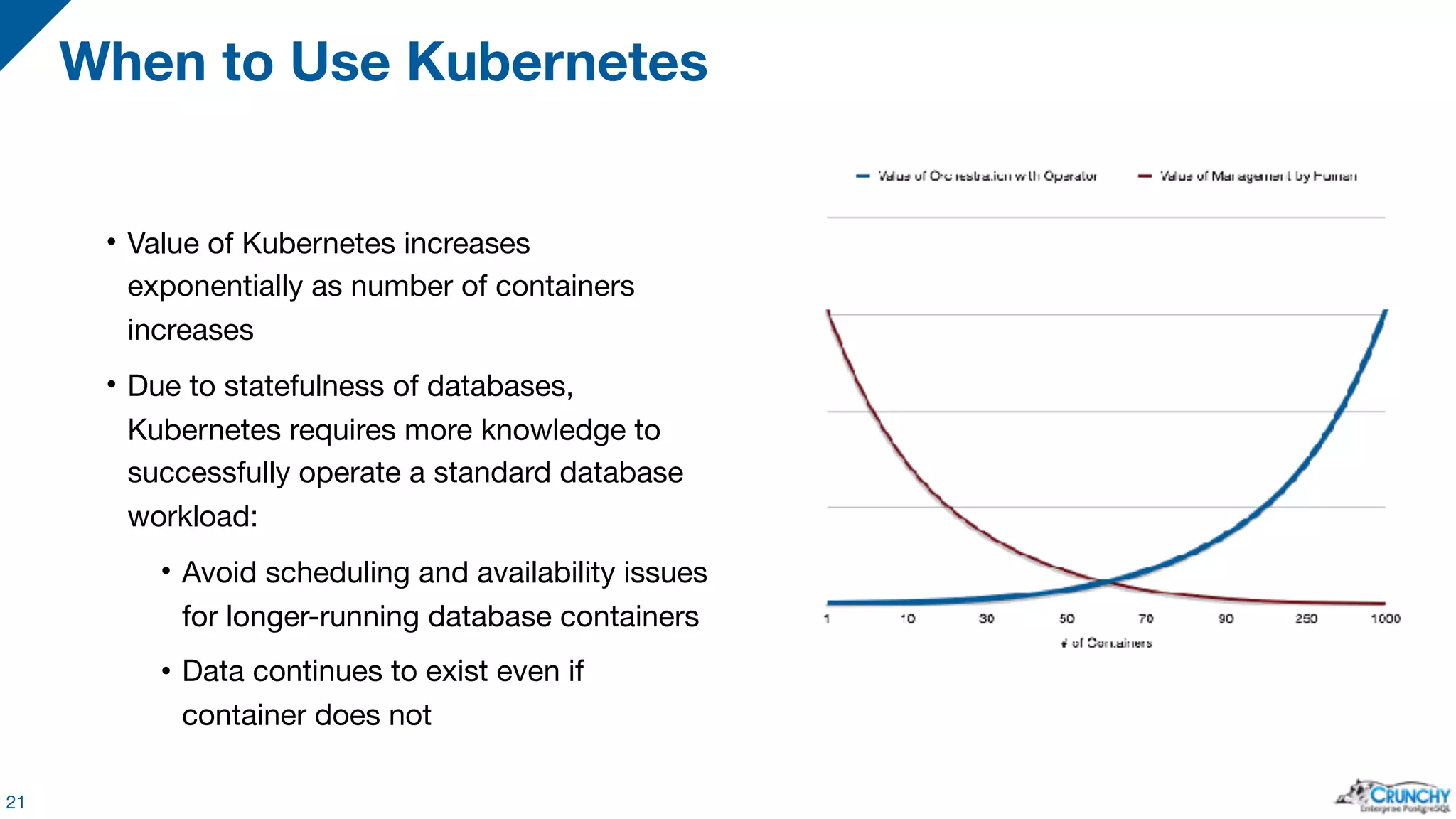

- 21. • Value ofKubernetes increases exponentially as number of containers increases • Due to statefulness of databases, Kubernetes requires more knowledge to successfully operate a standard database workload: • Avoid scheduling and availability issues for longer-running database containers • Data continues to exist even if container does not When to Use Kubernetes 21

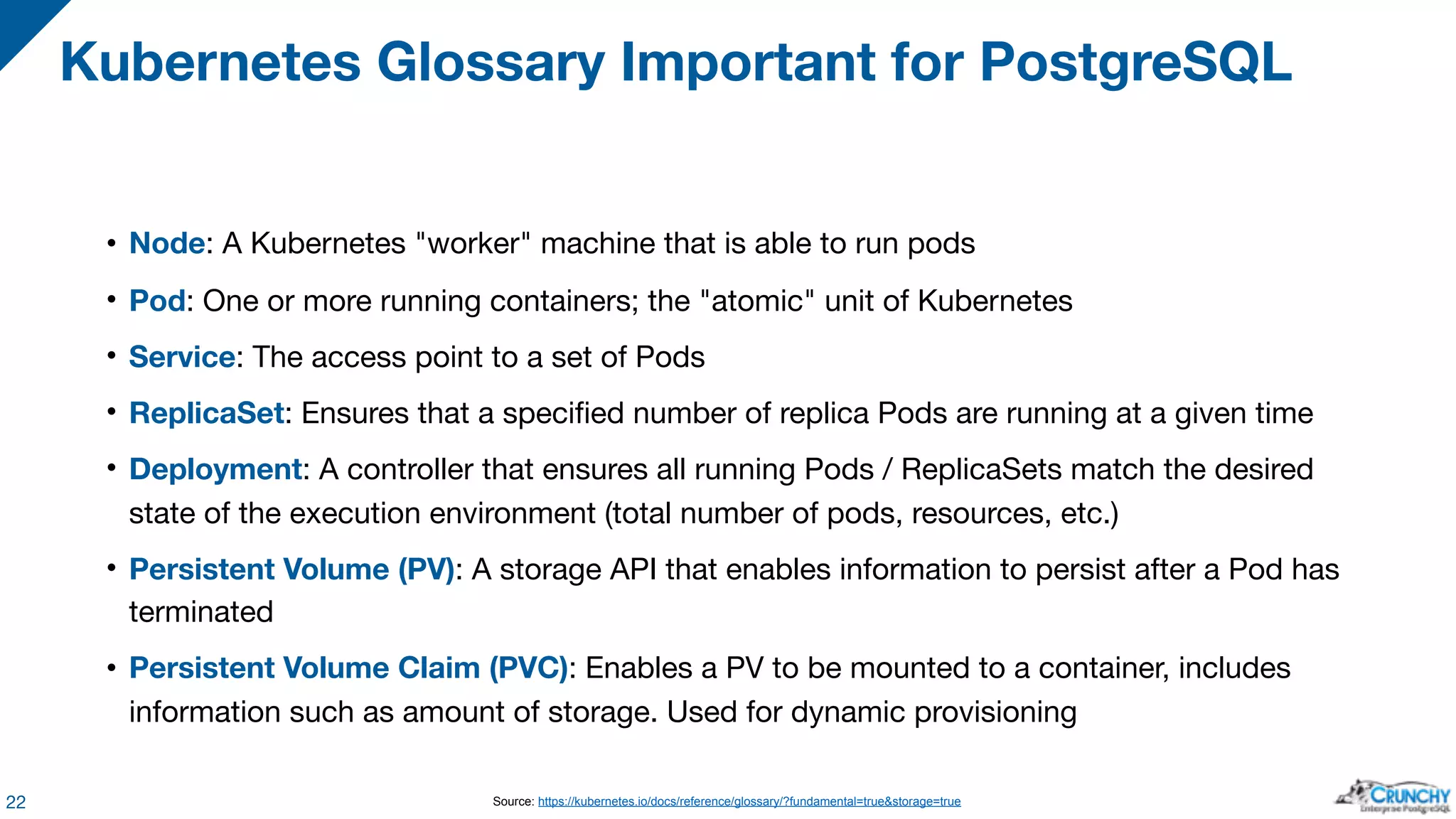

- 22. • Node: AKubernetes "worker" machine that is able to run pods • Pod: One or more running containers; the "atomic" unit of Kubernetes • Service: The access point to a set of Pods • ReplicaSet: Ensures that a specified number of replica Pods are running at a given time • Deployment: A controller that ensures all running Pods / ReplicaSets match the desired state of the execution environment (total number of pods, resources, etc.) • Persistent Volume (PV): A storage API that enables information to persist after a Pod has terminated • Persistent Volume Claim (PVC): Enables a PV to be mounted to a container, includes information such as amount of storage. Used for dynamic provisioning Kubernetes Glossary Important for PostgreSQL 22 Source: https://kubernetes.io/docs/reference/glossary/?fundamental=true&storage=true

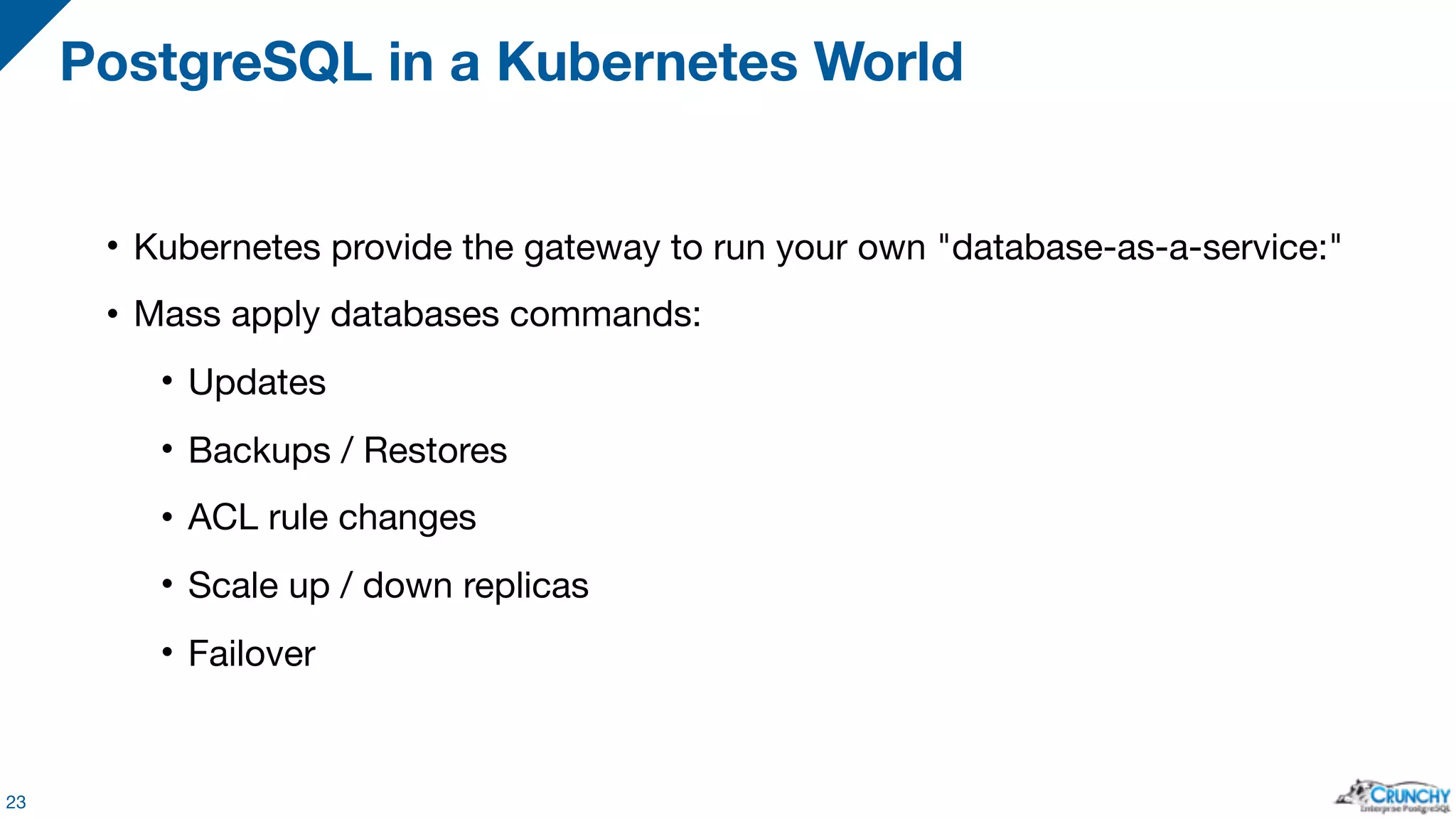

- 23. • Kubernetes providethe gateway to run your own "database-as-a-service:" • Mass apply databases commands: • Updates • Backups / Restores • ACL rule changes • Scale up / down replicas • Failover 23 PostgreSQL in a Kubernetes World

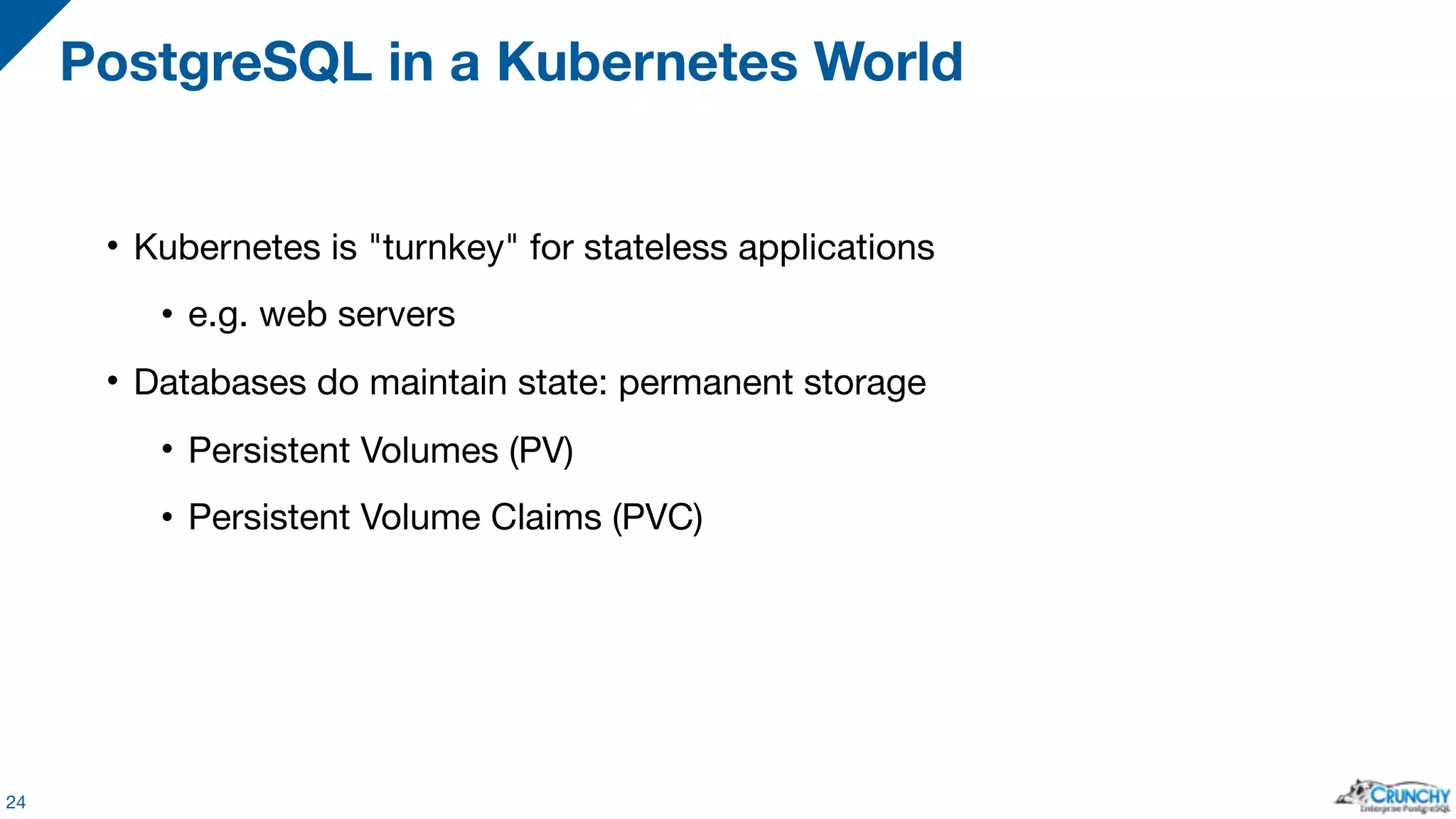

- 24. • Kubernetes is"turnkey" for stateless applications • e.g. web servers • Databases do maintain state: permanent storage • Persistent Volumes (PV) • Persistent Volume Claims (PVC) PostgreSQL in a Kubernetes World 24

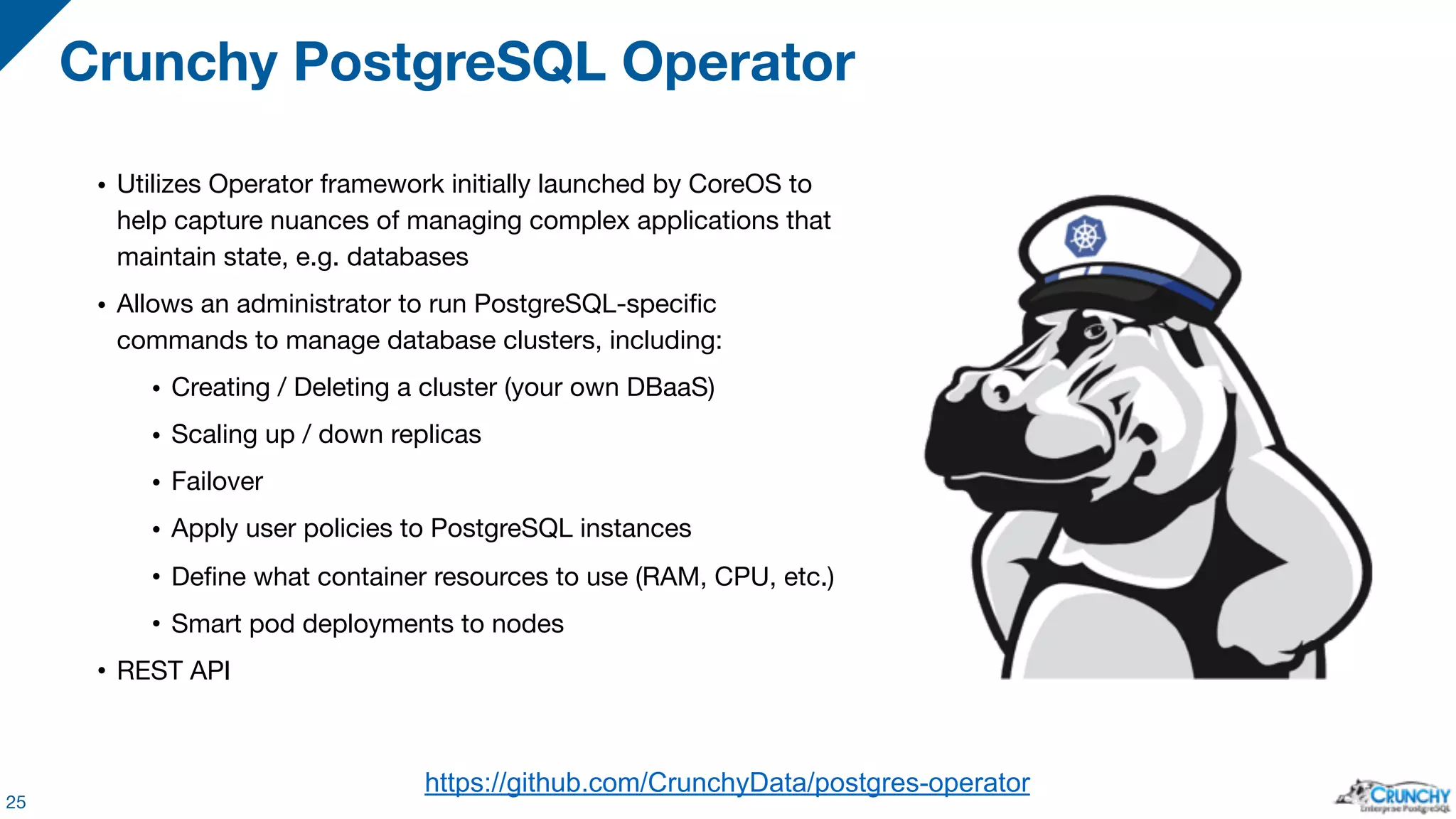

- 25. • Utilizes Operatorframework initially launched by CoreOS to help capture nuances of managing complex applications that maintain state, e.g. databases • Allows an administrator to run PostgreSQL-specific commands to manage database clusters, including: • Creating / Deleting a cluster (your own DBaaS) • Scaling up / down replicas • Failover • Apply user policies to PostgreSQL instances • Define what container resources to use (RAM, CPU, etc.) • Smart pod deployments to nodes • REST API Crunchy PostgreSQL Operator 25 https://github.com/CrunchyData/postgres-operator

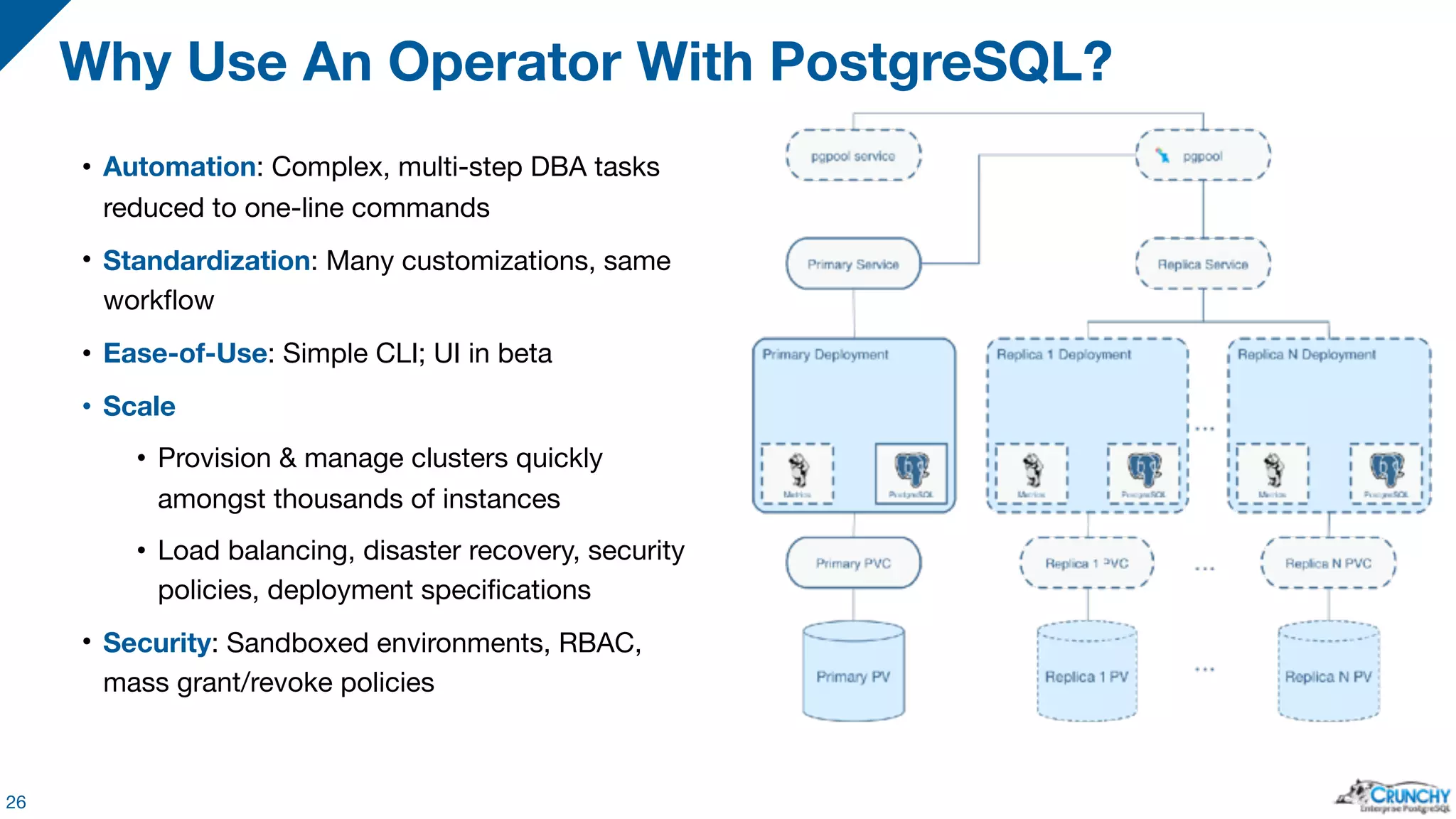

- 26. • Automation: Complex,multi-step DBA tasks reduced to one-line commands • Standardization: Many customizations, same workflow • Ease-of-Use: Simple CLI; UI in beta • Scale • Provision & manage clusters quickly amongst thousands of instances • Load balancing, disaster recovery, security policies, deployment specifications • Security: Sandboxed environments, RBAC, mass grant/revoke policies Why Use An Operator With PostgreSQL? 26
- 27.
- 28. Demo: Exploring theOperator User Interface 28

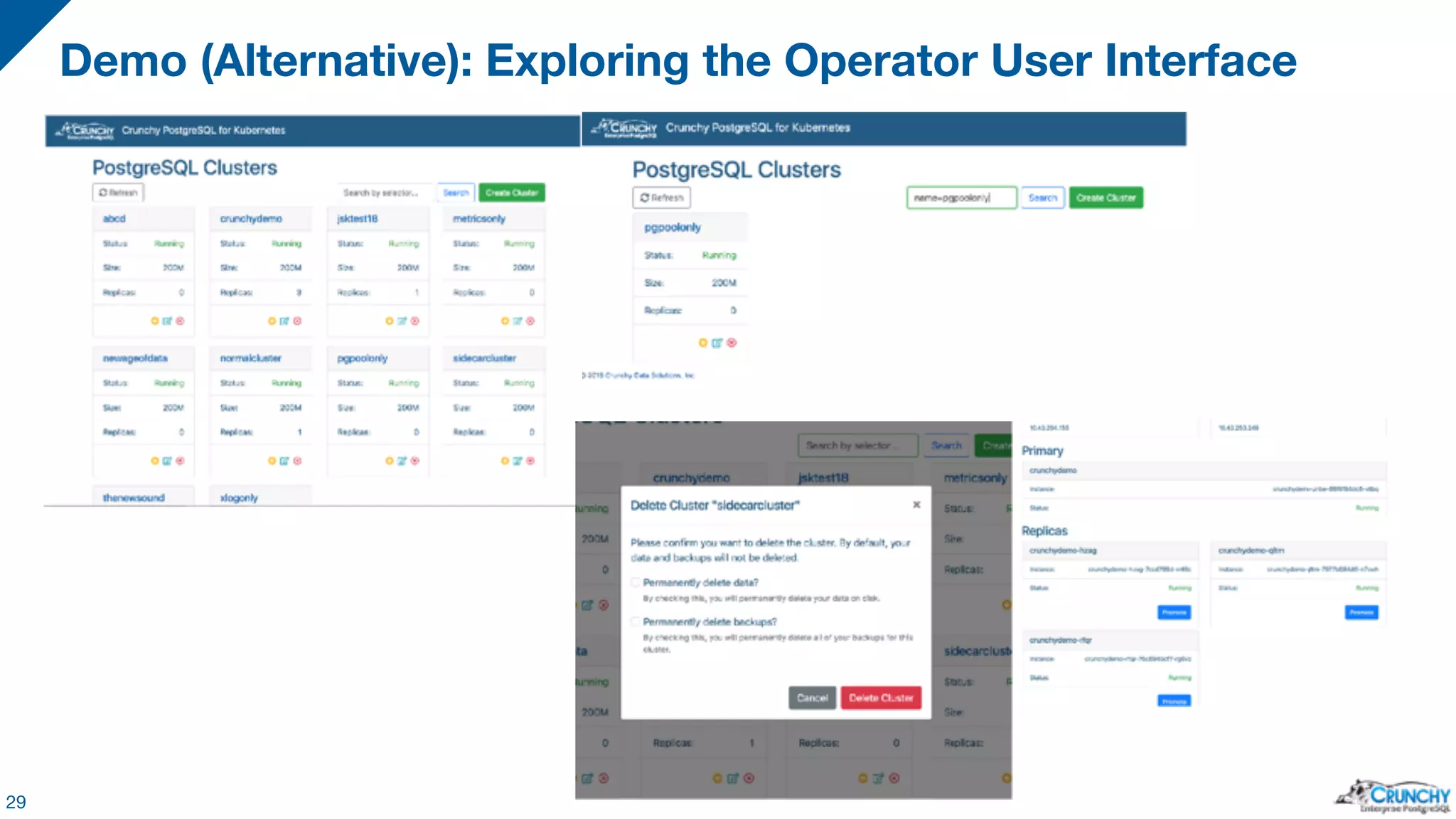

- 29. Demo (Alternative): Exploringthe Operator User Interface 29

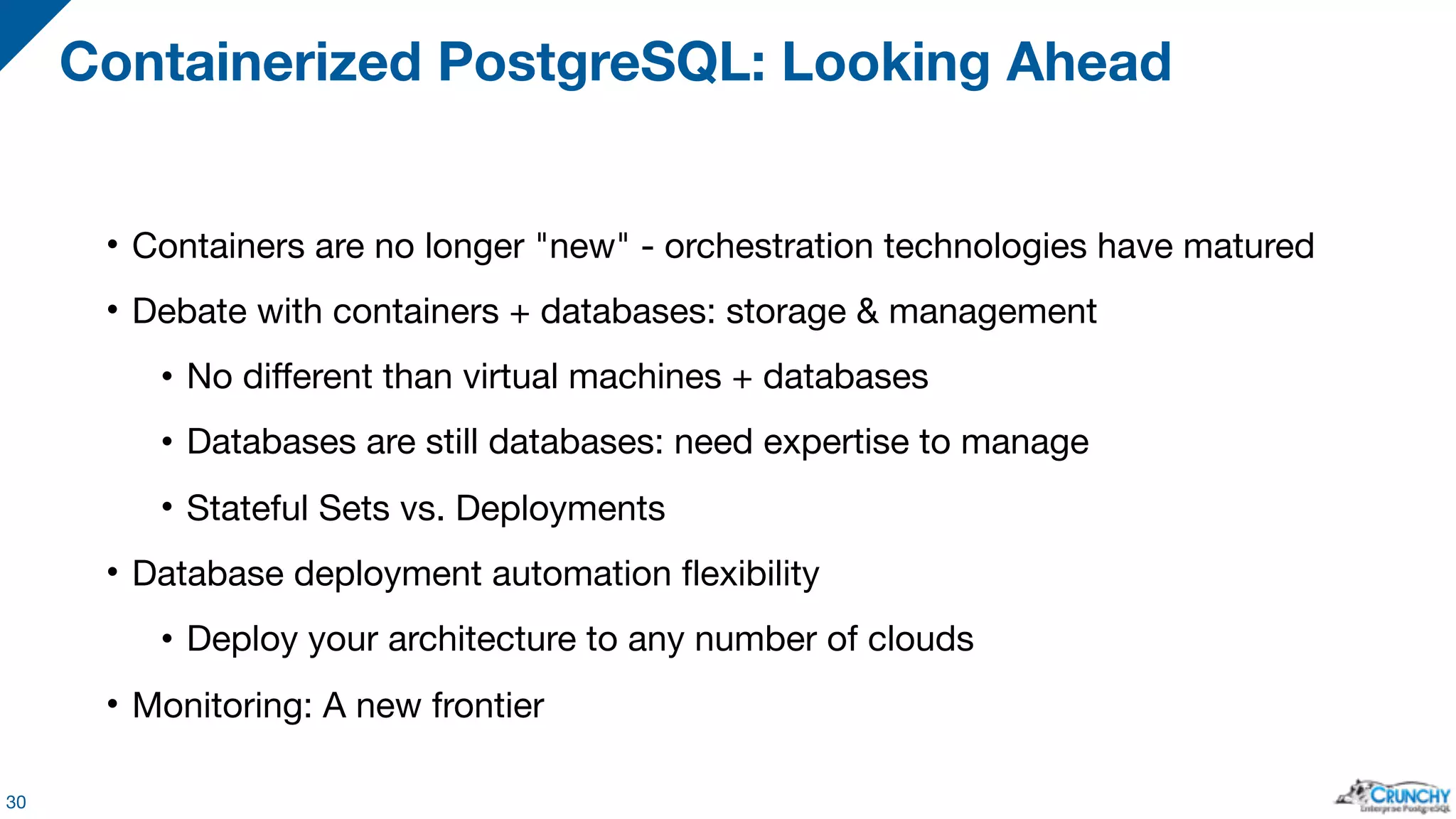

- 30. • Containers areno longer "new" - orchestration technologies have matured • Debate with containers + databases: storage & management • No different than virtual machines + databases • Databases are still databases: need expertise to manage • Stateful Sets vs. Deployments • Database deployment automation flexibility • Deploy your architecture to any number of clouds • Monitoring: A new frontier Containerized PostgreSQL: Looking Ahead 30

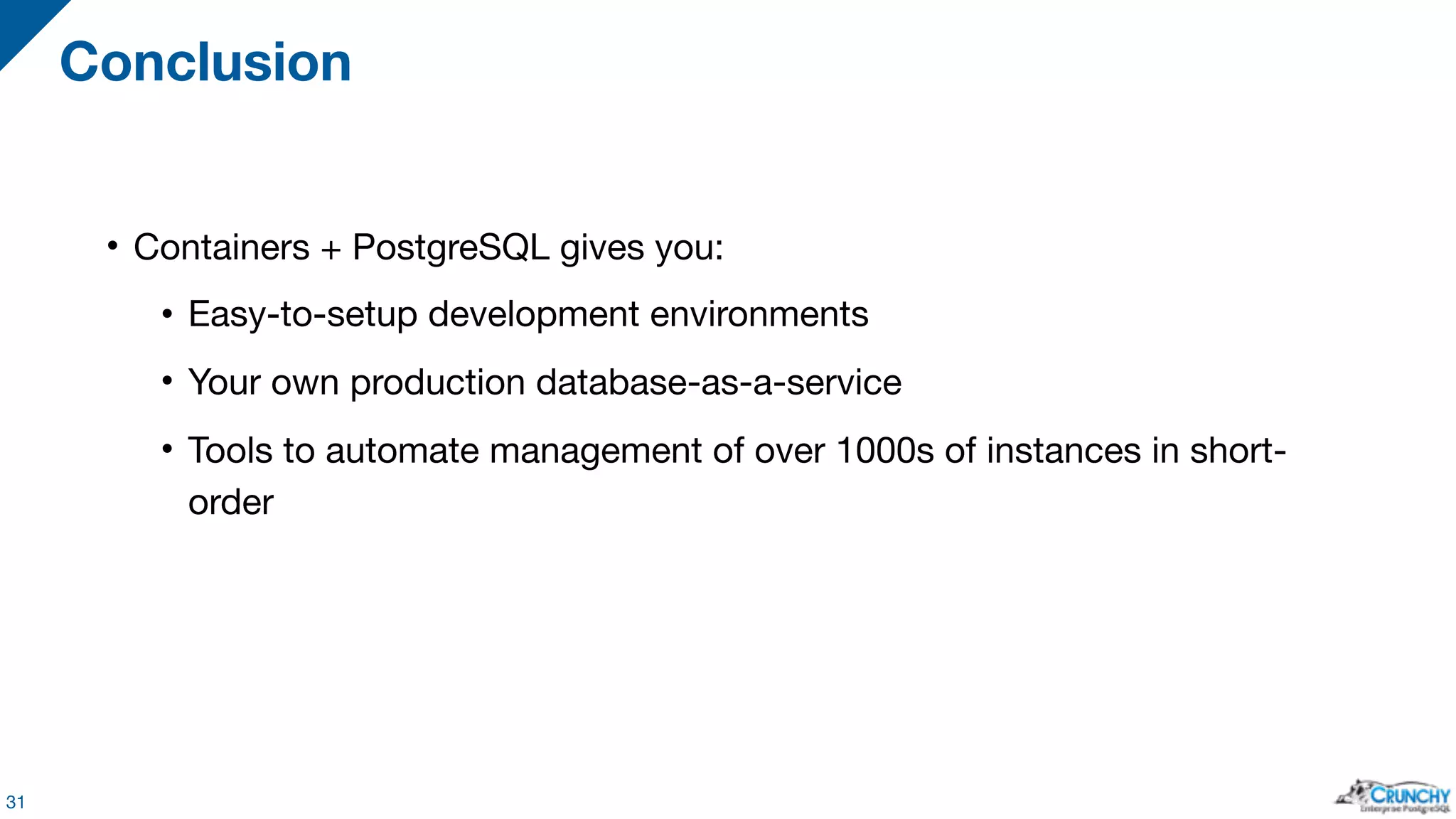

- 31. • Containers +PostgreSQL gives you: • Easy-to-setup development environments • Your own production database-as-a-service • Tools to automate management of over 1000s of instances in short- order Conclusion 31
