"The Story of Declarative React at Grammarly: From two-way data binding with Focal to a custom implementation of UI as a tree data structure", Oleksandr Suhak

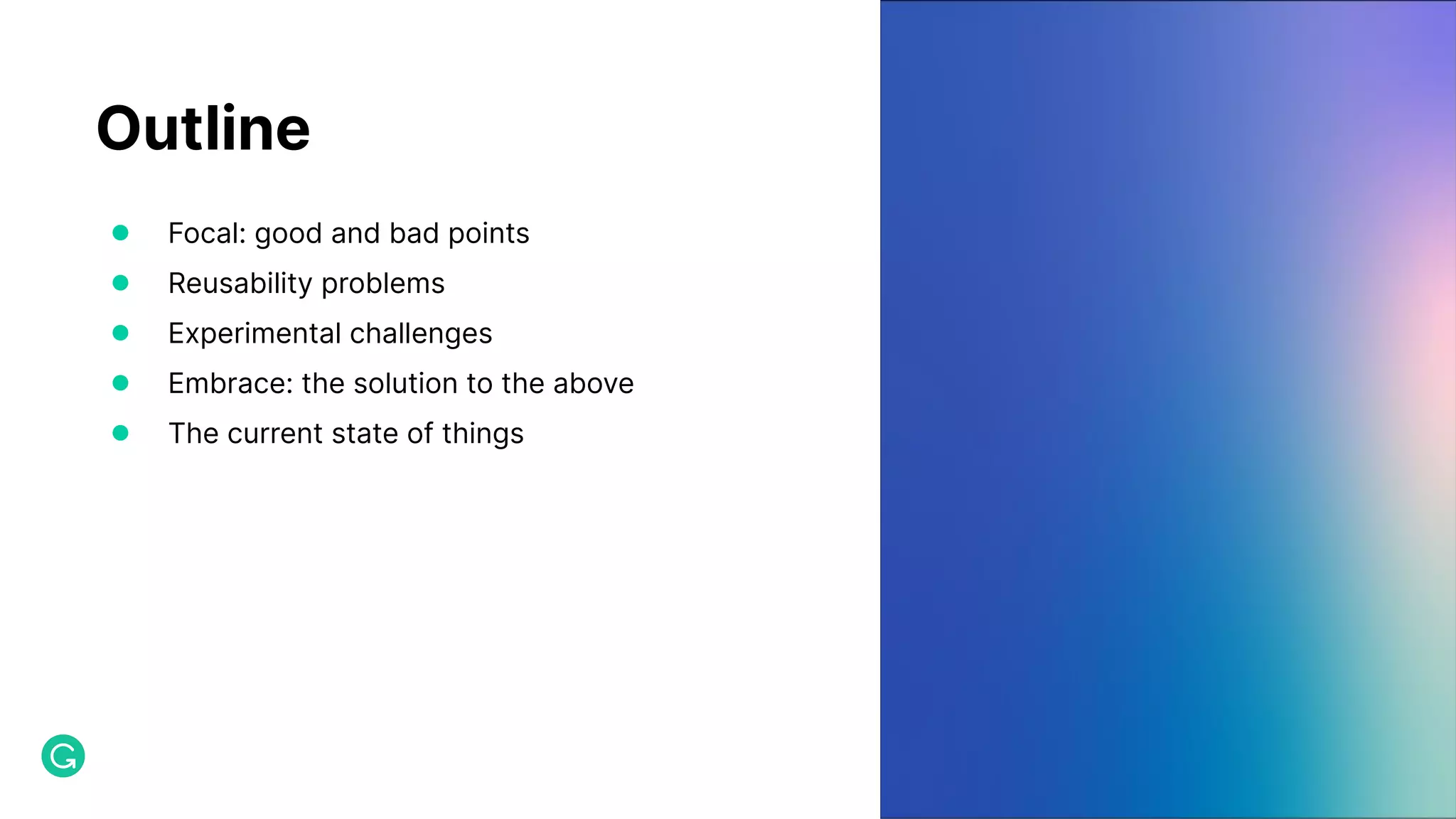

Outline ● Focal: good and bad points ● Reusability problems ● Experimental challenges ● Embrace: the solution to the above ● The current state of things

Let’s start with https://github.com/grammarly/focal

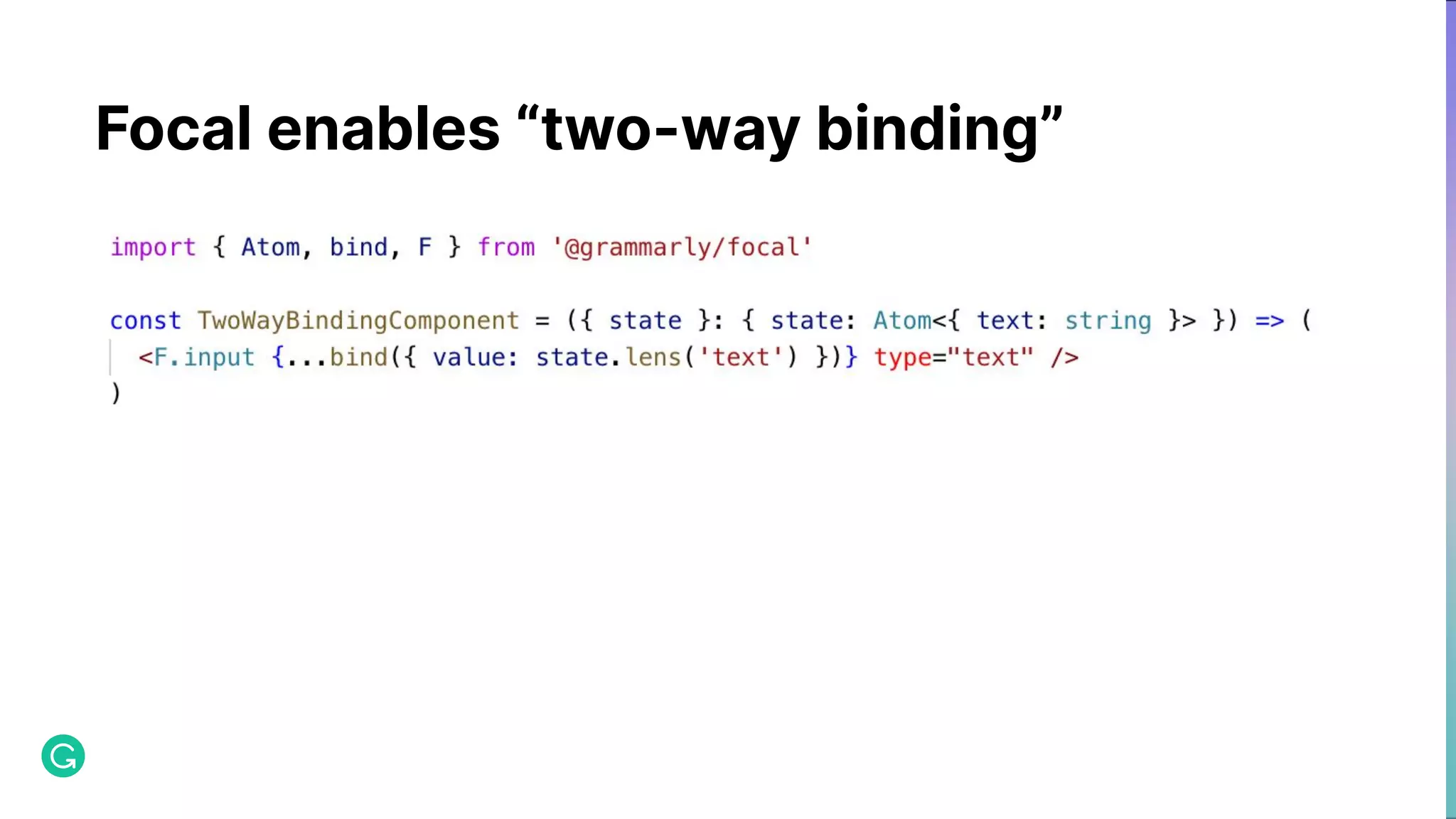

Focal enables “two-way binding”

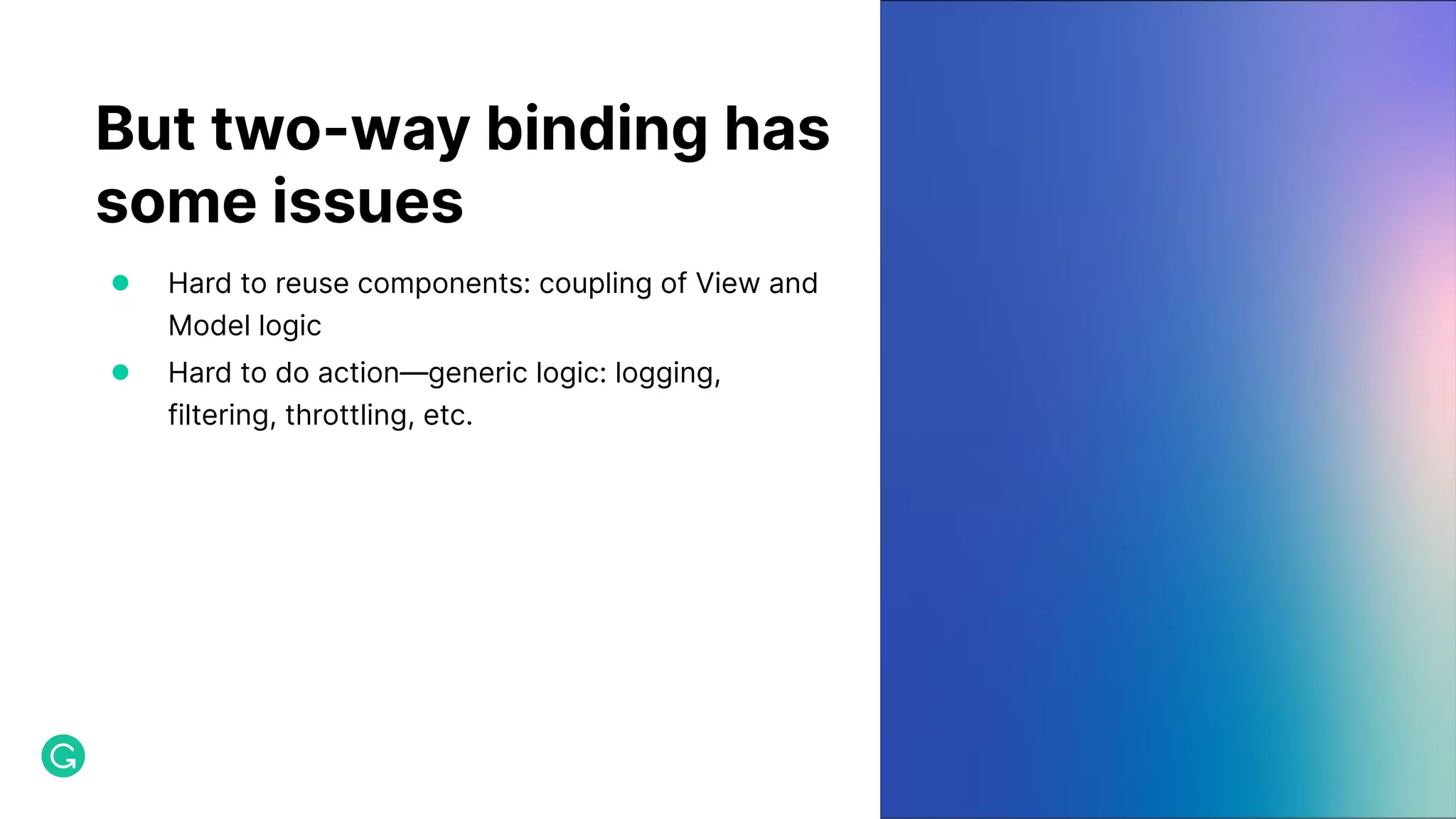

But two-way binding has some issues ● Hard to reuse components: coupling of View and Model logic ● Hard to do action—generic logic: logging, filtering, throttling, etc.

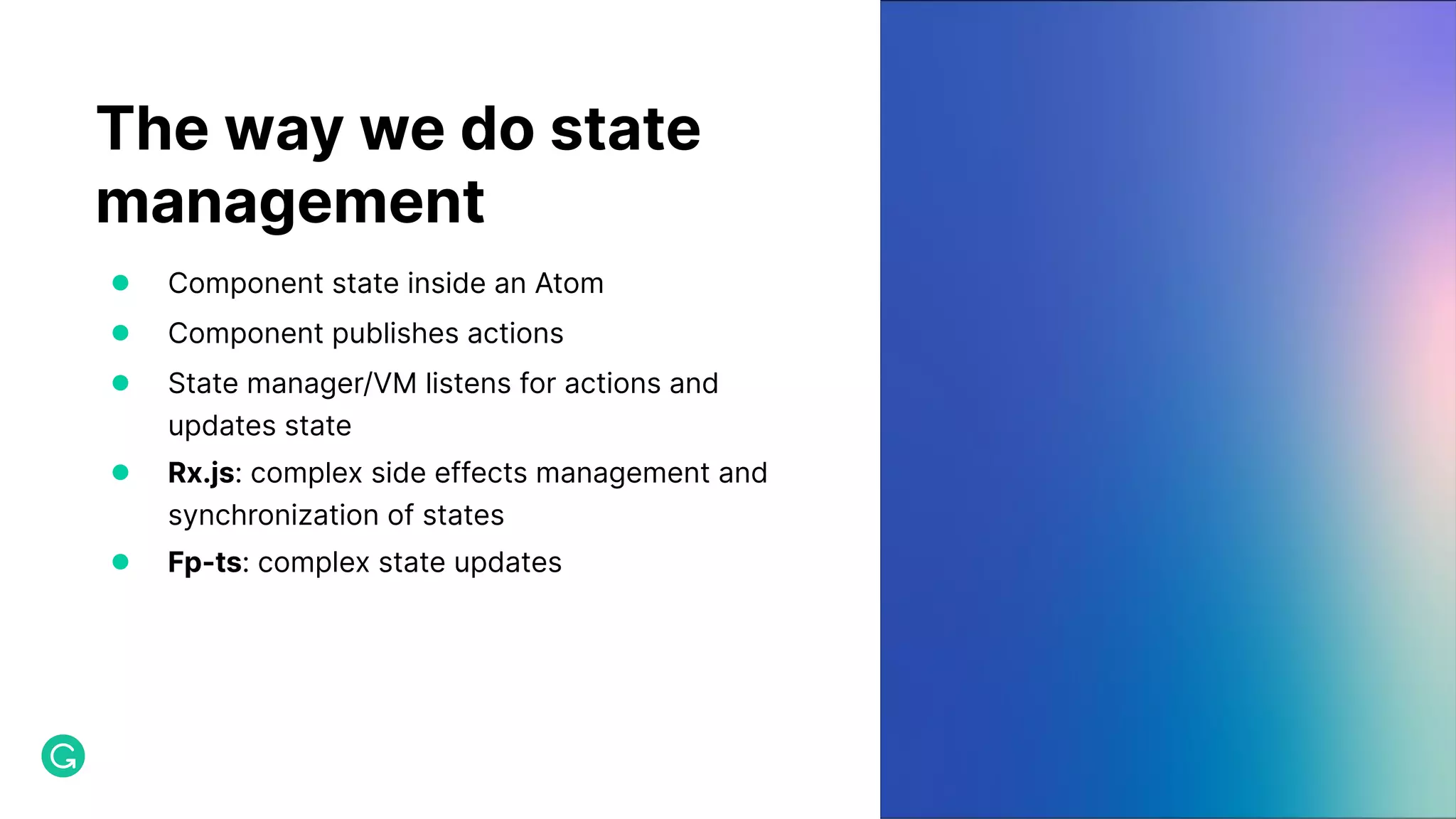

The way we do state management ● Component state inside an Atom ● Component publishes actions ● State manager/VM listens for actions and updates state ● Rx.js: complex side effects management and synchronization of states ● Fp-ts: complex state updates

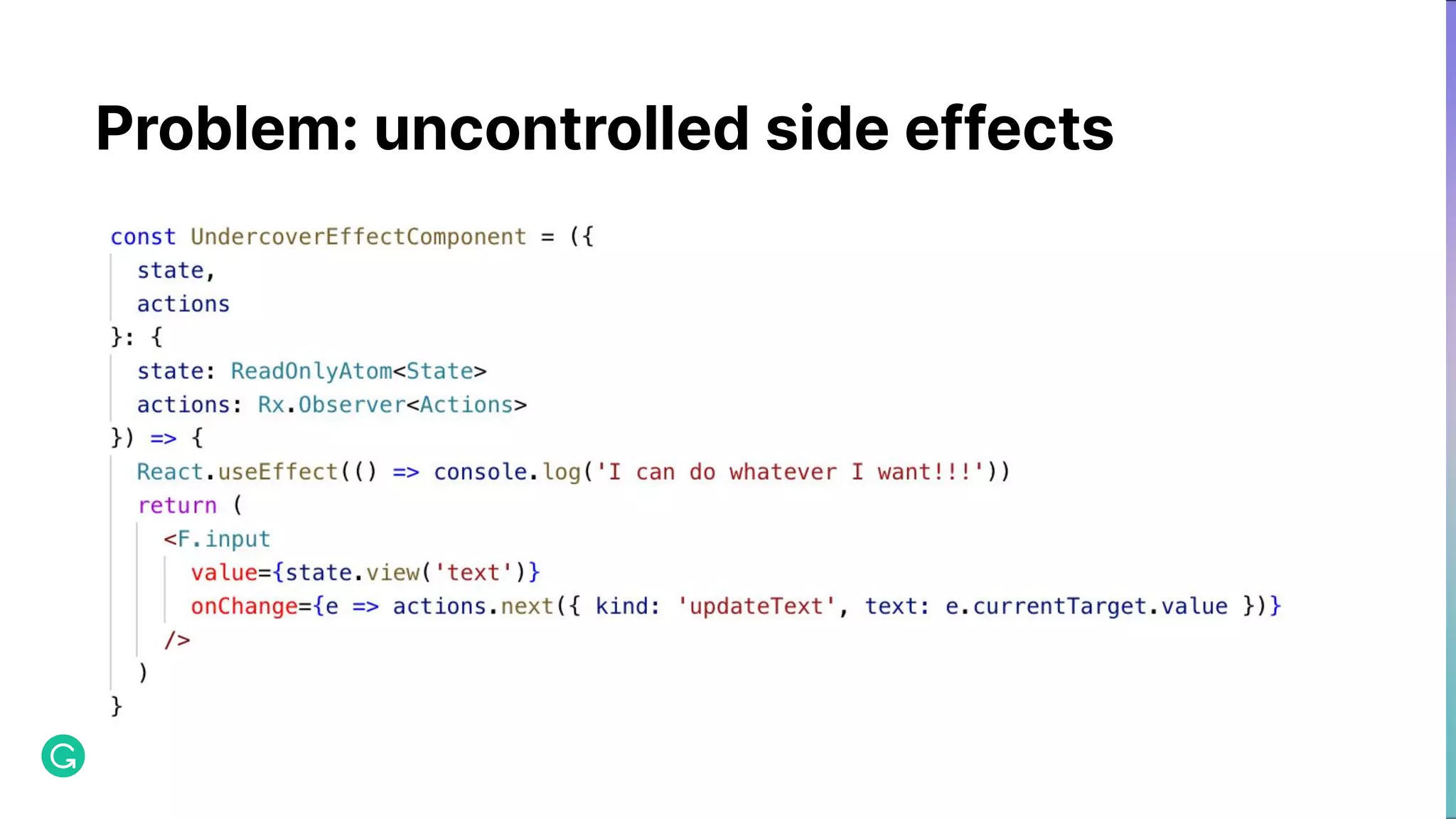

Problem: uncontrolled side effects

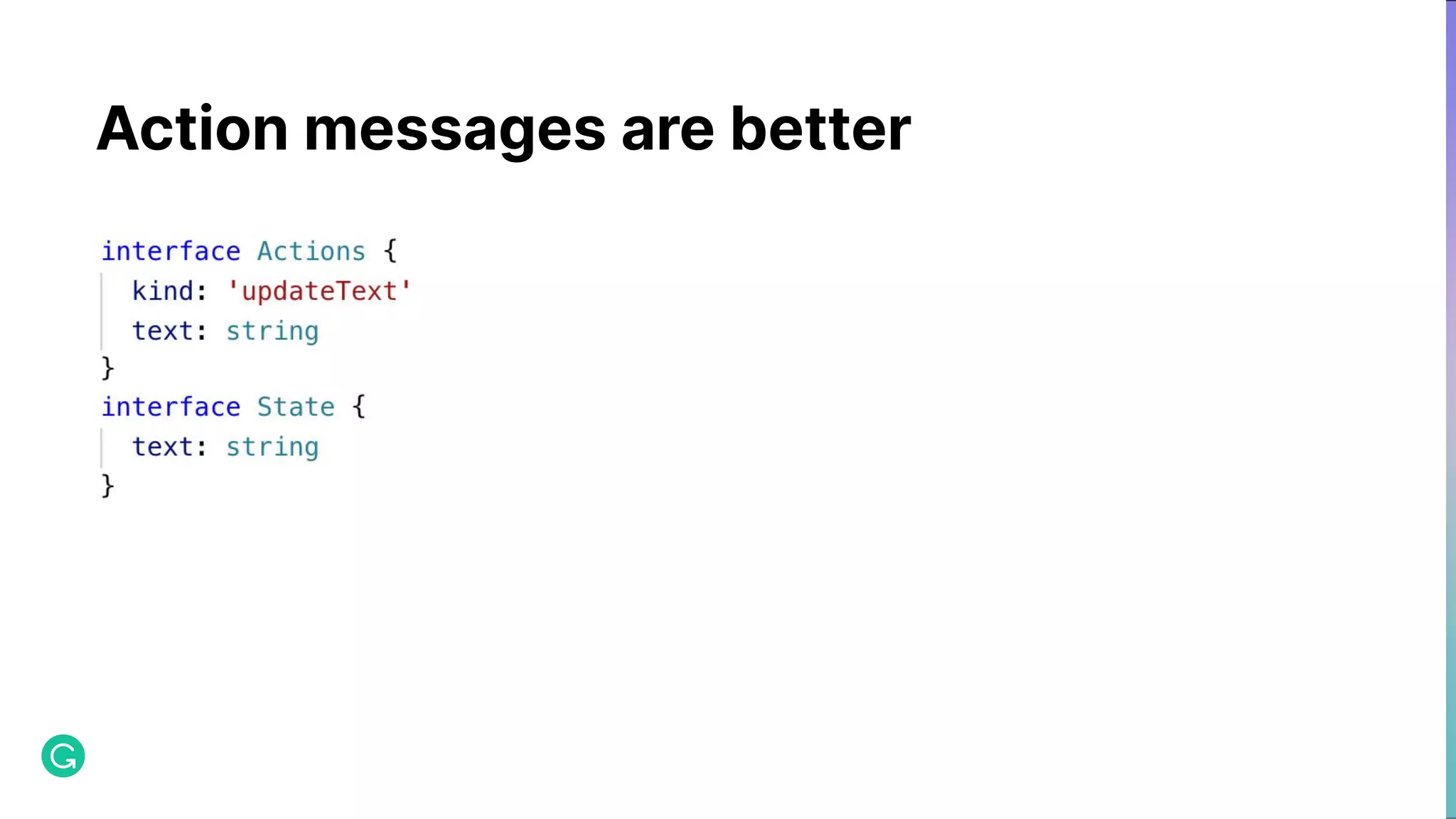

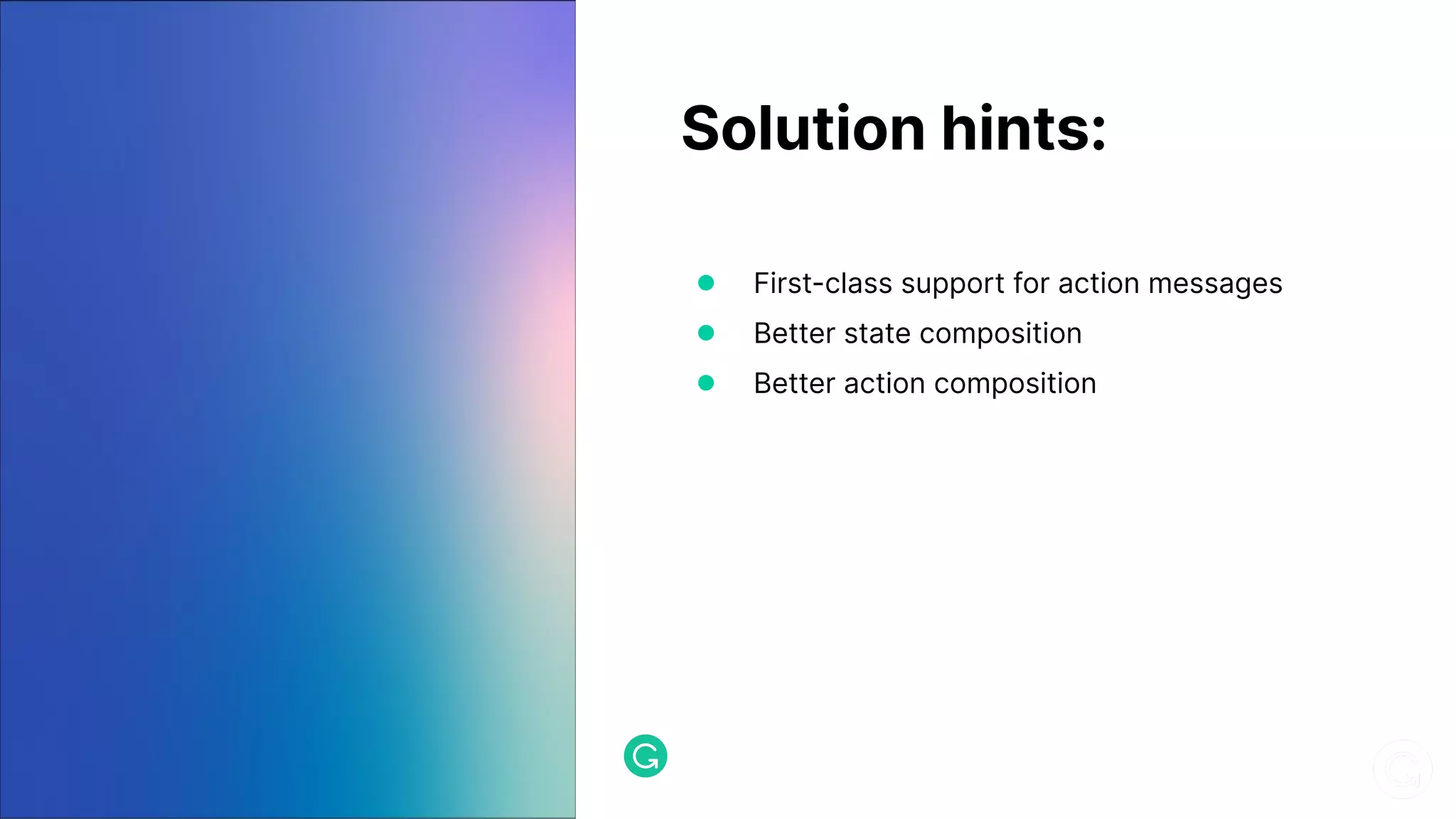

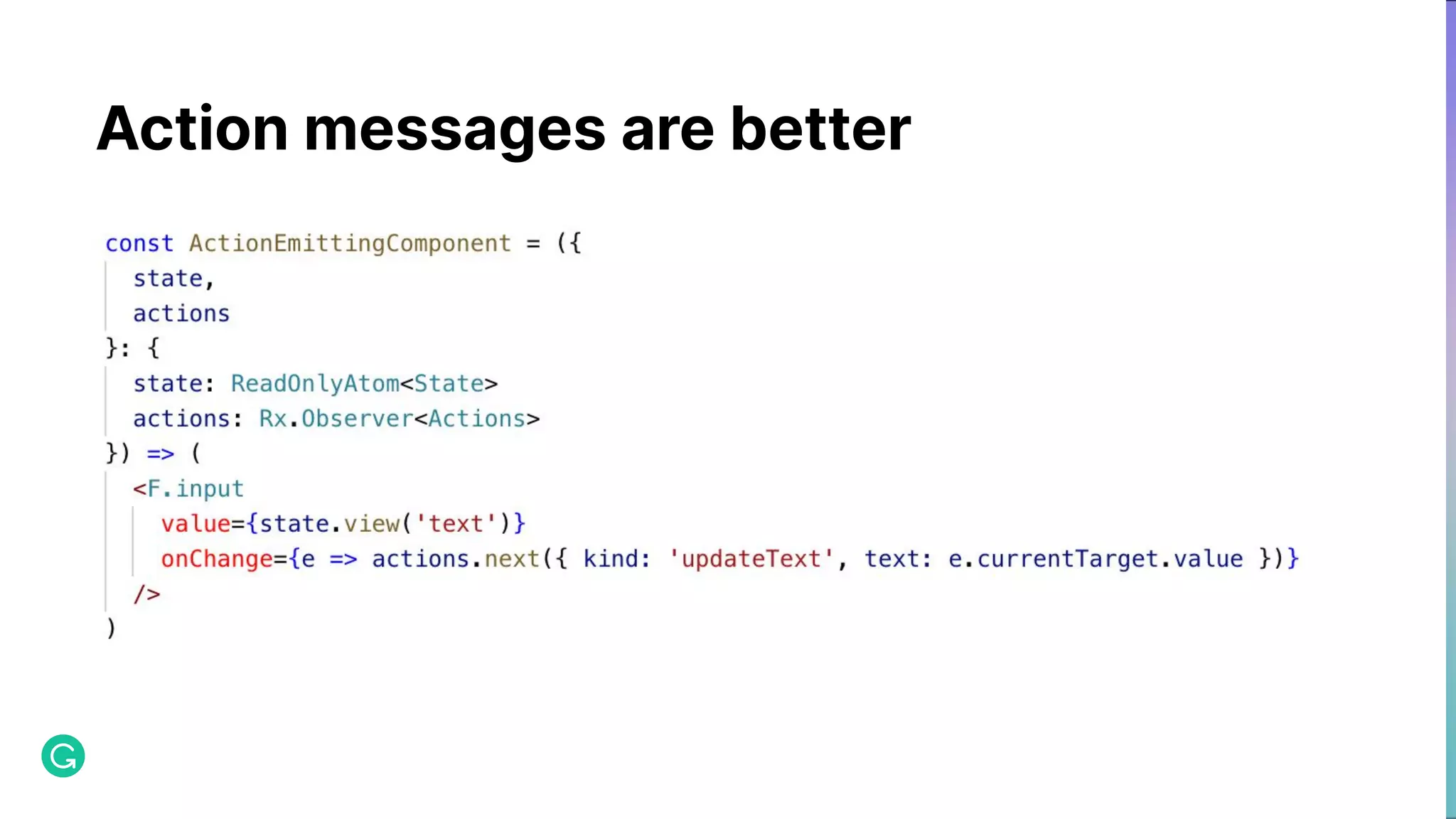

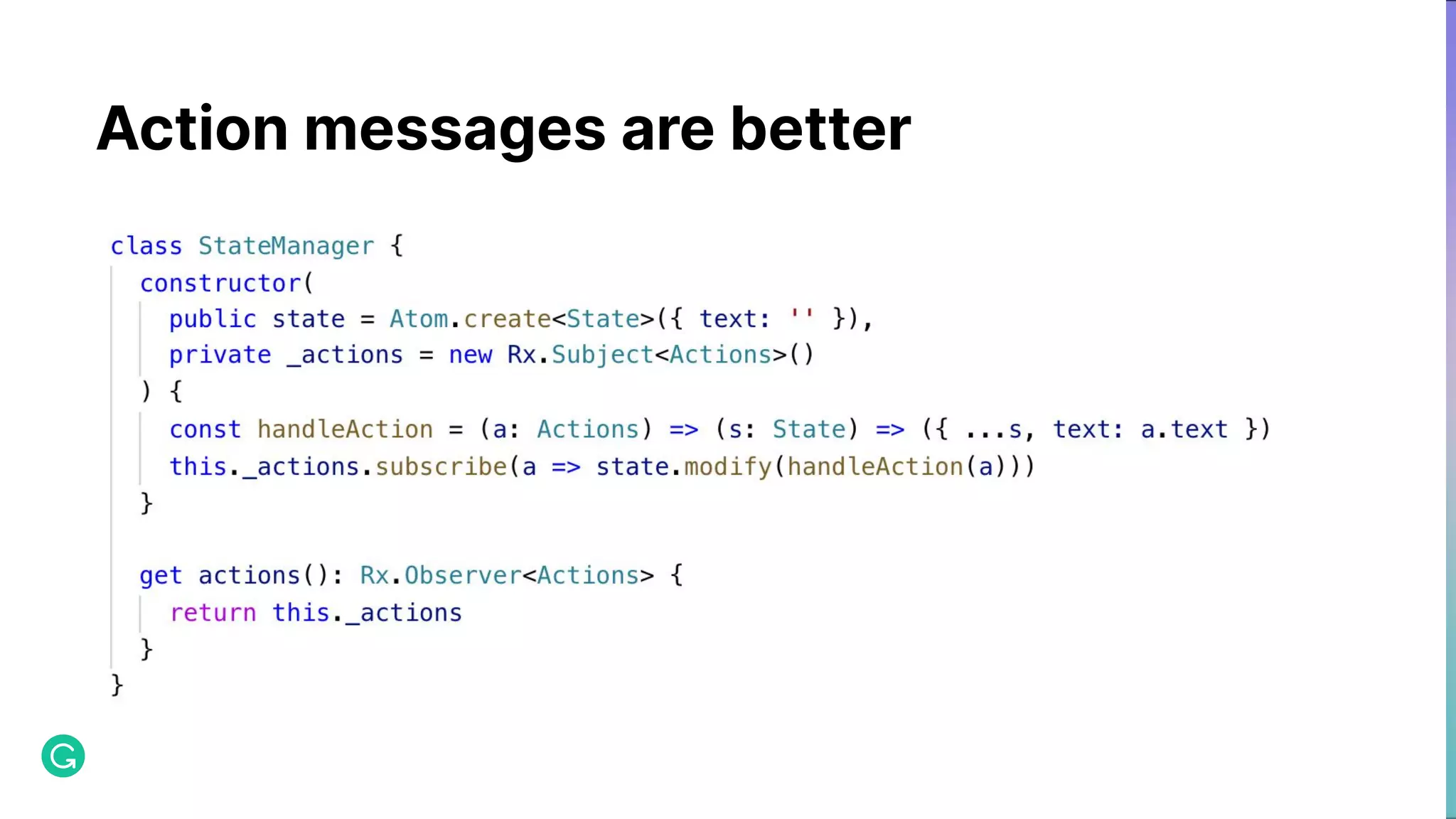

Solution hints: ● First-class support for action messages ● Better state composition ● Better action composition

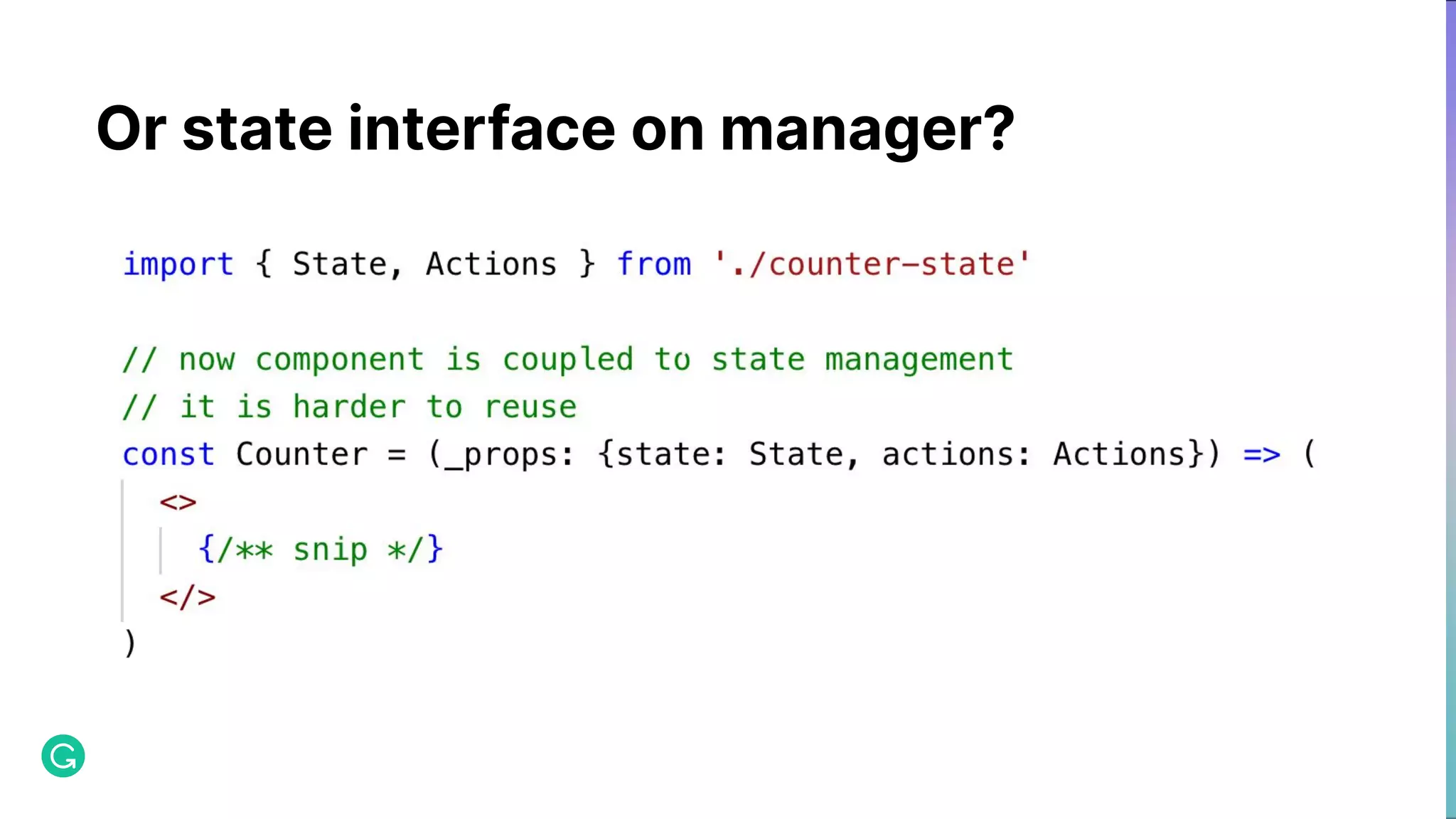

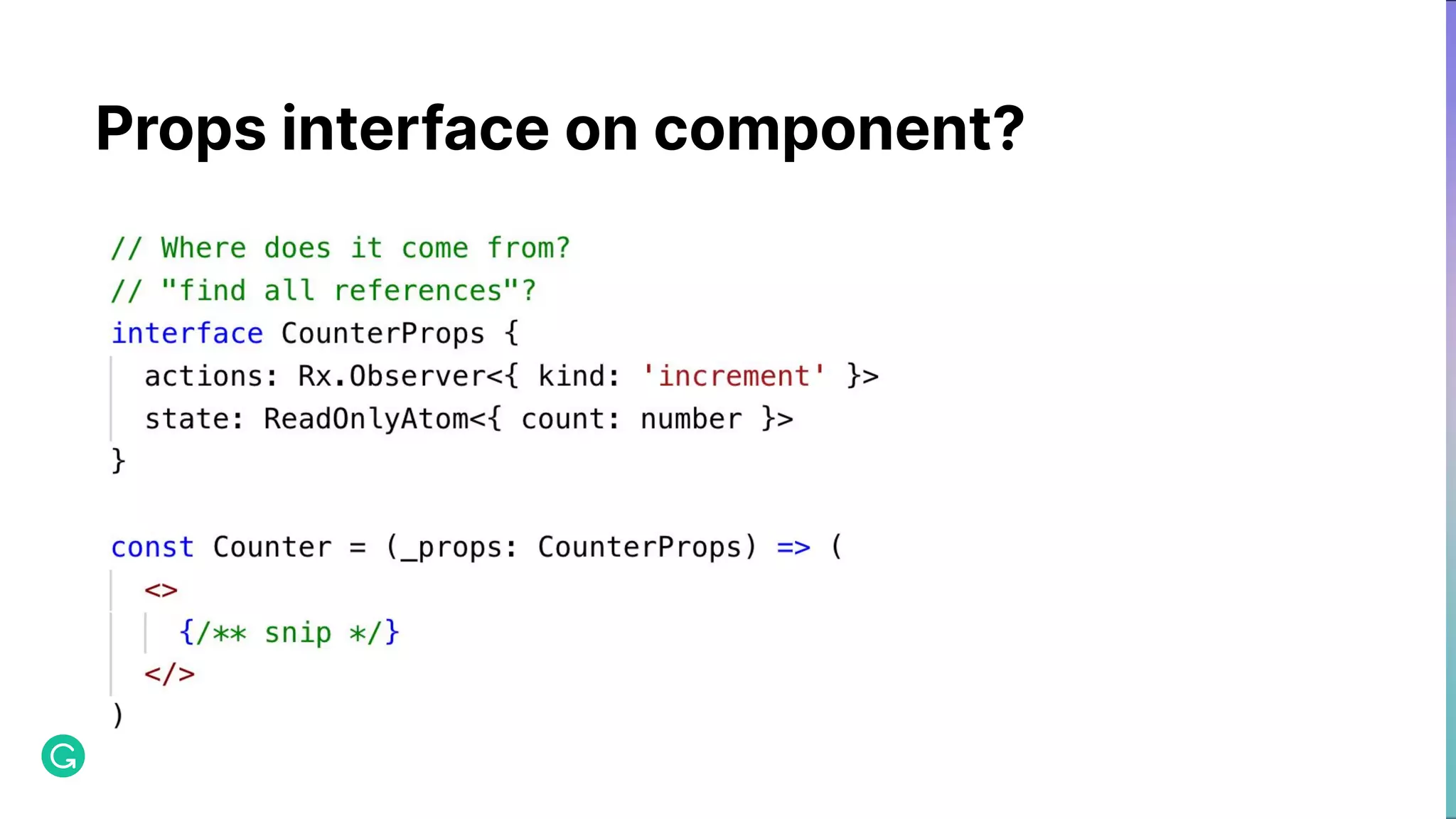

Or state interface on manager?

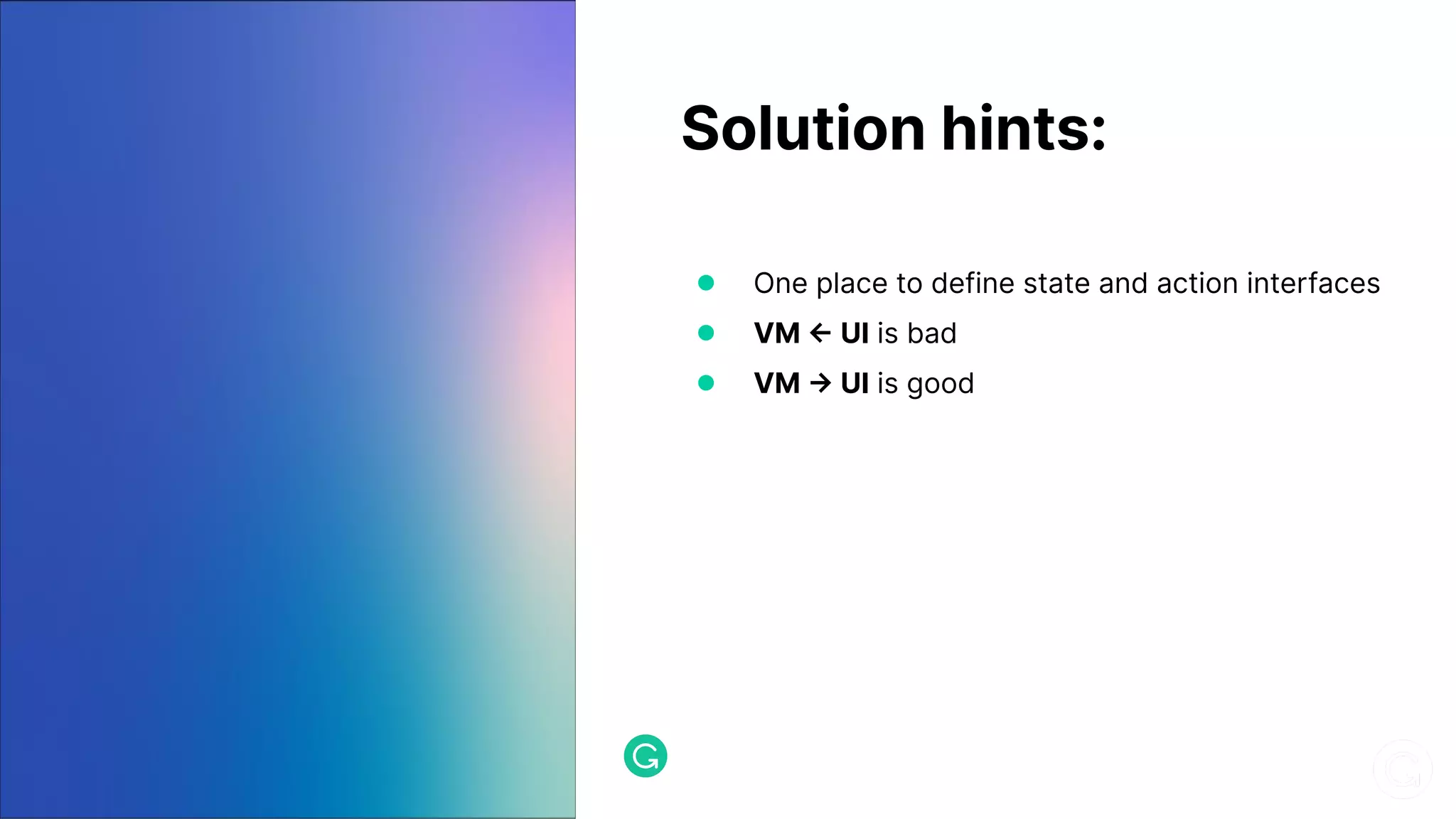

Solution hints: ● One place to define state and action interfaces ● VM <- UI is bad ● VM -> UI is good

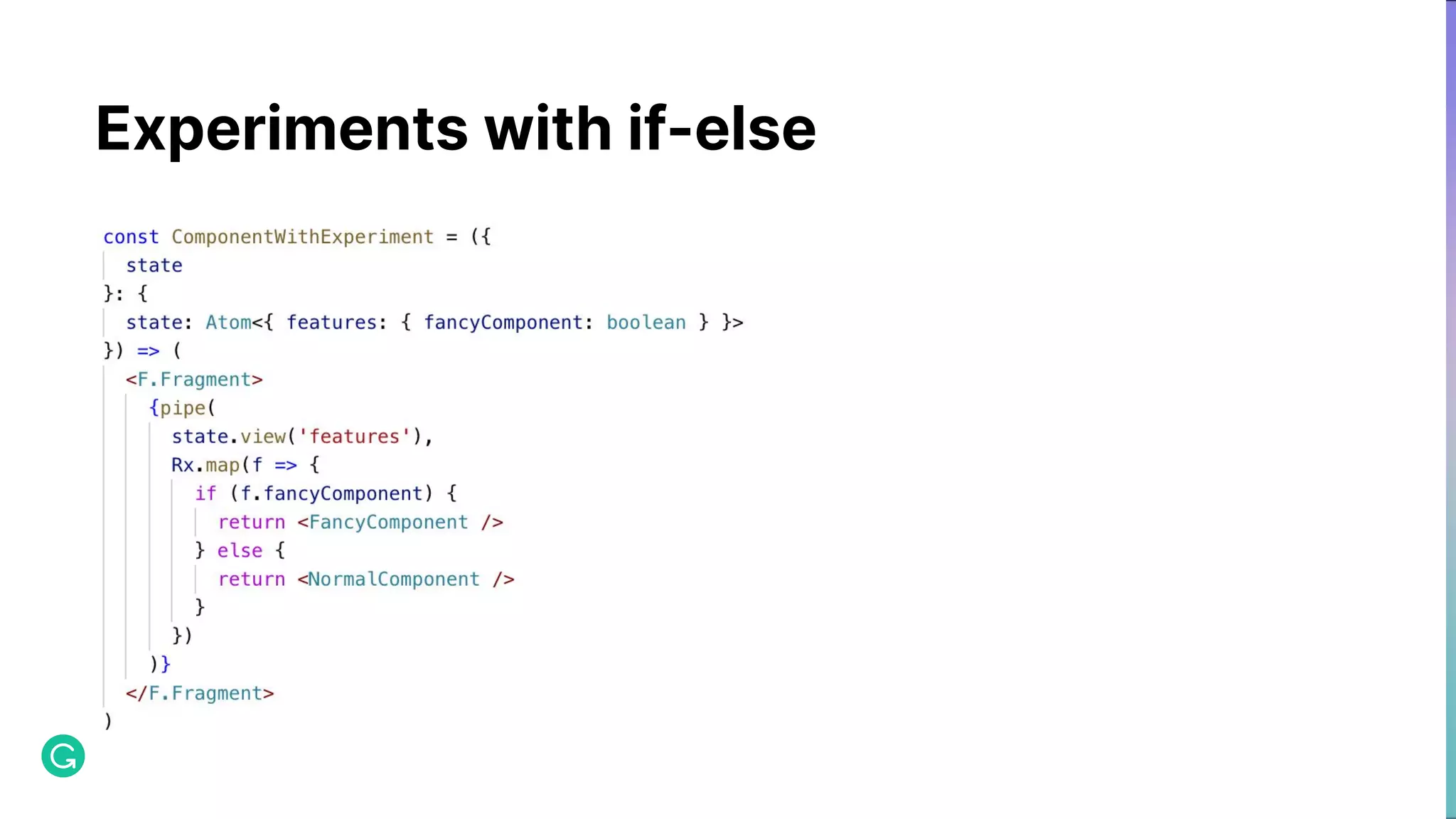

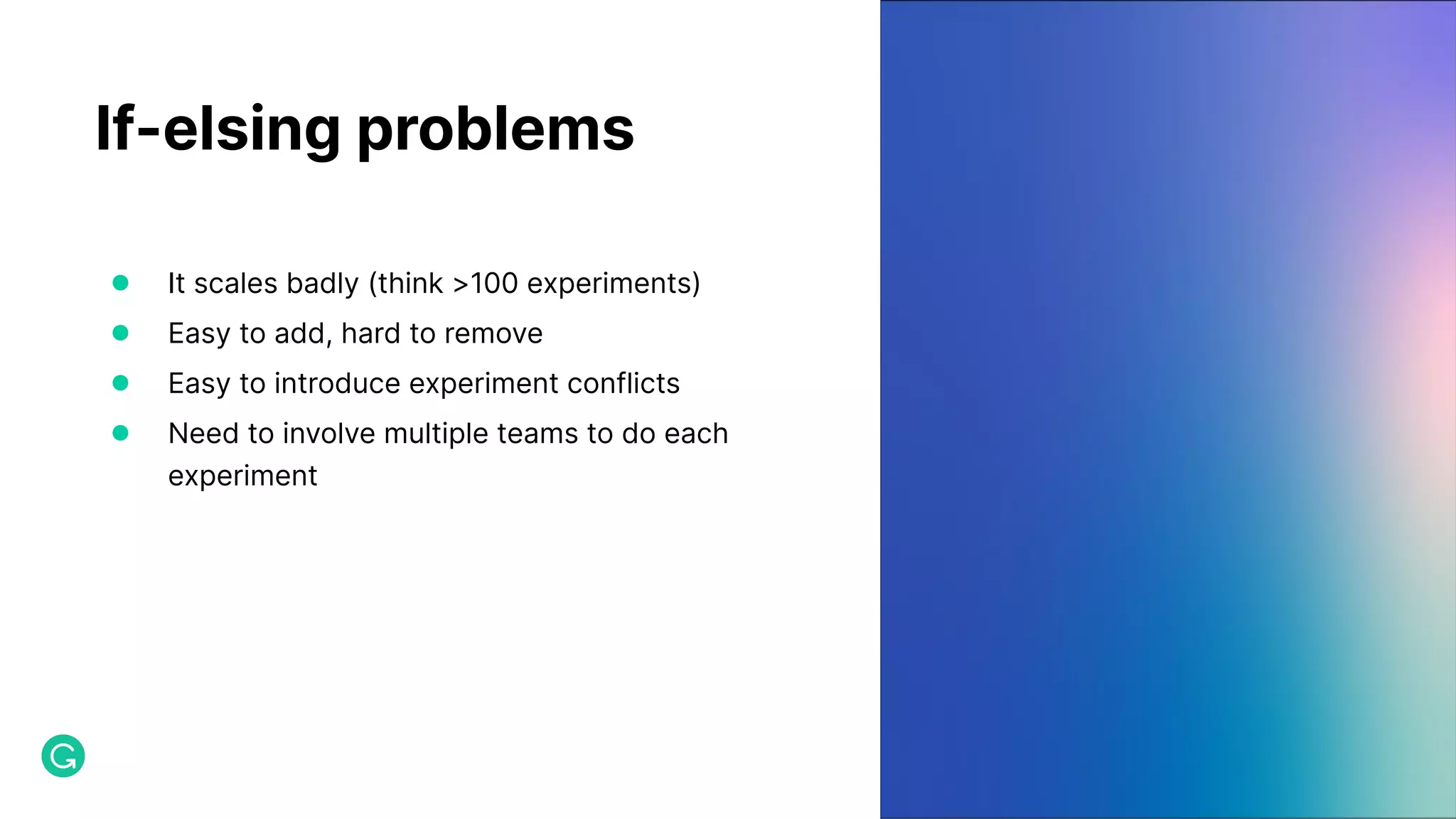

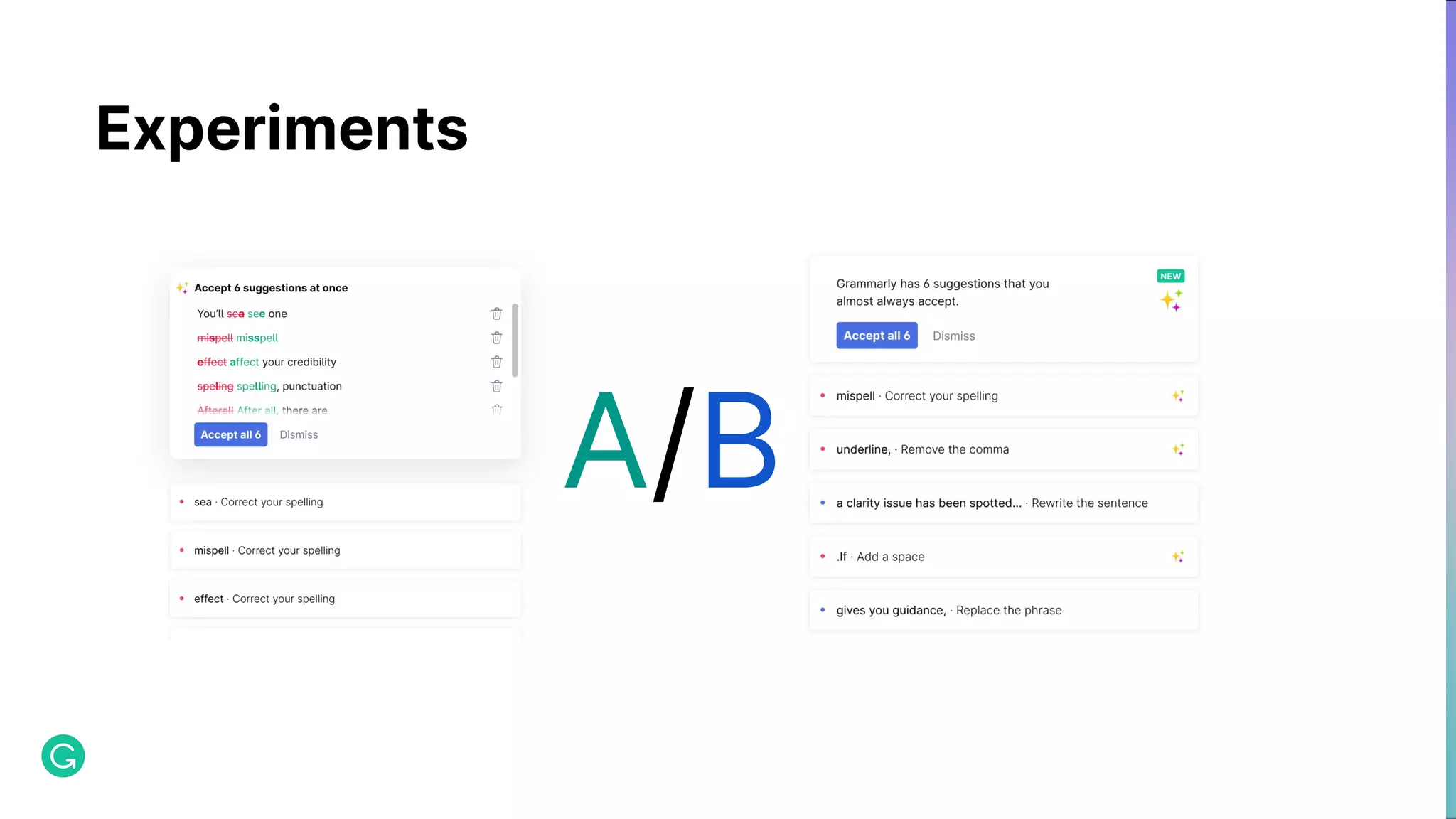

If-elsing problems ● It scales badly (think >100 experiments) ● Easy to add, hard to remove ● Easy to introduce experiment conflicts ● Need to involve multiple teams to do each experiment

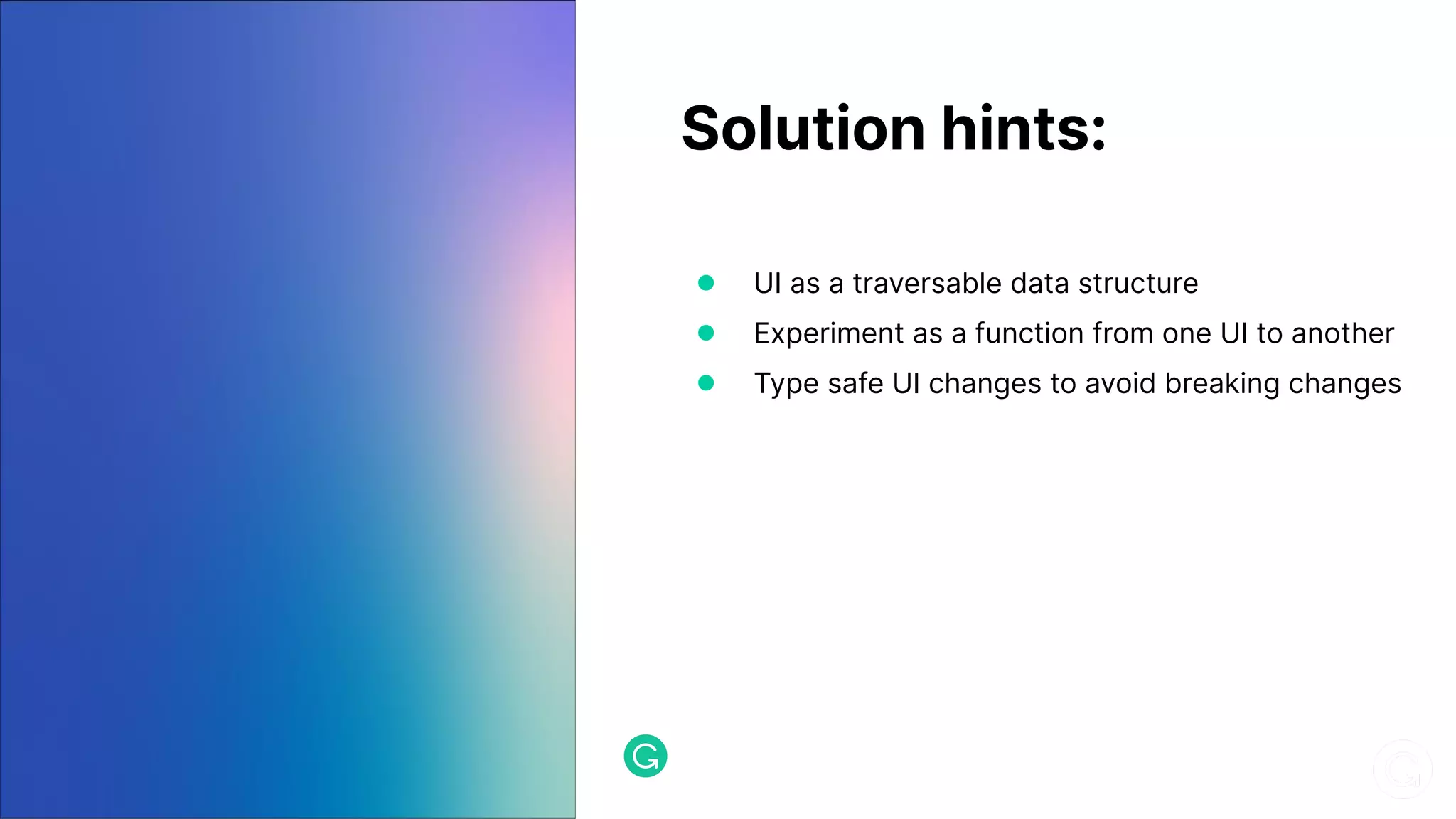

Solution hints: ● UI as a traversable data structure ● Experiment as a function from one UI to another ● Type safe UI changes to avoid breaking changes

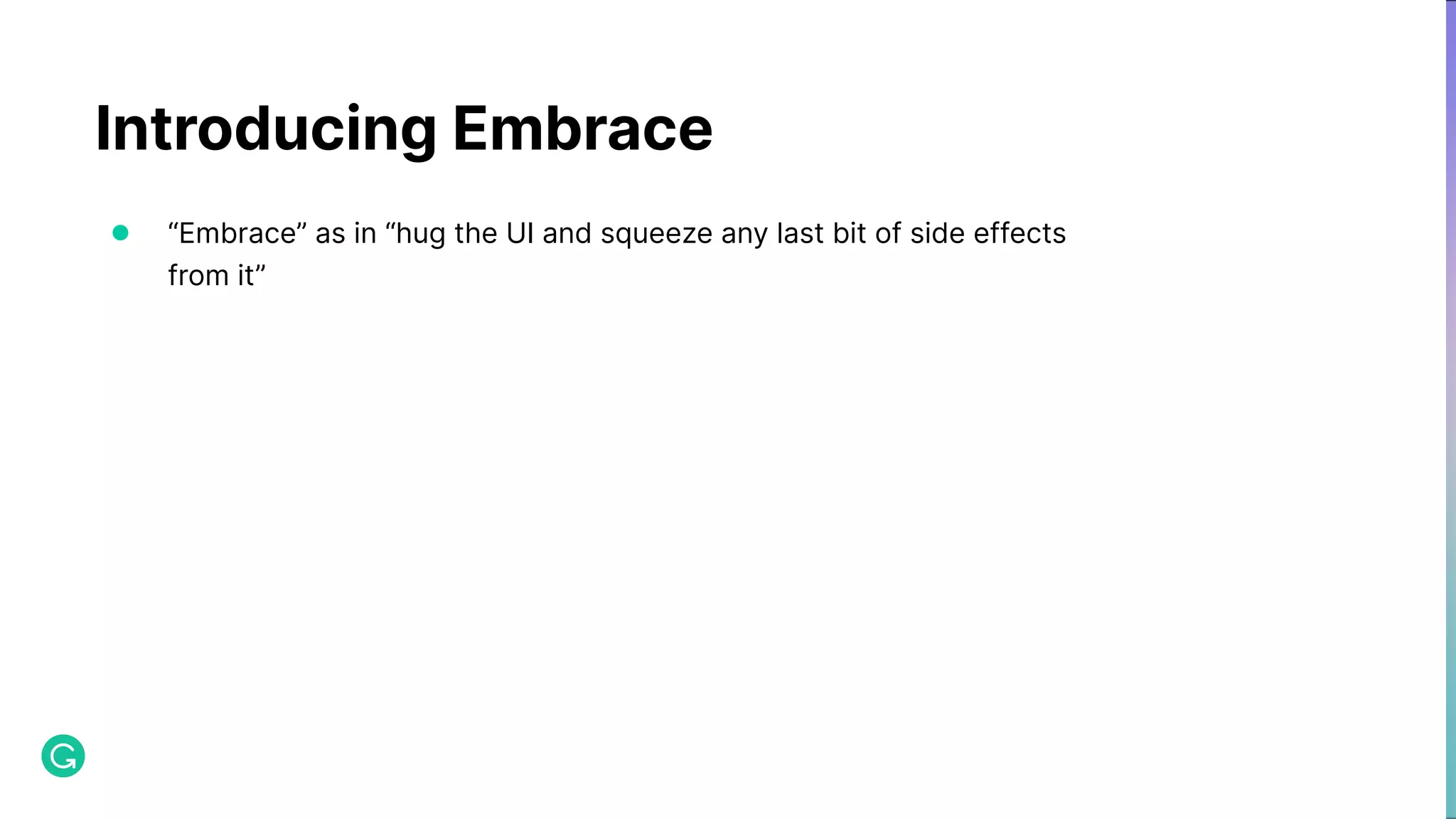

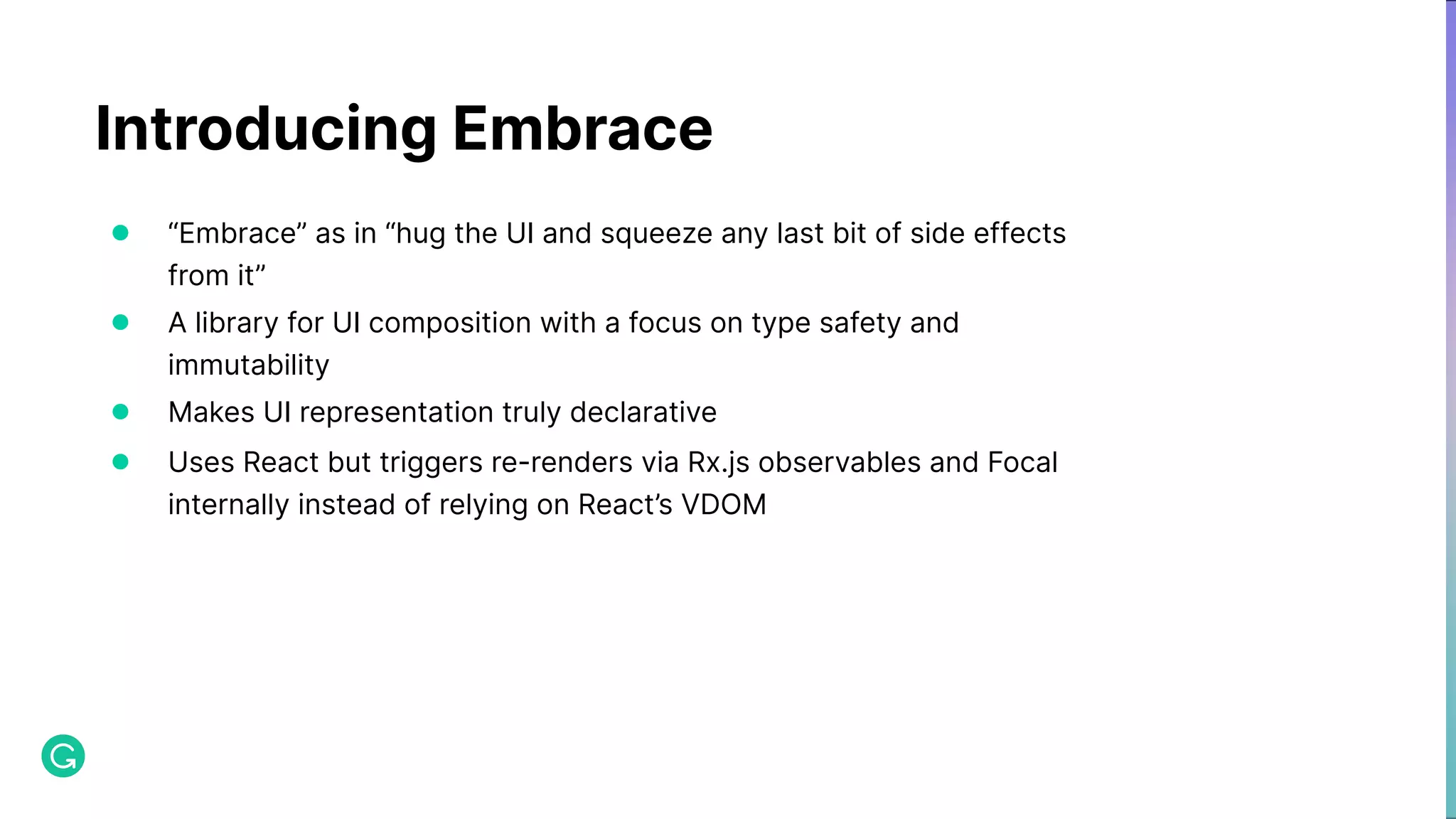

Introducing Embrace ● “Embrace” as in “hug the UI and squeeze any last bit of side effects from it”

Introducing Embrace ● “Embrace” as in “hug the UI and squeeze any last bit of side effects from it” ● A library for UI composition with a focus on type safety and immutability ● Makes UI representation truly declarative ● Uses React but triggers re-renders via Rx.js observables and Focal internally instead of relying on React’s VDOM

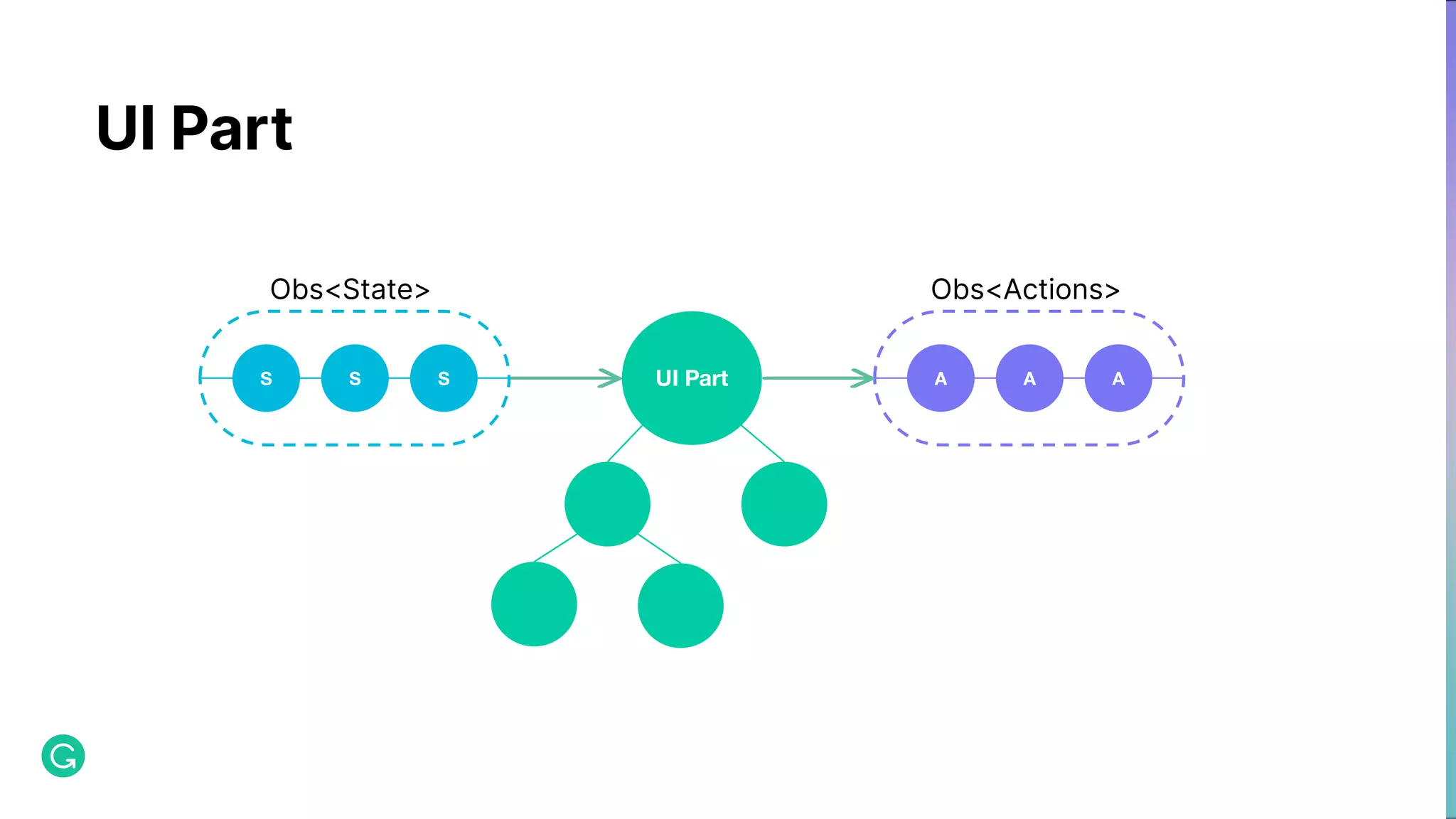

UI Part UI Part S S S Obs<State> A A A Obs<Actions>

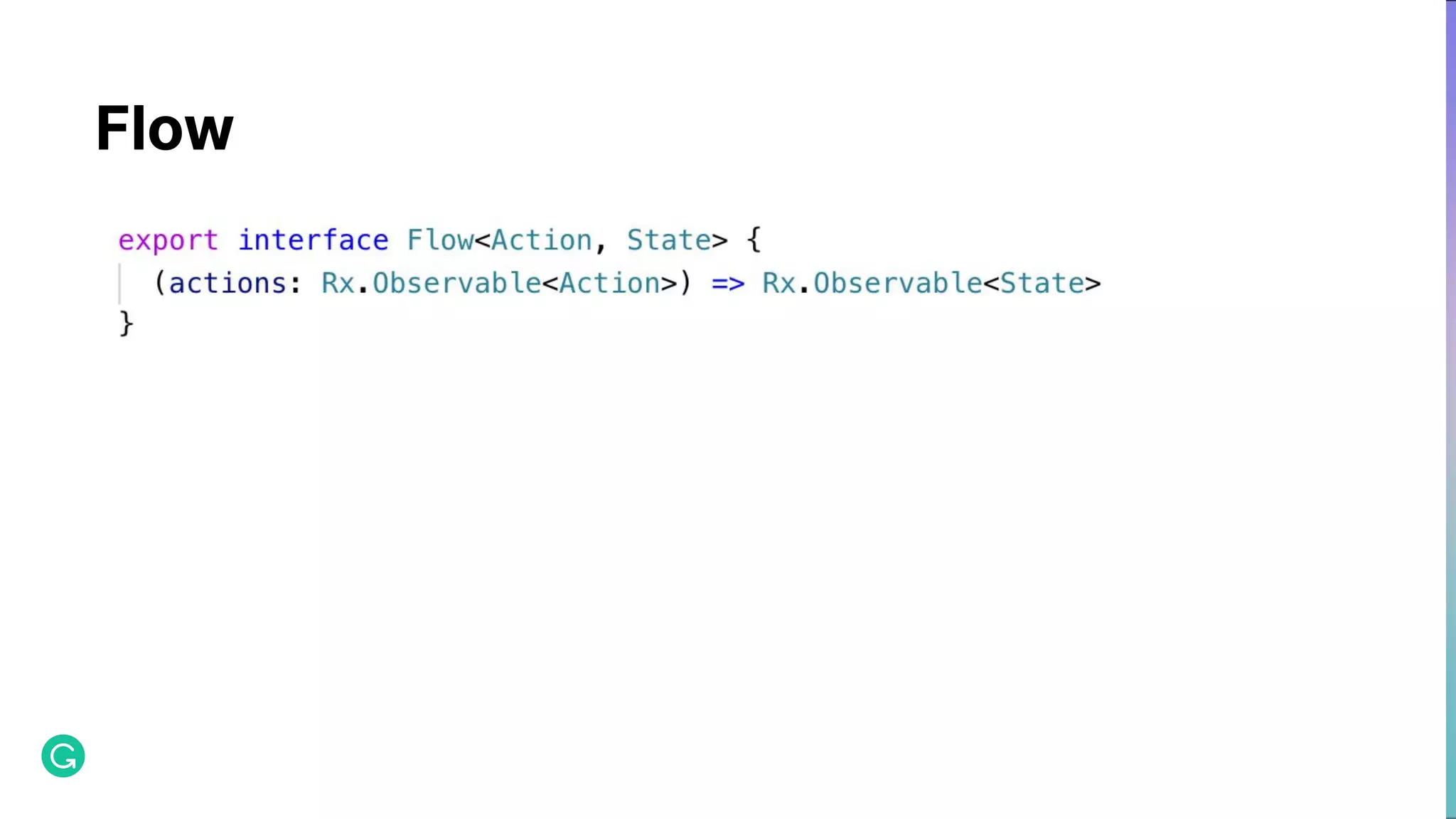

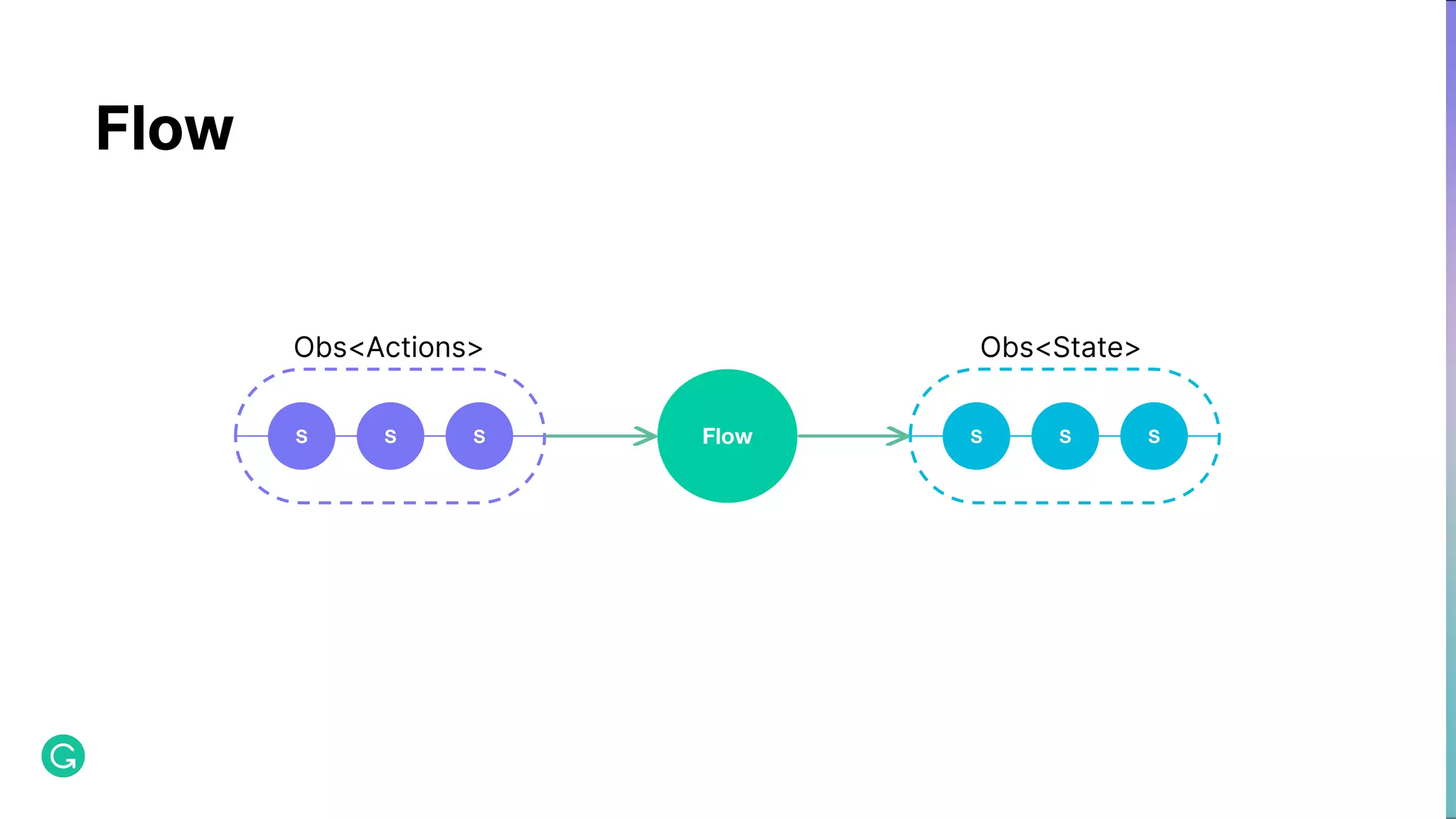

Flow Flow S S S Obs<State> S S S Obs<Actions>

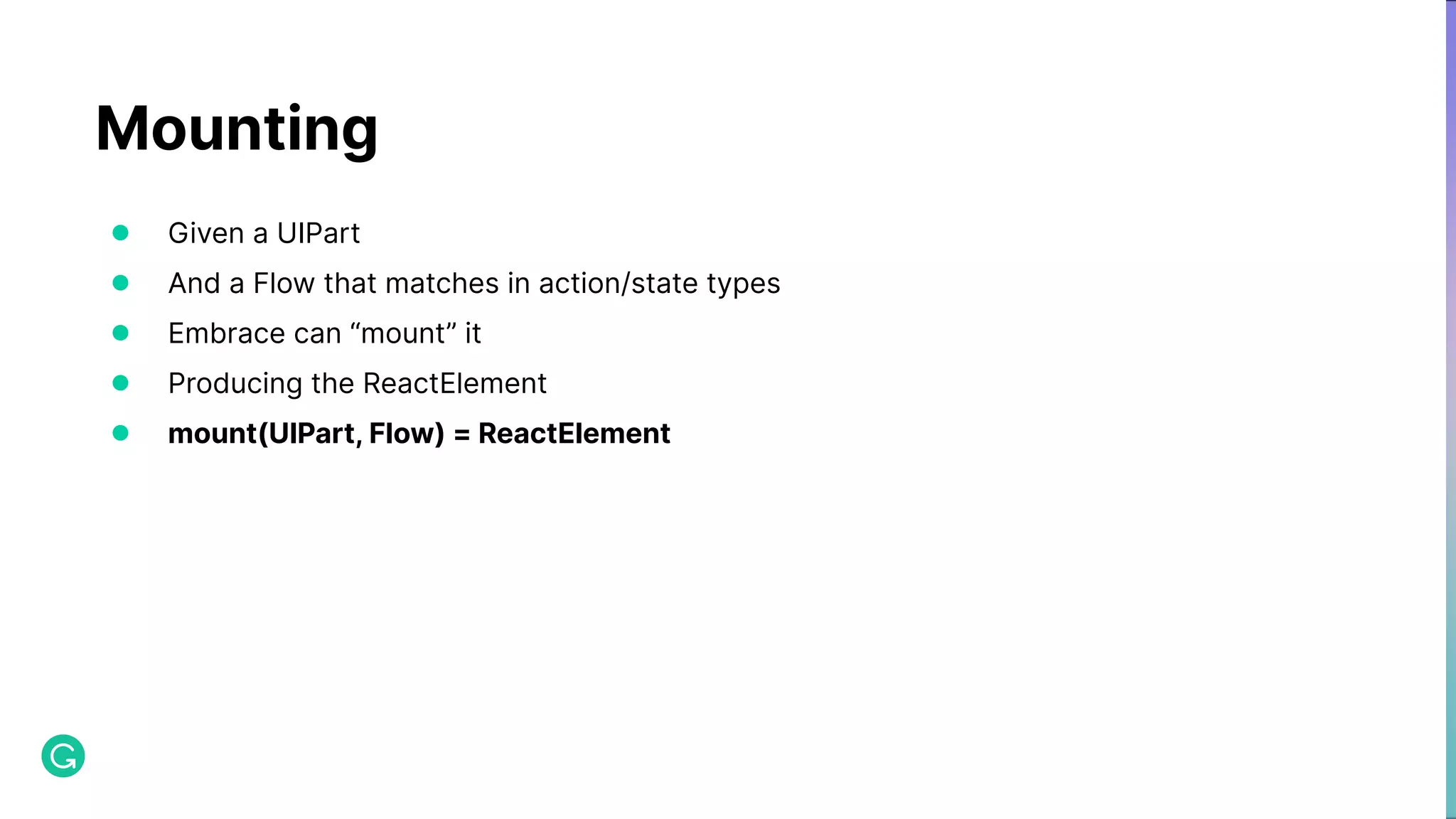

Mounting ● Given a UIPart ● And a Flow that matches in action/state types ● Embrace can “mount” it ● Producing the ReactElement ● mount(UIPart, Flow) = ReactElement

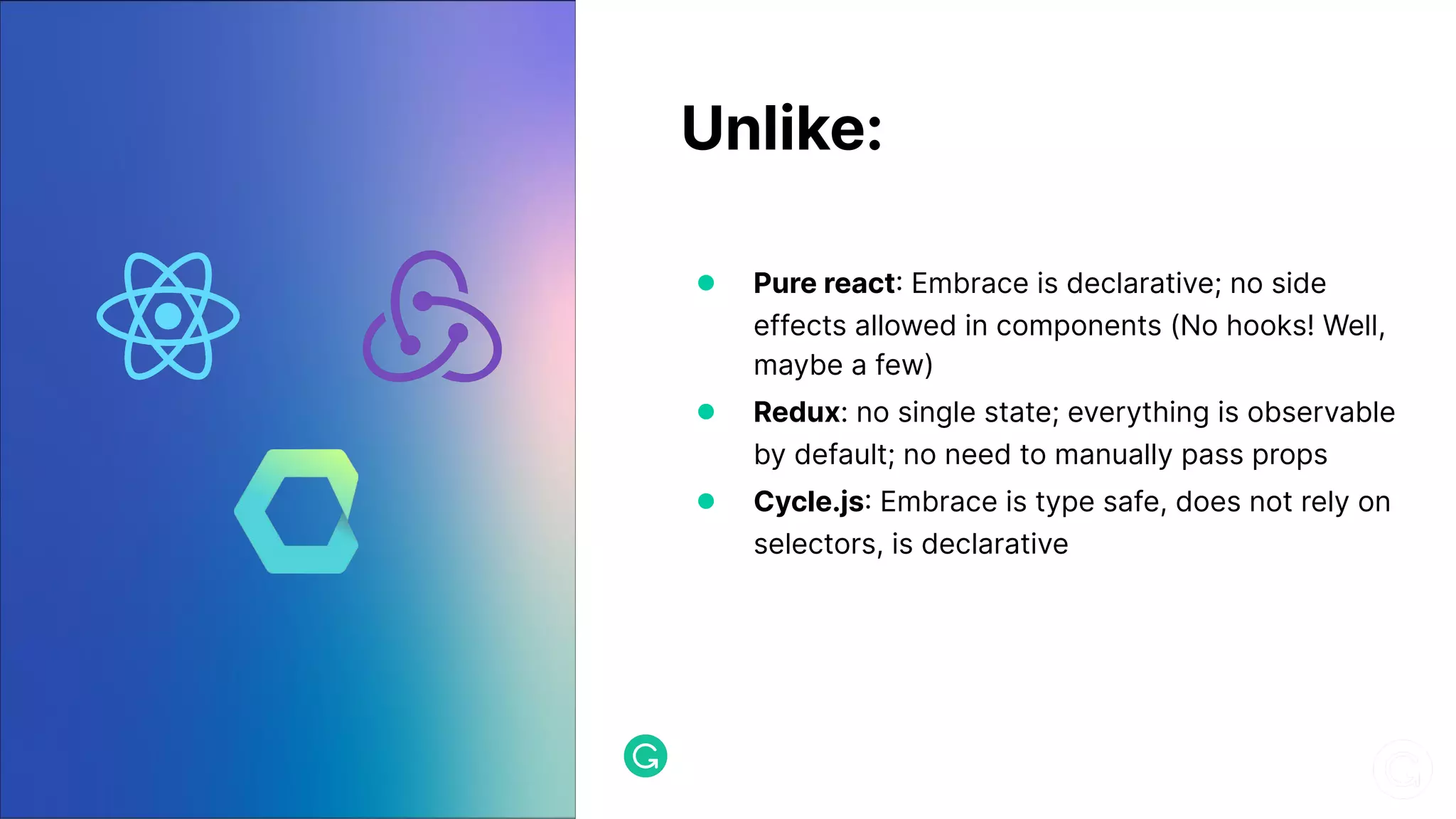

Unlike: ● Pure react Embrace is declarative; no side effects allowed in components (No hooks! Well, maybe a few) ● Redux: no single state; everything is observable by default; no need to manually pass props ● Cycle.js Embrace is type safe, does not rely on selectors, is declarative

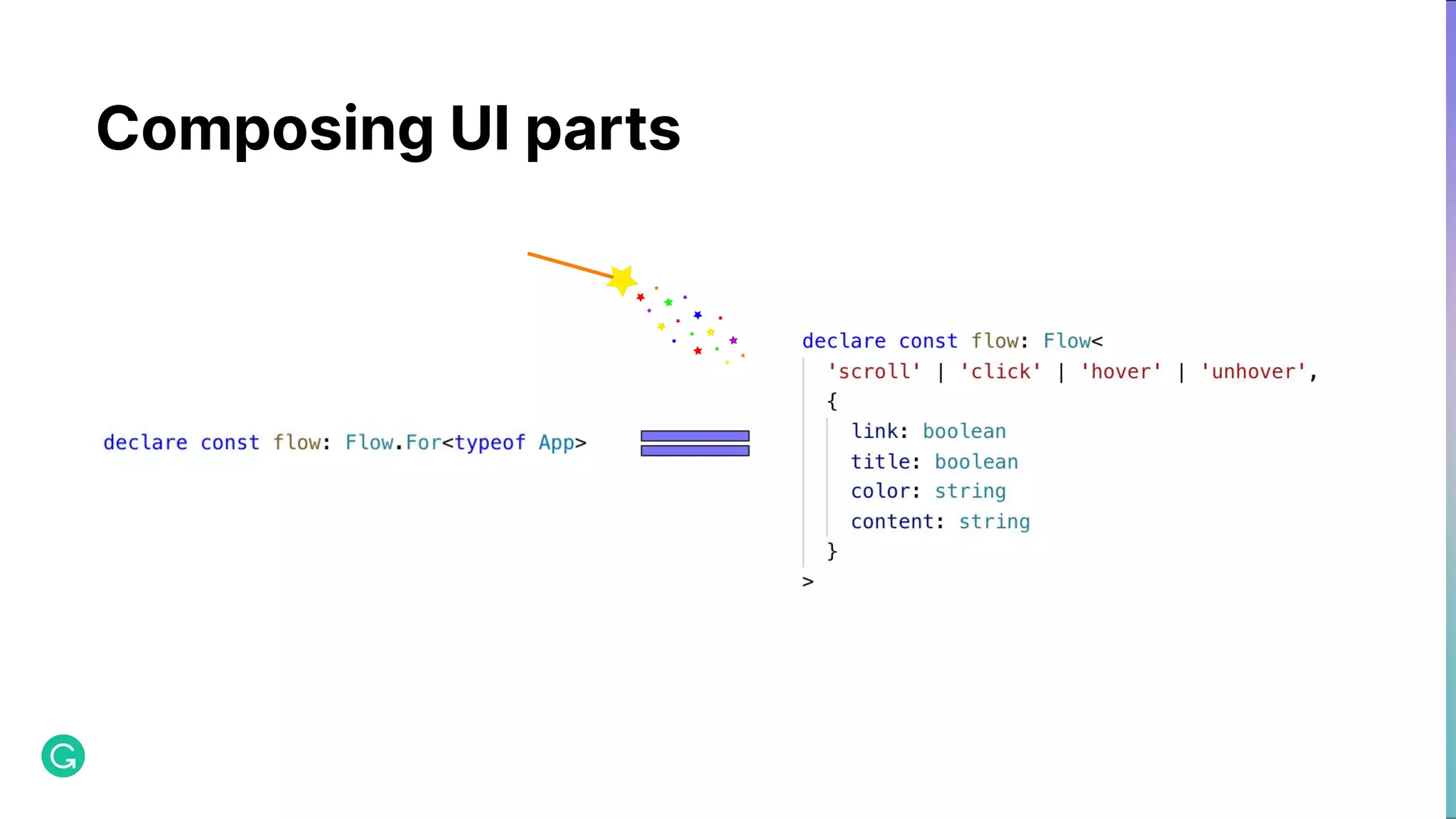

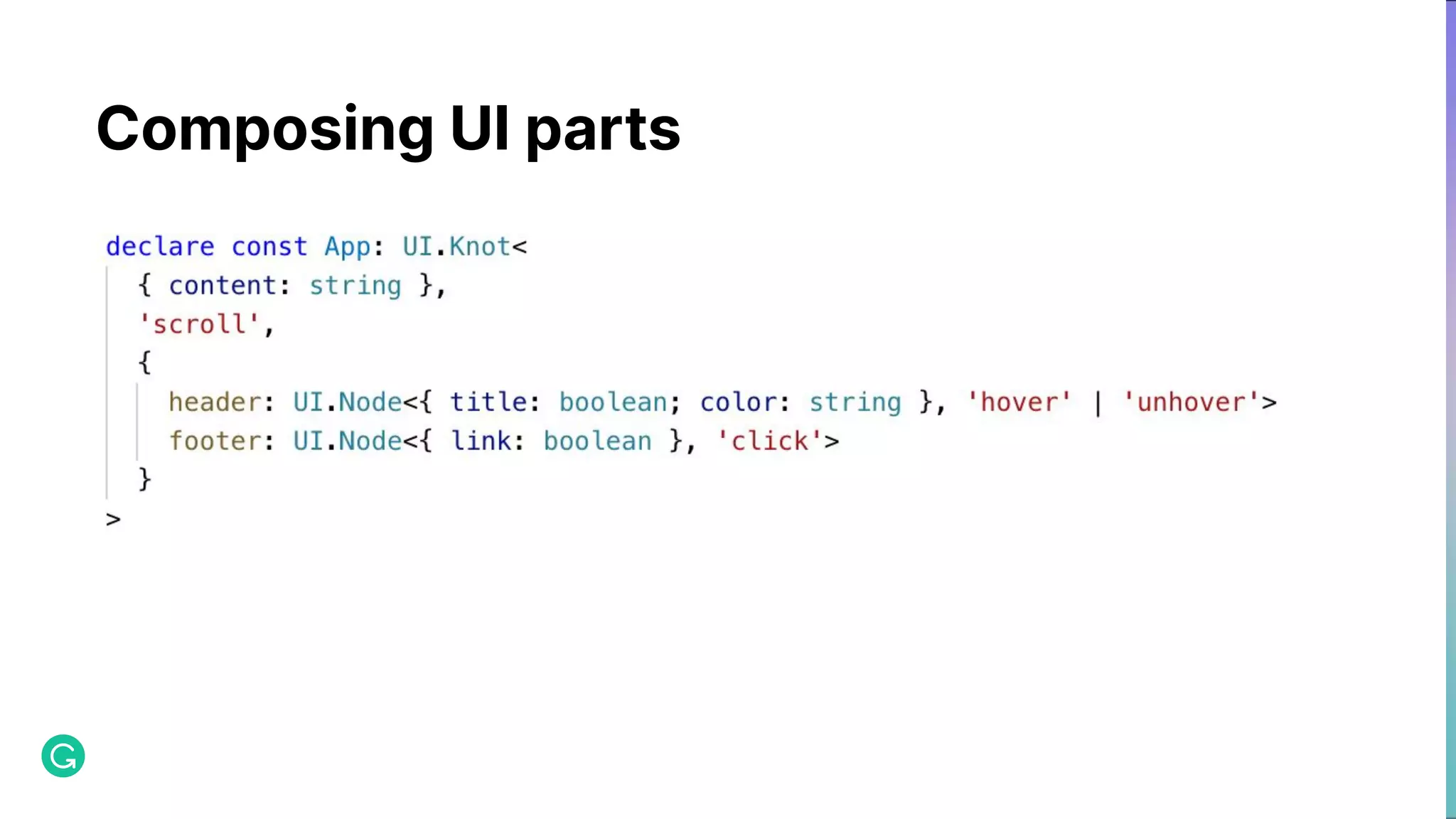

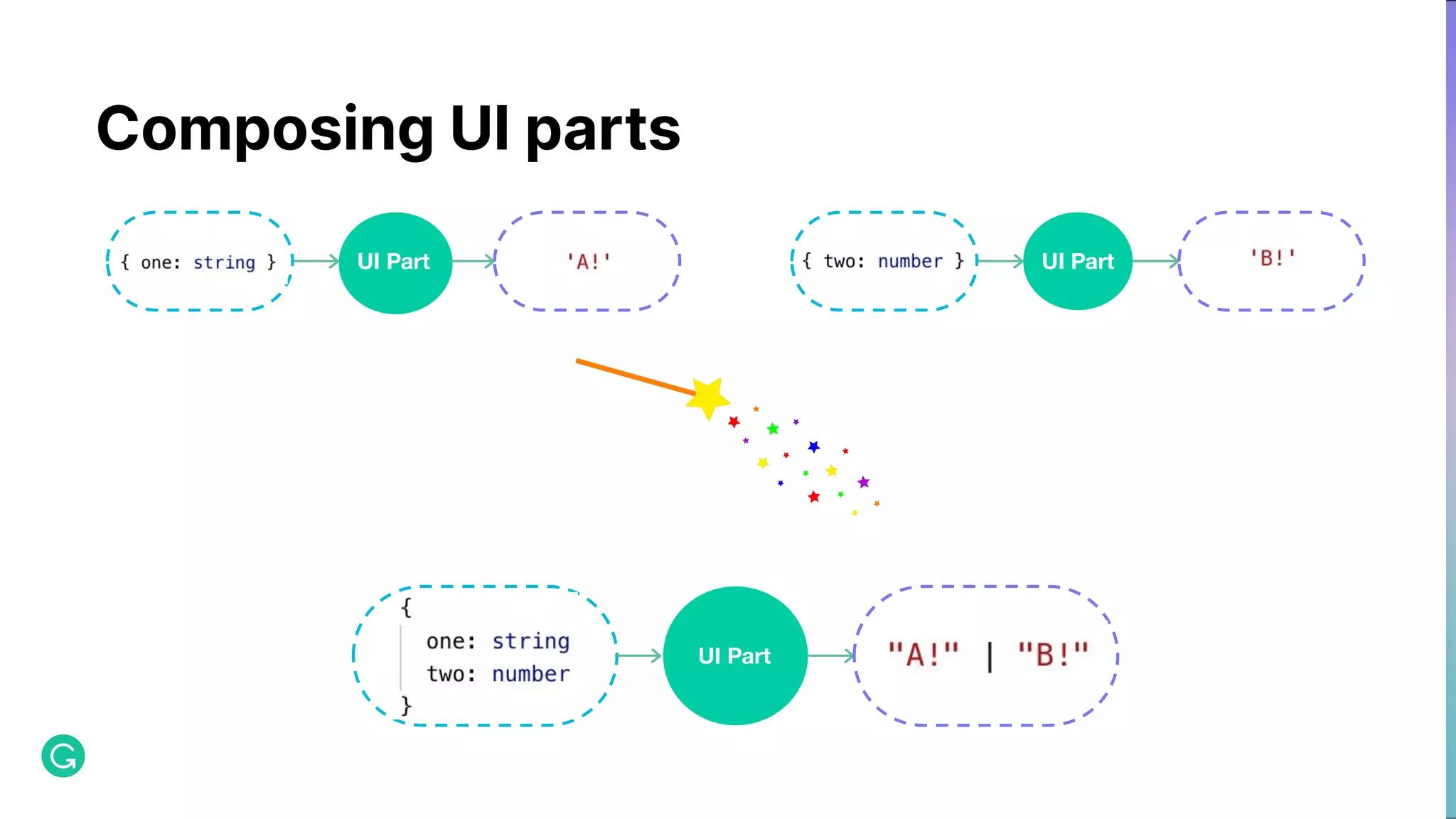

Composing UI parts UI Part UI Part UI Part

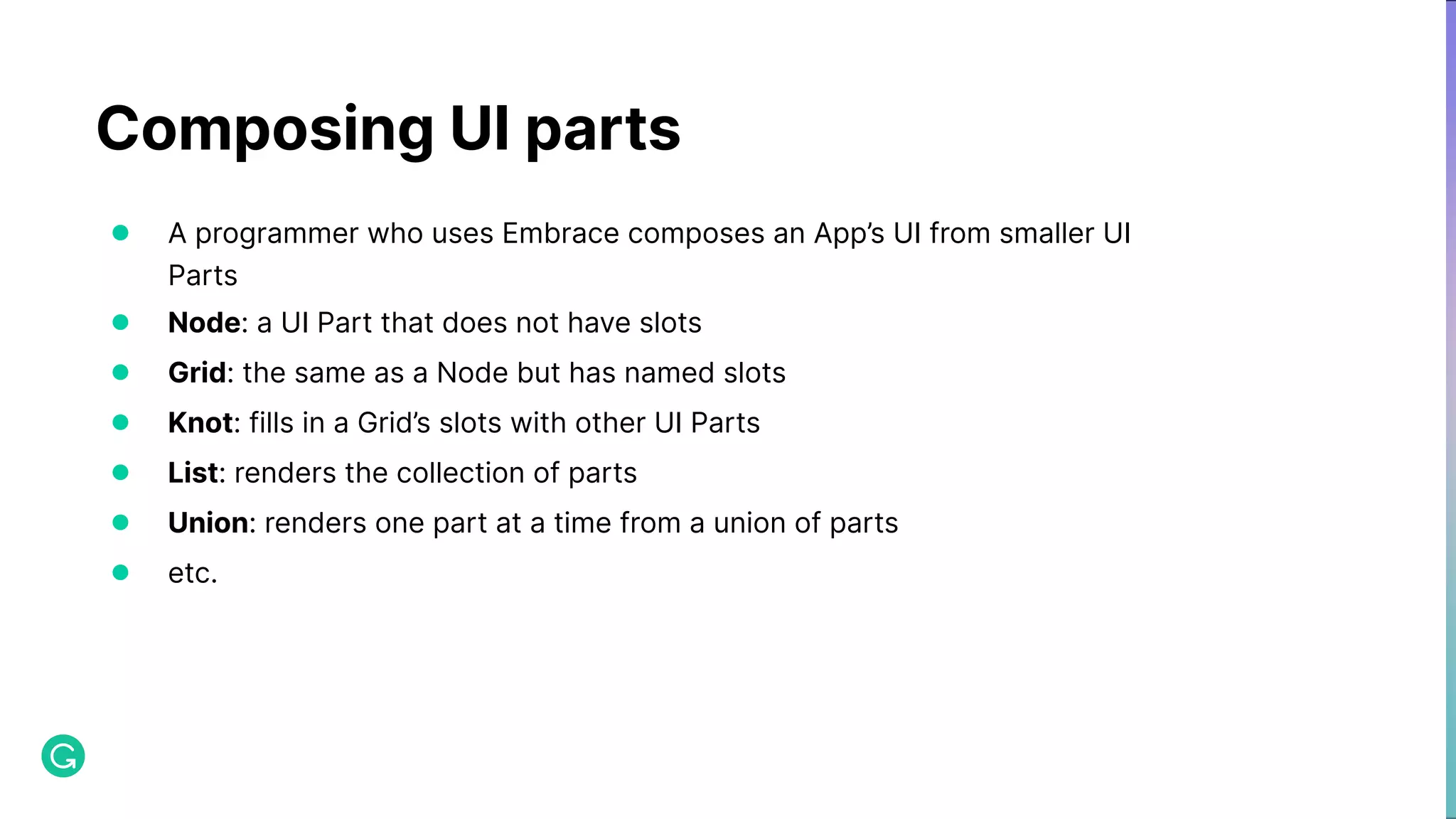

Composing UI parts ● A programmer who uses Embrace composes an App’s UI from smaller UI Parts ● Node: a UI Part that does not have slots ● Grid: the same as a Node but has named slots ● Knot: fills in a Grid’s slots with other UI Parts ● List: renders the collection of parts ● Union: renders one part at a time from a union of parts ● etc.

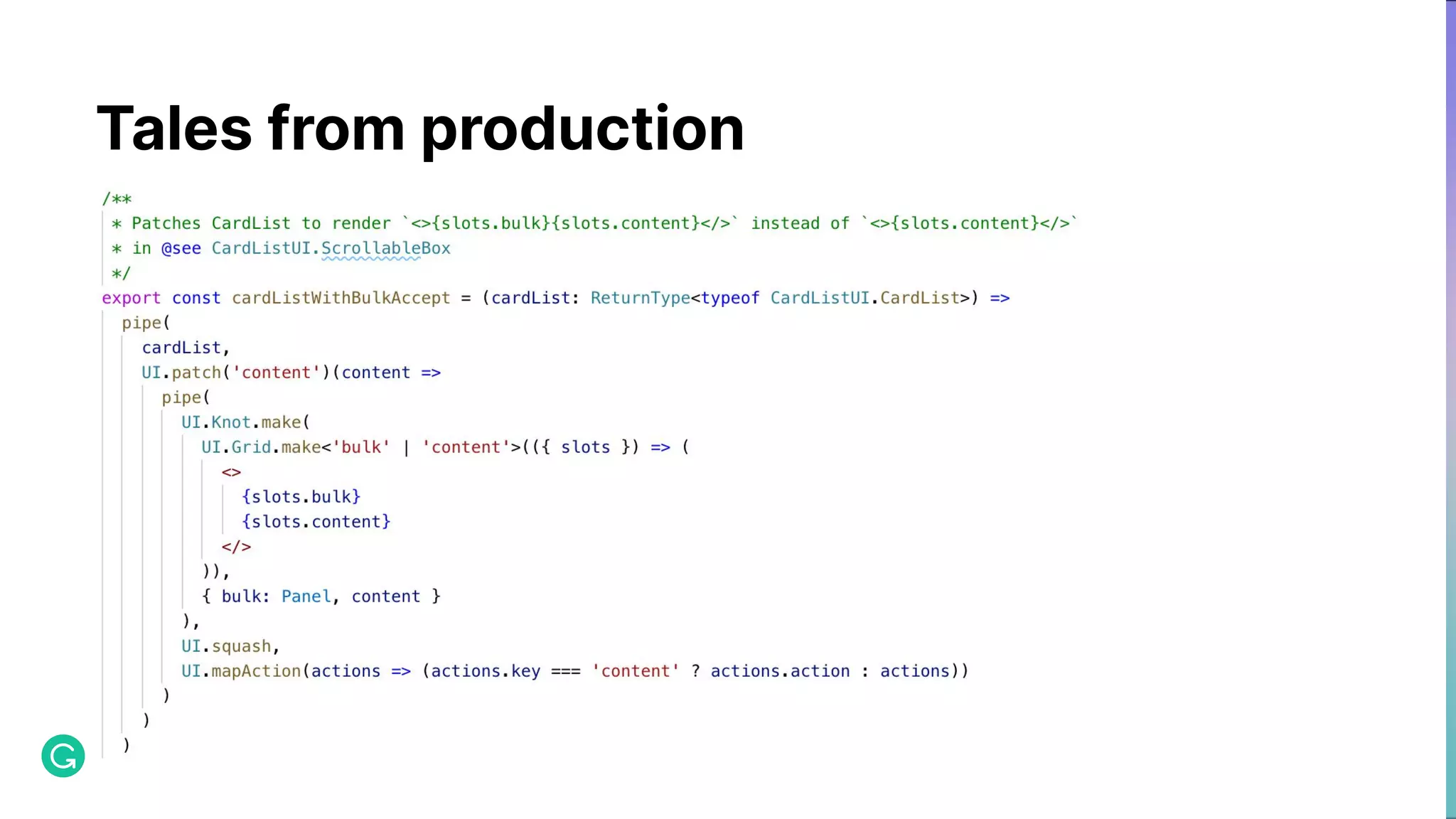

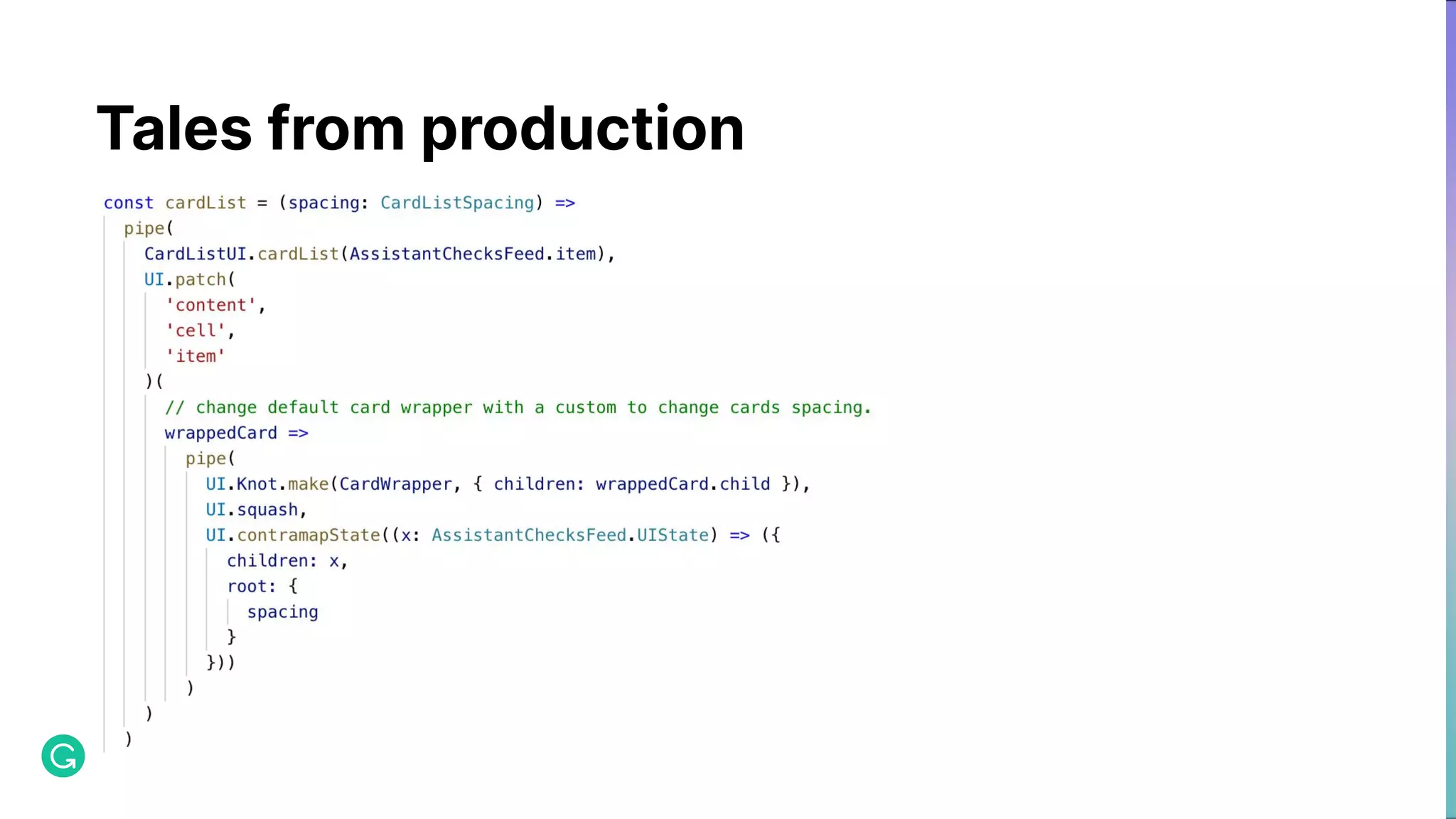

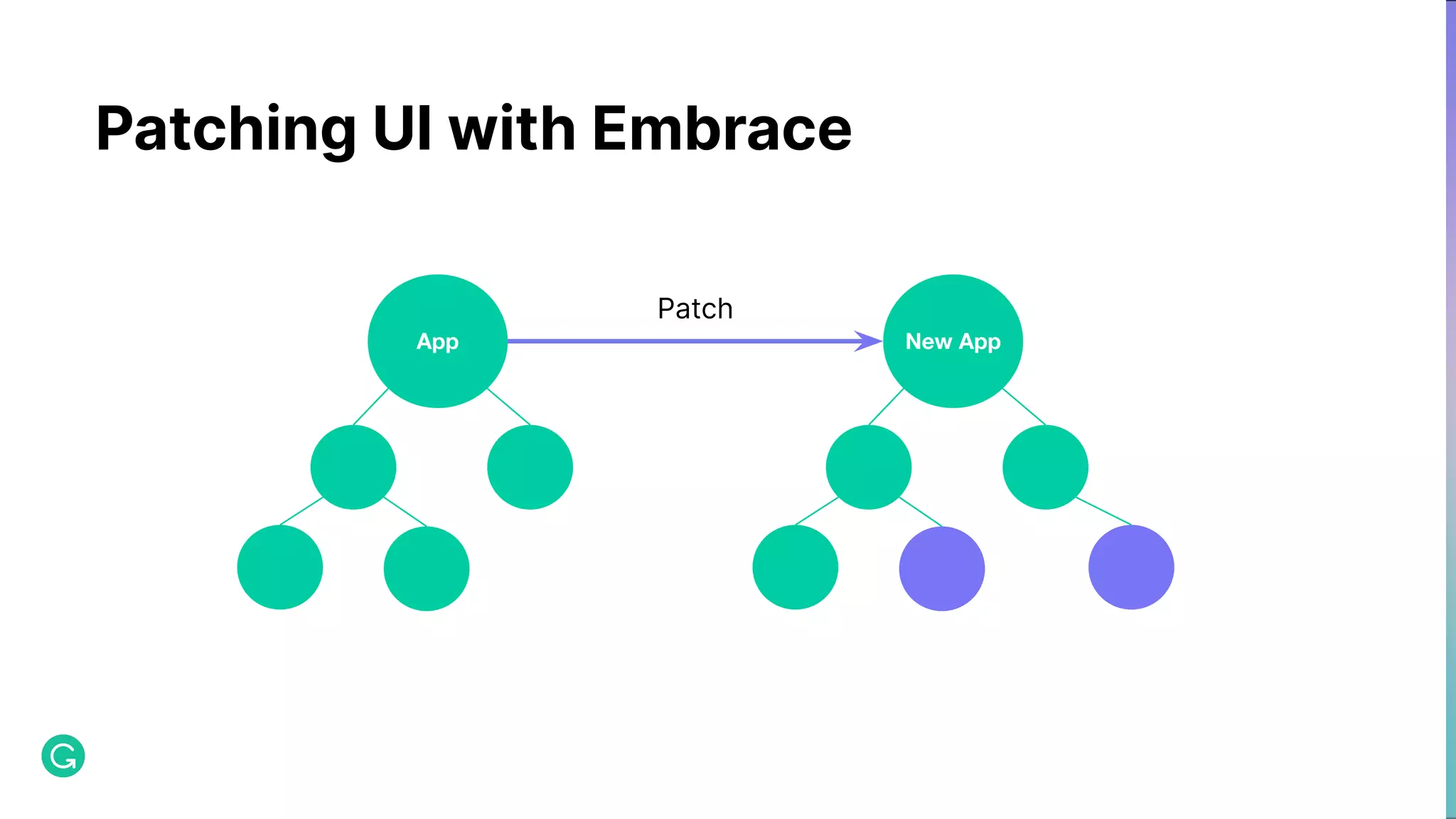

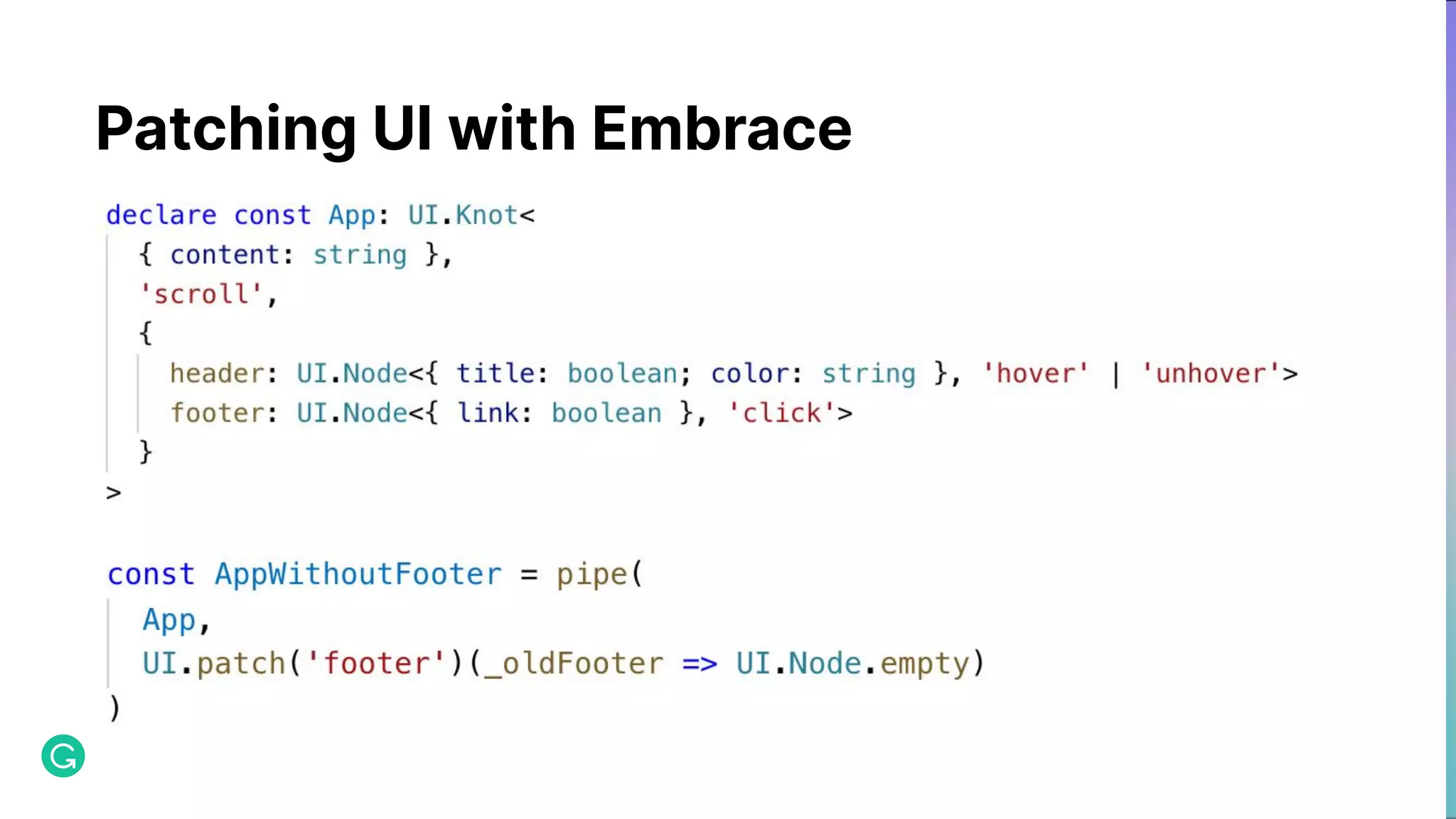

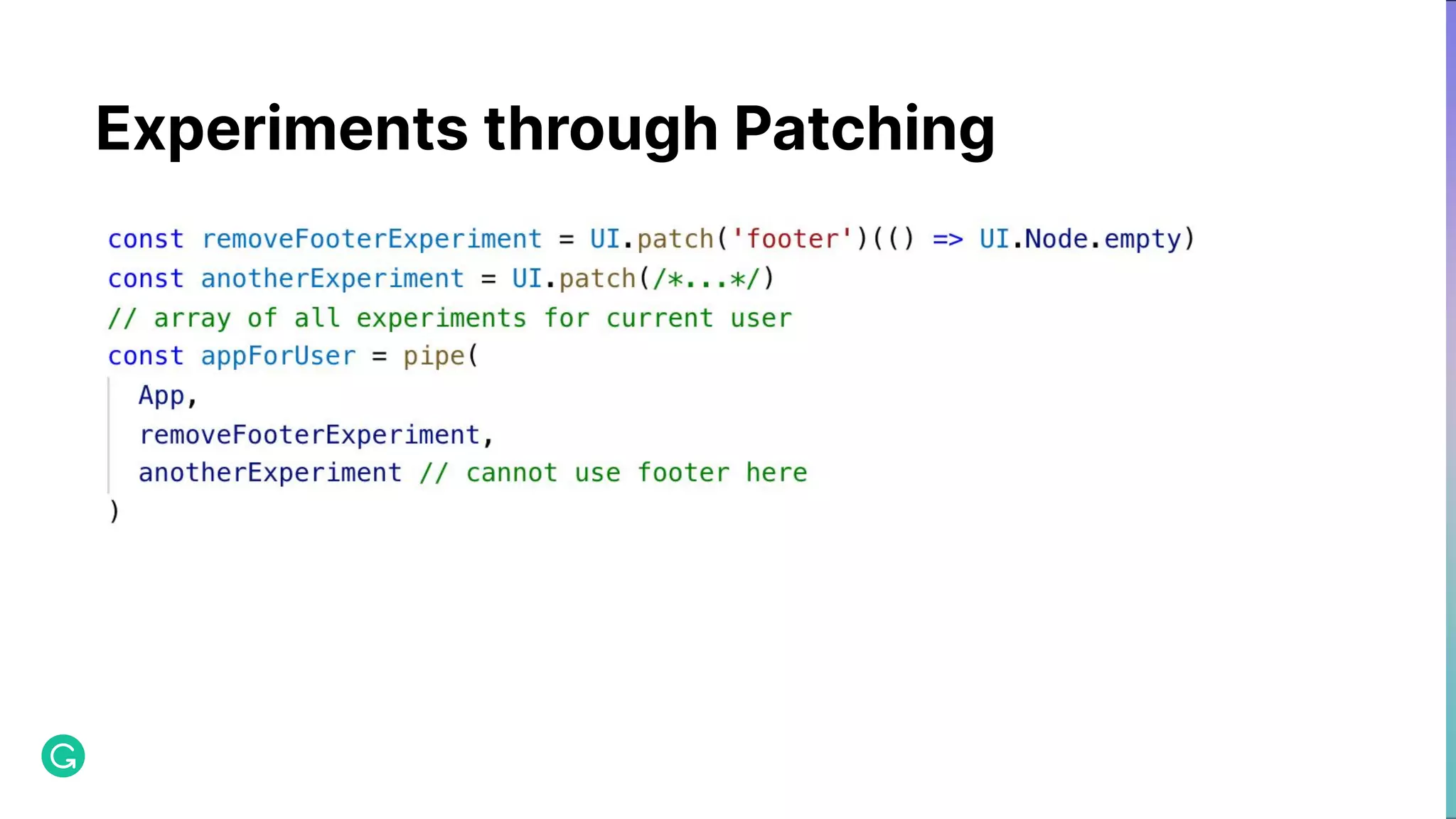

Patching UI with Embrace App New App Patch

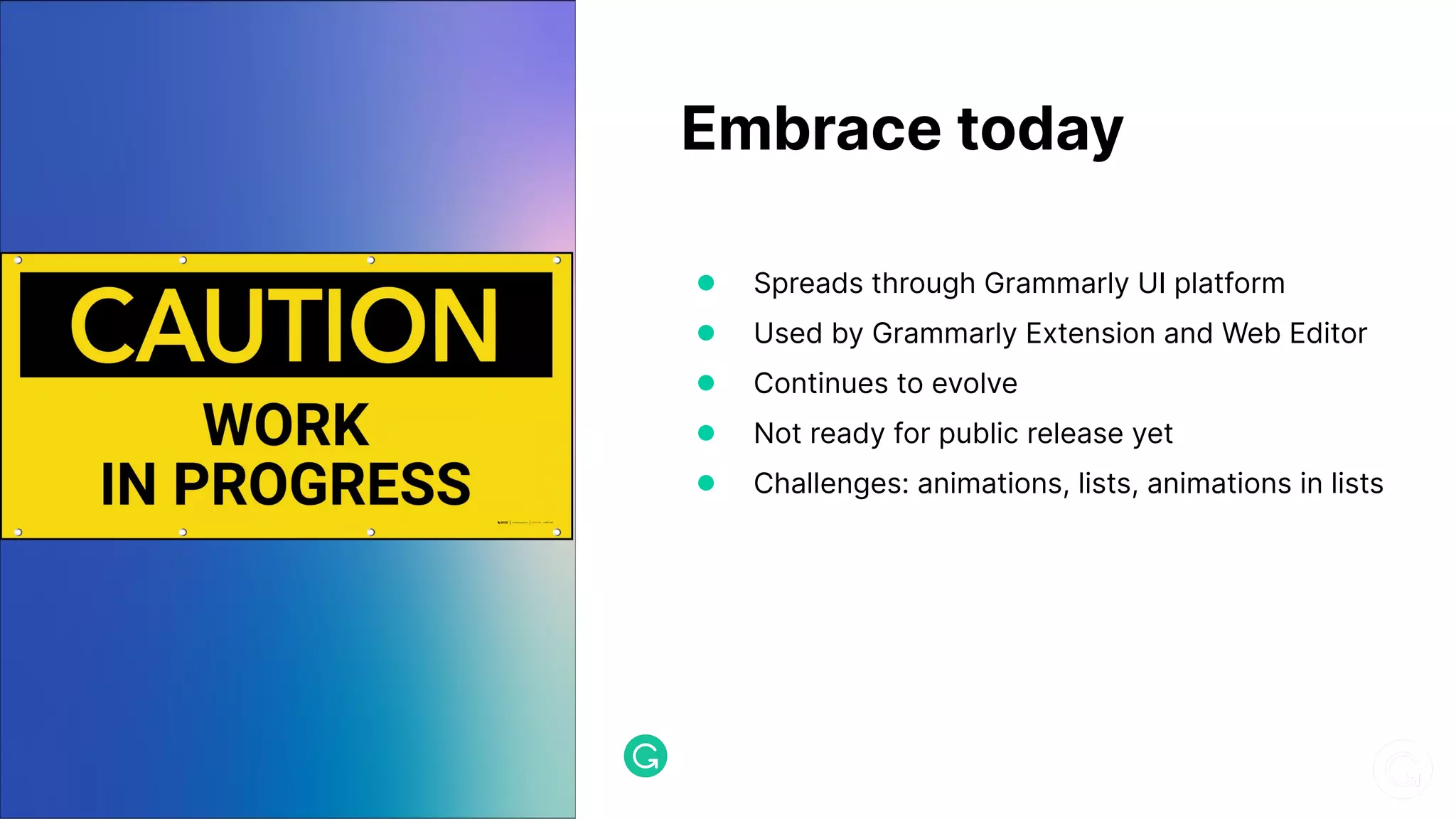

Embrace today ● Spreads through Grammarly UI platform ● Used by Grammarly Extension and Web Editor ● Continues to evolve ● Not ready for public release yet ● Challenges: animations, lists, animations in lists

● Gives us truly declarative UI logic that composes ● Provides our and other Grammarly teams full control of the UI after we reuse Embrace components ● Allows us to manage breaking changes Embrace today

Join us! Help make Embrace and other cool stuff!

"The Story of Declarative React at Grammarly: From two-way data binding with Focal to a custom implementation of UI as a tree data structure", Oleksandr Suhak
