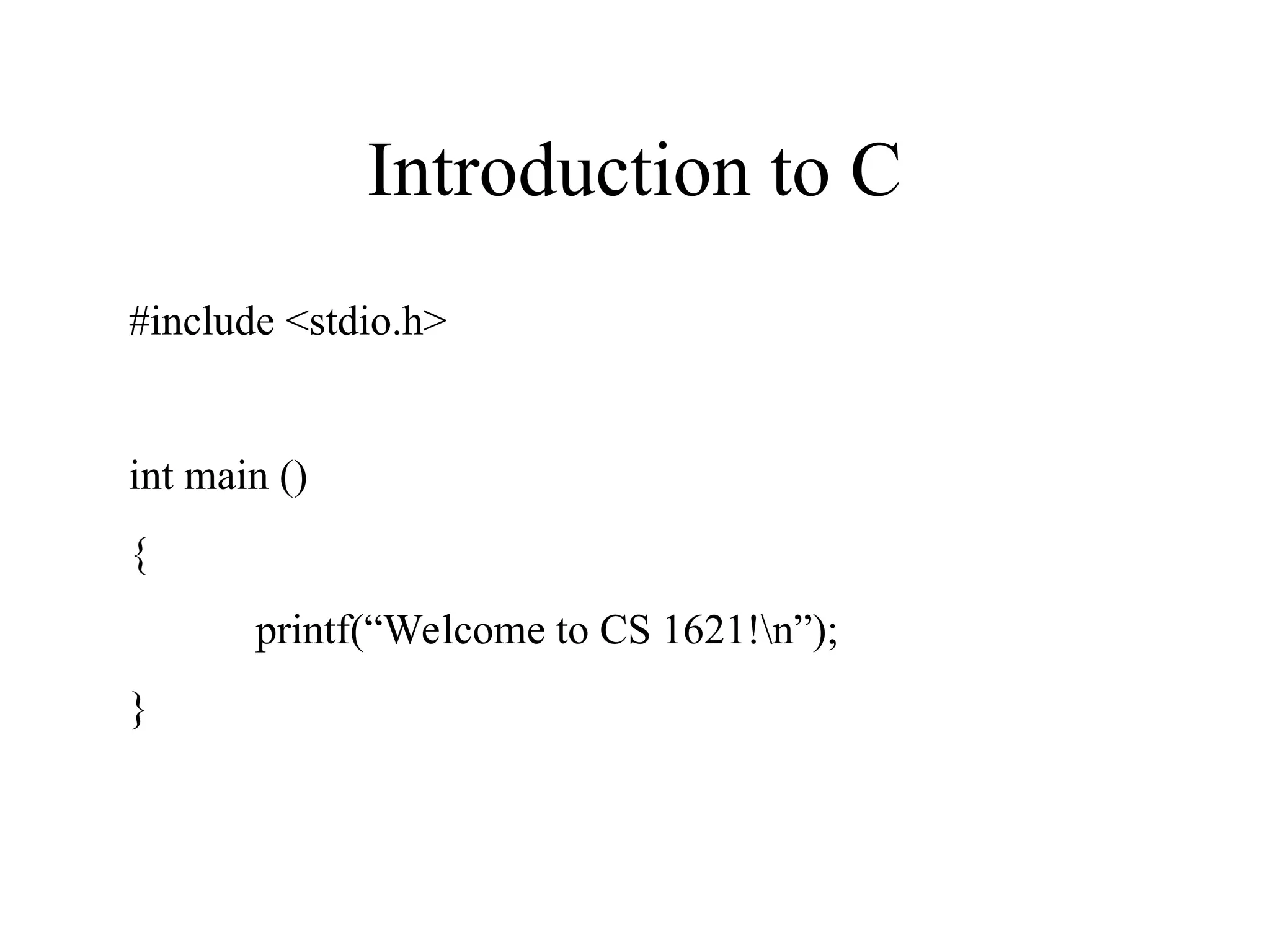

Introduction to C #include <stdio.h> int main () { printf(“Welcome to CS 1621!n”); }

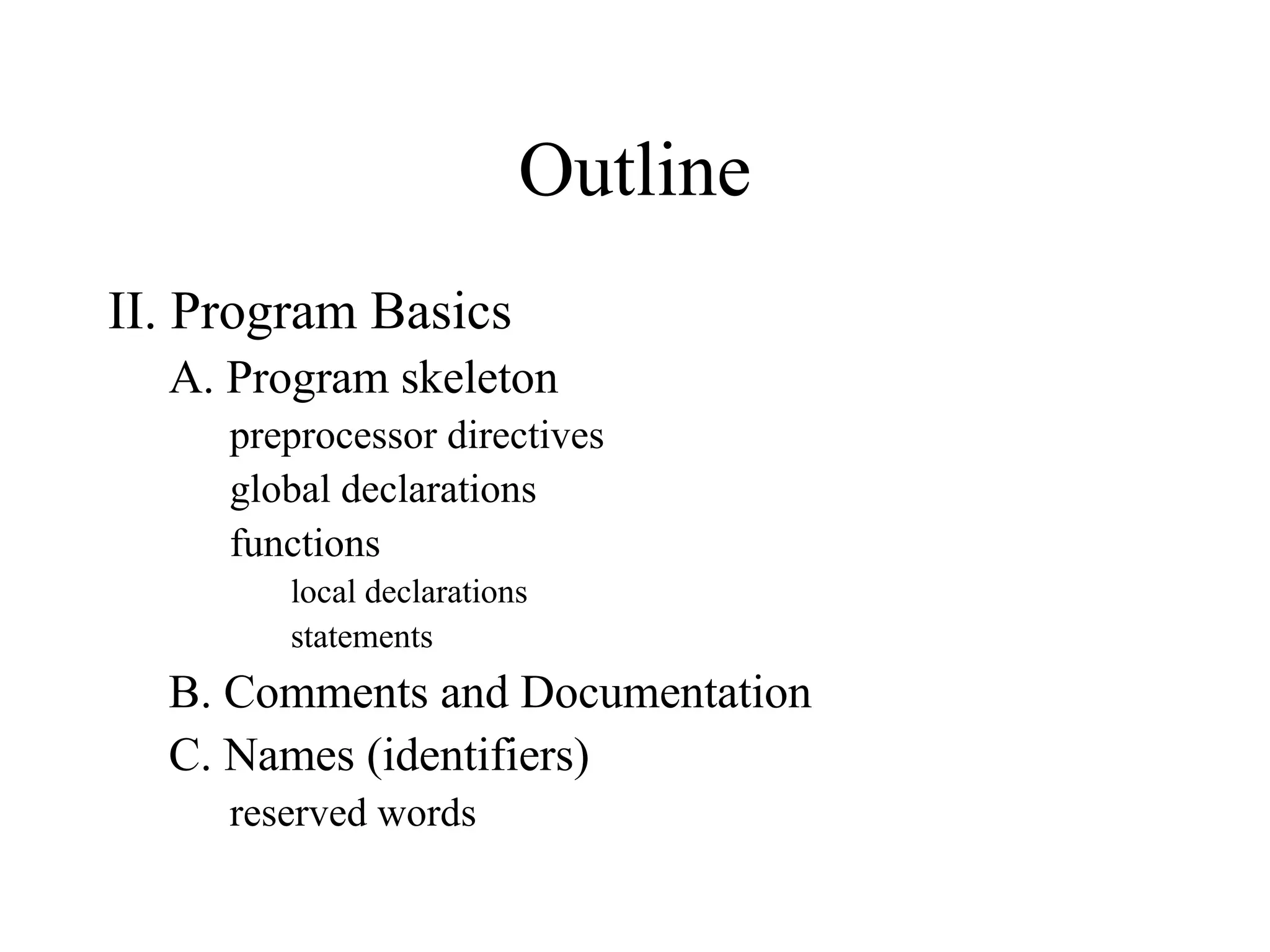

Outline II. Program Basics A. Program skeleton preprocessor directives global declarations functions local declarations statements B. Comments and Documentation C. Names (identifiers) reserved words

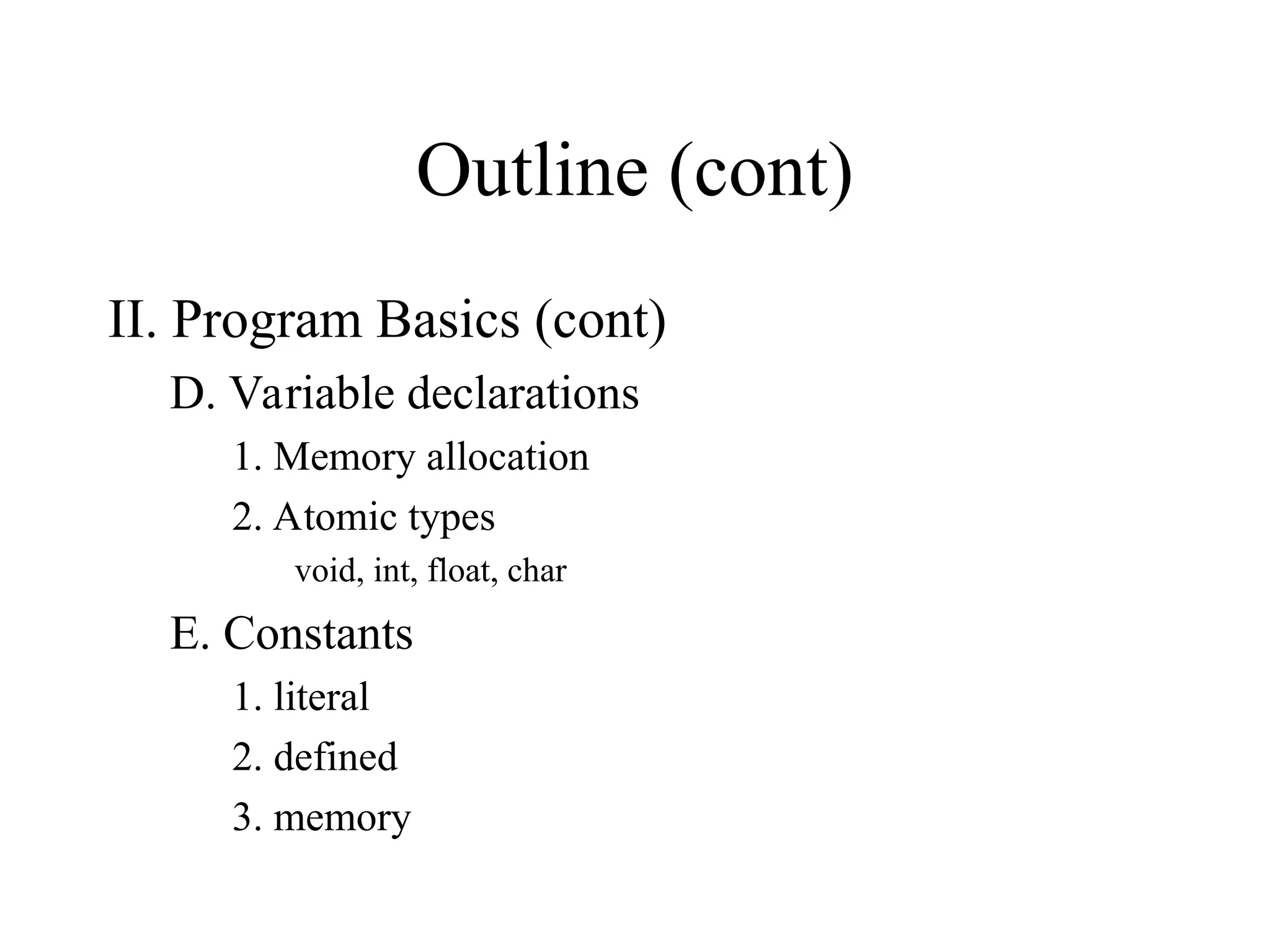

Outline (cont) II. Program Basics (cont) D. Variable declarations 1. Memory allocation 2. Atomic types void, int, float, char E. Constants 1. literal 2. defined 3. memory

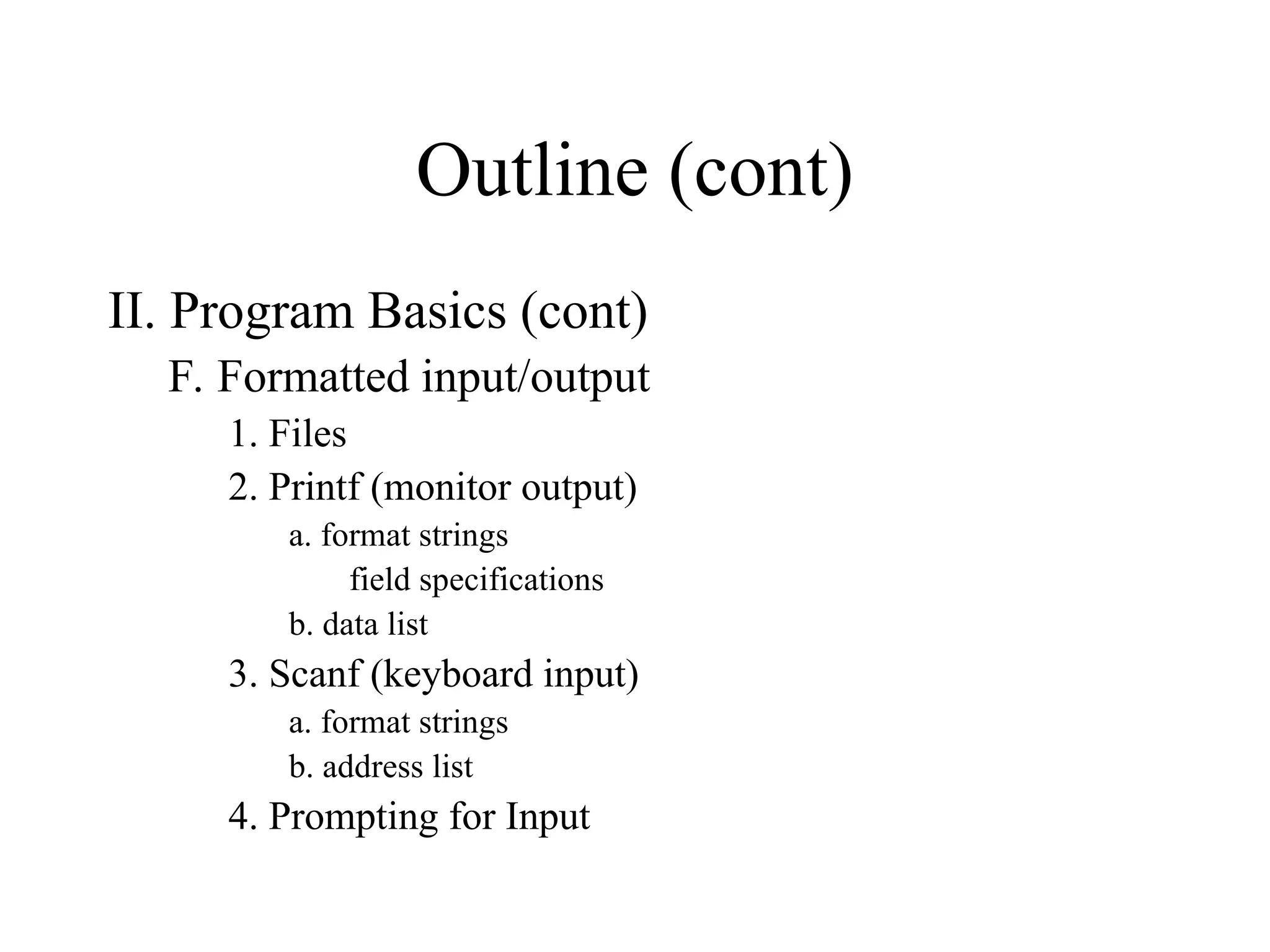

Outline (cont) II. Program Basics (cont) F. Formatted input/output 1. Files 2. Printf (monitor output) a. format strings field specifications b. data list 3. Scanf (keyboard input) a. format strings b. address list 4. Prompting for Input

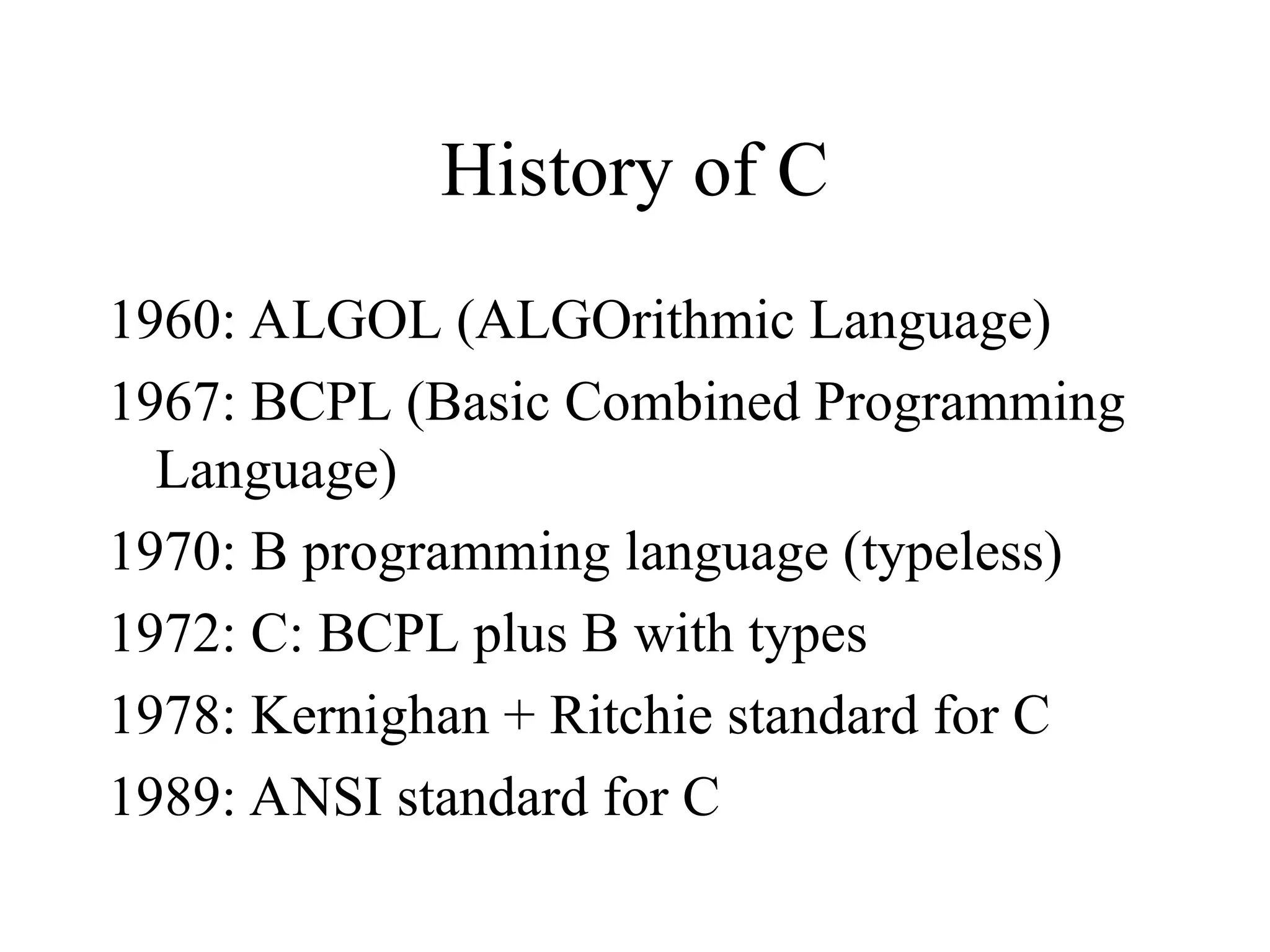

History of C 1960: ALGOL (ALGOrithmic Language) 1967: BCPL (Basic Combined Programming Language) 1970: B programming language (typeless) 1972: C: BCPL plus B with types 1978: Kernighan + Ritchie standard for C 1989: ANSI standard for C

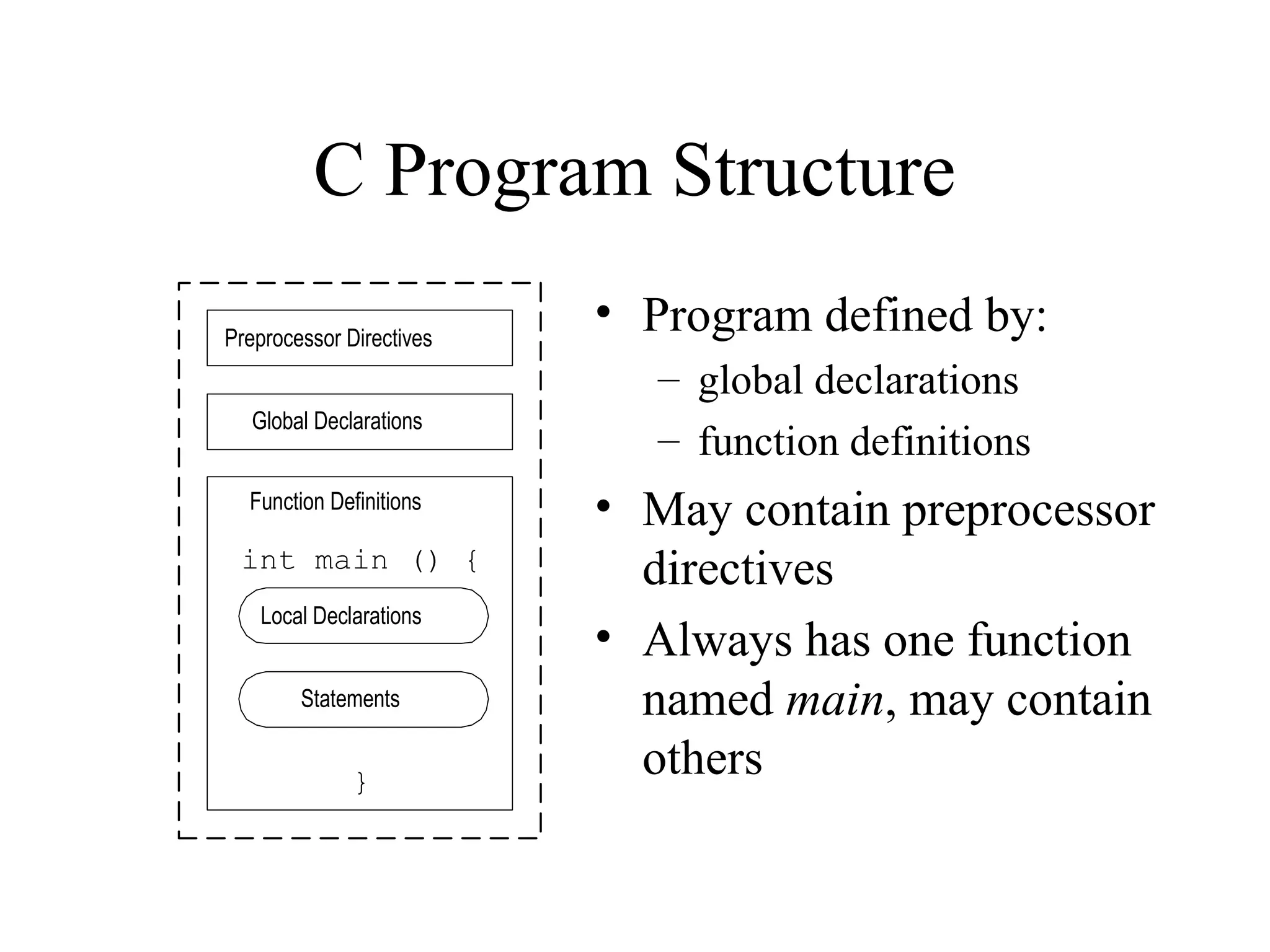

C Program Structure • Program defined by: – global declarations – function definitions • May contain preprocessor directives • Always has one function named main, may contain others Preprocessor Directives Global Declarations Function Definitions int main () { } Local Declarations Statements

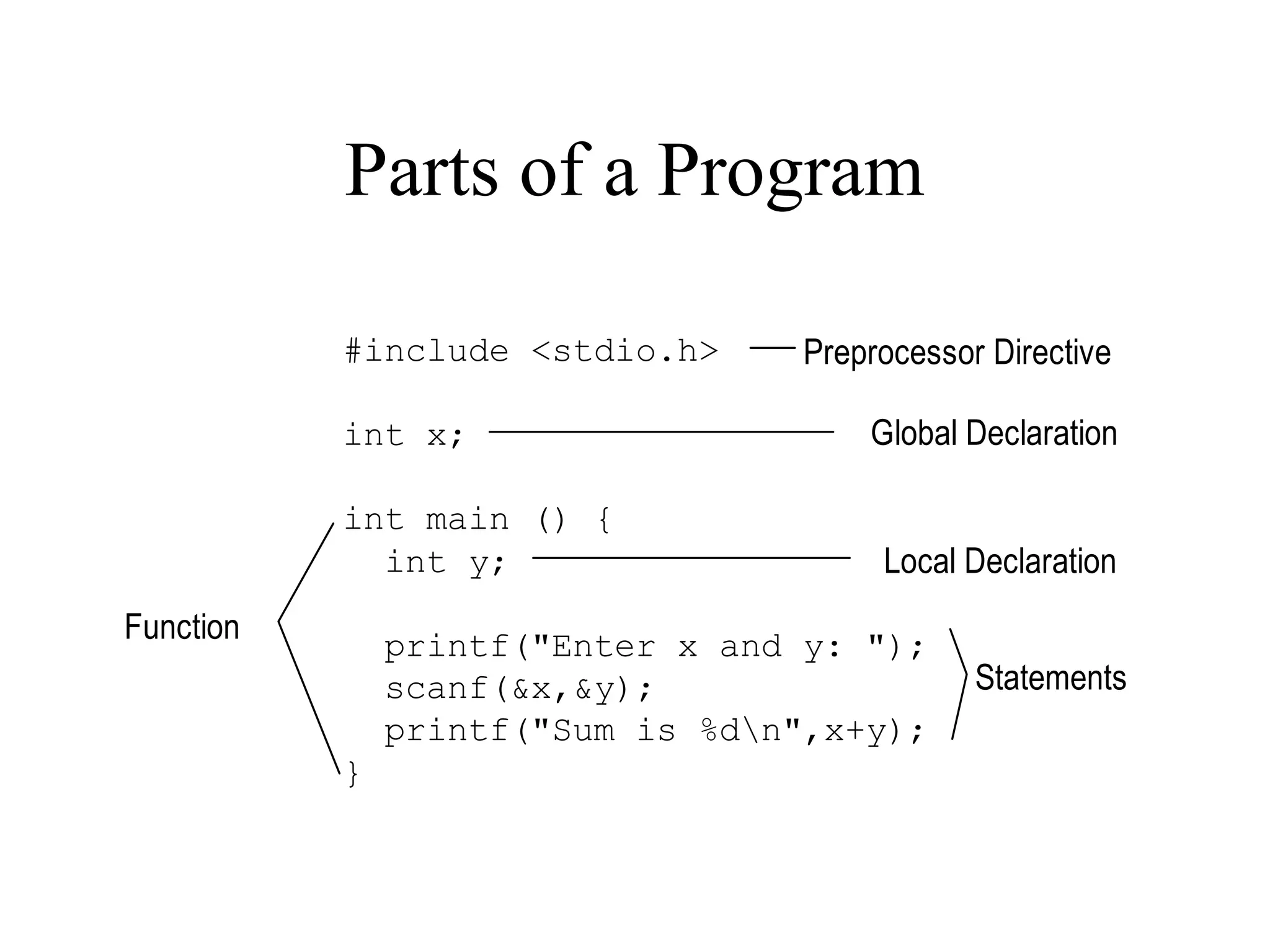

Parts of a Program #include <stdio.h> int x; int main () { int y; printf("Enter x and y: "); scanf(&x,&y); printf("Sum is %dn",x+y); } Preprocessor Directive Global Declaration Function Local Declaration Statements

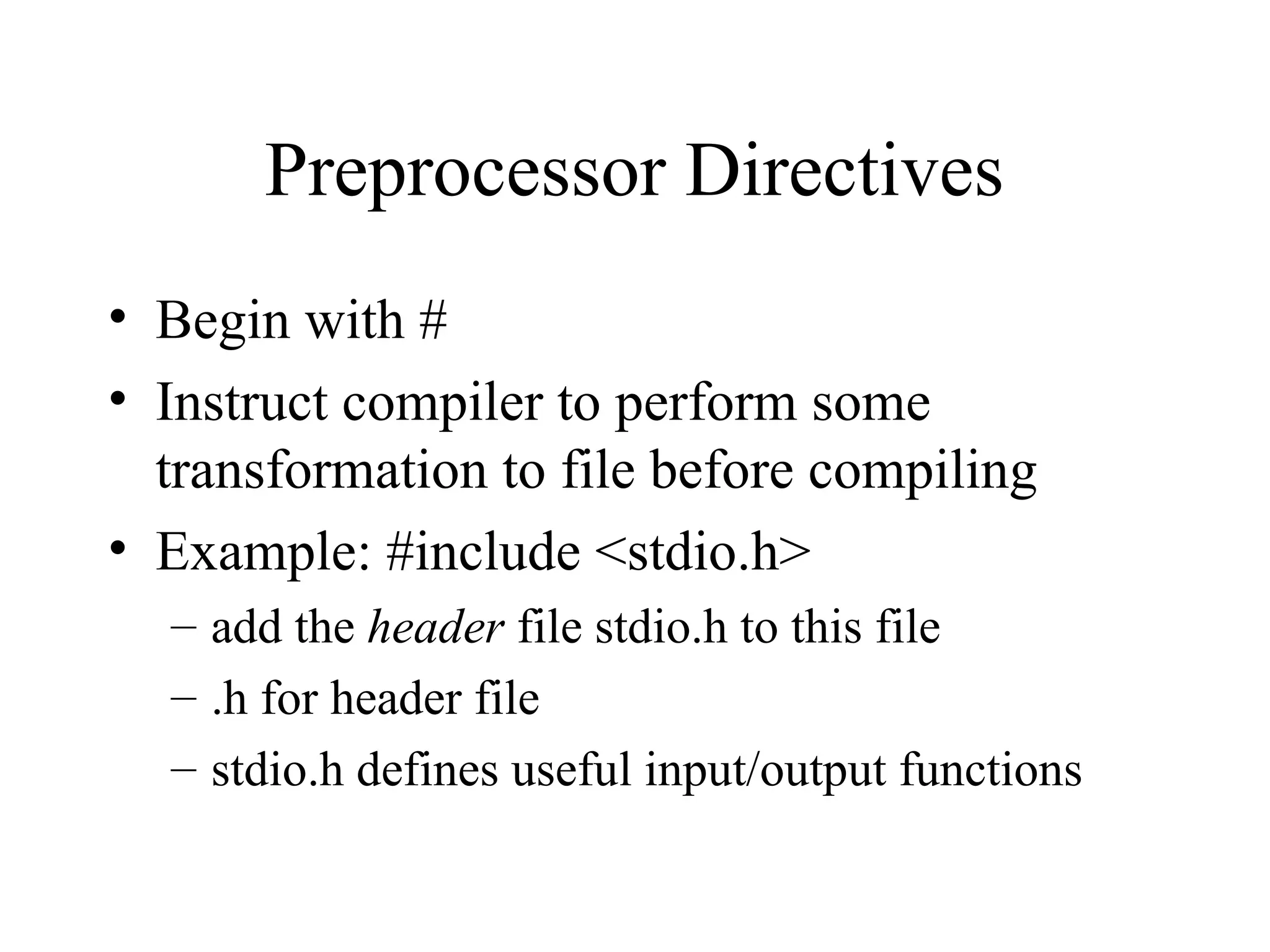

Preprocessor Directives • Begin with # • Instruct compiler to perform some transformation to file before compiling • Example: #include <stdio.h> – add the header file stdio.h to this file – .h for header file – stdio.h defines useful input/output functions

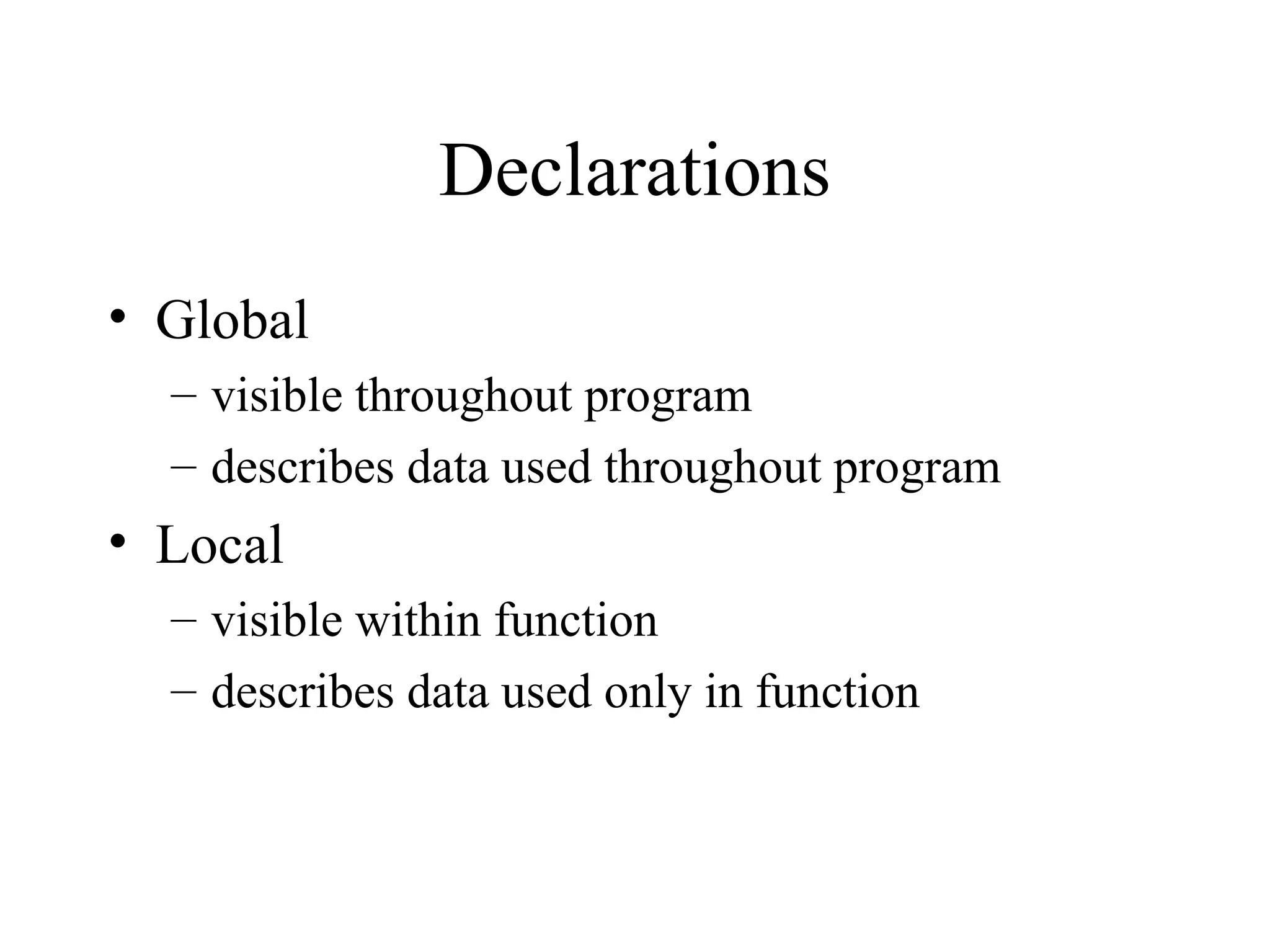

Declarations • Global – visible throughout program – describes data used throughout program • Local – visible within function – describes data used only in function

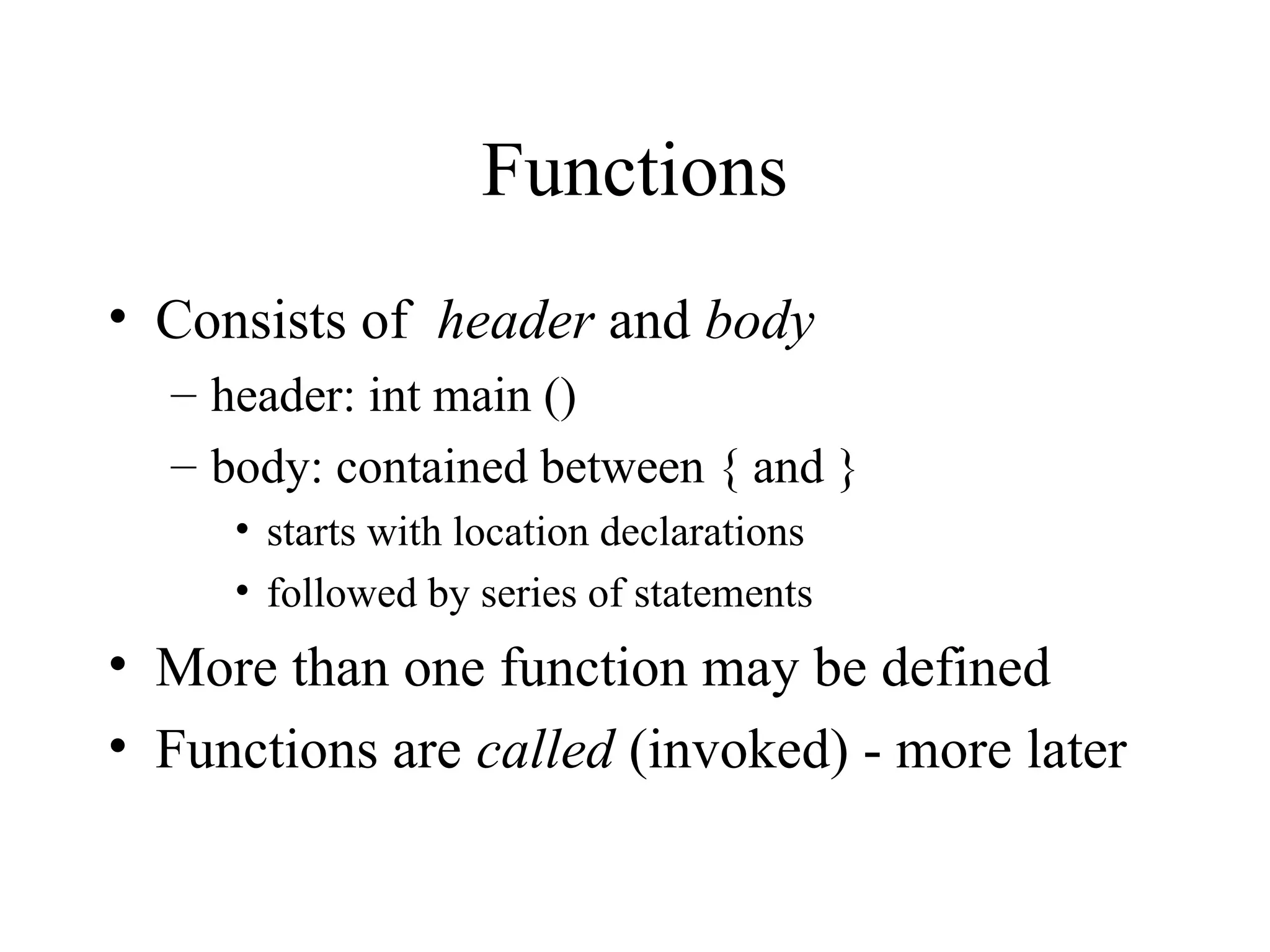

Functions • Consists of header and body – header: int main () – body: contained between { and } • starts with location declarations • followed by series of statements • More than one function may be defined • Functions are called (invoked) - more later

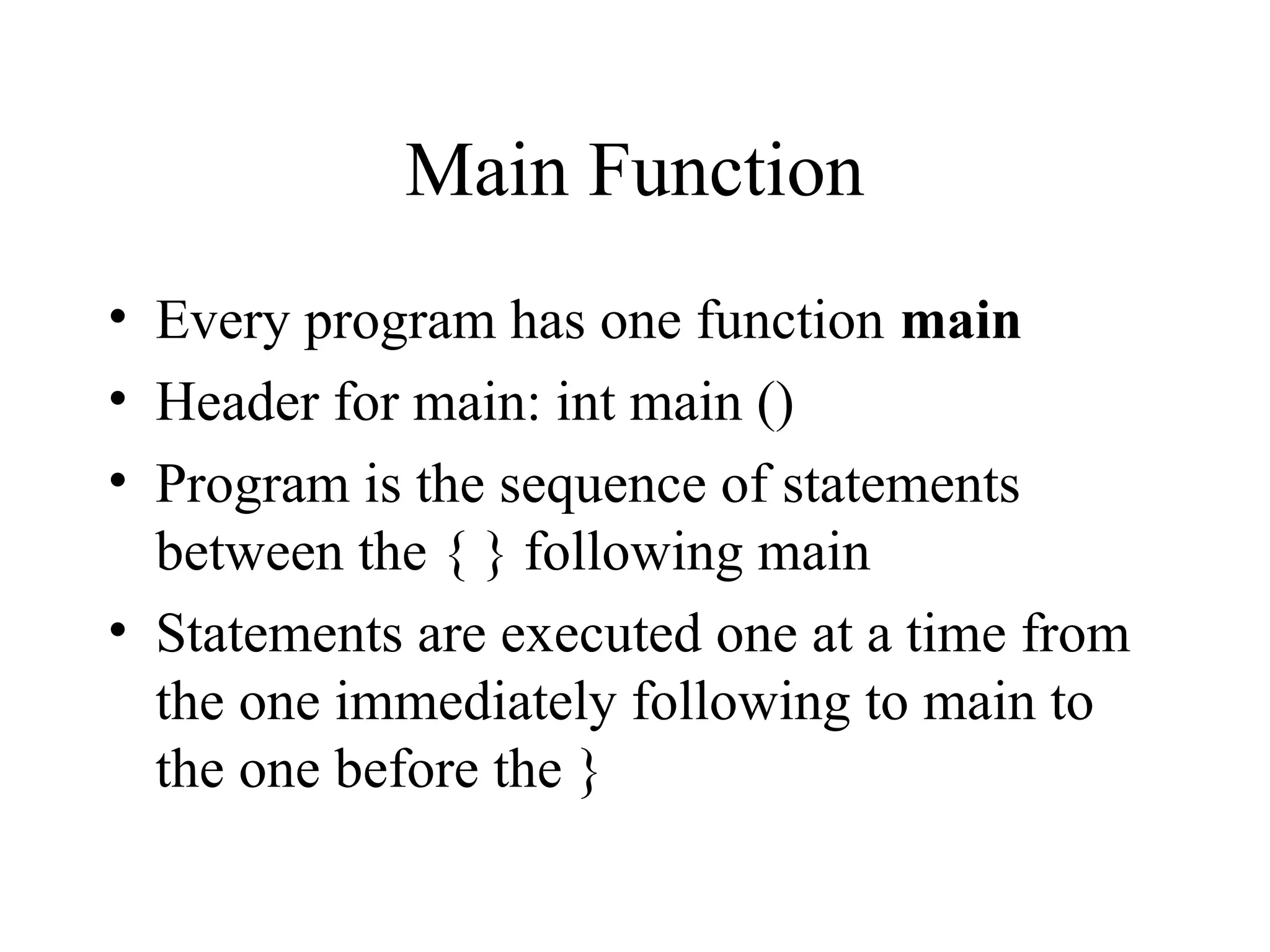

Main Function • Every program has one function main • Header for main: int main () • Program is the sequence of statements between the { } following main • Statements are executed one at a time from the one immediately following to main to the one before the }

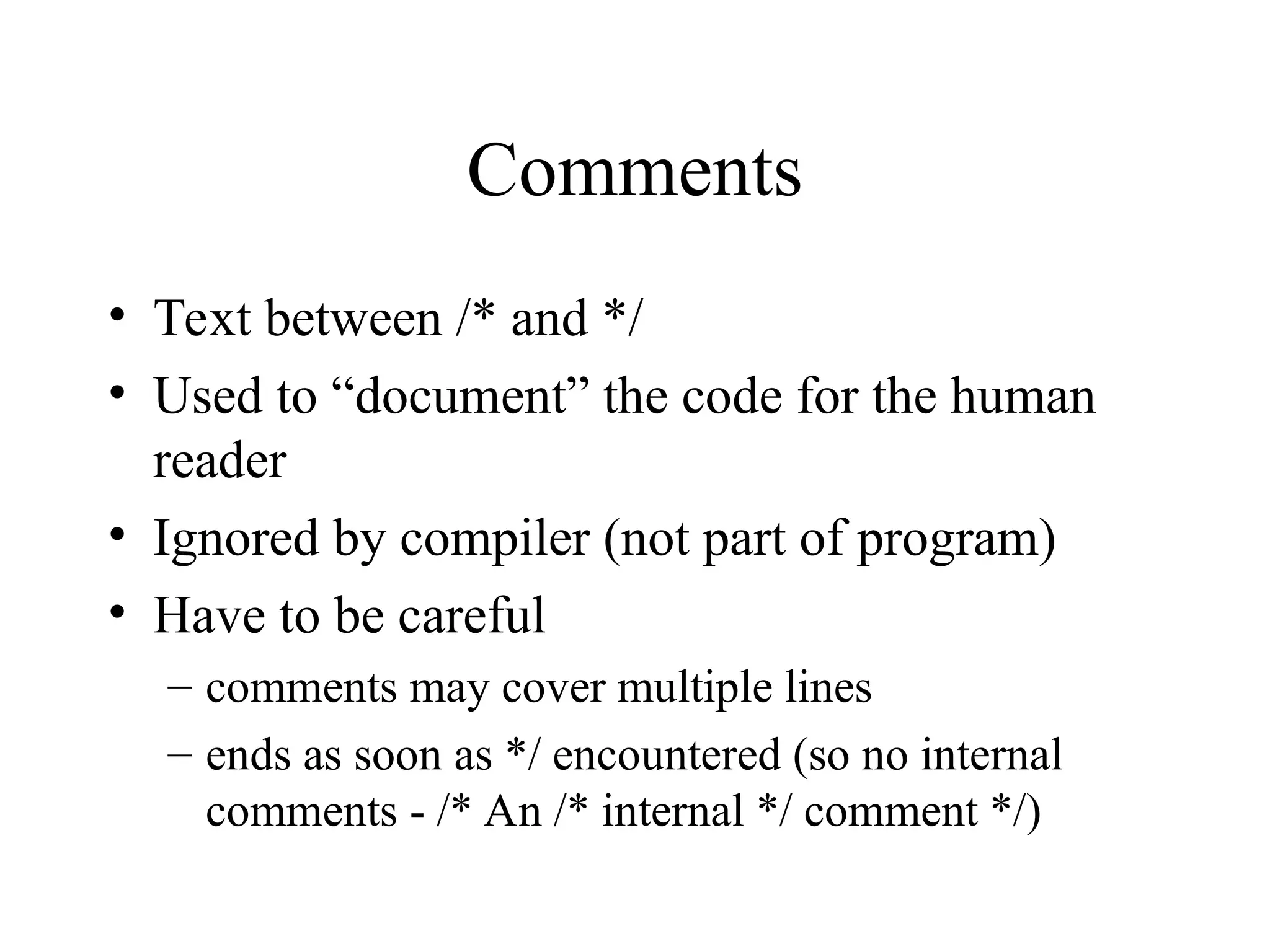

Comments • Text between /* and */ • Used to “document” the code for the human reader • Ignored by compiler (not part of program) • Have to be careful – comments may cover multiple lines – ends as soon as */ encountered (so no internal comments - /* An /* internal */ comment */)

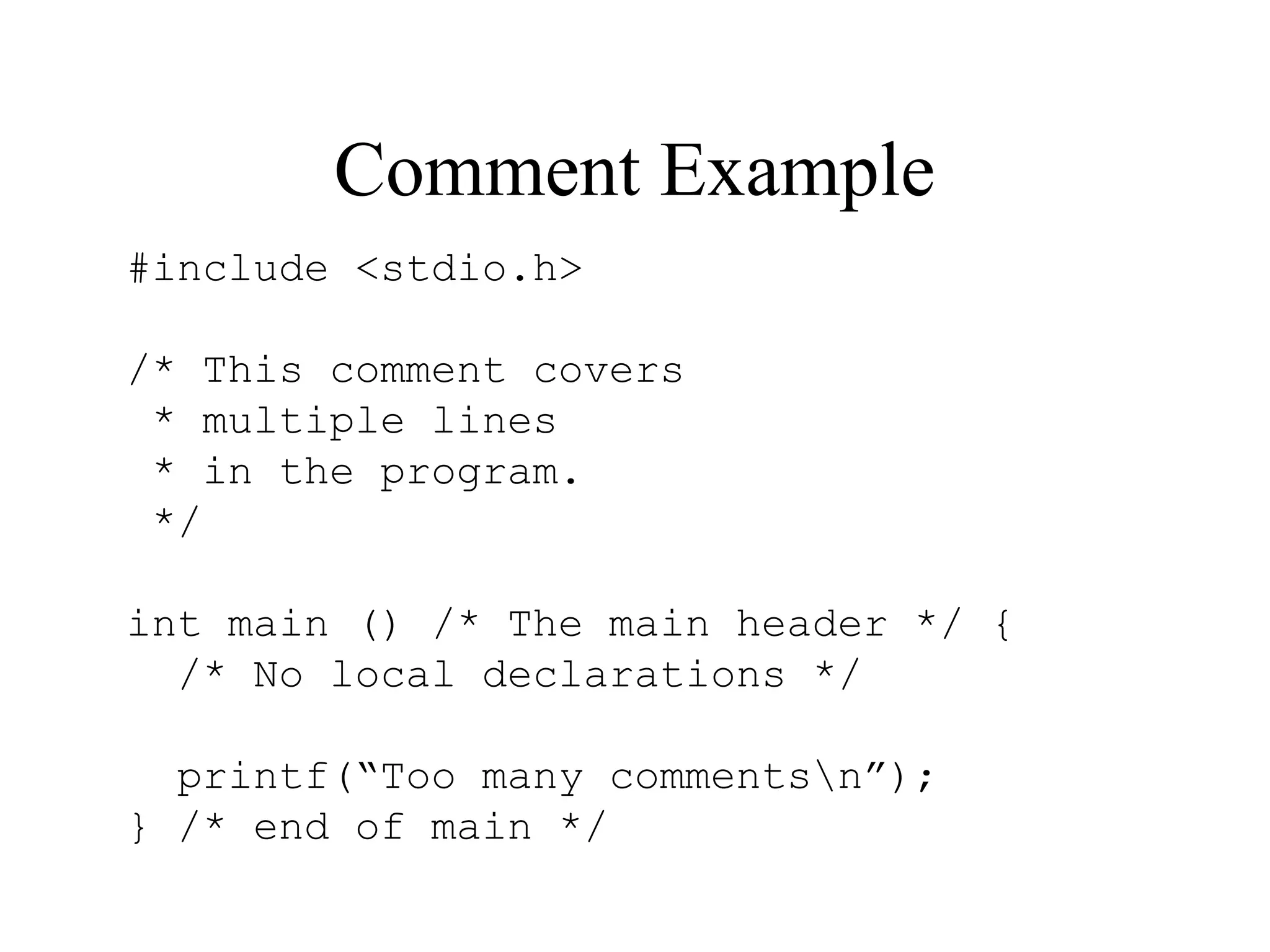

Comment Example #include <stdio.h> /* This comment covers * multiple lines * in the program. */ int main () /* The main header */ { /* No local declarations */ printf(“Too many commentsn”); } /* end of main */

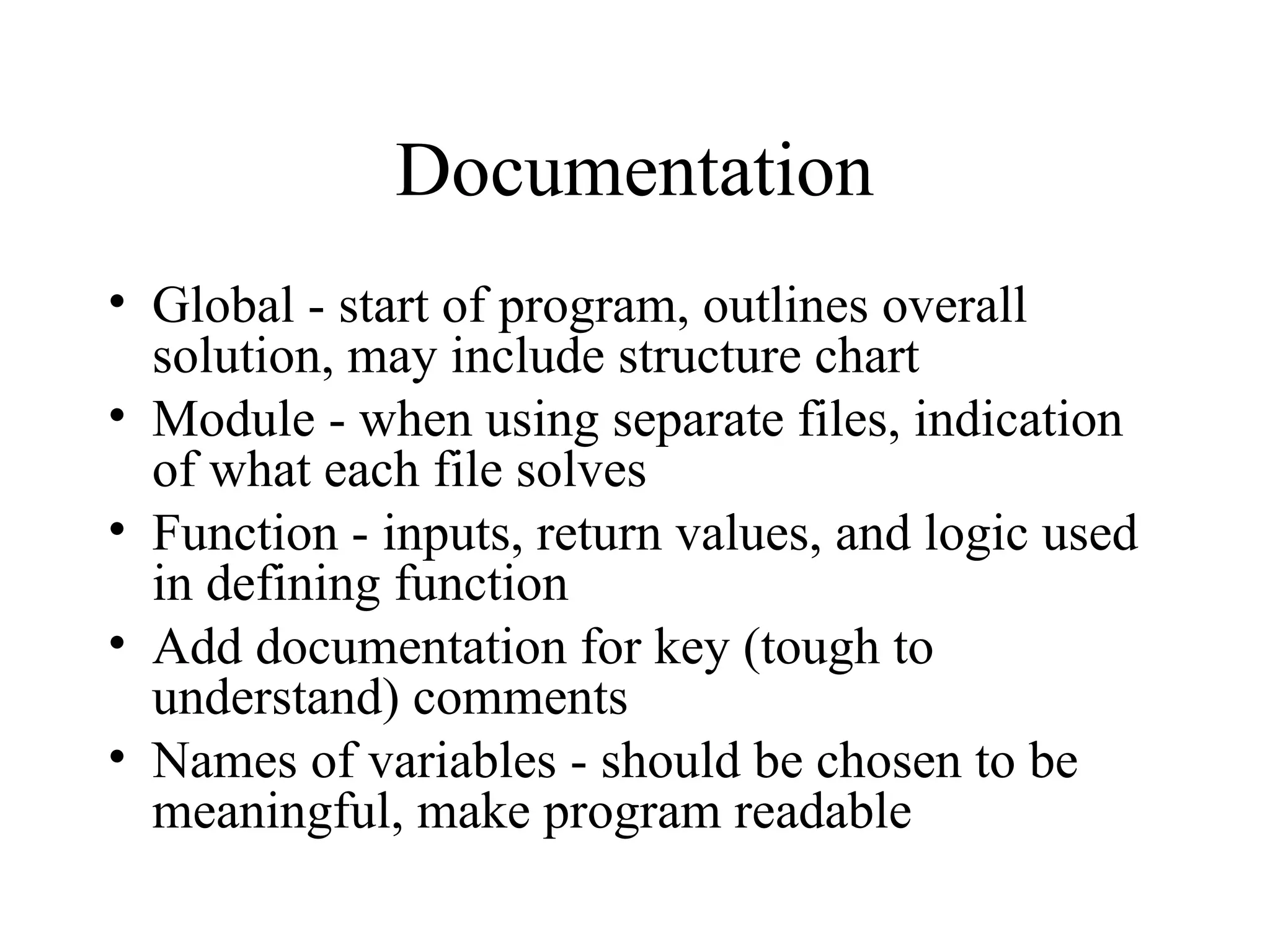

Documentation • Global - start of program, outlines overall solution, may include structure chart • Module - when using separate files, indication of what each file solves • Function - inputs, return values, and logic used in defining function • Add documentation for key (tough to understand) comments • Names of variables - should be chosen to be meaningful, make program readable

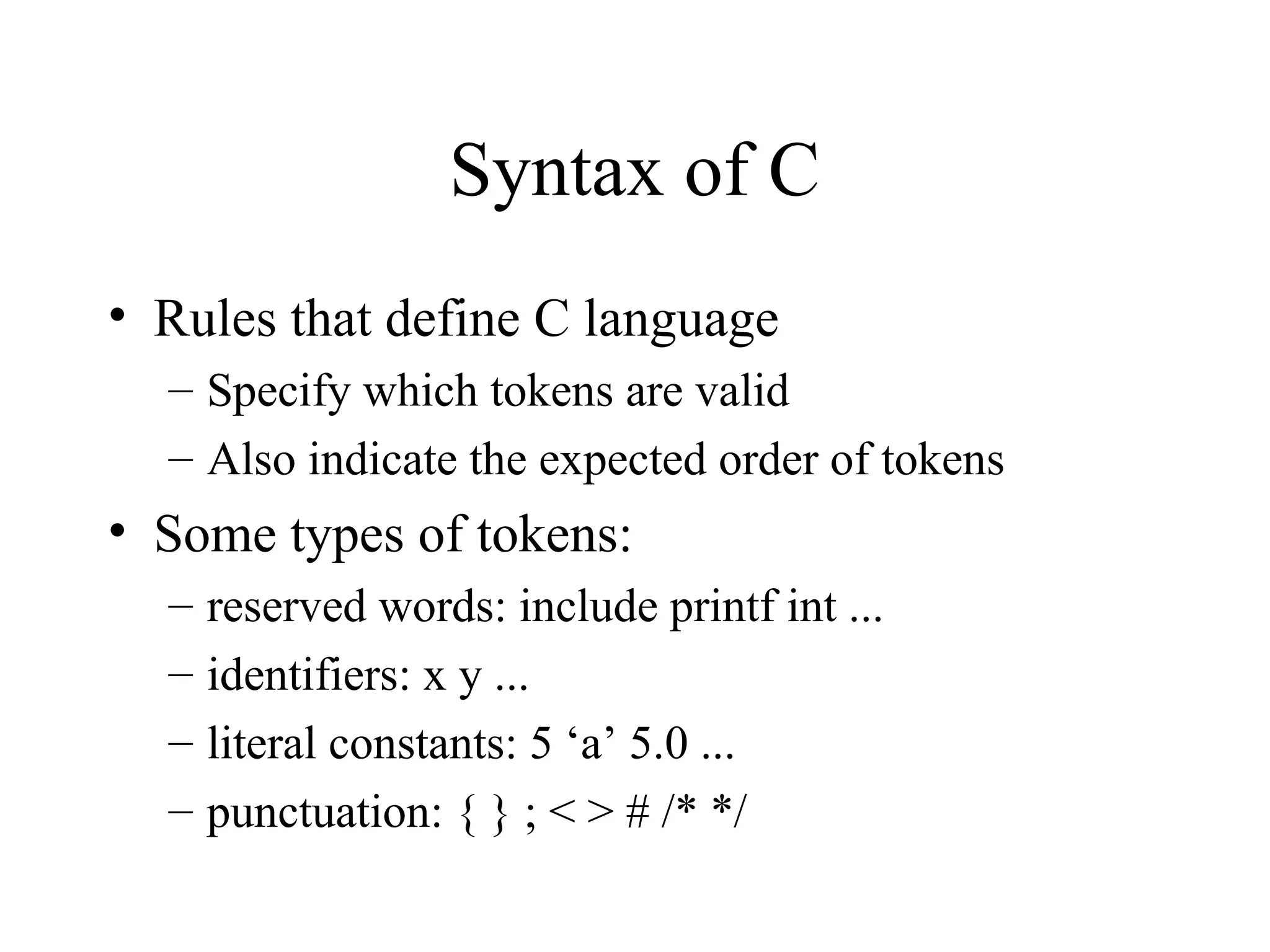

Syntax of C • Rules that define C language – Specify which tokens are valid – Also indicate the expected order of tokens • Some types of tokens: – reserved words: include printf int ... – identifiers: x y ... – literal constants: 5 ‘a’ 5.0 ... – punctuation: { } ; < > # /* */

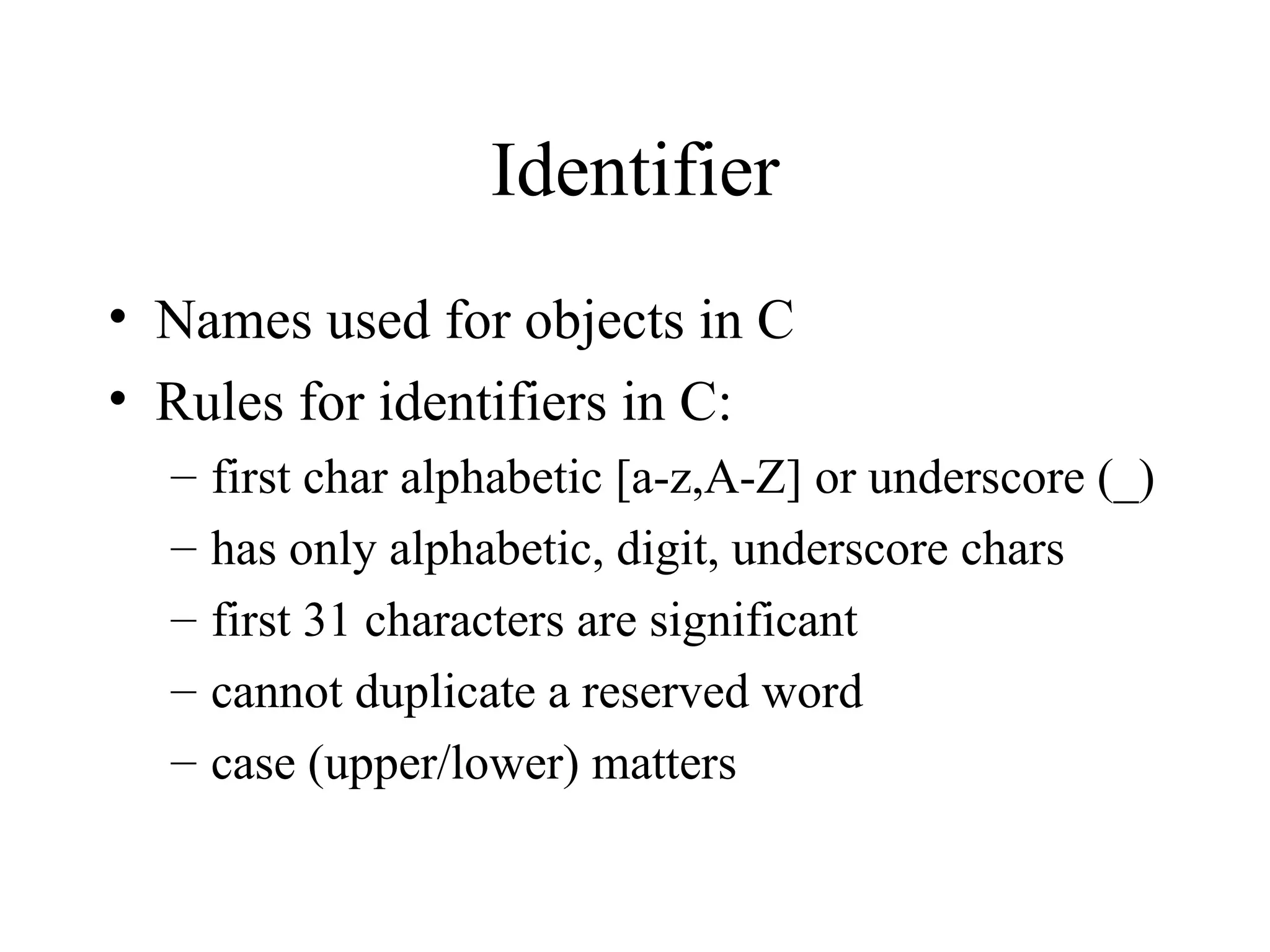

Identifier • Names used for objects in C • Rules for identifiers in C: – first char alphabetic [a-z,A-Z] or underscore (_) – has only alphabetic, digit, underscore chars – first 31 characters are significant – cannot duplicate a reserved word – case (upper/lower) matters

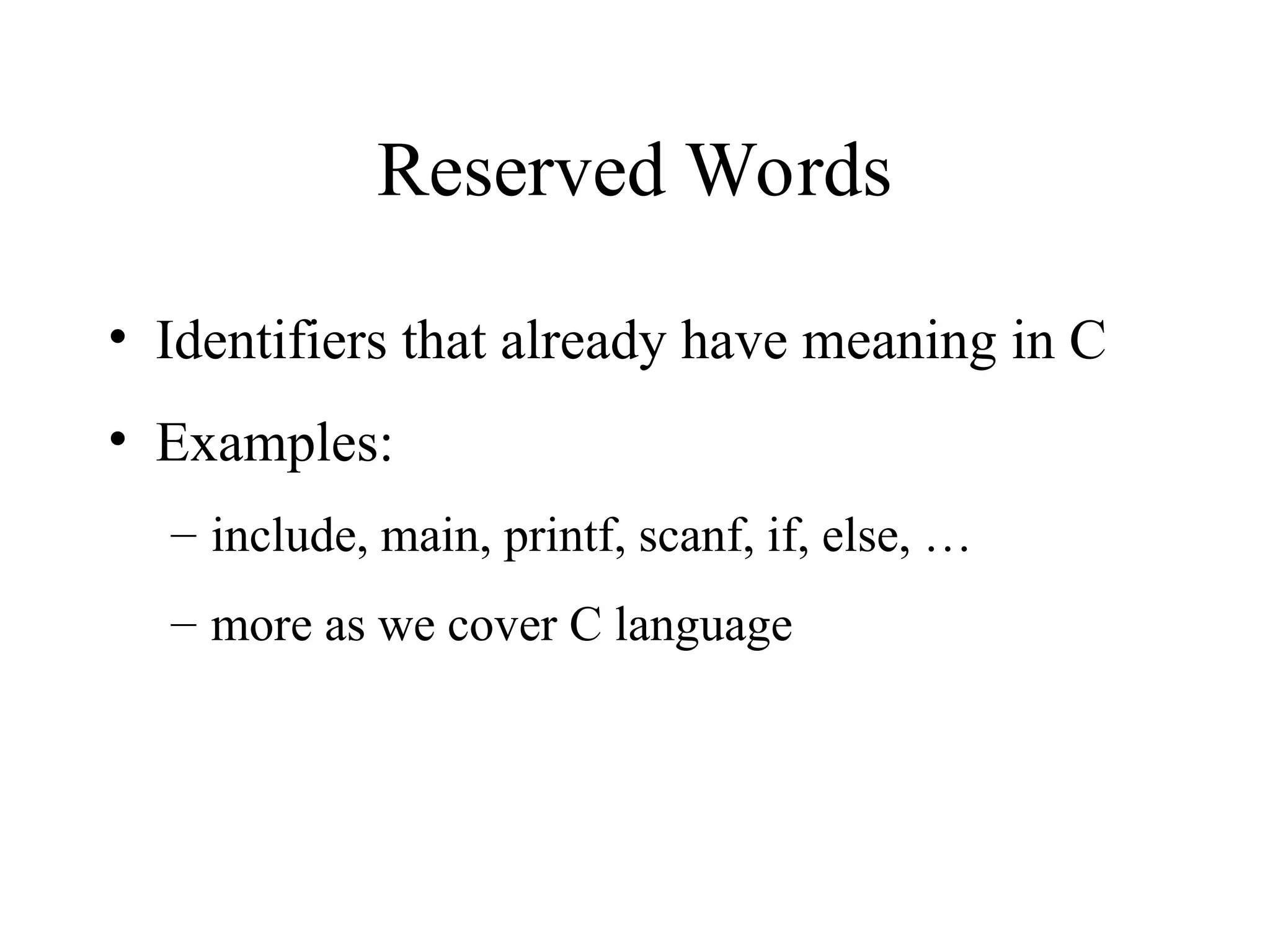

Reserved Words • Identifiers that already have meaning in C • Examples: – include, main, printf, scanf, if, else, … – more as we cover C language

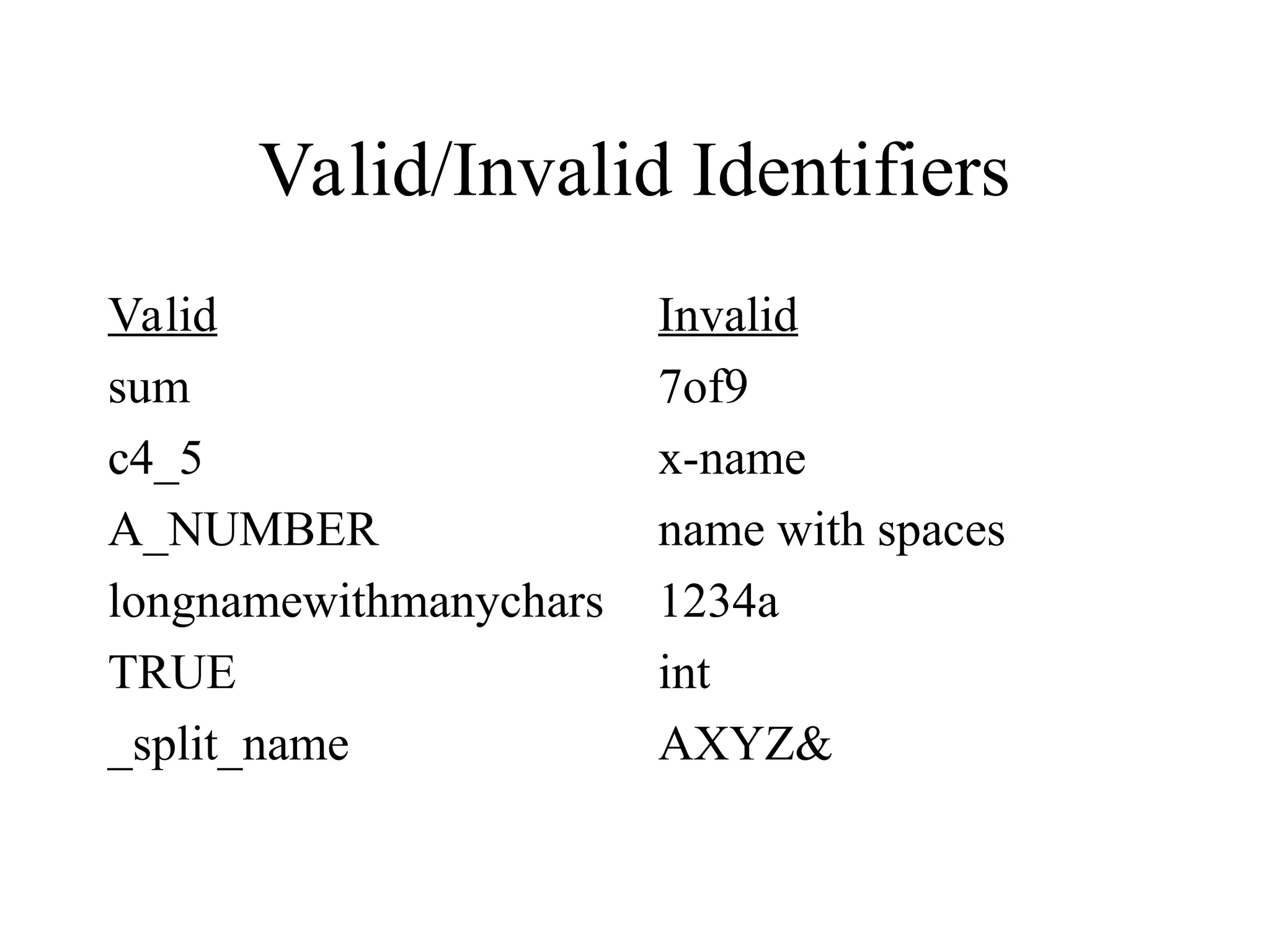

Valid/Invalid Identifiers Valid sum c4_5 A_NUMBER longnamewithmanychars TRUE _split_name Invalid 7of9 x-name name with spaces 1234a int AXYZ&

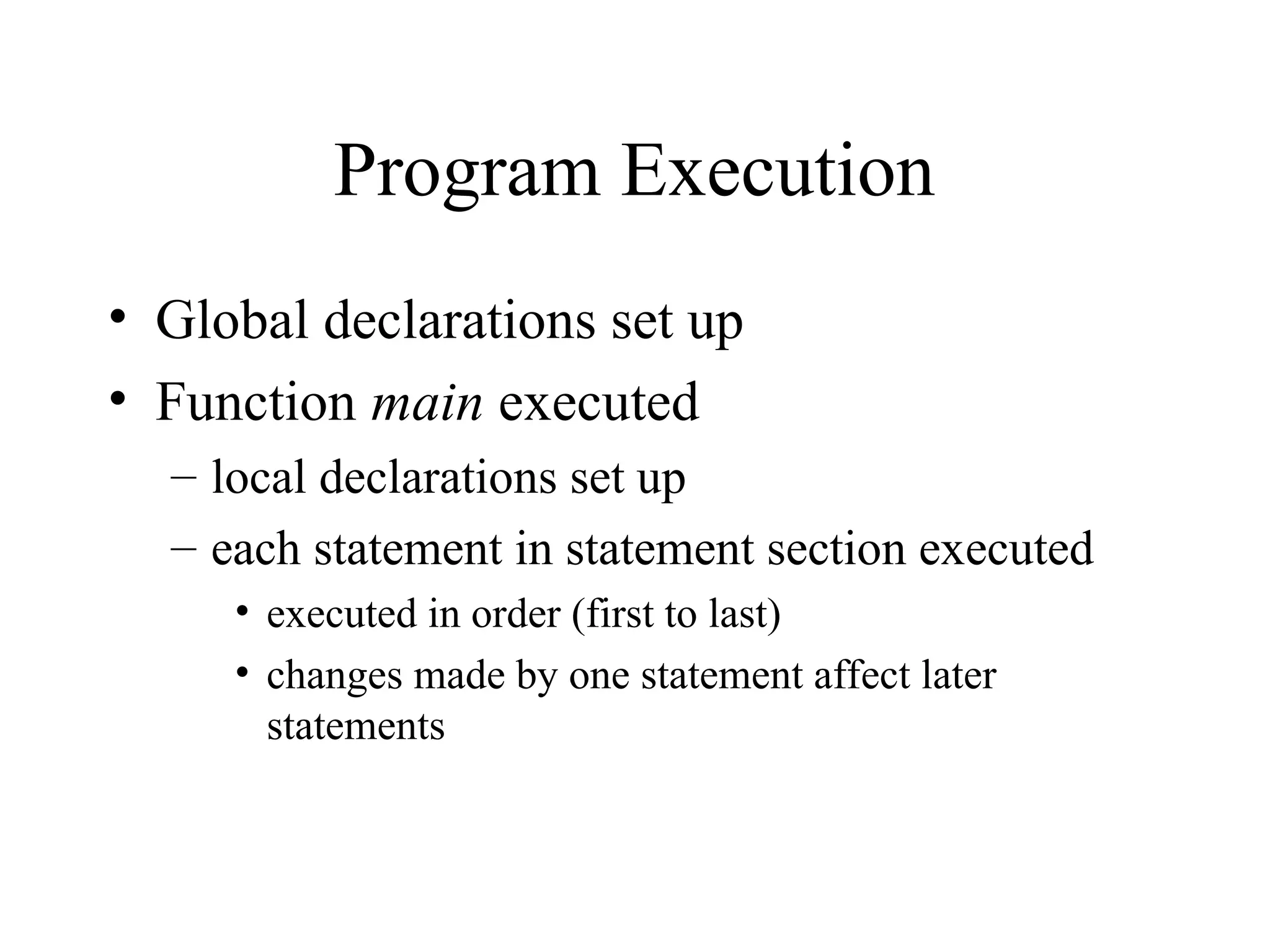

Program Execution • Global declarations set up • Function main executed – local declarations set up – each statement in statement section executed • executed in order (first to last) • changes made by one statement affect later statements

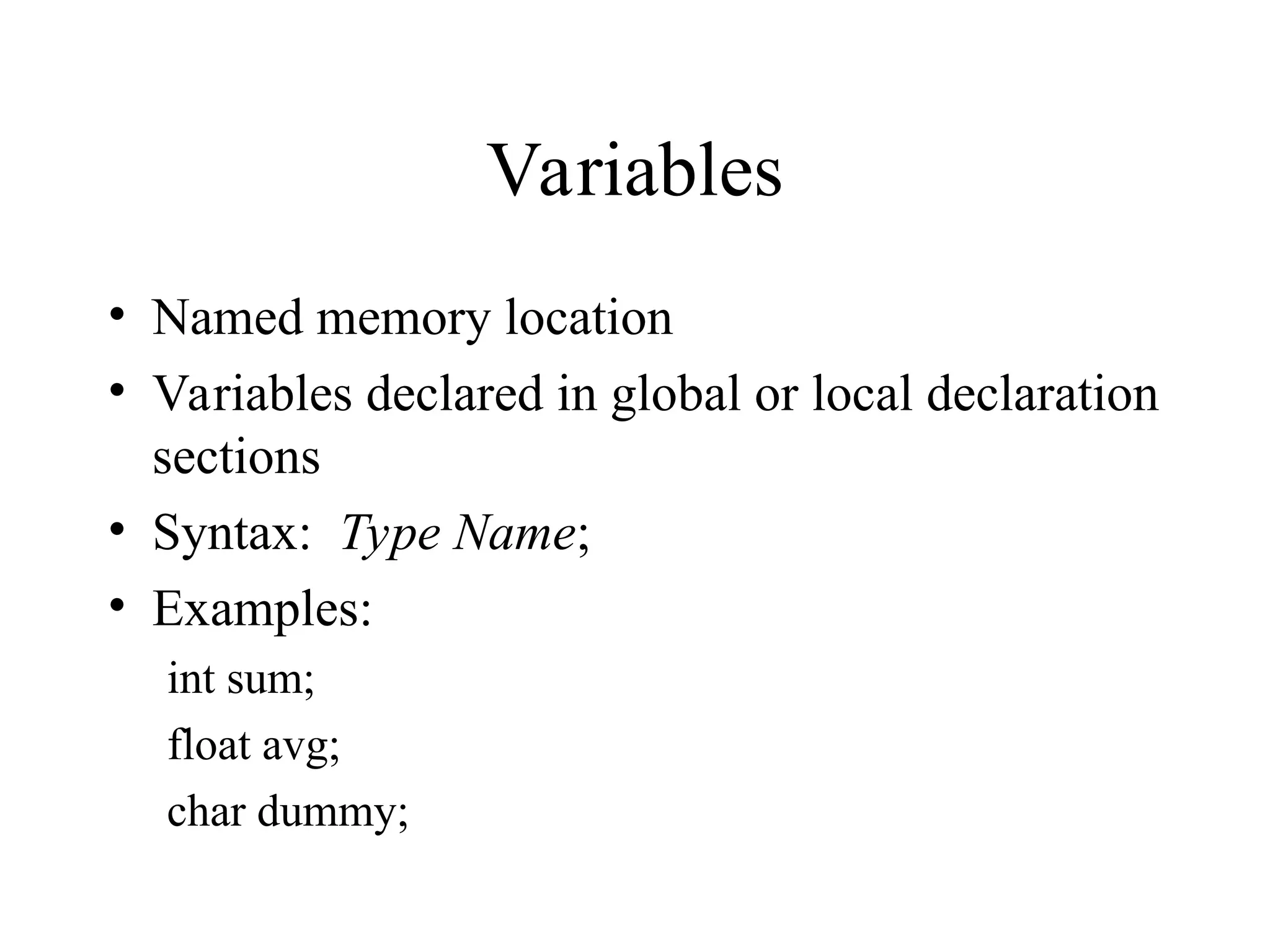

Variables • Named memory location • Variables declared in global or local declaration sections • Syntax: Type Name; • Examples: int sum; float avg; char dummy;

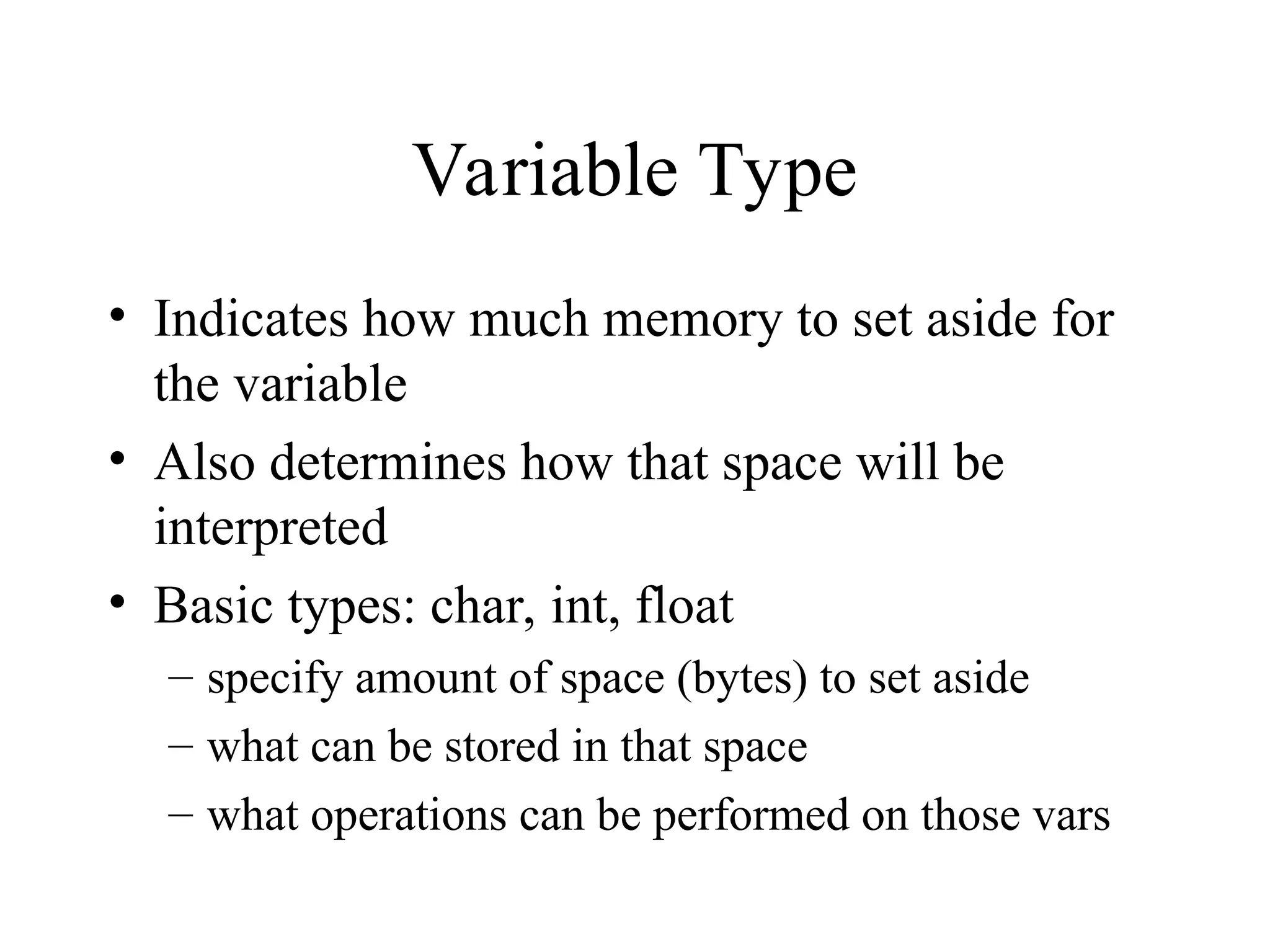

Variable Type • Indicates how much memory to set aside for the variable • Also determines how that space will be interpreted • Basic types: char, int, float – specify amount of space (bytes) to set aside – what can be stored in that space – what operations can be performed on those vars

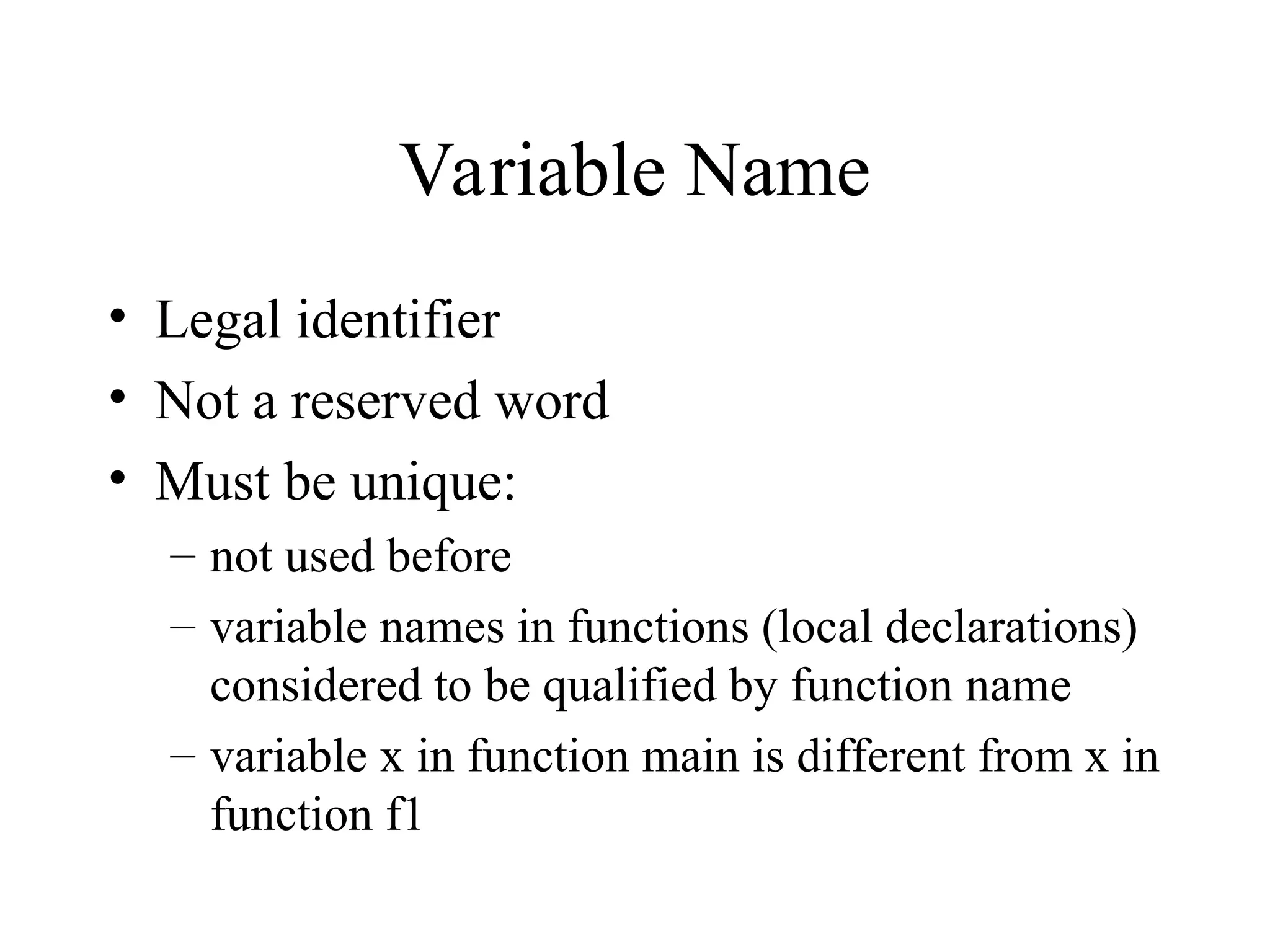

Variable Name • Legal identifier • Not a reserved word • Must be unique: – not used before – variable names in functions (local declarations) considered to be qualified by function name – variable x in function main is different from x in function f1

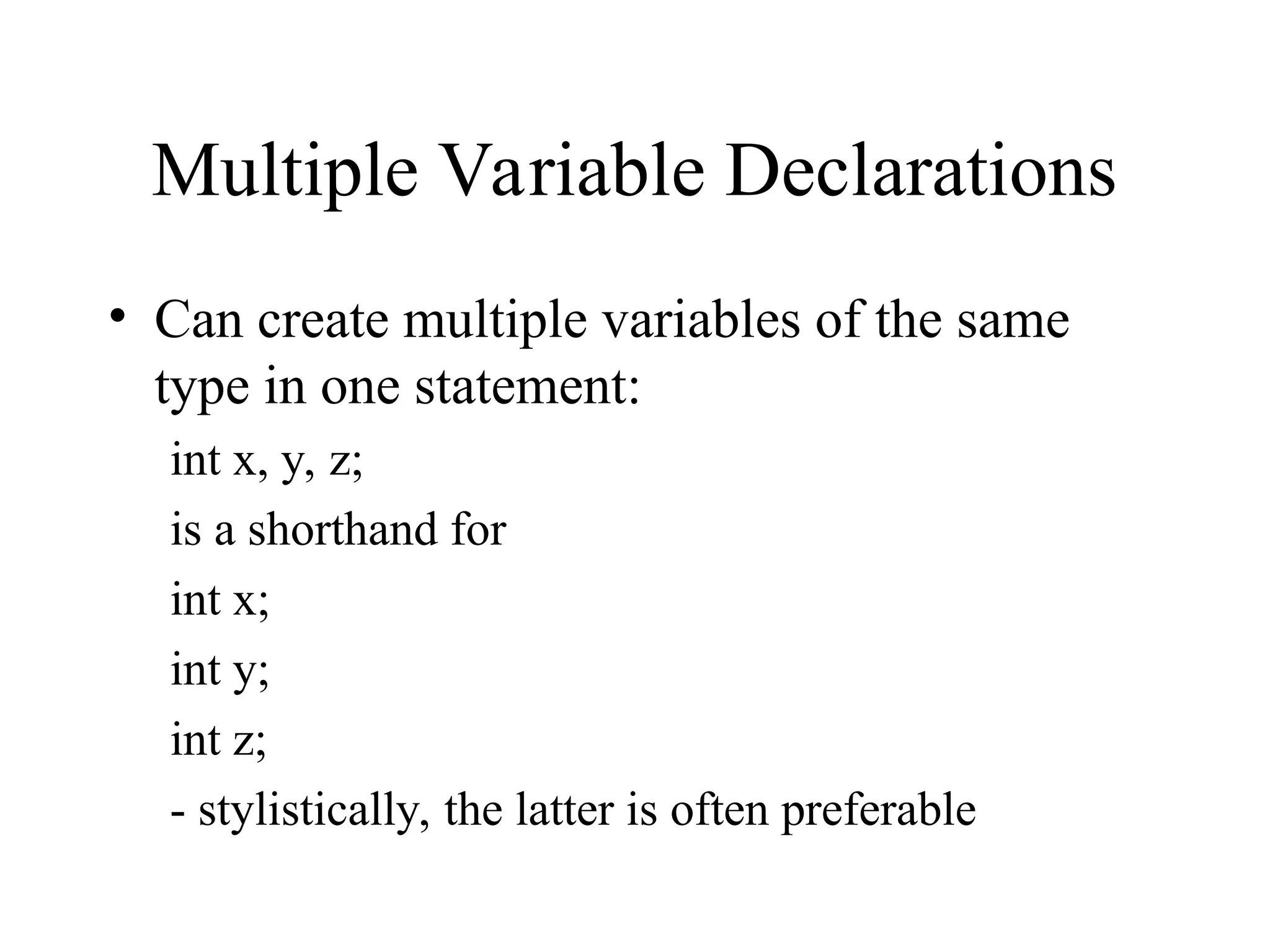

Multiple Variable Declarations • Can create multiple variables of the same type in one statement: int x, y, z; is a shorthand for int x; int y; int z; - stylistically, the latter is often preferable

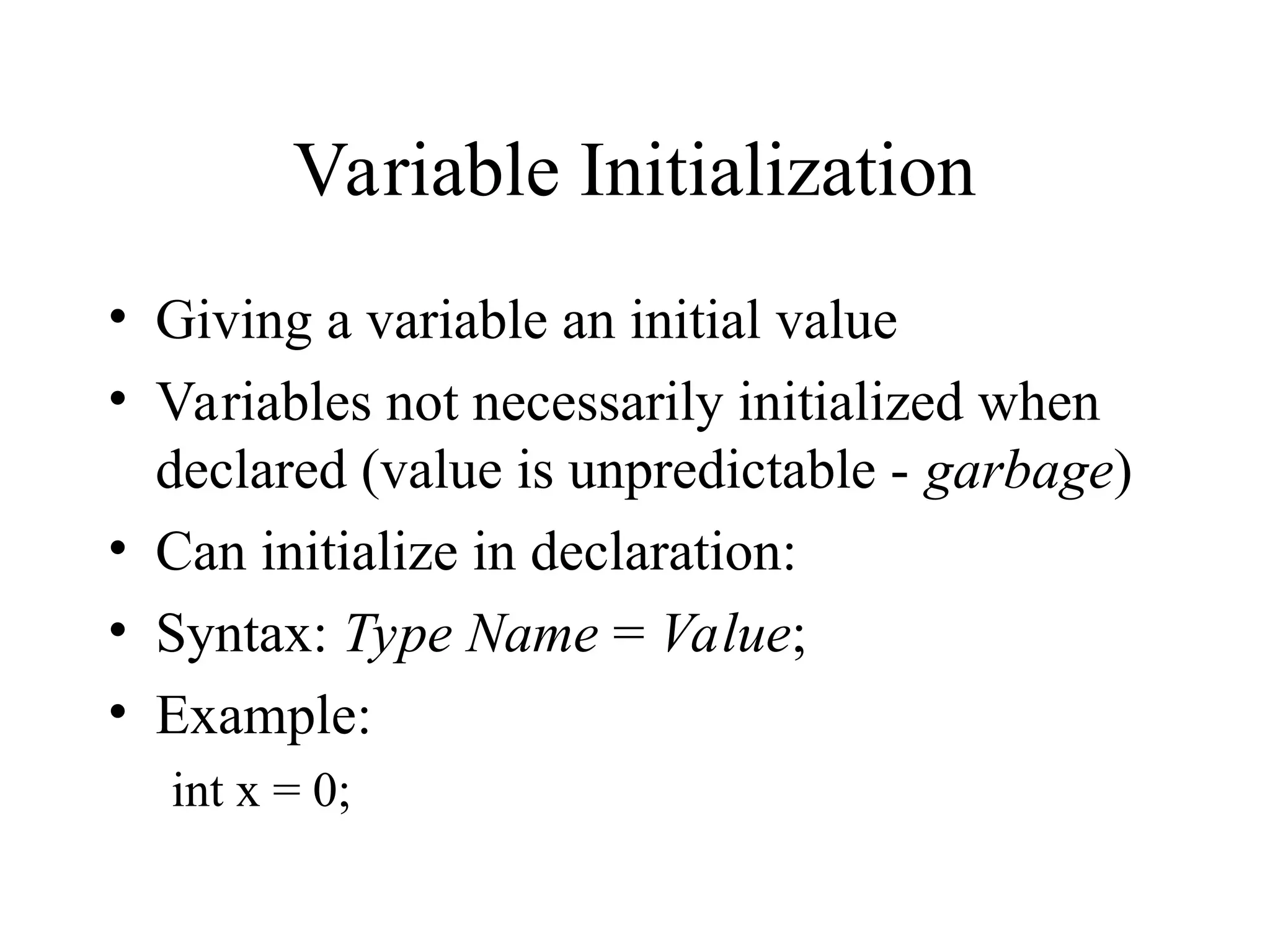

Variable Initialization • Giving a variable an initial value • Variables not necessarily initialized when declared (value is unpredictable - garbage) • Can initialize in declaration: • Syntax: Type Name = Value; • Example: int x = 0;

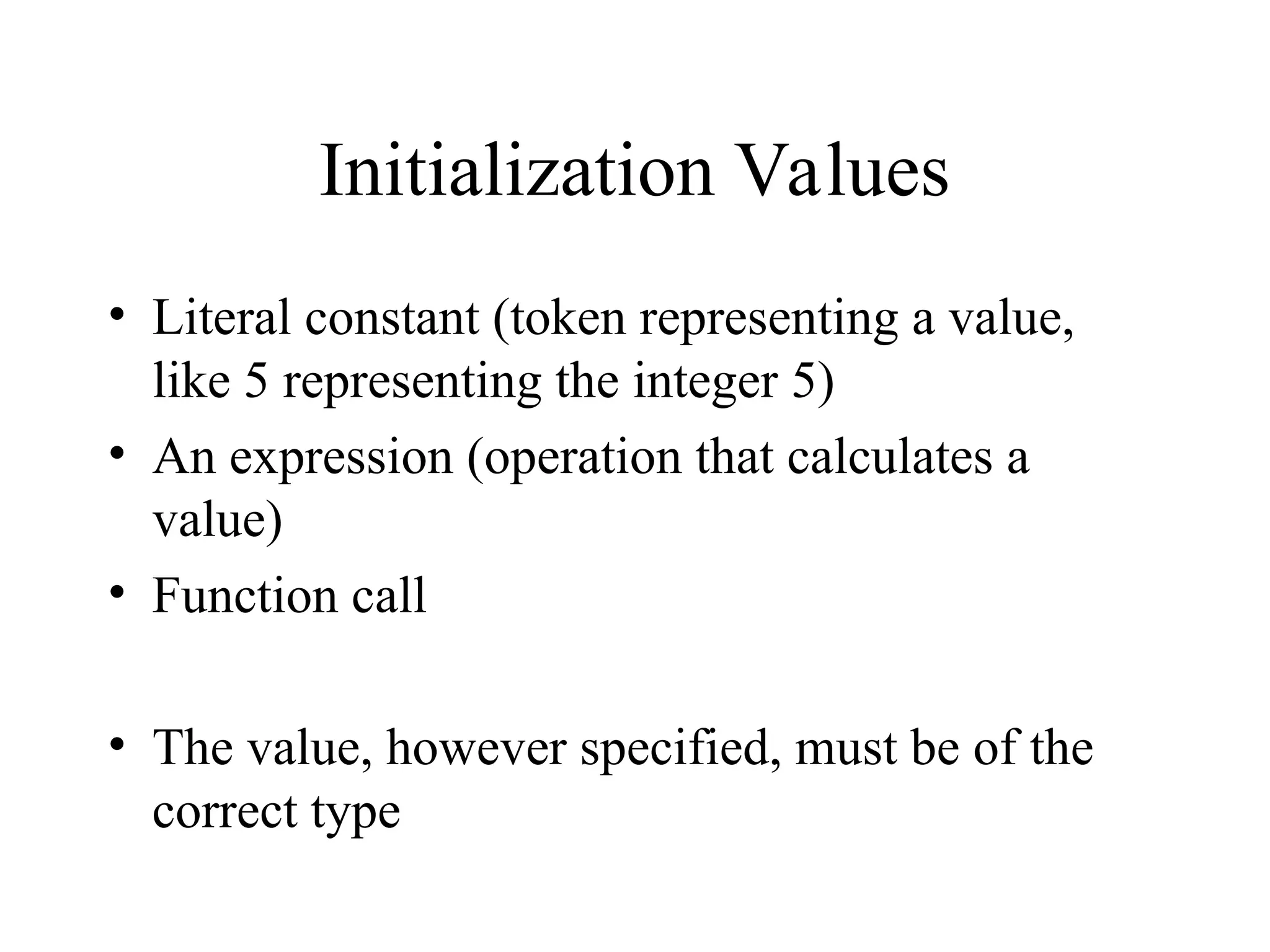

Initialization Values • Literal constant (token representing a value, like 5 representing the integer 5) • An expression (operation that calculates a value) • Function call • The value, however specified, must be of the correct type

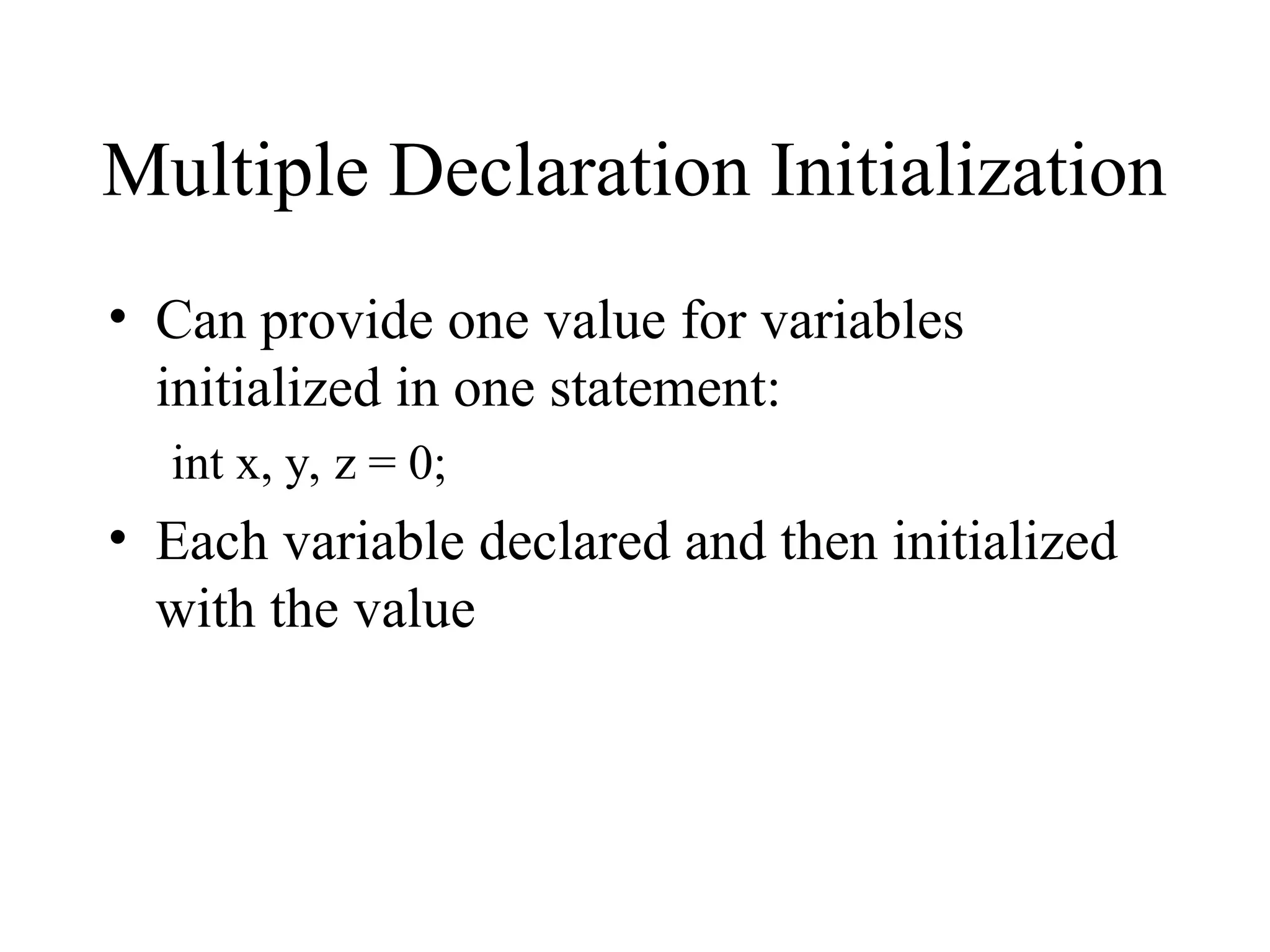

Multiple Declaration Initialization • Can provide one value for variables initialized in one statement: int x, y, z = 0; • Each variable declared and then initialized with the value

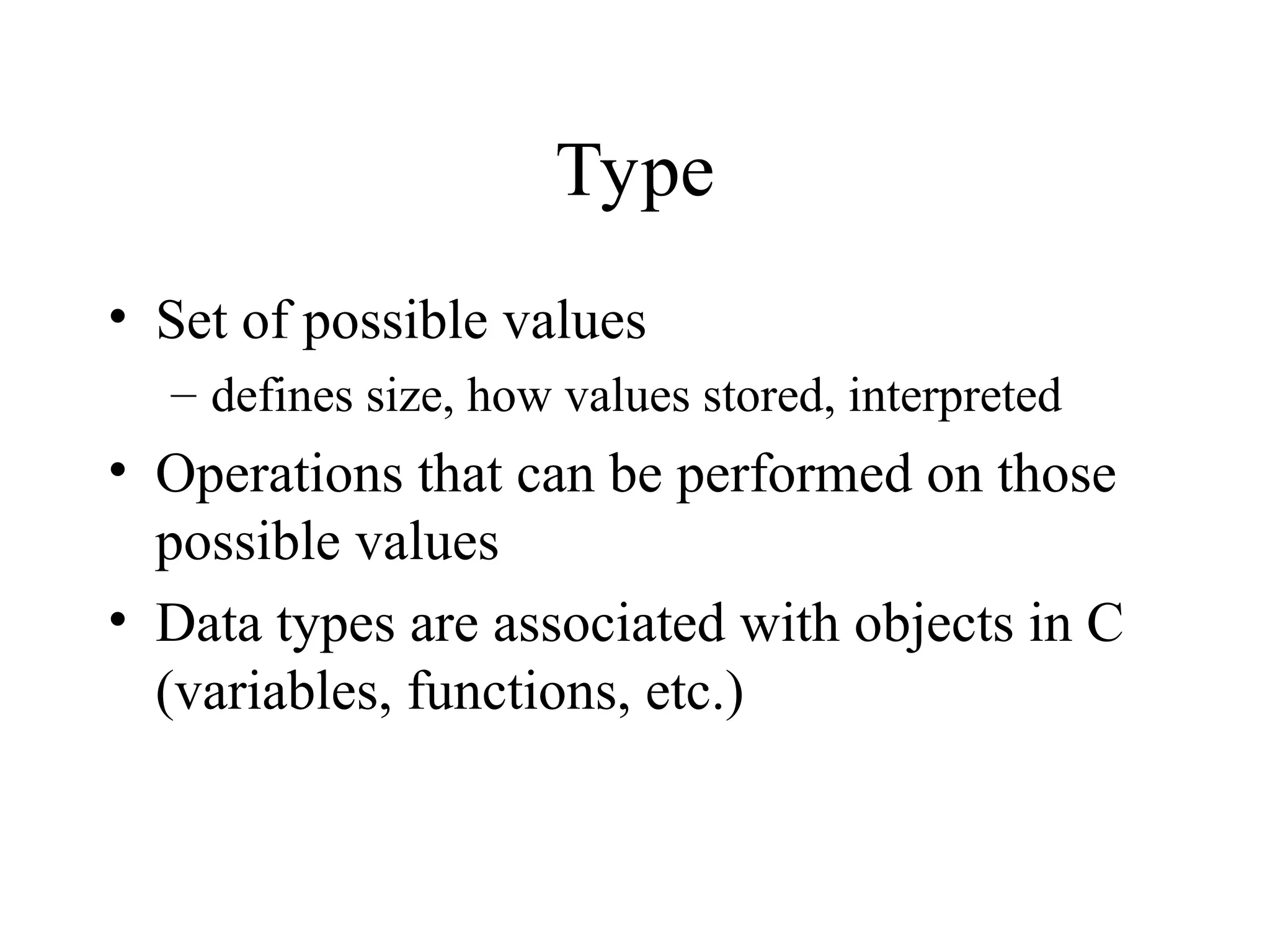

Type • Set of possible values – defines size, how values stored, interpreted • Operations that can be performed on those possible values • Data types are associated with objects in C (variables, functions, etc.)

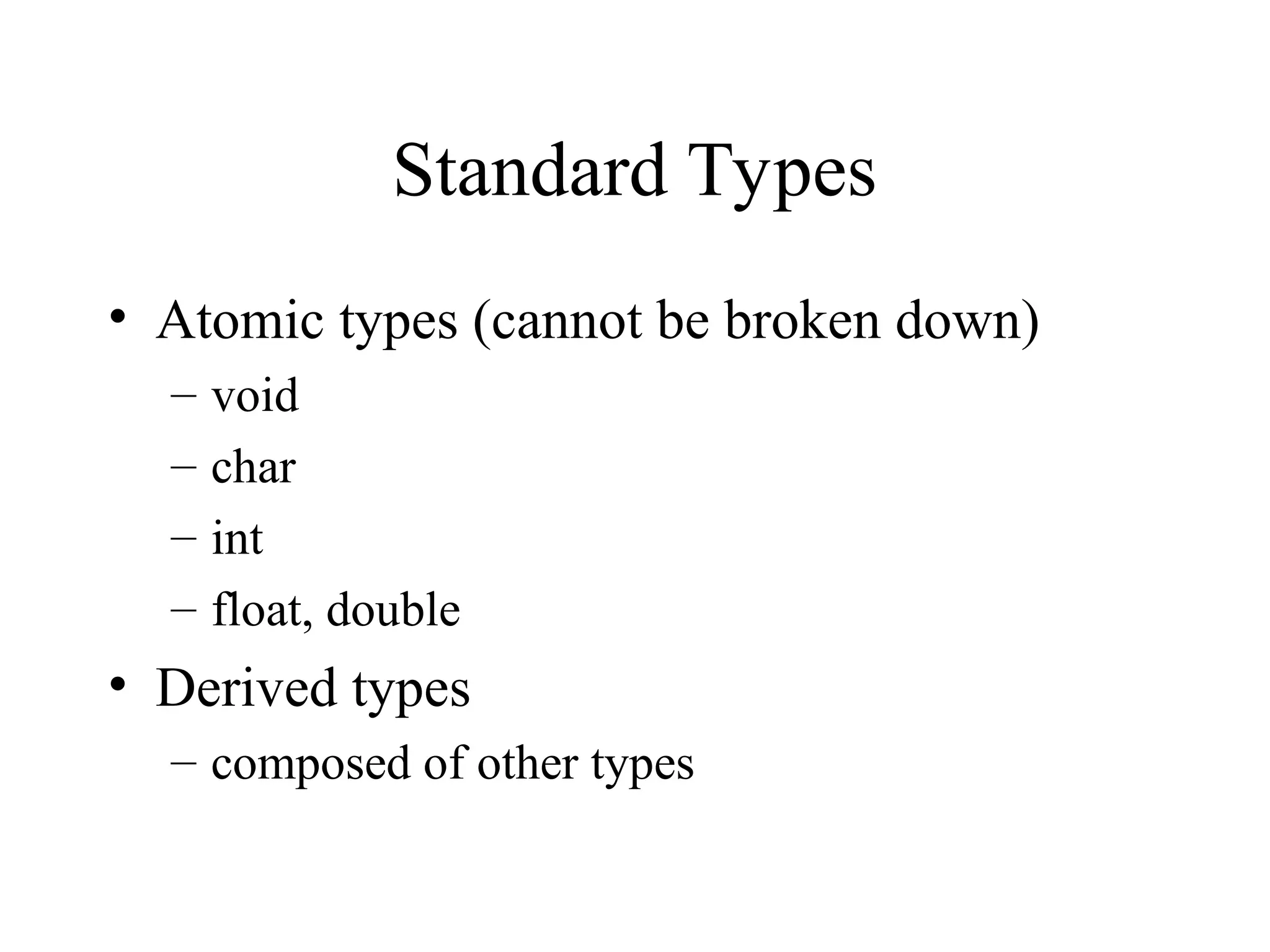

Standard Types • Atomic types (cannot be broken down) – void – char – int – float, double • Derived types – composed of other types

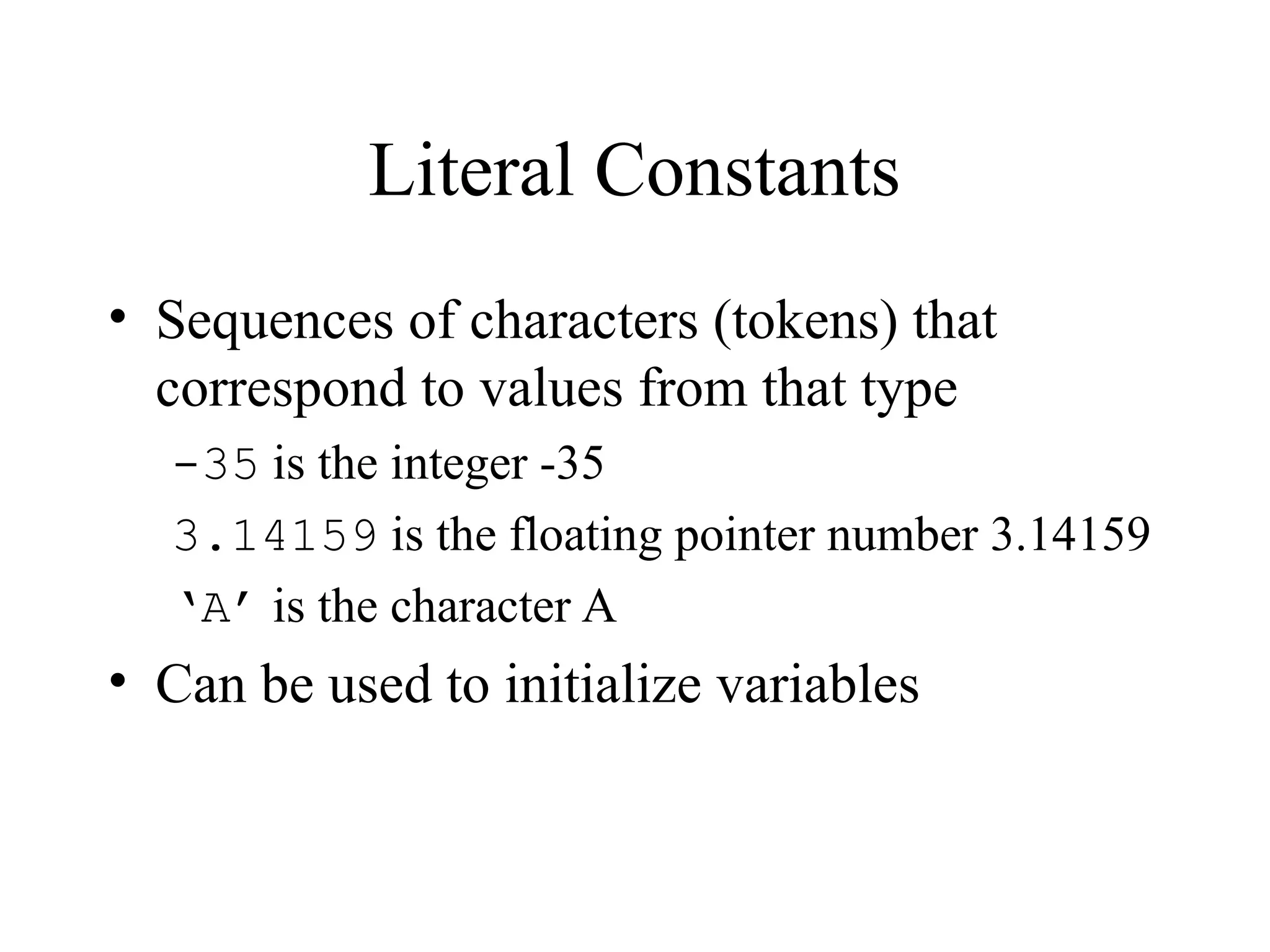

Literal Constants • Sequences of characters (tokens) that correspond to values from that type -35 is the integer -35 3.14159 is the floating pointer number 3.14159 ‘A’ is the character A • Can be used to initialize variables

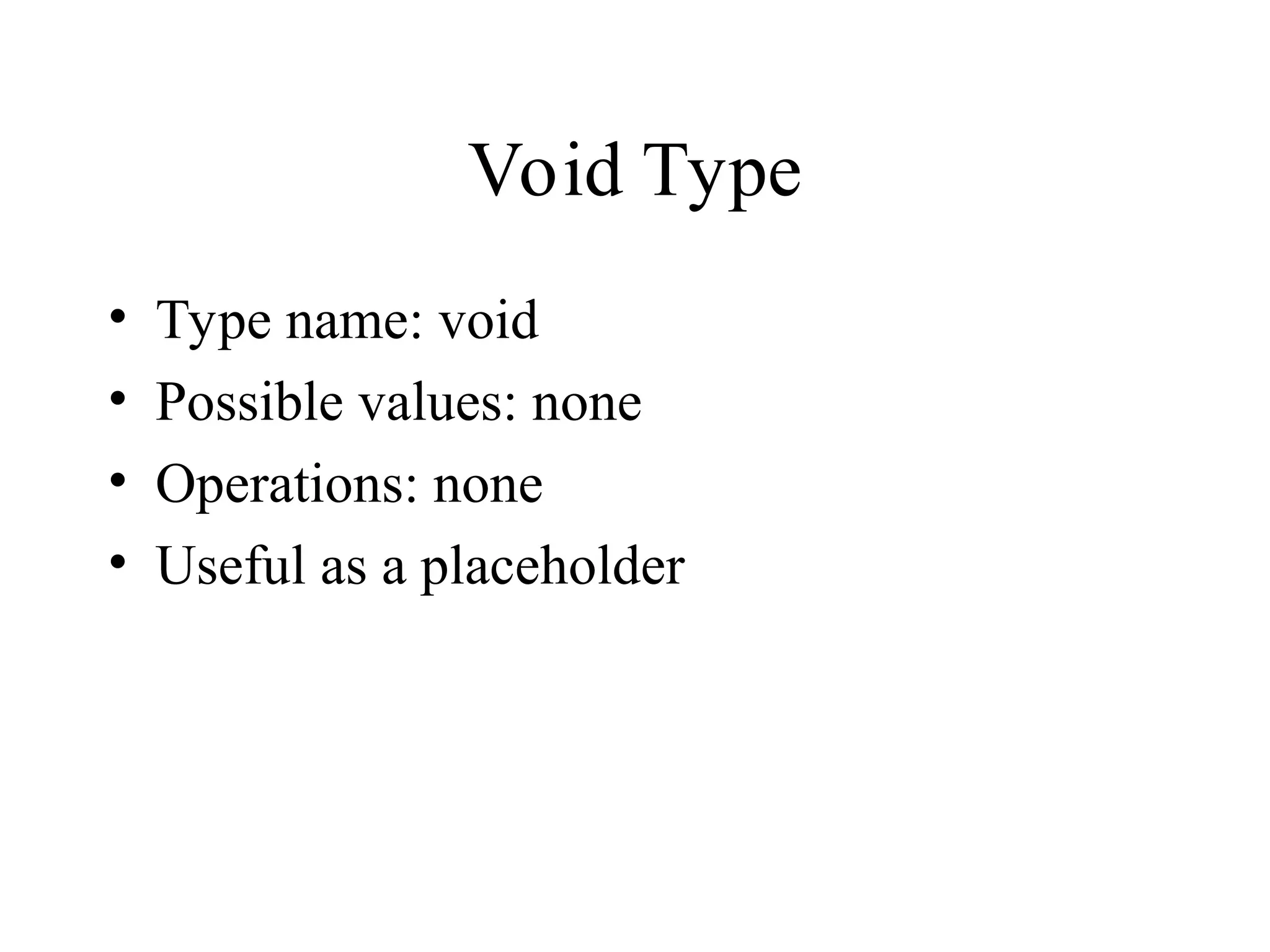

Void Type • Type name: void • Possible values: none • Operations: none • Useful as a placeholder

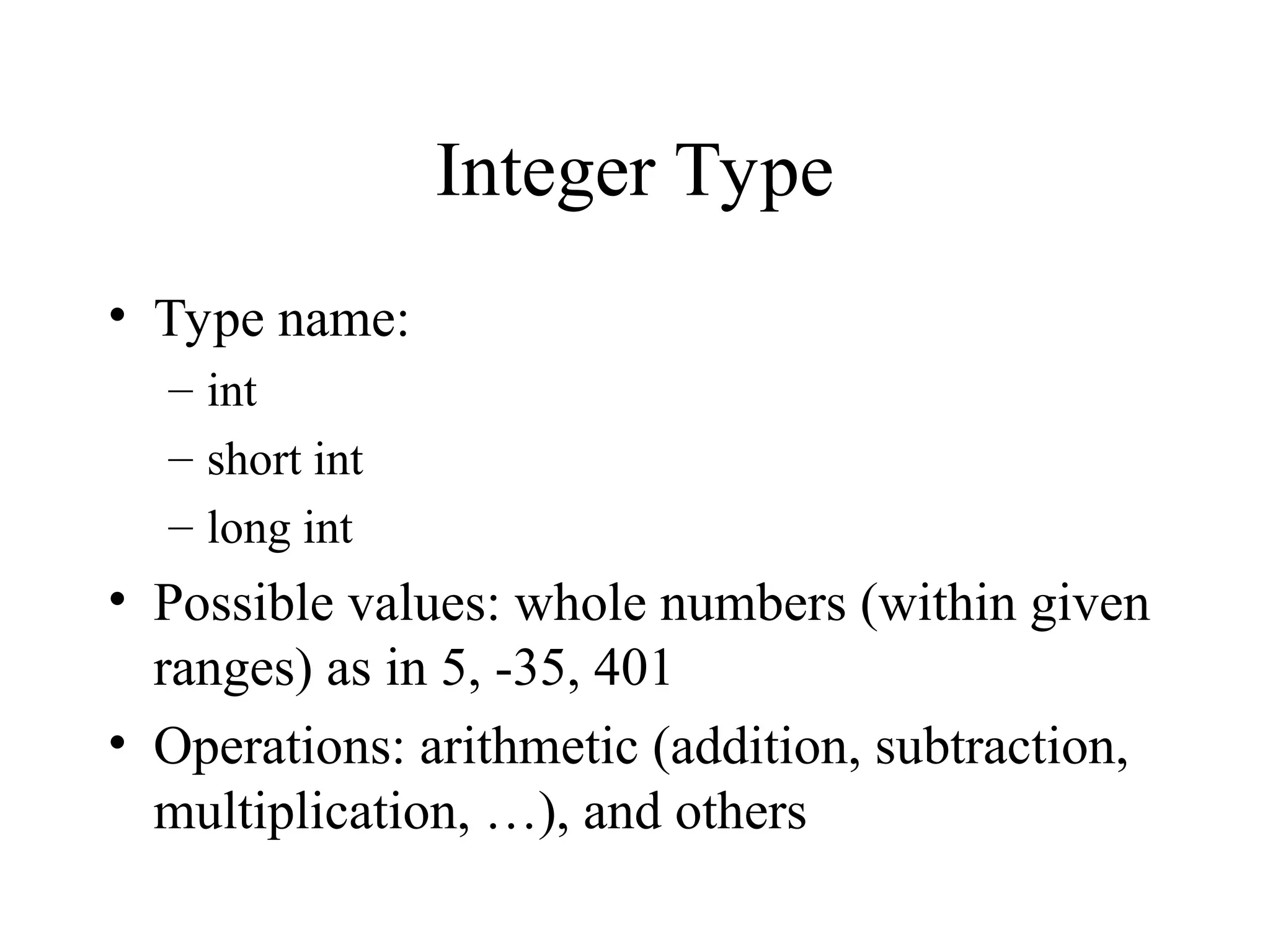

Integer Type • Type name: – int – short int – long int • Possible values: whole numbers (within given ranges) as in 5, -35, 401 • Operations: arithmetic (addition, subtraction, multiplication, …), and others

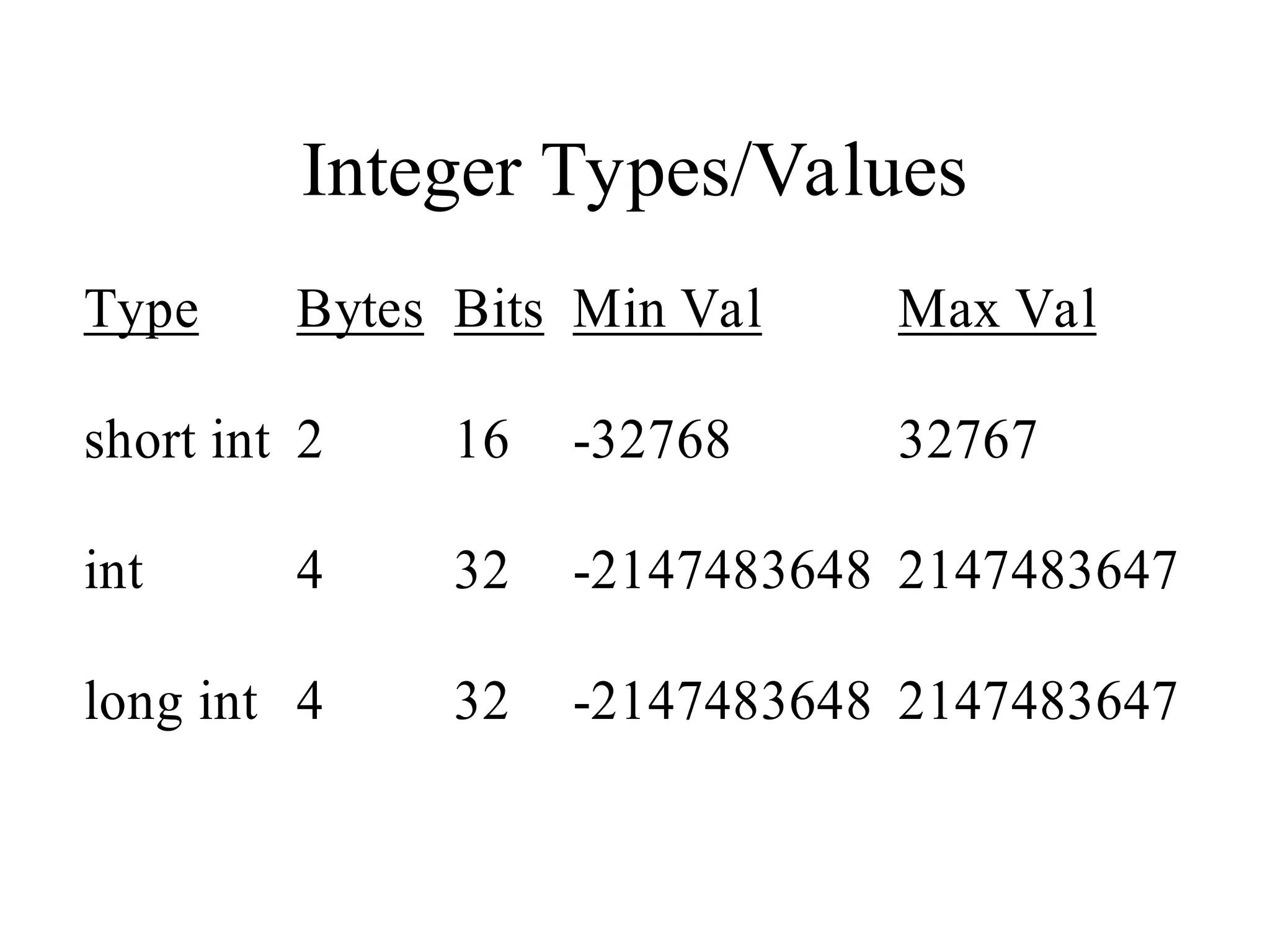

Integer Types/Values Type Bytes Bits Min Val Max Val short int 2 16 -32768 32767 int 4 32 -2147483648 2147483647 long int 4 32 -2147483648 2147483647

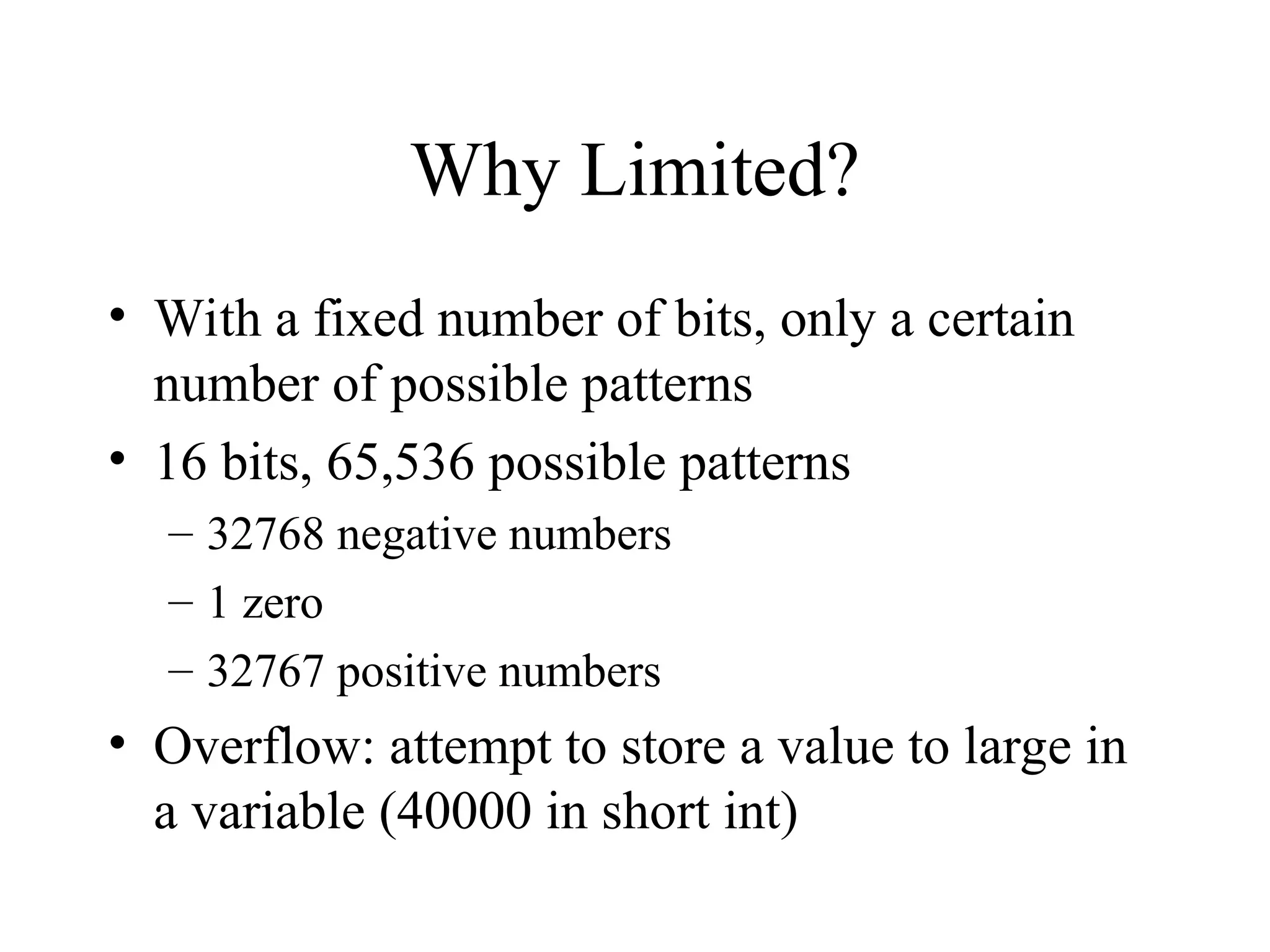

Why Limited? • With a fixed number of bits, only a certain number of possible patterns • 16 bits, 65,536 possible patterns – 32768 negative numbers – 1 zero – 32767 positive numbers • Overflow: attempt to store a value to large in a variable (40000 in short int)

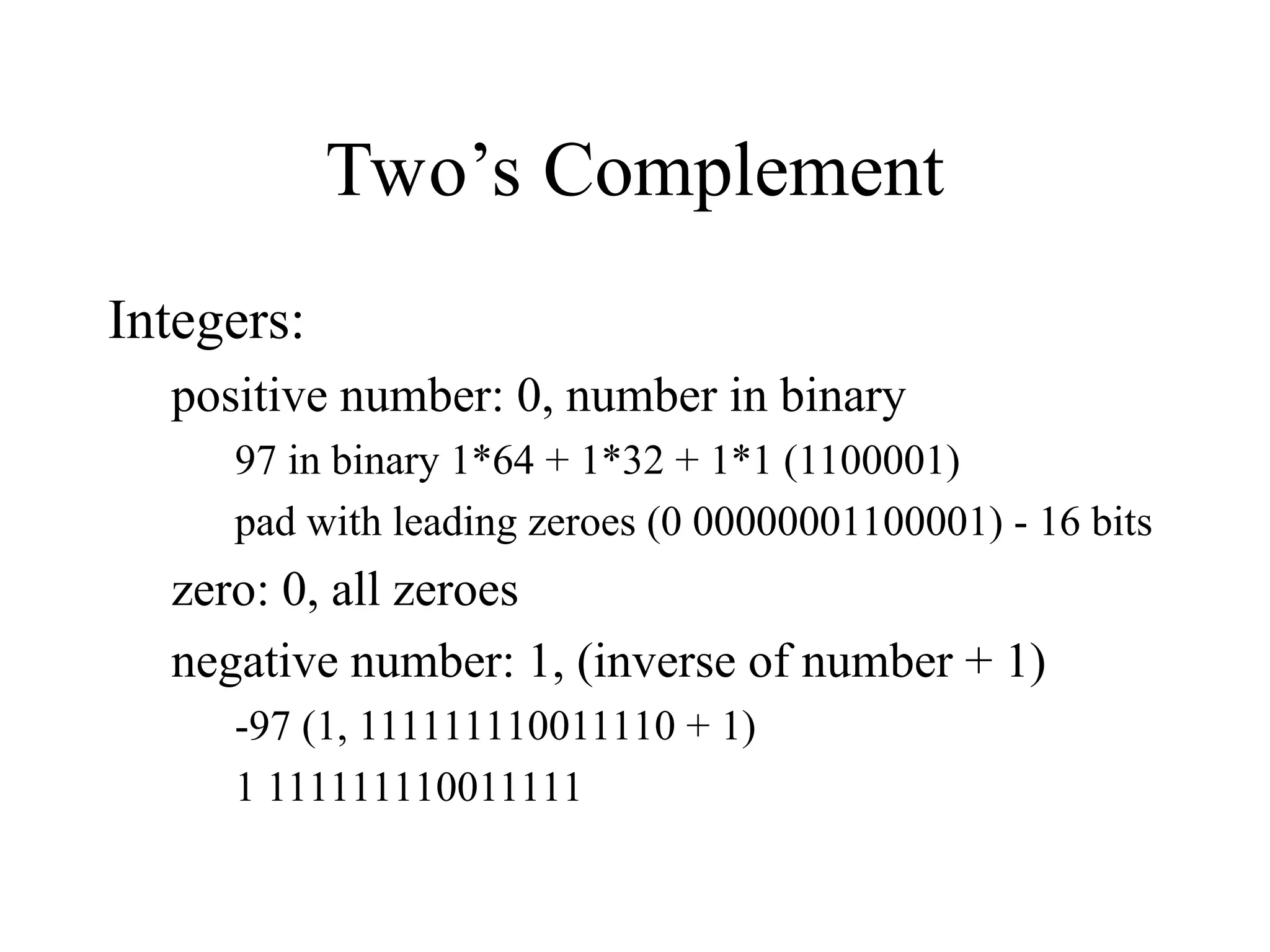

Two’s Complement Integers: positive number: 0, number in binary 97 in binary 1*64 + 1*32 + 1*1 (1100001) pad with leading zeroes (0 00000001100001) - 16 bits zero: 0, all zeroes negative number: 1, (inverse of number + 1) -97 (1, 111111110011110 + 1) 1 111111110011111

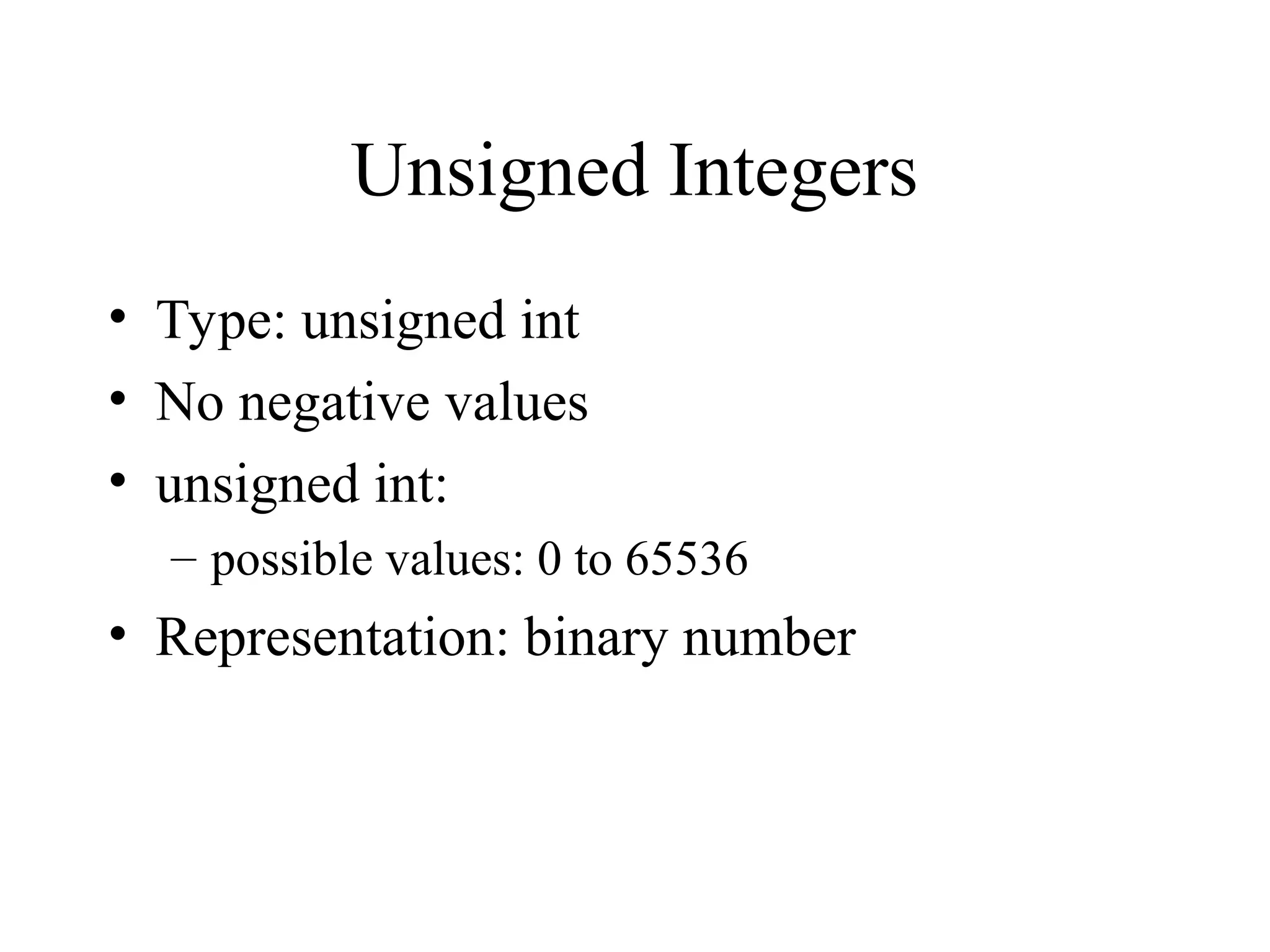

Unsigned Integers • Type: unsigned int • No negative values • unsigned int: – possible values: 0 to 65536 • Representation: binary number

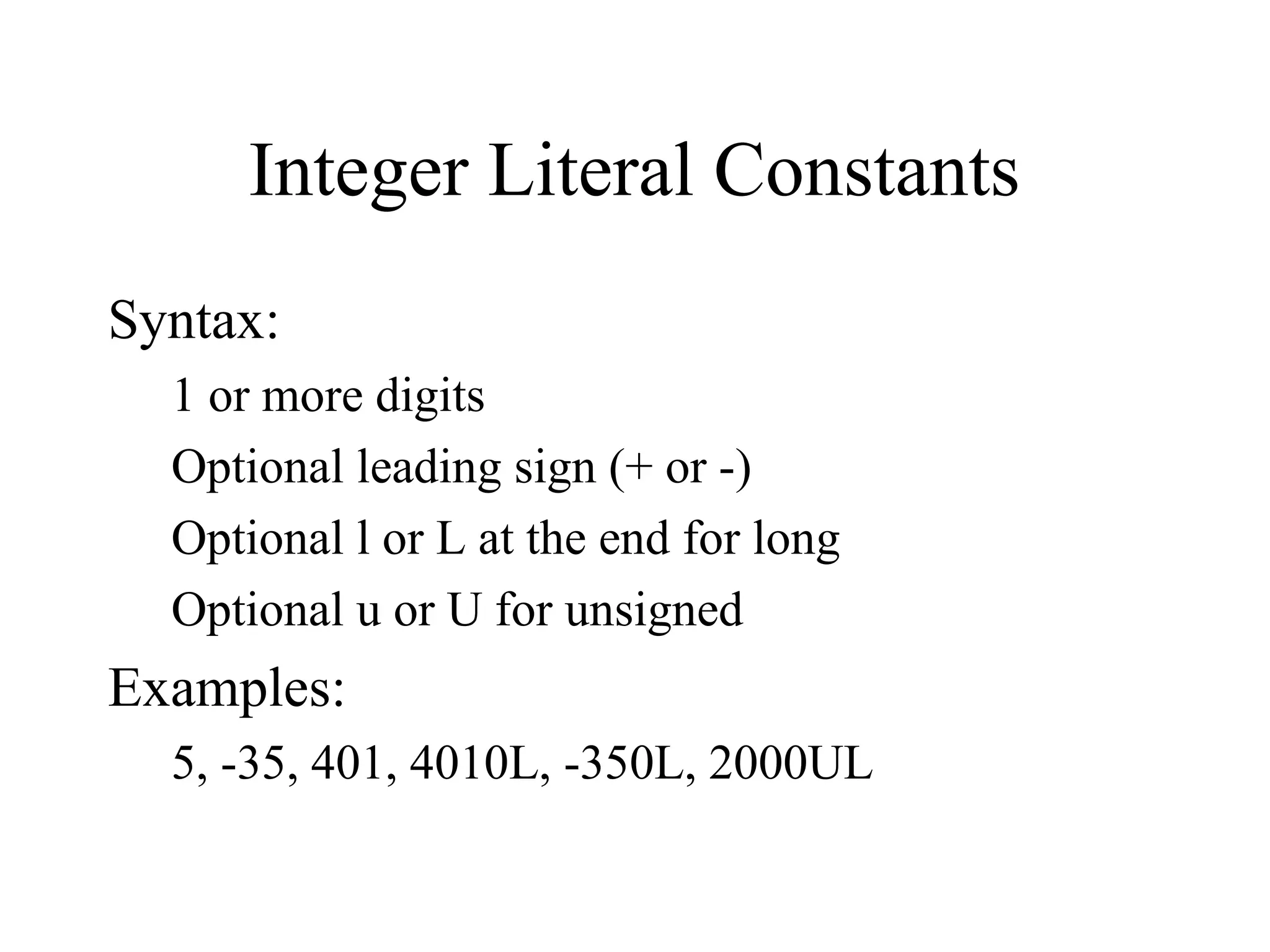

Integer Literal Constants Syntax: 1 or more digits Optional leading sign (+ or -) Optional l or L at the end for long Optional u or U for unsigned Examples: 5, -35, 401, 4010L, -350L, 2000UL

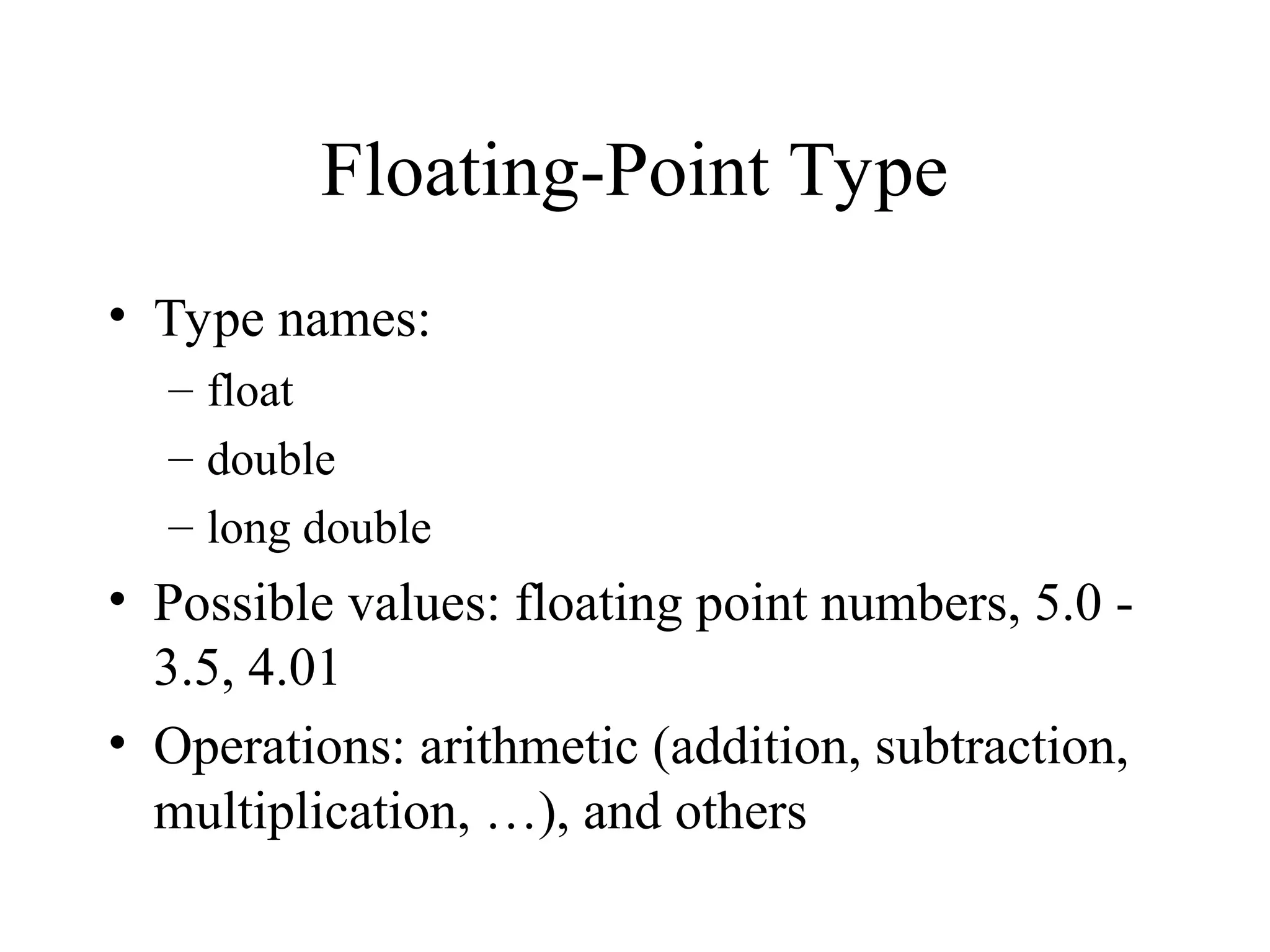

Floating-Point Type • Type names: – float – double – long double • Possible values: floating point numbers, 5.0 - 3.5, 4.01 • Operations: arithmetic (addition, subtraction, multiplication, …), and others

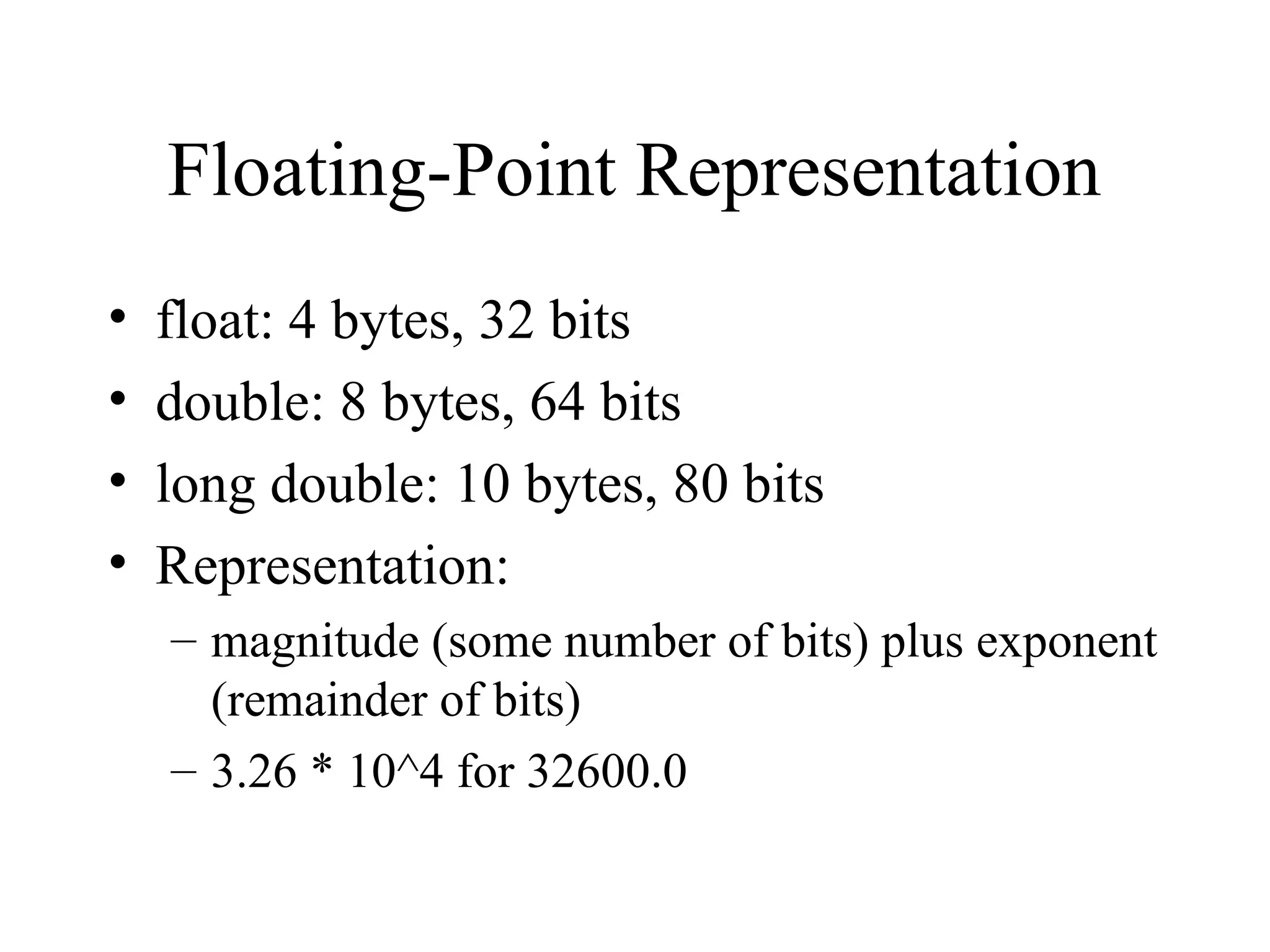

Floating-Point Representation • float: 4 bytes, 32 bits • double: 8 bytes, 64 bits • long double: 10 bytes, 80 bits • Representation: – magnitude (some number of bits) plus exponent (remainder of bits) – 3.26 * 10^4 for 32600.0

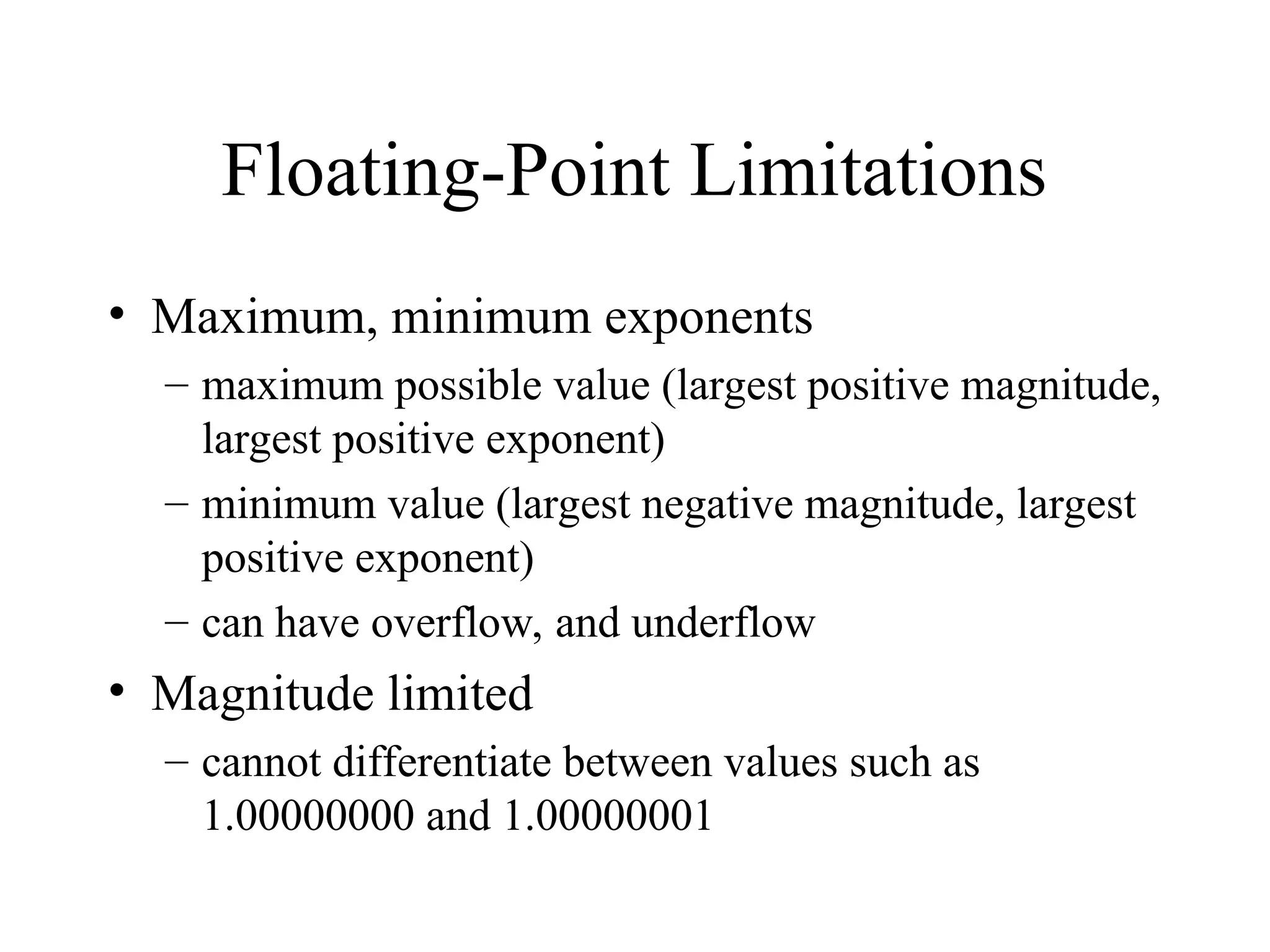

Floating-Point Limitations • Maximum, minimum exponents – maximum possible value (largest positive magnitude, largest positive exponent) – minimum value (largest negative magnitude, largest positive exponent) – can have overflow, and underflow • Magnitude limited – cannot differentiate between values such as 1.00000000 and 1.00000001

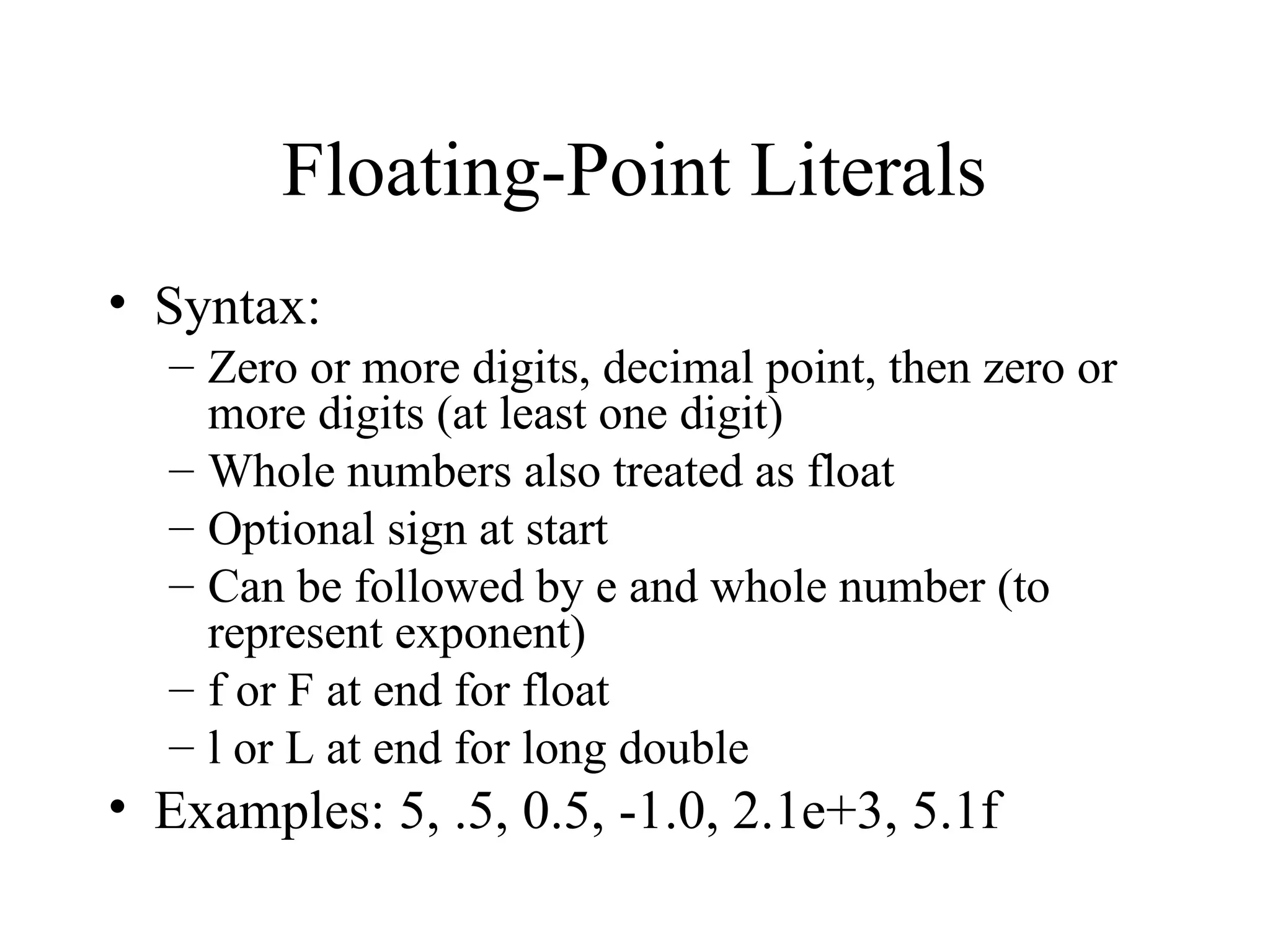

Floating-Point Literals • Syntax: – Zero or more digits, decimal point, then zero or more digits (at least one digit) – Whole numbers also treated as float – Optional sign at start – Can be followed by e and whole number (to represent exponent) – f or F at end for float – l or L at end for long double • Examples: 5, .5, 0.5, -1.0, 2.1e+3, 5.1f

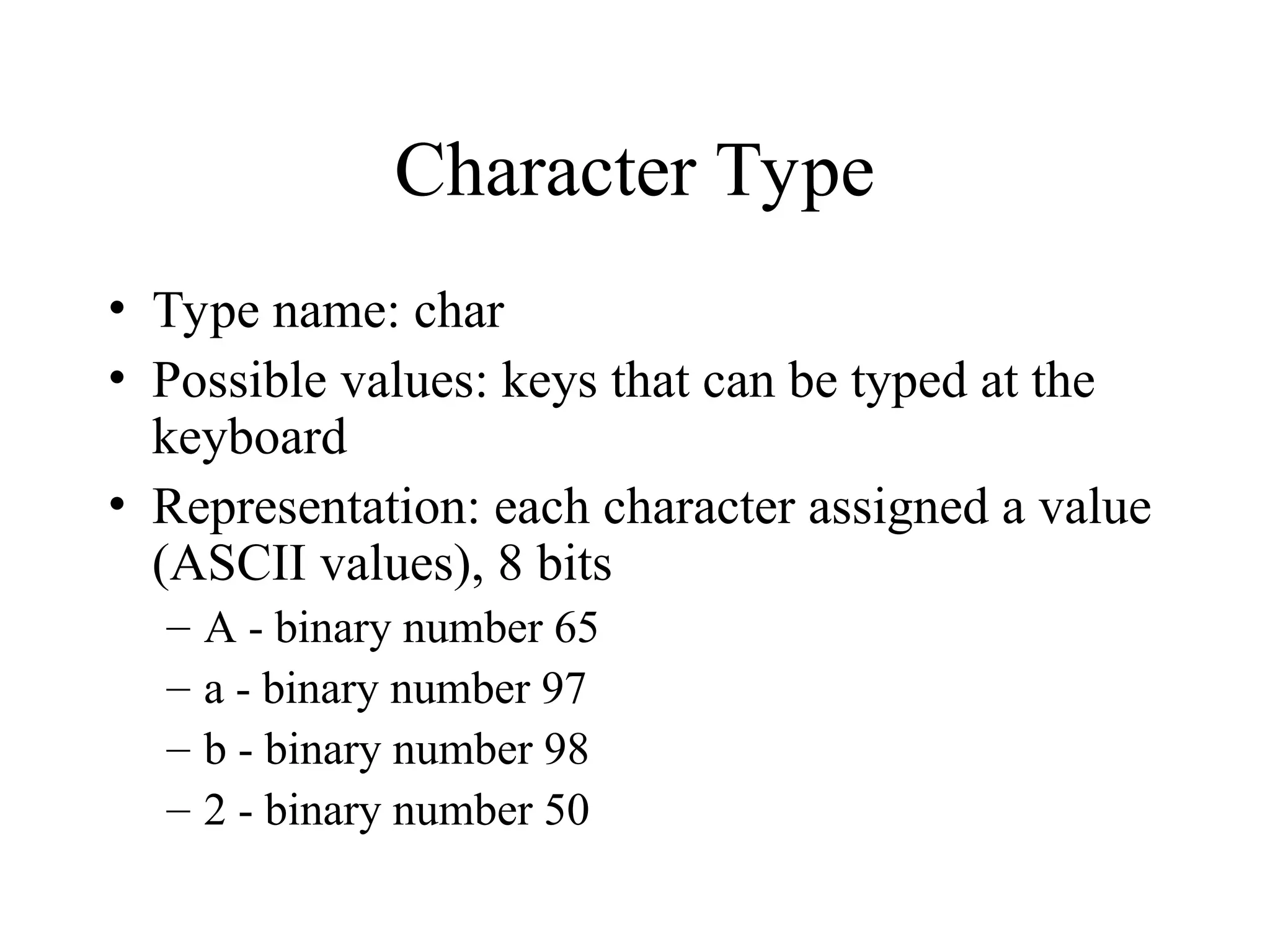

Character Type • Type name: char • Possible values: keys that can be typed at the keyboard • Representation: each character assigned a value (ASCII values), 8 bits – A - binary number 65 – a - binary number 97 – b - binary number 98 – 2 - binary number 50

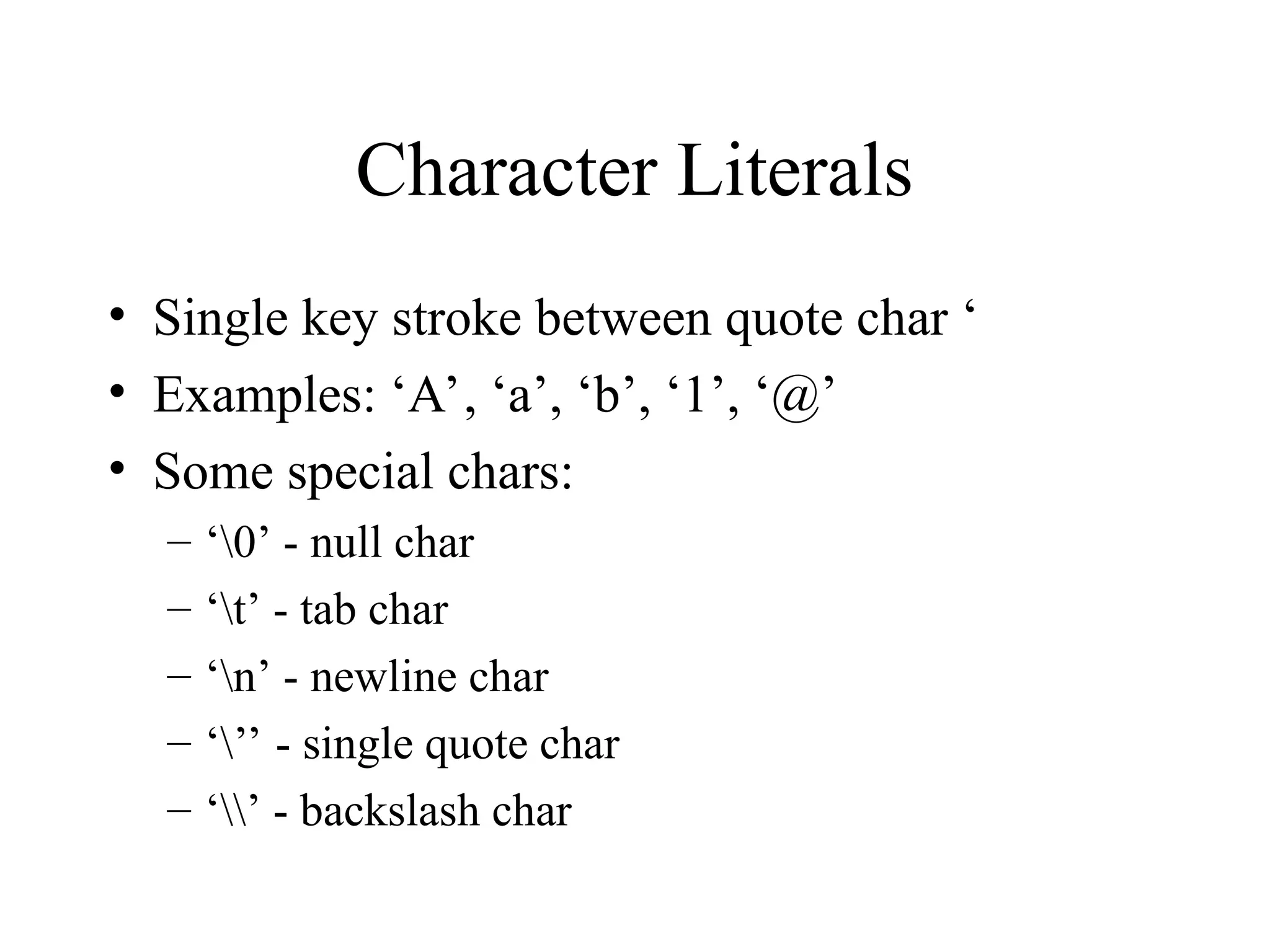

Character Literals • Single key stroke between quote char ‘ • Examples: ‘A’, ‘a’, ‘b’, ‘1’, ‘@’ • Some special chars: – ‘0’ - null char – ‘t’ - tab char – ‘n’ - newline char – ‘’’ - single quote char – ‘’ - backslash char

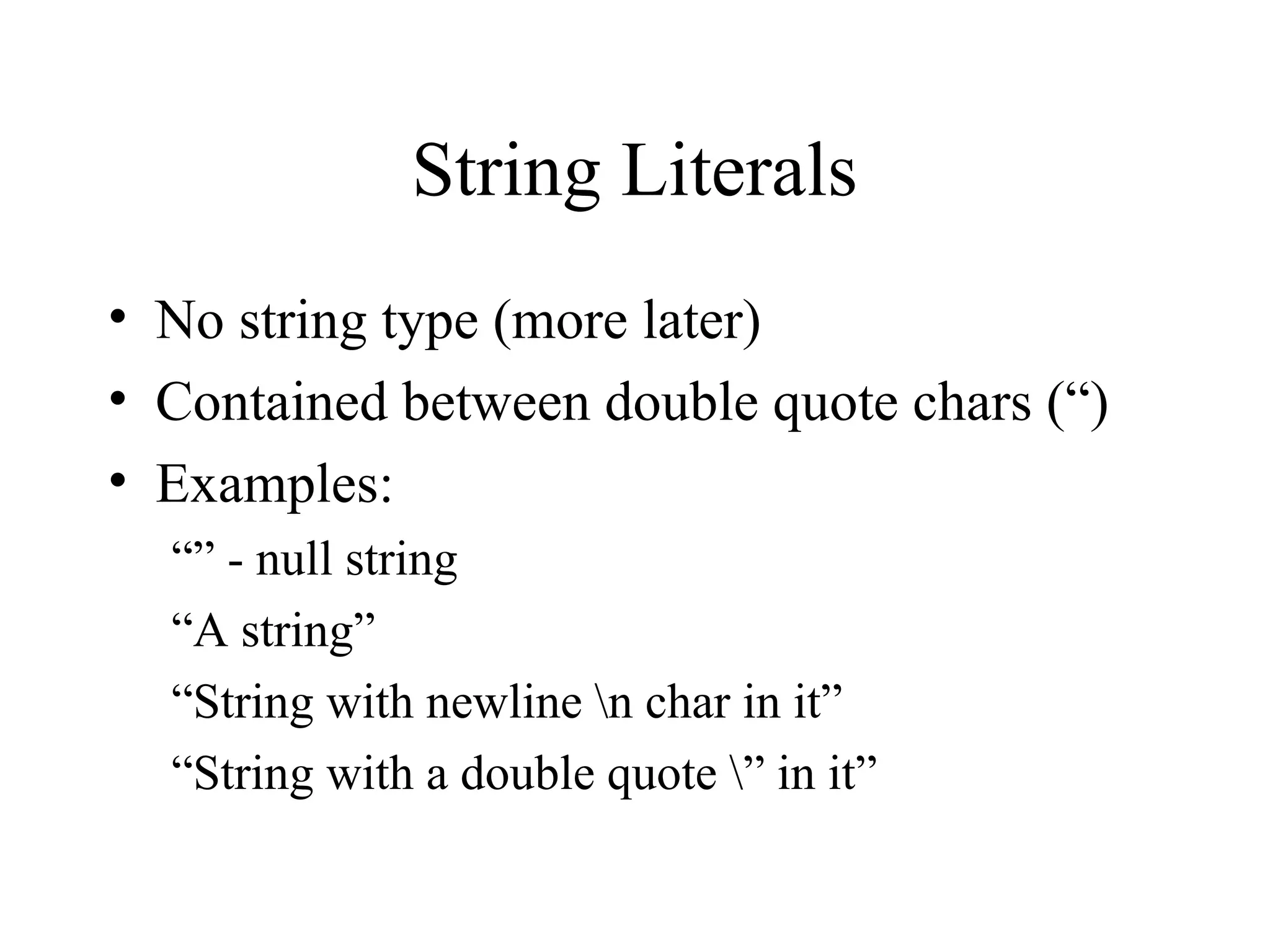

String Literals • No string type (more later) • Contained between double quote chars (“) • Examples: “” - null string “A string” “String with newline n char in it” “String with a double quote ” in it”

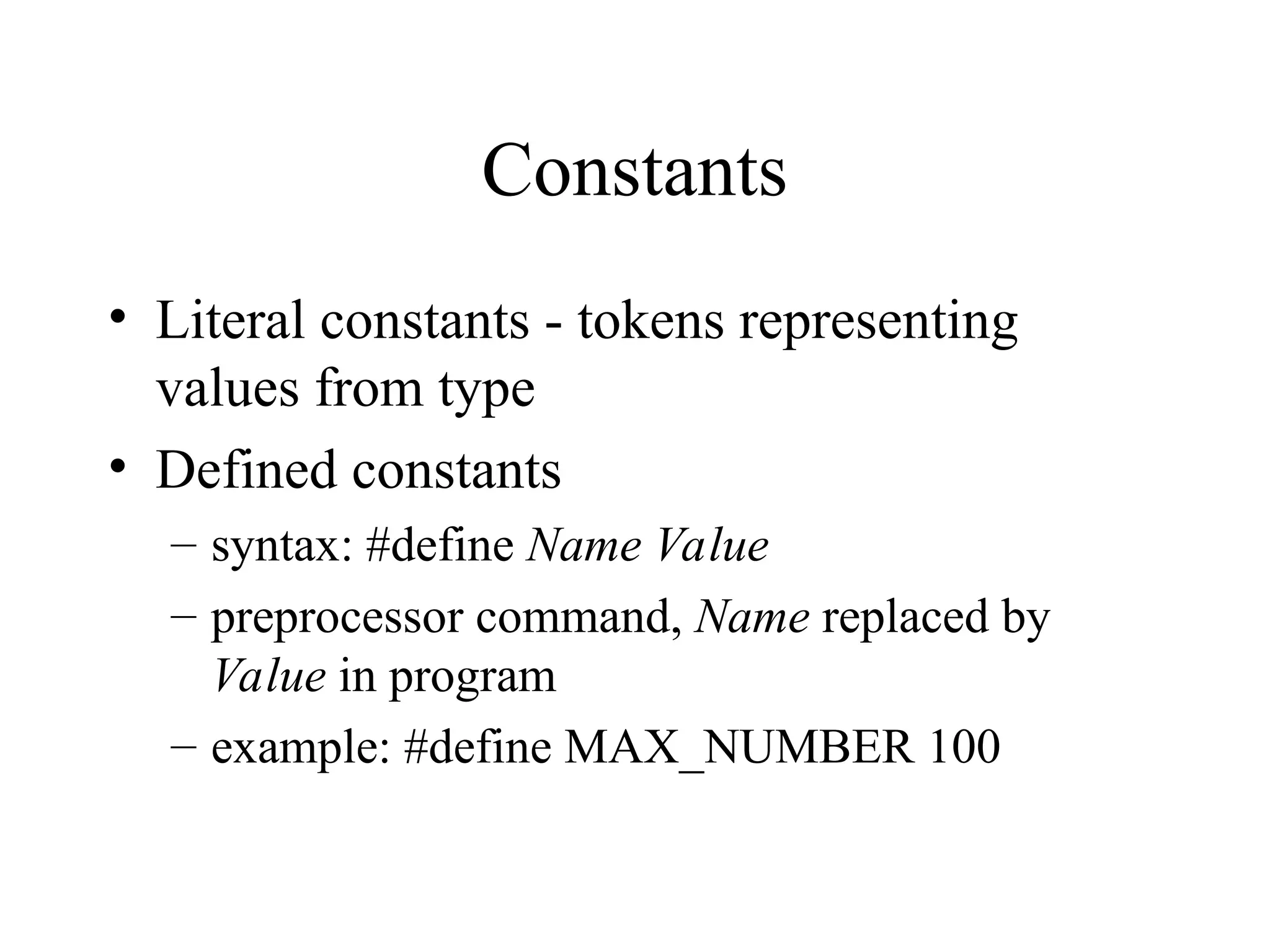

Constants • Literal constants - tokens representing values from type • Defined constants – syntax: #define Name Value – preprocessor command, Name replaced by Value in program – example: #define MAX_NUMBER 100

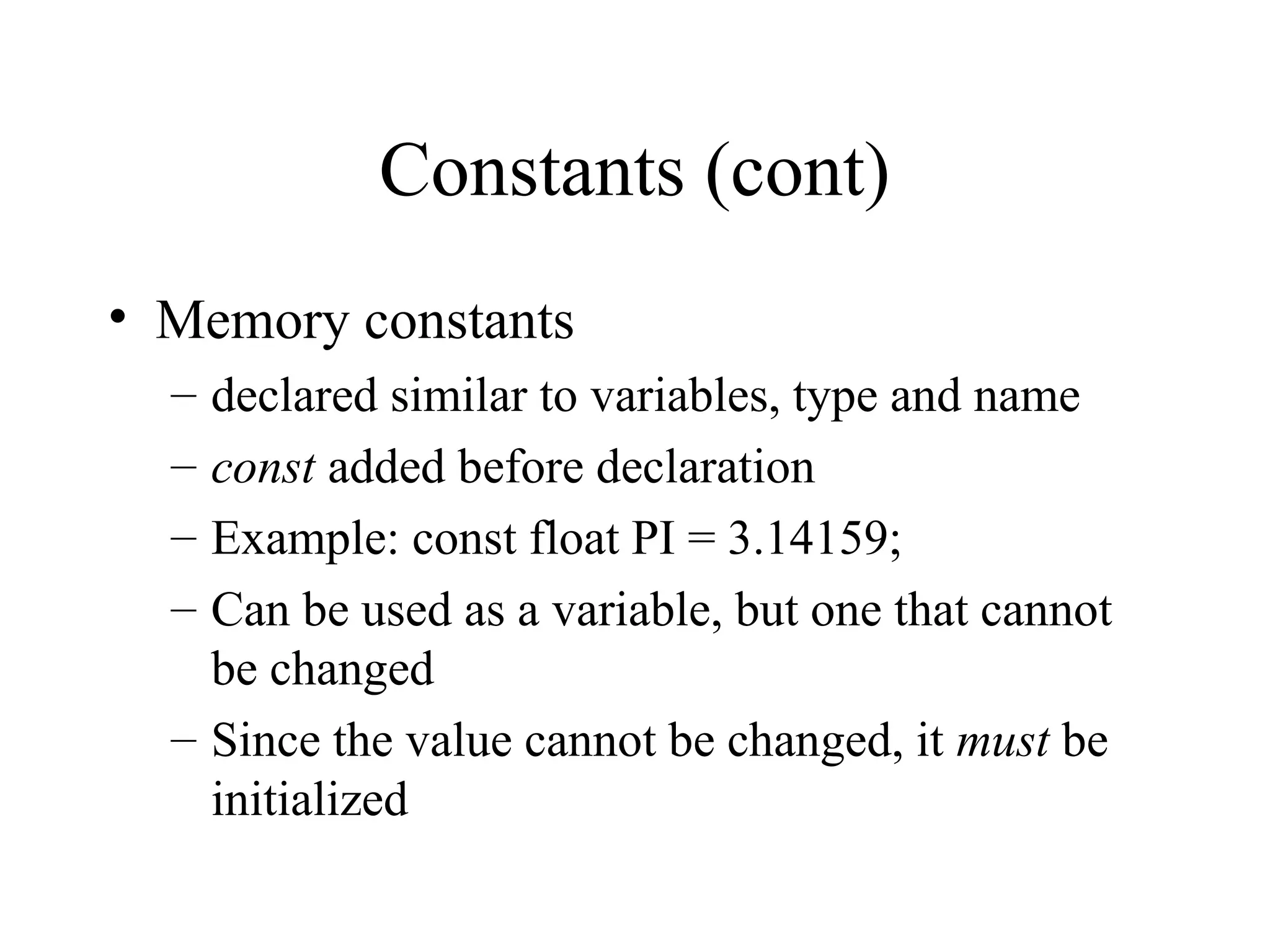

Constants (cont) • Memory constants – declared similar to variables, type and name – const added before declaration – Example: const float PI = 3.14159; – Can be used as a variable, but one that cannot be changed – Since the value cannot be changed, it must be initialized

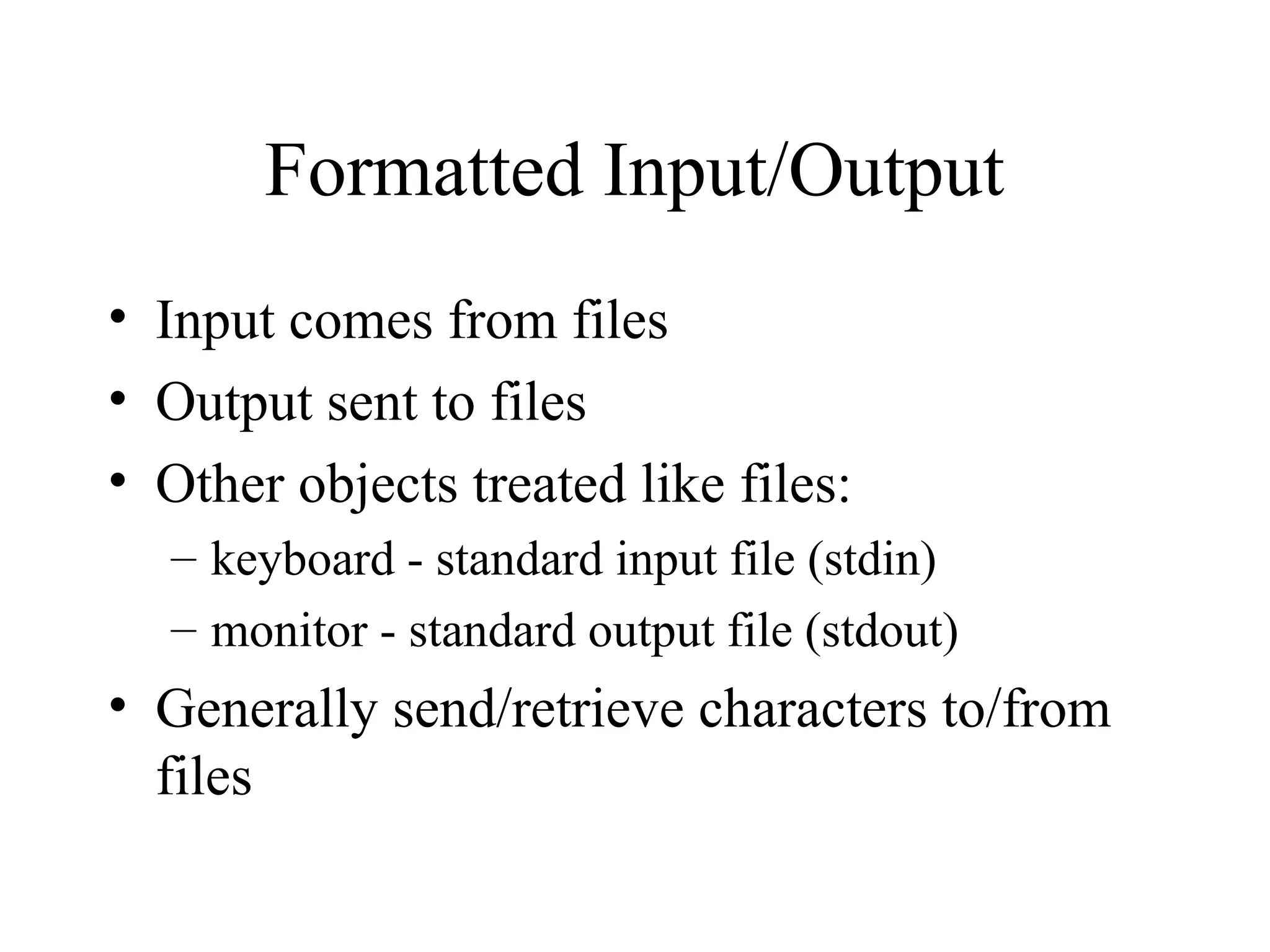

Formatted Input/Output • Input comes from files • Output sent to files • Other objects treated like files: – keyboard - standard input file (stdin) – monitor - standard output file (stdout) • Generally send/retrieve characters to/from files

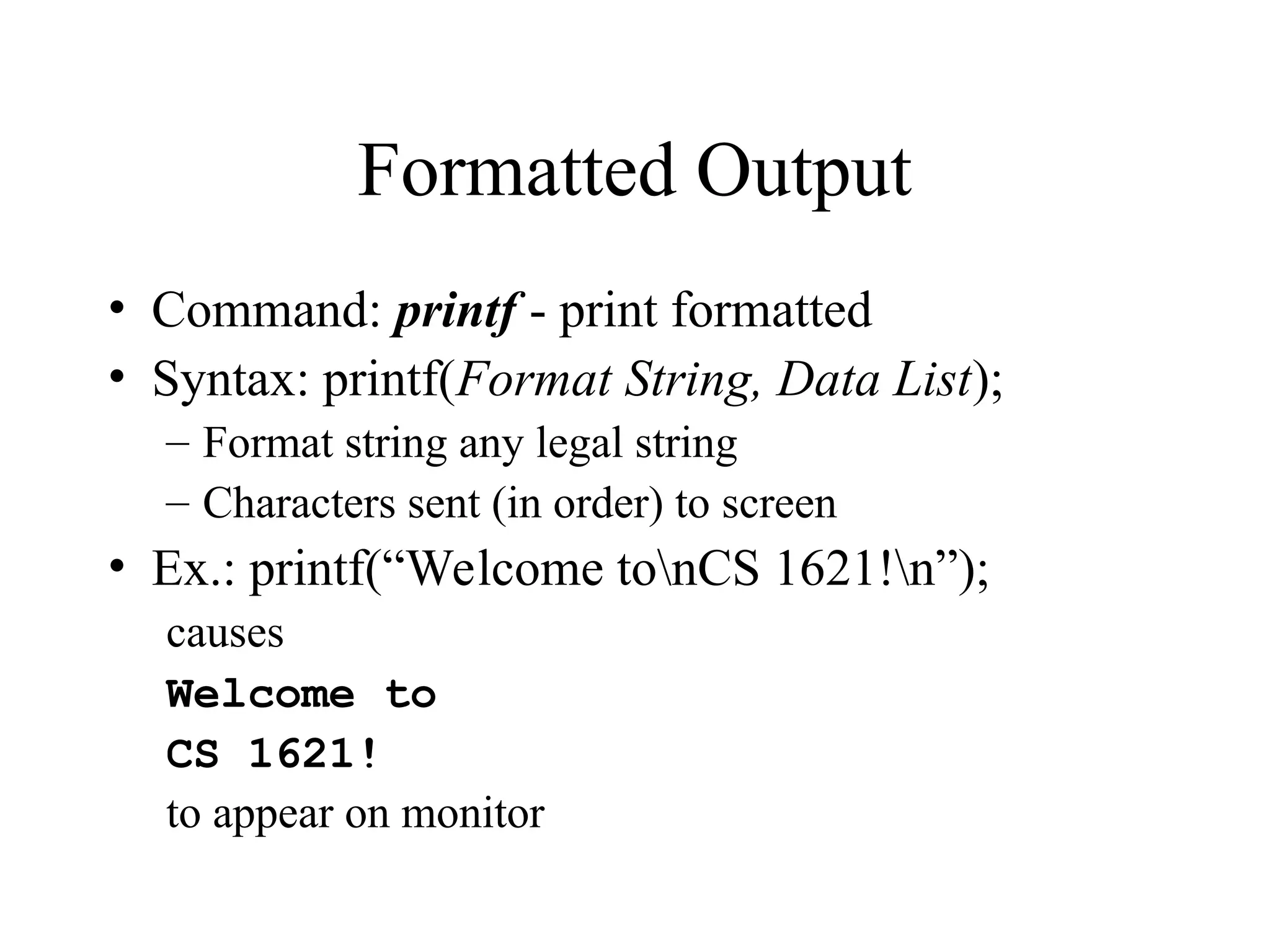

Formatted Output • Command: printf - print formatted • Syntax: printf(Format String, Data List); – Format string any legal string – Characters sent (in order) to screen • Ex.: printf(“Welcome tonCS 1621!n”); causes Welcome to CS 1621! to appear on monitor

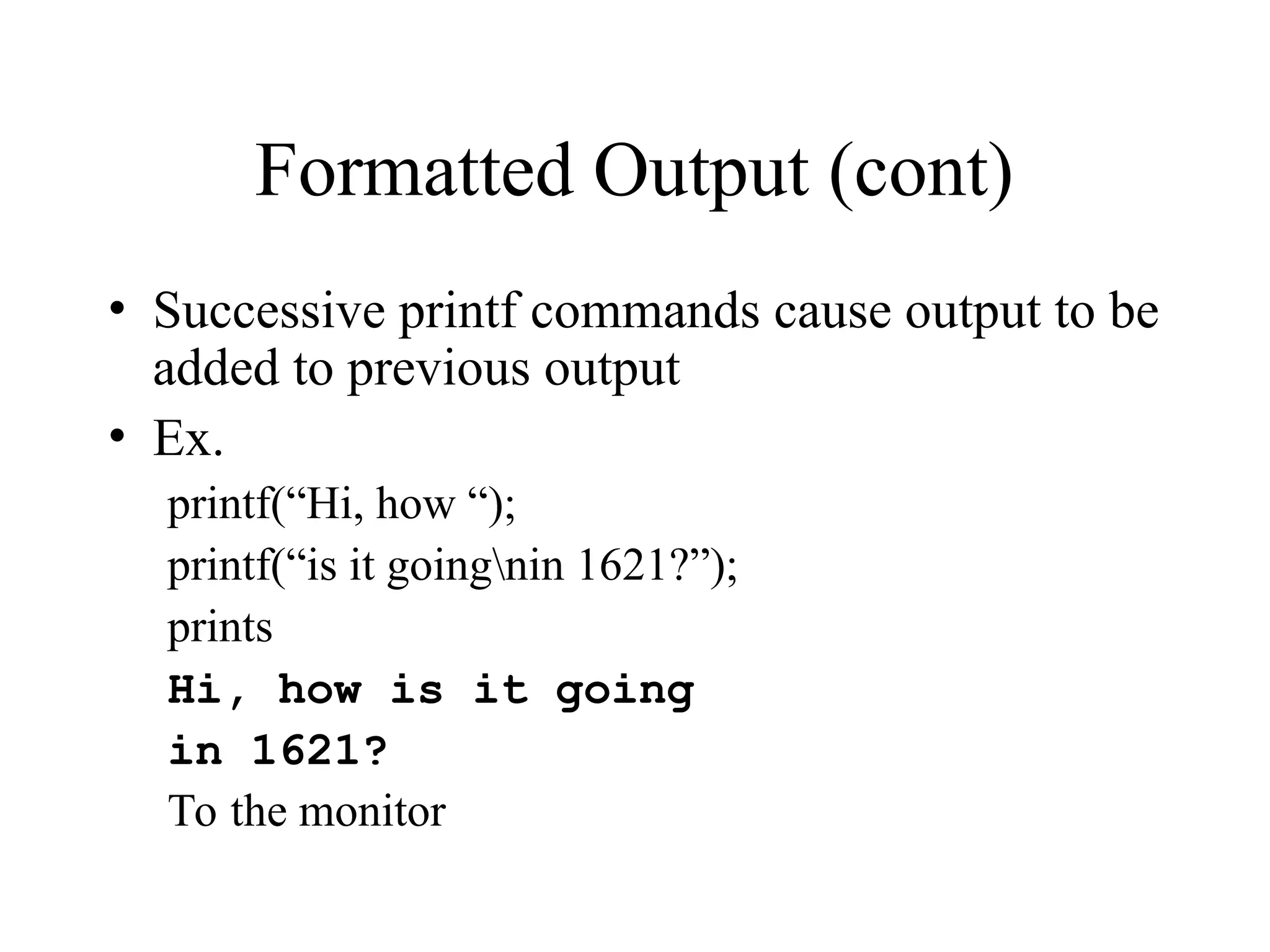

Formatted Output (cont) • Successive printf commands cause output to be added to previous output • Ex. printf(“Hi, how “); printf(“is it goingnin 1621?”); prints Hi, how is it going in 1621? To the monitor

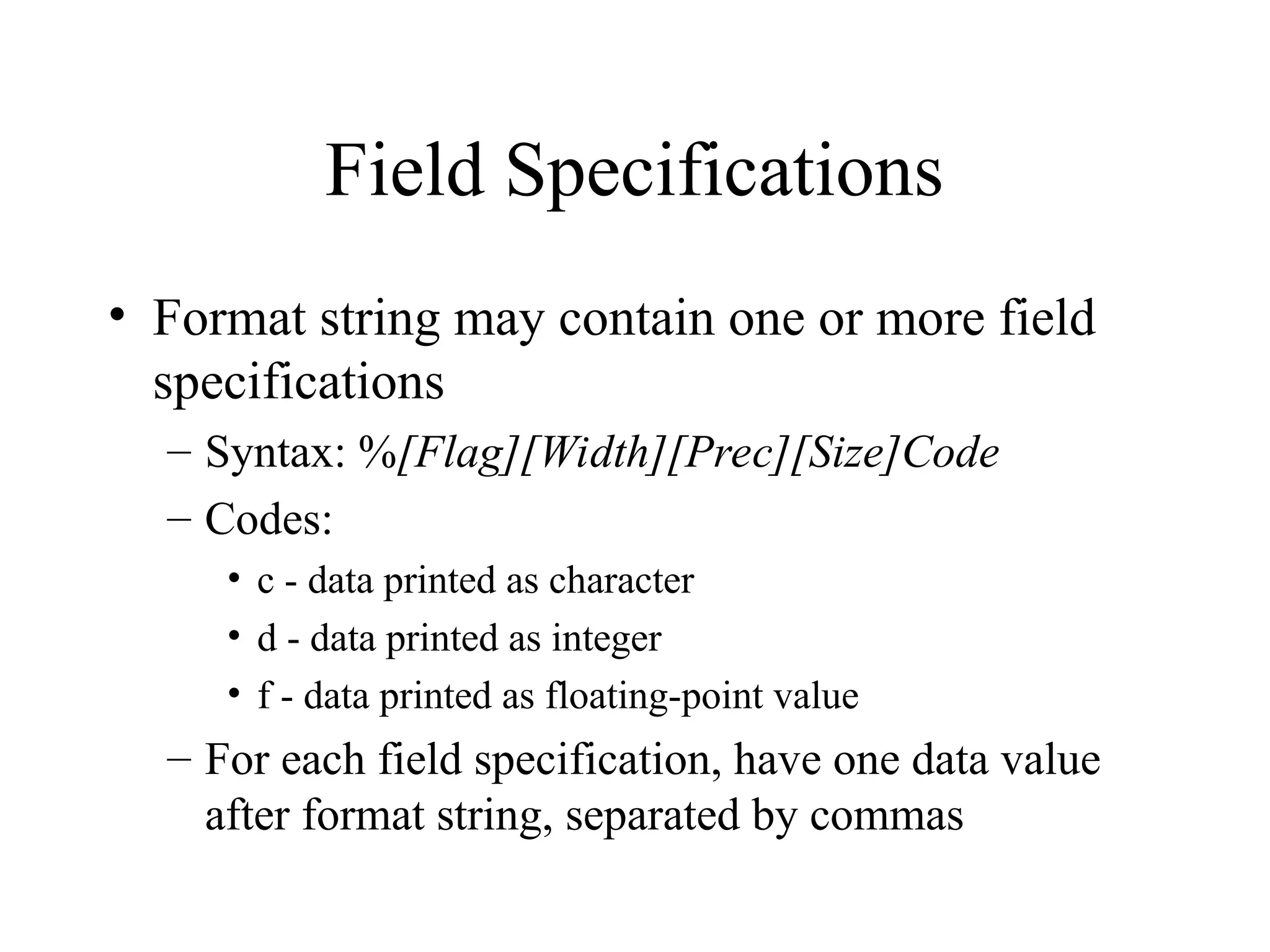

Field Specifications • Format string may contain one or more field specifications – Syntax: %[Flag][Width][Prec][Size]Code – Codes: • c - data printed as character • d - data printed as integer • f - data printed as floating-point value – For each field specification, have one data value after format string, separated by commas

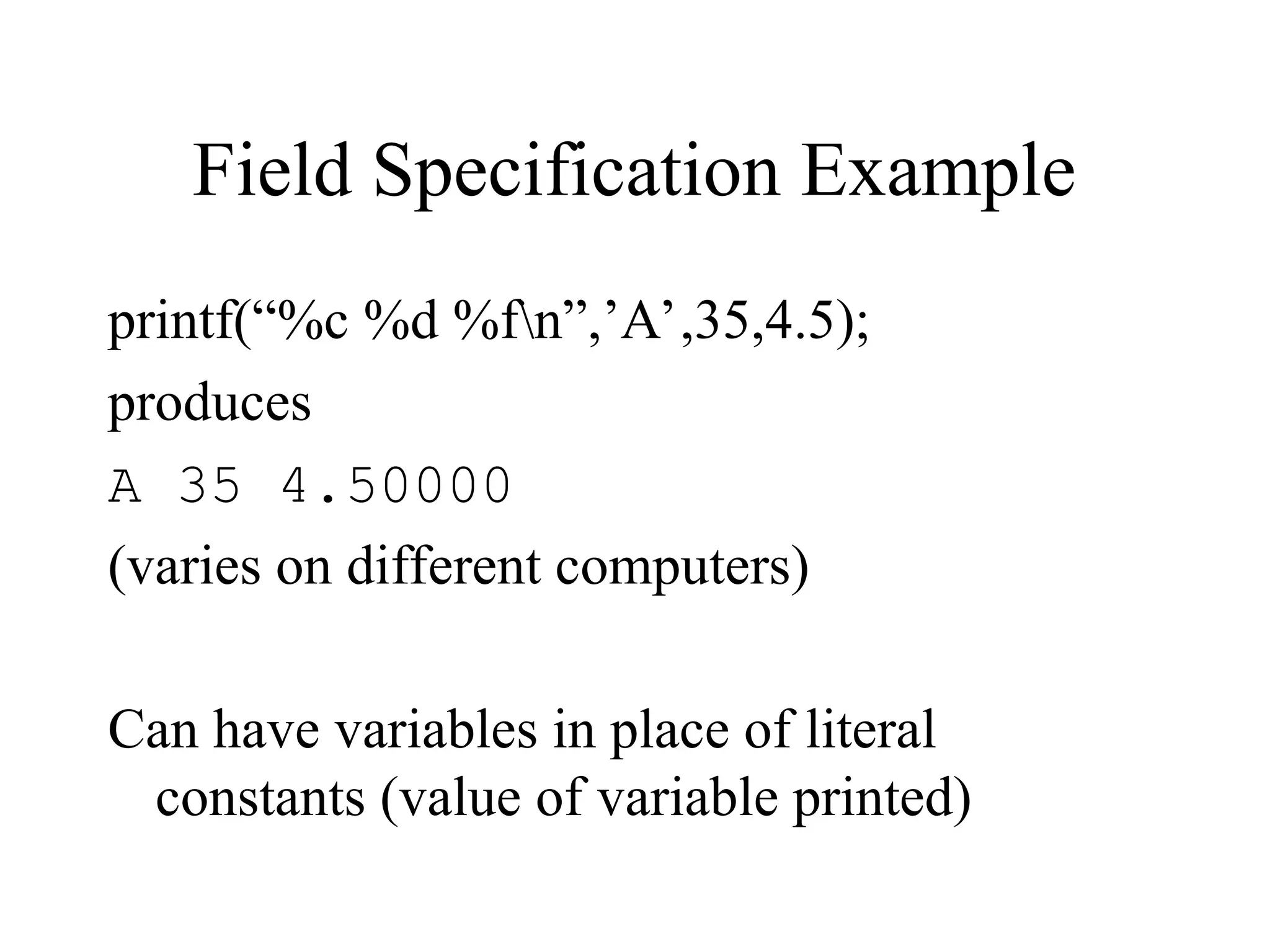

Field Specification Example printf(“%c %d %fn”,’A’,35,4.5); produces A 35 4.50000 (varies on different computers) Can have variables in place of literal constants (value of variable printed)

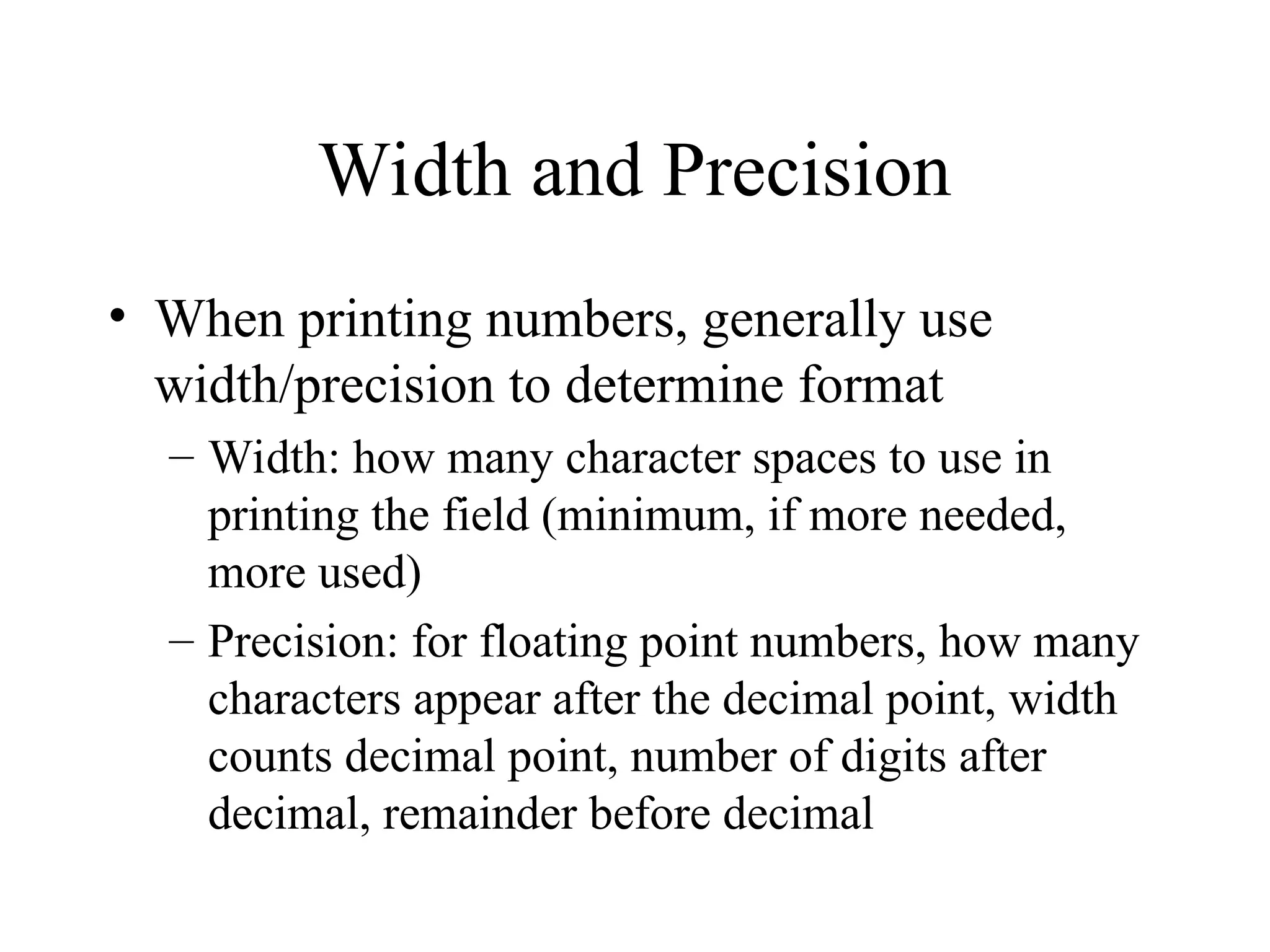

Width and Precision • When printing numbers, generally use width/precision to determine format – Width: how many character spaces to use in printing the field (minimum, if more needed, more used) – Precision: for floating point numbers, how many characters appear after the decimal point, width counts decimal point, number of digits after decimal, remainder before decimal

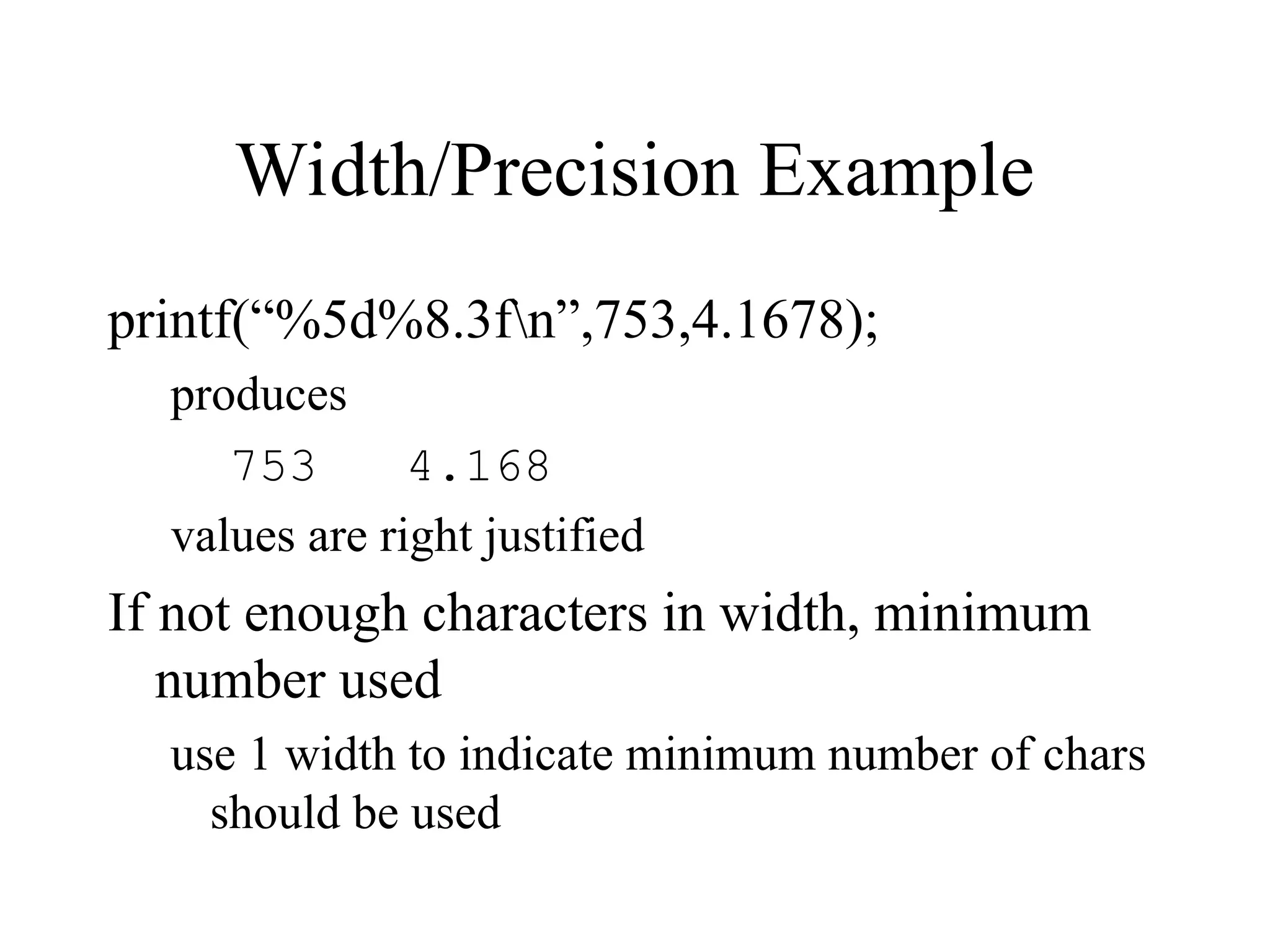

Width/Precision Example printf(“%5d%8.3fn”,753,4.1678); produces 753 4.168 values are right justified If not enough characters in width, minimum number used use 1 width to indicate minimum number of chars should be used

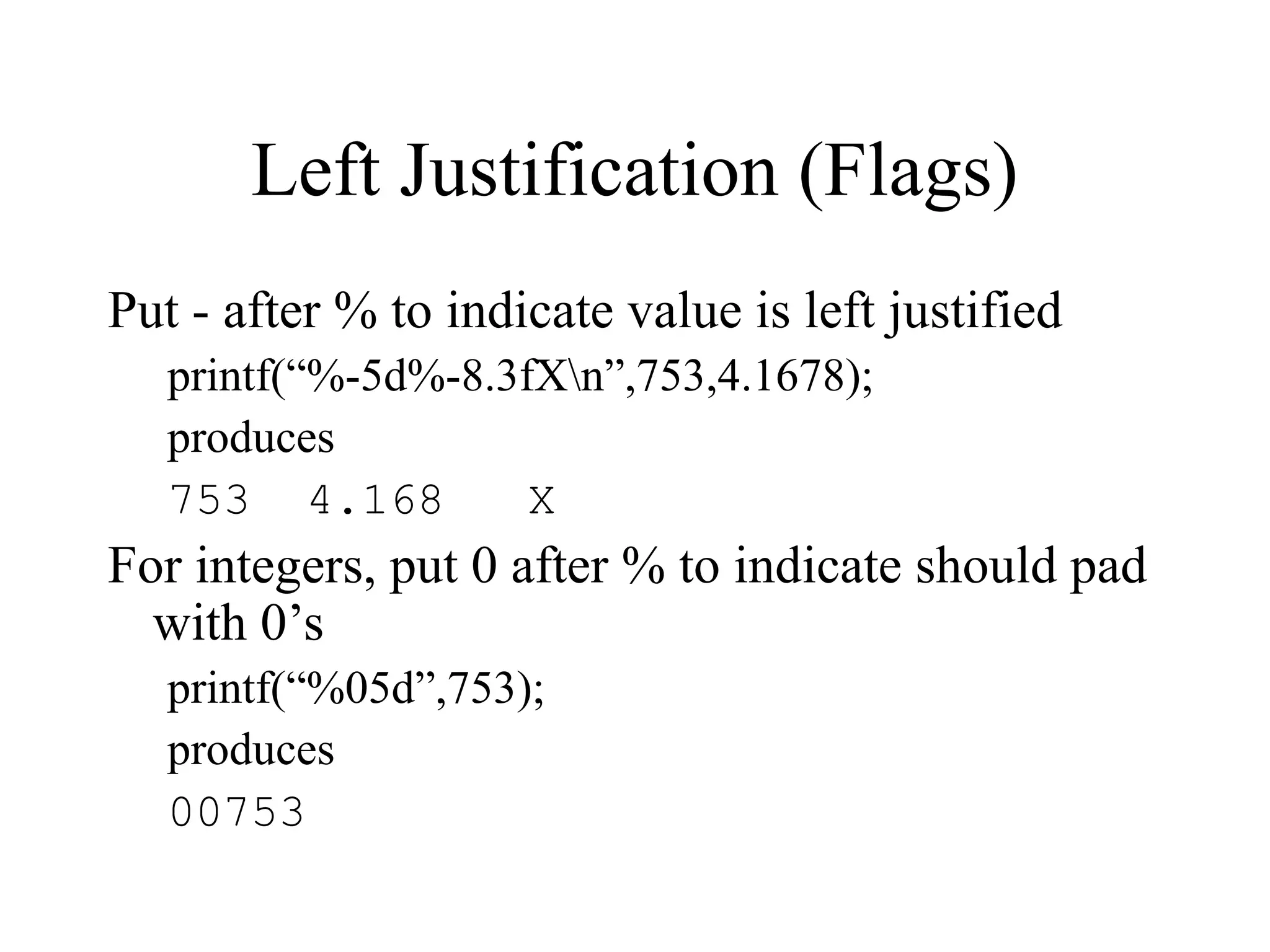

Left Justification (Flags) Put - after % to indicate value is left justified printf(“%-5d%-8.3fXn”,753,4.1678); produces 753 4.168 X For integers, put 0 after % to indicate should pad with 0’s printf(“%05d”,753); produces 00753

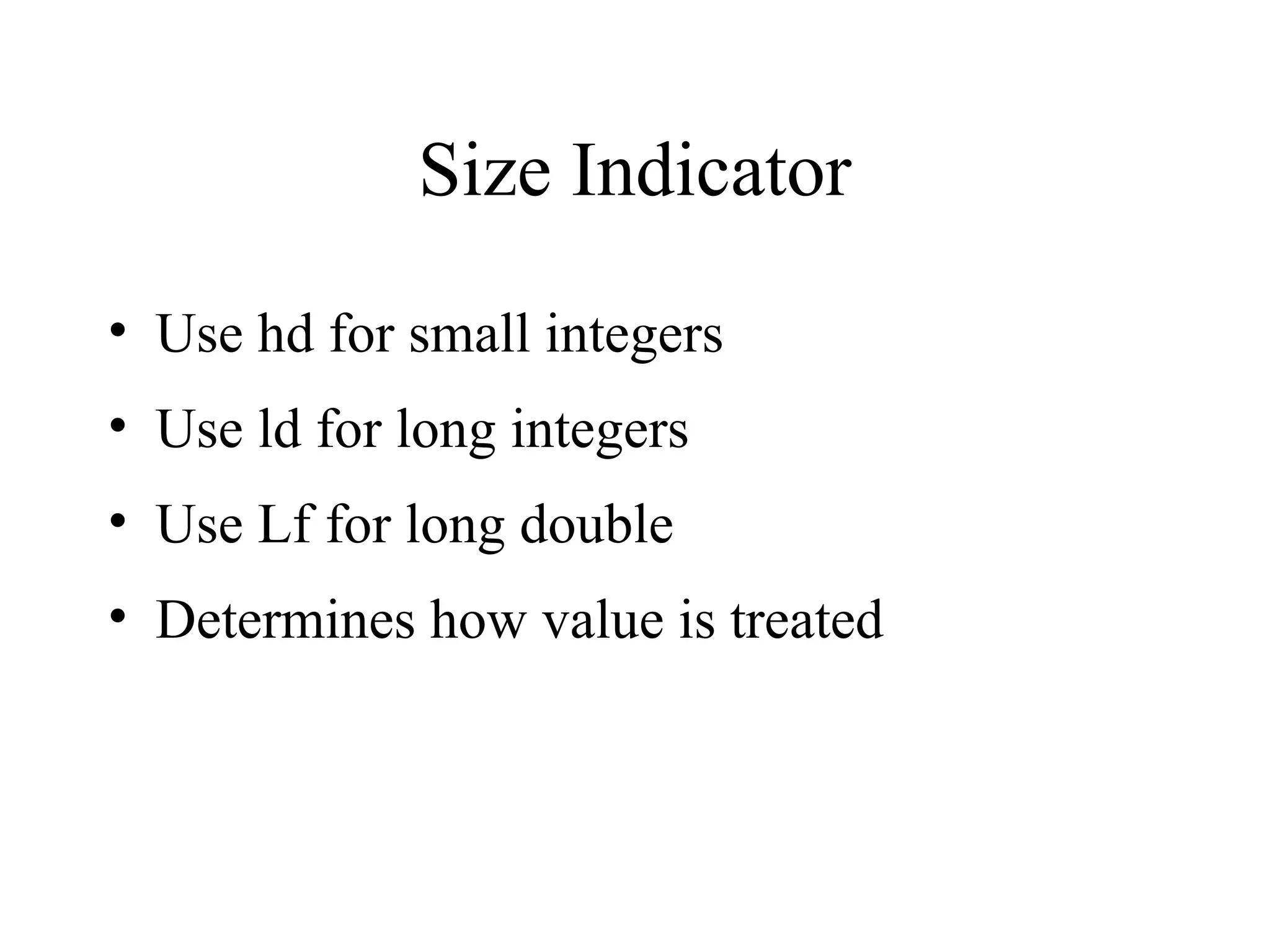

Size Indicator • Use hd for small integers • Use ld for long integers • Use Lf for long double • Determines how value is treated

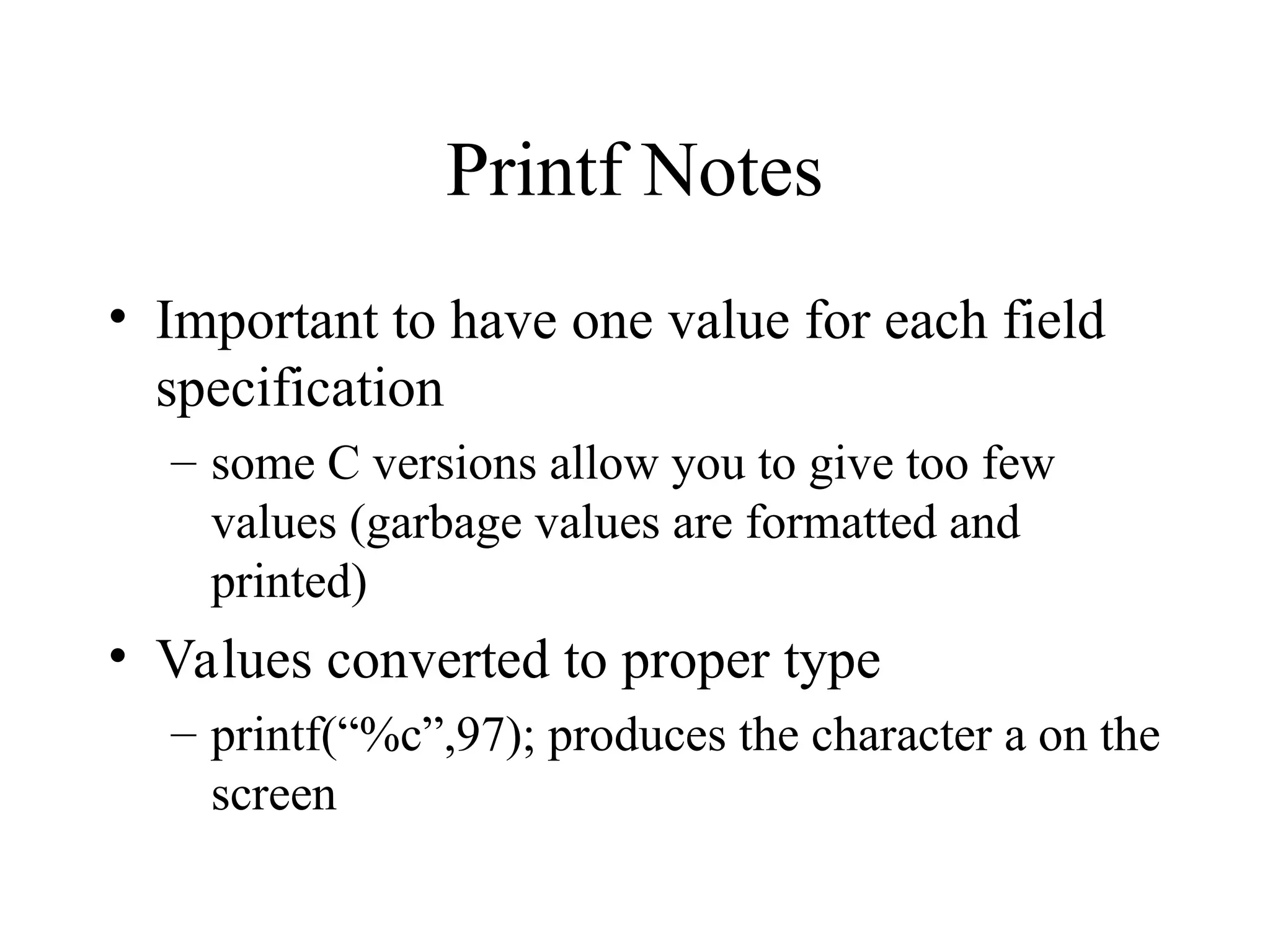

Printf Notes • Important to have one value for each field specification – some C versions allow you to give too few values (garbage values are formatted and printed) • Values converted to proper type – printf(“%c”,97); produces the character a on the screen

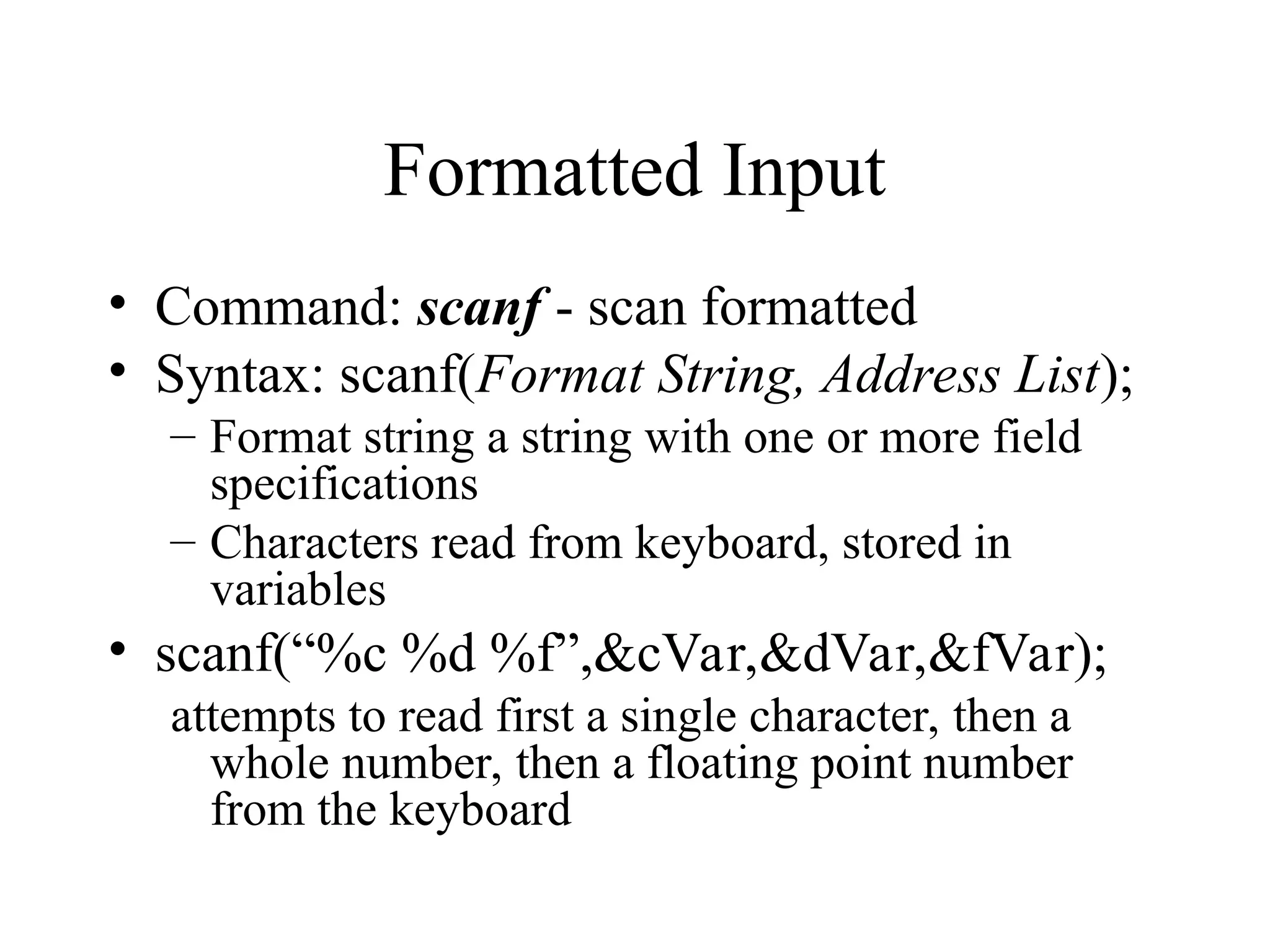

Formatted Input • Command: scanf - scan formatted • Syntax: scanf(Format String, Address List); – Format string a string with one or more field specifications – Characters read from keyboard, stored in variables • scanf(“%c %d %f”,&cVar,&dVar,&fVar); attempts to read first a single character, then a whole number, then a floating point number from the keyboard

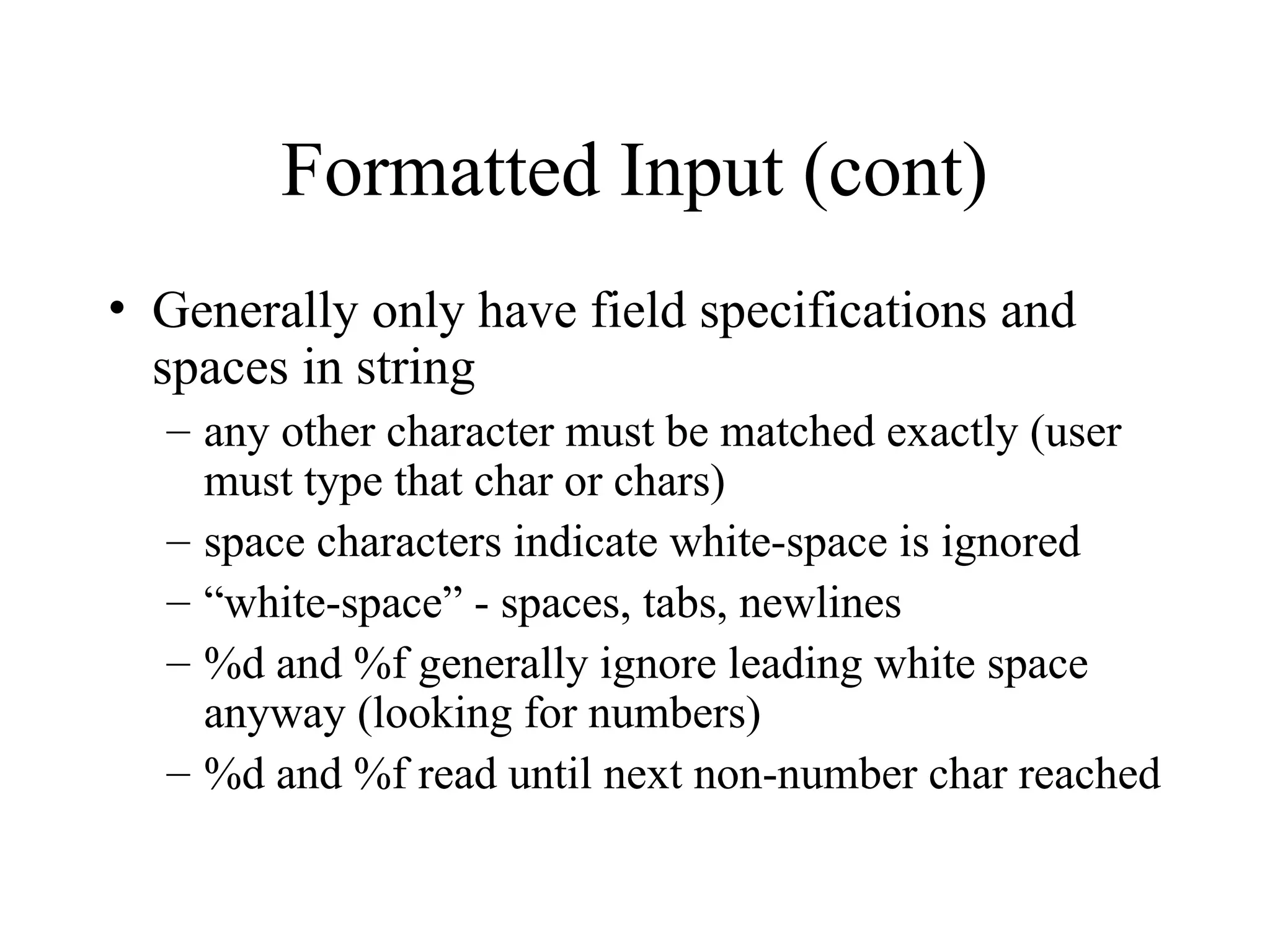

Formatted Input (cont) • Generally only have field specifications and spaces in string – any other character must be matched exactly (user must type that char or chars) – space characters indicate white-space is ignored – “white-space” - spaces, tabs, newlines – %d and %f generally ignore leading white space anyway (looking for numbers) – %d and %f read until next non-number char reached

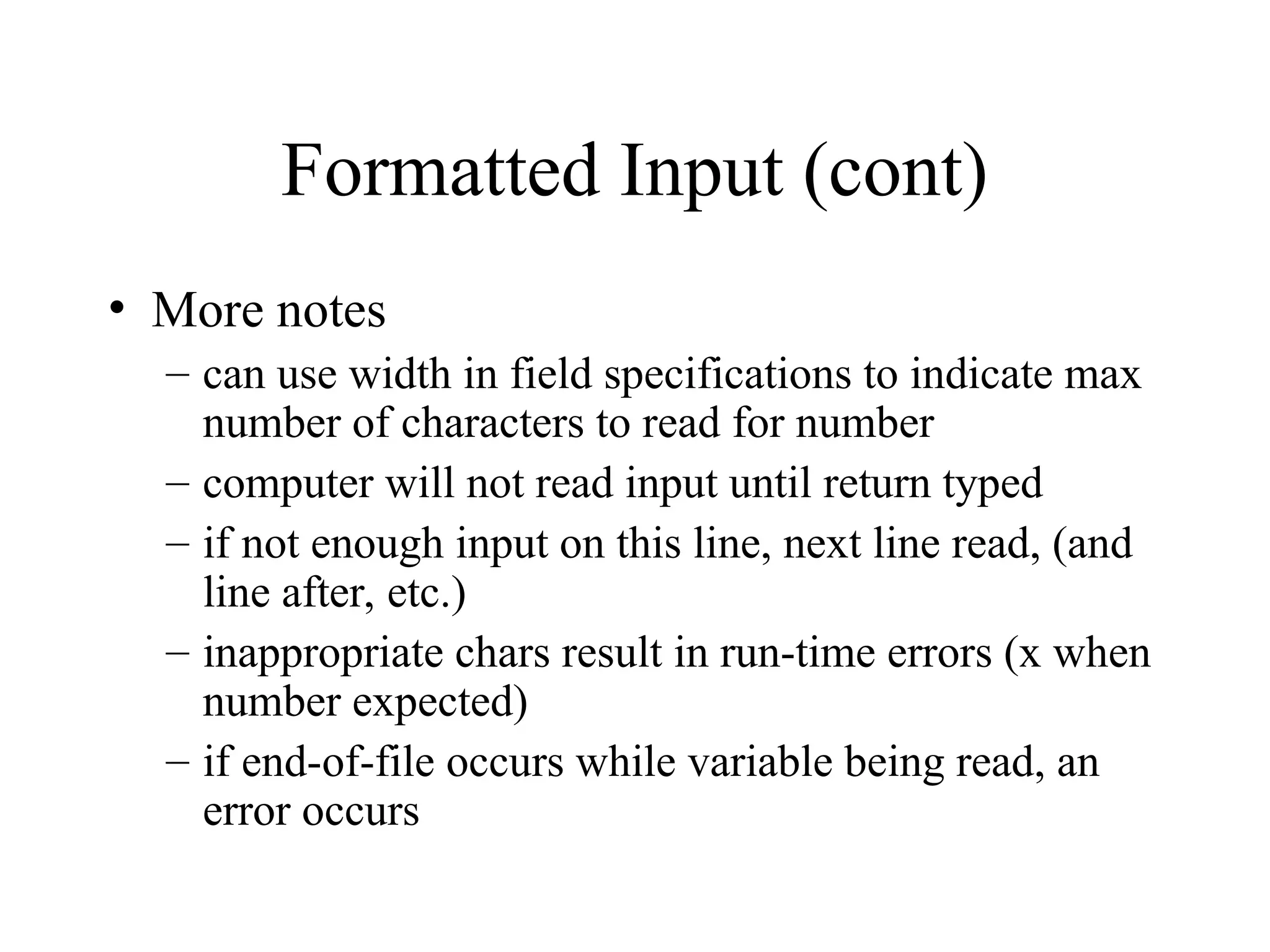

Formatted Input (cont) • More notes – can use width in field specifications to indicate max number of characters to read for number – computer will not read input until return typed – if not enough input on this line, next line read, (and line after, etc.) – inappropriate chars result in run-time errors (x when number expected) – if end-of-file occurs while variable being read, an error occurs

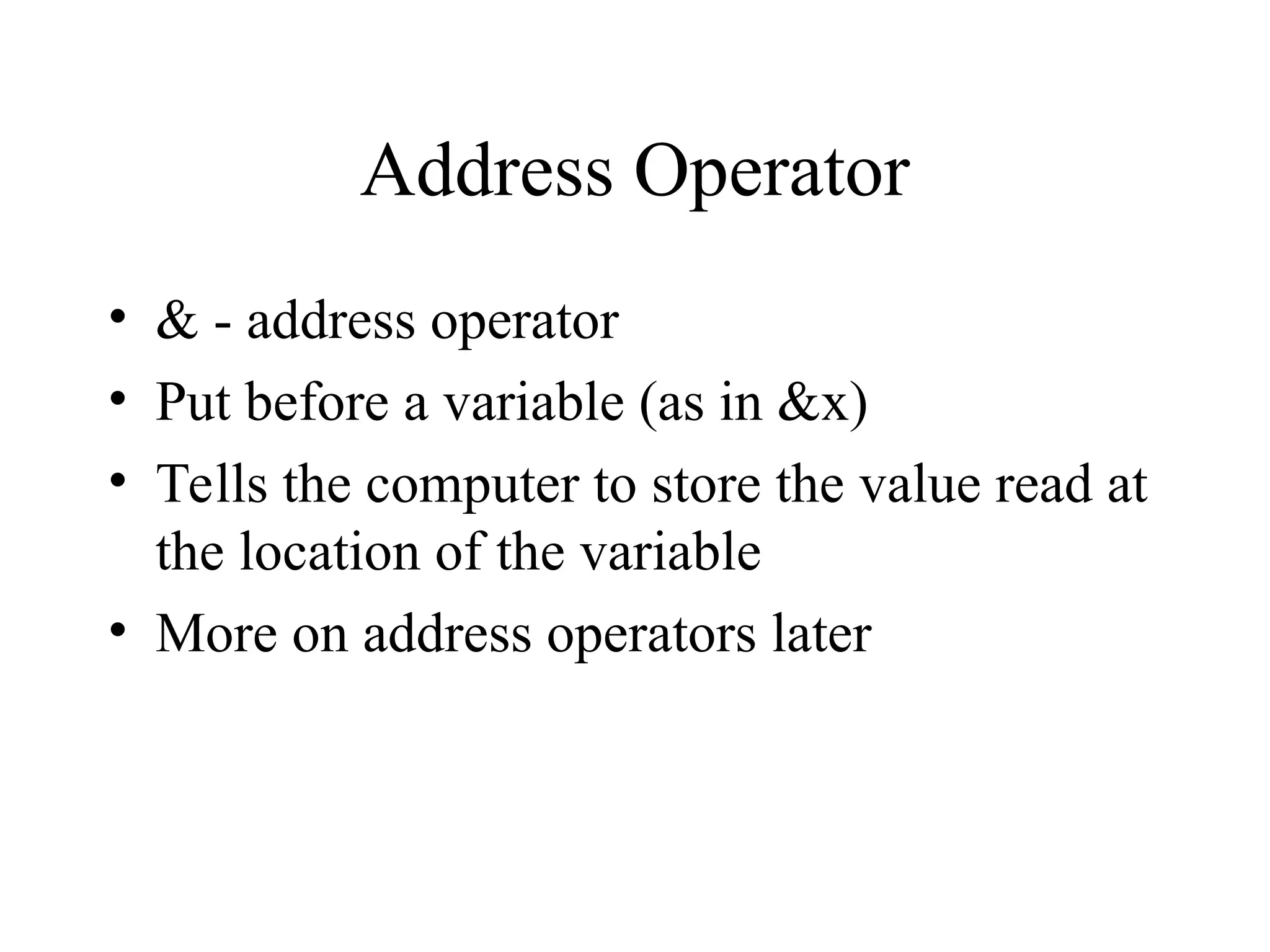

Address Operator • & - address operator • Put before a variable (as in &x) • Tells the computer to store the value read at the location of the variable • More on address operators later

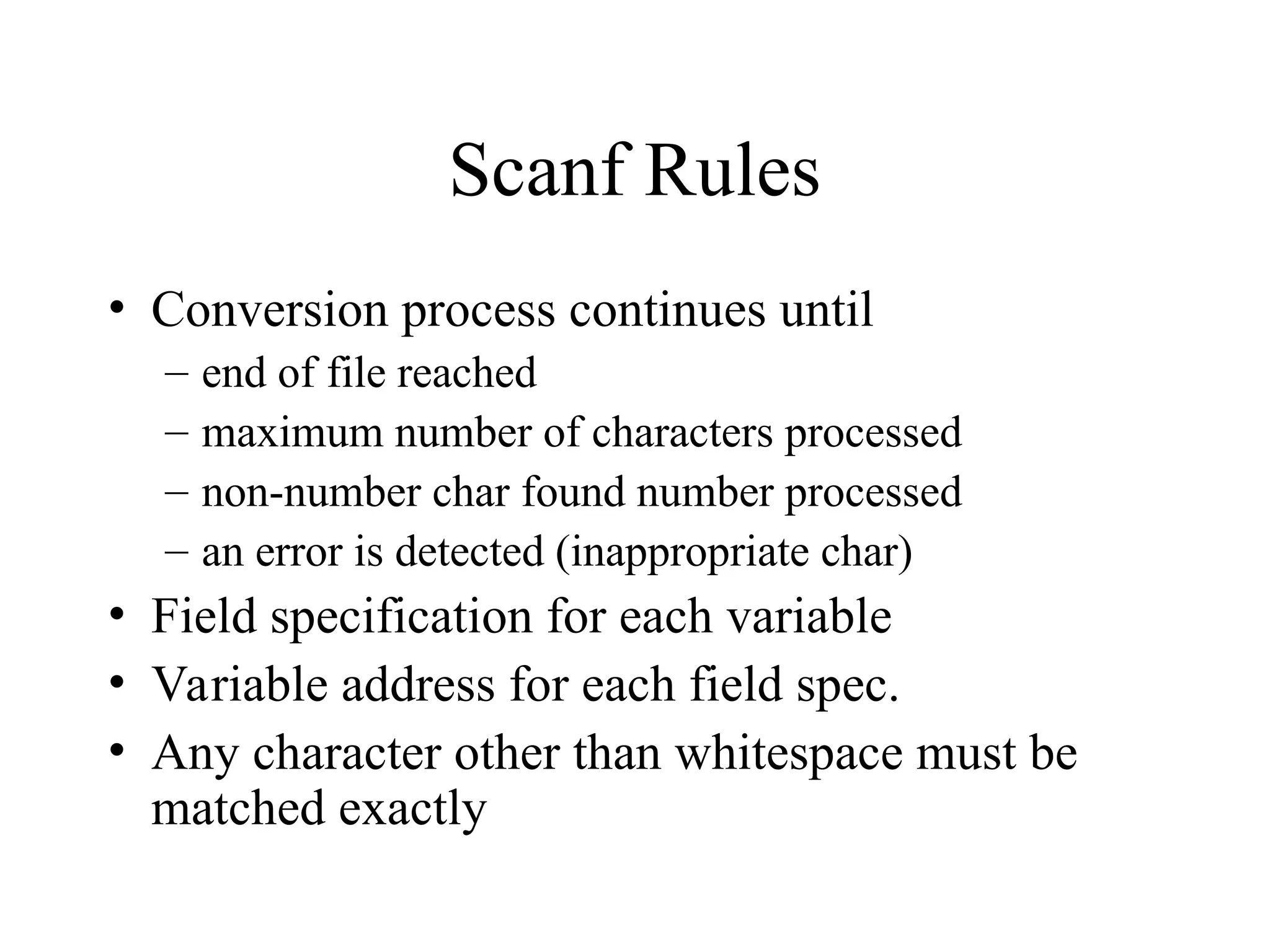

Scanf Rules • Conversion process continues until – end of file reached – maximum number of characters processed – non-number char found number processed – an error is detected (inappropriate char) • Field specification for each variable • Variable address for each field spec. • Any character other than whitespace must be matched exactly

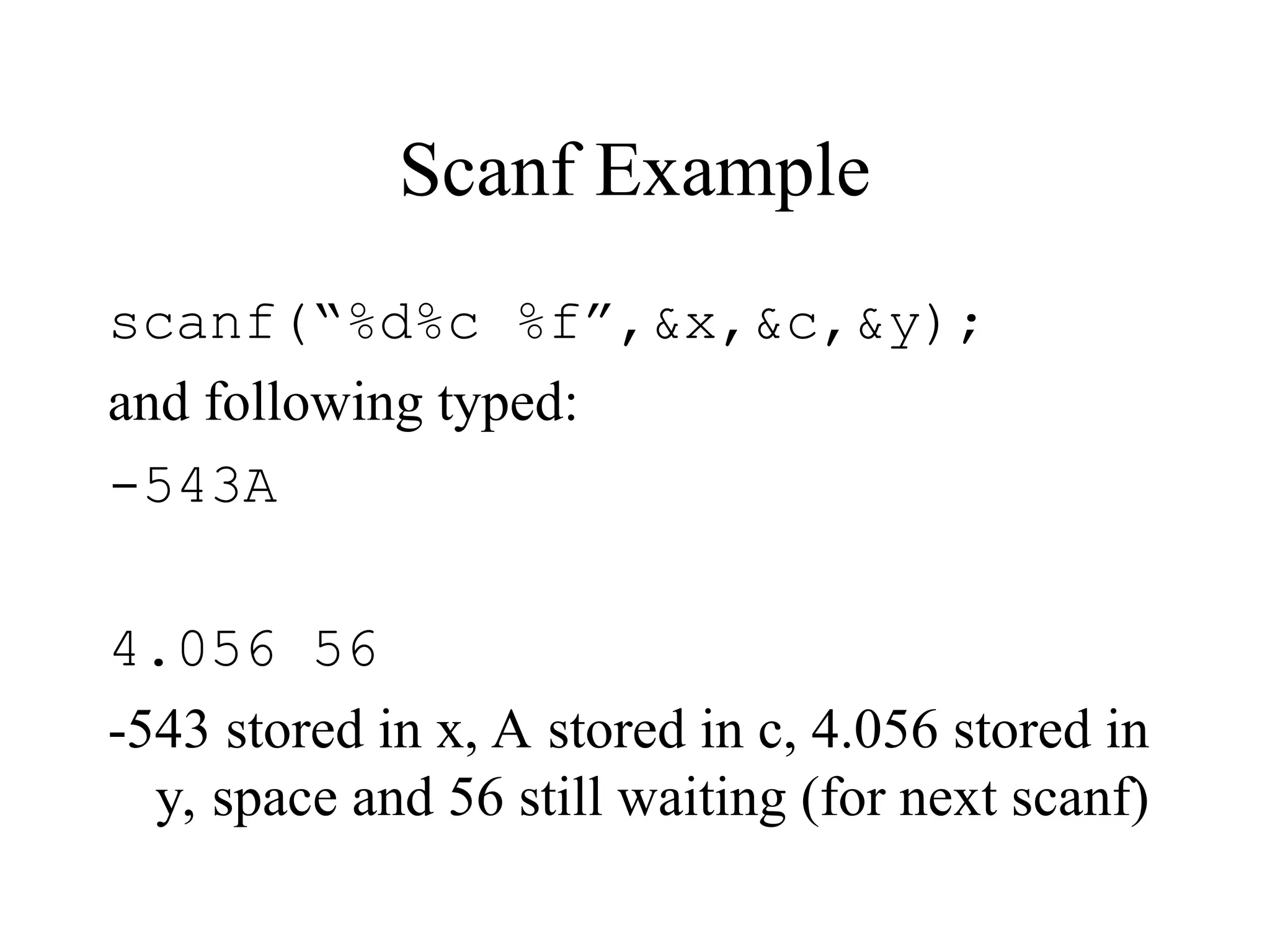

Scanf Example scanf(“%d%c %f”,&x,&c,&y); and following typed: -543A 4.056 56 -543 stored in x, A stored in c, 4.056 stored in y, space and 56 still waiting (for next scanf)

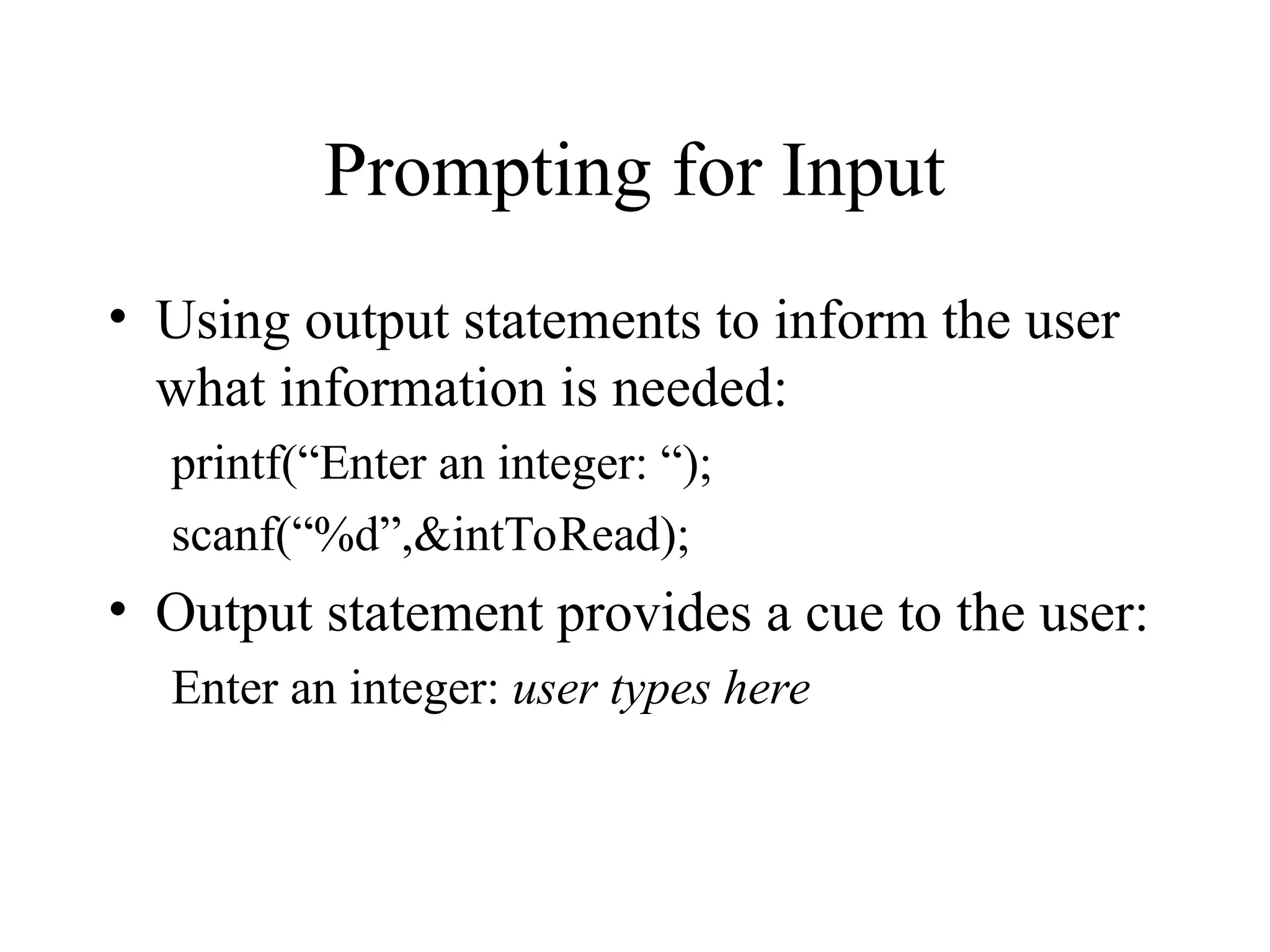

Prompting for Input • Using output statements to inform the user what information is needed: printf(“Enter an integer: “); scanf(“%d”,&intToRead); • Output statement provides a cue to the user: Enter an integer: user types here
