- 1. Living in aDigital World Discovering Computers 2010

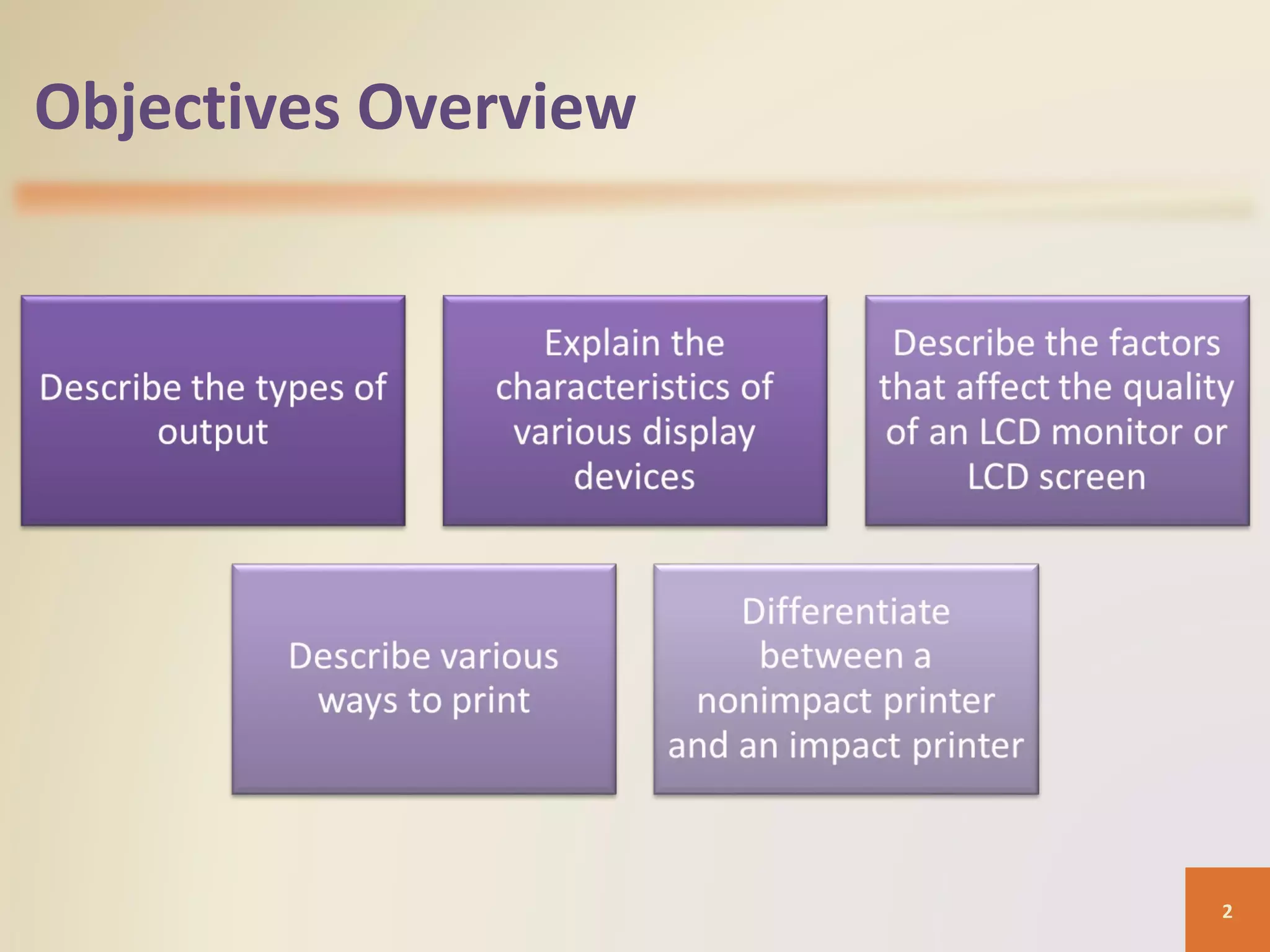

- 2.

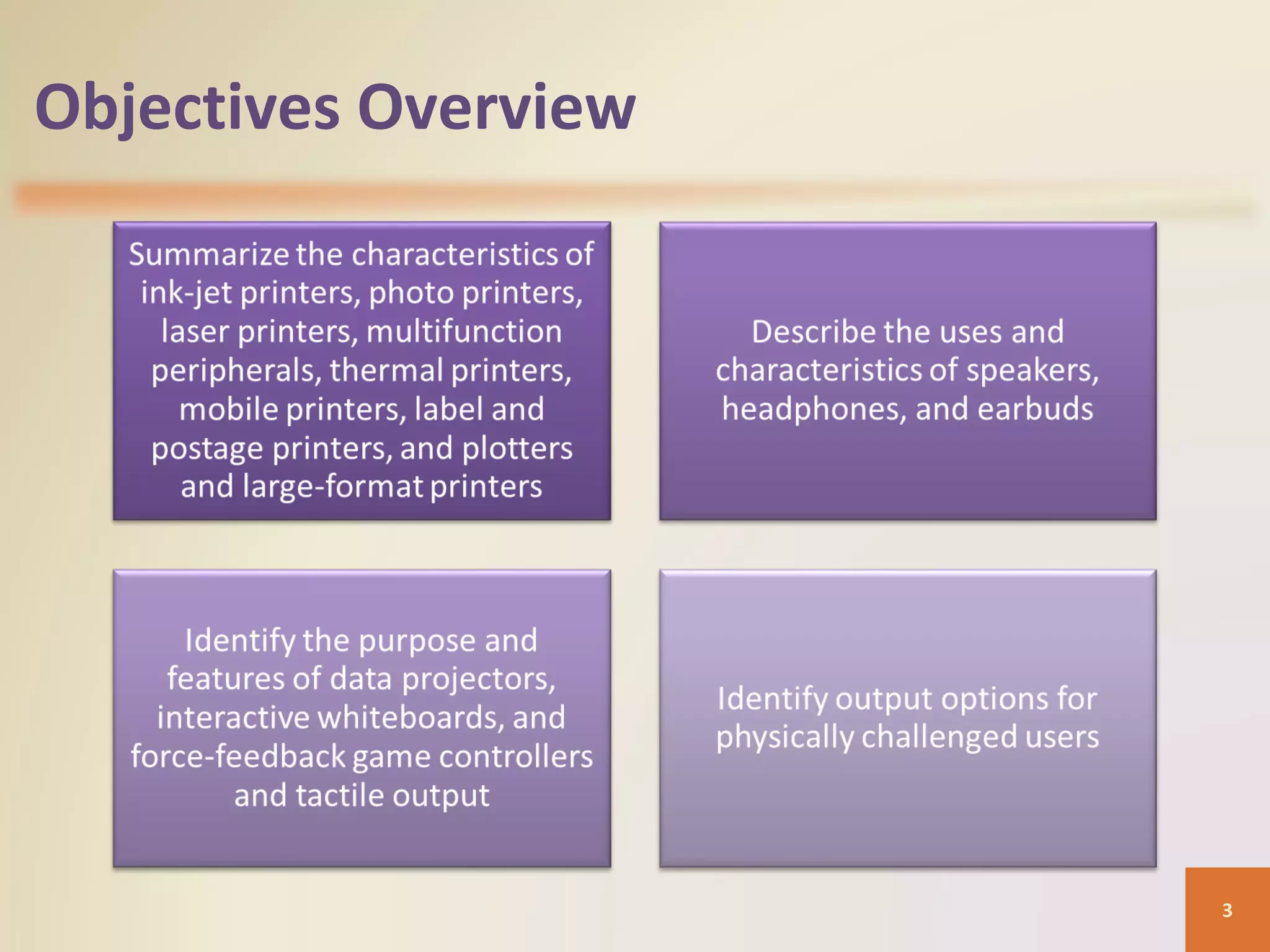

- 3.

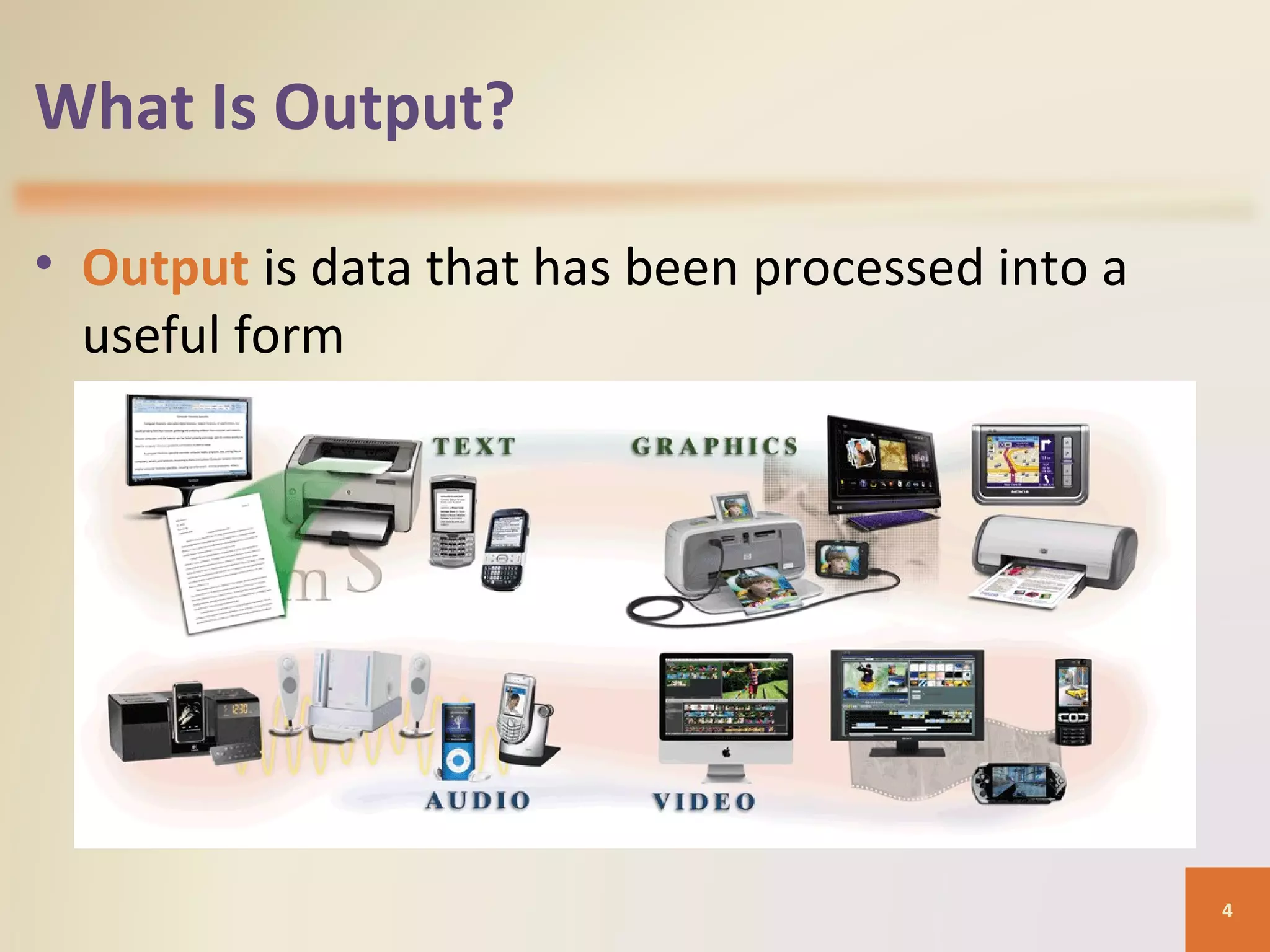

- 4. What Is Output? •Output is data that has been processed into a useful form 4

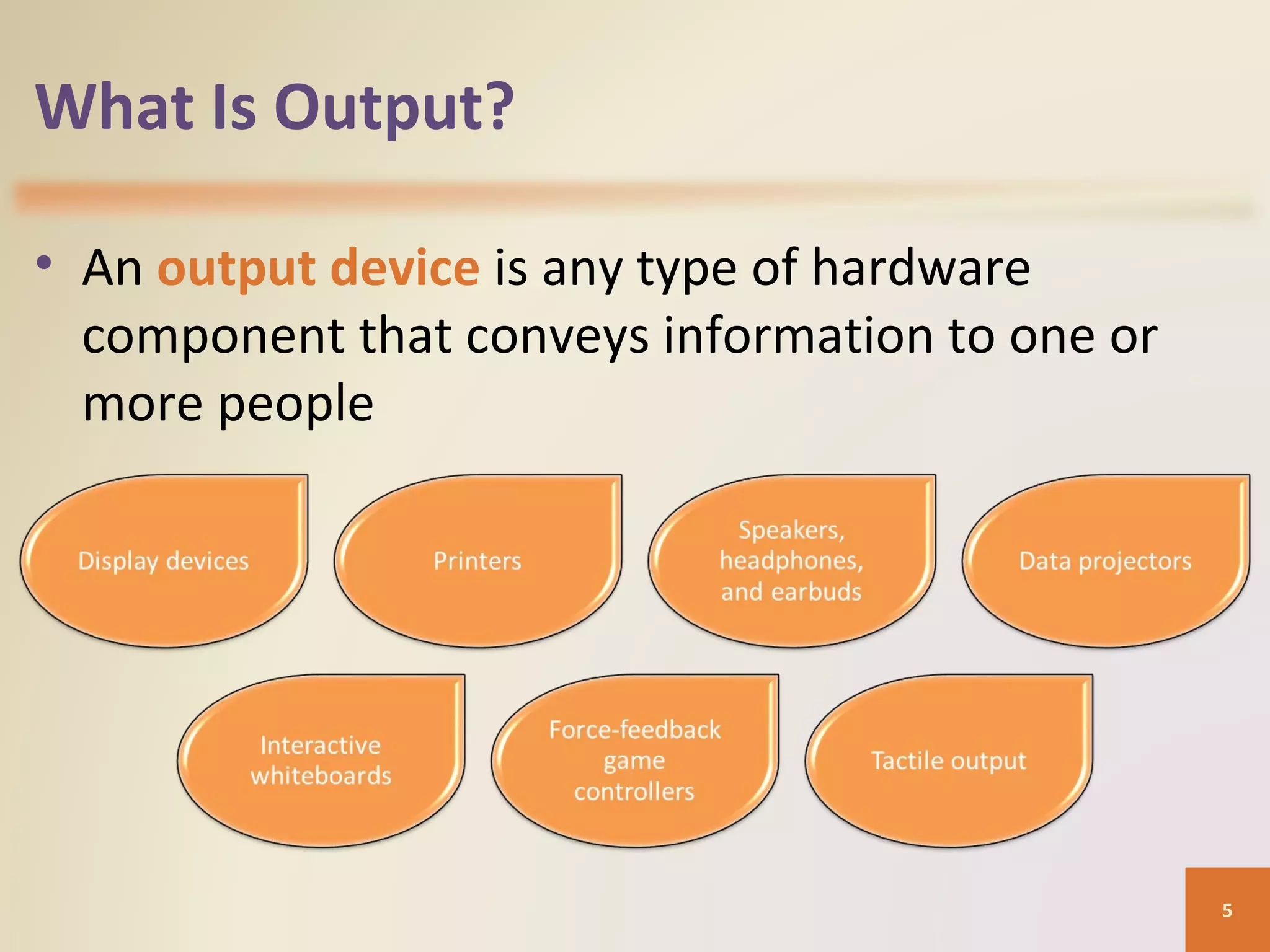

- 5. What Is Output? •An output device is any type of hardware component that conveys information to one or more people 5

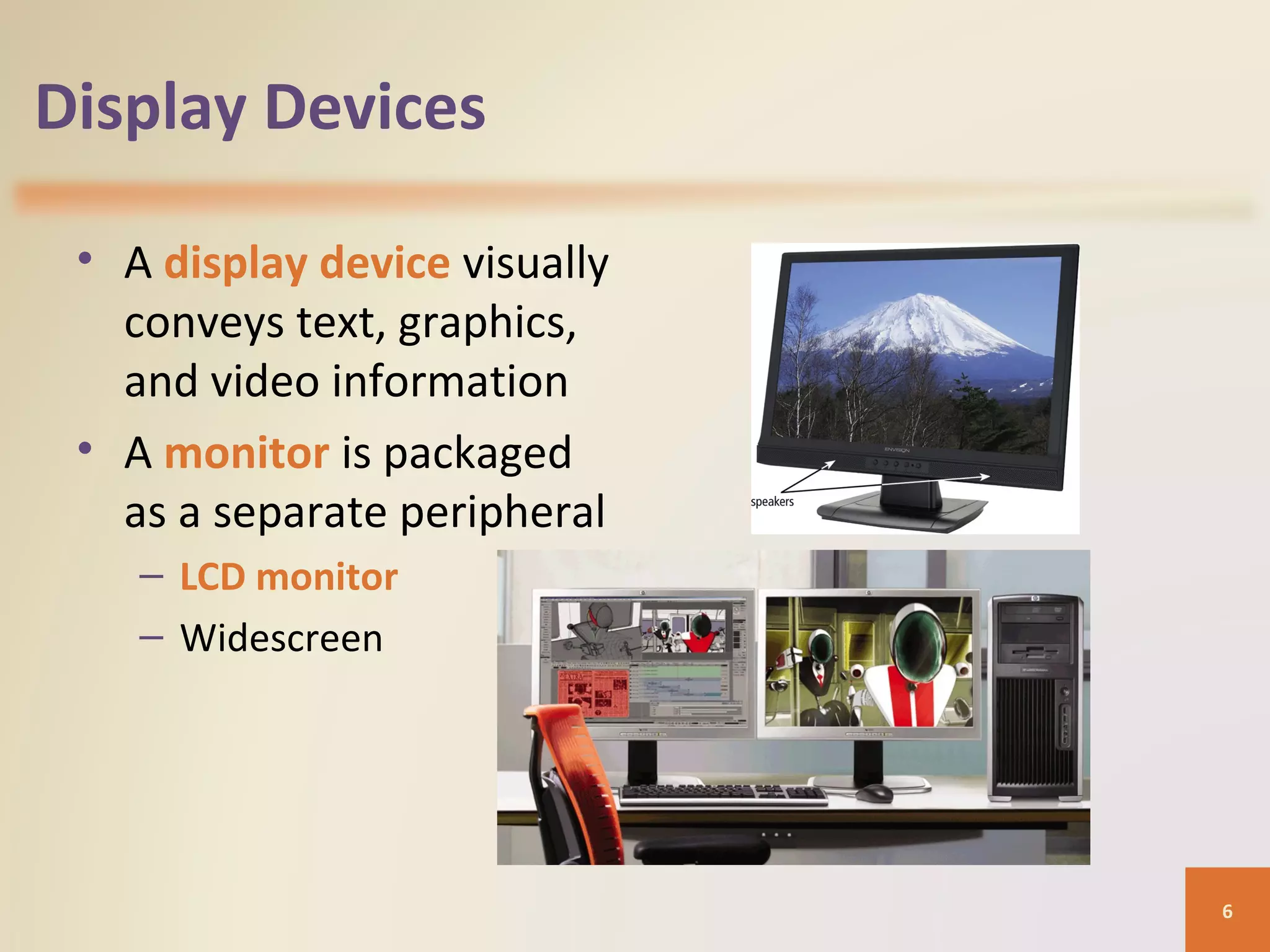

- 6. Display Devices • Adisplay device visually conveys text, graphics, and video information • A monitor is packaged as a separate peripheral – LCD monitor – Widescreen 6

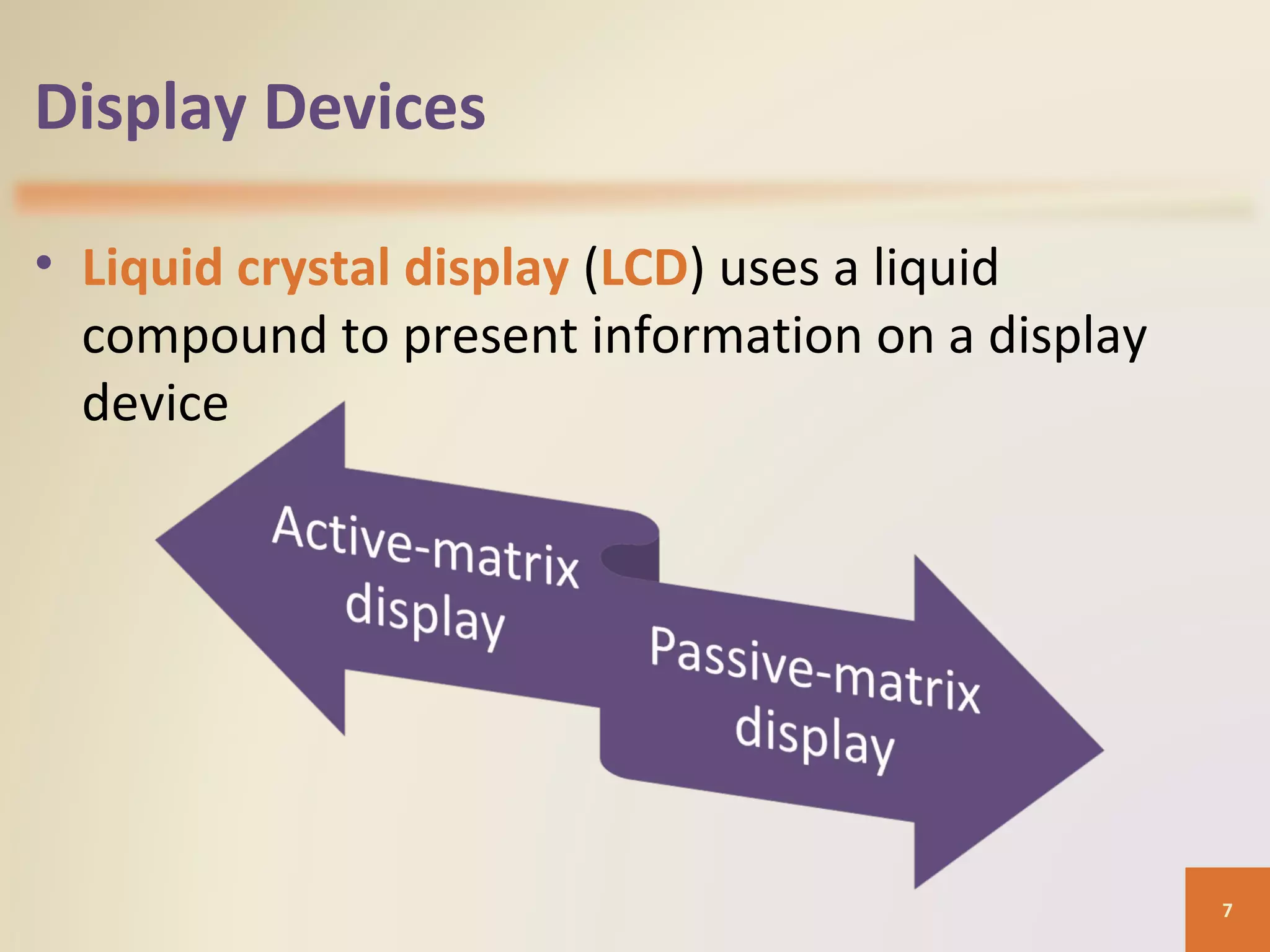

- 7. Display Devices • Liquidcrystal display (LCD) uses a liquid compound to present information on a display device 7

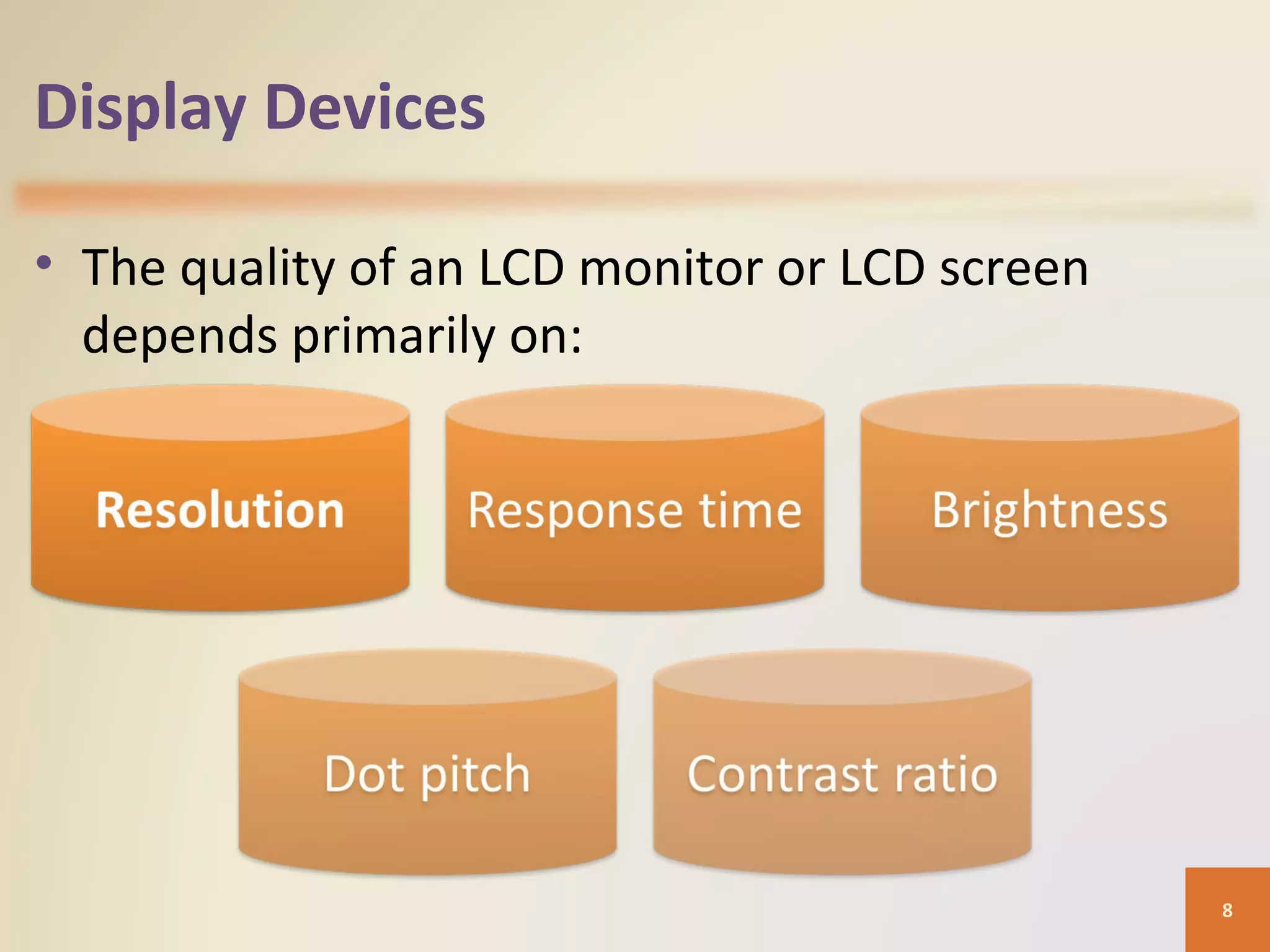

- 8. Display Devices • Thequality of an LCD monitor or LCD screen depends primarily on: 8

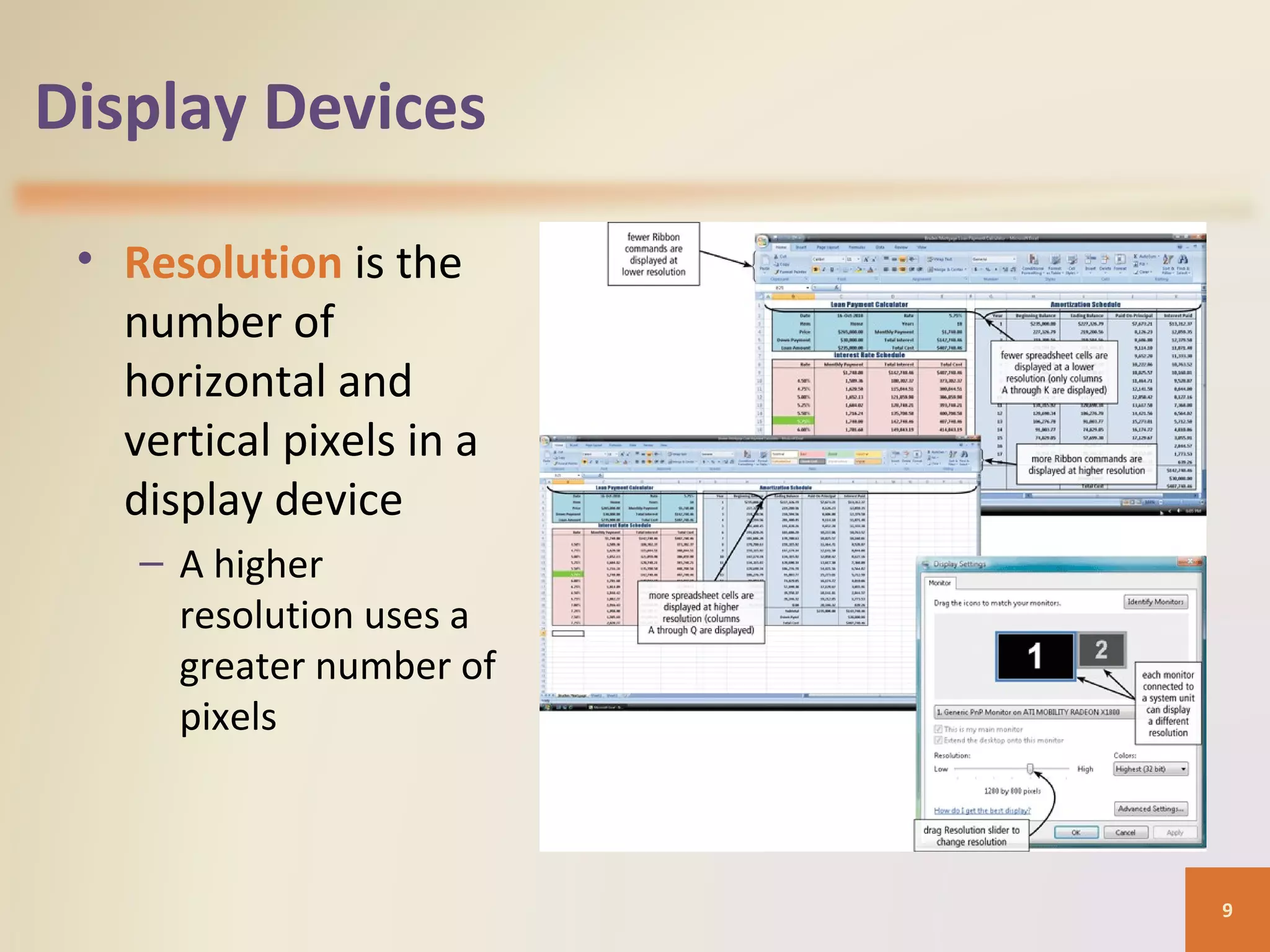

- 9. Display Devices • Resolutionis the number of horizontal and vertical pixels in a display device – A higher resolution uses a greater number of pixels 9

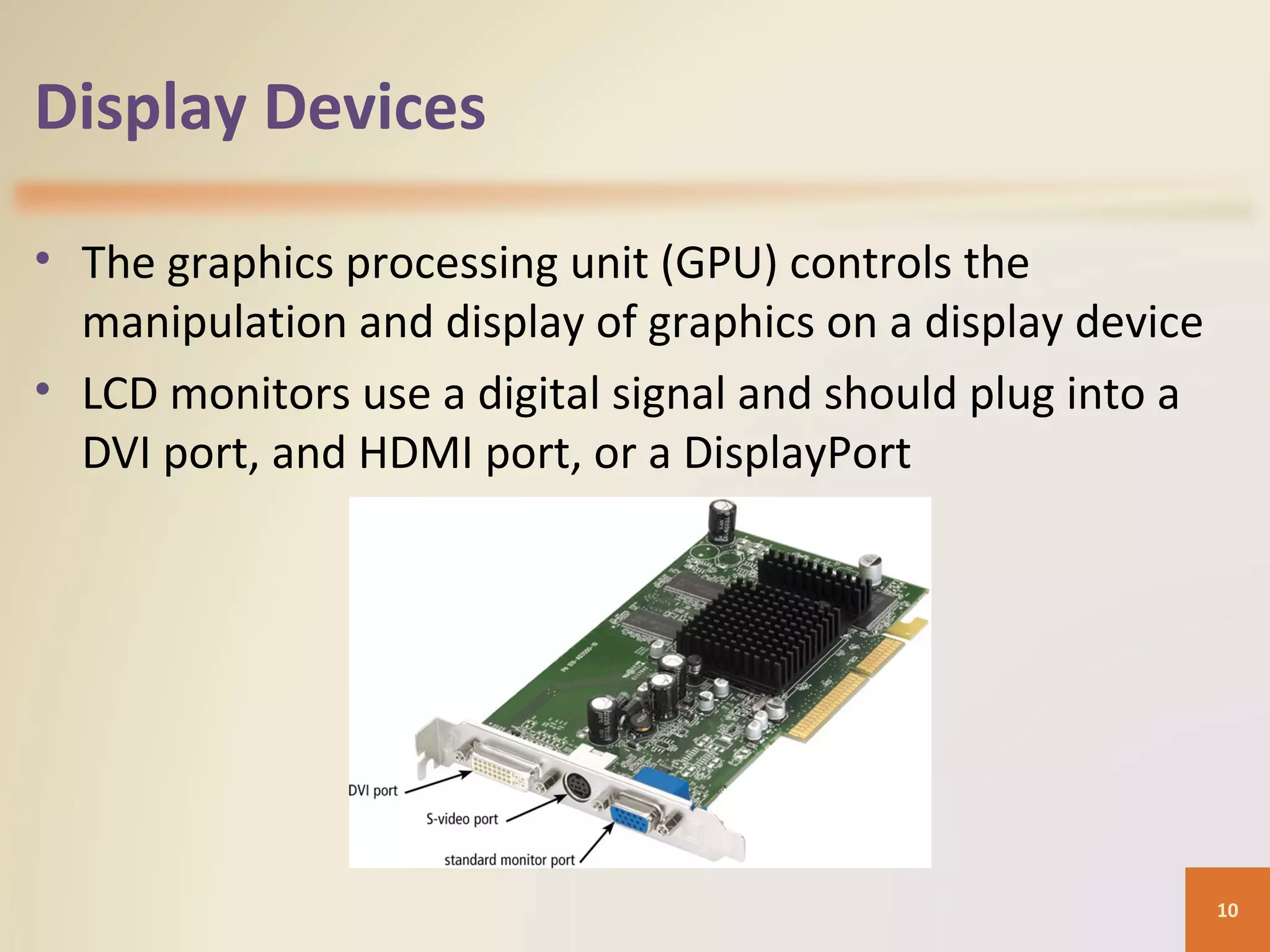

- 10. Display Devices • Thegraphics processing unit (GPU) controls the manipulation and display of graphics on a display device • LCD monitors use a digital signal and should plug into a DVI port, and HDMI port, or a DisplayPort 10

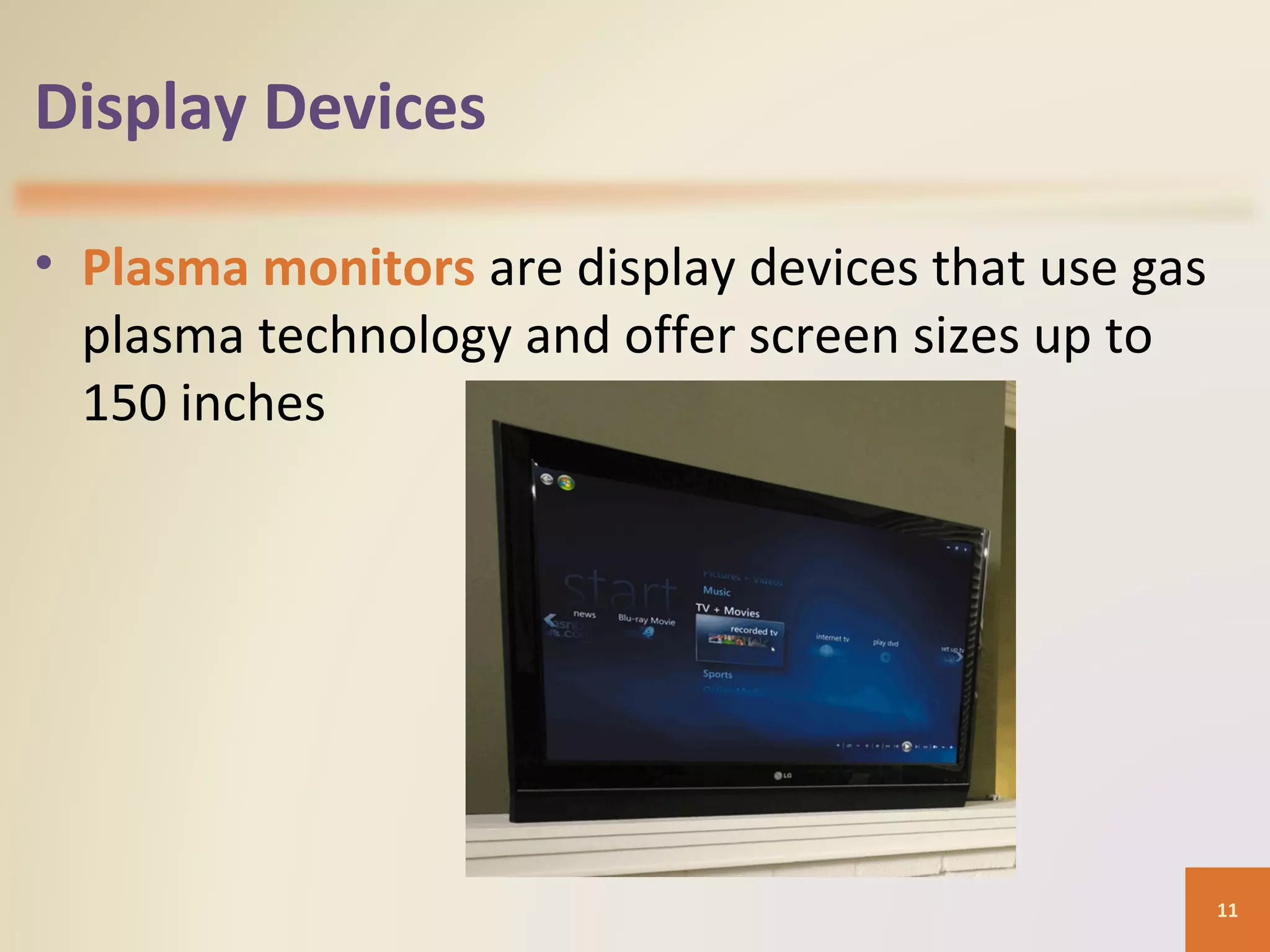

- 11. Display Devices • Plasmamonitors are display devices that use gas plasma technology and offer screen sizes up to 150 inches 11

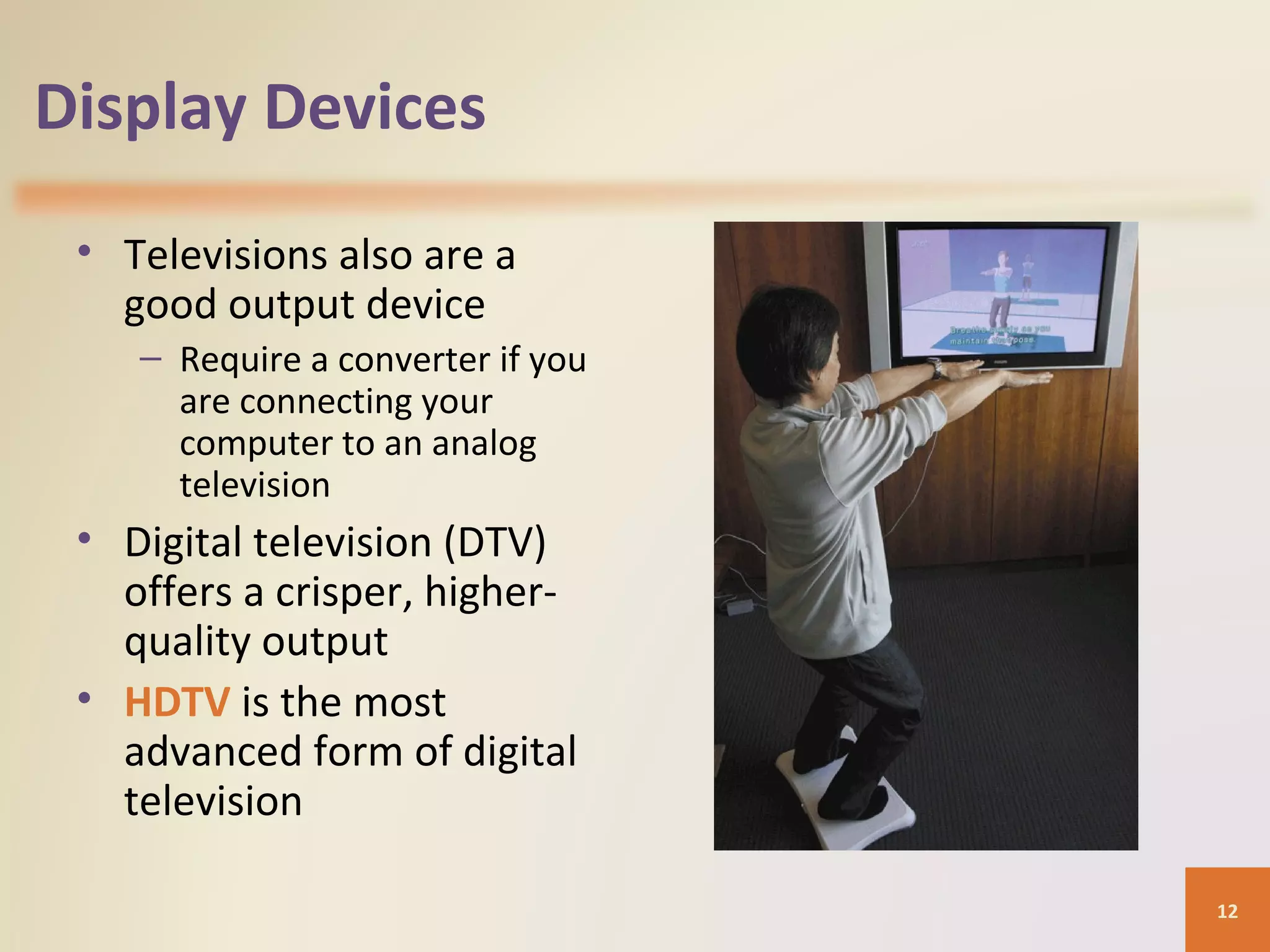

- 12. Display Devices • Televisionsalso are a good output device – Require a converter if you are connecting your computer to an analog television • Digital television (DTV) offers a crisper, higher- quality output • HDTV is the most advanced form of digital television 12

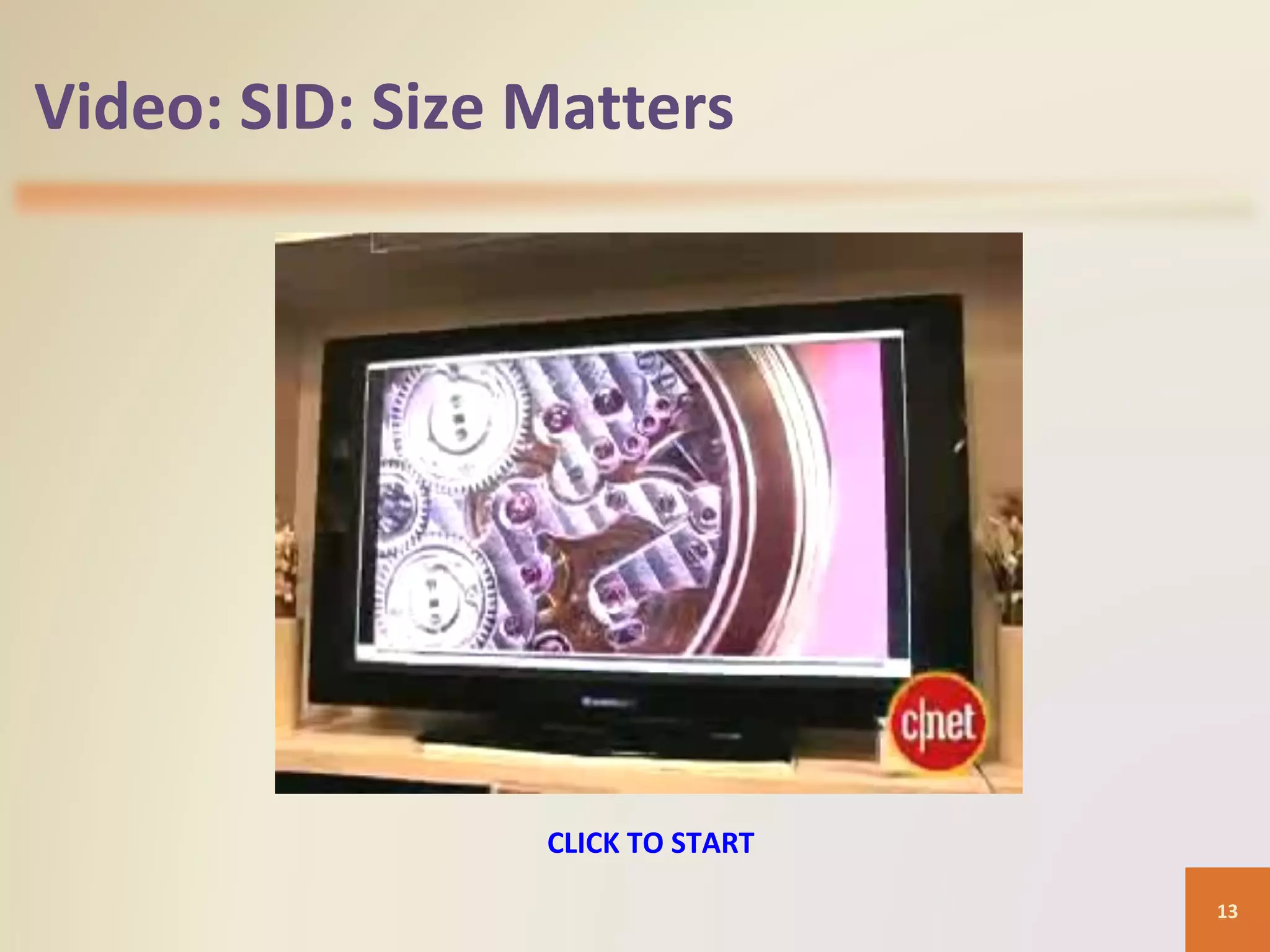

- 13. Video: SID: SizeMatters 13 CLICK TO START

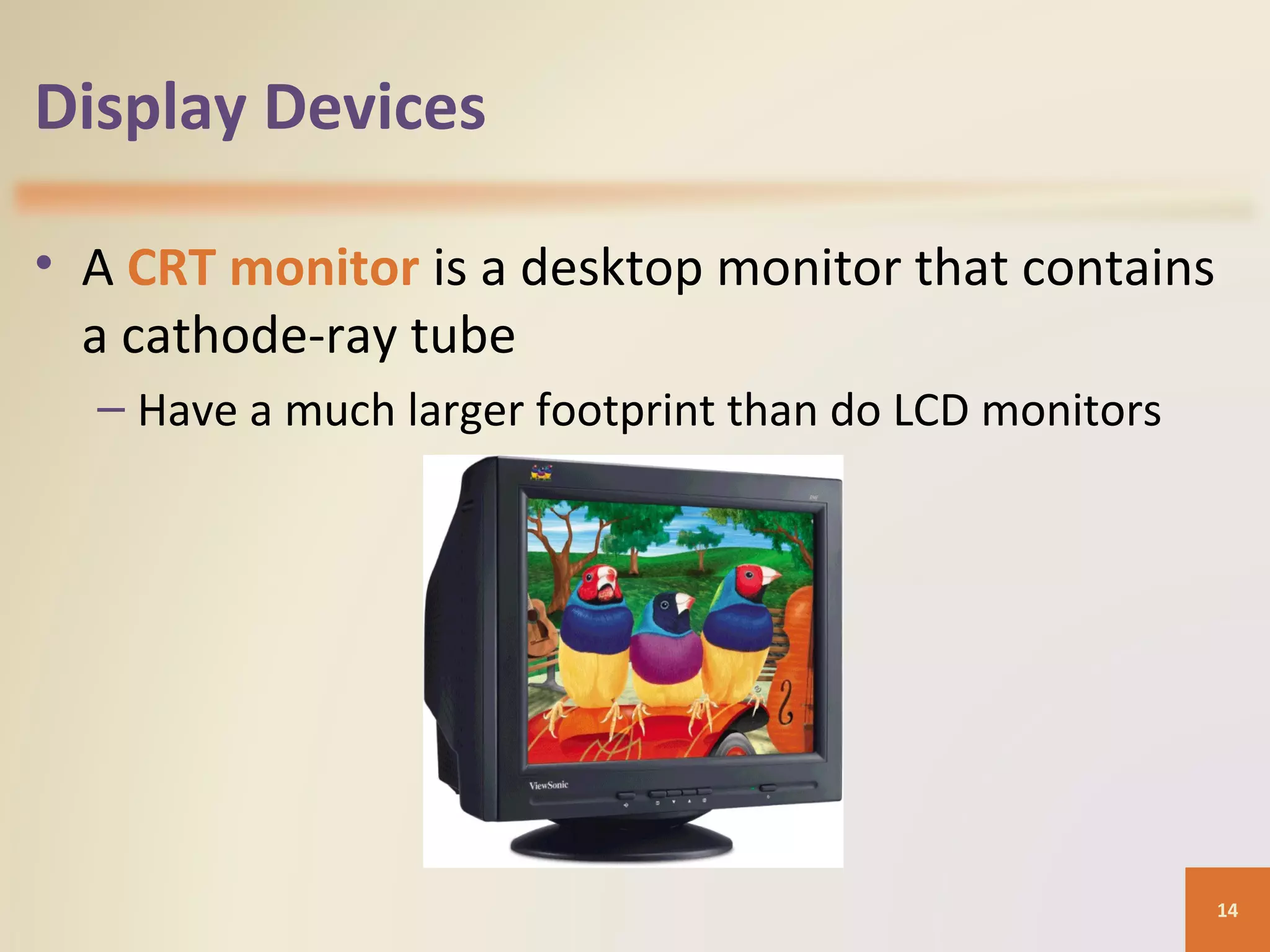

- 14. Display Devices • ACRT monitor is a desktop monitor that contains a cathode-ray tube – Have a much larger footprint than do LCD monitors 14

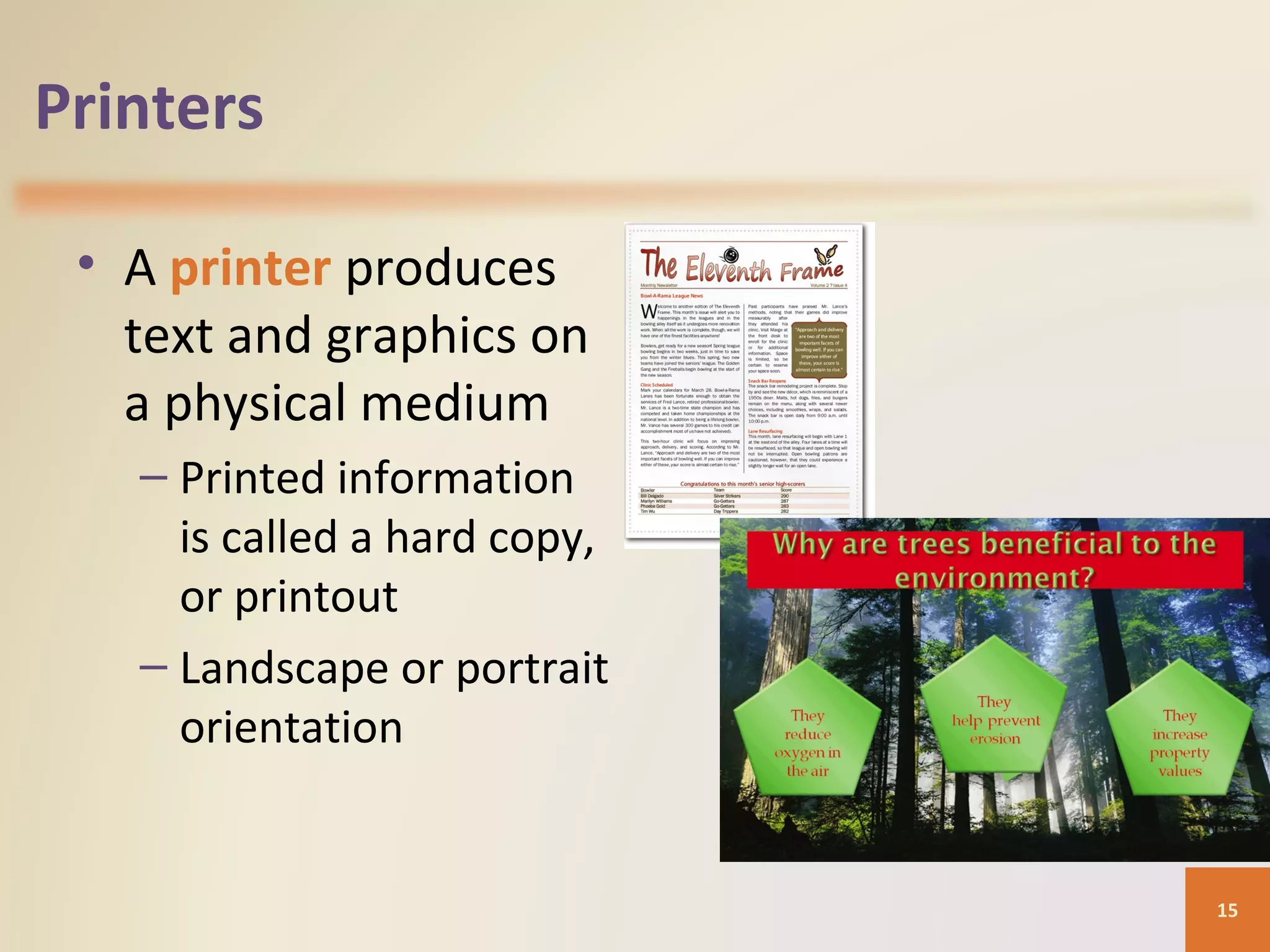

- 15. Printers • A printerproduces text and graphics on a physical medium – Printed information is called a hard copy, or printout – Landscape or portrait orientation 15

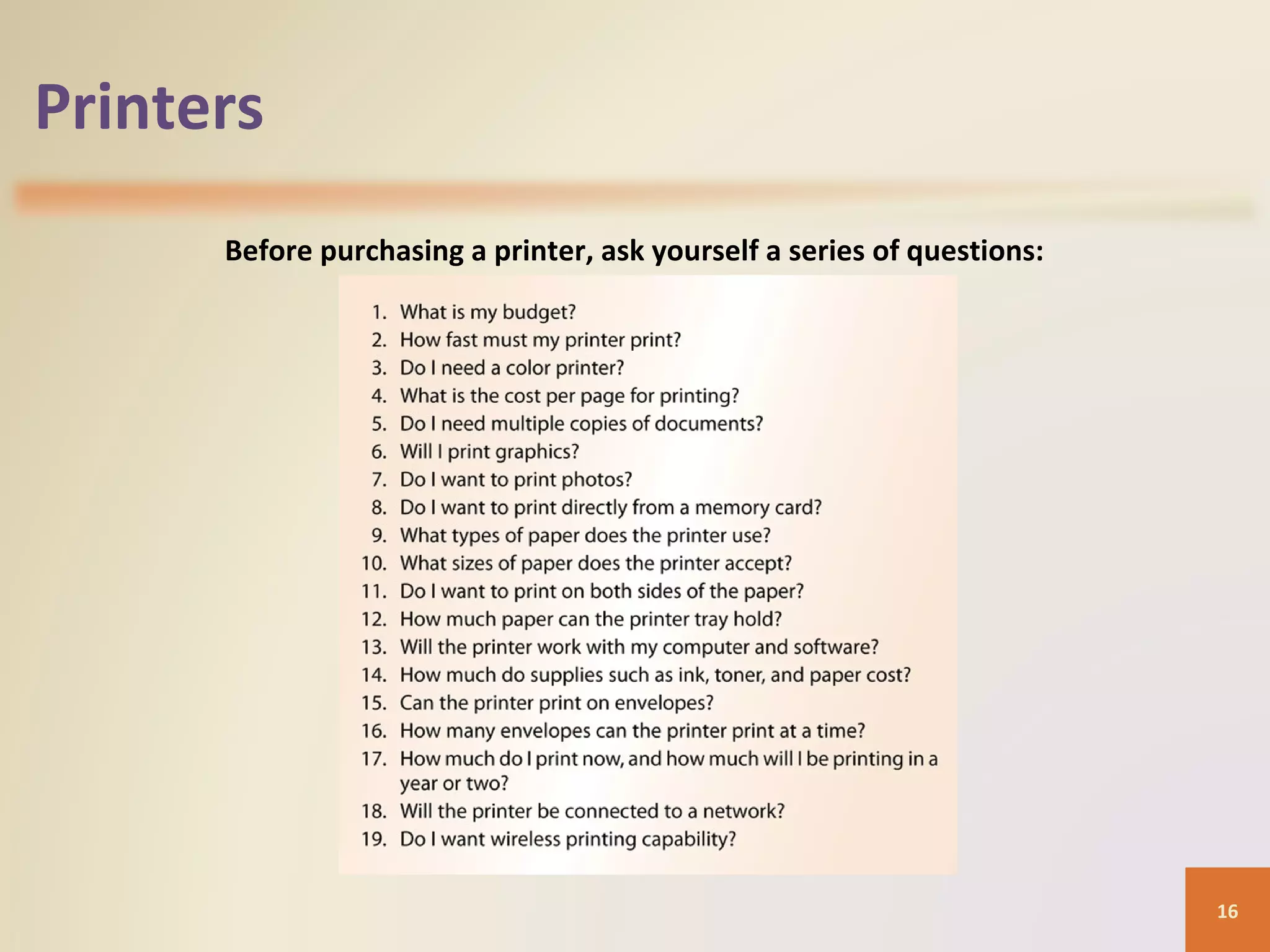

- 16. Printers 16 Before purchasing aprinter, ask yourself a series of questions:

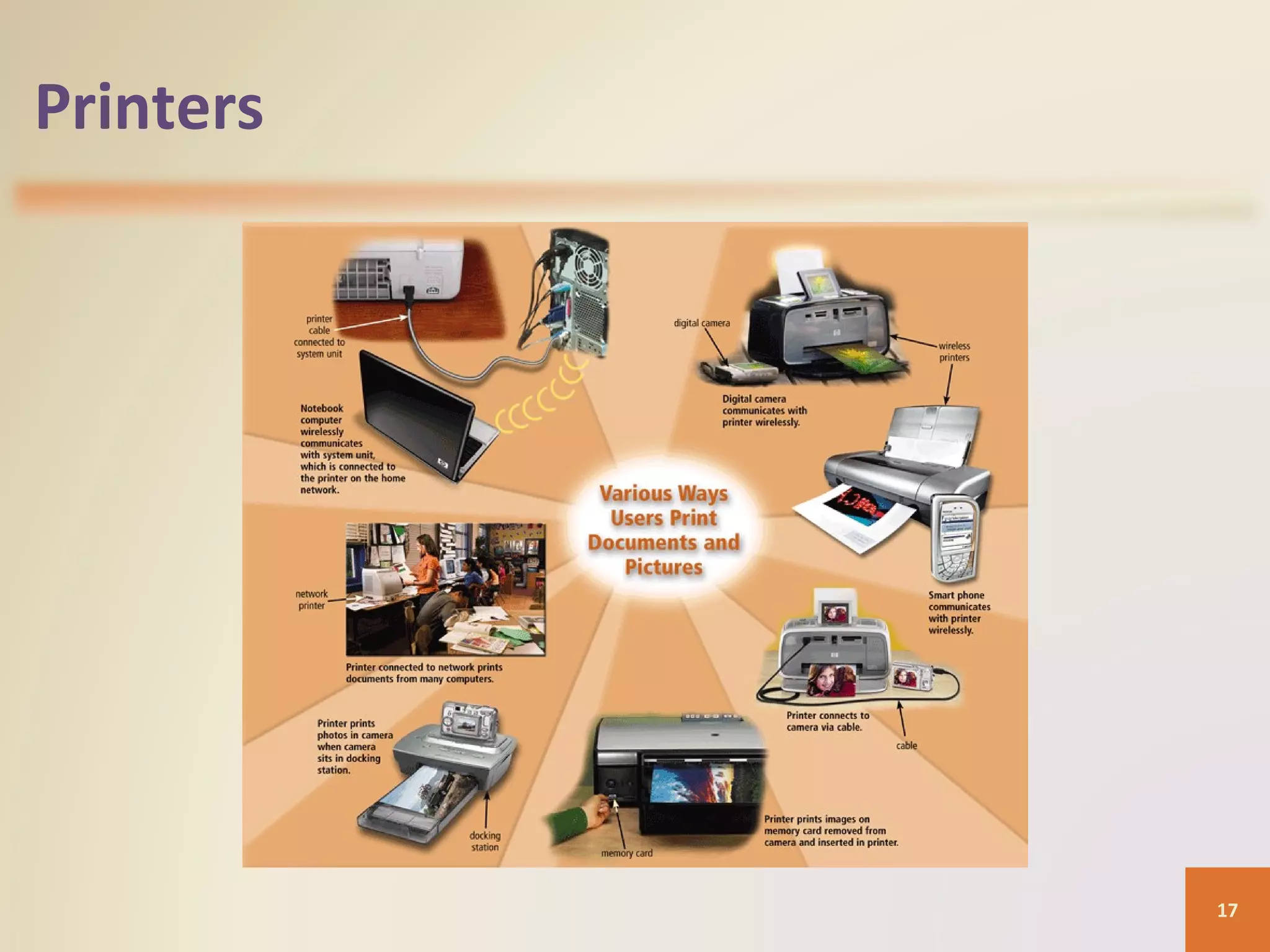

- 17.

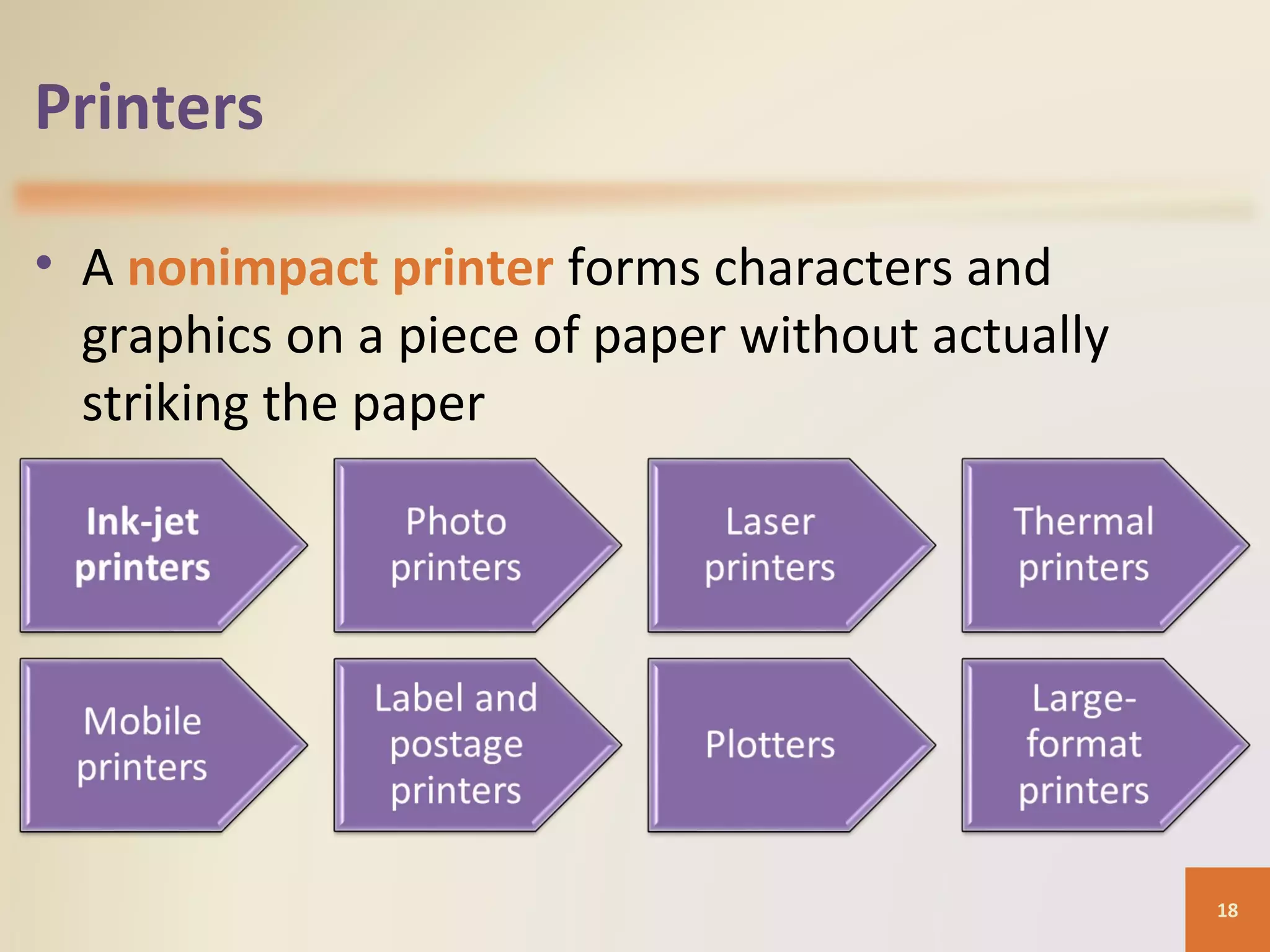

- 18. Printers • A nonimpactprinter forms characters and graphics on a piece of paper without actually striking the paper 18

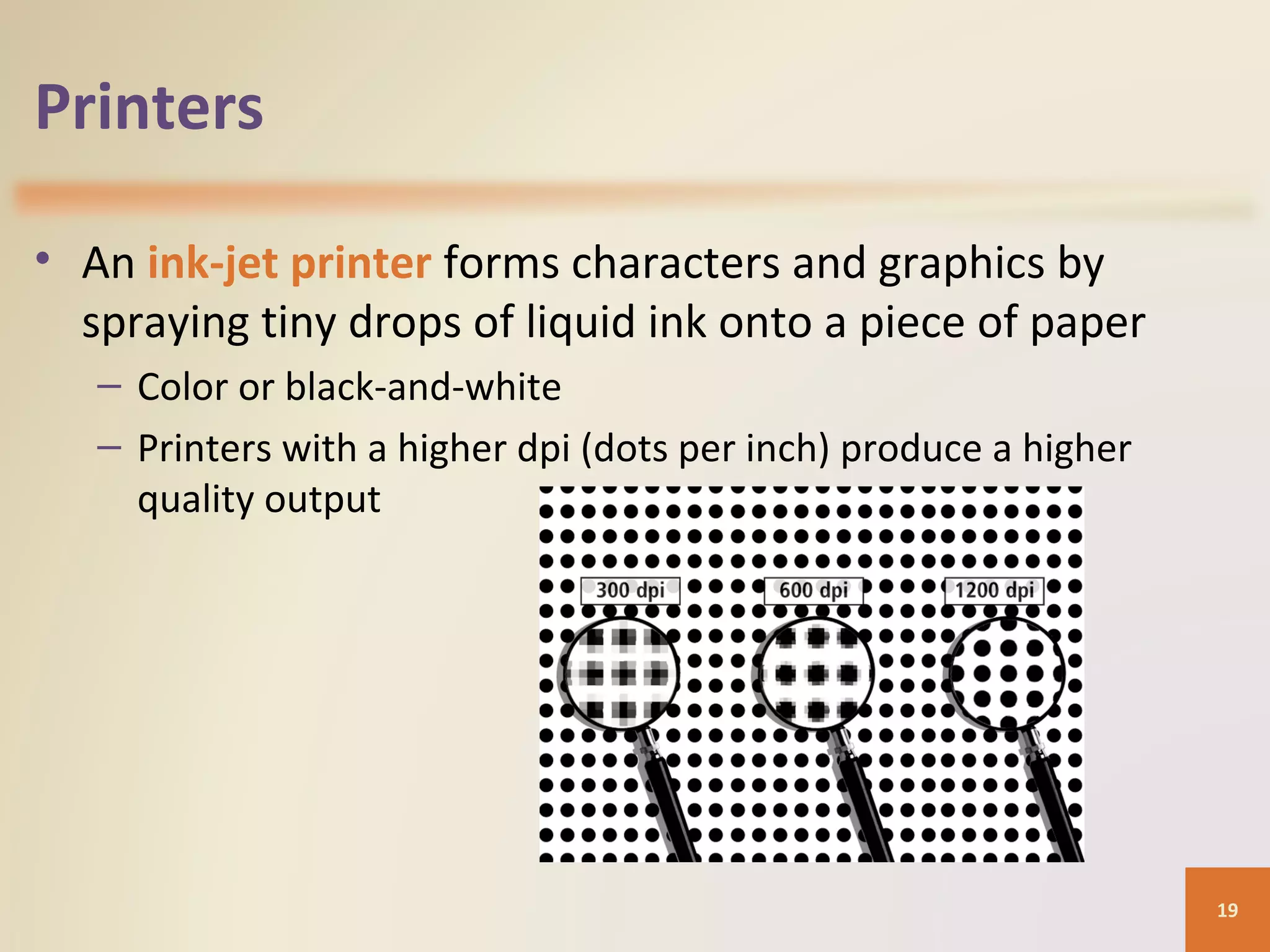

- 19. Printers • An ink-jetprinter forms characters and graphics by spraying tiny drops of liquid ink onto a piece of paper – Color or black-and-white – Printers with a higher dpi (dots per inch) produce a higher quality output 19

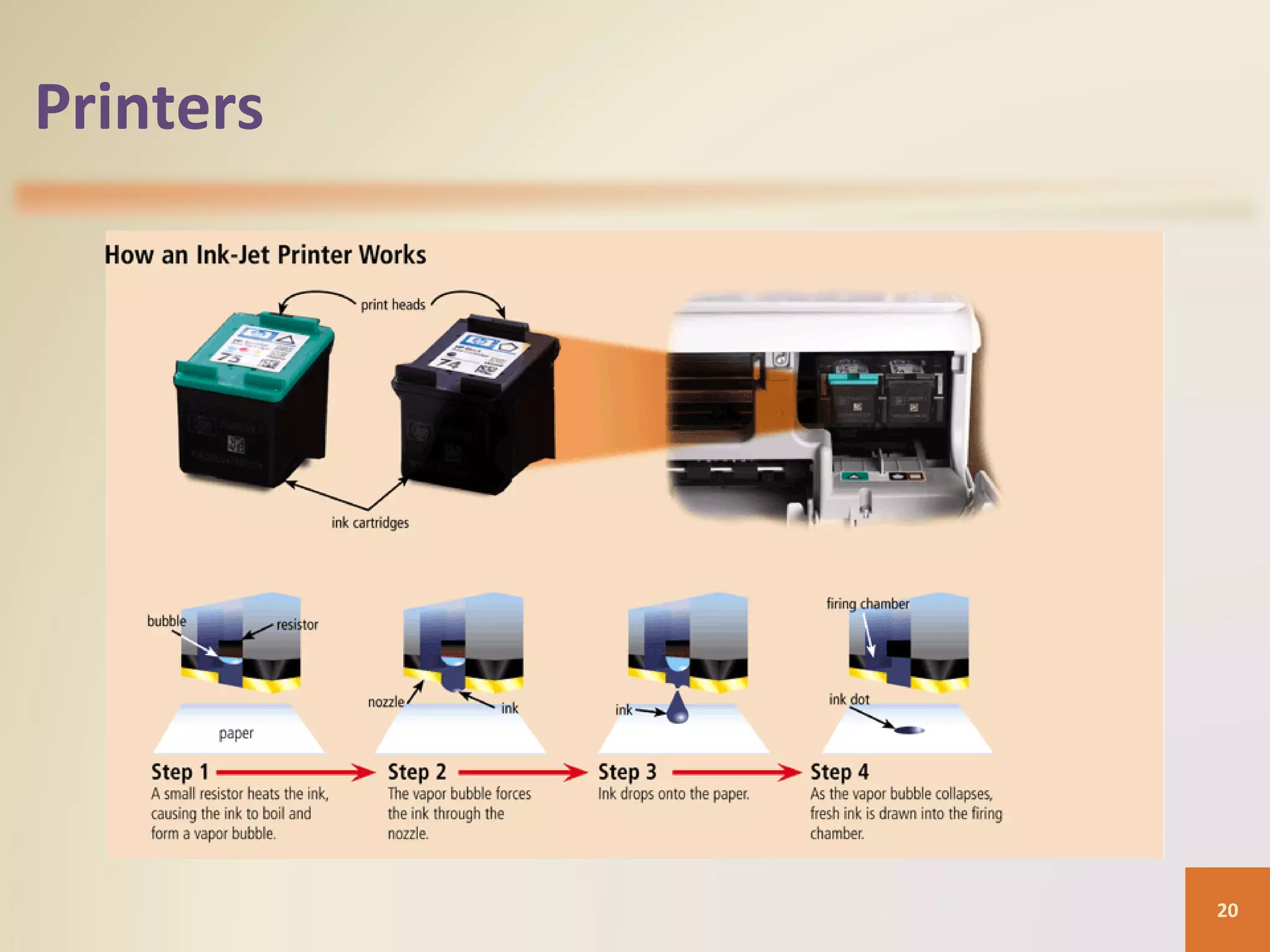

- 20.

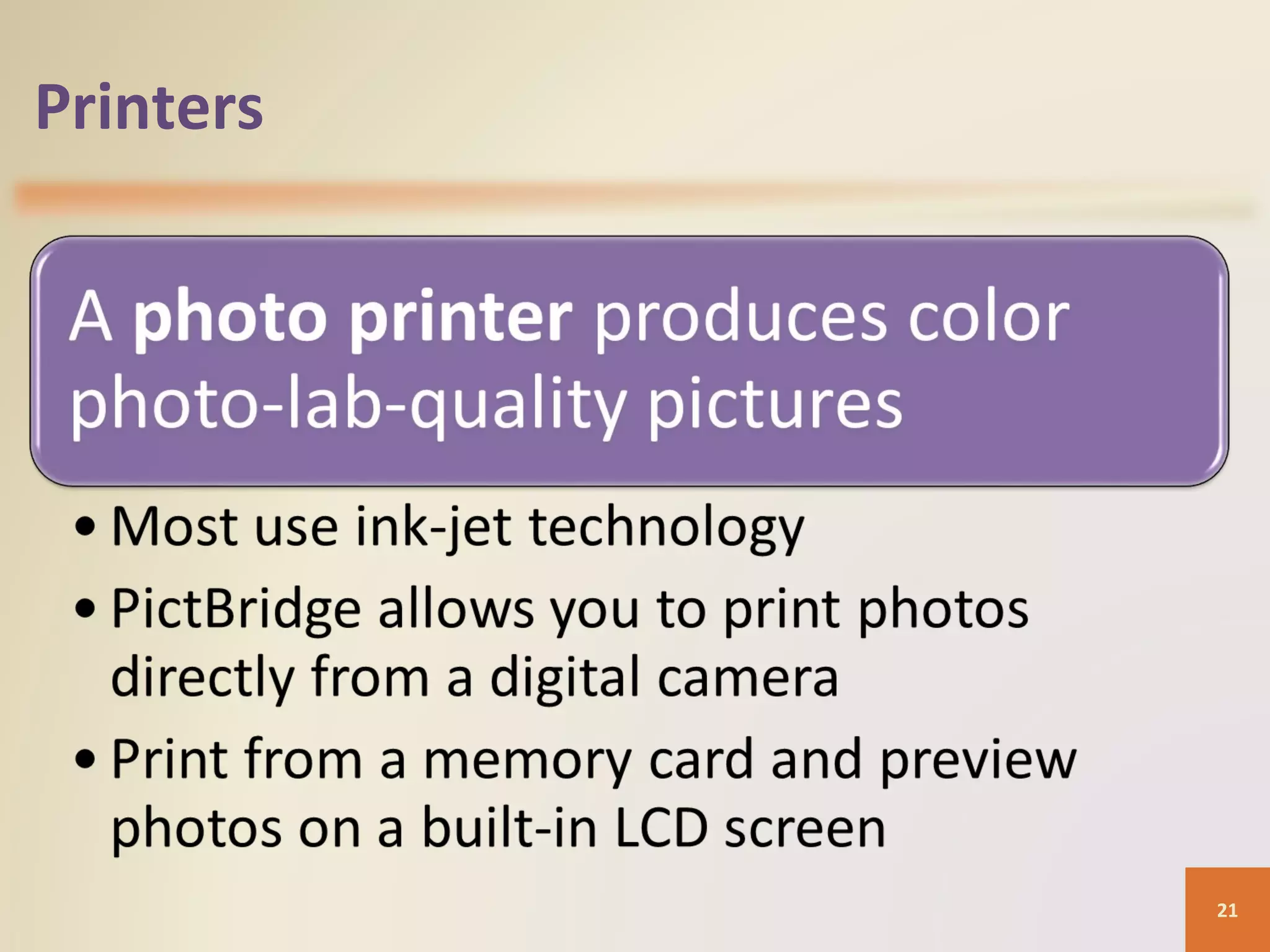

- 21.

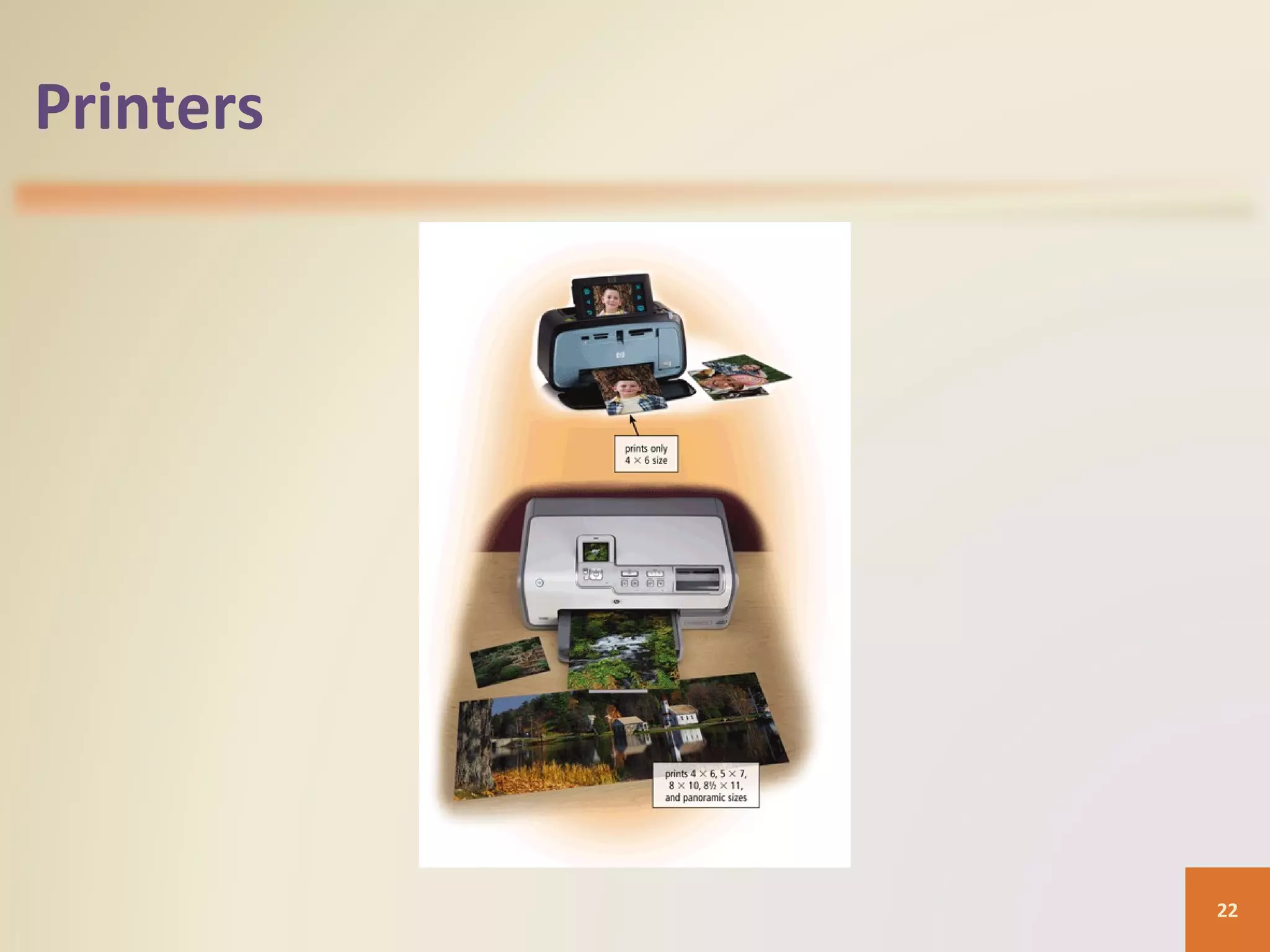

- 22.

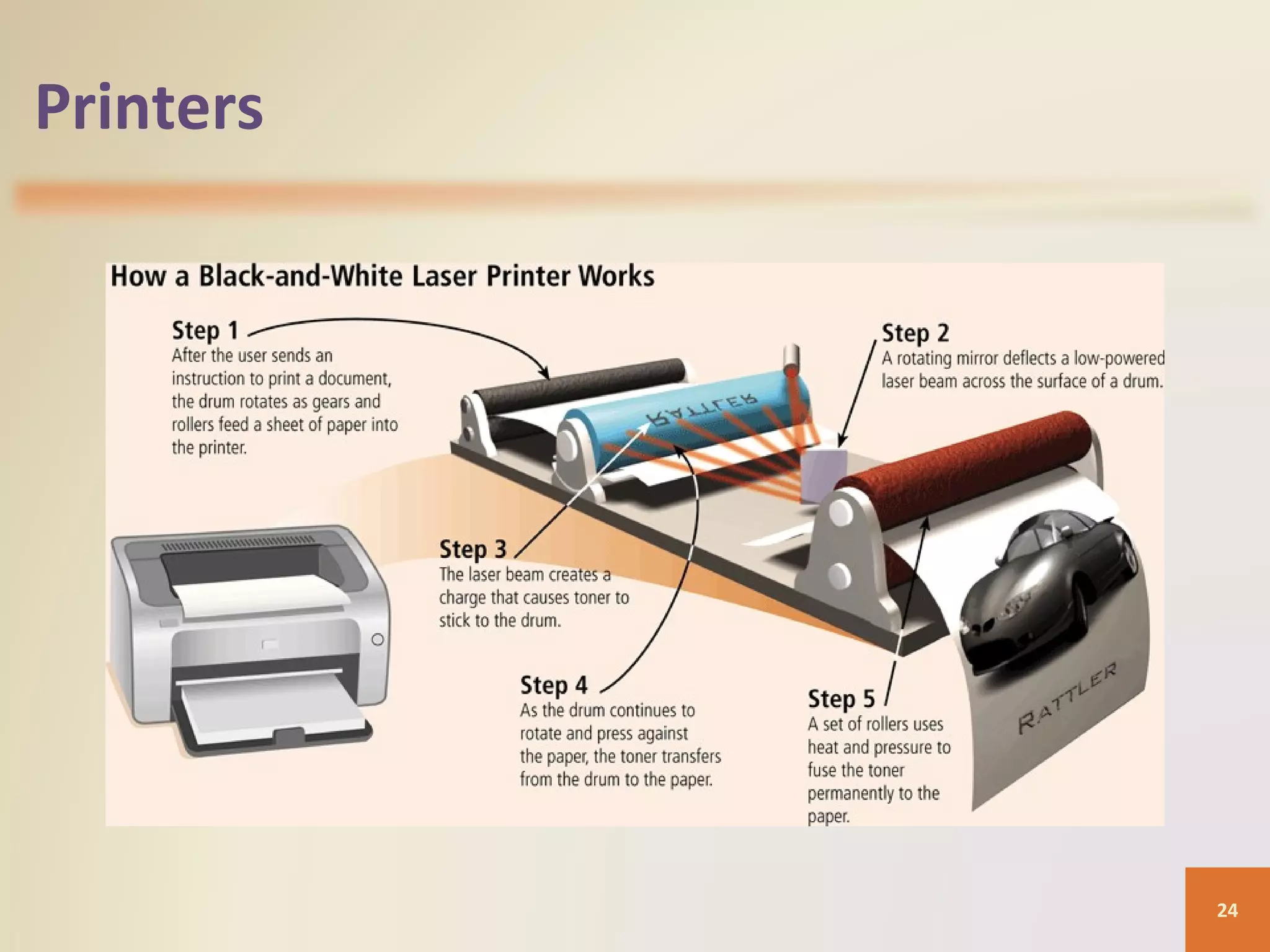

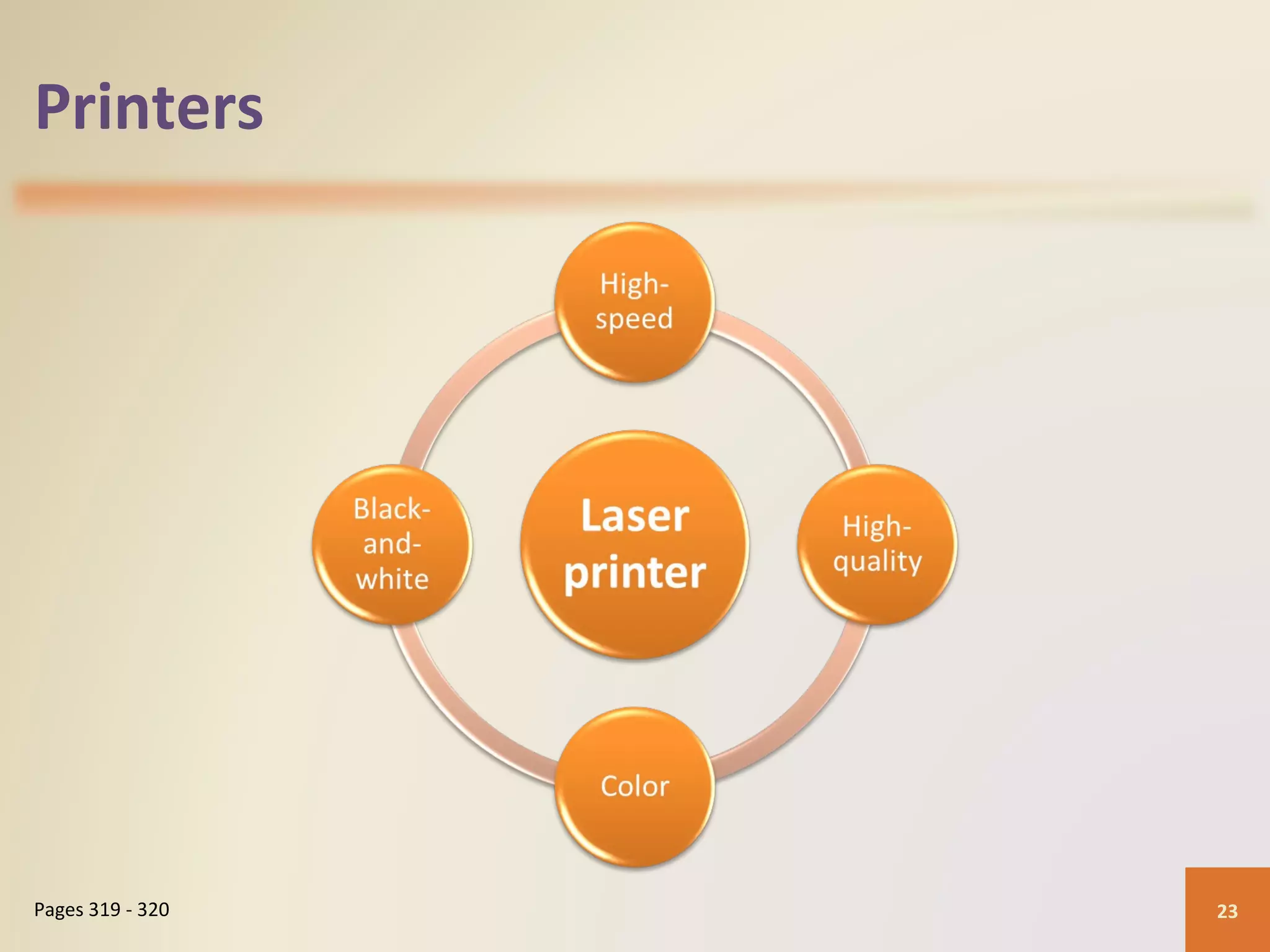

- 23.
- 24.

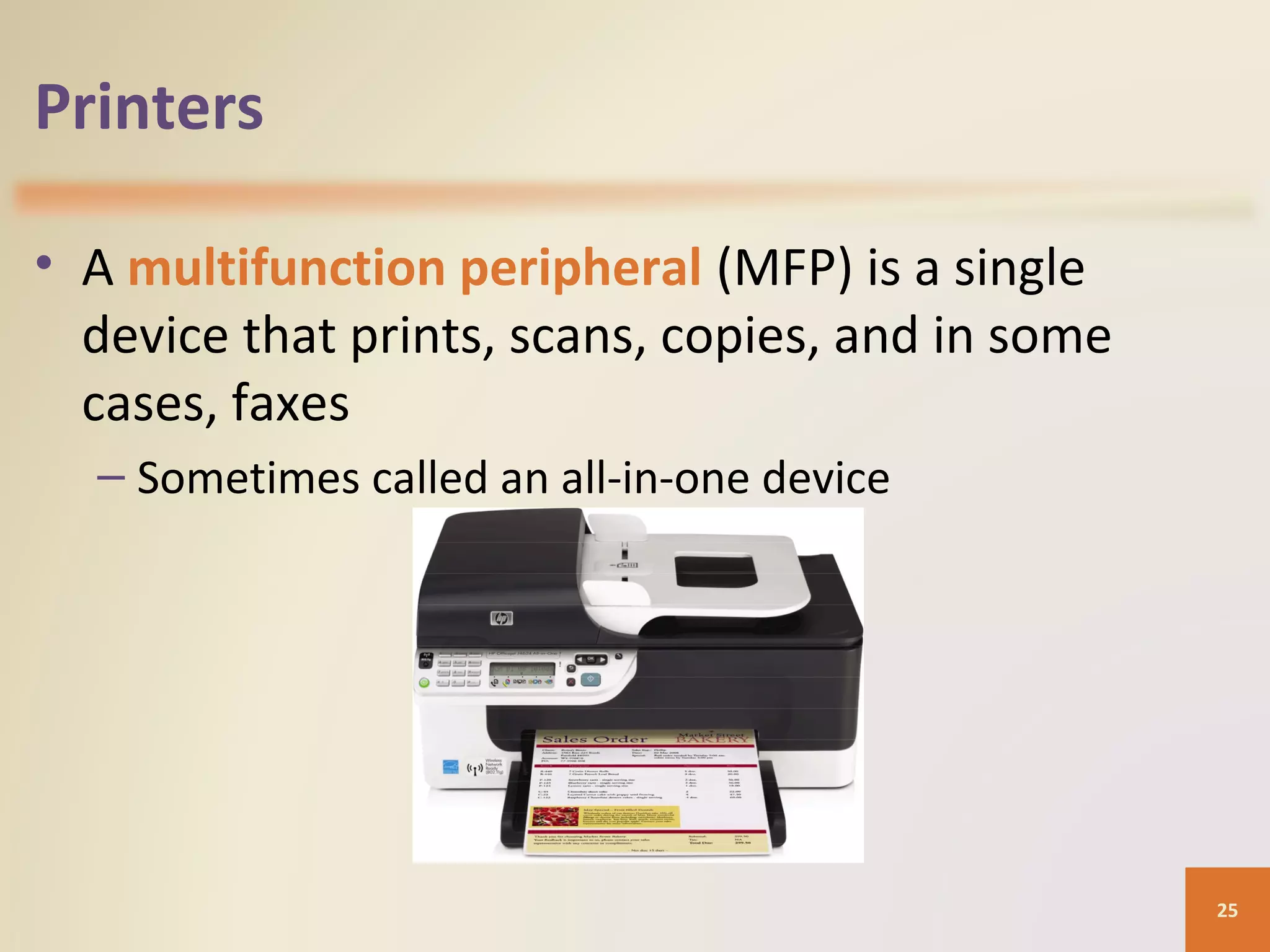

- 25. Printers • A multifunctionperipheral (MFP) is a single device that prints, scans, copies, and in some cases, faxes – Sometimes called an all-in-one device 25

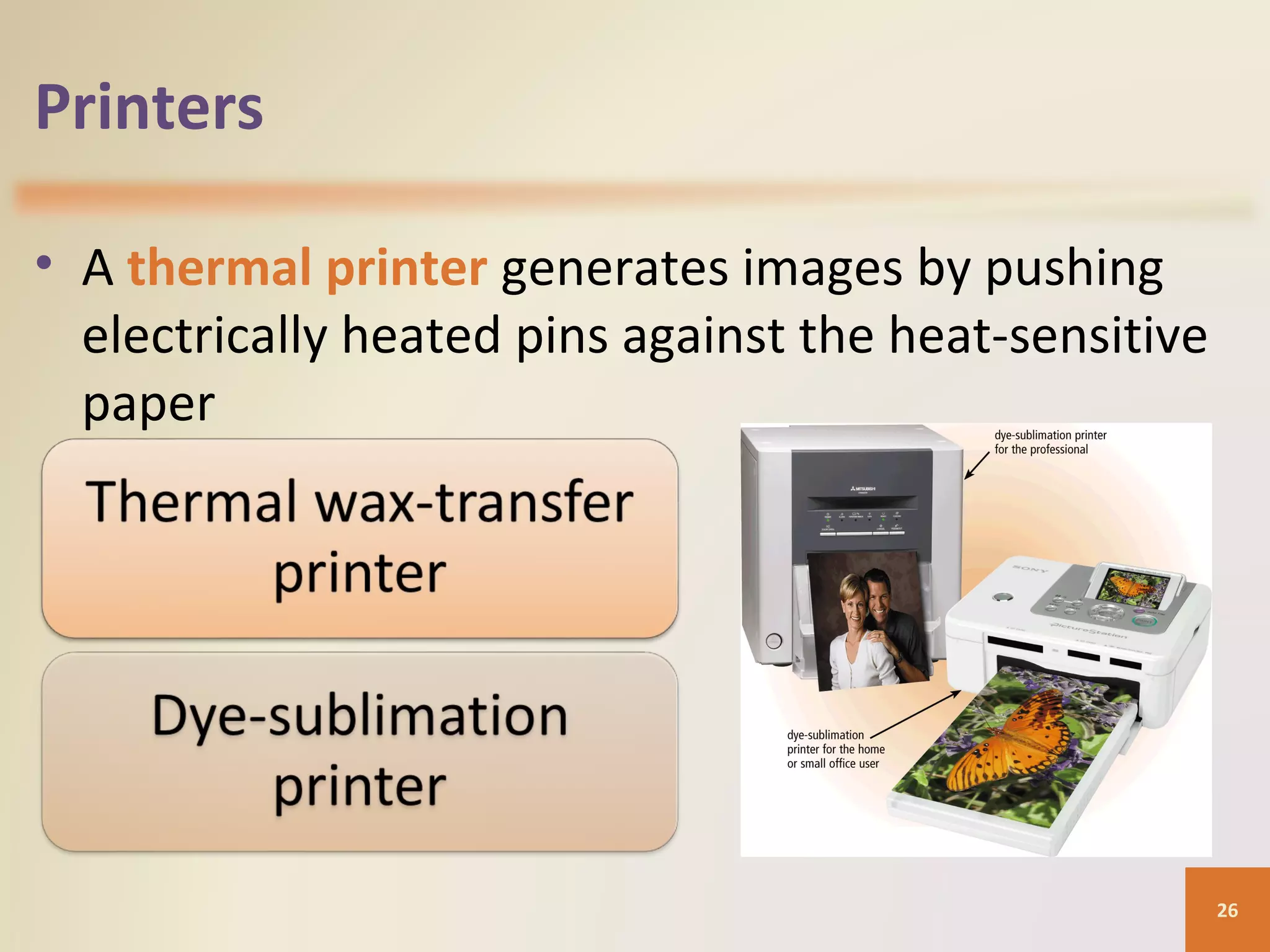

- 26. Printers • A thermalprinter generates images by pushing electrically heated pins against the heat-sensitive paper 26

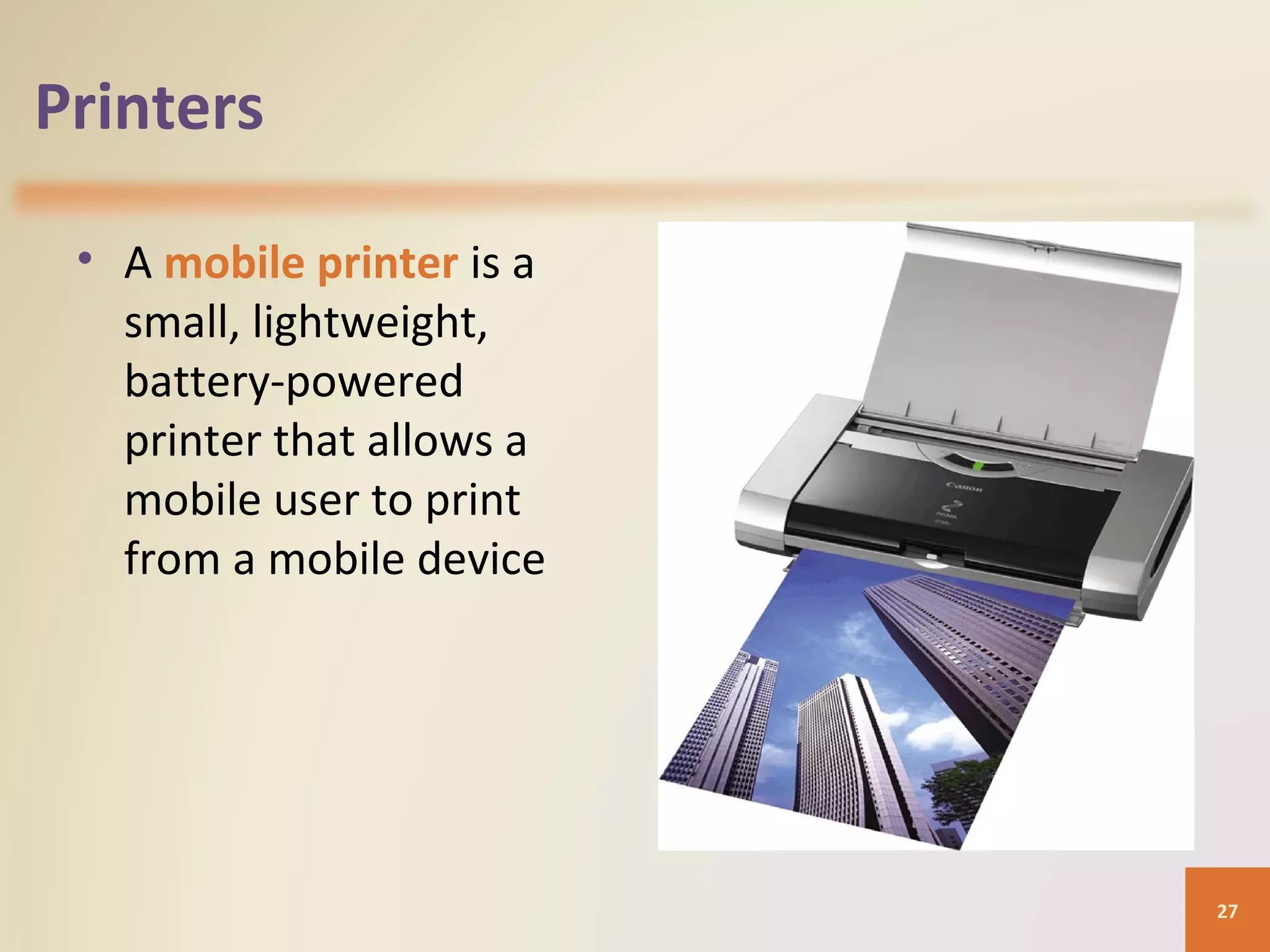

- 27. Printers • A mobileprinter is a small, lightweight, battery-powered printer that allows a mobile user to print from a mobile device 27

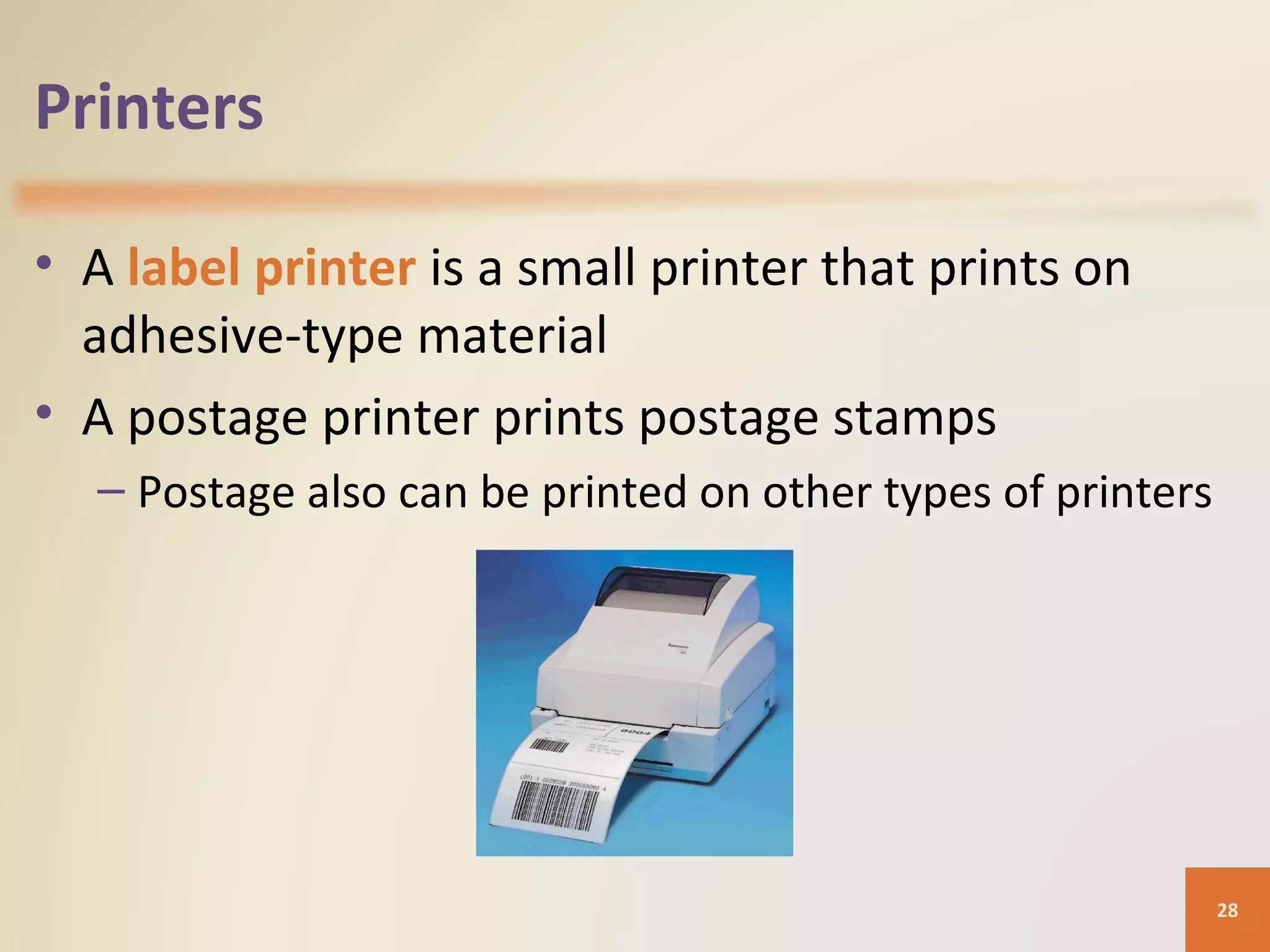

- 28. Printers • A labelprinter is a small printer that prints on adhesive-type material • A postage printer prints postage stamps – Postage also can be printed on other types of printers 28

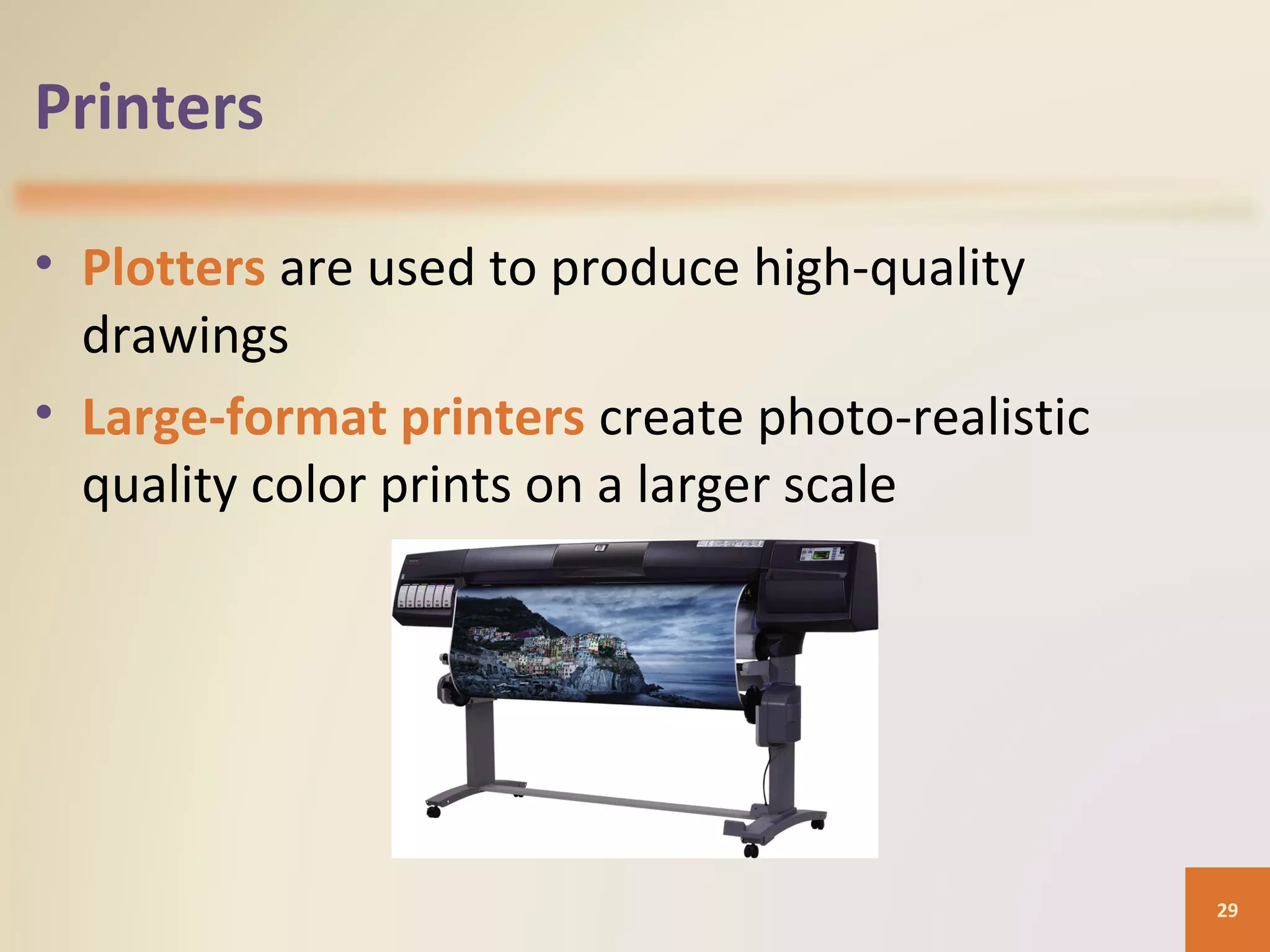

- 29. Printers • Plotters areused to produce high-quality drawings • Large-format printers create photo-realistic quality color prints on a larger scale 29

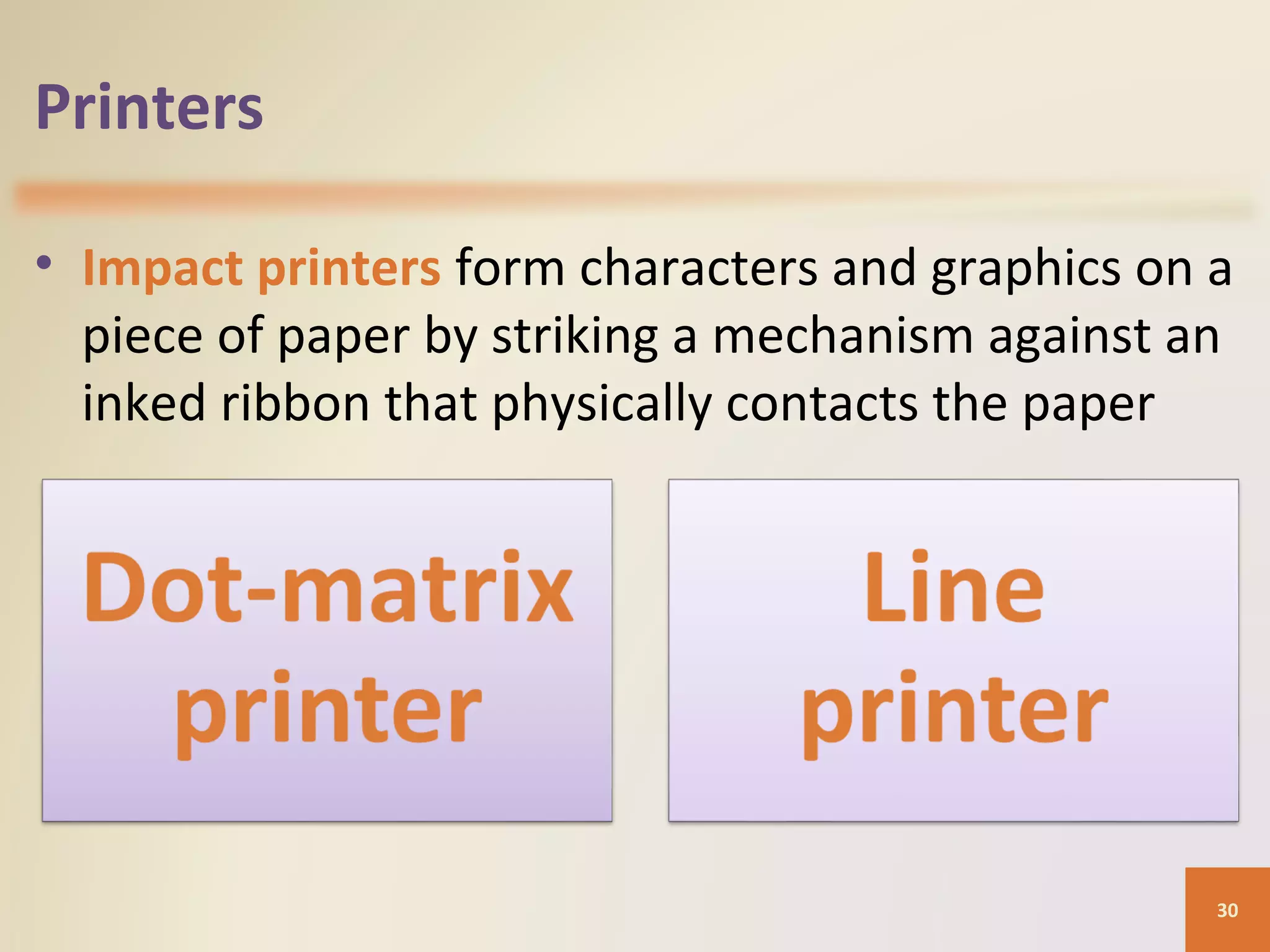

- 30. Printers • Impact printersform characters and graphics on a piece of paper by striking a mechanism against an inked ribbon that physically contacts the paper 30

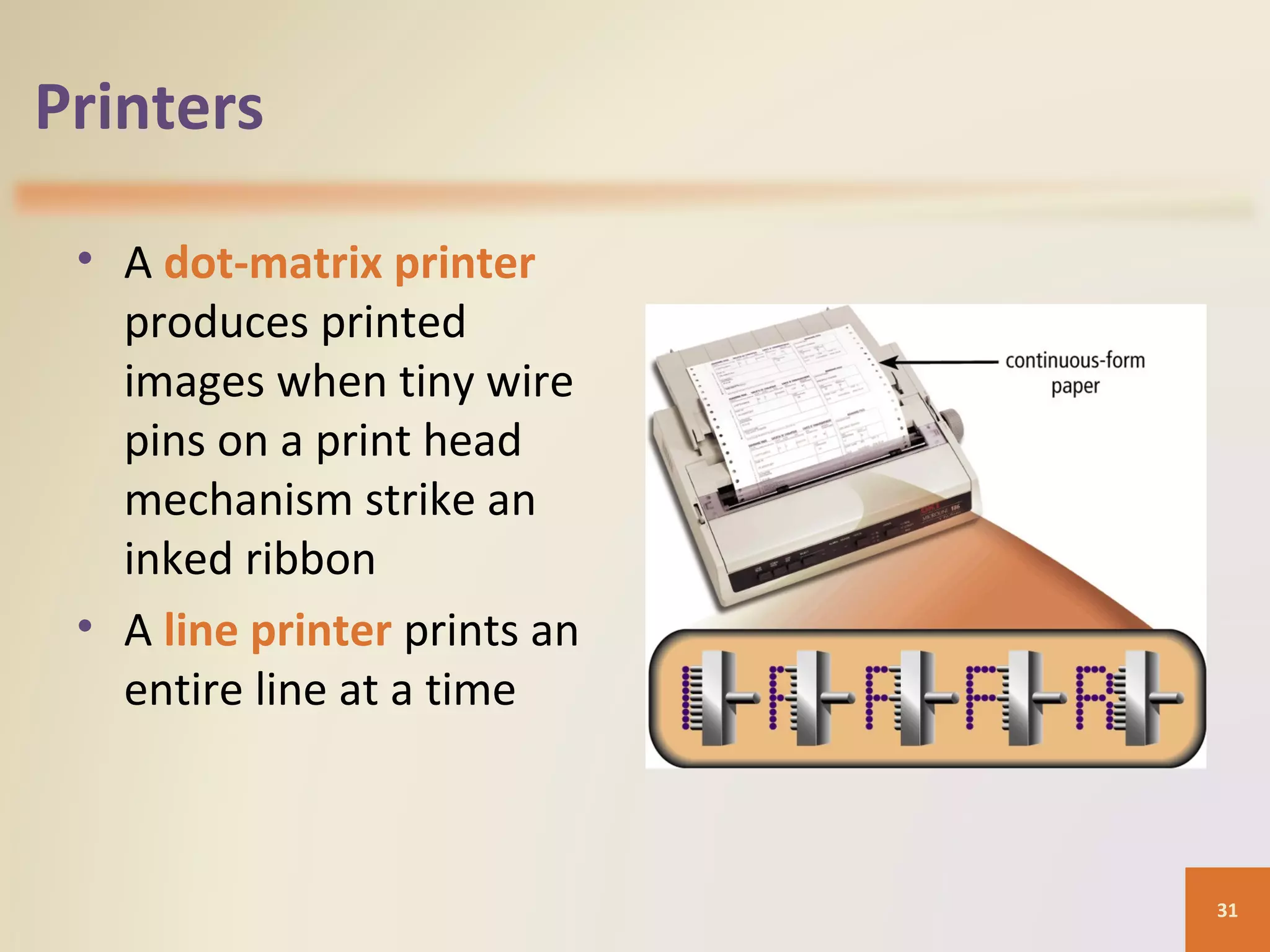

- 31. Printers • A dot-matrixprinter produces printed images when tiny wire pins on a print head mechanism strike an inked ribbon • A line printer prints an entire line at a time 31

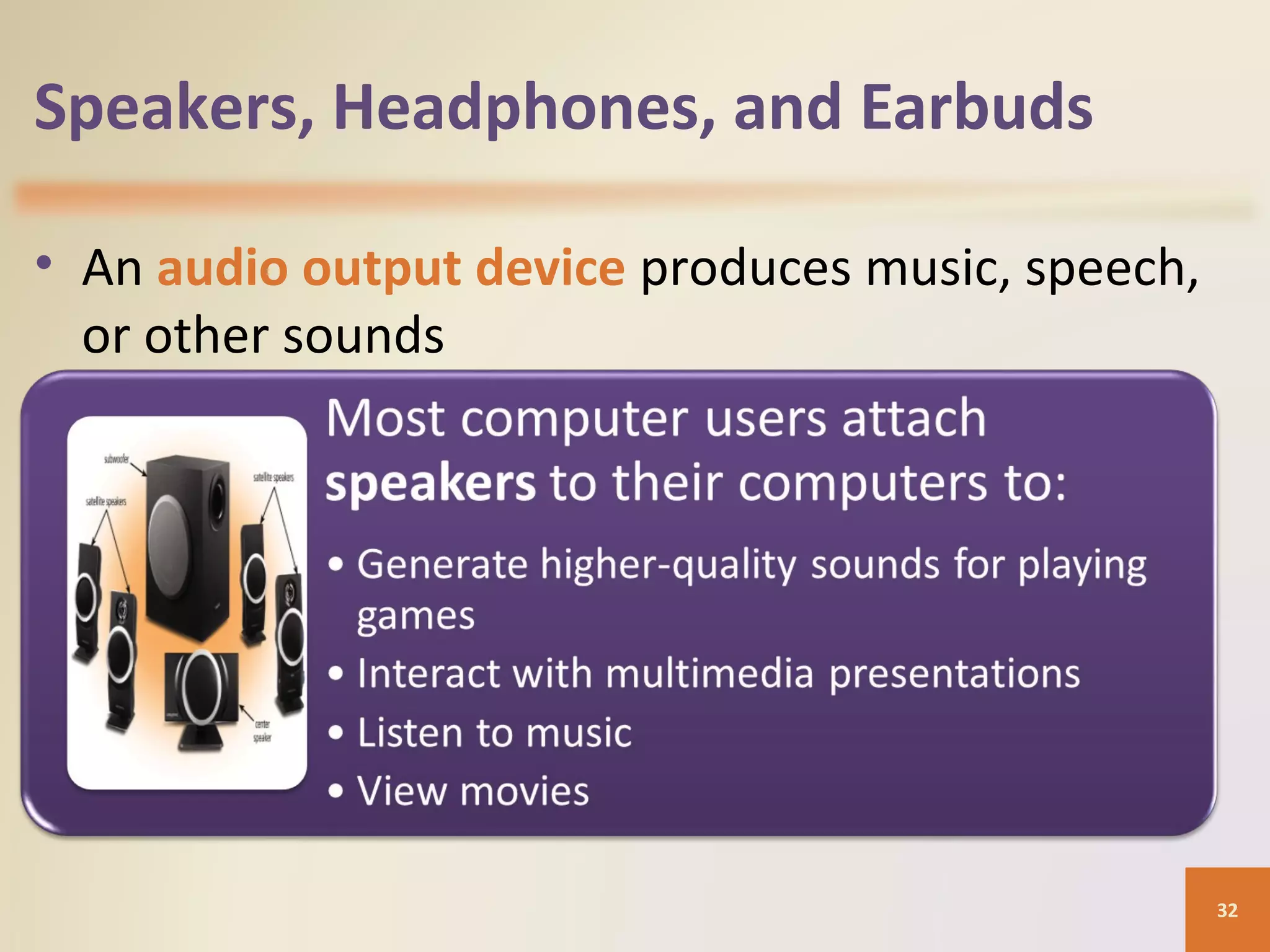

- 32. Speakers, Headphones, andEarbuds • An audio output device produces music, speech, or other sounds 32

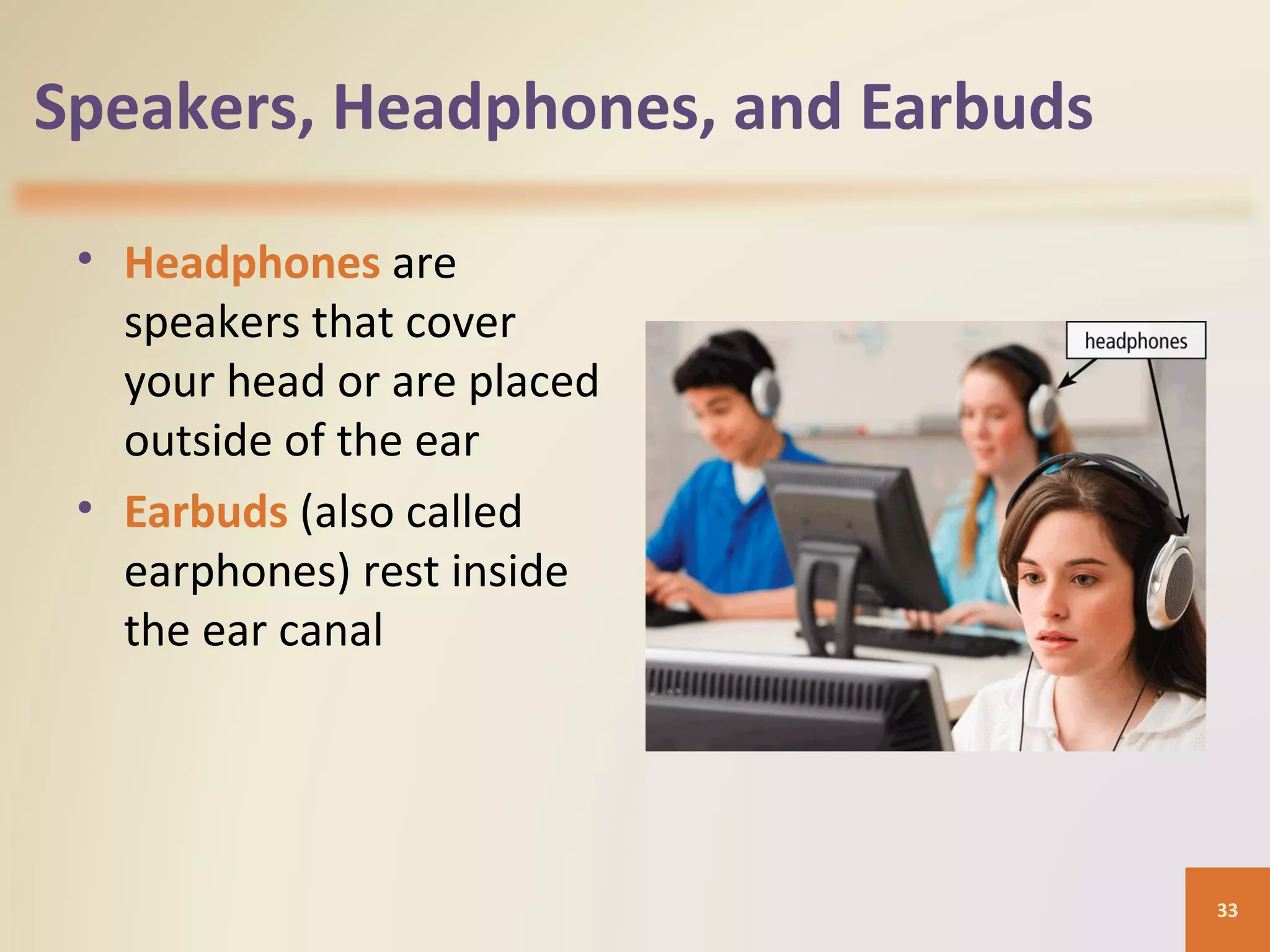

- 33. Speakers, Headphones, andEarbuds • Headphones are speakers that cover your head or are placed outside of the ear • Earbuds (also called earphones) rest inside the ear canal 33

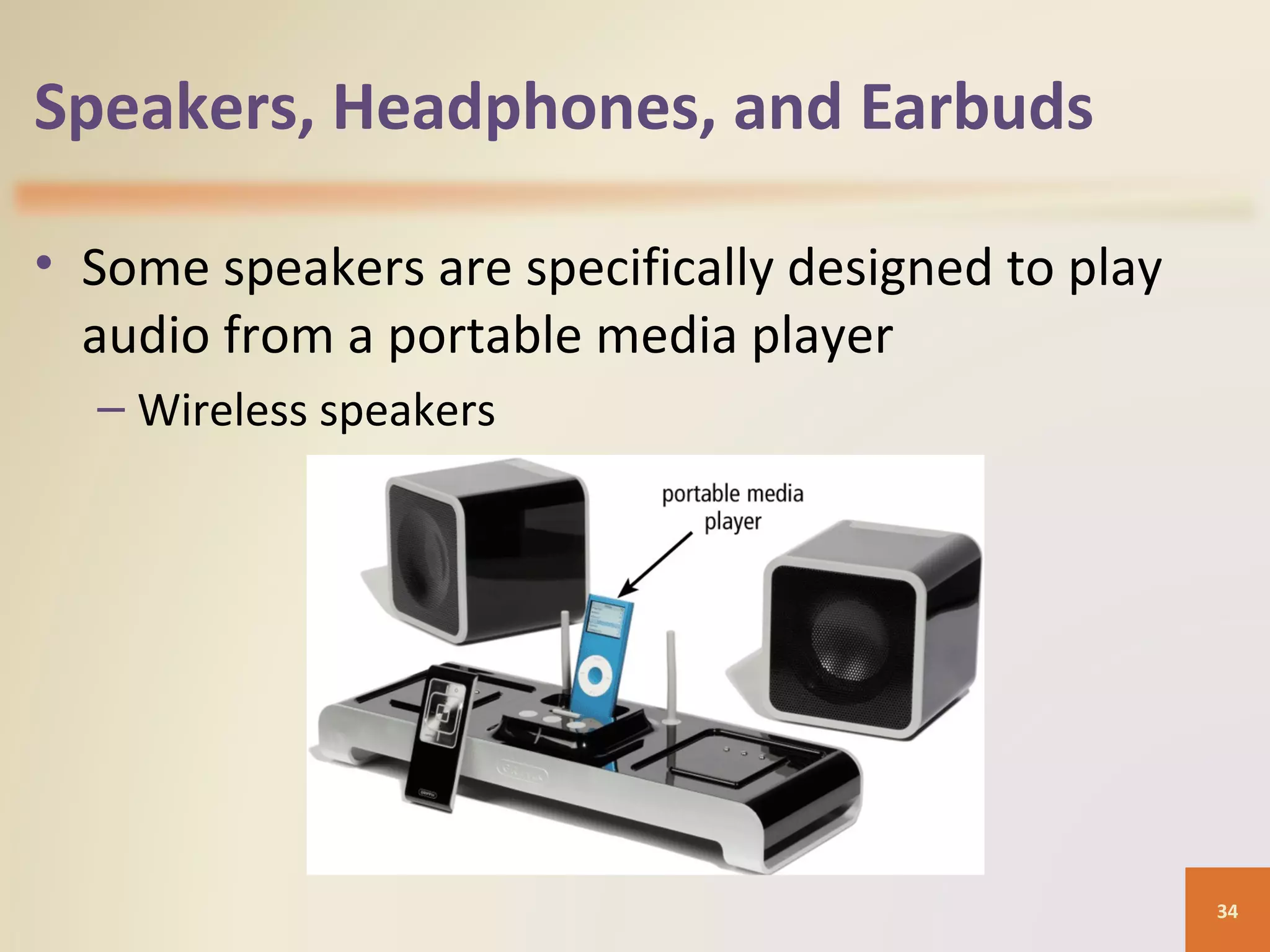

- 34. Speakers, Headphones, andEarbuds • Some speakers are specifically designed to play audio from a portable media player – Wireless speakers 34

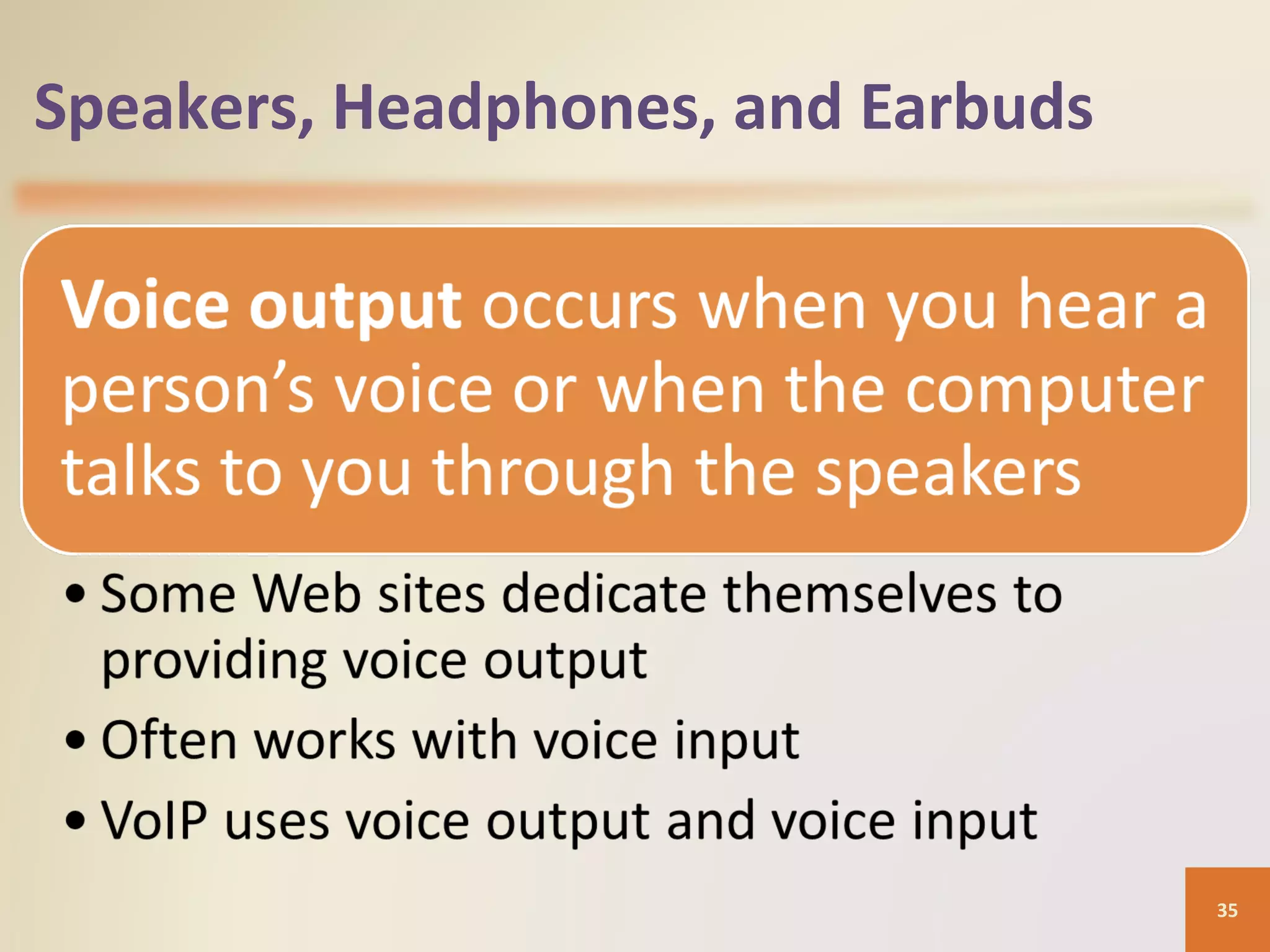

- 35. Speakers, Headphones, andEarbuds 35

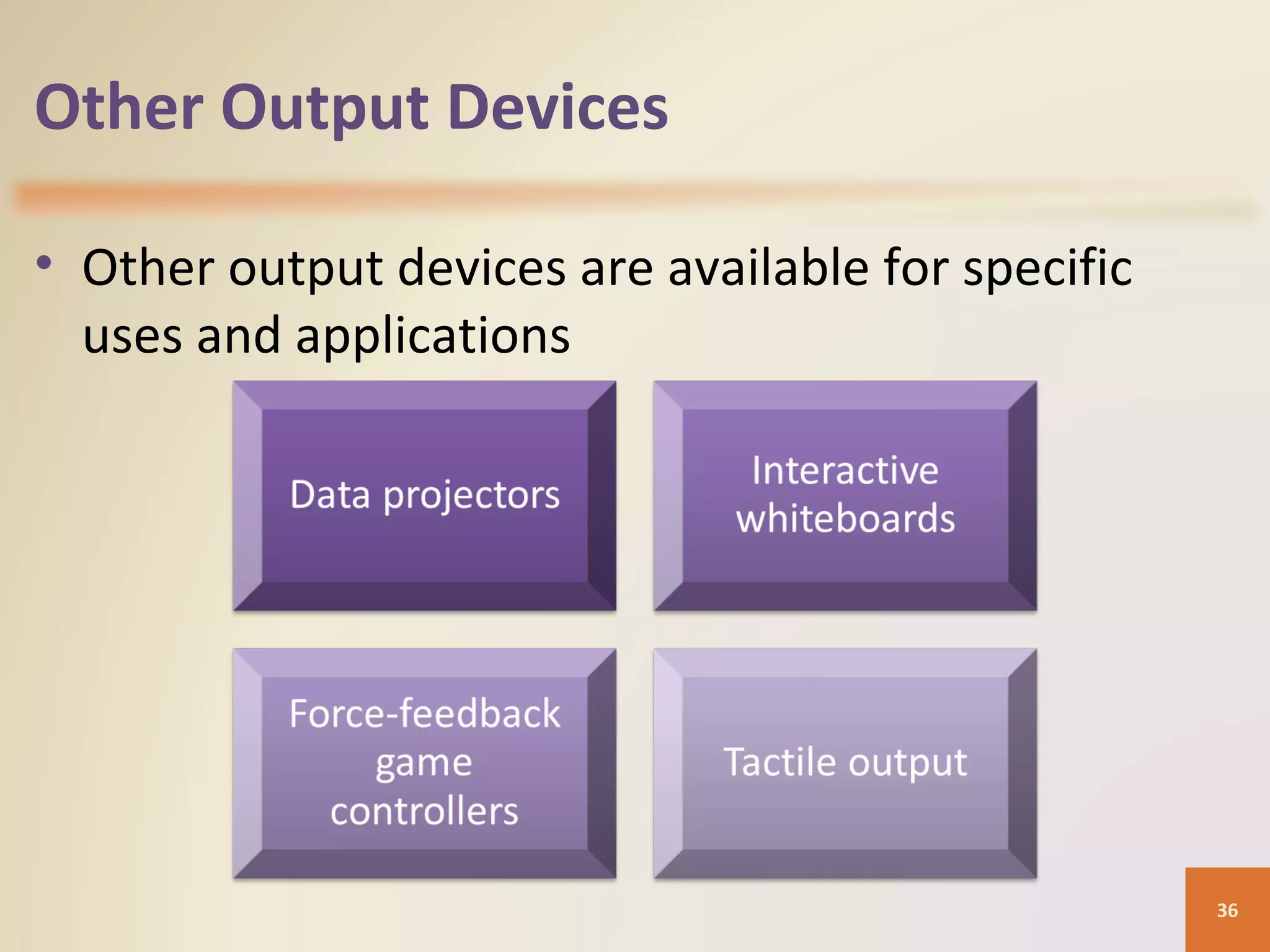

- 36. Other Output Devices •Other output devices are available for specific uses and applications 36

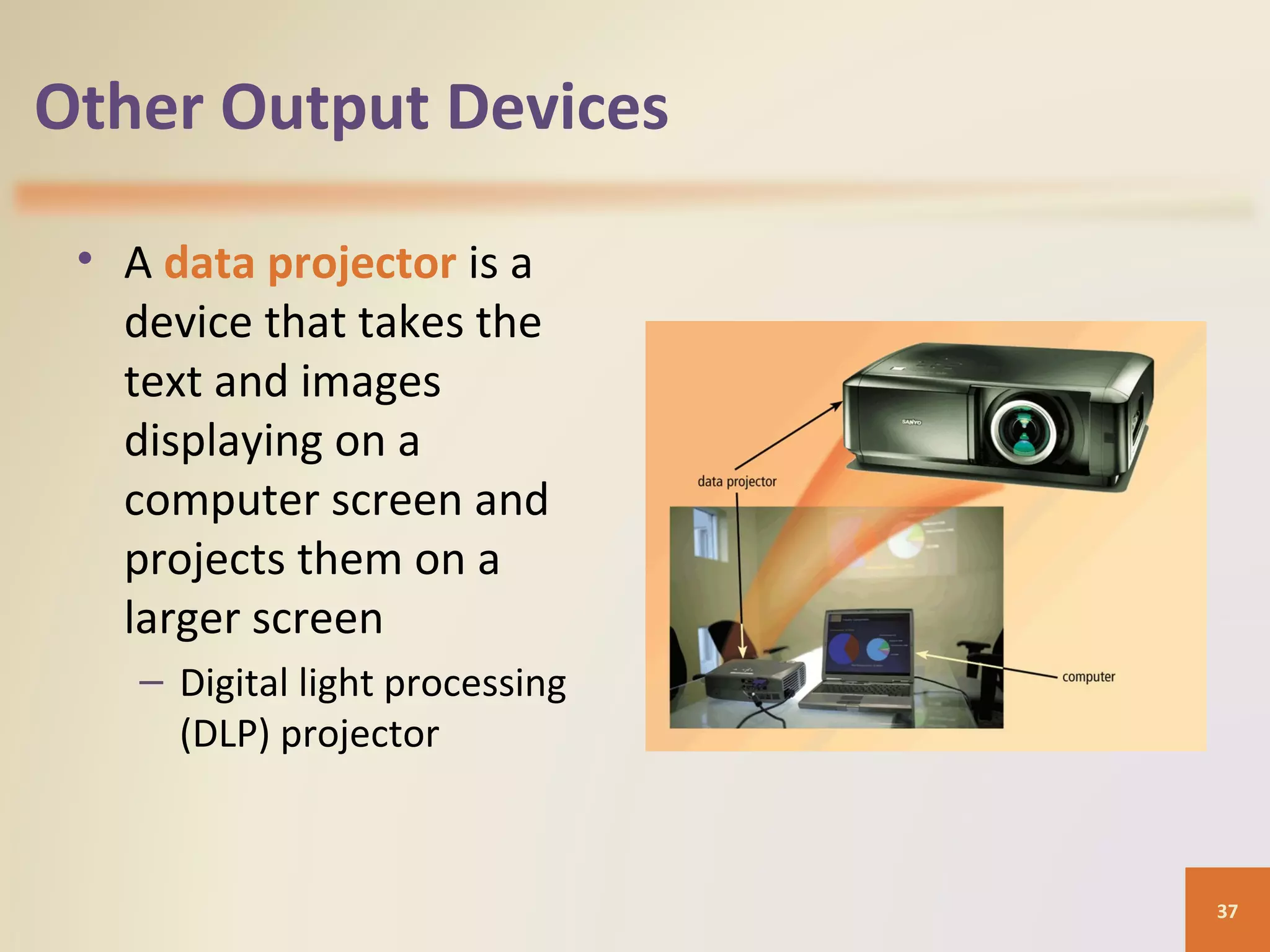

- 37. Other Output Devices •A data projector is a device that takes the text and images displaying on a computer screen and projects them on a larger screen – Digital light processing (DLP) projector 37

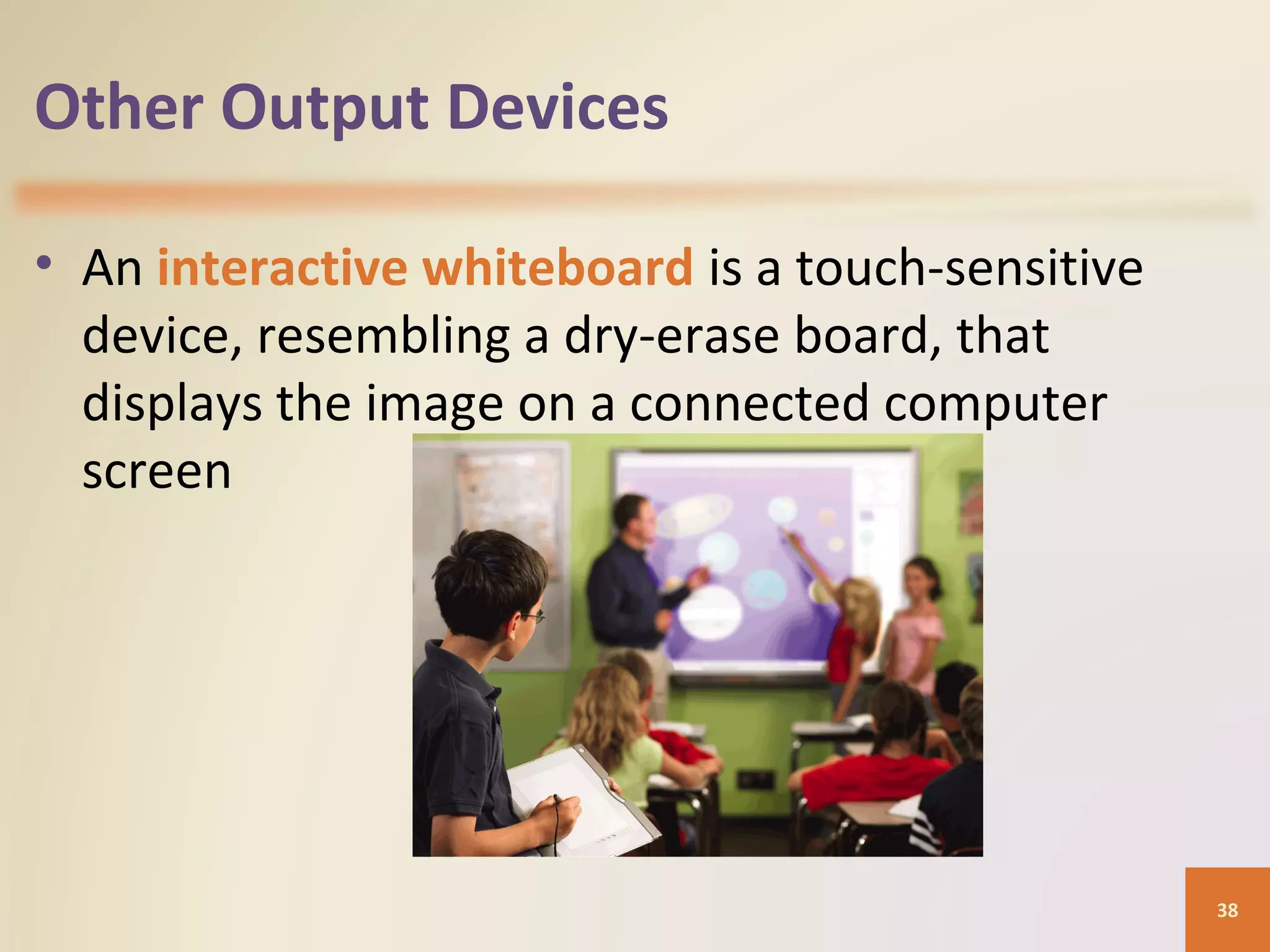

- 38. Other Output Devices •An interactive whiteboard is a touch-sensitive device, resembling a dry-erase board, that displays the image on a connected computer screen 38

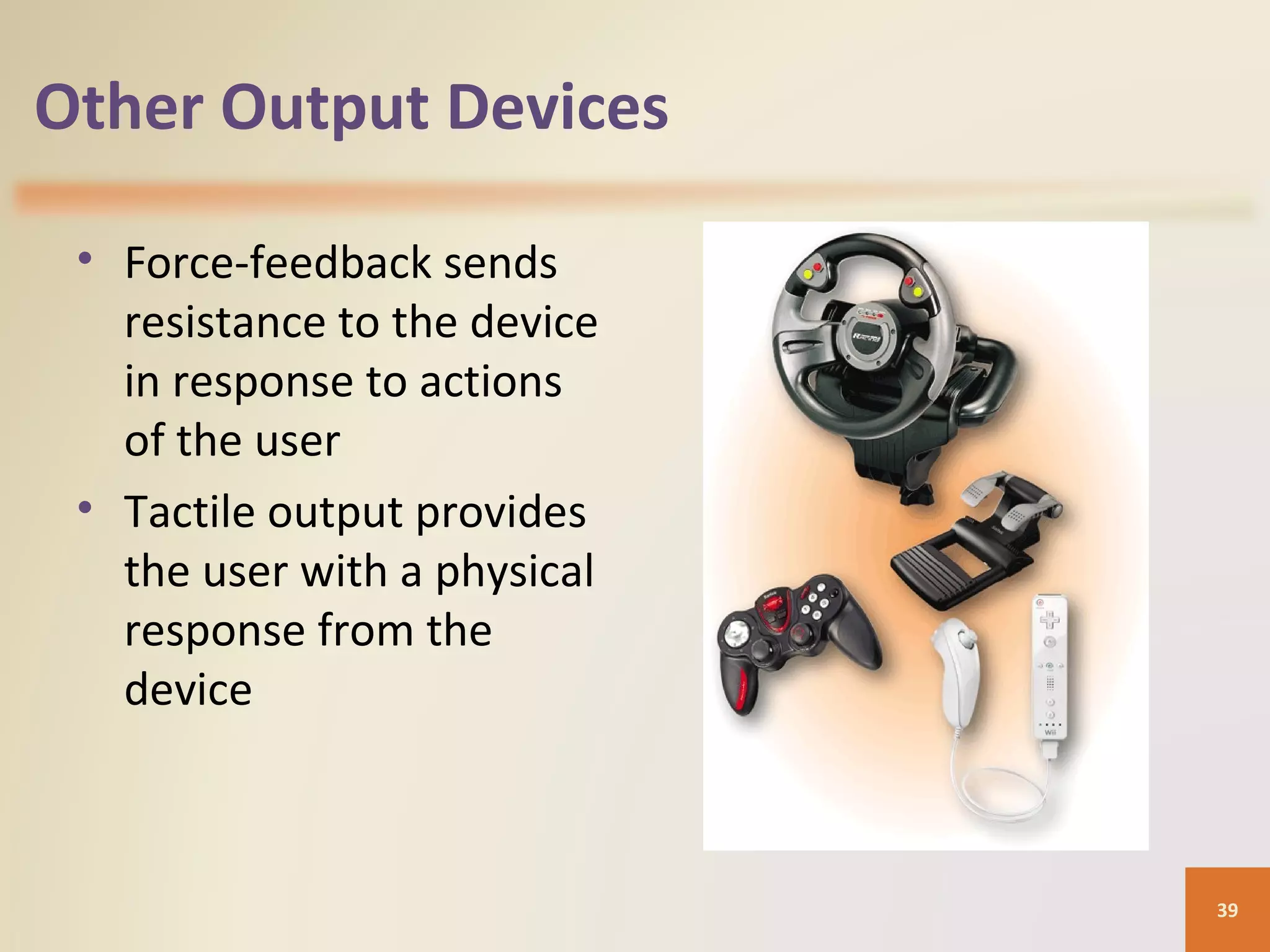

- 39. Other Output Devices •Force-feedback sends resistance to the device in response to actions of the user • Tactile output provides the user with a physical response from the device 39

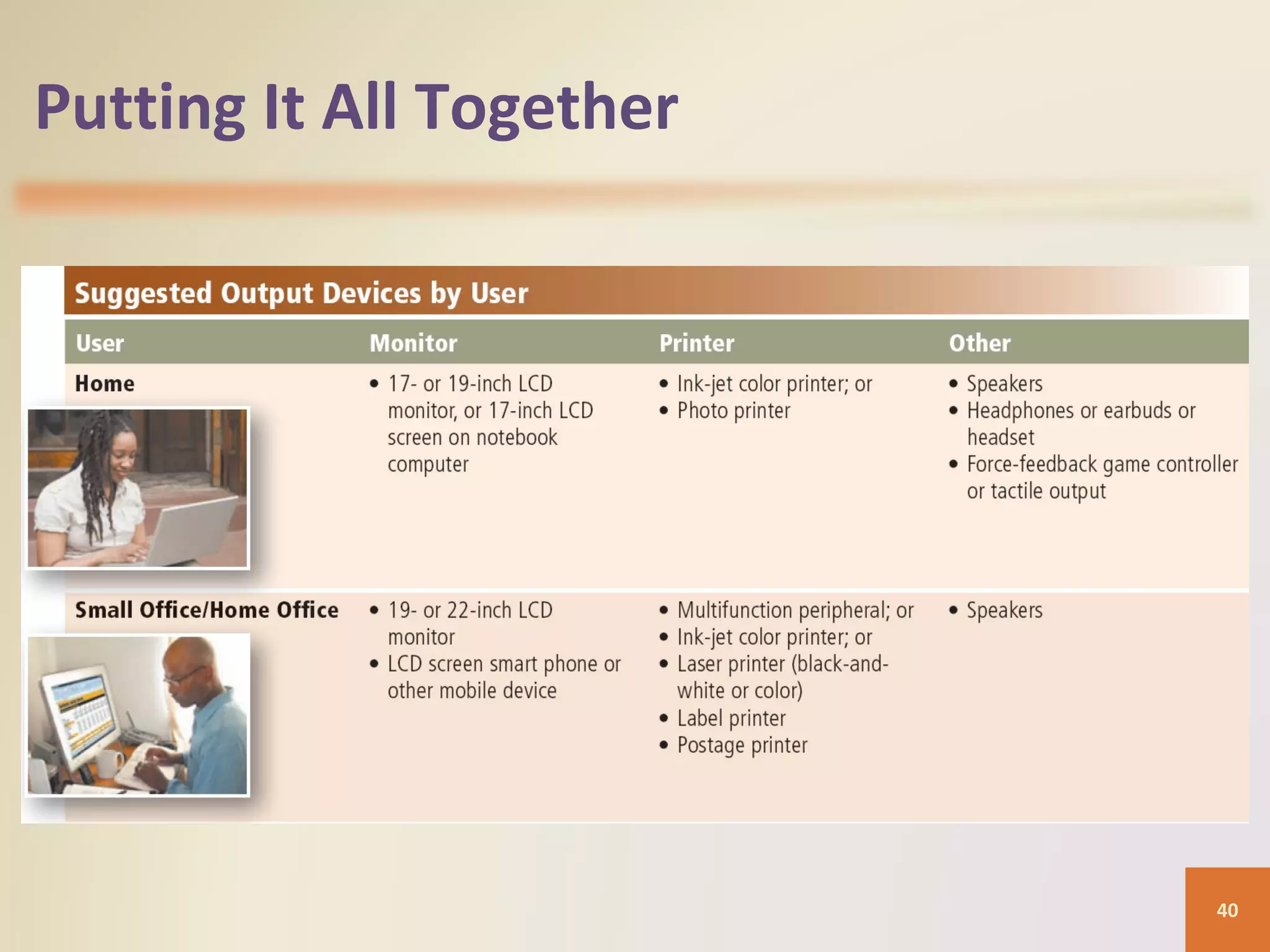

- 40. Putting It AllTogether 40

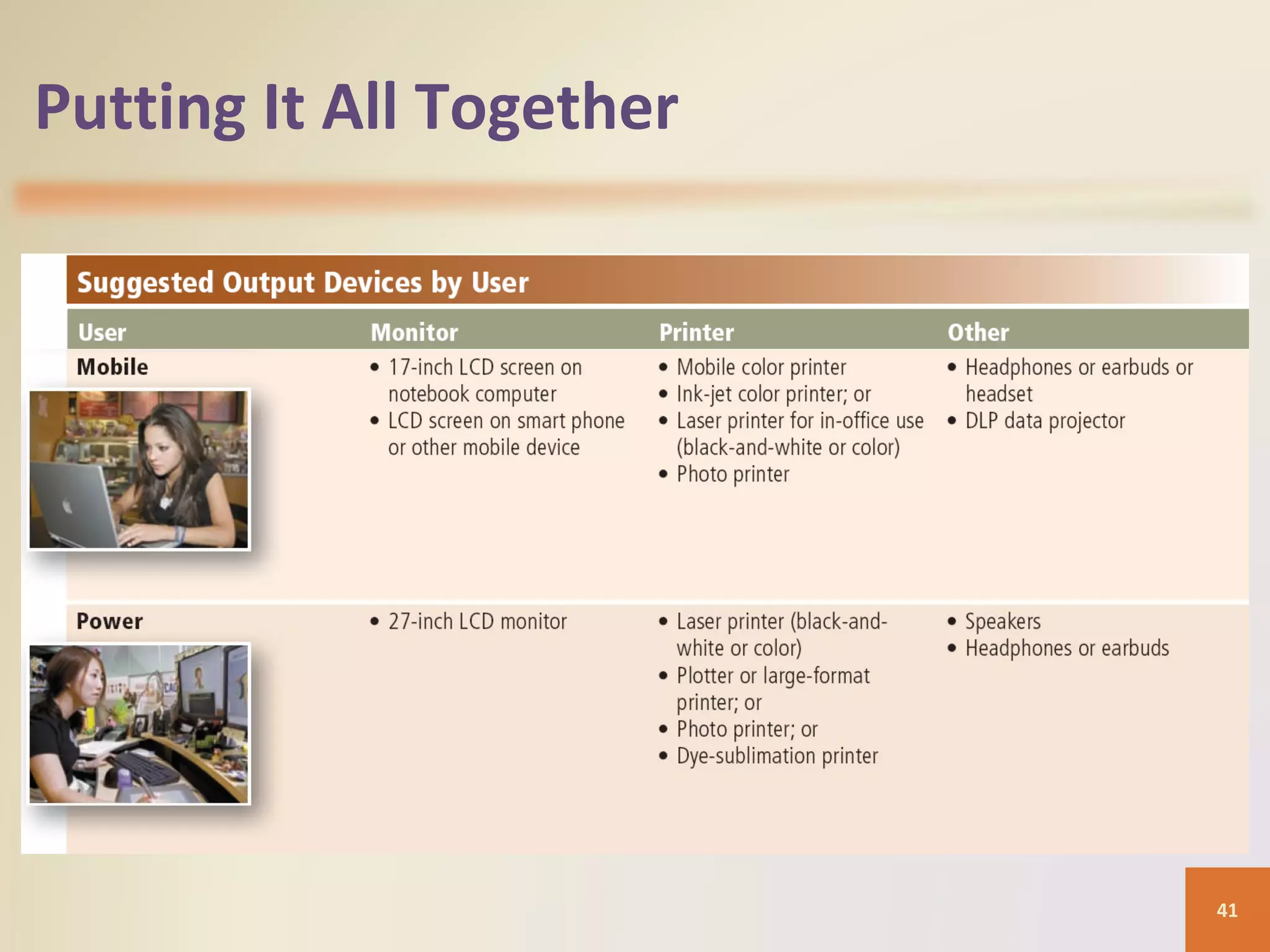

- 41. Putting It AllTogether 41

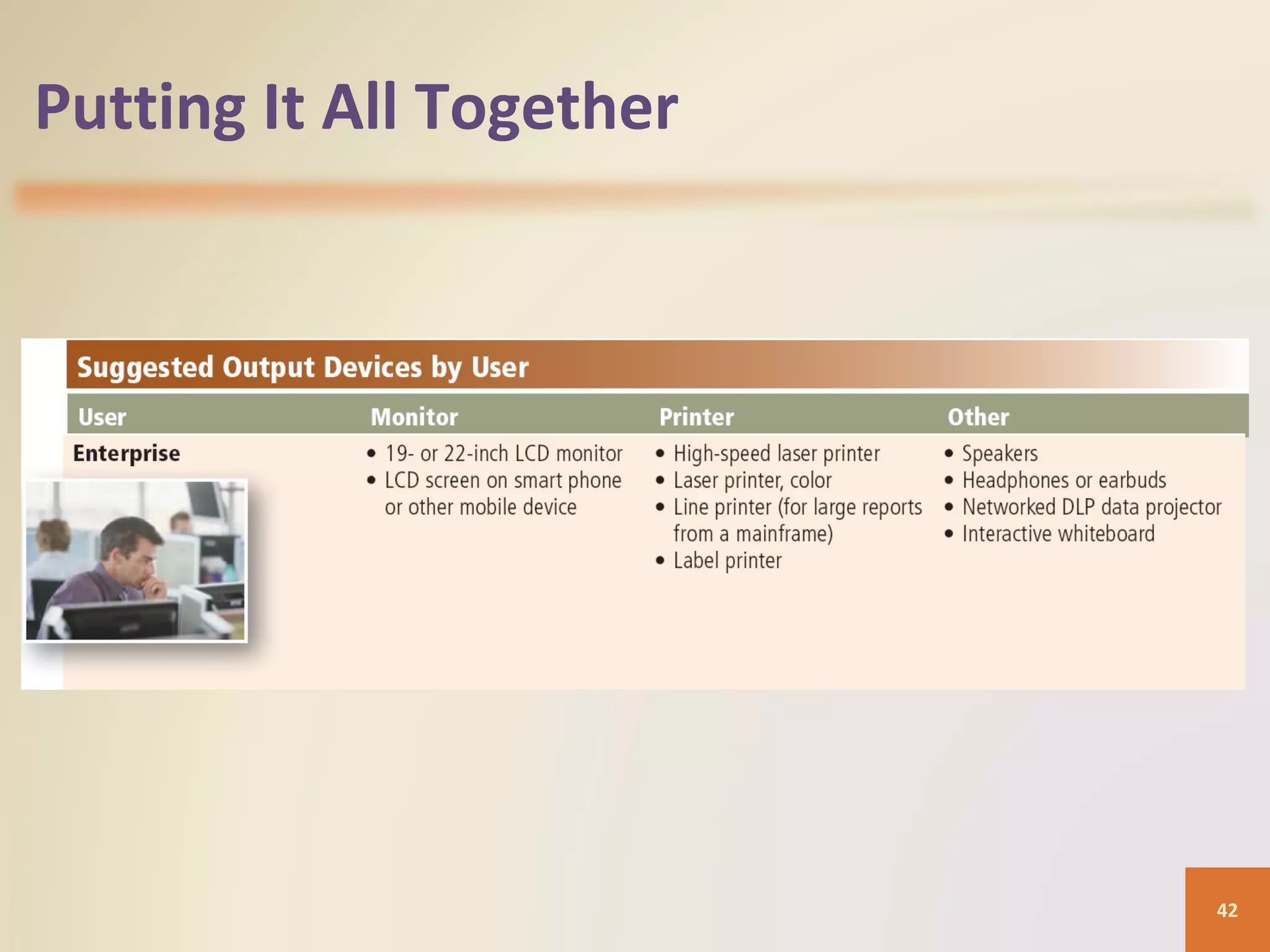

- 42. Putting It AllTogether 42

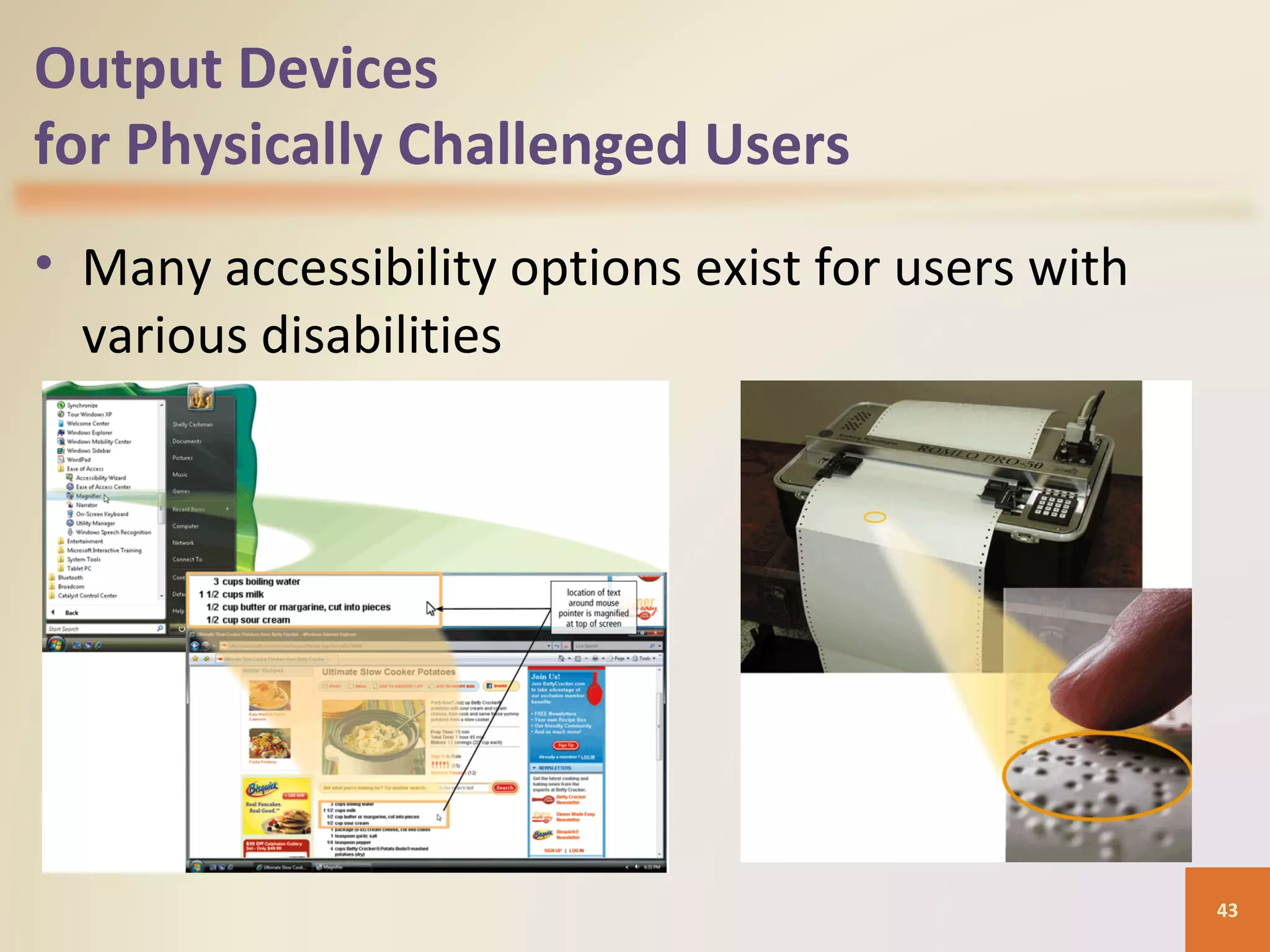

- 43. Output Devices for PhysicallyChallenged Users • Many accessibility options exist for users with various disabilities 43

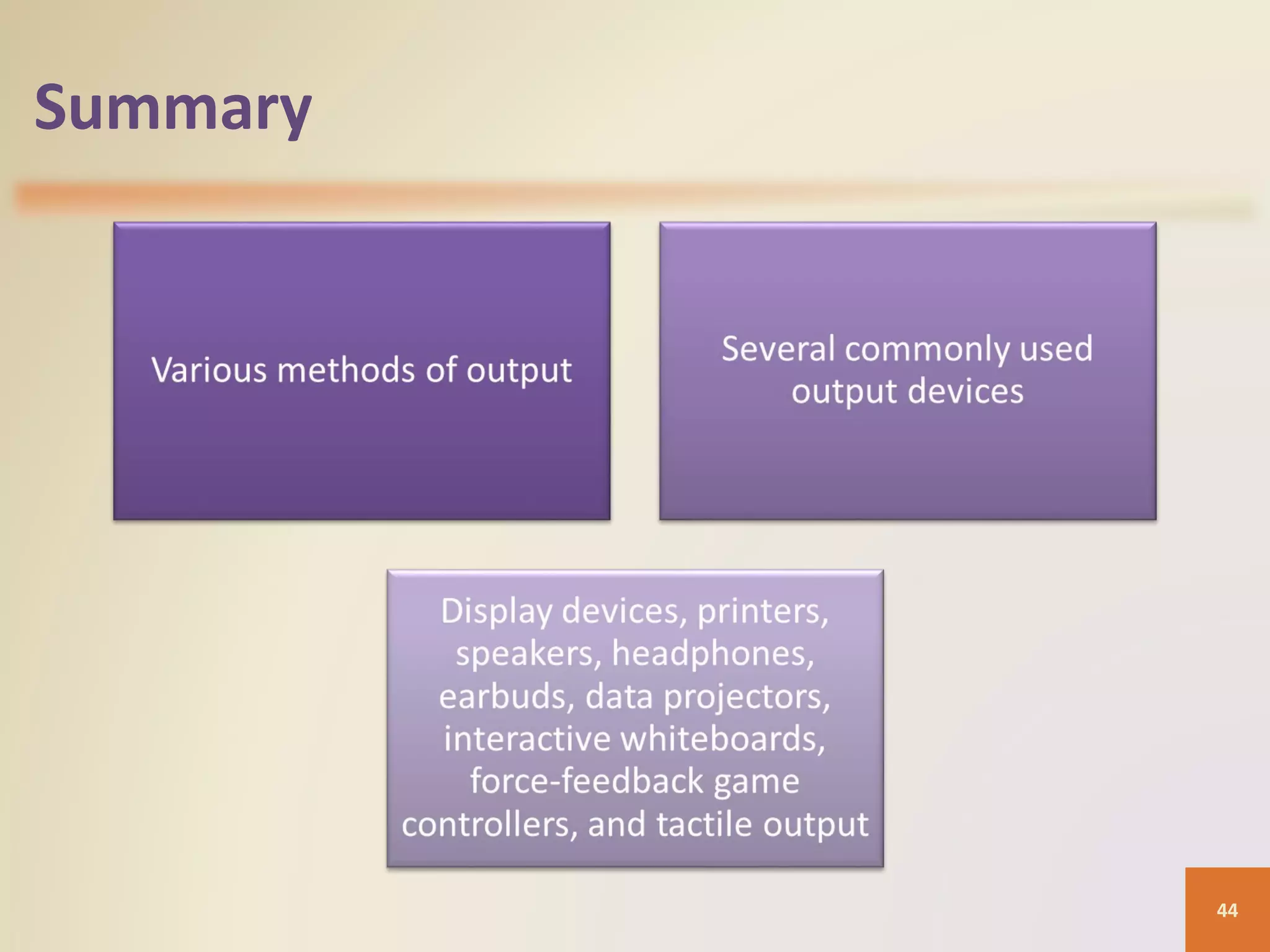

- 44.
