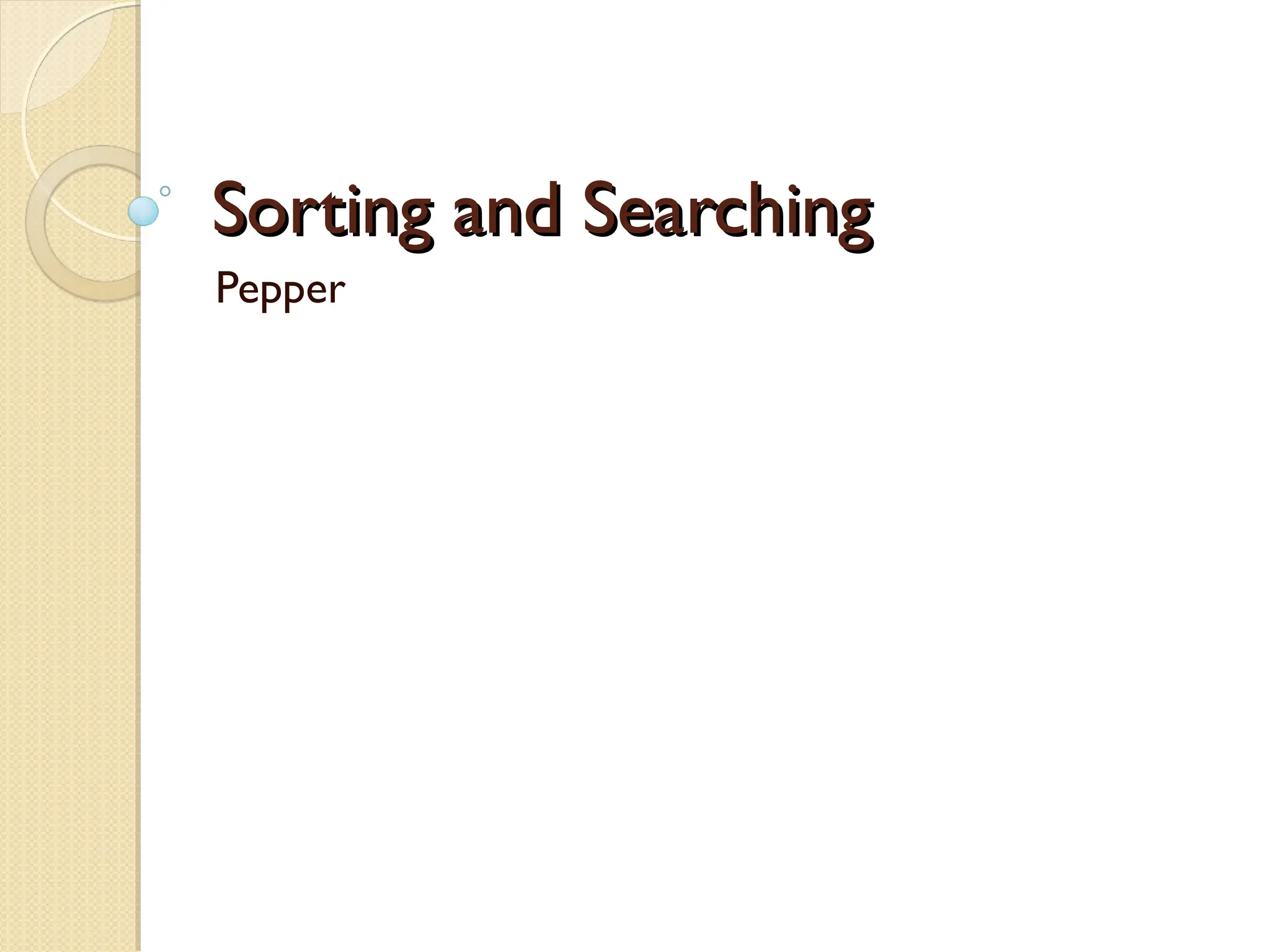

Sorting and Searching Sorting and Searching Pepper

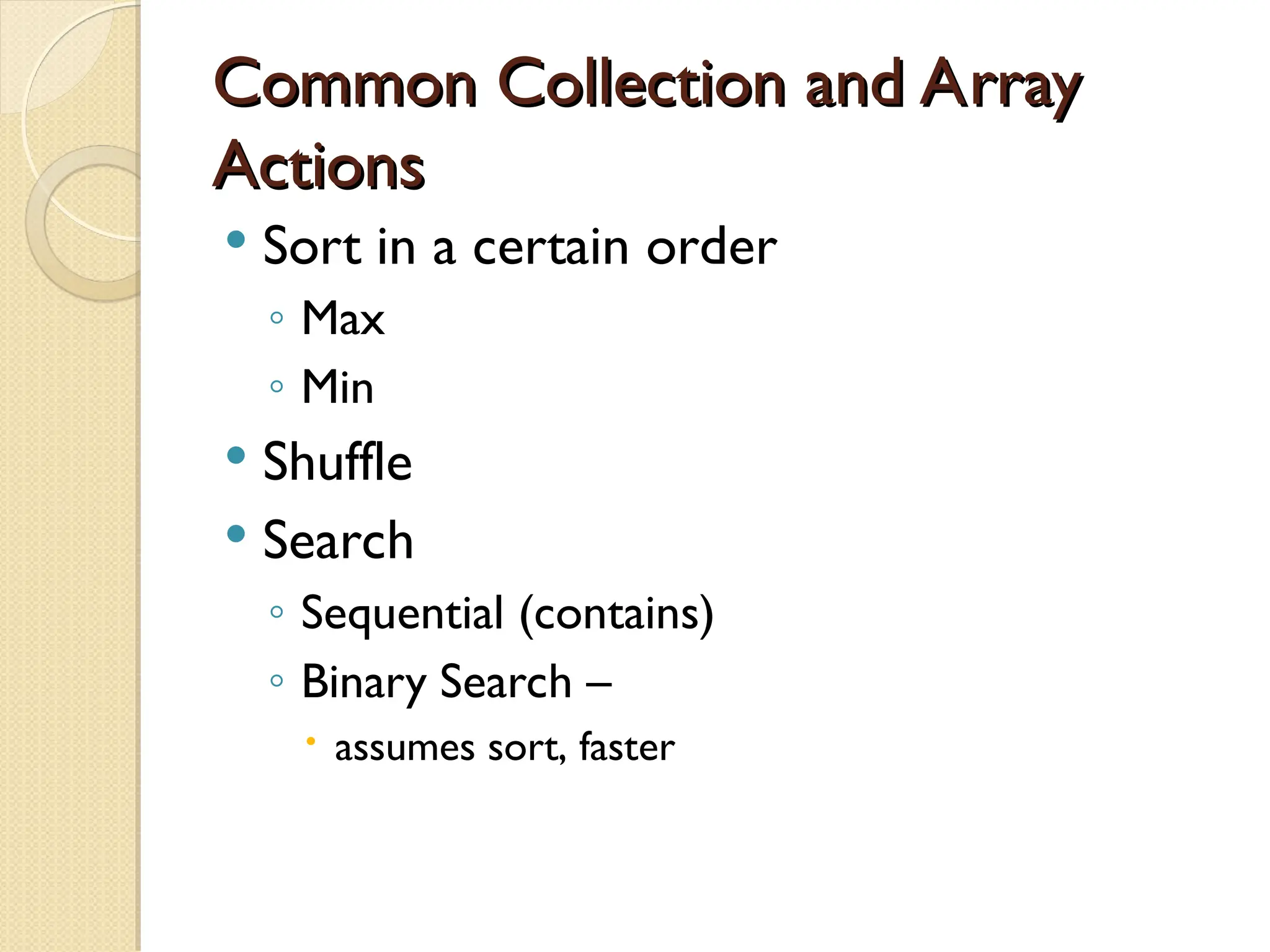

Common Collection and Array Common Collection and Array Actions Actions  Sort in a certain order ◦ Max ◦ Min  Shuffle  Search ◦ Sequential (contains) ◦ Binary Search –  assumes sort, faster

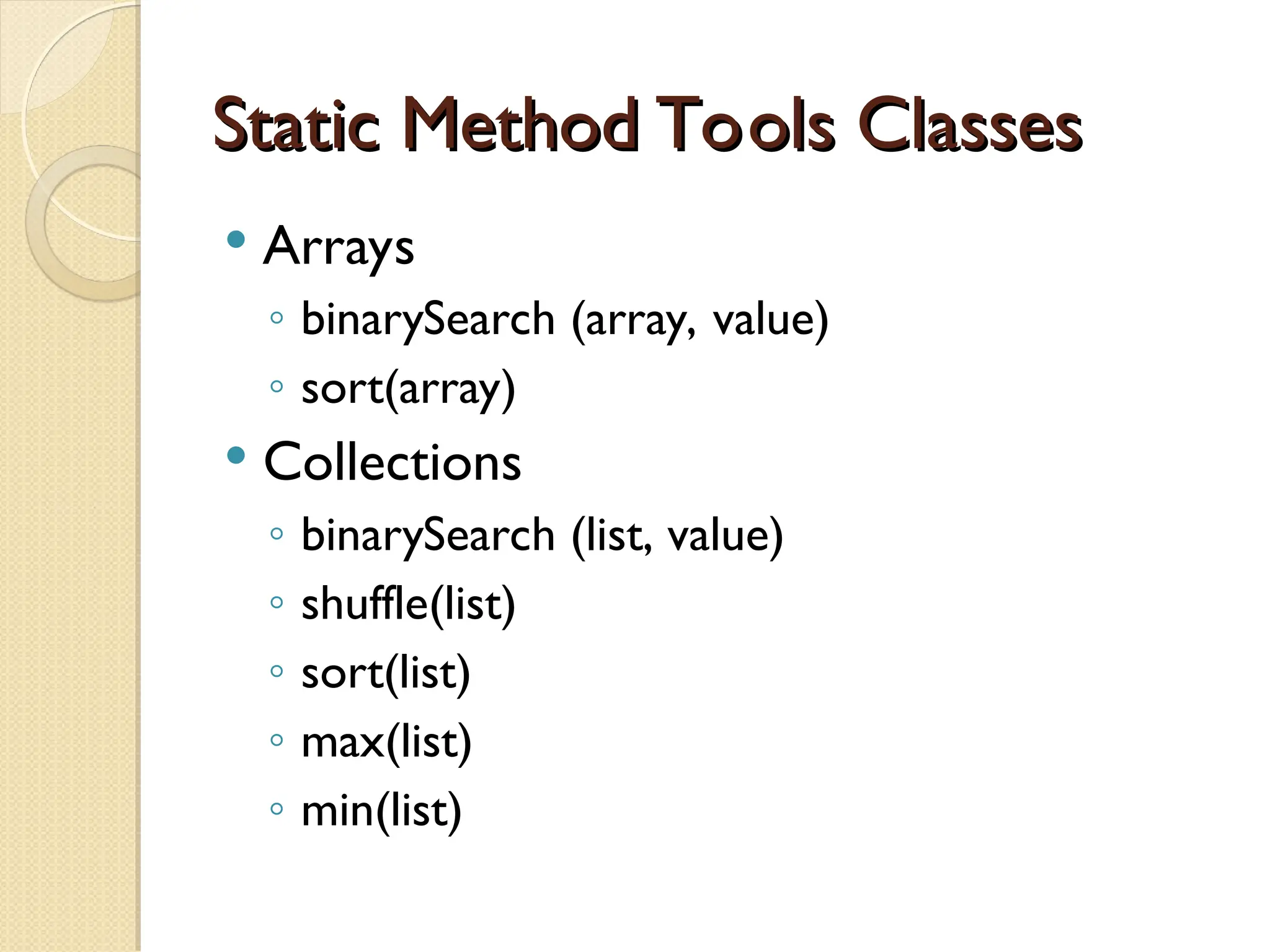

Static Method Tools Classes Static Method Tools Classes  Arrays ◦ binarySearch (array, value) ◦ sort(array)  Collections ◦ binarySearch (list, value) ◦ shuffle(list) ◦ sort(list) ◦ max(list) ◦ min(list)

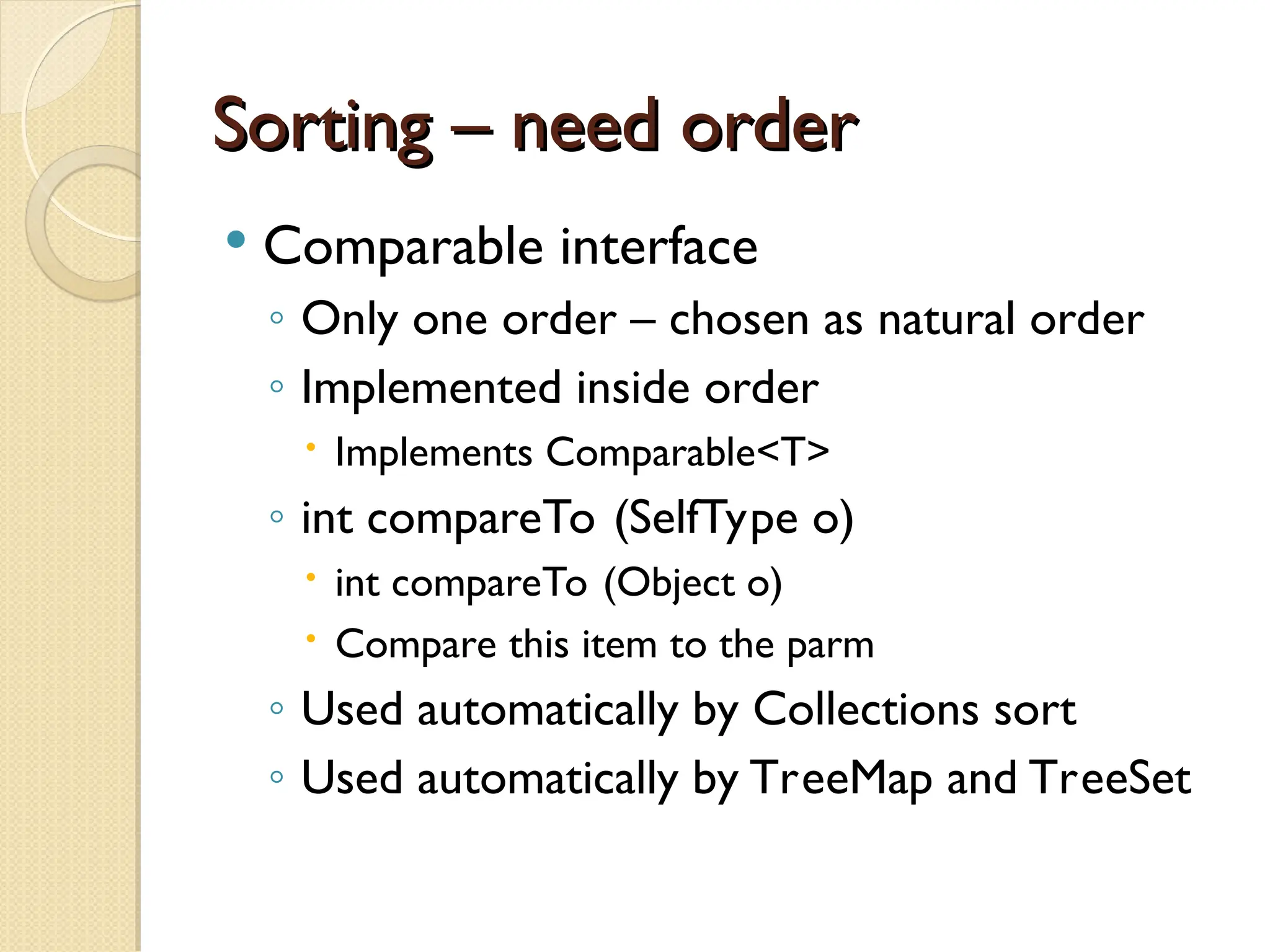

Sorting – need order Sorting – need order  Comparable interface ◦ Only one order – chosen as natural order ◦ Implemented inside order  Implements Comparable<T> ◦ int compareTo (SelfType o)  int compareTo (Object o)  Compare this item to the parm ◦ Used automatically by Collections sort ◦ Used automatically by TreeMap and TreeSet

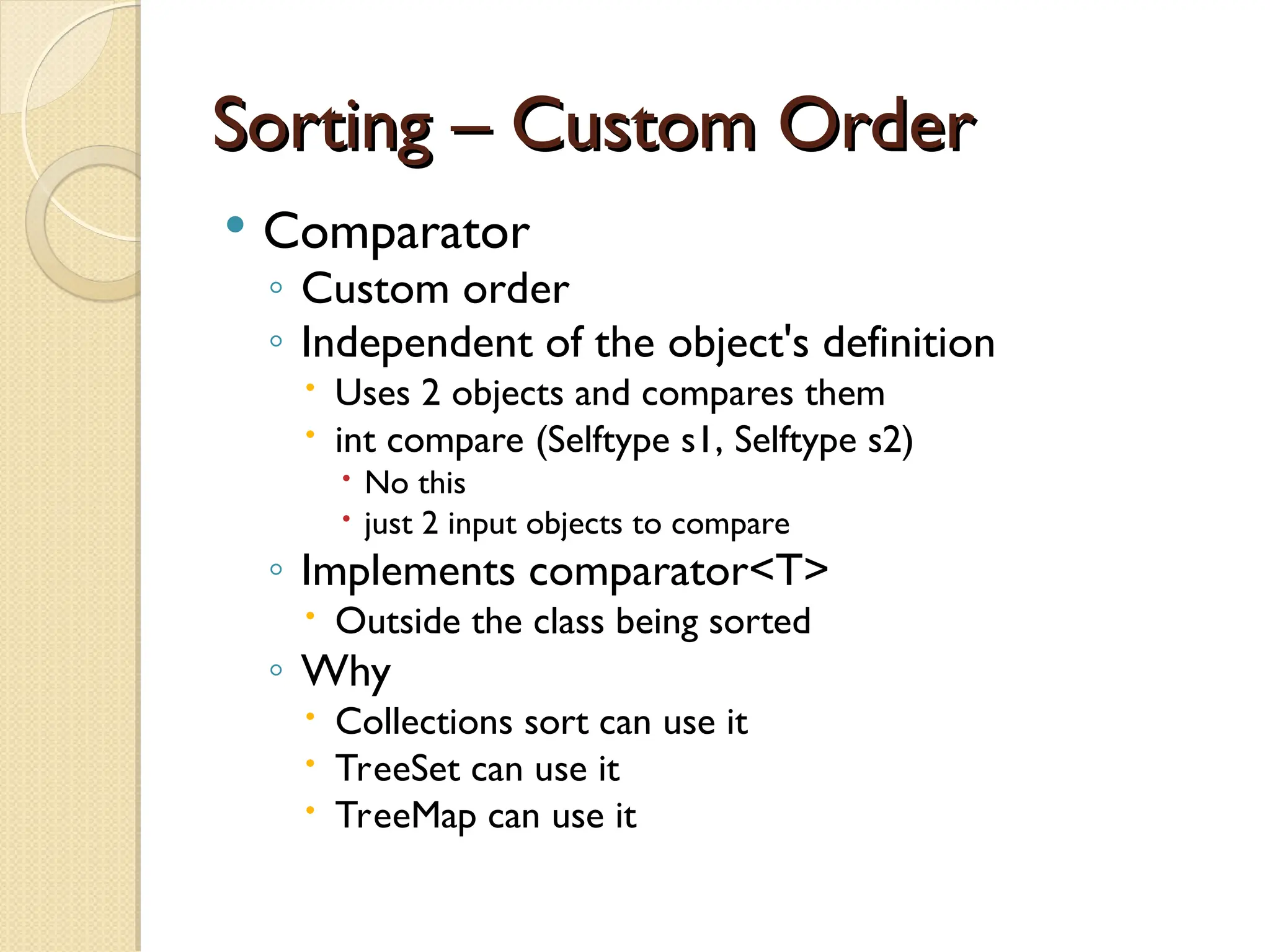

Sorting – Custom Order Sorting – Custom Order  Comparator ◦ Custom order ◦ Independent of the object's definition  Uses 2 objects and compares them  int compare (Selftype s1, Selftype s2)  No this  just 2 input objects to compare ◦ Implements comparator<T>  Outside the class being sorted ◦ Why  Collections sort can use it  TreeSet can use it  TreeMap can use it

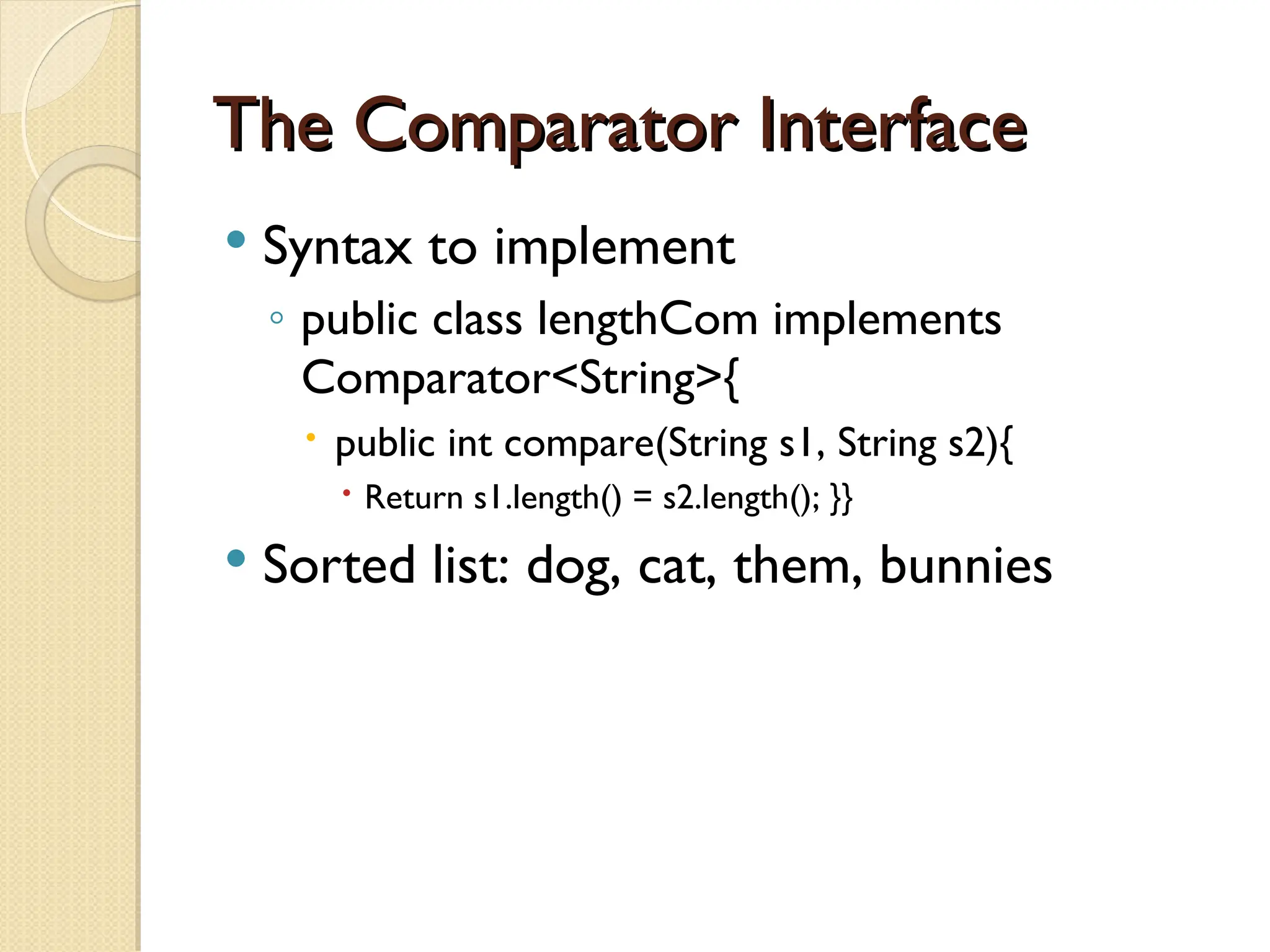

The Comparator Interface The Comparator Interface  Syntax to implement ◦ public class lengthCom implements Comparator<String>{  public int compare(String s1, String s2){  Return s1.length() = s2.length(); }}  Sorted list: dog, cat, them, bunnies

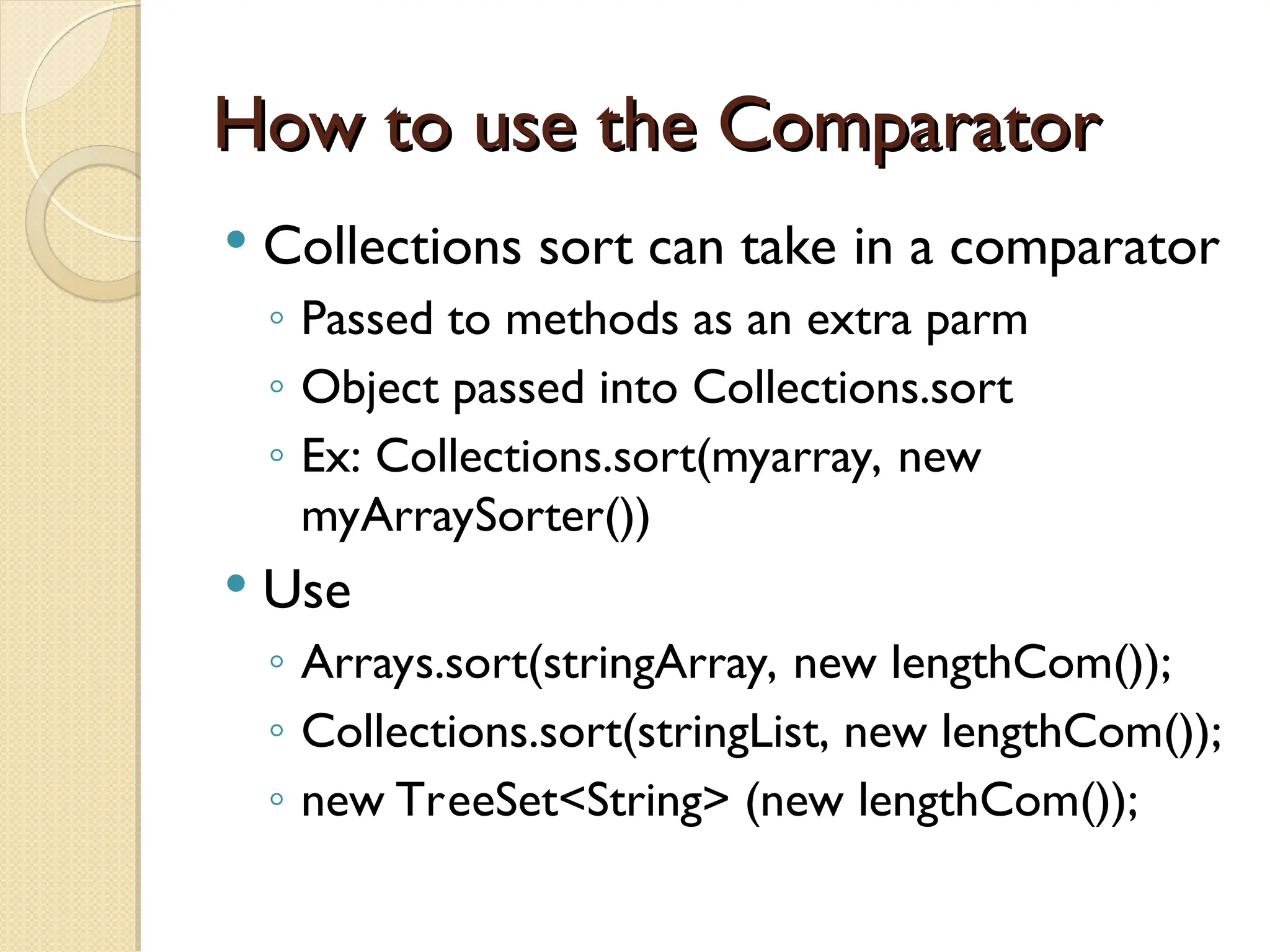

How to use the Comparator How to use the Comparator  Collections sort can take in a comparator ◦ Passed to methods as an extra parm ◦ Object passed into Collections.sort ◦ Ex: Collections.sort(myarray, new myArraySorter())  Use ◦ Arrays.sort(stringArray, new lengthCom()); ◦ Collections.sort(stringList, new lengthCom()); ◦ new TreeSet<String> (new lengthCom());

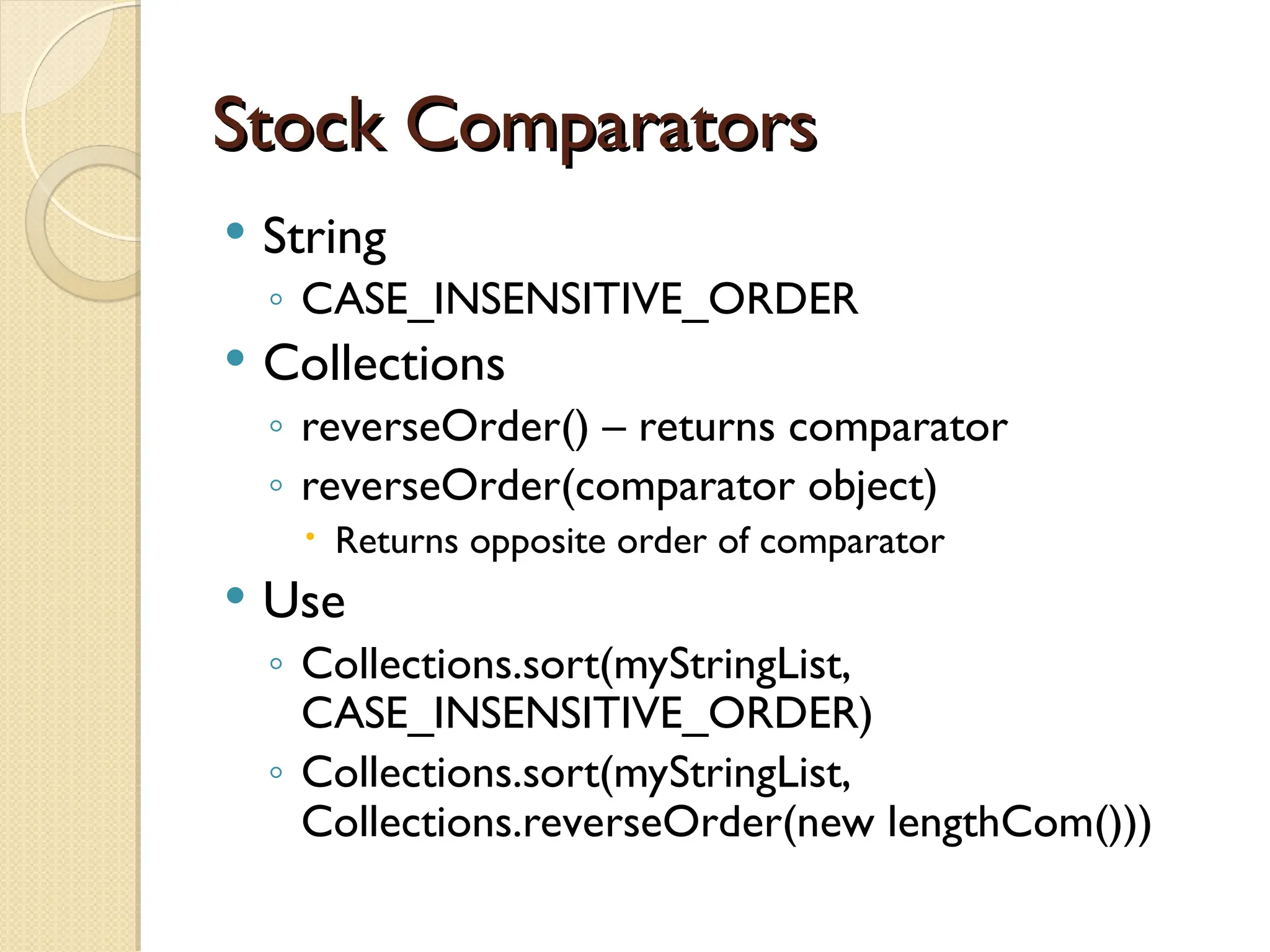

Stock Comparators Stock Comparators  String ◦ CASE_INSENSITIVE_ORDER  Collections ◦ reverseOrder() – returns comparator ◦ reverseOrder(comparator object)  Returns opposite order of comparator  Use ◦ Collections.sort(myStringList, CASE_INSENSITIVE_ORDER) ◦ Collections.sort(myStringList, Collections.reverseOrder(new lengthCom()))

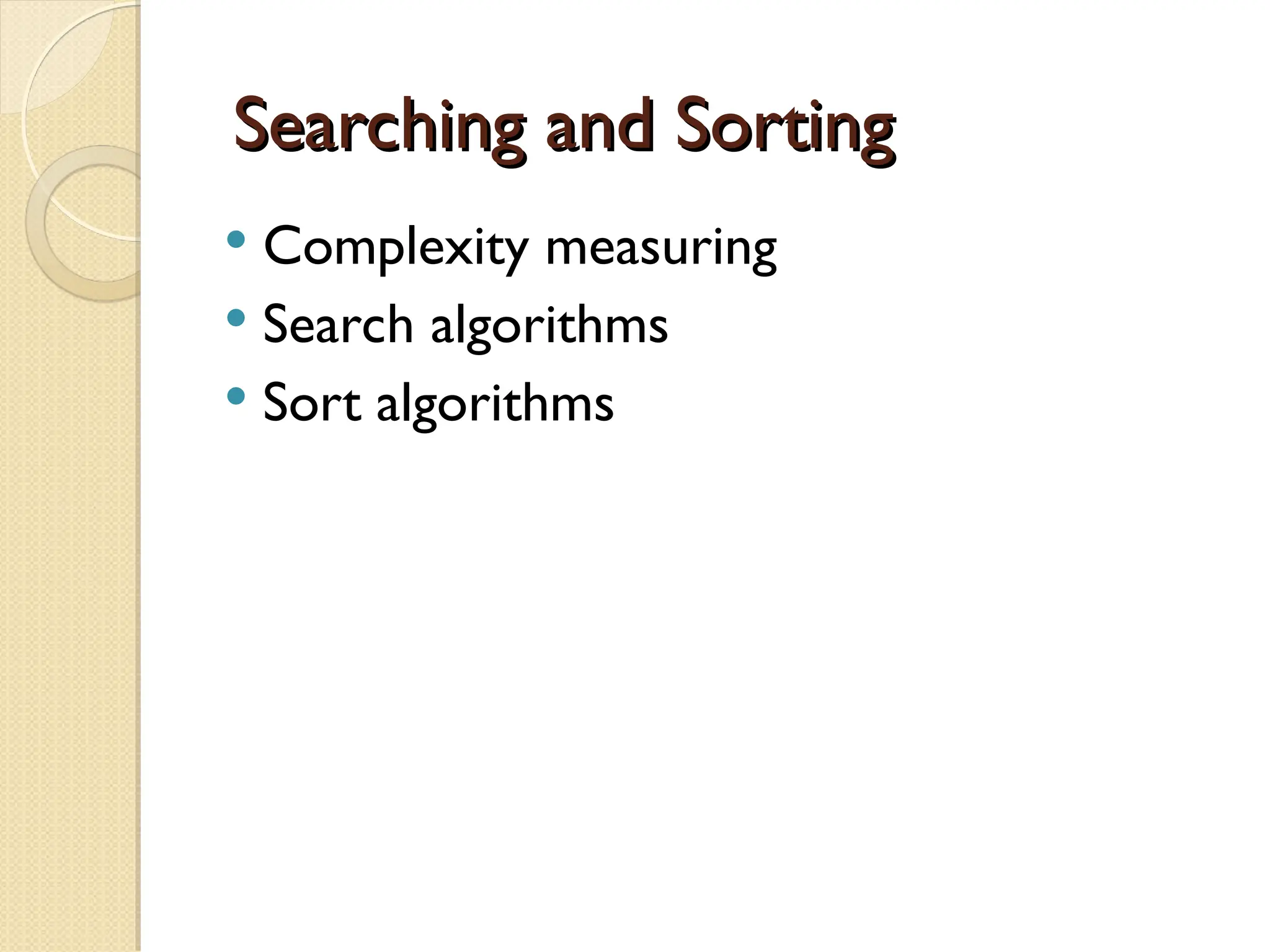

Searching and Sorting Searching and Sorting  Complexity measuring  Search algorithms  Sort algorithms

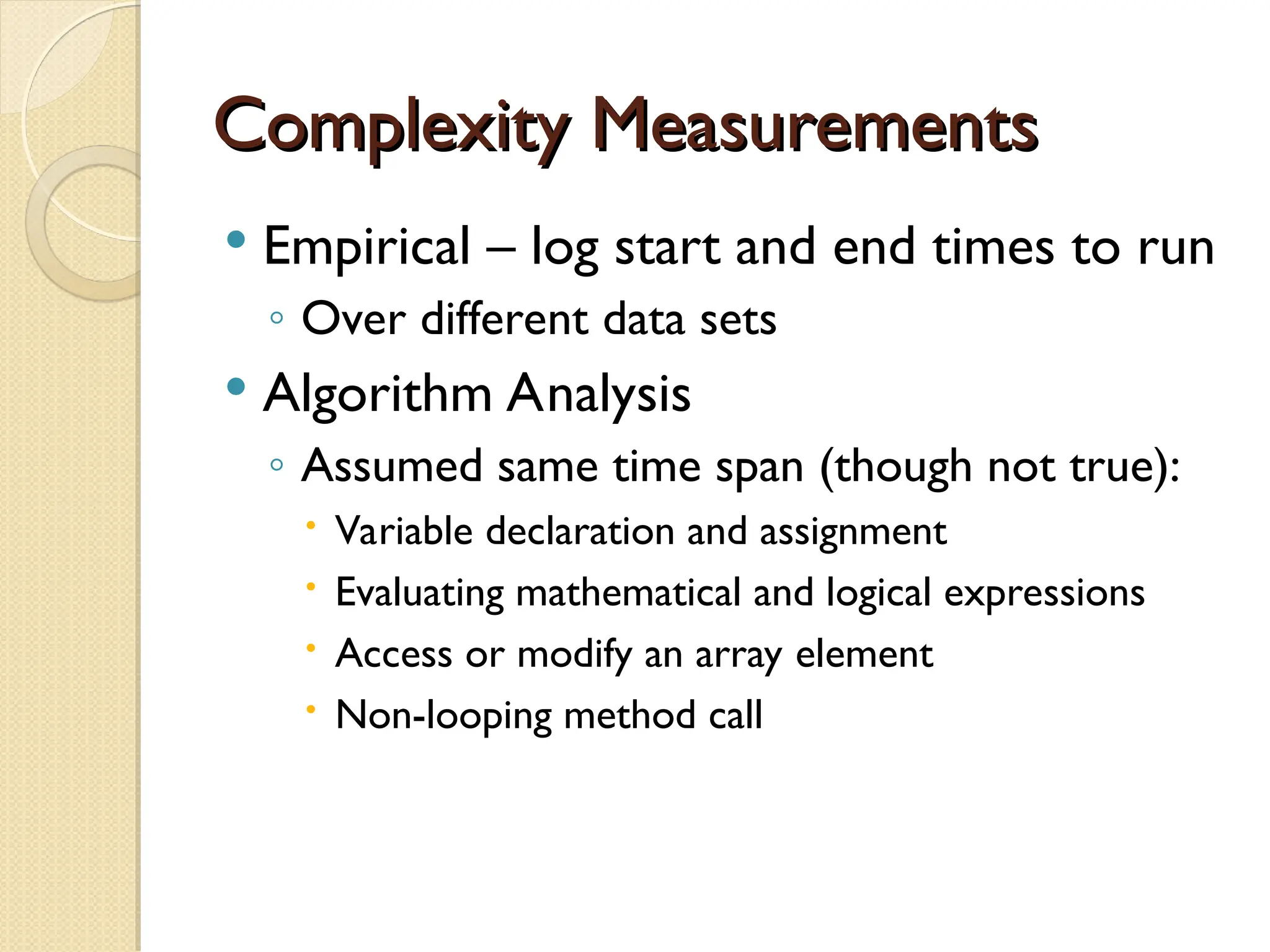

Complexity Measurements Complexity Measurements  Empirical – log start and end times to run ◦ Over different data sets  Algorithm Analysis ◦ Assumed same time span (though not true):  Variable declaration and assignment  Evaluating mathematical and logical expressions  Access or modify an array element  Non-looping method call

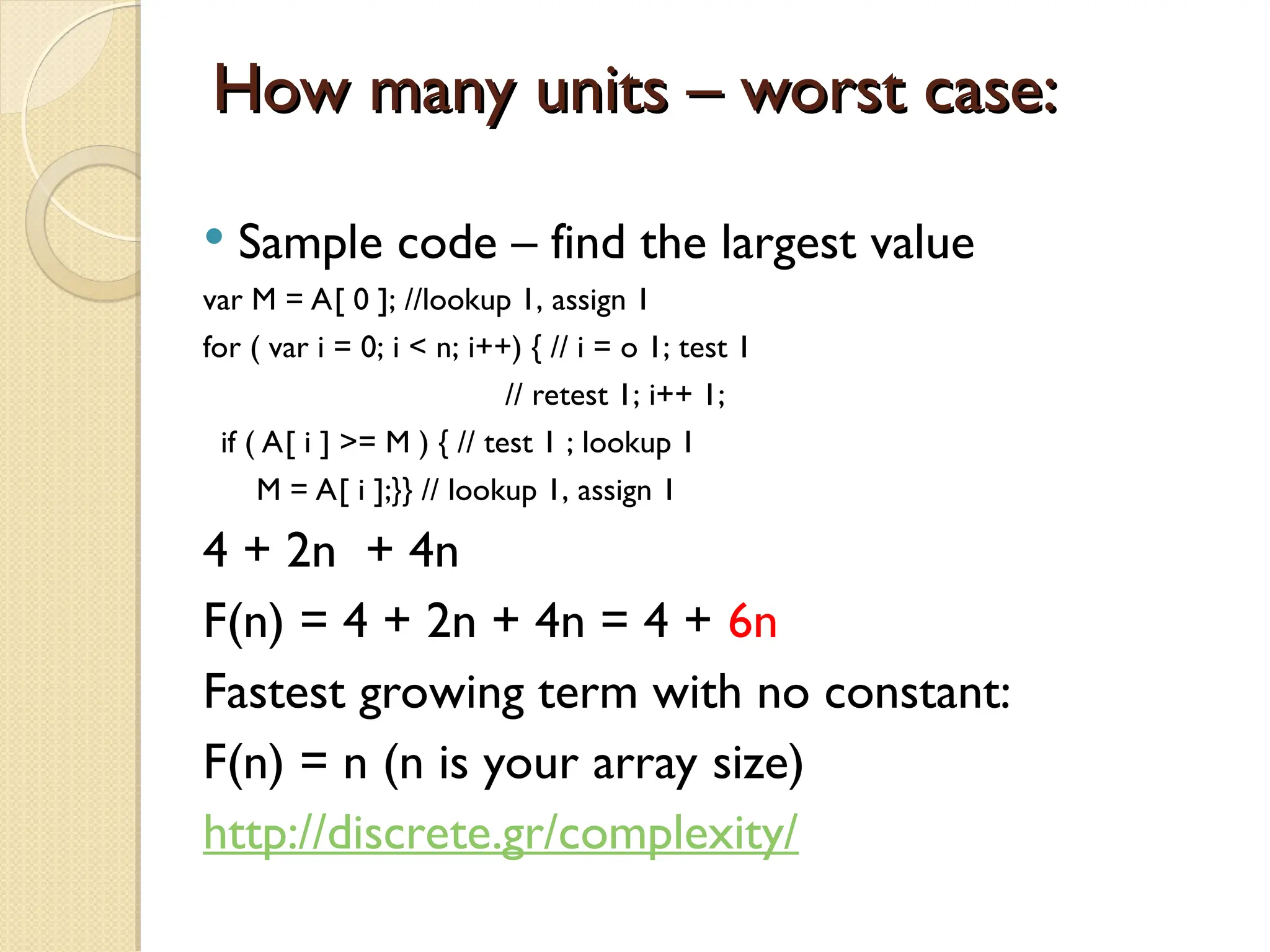

How many units – worst case: How many units – worst case:  Sample code – find the largest value var M = A[ 0 ]; //lookup 1, assign 1 for ( var i = 0; i < n; i++) { // i = o 1; test 1 // retest 1; i++ 1; if ( A[ i ] >= M ) { // test 1 ; lookup 1 M = A[ i ];}} // lookup 1, assign 1 4 + 2n + 4n F(n) = 4 + 2n + 4n = 4 + 6n Fastest growing term with no constant: F(n) = n (n is your array size) http://discrete.gr/complexity/

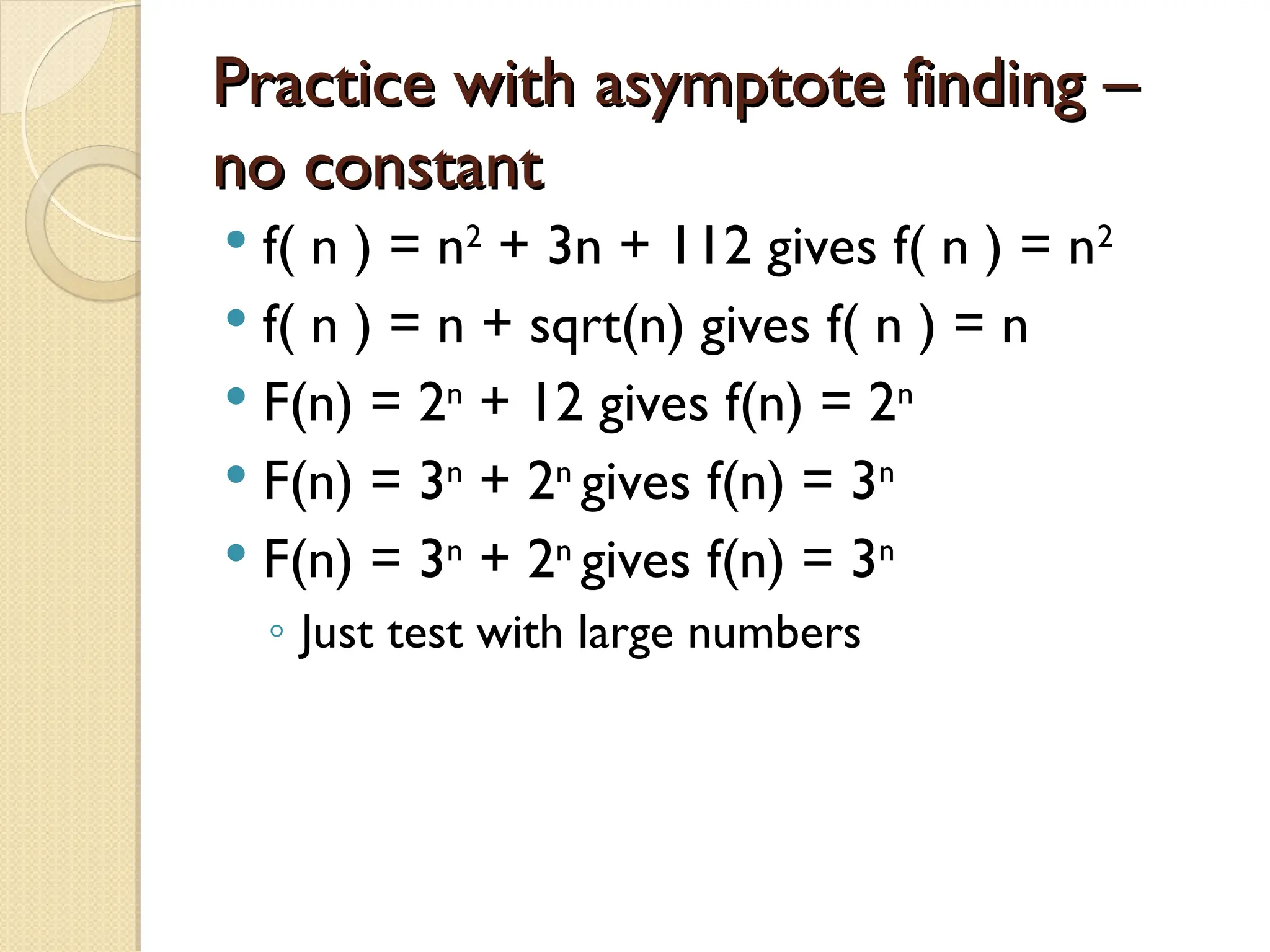

Practice with asymptote finding – Practice with asymptote finding – no constant no constant  f( n ) = n2 + 3n + 112 gives f( n ) = n2  f( n ) = n + sqrt(n) gives f( n ) = n  F(n) = 2n + 12 gives f(n) = 2n  F(n) = 3n + 2n gives f(n) = 3n  F(n) = 3n + 2n gives f(n) = 3n ◦ Just test with large numbers

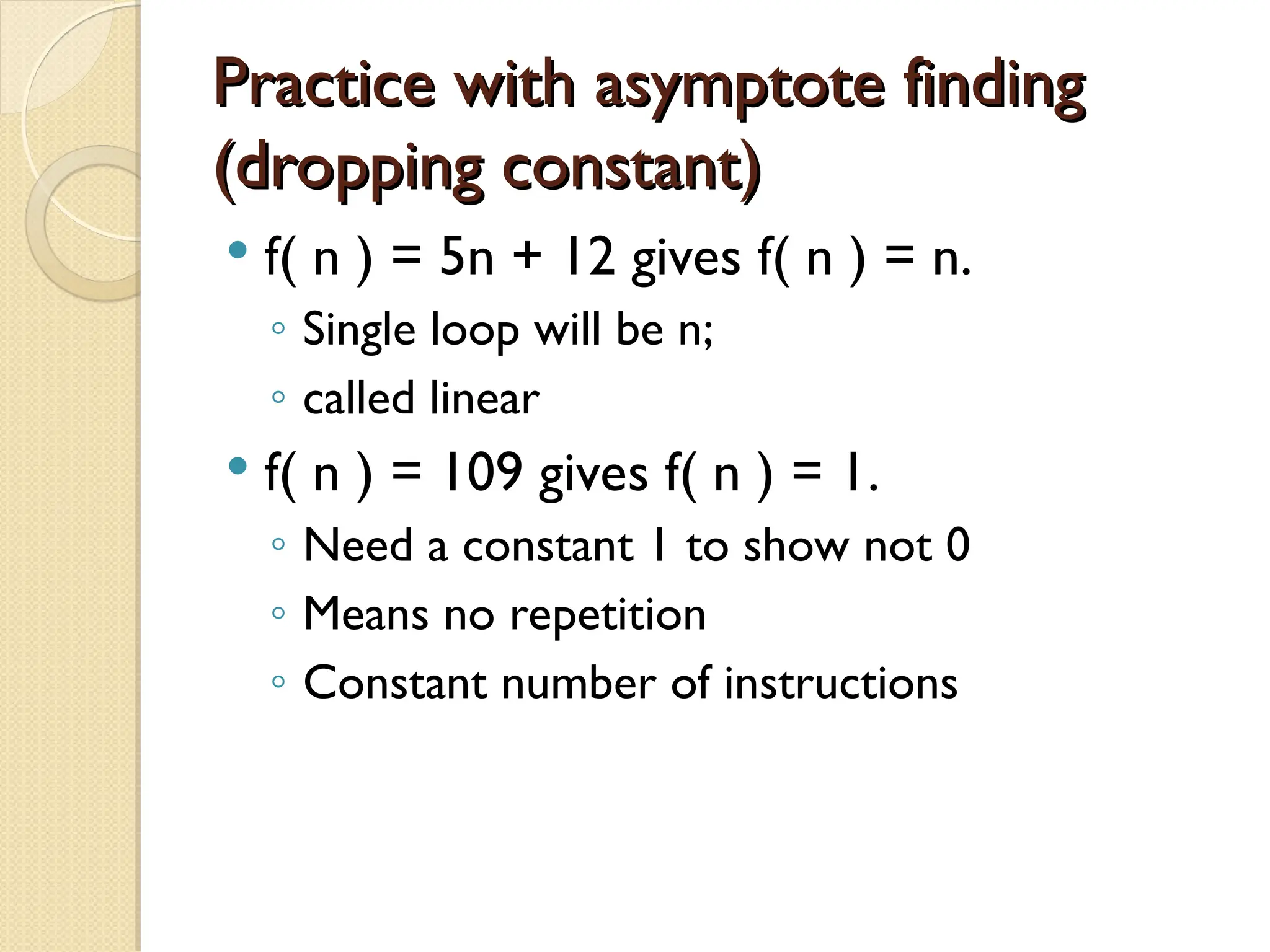

Practice with asymptote finding Practice with asymptote finding (dropping constant) (dropping constant)  f( n ) = 5n + 12 gives f( n ) = n. ◦ Single loop will be n; ◦ called linear  f( n ) = 109 gives f( n ) = 1. ◦ Need a constant 1 to show not 0 ◦ Means no repetition ◦ Constant number of instructions

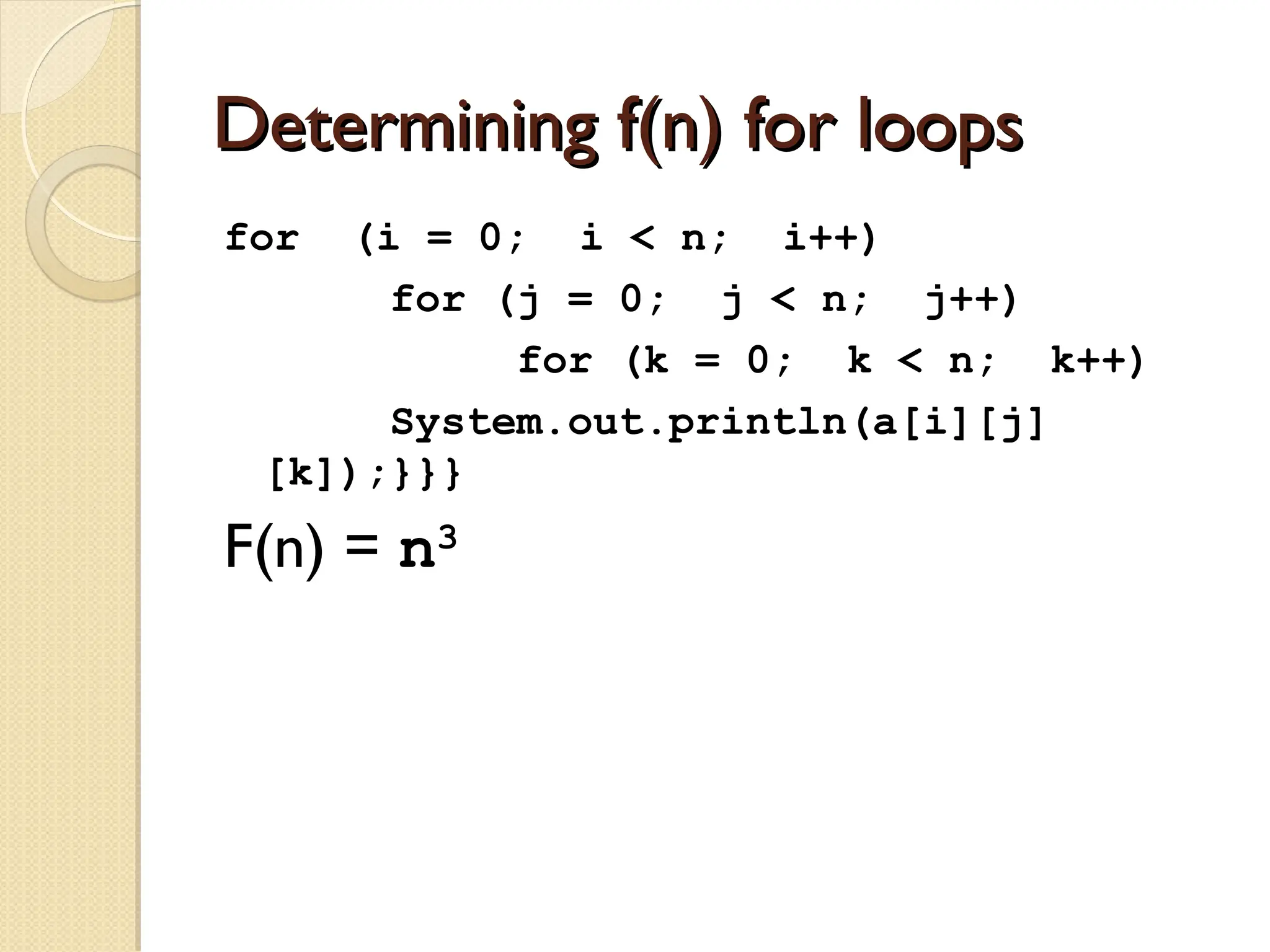

Determining f(n) for loops Determining f(n) for loops for (i = 0; i < n; i++) for (j = 0; j < n; j++) for (k = 0; k < n; k++) System.out.println(a[i][j] [k]);}}} F(n) = n3

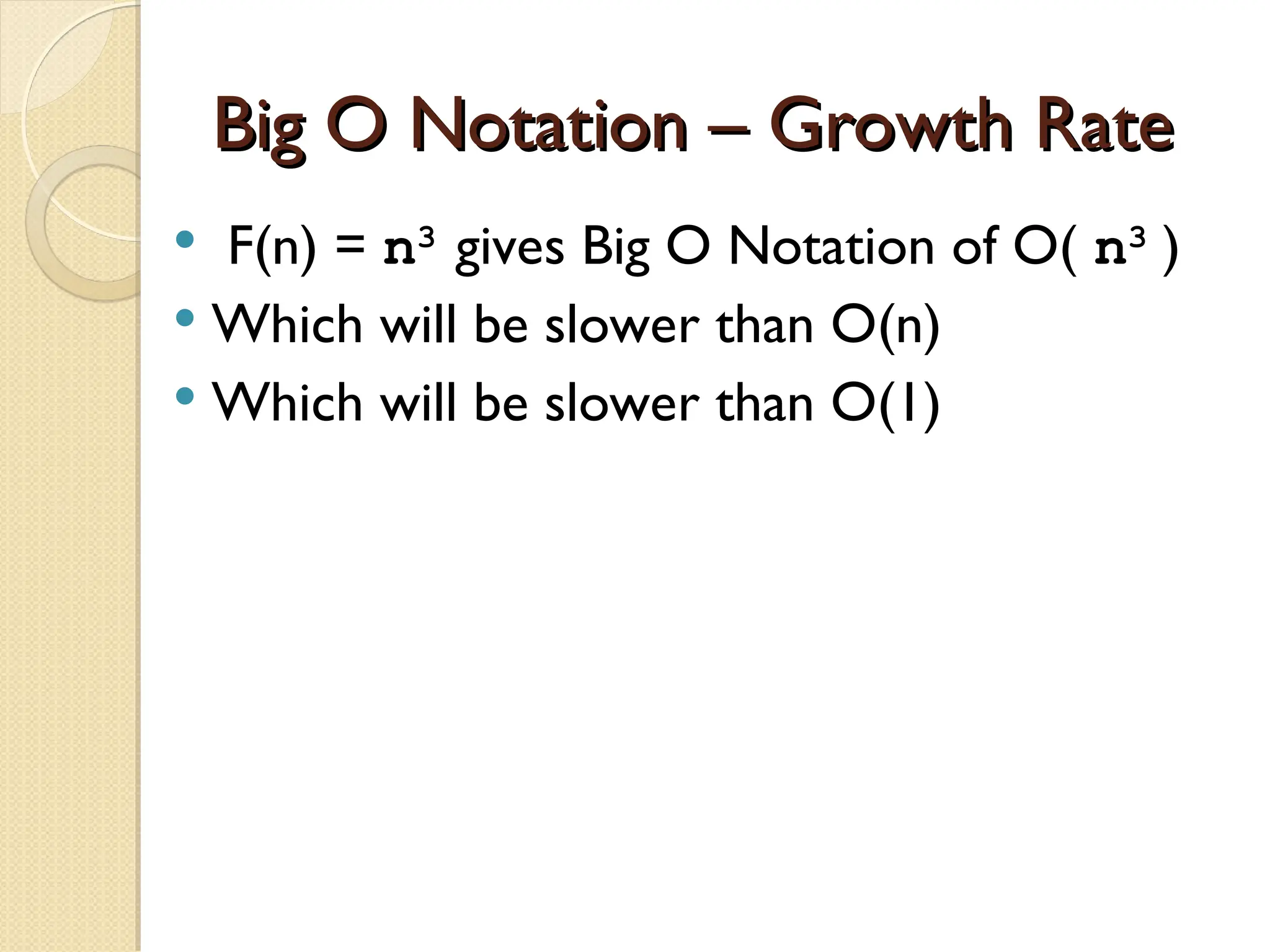

Big O Notation – Growth Rate Big O Notation – Growth Rate  F(n) = n3 gives Big O Notation of O( n3 )  Which will be slower than O(n)  Which will be slower than O(1)

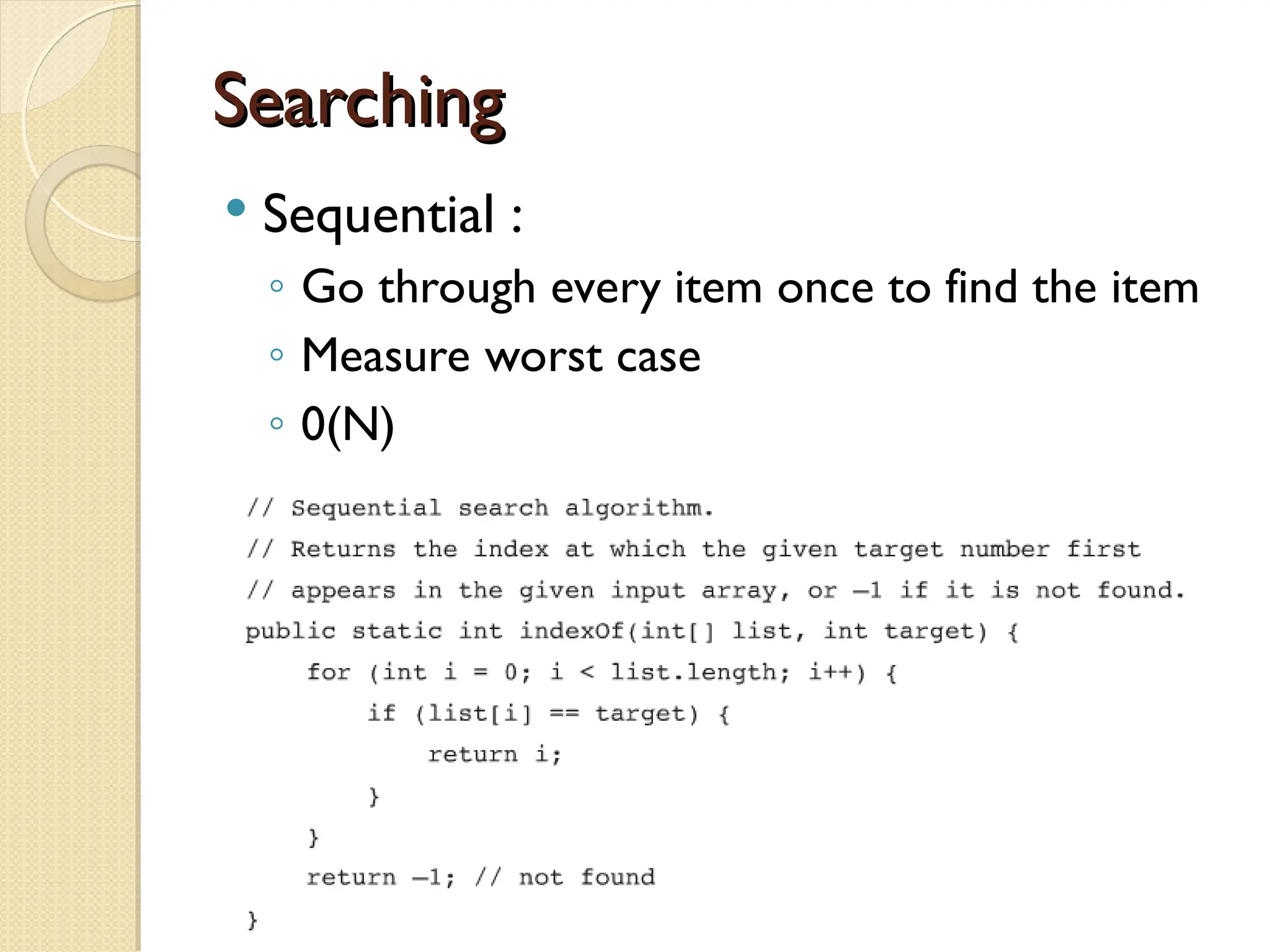

Searching Searching  Sequential : ◦ Go through every item once to find the item ◦ Measure worst case ◦ 0(N)

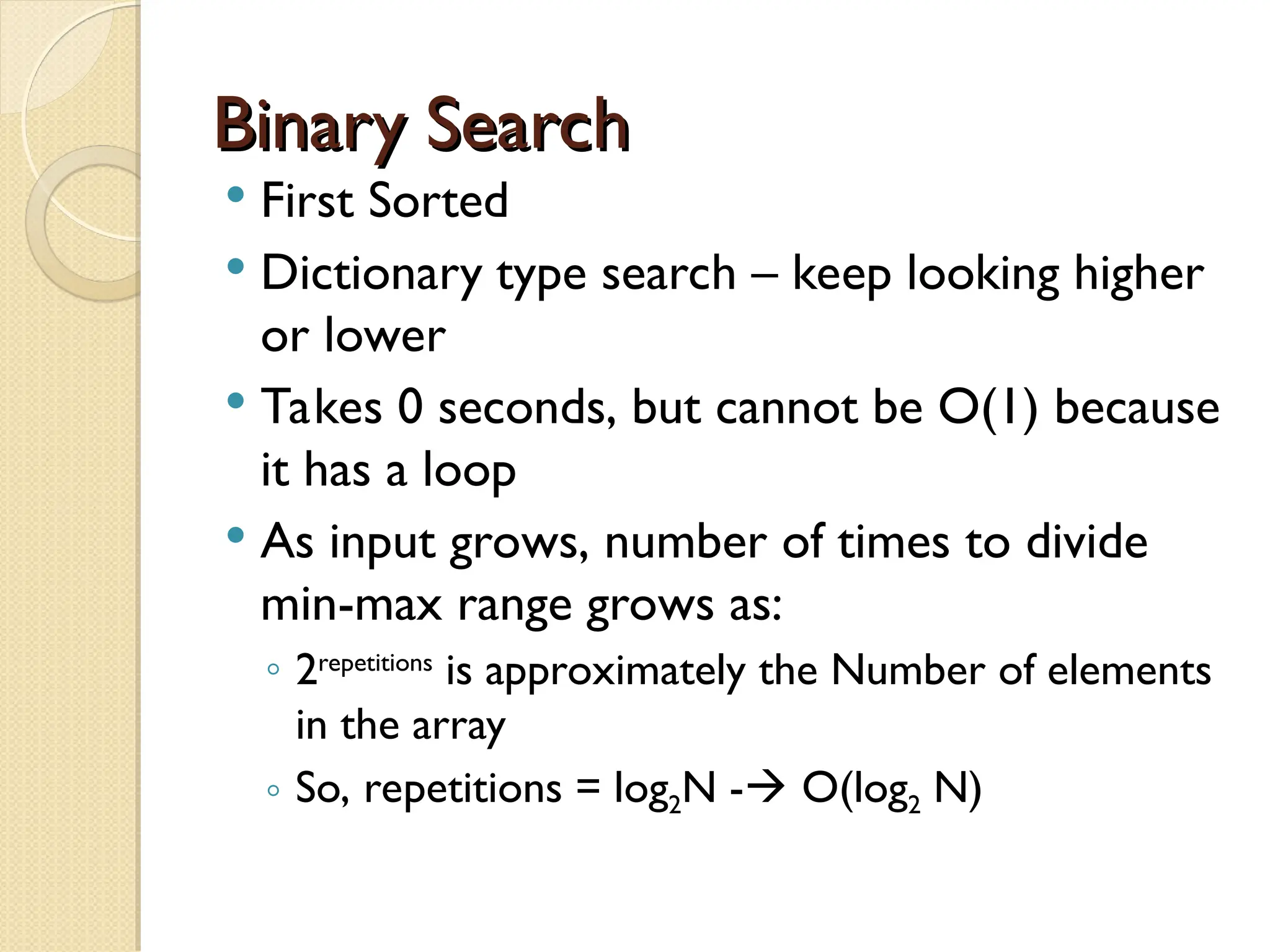

Binary Search Binary Search  First Sorted  Dictionary type search – keep looking higher or lower  Takes 0 seconds, but cannot be O(1) because it has a loop  As input grows, number of times to divide min-max range grows as: ◦ 2repetitions is approximately the Number of elements in the array ◦ So, repetitions = log2N - O(log2 N)

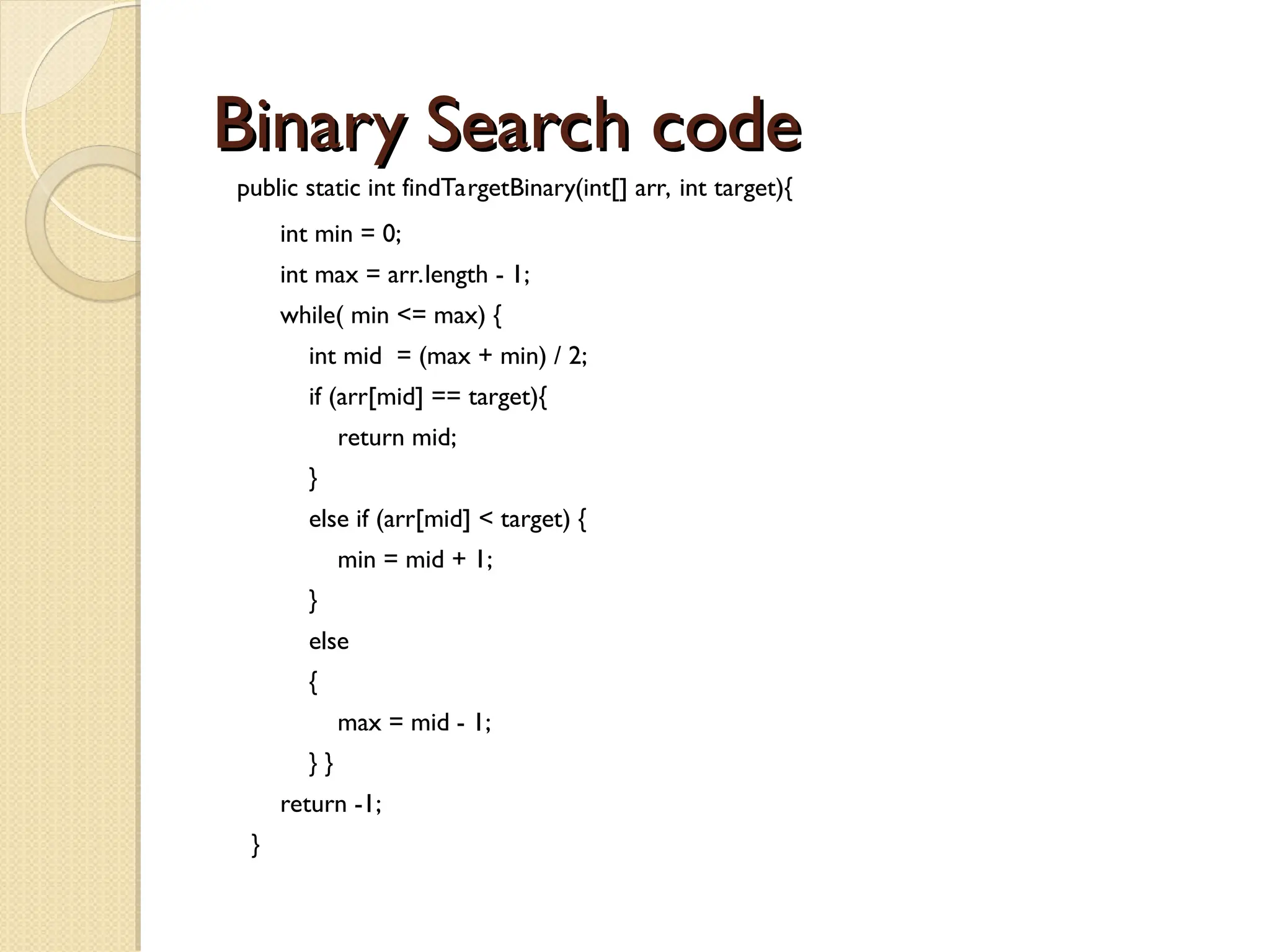

Binary Search code Binary Search code public static int findTargetBinary(int[] arr, int target){ int min = 0; int max = arr.length - 1; while( min <= max) { int mid = (max + min) / 2; if (arr[mid] == target){ return mid; } else if (arr[mid] < target) { min = mid + 1; } else { max = mid - 1; } } return -1; }

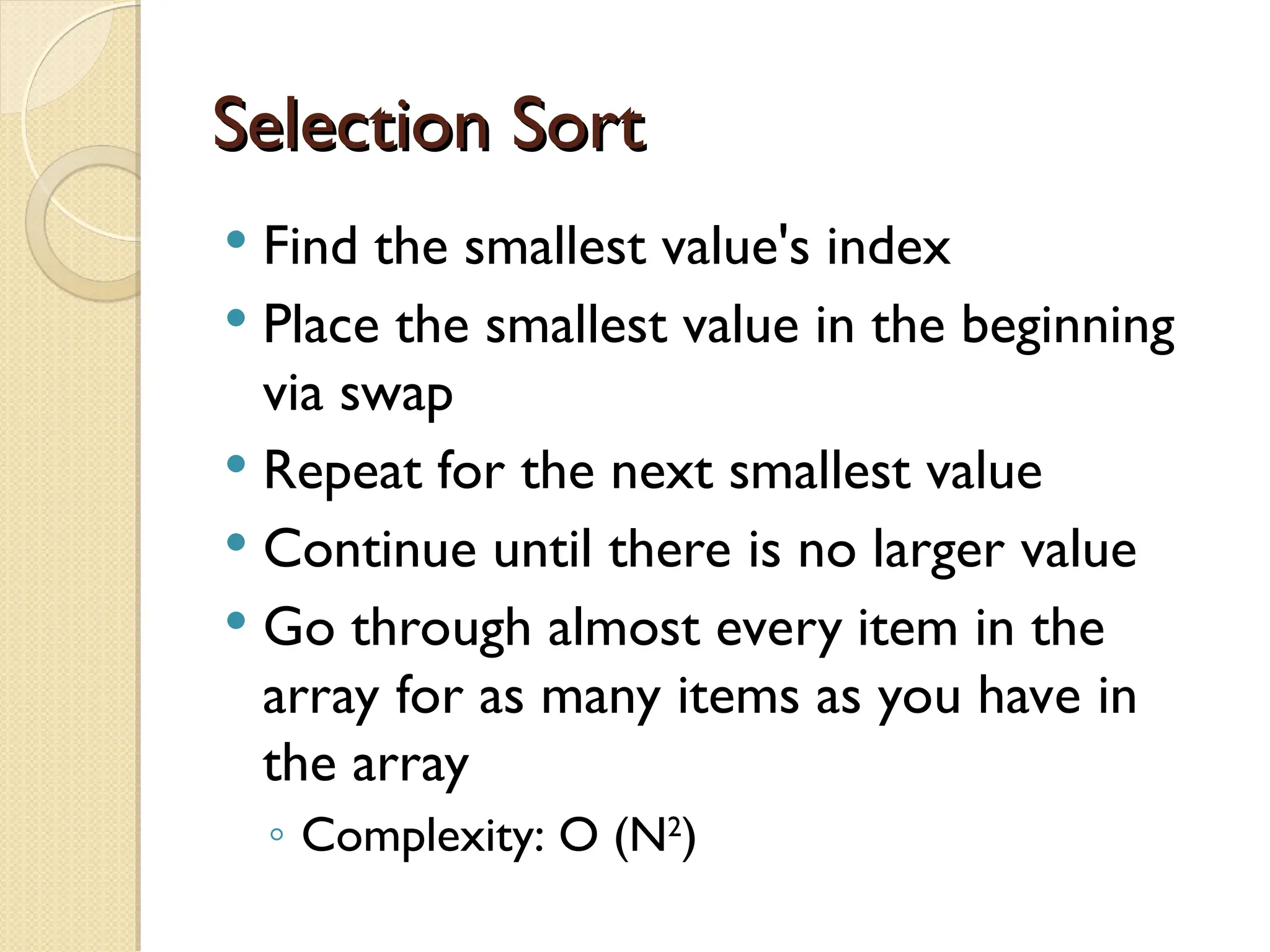

Selection Sort Selection Sort  Find the smallest value's index  Place the smallest value in the beginning via swap  Repeat for the next smallest value  Continue until there is no larger value  Go through almost every item in the array for as many items as you have in the array ◦ Complexity: O (N2 )

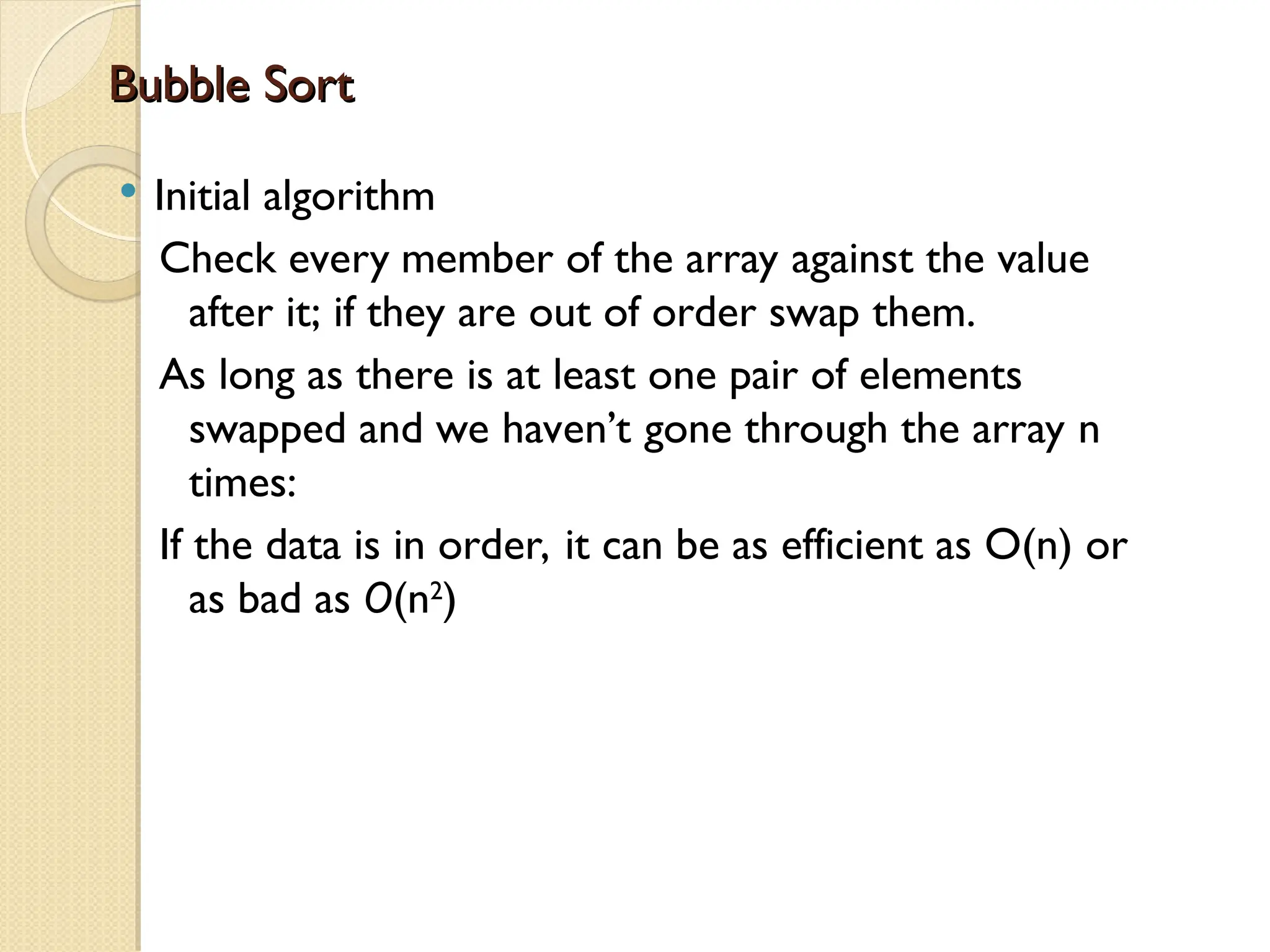

Bubble Sort Bubble Sort  Initial algorithm Check every member of the array against the value after it; if they are out of order swap them. As long as there is at least one pair of elements swapped and we haven’t gone through the array n times: If the data is in order, it can be as efficient as O(n) or as bad as O(n2 )

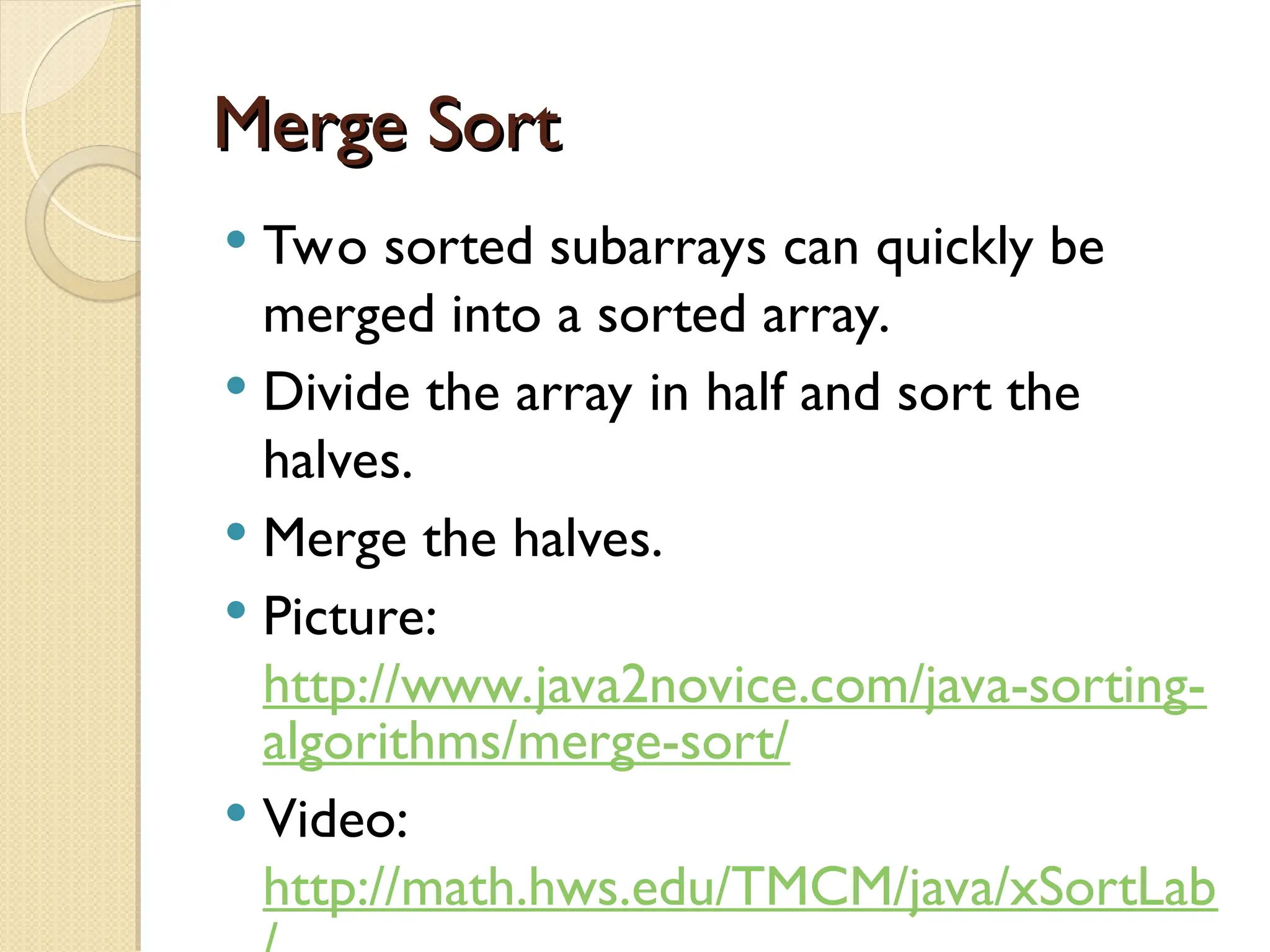

Merge Sort Merge Sort  Two sorted subarrays can quickly be merged into a sorted array.  Divide the array in half and sort the halves.  Merge the halves.  Picture: http://www.java2novice.com/java-sorting- algorithms/merge-sort/  Video: http://math.hws.edu/TMCM/java/xSortLab

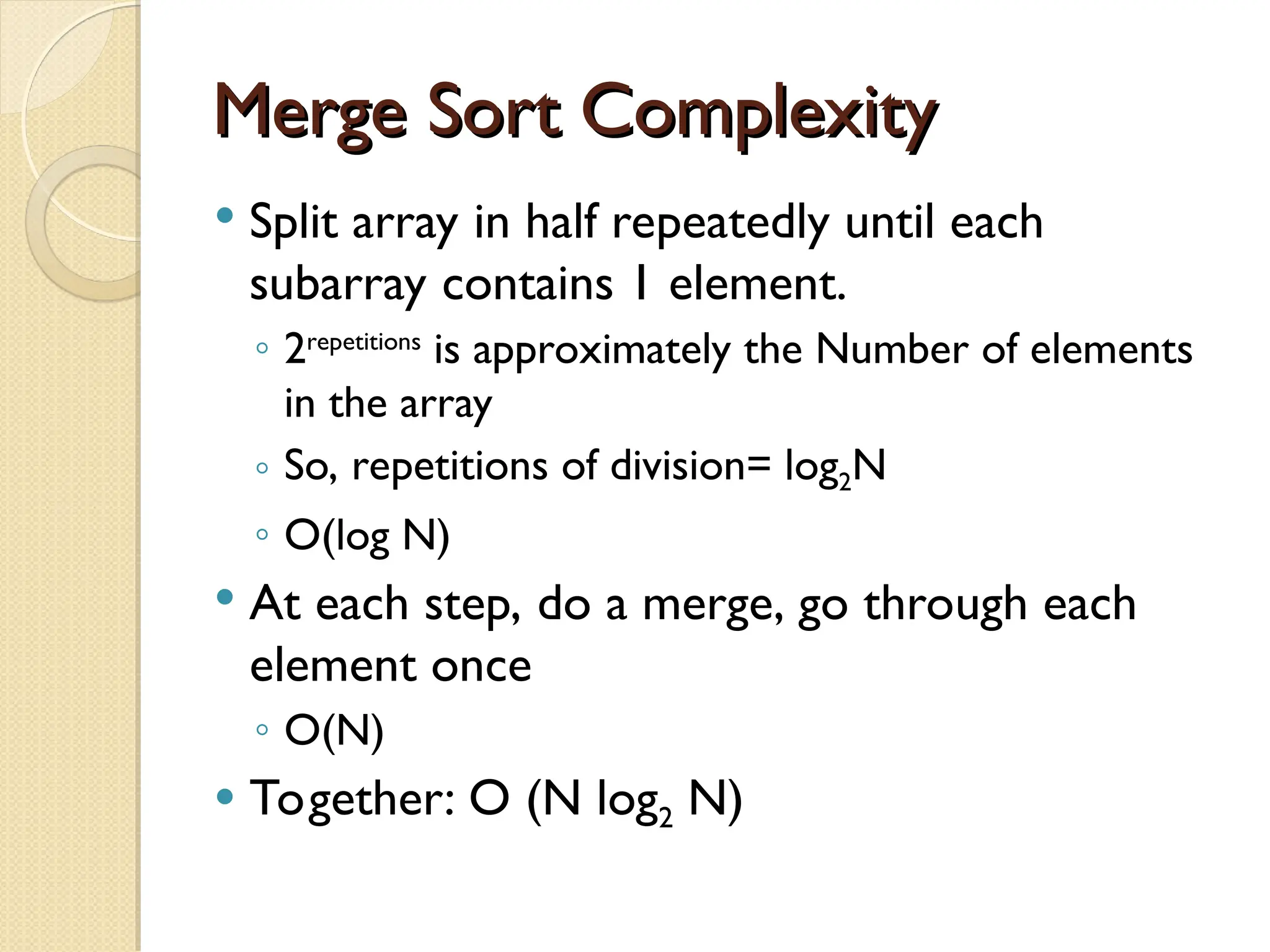

Merge Sort Complexity Merge Sort Complexity  Split array in half repeatedly until each subarray contains 1 element. ◦ 2repetitions is approximately the Number of elements in the array ◦ So, repetitions of division= log2N ◦ O(log N)  At each step, do a merge, go through each element once ◦ O(N)  Together: O (N log2 N)

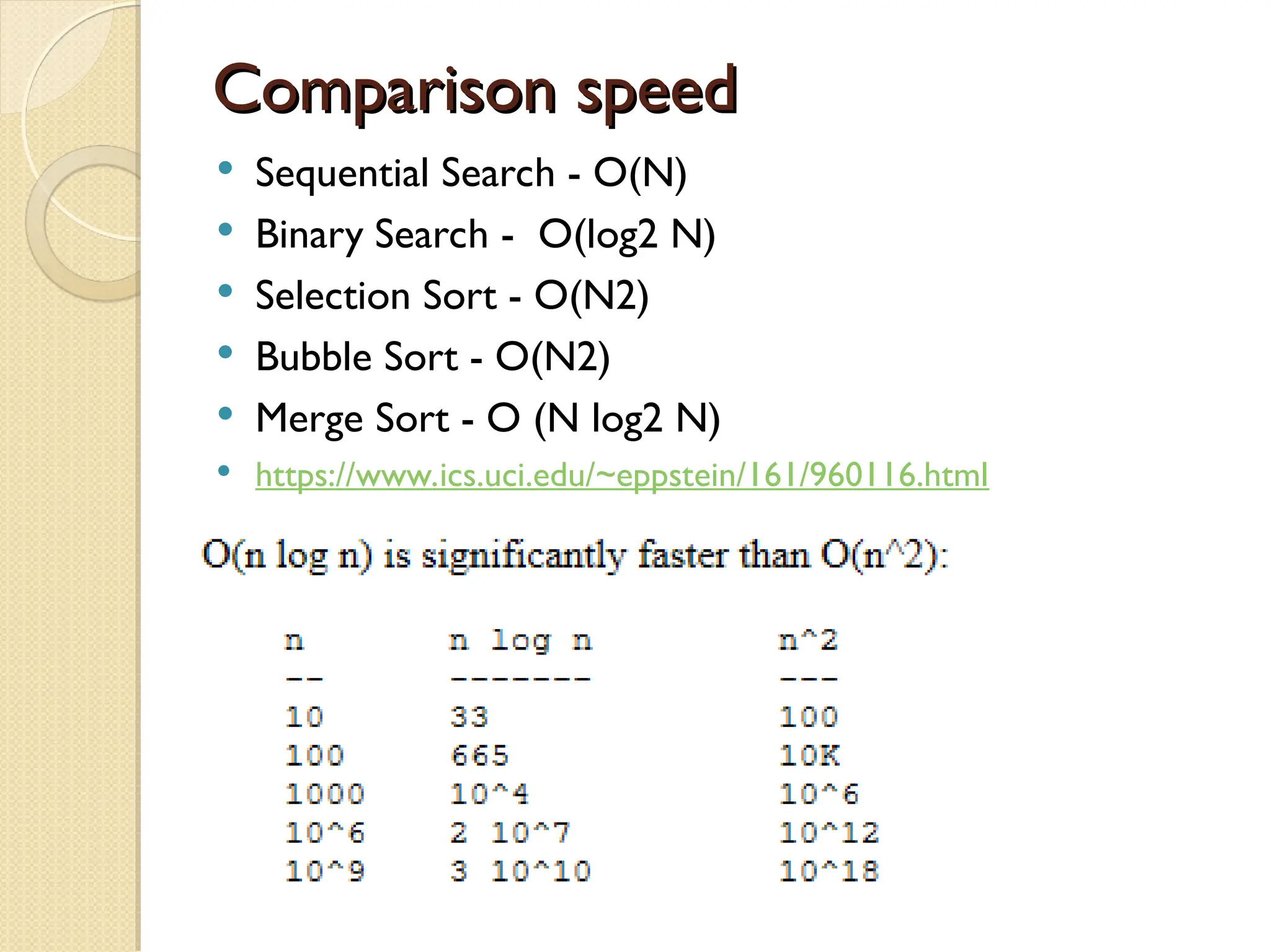

Comparison speed Comparison speed  Sequential Search - O(N)  Binary Search - O(log2 N)  Selection Sort - O(N2)  Bubble Sort - O(N2)  Merge Sort - O (N log2 N)  https://www.ics.uci.edu/~eppstein/161/960116.html

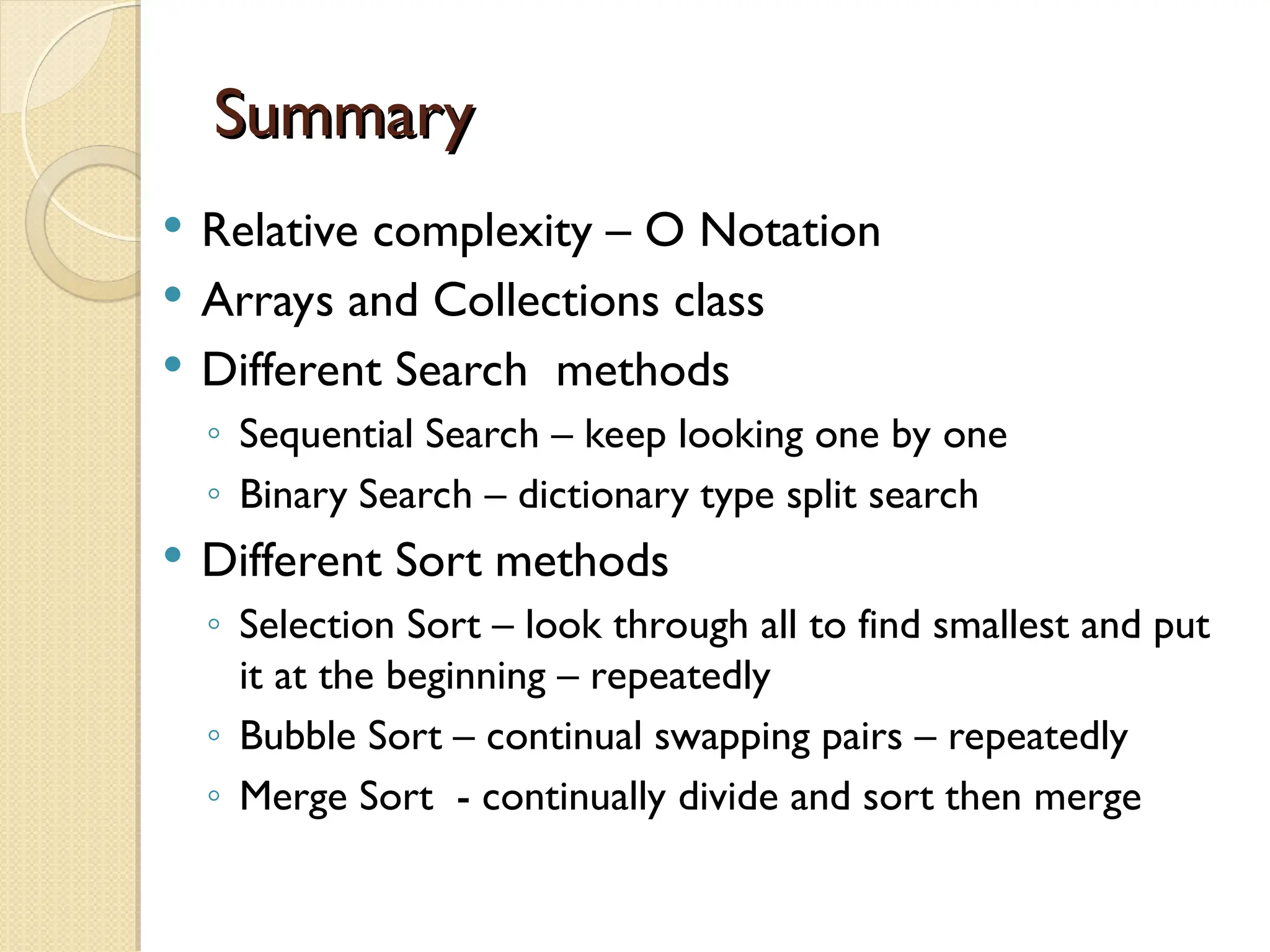

Summary Summary  Relative complexity – O Notation  Arrays and Collections class  Different Search methods ◦ Sequential Search – keep looking one by one ◦ Binary Search – dictionary type split search  Different Sort methods ◦ Selection Sort – look through all to find smallest and put it at the beginning – repeatedly ◦ Bubble Sort – continual swapping pairs – repeatedly ◦ Merge Sort - continually divide and sort then merge
