Reactive programming intro
The document provides an overview of reactive programming, contrasting it with imperative and functional programming paradigms, emphasizing the efficiency of using non-blocking threads for handling asynchronous data streams. It discusses key concepts such as event loops, callbacks, and the role of publishers and subscribers in data streaming, highlighting tools like RxJava and Project Reactor that facilitate these paradigms. The document also notes the pros and cons of reactive programming, suggesting its application in high-load scenarios while cautioning against its complexity in high-processing tasks.
Reactive programming intro
- 1.

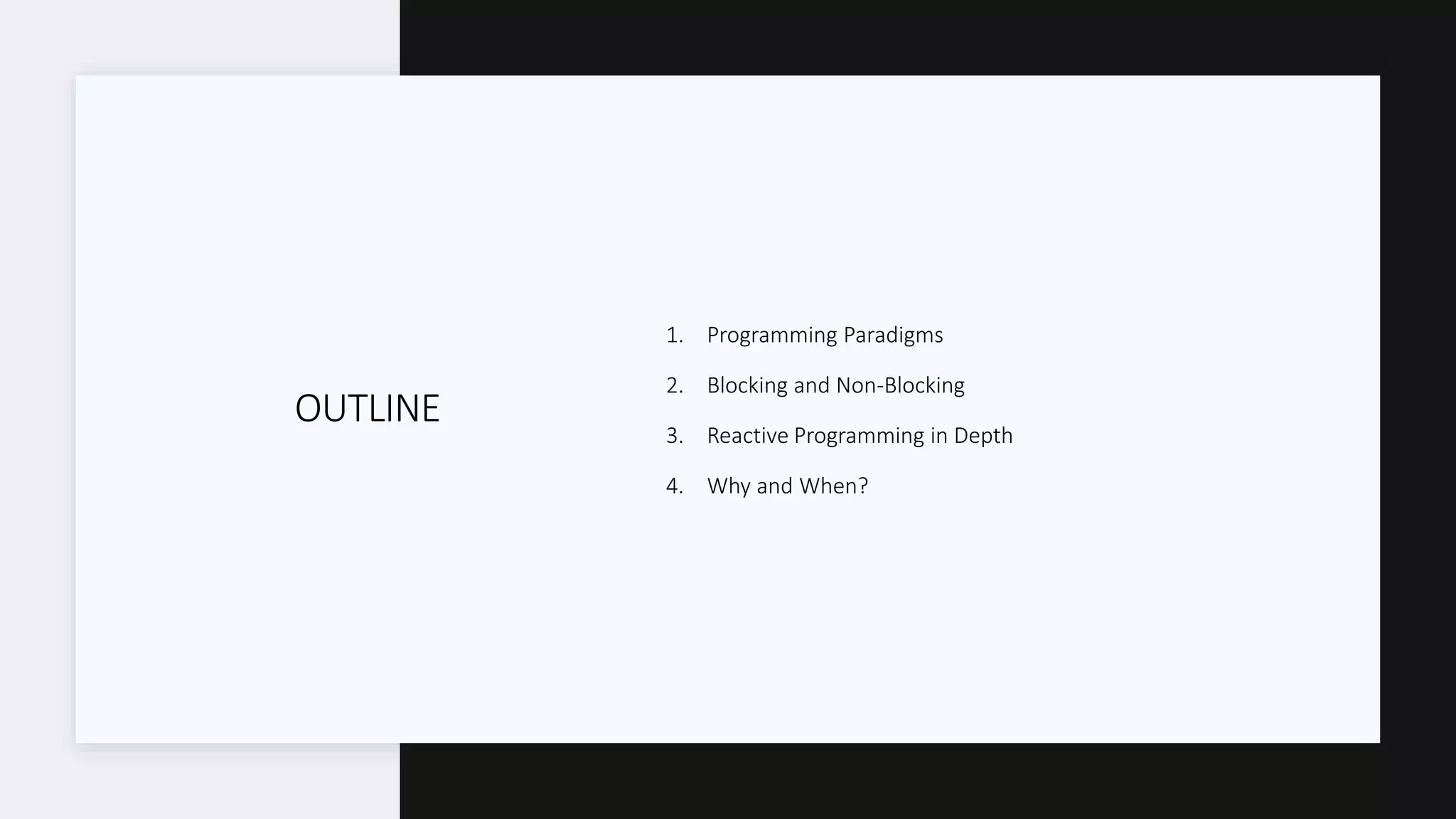

- 2. OUTLINE 1. Programming Paradigms 2.Blocking and Non-Blocking 3. Reactive Programming in Depth 4. Why and When?
- 3.
- 4. IMPERATIVE PROGRAMMING Imperative programming ismostly sequential and follows a natural flow, hence it is easy to write. For backend servers, this follows a thread per request model. Each request means a new thread on the server. For millions of requests that can be costly as each thread means at least 1-2MB of RAM just for the thread itself. Also, this means the thread must be blocked for any operation even that ’s outside of our application. 1 • Receive Request 2 • Attempt to retrieve data from database 3 • Block thread and waste memory and CPU until response 4 • Get data and send it to external system (BSS, CMS, etc.) 5 • Block thread again until response from external system
- 5. REACTIVE PROGRAMMING Reactive programmingis a paradigm that deals with asynchronous data streams (sequences of events), which means it executes modifications to the execution environment (context) in a certain order. Using pre-defined threads every request is assigned to one of the threads and the threads are NOT BLOCKED by waiting for a response from DB for example. It is all about reacting to events, so reacting to the DB returning with data instead of actively wait for it. Functional programming is usually used to achieve reactivity this is called FRP or Functional Reactive Programming. 1 • Receive Request 2 • Attempt to retrieve data from database 3 • Don’t block thread and receive another request while waiting 4 • Get data and send it to external system (BSS, CMS, etc.) 5 • Process another request while waiting

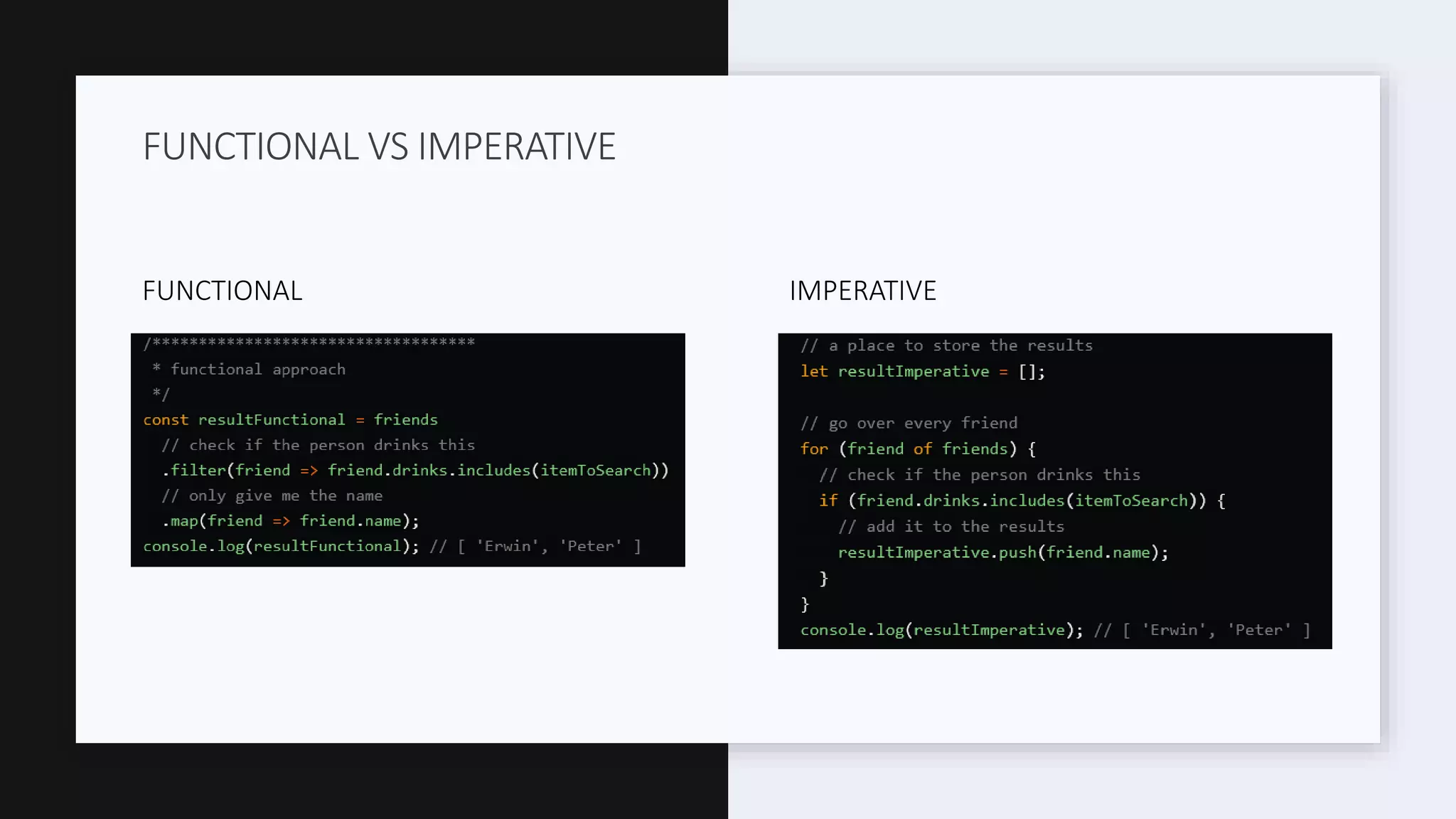

- 6. FUNCTIONAL IMPERATIVE FUNCTIONAL VSIMPERATIVE
- 7. 1. No sideeffects, as in all our processing data should be immutable. 2. Statelessness. 3. Functions are first class citizens, they are independent of each other. 4. Modularity because set of execution steps is an independent function. FUNCTIONAL PROGRAMMING RULES
- 8.
- 9.

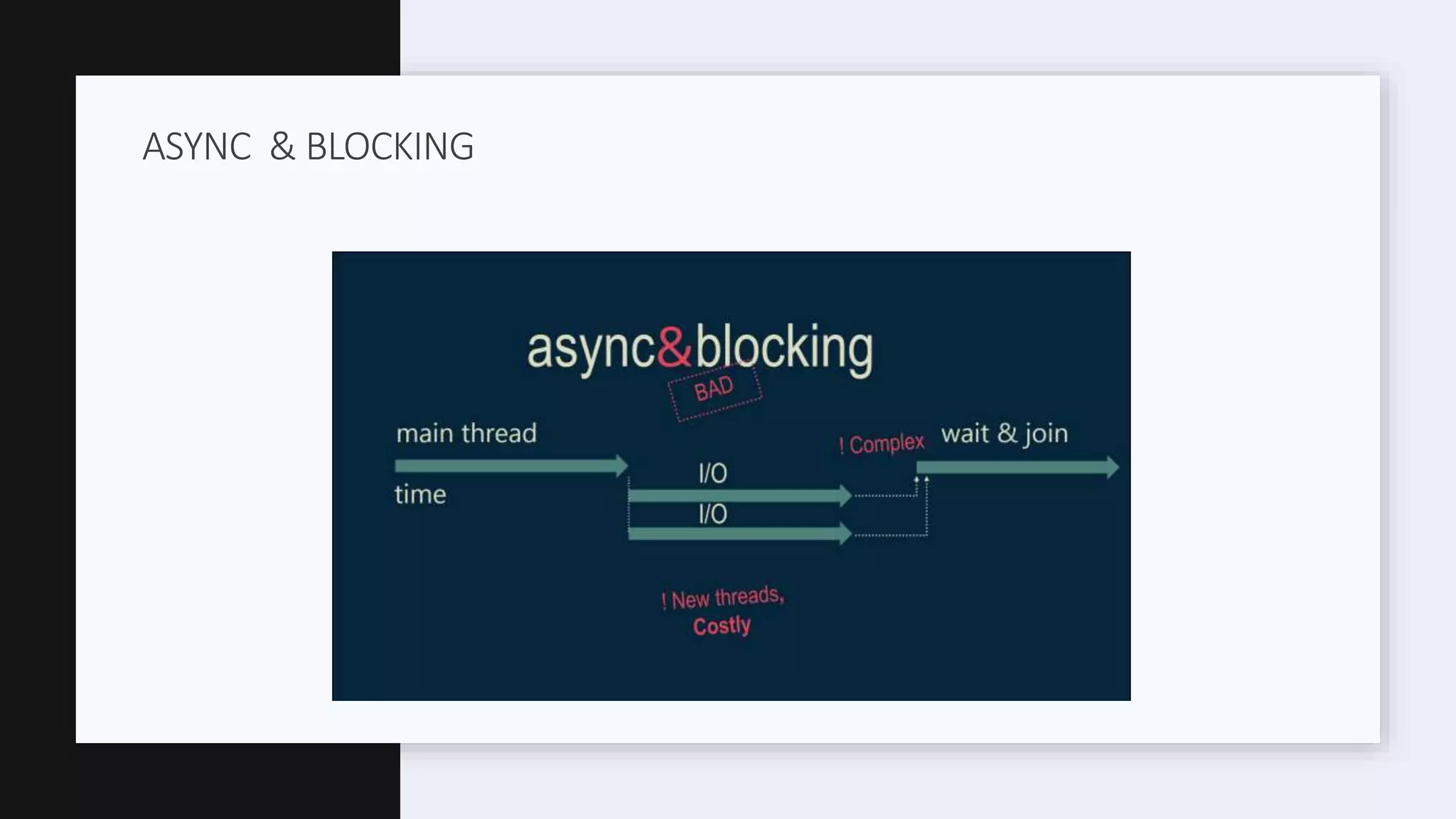

- 10.
- 11.
- 12.
- 13. With a singlethread we can handle a lot of requests, each request is processed in the event loop and we won’t wait for the response. It will be sent to a queue (like message queues) and to be processed on receiving an event of completion, the event of completion is called a callback. The event loop is a constantly running process that monitors both the callback/task queue and the call stack. If the call stack is not empty, the event loop waits until it is empty and places the next function from the callback queue to the call stack. If the callback queue is empty, nothing will happen. JavaScript is built on this concept, also note that the name event loop and callback can differ from a language/framework to another. We can have one thread (JavaScript) or more threads (Java, mostly one per core) with each having their own event loop. EVENT LOOPS AND CALLBACKS
- 14.
- 15. ANOTHER EVENT LOOPVIDEO
- 16. REACTIVE PROGRAMMING STREAMS In RP,any data is considered a stream. So when a client request all users, a response is returned to indicate that the request was sent successfully. A stream is a sequence of ongoing events ordered in time. It can emit three different things: a value, an error, or a "completed" signal. We capture these emitted events only asynchronously.

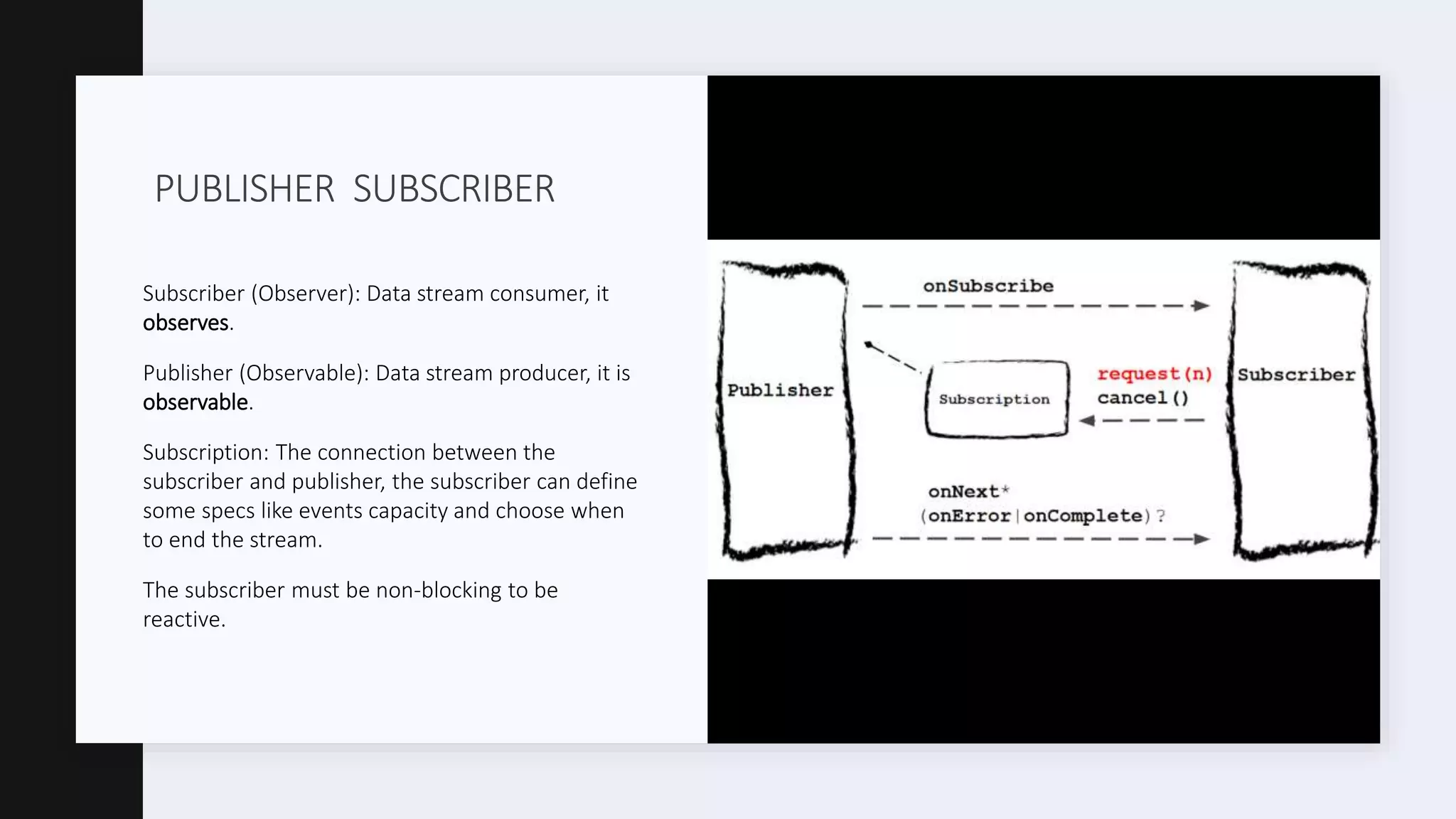

- 17. PUBLISHER SUBSCRIBER Subscriber (Observer):Data stream consumer, it observes. Publisher (Observable): Data stream producer, it is observable. Subscription: The connection between the subscriber and publisher, the subscriber can define some specs like events capacity and choose when to end the stream. The subscriber must be non-blocking to be reactive.
- 18. BACK-PRESSURE Backpressure is theactual main difference between a normal asynchronous pub sub relation and a reactive non-blocking one. It means that the publisher should never overwhelm the subscriber with more requests than it can handle. The subscriber defines its boundaries to achieve this and it can keep requesting in batch number (i.e. 100 responses more).

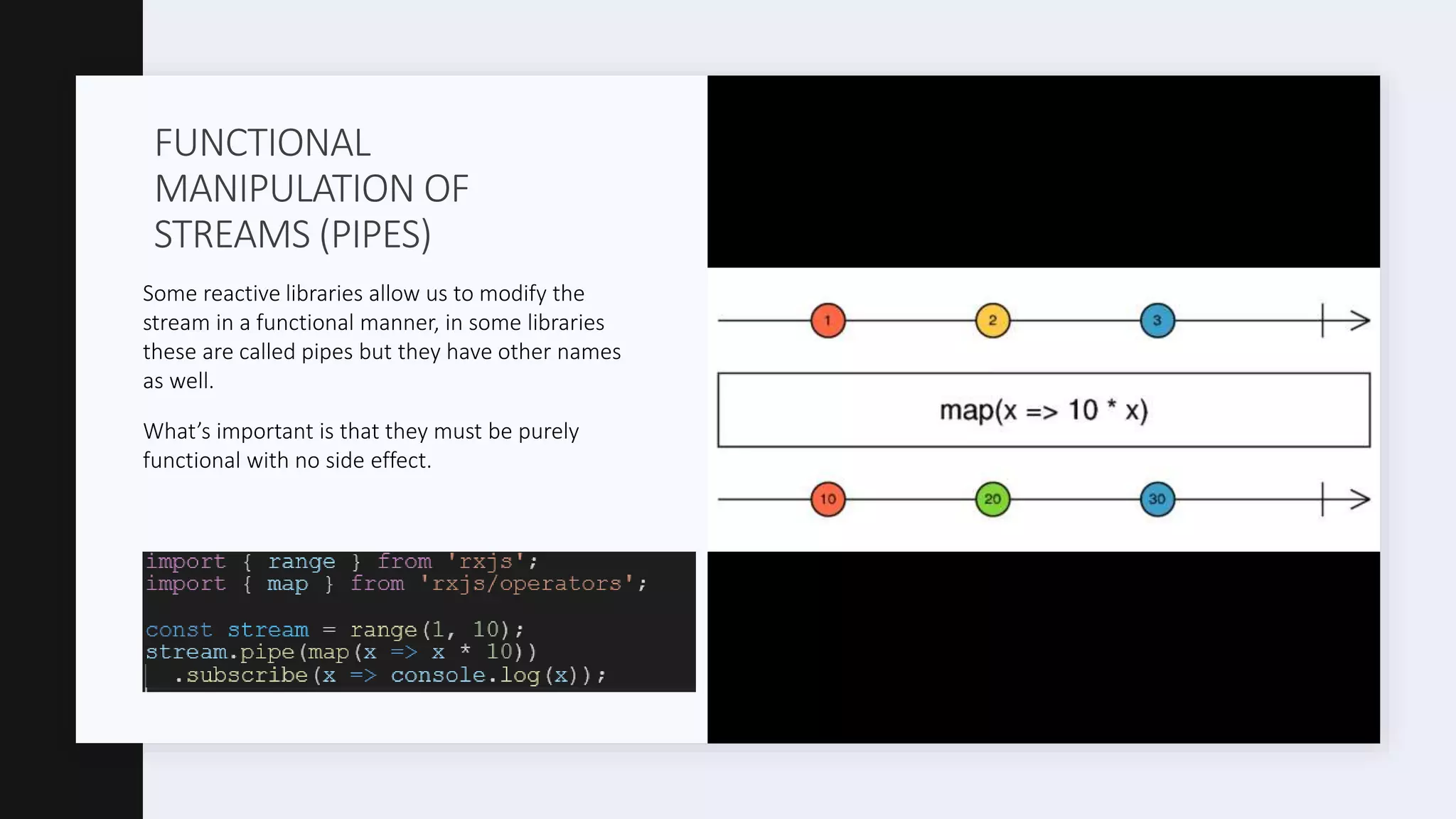

- 19. FUNCTIONAL MANIPULATION OF STREAMS (PIPES) Somereactive libraries allow us to modify the stream in a functional manner, in some libraries these are called pipes but they have other names as well. What’s important is that they must be purely functional with no side effect.
- 20. Rx: Reactive Extension(Rx) are libraries that enable imperative programming languages to compose asynchronous and event-based programs by using observable reactive streams. The data stream is called Flowable (multiple data) and Maybe (single result). They exist for many languages like Java (RxJava), JavaScript (RxJS), Kotlin (RxKotlin), Swift (RxSwift), .NET (Rx.NET), Python (RxPy) and so on. Project Reactor (Spring Webflux): Similar to RxJava but implemented for Spring framework. The stream is called Flux (multiple data) and Mono (single result). Vert.x: Another java based reactive framework which is extremely powerful and fast, it has Future (similar to Promise in JS) for data stream. It is a complete ecosystem and it’s the most powerful reactive library written in any high level language. It has an app generator https://start.vertx.io/ similar to spring initializr. Other frameworks like Quarkus and es4x build upon it to provide reactivity. FRAMEWORKS & LIBRARIES

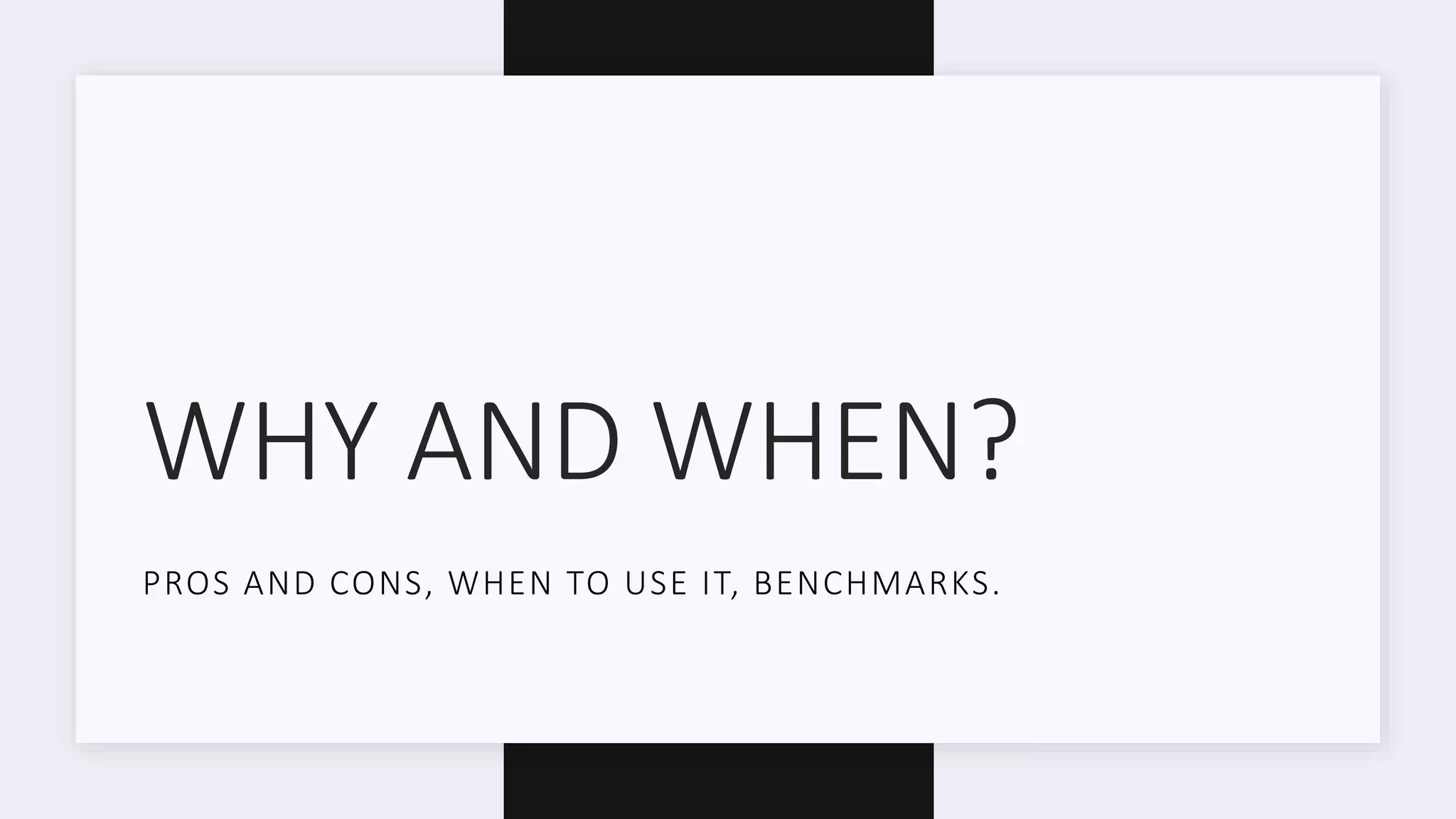

- 21. WHY AND WHEN? PROSAND CONS, WHEN TO USE IT, BENCHMARKS.
- 22. PROS Can manage millionsof request with a small amount of threads. Responsive, resilient, elastic and message driven (Reactive Manifesto) systems. Generally higher performance for web applications. Back-pressure. Perfect when integrating with stream/pub-sub systems like Kafka or RabbitMQ. NoSQL databases and drivers naturally support it. CONS Can be more complicated to write, not as natural as regular imperative code backgrounds. Non-blocking code is harder to write for people coming from non-functional Support for reactive JDBC is weak (R2DBC). Debugging can be really hard. Easy to mess. Subscriptions must be closed when not in use. Still new, support is not like old thread per request models like servlets. PROS AND CONS
- 23. USE IT High-load andmulti-user applications: ◦ Proxy Servers and Load Balancers. ◦ Any application that doesn’t do a lot of processing itself but delegates the high data processing to another system, like telecom e-care portals as they delegate to OCS, BSS or message brokers. ◦ Social Networks. ◦ Games. ◦ Real-time data streaming. DON’T USE IT High processing/blocking applications: ◦ If your whole application has to block the thread to do high processing (i.e. PDF generation in BI applications) then you probably would benefit from thread per request models WHEN TO USE

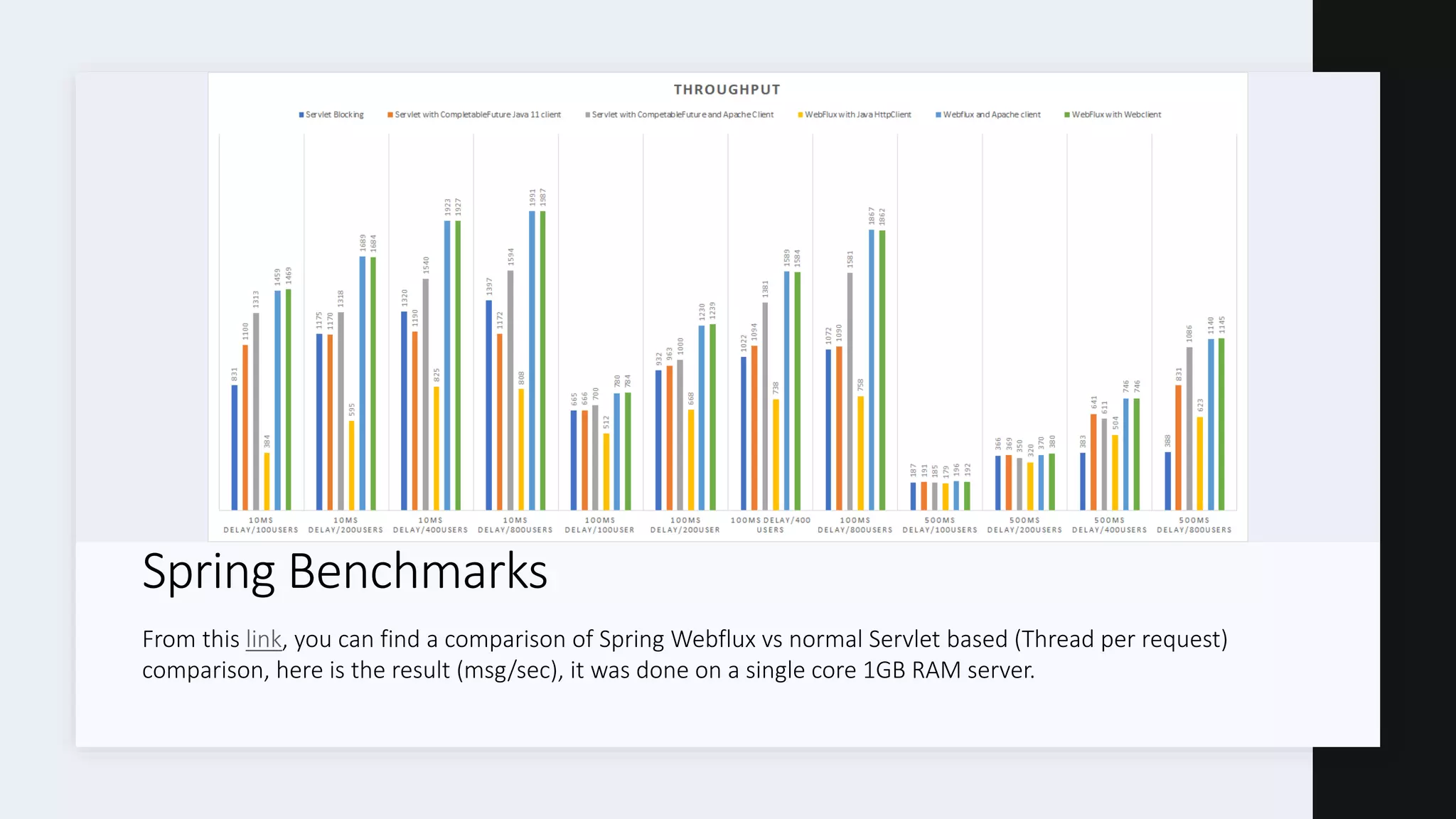

- 24. Spring Benchmarks From thislink, you can find a comparison of Spring Webflux vs normal Servlet based (Thread per request) comparison, here is the result (msg/sec), it was done on a single core 1GB RAM server.
- 25. Check this linkfor more info, you can find code implementations here. Basically, vert.x (and frameworks building on vert.x)are the fastest queries. Spring JDBC/Data JPA will slow down Webflux full potential. Pg-client is actually made for Vert.x (by Reactiverse) and it’s the fastest to communicate with databases in a reactive manner. There is reactive hibernate to use as an ORM and without a big loss. It can directly return data streams from Mutiny library (Qurakus) but not return a Flux. Spring Data has Spring Data R2DBC but it is not as ready as Hibernate Reactive. POLYGLOT BENCHMARK
- 26.
- 27.
