Practical JSON in MySQL 5.7

Who am I? 1.  Database Architect at Flite since 2007 2.  @iowalker on twitter 3.  Blog at mechanics.flite.com ABOUT ME © 2016 Flite Inc. All rights reserved. Conﬁdential information intended for direct recipients only.

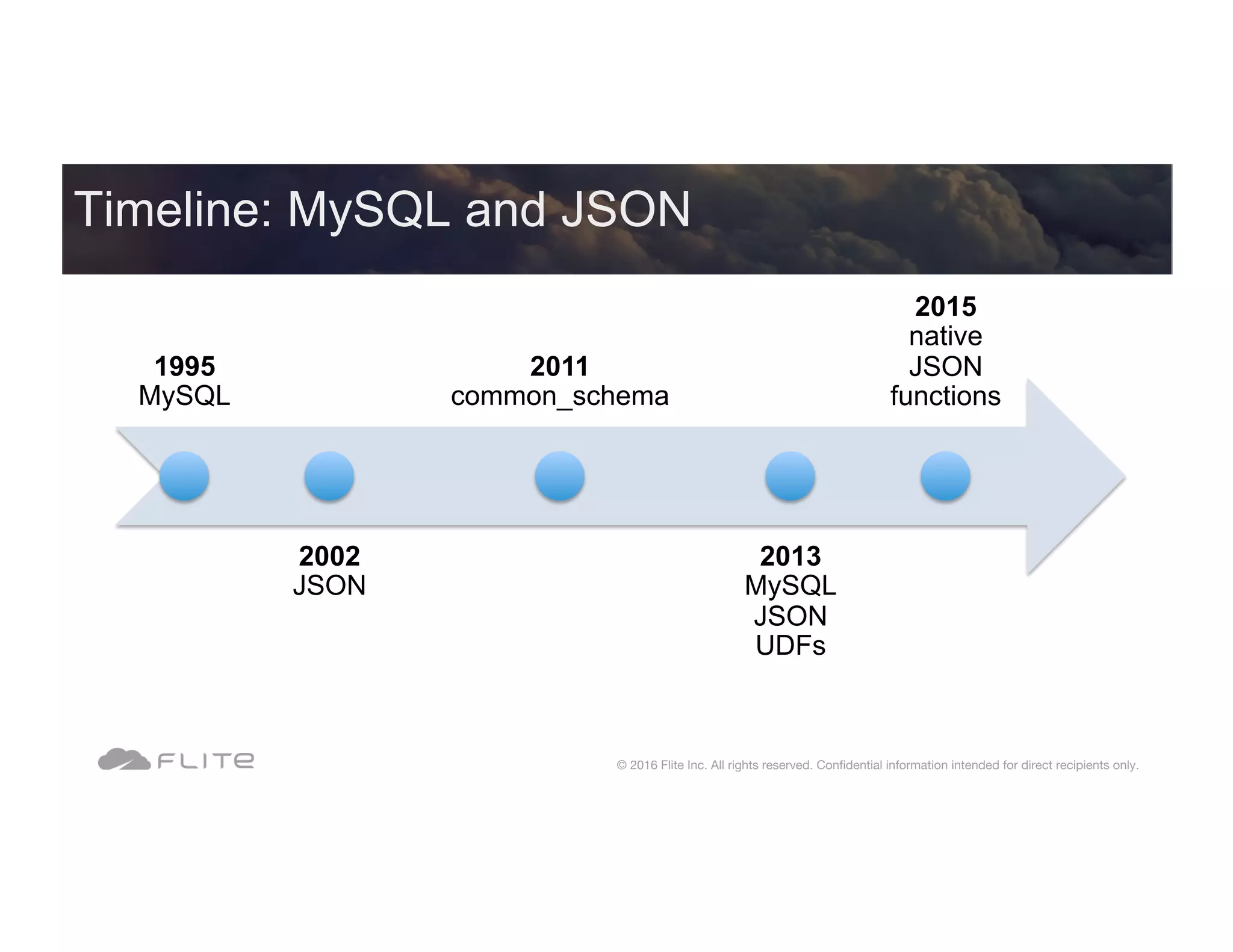

Timeline: MySQL and JSON © 2016 Flite Inc. All rights reserved. Conﬁdential information intended for direct recipients only. 1995 MySQL 2002 JSON 2011 common_schema 2013 MySQL JSON UDFs 2015 native JSON functions

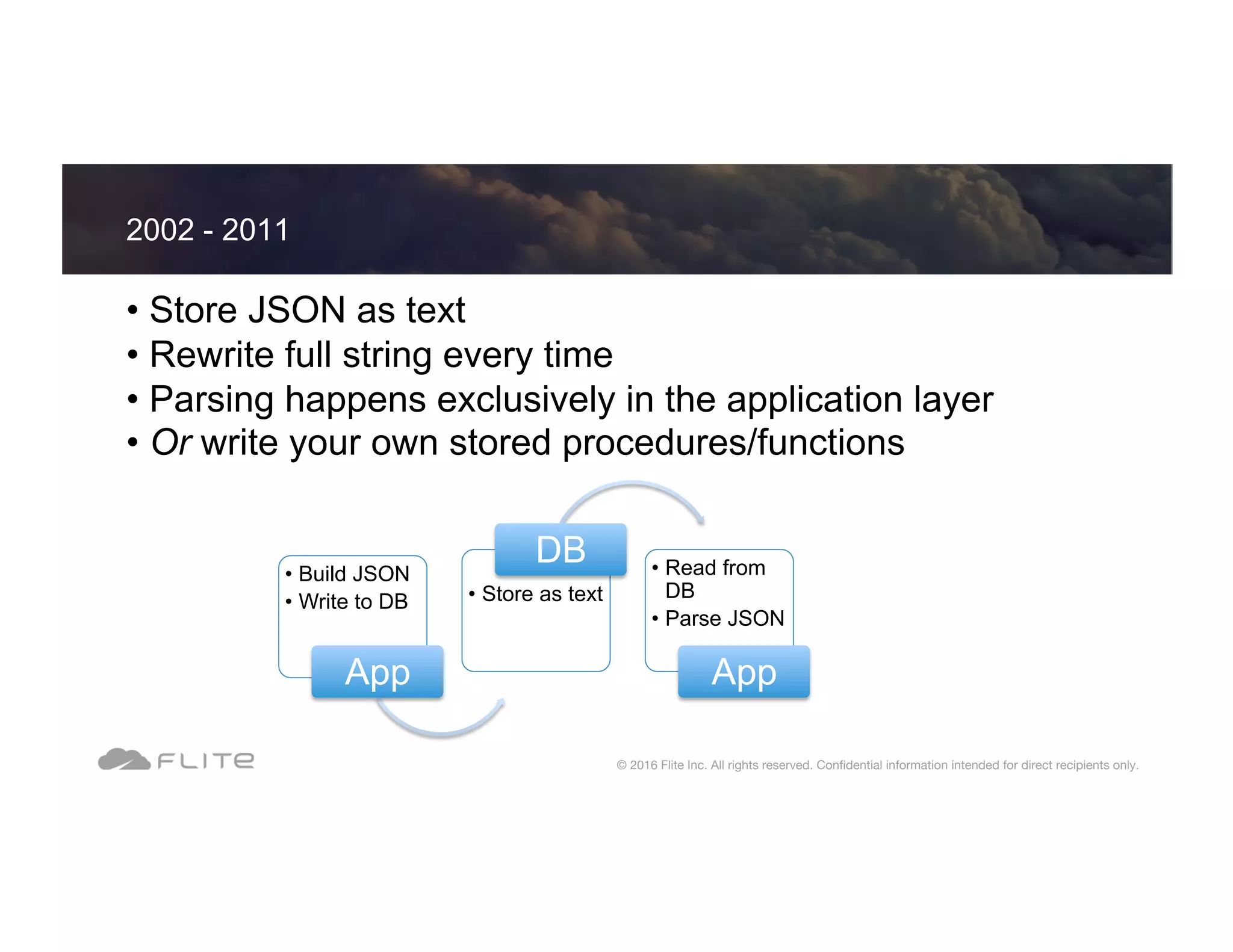

• Store JSON as text • Rewrite full string every time • Parsing happens exclusively in the application layer • Or write your own stored procedures/functions 2002 - 2011 © 2016 Flite Inc. All rights reserved. Conﬁdential information intended for direct recipients only. •  Build JSON •  Write to DB App •  Store as text DB •  Read from DB •  Parse JSON App

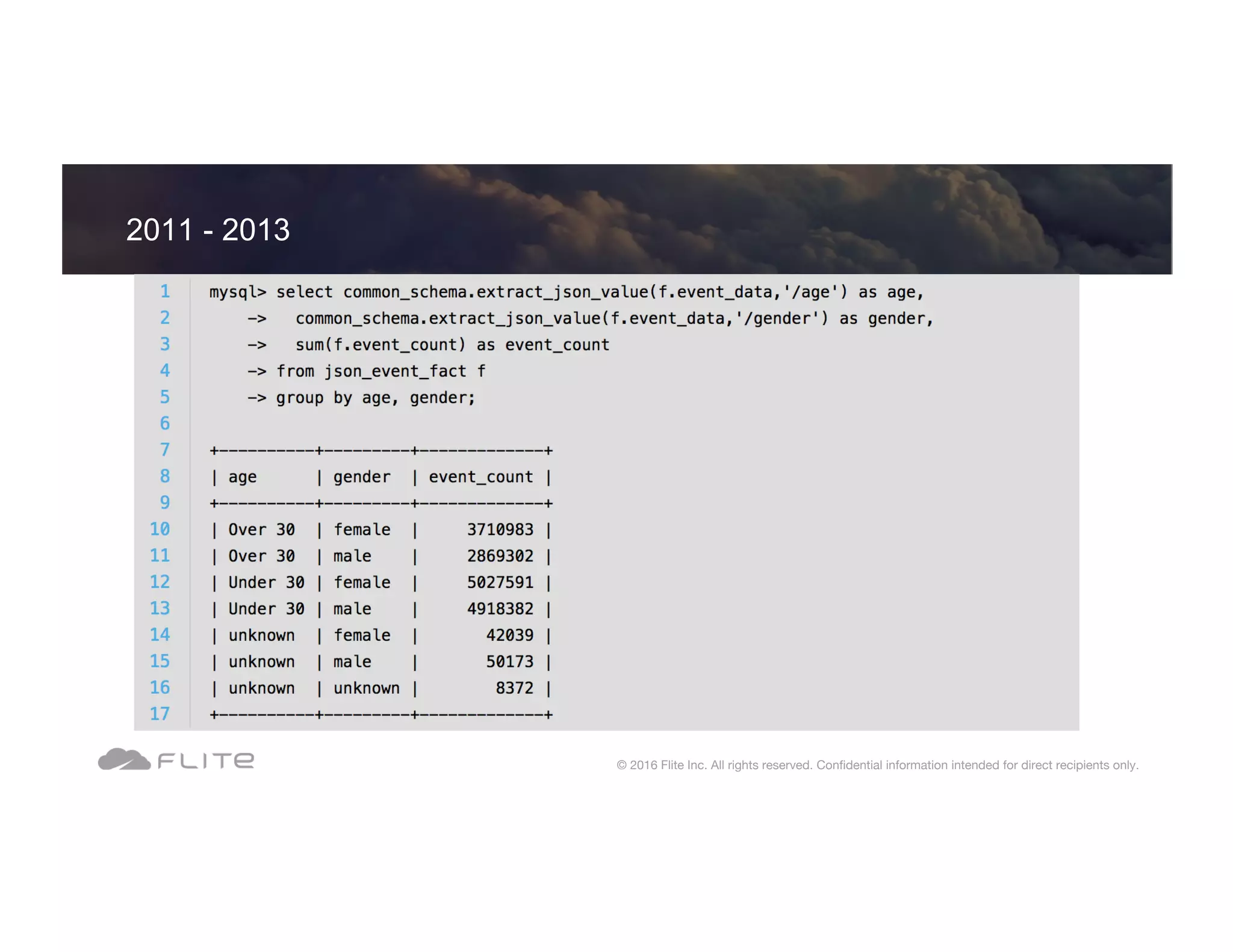

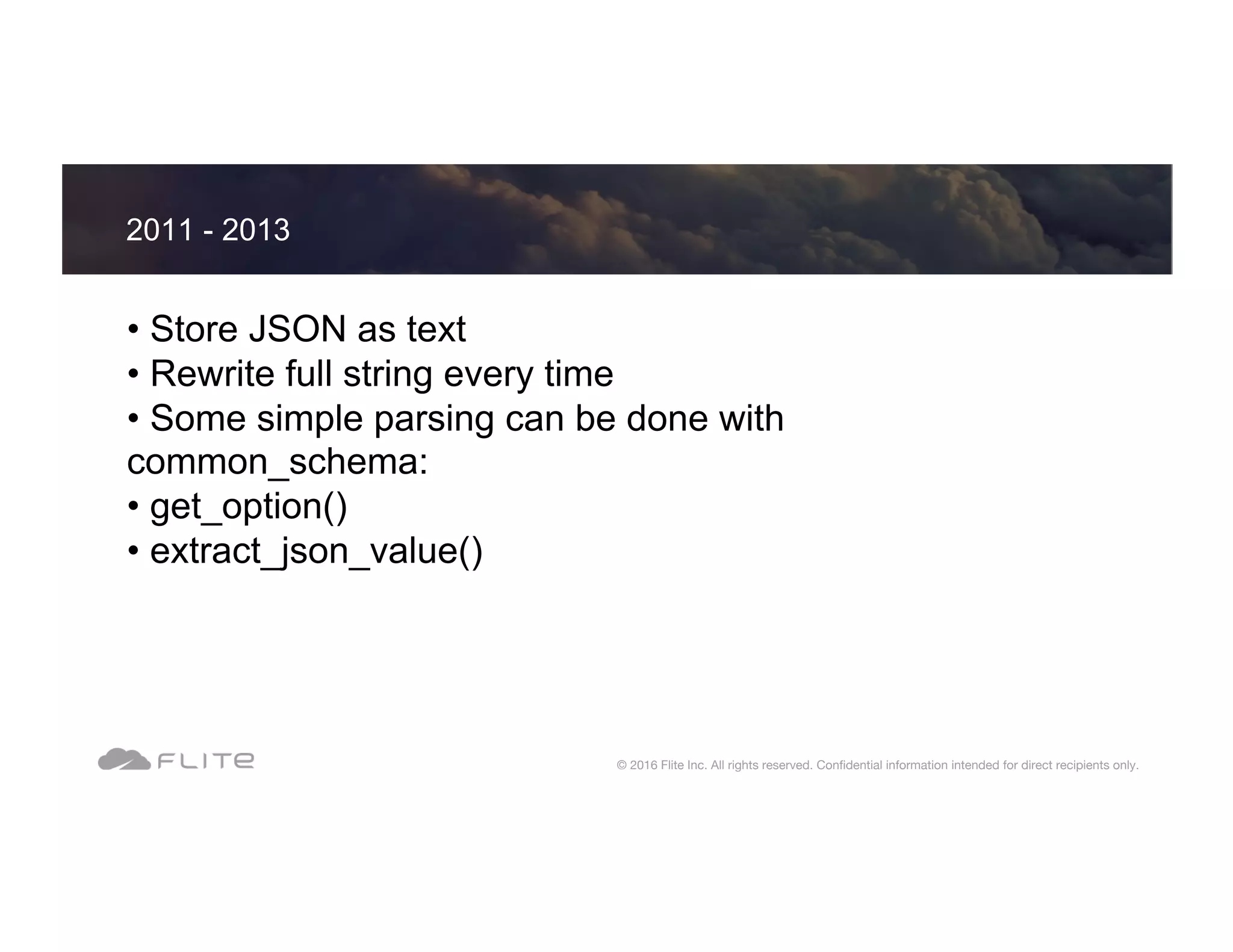

• Store JSON as text • Rewrite full string every time • Some simple parsing can be done with common_schema: • get_option() • extract_json_value() 2011 - 2013 © 2016 Flite Inc. All rights reserved. Conﬁdential information intended for direct recipients only.

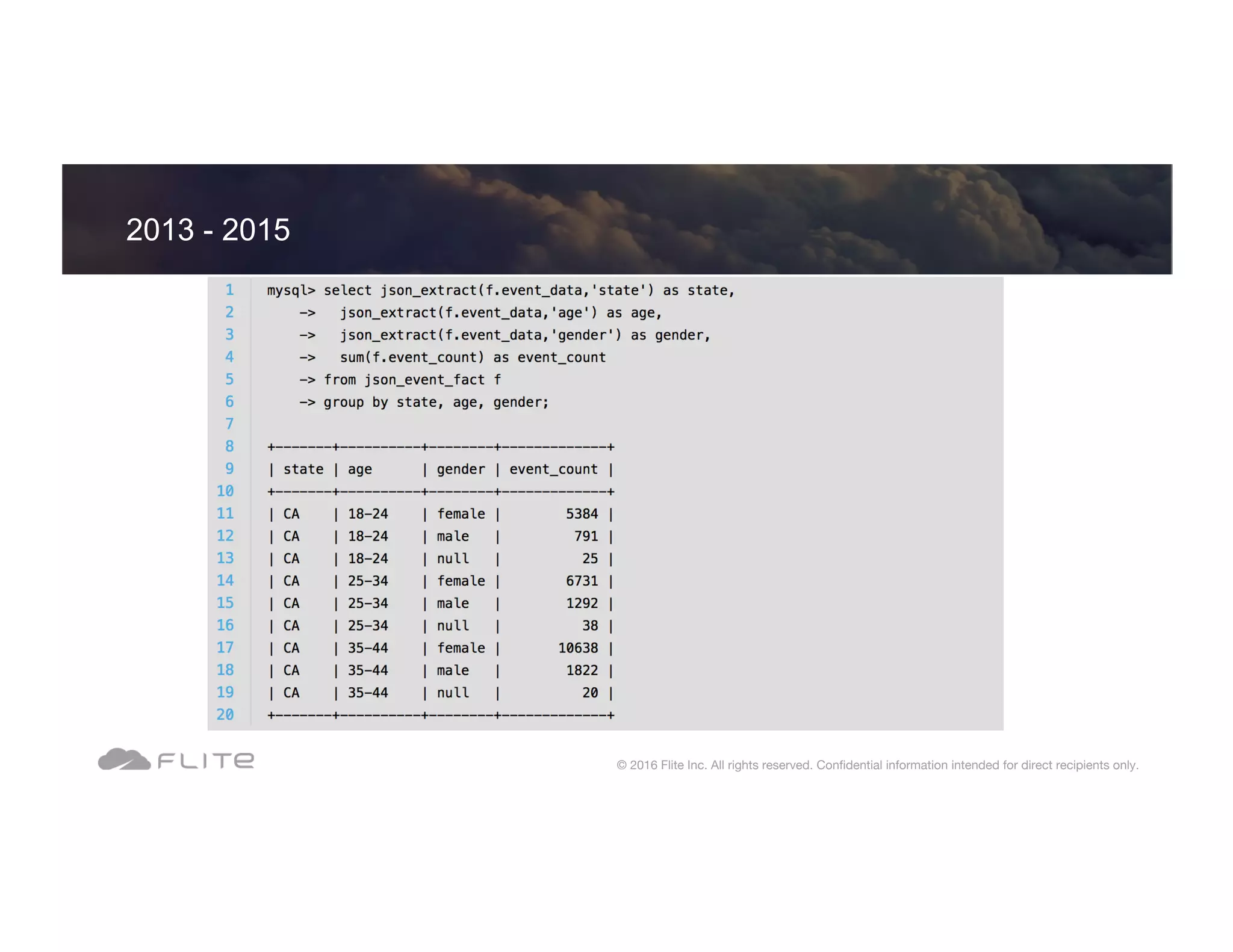

• Store JSON as text • Some updates can be done with UDFs • Much faster parsing supported by UDFs 2013 - 2015 © 2016 Flite Inc. All rights reserved. Conﬁdential information intended for direct recipients only.

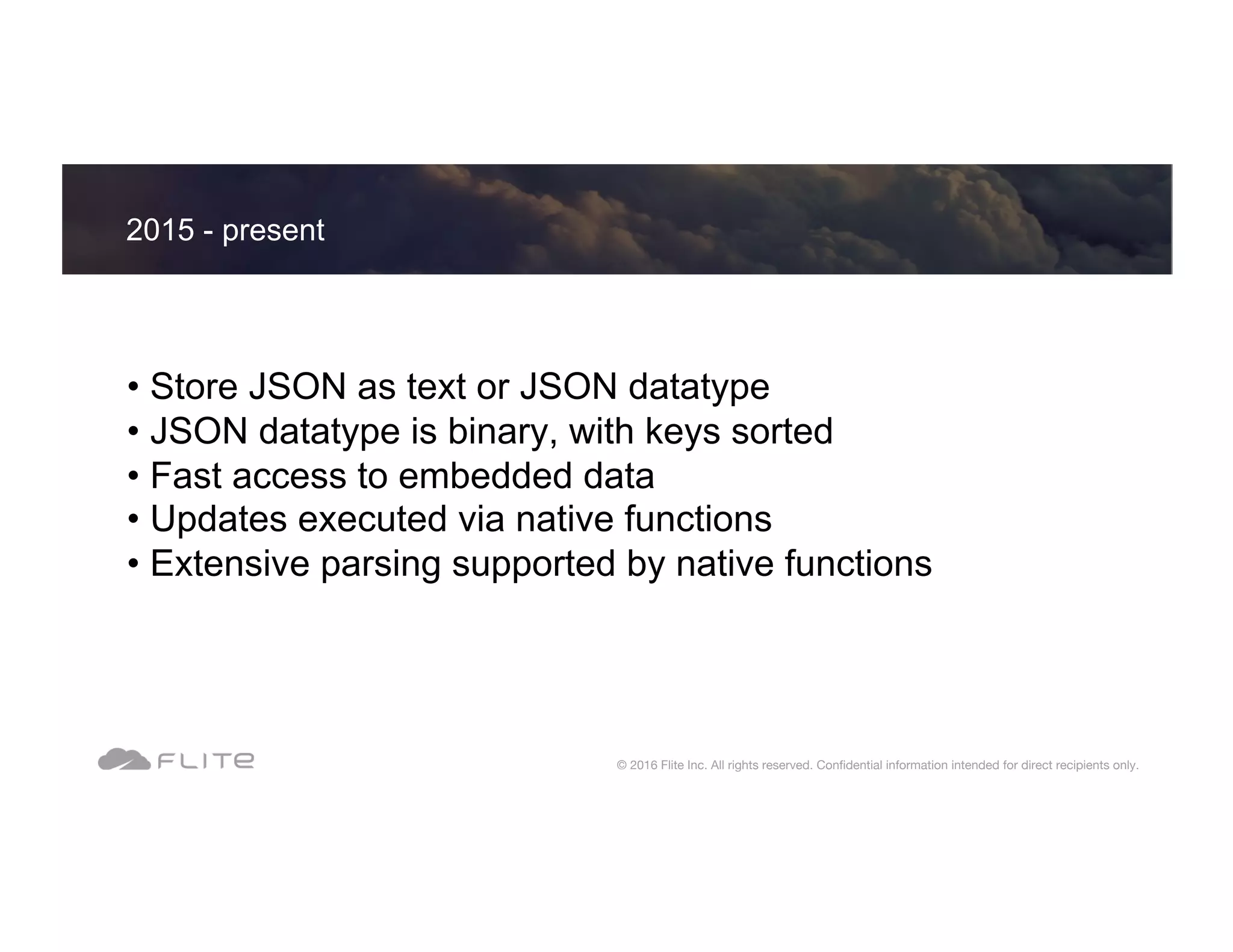

• Store JSON as text or JSON datatype • JSON datatype is binary, with keys sorted • Fast access to embedded data • Updates executed via native functions • Extensive parsing supported by native functions 2015 - present © 2016 Flite Inc. All rights reserved. Conﬁdential information intended for direct recipients only.

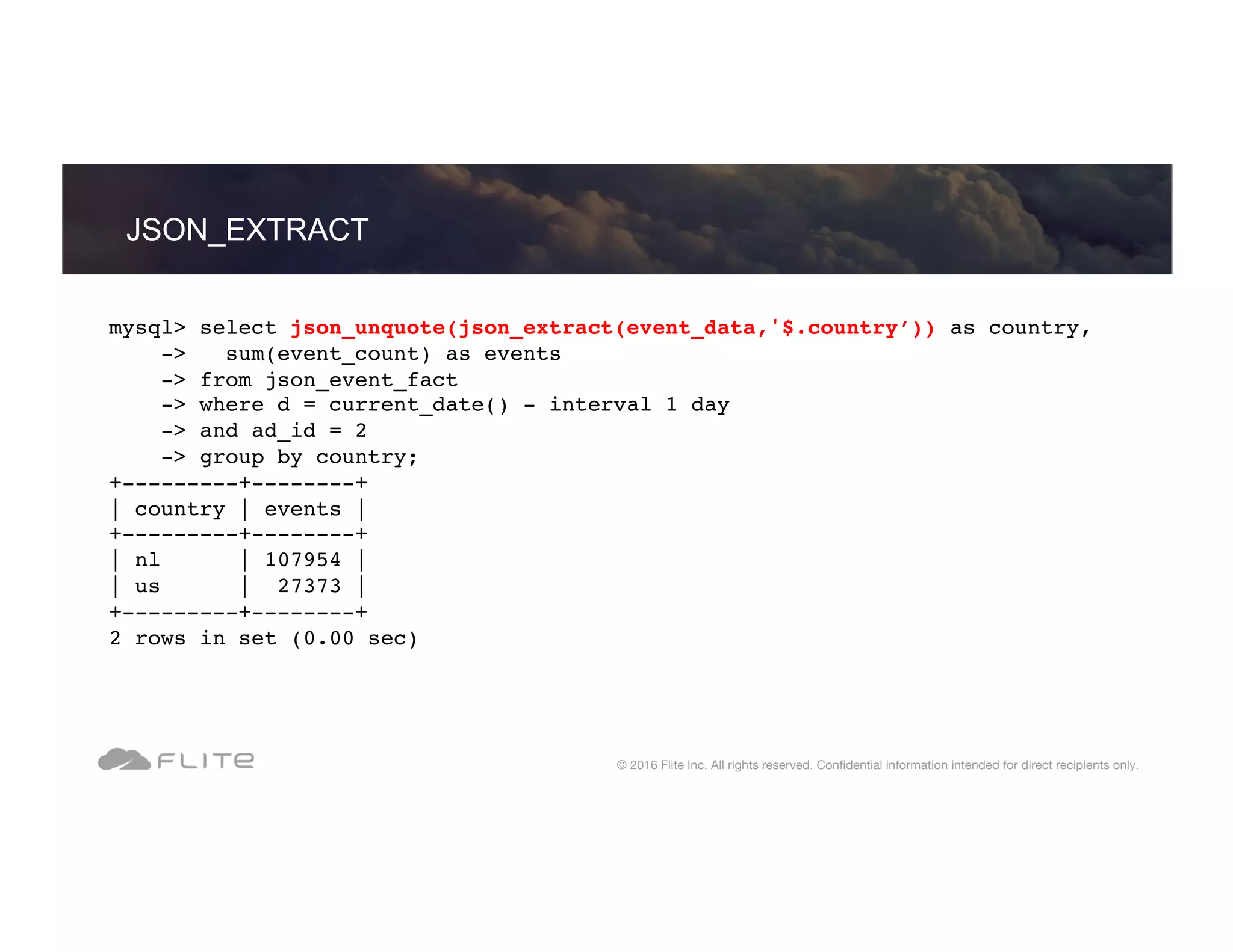

JSON_EXTRACT © 2016 Flite Inc. All rights reserved. Conﬁdential information intended for direct recipients only. mysql> select json_unquote(json_extract(event_data,'$.country’)) as country, -> sum(event_count) as events -> from json_event_fact -> where d = current_date() - interval 1 day -> and ad_id = 2 -> group by country; +---------+--------+ | country | events | +---------+--------+ | nl | 107954 | | us | 27373 | +---------+--------+ 2 rows in set (0.00 sec)

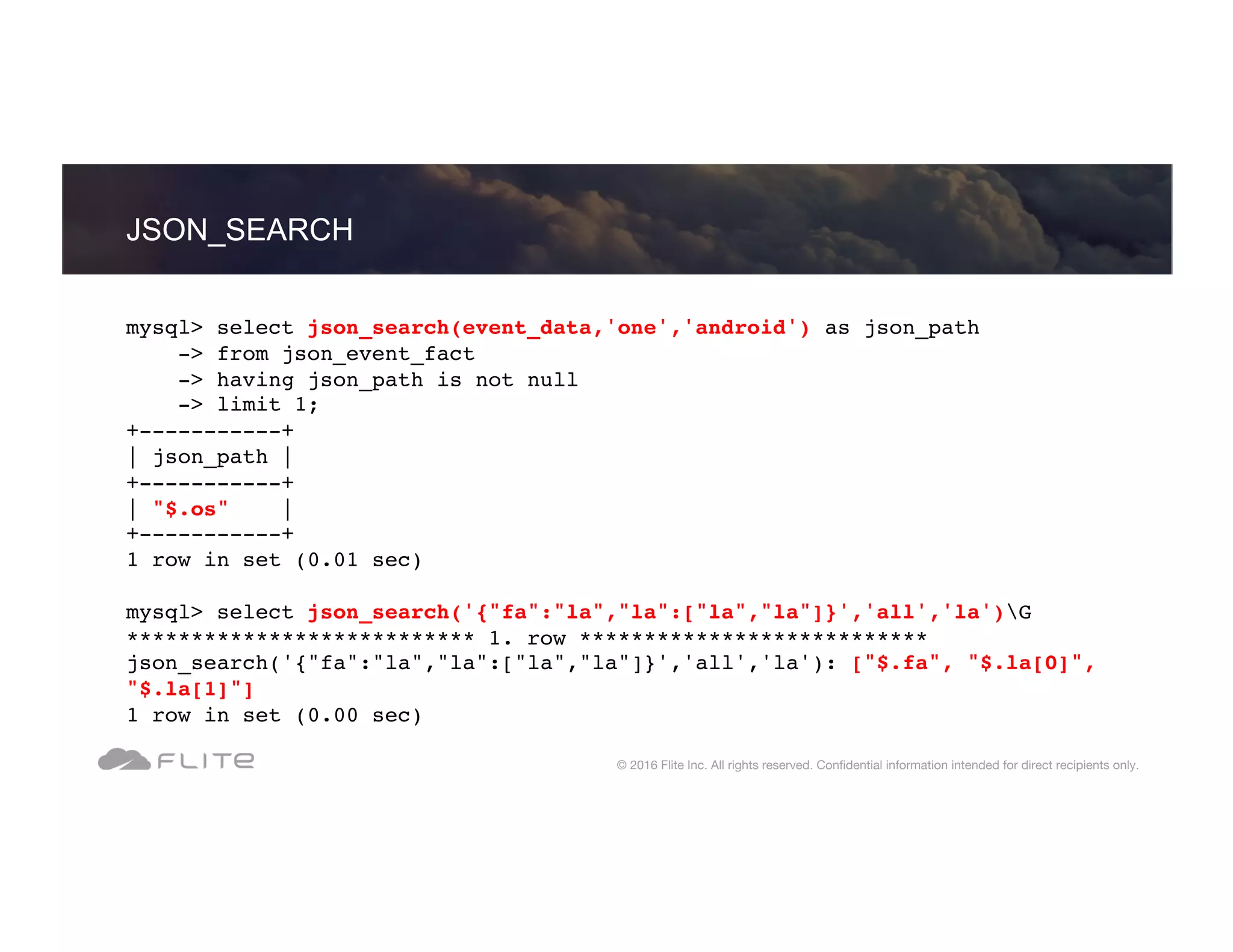

JSON_SEARCH © 2016 Flite Inc. All rights reserved. Conﬁdential information intended for direct recipients only. mysql> select json_search(event_data,'one','android') as json_path -> from json_event_fact -> having json_path is not null -> limit 1; +-----------+ | json_path | +-----------+ | "$.os" | +-----------+ 1 row in set (0.01 sec) mysql> select json_search('{"fa":"la","la":["la","la"]}','all','la')G *************************** 1. row *************************** json_search('{"fa":"la","la":["la","la"]}','all','la'): ["$.fa", "$.la[0]", "$.la[1]"] 1 row in set (0.00 sec)

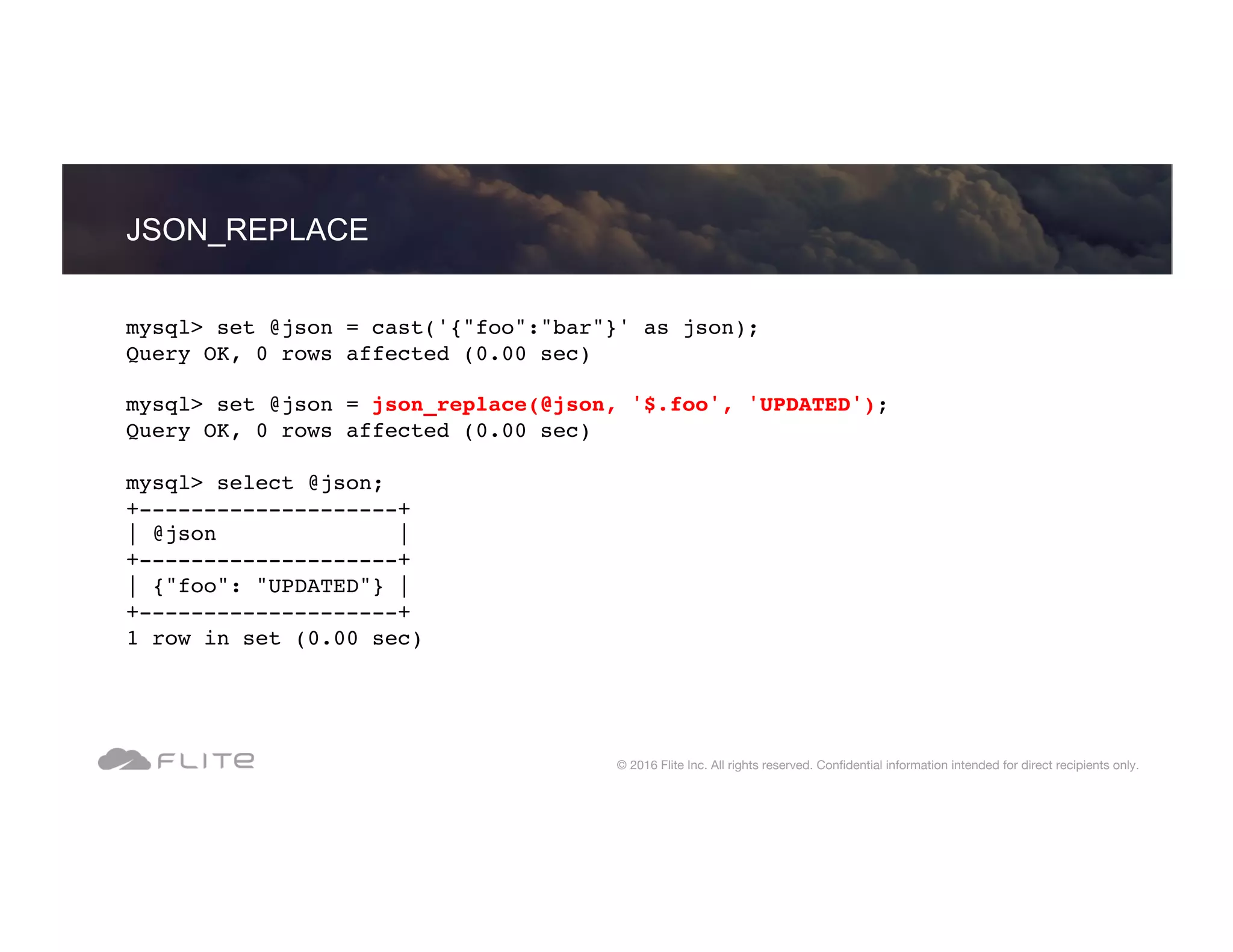

JSON_REPLACE © 2016 Flite Inc. All rights reserved. Conﬁdential information intended for direct recipients only. mysql> set @json = cast('{"foo":"bar"}' as json); Query OK, 0 rows affected (0.00 sec) mysql> set @json = json_replace(@json, '$.foo', 'UPDATED'); Query OK, 0 rows affected (0.00 sec) mysql> select @json; +--------------------+ | @json | +--------------------+ | {"foo": "UPDATED"} | +--------------------+ 1 row in set (0.00 sec)

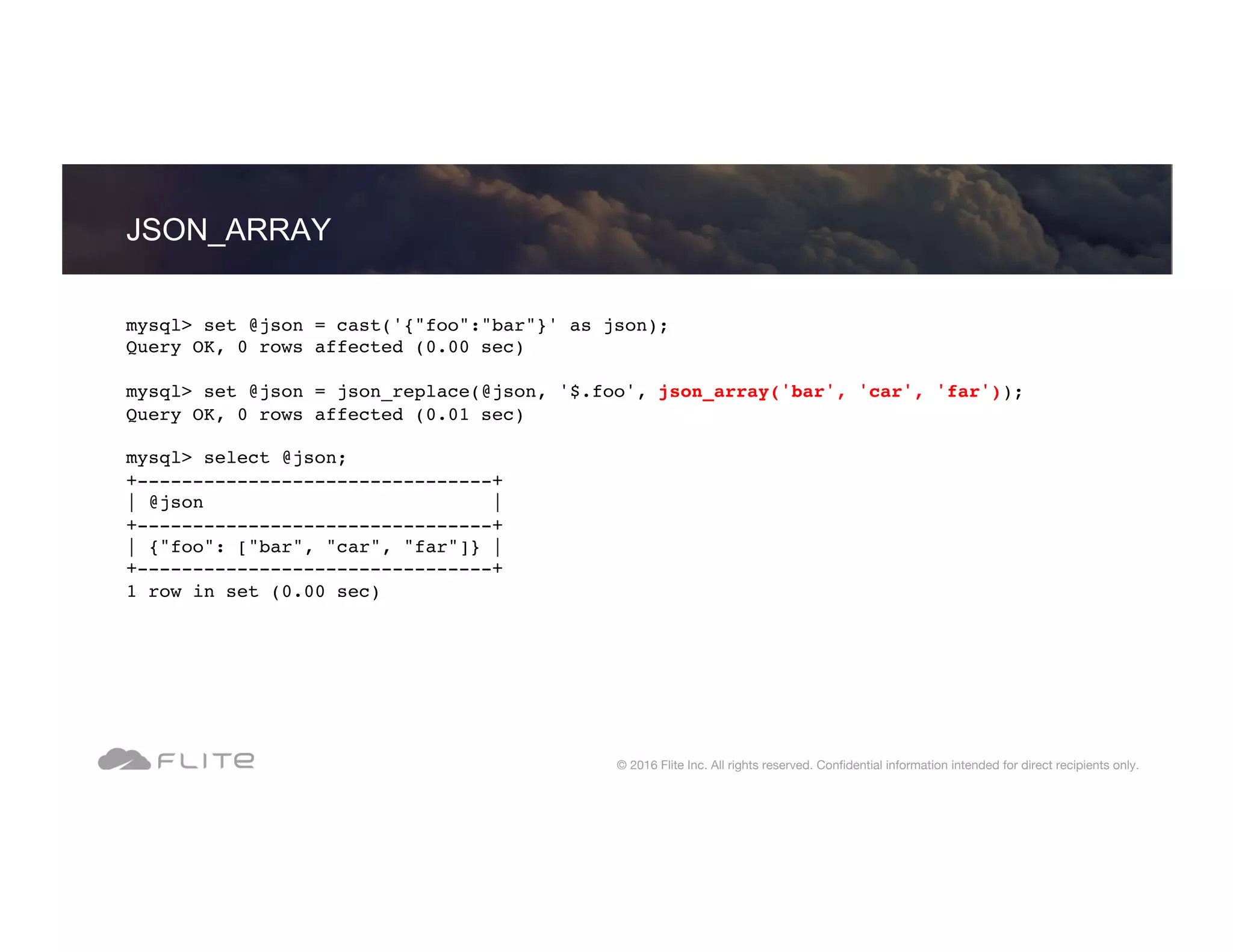

JSON_ARRAY © 2016 Flite Inc. All rights reserved. Conﬁdential information intended for direct recipients only. mysql> set @json = cast('{"foo":"bar"}' as json); Query OK, 0 rows affected (0.00 sec) mysql> set @json = json_replace(@json, '$.foo', json_array('bar', 'car', 'far')); Query OK, 0 rows affected (0.01 sec) mysql> select @json; +--------------------------------+ | @json | +--------------------------------+ | {"foo": ["bar", "car", "far"]} | +--------------------------------+ 1 row in set (0.00 sec)

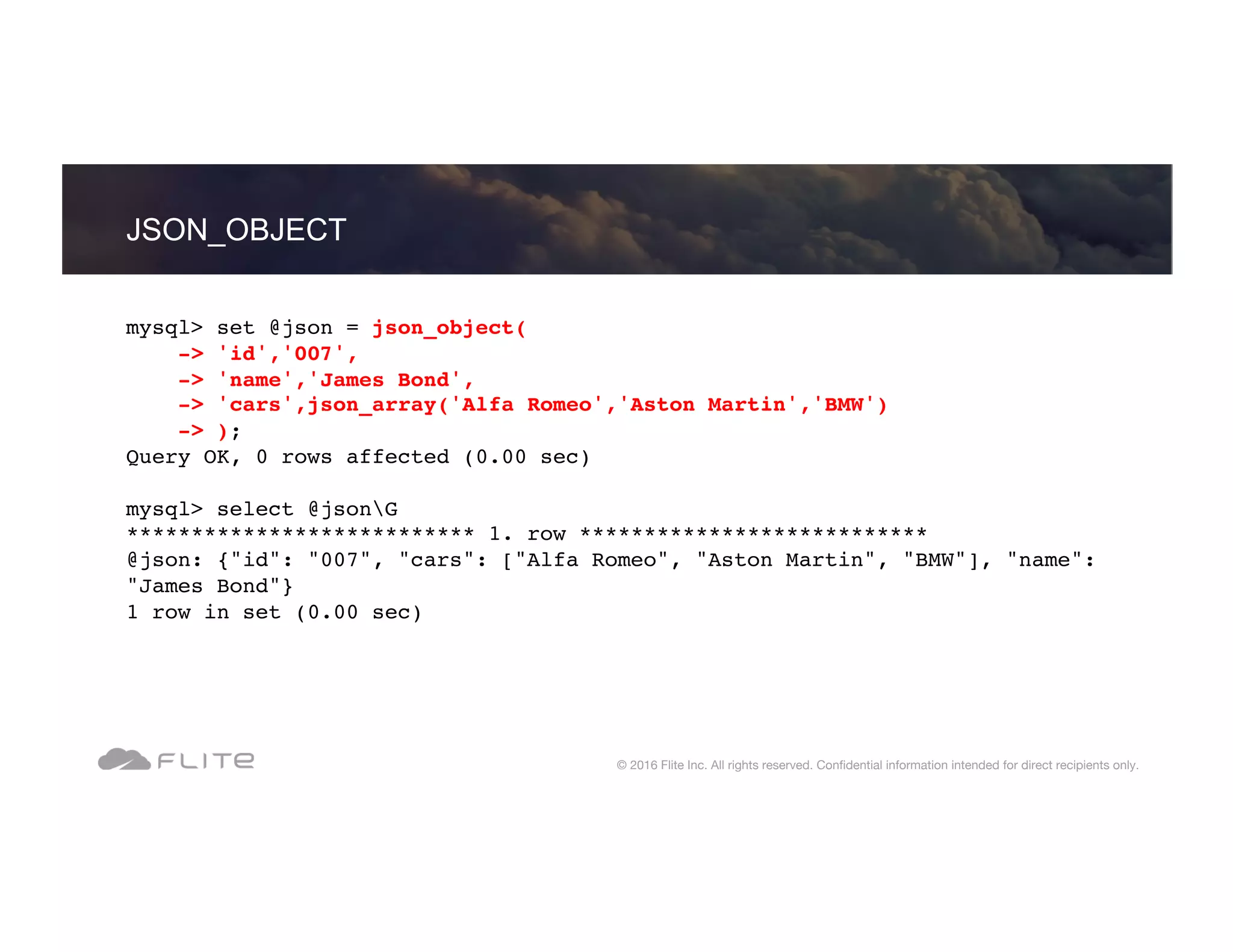

JSON_OBJECT © 2016 Flite Inc. All rights reserved. Conﬁdential information intended for direct recipients only. mysql> set @json = json_object( -> 'id','007', -> 'name','James Bond', -> 'cars',json_array('Alfa Romeo','Aston Martin','BMW') -> ); Query OK, 0 rows affected (0.00 sec) mysql> select @jsonG *************************** 1. row *************************** @json: {"id": "007", "cars": ["Alfa Romeo", "Aston Martin", "BMW"], "name": "James Bond"} 1 row in set (0.00 sec)

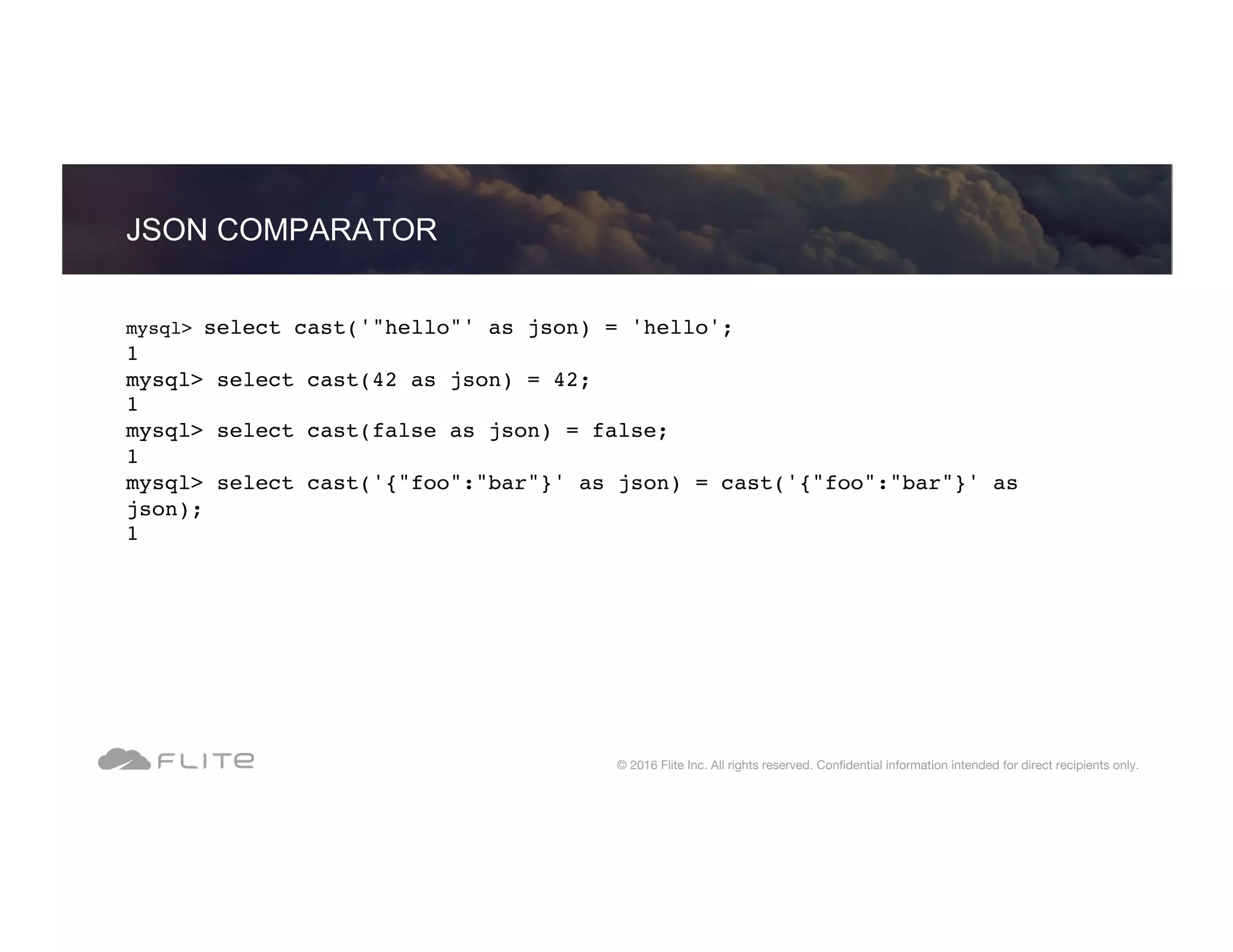

JSON COMPARATOR © 2016 Flite Inc. All rights reserved. Conﬁdential information intended for direct recipients only. mysql> select cast('"hello"' as json) = 'hello'; 1 mysql> select cast(42 as json) = 42; 1 mysql> select cast(false as json) = false; 1 mysql> select cast('{"foo":"bar"}' as json) = cast('{"foo":"bar"}' as json); 1

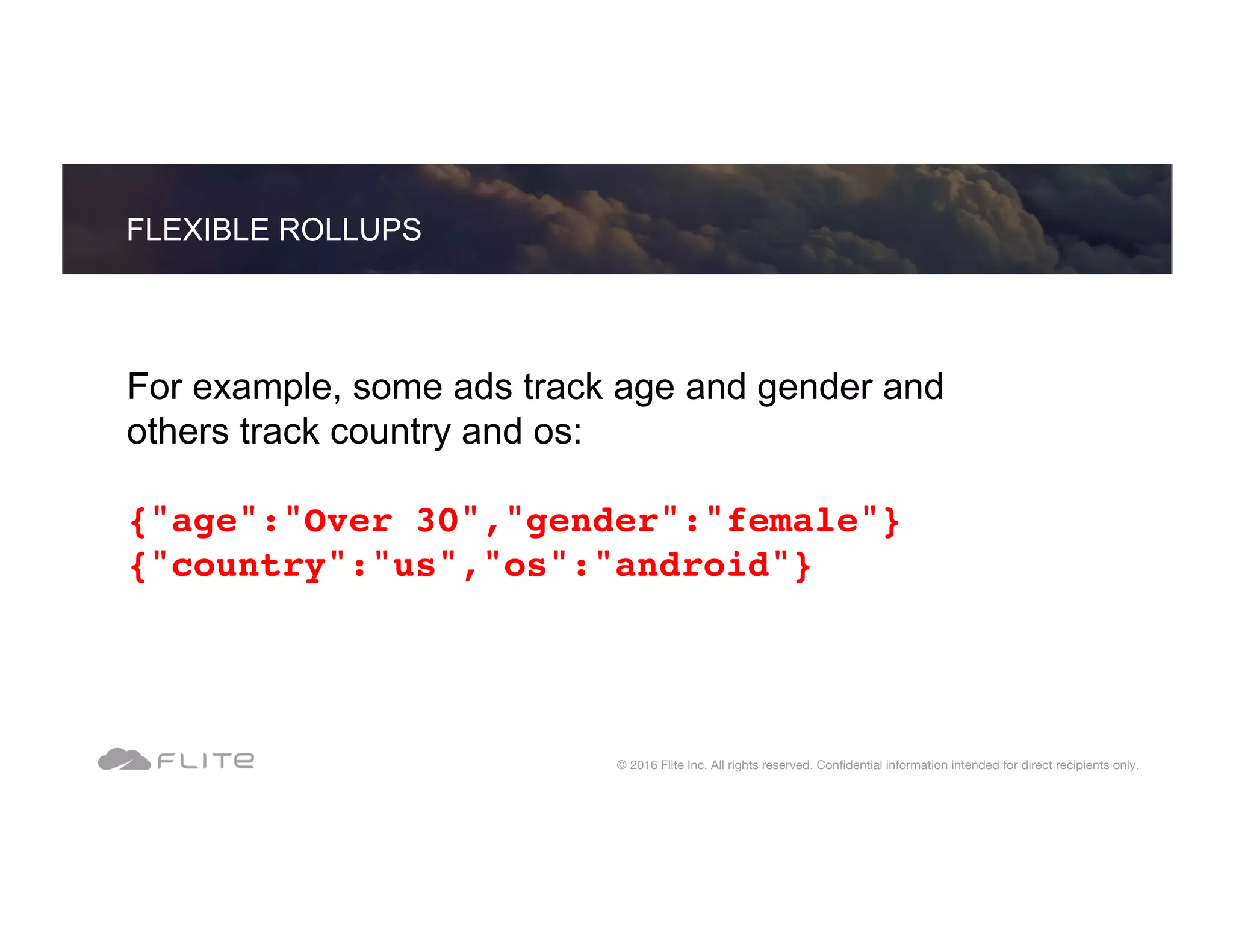

For example, some ads track age and gender and others track country and os: {"age":"Over 30","gender":"female"} {"country":"us","os":"android"} FLEXIBLE ROLLUPS © 2016 Flite Inc. All rights reserved. Conﬁdential information intended for direct recipients only.

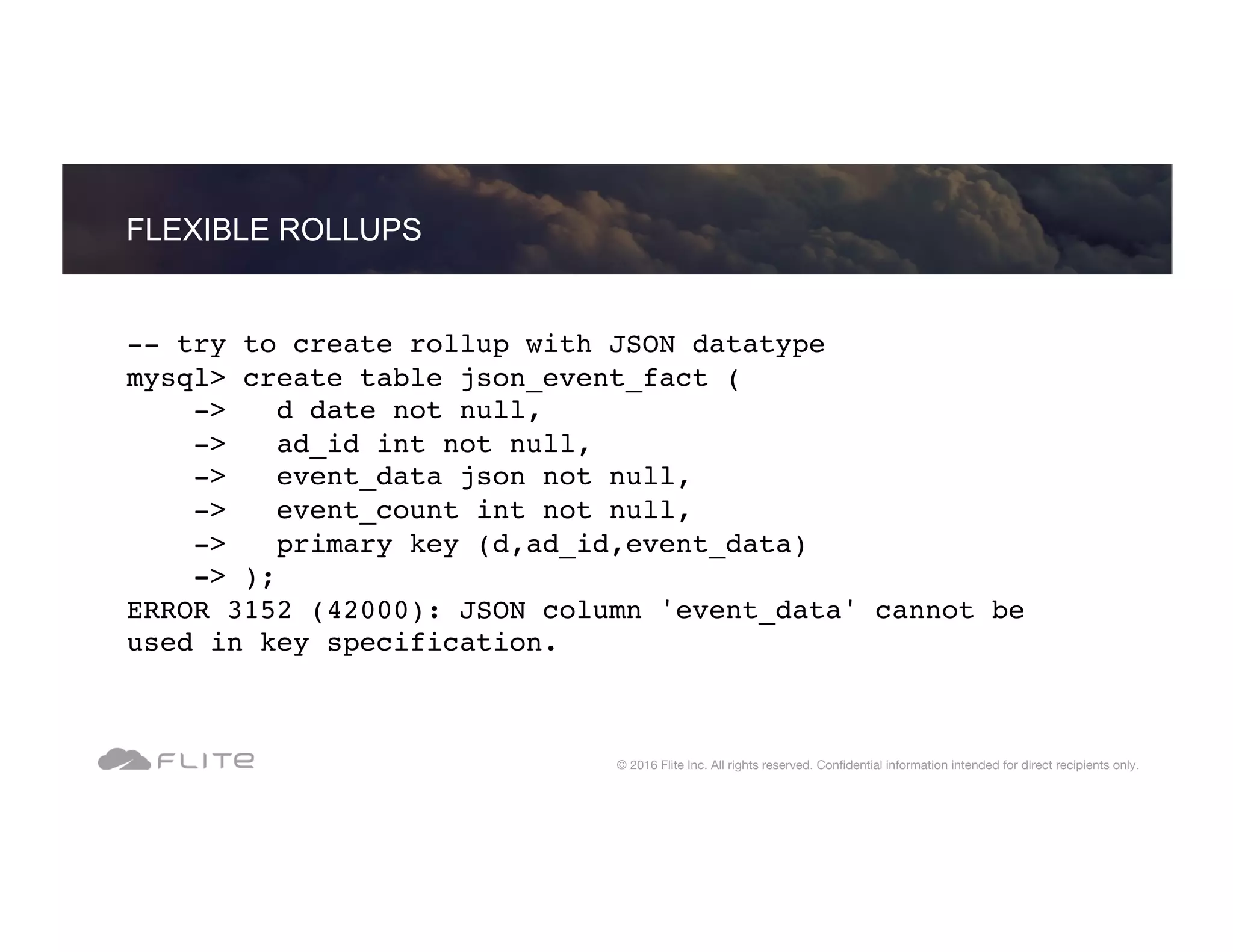

-- try to create rollup with JSON datatype mysql> create table json_event_fact ( -> d date not null, -> ad_id int not null, -> event_data json not null, -> event_count int not null, -> primary key (d,ad_id,event_data) -> ); ERROR 3152 (42000): JSON column 'event_data' cannot be used in key specification. FLEXIBLE ROLLUPS © 2016 Flite Inc. All rights reserved. Conﬁdential information intended for direct recipients only.

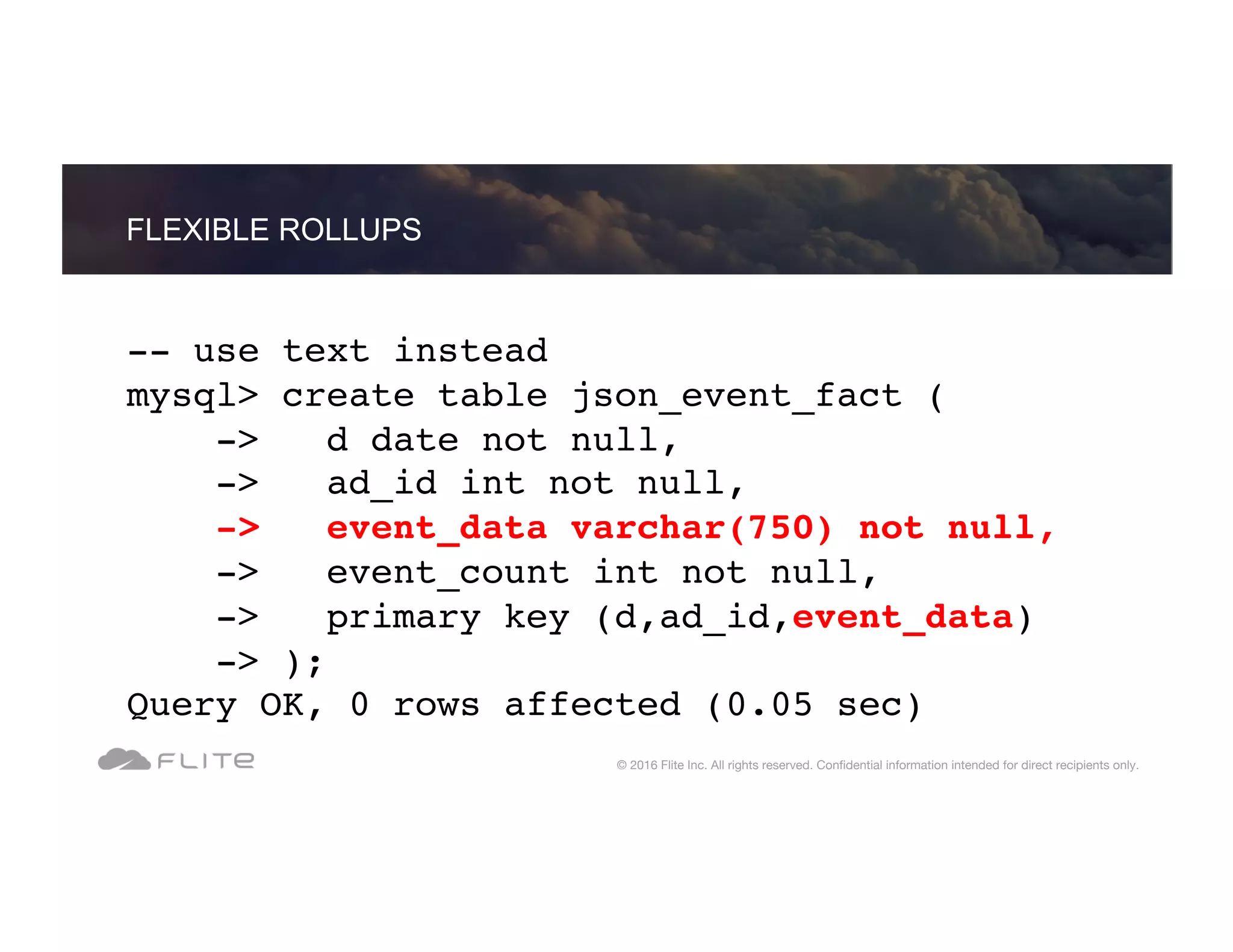

-- use text instead mysql> create table json_event_fact ( -> d date not null, -> ad_id int not null, -> event_data varchar(750) not null, -> event_count int not null, -> primary key (d,ad_id,event_data) -> ); Query OK, 0 rows affected (0.05 sec) FLEXIBLE ROLLUPS © 2016 Flite Inc. All rights reserved. Conﬁdential information intended for direct recipients only.

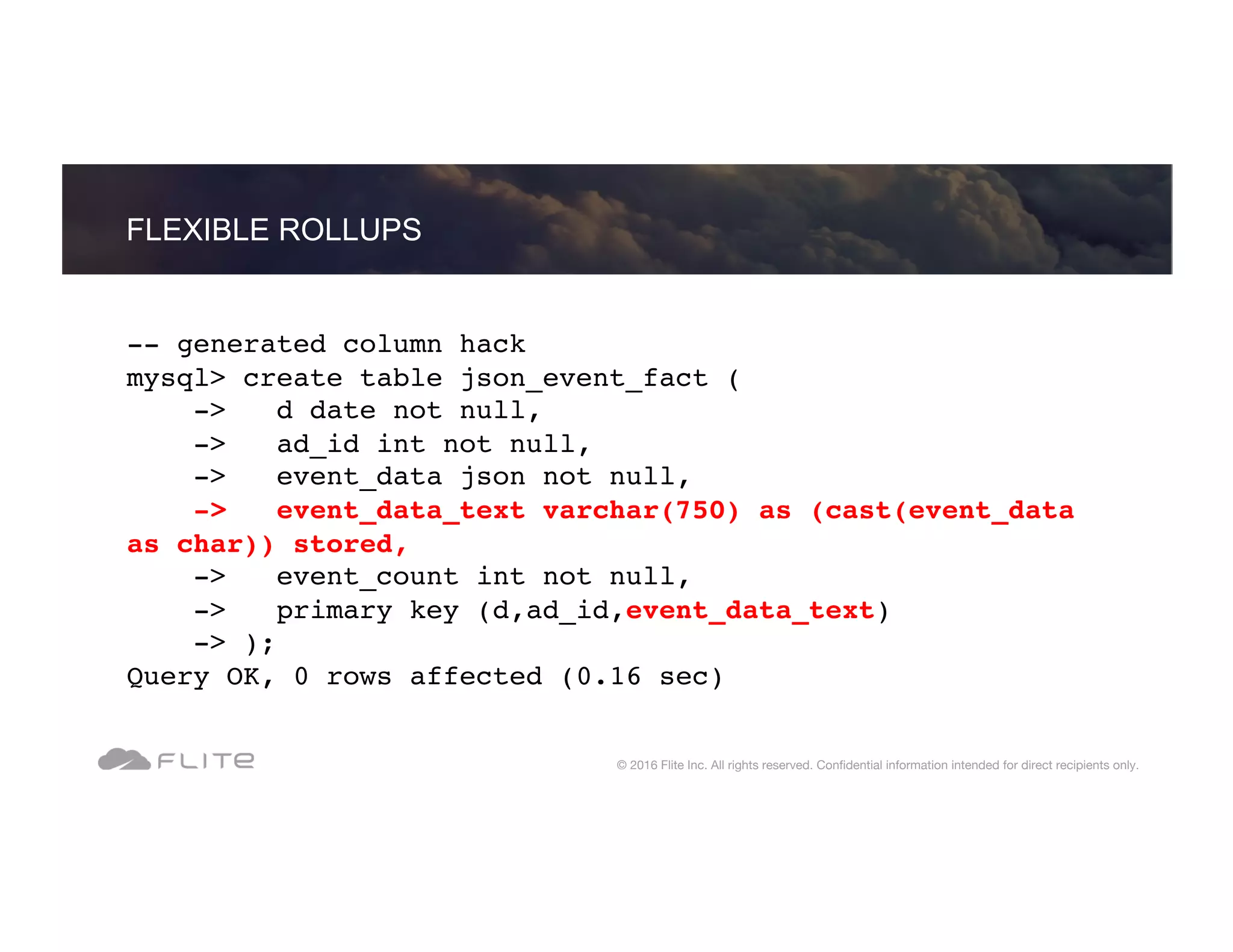

-- generated column hack mysql> create table json_event_fact ( -> d date not null, -> ad_id int not null, -> event_data json not null, -> event_data_text varchar(750) as (cast(event_data as char)) stored, -> event_count int not null, -> primary key (d,ad_id,event_data_text) -> ); Query OK, 0 rows affected (0.16 sec) FLEXIBLE ROLLUPS © 2016 Flite Inc. All rights reserved. Conﬁdential information intended for direct recipients only.

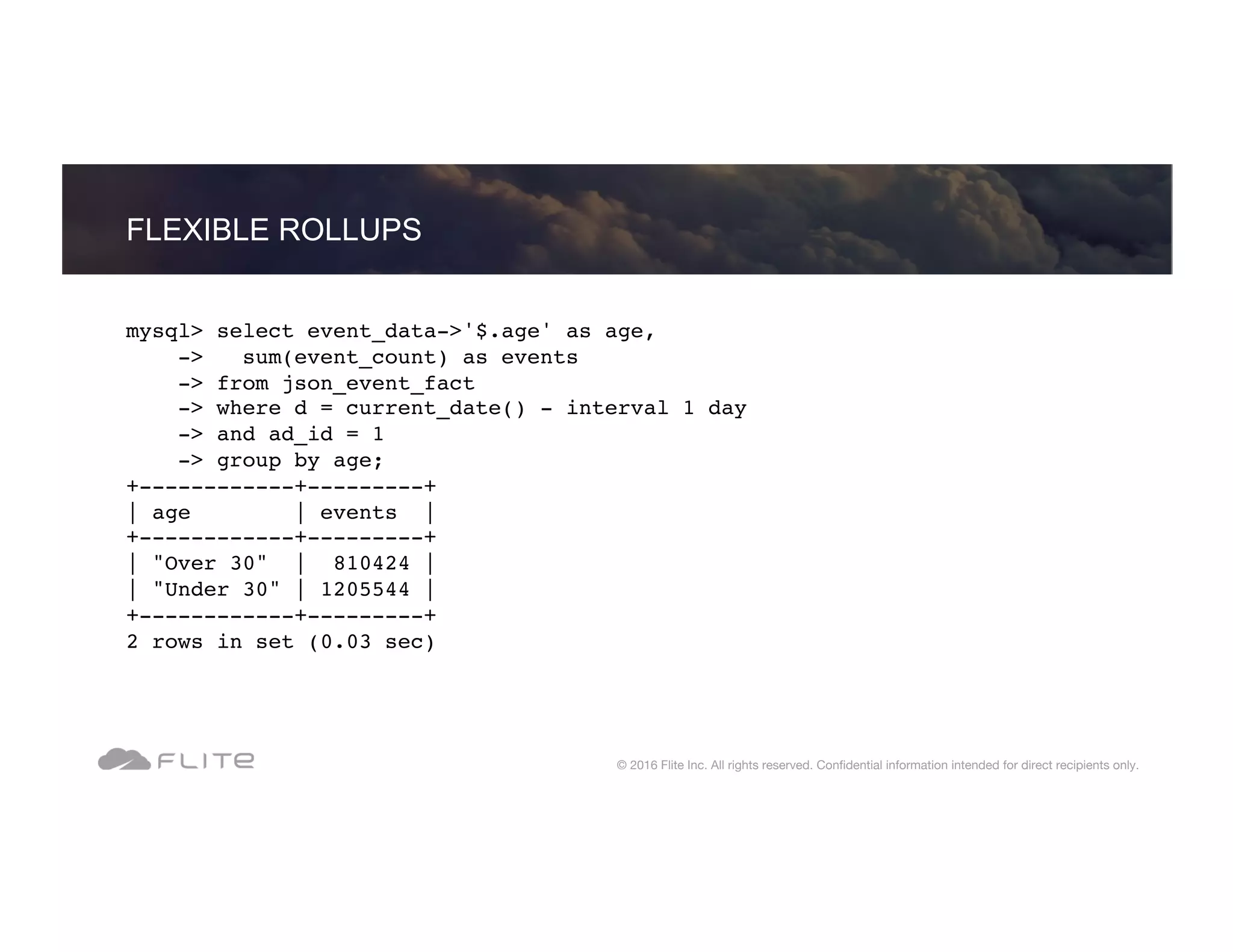

mysql> select event_data->'$.age' as age, -> sum(event_count) as events -> from json_event_fact -> where d = current_date() - interval 1 day -> and ad_id = 1 -> group by age; +------------+---------+ | age | events | +------------+---------+ | "Over 30" | 810424 | | "Under 30" | 1205544 | +------------+---------+ 2 rows in set (0.03 sec) FLEXIBLE ROLLUPS © 2016 Flite Inc. All rights reserved. Conﬁdential information intended for direct recipients only.

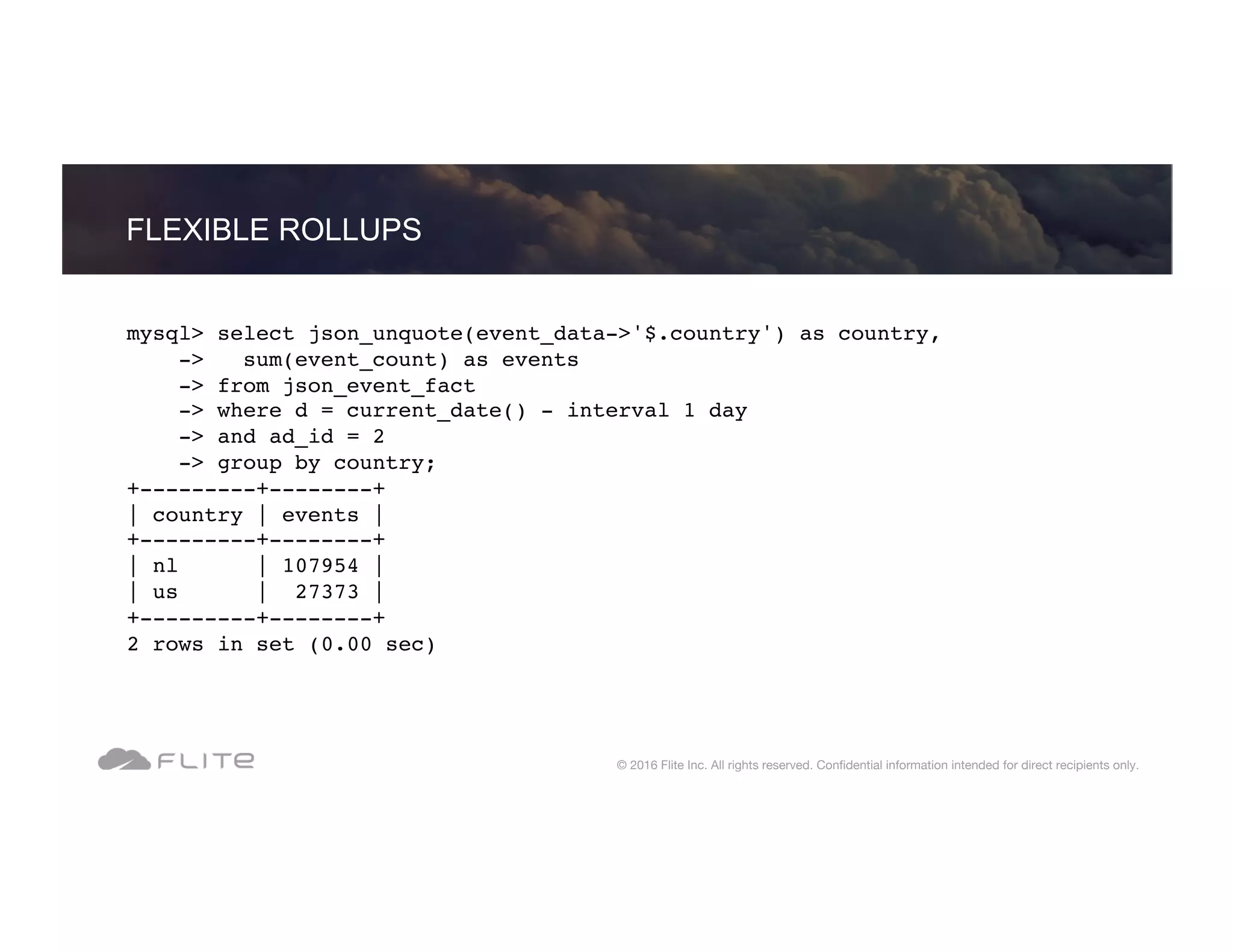

mysql> select json_unquote(event_data->'$.country') as country, -> sum(event_count) as events -> from json_event_fact -> where d = current_date() - interval 1 day -> and ad_id = 2 -> group by country; +---------+--------+ | country | events | +---------+--------+ | nl | 107954 | | us | 27373 | +---------+--------+ 2 rows in set (0.00 sec) FLEXIBLE ROLLUPS © 2016 Flite Inc. All rights reserved. Conﬁdential information intended for direct recipients only.

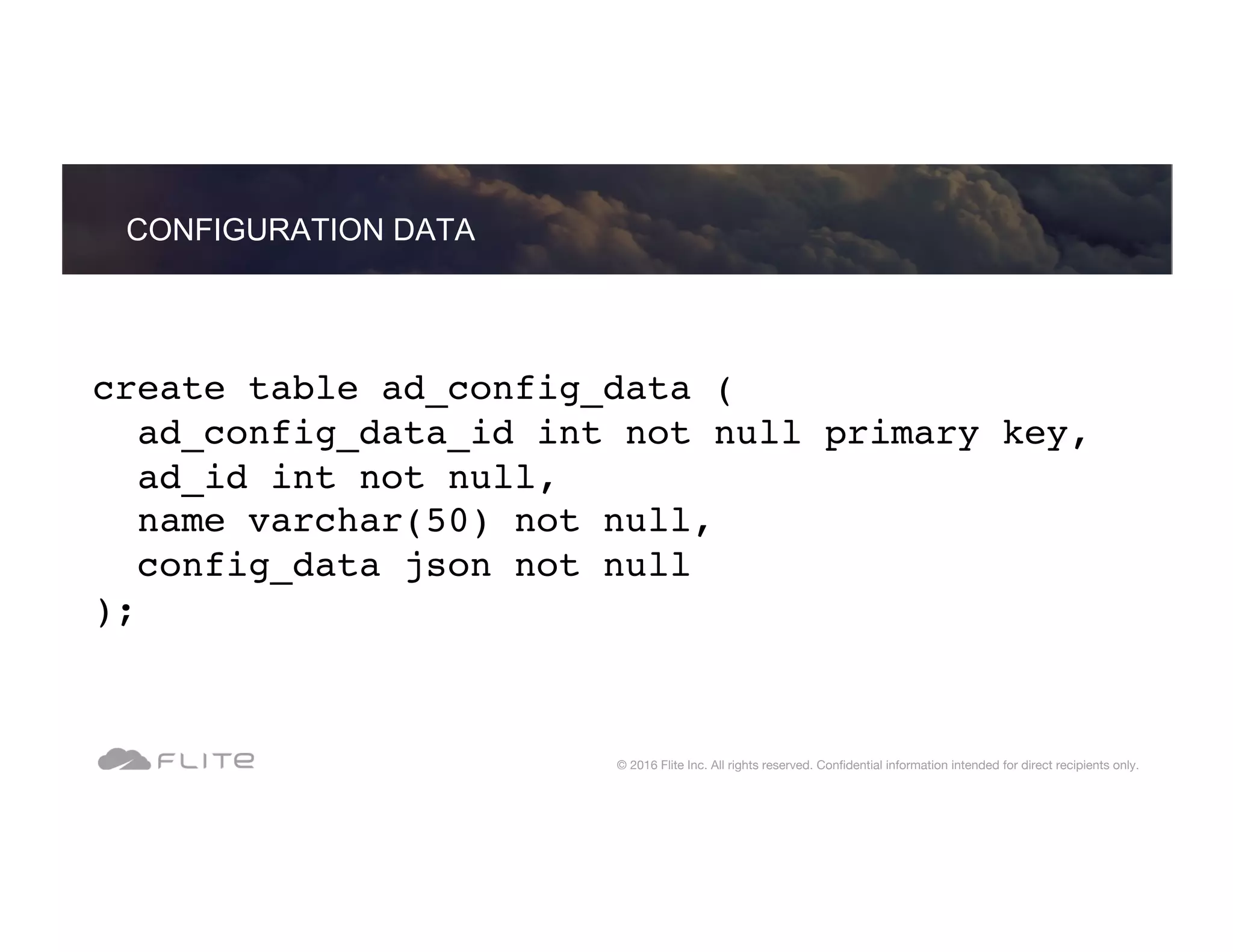

create table ad_config_data ( ad_config_data_id int not null primary key, ad_id int not null, name varchar(50) not null, config_data json not null ); CONFIGURATION DATA © 2016 Flite Inc. All rights reserved. Conﬁdential information intended for direct recipients only.

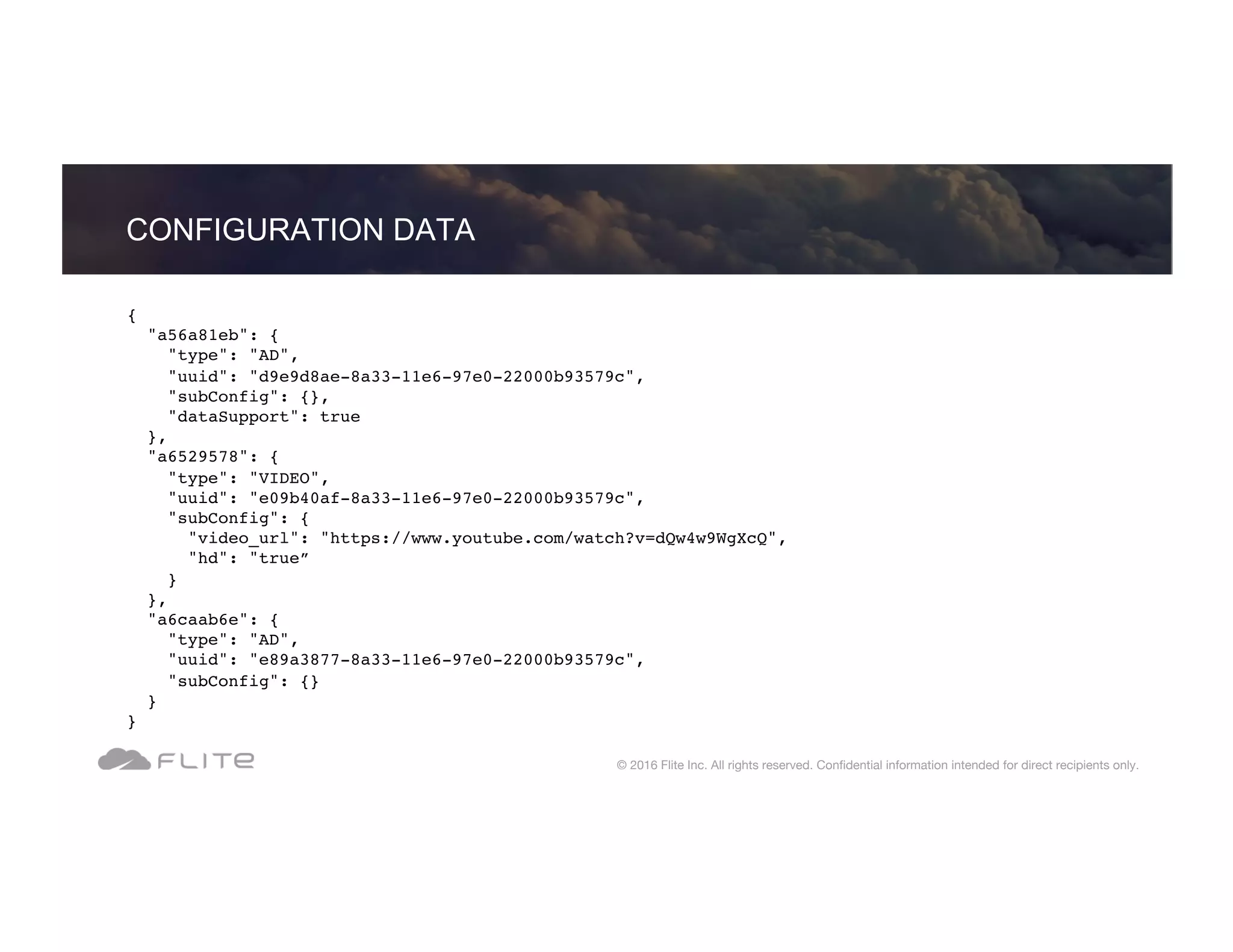

{ "a56a81eb": { "type": "AD", "uuid": "d9e9d8ae-8a33-11e6-97e0-22000b93579c", "subConfig": {}, "dataSupport": true }, "a6529578": { "type": "VIDEO", "uuid": "e09b40af-8a33-11e6-97e0-22000b93579c", "subConfig": { "video_url": "https://www.youtube.com/watch?v=dQw4w9WgXcQ", "hd": "true” } }, "a6caab6e": { "type": "AD", "uuid": "e89a3877-8a33-11e6-97e0-22000b93579c", "subConfig": {} } } CONFIGURATION DATA © 2016 Flite Inc. All rights reserved. Conﬁdential information intended for direct recipients only.

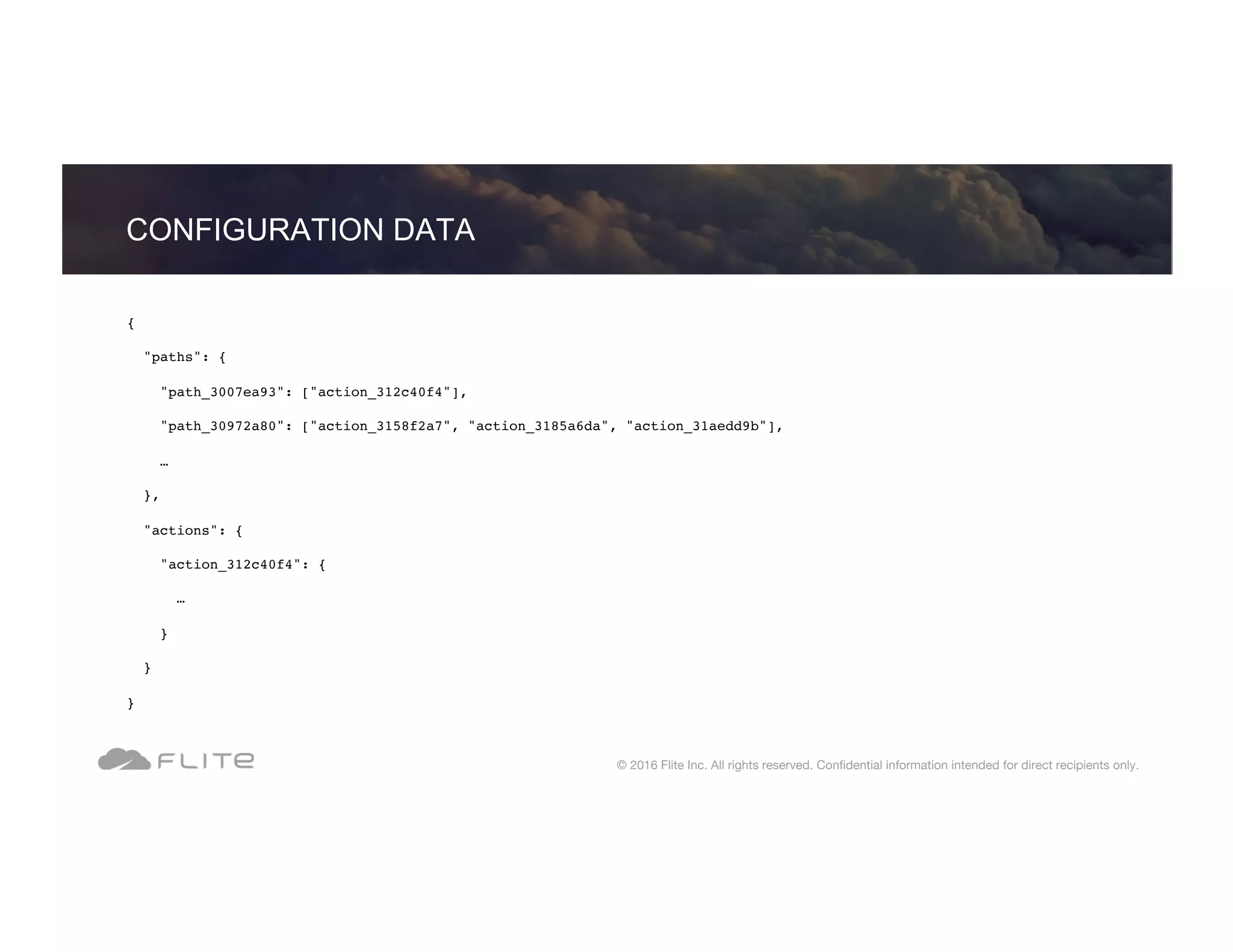

{ "paths": { "path_3007ea93": ["action_312c40f4"], "path_30972a80": ["action_3158f2a7", "action_3185a6da", "action_31aedd9b"], … }, "actions": { "action_312c40f4": { … } } } CONFIGURATION DATA © 2016 Flite Inc. All rights reserved. Conﬁdential information intended for direct recipients only.

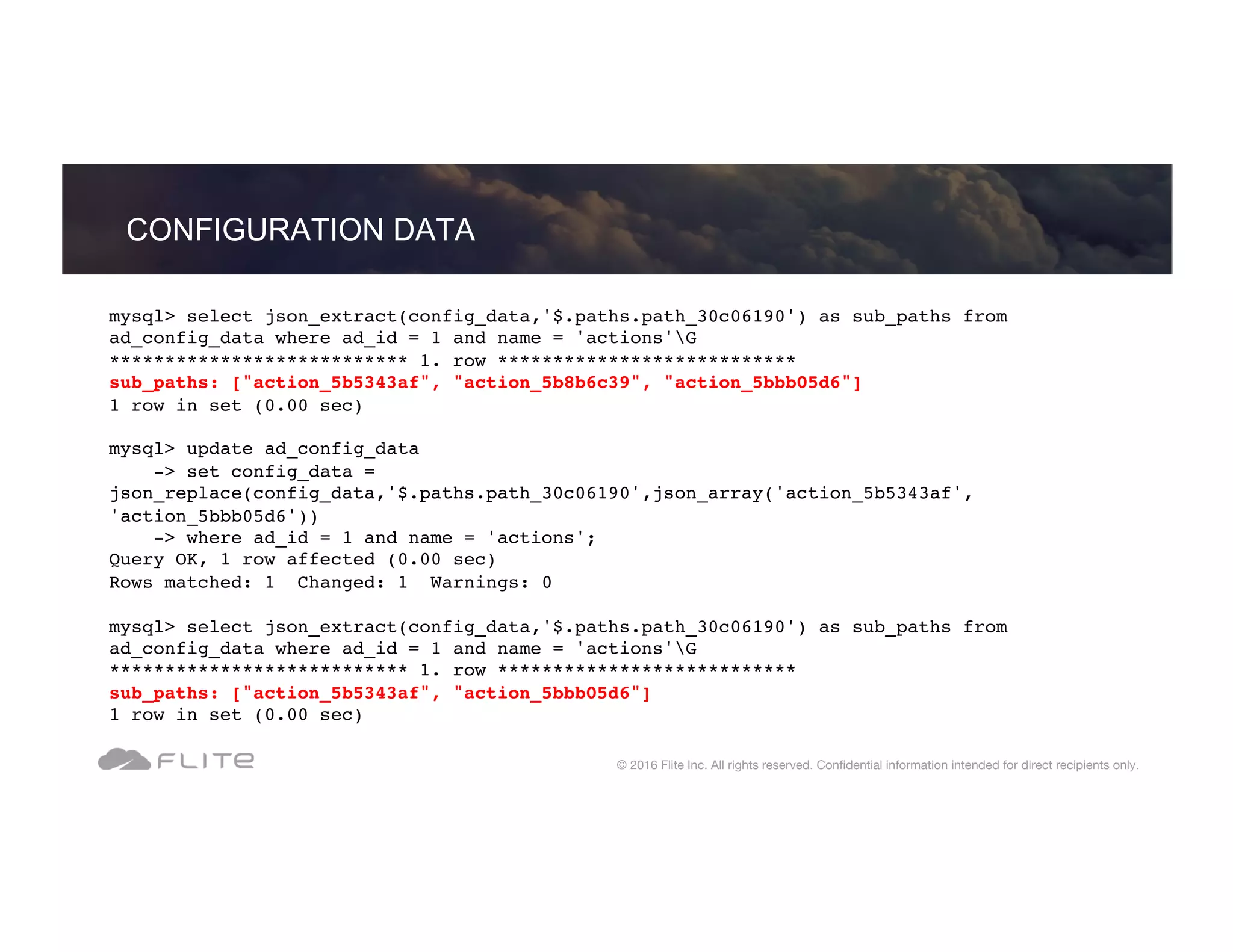

mysql> select json_extract(config_data,'$.paths.path_30c06190') as sub_paths from ad_config_data where ad_id = 1 and name = 'actions'G *************************** 1. row *************************** sub_paths: ["action_5b5343af", "action_5b8b6c39", "action_5bbb05d6"] 1 row in set (0.00 sec) mysql> update ad_config_data -> set config_data = json_replace(config_data,'$.paths.path_30c06190',json_array('action_5b5343af', 'action_5bbb05d6')) -> where ad_id = 1 and name = 'actions'; Query OK, 1 row affected (0.00 sec) Rows matched: 1 Changed: 1 Warnings: 0 mysql> select json_extract(config_data,'$.paths.path_30c06190') as sub_paths from ad_config_data where ad_id = 1 and name = 'actions'G *************************** 1. row *************************** sub_paths: ["action_5b5343af", "action_5bbb05d6"] 1 row in set (0.00 sec) CONFIGURATION DATA © 2016 Flite Inc. All rights reserved. Conﬁdential information intended for direct recipients only.

mysql> select json_extract(config_data,'$.*.type') -> from ad_config_data -> where ad_id = 1 -> and name = 'layers'; +--------------------------------------+ | json_extract(config_data,'$.*.type') | +--------------------------------------+ | ["AD", "VIDEO", "AD"] | +--------------------------------------+ 1 row in set (0.00 sec) CONFIGURATION DATA © 2016 Flite Inc. All rights reserved. Conﬁdential information intended for direct recipients only.

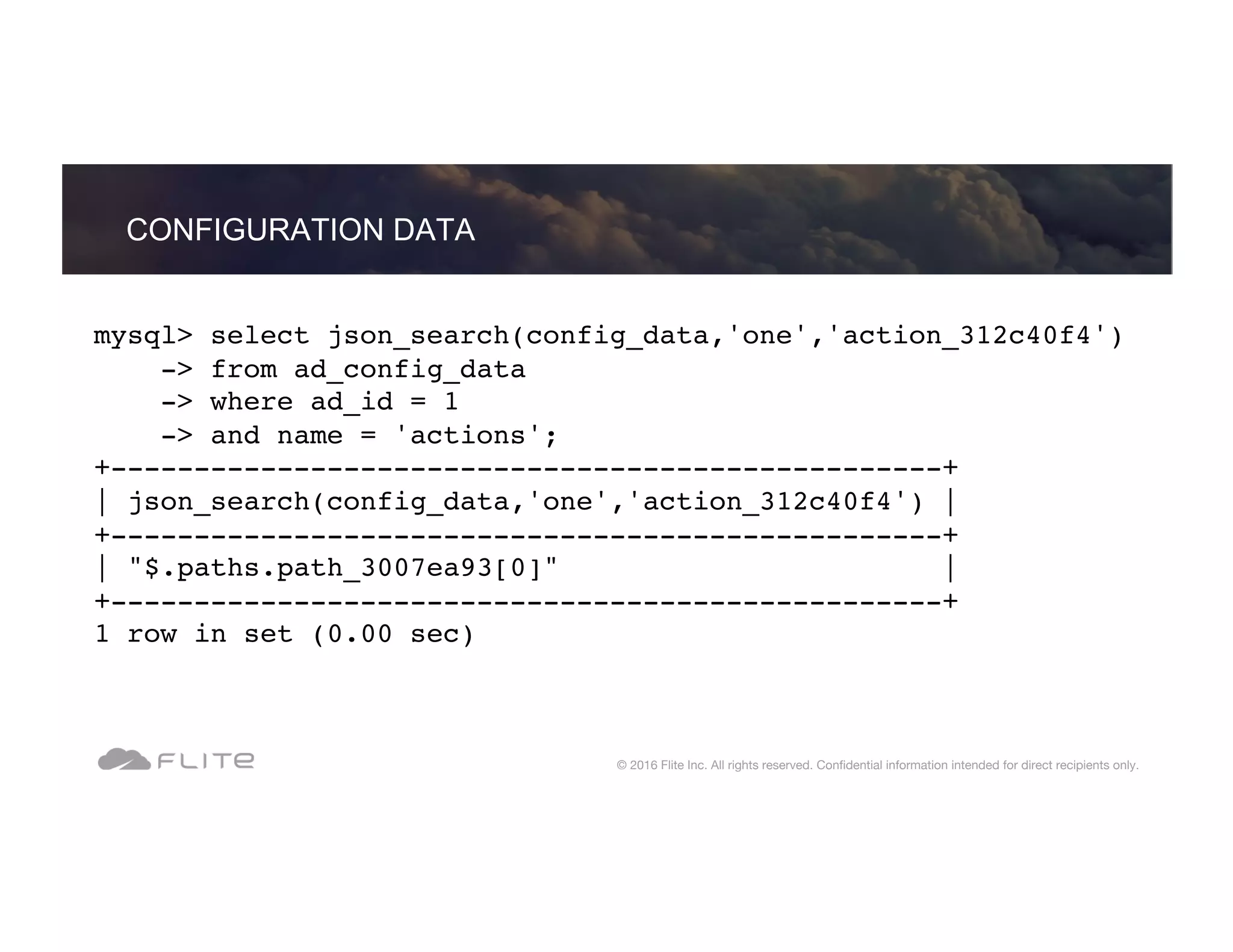

mysql> select json_search(config_data,'one','action_312c40f4') -> from ad_config_data -> where ad_id = 1 -> and name = 'actions'; +--------------------------------------------------+ | json_search(config_data,'one','action_312c40f4') | +--------------------------------------------------+ | "$.paths.path_3007ea93[0]" | +--------------------------------------------------+ 1 row in set (0.00 sec) CONFIGURATION DATA © 2016 Flite Inc. All rights reserved. Conﬁdential information intended for direct recipients only.

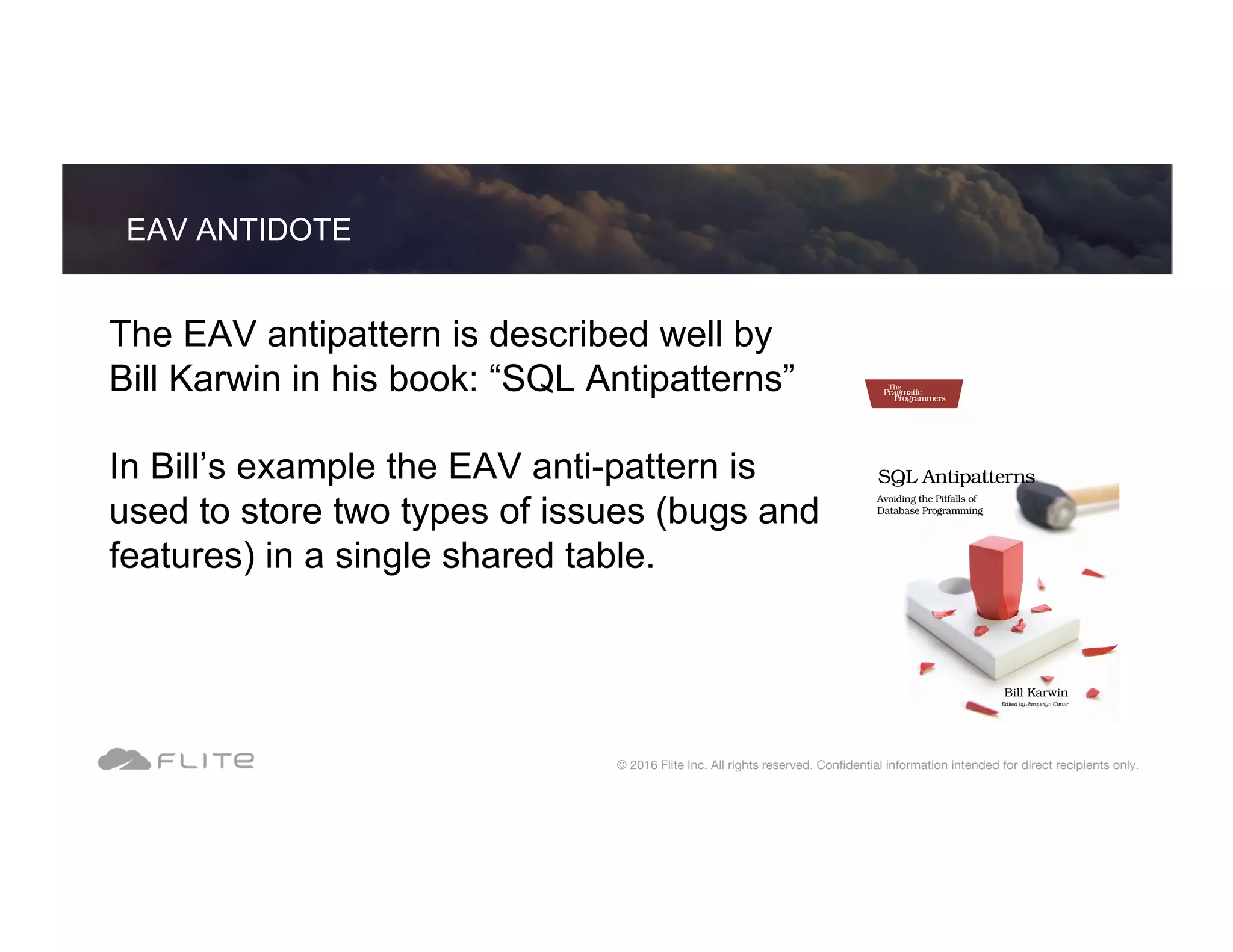

The EAV antipattern is described well by Bill Karwin in his book: “SQL Antipatterns” In Bill’s example the EAV anti-pattern is used to store two types of issues (bugs and features) in a single shared table. EAV ANTIDOTE © 2016 Flite Inc. All rights reserved. Conﬁdential information intended for direct recipients only.

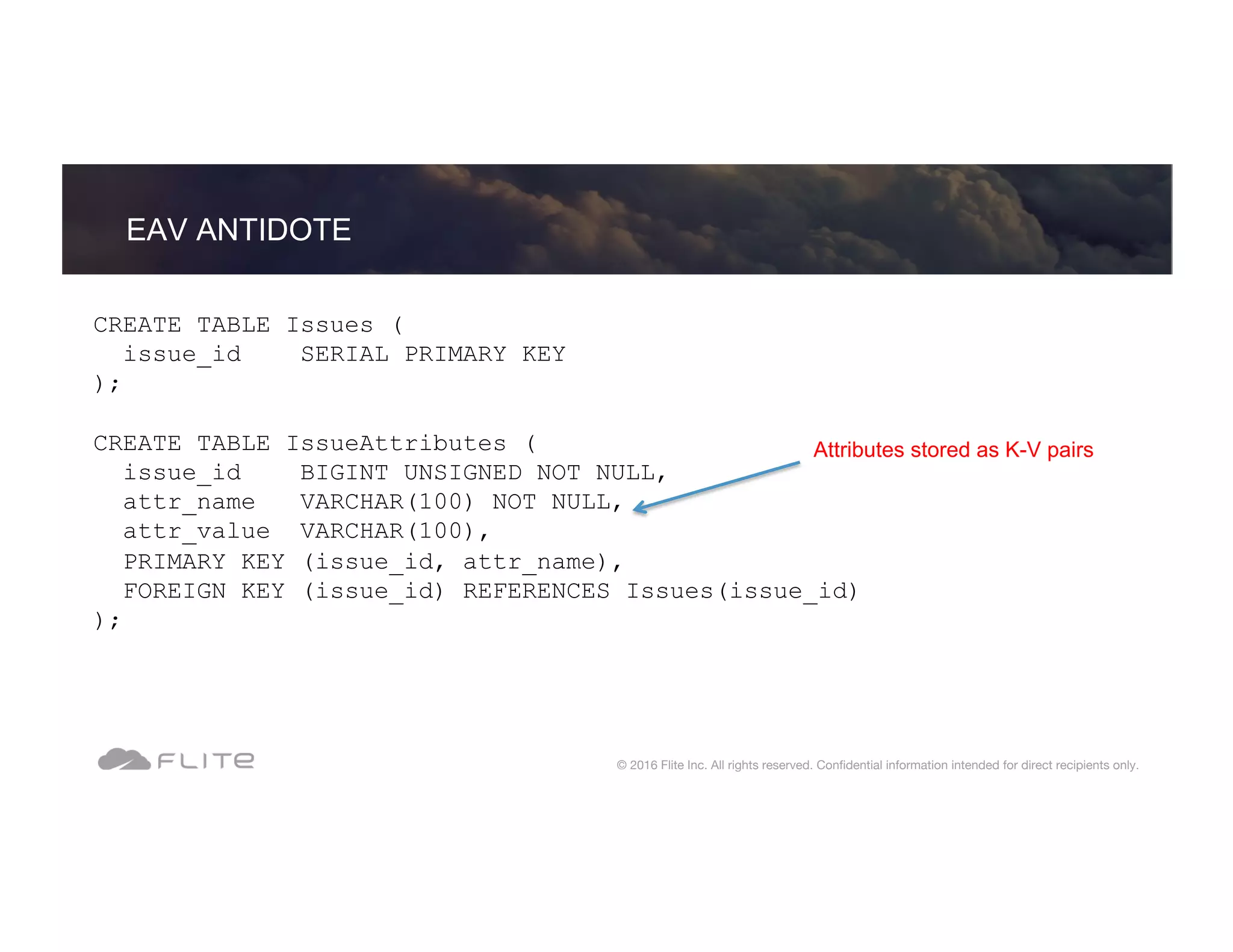

CREATE TABLE Issues ( issue_id SERIAL PRIMARY KEY ); CREATE TABLE IssueAttributes ( issue_id BIGINT UNSIGNED NOT NULL, attr_name VARCHAR(100) NOT NULL, attr_value VARCHAR(100), PRIMARY KEY (issue_id, attr_name), FOREIGN KEY (issue_id) REFERENCES Issues(issue_id) ); EAV ANTIDOTE © 2016 Flite Inc. All rights reserved. Conﬁdential information intended for direct recipients only. Attributes stored as K-V pairs

CREATE TABLE Issues ( issue_id SERIAL PRIMARY KEY, reported_by BIGINT UNSIGNED NOT NULL, product_id BIGINT UNSIGNED, priority VARCHAR(20), version_resolved VARCHAR(20), status VARCHAR(20), issue_type VARCHAR(10), -- BUG or FEATURE attributes TEXT NOT NULL, -- all dynamic attributes for the row FOREIGN KEY (reported_by) REFERENCES Accounts(account_id), FOREIGN KEY (product_id) REFERENCES Products(product_id) ); EAV ANTIDOTE © 2016 Flite Inc. All rights reserved. Conﬁdential information intended for direct recipients only.

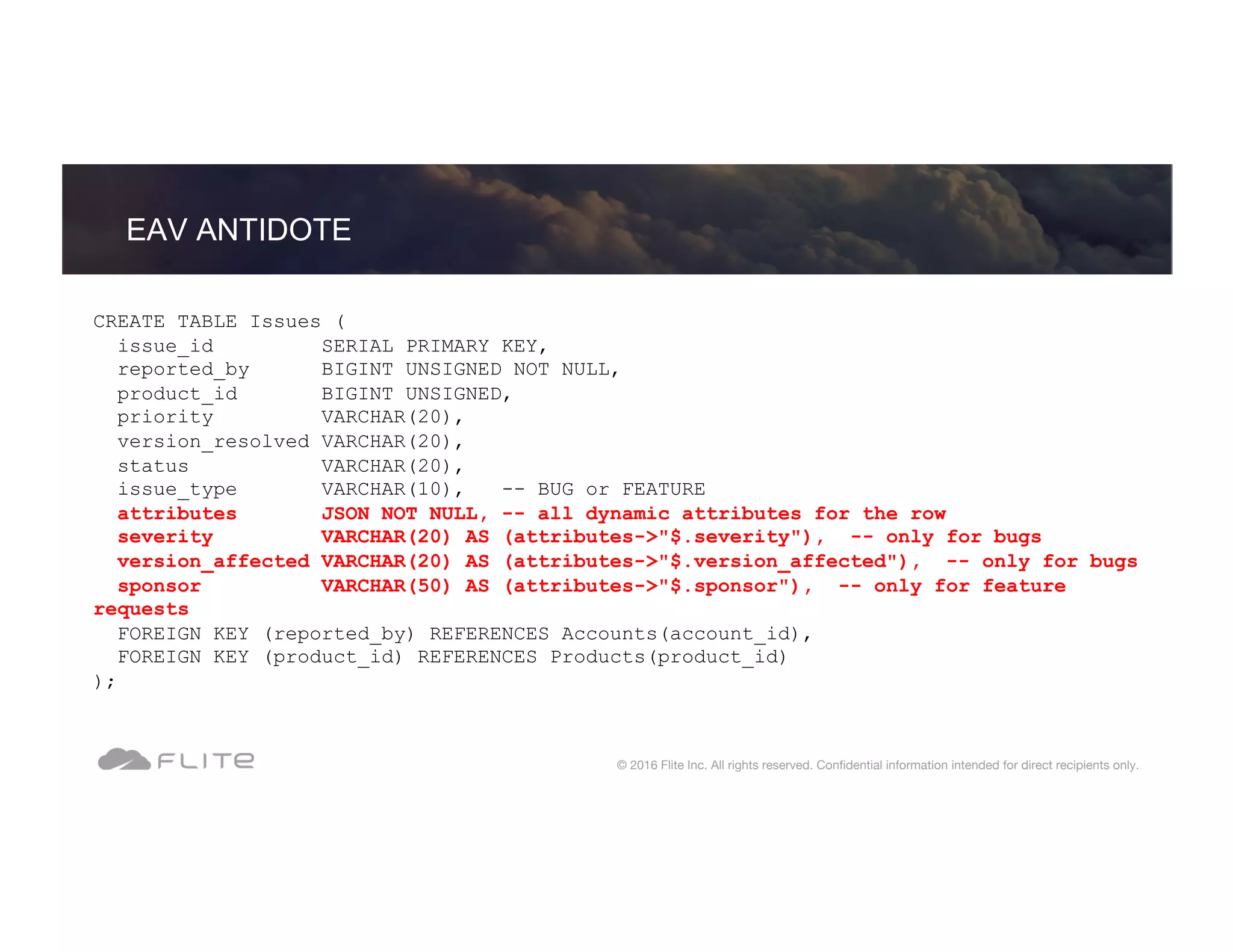

CREATE TABLE Issues ( issue_id SERIAL PRIMARY KEY, reported_by BIGINT UNSIGNED NOT NULL, product_id BIGINT UNSIGNED, priority VARCHAR(20), version_resolved VARCHAR(20), status VARCHAR(20), issue_type VARCHAR(10), -- BUG or FEATURE attributes JSON NOT NULL, -- all dynamic attributes for the row severity VARCHAR(20) AS (attributes->"$.severity"), -- only for bugs version_affected VARCHAR(20) AS (attributes->"$.version_affected"), -- only for bugs sponsor VARCHAR(50) AS (attributes->"$.sponsor"), -- only for feature requests FOREIGN KEY (reported_by) REFERENCES Accounts(account_id), FOREIGN KEY (product_id) REFERENCES Products(product_id) ); EAV ANTIDOTE © 2016 Flite Inc. All rights reserved. Conﬁdential information intended for direct recipients only.

• Allows you to expose one or more JSON fields as table columns • Supports indexes • Choose virtual (not stored) unless the index is Primary Key, FULLTEXT, or GIS JSON + GENERATED COLUMNS © 2016 Flite Inc. All rights reserved. Conﬁdential information intended for direct recipients only.

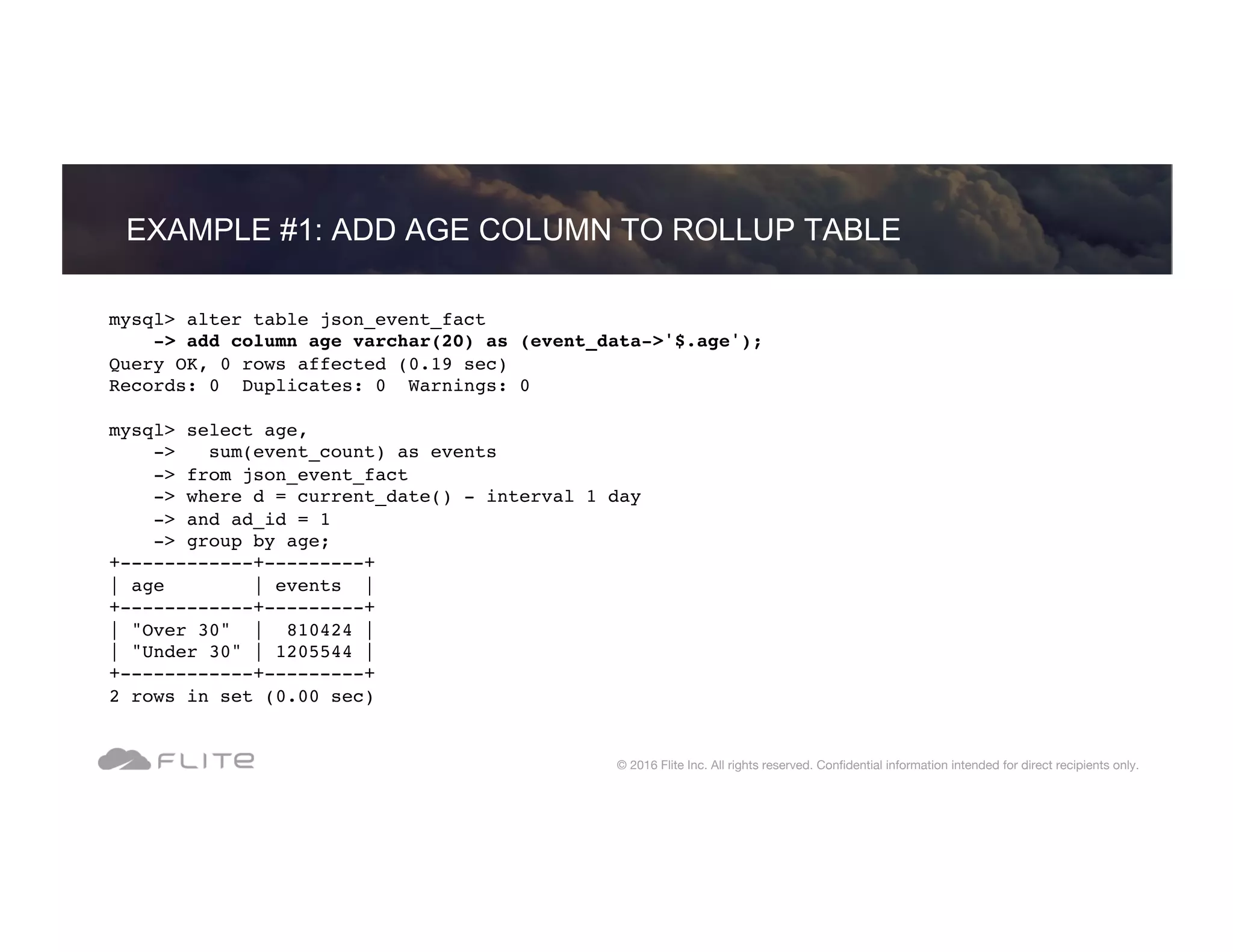

EXAMPLE #1: ADD AGE COLUMN TO ROLLUP TABLE © 2016 Flite Inc. All rights reserved. Conﬁdential information intended for direct recipients only. mysql> alter table json_event_fact -> add column age varchar(20) as (event_data->'$.age'); Query OK, 0 rows affected (0.19 sec) Records: 0 Duplicates: 0 Warnings: 0 mysql> select age, -> sum(event_count) as events -> from json_event_fact -> where d = current_date() - interval 1 day -> and ad_id = 1 -> group by age; +------------+---------+ | age | events | +------------+---------+ | "Over 30" | 810424 | | "Under 30" | 1205544 | +------------+---------+ 2 rows in set (0.00 sec)

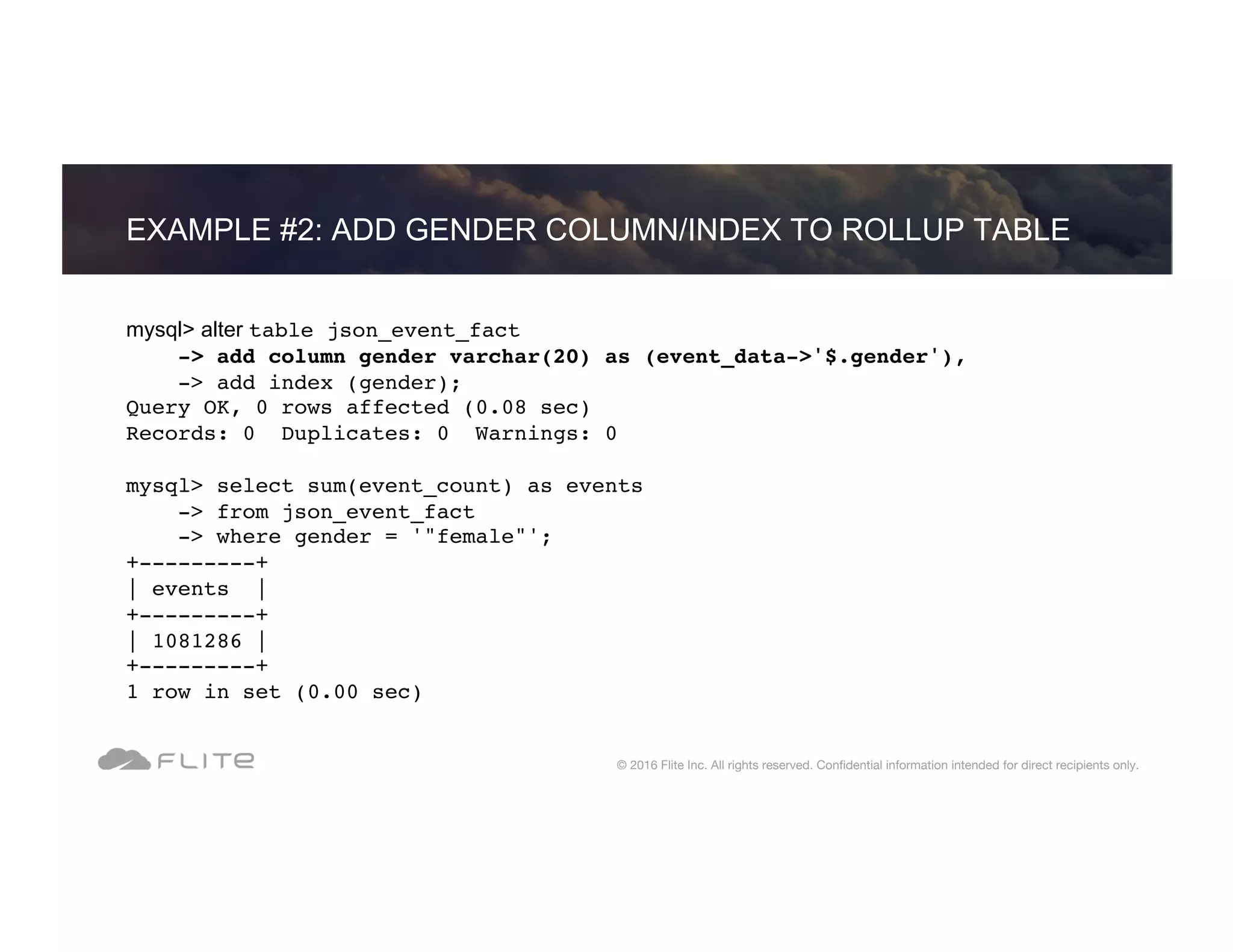

EXAMPLE #2: ADD GENDER COLUMN/INDEX TO ROLLUP TABLE © 2016 Flite Inc. All rights reserved. Conﬁdential information intended for direct recipients only. mysql> alter table json_event_fact -> add column gender varchar(20) as (event_data->'$.gender'), -> add index (gender); Query OK, 0 rows affected (0.08 sec) Records: 0 Duplicates: 0 Warnings: 0 mysql> select sum(event_count) as events -> from json_event_fact -> where gender = '"female"'; +---------+ | events | +---------+ | 1081286 | +---------+ 1 row in set (0.00 sec)

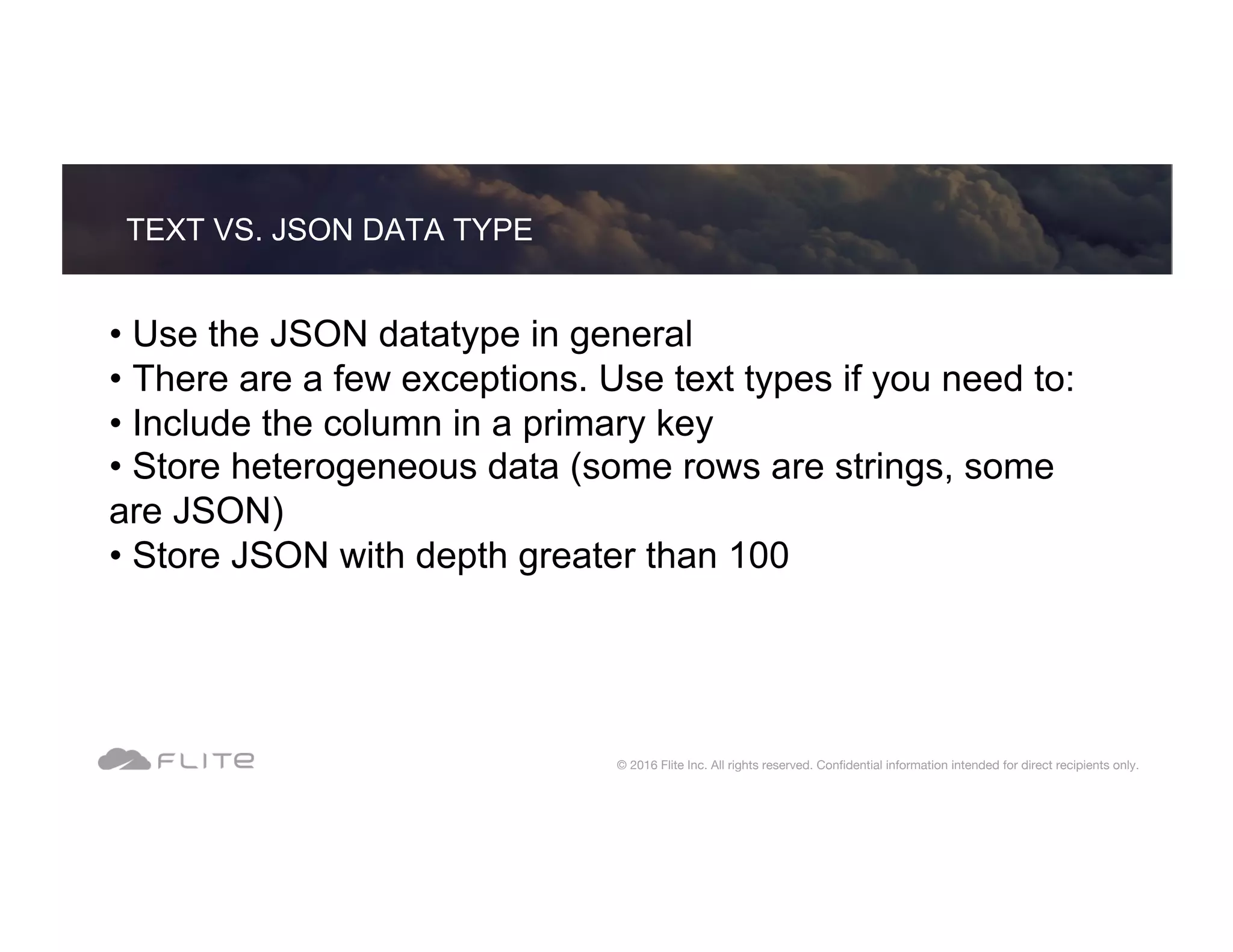

• Use the JSON datatype in general • There are a few exceptions. Use text types if you need to: • Include the column in a primary key • Store heterogeneous data (some rows are strings, some are JSON) • Store JSON with depth greater than 100 TEXT VS. JSON DATA TYPE © 2016 Flite Inc. All rights reserved. Conﬁdential information intended for direct recipients only.

JSON data type sorts by keys: mysql> select cast('{"c":"3","b":{"2":"2","1":"1"},"a":"1"}' as json) as key_sort_test; +-------------------------------------------------+ | key_sort_test | +-------------------------------------------------+ | {"a": "1", "b": {"1": "1", "2": "2"}, "c": "3"} | +-------------------------------------------------+ 1 row in set (0.00 sec) TEXT VS. JSON DATA TYPE © 2016 Flite Inc. All rights reserved. Conﬁdential information intended for direct recipients only.

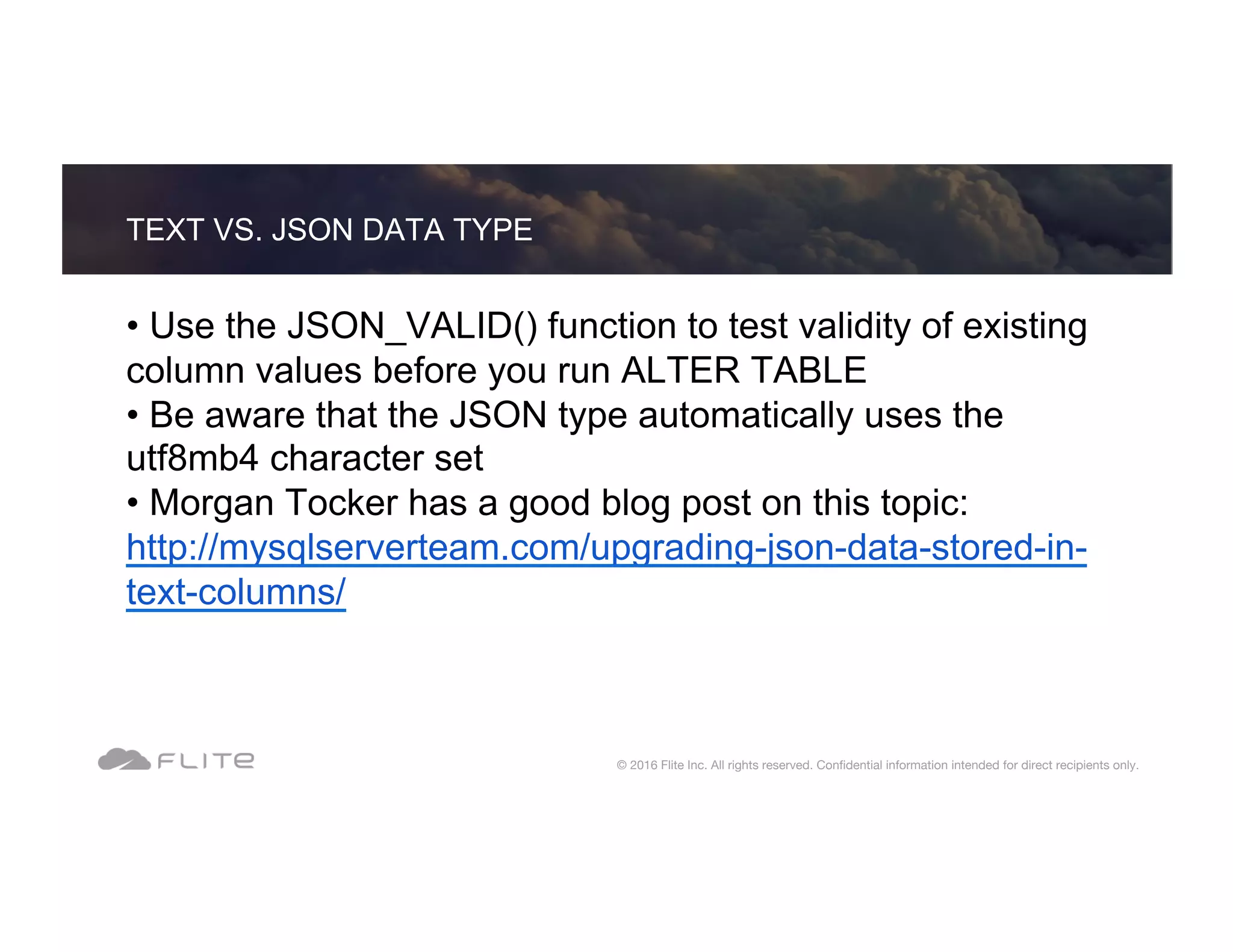

TEXT VS. JSON DATA TYPE © 2016 Flite Inc. All rights reserved. Conﬁdential information intended for direct recipients only. • Use the JSON_VALID() function to test validity of existing column values before you run ALTER TABLE • Be aware that the JSON type automatically uses the utf8mb4 character set • Morgan Tocker has a good blog post on this topic: http://mysqlserverteam.com/upgrading-json-data-stored-in- text-columns/

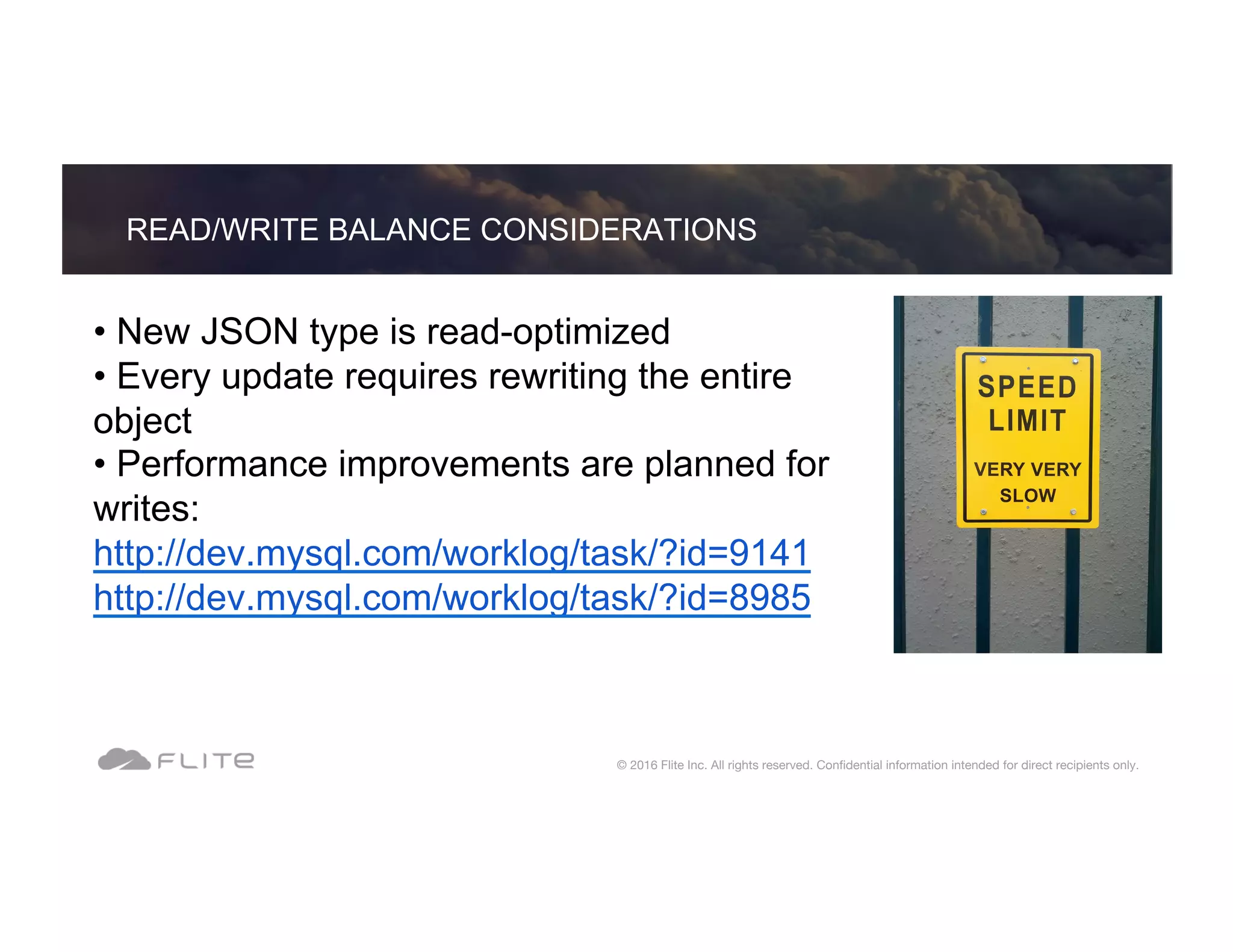

• New JSON type is read-optimized • Every update requires rewriting the entire object • Performance improvements are planned for writes: http://dev.mysql.com/worklog/task/?id=9141 http://dev.mysql.com/worklog/task/?id=8985 READ/WRITE BALANCE CONSIDERATIONS © 2016 Flite Inc. All rights reserved. Conﬁdential information intended for direct recipients only.

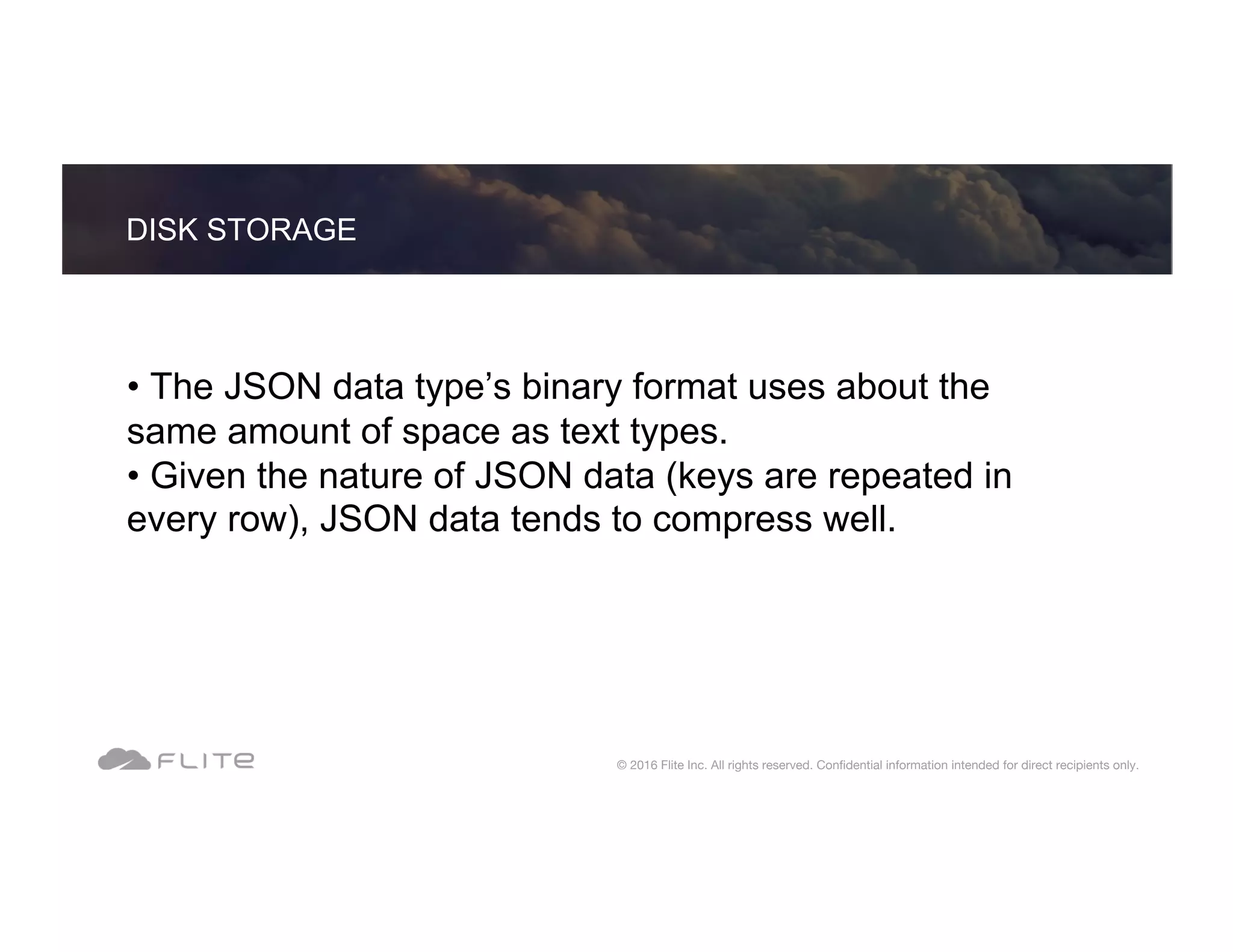

• The JSON data type’s binary format uses about the same amount of space as text types. • Given the nature of JSON data (keys are repeated in every row), JSON data tends to compress well. DISK STORAGE © 2016 Flite Inc. All rights reserved. Conﬁdential information intended for direct recipients only.

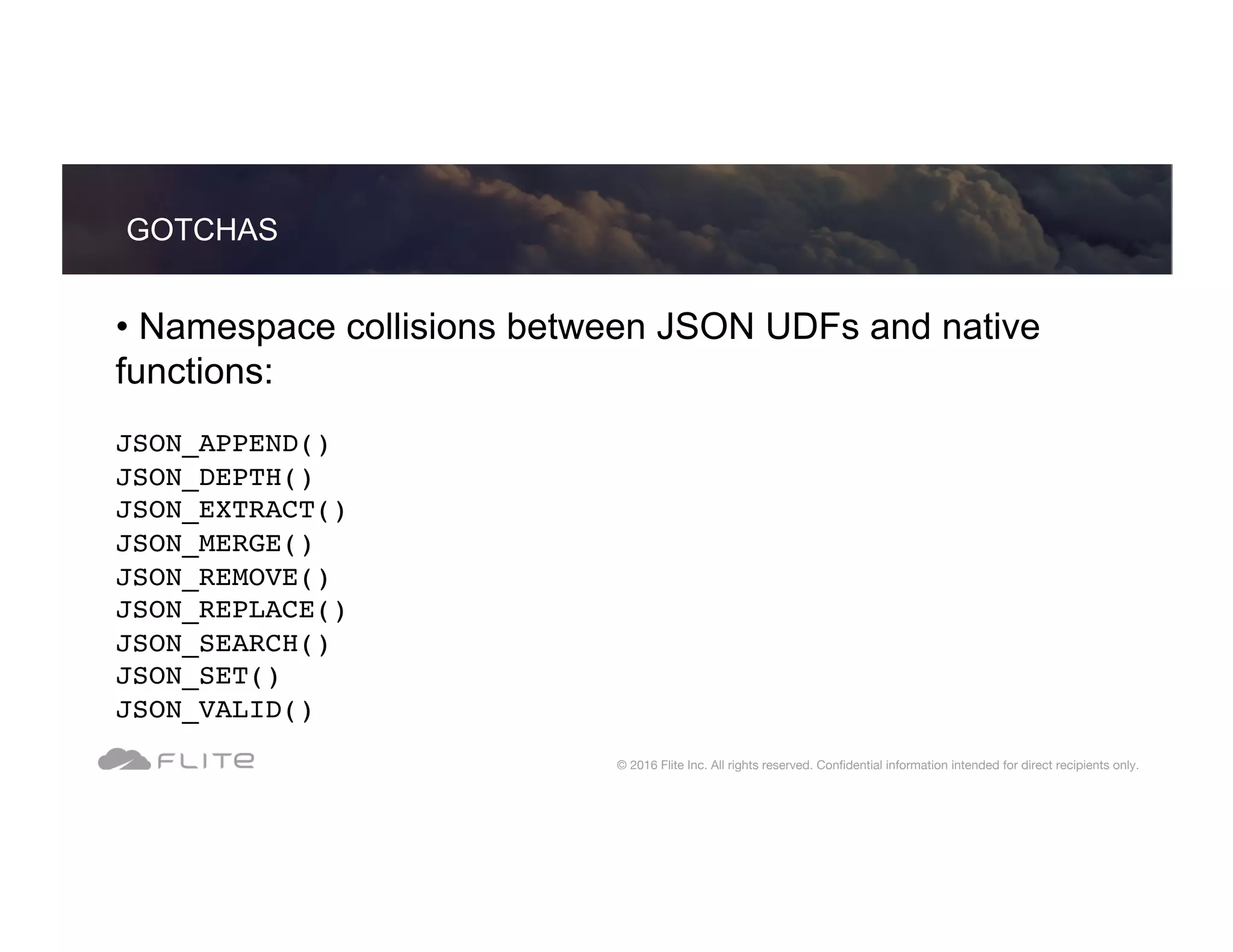

• Namespace collisions between JSON UDFs and native functions: JSON_APPEND() JSON_DEPTH() JSON_EXTRACT() JSON_MERGE() JSON_REMOVE() JSON_REPLACE() JSON_SEARCH() JSON_SET() JSON_VALID() GOTCHAS © 2016 Flite Inc. All rights reserved. Conﬁdential information intended for direct recipients only.

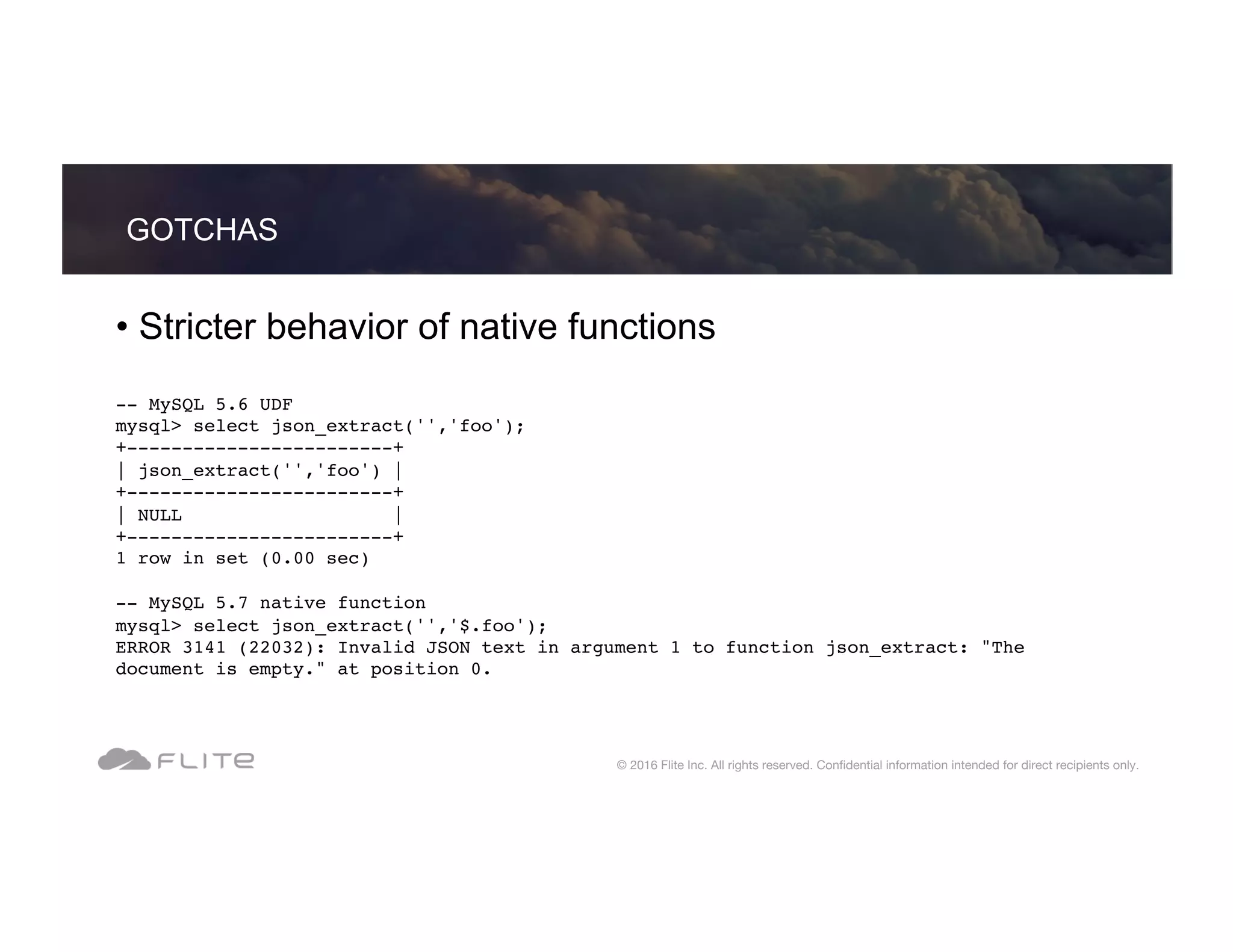

• Stricter behavior of native functions -- MySQL 5.6 UDF mysql> select json_extract('','foo'); +------------------------+ | json_extract('','foo') | +------------------------+ | NULL | +------------------------+ 1 row in set (0.00 sec) -- MySQL 5.7 native function mysql> select json_extract('','$.foo'); ERROR 3141 (22032): Invalid JSON text in argument 1 to function json_extract: "The document is empty." at position 0. GOTCHAS © 2016 Flite Inc. All rights reserved. Conﬁdential information intended for direct recipients only.

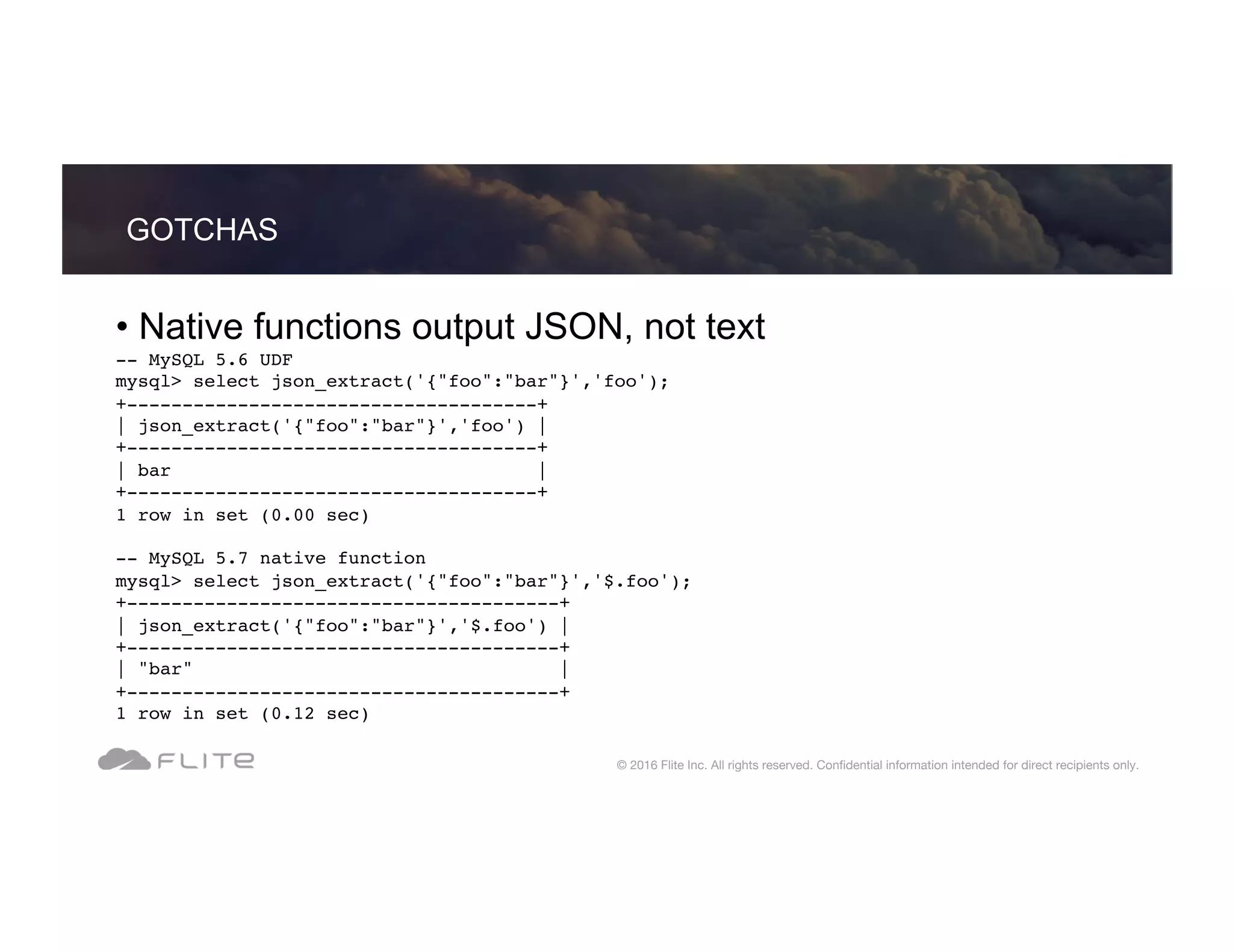

• Native functions output JSON, not text -- MySQL 5.6 UDF mysql> select json_extract('{"foo":"bar"}','foo'); +-------------------------------------+ | json_extract('{"foo":"bar"}','foo') | +-------------------------------------+ | bar | +-------------------------------------+ 1 row in set (0.00 sec) -- MySQL 5.7 native function mysql> select json_extract('{"foo":"bar"}','$.foo'); +---------------------------------------+ | json_extract('{"foo":"bar"}','$.foo') | +---------------------------------------+ | "bar" | +---------------------------------------+ 1 row in set (0.12 sec) GOTCHAS © 2016 Flite Inc. All rights reserved. Conﬁdential information intended for direct recipients only.

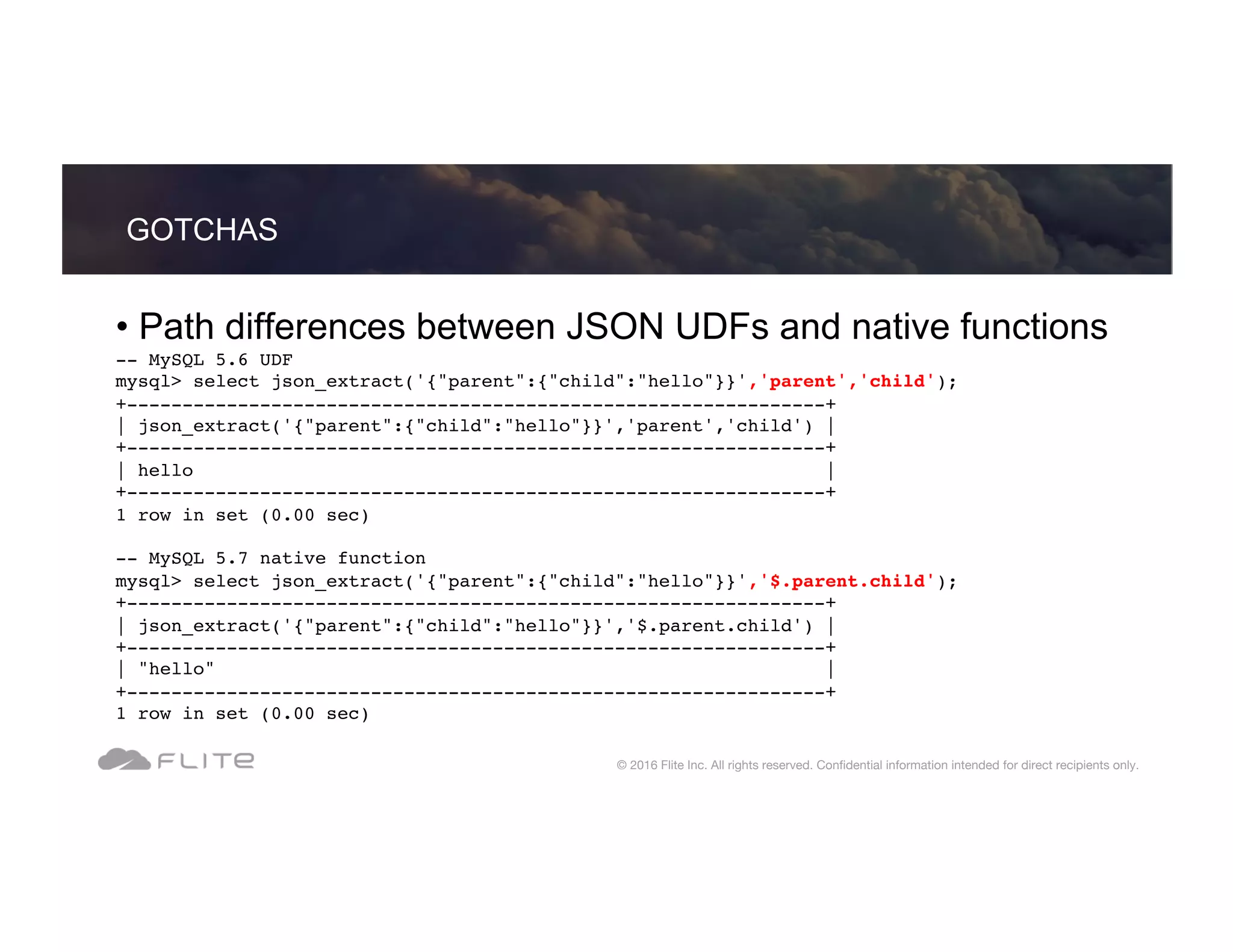

• Path differences between JSON UDFs and native functions -- MySQL 5.6 UDF mysql> select json_extract('{"parent":{"child":"hello"}}','parent','child'); +---------------------------------------------------------------+ | json_extract('{"parent":{"child":"hello"}}','parent','child') | +---------------------------------------------------------------+ | hello | +---------------------------------------------------------------+ 1 row in set (0.00 sec) -- MySQL 5.7 native function mysql> select json_extract('{"parent":{"child":"hello"}}','$.parent.child'); +---------------------------------------------------------------+ | json_extract('{"parent":{"child":"hello"}}','$.parent.child') | +---------------------------------------------------------------+ | "hello" | +---------------------------------------------------------------+ 1 row in set (0.00 sec) GOTCHAS © 2016 Flite Inc. All rights reserved. Conﬁdential information intended for direct recipients only.

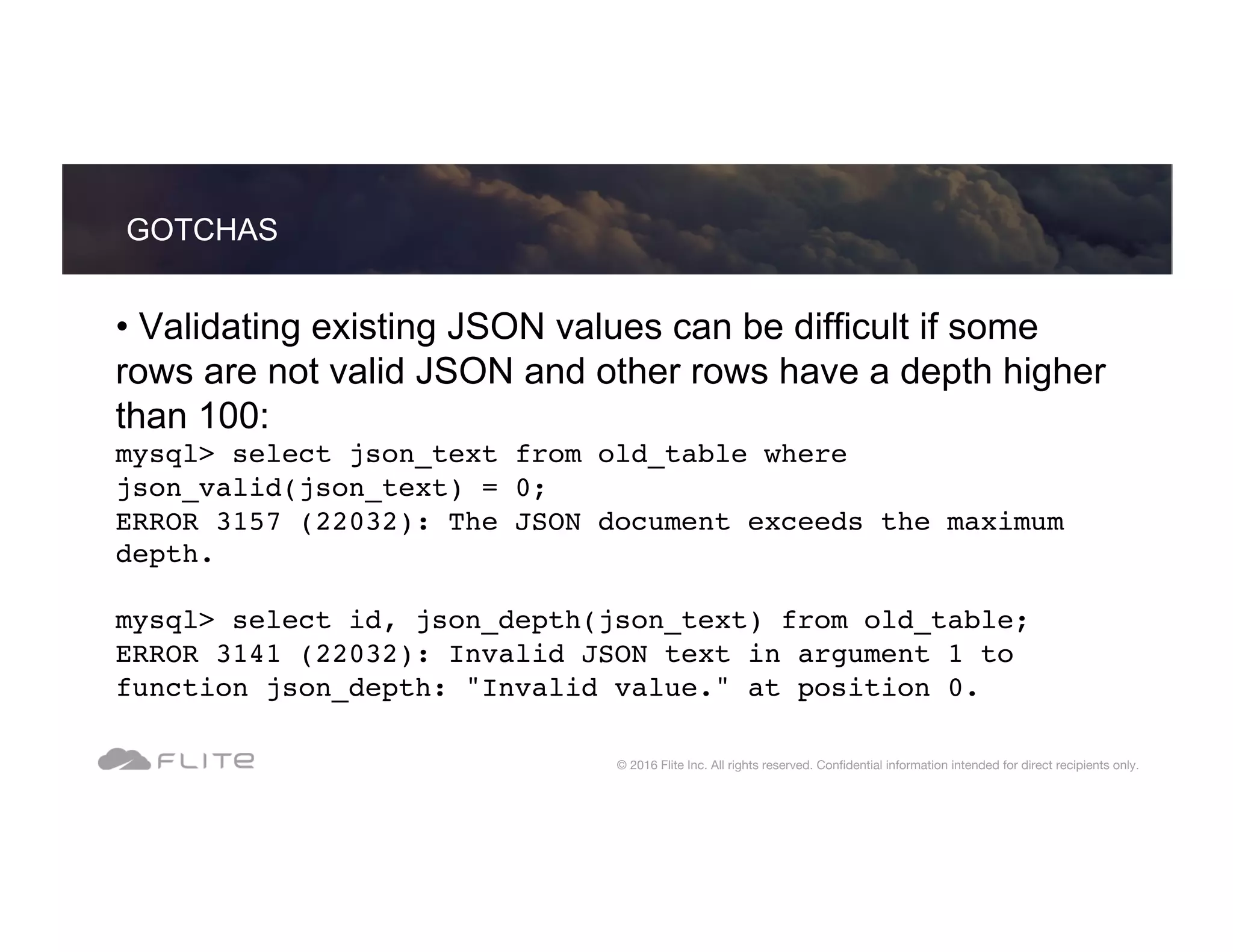

• Validating existing JSON values can be difficult if some rows are not valid JSON and other rows have a depth higher than 100: mysql> select json_text from old_table where json_valid(json_text) = 0; ERROR 3157 (22032): The JSON document exceeds the maximum depth. mysql> select id, json_depth(json_text) from old_table; ERROR 3141 (22032): Invalid JSON text in argument 1 to function json_depth: "Invalid value." at position 0. GOTCHAS © 2016 Flite Inc. All rights reserved. Conﬁdential information intended for direct recipients only.
