PostgreSQL and Compressed Documents (pgconf.ru 2018)
This document discusses data compression techniques for PostgreSQL, including ZSON for compressing JSONB data and pg_protobuf for indexing Protobuf data. It provides overviews of how these extensions work, such as replacing common strings with codes for ZSON and avoiding shared dictionaries for pg_protobuf. The document also shares ideas for future projects, such as adding modification support to pg_protobuf or generating PL/pgSQL procedures for Protobuf fields. Finally, it invites the audience to learn more about these open source projects and announces job opportunities at Postgres Professional.
PostgreSQL and Compressed Documents (pgconf.ru 2018)
- 1. PostgreSQL and Compressed Documents AleksanderAlekseev a.alekseev@postgrespro.ru
- 2. A few wordsabout me ● I live in Moscow, Russia; ● Develop software since 2007; ● Contribute to PostgreSQL since 2015; ● Work in Postgres Professional company; ● Interests: OSS, functional programming, electronics, SDR, distributed systems, blogging, podcasting; ● https://eax.me/ & http://devzen.ru/ ;

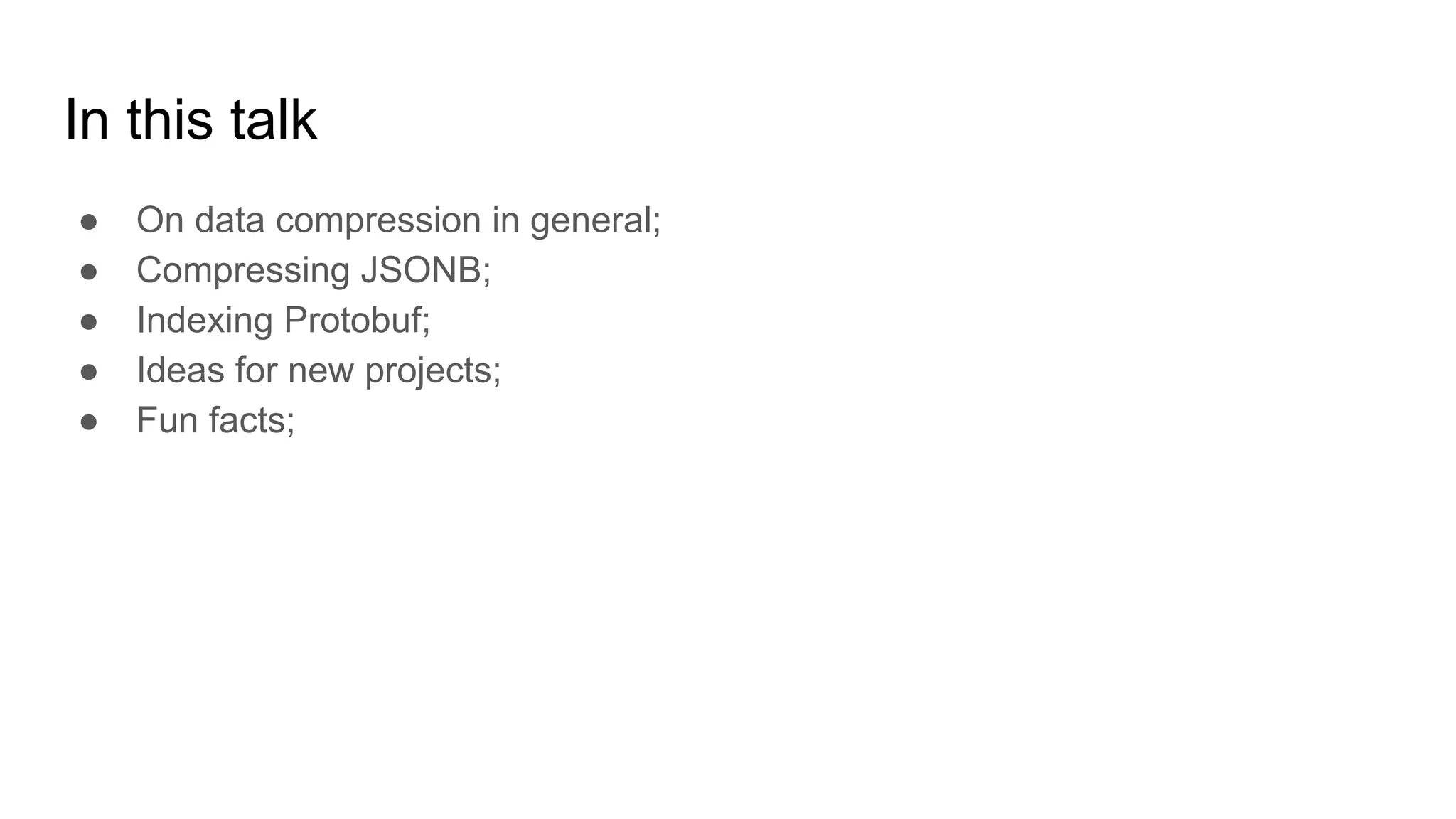

- 3. In this talk ●On data compression in general; ● Compressing JSONB; ● Indexing Protobuf; ● Ideas for new projects; ● Fun facts;

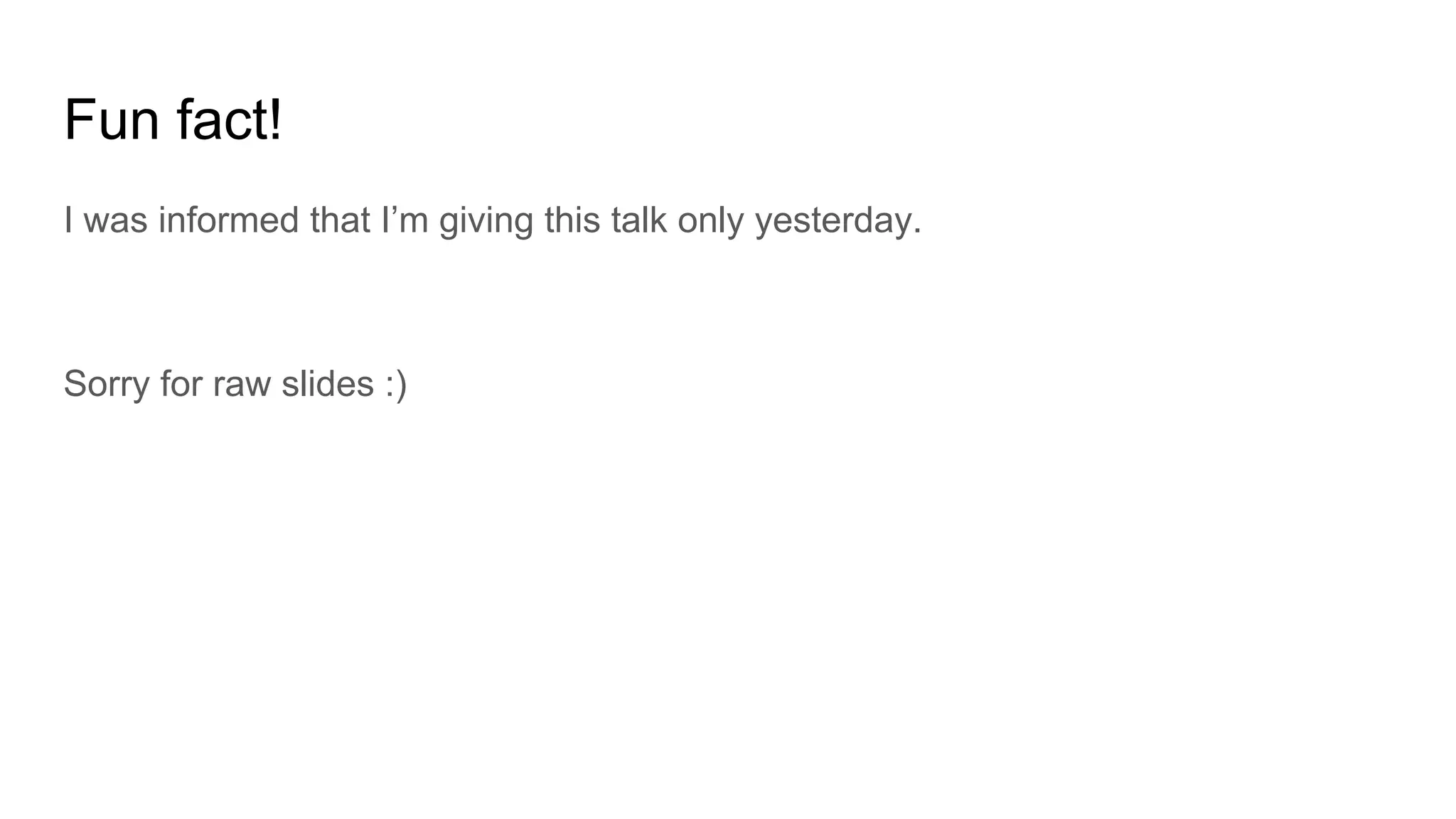

- 4. Fun fact! I wasinformed that I’m giving this talk only yesterday. Sorry for raw slides :)
- 5.

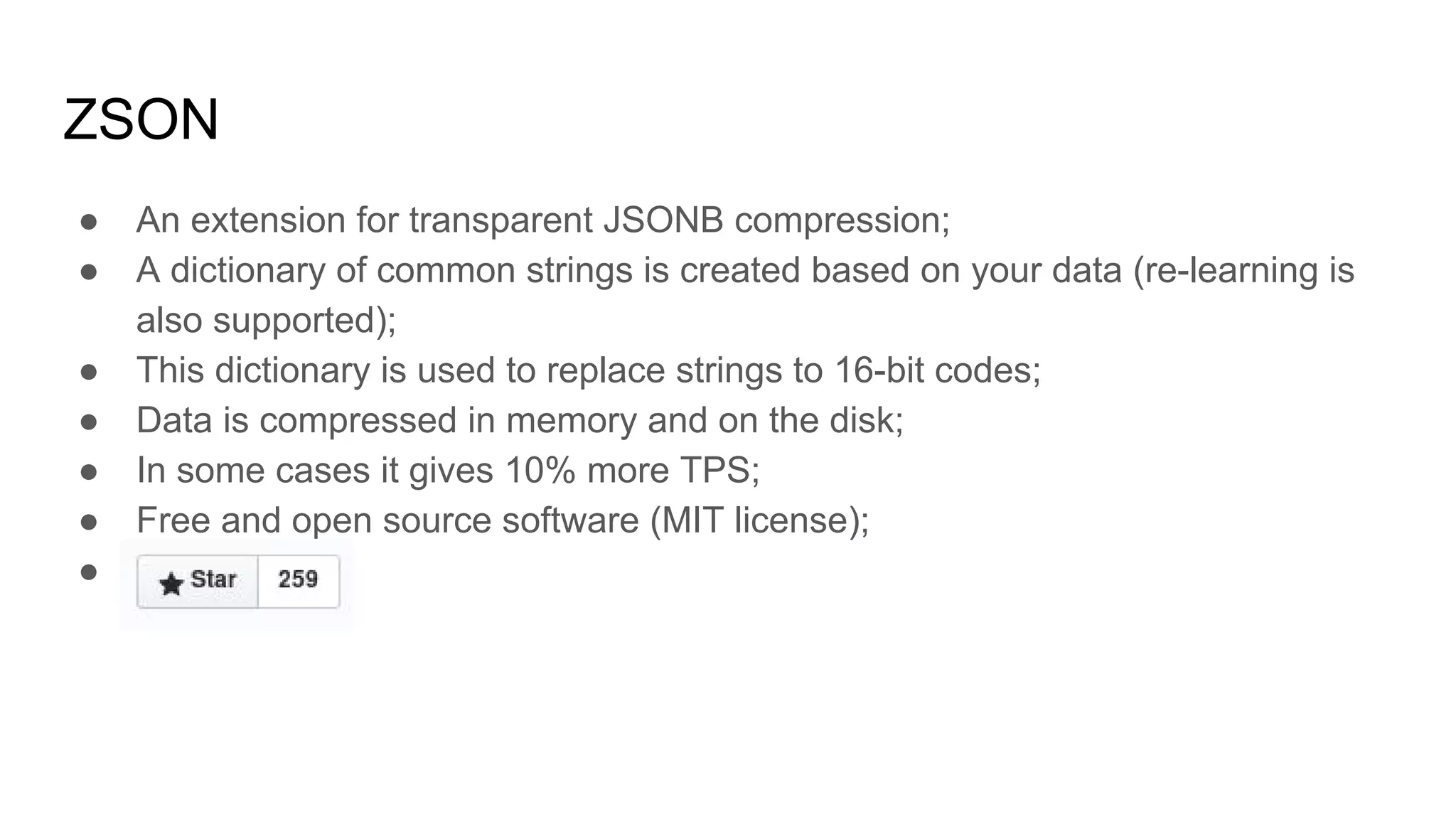

- 6. ZSON ● An extensionfor transparent JSONB compression; ● A dictionary of common strings is created based on your data (re-learning is also supported); ● This dictionary is used to replace strings to 16-bit codes; ● Data is compressed in memory and on the disk; ● In some cases it gives 10% more TPS; ● Free and open source software (MIT license); ●

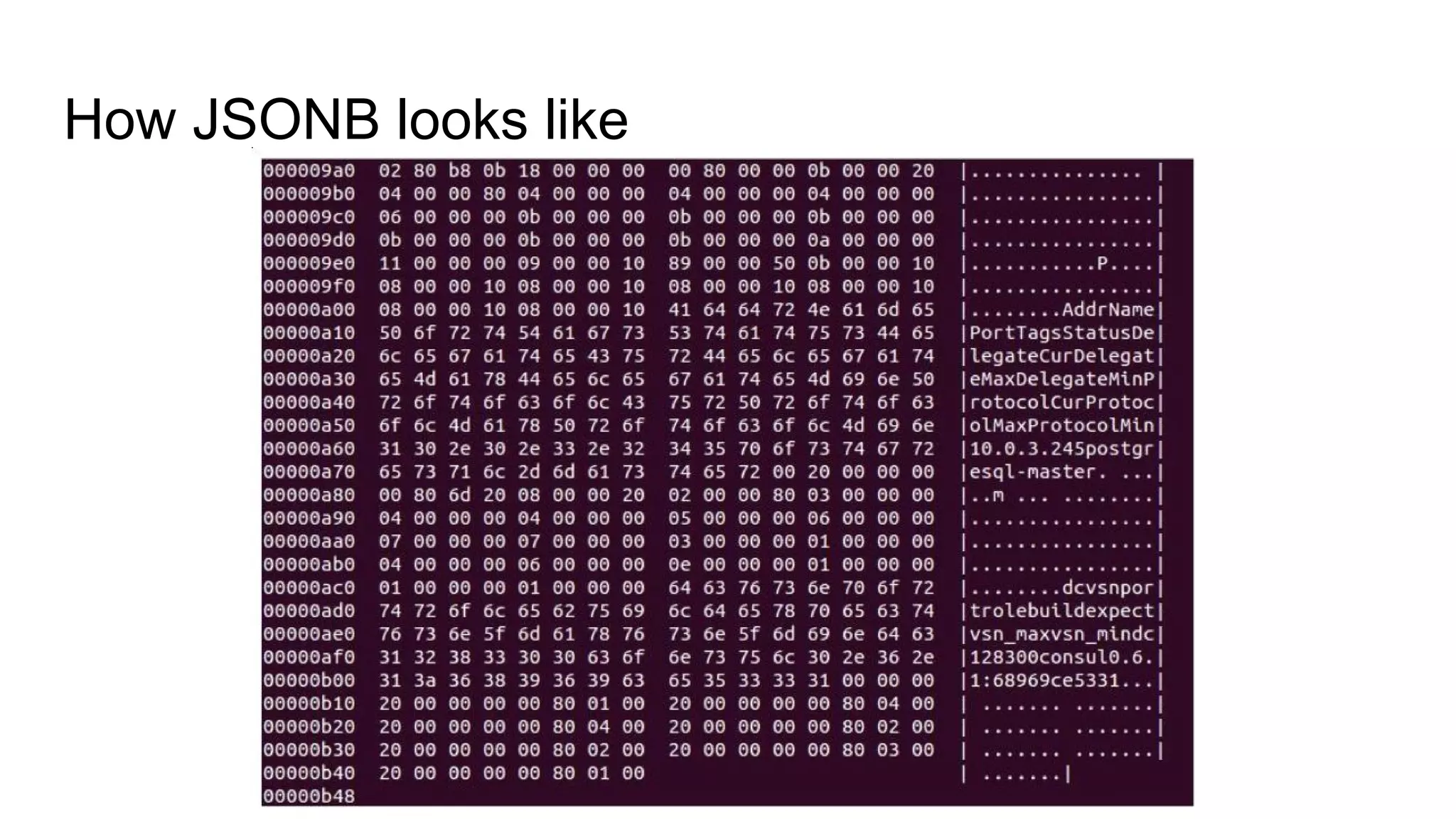

- 7. How JSONB lookslike

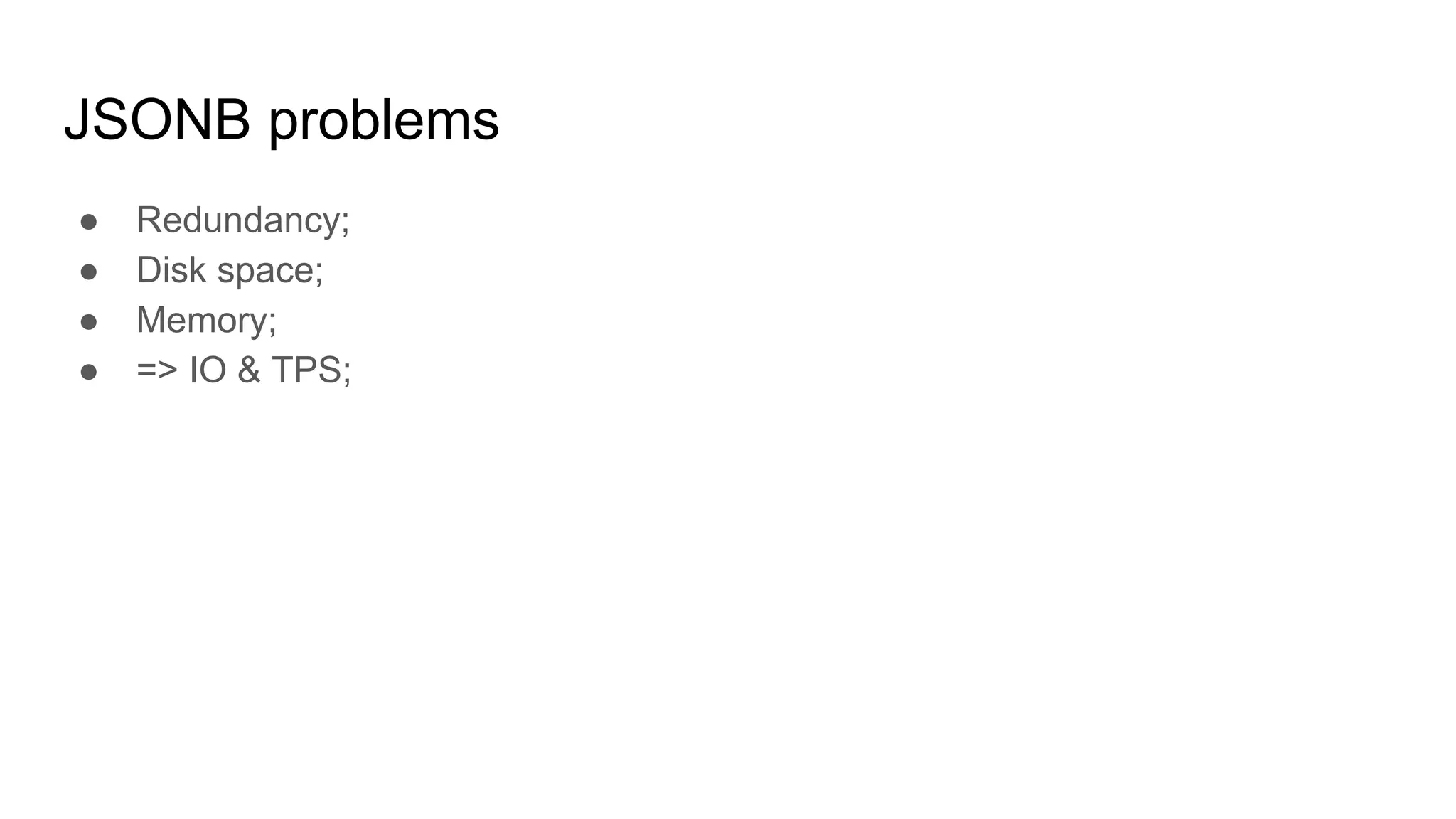

- 8. JSONB problems ● Redundancy; ●Disk space; ● Memory; ● => IO & TPS;

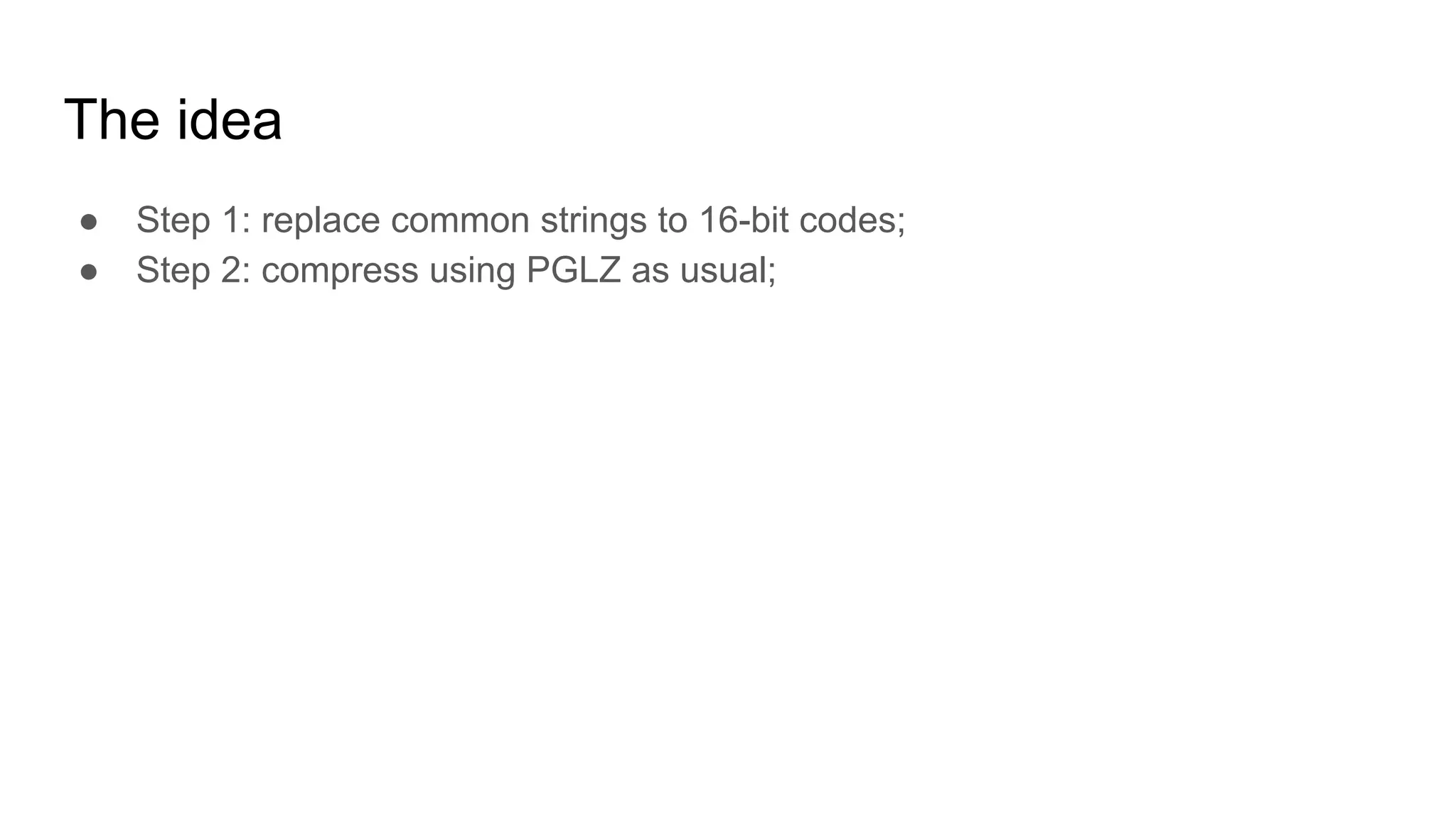

- 9. The idea ● Step1: replace common strings to 16-bit codes; ● Step 2: compress using PGLZ as usual;

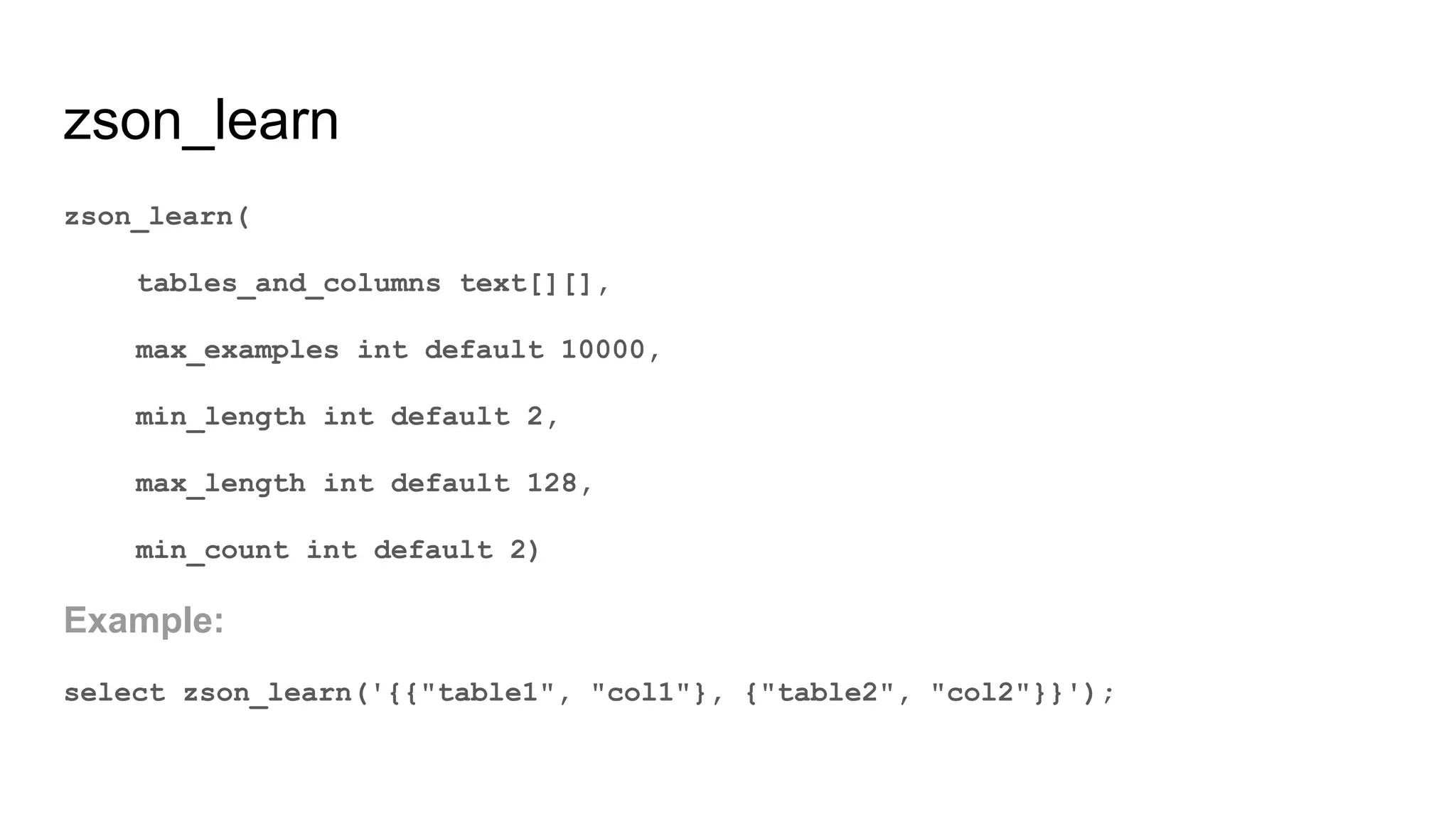

- 10. zson_learn zson_learn( tables_and_columns text[][], max_examples intdefault 10000, min_length int default 2, max_length int default 128, min_count int default 2) Example: select zson_learn('{{"table1", "col1"}, {"table2", "col2"}}');
- 11.

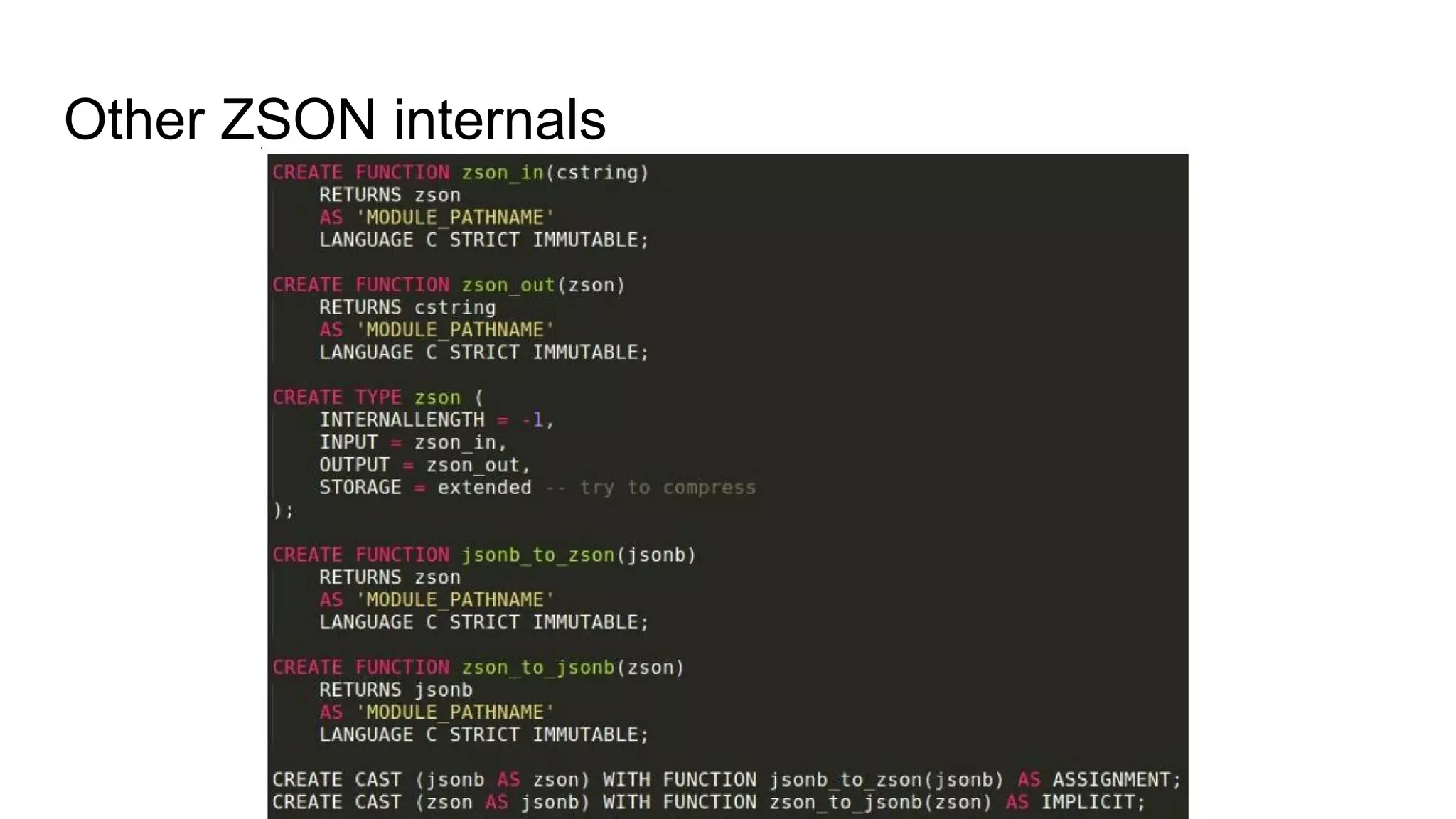

- 12.
- 13.
- 14.
- 15. What it hasto do with Star Wars?

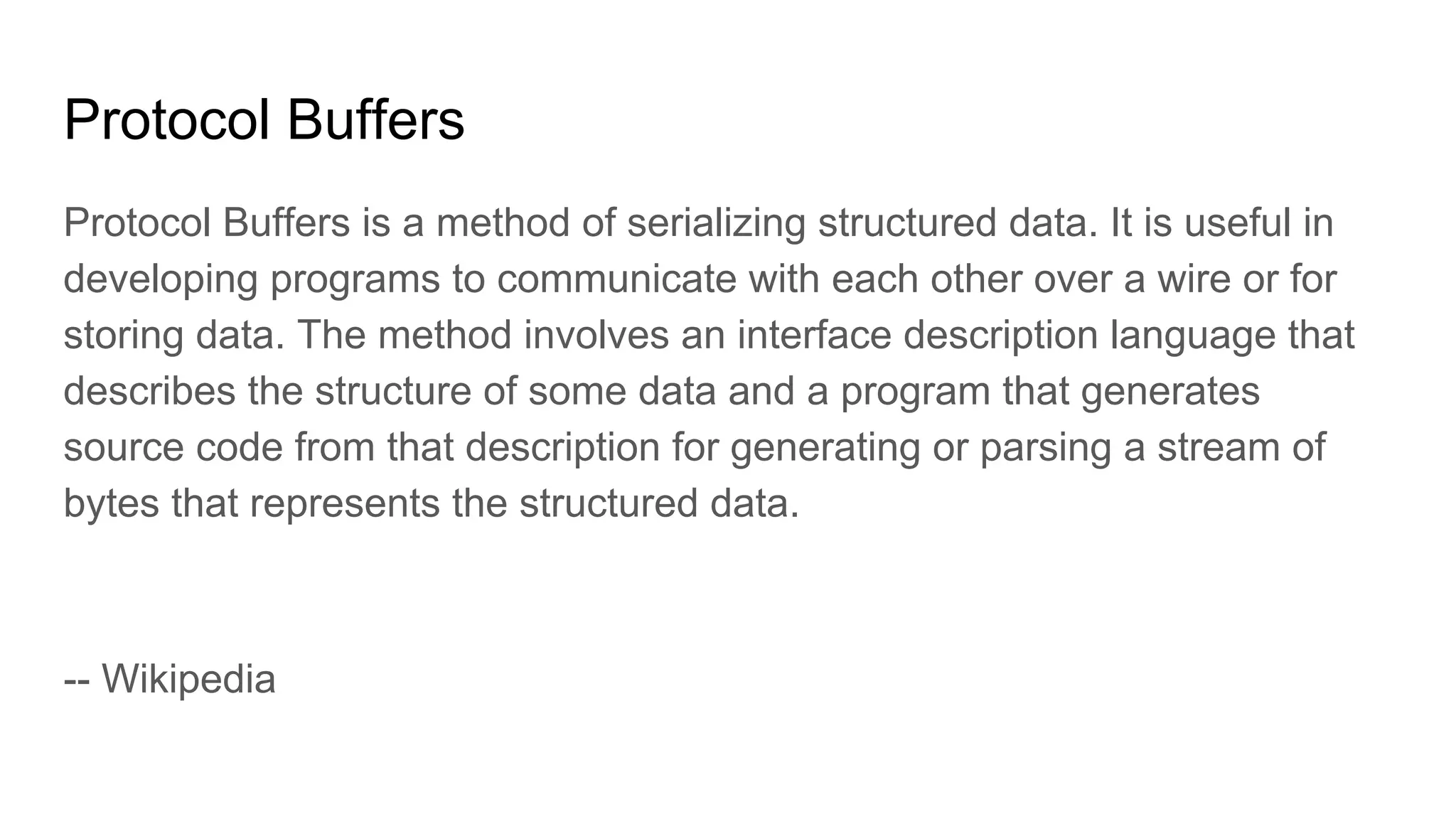

- 16. Protocol Buffers Protocol Buffersis a method of serializing structured data. It is useful in developing programs to communicate with each other over a wire or for storing data. The method involves an interface description language that describes the structure of some data and a program that generates source code from that description for generating or parsing a stream of bytes that represents the structured data. -- Wikipedia
- 17.
- 18.
- 19. These two imageswere borrowed from ● http://shop.oreilly.com/product/0636920032175.do ● https://martin.kleppmann.com/

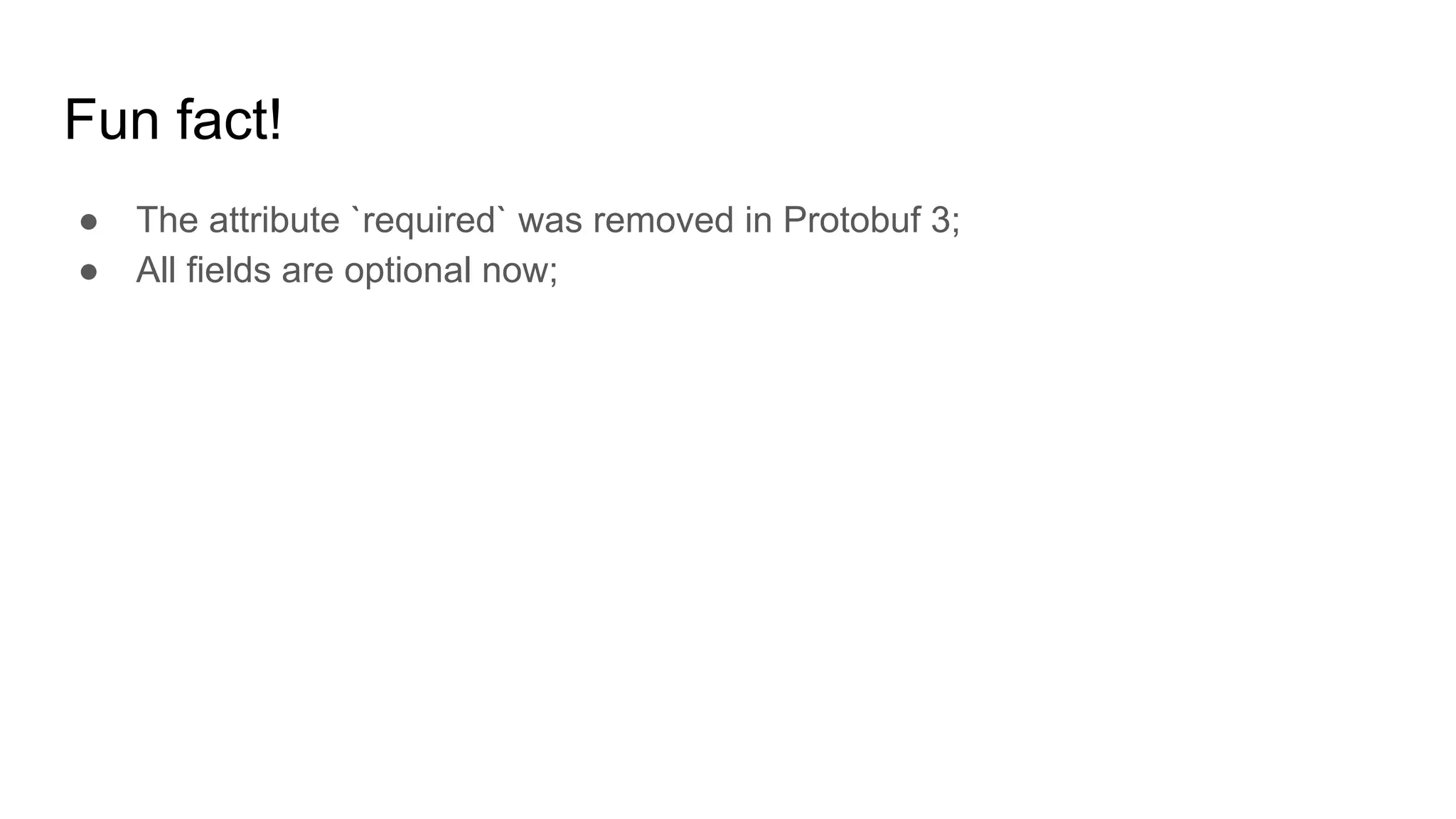

- 20. Fun fact! ● Theattribute `required` was removed in Protobuf 3; ● All fields are optional now;

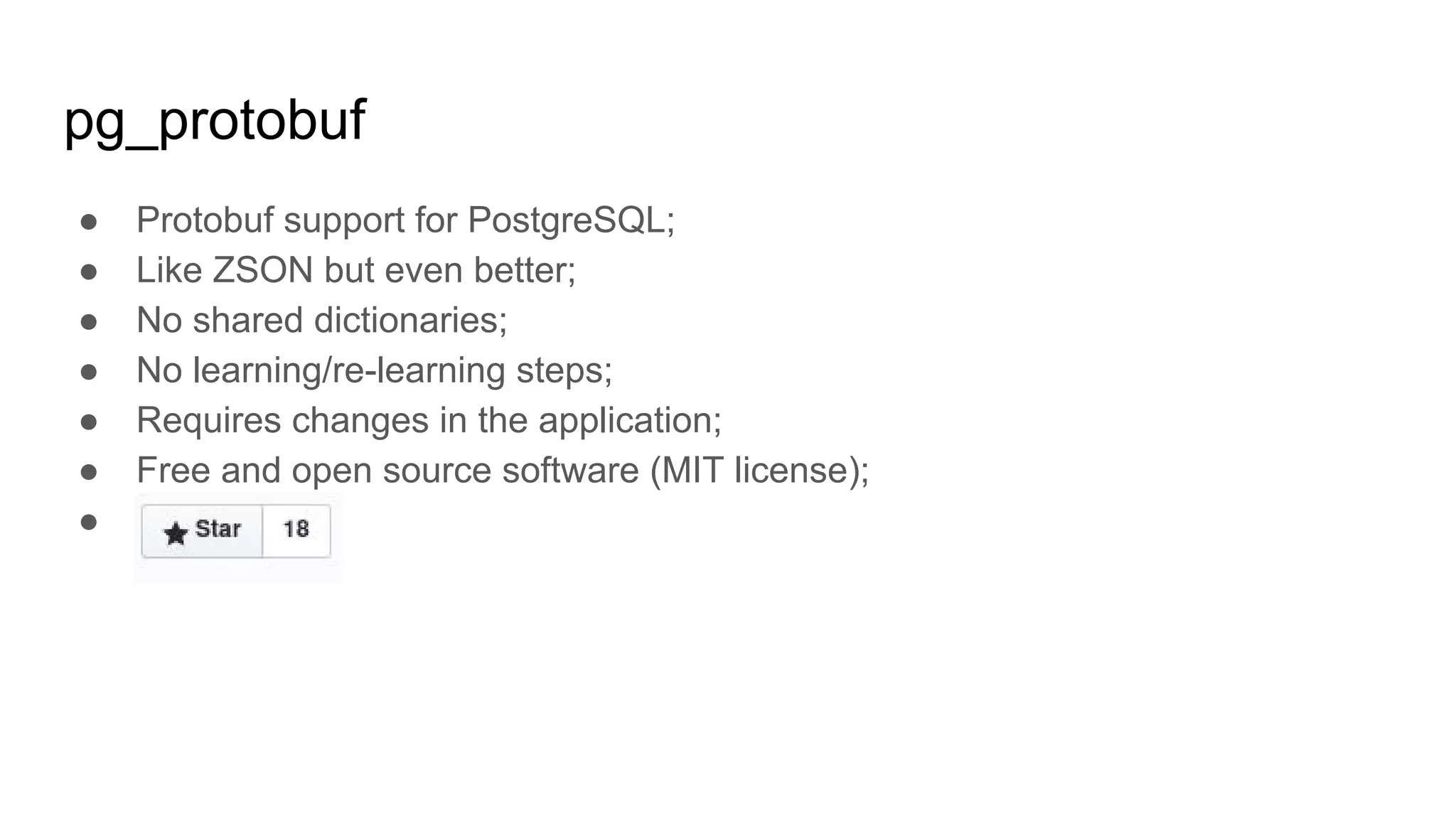

- 21. pg_protobuf ● Protobuf supportfor PostgreSQL; ● Like ZSON but even better; ● No shared dictionaries; ● No learning/re-learning steps; ● Requires changes in the application; ● Free and open source software (MIT license); ●

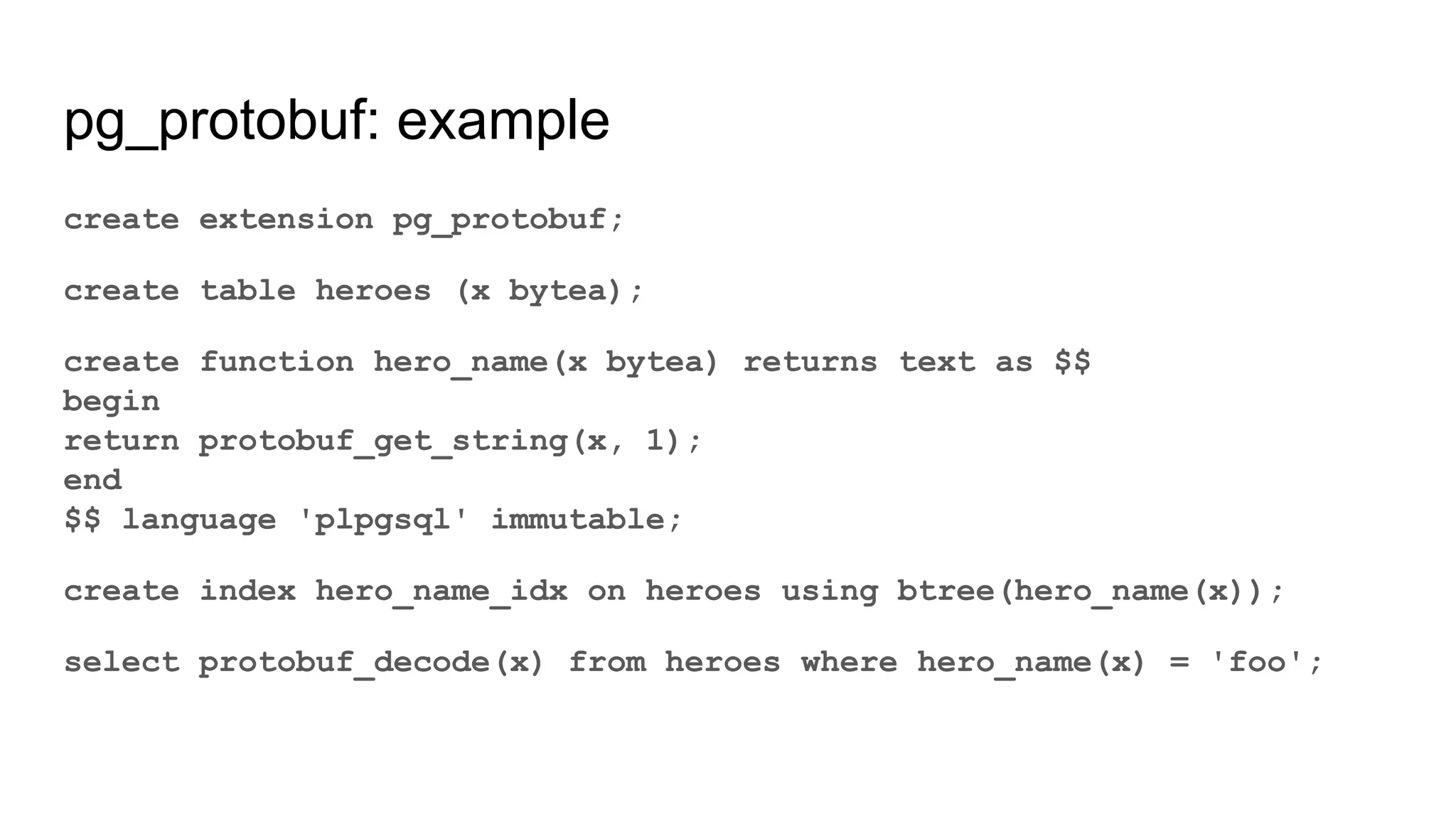

- 22. pg_protobuf: example create extensionpg_protobuf; create table heroes (x bytea); create function hero_name(x bytea) returns text as $$ begin return protobuf_get_string(x, 1); end $$ language 'plpgsql' immutable; create index hero_name_idx on heroes using btree(hero_name(x)); select protobuf_decode(x) from heroes where hero_name(x) = 'foo';
- 23.
- 24.
- 25.

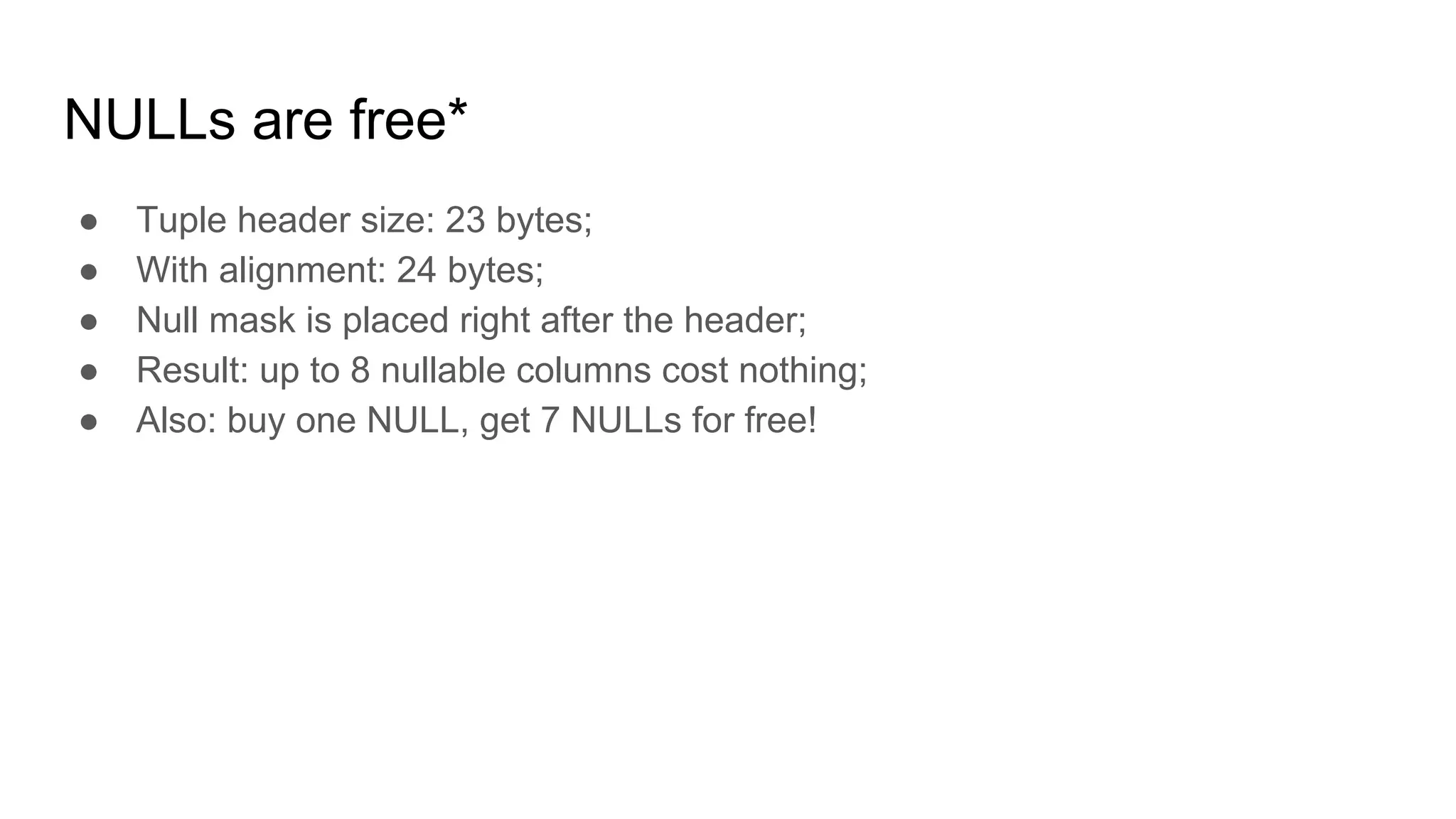

- 26. NULLs are free* ●Tuple header size: 23 bytes; ● With alignment: 24 bytes; ● Null mask is placed right after the header; ● Result: up to 8 nullable columns cost nothing; ● Also: buy one NULL, get 7 NULLs for free!
- 27. Alignment and B-tree Indexentries are 8-bytes aligned.

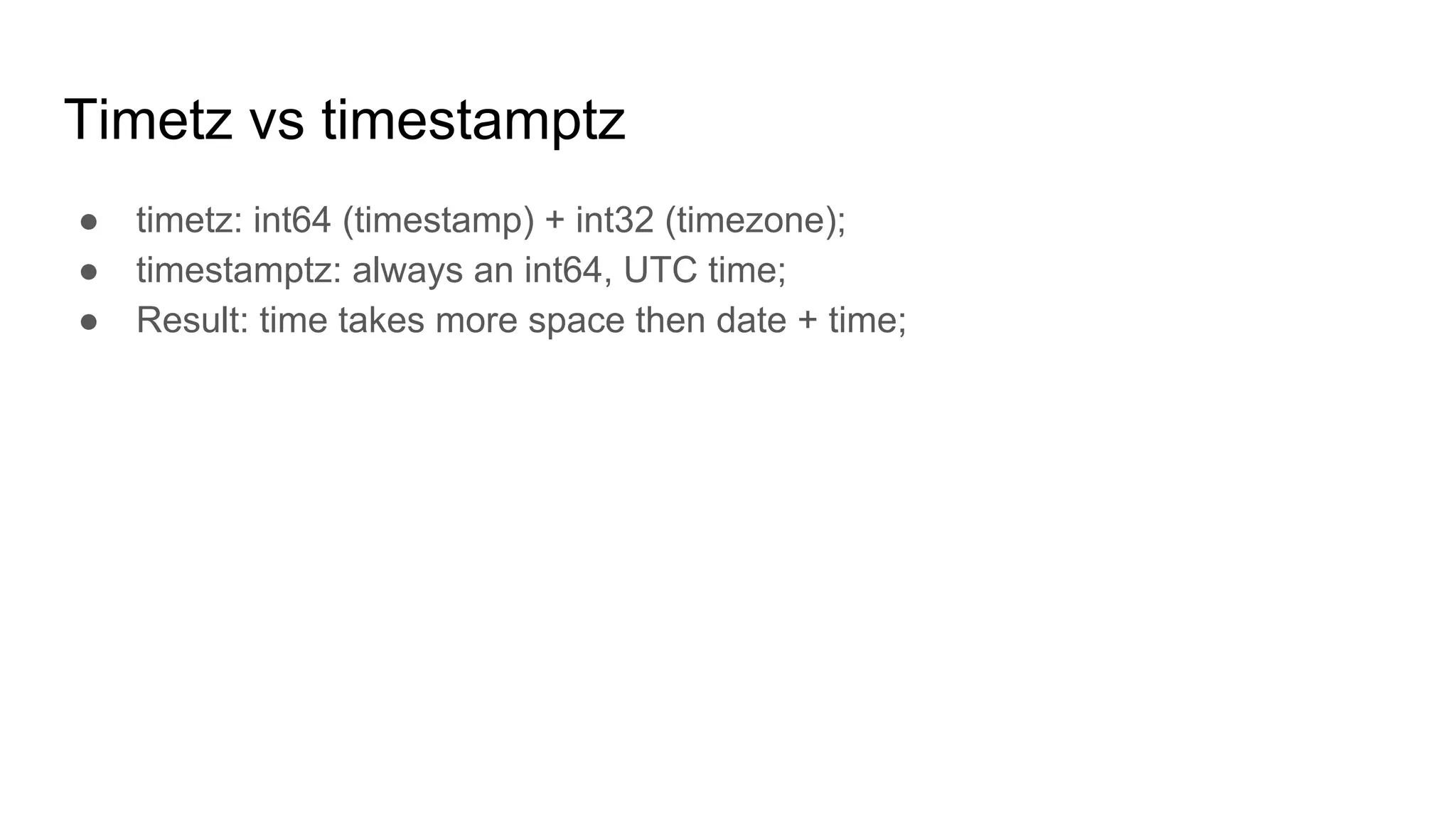

- 28. Timetz vs timestamptz ●timetz: int64 (timestamp) + int32 (timezone); ● timestamptz: always an int64, UTC time; ● Result: time takes more space then date + time;

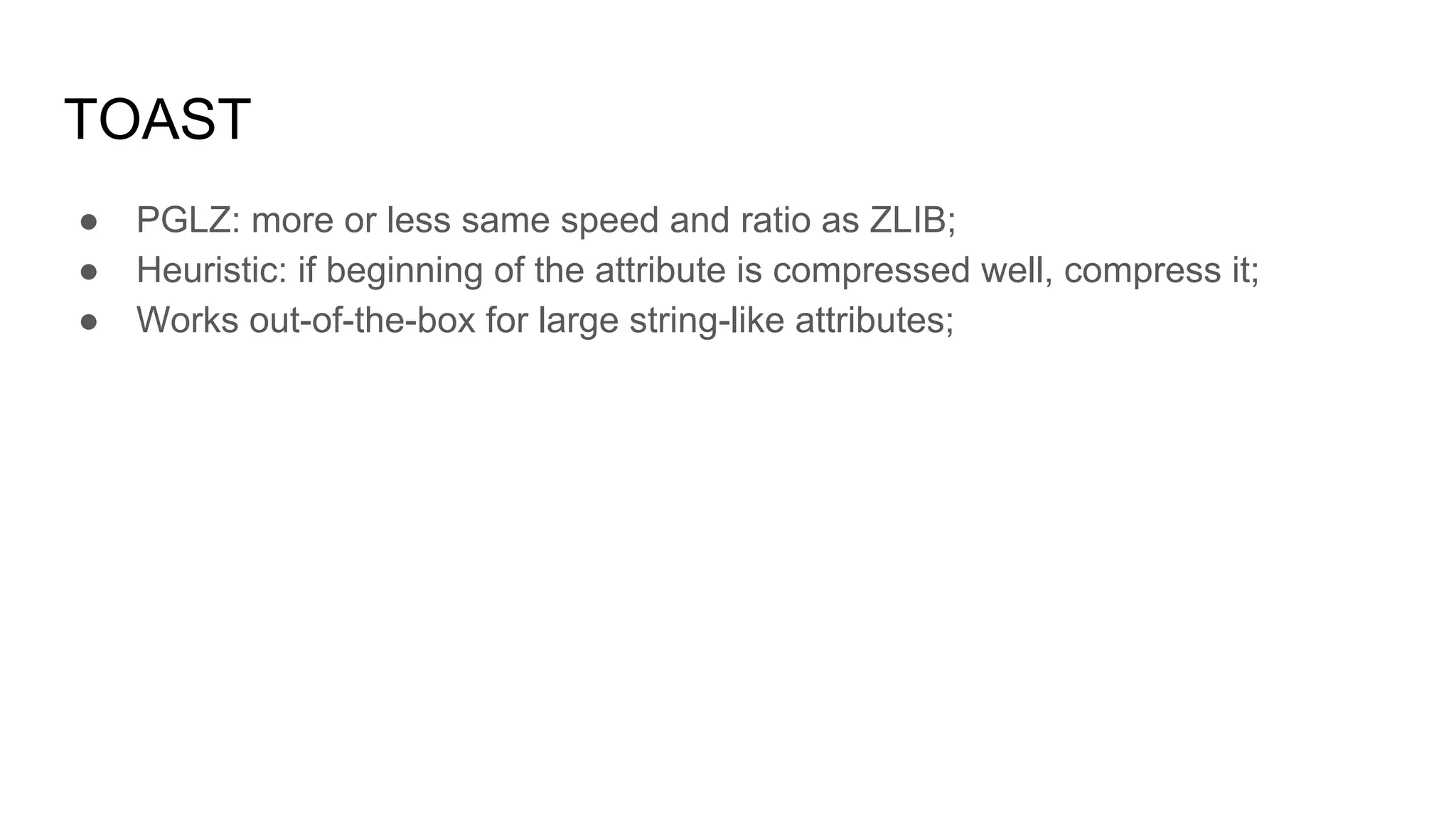

- 29. TOAST ● PGLZ: moreor less same speed and ratio as ZLIB; ● Heuristic: if beginning of the attribute is compressed well, compress it; ● Works out-of-the-box for large string-like attributes;
- 30.

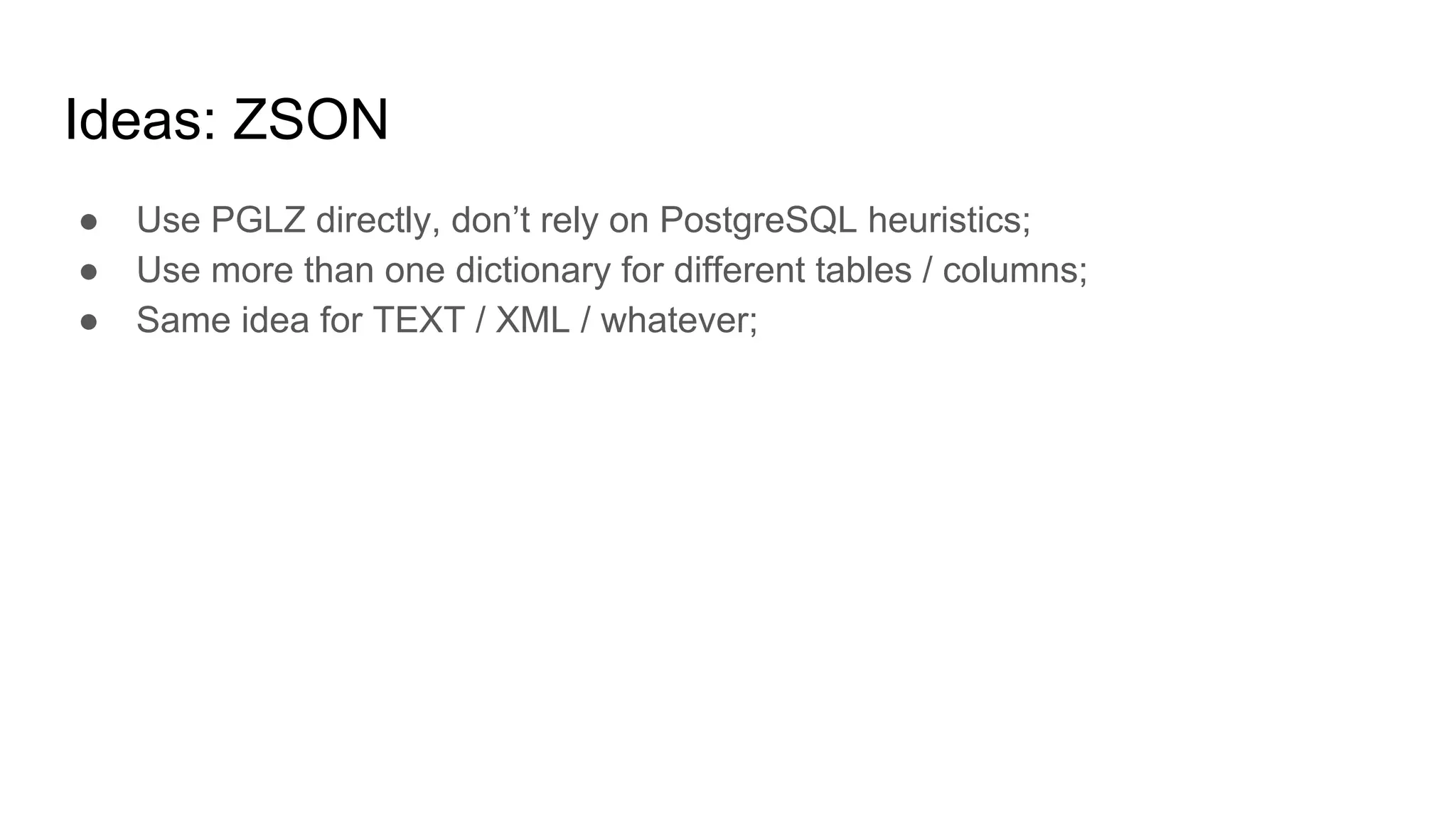

- 31. Ideas: ZSON ● UsePGLZ directly, don’t rely on PostgreSQL heuristics; ● Use more than one dictionary for different tables / columns; ● Same idea for TEXT / XML / whatever;

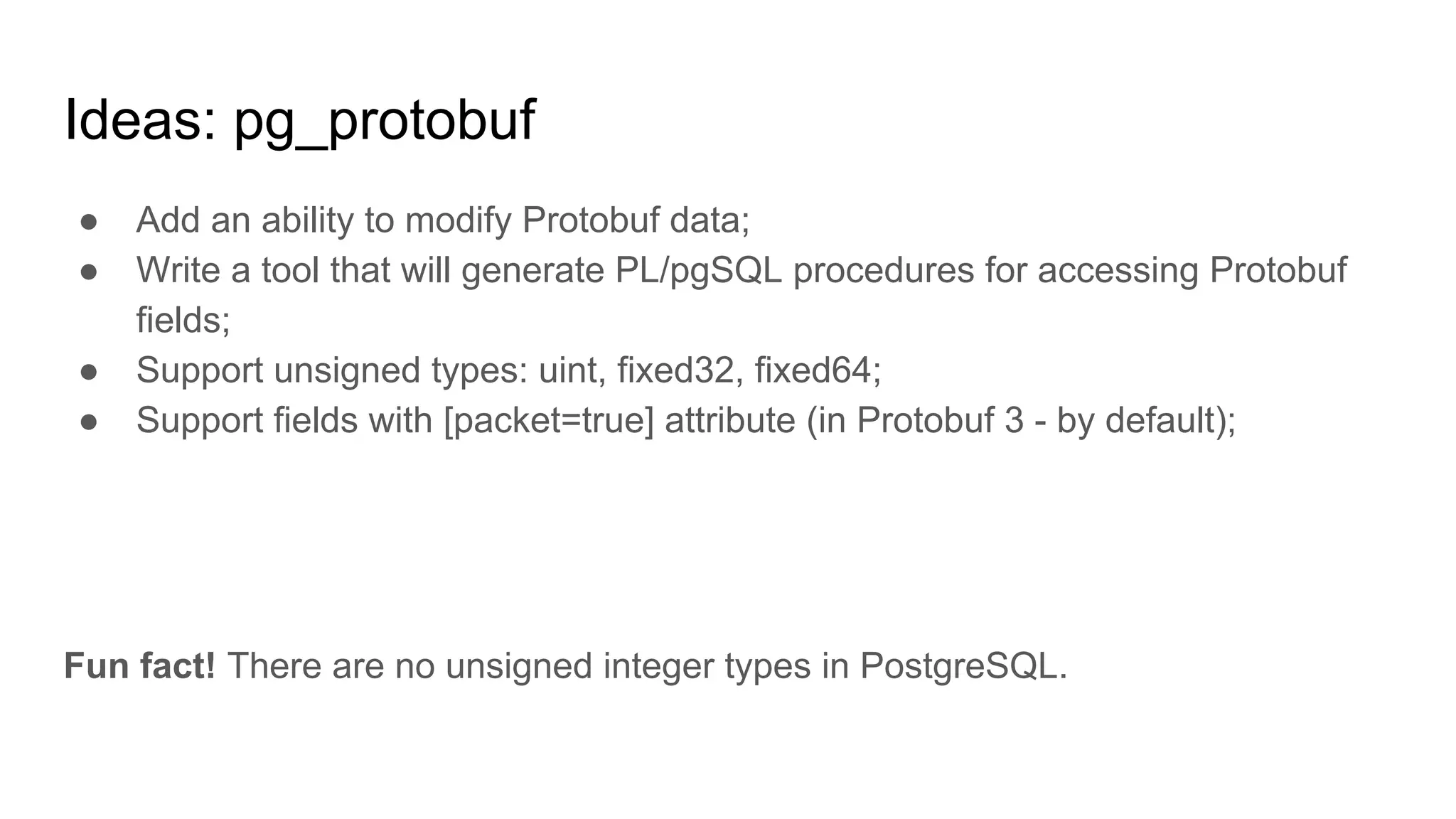

- 32. Ideas: pg_protobuf ● Addan ability to modify Protobuf data; ● Write a tool that will generate PL/pgSQL procedures for accessing Protobuf fields; ● Support unsigned types: uint, fixed32, fixed64; ● Support fields with [packet=true] attribute (in Protobuf 3 - by default); Fun fact! There are no unsigned integer types in PostgreSQL.

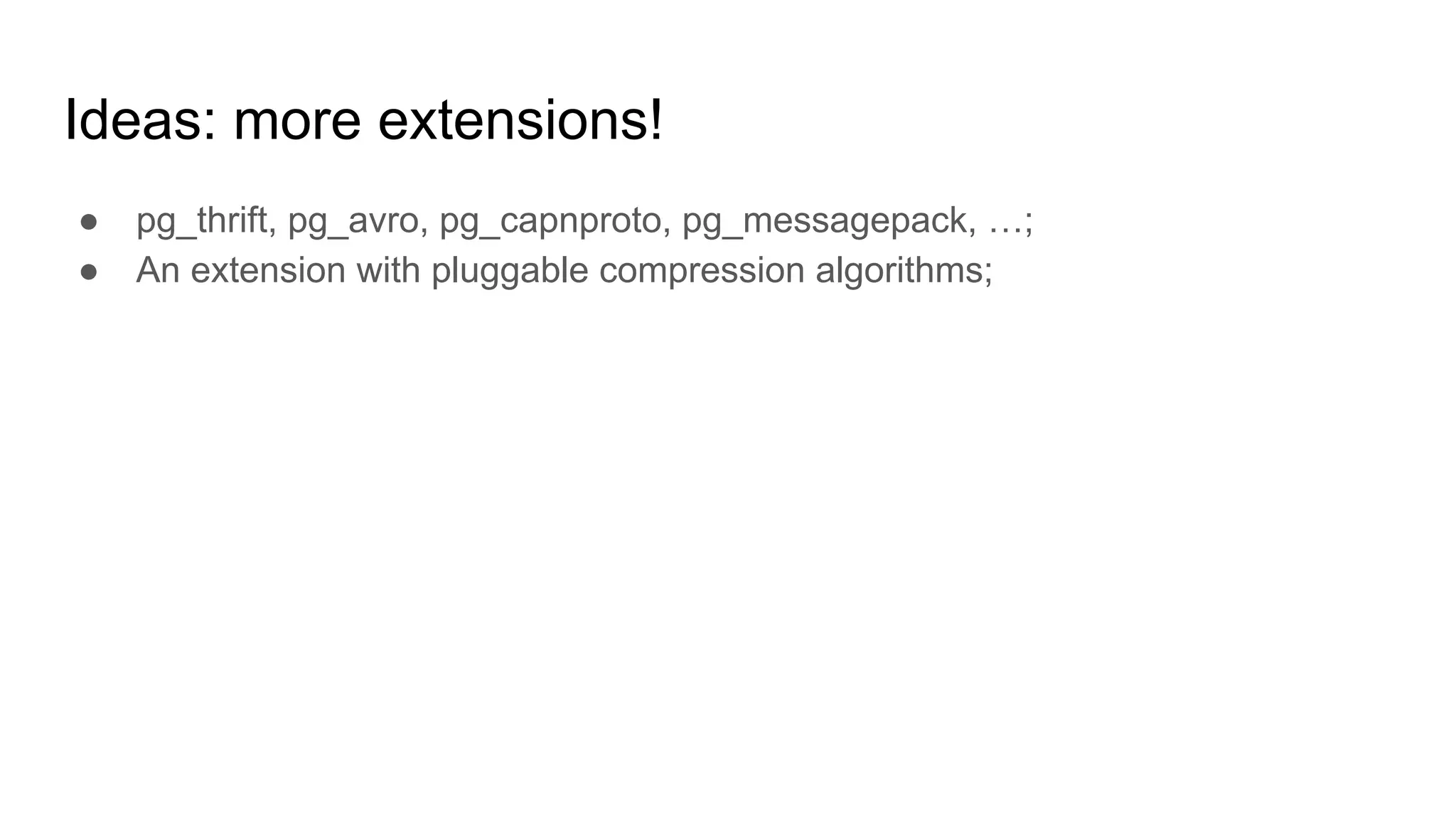

- 33. Ideas: more extensions! ●pg_thrift, pg_avro, pg_capnproto, pg_messagepack, …; ● An extension with pluggable compression algorithms;

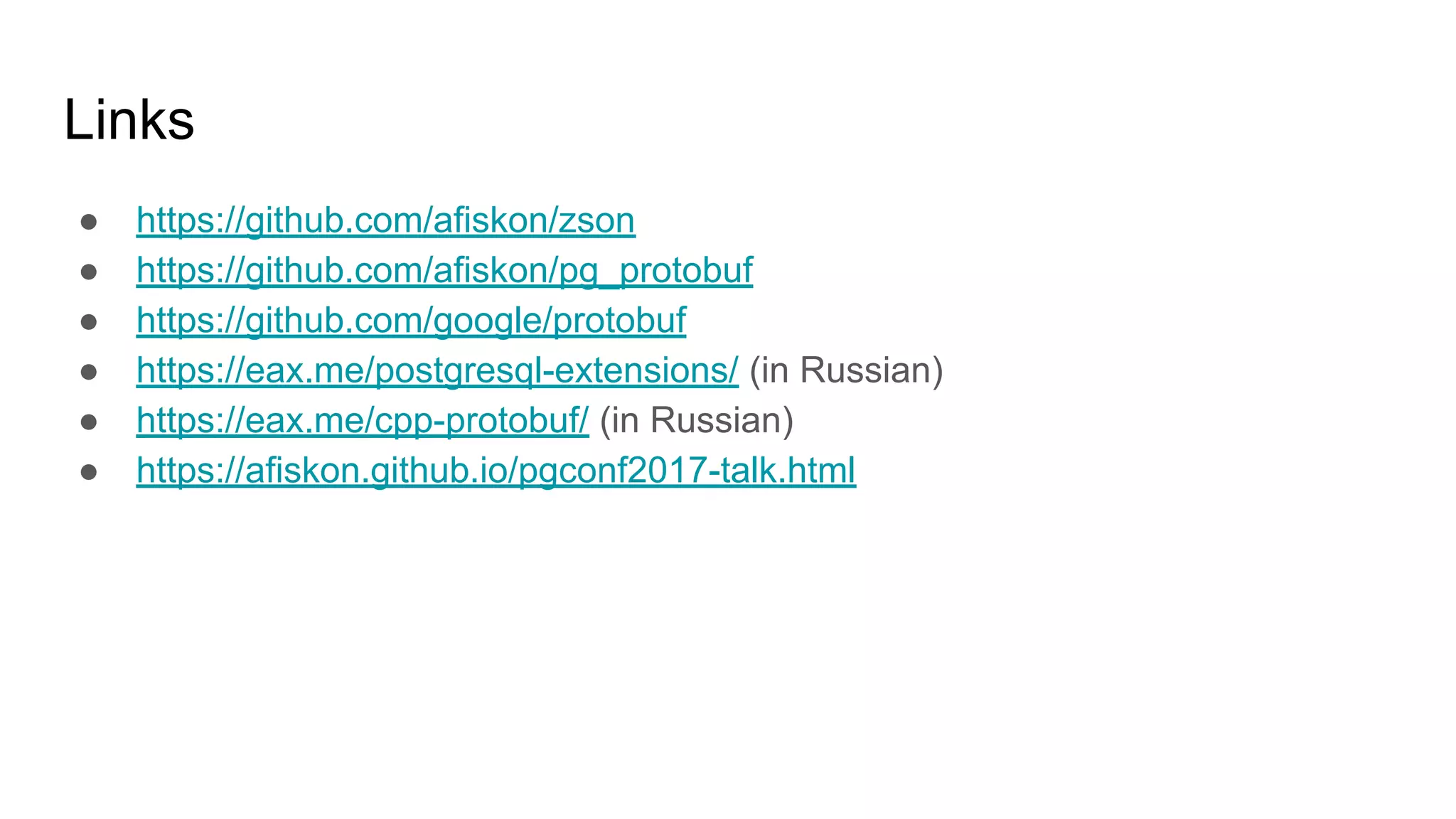

- 34. Links ● https://github.com/afiskon/zson ● https://github.com/afiskon/pg_protobuf ●https://github.com/google/protobuf ● https://eax.me/postgresql-extensions/ (in Russian) ● https://eax.me/cpp-protobuf/ (in Russian) ● https://afiskon.github.io/pgconf2017-talk.html
- 35. We are hiring! ●https://postgrespro.ru/jobs
- 36. Thank you foryour attention! ● a.alekseev@postgrespro.ru ● https://afiskon.github.io/ ● https://postgrespro.com/ ● https://github.com/postgrespro/
