Performance and Scalability Art of Isomorphic React Applications

Isomorphic React Applications: Performance & Scalability Denis Izmaylov June 23, 2016

Denis Izmaylov • 16 years of Software and Web development experience • The last 6 years focused exclusively  on Front-end and Web • 15+ projects, including SPA,  high-load and React • Commits to Redux, webpack and koa • Speaker at HighLoad++ 2015,  AgileDays 2016, RIT 2016, DevConf 2016 • Regular speaker at MoscowJS meetups • “Application and Universal Components” and other articles

• We develop web,  mobile and DevOps projects for  our customers • We use right and most efficient solutions • We have more than 20 talented developers  in the team

Why should we stop developing classic Single Page Applications?

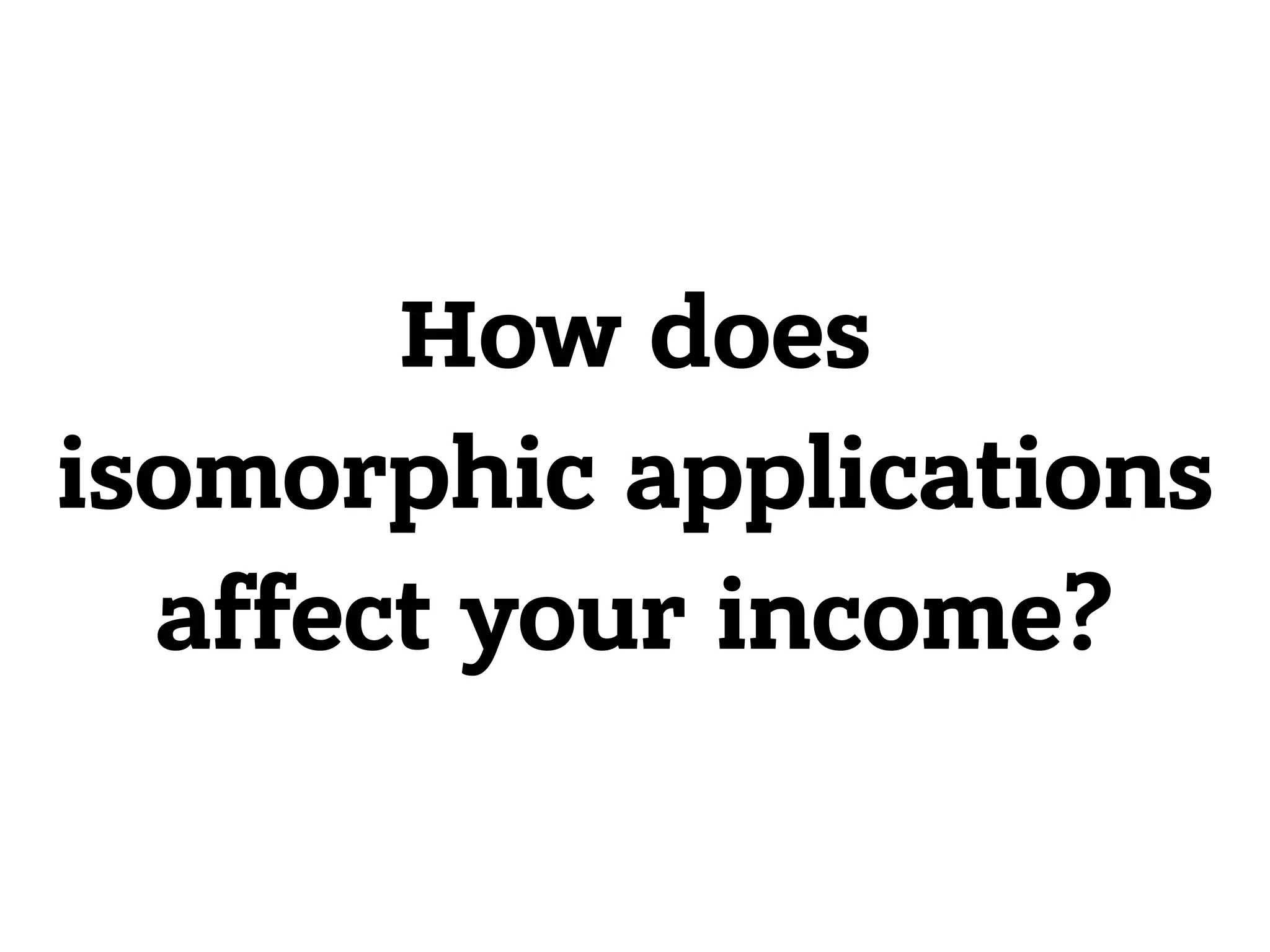

How does isomorphic applications affect your income?

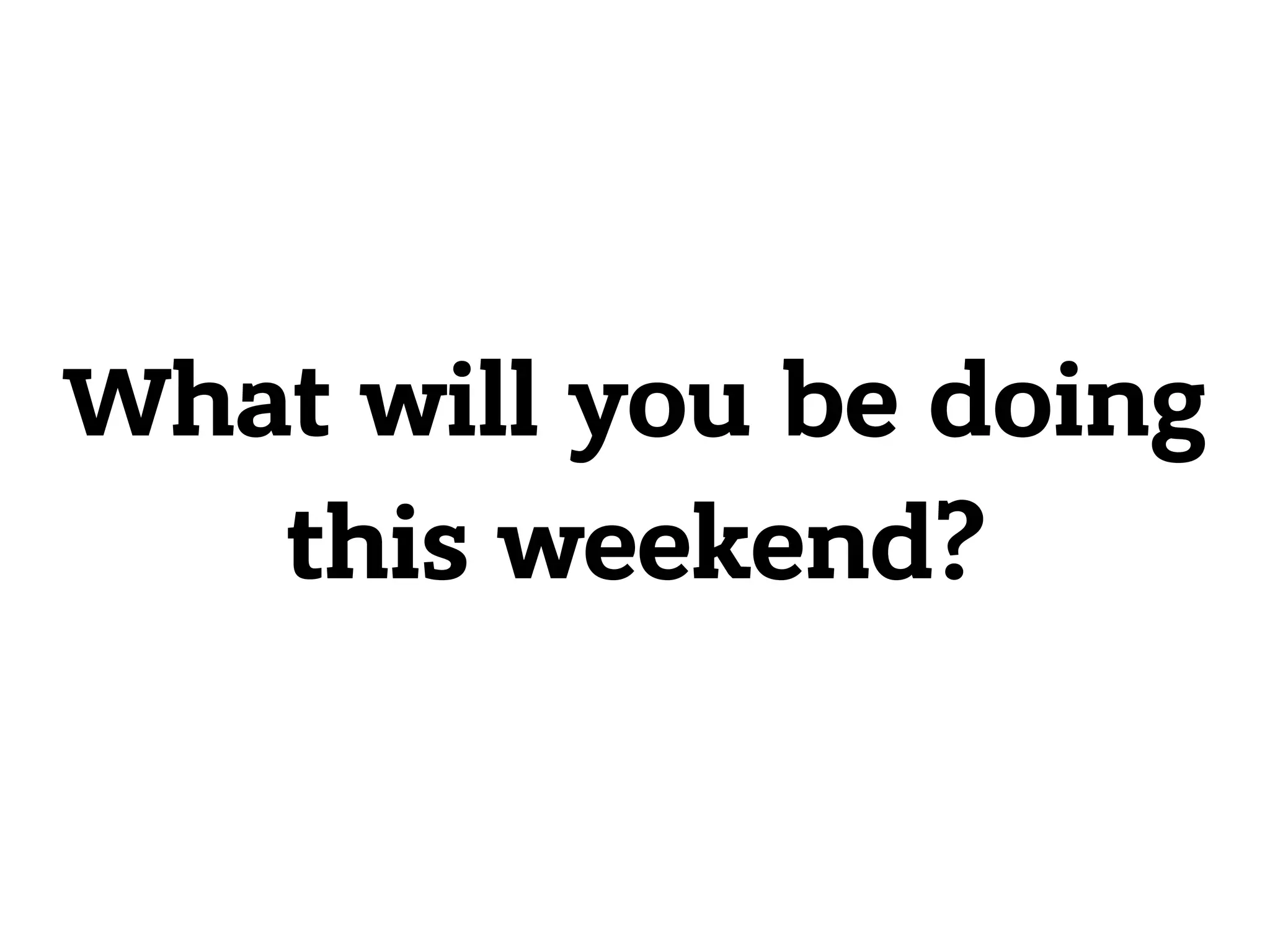

What will you be doing this weekend?

Web became a serious environment

Art  Web Development    Science

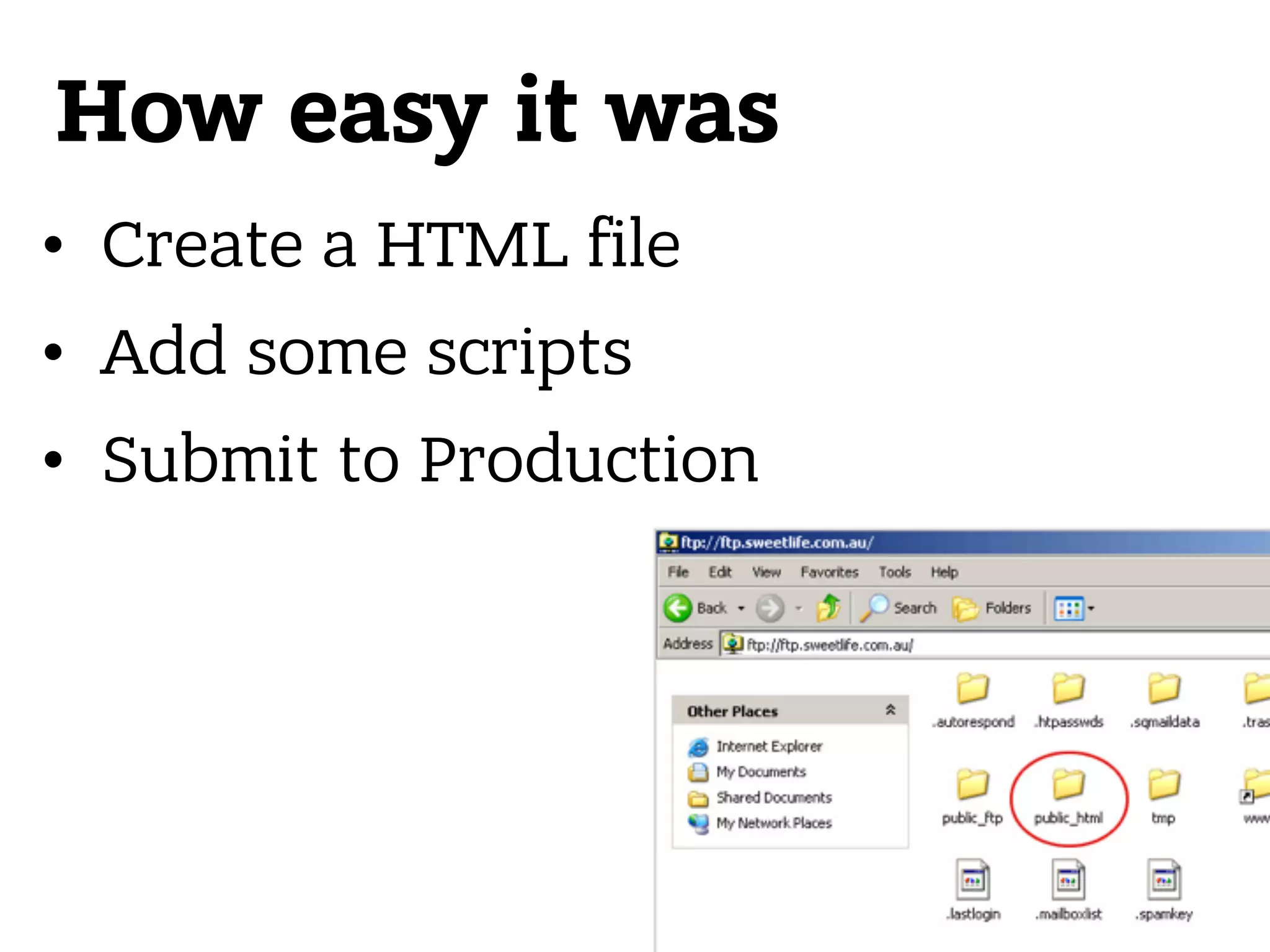

How easy it was • Create a HTML file • Add some scripts • Submit to Production

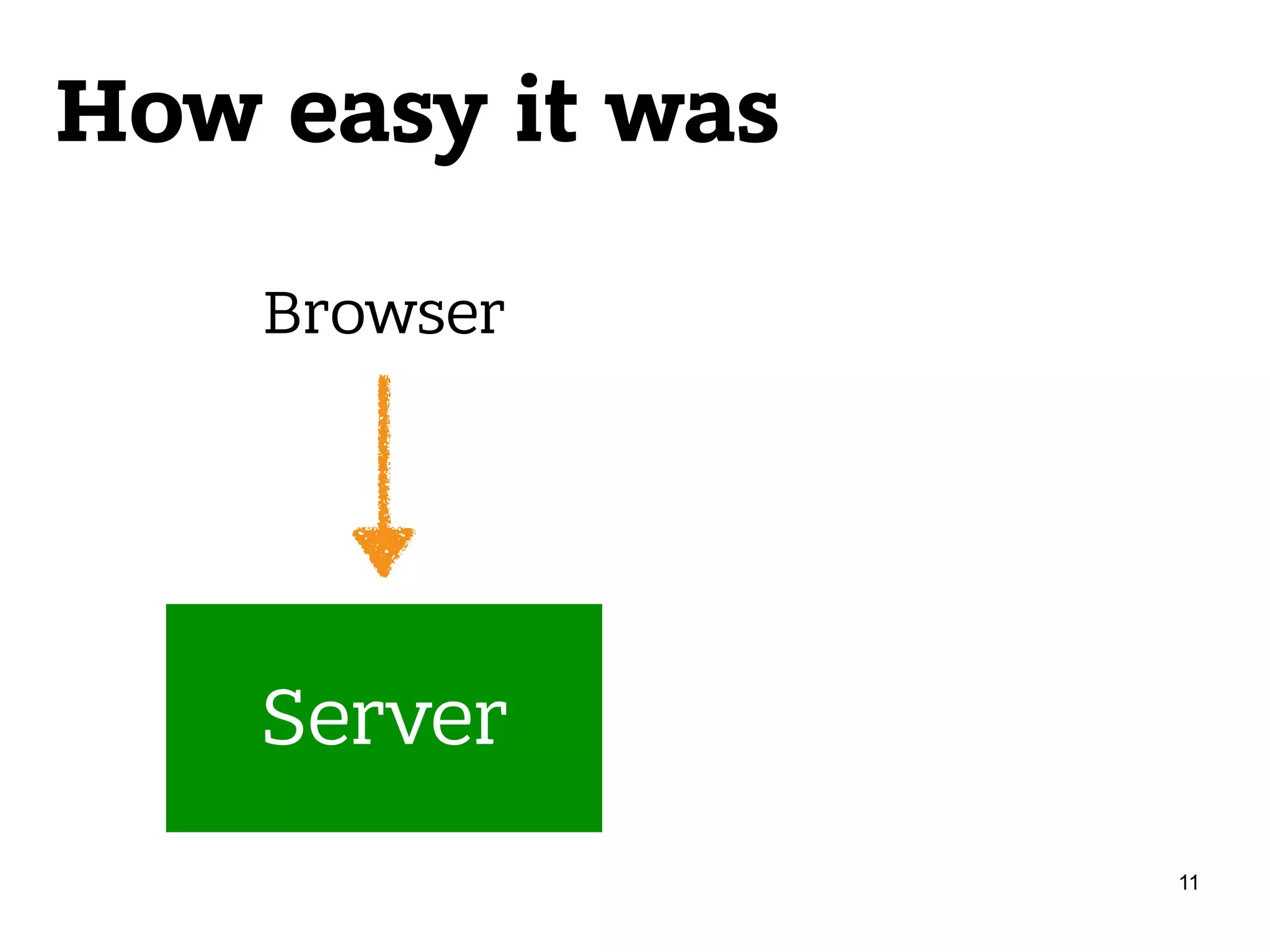

How easy it was Server Browser 11

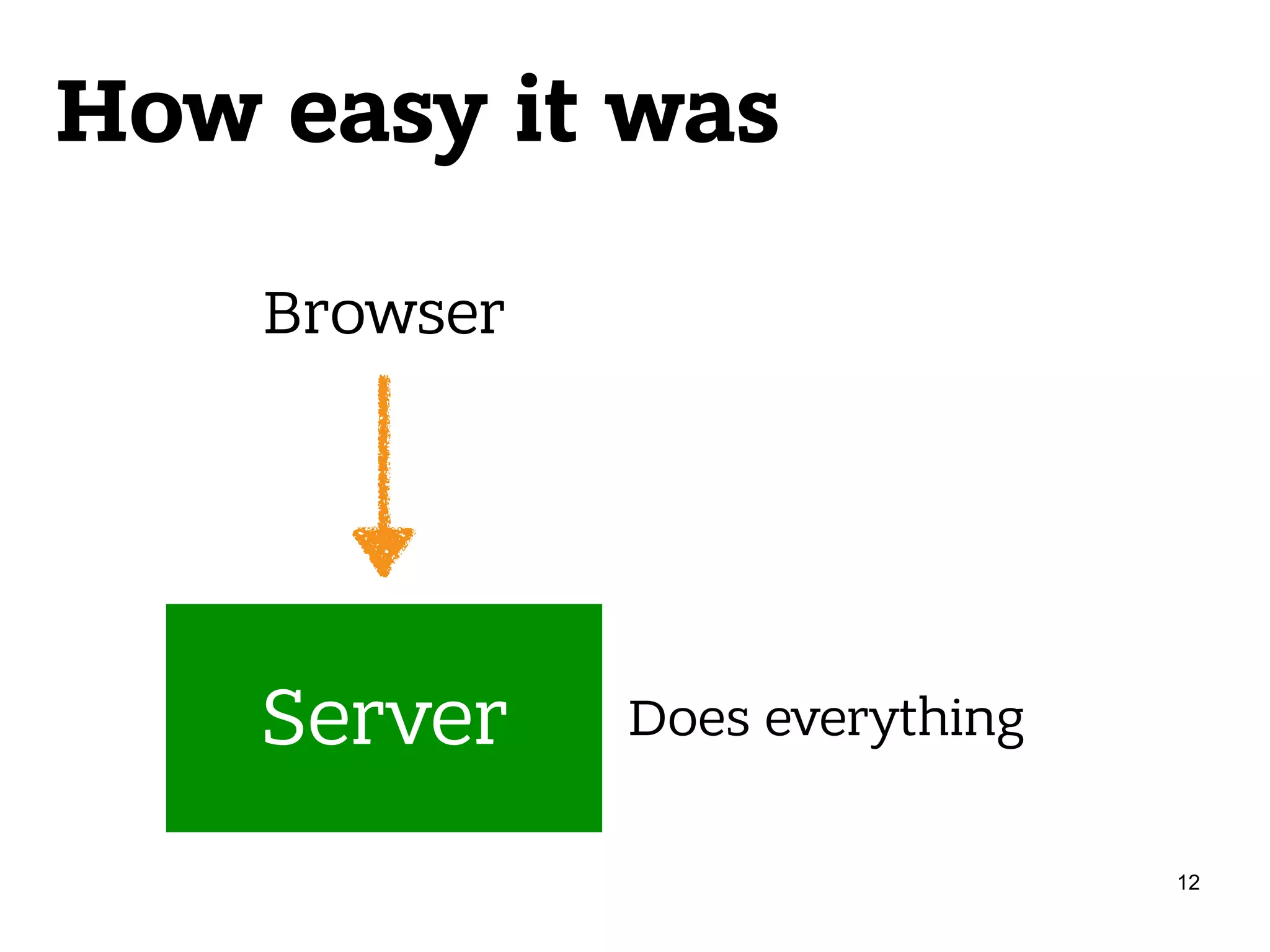

How easy it was Server Browser Does everything 12

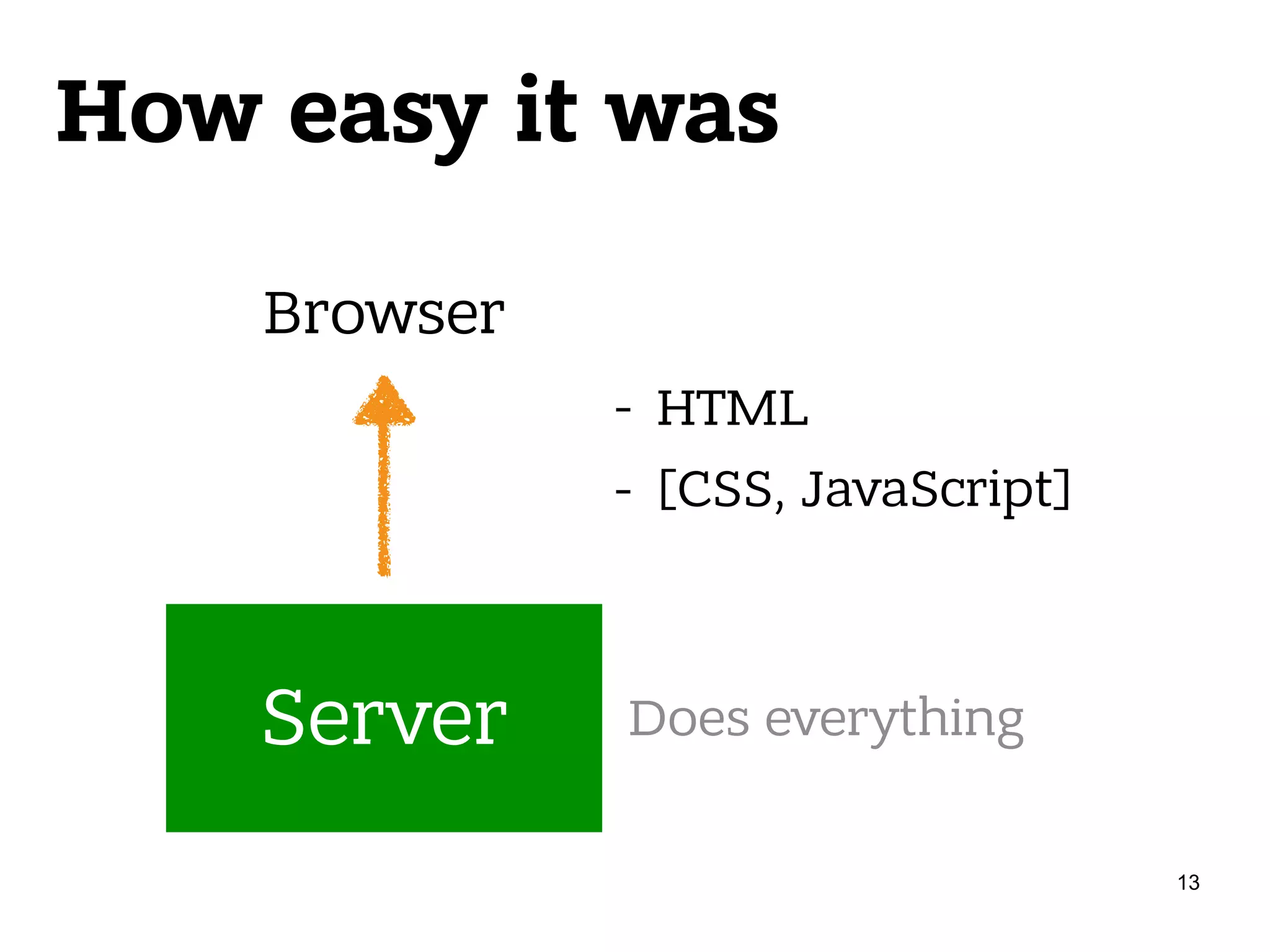

How easy it was Server Browser - HTML - [CSS, JavaScript] Does everything 13

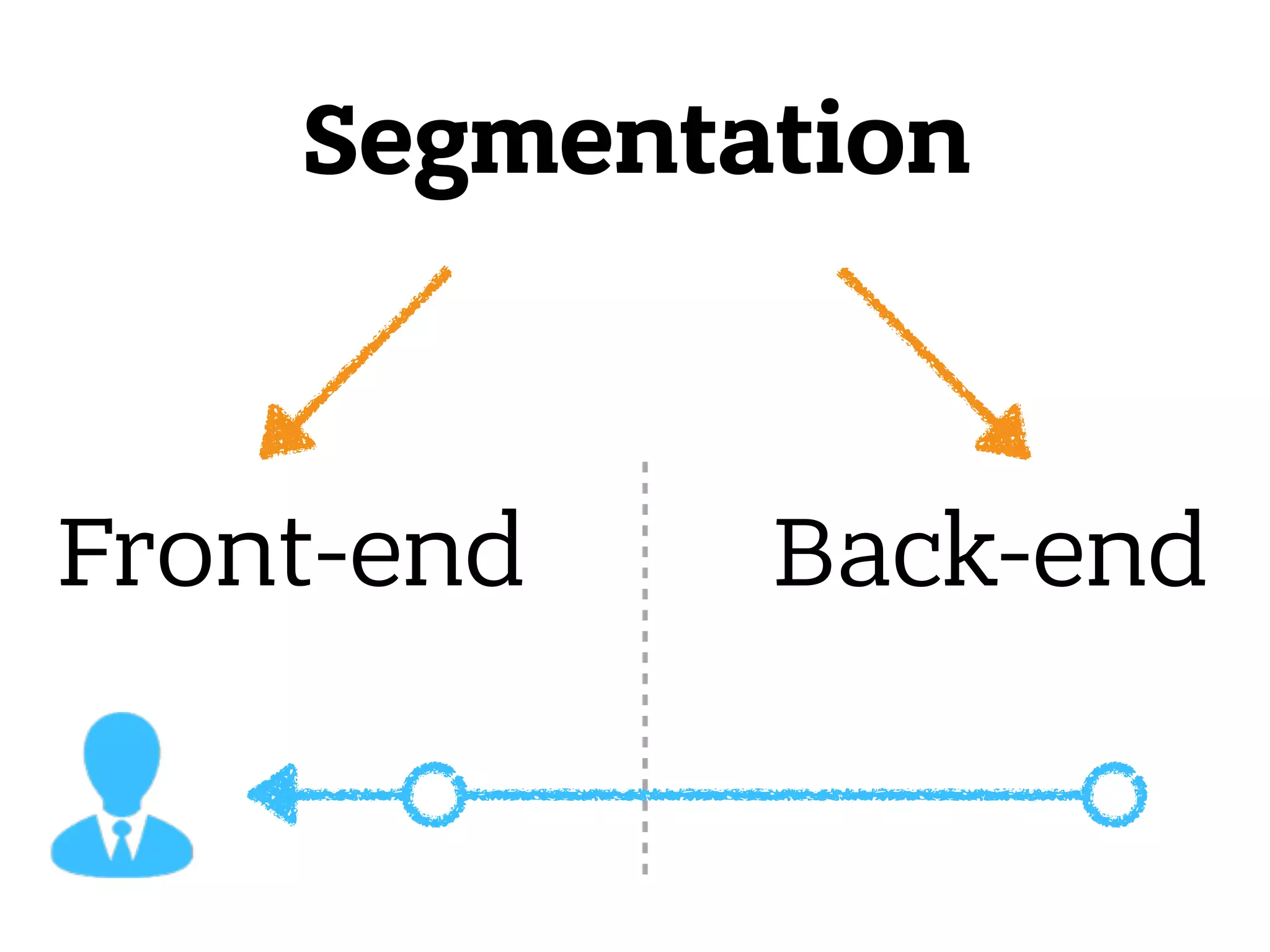

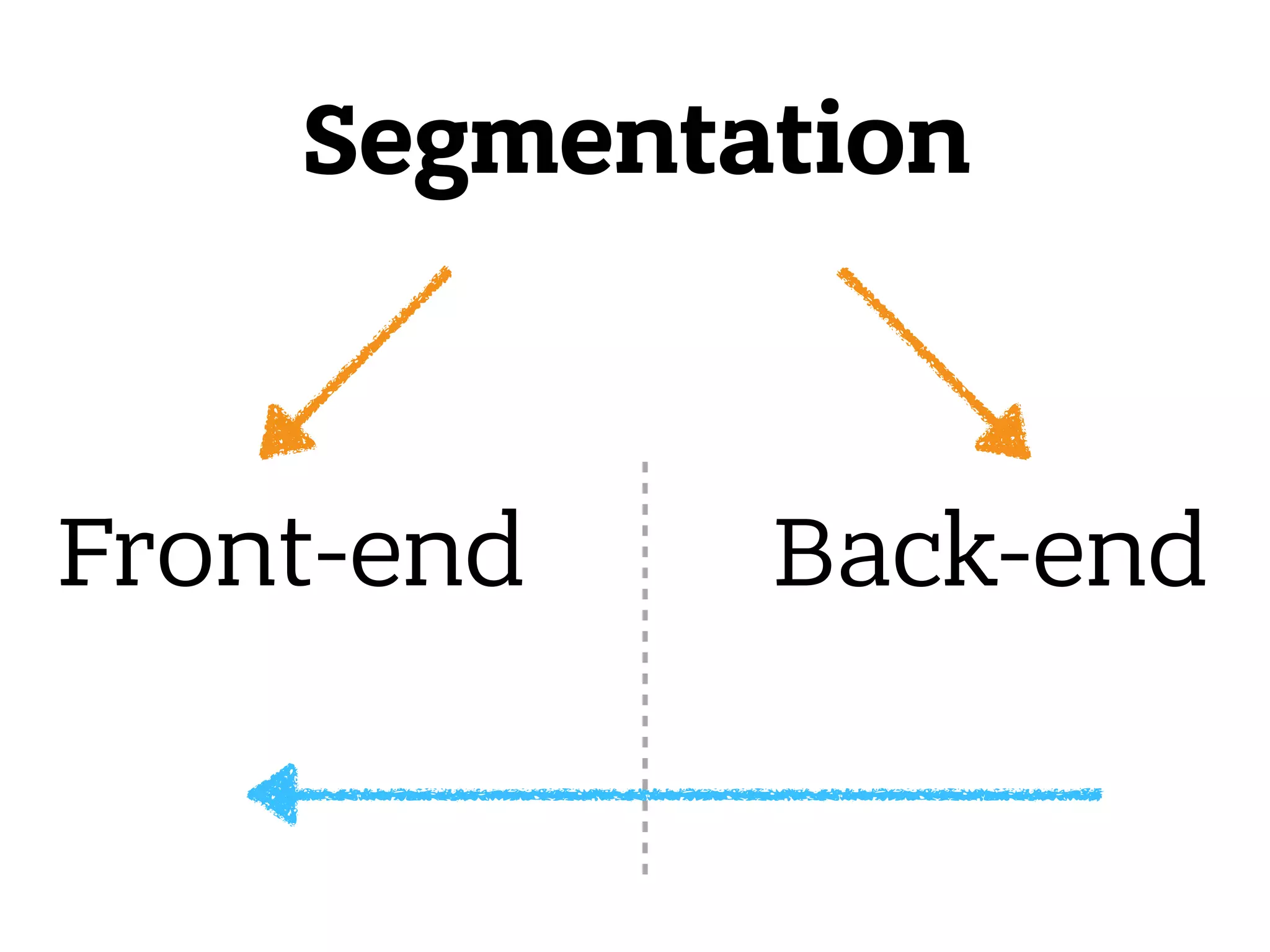

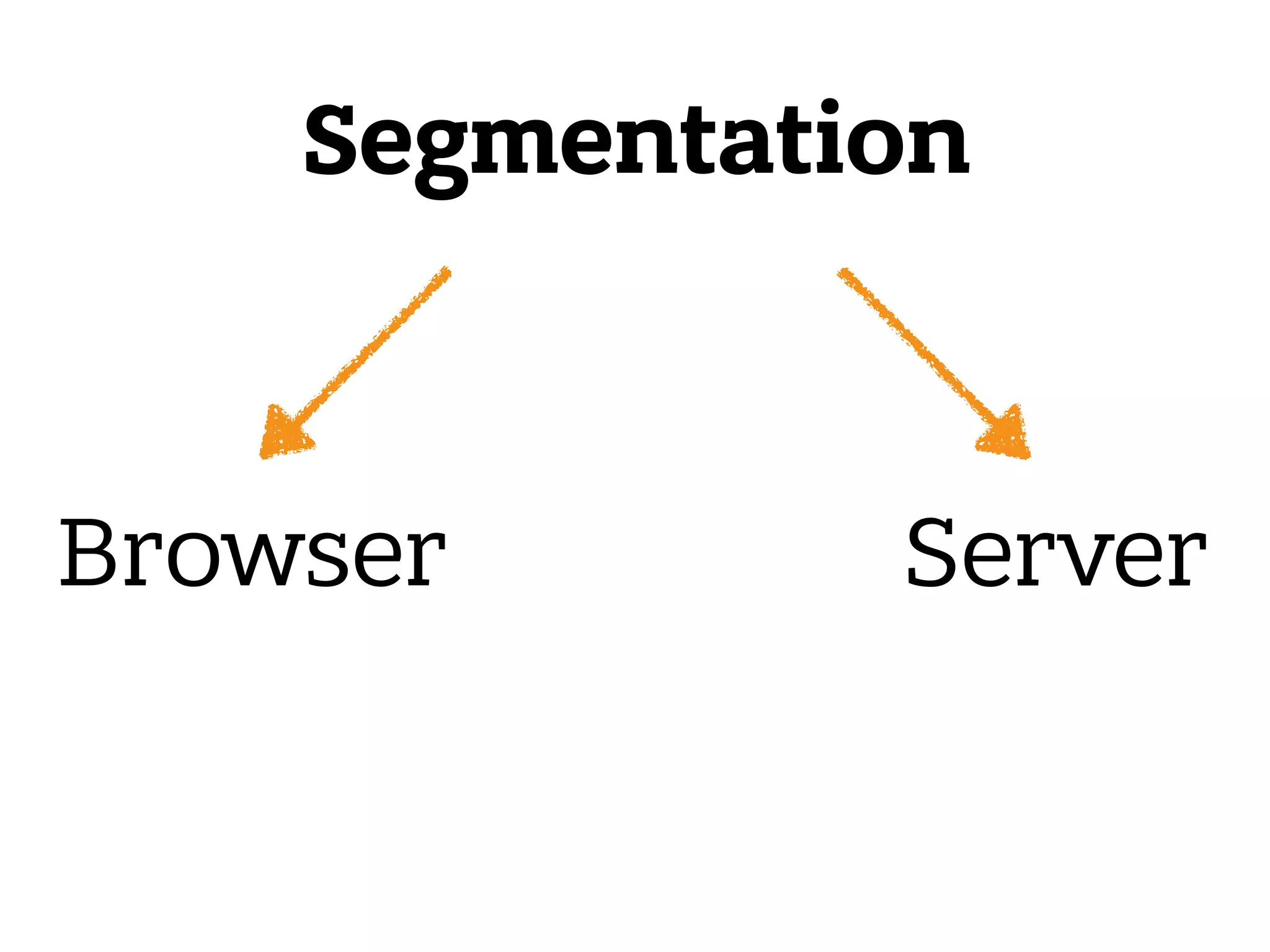

Segmentation Front-end Back-end

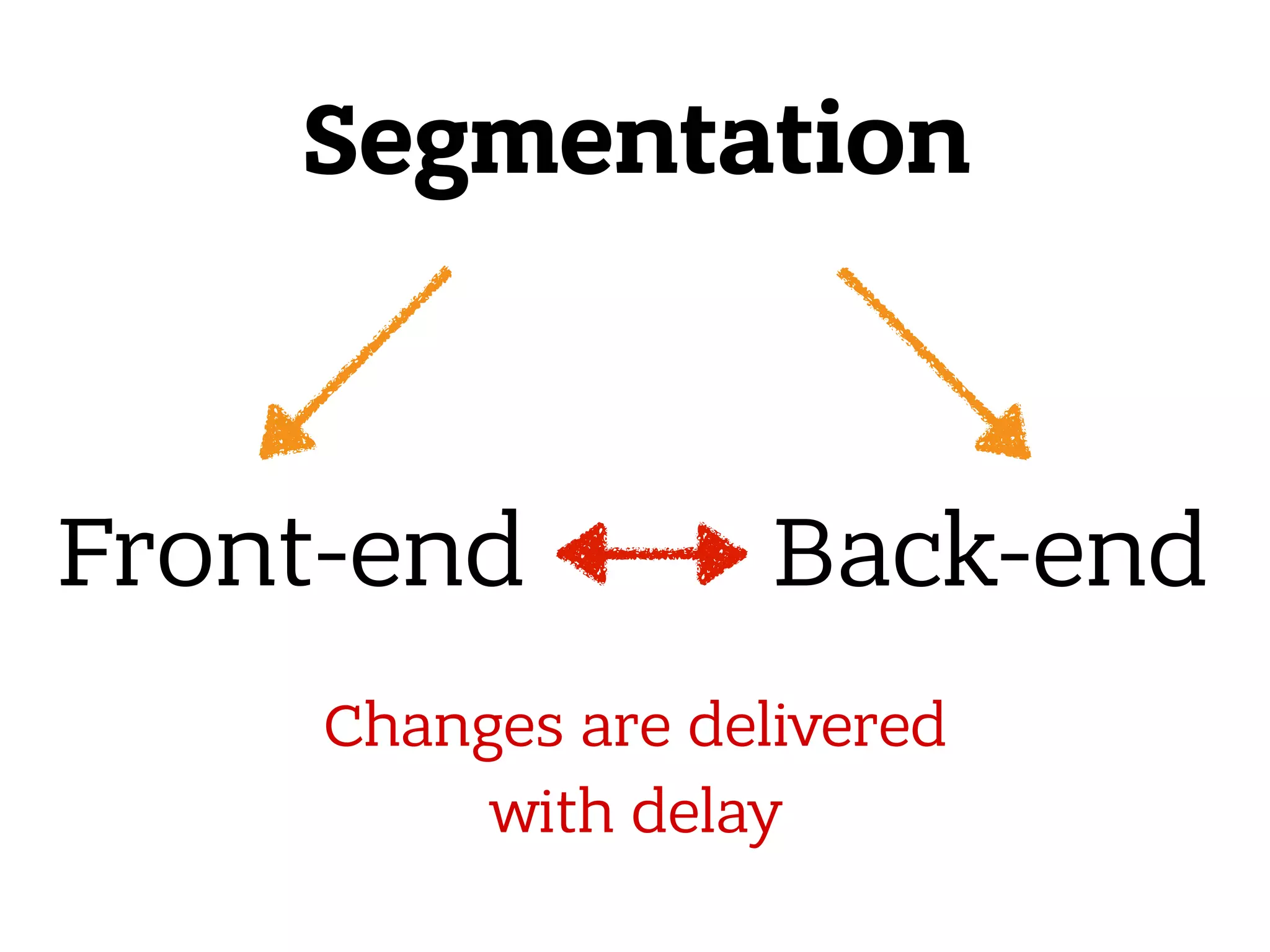

Segmentation Front-end Back-end Changes are delivered with delay

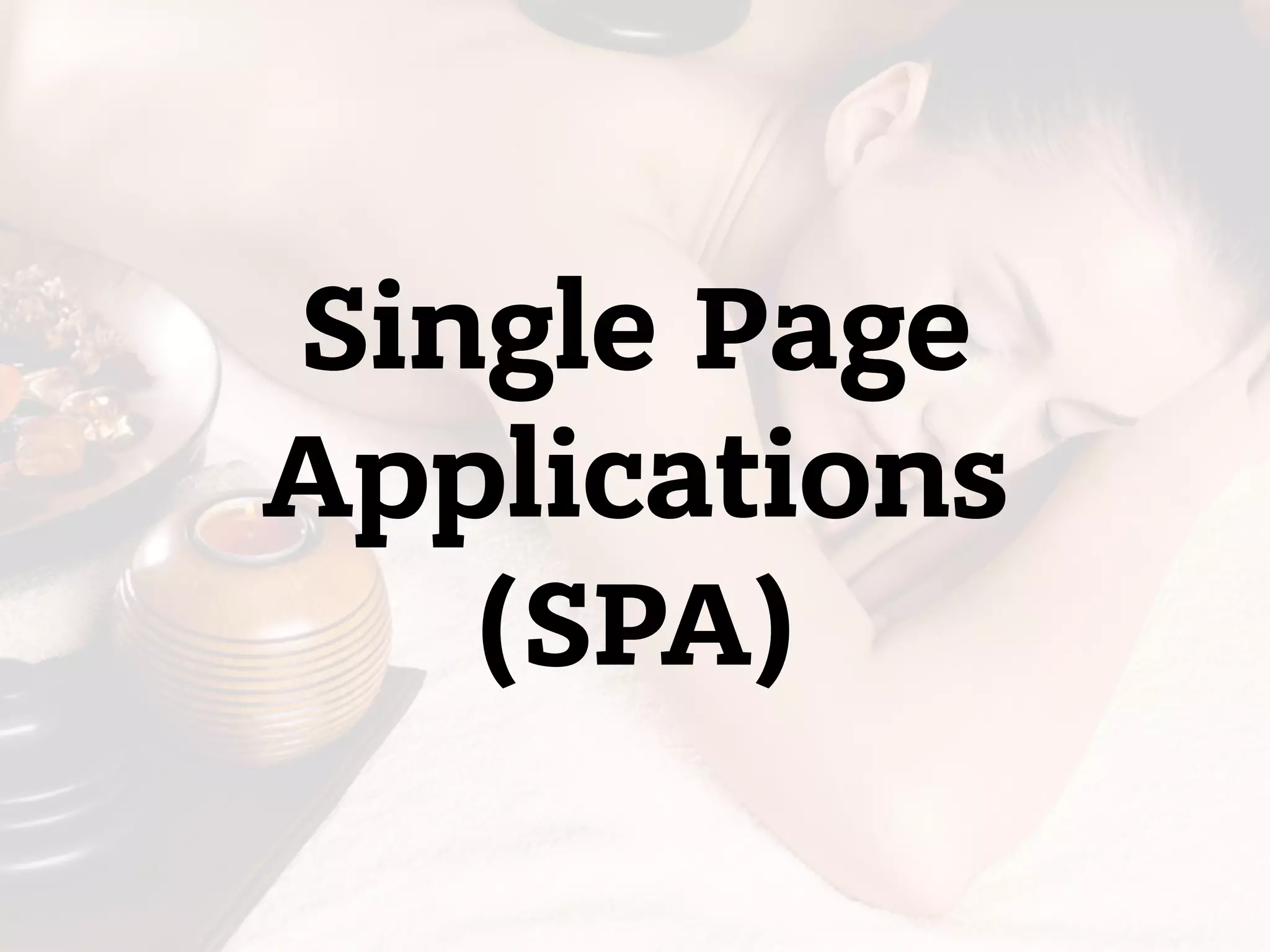

Single Page  Applications  (SPA)

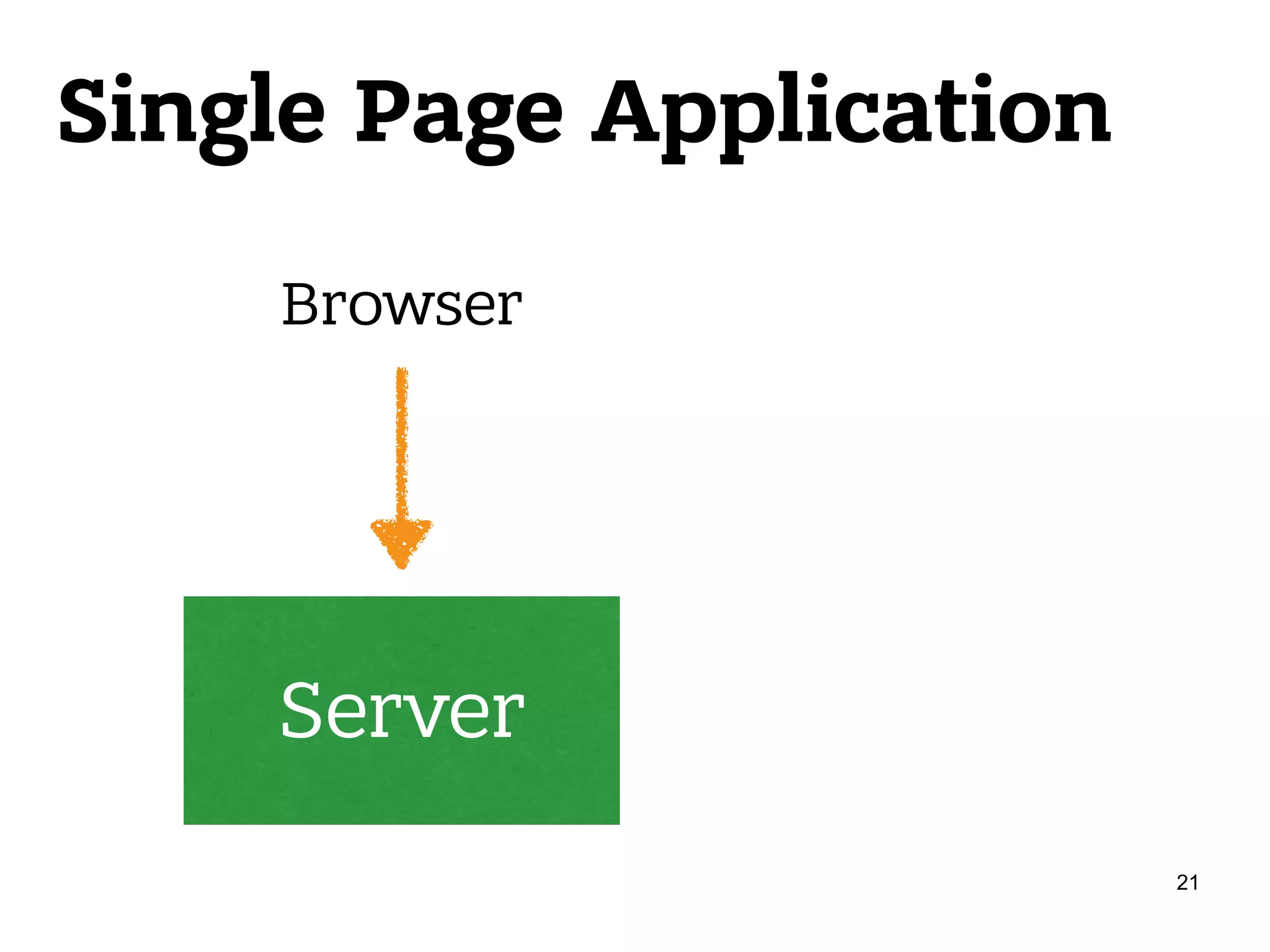

Single Page Application Server Browser 21

Single Page Application Server Browser Does the page exists?  Do we need auth?  Do we have access? 22

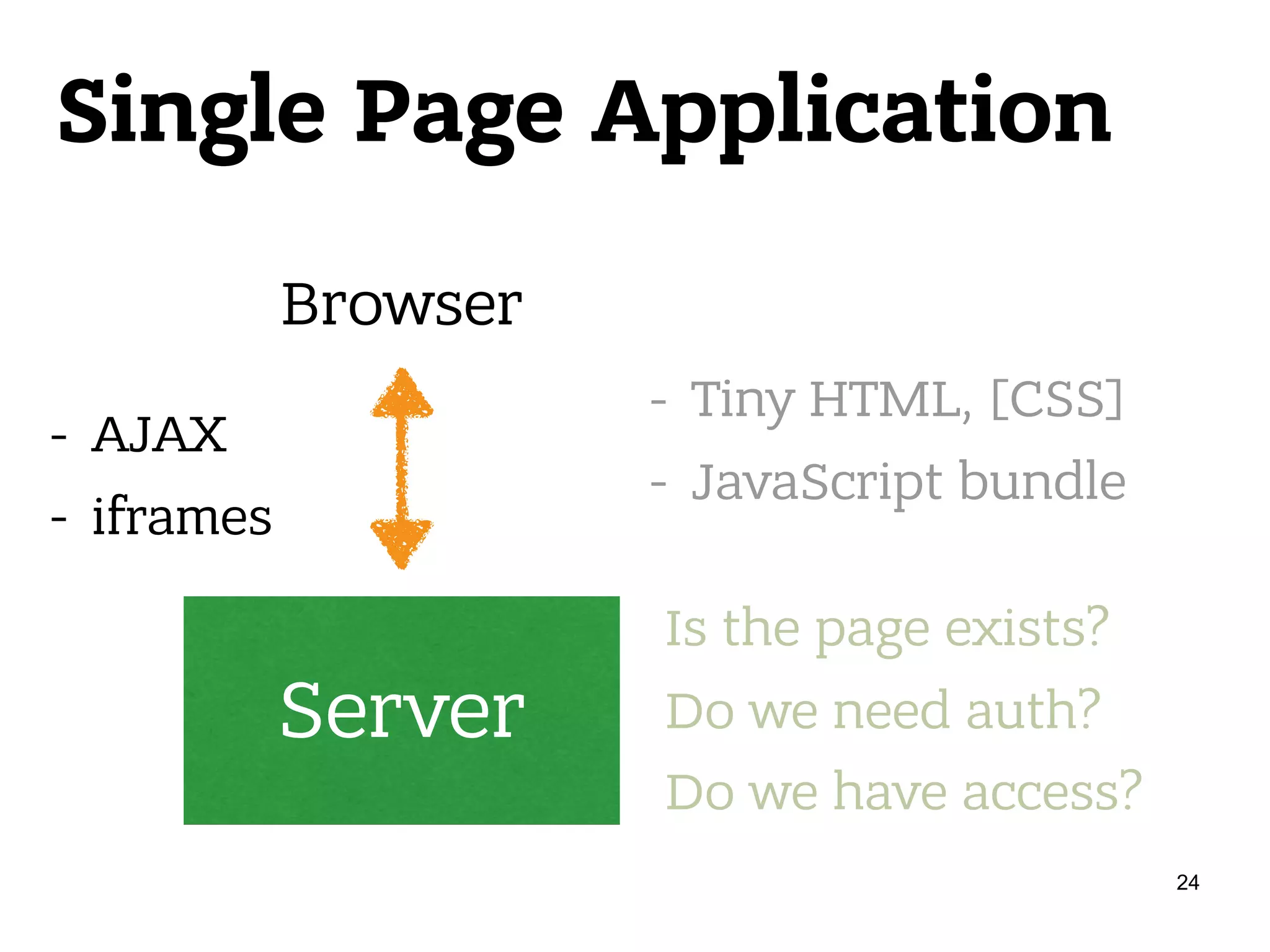

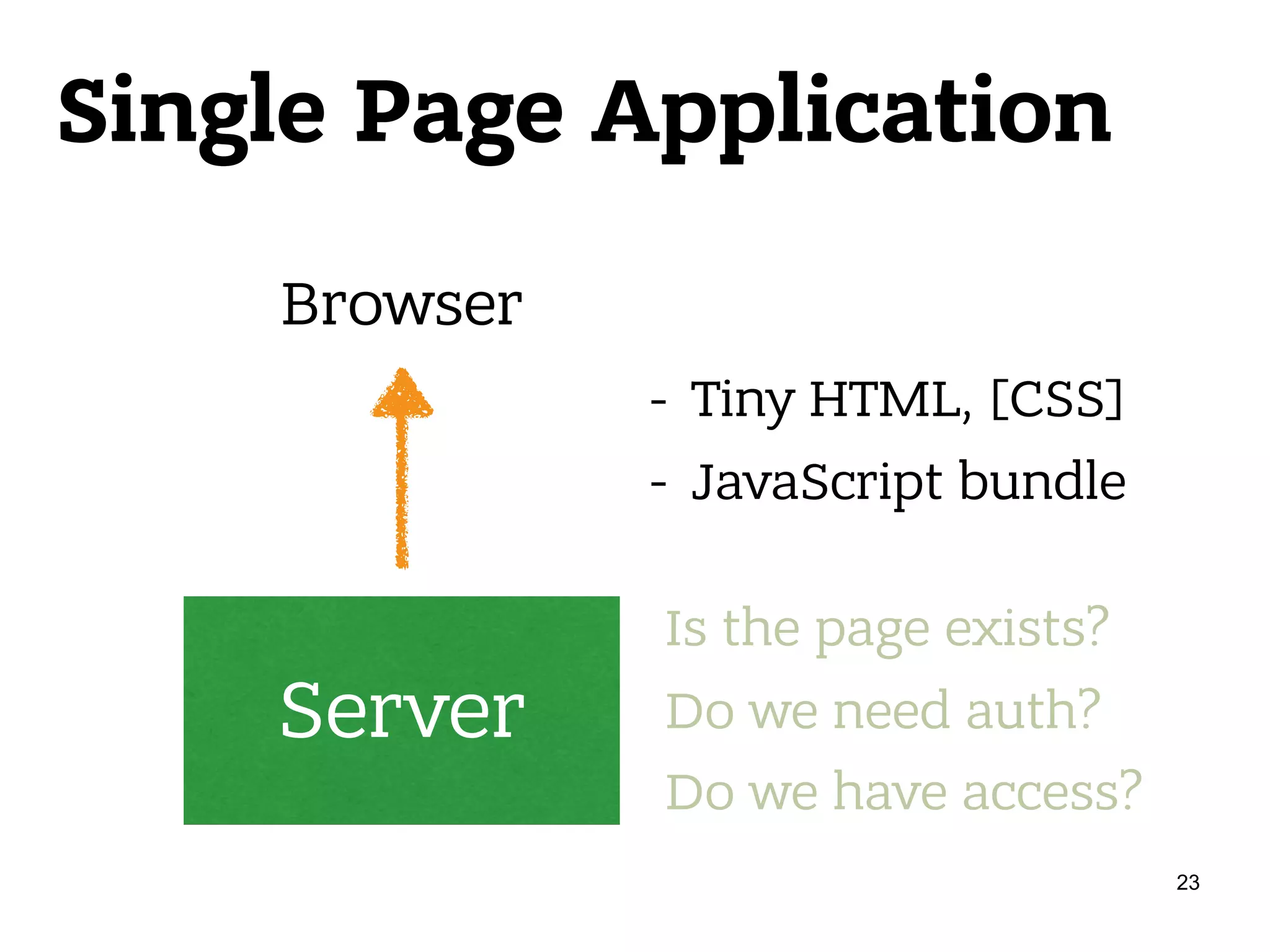

Single Page Application Server Browser Is the page exists?  Do we need auth?  Do we have access? - Tiny HTML, [CSS] - JavaScript bundle 23

Single Page Application Server Browser Is the page exists?  Do we need auth?  Do we have access? - Tiny HTML, [CSS] - JavaScript bundle 24 - AJAX - iframes

Single Page Application Benefits • Easy to start • <div id="root" /> • React, Redux • build JS bundle 25

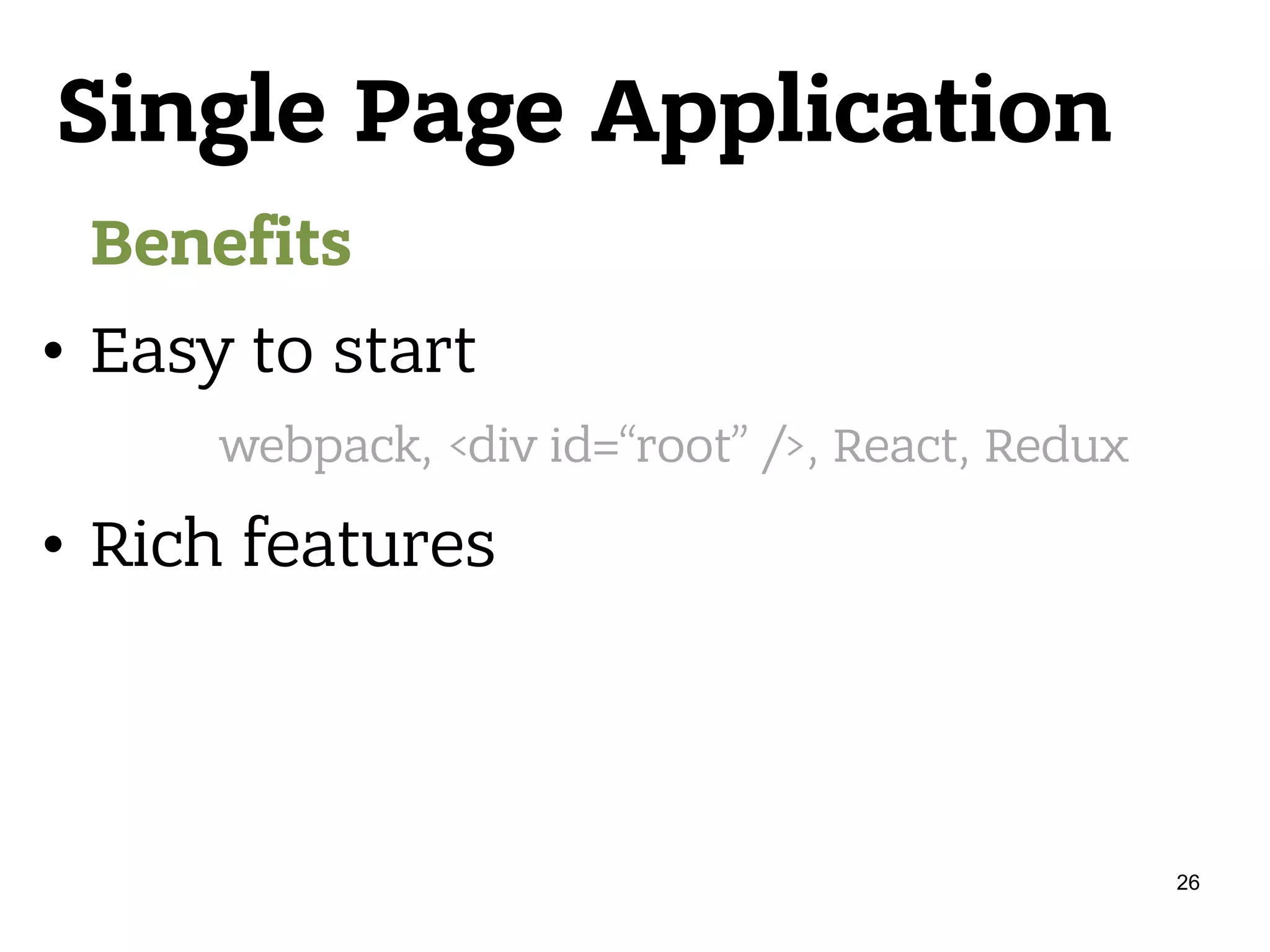

Single Page Application Benefits • Easy to start • Rich features webpack, <div id=“root” />, React, Redux 26

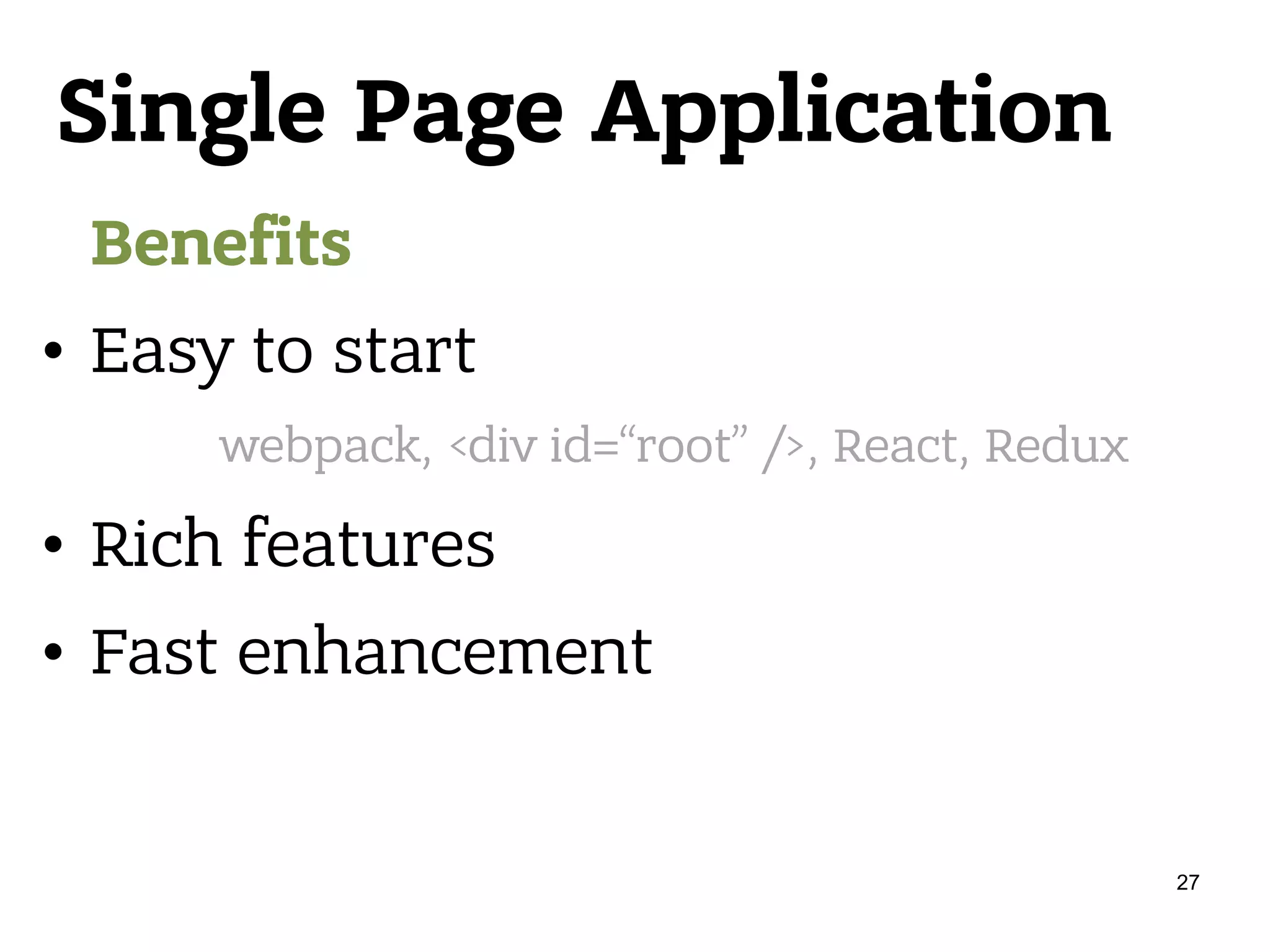

Single Page Application Benefits • Easy to start • Rich features • Fast enhancement webpack, <div id=“root” />, React, Redux 27

Single Page Application Benefits • Easy to start • Rich features • Fast enhancement • Responsive UI webpack, <div id=“root” />, React, Redux 28

Single Page Application Benefits • Easy to start • Rich features • Fast enhancement • Responsive UI • Effortless caching webpack, <div id=“root” />, React, Redux 29

Single Page Application Costs • Long-time Start • JavaScript bundle up to 3-5 Mb • first request • execution • memory 31

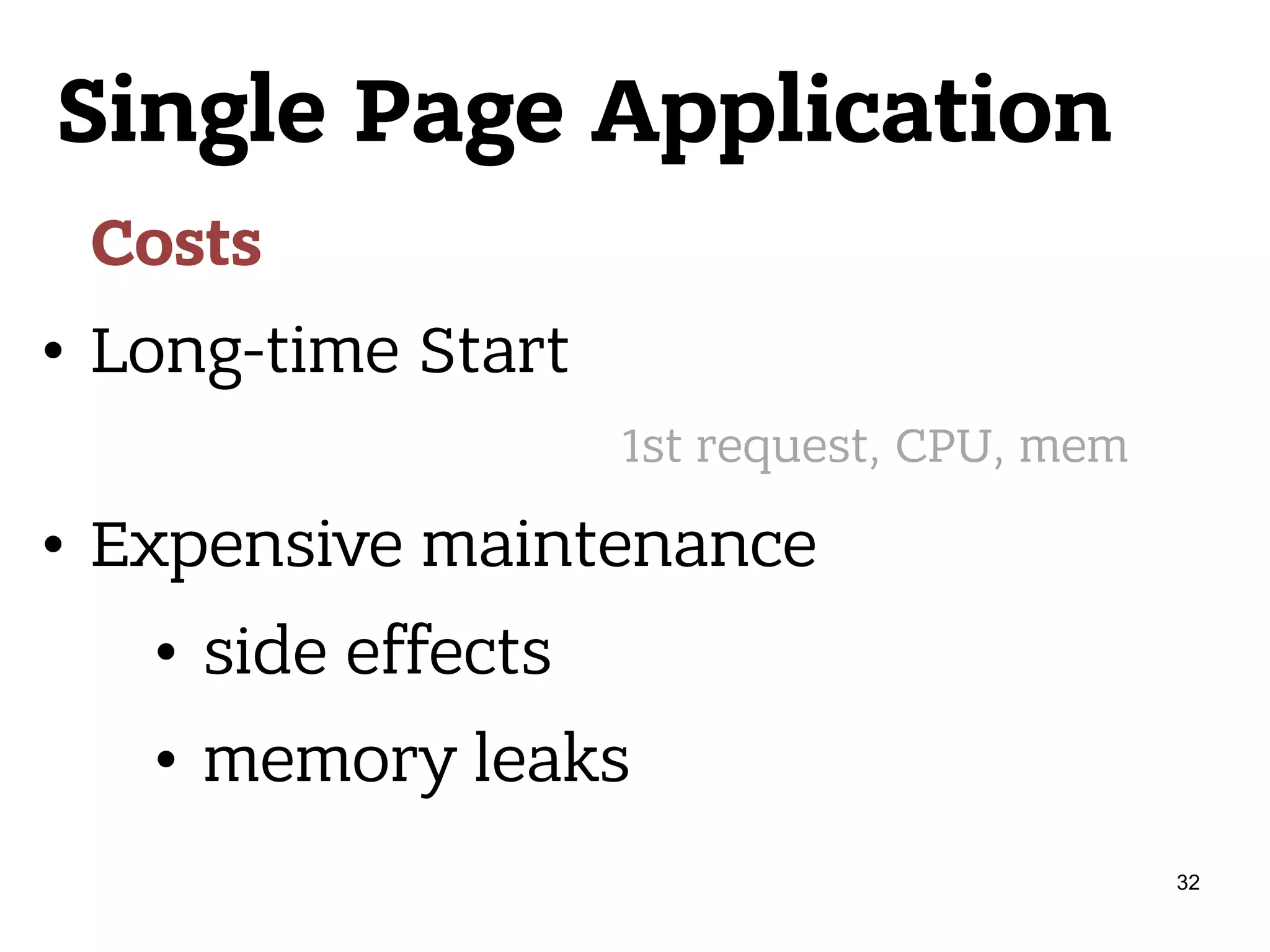

Single Page Application Costs • Long-time Start • Expensive maintenance • side effects • memory leaks 1st request, CPU, mem 32

Single Page Application Costs • Long-time Start • Expensive maintenance • Empty page, one URL 1st request, CPU, mem side effects, memory leaks 33

Single Page Application Costs • Long-time Start • Expensive maintenance • Empty page, one URL • Hard to support Legacy Browsers 1st request, CPU, mem side effects, memory leaks 34

- Are they really “costs”?

Single Page Application for business 36

Single Page Application Costs • Long-Time Start for business reduced UX 37

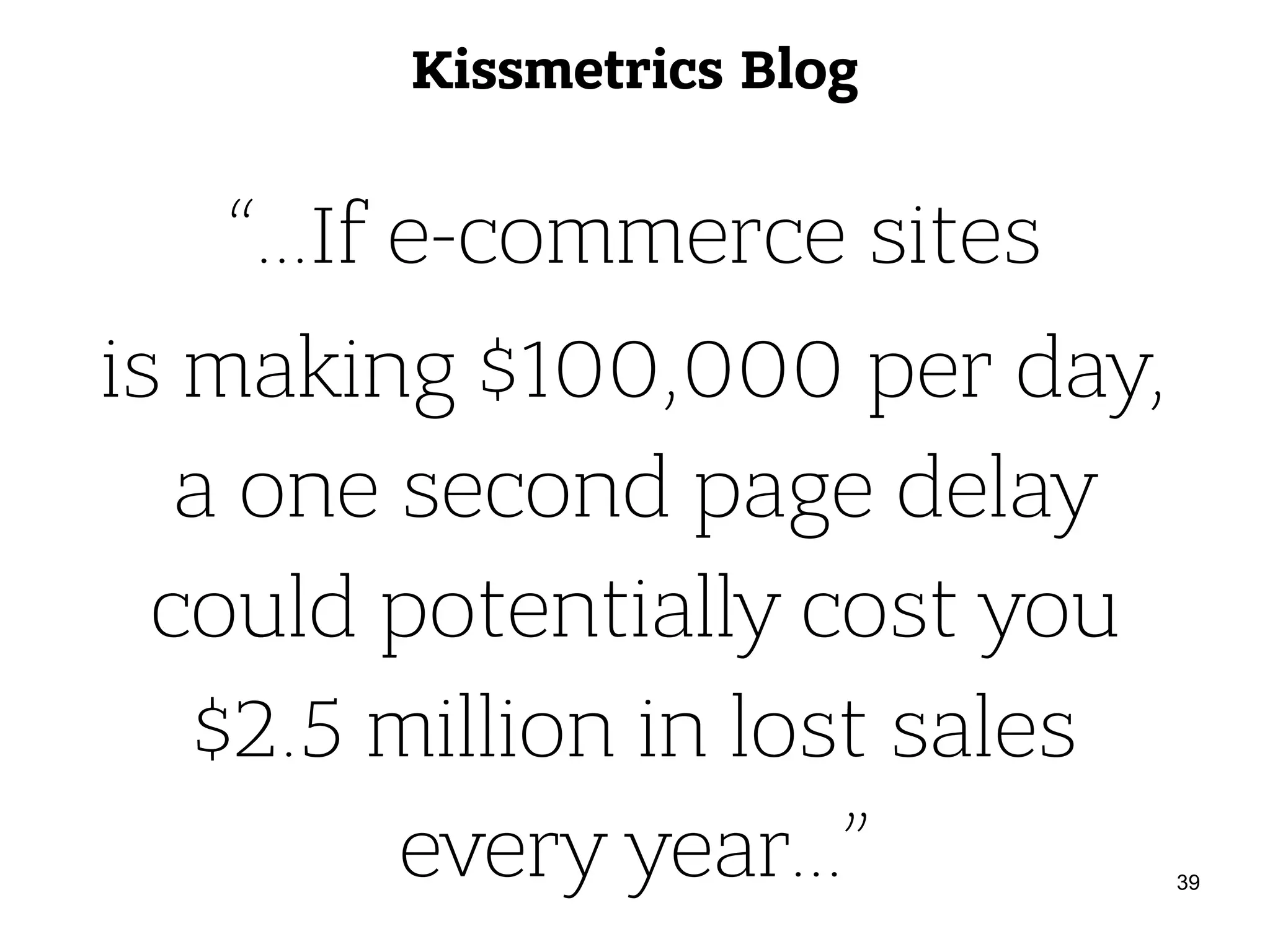

Kissmetrics Blog “…If e-commerce sites is making $100,000 per day,  a one second page delay  could potentially cost you  $2.5 million in lost sales  every year…” 39

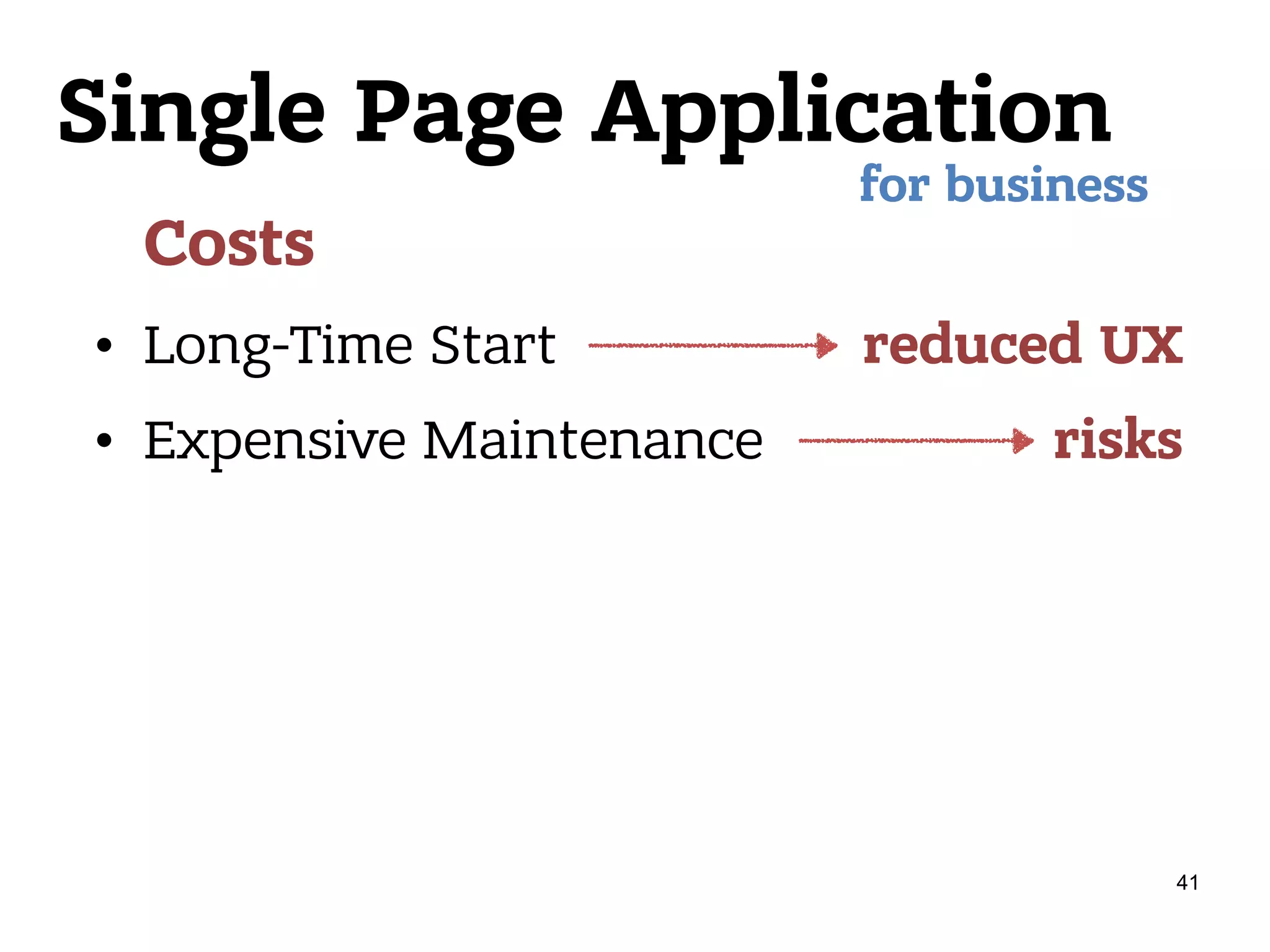

Single Page Application Costs • Long-Time Start • Expensive Maintenance for business reduced UX risks 41

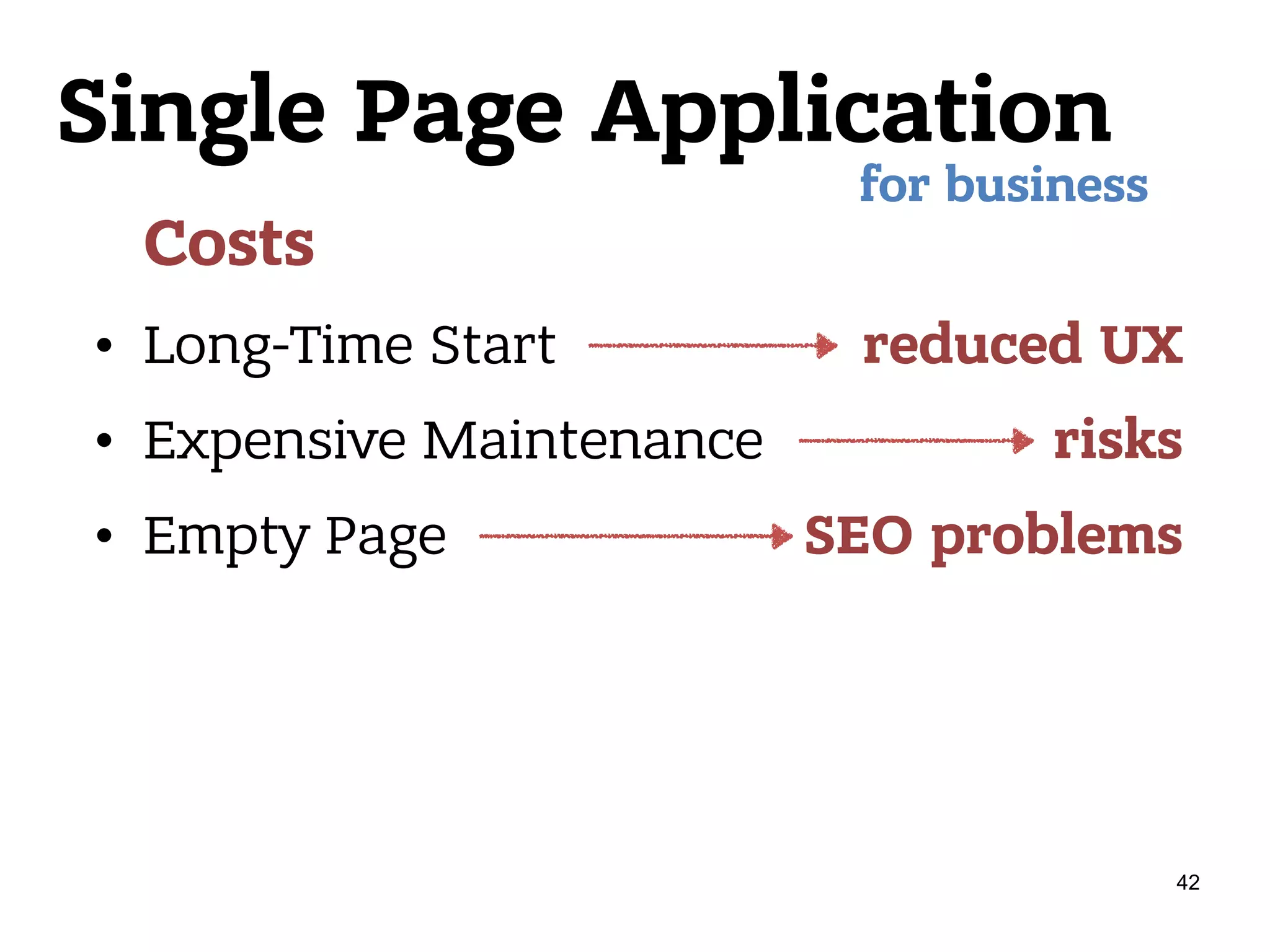

Single Page Application Costs • Long-Time Start • Expensive Maintenance • Empty Page for business reduced UX risks SEO problems 42

Single Page Application Costs • Long-Time Start • Expensive Maintenance • Empty Page • One URL for business reduced UX risks SEO problems Social Sharing problems 43

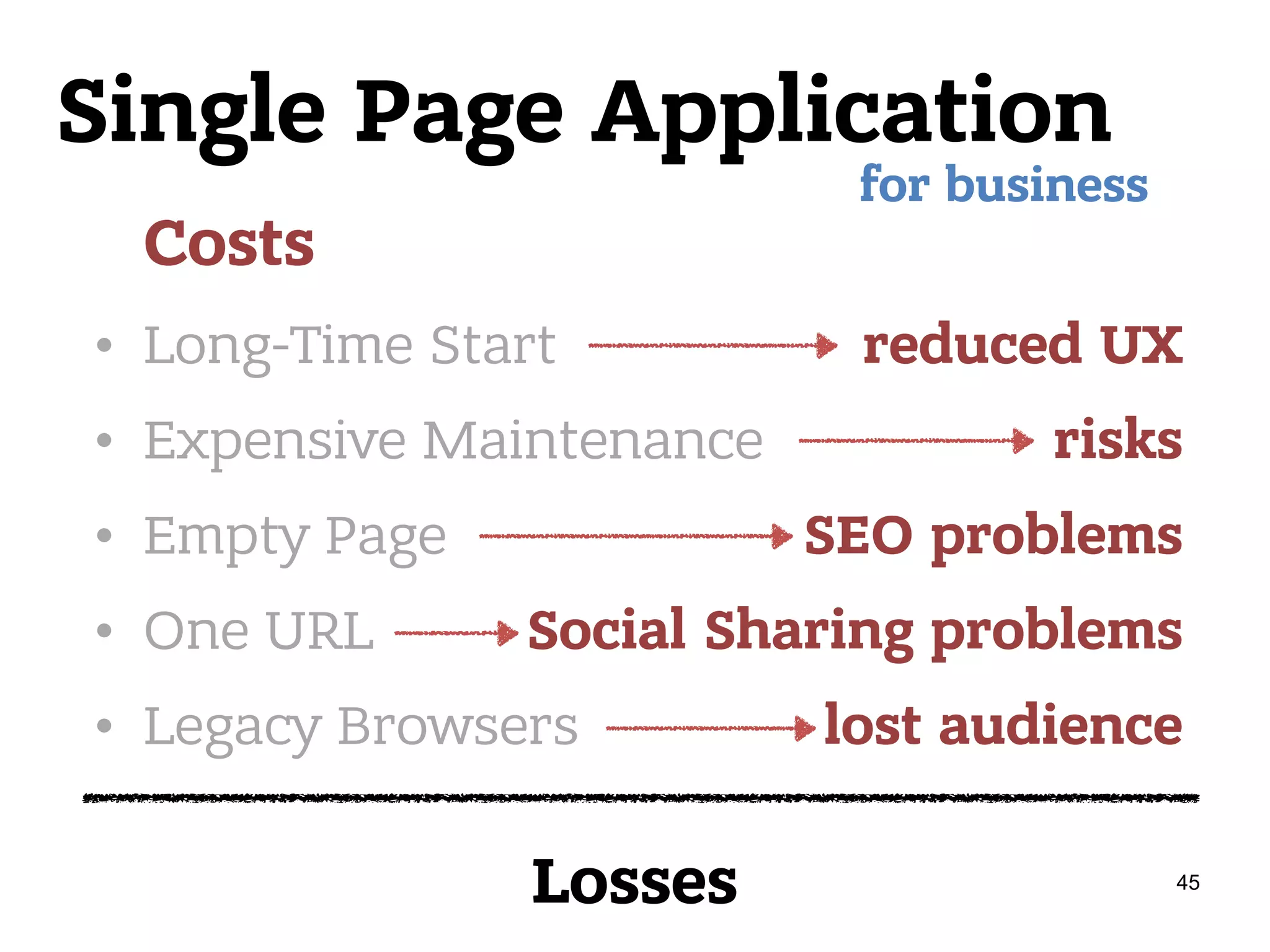

Single Page Application Costs • Long-Time Start • Expensive Maintenance • Empty Page • One URL • Legacy Browsers for business reduced UX risks SEO problems Social Sharing problems lost audience 44

Single Page Application Costs • Long-Time Start • Expensive Maintenance • Empty Page • One URL • Legacy Browsers for business reduced UX risks SEO problems Social Sharing problems lost audience 45 Losses

Single Page Application Costs for business reduced UX risks SEO problems Social Sharing problems lost audience 46 Losses

- What should we do?  How do we solve this?

Take the best from both worlds

Isomorphic Applications By isomorphic we mean that any given line of code (with notable exceptions) can execute both on the client and the server.   Charlie Robbins,  18 Oct 2011

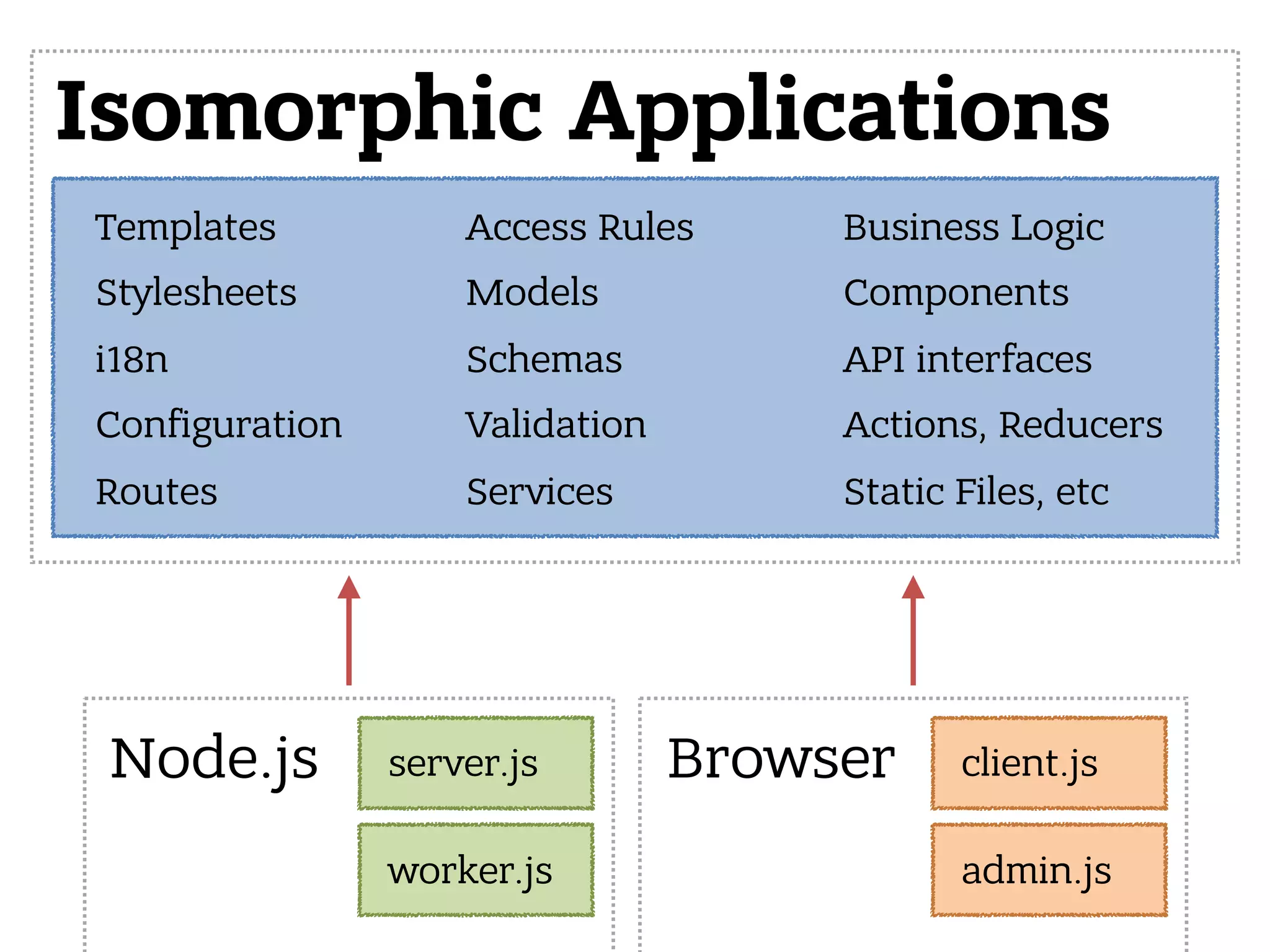

Templates Stylesheets i18n Configuration Routes Access Rules Models Schemas Validation Services Isomorphic Applications server.jsNode.js worker.js client.jsBrowser admin.js Business Logic Components API interfaces Actions, Reducers Static Files, etc

Templates Stylesheets i18n Configuration Routes Access Rules Models Schemas Validation Services Isomorphic Applications server.jsNode.js worker.js client.jsBrowser admin.js Business Logic Components API interfaces Actions, Reducers Static Files, etc + React Native

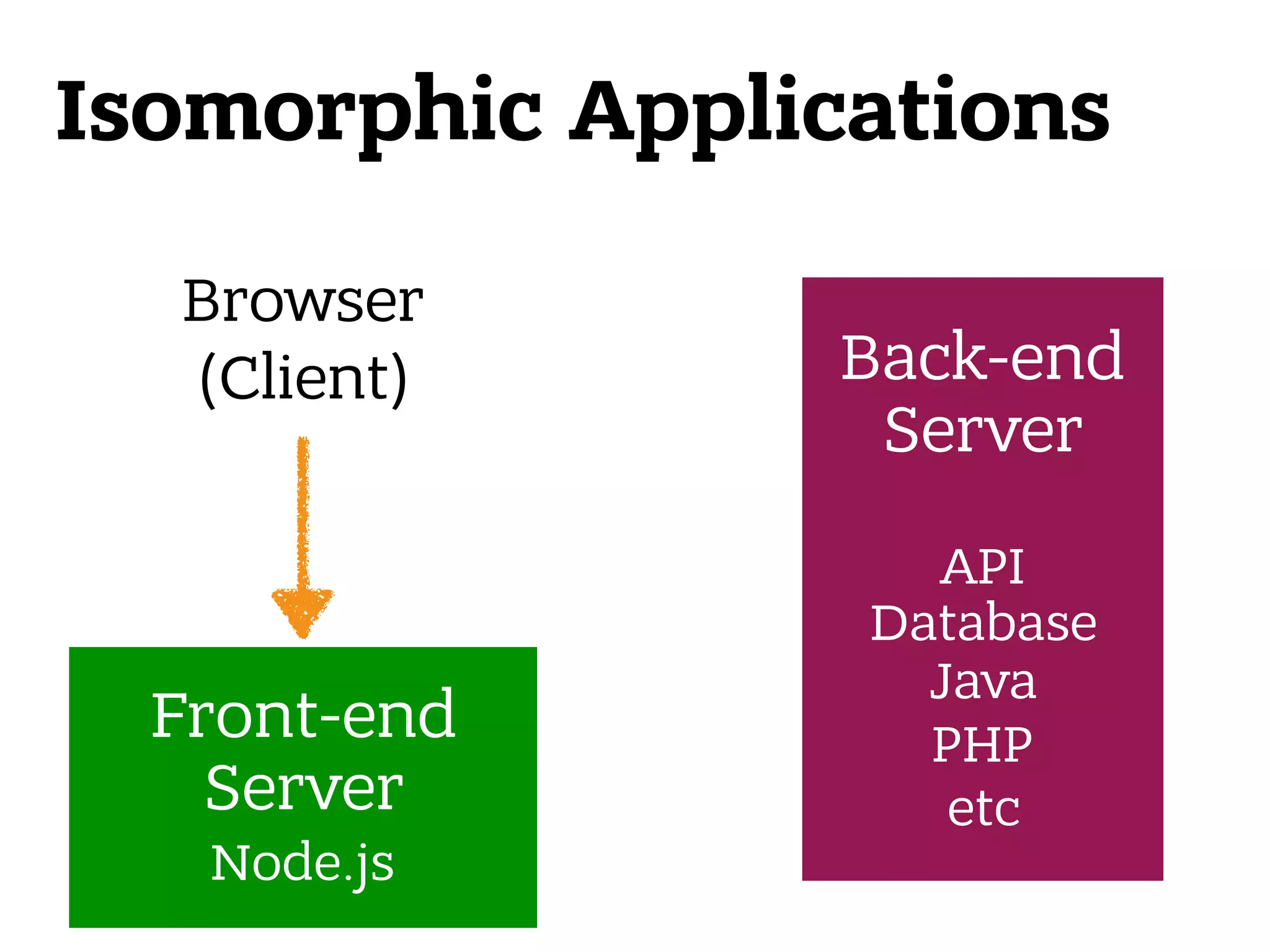

Browser  (Client) Isomorphic Applications Front-end Server  Node.js  Back-end Server    API  Database Java PHP  etc

Isomorphic Applications Browser  (Client) Front-end Server  Node.js  Back-end Server    API  Database Java PHP  etc

Isomorphic Applications - HTML - [critical CSS] - … Front-end Server  Node.js  Back-end Server    API  Database Java PHP  etc Browser  (Client)

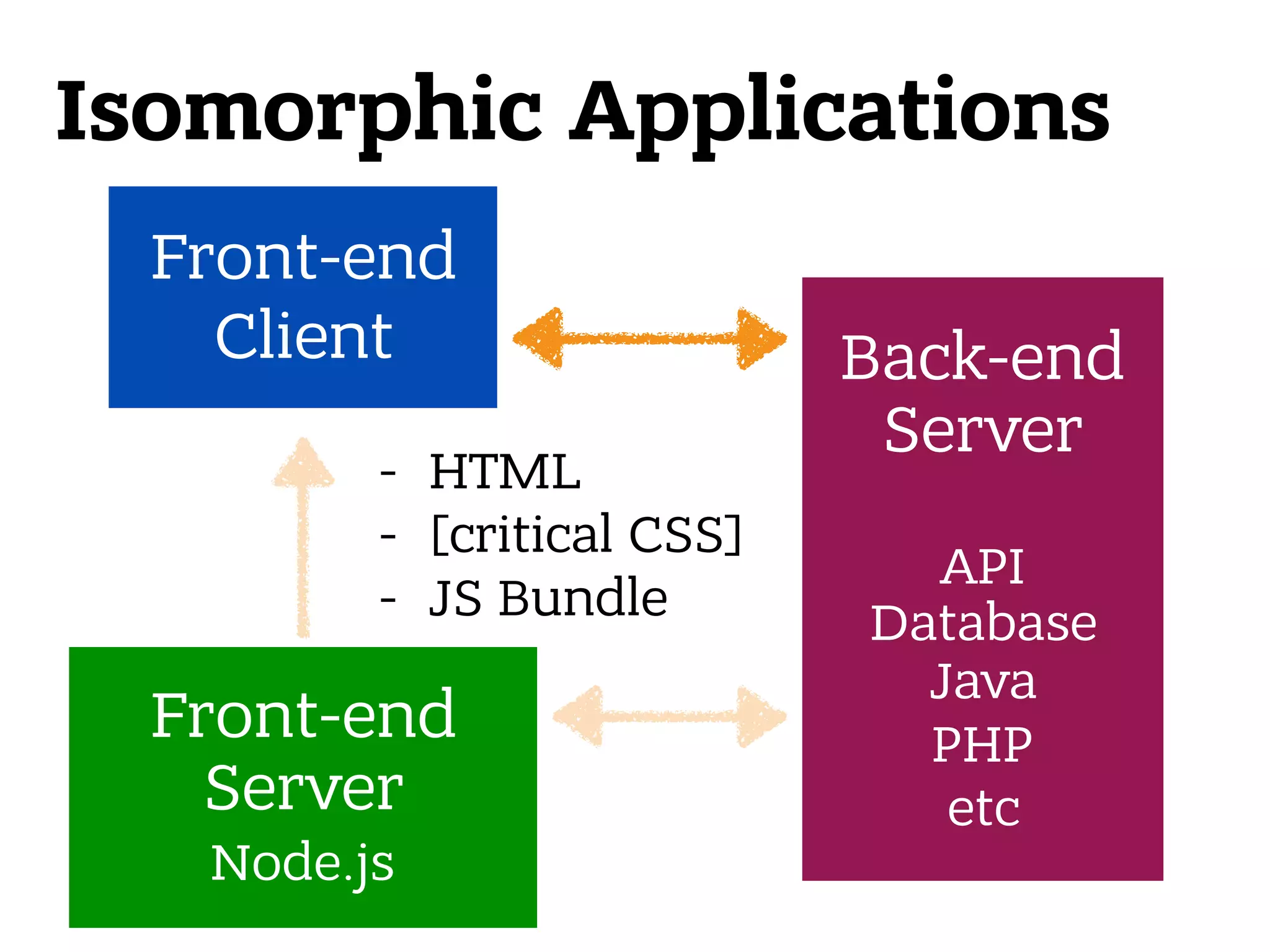

Front-end Client Isomorphic Applications - HTML - [critical CSS] - JS Bundle Front-end Server  Node.js  Back-end Server    API  Database Java PHP  etc

Front-end Client Isomorphic Applications Front-end Server • One execution environment • Shared codebase • Full control • Ecosystem • Microservices Architecture 58

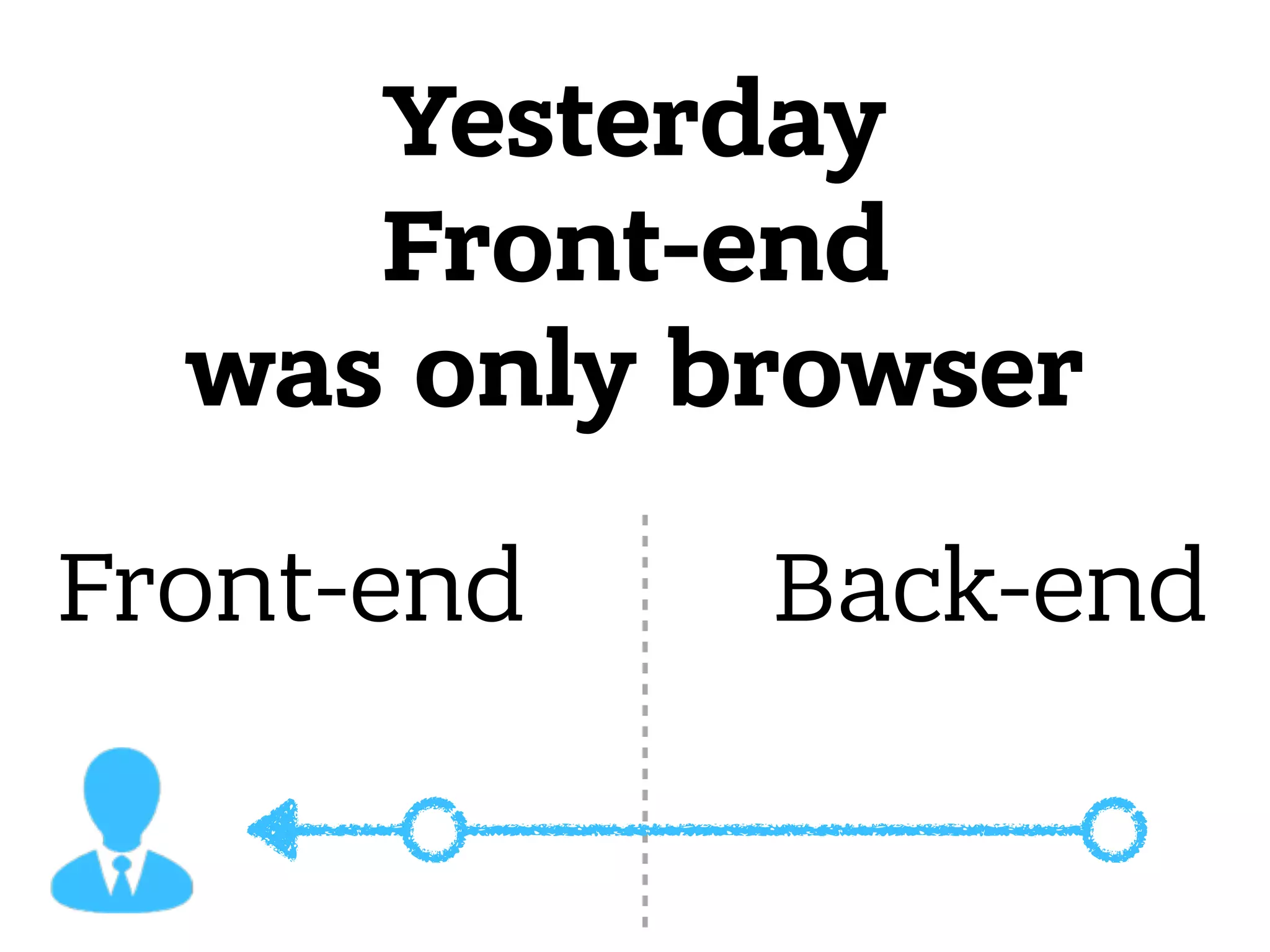

Yesterday Front-end was only browser Front-end Back-end

Front-end Back-end Today Front-end is browser and server

Server-Side Rendering  (SSR)

Server-Side Rendering • Build HTML on Front-end (Node.js) Server • Render Page in your browser immediately, before it loads JavaScript • When JavaScript will be loaded,  React just add event handlers only • It works very fast 63

Server-Side Rendering Example code for Server-Side: import ReactDOMServer from 'react-dom/server';  import Application from './components/application';    const body = ReactDOMServer.renderToString(  <Application />  ); 64

Server-Side Rendering Example code for Server-Side: import ReactDOMServer from 'react-dom/server';  import Application from './components/application';    const body = ReactDOMServer.renderToString(  <Application />  ); 65 Render React Component  to plain string

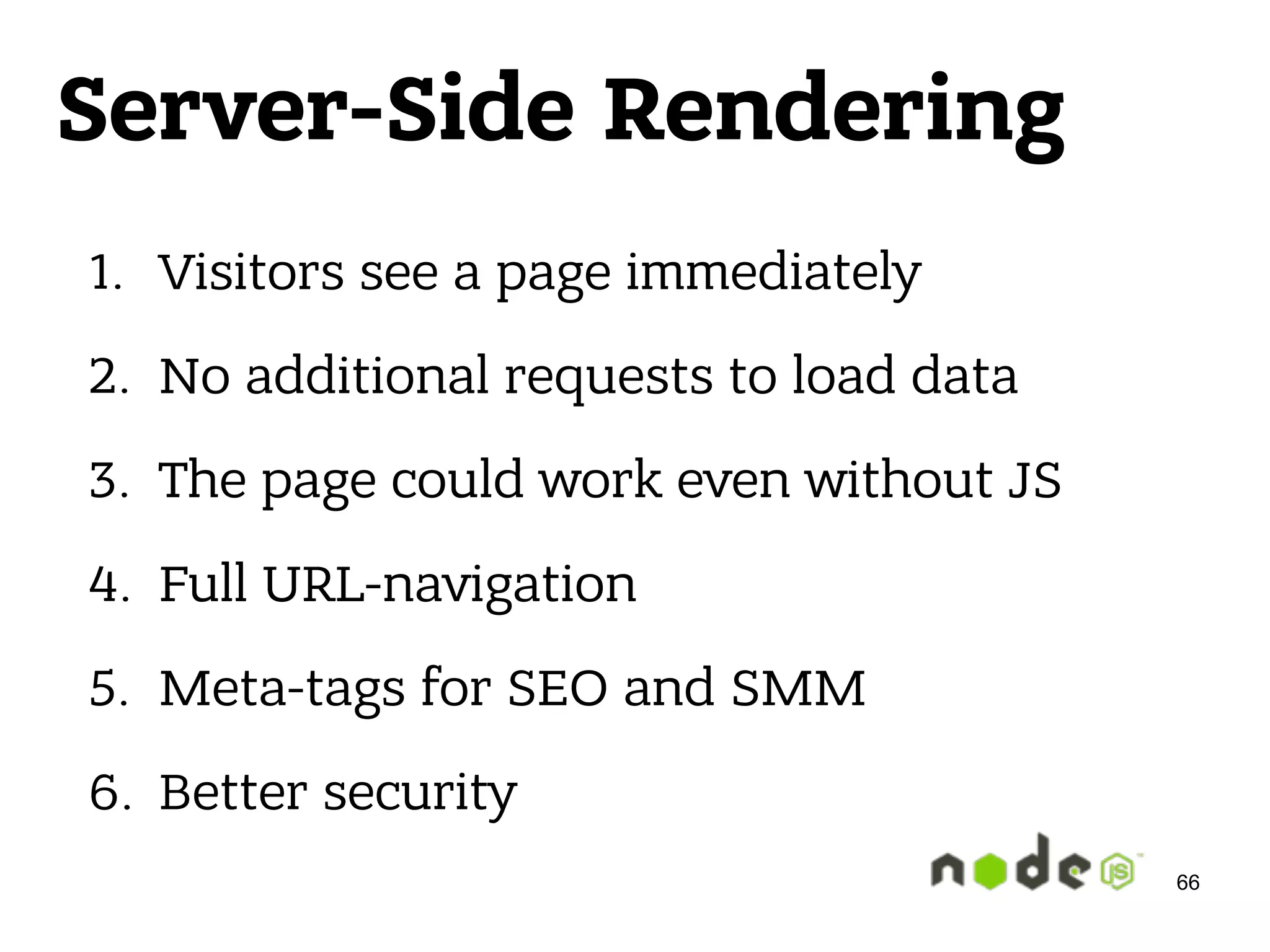

Server-Side Rendering 1. Visitors see a page immediately 2. No additional requests to load data 3. The page could work even without JS 4. Full URL-navigation 5. Meta-tags for SEO and SMM 6. Better security 66

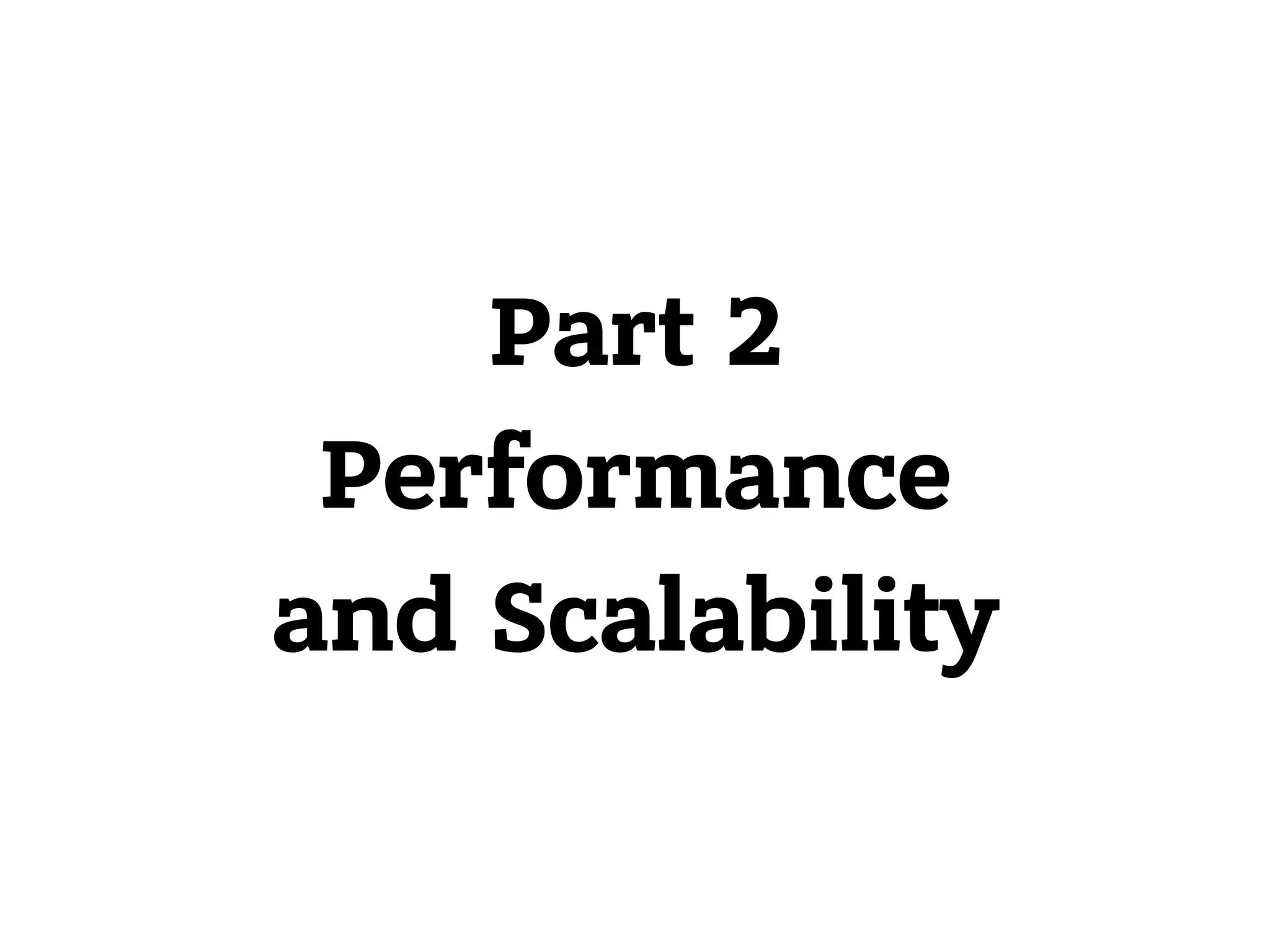

Part 2 Performance and Scalability

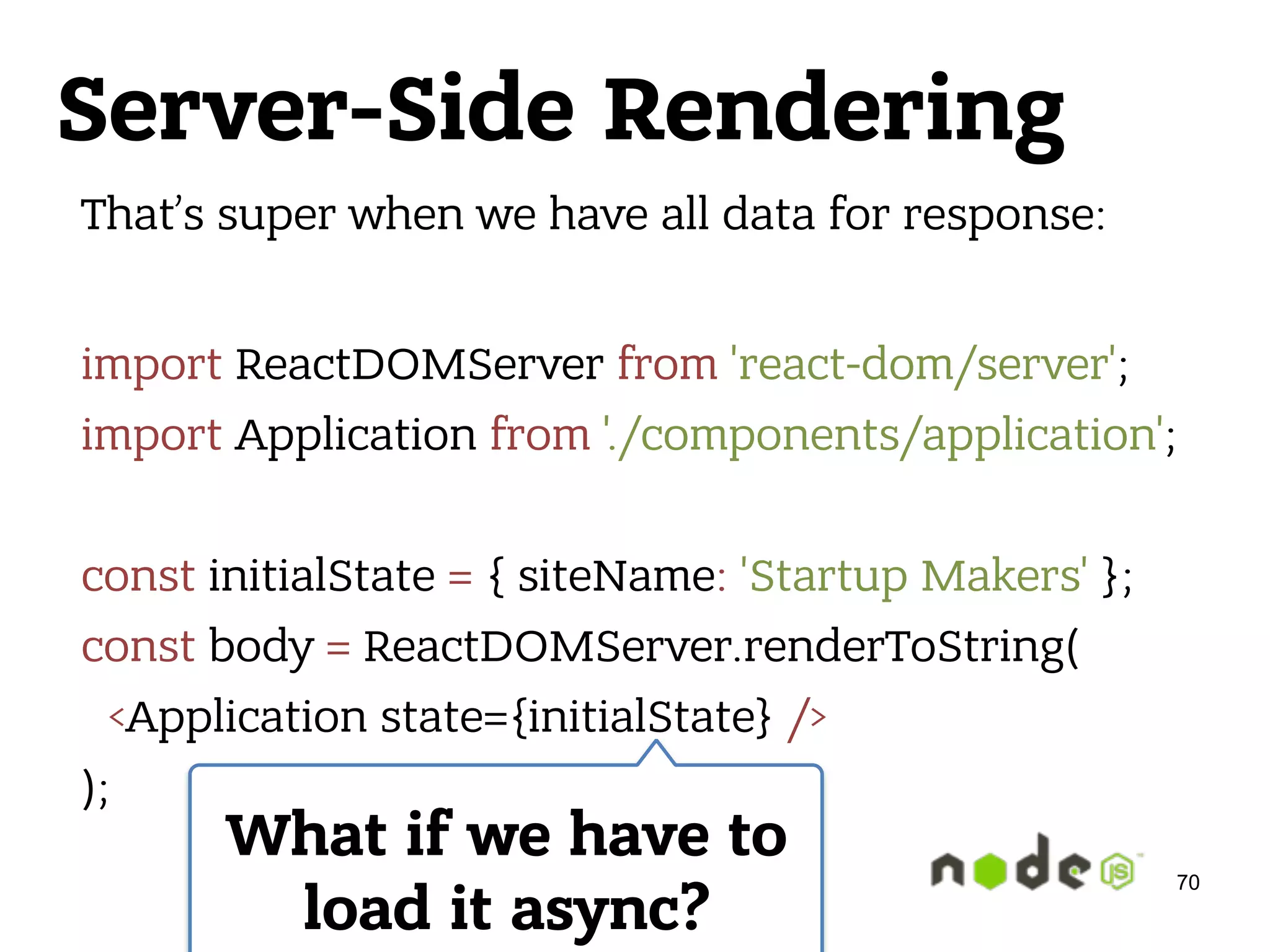

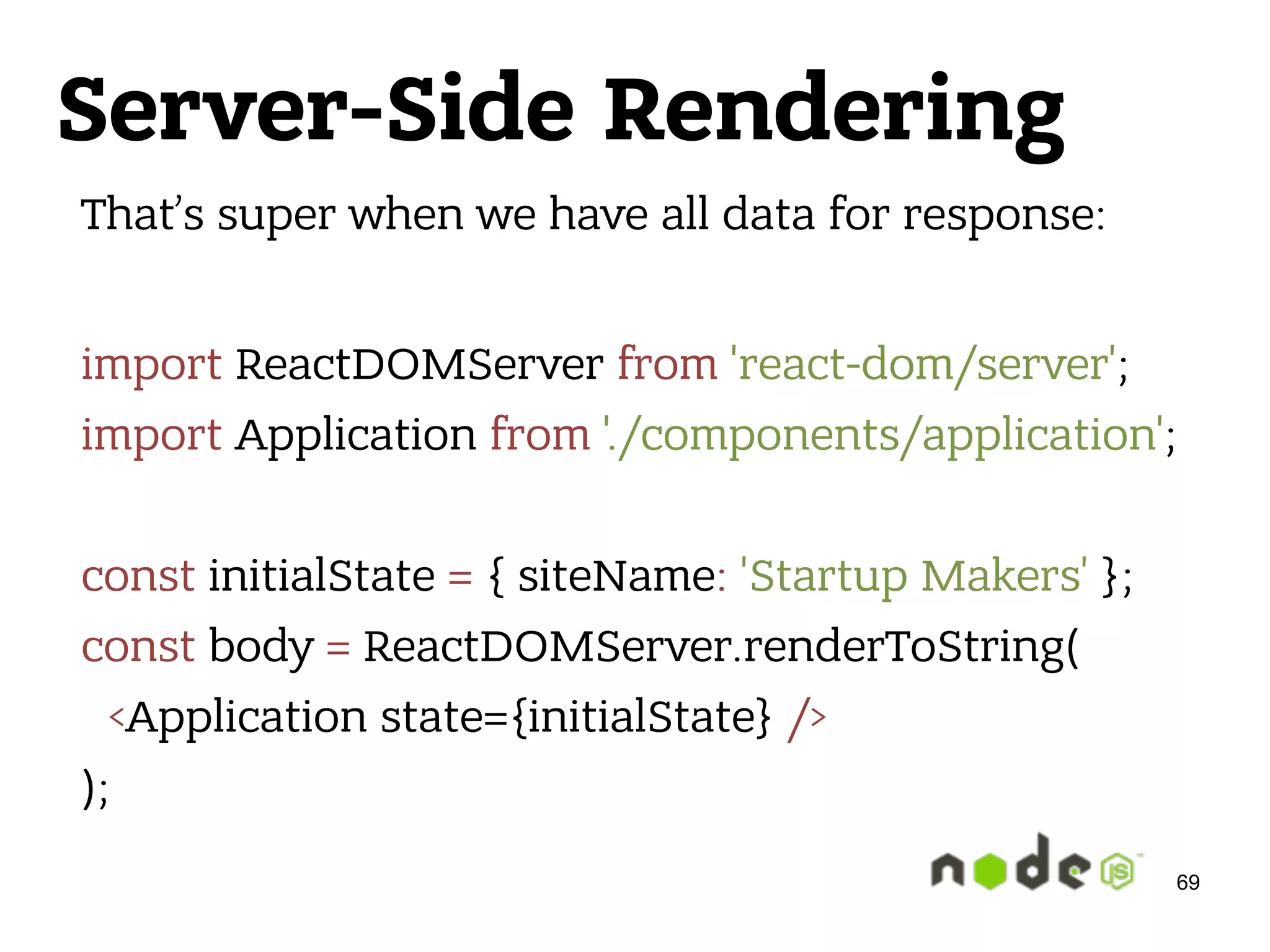

Server-Side Rendering That’s super when we have all data for response:  import ReactDOMServer from 'react-dom/server';  import Application from './components/application';    const initialState = { siteName: 'Startup Makers' };  const body = ReactDOMServer.renderToString(  <Application state={initialState} />  ); 69

Server-Side Rendering That’s super when we have all data for response:  import ReactDOMServer from 'react-dom/server';  import Application from './components/application';    const initialState = { siteName: 'Startup Makers' };  const body = ReactDOMServer.renderToString(  <Application state={initialState} />  ); What if we have to load it async? 70

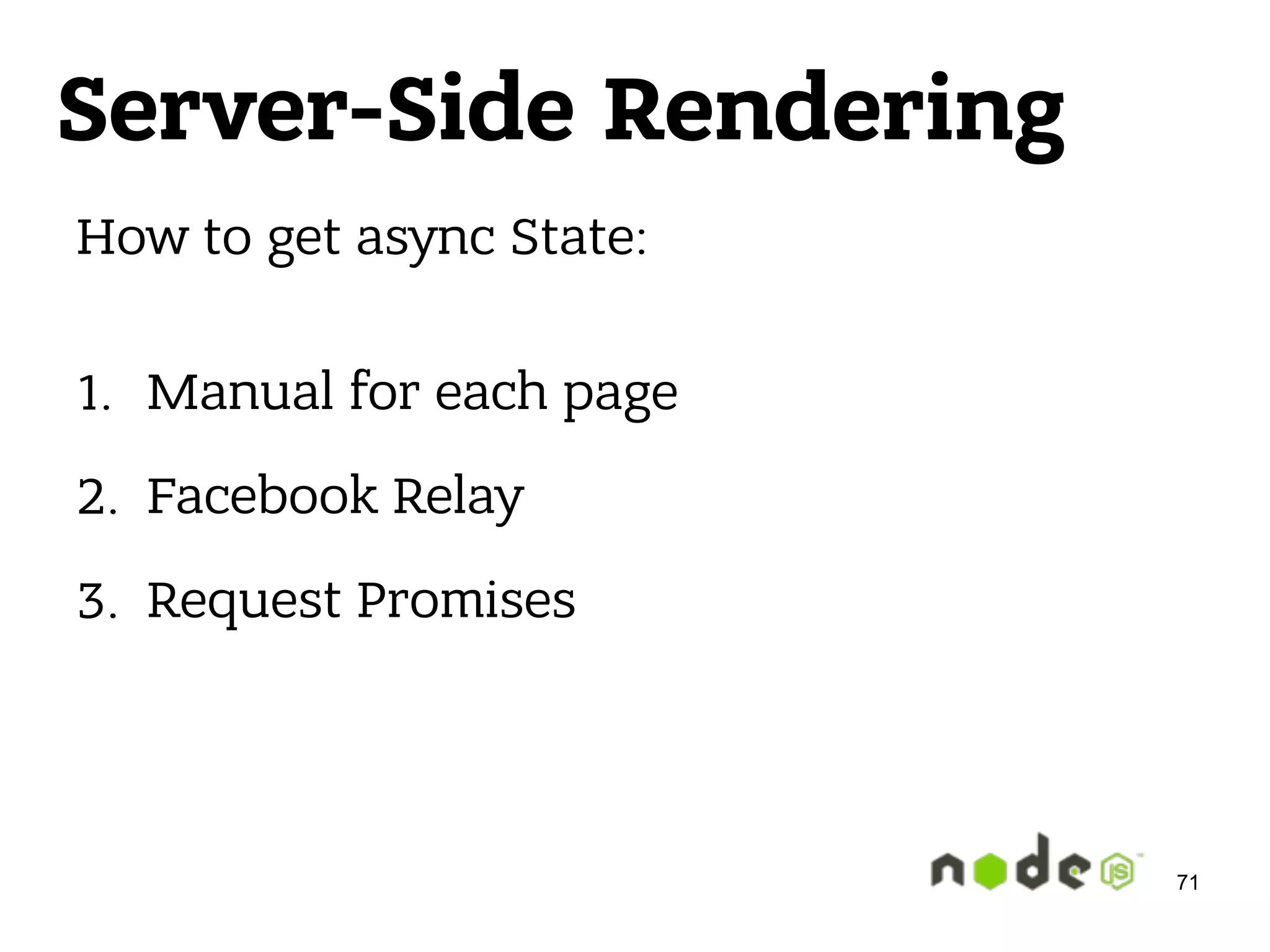

Server-Side Rendering How to get async State:  1. Manual for each page 2. Facebook Relay 3. Request Promises 71

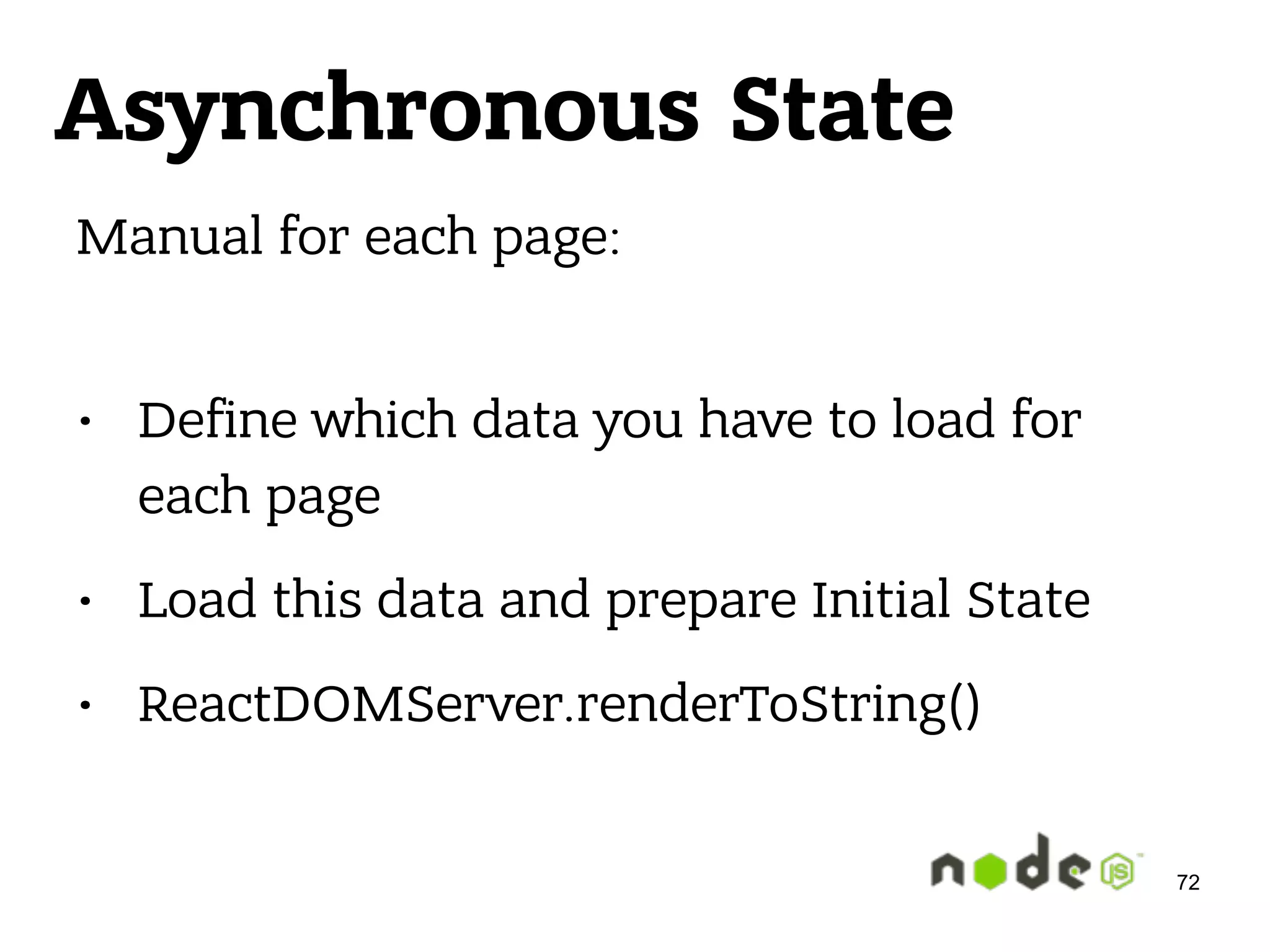

Asynchronous State Manual for each page: • Define which data you have to load for each page • Load this data and prepare Initial State • ReactDOMServer.renderToString() 72

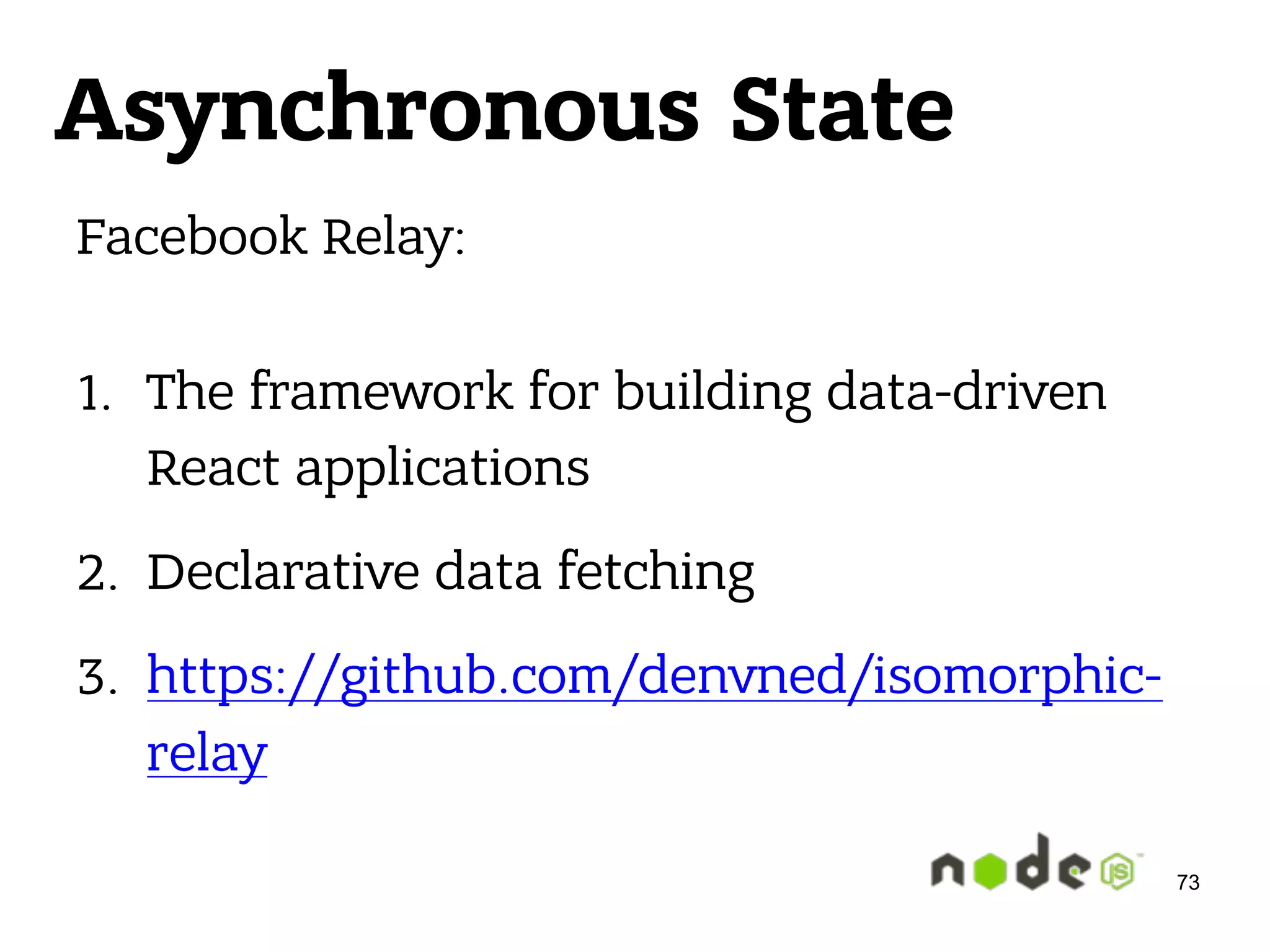

Asynchronous State Facebook Relay:  1. The framework for building data-driven React applications 2. Declarative data fetching 3. https://github.com/denvned/isomorphic- relay 73

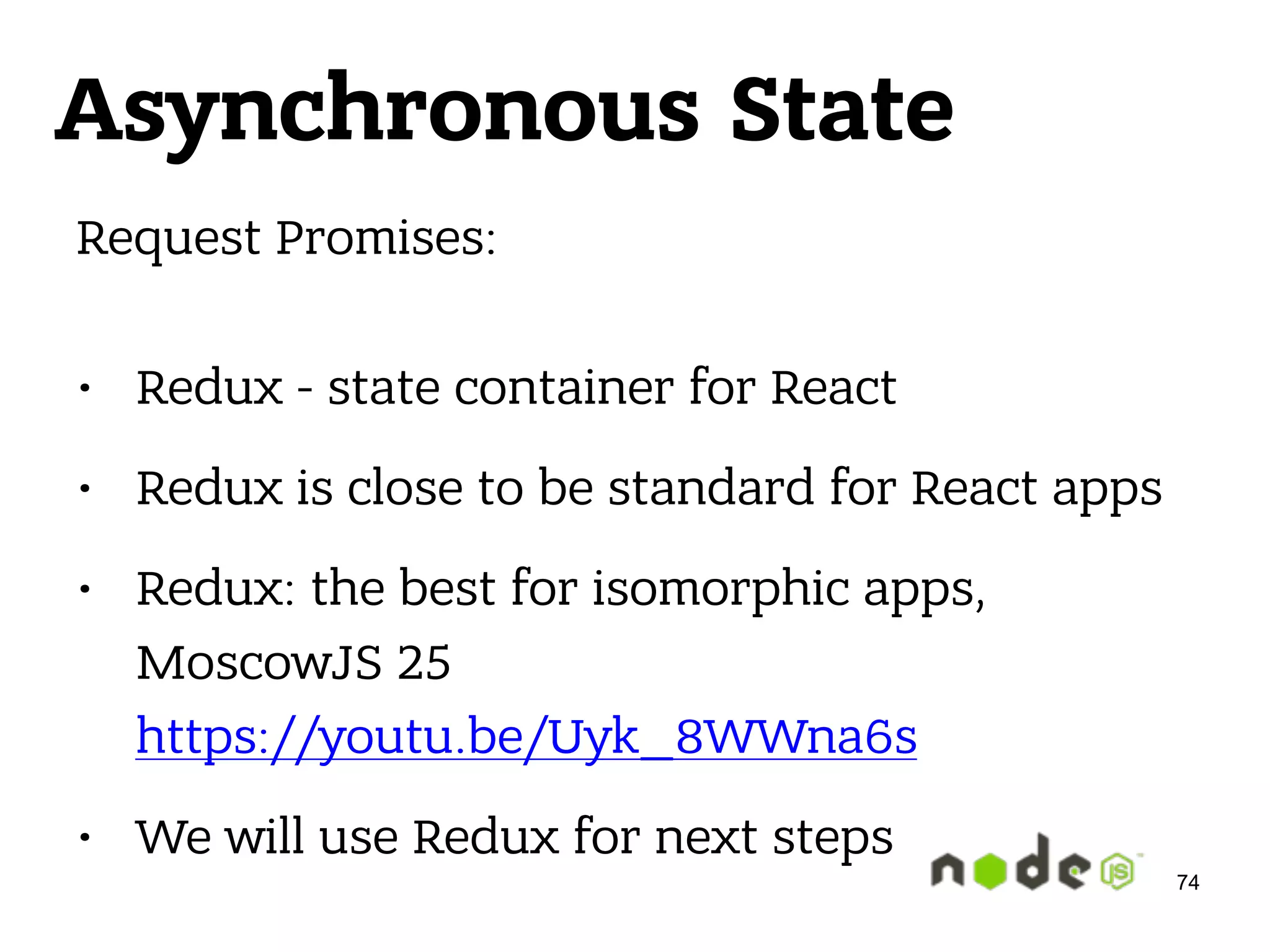

Asynchronous State Request Promises:  • Redux - state container for React • Redux is close to be standard for React apps • Redux: the best for isomorphic apps, MoscowJS 25  https://youtu.be/Uyk_8WWna6s • We will use Redux for next steps 74

Request Promises Two ways:  1. Call static methods for each main Component before render 2. Pre-render Elements Tree without data,  push requests promises in constructors and re-render Elements with data 75

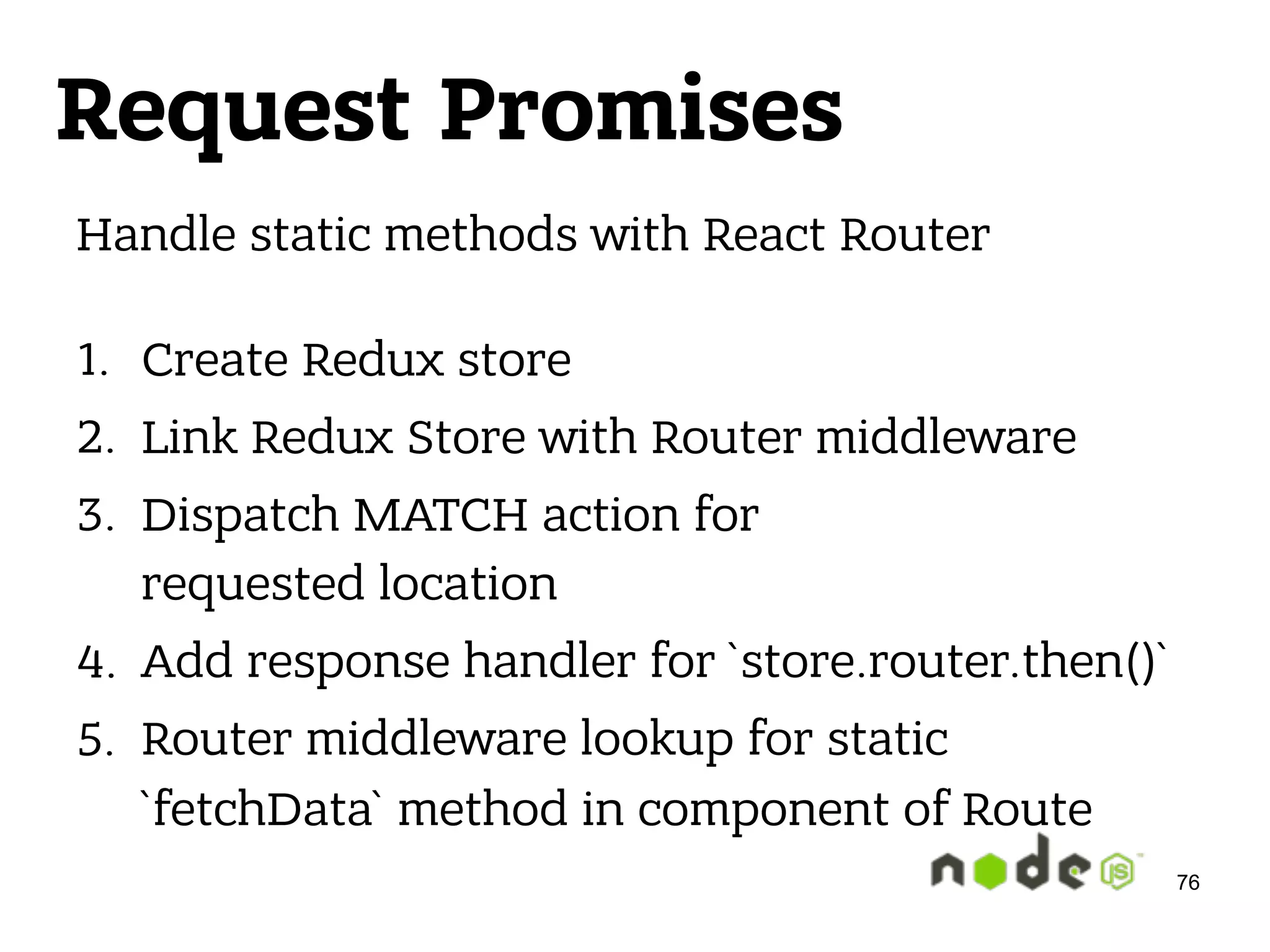

Request Promises Handle static methods with React Router  1. Create Redux store 2. Link Redux Store with Router middleware 3. Dispatch MATCH action for  requested location 4. Add response handler for `store.router.then()` 5. Router middleware lookup for static `fetchData` method in component of Route 76

Request Promises 77 Create Store Express Route Wait for resolving `fetchData` Render Components with Data Find Component for route

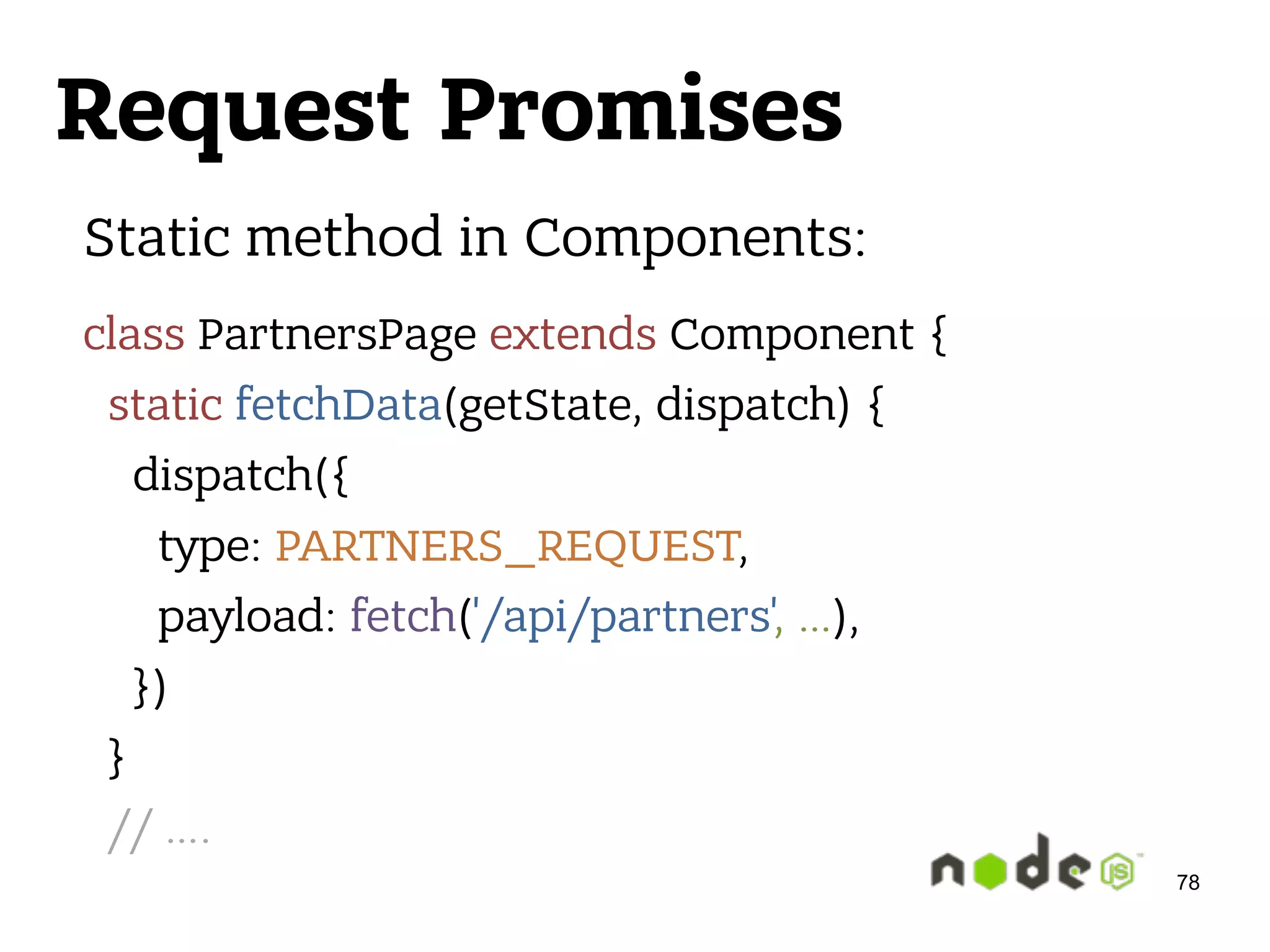

Request Promises 78 Static method in Components: class PartnersPage extends Component {  static fetchData(getState, dispatch) {  dispatch({  type: PARTNERS_REQUEST,  payload: fetch('/api/partners', …),  })  }  // ….

Request Promises 79 Static method in Components: export default (  <Route path='/' component={Layout}>  <Route  path='/partners'  component={PartnersPage}  />  </Route>  )

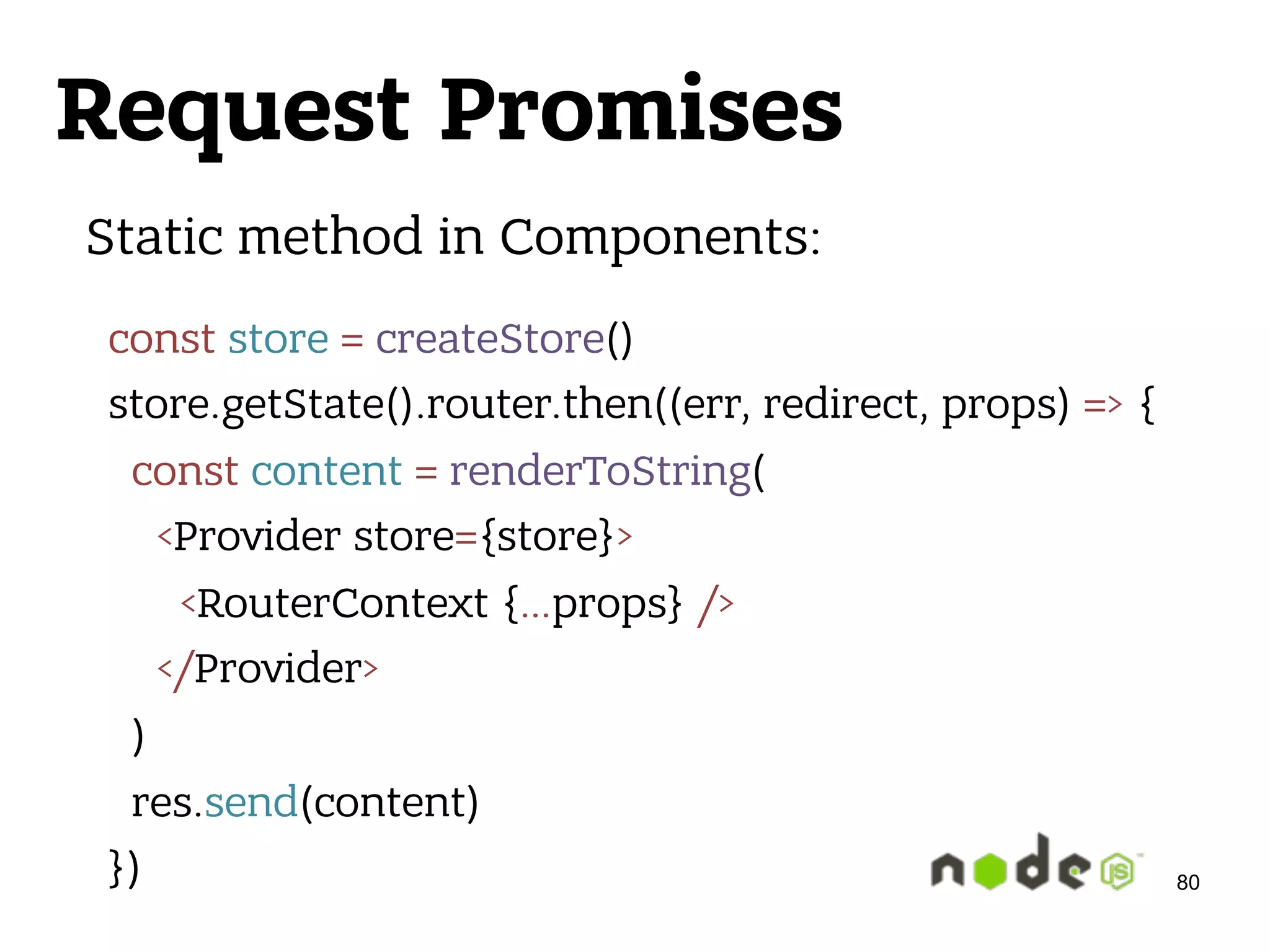

Request Promises 80 Static method in Components: const store = createStore()  store.getState().router.then((err, redirect, props) => {  const content = renderToString(  <Provider store={store}>  <RouterContext {…props} />  </Provider>  )  res.send(content)  })

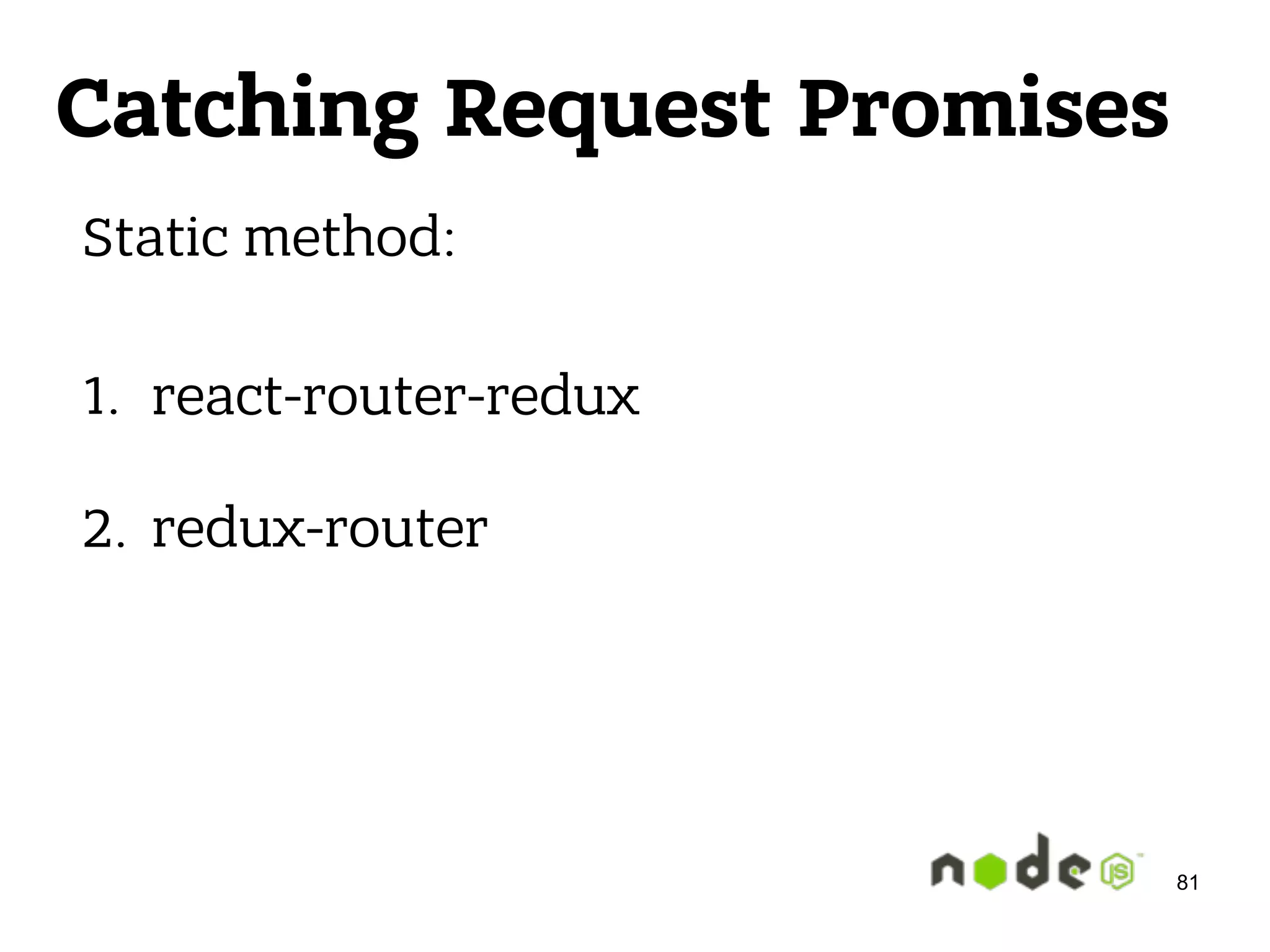

Catching Request Promises Static method:  1. react-router-redux 2. redux-router 81

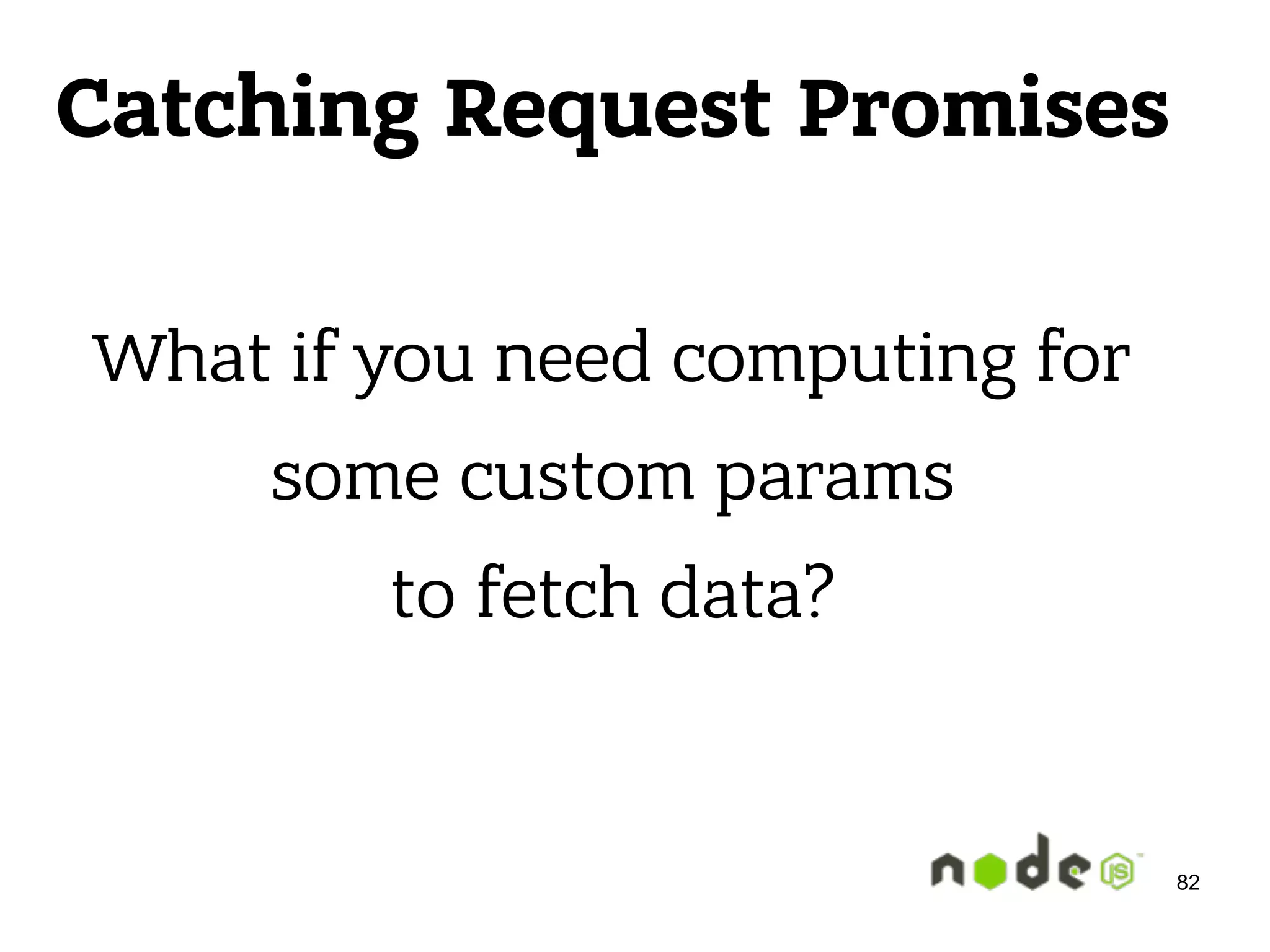

Catching Request Promises What if you need computing for   some custom params  to fetch data? 82

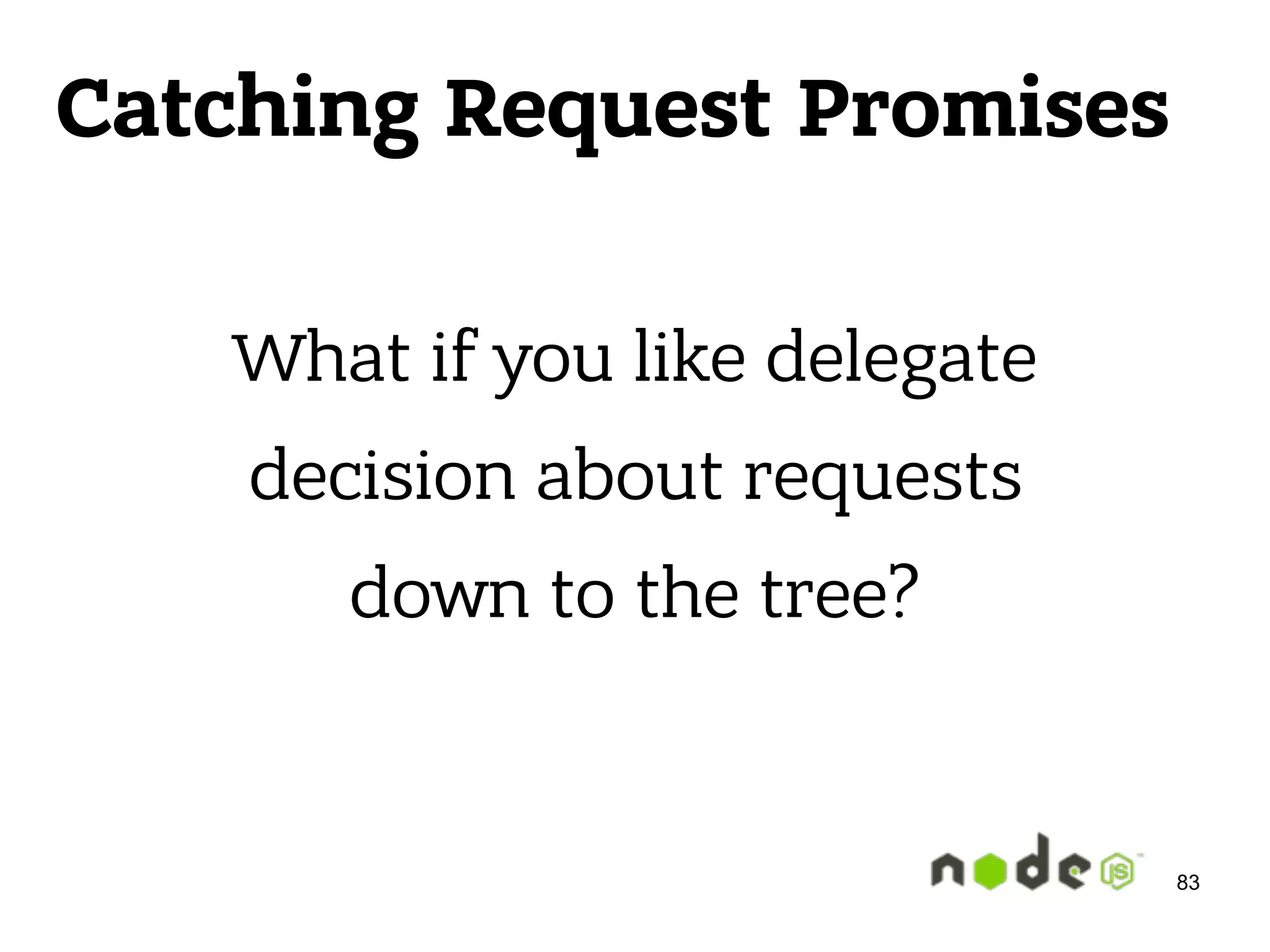

Catching Request Promises What if you like delegate  decision about requests  down to the tree? 83

redux-catch-promise:  1. Render the Elements Tree without Data 2. Collect all promises 3. Wait until they will be resolved 4. Re-render the Elements Tree with fetched data 5. Send rendered HTML to client 84 Catching Request Promises

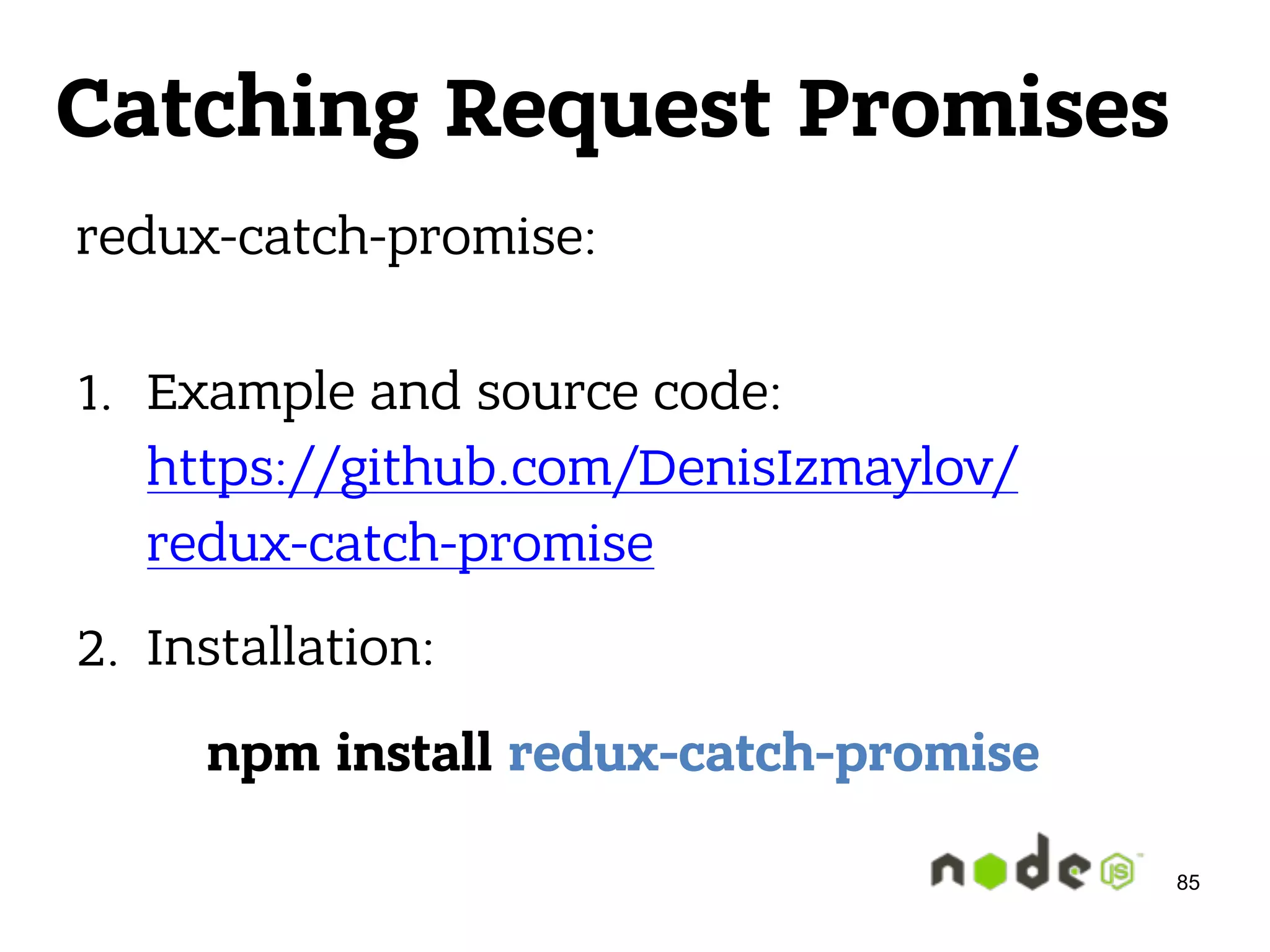

redux-catch-promise:  1. Example and source code:  https://github.com/DenisIzmaylov/ redux-catch-promise 2. Installation: npm install redux-catch-promise 85 Catching Request Promises

Performance Test stand: MacBook Pro 15” Retina (Early 2013) 2.4 GHz Intel Core i7 87

Performance We will test it with ab Apache HTTP server benchmarking tool    https://httpd.apache.org/docs/2.4/ programs/ab.html 94

Performance Test with: ab -n 100 http://localhost:3000/profile  95

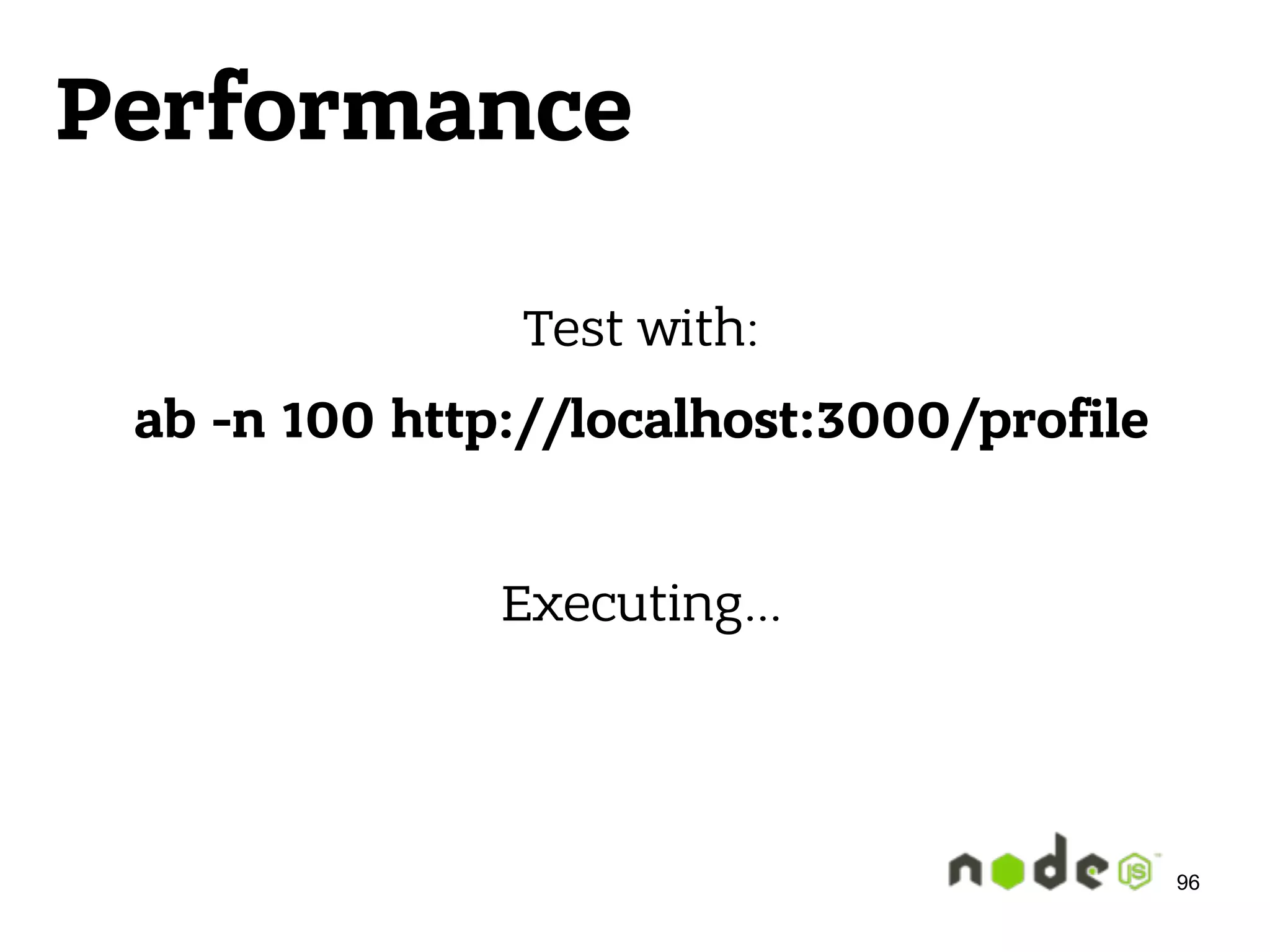

Performance Test with: ab -n 100 http://localhost:3000/profile Executing… 96

Performance Test with: ab -n 100 http://localhost:3000/profile Executing… Time per request: 62 ms 97

Performance 62 ms  Is it slow or fast? 98

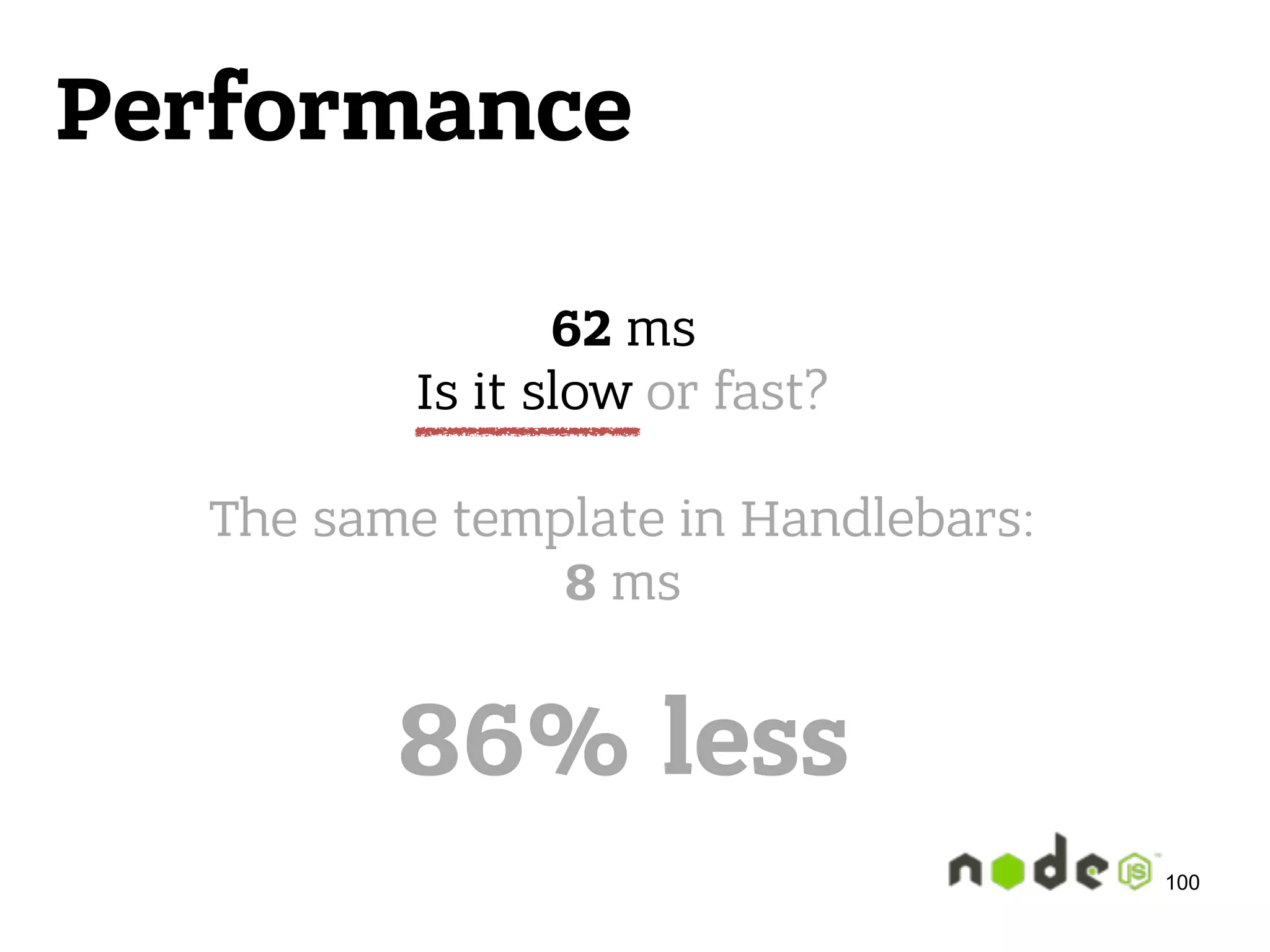

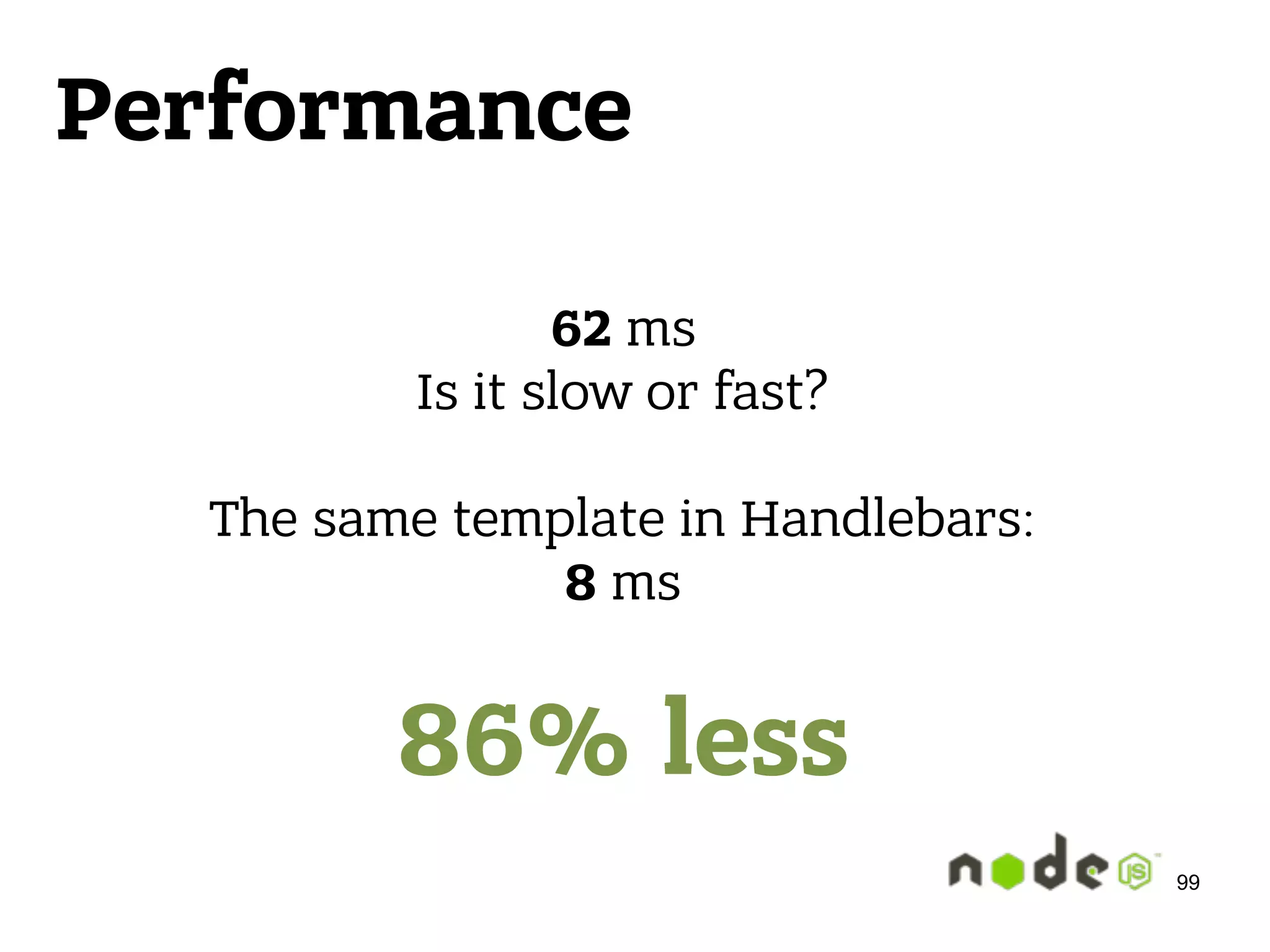

Performance 62 ms  Is it slow or fast?    The same template in Handlebars:  8 ms    86% less 99

Performance 62 ms  Is it slow or fast?    The same template in Handlebars:  8 ms    86% less 100

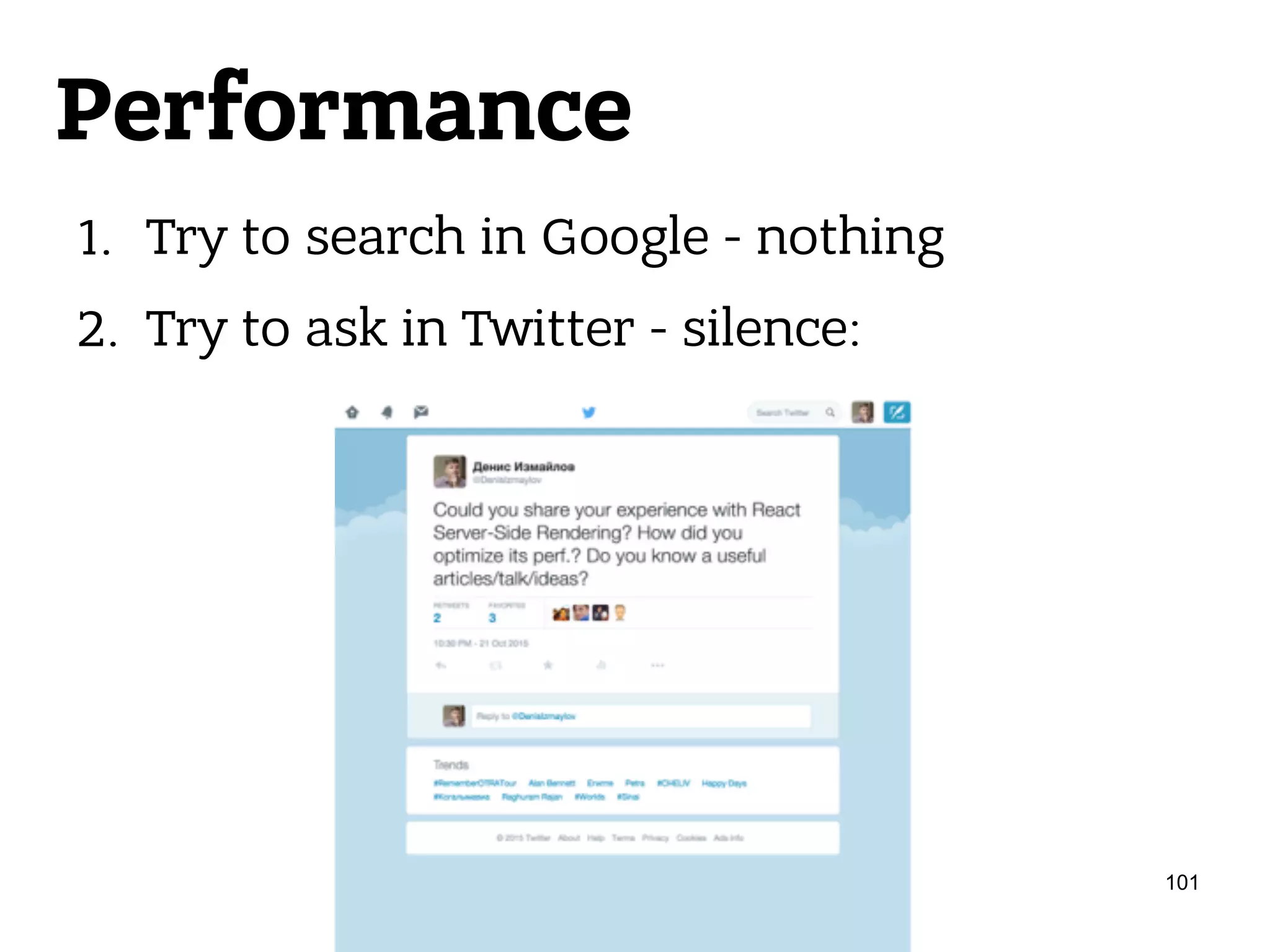

Performance 1. Try to search in Google - nothing 2. Try to ask in Twitter - silence: 101

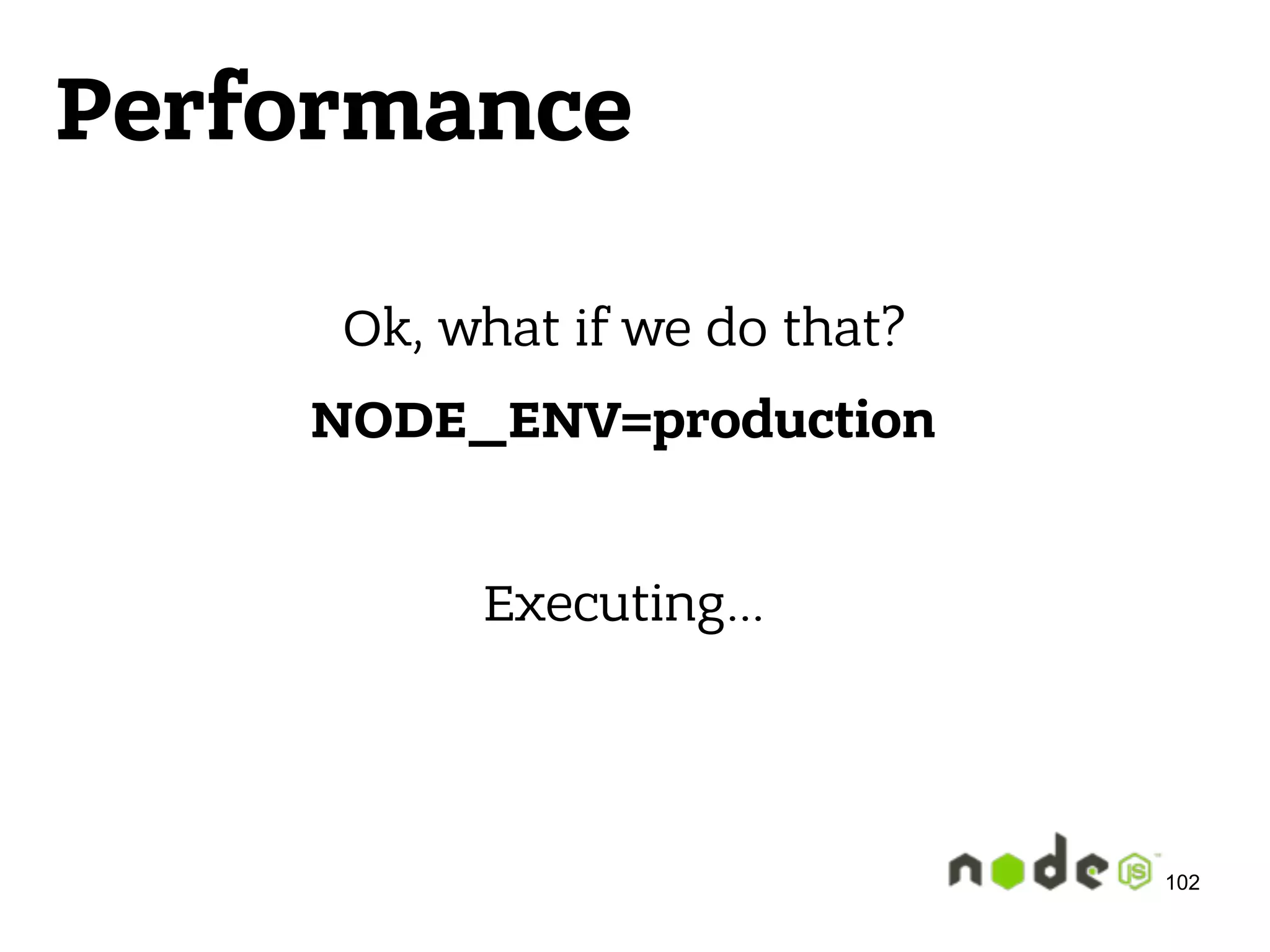

Performance Ok, what if we do that? NODE_ENV=production Executing… 102

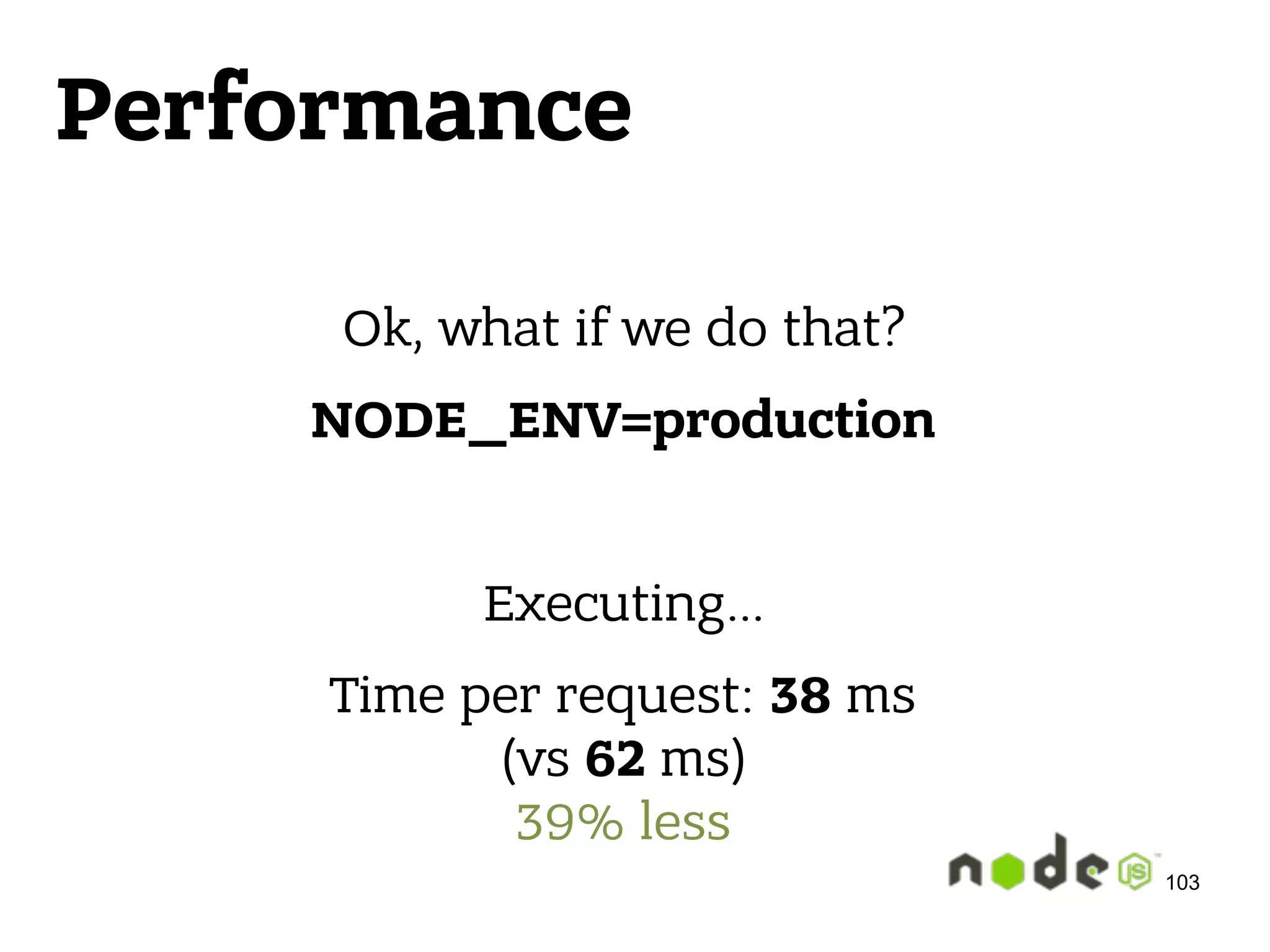

Performance Ok, what if we do that? NODE_ENV=production Executing… Time per request: 38 ms  (vs 62 ms)  39% less 103

Performance Looks better    104

Performance Looks better    But it’s still not funny 105

Performance • “Server rendering is slower with npm react”    https://github.com/facebook/react/issues/812    108

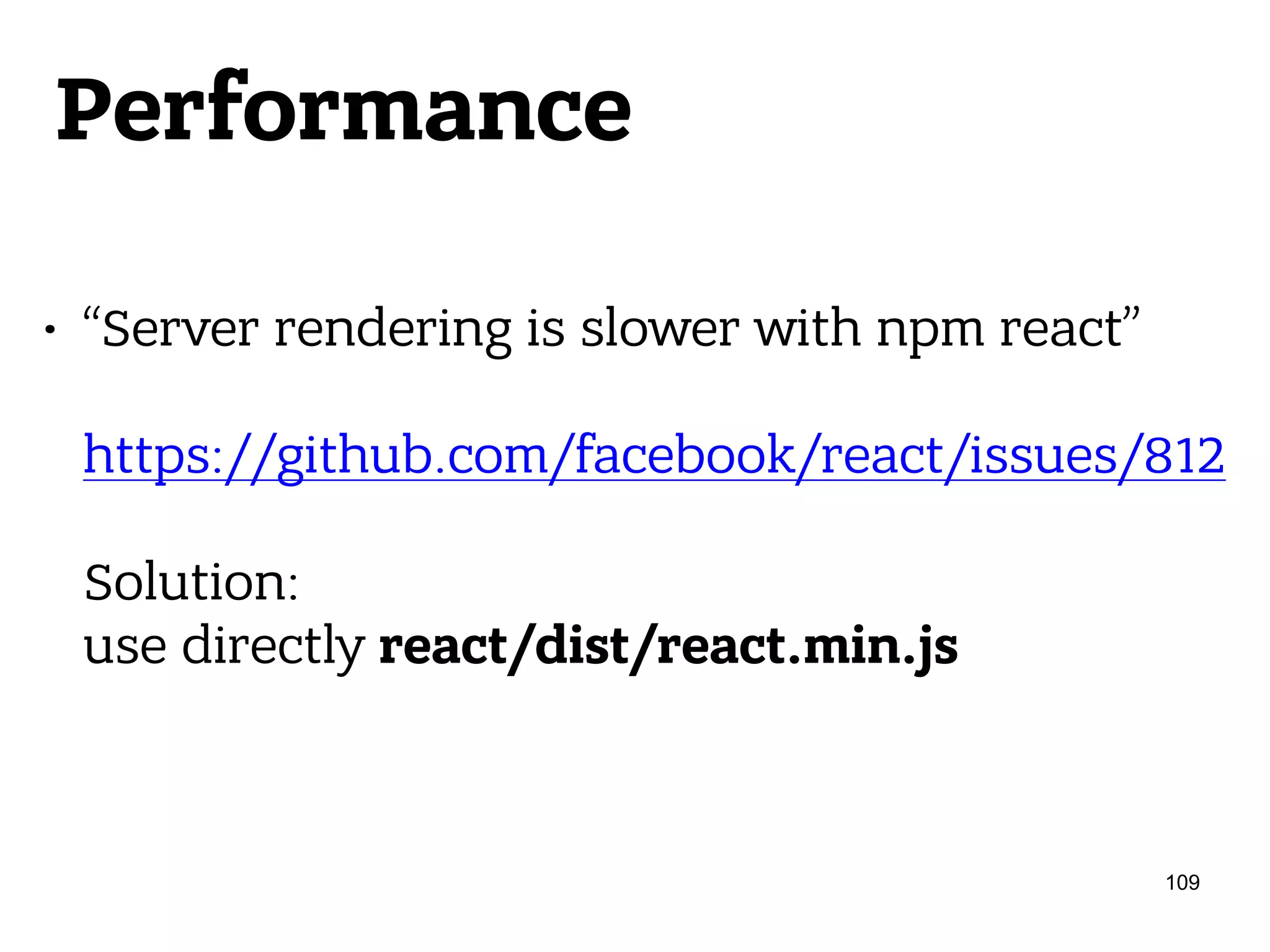

Performance • “Server rendering is slower with npm react”    https://github.com/facebook/react/issues/812    Solution:  use directly react/dist/react.min.js 109

Performance Create node_modules/react.js:    if (process.env.NODE_ENV === 'production') { module.exports = require('react/dist/react.min.js'); } else { module.exports = require('react/dist/react.js'); }  110

Performance Create node_modules/react.js:    if (process.env.NODE_ENV === 'production') { module.exports = require('react/dist/react.min.js'); } else { module.exports = require('react/dist/react.js'); }  111

How does it influence  results?

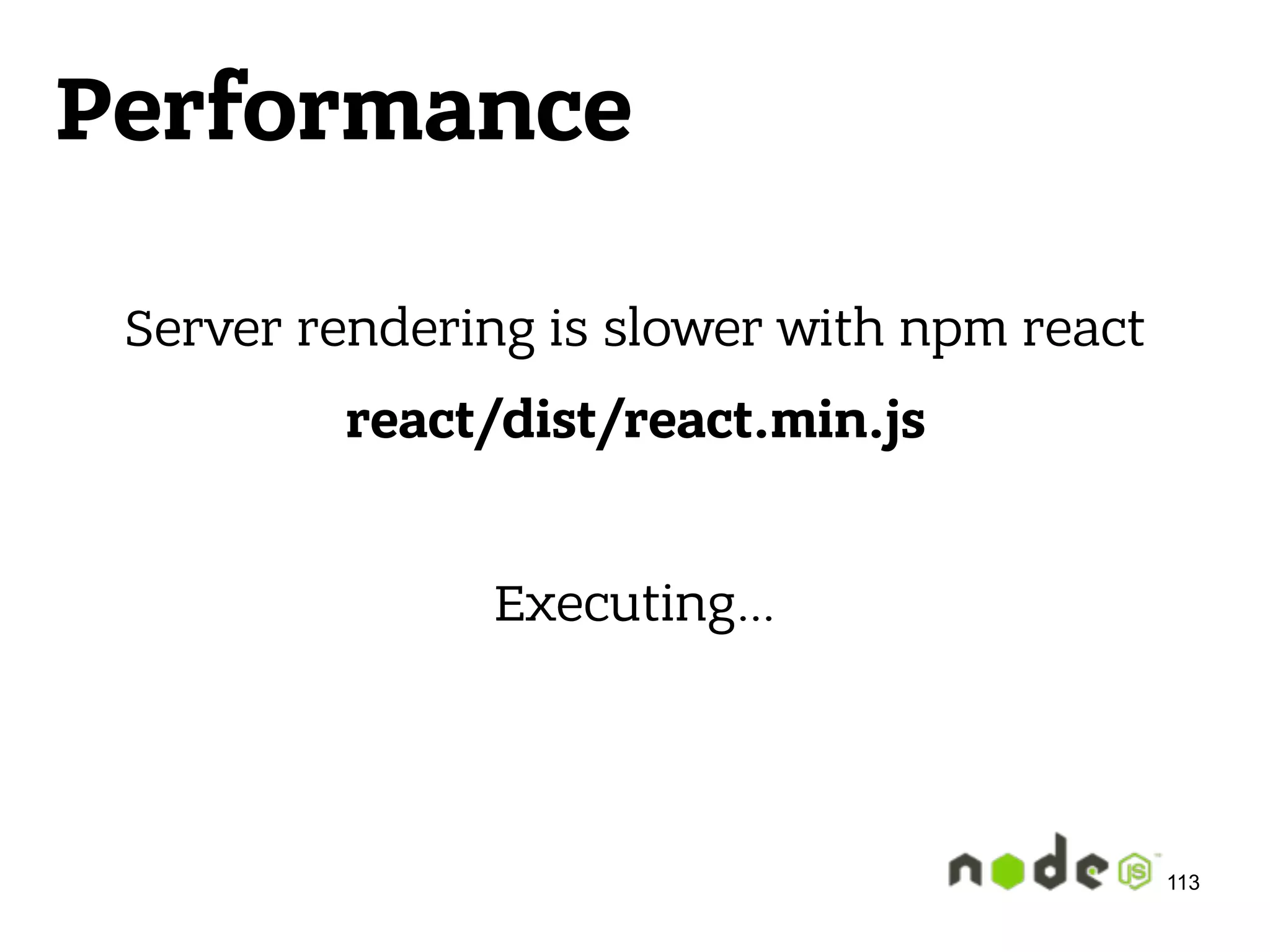

Performance Server rendering is slower with npm react react/dist/react.min.js Executing… 113

Performance Server rendering is slower with npm react react/dist/react.min.js Executing… Time per request: 38.253 ms  (vs 37.943 ms)  0.08% more 114

Performance Server rendering is slower with npm react react/dist/react.min.js Executing… Time per request: 38.253 ms  (vs 37.943 ms)  0.08% more FAILED 115

0 17,5 35 52,5 70 38,25337,943 8,385 61,85 React SSR Handlebars production react.min.js Results

0 17,5 35 52,5 70 38,25337,943 8,385 61,85 React SSR Handlebars production react.min.js Results NODE_ENV=production  39% less

Conclusion Always use  NODE_ENV=production

Advanced Solutions 1. Precompilation + Cache 2. Rendering Separation 3. HTML Streaming 4. Facebook BigPipe 5. HAProxy 120

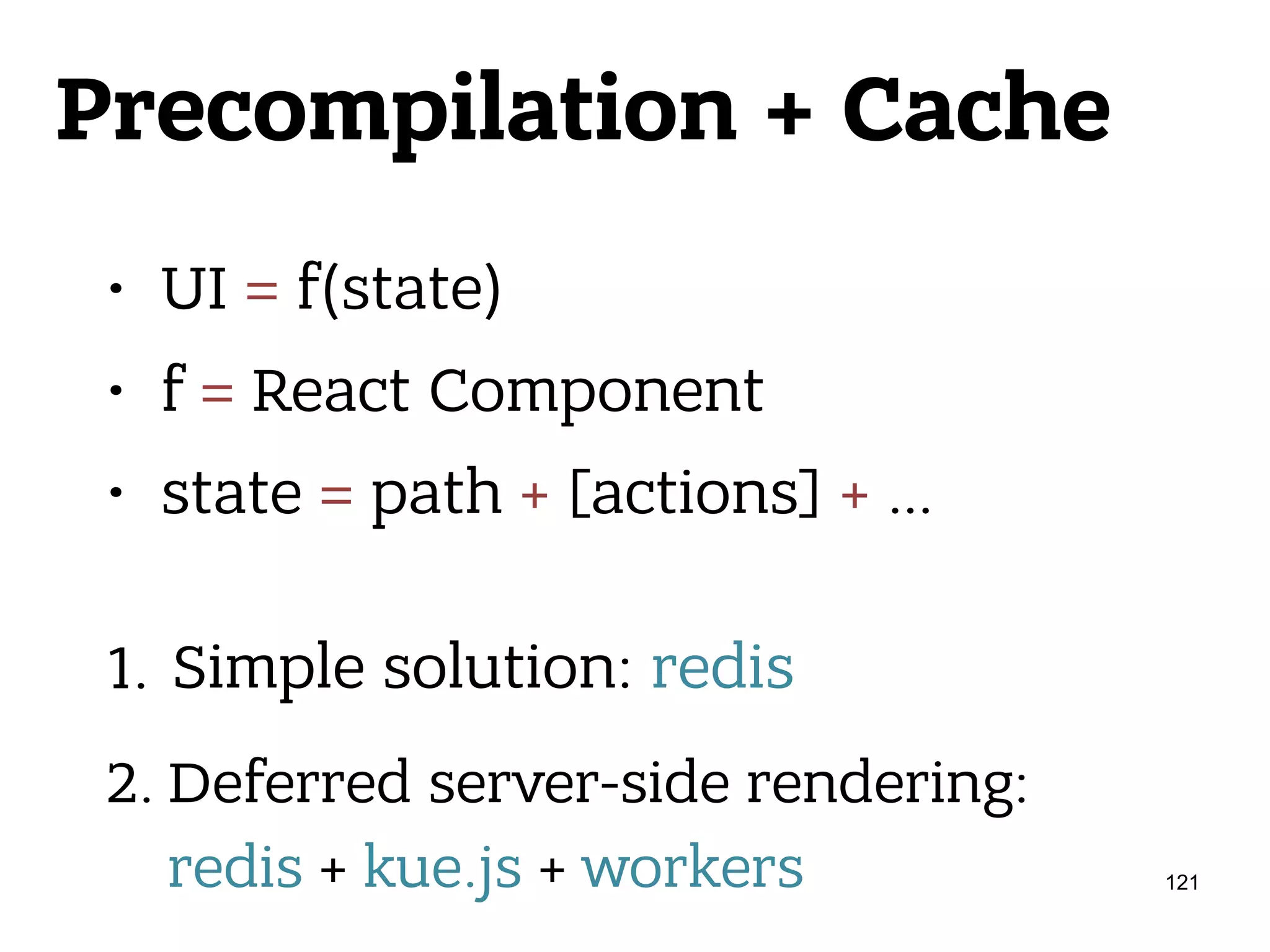

Precompilation + Cache • UI = f(state) • f = React Component • state = path + [actions] + …  1. Simple solution: redis 2. Deferred server-side rendering:  redis + kue.js + workers 121

HTML Streaming 123Usually we do this

HTML Streaming • React DOM Stream • Flushing the Document Early • “Streams make this library as much as 47% faster in sending down a full page than ReactDOM.renderToString” • Target - 108KB page on Heroku • Time To First Byte (TTFB) - 55% faster • https://www.youtube.com/watch?v=PnpfGy7q96U • https://github.com/aickin/react-dom-stream 124

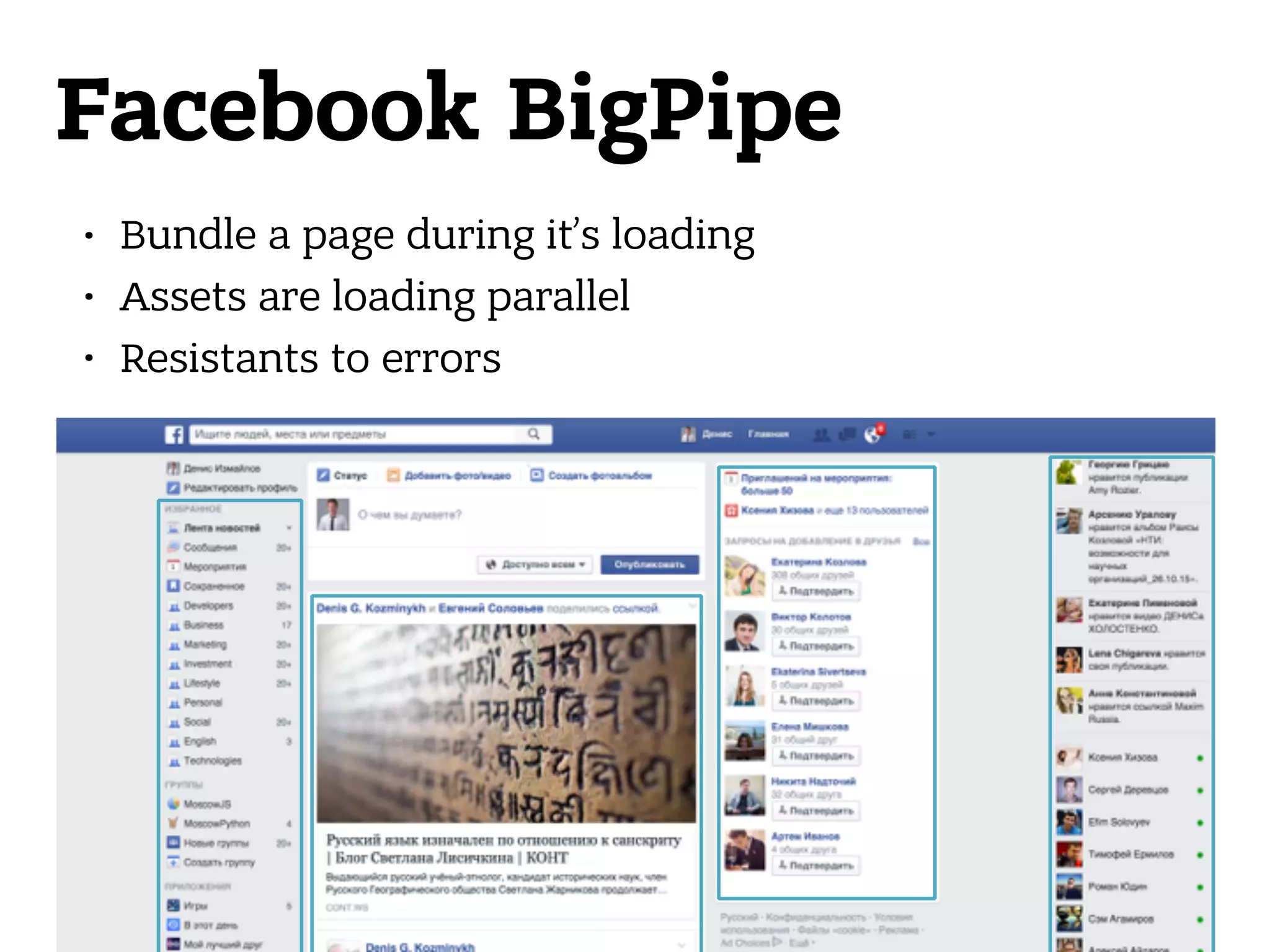

Facebook BigPipe • Bundle a page during it’s loading • Assets are loading parallel • Resistants to errors

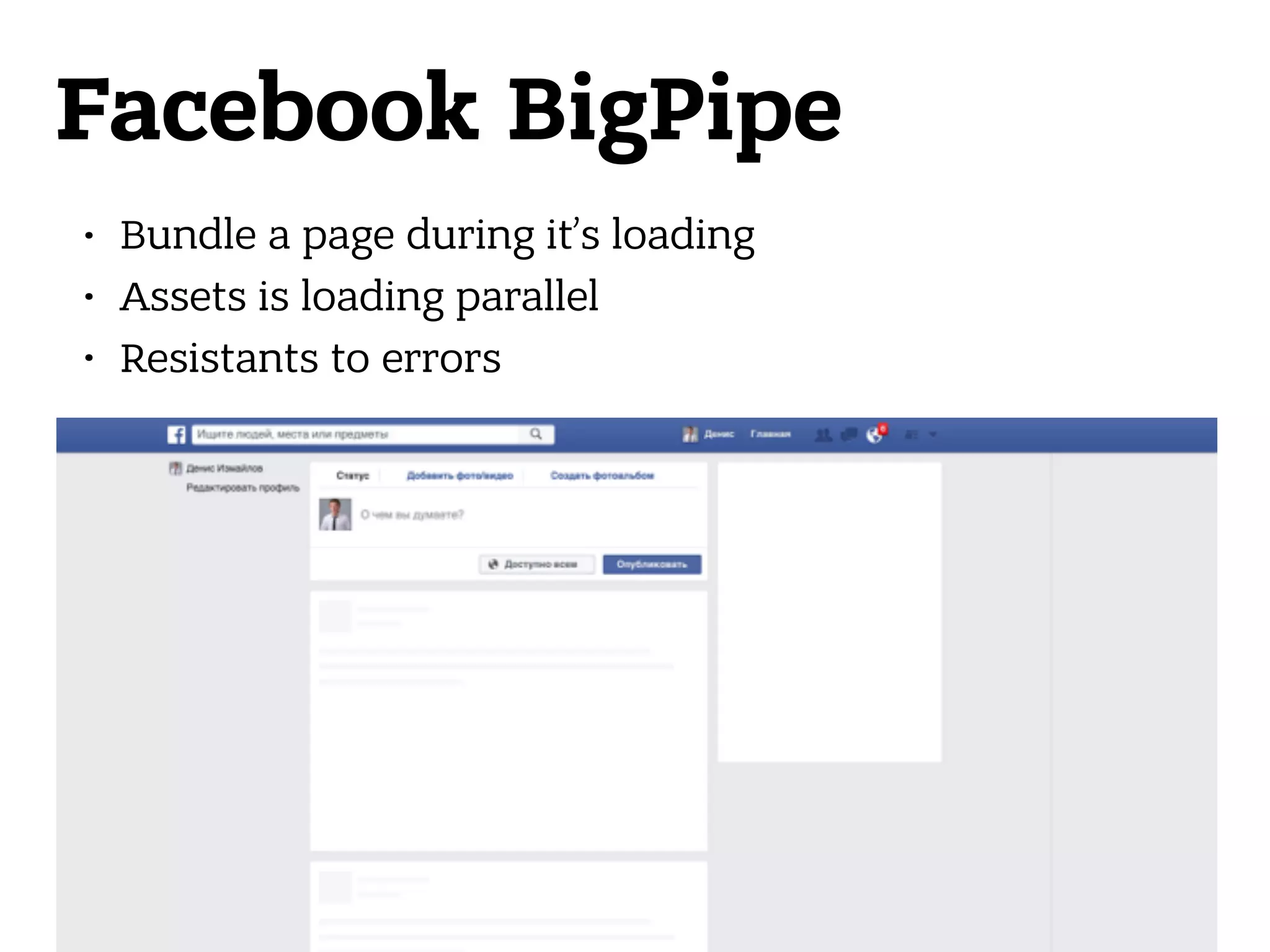

Facebook BigPipe • Bundle a page during it’s loading • Assets is loading parallel • Resistants to errors

Facebook BigPipe 129 https://www.facebook.com/notes/facebook- engineering/bigpipe-pipelining-web-pages-for- high-performance/389414033919/

HAProxy 130 • Multiple Node.js instance • Ask your DevOps engineer • Use CoreOS, Kubernetes or Mesosphere

Scale Cube 131 Monolith Infinite Scaling Y axis - functional decomposition X axis - horizontal duplication Zaxis-resources partitioning

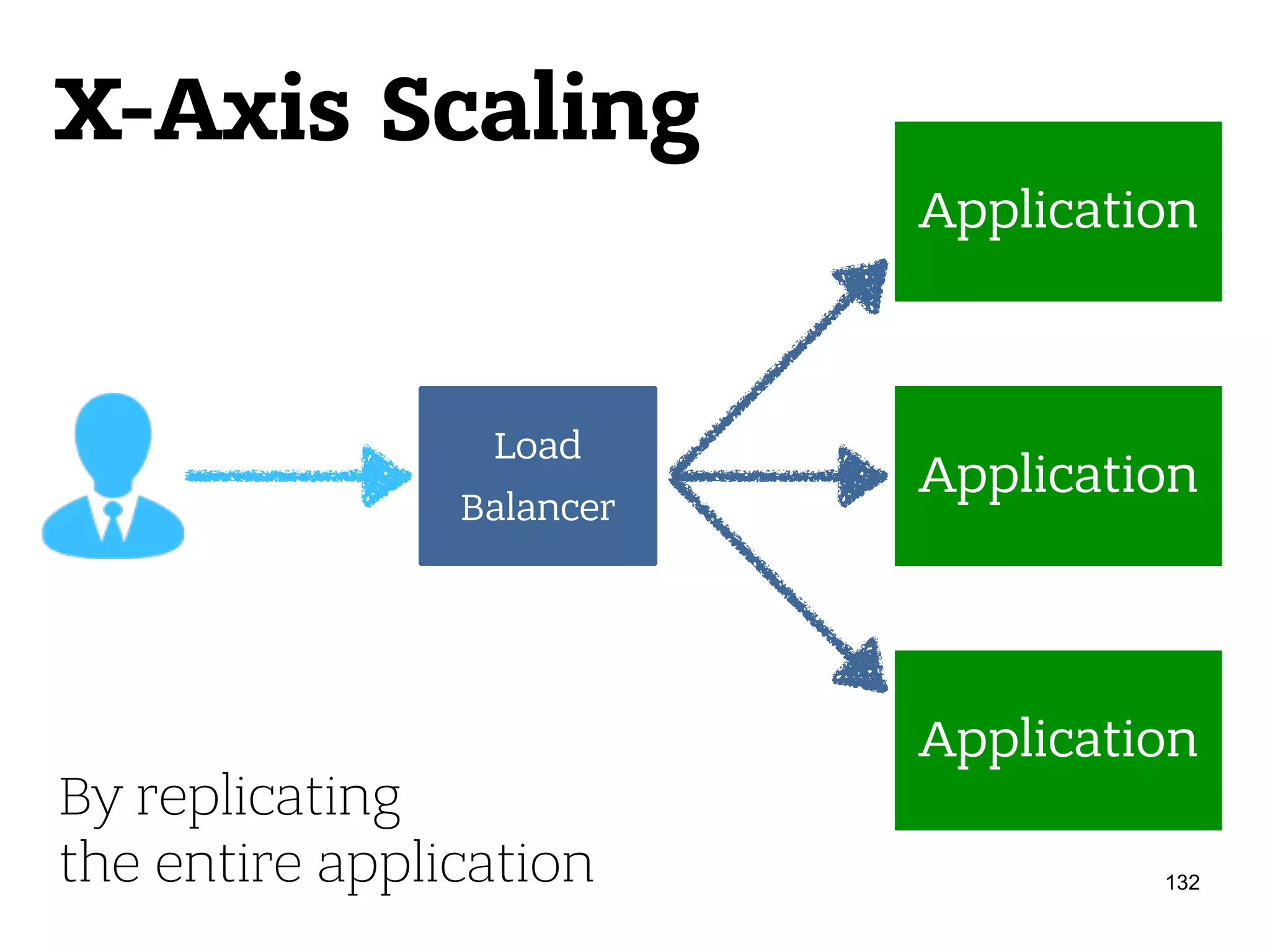

X-Axis Scaling 132 Load Balancer Application Application Application By replicating  the entire application

Y-Axis Scaling 133 Load Balancer Chat Catalog Orders /catalog /chat /orders By splitting  the application

Z-Axis Scaling 134 Load Balancer [A - I] [J - R] [S - Z] /catalog/* /catalog/* /catalog/* By splitting  the data

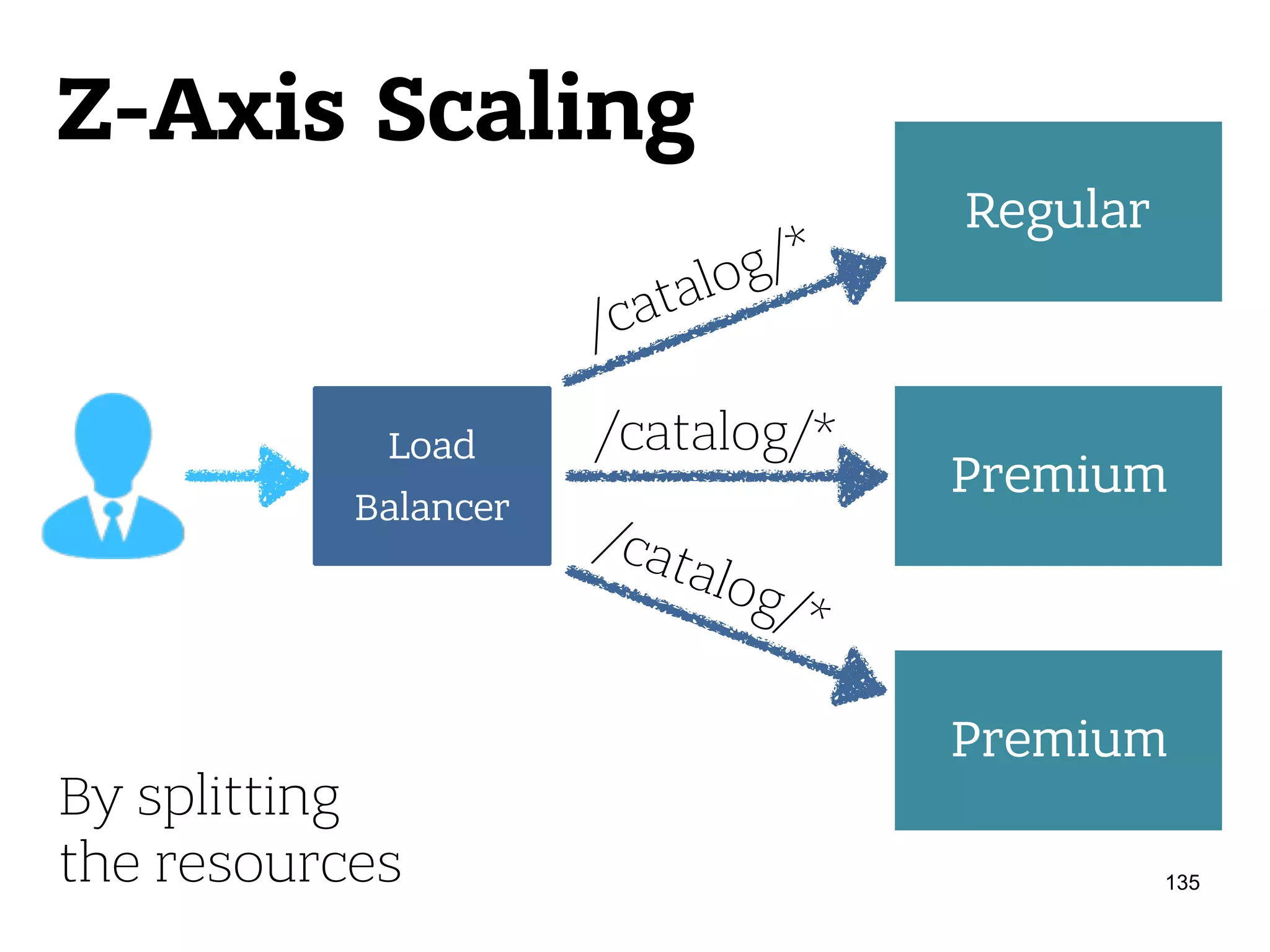

Z-Axis Scaling 135 Load Balancer Regular Premium Premium /catalog/* /catalog/* /catalog/* By splitting  the resources

“Almost all algorithm problems could be solved by changing a data structure” “Changes is our work”,  Jake Archibald, Google

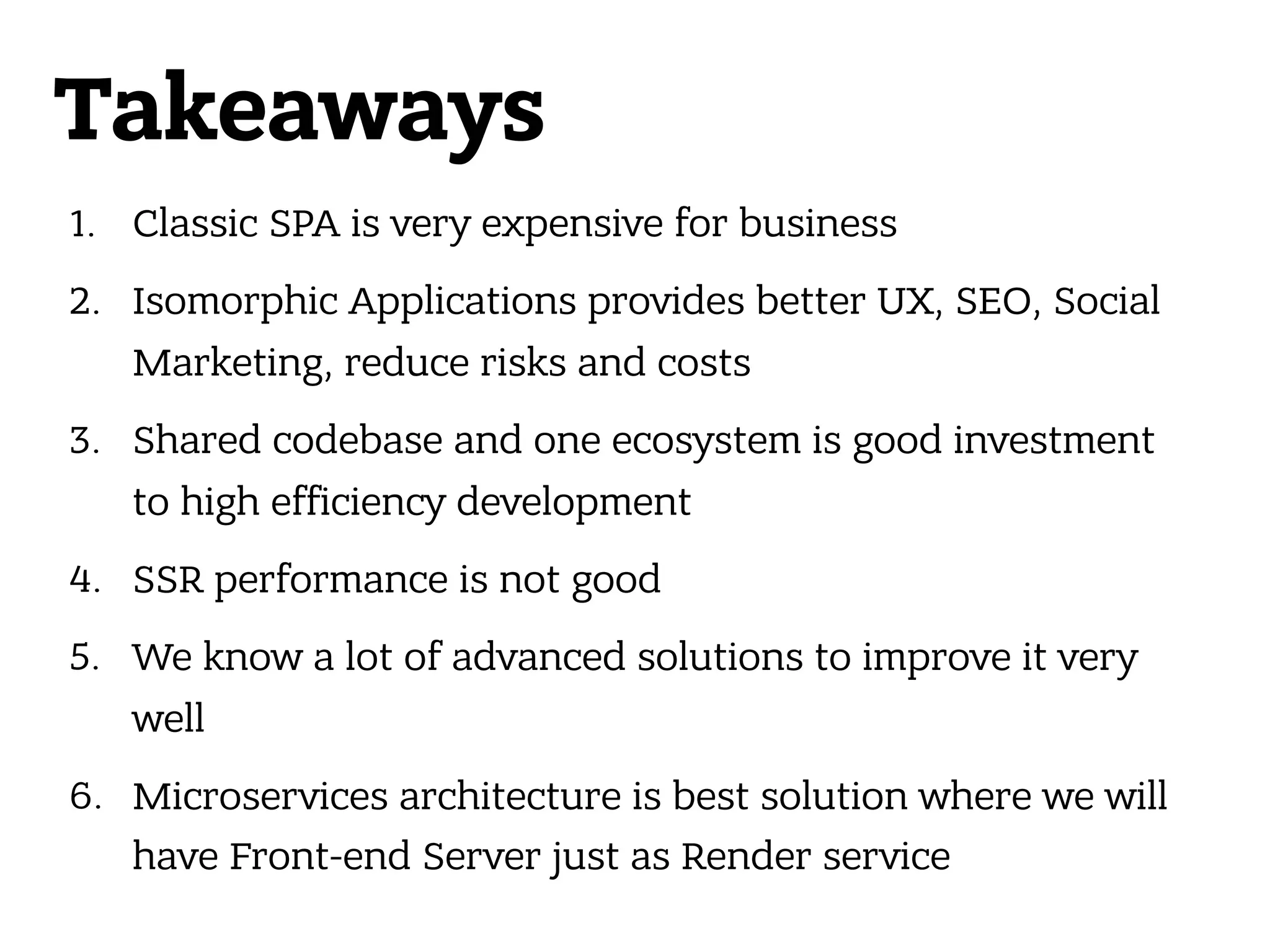

Takeaways 1. Classic SPA is very expensive for business 2. Isomorphic Applications provides better UX, SEO, Social Marketing, reduce risks and costs 3. Shared codebase and one ecosystem is good investment to high efficiency development 4. SSR performance is not good 5. We know a lot of advanced solutions to improve it very well 6. Microservices architecture is best solution where we will have Front-end Server just as Render service

Thank you Denis Izmaylov @DenisIzmaylov DenisIzmaylov www.startup-makers.com denis_izmaylov izmaylov.dm@gmail.com

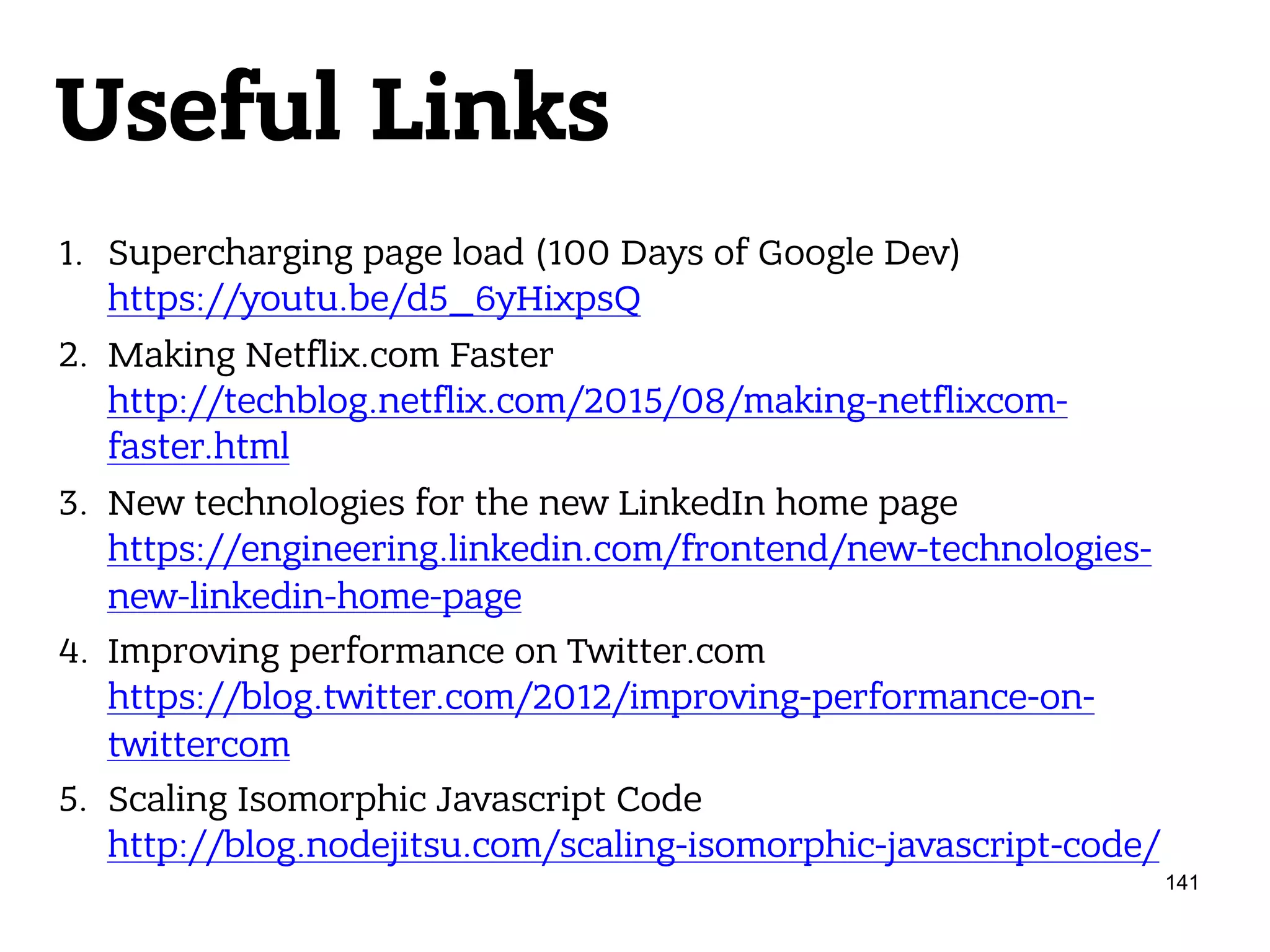

Useful Links 1. Supercharging page load (100 Days of Google Dev)  https://youtu.be/d5_6yHixpsQ 2. Making Netflix.com Faster  http://techblog.netflix.com/2015/08/making-netflixcom- faster.html 3. New technologies for the new LinkedIn home page  https://engineering.linkedin.com/frontend/new-technologies- new-linkedin-home-page 4. Improving performance on Twitter.com  https://blog.twitter.com/2012/improving-performance-on- twittercom 5. Scaling Isomorphic Javascript Code  http://blog.nodejitsu.com/scaling-isomorphic-javascript-code/ 141

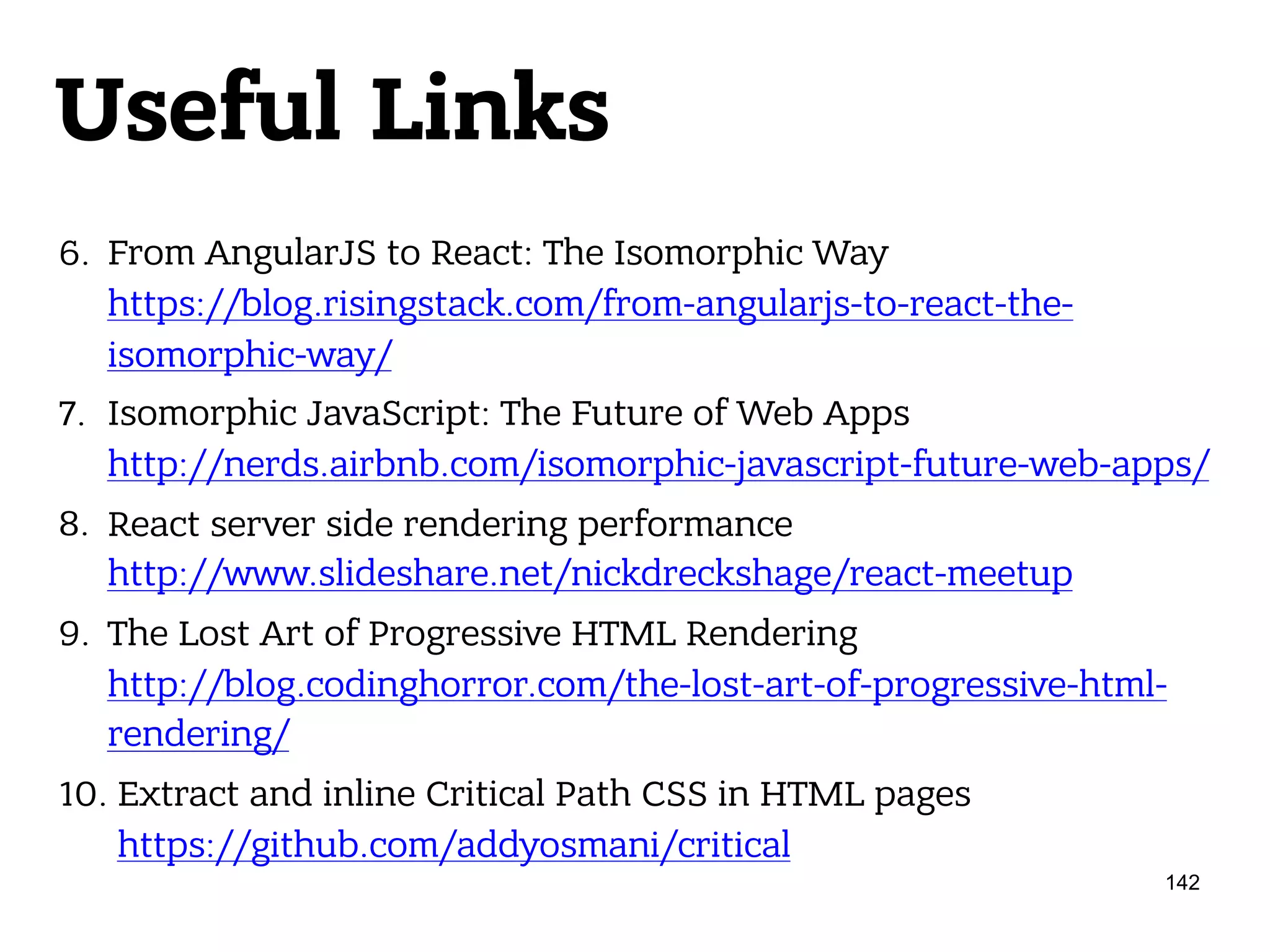

Useful Links 6. From AngularJS to React: The Isomorphic Way  https://blog.risingstack.com/from-angularjs-to-react-the- isomorphic-way/ 7. Isomorphic JavaScript: The Future of Web Apps  http://nerds.airbnb.com/isomorphic-javascript-future-web-apps/ 8. React server side rendering performance  http://www.slideshare.net/nickdreckshage/react-meetup 9. The Lost Art of Progressive HTML Rendering  http://blog.codinghorror.com/the-lost-art-of-progressive-html- rendering/ 10. Extract and inline Critical Path CSS in HTML pages  https://github.com/addyosmani/critical 142
