Overview of Computer Graphics
- 1. Computer Graphics Department ofComputer Science & Engineering Hamdard University Bangladesh Prepared By
- 2. The definition ofcomputer graphics is the technology that deals with designs and pictures on computers. Computer graphics 2

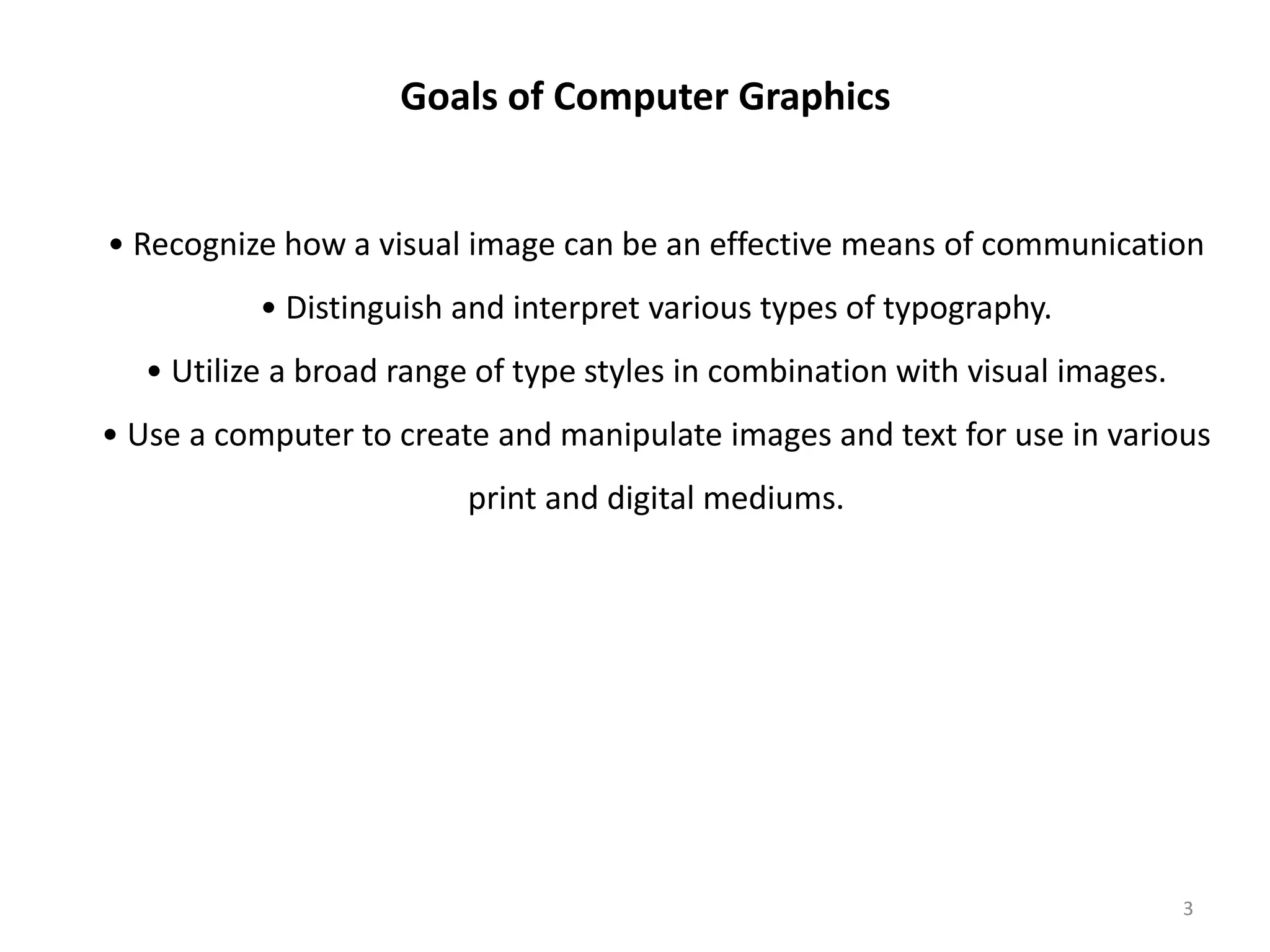

- 3. • Recognize howa visual image can be an effective means of communication • Distinguish and interpret various types of typography. • Utilize a broad range of type styles in combination with visual images. • Use a computer to create and manipulate images and text for use in various print and digital mediums. Goals of Computer Graphics 3

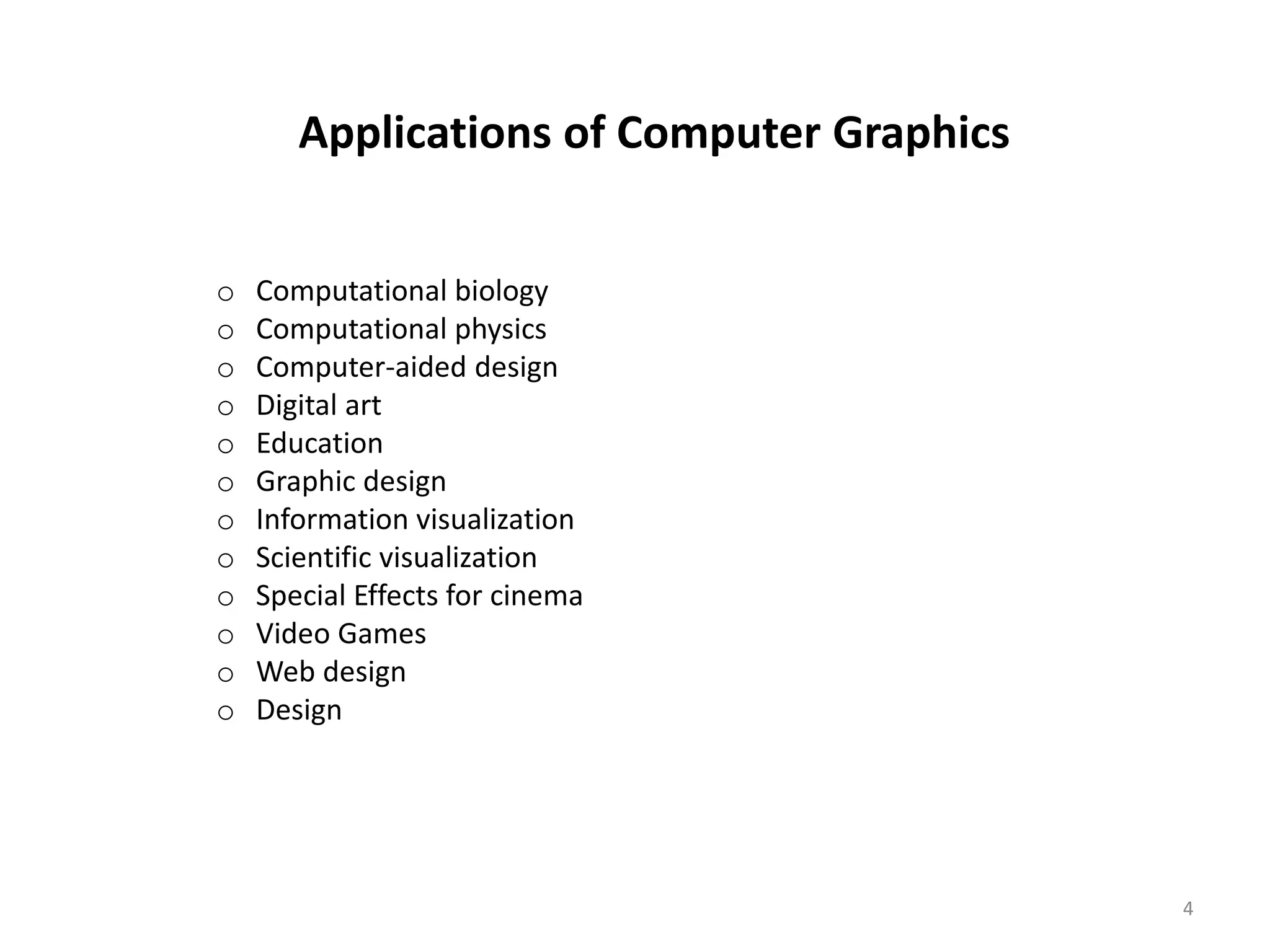

- 4. Applications of ComputerGraphics o Computational biology o Computational physics o Computer-aided design o Digital art o Education o Graphic design o Information visualization o Scientific visualization o Special Effects for cinema o Video Games o Web design o Design 4

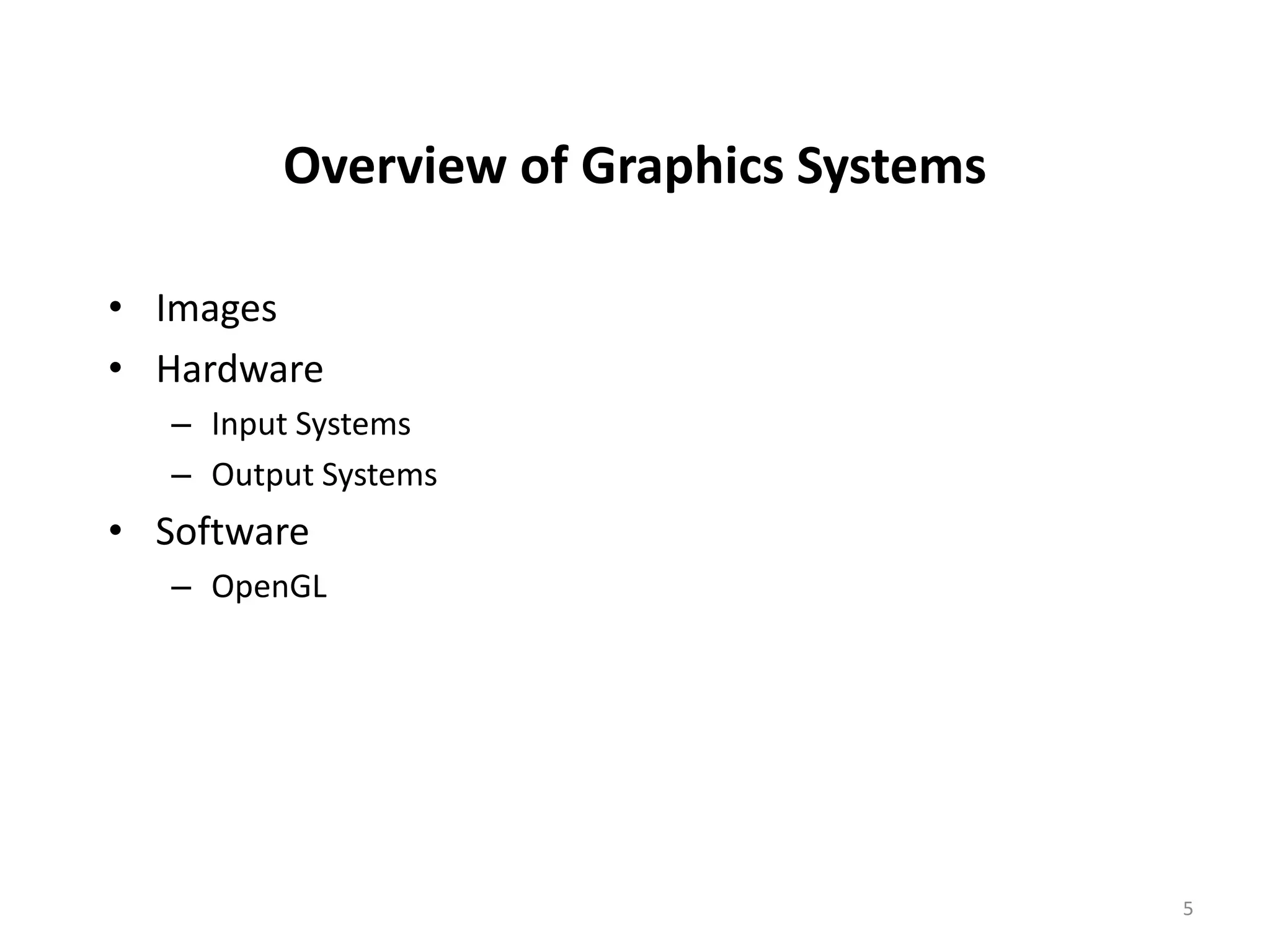

- 5. Overview of GraphicsSystems • Images • Hardware – Input Systems – Output Systems • Software – OpenGL 5

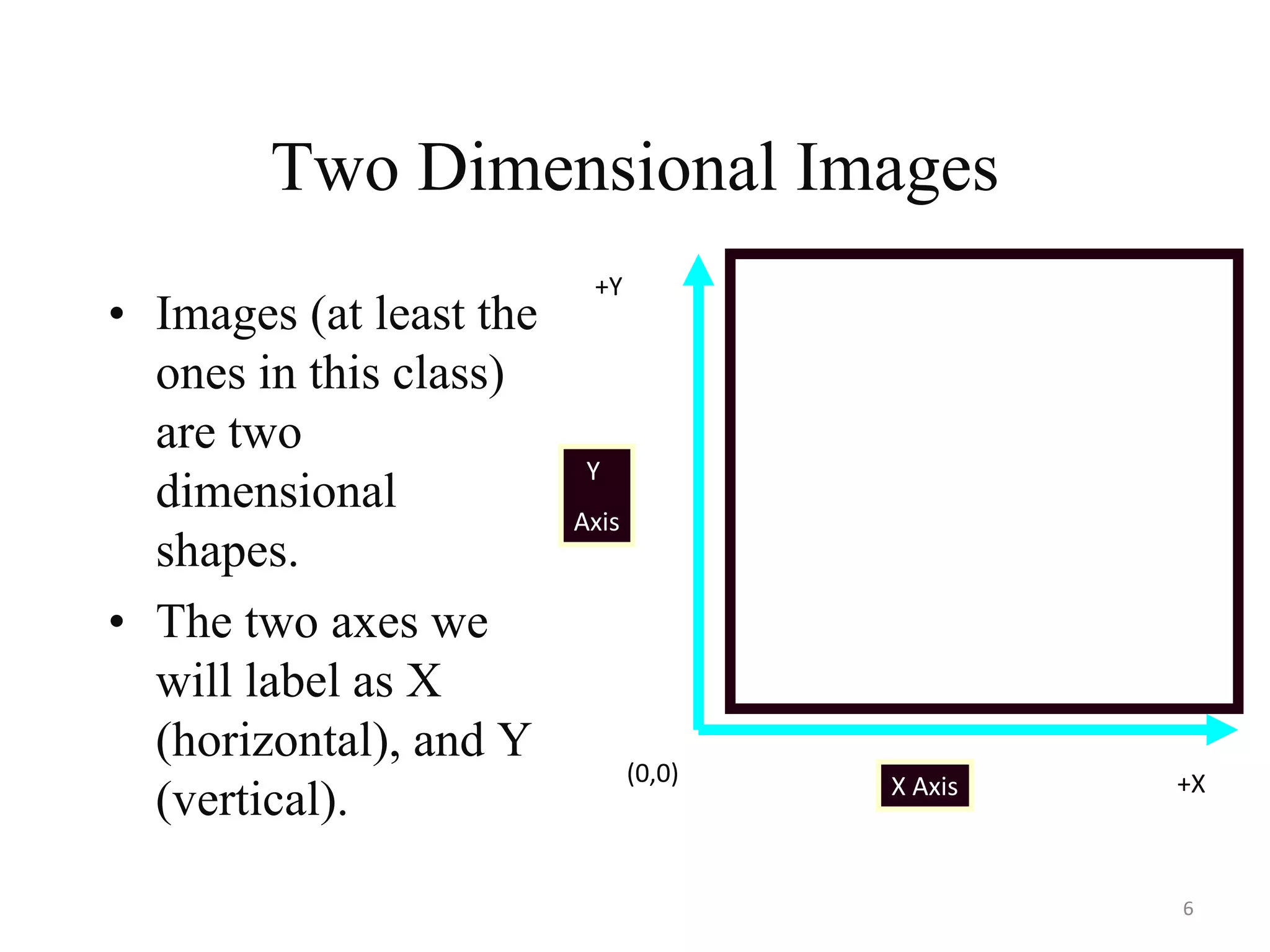

- 6. Two Dimensional Images •Images (at least the ones in this class) are two dimensional shapes. • The two axes we will label as X (horizontal), and Y (vertical). X Axis Y Axis (0,0) +X +Y 6

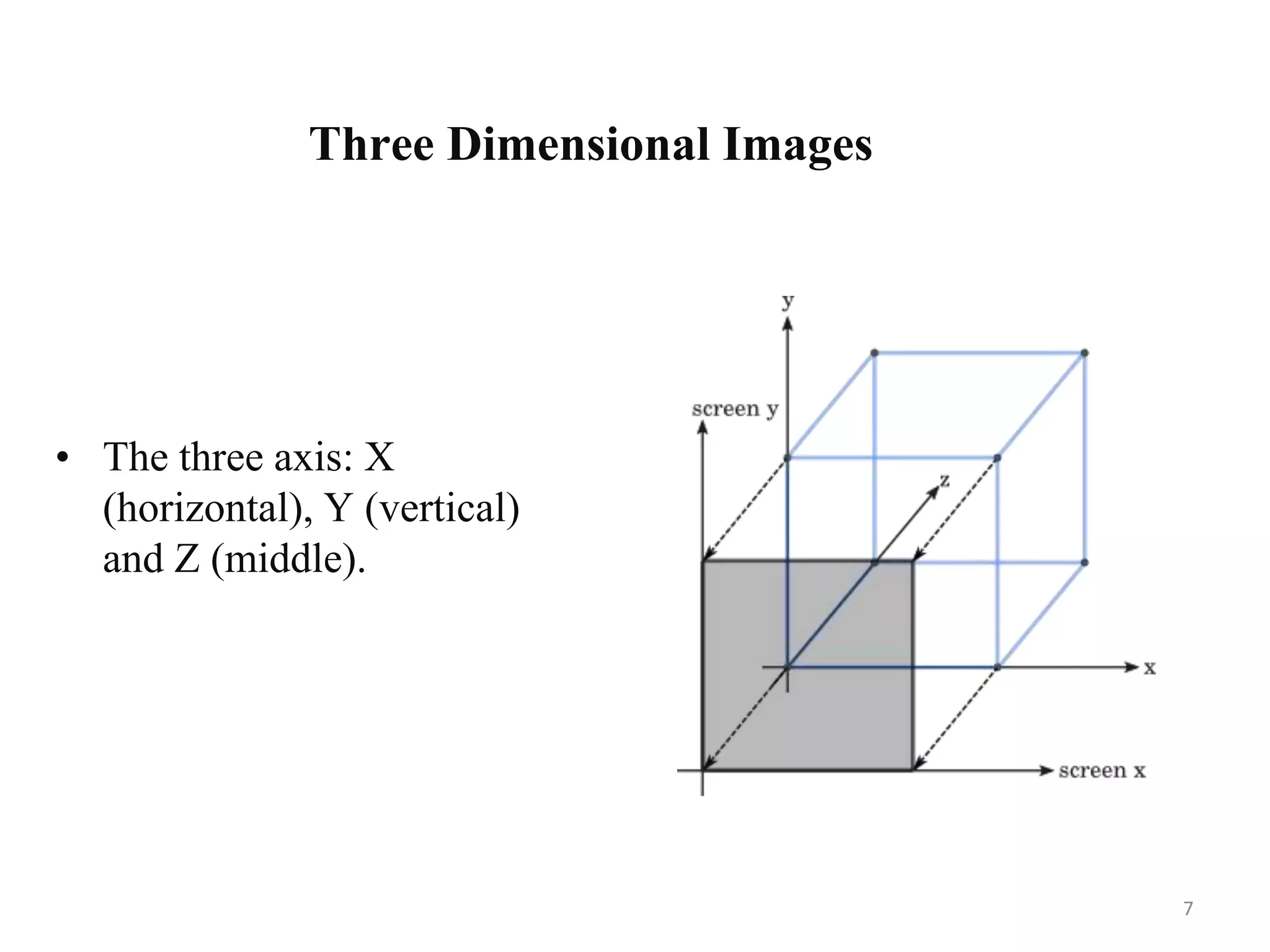

- 7. Three Dimensional Images •The three axis: X (horizontal), Y (vertical) and Z (middle). 7

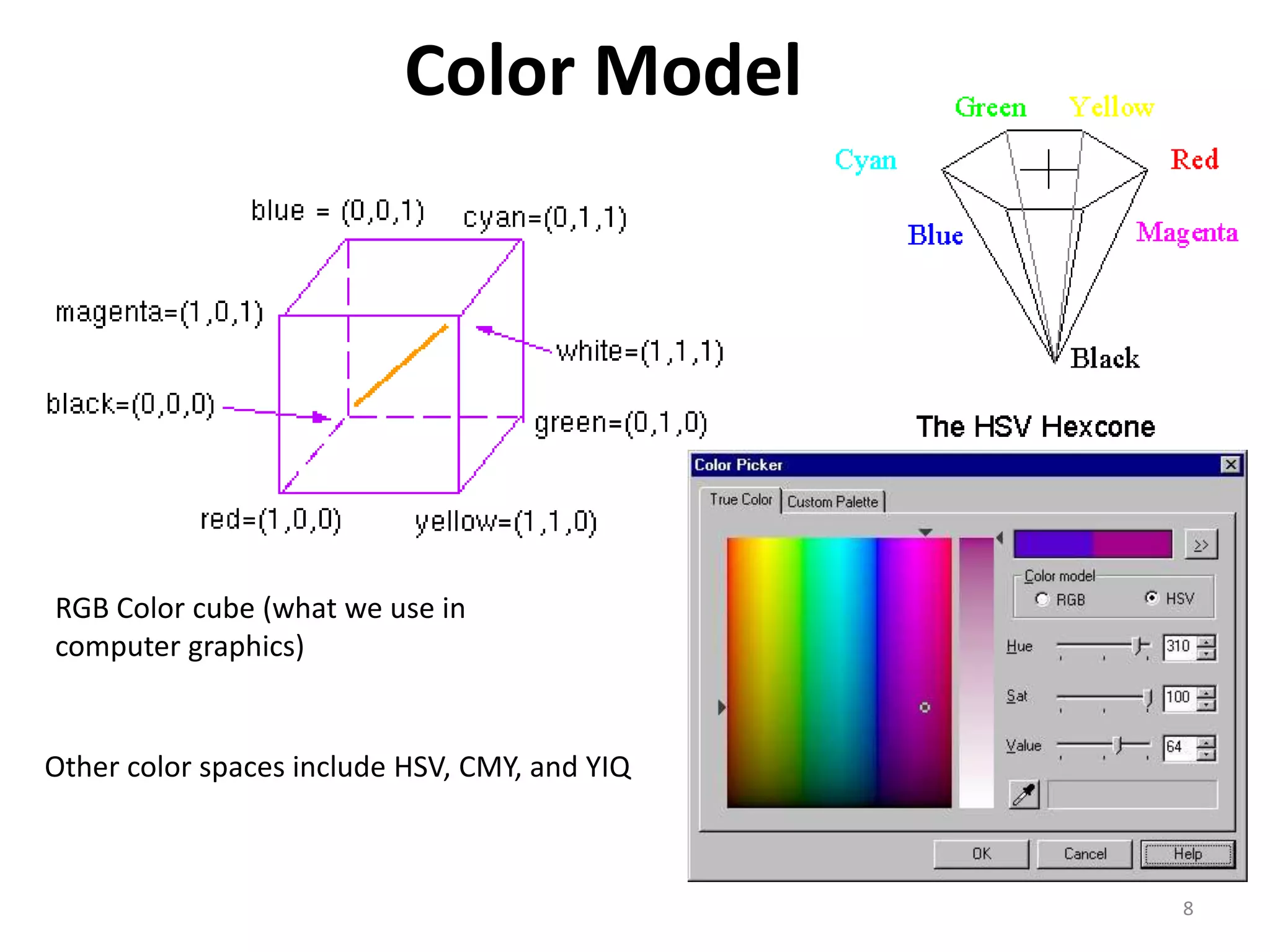

- 8. Color Model RGB Colorcube (what we use in computer graphics) Other color spaces include HSV, CMY, and YIQ 8

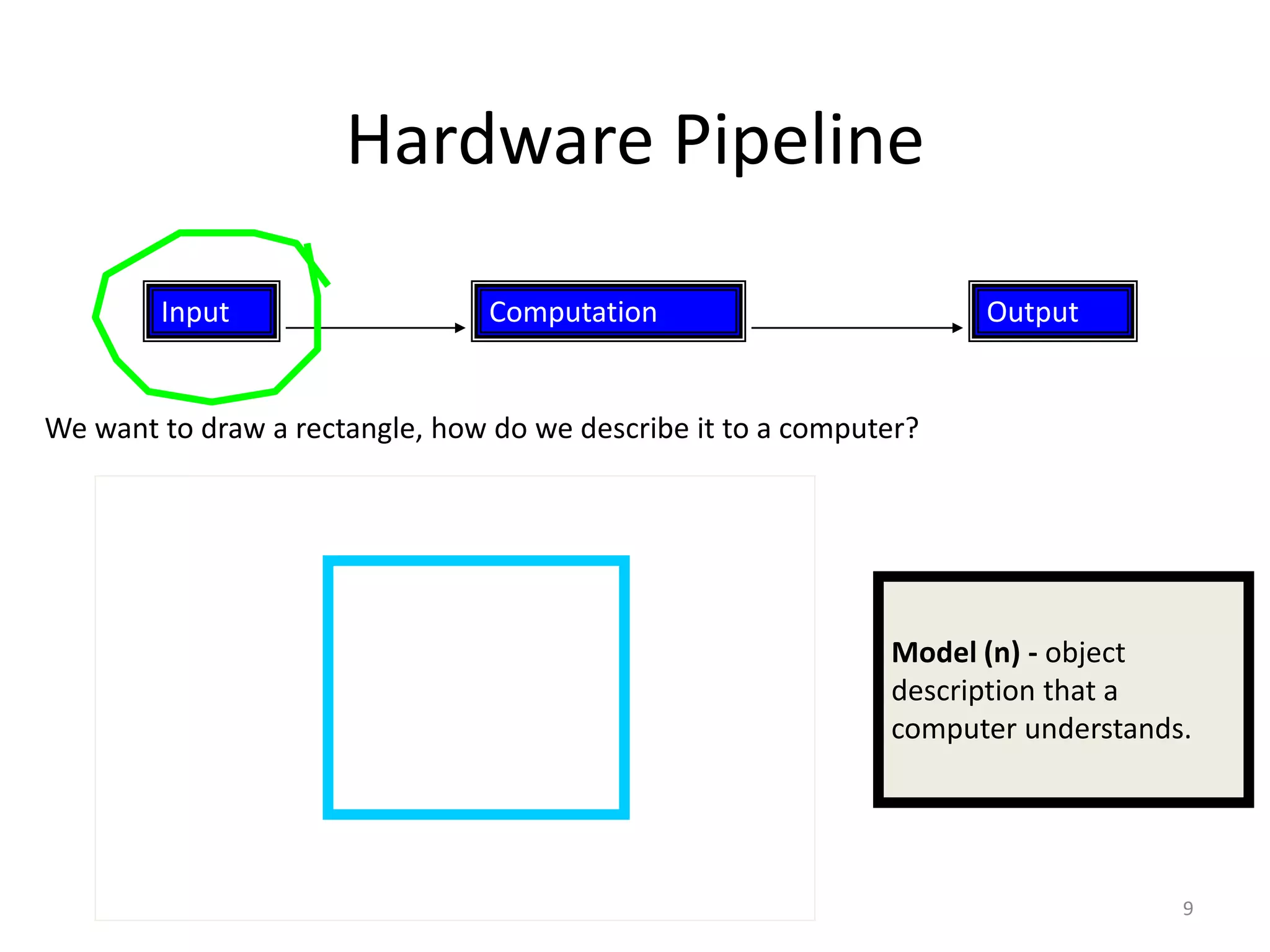

- 9. Hardware Pipeline Input OutputComputation Wewant to draw a rectangle, how do we describe it to a computer? Model (n) - object description that a computer understands. 9

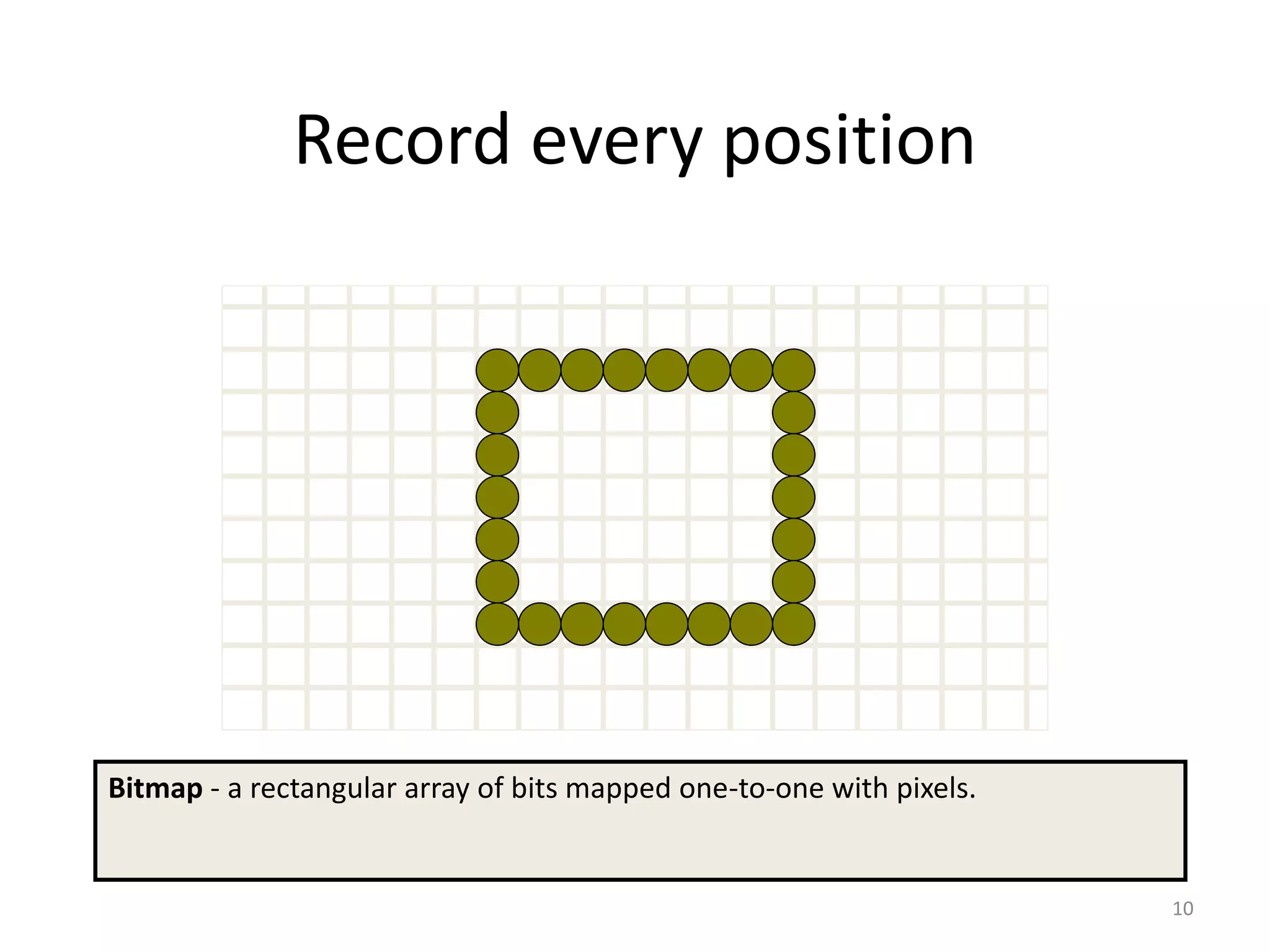

- 10. Record every position Bitmap- a rectangular array of bits mapped one-to-one with pixels. 10

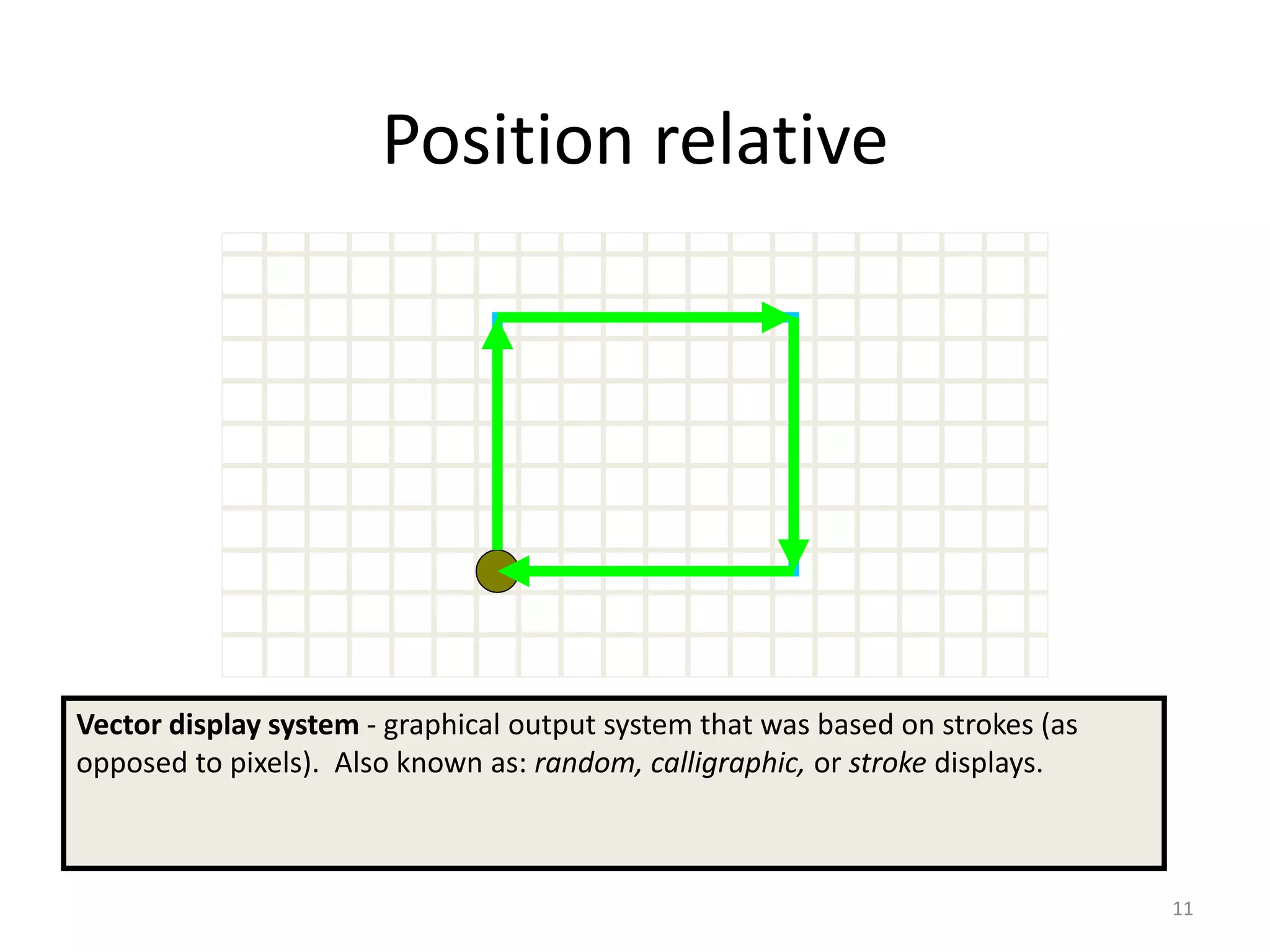

- 11. Position relative Vector displaysystem - graphical output system that was based on strokes (as opposed to pixels). Also known as: random, calligraphic, or stroke displays. 11

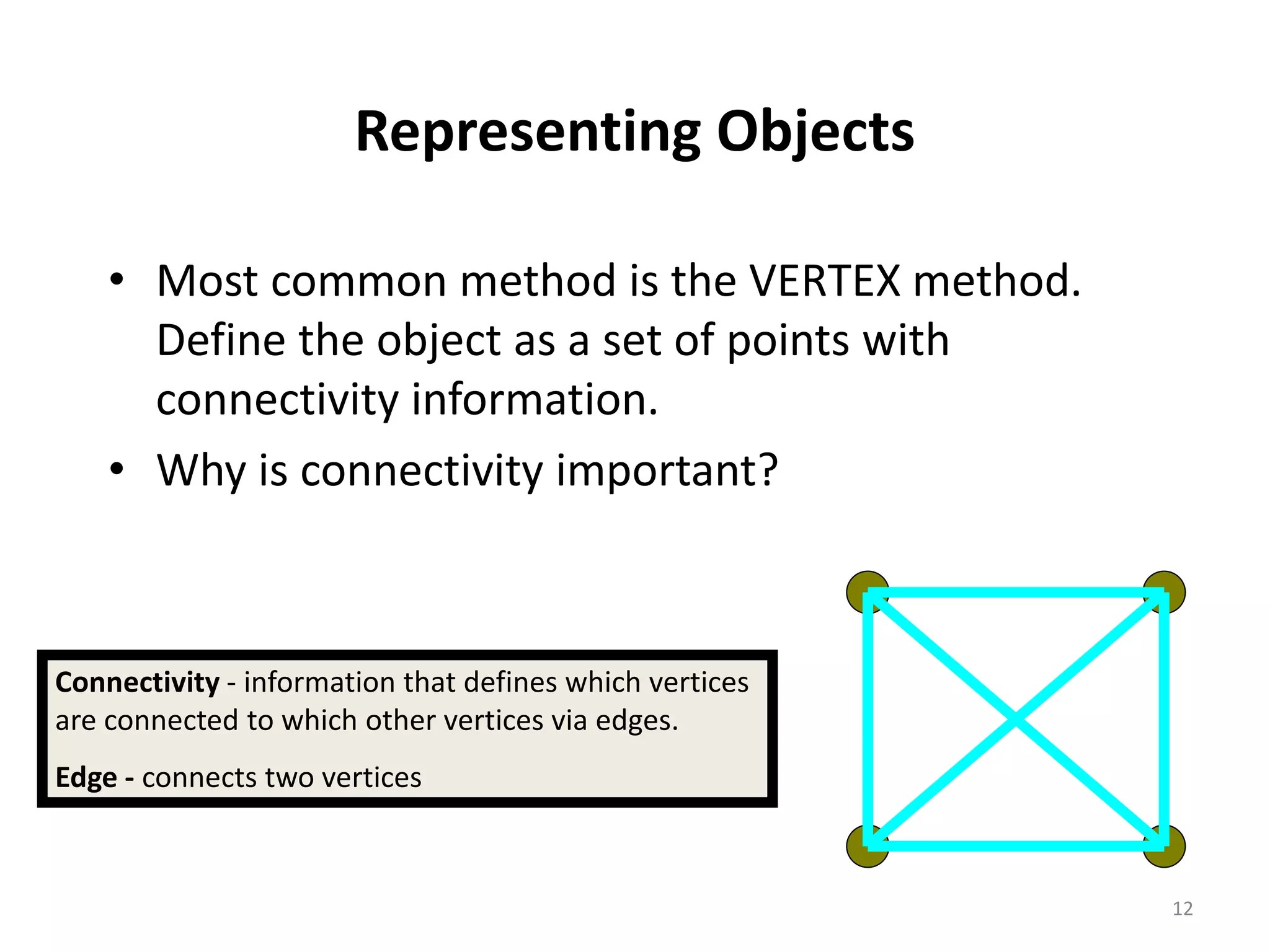

- 12. Representing Objects • Mostcommon method is the VERTEX method. Define the object as a set of points with connectivity information. • Why is connectivity important? Connectivity - information that defines which vertices are connected to which other vertices via edges. Edge - connects two vertices 12

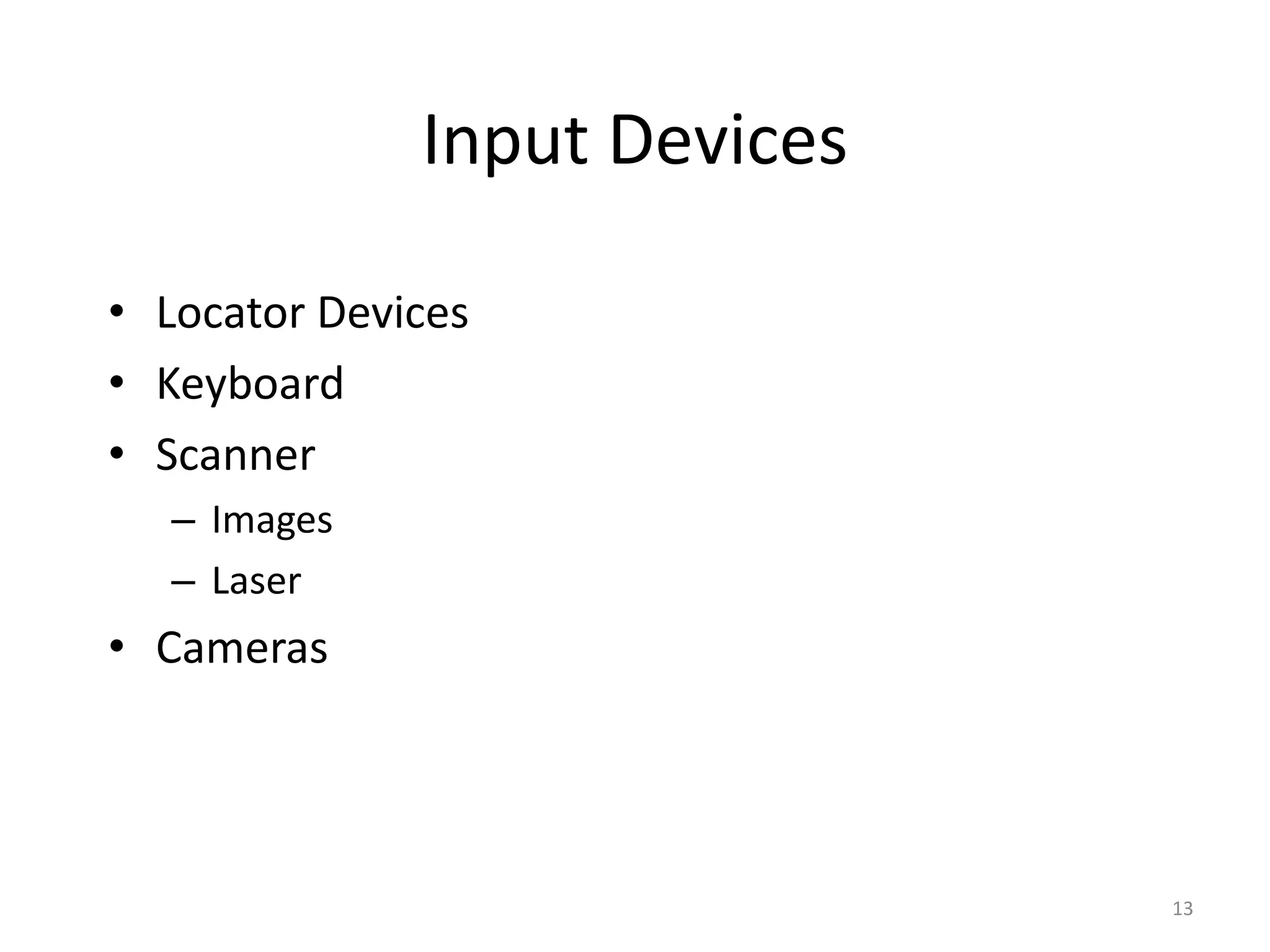

- 13. Input Devices • LocatorDevices • Keyboard • Scanner – Images – Laser • Cameras 13

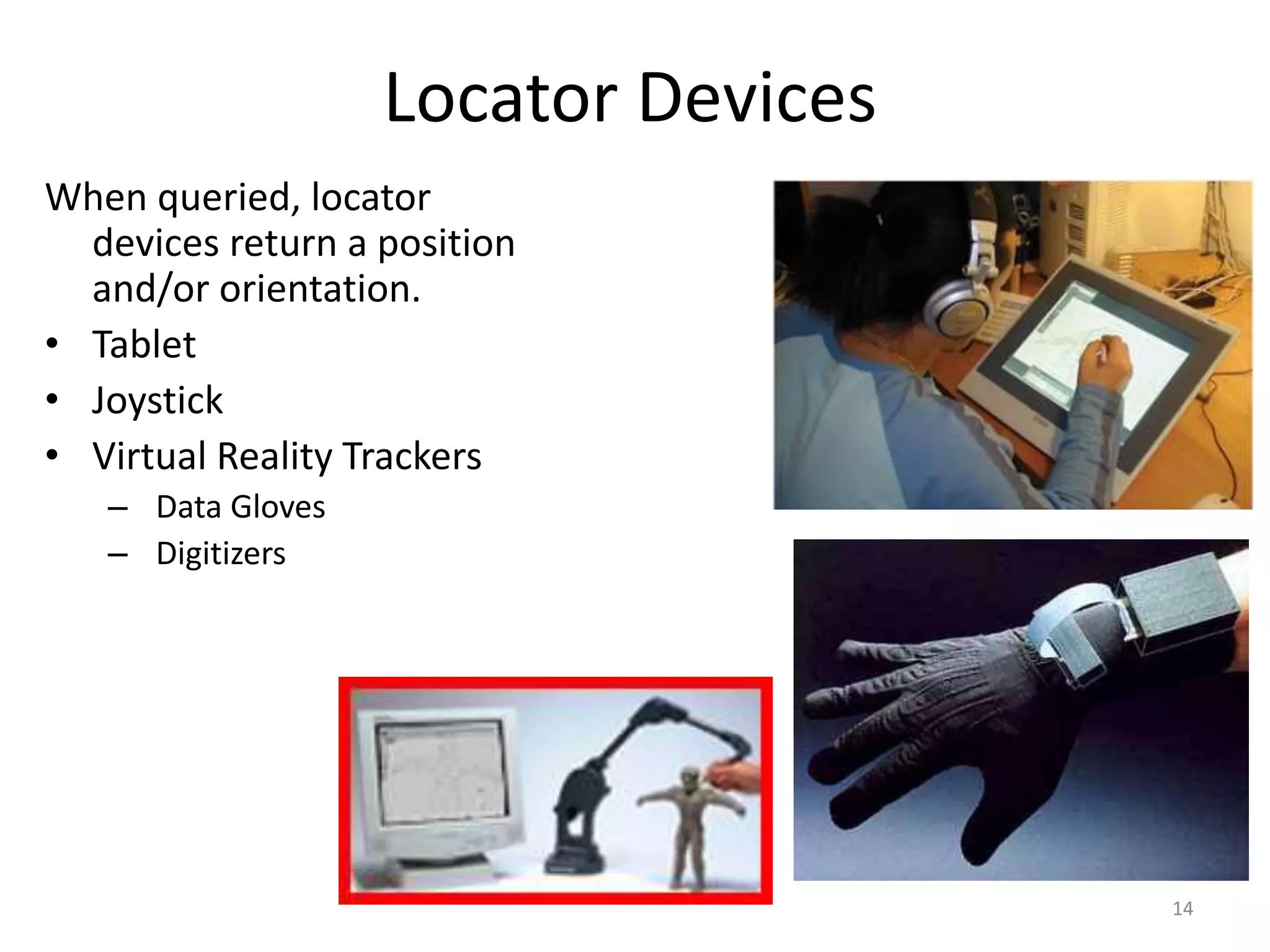

- 14. Locator Devices When queried,locator devices return a position and/or orientation. • Tablet • Joystick • Virtual Reality Trackers – Data Gloves – Digitizers 14

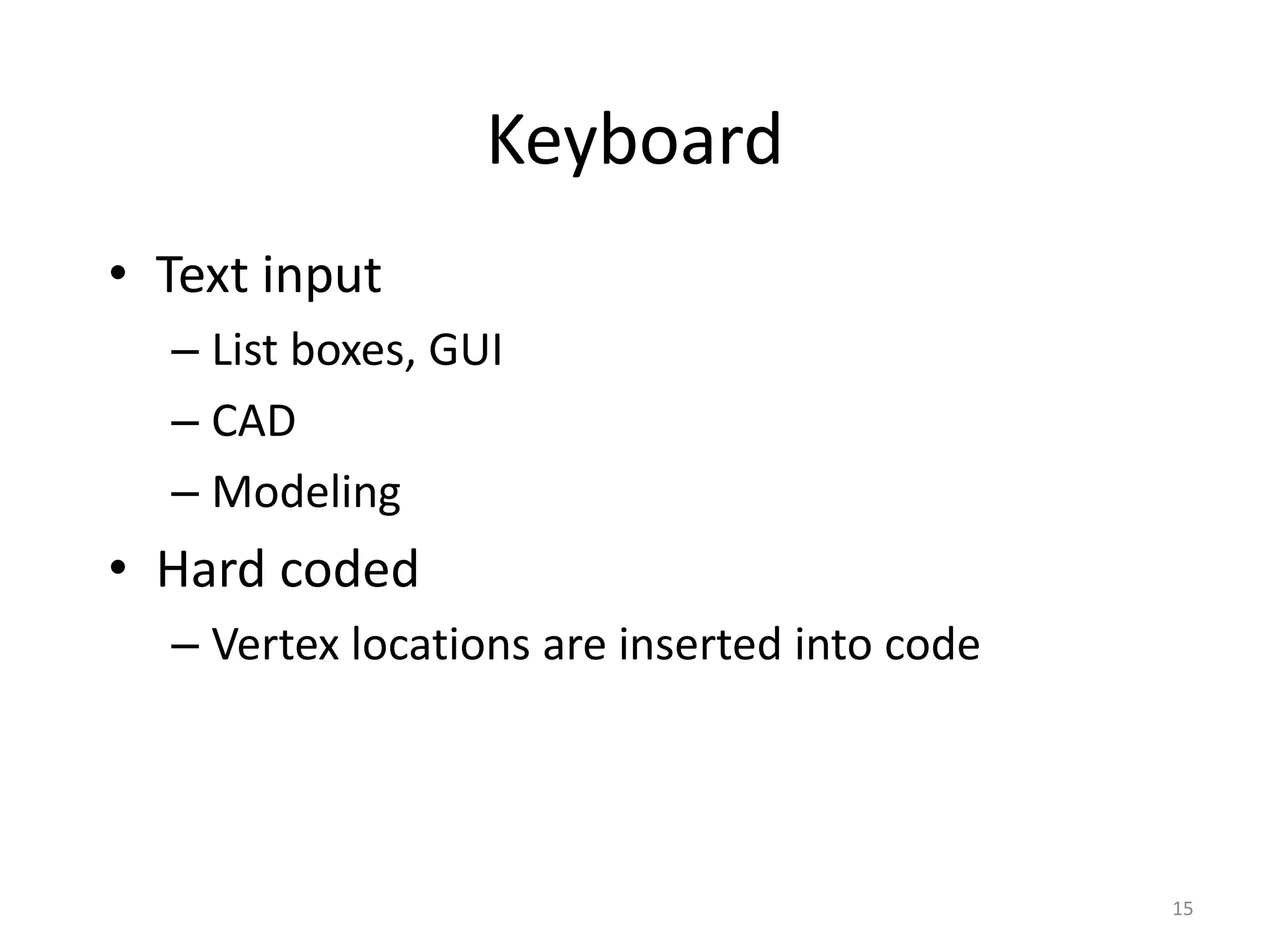

- 15. Keyboard • Text input –List boxes, GUI – CAD – Modeling • Hard coded – Vertex locations are inserted into code 15

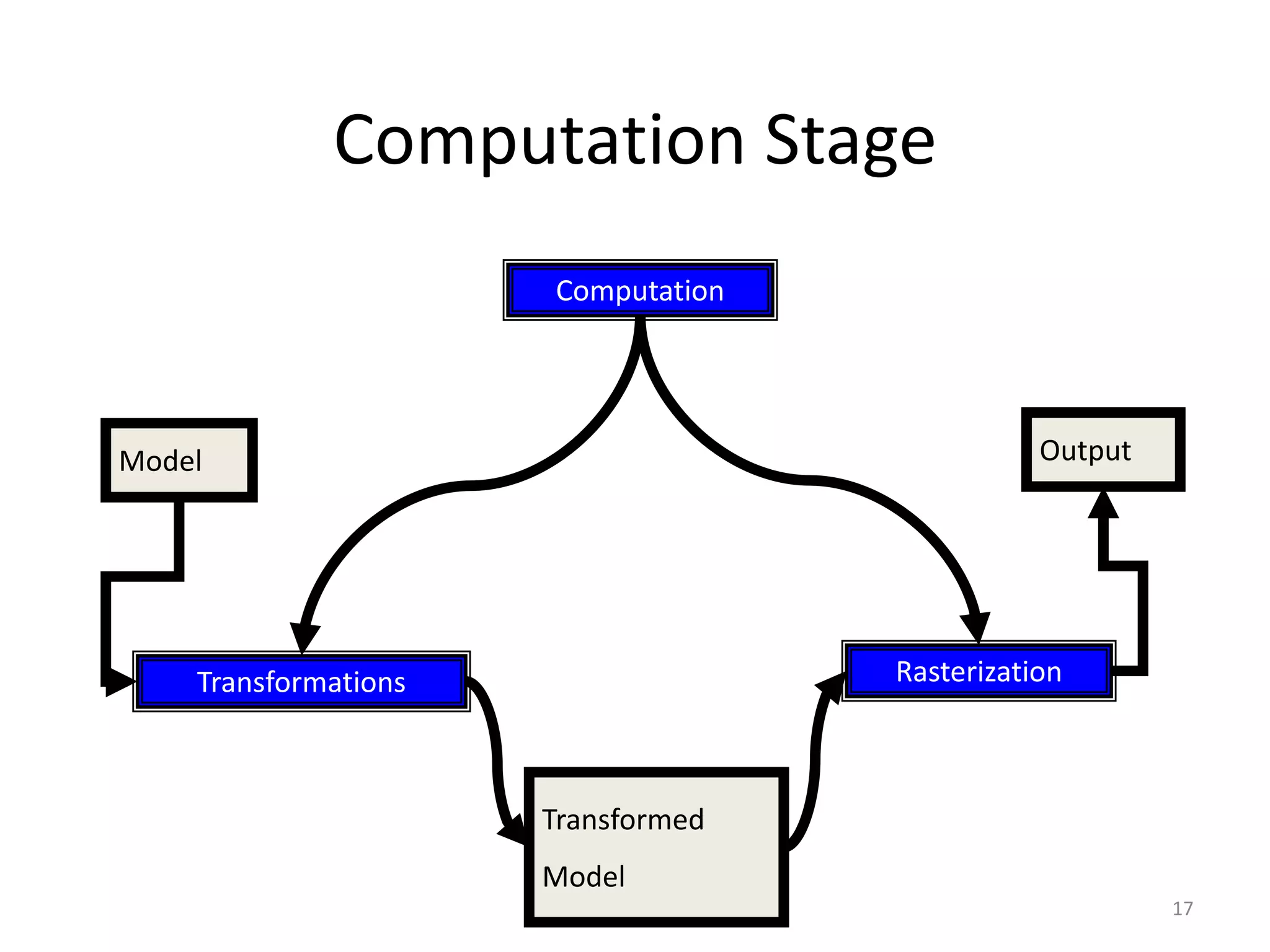

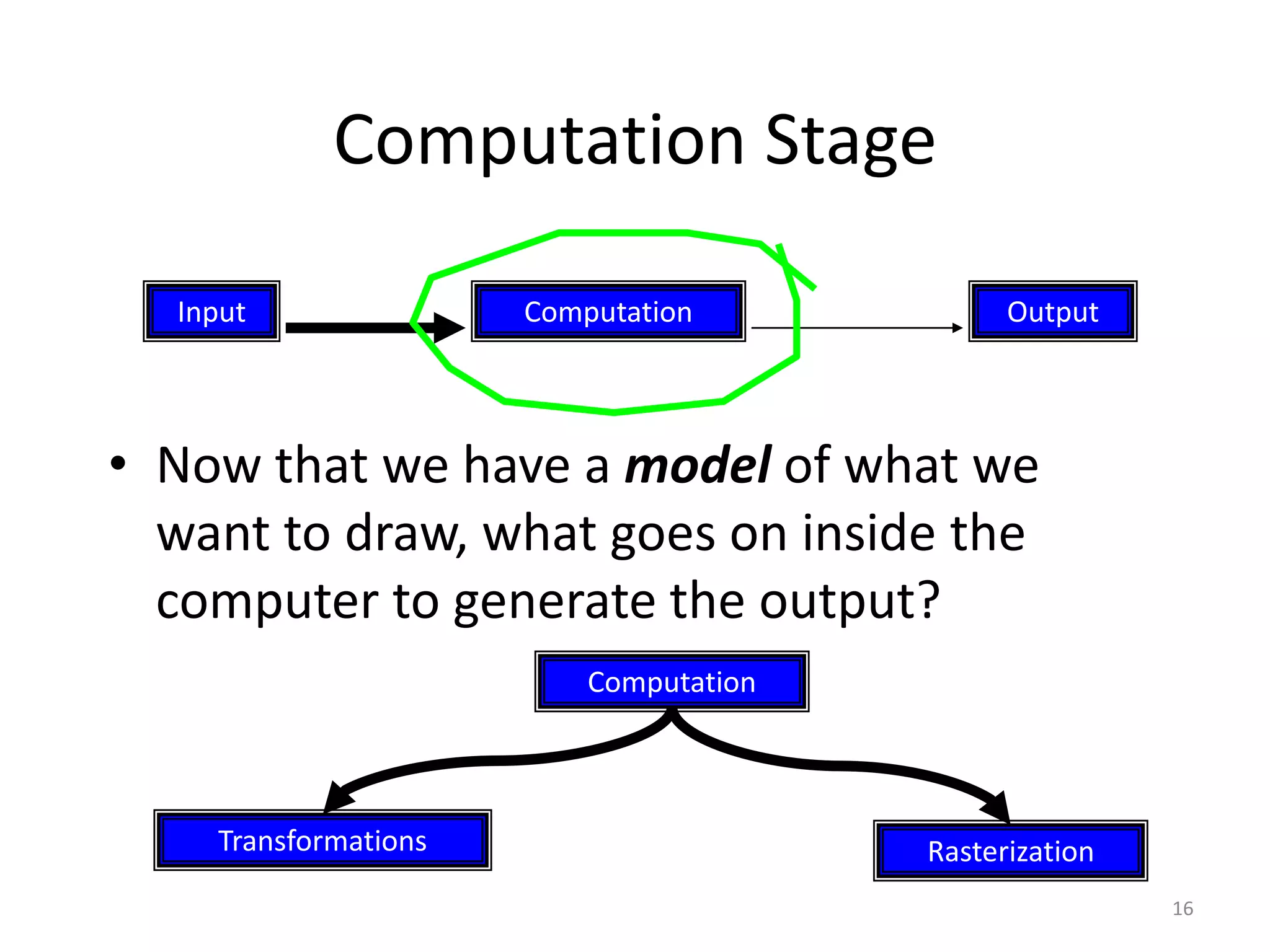

- 16. Computation Stage • Nowthat we have a model of what we want to draw, what goes on inside the computer to generate the output? Input OutputComputation Computation Transformations Rasterization 16
- 17.

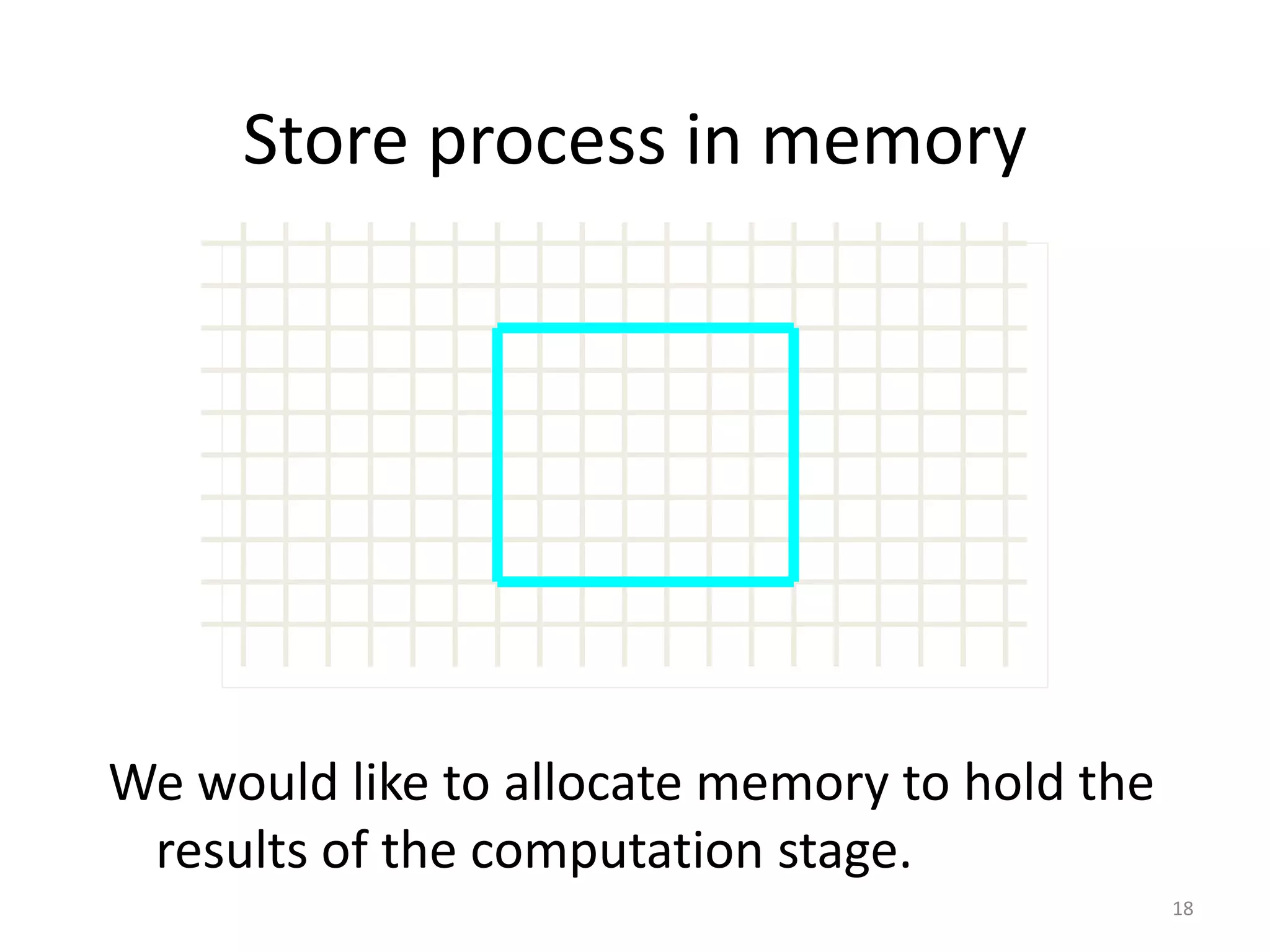

- 18. Store process inmemory We would like to allocate memory to hold the results of the computation stage. 18
- 19. Frame buffer Frame buffer– The picture definition is stored in a memory is called refresh or frame buffer. Pixel - one element of the framebuffer 19

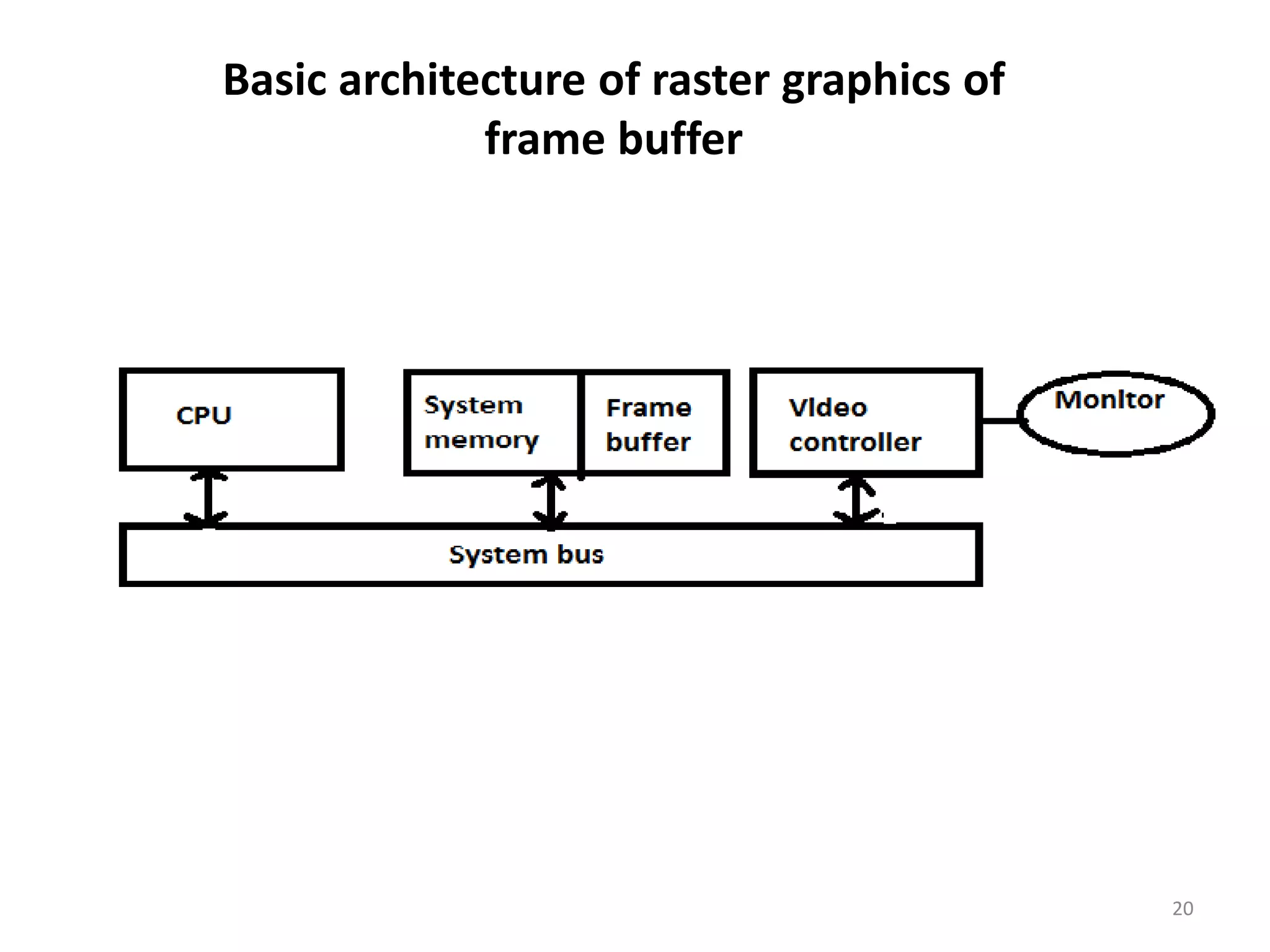

- 20. Basic architecture ofraster graphics of frame buffer 20

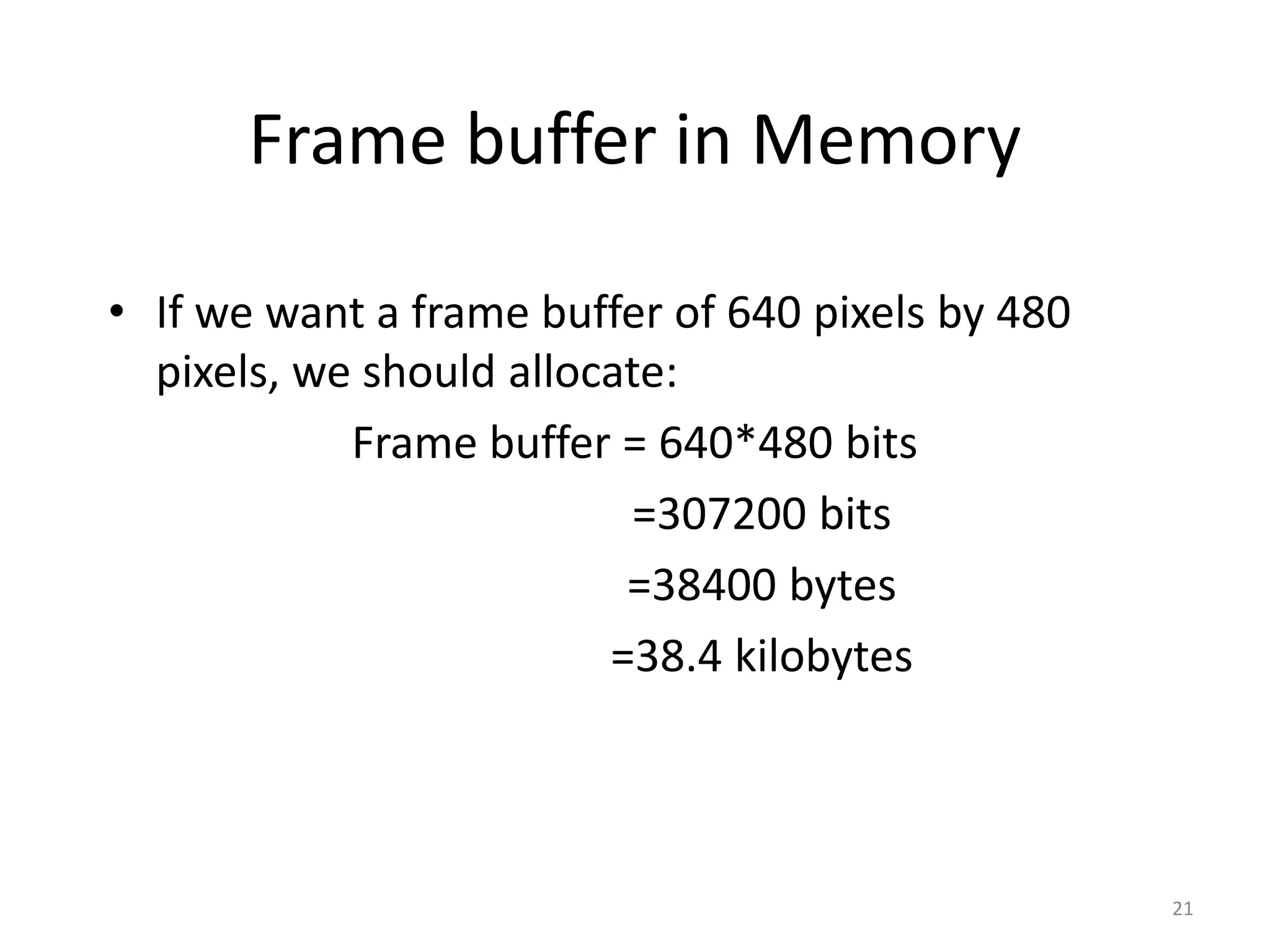

- 21. Frame buffer inMemory • If we want a frame buffer of 640 pixels by 480 pixels, we should allocate: Frame buffer = 640*480 bits =307200 bits =38400 bytes =38.4 kilobytes 21

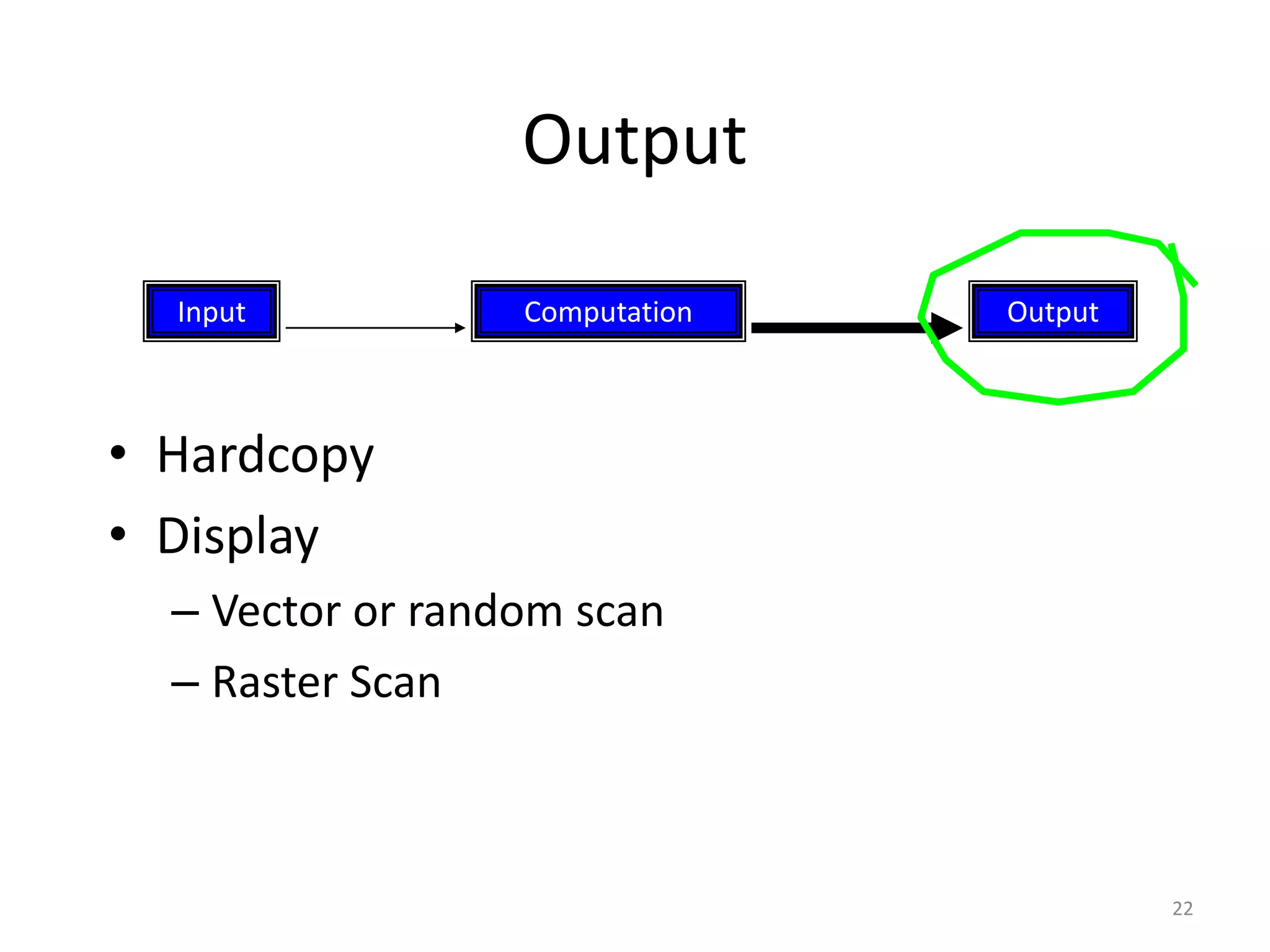

- 22. Output • Hardcopy • Display –Vector or random scan – Raster Scan Input OutputComputation 22

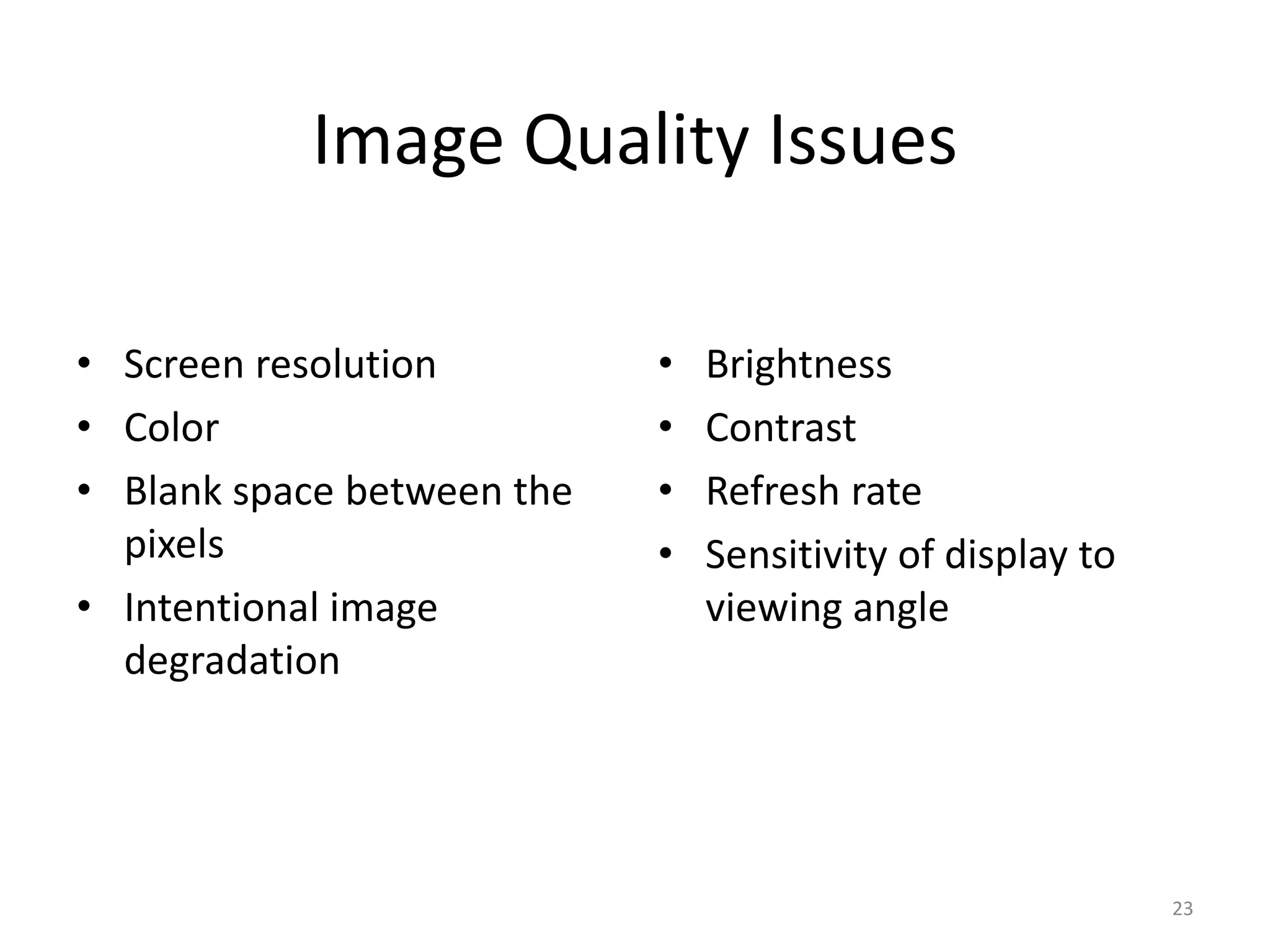

- 23. Image Quality Issues •Screen resolution • Color • Blank space between the pixels • Intentional image degradation • Brightness • Contrast • Refresh rate • Sensitivity of display to viewing angle 23

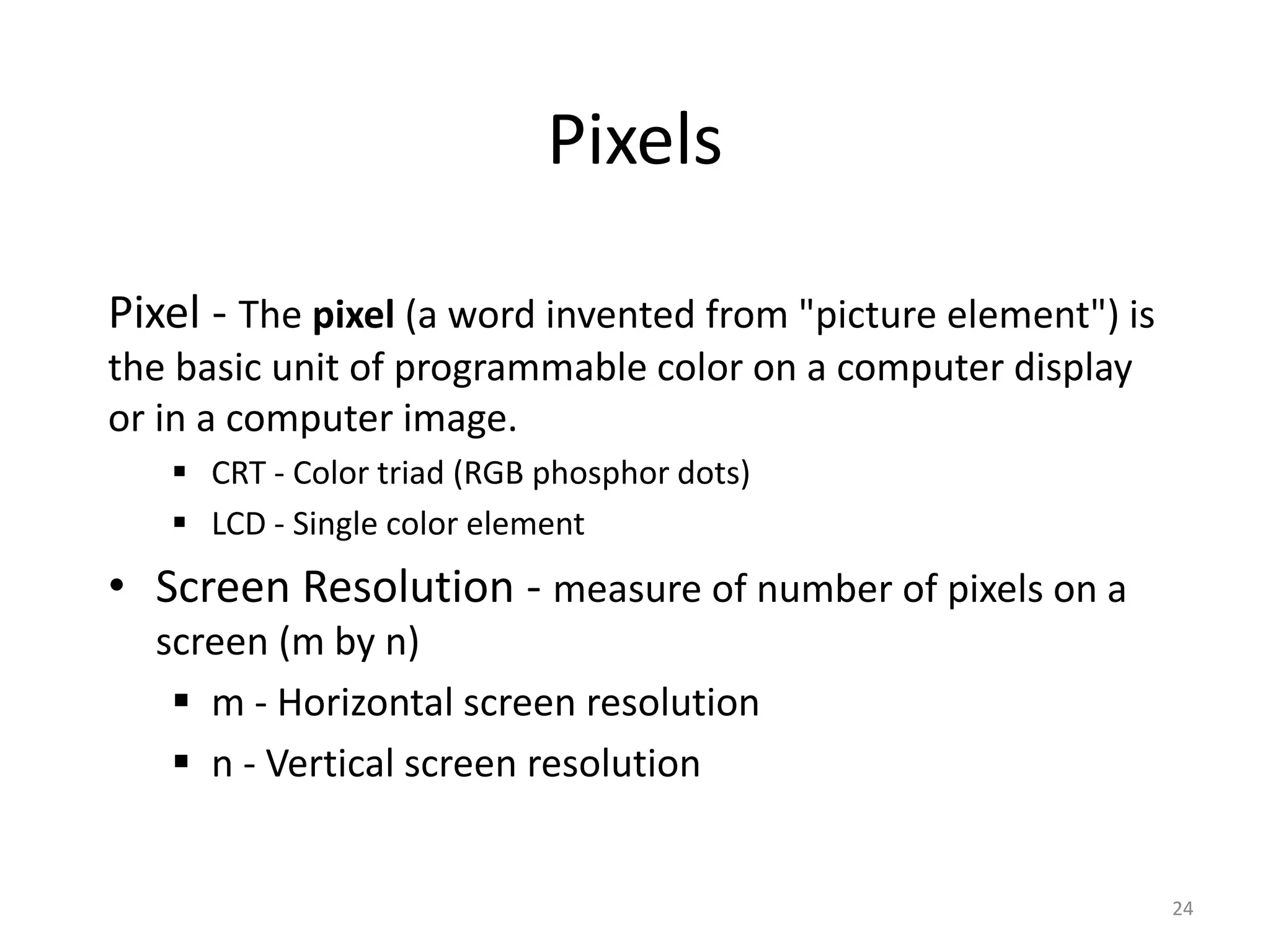

- 24. Pixels Pixel - Thepixel (a word invented from "picture element") is the basic unit of programmable color on a computer display or in a computer image. CRT - Color triad (RGB phosphor dots) LCD - Single color element • Screen Resolution - measure of number of pixels on a screen (m by n) m - Horizontal screen resolution n - Vertical screen resolution 24

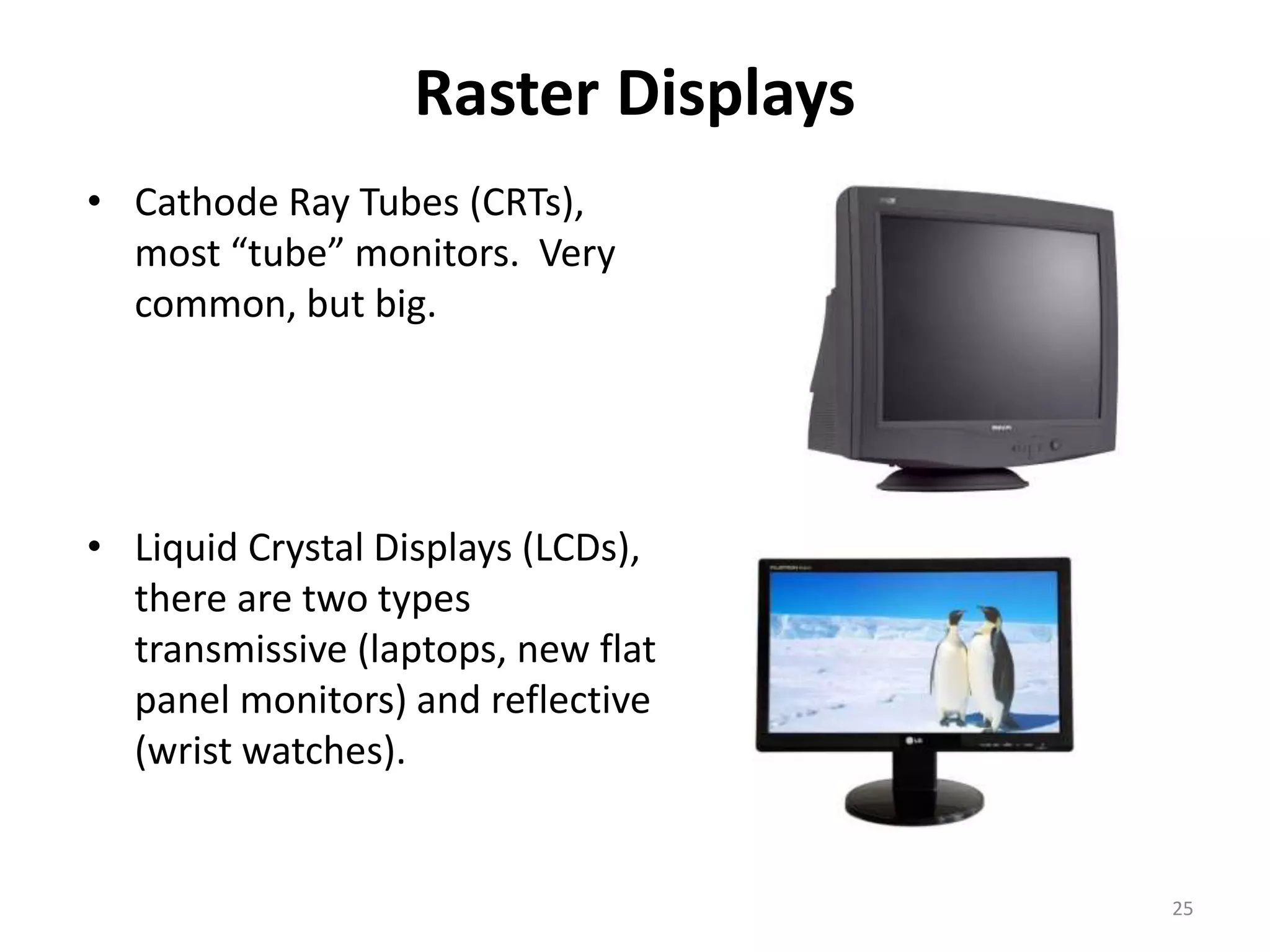

- 25. Raster Displays • CathodeRay Tubes (CRTs), most “tube” monitors. Very common, but big. • Liquid Crystal Displays (LCDs), there are two types transmissive (laptops, new flat panel monitors) and reflective (wrist watches). 25

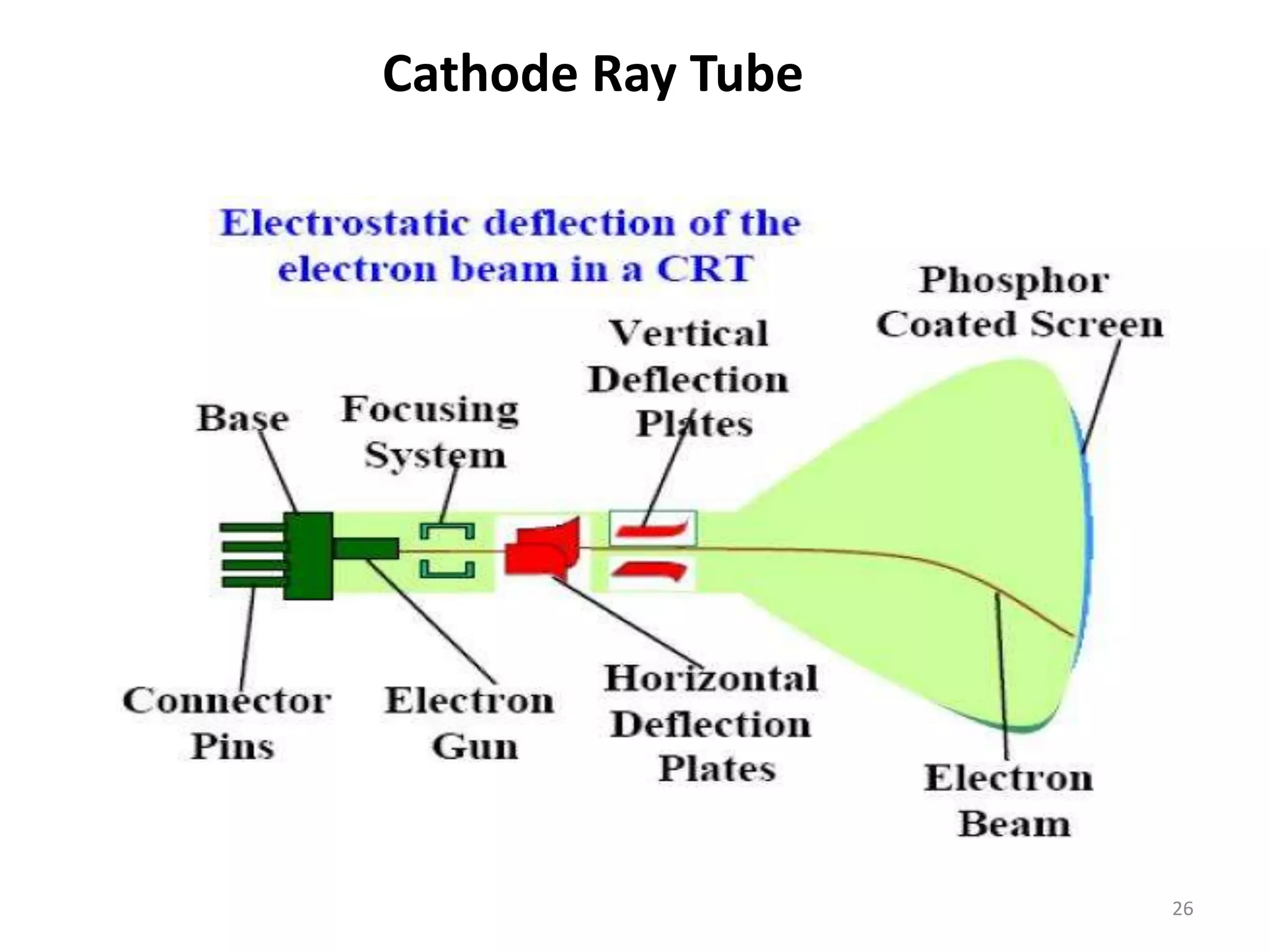

- 26.

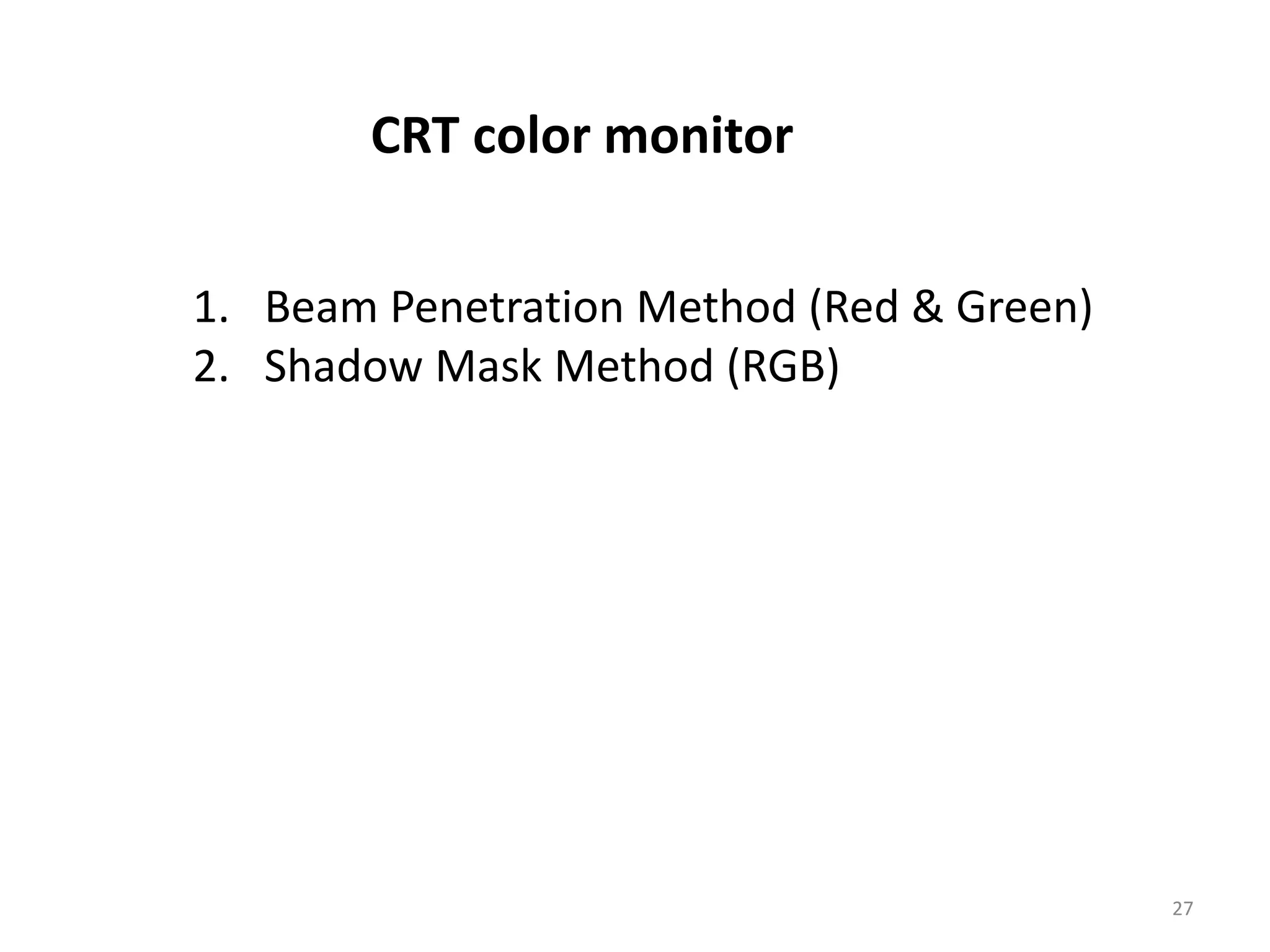

- 27. CRT color monitor 1.Beam Penetration Method (Red & Green) 2. Shadow Mask Method (RGB) 27

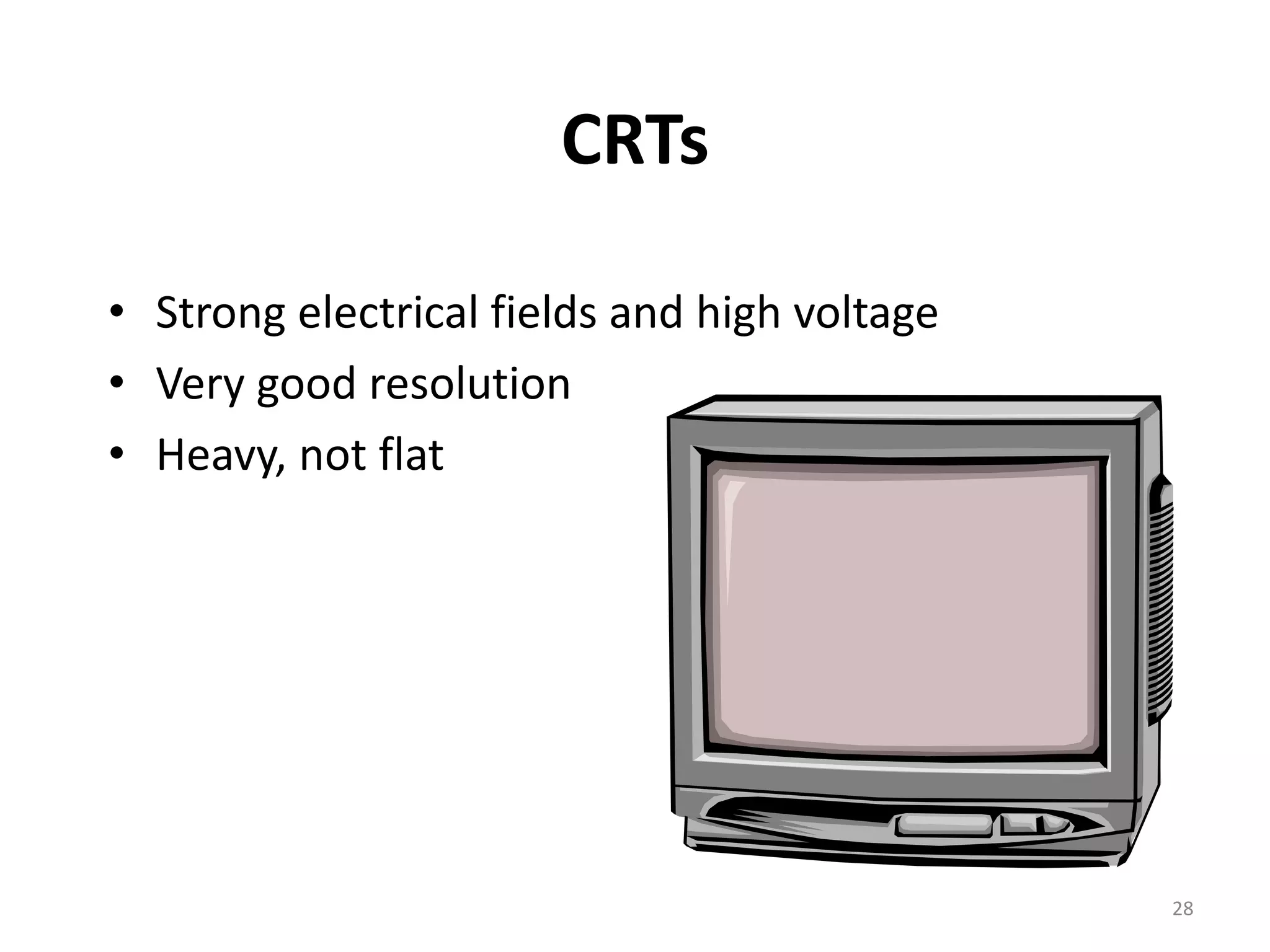

- 28. CRTs • Strong electricalfields and high voltage • Very good resolution • Heavy, not flat 28

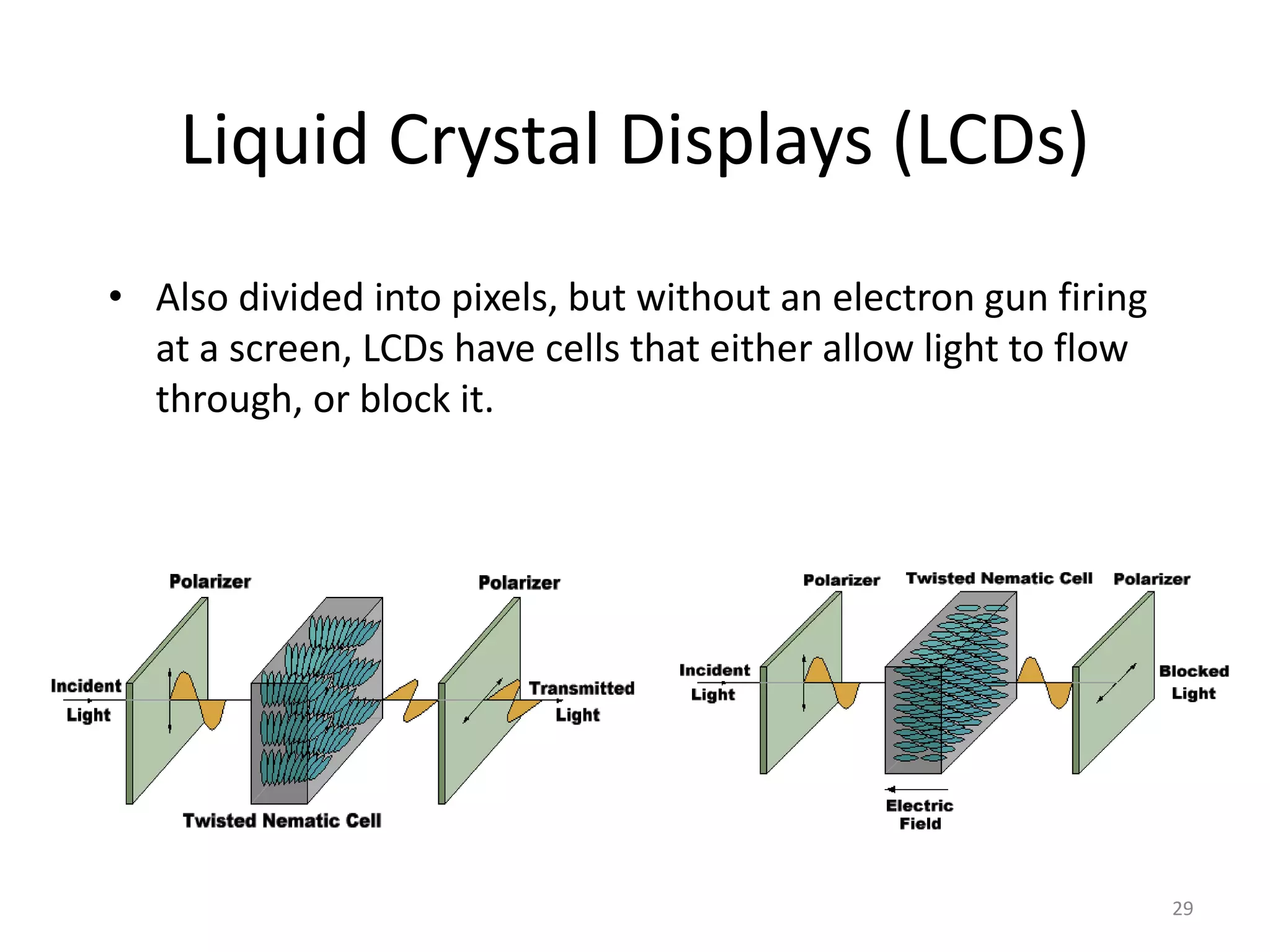

- 29. Liquid Crystal Displays(LCDs) • Also divided into pixels, but without an electron gun firing at a screen, LCDs have cells that either allow light to flow through, or block it. 29

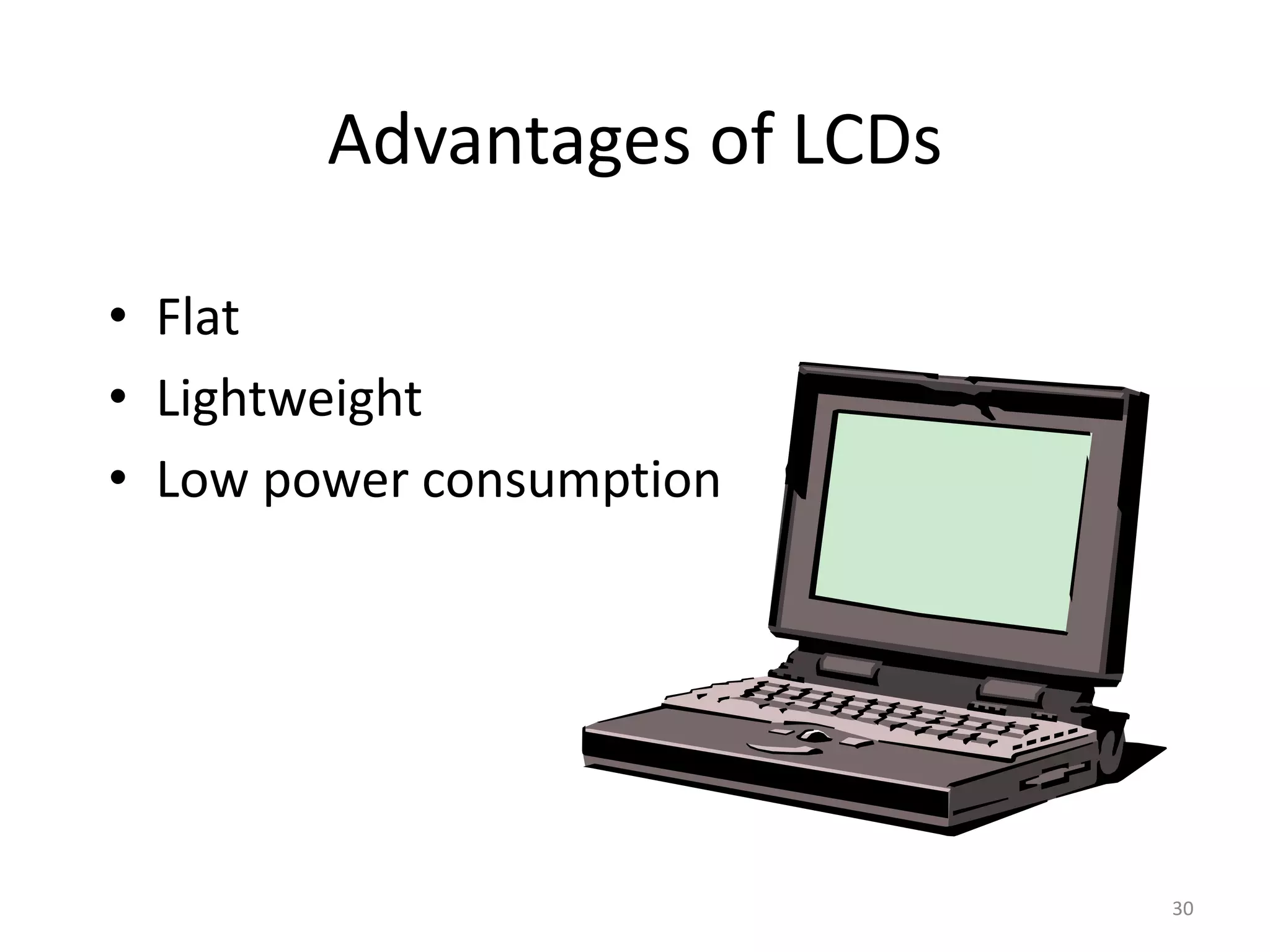

- 30. Advantages of LCDs •Flat • Lightweight • Low power consumption 30

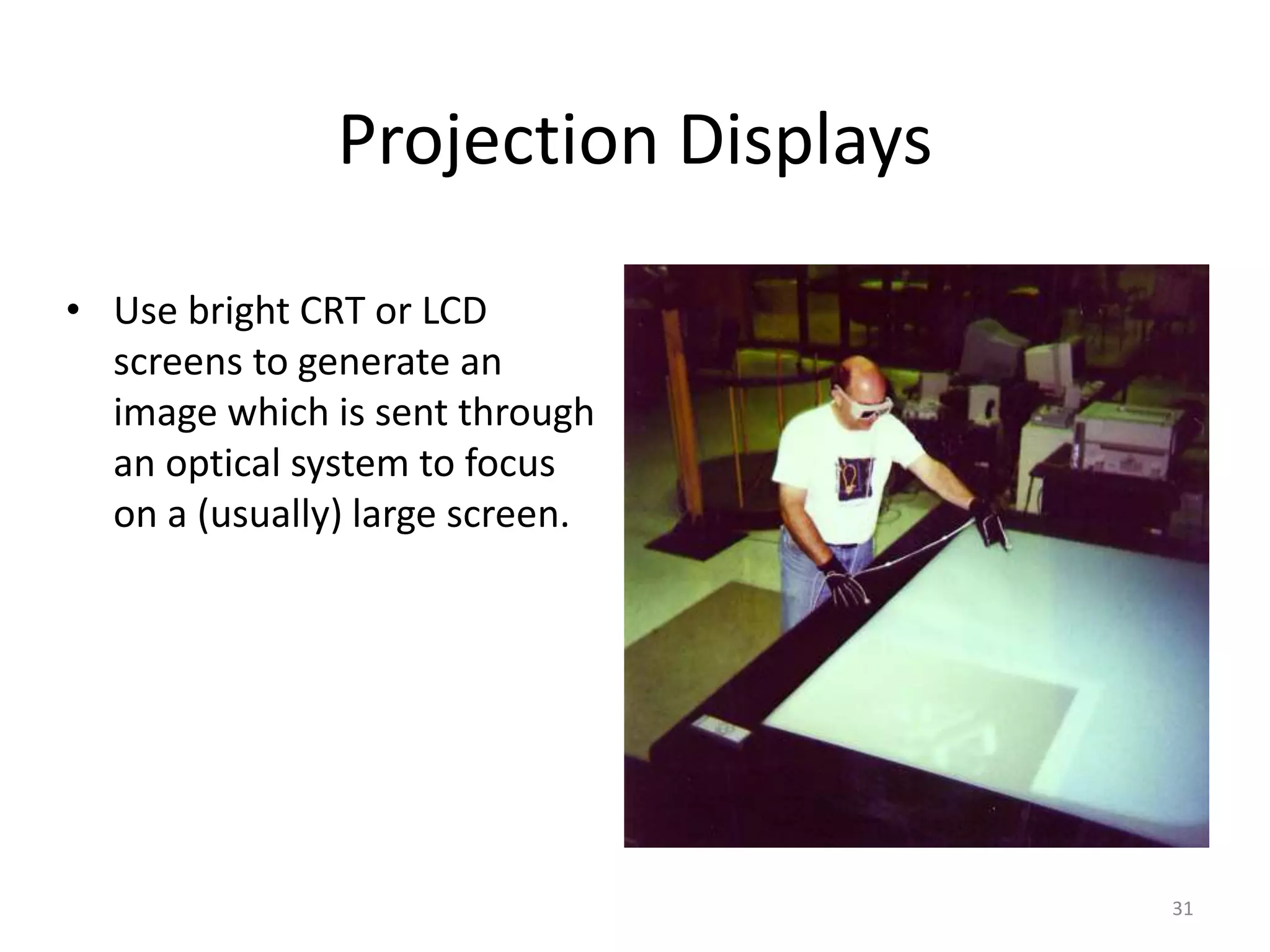

- 31. Projection Displays • Usebright CRT or LCD screens to generate an image which is sent through an optical system to focus on a (usually) large screen. 31

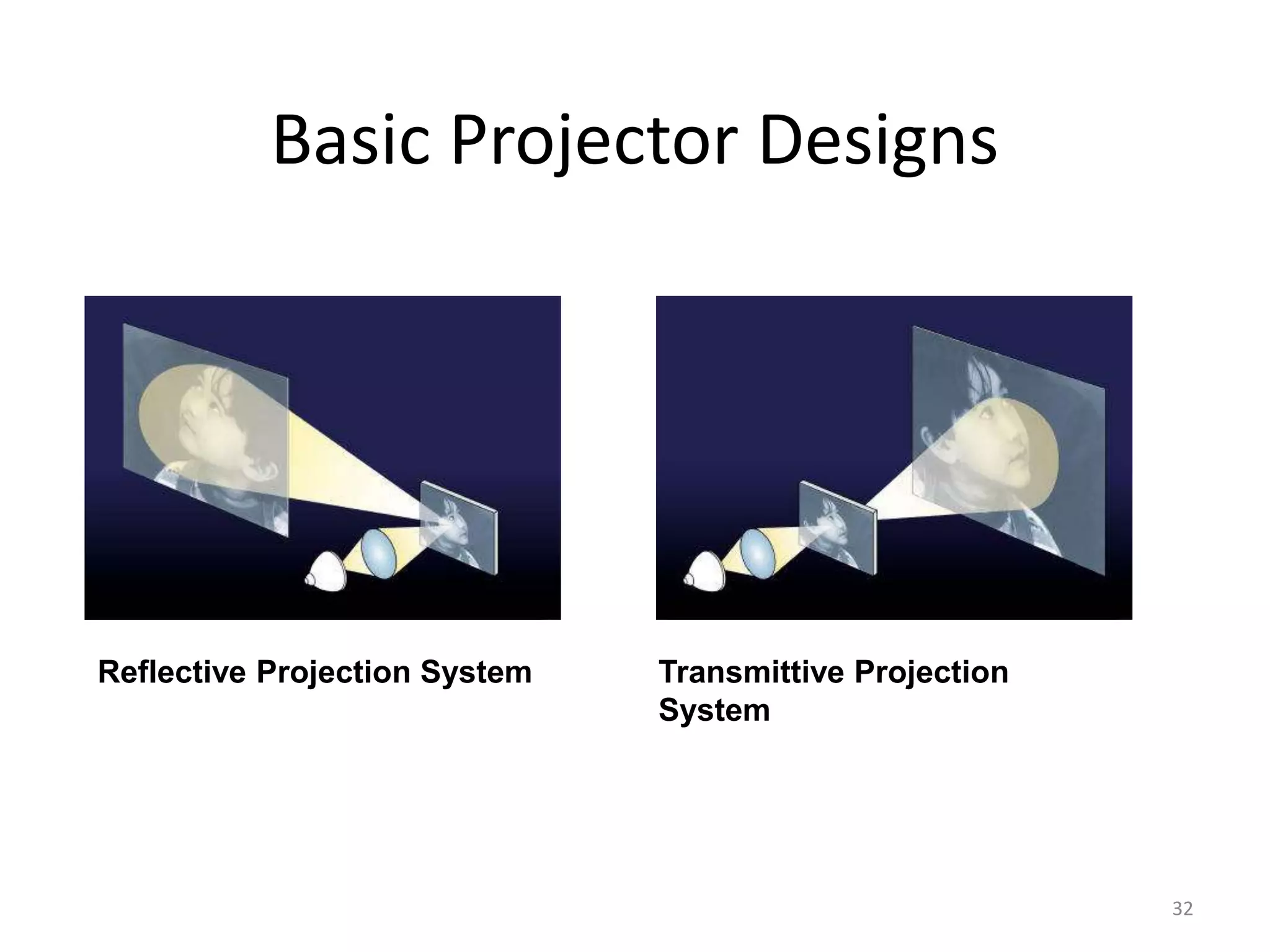

- 32. Basic Projector Designs ReflectiveProjection System Transmittive Projection System 32

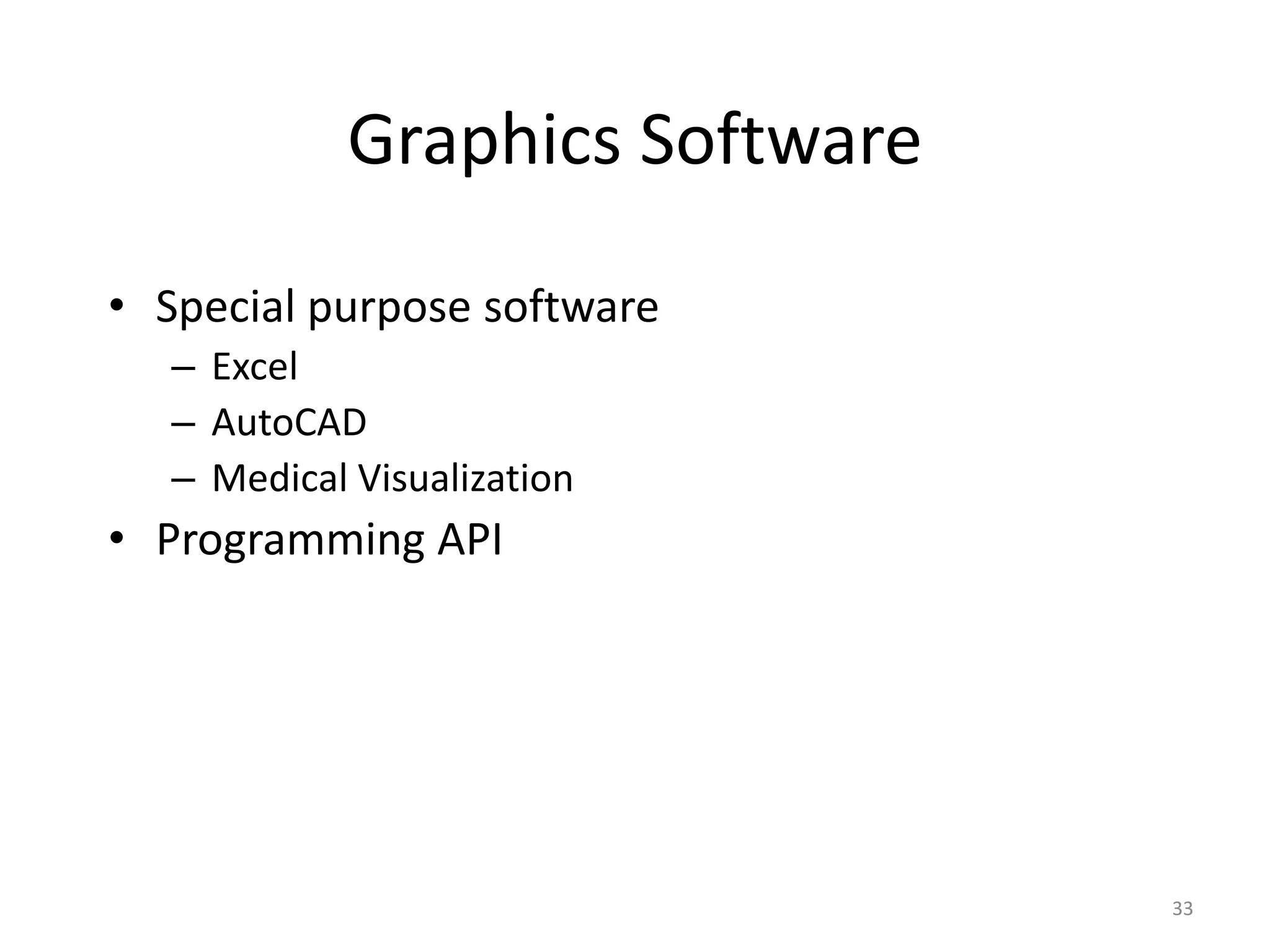

- 33. Graphics Software • Specialpurpose software – Excel – AutoCAD – Medical Visualization • Programming API 33

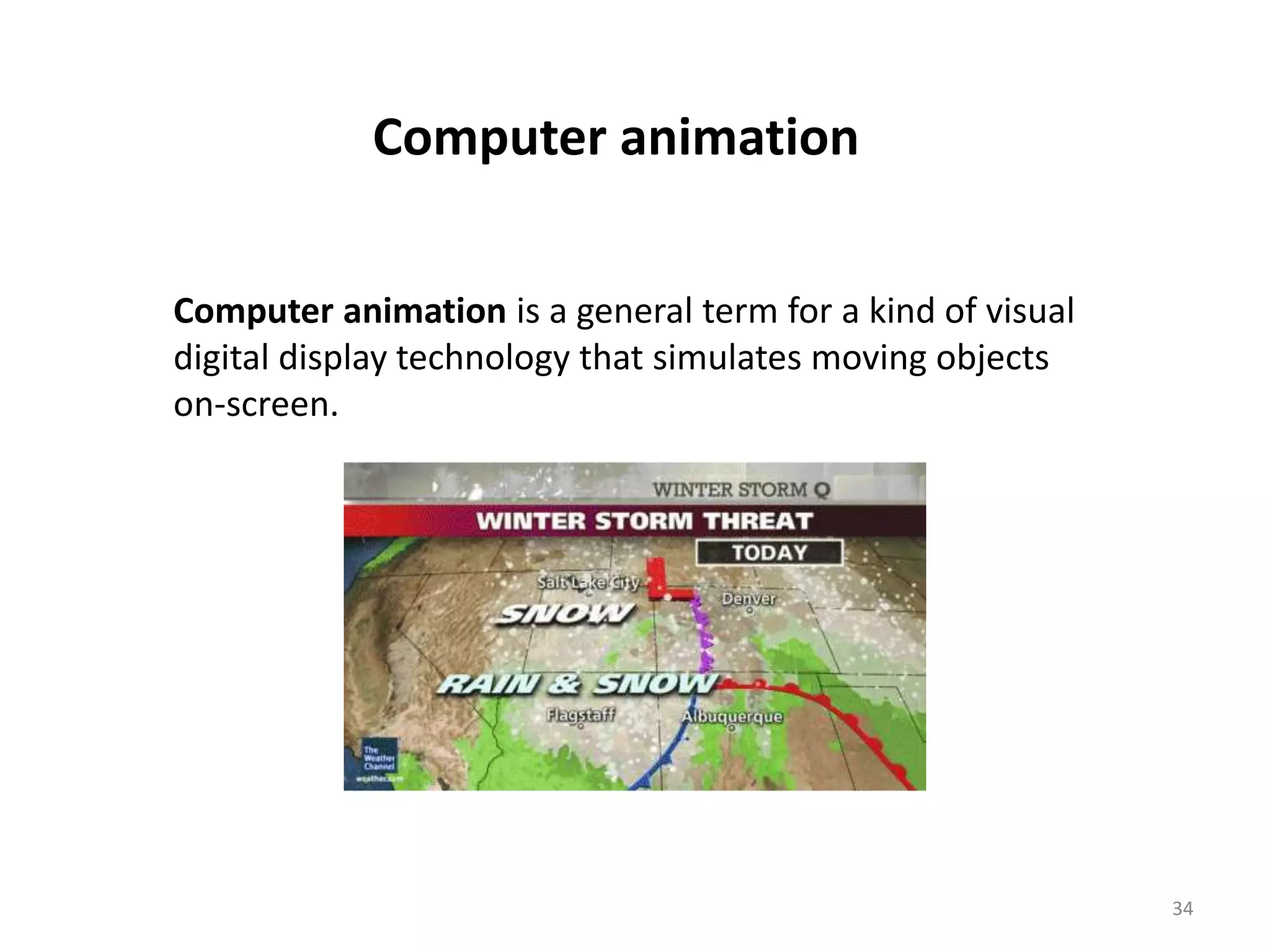

- 34. Computer animation isa general term for a kind of visual digital display technology that simulates moving objects on-screen. Computer animation 34

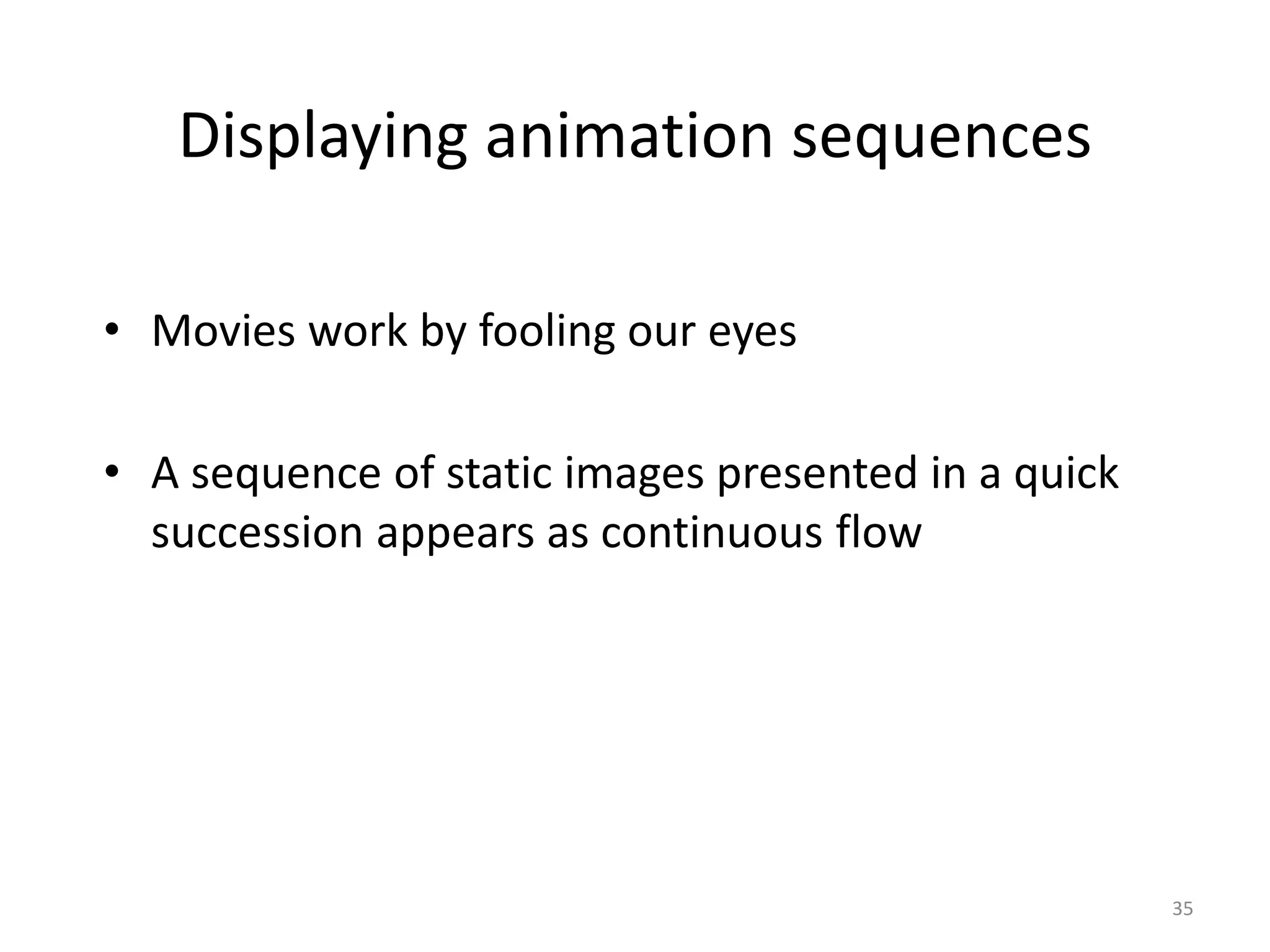

- 35. Displaying animation sequences •Movies work by fooling our eyes • A sequence of static images presented in a quick succession appears as continuous flow 35

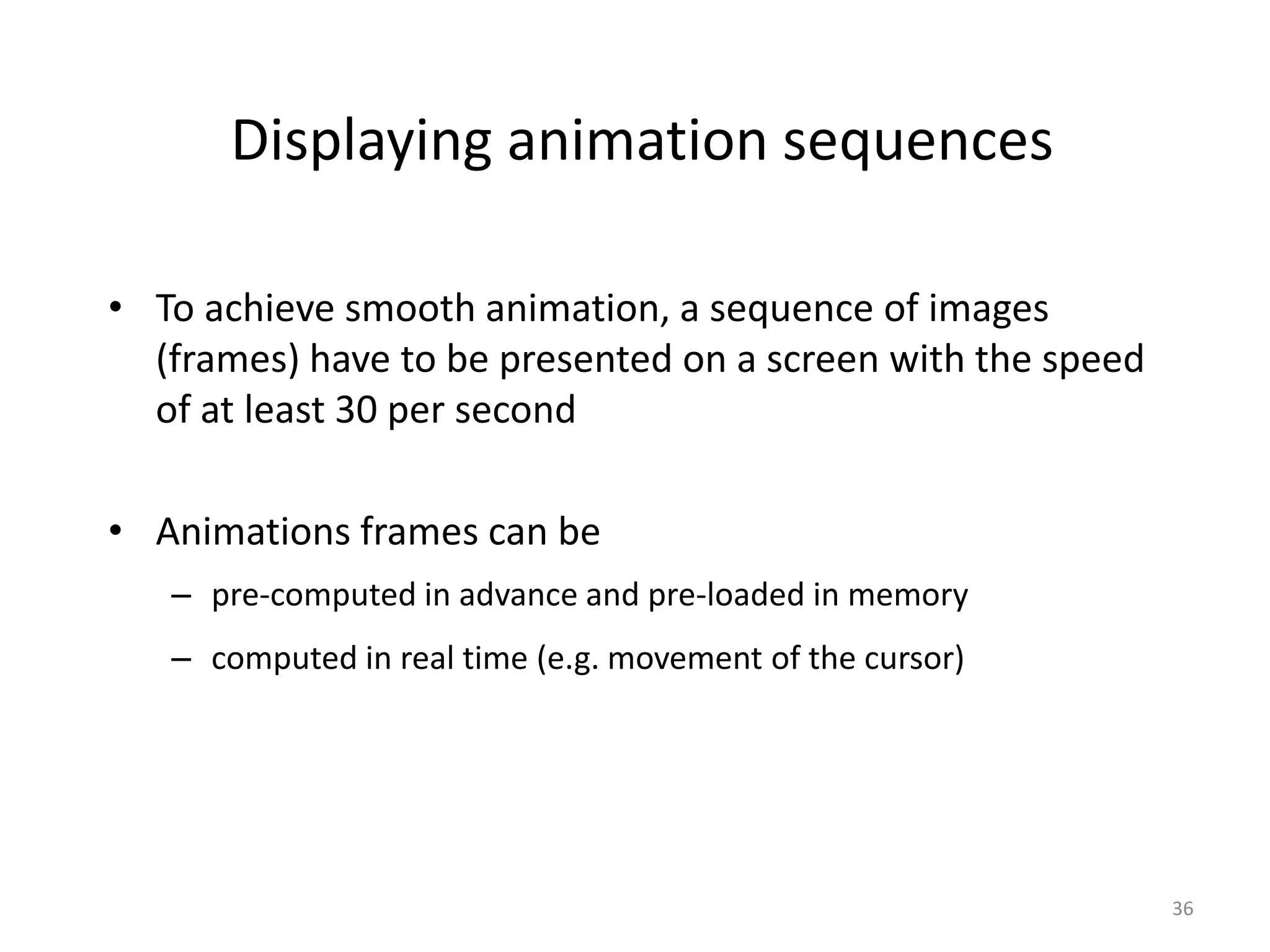

- 36. Displaying animation sequences •To achieve smooth animation, a sequence of images (frames) have to be presented on a screen with the speed of at least 30 per second • Animations frames can be – pre-computed in advance and pre-loaded in memory – computed in real time (e.g. movement of the cursor) 36
