Optimizing Drupal Performance Benchmark Results February 2010

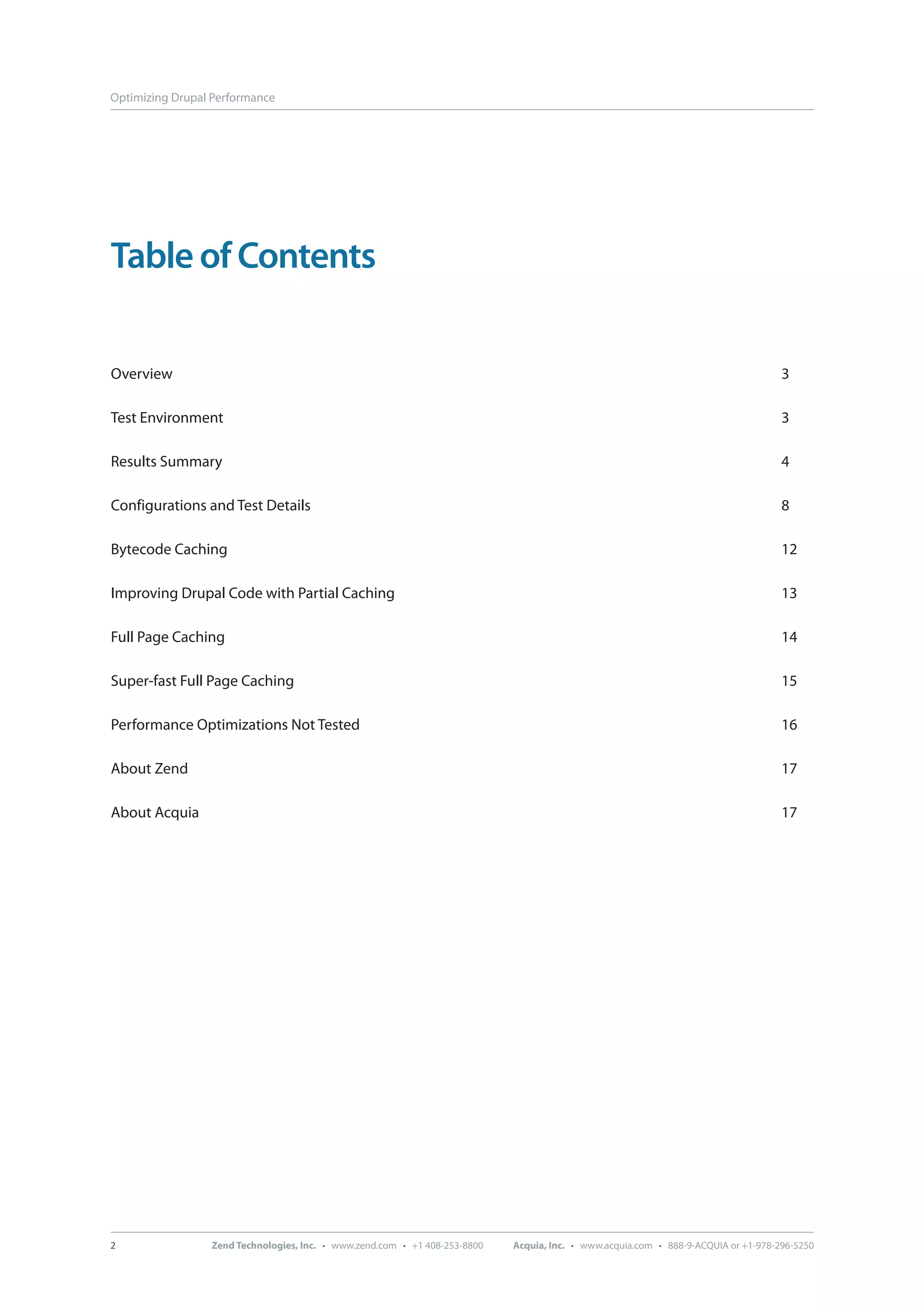

Optimizing Drupal Performance Table of Contents Overview 3 Test Environment 3 Results Summary 4 Configurations and Test Details 8 Bytecode Caching 12 Improving Drupal Code with Partial Caching 13 Full Page Caching 14 Super-fast Full Page Caching 15 Performance Optimizations Not Tested 16 About Zend 17 About Acquia 17 2 Zend Technologies, Inc. · www.zend.com · +1 408-253-8800 Acquia, Inc. · www.acquia.com · 888-9-ACQUIA or +1-978-296-5250

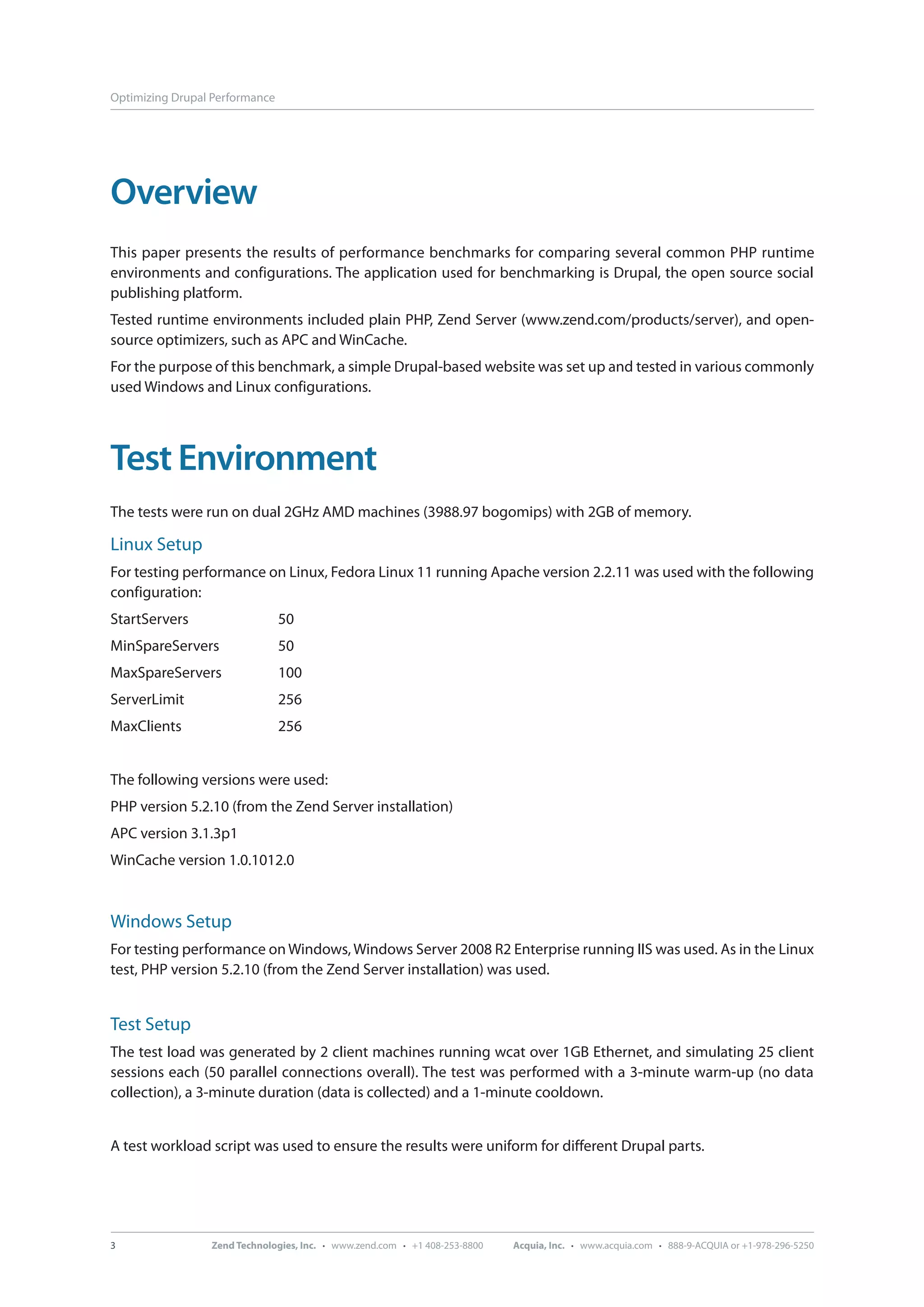

Optimizing Drupal Performance Overview This paper presents the results of performance benchmarks for comparing several common PHP runtime environments and configurations. The application used for benchmarking is Drupal, the open source social publishing platform. Tested runtime environments included plain PHP, Zend Server (www.zend.com/products/server), and open- source optimizers, such as APC and WinCache. For the purpose of this benchmark, a simple Drupal-based website was set up and tested in various commonly used Windows and Linux configurations. Test Environment The tests were run on dual 2GHz AMD machines (3988.97 bogomips) with 2GB of memory. Linux Setup For testing performance on Linux, Fedora Linux 11 running Apache version 2.2.11 was used with the following configuration: StartServers 50 MinSpareServers 50 MaxSpareServers 100 ServerLimit 256 MaxClients 256 The following versions were used: PHP version 5.2.10 (from the Zend Server installation) APC version 3.1.3p1 WinCache version 1.0.1012.0 Windows Setup For testing performance on Windows, Windows Server 2008 R2 Enterprise running IIS was used. As in the Linux test, PHP version 5.2.10 (from the Zend Server installation) was used. Test Setup The test load was generated by 2 client machines running wcat over 1GB Ethernet, and simulating 25 client sessions each (50 parallel connections overall). The test was performed with a 3-minute warm-up (no data collection), a 3-minute duration (data is collected) and a 1-minute cooldown. A test workload script was used to ensure the results were uniform for different Drupal parts. 3 Zend Technologies, Inc. · www.zend.com · +1 408-253-8800 Acquia, Inc. · www.acquia.com · 888-9-ACQUIA or +1-978-296-5250

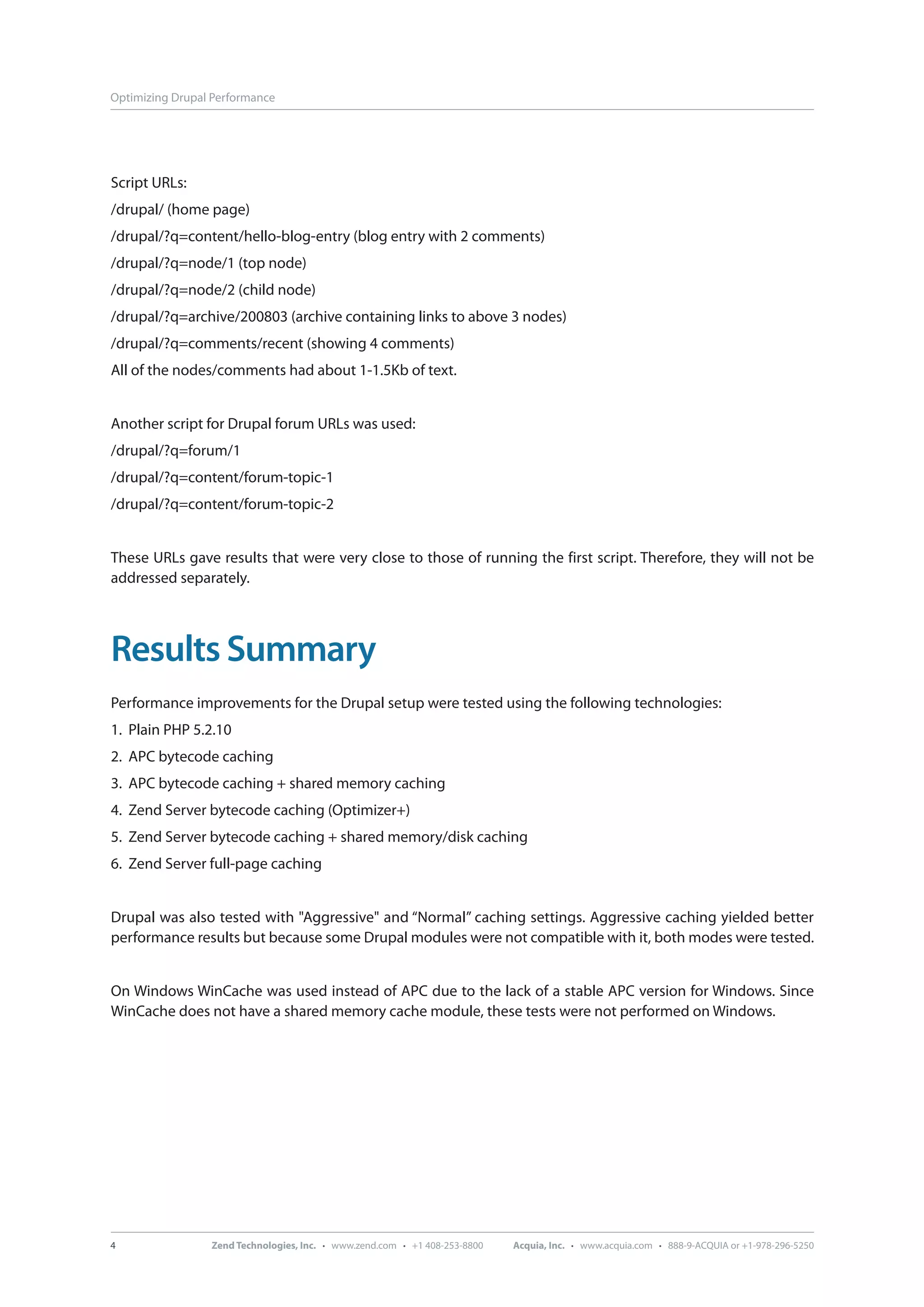

Optimizing Drupal Performance Script URLs: /drupal/ (home page) /drupal/?q=content/hello-blog-entry (blog entry with 2 comments) /drupal/?q=node/1 (top node) /drupal/?q=node/2 (child node) /drupal/?q=archive/200803 (archive containing links to above 3 nodes) /drupal/?q=comments/recent (showing 4 comments) All of the nodes/comments had about 1-1.5Kb of text. Another script for Drupal forum URLs was used: /drupal/?q=forum/1 /drupal/?q=content/forum-topic-1 /drupal/?q=content/forum-topic-2 These URLs gave results that were very close to those of running the first script. Therefore, they will not be addressed separately. Results Summary Performance improvements for the Drupal setup were tested using the following technologies: 1. Plain PHP 5.2.10 2. APC bytecode caching 3. APC bytecode caching + shared memory caching 4. Zend Server bytecode caching (Optimizer+) 5. Zend Server bytecode caching + shared memory/disk caching 6. Zend Server full-page caching Drupal was also tested with "Aggressive" and “Normal” caching settings. Aggressive caching yielded better performance results but because some Drupal modules were not compatible with it, both modes were tested. On Windows WinCache was used instead of APC due to the lack of a stable APC version for Windows. Since WinCache does not have a shared memory cache module, these tests were not performed on Windows. 4 Zend Technologies, Inc. · www.zend.com · +1 408-253-8800 Acquia, Inc. · www.acquia.com · 888-9-ACQUIA or +1-978-296-5250

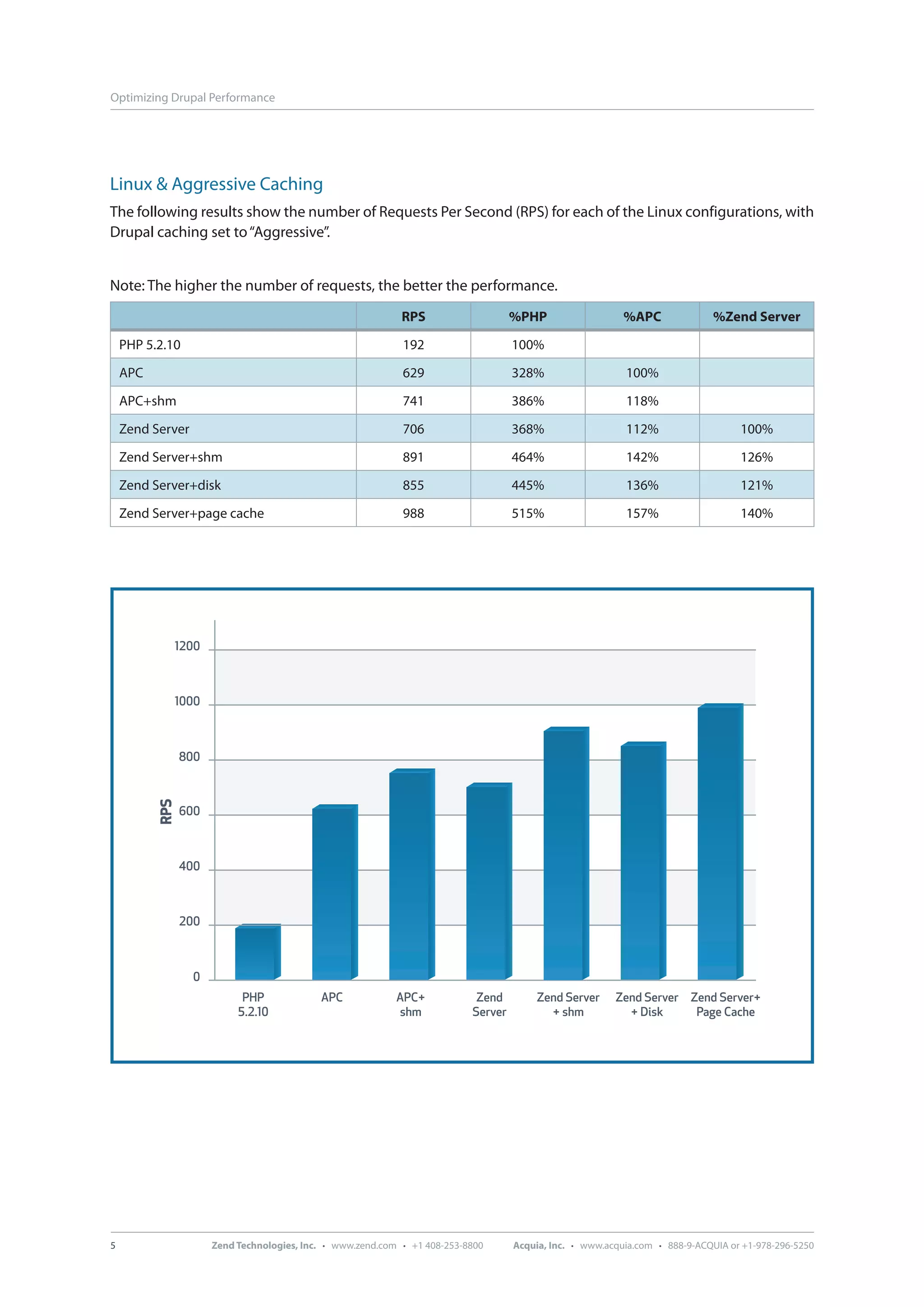

Optimizing Drupal Performance Linux & Aggressive Caching The following results show the number of Requests Per Second (RPS) for each of the Linux configurations, with Drupal caching set to “Aggressive”. Note: The higher the number of requests, the better the performance. RPS %PHP %APC %Zend Server PHP 5.2.10 192 100% APC 629 328% 100% APC+shm 741 386% 118% Zend Server 706 368% 112% 100% Zend Server+shm 891 464% 142% 126% Zend Server+disk 855 445% 136% 121% Zend Server+page cache 988 515% 157% 140% RPS PHP APC APC+ Zend Zend Server Zend Server Zend Server+ . . shm Server + shm + Disk Page Cache 5 Zend Technologies, Inc. · www.zend.com · +1 408-253-8800 Acquia, Inc. · www.acquia.com · 888-9-ACQUIA or +1-978-296-5250

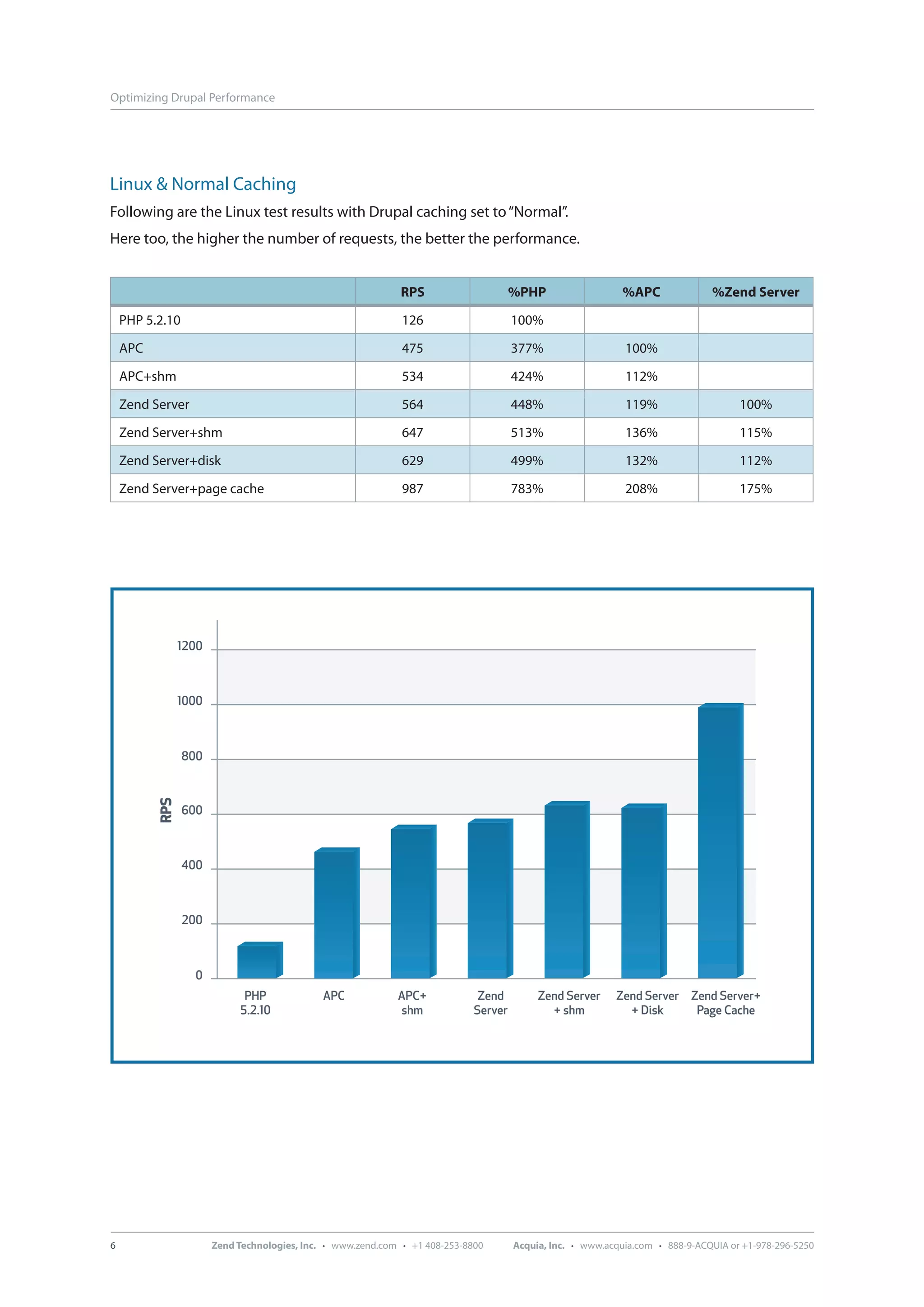

Optimizing Drupal Performance Linux & Normal Caching Following are the Linux test results with Drupal caching set to “Normal”. Here too, the higher the number of requests, the better the performance. RPS %PHP %APC %Zend Server PHP 5.2.10 126 100% APC 475 377% 100% APC+shm 534 424% 112% Zend Server 564 448% 119% 100% Zend Server+shm 647 513% 136% 115% Zend Server+disk 629 499% 132% 112% Zend Server+page cache 987 783% 208% 175% RPS PHP APC APC+ Zend Zend Server Zend Server Zend Server+ . . shm Server + shm + Disk Page Cache 6 Zend Technologies, Inc. · www.zend.com · +1 408-253-8800 Acquia, Inc. · www.acquia.com · 888-9-ACQUIA or +1-978-296-5250

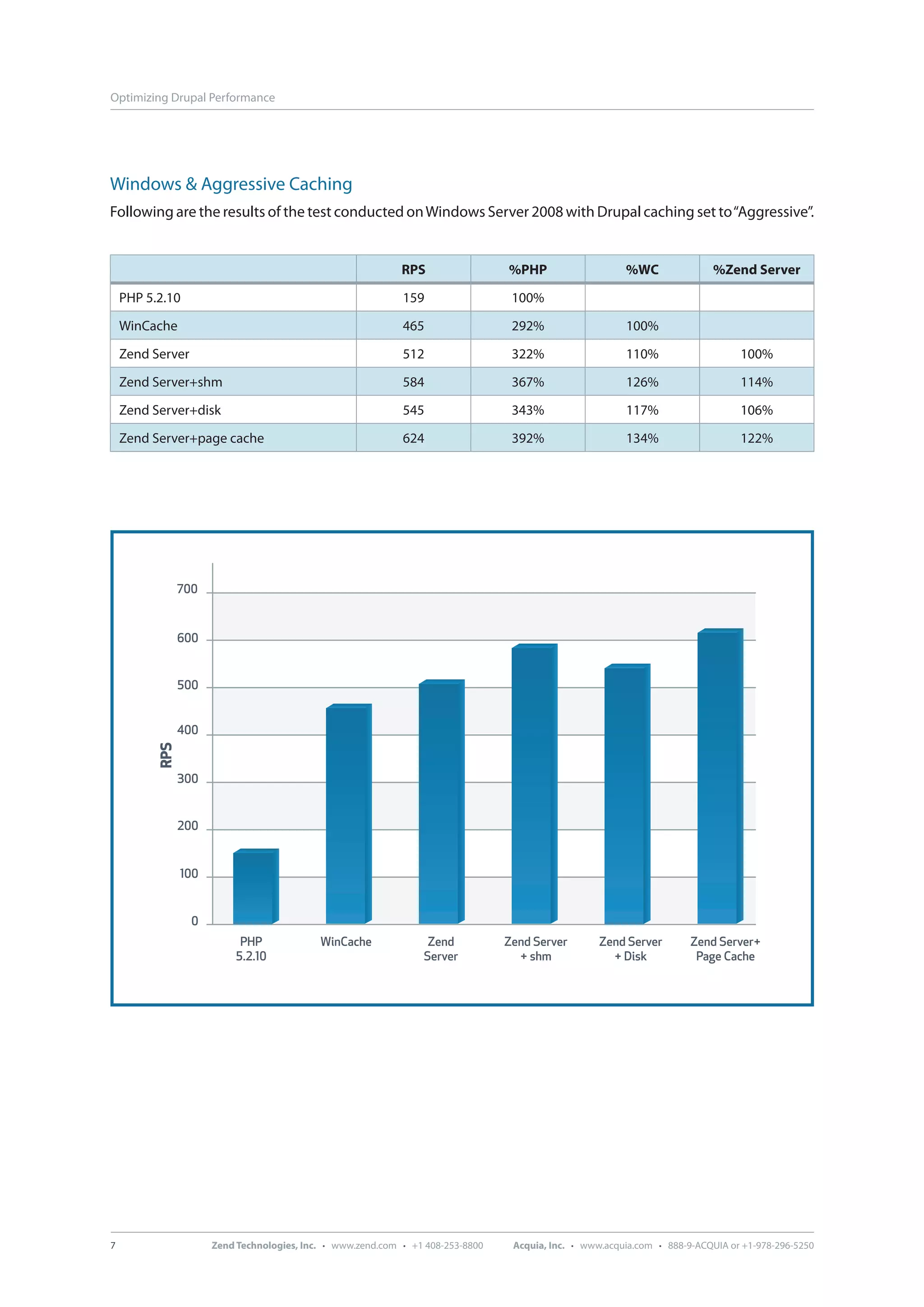

Optimizing Drupal Performance Windows & Aggressive Caching Following are the results of the test conducted on Windows Server 2008 with Drupal caching set to “Aggressive”. RPS %PHP %WC %Zend Server PHP 5.2.10 159 100% WinCache 465 292% 100% Zend Server 512 322% 110% 100% Zend Server+shm 584 367% 126% 114% Zend Server+disk 545 343% 117% 106% Zend Server+page cache 624 392% 134% 122% RPS PHP WinCache Zend Zend Server Zend Server Zend Server+ . . Server + shm + Disk Page Cache 7 Zend Technologies, Inc. · www.zend.com · +1 408-253-8800 Acquia, Inc. · www.acquia.com · 888-9-ACQUIA or +1-978-296-5250

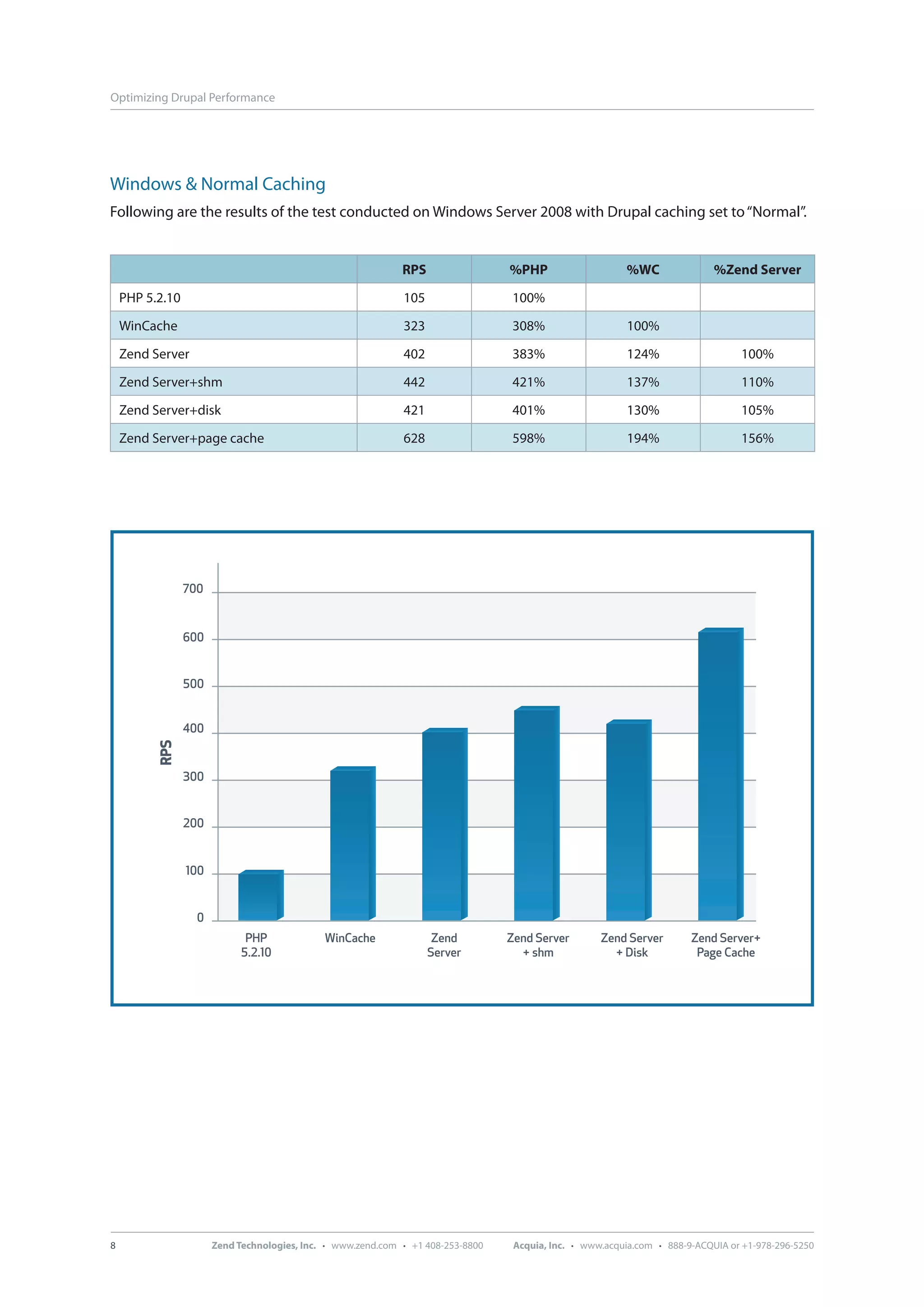

Optimizing Drupal Performance Windows & Normal Caching Following are the results of the test conducted on Windows Server 2008 with Drupal caching set to “Normal”. RPS %PHP %WC %Zend Server PHP 5.2.10 105 100% WinCache 323 308% 100% Zend Server 402 383% 124% 100% Zend Server+shm 442 421% 137% 110% Zend Server+disk 421 401% 130% 105% Zend Server+page cache 628 598% 194% 156% RPS PHP WinCache Zend Zend Server Zend Server Zend Server+ . . Server + shm + Disk Page Cache 8 Zend Technologies, Inc. · www.zend.com · +1 408-253-8800 Acquia, Inc. · www.acquia.com · 888-9-ACQUIA or +1-978-296-5250

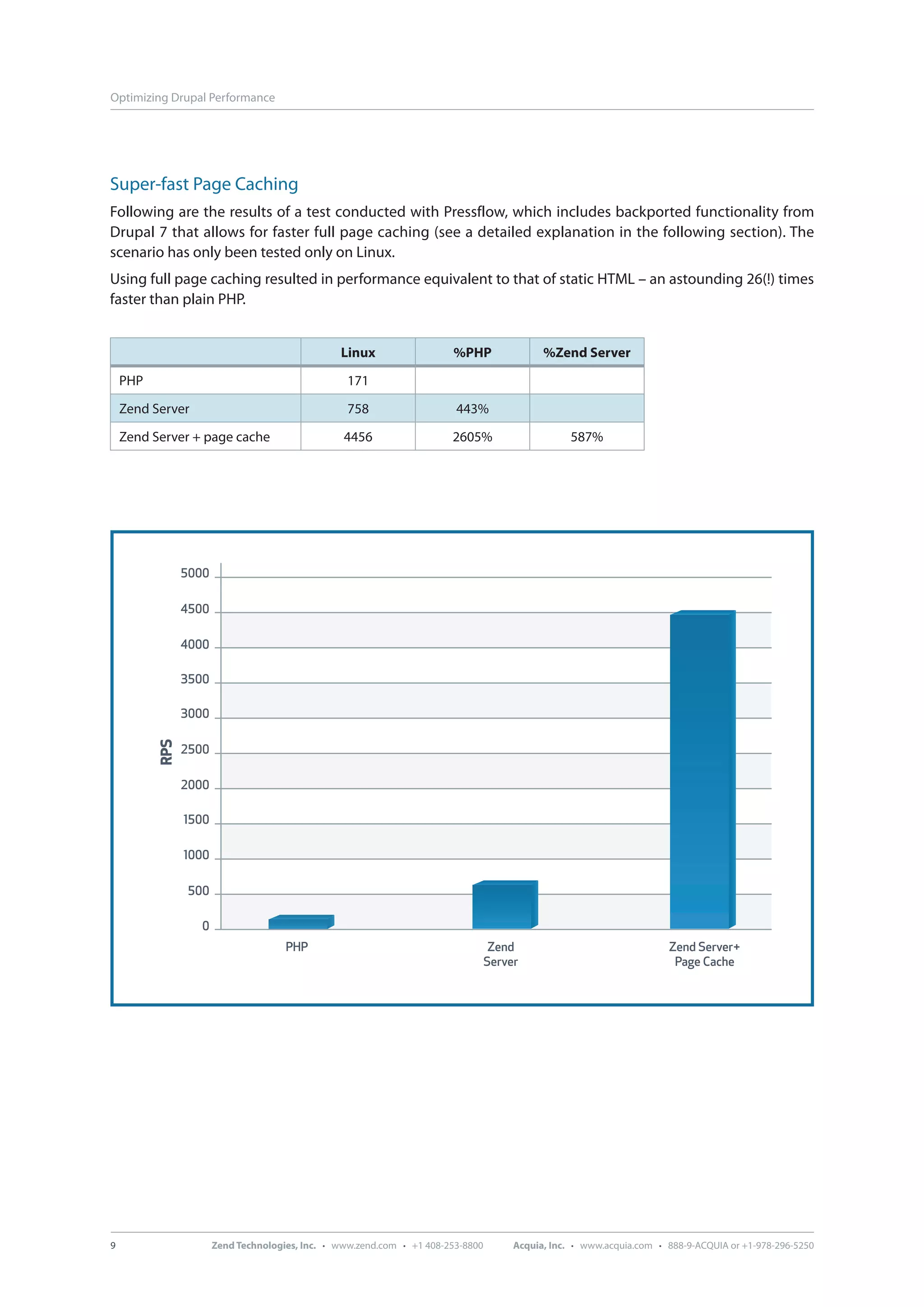

Optimizing Drupal Performance Super-fast Page Caching Following are the results of a test conducted with Pressflow, which includes backported functionality from Drupal 7 that allows for faster full page caching (see a detailed explanation in the following section). The scenario has only been tested only on Linux. Using full page caching resulted in performance equivalent to that of static HTML – an astounding 26(!) times faster than plain PHP. Linux %PHP %Zend Server PHP 171 Zend Server 758 443% Zend Server + page cache 4456 2605% 587% RPS PHP Zend Zend Server+ Server Page Cache 9 Zend Technologies, Inc. · www.zend.com · +1 408-253-8800 Acquia, Inc. · www.acquia.com · 888-9-ACQUIA or +1-978-296-5250

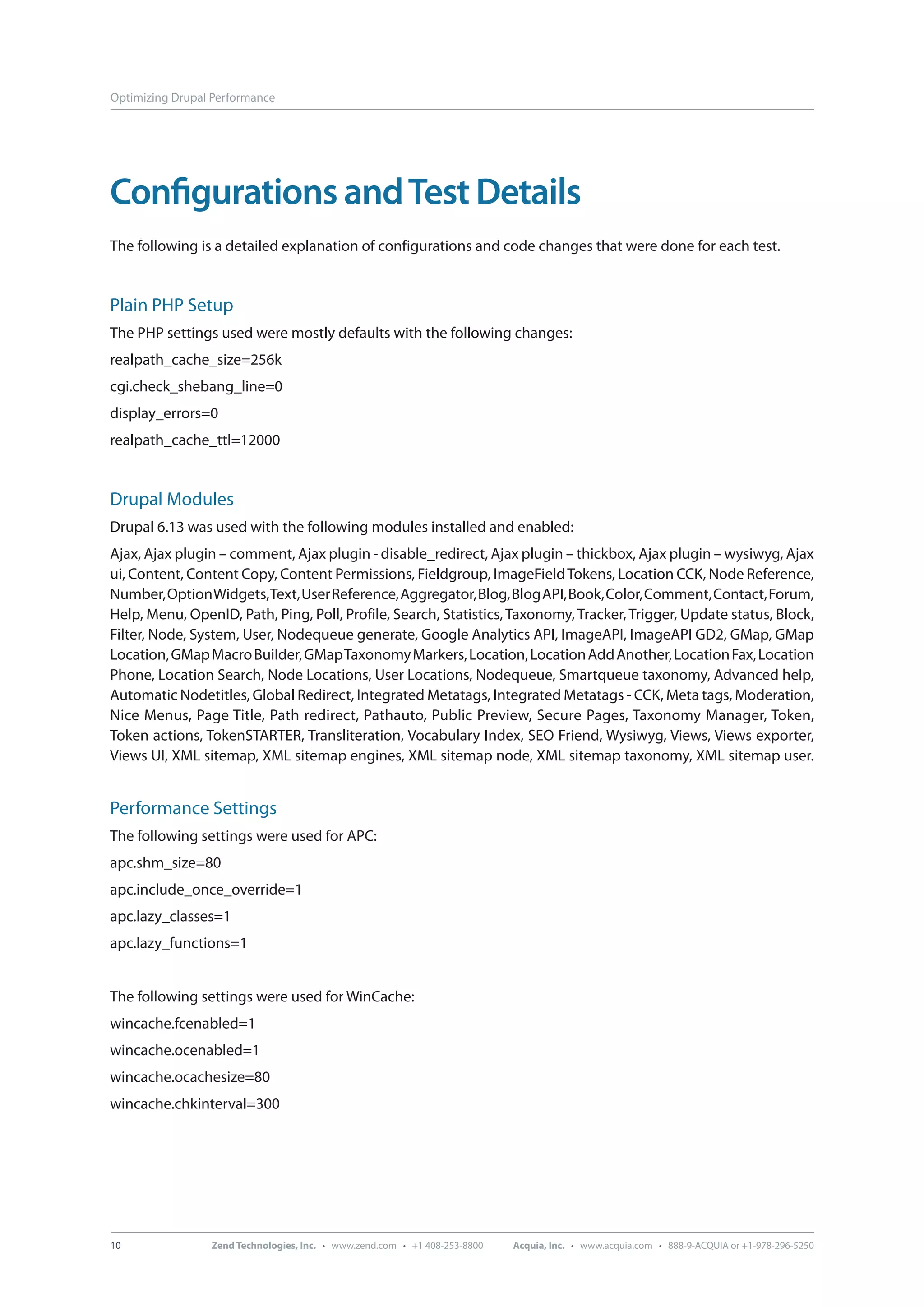

Optimizing Drupal Performance Configurations and Test Details The following is a detailed explanation of configurations and code changes that were done for each test. Plain PHP Setup The PHP settings used were mostly defaults with the following changes: realpath_cache_size=256k cgi.check_shebang_line=0 display_errors=0 realpath_cache_ttl=12000 Drupal Modules Drupal 6.13 was used with the following modules installed and enabled: Ajax, Ajax plugin – comment, Ajax plugin - disable_redirect, Ajax plugin – thickbox, Ajax plugin – wysiwyg, Ajax ui, Content, Content Copy, Content Permissions, Fieldgroup, ImageField Tokens, Location CCK, Node Reference, Number, Option Widgets, Text, User Reference, Aggregator, Blog, Blog API, Book, Color, Comment, Contact, Forum, Help, Menu, OpenID, Path, Ping, Poll, Profile, Search, Statistics, Taxonomy, Tracker, Trigger, Update status, Block, Filter, Node, System, User, Nodequeue generate, Google Analytics API, ImageAPI, ImageAPI GD2, GMap, GMap Location, GMap Macro Builder, GMap Taxonomy Markers, Location, Location Add Another, Location Fax, Location Phone, Location Search, Node Locations, User Locations, Nodequeue, Smartqueue taxonomy, Advanced help, Automatic Nodetitles, Global Redirect, Integrated Metatags, Integrated Metatags - CCK, Meta tags, Moderation, Nice Menus, Page Title, Path redirect, Pathauto, Public Preview, Secure Pages, Taxonomy Manager, Token, Token actions, TokenSTARTER, Transliteration, Vocabulary Index, SEO Friend, Wysiwyg, Views, Views exporter, Views UI, XML sitemap, XML sitemap engines, XML sitemap node, XML sitemap taxonomy, XML sitemap user. Performance Settings The following settings were used for APC: apc.shm_size=80 apc.include_once_override=1 apc.lazy_classes=1 apc.lazy_functions=1 The following settings were used for WinCache: wincache.fcenabled=1 wincache.ocenabled=1 wincache.ocachesize=80 wincache.chkinterval=300 10 Zend Technologies, Inc. · www.zend.com · +1 408-253-8800 Acquia, Inc. · www.acquia.com · 888-9-ACQUIA or +1-978-296-5250

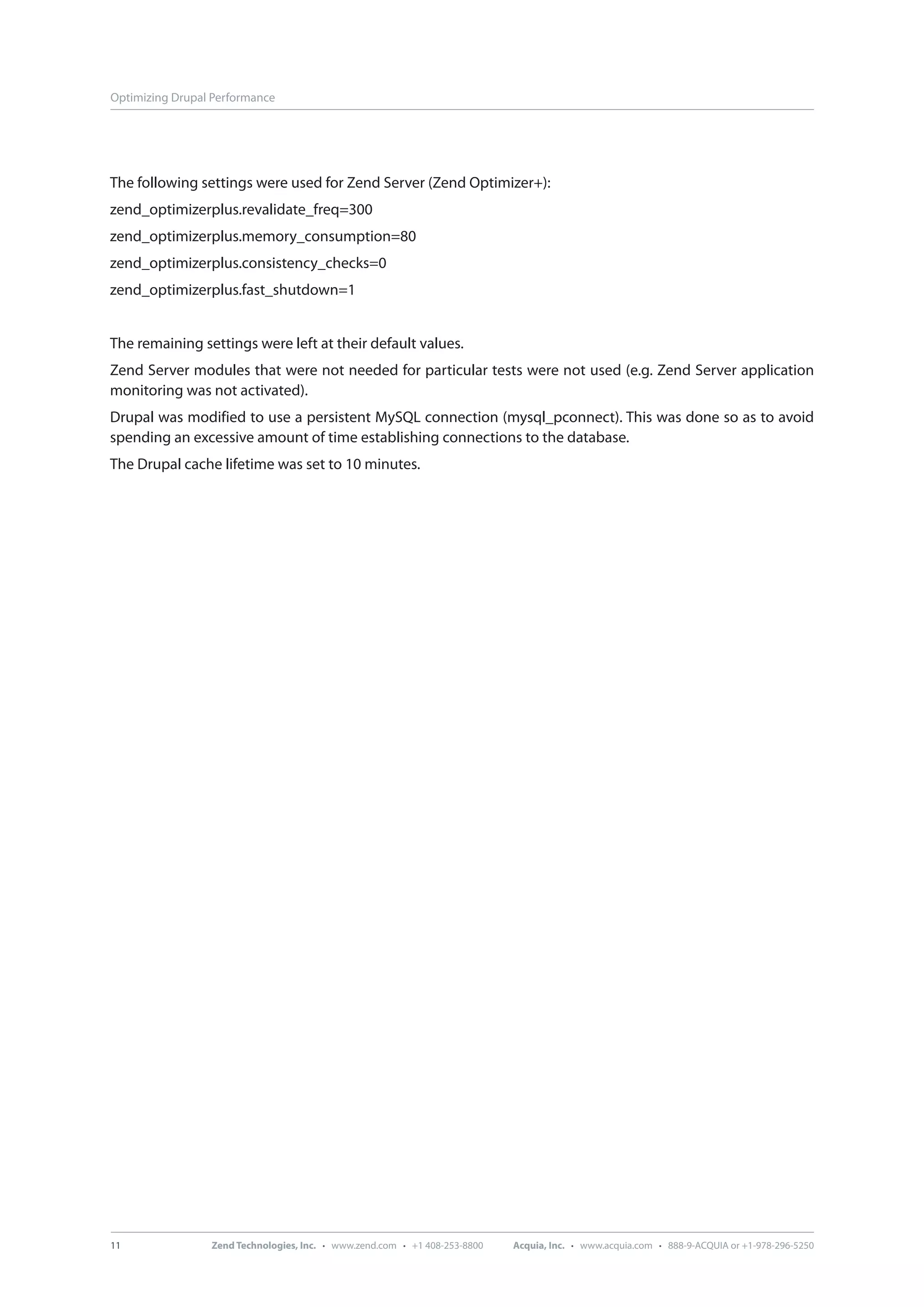

Optimizing Drupal Performance The following settings were used for Zend Server (Zend Optimizer+): zend_optimizerplus.revalidate_freq=300 zend_optimizerplus.memory_consumption=80 zend_optimizerplus.consistency_checks=0 zend_optimizerplus.fast_shutdown=1 The remaining settings were left at their default values. Zend Server modules that were not needed for particular tests were not used (e.g. Zend Server application monitoring was not activated). Drupal was modified to use a persistent MySQL connection (mysql_pconnect). This was done so as to avoid spending an excessive amount of time establishing connections to the database. The Drupal cache lifetime was set to 10 minutes. 11 Zend Technologies, Inc. · www.zend.com · +1 408-253-8800 Acquia, Inc. · www.acquia.com · 888-9-ACQUIA or +1-978-296-5250

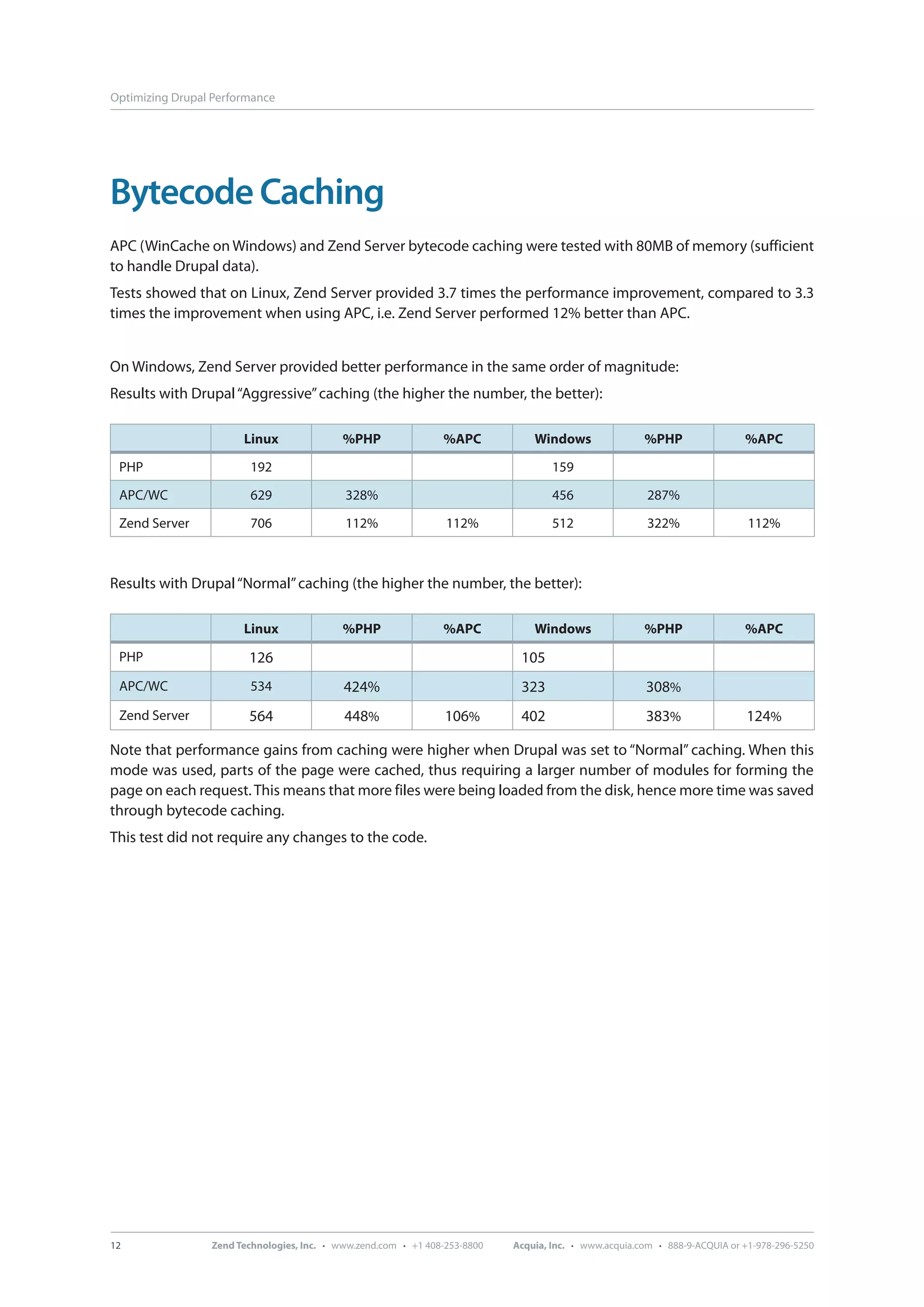

Optimizing Drupal Performance Bytecode Caching APC (WinCache on Windows) and Zend Server bytecode caching were tested with 80MB of memory (sufficient to handle Drupal data). Tests showed that on Linux, Zend Server provided 3.7 times the performance improvement, compared to 3.3 times the improvement when using APC, i.e. Zend Server performed 12% better than APC. On Windows, Zend Server provided better performance in the same order of magnitude: Results with Drupal “Aggressive” caching (the higher the number, the better): Linux %PHP %APC Windows %PHP %APC PHP 192 159 APC/WC 629 328% 456 287% Zend Server 706 112% 112% 512 322% 112% Results with Drupal “Normal” caching (the higher the number, the better): Linux %PHP %APC Windows %PHP %APC PHP 126 105 APC/WC 534 424% 323 308% Zend Server 564 448% 106% 402 383% 124% Note that performance gains from caching were higher when Drupal was set to “Normal” caching. When this mode was used, parts of the page were cached, thus requiring a larger number of modules for forming the page on each request. This means that more files were being loaded from the disk, hence more time was saved through bytecode caching. This test did not require any changes to the code. 12 Zend Technologies, Inc. · www.zend.com · +1 408-253-8800 Acquia, Inc. · www.acquia.com · 888-9-ACQUIA or +1-978-296-5250

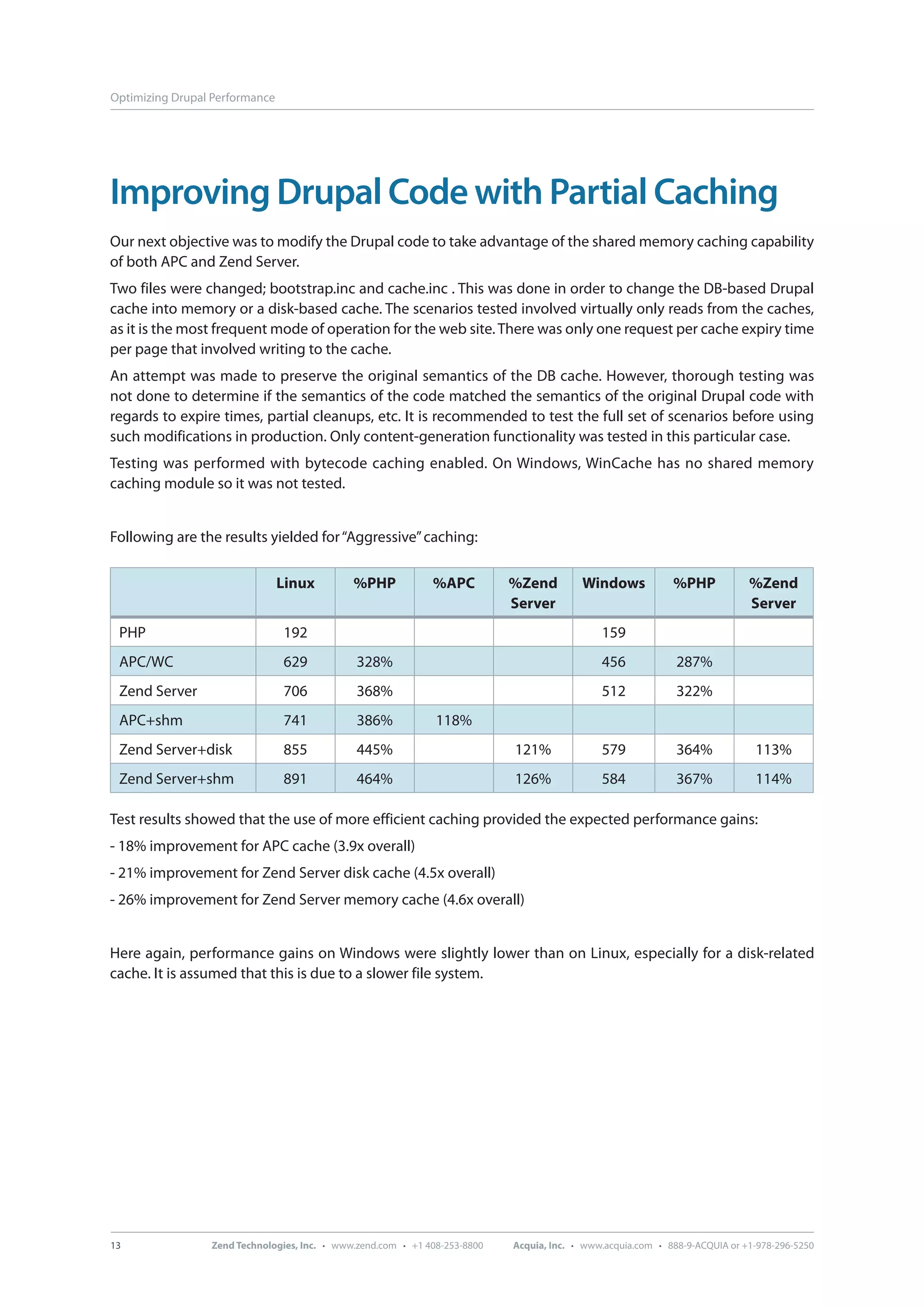

Optimizing Drupal Performance Improving Drupal Code with Partial Caching Our next objective was to modify the Drupal code to take advantage of the shared memory caching capability of both APC and Zend Server. Two files were changed; bootstrap.inc and cache.inc . This was done in order to change the DB-based Drupal cache into memory or a disk-based cache. The scenarios tested involved virtually only reads from the caches, as it is the most frequent mode of operation for the web site. There was only one request per cache expiry time per page that involved writing to the cache. An attempt was made to preserve the original semantics of the DB cache. However, thorough testing was not done to determine if the semantics of the code matched the semantics of the original Drupal code with regards to expire times, partial cleanups, etc. It is recommended to test the full set of scenarios before using such modifications in production. Only content-generation functionality was tested in this particular case. Testing was performed with bytecode caching enabled. On Windows, WinCache has no shared memory caching module so it was not tested. Following are the results yielded for “Aggressive” caching: Linux %PHP %APC %Zend Windows %PHP %Zend Server Server PHP 192 159 APC/WC 629 328% 456 287% Zend Server 706 368% 512 322% APC+shm 741 386% 118% Zend Server+disk 855 445% 121% 579 364% 113% Zend Server+shm 891 464% 126% 584 367% 114% Test results showed that the use of more efficient caching provided the expected performance gains: - 18% improvement for APC cache (3.9x overall) - 21% improvement for Zend Server disk cache (4.5x overall) - 26% improvement for Zend Server memory cache (4.6x overall) Here again, performance gains on Windows were slightly lower than on Linux, especially for a disk-related cache. It is assumed that this is due to a slower file system. 13 Zend Technologies, Inc. · www.zend.com · +1 408-253-8800 Acquia, Inc. · www.acquia.com · 888-9-ACQUIA or +1-978-296-5250

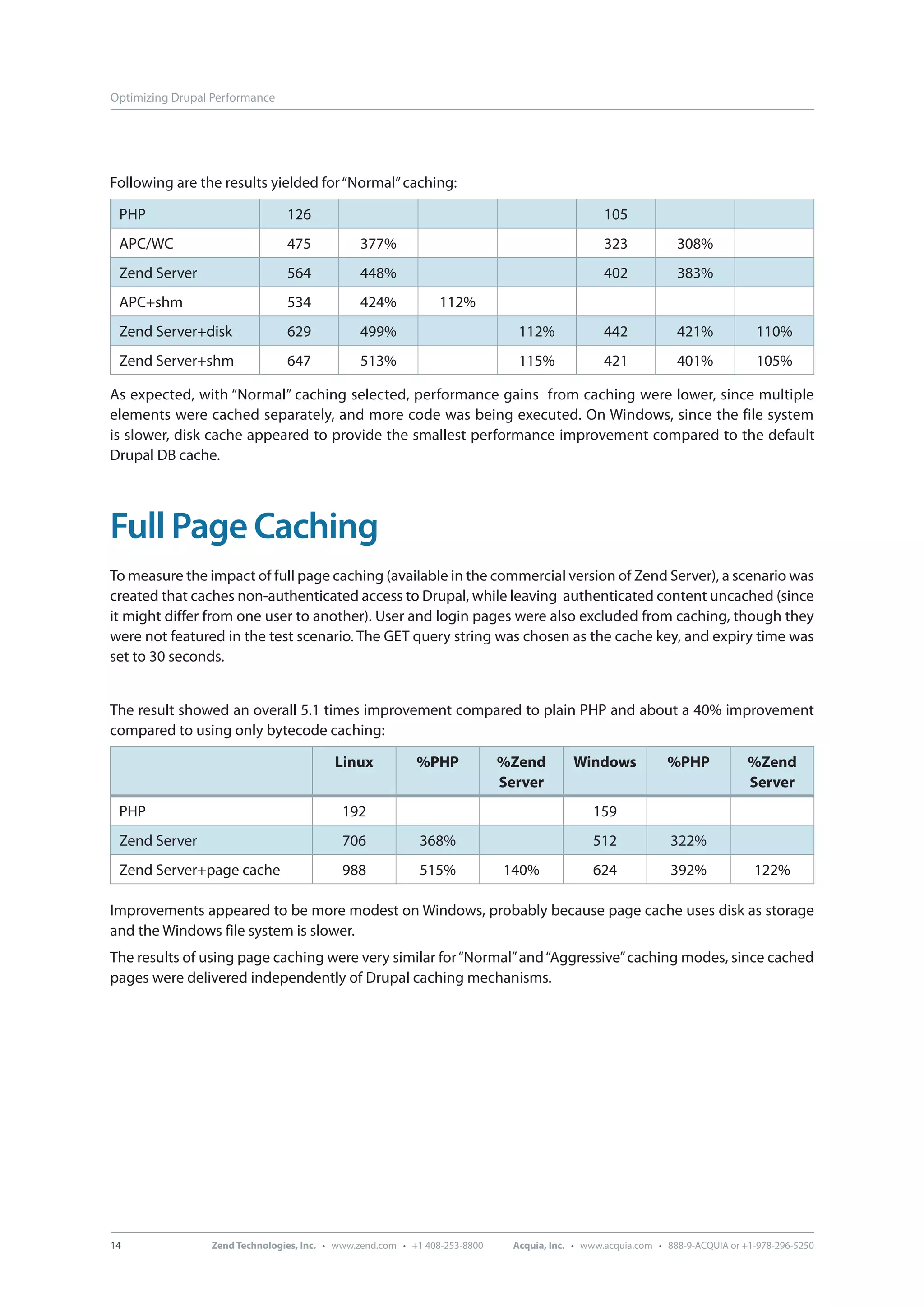

Optimizing Drupal Performance Following are the results yielded for “Normal” caching: PHP 126 105 APC/WC 475 377% 323 308% Zend Server 564 448% 402 383% APC+shm 534 424% 112% Zend Server+disk 629 499% 112% 442 421% 110% Zend Server+shm 647 513% 115% 421 401% 105% As expected, with “Normal” caching selected, performance gains from caching were lower, since multiple elements were cached separately, and more code was being executed. On Windows, since the file system is slower, disk cache appeared to provide the smallest performance improvement compared to the default Drupal DB cache. Full Page Caching To measure the impact of full page caching (available in the commercial version of Zend Server), a scenario was created that caches non-authenticated access to Drupal, while leaving authenticated content uncached (since it might differ from one user to another). User and login pages were also excluded from caching, though they were not featured in the test scenario. The GET query string was chosen as the cache key, and expiry time was set to 30 seconds. The result showed an overall 5.1 times improvement compared to plain PHP and about a 40% improvement compared to using only bytecode caching: Linux %PHP %Zend Windows %PHP %Zend Server Server PHP 192 159 Zend Server 706 368% 512 322% Zend Server+page cache 988 515% 140% 624 392% 122% Improvements appeared to be more modest on Windows, probably because page cache uses disk as storage and the Windows file system is slower. The results of using page caching were very similar for “Normal” and “Aggressive” caching modes, since cached pages were delivered independently of Drupal caching mechanisms. 14 Zend Technologies, Inc. · www.zend.com · +1 408-253-8800 Acquia, Inc. · www.acquia.com · 888-9-ACQUIA or +1-978-296-5250

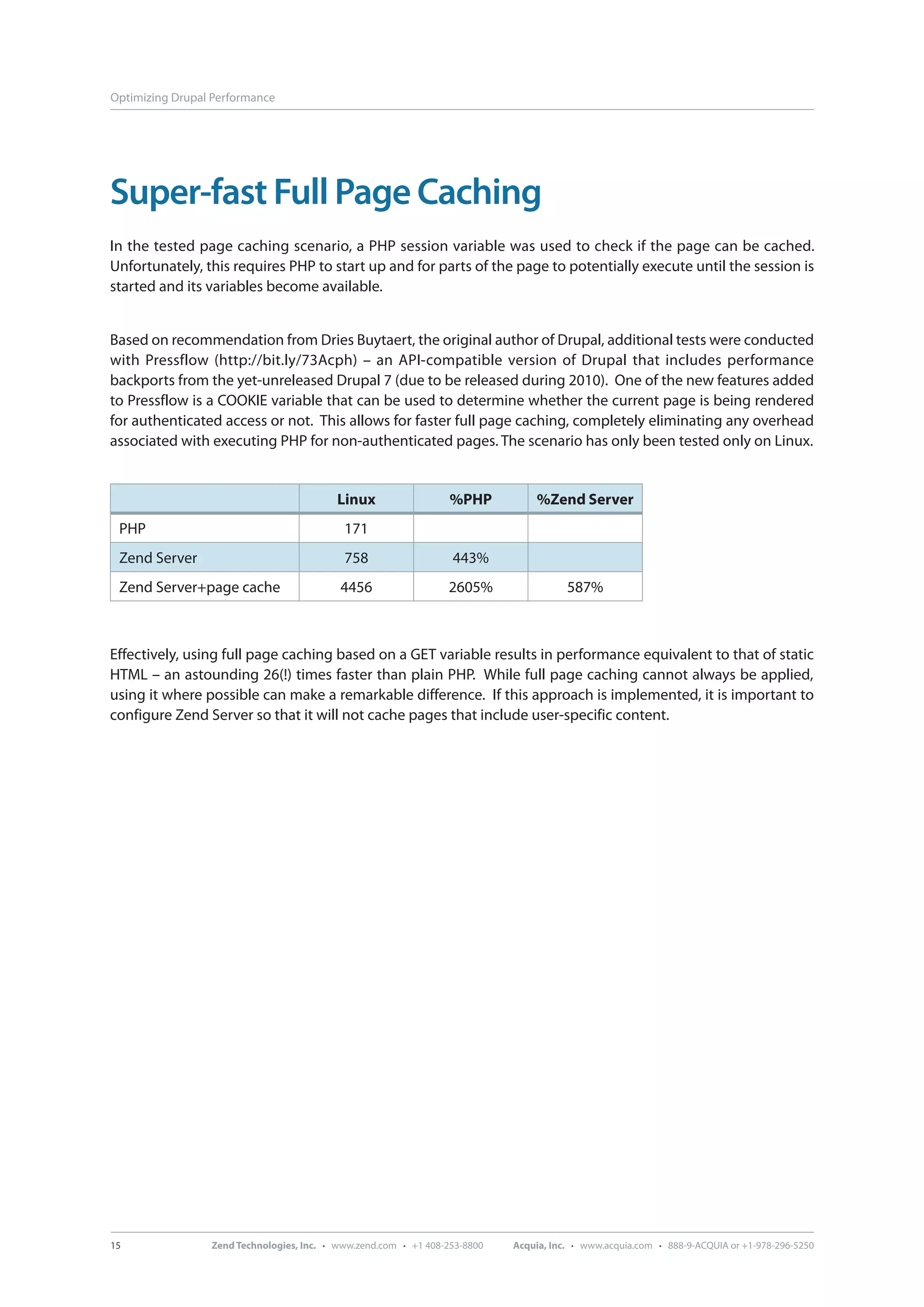

Optimizing Drupal Performance Super-fast Full Page Caching In the tested page caching scenario, a PHP session variable was used to check if the page can be cached. Unfortunately, this requires PHP to start up and for parts of the page to potentially execute until the session is started and its variables become available. Based on recommendation from Dries Buytaert, the original author of Drupal, additional tests were conducted with Pressflow (http://bit.ly/73Acph) – an API-compatible version of Drupal that includes performance backports from the yet-unreleased Drupal 7 (due to be released during 2010). One of the new features added to Pressflow is a COOKIE variable that can be used to determine whether the current page is being rendered for authenticated access or not. This allows for faster full page caching, completely eliminating any overhead associated with executing PHP for non-authenticated pages. The scenario has only been tested only on Linux. Linux %PHP %Zend Server PHP 171 Zend Server 758 443% Zend Server+page cache 4456 2605% 587% Effectively, using full page caching based on a GET variable results in performance equivalent to that of static HTML – an astounding 26(!) times faster than plain PHP. While full page caching cannot always be applied, using it where possible can make a remarkable difference. If this approach is implemented, it is important to configure Zend Server so that it will not cache pages that include user-specific content. 15 Zend Technologies, Inc. · www.zend.com · +1 408-253-8800 Acquia, Inc. · www.acquia.com · 888-9-ACQUIA or +1-978-296-5250

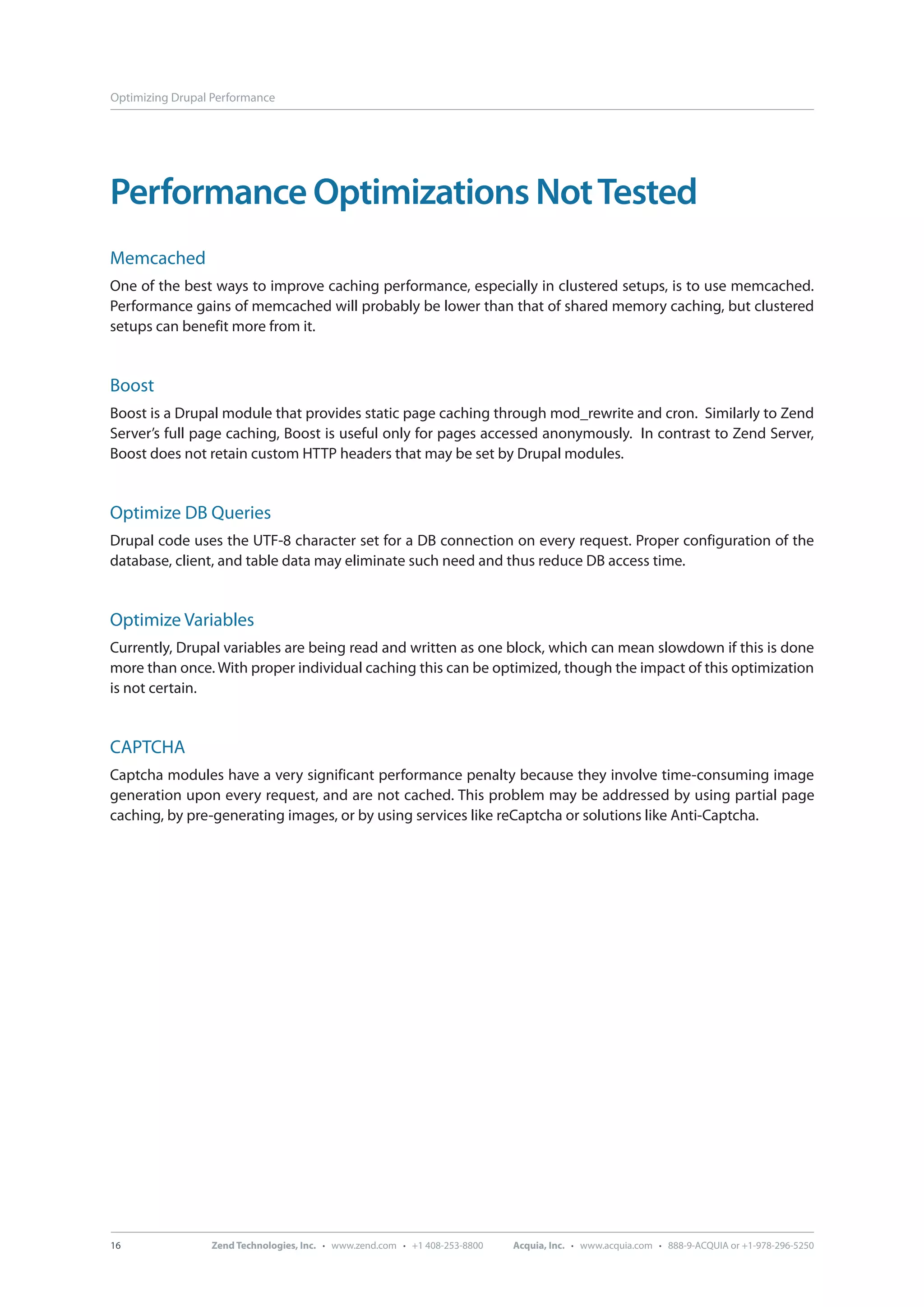

Optimizing Drupal Performance Performance Optimizations Not Tested Memcached One of the best ways to improve caching performance, especially in clustered setups, is to use memcached. Performance gains of memcached will probably be lower than that of shared memory caching, but clustered setups can benefit more from it. Boost Boost is a Drupal module that provides static page caching through mod_rewrite and cron. Similarly to Zend Server’s full page caching, Boost is useful only for pages accessed anonymously. In contrast to Zend Server, Boost does not retain custom HTTP headers that may be set by Drupal modules. Optimize DB Queries Drupal code uses the UTF-8 character set for a DB connection on every request. Proper configuration of the database, client, and table data may eliminate such need and thus reduce DB access time. Optimize Variables Currently, Drupal variables are being read and written as one block, which can mean slowdown if this is done more than once. With proper individual caching this can be optimized, though the impact of this optimization is not certain. CAPTCHA Captcha modules have a very significant performance penalty because they involve time-consuming image generation upon every request, and are not cached. This problem may be addressed by using partial page caching, by pre-generating images, or by using services like reCaptcha or solutions like Anti-Captcha. 16 Zend Technologies, Inc. · www.zend.com · +1 408-253-8800 Acquia, Inc. · www.acquia.com · 888-9-ACQUIA or +1-978-296-5250

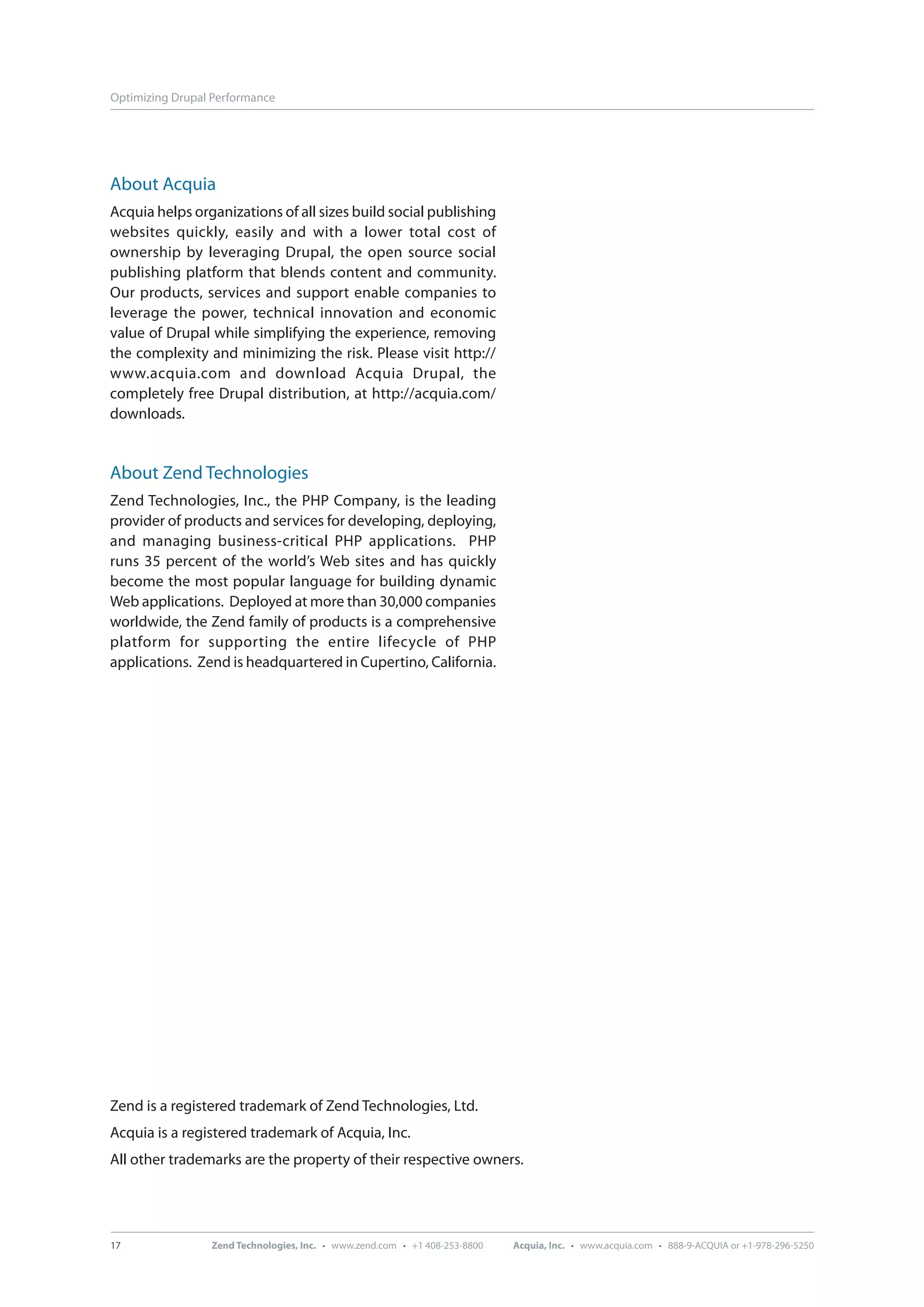

Optimizing Drupal Performance About Acquia Acquia helps organizations of all sizes build social publishing websites quickly, easily and with a lower total cost of ownership by leveraging Drupal, the open source social publishing platform that blends content and community. Our products, services and support enable companies to leverage the power, technical innovation and economic value of Drupal while simplifying the experience, removing the complexity and minimizing the risk. Please visit http:// www.acquia.com and download Acquia Drupal, the completely free Drupal distribution, at http://acquia.com/ downloads. About Zend Technologies Zend Technologies, Inc., the PHP Company, is the leading provider of products and services for developing, deploying, and managing business-critical PHP applications. PHP runs 35 percent of the world’s Web sites and has quickly become the most popular language for building dynamic Web applications. Deployed at more than 30,000 companies worldwide, the Zend family of products is a comprehensive platform for supporting the entire lifecycle of PHP applications. Zend is headquartered in Cupertino, California. Zend is a registered trademark of Zend Technologies, Ltd. Acquia is a registered trademark of Acquia, Inc. All other trademarks are the property of their respective owners. 17 Zend Technologies, Inc. · www.zend.com · +1 408-253-8800 Acquia, Inc. · www.acquia.com · 888-9-ACQUIA or +1-978-296-5250
