Non-Relational Postgres

Non-Relational Postgres BRUCE MOMJIAN This talk explores the advantages of non-relational storage, and the Postgres support for such storage. Creative Commons Attribution License http://momjian.us/presentations Last updated: April, 2016 1 / 77

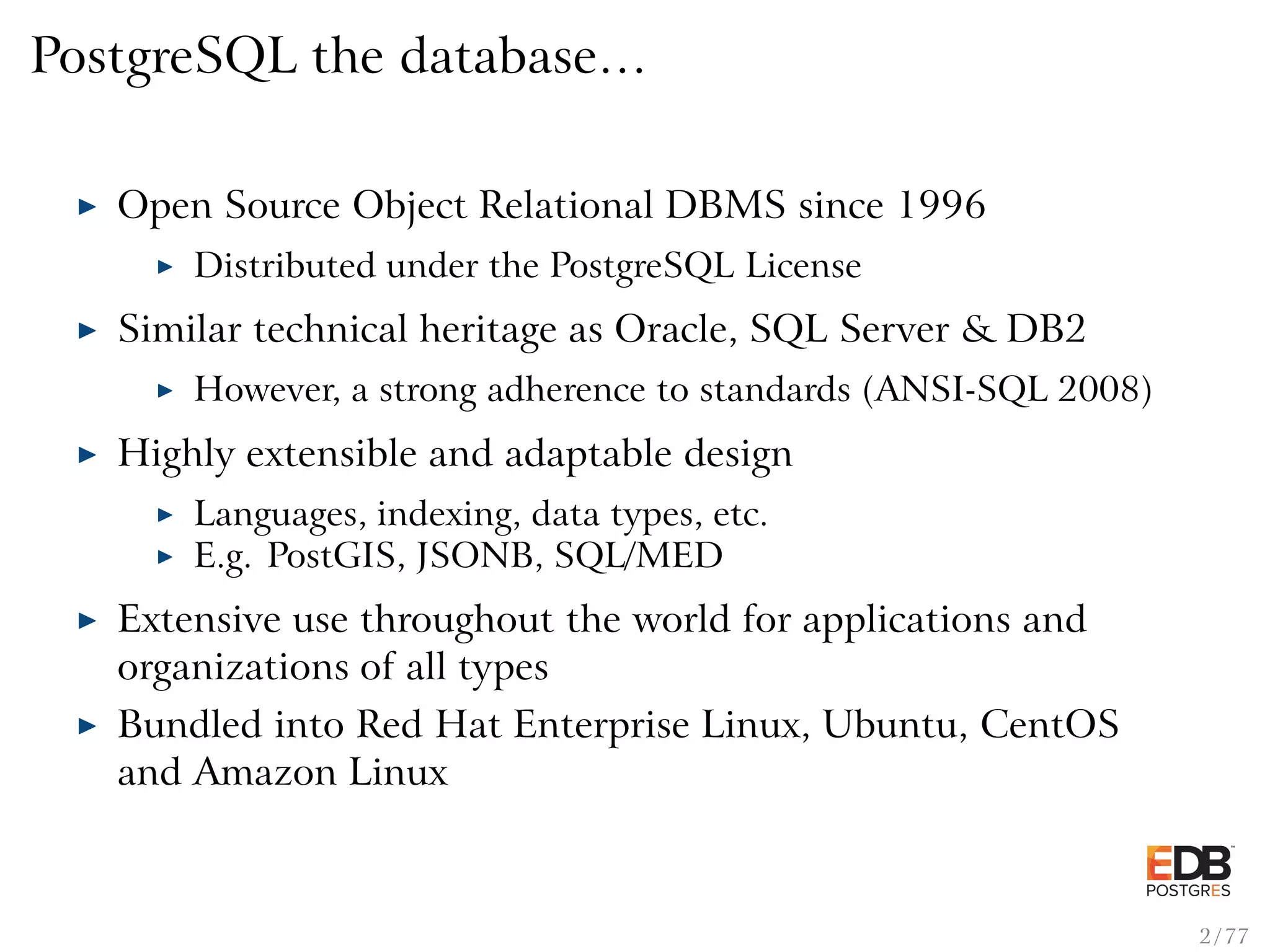

PostgreSQL the database… Open Source Object Relational DBMS since 1996 Distributed under the PostgreSQL License Similar technical heritage as Oracle, SQL Server & DB2 However, a strong adherence to standards (ANSI-SQL 2008) Highly extensible and adaptable design Languages, indexing, data types, etc. E.g. PostGIS, JSONB, SQL/MED Extensive use throughout the world for applications and organizations of all types Bundled into Red Hat Enterprise Linux, Ubuntu, CentOS and Amazon Linux 2 / 77

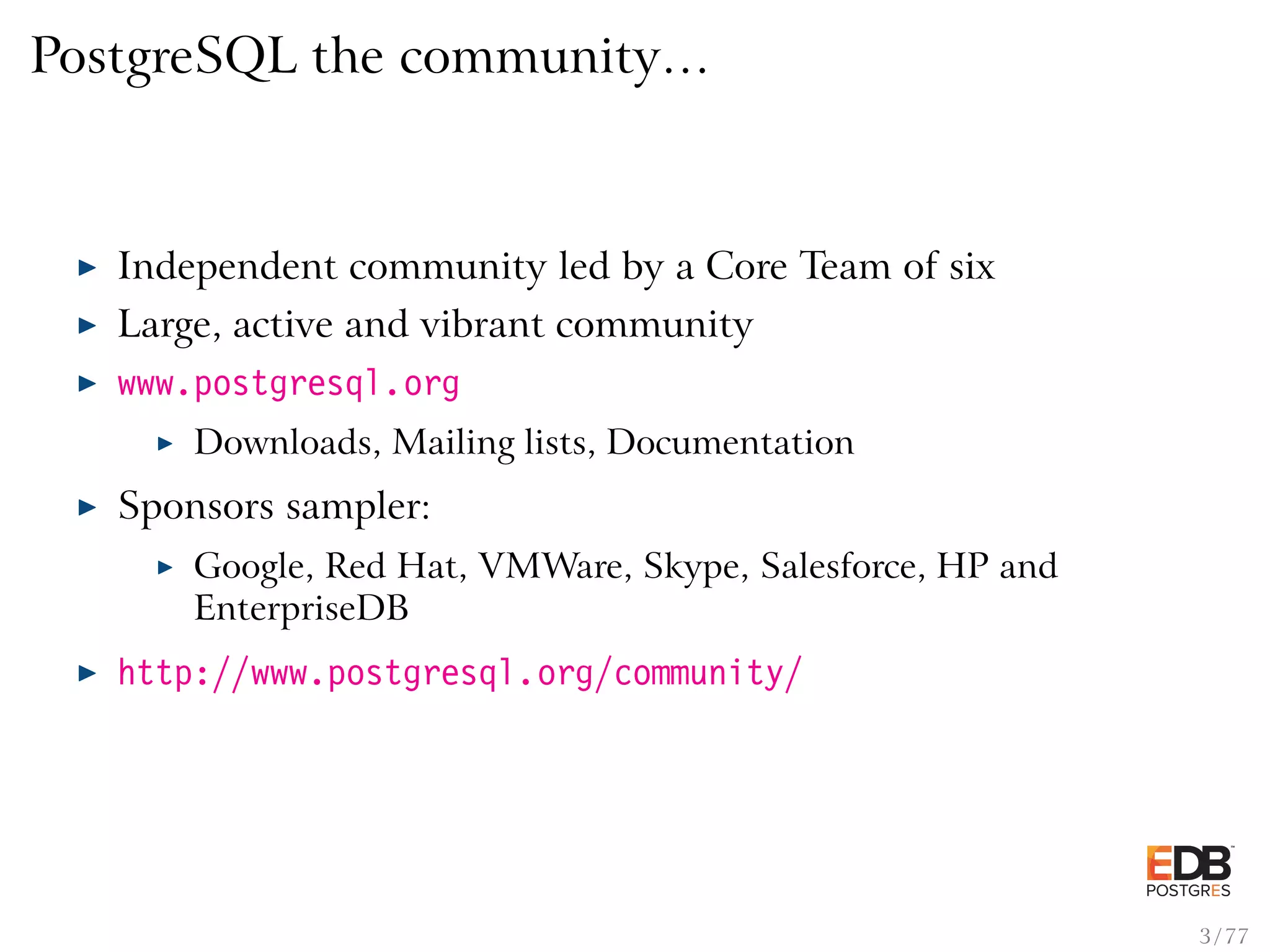

PostgreSQL the community… Independent community led by a Core Team of six Large, active and vibrant community www.postgresql.org Downloads, Mailing lists, Documentation Sponsors sampler: Google, Red Hat, VMWare, Skype, Salesforce, HP and EnterpriseDB http://www.postgresql.org/community/ 3 / 77

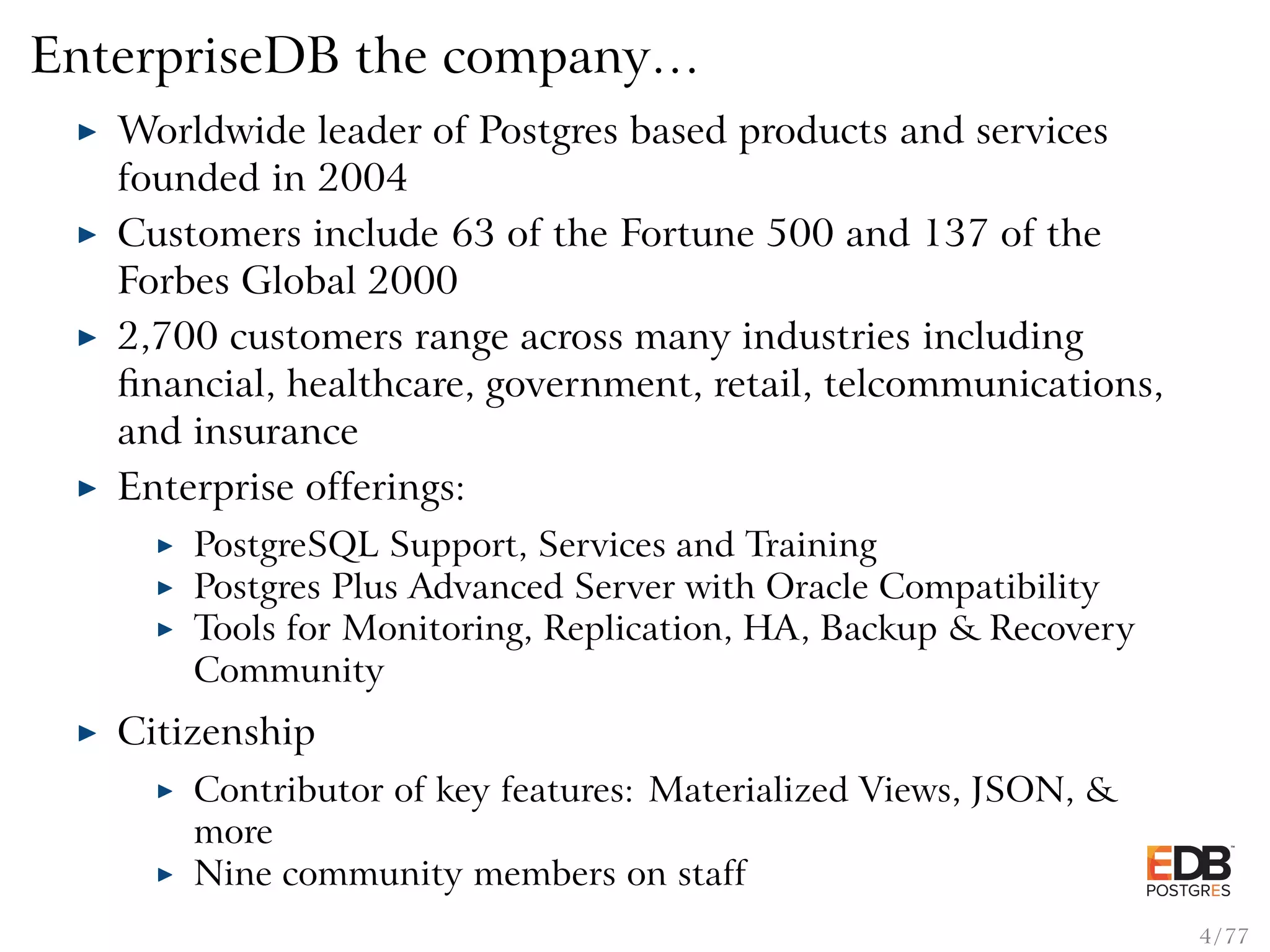

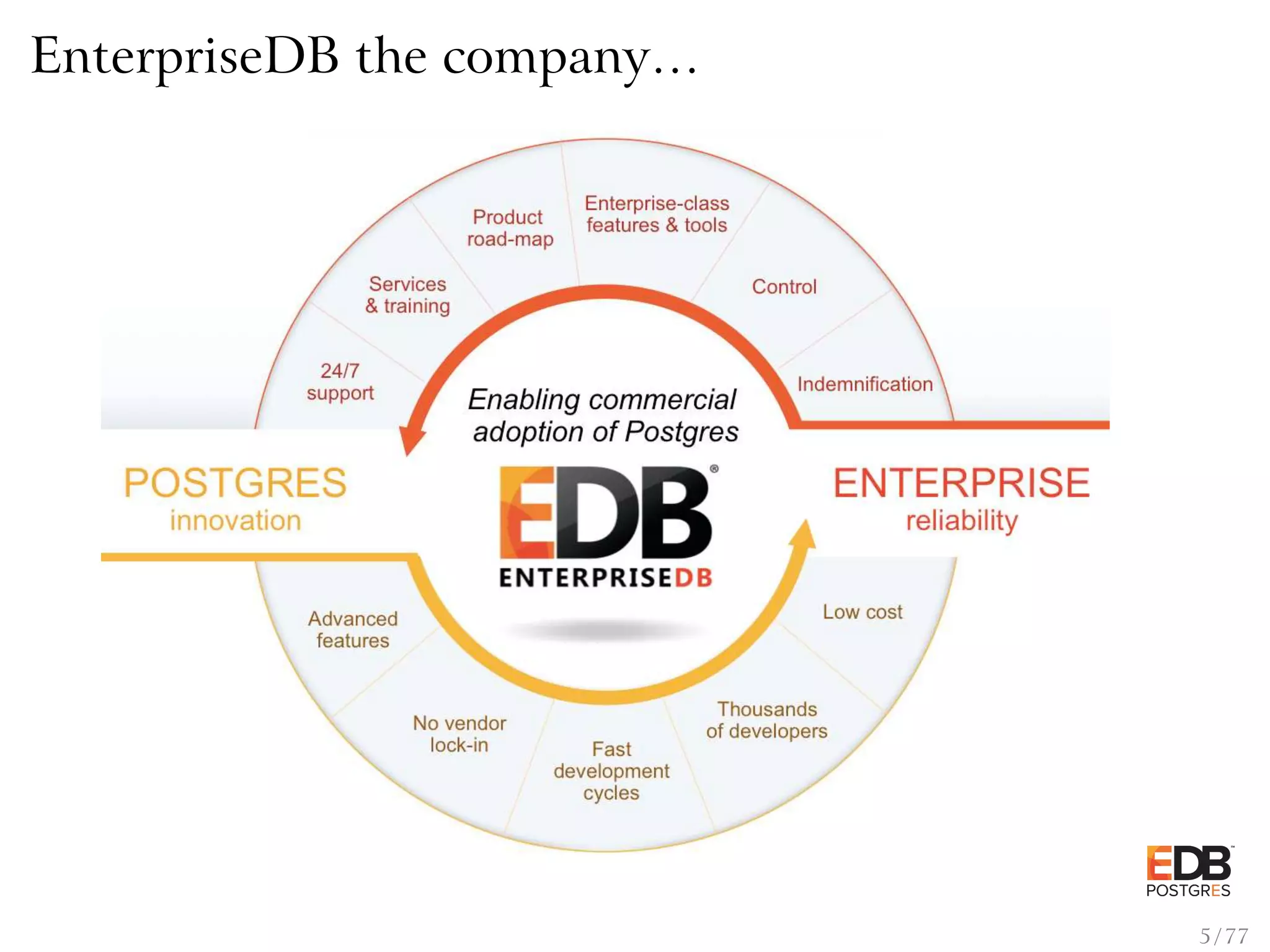

EnterpriseDB the company… Worldwide leader of Postgres based products and services founded in 2004 Customers include 63 of the Fortune 500 and 137 of the Forbes Global 2000 2,700 customers range across many industries including ﬁnancial, healthcare, government, retail, telcommunications, and insurance Enterprise offerings: PostgreSQL Support, Services and Training Postgres Plus Advanced Server with Oracle Compatibility Tools for Monitoring, Replication, HA, Backup & Recovery Community Citizenship Contributor of key features: Materialized Views, JSON, & more Nine community members on staff 4 / 77

EnterpriseDB the company… 5 / 77

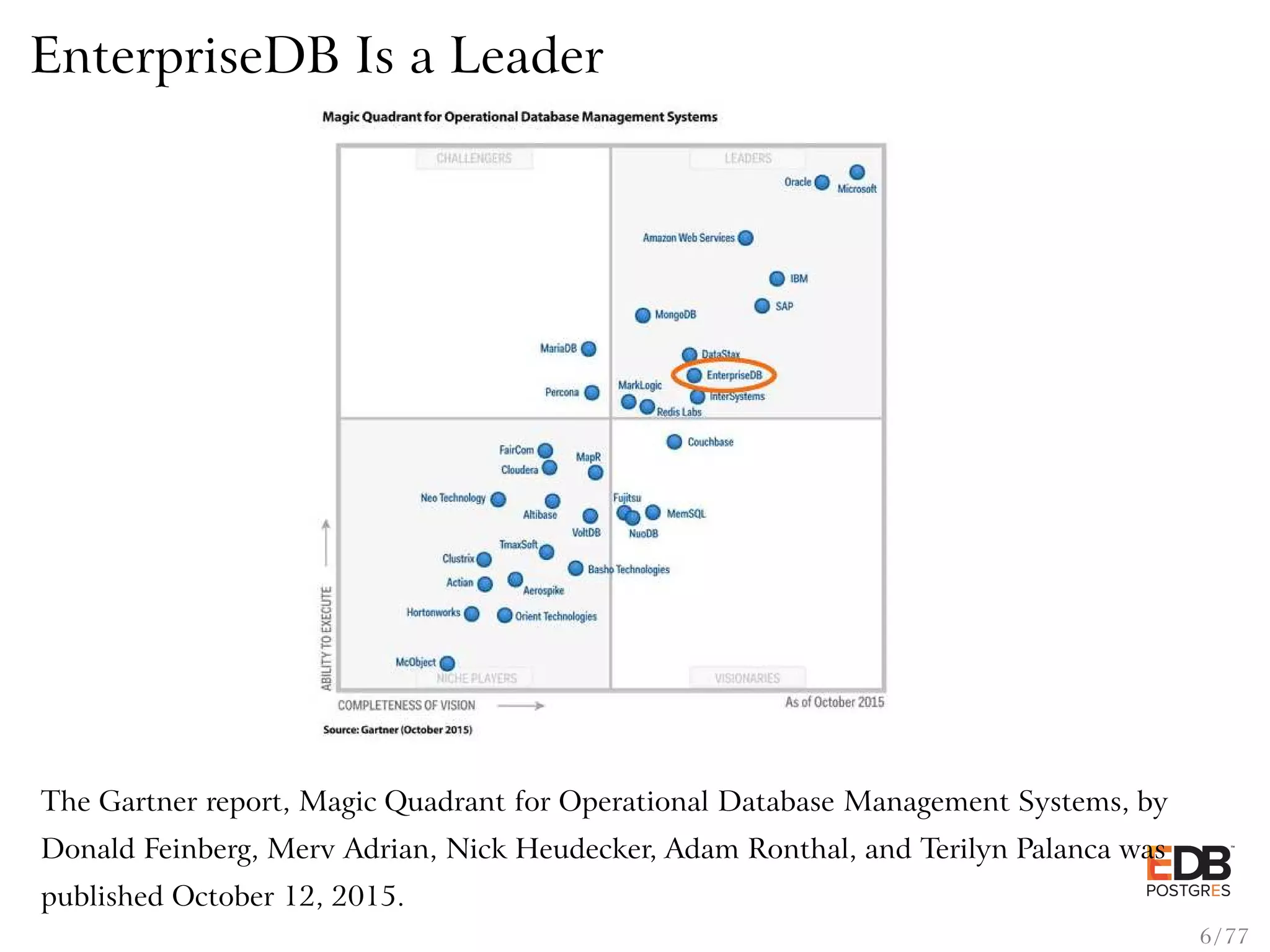

EnterpriseDB Is a Leader The Gartner report, Magic Quadrant for Operational Database Management Systems, by Donald Feinberg, Merv Adrian, Nick Heudecker, Adam Ronthal, and Terilyn Palanca was published October 12, 2015. 6 / 77

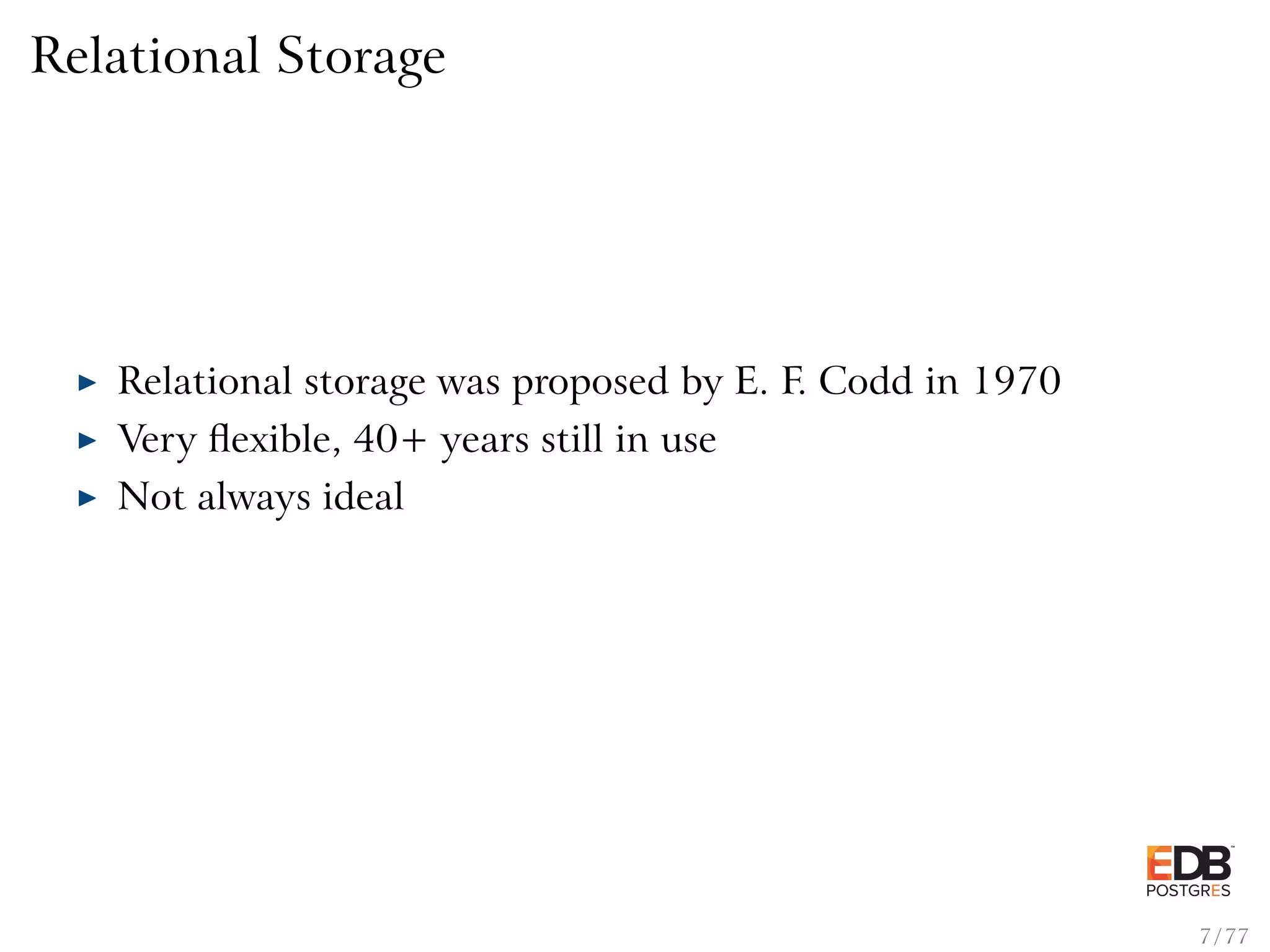

Relational Storage Relational storage was proposed by E. F. Codd in 1970 Very ﬂexible, 40+ years still in use Not always ideal 7 / 77

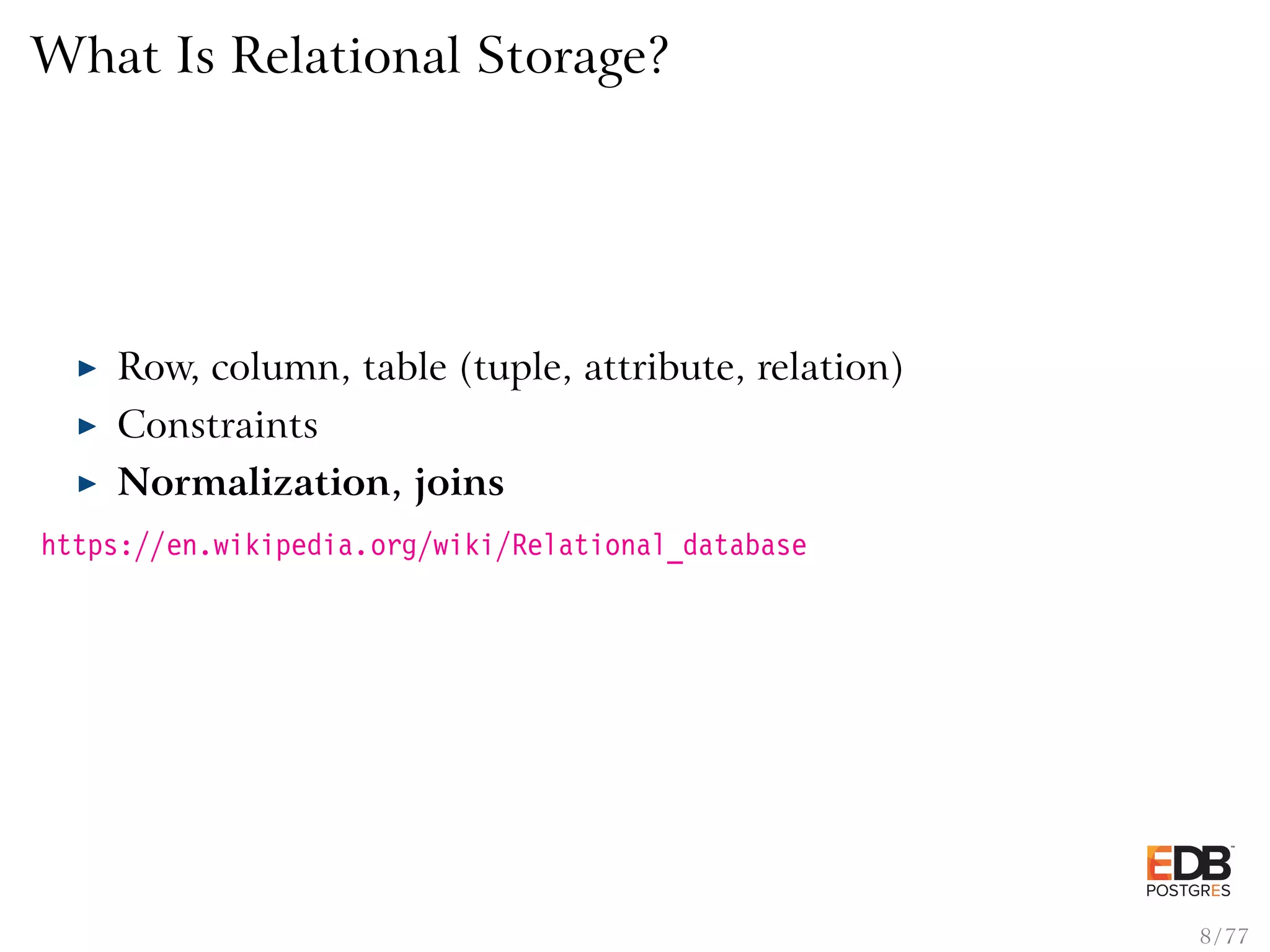

What Is Relational Storage? Row, column, table (tuple, attribute, relation) Constraints Normalization, joins https://en.wikipedia.org/wiki/Relational_database 8 / 77

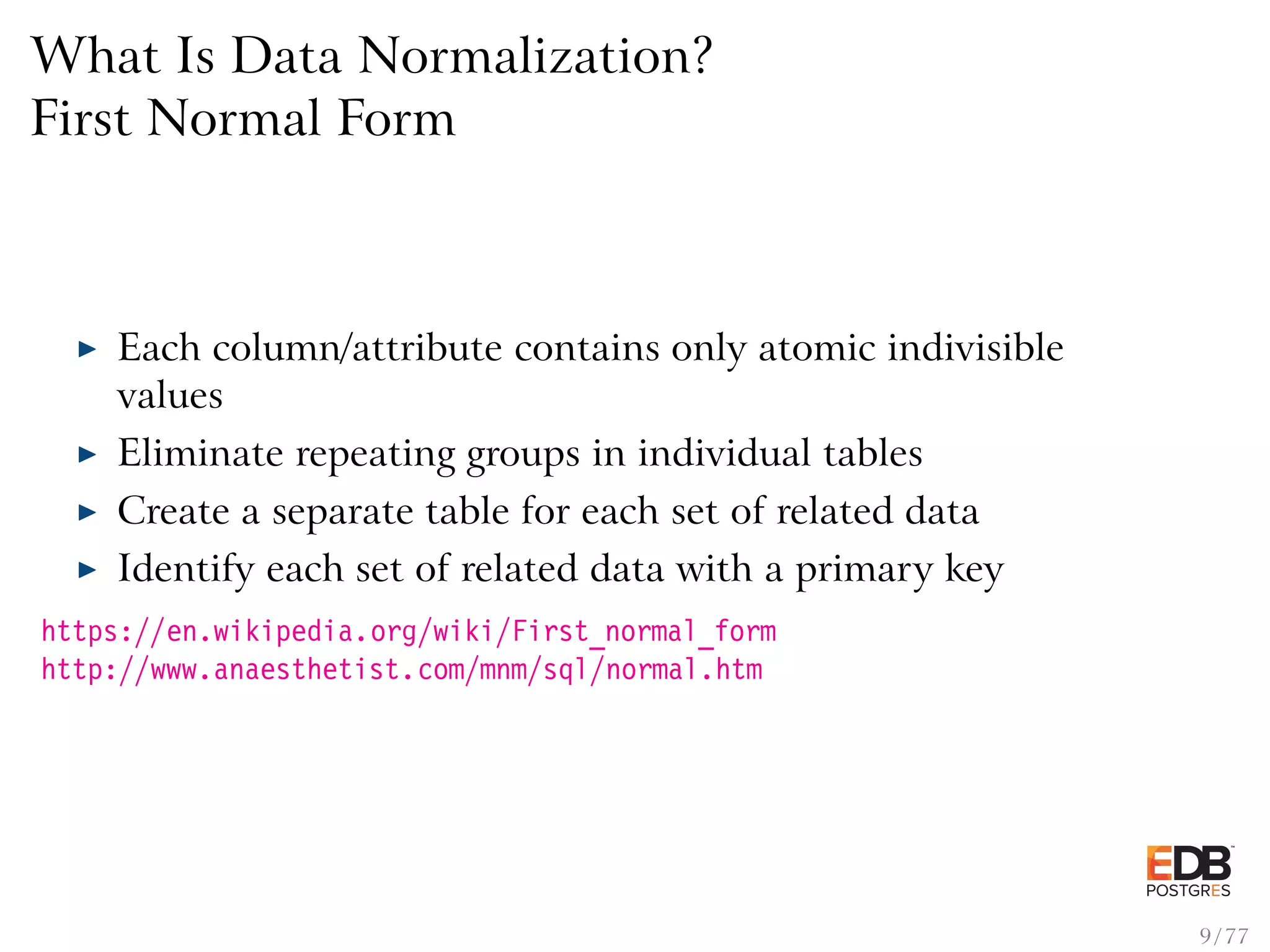

What Is Data Normalization? First Normal Form Each column/attribute contains only atomic indivisible values Eliminate repeating groups in individual tables Create a separate table for each set of related data Identify each set of related data with a primary key https://en.wikipedia.org/wiki/First_normal_form http://www.anaesthetist.com/mnm/sql/normal.htm 9 / 77

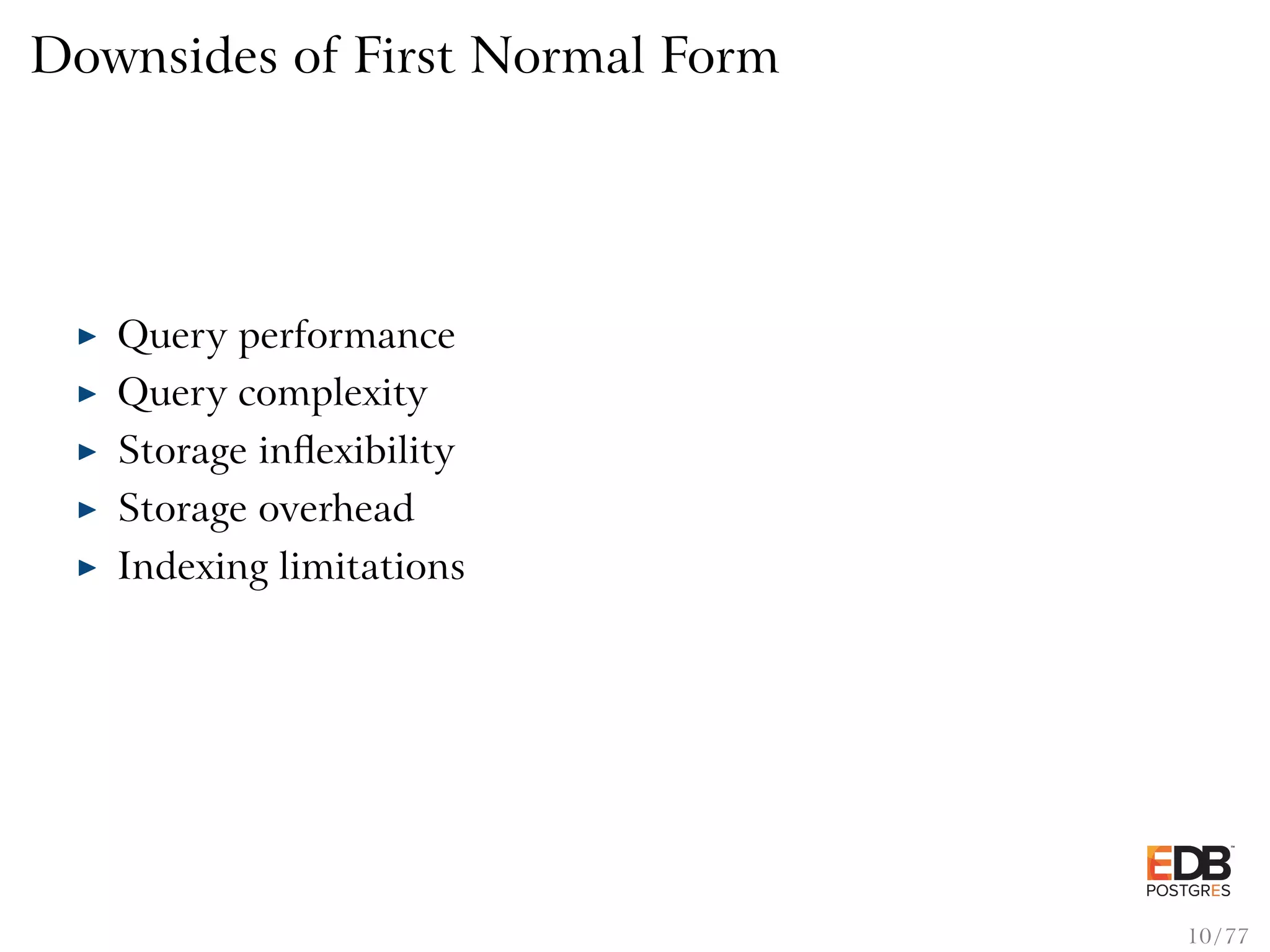

Downsides of First Normal Form Query performance Query complexity Storage inﬂexibility Storage overhead Indexing limitations 10 / 77

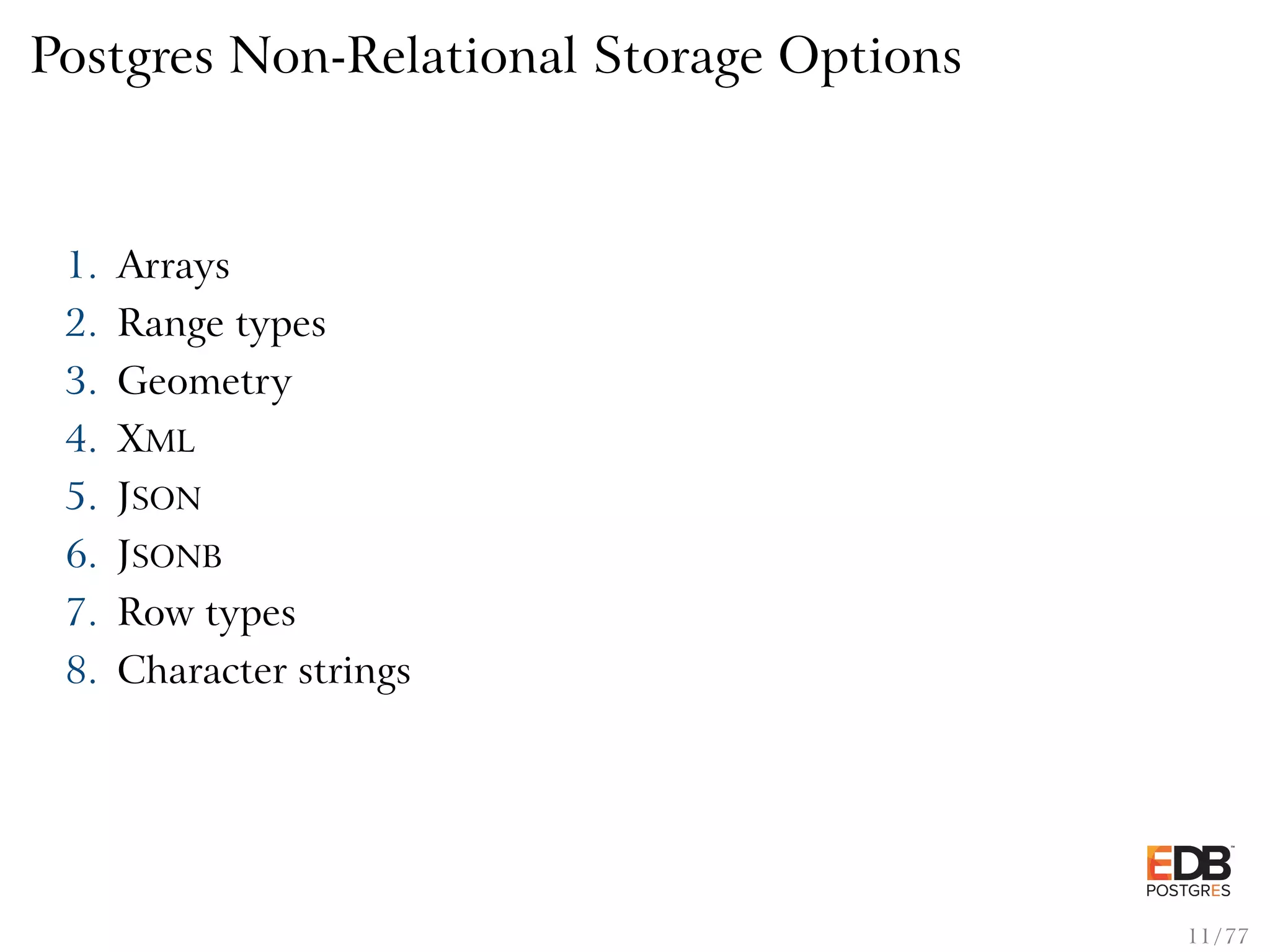

Postgres Non-Relational Storage Options 1. Arrays 2. Range types 3. Geometry 4. XML 5. JSON 6. JSONB 7. Row types 8. Character strings 11 / 77

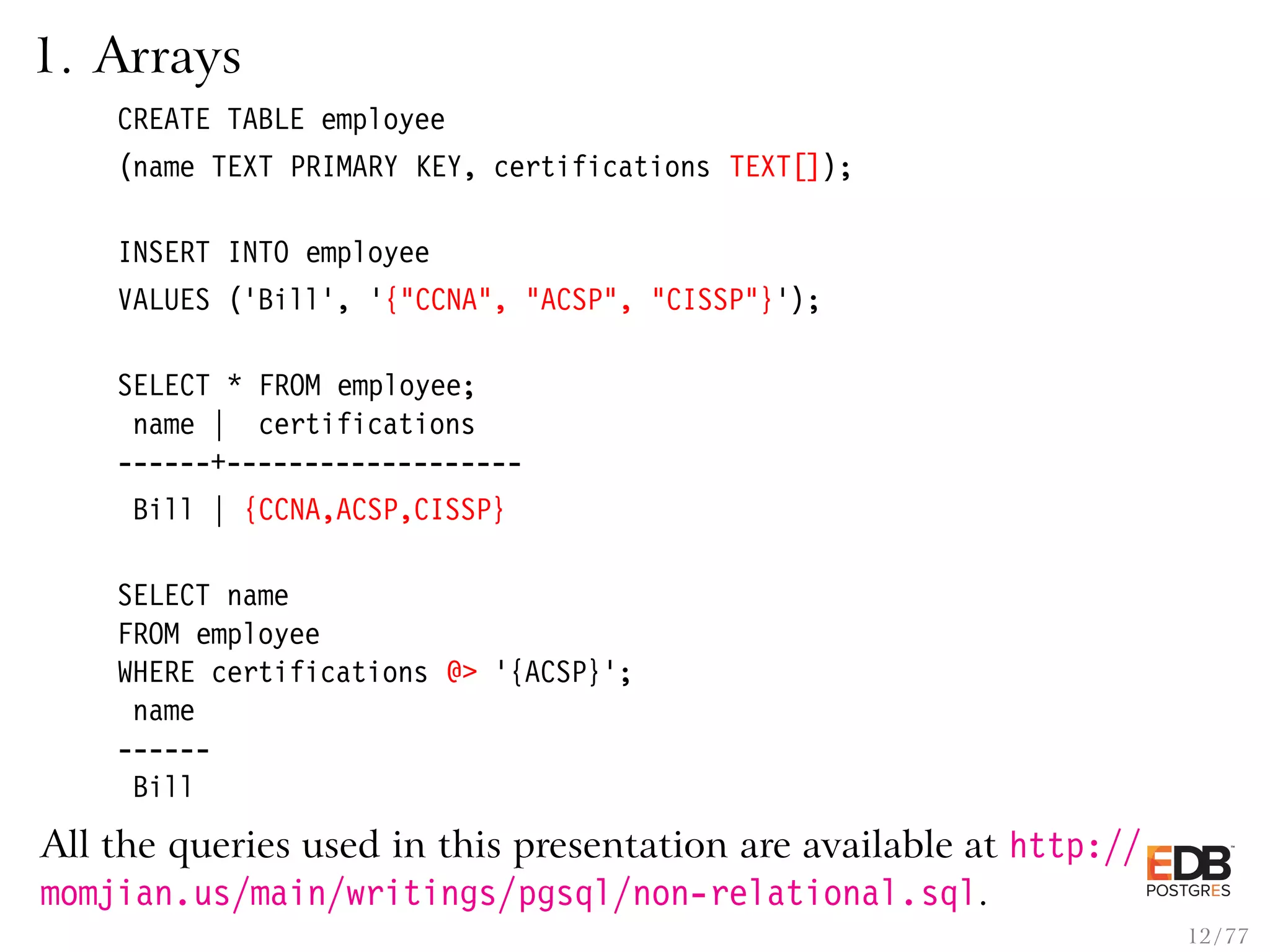

1. Arrays CREATE TABLE employee (name TEXT PRIMARY KEY, certifications TEXT[]); INSERT INTO employee VALUES (’Bill’, ’{"CCNA", "ACSP", "CISSP"}’); SELECT * FROM employee; name | certifications ------+------------------- Bill | {CCNA,ACSP,CISSP} SELECT name FROM employee WHERE certifications @> ’{ACSP}’; name ------ Bill All the queries used in this presentation are available at http:// momjian.us/main/writings/pgsql/non-relational.sql. 12 / 77

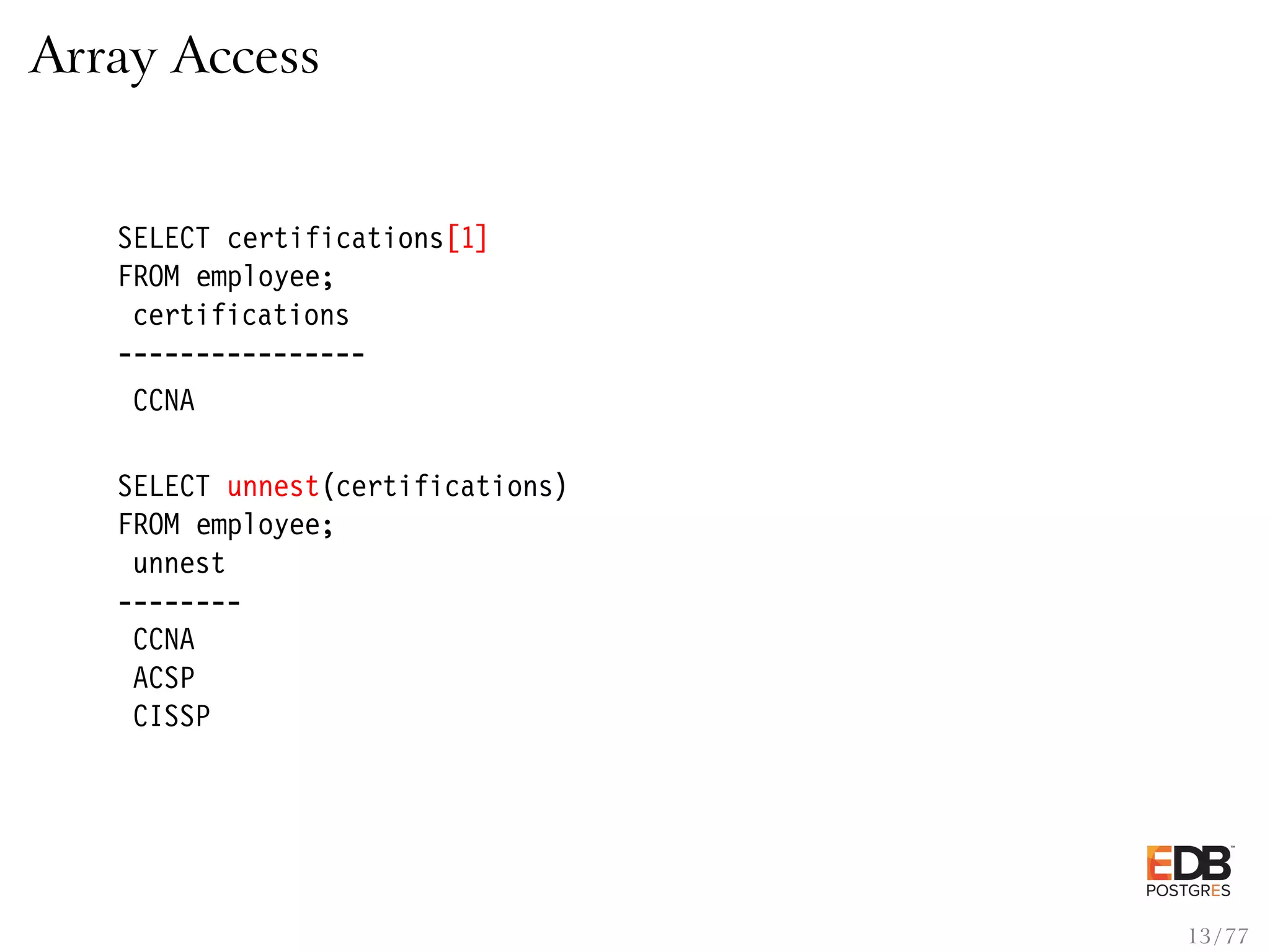

Array Access SELECT certifications[1] FROM employee; certifications ---------------- CCNA SELECT unnest(certifications) FROM employee; unnest -------- CCNA ACSP CISSP 13 / 77

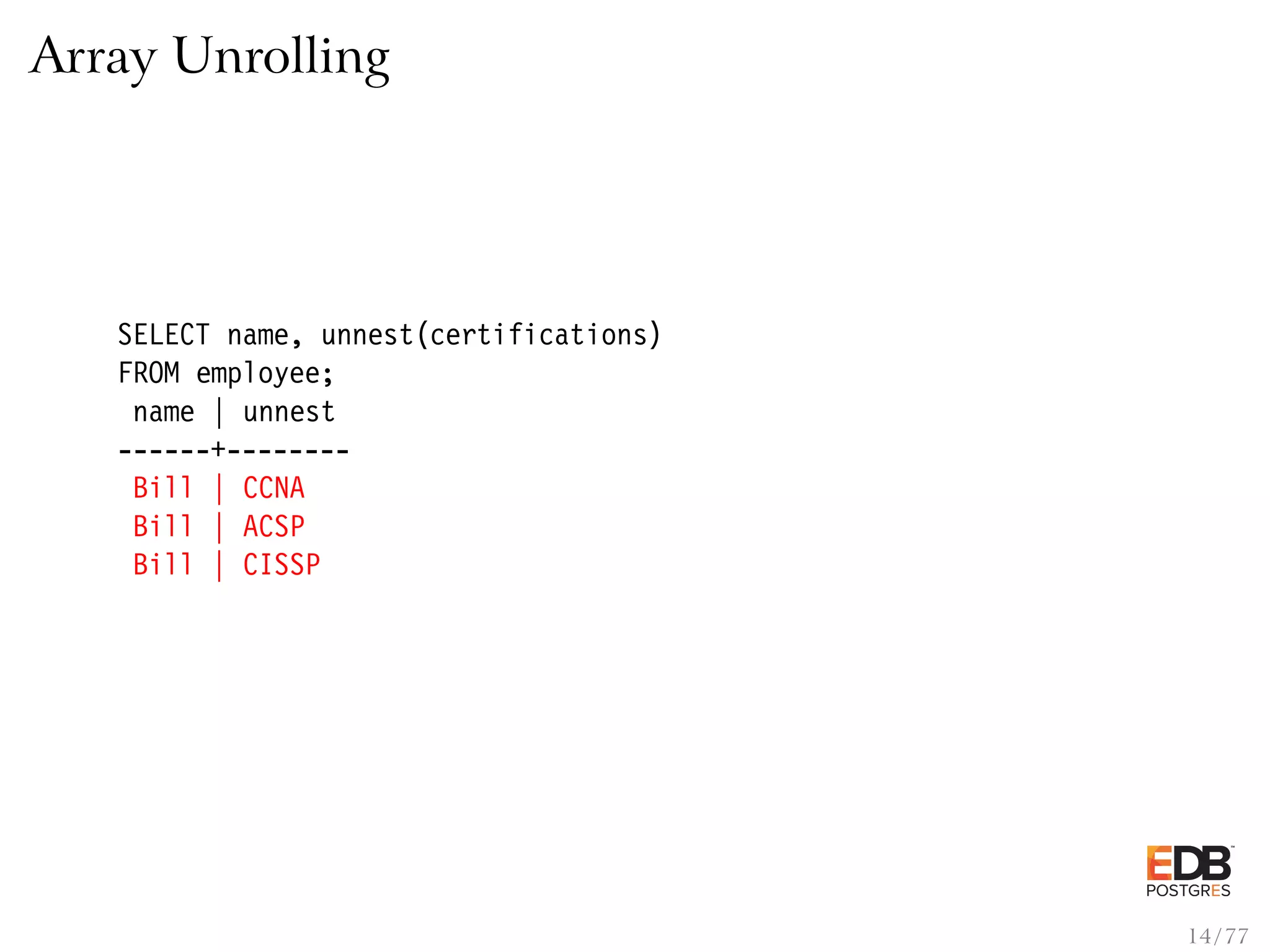

Array Unrolling SELECT name, unnest(certifications) FROM employee; name | unnest ------+-------- Bill | CCNA Bill | ACSP Bill | CISSP 14 / 77

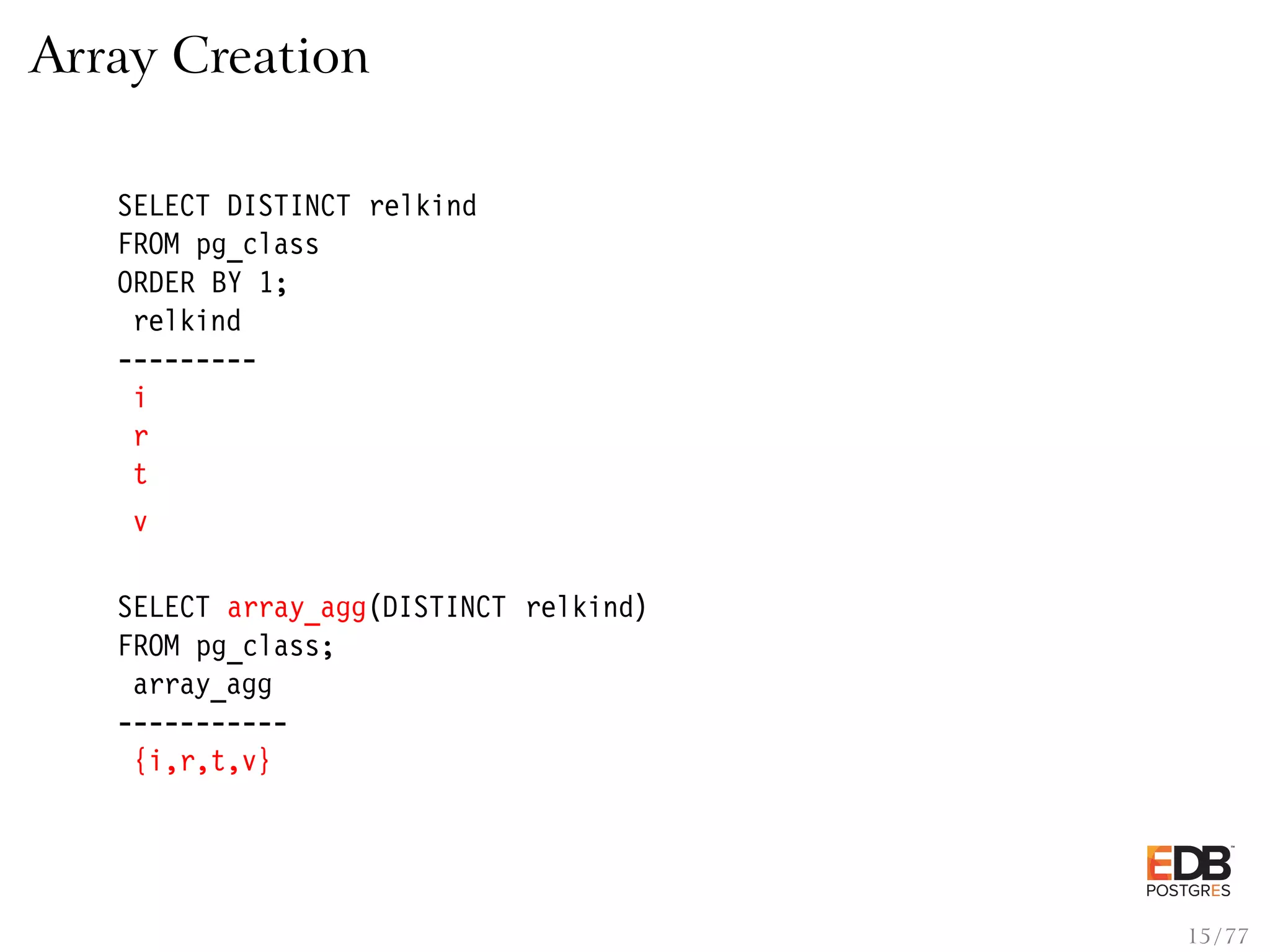

Array Creation SELECT DISTINCT relkind FROM pg_class ORDER BY 1; relkind --------- i r t v SELECT array_agg(DISTINCT relkind) FROM pg_class; array_agg ----------- {i,r,t,v} 15 / 77

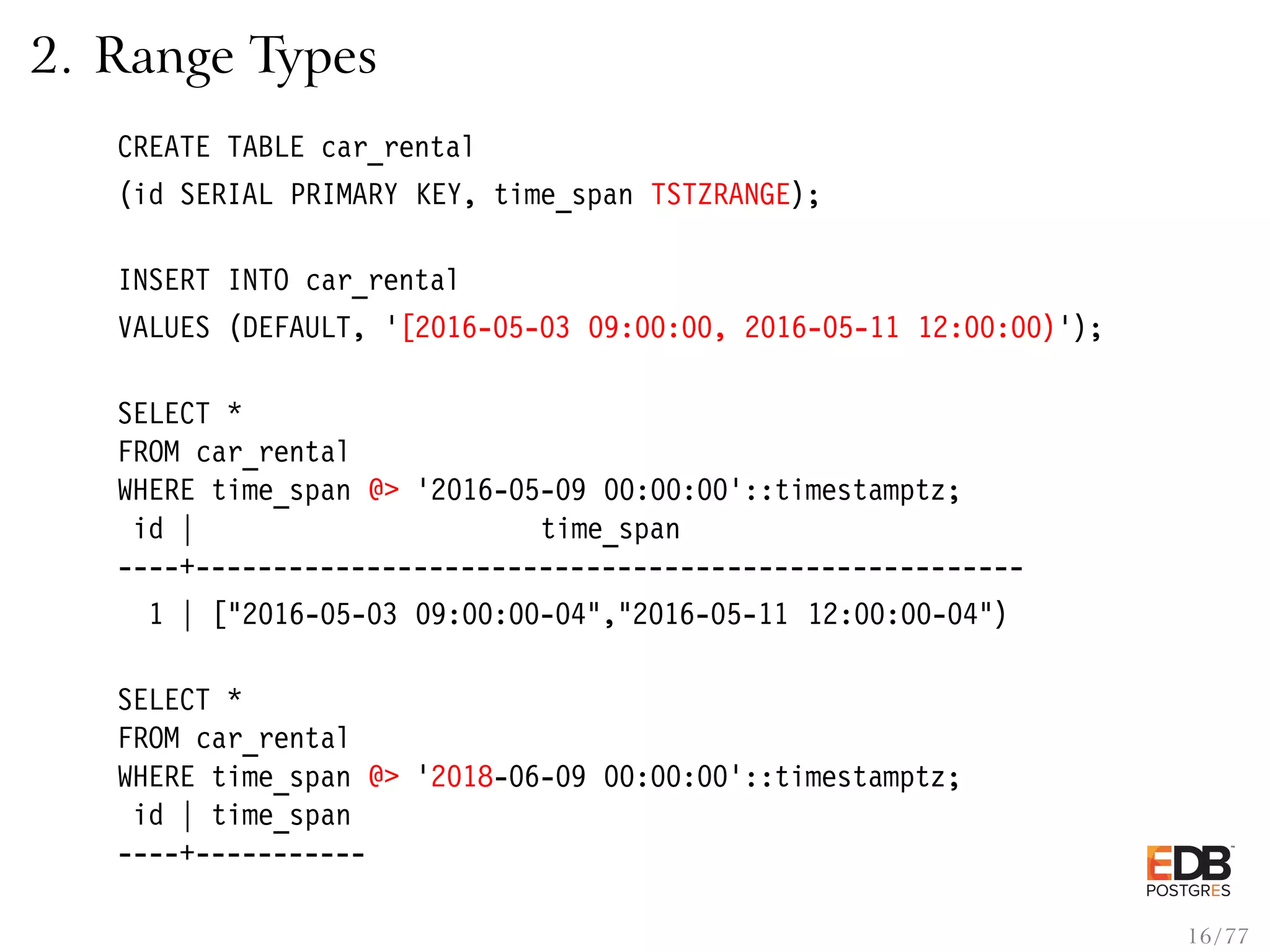

2. Range Types CREATE TABLE car_rental (id SERIAL PRIMARY KEY, time_span TSTZRANGE); INSERT INTO car_rental VALUES (DEFAULT, ’[2016-05-03 09:00:00, 2016-05-11 12:00:00)’); SELECT * FROM car_rental WHERE time_span @> ’2016-05-09 00:00:00’::timestamptz; id | time_span ----+----------------------------------------------------- 1 | ["2016-05-03 09:00:00-04","2016-05-11 12:00:00-04") SELECT * FROM car_rental WHERE time_span @> ’2018-06-09 00:00:00’::timestamptz; id | time_span ----+----------- 16 / 77

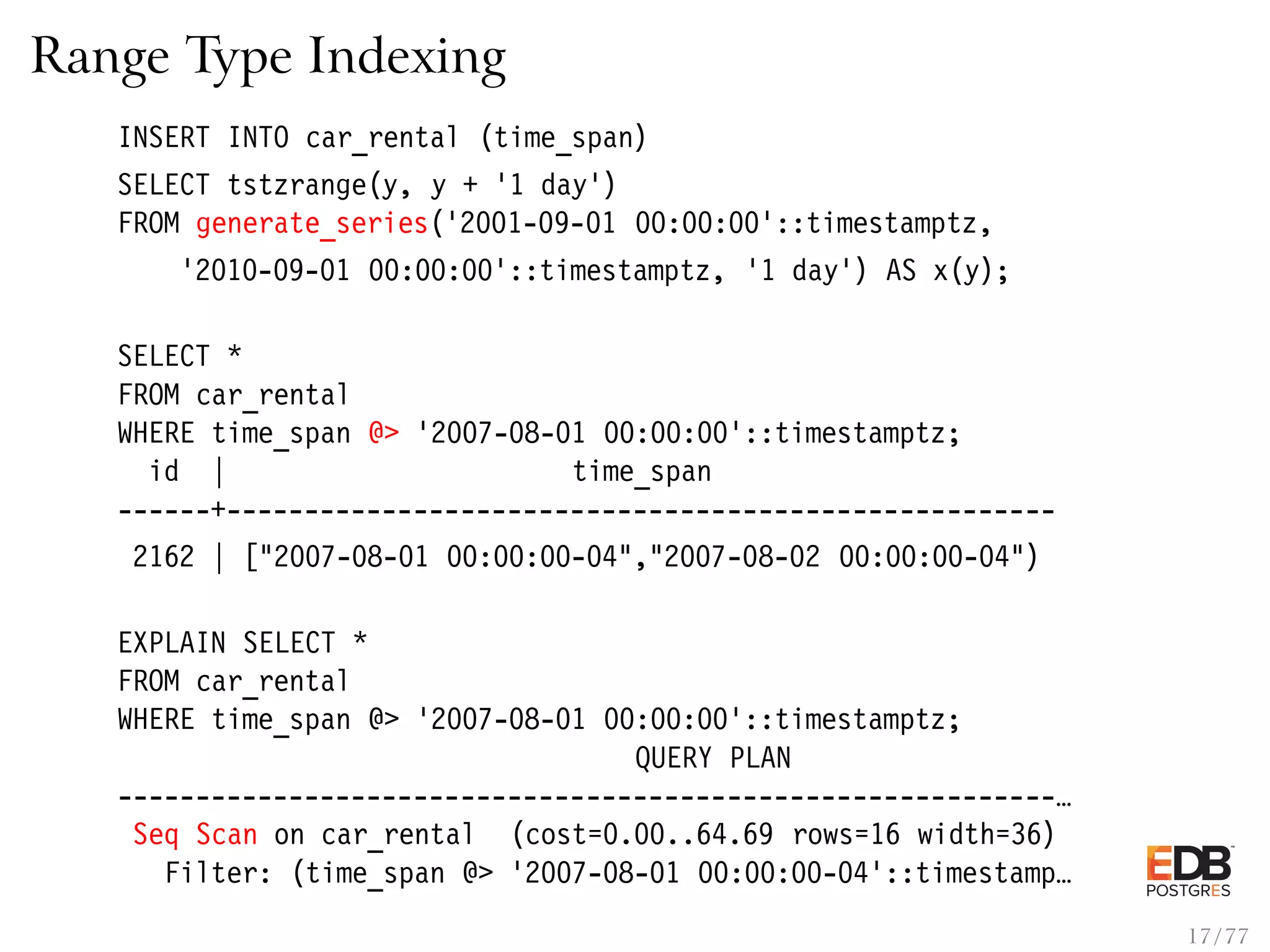

Range Type Indexing INSERT INTO car_rental (time_span) SELECT tstzrange(y, y + ’1 day’) FROM generate_series(’2001-09-01 00:00:00’::timestamptz, ’2010-09-01 00:00:00’::timestamptz, ’1 day’) AS x(y); SELECT * FROM car_rental WHERE time_span @> ’2007-08-01 00:00:00’::timestamptz; id | time_span ------+----------------------------------------------------- 2162 | ["2007-08-01 00:00:00-04","2007-08-02 00:00:00-04") EXPLAIN SELECT * FROM car_rental WHERE time_span @> ’2007-08-01 00:00:00’::timestamptz; QUERY PLAN ------------------------------------------------------------… Seq Scan on car_rental (cost=0.00..64.69 rows=16 width=36) Filter: (time_span @> ’2007-08-01 00:00:00-04’::timestamp… 17 / 77

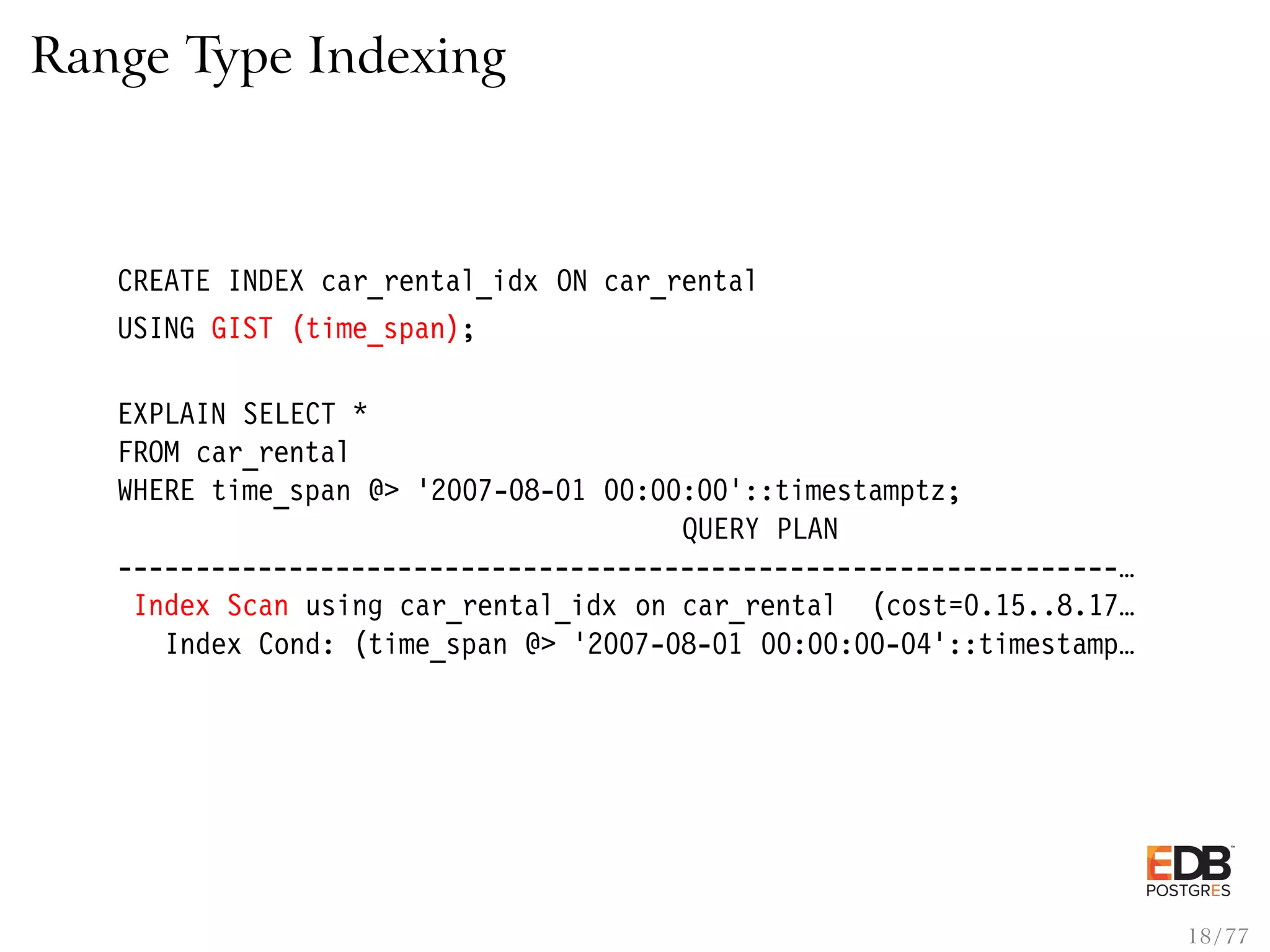

Range Type Indexing CREATE INDEX car_rental_idx ON car_rental USING GIST (time_span); EXPLAIN SELECT * FROM car_rental WHERE time_span @> ’2007-08-01 00:00:00’::timestamptz; QUERY PLAN ----------------------------------------------------------------… Index Scan using car_rental_idx on car_rental (cost=0.15..8.17… Index Cond: (time_span @> ’2007-08-01 00:00:00-04’::timestamp… 18 / 77

Exclusion Constraints ALTER TABLE car_rental ADD EXCLUDE USING GIST (time_span WITH &&); INSERT INTO car_rental VALUES (DEFAULT, ’[2003-04-01 00:00:00, 2003-04-01 00:00:01)’); ERROR: conflicting key value violates exclusion constraint "car… DETAIL: Key (time_span)=(["2003-04-01 00:00:00-05","2003-04-01 … with existing key (time_span)=(["2003-04-01 00:00:00-05","2003-… 19 / 77

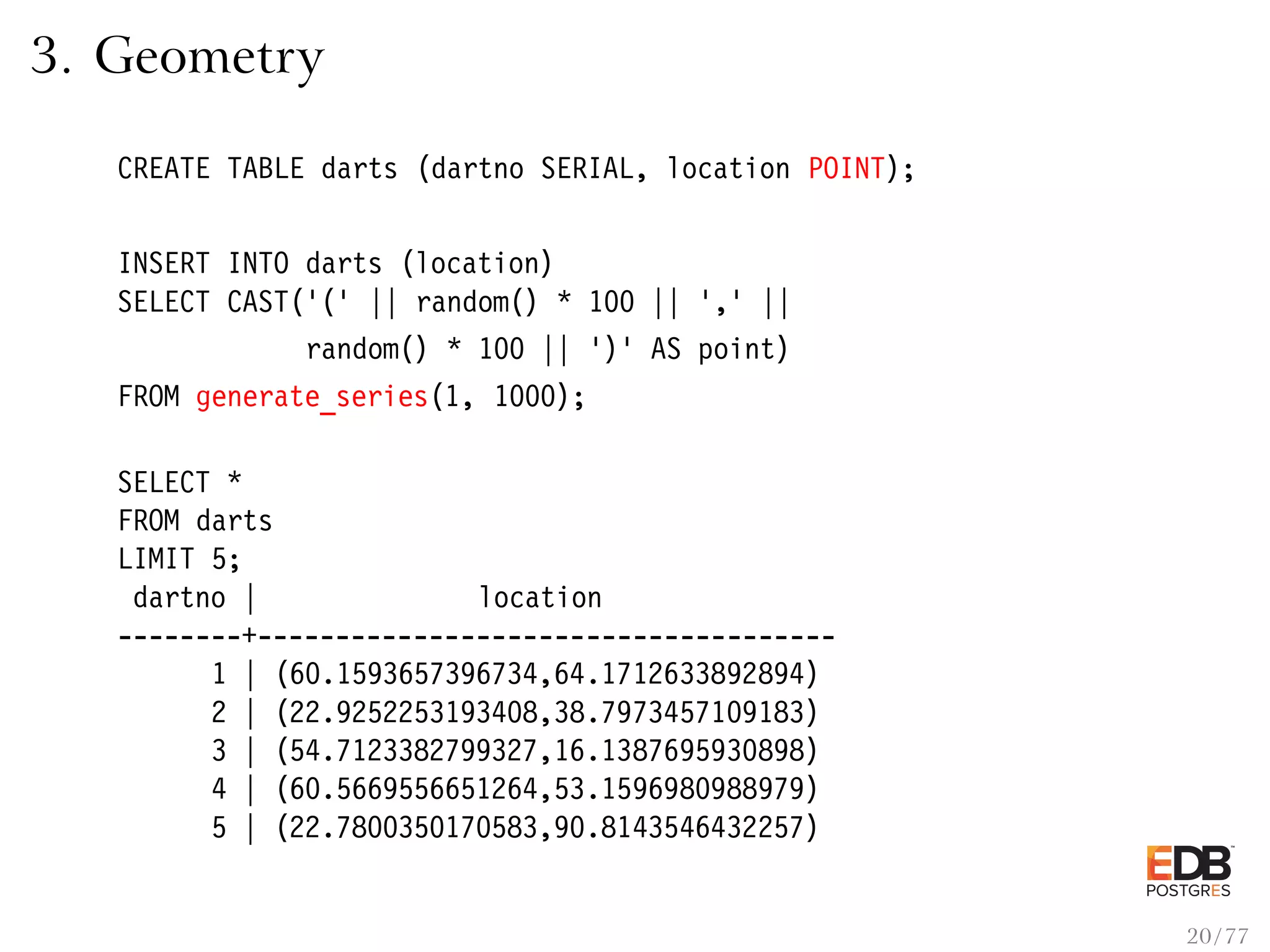

3. Geometry CREATE TABLE darts (dartno SERIAL, location POINT); INSERT INTO darts (location) SELECT CAST(’(’ || random() * 100 || ’,’ || random() * 100 || ’)’ AS point) FROM generate_series(1, 1000); SELECT * FROM darts LIMIT 5; dartno | location --------+------------------------------------- 1 | (60.1593657396734,64.1712633892894) 2 | (22.9252253193408,38.7973457109183) 3 | (54.7123382799327,16.1387695930898) 4 | (60.5669556651264,53.1596980988979) 5 | (22.7800350170583,90.8143546432257) 20 / 77

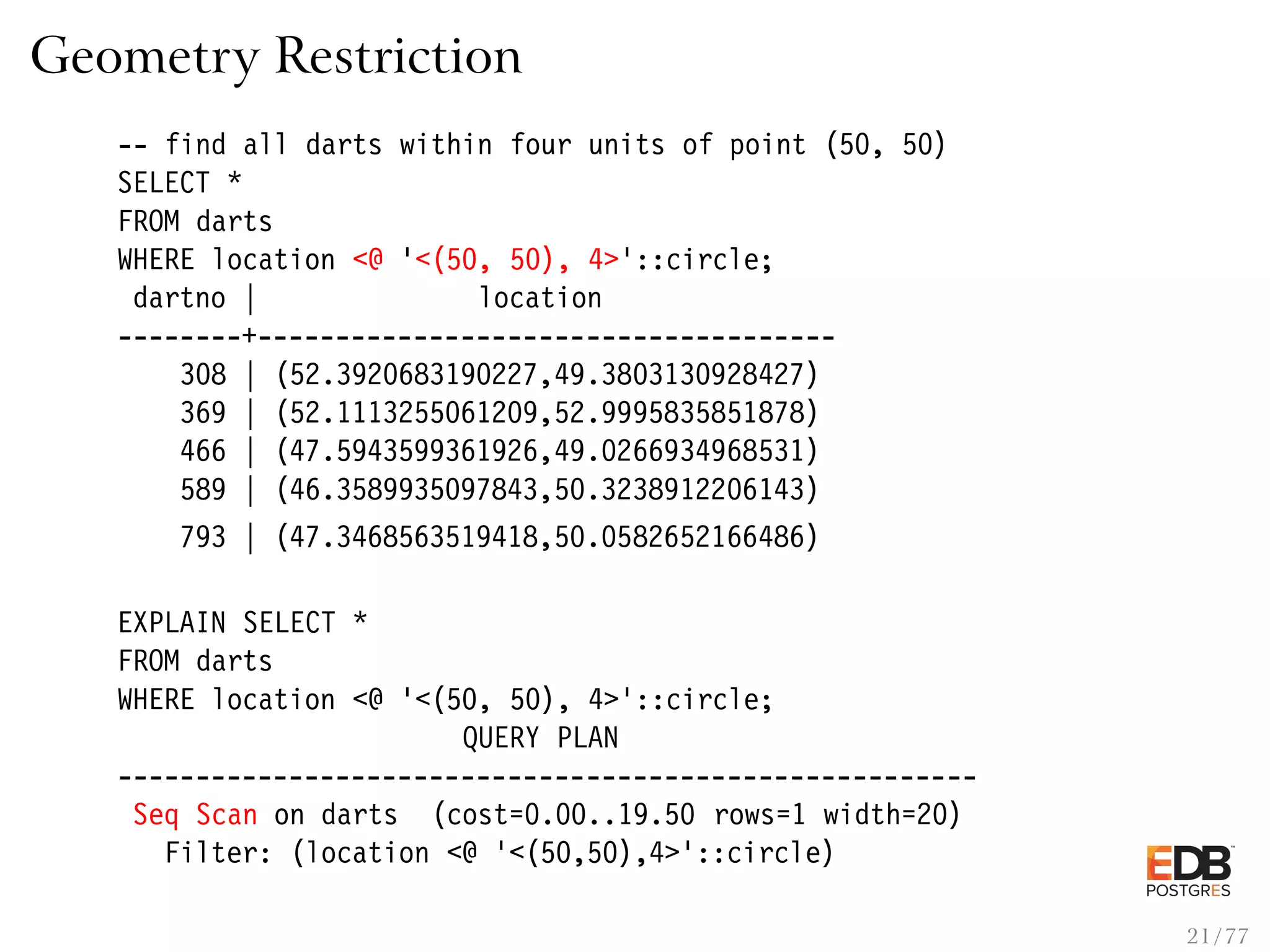

Geometry Restriction -- find all darts within four units of point (50, 50) SELECT * FROM darts WHERE location <@ ’<(50, 50), 4>’::circle; dartno | location --------+------------------------------------- 308 | (52.3920683190227,49.3803130928427) 369 | (52.1113255061209,52.9995835851878) 466 | (47.5943599361926,49.0266934968531) 589 | (46.3589935097843,50.3238912206143) 793 | (47.3468563519418,50.0582652166486) EXPLAIN SELECT * FROM darts WHERE location <@ ’<(50, 50), 4>’::circle; QUERY PLAN ------------------------------------------------------- Seq Scan on darts (cost=0.00..19.50 rows=1 width=20) Filter: (location <@ ’<(50,50),4>’::circle) 21 / 77

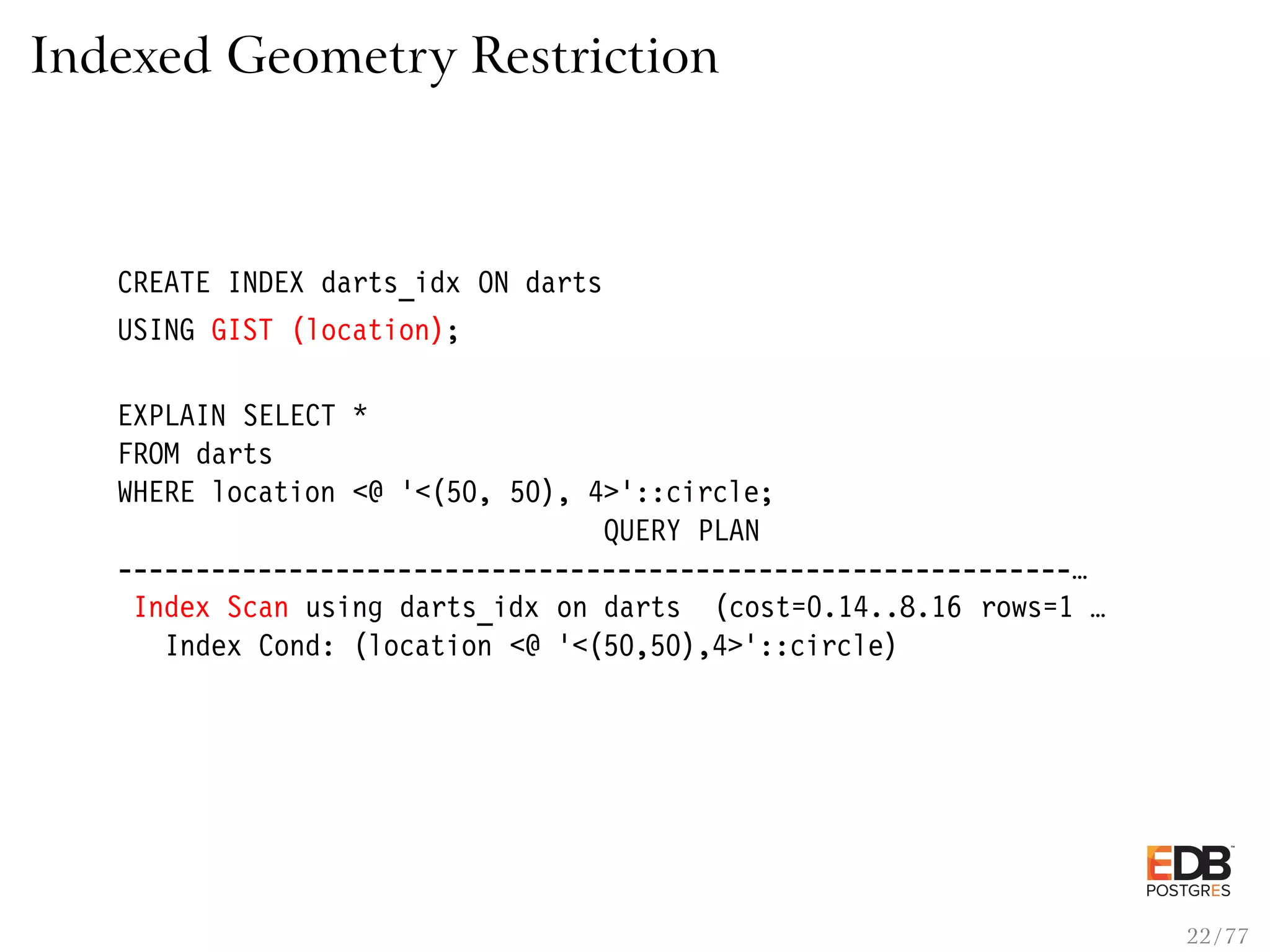

Indexed Geometry Restriction CREATE INDEX darts_idx ON darts USING GIST (location); EXPLAIN SELECT * FROM darts WHERE location <@ ’<(50, 50), 4>’::circle; QUERY PLAN -------------------------------------------------------------… Index Scan using darts_idx on darts (cost=0.14..8.16 rows=1 … Index Cond: (location <@ ’<(50,50),4>’::circle) 22 / 77

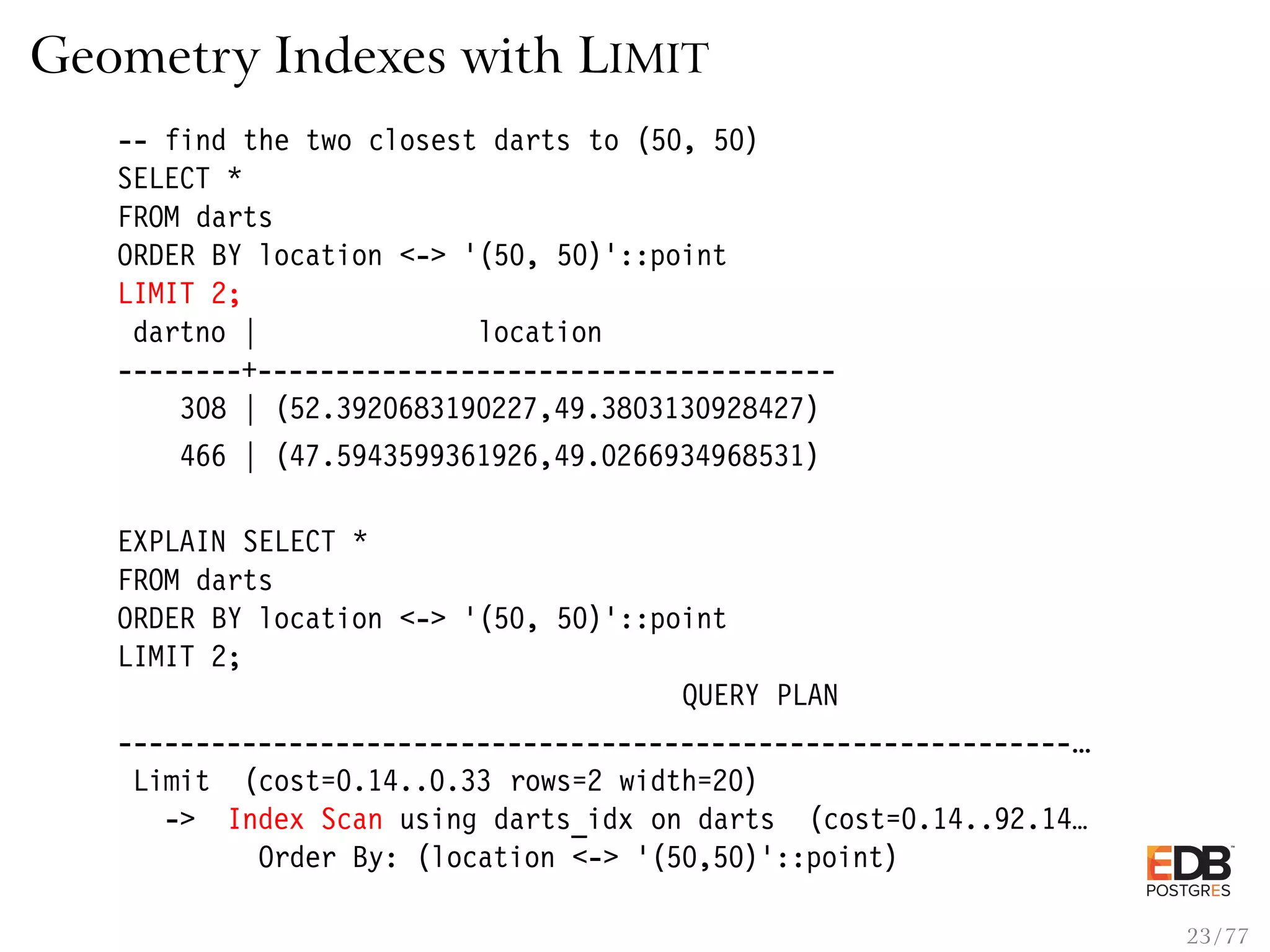

Geometry Indexes with LIMIT -- find the two closest darts to (50, 50) SELECT * FROM darts ORDER BY location <-> ’(50, 50)’::point LIMIT 2; dartno | location --------+------------------------------------- 308 | (52.3920683190227,49.3803130928427) 466 | (47.5943599361926,49.0266934968531) EXPLAIN SELECT * FROM darts ORDER BY location <-> ’(50, 50)’::point LIMIT 2; QUERY PLAN -------------------------------------------------------------… Limit (cost=0.14..0.33 rows=2 width=20) -> Index Scan using darts_idx on darts (cost=0.14..92.14… Order By: (location <-> ’(50,50)’::point) 23 / 77

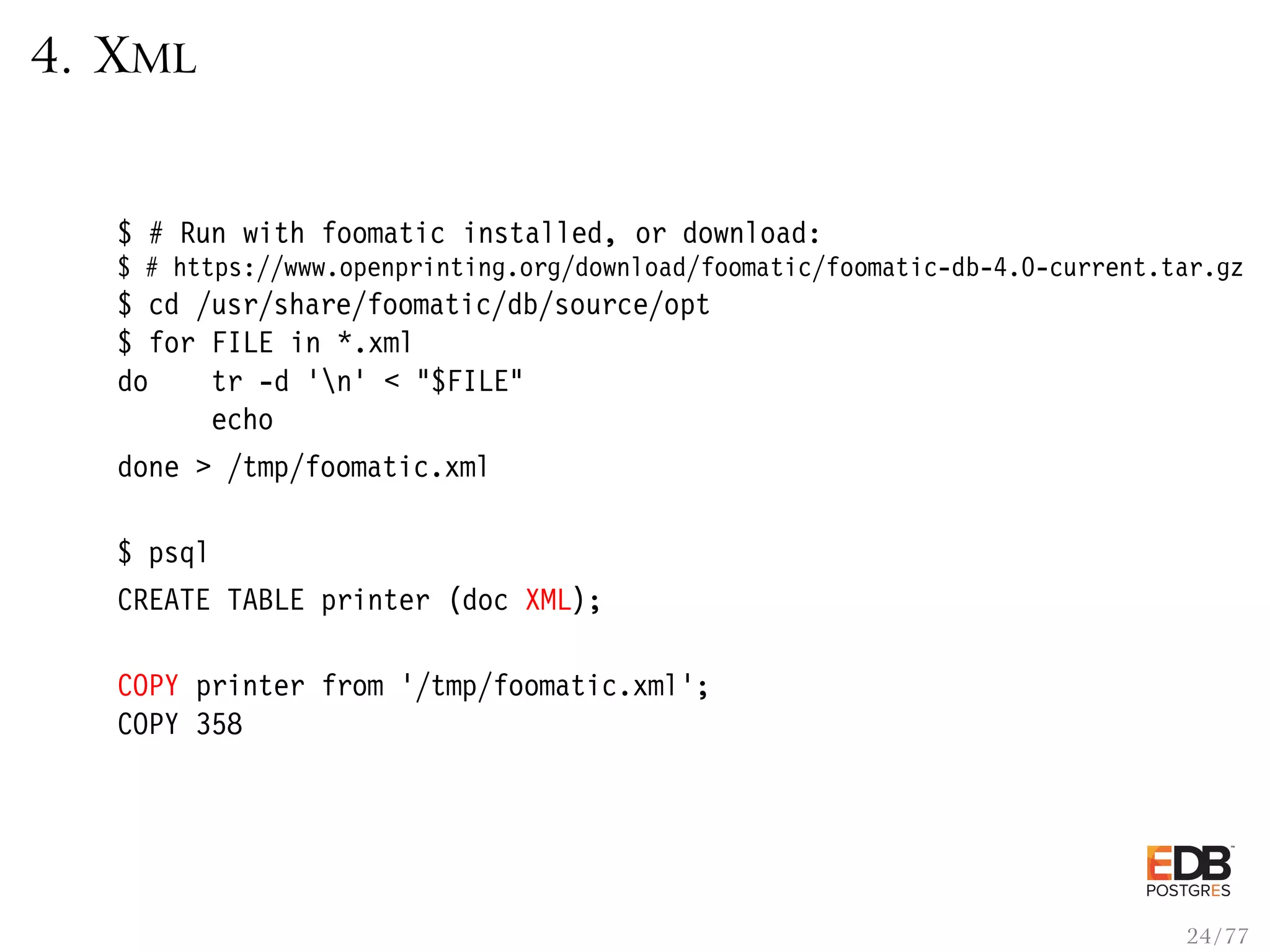

4. XML $ # Run with foomatic installed, or download: $ # https://www.openprinting.org/download/foomatic/foomatic-db-4.0-current.tar.gz $ cd /usr/share/foomatic/db/source/opt $ for FILE in *.xml do tr -d ’n’ < "$FILE" echo done > /tmp/foomatic.xml $ psql CREATE TABLE printer (doc XML); COPY printer from ’/tmp/foomatic.xml’; COPY 358 24 / 77

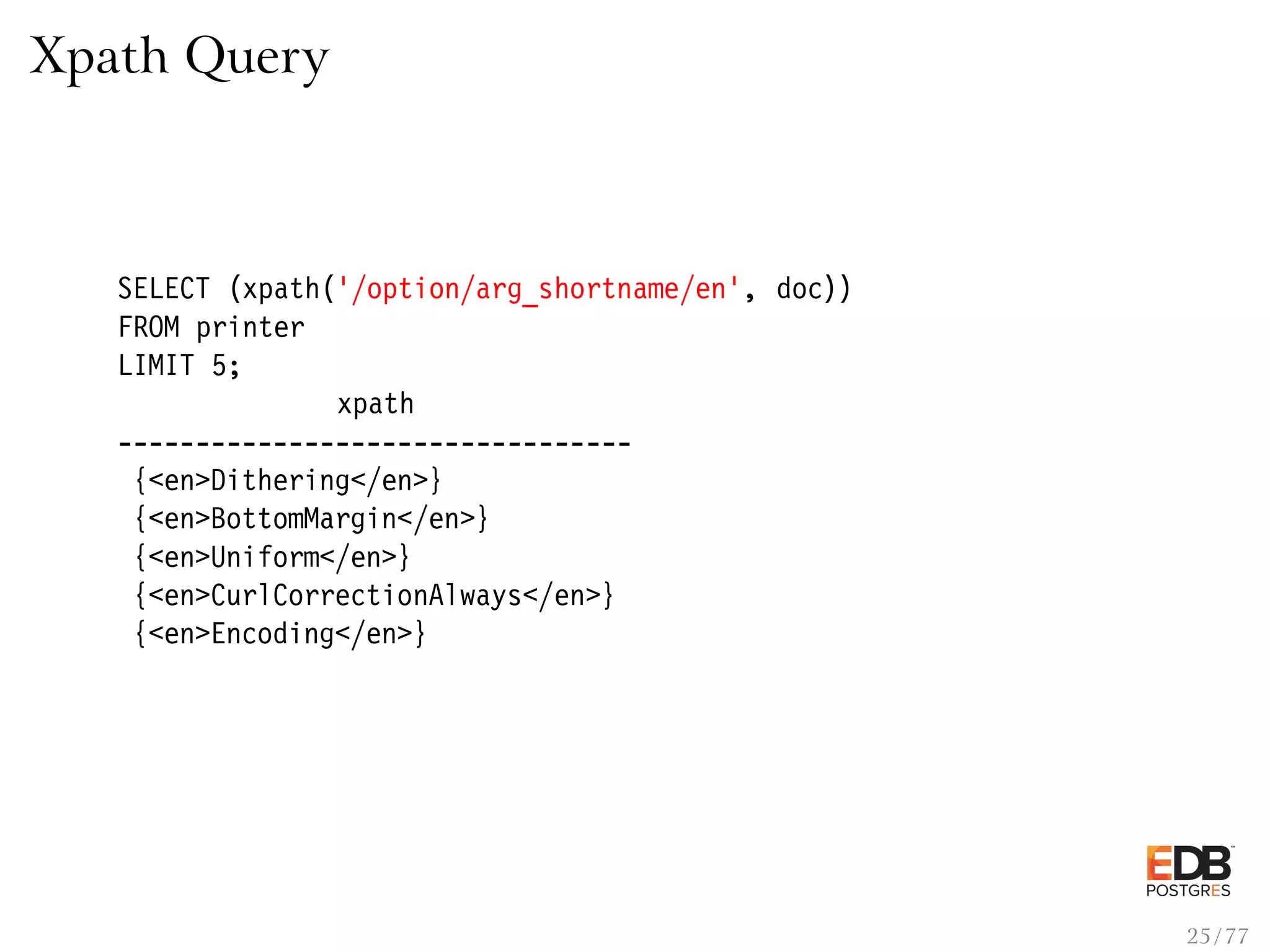

Xpath Query SELECT (xpath(’/option/arg_shortname/en’, doc)) FROM printer LIMIT 5; xpath --------------------------------- {<en>Dithering</en>} {<en>BottomMargin</en>} {<en>Uniform</en>} {<en>CurlCorrectionAlways</en>} {<en>Encoding</en>} 25 / 77

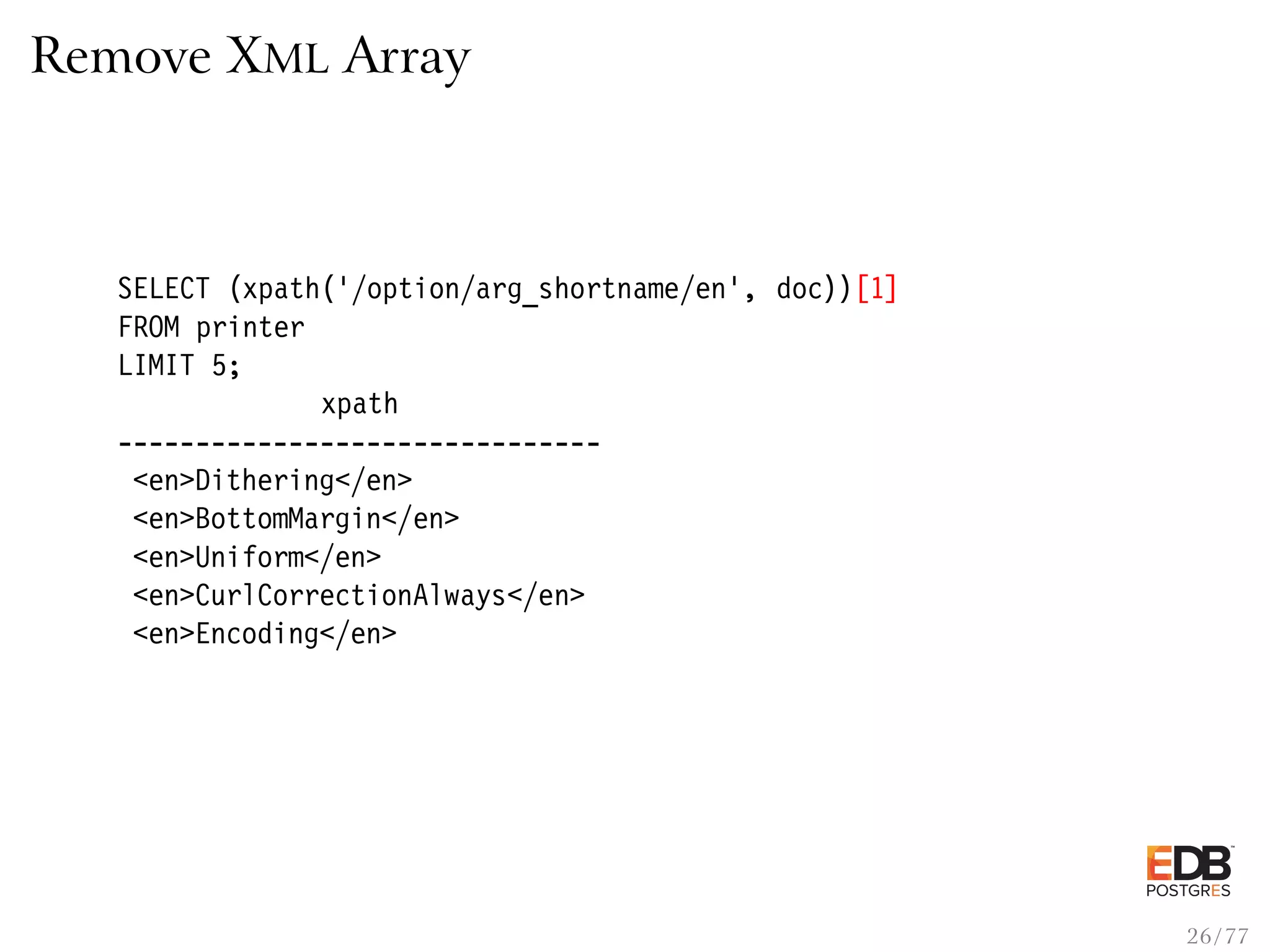

Remove XML Array SELECT (xpath(’/option/arg_shortname/en’, doc))[1] FROM printer LIMIT 5; xpath ------------------------------- <en>Dithering</en> <en>BottomMargin</en> <en>Uniform</en> <en>CurlCorrectionAlways</en> <en>Encoding</en> 26 / 77

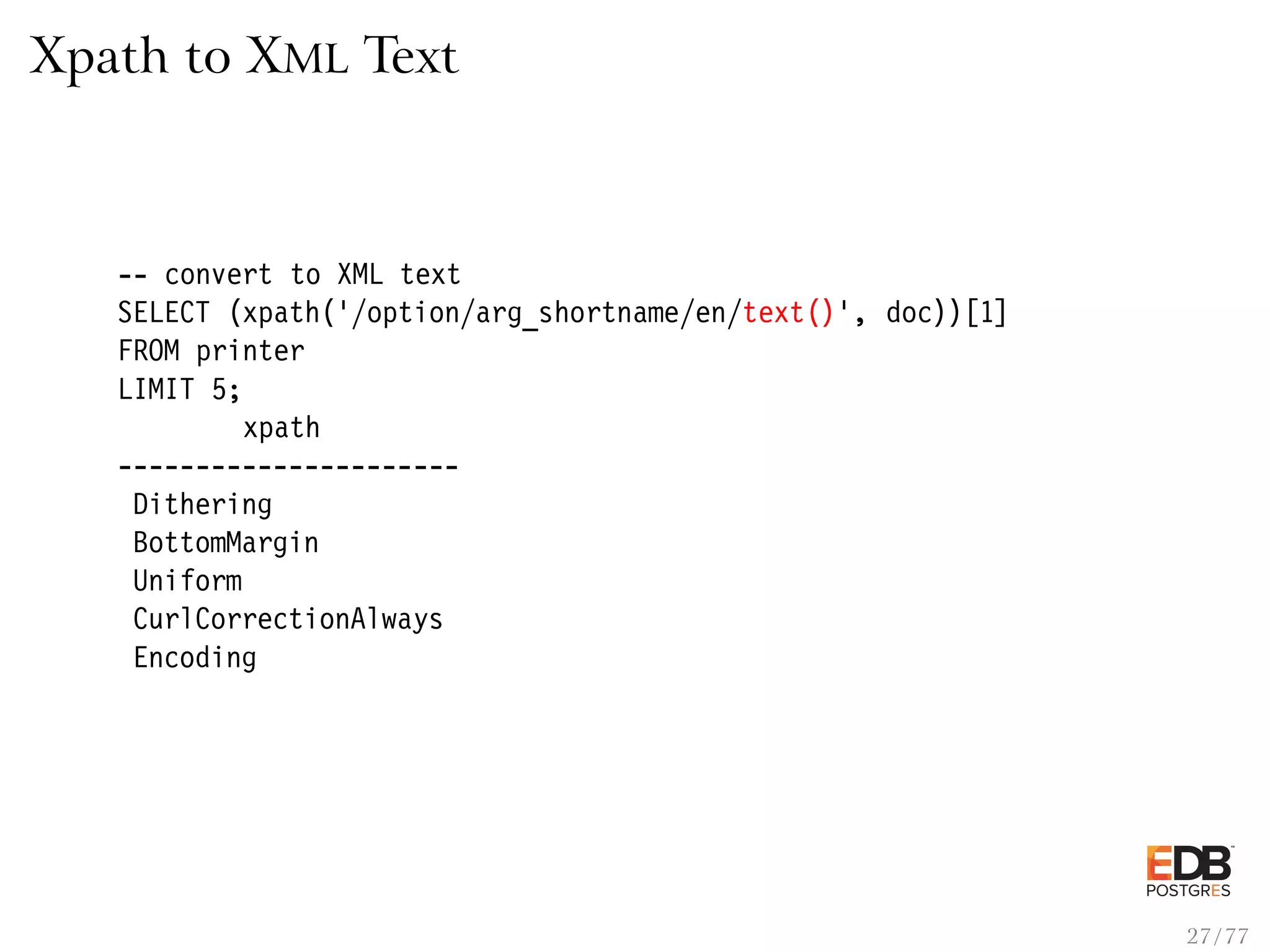

Xpath to XML Text -- convert to XML text SELECT (xpath(’/option/arg_shortname/en/text()’, doc))[1] FROM printer LIMIT 5; xpath ---------------------- Dithering BottomMargin Uniform CurlCorrectionAlways Encoding 27 / 77

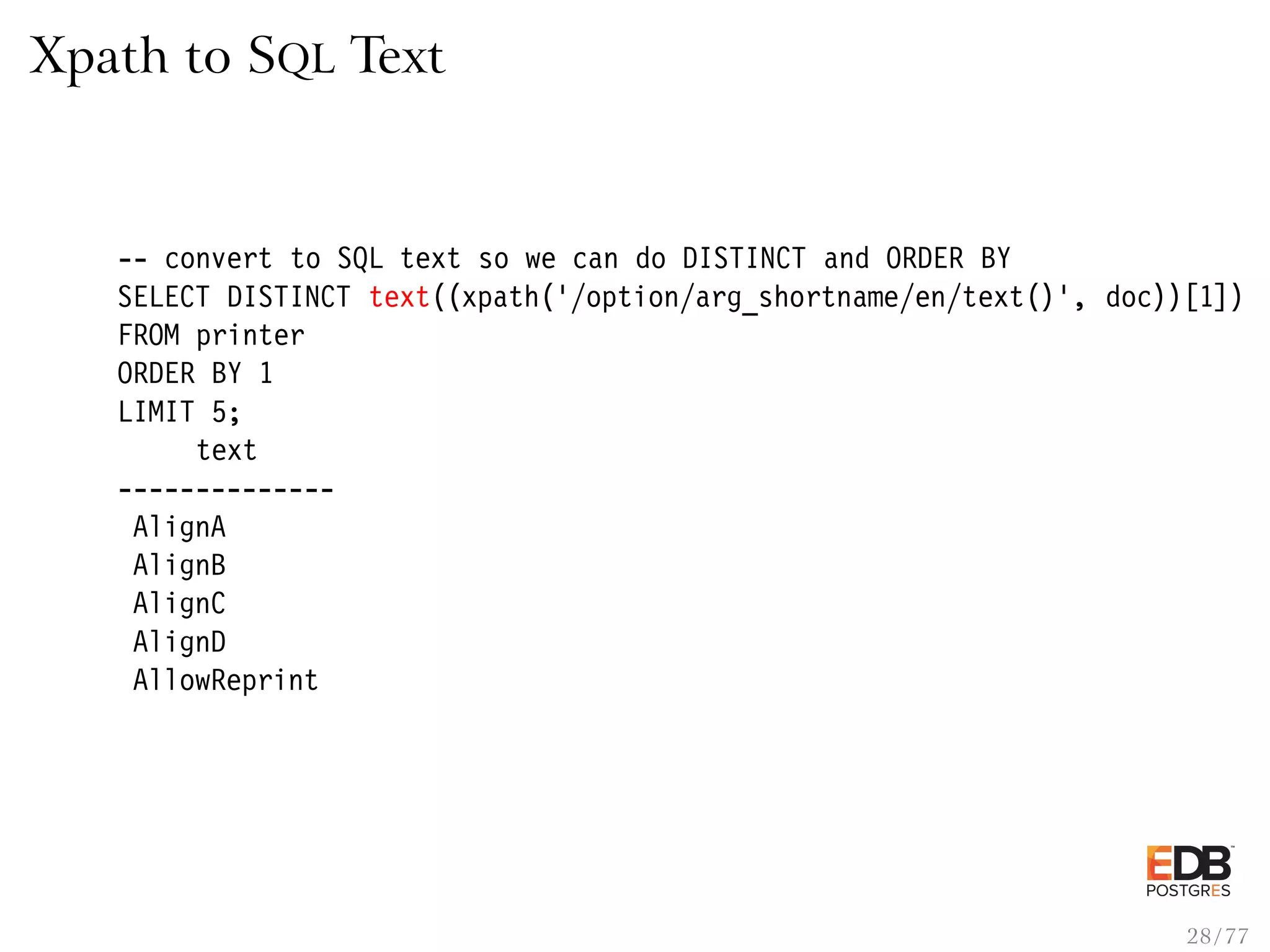

Xpath to SQL Text -- convert to SQL text so we can do DISTINCT and ORDER BY SELECT DISTINCT text((xpath(’/option/arg_shortname/en/text()’, doc))[1]) FROM printer ORDER BY 1 LIMIT 5; text -------------- AlignA AlignB AlignC AlignD AllowReprint 28 / 77

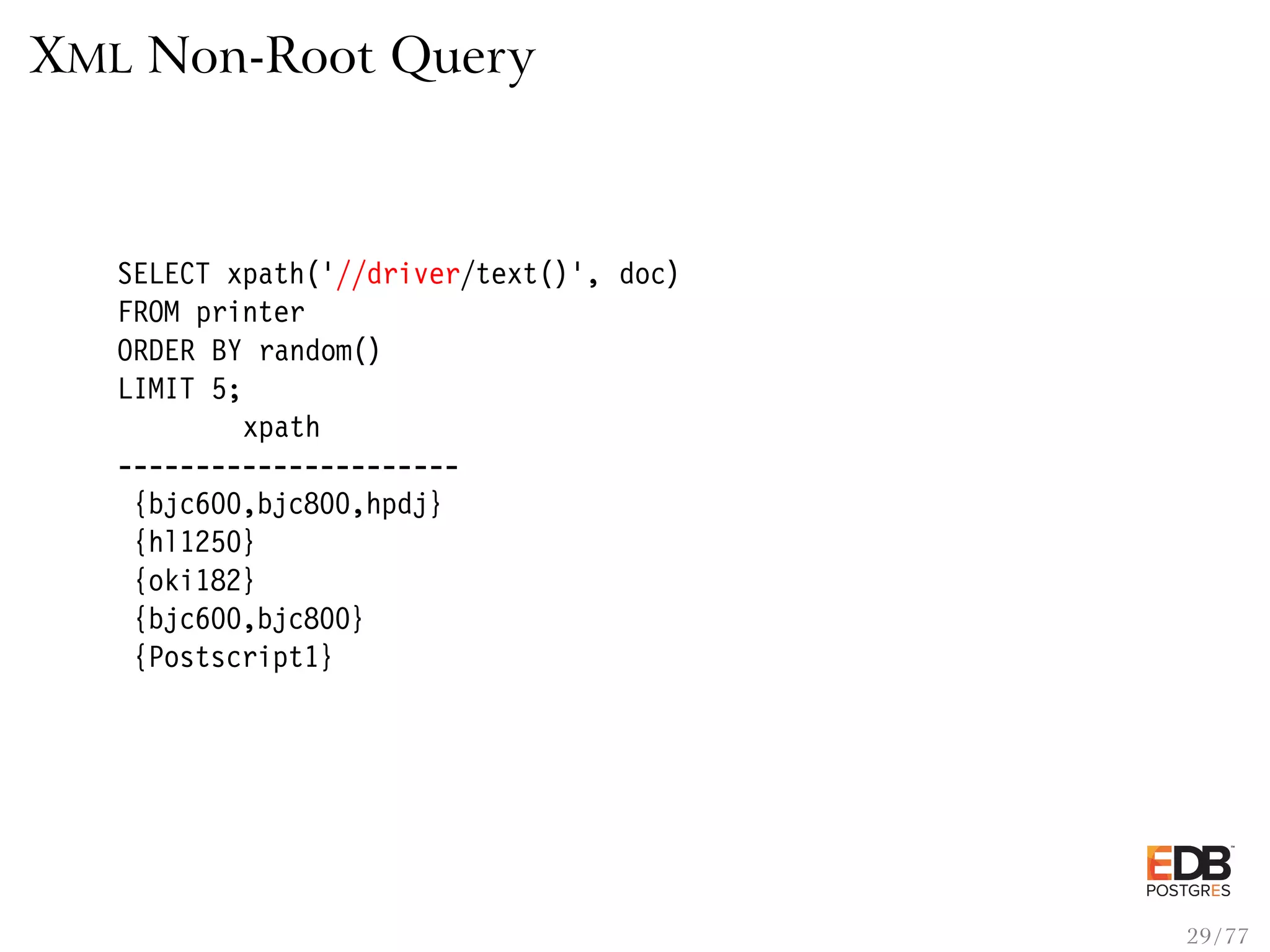

XML Non-Root Query SELECT xpath(’//driver/text()’, doc) FROM printer ORDER BY random() LIMIT 5; xpath ---------------------- {bjc600,bjc800,hpdj} {hl1250} {oki182} {bjc600,bjc800} {Postscript1} 29 / 77

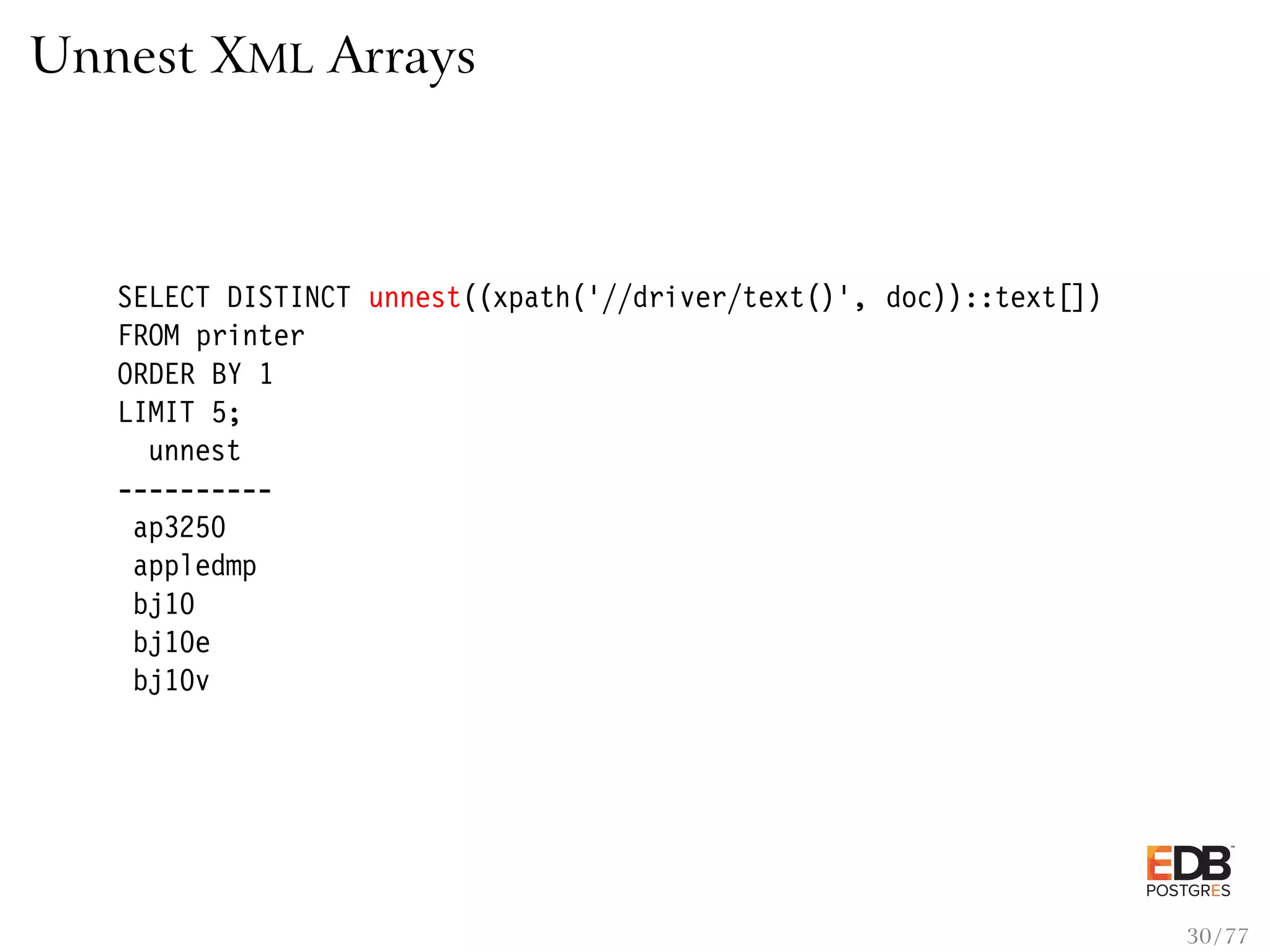

Unnest XML Arrays SELECT DISTINCT unnest((xpath(’//driver/text()’, doc))::text[]) FROM printer ORDER BY 1 LIMIT 5; unnest ---------- ap3250 appledmp bj10 bj10e bj10v 30 / 77

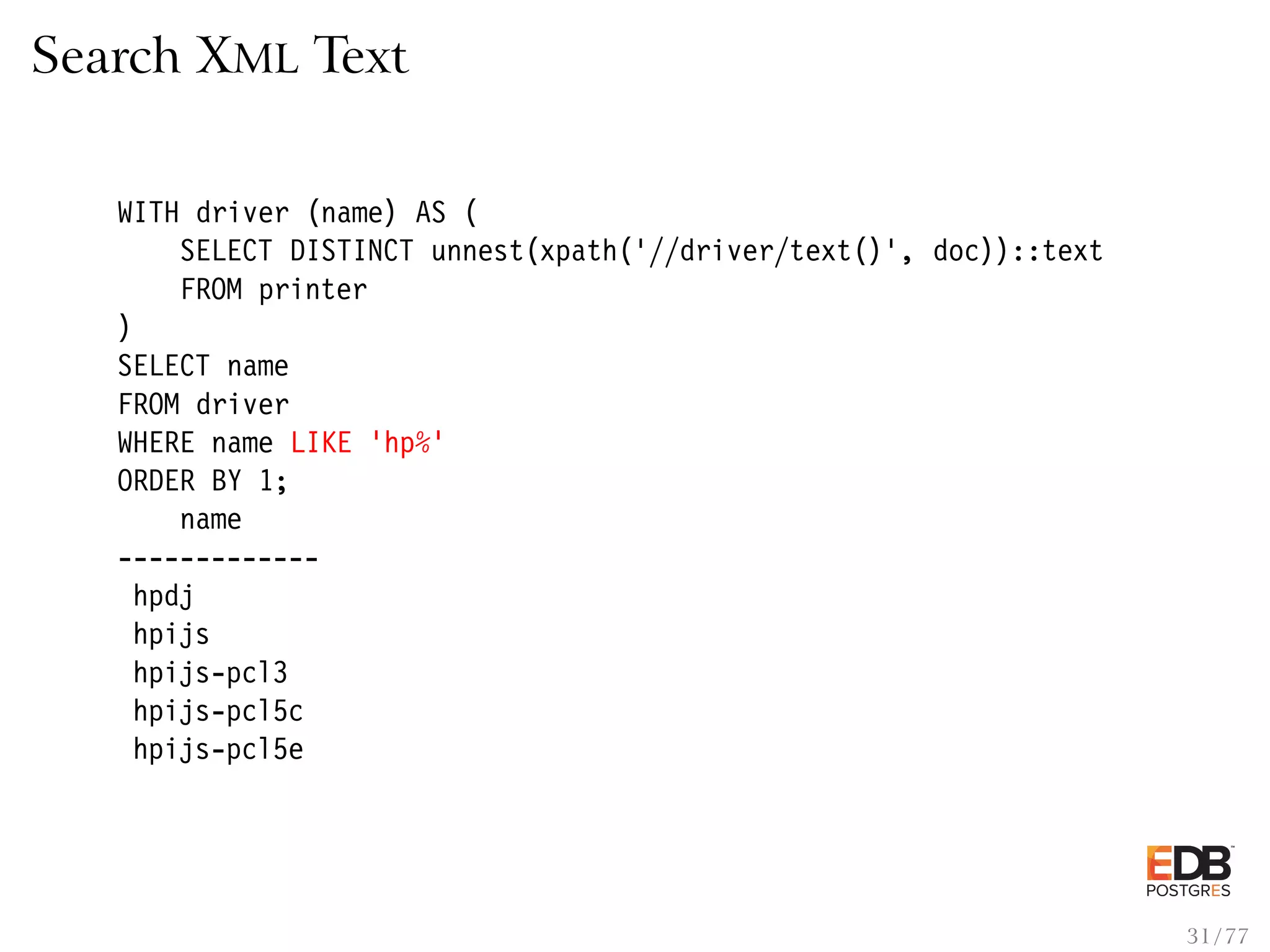

Search XML Text WITH driver (name) AS ( SELECT DISTINCT unnest(xpath(’//driver/text()’, doc))::text FROM printer ) SELECT name FROM driver WHERE name LIKE ’hp%’ ORDER BY 1; name ------------- hpdj hpijs hpijs-pcl3 hpijs-pcl5c hpijs-pcl5e 31 / 77

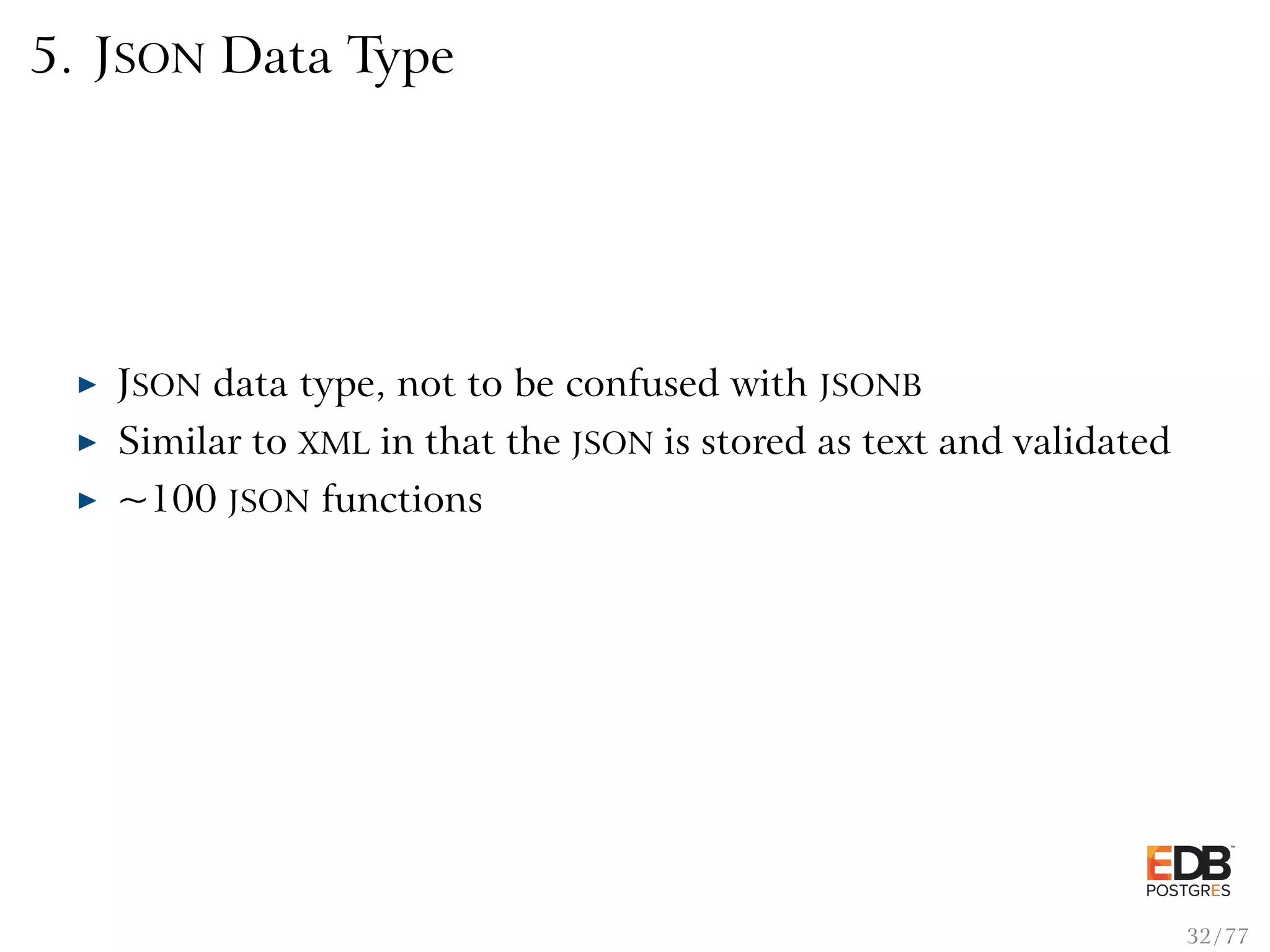

5. JSON Data Type JSON data type, not to be confused with JSONB Similar to XML in that the JSON is stored as text and validated ~100 JSON functions 32 / 77

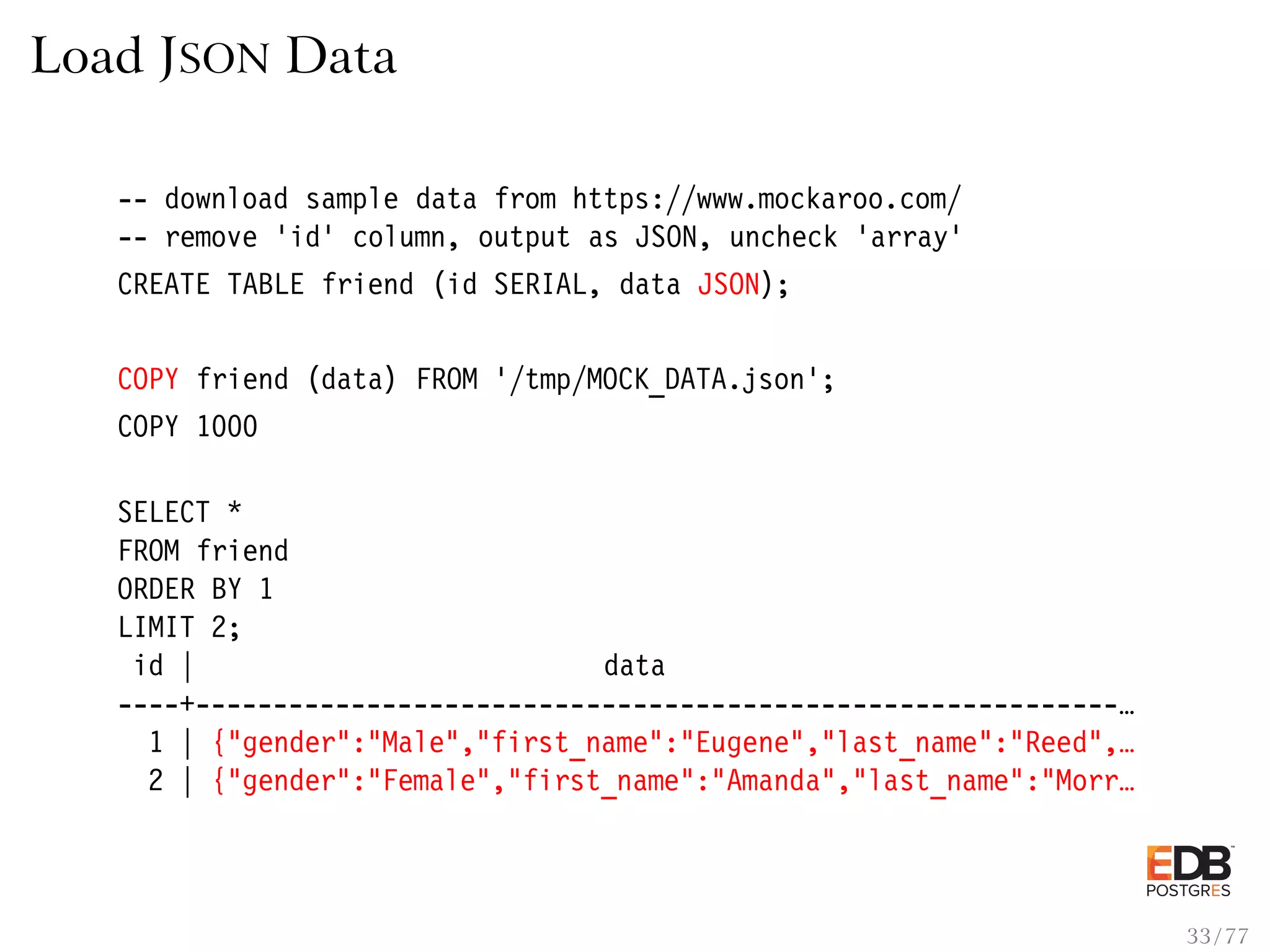

Load JSON Data -- download sample data from https://www.mockaroo.com/ -- remove ’id’ column, output as JSON, uncheck ’array’ CREATE TABLE friend (id SERIAL, data JSON); COPY friend (data) FROM ’/tmp/MOCK_DATA.json’; COPY 1000 SELECT * FROM friend ORDER BY 1 LIMIT 2; id | data ----+-----------------------------------------------------------… 1 | {"gender":"Male","first_name":"Eugene","last_name":"Reed",… 2 | {"gender":"Female","first_name":"Amanda","last_name":"Morr… 33 / 77

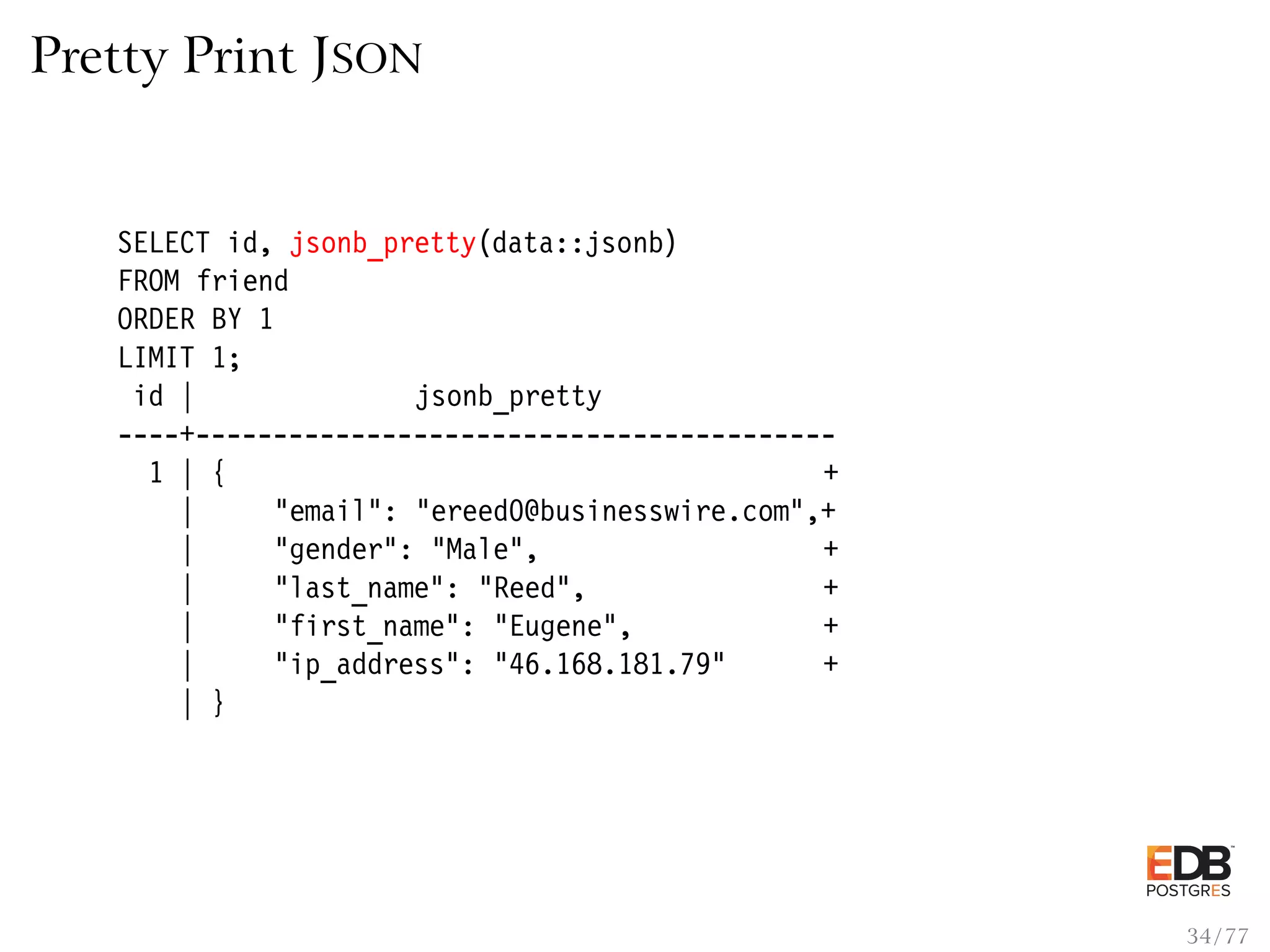

Pretty Print JSON SELECT id, jsonb_pretty(data::jsonb) FROM friend ORDER BY 1 LIMIT 1; id | jsonb_pretty ----+----------------------------------------- 1 | { + | "email": "ereed0@businesswire.com",+ | "gender": "Male", + | "last_name": "Reed", + | "first_name": "Eugene", + | "ip_address": "46.168.181.79" + | } 34 / 77

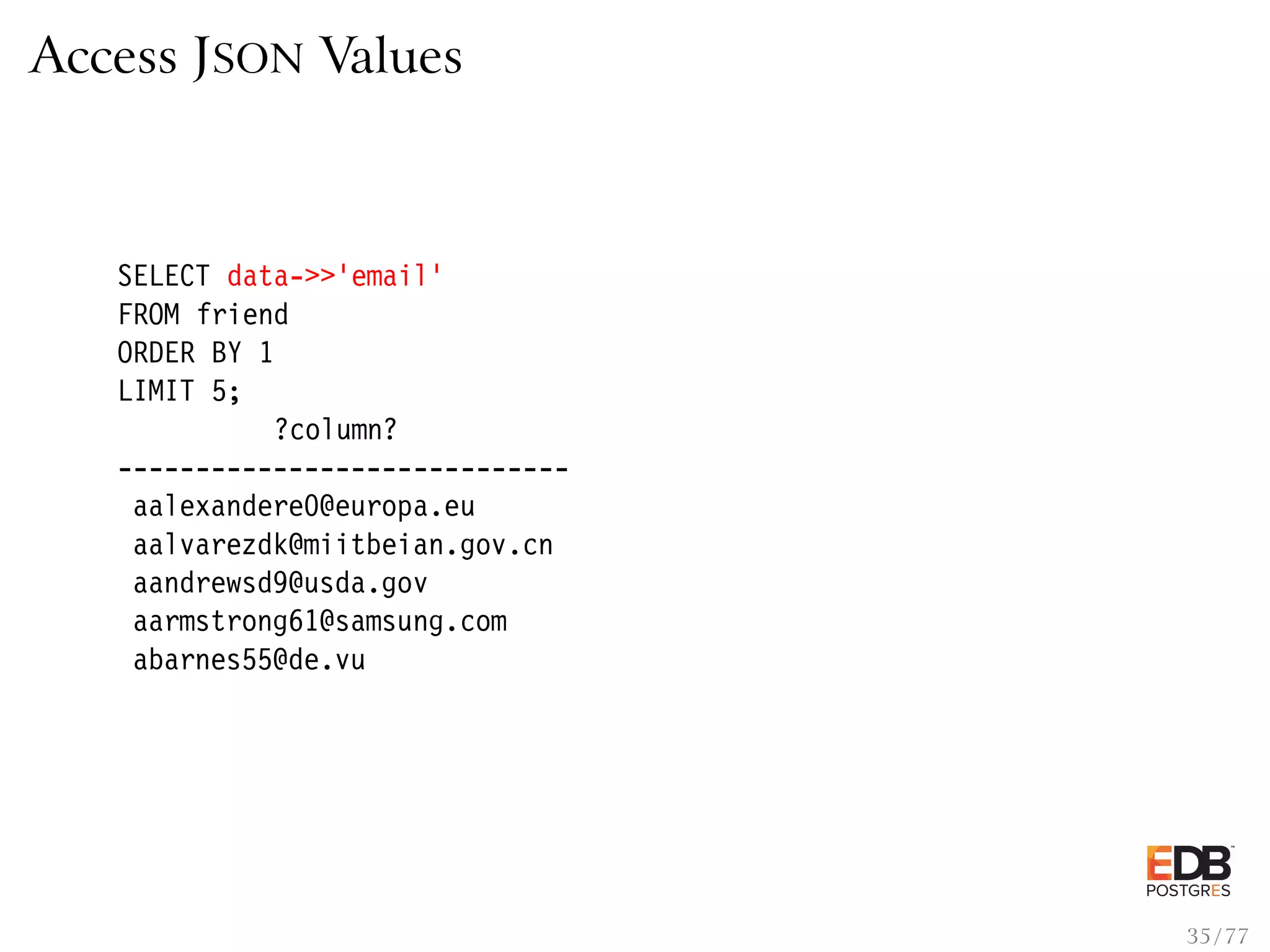

Access JSON Values SELECT data->>’email’ FROM friend ORDER BY 1 LIMIT 5; ?column? ----------------------------- aalexandere0@europa.eu aalvarezdk@miitbeian.gov.cn aandrewsd9@usda.gov aarmstrong61@samsung.com abarnes55@de.vu 35 / 77

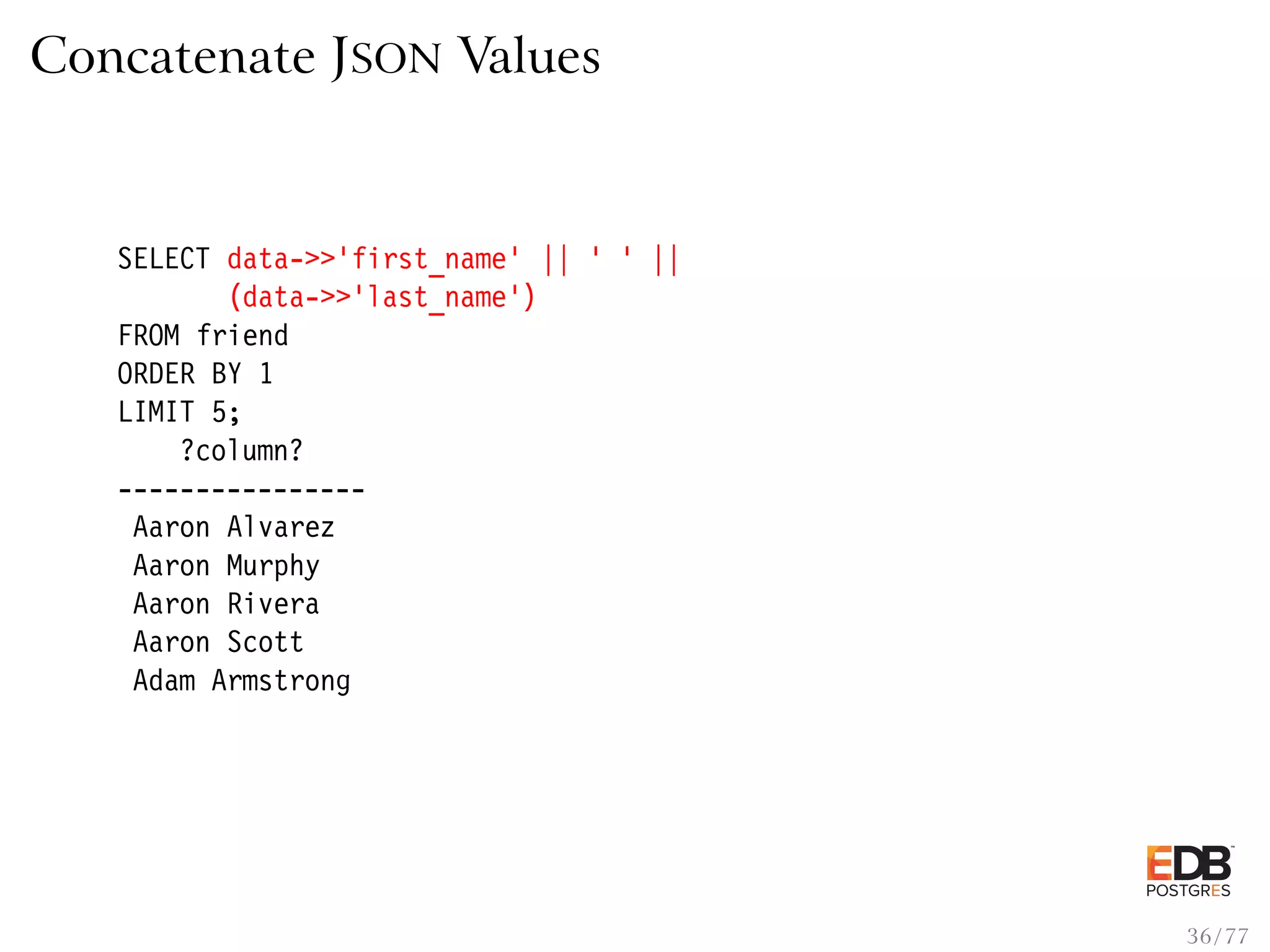

Concatenate JSON Values SELECT data->>’first_name’ || ’ ’ || (data->>’last_name’) FROM friend ORDER BY 1 LIMIT 5; ?column? ---------------- Aaron Alvarez Aaron Murphy Aaron Rivera Aaron Scott Adam Armstrong 36 / 77

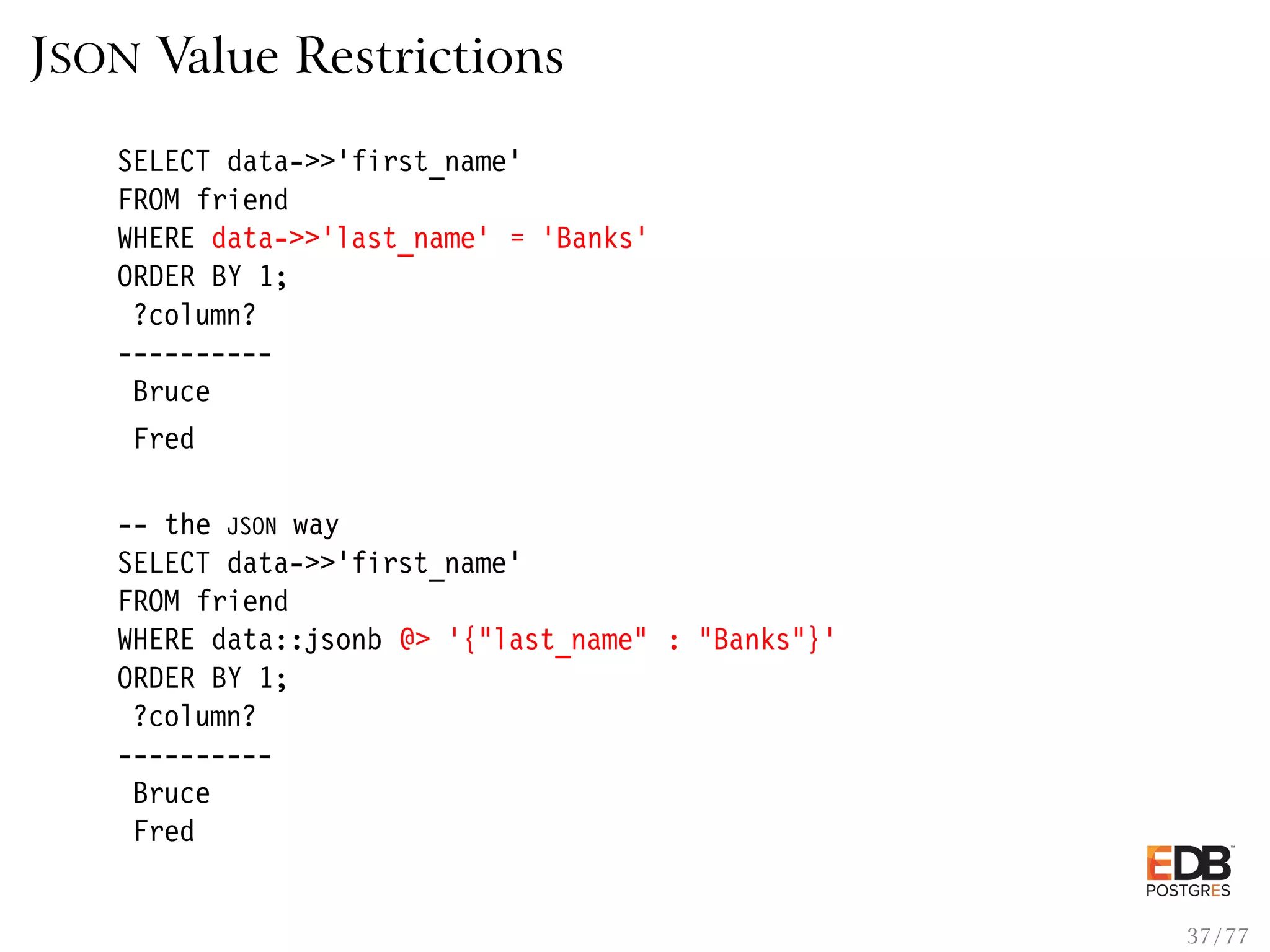

JSON Value Restrictions SELECT data->>’first_name’ FROM friend WHERE data->>’last_name’ = ’Banks’ ORDER BY 1; ?column? ---------- Bruce Fred -- the JSON way SELECT data->>’first_name’ FROM friend WHERE data::jsonb @> ’{"last_name" : "Banks"}’ ORDER BY 1; ?column? ---------- Bruce Fred 37 / 77

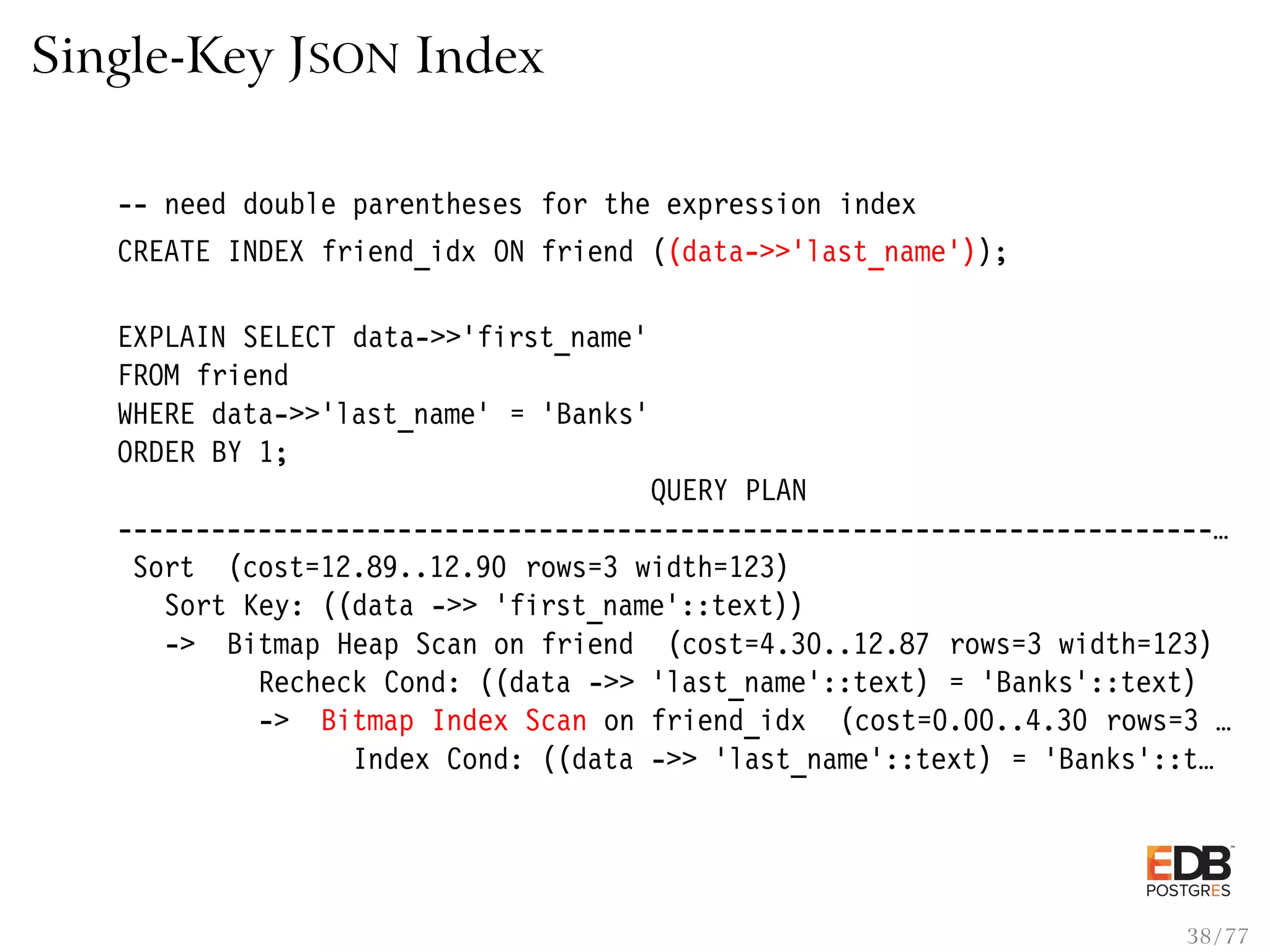

Single-Key JSON Index -- need double parentheses for the expression index CREATE INDEX friend_idx ON friend ((data->>’last_name’)); EXPLAIN SELECT data->>’first_name’ FROM friend WHERE data->>’last_name’ = ’Banks’ ORDER BY 1; QUERY PLAN ----------------------------------------------------------------------… Sort (cost=12.89..12.90 rows=3 width=123) Sort Key: ((data ->> ’first_name’::text)) -> Bitmap Heap Scan on friend (cost=4.30..12.87 rows=3 width=123) Recheck Cond: ((data ->> ’last_name’::text) = ’Banks’::text) -> Bitmap Index Scan on friend_idx (cost=0.00..4.30 rows=3 … Index Cond: ((data ->> ’last_name’::text) = ’Banks’::t… 38 / 77

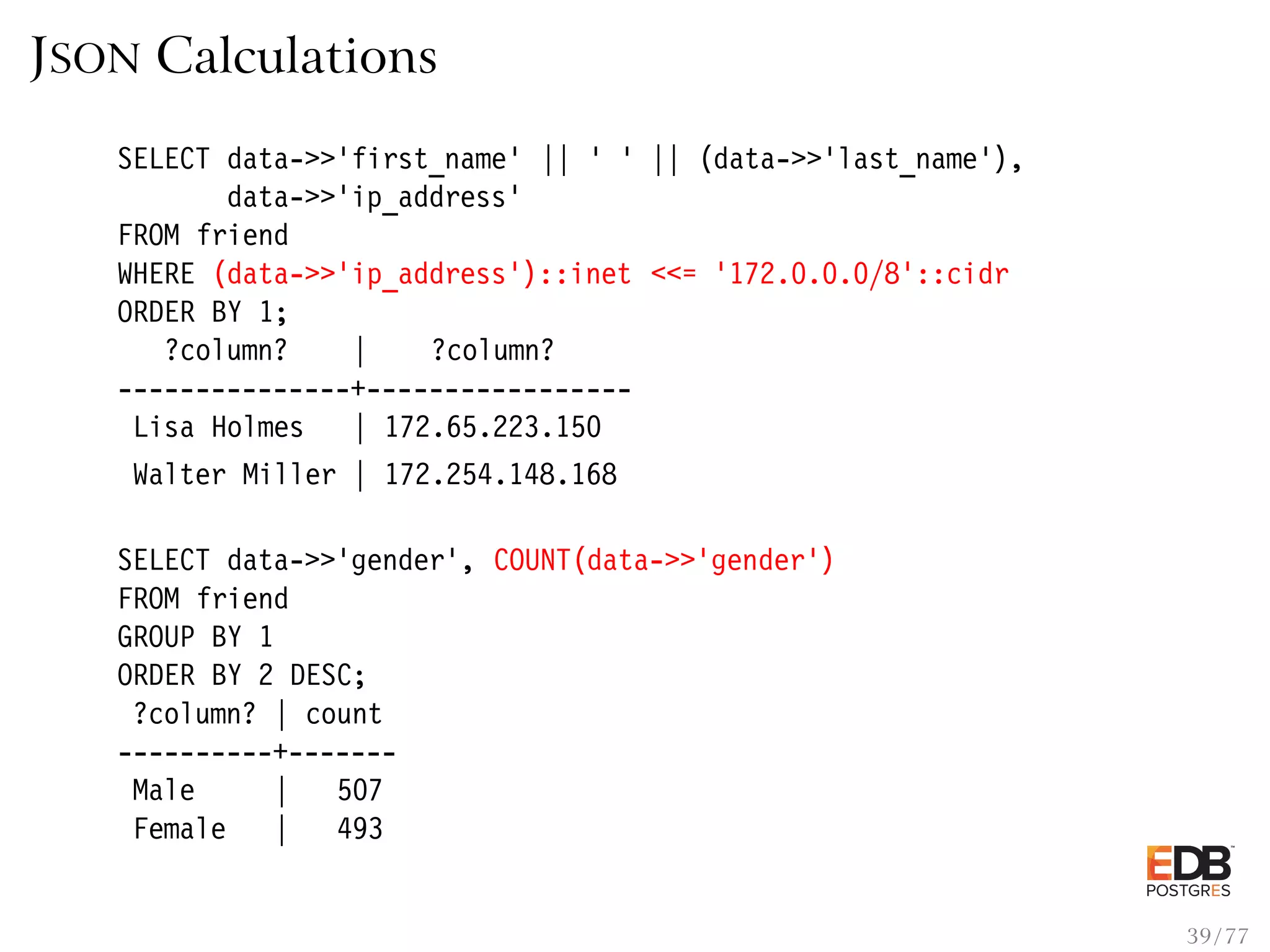

JSON Calculations SELECT data->>’first_name’ || ’ ’ || (data->>’last_name’), data->>’ip_address’ FROM friend WHERE (data->>’ip_address’)::inet <<= ’172.0.0.0/8’::cidr ORDER BY 1; ?column? | ?column? ---------------+----------------- Lisa Holmes | 172.65.223.150 Walter Miller | 172.254.148.168 SELECT data->>’gender’, COUNT(data->>’gender’) FROM friend GROUP BY 1 ORDER BY 2 DESC; ?column? | count ----------+------- Male | 507 Female | 493 39 / 77

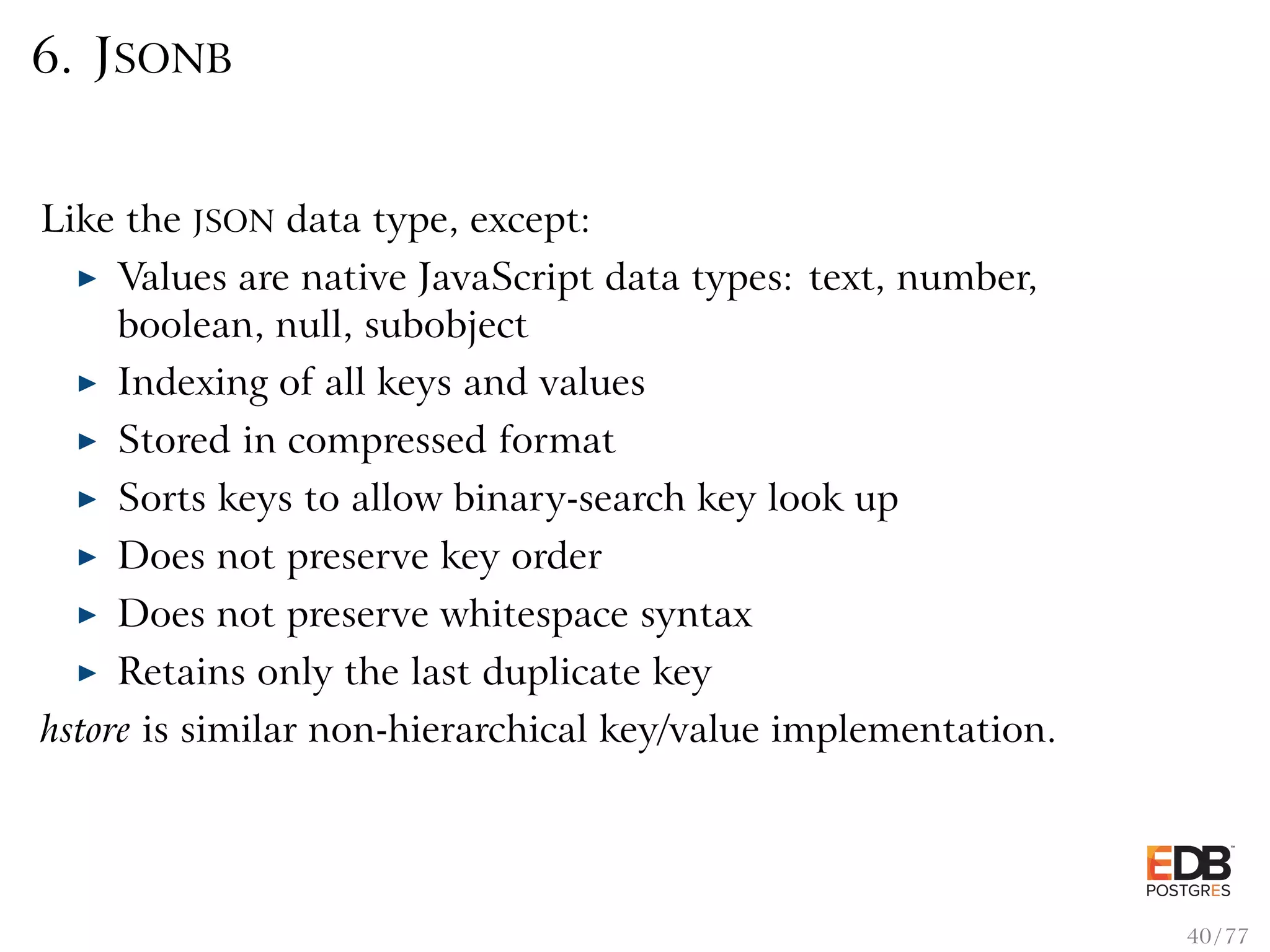

6. JSONB Like the JSON data type, except: Values are native JavaScript data types: text, number, boolean, null, subobject Indexing of all keys and values Stored in compressed format Sorts keys to allow binary-search key look up Does not preserve key order Does not preserve whitespace syntax Retains only the last duplicate key hstore is similar non-hierarchical key/value implementation. 40 / 77

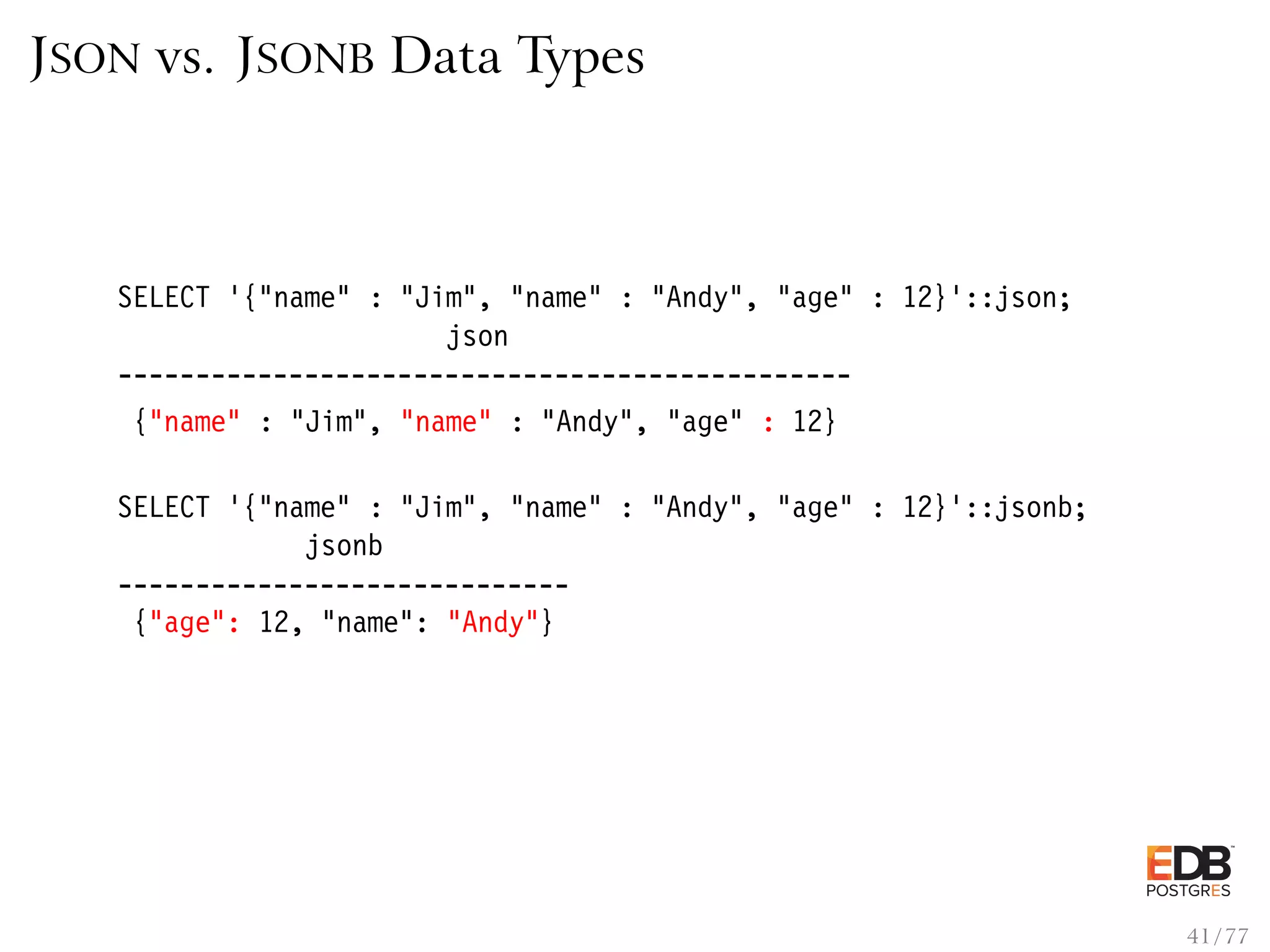

JSON vs. JSONB Data Types SELECT ’{"name" : "Jim", "name" : "Andy", "age" : 12}’::json; json ----------------------------------------------- {"name" : "Jim", "name" : "Andy", "age" : 12} SELECT ’{"name" : "Jim", "name" : "Andy", "age" : 12}’::jsonb; jsonb ----------------------------- {"age": 12, "name": "Andy"} 41 / 77

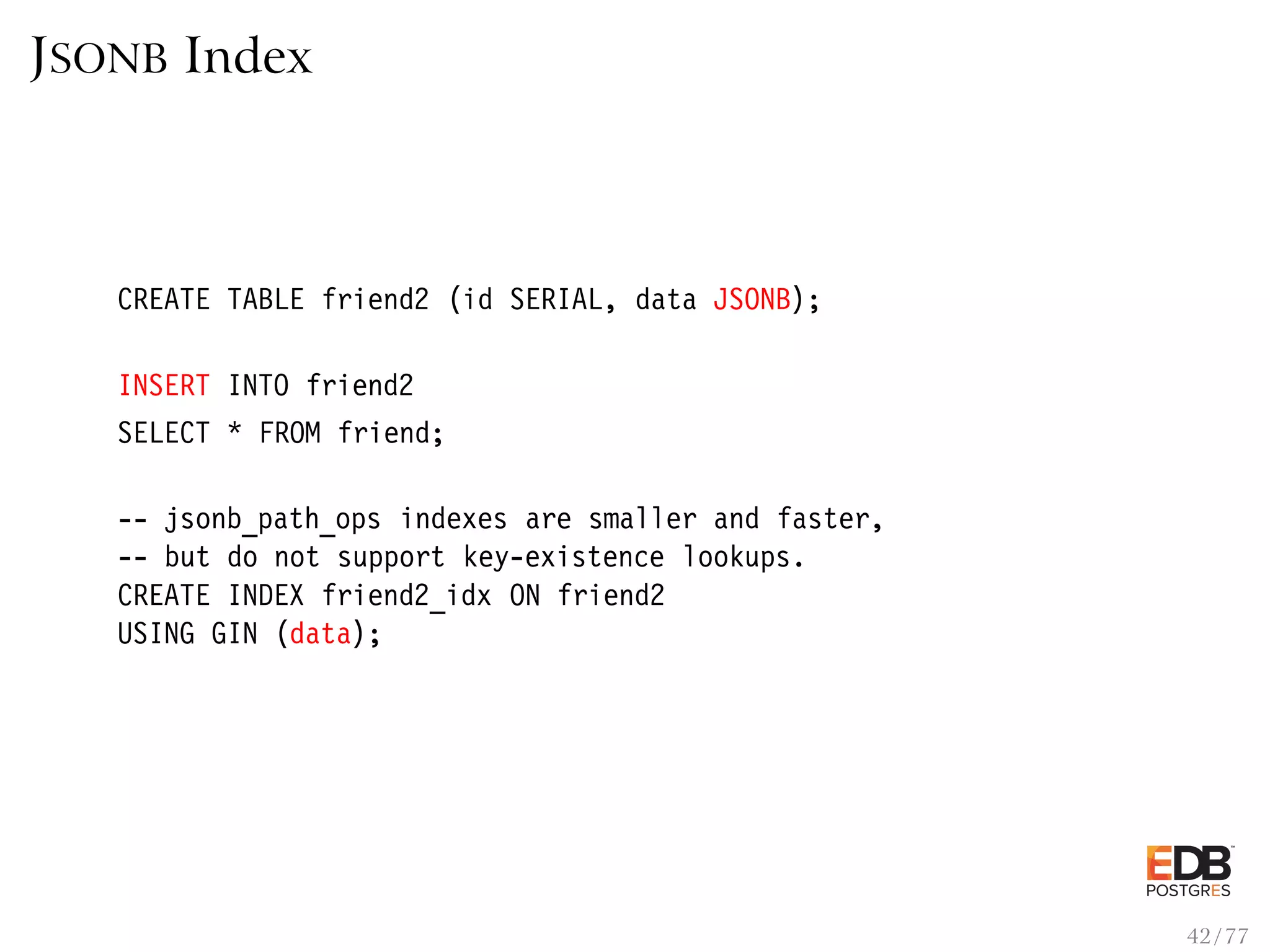

JSONB Index CREATE TABLE friend2 (id SERIAL, data JSONB); INSERT INTO friend2 SELECT * FROM friend; -- jsonb_path_ops indexes are smaller and faster, -- but do not support key-existence lookups. CREATE INDEX friend2_idx ON friend2 USING GIN (data); 42 / 77

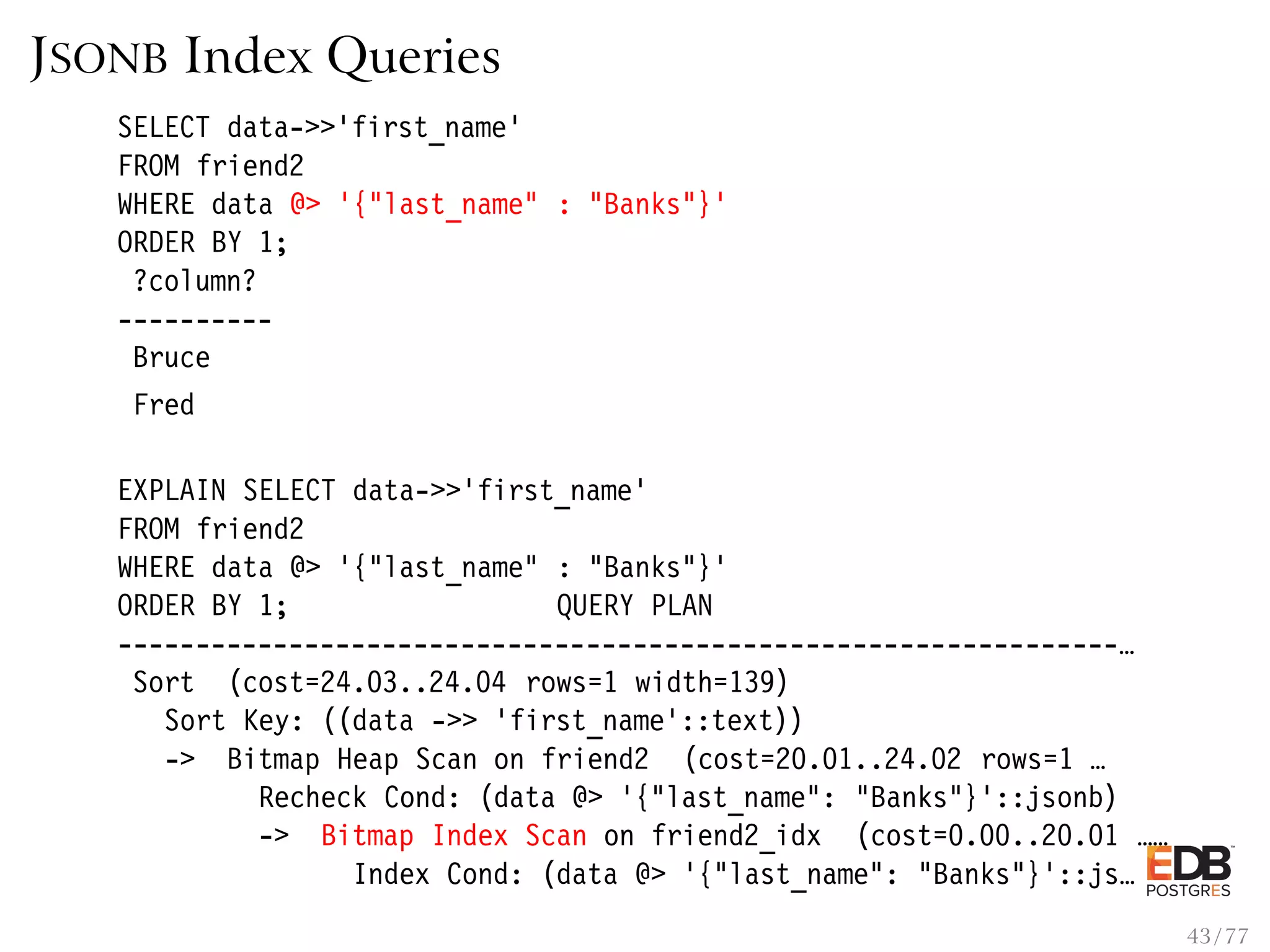

JSONB Index Queries SELECT data->>’first_name’ FROM friend2 WHERE data @> ’{"last_name" : "Banks"}’ ORDER BY 1; ?column? ---------- Bruce Fred EXPLAIN SELECT data->>’first_name’ FROM friend2 WHERE data @> ’{"last_name" : "Banks"}’ ORDER BY 1; QUERY PLAN ----------------------------------------------------------------… Sort (cost=24.03..24.04 rows=1 width=139) Sort Key: ((data ->> ’first_name’::text)) -> Bitmap Heap Scan on friend2 (cost=20.01..24.02 rows=1 … Recheck Cond: (data @> ’{"last_name": "Banks"}’::jsonb) -> Bitmap Index Scan on friend2_idx (cost=0.00..20.01 …… Index Cond: (data @> ’{"last_name": "Banks"}’::js… 43 / 77

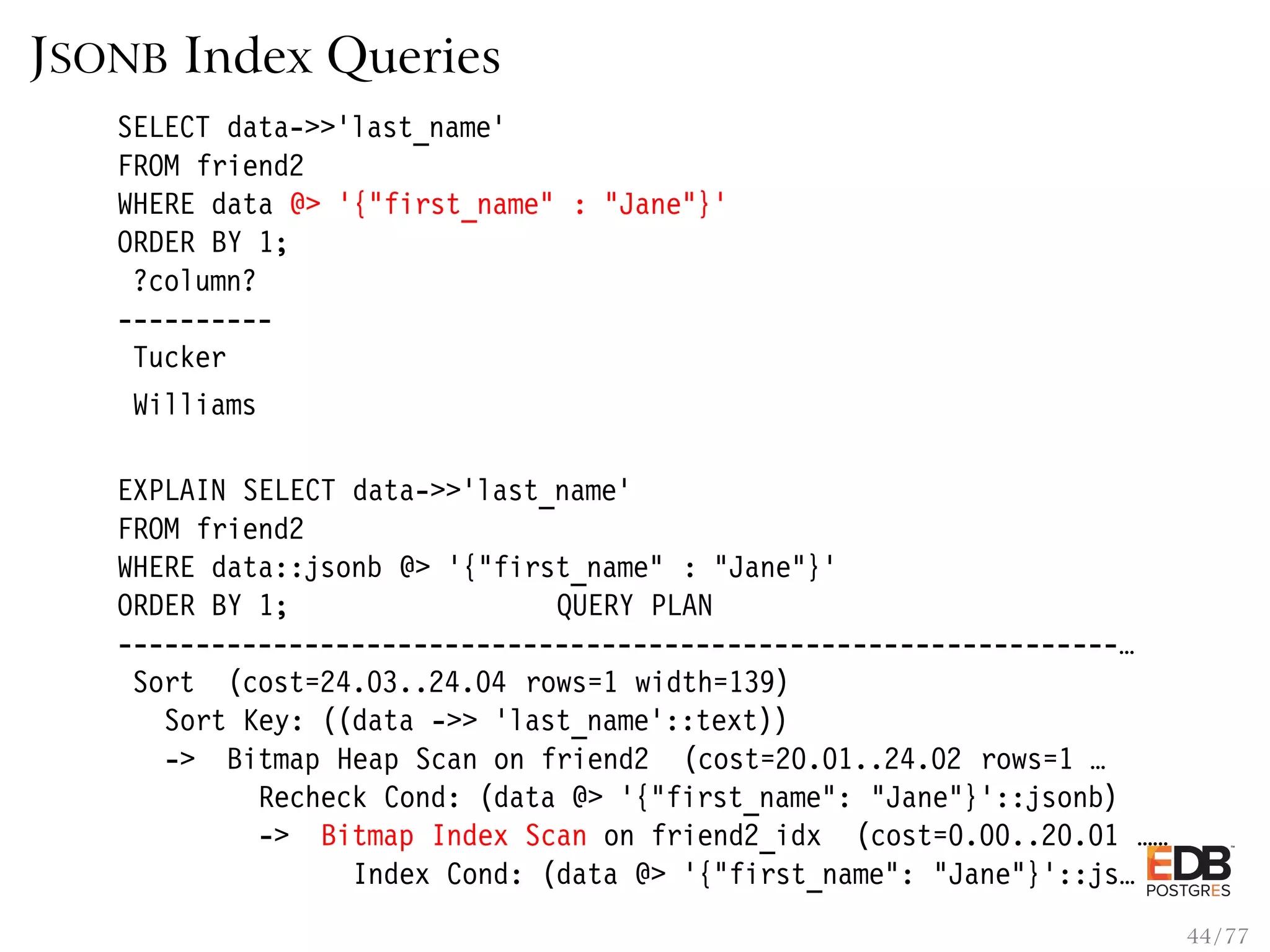

JSONB Index Queries SELECT data->>’last_name’ FROM friend2 WHERE data @> ’{"first_name" : "Jane"}’ ORDER BY 1; ?column? ---------- Tucker Williams EXPLAIN SELECT data->>’last_name’ FROM friend2 WHERE data::jsonb @> ’{"first_name" : "Jane"}’ ORDER BY 1; QUERY PLAN ----------------------------------------------------------------… Sort (cost=24.03..24.04 rows=1 width=139) Sort Key: ((data ->> ’last_name’::text)) -> Bitmap Heap Scan on friend2 (cost=20.01..24.02 rows=1 … Recheck Cond: (data @> ’{"first_name": "Jane"}’::jsonb) -> Bitmap Index Scan on friend2_idx (cost=0.00..20.01 …… Index Cond: (data @> ’{"first_name": "Jane"}’::js… 44 / 77

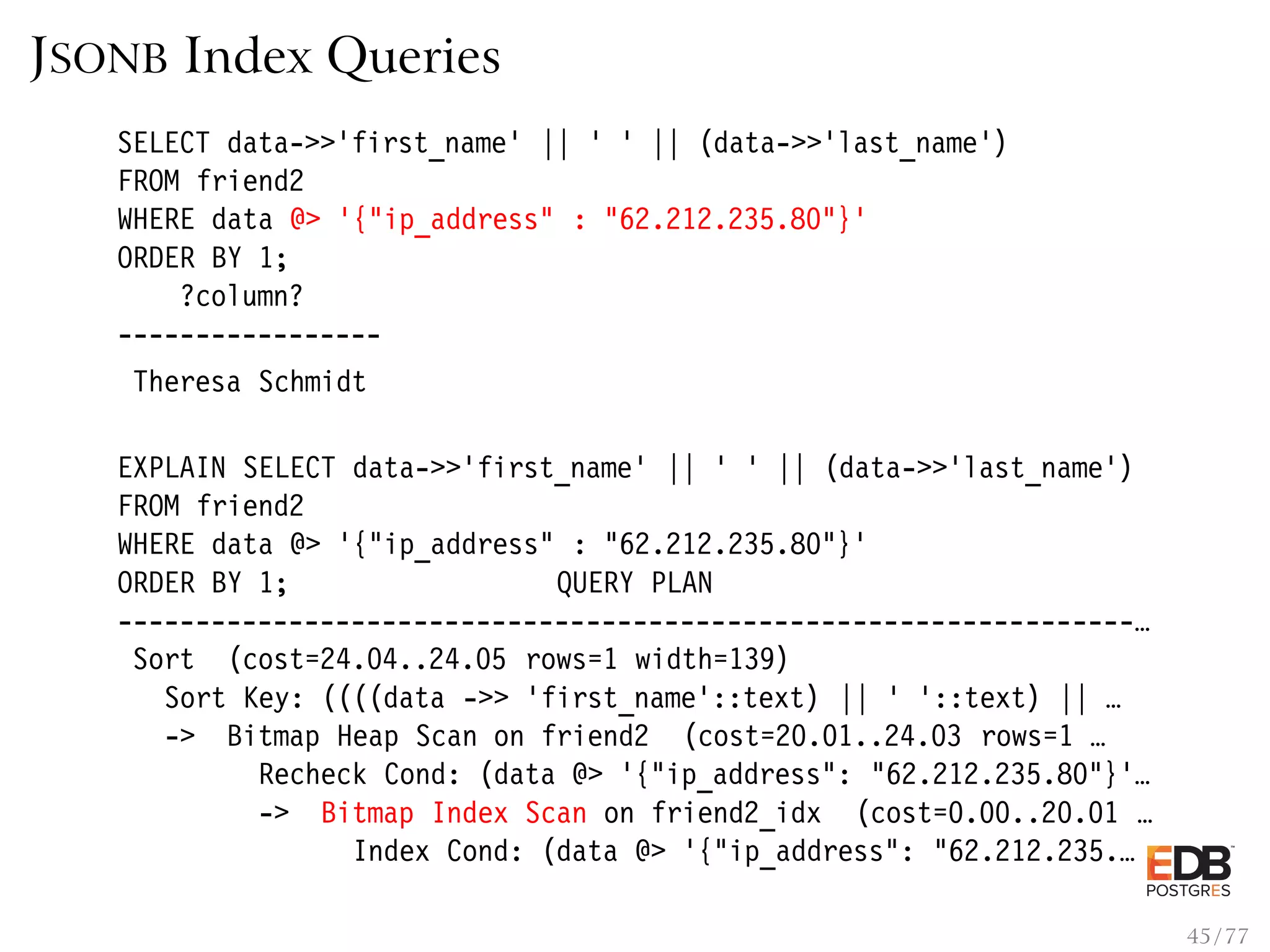

JSONB Index Queries SELECT data->>’first_name’ || ’ ’ || (data->>’last_name’) FROM friend2 WHERE data @> ’{"ip_address" : "62.212.235.80"}’ ORDER BY 1; ?column? ----------------- Theresa Schmidt EXPLAIN SELECT data->>’first_name’ || ’ ’ || (data->>’last_name’) FROM friend2 WHERE data @> ’{"ip_address" : "62.212.235.80"}’ ORDER BY 1; QUERY PLAN -----------------------------------------------------------------… Sort (cost=24.04..24.05 rows=1 width=139) Sort Key: ((((data ->> ’first_name’::text) || ’ ’::text) || … -> Bitmap Heap Scan on friend2 (cost=20.01..24.03 rows=1 … Recheck Cond: (data @> ’{"ip_address": "62.212.235.80"}’… -> Bitmap Index Scan on friend2_idx (cost=0.00..20.01 … Index Cond: (data @> ’{"ip_address": "62.212.235.… 45 / 77

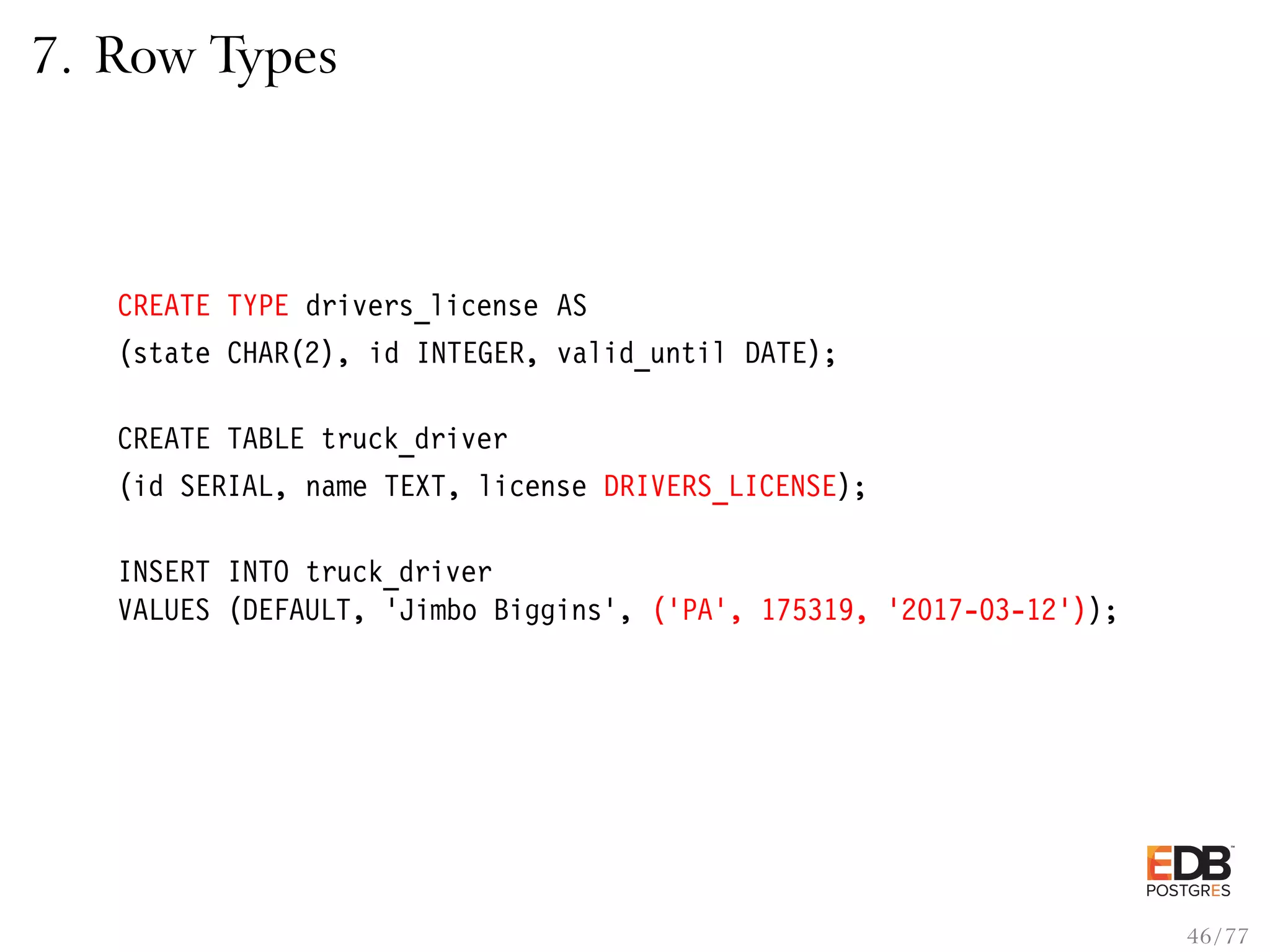

7. Row Types CREATE TYPE drivers_license AS (state CHAR(2), id INTEGER, valid_until DATE); CREATE TABLE truck_driver (id SERIAL, name TEXT, license DRIVERS_LICENSE); INSERT INTO truck_driver VALUES (DEFAULT, ’Jimbo Biggins’, (’PA’, 175319, ’2017-03-12’)); 46 / 77

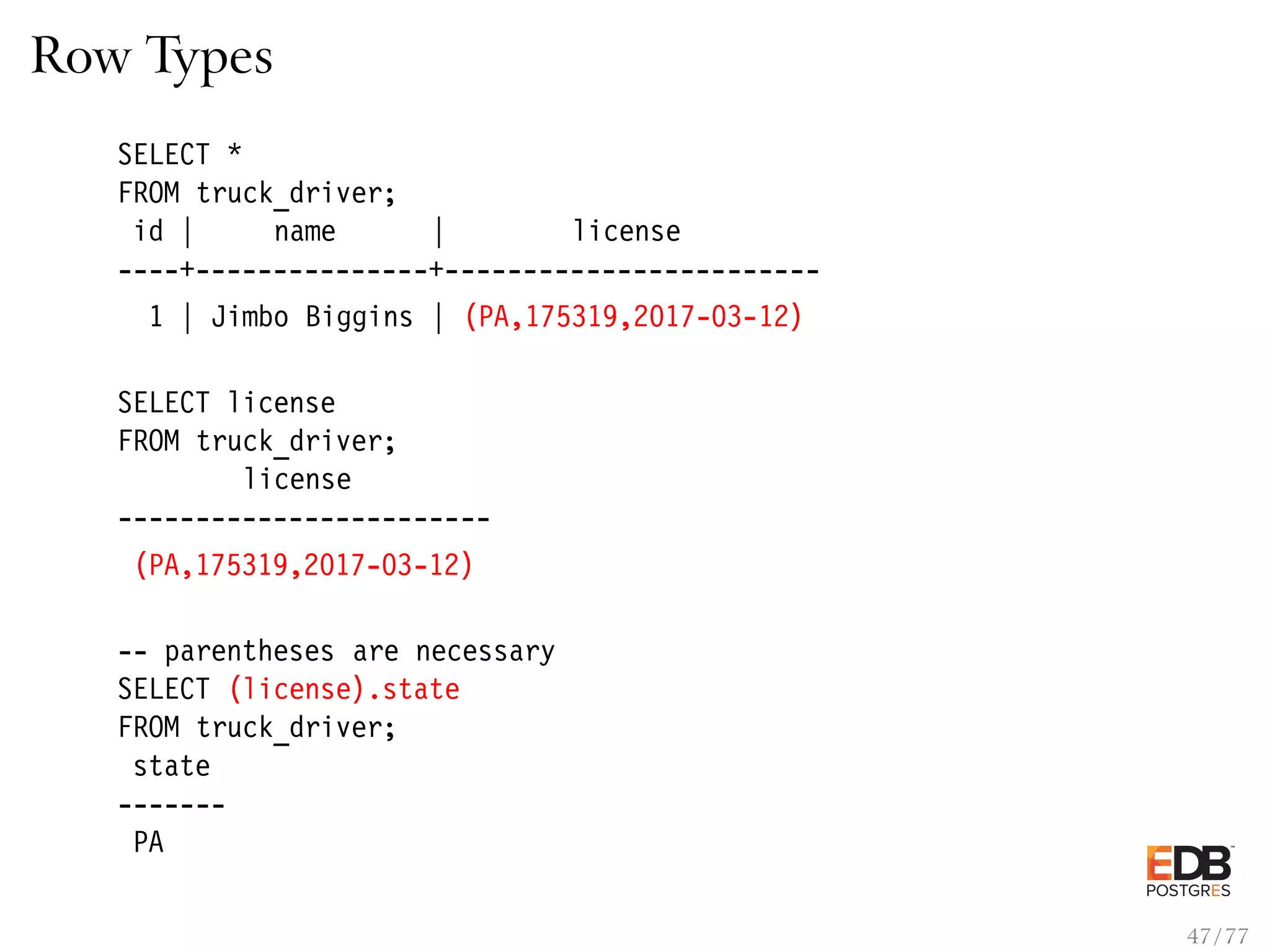

Row Types SELECT * FROM truck_driver; id | name | license ----+---------------+------------------------ 1 | Jimbo Biggins | (PA,175319,2017-03-12) SELECT license FROM truck_driver; license ------------------------ (PA,175319,2017-03-12) -- parentheses are necessary SELECT (license).state FROM truck_driver; state ------- PA 47 / 77

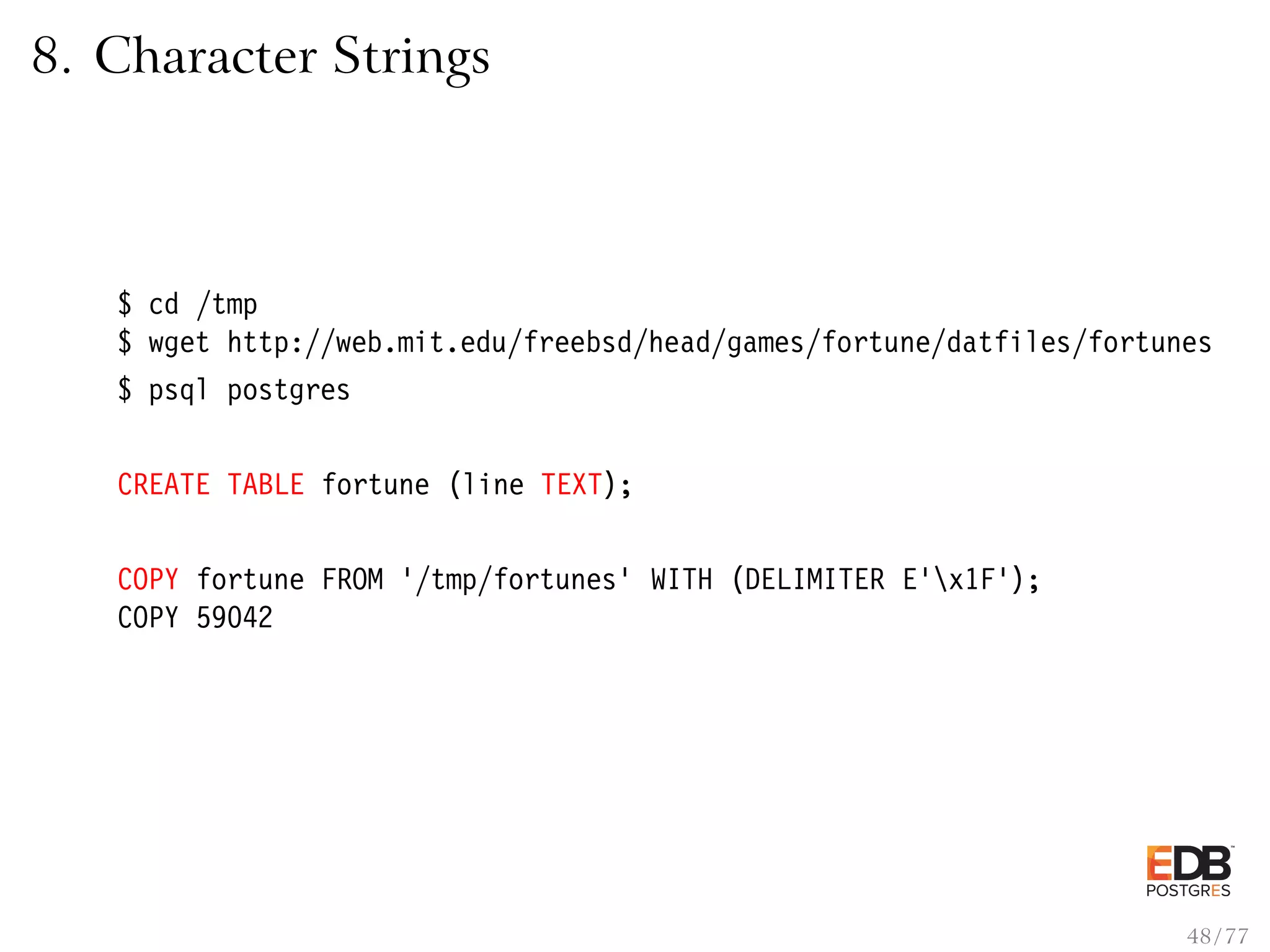

8. Character Strings $ cd /tmp $ wget http://web.mit.edu/freebsd/head/games/fortune/datfiles/fortunes $ psql postgres CREATE TABLE fortune (line TEXT); COPY fortune FROM ’/tmp/fortunes’ WITH (DELIMITER E’x1F’); COPY 59042 48 / 77

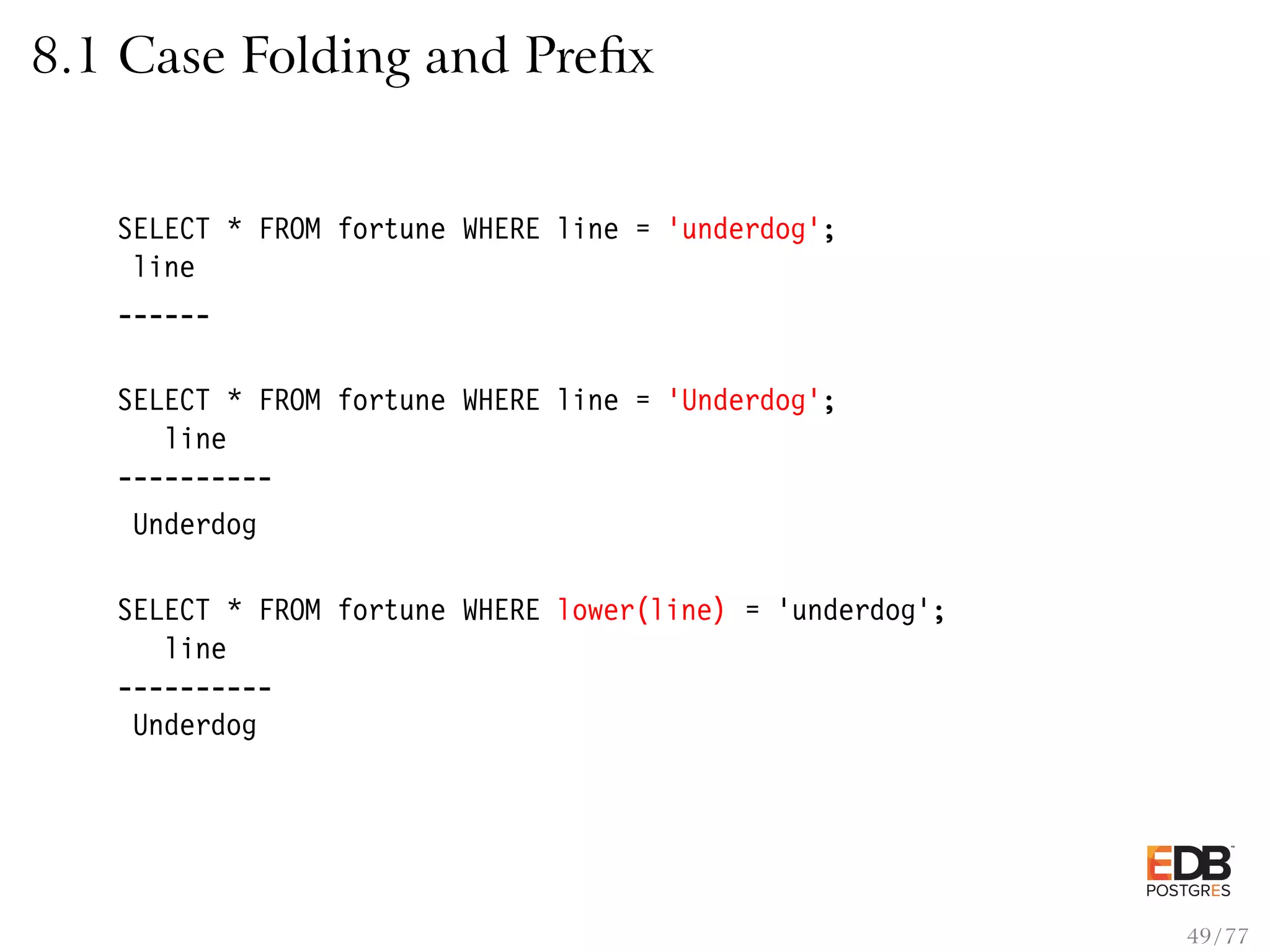

8.1 Case Folding and Preﬁx SELECT * FROM fortune WHERE line = ’underdog’; line ------ SELECT * FROM fortune WHERE line = ’Underdog’; line ---------- Underdog SELECT * FROM fortune WHERE lower(line) = ’underdog’; line ---------- Underdog 49 / 77

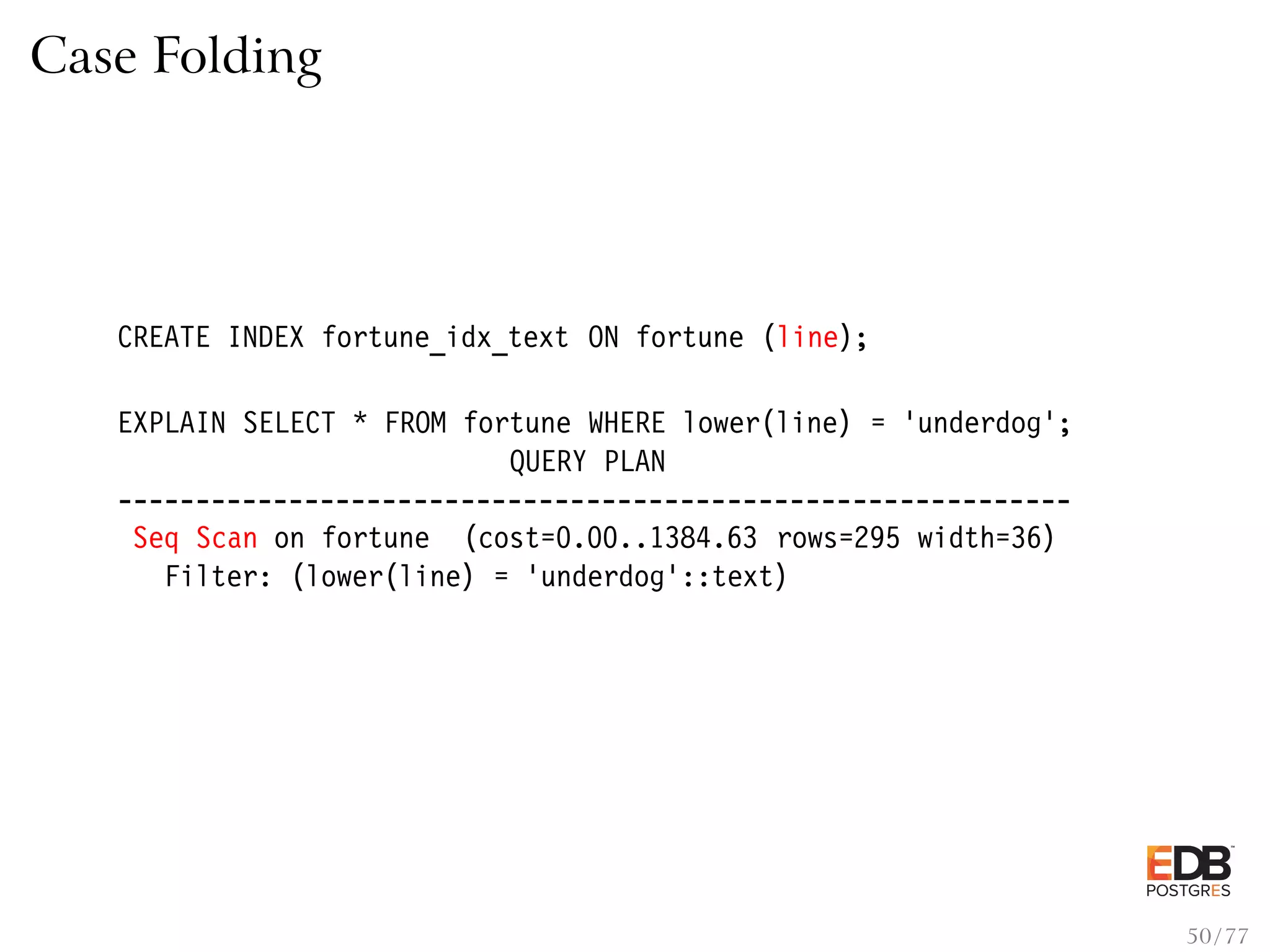

Case Folding CREATE INDEX fortune_idx_text ON fortune (line); EXPLAIN SELECT * FROM fortune WHERE lower(line) = ’underdog’; QUERY PLAN ------------------------------------------------------------- Seq Scan on fortune (cost=0.00..1384.63 rows=295 width=36) Filter: (lower(line) = ’underdog’::text) 50 / 77

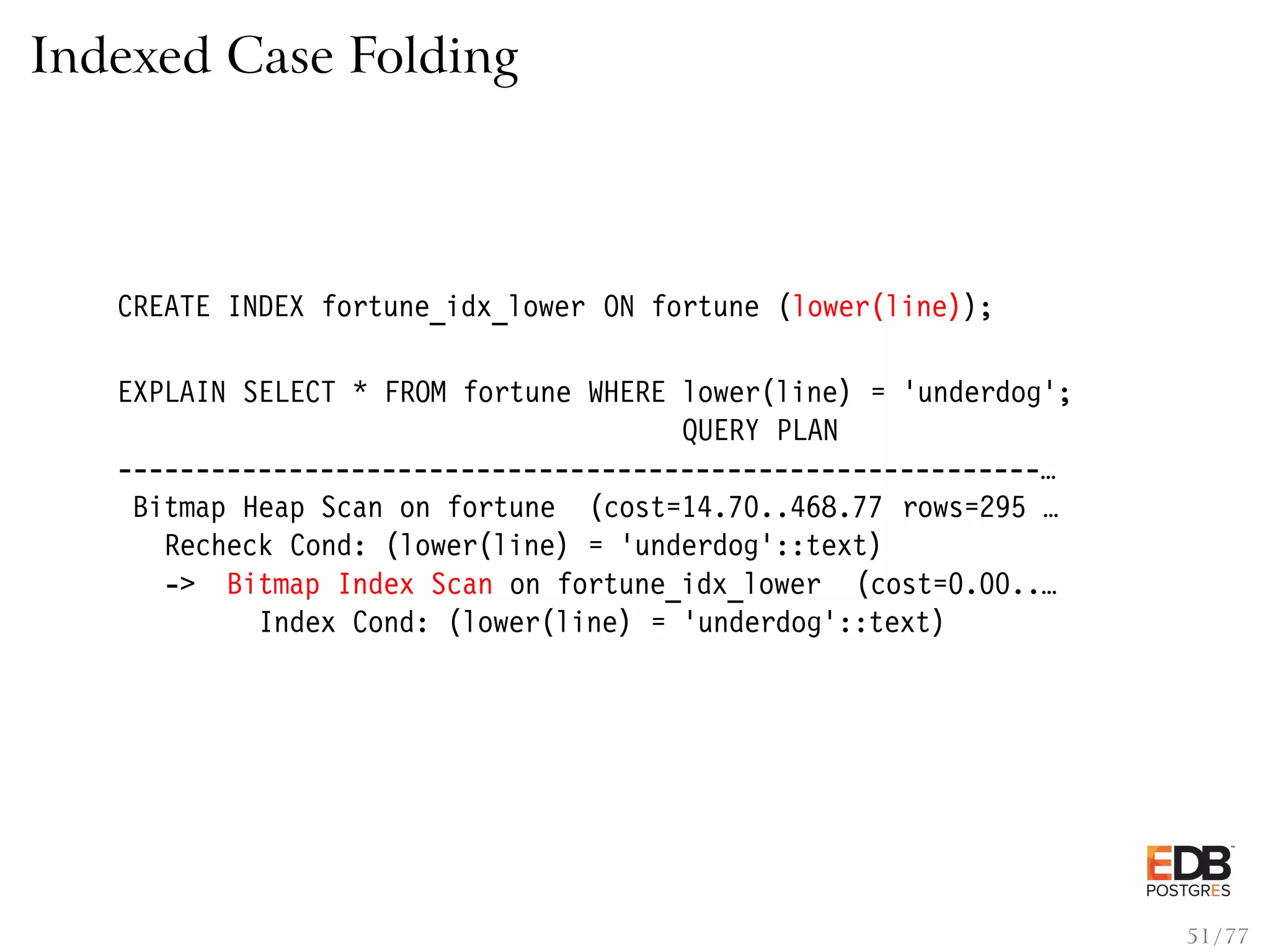

Indexed Case Folding CREATE INDEX fortune_idx_lower ON fortune (lower(line)); EXPLAIN SELECT * FROM fortune WHERE lower(line) = ’underdog’; QUERY PLAN -----------------------------------------------------------… Bitmap Heap Scan on fortune (cost=14.70..468.77 rows=295 … Recheck Cond: (lower(line) = ’underdog’::text) -> Bitmap Index Scan on fortune_idx_lower (cost=0.00..… Index Cond: (lower(line) = ’underdog’::text) 51 / 77

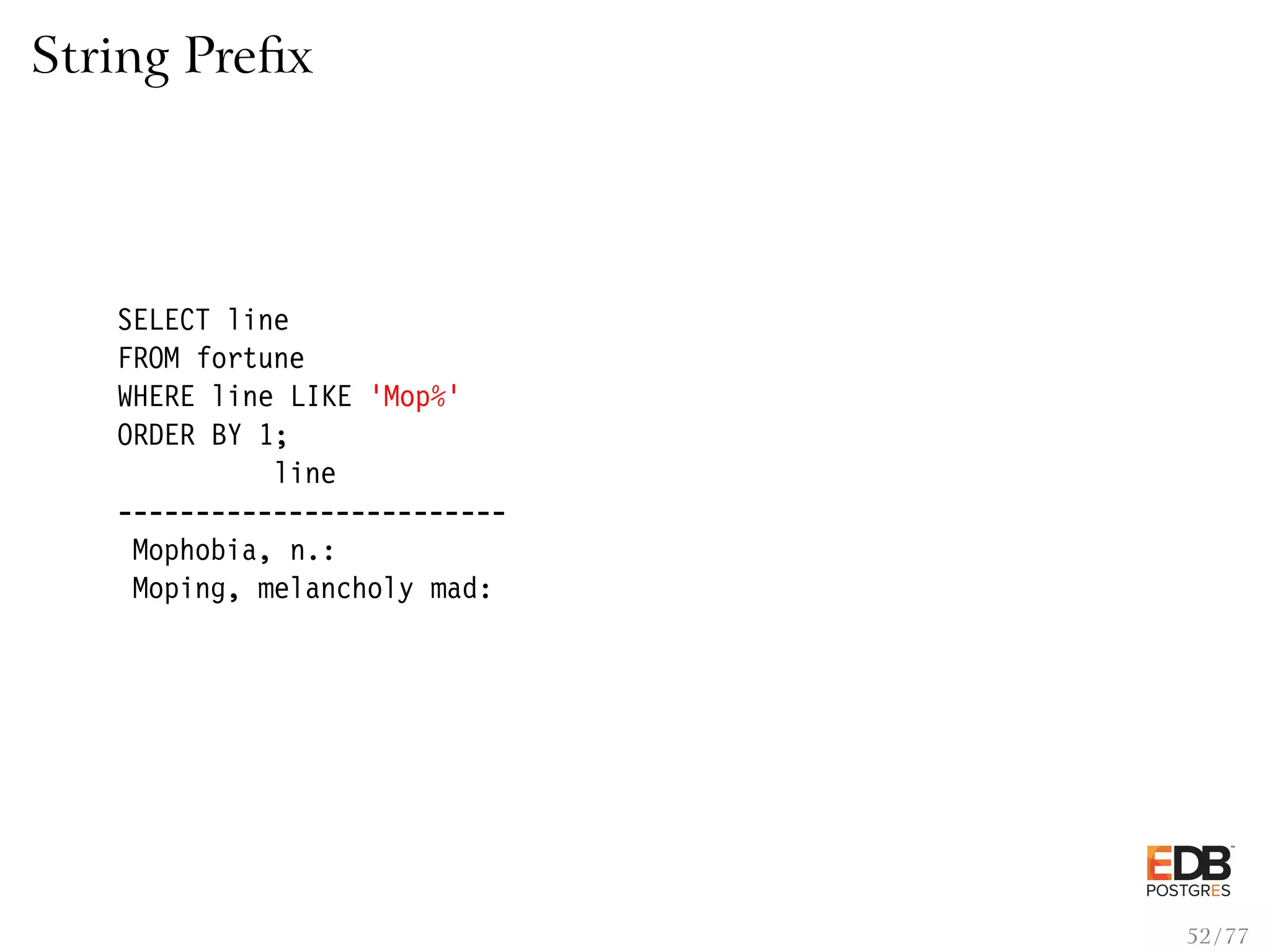

String Preﬁx SELECT line FROM fortune WHERE line LIKE ’Mop%’ ORDER BY 1; line ------------------------- Mophobia, n.: Moping, melancholy mad: 52 / 77

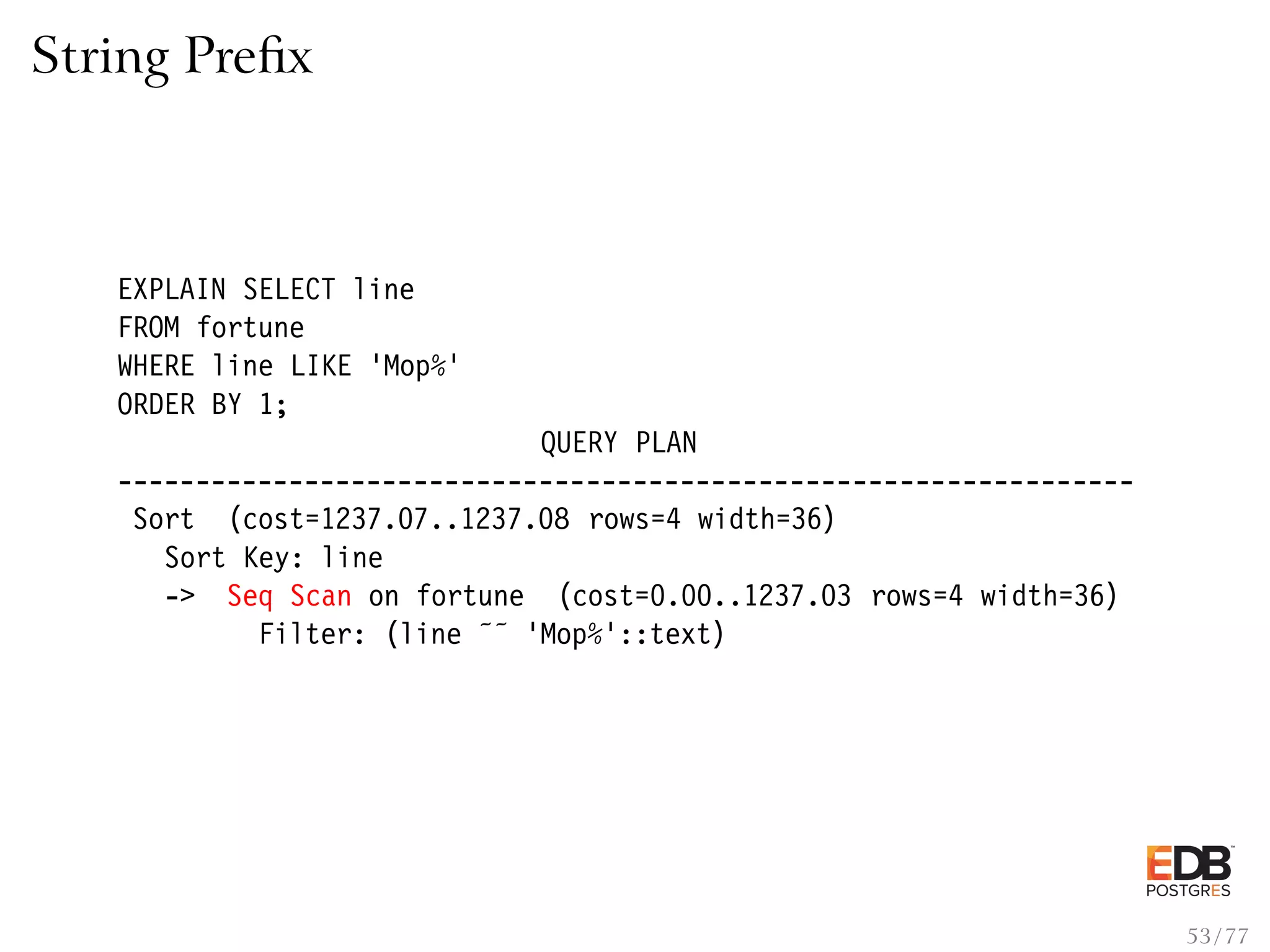

String Preﬁx EXPLAIN SELECT line FROM fortune WHERE line LIKE ’Mop%’ ORDER BY 1; QUERY PLAN ----------------------------------------------------------------- Sort (cost=1237.07..1237.08 rows=4 width=36) Sort Key: line -> Seq Scan on fortune (cost=0.00..1237.03 rows=4 width=36) Filter: (line ˜˜ ’Mop%’::text) 53 / 77

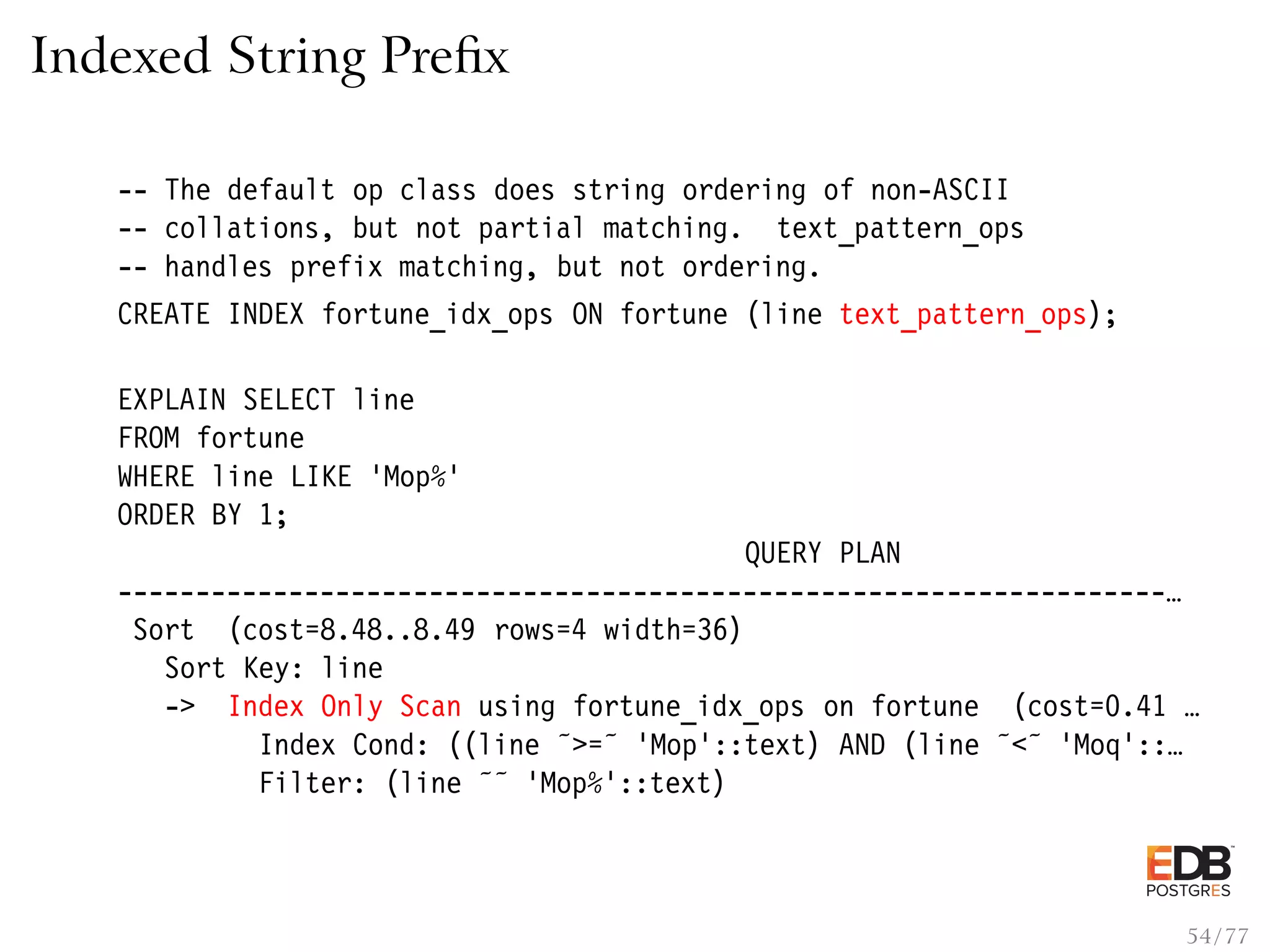

Indexed String Preﬁx -- The default op class does string ordering of non-ASCII -- collations, but not partial matching. text_pattern_ops -- handles prefix matching, but not ordering. CREATE INDEX fortune_idx_ops ON fortune (line text_pattern_ops); EXPLAIN SELECT line FROM fortune WHERE line LIKE ’Mop%’ ORDER BY 1; QUERY PLAN -------------------------------------------------------------------… Sort (cost=8.48..8.49 rows=4 width=36) Sort Key: line -> Index Only Scan using fortune_idx_ops on fortune (cost=0.41 … Index Cond: ((line ˜>=˜ ’Mop’::text) AND (line ˜<˜ ’Moq’::… Filter: (line ˜˜ ’Mop%’::text) 54 / 77

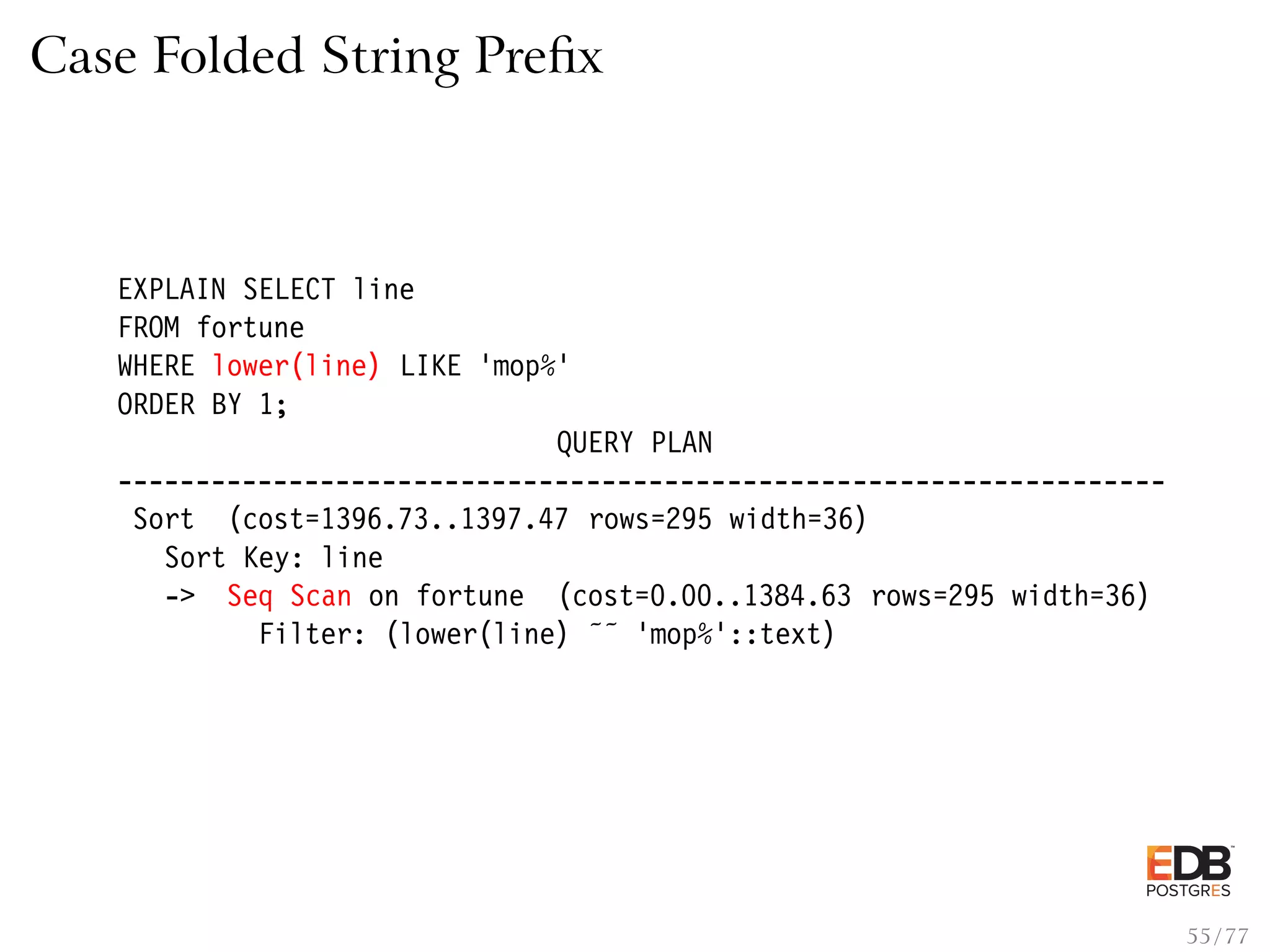

Case Folded String Preﬁx EXPLAIN SELECT line FROM fortune WHERE lower(line) LIKE ’mop%’ ORDER BY 1; QUERY PLAN ------------------------------------------------------------------- Sort (cost=1396.73..1397.47 rows=295 width=36) Sort Key: line -> Seq Scan on fortune (cost=0.00..1384.63 rows=295 width=36) Filter: (lower(line) ˜˜ ’mop%’::text) 55 / 77

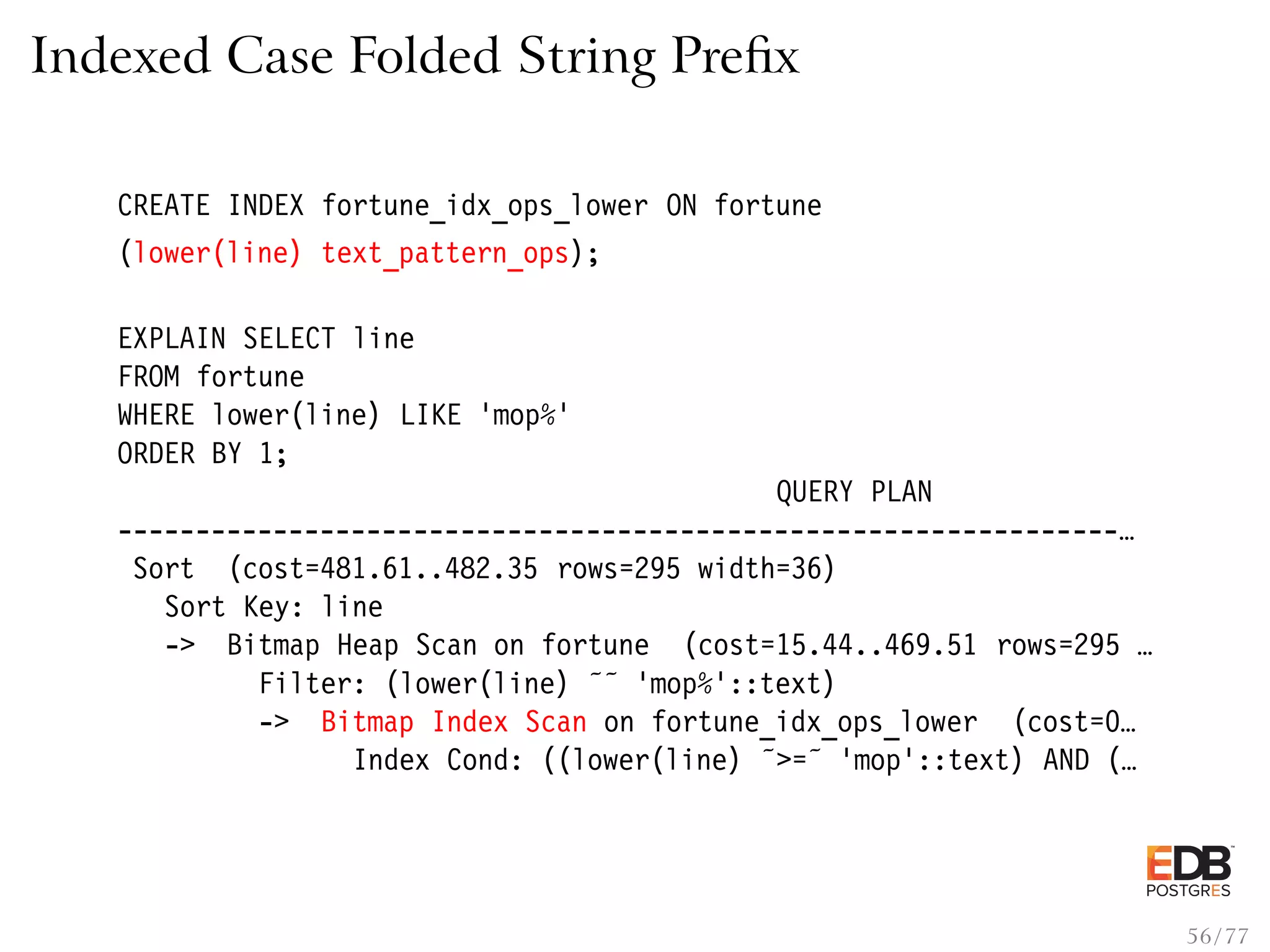

Indexed Case Folded String Preﬁx CREATE INDEX fortune_idx_ops_lower ON fortune (lower(line) text_pattern_ops); EXPLAIN SELECT line FROM fortune WHERE lower(line) LIKE ’mop%’ ORDER BY 1; QUERY PLAN ----------------------------------------------------------------… Sort (cost=481.61..482.35 rows=295 width=36) Sort Key: line -> Bitmap Heap Scan on fortune (cost=15.44..469.51 rows=295 … Filter: (lower(line) ˜˜ ’mop%’::text) -> Bitmap Index Scan on fortune_idx_ops_lower (cost=0… Index Cond: ((lower(line) ˜>=˜ ’mop’::text) AND (… 56 / 77

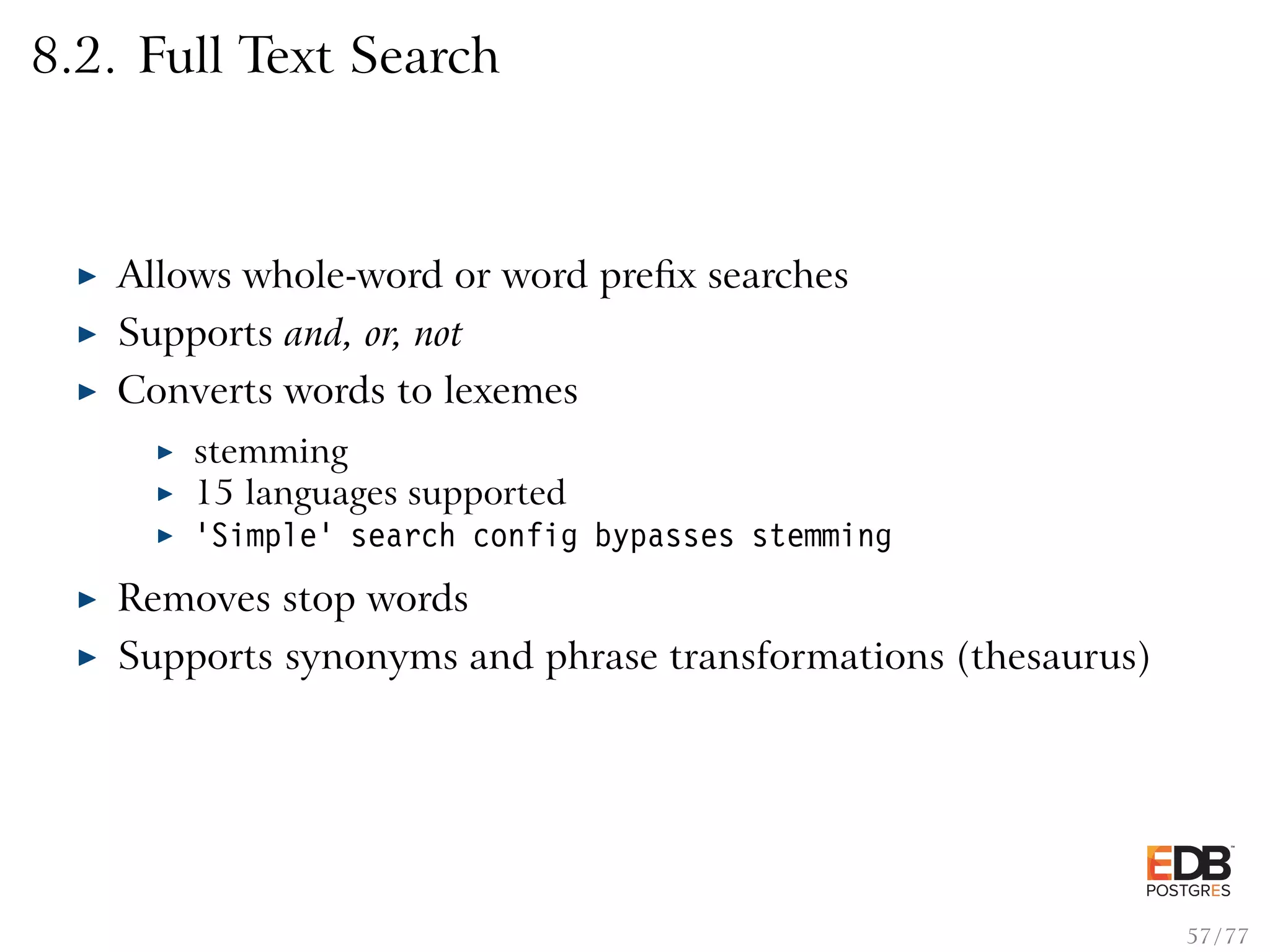

8.2. Full Text Search Allows whole-word or word preﬁx searches Supports and, or, not Converts words to lexemes stemming 15 languages supported ’Simple’ search config bypasses stemming Removes stop words Supports synonyms and phrase transformations (thesaurus) 57 / 77

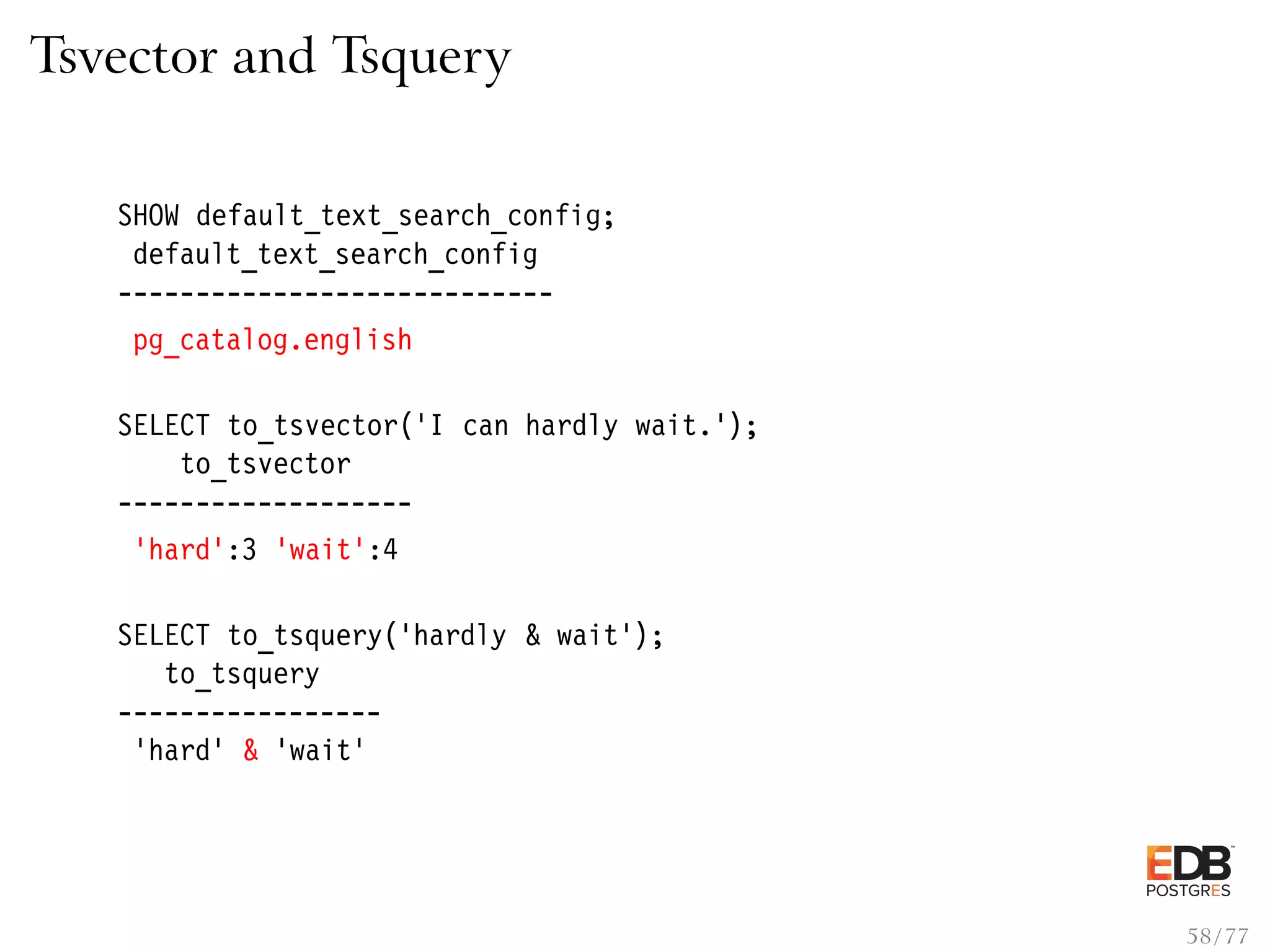

Tsvector and Tsquery SHOW default_text_search_config; default_text_search_config ---------------------------- pg_catalog.english SELECT to_tsvector(’I can hardly wait.’); to_tsvector ------------------- ’hard’:3 ’wait’:4 SELECT to_tsquery(’hardly & wait’); to_tsquery ----------------- ’hard’ & ’wait’ 58 / 77

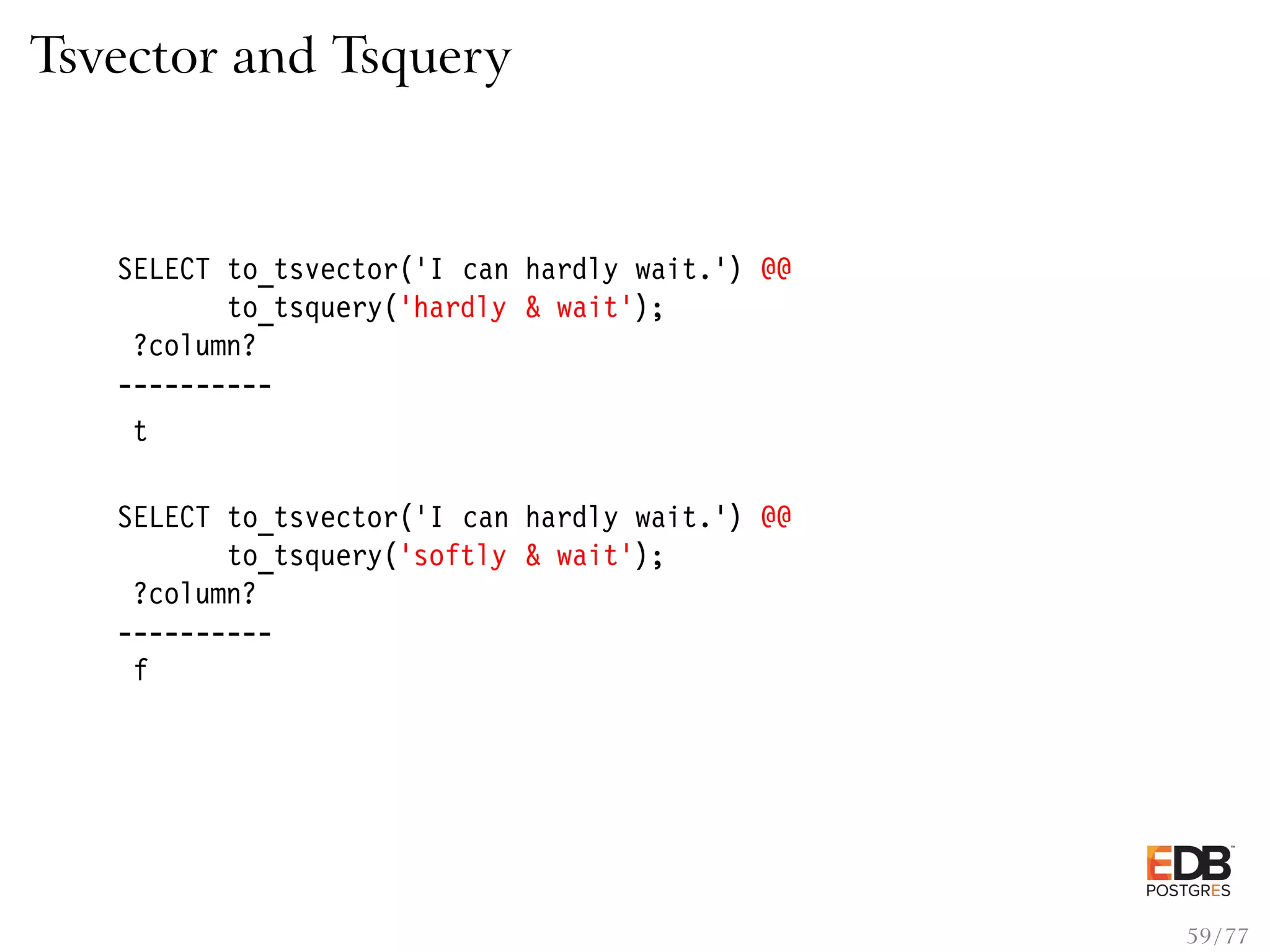

Tsvector and Tsquery SELECT to_tsvector(’I can hardly wait.’) @@ to_tsquery(’hardly & wait’); ?column? ---------- t SELECT to_tsvector(’I can hardly wait.’) @@ to_tsquery(’softly & wait’); ?column? ---------- f 59 / 77

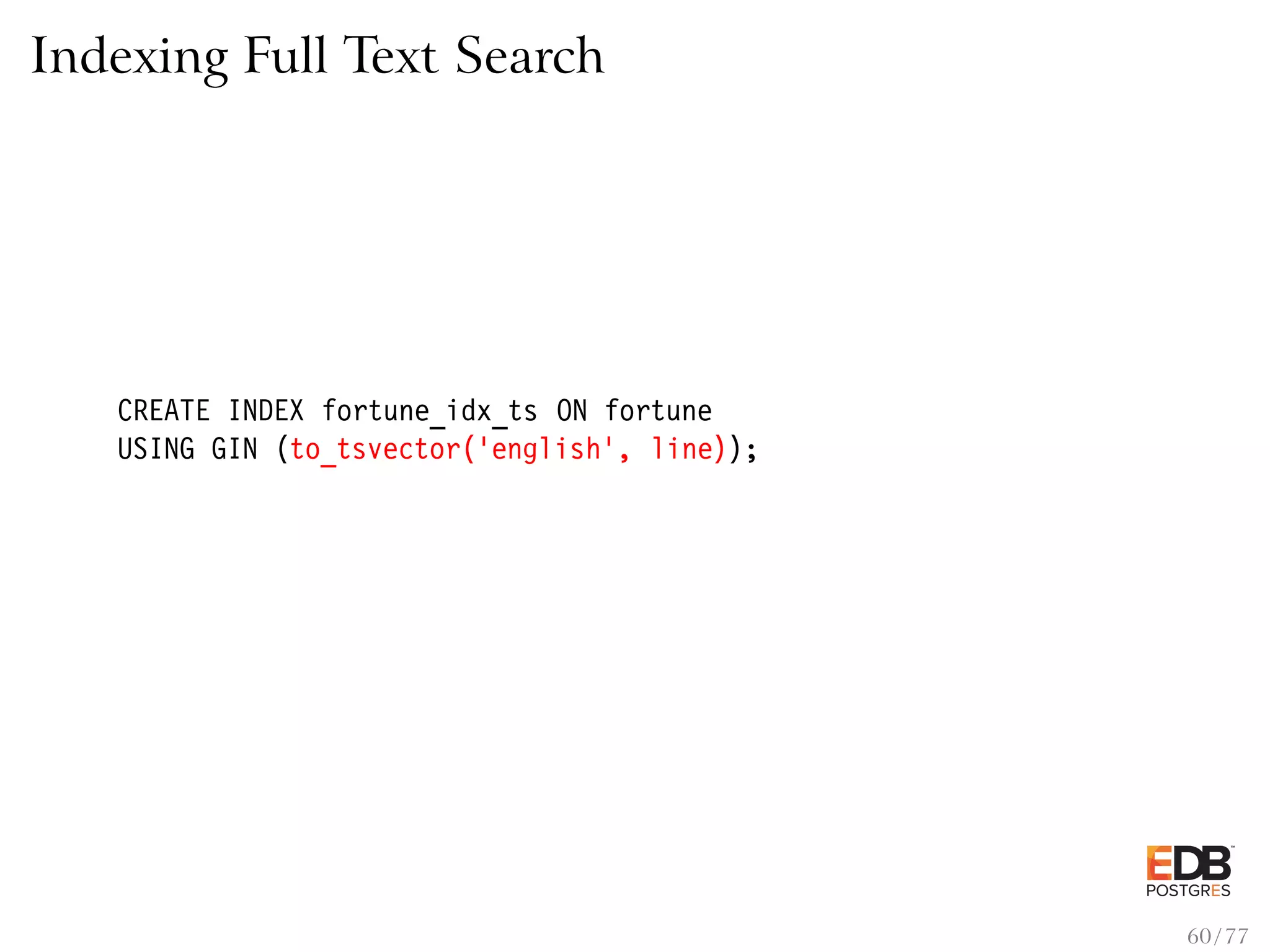

Indexing Full Text Search CREATE INDEX fortune_idx_ts ON fortune USING GIN (to_tsvector(’english’, line)); 60 / 77

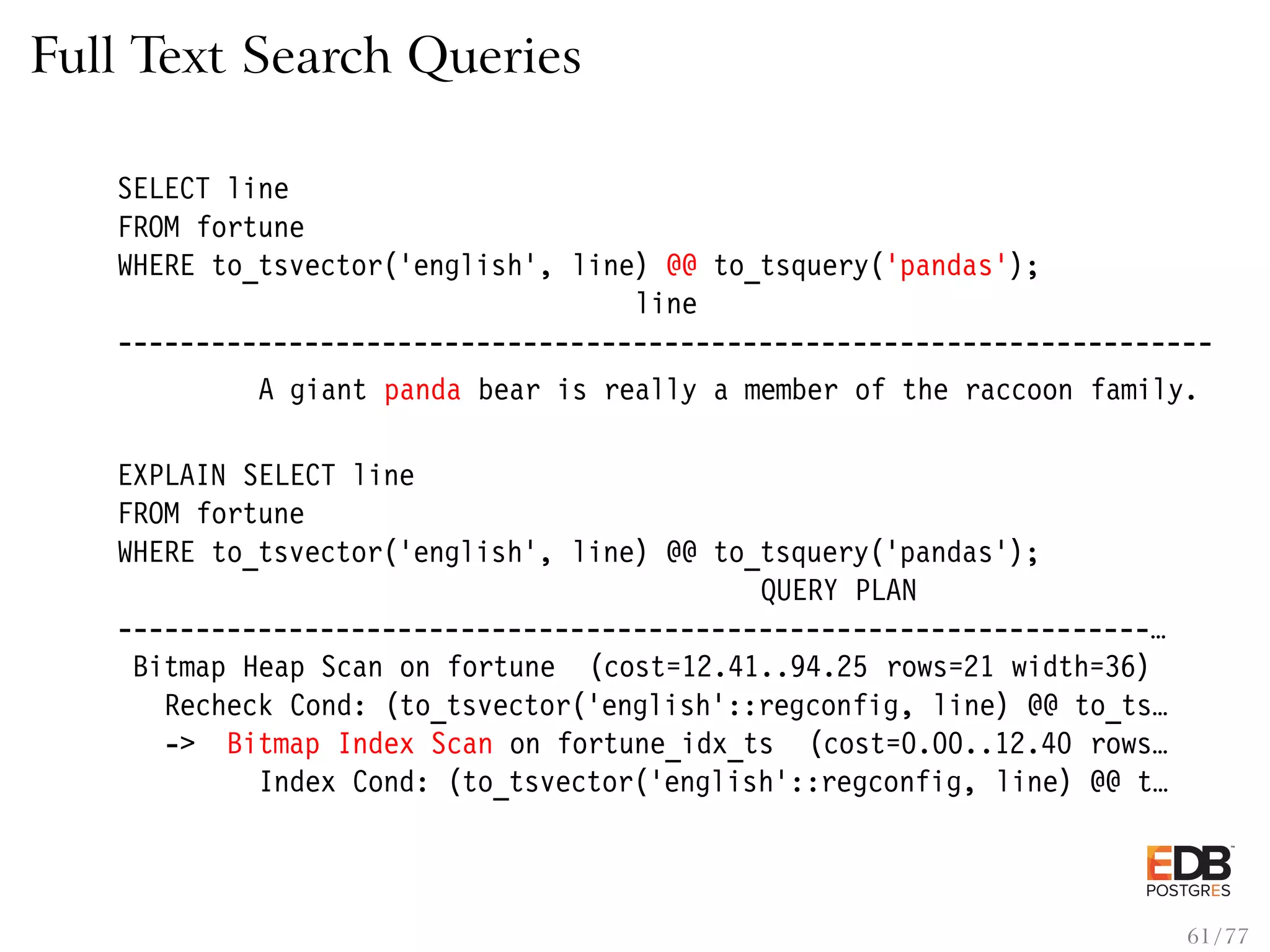

Full Text Search Queries SELECT line FROM fortune WHERE to_tsvector(’english’, line) @@ to_tsquery(’pandas’); line ---------------------------------------------------------------------- A giant panda bear is really a member of the raccoon family. EXPLAIN SELECT line FROM fortune WHERE to_tsvector(’english’, line) @@ to_tsquery(’pandas’); QUERY PLAN ------------------------------------------------------------------… Bitmap Heap Scan on fortune (cost=12.41..94.25 rows=21 width=36) Recheck Cond: (to_tsvector(’english’::regconfig, line) @@ to_ts… -> Bitmap Index Scan on fortune_idx_ts (cost=0.00..12.40 rows… Index Cond: (to_tsvector(’english’::regconfig, line) @@ t… 61 / 77

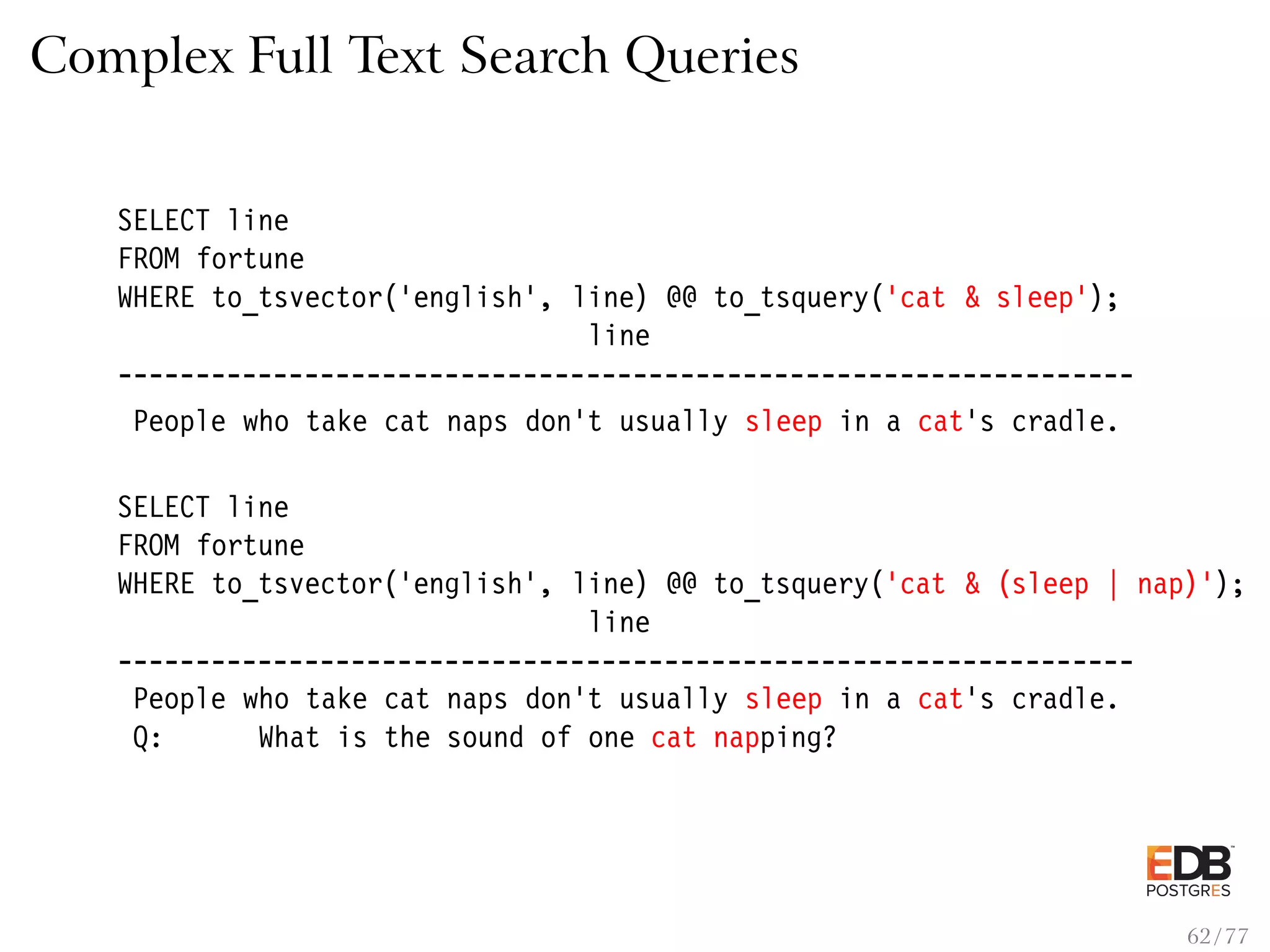

Complex Full Text Search Queries SELECT line FROM fortune WHERE to_tsvector(’english’, line) @@ to_tsquery(’cat & sleep’); line ----------------------------------------------------------------- People who take cat naps don’t usually sleep in a cat’s cradle. SELECT line FROM fortune WHERE to_tsvector(’english’, line) @@ to_tsquery(’cat & (sleep | nap)’); line ----------------------------------------------------------------- People who take cat naps don’t usually sleep in a cat’s cradle. Q: What is the sound of one cat napping? 62 / 77

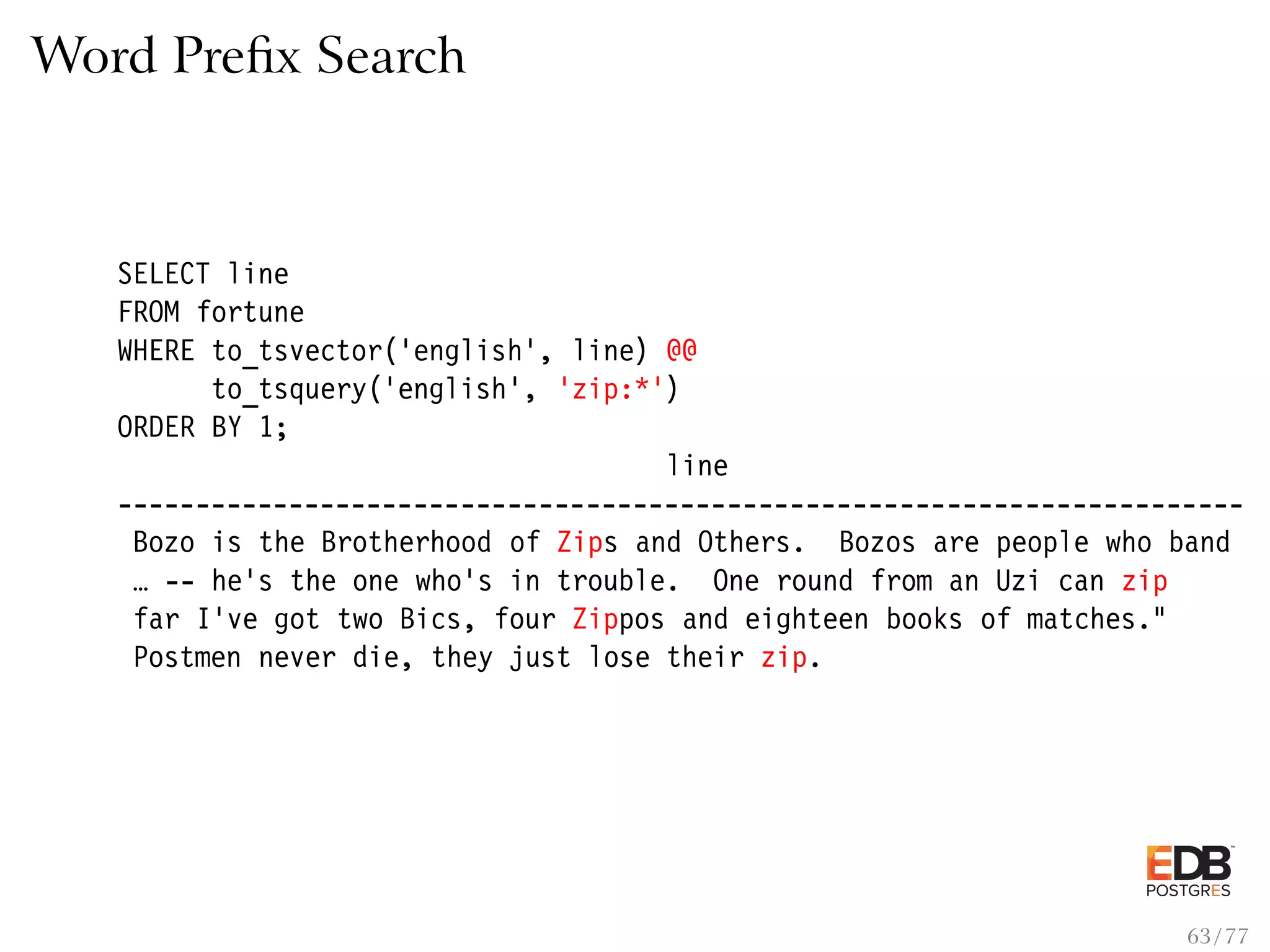

Word Preﬁx Search SELECT line FROM fortune WHERE to_tsvector(’english’, line) @@ to_tsquery(’english’, ’zip:*’) ORDER BY 1; line ------------------------------------------------------------------------ Bozo is the Brotherhood of Zips and Others. Bozos are people who band … -- he’s the one who’s in trouble. One round from an Uzi can zip far I’ve got two Bics, four Zippos and eighteen books of matches." Postmen never die, they just lose their zip. 63 / 77

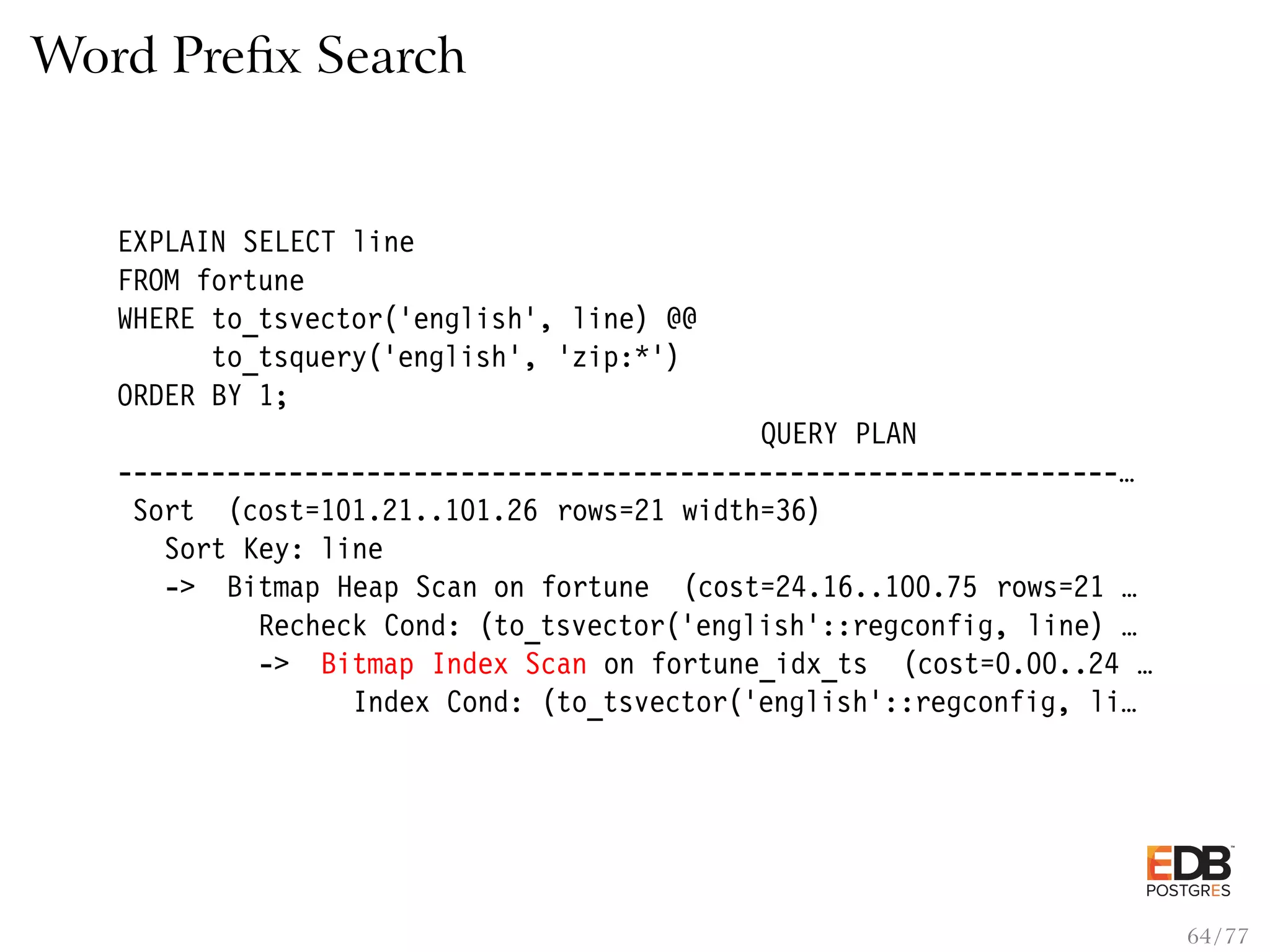

Word Preﬁx Search EXPLAIN SELECT line FROM fortune WHERE to_tsvector(’english’, line) @@ to_tsquery(’english’, ’zip:*’) ORDER BY 1; QUERY PLAN ----------------------------------------------------------------… Sort (cost=101.21..101.26 rows=21 width=36) Sort Key: line -> Bitmap Heap Scan on fortune (cost=24.16..100.75 rows=21 … Recheck Cond: (to_tsvector(’english’::regconfig, line) … -> Bitmap Index Scan on fortune_idx_ts (cost=0.00..24 … Index Cond: (to_tsvector(’english’::regconfig, li… 64 / 77

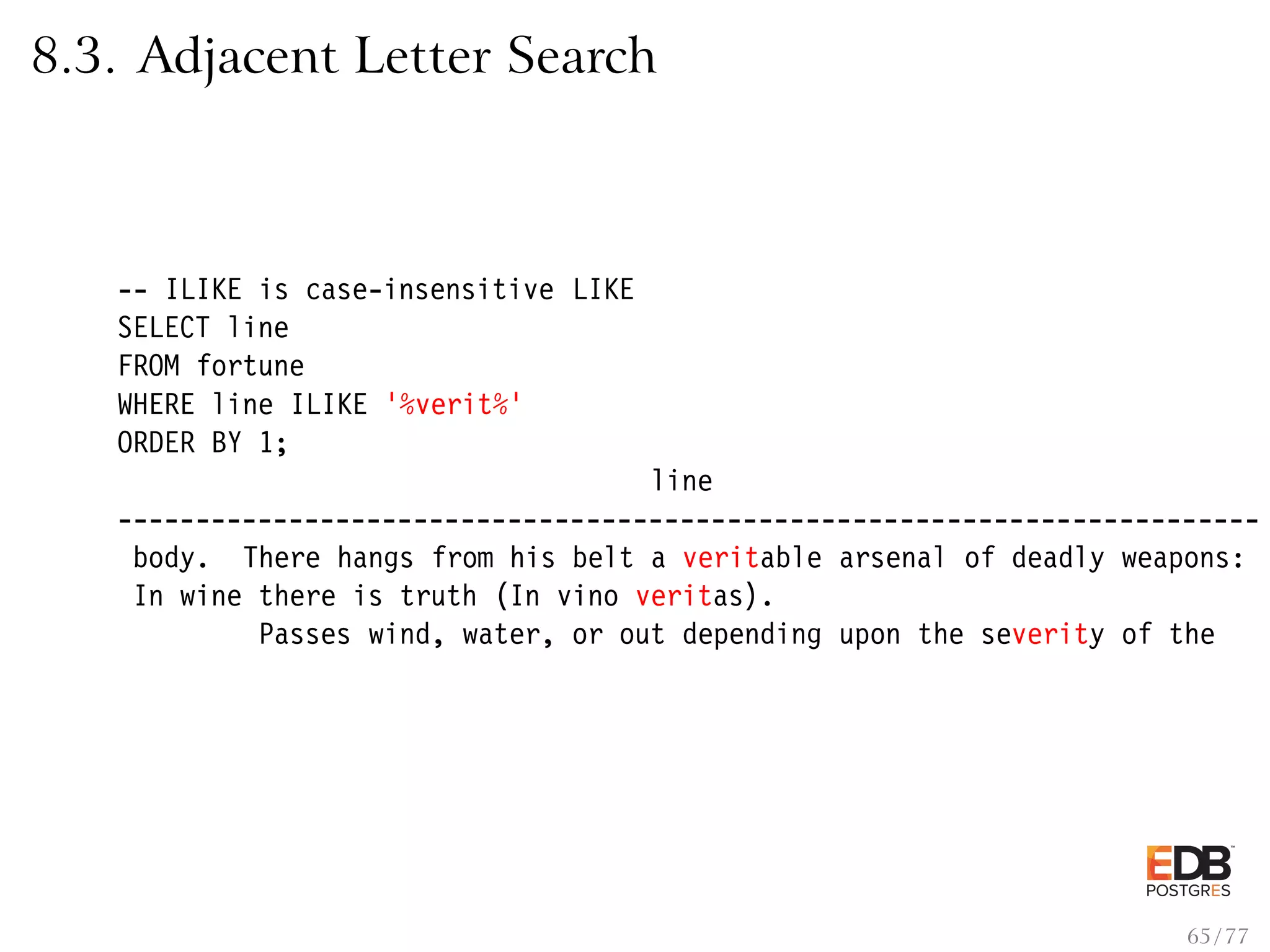

8.3. Adjacent Letter Search -- ILIKE is case-insensitive LIKE SELECT line FROM fortune WHERE line ILIKE ’%verit%’ ORDER BY 1; line ------------------------------------------------------------------------- body. There hangs from his belt a veritable arsenal of deadly weapons: In wine there is truth (In vino veritas). Passes wind, water, or out depending upon the severity of the 65 / 77

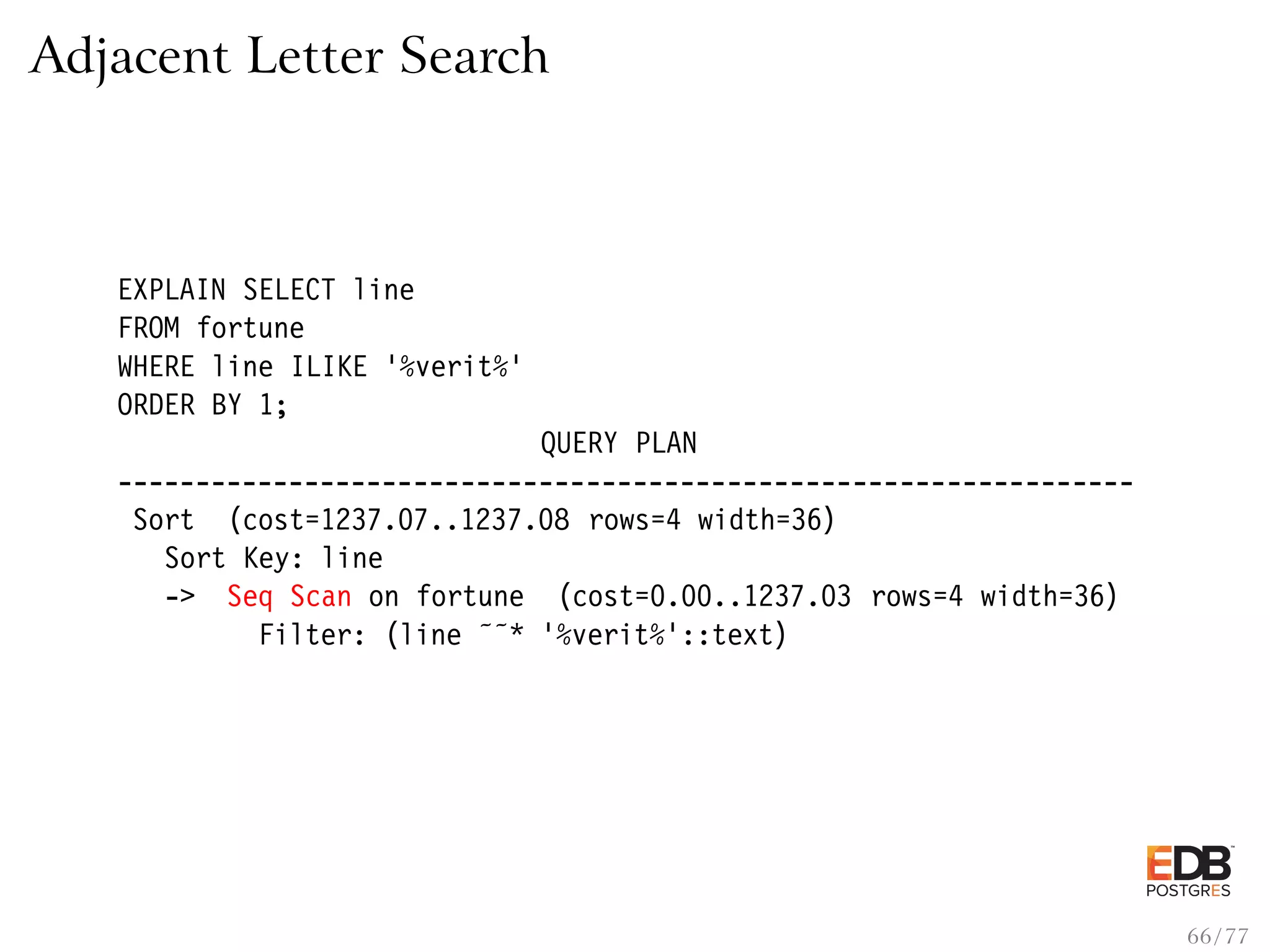

Adjacent Letter Search EXPLAIN SELECT line FROM fortune WHERE line ILIKE ’%verit%’ ORDER BY 1; QUERY PLAN ----------------------------------------------------------------- Sort (cost=1237.07..1237.08 rows=4 width=36) Sort Key: line -> Seq Scan on fortune (cost=0.00..1237.03 rows=4 width=36) Filter: (line ˜˜* ’%verit%’::text) 66 / 77

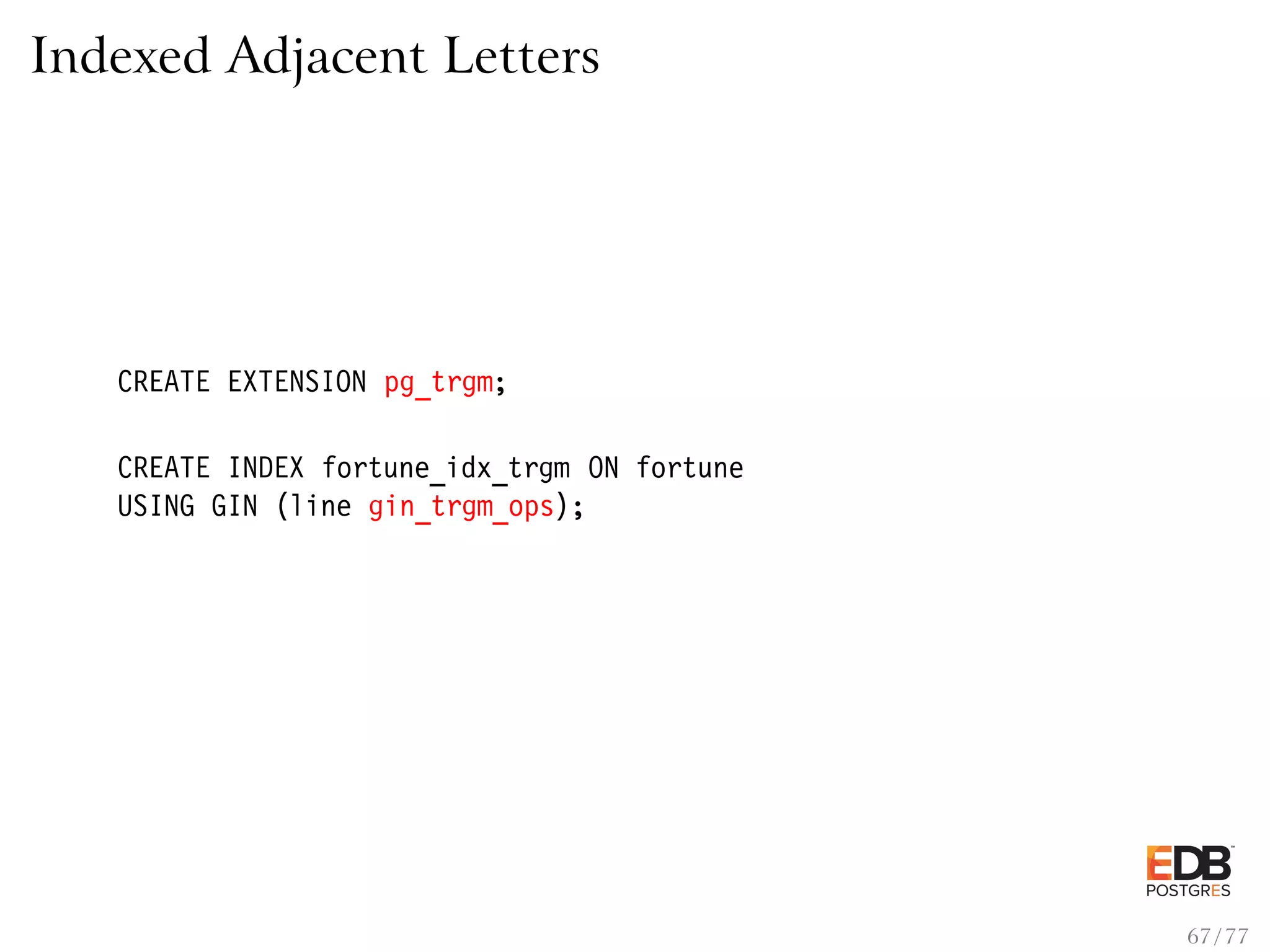

Indexed Adjacent Letters CREATE EXTENSION pg_trgm; CREATE INDEX fortune_idx_trgm ON fortune USING GIN (line gin_trgm_ops); 67 / 77

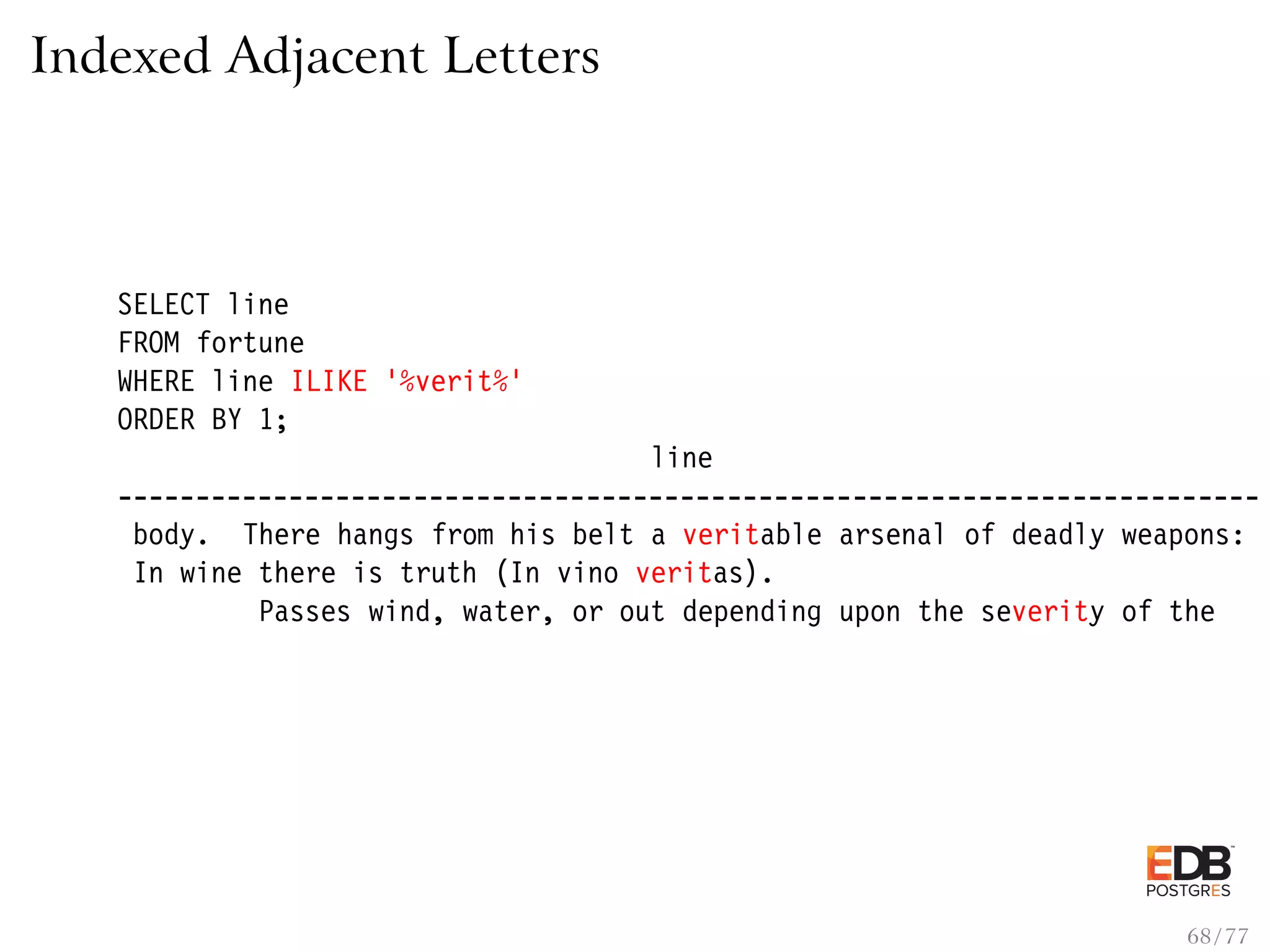

Indexed Adjacent Letters SELECT line FROM fortune WHERE line ILIKE ’%verit%’ ORDER BY 1; line ------------------------------------------------------------------------- body. There hangs from his belt a veritable arsenal of deadly weapons: In wine there is truth (In vino veritas). Passes wind, water, or out depending upon the severity of the 68 / 77

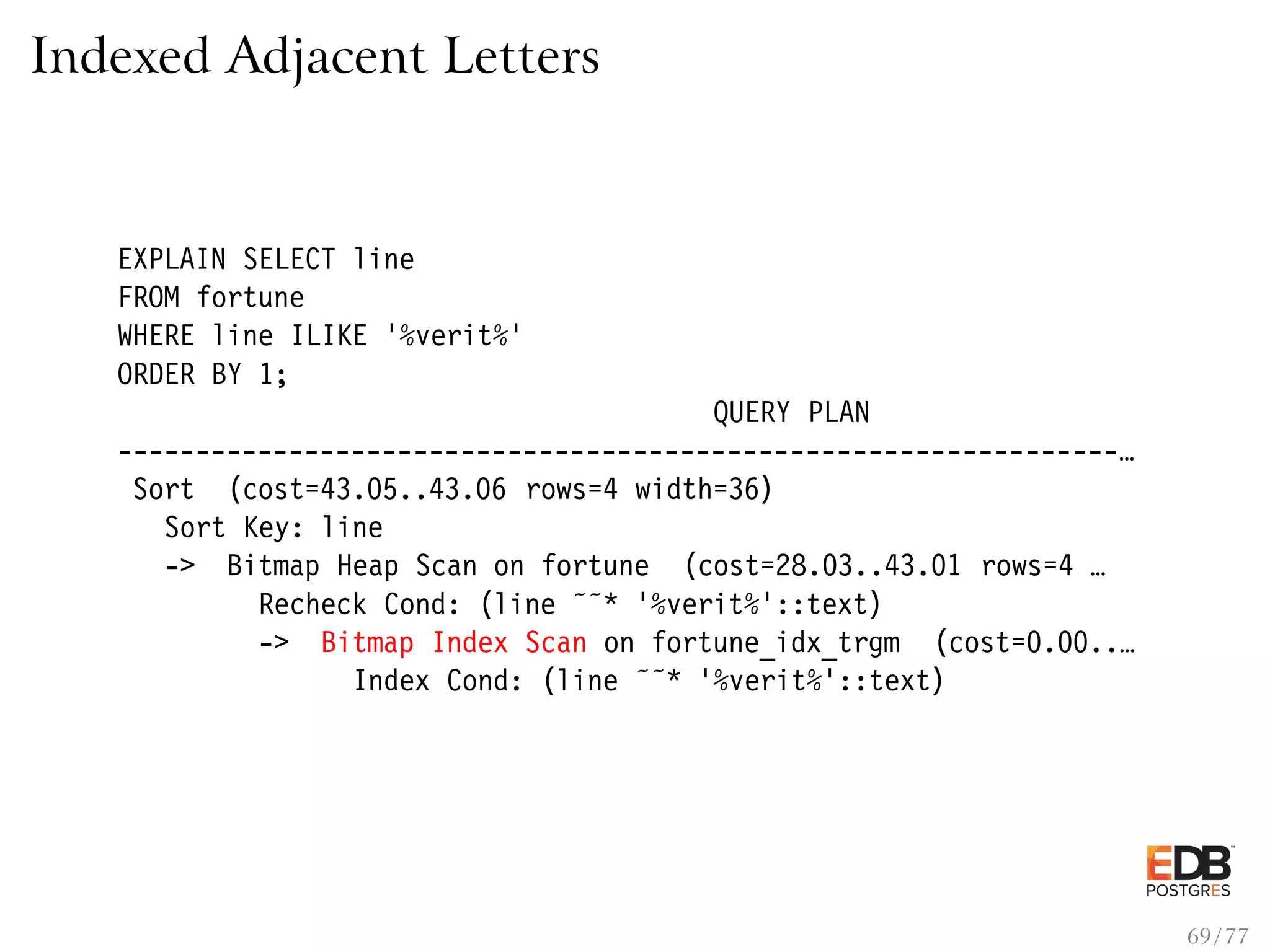

Indexed Adjacent Letters EXPLAIN SELECT line FROM fortune WHERE line ILIKE ’%verit%’ ORDER BY 1; QUERY PLAN ----------------------------------------------------------------… Sort (cost=43.05..43.06 rows=4 width=36) Sort Key: line -> Bitmap Heap Scan on fortune (cost=28.03..43.01 rows=4 … Recheck Cond: (line ˜˜* ’%verit%’::text) -> Bitmap Index Scan on fortune_idx_trgm (cost=0.00..… Index Cond: (line ˜˜* ’%verit%’::text) 69 / 77

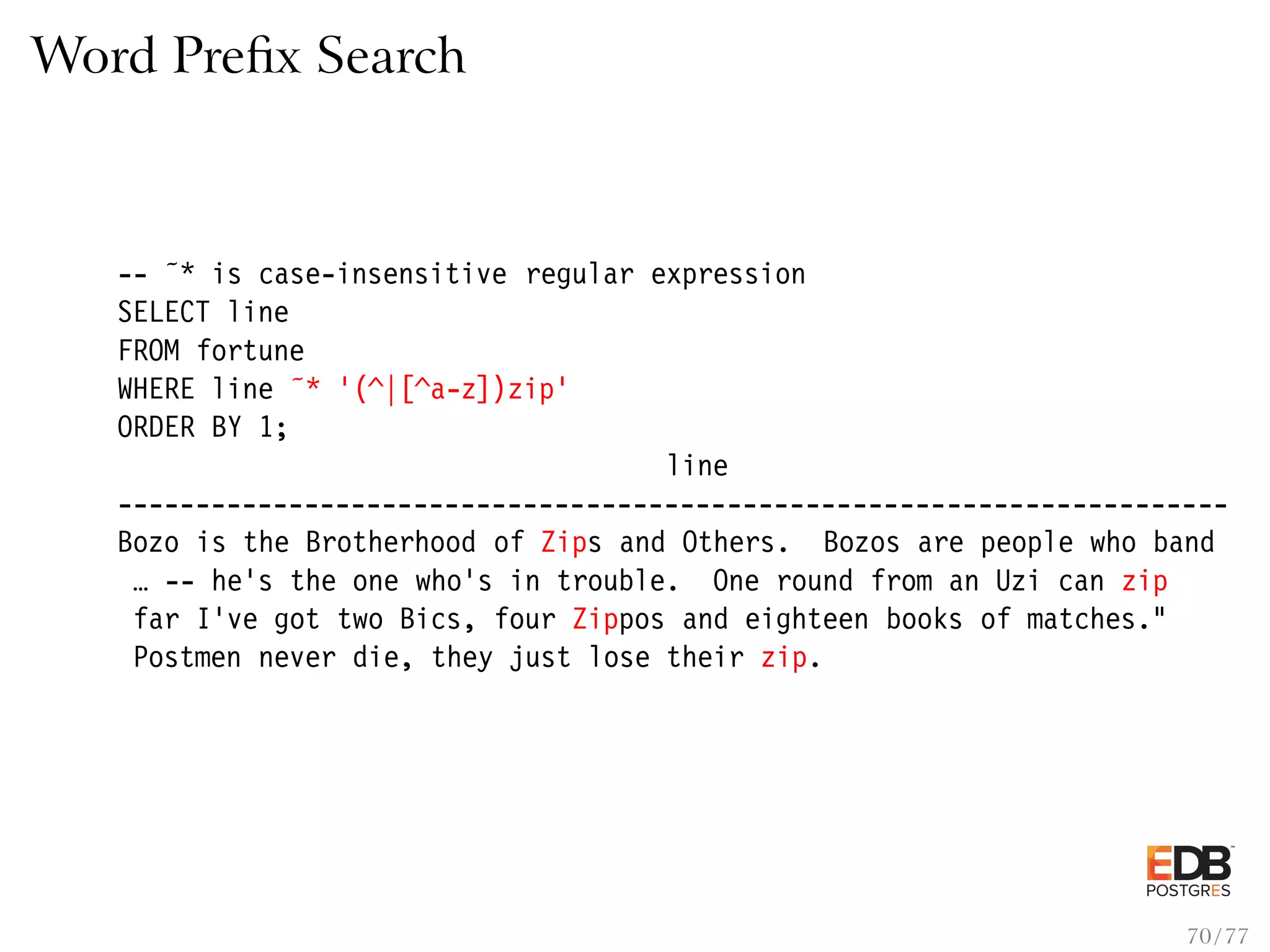

Word Preﬁx Search -- ˜* is case-insensitive regular expression SELECT line FROM fortune WHERE line ˜* ’(^|[^a-z])zip’ ORDER BY 1; line ----------------------------------------------------------------------- Bozo is the Brotherhood of Zips and Others. Bozos are people who band … -- he’s the one who’s in trouble. One round from an Uzi can zip far I’ve got two Bics, four Zippos and eighteen books of matches." Postmen never die, they just lose their zip. 70 / 77

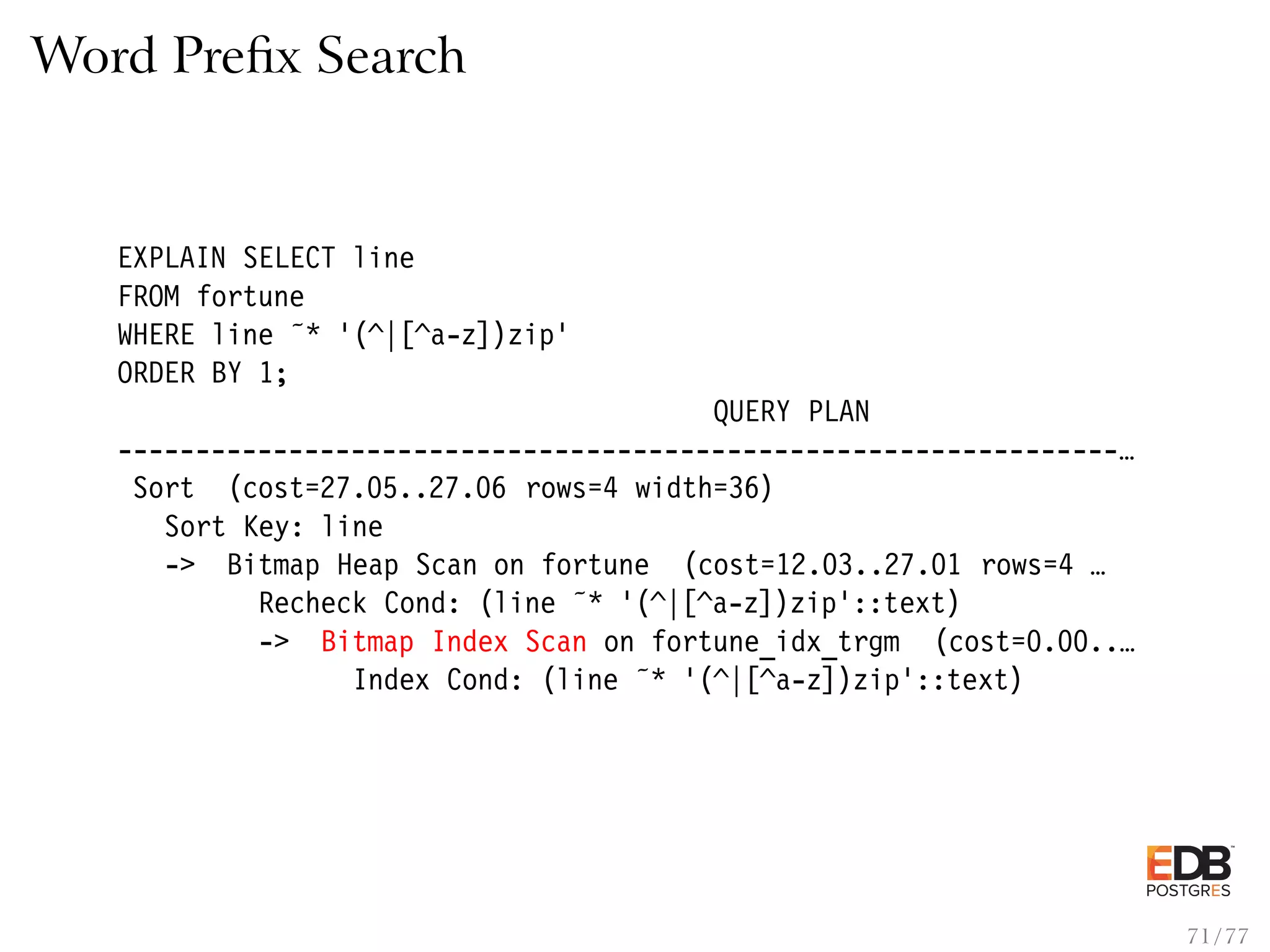

Word Prefix Search EXPLAIN SELECT line FROM fortune WHERE line ˜* ’(^|[â-z])zip’ ORDER BY 1; QUERY PLAN ----------------------------------------------------------------… Sort (cost=27.05..27.06 rows=4 width=36) Sort Key: line -> Bitmap Heap Scan on fortune (cost=12.03..27.01 rows=4 … Recheck Cond: (line ˜* ’(^|[â-z])zip’::text) -> Bitmap Index Scan on fortune_idx_trgm (cost=0.00..… Index Cond: (line ˜* ’(^|[â-z])zip’::text) 71 / 77

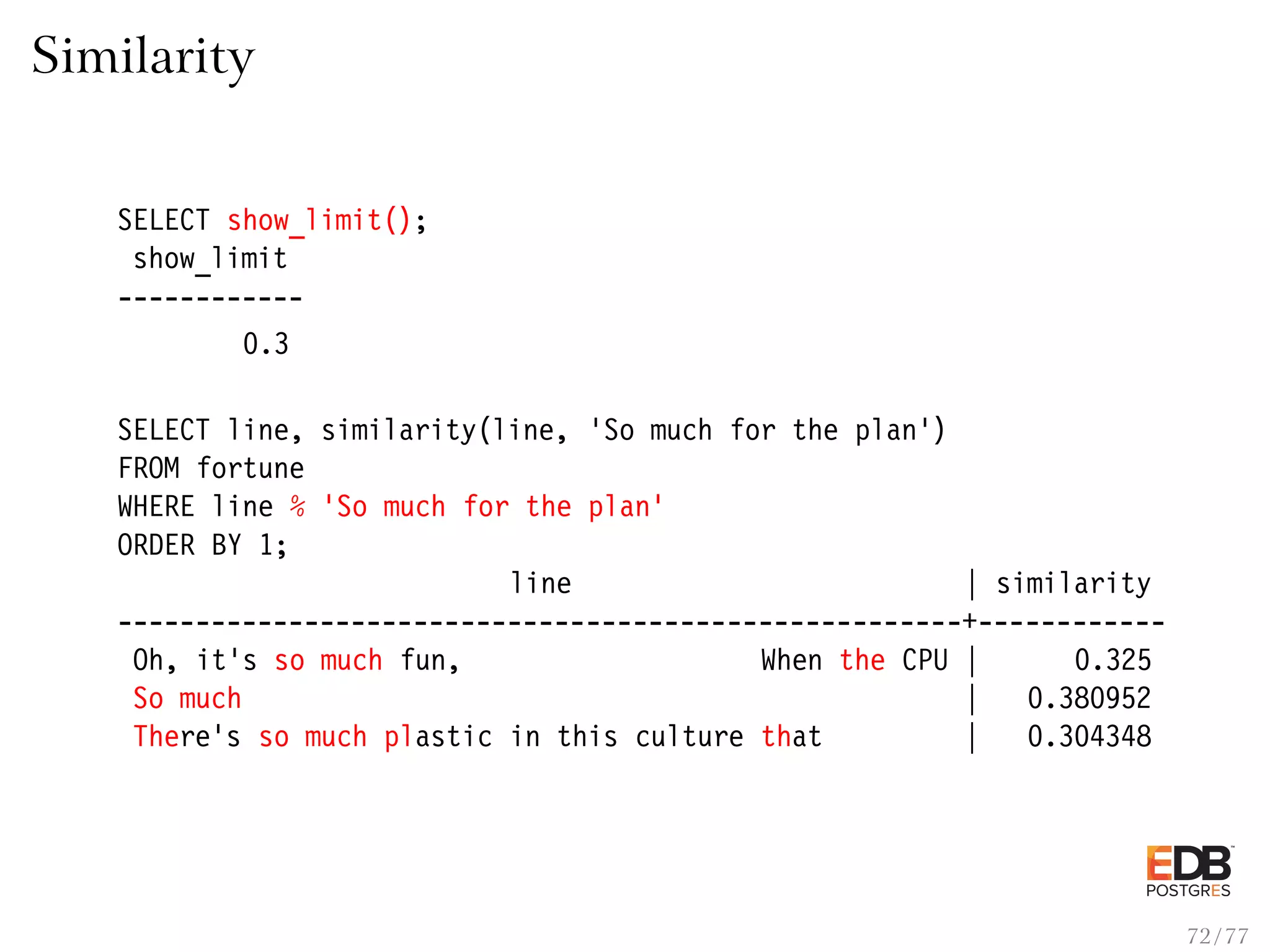

Similarity SELECT show_limit(); show_limit ------------ 0.3 SELECT line, similarity(line, ’So much for the plan’) FROM fortune WHERE line % ’So much for the plan’ ORDER BY 1; line | similarity ------------------------------------------------------+------------ Oh, it’s so much fun, When the CPU | 0.325 So much | 0.380952 There’s so much plastic in this culture that | 0.304348 72 / 77

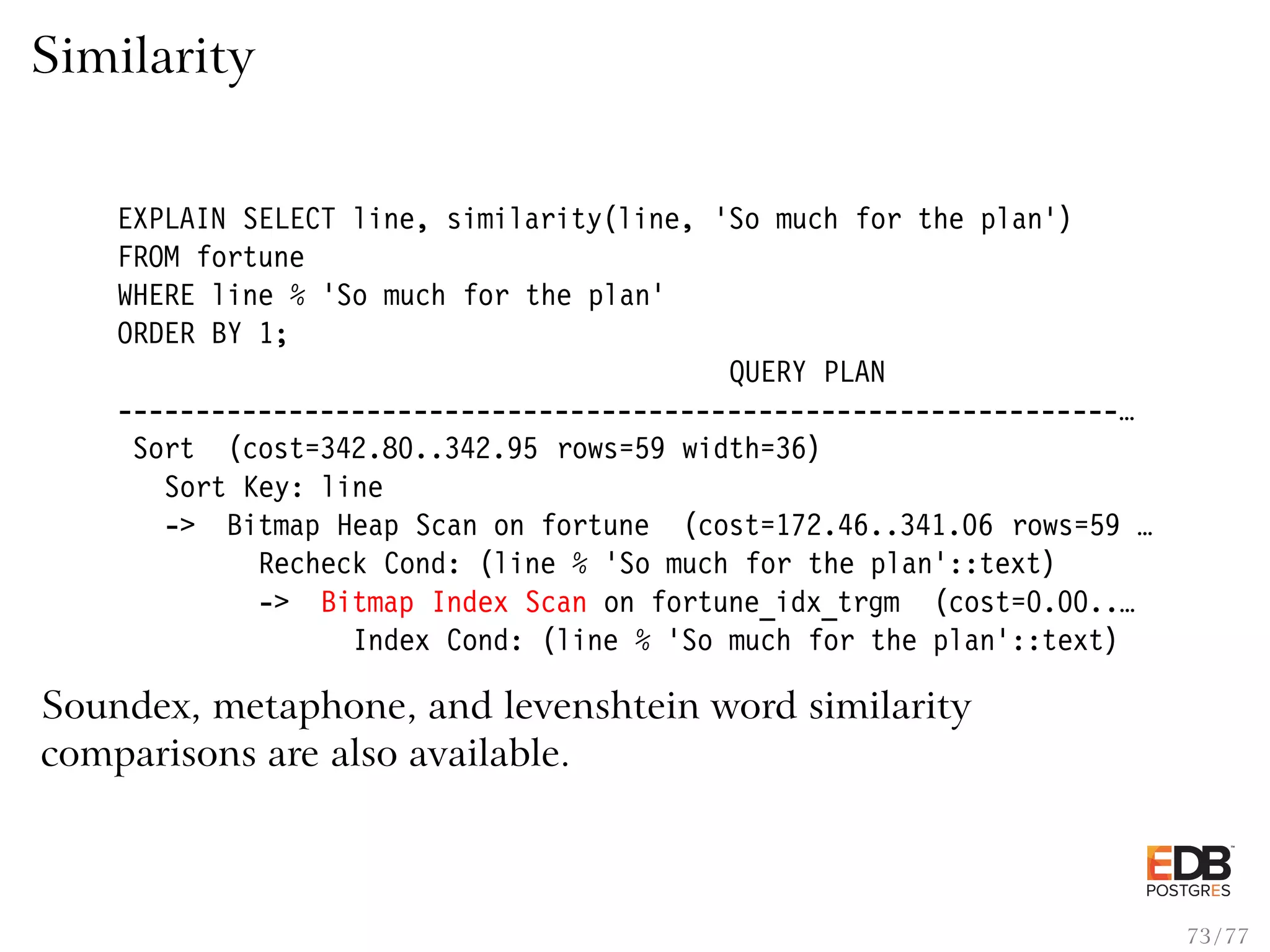

Similarity EXPLAIN SELECT line, similarity(line, ’So much for the plan’) FROM fortune WHERE line % ’So much for the plan’ ORDER BY 1; QUERY PLAN ----------------------------------------------------------------… Sort (cost=342.80..342.95 rows=59 width=36) Sort Key: line -> Bitmap Heap Scan on fortune (cost=172.46..341.06 rows=59 … Recheck Cond: (line % ’So much for the plan’::text) -> Bitmap Index Scan on fortune_idx_trgm (cost=0.00..… Index Cond: (line % ’So much for the plan’::text) Soundex, metaphone, and levenshtein word similarity comparisons are also available. 73 / 77

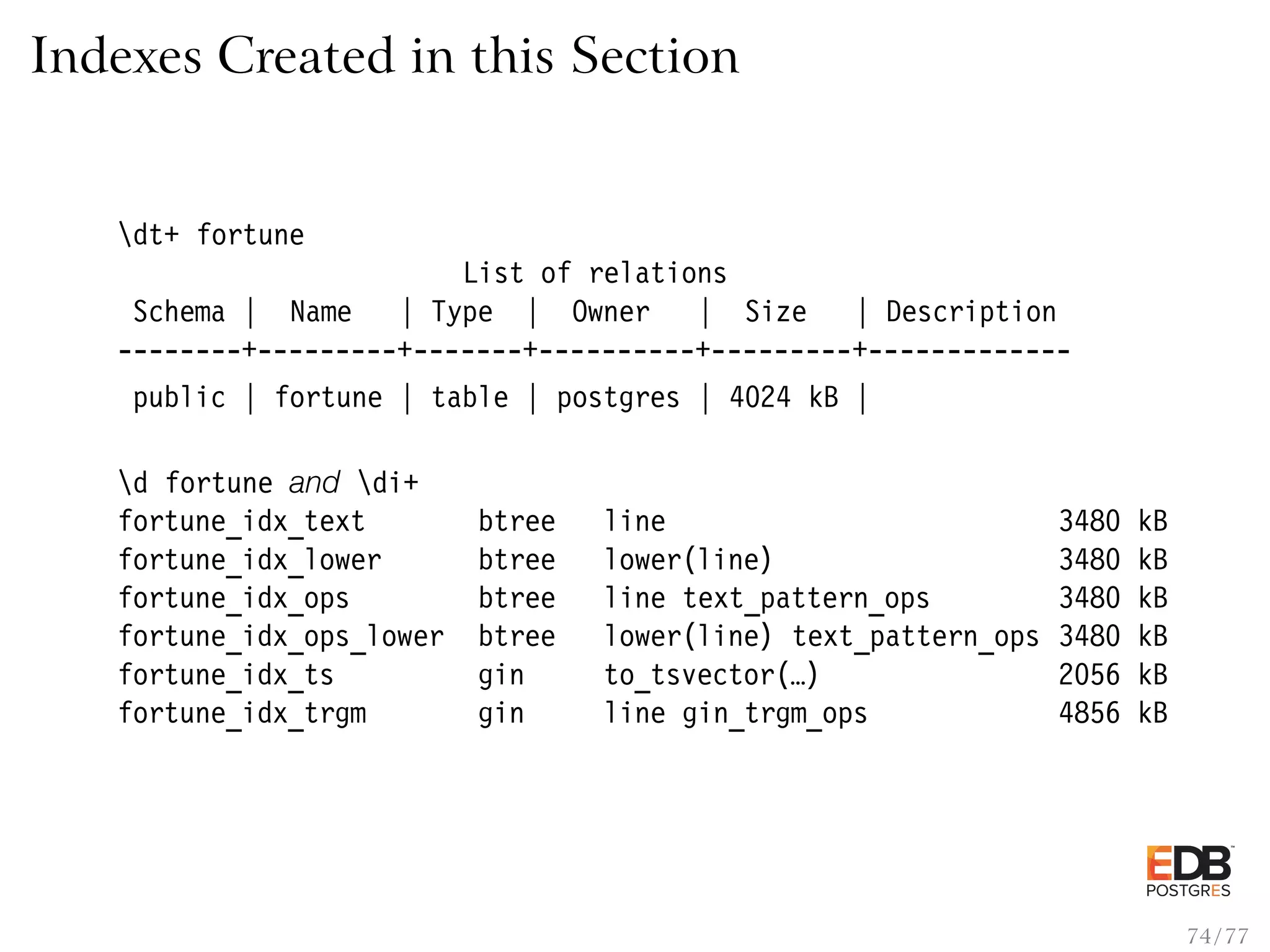

Indexes Created in this Section dt+ fortune List of relations Schema | Name | Type | Owner | Size | Description --------+---------+-------+----------+---------+------------- public | fortune | table | postgres | 4024 kB | d fortune and di+ fortune_idx_text btree line 3480 kB fortune_idx_lower btree lower(line) 3480 kB fortune_idx_ops btree line text_pattern_ops 3480 kB fortune_idx_ops_lower btree lower(line) text_pattern_ops 3480 kB fortune_idx_ts gin to_tsvector(…) 2056 kB fortune_idx_trgm gin line gin_trgm_ops 4856 kB 74 / 77

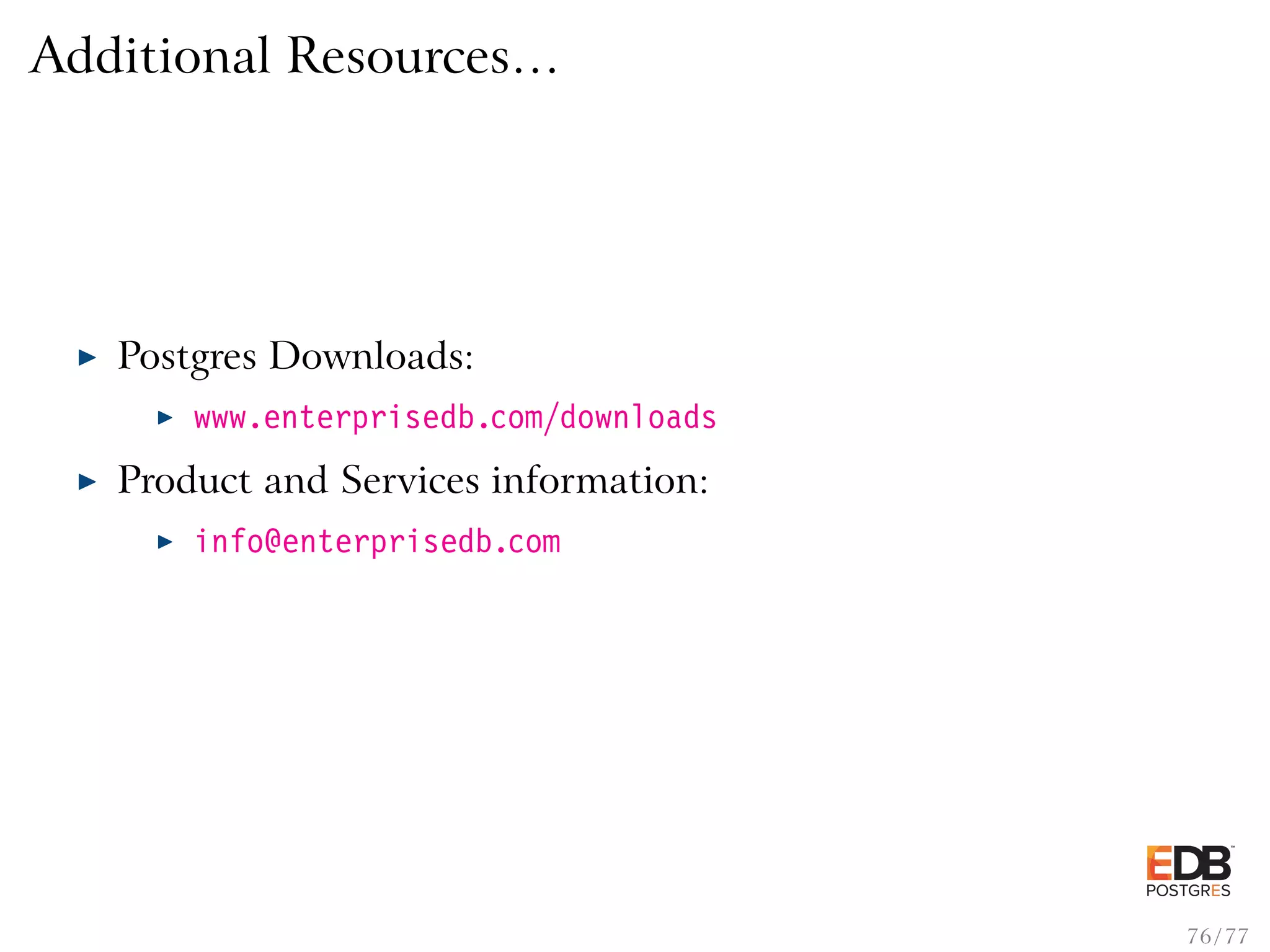

Additional Resources… Postgres Downloads: www.enterprisedb.com/downloads Product and Services information: info@enterprisedb.com 76 / 77

Conclusion http://momjian.us/presentations https://www.ﬂickr.com/photos/patgaines/ 77 / 77
