1 Natural Language Processing 1.Intro to NLP

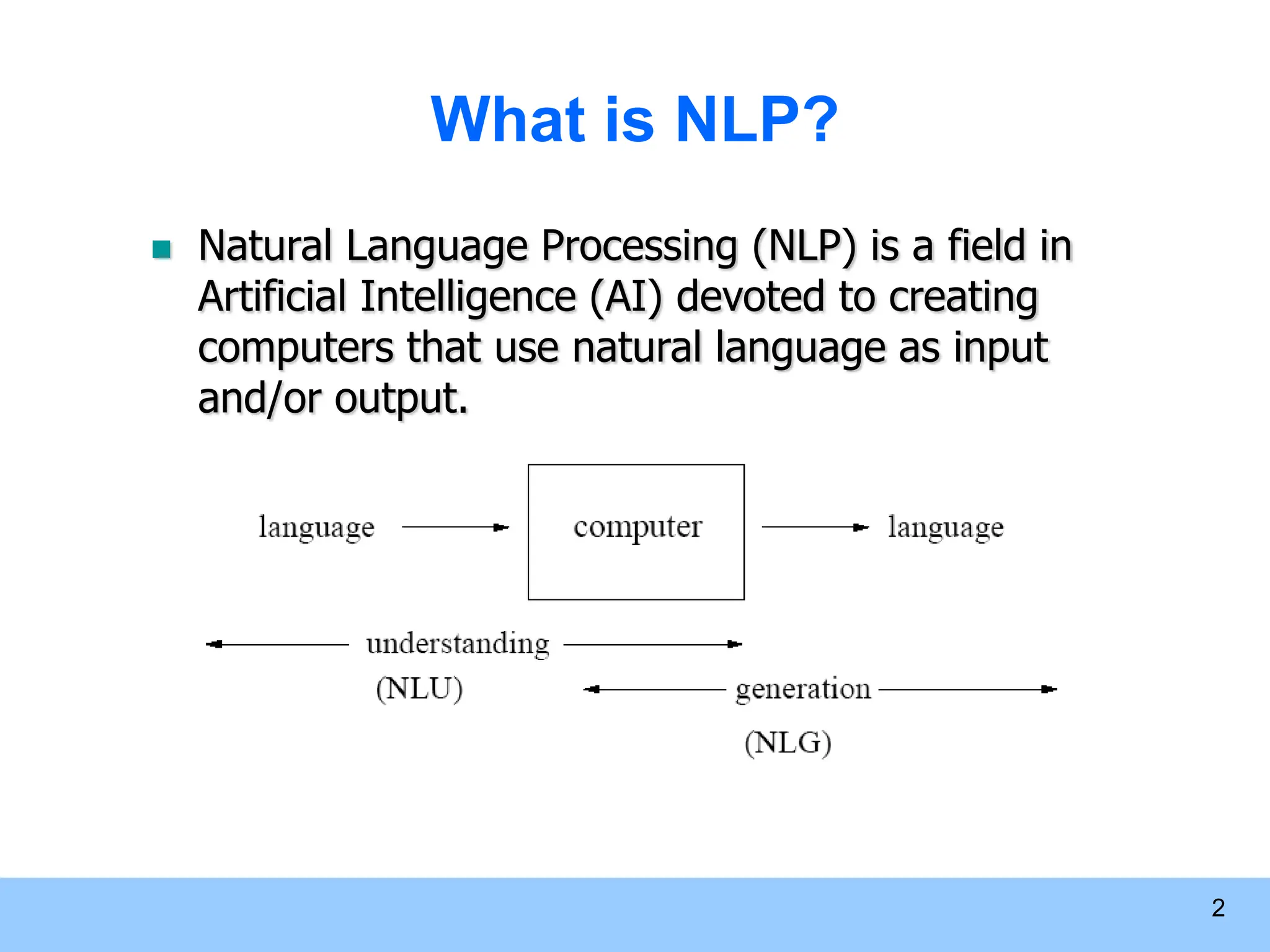

2 What is NLP?  Natural Language Processing (NLP) is a field in Artificial Intelligence (AI) devoted to creating computers that use natural language as input and/or output.

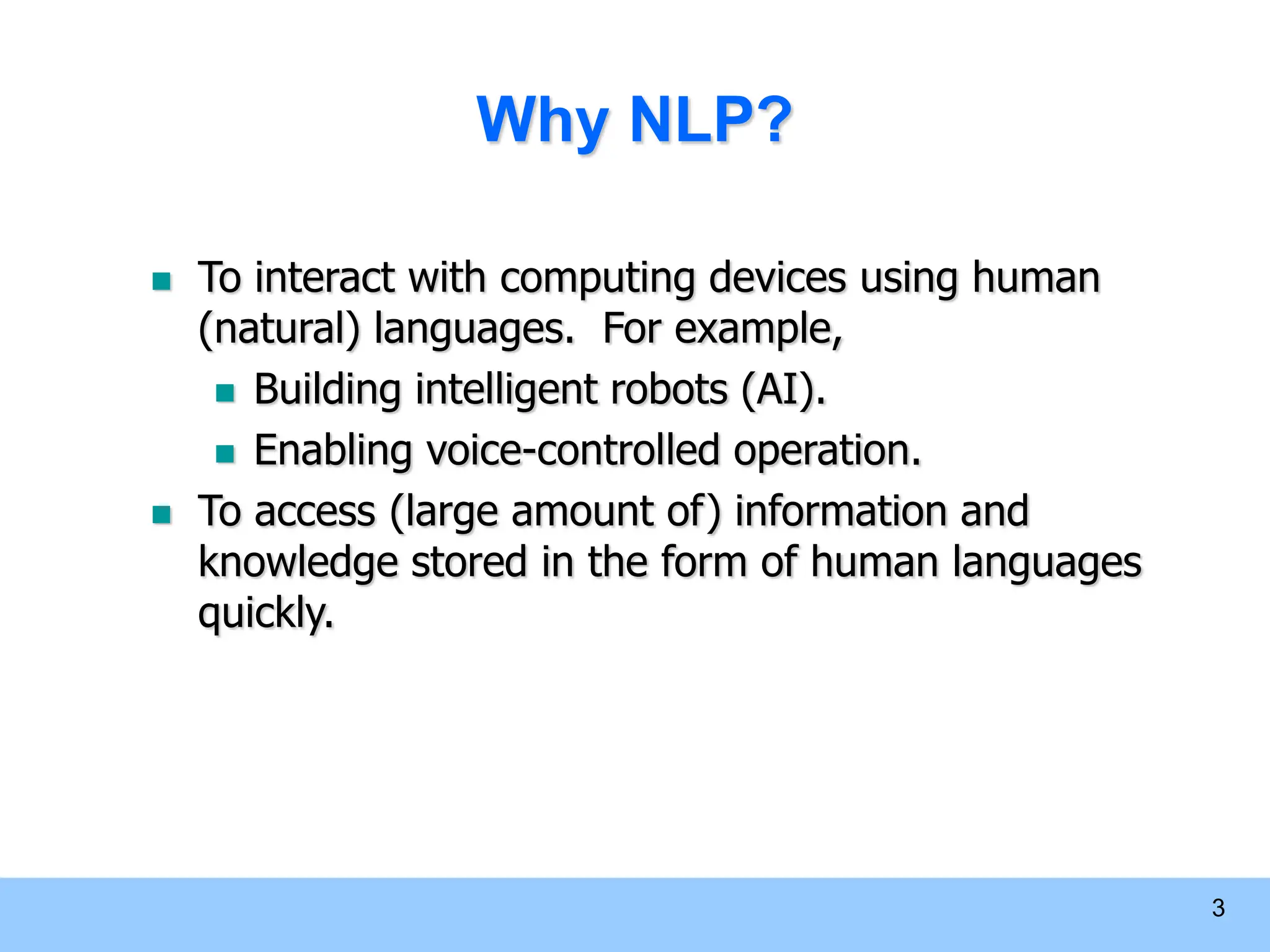

3 Why NLP?  To interact with computing devices using human (natural) languages. For example,  Building intelligent robots (AI).  Enabling voice-controlled operation.  To access (large amount of) information and knowledge stored in the form of human languages quickly.

4 Early days of NLP: Machines that Can Speak  HAL 9000 in “2001: A Space Odyssey”

5  C3PO in Star Wars Machines that Can Speak (cont.)  KITT in Knight Rider

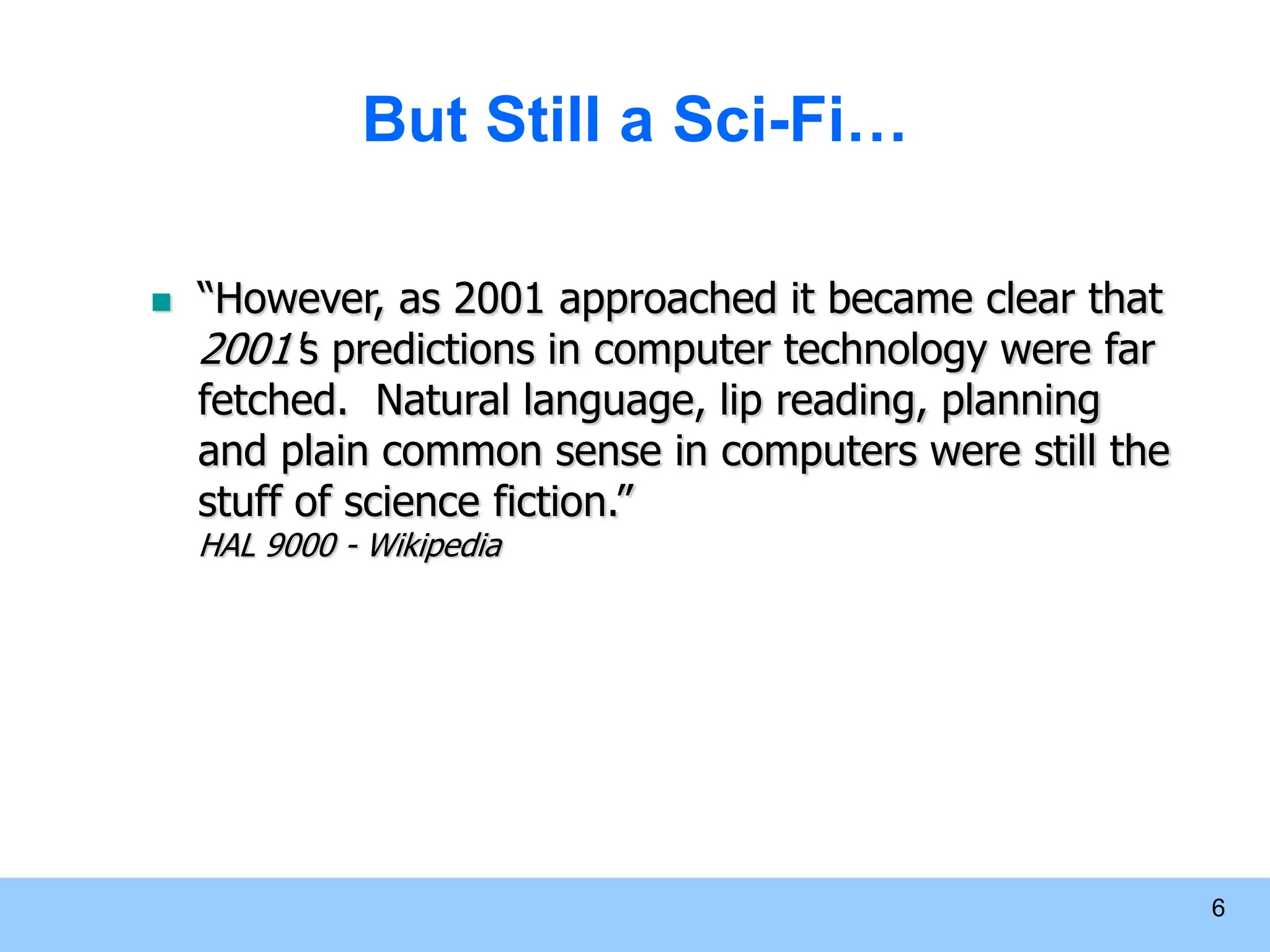

6 But Still a Sci-Fi…  “However, as 2001 approached it became clear that 2001's predictions in computer technology were far fetched. Natural language, lip reading, planning and plain common sense in computers were still the stuff of science fiction.” HAL 9000 - Wikipedia

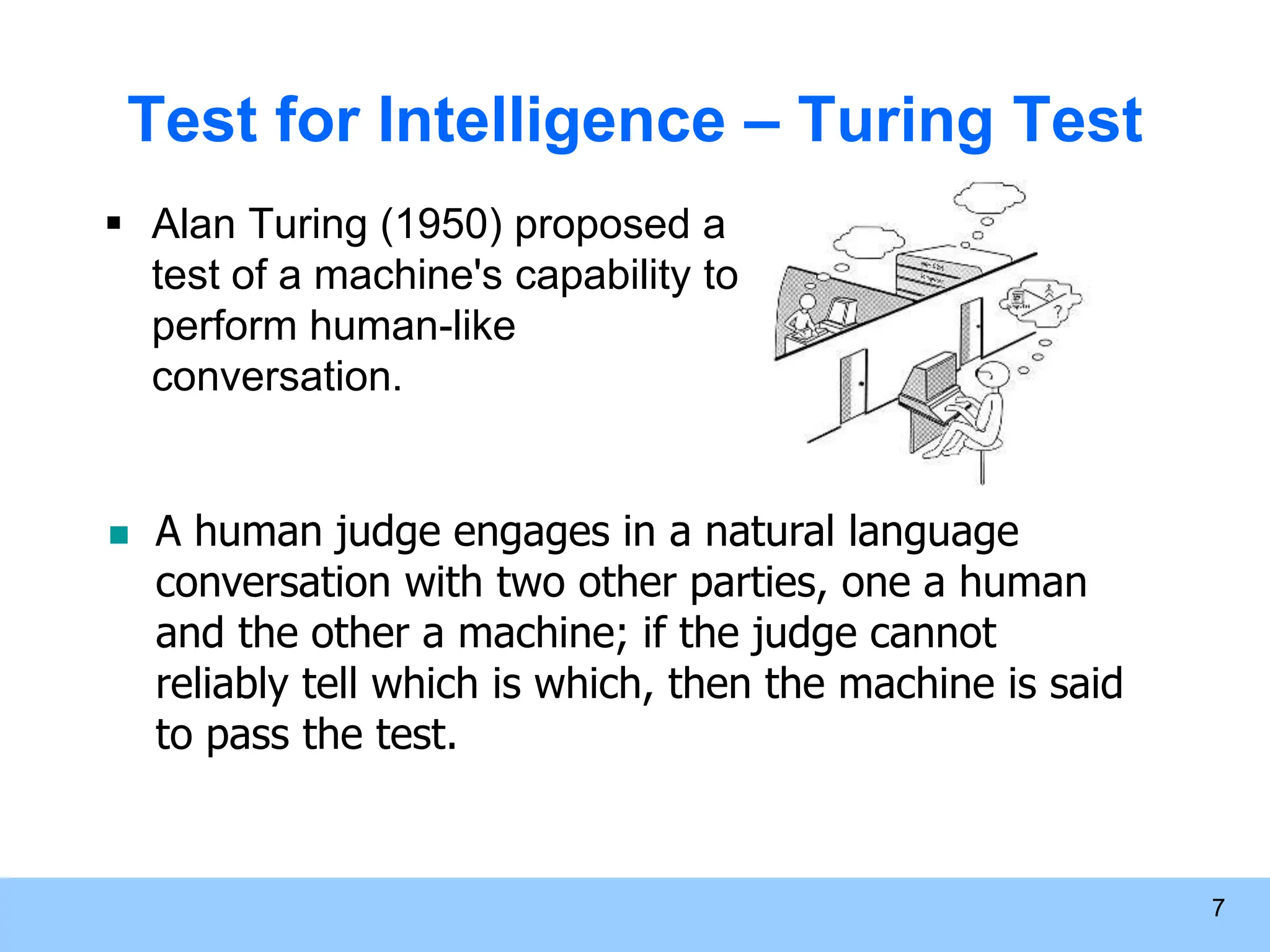

7 Test for Intelligence – Turing Test  Alan Turing (1950) proposed a test of a machine's capability to perform human-like conversation.  A human judge engages in a natural language conversation with two other parties, one a human and the other a machine; if the judge cannot reliably tell which is which, then the machine is said to pass the test.

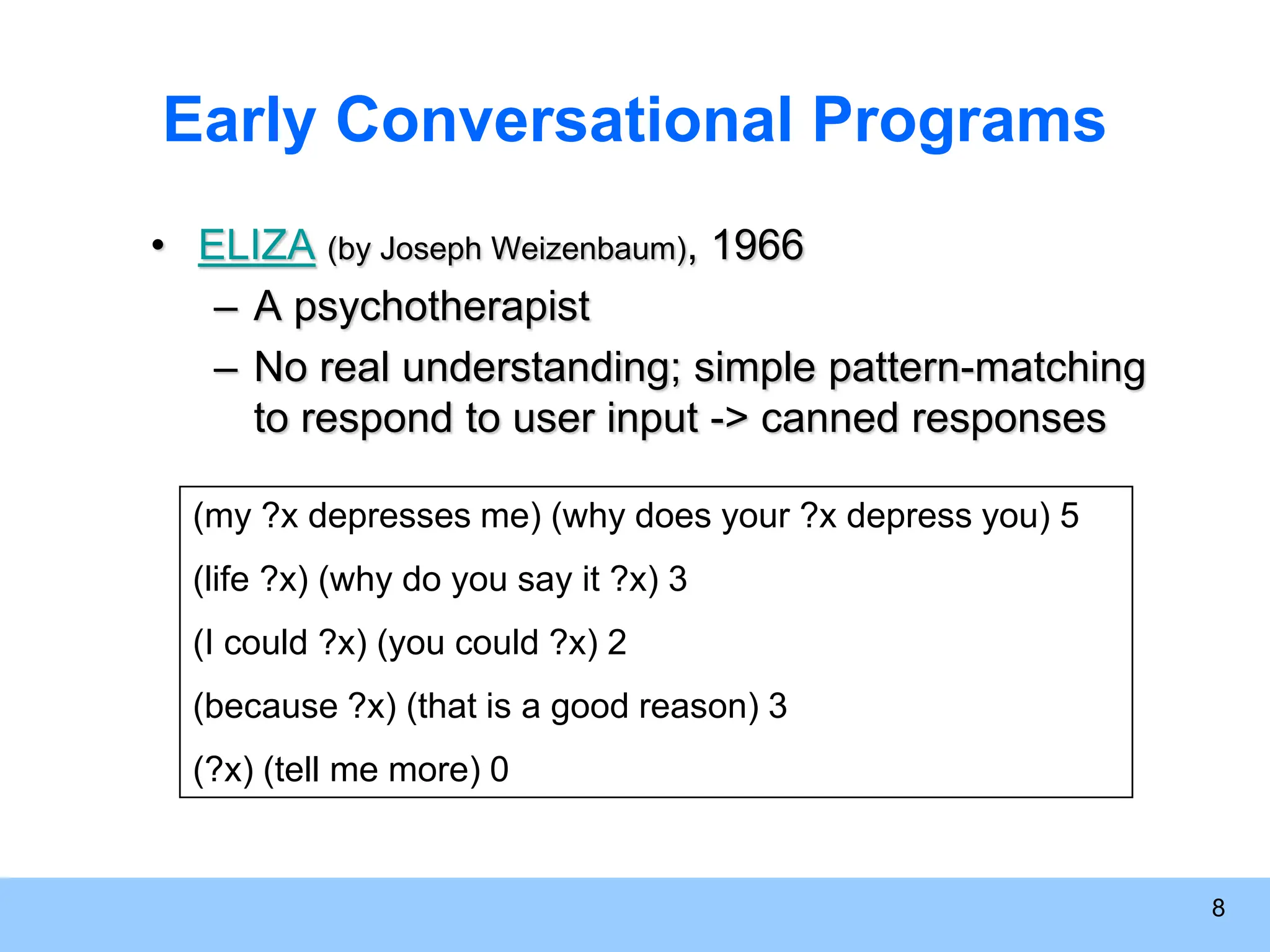

8 Early Conversational Programs • ELIZA (by Joseph Weizenbaum), 1966 – A psychotherapist – No real understanding; simple pattern-matching to respond to user input -> canned responses (my ?x depresses me) (why does your ?x depress you) 5 (life ?x) (why do you say it ?x) 3 (I could ?x) (you could ?x) 2 (because ?x) (that is a good reason) 3 (?x) (tell me more) 0

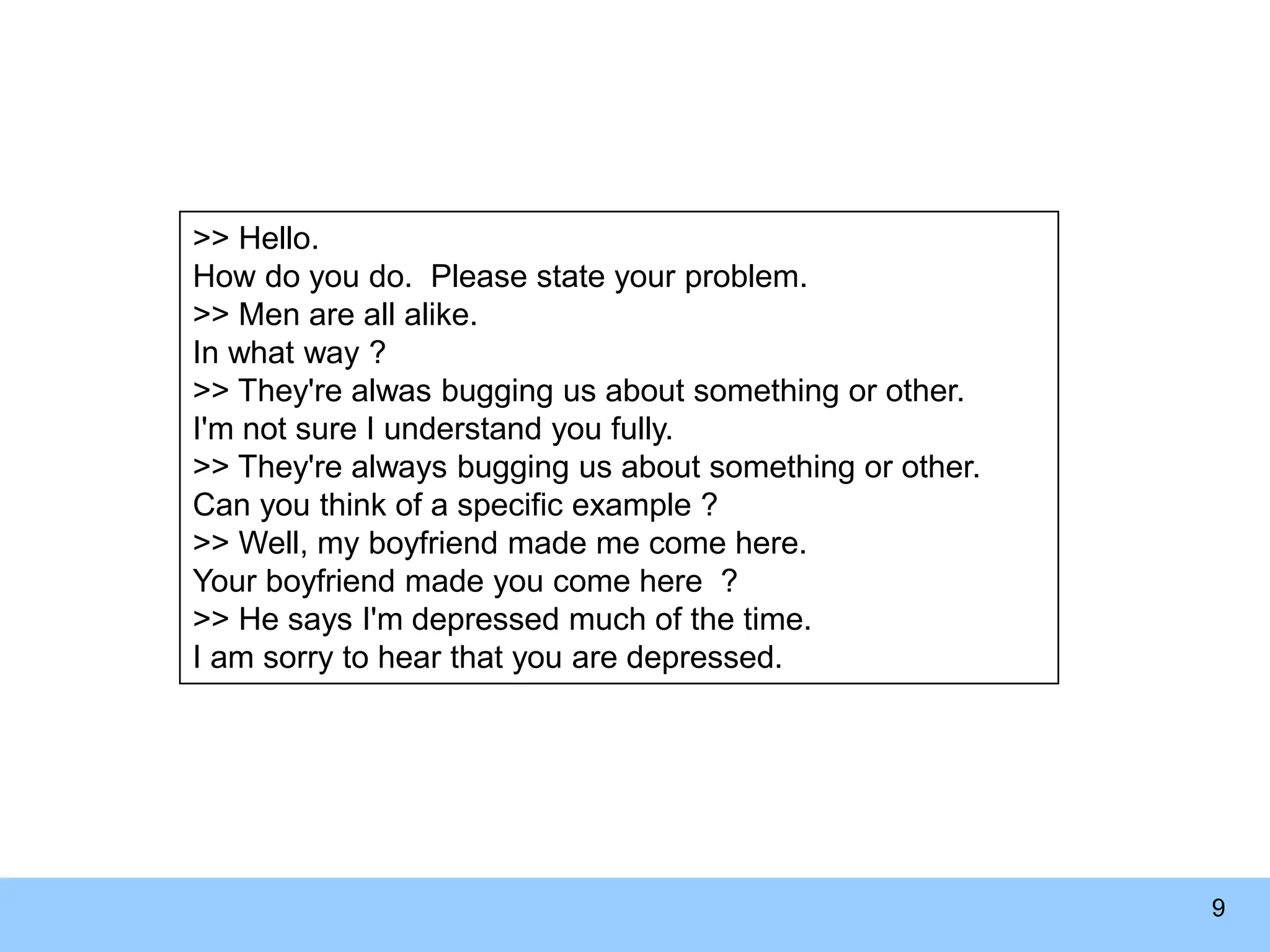

9 >> Hello. How do you do. Please state your problem. >> Men are all alike. In what way ? >> They're alwas bugging us about something or other. I'm not sure I understand you fully. >> They're always bugging us about something or other. Can you think of a specific example ? >> Well, my boyfriend made me come here. Your boyfriend made you come here ? >> He says I'm depressed much of the time. I am sorry to hear that you are depressed.

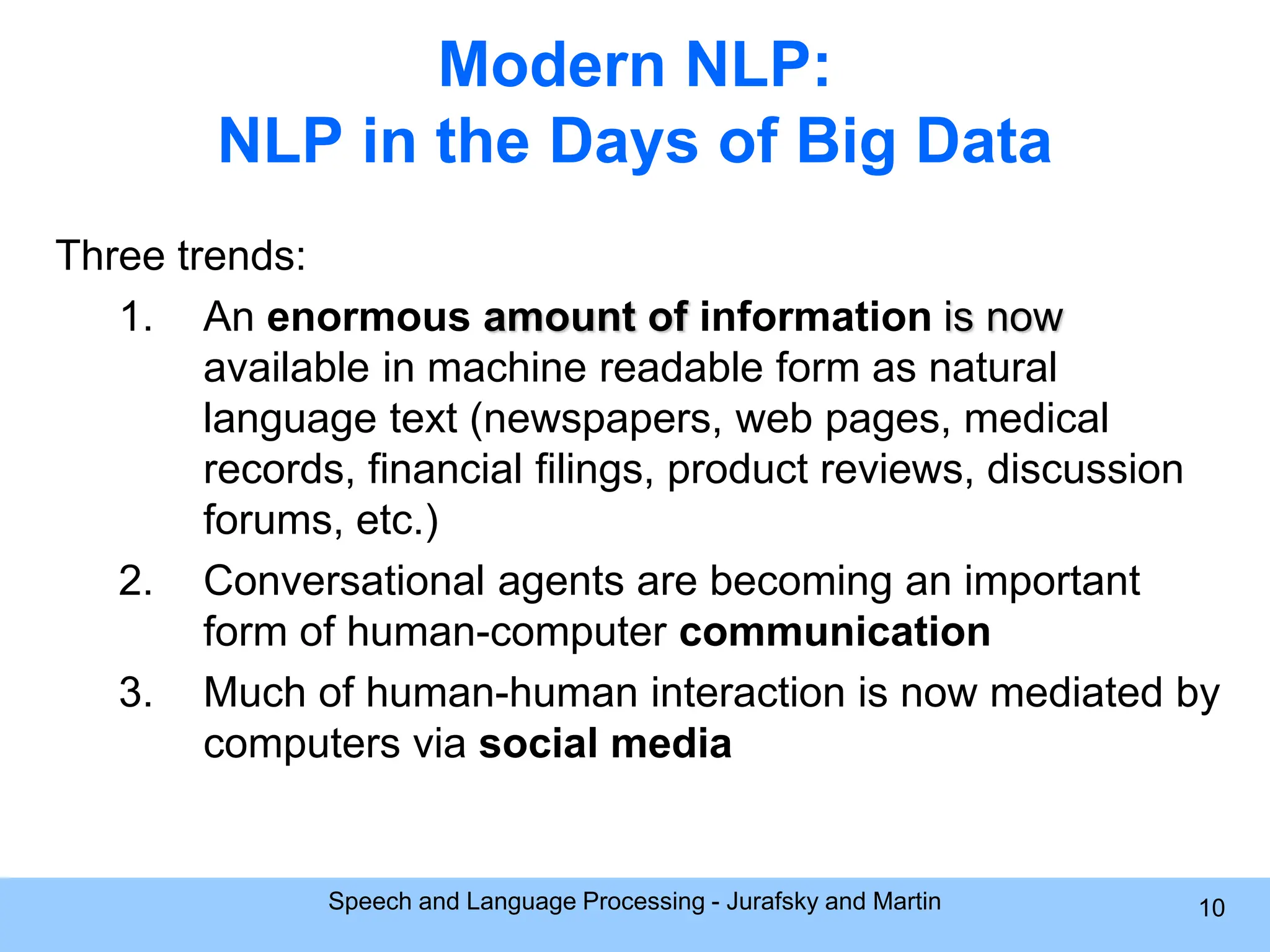

Modern NLP: NLP in the Days of Big Data Three trends: 1. An enormous amount of information is now available in machine readable form as natural language text (newspapers, web pages, medical records, financial filings, product reviews, discussion forums, etc.) 2. Conversational agents are becoming an important form of human-computer communication 3. Much of human-human interaction is now mediated by computers via social media Speech and Language Processing - Jurafsky and Martin 10

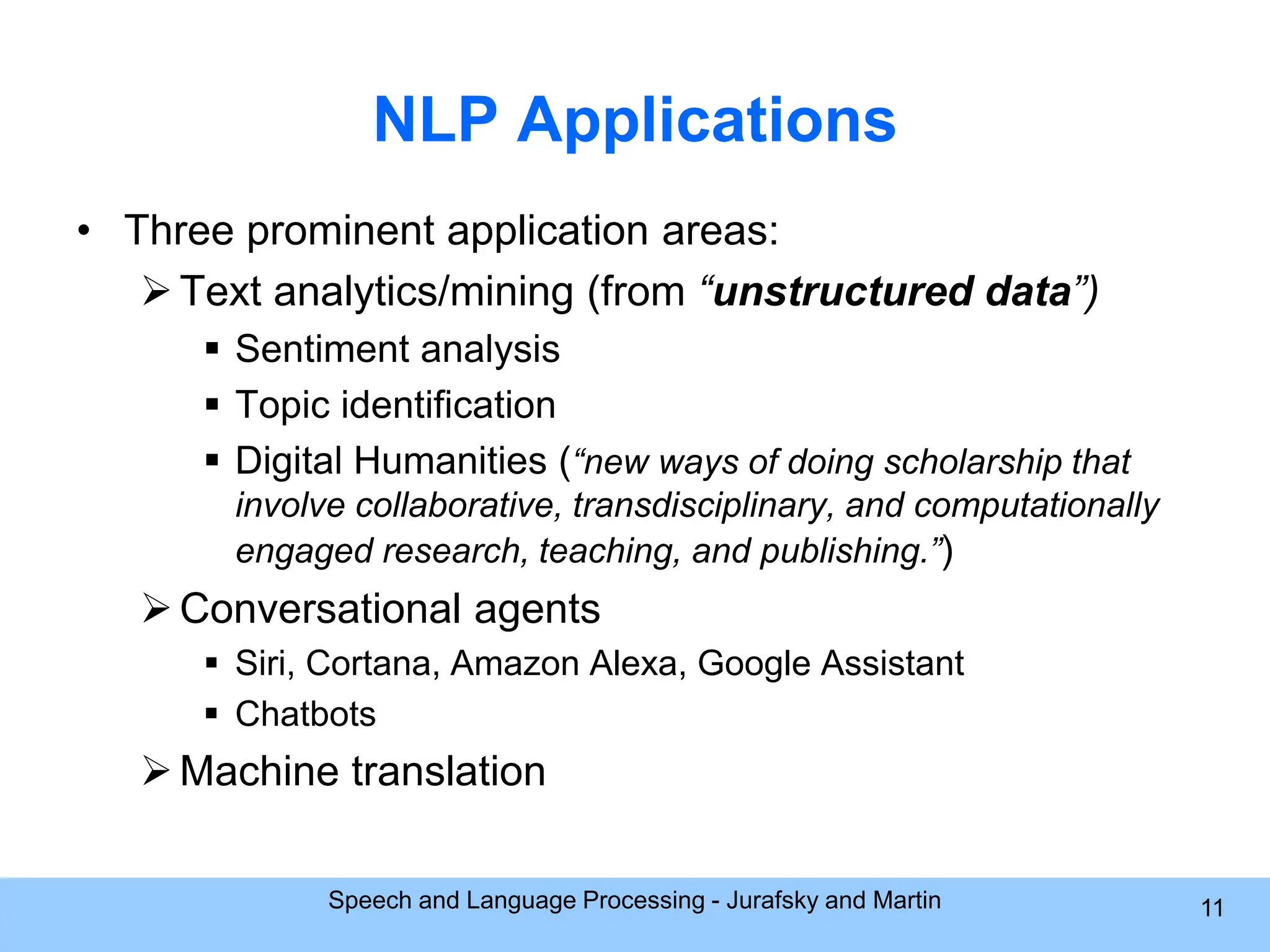

NLP Applications • Three prominent application areas: Text analytics/mining (from “unstructured data”)  Sentiment analysis  Topic identification  Digital Humanities (“new ways of doing scholarship that involve collaborative, transdisciplinary, and computationally engaged research, teaching, and publishing.”) Conversational agents  Siri, Cortana, Amazon Alexa, Google Assistant  Chatbots Machine translation Speech and Language Processing - Jurafsky and Martin 11

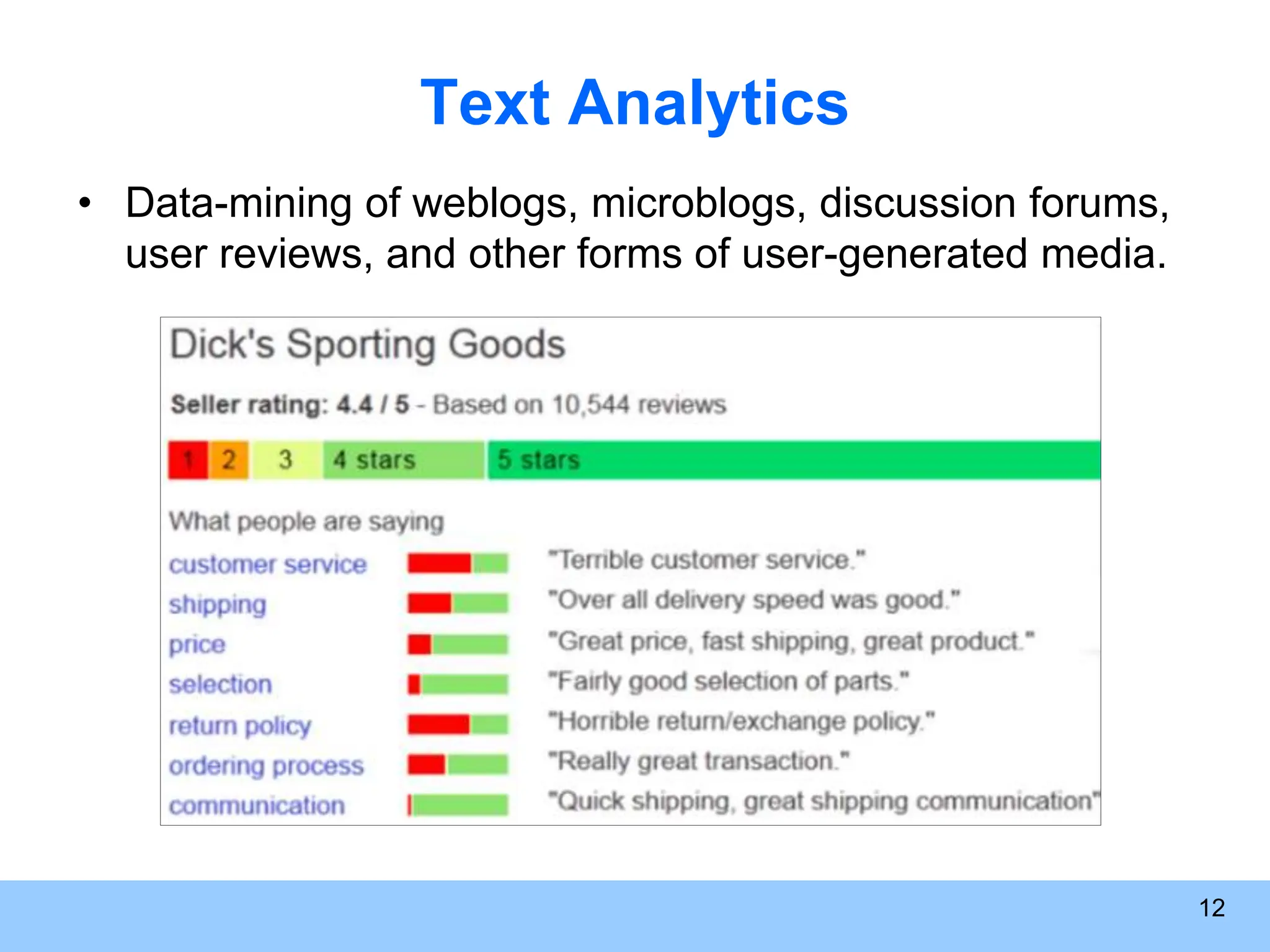

Text Analytics • Data-mining of weblogs, microblogs, discussion forums, user reviews, and other forms of user-generated media. 12

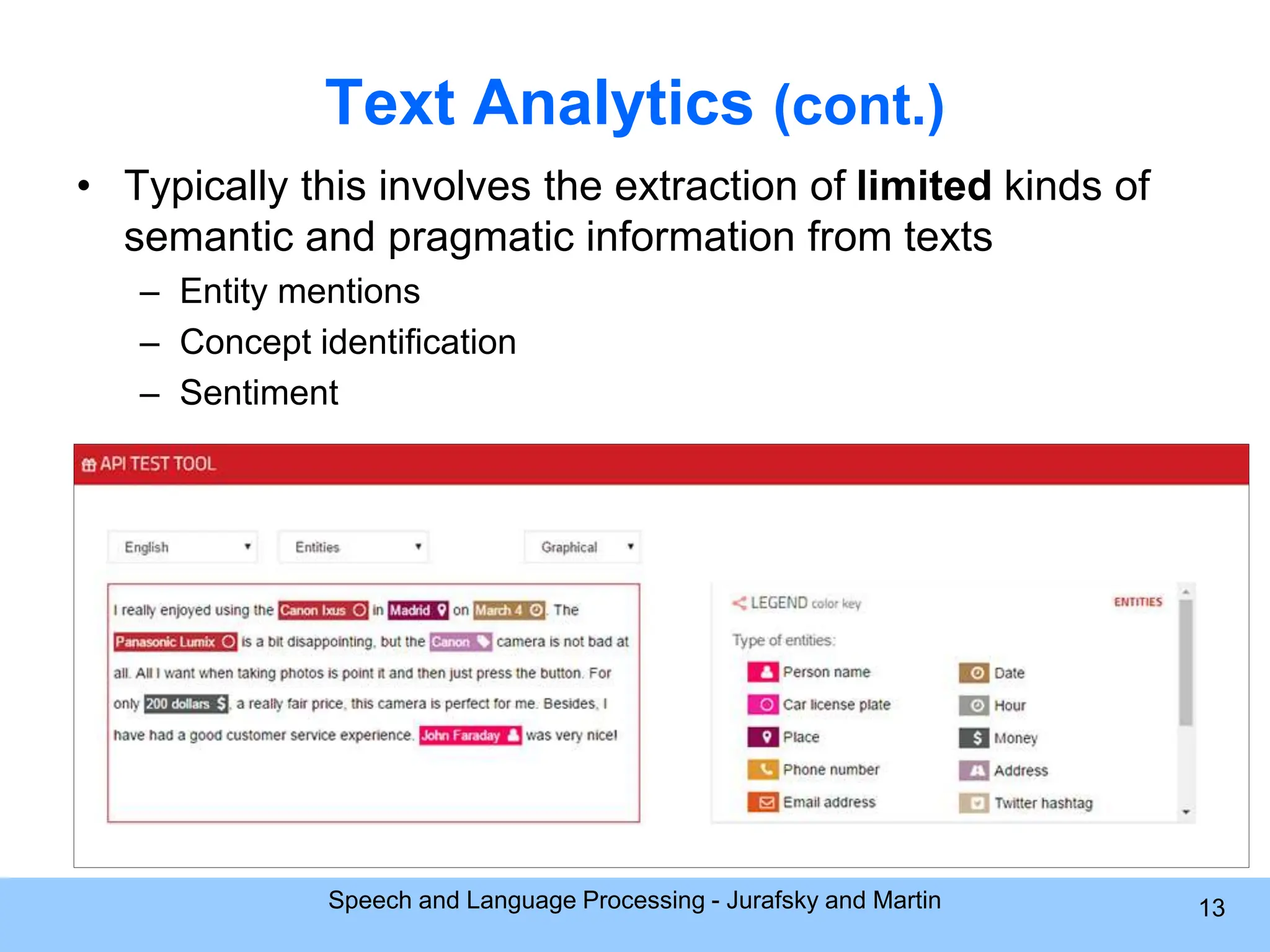

Text Analytics (cont.) • Typically this involves the extraction of limited kinds of semantic and pragmatic information from texts – Entity mentions – Concept identification – Sentiment Speech and Language Processing - Jurafsky and Martin 13

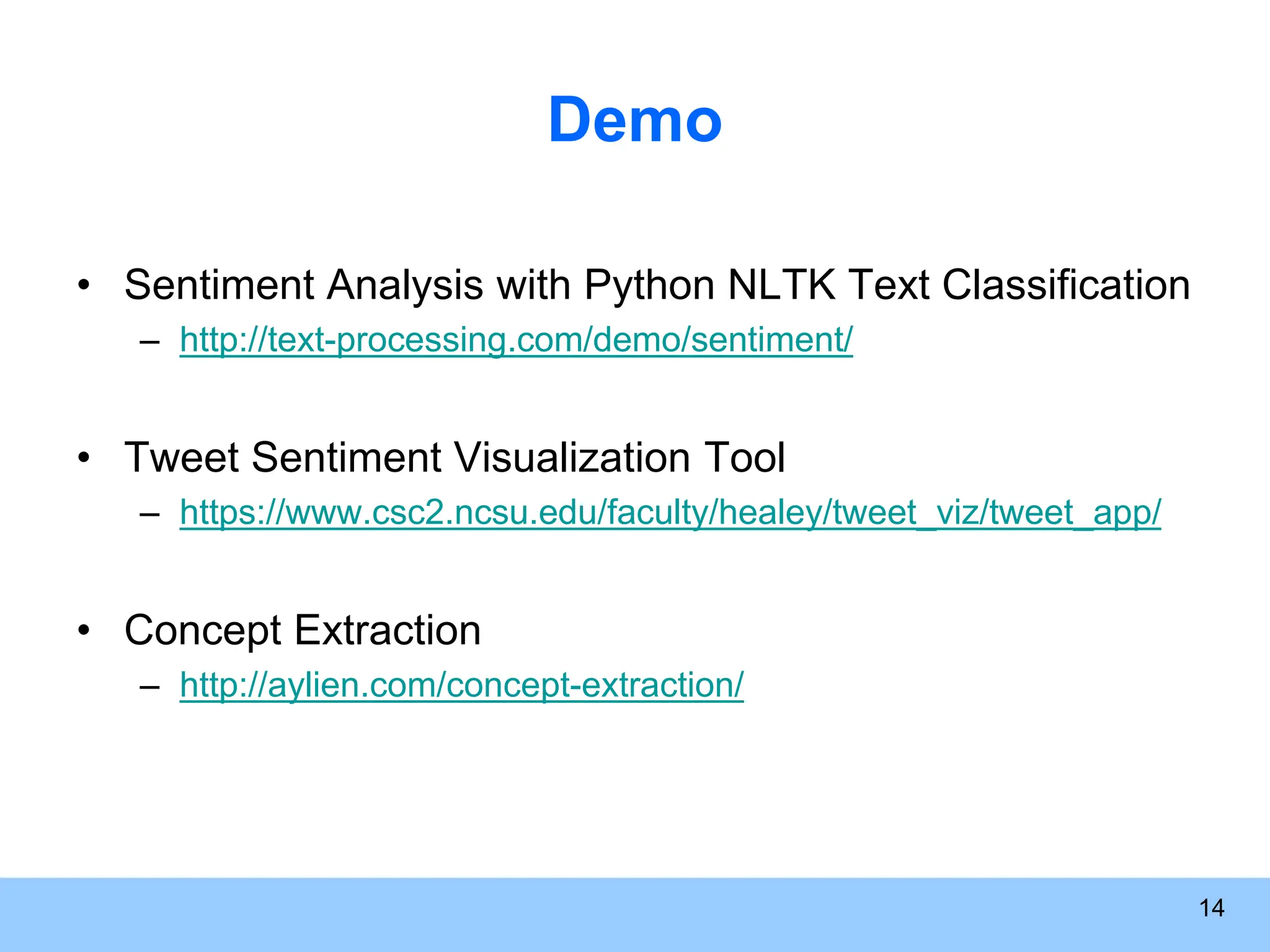

Demo • Sentiment Analysis with Python NLTK Text Classification – http://text-processing.com/demo/sentiment/ • Tweet Sentiment Visualization Tool – https://www.csc2.ncsu.edu/faculty/healey/tweet_viz/tweet_app/ • Concept Extraction – http://aylien.com/concept-extraction/ 14

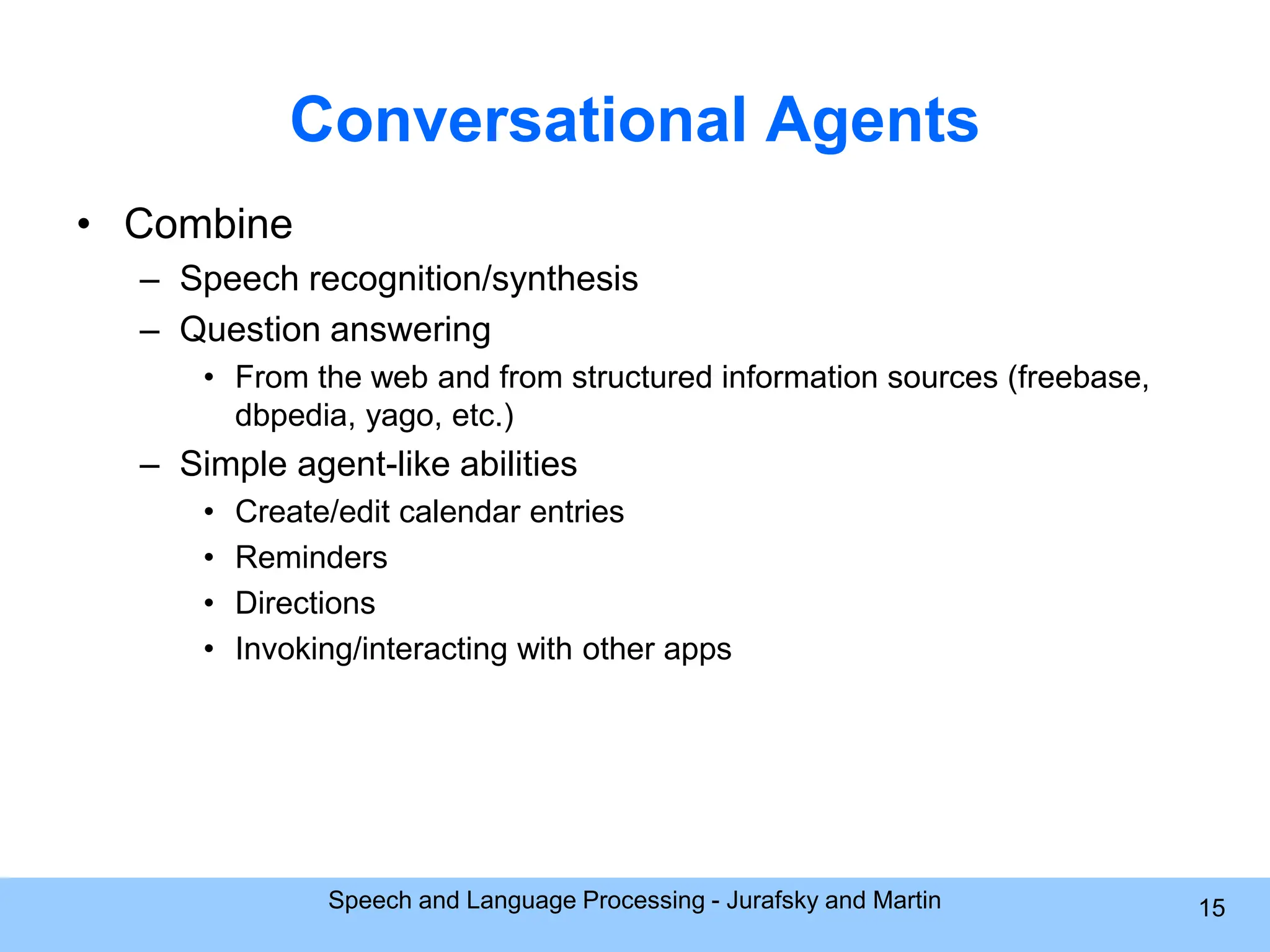

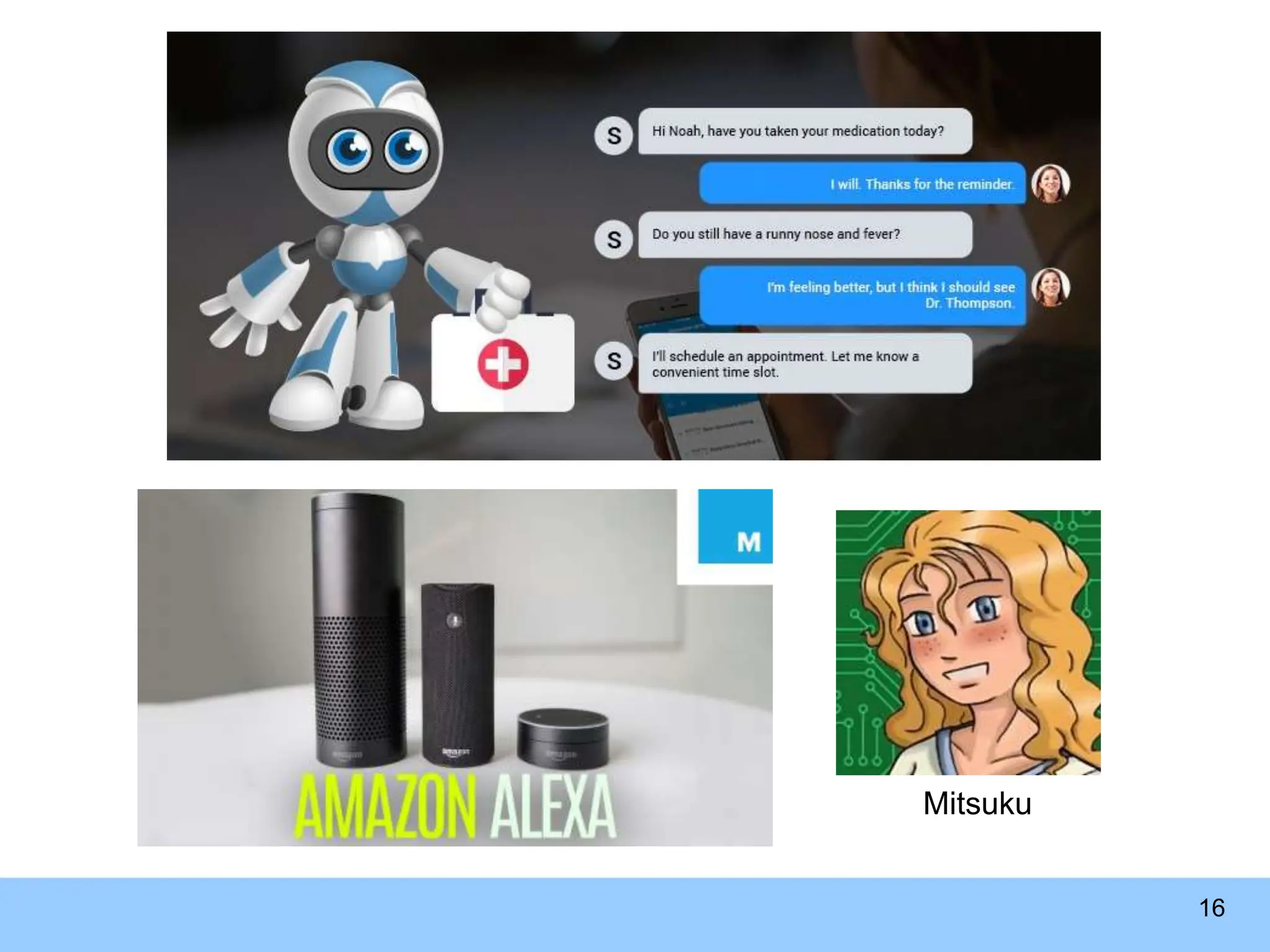

Conversational Agents • Combine – Speech recognition/synthesis – Question answering • From the web and from structured information sources (freebase, dbpedia, yago, etc.) – Simple agent-like abilities • Create/edit calendar entries • Reminders • Directions • Invoking/interacting with other apps Speech and Language Processing - Jurafsky and Martin 15

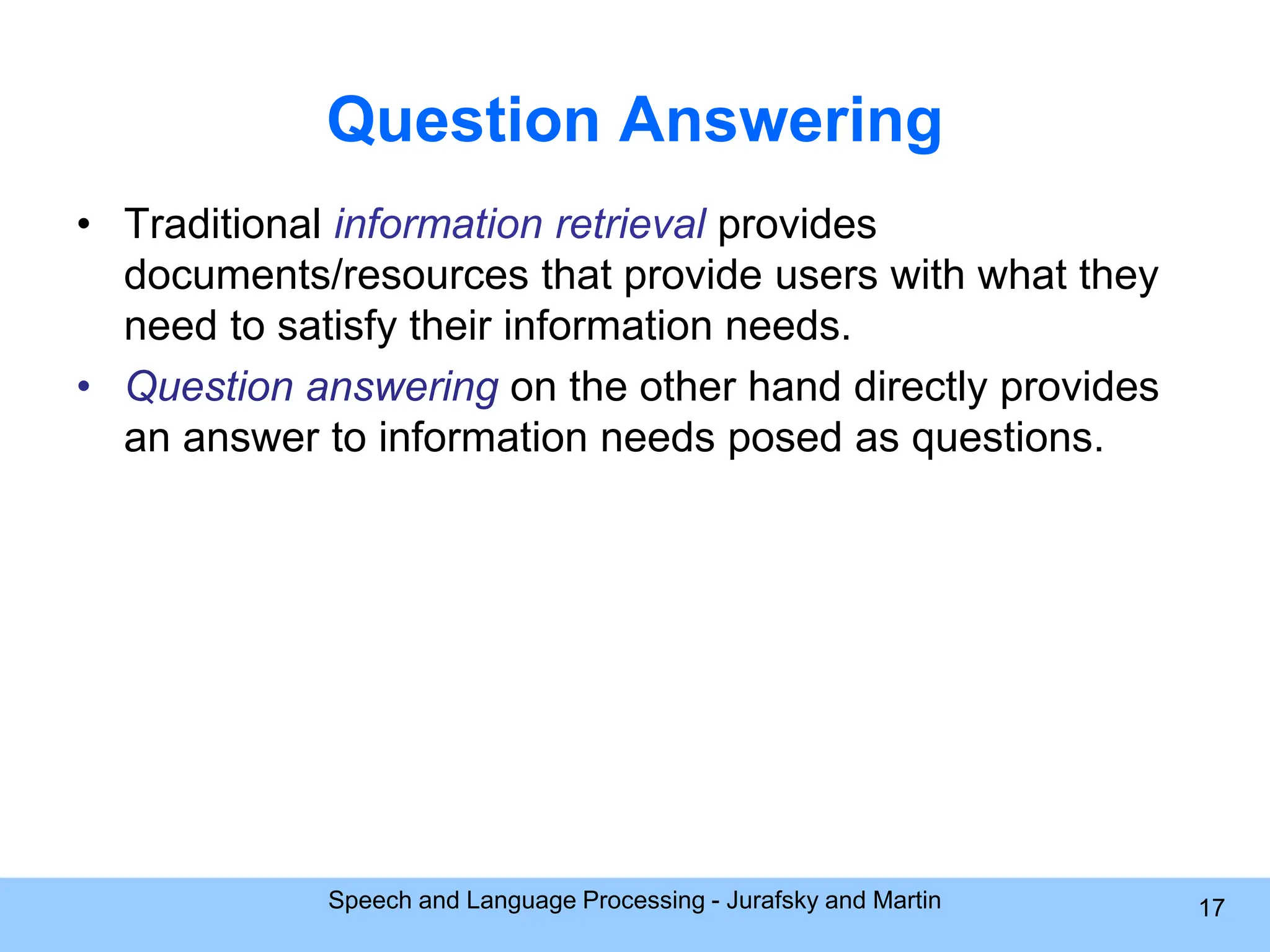

Question Answering • Traditional information retrieval provides documents/resources that provide users with what they need to satisfy their information needs. • Question answering on the other hand directly provides an answer to information needs posed as questions. Speech and Language Processing - Jurafsky and Martin 17

IBM Watson 18 https://www.youtube.com/watch?v=WFR3lOm_xhE

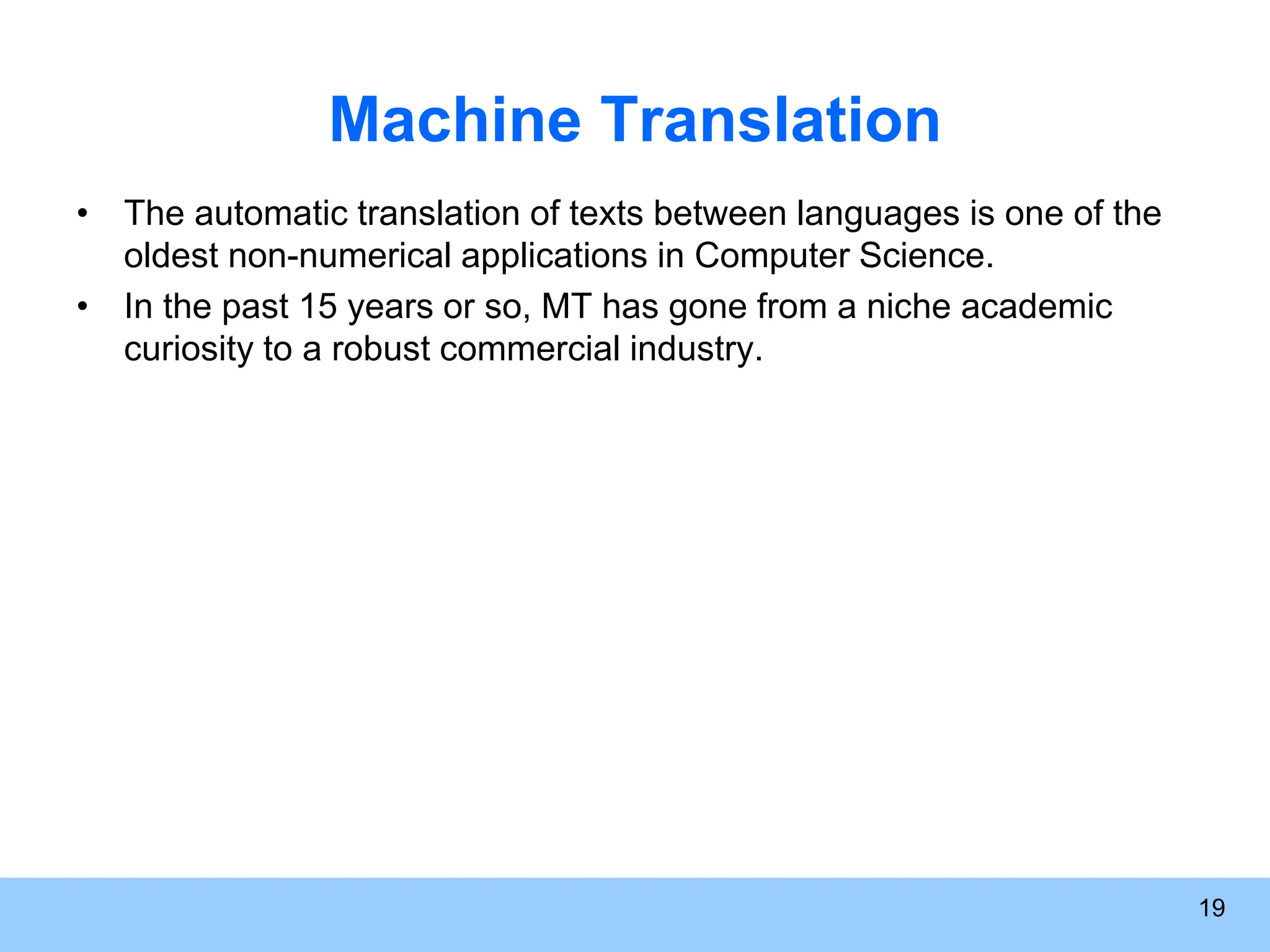

Machine Translation • The automatic translation of texts between languages is one of the oldest non-numerical applications in Computer Science. • In the past 15 years or so, MT has gone from a niche academic curiosity to a robust commercial industry. 19

• Text clustering 20 Text Mining Applications – Unsupervised • Trend analysis Trend for the Term “text mining” from Google Trends Cluster No. Comment Key Words 1 1, 3, 4 doctor, staff, friendly, helpful 2 5, 6, 8 treatment, results, time, schedule 3 2, 7 service, clinic, fast

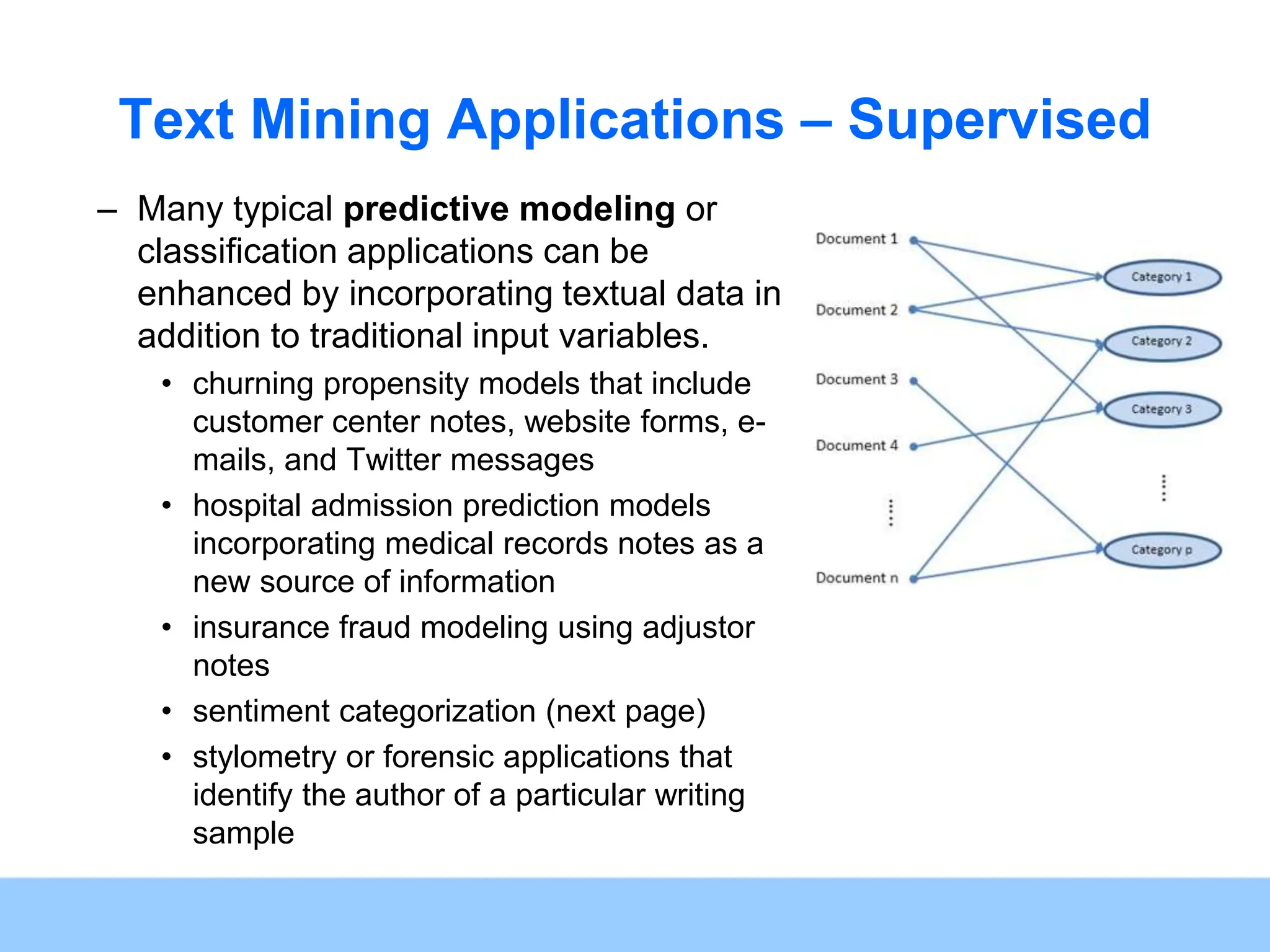

Text Mining Applications – Supervised – Many typical predictive modeling or classification applications can be enhanced by incorporating textual data in addition to traditional input variables. • churning propensity models that include customer center notes, website forms, e- mails, and Twitter messages • hospital admission prediction models incorporating medical records notes as a new source of information • insurance fraud modeling using adjustor notes • sentiment categorization (next page) • stylometry or forensic applications that identify the author of a particular writing sample

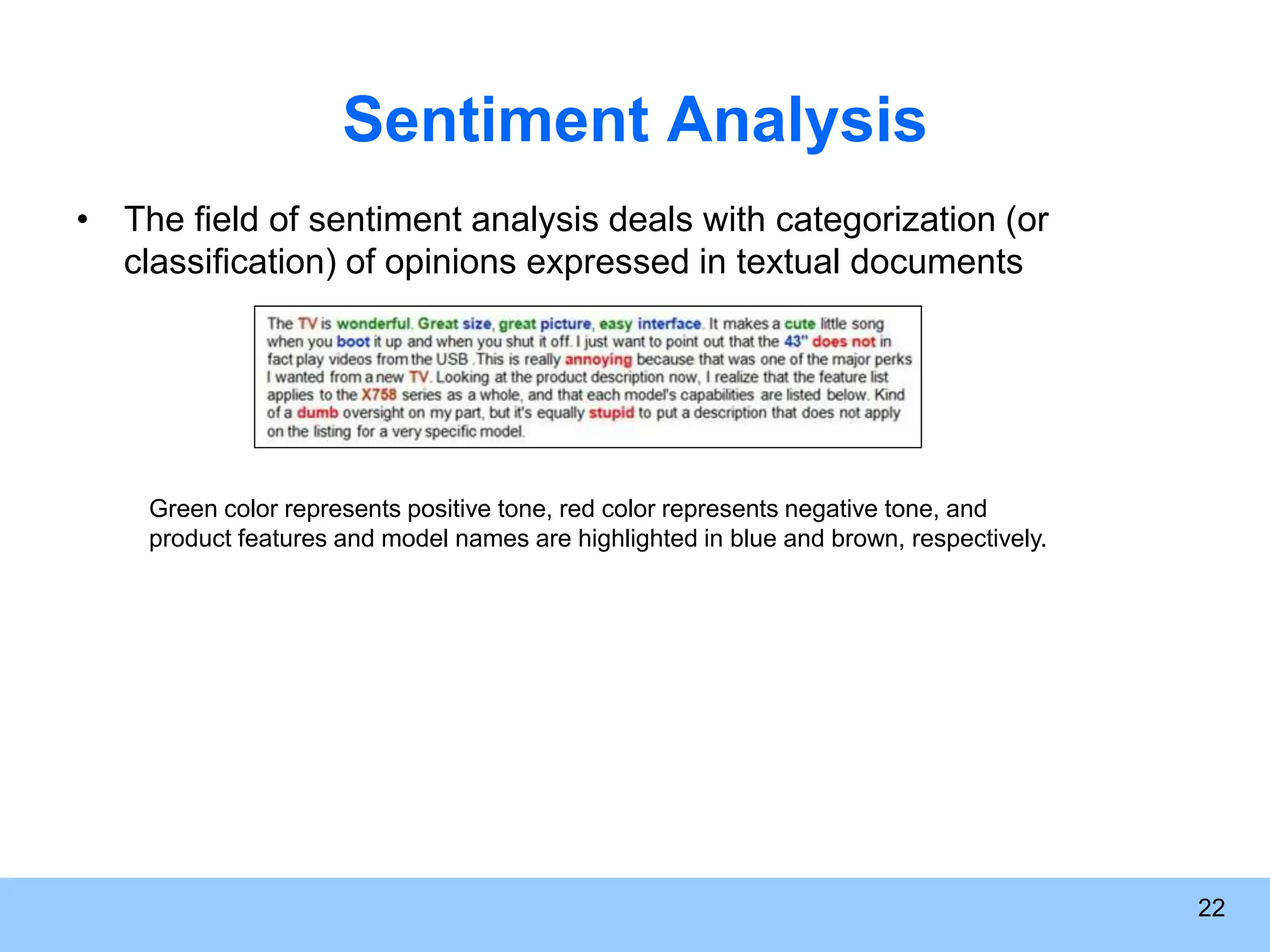

Sentiment Analysis • The field of sentiment analysis deals with categorization (or classification) of opinions expressed in textual documents 22 Green color represents positive tone, red color represents negative tone, and product features and model names are highlighted in blue and brown, respectively.

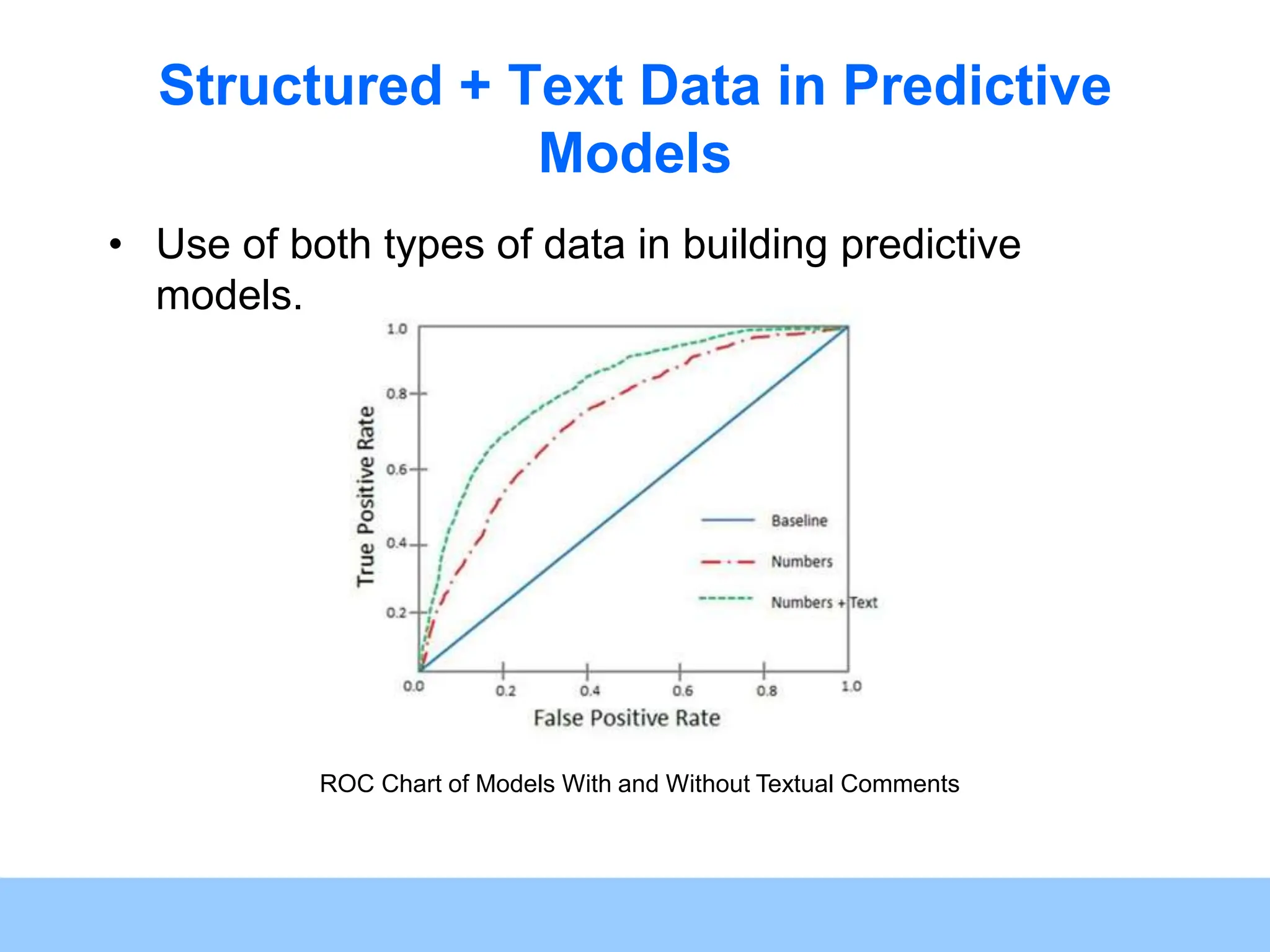

Structured + Text Data in Predictive Models • Use of both types of data in building predictive models. ROC Chart of Models With and Without Textual Comments

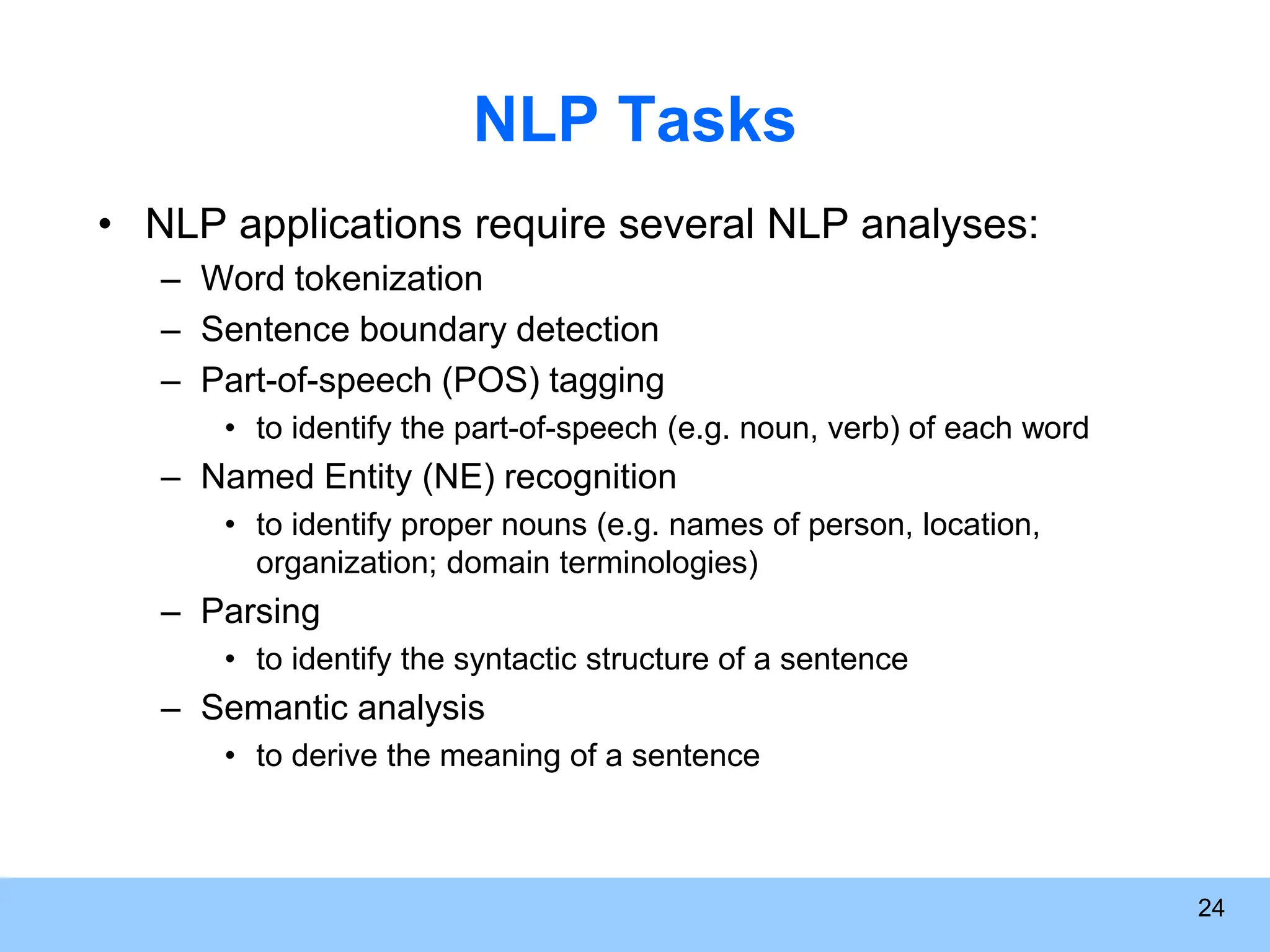

24 NLP Tasks • NLP applications require several NLP analyses: – Word tokenization – Sentence boundary detection – Part-of-speech (POS) tagging • to identify the part-of-speech (e.g. noun, verb) of each word – Named Entity (NE) recognition • to identify proper nouns (e.g. names of person, location, organization; domain terminologies) – Parsing • to identify the syntactic structure of a sentence – Semantic analysis • to derive the meaning of a sentence

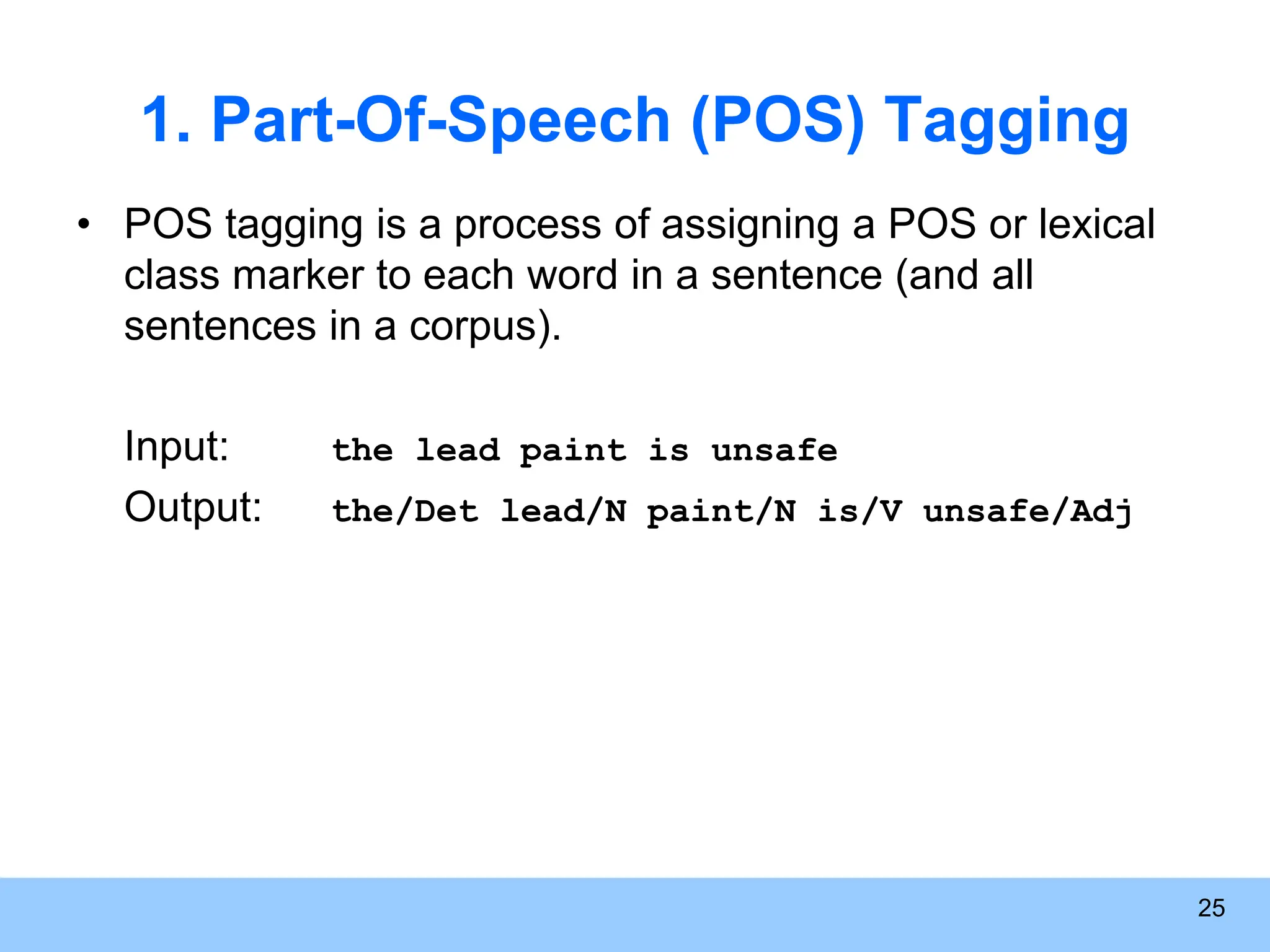

25 1. Part-Of-Speech (POS) Tagging • POS tagging is a process of assigning a POS or lexical class marker to each word in a sentence (and all sentences in a corpus). Input: the lead paint is unsafe Output: the/Det lead/N paint/N is/V unsafe/Adj

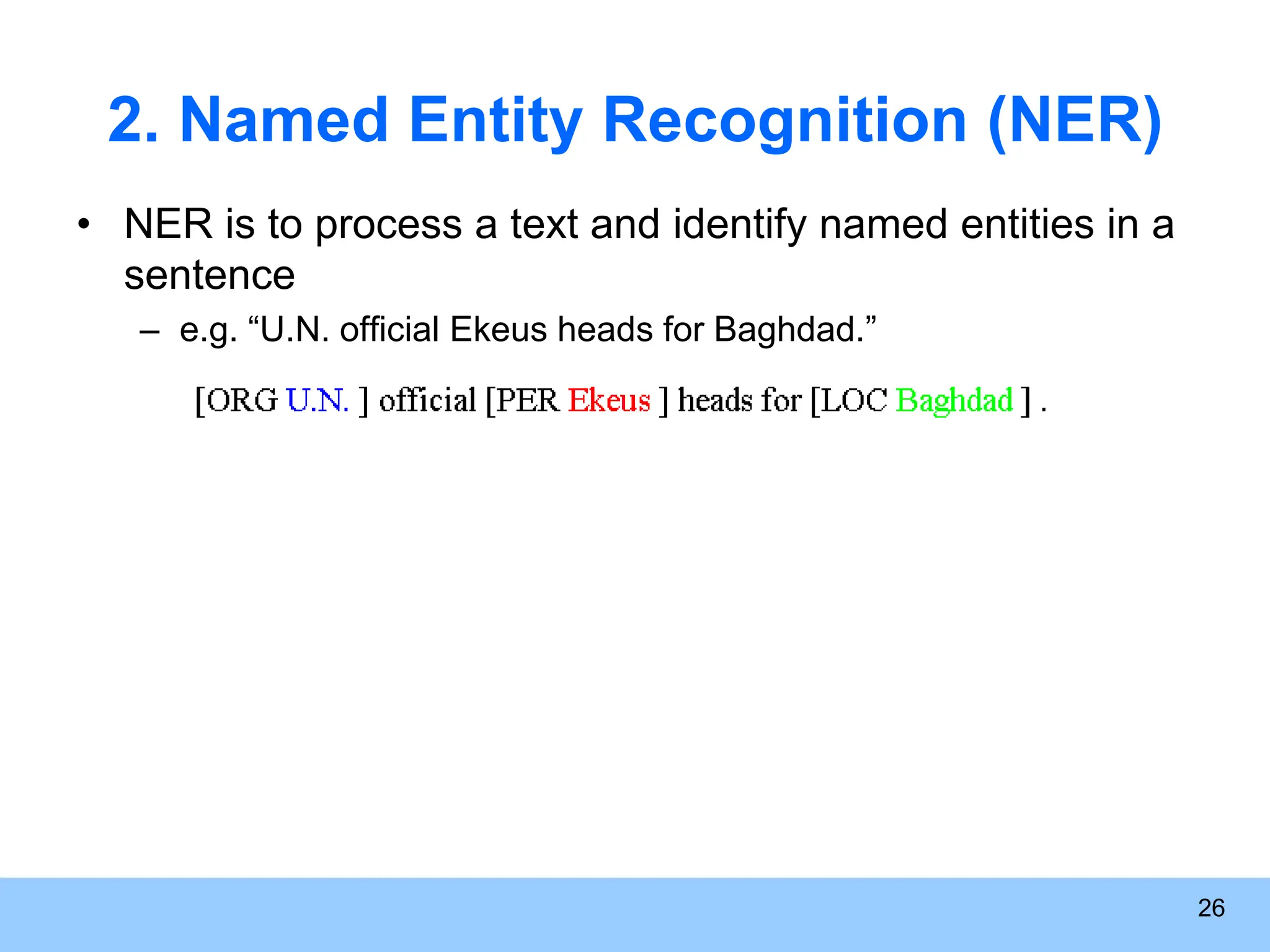

26 2. Named Entity Recognition (NER) • NER is to process a text and identify named entities in a sentence – e.g. “U.N. official Ekeus heads for Baghdad.”

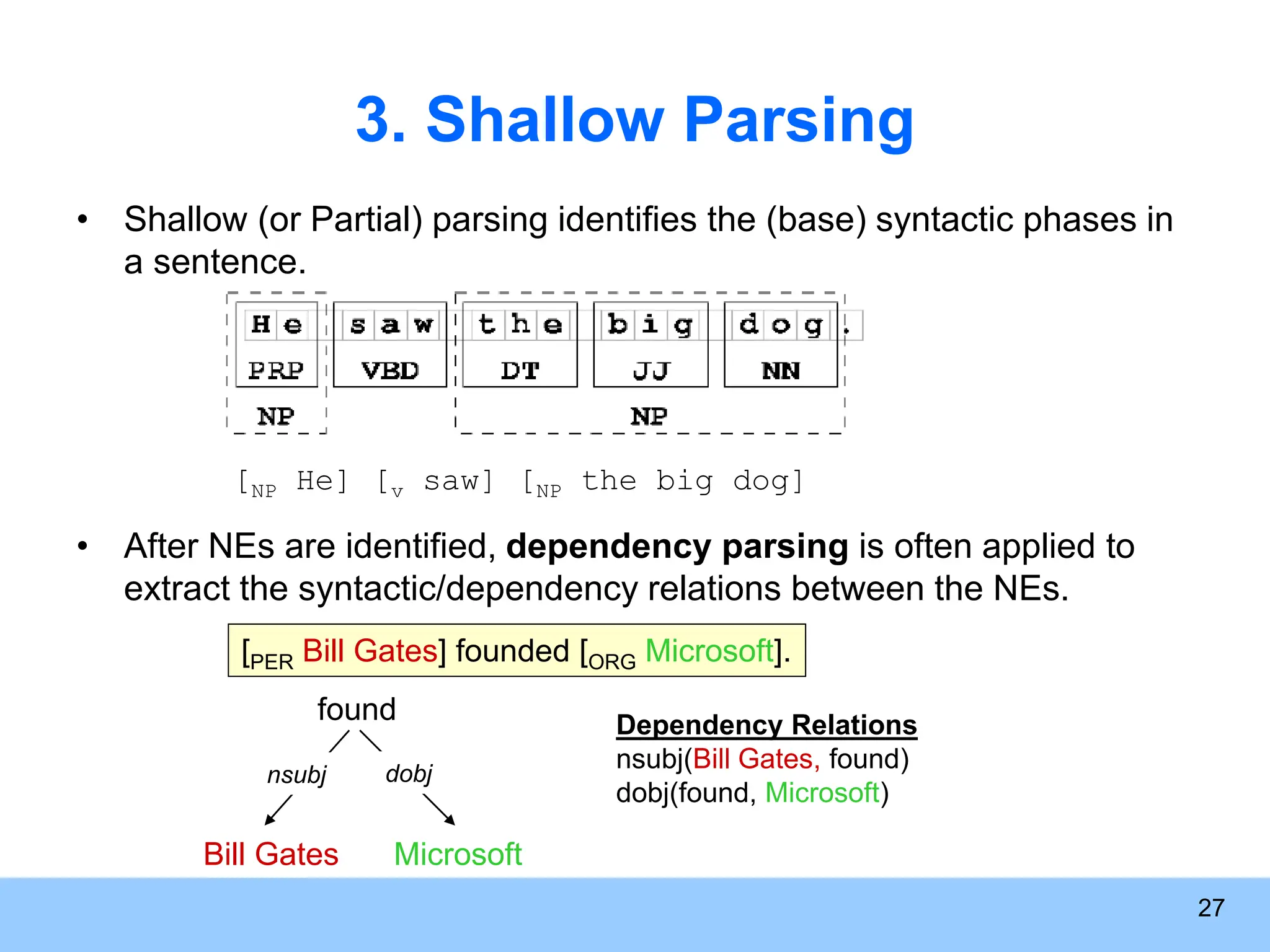

27 3. Shallow Parsing • Shallow (or Partial) parsing identifies the (base) syntactic phases in a sentence. • After NEs are identified, dependency parsing is often applied to extract the syntactic/dependency relations between the NEs. [NP He] [v saw] [NP the big dog] [PER Bill Gates] founded [ORG Microsoft]. found Bill Gates Microsoft nsubj dobj Dependency Relations nsubj(Bill Gates, found) dobj(found, Microsoft)

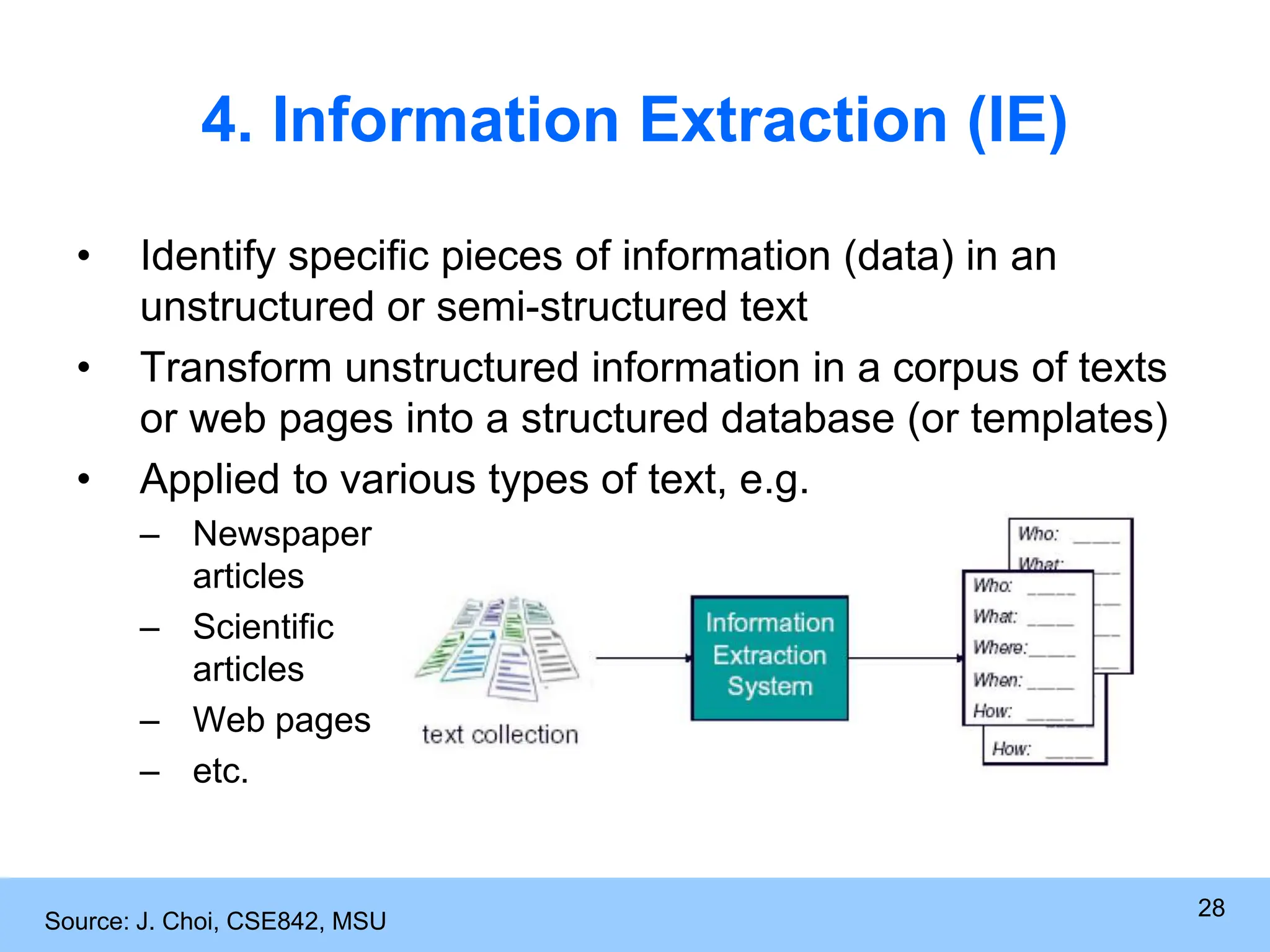

28 4. Information Extraction (IE) • Identify specific pieces of information (data) in an unstructured or semi-structured text • Transform unstructured information in a corpus of texts or web pages into a structured database (or templates) • Applied to various types of text, e.g. – Newspaper articles – Scientific articles – Web pages – etc. Source: J. Choi, CSE842, MSU

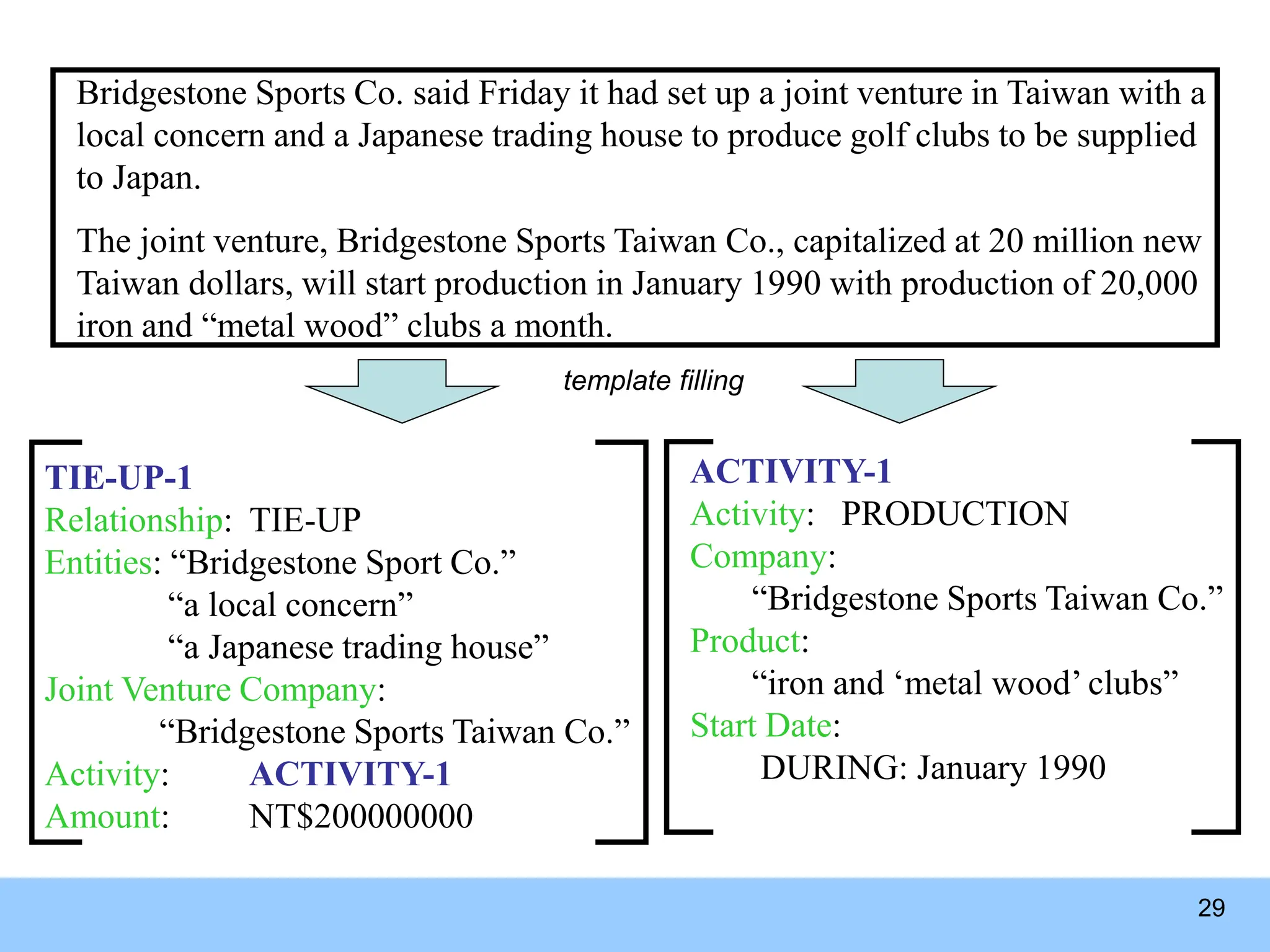

29 Bridgestone Sports Co. said Friday it had set up a joint venture in Taiwan with a local concern and a Japanese trading house to produce golf clubs to be supplied to Japan. The joint venture, Bridgestone Sports Taiwan Co., capitalized at 20 million new Taiwan dollars, will start production in January 1990 with production of 20,000 iron and “metal wood” clubs a month. TIE-UP-1 Relationship: TIE-UP Entities: “Bridgestone Sport Co.” “a local concern” “a Japanese trading house” Joint Venture Company: “Bridgestone Sports Taiwan Co.” Activity: ACTIVITY-1 Amount: NT$200000000 ACTIVITY-1 Activity: PRODUCTION Company: “Bridgestone Sports Taiwan Co.” Product: “iron and ‘metal wood’ clubs” Start Date: DURING: January 1990 template filling

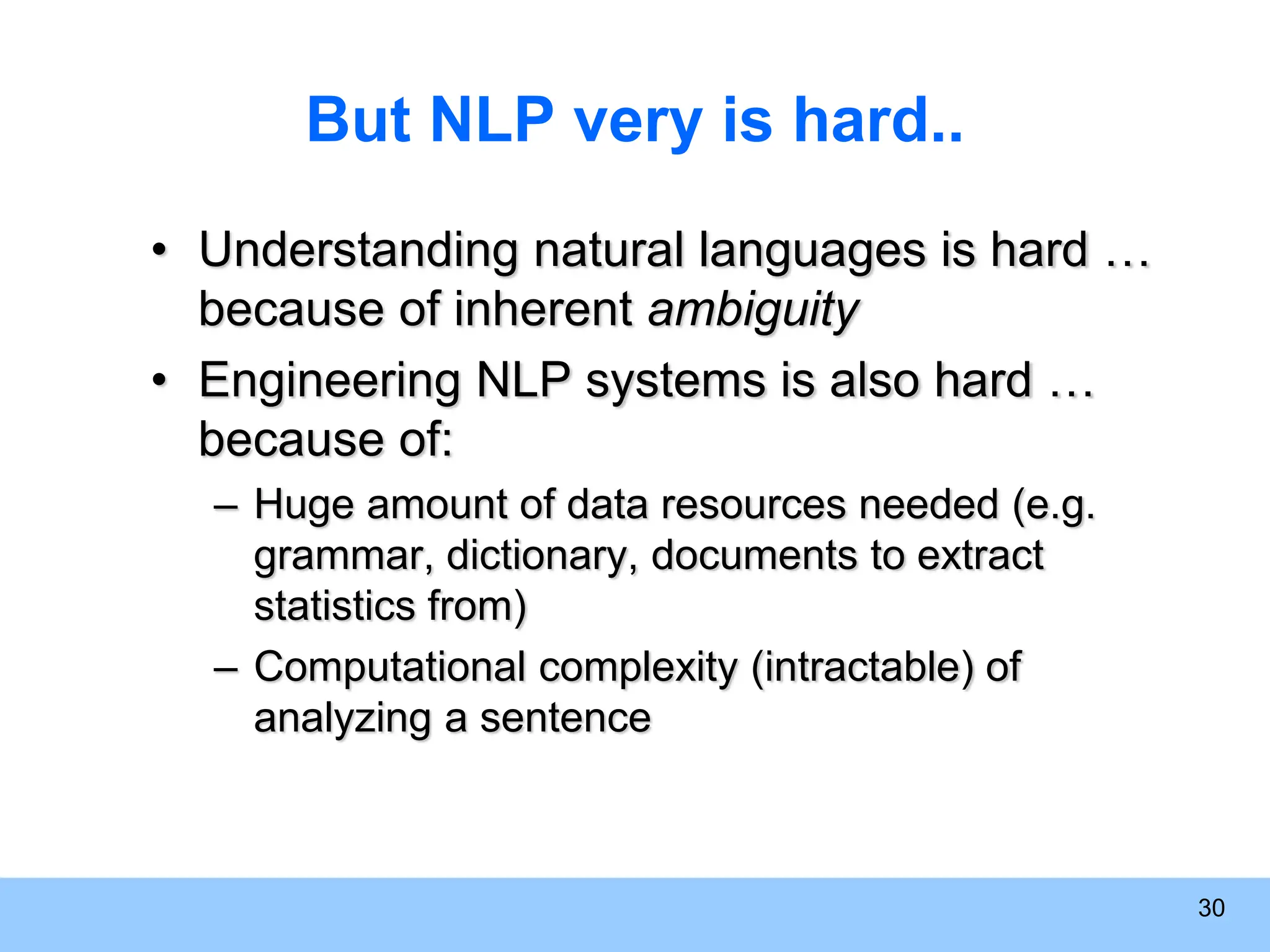

30 But NLP very is hard.. • Understanding natural languages is hard … because of inherent ambiguity • Engineering NLP systems is also hard … because of: – Huge amount of data resources needed (e.g. grammar, dictionary, documents to extract statistics from) – Computational complexity (intractable) of analyzing a sentence

Source: Marti Hearst, i256, at UC Berkeley 31 Ambiguity (1) “Get the cat with the gloves.”

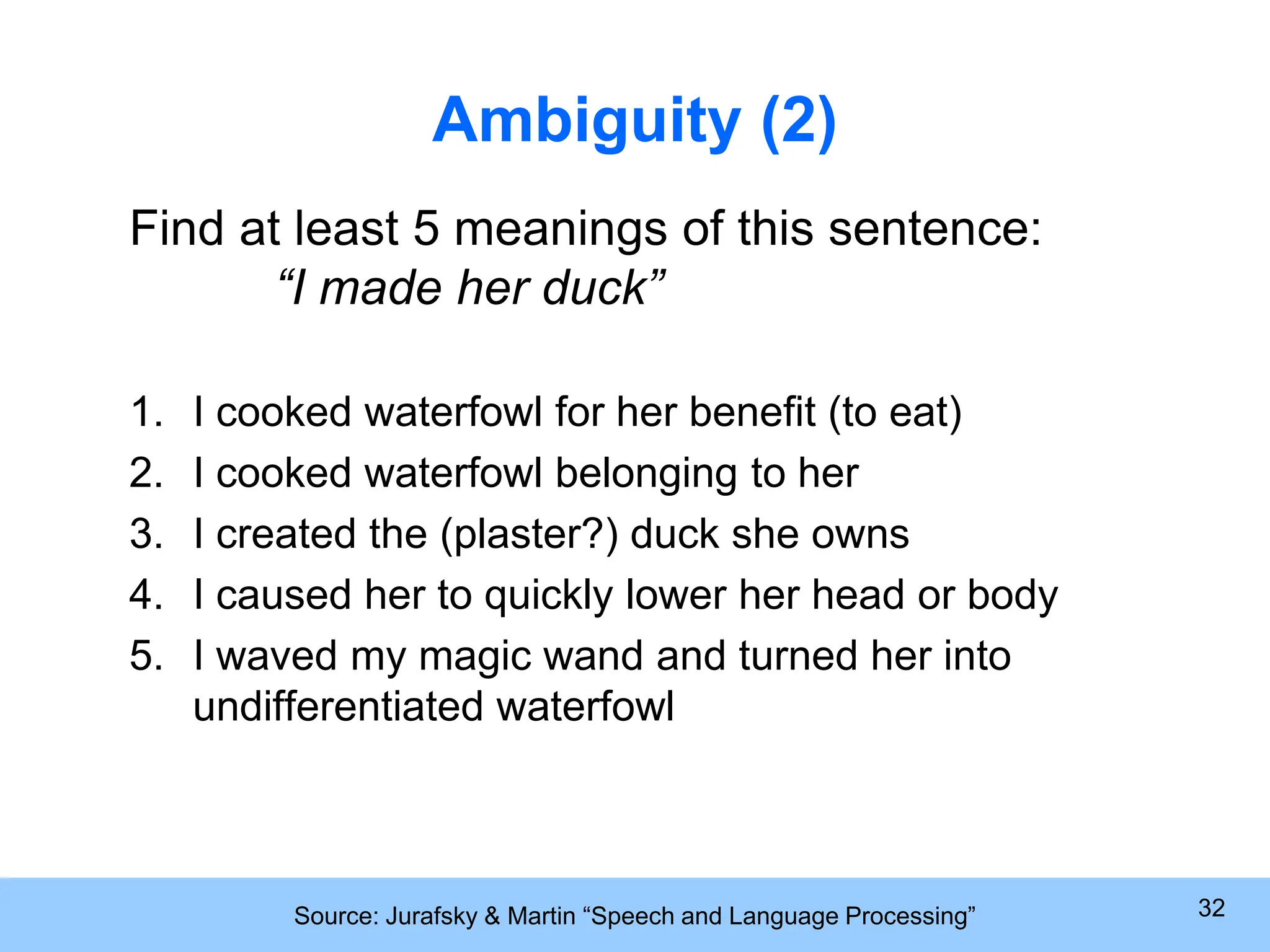

Source: Jurafsky & Martin “Speech and Language Processing” 32 Ambiguity (2) Find at least 5 meanings of this sentence: “I made her duck” 1. I cooked waterfowl for her benefit (to eat) 2. I cooked waterfowl belonging to her 3. I created the (plaster?) duck she owns 4. I caused her to quickly lower her head or body 5. I waved my magic wand and turned her into undifferentiated waterfowl

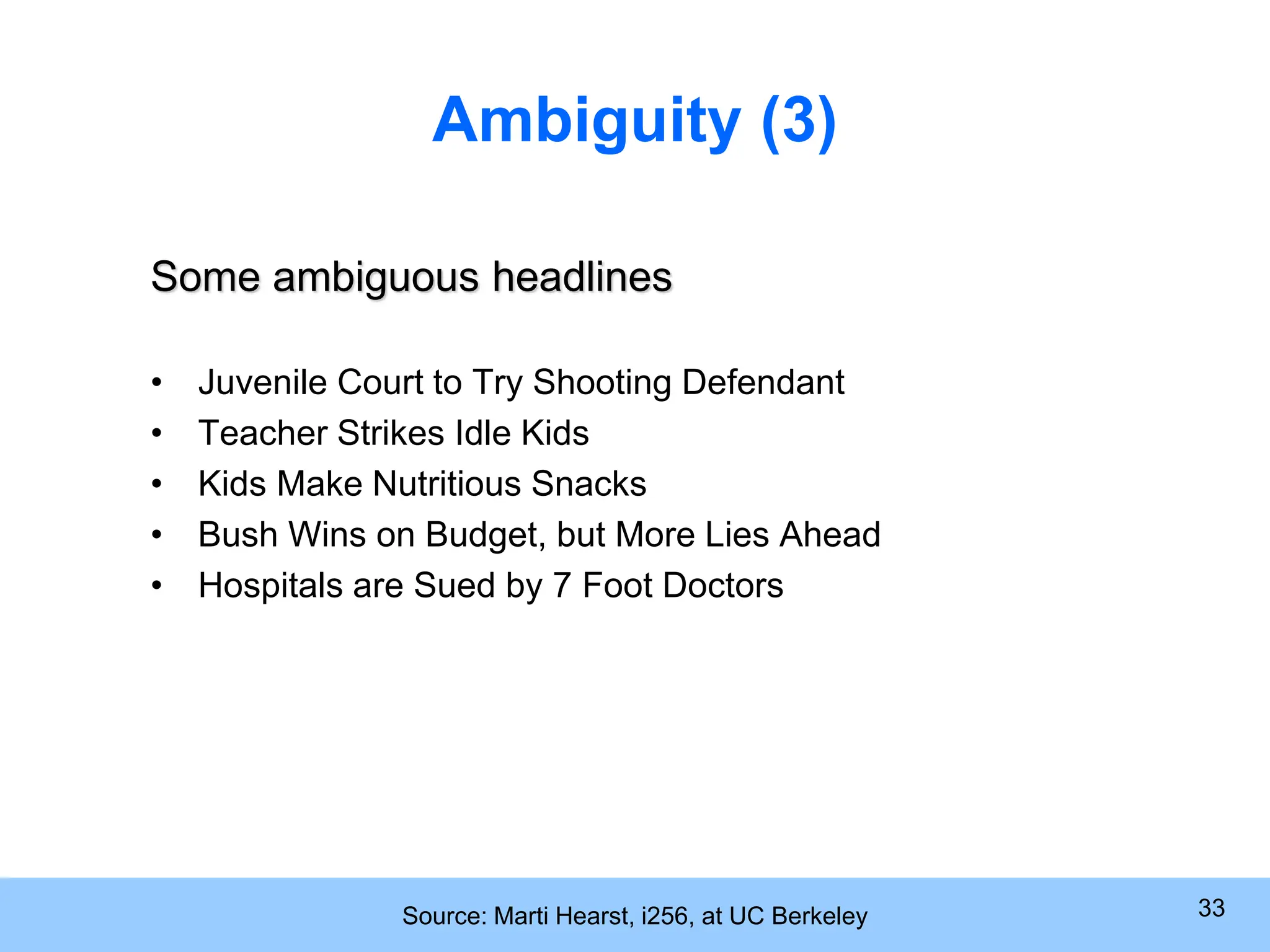

Source: Marti Hearst, i256, at UC Berkeley 33 Ambiguity (3) Some ambiguous headlines • Juvenile Court to Try Shooting Defendant • Teacher Strikes Idle Kids • Kids Make Nutritious Snacks • Bush Wins on Budget, but More Lies Ahead • Hospitals are Sued by 7 Foot Doctors

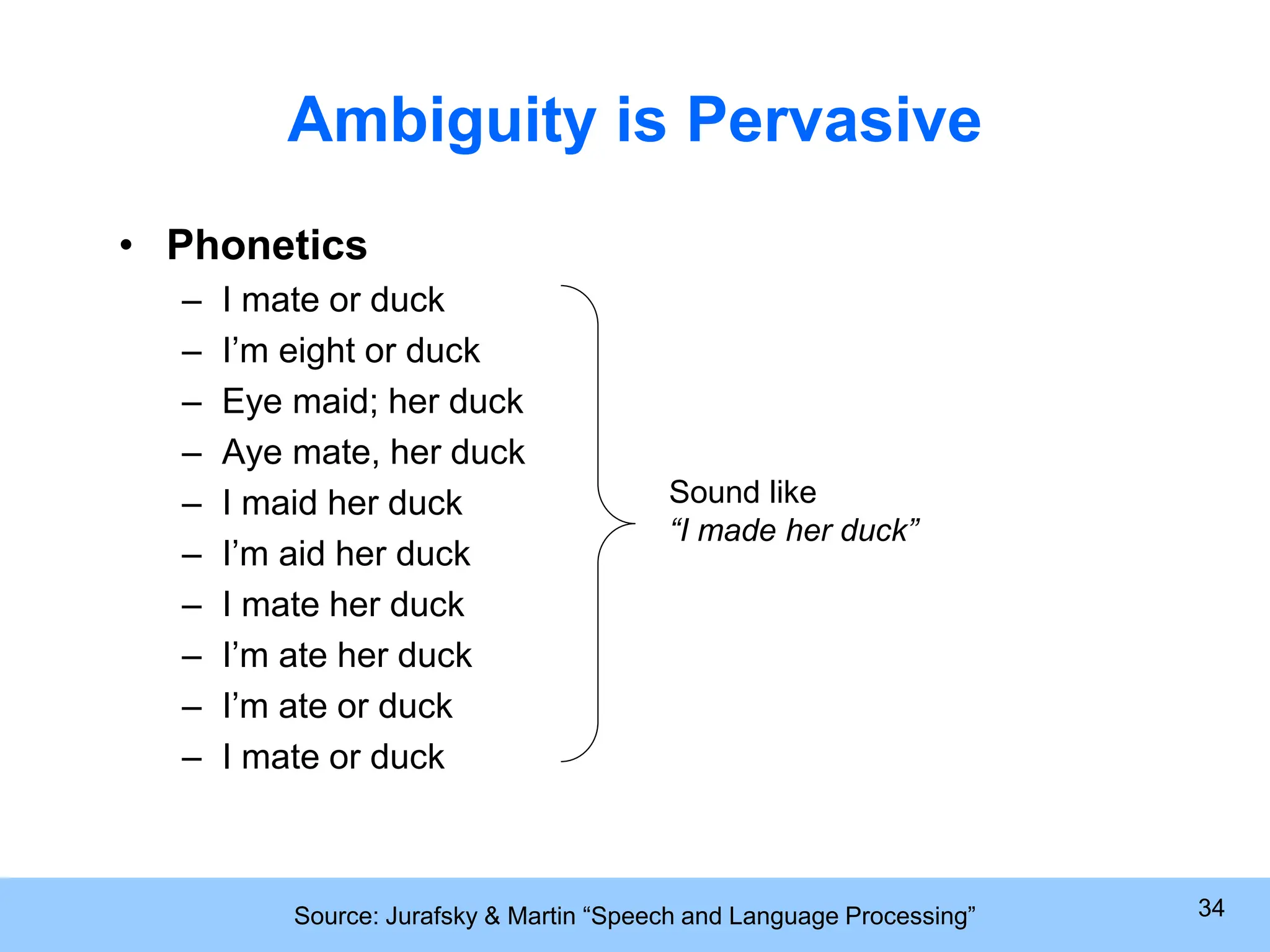

Source: Jurafsky & Martin “Speech and Language Processing” 34 Ambiguity is Pervasive • Phonetics – I mate or duck – I’m eight or duck – Eye maid; her duck – Aye mate, her duck – I maid her duck – I’m aid her duck – I mate her duck – I’m ate her duck – I’m ate or duck – I mate or duck Sound like “I made her duck”

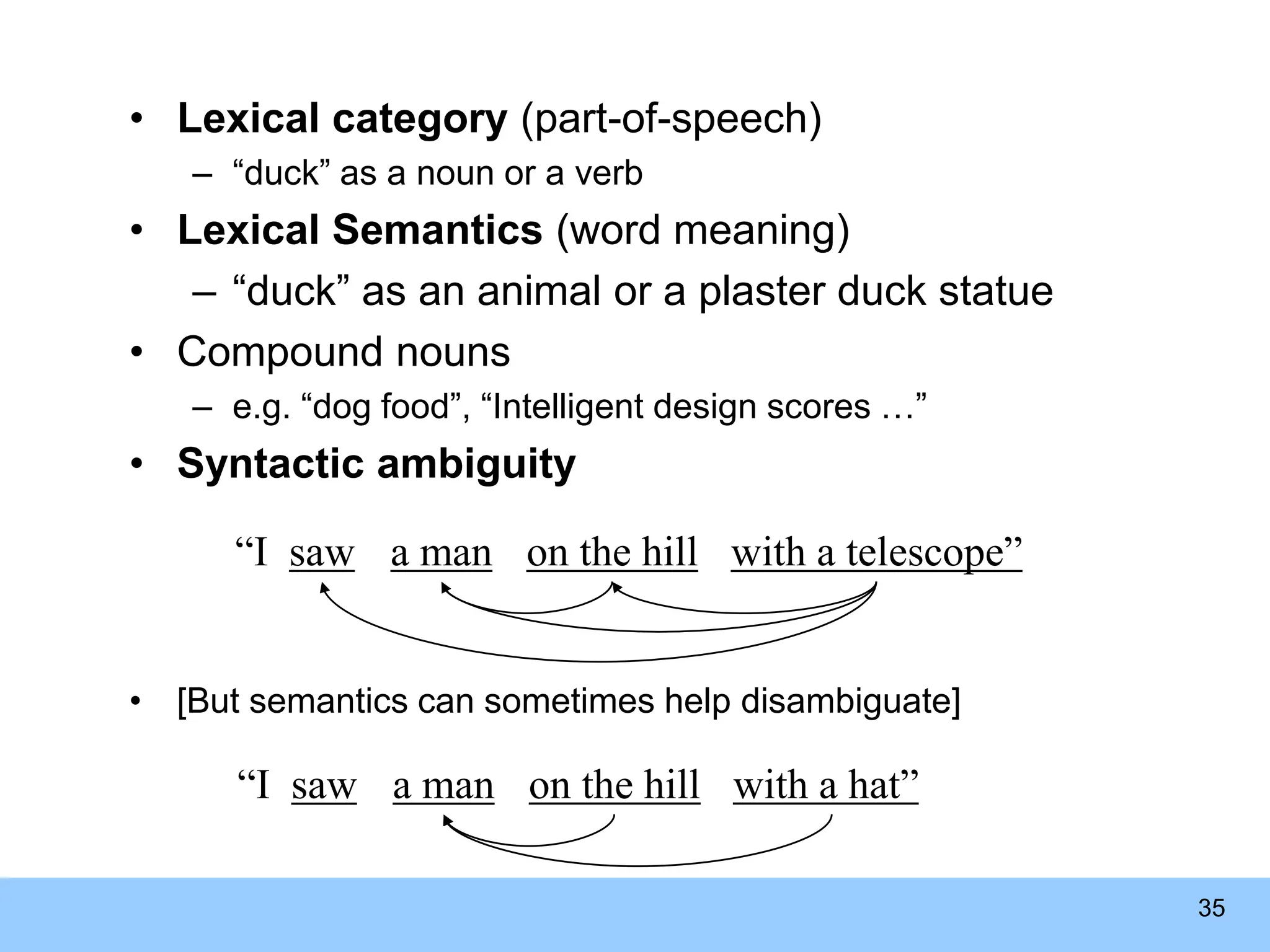

35 • Lexical category (part-of-speech) – “duck” as a noun or a verb • Lexical Semantics (word meaning) – “duck” as an animal or a plaster duck statue • Compound nouns – e.g. “dog food”, “Intelligent design scores …” • Syntactic ambiguity • [But semantics can sometimes help disambiguate] “I saw a man on the hill with a telescope” “I saw a man on the hill with a hat”

36 The Bottom Line • Complete NL Understanding (thus general intelligence) is impossible. • But we can make incremental progress. • Also we have made successes in limited domains.

All of these applications operate by exploiting underlying regularities in human languages. Sometimes in complex ways, sometimes in pretty trivial ways. The Big Picture Approach Language structure Practical applications Formal models Speech and Language Processing - Jurafsky and Martin 37

Topics: Linguistics • Word-level processing • Syntactic processing • Lexical and compositional semantics • Discourse structure Speech and Language Processing - Jurafsky and Martin 38

39 Different Levels of Linguistic Analysis • Phonology – Speech audio signal to phonemes • Morphology – Inflection (e.g. “I”, “my”, “me”; “eat”, “eats”, “ate”, “eaten”) – Derivation (e.g. “teach”, “teacher”, “nominate”, “nominee”) • Syntax – Part-of-speech (noun, verb, adjective, preposition, etc.) – Phrase structure (e.g. noun phrase, verb phrase) • Semantics – Meaning of a word (e.g. “book” as a bound volume or an accounting ledger) or a sentence • Discourse – Meaning and inter-relation between sentences

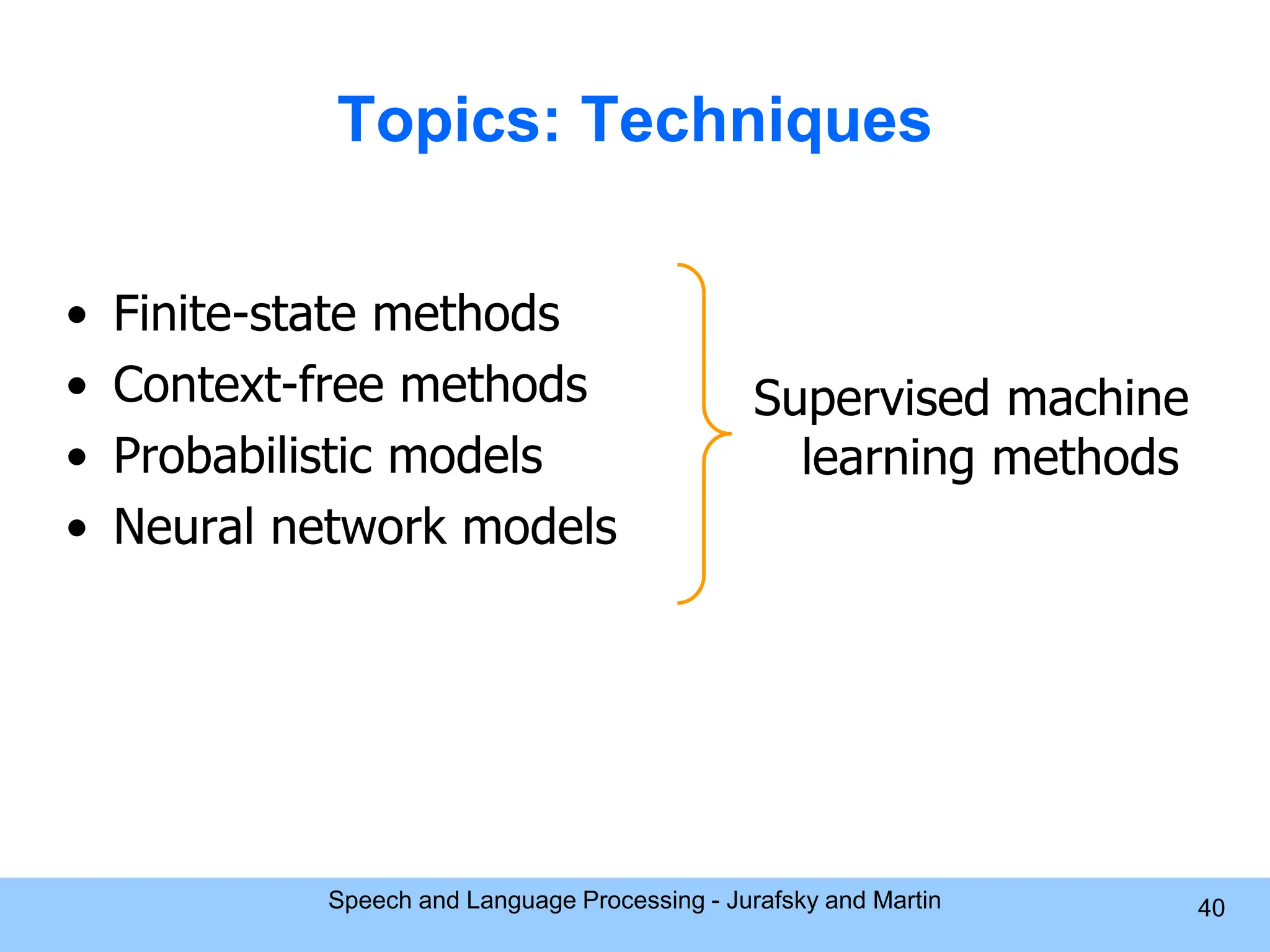

Topics: Techniques • Finite-state methods • Context-free methods • Probabilistic models • Neural network models Supervised machine learning methods Speech and Language Processing - Jurafsky and Martin 40

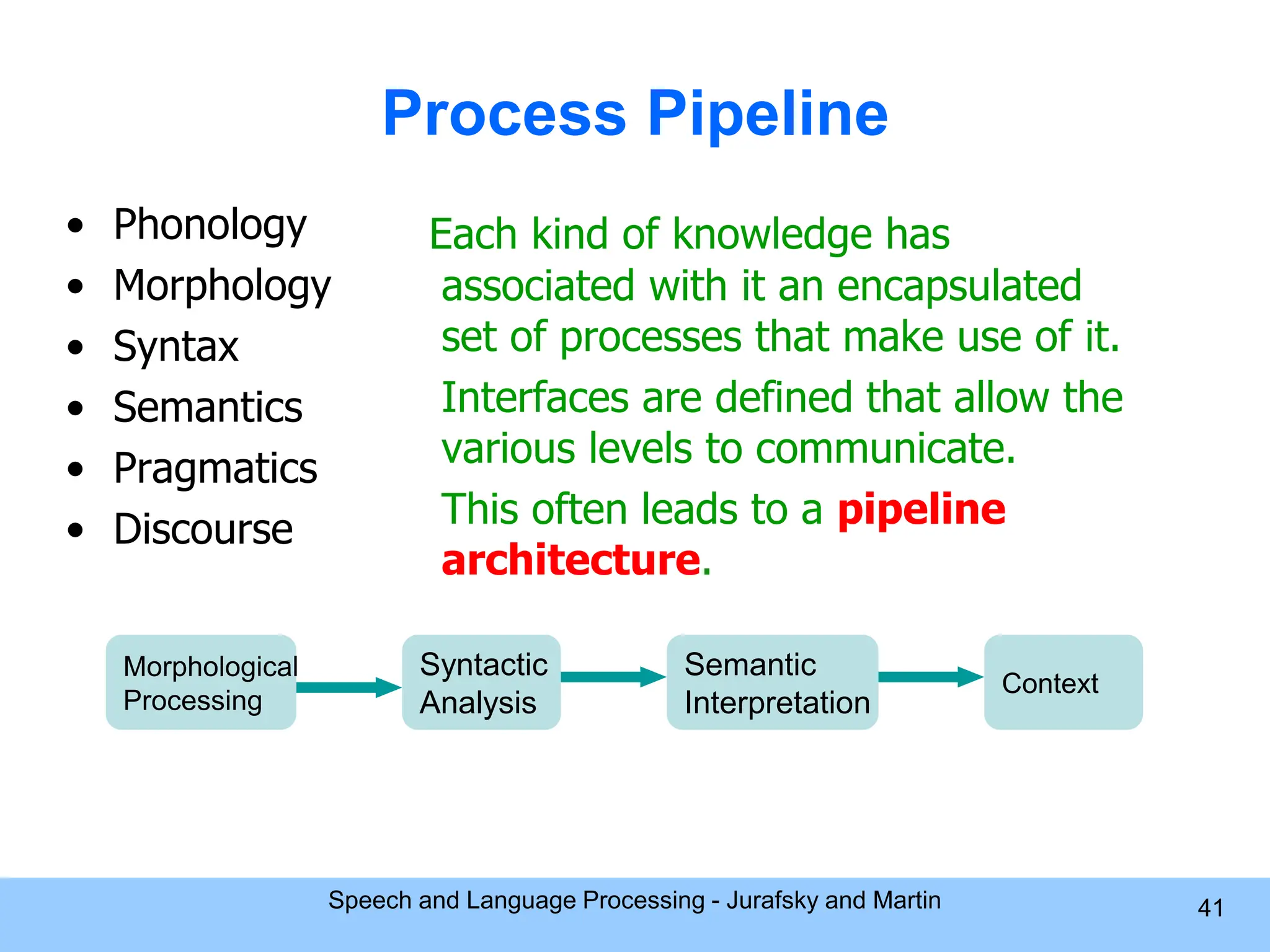

Process Pipeline • Phonology • Morphology • Syntax • Semantics • Pragmatics • Discourse Each kind of knowledge has associated with it an encapsulated set of processes that make use of it. Interfaces are defined that allow the various levels to communicate. This often leads to a pipeline architecture. Morphological Processing Syntactic Analysis Semantic Interpretation Context Speech and Language Processing - Jurafsky and Martin 41

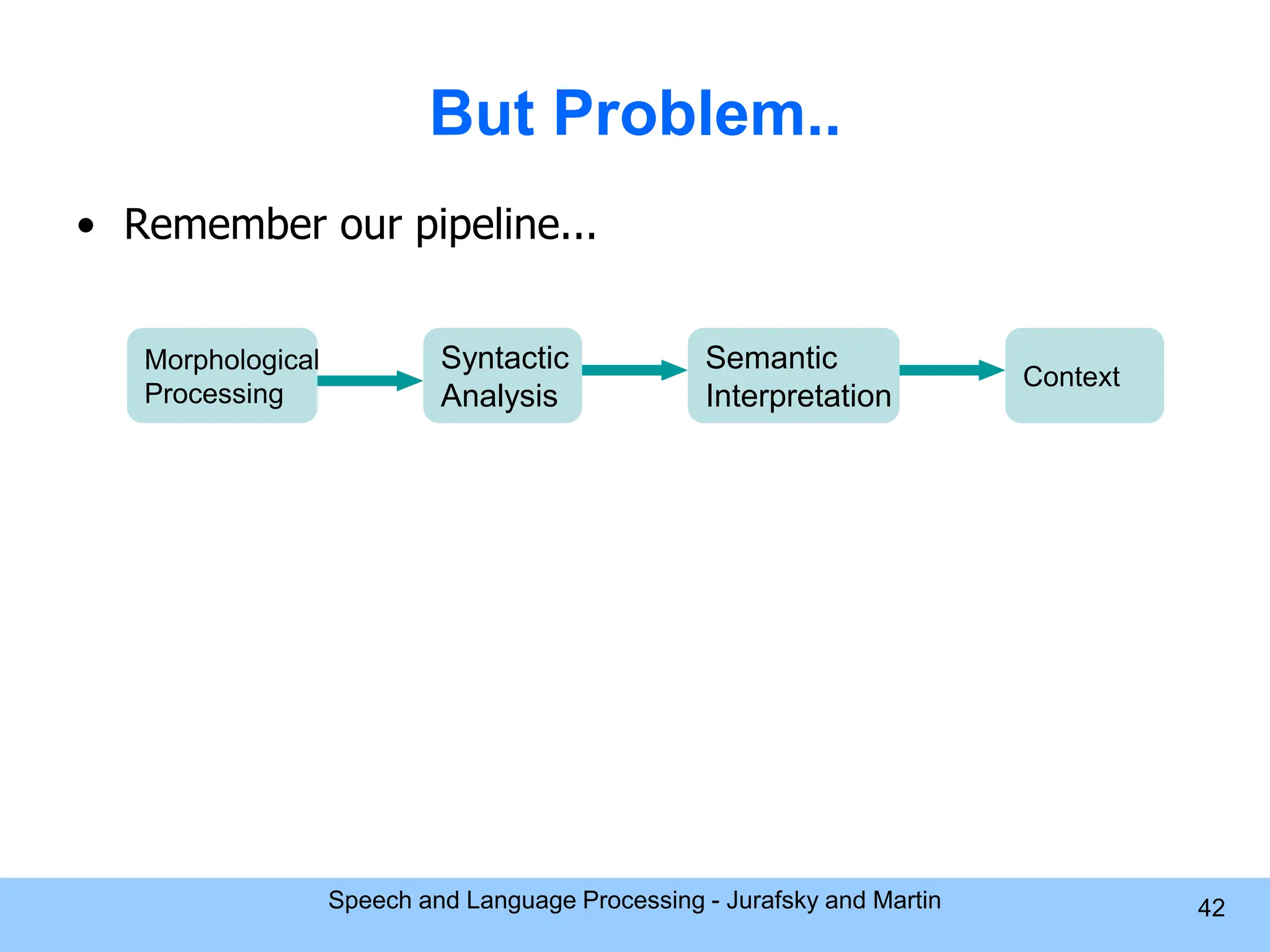

But Problem.. • Remember our pipeline... Morphological Processing Syntactic Analysis Semantic Interpretation Context Speech and Language Processing - Jurafsky and Martin 42

It really looks like this Morphological Processing Syntactic Analysis Syntactic Analysis Syntactic Analysis Syntactic Analysis Syntactic Analysis Syntactic Analysis Syntactic Analysis Semantic Interpretation Semantic Interpretation Semantic Interpretation Semantic Interpretation Semantic Interpretation Semantic Interpretation Semantic Interpretation Semantic Interpretation Semantic Interpretation Semantic Interpretation Semantic Interpretation Semantic Interpretation Semantic Interpretation Semantic Interpretation Semantic Interpretation Semantic Interpretation Semantic Interpretation Semantic Interpretation Speech and Language Processing - Jurafsky and Martin 43

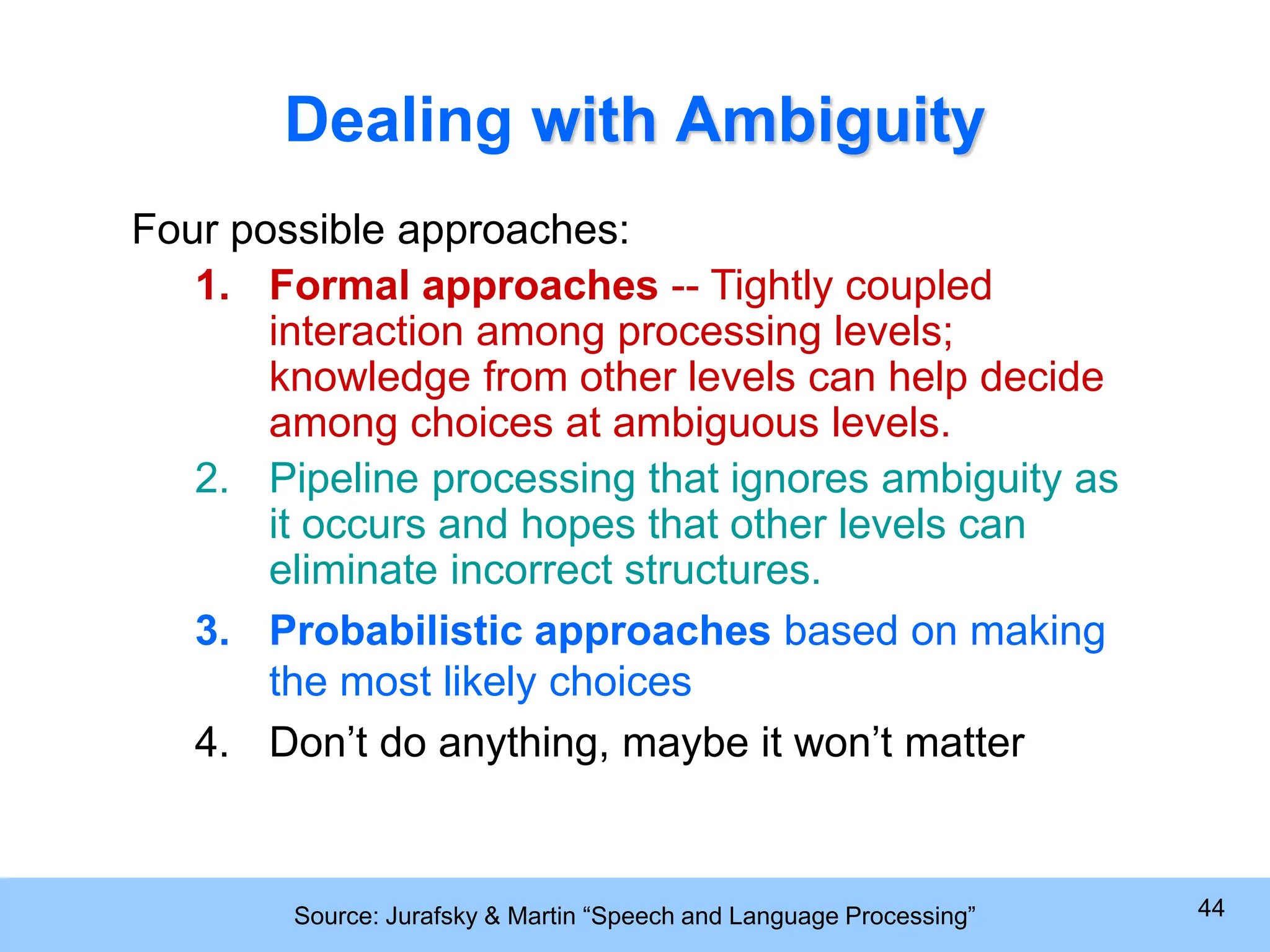

Source: Jurafsky & Martin “Speech and Language Processing” 44 Dealing with Ambiguity Four possible approaches: 1. Formal approaches -- Tightly coupled interaction among processing levels; knowledge from other levels can help decide among choices at ambiguous levels. 2. Pipeline processing that ignores ambiguity as it occurs and hopes that other levels can eliminate incorrect structures. 3. Probabilistic approaches based on making the most likely choices 4. Don’t do anything, maybe it won’t matter

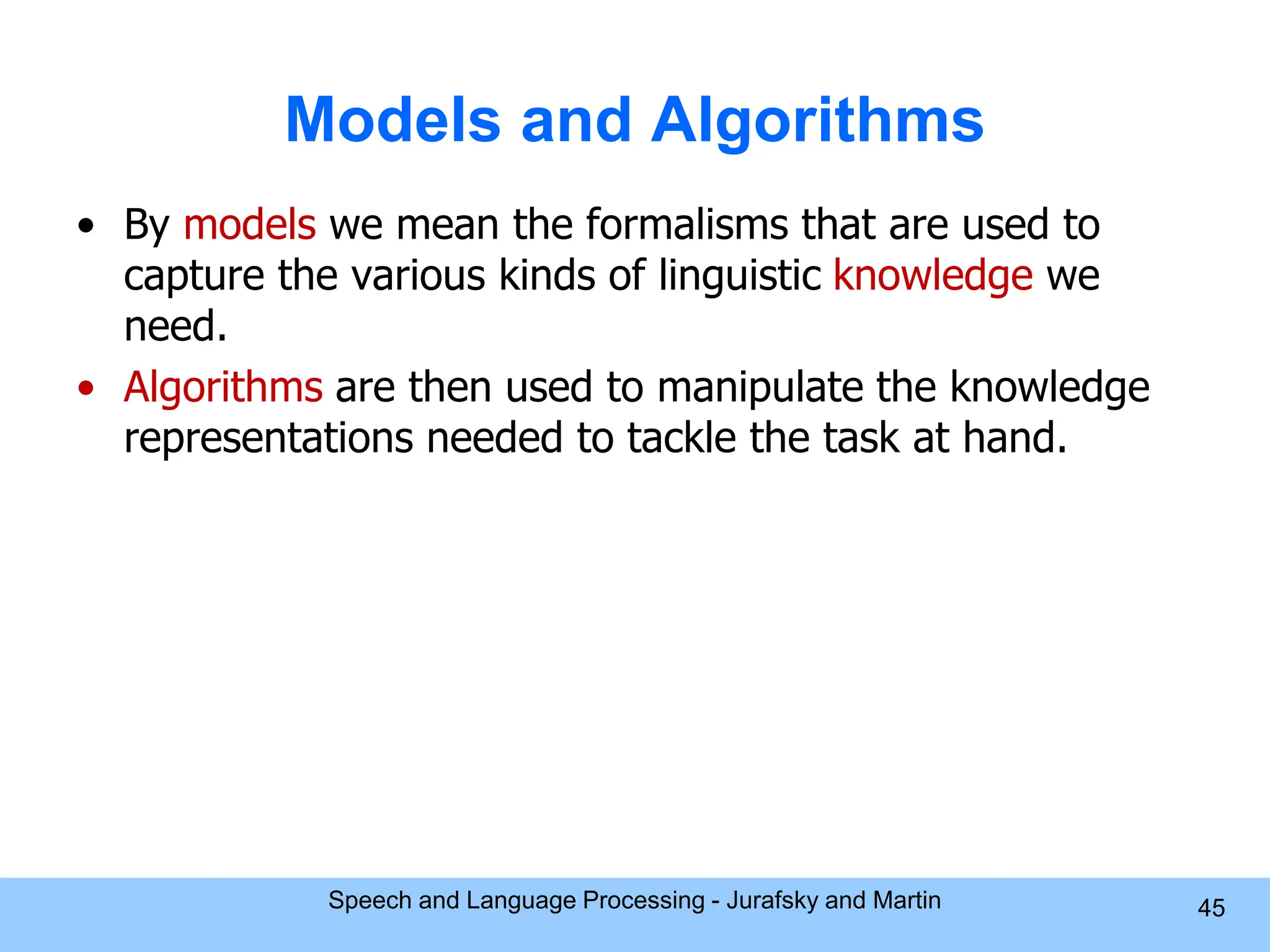

Models and Algorithms • By models we mean the formalisms that are used to capture the various kinds of linguistic knowledge we need. • Algorithms are then used to manipulate the knowledge representations needed to tackle the task at hand. Speech and Language Processing - Jurafsky and Martin 45

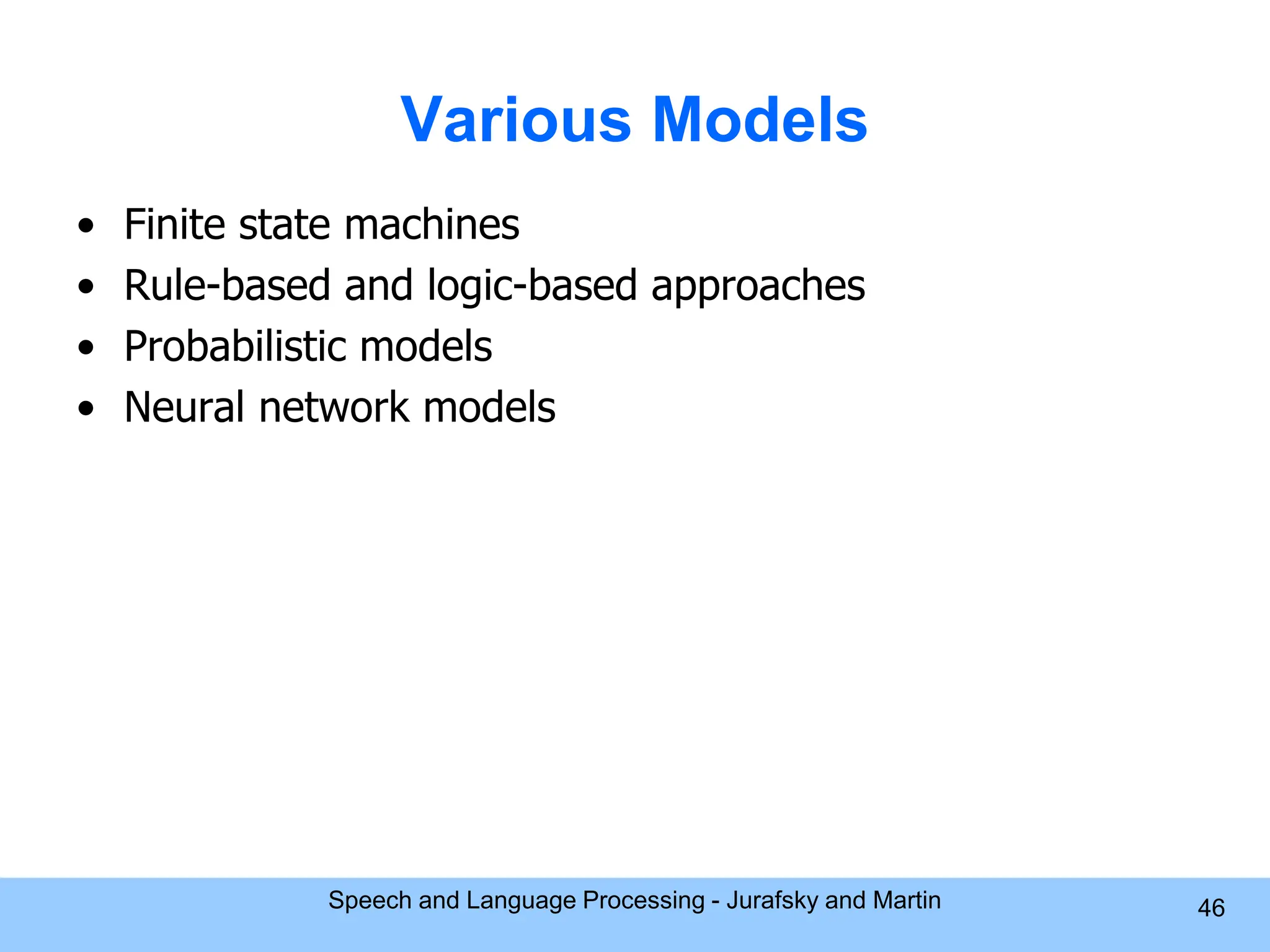

Various Models • Finite state machines • Rule-based and logic-based approaches • Probabilistic models • Neural network models Speech and Language Processing - Jurafsky and Martin 46

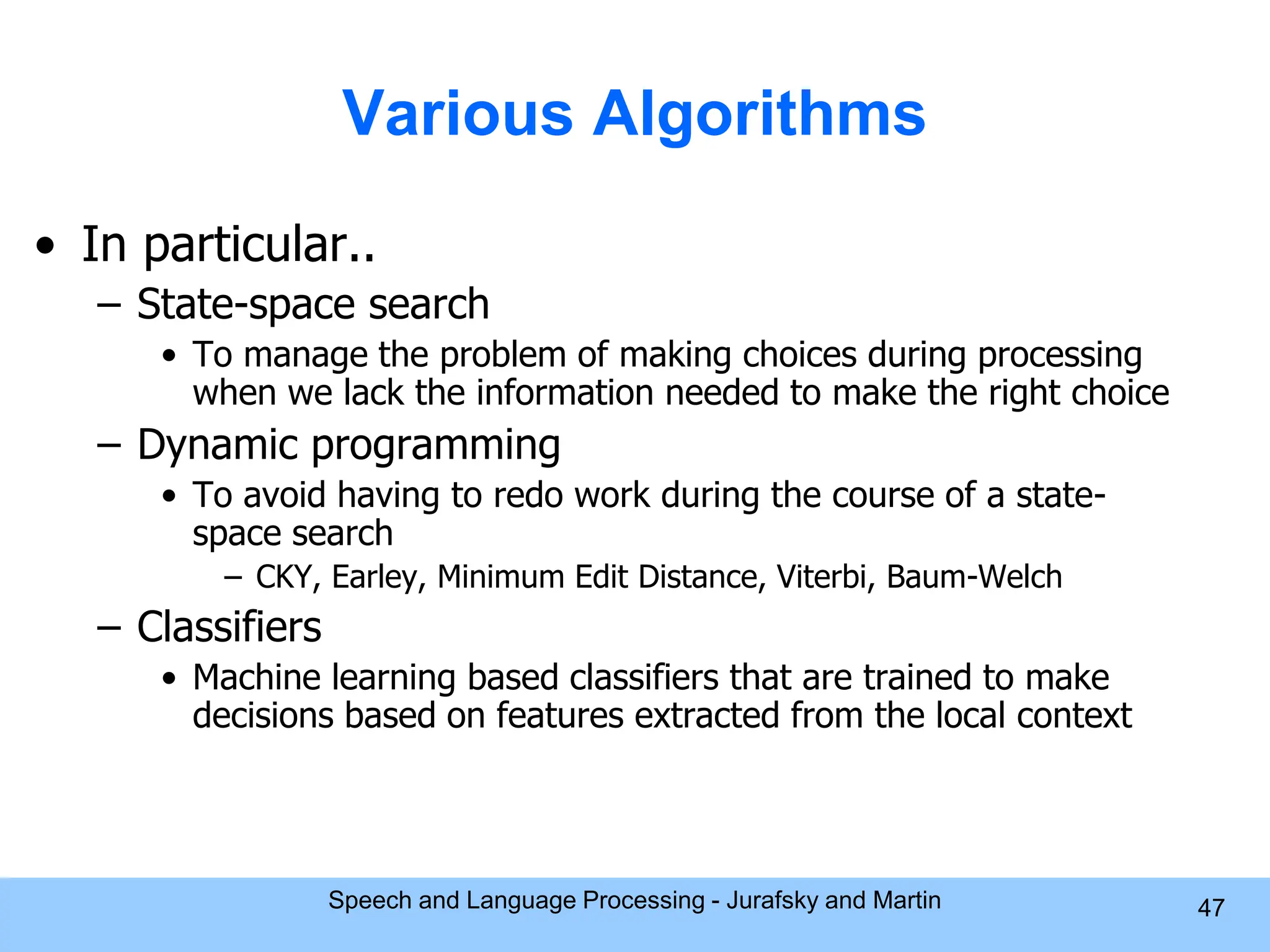

Various Algorithms • In particular.. – State-space search • To manage the problem of making choices during processing when we lack the information needed to make the right choice – Dynamic programming • To avoid having to redo work during the course of a state- space search – CKY, Earley, Minimum Edit Distance, Viterbi, Baum-Welch – Classifiers • Machine learning based classifiers that are trained to make decisions based on features extracted from the local context Speech and Language Processing - Jurafsky and Martin 47
