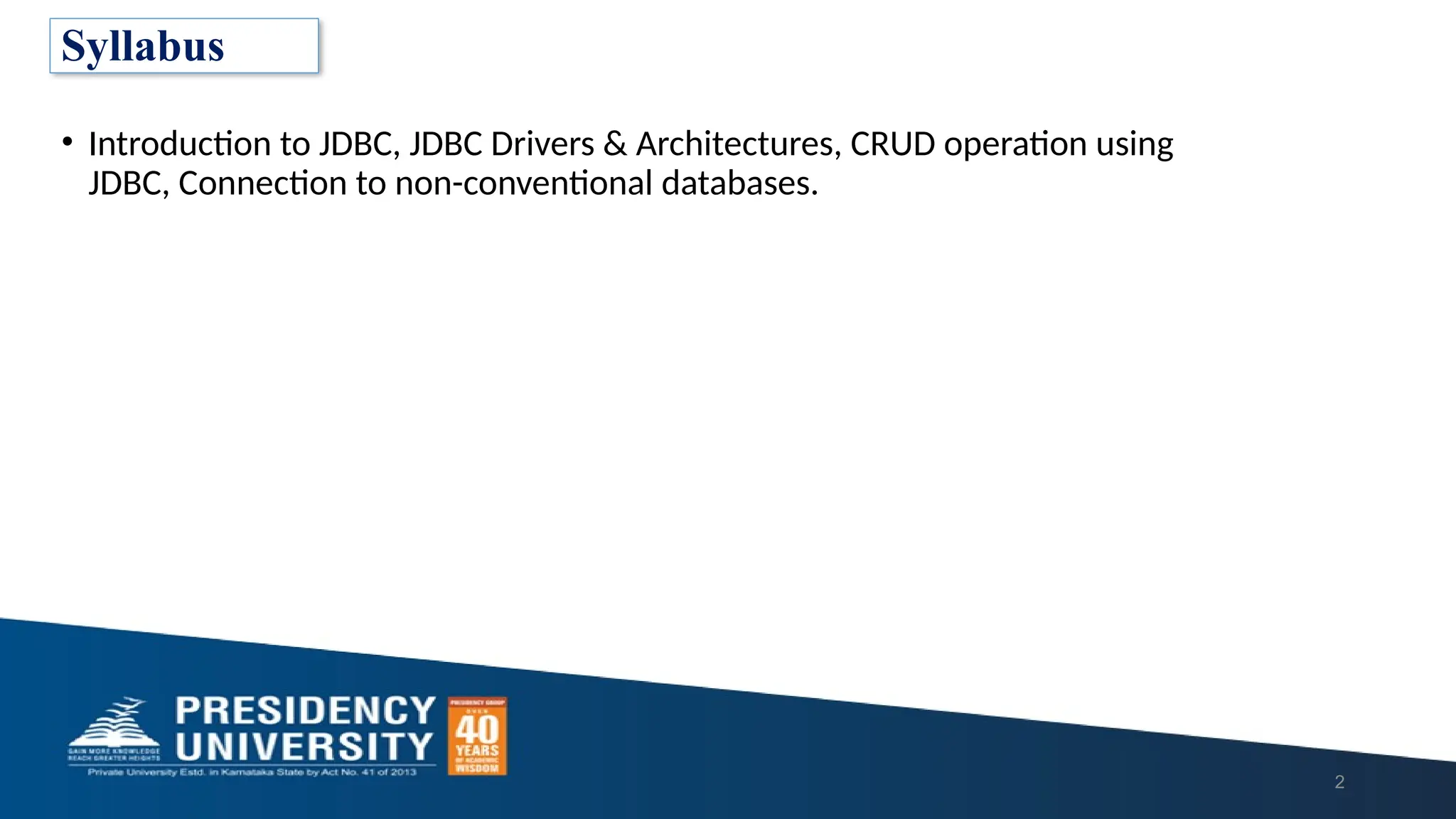

• Introduction to JDBC, JDBC Drivers & Architectures, CRUD operation using JDBC, Connection to non-conventional databases. 2 Syllabus

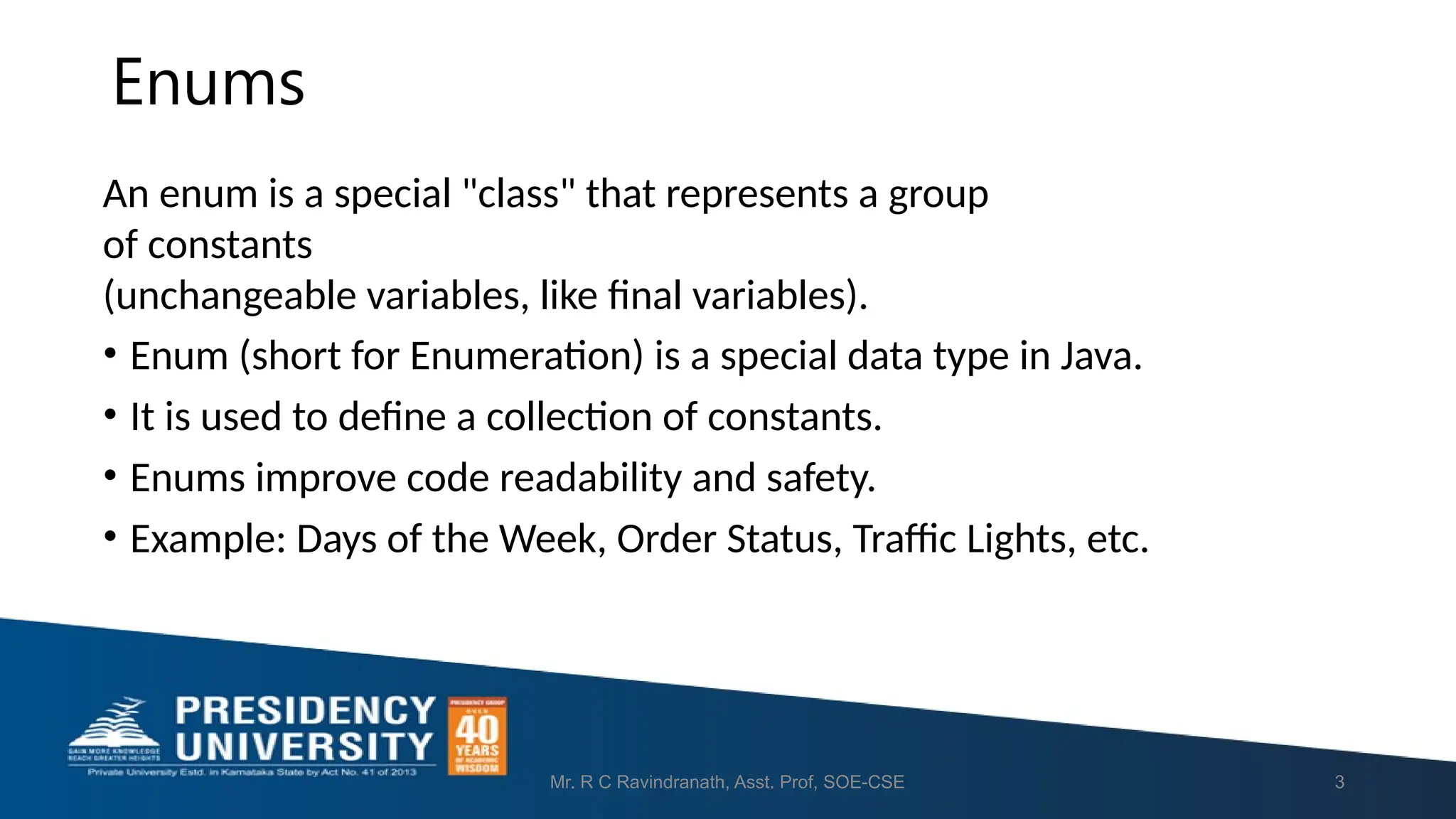

Enums Mr. R C Ravindranath, Asst. Prof, SOE-CSE 3 An enum is a special "class" that represents a group of constants (unchangeable variables, like final variables). • Enum (short for Enumeration) is a special data type in Java. • It is used to define a collection of constants. • Enums improve code readability and safety. • Example: Days of the Week, Order Status, Traffic Lights, etc.

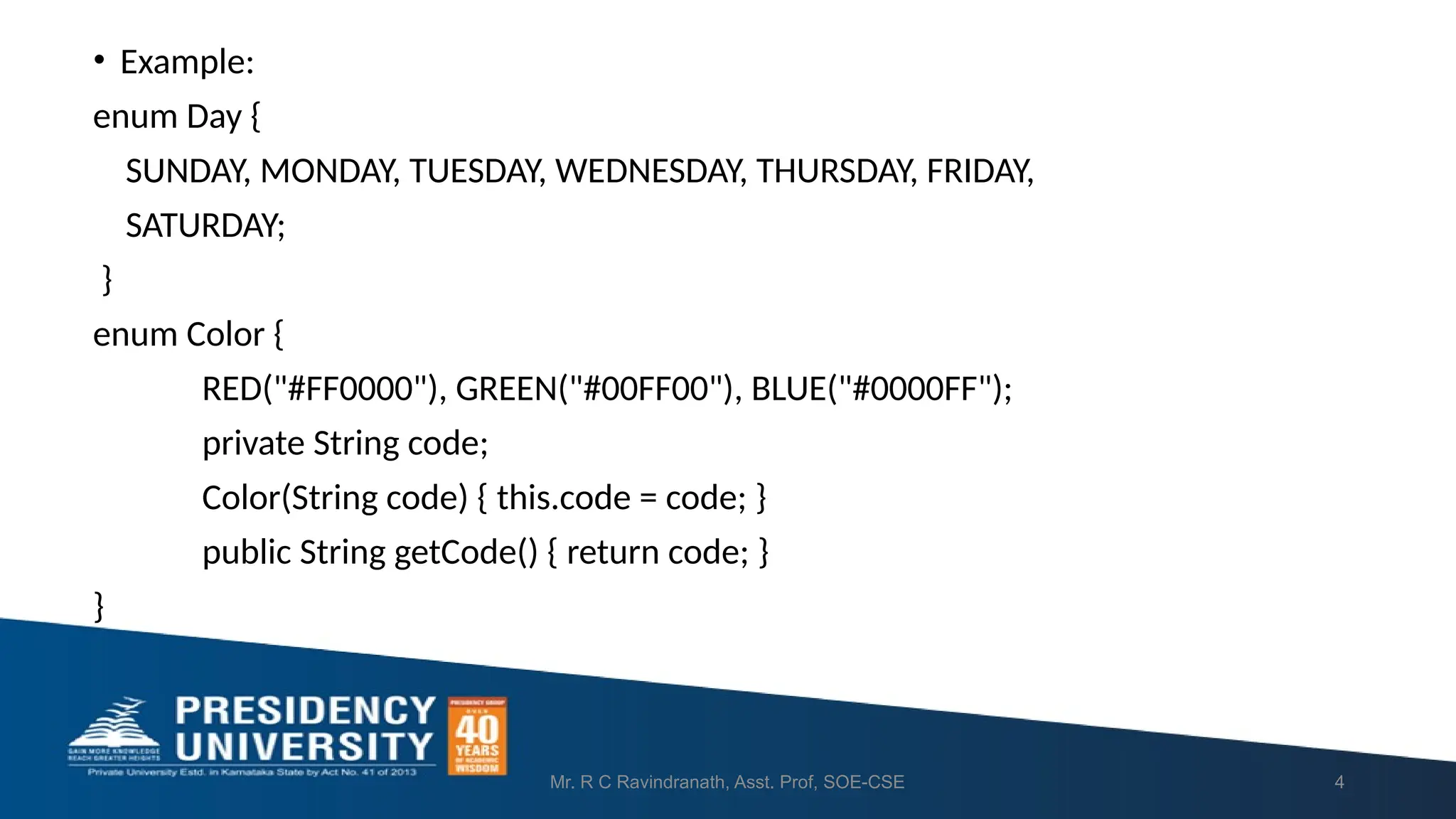

• Example: enum Day { SUNDAY, MONDAY, TUESDAY, WEDNESDAY, THURSDAY, FRIDAY, SATURDAY; } enum Color { RED("#FF0000"), GREEN("#00FF00"), BLUE("#0000FF"); private String code; Color(String code) { this.code = code; } public String getCode() { return code; } } Mr. R C Ravindranath, Asst. Prof, SOE-CSE 4

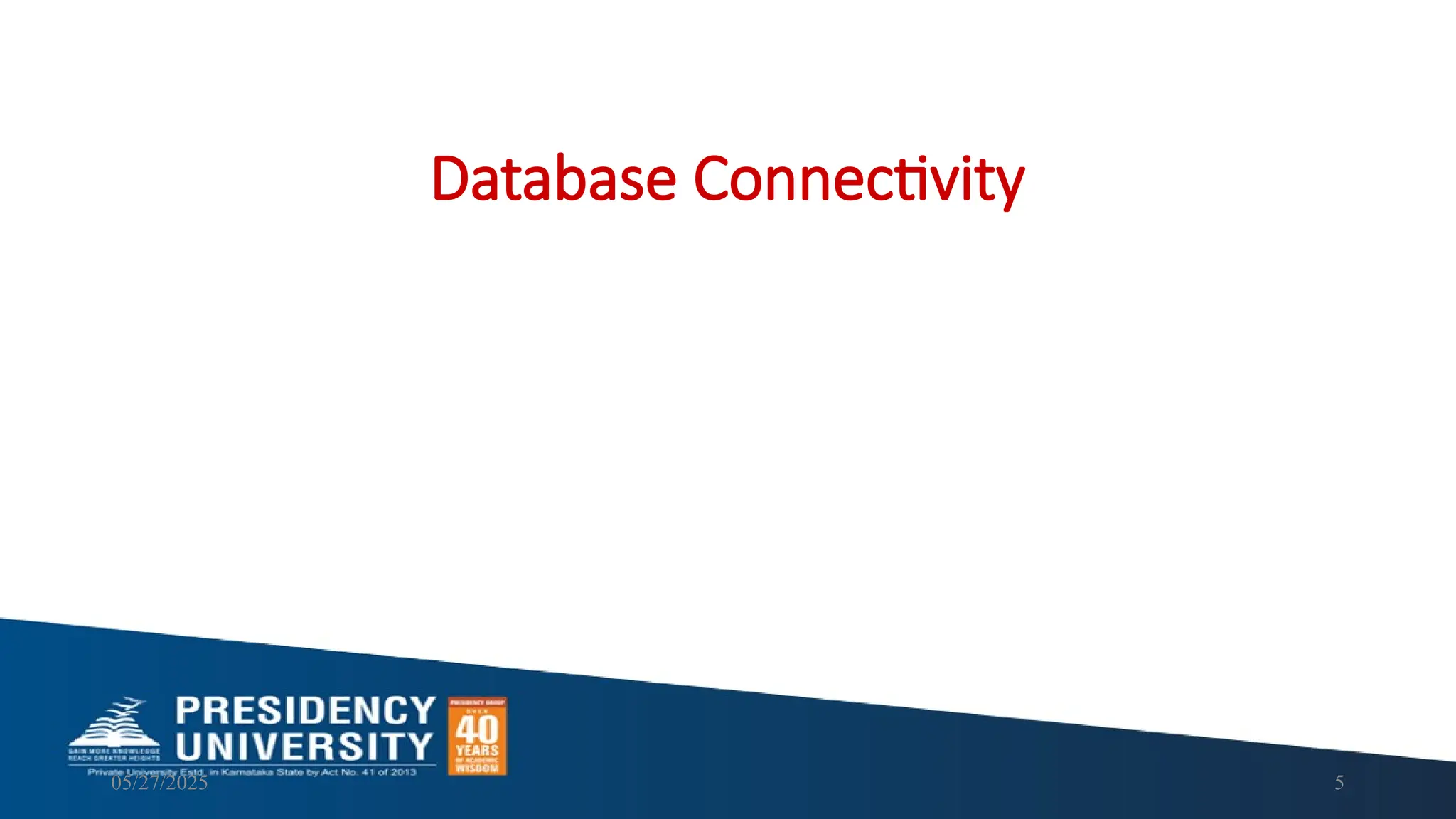

05/27/2025 5 Database Connectivity

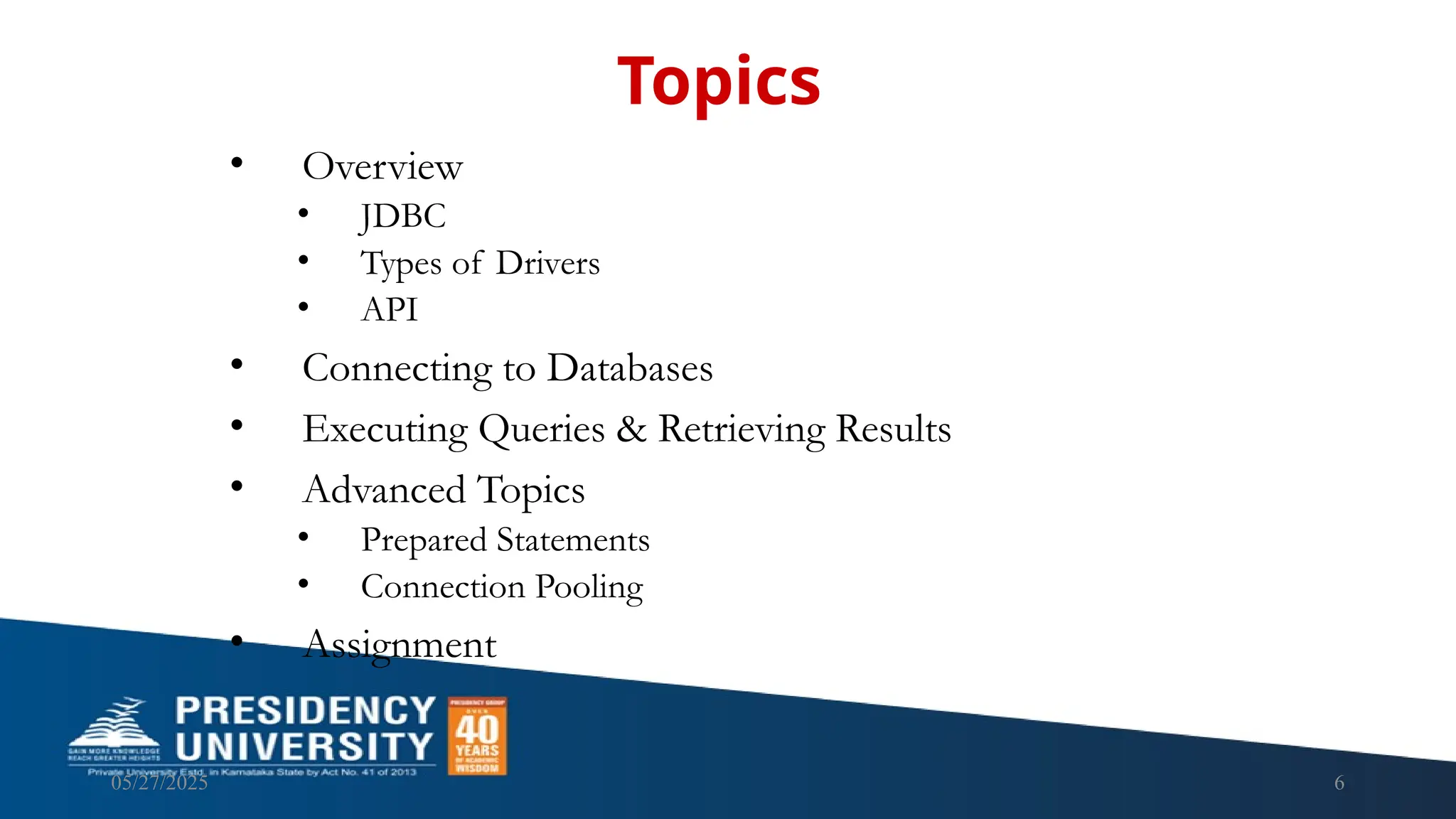

05/27/2025 6 • Overview • JDBC • Types of Drivers • API • Connecting to Databases • Executing Queries & Retrieving Results • Advanced Topics • Prepared Statements • Connection Pooling • Assignment Topics

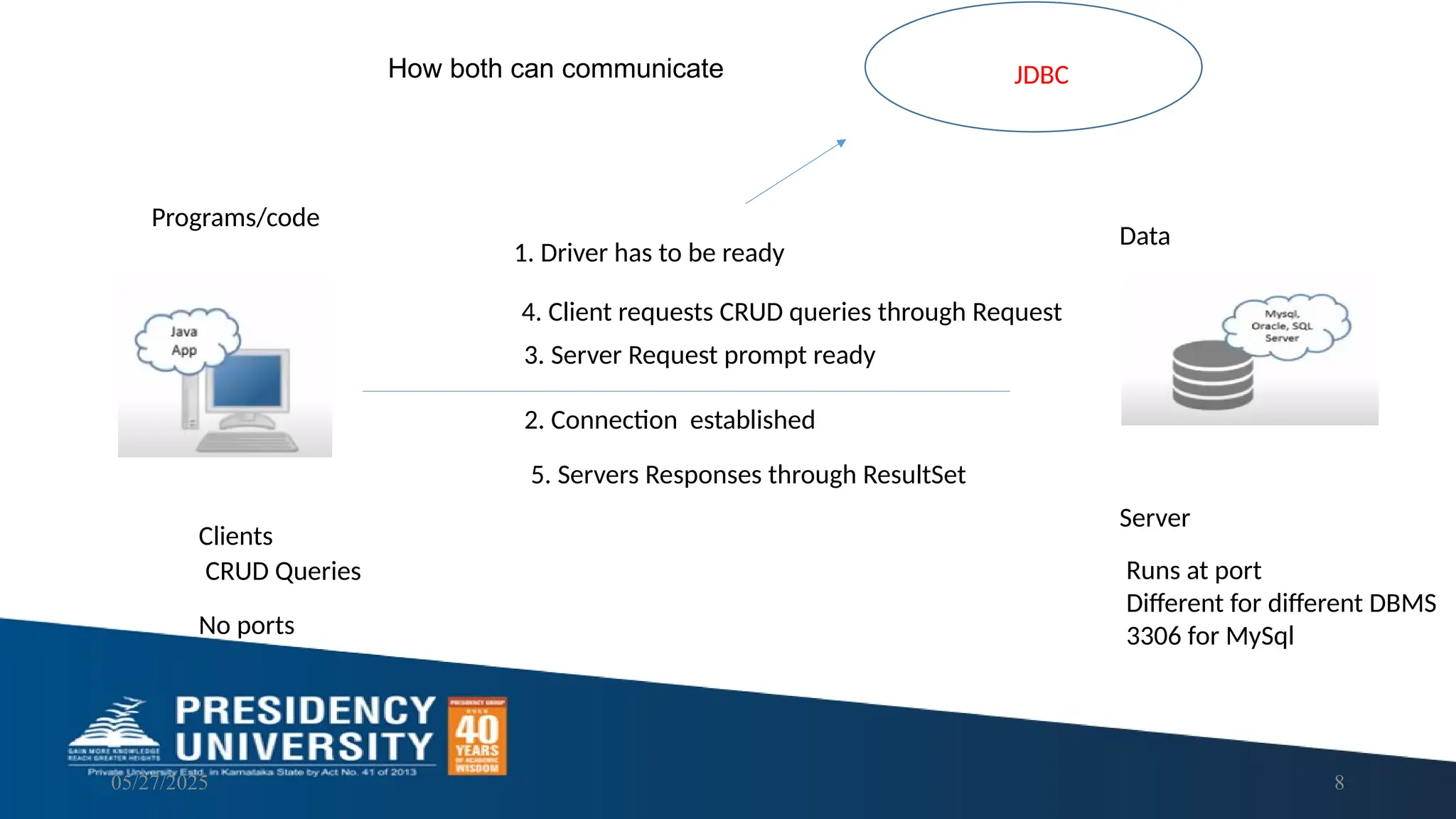

05/27/2025 8 Programs/code Clients Server Data Runs at port Different for different DBMS 3306 for MySql No ports CRUD Queries 2. Connection established 3. Server Request prompt ready 5. Servers Responses through ResultSet 1. Driver has to be ready 4. Client requests CRUD queries through Request JDBC How both can communicate

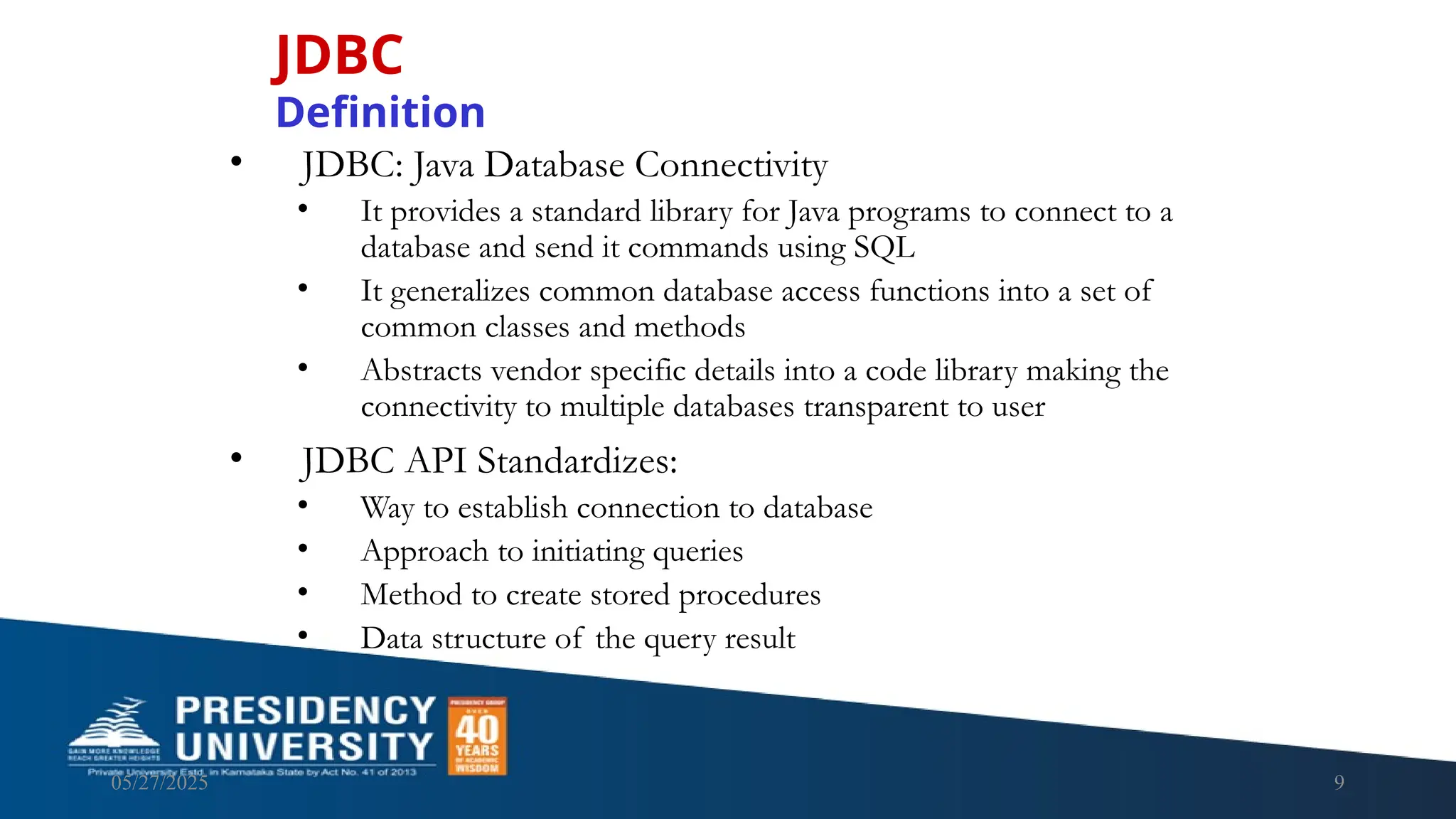

05/27/2025 9 • JDBC: Java Database Connectivity • It provides a standard library for Java programs to connect to a database and send it commands using SQL • It generalizes common database access functions into a set of common classes and methods • Abstracts vendor specific details into a code library making the connectivity to multiple databases transparent to user • JDBC API Standardizes: • Way to establish connection to database • Approach to initiating queries • Method to create stored procedures • Data structure of the query result JDBC Definition

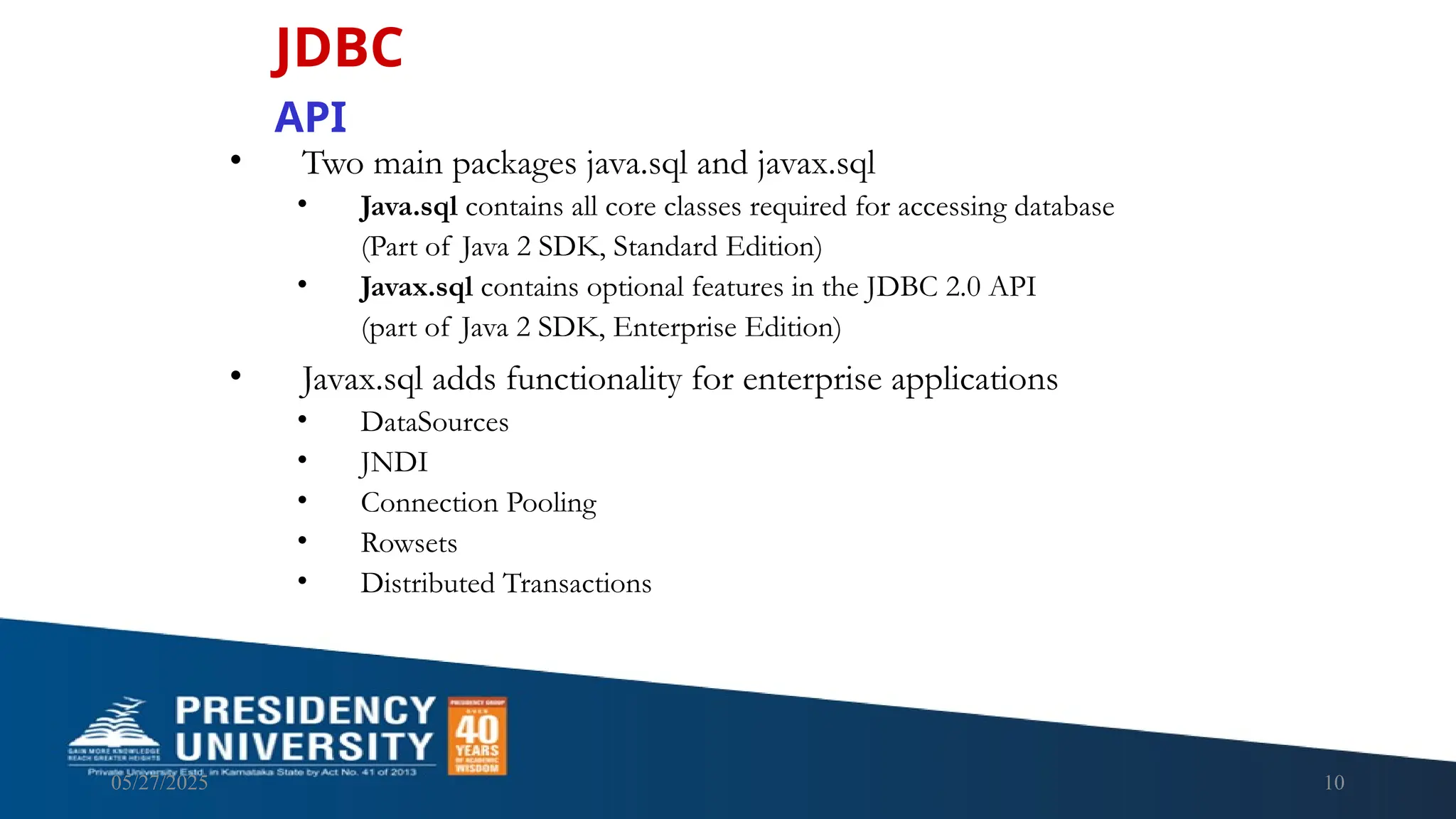

05/27/2025 10 • Two main packages java.sql and javax.sql • Java.sql contains all core classes required for accessing database (Part of Java 2 SDK, Standard Edition) • Javax.sql contains optional features in the JDBC 2.0 API (part of Java 2 SDK, Enterprise Edition) • Javax.sql adds functionality for enterprise applications • DataSources • JNDI • Connection Pooling • Rowsets • Distributed Transactions JDBC API

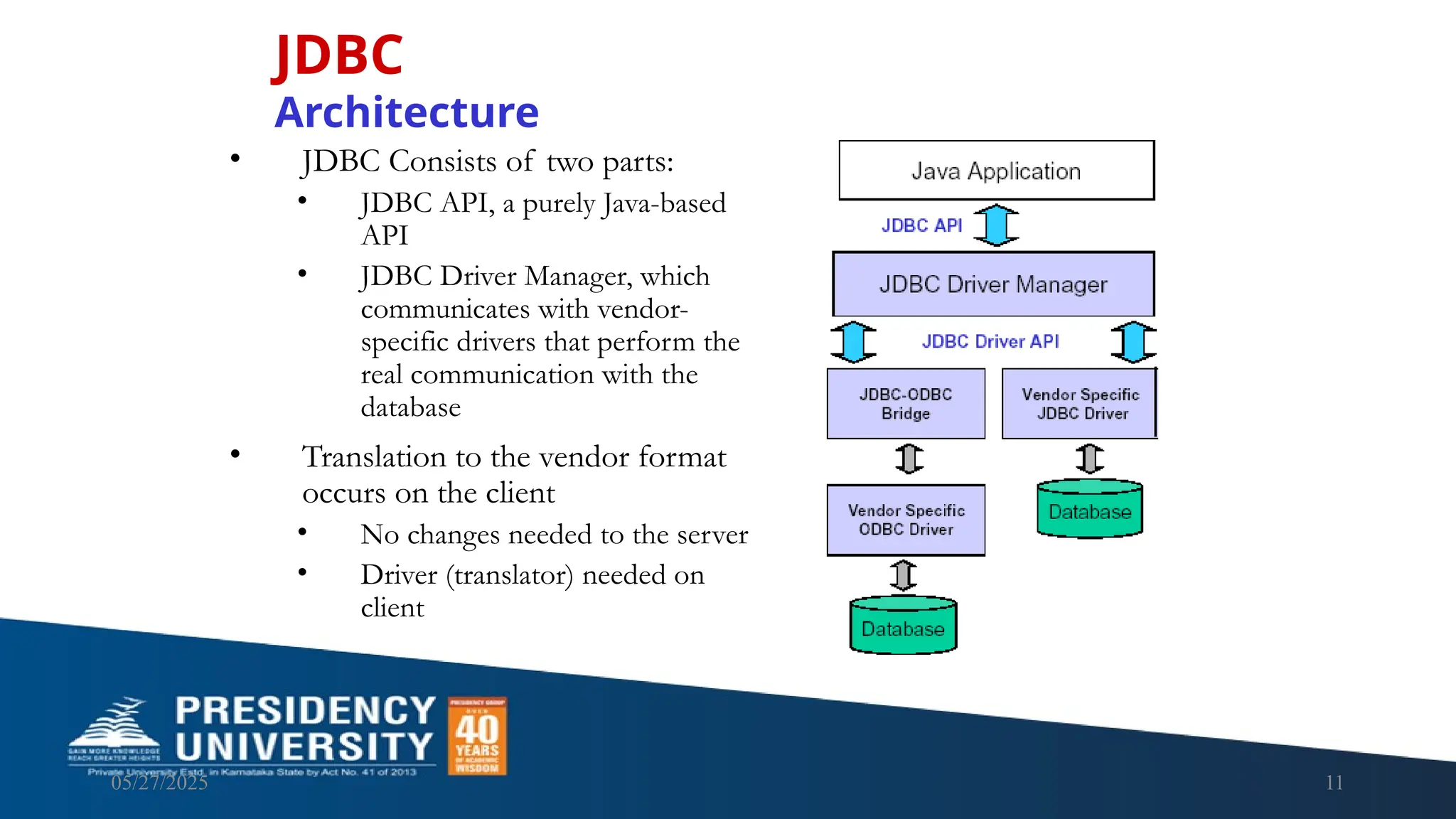

05/27/2025 11 • JDBC Consists of two parts: • JDBC API, a purely Java-based API • JDBC Driver Manager, which communicates with vendor- specific drivers that perform the real communication with the database • Translation to the vendor format occurs on the client • No changes needed to the server • Driver (translator) needed on client JDBC Architecture

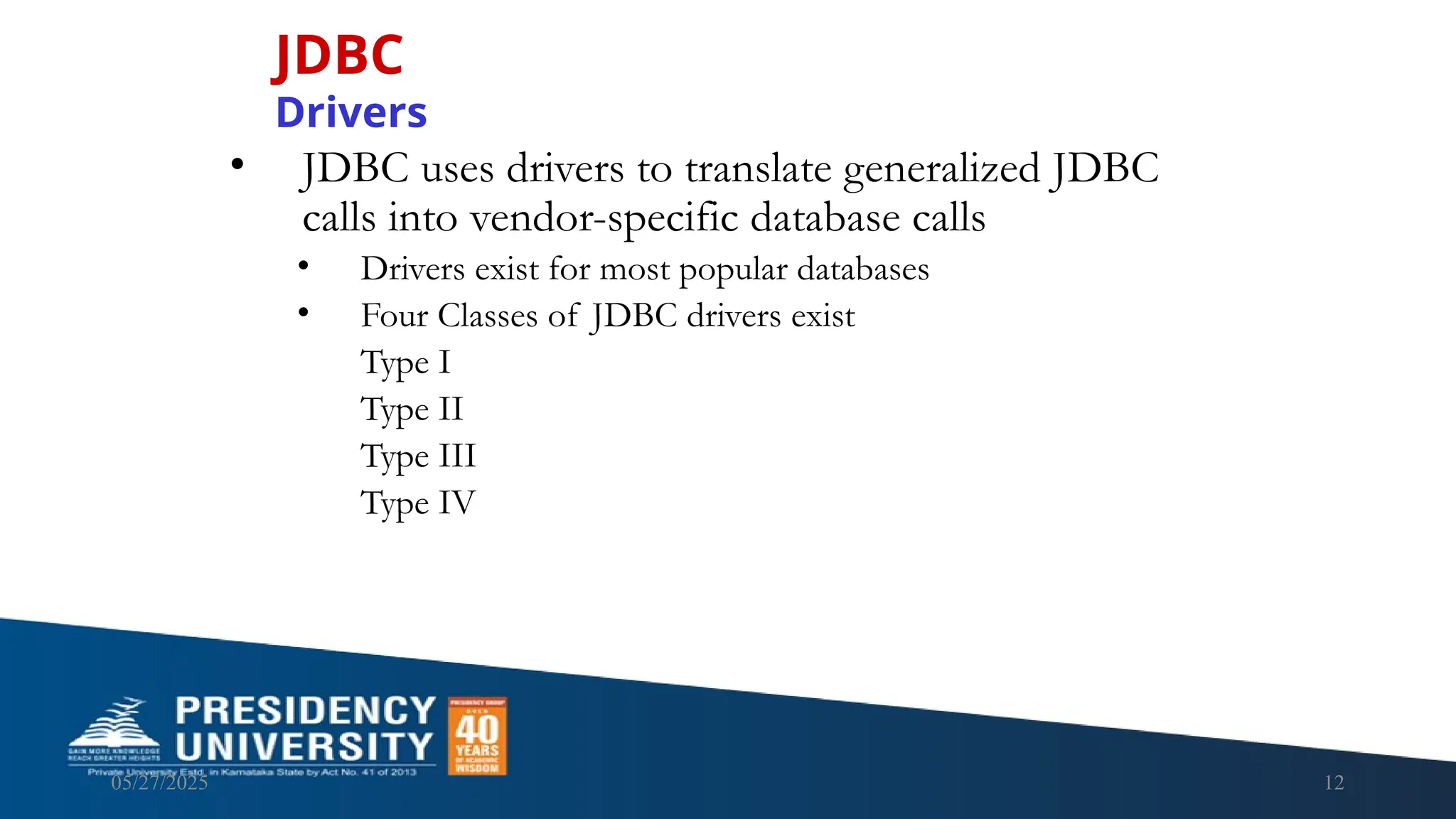

05/27/2025 12 • JDBC uses drivers to translate generalized JDBC calls into vendor-specific database calls • Drivers exist for most popular databases • Four Classes of JDBC drivers exist Type I Type II Type III Type IV JDBC Drivers

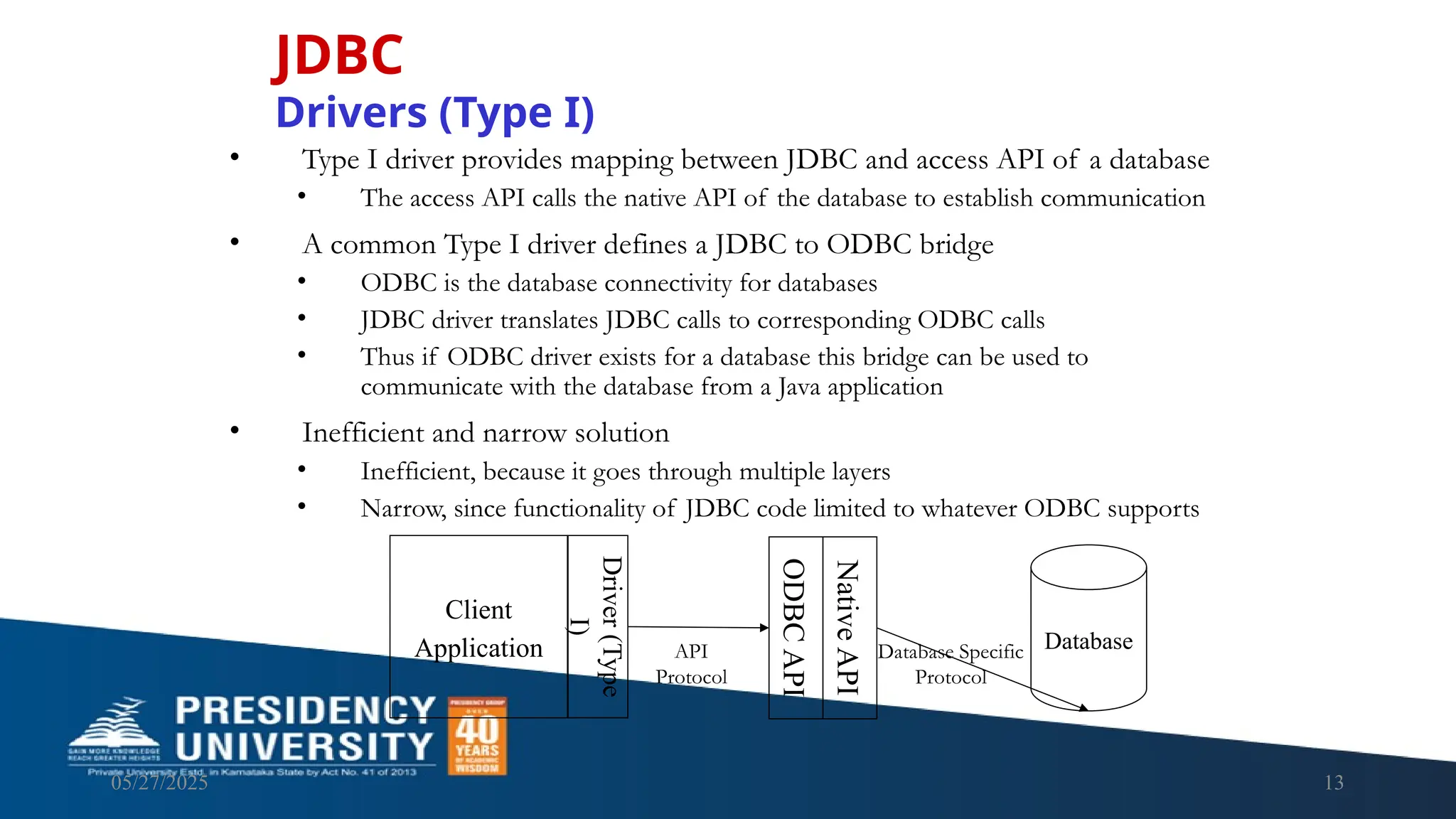

05/27/2025 13 • Type I driver provides mapping between JDBC and access API of a database • The access API calls the native API of the database to establish communication • A common Type I driver defines a JDBC to ODBC bridge • ODBC is the database connectivity for databases • JDBC driver translates JDBC calls to corresponding ODBC calls • Thus if ODBC driver exists for a database this bridge can be used to communicate with the database from a Java application • Inefficient and narrow solution • Inefficient, because it goes through multiple layers • Narrow, since functionality of JDBC code limited to whatever ODBC supports JDBC Drivers (Type I) Client Application ODBC API Database Driver (Type I) Native API Database Specific Protocol API Protocol

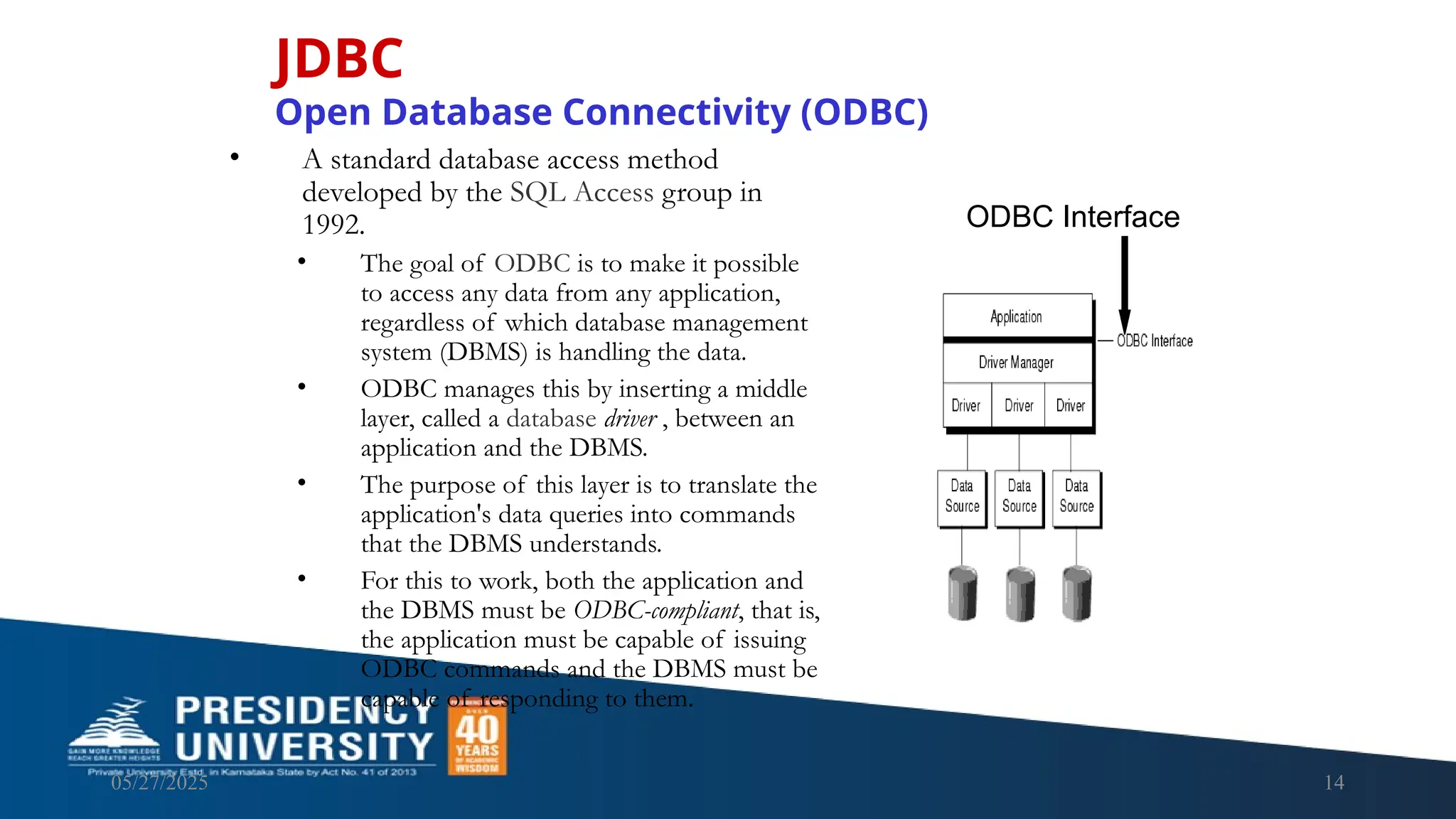

05/27/2025 14 • A standard database access method developed by the SQL Access group in 1992. • The goal of ODBC is to make it possible to access any data from any application, regardless of which database management system (DBMS) is handling the data. • ODBC manages this by inserting a middle layer, called a database driver , between an application and the DBMS. • The purpose of this layer is to translate the application's data queries into commands that the DBMS understands. • For this to work, both the application and the DBMS must be ODBC-compliant, that is, the application must be capable of issuing ODBC commands and the DBMS must be capable of responding to them. JDBC Open Database Connectivity (ODBC) ODBC Interface

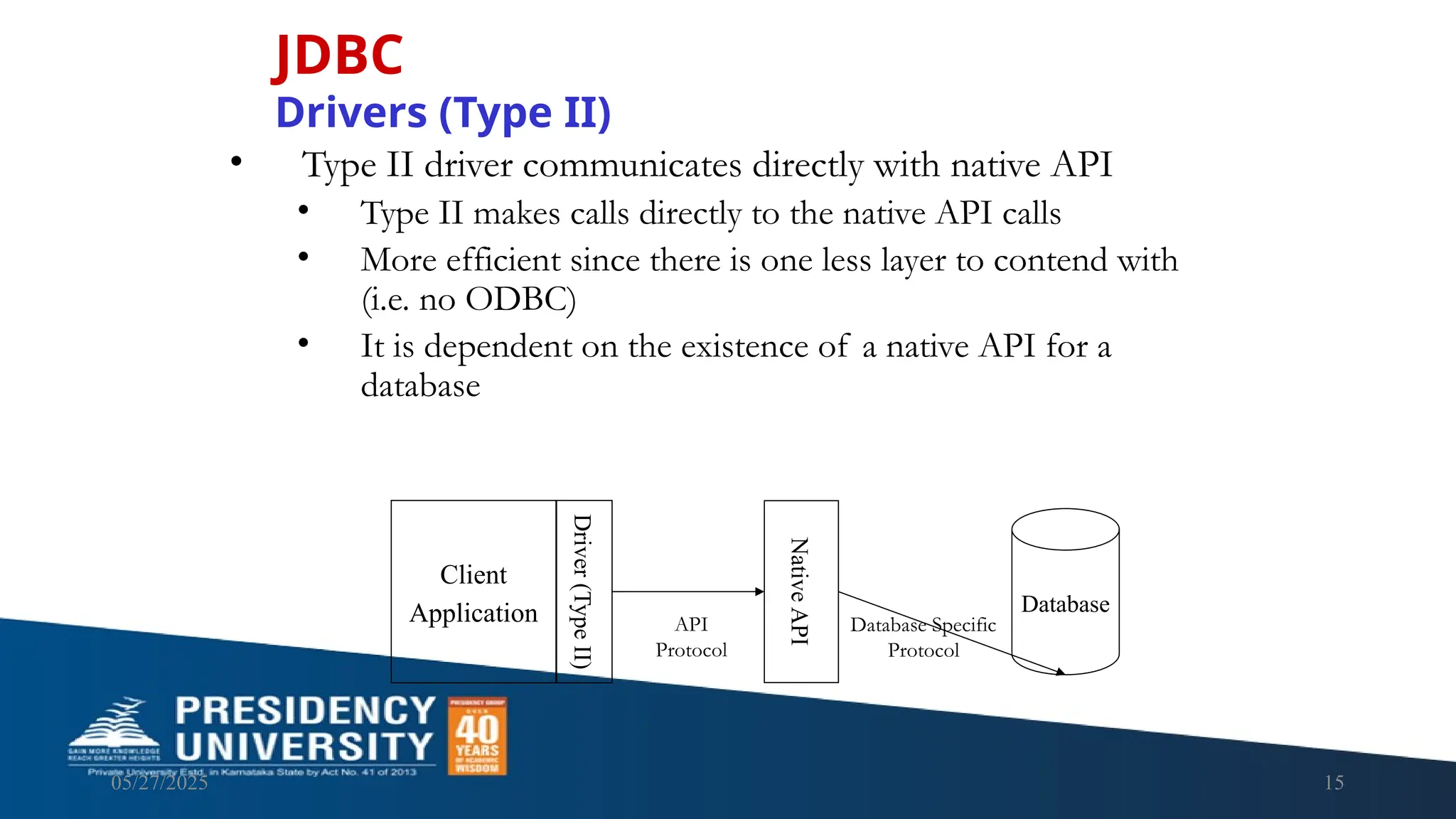

05/27/2025 15 • Type II driver communicates directly with native API • Type II makes calls directly to the native API calls • More efficient since there is one less layer to contend with (i.e. no ODBC) • It is dependent on the existence of a native API for a database JDBC Drivers (Type II) Client Application Database Driver (Type II) Native API Database Specific Protocol API Protocol

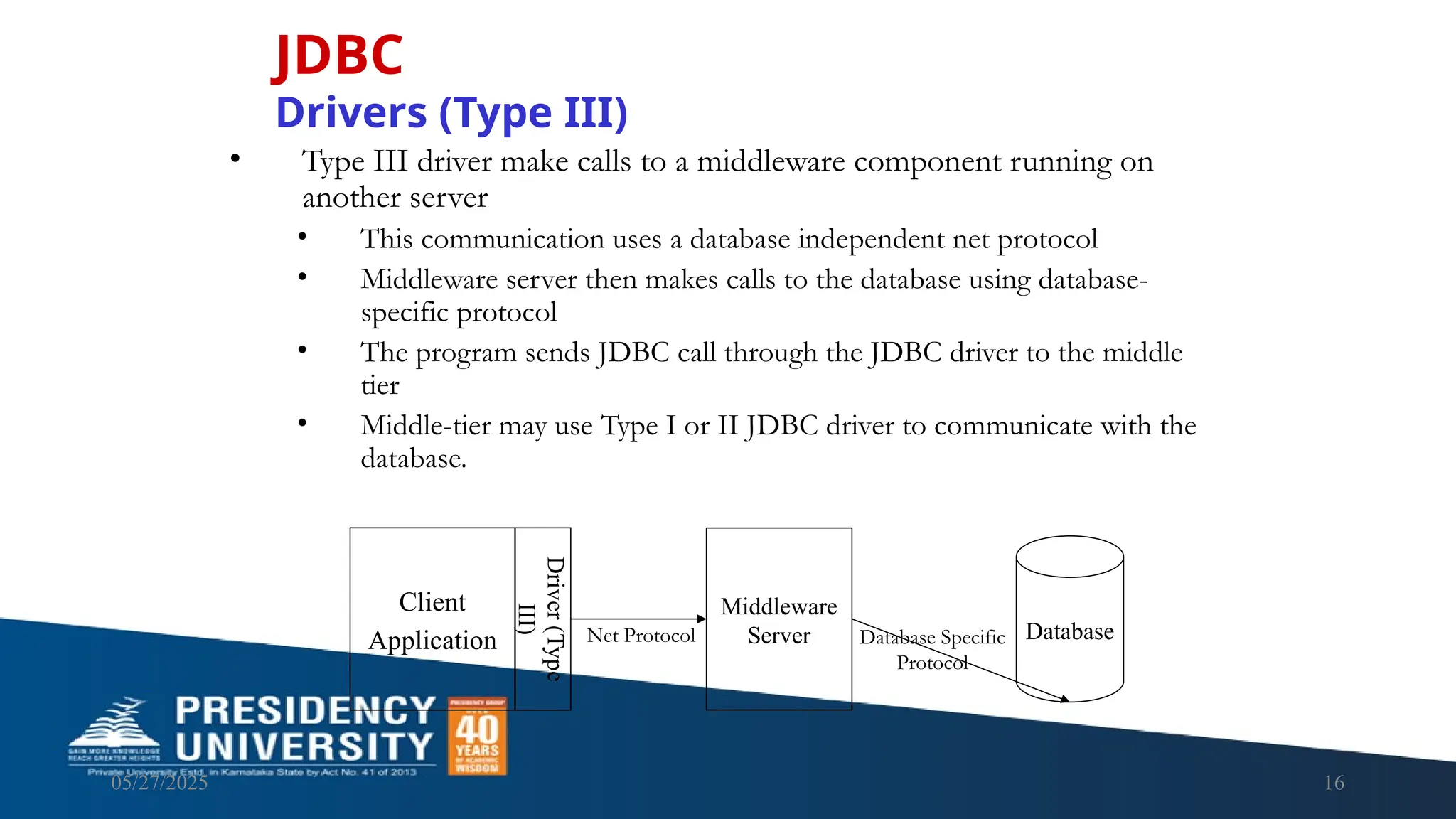

05/27/2025 16 • Type III driver make calls to a middleware component running on another server • This communication uses a database independent net protocol • Middleware server then makes calls to the database using database- specific protocol • The program sends JDBC call through the JDBC driver to the middle tier • Middle-tier may use Type I or II JDBC driver to communicate with the database. JDBC Drivers (Type III) Database Client Application Driver (Type III) Middleware Server Net Protocol Database Specific Protocol

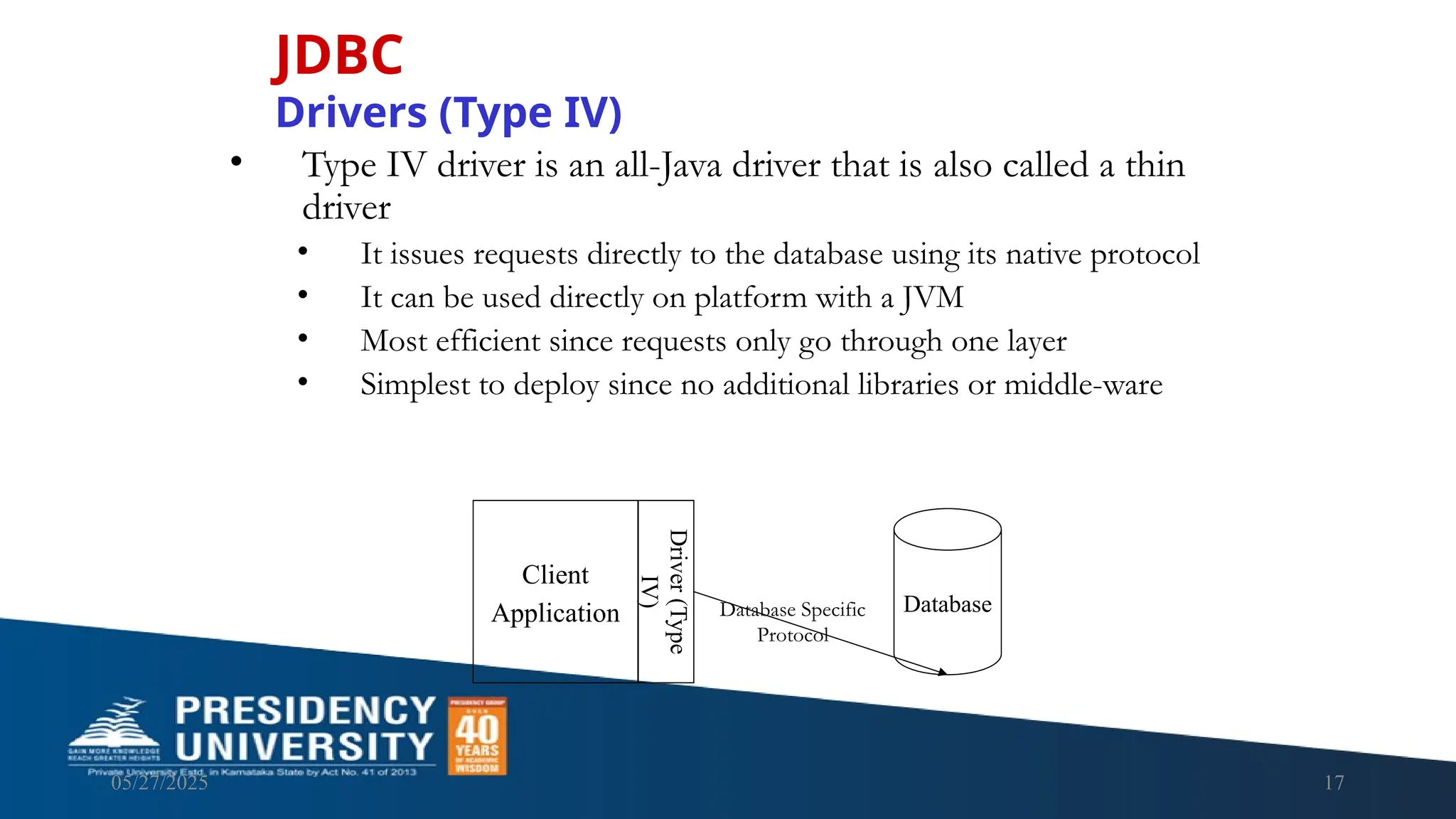

05/27/2025 17 • Type IV driver is an all-Java driver that is also called a thin driver • It issues requests directly to the database using its native protocol • It can be used directly on platform with a JVM • Most efficient since requests only go through one layer • Simplest to deploy since no additional libraries or middle-ware JDBC Drivers (Type IV) Database Client Application Driver (Type IV) Database Specific Protocol

05/27/2025 18 Connecting to Database

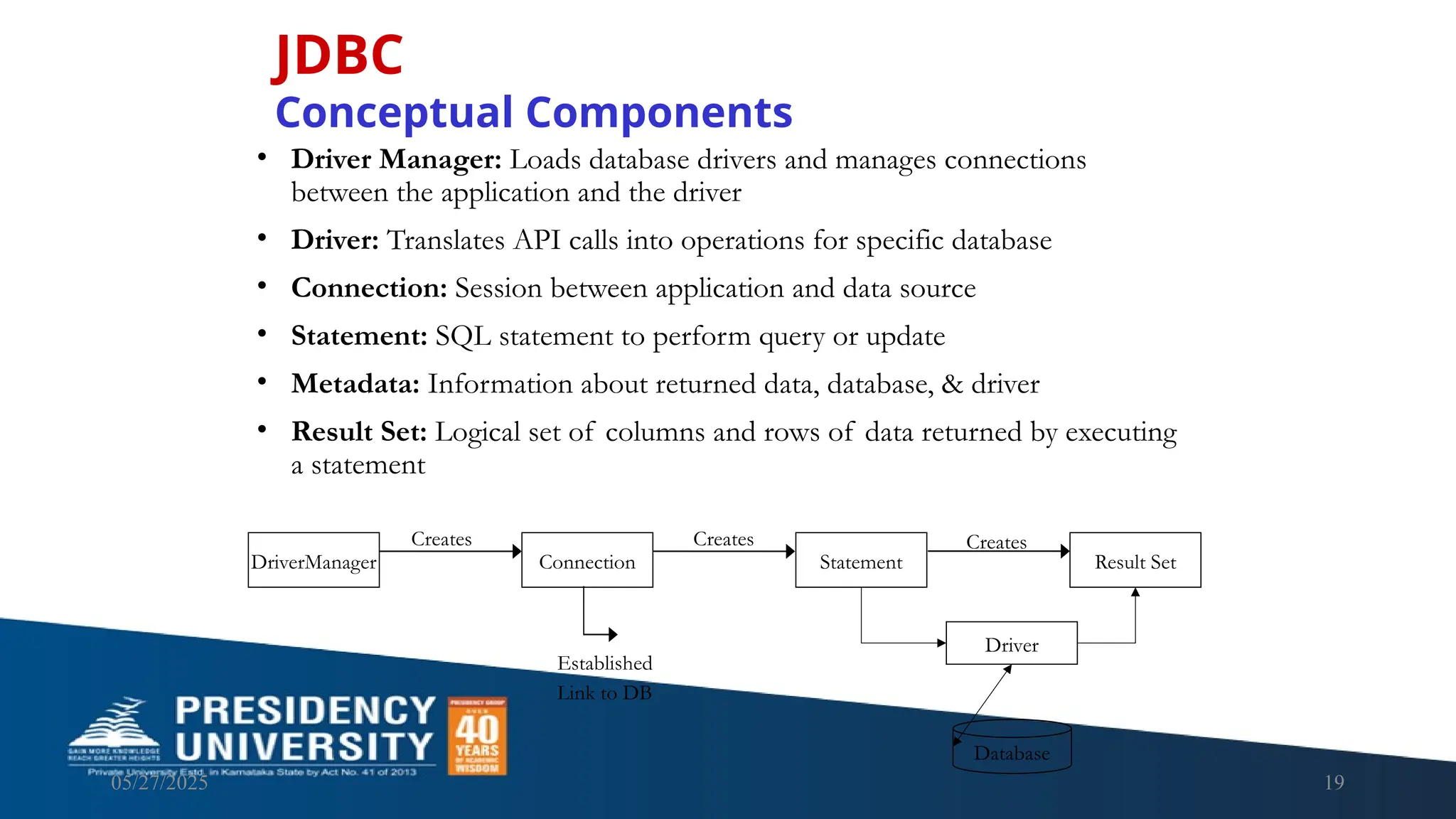

05/27/2025 19 • Driver Manager: Loads database drivers and manages connections between the application and the driver • Driver: Translates API calls into operations for specific database • Connection: Session between application and data source • Statement: SQL statement to perform query or update • Metadata: Information about returned data, database, & driver • Result Set: Logical set of columns and rows of data returned by executing a statement JDBC Conceptual Components DriverManager Creates Connection Creates Statement Creates Result Set Driver Database Established Link to DB

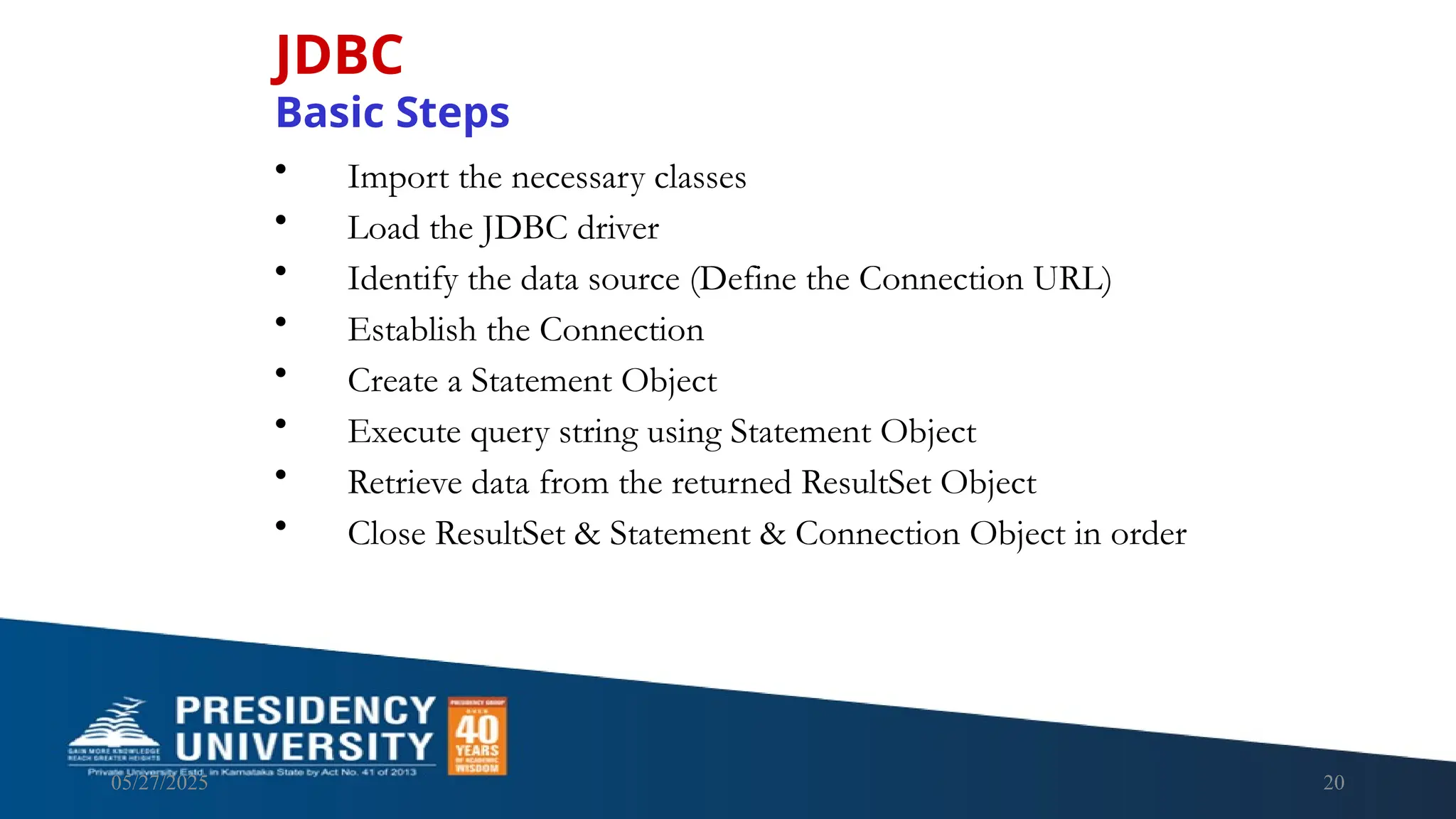

05/27/2025 20 JDBC Basic Steps • Import the necessary classes • Load the JDBC driver • Identify the data source (Define the Connection URL) • Establish the Connection • Create a Statement Object • Execute query string using Statement Object • Retrieve data from the returned ResultSet Object • Close ResultSet & Statement & Connection Object in order

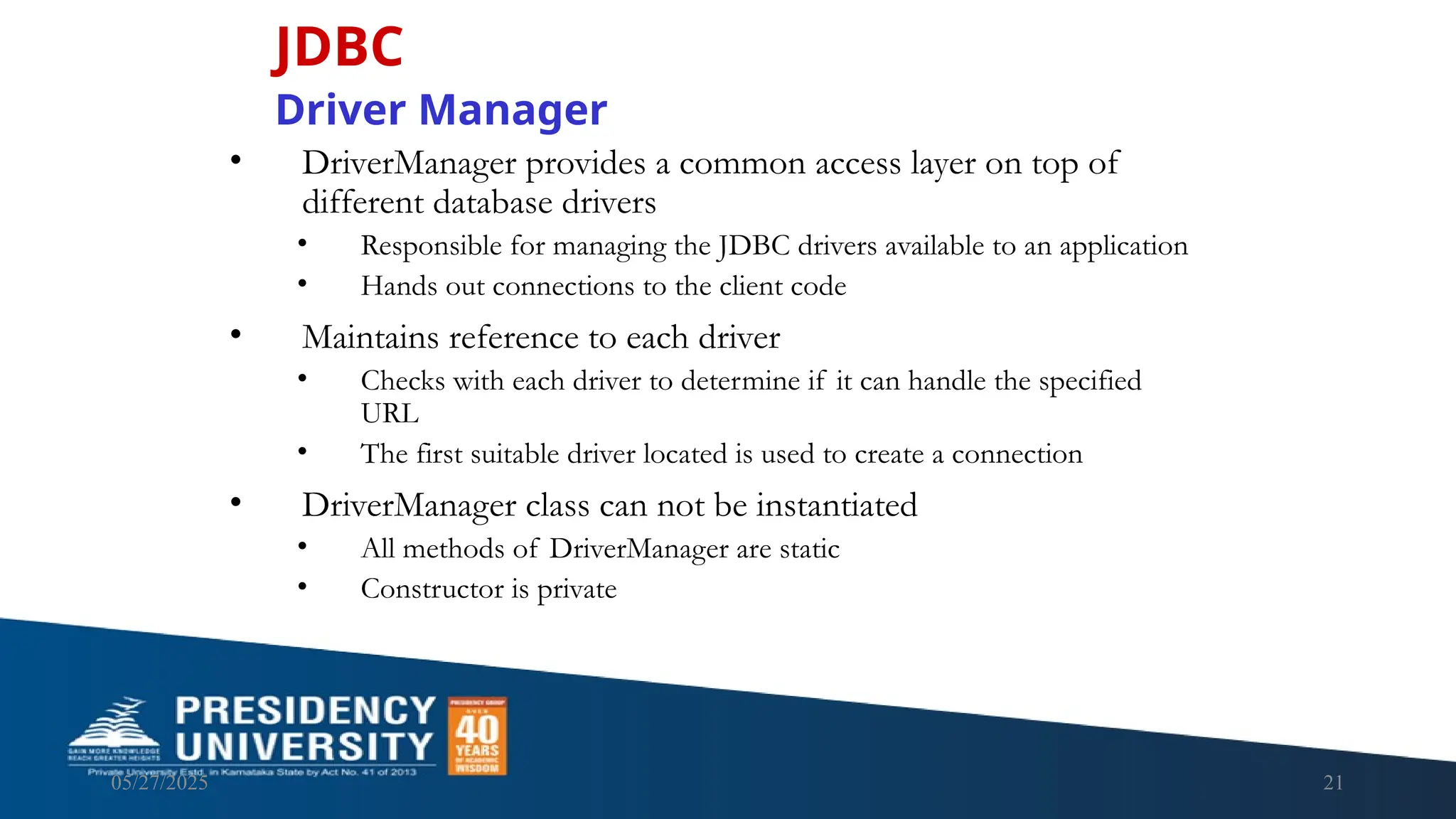

05/27/2025 21 • DriverManager provides a common access layer on top of different database drivers • Responsible for managing the JDBC drivers available to an application • Hands out connections to the client code • Maintains reference to each driver • Checks with each driver to determine if it can handle the specified URL • The first suitable driver located is used to create a connection • DriverManager class can not be instantiated • All methods of DriverManager are static • Constructor is private JDBC Driver Manager

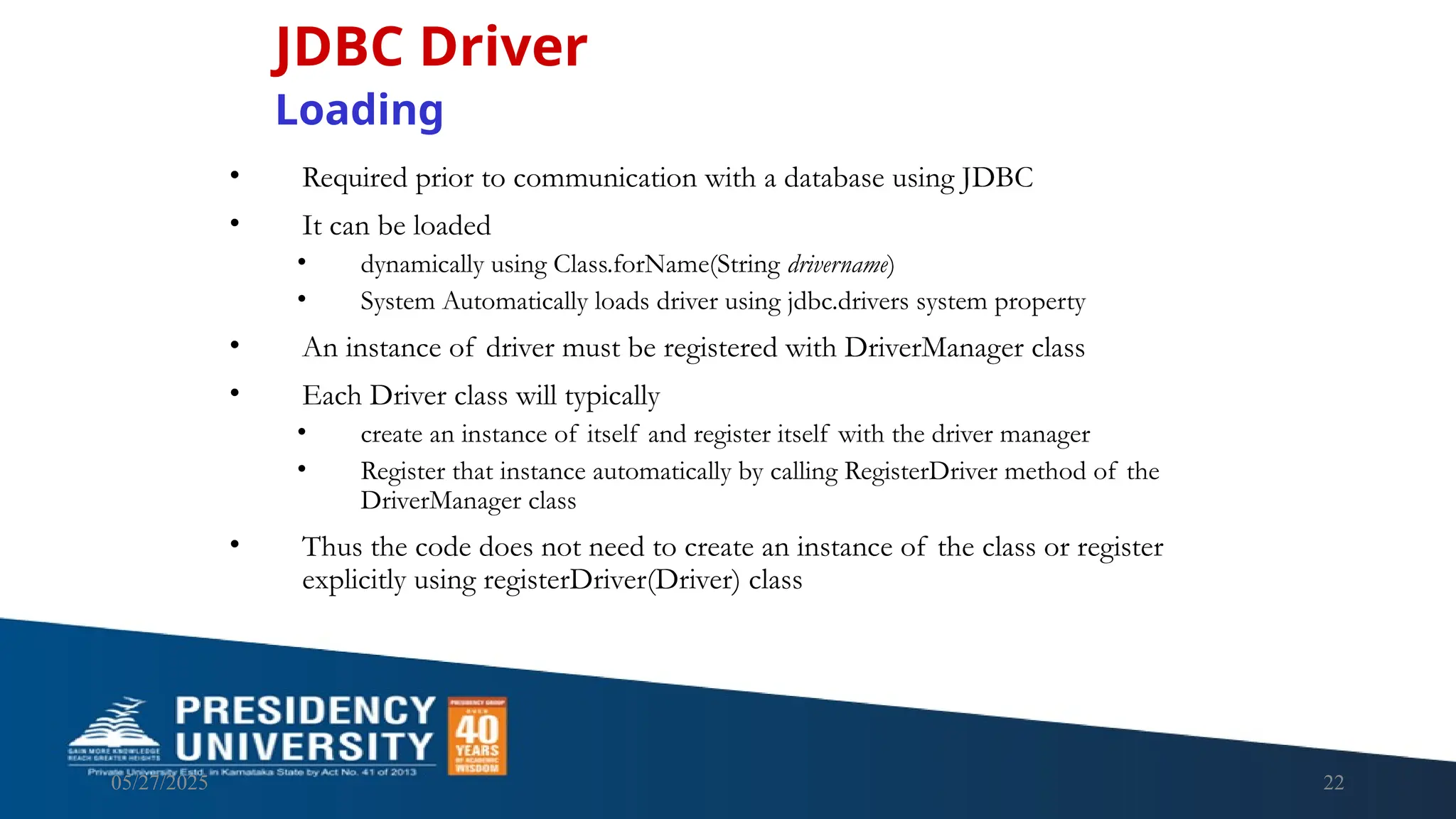

05/27/2025 22 • Required prior to communication with a database using JDBC • It can be loaded • dynamically using Class.forName(String drivername) • System Automatically loads driver using jdbc.drivers system property • An instance of driver must be registered with DriverManager class • Each Driver class will typically • create an instance of itself and register itself with the driver manager • Register that instance automatically by calling RegisterDriver method of the DriverManager class • Thus the code does not need to create an instance of the class or register explicitly using registerDriver(Driver) class JDBC Driver Loading

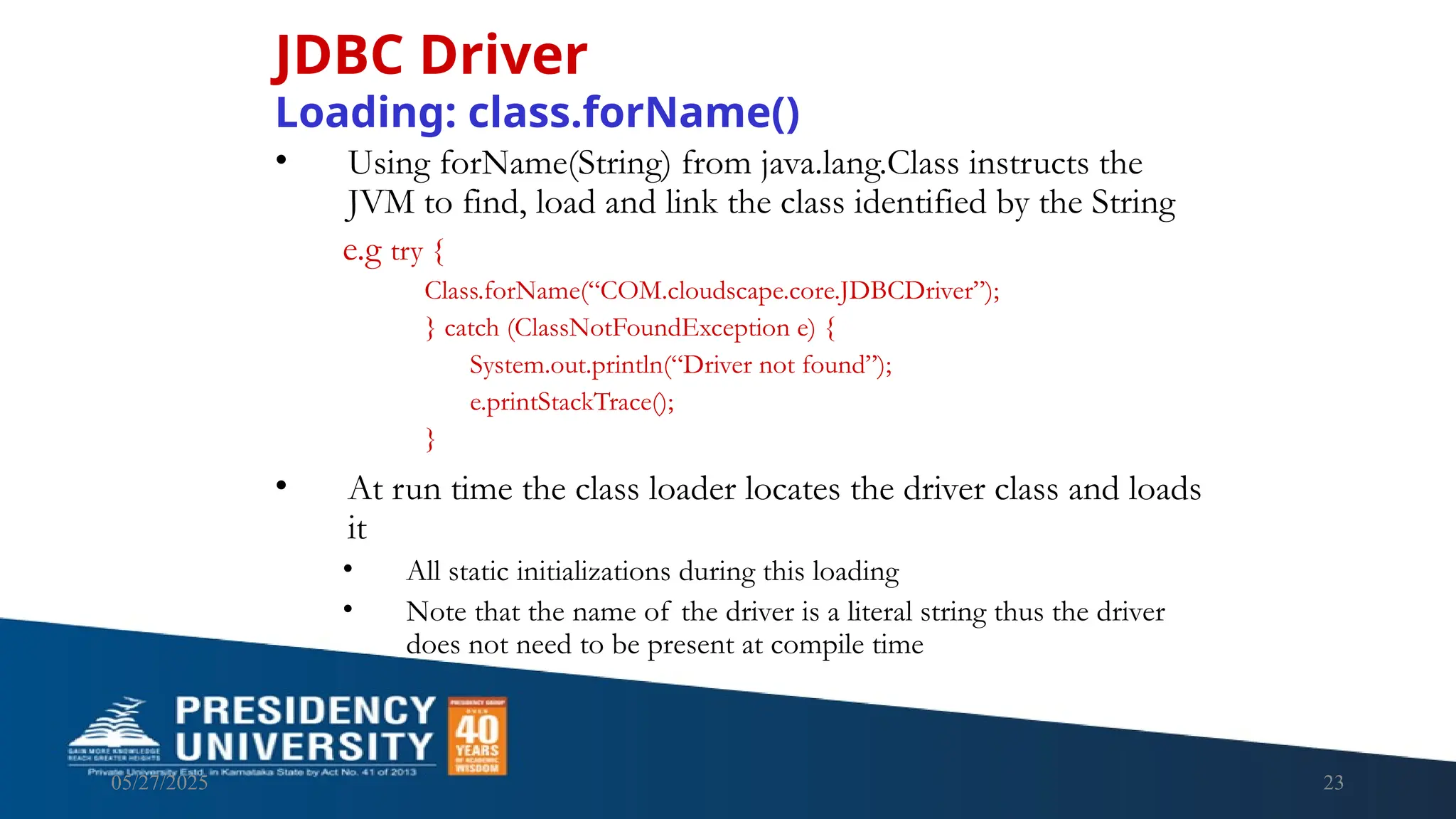

05/27/2025 23 • Using forName(String) from java.lang.Class instructs the JVM to find, load and link the class identified by the String e.g try { Class.forName(“COM.cloudscape.core.JDBCDriver”); } catch (ClassNotFoundException e) { System.out.println(“Driver not found”); e.printStackTrace(); } • At run time the class loader locates the driver class and loads it • All static initializations during this loading • Note that the name of the driver is a literal string thus the driver does not need to be present at compile time JDBC Driver Loading: class.forName()

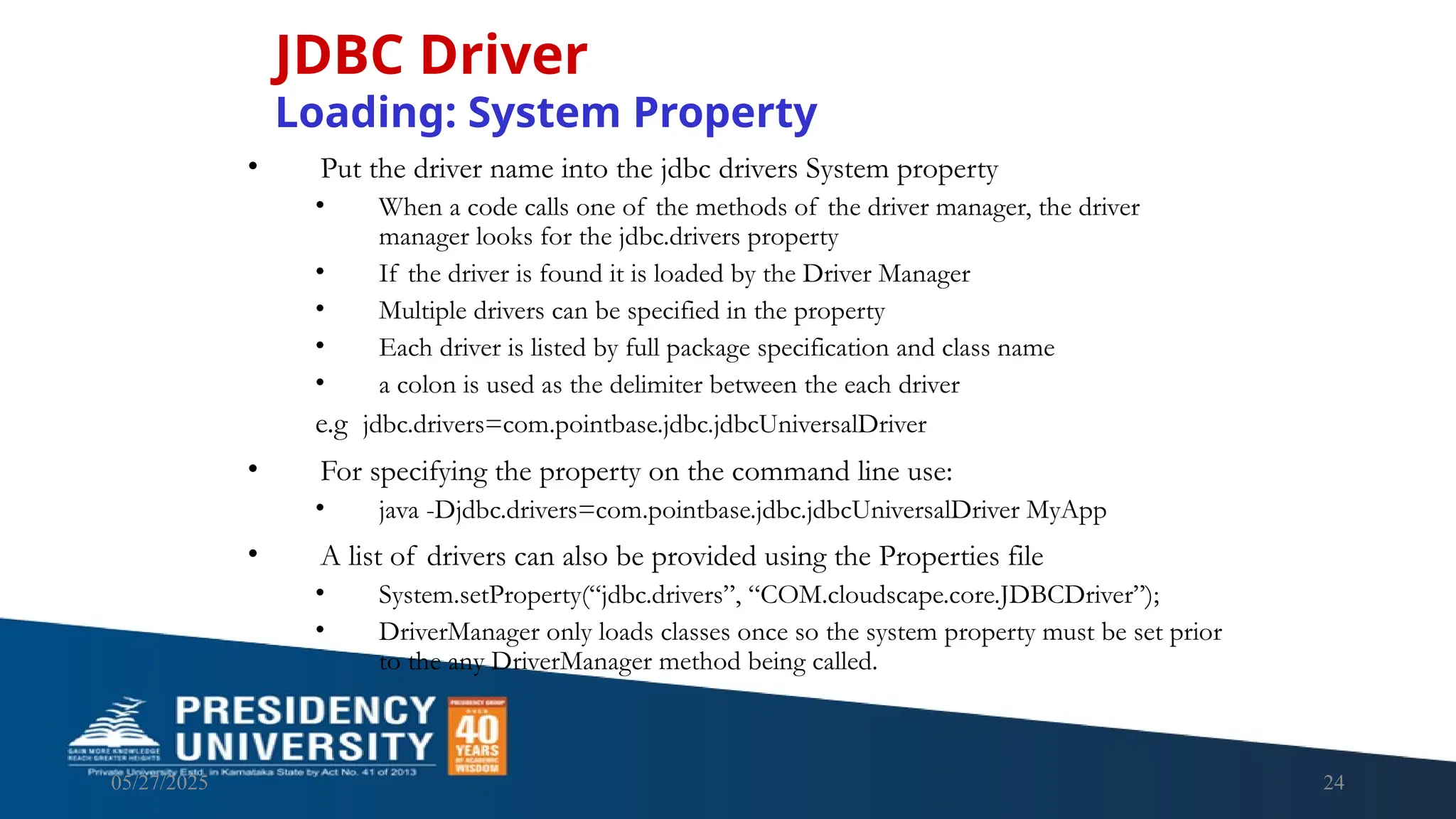

05/27/2025 24 • Put the driver name into the jdbc drivers System property • When a code calls one of the methods of the driver manager, the driver manager looks for the jdbc.drivers property • If the driver is found it is loaded by the Driver Manager • Multiple drivers can be specified in the property • Each driver is listed by full package specification and class name • a colon is used as the delimiter between the each driver e.g jdbc.drivers=com.pointbase.jdbc.jdbcUniversalDriver • For specifying the property on the command line use: • java -Djdbc.drivers=com.pointbase.jdbc.jdbcUniversalDriver MyApp • A list of drivers can also be provided using the Properties file • System.setProperty(“jdbc.drivers”, “COM.cloudscape.core.JDBCDriver”); • DriverManager only loads classes once so the system property must be set prior to the any DriverManager method being called. JDBC Driver Loading: System Property

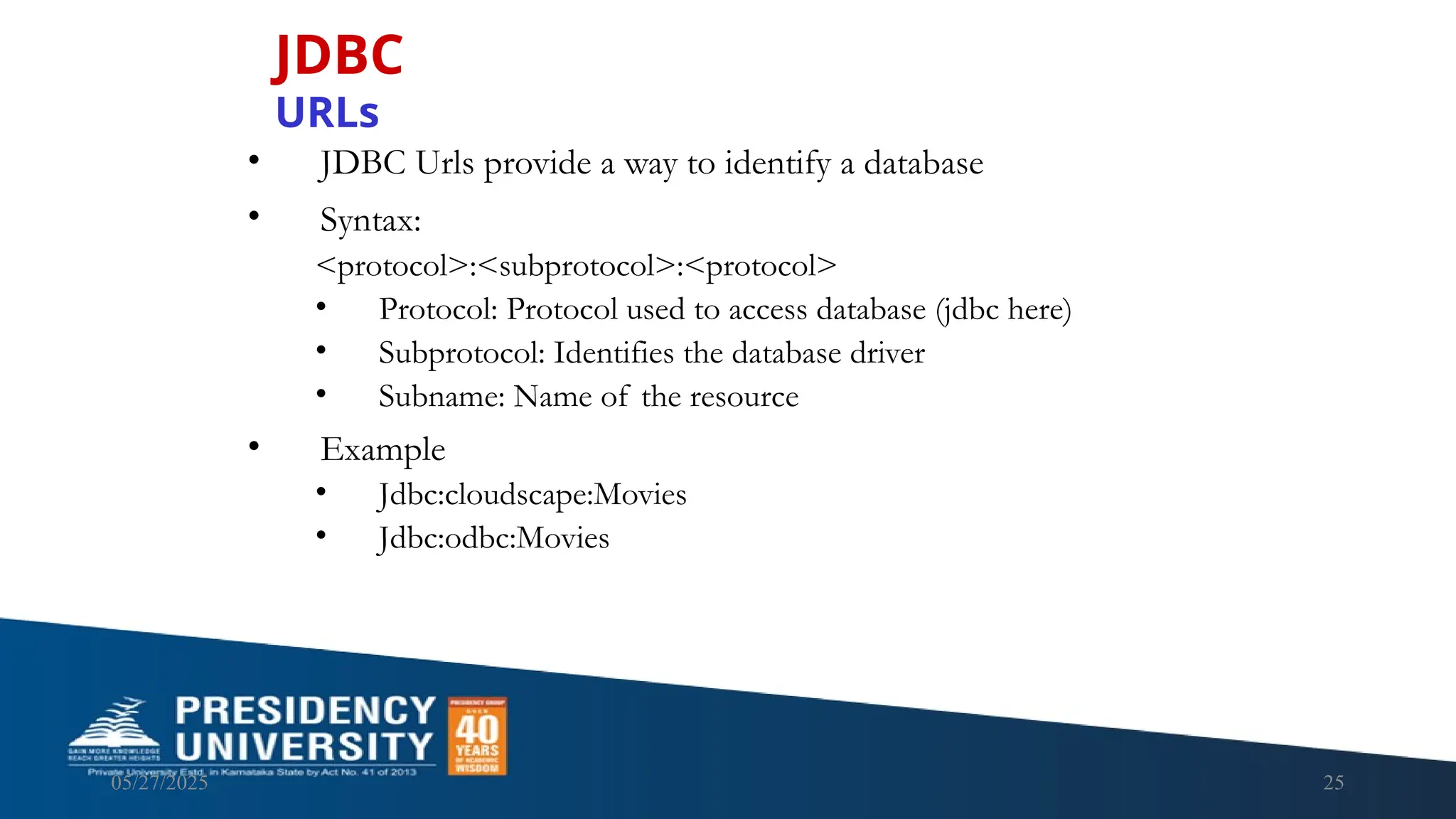

05/27/2025 25 • JDBC Urls provide a way to identify a database • Syntax: <protocol>:<subprotocol>:<protocol> • Protocol: Protocol used to access database (jdbc here) • Subprotocol: Identifies the database driver • Subname: Name of the resource • Example • Jdbc:cloudscape:Movies • Jdbc:odbc:Movies JDBC URLs

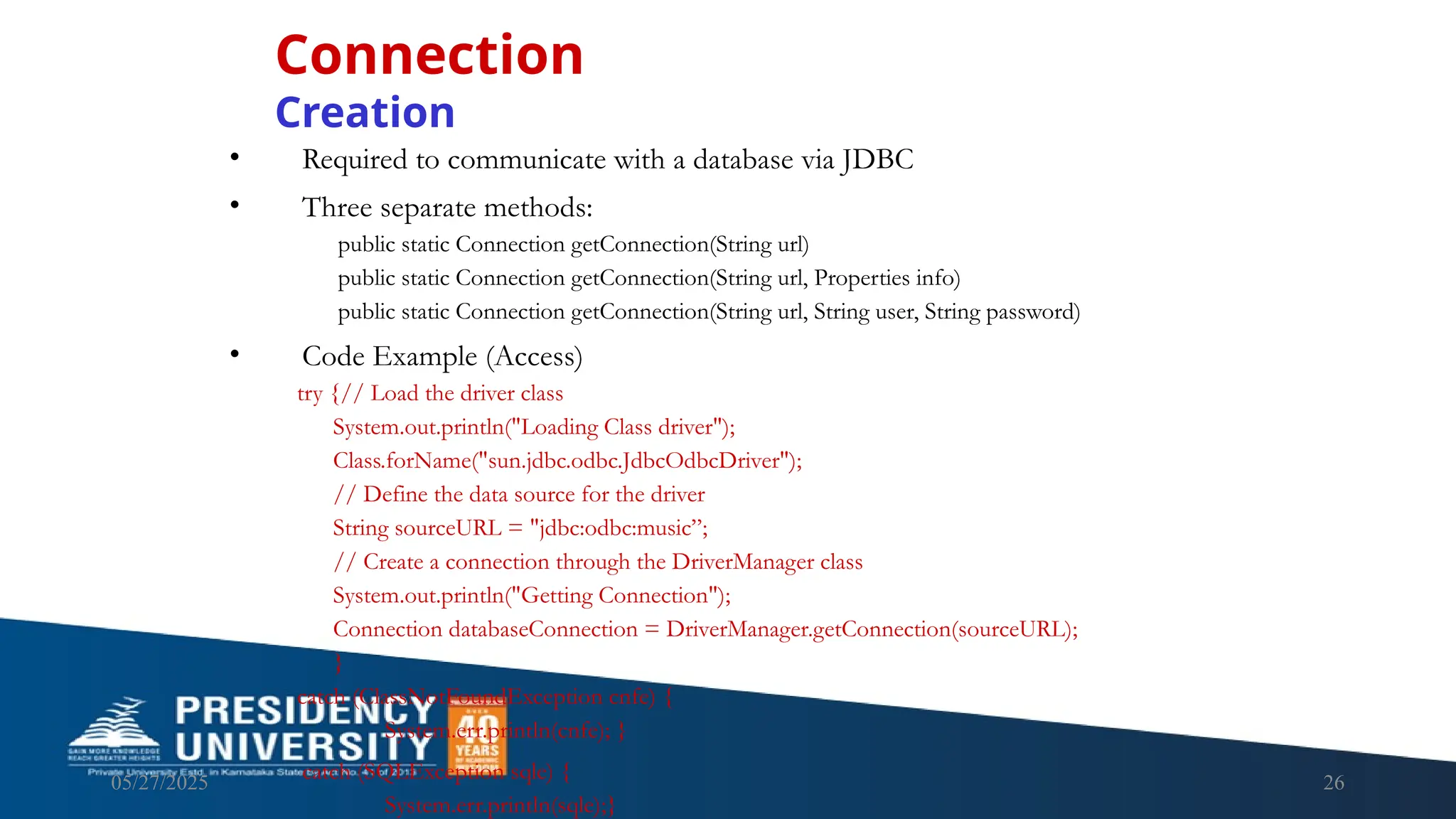

05/27/2025 26 • Required to communicate with a database via JDBC • Three separate methods: public static Connection getConnection(String url) public static Connection getConnection(String url, Properties info) public static Connection getConnection(String url, String user, String password) • Code Example (Access) try {// Load the driver class System.out.println("Loading Class driver"); Class.forName("sun.jdbc.odbc.JdbcOdbcDriver"); // Define the data source for the driver String sourceURL = "jdbc:odbc:music”; // Create a connection through the DriverManager class System.out.println("Getting Connection"); Connection databaseConnection = DriverManager.getConnection(sourceURL); } catch (ClassNotFoundException cnfe) { System.err.println(cnfe); } catch (SQLException sqle) { System.err.println(sqle);} Connection Creation

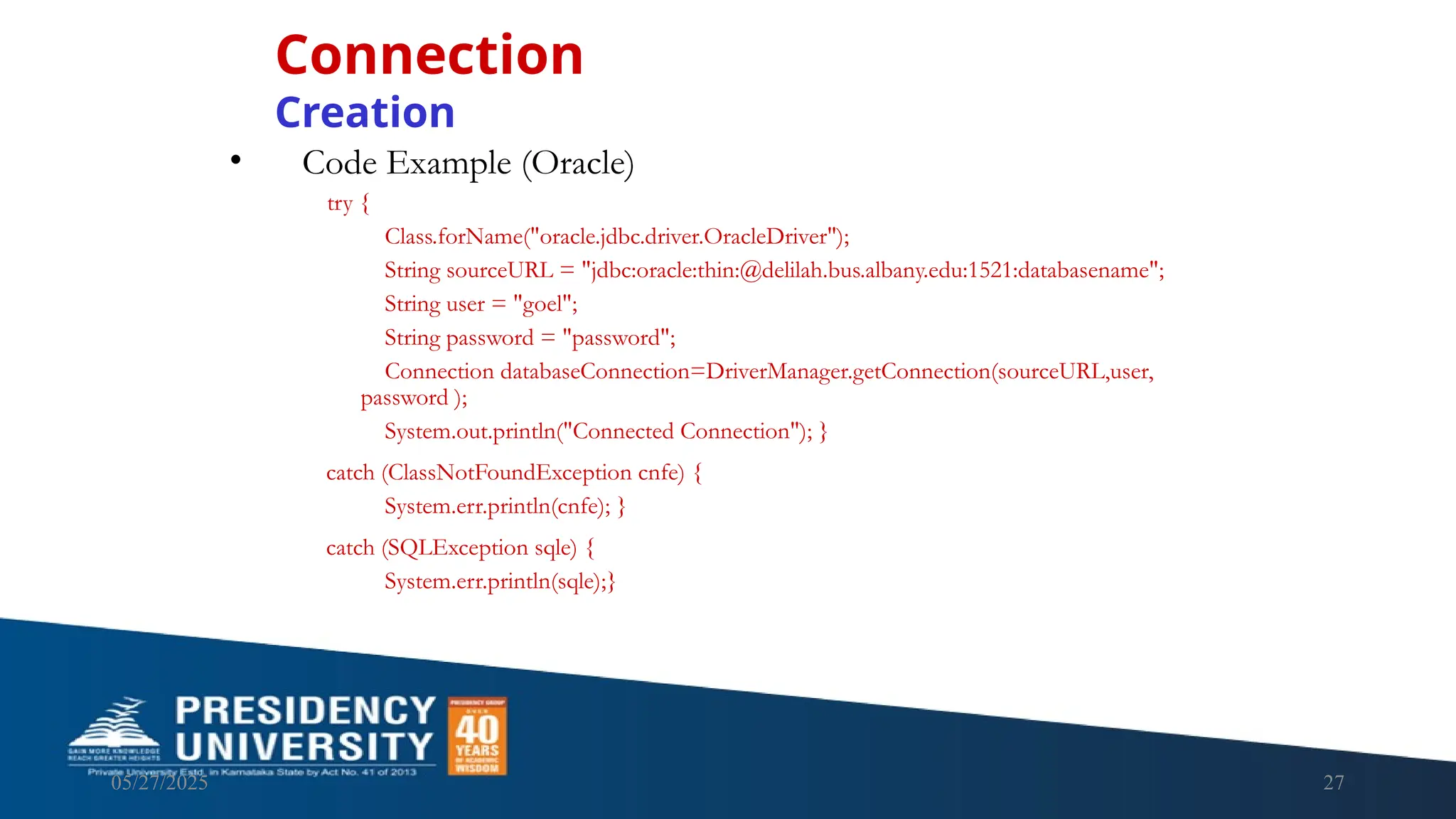

05/27/2025 27 • Code Example (Oracle) try { Class.forName("oracle.jdbc.driver.OracleDriver"); String sourceURL = "jdbc:oracle:thin:@delilah.bus.albany.edu:1521:databasename"; String user = "goel"; String password = "password"; Connection databaseConnection=DriverManager.getConnection(sourceURL,user, password ); System.out.println("Connected Connection"); } catch (ClassNotFoundException cnfe) { System.err.println(cnfe); } catch (SQLException sqle) { System.err.println(sqle);} Connection Creation

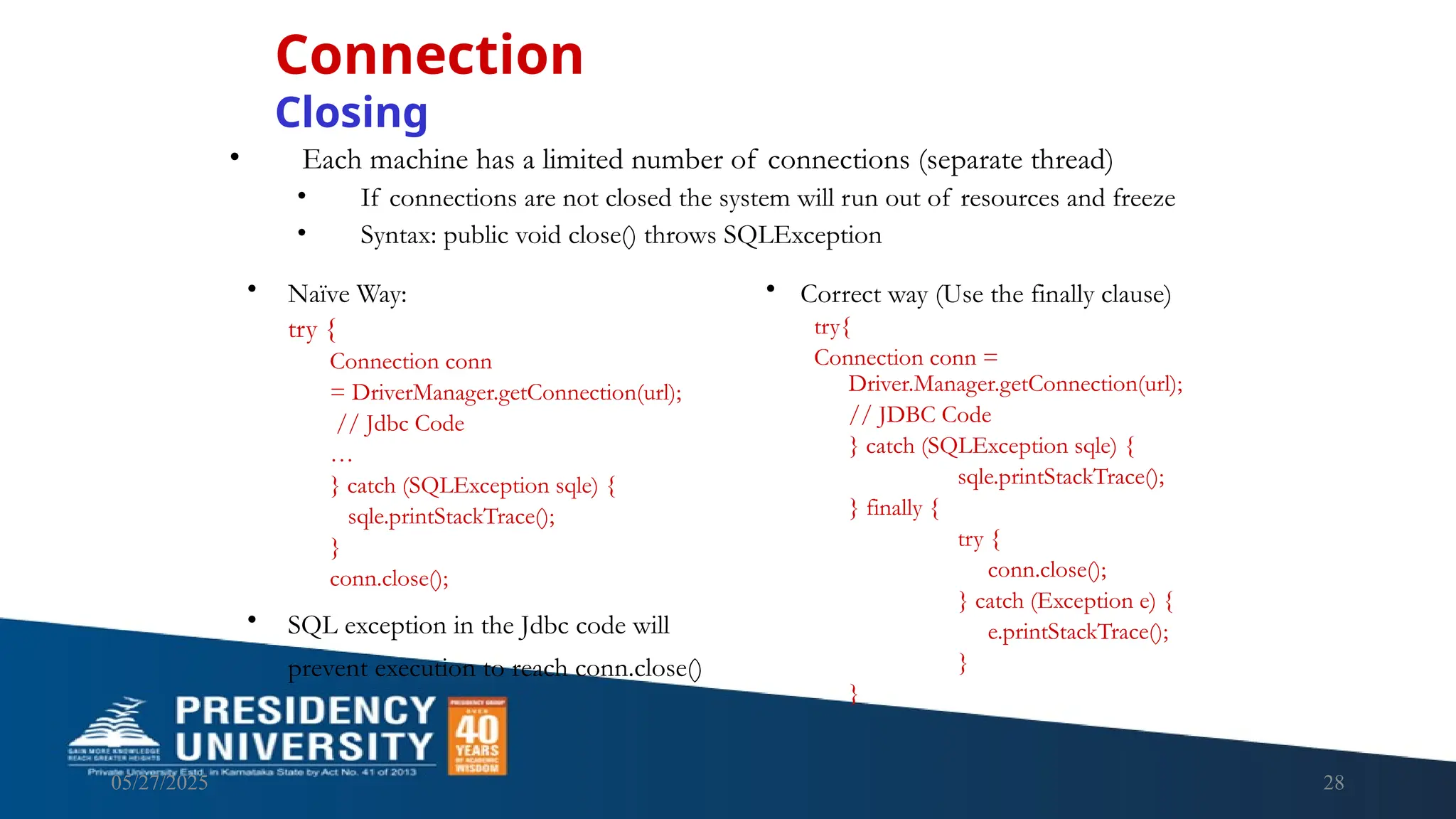

05/27/2025 28 • Each machine has a limited number of connections (separate thread) • If connections are not closed the system will run out of resources and freeze • Syntax: public void close() throws SQLException Connection Closing • Naïve Way: try { Connection conn = DriverManager.getConnection(url); // Jdbc Code … } catch (SQLException sqle) { sqle.printStackTrace(); } conn.close(); • SQL exception in the Jdbc code will prevent execution to reach conn.close() • Correct way (Use the finally clause) try{ Connection conn = Driver.Manager.getConnection(url); // JDBC Code } catch (SQLException sqle) { sqle.printStackTrace(); } finally { try { conn.close(); } catch (Exception e) { e.printStackTrace(); } }

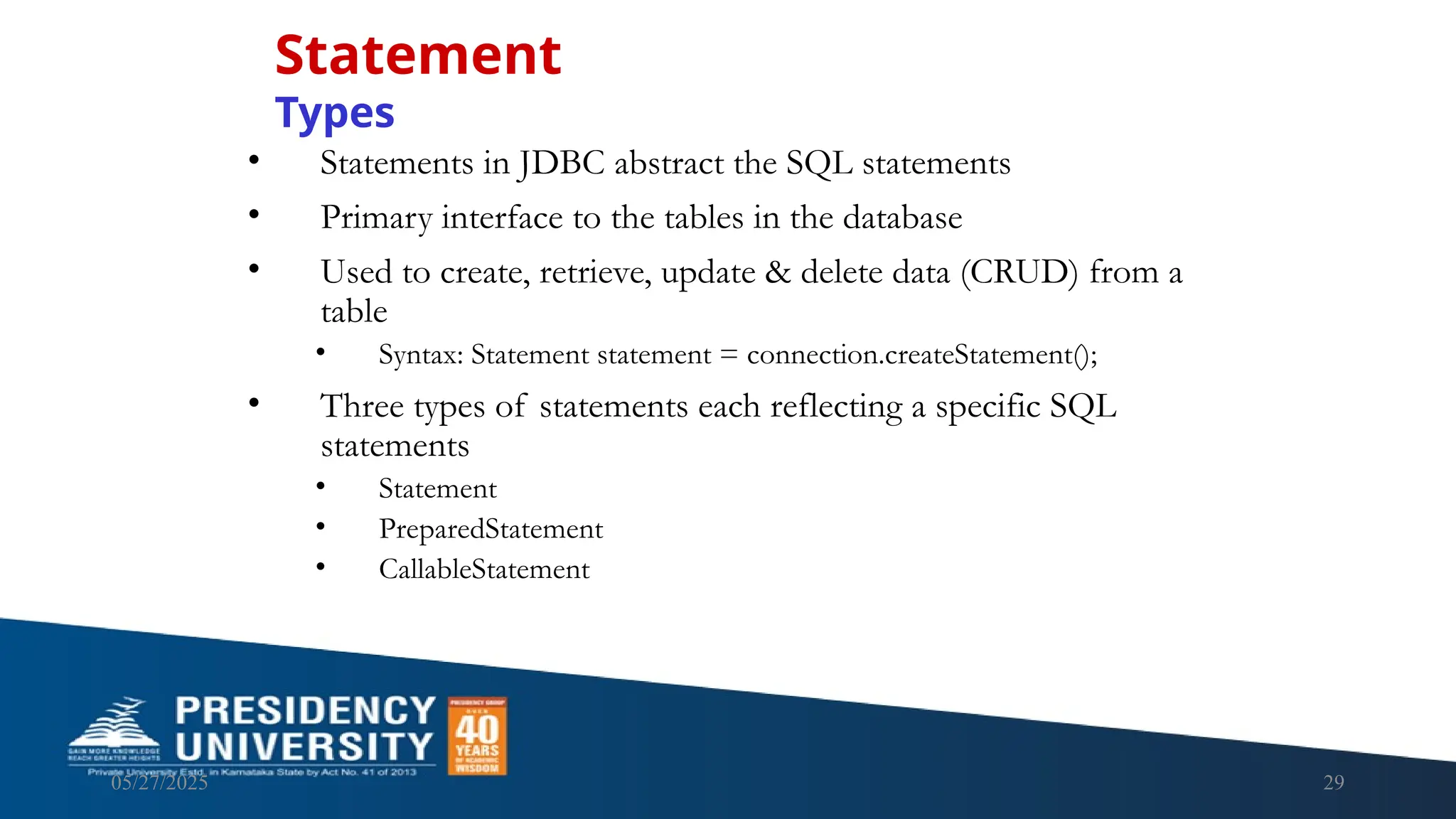

05/27/2025 29 • Statements in JDBC abstract the SQL statements • Primary interface to the tables in the database • Used to create, retrieve, update & delete data (CRUD) from a table • Syntax: Statement statement = connection.createStatement(); • Three types of statements each reflecting a specific SQL statements • Statement • PreparedStatement • CallableStatement Statement Types

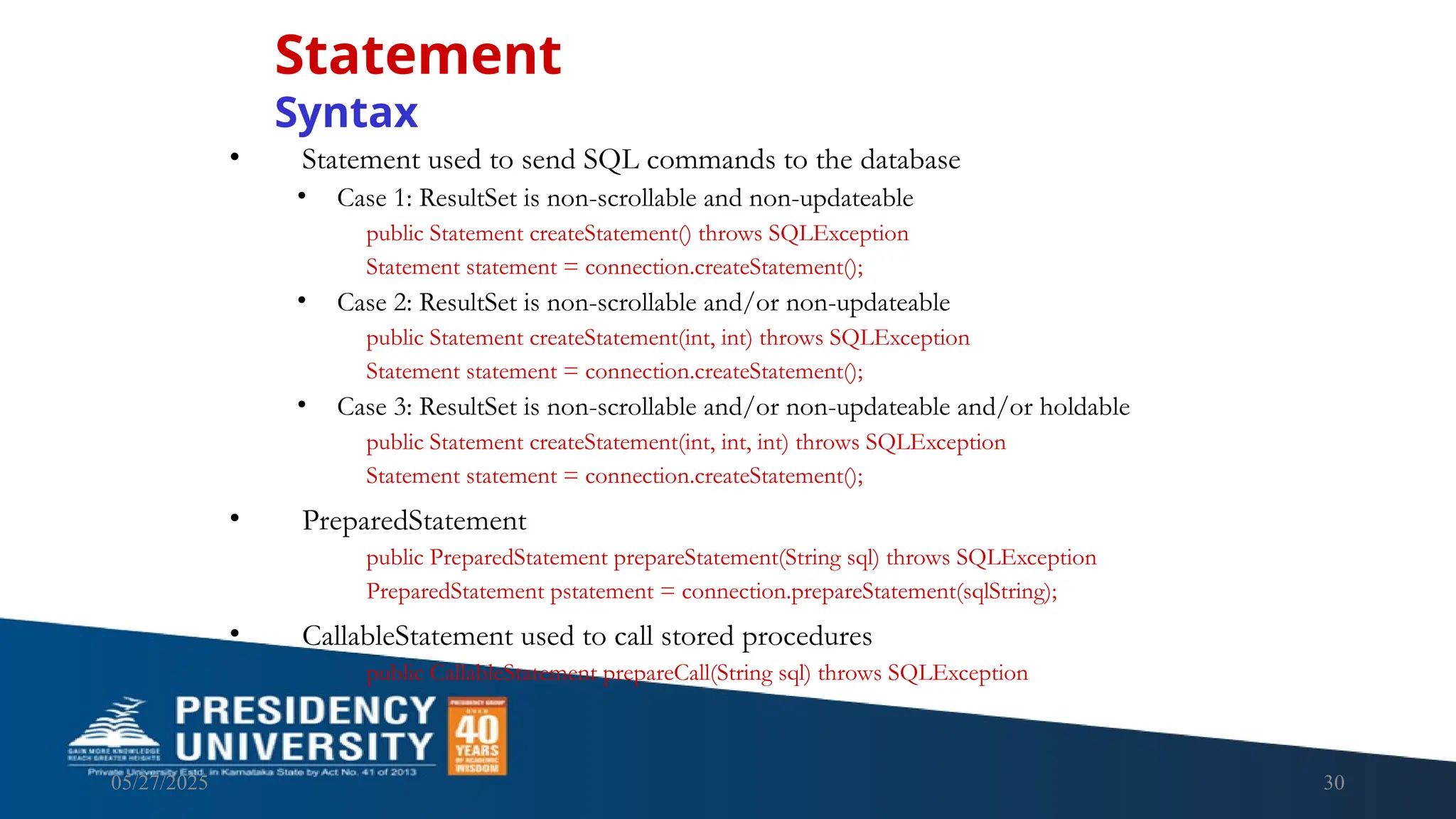

05/27/2025 30 • Statement used to send SQL commands to the database • Case 1: ResultSet is non-scrollable and non-updateable public Statement createStatement() throws SQLException Statement statement = connection.createStatement(); • Case 2: ResultSet is non-scrollable and/or non-updateable public Statement createStatement(int, int) throws SQLException Statement statement = connection.createStatement(); • Case 3: ResultSet is non-scrollable and/or non-updateable and/or holdable public Statement createStatement(int, int, int) throws SQLException Statement statement = connection.createStatement(); • PreparedStatement public PreparedStatement prepareStatement(String sql) throws SQLException PreparedStatement pstatement = connection.prepareStatement(sqlString); • CallableStatement used to call stored procedures public CallableStatement prepareCall(String sql) throws SQLException Statement Syntax

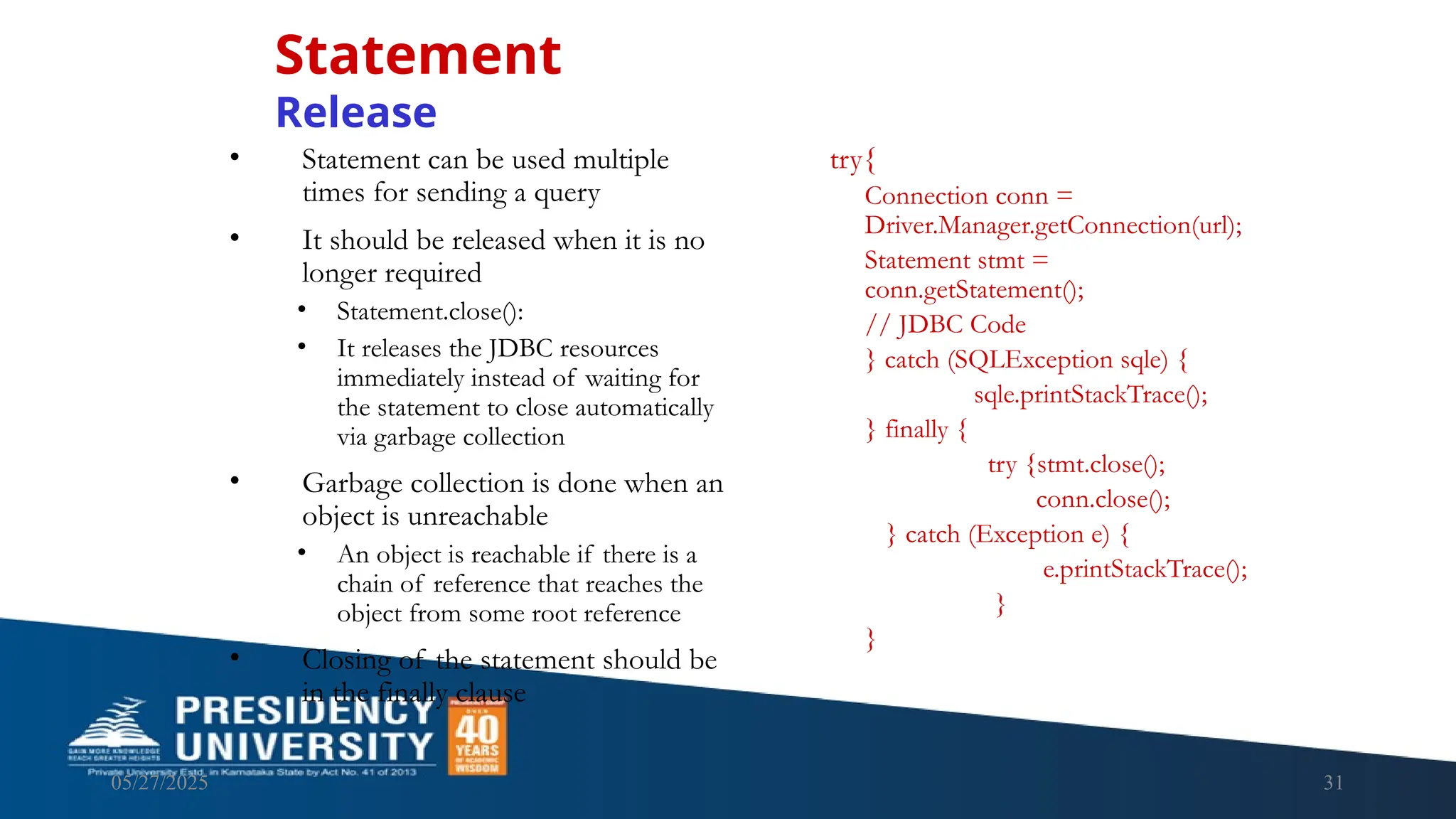

05/27/2025 31 • Statement can be used multiple times for sending a query • It should be released when it is no longer required • Statement.close(): • It releases the JDBC resources immediately instead of waiting for the statement to close automatically via garbage collection • Garbage collection is done when an object is unreachable • An object is reachable if there is a chain of reference that reaches the object from some root reference • Closing of the statement should be in the finally clause Statement Release try{ Connection conn = Driver.Manager.getConnection(url); Statement stmt = conn.getStatement(); // JDBC Code } catch (SQLException sqle) { sqle.printStackTrace(); } finally { try {stmt.close(); conn.close(); } catch (Exception e) { e.printStackTrace(); } }

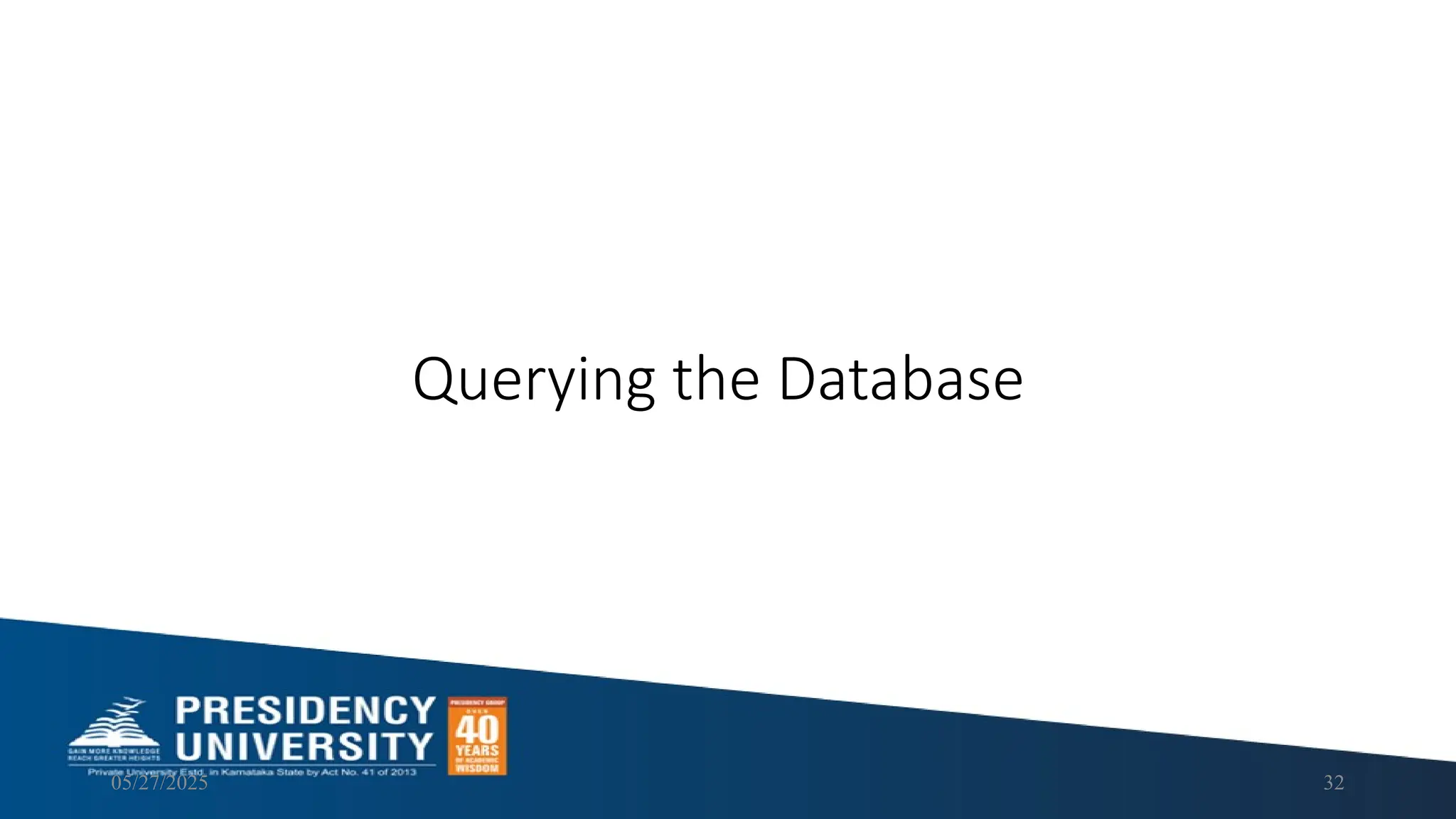

05/27/2025 32 Querying the Database

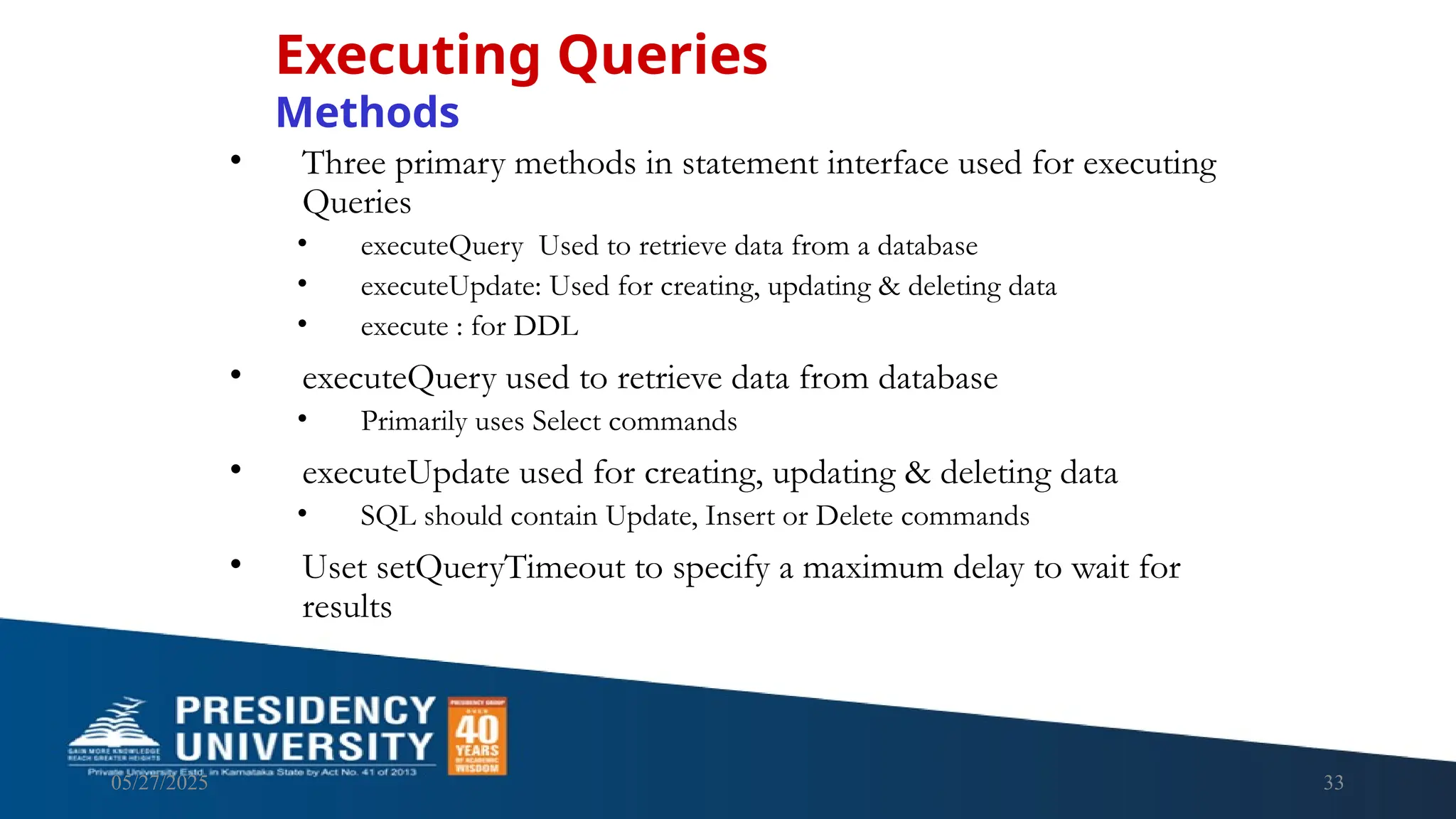

05/27/2025 33 • Three primary methods in statement interface used for executing Queries • executeQuery Used to retrieve data from a database • executeUpdate: Used for creating, updating & deleting data • execute : for DDL • executeQuery used to retrieve data from database • Primarily uses Select commands • executeUpdate used for creating, updating & deleting data • SQL should contain Update, Insert or Delete commands • Uset setQueryTimeout to specify a maximum delay to wait for results Executing Queries Methods

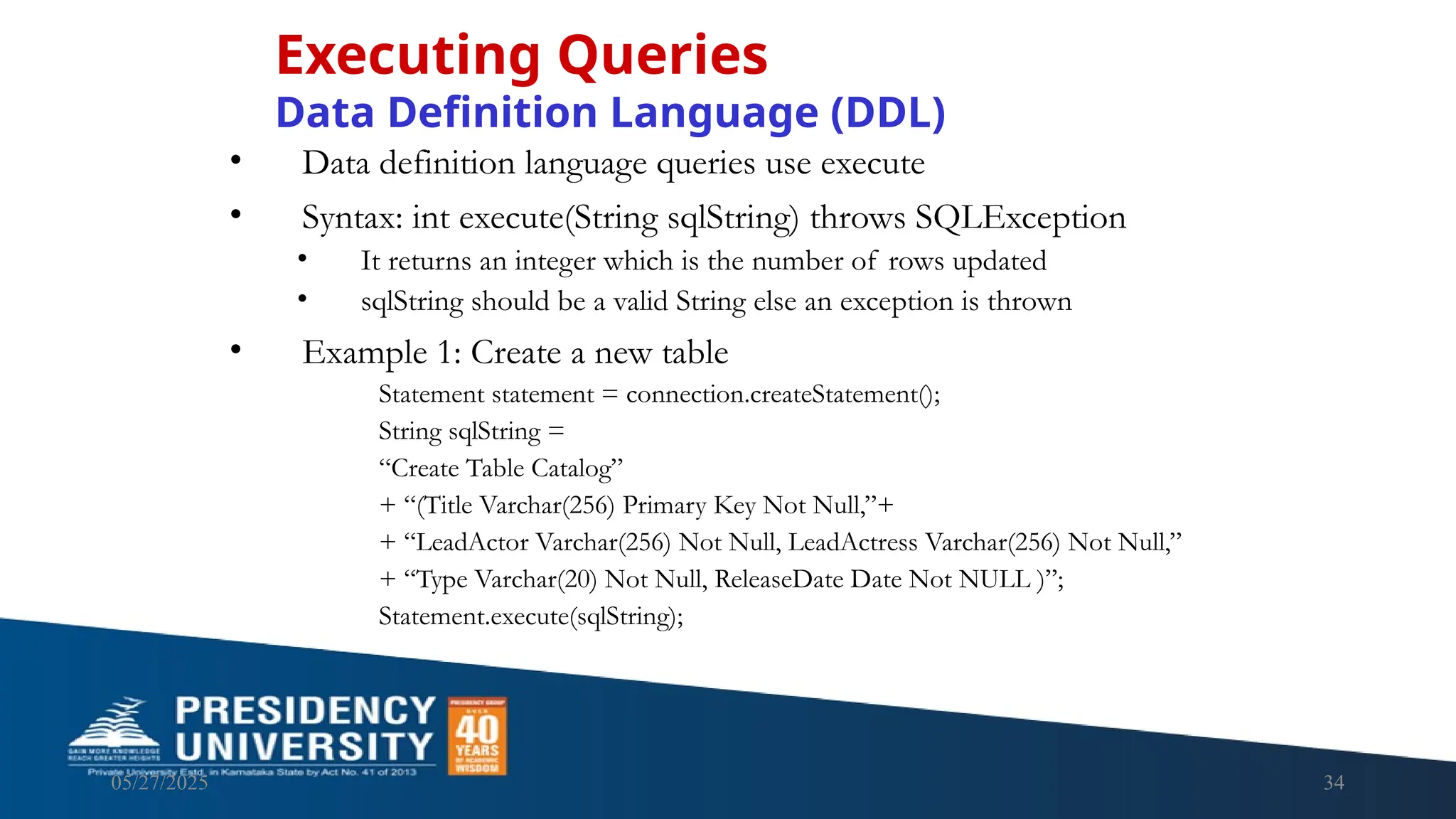

05/27/2025 34 • Data definition language queries use execute • Syntax: int execute(String sqlString) throws SQLException • It returns an integer which is the number of rows updated • sqlString should be a valid String else an exception is thrown • Example 1: Create a new table Statement statement = connection.createStatement(); String sqlString = “Create Table Catalog” + “(Title Varchar(256) Primary Key Not Null,”+ + “LeadActor Varchar(256) Not Null, LeadActress Varchar(256) Not Null,” + “Type Varchar(20) Not Null, ReleaseDate Date Not NULL )”; Statement.execute(sqlString); Executing Queries Data Definition Language (DDL)

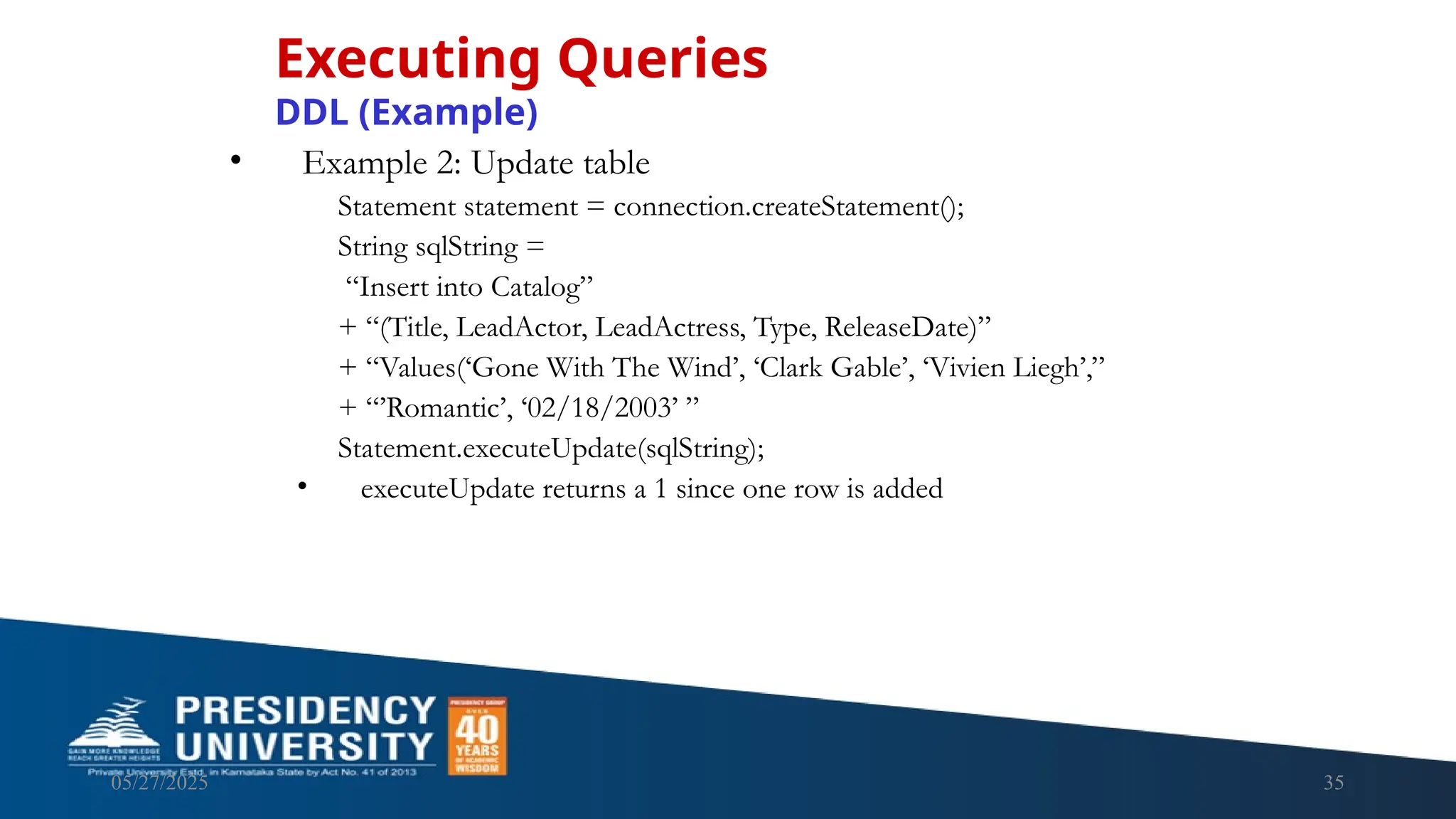

05/27/2025 35 • Example 2: Update table Statement statement = connection.createStatement(); String sqlString = “Insert into Catalog” + “(Title, LeadActor, LeadActress, Type, ReleaseDate)” + “Values(‘Gone With The Wind’, ‘Clark Gable’, ‘Vivien Liegh’,” + “’Romantic’, ‘02/18/2003’ ” Statement.executeUpdate(sqlString); • executeUpdate returns a 1 since one row is added Executing Queries DDL (Example)

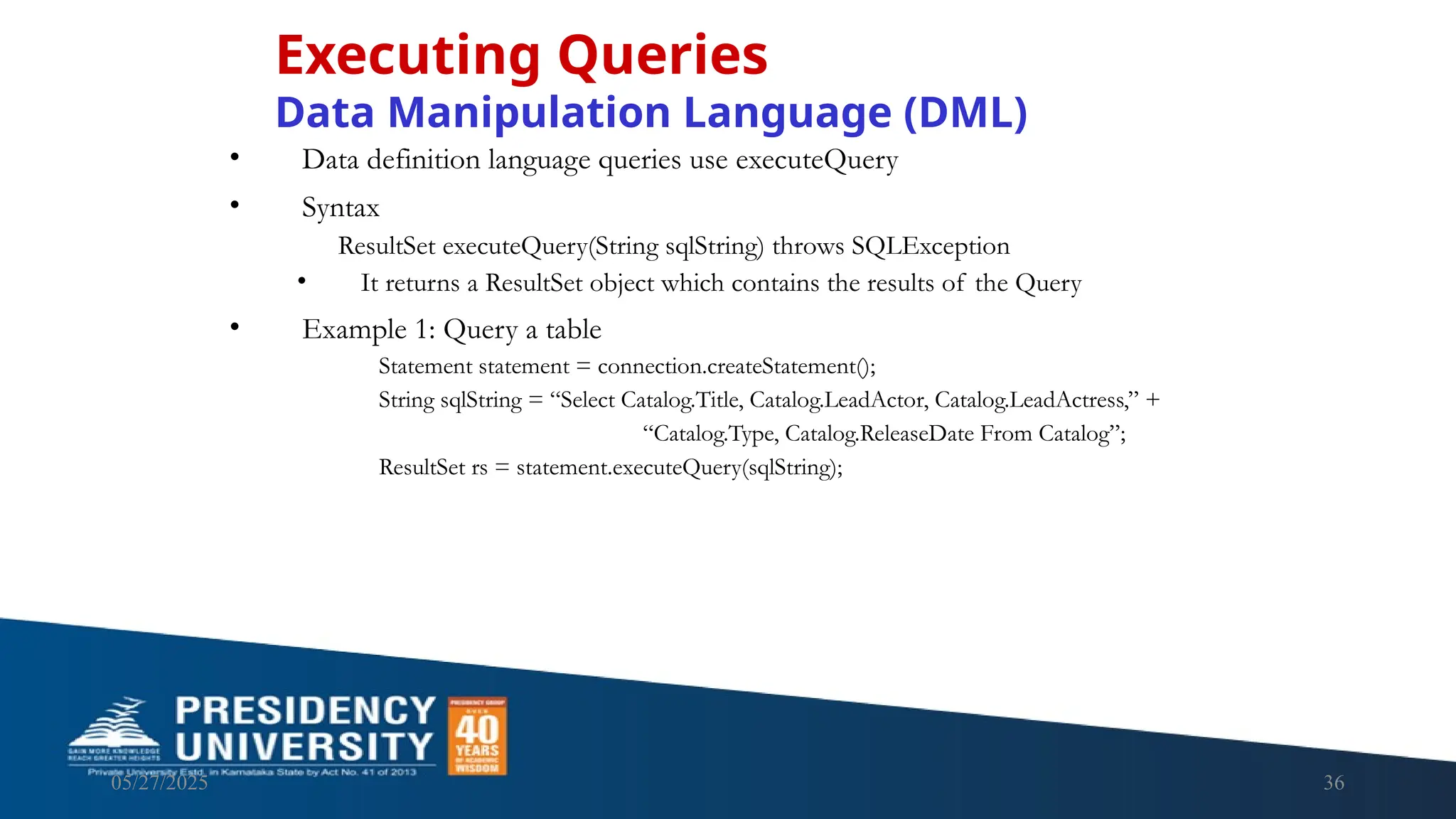

05/27/2025 36 • Data definition language queries use executeQuery • Syntax ResultSet executeQuery(String sqlString) throws SQLException • It returns a ResultSet object which contains the results of the Query • Example 1: Query a table Statement statement = connection.createStatement(); String sqlString = “Select Catalog.Title, Catalog.LeadActor, Catalog.LeadActress,” + “Catalog.Type, Catalog.ReleaseDate From Catalog”; ResultSet rs = statement.executeQuery(sqlString); Executing Queries Data Manipulation Language (DML)

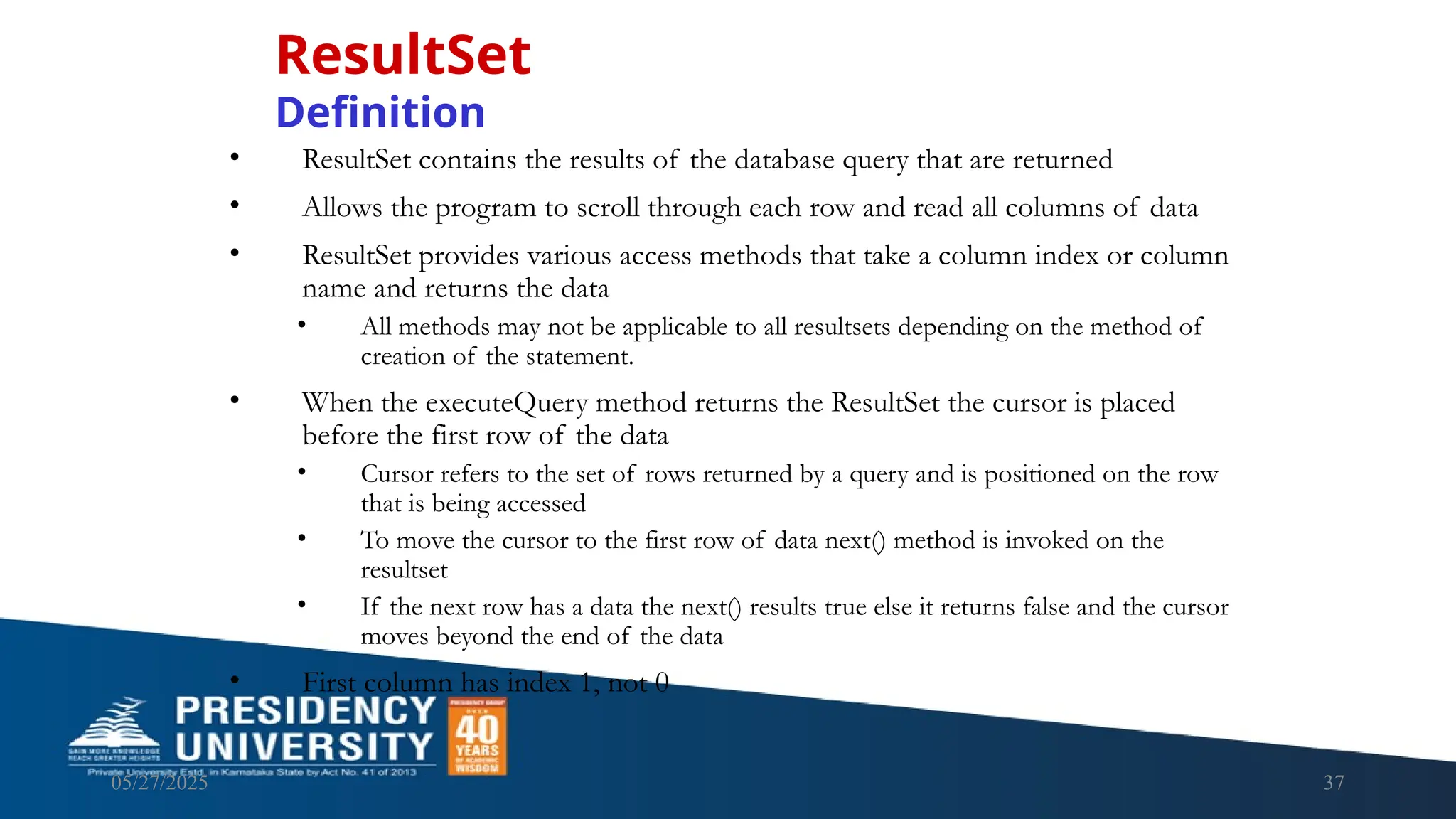

05/27/2025 37 • ResultSet contains the results of the database query that are returned • Allows the program to scroll through each row and read all columns of data • ResultSet provides various access methods that take a column index or column name and returns the data • All methods may not be applicable to all resultsets depending on the method of creation of the statement. • When the executeQuery method returns the ResultSet the cursor is placed before the first row of the data • Cursor refers to the set of rows returned by a query and is positioned on the row that is being accessed • To move the cursor to the first row of data next() method is invoked on the resultset • If the next row has a data the next() results true else it returns false and the cursor moves beyond the end of the data • First column has index 1, not 0 ResultSet Definition

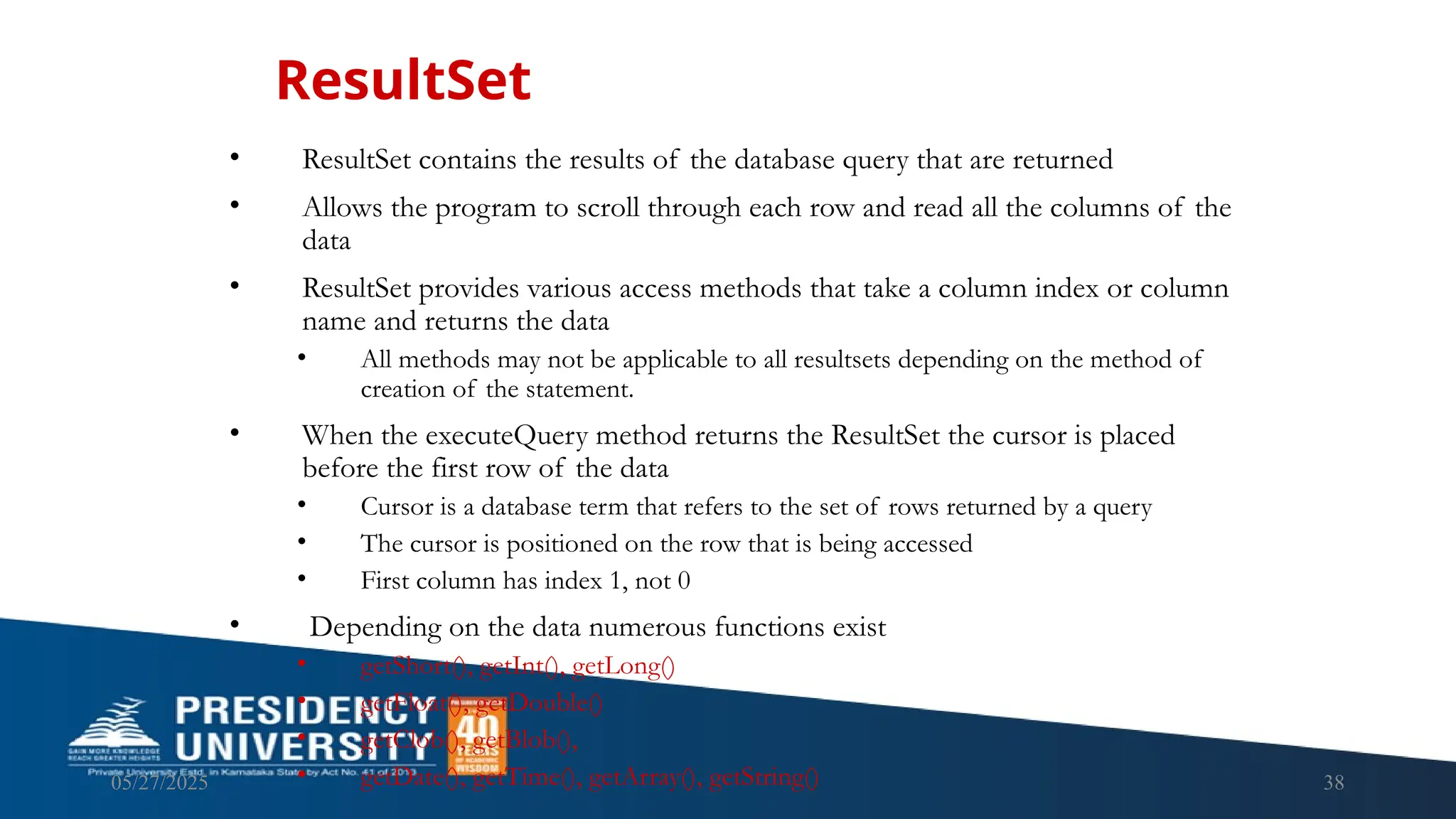

05/27/2025 38 • ResultSet contains the results of the database query that are returned • Allows the program to scroll through each row and read all the columns of the data • ResultSet provides various access methods that take a column index or column name and returns the data • All methods may not be applicable to all resultsets depending on the method of creation of the statement. • When the executeQuery method returns the ResultSet the cursor is placed before the first row of the data • Cursor is a database term that refers to the set of rows returned by a query • The cursor is positioned on the row that is being accessed • First column has index 1, not 0 • Depending on the data numerous functions exist • getShort(), getInt(), getLong() • getFloat(), getDouble() • getClob(), getBlob(), • getDate(), getTime(), getArray(), getString() ResultSet

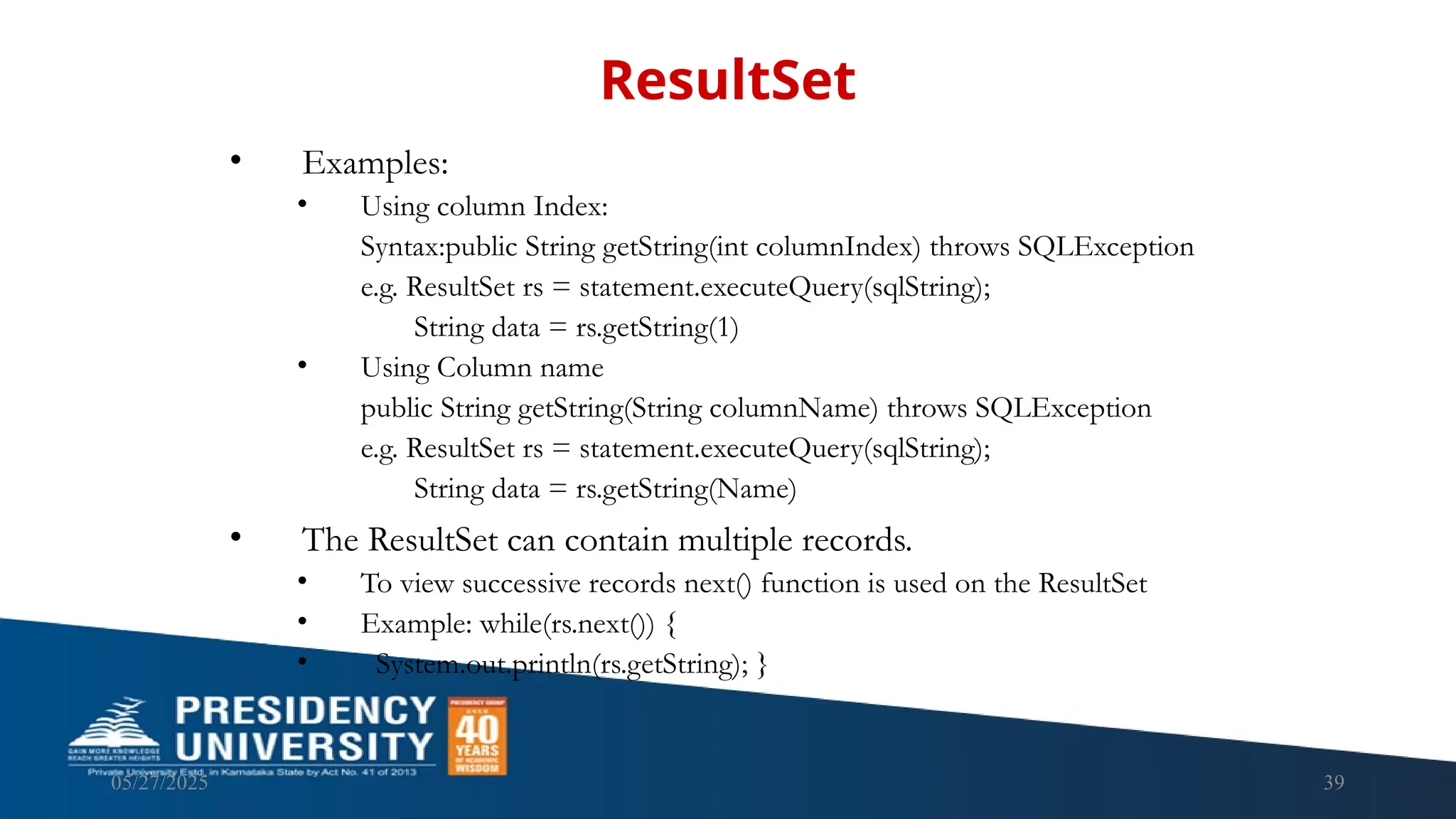

05/27/2025 39 • Examples: • Using column Index: Syntax:public String getString(int columnIndex) throws SQLException e.g. ResultSet rs = statement.executeQuery(sqlString); String data = rs.getString(1) • Using Column name public String getString(String columnName) throws SQLException e.g. ResultSet rs = statement.executeQuery(sqlString); String data = rs.getString(Name) • The ResultSet can contain multiple records. • To view successive records next() function is used on the ResultSet • Example: while(rs.next()) { • System.out.println(rs.getString); } ResultSet

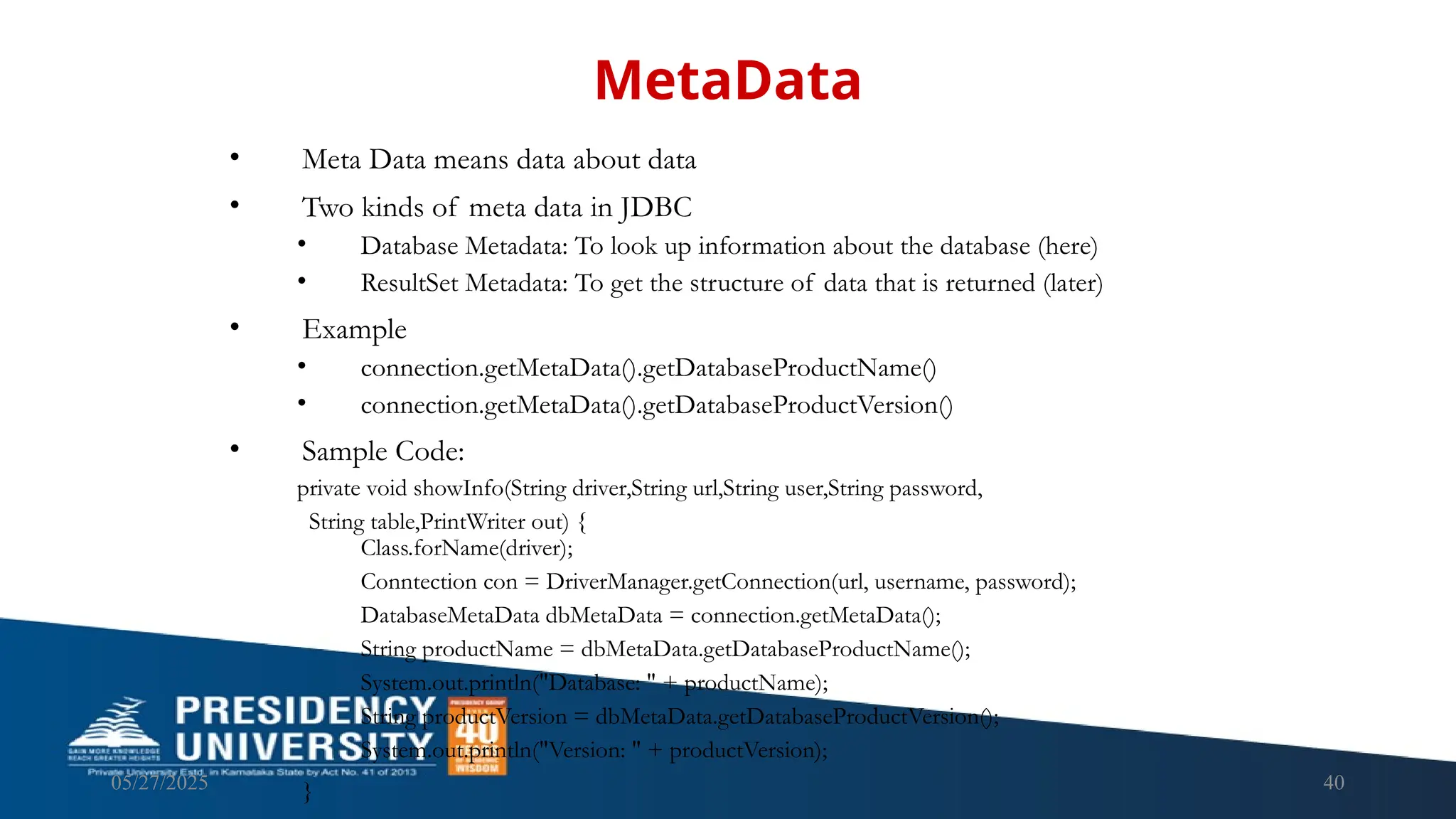

05/27/2025 40 • Meta Data means data about data • Two kinds of meta data in JDBC • Database Metadata: To look up information about the database (here) • ResultSet Metadata: To get the structure of data that is returned (later) • Example • connection.getMetaData().getDatabaseProductName() • connection.getMetaData().getDatabaseProductVersion() • Sample Code: private void showInfo(String driver,String url,String user,String password, String table,PrintWriter out) { Class.forName(driver); Conntection con = DriverManager.getConnection(url, username, password); DatabaseMetaData dbMetaData = connection.getMetaData(); String productName = dbMetaData.getDatabaseProductName(); System.out.println("Database: " + productName); String productVersion = dbMetaData.getDatabaseProductVersion(); System.out.println("Version: " + productVersion); } MetaData

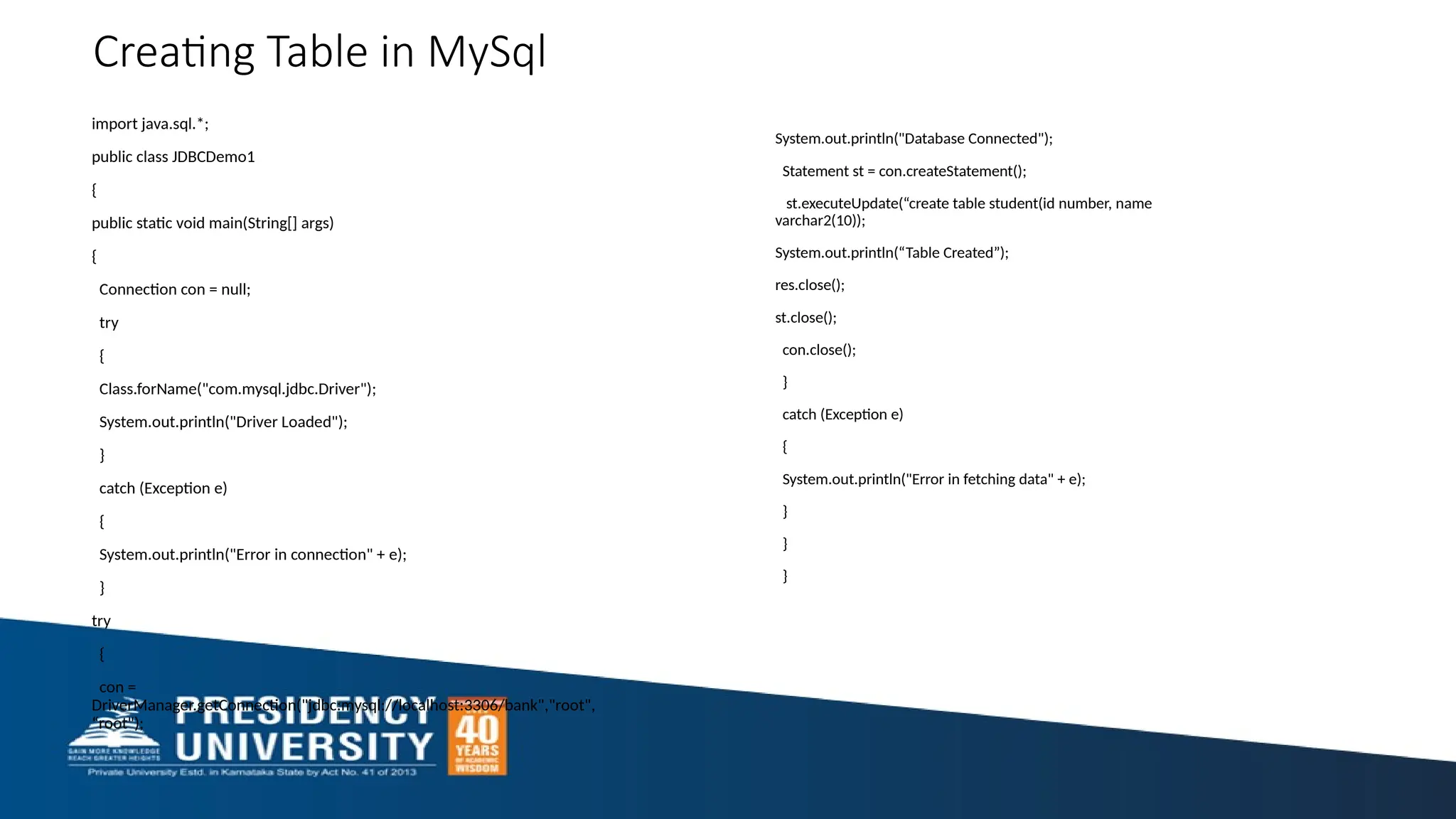

Creating Table in MySql import java.sql.*; public class JDBCDemo1 { public static void main(String[] args) { Connection con = null; try { Class.forName("com.mysql.jdbc.Driver"); System.out.println("Driver Loaded"); } catch (Exception e) { System.out.println("Error in connection" + e); } try { con = DriverManager.getConnection("jdbc:mysql://localhost:3306/bank","root", “root"); System.out.println("Database Connected"); Statement st = con.createStatement(); st.executeUpdate(“create table student(id number, name varchar2(10)); System.out.println(“Table Created”); res.close(); st.close(); con.close(); } catch (Exception e) { System.out.println("Error in fetching data" + e); } } }

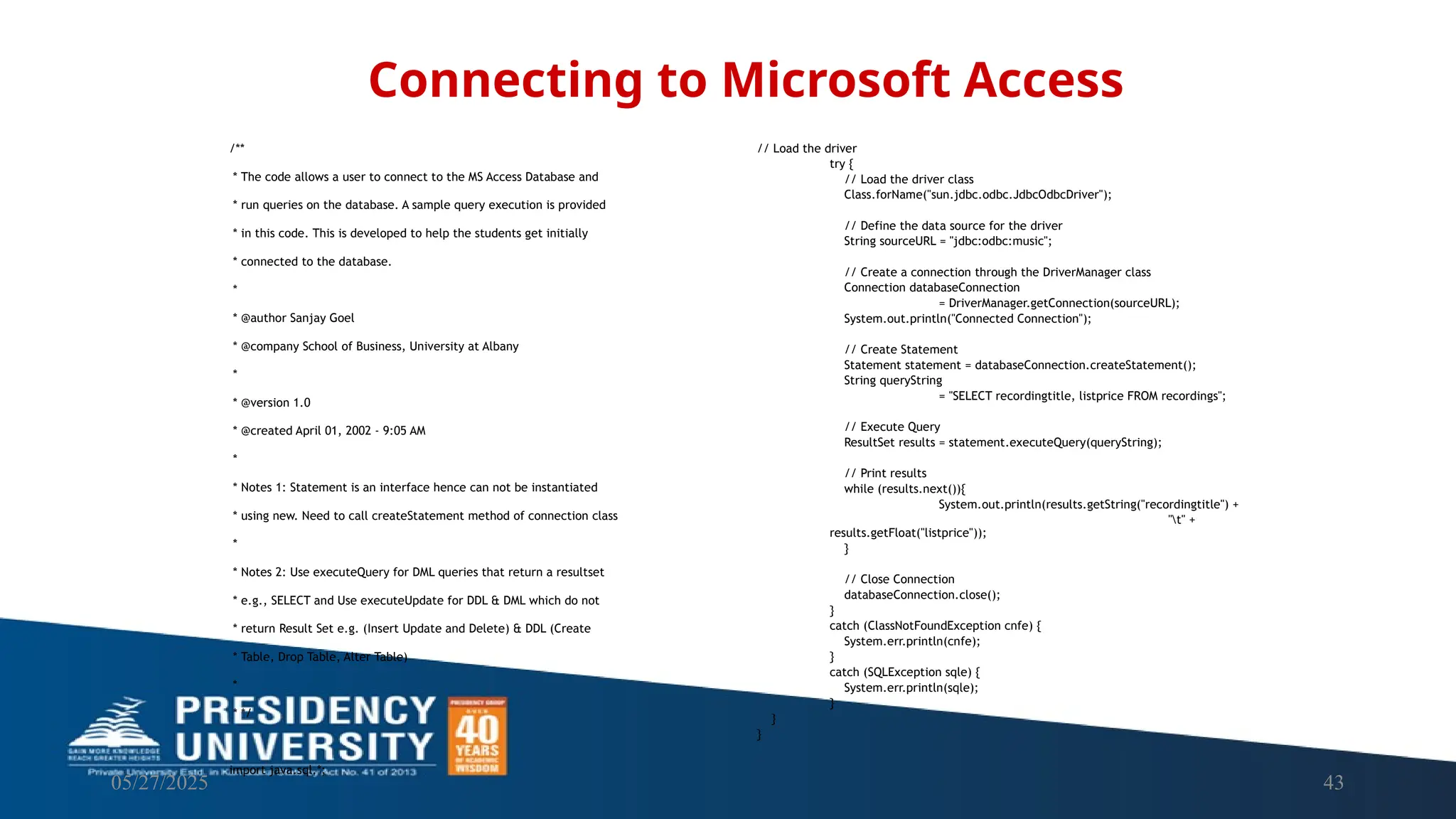

05/27/2025 43 /** * The code allows a user to connect to the MS Access Database and * run queries on the database. A sample query execution is provided * in this code. This is developed to help the students get initially * connected to the database. * * @author Sanjay Goel * @company School of Business, University at Albany * * @version 1.0 * @created April 01, 2002 - 9:05 AM * * Notes 1: Statement is an interface hence can not be instantiated * using new. Need to call createStatement method of connection class * * Notes 2: Use executeQuery for DML queries that return a resultset * e.g., SELECT and Use executeUpdate for DDL & DML which do not * return Result Set e.g. (Insert Update and Delete) & DDL (Create * Table, Drop Table, Alter Table) * * */ import java.sql.*; Connecting to Microsoft Access // Load the driver try { // Load the driver class Class.forName("sun.jdbc.odbc.JdbcOdbcDriver"); // Define the data source for the driver String sourceURL = "jdbc:odbc:music"; // Create a connection through the DriverManager class Connection databaseConnection = DriverManager.getConnection(sourceURL); System.out.println("Connected Connection"); // Create Statement Statement statement = databaseConnection.createStatement(); String queryString = "SELECT recordingtitle, listprice FROM recordings"; // Execute Query ResultSet results = statement.executeQuery(queryString); // Print results while (results.next()){ System.out.println(results.getString("recordingtitle") + "t" + results.getFloat("listprice")); } // Close Connection databaseConnection.close(); } catch (ClassNotFoundException cnfe) { System.err.println(cnfe); } catch (SQLException sqle) { System.err.println(sqle); } } }

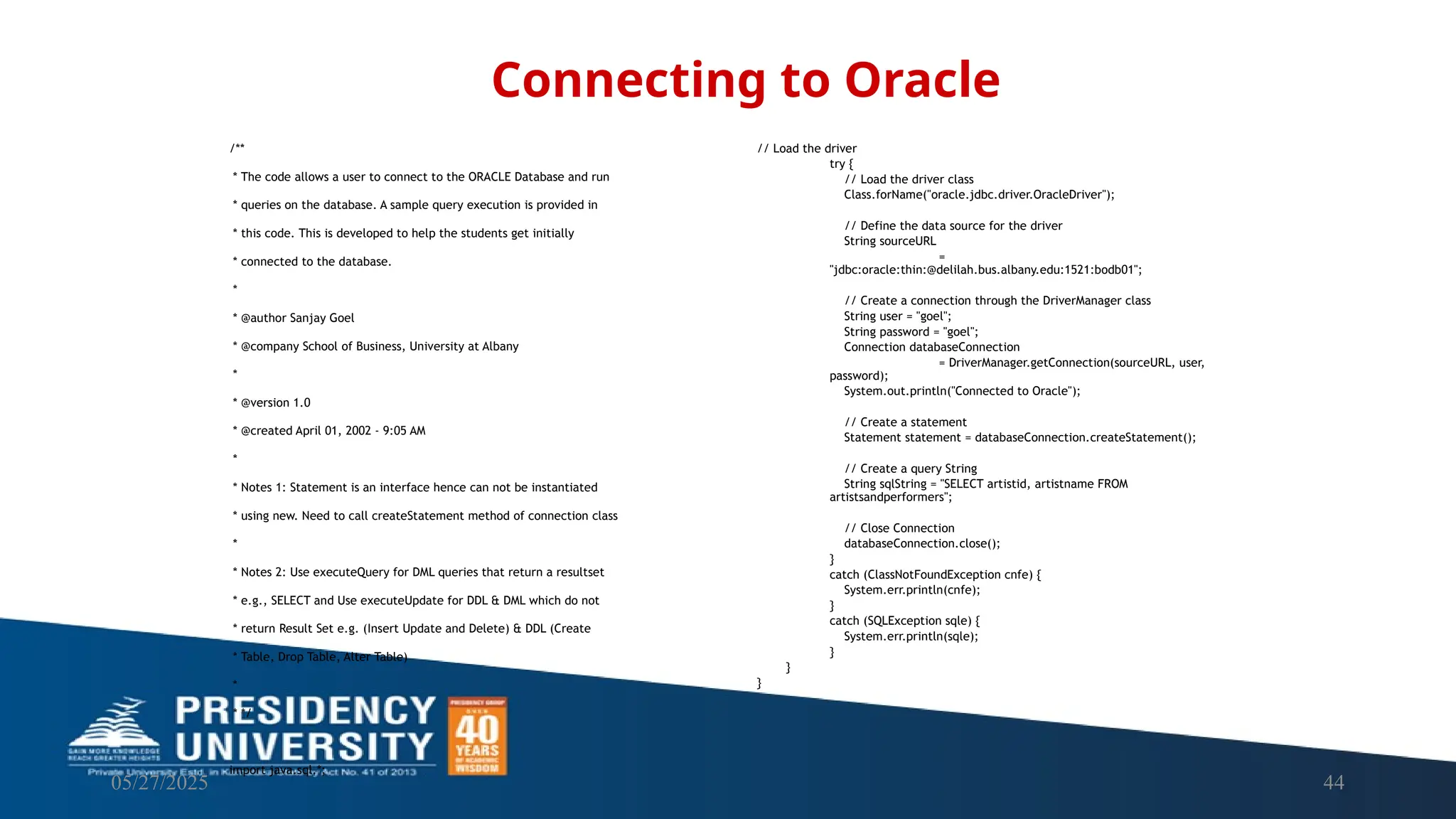

05/27/2025 44 /** * The code allows a user to connect to the ORACLE Database and run * queries on the database. A sample query execution is provided in * this code. This is developed to help the students get initially * connected to the database. * * @author Sanjay Goel * @company School of Business, University at Albany * * @version 1.0 * @created April 01, 2002 - 9:05 AM * * Notes 1: Statement is an interface hence can not be instantiated * using new. Need to call createStatement method of connection class * * Notes 2: Use executeQuery for DML queries that return a resultset * e.g., SELECT and Use executeUpdate for DDL & DML which do not * return Result Set e.g. (Insert Update and Delete) & DDL (Create * Table, Drop Table, Alter Table) * * */ import java.sql.*; Connecting to Oracle // Load the driver try { // Load the driver class Class.forName("oracle.jdbc.driver.OracleDriver"); // Define the data source for the driver String sourceURL = "jdbc:oracle:thin:@delilah.bus.albany.edu:1521:bodb01"; // Create a connection through the DriverManager class String user = "goel"; String password = "goel"; Connection databaseConnection = DriverManager.getConnection(sourceURL, user, password); System.out.println("Connected to Oracle"); // Create a statement Statement statement = databaseConnection.createStatement(); // Create a query String String sqlString = "SELECT artistid, artistname FROM artistsandperformers"; // Close Connection databaseConnection.close(); } catch (ClassNotFoundException cnfe) { System.err.println(cnfe); } catch (SQLException sqle) { System.err.println(sqle); } } }

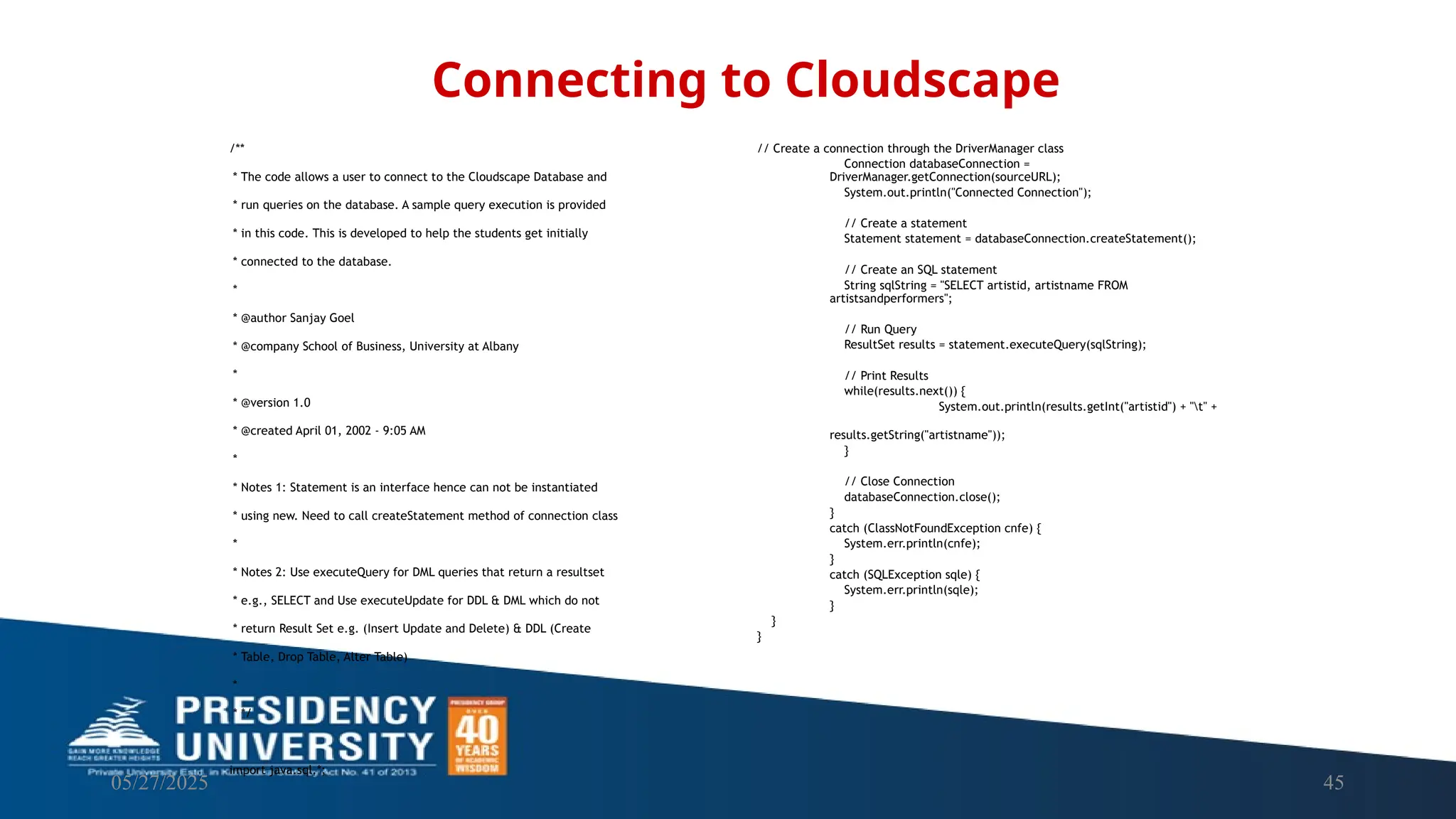

05/27/2025 45 /** * The code allows a user to connect to the Cloudscape Database and * run queries on the database. A sample query execution is provided * in this code. This is developed to help the students get initially * connected to the database. * * @author Sanjay Goel * @company School of Business, University at Albany * * @version 1.0 * @created April 01, 2002 - 9:05 AM * * Notes 1: Statement is an interface hence can not be instantiated * using new. Need to call createStatement method of connection class * * Notes 2: Use executeQuery for DML queries that return a resultset * e.g., SELECT and Use executeUpdate for DDL & DML which do not * return Result Set e.g. (Insert Update and Delete) & DDL (Create * Table, Drop Table, Alter Table) * * */ import java.sql.*; Connecting to Cloudscape // Create a connection through the DriverManager class Connection databaseConnection = DriverManager.getConnection(sourceURL); System.out.println("Connected Connection"); // Create a statement Statement statement = databaseConnection.createStatement(); // Create an SQL statement String sqlString = "SELECT artistid, artistname FROM artistsandperformers"; // Run Query ResultSet results = statement.executeQuery(sqlString); // Print Results while(results.next()) { System.out.println(results.getInt("artistid") + "t" + results.getString("artistname")); } // Close Connection databaseConnection.close(); } catch (ClassNotFoundException cnfe) { System.err.println(cnfe); } catch (SQLException sqle) { System.err.println(sqle); } } }

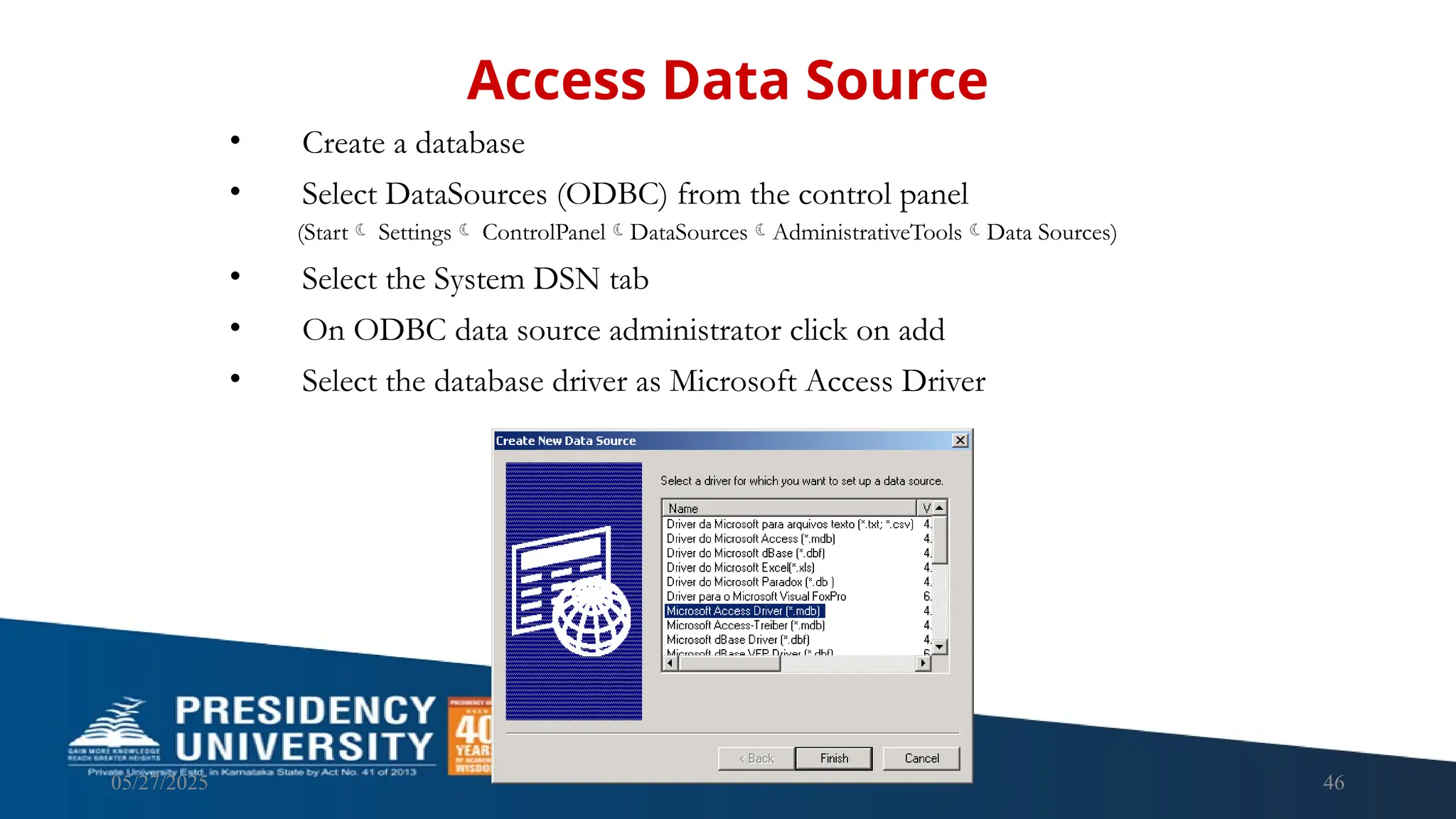

05/27/2025 46 • Create a database • Select DataSources (ODBC) from the control panel (Start Settings ControlPanelDataSourcesAdministrativeToolsData Sources) • Select the System DSN tab • On ODBC data source administrator click on add • Select the database driver as Microsoft Access Driver Access Data Source

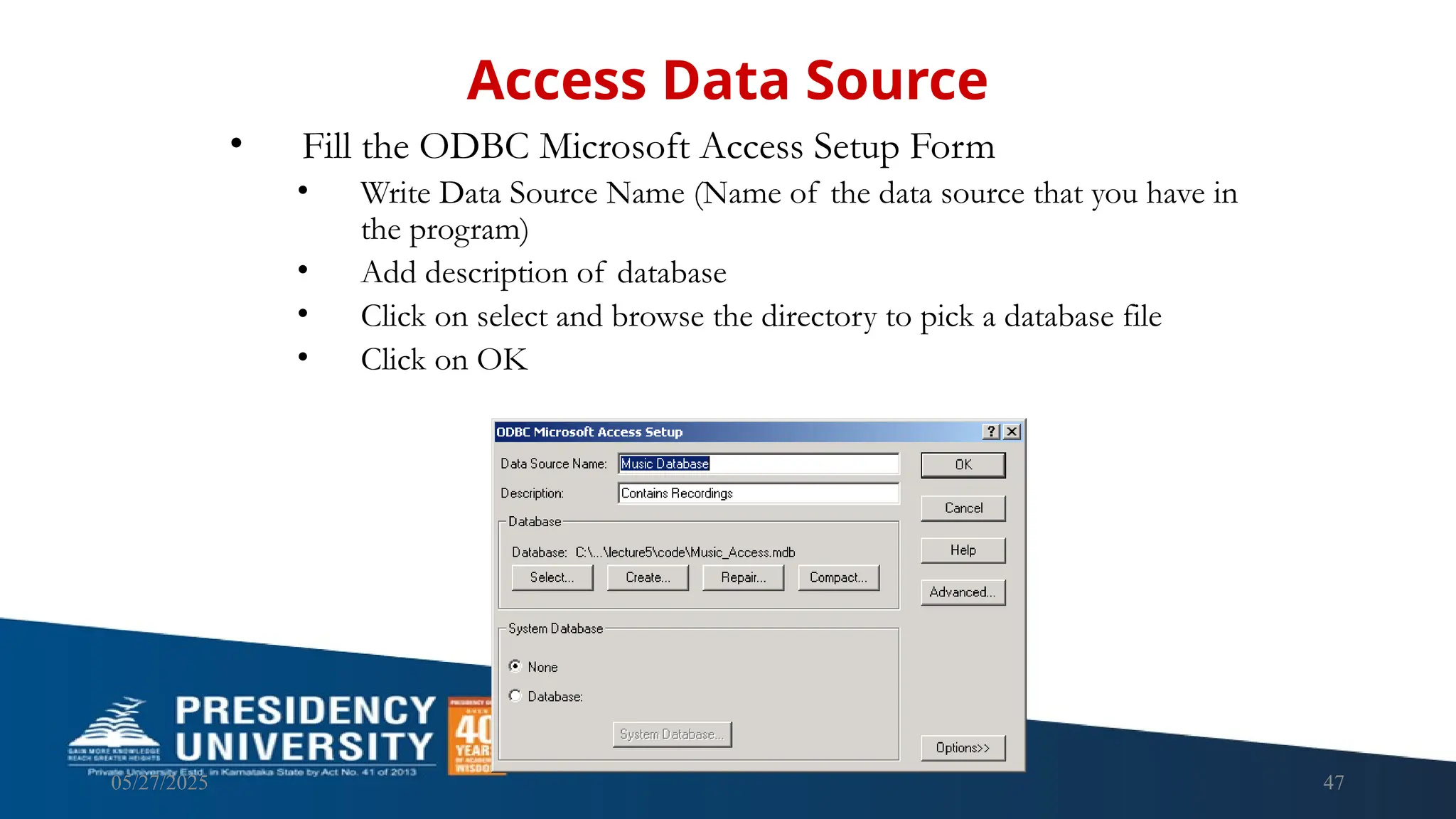

05/27/2025 47 • Fill the ODBC Microsoft Access Setup Form • Write Data Source Name (Name of the data source that you have in the program) • Add description of database • Click on select and browse the directory to pick a database file • Click on OK Access Data Source

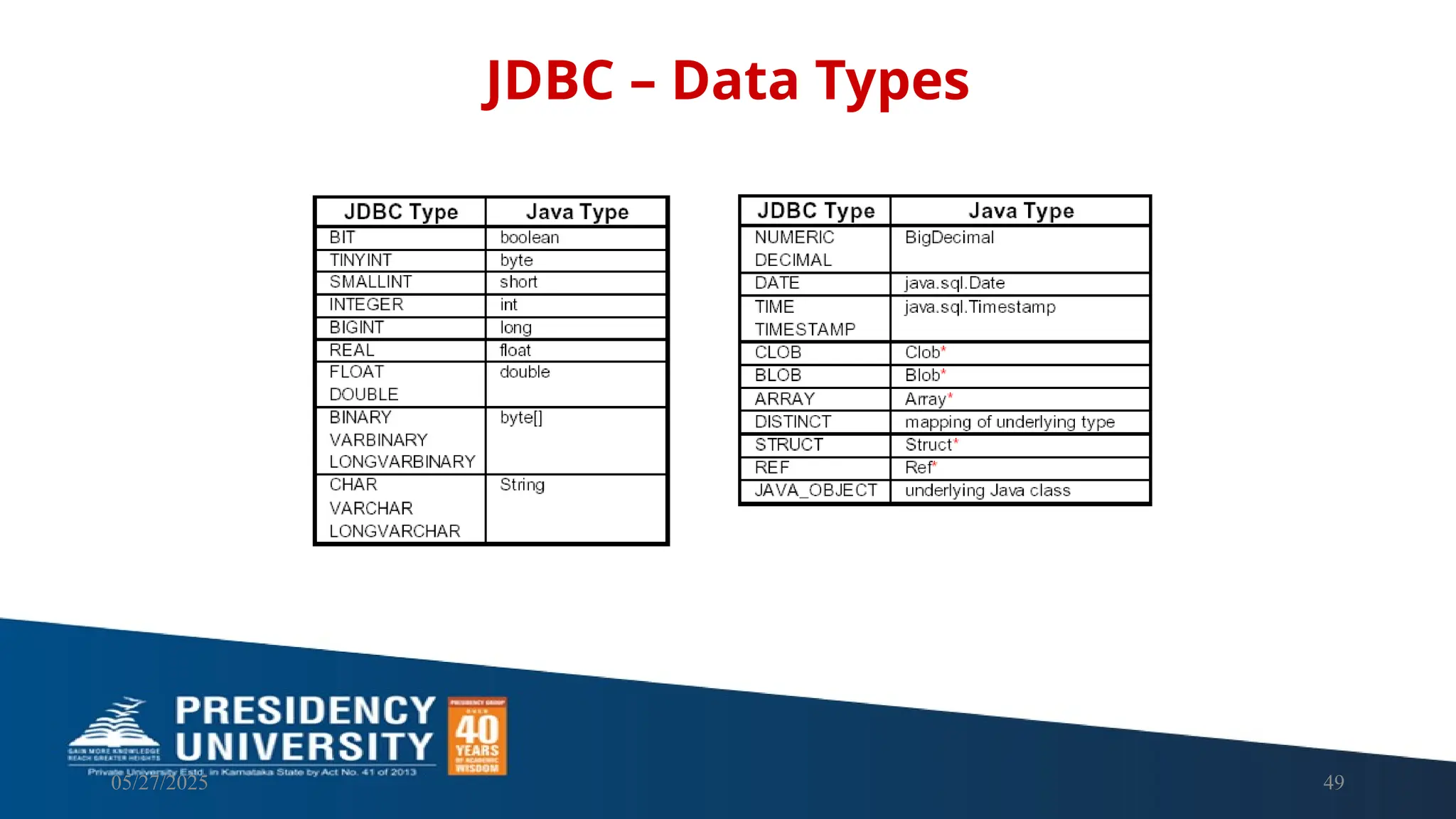

05/27/2025 49 JDBC – Data Types

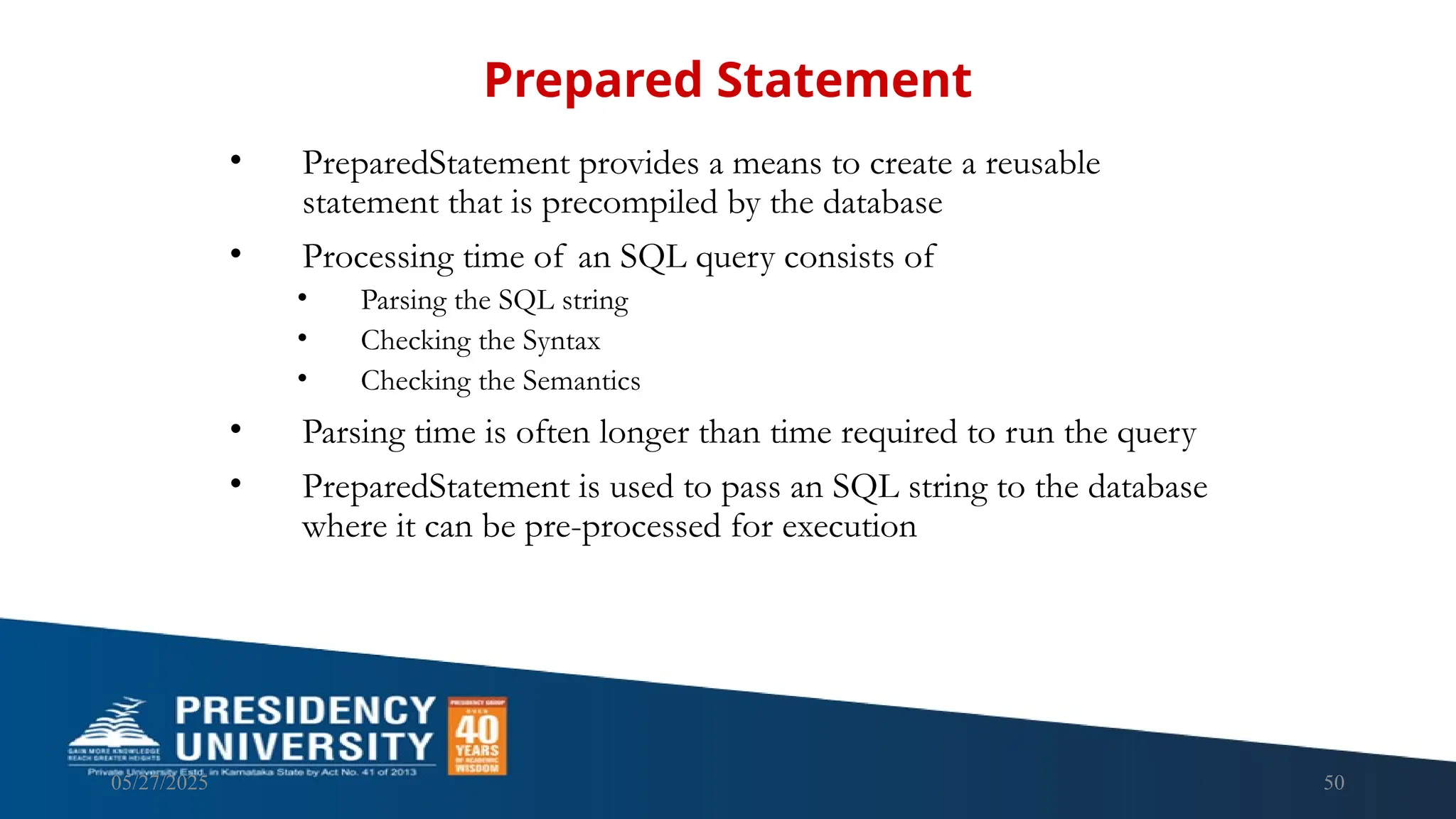

05/27/2025 50 • PreparedStatement provides a means to create a reusable statement that is precompiled by the database • Processing time of an SQL query consists of • Parsing the SQL string • Checking the Syntax • Checking the Semantics • Parsing time is often longer than time required to run the query • PreparedStatement is used to pass an SQL string to the database where it can be pre-processed for execution Prepared Statement

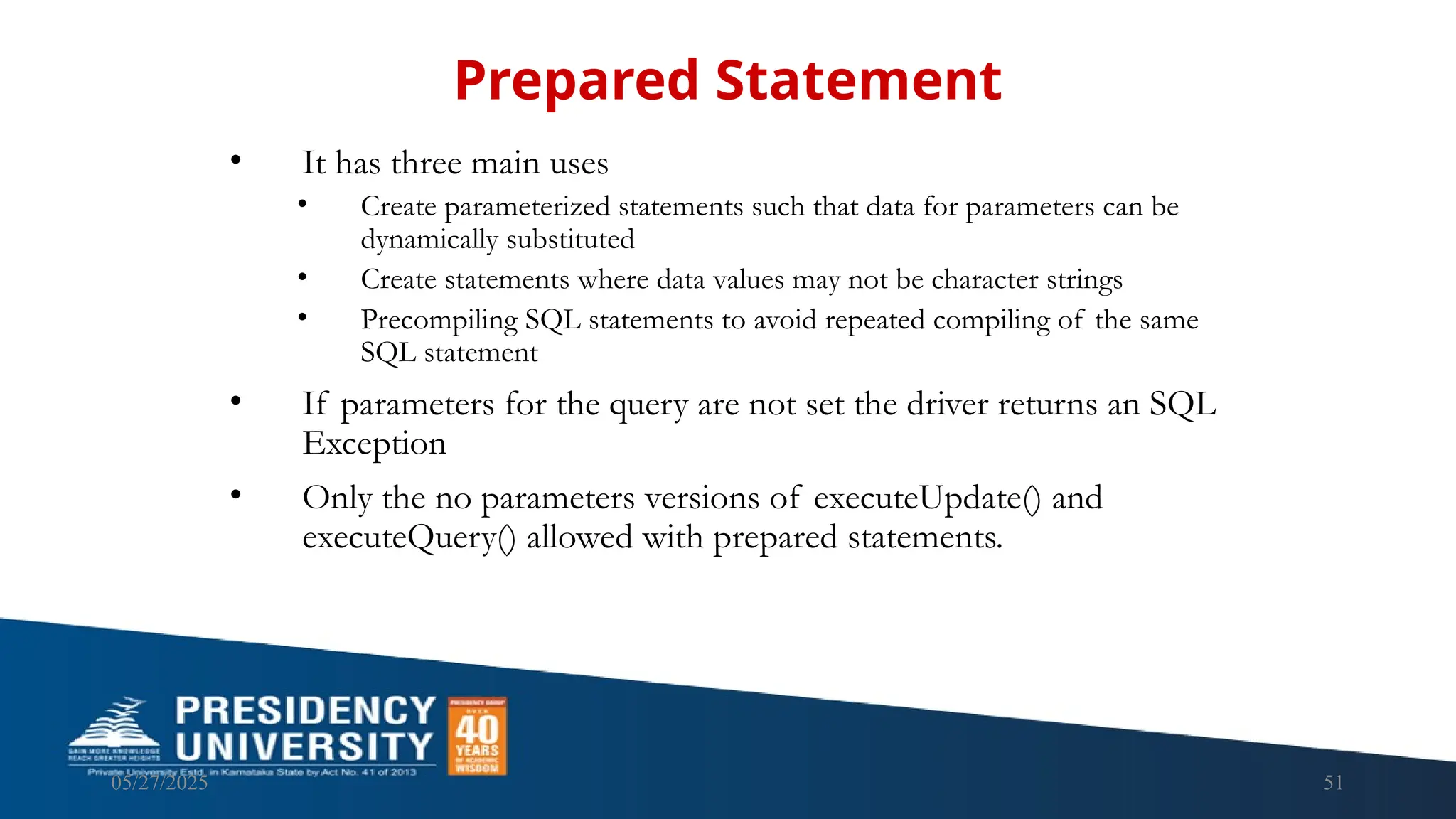

05/27/2025 51 • It has three main uses • Create parameterized statements such that data for parameters can be dynamically substituted • Create statements where data values may not be character strings • Precompiling SQL statements to avoid repeated compiling of the same SQL statement • If parameters for the query are not set the driver returns an SQL Exception • Only the no parameters versions of executeUpdate() and executeQuery() allowed with prepared statements. Prepared Statement

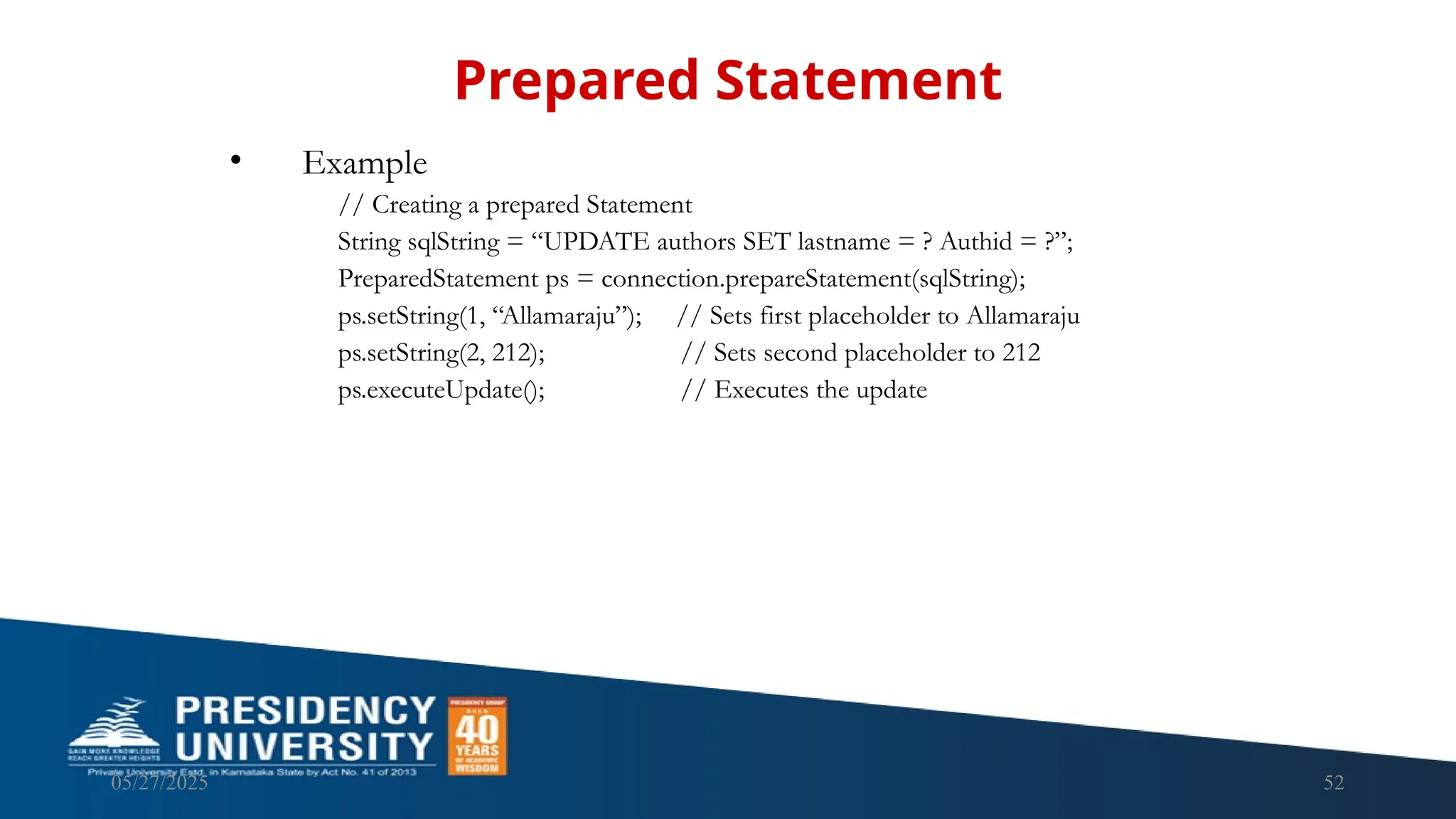

05/27/2025 52 • Example // Creating a prepared Statement String sqlString = “UPDATE authors SET lastname = ? Authid = ?”; PreparedStatement ps = connection.prepareStatement(sqlString); ps.setString(1, “Allamaraju”); // Sets first placeholder to Allamaraju ps.setString(2, 212); // Sets second placeholder to 212 ps.executeUpdate(); // Executes the update Prepared Statement

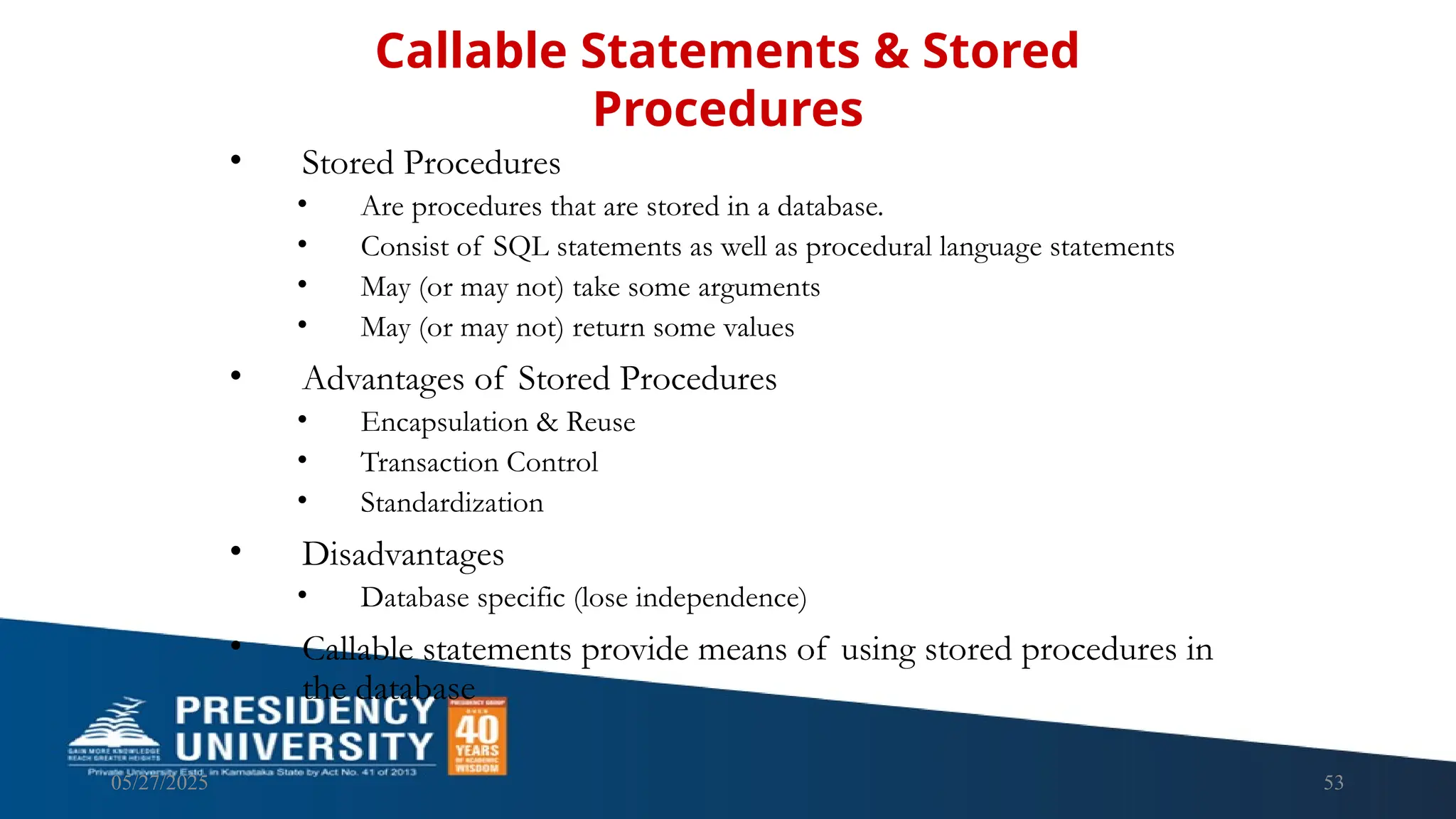

05/27/2025 53 • Stored Procedures • Are procedures that are stored in a database. • Consist of SQL statements as well as procedural language statements • May (or may not) take some arguments • May (or may not) return some values • Advantages of Stored Procedures • Encapsulation & Reuse • Transaction Control • Standardization • Disadvantages • Database specific (lose independence) • Callable statements provide means of using stored procedures in the database Callable Statements & Stored Procedures

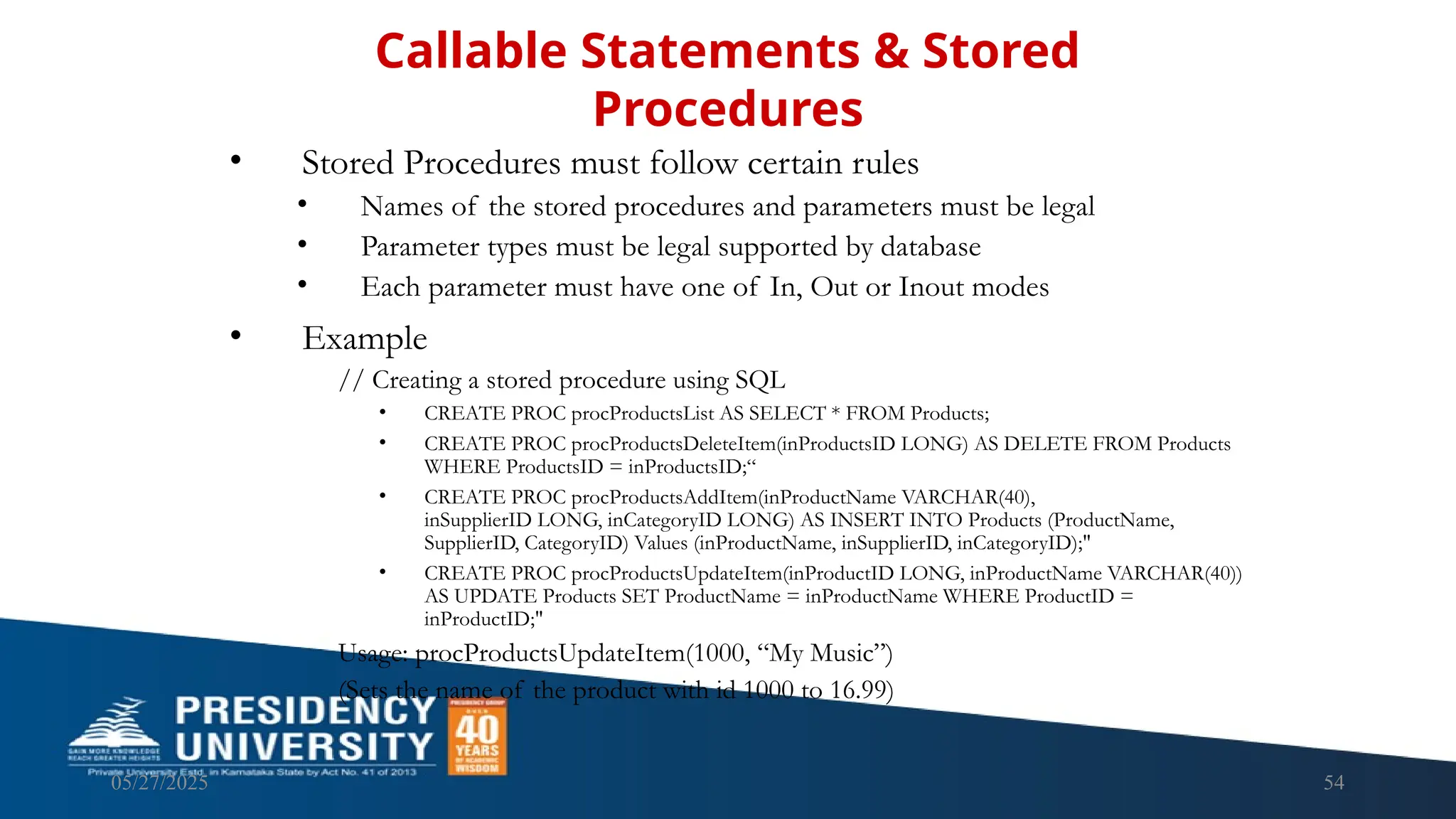

05/27/2025 54 • Stored Procedures must follow certain rules • Names of the stored procedures and parameters must be legal • Parameter types must be legal supported by database • Each parameter must have one of In, Out or Inout modes • Example // Creating a stored procedure using SQL • CREATE PROC procProductsList AS SELECT * FROM Products; • CREATE PROC procProductsDeleteItem(inProductsID LONG) AS DELETE FROM Products WHERE ProductsID = inProductsID;“ • CREATE PROC procProductsAddItem(inProductName VARCHAR(40), inSupplierID LONG, inCategoryID LONG) AS INSERT INTO Products (ProductName, SupplierID, CategoryID) Values (inProductName, inSupplierID, inCategoryID);" • CREATE PROC procProductsUpdateItem(inProductID LONG, inProductName VARCHAR(40)) AS UPDATE Products SET ProductName = inProductName WHERE ProductID = inProductID;" Usage: procProductsUpdateItem(1000, “My Music”) (Sets the name of the product with id 1000 to 16.99) Callable Statements & Stored Procedures
