Mircoservices, dev ops and Engineering best practices at Wix.com

@aviranm Aviran Mordo Head of Microservices, DevOps & Engineering at Wix.com www.linkedin.com/in/aviran @aviranm http://www.aviransplace.com

@aviranm Wix In Numbers Over 87M users Static storage is >2Pb of data 3 data centers + 2 clouds (Google, Amazon) 2B HTTP requests/day 1200 people work at Wix

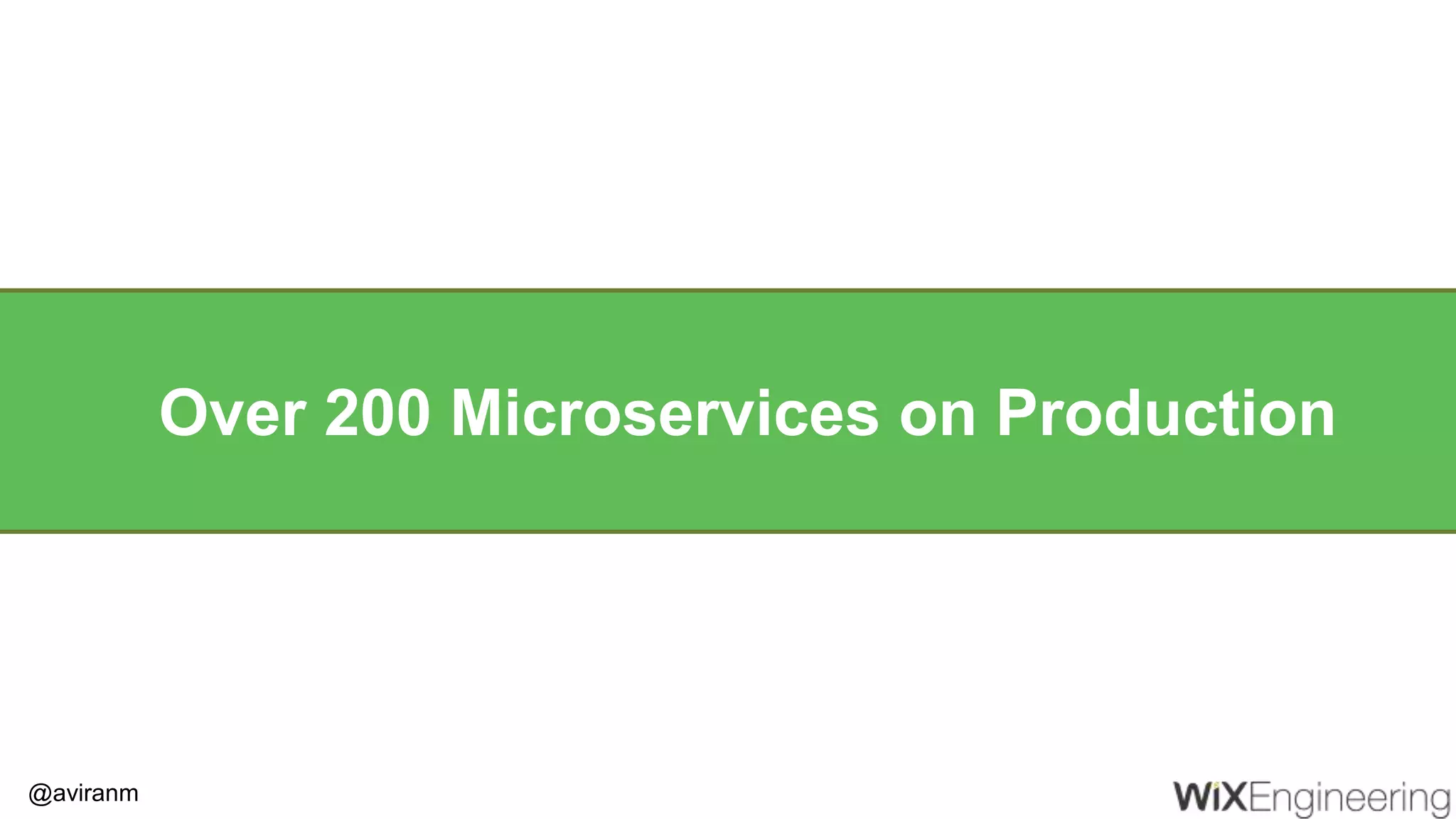

@aviranm Over 200 Microservices on Production

@aviranm Microservices - What Does it Take

@aviranm How to Get There? (Wix’s journey) http://gpstrackit.com/wp-content/uploads/2013/11/VanishingPointwRoadSigns.jpg

@aviranmhttp://p1.pichost.me/i/11/1339236.jpg About 6 years ago

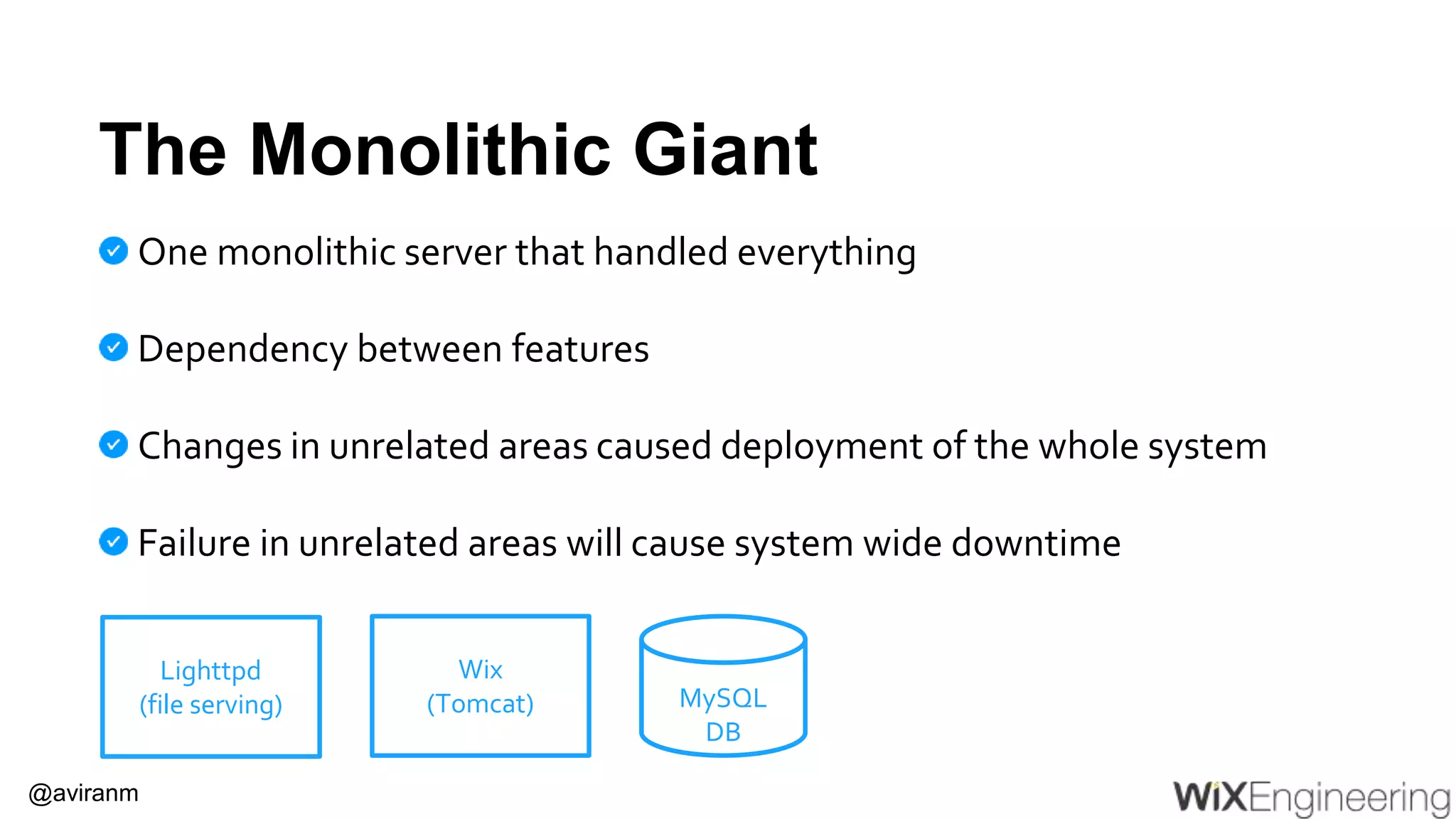

@aviranm The Monolithic Giant One monolithic server that handled everything Dependency between features Changes in unrelated areas caused deployment of the whole system Failure in unrelated areas will cause system wide downtime Lighttpd (file serving) MySQL DB Wix (Tomcat)

@aviranm Breaking the System Apart https://upload.wikimedia.org/wikipedia/commons/6/67/Broken_glass.jpg

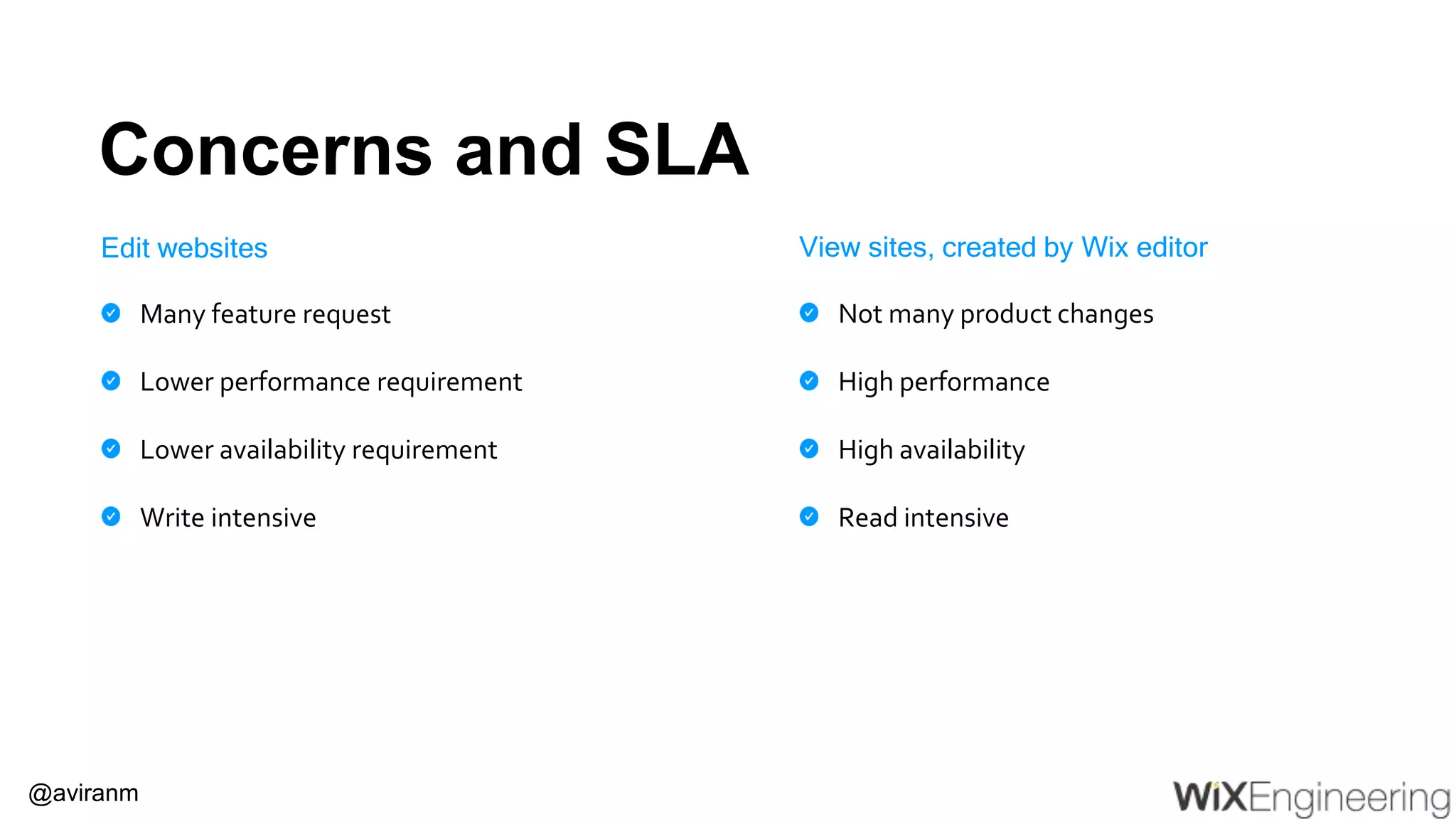

@aviranm Concerns and SLA Many feature request Lower performance requirement Lower availability requirement Write intensive Edit websites Not many product changes High performance High availability Read intensive View sites, created by Wix editor

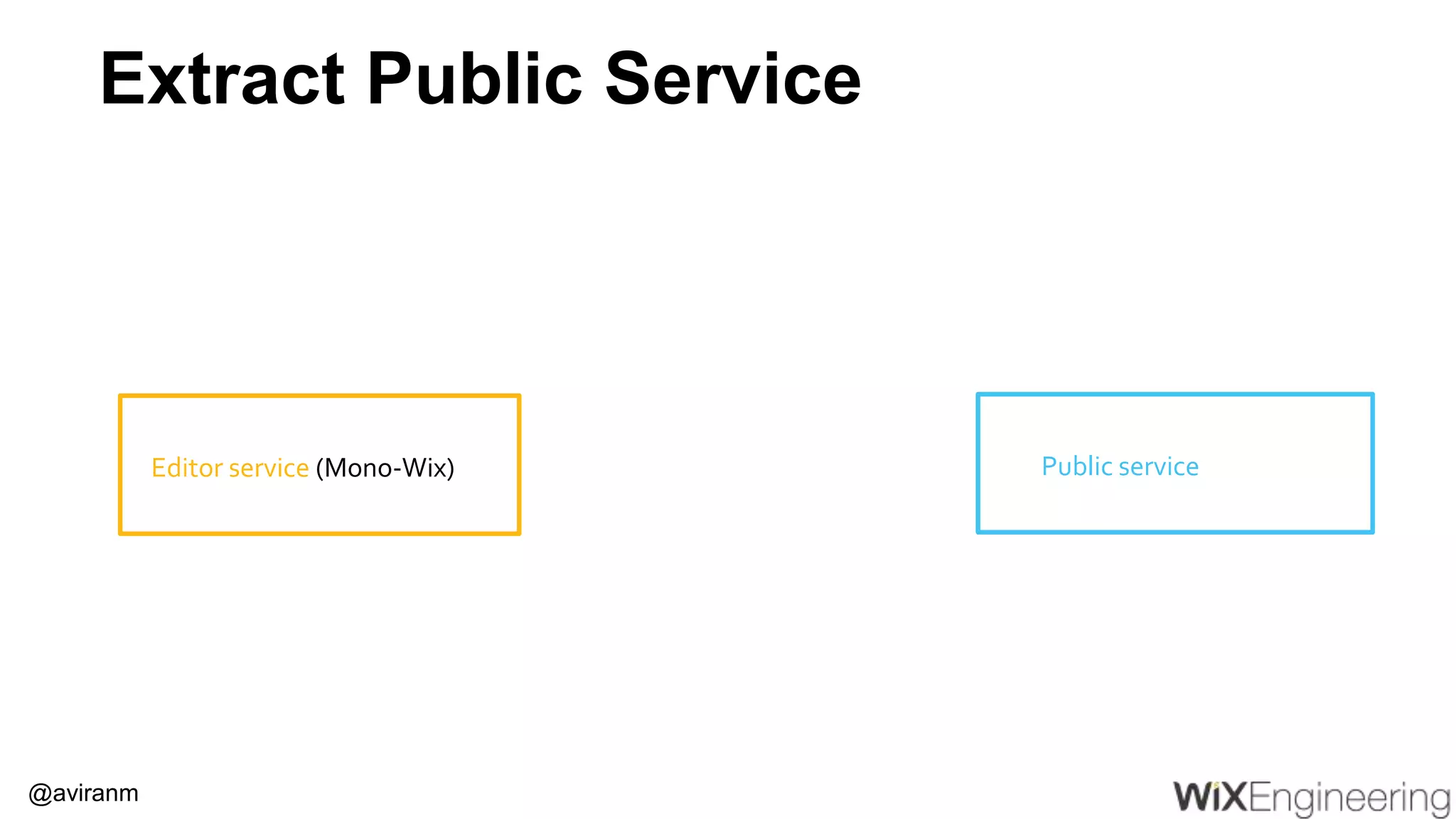

@aviranm Extract Public Service Editor service (Mono-Wix) Public service

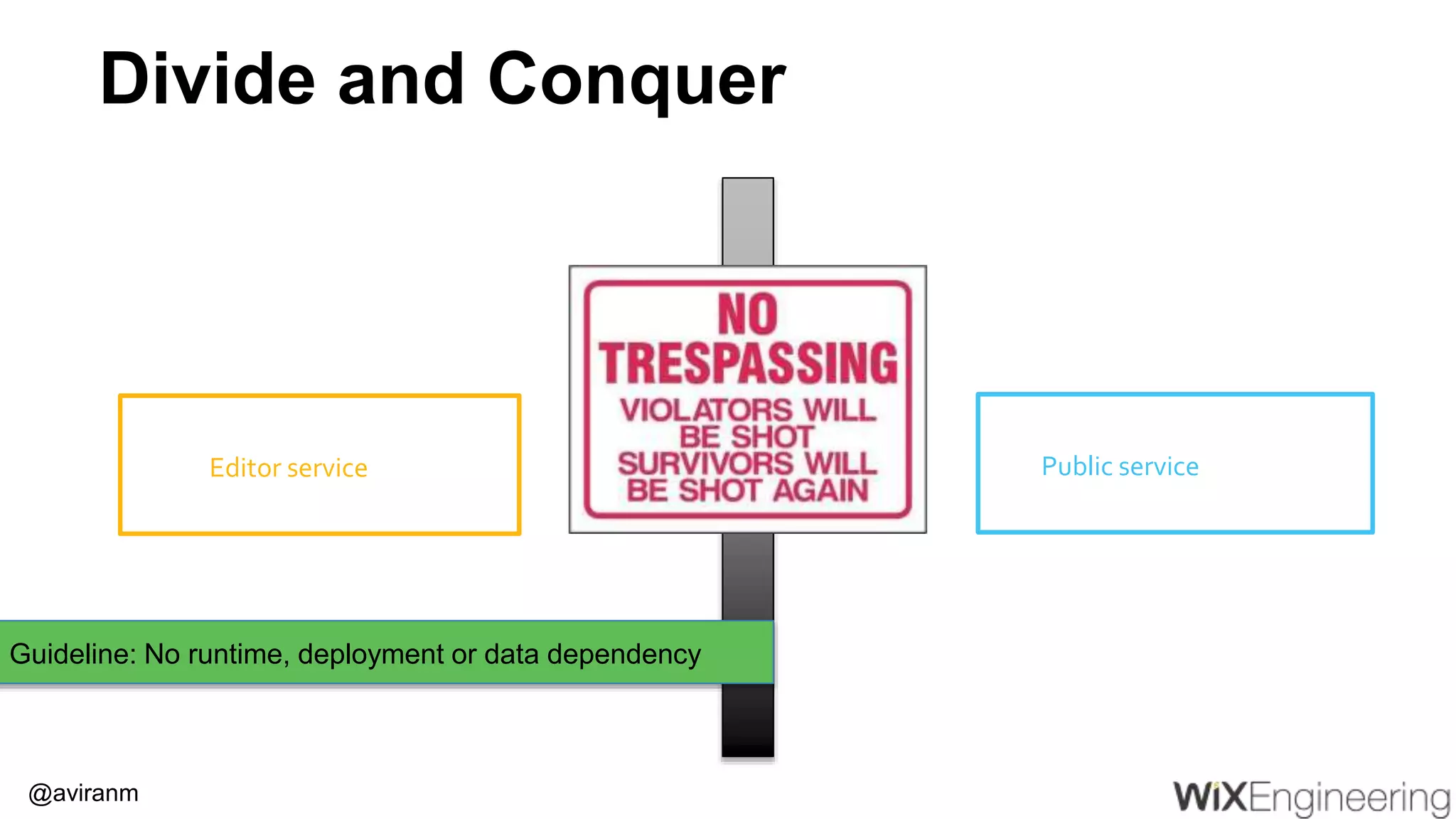

@aviranm Divide and Conquer Editor service Public service Guideline: No runtime, deployment or data dependency

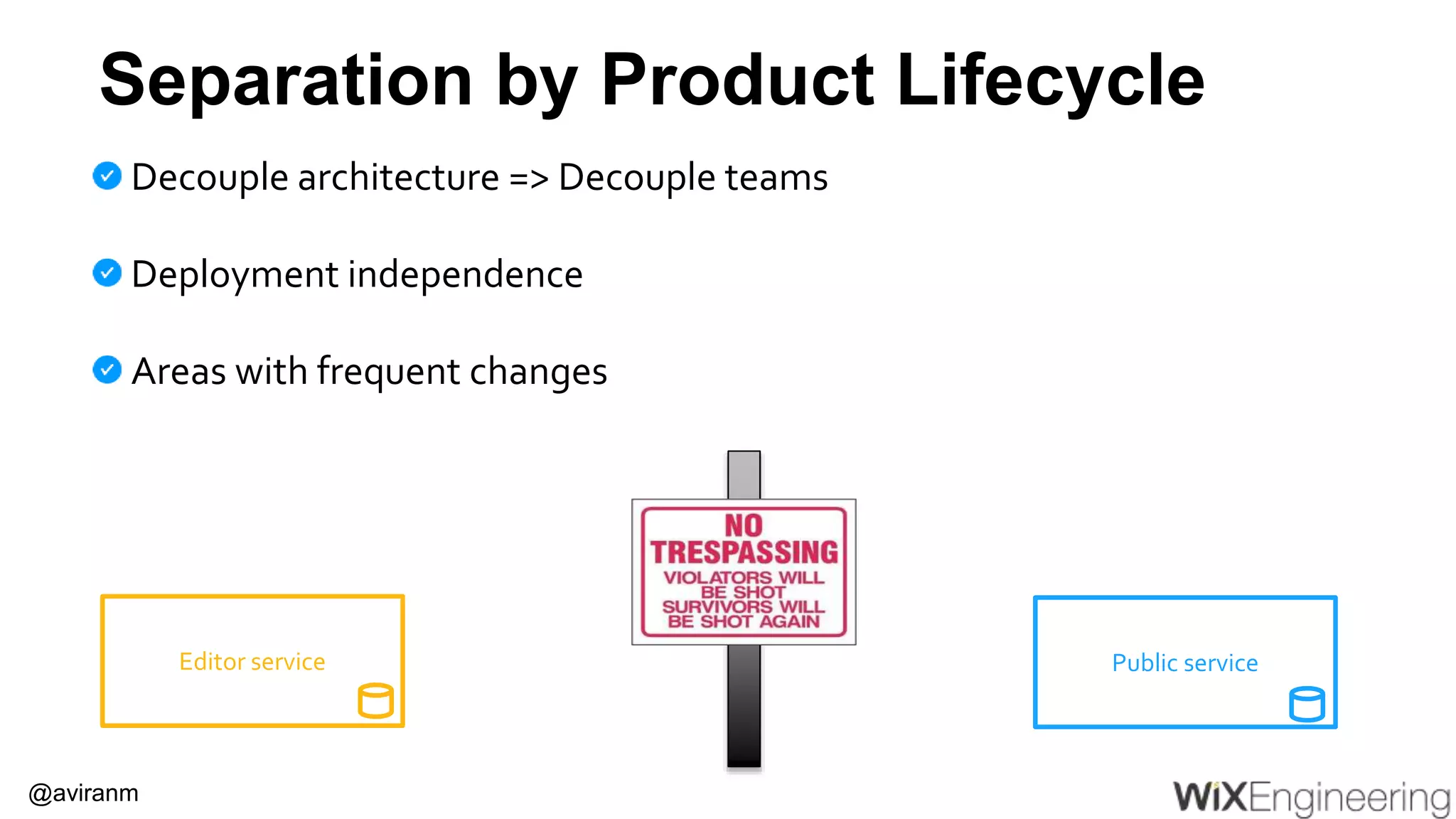

@aviranm Separation by Product Lifecycle Decouple architecture => Decouple teams Deployment independence Areas with frequent changes Editor service Public service

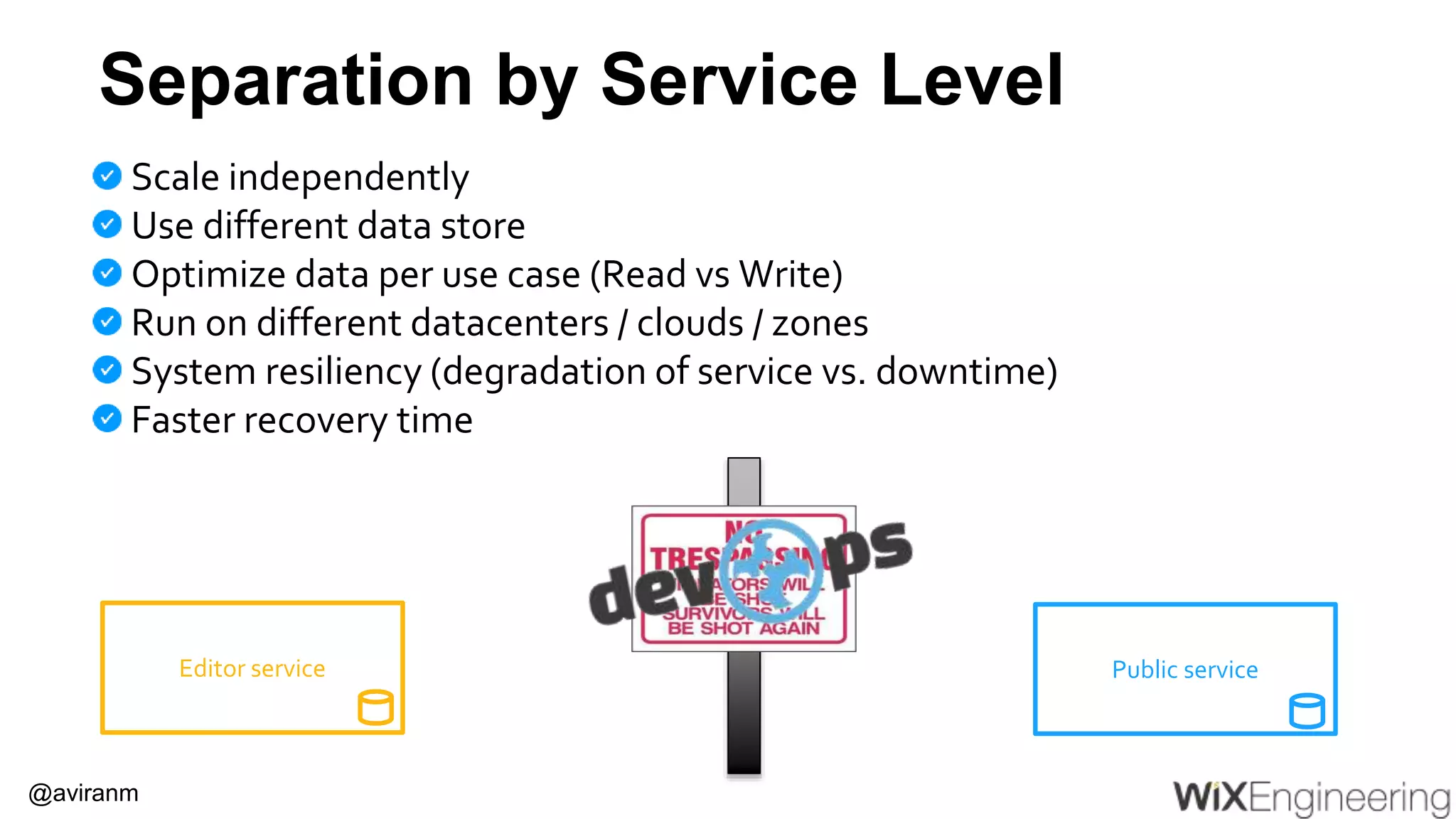

@aviranm Separation by Service Level Scale independently Use different data store Optimize data per use case (Read vs Write) Run on different datacenters / clouds / zones System resiliency (degradation of service vs. downtime) Faster recovery time Editor service Public service

@aviranm http://blogs.adobe.com/captivate/2011/03/training-adding-interactivity-to-elearning-courses-with-adobe-captivate-5.html/time-to-learn-clock

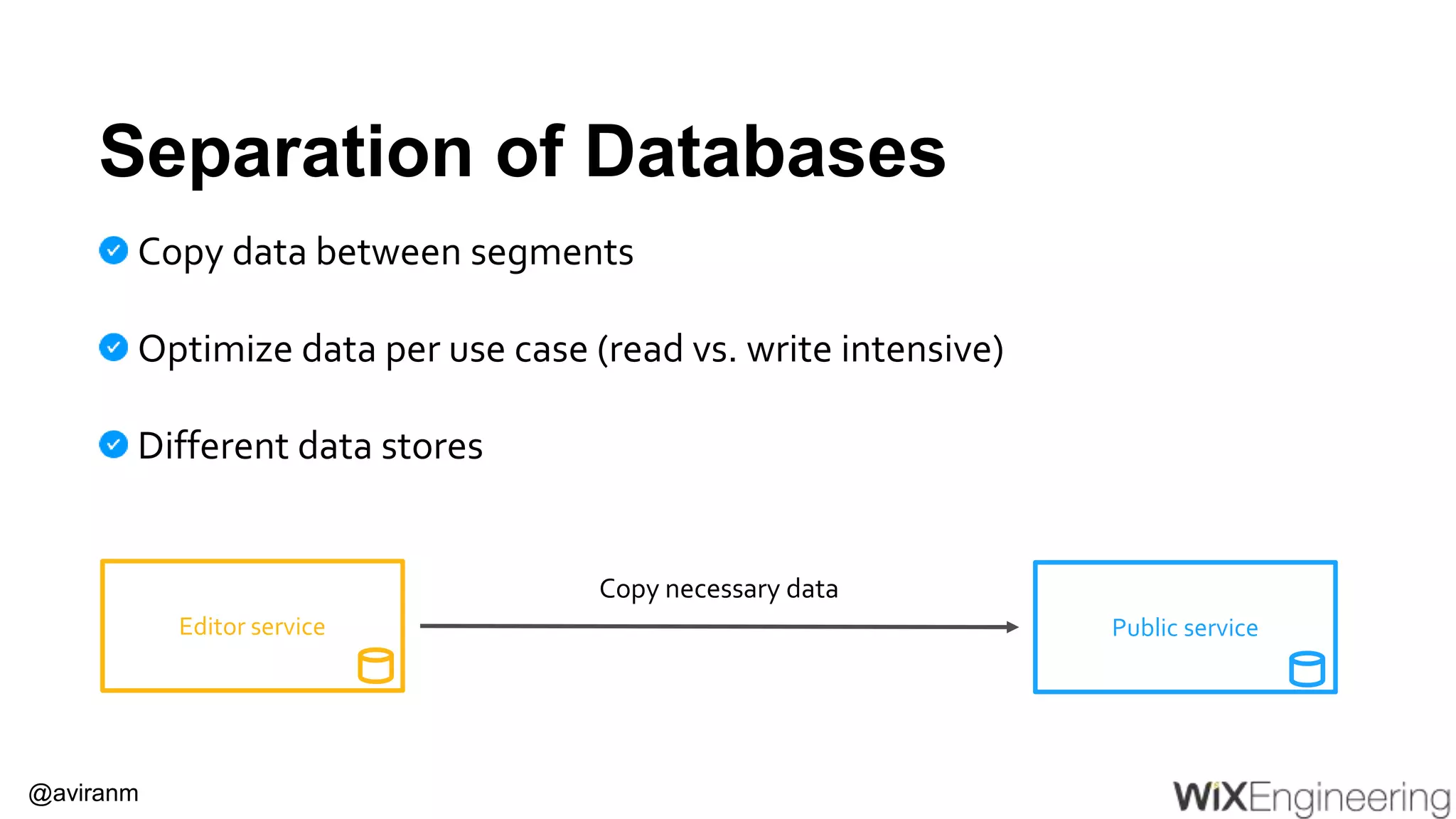

@aviranm Separation of Databases Copy data between segments Optimize data per use case (read vs. write intensive) Different data stores Public serviceEditor service Copy necessary data

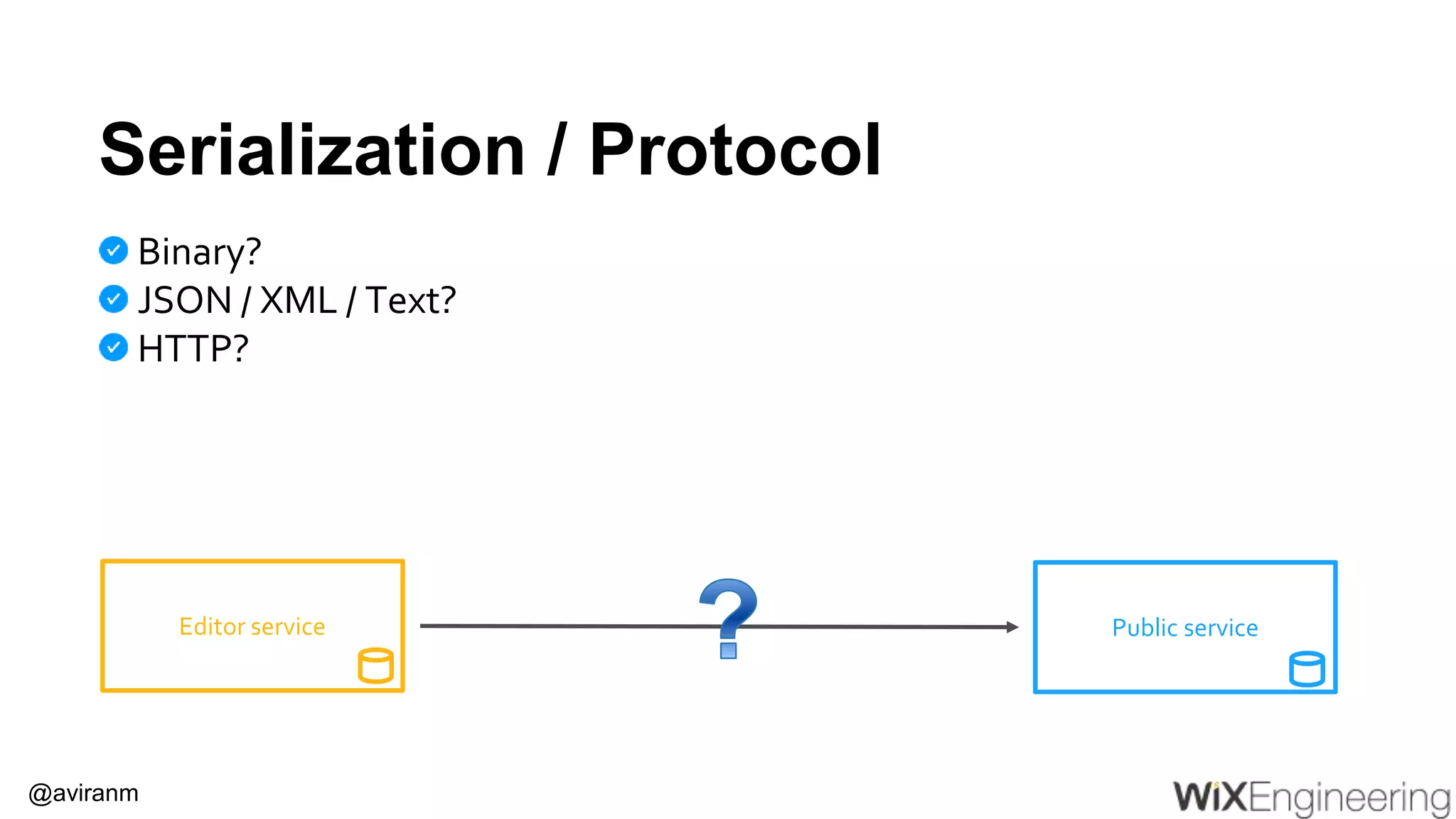

@aviranm Serialization / Protocol Binary? JSON / XML / Text? HTTP? Public serviceEditor service

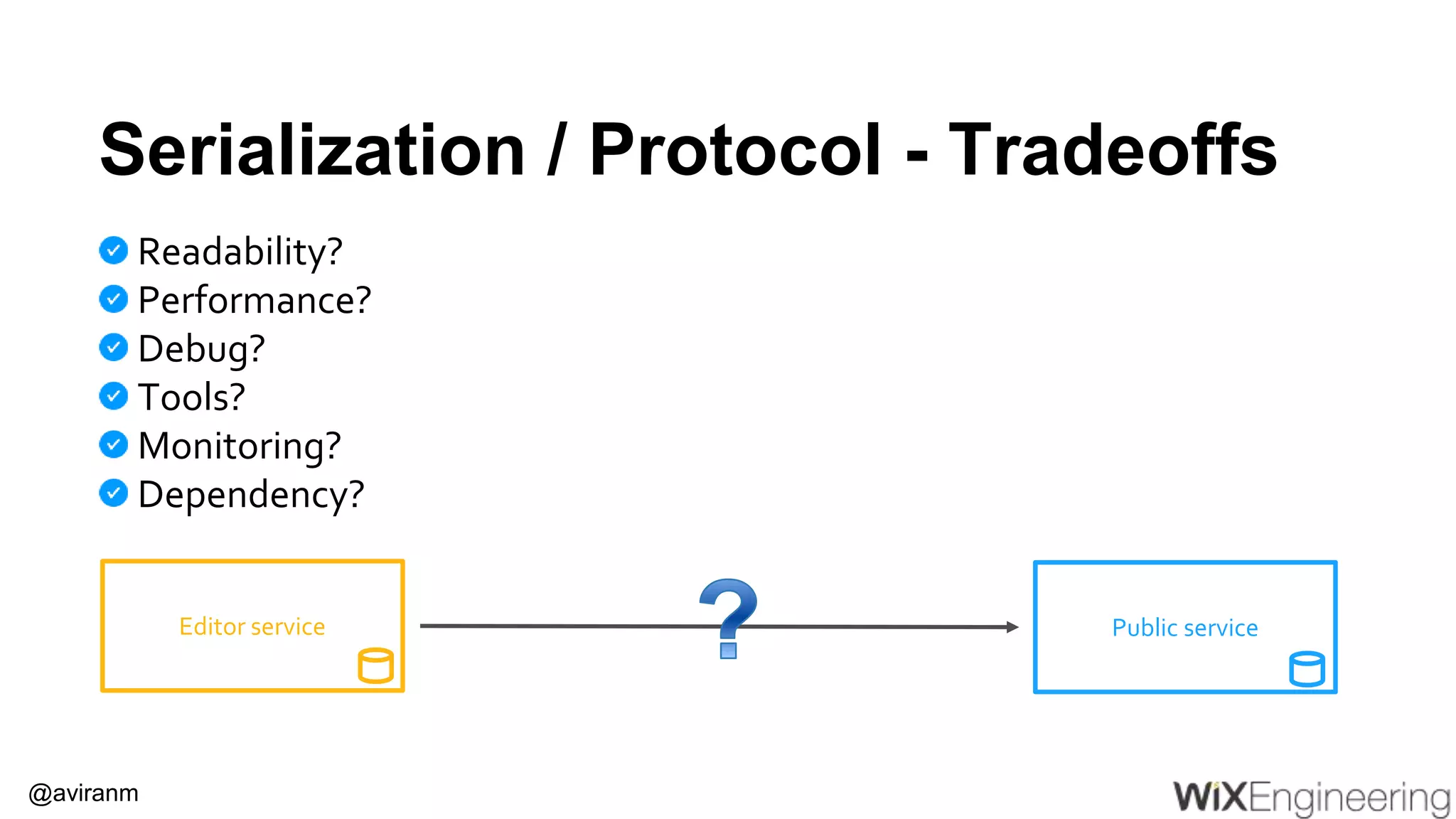

@aviranm Serialization / Protocol - Tradeoffs Readability? Performance? Debug? Tools? Monitoring? Dependency? Public serviceEditor service

@aviranm API Transport/Protocol

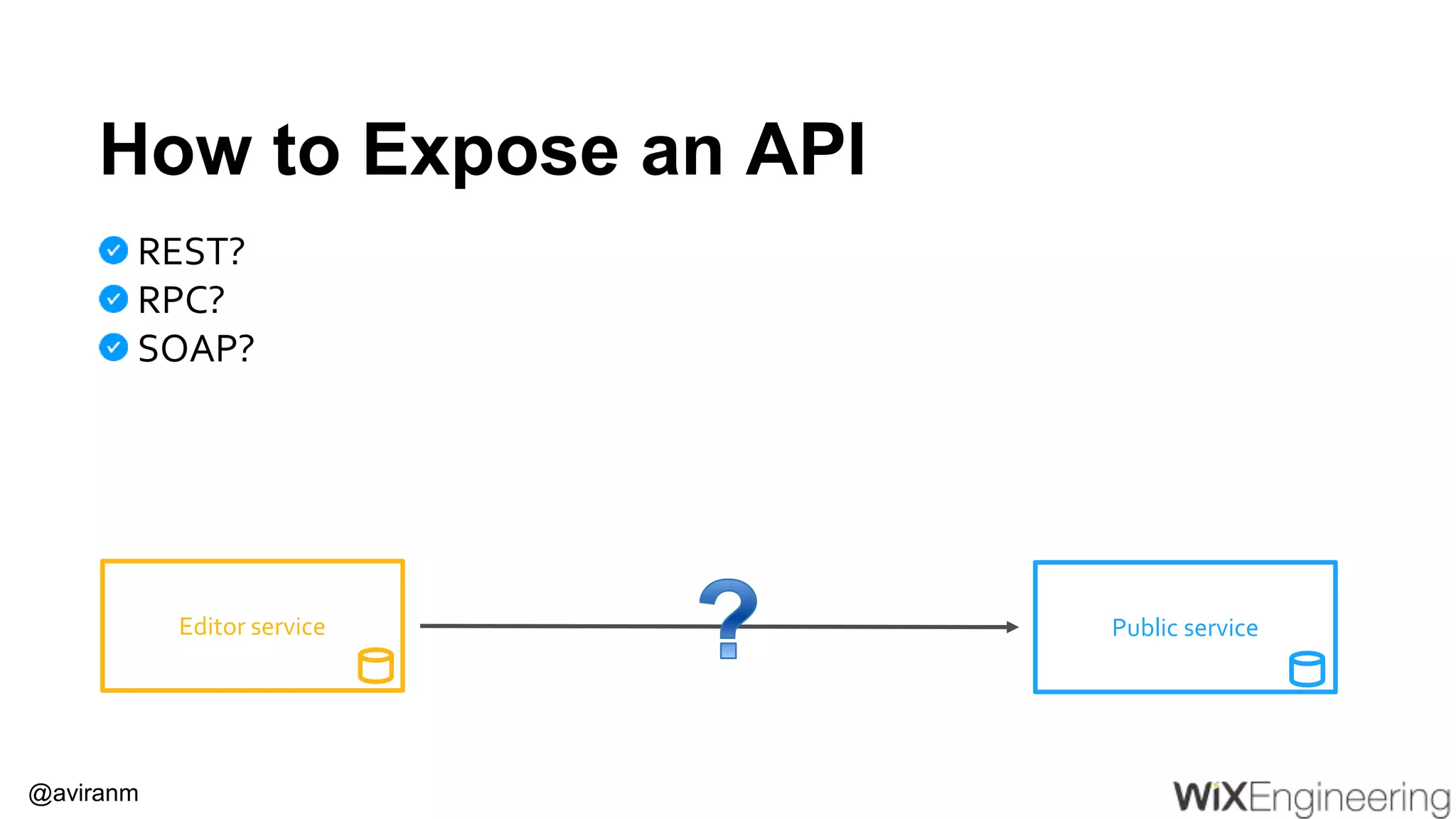

@aviranm How to Expose an API REST? RPC? SOAP? Public serviceEditor service

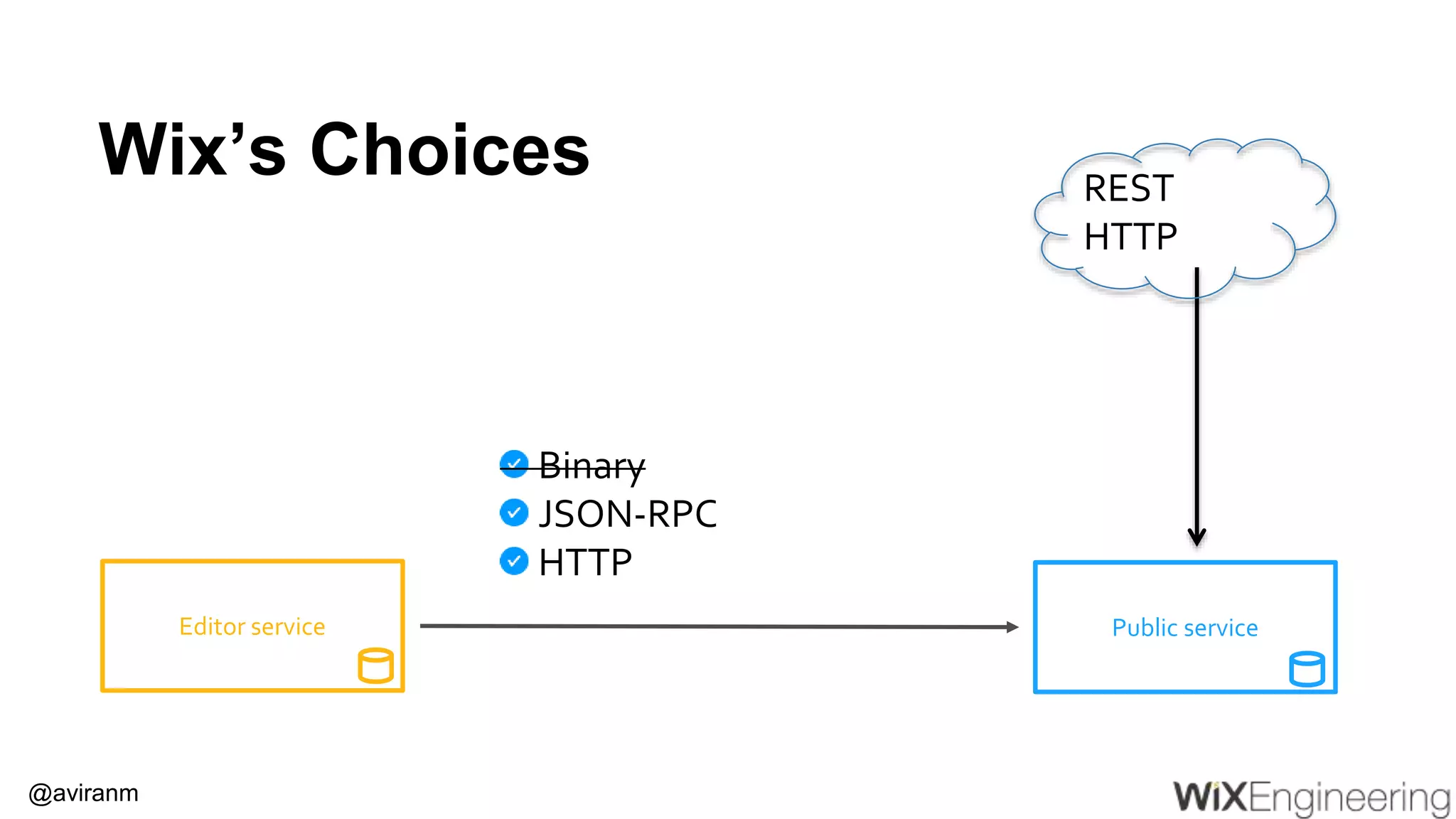

@aviranm Wix’s Choices REST HTTP Public serviceEditor service Binary JSON-RPC HTTP

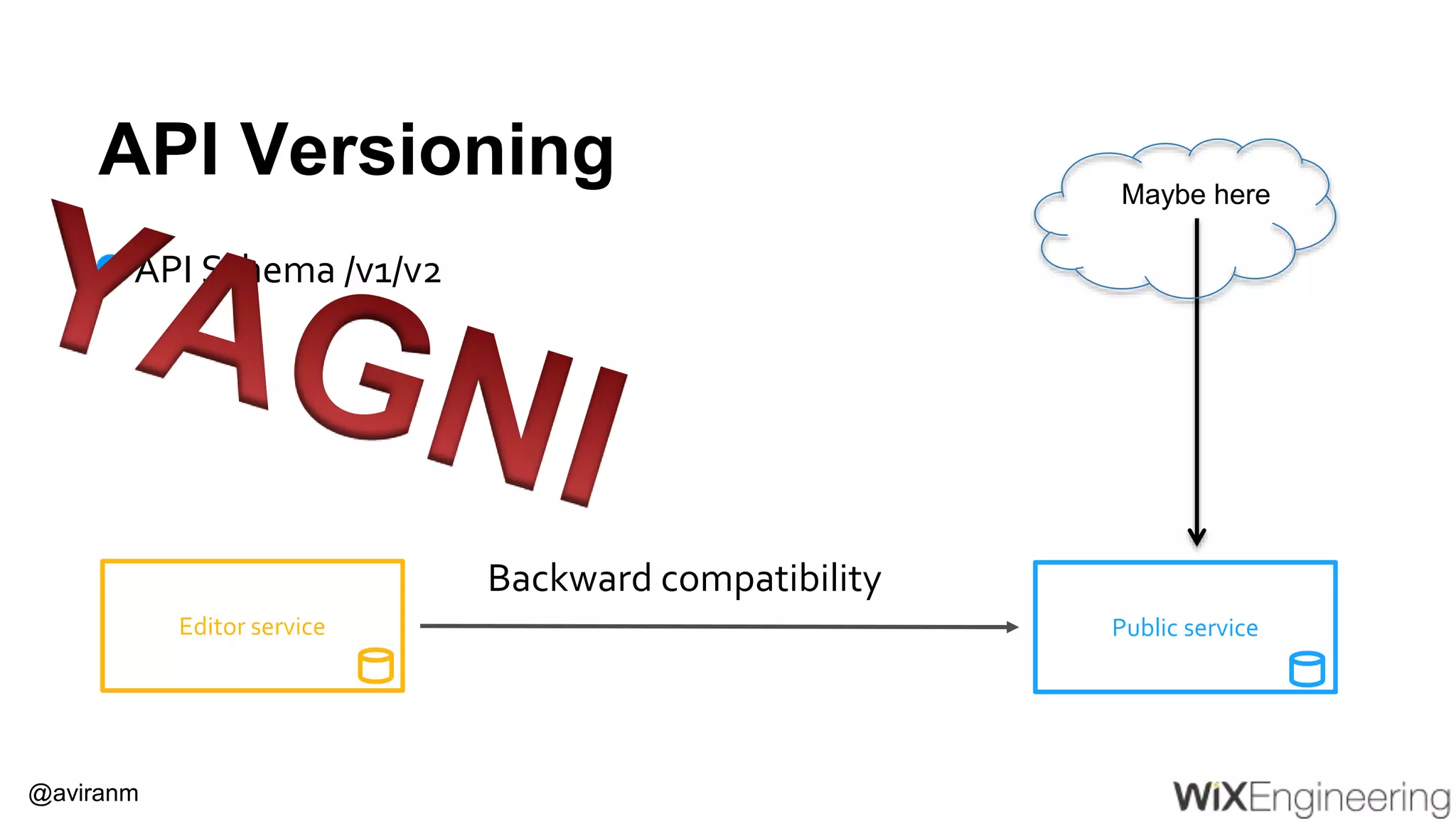

@aviranm API Versioning Public serviceEditor service Backward compatibility Maybe here API Schema /v1/v2

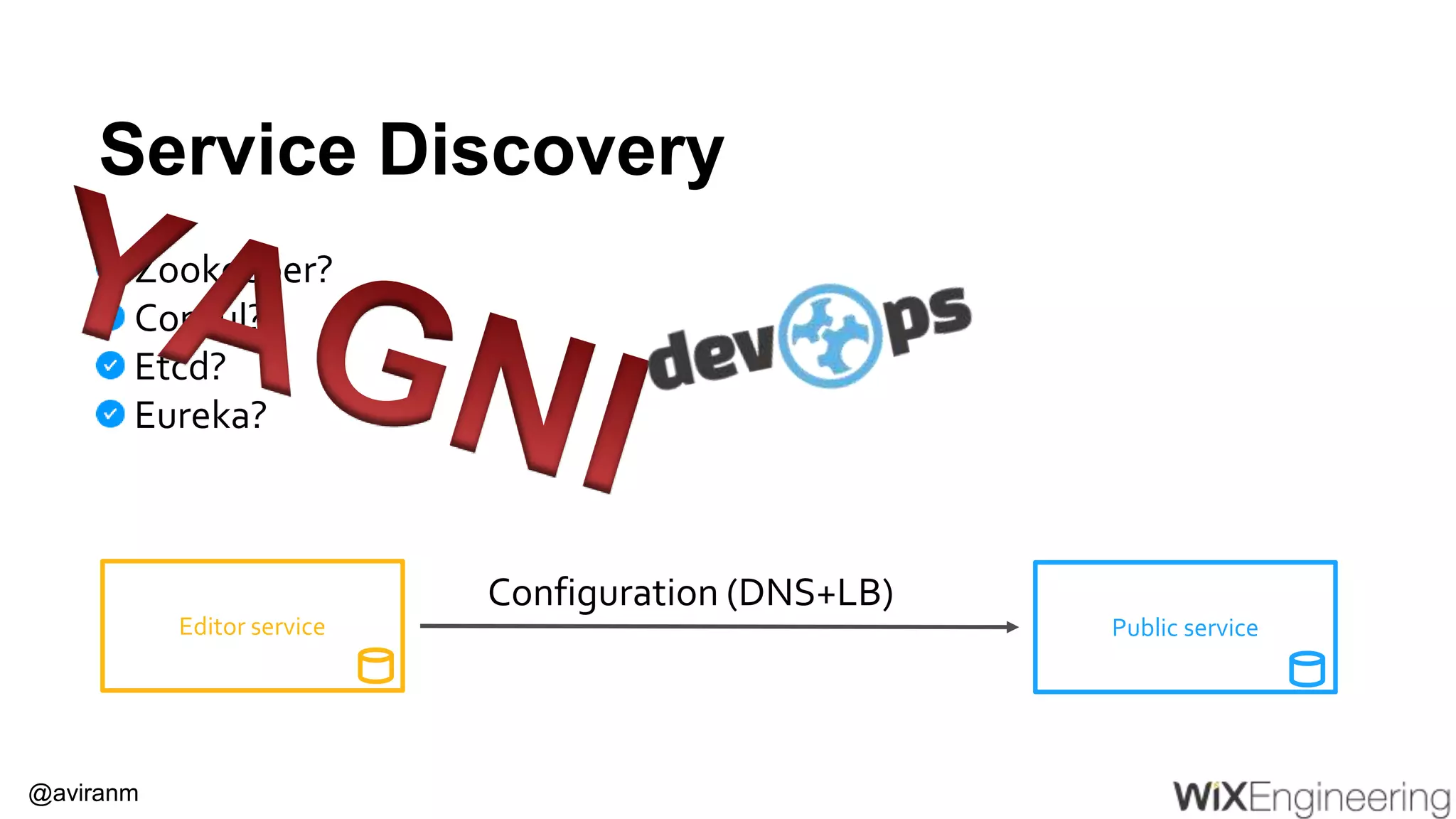

@aviranm Service Discovery Public serviceEditor service Configuration (DNS+LB) Zookeeper? Consul? Etcd? Eureka?

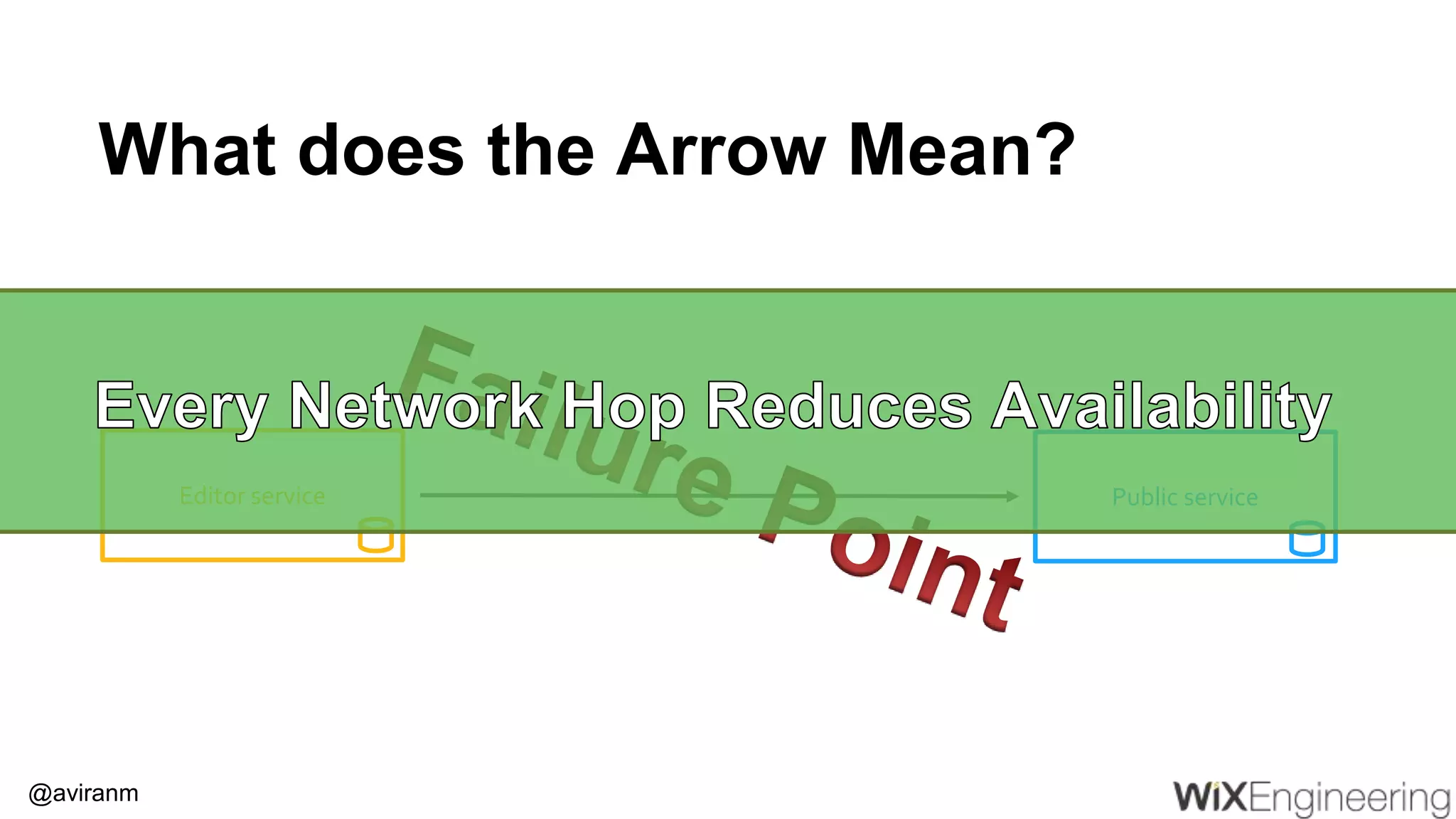

@aviranm What does the Arrow Mean? Public serviceEditor service

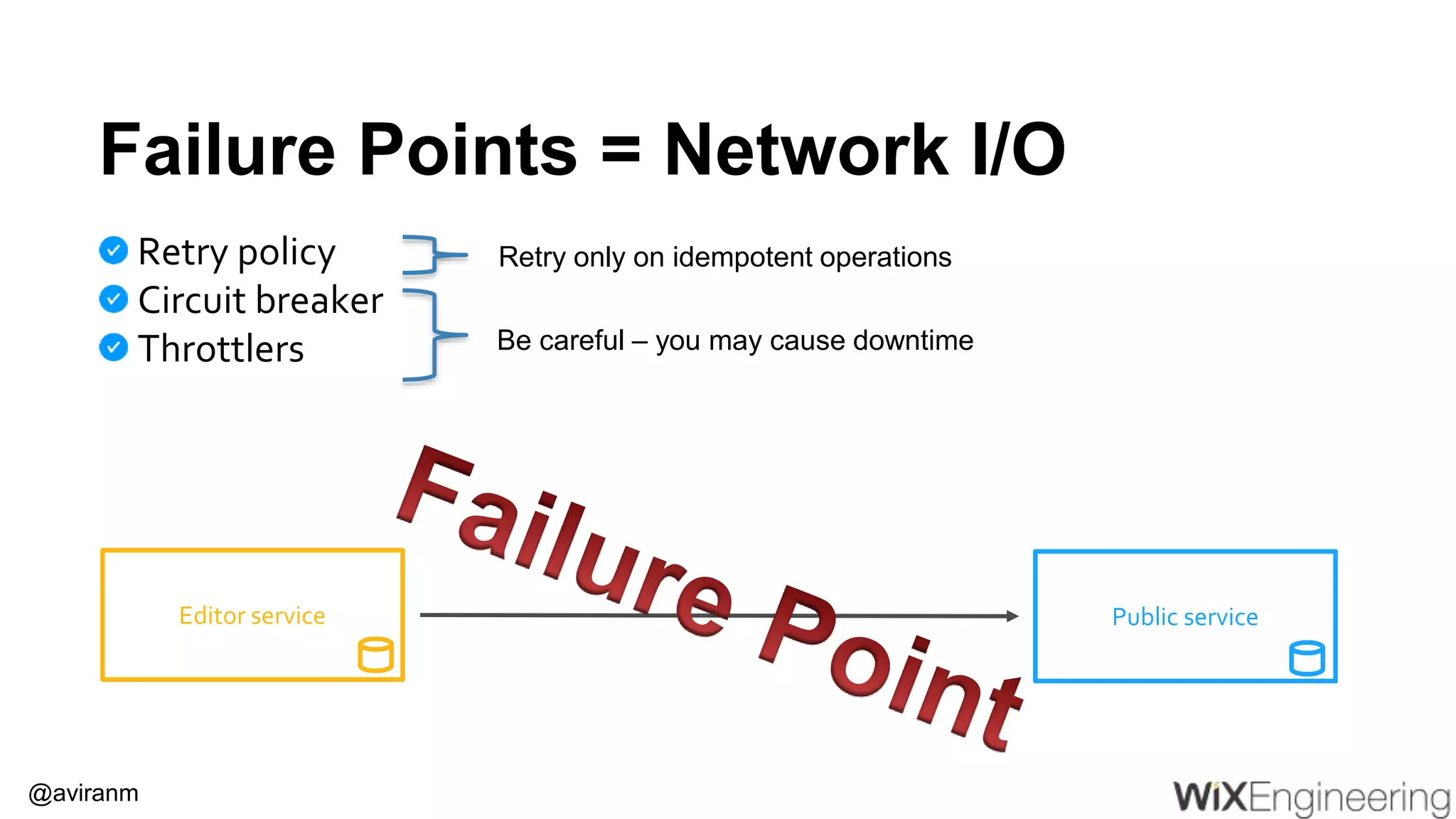

@aviranm Failure Points = Network I/O Public serviceEditor service Retry policy Circuit breaker Throttlers Be careful – you may cause downtime Retry only on idempotent operations

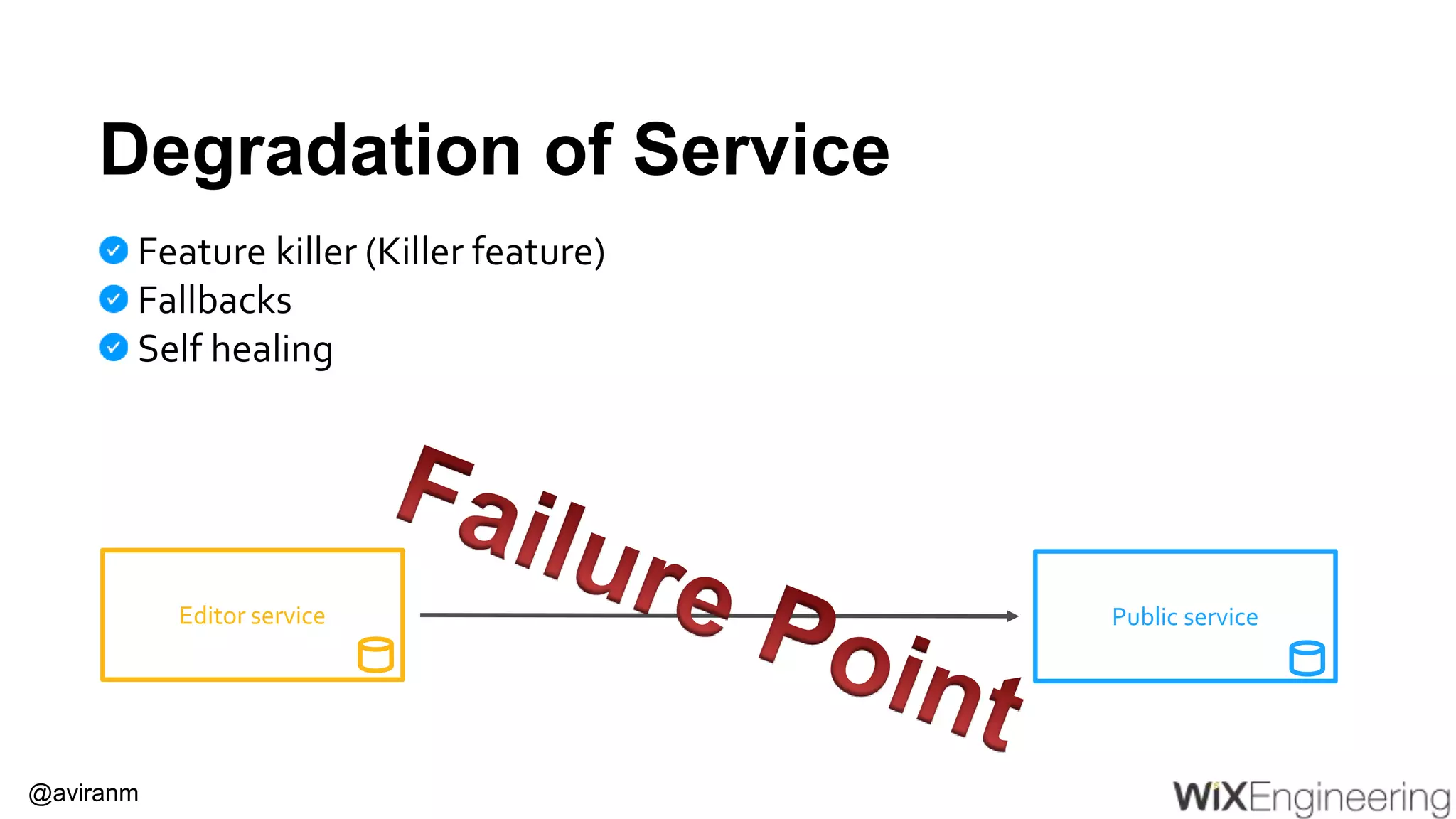

@aviranm Degradation of Service Public serviceEditor service Feature killer (Killer feature) Fallbacks Self healing

@aviranm Test a Distributed System (at Wix) Public serviceEditor service Unit Test Integration Test Server E2E Automation Client

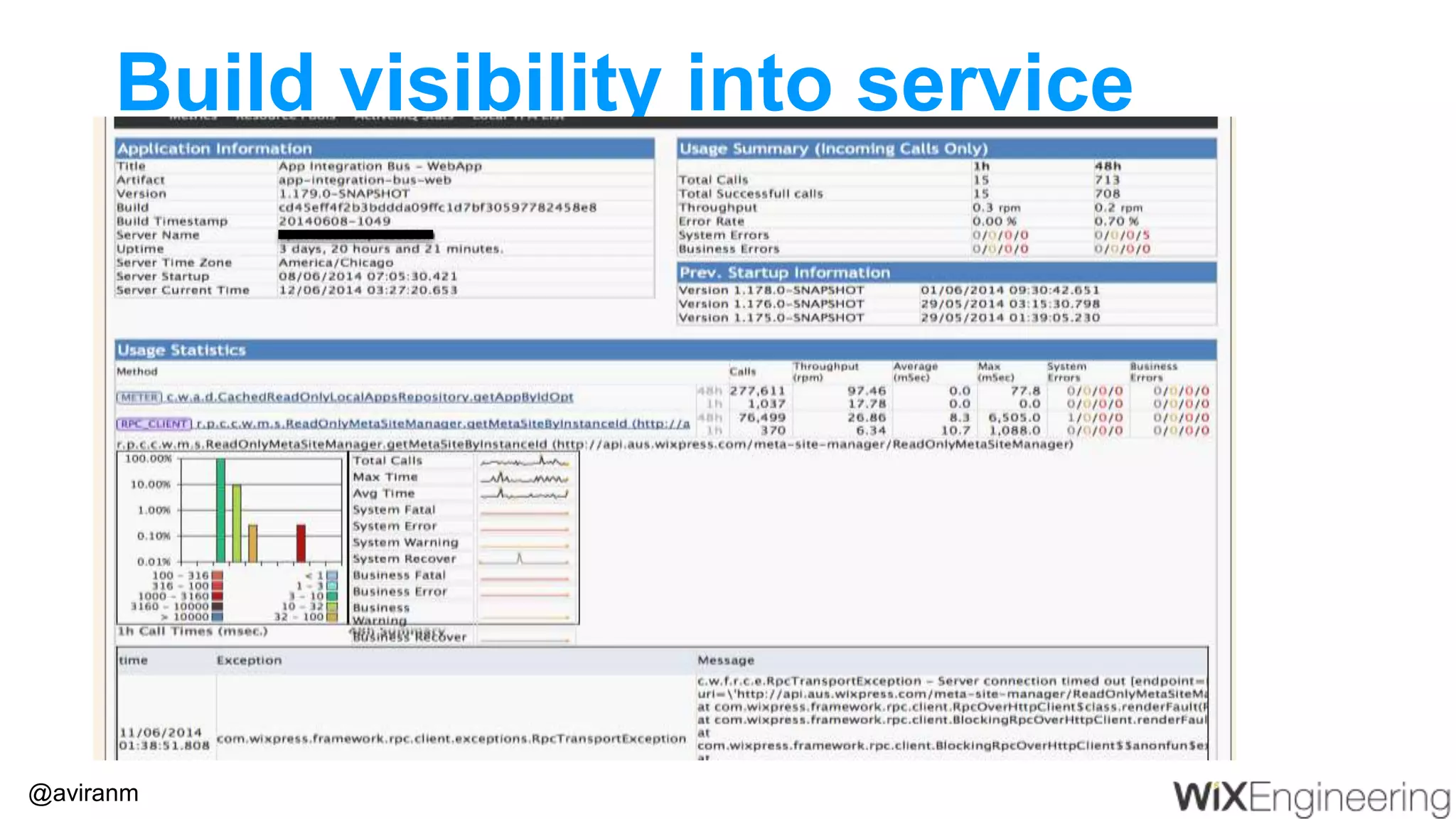

@aviranm Build visibility into service

@aviranm What is the Right Size of a Microservice?

@aviranm The Size of a Microservice is the Size of the Team That is Building it. “Organizations which design systems ... are constrained to produce designs which are copies of the communication structures of these organizations” Conway, Melvin

@aviranm How many Engineers can Work on a Single Project ? http://cdn.wp.sunmotors.co.uk/get/2014/03/cars.28.620x413.jpg

@aviranm Microservices = Small Teams Small Teams = Small Rooms @aviranm

@aviranm Team Work  Microservice is owned by a team  You build it – you run it  No microservice is left without a clear owner  Microservice is NOT a library – it is a live production system

@aviranm Culture that ROQS R O Q S esponsibility wnership uality haring @aviranm

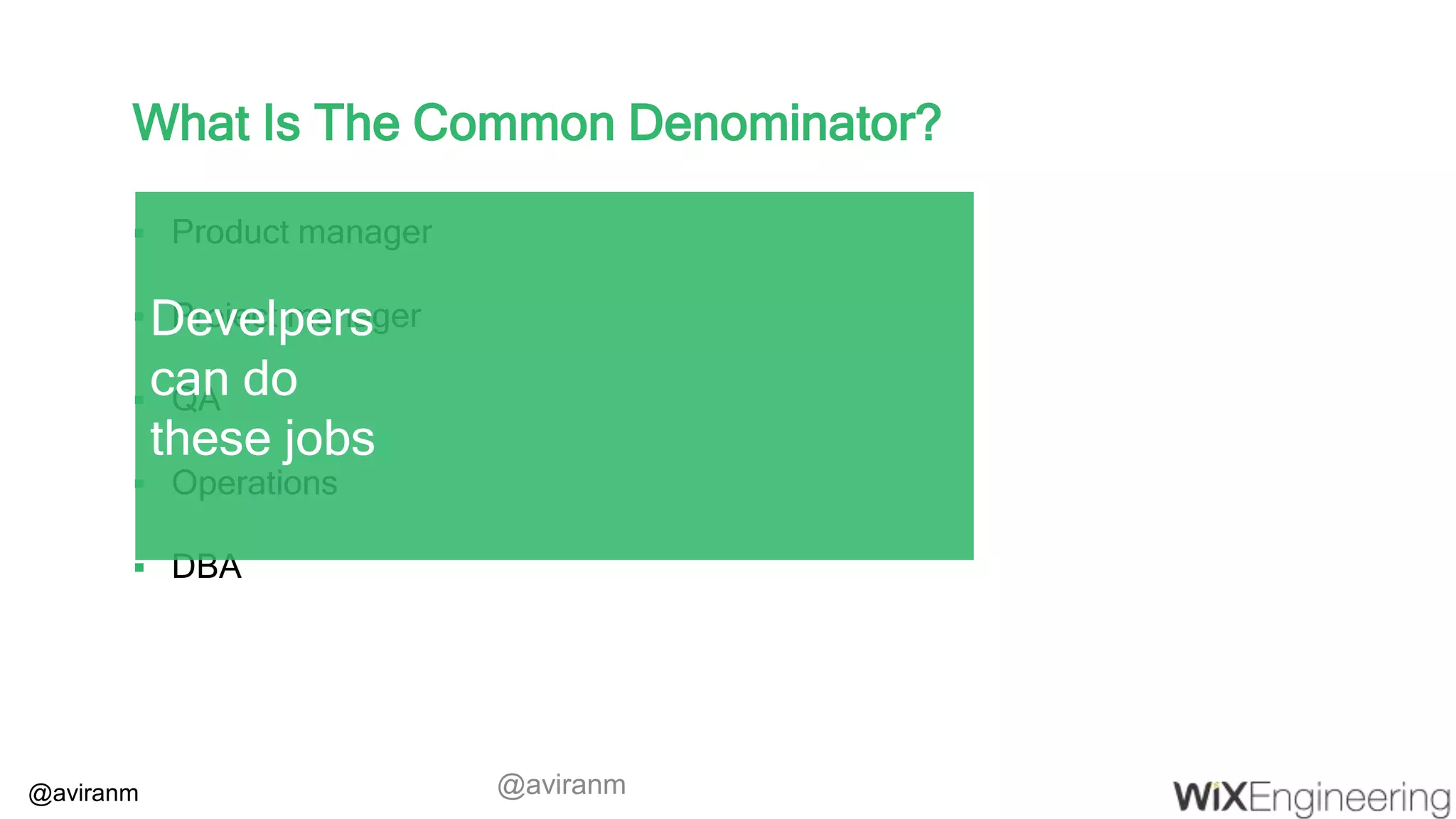

@aviranm What Is The Common Denominator?  Product manager  Project manager  QA  Operations  DBA Develpers can do these jobs @aviranm

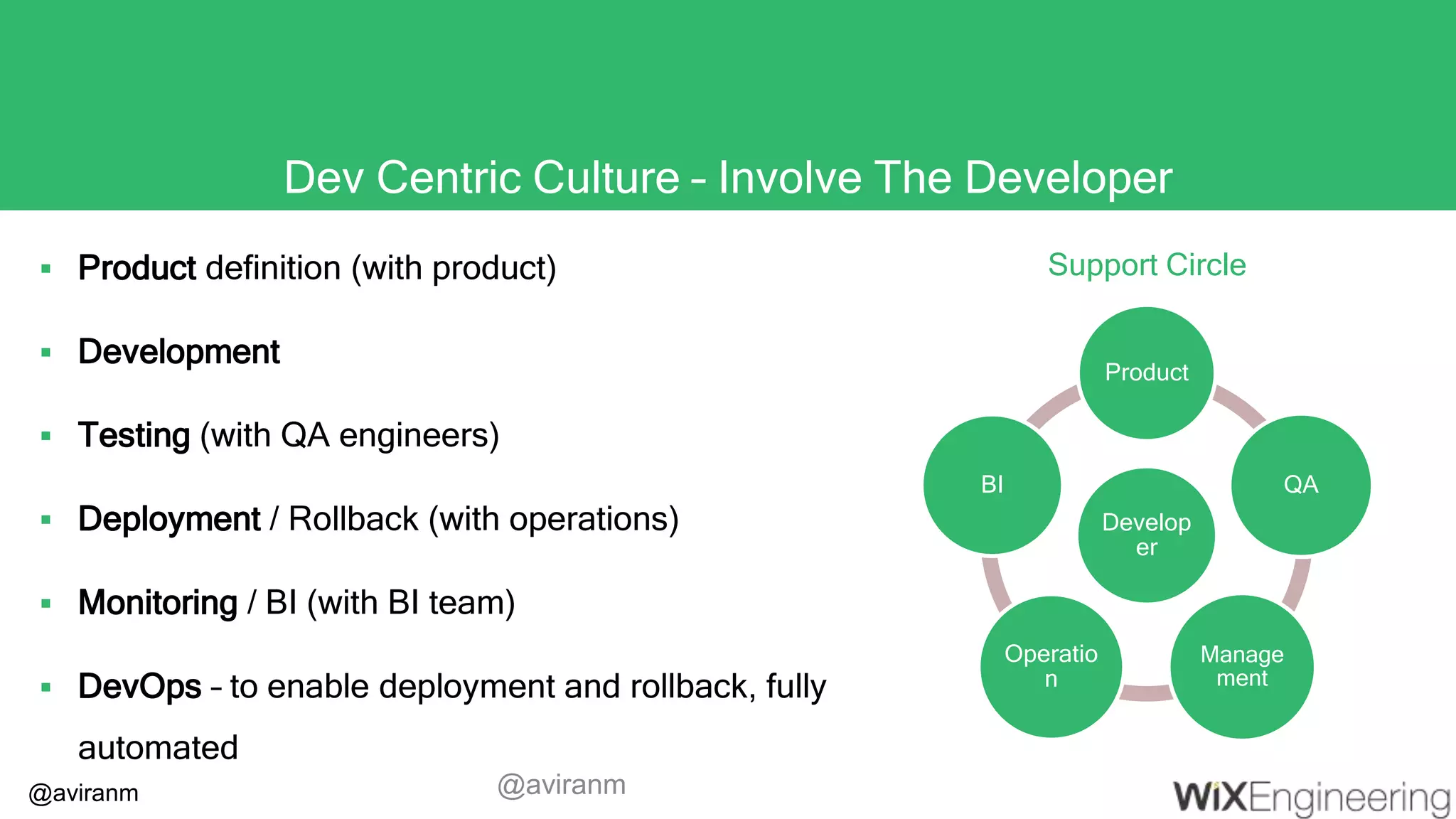

@aviranm Develop er Product QA Manage ment Operatio n BI Dev Centric Culture – Involve The Developer  Product definition (with product)  Development  Testing (with QA engineers)  Deployment / Rollback (with operations)  Monitoring / BI (with BI team)  DevOps – to enable deployment and rollback, fully automated Support Circle @aviranm

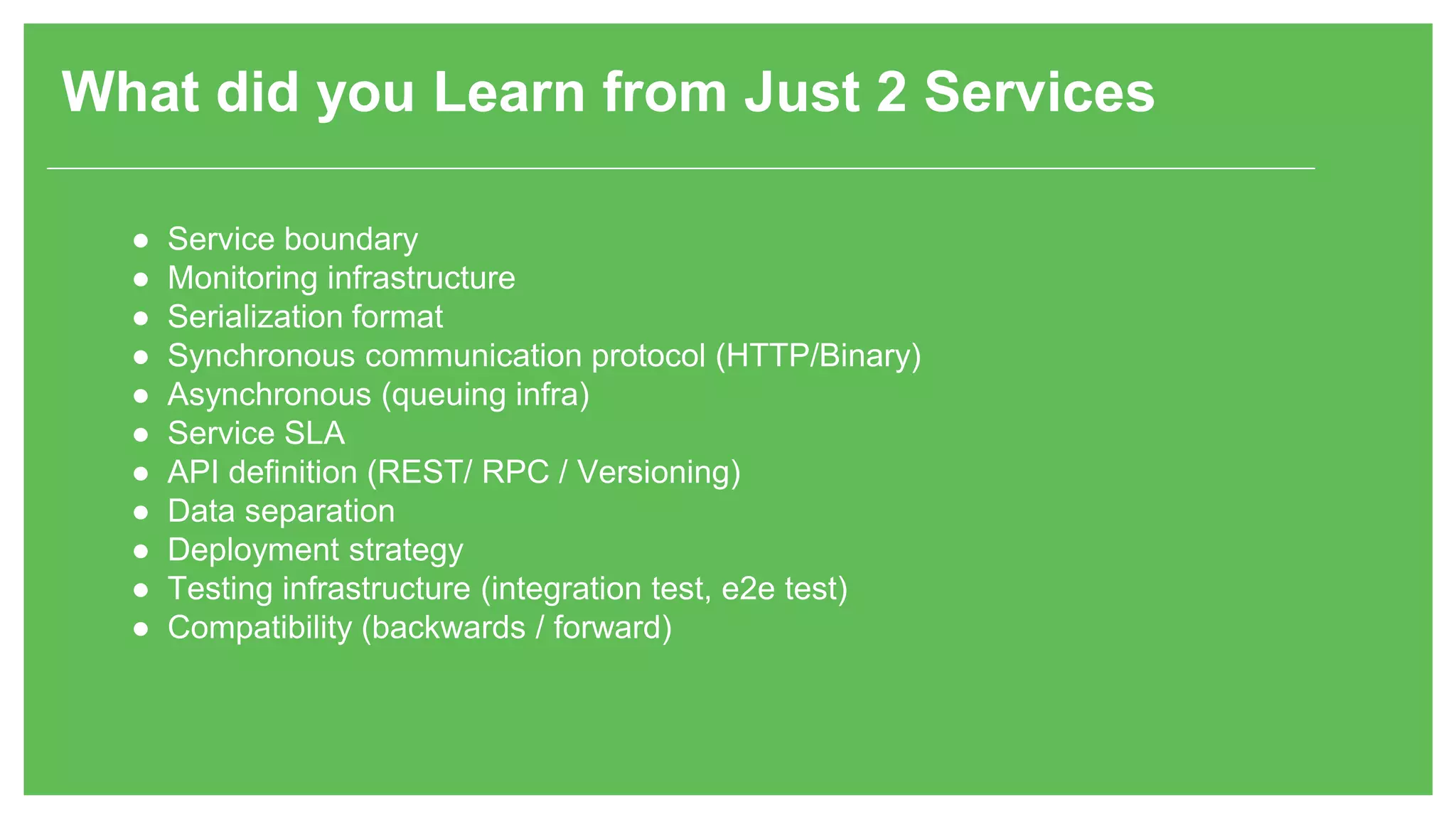

What did you Learn from Just 2 Services ● Service boundary ● Monitoring infrastructure ● Serialization format ● Synchronous communication protocol (HTTP/Binary) ● Asynchronous (queuing infra) ● Service SLA ● API definition (REST/ RPC / Versioning) ● Data separation ● Deployment strategy ● Testing infrastructure (integration test, e2e test) ● Compatibility (backwards / forward)

@aviranm Continue to Extract More Microservices

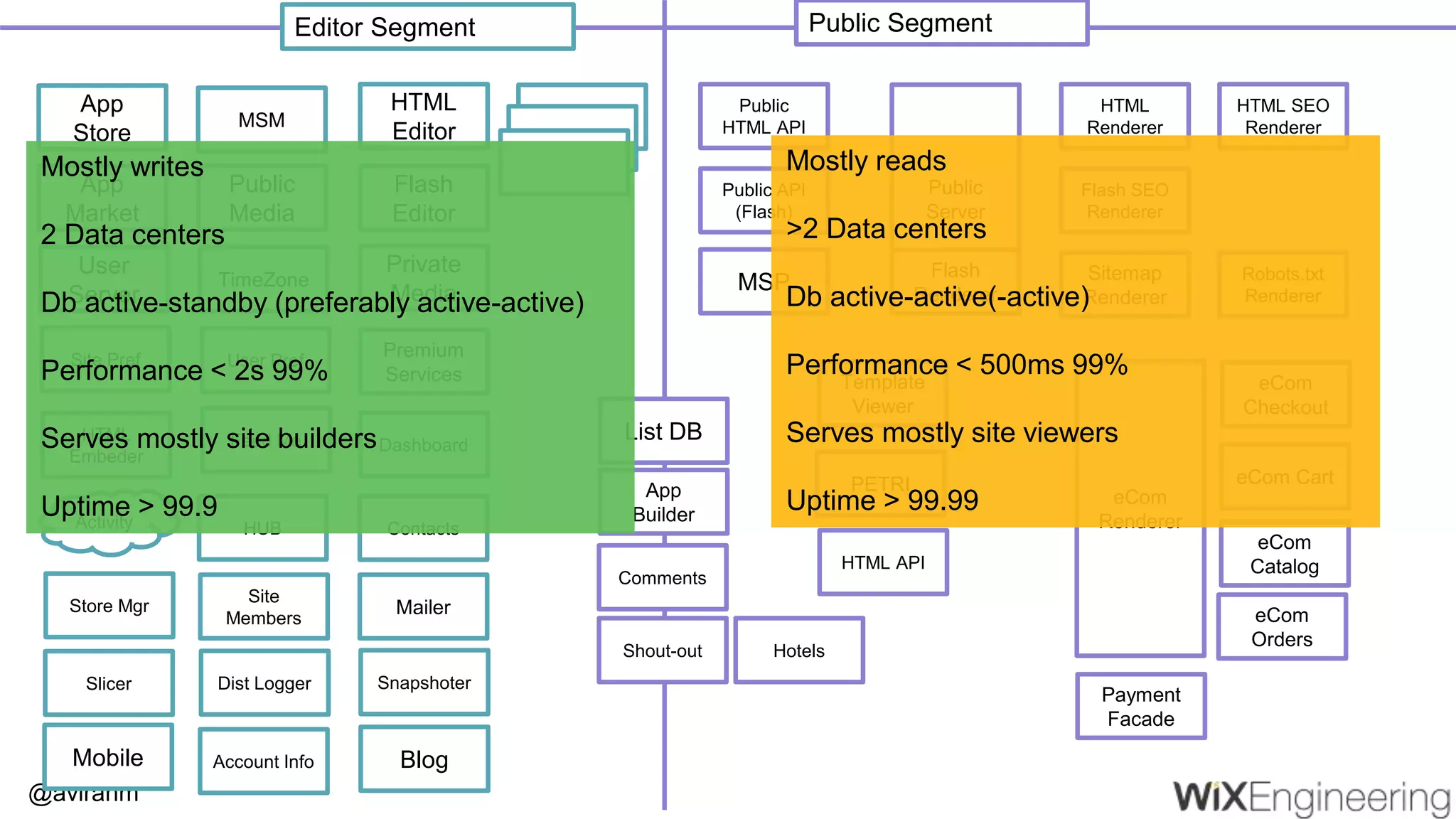

@aviranm HTML Editor Flash Editor MSM Private Media Public Media Editor Segment Public Segment Premium Services List DB App Builder App Store App Market Dashboard Mailer TimeZone Public HTML API Public API (Flash) MSP Public Server HTML Renderer HTML SEO Renderer Flash Renderer Flash SEO Renderer Sitemap Renderer Robots.txt Renderer User Server Template Viewer ContactsHUBActivity Site Members Store Mgr Comments Snapshoter User Pref Feed Me Shout-out Hotels PETRI Site Pref Dist LoggerSlicer eCom Renderer eCom Cart eCom Checkout eCom Catalog eCom Orders Payment Facade Account Info HTML API HTML Embeder BlogMobile Mostly writes 2 Data centers Db active-standby (preferably active-active) Performance < 2s 99% Serves mostly site builders Uptime > 99.9 Mostly reads >2 Data centers Db active-active(-active) Performance < 500ms 99% Serves mostly site viewers Uptime > 99.99

@aviranm When to Extract a New Microservice

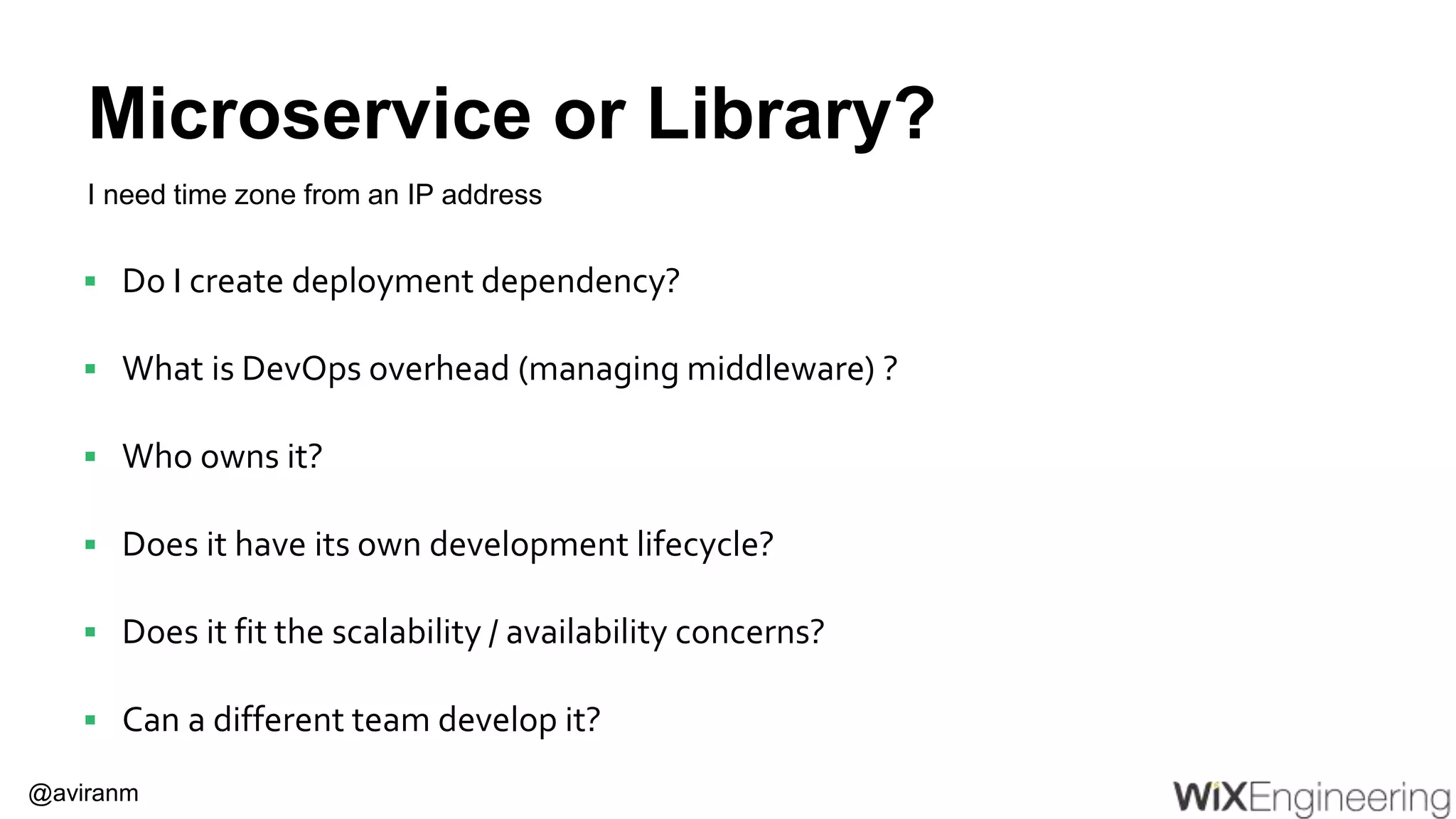

@aviranm Microservice or Library?  Do I create deployment dependency?  What is DevOps overhead (managing middleware) ?  Who owns it?  Does it have its own development lifecycle?  Does it fit the scalability / availability concerns?  Can a different team develop it? I need time zone from an IP address

@aviranm Microservice has Ops, Library is Only Computational

@aviranm Which Technology Stack to Use

@aviranm Free to Chose? Microservices gives the freedom to use a different technology stacks. Enables innovation

@aviranm Default to the Stack You Know how to Operate.

@aviranm Innovate on Non Critical Microservices and Take Full Responsibility for its Operation.

@aviranmhttp://wallpaperbeta.com/dogs_kiss_noses_animals_hd-wallpaper-242054/

@aviranm Why Microservices Scale engineering Development Velocity Scale system

@aviranm Microservices is the First Post DevOps Architecture

@aviranm Every Microservice is a Overhead

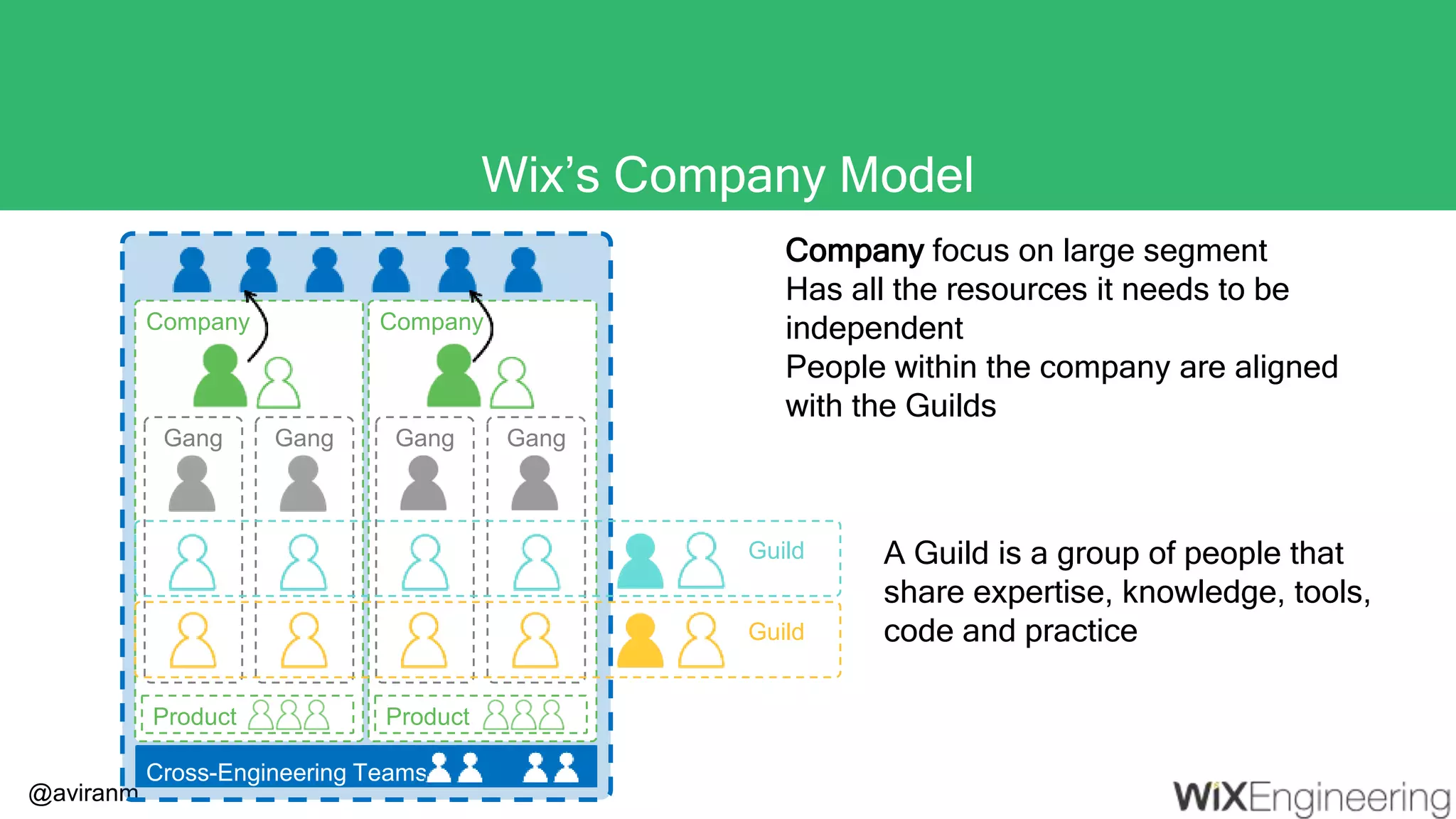

@aviranm Wix’s Company Model Company Guild Guild Company Gang GangGang Gang Product Product Cross-Engineering Teams A Guild is a group of people that share expertise, knowledge, tools, code and practice Company focus on large segment Has all the resources it needs to be independent People within the company are aligned with the Guilds

@aviranm Production State Changes Every 5 min

@aviranm @aviranm Quality = Better Engineers Better Engineers = Professional Growth Professional Growth = Investment in People

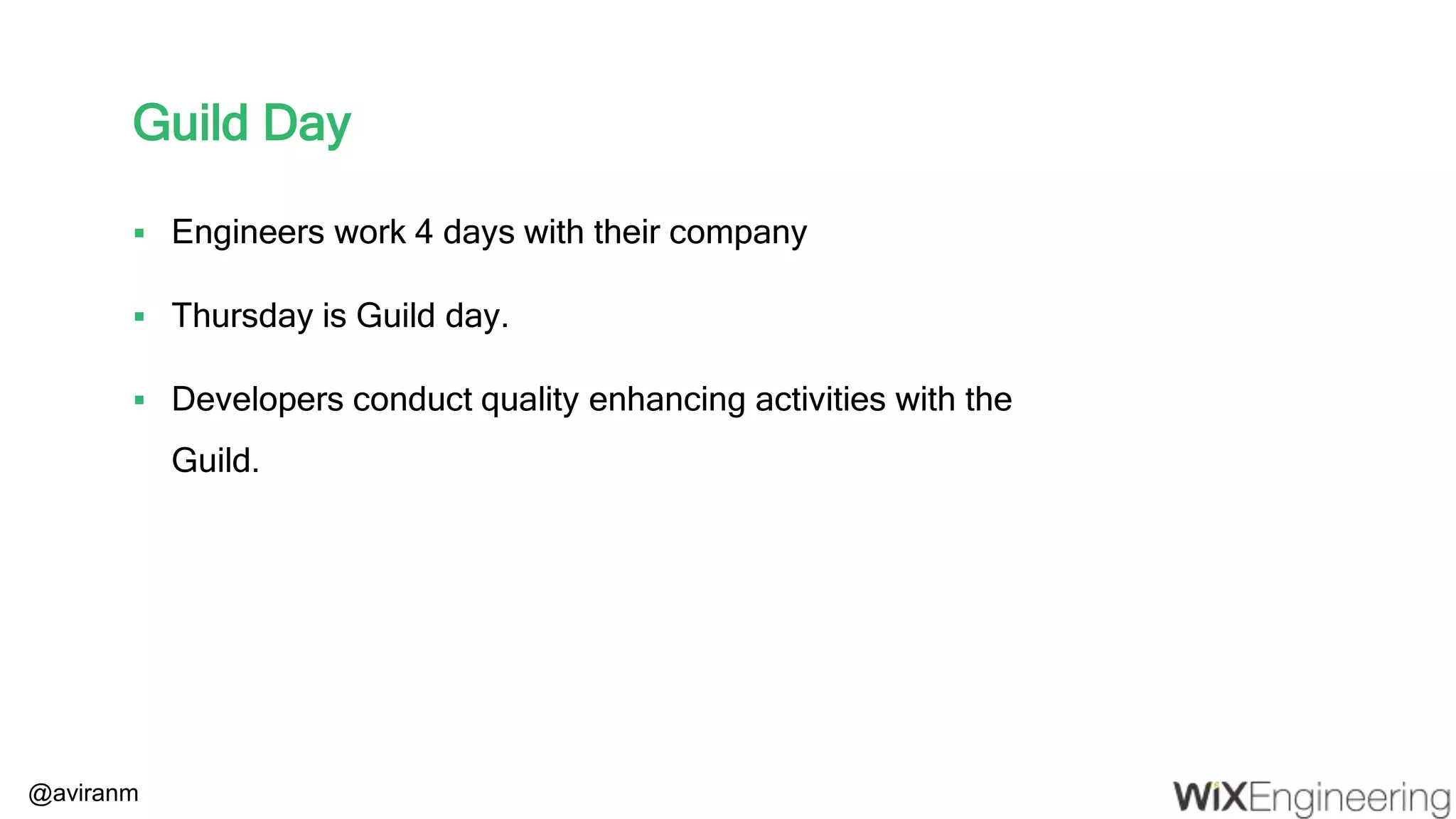

@aviranm Guild Day  Engineers work 4 days with their company  Thursday is Guild day.  Developers conduct quality enhancing activities with the Guild.

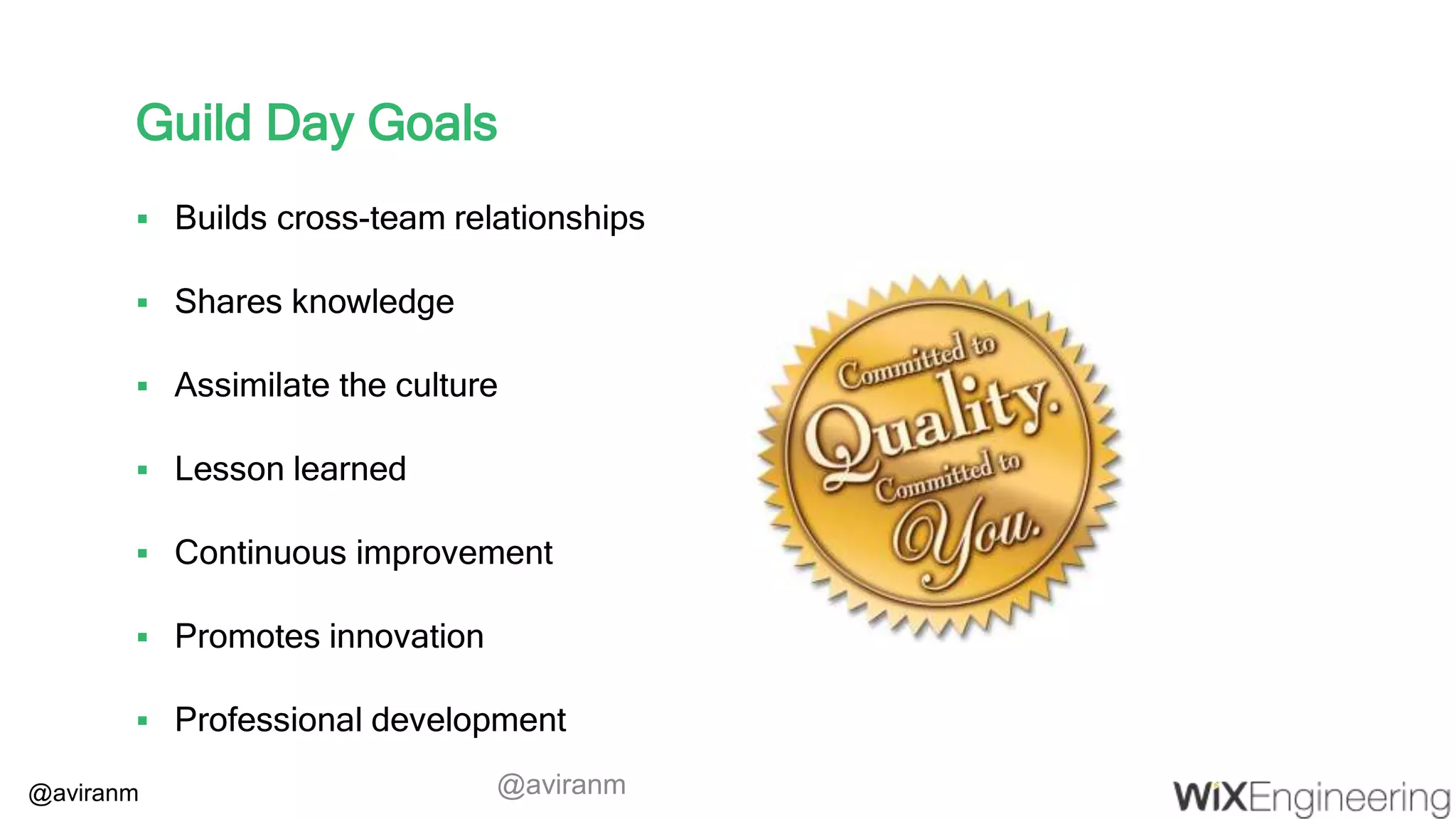

@aviranm Guild Day Goals  Builds cross-team relationships  Shares knowledge  Assimilate the culture  Lesson learned  Continuous improvement  Promotes innovation  Professional development @aviranm

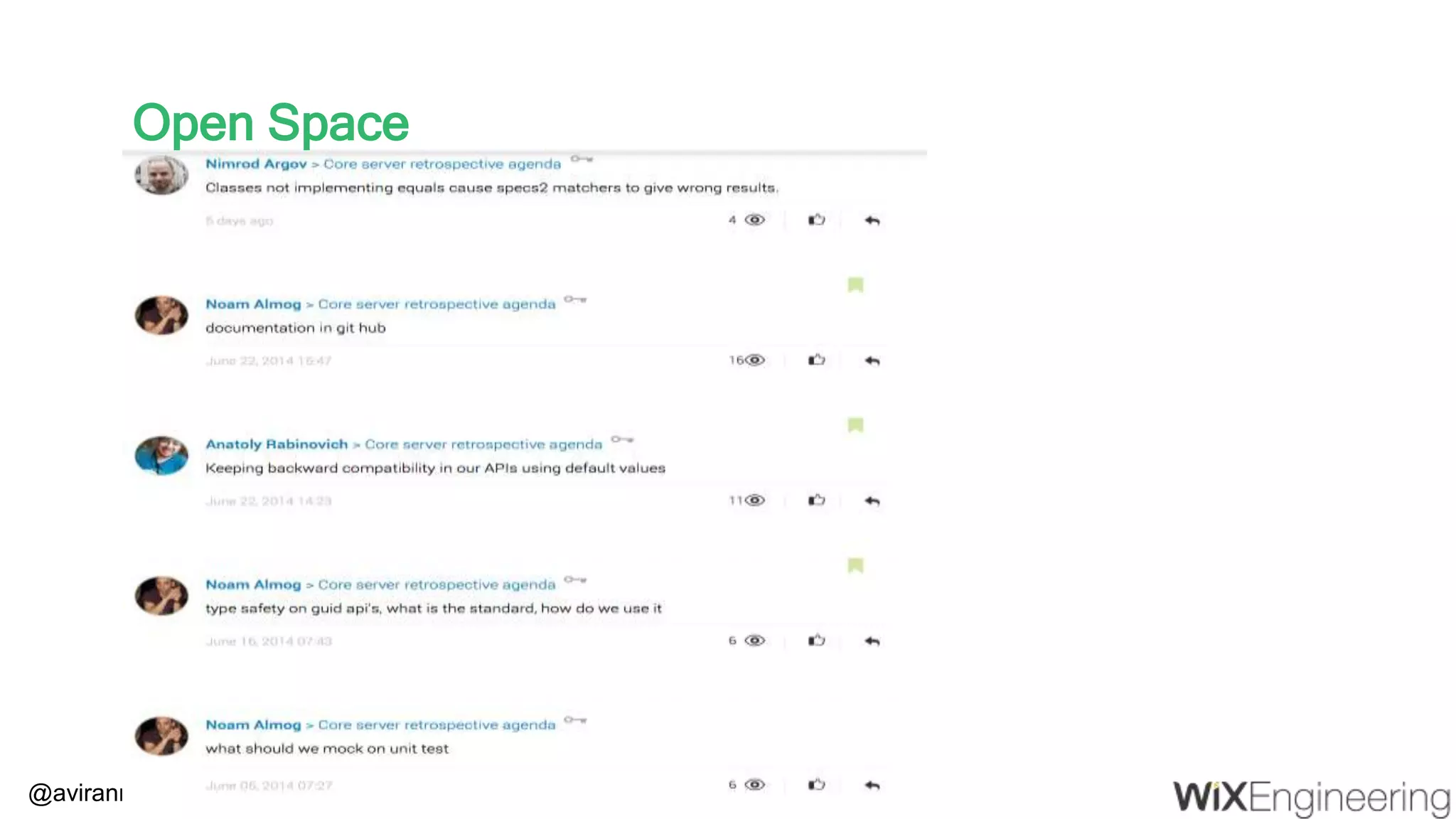

@aviranm Guild Day Schedule 10:00-11:00 Open Space 11:00-11:15 Break 11:15-11:40 Project spotlight 11:45-13:00 Tech talk or Workshop @aviranm

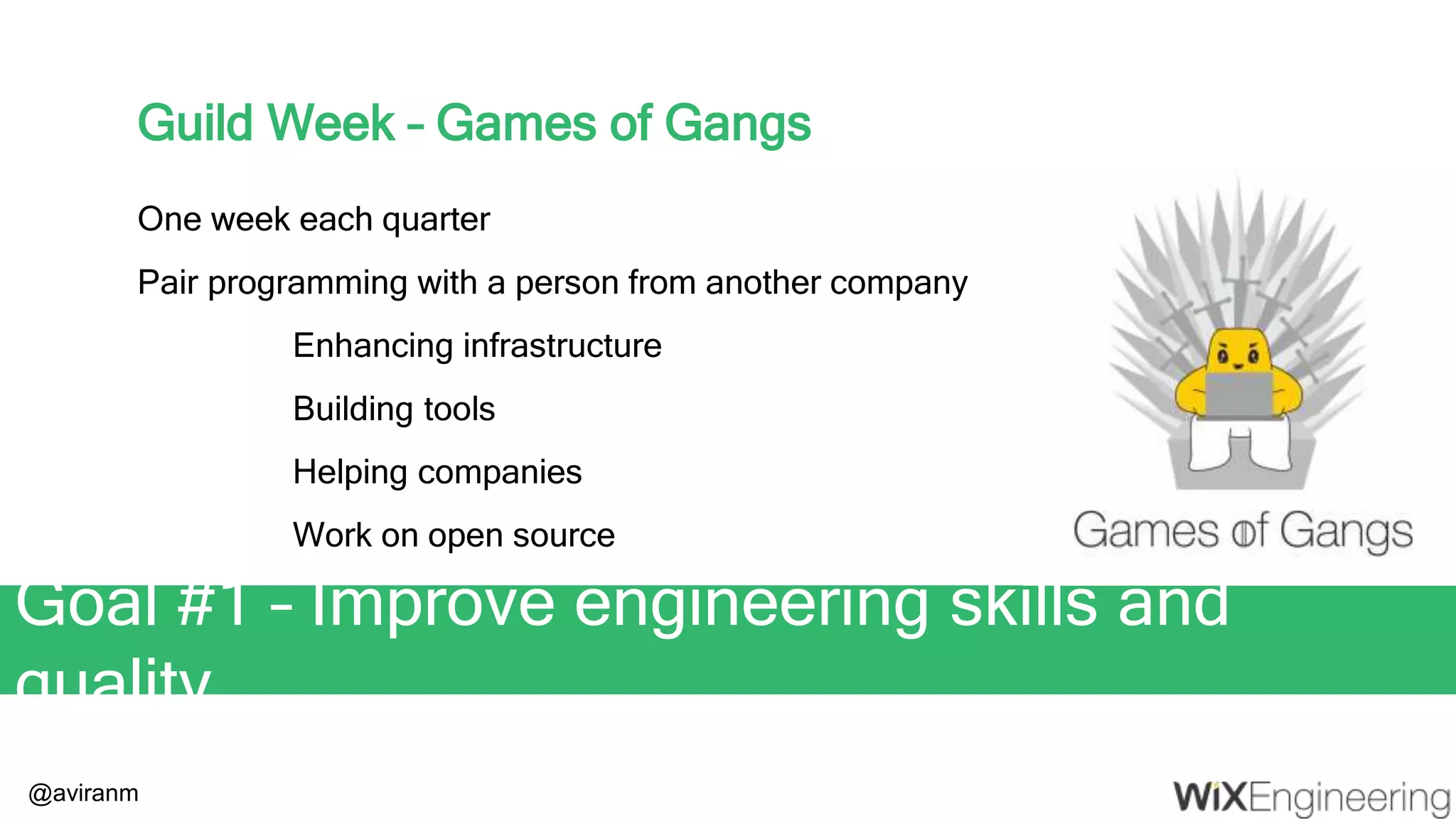

@aviranm Guild Week – Games of Gangs One week each quarter Pair programming with a person from another company Enhancing infrastructure Building tools Helping companies Work on open source Goal #1 – Improve engineering skills and quality

@aviranm Fast Features Better Quality

@aviranm Q&A @aviranm http://www.aviransplace.com www.linkedin.com/in/aviran Aviran Mordo Head of Engineering http://engineering.wix.com @WixEng
