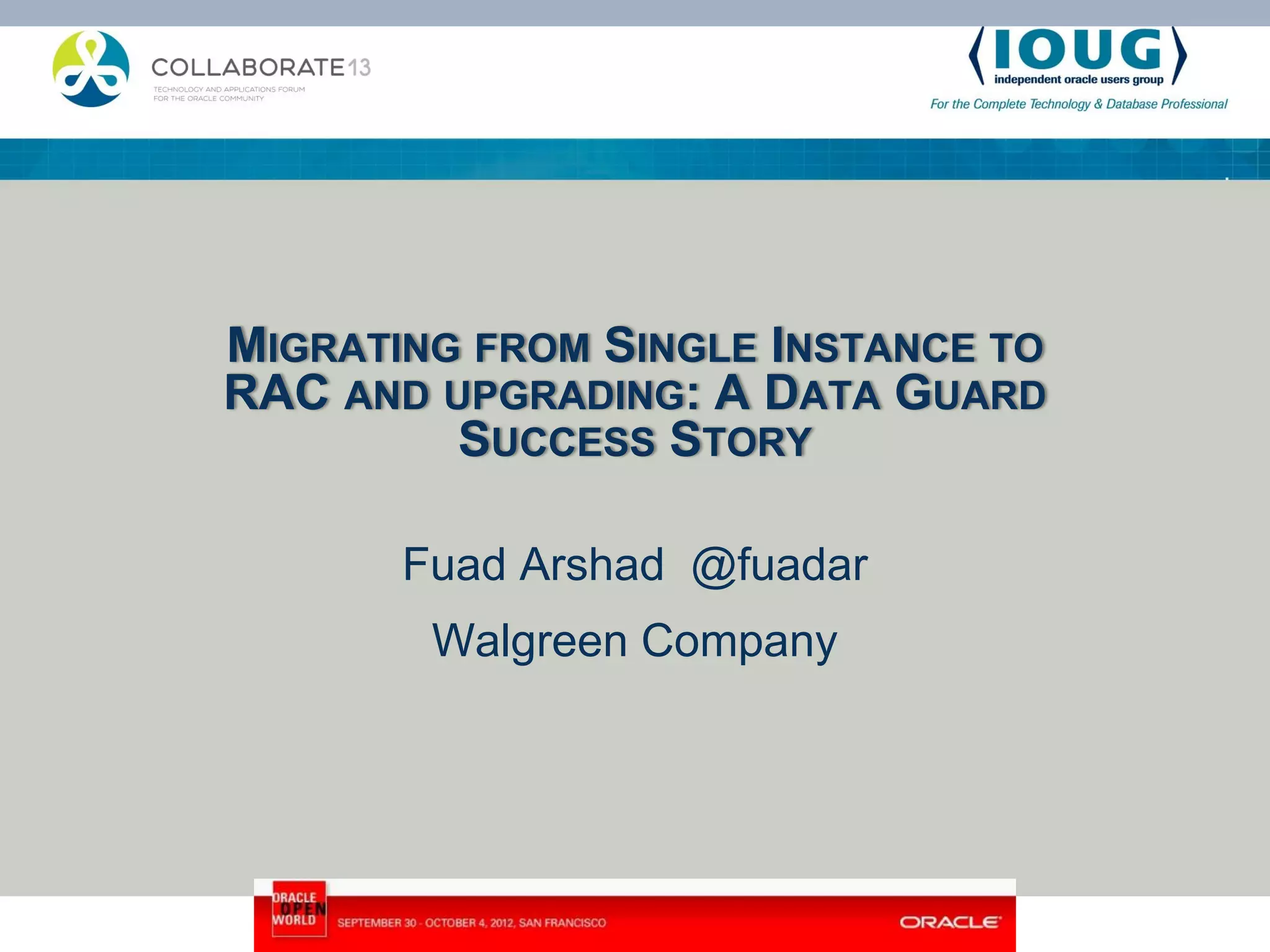

MIGRATING FROM SINGLE INSTANCE TO RAC AND UPGRADING: A DATA GUARD SUCCESS STORY Fuad Arshad @fuadar Walgreen Company

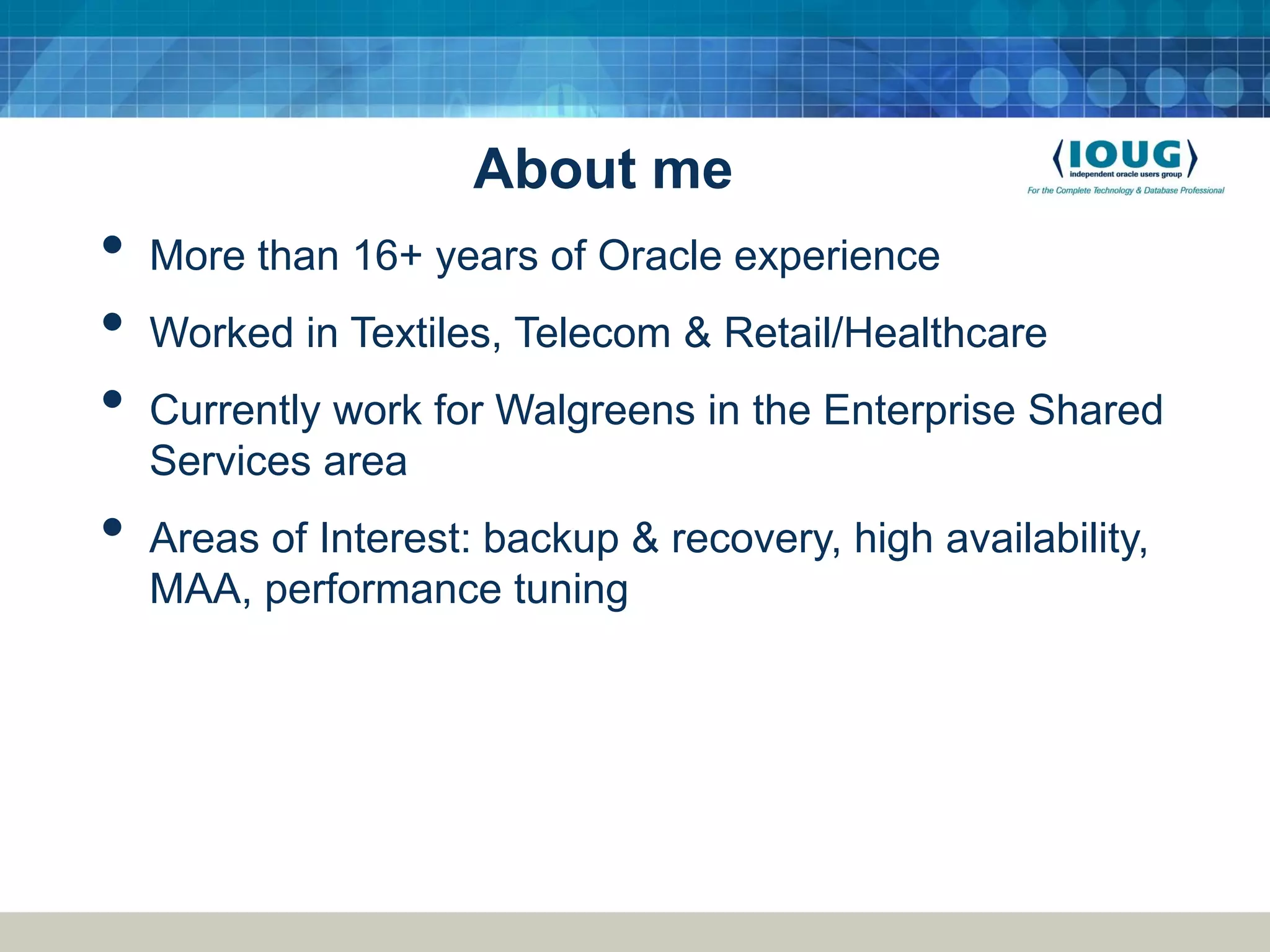

About me • More than 16+ years of Oracle experience • Worked in Textiles, Telecom & Retail/Healthcare • Currently work for Walgreens in the Enterprise Shared Services area • Areas of Interest: backup & recovery, high availability, MAA, performance tuning

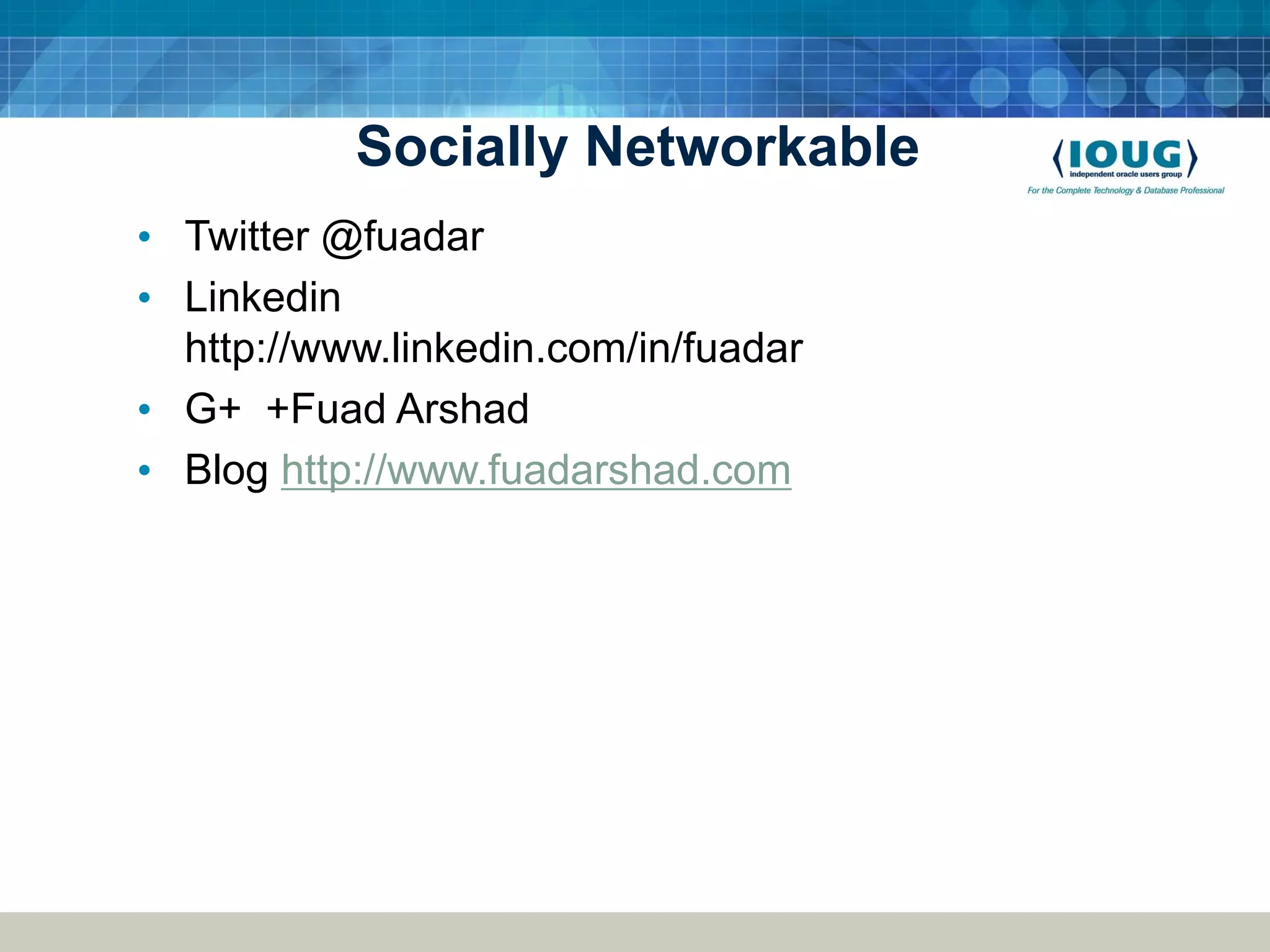

Socially Networkable • Twitter @fuadar • Linkedin http://www.linkedin.com/in/fuadar • G+ +Fuad Arshad • Blog http://www.fuadarshad.com

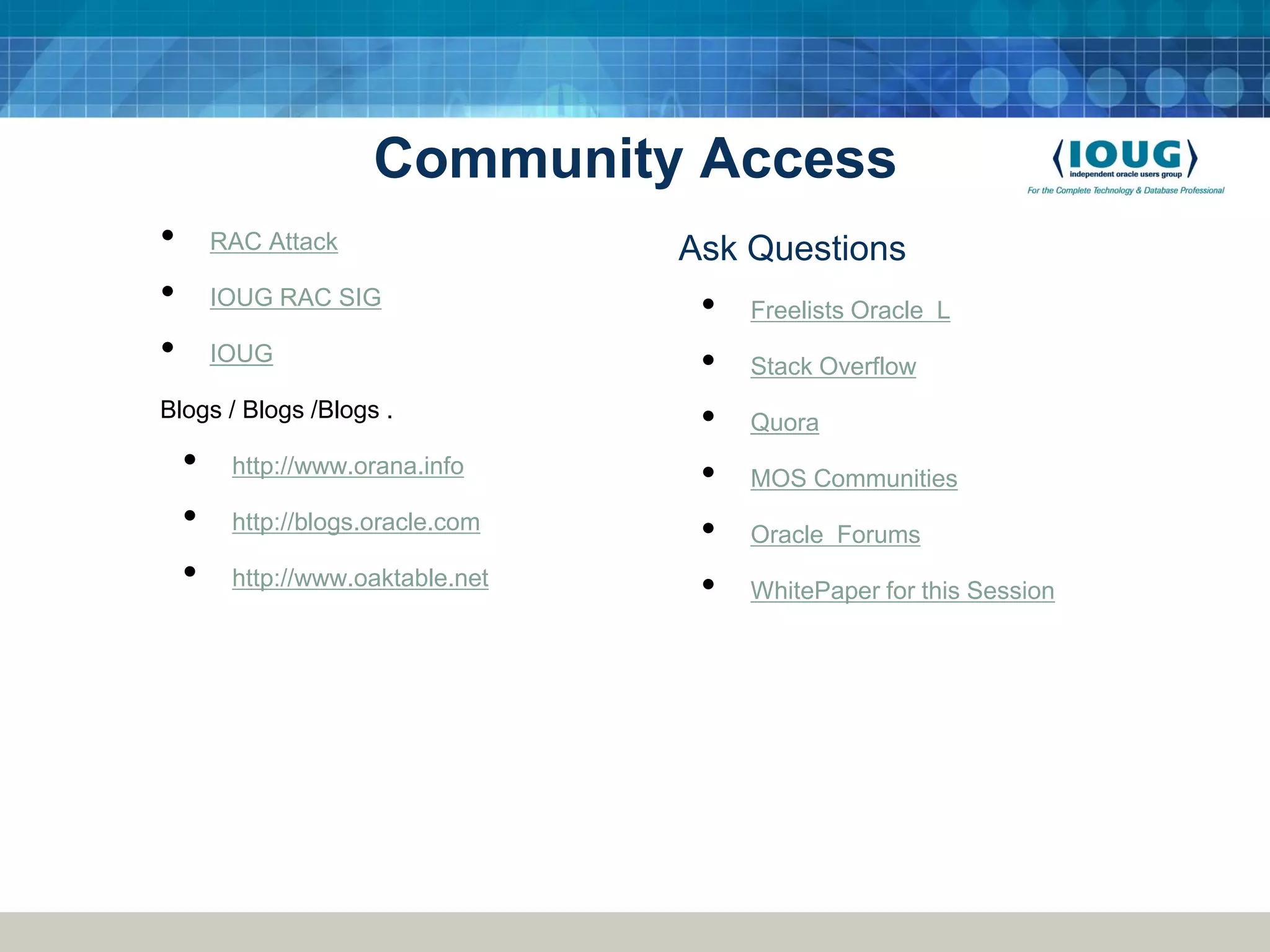

Community Access • RAC Attack Ask Questions • IOUG RAC SIG • Freelists Oracle L • IOUG • Stack Overflow Blogs / Blogs /Blogs . • Quora • http://www.orana.info • MOS Communities • http://blogs.oracle.com • Oracle Forums • http://www.oaktable.net • WhitePaper for this Session

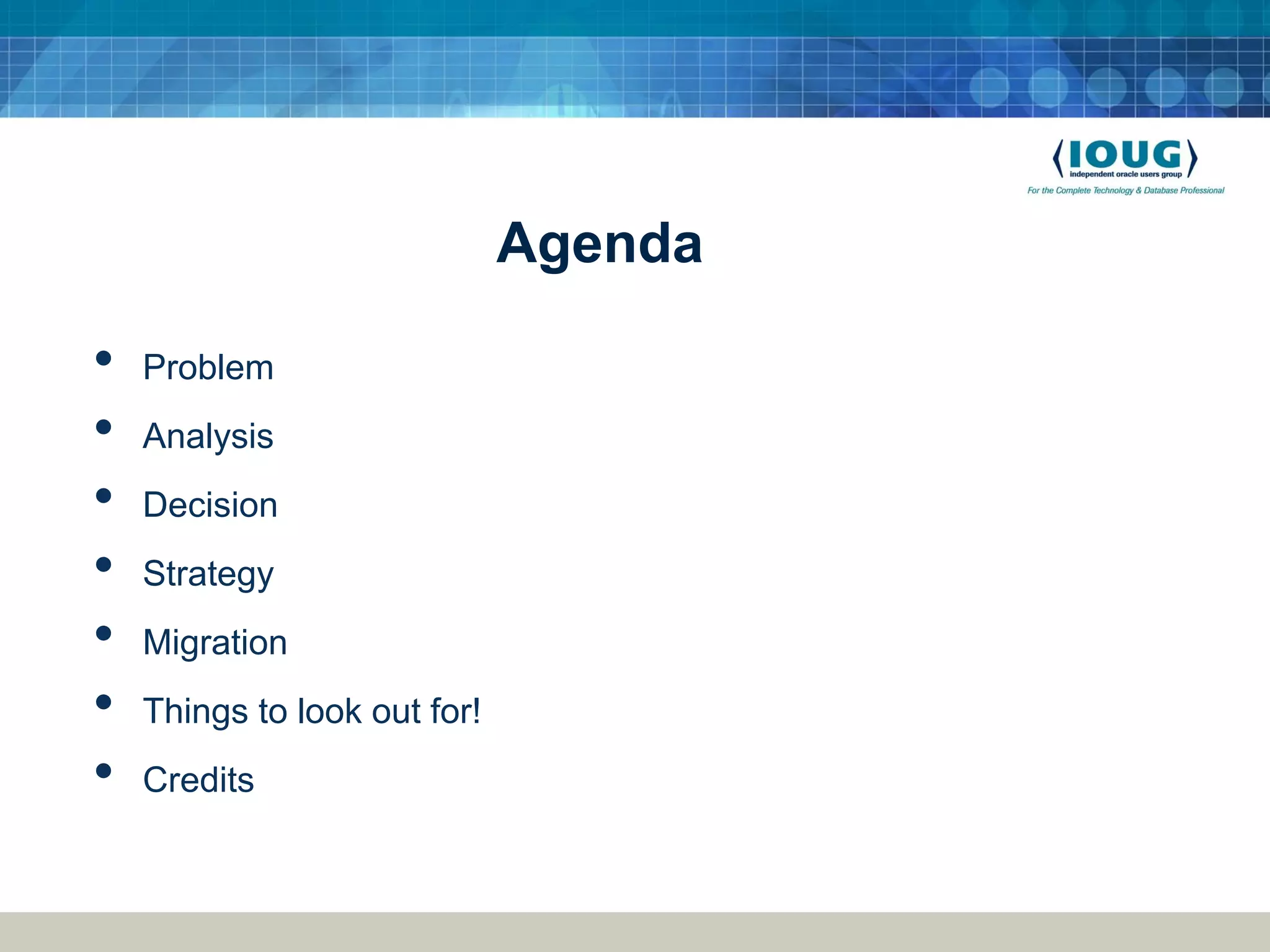

Agenda • Problem • Analysis • Decision • Strategy • Migration • Things to look out for! • Credits

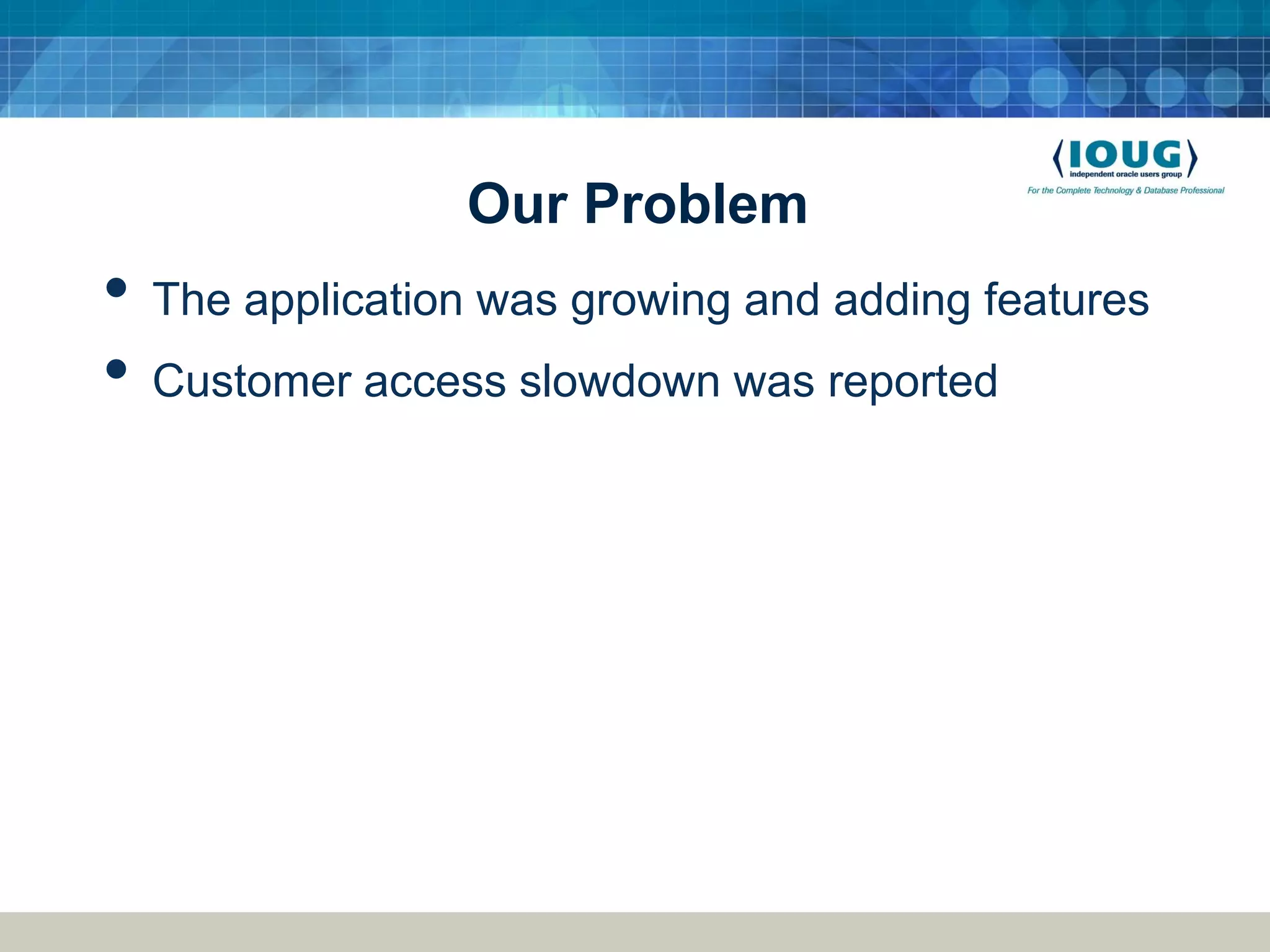

Our Problem • The application was growing and adding features • Customer access slowdown was reported

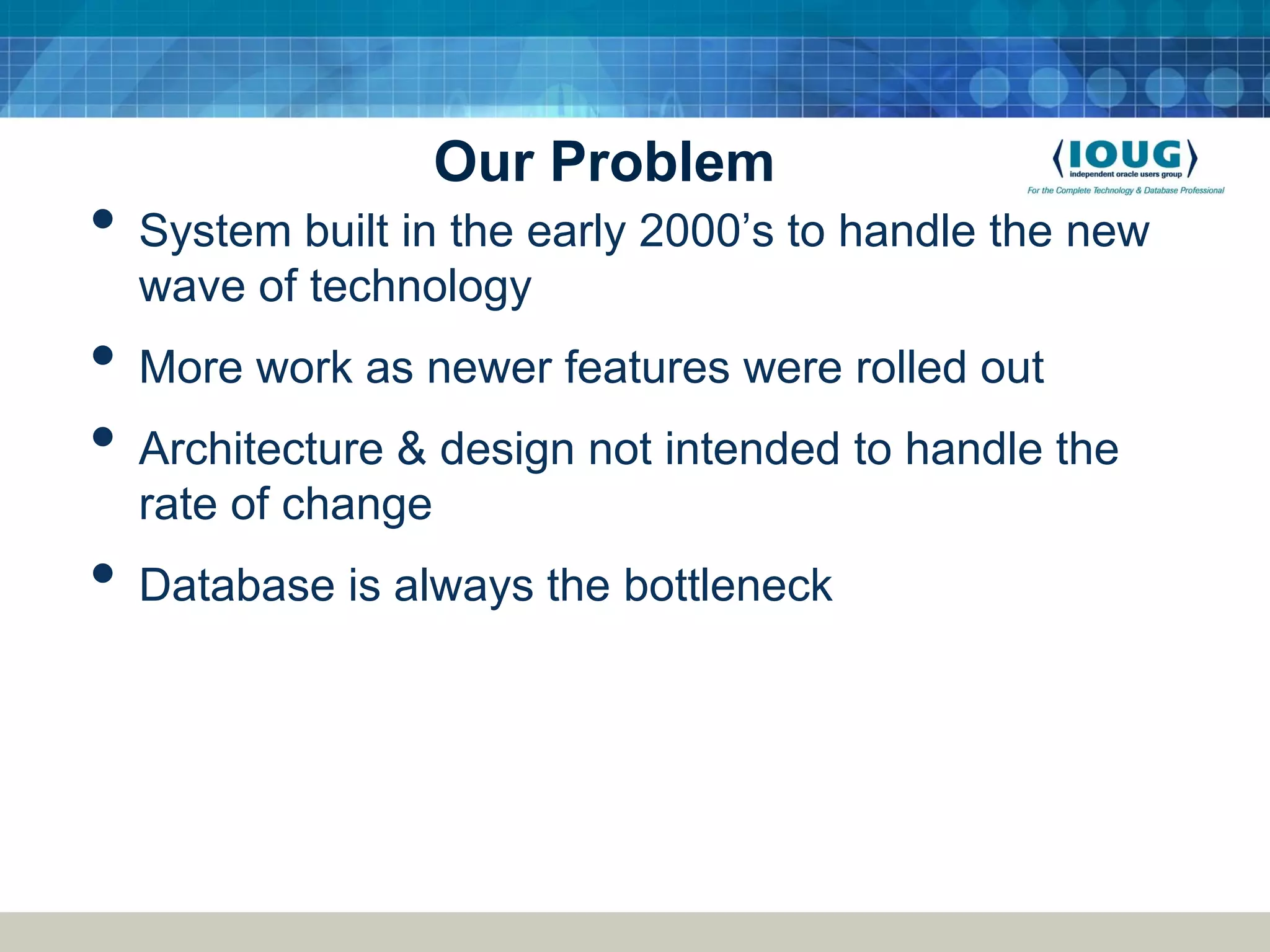

Our Problem • System built in the early 2000’s to handle the new wave of technology • More work as newer features were rolled out • Architecture & design not intended to handle the rate of change • Database is always the bottleneck

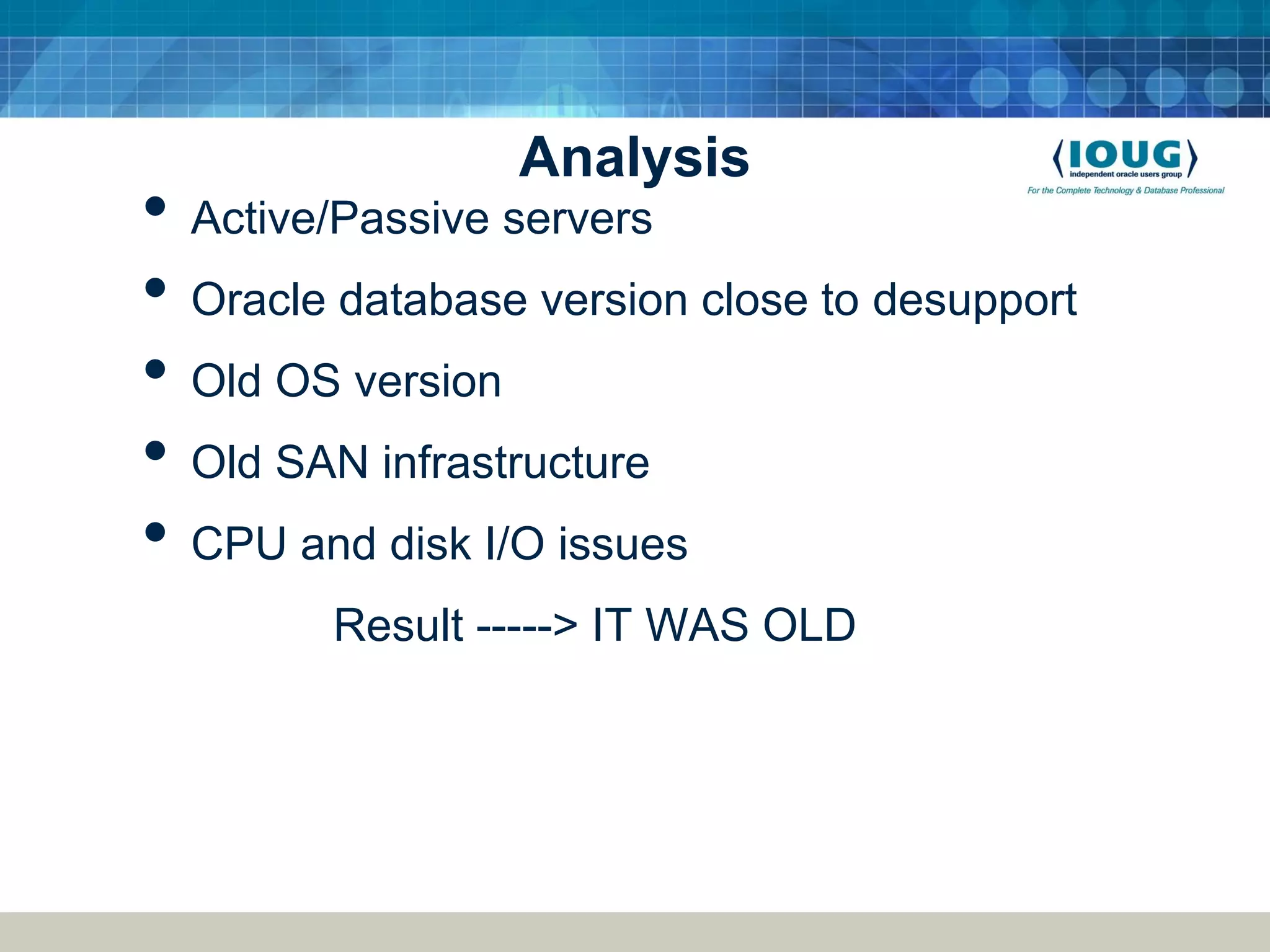

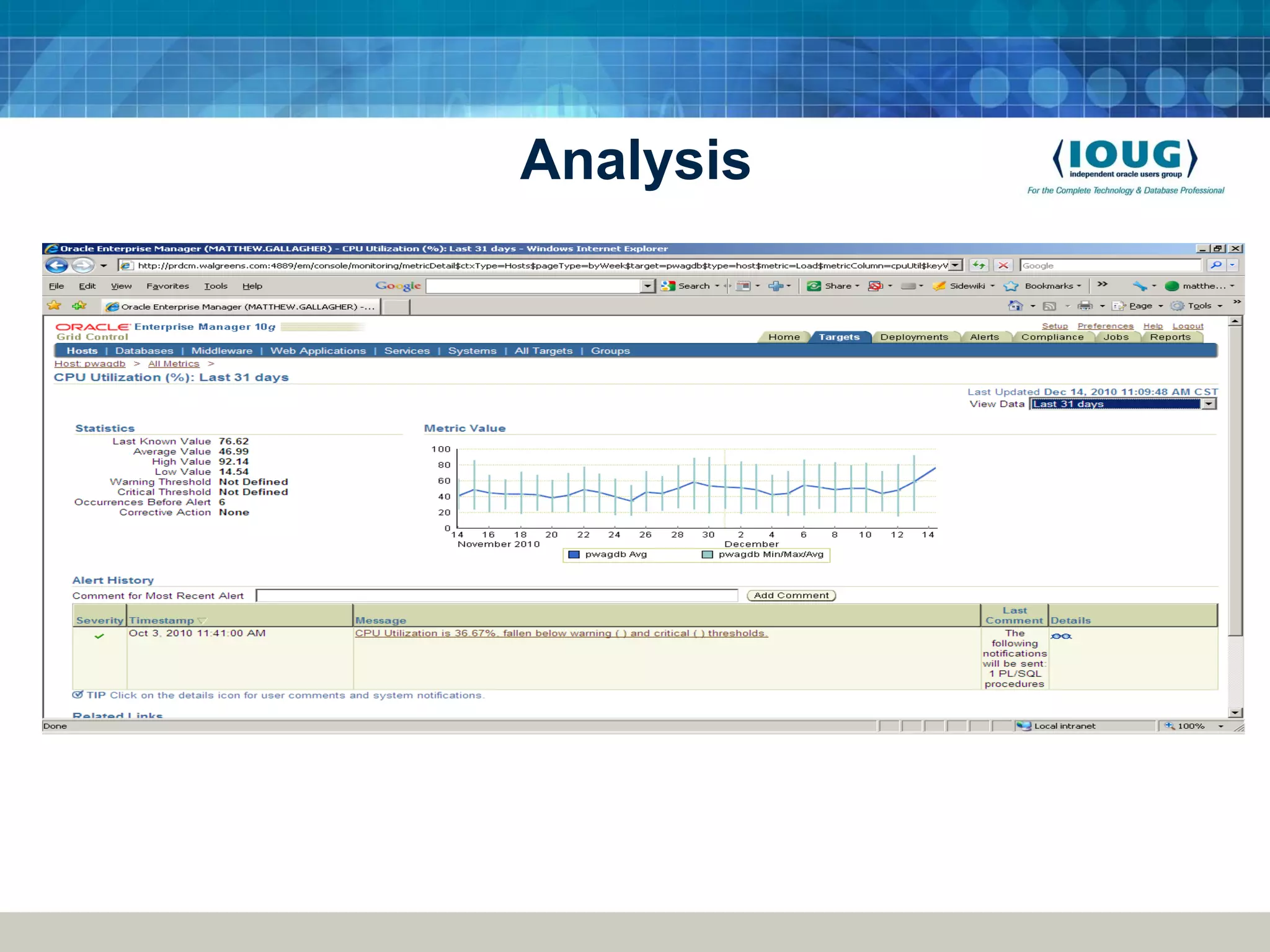

Analysis • Active/Passive servers • Oracle database version close to desupport • Old OS version • Old SAN infrastructure • CPU and disk I/O issues Result -----> IT WAS OLD

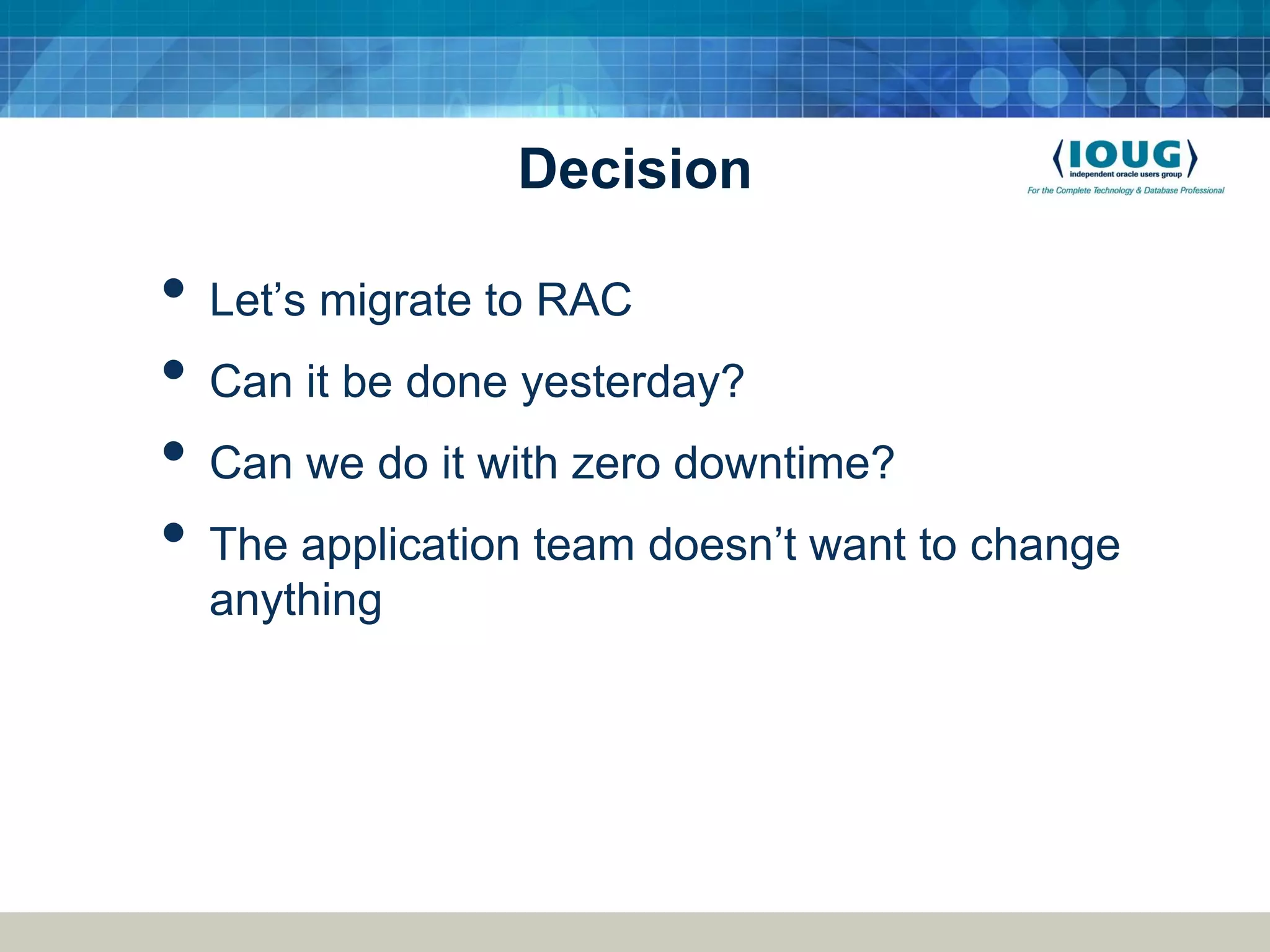

Decision • Let’s migrate to RAC • Can it be done yesterday? • Can we do it with zero downtime? • The application team doesn’t want to change anything

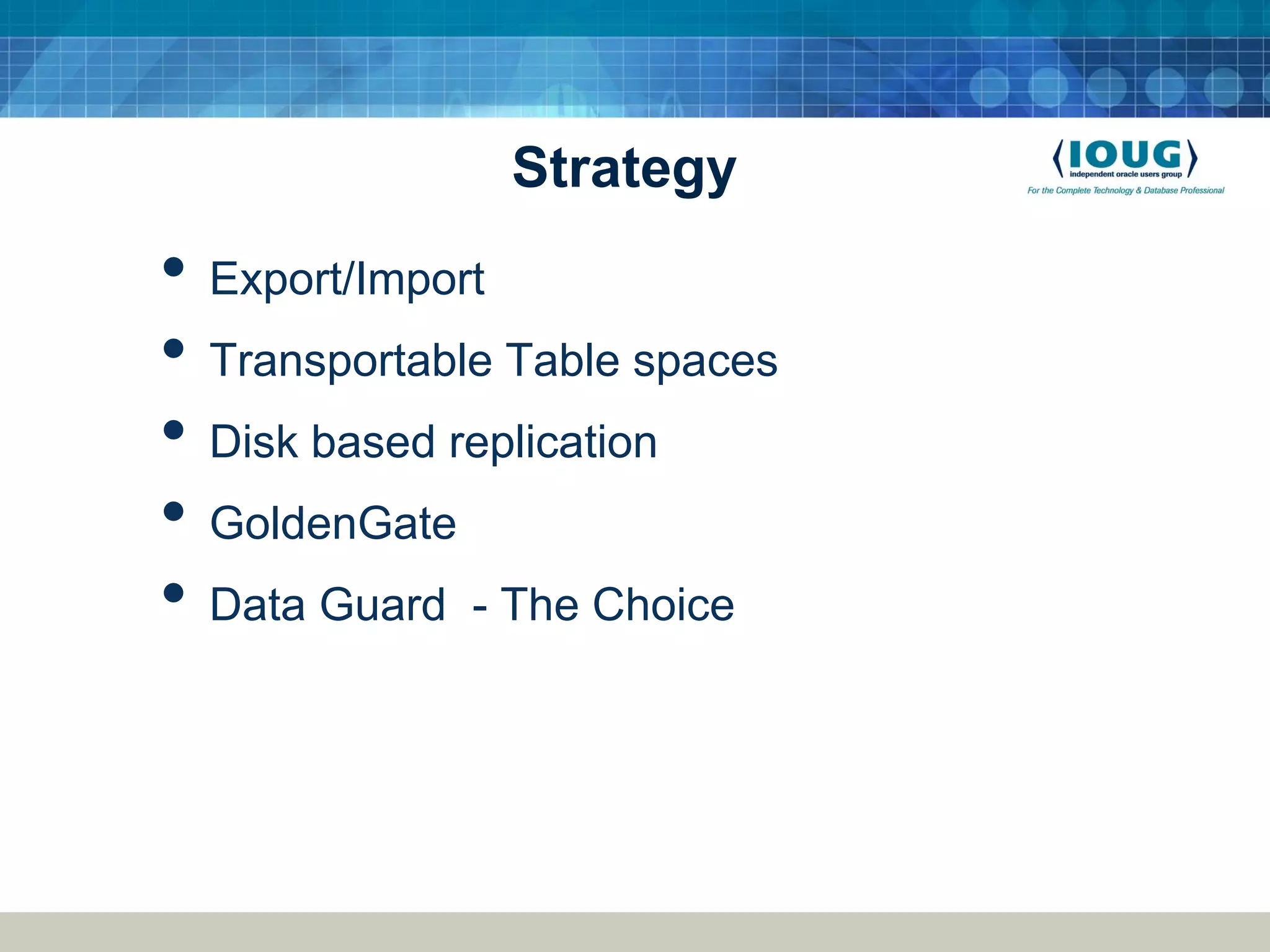

Strategy • Export/Import • Transportable Table spaces • Disk based replication • GoldenGate • Data Guard - The Choice

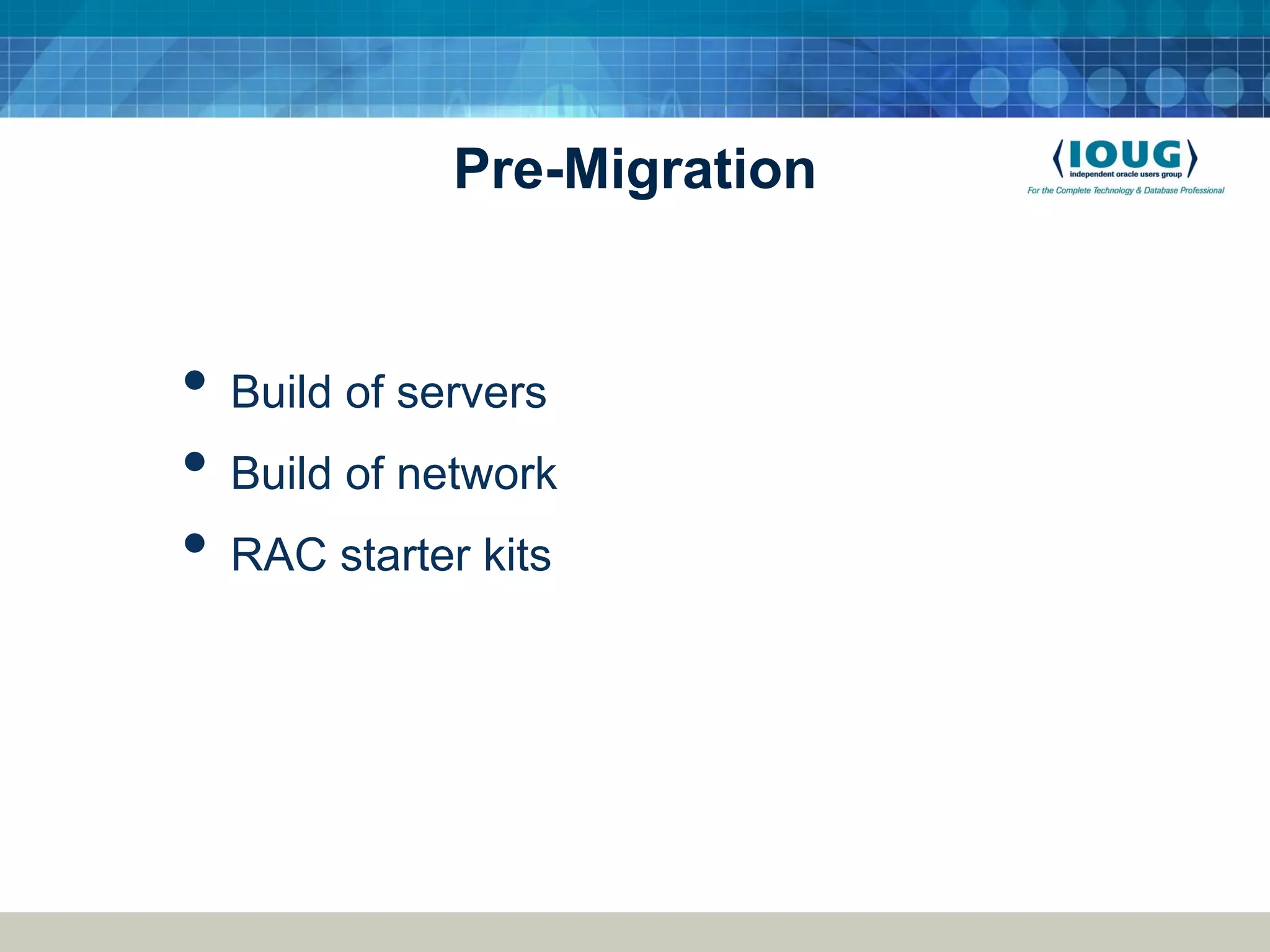

Pre-Migration • Build of servers • Build of network • RAC starter kits

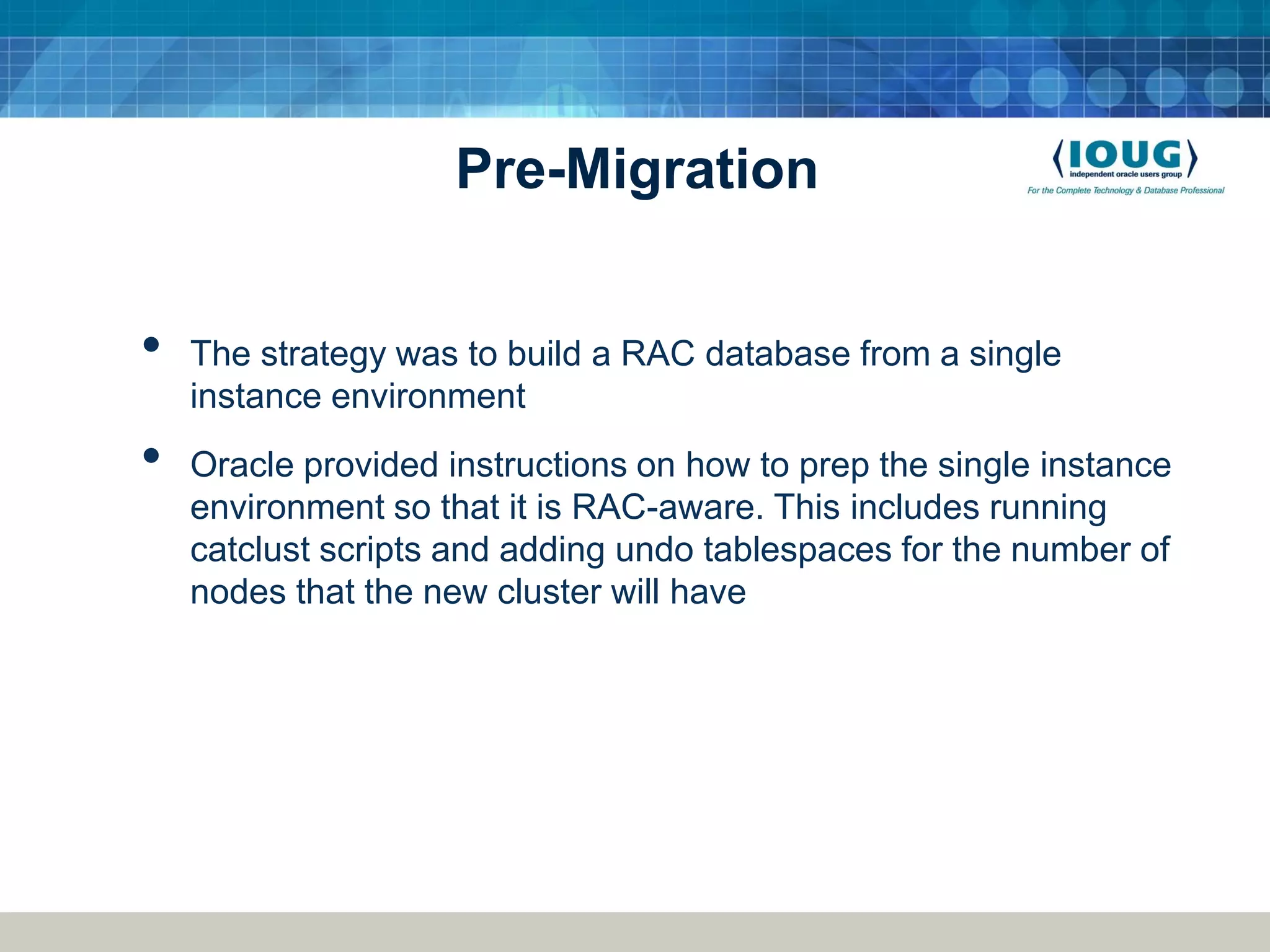

Pre-Migration • The strategy was to build a RAC database from a single instance environment • Oracle provided instructions on how to prep the single instance environment so that it is RAC-aware. This includes running catclust scripts and adding undo tablespaces for the number of nodes that the new cluster will have

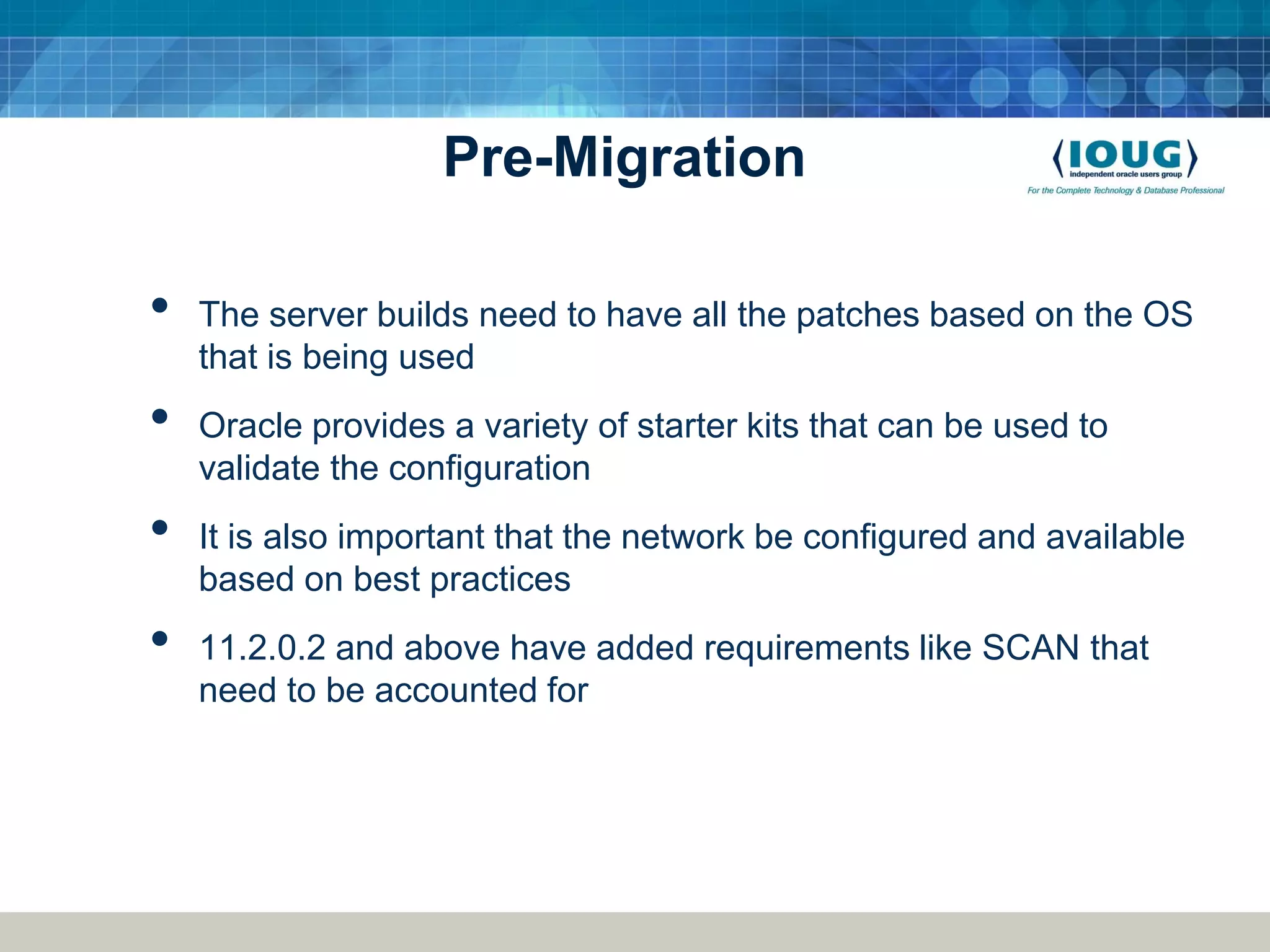

Pre-Migration • The server builds need to have all the patches based on the OS that is being used • Oracle provides a variety of starter kits that can be used to validate the configuration • It is also important that the network be configured and available based on best practices • 11.2.0.2 and above have added requirements like SCAN that need to be accounted for

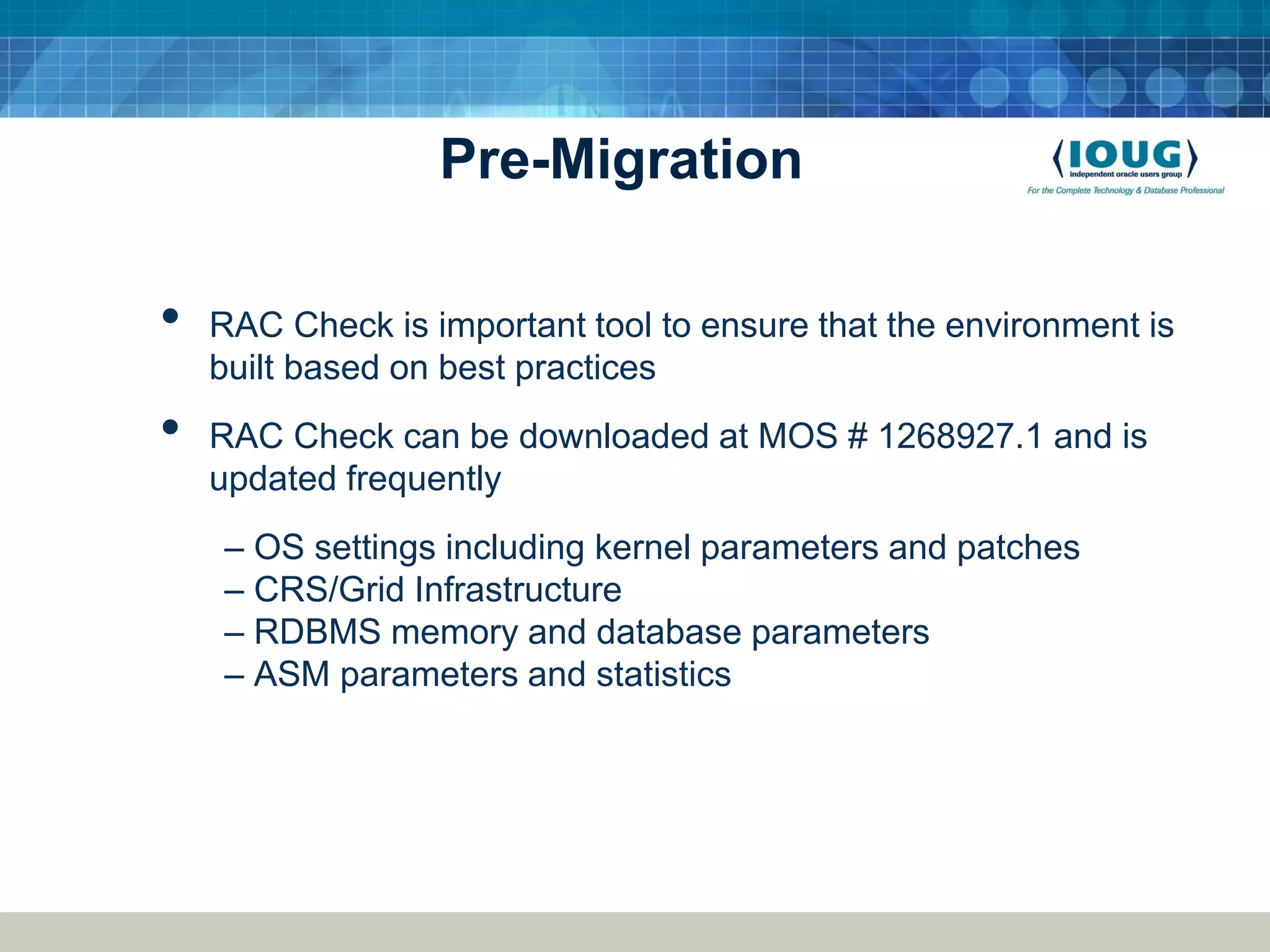

Pre-Migration • RAC Check is important tool to ensure that the environment is built based on best practices • RAC Check can be downloaded at MOS # 1268927.1 and is updated frequently – OS settings including kernel parameters and patches – CRS/Grid Infrastructure – RDBMS memory and database parameters – ASM parameters and statistics

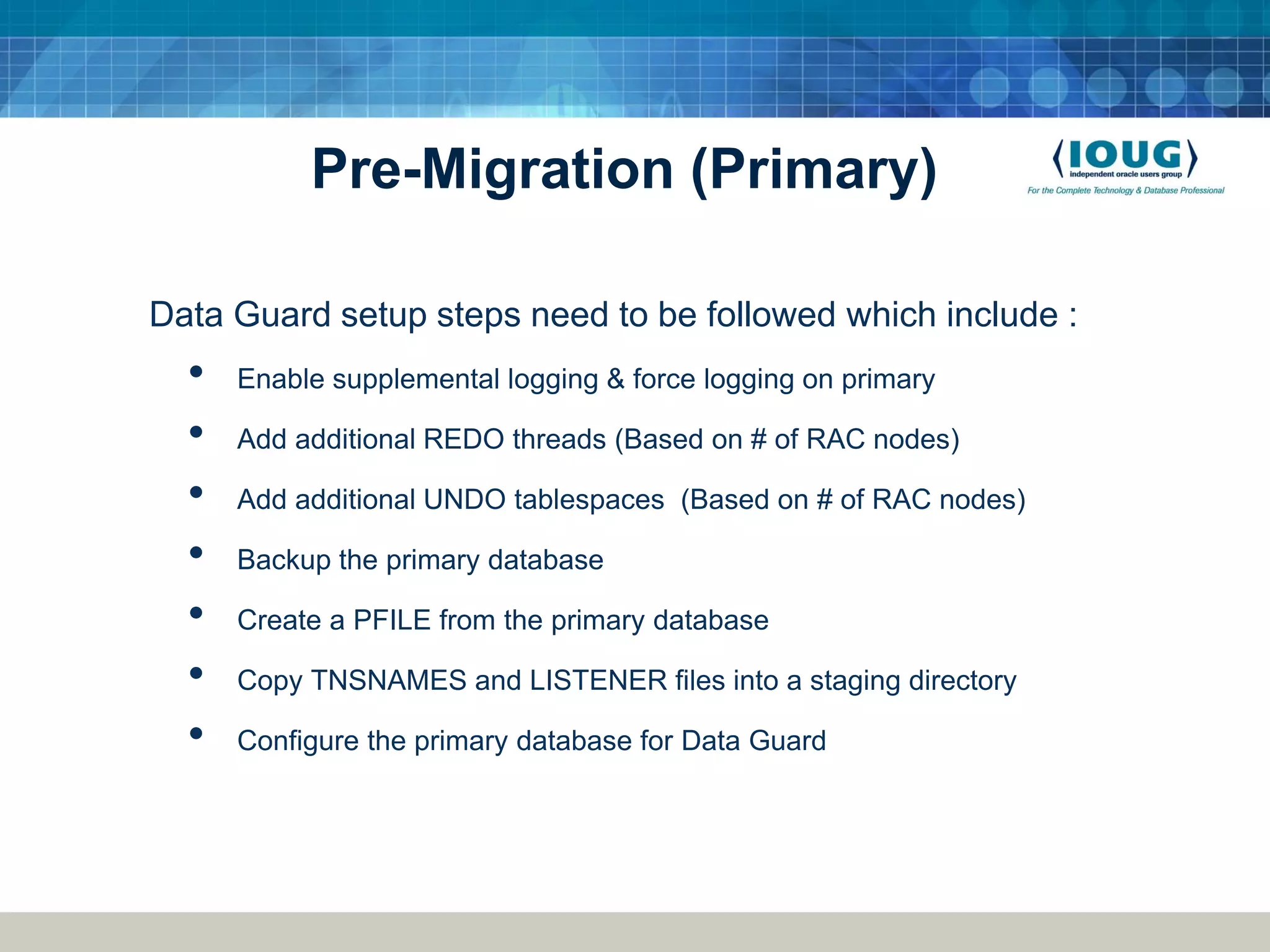

Pre-Migration (Primary) Data Guard setup steps need to be followed which include : • Enable supplemental logging & force logging on primary • Add additional REDO threads (Based on # of RAC nodes) • Add additional UNDO tablespaces (Based on # of RAC nodes) • Backup the primary database • Create a PFILE from the primary database • Copy TNSNAMES and LISTENER files into a staging directory • Configure the primary database for Data Guard

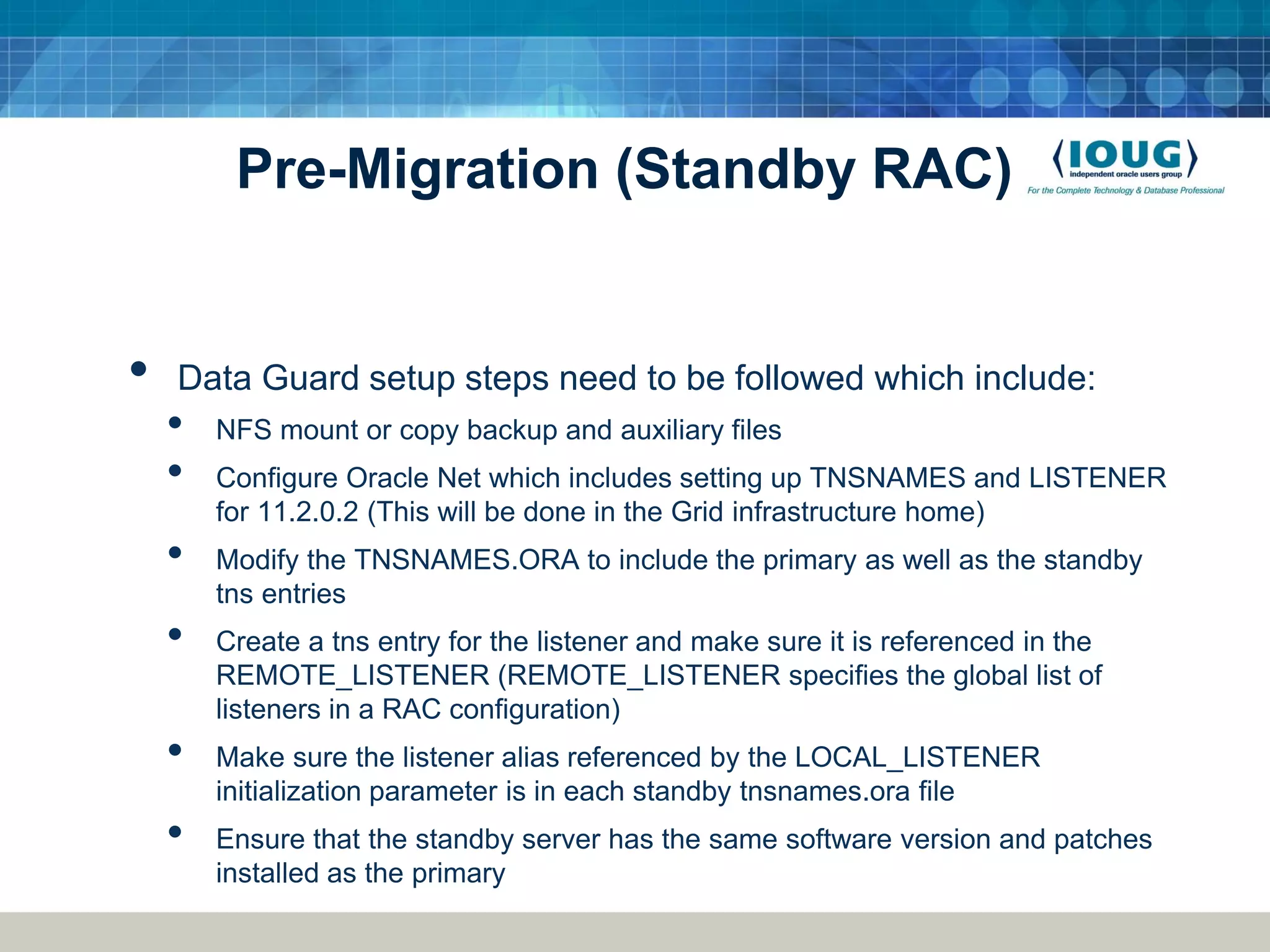

Pre-Migration (Standby RAC) • Data Guard setup steps need to be followed which include: • NFS mount or copy backup and auxiliary files • Configure Oracle Net which includes setting up TNSNAMES and LISTENER for 11.2.0.2 (This will be done in the Grid infrastructure home) • Modify the TNSNAMES.ORA to include the primary as well as the standby tns entries • Create a tns entry for the listener and make sure it is referenced in the REMOTE_LISTENER (REMOTE_LISTENER specifies the global list of listeners in a RAC configuration) • Make sure the listener alias referenced by the LOCAL_LISTENER initialization parameter is in each standby tnsnames.ora file • Ensure that the standby server has the same software version and patches installed as the primary

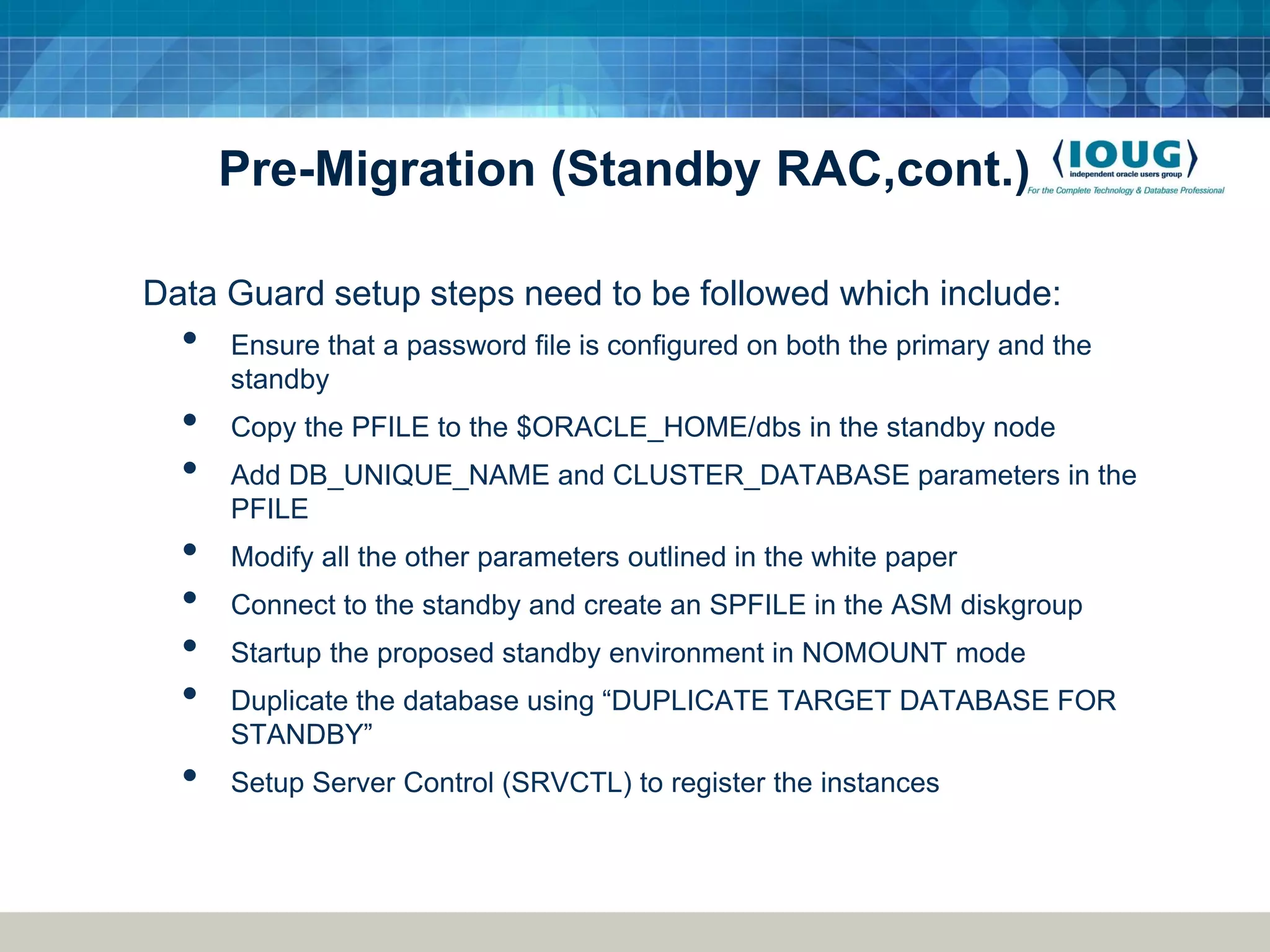

Pre-Migration (Standby RAC,cont.) Data Guard setup steps need to be followed which include: • Ensure that a password file is configured on both the primary and the standby • Copy the PFILE to the $ORACLE_HOME/dbs in the standby node • Add DB_UNIQUE_NAME and CLUSTER_DATABASE parameters in the PFILE • Modify all the other parameters outlined in the white paper • Connect to the standby and create an SPFILE in the ASM diskgroup • Startup the proposed standby environment in NOMOUNT mode • Duplicate the database using “DUPLICATE TARGET DATABASE FOR STANDBY” • Setup Server Control (SRVCTL) to register the instances

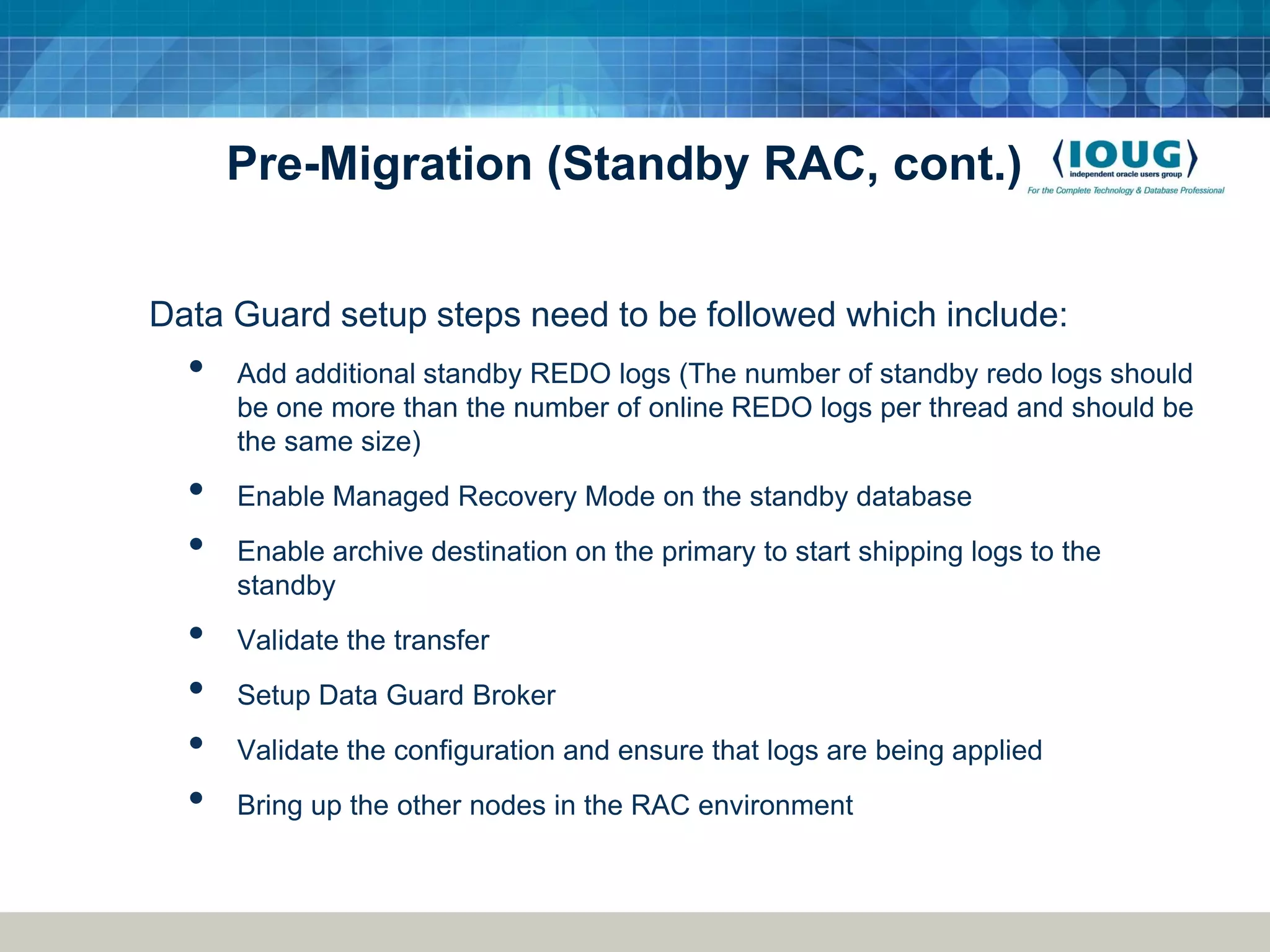

Pre-Migration (Standby RAC, cont.) Data Guard setup steps need to be followed which include: • Add additional standby REDO logs (The number of standby redo logs should be one more than the number of online REDO logs per thread and should be the same size) • Enable Managed Recovery Mode on the standby database • Enable archive destination on the primary to start shipping logs to the standby • Validate the transfer • Setup Data Guard Broker • Validate the configuration and ensure that logs are being applied • Bring up the other nodes in the RAC environment

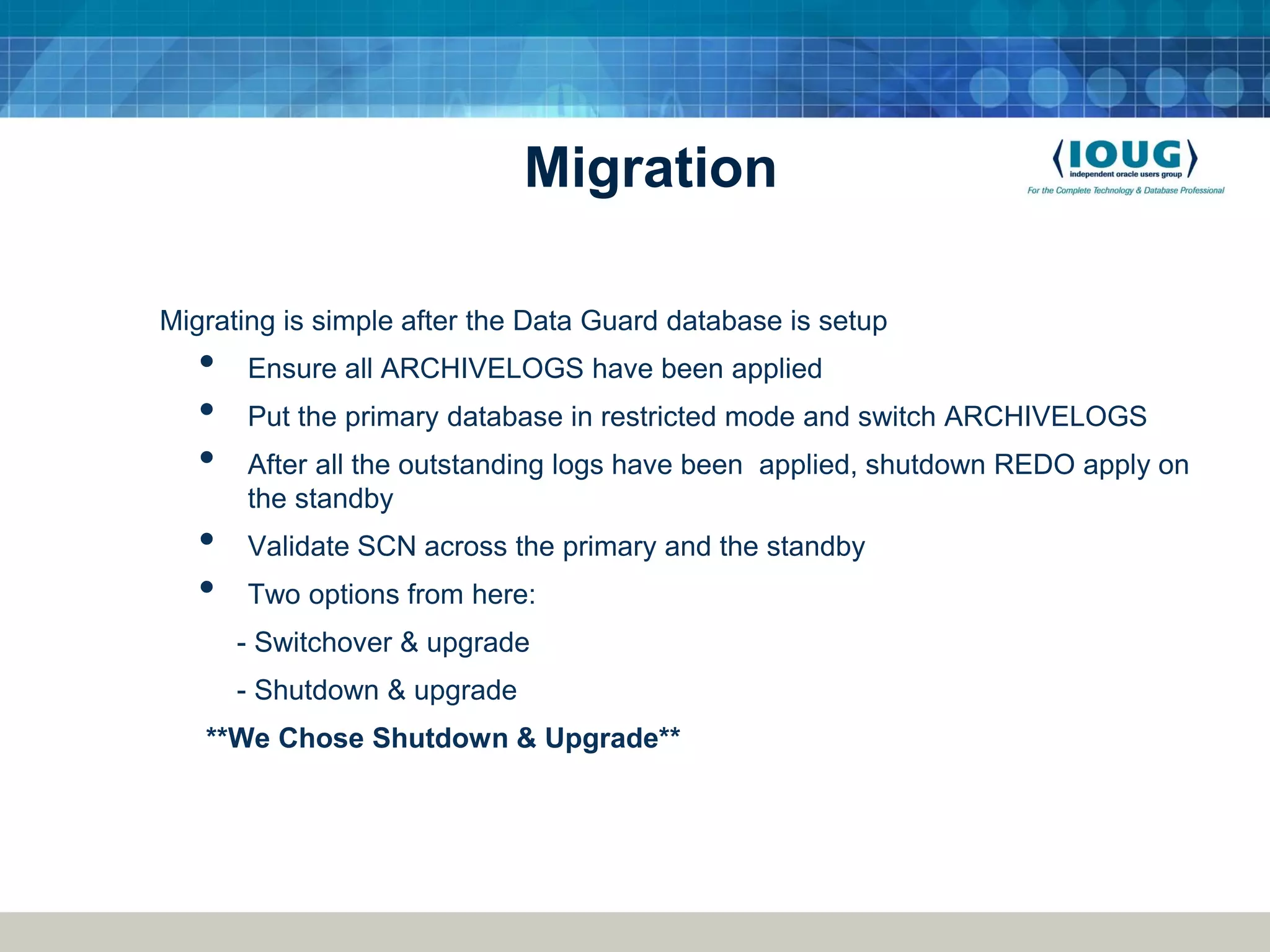

Migration Migrating is simple after the Data Guard database is setup • Ensure all ARCHIVELOGS have been applied • Put the primary database in restricted mode and switch ARCHIVELOGS • After all the outstanding logs have been applied, shutdown REDO apply on the standby • Validate SCN across the primary and the standby • Two options from here: - Switchover & upgrade - Shutdown & upgrade **We Chose Shutdown & Upgrade**

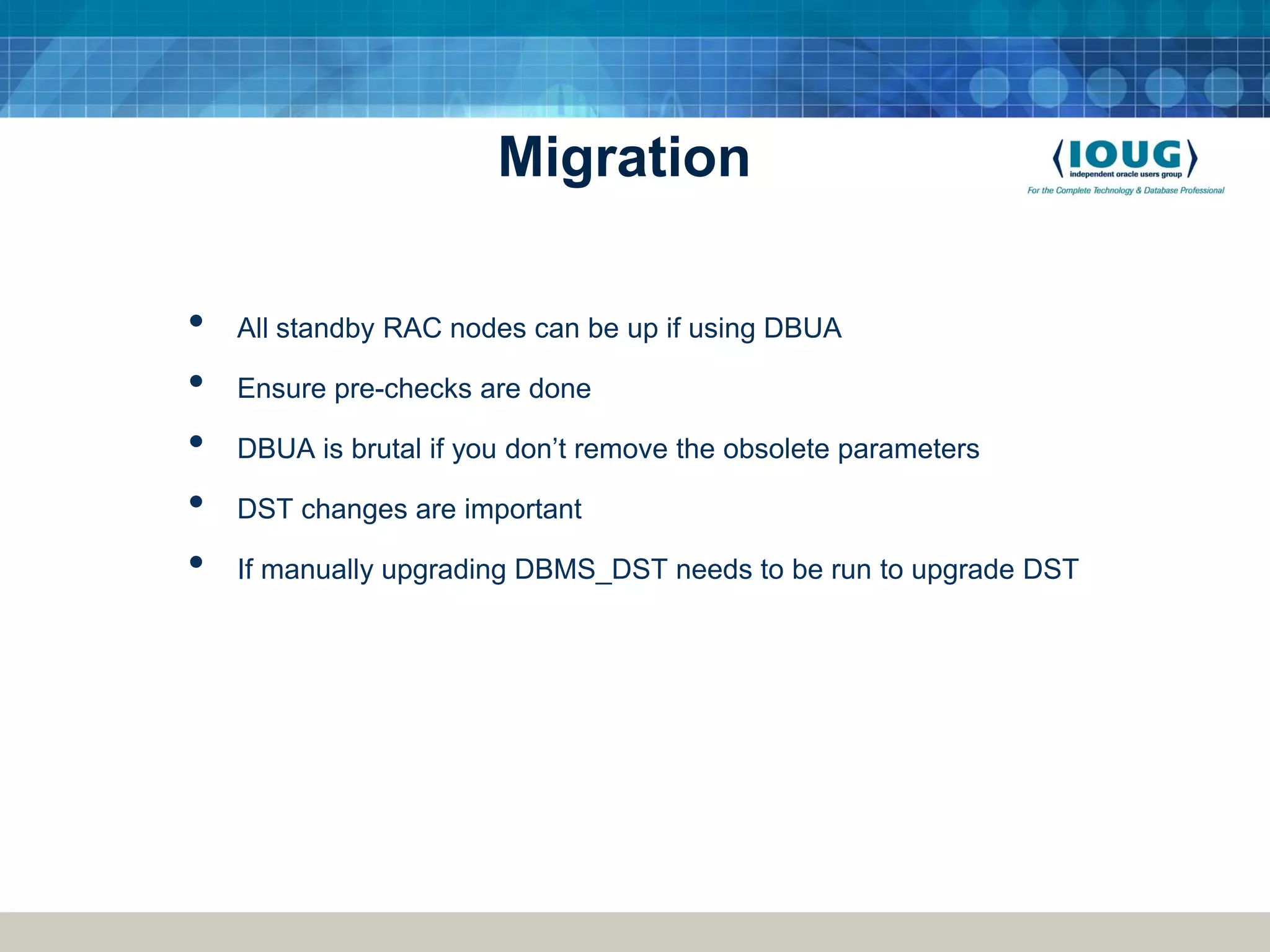

Migration • All standby RAC nodes can be up if using DBUA • Ensure pre-checks are done • DBUA is brutal if you don’t remove the obsolete parameters • DST changes are important • If manually upgrading DBMS_DST needs to be run to upgrade DST

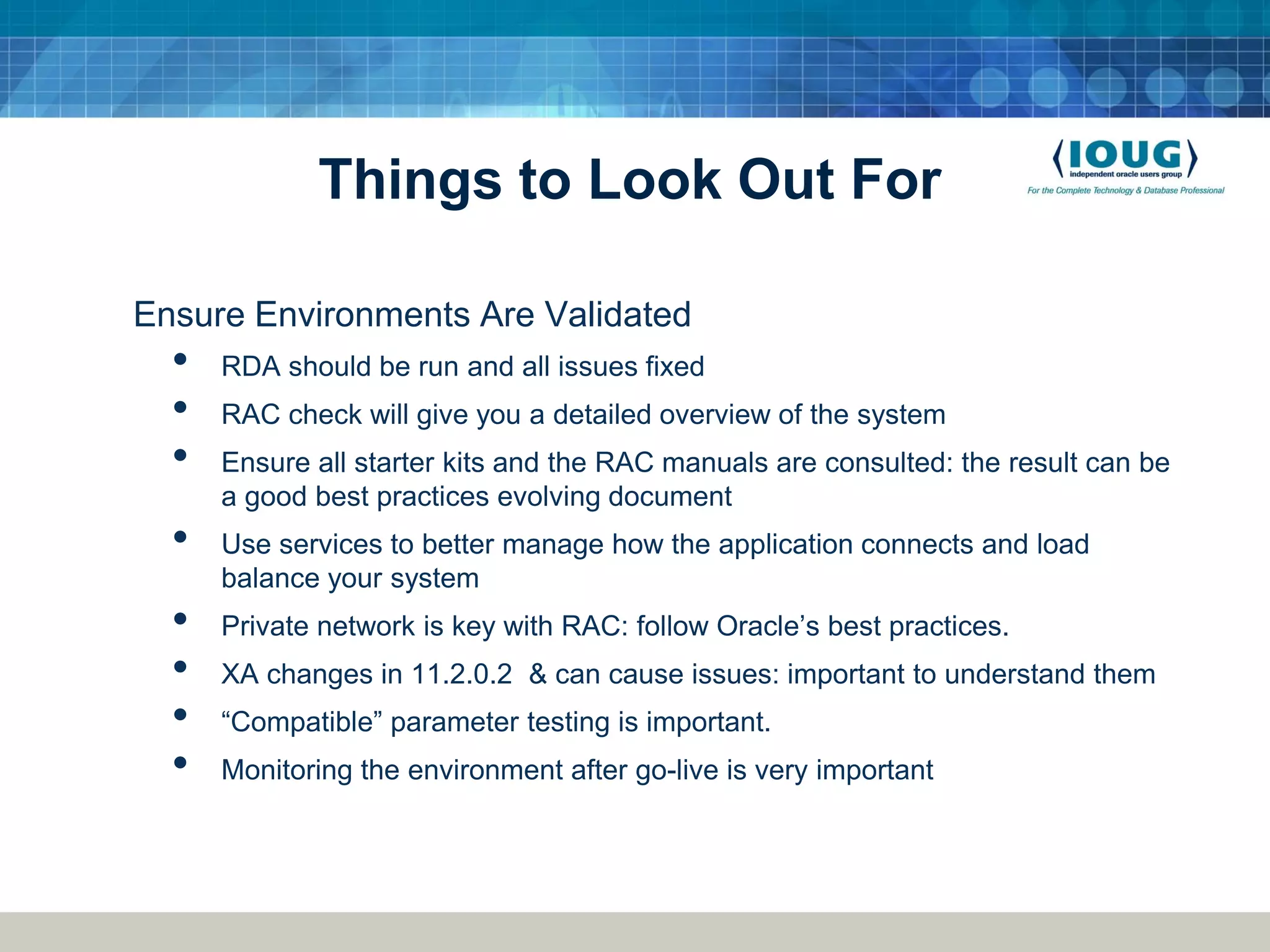

Things to Look Out For Ensure Environments Are Validated • RDA should be run and all issues fixed • RAC check will give you a detailed overview of the system • Ensure all starter kits and the RAC manuals are consulted: the result can be a good best practices evolving document • Use services to better manage how the application connects and load balance your system • Private network is key with RAC: follow Oracle’s best practices. • XA changes in 11.2.0.2 & can cause issues: important to understand them • “Compatible” parameter testing is important. • Monitoring the environment after go-live is very important

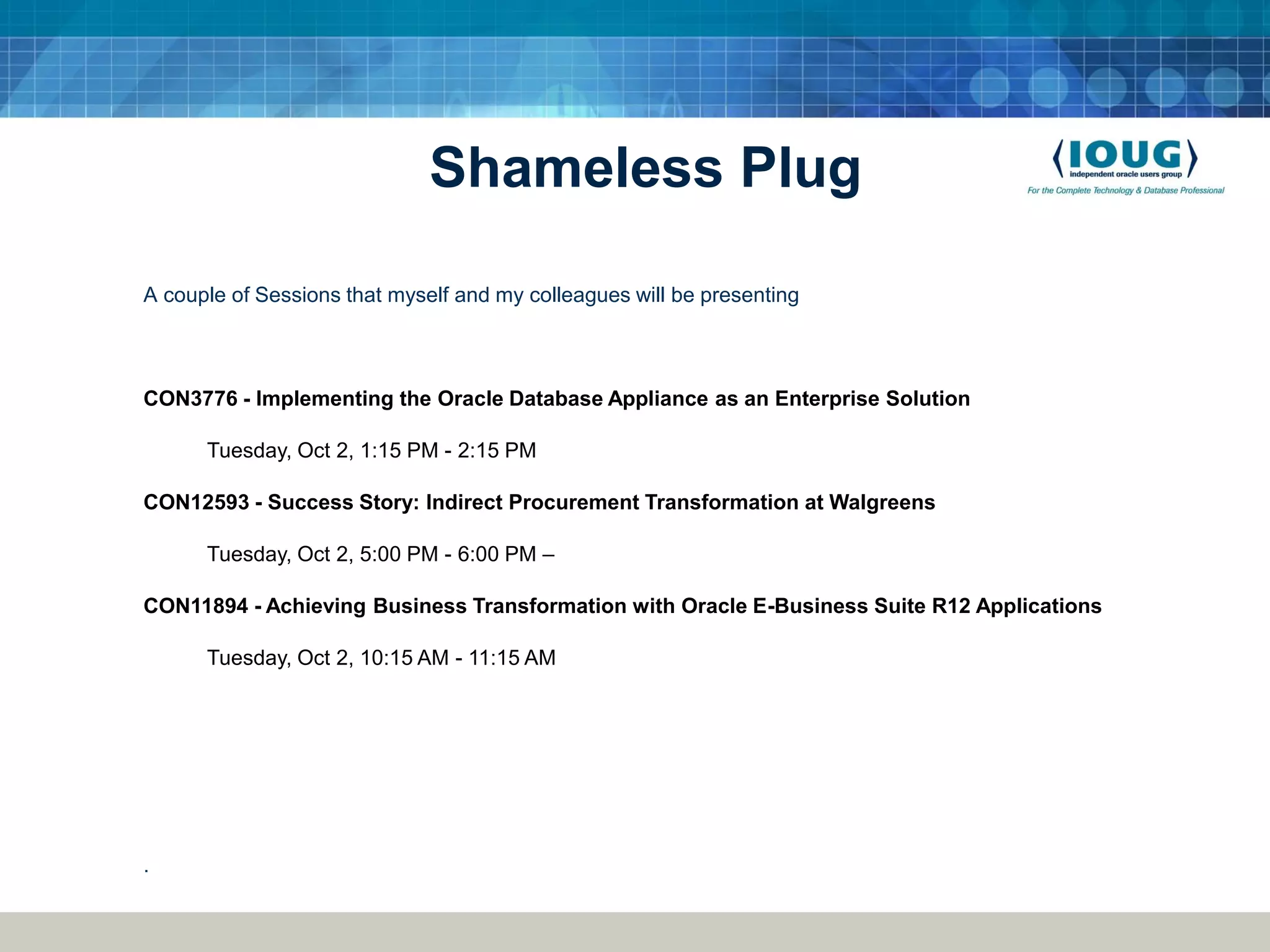

Shameless Plug A couple of Sessions that myself and my colleagues will be presenting CON3776 - Implementing the Oracle Database Appliance as an Enterprise Solution Tuesday, Oct 2, 1:15 PM - 2:15 PM CON12593 - Success Story: Indirect Procurement Transformation at Walgreens Tuesday, Oct 2, 5:00 PM - 6:00 PM – CON11894 - Achieving Business Transformation with Oracle E-Business Suite R12 Applications Tuesday, Oct 2, 10:15 AM - 11:15 AM .

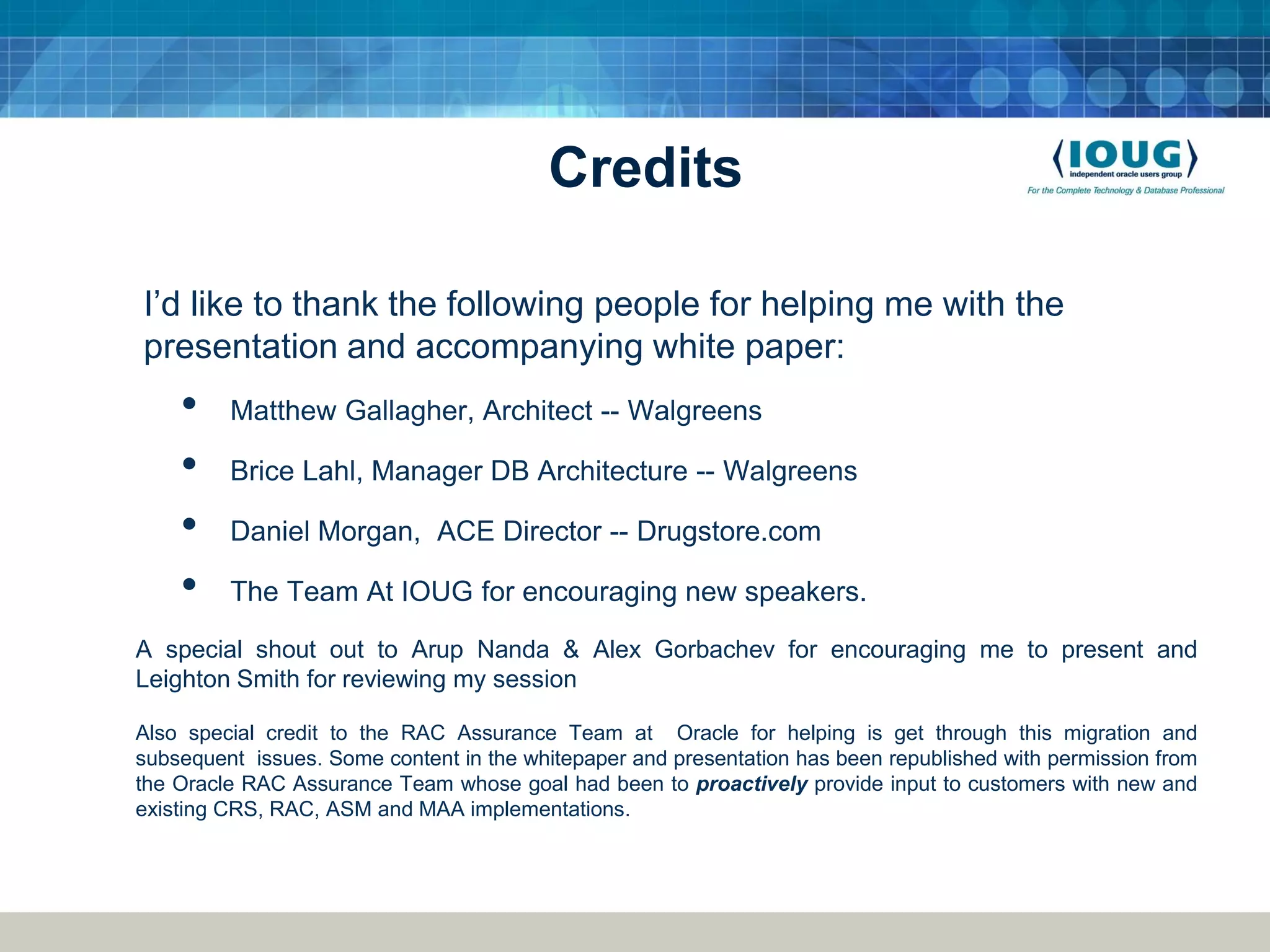

Credits I’d like to thank the following people for helping me with the presentation and accompanying white paper: • Matthew Gallagher, Architect -- Walgreens • Brice Lahl, Manager DB Architecture -- Walgreens • Daniel Morgan, ACE Director -- Drugstore.com • The Team At IOUG for encouraging new speakers. A special shout out to Arup Nanda & Alex Gorbachev for encouraging me to present and Leighton Smith for reviewing my session Also special credit to the RAC Assurance Team at Oracle for helping is get through this migration and subsequent issues. Some content in the whitepaper and presentation has been republished with permission from the Oracle RAC Assurance Team whose goal had been to proactively provide input to customers with new and existing CRS, RAC, ASM and MAA implementations.

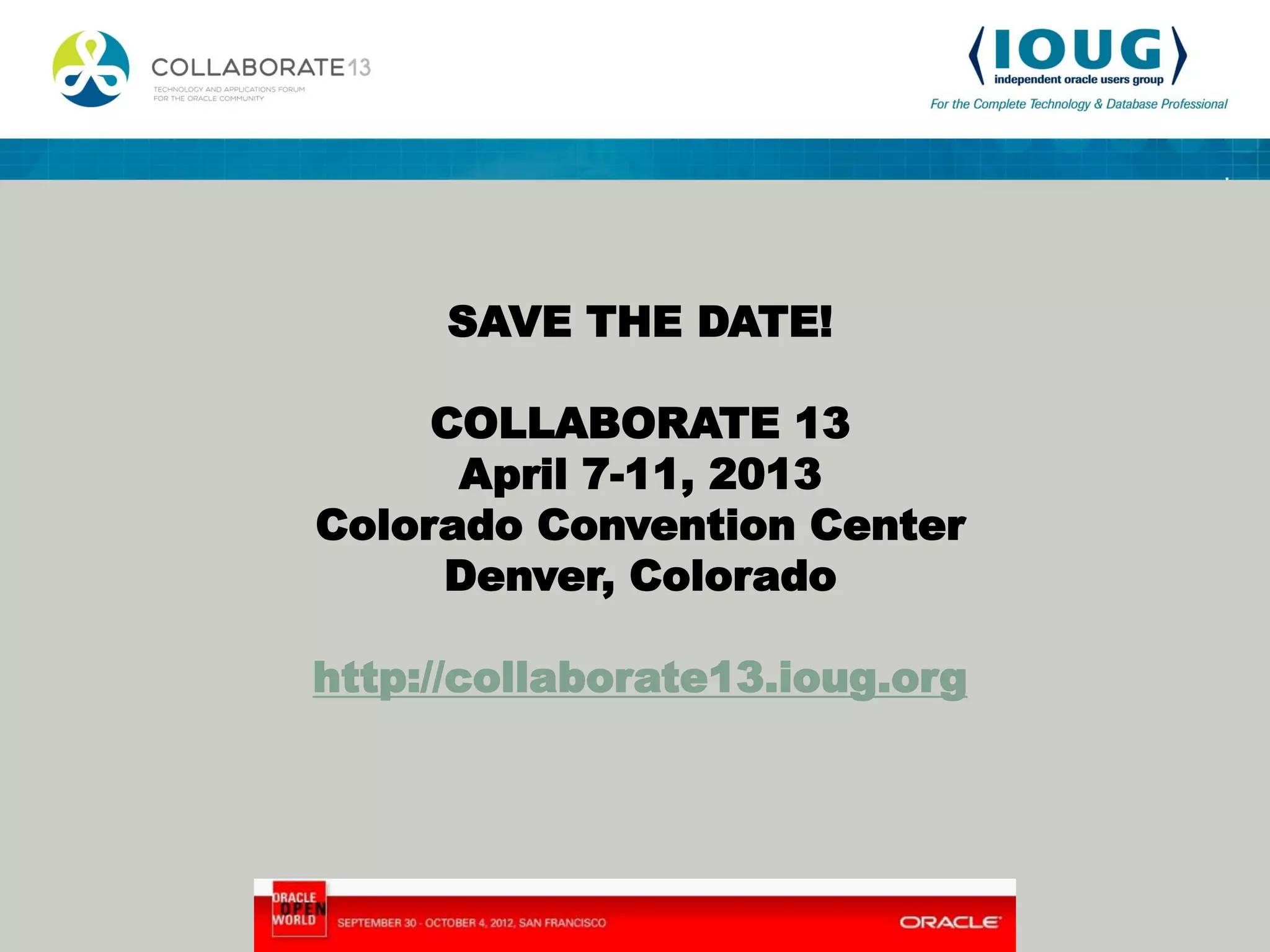

SAVE THE DATE! COLLABORATE 13 April 7-11, 2013 Colorado Convention Center Denver, Colorado http://collaborate13.ioug.org
