Migrating and Running DBs on Amazon RDS for Oracle

© 2016 Pythian 2 Maris Elsins Lead Database Consultant At Pythian since 2011 Located in Riga, Latvia Oracle [Apps] DBA since 2005 Speaker at conferences since 2007 @MarisDBA elsins@pythian.com http://bit.ly/getMOSPatchV2

© 2016 Pythian 9 DISCLAIMER OK, YOU CAUGHT ME ... I may have a few “Ouch!” slides in the presentation, that probably will make you think Oracle RDS is no good. It's not the intention. I honestly think Oracle RDS is a great service for the appropriate workload, and if it's done right.

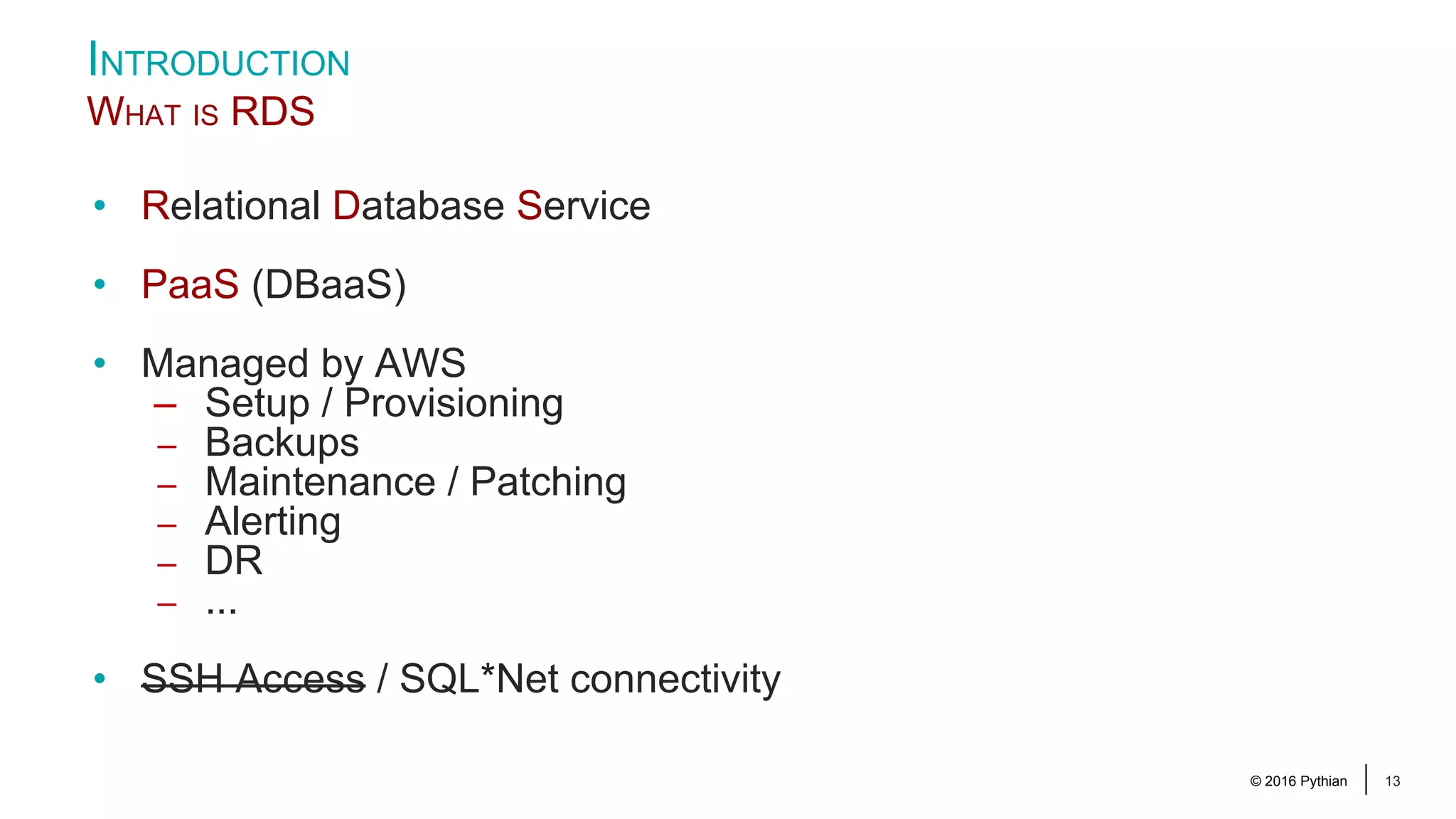

© 2016 Pythian 13 INTRODUCTION WHAT IS RDS • Relational Database Service • PaaS (DBaaS) • Managed by AWS – Setup / Provisioning – Backups – Maintenance / Patching – Alerting – DR – ... • SSH Access / SQL*Net connectivity

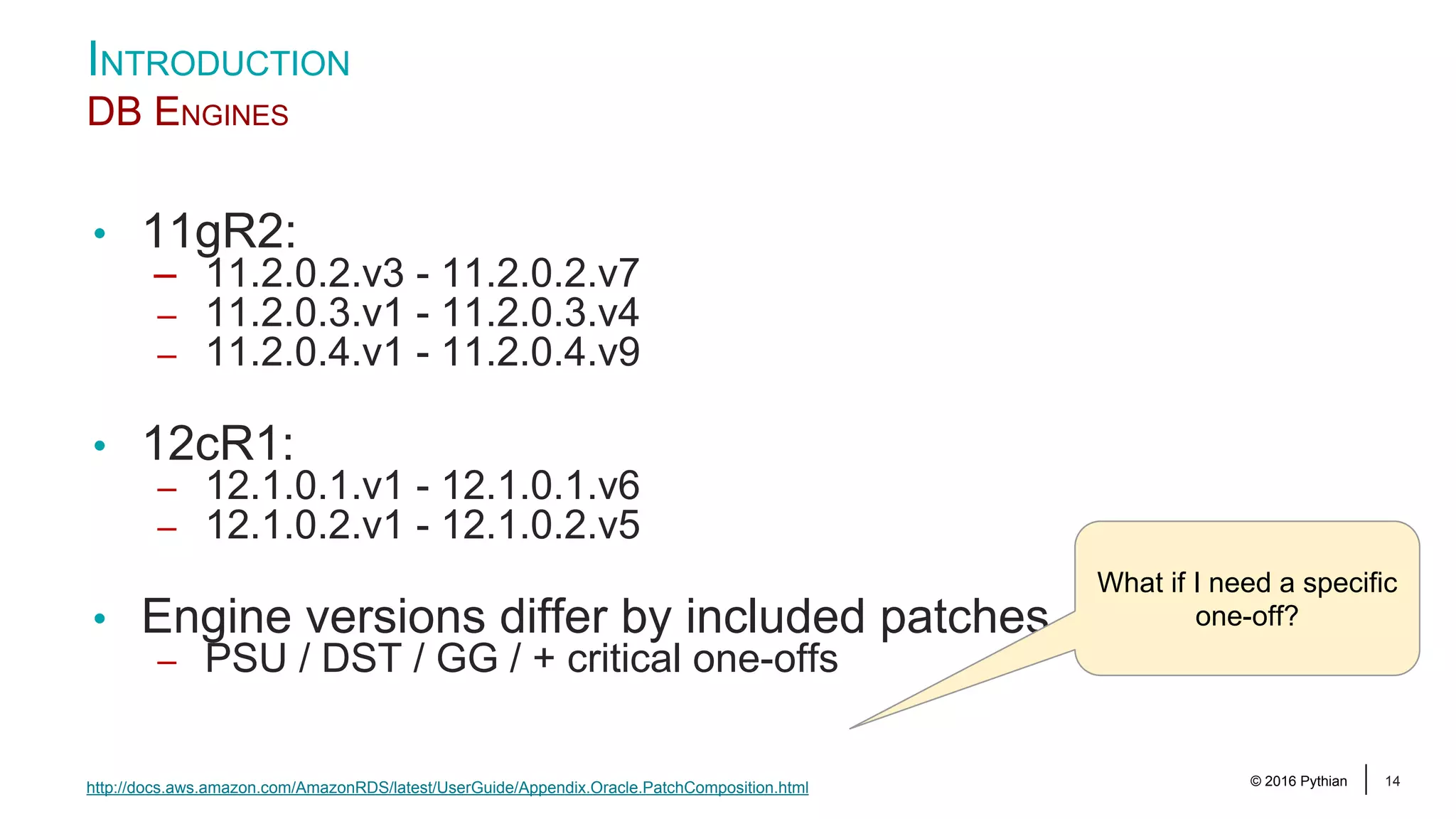

© 2016 Pythian 14 • 11gR2: – 11.2.0.2.v3 - 11.2.0.2.v7 – 11.2.0.3.v1 - 11.2.0.3.v4 – 11.2.0.4.v1 - 11.2.0.4.v9 • 12cR1: – 12.1.0.1.v1 - 12.1.0.1.v6 – 12.1.0.2.v1 - 12.1.0.2.v5 • Engine versions differ by included patches – PSU / DST / GG / + critical one-offs INTRODUCTION DB ENGINES http://docs.aws.amazon.com/AmazonRDS/latest/UserGuide/Appendix.Oracle.PatchComposition.html What if I need a specific one-off?

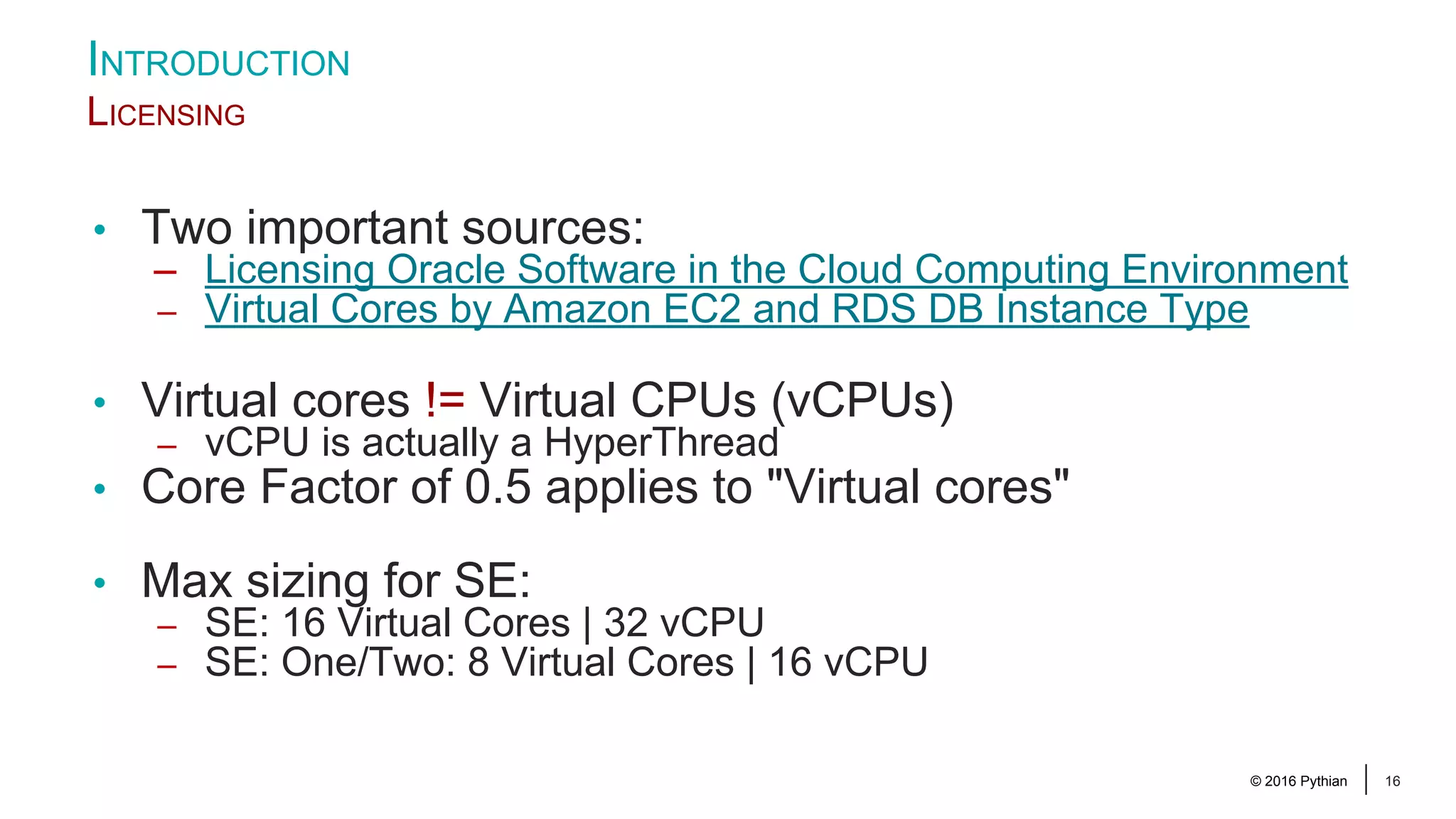

© 2016 Pythian 16 INTRODUCTION LICENSING • Two important sources: – Licensing Oracle Software in the Cloud Computing Environment – Virtual Cores by Amazon EC2 and RDS DB Instance Type • Virtual cores != Virtual CPUs (vCPUs) – vCPU is actually a HyperThread • Core Factor of 0.5 applies to "Virtual cores" • Max sizing for SE: – SE: 16 Virtual Cores | 32 vCPU – SE: One/Two: 8 Virtual Cores | 16 vCPU

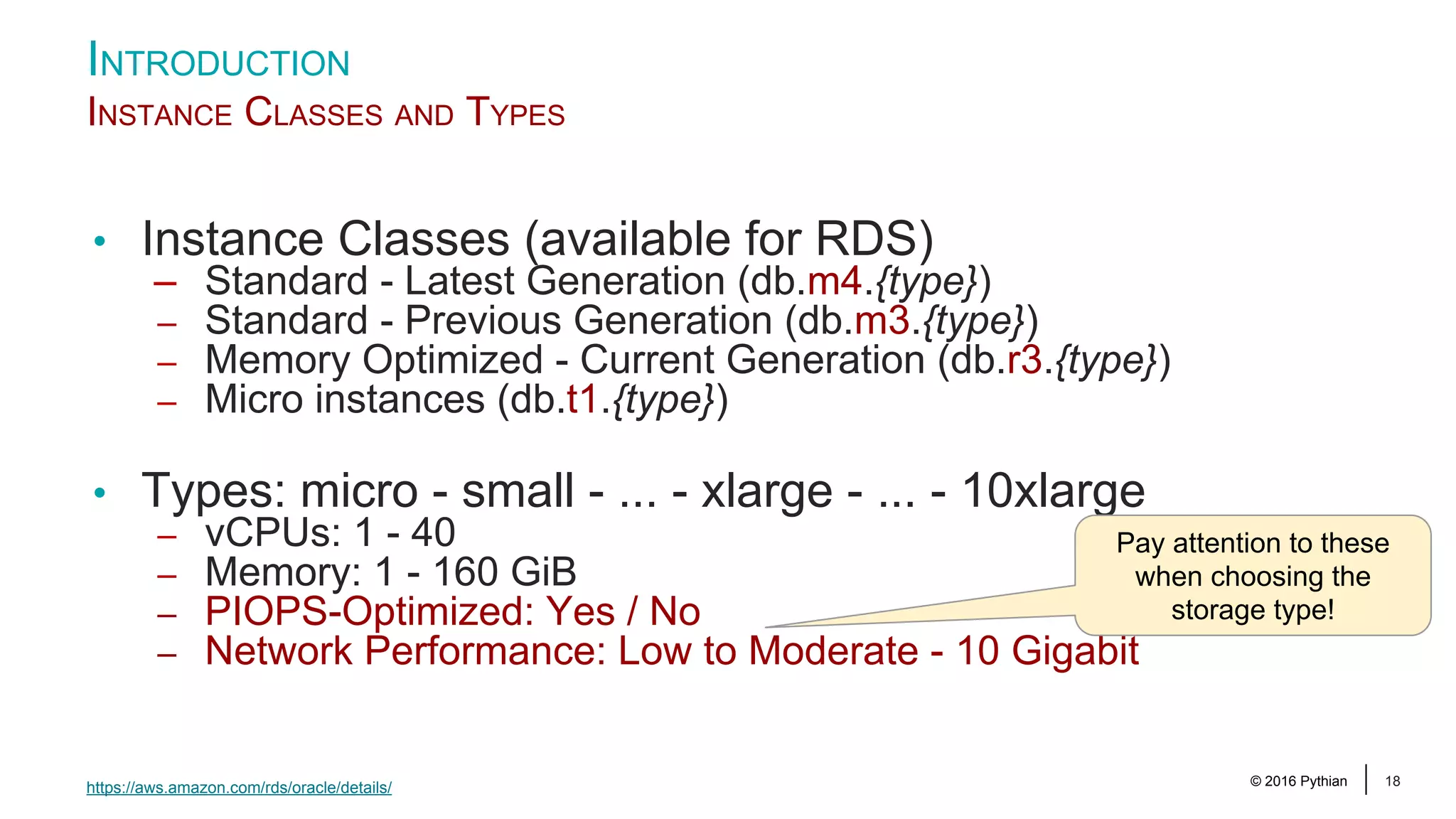

© 2016 Pythian 18 INTRODUCTION INSTANCE CLASSES AND TYPES https://aws.amazon.com/rds/oracle/details/ • Instance Classes (available for RDS) – Standard - Latest Generation (db.m4.{type}) – Standard - Previous Generation (db.m3.{type}) – Memory Optimized - Current Generation (db.r3.{type}) – Micro instances (db.t1.{type}) • Types: micro - small - ... - xlarge - ... - 10xlarge – vCPUs: 1 - 40 – Memory: 1 - 160 GiB – PIOPS-Optimized: Yes / No – Network Performance: Low to Moderate - 10 Gigabit Pay attention to these when choosing the storage type!

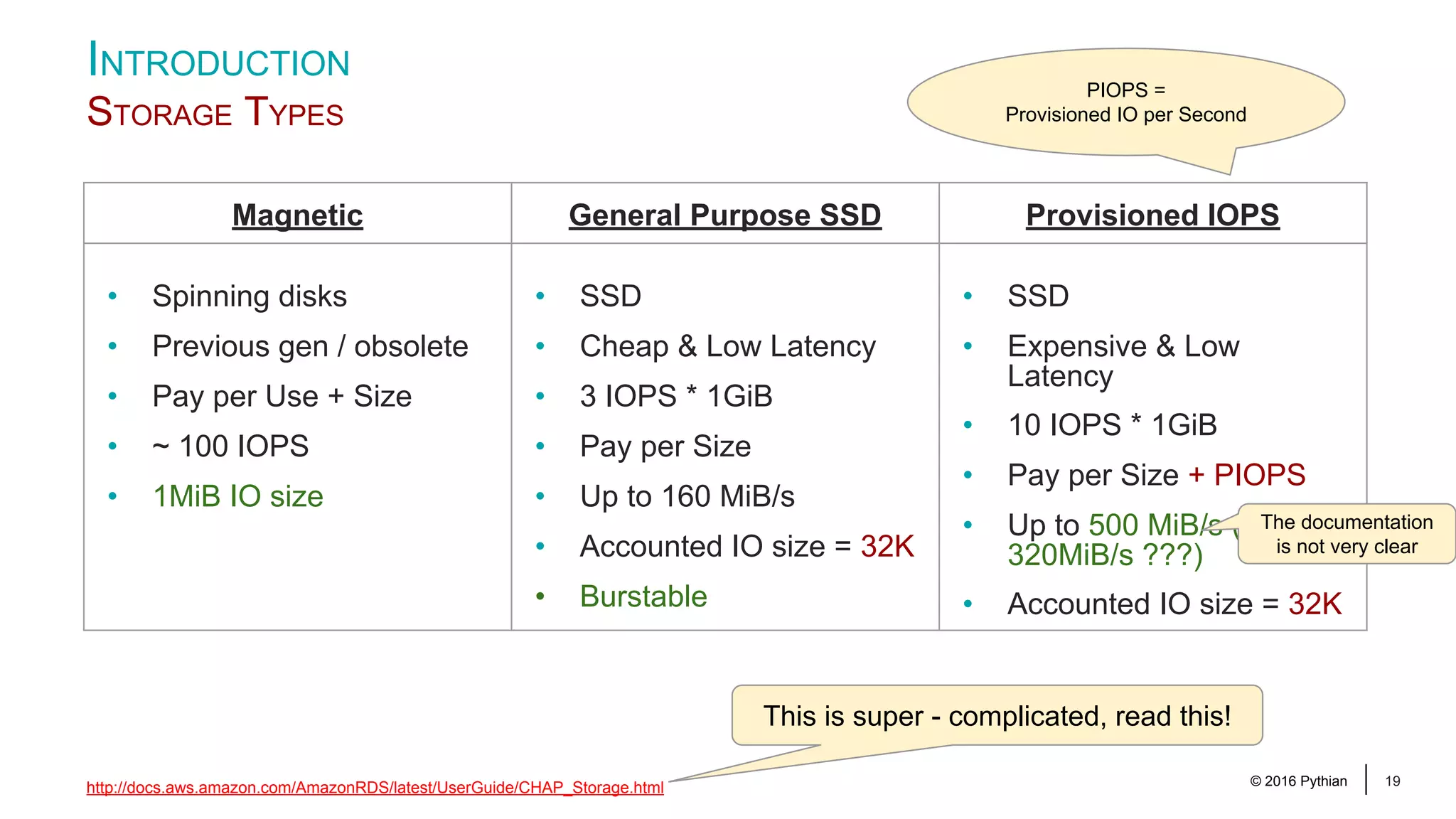

© 2016 Pythian 19 INTRODUCTION STORAGE TYPES http://docs.aws.amazon.com/AmazonRDS/latest/UserGuide/CHAP_Storage.html Magnetic General Purpose SSD Provisioned IOPS • Spinning disks • Previous gen / obsolete • Pay per Use + Size • ~ 100 IOPS • 1MiB IO size • SSD • Cheap & Low Latency • 3 IOPS * 1GiB • Pay per Size • Up to 160 MiB/s • Accounted IO size = 32K • Burstable • SSD • Expensive & Low Latency • 10 IOPS * 1GiB • Pay per Size + PIOPS • Up to 500 MiB/s (or 320MiB/s ???) • Accounted IO size = 32K This is super - complicated, read this! The documentation is not very clear PIOPS = Provisioned IO per Second

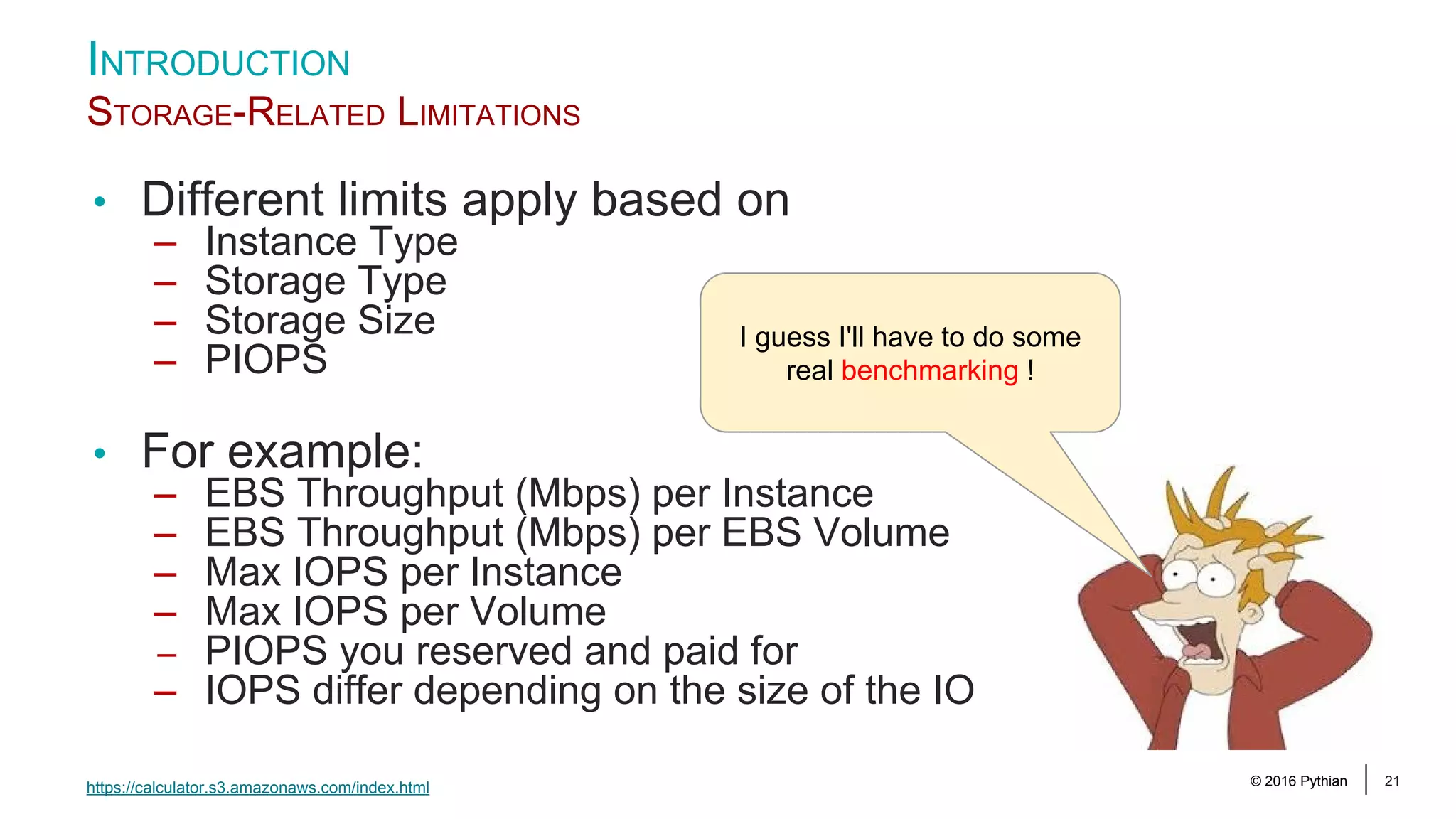

© 2016 Pythian 21 INTRODUCTION STORAGE-RELATED LIMITATIONS https://calculator.s3.amazonaws.com/index.html • Different limits apply based on – Instance Type – Storage Type – Storage Size – PIOPS • For example: – EBS Throughput (Mbps) per Instance – EBS Throughput (Mbps) per EBS Volume – Max IOPS per Instance – Max IOPS per Volume – PIOPS you reserved and paid for – IOPS differ depending on the size of the IO I guess I'll have to do some real benchmarking !

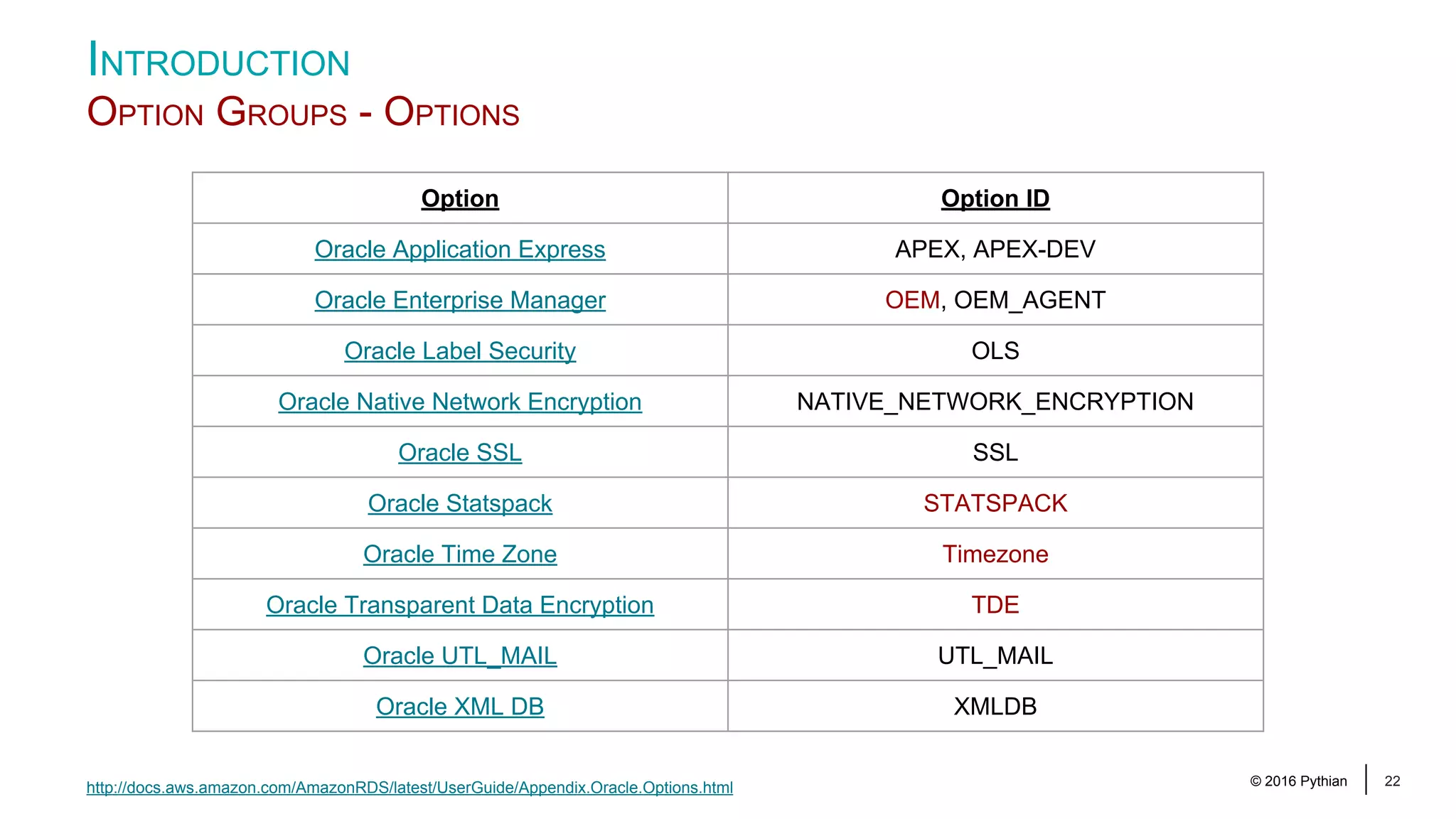

© 2016 Pythian 22 INTRODUCTION OPTION GROUPS - OPTIONS http://docs.aws.amazon.com/AmazonRDS/latest/UserGuide/Appendix.Oracle.Options.html Option Option ID Oracle Application Express APEX, APEX-DEV Oracle Enterprise Manager OEM, OEM_AGENT Oracle Label Security OLS Oracle Native Network Encryption NATIVE_NETWORK_ENCRYPTION Oracle SSL SSL Oracle Statspack STATSPACK Oracle Time Zone Timezone Oracle Transparent Data Encryption TDE Oracle UTL_MAIL UTL_MAIL Oracle XML DB XMLDB

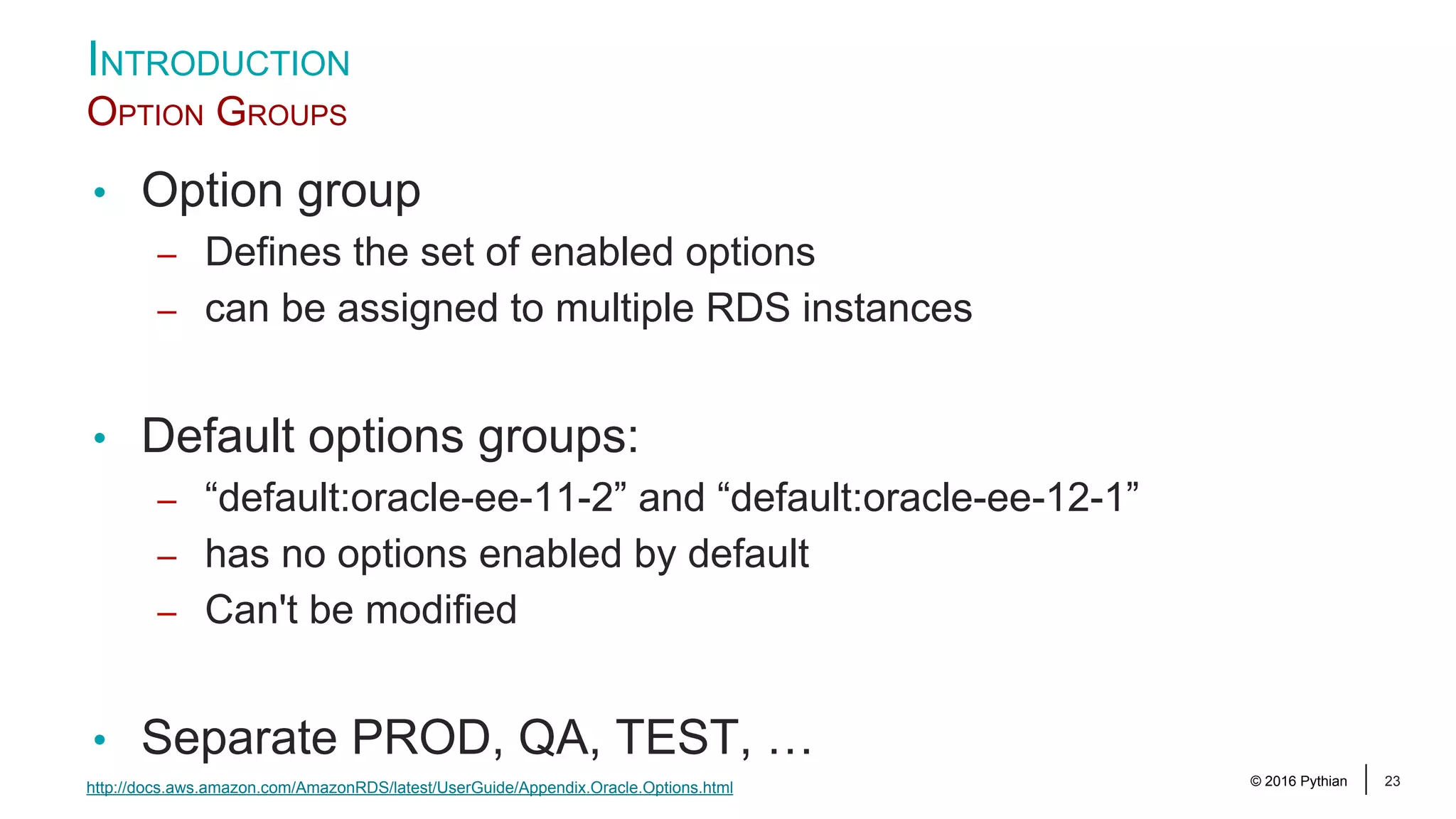

© 2016 Pythian 23 • Option group – Defines the set of enabled options – can be assigned to multiple RDS instances • Default options groups: – “default:oracle-ee-11-2” and “default:oracle-ee-12-1” – has no options enabled by default – Can't be modified • Separate PROD, QA, TEST, … INTRODUCTION OPTION GROUPS http://docs.aws.amazon.com/AmazonRDS/latest/UserGuide/Appendix.Oracle.Options.html

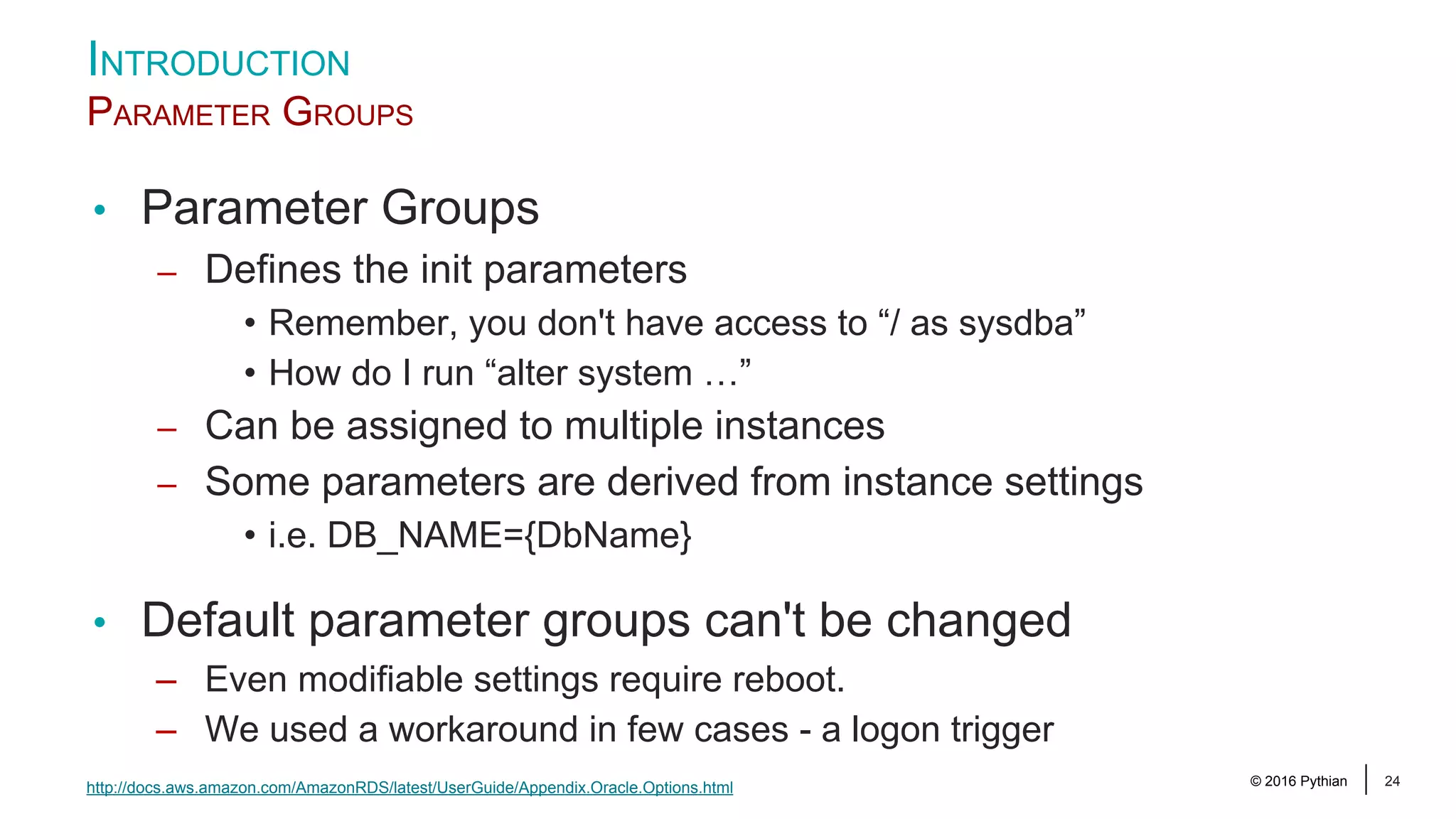

© 2016 Pythian 24 INTRODUCTION PARAMETER GROUPS • Parameter Groups – Defines the init parameters • Remember, you don't have access to “/ as sysdba” • How do I run “alter system …” – Can be assigned to multiple instances – Some parameters are derived from instance settings • i.e. DB_NAME={DbName} • Default parameter groups can't be changed – Even modifiable settings require reboot. – We used a workaround in few cases - a logon trigger http://docs.aws.amazon.com/AmazonRDS/latest/UserGuide/Appendix.Oracle.Options.html

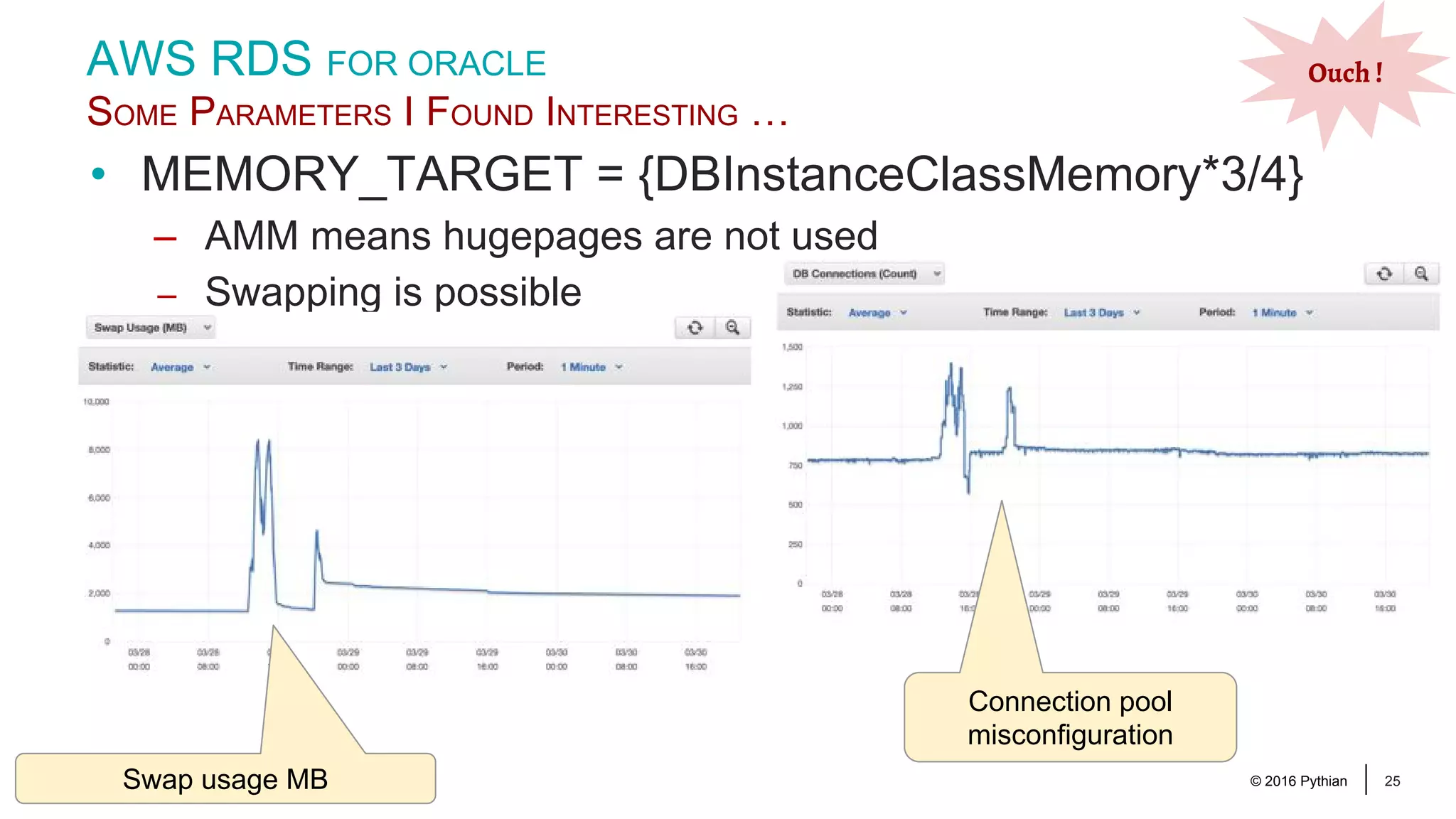

© 2016 Pythian 25 • MEMORY_TARGET = {DBInstanceClassMemory*3/4} – AMM means hugepages are not used – Swapping is possible AWS RDS FOR ORACLE SOME PARAMETERS I FOUND INTERESTING … Swap usage MB Connection pool misconfiguration Ouch !

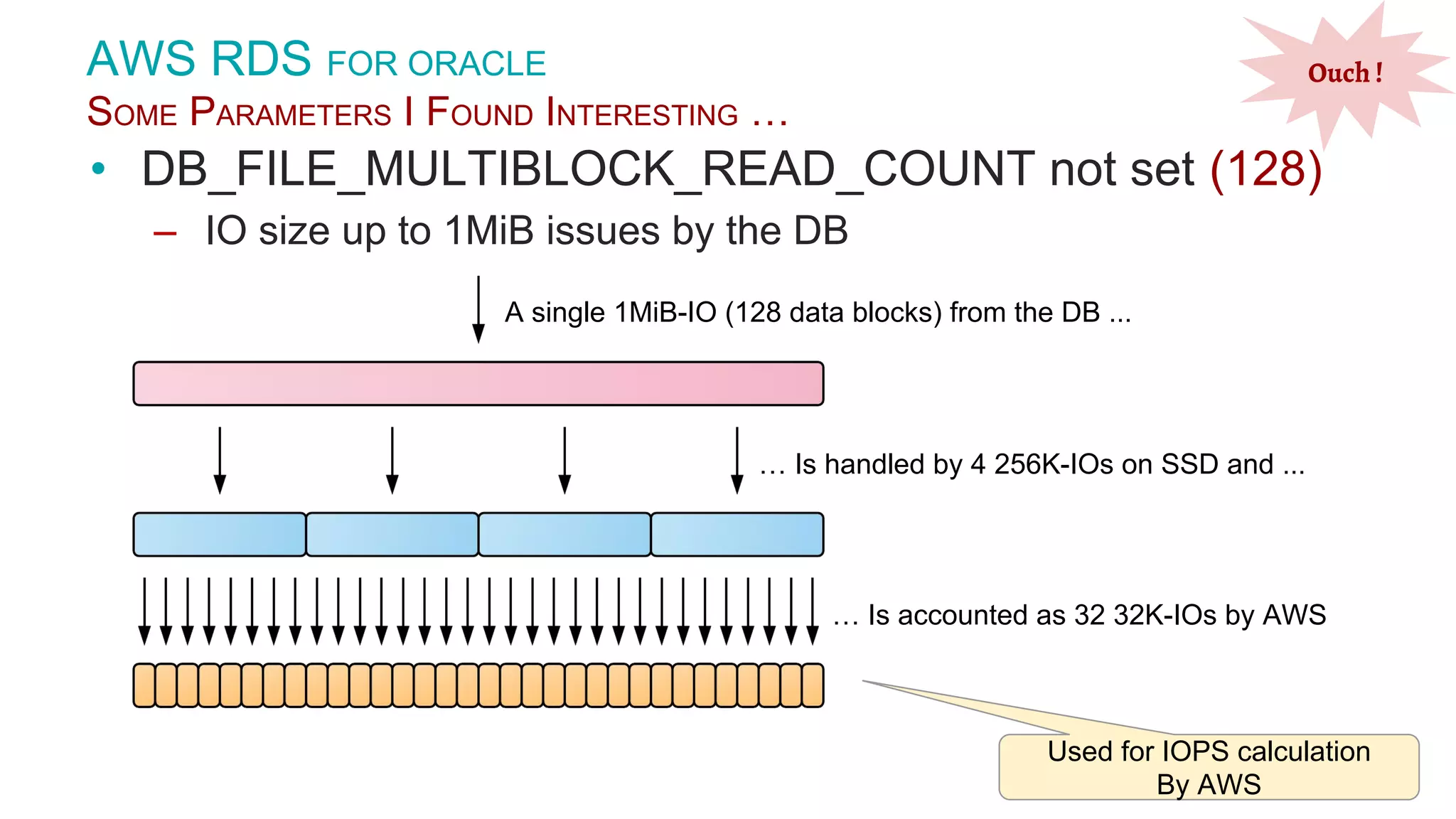

© 2016 Pythian 26 • DB_FILE_MULTIBLOCK_READ_COUNT not set (128) – IO size up to 1MiB issues by the DB AWS RDS FOR ORACLE SOME PARAMETERS I FOUND INTERESTING … Ouch ! A single 1MiB-IO (128 data blocks) from the DB ... … Is handled by 4 256K-IOs on SSD and ... … Is accounted as 32 32K-IOs by AWS Used for IOPS calculation By AWS

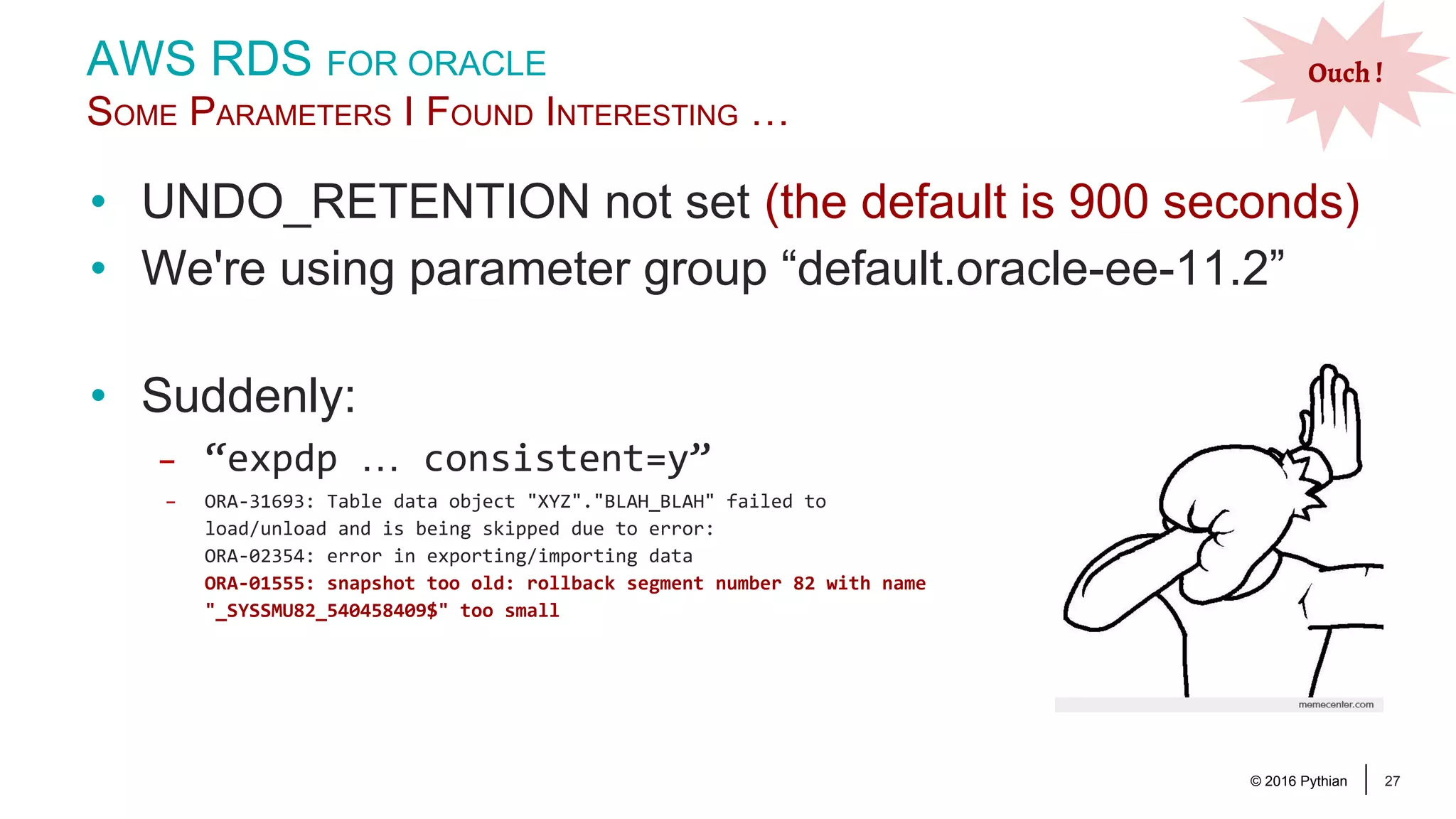

© 2016 Pythian 27 • UNDO_RETENTION not set (the default is 900 seconds) • We're using parameter group “default.oracle-ee-11.2” AWS RDS FOR ORACLE SOME PARAMETERS I FOUND INTERESTING … Ouch ! • Suddenly: – “expdp … consistent=y” – ORA-31693: Table data object "XYZ"."BLAH_BLAH" failed to load/unload and is being skipped due to error: ORA-02354: error in exporting/importing data ORA-01555: snapshot too old: rollback segment number 82 with name "_SYSSMU82_540458409$" too small

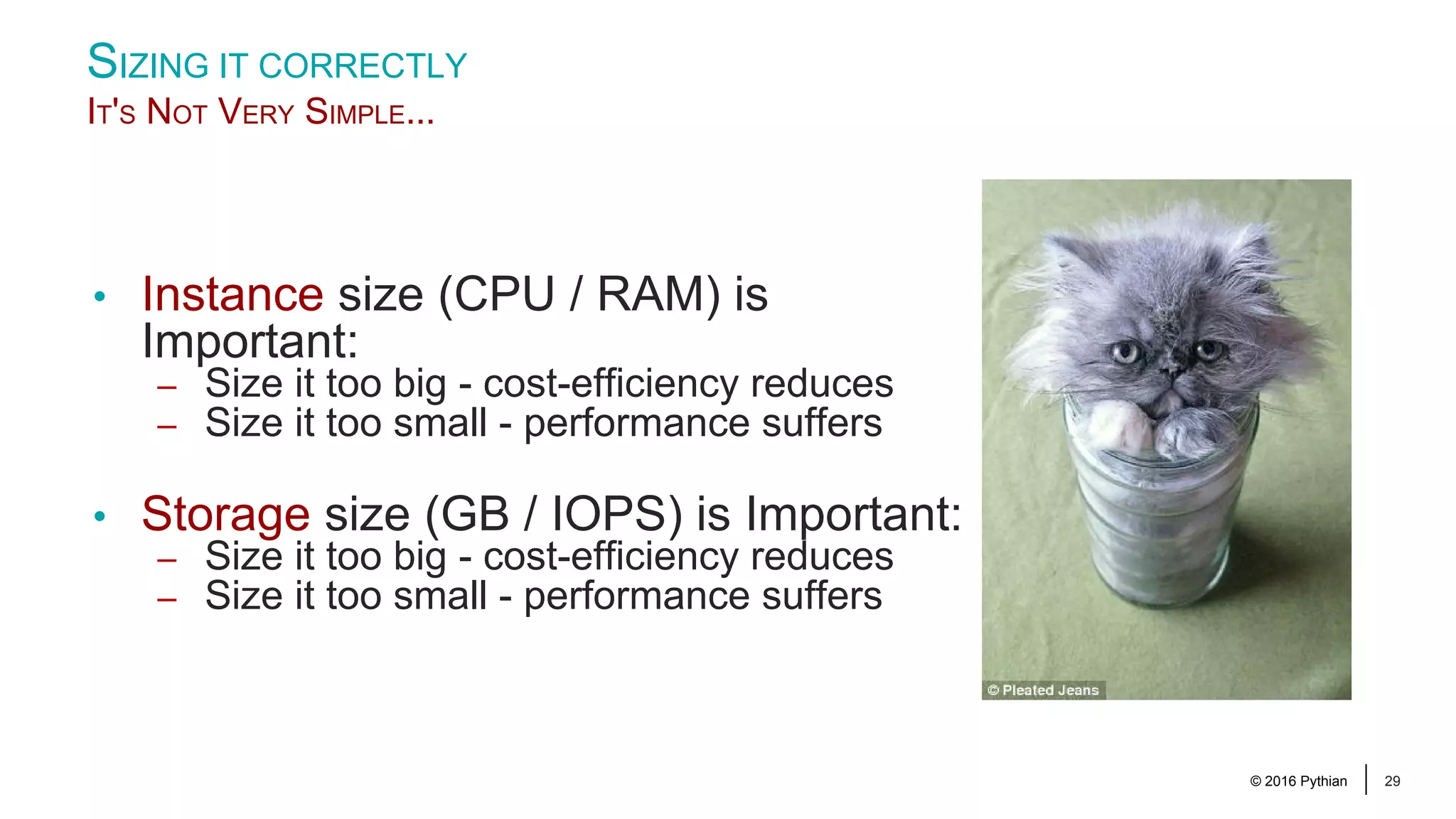

© 2016 Pythian 29 SIZING IT CORRECTLY IT'S NOT VERY SIMPLE... • Instance size (CPU / RAM) is Important: – Size it too big - cost-efficiency reduces – Size it too small - performance suffers • Storage size (GB / IOPS) is Important: – Size it too big - cost-efficiency reduces – Size it too small - performance suffers

© 2016 Pythian 30 • How to check the current usage? – sar - CPU/RAM/IO ? • 10 minute intervals for past workloads • Difficult to derive IOPS info – SGA sizing – iostat ? – data from storage? • What if it's not 1-to-1 move to RDS? – 1DB with 20+ schemas -> 4 RDS instances? SIZING IT CORRECTLY TOOLS Peak load?

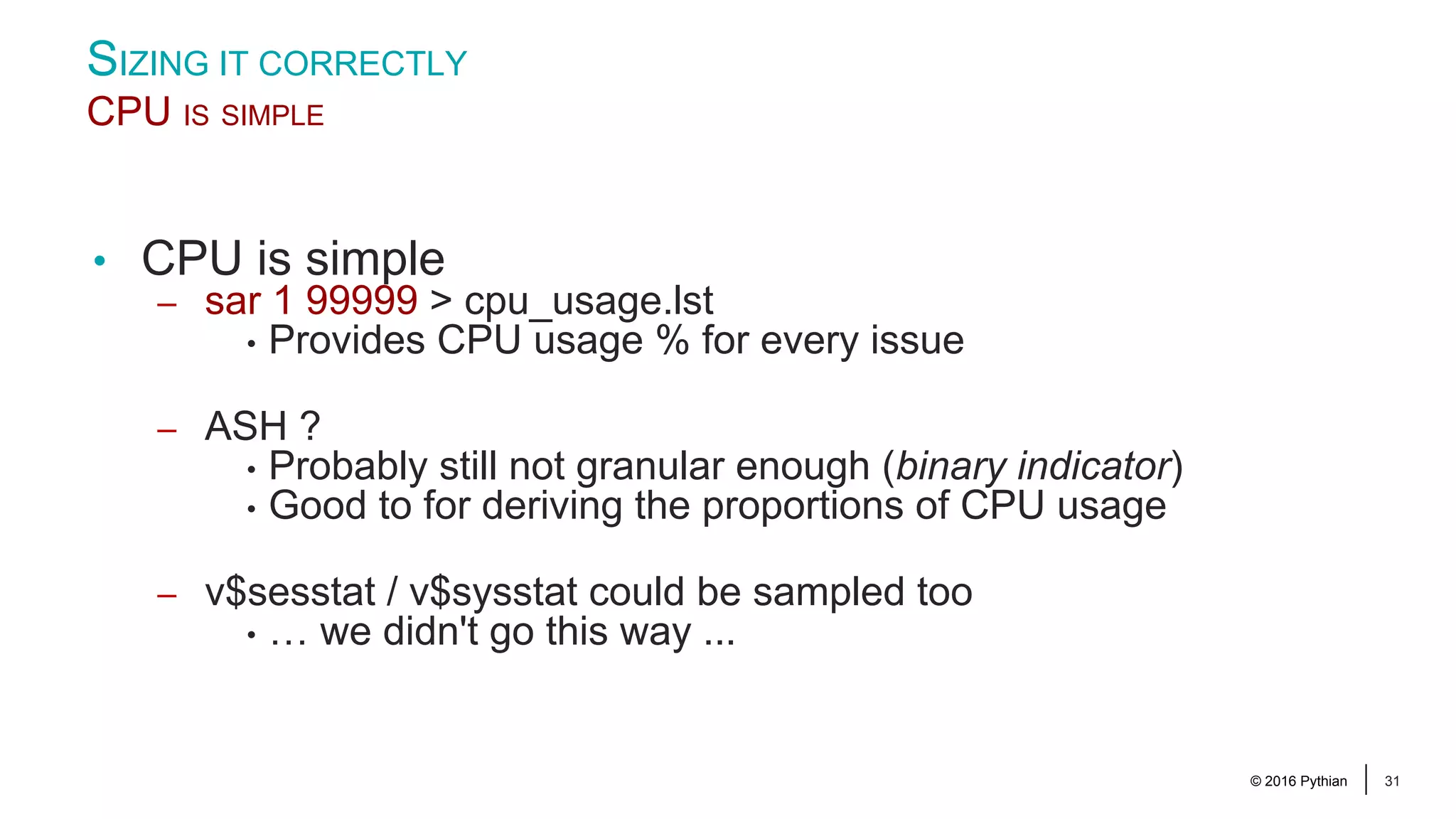

© 2016 Pythian 31 • CPU is simple – sar 1 99999 > cpu_usage.lst • Provides CPU usage % for every issue – ASH ? • Probably still not granular enough (binary indicator) • Good to for deriving the proportions of CPU usage – v$sesstat / v$sysstat could be sampled too • … we didn't go this way ... SIZING IT CORRECTLY CPU IS SIMPLE

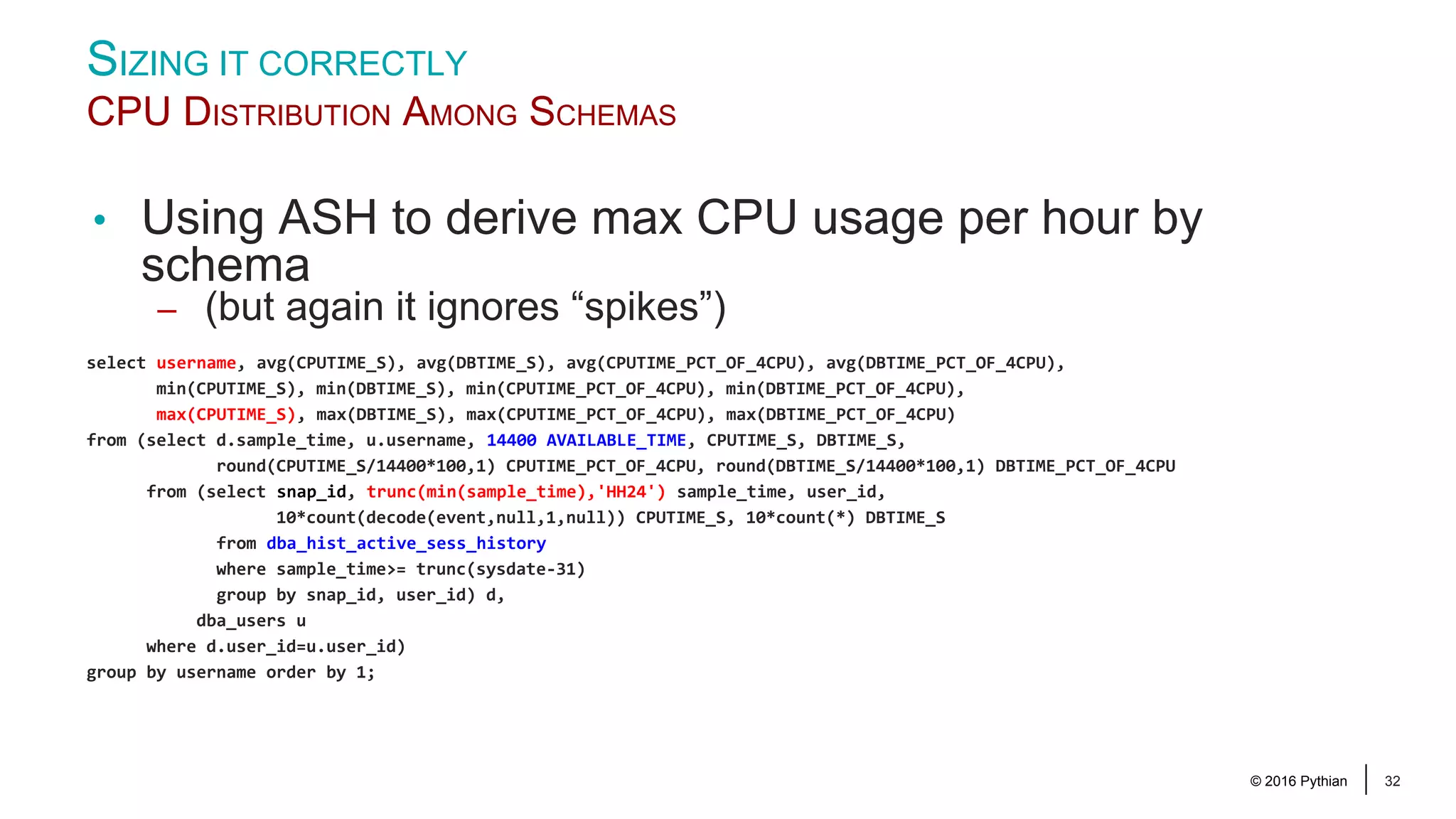

© 2016 Pythian 32 SIZING IT CORRECTLY CPU DISTRIBUTION AMONG SCHEMAS • Using ASH to derive max CPU usage per hour by schema – (but again it ignores “spikes”) select username, avg(CPUTIME_S), avg(DBTIME_S), avg(CPUTIME_PCT_OF_4CPU), avg(DBTIME_PCT_OF_4CPU), min(CPUTIME_S), min(DBTIME_S), min(CPUTIME_PCT_OF_4CPU), min(DBTIME_PCT_OF_4CPU), max(CPUTIME_S), max(DBTIME_S), max(CPUTIME_PCT_OF_4CPU), max(DBTIME_PCT_OF_4CPU) from (select d.sample_time, u.username, 14400 AVAILABLE_TIME, CPUTIME_S, DBTIME_S, round(CPUTIME_S/14400*100,1) CPUTIME_PCT_OF_4CPU, round(DBTIME_S/14400*100,1) DBTIME_PCT_OF_4CPU from (select snap_id, trunc(min(sample_time),'HH24') sample_time, user_id, 10*count(decode(event,null,1,null)) CPUTIME_S, 10*count(*) DBTIME_S from dba_hist_active_sess_history where sample_time>= trunc(sysdate-31) group by snap_id, user_id) d, dba_users u where d.user_id=u.user_id) group by username order by 1;

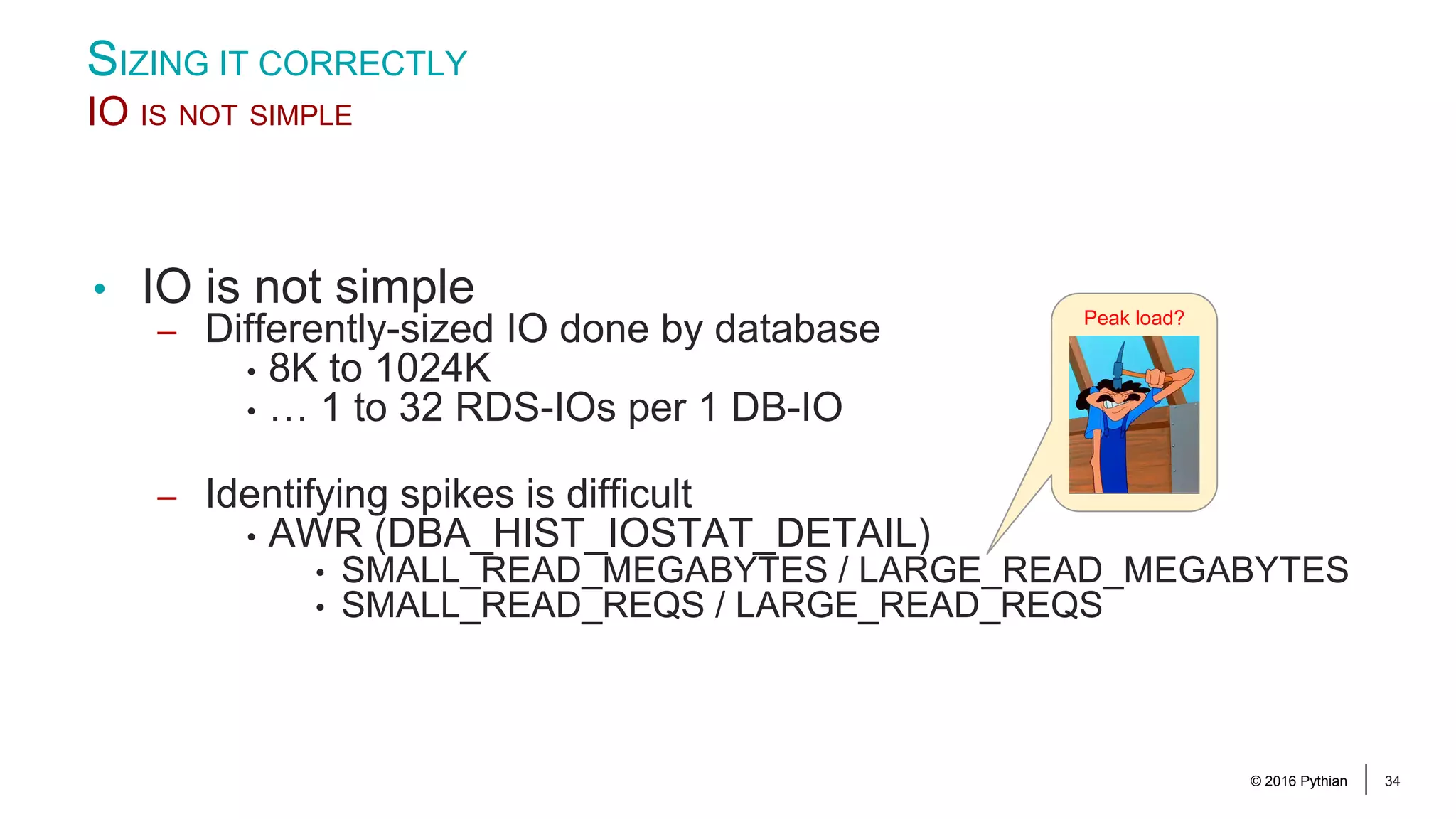

© 2016 Pythian 34 • IO is not simple – Differently-sized IO done by database • 8K to 1024K • … 1 to 32 RDS-IOs per 1 DB-IO – Identifying spikes is difficult • AWR (DBA_HIST_IOSTAT_DETAIL) • SMALL_READ_MEGABYTES / LARGE_READ_MEGABYTES • SMALL_READ_REQS / LARGE_READ_REQS SIZING IT CORRECTLY IO IS NOT SIMPLE Peak load?

© 2016 Pythian 35 SIZING IT CORRECTLY IO IS NOT SIMPLE • Sampling ASM statistics: – asm_metrics.pl by Bertrand Drouvot – https://bdrouvot.wordpress.com/2013/10/04/... • 1-second sampling: 23:00:03 Kby Avg AvgBy/ Kby Avg AvgBy/ 23:00:03 DBINST DG Reads/s Read/s ms/Read Read Writes/s Write/s ms/Write Write 23:00:03 ----------- ----------- ------- ------- ------- ------ ------ ------- -------- ------ 23:00:03 INST1 146 1360 9.1 9539 435 5578 25.5 13131 23:00:03 INST1 DATA 146 1360 9.1 9539 171 4096 61.7 24528 23:00:03 INST1 RECO 0 0 0.0 0 6 216 86.3 36864 23:00:03 INST1 REDO 0 0 0.0 0 258 1266 0.2 5025 23:00:03 INST2 245 2104 8.3 8794 2109 23955 97.5 11631 23:00:03 INST2 DATA 245 2104 8.3 8794 1998 21648 102.7 11095 23:00:03 INST2 RECO 0 0 0.0 0 3 1968 116.9 671744 23:00:03 INST2 REDO 0 0 0.0 0 108 339 0.1 3214

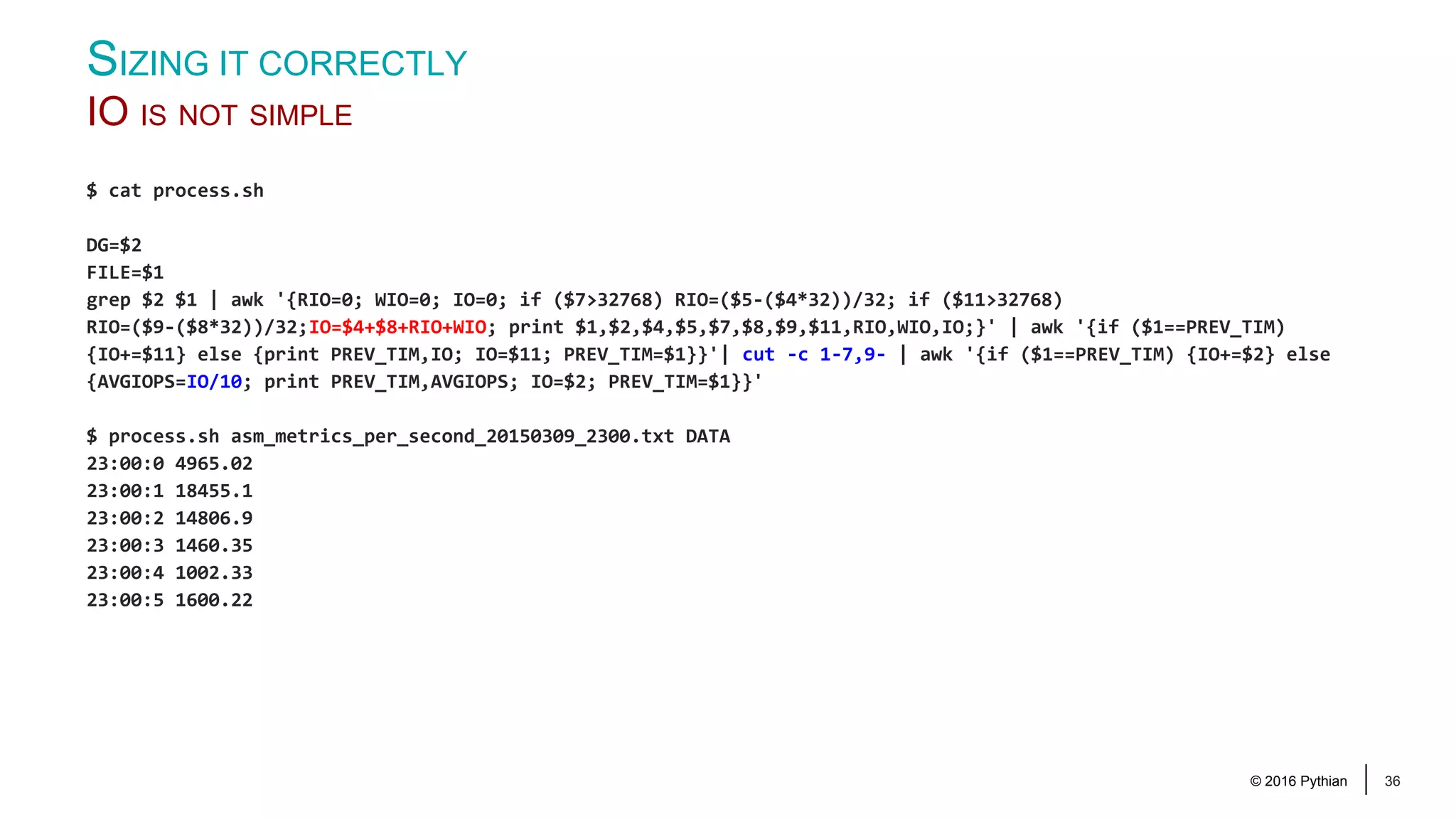

© 2016 Pythian 36 $ cat process.sh DG=$2 FILE=$1 grep $2 $1 | awk '{RIO=0; WIO=0; IO=0; if ($7>32768) RIO=($5-($4*32))/32; if ($11>32768) RIO=($9-($8*32))/32;IO=$4+$8+RIO+WIO; print $1,$2,$4,$5,$7,$8,$9,$11,RIO,WIO,IO;}' | awk '{if ($1==PREV_TIM) {IO+=$11} else {print PREV_TIM,IO; IO=$11; PREV_TIM=$1}}'| cut -c 1-7,9- | awk '{if ($1==PREV_TIM) {IO+=$2} else {AVGIOPS=IO/10; print PREV_TIM,AVGIOPS; IO=$2; PREV_TIM=$1}}' $ process.sh asm_metrics_per_second_20150309_2300.txt DATA 23:00:0 4965.02 23:00:1 18455.1 23:00:2 14806.9 23:00:3 1460.35 23:00:4 1002.33 23:00:5 1600.22 SIZING IT CORRECTLY IO IS NOT SIMPLE

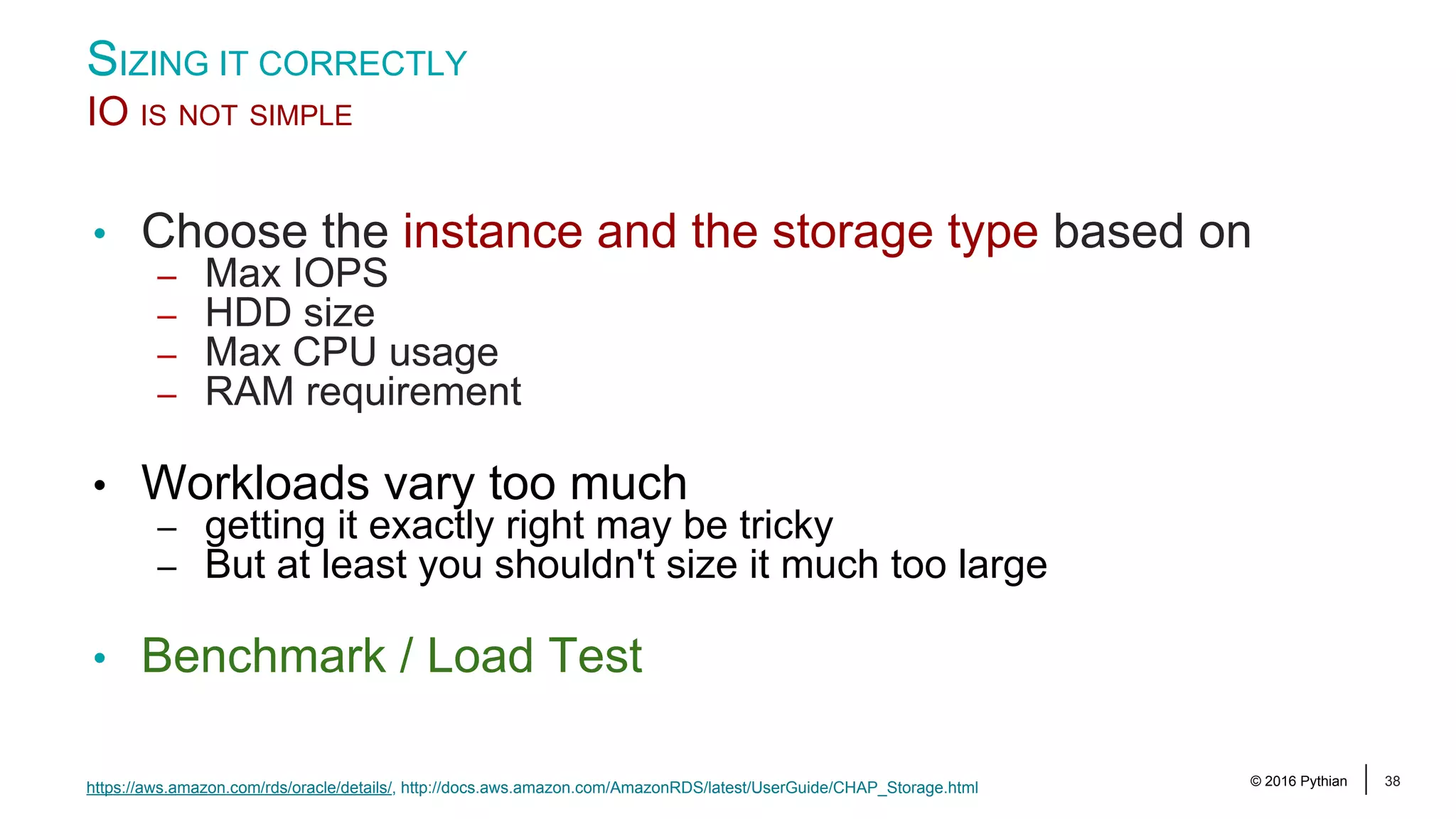

© 2016 Pythian 38 • Choose the instance and the storage type based on – Max IOPS – HDD size – Max CPU usage – RAM requirement • Workloads vary too much – getting it exactly right may be tricky – But at least you shouldn't size it much too large • Benchmark / Load Test SIZING IT CORRECTLY IO IS NOT SIMPLE https://aws.amazon.com/rds/oracle/details/, http://docs.aws.amazon.com/AmazonRDS/latest/UserGuide/CHAP_Storage.html

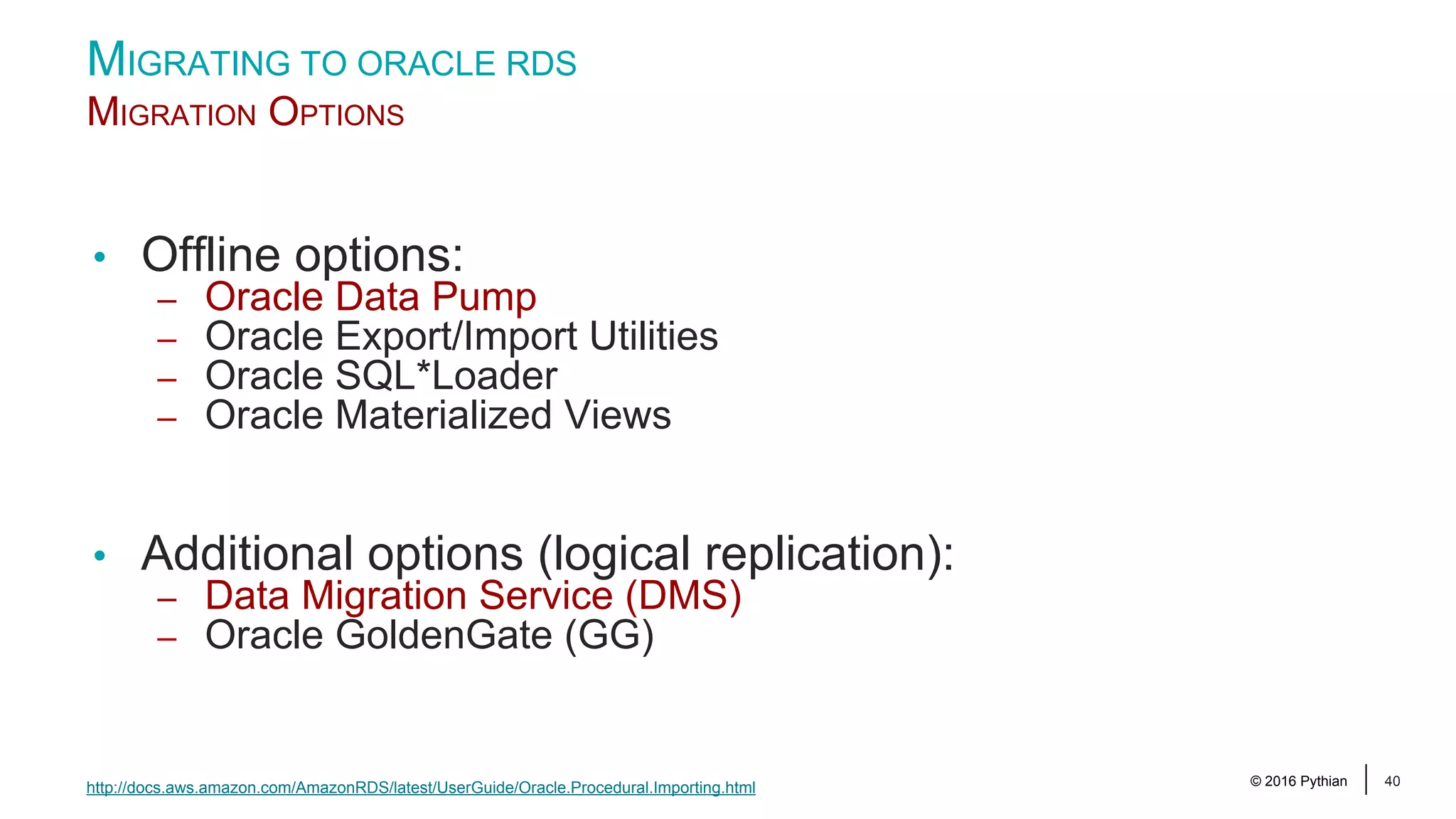

© 2016 Pythian 40 MIGRATING TO ORACLE RDS MIGRATION OPTIONS • Offline options: – Oracle Data Pump – Oracle Export/Import Utilities – Oracle SQL*Loader – Oracle Materialized Views • Additional options (logical replication): – Data Migration Service (DMS) – Oracle GoldenGate (GG) http://docs.aws.amazon.com/AmazonRDS/latest/UserGuide/Oracle.Procedural.Importing.html

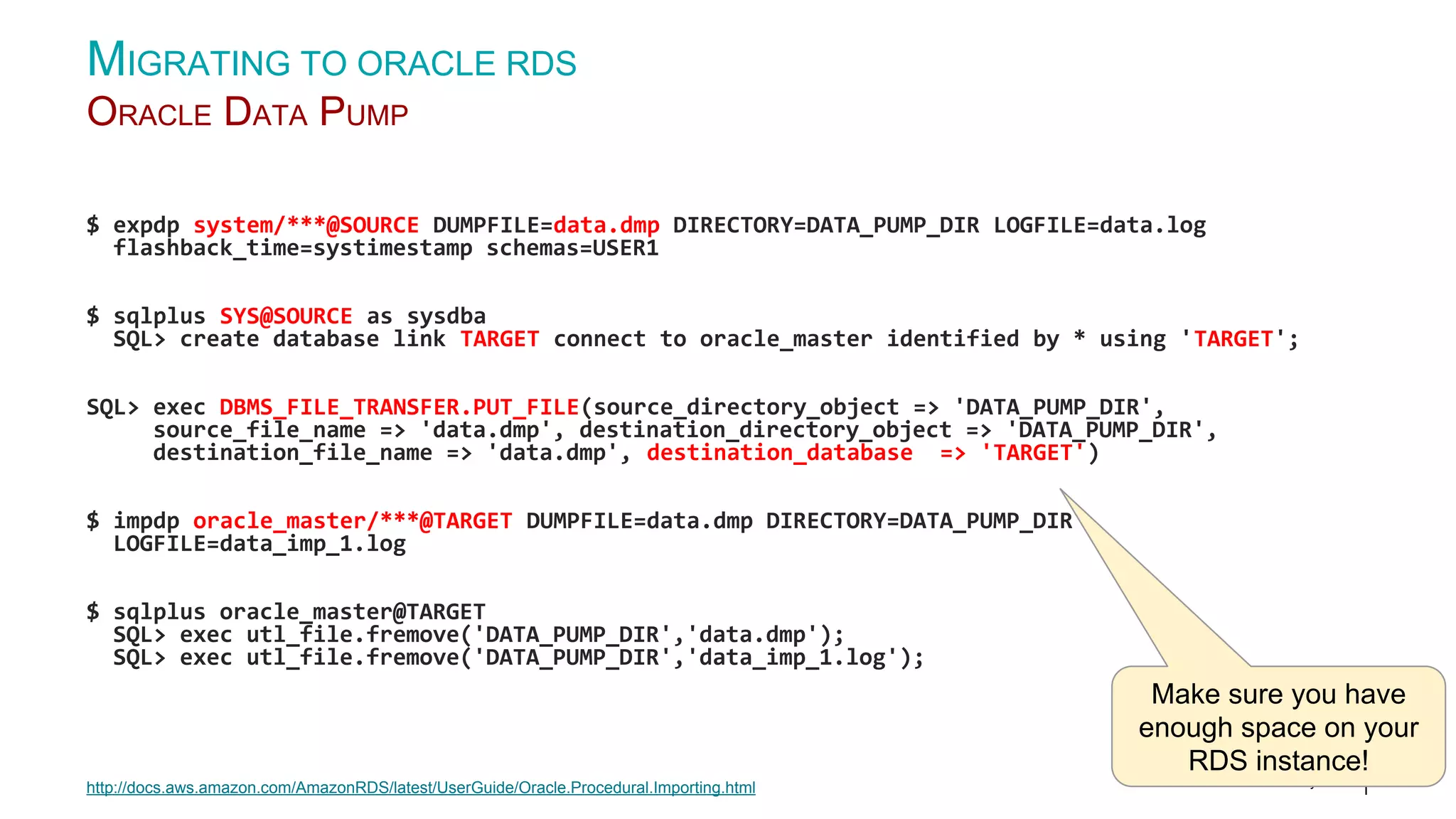

© 2016 Pythian 41 $ expdp system/***@SOURCE DUMPFILE=data.dmp DIRECTORY=DATA_PUMP_DIR LOGFILE=data.log flashback_time=systimestamp schemas=USER1 $ sqlplus SYS@SOURCE as sysdba SQL> create database link TARGET connect to oracle_master identified by * using 'TARGET'; SQL> exec DBMS_FILE_TRANSFER.PUT_FILE(source_directory_object => 'DATA_PUMP_DIR', source_file_name => 'data.dmp', destination_directory_object => 'DATA_PUMP_DIR', destination_file_name => 'data.dmp', destination_database => 'TARGET') $ impdp oracle_master/***@TARGET DUMPFILE=data.dmp DIRECTORY=DATA_PUMP_DIR LOGFILE=data_imp_1.log $ sqlplus oracle_master@TARGET SQL> exec utl_file.fremove('DATA_PUMP_DIR','data.dmp'); SQL> exec utl_file.fremove('DATA_PUMP_DIR','data_imp_1.log'); MIGRATING TO ORACLE RDS ORACLE DATA PUMP http://docs.aws.amazon.com/AmazonRDS/latest/UserGuide/Oracle.Procedural.Importing.html Make sure you have enough space on your RDS instance!

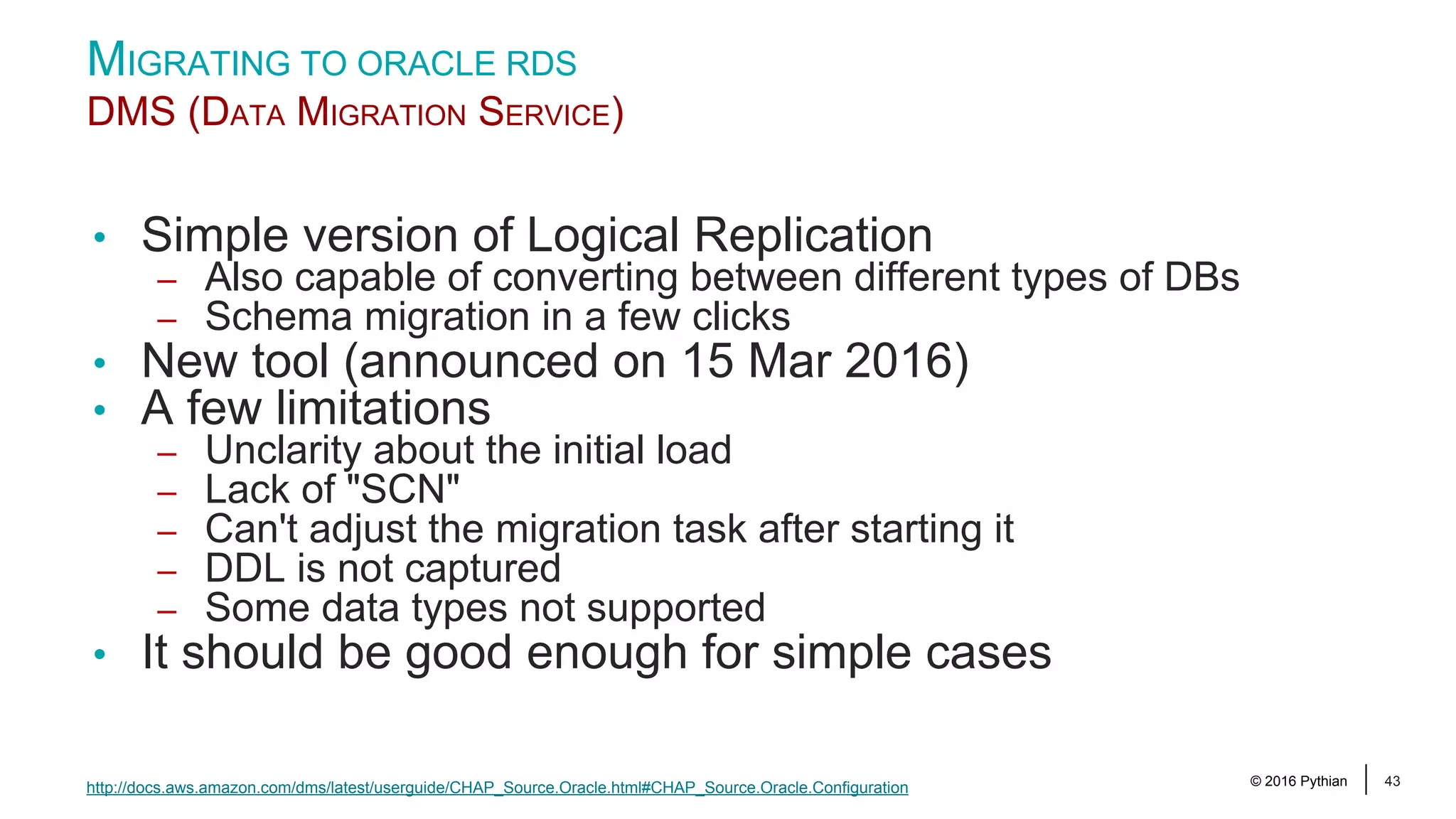

© 2016 Pythian 43 • Simple version of Logical Replication – Also capable of converting between different types of DBs – Schema migration in a few clicks • New tool (announced on 15 Mar 2016) • A few limitations – Unclarity about the initial load – Lack of "SCN" – Can't adjust the migration task after starting it – DDL is not captured – Some data types not supported • It should be good enough for simple cases MIGRATING TO ORACLE RDS DMS (DATA MIGRATION SERVICE) http://docs.aws.amazon.com/dms/latest/userguide/CHAP_Source.Oracle.html#CHAP_Source.Oracle.Configuration

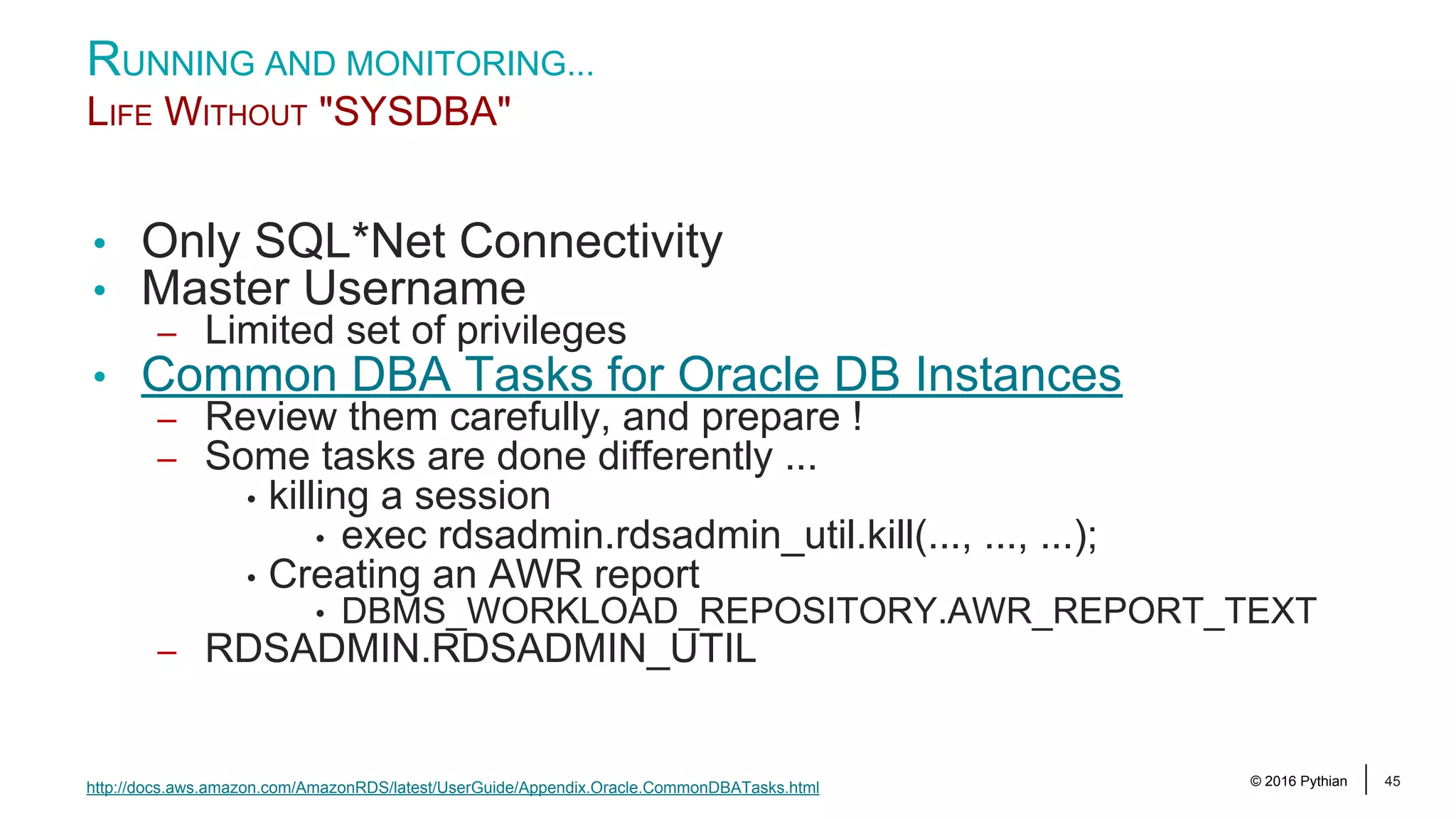

© 2016 Pythian 45 RUNNING AND MONITORING... LIFE WITHOUT "SYSDBA" http://docs.aws.amazon.com/AmazonRDS/latest/UserGuide/Appendix.Oracle.CommonDBATasks.html • Only SQL*Net Connectivity • Master Username – Limited set of privileges • Common DBA Tasks for Oracle DB Instances – Review them carefully, and prepare ! – Some tasks are done differently ... • killing a session • exec rdsadmin.rdsadmin_util.kill(..., ..., ...); • Creating an AWR report • DBMS_WORKLOAD_REPOSITORY.AWR_REPORT_TEXT – RDSADMIN.RDSADMIN_UTIL

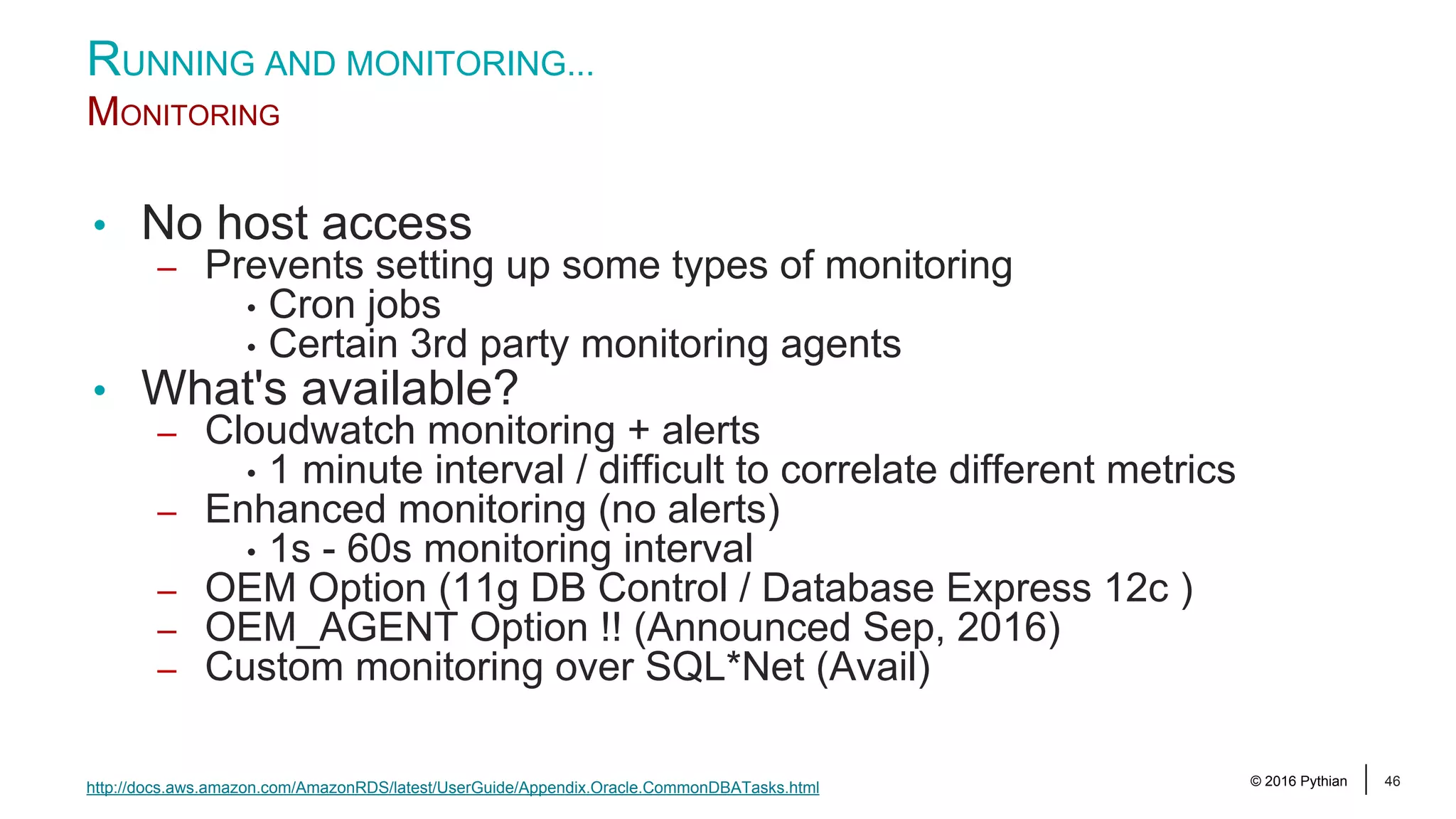

© 2016 Pythian 46 • No host access – Prevents setting up some types of monitoring • Cron jobs • Certain 3rd party monitoring agents • What's available? – Cloudwatch monitoring + alerts • 1 minute interval / difficult to correlate different metrics – Enhanced monitoring (no alerts) • 1s - 60s monitoring interval – OEM Option (11g DB Control / Database Express 12c ) – OEM_AGENT Option !! (Announced Sep, 2016) – Custom monitoring over SQL*Net (Avail) RUNNING AND MONITORING... MONITORING http://docs.aws.amazon.com/AmazonRDS/latest/UserGuide/Appendix.Oracle.CommonDBATasks.html

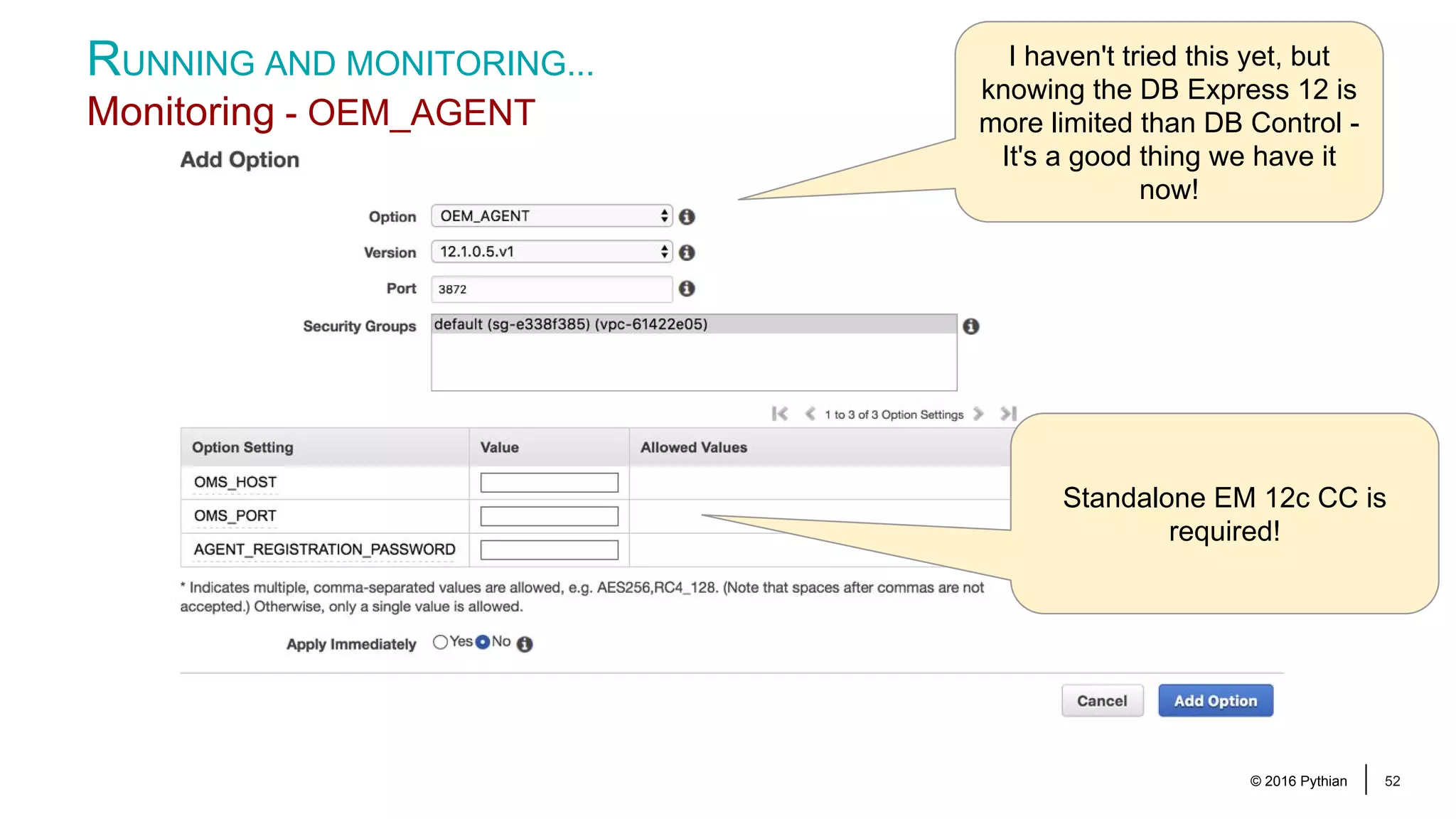

© 2016 Pythian 52 RUNNING AND MONITORING... Monitoring - OEM_AGENT I haven't tried this yet, but knowing the DB Express 12 is more limited than DB Control - It's a good thing we have it now! Standalone EM 12c CC is required!

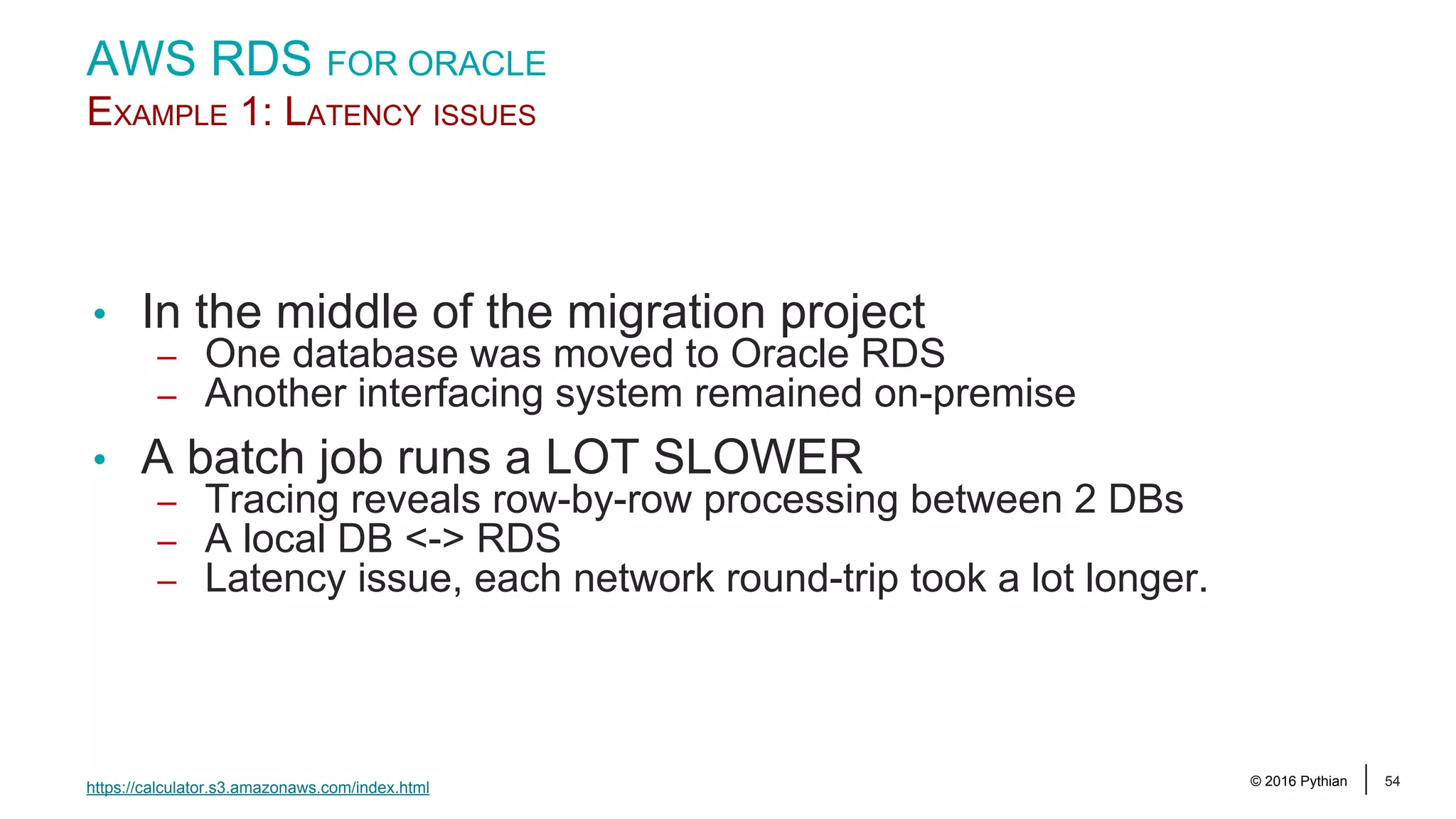

© 2016 Pythian 54 AWS RDS FOR ORACLE EXAMPLE 1: LATENCY ISSUES • In the middle of the migration project – One database was moved to Oracle RDS – Another interfacing system remained on-premise • A batch job runs a LOT SLOWER – Tracing reveals row-by-row processing between 2 DBs – A local DB <-> RDS – Latency issue, each network round-trip took a lot longer. https://calculator.s3.amazonaws.com/index.html

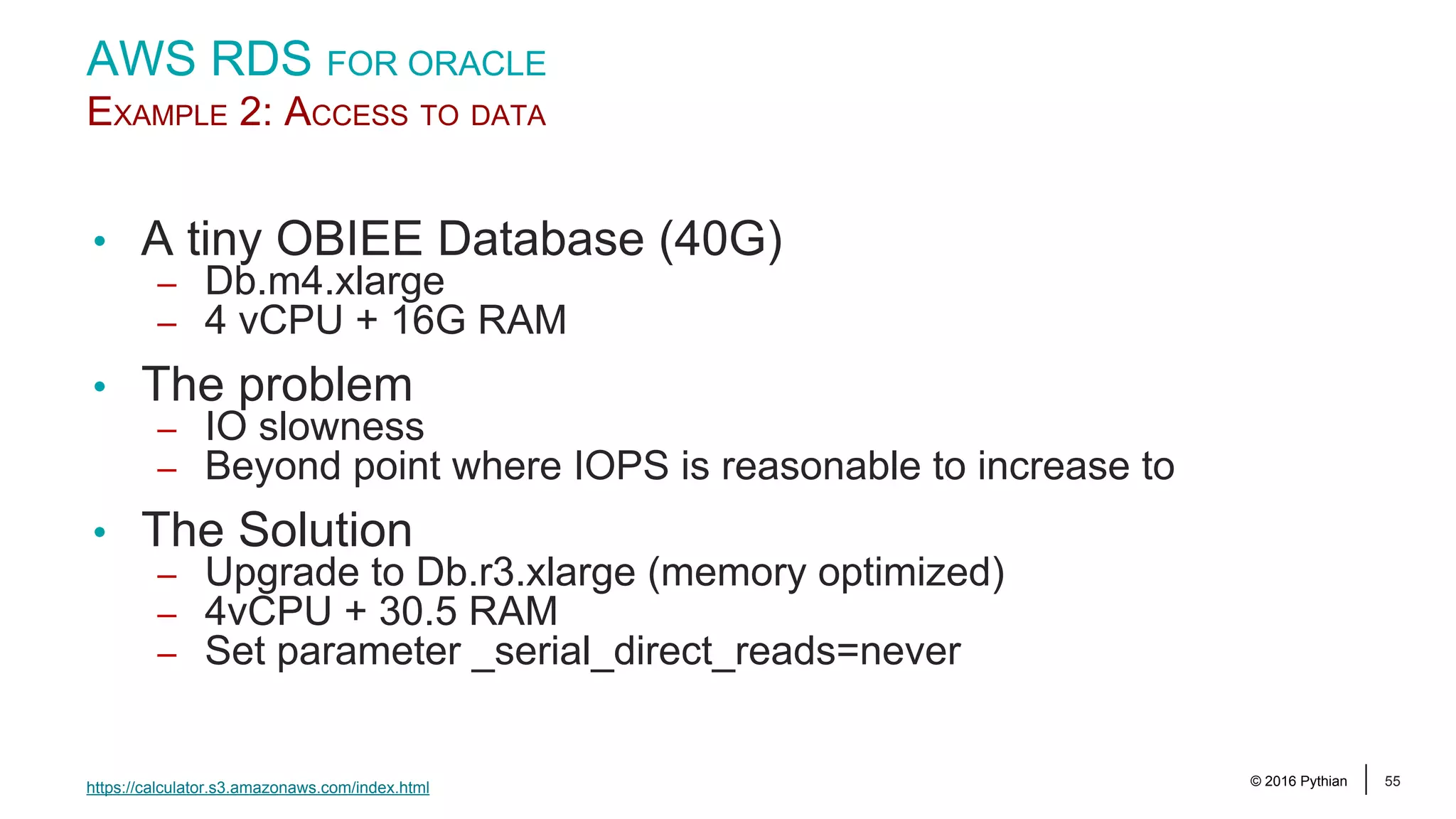

© 2016 Pythian 55 AWS RDS FOR ORACLE EXAMPLE 2: ACCESS TO DATA • A tiny OBIEE Database (40G) – Db.m4.xlarge – 4 vCPU + 16G RAM • The problem – IO slowness – Beyond point where IOPS is reasonable to increase to • The Solution – Upgrade to Db.r3.xlarge (memory optimized) – 4vCPU + 30.5 RAM – Set parameter _serial_direct_reads=never https://calculator.s3.amazonaws.com/index.html

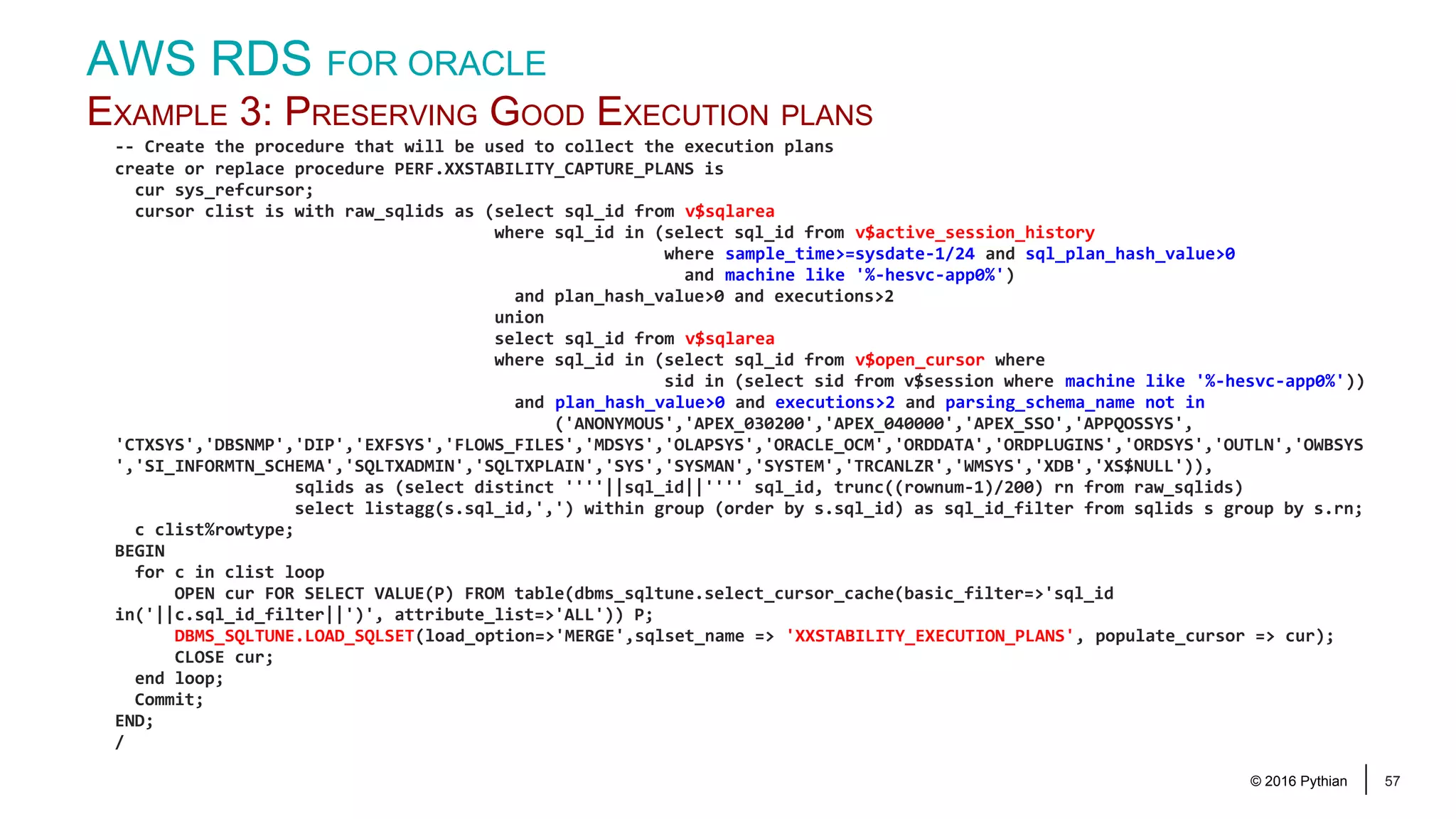

© 2016 Pythian 57 -- Create the procedure that will be used to collect the execution plans create or replace procedure PERF.XXSTABILITY_CAPTURE_PLANS is cur sys_refcursor; cursor clist is with raw_sqlids as (select sql_id from v$sqlarea where sql_id in (select sql_id from v$active_session_history where sample_time>=sysdate-1/24 and sql_plan_hash_value>0 and machine like '%-hesvc-app0%') and plan_hash_value>0 and executions>2 union select sql_id from v$sqlarea where sql_id in (select sql_id from v$open_cursor where sid in (select sid from v$session where machine like '%-hesvc-app0%')) and plan_hash_value>0 and executions>2 and parsing_schema_name not in ('ANONYMOUS','APEX_030200','APEX_040000','APEX_SSO','APPQOSSYS', 'CTXSYS','DBSNMP','DIP','EXFSYS','FLOWS_FILES','MDSYS','OLAPSYS','ORACLE_OCM','ORDDATA','ORDPLUGINS','ORDSYS','OUTLN','OWBSYS ','SI_INFORMTN_SCHEMA','SQLTXADMIN','SQLTXPLAIN','SYS','SYSMAN','SYSTEM','TRCANLZR','WMSYS','XDB','XS$NULL')), sqlids as (select distinct ''''||sql_id||'''' sql_id, trunc((rownum-1)/200) rn from raw_sqlids) select listagg(s.sql_id,',') within group (order by s.sql_id) as sql_id_filter from sqlids s group by s.rn; c clist%rowtype; BEGIN for c in clist loop OPEN cur FOR SELECT VALUE(P) FROM table(dbms_sqltune.select_cursor_cache(basic_filter=>'sql_id in('||c.sql_id_filter||')', attribute_list=>'ALL')) P; DBMS_SQLTUNE.LOAD_SQLSET(load_option=>'MERGE',sqlset_name => 'XXSTABILITY_EXECUTION_PLANS', populate_cursor => cur); CLOSE cur; end loop; Commit; END; / AWS RDS FOR ORACLE EXAMPLE 3: PRESERVING GOOD EXECUTION PLANS

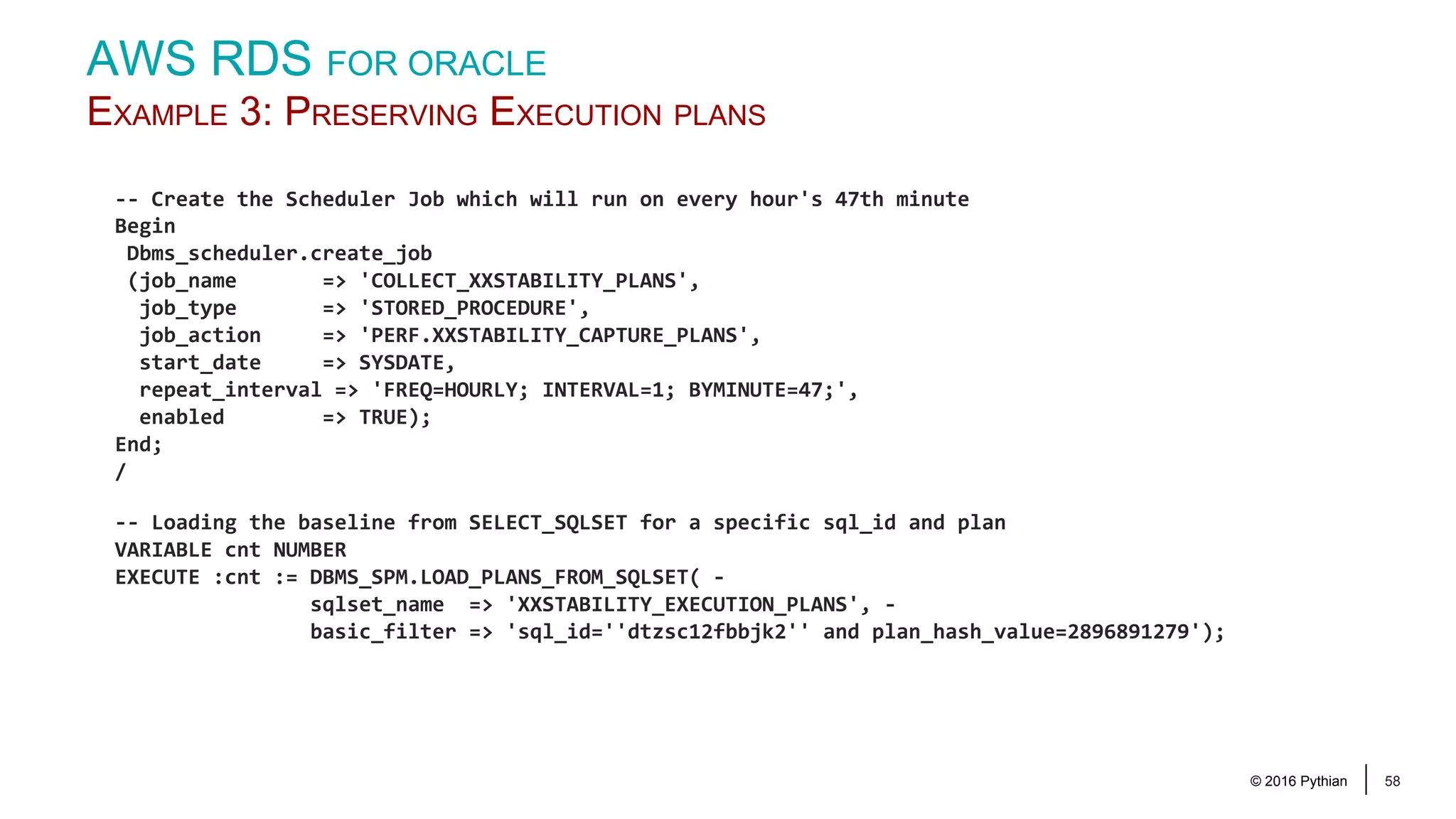

© 2016 Pythian 58 -- Create the Scheduler Job which will run on every hour's 47th minute Begin Dbms_scheduler.create_job (job_name => 'COLLECT_XXSTABILITY_PLANS', job_type => 'STORED_PROCEDURE', job_action => 'PERF.XXSTABILITY_CAPTURE_PLANS', start_date => SYSDATE, repeat_interval => 'FREQ=HOURLY; INTERVAL=1; BYMINUTE=47;', enabled => TRUE); End; / -- Loading the baseline from SELECT_SQLSET for a specific sql_id and plan VARIABLE cnt NUMBER EXECUTE :cnt := DBMS_SPM.LOAD_PLANS_FROM_SQLSET( - sqlset_name => 'XXSTABILITY_EXECUTION_PLANS', - basic_filter => 'sql_id=''dtzsc12fbbjk2'' and plan_hash_value=2896891279'); AWS RDS FOR ORACLE EXAMPLE 3: PRESERVING EXECUTION PLANS

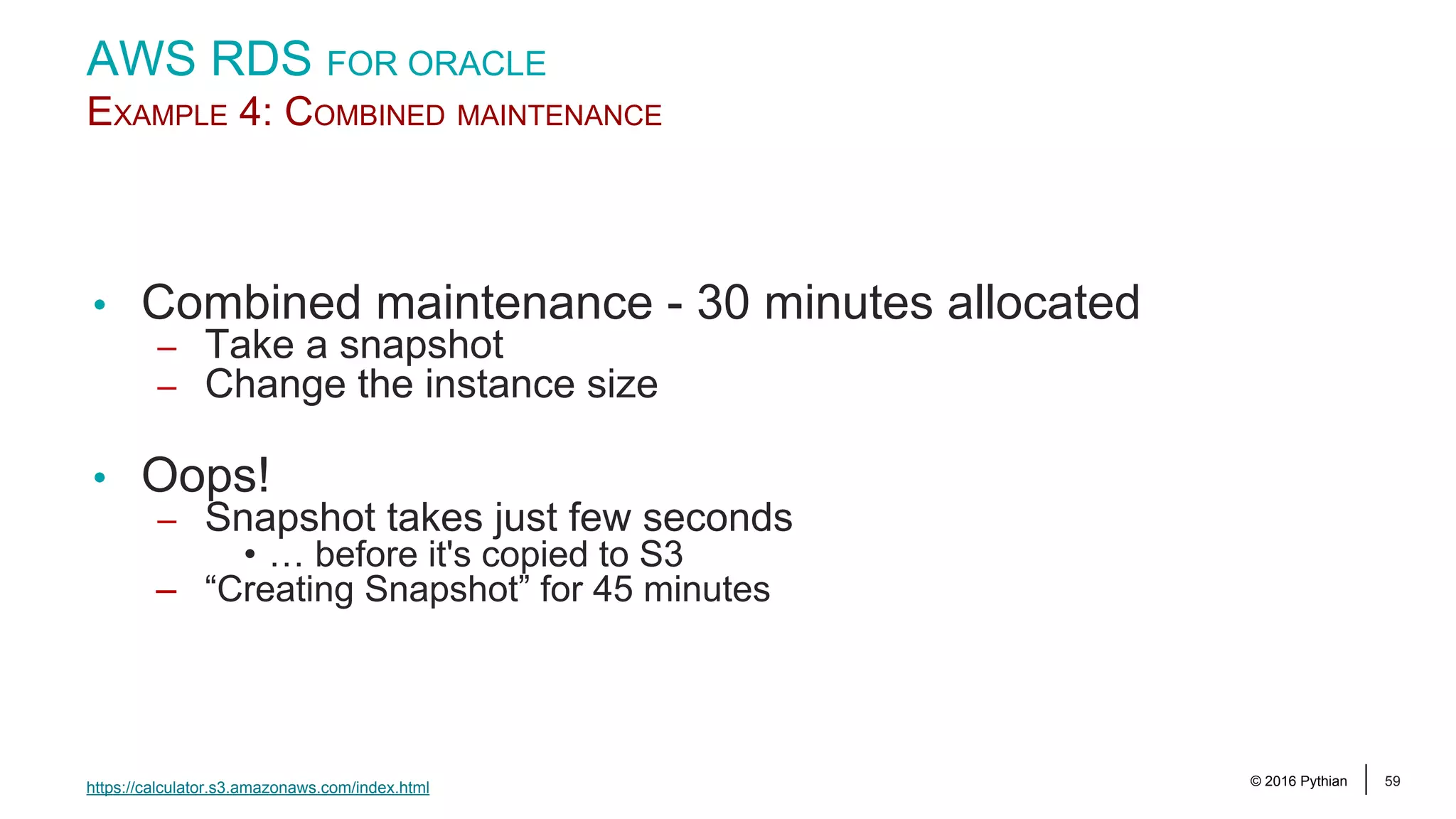

© 2016 Pythian 59 AWS RDS FOR ORACLE EXAMPLE 4: COMBINED MAINTENANCE • Combined maintenance - 30 minutes allocated – Take a snapshot – Change the instance size • Oops! – Snapshot takes just few seconds • … before it's copied to S3 – “Creating Snapshot” for 45 minutes https://calculator.s3.amazonaws.com/index.html

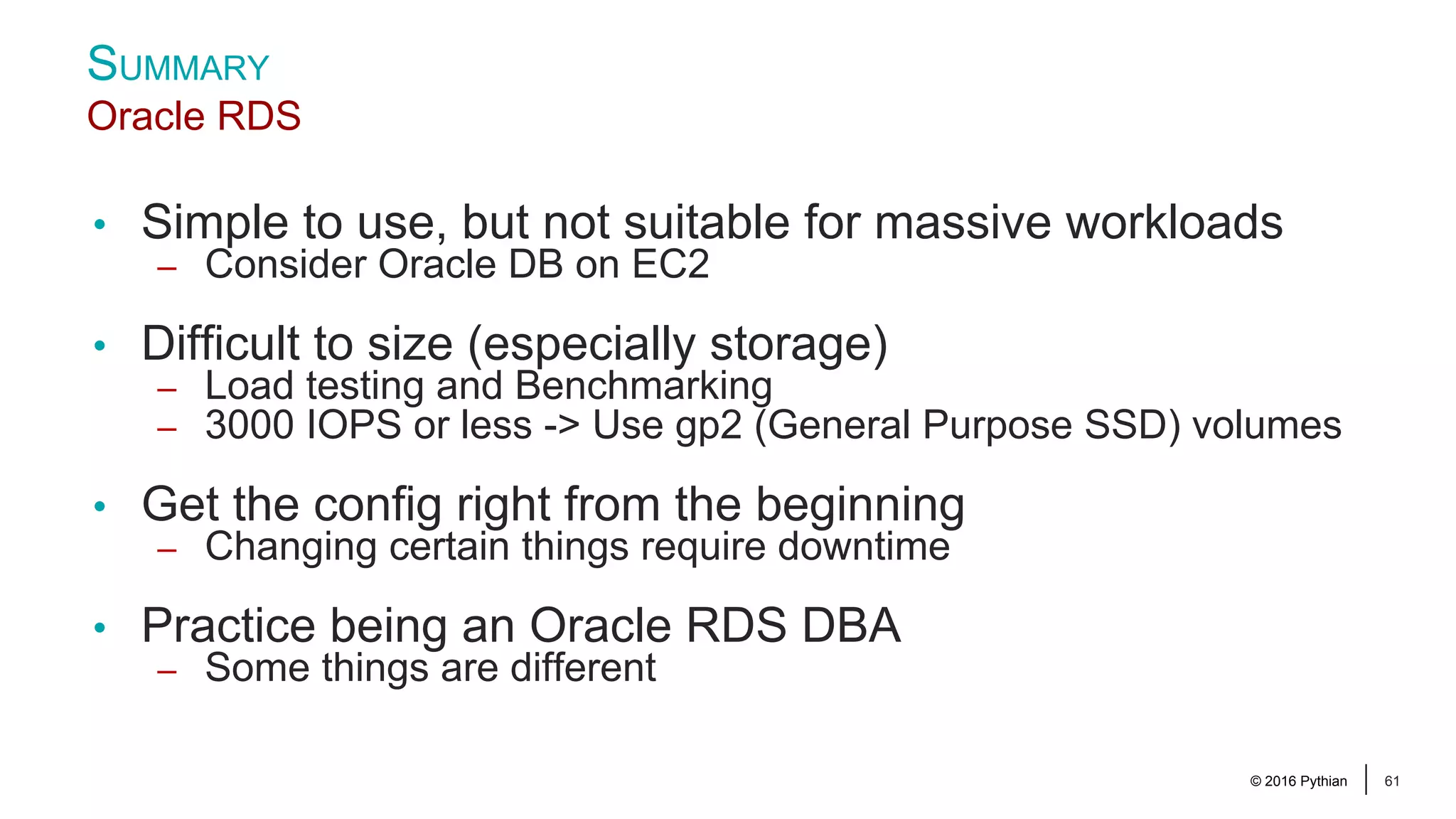

© 2016 Pythian 61 • Simple to use, but not suitable for massive workloads – Consider Oracle DB on EC2 • Difficult to size (especially storage) – Load testing and Benchmarking – 3000 IOPS or less -> Use gp2 (General Purpose SSD) volumes • Get the config right from the beginning – Changing certain things require downtime • Practice being an Oracle RDS DBA – Some things are different SUMMARY Oracle RDS
