Maven Zero to Hero with AWS CodeCommit, CodeArtifact, ECR, OWASP Dependency Track
This document provides an overview and agenda for a presentation on using Maven with AWS services like CodeCommit, CodeArtifact, and ECR. It discusses Maven concepts like folders, POMs, lifecycles, plugins and goals. It also covers setting up projects with these AWS services, performing Maven releases, and best practices. Example builds are provided like a Hello World app and utilizing services together.
Maven Zero to Hero with AWS CodeCommit, CodeArtifact, ECR, OWASP Dependency Track
- 1. Maven Zero toHero with AWS CodeCommit, CodeArtifact, ECR, OWASP Dependency Track Ravi Soni linkedin.com/in/rvsoni/

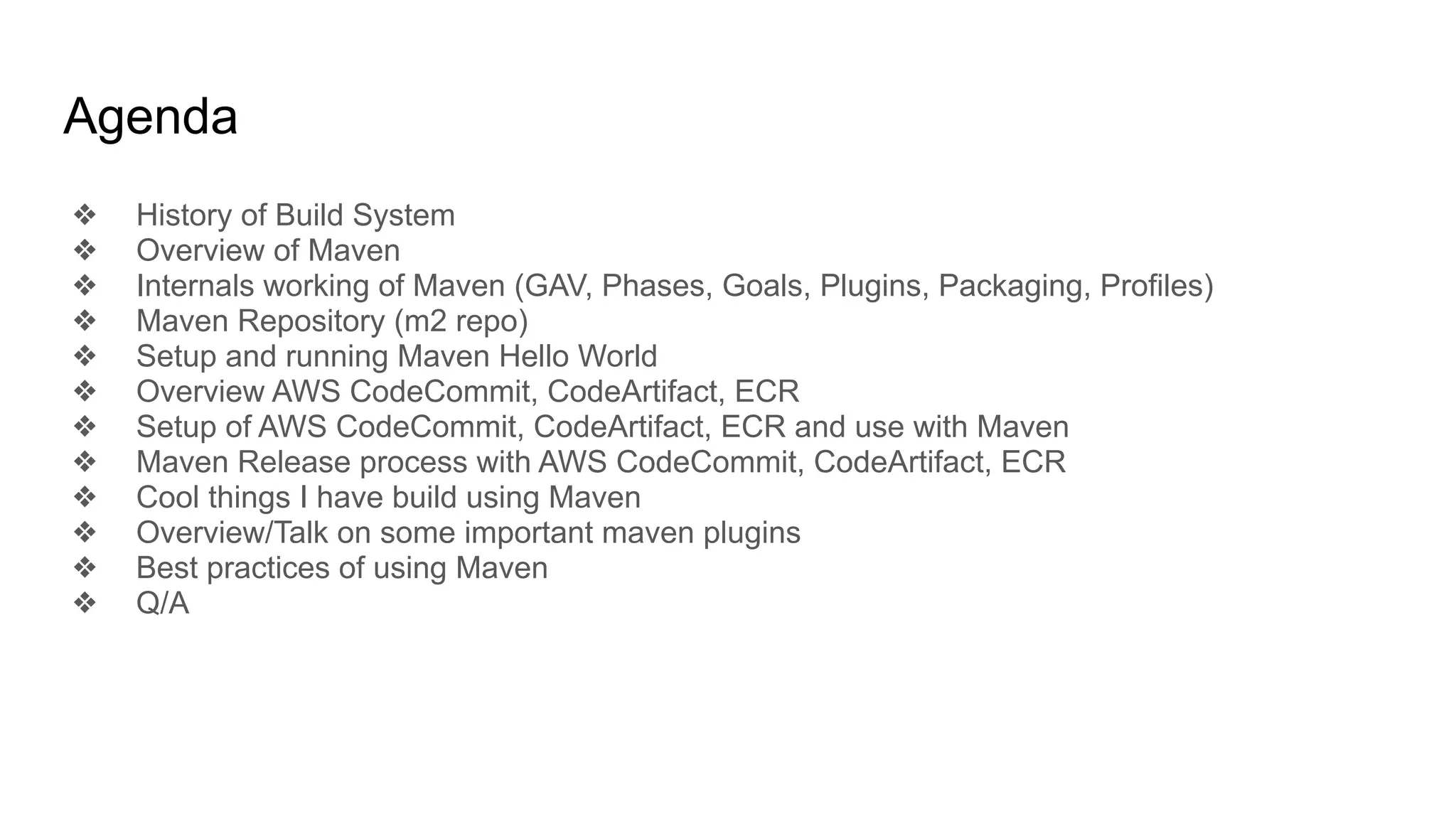

- 2. Agenda ❖ History ofBuild System ❖ Overview of Maven ❖ Internals working of Maven (GAV, Phases, Goals, Plugins, Packaging, Profiles) ❖ Maven Repository (m2 repo) ❖ Setup and running Maven Hello World ❖ Overview AWS CodeCommit, CodeArtifact, ECR ❖ Setup of AWS CodeCommit, CodeArtifact, ECR and use with Maven ❖ Maven Release process with AWS CodeCommit, CodeArtifact, ECR ❖ Cool things I have build using Maven ❖ Overview/Talk on some important maven plugins ❖ Best practices of using Maven ❖ Q/A

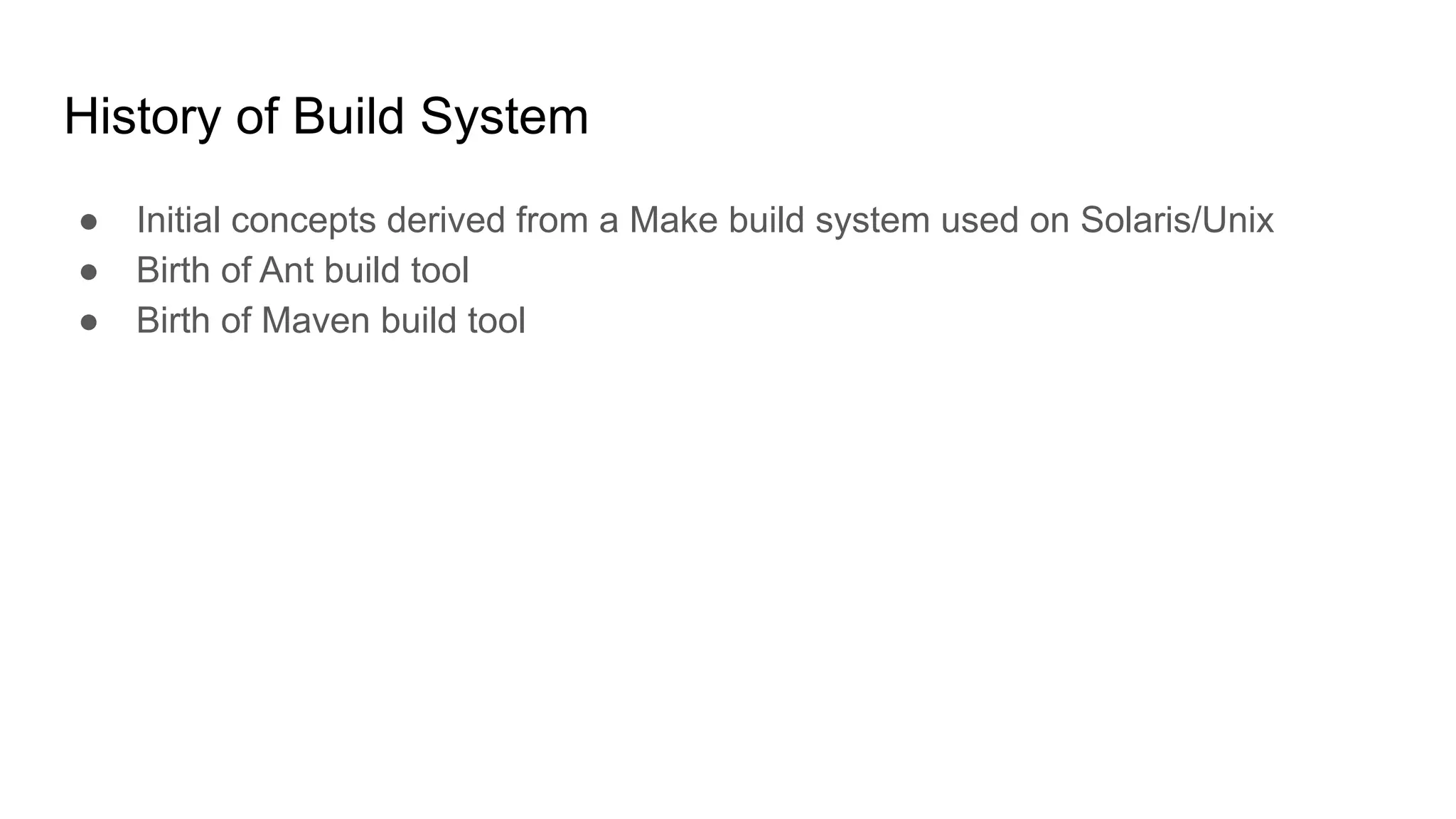

- 3. History of BuildSystem ● Initial concepts derived from a Make build system used on Solaris/Unix ● Birth of Ant build tool ● Birth of Maven build tool

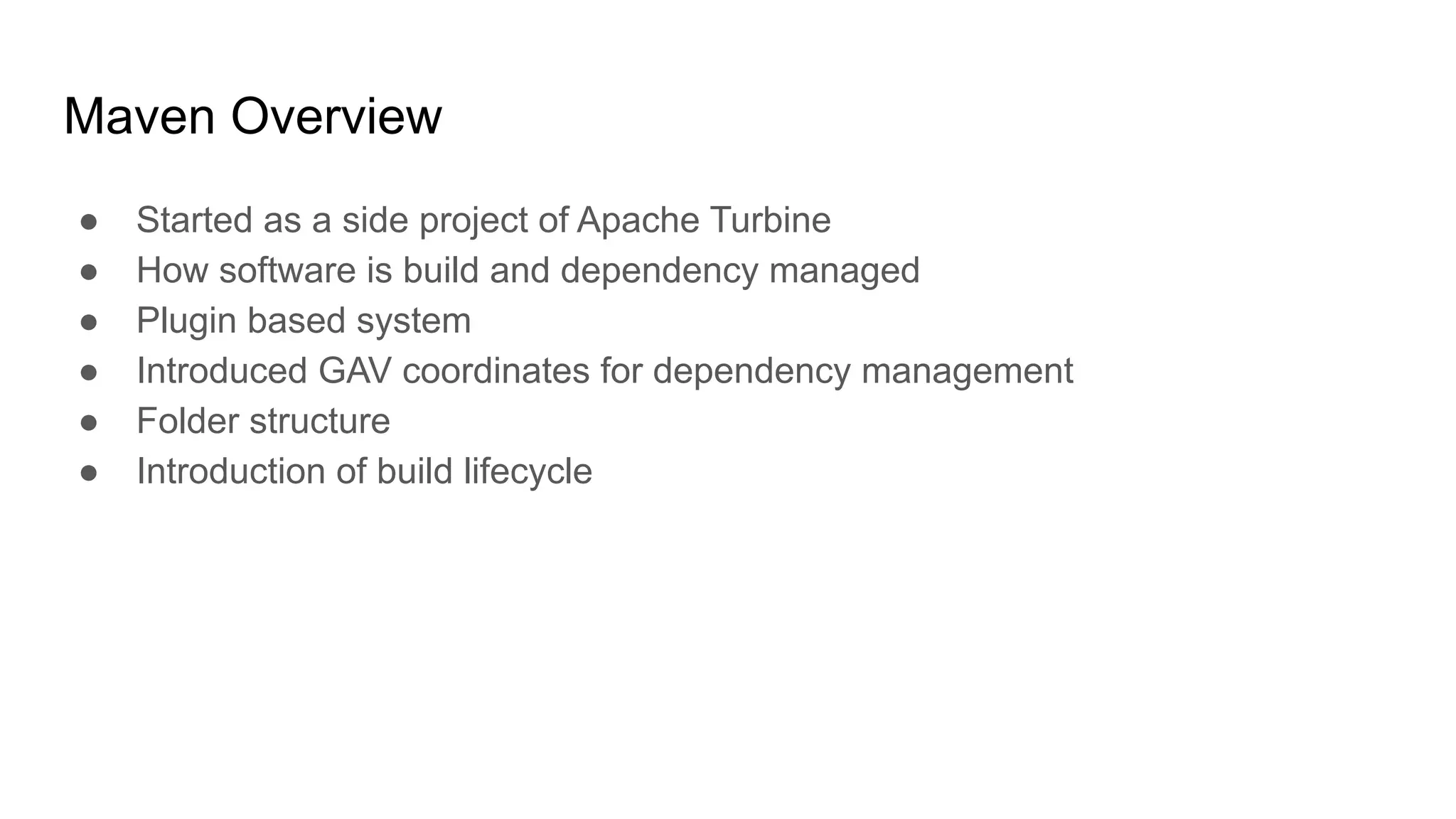

- 4. Maven Overview ● Startedas a side project of Apache Turbine ● How software is build and dependency managed ● Plugin based system ● Introduced GAV coordinates for dependency management ● Folder structure ● Introduction of build lifecycle
- 5.

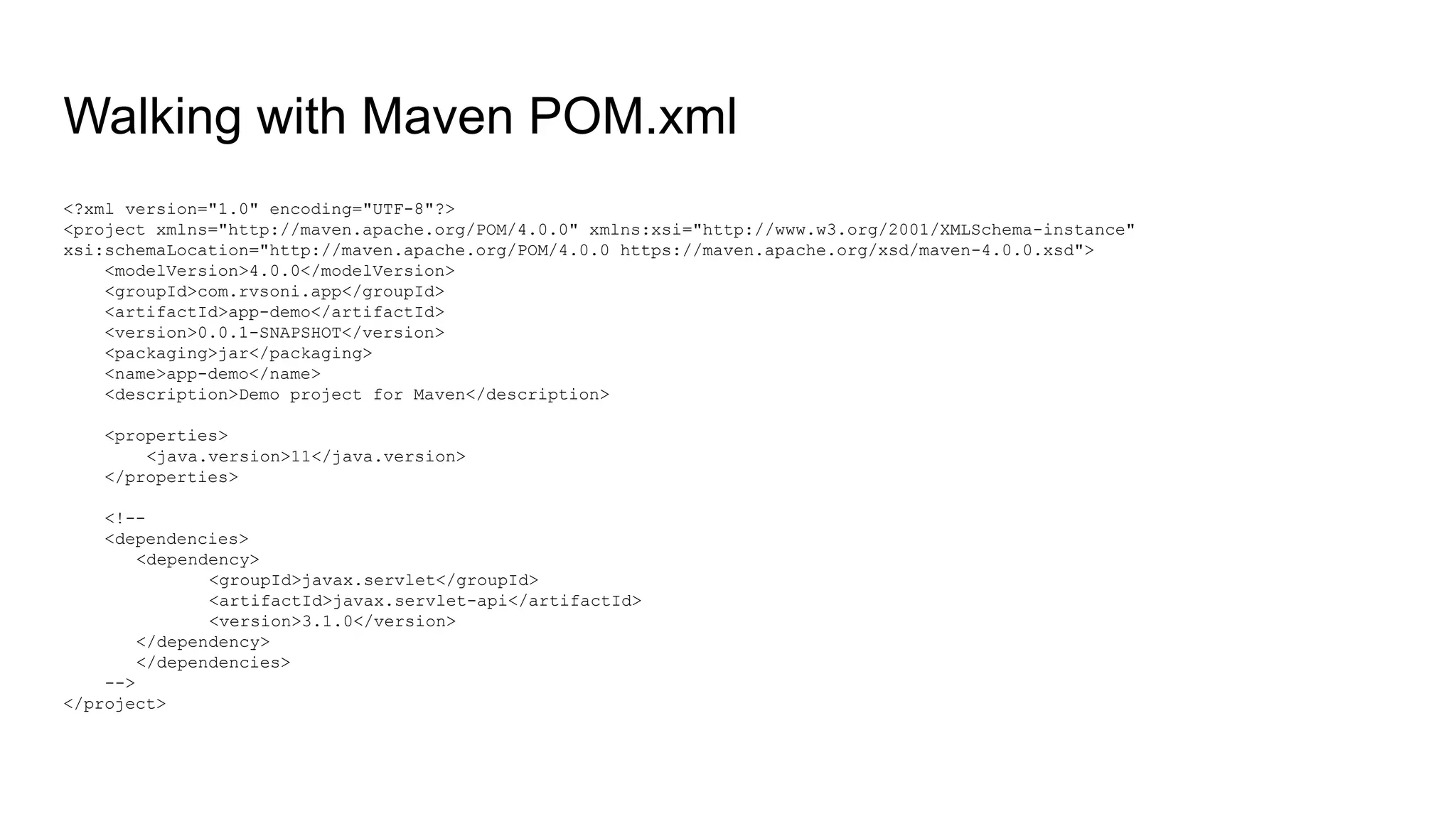

- 6. Walking with MavenPOM.xml <?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <groupId>com.rvsoni.app</groupId> <artifactId>app-demo</artifactId> <version>0.0.1-SNAPSHOT</version> <packaging>jar</packaging> <name>app-demo</name> <description>Demo project for Maven</description> <properties> <java.version>11</java.version> </properties> <!-- <dependencies> <dependency> <groupId>javax.servlet</groupId> <artifactId>javax.servlet-api</artifactId> <version>3.1.0</version> </dependency> </dependencies> --> </project>
- 7. Walking with Maven(Multi Module) POM.xml <project> <modelVersion>4.0.0</modelVersion> <artifactId>service</artifactId> <packaging>jar</packaging> <description>Demo project for Maven</description> <parent> <groupId>com.rvsoni.app</groupId> <artifactId>multi-module-app-demo</artifactId> <version>0.0.1-SNAPSHOT</version> </parent> <dependencies> <dependency> <groupId>com.rvsoni.app</groupId> <artifactId>jpa</artifactId> <version>${project.version}</version> </dependency> </dependencies> </project> <project> <modelVersion>4.0.0</modelVersion> <groupId>com.rvsoni.app</groupId> <artifactId>multi-module-app-demo</artifactId> <version>0.0.1-SNAPSHOT</version> <packaging>pom</packaging> <name>Maven multi-module App Demo</name> <properties> <java.version>11</java.version> <maven.compiler.source>${java.version}</maven.compiler.source> <maven.compiler.target>${java.version}</maven.compiler.target> <spring-boot.version>2.6.7</spring-boot.version> </properties> <dependencyManagement> <dependencies> <!-- Spring Boot BOM --> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-dependencies</artifactId> <version>${spring-boot.version}</version> <type>pom</type> <scope>import</scope> </dependency> </dependencies> </dependencyManagement> <modules> <module>jpa</module> <module>service</module> <module>web</module> </modules> </project>

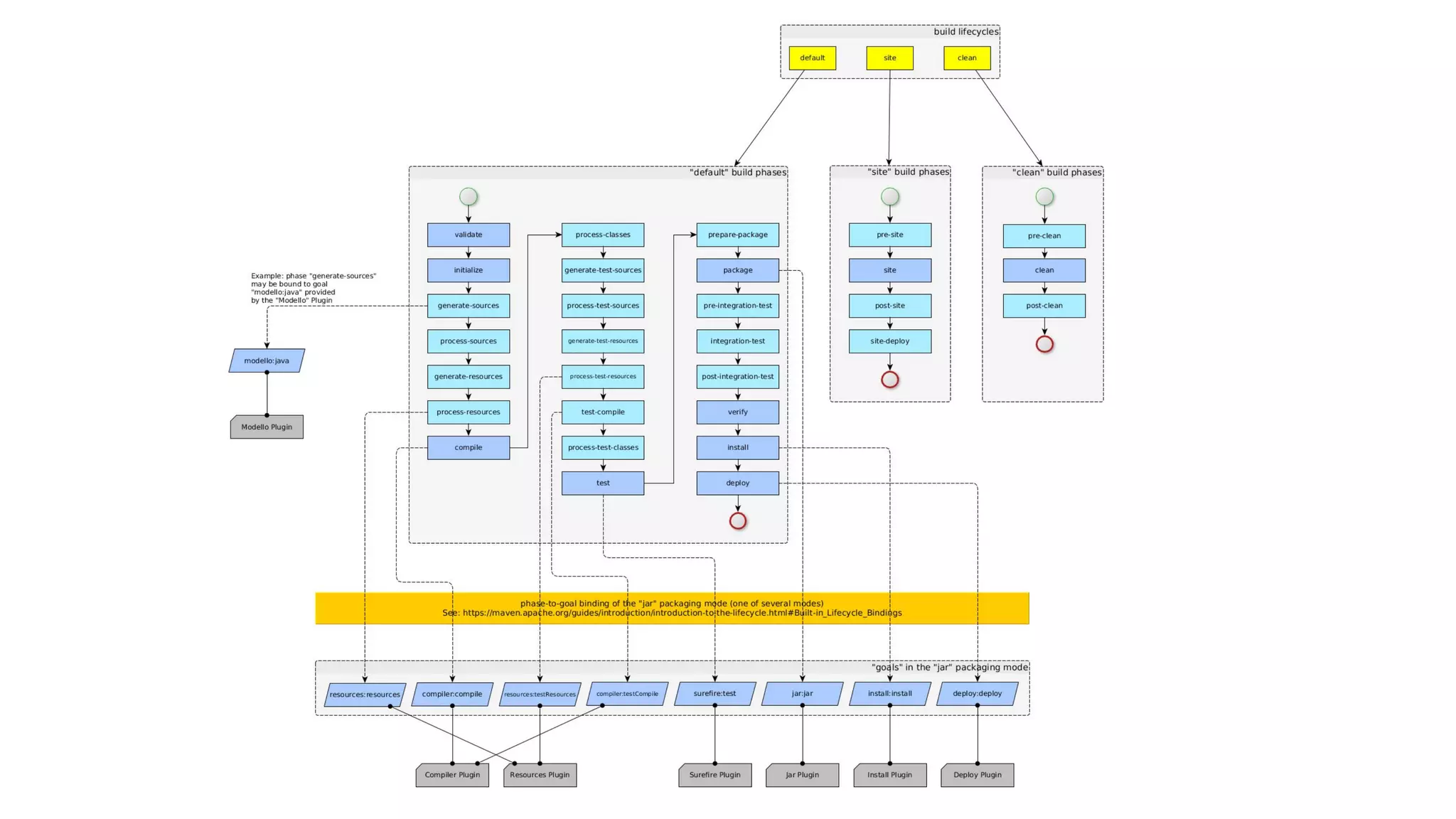

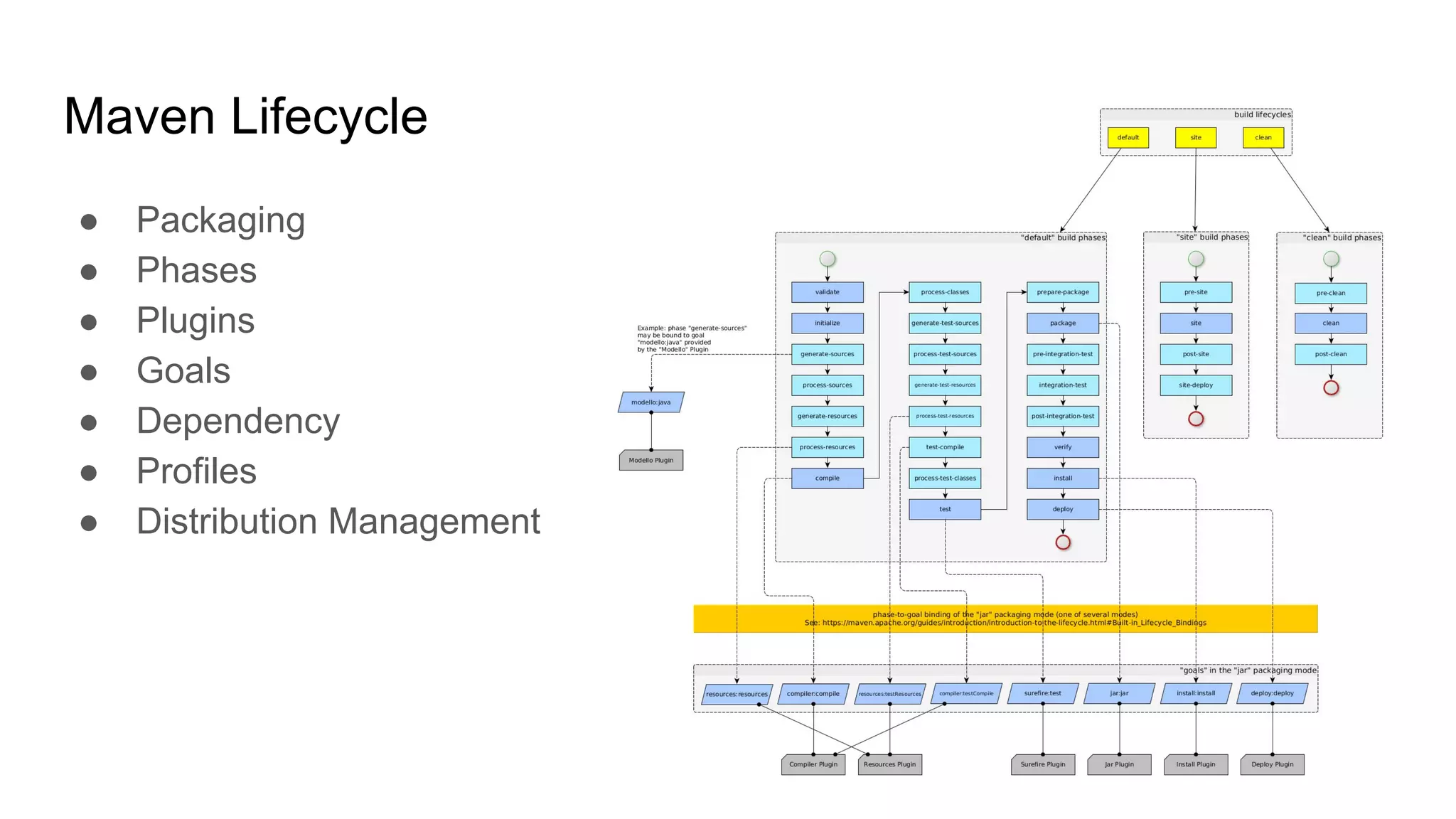

- 8. Maven Lifecycle ● Packaging ●Phases ● Plugins ● Goals ● Dependency ● Profiles ● Distribution Management

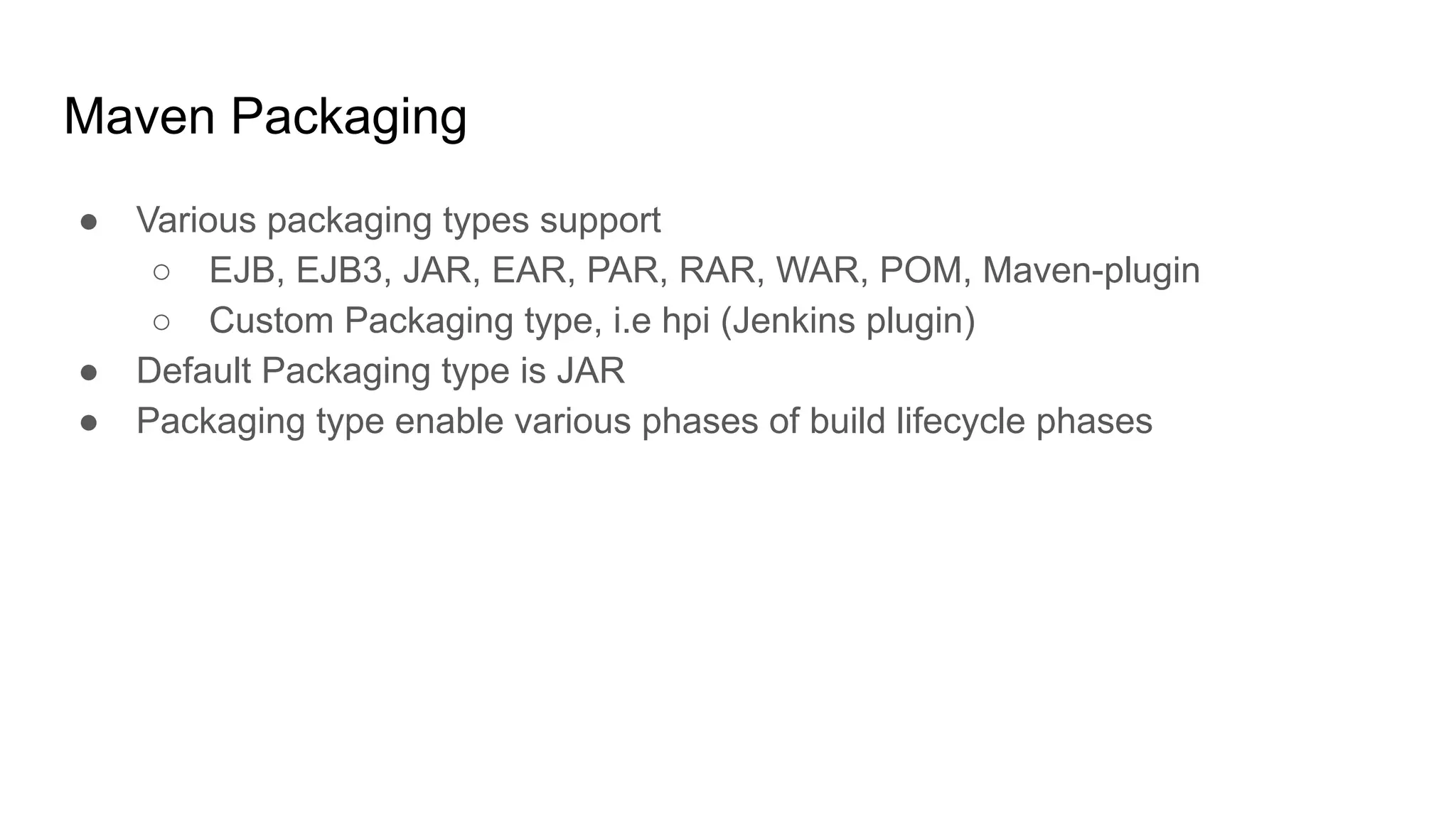

- 10. Maven Packaging ● Variouspackaging types support ○ EJB, EJB3, JAR, EAR, PAR, RAR, WAR, POM, Maven-plugin ○ Custom Packaging type, i.e hpi (Jenkins plugin) ● Default Packaging type is JAR ● Packaging type enable various phases of build lifecycle phases

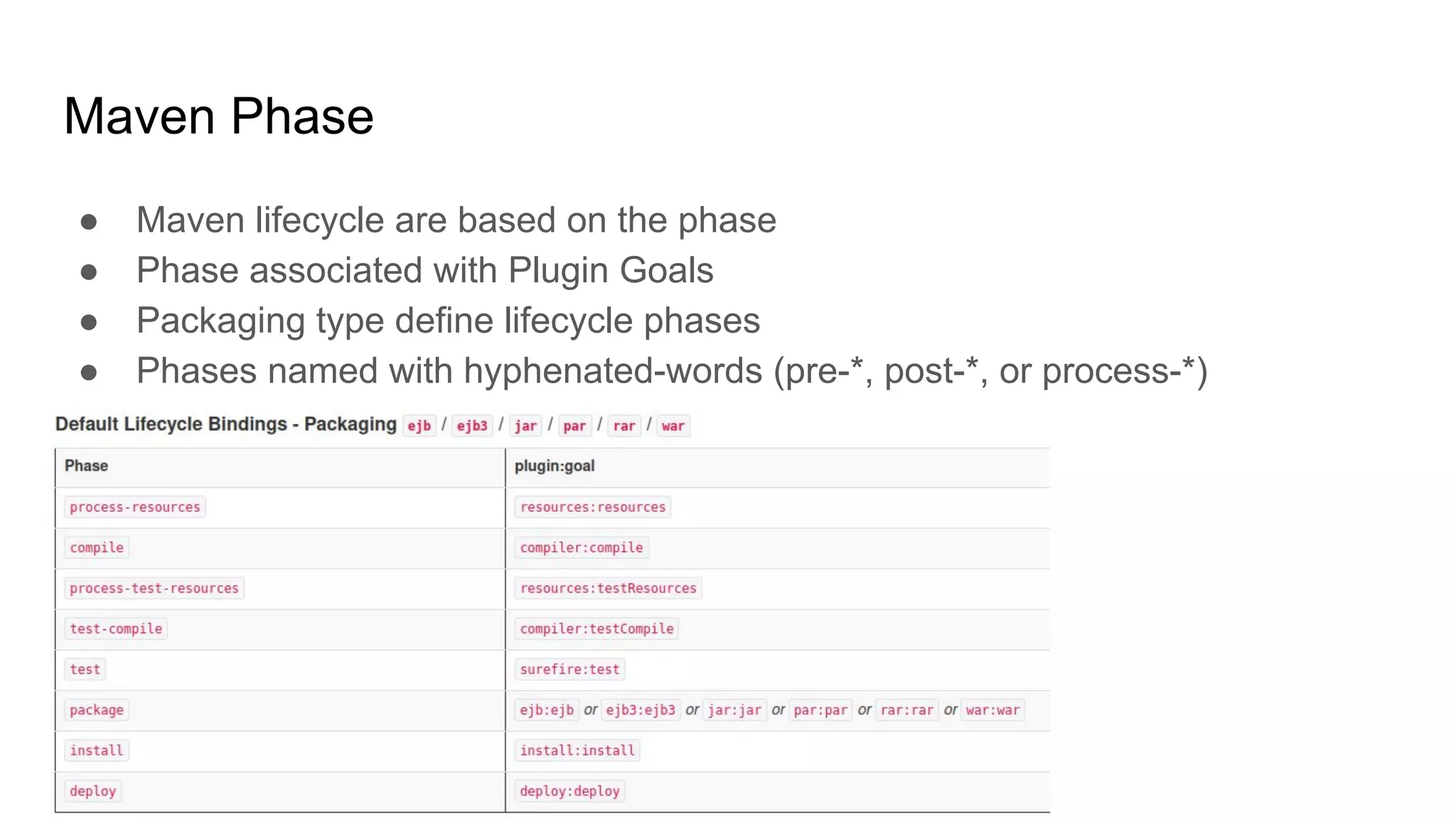

- 11. Maven Phase ● Mavenlifecycle are based on the phase ● Phase associated with Plugin Goals ● Packaging type define lifecycle phases ● Phases named with hyphenated-words (pre-*, post-*, or process-*)

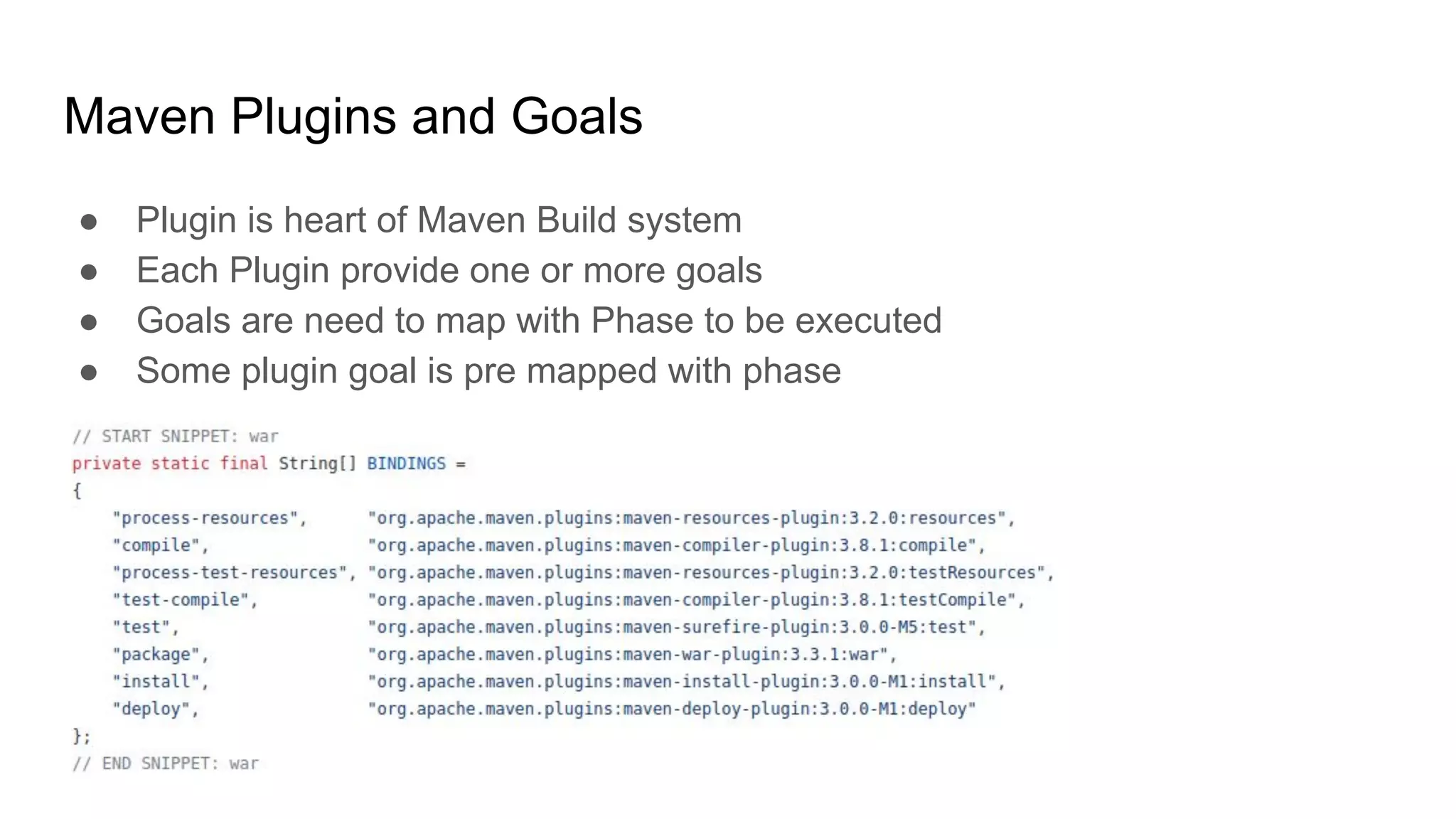

- 12. Maven Plugins andGoals ● Plugin is heart of Maven Build system ● Each Plugin provide one or more goals ● Goals are need to map with Phase to be executed ● Some plugin goal is pre mapped with phase

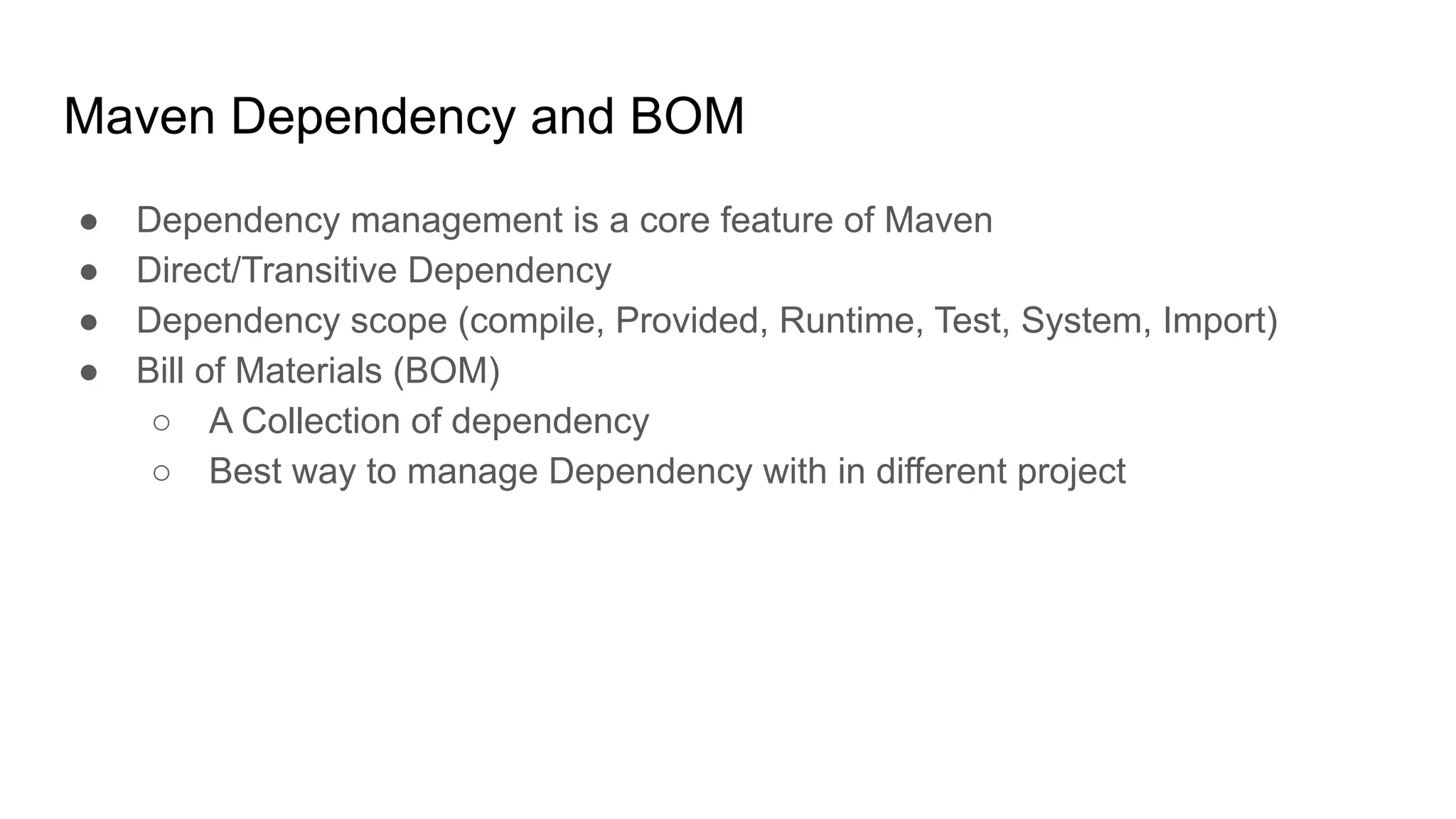

- 13. Maven Dependency andBOM ● Dependency management is a core feature of Maven ● Direct/Transitive Dependency ● Dependency scope (compile, Provided, Runtime, Test, System, Import) ● Bill of Materials (BOM) ○ A Collection of dependency ○ Best way to manage Dependency with in different project

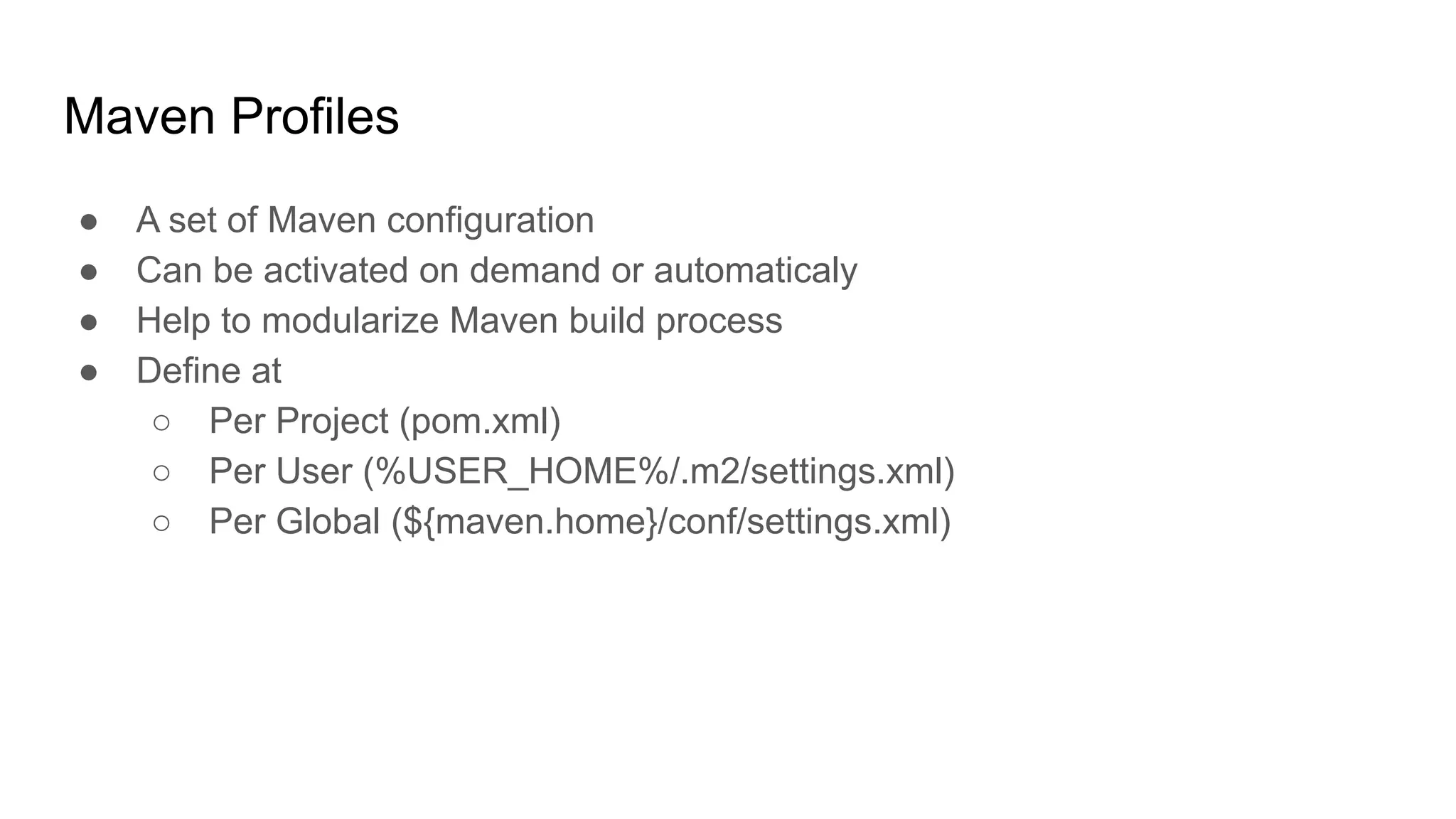

- 14. Maven Profiles ● Aset of Maven configuration ● Can be activated on demand or automaticaly ● Help to modularize Maven build process ● Define at ○ Per Project (pom.xml) ○ Per User (%USER_HOME%/.m2/settings.xml) ○ Per Global (${maven.home}/conf/settings.xml)

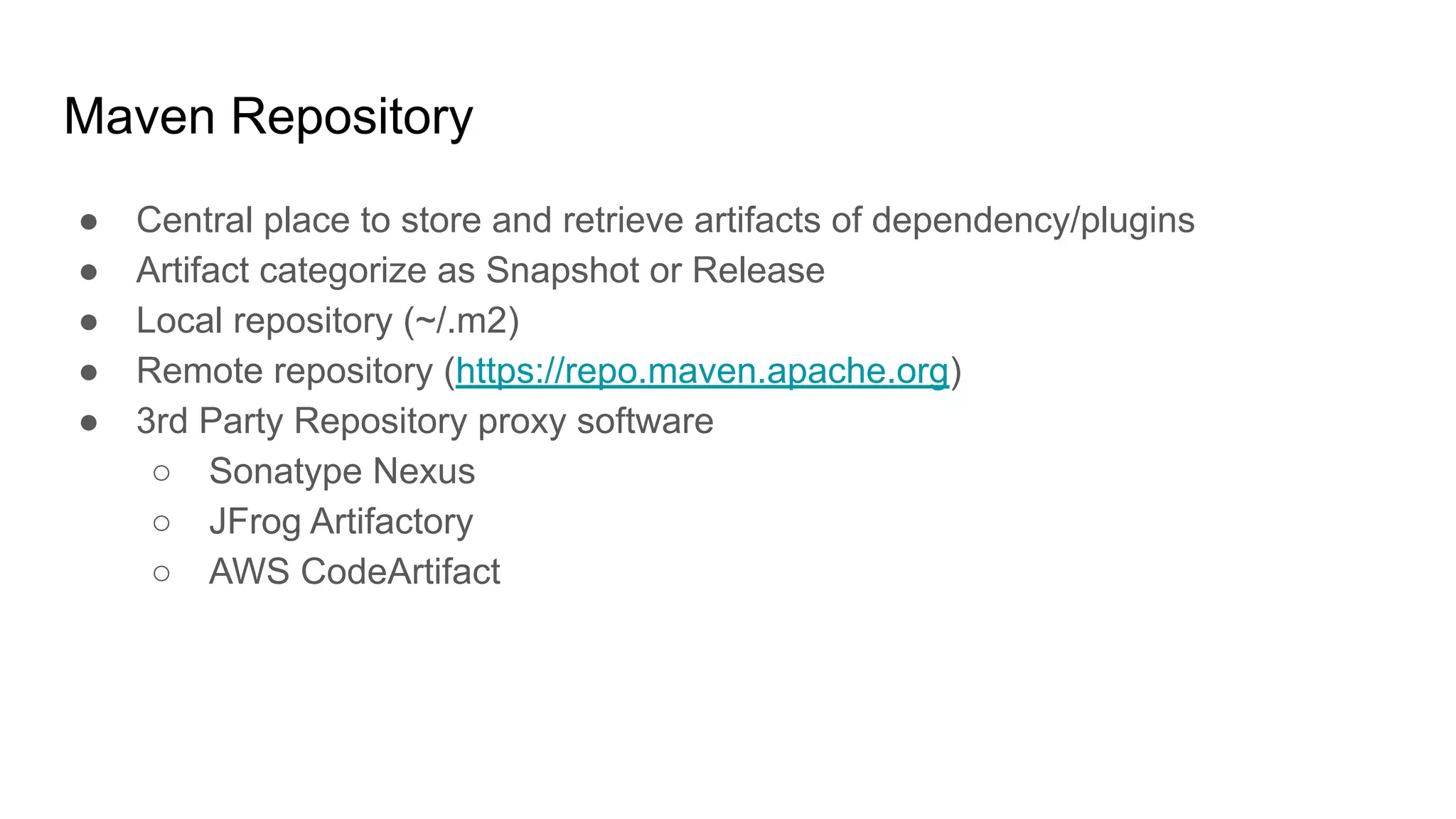

- 15. Maven Repository ● Centralplace to store and retrieve artifacts of dependency/plugins ● Artifact categorize as Snapshot or Release ● Local repository (~/.m2) ● Remote repository (https://repo.maven.apache.org) ● 3rd Party Repository proxy software ○ Sonatype Nexus ○ JFrog Artifactory ○ AWS CodeArtifact
- 16.

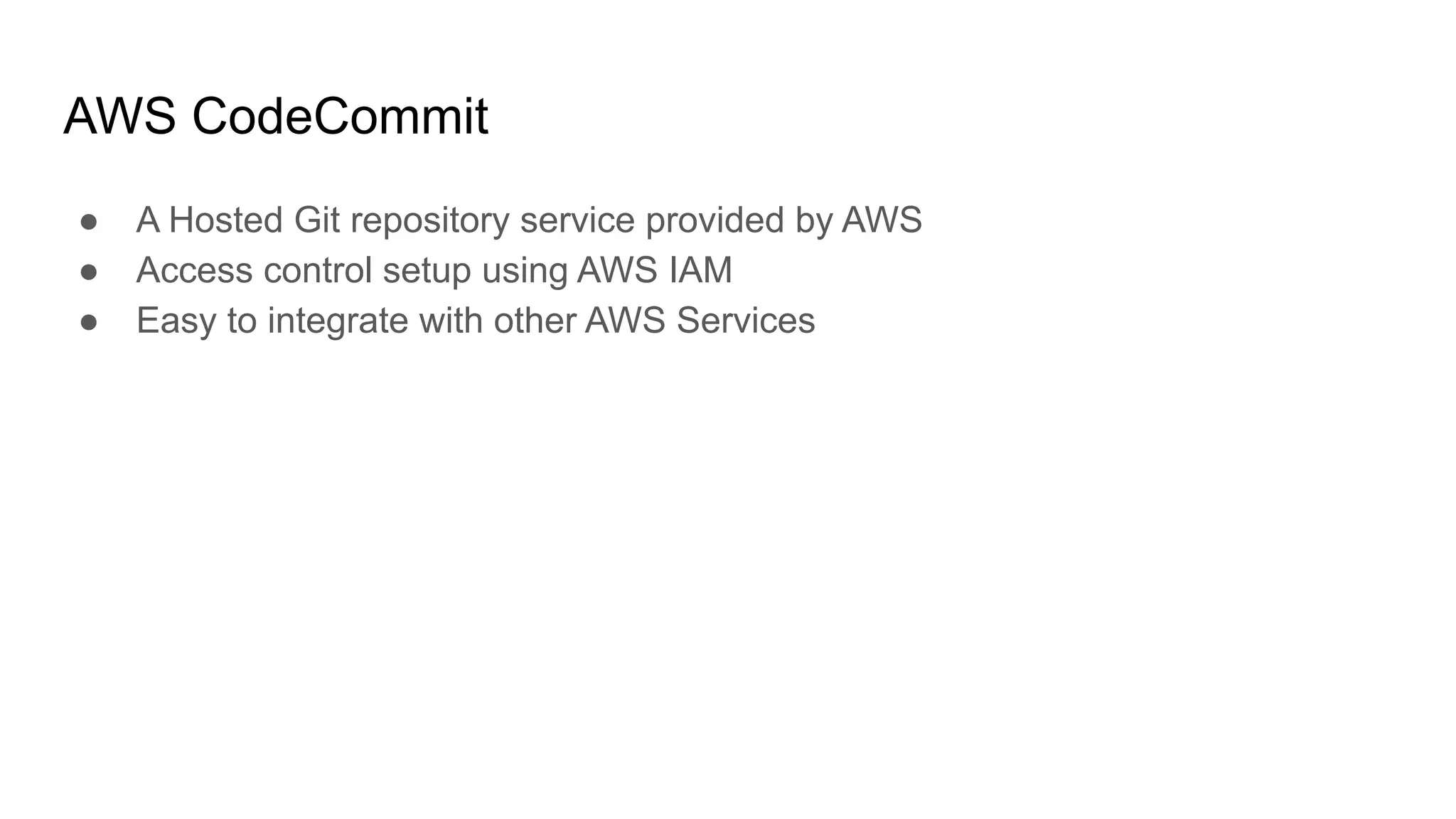

- 17. AWS CodeCommit ● AHosted Git repository service provided by AWS ● Access control setup using AWS IAM ● Easy to integrate with other AWS Services

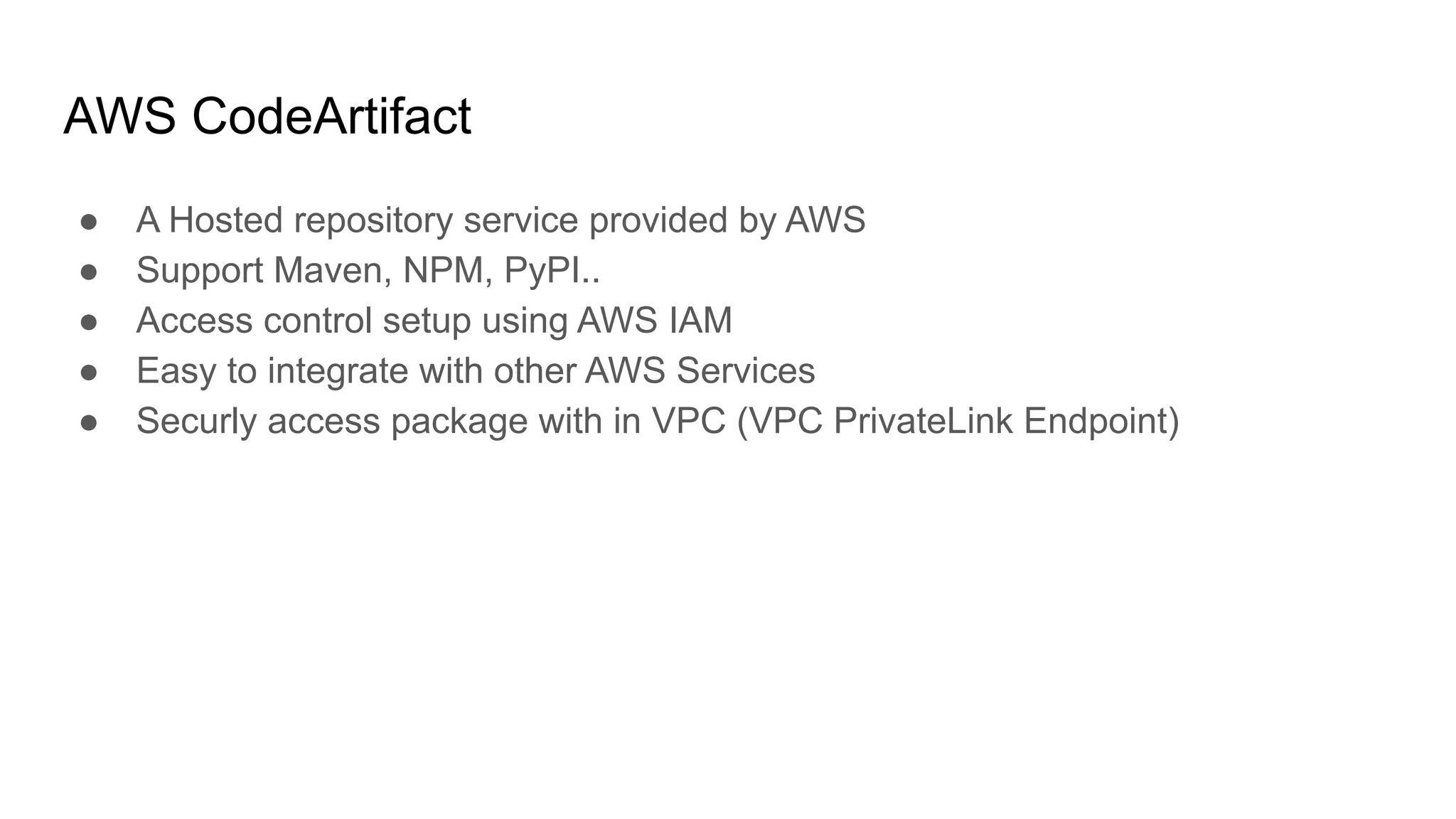

- 18. AWS CodeArtifact ● AHosted repository service provided by AWS ● Support Maven, NPM, PyPI.. ● Access control setup using AWS IAM ● Easy to integrate with other AWS Services ● Securly access package with in VPC (VPC PrivateLink Endpoint)

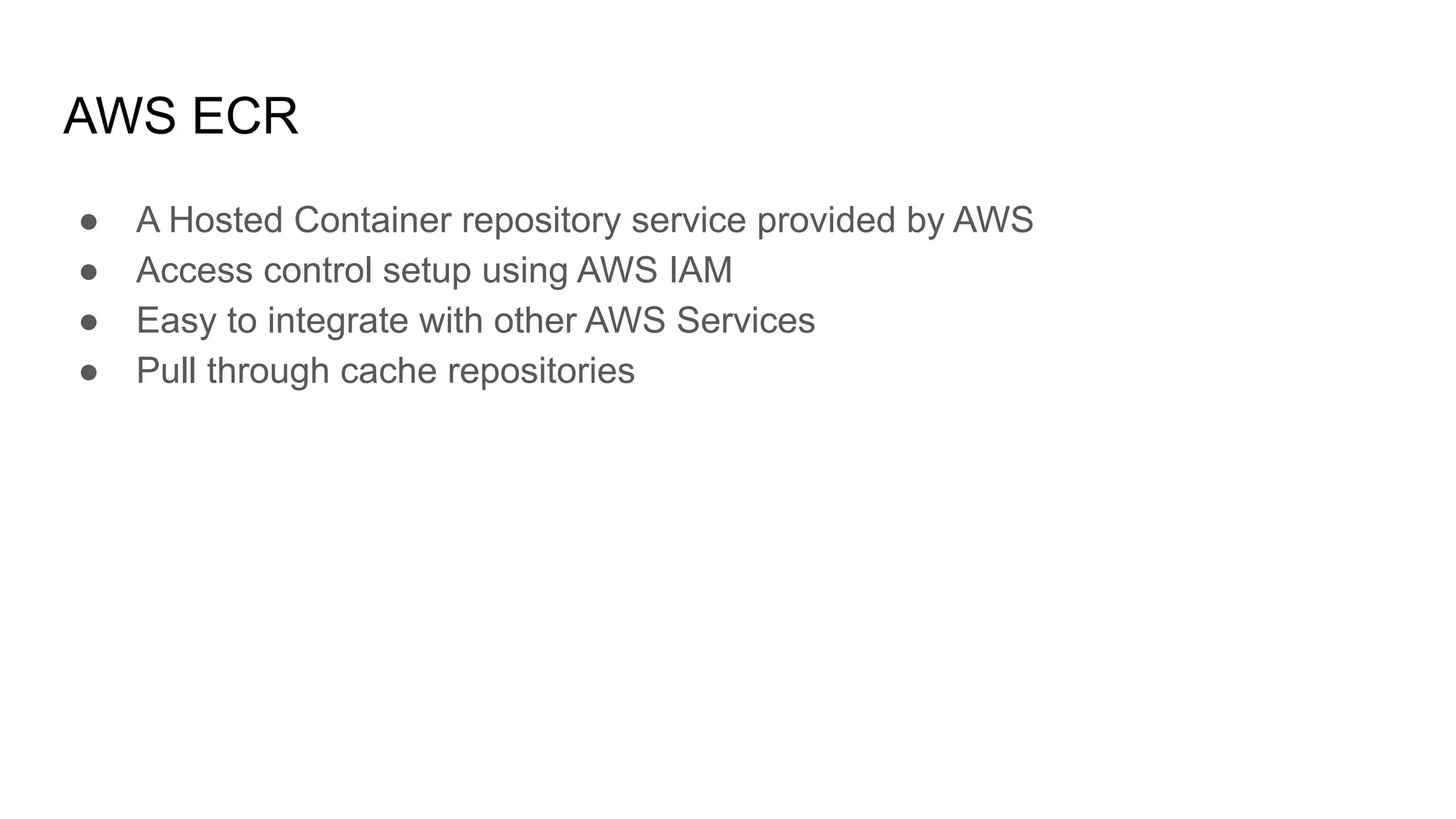

- 19. AWS ECR ● AHosted Container repository service provided by AWS ● Access control setup using AWS IAM ● Easy to integrate with other AWS Services ● Pull through cache repositories
- 20.

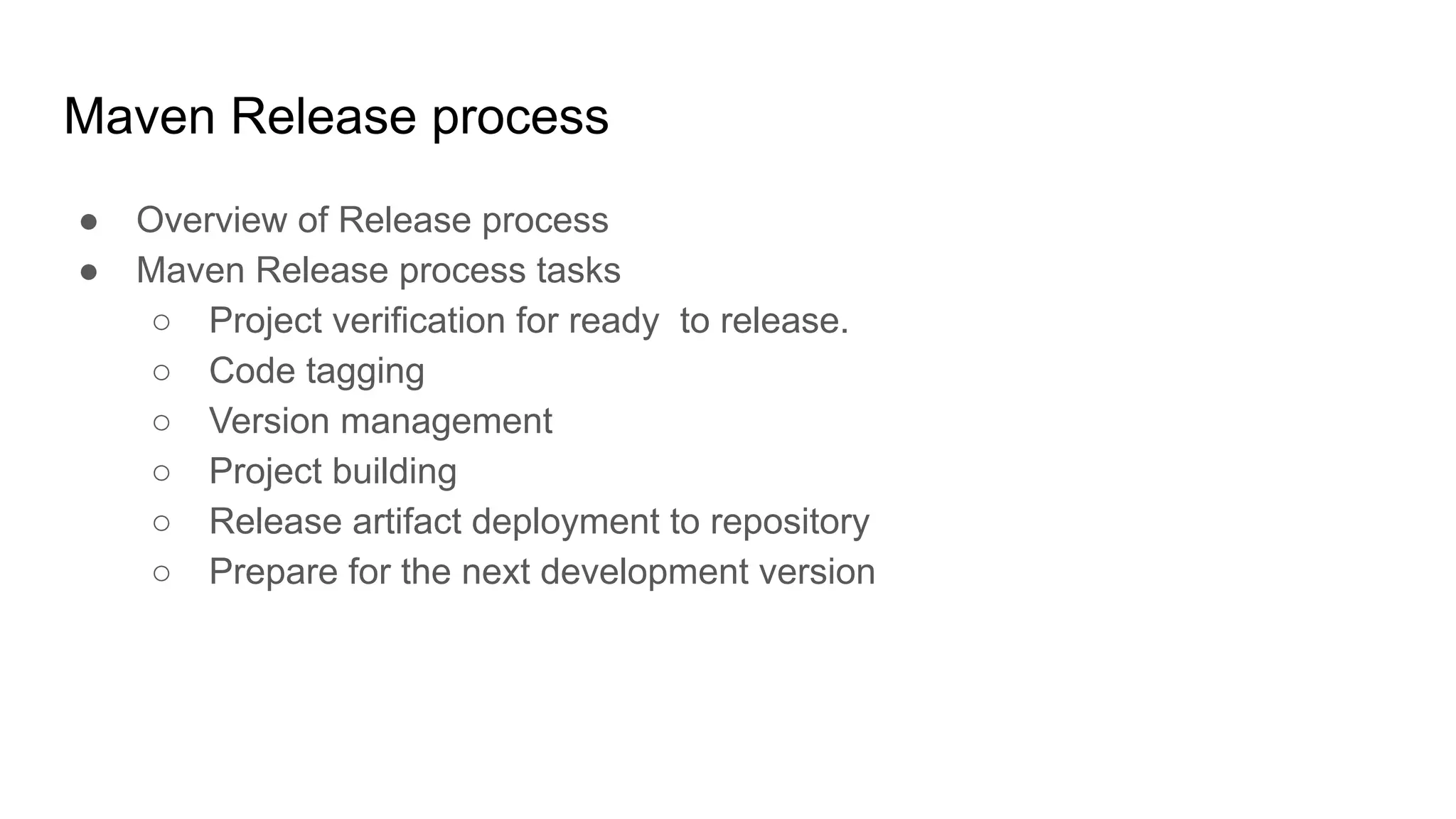

- 21. Maven Release process ●Overview of Release process ● Maven Release process tasks ○ Project verification for ready to release. ○ Code tagging ○ Version management ○ Project building ○ Release artifact deployment to repository ○ Prepare for the next development version

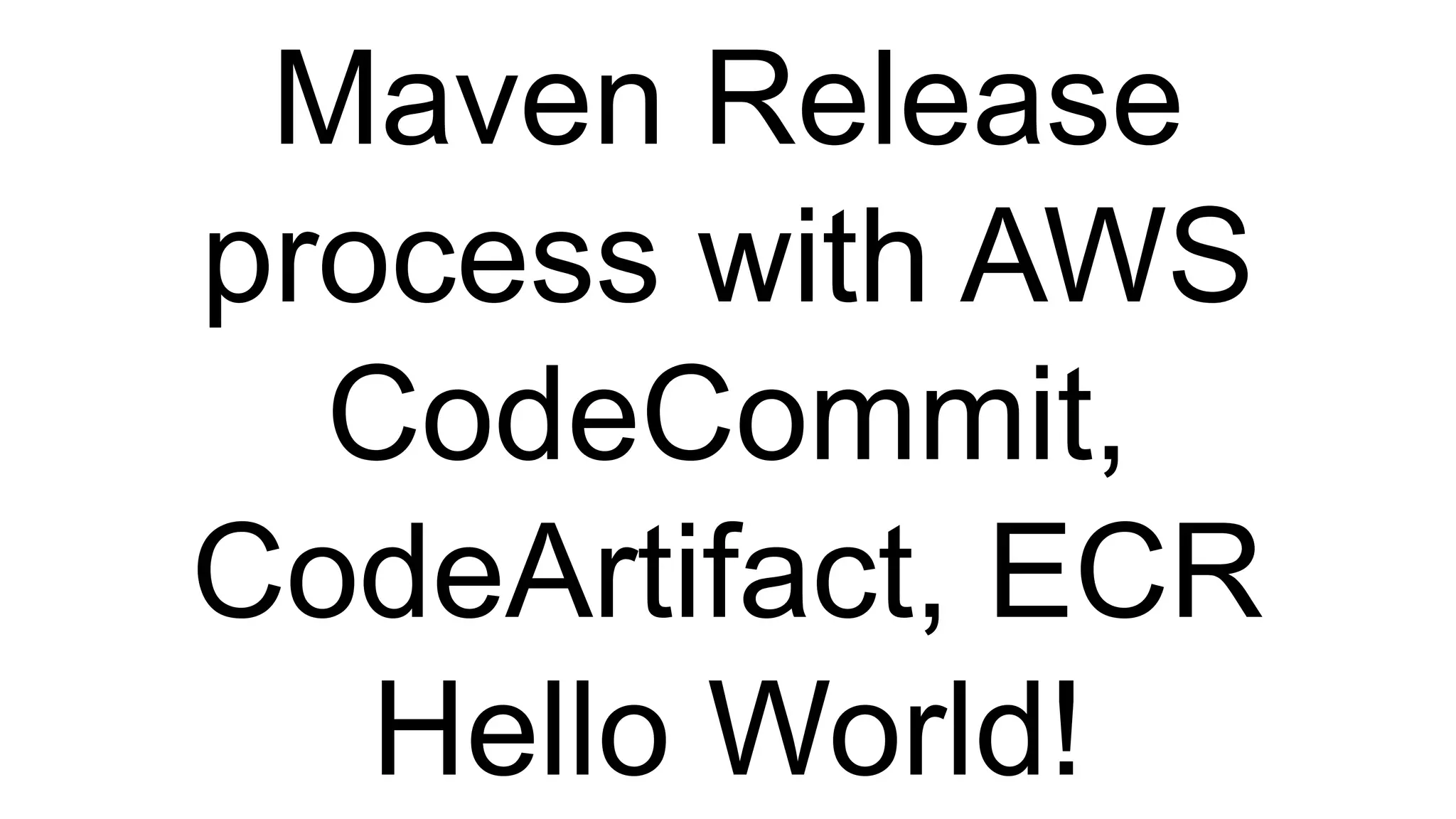

- 22. Maven Release process withAWS CodeCommit, CodeArtifact, ECR Hello World!

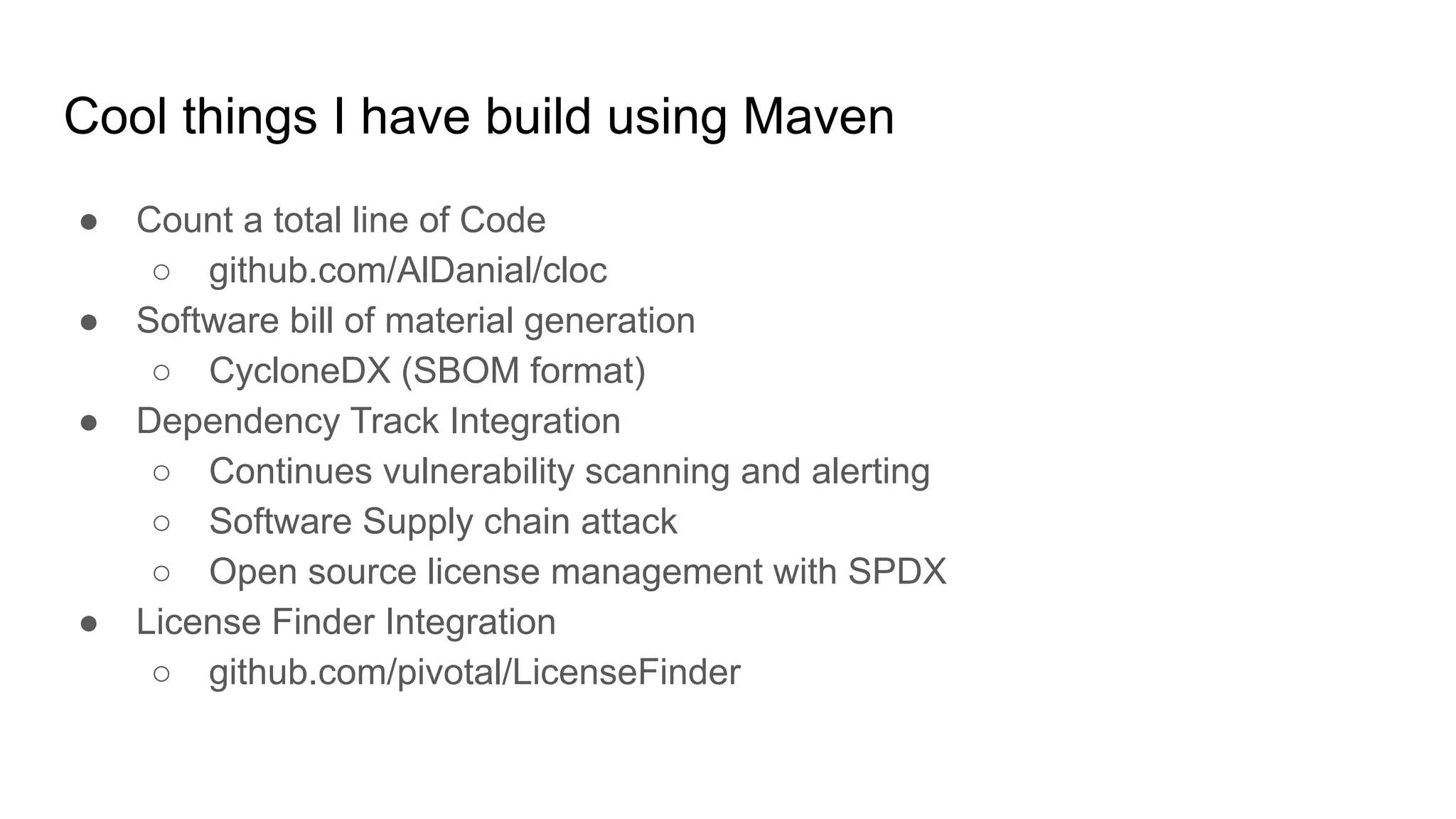

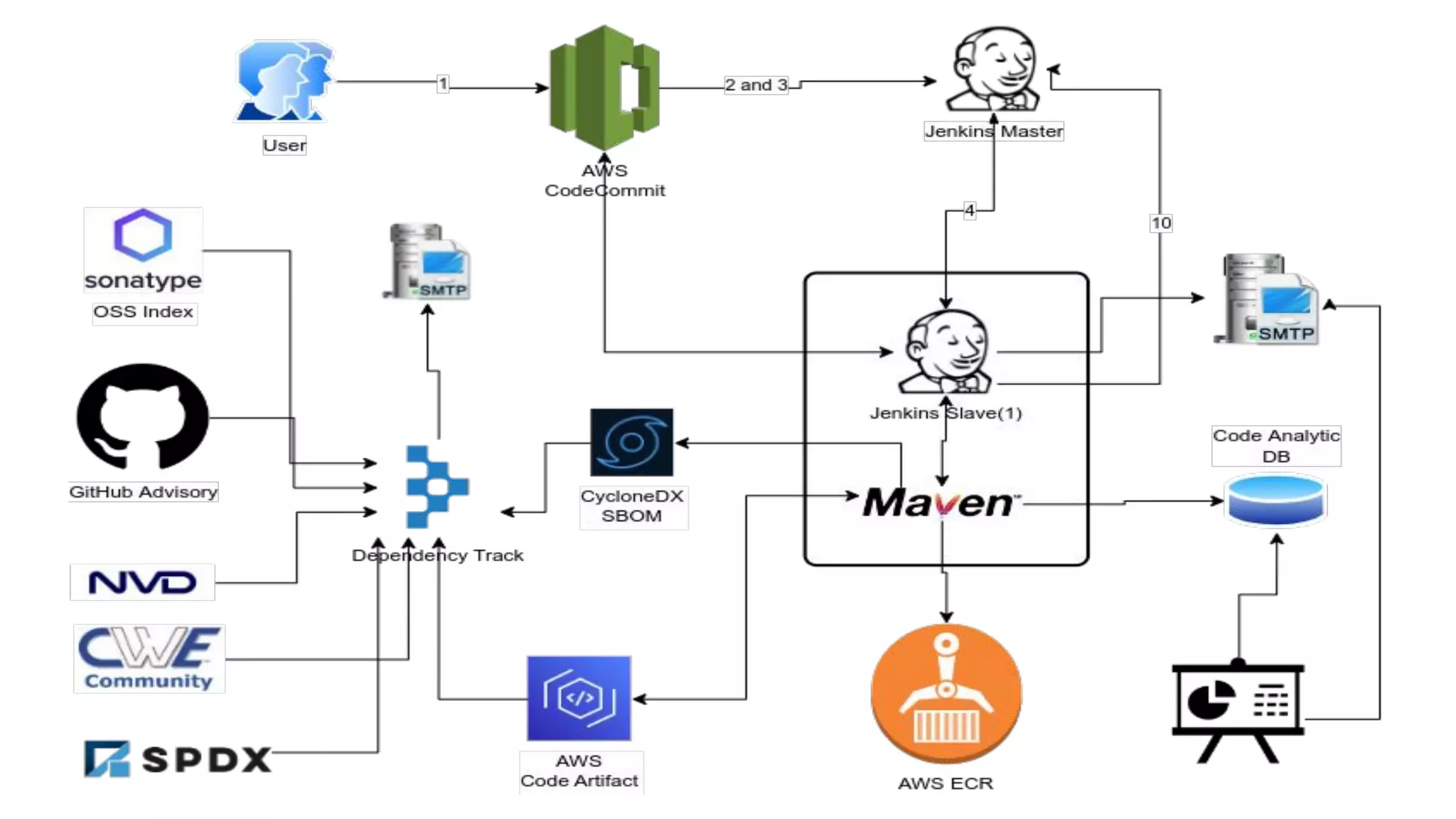

- 23. Cool things Ihave build using Maven ● Count a total line of Code ○ github.com/AlDanial/cloc ● Software bill of material generation ○ CycloneDX (SBOM format) ● Dependency Track Integration ○ Continues vulnerability scanning and alerting ○ Software Supply chain attack ○ Open source license management with SPDX ● License Finder Integration ○ github.com/pivotal/LicenseFinder

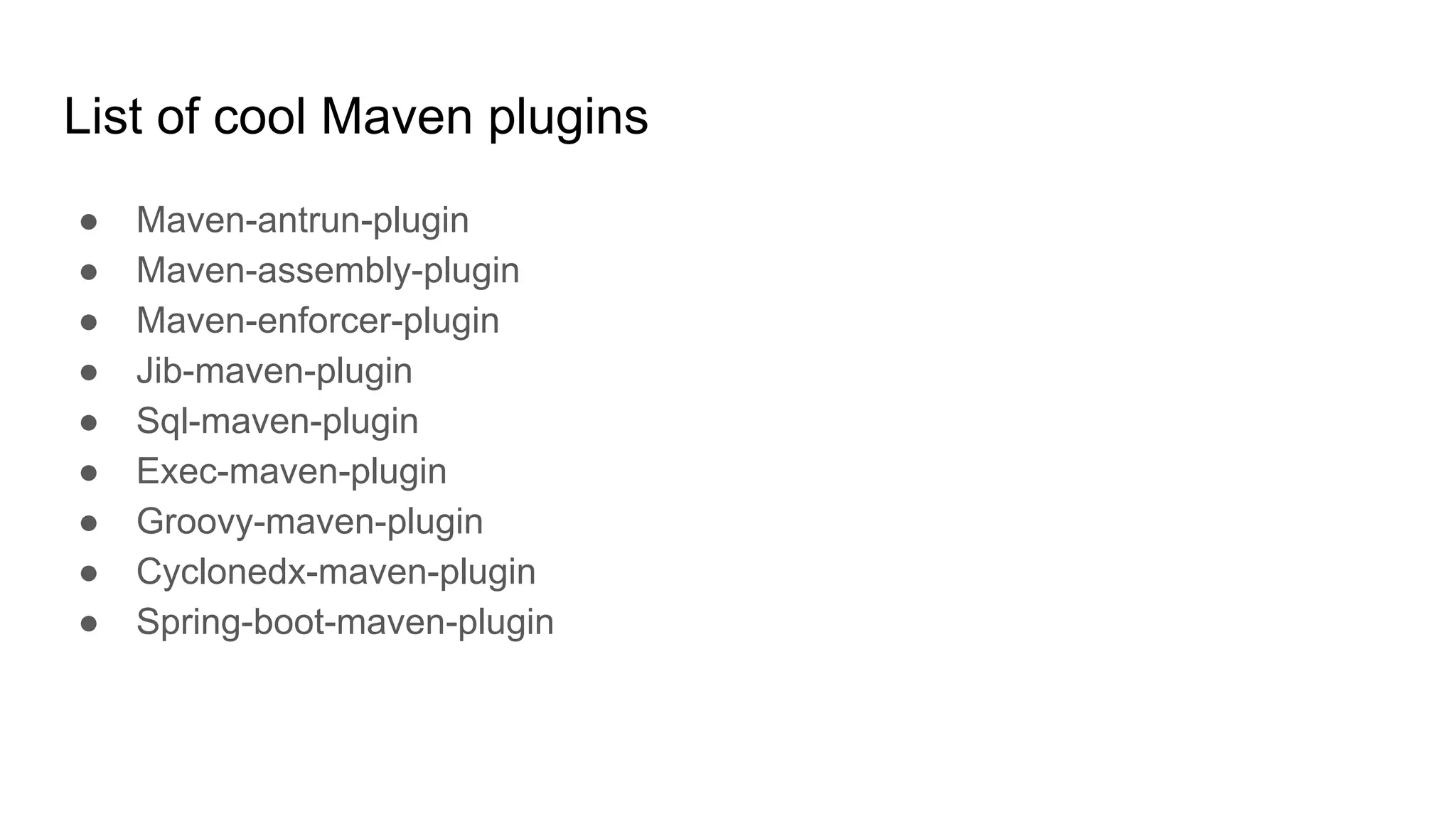

- 25. List of coolMaven plugins ● Maven-antrun-plugin ● Maven-assembly-plugin ● Maven-enforcer-plugin ● Jib-maven-plugin ● Sql-maven-plugin ● Exec-maven-plugin ● Groovy-maven-plugin ● Cyclonedx-maven-plugin ● Spring-boot-maven-plugin

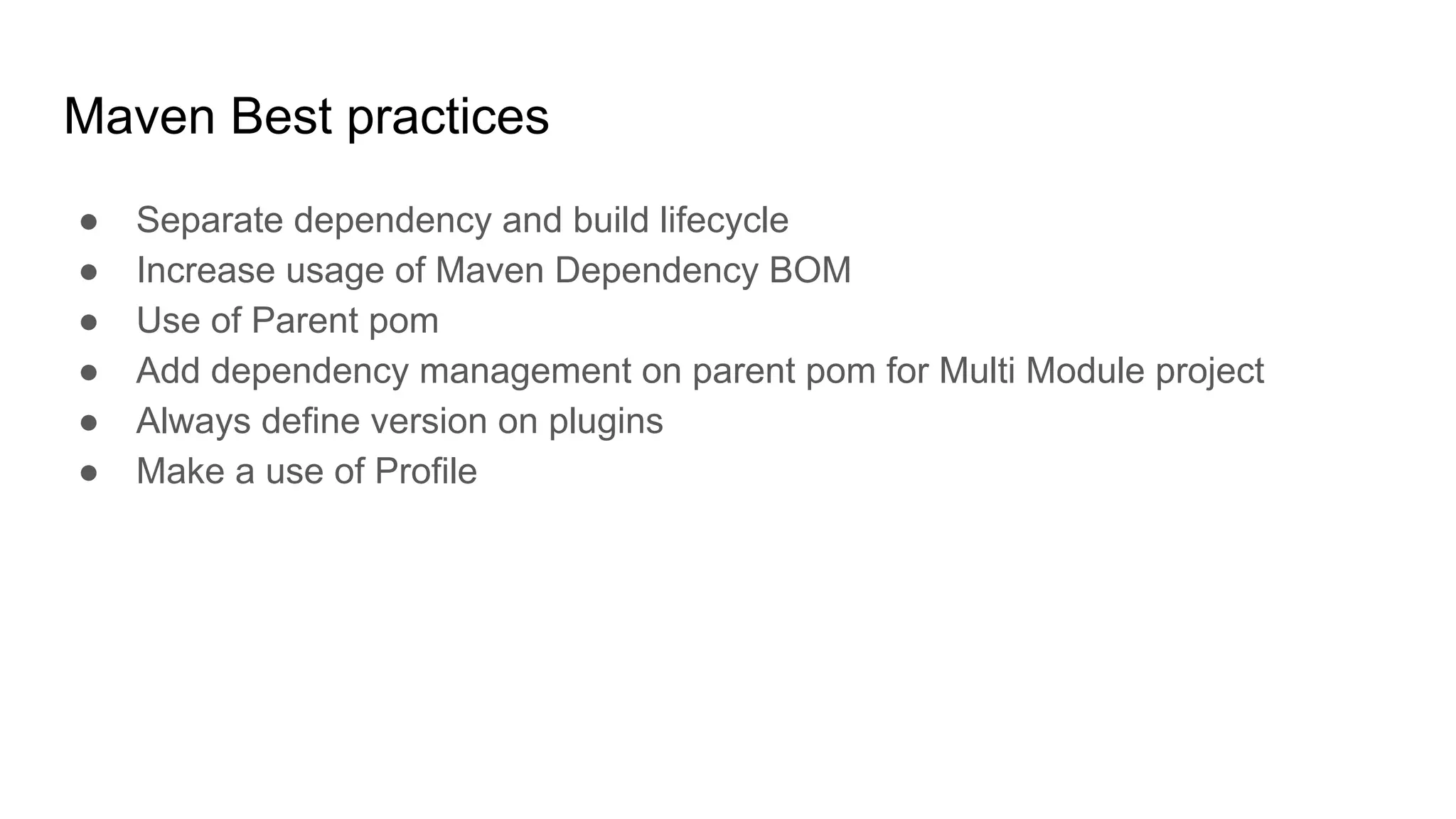

- 26. Maven Best practices ●Separate dependency and build lifecycle ● Increase usage of Maven Dependency BOM ● Use of Parent pom ● Add dependency management on parent pom for Multi Module project ● Always define version on plugins ● Make a use of Profile
- 27.
